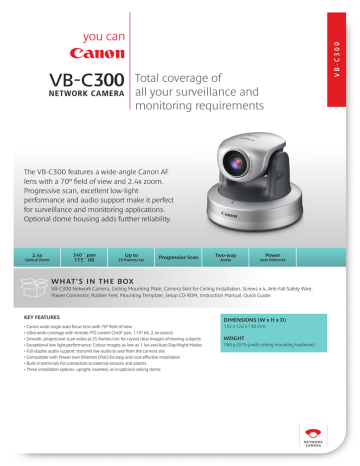

VB-C300
300
Total coverage of
all your surveillance and
monitoring requirements
The VB-C300 features a wide-angle Canon AF
lens with a 70° field of view and 2.4x zoom.
Progressive scan, excellent low-light
performance and audio support make it perfect
for surveillance and monitoring applications.
Optional dome housing adds further reliability.
340˚ pan
115˚ tilt
2.4x
Optical Zoom
Up to
25 frames/sec
Progressive Scan
Two-way
Audio
Power
over Ethernet
WHAT ’S IN T HE BOX
VB-C300 Network Camera, Ceiling Mounting Plate, Camera Skirt for Ceiling Installation, Screws x 4, Anti-Fall Safety Wire,
Power Connector, Rubber Feet, Mounting Template, Setup CD-ROM, Instruction Manual, Quick Guide.
KEY FEATURES
• Canon wide-angle auto focus lens with 70° field of view
• Ultra-wide coverage with remote PTZ control (340° pan, 115° tilt, 2.4x zoom)
• Smooth, progressive scan video at 25 frames/sec for crystal clear images of moving subjects
• Exceptional low light performance: Colour images as low as 1 lux and Auto Day/Night Modes
• Full duplex audio support: transmit live audio to and from the camera site
• Compatible with Power over Ethernet (PoE) for easy and cost-effective installation
• Built-in terminals for connection to external sensors and alarms
• Three installation options: upright, inverted, or in optional ceiling dome
DIMENSIONS (W x H x D)
132 x 122 x 130 mm
WEIGHT
780 g (975 g with ceiling mounting hardware)
NE TWO R K
CA M E R A
300
Specifications
IMAGE SENSOR
Type
Number of Pixels
Video System
Scanning System
OPTICS
Zoom Magnification & Control
Focal Length
Horizontal Field of View
Lens F-Number
Minimum Subject Illumination
Focus Control
Focusing Region
Aperture
White Balance
Imaging Modes
IR Illuminator Type & Range
Backlight Compensation
SERVER UNIT
Video Output Size
Frame Rate
Video Compression Method
Audio Compression Method
Simultaneous Distribution
Supported Protocols
Internal Memory Buffer
Motion Detection / Auto Tracking
Shade Correction
CONNECTORS
Network Interface
Composite Video Output
Audio Input (Line In)
Audio Output (Line Out)
External Devices
¼” CCD with primary colour filter
310,000 effective
PAL
Progressive
2.4x Powered Zoom (at infinity focus)
3.0mm (wide) – 7.2mm (telephoto)
70.8° (wide) – 29.6° (telephoto)
f/2.0 – f/3.4
Day Mode: 1 lux (Colour, at 1/30 sec shutter speed)
Night Mode: 0.25 lux (Mono, at 1/30 sec shutter speed)
Auto-Focus with Manual override
Day Mode: 0.3m – infinity
Night Mode: 0.6m – infinity
Auto Iris Servo System
Auto / Manual Preset / One-Shot
Day Mode, Night Mode (Auto / Manual / Scheduled)
3 levels
640 x 480 / 320 x 240 / 160 x 120 pixels
0.1fps - 25 fps (max)
Motion-JPEG (video), JPEG (still images)
G.711 (64Kbps), Full duplex
5 clients at 25 fps / 15 clients (max) at 10 fps
HTTP, DHCP, WV-HTTP (Canon)
None
Not supported
Supported via software
RJ-45 Ethernet, 10/100TX Auto-Negotiation
3.5mm mini-jack
3.5mm mini-jack
3.5mm mini-jack
6-pin multi-connector: 2 x Inputs / 1 x Output
MECHANISMS
Pan Angle Range
Tilt Angle Range
Maximum Rotation Speed
Infrared Cut Filter
340° (-170° to +170°)
115° (-25° to +90°)
Pan: 90° per sec / Tilt: 70° per sec
Power-driven insertion and removal
(Day / Night Modes)
Preset Positions 20 preset positions (Pan, Tilt, Zoom)
RATINGS
Dimensions (W x H X D) Network Camera: 132mm x 122mm x 130mm
AC Adaptor: 58mm x 25mm x 118mm
Weight 780g / 975g with ceiling mounting hardware
Power over Ethernet Compatible Yes (Conforms to IEEE 802.3af)
Power Sources 12V DC or 24V AC (via supplied two-pin connector) /
100V – 240V AC, 50/60Hz (via optional AC Adaptor)
Power Consumption 10W Max (on PoE) / 13W Max (on AC Adaptor)
Operating Environment Temperature: -10°C to +45°C,
Humidity: 20% to 85% RH
All data is based on Canon’s standard testing methods. This Leaflet and the specifications of the product have been developed
prior to the date of product launch. Specifications are subject to change without notice. ™ and ®: All company and/or product
names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries
Connectivity
2
1
5
3
6
1
Molex 2-pin Connector 12V-13V DC / 24V AC
2
RJ-45 Jack 10/100TX Ethernet Network, PoE Compatible
3
Audio Input (Line level) 3.5mm mini-jack
4
Audio Output (Line level) 3.5mm mini-jack
5
Composite Video Output 3.5mm mini-jack
6
6-way bare-wire terminals 2 x Sensor inputs; 1 x Alarm output
4
OPTIONS
Accessories
VB-RD41S-C Recessed Ceiling Mount
Dome Kit (Clear)
VB-RD41S-S Recessed Ceiling Mount
Dome Kit (Smoked)
Network Video Recorder VK-64 V2.0
Network Video Recorder VK-16 V2.0
AC Mains Power Adapter PA-V17 (E)
