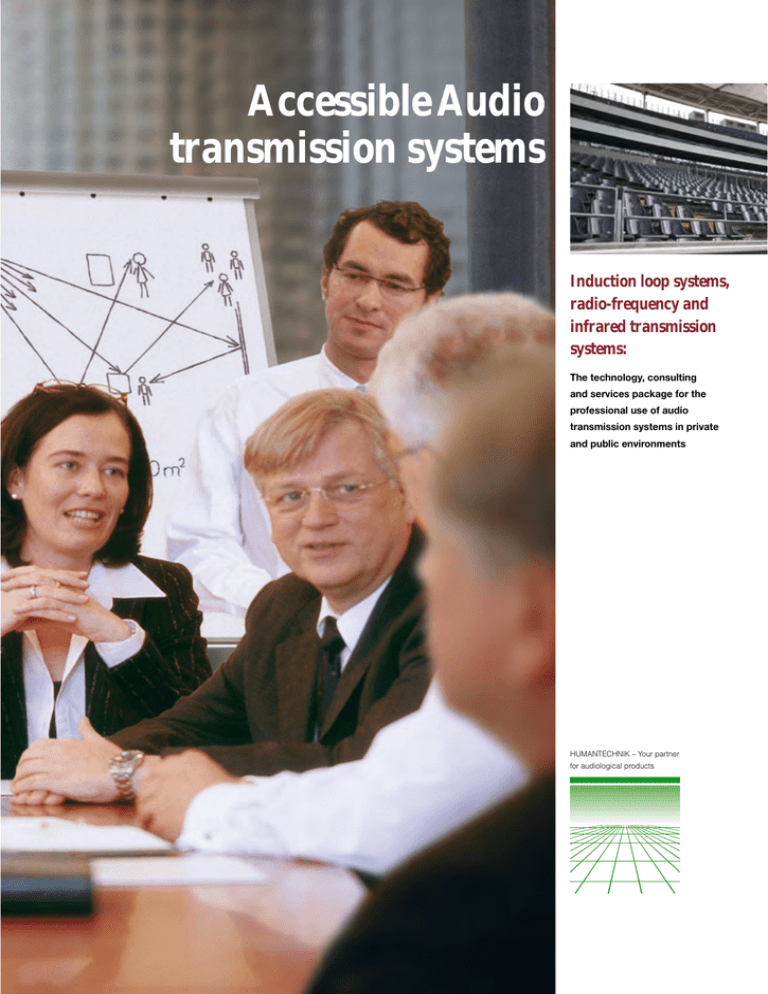

Accessible Audio transmission systems

Induction loop systems, radio-frequency and infrared transmission systems:

The technology, consulting and services package for the professional use of audio transmission systems in private and public environments

HUMANTECHNIK – Your partner for audiological products

2

Introduction:

Accessible sound in private and public facilities ............................ 4

Technical solutions ...........................................................................5

Comprehensive service offer from HUMANTECHNIK ......................5

Systems based on different physical principles and their main areas of application (table) ......................................5

Induction loop systems

Function and use of induction loop systems ....................................6

Portable induction loop systems and components ..........................8

Induction loop amplifiers for small and medium-sized rooms .........9

Induction loop amplifiers for large areas ........................................10

Low-overspill systems (LOS): Function and use ............................12

Induction loop amplifier systems for LOS installations ...................13

Induction loop receivers and receiver accessories .......................14

General accessories for induction loop systems ...........................15

Accessible Audio transmission systems

Infrared transmission systems

Function and use of infrared transmission systems .......................16

High-powered infrared transmitters and modulators .....................18

Configuration examples .................................................................20

Two-channel infrared transmitters with integrated modulators ......21

Infrared receivers ...........................................................................22

Infrared transmission system for small to medium-sized rooms ....24

Accessories for infrared transmission systems ..............................25

Radio-frequency transmission systems

Function and use of radio-frequency transmission systems ..........28

Portable 3-channel transmission system........................................30

Radio-frequency transmitters to large-coverage areas..................32

Example configuration ....................................................................33

Portable radio-frequency CM-1 transmission system ....................34

Stationary 3-channel transmission system .....................................35

Accessories for radio-frequency transmission systems .................35

Keyword list ....................................................................................39

This information brochure shows the structure and scope of the

HUMANTECHNIK programme

»Accessible Audio transmission systems« at the time of its publication, 10/2009.

HUMANTECHNIK GmbH reserves the right to make technical developments and changes to the structure and scope of its delivery programme in respect of the components described here. This brochure is therefore exclusively for information about available systems, their accessories and application - but is not binding as far as orders are concerned. We will be pleased to advise you on the basis of the current programme status before you place your order.

3

The percentage of people with impaired hearing is on the increase.

Accessible sound:

Greater independence in public life for people with hearing disabilities.

The demographic shift in age has had a decided impact on this development. Hearing loss – even if only slight – can now be detected in every fourth 50- to 59-year-old.

Among people over 70, the number who are hard of hearing is already considerably higher at more than fifty percent – with significantly greater hearing loss. The percentage of people in these age groups is also expected to increase in the future.

Right to participation in cultural life

handicapped people in a general way, without any particular difficulty and without necessitating the help of third parties.«

Needless to say, the term accessibility also includes the access of the hearing impaired to acoustic information – starting with such elementary sounds as alarms and emergency signals to educational information and communications and right on up to acoustic participation in cultural and sporting events.

This so-called »50plus Generation« is very active in shaping public life. They represent a group with considerable purchasing power, take advantage of a comprehensive range of cultural offers and use all contemporary media. And they also demand – quite justifiably – unlimited access to information and communication – which constitutes acoustically accessible infrastructures in the broadest sense.

Even contemporary hearing aids are not able to guarantee good hearing and clear understanding in every situation. In noisy environments or in rooms with extreme resonance or echoes, for example, these systems often quickly reach their limits. That’s why audio transmission systems that effectively include or supplement hearing aids are now often used, particularly in places where interruption-free communication is important.

These systems feed the sound either directly into a hearing aid or a CI system or make it available to the user via special receivers.

The accessible design of public and private infrastructures

The German law for the equality of disabled persons (BGG) defines accessibility as follows: »Buildings and other facilities, means of transport, technical apparatus, systems for information processing, acoustic and visual sources of information and communication facilities as well as all other areas of life are accessible when they are useable by

National laws on equality and their implementation

The application of equality guidelines (anti-discrimination laws) is as diverse as the cultural attributes of the individual European states.

While far-reaching measures enabling equal treatment are already common in France, the Netherlands, Great Britain and Scandinavian countries, for example, the provision of accessible infrastructures is lagging behind in other countries – as in Germany.

The equal treatment of the disadvantaged and minorities has, however, now become a central concern of the European Union

(EU Basic Treaty). In this respect, the consistent implementation of accessible infrastructures – particularly in government offices, but also in restaurants, at event venues and in public transportation systems – will only be a question of time for all EU nations.

Europe’s self-image

The EU appeals to all its member states to not discriminate against anyone because of his/her personal situation. Article 26 of the Charter of

Fundamental Rights of the European Union, for example, reads: »The

Union recognises and respects the right of persons with disabilities to benefit from measures designed to ensure their independence, social and occupational integration and participation in the life of the community.«

4

Technical solutions for accessible sound

In addition to building acoustics and electro-acoustic public address systems (DIN 18041), the following systems can be used for a significantly higher proportion of direct sound:

Induction loop systems

Infrared transmission systems

Radio-frequency transmission systems

In order to ensure that the listening systems provided are effective, it is important to compare the requirements of the venue and its architectural features with the properties of the transmission systems early in the decision-making process.

The table (below) provides a brief overview of the main selection criteria.

The main advantage of all these systems is that the sound is delivered to the listeners in a pure, undistorted form that is not influenced by the distance of the listeners to the sound source or by any annoying background noise in the room.

HUMANTECHNIK provides a comprehensive range of assistive listening services.

The HUMANTECHNIK program is structured in a cross-system manner and includes components and the complete range of accessories for transmission systems using all three of the physical principles mentioned here. The following pages will present the technical components, list their main technical data and provide you with assistance in making your purchasing decisionl.

Special skills or knowledge are often required in the planning, project development and installation of sound transmission systems. That’s why we offer system operators and architects a comprehensive consulting and services package in this field. From qualified information to competent support in the planning process and right on up to the installation and first-time operation of the system, we will accompany you every step of the way with our consulting services to ensure the effective implementation of your professional audio transmission system.

HUMANTECHNIK offers a comprehensive package of technology, consulting and services for the professional use of audio transmission systems.

A comparison of systems

using different physical

transmission principles

Small to medium-sized conference rooms

Partial provision, e.g. information counters, reception areas, living areas

Cinemas (particularly multiplex cinemas)

Courtrooms (data confidentiality), conference rooms

City centres (high radio-frequency emissions)

Auditoriums, theatres

Schools and universities

Stadiums, sport arenas

Churches

Open-air applications

Direct reception in the hearing aid (without a special receiver)

Tour-guide systems available

Locally limited reception range

Not susceptible to electromagnetic interference

Interference-free parallel operation in neighbouring rooms

Portable systems available

Excellent sound quality

Several channels available

Service provided for very large areas/large range

Easy installation

Inexpensive components and installation

Inconspicuous transmitter positioning (aesthetics)

Transmitter and receiver do not require direct line of sight

* For use of low-overspill systems (LOS) – ** Service provision in partial areas (selected seat rows/blocks)

*

*

Induction loop systems

*

**

*

**

Infrared transmission systems

Radio-frequency transmission systems

Optimally suited or applicable

Limited suitability

(depending on details of set-up) or limited applicability

Suitable in exceptions or hardly applicable

5

6

What is an induction loop system?

Function and use of induction loop systems

Using an inductive loop system, hearing-aid wearers can pick up the signals emitted by electric/ electronic audio sources (microphone or hi-fi systems) directly in their hearing aids or CI systems.

As a result, they hear the sound without any annoying background noise, echo or reverberation. An outstanding advantage of using induction loop systems: no special receivers are required. All that’s needed is the hearing aid.

amplifier, connected with an audio source (hi-fi system, speaker’s microphone, etc.), transmits the acoustic signals converted into alternating current to the loop.

The magnetic field inside the loop allows the listeners to move freely in the room and pick up the audio signals fed directly into their hearing aids.

European standards and legislation

Most modern hearing aids are now equipped with adjustable »M« and »T« functions. »M« stands for microphone, i.e. hearing the sound in the room via the integrated microphone, and »T« (telecoil) means that the audio signals are transmitted inductively and directly via a telecoil integrated in the hearing aid. Some hearing aids are also equipped with an »MT« function, which combines both types of reception, microphone and telecoil so that the listeners are able to hear the sound in the room as well as the inductively transmitted signals.

The technical requirements for induction loop systems are defined in the European Standard EN 60118-4

(also known as IEC 118-4). This standard, which HUMANTECHNIK induction loop components meet when installed correctly, regulates the magnetic field strength and the frequency range of the systems.

All induction loop systems also comply with the CE standards, which demand the strict control of the equipment with respect to interference, spurious emissions and electrical safety.

Planning induction loop systems

In order to install induction loop systems correctly, it is necessary to take into account many different factors – with respect to the architecture as well as the area in which they are used. Some areas of use with special requirements include:

Rooms without equally rectangular or square floor plans

Strong steel reinforcement or electromagnetic fields from other sources

Theatres / cinemas / lecture halls

Rooms in which the loop is positioned far away from the listening level

Buildings in which several independent loops have to be installed close to one another without interfering with one another.

How does an induction loop system work?

Alternating current creates a magnetic field in a wire/a loop. If a second wire is introduced into this magnetic field (here: the telecoil in a hearing aid), a correspondingly alternating current will also be created in it: the electrical impulses are »induced« into the second wire without any actual electrical connection.

An induction loop system consists of a loop and an amplifier. The loop, an insulated wire, runs around the outside of the listening area. The

Installation tips

Loop position: In order to create a uniform magnetic field, the distance between the loop level to the normal listening level should be between approx. 1.2 and 2 metres.

The position and size of the

loop can also be determined by the position of the listening area

(often much smaller than the size of the room) or the position of the microphones as well as other technical equipment that affects the magnetic field.

Selection of the amplifier:

Area used

Reception, counter:

TV rooms, nursing homes, living rooms:

Conference rooms, theatres:

Very large induction loop systems:

Systems with little overspill:

Portable induction loop system:

This table serves only as general orientation for selecting the amplifier.

Please take advantage of our consulting services before you make your purchase.

Amplifier Page/s

soundshuttle / LA-215 / LA-60

8

/ 9

LA-215 / PROLOOP C

PROLOOP C

PROLOOP DCC

PROLOOP DCC

LOS systems

LOS systems soundshuttle loop system kit

9

/

10

10

11

11

12

12

8

If possible, avoid using dynamic

microphones in combination with induction loop systems. If they cannot be avoided, they must be positioned outside the loops. The distance between the loop and the dynamic microphone should be at least half the diameter of the loop.

Recommended loop wire cross-sections:

Loop area

300 - 600 m²

200 - 300 m²

150 - 200 m²

70 - 150 m²

< = 70 m²

Single loop

(recommended cross-section)

4.0 mm²

4.0 mm²

2.5 mm²

1.5 mm²

1.5 mm²

The values indicated can be used for most induction loop systems.

For special solutions, please contact HUMANTECHNIK. H07V-K, for example, is recommended as the induction loop wire to use.

Using a condenser or electret

microphone usually produces better results with respect to interference or acoustic feedback.

A microphone with a high-quality, insulated connection cord also generally reduces magnetic feedback.

Reduce the area of the loop! The connection wire to the loop must be firmly twisted or closely parallel.

Conducting materials, such as

reinforced concrete, can increase or decrease the area covered by the loop. The magnetic field strength is often increased outside the loop, while it is decreased inside. This fact considerably increases the risk of acoustic feedback. In a new building, you should try to install an LOS system. The LOS system makes it more difficult for the current to connect with large metal objects. Make a test installation. Always test the loop system to make sure that it is powerful enough, that the overspill does not cause any problems, etc.

Pay particular attention to metal

frames. Do not fasten the loop to structural elements made of metal or to similar objects.

Adjust the height of the loop (1.2

to 2.0 m) to provide for the greatest possible range with the smallest amount of overspill.

Notes on the installation of induction loop systems

Loops are generally laid around the outside perimeter of the room.

The audio signals are then inductively transmitted to all the »coils« inside the loop.

7

soundshuttle

Induction loop kit

BA-200

Portable induction loop systems

soundshuttle Induction loop system kit

Order No.: A-4205-0 (black)

Order No.: A-4206-0 (yellow)

Order No.: A-4207-0 (beige)

The »soundshuttle« is a compact, portable induction loop system for applications over short distances, at reception desks, for example, at information counters or in sales areas.

Positioned between the people speaking to each another, the

»soundshuttle« uses an integrated microphone to pick up the sound and transmits the corresponding inductive signals via the integrated loop.

Order No.: A-4271-0

The induction loop system kit contains a complete, portable induction loop system designed for rooms up to 140 m² in size. The set includes the PROLOOP C induction

loop amplifier ( see p. 10

) as well as two cable reels with 25 metres of loop wire each and the PROLOOP

FSM measuring instrument (incl.

DIR under-the-chin receiver, see p.

15).

The system is easy to use and ready to go »in a flash« – ideal for temporary installations.

The BA-200 induction loop amplifier is designed to provide inductive audio signals in coaches. The amplifier is equipped with settings for basic volume and tone and uses

Automatic Gain Control to effectively support volume stabilisation for fluctuating input levels. Digital control makes it possible to select one of the two audio sources connected at the same time, e.g. a microphone and a music system. Two mounting brackets come included with the system.

An optionally available microphone can be connected via the additional

microphone jack ( see table microphone on page 15

)

BA-200: Induction loop amplifier for coaches

Order No.: A-4225-0

Power can be provided by the power supply included with the system or by the integrated rechargeable battery.

Technical data

Dimensions (HxWxD): 185 x 170 x 65 mm

Weight: 420 g

Microphone sensitivity: bis 60 dB ± 3 dB

Primary power supply:

100-240 V, 50-60 Hz AC power cord

Secondary: 15 V DC or using built-in 12 V NiMH battery

Output power: Max. 7 W

Technical data

Power supply: 220 - 240 V

Weight: 11 kg

Colour: Silver

Dimensions (HxWxD): 210 x 610 x 360 mm

Power cord: 2 m

Features

Max. power: 60 A

Max. voltage: 31 V

Frequency range: 100 - 5000 Hz ( ± 3 dB)

Distortion: < 1%

Technical data

Dimensions (HxWxD): 42 x 180 x 140 mm

Weight: 905 g

Colour: Silver-metallic

Power supply: 12 – 24 V DC

Power cord: 2 m

8

LA-60

Order No.: A-4213-0

The LA-60 induction loop amplifier is designed for use in small rooms up to

16 m

2

or for partial signal coverage, at information counters, for example.

It is equipped with two line/mic input jacks, which can be selected and activated by flipping a switch. The control switch is used to individually adjust the volume. Control lamps help in the operation of the system by indicating the corresponding status signals.

Technical data

Power supply: 180 – 265 V AC

50/60 Hz 10 VA

Dimensions (HxWxD): 65 x 121 x 35 mm

Weight: 146 g

Output power of the induction loop system

1.3 A RMS, 1.82 A surge output current

100 - 5 kHz – compliant with the BS6083 pt4 (IECI 18-4) standard for a loop, with 24 / 0.2 cable (0.75 mm²) at 0.03 ohms/m

LA-60

LA-215

Induction loop pads

LA-215

Order No.: A-4223-0

The LA-215 is able to supply living quarters or small conference rooms up to approx. 50 m² in size with inductive audio signals via the loop connected. The system includes a

37-m long induction loop wire. In addition to settings for basic volume and tone, the digitally controlled induction loop amplifier uses Automatic Gain Control to stabilise the volume for fluctuating input levels.

The device is able to accommodate the connection of two audio sources.

The desired source can be selected at the touch of a button.

Induction loop amplifiers and components for small to medium- sized rooms

Induction loop pad for the LA-60 or the LA-215

Order No.: A-4910-0

The »pad« contains a small loop. It is connected directly to the LA-215 or

LA-60 induction loop amplifier and placed under the seat cushion or behind the back of a chair. The connection cord for the pad is 4.50 m long. As a result, the signal coverage can be restricted to a very small area.

Technical data

2x mic jacks

2x line in jacks

2.85A RMS, 4A max. output power

Dimensions (HxWxD): 42 x 180 x 140 mm

Weight: 905 g

Colour: Silver-metallic

Power supply: 230 V AC 50 Hz 20 VA

Power cord: 2 m

What’s included

LA-215 with power cord

1x mic with 4 m of cable

37 m of single-wire strand 0.75 mm² and

Cable clips

Scart- / Cinch-cable

LA-220

Order No.: A-4226-0

Use and equipment delivered is identical to the

LA-215, except it also includes an external power supply

9

10

PROLOOP C

Induction loop amplifier

High output current:

11 A RMS

Short-circuit-proof

Automatic fuse reset

Two symmetrical

XLR input jacks

One RCA input jack

One line output jack

Extra-sturdy jacks

Dual action AGC for excellent speech recognition

High availability, operating reliability and quality assurance

Convenient monitoring of the magnetic field: Can be done using headphones or speakers

Treble control to compensate for treble losses due to reinforcement

PROLOOP C

Order No.: A-4246-0

The PROLOOP amplifier family is designed for professional use in medium-sized rooms (up to 170 m²) in private buildings and public facilities, in which particularly high dependability and extremely reliable operation are required.

Thanks to a 100-percent shortcircuit-proof amplifier, switchable, symmetrical XLR input jacks and extremely stable output performance, the PROLOOP C is able to meet these demands.

Automatic Gain Control (AGC) guarantees consistent field strength and reproduces stable sound with a special emphasis on clear speech, even under acoustically demanding conditions.

Corresponding test equipment can be used to evaluate the sound quality via the integrated monitor out jack.

Technical data for the PROLOOP C

Mains connection: 230-240 V AC 50 Hz, 7-200 W, 10 A fuse

Coverage: 170 m² acc. to IEC 60118-4, single-loop, free field

Induction loop output

Max. current: 60 A from peak to peak, 1-5 ms, 1 kHz, 11 A RMS, continuous 1 kHz, short-circuit-proof

Max. voltage: 31 V from peak to peak

Output AGC: Sets voltage and power for steady signals like oscillation and sine curves after 0.6-1 seconds to -10 dB. Short pulses and normal program signals are not limited.

Frequency response: 100 - 5000 Hz ( ± 3 dB)

Distortion: < 1%

Cable connection: Screw connection on rear panel of the amplifier

Outputs

1. LINE OUT: 0 dBm-RCA out (with AGC function)

Inputs

IN 1 und 2:

IN 3:

0.5 mV-100 mV / 10 kOhm (mic.) alt. 25 mV - 4 V/ 10 kOhm (line)

AGC, switchable phantom voltage, XLR connections

50 mV-10 V / 10 kOhm, RCA connection

AGC

Dynamics:

Rise time:

Fall time:

> 70 dB

2 - 500 ms

0.5 - 20 dB/s

Controls and displays

Treble control: 0 - +9 dB, potentiometer

Induction loop adjustment:

Displays:

0 - 170 m², potentiometer

Mains connection: 1 green LED

Input level: 1 green LED

Induction loop power: 1 green LED

Induction loop monitoring

6.3 mm jack for headphone connection

Enclosure

Dimensions: 64 x 295 x 205 mm (H x W x D)

Weight:

Colour:

3.6 kg black

Frequency range:

Distortion:

Cable connection:

Outputs

1. LINE OUT:

Inputs

IN 1, 2 und 3:

AGC

100 - 5000 Hz (±3 dB)

< 1 %

Screw connection on rear panel of the amplifier

0 dBm-RCA (with AGC function)

XLR connections (0,5 - 100 mV) microphone / (25 mV - 4 V) Line, sensitivity, phantom voltage, balanced/unbalanced and priority can be adjusted separately for each input.

Dynamics:

Rise time:

Fall time:

>70 dB

2 - 500 ms

0.5 - 20 dB/s

Controls and displays

Treble control: 0 - +9 dB (potentiometer)

Induction loop adjustment: 0 - 800 m² (potentiometer)

Displays: Mains connection: 1 green LED

Input level: 3 green LEDs

Induction loop monitoring

Induction loop power: 5 red LEDs

6.3 mm jack for headphone connection

Enclosure

Dimensions:

Weight:

Colour:

90 x 439 x 295 mm (H x W x D)

9.5 kg black

PROLOOP DCC

Order No.: A-4263-0

Designed for rooms up to 800 m² in size, the PROLOOP DCC induction loop amplifier is an ideal solution for event venues and larger assembly halls.

Short-circuit-proof amplifiers with switchable, symmetrical XLR inputs and strong output performance

(up to 25 A RMS) guarantee that the induction loop system remains highly available.

Automatic Gain Control (AGC) creates consistent field strength to produce stable tone with outstanding speech reproduction – even under difficult acoustic conditions. The integrated monitor output and the corresponding measurement technology make it possible to test the quality of the induction loop system easily and conveniently.

PROLOOP DCC

Induction loop amplifier

High output current:

25 A RMS

Short-circuit-proof

Automatic fuse reset

Three symmetrical

XLR inputs

Sensitivity, phantom voltage, balanced/ unbalanced and priority can be separated adjusted for each input

High availability, operating reliability and quality assurance

Convenient monitoring of the magnetic field: Can be done using headphones or speakers

Treble control to compensate for treble losses due to reinforcement

LED display for mains connection, input level and induction loop current

19” rack design

11

Standard induction loop systems produce a magnetic field that usually exceeds the »core service area«. This »overspill«, which travels horizontally and vertically, might still be audible three to four loop widths away. This limits the use of this technology.

An LOS system consists of two induction loop amplifiers that are operated out of phase. This configuration prevents overspill and makes it possible to operate several induction loop systems in adjacent rooms without having their signals interfere with each other:

Low-overspill systems expand the application options of induction loop systems.

Low-overspill systems

(LOS): Induction loop systems with low overspill

Low-overspill systems (LOS) considerably reduce »overspill«. They use special loop patterns to reduce the signal strength outside the loop.

For these patterns, two loops have to be operated out of phase with each other to achieve an equal distribution of the desired signal without creating any undesirable signal-free areas.

No field strength reduction in the centre of the loop due to reinforced concrete,

Greater reproducibility of the results,

Reduced danger of feedback due to lower power consumption,

Extremely low overspill at reduced directional sensitivity.

HUMANTECHNIK service for planning low-overspill systems

Each individually optimal customisation and configuration depends on the conditions prevailing in the area of application, in other words, on the room floor plans and the sizes of the coverage areas, the number of internal loops and the demands made on low overspill.

Determining the corresponding values for the »customised« lowoverspill layout and the optimal level adjustments in each case is based on a complex method of calculation and installation. That’s

why we strongly recommend that you take advantage of the ser vices offered by HUMAN-

TECHNIK. We provide competent support to architects, technicians and installers in planning LOS installations.

The overspill of standard induction loop systems works in a horizontal and vertical direction.

The resulting »eavesdropping effect« is often still measurable over distances of up to three induction loop widths.

Low-overspill systems

(LOS) that are competently customized and configured reduce overspill considerably to allow the operation of induction loop systems in directly adjacent rooms.

12

Technical data

Mains connection:

Coverage:

Induction loop output

Max. power:

Max. voltage:

Output AGC:

Frequency range:

Distortion:

Cable connection:

Outputs

Master OUT:

Slave OUT:

Inputs

IN 1:

IN 2:

IN 3:

AGC

Dynamics:

Rise time:

Fall time:

Controls and displays

230 – 240 V AC, 50Hz, 25 – 700 W

300 m² acc. to IEC 60118-4

60 A from peak to peak, 1-5ms, 1 kHz, 2 x 13 A RMS, continuous 1 kHz, short-circuit-proof

47 V from peak to peak

Sets voltage and power for steady signals like oscillation and sine curves after 0.6-1 seconds to -10 dB. Short pulses and normal program signals are not limited.

100 – 5000 Hz (±3 dB)

< 1 %

2 screw connections on rear panel of the amplifier

0 dBm, RCA (with AGC function)

0 dBm, RCA (with AGC function)

Combined XLR / 6.35 mm connector

MIC sensitivity 2.5 mV – 10V RMS / 10 kOhm,

LINE sensitivity 37 mV – 10V RMS / 10 kOhm or phantom voltage 9 – 20 V

Dual RCA connections, 45 mV – 10V RMS / 10kOhm

Dual RCA connections, 45 mV – 10V RMS / 10kOhm

> 70 dB

2 – 500 ms

0.5 – 20 dB/s

Rise and fall times depend on the currently active channel

Loop setting:

Input level:

Displays:

0 – 300m² (with one potentiometer each for master and slave outputs)

IN 1 and IN 2 can be adjusted separately

Mains connection: 1 green LED

Input level: 1 green LED

Induction loop power: 2 green LED

Induction loop monitoring

Two 6.3 mm jacks for headphone connection

Enclosure

Dimensions:

Colour:

Weight:

88 x 438 x 280 mm (H x W x D)

Black

9.3 kg

PROLOOP LOS

Order No.: A-4252-0

The PROLOOP LOS is a complete system for the operation of lowoverspill systems. It includes the complete range of electronics required in a single enclosure. Thus, there is a flexibly sized, reliable low-overspill solution available to serve neighbouring event rooms and assembly halls up to 300 square metres in size.

The system is equipped with Automatic Gain Control (AGC) to produce stable sound with outstanding speech reproduction, even under difficult acoustic conditions.

The integrated monitor output for the corresponding measurement technology makes it possible to easily and conveniently test the sound quality of the induction loop system.

PROLOOP LOS

Induction loop amplifier system for low-overspill installations

Uniform coverage throughout the room (no dead spots in the middle of the room)

No signal fluctuations when hearing-aid user moves his/her head

Reduced sensitivity to architecture-related magnetic fields

High efficiency, low power consumption

19“ design

Well suited for retrofitted installation in theatres, cinemas, concert halls, schools, conference rooms, housing, etc.

(Possible for floor reconstructions only)

13

»Induction loop receiver« and accessories

LPU-1: Induction loop receiver / Under-the-chin receiver

CRESCENDO 50

Order No.: A-4202-0

Order No.: A-4276-0

The LPU-1 takes the signals transmitted by the induction loop system directly to the ears of people who do not wear hearing aids. The ear buds of the featherweight, ergonomically designed under-the-chin receiver can swivel to stay firmly fixed in the user’s ears even when he/she moves his or her head. The flexible material used to make the ear buds also nestles gently into the auditory canal to effectively subdue any ambient noise.

LPU-1: Technical data

Sound frequency transmission range: 70 - 5400 Hz

Distortion factor: < 1 %

Signal-to-noise ratio: Typ. 60 dB

Battery charging time: Approx. 6 h

Operating time: Approx. 6 h

Maximum volume: Approx. 120 dBA

Weight: 47 g

The universal CRESCENDO 50 audio amplifier, which was specially designed for dialogue situations, can also be used as a pocket receiver for induction loop systems.

An under-the-chin receiver serves as the listening device.

A100: Additional battery for the LPU-1

Order No.: A-4970-0

Single-bay recharger for the

LPU-1

Order No.: A-4977-0

When the LPU-1 is not in use, it can be placed into the recharger to recharge.

5-bay recharger for the LPU-1 under-the-chin receiver

Order No.: A-4976-0

12-battery recharger for the

A100 battery

Order No.: A-4974-0

Aluminium case designed to accommodate up to

15 receivers

Order No.: A-4072-0

The tray in the case provides for the safe and reliable storage and transport of up to 15 LPU-1, RCI-102, InfraLight or RadioLight receivers. In addition, the induction loop receivers can also be conveniently distributed »straight from the case«.

Plastic tray for 5 under-the-chin receivers

Order No.: A-4955-0

Safe-transport storage system – which can be used in the A-4072-0 case, for example – for receivers from the InfraLight, RadioLight and

LPU-1 series.

Silicone earpieces for LPU-1 under-the-chin receivers

(also for RCI-102, InfraLight and

RadioLight)

Standard

Order No.: A-4985-0 (2 Paar)

Order No.: A-4987-0 (24 Paar)

Tapered shape

Order No.: A-4988-0 (2 Paar)

Order No.: A-4989-0 (24 Paar)

Perforated

Order No.: A-4993-0 (2 Paar)

Order No.: A-4992-0 (24 Paar)

14

XLR(M) adapter cord -->

3.5 mm cinch

Table microphone with

XLR plug connection

Order No.: A-4933-0

e.g. to connect to CD players or stereo systems

Order No.: A-4495-0

needs 2 AA batteries

Cinch connection cord

Induction loop pad

(

description, see p. 9 )

Order No.: A-4910-0

Order No.: A-4906-0 (length: 3 m)

Order No.: A-4907-0 (length: 6 m)

XLR(M) --> 6.3 mm plug

Order No.: A-4939-0

Connection of 1- (UHF101) or 4-channel (UHF401) microphone systems.

XLR connection cord

Order No.: A-4935-0 (length: 2 m)

Order No.: A-4936-0 (length: 6 m)

XLR(F) --> 3.5 mm plug

Order No.: A-4934-0

For the connection of the table microphone to the soundshuttle or LA-215.

Copper ribbon cable,

50-metre roll

Order No.: A-4937-0

21x0,4 mm – insulated

»General accessories for induction loop systems«

PROLOOP FSM: Measuring device for induction loop systems

Order No.: A-4291-0

The PROLOOP FSM is a measuring device that measures the magnetic field strength of induction loop systems according to

IEC 60118-4:2006 and BS 6083,

Para. 4. The device is designed for professional use and delivers reliable RMS values on the output level, response frequency, AGC function (Automatic Gain Control), distortion and background noise in the induction looped tested.

In addition, it enables the user to make an acoustic evaluation of the sound using signal reproduction via earphones.

Features

Compliant with IEC 60118-4:006 and BS for testing equipment used to evaluate induction loop systems.

True RMS: 125 ms average time

Crest factor: 3

A filter

Measuring range:

+6 dB ...-51 dB (0 dB = 400mA/m)

Power supply: 2 x 1.5V AA batteries, long battery life

Battery status control via LED

Headphone jack with volume control

Wireless PLL microphones,

1- or 4-microphone systems – also recommended as an audio source for infrared transmission systems (

see p. 18 ff

).

(

Description, p. 25

)

15

»Function and use of infrared transmission systems«

How does an infrared audio transmission system work?

An IR audio transmission system consists of at least one transmitter and one receiver. The transmitter is connected to an audio source – to a microphone system, for example – and transmits the signals received in the form of infrared light impulses wirelessly to the receiver, which converts the light impulse received into electrical audio signals and feeds them into the reproduction device connected – into headphones, for example, or a teleloop for the inductive direct transmission to hearing aids.

for certain large professional

applications.

Advantages of infrared transmission technology

This applies in particular to venues and facilities, ...

... in which the confidentiality of the information exchanged there plays a decisive role, for example in courtrooms or conference rooms, and areas, ...

... in which several transmission systems are operated parallel to one another in neighbouring rooms, such as in multiplex cinemas or in living quarters in social facilities.

Areas of application

Apart from the home environment, in which the wireless reception of audio signals via infrared light has long since become a popular alternative to the corresponding radiofrequency transmission systems, this technology proves superior to all other transmission principles

In addition, infrared audio transmission systems have proven valuable in schools and universities, in large auditoriums with partial signal cover age or in city centres, in which there is a very high rate of radio-frequency emissions.

Infrared light signals cannot pass through walls, which reduces reception to the room in which the transmitter is installed.

Transmission is reliable and absolutely free of the interference caused by electromagnetic fields or structural elements in the building, such as metal reinforcements. In addition, these systems do not produce any electromagnetic emissions themselves.

Infrared transmission systems can be used easily in many different countries; an »obligation to register« them, similar to the allocation of radio licenses, is not required.

The transmitter sets up an

»infrared signal route« to the receivers of the transmission system. The transmitter’s large signal emission angle or the wide signal dispersion and the reflection from walls, ceilings and floors guarantee reliable reception – for the most part, even when smaller obstacles (furniture or pillars) block the direct

»line of sight« between the transmitter and the receiver.

16

Coverage

While the range of systems designed for private use is limited to about 10 or 20 metres, high-

powered infrared transmitters are able to provide coverage for much

larger rooms. The transmitters described in this product overview, for example, are able to provide coverage for up to 2600 m².

Other factors affecting infrared transmission technology:

The transmitter does not focus the emission of the infrared light impulses, i.e. it uses a very large transmission angle.

As a result, there is generally no need for a specific »line of sight« between the transmitter and the receiver.

Other characteristics of infrared audio transmission systems:

Portable/mobile systems are available.

Multi-channel operation provides for flexible use, making it possible to simultaneously transmit several different languages, for example.

The signals do not only travel directly between the transmitter and the receiver, but are also reflected from the walls, cei lings and floors. Nevertheless, pillars and furniture – depending on their size and position – can interfere with or even block reception under certain conditions.

Receivers are compatible with

TV listening system for at-home use.

In any case, a technically

correct, precise positioning of the transmitters is required for optimal signal coverage.

Light-coloured floor, wall and ceiling areas reflect infrared energy more strongly. This can increase the reception range.

Dark, low-reflection floors, ceilings and walls absorb the energy and can limit reception ranges as a result.

The carrier frequencies of 2.3 to 3.8 MHz (basic band) minimize the probability of interference resulting from powerful lighting. However, functional problems due to direct sunlight cannot be ruled out altogether.

Reliable, inconspicuous audio transmission for rooms up to 2600 m² in size

In order to provide coverage for areas that exceed the maximum range of the individual transmitters, it is necessary to install several transmitters at different locations and connect them in parallel.*

* If the reception range is the main criterion for the application in this context, it is advisable to consider the use of a radio-frequency system

as an alternative – also taking into consideration the cost factor (

p. 22 ff.

).

The signals are transmitted to the hearing aid via a special infrared receiver with audio amplification equipped with a teleloop

(induction).

If the receiver is equipped with an audio output jack, it is also possible to use headphones or earphones.

Amplifying infrared audio receivers are available as pocket devices, underthe-chin receivers, headphones with reception diodes or in the LR version with a teleloop and audio output.

17

18

WIR TX9

High-powered infrared transmitter

WIR TX9 transmitter

Order No.: A-4030-0

The TX9 infrared transmitter uses a wide emission angle and a typical roughly circular geometry (see diagram below) to send signals into the room. The operating bandwidth of 2.3 to 3.8 MHz guarantees interference-free operation, unaffected by the extraneous light from other portions of the spectrum.

With a signal coverage of 2600 m² in one-channel operation, the TX9 can also be used in large rooms.

The connection of additional

TX9 transmitters increases or

multiplies the reception range.

The system comes with a mounting kit for the wall and ceiling.

Technical data

Dimensions (H x W x D): 15.9 x 28.6 x 5.4 cm

Weight:

Colour:

Power supply:

900 g

Black with white text, black acrylic faceplate

24 VAC, 50 – 60 Hz, 35 VA,

3-pin MOLEX connector (each WIR TX9 requires its own power supply)

Mains connection:

Europe:

Great Britain:

Displays:

Carrier frequency:

IR transmitter power:

NEC class 2-wire, max. length: 61 m

TFP 027-01, safety plug, 2-pin, CE

TFP 027-02, 3-pin-UK plug, CE

Voltage: green / basic band: red

50 kHz to 8 MHz

3.5 W

Reception range/coverage areas:

2600 m² in 1-channel mode with RX22-4 receiver

1700 m² in 2-channel mode with RX22-4 receiver

325 m² in 1-channel mode with the RCI-102 receiver

Basic band input:

Basic band output:

Basic band cable:

BNC, 100 mV per carrier, 50

Ω

(for the WIR TX9 or MOD 232 only)

BNC, 50 Ω (for the TX9 only)

RG 58 coax, BNC plug, max. length: 300 m

Ambient conditions:

Installation types:

Certifications:

0 – +50 °C ambient temperature (non-condensing, non-corroding environment)

Wall or ceiling mounting: BKT 024 installation kit

SS-11 or SS-6 microphone stand set

CE, FCC, ROHS, WEEE,

Stands are also available for freestanding installation.

The TX9 is not equipped with a modulator function, which means that the separately available MOD 232 modulator is required to connect the system to the audio source and to process the signals.

Reception range for the TX9 transmitter in 1-channel mode (depends on receiver)

RX22-4 receiver

RCI-102 receiver

The transmission energy of infrared transmission systems spreads out in a roughly circular shape with a wide emission angle.

Technical data

Dimensions (H x W x D): 4.4 x 21.5 x 20.8 cm

Weight:

Colour:

Rack assembly:

1500 g

Black with white lettering

1/2 rack unit in width, 1 rack unit in height; with

RPK 005 (simple) or RPK 006 (double) installation kits either one or two modulators can be installed in one IEC rack.

Power supply:

Modulation:

Carrier frequency:

Signal-to-noise ratio:

Frequency response:

Harmonic distortion:

Audio processing:

24 VAC, 50 – 60 Hz, 15 VA

Europe: TFP 027-01, safety plug, 2-pin, CE

Great Britain: TFP 027-02, UK plug, 3-pin CE

FM broadband, ± 50 kHz deviation,

50 uS pre-distortion

Channel A: selectable 2.3 / 2.8 / 3.3 / 3.8 MHz

Channel B: selectable 2.3 / 2.8 / 3.3 / 3.8 MHz

> 60 dB

30 to 16000 Hz + 1 dB, -3 dB

Less than 2 %

Compression (rising) adjustable from 1:1 to 4:1

Switchable compression amplification:

Audio input:

Microphone level:

Line level:

Audio line output:

Basic band input:

Basic band output:

Automatic shutoff:

Certifications:

Ambient conditions:

Moderated16 dB; max. 33 dB

2xCombo XLR or 6.3 mm cinch plug

Symmetrical, Lo-Z, 100 µV min. to 90 mV max., 1 mV nominal,

3 k Ω input impedance, delivers switchable neutral current according to DIN 45596 for condenser microphones

Symmetrical or asymmetrical, 21 mV min. to 10 V max., 212 mV nominal, 100 k Ω

RCA jack, channel A and channel B, 500 mV, asymmetrical, 100

Ω source impedance (load impedance must be larger than 1 k

Ω)

BNC, allows mixing with additional modulator

MOD 232 (4-channel mode), 100 mV,

50 Ω input impedance

Two BNC jacks lead the basic band signal,

100 mV / channel, 50 Ω source impedance, to be used exclusively with WIR TX9 or MOD 232

Switches off after 30 signal-free minutes

CE, FCC Section 15, Industry Canada, AS

0 – +50 °C ambient temperature (non-condensing, non-corroding environment)

»MOD 232« modulator

Order No.: A-4029-0

The MOD 232 Modulator is connected to the audio source. It processes these signals and sends them to the transmitter. The transmitter then converts this data into infrared light impulses and sends them out at a wide angle into the room to be provided with coverage.

Conferences are often plagued by limited acoustic quality. That’s why the MOD 232’s audio-processed signals focus on speech frequencies for well-balanced good reproduction and reduce undesirable background noise. As a result, people can listen to longer lectures and events without tiring.

Like the TX9 transmitter, the MOD

232 modulator also includes an installation kit for wall and ceiling mounting.

MOD 232

Modulator for the operation of the WIR TX9 transmitter

19

If we consider the TX9 transmitter and the MOD 232 modulator

(

description: pages 18 and 19 )

as a modular system, it offers not only easy expansion with respect to the audio coverage (

also see diagram, p. 21 ). It also presents

new prospects for greater application flexibility.

Configuration examples for audio using infrared transmission systems

TX9 transmitter and

MOD 232 modulator: the standard configuration

The MOD 232 modulator serves as the »interface« between the audio source and the infrared transmitter. The standard configuration allows one as well as two-channel operation.

Typical applications:

Simultaneous transmission in different languages

Media rooms

Courtrooms

Theatres

Churches

Educational facilities

TX9 transmitter and MOD 232 modulator as a 4-channel system

Using the components as a 4-channel transmission system requires two MOD 232 modulators and two

WIR TX9 infrared transmitters. This combination presents high flexibility for a wide range of applications at an attractive price – particularly in areas that require the simultaneous provision of information in several different languages.

In four-channel mode and using the four-channel RX22-4 receivers

( see p. 22 ), the transmission sys-

tem is able to provide coverage for approx. 1000 m² in its standard configuration.

The components can be used as a stationary installation (e.g. 19” IEC rack mounting for the modulator) or as a portable system with easy setup and convenient operation.

TX9 and MOD 232: 2-channel configuration

TX9 transmitter

TX9 transmitter

MOD 232 modulator

ce

Audio sour

Audio On

Channels A

TX9 and MOD 232 in 4-channel operation

TX9 transmitter

Basic band signal

MOD 232 modulator

MOD 232 modulator

WCA 068

Basic band signal

ce

Audio sour

Audio On

ce

Audio sour

Audio On

20

Technical data

Dimensions (H x W x D): 15.9 x 28.6 x 5.4 cm

Weight:

Colour:

Power supply:

800 g

Black with white text, black acrylic faceplate

24 VAC, 50 – 60 Hz, 35 VA,

3-pin MOLEX connector

Mains connection:

Europe:

UK:

Modulation:

NEC class, 2-wire, max. length 61 m

TFP 027-01, safety plug, 2-pin, CE

TFP 027-02, 3-pin UK plug, CE

FM wideband, + 50kHz

Carrier frequency: Channel A: 2.3 / 2.8 MHz (selectable)

Channel B: 3.3 / 3.8 MHz (selectable)

IR transmission power: 3.5 W

Audio input: Symmetrical or asymmetrical line level only, 316 mV RMS

5.7 k Ω input impedance

Reception range / coverage areas:

2600 m² in 1-channel mode with the RX22-4 receiver

1670 m² in 4-channel mode with the RX22-4 receiver

325 m² in 1-channel mode with the RCI-102 receiver

Desired signal / background noise: >75 dB / +3 dB

Response frequency:

Compression:

Automatic shutoff:

80 to 15000 Hz, electrical

Music 1:1

Speech 1.5:1

Hearing aid 2:1 (default setting)

Switches off after 20 signal-free minutes

Main TX90 system

TX9

WIR TX90

WIR TX90 transmitter

Order No.: A-4028-0

Two-channel highpowered infrared transmitter with an integrated modulator

The two-channel TX90 infrared transmitter combines the modulator and transmitter as one unit in a single enclosure. This design saves money and does not take up a lot of room during transportation.

The TX90 transmitter uses a wide angle for the efficient emission of the infrared signals into the room to be provided with coverage.

Possible areas of application:

Cinemas

Parallel transmission of different languages

(channel selection)

Conference and meeting rooms as well as multimedia rooms

Courtrooms and lecture halls

Schools, universities

Churches

With an operating bandwidth of

2.3 to 3.8 MHz, the transmission of the TX90 is reliable and immune to the effects of extraneous light.

In 1-channel mode, the transmitter is able to cover up to 2600 m².

With the addition of another TX9 transmitter, it is possible to easily expand the reception range. The system includes an installation kit for wall and ceiling mounting.

Stands for freestanding installation are also available.

TX9 TX9

The reception area can be multiplied by connecting several transmitters – here a TX90 with three TX9.

21

RX22-4

Four-channel infrared receiver

Possible areas of application:

Selective reception of simultaneously transmitted information, e.g. in different languages

Conference and meeting rooms as well as courtrooms

Multimedia rooms

Educational facilities, e.g. schools, universities

Cinemas, theatres

Churches, assembly rooms

RX22-4 infrared receiver

Order No.: A-4032-0

The RX22-4 is a portable fourchannel infrared receiver (pocket receiver), which can be worn on a strap around the neck. The receiver is compatible with all transmitters that operate at frequencies from

2.3 to 3.8 MHz.

The receiver is easy and convenient to use. It is limited to just two operating elements: a knob for the combined on/off/volume function and a four-stage switch for channel selection. The selective channel setting allows the listener to select a language, for example, for simultaneously interpreted information.

The RX22-4 is equipped with a connection jack that can be used to connect either headphones or a teleloop. Dual IR reception diodes guarantee maximum reception sensitivity within the transmission zone.

Technical data

Type of receiver/design: Pocket receiver with dual reception diode, carrying strap (can be worn around the neck)

Dimensions (H x W x D): 104.1 x 72.4 x 30.4 mm

Weight: 127 g, incl. batteries

Colour: Black

Carrying strap: 91 cm

Operating temperature: -10 °C to +50 °C

Battery type:

Battery life:

Charging contacts:

Carrier frequencies:

2 x AA, Alkali or NiMH

Alkali: 60 h / NiMH: 30 h

For the CHG 3512 only

Channel 1: 2.3 MHz

Channel 2: 2.8 MHz

Channel 3: 3.3 MHz

Channel 4: 3.8 MHz

Linear pre-distortion:

FM deviation:

Signal-to-noise ratio:

Noise limiter:

Certifications:

Response frequency:

Harmonic distortion:

Operating elements:

Operating display:

Audio output:

Audio output power:

Acoustic output:

Sensitivity::

50 µsec.

±50 kHz

60 dB min.

Receiver cuts off at 40 dB S/N

25 Hz to 16 kHz, +1 dB , -3 dB, electrical

< 1%, electrical

On/off/volume: combined knob

Channel selection: four-stage switch

LED constant, flashing indicates low battery

3.5 mm (mono)

Max. 15 mW at 32 Ω

125 dB SSPL90 with HED 021; 110 dB SSPL90 w / EAR 013

Better than 1 nW/cm² for 40 dB signal-to-noise ratio

CE, FCC, ROHS, WEEE

Teleloop

Order No.: A-4922-0

Teleloop for the connection of the RX22-4 receiver

Inductive audio transmission to hearing aids or CI systems with a telecoil (switch set to

»T« or »MT«)

HED 021 headphones

Order No.: A-4913-0

»Deluxe« headphones for adults:

3.5 mm plug to connect to the

RX22-4 infrared receiver, 1 m cable

22

Technical data

Weight:

Colour and material:

Rechargeable battery, battery life:

Modulation processes:

52 g with battery

ABS plastic, black and red

A100 NiMH battery, approx. 5 h

FM, mono or stereo

Sound frequency transmission range: 15 - 20000 Hz

Operating frequencies: 2.3 MHz and 2.8 MHz

Possible selections: stereo reception or either frequency for mono reception

Harmonic distortion:

Signal-to-noise ratio:

<1%

Typ. 60 dB

Controls:

Maximum volume:

Main switch:

Knob to adjust the volume;

Balance can be adjusted with the help of a screwdriver

Approx. 120 dB

Integrated in the »receiver«

Single recharger for the

RCI-102 and InfraLight under-the-chin receivers

Order No.: A-4977-0

Recharger for one under-the-chin receiver and two separate rechargeable batteries.

RCI-102

Order No.: A-4043-0

Silicone earpieces for the

RCI-102 under-the-chin receiver

(also for the LPU-1 and Infra-

Light)

Stereo or selective mono reception, e.g. for multi-language transmissions.

Standard

Order No.: A-4985-0 (2 Paar)

Order No.: A-4987-0 (24 Paar)

Tapered shape

Order No.: A-4988-0 (2 Paar)

Order No.: A-4989-0 (24 Paar)

Perforated

Order No.: A-4993-0 (2 Paar)

Order No.: A-4992-0 (24 Paar)

RCI-102

Two-channel infrared under-the-chin receiver

The RCI-102 is an ergonomically designed under-the-chin receiver that weighs just 52 grams and is equipped with swivelling earpieces, which means that the earpieces retain their position in the ear even when the user turns his/her head.

The flexible material used to make the ear buds also nestles gently into the auditory canal to effectively subdue any ambient noise.

compatible with all infrared transmitters with the operating frequencies of 2.3 MHz and 2.8 MHz

The RCI-102 is equipped with a switch to select the frequency channels. Both channels are constantly active for stereo transmissions. If the event organizer uses both the 2.3 MHz and the 2.8 MHz frequency ranges to transmit in two different languages at the same time, the listener can select the channel in his/her preferred language and receive the information in mono mode.

Case able to accommodate up to 15 under-the-chin receivers –

Description: p. 27

23

InfraLight

Infrared transmission system for small to medium-sized rooms

Case able to accommodate up to 15 under-the-chin receivers –

Description: p. 27

System with transmitter and two different types of receivers

With its compact transmitter and two different types of receivers, the InfraLight system provides convenient audio solutions for sound coverage using infrared transmission signals in small to medium-sized rooms. The receivers are equipped with mono and stereo sound as well as infinitely variable volume control.

The InfraLight transmitter

Order No.: A-4022-0

The InfraLight transmitter is able to recharge one receiver as well as two rechargeable batteries.

Directed towards the receivers and connected with an audio source, it transmits signals over a range of up to 12 metres to an unlimited number of corresponding receivers.

The InfraLight transmitter includes the transmitting unit with its power supply and one rechargeable battery to operate one receiver.

Technical data

Modulation processes:

Carrier frequencies:

Sound frequency transmission range:

Harmonic distortion:

Signal-to-noise ratio:

Battery recharging time:

Transmitter

Power consumption:

Power supply:

Weight:

InfraLight DIR under-the-chin receiver

Operating time depending on charge:

Maximum volume:

Weight:

Receiver with InfraLight LR teleloop

Operating time:

Maximum volume:

Weight:

The InfraLight DIR underthe-chin receiver

Order No.: A-4042-0

The InfraLight DIR under-the-chin receiver is equipped with earpieces that swivel to stay firmly fixed in the user’s ears even when the user moves his/her head. The flexible material fits snugly into the auditory canal to effectively subdue any other ambient noise (different silicone earpieces available,

see p. 23 ).

FM, stereo or mono

2.3 / 2.8 MHz

15 - 20000 Hz

< 1 % typ. 60 dB

Approx. 14 h

Approx. 3.6 VA

Transmitter 12 volts DC

Mains connection 230 volts 50 Hz

Approx. 170 g

Approx. 7 h

Approx. 120 dBA

55 g

Approx. 6-7 h

Approx. 120 dBA

56 g

The InfraLight LR receiver with the teleloop

Order No.: A-4052-0

The InfraLight LR receiver is equipped with a teleloop that uses an induction system to transmit the

TV sound directly to hearing aids or CI systems via the integrated telecoil. It is also fitted with an audio output jack – to allow the connection of headphones, for example, or for a cable connection to the hearing aid.

24

Wireless UHF101 microphone

Order No.: A-4450-0

The wireless UHF101 microphone set (PLL) can be used in combination with any of the transmission systems described in this brochure.

The set consists of a handheld transmitting microphone and the receiver that transmits the signals via cable to the corresponding audio output device.

Wireless UHF401 microphone

Order No.: A-4455-0

The 4-channel UHF401 microphone system is designed for use anywhere where up to four different speakers talk from different locations, in churches, for example.

Technical data for the UHF101

RF transmission frequency:16 frequencies in the range from 863 to 864 MHz

Frequency stability: ±0.005 %,

PLL synthesized circuit

Modulation: FM

Range: Up to 100m

Distortion factor: 0.4%

Audio frequency response: 60 to 21,000 Hz, -3dB

Receiver

Reception type: Dual antenna, PLL

Noise suppression: > 90 dB

Audio output:

Power supply:

XLR or 6.3 mm

DC 22V / 400mA

(AC/DC adapter included)

Transmitter

Transmission power: 10 mW

Power supply: Alkaline / NiMH batteries 2xAA

Operating time: 6 - 8 h

Four independent handheld microphones transmit the voices wirelessly to the stationary receiver, which in turn feeds the signals via cable into an audio output device, such as an induction loop amplifier or an infrared or a radio-frequency transmitter.

Portable pocket transmitter with PLL microphone (to be used with the UHF101 set)

Order No.: A-4460-0

The compact transmitter is worn on the body. The facilitator/speaker can clip the microphone to his/her clothing so that both hands are left free while he/she is talking.

Technical data for the UHF401

RF transmitting frequency: 16 frequencies in the range from 790 to 819 MHz

Frequency stability: ±0.005 %,

PLL synthesized circuit

Modulation: FM

Range: Up to 100m

Distortion factor: 0.4%

Audio frequency response: 60 to 21,000 Hz, -3dB

Receiver

Reception type: Dual antenna, PLL

Noise suppression: > 90 dB

Audio output:

Power supply:

Transmitter

XLR or 6.3 mm /

Composite signal 6.3 mm

DC 22V / 1.2A

(AC/DC adapter included)

Transmitting power: 10mW

Power supply: Alkaline / NiMH batteries 2xAA

Operating time: 6 - 8 h

Accessories for Infrared

Transmission

Systems

25

Accessories for infrared transmission systems

Under-the-chin receiver

(closed)

Order No.: A-4903-0

Dual recharger for the

RX22-4 infrared receiver

Order No.: A-4979-0

Under-the-chin receiver weighing less than 30 g, which can be connected to the RX22-4 receiver – with ergonomically shaped earpieces that fit snugly into the auditory canal

Recharging station with two inde-

pendent recharging bays.

12-bay recharger for the

RX22-4 infrared receiver

Order No.: A-4978-0

Under-the-chin receiver

(open)

Recharging station with 12 inde-

pendent recharging bays.

Order No.: A-4902-0

Featherweight under-the-chin receiver (weight: < 30 g), which can be connected to the RX22-4 receiver – earpieces do not block the auditory canal

5-bay recharger for RCI-102 and InfraLight receivers

Order No.: A-4976-0

Recharger with 5 independent recharging bays for the receivers.

12-battery recharger for

A100 batteries

Order No.: A-4974-0

Time-saving recharger for users who operate a larger number of the receivers (InfraLight and RCI-102)

Replacement A100 battery for RCI-102 and InfraLight receivers

26

Order No.: A-4970-0

Plastic tray case for 5 underthe-chin receivers

Order No.: A-4955-0

Stand to set up the TX9 and

TX90 infrared receivers

Aluminium case designed to accommodate up to 15 under-the-chin receivers

Order No.: A-4072-0

The tray in the case provides for the safe and reliable storage and transport of up to 15 LPU-1, RCI-102,

InfraLight or RadioLight receivers. In addition, the under-the-chin receivers can also be conveniently distributed

»straight from the case«.

Order No.: A-4986-0

The adjustable stand is able to accommodate TX9 and TX90 transmitters.

Pulls out to a maximum of 3 m

Maximum load 20 kg

Case with 12-bay recharger*

Order No.: A-4195-0

Safe storage and reliable transport of up to 12 RX22-4 infrared receivers incl. A-4978-0 recharger.

Transport-safe storage system

– for the MK-0016-0 case, for example – for InfraLight and LPU-1 receivers.

Accessories for infrared transmission systems

* Batteries must be ordered separately.

2 batteries per device.

Order No.: EG4601-0

27

RF transmission systems

Of all the wireless transmission technologies, radio-frequency transmission has been around for the longest time. Not surprisingly, then, it is also the most common, and with respect to audio transmission systems for accessible sound, it proves to be the most powerful system with the largest ranges of coverage.

Function and use of radio-frequency transmission systems

The basic configuration of a radiotransmission system consists of a transmitter and at least one receiver. The transmitter, which is connected to an audio source – to a microphone system or any other audio system, for example – picks up the audio signals to transmit them wirelessly to the receivers.

Amplifying receivers with audio output jacks are also available and can be connect to the earphones or headphones.

Areas of application

Radio-frequency audio transmission systems have already become well established as wireless headphones or TV listening systems in the home environment.

The systems described in this brochure, however, go above and beyond this, most importantly because they have been designed for professional applications – for example:

in sport arenas or at other spacious event venues,

in churches and other assembly halls, The receivers can be equipped with teleloops, which provide for the inductive transmission of the signals to the hearing aid.

in lecture or seminar rooms, as in schools and universities,

and for open-air applications in particular, there is hardly an alternative to radio-frequency transmission.

In addition to these stationary applications, portable, so-called tourguide systems have also proven useful in many areas. Some of the areas they can be used in include

museums, art galleries,

tourist attractions and special events

or transportation.

The availability and use of several channels makes it possible to pro vide different information at the same time, for simultaneous interpreting into different languages, for example, or for the treatment of different topics for several listening groups located close to one another.

28

Due to their ability to provide large coverage and independence from floor plans and architectural structures, radiofrequency transmission systems are also ideally suited to open-air applications.

Radio-frequency signals are able to easily pass through walls. The listeners can leave the room in which the transmitter is installed at any time without any problem and their RF receivers will continue to provide them with the information they need.

Outstanding features of radio-frequency transmission technology

Transmitter and receiver do not require a direct »line of sight«.

Radio waves can pass easily through normal house and building walls. Listeners take the sound along, even when they leave the room in which the transmitter is installed.

This means that even very large areas can be easily supplied with audio signals.

It is relatively easy to install RF transmitters, which also makes it inexpensive. The costs for installation and hardware do not increase in proportion to the size of the area that requires coverage.

The transmitters can be installed inconspicuously

(except in metal enclosures) and do not mar or spoil the overall architectural picture.

Sunlight, artificial light and the reflection conditions inside rooms do not affect transmission.

RF transmission systems are easy and convenient to use, they are very portable and, with multi-channel functionality, they are very flexible in their uses and applications.

Some countries charge radiolicensing fees for the use of these systems. In this context, it cannot be ruled out that the national regulations in some countries only release certain frequency ranges for these systems (different from the standard).

Coverage

With respect to coverage, RF transmission systems are far superior to the two other transmission technologies described in this brochure.

With coverage ranges of up to more than 300 metres, it is possible to easily supply even large arenas with audio signals. The transmission distances of tour-guide systems with approximately 30 metres makes it possible to supply information even in large groups or groups in different locations.

Factors influencing the operation of radio-frequency transmission technology

More useful information on the use of radio-frequency transmission systems

Users of audio radio-frequency transmission systems should be aware of the fact that the coverage ranges or the signal scattering go beyond the intended coverage areas. As a result, there is no guarantee that the information transmitted will remain confidential.

When planning the parallel use of this type of system – in neighbouring rooms, for example – the transmission must be made on different channels

(compare the number of channels available with the number of channels required).

Other RF systems or electromagnetic emissions could have a negative effect on transmission and signal quality.

An attractively priced, functional solution designed to provide large areas with audio signals

Users must make sure that their transmission channels are set correctly.

29

The portable

3-channel transmission system

T863 transmitter

Convenient radio-frequency transmission system for

guided tours

simultaneous selective transmission of different languages

clear understanding, even in noisy environments or under other unfavourable acoustic conditions

The minimum configuration of a three-channel audio RF system with compact, easy-to-use transmission and reception components includes a transmitter (T863) with a microphone* and a receiver

(R863).

This system can be used as a tour-guide system and allows simultaneous transmission in multiple languages with three different frequency channels. Audio signal processing puts emphasis on the voice frequencies rather than on the annoying background noise.

T863 portable transmitter

Order No.: A-4170-0

Technical data: T863 transmitter

Dimensions (H x W x D): 155 x 72 x 30 mm

Weight:

Colour:

Material:

Batteries:

Charging times:

Operating frequencies:

82 g (without batteries)

Black

ABS / polycarbonate, impact-resistant, unbreakable

2x AA 1.5V alkaline batteries, uninterrupted power supply for approx. 20 h or 2xAA 1.2V NiMH rechargeable batteries, uninterrupted power supply for approx. 15 h

Approx. 14 to 16 h when using the CHG 3512 recharger

Channel 1: 863.25 MHz; Channel 2 : 863.75 MHz;

Channel 3: 864.75 MHz (±30 kHz)

Range:

Stability:

FM deviation:

Noise reduction:

Sensitivity:

RF output:

30 metres when using the R863 receiver

± 0.5 MHz, 0 – 50 °C

60 kHz ± 5 kHz, transmission input at 1 kHz, 2.5 mV

50 µS

< - 90 dBm at 60 kHz deviation

5 - 10 dBm

Response frequency:

Distortion:

Transmission antenna:

500 Hz – 5 kHz, ± 3 dB

< 2.0 % THD

5 cm

Recommended microphone*: MIC 096 microphone headset

Microphone connection: 3.5-mm jack

Recharging contacts:

Certifications:

Compliant with CHG 3512 battery recharger

CE, ROHS, WEEE, ETSI EN 301 357-1, ETSI EN 301 357-2

The portable T863 broadband RF transmitter can be clipped to a belt. An impact-resistant plastic enclosure protects the audio and transmission technology. The signals are transmitted via a two-inch antenna and the device is also equipped with a 3.5-mm input jack for the connection of a microphone or microphone headset*.

Internal »mic gain control« guarantees a well-balanced microphone signal. The transmitter is equipped with three frequency channels that the user can choose from. The channel selection switch is also the on/off switch.

The »power-on LED« flashes to indicate a low battery early.

Depending on the battery type, the R863 receiver provides for uninterrupted reception for up to

20 hours.

When the R863 receiver is used, the T863 transmitter has a range of approx. 30 metres.

* Microphone not included, see Acces-

sories, Page 36 : MIC 096 headset micro-

phone, MIC 014-R plug-in microphone.

30

Technical data for the R863 receiver

Dimensions (H x W x D): 115 x 72 x 30 mm

Weight:

Colour:

Material:

85 g (without batteries)

Black

ABS / polycarbonate, impact-resistant, unbreakable

Batteries: 2x AA 1.5V alkaline batteries, uninterrupted power supply for approx. 20 h or 2xAA 1.2V NiMH rechargeable batteries, uninterrupted power supply for approx. 15 h

Recharging times: Approx. 14 to 16 h using the CHG 3512 recharger

Operating frequencies: Channel 1: 863.25 MHz; Channel 2 : 863.75 MHz;

Channel 3: 864.75 MHz (± 30 kHz)

Range:

Stability:

FM deviation:

Noise reduction:

Noise cut-off:

RF output:

30 metres using the T863 transmitter

± 0.5 MHz, 0 – 50 °C

60 kHz ±5 kHz, transmission input at 1 kHz, 2.5 mV

50 µS

-100 dB at 6 kHz

5 – 10 dBm

Response frequency:

Distortion:

Signal-to-noise ratio:

Connections:

Recharging contacts:

Certifications:

500 Hz – 5 kHz, ±3 dB

< 2.0 % THD

> 50 dB (± 5 dB) with transmission input at 1 kHz, 2.5 mV

3.5-mm jack headphones (recommended: HED 021) or teleloop

Compliant with the CHG 3512 battery recharger

CE, ROHS, WEEE, ETSI EN 301 357-1, ETSI EN 301 357-2

The earphones, headphones or a teleloop can be connected via the 3.5-mm audio output. As an alternative to the portable transmitter, there is also a transmitter for stationary installation (see next page), Order No.: A-4171-0.

R863 portable RF receiver

Order No.: A-4172-0

The portable RF receiver for the tour-guide system is equipped with a belt clip; as for the transmitter, the enclosure is made of impact-resistant plastic and has a connection jack for mono or stereo headphones. The volume is controlled by a knob, which is also the on/ off switch. The LED, which lights up permanently when the device is switched on, will begin to flash to indicate a low battery.

Depending on the type of battery used, the R863 receiver provides uninterrupted reception for up to

20 h.

In combination with the T863 tourguide transmitter, the R863 receiver guarantees reliable reception over a distance of approx. 30 metres.

R863

RF receiver with channel selection

31

T800

Radio transmitter in stand enclosure, range up to 120 metres

»T800« transmitter

Suitable areas of application:

Churches, assembly halls

Schools and other educational facilities

Theatres, spectator and viewer rooms

Conference and meeting rooms

Open-air events, e.g. open-air theatres

Order No.: A-4171-0

The T800 RF transmitter transmits the speaker’s voice, a music program or the signals from any other audio source wirelessly over a distance of up to 120 m.

Installation and operation of the transmitter are convenient and easy – »plug & play«: connect the microphone or audio system to the XLR or 6.3 mm plug, switch on the transmitter – and the system is ready to go. An LCD display guides the user through the menu.

The T800 operates on three frequency channels: 863.250 / 863.750 and

864.750 MHz. This means that it is also possible to transmit up to three different languages, which the listeners using the R863 FM receiver (

see p. 31 ) can select as

they wish.

Technical data

Dimensions (H x W x D):

Weight:

Colour:

Power supply:

Temperature range:

Operating frequencies:

RF output:

Stability:

FM deviation:

Noise reduction:

Range:

Response frequency:

4.6 x 21.8 x 21.8 cm

1320 g

Black

AC: 100 to 240 V AC, 50-60 Hz, 400 mA

DC: 12 to 13 VDC, 800 mA

0 °C to 40 °C (storage temperature: -20 °C to 70 °C)

Channel 1 = 863.250 MHz / Channel 2 = 863.750 MHz,

Channel 3 = 864.750 MHz

5 to 10 dBm

±0.5 MHz (0 °C to 40 °C)

45 KHz (transmission input, L+R, 1 kHz, 0.5 Vrms)

50 µsec

Up to approx. 120 metres (for R863 receivers)

LINE-IN: 25 to 10.1 KHz ±3 dB

MIC-IN: 110 to 8.5 KHz ±3 dB

Signal-to-noise ratio (1 KHz): LINE-IN: > 50 dB

MIC-IN: > 40 dB

THD + noise (1 KHz): LINE-IN: < 0.4%

MIC-IN: < 0.5%

Audio processing: 2:1 compression (LINE or MIC-IN)

Audio inputs:

Audio level:

LINE: mono, RCA plug (2 x)

MIC: Combo XLR (3-pin) or 6.3-mm-TRS plug.

(for FM deviation) LINE-IN: 0.5 Vrms (-6 dBV)

Microphone input: 10 Vrms (-40 dBV)

Common mode rejection: MIC-IN: > 22 dB at 1 KHz

Antenna:

Certifications:

22.9 cm long, flexible, adjustable, removable

CE, ROHS, WEEE, ETSI EN 301 357-1, 2

With a range of more than 100 metres, the transmitter is able to provide even large venues with audio signals, from conference rooms to lecture halls and from open-air stages right on up to sport arenas.

The T800 transmits one channel only. To transmit three different languages, it would be necessary to use three T800 devices.

32

Speakers audio system ce)

Microphone

RF transmitter T800

33

CM-1

Portable 3-channel radio-frequency transmission system

Convenient in its operation ...

... from a personal communications system with one transmitter and one receiver right on up to guided tours in larger groups

easy to understand, even in noisy environments or under less-than-perfect acoustic conditions

Order No.: A-4313-0

The CM-1 case for the storage and transport of the CM-1 system is equipped with

10 recharging bays for transmitters and receivers that also serve as compartments for safe transport.

CM-1 FM transmitter (incl. 2 rechargeable batteries)

Order No.: A-4320-0

CM-1 FM receiver with teleloop (incl. 1 rechargeable battery)

Order No.: A-4340-0

CM recharger for CM-1

Order No.: A-4951-0

CM-1 – that’s the portable 3-channel FM system that is easy to understand – in conversation, during guided tours or at panel discussion or hosted events. The system consists of a transmitting microphone and any number of separate receivers. The components can be used to cover distances of up to

30 metres.

Technical data: CM-1 transmitter

Dimensions (H x W x D):

Weight:

Power supply:

Charging time (fully discharged):

Operating time (depending on use):

Carrier frequencies:

CM-1 receiver

Dimensions (H x W x D): 20 x 39 x 96 mm

Sound pressure level for headphones: Max. 118 dB

Weight:

Power supply:

Charging time (fully discharged):

Operating time (depending on use):

CM recharger

Dimensions (H x W x D):

Weight:

Power supply via mains connection:

19 x 37x120 mm

64 g

2x 1.2V NiMH rechargeable batteries (LR03)

Max. 12-14h

Max. 10-12h

Channel A: 863.5 Mhz

Channel B: 864.0 Mhz

Channel C: 864.5 Mhz

45 g

1x 1.2 V NiMH rechargeable batteries (LR03)

Max. 12-14h

Max. 8-10h

67 x 83 x 65 mm

94 g

Primary 220/230 V 50-60 Hz AC /

Secondary 12 V DC

Convenience in operation, flexibility in use

The CM system transmits the audio signals inductively via the teleloop to the hearing aids. The CM-1 receivers are also equipped with an audio output jack.

Equipped with an acoustic zoom function and an omnidirectional setting (spatial hearing), the directional microphone is able to provide the suitable angle for sound reception for a variety of different situations.

Outstanding voice quality

The speaker can wear the microphone on a neck cord or place it nearby, on a table, for example. The microphone transmits the signals it receives via radio waves to the receivers, which the listeners wear or carry.

Three channels to select

CM-1 is equipped with three radio channels to choose from so that up to three CM-1 systems can be active at the same time without interfering with one another.

Operation is easy and quick to learn. As a result, listeners can make their own individual settings as soon as they get their receivers.

A knob is used to adjust the volume to any level desired, while a treblebass switch makes it possible to adjust the tone.

DSP technology processes the audio signals in real time on the basis of audiological criteria. Any undesirable ambient noise is suppressed and voice frequencies are accentuated. The AGC function

(Automatic Gain Control) controls the adjustment of the volume to the current acoustic situation.

34

RadioLight II

Technical data

Modulation process:

Carrier frequencies:

Transmission power:

FM

Channel A: 863.25 MHz

Channel B: 863.75 MHz

Channel C: 864.75 MHz

10 mW

Sound frequency transmission range: 15 - 20000 Hz

Distortion factor: < 1 %

Signal-to-noise ratio:

Battery recharging time:

Transmitter

typ. 60 dB

Approx. 6 h

Power consumption:

Power supply:

Weight:

Approx. 3.6 VA

Transmitter 12 volts DC

Mains connection 100-240 VAC 50/60 Hz

Approx. 200 g

RadioLight DIR II under-the-chin receiver

Operating time depending on battery charge: Approx. 4-5 h

Maximum volume: Approx. 120 dBA

Weight: Approx. 59 g

Receiver with RadioLight LR II teleloop

Operating time depending on battery charge: Approx. 4-5 h

Maximum volume:

Weight:

Approx. 120 dBA

Approx. 59 g

3-channel system with transmitter and two different types of receivers

Three individually selectable channels on the transmitter and the receivers make it possible to operate the system on three transmission paths with separate frequencies that remain »isolated« from one another – ideal for simultaneous interpreting in different languages or for the operation of several systems at different event venues that are various distances apart.

The RadioLight II system with its transmitter and two different types of receivers makes it possible to create convenient audio solutions that are able to provide sound coverage for a range of up to approx. 80 metres.

The receivers are equipped with a mono- and stereo switch as well as infinitely variable volume control.

The RadioLight II transmitter

Order No.: A-4123-0

The RadioLight II transmitter includes a recharging bay for one receiver and two recharging inserts for separate batteries.

The RadioLight DIR II under-the-chin receiver

Stationary

3-channel transmission system

Order No.: A-4154-0

The ergonomically designed Radio-

Light DIR II under-the-chin receiver is equipped with earpieces that swivel to stay firmly fixed in the user’s ears even when the user moves his/her head. The flexible material fits snugly into the auditory canal to effectively subdue any other ambient noise (different silicone earpieces available, see

p. 36 /

37 ).

The transmitter can also be used as a battery recharger. A microprocessor-controlled intelligent recharging switch (with charging status indicator) increases battery service life and guarantees short recharging times.

Receiver with RadioLight LR II teleloop

Order No.: A-4160-0

The RadioLight LR II receiver is equipped with a teleloop that uses an induction system to transmit the audio signal directly to hearing aids or CI systems via the integrated telecoil. It is also fitted with an audio output jack – to allow the connection of headphones, for example, or for a cable connection to the hearing aid.

The transmitter includes the transmitter itself with the power supply unit, one battery to operate one receiver and an audio connection cord.

Case able to accommodate up to 15 under-the-chin receivers –

Description: p. 27

35

Accessories for radio-frequency transmission systems

MIC 096 headset microphone HED 021 headphones

Order No.: A-4481-0

Headset with condenser directional microphone:

Order No.: A-4913-0

»Deluxe« headphones for adults:

Noise suppression

3.5-mm plug to connect the

R863 radio-frequency receiver.

1-metre cable 1-metre cable

Compatible with the T863 receiver

Under-the-chin receiver

(open)

Order No.: A-4902-0

Featherweight under-the-chin receiver (weight: < 30 g) for connection to the R863 receiver

Earpieces do not block the auditory canal.

MIC 014-R plug-in microphone (omnidirectional) for the portable T863 radiofrequency transmitter

Order No.: A-2976-0

Under-the-chin receiver

(closed)

Order No.: A-4903-0

Under-the-chin receiver weighing less than 30 g for connection to the R863 receiver

Ergonomically designed earpieces that fit snugly into the auditory canal

36

Silicone earpieces for LPU-1 under-the-chin receivers

(closed) A-4903-0 (also for

RCI-102, InfraLight, RadioLight)

Standard

Order No.: A-4985-0 (2 Paar)

Order No.: A-4987-0 (24 Paar)

Tapered shape

Order No.: A-4988-0 (2 Paar)

Order No.: A-4989-0 (24 Paar)

Perforated

Order No.: A-4993-0 (2 Paar)

Order No.: A-4992-0 (24 Paar)

Teleloop

Order No.: A-4922-0

Teleloop for connection to the

R863 receiver

Inductive audio transmission to hearing aids or CI systems via the T-coil (switch set to »T« or

»MT«)

Carrying strap for the T863 and the R863

Order No.: A-4918-0

Case for one stationary transmitter and 10 receivers

Order No.: A-4190-0

The CCS 030 S heavy-duty case is ideal for the professional storage and safe transport.

The case made of hard plastic with metal edging and rubber foam on the interior is able to accommodate one transmitter, the T 800 for example, and 10 RF receivers (R863 or RX22-4).

Accessories for radio-frequency transmission systems

37

Accessories for radio-frequency transmission systems

The HUMANTECHNIK program includes single and multiple-battery rechargers for all the systems.

Depending on the product group, the transmitters and receivers are either inserted completely into the rechargers or the batteries are removed and inserted separately.

For users who want to lend the corresponding receivers to visitors for a limited time during an event, we recommend using multiple-battery rechargers to keep recharging time and trouble to a minimum.

HUMANTECHNIK transport and recharging cases are available for the safe, reliable transport of these components.

Recharger for 2 R863 / T863 radio-frequency units*

Order No.: A-4979-0

Recharger with 2 independent recharging bays.

CHG3512 12-battery recharger*

Order No.: A-4978-0

For users who operate a larger number of R863 or R22-4 receivers, we recommend using this time-saving recharger, which is equipped with 12 independent recharging bays. It takes approx.

16 hours to recharge the original receiver batteries.

Case with 12-battery recharger*

Order No.: A-4195-0

Safe and reliable transport and storage of up to 12 R863 receivers incl. the A-4978-0 recharger.

Single-bay recharger for a

RadioLight receiver

Order No.: A-4977-0

When the RadioLight receiver is not in use, the user can place it in the recharger.

Replacement A100 battery for RadioLight receivers

Order No.: A-4970-0

* Batteries must be ordered separately.

2 batteries per device.

Order No.: EG4601-0

12-battery recharger for

A100 batteries

Order No.: A-4974-0

Time-saving recharger for users who operate a larger number of under-the-chin receivers for the

RadioLight system.

5-bay recharger for

RadioLight receivers

Order No.: A-4976-0

Recharger with 5 independent recharging bays for RadioLight receivers.

38

A

Accessible sound ..............................

4

Adapter cord ...................................

15

Aluminium case ...............................

14

Audio coverage of large areas ........

29

Automatic Gain Control (AGC) ....

8 ;

10

C

Carrier frequencies ..........................

17

Carrying strap..................................

37

Case ..........................................

27 ;

37

Cinch connection cord ....................

15

CI system ...........................................

4

CM-1 ................................................

34

Coaches ............................................

8

Condenser or electret microphone....

7

Conducting material ..........................

7

Configuration examples ..................

20

Copper ribbon cable .......................

15

Crescendo 50 ..................................

14

D

Directional sensitivity .......................

12

Dual action ......................................

10

Dynamic microphones ......................

7

E

Earpieces ............................

14 ;

23 ;

36

Emergency signals ............................

4

Environmental factors ................

17 ;

29

Equality of disabled persons law (BGG) ..........................................

4

Equality ..............................................

4

European Constitution .......................

4

European standards ..........................

6

European Standard EN60118-4

(IEC118-4) .........................................

6

European Union .................................

4

Extraneous light ...............................

21

F

Field strength reduction .................

12

Four-channel infrared receivers

(RX22-4) ..........................................

22

Four-channel system .......................

20

Function of an induction loop system .......................................

6

G

German equality of disabled persons law (BGG) ............................

4

H

Headphones ..............................

22 ;

36

Headset microphone .................

30 ;

36

Hearing aids ......................................

6

HED 021 ....................................

22 ;

36

High-powered infrared transmitter ..................................

17 ;

18

I

Impact-resistant plastic enclosure ..

30

Induction / Induction systems ...........

6

Induction loop amplifier .....

8

;

9 ;

10

; 11

Induction loop cable ........................

15

Induction loop case ...........................

8

Induction loop pad ......................

9

; 15

Induction loop position ......................

7

Induction loop receiver ....................

14

Induction loop system ...................

5

;

6

Induction loop wire cross-section......

7

InfraLight .........................................

24

Infrared light dispersion ............

18

: 21

Infrared receiver ..............................

22

Infrared transmission systems .................................

5 ;

16

; 20

Infrared under-the-chin receiver ......

23

L

LA-215 ...............................................

9

LA-60 .................................................

9

LOS / LOS installations ....................

12

Low-overspill systems (LOS) .....

12

; 13

M

Magnetic field ..................................

12

Measuring device for induction loop systems ....................

15

Medium-sized rooms ......................

10

MOD 232 ...................................

19

; 20

Modulator ............................

18 ;

19

; 20

Monitor output .................................

10

Mounting kit ...............................

18

; 19

Multi-channel operation ...................

17

Multi-language transmissions ..........

23

N

National laws .....................................

4

O

Optimal signal coverage .................

17

Out-of-phase ...................................

12

Overspill ..........................................

12

P

Plastic tray .................................

14

; 27

PLL microphone ........................

15

; 25

PLS amplifier .............................

10

; 11

Plug-in microphone .........................

36

Pocket receiver ................................

22

Pocket transmitter ............................

25

Portable 3-channel radio-frequency

transmission system…………… .. … 34

Portable induction loop systems .......

8

Portable R863 radio-frequency receiver ............................................

31

Portable T863 radio frequency receiver ............................................

30

Professional use ..............................

10

PROLOOP C ....................................

10

PROLOOP DCC .........................

10

; 11

PROLOOP FSM ...............................

15

PROLOOP LOS ...............................

13

Q

Quality assurance ............................

11

R

R863 TGS receiver ..........................

31

Radio-frequency receiver ....

31

;

34

;

35

Radio-frequency transmission systems ..................

5

;

29

Radio-frequency transmitter ......................

30

; 32

;

34

;

35

RadioLight II ....................................

35

Ranges ......................................

17

;

29

Reception range ..............................

21

Rechargeable/replacement battery .......................................

14

;

26

Recharger ................

14 ;

23

; 26

;

34

;

38

RX22-4 .............................................

22

S

Signal availability .............................

10

Small to medium-sized rooms ...........

9

soundshuttle ......................................

8

Standard configuration ....................

20

Standards ..........................................

6

Stand ...............................................

27

Stationary 3-channel transmission system……………. .....

35

Stereo or selective mono reception .........................................

23

T

T800.................................................

32

T863 TGS transmitter .......................

30

Tabletop microphone .......................

15

Telecoil ...............................................

6

Teleloop .....................................

22

;

37

Tour-guide system

(TGS)………………………………….

28

Two-channel high-powered infrared transmitter ....................

20

;

21

TX9 ............................................

18

;

20

TX90 ................................................

21

U

UHF101 (wireless microphone) ......

25

UHF401 (wireless microphone) .......

25

Under-the-chin receiver .............

23

;

24

Under-the-chin listening device ..................................

14

;

26

;

36

W

WIR TX9 transmitter .........................

18

WIR TX90 transmitter .......................

21

Wireless microphone .......................

25

X

XLR connection cord .......................

15

XLR input jack ...........................

10

;

11

Keyword list from A to Z

39

Welcome to the dialogue about accessible Audio transmission systems

HUMANTECHNIK GmbH

Im Wörth 25

D-79576 Weil am Rhein

Telefon: +49 (0) 76 21 / 9 56 89 - 0

Fax: +49 (0) 76 21 / 9 56 89 - 70 [email protected]

Internet: www.humantechnik.com

HUMANTECHNIK Austria KG

Wagnitzer Straße 29

A-8401 Kalsdorf bei Graz

Tel.: +43 (0) 31 35 / 5 62 87

Fax: +43 (0) 31 35 / 5 62 87 [email protected]

Internet: www.humantechnik.com

·

SMS Audio Electronique Sàrl

173 rue du Général de Gaulle

F-68440 Habsheim

Tel.: +33 (0) 389441400

Fax: +33 (0) 389446213 [email protected]

Internet: www.humantechnik.com

HUMANTECHNIK GmbH

Vertriebsbüro Berlin

Garibaldistraße 60

D-13158 Berlin

HUMANTECHNIK GHL AG

Rastatterstrasse 9

CH-4057 Basel

Tel.: +49 (0) 30 / 91 74 50 01

Fax: +49 (0) 30 / 91 74 50 02 [email protected]

Internet: www.humantechnik.com

Tel.: +41 (0) 61 / 6 93 22 60

Fax: +41 (0) 61 / 6 93 22 61 [email protected]

Internet: www.humantechnik.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
