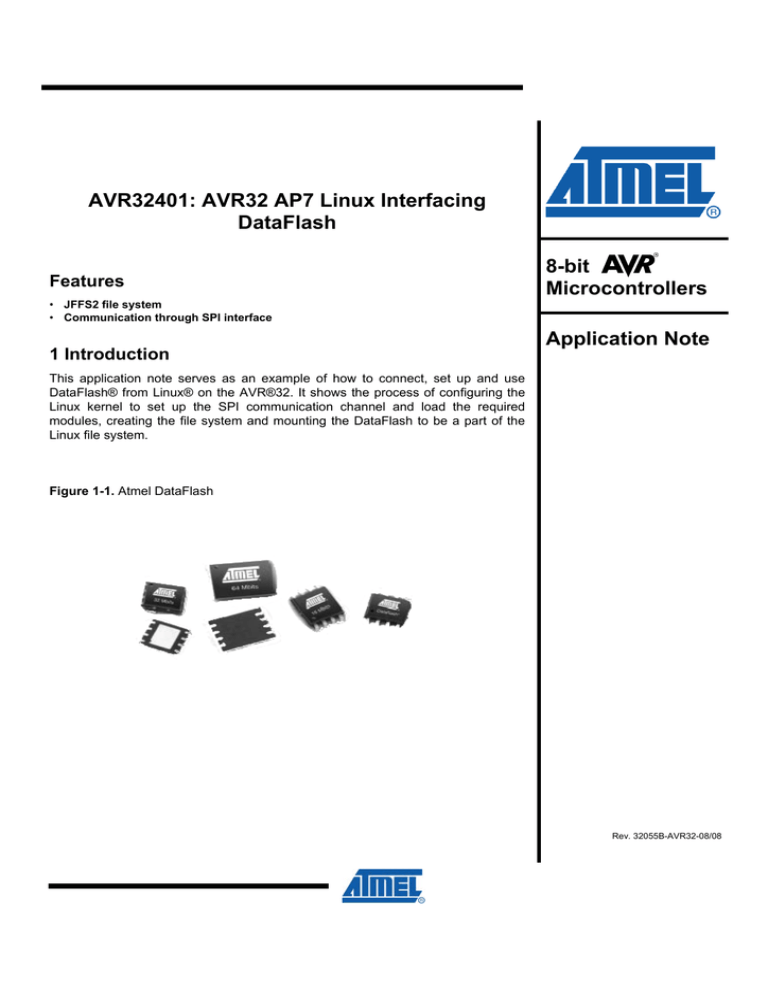

AVR32401: AVR32 AP7 Linux Interfacing
DataFlash
Features
8-bit
Microcontrollers
• JFFS2 file system
• Communication through SPI interface
1 Introduction
Application Note
This application note serves as an example of how to connect, set up and use
DataFlash® from Linux® on the AVR®32. It shows the process of configuring the
Linux kernel to set up the SPI communication channel and load the required
modules, creating the file system and mounting the DataFlash to be a part of the
Linux file system.
Figure 1-1. Atmel DataFlash
Rev. 32055B-AVR32-08/08
2 Hardware
The Serial Peripheral Interface (SPI) supports communication with external devices
and memories, such as the DataFlash. The SPI system consists of two data lines
and two control lines:
• Master Out Slave In (MOSI): This data line supplies the output data from the
master shifted into the input(s) of the slave(s).
• Master In Slave Out (MISO): This data line supplies the output data from a slave to
the input of the master. There may be no more than one slave transmitting data
during any particular transfer.
• Serial Clock (SPCK): This control line is driven by the master and regulates the
flow of the data bits. The master may transmit data at a variety of baud rates; the
SPCK line cycles once for each bit that is transmitted.
• Slave Select (NSS): This control line allows slaves to be turned on and off by
hardware.
The DataFlash can be connected to the SPI as shown in Figure 2-1. Hardware
connections on page 2.
Figure 2-1. Hardware connections
3 Creating a JFFS v2 root file system
This chapter requires that mtd-tools is installed and that the binary mkfs.jffs2 is
available.
3.1 Flash parameters
All flash devices have a given erase size and page size. These must be known
because the filesystem will be built in blocks depending on these values.
Before a block in the flash can be reprogrammed, it has to be erased. The erase size
is given by the size of an erase block, which is the smallest unit that can be erased.
Arbitrary bytes can not be written even if they have been properly erased. The
smallest unit that can be written at once is a page and the size of a page is given by
the page size.
2
AVR32401
32055B-AVR32-08/08
AVR32401
3.2 The mkfs.jffs2 tool
In the mtd-tools software package there is a tool called mkfs.jffs2. This application is
used to make an image from a given root directory.
mkfs.jffs2 should have the following parameters given when used:
•
•
•
--output, where to put the image.
--root, path to the root directory.
--big-endian or --little-endian, defines the endianess of the image. AVR32 uses
--big-endian.
• --pagesize, size of the pages on the flash, defaults to 4KiB.
• --eraseblock, size of the erase blocks on the flash, defaults to 64KiB.
For more information about mkfs.jffs2, start the application with the --help parameter.
3.3 Making the image
Example of copying a file system on the host computer to the flash on the target:
# mkfs.jffs2 --output=/home/user/images/rootfs.img
--root=/home/user/target_root --big-endian --pagesize=1056
--eraseblock=8448
This implies that the made image should output to /home/user/images/rootfs.img and
the directory /home/user/target root will be used as the source for the image. The
image will be made big endian and 64KiB erase block size and 4KiB page size.
This example conforms to a typical NOR flash, i.e. the AT49BV642D which is used on
the ATSTK1000 and ATNGW100.
4 System Setup
The Linux kernel has a lot of drivers that can be loaded on startup or compiled as
modules which can be loaded by the user during runtime. The Linux kernel comes
with a default set of built-in drivers and modules, and it is up to the user to enable
additional features.
4.1 Kernel Configuration
4.1.1 Enabling modules
To enable support for Memory Technology Devices (MTD), enter the Linux kernel
source directory, and launch the configuration menu. This is done by executing the
following command:
# make ARCH=avr32 CROSS_COMPILE=avr32-linux- menuconfig
This will open the kernel configuration window where all the modules and drivers can
be selected. The options that needs to be enabled are shown in .
Device Drivers ->
SPI support ->
[X] “SPI support”
[X] Atmel SPI Controller
Memory Technology Devices (MTD) ->
3
32055B-AVR32-08/08
[X] Memory Technology Device (MTD) support
[X] MTD partitioning support
(1)
[X] Direct char device access to MTD devices
[X] Caching block device access to MTD devices
RAM/ROM/Flash chip drivers -->
[X] Detect flash chips by Common Flash Inter...
[X] Support for AMD/Fujitsu flash chips
(2)
(2)
Self-contained MTD device drivers ->
[X] Support for AT45xxx DataFlash
File Systems ->
Miscellaneous filesystems ->
[X] Journaling Flash File System v2 (JFFS2) support
[Notes] 1. Only needed for partitioning the DataFlash.
2. Not needed by DataFlash, but useful for other types of flash.
4.1.2 Setting up the SPI modules
The SPI controller needs to be set up with the proper chip select, clock frequency and
it needs to be told which driver to pass the data on to.
To change these settings, the file linux/arch/avr32/boards/atstk1000/atstk1002.c
needs to be modified by adding the following set of variables to the spi_board_info
structure:
{
.modalias
= "mtd_dataflash",
.controller_data = (void *)GPIO_PIN_PB(2),
.max_speed_hz
= 16000000,
.bus_num
= 1,
.chip_select
= 0,
},
The first parameter, modalias, is matched against the “name” member of registered
device_driver structure, and tells the kernel which driver to use The “controller_data”
parameter identifies which General Purpose I/O line to use for controlling the
peripheral select signal to the SPI chip. The bus_num parameter specifies which SPI
controller to use.
The last thing that needs to be enabled is the SPI controller 1. This is enabled in the
function atstk1002_init(void), in the same file as described earlier. The line:
at32_add_device_spi(1);
will have to be added to the list of devices to initialize.
4.1.3 Compiling the Kernel
To compile the new kernel with the above changes included, run the following
command:
# make ARCH=avr32-linux CROSS_COMPILE=avr32-linux-
The new uImage file will now be located at arch/avr32/boot/images/uImage.
4
AVR32401
32055B-AVR32-08/08
AVR32401
4.2 Device nodes
In order for the user to communicate with the DataFlash, the device files for the
Memory Technology Devices (MTD) must be present in the device folder. The
following set of commands will create these device nodes:
# mknod /dev/mtd0 c 90 0
# mknod /dev/mtd0ro c 90 1
# mknod /dev/mtd1 c 90 2
# mknod /dev/mtd1ro c 90 3
# mknod /dev/mtd2 c 90 4
# mknod /dev/mtd2ro c 90 5
# mknod /dev/mtd3 c 90 6
# mknod /dev/mtd3ro c 90 7
# mknod /dev/mtdblock0 b 31 0
# mknod /dev/mtdblock1 b 31 1
# mknod /dev/mtdblock2 b 31 2
# mknod /dev/mtdblock3 b 31 3
These device nodes will also be created with the mdev utility.
4.3 Mounting
To be able to write and read to and from the DataFlash, one or more partitions needs
to be mounted. Create an empty directory, where the filesystem on the DataFlash will
be mounted, and mount it with the following command:
# mount -t jffs2 /dev/mtdblock0 /mnt-directory
5 Using the DataFlash
The /mnt-directory now provides access to the DataFlash in an easy way – ordinary
shell commands will work to read and write to the DataFlash.
# cd /mnt
# echo “Hello, DataFlash” > test.file
# cat test.file
Hello, DataFlash
# ls -l
-rw-r--r--
1 root
root
17 Jan
1 00:34 test.file
5
