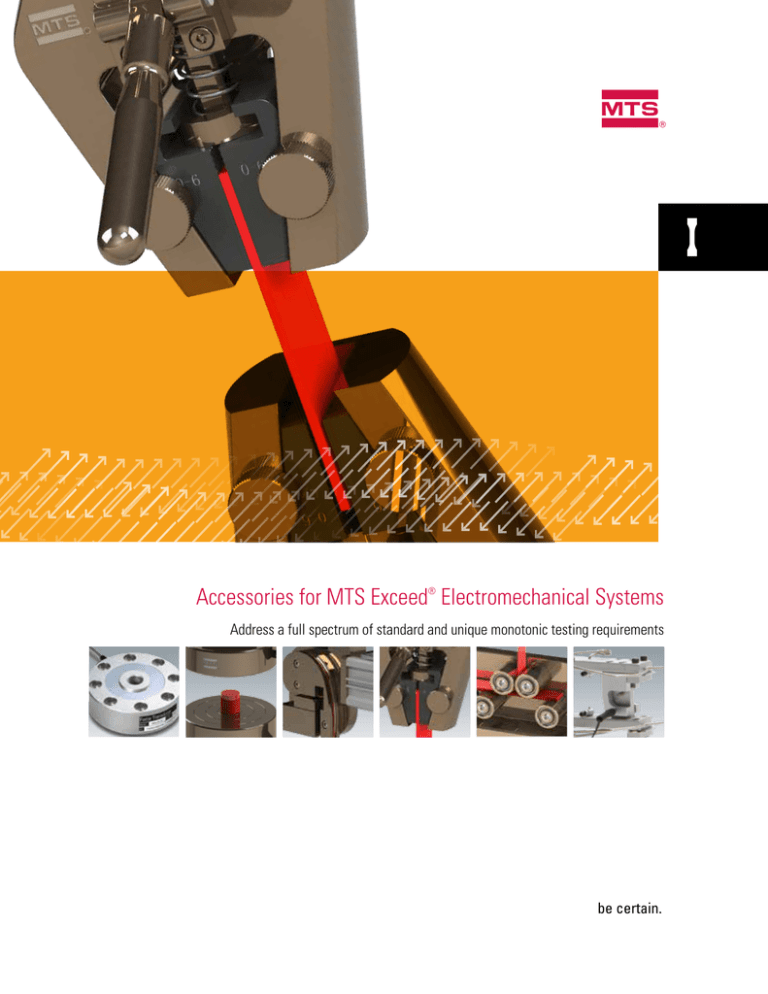

Accessories for MTS Exceed

®

Electromechanical Systems

Address a full spectrum of standard and unique monotonic testing requirements be certain.

Table of Contents

INTRODUCTION

INSTALLATION

Hydraulic Double Side-Action Grips

» 100 kN Hydraulic Double-side Action Grip

Pneumatic Vise Grips

» 10 N Pneumatic Vise Action Grip

» 100 N Pneumatic Vise Action Grip

» 100 N Pneumatic Vise Action Grip

» 500 N Pneumatic Vise Action Grip

» 1 kN Pneumatic Vise Action Grip

» 2 kN Pneumatic Vise Action Grip

» 3 kN Pneumatic Vise Action Grip

» 5 kN Pneumatic Vise Action Grip

Model Page

5-6

FDYA105B

DQD101B

DQA102A

DQA102B

DQA502A

DQA103A

DQC203A

DQC303A

DQC503C

» 3 kN Vise Action Grip

» 5 kN Vise Action Grip

» 20 N Vise Action Grip

» 500 N Vise Action Grip

Model Page

DSA303A

DSD503A

34-35

34-35

DSA201A

DSA502A

36

37

GRIPS & FIXTURES

Tension Grips

Hydraulic Single Side-Action Grips

» 50 kN Hydraulic Single Side-Action Grip FDYA504A

» 100 kN Hydraulic Single Side-Action Grip

» 300 kN Hydraulic Single Side-Action Grip

FDYB105A

FDYA305A

7

7

7

8

11

12

13

14-15

9

10

11

11

Shoulder Grips

» 100 kN Shoulder Grip TB105A 38

» 300 kN Shoulder Grip TA305A 39

Scissor Action Grips

» 2 kN Scissors Action Grip GD203A 40

» 5 kN Scissors Action Grip GD503A 41

Thread Style Grip

» 100 kN Thread Grip ZLA105A 42

Bollard Grips

» 500 N Bollard Grip CB502B 43

» 2 kN Bollard Grip

» 5 kN Bollard Grip

CA203A

CH503A

44

45

» 5 kN Bollard Grip

» 5 kN Bollard Grip

» 30 kN Bollard Grip

» 1 kN Roller Action Grip

CD503B

CB503A

CSA304C

CA103A

46

47

48

49

» 20 kN Roller Action Grip

» 50 kN Roller Action Grip

» 30 kN Roller Action Grip

» 100 kN Roller Action Grip

» 10 kN Capstan Grip

» 20 kN Capstan Grip

CSA204C

CB504E

CA304C

CA105C

CA104A

ZLD204

50

51

52

52

53

54

Pneumatic Bollard Grips

» 2 kN Pneumatic Capstan Grip

» 3 kN Pneumatic Bollard Grip

» 3 kN Pneumatic Bollard Grip

» 100 N Pneumatic Horn Grip

» 500 N Pneumatic Horn Grip

CQB203A

CQA303E

DQB303A

CQA102A

CQA502A

16

17

18

19

19

Wedge Action Grips (Manual)

» 10 kN Wedge Action Grip

» 20 kN Wedge Action Grip

XSA104B

XSD204B

20-21

20-21

Eccentric Grips

» 1 kN Roller Action Grip PA103A 55

» 500 N Roller Action Grip PA502B 56

» 20 kN Wedge Action Grip

» 20 kN Wedge Action Grip

XSB204B

XSF204A

XSA304A

XSA105A

22

23

24-25

24-25

Specialty Tension Grips

» 100 N Circular Ring Tension Grip ZYH102 57

» 30 kN Wedge Action Grip

» 100 kN Wedge Action Grip

» 300 kN Wedge Action Grip

Screw Action Grips

XSA305A 24-25

» 500 N Locking Piler Grip

» 500 N Screw Withdrawal Test Fixture

» 10 kN Spring Tension Grip

» 10 kN Surface Bonding Strength Test Fixture

GSB502A

ZJM502

ZGGA104

ZJH104

58

59

60

61

» 1 kN Screw Action Grip

» 3 kN Screw Action Grip

DSA103B

DSA303B

26

27

» 10 kN Surface Bonding Strength Test Fixture

» 10 kN Internal Bonding Strength Test Fixture

ZBM104

ZNJ104

62

63

» 5 kN Screw Action Grip

» 10 kN Screw Action Grip

» 10 kN Screw Action Grip, SST

» 10 kN Screw Action Grip

DSA503B

DSA104B

DSC104B

DSB104B

27

28

28

29

» 220 kN Wedge Action Grip (small flat specimen) ZLA204B

» 10 kN Wood-based Panels-surface

Soundness Test Fixture ZBJ104

» 50 kN Balsa Wood & Foams Surface

Soundness Test Fixture DKF1005089.01

64

65

66

» 10 kN Screw Action Grip

» 20 kN Screw Action Grip

DX104A

DSA204B

30

31

Vise Action Grips

Compression Platens

Round Compression Platens

» 1 kN Vise Action Grip

» 5 kN Vise Action Grip

» 2 kN Vise Action Grip

» 3 kN Vise Action Grip

DSE103B

ZDA503

K203A

ZDA303

32

33

34-35

34-35

» 20 kN Round Compression Platen

(with dial gage)

» 5 kN Round Compression Platen

» 10 kN Round Compression Platen

ZYA204

YA503A

YA104A

67

68-69

68-69

» 20 kN Round Compression Platen

» 50 kN Round Compression Platen

» 100 kN Round Compression Platen

» 100 kN Round Compression Platen

» 300 kN Round Compression Platen

» 5 kN Round Compression Platen

» 10 kN Round Compression Platen, SST

» 100 kN Round Compression Platen

» 100 kN Round Compression Platen

» 300 kN Round Compression Platen

» 300 kN Round Compression Platen

» 20 kN Round Compression Platen

Model

YA204A

YB504A

YD105A

YF105A

YC305A

ZYA503A

Y104B

YA105A

YB105A

YA305A

YB305A

YC204A

71

72

72

72

72

73

Page

68-69

68-69

68-69

68-69

68-69

70

Model Page

Shear Fixtures

» 1 kN Fiberglass Reinforced Plastics

Sheer Fixture JB103A 89

» 10 kN Wood Sheer Fixture JA104B 90

» 30 kN Metal Shear Fixture (double faces) JA504A 91

» 100 kN Metal Sheer Fixture JA105B 92

Tear Fixtures

» 1 kN Leather Double Edge Tear Fixture ZSL103 93

Puncture Fixtures

» 5 kN Geotextile Puncture Fixture ZDPA503 94

Square Compression Platens

» 10 kN Square Compression Platen

2 kN Square Compression Platen

» 10 kN Square Compression Platen

» 30 kN Square Compression Platen

» 20 kN Square Compression Platen

» 10 kN Square Compression Platen

» 30 kN Square Compression Platen

» 10 kN Square Compression Platen

» 10 kN Square Compression Platen

» 30 kN Square Compression Platen

» 200 kN Square Compression Platen

ZYN104

ZYA203

ZYL104

ZYK304

ZYE204

YC104B

ZYG304

YB104B

YA104B

74-75

74-75

YB304A 74-75

DL07589.01 74-75

74-75

74-75

74-75

74-75

74-75

74-75

74-75

Grip Supplies & Intensifiers

» Grip Supplies & Intensifiers

LOAD CELLS

Force Transducers (Load Cells)

» Force Transducers for Exceed Series 40 Electromechanical Systems 96

EXTENSOMETERS

95

Contacting Extensometers

» 635 Monotonic Extensometer

Specialty Compression Platens

» 10 kN Test Fixture, Flexible Graphite

Sheets Compressibility & Recovery ZYM104 76

» 632 & 634 Advantage Axial Extensometers

» Compression Gage

» Gage Length Extenders

» 50 kN Compression Platen DLB12129.01 77

» Axial High-Temperature Extensometers

» 50 kN Compression Fixture DKF1005089.03 78

» Axial Enhanced Travel Extensometers

» 300 kN Compression Fixture ZYS305 79

» Axial Immersible Extensometer

Bend Fixtures

» 100 kN Bend Fixture, Metal WA105A 80

» Axial Sub-miniature Extensometers

» Cross Sectional Strain Extensometer

» Diametral Extensometers

» 300 kN Bend Fixture, Metal WA305A 80

» Biaxial Extensometer

» 10 kN Bend Fixture, Plastics WA104A 81

» LTX 850 Long Travel Extensometer

» 20 kN Bend Fixture, Plastics WA204A 81

Non-Contacting Extensometers

» 30 kN Bend Fixture, SST ZWA304 81

» LX Laser Extensometers

» 10 kN Bend Fixture, Wood ZWC104A 82

» MTS Fundamental Video Extensometers (FVX)

» 10 kN Bend Fixture, with Dial Gage ZWA104A 83

99

100

100

100

97

98

99

101

101

102

102

103

104

104

» 20 kN Bend Fixture, with Dial Gage ZWA204A 83

Peel Fixtures

ENVIRONMENTAL CHAMBERS

» 200 N Peel Fixture, 90° BA202A 84

» 653 Furnaces

» 200 N Peel Fixture, Floating Roller BB202A 85

» FEC Chambers

» 2 kN Peel Fixture, 90°, Polyethylene/

» Optional Pull Rods

Aluminum Composite Pressure Pipe BA203B 86

» 3 kN Peel Fixture, 90° BA303B 86

MTS EXCEED SERIES 40 EM LOAD FRAMES

105

106-107

108-109

110

Specialty Peel Fixture

» 5 kN Peel Fixture, 180°, Customized DL12179.01 88

GRIPS & FIXTURES INDEX

111

3

Introduction to Grips and Test Fixtures

Application of Grips and Fixtures

Grips and fixtures are critical components to material testing.

Testing results might be compromised if incorrect grips or fixtures are used. MTS offers a large variety of grips and fixtures and this catalog includes popular items that are compatible with specimens defined by commonly adopted testing standards such as ASTM,

ISO, DN, GB, BS, JIS and etc. For additional grips and fixtures not listed or custom design needs, please contact MTS sales or application engineers.

System Compatibility

The grips and fixtures in this catalog can be directly used on

MTS Exceed 4X series of electromechanical models: E42.503,

E43.104, E44.104, E44.304, E54.105, and E45.305.

To use them with MTS Criterion® 4X series models, conversion adapters need to be used. Please refer to Page 6 for adapter choices.

Selection of Grips and Fixtures

Selecting grips and fixtures is complex but largely focused on 3 areas:

A) TEST LOAD

The grip capacity is recommended to be 1.25 times more than the estimated maximum test load, which means the grip will work under 80% of its capacity. The capacity of the load cell should match the grip (i.e. a 30 kN grip should be used with

30 kN rated load cell). This is preferred to ensure result accuracy and decent useful life.

B) TEST STANDARD

Test standards define the dimensions and shape of specimens.

It is common to have a large selection of grips that can be used. If you are not certain, please consult MTS by providing the specific test standard code.

C) SPECIMEN AND TEST METHOD

Besides the dimension and shape of specimens, the surface texture is an important factor in grip selections. For tensile tests, slipping, premature damage and cracking in the grip are quite common due to incorrect grip selection. For help determining the right grip, send the specimen samples and detailed testing method to MTS and we will help identify the correct grip for you.

E44.304 (30 kN)

E43.104 (10 kN)

E44.104 (10 kN)

E42.503 (5 kN)

E45.105 (100 kN)

E45.305 (300 kN)

Installation Method for Grips and Fixtures

Standard Adapters

Generally grips and fixtures will be equipped with adapters of standard dimensions to be used with clevis adapters of the frames. The advantages of using standard adapters are easy installation and accurate mounting. Selecting grips or fixtures with standard adapters can achieve maximum compatibility.

Clevis adapter

B

Grips and fixtures adapter

E

A

D

C

C

Clevis adapter

Grips and fixtures adapter

Standard Adapters

B

C

D

Type

Load Range

Compatible Frame

A

E

Lock Nut

ø

20 mm

5 N-30 kN

E42.503, E43.104, E44.104, E44.304

ø

20 mm

15 mm

ø

10 mm

ø

20 mm

15 mm

M24 × 1.5

ø

40 mm

50 kN-100 kN

E45.105

ø

40 mm

25 mm

ø

18 mm

ø

40 mm

25 mm

M45 × 2

ø

60 mm*

200 kN-300 kN

E45.305

ø

60 mm

35 mm

ø

28 mm

ø

60 mm

35 mm

M64 × 2

*Note: The specifications of the

ø

60 mm adapter are the same as those of the Criterion type E adapter; therefore, this category of grips and fixtures can be directly applied to the Criterion C45.305 and Exceed E45.305.

Additionally, the grip used with E45.605 frames is of non-standard specifications. Contact the MTS service department for more details on relevant grips and fixtures.

5

Installation Method for Grips and Fixtures

Conversion Adapters

Grips and fixtures with smaller standard adapters can be used on the frames with larger standard clevis adapters with a set of suitable conversion adapters.

The conversion adapters allows you to use the same stand grips and fixtures on both the Exceed and Criterion series frames.

The table below shows the variety of conversion adapters available.

A

C1

E D

C2

B

Specifications

Adapter Type 40-20

Maximum Load 30 kN

Compatible

Frame

E45.105

A

B

C1

C2

D

E

Lock Nut

60(E)-20 60(E)-40

30 kN 100 kN

E45.305

C45.305

E45.305

C45.305

ø

40 mm

ø

60 mm

ø

60 mm

ø

20 mm

ø

20 mm

ø

40 mm

ø

18 mm

ø

28 mm

ø

28 mm

ø

10 mm

ø

10 mm

ø

18 mm

58 mm 80 mm 90 mm

98 mm 125 mm 150 mm

M45 × 2 M64 × 2 M64 × 2

20-D

30 kN

E42.503

E43.104

E44.104

E44.304

40-D

100 kN

E45.105

D-20

30 kN

D-40

100 kN

C41.103, C42.503, C41.103, C42.503,

C43.104, C43.304, C43.104, C43.304,

C44.304, C43.504, C44.304, C43.504,

C45.504, C45.105, C45.504, C45.105,

ø

20 mm

ø

40 mm

ø

31.75 mm

ø

31.75 mm

ø

31.75 mm

ø

20 mm

ø

10 mm

ø

18 mm

ø

12.83 mm

ø

12.83 mm

ø

12.83 mm

ø

10 mm

68.5 mm 91 mm 72.5 mm

109.5 mm

M24 × 1.5

142 mm

M45 × 2

103 mm

M35 × 1.5

ø

31.75 mm

ø

40 mm

ø

12.83 mm

ø

18 mm

89.5 mm

130 mm

M35 × 1.5

Tension Grips

Hydraulic Single Side-Action Grips

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials with proper grip force

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» A variety of gripping faces are available to suit specimens varying by shape, material and surface texture

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» Customized wider faces available (Except FDYA305A)

» Available for off-center specimen tests h h w w d d

Applicable Standards

Code Description

ASTM E8M-13 Standard test methods for tension testing of metallic materials

ISO 6892-1:2009 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

EN 10002-1:2001 Test methods for tensile testing of metallic materials

ASTM A370-10 Standard test methods and definitions for mechanical testing of steel products

ASTM E517-00 Standard test methods for plastic strain ratio of metal sheet

ASTM E646-07 Metallic materials – Sheet and strip – Determination of tensile strain hardening exponent

GB/T 228.1-2010 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Optional Faces

Model

Opening

Description Width Range

FDYA504A.03

Flat

FDYA504A.04

Vee

FDYA504A.05

Vee

FDYB105A.03

Flat

FDYB105A.04

Vee

FDYB105A.05

Vee

FDYA305A.01

Flat

FDYA305A.02

Vee

FDYA305A.03

Vee

FDYA305A.04

Vee

98 mm

98 mm

98 mm

100 mm

100 mm

0-28 mm

Compatible

Grip

FDYA504A

ø

4-

ø

12 mm FDYA504A

ø

12-

ø

20 mm FDYA504A

100 mm 0-28 mm

ø

4-

ø

12 mm FDYB105A

ø

12-

ø

28 mm FDYB105A

100 mm 0-36 mm

100 mm

100 mm

100 mm

FDYB105A

FDYA305A

ø

4-

ø

10 mm FDYA305A

ø

10-

ø

22 mm FDYA305A

ø

22-

ø

36 mm FDYA305A

Specifications

Model FDYA504A FDYB105A FDYA305A

Description

Rated Force

Temperature Range

Weight (Upper part)

50 kN Hydraulic single side-action grip

50 kN

Room temperature

Weight (Lower part)

Adapter Style (Upper part)

26 kg

26 kg

40 mm

Adapter Style (Lower part) 40 mm

Dimensions (h*w*d) (Upper part)

210 mm × 302 mm × 160 mm

Dimensions (h*w*d) (Lower part)

Application

Applicable Specimens

Compatible Frames

Maximum Input Pressure

210 mm × 302 mm × 160 mm

Tensile test

Metal, plastic

E45.105, E45.305

40 MPa

100 kN Hydraulic single side-action grip

100 kN

Room temperature

41 kg

41 kg

40 mm

40 mm

253 mm × 358 mm × 173 mm

253 mm × 358 mm × 173 mm

Tensile test

Metal, plastic

E45.105, E45.305

40 MPa

300 kN Hydraulic single side-action grip

300 kN

Room temperature

99 kg

99 kg

60 mm

60 mm

355 mm × 470 mm × 203 mm

355 mm × 470 mm × 203 mm

Tensile test

Metal, plastic

E45.305

40 MPa

7

Tension Grips

100 kN Hydraulic Double Side-Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» A variety of gripping faces are available to suit specimens varying by shape, material and surface texture

» Clamping ability on both sides; faces move synchronously to ensure accurate centering of specimens

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

Additional Information

The universal hydraulic tensile grip is applicable to tensile tests of metal plates and bars. The shortest distance between grips is

55 mm. Corresponding faces can be selected and changed according to the shape of the specimens.

w d

Applicable Standards

Code Description

ASTM E8M-13 Standard test methods for tension testing of metallic materials

ISO 6892-1:2009 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

EN 10002-1:2001

Test methods for tensile testing of metallic materials

ASTM A370-10 Standard test methods and definitions for mechanical testing of steel products

ASTM E517-00

ASTM E646-07

Standard test method for plastic strain ratio for sheet metal

Metallic sheet materials – Determination of tensile strain hardening exponent

GB/T 228.1-2010 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Optional Faces

Model

FDYA105B.02

FDYA105B.03

FDYA105B.04

Description

Flat

Vee

Vee

Diameter

50 mm

50 mm

50 mm

Opening Range

0-28 mm

ø

4-

ø

12 mm

ø

12-

ø

20 mm h h w d

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

FDYA105B

100 kN Hydraulic double side-action grip

100 kN

Room temperature

(Upper part) 60 kg/(Lower part) 60 kg

(Upper part) 40 mm/(Lower part) 40 mm

(Upper part) 245 mm × 380 mm × 221 mm

(Lower part) 245 mm × 380 mm × 221 mm

Application

Applicable Specimens

Tensile test

Metal; plastic

Compatible Frames E45.105, E45.305

Maximum Input Pressure 40 MPa

Tension Grips

10 N Pneumatic Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Threaded upper adapters are designed in small capacity grips or fixtures to reduce the preload of the load cell

» Corrosion resistant aluminum grips are lightweight and easy to operate

» Specimen center block allows for simple installation and centering of wire stock specimens

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

Additional Information

14 mm line contact clamping faces. The widest opening of the grip is 5 mm. Applicable to spandex specimens with a diameter of less than 0.2 mm.

Applicable Standards

Code Description

FZ/T 50007-2012 Testing method for elasticity of spandex filament yarns h

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

DQD101B

10 N Pneumatic vise action grip

10 N

Room temperature

(Upper part) 210 g/(Lower part) 420 g

(Upper part) M6x1.0/(Lower part) 20 mm

(Upper part) 108 mm × 51 mm × 66 mm

(Lower part) 132 mm × 51 mm × 66 mm

Application

Applicable Specimens

Tensile test

Spandex

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Maximum Input Pressure

0.8 MPa h w w d d

9

Tension Grips

100 N Pneumatic Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Corrosion resistant aluminum grips are lightweight and easy to operate

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» Specimen center block allows for simple installation and centering of wire stock specimens

Applicable Standards

Code Description

GB/T 1040.3-2006 Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

ISO 527-3:1995/C or 2:2001 Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

ASTM D1004-07

QB/T 1130-1991

Standard test method for tear resistance

(graves tear) of plastic film and sheeting

Plastics – Determination of tear strength –

Right-angle test pieces w

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Faces Surface Material

DQA102B

100 N Pneumatic vise action grip

100 N

Room temperature

(Upper part) 630 g/(Lower part) 630 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 141 mm × 60 mm × 60 mm

(Lower part) 141 mm × 60 mm × 60 mm

Tensile test, tear test

Plastic film, textile wire

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Rubber

Grip Opening

Faces Width

0-7 mm

25 mm

Maximum Input Pressure 0.8 MPa h h w d d

Tension Grips

Pneumatic Vise Action Grips

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Corrosion resistant aluminum grips are lightweight and easy to operate

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

Applicable Standards

Code Description

GB/T 1040.3-2006 Plastics – Determination of tensile properties – Part 3:

Test conditions for films and sheets

ISO 527-3:2003 Plastics – Determination of tensile properties – Part 3:

Test conditions for films and sheets

ASTM D1004-07 Standard test method for tear resistance (graves tear) of plastic film and sheeting

QB/T 1130-1991 Plastics – Determination of tear strength – Right-angle test pieces w d h

11 h

DQA102A DQA502A w d

Specifications

Model

Description

Rated Force

Temperature Range

Weight (Upper part)

Weight (Lower part)

Adapter Style (Upper part)

Adapter Style (Lower part)

Dimensions (h*w*d) (Upper part)

DQA102A

100 N Pneumatic vise action grip

100 N

Room temperature

380 g

380 g

20 mm

20 mm

DQA502A

500 N Pneumatic vise action grip

500 N

Room temperature

850 g

850 g

20 mm

20 mm

Dimensions (h*w*d) (Lower part)

Application

Applicable Specimen

Compatible Frames

Faces Surface Material

119 mm × 85 mm × 53 mm

119 mm × 85 mm × 53 mm

Tensile test, tear test

146 mm × 105 mm × 70 mm

146 mm × 105 mm × 70 mm

Tensile test, tear test

Plastic film, metal foil, rubber sheet

Grip Opening 0-3 mm

Faces Width

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

Rubber

22 mm

Rubber

0-6 mm

30 mm

Maximum Input Pressure 0.8 MPa 0.8 MPa

DQA103A

DQA103A

1 kN Pneumatic vise action grip

1 kN

Room temperature

1.1 kg

1.1 kg

20 mm

20 mm

155 mm × 114 mm × 84 mm

155 mm × 114 mm × 84 mm

Tensile test, tear test

Rubber

0-4 mm

32 mm

0.8 MPa

Tension Grips

2 kN Pneumatic Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grip faces are removable and can be customized to special size requirements

» Improved application performance with manual side face adjustment and adjustable clamping position inside the vise

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» Customizable wider faces

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» Corrosion resistant aluminum grips are lightweight and easy to operate

Applicable Standards

Code

ISO 527-3:1995

ASTM D882-10

GB/T 1040.3-2006

Description

Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

Standard test method for tensile properties of thin plastic sheeting

Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Driving Structure

Faces Surface Material

Grip Opening

Faces Width

Maximum Input Pressure

DQC203A

2 kN Pneumatic vise action grip

2 kN

Room temperature

(Upper part) 1.53 kg/(Lower part) 1.53 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 150 mm × 170 mm × 77 mm

(Lower part) 150 mm × 170 mm × 77 mm

Tensile test, tear test

Thin film, sheet, tearing specimen

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Double-action cylinder

Rubber

0-10 mm

30 mm

0.8 MPa w w h h d d

Tension Grips

3 kN Pneumatic Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

Additional Information

Minimum specimen length is 125 mm.

Applicable Standards

Code Description

GB/T 1040.3-2006 Plastics – Determination of tensile properties – Part 3:

Test conditions for films and sheets

ISO 527-3:2003 Plastics – Determination of tensile properties – Part 3:

Test conditions for films and sheet

ASTM D1004-07 Standard test method for tear resistance (graves tear) of plastic film and sheeting

QB/T 1130-1991 Plastics – Determination of tear strength – Right-angle test pieces

GB/T 16578.1-2008 Plastics – Film and sheeting – Determination of tear resistance – Part 1: Trouser tear method

ISO 6383-1:1983 Plastics – Film and sheeting – Determination of tear resistance – Part 1: Trouser tear method

GB/T 3923.1-2013 Textiles – Tensile properties of fabrics – Part 1:

Determination of maximum force and elongation at maximum force using the strip method

ISO 13934-1:1999 Textiles – Tensile properties of fabrics – Part 1:

Determination of maximum force and elongation at maximum force using the strip method

GB/T 13773.1-2008 Textiles – Seam tensile properties of fabrics and made-up textile articles – Part 1: Determination of maximum force to seam rupture using the strip method

ISO 13935-1:1999 Textiles – Seam tensile properties of fabrics and made-up textile articles – Part 1: Determination of maximum force to seam rupture using the strip method w d h h

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Maximum Input Pressure

Faces Surface Material

Grip Opening

Faces Width

DQC303A

3 kN Pneumatic vise action grip

3 kN

Room temperature

(Upper part) 6.72 kg/(Lower part) 6.72 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 175 mm × 182 mm × 118 mm

(Lower part) 175 mm × 182 mm × 118 mm

Tensile test, tear test

Textile fiber, plastic

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

0.8 MPa

Rubber

0-13 mm

70 mm w d

13

Tension Grips

5 kN Pneumatic Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping stable to avoid slipping failure and measurement inconsistency

» Lever structure designed to provide higher clamping force

» Optional faces with different specifications are available for a variety of specimens

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Maximum Input Pressure

DQC503C

5 kN Pneumatic vise action grip

5 kN

Room temperature

(Upper part) 4.78 kg/(Lower part) 4.78 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 151 mm × 200 mm × 120 mm

(Lower part) 151 mm × 200 mm × 120 mm

Tensile test, tear test

Textile fiber, plastic

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

0.8 MPa h h w w d d

Tension Grips

Applicable Standards

Code Description

GB/T 1040.3-2006 Plastics – Determination of tensile properties – Part 3: Test conditions for films and sheets

ISO 527-3:1995 Plastics – Determination of tensile properties – Part 3: Test conditions for films and sheets

ASTM D1004-07 Standard test method for tear resistance (graves tear) of plastic film and sheeting

QB/T 1130-1991 Plastics – Determination of tear strength – Right-angle test pieces

GB/T 16578.1-2008 Plastics – Film and sheeting – Determination of tear resistance – Part 1: Trouser tear method

ISO 6383-1:1983 Plastics – Film and Sheeting – Determination of tear resistance – Part 1: Trouser tear method

GB/T 3923.1-2013 Textiles – Tensile properties of fabrics – Part 1: Determination of maximum force and elongation at maximum force using the strip method

GB/T 3923.2-2013 Textiles – Tensile properties of fabrics – Part 2: Determination of maximum force using the grab method

ISO 13934-1:1999 Textiles – Tensile properties of fabrics – Part 1: Determination of maximum force and elongation at maximum force using the strip method

ISO 13934-2:1999 Textiles – Tensile properties of fabrics – Part 2: Determination of maximum force using the grab method

GB/T 13772.1-2008 Textiles – Determination of the slippage resistance of yarns at a seam in woven fabrics – Part 1: Fixed seam opening method

GB/T 13772.2-2008 Textiles – Determination of the slippage resistance of yarns at a seam in woven fabrics – Part 2: Fixed load method

ISO 13936-1:2004 Textiles – Determination of the slippage resistance of yarns at a seam in woven fabrics – Part 1: Fixed seam opening method

ISO 13936-2:2004 Textiles – Determination of the slippage resistance of yarns at a seam in woven fabrics – Part 2: Fixed load method

GB/T 13773.1-2008 Textiles – Seam tensile properties of fabrics and made-up textile articles – Part 1: Determination of maximum force to seam rupture using the strip method

GB/T 13773.2-2008 Textiles – Seam tensile properties of fabrics and made-up textile articles – Part 2: Determination of maximum force to seam rupture using the grab method

ISO 13935-1:1999

Textiles – Seam tensile properties of fabrics and made-up textile articles – Part 1: Determination of maximum force to seam rupture using the strip method

ISO 13935-2:1999 Textiles – Seam tensile properties of fabrics and made-up textile articles – Part 2: Determination of maximum force to seam rupture using the grab method

ASTM D1683-07

ASTM D5034-09

Standard test method for failure in sewn seams of woven apparel fabrics

Standard test method for breaking strength and elongation of textile fabrics (grab test)

Optional Faces

Model Description

DQC503C-05/07

DQC503C-06/08a

DQC503C-09/

DQA503C-15

Rubber

Corrugated & Trapezoidal

Rubber

DQC503C-09/

Rubber

DQA503C-14

DL13022.01

Diamond tip

* 25 mm x 50 mm grip is special for fabric grab method.

Width

60 mm

60 mm

25 mm

25 mm

50 mm*

60 mm

Opening Range

0-11.5 mm

0-6.5 mm

0-11.5 mm

0-11.5 mm

0-11.5 mm

15

Tension Grips

2 kN Pneumatic Capstan Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» Wound up specimen clamping to prevent stress concentration and damage out of test range

Additional Information

Minimum specimen length: 694 mm

Applicable Standards

Code

GB/T 30311-2013

Description

Test method for tensile properties of dipped aramid yarns and cords

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Faces

Maximum Specimen Diameter

Maximum Input Pressure

CQB203A

2 kN Pneumatic capstan grip

2 kN

Room temperature

(Upper part) 1.77 kg/(Lower part) 1.77 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 146 mm × 187 mm × 82 mm

(Lower part) 146 mm × 187 mm × 82 mm

Tensile test

Textile fibers, special fiber

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Corrugated

ø

3 mm

0.8 MPa h h w w d d

Tension Grips

3 kN Pneumatic Bollard Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials.

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» Wound up specimen clamping to prevent stress concentration and damage out of test range

Additional Information

Minimum specimen length: 532 mm

Applicable Standards

Code Description

GB/T 14344-2008 Testing method for tensile of man-made filament yarns

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

CQA303E

3 kN Pneumatic bollard grip

3 kN

Room temperature

(Upper part) 5 kg/(Lower part) 5 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 195 mm × 181 mm × 100 mm

(Lower part) 195 mm × 181 mm × 100 mm

Tensile test

Applicable Specimens

Compatible Frames

Textile fibers, special fiber

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Flat

Grip Opening

0-4

mm

Faces Width

20 mm

Maximum Input Pressure 0.8 MPa h h w w d d

17

Tension Grips

3 kN Pneumatic Bollard Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» Wound up specimen clamping to prevent stress concentration and damage out of test range

Additional Information

Minimum specimen length: 314 mm

Applicable Standards

Code

GB/T 14344-2008

GB/T 30311-2013

Description

Testing method for tensile of filament yarn

Test method for tensile properties of dipped aramid yarns and cords

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

DQB303A

3 kN Pneumatic bollard grip

3 kN

Room temperature

(Upper part) 2.82 kg/(Lower part) 2.82 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 159 mm × 156 mm × 111 mm

(Lower part) 159 mm × 156 mm × 111 mm

Application

Applicable Specimens

Compatible Frames

Maximum Input Pressure

Faces

Maximum Specimen Diameter

Tensile test

Textile fiber

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

0.8 MPa

Multi-slots

ø

4 mm h w w h d d

Tension Grips

Pneumatic Horn Grips

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Grips clamp onto the specimen with a same force for every test to minimize operator errors

» Adjustable pressure allows grips to test a variety of materials

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» Wound up specimen clamping to prevent stress concentration and damage out of test range

Applicable Standards

Code Description

GB/T 14344-2008

GB/T 19975-2005

Testing method for tensile of filament yarn

Test method of tensile properties for high tenacity filament yarn

GB/T 3916-1997

ISO 2062:1993

ISO 3341:2000

Textile package single yarn breaking strength and breaking elongation tests

Textiles – Yarns from packages – Determination of single-end breaking force and elongation at break

Textile glass – Yarns – Determination of breaking force and breaking elongation

GB 7690.3-2001 Reinforcements – Test method for yarns – Part 3:

Determination of breaking force and breaking elongation for glass fibre

ASTM D2343-1995

Standard test method for tensile properties of glass fiber strands, yarns, and rovings used in reinforced plastics w d h

19 h

CQA102A

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Faces

Maximum Specimen Diameter

Maximum Input Pressure

CQA502A w d

CQA102A

100 N Pneumatic horn grip

100 N

Room temperature

(Upper part) 700 g /(Lower part) 700 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 135 mm × 95 mm × 60 mm

(Lower part) 135 mm × 95 mm × 60 mm

Tensile test

Wire, cord

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

Flat

ø

2 mm

Flat

ø

1.5 mm

CQA502A

500 N Pneumatic horn grip

500 N

Room temperature

(Upper part) 625 g/(Lower part) 625 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 146 mm × 117 mm × 55 mm

(Lower part) 146 mm × 117 mm × 55 mm

Tensile test

Wire, cord

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

Tension Grips

Wedge Action Grips (Manual)

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Prevents slipping failure caused by the specimen shrinking

» The faces move synchronously allowing specimens to be clamped in the same position of the force axis center

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» High rigidity semi-closed structure enables a lighter and smaller grip to support a higher allowable load

» Flat faces depth-stop design for easy to center specimen positioning

Applicable Standards

XSA104B Code

ISO 527-2:1997

ASTM D638-08

GB/T 1040.3-2006

GB/T 1040.4-2006

GB/T 1040.5-2008

GB/T 228.1-2010

ISO 6892-1:2009

EN 10002-1:2001

ASTM A370-10

ASTM E517-00(2010)

ASTM E646-2007

XSD204B Code

ISO 527-2:1997

GB/T 228.1-2010

GB/T 10654-2001

GB/T 2651-2008

GB/T 2652-2008

GB/T 1040.3-2006

GB/T 1040.4-2006

ISO 6892-1:2009

EN 10002-1:2001

ASTM A370-10

ASTM E517-00(2010)

ASTM E646-2007

Description

Plastics – Determination of tensile properties – Part 2: Test conditions for moulding and extrusion plastics

Standard test method for tensile properties of plastics (this standard is also available for XSA204B)

Plastics – Determination of tensile properties – Part 3: Test conditions for films and sheets

Plastics – Determination of tensile properties – Part 4: Test conditions for isotropic and orthotropic fibre-reinforced plastic composites

Plastics – Determination of tensile properties – Part 5: Test conditions for unidirectional fibre-reinforced plastic composites

Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Test methods for tensile testing of metallic materials

Standard test methods and definitions for mechanical testing of steel products

Standard test method for plastic strain ratio for sheet metal

Standard test method for tensile strain – Hardening exponents (n-values) of metallic sheet materials

Description

Plastics – Determination of tensile properties – Part 2: Test conditions for moulding and extrusion plastics

Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Flexible cellular polymeric materials – Determination of tensile strength and elongation at break

Tensile test method on welded joints

Tensile test methods on weld and deposited metal

Plastics – Determination of tensile properties – Part 3: Test conditions for films and sheets

Plastics – Determination of tensile properties – Part 4: Test conditions for isotropic and orthotropic fibre-reinforced plastic composites

Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Test methods for tensile testing of metallic materials

Standard test methods and definitions for mechanical testing of steel products

Standard test method for plastic strain ratio for sheet metal

Standard test method for tensile strain – Hardening exponents (n-values) of metallic sheet materials

Optional Faces

Models

XSD204B-09

XSD204B-10

XSD204B-11

XSD204B-12

XSA204B-14/15

XSA204B-17

XSA204B-18

Description

Flat (sawtooth)

Flat (sawtooth)

Vee

Vee

File

Flat (sawtooth, coarse)

Flat (sawtooth, coarse)

Width

40 mm

40 mm

40 mm

40 mm

18 mm

40 mm

40 mm

Opening Range

0-6 mm

6-12 mm

ø

4-

ø

9 mm

ø

9-

ø

14 mm

0-6 mm (

ø

1-

ø

3 mm steel wire specimen)

0-6 mm

6-12 mm

Compatible Grip

XSD204B

XSD204B

XSD204B

XSD204B

XSD204B

XSD204B

XSD204B

Tension Grips

Wedge Action Grips (Manual) h w d h

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

w d

XSA104B

10 kN Wedge action grip

10 kN

Room temperature

(Upper part) 3.08 kg/(Lower part) 3.14 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 167 mm × 104 mm × 120 mm

(Lower part) 176 mm × 104 mm × 120 mm

Tensile test

Plate

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

XSD204B

20 kN Wedge action grip

20 kN

Room temperature

(Upper part) 3.96 kg/(Lower part) 4.03 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 167 mm × 113 mm × 154 mm

(Lower part) 175 mm × 113 mm × 154 mm

Tensile test

Bar, plate

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

21

Tension Grips

20 kN Wedge Action Grip (Manual)

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Corrosion resistant stainless grips can test in temperatures of –70°C to 350°C

» Prevents slipping failure caused by the specimen shrinking

» The faces move synchronously allowing specimens to be clamped in the same position of the force axis center

» Optional faces with different specifications are available for a variety of specimens, upon request

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» High rigidity semi-closed structure enables a lighter and smaller grip to support a higher allowable load

» Fast and accurate specimen center force axis positioning with centering device w d

Applicable Standards

Code Description

GB/T 1040.4-2006 Plastics – Determination of tensile properties – Part 4:

Test conditions for isotropic and orthotropic fibre-reinforced plastic composites

ASTM E8M-2013 Standard test methods for tension testing of metallic materials

ISO 6892-1:2009 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

EN 10002-1:2001 Test methods for tensile testing of metallic materials

ASTM A370-10 Tensile test method for metallic materials

ASTM E517-2000 Standard test method for plastic strain ratio for sheet metal

ASTM E646-2007 Standard test method for tensile strain – Hardening exponents (n-Values) of metallic sheet materials

GB/T 228.1-2010 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

ISO 527-2:1997

Plastics – Determination of tensile properties – Part 2:

Test conditions for moulding and extrusion plastics

GB/T 1040.2-2006 Plastics – Determination of tensile properties – Part 2:

Test conditions for moulding and extrusion plastics

Optional Faces

Model Description

XSB204B-09

XSB204B-10

Flat

Flat

XSB204B-11 Vee

XSB204B-12 Vee

Width Opening Range

40 mm 0-6 mm

40 mm 6-12 mm

ø

4-

ø

9 mm

ø

9-

ø

14 mm w h h d

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

XSB204B

20 kN Wedge action grip

20 kN

–70°C to 350°C

(Upper part) 2.37 kg/(Lower part) 2.45 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 156 mm × 145 mm × 82 mm

(Lower part) 156 mm × 145 mm × 101 mm

Application Tensile test

Applicable Specimens Bar, plate

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Tension Grips

20 kN Wedge Action Grip (Manual)

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Corrosion resistant stainless grips can test in temperatures of

–70°C to 350°C

» Prevents slipping failure caused by the specimen shrinking

» The faces move synchronously allowing specimens to be clamped in the same position of the force axis center

» Optional faces with different specifications are available for a variety of specimens, upon request

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» High rigidity semi-closed structure enables a lighter and smaller grip to support a higher allowable load

Applicable Standards

Code Description

ASTM E8/E8M-13a Standard test methods for tension testing of metallic materials

ISO 6892-1:2009 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

EN 10002-1:2001

Test methods for tensile testing of metallic materials

ASTM A370-10 Standard test methods and definitions for mechanical testing of steel products

ASTM E517-00(2010) Standard test method for plastic strain ratio for sheet metal

ASTM E646-2007

Standard test method for tensile strain – Hardening exponents (n-values) of metallic sheet materials

GB/T 228.1-2010

Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Optional Faces

Model

XSF204A-13a

XSF204A-14a

XSF204A-15a

XSF204A-16a

Description

Flat

Flat

Vee

Vee

Width

40 mm

40 mm

40 mm

40 mm h h

Opening Range

0-6 mm

6-12 mm

ø

4-

ø

9 mm

ø

9-

ø

14 mm w

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames d d

XSF204A

20 kN Wedge action grip

20 kN

–70°C to 350°C

(Upper part) 5.05 kg/(Lower part) 5.05 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 196 mm × 172 mm × 172 mm

(Lower part) 196 mm × 172 mm × 172 mm

Tensile test

Plate, bar

E44.104, E44.304, E45.105, E45.305

23

Tension Grips

Wedge Action Grips (Manual)

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Prevents slipping failure caused by the specimen shrinking

» The faces move synchronously allowing specimens to be clamped in the same position of the force axis center

» Optional faces with different specifications are available for a variety of specimens, upon request

» Flat faces depth-stop design for easy to center specimen positioning

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» High rigidity semi-closed structure enables a lighter and smaller grip to support a higher allowable load

Applicable Standards

Code Description

ASTM E8/E8M-13a Standard test methods for tension testing of metallic materials

ISO 6892-1:2009 Metallic materials – Tensile testing – Part 1:Method of test at room temperature

EN 10002-1:2001

Test methods for tensile testing of metallic materials

ASTM A370-10 Standard test methods and definitions for mechanical testing of steel products

ASTM E517-00(2010) Standard test method for plastic strain ratio for sheet metal

ASTM E646-2007 Standard test method for tensile strain – Hardening exponents (n-values) of metallic sheet materials

GB/T 228.1-2010 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Optional Faces

Model

XSA105A-13

XSA105A-14

XSA105A-15

XSA105A-16

XSA105A-17

XSA105A-18

XSA105A-19/20

XSA305A-14A

XSA305A-15A

XSA305A-16A

XSA305A-17A

XSA305A-18A

XSA305A-19A

XSA305A-20A

XSA305A-21A

XSA305A-23/24

Description

Vee

Vee

Vee

File

Flat

Flat

Flat

Vee

Vee

Vee

File

Flat

Flat

Flat

Flat

Vee

Width

50 mm

50 mm

50 mm

50 mm

50 mm

50 mm

50 mm

18 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

18 mm

50 mm

Opening Range

0-7 mm

7-14 mm

14-21 mm

ø

4-

ø

9 mm

ø

9-

ø

14 mm

ø

14-

ø

19 mm

0-7 mm (

ø

1-

ø

3 mm steel wire specimen)

0-8 mm

8-16 mm

16-24 mm

24-32 mm

ø

4-

ø

9 mm

ø

9-

ø

16 mm

ø

16-

ø

23 mm

ø

23-

ø

30 mm

0-8 mm (

ø

1-

ø

4 mm steel wire specimen)

Compatible Grip

XSA304A

XSA304A

XSA304A

XSA304A

XSA105A

XSA105A

XSA105A

XSA105A

XSA304A

XSA304A

XSA105A

XSA105A

XSA304A

XSA305A

XSA105A

XSA305A

XSA305A

XSA305A

XSA305A

XSA305A

XSA305A

XSA305A

XSA305A

Tension Grips

Wedge Action Grips (Manual) h w d

25 h

XSA304A

XSA105A

XSA305A w d

Specifications

Model

Description

Rated Force

Temperature Range

Weight (Upper part)

Weight (Lower part)

Adapter Style (Upper part)

Adapter Style (Lower part)

Dimensions (h*w*d) (Upper part)

Dimensions (h*w*d) (Lower part)

Application

Applicable Specimens

Compatible Frames

XSA304A

30 kN Wedge action grip

30 kN

Room temperature

7.44 kg

7.44 kg

20 mm

20 mm

233 mm × 247 mm × 70 mm

233 mm × 247 mm × 70 mm

Tensile test

Plate, bar

E44.104, E44.304, E45.105, E45.305

XSA105A

100 kN Wedge action grip

100 kN

Room temperature

14.7 kg

14.7 kg

40 mm

40 mm

304 mm × 370 mm × 90 mm

304 mm × 370 mm × 90 mm

Tensile test

Plate, bar

E45.105, E45.305

XSA305A

300 kN Wedge action grip

300 kN

Room temperature

35.6 kg

35.6 kg

60 mm

60 mm

350 mm × 400 mm × 130 mm

350 mm × 400 mm × 130 mm

Tensile test

Plate, bar

E45.305

Tension Grips

1 kN Screw Action Grips

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Optional faces with different specifications are available for a variety of specimens, upon request

» Provides the highest clamping force of all the manual grips

» Improved application performance with manual side face adjustment and adjustable clamping position inside the vise

Applicable Standards

Code Description

ISO 527-2:1997 Plastics – Determination of tensile properties –

Part 2: Test conditions for moulding and extrusion

ISO 527-3:1995 Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

ASTM D638-08 Standard test method for tensile properties of plastics

ASTM D882-10 Standard test method for tensile properties of thin plastic sheeting

GB/T 1040.2-2006 Plastics – Determination of tensile properties – Part 2:

Test conditions for moulding and extrusion plastics

GB-T 1040.3-2006 Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

Optional Faces

Model Description Width

DSA103B-02 Smooth metal surface

DSA103B-02A Saw-tooth

26 mm

26 mm

Opening Range

0-12 mm

0-12 mm h w w h d d

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

DSA103B

1 kN Screw action grip

1 kN

Room temperature

(Upper part) 0.83 kg/(Lower part) 0.91 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 98 mm × 106 mm × 40 mm

(Lower part) 111 mm × 106 mm × 40 mm

Tensile test, tear test, peel test, shear test

Metal wire, foil, plastic plate, sheet

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Tension Grips

Screw Action Grips

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» Customizable wider faces

Additional Information

DSA303B: The custom manual tensile grip is applicable to tensile properties grab tests of textile fabric. Grip specifications: 25 x

25 mm, 25 x 50 mm. Flat sticky rubber.

DSA503B: The universal manual tensile grip is applicable to tensile tests of specimens with various specifications. Grips feature either square or multiple wave-form faces. Height is 30 mm.

Optional Faces

Model Description H x W

Opening Compatible

Range Grip

DSA503B-05A/06A Sawtooth 30 x 70 mm 0-12 mm DSA503B

DSA503B-05B/06B Corrugated 32 x 30 mm 0-10 mm DSA503B

DSA503B-05C/06C Corrugated 32 x 70 mm 0-10 mm DSA503B h h w w d d

Applicable Standards

DSA303B Code Description DSA503B Code Description

GB/T 3923.2-2013 Textiles – Tensile properties of fabrics – Part 2: Determination ISO 527-2:1997 Plastics – Determination of tensile properties – Part 2: of maximum force using the grab method Test conditions for moulding and extrusion plastics

GB/T 13773-92

Woven fabric and its products – Testing method for seam strength and seam efficiency

ISO 13934-2:1999 Textiles – Tensile properties of fabrics – Part 2:

Determination of maximum force using the grab method

ISO 13935-2:1999 Textiles – Seam tensile properties of fabrics and made-up textile articles – Part 2: Determination of maximum force to seam rupture using the grab method

ASTM D638-08

Standard test method for tensile properties of plastics

GB/T 10808-2006 Flexible cellular polymeric materials – Determination of tear strength

ASTM D882-10

Standard test method for tensile properties of thin plastic sheeting

ASTM D5034-09 Standard test method for breaking strength and elongation of textile fabrics (grab test)

ASTM D1683-07 Standard test method for failure in sewn seams of woven apparel fabrics

GB/T 6759-2002 Textile conveyor belts – Adhesive strength between constitutive elements – Test methods

GB/T 1040.1-2006 Plastics – Determination of tensile properties –

Part 1: General principles

GB/T 1040.3-2006 Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

GB/T 1040.4-2006 Plastics – Determination of tensile properties –

Part 4: Test conditions for isotropic and orthotropic fibre-reinforced plastic composites

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

DSA303B

3 kN Screw action grip

3 kN

Room temperature

(Upper part) 2.46 kg/(Lower part) 2.46 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 154 mm × 143 mm × 50 mm

(Lower part) 154 mm × 143 mm × 50 mm

Grab test

Textile

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

DSA503B

5 kN Screw action grip

5 kN

Room temperature

(Upper part) 1.51 kg/(Lower part) 1.51 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 135 mm × 110 mm × 70 mm

(Lower part) 135 mm × 110 mm × 70 mm

Tensile test, tear test

Plate, sheet, tearing specimen

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

27

Tension Grips

10 kN Screw Action Grips

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Optional faces with different specifications are available for a variety of specimens, upon request

» Improved application performance with manual side face adjustment and adjustable clamping position inside the vise

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» Customizable wider faces

» Fast and accurate specimen center force axis positioning with centering device

Optional Faces

Code

Opening Compatible

Description Width Range Grip

DSA104B-09/11 Sawtooth

DSA104B-10 Corrugated

DSA104B-12 Corrugated

34 mm

34 mm

72 mm

0-14 mm

0-13 mm

0-13 mm

DSA503B

DSA503B

DSA503B

Additional Information

DSC104B:

Corrosion resistant stainless grips can test in temperatures of –70°C to 350°C

Applicable Standards

Code Description

ISO 527-2:1997

Plastics – Determination of tensile properties – Part 2:

Test conditions for moulding and extrusion plastics

ISO 527-3:1995

ASTM D638-08

Plastics – Determination of tensile properties – Part 3:

Test conditions for films and sheets

Standard test method for tensile properties of plastics

GB/T 1040.2-2006

Plastics – Determination of tensile properties – Part 2:

Test conditions for moulding and extrusion plastics

GB/T 7124-2008 Adhesives – Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies

GB/T 10808-2006

Flexible cellular polymeric materials – Determination of tear strength

GB/T 1040.3-2006 Plastics – Determination of tensile properties – Part 3:

Test conditions for films and sheets

GB/T 1040.4-2006

Plastics – Determination of tensile properties – Part 4:

Test conditions for isotropic and orthotropic fibre-reinforced plastic composites h w w d d h

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

DSA104B

10 kN Screw action grip

10 kN

Room temperature

(Upper part) 1.9 kg/(Lower part) 1.97 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 117 mm × 123 mm × 48 mm

(Lower part) 127 mm × 123 mm × 48 mm

Application

Applicable Specimens

Compatible Frames

DSC104B

10 kN Screw action grip, SST

10 kN

–70°C to 350°C

(Upper part) 1.87 kg/(Lower part) 1.87 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 127 mm × 123 mm × 48 mm

(Lower part) 127 mm × 123 mm × 48 mm

Tensile test, tear test, peel test, shear test

Plastic plate, tearing specimen, shearing specimen

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

Tension Grips

10 kN Screw Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» The switching structure allows faces to be moved synchronously or separately

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

Applicable Standards

Code

GB/T 17657-2013

Description

Test methods of evaluating the properties of wood-based panels and surface decorated wood-based panels

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Faces

Grip Opening

Faces Width

DSB104B

10 kN Screw action grip

10 kN

Room temperature

(Upper part) 3.92 kg/(Lower part) 3.92 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 148 mm × 174 mm × 84 mm

(Lower part) 148 mm × 174 mm × 84 mm

Tensile test

Wood-based panels

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Sawtooth

0-25 mm

60 mm h h w w d d

29

Tension Grips

10 kN Screw Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Optional faces with different specifications are available for a variety of specimens, upon request

» The switching structure allows faces to be moved synchronously or separately

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» Customizable wider faces

» Fast and accurate specimen center force axis positioning with centering device

Applicable Standards

Code Description

GB/T 228.1-2010 Metallic materials – Tensile testing – Part 1: Method of test at room temperature

ASTM E8-2004 Standard test methods for tension testing of metallic materials

ISO 6892-1:2009 Metallic materials – Tensile testing – Part 1:

Method of test at room temperature

GB/T 1040.2-2006 Plastics – Determination of tensile properties – Part 2:

Test conditions for moulding and extrusion plastics

ASTM D638-08 Standard test method for tensile properties of plastics

ISO 527-2:1997 Plastics – Determination of tensile properties – Part 2:

Test conditions for moulding and extrusion plastics h

Optional Faces (Jaws)

Model Description

DX104A-07

DX104A-07a

Flat (sawtooth)

Flat (SiC coating)

DX104A-23 Vee

DX104A-24 Vee

Width

40 mm

40 mm

Opening Range

0-20 mm

0-20 mm

ø

4-

ø

9 mm

ø

9-

ø

14 mm h w w d d

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

DX104A

10 kN Screw action grip

10 kN

Room temperature

(Upper part) 9.80 kg/(Lower part) 9.80 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 164 mm × 250 mm × 72 mm

(Lower part) 164 mm × 250 mm × 72 mm

Tensile test

Metal plate, sheet, plastic plate, sheet

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Tension Grips

20 kN Screw Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Calibration line provides reference for specimen positioning

» Improved textile tension performance with high rigidity faces, customizable upon request

Applicable Standards

Code

GB/T 15788-2005

Description

Geo-textiles and Geo-textile-related products –

Wide-width tensile test

Specifications

Model

Description

Rated Force

Temperature Range

Weight

DSA204B

20 kN Screw action grip

20 kN

Room temperature

(Upper part) 15.61 kg/(Lower part) 15.61 kg

Adapter Style

Dimensions (h*w*d)

Application

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 156 mm × 210 mm × 174 mm

(Lower part) 156 mm × 210 mm × 174 mm

Tensile test

Applicable Specimens

Geo-textile

Compatible Frames E43.104, E44.104, E44.304, E45.105, E45.305

Faces Corrugated

Grip Opening

Faces Width

0-10 mm

210 mm h h w w d d

31

Tension Grip

1 kN Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» High efficiency clamping performance for thin specimens

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» High rigidity semi-closed structure enables a lighter and smaller grip to support a higher allowable load

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

DSE103B

1 kN Vise action grip

1 kN

Room temperature

(Upper part) 1.21 kg/(Lower part) 1.21 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 143 mm × 105 mm × 50 mm

(Lower part) 143 mm × 105 mm × 50 mm

Application

Applicable Specimens

Compatible Frames

Tensile test

Sheath of cable

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Surface Material Corrugated

Grip Opening

Faces Width

0-6 mm

22 mm h h w w d d

Tension Grips

5 kN Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Calibration line provides reference for specimen positioning

» Improved textile tension performance with high rigidity faces, customizable upon request

» High efficiency clamping performance for thin specimens

Applicable Standards

Code

GB/T 7689.5-2013

ISO 4606:1995

Description

Reinforcements – Test method for woven fabrics – Part 5: Determination of glass fiber tensile breaking force and elongation at break

Textile glass-woven fabric – Determination of tensile breaking force and elongation at break by the strip method

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

ZDA503

5 kN Vise action grip

5 kN

Room temperature

(Upper part) 1.73 kg/(Lower part) 1.83 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 110 mm × 110 mm × 90 mm

(Lower part) 120 mm × 110 mm × 90 mm

Application

Applicable Specimens

Tensile test

Fiberglass mesh

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Surface Material Rubber

Grip Opening

Faces Width

0-10 mm

65 mm h h w w d d

33

Tension Grips

Vise Action Grips

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Improved textile tension performance with high rigidity faces, customizable upon request

» High efficiency clamping performance for thin specimens h w w d d h

Applicable Standards

DSD503A Code

ASTM D5035-2011

ISO 13937-2:2000

GB/T 3917.2-2009

GB/T 1040.3-2006

DSA303A Code

ASTM D5035-2011

ISO 13937.2:2000

GB/T 3917.2-2009

GB/T 1040.3-2006

Description

Standard test method for breaking force and elongation of textile fabrics (strip method)

Textiles – Tear properties of fabrics – Determination of tear force of trouser-shaped test specimens (single tear method)

Textiles – Tear properties of fabrics – Part 2: Determination of tear force of trouser-shaped test specimens (single tear method)

Plastics – Determination of tensile properties – Part 3: Test conditions for films and sheets

Description

Standard test method for breaking force and elongation of textile fabrics (strip method)

Textiles – Tear properties of fabrics – Determination of tear force of trouser-shaped test specimens (single tear method)

Textiles – Tear properties of fabrics – Part 2: Determination of tear force of trouser-shaped test specimens (single tear method)

Plastics – Determination of tensile properties – Part 3: Test conditions for films and sheets

ZDA303 Code

GB/T 328.8-2007

K203A Code

GB/T 2951.1-1997

Description

Methods for building sheets for waterproofing – Part 8: Bitumen sheets for waterproofing-tensile properties

Description

Common test methods for insulating and sheathing materials of electric cables – Part 1: Methods for general application section – One:

Measurement of thickness and overall dimensions – Tests for determining the mechanical properties

Tension Grips

Vise Action Grips

K203A ZDA303 DSA303A DSD503A

Specifications

Model

Description

Rated Force

Temperature Range

Weight (Upper part)

Weight (Lower part)

Adapter Style (Upper part)

Adapter Style (Lower part)

Dimensions (h*w*d) (Upper part)

Dimensions (h*w*d) (Lower part)

Application

Applicable Specimens

Compatible Frames

Faces

Grip Opening

Faces Width

K203A

2 kN Vise action grip

2 kN

Room temperature

0.6 kg

0.6 kg

20 mm

20 mm

ZDA303

3 kN Vise action grip

3 kN

Room temperature

1.99 kg

2.06 kg

20 mm

20 mm

DSA303A

3 kN Vise action grip

3 kN

Room temperature

2.35 kg

2.35 kg

20 mm

20 mm

DSD503A

5 kN Vise action grip

5 kN

Room temperature

2.17 kg

2.28 kg

20 mm

20 mm

91 mm × 60 mm × 78 mm

91 mm × 60 mm × 78 mm

Tensile test

Sheath of cable

0-10 mm

32 mm

110 mm × 145 mm × 135 mm 115 mm × 202 mm × 111 mm

119 mm × 145 mm × 135 mm 115 mm × 202 mm × 111 mm

Tensile test, tear test

Asphalt, waterproof roll

Tensile test, tear test

Textile

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

Corrugated Trapezoidal & Corrugated Corrugated

0-12 mm

80 mm

0-10 mm

75 mm

116 mm × 120 mm × 135 mm

126 mm × 120 mm × 135 mm

Tensile test, tear test

Textile

Corrugated

0-12 mm

80 mm

35

Tension Grips

20 N Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Threaded upper adapters are designed in small capacity grips or fixtures to reduce the preload of the load cell

» Prevents slipping failure caused by the specimen shrinking and high preload

Applicable Standards

Code Description

FZ/T 50006-2013 Testing method for tenacity of spandex filament yarns

FZ/T 50007-2012 Testing method for elasticity of spandex filament yarns

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

DSA201A

20 N Vise action grip

20 N

Room temperature

(Upper part) 60 g/(Lower part) 750 g

(Upper part) M6×1 (Lower part) 20 mm

(Upper part) 96 mm × 24 mm × 12 mm

(Lower part) 150 mm × 86 mm × 40 mm

Tensile test

Spandex

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Flat

Maximum Specimen Diameter

ø

0.2 mm h w w d d h

Tension Grips

500 N Vise Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» High efficiency clamping performance for thin specimens

» Better test performance with quick acting U-shaped grips that allow specimen loading from the side

» High rigidity semi-closed structure enables a lighter and smaller grip to support a higher allowable load

Applicable Standards

Code

ISO 527-3:1995

ASTM D882-10

GB/T 1040.3-2006

Description

Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

Standard test method for tensile properties of thin plastic sheeting

Plastics – Determination of tensile properties –

Part 3: Test conditions for films and sheets

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

DSA502A

500 N Vise action grip

500 N

Room temperature

(Upper part) 500 g/(Lower part) 580 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 96 mm × 56 mm × 56 mm

(Lower part) 105 mm × 56 mm × 56 mm

Application

Applicable Specimens

Compatible Frames

Tensile test, tear test

Thin film, sheet, tearing specimen

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Surface Material Rubber

Grip Opening 0-5 mm

Faces Width 32 mm h h w w d d

37

Tension Grips

100 kN Shoulder Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Created for specimens with shoulder-end

» No slipping failure for materials with higher hardness

Additional Information

The shoulder blocks can be customized and changed for specimens with different dimensions, according to ASTM A370 -03a.

Applicable Standards

Code

ASTM A370-10

GB/T 228.1-2010

Description

Standard test methods and definitions for mechanical testing of steel products

Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Recommended Specimen Specifications

ø 30 mm ø 20.5 mm

0-

ø

15 mm h w w d d h

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

TB105A

100 kN Shoulder grip

100 kN

Room temperature

(Upper part) 9.12 kg/(Lower part) 9.75 kg

(Upper part) 40 mm/(Lower part) 40 mm

(Upper part) 173 mm × 115 mm × 108 mm

(Lower part) 192 mm × 115 mm × 108 mm

Tensile test

Metal bar shoulder specimen

E45.105, E45.305

Tension Grips

300 kN Shoulder Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Designed for specimens with shoulder-end

» No slipping failure for materials with higher hardness

Additional Information

The shoulder blocks can be customized and changed for specimens with different dimensions, according to ASTM A370 -03a.

Applicable Standards

Code Description

ASTM A370-10 Standard test methods and definitions for mechanical testing of steel products

GB/T 228.1-2010 Metallic materials – Tensile testing – Part 1: Method of test at room temperature h

Recommended Specimen Specifications for Optional Shoulder Blocks

Shoulder

Block d(mm) D(mm) D1(mm) h(mm) h1(mm) h2(mm L(mm) Fmax(kN)

TA305A-05

6 13 8 6 4 3 36 30

TA305A-06

TA305A-07 10

TA305A-08 15

20

28

13

0

– 0.1

18

0

– 0.1

TA305A-09 20 36 24

0

– 0.1

10

15

20

5

7.5

10

4

4

5

60

90

120

100

200

300 h2

ød

L w w d d h

øD1 h1 h

øD

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

TA305A

300 kN Shoulder grip

300 kN

Room temperature

(Upper part) 11.8 kg/(Lower part) 13 kg

(Upper part) 60 mm/(Lower part) 60 mm

(Upper part) 204 mm × 120 mm × 116 mm

(Lower part) 227 mm × 120 mm × 116 mm

Tensile test

Specimens of metallic bar with shoulder

E45.305

39

Tension Grips

2 kN Scissor Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Improved performance with preloaded springs on soft material tension test with high efficiency and large tracking space

» Prevents slipping failure caused by the specimen shrinking and high preload

Applicable Standards

Code Description

ASTM D412-06a(2013) Standard test methods for vulcanized rubber and thermoplastic elastomers – tension

ASTM D624-2007 Standard test method for tear strength of conventional vulcanized rubber and thermoplastic elastomers

GB/T 528-2009

GB/T 529-2008

Rubber – vulcanized or thermoplastic – Determination of tensile stress-strain properties

Rubber – vulcanized or thermoplastic – Determination of tear strength (trouser, angle and crescent test pieces)

GB 7543-2006 Single-use sterile rubber surgical gloves – Specifications

GB/T 6759-2002 Textile conveyor belts – Adhesive strength between constitutive elements – Test methods

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

GD203A

2 kN Scissors action grip

2 kN

Room temperature

(Upper part) 0.44 kg/(Lower part) 0.53 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 102 mm × 104 mm × 46 mm

(Lower part) 114 mm × 104 mm × 46 mm

Application

Applicable Specimens

Tensile test, tear test

Rubber; sheet

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Sawtooth

Grip Opening

0-10 mm

Faces Width 30 mm h h w w d d

Tension Grips

5 kN Scissor Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Improved performance with preloaded springs on soft material tension test with high efficiency and large tracking space

» Prevents slipping failure caused by the specimen shrinking and high preload

Applicable Standards

Code Description

ASTM D412-06a(2013) Standard test methods for vulcanized rubber and thermoplastic elastomers – tension

ASTM D624-2007

Standard test method for tear strength of conventional vulcanized rubber and thermoplastic elastomers

GB/T 528-2009

GB/T 529-2008

Rubber – vulcanized or thermoplastic – Determination of tensile strength-strain properties

Rubber – vulcanized or thermoplastic – Determination of tear strength (trouser, angle and crescent test pieces)

GB 7543-2006 Single-use sterile rubber surgical gloves – Specifications

GB/T 6759-2002 Textile conveyor belts – Adhesive strength between constitutive elements – Test methods

GB/T 10654-2001 Flexible cellular polymeric materials – Determination of tensile strength and elongation at break

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

GD503A

5 kN Scissors action grip

5 kN

Room temperature

(Upper part) 1.41 kg/(Lower part) 1.51 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 146 mm × 146 mm × 72 mm

(Lower part) 156 mm × 146 mm × 72 mm

Application

Applicable Specimens

Tensile test, tear test

Rubber, sheet

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Sawtooth

Grip Opening

0-12 mm

Faces Width 40 mm h h w w d d

41

Tension Grips

100 kN Thread Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Recommended for threaded-head products or materials with higher hardness

Applicable Standards

Code

GB/T 228.1-2010

Description

Metallic materials – Tensile testing – Part 1: Method of test at room temperature

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Specimen Screw

ZLA105A

100 kN Thread grip

100 kN

Room temperature

(Upper part) 2.67 kg/(Lower part) 2.67 kg

(Upper part) 40 mm/(Lower part) 40 mm

(Upper part) 182 mm × 72 mm × 72 mm

(Lower part) 182 mm × 72 mm × 72 mm

Tensile test

Threaded end tension specimen

E45.105, E45.305

M12x1.75

h h w d w d

Tension Grips

500 N Bollard Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

» Provides the highest clamping force of all the manual grips

Additional Information

Specimen length should be more than 176 mm to easily twine and clamp to the grip.

Applicable Standards

Code

GB/T 19975-2005

Description

Test method of tensile properties for high tenacity filament yarn

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Faces Flat

Maximum Specimen Diameter

ø

0.5 mm

CB502B

500 N Bollard grip

500 N

Room temperature

(Upper part) 0.87 kg/(Lower part) 0.87 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 126 mm × 81 mm × 42 mm

(Lower part) 126 mm × 81 mm × 42 mm

Tensile test

Wire, cord

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h h w w d d

43

Tension Grips

2 kN Bollard Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

Applicable Standards

Code

ASTM E8/E8M-13a

Description

Standard test methods for tension testing of metallic materials

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

CA203A

2 kN Bollard grip

2 kN

Room temperature

(Upper part) 2.02 kg/(Lower part) 2.02 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 156 mm × 120 mm × 46 mm

(Lower part) 156 mm × 120 mm × 46 mm

Application

Applicable Specimens

Compatible Frames

Tensile test

Steel Wire

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces File

Grip Opening

Faces Width

0-4 mm

20 mm h h w w d d

Tension Grips

5 kN Bollard Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

Additional Information

Specimen length should be more than 335 mm to easily twine and clamp to the grip.

Applicable Standards

Code Description

GB/T 14344-2008 Testing method for tensile of man-made filament

GB/T 19975-2005 Test method of tensile properties for high tenacity filament yarn

GB/T 3916-1997 Textile package single yarn breaking strength and breaking elongation tests

ISO 2062:1993

Textiles – Yarns from packages – Determination of single-end breaking force and elongation at break

ISO 3341:2000 Textile glass – Yarns – Determination of breaking force and breaking elongation

GB 7690.3-2001

Reinforcements – Test method for yarns – Part 3:

Determination of breaking force and breaking elongation for glass fibre

ASTM D2343-1995 Standard test method for tensile properties of glass fiber strands, yarns, and rovings used in reinforced plastics

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

CH503A

5 kN Bollard grip

5 kN

Room temperature

(Upper part) 1.6 kg/(Lower part) 1.6 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 166 mm × 119 mm × 52 mm

(Lower part) 166 mm × 119 mm × 52 mm

Tensile test

Wire, cord

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Surface Material Rubber

Grip Opening

Faces Width

0-5 mm

15 mm h w w h d d

45

Tension Grips

5 kN Bollard Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

Applicable Standards

Code

GB/T 21825-2008

Description

Glass fibre geo-grid

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Faces

Grip Opening

Faces Width

CD503B

5 kN Bollard grip

5 kN

Room temperature

(Upper part) 2.96 kg/(Lower part) 2.96 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 177 mm × 160 mm × 51 mm

(Lower part) 177 mm × 160 mm × 51 mm

Tensile test

Fiberglass geogrid

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Diamond tip

0-7 mm

30 mm h h w w d d

Tension Grips

5 kN Bollard Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

» Increase clamping force by winding the specimen around the movable part of the grip

Additional Information

Specimen length should be more than 720 mm to easily twine and clamp to the grip.

Applicable Standards

Code

ASTM E8/E8M-13a

Description

Standard test methods for tension testing of metallic materials

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

CB503A

Faces File

Maximum Specimen Diameter

ø

3 mm

5 kN Bollard grip

5 kN

Room temperature

(Upper part) 1.82 kg/(Lower part) 1.83 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 165 mm × 110 mm × 60 mm

(Lower part) 165 mm × 110 mm × 60 mm

Tensile test

Steel wire

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h h w w d d

47

Tension Grips

30 kN Bollard Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

» Increase clamping force by winding the specimen around the movable part of the grip

Additional Information

Specimen length should be no less than 575 mm to easily twine and clamp to the grip.

Applicable Standards

Code

GB 14166-93

Description

Motor vehicles – Safety belt assemblies – Performance requirements and test methods

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

CSA304C

30 kN Roller action grip

30 kN

Room temperature

(Upper part) 4.6 kg/(Lower part) 4.72 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 166 mm × 172 mm × 99 mm

(Lower part) 166 mm × 172 mm × 120 mm

Application

Applicable Specimens

Compatible Frames

Tensile test

Mesh belt, safety belt

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Maximum Specimen Width 70 mm

Maximum Specimen Thickness 5 mm h h w w d d

Tension Grips

1 kN Roller Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

Additional Information

Specimen length should be no less than 89 mm to easily twine and clamp to the grip.

Applicable Standards

Code

ASTM D412-06a(2013)

Description

Standard test methods for vulcanized rubber and thermoplastic elastomers – tension

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

CA103A

1 kN Roller action grip

1 kN

Room temperature

(Upper part) 0.66 kg/(Lower part) 0.66 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 118 mm × 67 mm × 76 mm

(Lower part) 118 mm × 67 mm × 76 mm

Application

Applicable Specimens

Compatible Frames

Tensile test

Rubber, sheath of cable

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Maximum Specimen Width 35 mm

Maximum Specimen Thickness 2 mm h h w w d d

49

Tension Grips

20 kN Roller Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

» Increase clamping force by winding the specimen around the movable part of the grip

Additional Information

Specimen length should be no less than 755 mm to easily twine and clamp to the grip.

Applicable Standards

Code

QB/T 3811-1999

Description

Plastic pack belt

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

CSA204C

20 kN Roller action grip

20 kN

Room temperature

(Upper part) 1.20 kg/(Lower part) 1.20 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 152 mm × 88 mm × 97 mm

(Lower part) 152 mm × 88 mm × 97 mm

Application

Applicable Specimens

Compatible Frames

Tensile test

Plastic packing belt

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Maximum Specimen Width 28 mm

Maximum Specimen Thickness 2 mm h h w w d d

Tension Grips

50 kN Roller Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

» Increase clamping force by winding the specimen around the movable part of the grip

Additional Information

Specimen length should be no less than 650 mm to easily twine and clamp to the grip.

Applicable Standards

Code

GB 14166-93

Description

Motor vehicles – Safety belt assemblies – Performance requirements and test methods

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

CB504E

50 kN Roller action grip

50 kN

Room temperature

(Upper part) 8.34 kg/(Lower part) 8.34 kg

(Upper part) 40 mm/(Lower part) 40 mm

(Upper part) 200 mm × 182 mm × 110 mm

(Lower part) 200 mm × 182 mm × 110 mm

Application

Applicable Specimen

Tensile test, tear test

Mesh belt, safety belt

Compatible Frames E45.105, E45.305

Maximum Specimen Width 100 mm

Maximum Specimen Thickness 4 mm h h w w d d

51

Tension Grips

Roller Action Grips

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

» Increase clamping force by winding the specimen around the movable part of the grip

Additional Information

Specimen length should be no less than 1100 mm

(CA105A)/735 mm (CA304C) to easily twine and clamp to the grip.

Applicable Standards

Code

GB 14166-93

Description

Motor vehicles – Safety belt assemblies – Performance requirements and test methods w d h

CA304C

Specifications

Model

Description

Rated Force

Temperature Range

Weight (Upper part)

Weight (Lower part)

Adapter Style (Upper part)

Adapter Style (Lower part)

Dimensions (h*w*d) (Upper part)

Dimensions (h*w*d) (Lower part)

Application

Applicable Specimen

Compatible Frames

Maximum Specimen Width

Maximum Specimen Thickness

CA105C

CA304C

30 kN Roller action grip

30 kN

Room temperature

5.29 kg

5.29 kg

20 mm

20 mm

195 mm × 187 mm × 122 mm

195 mm × 187 mm × 122 mm

Tensile test

Braid, safety belt

E44.304, E45.105, E45.305

80 mm

4 mm h w

CA105C

100 kN Roller action grip

100 kN

Room temperature

11.2 kg

11.2 kg

40 mm

40 mm

272 mm × 197 mm × 132 mm

272 mm × 197 mm × 132 mm

Tensile test

Braid, safety belt

E45.105, E45.305

80 mm

4 mm d

Tension Grips

10 kN Capstan Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

» Increase clamping force by winding the specimen around the movable part of the grip

» Corrugated tooth between the clamping parts ensure a stable clamping function

Additional Information

Specimen length should be no less than 755 mm to easily twine and clamp to the grip.

Applicable Standards

Code

ASTM E8/E8M-13a

ISO 6892-1:2009

Description

Standard test methods for tension testing of metallic materials

Metallic materials – Tensile testing –

Part 1: Method of test at room temperature

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

CA104A

10 kN Capstan grip

10 kN

Room temperature

(Upper part) 950 g/(Lower part) 950 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 150 mm × 102 mm × 52 mm

(Lower part) 150 mm × 102 mm × 52 mm

Application

Applicable Specimens

Tensile test

Wire

Compatible Frames

E43.104, E44.104, E44.304, E45.105, E45.305

Maximum Specimen Diameter

ø

3 mm h h w d w d

53

Tension Grips

20 kN Capstan Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Wound up specimen clamping to prevent stress concentration and damage out of test range

» Applicable to tensile tests of thick ropes with smooth surfaces

Additional Information

Specimen length should be more than 1040 mm to easily twine and clamp to the grip.

Applicable Standards

Code

GB/T 8834-2006

Description

Ropes – Determination of certain physical and mechanical properties w d h

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Maximum Specimen Diameter

ZLD204

20 kN Capstan grip

20 kN

Room temperature

(Upper part) 900 g/(Lower part) 900 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 175 mm × 75 mm × 55 mm

(Lower part) 175 mm × 75 mm × 55 mm

Tensile test

Rope

E42.503, E43.104, E44.104,

E44.304, E45.105

ø

15 mm h w d

Tension Grips

1 kN Roller Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

Applicable Standards

Code Description

ASTM D412-06a(2013) Standard test methods for vulcanized rubber and thermoplastic elastomers – tension

ASTM D624-2007 Standard test method for tear strength of conventional vulcanized rubber and thermoplastic elastomers

GB/T 528-2009

GB/T 529-2008

GB 7543-2006

Rubber – vulcanized or thermoplastic – Determination of tensile stress-strain properties

Rubber – vulcanized or thermoplastic – Determination of tear strength (trouser, angle and crescent test pieces)

Single-use sterile rubber surgical gloves – Specification

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Roller Surface

Grip Opening

Roller Length

PA103A

1 kN Roller action grip

1 kN

Room temperature

(Upper part) 1 kg/(Lower part) 1 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 125 mm × 58 mm × 105 mm

(Lower part) 125 mm × 58 mm × 105 mm

Tensile test, tear test

Rubber, sheet

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Serrated

0-10 mm

30 mm h h w w d d

55

Tension Grips

500 N Roller Action Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Keep the clamping force stable to avoid slipping failure and measurement inconsistency

» The rollers move synchronously to ensure specimen can be clamped in the same position of the force axis center

Applicable Standards

Code Description

ASTM D412-06a(2013) Standard test methods for vulcanized rubber and thermoplastic elastomers – tension

ASTM D624-2007 Standard test method for tear strength of conventional vulcanized rubber and thermoplastic elastomers

GB/T 528-2009 Rubber – vulcanized or thermoplastic – Determination of tensile strength-strain properties

GB/T 529-2008

GB 7543-2006

Rubber – vulcanized or thermoplastic – Determination of tear strength (trouser, angle and crescent test pieces)

Single-use sterile rubber surgical gloves – Specification

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

PA502B

500 N Roller action grip

500 N

Room temperature

(Upper part) 1.06 kg/(Lower part) 1.06 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 111 mm × 125 mm × 57 mm

(Lower part) 111 mm × 125 mm × 57 mm

Tensile test, tear test

Sheath of cable, rubber, tube, sheet

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Roller Surface Serrated

Grip Opening 0-5 mm

Roller Length 30 mm h h w w d d

Tension Grips

100 kN Specialty Circular Ring Tension Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Additional Information

The minimum distance between pins is 56 mm

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Pin Diameter

Pin Length

ZYH102

100 N Circular ring tension grip

100 N

Room temperature

(Upper part) 1.22 kg/(Lower part) 1.22 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 127 mm × 184 mm × 42 mm

(Lower part) 127 mm × 184 mm × 42 mm

Tensile test

Rubber, plastic, thin film, pipe

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

10 mm

156 mm h h w w d d

57

Tension Grips

500 N Specialty Locking Pliers Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Applicable Standards

Code

ISO 1798:2008

GB/T 6344-2008

Description

Flexible cellular polymeric materials – Determination of tensile strength and elongation at break

Flexible cellular polymeric materials – Determination of tensile strength and elongation at break

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Faces

Grip Opening

Faces Width

GSB502A

500 N Locking pliers grip

500 N

Room temperature

(Upper part) 1.05 kg/(Lower part) 1.05 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 230 mm × 90 mm × 42 mm

(Lower part) 230 mm × 90 mm × 42 mm

Tensile test, tear test

Sponge, insole, sheet

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Serrated

0-35 mm

30 mm h h w d w d

Tension Grips

500 N Specialty Screw Withdrawal Test Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Additional Information

The maximum screw diameter is 5 mm

Applicable Standards

Code Description

EN 320:1993

GB/T 17657-1999

Fibre boards – Determination of resistance to axial withdrawal of screws

Test methods of evaluating the properties of wood-based panels and surface decorated wood-based panels

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Diameter

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

ZJm502

500 N Test fixture, screw withdrawal

500 N

Room temperature

(Upper part) 210 g/(Lower part) 3.9 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 105 mm × 44 mm × 20 mm

(Lower part) 158 mm × 160 mm × 100 mm

Pull-off test

Screw withdrawal specimen

E42.503 E43.104 E44.104 E44.304

E45.105, E45.305

h h w w d d

59

Tension Grips

10 kN Specialty Spring Tension Grip

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Additional Information

The minimum inner spring’s diameter is 8 mm

Applicable Standards

Code

JJG 609-1989

JB/T 7796-2005

JISB 7738-1993

Description

Verification regulation of spring tension and compression testing machine

Tension and compression spring testing machines

Verification of helical compression and extension springs testing machines

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Diameter

Dimensions (h*w*d)

ZGgA104

10 kN Spring tension grip

10 kN

Room temperature

(Upper part) 230 g/(Lower part) 230 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 102 mm × 42 mm × 42 mm

(Lower part) 102 mm × 42 mm × 42 mm

Application Tension

Applicable Specimens Helical Tension Spring

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h h w w d d

Tension Grips

10 kN Specialty Surface Bonding Strength Test Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» This is a custom manual pull-out grip

Additional Information

The dimension of the specimen is 50 mm x 50 mm. The dimension of the adhesive joint of specimen is 20 mm x 20 mm.

Applicable Standards

Code

GB/T 17657-1999

Description

Test methods for evaluating the properties of wood-based panels and surface decorated wood-based panels

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

ZJH104

10 kN Test fixture, surface bonding strength, method 2

10 kN

Room temperature

(Upper part) 0.25 kg/(Lower part) 0.25 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 56 mm × 38 mm × 20 mm

(Lower part) 56 mm × 38 mm × 20 mm

Pull-out test

Wood-based panels, surface decorated wood-based panels

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

w d h w d h

61

Tension Grips

10 kN Specialty Surface Bonding Strength Test Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» This is a custom pull-off grip

Additional Information

Dimensions are 50 mm × 50 mm with a groove diameter of

Φ

35.7 mm on the adhesive joint. If the thickness of the specimen is less than 10 mm, 2 or 3 specimens need to be bonded together for the test.

Applicable Standards

Code

GB/T 17657-1999

Description

Test methods for evaluating the properties of wood-based panels and surface decorated wood-based panels w

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

ZBM104

10 kN Test fixture, surface bonding strength, method 1

10 kN

Room temperature

(Upper part) 0.75 kg/(Lower part) 0.52 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 75 mm x 50 mm × 50 mm

(Lower part) 59 mm x 50 mm × 50 mm

Pull-off test

Wood-based panel, surface decorated wood-based panel

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h w d d h

Tension Grips

10 kN Specialty Internal Bonding Strength Test Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» This is a manual pull-off grip

Additional Information

Specimen dimensions are 50 mm × 50 mm and adhesive joint dimensions are 50 mm × 50 mm.

Applicable Standards

Code

GB/T 17657-1999

Description

Test methods for evaluating the properties of wood-based panels and surface decorated wood-based panels w

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

ZNJ104

10 kN Test fixture, internal bond strength

10 kN

Room temperature

(Upper part) 1.2 kg/(Lower part) 1.2 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 95 mm × 66 mm × 50 mm

(Lower part) 95 mm × 66 mm × 50 mm

Pull-off test

Wood-based panel, surface decorated wood-based panel

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

w d d h h

63

Tension Grips

20 kN Specialty Wedge Action Grip (Small Flat Specimen)

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Prevents slipping failure caused by specimen shrinking

» The faces move synchronously allowing specimens to be clamped in the same position of the force axis center

» Optional faces with different specifications are available for a variety of specimens, upon request

Additional Information

Designed for thin metal sheet tension test.

Applicable Standards

Code

GB/T 228.1-2010

ASTM A370-10

Description

Metallic materials – Tensile testing – Part 1:

Method of test at room temperature

Standard test methods and definitions for mechanical testing of steel products

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

ZLA204B

20 kN Specialty wedge action grip, small flat specimen

20 kN

Room temperature

(Upper part) 900 g/(Lower part) 900 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 108 mm × 65 mm × 42 mm

(Lower part) 108 mm × 65 mm × 42 mm

Tensile test

Applicable Specimens

Compatible Frames

Metal Plate, sheet

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Faces Sawtooth

Grip Opening 0-1.8 mm

Faces Width 10 mm h h w w d d

Tension Grips

10 kN Specialty Wood-based Panels – Surface Soundness Test Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Applicable Standards

Code Description

ISO/DIS 16895-2:2010 Wood-based panels – Dry-process fiber board –

Part 2: Requirements

EN 311-2002 Wood-based panels – Surface soundness-test method

GB/T 11718-2009

GB/T 17657-2013

Medium density fiber board

Test methods of evaluating the properties of wood-based panels and surface decorated wood-based panels

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

ZBJ104

10 kN Test fixture, wood-based panels – Surface soundness

10 kN

Room temperature

(Upper part) 0.4 kg/(Lower part) 0.7 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 90 mm × 35 mm × 26 mm

(Lower part) 99 mm × 67 mm × 50 mm

Pull-off test

Wood, wood-based panels

E42.503,E43.104, E44.104, E44.304

h w h d w d

65

Tension Grips

50 kN Specialty Balsa Wood and Foams Surface Soundness Test Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Applicable Standards

Code Description

ASTM C297/C297M-04(2010) Standard test method for flatwise tensile strength of sandwich constructions

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

DKF1005089.01

50 kN Test fixture, balsa wood and foams surface soundness

50 kN

Room temperature

(Upper part) 1.26 kg/(Lower part) 2.07 kg

(Upper part) 40 mm/(Lower part) 40 mm

(Upper part) 94 mm × 60 mm × 60 mm

(Lower part) 117 mm × 72 mm × 72 mm

Pull-off test

Wood-based panels, surface decorated wood-based panels

E45.105, E45.305

h h w w d d

Compression Plate

20 kN Round Compression Platen (with Dial Gage)

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» The dial gage can be attached as a measuring device for more accurate deformation measurement results

» Durable alloy tool steel construction with reliable surface hardness

» Easier center specimen loading with the round or cross-line scales

» Cycle style compression platens are applicable for most materials

Applicable Standards

Code

GB/T 1041-1992

ISO 604-2009

Description

Plastics – Determination of compressive properties

Plastics – Determination of compressive properties

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

ZYA204

20 kN

ø

100 mm Compression platen, with dial gage

20 kN

Room temperature

(Upper part) 2.18 kg/(Lower part) 2.64 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 107 mm × 166 mm × 100 mm

(Lower part) 58 mm × 155 mm × 100 mm

Maximum Specimen Height 55 mm

(with dial gage)

Dial Gage Travel Range

<12.5 mm

Dial Gage Resolution

Application

0.001 mm

Compression test

Applicable Specimens

Compatible Frames

Metal, plastic, rubber

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h h d w d w

67

Compression Platens

Round Compression Platens

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Durable alloy tool steel construction with reliable surface hardness

» Easier center specimen loading with the round or cross-line scales

» Disc compression grip style is applicable to requirements of compression tests of most materials

Applicable Standards

YA503A, YA104A, YA204A

Code Description

GB/T1041-1992 Plastics – Determination of compressive properties

ISO 604-2009 Plastics – Determination of compressive properties

GB/T 17657-2013 Test methods of evaluating the properties of wood-based panels and surface decorated wood-based panels

YB504A, YD105A, YF105A, YC305A

Code Description

GB/T 246-2007 Metal materials tube flattening test

GB/T 7314-2005 Metallic materials – Compression testing at ambient temperature

GB/T 1041-1992 Plastics – Determination of compressive properties

ISO 604-2009 Plastics – Determination of compressive properties

ASTM E9-2002 Metallic materials – Compression testing at ambient temperature

D

D h h

Specifications

Model

Description

Rated Force

Temperature Range

Weight (Upper part)

Weight (Lower part)

Adapter Style (Upper part)

Adapter Style (Lower part)

Dimensions (D*h)/mm (Upper part)

Dimensions (D*h)/mm (Lower part)

Application

Applicable Specimens

Compatible Frames

YA503A YA104A YA204A YB504A YD105A YF105A YC305A

5 kN

ø

150 mm 10 kN

ø

150 mm 20 kN

ø

100 mm 50 kN

ø

200 mm 100 kN

ø

100 mm 100 kN

ø

150 mm 300 kN

ø

150 mm

100 kN 100 kN 300 kN 5 kN

3.23 kg

3.11 kg

20 mm

10 kN

3.5 kg

3.1 kg

20 mm

20 kN 50 kN

Room temperature

1.59 kg

1.19 kg

20 mm

11.4 kg

9.78 kg

40 mm

2.31 kg

1.62 kg

40 mm

5.26 kg

3.98 kg

40 mm

6.95 kg

3.93 kg

60 mm

20 mm

ø

150 × 73

ø

150 × 48

20 mm

ø

150 × 81

ø

150 × 38

20 mm 40 mm

ø

100 × 78

ø

200 × 127

ø

100 × 35

ø

200 × 52

40 mm

ø

100 × 96

ø

100 × 37

40 mm

ø

150 × 116

ø

150 × 53

60 mm

ø

150 × 141

ø

150 × 50

Compression test

Metal, plastic, Metal, plastic, Metal, plastic, Metal, plastic, Metal, plastic, Metal, plastic, Metal, plastic, rubber, wood rubber, wood rubber, wood rubber, wood rubber, wood rubber, wood rubber, wood

E42.503,

E43.104,

E44.104,

E44.304,

E45.105,

E45.305,

E42.503,

E43.104,

E44.104,

E44.304,

E45.105,

E45.305,

E42.503,

E43.104,

E44.104,

E44.304,

E45.105,

E45.305,

E45.105,

E45.305,

E45.105,

E45.305,

E45.105,

E45.305,

E45.305,

Compression Platens

Round Compression Platens

YA503A

YA104A

YA204A

69

YB504A

YD105A

YF105A

YC305A

Compression Platens

5 kN Round Compression Platen

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Minimize system errors with self-aligning mechanism that secures the specimen

» Ability to be pre-aligned to obtain better rigidity and parallelism

» Durable alloy tool steel construction with reliable surface hardness

» Easily center specimen loading with the round or crossline scales

» Cycle style compression platens are applicable for most materials

Additional Information

The lower platen aligning mechanism can be locked to ensure the parallelism between platens in tests, which is preferred to be used with spoke-type load cells.

Applicable Standards

Code

JB/T 7796-2005

GB/T 1972-2005

GB/T 1973.1-1989

JISB 7738-1993

GB/T 1041-1992

ISO 604:2009

Description

Tension and compression spring testing machines

Disc spring

Small cylindrically coiled springs specification

Verification of helical compression and extension springs testing machines

Plastics – Determination of compressive properties

Plastics – Determination of compressive properties d w h h

Specifications

Model

Description

Rated Force

ZYA503A

5 kN

ø

50 mm Compression platen, lockable spherical self-aligning

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

5 kN

Room temperature

(Upper part) 480 g/(Lower part) 1.12 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 65 mm × 50 mm × 50 mm

(Lower part) 80 mm × 90 mm × 90 mm

Compression test

Applicable Specimens

Spring, plastic, rubber

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Compression Platens

10 kN Round Compression Platen

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Minimize system errors with self-aligning mechanism that secures the specimen

» Corrosion resistant stainless grips can test in temperatures of –70°C to 350°C

» Stainless steel construction with reliable surface hardness

» Easily center specimen loading with the round or crossline scales

» Cycle style compression platens are applicable for most materials

Applicable Standards

Code Description

GB/T 1041-1992 Plastics – Determination of compressive properties

ISO 604:2009 Plastics

GB/T 17657-2013 Test methods for evaluating the properties of wood-based panels and surface decorated wood-based panels h

Specifications

Model Y104B

Description 10 kN

ø

100 mm Compression platen, spherical self-aligning, SST

10 kN

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (D*h)

Application

–70°C to 350°C

(Upper part) 1.59 kg/(Lower part) 2.75 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part)

ø

100 mm × 79 mm

(Lower part)

ø

100 mm × 91 mm

Compression test

Applicable Specimens

Compatible Frames

Metal, plastic, rubber

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

D

D h

71

Compression Platens

Round Compression Platens

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Minimize system errors with self-aligning mechanism that secures the specimen

» Durable alloy tool steel construction with reliable surface hardness

» Easily center specimen loading with the round or crossline scales

» Disk style compression platens is applicable for most materials

Applicable Standards

Code

GB/T 246-2007

GB/T 7314-2005

GB/T 1041-1992

ISO 604:2009

ASTM E9-2002

Description

Metal materials tube flattening test

Metallic materials – Compressing testing at ambient temperature

Plastics – Determination of compressive properties

Plastics – Determination of compressive properties

Test method for compression test of metallic materials at ambient temperature 6.2.2

h

D

D h

YA105A YB105A YA305A YB305A

Specifications

Model YA105A YB105A YA305A YB305A

Description (Compression platen, spherical self-aligning) 100 kN

ø

100 mm

Rated Force

100 kN

Room temperature Temperature Range

Weight (Upper part)

Weight (Lower part)

Adapter Style (Upper part)

Adapter Style (Lower part)

Dimensions (D*h)/mm (Upper part)

Dimensions (D*h)/mm (Lower part)

Application

Applicable Specimens

2.31 kg

2.61 kg

40 mm

40 mm

ø

100 × 96

ø

100 × 55

100 kN

ø

150 mm

100 kN

Room temperature

5.21 kg

7.74 kg

40 mm

40 mm

ø

150 × 115

ø

150 × 69

300 kN

300 kN

Room temperature

3.82 kg

3.06 kg

60 mm

60 mm

ø

ø

100 mm

ø

100 × 120

100 × 68

300 kN

300 kN

Room temperature

6.95 kg

7.68 kg

60 mm

60 mm

ø

150 mm

ø

150 × 141

ø

150 × 79

Compression test Compression test Compression test Compression test

Metal, plastic, rubber Metal, plastic, rubber Metal, plastic, rubber Metal, plastic, rubber

Compatible Frames

E45.105, E45.305 E45.105, E45.305 E45.305 E45.305

Compression Platens

20 kN Round Compression Platen

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Durable alloy tool steel construction with reliable surface hardness

» Easily center specimen loading with the round or crossline scales

» Cycle style compression platens are applicable for most materials

Applicable Standards

Code

GB/T 1041-1992

ISO 604:2009

GB/T 17657-2013

Description

Plastics – Determination of compressive properties

Plastics – Determination of compressive properties

Test methods for evaluating the properties of wood-based panels and surface decorated wood-based panels

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (D*h)/mm

Application

Applicable Specimens

Compatible Frames

YC204A

20 kN

ø

200 mm Compression platen

20 kN

Room temperature

(Upper part) 4.8 kg/(Lower part) 4.8 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part)

ø

200 mm × 74 mm

(Lower part)

ø

200 mm × 74 mm

Compression test

Metal, plastic, rubber

E43.104, E44.104, E44.304, E45.105, E45.305

D

D h h

73

Compression Platens

Square Compression Platens

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Durable alloy tool steel construction with reliable surface hardness

» Easily center specimen loading with the round or crossline scales

» Applicable to tests product specimens with larger dimensions, e.g., ring stiffness test

Additional Information

YB104B, YA104B, YB304A, DL07589.01:

Applicable to ring stiffness tests of pipes.

Applicable Standards

ZYN104, ZYA203, ZYL104, ZYK304, ZYE204, YC104B, ZYG304:

Code Description

GB/T 1041-1992 Plastics – Determination of compressive properties

ISO 604:2009 Plastics – Determination of compressive properties

YB104B, YA104B, YB304A, DL07589.01:

Code Description

GB/T 9647-2003 Thermoplastic pipes – Determination of ring stiffness

ISO 9969:2007

Thermoplastic pipes – Determination of ring stiffness

GB/T 1041-1992 Plastics – Determination of compressive properties

ISO 604:2009 Plastics – Determination of compressive properties

Specifications

Model ZYN104 ZYA203 ZYL104 ZYK304 ZYE204 YC104B ZYG304 YB104B YA104B YB304A DL07589.01

Description kN 10 10 10 30 200

mm 100 x 100 150 x 150 160 x 160 220 x 120 200 x200 210 x 210 300 x 300 320 x 220 320 x 320 350 x 350 450 x 450

Rated Force

10 kN 2 kN 10 kN

Compression platens

30 kN 20 kN 10 kN 30 kN 10 kN 10 kN 30 kN 200 kN

Weight (Upper part)

Weight (Lower part)

Adapter Style

(Upper part)

Adapter Style

(Lower part)

Dimensions (h*w*d)

(Upper part)

2.96 kg

2.96 kg

20 mm

3 kg

3 kg

20 mm

3.32 kg

3.32 kg

20 mm

4.04 kg

4.04 kg

20 mm

5.9 kg

5.9 kg

20 mm

8.4 kg

8.4 kg

20 mm

16.9 kg

16.9 kg

20 mm

10.5 kg

10.5 kg

20 mm

19.2 kg

19.2 kg

20 mm

22 kg

22 kg

20 mm

60.2 kg

60.2 kg

60 mm

20 mm 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm 60 mm

71 mm x 69 mm x 71 mm x 71 mm x 72 mm x 79 mm x 79 mm x 76 mm x 76 mm x 84 mm x 155 mm x

100 mm x 150 mm x 160 mm x 220 mm x 200 mm x 210 mm x 300 mm x 320 mm x 320 mm x 350 mm x 420 mm x

100 mm 150 mm 160 mm 120 mm 200 mm 210 mm 300 mm 220 mm 320 mm 350 mm 450 mm

Dimensions (h*w*d)

(Lower part)

Application

71 mm x 69 mm x 71 mm x 71 mm x 72 mm x 79 mm x 79 mm x 76 mm x

Compression test

76 mm x 84 mm x 155 mm x

100 mm x 150 mm x 160 mm x 220 mm x 200 mm x 210 mm x 300 mm x 320 mm x 320 mm x 350 mm x 420 mm x

100 mm 150 mm 160 mm 120 mm 200 mm 210 mm 300 mm 220 mm 320 mm 350 mm 450 mm

Applicable Specimens Plastic, Plastic, Plastic, Plastic, Plastic, Plastic, Plastic, Plastic, Plastic, Plastic, Plastic, rubber rubber rubber rubber rubber rubber rubber rubber, rubber, rubber, rubber,

Compatible Frames

E42.503,E43.104,E44.104,

E44.304,E45.105, E45.305

E43.104,E44.104,E44.304,

E45.105,E45.305

E44.104, E44.304,

E45.105,E45.305

E45.305

Compression Platens

Square Compression Platens w d h h w d

ZYN104

ZYL104 ZYK304

ZYA203

75

ZYE204

YC104B ZYG304 YB104B

YA104B YB304A DL07589.01

Compression Platens

10 kN Specialty Test Fixture

» Fixture must be used with a larger sized compression platen

» Durable alloy tool steel construction with reliable surface hardness

» The dial gage can be attached as a measuring device resulting in more accurate deformation measurement results

Additional Information

Four upper compression platens with different sizes are included:

ø6.4 mm, ø11.29 mm, ø25 mm, ø80 mm. Additional sizes available upon request.

Applicable Standards

Code

JB/T 9141.4-1999

Description

Test method for compressibility and recovery of flexible graphite sheets

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter

Dimensions (h*w*d)

Gage Maximum Travel

Lower Platen Diameter

Application

Applicable Specimens

Compatible Frames

ZYM104

10 kN Test fixture, flexible graphite sheets compressibility and recovery

10 kN

Room temperature

8.8 kg

No adapter; requires compression platens to use together

229 mm × 180 mm × 140 mm

12.5 mm

ø

100 mm

Compression test

Flexible graphite sheets

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305 w d h

Compression Platens

50 kN Specialty Compression Platen

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Durable alloy tool steel construction with reliable surface hardness

Applicable Standards

Code

GB/T 19806-2005

ISO 13955:1997

Description

Plastics pipes and fittings – Crushing decohesion test for polyethylene (PE) electrofusion assemblies

Plastics pipes and fittings – Crushing decohesion test for polyethylene (PE) electrofusion assemblies

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (D*h)

Application

Applicable Specimens

Compatible Frames

Filet Edge

DLB12129.01

50 kN

ø

200 mm Compression platen, crushing decohesion test

50 kN

Room temperature

(Upper part) 7.45 kg/(Lower part) 6.58 kg

(Upper part) 40 mm/(Lower part) 40 mm

(Upper part)

ø

200 mm × 118 mm

(Lower part)

ø

200 mm × 65 mm

Other pressure test, compression test

Polyethylene electrofusion assemblies

E45.105, E45.305

R20 mm h h w w

77

Compression Platens

50 kN Specialty Compression Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Minimize system errors with self-aligning mechanism that secures the specimen

Applicable Standards

Code

ASTM C364/C364M-07(2012)

Description

Standard test method for edgewise compressive strength of sandwich constructions w

Specifications

Model

Description

Rated Force

Temperature Range

Weight

DKF1005089.03

50 kN Compression fixture

50 kN

Room temperature

(Upper part) 3.7 kg/(Lower part) 3.1 kg

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

(Upper part) 40 mm/(Lower part) 40 mm

(Upper part) 160 mm × 118 mm × 100 mm

(Lower part) 126 mm × 118 mm × 100 mm

Compression test

Sandwich material

E45.105, E45.305

Faces Surface Material Rubber

Faces Opening 0-22 mm

Faces Width 65 mm w d h d h

Compression Platens

300 kN Specialty Compression Fixture

» The grip must be used with the compression platens

» Durable alloy tool steel construction with reliable surface hardness

Additional Information

The dimension of specimen is 50.8 mm x 50.8 mm x 50.8 mm, minimal high is 37 mm.

Applicable Standards

Code

GB 10238-2005

Description

Oil well cement

ISO 10426-1:2001

Petroleum and natural gas industries. Cements and materials for well cementing. Part 1: Specification

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter

Dimensions (h*w*d)

Application

Applicable Specimen

Compatible Frames

ZYS305

300 kN Compression fixture, oil well cement

300 kN

Room temperature

5.6 kg

No adapter; requires compression platens to use together

175 mm × 99 mm × 99 mm

Compression test

Oil well cement

E45.105, E45.305, E45.605

79 w d h

Bend Fixtures

Metal Bend Fixtures

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Loading edge and supports can be changed to optional parts or customized designs

» Adjustable stepless lower span on the support beam

» The support and loading edges are constructed of alloy tool steel with reliable surface hardness and durability

» The rollers can rotate to minimize errors caused by friction

Additional Information

The two adjustable supports (WA305A) should be placed in the surface of the base beam but not on the rubber mat, so the two pieces of square rubber mat by the sides of clevis can be cut off and removed.

Applicable Standards

Code

GB/T 14452-1993

ISO 7438:2005

ASTM E290-09

Description

Metallic materials – Determination of bending mechanical properties

Metallic materials – Bend test

Standard test methods for bend testing of material for ductility

WA105A w w

Specifications

Model

Description

Rated Force

Temperature Range

Weight (Upper part)

Weight (Lower part)

WA105A

100 kN Bend fixture, metal

100 kN

Room temperature

WA305A

300 kN Bend fixture, metal

300 kN

Room temperature

2.5 kg

20.5 kg

4.8 kg

27 kg

Adapter Style (Upper part) 40 mm 60 mm

Adapter Style (Lower part) 40 mm

Dimensions (h*w*d)

(Upper part)

175 × 70 × 104 mm

Dimensions (h*w*d)

(Lower part)

60 mm

205 × 98 × 110 mm

190 × 464 × 144 mm 230 × 500 × 156 mm

Application

Bend test Bend test

Applicable Specimens

Compatible Frames

Metal plate

E45.105, E45.305

Metal plate

E45.305

Loading Edge R10 R15

Supporting R10 R15

Span 340 mm

Maximum Specimen Width 80 mm

340 mm

90 mm

WA305A w w d h h d d h h d

Bend Fixtures

Plastics Bend Fixtures

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Loading edge and supports can be changed to optional parts or customized designs

» Fast and accurate specimen positioning with centering device

» Adjustable stepless lower span on the support beam w d h

Applicable Standards

Code

GB/T 9341-2008

GB/T 1449-2005

ISO 178:2003

Description

Plastics – Determination of flexural properties

Fiber-reinforced plastic composites – Determination of flexural properties

Plastics – Determination of flexural properties

Optional Loading Edge

Model Edge Radius

WA104A-06Ab

WA104A-06Bb

WA104A-06Cb

WA204A-10Ac

WA204A-10Bb

R2

R3

R7.6

R2

R10

Width

40 mm

40 mm

40 mm

45 mm

45 mm

Compatible

Fixture

WA104A

WA104A

WA104A

WA204A

WA204A

Optional Supporting

Model

WA104A-08Ab

WA204A-06Ab

ZWA304-04A

Edge Radius

R5

R5

R5 w d h

Width

40 mm

45 mm

45 mm

Compatible

Fixture

WA104A

WA204A

WA304A

81

WA104A WA204A ZWA304

Specifications

Model

Description

Rated Force

Temperature Range

Weight (Upper part)

Weight (Lower part)

Adapter Style (Upper part)

Adapter Style (Lower part)

Dimensions (h*w*d) (Upper part)

Dimensions (h*w*d) (Lower part)

Application

Applicable Specimens

Compatible Frames

Loading Edge

WA104A

10 kN Bend fixture, plastics

10 kN

Room temperature

500 g

4.95 kg

20 mm

20 mm

WA204A

20 kN Bend fixture, plastics

20 kN

Room temperature

670 g

9.22 kg

20 mm

20 mm

ZWA304

30 kN Bend fixture, SST

30 kN

–70°C to 350°C

510 g

4.7 kg

20 mm

20 mm

106 mm × 42 mm × 42 mm

151 mm × 280 mm × 77 mm

108 mm × 42 mm × 42 mm

180 mm × 340 mm × 88 mm

108 mm × 42 mm × 42 mm

180 mm × 190 mm × 88 mm

Bend test

Plastic plate, sheet

Bend test

Plastic plate, sheet

Bend test

Plastic plate, sheet

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

R5 R5 R5

Supporting R2 R2

Maximum Span 160 mm 200 mm

Maximum Specimen Width 40 mm 45 mm

R2

80 mm

45 mm

Bend Fixtures

10 kN Wood Bend Fixtures

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Loading edge and supports can be changed to optional parts or customized designs

» Adjustable stepless lower span on the support beam

» The support and loading edges are constructed of alloy tool steel with reliable surface hardness and durability

» The rollers can rotate to minimize errors caused by friction

Applicable Standards

Code

GB/T 17657-1999

Description

Test methods for evaluating the properties of wood-based panels and surface decorated wood-based panels

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

ZWC104A

10 kN Bend fixture, wood

10 kN

Room temperature

(Upper part) 1.1 kg/(Lower part) 14.27 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 120 mm × 42 mm × 82 mm

(Lower part) 180 mm × 530 mm × 82 mm

Bend test Application

Applicable Specimens

Wood-based panel, surface decorated wood-based panel

Compatible Frames E45.105, E45.305

Loading Edge R15

Optional Loading Edge R7.5

Supporting R15

Optional Supporting

Maximum Span

R7.5

400 mm

Maximum Specimen Width 60 mm w w d h h d

Bend Fixtures

Dial Gage Bend Fixtures

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Loading edge and supports can be changed to optional parts or customized designs

» Fast and accurate specimen positioning with centering device

» Adjustable stepless lower span on the support beam

» The dial gage can be attached as a measuring device providing more accurate deformation measurement results

Applicable Standards

Code

GB/T 9341-2008

GB/T 1449-2005

ISO 178:2003

Description

Plastics – Determination of flexural properties

Fiber-reinforced plastic composites - Determination of flexural properties

Plastics – Determination of flexural properties

Optional Supporting

Model

Maximum Compatible

Edge Radius Specimen Width Fixture

ZWA104A-18

ZWA204A-03

R5

R5

45 mm

45 mm

ZWA104A

ZWA204A w d h

83

ZWA104A ZWA204A w d

Specifications

Model

Description

Rated Force

Temperature Range

Weight (Upper part)

Weight (Lower part)

Adapter Style (Upper part)

ZWA104A

10 kN Dial gage bend fixture

10 kN

Room temperature

670 g

8.92 kg

20 mm

ZWA204A

20 kN Dial gage bend fixture

20 kN

Room temperature

670 g

9.22 kg

20 mm

Adapter Style (Lower part)

Dimensions (h*w*d) (Upper part)

Dimensions (h*w*d) (Lower part)

Application

Applicable Specimen

Compatible Frame

20 mm

108 mm × 45 mm × 45 mm

255 mm × 320 mm × 88 mm

Bend test

20 mm

108 mm × 45 mm × 45 mm

255 mm × 340 mm × 88 mm

Bend test

Plastics plate Plastics plate

E42.503, E43.104, E44.104, E44.304, E45.105, E45.305 E42.503, E43.104, E44.104, E44.304, E45.105, E45.305

Loading Edge R5 R5

Supporting R2 R2

Maximum Span

Maximum Specimen Width

Gage Maximum Travel

160 mm

45 mm

12.5 mm

200 mm

45 mm

12.5 mm

Dial Gage Resolution 0.001 mm 0.001 mm h

Peel Fixtures

200 N Peel Fixtures, 90°

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Additional Information

The is a custom manual peeling fixture, which is applicable to 90° peel tests of bonded assembly specimens. The table is 200 mm in length and 50 mm in width, with a maximum peeling length of

185 mm and a peeling width of 30 mm.

h w w h

Specifications

Model

Description

Rated Force

BA202A

200 N Peel fixture, 90°

Temperature Range

Weight

Adapter Style

200 N

Room temperature

(Upper part) 1.35 kg/(Lower part) 6.58 kg

Dimensions (h*w*d)

Application

Applicable Specimens

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 91 mm × 100 mm × 82 mm

(Lower part) 135 mm × 174 mm × 352 mm

Tensile test, 90° Peel test

Adhesive bonds

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Maximum Flexible Layer Width 30 mm

Rigid Layer Width 50±1 mm

Maximum Peeling Length 185 mm d d

Peel Fixtures

200 N Floating Roller Peel fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Fixture must be used with a right grip, e.g., DSA502A

Additional Information

The custom manual peeling grip contains only an upper grip, which can be used with a lower part, e.g., DSA502A. Peeling arc radius is 12.5 mm. The maximum peeling width is 30 mm.

Applicable Standards

Code

ISO 4578:1997

EN 1464:2010

Description

Determination of peel resistance of high-strength adhesive bonds – Floating roller method

Adhesives – Determination of peel resistance of adhesive bonds – Floating roller method

GB/T 7122-1996 Adhesives – Determination of peel resistance of high-strength adhesive bonds – Floating roller method

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Maximum Width

Peeling Radius

BB202A

200 N Floating roller peel fixture

200 N

Room temperature

(Upper part) 760 g

(Upper part) 20 mm

(Upper part) 123 mm × 56 mm × 44 mm

Peel test

Adhesive, peel specimen

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

30 mm

12.5 mm h w d

85

Peel Fixtures

2 kN Peel fixture, 90°

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Additional Information

Applicable to peel tests of cross-linked pressure pipe with an inner diameter of 12 mm, 16 mm, 20 mm, 26 mm, 33 mm, 42 mm,

53 mm, 63 mm, 76 mm or 94 mm. It can be customized according to the requirements. The maximum peeling width is 10 mm.

Applicable Standards

Code Description

ASTM F1281-03 Standard specification for cross-linked polyethylene/aluminum/cross-linked polyethylene (pex-al-pex) pressure pipe

ASTM F1282-06

Standard specification for cross-linked polyethylene/aluminum/polyethylene

(pex-al-pex) composite pressure pipe

GB/T 18997.1-2003 Polyethylene/Aluminium/Polyethylene composite pressure pipe – Part 1: PE/AL/PE pipe overlap-welded by aluminium pipe

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

BA203B

2 kN Peel fixture, 90°, polyethylene/ aluminum composite pressure pipe

2 kN

Room temperature

(Upper part) 440 g/(Lower part) 1.85 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 102 mm × 104 mm × 46 mm

(Lower part) 156 mm × 53 mm × 105 mm

Peel test

Cross-linked pressure pipe, composite pressure pipe

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h h w w d d

Peel Fixtures

3 kN Peel Fixtures, 90°

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Flexible layer is peeled from rigid layer in a constant angle from the gap between roles

Applicable Standards

Code

HB 5165-1981

Description

Metal bonding 90° peel strength test method

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

BA303B

3 kN Peel fixture, 90°

3 kN

Room temperature

(Upper part) 1.51 kg/(Lower part) 3.53 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 136 mm × 116 mm × 70 mm

(Lower part) 131mm × 178 mm × 73 mm

Application

Applicable Specimens

Compatible Frames

Peel test

Adhesive, peel specimen

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

Maximum Specimen Width 20 mm

Peeling Radius 12.8 mm h h w w d d

87

Peel Fixtures

5 kN Specialty Peel Fixture, 180°

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Additional Information

Customized peel fixture according to customer requirement.

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

DL12179.01

5 kN Peel fixture, 180°, customized

5 kN

Room temperature

(Upper part) 380 g/(Lower part) 700 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 125 mm × 39 mm × 24 mm

(Lower part) 130 mm × 62 mm × 50 mm

Peel test

Plastic, rubber, glass, adhesive

E42.503, E43.104, E44.104, E44.304

h w w h d d

Shear Fixtures

1 kN Fiberglass Reinforced Plastic Sheer Fixture

» Fixture must be used with a right grip compression platen

Additional Information

The manual shearing fixture is applicable to shear tests of specimens with various specifications. The maximum clamping width is 30 mm and the maximum clamping thickness is 10 mm.

Applicable Standards

Code Description

GB/T 1450.1-2005 Fiber-reinforced plastic composites – Determination of interlaminar shear strength

GB/T 17657-1999 Test methods for evaluating the properties of wood-based panels and surface decorated wood-based panels

GB/T 17657-2013 Test methods for evaluating the properties of wood-based panels and surface decorated wood-based panels

89

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

JB103A

1 kN Shear fixture, fiberglass reinforced plastics

1 kN

Room temperature

550 g

No adapter

48 mm × 75 mm × 50 mm

Shear test

Applicable Specimens Glass fiber-reinforced plastic, wood-based panels

Compatible Frames E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

w d h

Shear Fixtures

10 kN Wood Sheer Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Applicable Standards

Code Description

HG/T 2727-2010 Polyvinyl acetate emulsion adhesives for woods

GB/T 17517-1998 Adhesives – Wood to wood adhesive bonds – Determination of shear strength by compression loading

ISO 6238:1987 Adhesives – Wood-to-wood – Determination of compression shearing strength

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

JA104B

10 kN Wood shear fixture

10 kN

Room temperature

(Upper part) 590 g/(Lower part) 2.17 kg

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 111 mm × 50 mm × 50 mm

(Lower part) 187 mm × 101 mm × 114 mm

Compression shear test

Natural wood, artificial board

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h h w w d d

Shear Fixtures

30 kN Metal Shear Fixture (double faces)

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Additional Information

Grip consists of four sharing panels for specimens of differing dimensions. The panels can be customized.

Array Panel Models

Model Diameter of Pin Hole Minimum Specimen Length

JA504A.01

JA504A.02

JA504A.03

JA504A.04

ø

3.6 mm

ø

4.9/5.1/7.5/7.8 mm

ø

5.8/6.0/6.5/7.0 mm

ø

9.0/9.5/10.0 mm

16 mm

20 mm

20 mm

30 mm

Applicable Standards

Code

ISO 8749:1986

GB/T 13683-1992

Description

Pins and grooved pins – Shear test

Pins and grooved pins – Shear test

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

JA504A

30 kN Metal shear fixture (double faces)

30 kN

Room temperature

(Upper part) 2.27 kg/(Lower part) 690 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 271 mm × 91 mm × 77 mm

(Lower part) 111 mm × 42 mm × 87 mm

Shear test

Pin, bar

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h h w w d d

91

Shear Fixtures

100 kN Metal Shear Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Shear blocks can be customized according to requirements

» Fixture must be used with a compression platen

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimens

Compatible Frames

Specimen Diameter

JA105B

100 kN Metal shear fixture

100 kN

Room temperature

(Upper part) 1.61 kg/(Lower part) 9.79 kg

(Upper part) 40 mm/(Lower part – no adapter)

(Upper part) 118 mm × 45 mm × 70 mm

(Lower part) 130 mm × 150 mm × 120 mm

Compression shear test

Metallic bar

E45.105,E45.305

ø

10 mm h h w w d d

Tear Fixtures

1 kN Leather Double Edge Tear Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

Applicable Standards

Code Description

ISO 3377-2:2002 Leather – Physical and mechanical tests – Determination of tear load – Part 2: Double edge tear

QB/T 2711-2005 Leather – Physical and mechanical tests – Determination of tear load – Double edge tear

Specifications

Model

Description

Rated Force

Temperature Range

Weight

Adapter Style

Dimensions (h*w*d)

Application

Applicable Specimen

Compatible Frames

ZSL103

1 kN Leather double edge tear fixture

1 kN

Room temperature

(Upper part) 190 g/(Lower part) 190 g

(Upper part) 20 mm/(Lower part) 20 mm

(Upper part) 82 mm × 42 mm × 42 mm

(Lower part) 82 mm × 42 mm × 42 mm

Tension test, tear test

Leather

E42.503, E43.104, E44.104, E44.304,

E45.105, E45.305

h h w w d d

93

Puncture Fixtures

5 kN Geotextile Puncture Fixture

» Designed to use with MTS Exceed load frames; can also be used on Criterion load frames with appropriate conversion adapters

» Plungers or clamping rings can be customized

Applicable Standards

Code Description

ISO 12236:2006 Geosynthetics – Static puncture test (CBR test)

GB/T 14800-2010 Geosynthetics – Static puncture test (CBR test)

GB/T 17639-2008 Geosynthetics – Synthetic filament spunbond and needlepunched nonwoven geotextiles

GB/T 17640-2008 Geosynthetics – Synthetic filament woven geotextiles

Specifications

Model ZDPA503

Description

Rated Force

Temperature Range

Weight

Adapter Style

5 kN Geotextile puncture fixture

5 kN

Room temperature

(Upper part) 2.17 kg/(Lower part) 30.4 kg

20 mm

Dimensions (h*w*d)

(Upper part) 180 mm × 42 mm × 42 mm

(Lower part) 362.5 mm × 310 mm × 310 mm

Plunger

Clamping Ring

ø

50 mm cylinder with 2.5 mm leading edge radius

ø

150 mm internal diameter

Application Puncture test

Applicable Specimen Geotextile

Compatible Frames E43.104 E44.104 E44.304 E45.105 h h d w d w

Grip Supplies and Intensifiers

MTS Model 685 self-contained, Hydraulic Grip Supplies have been engineered for both performance and ease of use. There are two grip supplies and one grip intensifier to choose from.

Standard Features Include:

» Directional control value for each grip

» Center valve detent, allowing unparalleled control over gripping

» Continuous positive pressure design, providing high pressure stability over the entire operating range

» Separate flow control valve for control of grip engagement speed

» Independent grip circuits eliminate crosstalk

» Easy to maintain and service

» Accommodate a wide range of electrical connections

Model 685.22 and Model 685.10 Standalone Hydraulic Grip Supplies

The 685.22 and 685.10 units feature a self-contained hydraulic pump, a 0.75 kW (1 hp) electric motor, a 11.3 l (3 gal) reservoir, a 10-micron absolute return line filter, and hoses for connection to grips. These units are furnished with individual directional control valves for upper and lower grips. The grip supplies use a special hydraulic fluid which allows the grips to be used in environmental chambers at elevated temperatures. They are designed to run continuously, which results in good pressure stability and easy adjustment of the output pressure. Grip closure rate is also adjustable. Since the grip supplies are self-contained systems, they allow the use of hydraulic grips on non-hydraulic test systems.

Model 685.60 Hydraulic Grip Intensifier

The 685.60 Hydraulic Grip Intensifier, which utilizes an innovative fluid-to-fluid intensification system, is used with grips that require a pressure higher than the normal system hydraulic pressure. Two versions are available with factory adjusted output pressures of 45 MPa (6,500 psi) and 69 MPa

(10,000 psi). The output pressure is adjustable from 10 MPa

(1,500 psi) up to the grip supply output rating.

To minimize the set-up time of larger grips, a high volume upgrade kit is available.

95

Force Transducers for Exceed Series 40 Electromechanical Systems

S-Beam

» Measures axial loads using S-shaped design with a single embedded strain gage

» Offers exceptional value and extreme simplicity for lowcapacity testing with minimal side loads

» Ideal for low-force tension and compression testing of plastics, rubber and paper

» Designed for accuracy and linearity

» Available in a range of force capacities (1 N to 5 kN)

Precision, TEDS-enabled load cells

Highly accurate MTS load cells are designed to offer high stiffness and stability with low non-linearity. They provide overload and side load protection and are designed with built-in shunt resistors to facilitate regular verification of accuracy using calibration routines featured in MTS software.

To increase efficiency and reduce potential operator error, they feature TEDS (Transducer Electronic Data Sheets) selfidentification capabilities that follow the recently adopted

IEEE 1451.4 standard. This enables an MTS Exceed system to automatically detect installed load cells and download specific calibration information.

Load cell savings

The dual-test zone design allows one load cell to be used for two types of test on the same load frame. This feature not only saves testing time, but it reduces overall load cell expense for the lab.

LSB.100

Part Number

100302923

100302924

100302925

100302926

100302927

100302928

100302929

100302930

100302931

100302932

100302933

100302934

100302935

100302939

100302940

100302937

100302944

100302946

Type

single cantilever beam single cantilever beam single cantilever beam

S Beam

S Beam

S Beam

S Beam

S Beam

S Beam

S Beam

S Beam

S Beam

S Beam

Low Profile Mount

Low Profile Mount

Low Profile Mount

Low Profile Mount

Low Profile Mount

Force Rating

5N

10N

20N

50N

100N

200N

500N

1kN

2kN

5kN

10kN

25kN

30kN

30kN

50kN

100kN

300kN

600kN

Compatible Load frame

E42/E43

E42/E43

E42/E43

E42/E43

E42/E43/E44.104

E42/E43/E44.104

E42/E43/E44.104

E42/E43/E44.104

E42/E43/E44.104

E42/E43/E44.104

E43/E44.104

E44.204

E44.304

E43.304/E44.304

E43.504

E45.105

E45.305

E45.605

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

TEDS ID

YES

YES

YES

YES

YES

YES

YES

Overload Protection Connections

150% of Capacity M3

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

M3

M3

M8

M8

M6

M6

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

150% of Capacity

M10

M12

M12

M12

M18X1.5

M18X1.5

M24X1.5/M10

M24X1.5/M10

M24X1.5/M10

M36X2

M72X2

Contacting Extensometers

635 Monotonic Tensile Extensometers

MTS 635 Series Extensometers are specially designed for popular monotonic axial tensile strain measurement. They are the economic choices, ideally for large volume QA/QC testing.

Like all MTS extensometers, these feature our unique design of proprietary strain gaged elements using a special heat treated alloy. They are designed with a ground profile, dual-member flexure that provides for very low activation force with excellent strength. The design assures true center-point bending resulting in low hysteresis and exceptionally accurate strain readings.

Mechanical stops on these extensometers make it possible to leave them attached through specimen failure without damaging the unit. They also feature a zero-set pin for accurate and consistent determination of the initial gage length.

MTS Fundamental Series 635 Extensometers come standard with hardened, replaceable knife edges for flat and round specimens. These units come standard with patented MTS

Quick-attach springs which make attachment to specimens fast and easy. Each extensometer is packed in a storage case containing the instrument and attached cable.

Features

» Designed for monotonic tensile test

» Proven MTS reliability and can be left in place through specimen failure

» Easy to use with MTS patented Quick Attach springs

Linearity

1

Typical: 0.08% of range

Immersibility

Not intended for immersion in water or other liquids

Cable Length

Standard 1.5 m (60 in)

Adapters

Extensometer adapter: Bendix PT01A-10-6P. All zero-balancing circuitry is situated in the adapter to reduce unit weight

Accuracy

2

Designed to meet ASTM E83 Class B1 and ISO 9513

Class 0.5 standards

Temperature Range

4°C to 50°C (40°F to 120°F)

97

Specifications

Model Part Number Gage Length

Maximum

Travel

Maximum

Strain

Length (from knife edge to back of housing)

635.25F-05

635.50F-05

635.50F-10

635.50F-25

635.100F-10

057-863-506

057-863-505

057-863-504

057-863-503

057-863-502

25 mm

50 mm

50 mm

50 mm

100 mm

+ 5 mm

+ 5 mm

+ 10 mm

+ 25 mm

+ 10 mm

20%

10%

20%

50%

10%

77.5 mm (3.1 in)

77.5 mm (3.1 in)

77.5 mm (3.1 in)

153.7 mm (6.1 in)

77.5 mm (3.1 in)

635.100F-25 057-863-501 100 mm + 25 mm 25% 153.7 mm (6.1 in)

Notes:

1 Linearity stated is for ascending data and is the deviation from best fit straight line thru zero expressed as a percent of full scale.

2 Calibrations are separate. These extensometers leave the factory with a quality validation and verification by sampling three measurement

points to validate performance. The 635 series extensometers are intended to meet ASTM class B-1 and ISO class 0,5.

Height

(from bottom to top)

39.6 mm (1.1 in)

59.2 mm (2.3 in)

61.5 mm (2.4 in)

69.1 mm (2.7 in)

111.8 mm (4.4 in)

119.1 mm (4.7 in)

Contacting Extensometers

632 & 634 Advantage Axial Extensometers

» Fatigue rated high performance extensometers for both monotonic and dynamic testing

» Available in many gage lengths (10 to 50 mm) and travel ranges (±1.5 to 50 mm)

» Meet and/or exceed ASTM E83 Class B1 and ISO 9513 Class

0.5 calibration requirements

» See Gage Length Extenders for 634.11 / .12 / .25

Axial Extensometers...page 99

632.13F-20

Model

632.13F-20

632.26E-30

632.26E-31

632.26E-33

632.26E-40

632.26E-41

632.26E-43

632.26F-20

632.26F-21

632.26F-23

632.26F-30

632.26F-31

632.26F-33

632.26F-40

632.26F-41

632.26F-43

634.11F-24

634.11F-54

634.12F-24

634.12F-54

634.25F-24

634.25F-54

634.31F-24

Type

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial

Axial/Multiple

Gage Length

632.26F-20

Gage

Length(s)

8 mm

8 mm

8 mm

12 mm

12 mm

12 mm

25 mm

25 mm

10 mm

0.3 in

0.3 in

0.3 in

0.5 in

0.5 in

0.5 in

8 mm

8 mm

8 mm

25 mm

25 mm

50 mm

50 mm

10, 15, 20, 25, 30,

35, 40, 45, 50 mm

634.12F-54

Travel

+/- 0.48 mm

+/- 0.48 mm

+/- 0.48 mm

+/- 1.08 mm

+/- 1.08 mm

+/- 1.08 mm

+/- 2.5 mm

5 mm

+/- 1.5 mm

+/- 0.018 in

+/- 0.018 in

+/- 0.018 in

+/- 0.045 in

+/- 0.045 in

+/- 0.045 in

+/- 1.2 mm

+/- 1.2 mm

+/- 1.2 mm

-2.5 mm to 12.5 mm

12.5 mm

-5 mm to 25 mm

25 mm

-2 mm to 4 mm

634.25F-24

Accuracy

class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5 class 0.5

634.31F-24 – Multiple

Gage Lengths

Temperature

Range

-100°C to 150°C

-150°F to 350°F

-452°F to 150°F

-150°F to 350°F

-150°F to 300°F

-452°F to 150°F

-150°F to 350°F

-100°C to 150°C

-269°C to 65°C

-100°C to 175°C

-100°C to 150°C

-269°C to 65°C

-100°C to 175°C

-100°C to 150°C

-269°C to 65°C

-100°C to 175°C

-85°C to 120°C

-85°C to 120°C

-85°C to 120°C

-85°C to 120°C

-85°C to 120°C

-85°C to 120°C

-85°C to 120°C

Contacting Extensometers

Compression Gage

» Ideal for testing advanced materials and composites

» Extremely versatile: designed for measuring small deformations, bend testing or specimens with unusual geometries

» Measures displacement in contact with specimen or on an active component in the force train

» Meets and/or exceeds ASTM E83 Class B1 and ISO 9513

Class 0.5 calibration requirements

Model

632.06H-20

Type

Displacement Gage

Height

101 mm

Length

101 mm

Travel

-4 mm to 4 mm

632.06H-20

Accuracy

class 0.5

Temperature

Range

-100°C to 150°C

99

Gage Length Extenders

GAGE LENGTH EXTENDERS FOR 634.11 / .12 / .25 AXIAL EXTENSOMETERS

634.11F-24

(with extender)

Model

634.15C-31

634.15C-32

634.15C-33

634.15C-37

634.15C-40

634.15C-41

634.15C-42

634.15C-47

634.15C-4X

Type

Gage Length Extenders

Gage Length Extenders

Gage Length Extenders

Gage Length Extender Kit

Gage Length Extenders

Gage Length Extenders

Gage Length Extenders

Gage Length Extender Kit

Gage Length Extenders

Compatible

Extensometer(s)

634.11F, 634.12F

634.11F, 634.12F

634.11F, 634.12F

634.11F, 634.12F

634.25 (C/F)

634.25 (C/F)

634.25 (C/F)

634.25 (C/F)

634.25 (C/F)

Gage

Dimension(s)

100 mm

150 mm

200 mm

50, 100, 150, 200 mm

100 mm

150 mm

200 mm

100, 150, 200 mm

80 mm

Contacting Extensometers

Axial High-Temperature Extensometers

» Lightweight, low-contact-force devices for measuring strain in tests up to 2200°F (1200°C) in furnaces or induction heaters

» Designed for high-temperature tension and compression testing applications, typically for round metal and ceramic specimens

» Maximize accuracy in complex high-temperature materials tests that require precise measurement of thermal gradients

» Meet and/or exceed ASTM E83 Class B1 and ISO 9513

Class 0.5 calibration requirements

Model

632.53F-11

632.53F-14

632.54F-11

632.54F-14

Type

Axial High-Temperature

Axial High-Temperature

Axial High-Temperature

Axial High-Temperature

Gage

Length(s)

25 mm

12 mm

25 mm

12 mm

632.53F-11

Travel

-1.25 mm to 2.5 mm

-1.2 mm to 2.4 mm

-1.25 mm to 2.5 mm

-1.2 mm to 2.4 mm

Accuracy

class 0.5 class 0.5 class 0.5 class 0.5

632.54F-11

Temperature

Range

Max: 1200°C

Max: 1200°C

Max: 1200°C

Max: 1200°C

Axial Enhanced Travel Extensometers

» Available in 25 and 50 mm gage lengths to enable measurement over a longer travel range without compromising accuracy

» Suited for tension testing with +100% strain capability, typically for flat or round metal and plastic specimens

Model

632.24F-50

634.28F-24

Type

Axial – Enhanced Travel

Axial – Enhanced Travel

Gage

Length(s)

25 mm

50 mm

Travel

25 mm

50 mm

Accuracy

class 1.0 class 0.5

632.24F-50

Temperature

Range

-100°C to 150°C

-100°C to 150°C

Axial Immersible Extensometer

» Designed to accurately measure axial strain while completely submerged in water or saline solution

» Ideal for tension testing of biomaterials

» Patented parallel flexure system accurately translates specimen displacement to a hermetically sealed LVDT

» Meet and/or exceed ASTM E83 Class B1 and ISO 9513 Class

0.5 calibration requirements

Model

632.79F-01

Type

Axial Immersible

Gage

Length(s)

25 mm

632.79F-01

Travel

+/- 6.25 mm

Accuracy

class 0.5

Temperature

Range

-15°C to 85°C

Contacting Extensometers

Axial Sub-miniature Extensometers

» Designed for accurately measuring axial strain on specimens that require a smaller device, such as short or thin wires, delicate materials and small organics

» Available in gage lengths of 3, 5 and 6 mm and travel ranges of ±0.24 mm and 0.5 to 1.5 mm

» Meet and/or exceed ASTM E83 Class B1 and ISO 9513 Class

0.5 calibration requirements

Model

632.29F-20

632.29E-30

632.29F-30

Type

Axial Sub-miniature

Axial Sub-miniature

Axial Sub-miniature

Gage

Length(s)

3 mm

6 mm

5 mm

Travel

+/- 0.24 mm

+/- 0.24 mm

-0.5 mm to 1.5 mm

632.29F-20

Accuracy

class 0.5 class 0.5 class 0.5

Temperature

Range

-100°C to 150°C

-100°C to 150°C

-100°C to 150°C

101

Cross Sectional Strain Extensometer

» Dedicated, single-purpose extensometer for measuring cross-sectional strain

» Can be paired with other axial extensometers to measure the

“R” value of plastics and sheet metal

» Unique design allows one-hand mounting

» Free-floating feature enables it to travel with the specimen as it is elongated during axial loading

» Meets and/or exceeds ASTM E83 Class B1 and ISO 9513

Class 0.5 calibration requirements

Model

632.23F-30

Type

Cross Sectional Strain

Gage

Width

20 mm

Specimen

Thickness

.5 mm to 5 mm

Travel

-4 mm

632.23F-30

Accuracy

class 0.5

Temperature

Range

-100°C to 150° C

Contacting Extensometers

Diametral Extensometers

» Ideal for tension and compression testing of round specimens, determining Poisson’s ratio or measuring cross-sectional area change

» Available in gage diameters of 6.1 to 26 mm

» Models optimized for ambient temperature, cryogenic and elevated temperature testing

» Meet and/or exceed ASTM E83 Class B1 and ISO 9513

Class 0.5 calibration requirements

Model

632.18F-20

632.18F-21

632.18F-23

Type

Diametral

Diametral

Diametral

Gage

Diameter

6.1 mm to 26 mm

6.1 mm to 26 mm

6.1 mm to 26 mm

632.18F-20

Travel

-2 mm to 2 mm

-2 mm to 2 mm

-2 mm to 2 mm

Accuracy

class 0.5 class 0.5 class 0.5

Temperature

Range

-100°C to 150°C

-270°C to 65°C

-100°C to 175°C

Biaxial Extensometer

» Designed to accurately measure cross-sectional, diametral and average axial strain to help find Poisson’s ratio

» Ideal for tension and compression testing of plastic and composite specimens in many shapes and sizes

» Minimizes mechanical crosstalk between axial and transverse channels

» Meets and/or exceeds ASTM E83 Class B1 and ISO 9513

Class 0.5 calibration requirements

Model

632.85F-05

Type

Biaxial

Gage

Length

25 mm

Travel

Axial

1.2 mm to -1.5 mm

632.85F-05

Travel Temperature

Transverse Accuracy Range

+/- .5 mm class 0.5 -100°C to 150°C

Contacting Extensometers

LTX 850 Long Travel Extensometer

Equipped only for Exceed Family EM systems, the LTX 850 long travel extensometer is used to measure tension of materials with large displacement such as polymers and other elastomers.

Features

» Durable high strength aluminum alloy structure for long useful life

» High resolution digital encoder to ensure accurate and repeatable measurement

» Optimized mechanical design for smooth reliable operation

» Changeable contact knife, adjustable gripping force and balanced arm and head weight design to allow smooth following of the material strain change and prevent stickiness

» Choice of fixed or swivel mounts for user convenience

Specifications

Model LTX 850

Part Number 100-302-887

Maximum Travel

850

Effective Measuring Range 10-850

Standard Gage Length

10, 15, 20, 25, 50, 75, 100

Minimum Gage Length 10

Allowed Specimen Size (within) 20 mm (width), 30 mm (thickness)

Accuracy <0.5%

Standards Compliance

» ASTM E83 Class B1 and ISO 9513 Class 0.5

» ASTM D412 and ISO 37 requirements

Mounting Options

Fixed Mount

100-302-888 100-302-888

Swivel Mount

100-302-889 100-302-891 100-302-890 100-302-892

103

Non-Contacting Extensometers

LX Laser Extensometers

» Utilize scanning laser and reflective targets to measure axial strain

» Analog output port for closed loop strain control or input to a data acquisition board or chart recorder

» Self-contained, easily portable, user-friendly design

» Meet accuracy requirements as stated in ASTM E83 Class B1

» Certified with the Center for Devices and Radiological

Health as Class II products

LX 500

Model Type

LX 500 Laser

Travel

5 mm to 127 mm

Accuracy Voltage Non-linearity Repeatability Resolution

class B1 110 V 0.009 mm 0.003 mm 0.001 mm

LX 500

LX 1500

Laser

Laser

5 mm to 127 mm

8 mm to 381 mm class B1 class B2

220 V

110 V

0.009 mm

0.05 mm

0.003 mm

0.05 mm

0.001 mm

0.01 mm

LX 1500

Laser 8 mm to 381 mm class B2 220 V 0.05 mm 0.05 mm 0.01 mm

MTS Fundamental Video Extensometers (FVX)

» Utilize single high-resolution digital video camera and reflective targets to perform edge-to-edge strain measurements

» Value-priced solutions for gaining axial and axialtransverse strain measurements

» Multiple optional lenses provide field of view (FOV) flexibility

» Integrates measurements into results and reports via

TestWorks software

» Conforms with ASTM E83, ISO 9513 and EN 10002-4 standards

FVX

Strain

Axis of Software Typical Measurement Video Gage

Model Measurement Platform Applications Segment(s) Camera Lens Length Accuracy Resolution

FVX01 Axial TestWorks

® Rubbers /

Plastics

FVX02

Axial-transverse TestWorks Soft Metals /

Composites

1

2

1380 x 1024 pixel

Tamron

M118 FM25

Up to 100 mm

1380 x 1024 Tamron Up to 100 mm pixel

Tamron

M118 FM25 class 1.0 class 1.0

1 µm

1 µm

Environmental Chambers

Model 653 Furnaces for Series 40 (EM) Systems

MODEL 653.XX FURNACE

» Capable of achieving temperatures up to 1400°C

(2550°F) (non-testing environment)

» Capable of achieving 1000°C (1800°F) in validated testing conditions with standard solution

» Single or multiple zone heating

» Clamshell design streamlines test setup, furnace alignment, and specimen changeover

» Silicon carbide heating elements and alumina fiber insulation system for low heat loss and long life

» Multiple furnace heights to accommodate diverse test requirements

» Mounting bracket for a variety of MTS load frames is included

» Designed to accommodate MTS high-temperature axial extensometers

MODEL 409.83 TEMPERATURE CONTROLLER

» Multiple mounting options – on included furnace mounting bracket or optional stand for floor or table

» Compact, ergonomic design

» Multiple level, self-tuning PID control

» SCR power relays included

» Digital communications available

Specifications

Model

653.01

653.02

653.03

653.04**

Temperature

Max/Min*

1400°C/100°C

1400°C/100°C

1400°C/100°C

1400°C/100°C

Overall

Height

55 mm

85 mm

126 mm

220 mm

Hot Zone

Height

19 mm

50 mm

90 mm

185 mm

Hot Zone

Width & Depth

50 x 50 mm

50 x 50 mm

62.5 x 62.5 mm

62.5 x 62.5 mm

* Nominal temperatures may vary depending on specimen geometry and material. 1400°C is achieved in a non-testing environment.

** Supports testing to ASTM E606-04e1. BSI 7270, JIS Z2279, AFNOR A03-403 or ISO 12106 requirements.

Note: When ordering, please indicate voltage requirements and provide necessary load frame dimensions in order to determine system integration requirements

Number of Zones

1

2

2

3

105

Environmental Chambers

Chambers

The MTS FEC Series Chambers enable the testing of materials and components within various ranges of high and low temperatures.

Two electrical heating elements are used for high temperature testing. An electric motor-driven fan with a baffle provides diffused convection heat for uniform temperatures. The specimen is shielded from direct radiant heat by the fan baffle and fan blades.

Use of liquid nitrogen (at 22 psi) allows temperature control between ambient and -70°C (-94°F) . Chambers may be provided for carbon dioxide operation between ambient and -70°C (-94°F) as an option (specify either 300 psi or 900 psi carbon dioxide supply).

The chambers will maintain a constant temperature within a few degrees (see specifications) of the desired setting with very little temperature gradient across the specimen. Temperature gradient across the specimen, while heating or cooling, depends mainly on the geometry, mass, and material of the specimen.

Typical uses are elastomer material studies, body and engine mount tests, shock absorber tests, tire cord tests, plastics, composite material tests, laminate tests, and vibration isolator tests. These chambers are used in research, in reliability testing, quality control, and production testing.

Chambers are of all-welded construction. The door opens to

180°, or it may be lifted from the chamber if that is more convenient. The window is multipane, tempered glass, sealed to keep moisture out and to prevent fogging and frosting .

MTS can also supply special chambers designed for use with mechanical refrigeration, humidity control, or salt spray applications and in special sizes to suit your unique requirements. Contact your

MTS sales engineer for more information about these options.

Features

» Temperature ranges from -70°C (-94°F) to 350°C (662°F )

» Forced convection heating provides rapid heat transfer, over-shoot protection

» Large circulating fan helps ensure small specimen temperature gradients; fan baffle minimizes radiant heat on specimen

» Cooling ranges available from ambient to: -70°C (-94°F) when equipped for liquid nitrogen (standard)

» Built-in high quality temperature controller, with digital communications

» Removable “U-plug” sections for top and bottom walls allow the chamber to be put in place for testing after mounting the specimen and all instrumentation in the load frame

» Local protection against thermal run away (additional protection is provided by the temperature controller)

» Internal light illuminates the test area

» Temperature sensor can be located anywhere in test area

» CE certified

C

B

A

L

W

F

H

G

E

D

Dimensions of Environmental Chambers

Model A B C D E F H G L W

FEC1200 45 mm 110 mm 170 mm 200 mm 600 mm 200 mm 835 mm 760 mm 1050 mm 360 mm

FEC1300

45 mm 150 mm 225 mm 265 mm 600 mm 300 mm 865 mm 760 mm 1150 mm 460 mm

Environmental Chambers

Applicable Grips and Fixtures

Model Description

XSB204B 20 kN Wedge action grip

XSF204A 20 kN Wedge action grip

Compatible Occupation

Application Chambers Adapter Height* page

Tensile Test

Tensile Test

FEC1200, FEC1300 20 mm

FEC1200, FEC1300 20 mm

DSC104B 10 kN Screw action grip,SST

Y104B

Tensile Test FEC1200, FEC1300 20 mm

10 kN

ø

100 Compression platen, spherical self-aligning, SST Compression Test FEC1200, FEC1300 20 mm

ZWA304 30kN Bend Fixture,SST Bend Test FEC1200, FEC1300 20 mm

282 mm

362 mm

224 mm

140 mm

258 mm

24

25

30

73

83

* Occupation height: The total height from upper grip pin hole to the lower grip pin hole when there is no gap between the grips or fixtures.

Dimensions of FEC Chamber Mounted in Exceed Frame

Bracket Model 169000

C

D

E

F

G

H

Chamber

Frame

A

B

FEC1200

1870 mm

361 mm

420 mm

900 mm

835 mm

1060 mm

360 mm

196 mm

169100

FEC1300

1870 mm

461 mm

590 mm

900 mm

835 mm

1060 mm

460 mm

184 mm

169200

FEC1300 FEC1300

1870 mm

461 mm

685 mm

900 mm

835 mm

1060 mm

460 mm

179 mm

1870 mm

461 mm

682 mm

900 mm

835 mm

1060 mm

460 mm

179 mm

107

G

F

H

E

C

B

D

A

Environmental Chambers

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

20 mm

20 mm

20 mm

20 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

Optional Pull Rods

Description

A B C D

Capacity Upper Adapter Lower Adapter Length (pin to pin) Travel*

Pull Rod, 2020, 575

Pull Rod, 2020, 600

Pull Rod, 2020, 625

Pull Rod, 2020, 650

Pull Rod, 4020, 200

Pull Rod, 4020, 225

Pull Rod, 4020, 250

Pull Rod, 4020, 275

Pull Rod, 4020, 300

Pull Rod, 4020, 325

Pull Rod, 4020, 350

Pull Rod, 4020, 375

Pull Rod, 4020, 400

Pull Rod, 4020, 425

Pull Rod, 4020, 450

Pull Rod, 4020, 475

Pull Rod, 2020, 175

Pull Rod, 2020, 200

Pull Rod, 2020, 225

Pull Rod, 2020, 250

Pull Rod, 2020, 275

Pull Rod, 2020, 300

Pull Rod, 2020, 325

Pull Rod, 2020, 350

Pull Rod, 2020, 375

Pull Rod, 2020, 400

Pull Rod, 2020, 425

Pull Rod, 2020, 450

Pull Rod, 2020, 475

Pull Rod, 2020, 500

Pull Rod, 2020, 525

Pull Rod, 2020, 550

Pull Rod, 4020, 500

Pull Rod, 4020, 525

Pull Rod, 4020, 550

Pull Rod, 4020, 575

Pull Rod, 4020, 600

Pull Rod, 4020, 625

Pull Rod, 4020, 650

Pull Rod, 4020, 675

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

Pull Rod, 4040, 250 100 kN

Pull Rod, 4040, 300 100 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

40 mm

40 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

300 mm

325 mm

350 mm

375 mm

400 mm

425 mm

450 mm

475 mm

575 mm

600 mm

625 mm

650 mm

200 mm

225 mm

250 mm

275 mm

500 mm

525 mm

550 mm

575 mm

600 mm

625 mm

650 mm

675 mm

250 mm

300 mm

375 mm

400 mm

425 mm

450 mm

475 mm

500 mm

525 mm

550 mm

175 mm

200 mm

225 mm

250 mm

275 mm

300 mm

325 mm

350 mm

120 mm

145 mm

170 mm

195 mm

220 mm

245 mm

270 mm

295 mm

415 mm

440 mm

465 mm

490 mm

20 mm

45 mm

70 mm

95 mm

320 mm

345 mm

370 mm

395 mm

420 mm

445 mm

470 mm

495 mm

35 mm

85 mm

215 mm

240 mm

265 mm

290 mm

315 mm

340 mm

365 mm

390 mm

15 mm

40 mm

65 mm

90 mm

115 mm

140 mm

165 mm

190 mm

Available as 1

Lower Rod**

YES

YES

YES

YES

YES

YES

YES

YES

NO

NO

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

NO

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

NO

NO

NO

YES

Compatible

Frame

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E44.104, E44.304

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

Environmental Chambers

Optional Pull Rods (continued)

Description

A B C D

Capacity Upper Adapter Lower Adapter Length (pin to pin) Travel*

Pull Rod, 4040, 350 100 kN

Pull Rod, 4040, 400 100 kN

Pull Rod, 4040, 450 100 kN

Pull Rod, 4040, 500 100 kN

Pull Rod, 4040, 550 100 kN

Pull Rod, 4040, 600 100 kN

Pull Rod, 4040, 650 100 kN

Pull Rod, 4040, 700 100 kN

Pull Rod, 6020, 250

Pull Rod, 6020, 300

Pull Rod, 6020, 350

Pull Rod, 6020, 400

Pull Rod, 6020, 450

Pull Rod, 6020, 500

Pull Rod, 6020, 550

Pull Rod, 6020, 600

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

30 kN

Pull Rod, 6020, 650

Pull Rod, 6020, 700

30 kN

30 kN

Pull Rod, 6040, 300 100 kN

Pull Rod, 6040, 350 100 kN

Pull Rod, 6040, 400 100 kN

Pull Rod, 6040, 450 100 kN

Pull Rod, 6040, 500 100 kN

Pull Rod, 6040, 550 100 kN

Pull Rod, 6040, 600 100 kN

Pull Rod, 6040, 650 100 kN

Pull Rod, 6040, 700 100 kN

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

60 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

20 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

20 mm

20 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

40 mm

250 mm

300 mm

350 mm

400 mm

450 mm

500 mm

550 mm

600 mm

350 mm

400 mm

450 mm

500 mm

550 mm

600 mm

650 mm

700 mm

650 mm

700 mm

300 mm

350 mm

400 mm

450 mm

500 mm

550 mm

600 mm

650 mm

700 mm

60 mm

110 mm

160 mm

210 mm

260 mm

310 mm

360 mm

410 mm

135 mm

185 mm

235 mm

285 mm

335 mm

385 mm

435 mm

485 mm

460 mm

510 mm

75 mm

125 mm

175 mm

225 mm

275 mm

325 mm

375 mm

425 mm

475 mm

Note:

All of these rods are compatible for use with both FEC1200 and FEC1300.

Other sizes on request.

* D Travel: The biggest travel range in theory, not the final parameter. A higher frame or chamber might be required.

** Available as a lower rod: Some of the rods are too short to be used as lower rod.

Compatible

Frame

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.105

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

E45.305

A

Available as a

Lower Rod**

YES

YES

YES

YES

NO

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

109

C

D

B

MTS Exceed Series 40 Electromechanical Load Frames

Model E42.503 E43.104 E44.104

Maximum rated force capacity

Force capacity options

Frame type

5 kN (1100 lbf)

5 N, 10 N, 20 N, 50 N, 100 N,

200 N, 500 N, 1 kN, 2 kN, 5 kN

1 lbf, 2 lbf, 5 lbf, 10 lbf, 20 lbf, 45 lbf,

110 lbf, 220 lbf, 450 lbf, 1100 lbf

Table top

10 kN (2200 lbf)

5 N, 10 N, 20 N, 50 N, 100 N, 200 N,

500 N, 1 kN, 2 kN, 5 kN, 10 kN

1 lbf, 2 lbf, 5 lbf, 10 lbf, 20 lbf, 45 lbf,

110 lbf, 220 lbf, 450 lbf, 1100 lbf, 2200 lbf

Table top

10 kN (2200 lbf)

100 N, 250 N, 500 N,

1 kN, 2 kN, 5 kN, 10 kN

20 lbf, 50 lbf, 110 lbf, 220 lbf,

450 lbf, 1100 lbf, 2200 lbf

Floor-standing

Test zones (single/dual) Single

Maximum test speed

Minimum test speed

500 mm/min (19.7 in/min)

0.001 mm/min (0.00004 in/min)

0.000051 mm (0.0000022 in) Position resolution

Vertical test space crosshead travel

Standard

Extended

Space between columns

Frame height

Standard

Extended

700 mm (27.6 in)

1000 mm (39.4 in)

100 mm (3.94 in)

1300 mm (51.18 in)

1600 mm (63.0 in)

Single

500 mm/min (19.7 in/min)

0.001 mm/min (0.00004 in/min)

0.000041 mm (0.0000016 in)

1000 mm (39.4 in)

1300 mm (51.2 in)

340 mm (13.4 in)

1617 mm (63.7 in)

1917 mm (75.5 in)

Single/Dual

500 mm/min (19.7 in/min)

0.001 mm/min (0.00004 in/min)

0.000036 mm (0.0000014 in)

1150 mm (45.28 in)

1450 mm (57.09 in)

400 mm (15.75 in)

1862 mm (73.3 in)

2162 mm (85.12 in)

Frame width

Frame depth

Weight

Standard

Extended

Power requirement

642 mm (25.28 in)

582 mm (22.91 in)

120 kg (265 lb)

130 kg (287 lb)

Single-phase 200-230 V AC,

3 Amp 50/60 Hz, 600 W

681 mm (26.81 in)

588 mm (23.15 in)

120 kg (265 lb)

130 kg (287 lb)

Single-phase 200-230 V AC,

3 Amp 50/60 Hz, 600 W

845 mm (33.27 in)

716 mm (27.19 in)

435 kg (959 lb)

450 kg (992 lb)

Single-phase 200-230 V AC,

3 Amp 50/60 Hz, 600 W

Model E44.304 E45.105 E45.305 E45.605

Maximum rated force capacity

Force capacity options

Frame type

30 kN (6600 lbf)

100 N, 250 N, 500 N, 1 kN, 2 kN,

5 kN, 10 kN, 20 kN, 30 kN

100 kN (22000 lbf)

50 kN, 100 kN

20 lbf, 50 lbf, 110 lbf, 220 lbf, 450 lbf, 11000 lbf, 22000 lbf

1100 lbf, 2200 lbf, 4400 lbf, 6600 lbf

Floor-standing

Test zones (single/dual) Single/Dual

300 kN (66000 lbf)

200 kN, 300 kN

44000 lbf, 66000 lbf

600 kN (132000 lbf)

200 kN, 300 kN, 600 kN

44000 lbf, 66000 lbf, 132000 lbf

Floor-standing Floor-standing Floor-standing

Single/Dual Single/Dual Single/Dual

Maximum test speed 500 mm/min (19.7 in/min) 500 mm/min (19.7 in/min) 250 mm/min (9.84 in/min) 254 mm/min (10 in/min)

0.001 mm/min (0.00004 in/min) 0.001 mm/min (0.00004 in/min) 0.001 mm/min (0.00004 in/min)

0.000041 mm (0.0000016 in) 0.000017 mm (0.0000007 in) 0.000016 mm (0.0000006 in)

Minimum test speed

Position resolution

0.001 mm/min (0.00004 in/min)

0.000040 mm (0.0000015 in)

Vertical test space crosshead travel

Standard

Extended

Space between columns

Frame height

Standard

Extended

1150 mm (45.28 in)

1450 mm (57.09 in)

400 mm (15.75 in)

1862 mm (73.3 in)

2162 mm (85.12 in)

845 mm (33.27 in)

716 mm (27.19 in)

Frame width

Frame depth

Weight

Standard

Extended

Power requirement

435 kg (959 lb)

450 kg (992 lb)

Single-phase 200-230 V AC,

6 Amp 50/60 Hz, 1200 W

1050 mm (41.34 in)

1350 mm (53.15 in)

600 mm (23.62 in)

2133 mm (83.98 in)

2433 mm (95.79 in)

1230 mm (48.43 in)

870 mm (34.25 in)

1400 kg (3086 lb)

1450 kg (3197 lb)

1100 mm (43.30 in)

1400 mm (55.12 in)

580 mm (22.83 in)

2360 mm (92.91 in)

2660 mm (104.72 in)

1215 mm (47.83 in)

960 mm (37.80 in)

1700 kg (3748 lb)

1750 kg (3758 lb)

1300 mm (51.2 in)

750 mm (29.52 in)

2820 mm (111.02 in)

1660 mm (65.35 in)

1272 mm (50.08 in)

3500 kg (7716)

Single-phase 200-230 V AC, Three-phase 380-415 V AC, or Three-phase 380-415 V AC, or

10 Amp 50/60 Hz, 2000 W 440-480 V AC, 6.8 Amp 440-480 V AC, 7.2 Amp

50/60 Hz, 5000 W 50/60 Hz, 5000 W

Grips & Fixtures Index

Model Description Page

DQC203A

DQC303A

DQC503C

DQD101B

DSA103B

DSA104B

DSA201A

DSA204B

DSA303A

DSA303B

DSA502A

DSA503B

DSB104B

DSC104B

DSD503A

DSE103B

DX104A

FDYA105B

FDYA305A

FDYA504A

FDYB105A

GD203A

GD503A

GSB502A

JA104B

JA105B

JA504A

JB103A

K203A

PA103A

BA202A

BA203B

BA303B

BB202A

CA103A

CA104A

CA105C

CA203A

CA304C

CB502B

CB503A

CB504E

200 N Peel Fixture, 90°

2 kN Peel Fixture, 90°, Polyethylene/Aluminum

Composite Pressure Pipe

3 kN Peel Fixture, 90°

200 N Peel Fixture, Floating Roller

1 kN Roller Action Grip

10 kN Capstan Grip

100 kN Roller Action Grip

2 kN Bollard Grip

30 kN Roller Action Grip

500 N Bollard Grip

5 kN Bollard Grip

50 kN Roller Action Grip

84

CD503B

CH503A

CQA102A

CQA303E

CQA502A

CQB203A

5 kN Bollard Grip

5 kN Bollard Grip

100 N Pneumatic Horn Grip

3 kN Pneumatic Bollard Grip

500 N Pneumatic Horn Grip

2 kN Pneumatic Capstan Grip

CSA204C

CSA304C

20 kN Roller Action Grip

30 kN Bollard Grip

50

48

DKF1005089.01 50 kN Balsa Wood & Foams Surface Soundness Test Fixture 66

DKF1005089.03 50 kN Compression Fixture 78

46

45

19

17

19

16

DL07589.01 200 kN Square Compression Platen

DL12179.01 5 kN Peel Fixture, 180°, Customized

DLB12129.01 50 kN Compression Platen

DQA102A 100 N Pneumatic Vise Action Grip

DQA102B

DQA103A

DQA502A

DQB303A

100 N Pneumatic Vise Action Grip

1 kN Pneumatic Vise Action Grip

500 N Pneumatic Vise Action Grip

3 kN Pneumatic Bollard Grip

74-75

88

77

10

11

11

11

18

44

52

43

47

51

86

86

85

49

53

52

2 kN Pneumatic Vise Action Grip

3 kN Pneumatic Vise Action Grip

5 kN Pneumatic Vise Action Grip

10 N Pneumatic Vise Action Grip

1 kN Screw Action Grip

10 kN Screw Action Grip

20 N Vise Action Grip

20 kN Screw Action Grip

3 kN Vise Action Grip

3 kN Screw Action Grip

500 N Vise Action Grip

5 kN Screw Action Grip

10 kN Screw Action Grip

10 kN Screw Action Grip, SST

5 kN Vise Action Grip

1 kN Vise Action Grip

10 kN Screw Action Grip

100 kN Hydraulic Double-side Action Grip

300 kN Hydraulic Single Side-Action Grip

50 kN Hydraulic Single Side-Action Grip

100 kN Hydraulic Single Side-Action Grip

2 kN Scissors Action Grip

5 kN Scissors Action Grip

500 N Locking Piler Grip

10 kN Wood Sheer Fixture

100 kN Metal Sheer Fixture

30 kN Metal Shear Fixture (double faces)

1 kN Fiberglass Reinforced Plastics Sheer Fixture,

2 kN Vise Action Grip

1 kN Roller Action Grip

34-35

27

37

27

29

28

34-35

32

12

13

14-15

9

26

28

36

31

92

91

89

34-35

55

7

40

41

58

90

30

8

7

7

YA204A

YA305A

YA503A

YB104B

YB105A

YB304A

YB305A

YB504A

YC104B

YC204A

YC305A

YD105A

YF105A

ZBJ104

ZBM104

ZDA303

ZDA503

PA502B

TA305A

TB105A

WA104A

WA105A

WA204A

WA305A

XSA104B

XSA105A

XSA304A

XSA305A

XSB204B

XSD204B

XSF204A

Y104B

YA104A

YA104B

YA105A

ZDPA503

ZGGA104

ZJH104

ZJM502

ZLA105A

ZLA204B

ZLD204

ZNJ104

ZSL103

ZWA104A

ZWA204A

ZWA304

ZWC104A

ZYA203

ZYA204

ZYA503A

ZYE204

ZYG304

ZYH102

ZYK304

ZYL104

ZYM104

ZYN104

ZYS305

Model Description Page

500 N Roller Action Grip

300 kN Shoulder Grip

100 kN Shoulder Grip

10 kN Bend Fixture, Plastics

100 kN Bend Fixture, Metal

20 kN Bend Fixture, Plastics

300 kN Bend Fixture, Metal

10 kN Wedge Action Grip

100 kN Wedge Action Grip

30 kN Wedge Action Grip

300 kN Wedge Action Grip

20 kN Wedge Action Grip

20 kN Wedge Action Grip

20 kN Wedge Action Grip

10 kN Round Compression Platen, SST

10 kN Round Compression Platen

10 kN Square Compression Platen

100 kN Round Compression Platen

20 kN Round Compression Platen

300 kN Round Compression Platen

5 kN Round Compression Platen

10 kN Square Compression Platen

100 kN Round Compression Platen

30 kN Square Compression Platen

300 kN Round Compression Platen

50 kN Round Compression Platen

10 kN Square Compression Platen

20 kN Round Compression Platen

300 kN Round Compression Platen

100 kN Round Compression Platen

74-75

73

68-69

68-69

100 kN Round Compression Platen 68-69

10 kN Wood-based Panels-surface Soundness Test Fixture 65

10 kN Surface Bonding Strength Test Fixture

3 kN Vise Action Grip

5 kN Vise Action Grip

62

34-35

33

68-69

72

68-69

74-75

72

74-75

72

68-69

5 kN P Geotextile Puncture Fixture

10 kN Spring Tension Grip

10 kN Surface Bonding Strength Test Fixture

500 N Screw Withdrawal Test Fixture

100 kN Thread Grip

220 kN Wedge Action Grip (small flat specimen)

20 kN Capstan Grip

10 kN Internal Bonding Strength Test Fixture

1 kN Leather Double Edge Tear Fixture

10 kN Bend Fixture, with Dial Gage

20 kN Bend Fixture, with Dial Gage

30 kN Bend Fixture, SST

10 kN Bend Fixture, Wood

2 kN Square Compression Platen

20 kN Round Compression Platen (with dial gage)

5 kN Round Compression Platen

20 kN Square Compression Platen

30 kN Square Compression Platen

100 N Circular Ring Tension Grip

30 kN Square Compression Platen

10 kN Square Compression Platen

10 kN Test Fixture, Flexible Graphite Sheets

Compressibility & Recovery

10 kN Square Compression Platen

300 kN Compression Fixture

24-25

22

20-21

23

71

68-69

74-75

72

80

20-21

24-25

24-25

56

39

38

81

80

81

83

81

82

74-75

67

70

74-75

74-75

57

74-75

74-75

54

63

93

83

94

60

61

59

42

64

76

74-75

79

111

m

MTS Systems Corporation

14000 Technology Drive

Eden Prairie, MN 55344-2290 USA

ISO 9001 Certified QMS http://www.mts.com

Regional Business Centers

THE AMERICAS

MTS Systems Corporation

14000 Technology Drive

Eden Prairie, MN 55344-2290

USA

Telephone: 952-937-4000

Toll Free: 800-328-2255

Fax: 952-937-4515

E-mail: [email protected]

Internet: www.mts.com

EUROPE

MTS Systems France

BAT EXA 16

16/18 rue Eugène Dupuis

94046 Créteil Cedex

France

Telephone: +33-(0)1-58 43 90 00

Fax: +33-(0)1-58 43 90 01

E-mail: [email protected]

MTS Systems GmbH

Hohentwielsteig 3

14163 Berlin

Germany

Telephone: +49-(0)30 81002-0

Fax: +49-(0)30 81002-100

E-mail: [email protected]

MTS Systems S.R.L. a socio unico

Strada Pianezza 289

10151 Torino

Italy

Telephone: +39-(0)11 45175 11 sel. pass.

Fax: +39-(0)11 45175 00-01

E-mail: [email protected]

MTS Systems Norden AB

Datavägen 37b

SE-436 32 Askim

Sweden

Telephone: +46-(0)31-68 69 99

Fax: +46-(0)31-68 69 80

E-mail: [email protected]

MTS Systems Ltd. UK

Unit 9, Cirencester Office Park

Tetbury Road

Cirencester

Gloucestershire

GL7 6JJ

United Kingdom

Telephone: +44-(0)1285-648800

Fax: +44-(0)1285-658052

E-mail: [email protected]

ASIA/PACIFIC

MTS Japan Ltd.

ArcaCentral Bldg. 8F

1-2-1 Kinshi, Sumida-ku

Tokyo 130-0013

Japan

Telephone: 81-3-6658-0901

Fax: 81-3-6658-0904

E-mail: [email protected]

MTS Korea, Inc.

4 th

F., ATEC Tower, 289,

Pankyo-ro, Bundang-gu

Seongnam-si

Gyeonggi-do 463-400,

Korea

Telephone: 82-31-728-1600

Fax: 82-31-728-1699

E-mail: [email protected]

MTS China Hechuan Office

Room 703 Building #B,

Venture International Park,

No. 2679 Hechuan Road,

Minhang District,

Shanghai 201103,

P.R.China

Telephone: +86-21-5427 1122

Fax: +86-21-6495 6330

E-mail: [email protected]

MTS and Bionix are registered trademarks and Advantage, MTS Criterion, MTS

Fundamental and MTS TestSuite are trademarks of MTS Systems Corporation in the United States. These trademarks may be protected in other countries.

RTM No. 211177.

©2015 MTS Systems Corporation

100-310-444 ExceedAccessories Printed in U.S.A. 9/15

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
