14._coaxdata_en

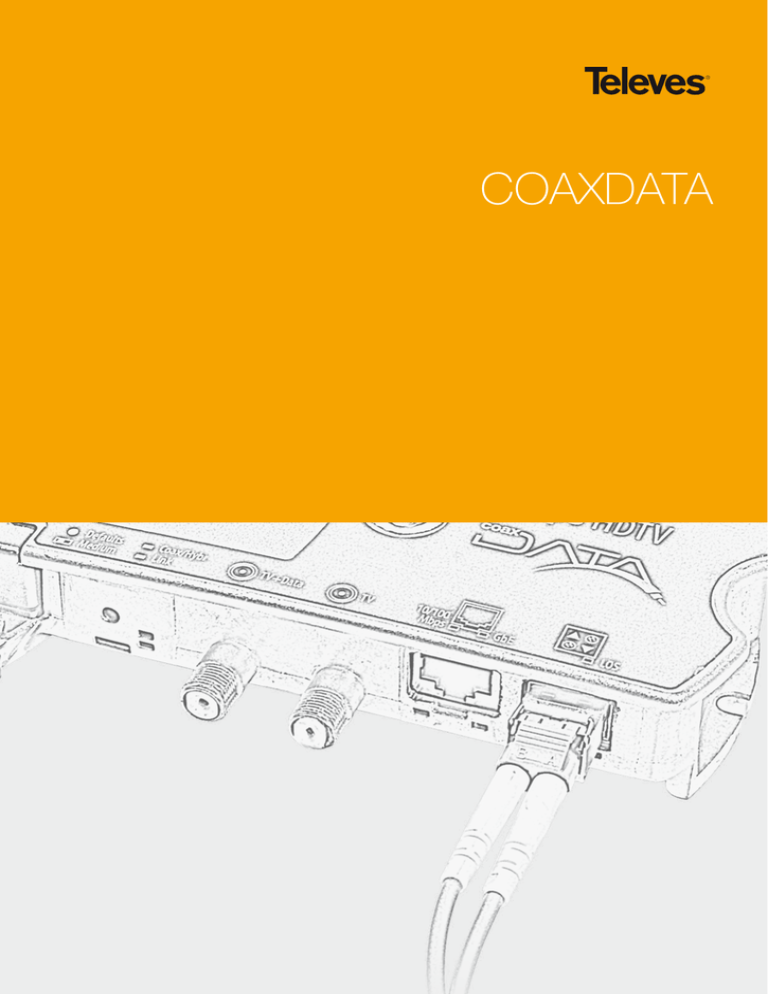

COAXDATA

coaxdata

ethernet coaxial adapter

Qr-a00171

Coaxdata: HomePlug AV and Gigabit (HomePlug AV IEEE1901)

The bandwidth of the coaxial cable allows to multiplex a number of services other than television.

200 Mbps

Coaxdata is a state-of-art system that converts a television coaxial network into a high speed local network. By means of Coaxdata, sharing resources (computers, printers, an internet connection, etc) does not need any additional cable.

This system allows its integration in coaxial networks and the data electric power distribution (PLC) and includes features which allows its deployment in optical fiber networks. p 7689

High throughput for applications such as VoIP, video streaming, video on demand, internet access, etc.

Integrated QoS (Quality of Service). 128bit AES

Encryption.

flexible and upgradable solution for the construction of segments of

up to 253 devices

.

No changes are necessary in the topology of the coaxial network

to coexist with existing TV services.

Coaxial cable high attenuations (~85dB) are supported.

Remote management is possible by means of the

CoaxManager

Software and

Control Access Software

.

1 Gbps

p 768973 p 769201

REf.

DESCRIPTION

Coaxdata Homeplug 200Mbps units

7689 CoaxData 200 Mbps coaxial + PLC, 2 ETH connectors

768973 CoaxData 200 Mbps coaxial, 1 ETH connector

Coaxdata Gigabit 1 Gbps units

769201 CoaxData 1Gbps-HDTV coaxial + PLC, 2 ETH connectors

769203 CoaxData 1Gbps-HDTV coaxial, 1 ETH connector

769202

CoaxData 1Gbps-HDTV coaxial + PLC,

1 ETH connector and 1 SfP connector p 769203 p 769202

288 catalogue 2014 / 2015

coaxdata

ethernet coaxial adapter

Type of installation

Home Networking

Local network between users.

85 dB

85 dB

85 dB

85 dB

85 dB

Multipoint-to-Multipoint

Local network with conection between all the devices.

MDU/MTU (MXU)

Shared access to internet.

master

85 dB 85 dB

85 dB 85 dB slave slave slave slave

Point-to-Multipoint

Local network with no communication between slaves.

Qr-a00100

TV - Data diplexer filters

REf.

DESCRIPTION

7654 filter 1-40 / 47-2150MHz for Coaxdata 200 Mbps

769220 filter 1-68 / 87-2150MHz for Coaxdata 1 Gbps

Qr-a00172

Reference

Bandwidth

Throughloss IN - fPA_OUT

Throughloss IN - fPB_OUT

Isolation between inputs

7654 769220

MHz 1-40 47-2150 1-70 88-2150

35 2 35 2 dB 2 25 2 30

37 40

BLOCK DIAGRAM

1 MHz

Ref. 7654

40 MHz 47 MHz 2150 MHz

FPB FPA

SfP Module

REf.

DESCRIPTION

Optical SFM Modules for Coaxdata

769211 SfP EPON 1f.O.

769210 SfP 1000 Base-X 2 f.O.

p 769211 z

7654

1 MHz 70 MHz

Ref. 769220

88 MHz 2150 MHz

FPB FPA

p 769210

289 catalogue 2014 / 2015

coaxdata

ethernet coaxial adapter

PRODUCT DESCRIPTION

Coaxdata Homeplug

Coaxial / Hybrid

Green

Orange

Cable Coaxial

Power line

(Ref.7689)

TV + data

TV

Ethernet 10/100 Mbps

(2 ports just Ref.7689)

Factory

Preset

Transmission mode switch

Channel quality Green

Orange

Red

120 Mbps < Throughput

70 Mbps < Throughput < 120 Mbps

0 Mbps < Throughput a < 70 Mbps

Only coaxial

Coaxial & PLC

(Ref.7689)

Coaxdata Gigabit

Coaxial / Hybrid

Green

Orange

Coaxial cable

Power line

TV + data

Factory

Preset

TV

Ethernet 10/100/1000 Mbps

(2 Ports Eth Ref.769201

1Eth + 1SFP Ref.769202)

1 Port Ethernet Ref.769203

Channel quality

Green

Orange

Red

300 Mbps <Throughput

170 Mbps < Throughput< 300 Mbps

0 Mbps < Throughput < 170 Mbps

Transmission mode switch

Only coaxial

Coaxial & PLC

290 catalogue 2014 / 2015

coaxdata

ethernet coaxial adapter

Reference

Technology

Connection

Data interface

Ethernet ports

Coaxial interface

Coaxial data interface

Bandwidth

Output level

Output impedance

Max. attenuation

Coaxial TV interface

Bandwidth

Insertion loss

Return loss

Ouput impedance

Power supply / Temperature

Voltage (50/60 Hz)

Max. consumption

Working temperature firmware

Number of supported slaves

Maximum length of coaxial network

Home Networking

Coaxial option

One of the most typical applications of the CoaxData-200Mbps-HDTV modem, is used to share the services of your Internet provider at home.

Using the modem, you will get access to the services provided by your ISP such as the Internet access, video streaming or VoIP throughout the home without requiring additional infrastructure.

The following diagram shows a prototype facility in which a user can access the different services provided by the Internet, anywhere in the house.

You can also share printers and media servers located in other rooms of the same.

Mbps

MHz dBµV

Ω dB

MHz dB

Ω

Vac

W

ºC no.

m

7689 / 768973

HomePlug AV

769201 / 769202 / 769203

Gigabit (HomePlug AV IEEE1901)

2×RJ45 / 1xRJ45

10/100

2×RJ45 / 1xRJ45 + 1xSfP / 1xRJ45

10/100/1000

2 × f (TV + data)

2 - 30 2 - 67,5

130

75

85

57 ... 2150

100 - 264

5

800

87 ... 2150

2

> 10

75

108 -254

6 (1,8 by low consumption mode)

-10 a +45

253 (1012 with 4 masters)

1200

Home Networking

Share printer, NAS Media Server, the Internet, ... on the same network

Internet

Router

291 catalogue 2014 / 2015

coaxdata

home networking

Home Networking

PLC Mode

The Coax Data 200Mbps-HDTV adapter is factory configured to be able to perform a Home Networking plug-and-play installation. This allows for the creation of an LAN, where all the devices communicate with each other (peer-to-peer).

In this application it is used the electric network infrastructure of the house for data trnasmission (PLC).

The main benefit of this application is based on the fact that the electrical network reaches every corner of the home.

Hybrid Mode

The Coax Data 200Mbps-HDTV adapter is factory configured to be able to perform a Home Networking plug-and-play installation. This allows for the creation of an LAN, where all the devices communicate with each other (peer-to-peer).

In this application it is used both coaxial cable and electric infrastructures of the house for data trnasmission (COAX + PLC).

In other words, whichever electric or coaxial outlet can be a LAN point.

292 catalogue 2014 / 2015

Home Networking

Internet

Router the Internet

Internet

Router

Home Networking

coaxdata

mxU mode

Coaxial distribution

Internet

PWR

CTRL

Router

Master

TV - DATA Diplexer master slave slave slave slave

MDU/MTU (MXU)

Systems to share Internet access.

MATV/SMATV Networks.

CATV

HfC (Redes híbridas fibra/coaxial).

Hospitality applications.

Slave

Slave

Option 1

Line amplifier with passif return path

TV - DATA Diplexer

Option 2

Line amplifier without or active return path.

TV - DATA Diplexer

Slave

293 catalogue 2014 / 2015

coaxdata

optical network

P2P Solution : Ethernet over fiber 1000Base-X

Using Ethernet adapter ref.769202

By means of an SfP module the Gigabit Coaxdata allows the connection with the optical network of a provider.

In the following application it can be seen an example of a system with 8 branches using three fibers each. Two fibers for the data communications and a third for Rf Overlay. The last part of the network is distributed trough the coaxial network.

p 769202

Coaxdata Network 1

769201/7689/769203

1Gbps

HDTV

Defaults

Medium

Coax/Hybr

Link

TV + Data TV

Coaxial Network TV + Data

769202

Defaults

Medium

Coax/Hybr

Link

TV + Data TV

1Gbps

HDTV

LOS

769210

769220

Optical node

2310

Optical headend:

- PSU. ref.5629

- TX_fO 10dBm /1310nm ref. 233310

- 8w Optical Splitterd ref. 234401 fibra TV

1.310nm

Switch 1000Base-X

1.310nm

Coaxdata Network 2

Coaxdata Network 3

Coaxdata Network 8

294 catalogue 2014 / 2015

Cabecera Rf

coaxdata

optical network

EPON Solution

Using adapter ref.769202

Three optical windows are multiplexed to be able to distribute data download, upload and TV Rf Overlay. for data transmission lamdas1490/1310nm are implemented. for Rf distribution (RfOG) 1550nm is used . This configuration allows the distribution through an Passive

Optical Network (PON).

The SfP Module used has to be compatible with the OLT deployed in the headend. A WDM hast be used both at the headend and at the optical nodes.

In the example its shown an application with 64 EPON lines, each of them feeding a coaxial network.

Coaxdata Network 1

769201/7689/769203

1Gbps

HDTV

Defaults

Medium

Coax/Hybr

Link

TV + Data TV

Coaxial NetworkTV + Data

Optical splitter + EPON

OUT

16

14

15

13

12

11

10

9

OUT

fiber TV + EPON

Coaxdata Network 1...16

Optical headend :

-PSU. ref.5629

-TX_fO 1550nm ref. 234304

-EDfA 1550nm ref.234220

-WDM ref. 234701

-Rep.4d fO ref.2339

769202

Nodo óptico 2310

Defaults

Medium

Coax/Hybr

Link

TV + Data TV

1Gbps

HDTV

LOS

769211

769220

Coaxdata Network 17...32

OLT Headend

OUT

16

15

14

13

12

11

10

9

OUT

WDM (Multiplexor/Desmultiplexor

3 ventanas)

234701

1.550nm

1.310nm

1.490nm

Optical splitter16d fO234501

Coaxdata Network 33...48

Coaxdata Network 49...64

OUT

16

15

14

13

12

11

10

9

OUT

Optical splitter16d fO 234501

OUT

14

13

12

16

15

11

10

9

OUT

Optical splitter 16d fO 234501

295 catalogue 2014 / 2015

Rf Headend

coaxdata

management SYStem

CoaxManager Software

This tool allows the configuration of the working mode and parameters of the system. As well as an evaluation of the transmission channel of each device.

Configuration of the working mode Home Networking or MXU.

Establisment of private networks (Encryption).

QoS configuration.

Limit of number of MAC Adresses per slave.

IGMP (Internet Group Management Protocol) configuration.

Detailed información of the SNR, attenuation, tone map which allows to evaluate the performace of the system. firmware update.

Channel evaluation window for the Gigabit Coaxdata Channel evaluation window for the Homeplug Coaxdata

Network parameters window

296 catalogue 2014 / 2015

Configuration window
