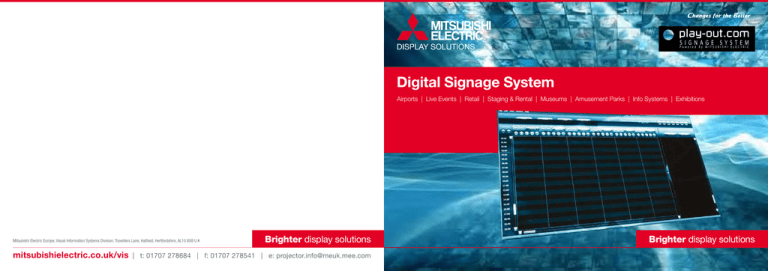

SP o wI eGr e Nd BAy MGI TES U B SI S HYI SE L TE C ET R M
IC
Digital Signage System
Airports | Live Events | Retail | Staging & Rental | Museums | Amusement Parks | Info Systems | Exhibitions
Mitsubishi Electric Europe, Visual Information Systems Division, Travellers Lane, Hatfield, Hertfordshire, AL10 8XB U.K
mitsubishielectric.co.uk/vis
Brighter display solutions
| t: 01707 278684 | f: 01707 278541 | e: [email protected]
Brighter display solutions
is capable of producing image files from content up to 1080p
resolution.
Play-Out
A digital signage and information system solution powered by Mitsubishi
65"
52"
46"
42"
32"
65"
52"
46"
42"
32"
As digital signage becomes increasingly popular within the advertising
world, capturing your audience’s attention can be difficult and expensive. However getting the right message to your desired audience could
not be simpler with Mitsubishi’s new digital signage software
system, Play-Out. Complementing Mitsubishi’s full range of
display solutions, Play-Out has been designed as a cost effective
professional network programme that enables the display
of dynamic and creative visuals ideal for advertisements
and broadcasting.
With more emphasis now on electronic forms of
communication and advertisements, Play-Out
provides a complete delivery system that enables
creatives to deploy virtually any combination of
Flash, HTML, video or graphics to their network
quickly and easily. Affordable and user-friendly,
users can customise their messages and
graphics to target their customers specifically.
For flexible integration, Play-Out can be used
with a variety of configurations, from small
display systems to large impact display walls.
Offering an all in-one digital signage solution, Mitsubishi’s Play-Out
is compatible with our full range of projectors, LCD monitors, LED
screens and display wall solutions. Individual resolutions can be
achieved for different installation environments and the software
The Play-Out user interface is compact and user-friendly. Setup and configurations are easy and the producer is designed to
control the whole system, from playlists to resolution settings
and media files display status .Operating and navigating around
the system is also kept simple. The media input container
consists of media files that users can simply drag and drop
into the display container. Each display has its own
container and timeline, allowing users to personalise
their graphics and create their own specific play lists.
System configuration
Consisting of one producer PC and one PC player/
IP player, Play-Out is easily connectable via the LAN.
The producer controls the whole
system and users can create
play lists for individual displays,
synchronize and update content
and change the resolution in
accordance to specific display
specifications. Furthermore the
producer PC can automatically
detect all the PC´s on the LAN
with the player software installed,
making set up quick and easy.
The player component of the
software is used for displaying
the desired content. To keep cost
to a minimum, the software works well with all core
CPU and ATI or NVidia graphic cards, 2GB RAM and a
HDD size from 120GB.
Play-Out Interface
tool buttons
on-off line status
media preview button
display container
time line
media input container
Brighter display solutions
SP o wI eGr e Nd BAy MGI TES U B SI S HYI SE L TE C ET R M
IC
Digital Signage System
Airports | Live Events | Retail | Staging & Rental | Museums | Amusement Parks | Info Systems | Exhibitions
Mitsubishi Electric Europe, Visual Information Systems Division, Travellers Lane, Hatfield, Hertfordshire, AL10 8XB U.K
mitsubishielectric.co.uk/vis
Brighter display solutions
| t: 01707 278684 | f: 01707 278541 | e: [email protected]
Brighter display solutions
