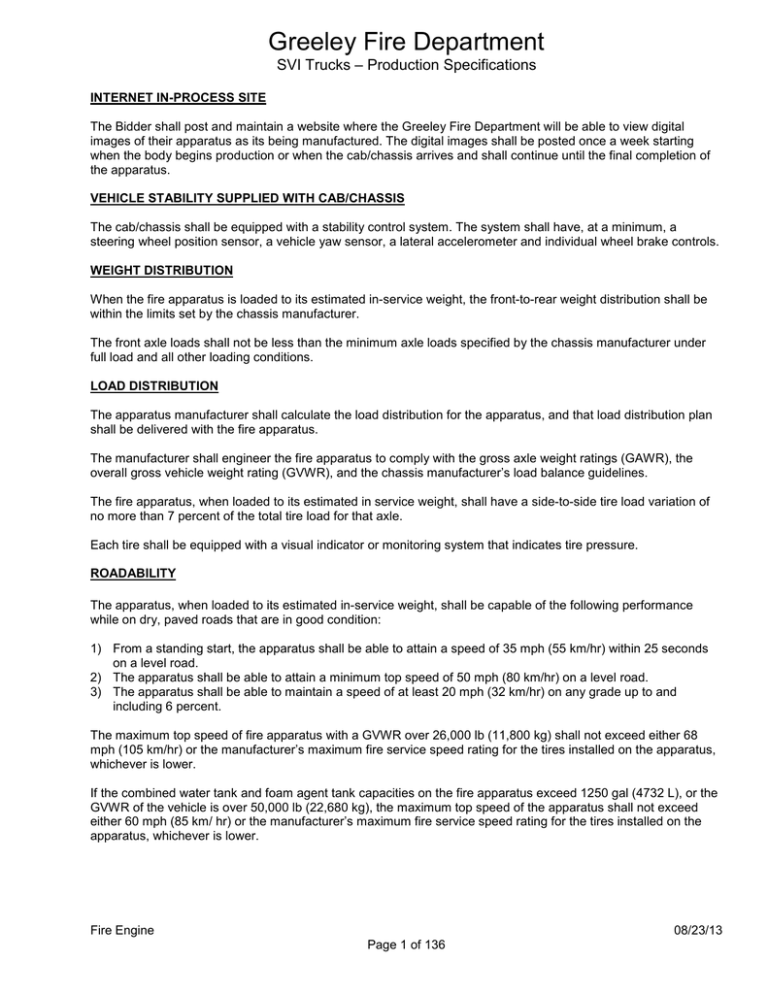

Greeley Fire Department
SVI Trucks – Production Specifications
INTERNET IN-PROCESS SITE
The Bidder shall post and maintain a website where the Greeley Fire Department will be able to view digital
images of their apparatus as its being manufactured. The digital images shall be posted once a week starting
when the body begins production or when the cab/chassis arrives and shall continue until the final completion of
the apparatus.
VEHICLE STABILITY SUPPLIED WITH CAB/CHASSIS
The cab/chassis shall be equipped with a stability control system. The system shall have, at a minimum, a
steering wheel position sensor, a vehicle yaw sensor, a lateral accelerometer and individual wheel brake controls.
WEIGHT DISTRIBUTION
When the fire apparatus is loaded to its estimated in-service weight, the front-to-rear weight distribution shall be
within the limits set by the chassis manufacturer.
The front axle loads shall not be less than the minimum axle loads specified by the chassis manufacturer under
full load and all other loading conditions.
LOAD DISTRIBUTION
The apparatus manufacturer shall calculate the load distribution for the apparatus, and that load distribution plan
shall be delivered with the fire apparatus.
The manufacturer shall engineer the fire apparatus to comply with the gross axle weight ratings (GAWR), the
overall gross vehicle weight rating (GVWR), and the chassis manufacturer’s load balance guidelines.
The fire apparatus, when loaded to its estimated in service weight, shall have a side-to-side tire load variation of
no more than 7 percent of the total tire load for that axle.
Each tire shall be equipped with a visual indicator or monitoring system that indicates tire pressure.
ROADABILITY
The apparatus, when loaded to its estimated in-service weight, shall be capable of the following performance
while on dry, paved roads that are in good condition:
1) From a standing start, the apparatus shall be able to attain a speed of 35 mph (55 km/hr) within 25 seconds
on a level road.
2) The apparatus shall be able to attain a minimum top speed of 50 mph (80 km/hr) on a level road.
3) The apparatus shall be able to maintain a speed of at least 20 mph (32 km/hr) on any grade up to and
including 6 percent.
The maximum top speed of fire apparatus with a GVWR over 26,000 lb (11,800 kg) shall not exceed either 68
mph (105 km/hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the apparatus,
whichever is lower.
If the combined water tank and foam agent tank capacities on the fire apparatus exceed 1250 gal (4732 L), or the
GVWR of the vehicle is over 50,000 lb (22,680 kg), the maximum top speed of the apparatus shall not exceed
either 60 mph (85 km/ hr) or the manufacturer’s maximum fire service speed rating for the tires installed on the
apparatus, whichever is lower.
Fire Engine
08/23/13
Page 1 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
SERVICEABILITY
The fire apparatus shall be designed to allow the manufacturer’s recommended routine maintenance checks of
lubricant and fluid levels to be performed by the operator without lifting the cab of a tilt-cab apparatus or without
the need for hand tools.
Where special tools are required for routine service on any component of the apparatus, such tools shall be
provided with the apparatus.
Apparatus components that interfere with repair or removal of other major components shall be attached with
fasteners, such as cap screws and nuts, so that the components can be removed and installed with ordinary hand
tools. These components shall not be welded or otherwise permanently secured into place.
Fire Engine
08/23/13
Page 2 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CONSTRUCTION DOCUMENTATION
The contractor shall supply, at the time of delivery, at least one (1) copy of the following documents:
The manufacturers record of apparatus construction details, including the following information:
1) Owner’s name and address
2) Apparatus manufacturer, model, and serial number
3) Chassis make, model, and serial number
a) GAWR of front and rear axles and GVWR
b) Front tire size and total rated capacity in pounds (kilograms)
c) Rear tire size and total rated capacity in pounds (kilograms)
d) Chassis weight distribution in pounds (kilograms) with water and manufacturer-mounted equipment (front
and rear)
e) Engine make, model, serial number, rated horsepower and related speed, and governed speed; and if so
equipped, engine transmission PTO(s) make, model, and gear ratio
f) Type of fuel and fuel tank capacity
g) Electrical system voltage and alternator output in amps
h) Battery make, model, and capacity in cold cranking amps (CCA)
i) Chassis transmission make, model, and serial number; and if so equipped, chassis transmission PTO(s)
make, model, and gear ratio
4) Pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and serial
number
5) Pump transmission make, model, serial number, and gear ratio
6) Auxiliary pump make, model, rated capacity in gallons per minute (liters per minute where applicable), and
serial number
7) Water and Foam tank certified capacity in gallons or liters
8) Paint manufacturer and paint number(s)
9) Company name and signature of responsible company representative
10) If the apparatus is a mobile foam fire apparatus, the certification of foam tank capacity
11) Certification of compliance of the optical warning system
12) Siren manufacturer’s certification of the siren
13) Written load analysis and results of the electrical system performance tests
14) Certification of slip resistance of all stepping, standing, and walking surfaces
15) If the apparatus has a fire pump, the pump manufacturer’s certification of suction capability
16) If the apparatus is equipped with a fire pump and special conditions are specified by the purchaser, the pump
manufacturer’s certification of suction capacity under the special conditions
17) If the apparatus has a fire pump, a copy of the apparatus manufacturer’s approval for stationary pumping
applications
18) If the apparatus has a fire pump, the engine manufacturer’s certified brake horsepower curve for the engine
furnished, showing the maximum governed speed
19) If the apparatus has a fire pump, the pump manufacturer’s certification of the hydrostatic test
20) If the apparatus has a fire pump, the certification of inspection and test for the fire pump
21) If the apparatus is equipped with an auxiliary pump, the apparatus manufacturer’s certification of the
hydrostatic test
22) When the apparatus is equipped with a water tank, the certification of water tank capacity
23) If the apparatus has a foam proportioning system, the foam proportioning system manufacturer’s certification
of accuracy and the final installer’s certification the foam proportioning system meets this standard
24) If the system has a CAFS, the documentation of the manufacturer’s pre delivery tests
25) If the apparatus has a line voltage power source, the certification of the test for the power source
26) If the apparatus is equipped with an air system, air tank certificates, the SCBA fill station certification, and the
results of the testing of the air system installation
27) Any other required manufacturer test data or reports.
Fire Engine
08/23/13
Page 3 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
OPERATIONS AND SERVICE DOCUMENTATION
The Contractor shall deliver with the fire apparatus at least two (2) sets of complete operation and service
documentation covering the completed apparatus as delivered and accepted.
The documentation shall address at least the inspection, service, and operations of the fire apparatus and all
major components thereof.
The Contractor shall also deliver with the fire apparatus the following documentation for the entire apparatus and
each major operating system or major component of the apparatus:
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
19)
Manufacturer’s name and address
Country of manufacture
Source for service and technical information
Parts replacement information
Descriptions, specifications, and ratings of the chassis, pump (if applicable), and aerial device (if applicable)
Wiring diagrams for low voltage and line voltage systems to include the following information:
a) Pictorial representations of circuit logic for all electrical components and wiring
b) Circuit identification
c) Connector pin identification
d) Zone location of electrical components
e) Safety interlocks
f) Alternator–battery power distribution circuits
g) Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems
Lubrication charts
Operating instructions for the chassis, any major components such as a pump or aerial device, and any
auxiliary systems
Precautions related to multiple configurations of aerial devices, if applicable
Instructions regarding the frequency and procedure for recommended maintenance
Overall apparatus operating instructions
Safety considerations
Limitations of use
Inspection procedures
Recommended service procedures
Troubleshooting guide
Apparatus body, chassis and other component manufacturer’s warranties
Special data required by this standard
A material safety data sheet (MSDS) for any fluid that is specified for use on the apparatus
The Contractor shall deliver with the apparatus all manufacturer's operations and service documents supplied with
components and equipment that are installed or supplied by the Contractor.
NFPA REQUIRED DOCUMENTATION FORMAT - USB FLASH DRIVE
The vehicle construction details and the operations and service documentation as required per NFPA 1901 latest
edition shall be provided on a USB Flash Drive. These manuals shall be divided into sections for ease of
reference. There shall be two (2) USB flash drives provided with the completed vehicle.
There shall be two (2) printed copies of the manual provided with the apparatus.
Fire Engine
08/23/13
Page 4 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CARRYING CAPACITY
The GAWR and the GCWR or GVWR of the chassis shall be adequate to carry the weight of the completed
vehicle when loaded to its estimated in-service weight. The Body Manufacturer shall establish the estimated in
service weight during the design of the vehicle
The estimated in-service weight shall include the following:
1)
2)
3)
4)
5)
6)
7)
The chassis, body and tank(s)
Full fuel, lubricant, and other chassis or component fluid tanks or reservoirs
Full water and other agent tanks
*250 lb (114 kg) in each seating position
Fixed equipment such as pumps, aerial devices, generators, reels and air systems as installed
Ground ladders, suction hose, designed hose load in their hose beds and on their reels
An allowance for miscellaneous equipment that is the greatest of the values for type of vehicle per NFPA
1901, a Purchaser provided list of equipment to be carried with weights or a Purchaser specified
miscellaneous equipment allowance.
The Body Manufacturer shall engineer and design the vehicle such that the completed unit, when loaded to its
estimated in-service weight, with all movable weights distributed as close as is practical to their intended inservice configuration, does not exceed the GVWR.
A final Body Manufacturer’s certification of the GVWR or GCWR, along with a certification of each GAWR, shall
be supplied on a label affixed to the vehicle.
Equipment
Allowance
lb.
kg.
2,000
910
Apparatus Type
Storage Areas
Apparatus Size
Pumper Fire Apparatus Equip. minimum of 40 cu ft
Less than 250 cu ft
(1.1 cu mt) of enclosed
( 7 cu mt)
compartmentation.
compartment space
Hose minimum of 30
250 cu ft (7 cu mt)
2,500
cu ft (0.8 cu mt) for
or more of
2 1/2" (65 mm) or larger fire compartment space
hose.
(2) areas for pre-connects
each minimum of 3.5 cu.ft.
(0.1 cu.mt.) for 1 1/2" (38
mm) or larger fire hose.
Compartment space for pumpers is calculated based on the inside dimensions of the enclosed
compartment.
Fire Engine
1,135
08/23/13
Page 5 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
TESTING
ROAD TEST
Road test shall be conducted in accordance with this section to verify that the completed apparatus is capable of
compliance with Roadability Section.
The tests shall be conducted at a location and in a manner that does not violate local, state or provincial or federal
traffic laws.
The tests shall be conducted on dry, level, paved roads that are in good condition. The apparatus shall be loaded
to its estimated in service weight.
The engine shall not operate in excess of the maximum governed speed. Acceleration tests shall consist of two
runs in opposite directions over the same route. The fire apparatus shall attain a speed of 35 mph (55 km/hr) from
a standing start within 25 seconds. The fire apparatus shall attain a minimum top speed of 50 mph (80 km/hr).
If the apparatus is equipped with an auxiliary braking system, the Body Manufacturer shall road test the system to
confirm that the system is functioning as intended by the auxiliary braking system manufacturer.
If the apparatus is equipped with an air brake system, the service brakes shall bring the apparatus, when loaded
to its GVWR, to a complete stop from an initial speed of 20 mph (32.2 km/hr) in a distance not exceeding 35 ft
(10.7 m) by actual measurement on a paved, level, dry surface road that is free of loose material, oil or grease.
If the apparatus is equipped with a hydraulic brake system, the service brakes shall bring the apparatus, when
loaded to its GVWR, to a complete stop from an initial speed of 30 mph (48.2 km/hr) in a distance not exceeding
88 ft (26.8 m) by actual measurement on a paved, level, dry surface road that is free of loose material, oil or
grease.
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST
The vehicles low voltage electrical system shall be tested and certified by the manufacturer. The certified test
results shall be delivered with the completed vehicle. Tests shall be performed when the air temperature is
between 0°F and 110°F (–18°C and 43°C).
TEST SEQUENCE
The following three (3) tests shall be performed in the order in which they appear below. Before each test, the
batteries shall be fully charged until the voltage stabilizes at the voltage regulator set point and the lowest charge
current is maintained for ten (10) minutes. Failure of any of these tests shall require a repeat of the sequence.
1. RESERVE CAPACITY TEST
The engine shall be started and kept running until the engine and engine compartment temperatures are
stabilized at normal operating temperatures and the battery system is fully charged. The engine shall be shut off
and the minimum continuous electrical load shall be activated for ten (10) minutes.
All electrical loads shall be turned off prior to attempting to restart the engine. The battery system shall then be
capable of restarting the engine. Failure to restart the engine shall be considered a test failure of the battery
system.
Fire Engine
08/23/13
Page 6 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
2. ALTERNATOR PERFORMANCE TEST
TEST AT IDLE
The minimum continuous electrical load shall be activated with the engine running at idle speed. The engine
temperature shall be stabilized at normal operating temperature. The battery system shall be tested to detect the
presence of battery discharge current. The detection of battery discharge current shall be considered a test
failure.
TEST AT FULL LOAD
The total continuous electrical load shall be activated with the engine running up to the engine manufacturer’s
governed speed. The test duration shall be a minimum of two (2) hours. Activation of the load management
system shall be permitted during this test.
An alarm sounded by excessive battery discharge, as detected by the warning system required in 13.3.4, or a
system voltage of less than 11.8 V dc for a 12 V nominal system, 23.6 V dc for a 24 V nominal system, or 35.4 V
dc for a 42 V nominal system for more than 120 seconds shall be considered a test failure.
3. LOW VOLTAGE ALARM TEST
The following test shall be started with the engine off and the battery voltage at or above 12 V for a 12 V nominal
system, 24 V for a 24 V nominal system or 36 V for a 42 V nominal system.
With the engine shut off, the total continuous electrical load shall be activated and shall continue to be applied
until the excessive battery discharge alarm activates. The battery voltage shall be measured at the battery
terminals.
The test shall be considered a failure if the alarm does not sound in less than 140 seconds after the voltage drops
to 11.70 V for a 12 V nominal system, 23.4 V dc for a 24 V nominal system, or 35.1 V for a 42 V nominal system.
The battery system shall then be able to restart the engine. Failure to restart the engine shall be considered a test
failure.
LOW VOLTAGE - ELECTRICAL SYSTEM PERFORMANCE TEST
DOCUMENTATION
The manufacturer shall deliver the following with the fire apparatus:
1) Documentation of the electrical system performance tests
2) A written electrical load analysis, including the following:
a) The nameplate rating of the alternator
b) The alternator rating
c) Each of the component loads specified that make up the minimum continuous electrical load
d) Additional electrical loads that, when added to the minimum continuous electrical load, determine the total
continuous electrical load
e) Each individual intermittent electrical load
Fire Engine
08/23/13
Page 7 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
UL 120/240 VAC CERTIFICATION
The 120/240 volt electrical system shall be third-party, independent, audit-certified through Underwriters
Laboratory (UL) to the current edition of NFPA 1901 to perform as listed below;
The prime mover shall be started from a cold start condition, and the unloaded voltage and frequency shall be
recorded.
The line voltage electrical system shall be loaded to at least 100% of the continuous rated wattage stated on the
power source specification label. Testing with a resistive load bank shall be permitted.
The power source shall be operated in the manner specified by the apparatus manufacturer as documented on
instruction plates or in operation manuals. The power source shall be operated at a minimum of 100% of the
continuous rated wattage as stated on the power source specification label for a minimum of two (2) hours.
The load shall be adjusted to maintain the output wattage at or above the continuous rated wattage during the
entire 2-hour test.
The following conditions shall be recorded at least every 1/2 hour during the test:
1)
2)
3)
4)
The power source output voltage, frequency and amperes
The prime mover’s oil pressure, water temperature and transmission temperature, if applicable
The power source hydraulic fluid temperature, if applicable
The ambient temperature and power source air inlet temperature
The following conditions shall be recorded once during the test for power sources driven by dedicated auxiliary
internal combustion engines:
1) Altitude
2) Barometric pressure
3) Relative humidity
If the generator is driven by the chassis engine and the generator allows for operation at variable speeds, the
chassis engine speed shall be reduced to the lowest rpm allowed for generator operation and the voltage and
frequency shall be recorded.
The load shall be removed and the unloaded voltage and frequency shall be recorded.
Voltage shall be maintained within ±10% of the voltage stated on the power source specification label during the
entire test. Frequency shall be maintained within ±3 Hz of the frequency stated on the power source specification
label during the entire test.
The total continuous electrical loads, excluding those loads associated with the equipment defined in NFPA
22.15.7.3.11.2, shall be applied during the testing unless an auxiliary engine drives the power source.
If the apparatus is equipped with a fire pump, the 2-hour certification test of the power source shall be completed
with the fire pump pumping at 100% capacity at 150 psi (1000 kPa) net pump pressure. The test shall be
permitted to be run concurrently with the pump certification test.
DOCUMENTATION
The Body Manufacturer shall deliver the following with the fire apparatus:
The results of each test shall be recorded on an appropriate form and provided with the delivery of the fire
apparatus.
Fire Engine
08/23/13
Page 8 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
DIELECTRIC VOLTAGE WITHSTAND TEST
The line voltage wiring and permanently connected devices and equipment shall be subjected to a dielectric
voltage withstand test of 900 volts for one (1) minute. The testing shall be performed after all body work has been
completed.
The test shall be conducted as follows:
1)
2)
3)
4)
5)
Isolate the power source from the panel board and disconnect any solid state low voltage components
Connect one lead of the dielectric tester to all the hot and neutral buses tied together
Connect the other lead to the fire apparatus frame or body
Close any switches and circuit breakers in the circuit(s)
Apply the dielectric voltage for one (1) minute in accordance with the testing equipment manufacturer’s
instructions
The electrical polarity of all permanently wired equipment, cord reels and receptacles shall be tested to verify that
wiring connections have been properly made.
Electrical continuity shall be verified from the chassis or body to all line voltage electrical enclosures, light
housings, motor housings, light poles, switch boxes and receptacle ground connections that are accessible to fire
fighters in normal operations.
If the apparatus is equipped with a transfer switch, it shall be tested to verify operation and that all non grounded
conductors are switched.
Electrical light towers, floodlights, motors, fixed appliances and portable generators shall be operated at their full
rating or capacity for 30 minutes to ensure proper operation.
UL PUMP CERTIFICATION
The fire pump shall be tested and certified by Underwriters Laboratories, to perform as listed below;
•
•
•
100% of rated capacity at 150 psi (1,000 kPa) net pressure
70% of rated capacity at 200 psi (1,400 kPa) net pressure
50% of rated capacity at 250 psi (1700 kPa) net pressure
The entire pump, both suction and discharge passages, shall be hydrostatically tested to a pressure of 500 psi
(3,400 kPa).
The pump shall comply with the applicable requirements of "Standard for Automotive Fire Apparatus 1901, latest
edition.
The pump shall be capable of producing fire streams that are free from objectionable pulsation under all normal
operating conditions.
Fire Engine
08/23/13
Page 9 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
WARRANTY
A full statement shall be provided of the warranties for the vehicle(s) being bid. Warranties should clearly describe
the terms under which the vehicle manufacturer accepts responsibility for the cost to repair defects caused by
faulty design, quality of work or material and for the applicable period of time after delivery.
Cost of repairs refers to all costs related thereto including, but not limited to, the cost of materials and the cost of
labor.
The Body Manufacturer shall warrant all materials and accessories used on the vehicle(s), whether fabricated by
manufacturer or purchased from an outside source and will deal directly with the Greeley Fire Department on all
warranty work.
GENERAL LIMITED WARRANTY - TWO (2) YEARS
The vehicle shall be free of defects in material and workmanship for a period of two (2) years or 36,000 miles (or
57,936 kilometers), whichever occurs first starting thirty (30) days after the original invoice date.
The Contractor must be the "single source" coordinator of all warranties on the vehicle.
LOW VOLTAGE ELECTRICAL WARRANTY - FIVE (5) YEARS
The vehicle low voltage electrical system shall be free of defects in material and workmanship for a period of five
(5) years or 60,000 miles (or 96,561 kilometers), whichever occurs first, starting thirty (30) days after the original
invoice date.
STRUCTURAL WARRANTY - TEN (10) YEARS
The body shall be free of structural or design failure or workmanship for a period of ten (10) years, or 100,000
miles (or 160,934 kilometers), whichever occurs first, starting thirty (30) days after the original invoice date.
PAINT LIMITED WARRANTY - TEN (10) YEARS
The body shall be free of bubbling or peeling as a result of a defect in the method of manufacture for a period of
ten (10) years or 100,000 miles (or 160,934 kilometers), whichever occurs first, starting thirty (30) days after the
original invoice date. Pro-rated warranties will not be acceptable.
GRAPHICS LIMITED WARRANTY
The 3M graphics installation shall be warranted for a period of two (2) years. The 3M materials installed on
completed vehicle shall be warranted for seven (7) years. The 3M Diamond grade film (if specified) shall be
warranted for ten (10) years.
WATEROUS FIVE YEAR PUMP WARRANTY
The fire pump shall be warranted by Waterous for a period of five (5) years from the date of delivery to the
Greeley Fire Department.
STAINLESS STEEL PLUMBING WARRANTY
The stainless steel plumbing shall be free of defects in material and workmanship for a period of ten (10) years, or
100,000 miles (or 160,934 kilometers), whichever occurs first, starting thirty (30) days after the original invoice
date.
The contractor shall supply details of their warranty information with their bid submission.
Fire Engine
08/23/13
Page 10 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
UPF POLY WATER TANK WARRANTY
The UPF poly water tank shall be provided with a lifetime material and workmanship limited warranty. The
manufacturer shall supply details of their warranty information with their bid submission.
CONSTRUCTION PERIOD
The completed vehicle shall be delivered within three hundred sixty (360) days after receipt of a purchase order or
contract.
Contractor shall not be held liable for delays of chassis delivery due to accidents, strikes, floods or other events
not subject to their control. Contractor shall provide immediate written notice to Greeley Fire Department as to
delays and to what extent these delays have in completing vehicle within the stated construction time period.
OVERALL HEIGHT
The overall height (OAH) of the vehicle shall not exceed 130" (10' - 10") from the ground. This measurement
shall be taken on flat ground with the tires properly inflated, in the unloaded condition, at that highest point of the
vehicle.
OVERALL LENGTH
The overall length (OAL) of the vehicle shall not exceed 420" (35' - 0").
APPARATUS DELIVERY
The Greeley Fire Department shall pick up finished apparatus at Contractor's facility. The Contractor shall be
responsible for notifying the Greeley Fire Department a minimum of two (2) weeks prior to the completion of
apparatus, so that the Greeley Fire Department has sufficient time to schedule pickup.
Fire Engine
08/23/13
Page 11 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB CHASSIS SPECIFICATION
MODEL
The chassis shall be a Gladiator model. The cab and chassis shall include design considerations for multiple
emergency vehicle applications, rapid transit and maneuverability. The chassis shall be manufactured for heavy
duty service with the strength and capacity to support a fully laden apparatus, one hundred (100) percent of the
time.
MODEL YEAR
The chassis shall have a vehicle identification number that reflects a 2013 model year.
COUNTRY OF SERVICE
The chassis shall be put in service in the country of United States of America (USA).
The chassis will meet applicable U.S.A. federal motor vehicle safety standards per CFR Title 49 Chapter V Part
571 as clarified in the incomplete vehicle book per CFR Title 49 Chapter V Part 568 Section 4 which accompanies
each chassis. Spartan Chassis is not responsible for compliance to state, regional, or local regulations. Dealers
should identify those regulations and order any necessary optional equipment from Spartan Chassis or their OEM
needed to be in compliance with those regulations.
APPARATUS TYPE
The apparatus shall be a pumper vehicle designed for emergency service use which shall be equipped with a
permanently mounted fire pump which has a minimum rated capacity of 750 gallons per minute (3000 L/min).
The apparatus shall include a water tank and hose body whose primary purpose is to combat structural and
associated fires.
VEHICLE TYPE
The chassis shall be manufactured for use as a straight truck type vehicle and designed for the installation of a
permanently mounted apparatus behind the cab. The apparatus of the vehicle shall be supplied and installed by
the apparatus manufacturer.
AXLE CONFIGURATION
The chassis shall feature a 4 x 2 axle configuration consisting of a single rear drive axle with a single front steer
axle.
GROSS AXLE WEIGHT RATINGS FRONT
The front gross axle weight rating (GAWR) of the chassis shall be 21,500 pounds.
This front gross axle weight rating shall be adequate to carry the weight of the completed apparatus including all
equipment and personnel.
GROSS AXLE WEIGHT RATINGS REAR
The rear gross axle weight rating (GAWR) of the chassis shall be 24,000 pounds.
This rear gross axle weight rating shall be adequate to carry the weight of the completed apparatus including all
equipment and personnel.
Fire Engine
08/23/13
Page 12 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
PUMP PROVISION
The chassis shall include provisions to mount a drive line pump in the middle of the chassis, behind the cab, more
commonly known as the midship location.
CAB STYLE
The cab shall be a custom, fully enclosed, ELFD model with a 10.00 inch raised roof over the driver, officer, and
crew area, designed and built specifically for use as an emergency response vehicle by a company specializing in
cab and chassis design for all emergency response applications. The cab shall be designed for heavy-duty
service utilizing superior strength and capacity for the application of protecting the occupants of the vehicle. This
style of cab shall offer up to ten (10) seating positions.
The cab shall incorporate a fully enclosed design with side wall roof supports, allowing for a spacious cab area
with no partition between the front and rear sections of the cab. To provide a superior finish by reducing welds
that fatigue cab metal; the roof, the rear wall and side wall panels shall be assembled using a combination of
welds and proven industrial adhesives designed specifically for aluminum fabrication for construction.
The cab shall be constructed using multiple aluminum extrusions in conjunction with aluminum plate, which shall
provide proven strength and the truest, flattest body surfaces ensuring less expensive paint repairs if needed. All
aluminum welding shall be completed to the American Welding Society and ANSI D1.2-96 requirements for
structural welding of aluminum.
All interior and exterior seams shall be sealed for optimum noise reduction and to provide the most favorable
efficiency for heating and cooling retention.
The cab shall be constructed of 5052-H32 corrosion resistant aluminum plate. The cab shall incorporate tongue
and groove fitted 6061-T6 0.13 & 0.19 inch thick aluminum extrusions for extreme duty situations. A single
formed, one (1) piece extrusion shall be used for the “A” pillar, adding strength and rigidity to the cab as well as
additional roll-over protection. The cab side walls and lower roof skin shall be 0.13 inch thick; the rear wall and
raised roof skins shall be 0.09 inch thick; the front cab structure shall be 0.19 inch thick.
The exterior width of the cab shall be 99.40 inches wide with a minimum interior width of 91.00 inches. The overall
cab length shall be 151.10 inches with 74.00 inches from the centerline of the front of the axle to the back of the
cab.
The cab interior shall be designed to afford the maximum usable interior space and attention to ergonomics with
hip and legroom while seated which exceeds industry standards. The crew cab floor shall be flat across the entire
walking area for ease of movement inside the cab.
The cab shall offer an interior height of 57.50 inches from the front floor to the headliner and a rear floor to
headliner height of 65.00 inches in the raised roof area, at a minimum. The cab shall offer an interior
measurement at the floor level from the rear of the engine tunnel to the rear wall of the cab of 69.88 inches. All
interior measurements shall include the area within the interior trimmed surfaces and not to any unfinished
surface.
The cab shall include a driver and officer area with two (2) cab doors large enough for personnel in full
firefighting gear. The front doors shall offer a clear opening of 40.25 inches wide X 53.50 inches high, from the
cab floor to the top of the door opening. The cab shall also include a crew area with up to two (2) cab doors,
also large enough for personnel in full firefighting gear. The rear doors shall offer a clear opening of 32.25
inches wide X 61.00 inches high, from the cab floor to the top of the door opening.
The cab shall incorporate a progressive two (2) step configuration from the ground to the cab floor at each door
opening. The progressive steps are vertically staggered and extend the full width of each step well allowing
personnel in full firefighting gear to enter and exit the cab easily and safely.
Fire Engine
08/23/13
Page 13 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
The first step for the driver and officer area shall measure approximately 11.25 inches deep X 31.13 inches wide.
The intermediate step shall measure approximately 8.38 inches deep X 32.13 inches wide. The height from the
first step to the intermediate step and the intermediate step to the cab floor shall not exceed 11.00 inches.
The first step for the crew area shall measure approximately 10.38 inches deep X 20.44 inches wide. The
intermediate step shall measure approximately 10.20 inches deep X 21.00 inches wide. The height from the first
step to the intermediate step and the intermediate step to the cab floor shall not exceed 12.80 inches.
OCCUPANT PROTECTION
The vehicle shall include the Advanced Protection System™ (APS) which shall secure belted occupants and
increase the survivable space within the cab. The APS shall selectively deploy integrated systems to protect
against injuries in qualifying frontal impact, side impact, and rollover events. The increase in survivable space and
security of the APS shall also provide ejection mitigation protection.
The system components shall include:
•
•
•
•
•
•
•
Driver steering wheel airbag
Driver dual knee air bags (patent pending) with energy management mounting (patent pending) and officer
knee airbag.
Large driver, officer, and crew area side curtain airbags
APS advanced seat belt system - retractor pre-tensioners tighten the seat belts around the occupants,
securing the occupants in seats and load limiters play out some of the seat belt webbing to reduce seat belt to
chest and torso force upon impact as well as mitigate head and neck injuries
Heavy truck Restraints Control Module (RCM) - receives inputs from the outboard sensors, selectively
deploys APS systems, and records sensory inputs immediately before and during a detected qualifying event
Integrated outboard crash sensors mounted at the perimeter of the vehicle - detects a qualifying front or side
impact event and monitors and communicates vehicle status and real time diagnostics of all critical
subsystems to the RCM
Fault-indicating Supplemental Restraint System (SRS) light on the driver’s instrument panel
Frontal impact protection shall be provided by the outboard sensors and the RCM. In a qualifying front impact
event the outboard sensors provide inputs to the RCM. The RCM activates the steering wheel airbag, driver side
dual knee airbags (patent pending), officer side knee airbag, and advanced seat belts for each occupant in the
cab.
The APS frontal impact system shall be independently tested to ensure occupant injury criteria does not exceed
injury criteria defined in Federal Motor Vehicle Safety Standard (FMVSS) 208. Frontal impact into a rigid barrier at
25 mph shall be conducted by an independent third party test facility using belted 95th percentile Hybrid II test
dummies.
Rollover, side impact, and ejection mitigation shall be provided by the outboard sensors and the RCM. In
qualifying rollover or side impact events the outboard sensors provide inputs to the RCM. The RCM activates the
side curtain airbags and advanced seat belts for each occupant in the cab. The RCM measures roll angle, lateral
acceleration, and roll rate to determine if a rollover event or side impact event is imminent or occurring.
In the event of a qualifying offset or other non-frontal impact, the RCM shall determine and intelligently deploy the
front impact protection system, the side impact protection system, or both front and side impact protection
systems based on the inputs received from the outboard crash sensors.
The APS side impact system shall be independently tested to ensure occupant injury criteria does not exceed
injury criteria defined in Federal Motor Vehicle Safety Standard (FMVSS) 214. Side impact from a moving barrier
at 17 mph shall be conducted by an independent third party test facility using belted 50th percentile ES-2re test
dummies.
Fire Engine
08/23/13
Page 14 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB FRONT FASCIA
The front cab fascia shall be constructed of 5052-H32 Marine Grade, 0.13 of an inch thick aluminum plate which
shall be an integral part of the cab.
The cab fascia will encompass the entire front of the aluminum cab structure from the bottom of the windshield to
the bottom of the cab and shall be the “Classic” design.
The front cab fascia shall include two (2) molded plastic modules on each side accommodating a total of up to
four (4) Hi/Low beam headlights and two (2) turn signal lights or up to four (4) warning lights. A chrome plated
molded plastic bezel shall be provided on each side around each set of four lamps.
FRONT GRILLE
The front cab fascia shall include a classic box style, 304 stainless steel front grille with a Spartan logo. The grille
shall measure 55.45 inches wide at the top tapering to 50.00 inches wide at the bottom X 33.06 inches high X
1.50 inches deep. The grille shall include a minimum free air intake of 750.00 square inches.
CAB UNDERCOAT
There shall be a rubberized undercoating applied to the underside of the cab that provides abrasion protection,
sound deadening and corrosion protection.
CAB SIDE DRIP RAIL
There shall be a drip rail along the top radius of each cab side. The drip rails shall help prevent water from the
cab roof running down the cab side.
CAB PAINT EXTERIOR
The cab shall be painted prior to the installation of glass accessories and all other cab trim to ensure complete
paint coverage and the maximum in corrosion protection of all metal surfaces.
All metal surfaces on the entire cab shall be ground by disc to remove any surface oxidation or surface debris
which may hinder the paint adhesion. Once the surface is machine ground a high quality acid etching of base
primer shall be applied. Upon the application of body fillers and their preparation, the cab shall be primed with a
coating designed for corrosion resistance and surface paint adhesion. The maximum thickness of the primer
coat shall be 2.00 mils.
The entire cab shall then be coated with an intermediate solid or epoxy surfacing agent that is designed to fill any
minor surface defects, provide an adhesive bond between the primer and the paint and improve the color and
gloss retention of the color. The finish to this procedure shall be a sanding of the cab with 360 grit paper followed
by sealing the seams with SEM brand seam sealer.
The cab shall then be painted the specific color designated by the customer with an acrylic urethane type system
designed to retain color and resist acid rain and most atmospheric chemicals found on the fire ground or
emergency scene. The paint shall have a minimum thickness of 2.00 mils, followed by a clear top coat not to
exceed 2.00 mils. The entire cab shall then be baked at 180 degrees for one (1) hour to speed the curing process
of the coatings.
CAB PAINT MANUFACTURER
The cab shall be painted with PPG Industries paint.
Fire Engine
08/23/13
Page 15 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB PAINT PRIMARY/LOWER COLOR
The lower paint color shall be PPG FBCH 911662 Red.
CAB PAINT WARRANTY
The cab and chassis shall be covered by a limited manufacturer paint warranty which shall be in effect for ten (10)
years from the first owner’s date of purchase or in service or the first 100,000 actual miles, whichever occurs first.
CAB PAINT INTERIOR
The visible interior cab structure surfaces shall be painted with a Zolatone #20-72 silver gray texture finish.
CAB ENTRY DOORS
The cab shall include four (4) entry doors, two (2) front doors and two (2) crew doors designed for ease of
entering and egress when outfitted with an SCBA. The doors shall be constructed of extruded aluminum with a
nominal thickness of 0.13 inch. The exterior skins shall be constructed of 0.13 inch aluminum plate.
The doors shall include a double rolled style automotive rubber seal around the perimeter of each door frame and
door edge which ensures a weather tight fit.
All door hinges shall be hidden within flush mounted cab doors for a pleasing smooth appearance and perfect fit
along each side of the cab. Each door hinge shall be piano style with a 0.38 inch pin and shall be constructed of
stainless steel.
CAB ENTRY DOOR TYPE
All cab entry doors shall be full length in design to fully enclose the lower cab steps.
CAB INSULATION
The cab ceiling and walls shall include 1.00 inch thick foam insulation. The insulation shall act as a barrier
absorbing noise as well as assisting in sustaining the desired climate within the cab interior.
LH EXTERIOR REAR COMPARTMENT
The cab shall offer an exterior compartment on the left side of the cab behind the rear door. The compartment
opening shall be 16.25 inches wide X 84.19 inches high. The compartment size shall be 17.84 inches wide X
84.19 inches high X 21.19 inches deep. The compartment shall have a 17.13 inches wide, 84.00 inches high and
1.50 inch thick reverse hinged box pan style flush mount door with a bright aluminum tread plate inner panel and
a bent D-ring slam latch. The door shall open towards the rear of the cab. There shall be a switch to activate a
light inside the compartment and the open compartment warning light in the cab in the event the door is left ajar.
LEFT HAND EXTERIOR REAR COMPARTMENT LIGHTING
There shall be two (2) On-Scene brand Night Axe LED strip lights installed to illuminate the exterior rear
compartment on the left side of the cab. The strip lights shall be 36.00 inches long.
LH EXTERIOR COMPARTMENT INTERIOR FINISH
The interior of the left hand exterior compartment shall have a Zolatone #20-72 silver gray texture finish.
Fire Engine
08/23/13
Page 16 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
RH EXTERIOR REAR COMPARTMENT
The cab shall offer an exterior compartment on the right side of the cab behind the rear door. The compartment
opening shall be 16.25 inches wide X 84.19 inches high. The compartment size shall be 17.84 inches wide X
84.19 inches high X 21.19 inches deep. The compartment shall have a 17.13 inches wide, 84.00 inches high and
1.50 inch thick reverse hinged box pan style flush mount door with a bright aluminum tread plate inner panel and
a bent D-ring slam latch. The door shall open towards the rear of the cab. There shall be a switch to activate a
light inside the compartment and the open compartment warning light in the cab in the event the door is left ajar.
RIGHT HAND EXTERIOR REAR COMPARTMENT LIGHTING
There shall be two (2) On-Scene brand Night Axe LED strip lights installed to illuminate the exterior rear
compartment on the right side of the cab. The strip lights shall be 36.00 inches in length.
RH EXTERIOR COMPARTMENT INTERIOR FINISH
The interior of the right hand exterior compartment shall have a Zolatone #20-72 silver gray texture finish.
CAB STRUCTURAL WARRANTY
The cab structure shall be warranted for a period of ten (10) years or one hundred thousand (100,000) miles
which ever may occur first. Warranty conditions may apply and shall be listed in the detailed warranty document
that shall be provided upon request.
CAB TEST INFORMATION
The cab shall have successfully completed the preload side impact, static roof load application and frontal impact
without encroachment to the occupant survival space when tested in accordance with Section 4 of SAE J2420
COE Frontal Strength Evaluation Dynamic Loading Heavy Trucks, Section 5 of SAE J2422 Cab Roof Strength
Evaluation Quasi –Static Loading Heavy Trucks and ECE R29 Uniform Provisions Concerning the Approval of
Vehicles with regard to the Protection of the Occupants of the Cab of a Commercial Vehicles Annex 3 Paragraph
5.
The above tests have been witnessed by and attested to by an independent third party. The test results were
recorded using cameras, high speed imagers, accelerometers and strain gauges. Documentation of the testing
shall be provided upon request.
ELECTRICAL SYSTEM
The chassis shall include a single starting electrical system which shall include a 12 volt direct current Weldon
brand of multiplexing system, suppressed per SAE J551. The wiring shall be appropriate gauge cross link with
311 degree Fahrenheit insulation. All SAE wires in the chassis shall be color coded and shall include the circuit
number and function where possible. The wiring shall be protected by 275 degree Fahrenheit minimum high
temperature flame retardant loom. All nodes and sealed Deutsch connectors shall be waterproof.
APPARATUS WIRING PROVISION
An apparatus wiring panel shall be installed in the center dash area behind the rocker switch panel which shall
include eight (8) open circuits consisting of three (3) 20 amp, one (1) 30 amp, three (3) 10 amp, and one (1) 15
amp circuit, with relays and breakers with trigger wires which shall be routed to the rocker switch panel.
Fire Engine
08/23/13
Page 17 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
MULTIPLEX DISPLAY
The multiplex electrical system shall include a Weldon Vista IV Touchscreen display which shall be located on the
left side of the dash in the switch panel. The Touchscreen display shall feature a full color LCD screen. The
display shall include a message bar displaying the time of day, and important messages requiring
acknowledgement by the user. There shall be virtual controls for the on-board diagnostics. The display screen
shall be video ready for back- up cameras, thermal cameras, and DVD. A DIN type input connector ready for GPS
interfacing shall be incorporated into the back of the display.
The Touchscreen display shall measure approximately 6.25 inches wide x 3.38 inches in height. The display
shall offer varying fonts and background colors. The display shall be fully programmable to the needs of the
customer and shall offer virtually infinite flexibility for screen configuration options.
DATA RECORDING SYSTEM
The chassis shall have a Weldon Vehicle Data Recorder (VDR) system installed. The system shall be designed to
meet NFPA 1901 and shall be integrated with the Weldon Multiplex electrical system. The following information
shall be recorded:
•
•
•
•
•
•
•
•
•
•
•
Vehicle Speed
Acceleration
Deceleration
Engine Speed
Engine Throttle Position
ABS Event
Seat Occupied Status
Seat Belt Status
Master Optical Warning Device Switch Position
Time
Date
Each portion of the data shall be recorded at the specified intervals and stored for the specified length of time to
meet NFPA 1901 guidelines and shall be retrievable by connecting a laptop computer to the VDR system.
ACCESSORY POWER
The electrical distribution panel shall include two (2) power studs. The studs shall be size #10 and each of the
power studs shall be circuit protected with a fuse of the specified amperage. One (1) power stud shall be
capable of carrying up to a 40 amp battery direct load. One (1) power stud shall be capable of carrying up to a 15
amp ignition switched load. The two (2) power studs shall share one (1) #10 ground stud.
EXTERIOR ELECTRICAL TERMINAL COATING
All terminals exposed to the elements will be sprayed with a high visibility protective rubberized coating to prevent
corrosion.
Fire Engine
08/23/13
Page 18 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ENGINE
The chassis engine shall be a Cummins ISX15 engine. The ISX15 engine shall be an in-line six (6) cylinder, four
cycle diesel powered engine. The engine shall offer a rating of 550 horse power at 1800 RPM and shall be
governed at 2000 RPM. The torque rating shall feature 1850 foot pounds of torque at 1200 RPM with 912 cubic
inches (14.9 liter) of displacement.
The ISX15 engine shall feature a VGT™ Turbocharger, a high pressure common rail fuel system, fully integrated
electronic controls with an electronic governor, and shall be EPA certified to meet the 2010 emissions standards
using cooled exhaust gas recirculation and selective catalytic reduction technology.
The engine shall include an engine mounted combination full flow/by-pass oil filter with replaceable spin on
cartridge for use with the engine lubrication system. The engine shall include Citgo brand Citgard 500, or
equivalent SAE 15W40 CJ4 low ash engine oil which shall be utilized for proper engine lubrication.
A wiring harness shall be supplied ending at the back of the cab. The harness shall include a connector which
shall allow an optional harness for the pump panel. The included circuits shall be provided for a tachometer, oil
pressure, engine temperature, hand throttle, high idle and a PSG system. A circuit for J1939 data link shall also
be provided at the back of the cab.
CAB ENGINE TUNNEL
The cab interior shall include an integrated engine tunnel constructed of 5052-H32 Marine Grade 0.19 of an inch
thick aluminum alloy plate. The tunnel shall be a maximum of 46.50 inches wide X 29.00 inches high.
DIESEL PARTICULATE FILTER CONTROLS
There shall be two (2) controls for the diesel particulate filter. One (1) control shall be for regeneration and one (1)
control shall be for regeneration inhibit.
ENGINE PROGRAMMING HIGH IDLE SPEED
The engine high idle control shall maintain the engine idle at approximately 1250 RPM when engaged.
ENGINE HIGH IDLE CONTROL
The vehicle shall be equipped with an automatic high-idle speed control. It shall be pre-set so when activated, it
will operate the engine at the appropriate RPM to increase alternator output. This device shall operate only when
the master switch is activated and the transmission is in neutral with the parking brake set. The device shall
disengage when the operator depresses the brake pedal, or the transmission is placed in gear, and shall be
available to manually or automatically re-engage when the brake is released, or when the transmission is placed
in neutral. There shall be an indicator on the Vista display and control screen for the high idle speed control.
ENGINE PROGRAMMING ROAD SPEED GOVERNOR
The engine shall include programming which will govern the top speed of the vehicle.
AUXILIARY ENGINE BRAKE
A compression brake, for the six (6) cylinder engine shall be provided. A cutout relay shall be installed to disable
the compression brake when in pump mode or when an ABS event occurs. The engine compression brake shall
activate upon 0% accelerator when in operation mode and actuate the vehicle’s brake lights.
The engine shall utilize a variable geometry turbo (VGT) as an integrated auxiliary engine brake to offer a variable
rate of exhaust flow, which when activated in conjunction with the compression brake shall enhance the engine's
compression braking capabilities.
Fire Engine
08/23/13
Page 19 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
AUXILIARY ENGINE BRAKE CONTROL
An engine compression brake control device shall be included. The electronic control device shall monitor various
conditions and shall activate the engine brake only if all of the following conditions are simultaneously detected:
•
•
•
•
A valid gear ratio is detected.
The driver has requested or enabled engine compression brake operation.
The throttle is at a minimum engine speed position.
The electronic controller is not presently attempting to execute an electronically controlled final drive gear
shift.
The compression brake shall be controlled via an off/low/high virtual button through the Vista display and control
screen. The multiplex system shall remember and default to the last engine brake control setting when the vehicle
is shut off and re-started.
ELECTRONIC ENGINE OIL LEVEL INDICATOR
The engine oil shall be monitored electronically and shall send a signal to activate a warning in the instrument
panel when levels fall below normal. The warning shall activate in a low oil situation upon turning on the master
battery and ignition switches without the engine running.
FLUID FILLS
The engine oil, coolant, transmission, and power steering fluid fills shall be located under the cab. The windshield
washer fill shall be accessible through the front left side mid step.
ENGINE DRAIN PLUG
The engine shall include an original equipment manufacturer installed oil drain plug.
ENGINE WARRANTY
The Cummins engine shall be warranted for a period of five (5) years or 100,000 miles, whichever occurs first.
REMOTE THROTTLE HARNESS
An apparatus interface wiring harness for the engine shall be supplied with the chassis. The harness shall
include a connector for connection to the chassis harness which shall terminate in the left frame rail behind the
cab for reconnection by the apparatus builder. The harness shall contain connectors for a FRC Pump Boss
pressure governor and a multiplexed gauge. Separate circuits shall be included for pump controls, “Pump
Engaged” and “OK to Pump” indicator lights, open compartment ground, start signal, park brake ground, ignition
signal, master power, customer ignition, air horn solenoid switch, high idle switch and high idle indication light.
The harness shall be designed for a side mount pump panel.
An apparatus interface wiring harness shall also be included which shall be wired to the cab harness interface
connectors and shall incorporate circuits with relays to control pump functions. This harness shall control the
inputs for the transmission lock up circuits, governor/hand throttle controls and dash display which shall
incorporate “Pump Engaged” and “OK to Pump” indicator lights. The harness shall contain circuits for the
apparatus builder to wire in a pump switch.
ENGINE PROGRAMMING REMOTE THROTTLE
The engine ECM (Electronic Control Module) discreet wire remote throttle circuit shall be turned off for use with a
J1939 based pump controller or when the discreet wire remote throttle controls are not required.
Fire Engine
08/23/13
Page 20 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ENGINE PROGRAMMING IDLE SPEED
The engine low idle speed will be programmed at 700 rpm.
ENGINE FAN DRIVE
The engine cooling system fan shall incorporate a thermostatically controlled, Horton clutched type fan drive.
When the clutched fan is disengaged it shall facilitate improved vehicle performance, cab heating in cold climates,
and fuel economy. The fan clutch design shall be fail safe so that if the clutch drive fails the fan shall engage to
prevent engine overheating due to the fan clutch failure.
ENGINE COOLING SYSTEM
There shall be a heavy-duty aluminum cooling system designed to meet the demands of the emergency response
industry. The cooling system shall have the capacity to keep the engine properly cooled under all conditions of
road and pumping operations. The cooling system shall be designed and tested to meet or exceed the
requirements specified by the engine and transmission manufacturer and all EPA requirements. The complete
cooling system shall be mounted to isolate the entire system from vibration or stress. The individual cores of the
cooling system shall be mounted in a manner to allow expansion and contraction at various rates without inducing
stress into the adjoining cores.
The cooling system shall be comprised of a charge air cooler to radiator serial flow package that provides the
maximum cooling capacity for the specified engine as well as serviceability. The main components shall include a
surge tank, a charge air cooler bolted to the front of the radiator, recirculation shields, a shroud, a fan, and
required tubing.
The radiator shall be a down-flow design constructed with aluminum cores, plastic end tanks, and a steel frame.
The radiator shall be equipped with a drain cock to drain the coolant for serviceability.
The cooling system shall include a one piece injected molded polymer eleven (11) blade fan with a fiberglass fan
shroud.
The cooling system shall be equipped with a surge tank that is capable of removing entrained air from the system.
The surge tank shall be equipped with a low coolant probe and sight glass to monitor the level of the coolant. The
surge tank shall have a dual seal cap that meets the engine manufacturer's pressure requirements, and allows for
expansion and recovery of coolant into a separate integral expansion chamber.
All radiator tubes shall be formed from aluminized steel tubing. Recirculation shields shall be installed where
required to prevent heated air from reentering the cooling package and affecting performance.
The charge air cooler shall be a cross-flow design constructed completely of aluminum with cast tanks. All charge
air cooler tubes shall be formed from aluminized steel tubing and installed with silicone hump hoses and stainless
steel “constant torque” style clamps meeting the engine manufacturer's requirements.
ENGINE COOLING SYSTEM PROTECTION
The engine cooling system shall include a recirculation shield designed to act as a light duty skid plate below the
radiator to provide additional protection for the engine cooling system from light impacts, stones, and road debris.
Fire Engine
08/23/13
Page 21 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ENGINE COOLANT
The cooling package shall include Extended Life Coolant (ELC). The use of ELC provides longer intervals
between coolant changes over standard coolants providing improved performance. The coolant shall contain a
50/50 mix of ethylene glycol and de-ionized water to keep the coolant from freezing to a temperature of -34
degrees Fahrenheit.
Proposals offering supplemental coolant additives (SCA) shall not be considered, as this is part of the extended
life coolant makeup.
ENGINE COOLANT FILTER
An engine coolant filter with a shut-off valve for the inlet and outlet shall be installed on the chassis. The location
of the filter shall allow for easy maintenance.
Proposals offering engines equipped with coolant filters shall be supplied with standard non-chemical type
particulate filters.
ELECTRONIC COOLANT LEVEL INDICATOR
The instrument panel shall feature a low engine coolant indicator light which shall be located in the center of the
instrument panel. An audible tone alarm shall also be provided to warn of a low coolant incident.
ENGINE PUMP HEAT EXCHANGER
A single bundle type coolant to water heat exchanger shall be installed between the engine and the radiator. The
heat exchanger shall be designed to prohibit water from the pump from coming in contact with the engine coolant.
This shall allow the use of water from the discharge side of the pump to assist in cooling the engine.
COOLANT HOSES
The cooling system hoses shall be silicone heater hose with rubber hoses in the cab interior. The radiator hoses
shall be formed silicone coolant hoses with formed aluminized steel tubing. All heater hose, silicone coolant hose,
and tubing shall be secured with stainless steel constant torque band clamps.
ENGINE AIR INTAKE
The engine air intake system shall include an ember separator air intake filter which shall be located in the front of
the cab behind the right hand side fascia. This filter shall protect the downstream air filter from embers using a
combination of unique flat and crimped metal screens constructed into a corrosion resistant steel frame. This
multilayered screen shall be designed to trap embers or allow them to burn out before passing through the pack,
while creating only minimal air flow restriction through the system. Periodic cleaning or replacement of the screen
shall be all that is required after installation.
The engine shall also include an air intake filter which shall be bolted to the frame and located under the front of
the cab on the right hand side. The dry type filter shall ensure dust and debris safely contained inside the
disposable housing, eliminating the chance of contaminating the air intake system during air filter service via a
leak-tight seal.
The air flow distribution and dust loading shall be uniform throughout the high-performance filter cone pack, which
shall result in pressure differential for improved horsepower and fuel economy. The air intake shall be mounted
within easy access via a hinged panel behind the right hand side headlight module. The air intake system shall
include a restriction indicator light in the warning light cluster on the instrument panel, which shall activate when
the air cleaner element requires replacement.
Fire Engine
08/23/13
Page 22 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ENGINE EXHAUST SYSTEM
The exhaust system shall include a diesel particulate filter (DPF), a diesel oxidation catalyst, and a selective
catalytic reduction (SCR) catalyst to meet current EPA standards. The selective catalytic reduction catalyst
utilizes a diesel exhaust fluid solution consisting of urea and purified water to convert NOx into nitrogen, water,
and trace amounts of carbon dioxide. The solution shall be injected into the system through the decomposition
tube between the DPF and SCR.
The system shall utilize 0.07 inch thick stainless steel exhaust tubing between the engine turbo and the DPF.
Zero leak clamps seal all system joints between the turbo and DPF.
The DPF, the decomposition tube, and the SCR canister through the end of the tailpipe shall be connected with
zero leak clamps. The discharge shall terminate horizontally on the right side of the vehicle ahead of the rear
tires.
The exhaust system shall be mounted below the frame in the outboard position with the SCR canister in line
rearward of the DPF.
DIESEL EXHAUST FLUID TANK
The exhaust system shall include a molded cross linked polyethylene tank for Diesel Exhaust Fluid (DEF). The
tank shall have a capacity of six (6) usable gallons and shall be mounted on the left hand side of the chassis
frame behind the batteries below the frame.
The DEF tank shall be designed with capacity for expansion in case of fluid freezing. Engine coolant, which shall
be thermostatically controlled, shall be run through lines in the tank to help prevent the DEF from freezing and to
provide a means of thawing the fluid if it should become frozen.
The tank fill tube shall be routed under the rear of the cab with the fill neck and splash guard accessible in the top
rear step.
ENGINE EXHAUST ACCESSORIES
An exhaust temperature mitigation device shall be shipped loose for installation by the body manufacturer on the
vehicle. The temperature mitigation device shall lower the temperature of the exhaust by combining ambient air
with the exhaust gasses at the exhaust outlet.
ENGINE EXHAUST WRAP
The exhaust tubing between the engine turbo and the diesel particulate filter (DPF) shall be wrapped with a
thermal cover in order to retain the necessary heat for DPF regeneration. The exhaust wrap shall also help
protect surrounding components from radiant heat which can be transferred from the exhaust.
Fire Engine
08/23/13
Page 23 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
TRANSMISSION
The drive train shall include an Allison model EVS 4000 torque converting, automatic transmission which shall
include electronic controls and an output retarder. The transmission shall feature two (2) 10-bolt PTO pads
located on the converter housing.
The transmission shall include two (2) internal oil filters which shall offer Castrol TranSynd™ synthetic TES 295
transmission fluid which shall be utilized in the lubrication of the EVS transmission. An electronic oil level sensor
shall be included with the readout located in the shift selector.
The transmission gear ratios shall be:
1st
3.51:1
2nd
1.91:1
3rd
1.43:1
4th
1.00:1
5th
0.74:1
6th
0.64:1 (if applicable)
Rev
4.80:1
TRANSMISSION MODE PROGRAMMING
The transmission, upon start-up, will automatically select a four (4) speed operation. The fifth speed over drive
shall be available with the activation of the mode button on the shifting pad.
TRANSMISSION FEATURE PROGRAMMING
The Allison Gen IV-E transmission EVS group package number 127 shall contain the 198 vocational package in
consideration of the duty of this apparatus as a pumper. This package shall incorporate an automatic neutral with
selector override. This feature commands the transmission to neutral when the park brake is applied, regardless
of drive range requested on the shift selector. This requires re-selecting drive range to shift out of neutral for the
override.
This package shall be coupled with the use of a split shaft PTO and incorporate pumping circuits. These circuits
shall be used allowing the vehicle to operate in the fourth range lockup while operating the pump mode due to the
1 to 1 ratio through the transmission, therefore the output speed of the engine is the input speed to the pump.
The pump output can be easily calculated by using this input speed and the drive ratio of the pump itself to rate
the gallons of water the pump can provide.
An eight (8) pin Delphi connector will be provided which will contain the following input/output circuits to the
transmission control module. The Gen IV-E transmission shall include prognostic diagnostic capabilities. These
capabilities shall include the monitoring of the fluid life, filter change indication, and transmission clutch
maintenance.
Function ID
C
J
C
G
Description
PTO Request
Fire Truck Pump Mode (4th Lockup)
Range Indicator
PTO Enable Output
Signal Return
Wire assignment
142
122 / 123
145 (4th)
130
103
TRANSMISSION SHIFT SELECTOR
An Allison pressure sensitive range selector touch pad shall be provided and located to the right of the driver
within clear view and easy reach. The shift selector shall provide a prognostic indicator (wrench symbol) on the
digital display between the selected and attained indicators. The prognostics monitor various operating
parameters to determine and shall alert you when a specific maintenance function is required.
Fire Engine
08/23/13
Page 24 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ELECTRONIC TRANSMISSION OIL LEVEL INDICATOR
The transmission fluid shall be monitored electronically and shall send a signal to activate a warning in the
instrument panel when levels fall below normal.
TRANSMISSION RETARDER CONTROL
The Allison transmission retarder shall be engaged with the first one-third at 0% throttle and the remaining twothirds shall be modulated by brake pedal actuation. The system shall include a retarder on/off rocker switch
mounted on the dash. The engagement of the retarder shall activate the brake lights. The retarder shall be
inactive during pump mode.
TRANSMISSION RETARDER CAPACITY LEVEL
The transmission retarder shall be programmed so the maximum retardation shall be at the high capacity level.
TRANSMISSION PRE-SELECT WITH AUXILIARY BRAKE
When the auxiliary brake is engaged, the transmission shall automatically shift to second gear to decrease the
rate of speed assisting the secondary braking system and slowing the vehicle.
TRANSMISSION COOLING SYSTEM
The transmission shall include a water to oil cooler system located in the cooling loop between the radiator and
the engine. The transmission cooling system shall meet all transmission manufacturer requirements. The
transmission cooling system shall feature continuous flow of engine bypass water to maintain uninterrupted
transmission cooling.
TRANSMISSION DRAIN PLUG
The transmission shall include an original equipment manufacturer installed oil drain plug.
TRANSMISSION WARRANTY
The Allison EVS series transmission shall be warranted for a period of five (5) years with unlimited mileage. Parts
and labor shall be included in the warranty.
DRIVELINE
All drivelines shall be heavy duty metal tube and equipped with Spicer 1810 series universal joints. The shafts
shall be dynamically balanced prior to installation to alleviate future vibration. In areas of the driveline where a
slip shaft is required, the splined slip joint shall be coated with Glide Coat®.
DRIVELINE GUARDS
One (1) driveline guard loop shall be provided and installed to support the driveline shaft for routine maintenance
and in the event of a driveline component failure.
MIDSHIP PUMP / GEARBOX
A temporary jackshaft driveline shall be installed by the chassis manufacturer to accommodate the mid-ship split
shaft pump as specified by the apparatus manufacturer.
MIDSHIP PUMP / GEARBOX MODEL
The midship pump/gearbox provisions shall be for a Waterous CMUC20 pump.
Fire Engine
08/23/13
Page 25 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
MIDSHIP PUMP GEARBOX DROP
The Waterous pump gearbox shall have a “C” (medium length) drop length.
MIDSHIP PUMP RATIO
The ratio for the midship pump shall be 2.27:1.
MIDSHIP PUMP LOCATION C/L SUCTION TO C/L REAR AXLE
The midship pump shall be located so the dimension from the centerline of the suction to the centerline of the rear
axle is 97.00 inches.
PUMP SHIFT CONTROLS
One (1) air pump shift control panel shall be located in the left hand side knee area below the dash. The following
shall be provided on the panel: a three (3) position control lever; an engraved PUMP ENGAGED identification
light; and an engraved OK TO PUMP identification light. The pump shift control panel shall be black with a yellow
border outline and shall include pump instructions. An instruction plate describing the transmission shift selector
position used for pumping shall be provided and located so it can be read from the driver’s position per NFPA
16.10.1.3. The pump mode shall be selected when the control lever is in the up position and road mode shall be
selected when the control lever is in the down position.
The control lever center position shall exhaust air from both pump and road sides of the pump gear box shift
cylinder.
PUMP SHIFT CONTROL PLUMBING
Air connections shall be provided from the air supply tank to the pump shift control valve and from the pump shift
control valve to the frame mounted bracket. The frame mounted bracket shall include labeling identifying the
pump and road connection points with threaded 0.38 NPT fittings for attaching the customer installed pump. The
air supply shall be pressure protected from service brake system.
FUEL FILTER/WATER SEPARATOR
The fuel system shall have a Racor S3238 fuel filter/water separator as a primary filter. The fuel filter shall have a
drain valve and a see through cover to allow visual inspection of fuel and filter condition. The Racor S3238 shall
be a 10 micron filter capable of handling a maximum flow rate of 150 gallons per hour.
A secondary fuel filter shall be included as approved by the engine manufacturer.
An instrument panel lamp and audible alarm which indicates when water is present in the fuel-water separator
shall also be included.
FUEL LINES
The fuel system supply and return lines installed from the fuel tank to the engine shall be black textile braided
lines which are reinforced with braided high tensile steel wire. The fuel lines shall be connected with reusable
steel fittings.
Fire Engine
08/23/13
Page 26 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
FUEL SHUTOFF VALVE
A fuel shutoff valve shall be installed in the fuel draw line at the primary fuel filter to allow the fuel filter to be
changed without loss of fuel to the fuel pump.
A second fuel shutoff valve shall be installed in the fuel draw line, near the fuel tank to allow maintenance to be
performed with minimal loss of fuel.
ELECTRIC FUEL PRIMER
Integral to the engine assembly is an electric lift pump that serves the purpose of pre-filter fuel priming.
FUEL COOLER
An aluminum cross flow air to fuel cooler shall be provided to lower fuel temperature allowing the vehicle to
operate at higher ambient temperatures. The fuel cooler shall be located behind the rear axle.
FUEL TANK
The fuel tank shall have a capacity of sixty-eight (68) gallons and shall measure 35.00 inches in width X 17.00
inches in height X 29.00 inches in length. The baffled tank shall be made of 14 gauge aluminized steel. The
exterior of the tank shall be painted with a PRP Corsol™ black anti-corrosive exterior metal treatment finish. This
results in a tank which offers the internal and external corrosion resistance.
The tank shall have a vent port to facilitate venting to the top of the fill neck for rapid filling without "blow-back"
and a roll over ball check vent for temperature related fuel expansion and draw.
The tank is designed with dual draw tubes and sender flanges. The tank shall have 2.00 inch NPT fill ports for
right or left hand fill. A 0.50 inch NPT drain plug shall be centered in the bottom of the tank.
The fuel tank shall be mounted below the frame, behind the rear axle. Two (2) three-piece strap hanger
assemblies with “U” straps bolted midway on the fuel tank front and rear shall be utilized to allow the tank to be
easily lowered and removed for service purposes. Rubber isolating pads shall be provided between the tank and
the upper tank mounting brackets. Strap mounting studs through the rail, hidden behind the body shall not be
acceptable.
FUEL TANK FILL PORT
The fuel tank fill ports shall be provided with two (2) left fill ports located one (1) in the forward position and one
(1) in the middle position and the right fill port located in the middle position of the fuel tank.
FRONT AXLE
The front axle shall include an independent front suspension (IFS) offering superior ride and improved handling.
The suspension shall utilize fully independent double wishbone arms with carrier and kingpin for optimized scrub
radius. Air springs are tuned for ride and help reduce suspension weight. The IFS reduces turn radius with
improved wheel cut over beam axles. The hydraulic damper shall feature rebound control to ensure the
maximum load stability and superior driver comfort. The IFS system shall improve handling and offer better
braking because of improved ground to tire ratio. This design shall allow for independent adjustment of the
vehicle’s alignment settings. The IFS shall include an auxiliary transverse leaf spring.
Proposals offering independent front axles comprised of torsion bar style suspensions shall not be considered.
Fire Engine
08/23/13
Page 27 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
FRONT AXLE WARRANTY
The front axle shall be warranted by Tuthill for three (3) years or 150,000 miles, which ever comes first. Details of
the Tuthill warranty are provided on the PDF document attached to this option.
FRONT WHEEL BEARING LUBRICATION
The front axle wheel bearings shall be lubricated with oil. The oil level can be visually checked via clear
inspection windows in the front axle hubs.
FRONT SHOCK ABSORBERS
Two (2) Bilstein inert, nitrogen gas filled shock absorbers shall be provided and installed as part of the front
suspension system. The shocks shall be a monotubular design and fabricated using a special extrusion method,
utilizing a single blank of steel without a welded seam, achieving an extremely tight peak-to-valley tolerance and
maintains consistent wall thickness. The monotubular design shall provide superior strength while maximizing
heat dissipation and shock life.
The ride afforded through the use of a gas shock is more consistent and shall not deteriorate with heat, the same
way a conventional oil filled hydraulic shock would.
The Bilstein front shocks shall include a digressive working piston assembly allowing independent tuning of the
compression and rebound damping forces to provide optimum ride and comfort without compromise. The
working piston design shall feature fewer parts than most conventional twin tube and “road sensing” shock
designs and shall contribute to the durability and long life of the Bilstein shock absorbers.
Proposals offering the use of conventional twin tube or “road sensing” designed shocks shall not be considered.
FRONT SUSPENSION
The chassis shall include an independent front suspension (IFS) system. The known advantages of IFS systems
can be improved handling and better braking due to the increase in tire surface to ground contact area. The
suspension travel of the IFS shall be approximately 6.50 inches, providing 3.00 inches bounce and 3.50 inches
rebound of the suspension. The IFS front axle shall be rated between 21,000 and 24,000 pounds.
STEERING COLUMN/ WHEEL
The cab shall include a Douglas Autotech steering column which shall include a seven (7) position tilt, a 2.25 inch
telescopic adjustment, and an 18.00 inch, four (4) spoke steering wheel located at the driver’s position. The
steering wheel shall be covered with black polyurethane foam padding.
The steering column shall contain a horn button, self-canceling turn signal switch, four-way hazard switch and
headlamp dimmer switch.
POWER STEERING PUMP
The hydraulic power steering pump shall be a TRW PS and shall be gear driven from the engine. The pump shall
be a balanced, positive displacement, sliding vane type.
ELECTRONIC POWER STEERING FLUID LEVEL INDICATOR
The power steering fluid shall be monitored electronically and shall send a signal to activate an audible alarm and
visual warning in the instrument panel when fluid level falls below normal.
Fire Engine
08/23/13
Page 28 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
FRONT AXLE CRAMP ANGLE
The chassis shall have a front axle cramp angle of 48-degrees to the left and right.
POWER STEERING GEAR
The power steering gear shall be a TRW model TAS 85/RCS 85.
CHASSIS ALIGNMENT
The chassis frame rails shall be measured to insure the length is correct and cross checked to make sure they
run parallel and are square to each other. The front and rear axles shall be laser aligned. The front tires and
wheels shall be aligned and toe-in set on the front tires by the chassis manufacturer.
REAR AXLE
The rear axle shall be a Meritor model RS-23-186 single drive axle. The axle shall include precision forged, single
reduction differential gearing, and shall have a fire service rated capacity of 24,000 pounds.
The axle shall be built of superior construction and quality components to provide the rugged dependability
needed to stand up to the fire industry’s demands. The axle shall include rectangular shaped, hot-formed housing
with a standard wall thickness of 0.50 of an inch for extra strength and rigidity and a rigid differential case for high
axle strength and reduced maintenance.
The axle shall have heavy-duty Hypoid gearing for longer life, greater strength and quieter operation. Industrystandard wheel ends for compatibility with both disc and drum brakes, and unitized oil seal technology to keep
lubricant in and help prevent contaminant damage will be used.
REAR AXLE WARRANTY
The rear axle shall be warranted by Meritor for two (2) years with unlimited miles under the general service
application. Details of the Meritor warranty are provided on the PDF document attached to this option.
REAR AXLE DIFFERENTIAL LUBRICATION
The rear axle differential shall be lubricated with oil.
REAR WHEEL BEARING LUBRICATION
The rear axle wheel bearings shall be lubricated with oil.
VEHICLE TOP SPEED
The top speed of the vehicle shall be approximately 68 MPH +/-2 MPH at governed engine RPM.
REAR SUSPENSION
The single rear axle shall feature a Hendrickson Firemaax™ air suspension. The suspension shall include two
optimized air springs mounted to cast structural trailing arms, a transverse cross beam for increased roll stability
and two heavy duty shock absorbers. Dual air height control valves shall be installed to ensure equal frame height
on both sides of the vehicle regardless of the load. Axle alignment is maintained using two eccentric bushings at
each frame bracket.
The rear suspension capacity shall be rated at 24,000 pounds.
Fire Engine
08/23/13
Page 29 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
REAR SHOCK ABSORBERS
Shock absorbers shall be supplied by the suspension manufacturer and installed on the rear axle suspension.
FRONT TIRE
The front tires shall be Michelin 425/65R22.5 “L” tubeless radial XFE regional tread.
The front tire stamped load capacity shall be 22,800 pounds per axle with a speed rating of 65 miles per hour
when properly inflated to 120 pounds per square inch.
The Michelin Tire Intermittent Service Rating load capacity shall be 24,400 pounds per axle with a speed rating of
up to 75 miles per hour when properly inflated to 120 pounds per square inch. The Michelin Intermittent Service
Rating limits the operation of the emergency vehicle to one (1) hour of loaded travel with a one (1) hour cool down
prior to another loaded run.
REAR TIRE
The rear tires shall be Michelin 11R-22.5 16PR "H" tubeless radial XDN2 all-weather tread designed for
exceptional traction and mileage.
The rear tire stamped load capacity shall be 24,020 pounds per axle with a speed rating of 75 miles per hour
when properly inflated to 120 pounds per square inch.
The Michelin Tire Intermittent Service Rating load capacity shall be 24,820 pounds per axle with a speed rating of
75 miles per hour when properly inflated to 120 pounds per square inch. The Michelin Intermittent Service Rating
limits the operation of the emergency vehicle to one (1) hour of loaded travel with a one (1) hour cool down prior
to another loaded run.
REAR AXLE RATIO
The rear axle ratio shall be 4.56:1.
TIRE PRESSURE INDICATOR
There shall be a voucher provided with the chassis for a pop up style tire pressure indicator at each tire valve
stem. The indicator shall provide visual indication of pressure in the specific tire.
The tire pressure indicators shall be redeemed upon the vehicle manufacturer’s receipt of the voucher for
installation by the customer.
FRONT WHEEL
The front wheels shall be Alcoa hub piloted, 22.50 inch X 12.25 inch LvL One™ polished aluminum wheels. The
hub piloted mounting system shall provide easy installation and shall include two-piece flange nuts. The wheels
shall feature one-piece forged strength and shall include Alcoa’s Dura-Bright® finish with XBR technology as an
integral part of the wheel surface. Alcoa Dura-Bright® wheels keep their shine without polishing. Brake dust,
grime and road debris are easily removed by simply cleaning the wheels with soap and water.
REAR WHEEL
The rear wheels shall be Alcoa hub piloted, 22.50 inch X 8.25 inch LvL One™ aluminum wheels with a polished
outer surface and Alcoa Dura-Bright® wheel treatment with XBR® technology as an integral part of the wheel.
The hub piloted mounting system shall provide easy installation and shall include two-piece flange nuts.
Fire Engine
08/23/13
Page 30 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
WHEEL TRIM
The front wheels shall include stainless steel lug nut covers and stainless steel baby moons shipped loose with
the chassis for installation by the apparatus builder. The baby moons shall have cutouts for oil seal viewing when
applicable.
The rear wheels shall include stainless steel lug nut covers and band mounted spring clip stainless steel high hats
shipped loose with the chassis for installation by the apparatus builder.
The lug nut covers, baby moons, and high hats shall be RealWheels® brand constructed of 304L grade, noncorrosive stainless steel with a mirror finish. Each wheel trim component shall meet D.O.T. certification.
TIRE CHAINS
Insta-Chains, six (6) strand automatic ice chains shall be installed on the rear axle of the chassis to provide
instant traction on ice and snow at speeds below 35 MPH.
TIRE CHAINS ACTIVATION
The tire chain system shall be activated by a virtual button on the Vista display and control screen. The virtual
button shall display “Active” when the tire chains are engaged. The tire chains shall be interlocked with the
transmission and shall engage only if the vehicle is traveling 30 MPH or less. After traveling over 30 MPH, the
vehicle must be reduced to a speed below 5 MPH for the tire chains to be engaged or re-engaged. The virtual
button, once the vehicle reaches 35 MPH shall be reset to “Inactive”. The vehicle must then reduce to a speed
below 5 MPH to enable the tire chains virtual button.
Fire Engine
08/23/13
Page 31 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
BRAKE SYSTEM
A rapid build-up air brake system shall be provided. The air brakes shall include a two (2) air tank, three (3)
reservoir system with a total of 4152 cubic inch of air capacity. A floor mounted treadle valve shall be mounted
inside the cab for graduated control of applying and releasing the brakes. An inversion valve shall be installed to
provide a service brake application in the unlikely event of primary air supply loss. All air reservoirs provided on
the chassis shall be labeled for identification.
The rear axle spring brakes shall automatically apply in any situation when the air pressure falls below 25 PSI and
shall include a mechanical means for releasing the spring brakes when necessary. An audible alarm shall
designate when the system air pressure is below 60 PSI.
A four (4) sensor, four (4) modulator anti-lock braking system (ABS) shall be installed on the front and rear axles
in order to prevent the brakes from locking or skidding while braking during hard stops or on icy or wet surfaces.
This in turn shall allow the driver to maintain steering control under heavy braking and in most instances, shorten
the braking distance. The electronic monitoring system shall incorporate diagonal circuitry which shall monitor
wheel speed during braking through a sensor and tone ring on each wheel. A dash mounted ABS lamp shall be
provided to notify the driver of a system malfunction. The ABS system shall automatically disengage the auxiliary
braking system device when required. The speedometer screen shall be capable of reporting all active defaults
using PID/SID and FMI standards.
Additional safety shall be accommodated through Automatic Traction Control (ATC) which shall be installed on
the single rear axle. The ATC system shall apply the ABS when the drive wheels loose traction. The system
shall scale the electronic engine throttle back to prevent wheel spin while accelerating on ice or wet surfaces.
A momentary rocker style switch shall be provided and properly labeled “mud/snow”. When the switch is pressed
once, the system shall allow a momentary wheel slip to obtain traction under extreme mud and snow conditions.
During this condition the ATC light and the light on the rocker switch shall blink continuously notifying the driver of
activation. Pressing the switch again shall deactivate the mud/snow feature.
The Electronic Stability Control (ESC) unit is a functional extension of the electronic braking system. It is able to
detect any skidding of the vehicle about its vertical axis as well as any rollover tendency. The control unit
comprises an angular-speed sensor that measures the vehicle’s motion about the vertical axis, caused, for
instance, by cornering or by skidding on a slippery road surface. An acceleration sensor measures the vehicle’s
lateral acceleration. The Controller Area Network (CAN) bus provides information on the steering angle. On the
basis of lateral acceleration and steering angle, an integrated microcontroller calculates a theoretical angular
speed for the stable vehicle condition.
FRONT BRAKES
The front brakes shall be Knorr/Bremse SN7 disc brakes with 17.00 inch vented rotors.
REAR BRAKES
The rear brakes shall be Meritor EX225 Disc Plus disc brakes with 17.00 inch vented rotors.
PARK BRAKE
Upon application of the push-pull valve in the cab, the rear brakes will engage via mechanical spring force. This
is accomplished by dual chamber rear brakes, satisfying the FMVSS parking brake requirements.
Fire Engine
08/23/13
Page 32 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
PARK BRAKE CONTROL
A Meritor-Wabco manual hand control push-pull style valve shall operate the parking brake system. The control
shall be yellow in color.
The parking brake actuation valve shall be mounted on the center of the tunnel within easy access of both the
driver and officer positions.
AIR DRYER
The brake system shall include a Bendix AD-9 fully self contained air dryer which shall not require an extra purge
tank or additional valves. The AD-9 system shall include a spin-off desiccant filter with a 12-volt, 75-watt
thermostatically controlled heating element. The air dryer shall feature 3.9 pounds of premium, high crush
strength desiccant which shall be produced with a composition that shall be more effective and longer lasting than
other desiccants. It shall also offer protection against contamination and desiccant breakdown. The air dryer
shall be mounted behind the battery box on the left hand side.
FRONT BRAKE CHAMBERS
The front brakes shall be provided with type 24 brake chambers as supplied with the independent front
suspension axle.
REAR BRAKE CHAMBERS
The rear axle shall include TSE 24/30 H.O.T. (High Output Technology) brake chambers shall convert the energy
of compressed air into mechanical force and motion. This shall actuate the brake camshaft, which in turn shall
operate the foundational brake mechanism forcing the brake pads against the brake rotor.
AIR COMPRESSOR
The air compressor provided for the engine shall be a Wabco® SS318 single cylinder pass-through drive type
compressor which shall be capable of producing 18.7 CFM at 1200 engine RPMs. The air compressor shall
feature a higher delivery efficiency translating to more air delivery per horsepower absorbed. The compressor
shall include an aluminum cylinder head which shall improve cooling, reduce weight and decrease carbon
formation. Superior piston and bore finishing technology shall reduce oil consumption and significantly increasing
the system component life.
AIR GOVERNOR
An air governor shall be provided to control the cut-in and cut-out pressures of the engine mounted air
compressor. The governor shall be calibrated to meet FMVSS requirements. The air governor shall be mounted
to the right frame rail.
AUXILIARY AIR RESERVOIR
One (1) auxiliary air reservoir with a 2084 cubic inch capacity shall be installed on the chassis to act as an
additional reserve supply to the air system for air horn, air tool, or other non-service brake use. The reservoir
shall be isolated with a 90 PSI pressure protection valve on the reservoir supply side to prevent depletion of the
air to the air brake system.
MOISTURE EJECTORS
An automatic moisture ejector with a manual drain provision shall be installed on the wet tank of the air supply
system. Manual pet-cock type drain valves shall be installed on all remaining reservoirs of the air supply system.
Fire Engine
08/23/13
Page 33 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
AIR SUPPLY LINES
The air system on the chassis shall be plumbed with black textile braid covered high tensile steel reinforced wire
braided hose with steel reusable fittings. All drop hoses shall be fiber reinforced neoprene covered hose.
REAR AIR TANK MOUNTING
If a combination of wheel base, air tank quantity, or other requirements necessitate the location of one or more air
tanks to be mounted rear of the fuel tank, these tank(s) will be mounted perpendicular to frame.
WHEELBASE
The chassis wheelbase shall be 212.00 inches.
REAR OVERHANG
The chassis rear overhang shall be 79.00 inches.
FRAME
The frame shall consist of double rails running parallel to each other with cross members forming a ladder style
frame. The frame rails shall be formed in the shape of a "C" channel, with the outer rail measuring 10.25 inches
high X 3.50 inches deep upper and lower flanges X 0.38 inches thick with an inner channel of 9.44 inches high X
3.13 inches deep and 0.38 inches thick. Each rail shall be constructed of 110,000 psi minimum yield high strength
low alloy steel. Each double rail section shall be rated by a Resistance Bending Moment (RBM) minimum of
3,213,100 inch pounds and have a minimum section modulus of 29.21 cubic inches. The frame shall measure
35.00 inches in width.
Proposals calculating the frame strength using the “box method” shall not be considered.
Proposals including heat treated rails shall not be considered. Heat treating frame rails produces rails that are not
uniform in their mechanical properties throughout the length of the rail. Rails made of high strength, low alloy
steel are already at the required yield strength prior to forming the rail.
A minimum of seven (7) fully gusseted 0.25 inch thick cross members shall be installed. The inclusion of the body
mounting, or bumper mounting shall not be considered as a cross member. The cross members shall be attached
using zinc coated grade 8 fasteners. The bolt heads shall be flanged type, held in place by distorted thread
flanged lock nuts. Each cross member shall be mounted to the frame rails utilizing a minimum of 0.25 inch thick
gusset reinforcement plates at all corners balancing the area of force throughout the entire frame.
.
Any proposals not including additional reinforcement for each cross member shall not be considered.
All relief areas shall be cut in with a minimum 2.00 inch radius at intersection points with the edges ground to a
smooth finish to prevent a stress concentration point.
The frame and cross members shall carry a lifetime warranty to the original purchaser. A copy of the frame
warranty shall be made available upon request.
Proposals offering warranties for frames not including cross members shall not be considered.
FRAME WARRANTY
The frame and cross members shall carry a limited lifetime warranty to the original purchaser. The warranty shall
include conditional items listed in the detailed warranty document which shall be provided upon request.
Fire Engine
08/23/13
Page 34 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
FRAME CLEAR AREA
The chassis frame shall be left clear of chassis mounted components inside or outside the frame rails within the
first 30.00 inches behind the cab to allow space for OEM installed components. Cross members may be installed
in the clear area if required for proper frame or driveline configuration.
FRAME PAINT
The frame shall be powder coated black prior to any attachment of components.
All powder coatings, primers and paint shall be compatible with all metals, pretreatments and primers used. The
cross hatch adhesion test per ASTM D3359 shall not have a fail of more than ten (10) squares. The pencil
hardness test per ASTM D3363 shall have a final post-curved pencil hardness of H-2H. The direct impact
resistance test per ASTM D2794 shall have an impact resistance of 120.00 inches per pound at 2 mils.
Any proposals offering painted frame with variations from the above process shall not be accepted. The film
thickness of vendor supplied parts shall also be sufficient to meet the performance standards as stated above.
FRONT BUMPER
The chassis shall be equipped with a severe duty front bumper constructed from structural steel channel. The
bumper material shall be 0.38 thick ASTM A36 steel which shall measure 12.00 inches high with a 3.05 inch
flange and shall be 104.50 inches wide with angled front corners.
The bumper shall be primed and painted as specified.
FRONT BUMPER EXTENSION LENGTH
The front bumper shall be extended approximately 21.00 inches ahead of the cab.
FRONT BUMPER EXTENSION FRAME WIDTH
The front bumper extension frame shall feature an overall width of 48.25 inches.
FRONT BUMPER PAINT
The front bumper shall be painted the same as the lower cab color.
FRONT BUMPER APRON
The 21.00 inch extended front bumper shall include an apron constructed of 0.19 inch thick embossed aluminum
tread plate.
The apron shall be installed between the bumper and the front face of the cab affixed using stainless steel bolts
attaching the apron to the top bumper flange.
MECHANICAL SIREN
The front bumper shall include an electro mechanical Federal Q2B™ siren, which shall be streamlined, chromeplated and shall produce 123 decibels of sound at 10.00 feet. The Q2B™ siren produces a distinctive warning
sound that is recognizable at long distances. A unique clutch design provides a longer coast down sound while
reducing the amp draw to 100 amps. The siren shall measure 10.50 inches wide X 10.00 inches high X 14.00
inches deep.
Fire Engine
08/23/13
Page 35 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
MECHANICAL SIREN LOCATION
The siren shall be pedestal mounted on the bumper apron on the furthest outboard section of the bumper on the
driver side.
AIR HORN
The front bumper shall include two (2) Hadley brand E-Tone air horns which shall measure 21.00 inches long with
a 6.00 inch round flare. The air horns shall be trumpet style with a chrome finish on the exterior and a painted
finish deep inside the trumpet.
AIR HORN LOCATION
The air horns shall be recess mounted in the front bumper face on the right side of the bumper in the inboard and
outboard positions relative to the right hand frame rail.
AIR HORN RESERVOIR
One (1) air reservoir, with a 1200 cubic inch capacity, shall be installed on the chassis to act as a supply tank for
operating air horns. The reservoir shall be isolated with a 90 PSI pressure protection valve on the reservoir
supply side to prevent depletion of the air to the air brake system.
ELECTRONIC SIREN SPEAKER
The bumper shall include two (2) Whelen Engineering Inc. model SA314A, 100 watt speakers which shall be
recess mounted within the bumper fascia. Each speaker shall measure 6.40 inches tall X 6.17 inches wide X
3.14 inches deep. Each speaker shall have a natural cast aluminum finish and shall be installed using a polished
aluminum trim ring.
ELECTRONIC SIREN SPEAKER LOCATION
The two (2) electronic siren speakers shall be located on the front bumper face between the frame rails in the
right and left side outboard positions.
FRONT BUMPER TOW EYES
The bumper shall include two (2) chrome plated tow eyes shall be installed through the front bumper. The eyes
shall be fabricated from 0.75 inch thick #1020 ASTM-A36 hot rolled steel. The inside diameter of the eye shall be
2.00 inches and include a chamfered edge.
Fire Engine
08/23/13
Page 36 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB TILT SYSTEM
The entire cab shall be capable of tilting approximately 45-degrees to allow for easy maintenance of the engine
and transmission. The cab tilt pump assembly shall be located on the right side of the chassis above the battery
box.
The electric-over-hydraulic lift system shall include an ignition interlock and red cab lock down indicator lamp on
the tilt control which shall illuminate when holding the “Down” button to indicate safe road operation.
It shall be necessary to activate the master battery switch and set the parking brake in order to tilt the cab. As a
third precaution the ignition switch must be turned off to complete the cab tilt interlock safety circuit.
Two (2) spring-loaded hydraulic hold down hooks located outboard of the frame shall be installed to hold the cab
securely to the frame. Once the hold-down hooks are set in place, it shall take the application of pressure from
the hydraulic cab tilt lift pump to release the hooks.
Two (2) cab tilt cylinders shall be provided with velocity fuses in each cylinder port. The cab tilt pivots shall be
1.90 inch ball and be anchored to frame brackets with 1.25 inch diameter studs.
A steel safety channel assembly, painted safety yellow shall be installed on the right side cab lift cylinder to
prevent accidental cab lowering. The safety channel assembly shall fall over the lift cylinder when the cab is in
the fully tilted position. A cable release system shall also be provided to retract the safety channel assembly from
the lift cylinder to allow the lowering of the cab.
CAB TILT LIMIT SWITCH
A cab tilt limit switch shall be installed. The switch will effectively limit the travel of the cab when being tilted. The
limit adjustment of the switch shall be preset by the chassis manufacturer to prevent damage to the cab or any
bumper mounted option mounted in the cab tilt arc. Further adjustment to the limit by the apparatus manufacturer
shall be available to accommodate additional equipment.
CAB TILT CONTROL RECEPTACLE
The cab tilt control cable shall include a receptacle which shall be temporarily located on the right hand chassis
rail rear of the cab to provide a place to plug in the cab tilt remote control pendant. The tilt pump shall include
8.00 feet of cable with a six (6) pin Deutsch receptacle with a cap.
The remote control pendant shall include 20.00 feet of cable with a mating Deutsch connector. The remote control
pendant shall be shipped loose with the chassis.
CAB TILT LOCK DOWN INDICATOR
The cab dash shall include a message located within the dual air pressure gauge which shall alert the driver when
the cab is unlocked and ajar. The alert message shall cease to be displayed when the cab is in the fully lowered
position and the hold down hooks are secured and locked to the cab mounts.
In addition to the alert message an audible alarm shall sound when the cab is unlocked and ajar and the parking
brake is released.
Fire Engine
08/23/13
Page 37 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB WINDSHIELD
The cab windshield shall have a surface area of 2969.88 square inches and be of a two (2) piece wraparound
design for maximum visibility.
The glass utilized for the windshield shall include standard automotive tint. The left and right windshield shall be
fully interchangeable thereby minimizing stocking and replacement costs.
Each windshield shall be installed using black self locking window rubber.
GLASS FRONT DOOR
The front cab doors shall include a window which is 27.00 inches in width X 26.00 inches in height. These
windows shall have the capability to roll down completely into the door housing. This shall be accomplished
manually utilizing a crank style handle on the inside of the door. A reinforced window regulator assembly shall be
provided for severe duty use.
There shall be an irregular shaped fixed window which shall measure 2.50 inches wide at the top, 8.00 inches
wide at the bottom X 26.00 inches in height, more commonly known as “cozy glass” ahead of the front door roll
down windows.
The windows shall be mounted within the frame of the front doors trimmed with a black anodized ring on the
exterior.
GLASS TINT FRONT DOOR
The windows located in the left and right front doors shall have a standard green automotive tint which shall allow
seventy-five percent (75%) light transmittance.
GLASS REAR DOOR RH
The rear right hand side door shall include a window which is 27.00 inches in width X 26.00 inches in height. This
window shall roll up and down manually utilizing a crank style handle on the inside of the door. A reinforced
window regulator assembly shall be provided for severe duty use.
GLASS TINT REAR DOOR RIGHT HAND
The window located in the right hand side rear door shall include a standard green automotive tint which shall
allow seventy-five percent (75%) light transmittance.
GLASS REAR DOOR LH
The rear left hand side door shall include a window which is 27.00 inches in width X 26.00 inches in height. This
window shall roll up and down manually utilizing a crank style handle on the inside of the door. A reinforced
window regulator assembly shall be provided for severe duty use.
GLASS TINT REAR DOOR LEFT HAND
The window located in the left hand side rear door shall include a standard green automotive tint which shall allow
seventy-five percent (75%) light transmittance.
Fire Engine
08/23/13
Page 38 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
GLASS SIDE MID RH
The cab shall include a window on the right side behind the front and ahead of the crew door which shall measure
16.00 inches wide X 26.00 inches high. This window shall be fixed within this space and shall be rectangular in
shape. The window shall be mounted using self locking window rubber. The glass utilized for this window shall
include a green automotive tint unless otherwise noted.
GLASS TINT SIDE MID RIGHT HAND
The window located on the right hand side of the cab between the front and rear doors shall include a standard
green automotive tint which shall allow seventy-five percent (75%) light transmittance.
GLASS SIDE MID LH
The cab shall include a window on the left side behind the front door and ahead of the crew door and above the
wheel well which shall measure 16.00 inches wide X 26.00 inches high. This window shall be fixed within this
space and shall be rectangular in shape. The window shall be mounted using self locking window rubber. The
glass utilized for this window shall include a green automotive tint unless otherwise noted.
GLASS TINT SIDE MID LEFT HAND
The window located on the left hand side of the cab between the front and rear doors shall include a standard
green automotive tint which shall allow seventy-five percent (75%) light transmittance.
CLIMATE CONTROL
The cab shall be equipped with a ceiling mounted combination defrost / heating and air-conditioning system
mounted above the engine tunnel in a central location.
The system shall offer sixteen (16) adjustable louvers. Six (6) of the louvers shall face forward towards the
windshield, offering 45,000 BTU of heat at 320 CFM for defrosting. The system shall include six (6) rearward
facing louvers to direct air for the crew area and four (4) for driver and officer comfort. The HVAC system shall be
designed to produce 60,000 BTU of heat and 32,000 BTU of cooling. The HVAC cover shall be made of
aluminum which shall be coated with a customer specified interior paint, or protective coating.
All defrost/heating systems shall be plumbed with one (1) seasonal shut-off valve at the front corner on the right
side of the cab.
The air conditioner lines shall be a mixture of custom bent zinc coated steel fittings and Aero-quip GH 134 flexible
hose with Aero-Quip EZ-Clip fittings.
CLIMATE CONTROL DRAIN
The climate control system shall include a venturi pump for water management. The venturi pump drain shall
remove condensation from the air conditioning system.
CLIMATE CONTROL ACTIVATION
The heating, defrosting and air conditioning controls shall be located on the center dash panel in the lower left
hand side, in a position which is easily accessible to the driver. The climate control shall be activated by a rotary
switch.
HVAC OVERHEAD COVER PAINT
The overhead HVAC cover shall be painted with a Zolatone #20-72 silver gray texture finish.
Fire Engine
08/23/13
Page 39 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
AUXILIARY CLIMATE CONTROL FRONT UNDERSEAT
Two (2) 13,500 BTU heaters shall be provided and installed in the face of the seat riser storage area for the left
and right front seats, one (1) each side. The fan controls shall be located on the Vista display and control
screen(s).
The auxiliary heater system hoses shall be silicone with stainless steel constant torque clamps approved for use
with silicone hose. The auxiliary heater system shall include one (1) seasonal shut-off valve. The valve shall be
supplied at the front of the right hand corner of the cab. The cab must be tilted to access the shut-off valve.
HEATER HOSE INSULATION
The heater hoses leading from the engine to the cab shall include a foam insulation wrap which runs the length of
the hose improving heating in extreme cold climates. The heater hoses which shall be routed inside the cab shall
not be insulated.
A/C CONDENSER LOCATION
A roof mounted A/C condenser shall be installed centered on the cab forward of the raised roof against the slope
rise.
A/C COMPRESSOR
The air-conditioning compressor shall be a belt driven, engine mounted, open type compressor that shall be
capable of producing a minimum of 32,000 BTU at 1500 engine RPMs. The compressor shall utilize R-134A
refrigerant and PAG oil.
UNDER CAB INSULATION
The underside of the cab tunnel surrounding the engine shall be lined with multi-layer insulation, engineered for
application inside diesel engine compartments.
The insulation shall act as a noise barrier, absorbing noise thus keeping the decibel level in the cab well within
NFPA recommendations. As an additional benefit, the insulation shall assist in sustaining the desired temperature
within the cab interior.
The engine tunnel insulation shall measure approximately 0.75 inch thick including a vertically lapped polyester
fiber layer, a 1.0 lb/ft² PVC barrier layer, an open cell foam layer, and a moisture and heat reflective foil facing
reinforced with a woven fiberglass layer. The foil surface acts as protection against moisture and other
contaminants. The insulation shall meet or exceed FMVSS 302 flammability test.
The insulation shall be cut precisely to fit each section and sealed for additional heat and sound deflection. The
insulation shall be held in place by 3 mils of acrylic pressure sensitive adhesive and aluminum pins with hard hat,
hold in place fastening heads.
INTERIOR TRIM FLOOR
The floor of the cab shall be covered with a multi-layer mat consisting of 0.25 inch thick sound absorbing closed
cell foam with a 0.06 inch thick non-slip vinyl surface with a pebble grain finish. The covering shall be held in
place by a pressure sensitive adhesive and aluminum trim molding. All exposed seams shall be sealed with
silicone caulk matching the color of the floor mat to reduce the chance of moisture and debris retention.
INTERIOR TRIM VINYL
The cab interior shall include trim on the front ceiling, rear crew ceiling, and the cab walls. It shall be easily
removable to assist in maintenance. The trim shall be constructed of insulated vinyl over a hard board backing.
Fire Engine
08/23/13
Page 40 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
REAR WALL INTERIOR TRIM
The rear wall of the cab shall be trimmed with vinyl.
HEADER TRIM
The cab interior shall feature header trim over the driver and officer dash constructed of 5052-H32 Marine Grade,
0.13 inch thick aluminum.
TRIM CENTER DASH
The main center dash area shall be constructed of 5052-H32 Marine Grade, 0.13 inch thick aluminum plate.
There shall be four (4) holes located on the top of the dash near each outer edge of the electrical access cover for
ventilation.
TRIM LH DASH
The left hand dash shall be constructed of 5052-H32 Marine Grade, 0.13 inch thick aluminum plate for a perfect fit
around the instrument panel. For increased occupant protection the extreme duty left hand dash utilizes patent
pending break away technology to reduce rigidity in the event of a frontal crash. The left hand dash shall offer
lower vertical surface area to the left and right of the steering column to accommodate control panels.
TRIM RH DASH
The right hand dash shall be constructed of 5052-H32 Marine Grade, 0.13 of an inch thick aluminum plate and
shall include a glove compartment with a hinged door and a Mobile Data Terminal (MDT) provision. The glove
compartment size will measure 14.00 inches wide X 6.38 inches high X 5.88 inches deep. The MDT provision
shall be provided above the glove compartment.
TRIM RH DASH ACCESSORIES
The Mobile Data Terminal (MDT) provision on the right hand dash shall be provided with a slide-out tray. The
MDT slide-out tray shall be constructed of 5052-H32 Marine Grade, 0.13 of an inch thick aluminum plate. The
mounting surface of the tray measures 12.50 inches wide X 10.75 inches deep which shall allow for the mounting
of a MDT with the added luxury of sliding it toward the officer as much as 11.00 inches.
ENGINE TUNNEL TRIM
The cab engine tunnel shall be covered with a multi-layer mat consisting of 0.25 inch closed cell foam with a 0.06
inch thick non-slip vinyl surface with a pebble grain finish. The mat shall be held in place by pressure sensitive
adhesive. The engine tunnel mat shall be trimmed with anodized aluminum stair nosing trim for an aesthetically
pleasing appearance.
POWER POINT DASH MOUNT
The cab shall include three (3) 12 volt cigarette lighter type receptacles in the cab dash to provide a power source
for 12 volt electrical equipment. The receptacles shall be wired to be live with the battery master switch.
Fire Engine
08/23/13
Page 41 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
STEP TRIM
Each cab entry door shall include a three step entry. The first step closest to the ground shall be constructed of
polished 5032 H32 aluminum Grip Strut® grating with angled outer corners. The step shall feature a splash guard
to reduce water and debris from splashing in to the step. The splash guard shall have an opening on the outer
edge to allow debris and water to flow through rather than becoming trapped within the stepping surface. The
lower step shall be mounted to a frame which is integral with the construction of the cab for rigidity and strength.
The middle step shall be integral with the cab construction and shall be trimmed with a Flex-Tred® adhesive grit
surface material.
UNDER CAB ACCESS DOOR
The cab shall include an aluminum access door in the left crew step riser painted to match the cab interior paint
with a push and turn latch. The under cab access door shall provide access to the diesel exhaust fluid fill.
INTERIOR DOOR TRIM
The interior trim on the doors of the cab shall consist of an aluminum panel constructed of Marine Grade 5052H32 0.13 of an inch thick aluminum plate. The door panels shall include a painted finish.
DOOR TRIM KICKPLATE
The inner door panels shall include an aluminum tread kick plate which shall be fastened to the lower portion of
the door panels.
DOOR TRIM CUSTOMER NAMEPLATE
The interior door trim on the front doors shall include a customer nameplate which states the vehicle was custom
built for their Department.
CAB DOOR TRIM REFLECTIVE
The interior of each door shall include high visibility reflective tape. A white reflective tape 1.00 inch in width shall
be provided vertically along the rear outer edge of the door. The lowest portion of each door skin shall include a
reflective tape chevron with red and white stripes and a Spartan logo. The chevron tape shall measure 6.00
inches in height.
INTERIOR GRAB HANDLE "A" PILLAR
There shall be two (2) rubber covered 11.00 inch grab handles installed inside the cab, one on each “A” post at
the left and right door openings. The left handle shall be located 7.88 inches above the bottom of the door window
opening and the right handle shall be located 2.88 inches above the bottom of the door window opening. The
handles shall assist personnel in entering and exiting the cab.
INTERIOR GRAB HANDLE FRONT DOOR
Each front door shall include one (1) ergonomically contoured 9.00 inch cast aluminum handle mounted
horizontally on the interior door panels. The handles shall feature a textured black powder coat finish to assist
personnel entering and exiting the cab.
INTERIOR GRAB HANDLE REAR DOOR
A black powder coated cast aluminum assist handle shall be provided on the inside of each rear crew door. A
30.00 inch long handle shall extend horizontally the width of the window just above the window sill. The handle
shall assist personnel in exiting and entering the cab.
Fire Engine
08/23/13
Page 42 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
INTERIOR TRIM VINYL COLOR
The cab interior vinyl trim surfaces shall be gray in color.
INTERIOR TRIM SUNVISOR
The header shall include two (2) sun visors, one each side forward of the driver and officer seating positions
above the windshield. Each sun visor shall be constructed of Masonite and covered with padded vinyl trim.
INTERIOR FLOOR MAT COLOR
The cab interior floor mat shall be gray in color.
CAB PAINT INTERIOR DOOR TRIM
The inner door panel surfaces shall be painted with Zolatone #20-72 silver gray texture finish.
HEADER TRIM INTERIOR PAINT
The metal surfaces in the header area shall be coated with Zolatone #20-72 silver gray texture finish.
TRIM CENTER DASH INTERIOR PAINT
The entire center dash shall be coated with Zolatone #20-72 silver gray texture finish. Any accessory pods
attached to the dash shall also be painted this color.
TRIM LH DASH INTERIOR PAINT
The left hand dash shall be painted with a Zolatone #20-72 silver gray texture finish.
TRIM RIGHT HAND DASH INTERIOR PAINT
The right hand dash shall be painted with Zolatone #20-72 silver gray texture finish.
RIGHT HAND DASH ACCESSORIES INTERIOR PAINT
The right hand dash accessories shall be painted with Zolatone #20-72 silver gray texture finish.
DASH PANEL GROUP
The main center dash area shall include three (3) removable panels located one (1) to the right of the driver
position, one (1) in the center of the dash and one (1) to the left of the officer position. The center panel shall be
within comfortable reach of both the driver and officer.
SWITCHES CENTER PANEL
The center dash panel shall include six (6) switch positions in the upper left portion of the panel.
A rocker switch with a blank legend installed directly above shall be provided for any position without a switch and
legend designated by a specific option. The non-specified switches shall be two-position, black switches with a
green indicator light. Each blank switch legend can be custom engraved by the body manufacturer. All switch
legends shall have backlighting provided.
Fire Engine
08/23/13
Page 43 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
SWITCHES LEFT PANEL
The left dash panel shall include four (4) switches. There shall be three (3) across the top of the panel with one
(1) below. Two (2) of the top row of switches shall be rocker type and the left one (1) shall be the windshield
wiper/washer control switch. The lower switch shall be a rocker type switch.
A rocker switch with a blank legend installed directly above shall be provided for any position not designated by a
specific option. The non-designated switches shall be two-position, black switches with a green indicator light.
Each blank switch legend can be custom engraved by the body manufacturer. All switch legends shall have
backlighting provided.
SWITCHES RIGHT PANEL
The right dash panel shall include three (3) rocker switch positions in the upper right hand portion of the panel.
A rocker switch with a blank legend installed directly above shall be provided for any position without a switch and
legend designated by a specific option. The non-specified switches shall be two-position, black switches with a
green indicator light. Each blank switch legend can be custom engraved by the body manufacturer. All switch
legends shall have backlighting provided.
SEAT BELT WARNING
A Weldon seat belt warning system, integrated with the Vehicle Data Recorder system, shall be installed for each
seat within the cab. The system shall provide a visual warning indicator in the Vista display and control screen(s),
an indicator light in the instrument panel, and an audible alarm.
The warning system shall activate when any seat is occupied with a minimum of 60 pounds, the corresponding
seat belt remains unfastened, and the park brake is released. The warning system shall also activate when any
seat is occupied, the corresponding seat belt was fastened in an incorrect sequence, and the park brake is
released. Once activated, the visual indicators and audible alarm shall remain active until all occupied seats have
the seat belts fastened.
SEAT MATERIAL
The seats shall include a covering of high strength, wear resistant fabric made of durable ballistic polyester. A
PVC coating shall be bonded to the back side of the material to help protect the seats from UV rays and from
being saturated or contaminated by fluids. Common trade names for this material are Imperial 1200 and
Durawear.
SEAT COLOR
All seats supplied with the chassis shall be gray in color. All seats shall include red seat belts.
SEAT BACK LOGO
The seat backs shall include the logo for the OEM body manufacturer. The logo shall be centered on the
standard headrest of the seat back and on the left side of a split headrest.
Fire Engine
08/23/13
Page 44 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
SEAT DRIVER
The driver's seat shall be an H.O. Bostrom Sierra model seat with air suspension. The four-way seat shall feature
3.00 inch vertical travel air suspension and manual fore and aft adjustment with 5.00 inches of travel. The
suspension control shall be located on the seat below the left front corner of the bottom cushion. The seat shall
also feature integral springs to isolate shock.
The seat position shall include a three-point shoulder harness with lap belt and an automatic retractor attached to
the cab. The buckle portion of the seat belt shall be mounted on a semi-rigid stalk extending from the seat base
within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position shall be 37.00
inches measured with the seat suspension height adjusted to the upper limit of its travel.
This model of seat shall have successfully completed the static load tests set forth by FMVSS 207, 209, and 210
in effect at the time of manufacture. This testing shall include a simultaneous forward load of 3000 pounds each
on the lap and shoulder belts and twenty (20) times the weight through the center of gravity.
The materials used in construction of the seat shall also have successfully completed testing with regard to the
flammability of materials used in the occupant compartments of motor vehicles as outlined in FMVSS 302, of
which dictates the allowable burning rate of materials in the occupant compartments of motor vehicles.
SEAT BACK DRIVER
The driver’s seat shall feature a two (2) way adjustable lumbar support and offer an infinite fully reclining
adjustable titling seat back. The seat back shall also feature a contoured head rest.
SEAT MOUNTING DRIVER
The driver’s seat shall be installed in an ergonomic position in relation to the cab dash.
OCCUPANT PROTECTION DRIVER
The driver’s position shall be equipped with the Advanced Protection System™ (APS). The APS shall selectively
deploy integrated systems to protect against injuries in qualifying frontal impact, side impact, and rollover events.
The increase in survivable space and security of the APS shall also provide ejection mitigation protection.
The driver’s seating area APS shall include:
•
•
•
Advanced seat belt system - retractor pre-tensioner tightens the seat belt around the driver, securing the
occupant in the seat and the load limiter plays out some of the seat belt webbing to reduce seat belt to chest
and torso force upon impact as well as mitigate head and neck injuries.
Large side curtain airbag - protects the driver’s head, neck, and upper body from dangerous cab side
surfaces and contact points with intrusive surfaces as a result of a collision as well as provides ejection
mitigation protection to the driver in a qualifying event by covering the window and the upper portion of the
door.
Dual knee airbags (patent pending) with energy management mounting (patent pending) - protects the
driver's lower body from dangerous surface contact injuries, acceleration injuries, and from intrusion as well
as locks the lower body in place so the upper body shall be shall be slowed by the load limiting seat belt.
Steering wheel airbag - protects the driver’s head, neck, and upper torso from contact injuries, acceleration
injuries, and contact points with intrusive surfaces as a result of a collision.
Fire Engine
08/23/13
Page 45 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
SEAT OFFICER
The officer's seat shall be an H.O. Bostrom Firefighter Sierra model seat. The seat shall feature six-way electric
positioning. The six (6) positions shall include up and down, fore and aft and front and rear tilt. The seat shall
also feature integral springs to isolate shock.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a threepoint shoulder harness with the lap belt, automatic retractor and buckle as an integral part of the seat assembly.
The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position shall be 35.00
inches measured with the seat height adjusted to the lowest position of travel.
This model of seat shall have successfully completed the static load tests by FMVSS 207, 209, 210 and 302 in
effect at the time of manufacture. This testing shall include a simultaneous forward load of 3000 pounds each on
the lap and shoulder belts and twenty (20) times the weight through the center of gravity. The model of seats
shall also have successfully completed the flammability of materials used in the occupant compartments of motor
vehicles as outlined in FMVSS 302, of which decides the burning rate of materials in the occupant compartments
of motor vehicles.
SEAT BACK OFFICER
The officer’s seat shall feature a SecureAll™ SCBA locking system which shall be one bracket model and store
most U.S. and International SCBA brands and sizes while in transit or for storage within the seat back. The
bracket shall be easily adjustable for all SCBA brands and cylinder diameters. All adjustment points shall utilize
similar hardware and adjustments shall be made with one tool.
The bracket shall be adjustable to compensate for different cylinder lengths without the use of tools.
adjustment shall be made by raising a lever and moving the top clamp vertically.
The
The bracket system shall be free of straps and clamps that may interfere with auxiliary equipment on SCBA units.
The center guide fork shall keep the SCBA tank in place for a safe and comfortable fit in the seat back cavity.
The SCBA unit simply needs to be pushed against the pivot arm to engage the patented auto- locking system.
Once the lock is engaged, the top clamp shall surround the top of the SCBA tank for a secure fit in all directions.
The SecureAll™ shall include a release handle which shall be integrated into the seat cushion for quick and easy
release. This shall eliminate the need for straps or pull cords to interfere with other SCBA equipment.
The seat back shall include a removable padded cover which shall be provided over the SCBA cavity.
SEAT MOUNTING OFFICER
The officer’s seat shall be installed in an ergonomic position in relation to the cab dash.
Fire Engine
08/23/13
Page 46 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
OCCUPANT PROTECTION OFFICER
The officer’s position shall be equipped with the Advanced Protection System™ (APS). The APS shall selectively
deploy integrated systems to protect against injuries in qualifying frontal impact, side impact, and rollover events.
The increase in survivable space and security of the APS shall also provide ejection mitigation protection.
The officer’s seating area APS shall include:
•
•
Advanced seat belt system - retractor pre-tensioner tightens the seat belt around the officer, securing the
occupant in the seat and the load limiter plays out some of the seat belt webbing to reduce seat belt to chest
and torso force upon impact as well as mitigate head and neck injuries.
Large side curtain airbag - protects the officer’s head, neck, and upper body from dangerous cab side
surfaces and contact points with intrusive surfaces as a result of a collision as well as provides ejection
mitigation protection to the officer in a qualifying event by covering the window and the upper portion of the
door.
Knee airbags - protects the officer's lower body from dangerous surface contact injuries, acceleration injuries, and
from contact points with intrusive surfaces as a result of a collision as well as locks the lower body in place so the
upper body shall be slowed by the load limiting seat belt.
POWER SEAT WIRING
The power seat or seats installed in the cab shall be wired directly to battery power.
SEAT REAR FACING OUTER LOCATION
The crew area shall include two (2) rear facing crew seats, which include one (1) located directly behind the left
side front seat and one (1) located directly behind the right side front seat.
SEAT CREW REAR FACING OUTER
The crew area shall include a seat in the rear facing outboard position which shall be a H.O. Bostrom Firefighter
series. The seat shall feature a tapered and padded seat, and cushion.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall include a threepoint shoulder harness with the lap belt and automatic retractor as an integral part of the seat assembly. The
buckle portion of the seat belt shall extend from the seat base towards the driver position within easy reach of the
occupant.
The minimum vertical dimension from the seat H-point to the ceiling for each belted seating position shall be
35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This testing shall
include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts and twenty (20) times the
weight through the center of gravity. This model of seat installed in the cab model, as specified, shall have
successfully completed the dynamic sled testing using FMVSS 208 as a guide with the following
accommodations. In order to reflect the larger size outfitted firefighters, the test dummy used shall be a 95th
percentile hybrid III male weighing 225 pounds rather than the 50th percentile male dummy weighing 165 pounds
as referenced in FMVSS 208. The model of seats shall also have successfully completed the flammability of
materials used in the occupant compartments of motor vehicles as outlined in FMVSS 302, of which decides the
burning rate of materials in the occupant compartments of motor vehicles.
Fire Engine
08/23/13
Page 47 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
SEAT BACK REAR FACING OUTER
The rear facing outboard seat shall feature a Bostrom SecureAll™ self contained breathing apparatus (SCBA)
locking system which shall store most U.S. and International SCBA brands and bottle sizes while in transit or for
storage within the seat back. The bracket shall be easily adjustable for all SCBA brands and cylinder diameters.
All adjustment points shall utilize similar hardware and adjustments shall be made with one tool.
The bracket shall be adjustable to compensate for different cylinder lengths without the use of tools.
adjustment shall be made by raising a lever and moving the top clamp vertically.
The
The bracket system shall be free of straps that may interfere with auxiliary equipment on SCBA units. The center
guide fork shall keep the SCBA tank in place for a safe and comfortable fit in the seat back cavity. The SCBA unit
simply needs to be pushed against the pivot arm to engage the patented auto-locking system. Once the lock is
engaged, the top clamp shall surround the top of the SCBA tank for a secure fit in all directions.
The SecureAll™ shall include a release handle which shall be integrated into the center of the bottom seat
cushion for easy access and to eliminate hooking the release handle with clothing or other equipment.
The seat back shall include a removable padded cover which shall be provided over the SCBA cavity.
SEAT MOUNTING REAR FACING OUTER
The rear facing outer seats shall offer special mounting positions which shall be 2.00 inches towards the rear wall
offering additional space between the front seats and the outer rear facing seats.
OCCUPANT PROTECTION RFO
The rear facing outer seat position(s) shall be equipped with the Advanced Protection System™ (APS). The APS
shall selectively deploy integrated systems to protect against injuries in qualifying frontal impact, side impact, and
rollover events. The increase in survivable space and security of the APS shall also provide ejection mitigation
protection.
Each rear facing outer seating position APS shall include:
•
APS advanced seat belt system - retractor pre-tensioners tighten the seat belts around each occupant,
securing the occupants in seats and load limiters play out some of the seat belt webbing to reduce seat belt to
chest and torso force upon impact as well as mitigate head and neck injuries.
Side curtain airbag - protects each occupant's head, neck, and upper body from dangerous cab side surfaces and
contact points with intrusive surfaces as a result of a collision as well as provides ejection mitigation protection to
each occupant in a qualifying event by covering the windows and walls adjacent to each seating position with an
airbag custom designed for each cab configuration.
SEAT BELT ORIENTATION CREW
The crew position seat belts shall follow the standard orientation which extends from the outboard shoulder
extending to the inboard hip.
SEAT FRAME REAR FACING CENTER
The rear facing center seating shall include a seat frame which is located and installed behind the engine tunnel.
The seat frame shall measure 46.15 inches wide X 12.00 inches high X 15.88 inches deep The seat frame shall
be constructed of 0.19 inch thick Marine Grade 5052-H32 smooth aluminum plate. The seat box shall be painted
with the same color as the remaining interior.
Fire Engine
08/23/13
Page 48 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
SEAT FRAME REAR FACING CENTER STORAGE ACCESS
The rear facing center seat frame shall include a storage access opening which shall measure 32.00 inches wide
X 8.75 inches high to allow access within the seat frame for storage. A solid access door which shall measure
34.00 inches wide X 11.12 inches high shall be provided at the opening.
CAB FRONT UNDERSEAT STORAGE ACCESS
The left and right under seat storage areas shall have a vented aluminum hinged door with non-locking latch.
SEAT COMPARTMENT DOOR FINISH
All underseat storage compartment access doors shall have a Zolatone #20-72 silver gray texture.
WINDSHIELD WIPER SYSTEM
The cab shall include a dual arm wiper system which shall clear the windshield of water, ice and debris. There
shall be two (2) windshield wipers which shall be affixed to a radial wet arm. The system shall include a single
motor which shall initiate the arm in which both the left hand and right hand windshield wipers are attached,
initiating a back and forth motion for each wiper. The wiper motor shall be activated by an intermittent wiper
control located within easy reach of the driver’s position.
ELECTRONIC WINDSHIELD FLUID LEVEL INDICATOR
The windshield washer fluid level shall be monitored electronically. When the washer fluid level becomes low the
yellow “Check Message Center” indicator light on the instrument panel shall illuminate and the message center in
the dual air pressure gauge shall display a “Check Washer Fluid Level” message.
CAB DOOR HARDWARE
The cab entry doors shall be equipped with exterior pull handles, suitable for use while wearing firefighter gloves.
The handles shall be made of a fiber reinforced plastic composite with a black matt finish.
The interior exit door handles shall be flush paddle type with a black finish, which are incorporated into the upper
door panel.
All cab entry doors shall include locks which are keyed alike. The door locks shall be designed to prevent
accidental lockout.
DOOR LOCKS
Each cab entry door shall include a manually operated door lock. The each door lock may be actuated from the
inside of the cab by means of a red knob located on the paddle handle of the respective door or by using a
TriMark key from the exterior. The door locks are designed to prevent accidental lock out.
DOOR LOCK LH REAR CAB COMPARTMENT
The left hand side rear compartment shall feature a manual door lock.
DOOR LOCK RH REAR CAB COMPARTMENT
The right hand side rear compartment shall feature a manual door lock.
Fire Engine
08/23/13
Page 49 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
GRAB HANDLES
The cab shall include one (1) 18.00 inch three-piece knurled aluminum, anti-slip exterior assist handle, installed
behind each cab door. The assist handle shall be made of extruded aluminum with a knurled finish to enable
non-slip assistance with a gloved hand.
REAR VIEW MIRRORS
The cab exterior shall include Ramco bus style mirrors, one (1) mounted on the drivers’ door and one (1) mounted
on the right front cab corner radius below the windshield.
The left side mirror shall be model CRM-310-1750-TPCHR. The mirror head shall be injection molded chrome
plated ABS plastic that measures 9.50 inches wide X 17.50 inches high and is mounted with a polished die-cast
aluminum arm.
The right side mirror shall be model CRM-310-1752-A8-TPCHR. The mirror head shall be injection molded
chrome plated ABS plastic that measures 9.50 inches wide X 17.50 inches high and is mounted with a 17.00 inch
long polished cast aluminum arm.
Both the flat and convex mirrors shall be heated and remote controlled. The mirror control switches shall be
located within easy reach of the driver. The mirrors shall be manufactured using the finest quality non-glare glass
and shall feature a rigid mounting thereby reducing vibration. The mirrors shall be corrosion free under all
weather conditions.
REARVIEW MIRROR HEAT SWITCH
The heat for the rearview mirrors shall be controlled through a virtual button on the Vista display and control
screen.
EXTERIOR TRIM REAR CORNER
There shall be mirror finish stainless steel scuff plates on the outside corners at the back of the cab. The
stainless steel plate shall be affixed to the cab using two sided adhesive tape.
TRIM ROOF
The raised portion of the cab roof shall include 3003-H22 bright aluminum embossed tread plate which is 0.08
inches thick. This plate shall be intended for reinforcement value and shall start at the rear edge of the roof
extending to the radius at the forward end of the raised roof, and shall be the full width of the flat portion of the
roof left to right.
The tread plate shall be held in place using stainless steel fasteners and shall be sealed with silver silicone caulk
around the perimeter of the tread plate and at each mounting screw.
CAB FENDER
Full width wheel well liners shall be installed on the extruded cab to limit road splash and enable easier cleaning.
Each two-piece liner shall consist of an inner liner 16.00 inches wide made of vacuum formed ABS composite and
an outer fenderette 3.50 inches wide made of 14 gauge 304 polished stainless steel.
MUD FLAPS FRONT
The front wheel wells shall have mud flaps installed on them. The mud flaps shall extend from the outer edge of
the wheel well to the inner edge of the wheel well to provide additional protection from road spray.
Fire Engine
08/23/13
Page 50 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB EXTERIOR FRONT & SIDE EMBLEMS
The cab shall include three (3) Spartan Chassis emblems. There shall be one (1) installed on the front air intake
grille and one (1) emblem with an integrated model nameplate installed on the exterior of the cab on the lower
forward portion of the front driver and officer side doors.
CAB EXTERIOR MODEL NAMEPLATE
The cab shall include custom “Gladiator Advanced Protection System” nameplates integrated into the side
emblem.
IGNITION
A master battery system with a keyless start ignition system shall be provided. Each system shall be controlled by
a one-quarter turn Cole Hersee switch, both of which shall be mounted to the left of the steering wheel on the
dash. A chrome push type starter button shall be provided adjacent to the master battery and ignition switches.
Each switch shall illuminate a green LED indicator light on the dash when the respective switch is placed in the
“ON” position.
The starter button shall only operate when both the master battery and ignition switches are in the “ON” position.
BATTERY
The single start electrical system shall include six (6) Harris BCI 31 950 CCA batteries with a 210 minute reserve
capacity and 4/0 welding type dual path starter cables per SAE J541. The cables shall have encapsulated ends
with heat shrink and sealant.
BATTERY TRAY
The batteries shall be installed within two (2) steel battery trays located on the left side and right side of the
chassis, securely bolted to the frame rails. The battery trays shall be coated with the same material as the frame.
The battery trays shall include drain holes in the bottom for sufficient drainage of water. A durable, nonconducting, interlocking mat made by Dri-Dek shall be installed in the bottom of the trays to allow for air flow and
help prevent moisture build up. The batteries shall be held in place by non-conducting phenolic resin hold down
boards.
BATTERY BOX COVER
Each battery box shall include a steel cover which protects the top of the batteries. Each cover shall include flush
latches which shall keep the cover secure as well as a black powder coated handle for convenience when
opening.
BATTERY CABLE
The starting system shall include cables which shall be protected by 275 degree F. minimum high temperature
flame retardant loom, sealed and encapsulated at the ends with heat shrink and sealant.
BATTERY JUMPER STUD
The starting system shall include battery jumper studs. These studs shall be located in the forward most portion
of the driver's side lower step. The studs shall allow the vehicle to be jump started, charged, or the cab to be
raised in an emergency in the event of battery failure.
Fire Engine
08/23/13
Page 51 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ALTERNATOR
The charging system shall include a 320 amp Leece-Neville 12 volt alternator. The alternator shall include a selfexciting integral regulator.
BATTERY CONDITIONER
A Kussmaul 35/10 battery conditioner shall be supplied. The battery conditioner shall provide a 35 amp output for
the chassis batteries and a 10 amp battery saver output. The battery conditioner shall be mounted in the cab in
the LH rear facing outer seating position.
BATTERY CONDITIONER DISPLAY
A Kussmaul battery conditioner display shall be supplied. The battery conditioner display shall be mounted in the
cab, viewable through the cab mid side window behind the left front door.
ELECTRICAL INLET
A Kussmaul 20 amp super auto-eject electrical receptacle shall be supplied. It shall automatically eject the plug
when the starter button is depressed.
A single item or an addition of multiple items must not exceed the rating of the electric inlet that it’s connected to.
Amp Draw Reference List:
Kussmaul 1000 Charger - 3.5 Amps
Kussmaul 1200 Charger - 10 Amps
Kussmaul 35/10 Charger - 10 Amps
1000W Engine Heater - 8.33 Amps
1500W Engine Heater - 12.5 Amps
120V Air Compressor - 4.2 Amps
ELECTRICAL INLET LOCATION
An electrical inlet shall be installed on the left hand side of cab over the wheel well.
ELECTRICAL INLET CONNECTION
The electrical inlet shall be connected to the battery conditioner.
ELECTRICAL INLET COLOR
The electrical inlet connection shall include a gray cover.
HEADLIGHTS
The cab front shall include four (4) rectangular LED headlamps with separate high and low beams mounted in
bright chrome bezels.
FRONT TURN SIGNALS
The front fascia shall include two (2) Whelen model 600 4.00 inch X 6.00 inch programmable amber LED turn
signals which shall be installed in the outboard position.
HEADLIGHT LOCATION
The headlights shall be located on the front fascia of the cab directly below the front warning lights.
Fire Engine
08/23/13
Page 52 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
SIDE TURN/MARKER LIGHTS
The sides of the cab shall include two (2) LED round side marker lights which shall be provided just behind the
front cab radius corners.
MARKER AND ICC LIGHTS
In accordance with FMVSS, there shall be five (5) LED cab marker lamps designating identification, center and
clearance provided. These lights shall be installed on the face of the cab within full view of other vehicles from
ground level.
HEADLIGHT AND MARKER LIGHT ACTIVATION
The headlights and marker lights shall be controlled via a virtual button on the Vista display. There shall be a
virtual dimmer control on the Vista display to adjust the brightness of the dash lights. The headlamps shall be
equipped with the "Daytime Running" light feature, which shall illuminate the headlights to 80% brilliance when
the battery master switch is in the "On" position and the parking brake is released.
GROUND LIGHTS
Each door shall include an NFPA compliant LED ground light mounted to the underside of the cab step below
each door. The lights shall include a polycarbonate lens, a housing which is vibration welded and LEDs which
shall be shock mounted for extended life. The ground lighting shall be activated by the opening of the door on
the respective cab side, when the parking brake is set and through a virtual button on the Vista display and
control screen.
STEP LIGHTS
The middle step located at each door shall include a recess mounted 4.00 inch round LED light which shall
activate with the opening of the respective door.
ENGINE COMPARTMENT LIGHT
There shall be an LED NFPA compliant light mounted under the engine tunnel for area work lighting on the
engine. The light shall include a polycarbonate lens, a housing which is vibration welded and a bulb which shall
be shock mounted for extended life. The light shall activate automatically when the cab is tilted.
FRONT SCENE LIGHTS
The front of the cab shall include two (2) Fire Research Spectra model, universal mount scene lights installed on
the brow of the cab.
The lamphead shall have sixty (60) ultra-bright white LEDs, 48 for flood lighting and 12 to provide a spot light
beam pattern. It shall operate at 240 volts AC, draw 1 amp, and generate 20,000 lumens of light. The lamphead
shall have a unique lens that directs flood lighting onto the work area and focuses the spot light beam into the
distance. The lamphead shall be no more than 6" high by 14" wide by 4 3/4" deep. The lamphead and mounting
arm shall be powder coated.
FRONT SCENE LIGHTS ACTIVATION
The front scene lighting shall be pre-wired to be activated by the OEM.
FRONT SCENE LIGHT LOCATION
There shall be two (2) scene lights mounted to the front brow of the cab inboard of the outer front marker lights.
Each light shall be angled outboard 15-degrees.
Fire Engine
08/23/13
Page 53 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
INTERIOR OVERHEAD LIGHTS
The cab shall include a two-section, red and clear Weldon LED dome lamp located over each door. The dome
lamps shall be rectangular in shape and shall measure approximately 7.00 inches in length X 3.00 inches in width
with a black colored bezel. The clear portion of each lamp shall be activated by opening the respective door and
via the multiplex display and both the red and clear portion can be activated by individual push lenses on each
lamp.
An additional two-section, red and clear Weldon LED dome lamp shall be provided over the engine tunnel which
can be activated by individual switches on the lamp.
DO NOT MOVE APPARATUS LIGHT
The front headliner of the cab shall include a flashing red Whelen 500 Series 5mm LED light clearly labeled "Do
Not Move Apparatus". In addition to the flashing red light, an audible alarm shall be included which shall sound
while the light is activated.
The flashing red light shall be 5.40 inches long X 1.70 inches wide X 0.90 inches high and shall be located
centered left to right for greatest visibility.
The light and alarm shall be interlocked for activation when either a cab door is not firmly closed or an apparatus
compartment door is not closed, and the parking brake is released.
MASTER WARNING SWITCH
A master switch shall be included, as a virtual button on the Vista display and control screen which shall be
labeled “E Master” for identification. The button shall feature control over all devices wired through it. Any warning
device switches left in the “ON” position when the master switch is activated shall automatically power up.
HEADLIGHT FLASHER
An alternating high beam headlight flashing system shall be installed into the high beam headlight circuit which
shall allow the high beams to flash alternately from left to right.
Deliberate operator selection of high beams will override the flashing function until low beams are again selected.
Per NFPA, these clear flashing lights will also be disabled “On Scene” when the park brake is applied.
HEADLIGHT FLASHER SWITCH
The flashing headlights shall be activated through a virtual button on the Vista display and control screen.
INBOARD FRONT WARNING LIGHTS
The cab front fascia shall include two (2) Whelen 600 series Super LED front warning lights in the left and right
inboard positions. The lights shall feature multiple flash patterns including steady burn for solid colors and multiple
flash patterns for split colors. The lights shall be mounted to the front fascia of the cab within a chrome bezel.
INBOARD FRONT WARNING LIGHTS COLOR
The warning lights mounted on the cab front fascia in the inboard positions shall be red.
FRONT WARNING SWITCH
The front warning lights shall be controlled through a virtual control on the Vista display and control screen. This
switch shall be clearly labeled for identification.
Fire Engine
08/23/13
Page 54 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
INTERSECTION WARNING LIGHTS
The chassis shall include two (2) Whelen 600 series Super LED intersection warning lights, one (1) each side.
The lights shall feature multiple flash patterns including steady burn for solid colors and multiple flash patterns for
split colors.
INTERSECTION WARNING LIGHTS COLOR
The intersection lights shall be red.
INTERSECTION WARNING LIGHTS LOCATION
The intersection lights shall be mounted on the side of the bumper.
SIDE WARNING LIGHTS
The cab sides shall include two (2) Whelen 600 series Super LED warning lights, one (1) on each side. The lights
shall feature multiple flash patterns including steady burn for solid colors and multiple flash patterns for split
colors. The lights shall be mounted to the sides of the cab within a chrome bezel.
SIDE WARNING LIGHTS COLOR
The warning lights located on the side of the cab shall be red.
SIDE WARNING LIGHTS LOCATION
The warning lights on the side of the cab shall be mounted over the front wheel well directly over the center of the
front axle.
SIDE AND INTERSECTION WARNING SWITCH
The side warning lights shall be controlled through a virtual button on the Vista display and control screen. This
button shall be clearly labeled for identification.
MARS WARNING LIGHTS
The cab front shall include a Mars 888 model TB8-12P warning light featuring a gimbal mounted oscillating lamp.
The stainless steel light head shall be 7.00 inches in diameter and shall generate a “figure eight” pattern which is
clearly visible even in adverse conditions. The light shall be pedestal mounted top center above the grill on an
aluminum bracket painted cab color.
The lens shall be clear in color.
MARS WARNING LIGHT SWITCH
The Mars front warning light(s) shall be separately controlled through a virtual button on the Vista display and
control panel.
INTERIOR DOOR OPEN WARNING LIGHTS
The interior of each door shall include one (1) red 4.00 inch diameter Truck-Lite LED warning light located on the
door panel. Each light shall activate with a flashing pattern when the door is in the open position to serve as a
warning to oncoming traffic.
Fire Engine
08/23/13
Page 55 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
SIREN CONTROL HEAD
A Whelen 295SLSA1 electronic siren control head with hard wired microphone shall be provided in lower right
section of the center panel. The siren shall offer a selectable 100 or 200-watt output, radio broadcast, public
address, and seventeen (17) Scan-Lock siren tones and hands free operation which shall allow the operator to
turn the siren on and off from the steering wheel horn ring if a horn/siren selector switch option is also selected.
The siren circuitry shall be placed behind the rocker switch panels under the electrical cover with a 30 inch loop
for the OEM to route as desired.
HORN BUTTON SELECTOR SWITCH
A virtual button on the Vista display and control screen shall be provided to allow control of the electric horn or the
air horn from the steering wheel horn button. The horn button selection shall default to the air horn each time the
Vista screen power is cycled off and on. The electric horn shall sound when the selector switch is in either
position to meet FMCSA requirements.
AIR HORN ACTIVATION
The air horn activation shall be accomplished through the steering wheel button for the driver and by two (2)
lanyard cables, one (1) on the left hand side accessible to the driver and one (1) on the right hand side accessible
to the officer. An air horn activation circuit shall be provided to the chassis harness pump panel harness
connector.
MECHANICAL SIREN ACTIVATION
The mechanical siren shall be actuated by a Linemaster model SP491-S81 foot switch mounted in the front
section of the cab for use by the officer. A red momentary siren brake rocker switch shall be provided in the switch
panel on the dash.
The siren shall only be active when master warning switch is on to prevent accidental engagement.
BACK-UP ALARM
An ECCO model 575 backup alarm shall be installed at the rear of the chassis with an output level of 107 dB. The
alarm shall automatically activate when the transmission is placed in reverse. A virtual button shall be provided
on the Vista display and control screen to disable the backup alarm.
Fire Engine
08/23/13
Page 56 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
INSTRUMENTATION
An ergonomically designed instrument panel shall be provided. Each gauge shall be backlit with LED lamps.
Stepper motor movements shall drive all gauges. The instrumentation system shall be multiplexed and shall
receive ABS, engine, and transmission information over the J1939 data bus to reduce redundant sensors and
wiring.
The instrument panel shall contain the following gauges:
One (1) electronic speedometer shall be included. The primary scale on the speedometer shall read from 0 to
100 MPH, and the secondary scale on the speedometer shall read from 0 to 160 KM/H.
One (1) electronic tachometer shall be included. The scale on the tachometer shall read from 0 to 3000 RPM.
One (1) two-movement gauge displaying primary system, and secondary system air volumes and integral LCD
odometer/trip odometer shall be included on the lower portion of the LCD. The scale on the air pressure gauges
shall read from 0 to 150 pounds per square inch (PSI). The air pressure scales shall be linear to operate with an
accuracy of 1 degree of the measured data with a red indication zone on the gauge showing critical levels of air
pressure. A red indicator light in the gauge shall indicate a low air pressure, as well as a message on the LCD
screen. The odometer shall display up to 9,999,999.9 miles. The trip odometer shall display 9,999.9 miles. The
LCD shall display Transmission Temperature in degrees Fahrenheit on the upper portion of the LCD. The LCD
screen shall also be capable of displaying certain diagnostic functions.
One (1) four-movement gauge displaying engine oil pressure, coolant temperature, fuel level, voltmeter, and an
indicator bar displaying Diesel Exhaust Fluid (DEF) LED bar shall be included. The scale on the engine oil
pressure gauge shall read from 0 to 120 pounds per square inch (PSI). The engine oil pressure scale shall be
linear to operate with an accuracy of 1 degree of the measured. A red indicator light in the gauge shall indicate a
low engine oil pressure, as well as a message on the LCD screen. The scale on the coolant temperature gauge
shall read from 100 to 250 degrees Fahrenheit (F). The coolant temperature scale shall be linear to operate with
an accuracy of 1 degree of the measured data with a red indication zone on the gauge showing critical levels of
air pressure. A red indicator light in the gauge shall indicate high coolant temperature, as well as a message on
the LCD screen. The scale on the fuel level gauge shall read from empty to full as a percentage of fuel
remaining. An amber indicator light shall indicate low fuel at 25% tank level. The scale on the voltmeter shall
read from 10 to 16 volts with a red indication zone on the gauge showing critical levels of battery voltage. A red
indicator light shall indicate high or low system voltage, as well as a message on the LCD screen. The scale on
the DEF LED bar will consist of four (4) LEDs displaying levels in increments of 25% of useable DEF in green.
Upon decreasing levels, the indicator bar will change colors to notify the driver of decreasing levels of DEF and
action will be required. An amber indicator light shall indicate low levels of DEF, as well as a message on the
LCD screen and an audible alarm.
The instrument panel shall include a light bar that contains the following LED indicator lights and produce the
following audible alarms in applicable configurations:
RED LAMPS
Stop Engine-indicates critical engine fault
Air Filter Restricted-indicates excessive engine air intake restriction
Park Brake-indicates parking brake is set
Seat Belt Indicator-indicates when a seat is occupied and corresponding seat belt remains unfastened
Low Coolant-indicates engine coolant is required
Fire Engine
08/23/13
Page 57 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
AMBER LAMPS
MIL-indicates an engine emission control system fault
Check Engine-indicates engine fault
Check Trans-indicates transmission fault
High Transmission Temperature-indicates excessive transmission oil temperature
ABS-indicates anti-lock brake system fault
Wait to Start-indicates active engine air preheat cycle
HEST-indicates a high exhaust system temperature
Water in Fuel-indicates presence of water in fuel filter
DPF-indicates a restriction of the diesel particulate filter
Regen Inhibit-indicates regeneration has been postponed due to user interaction
Range Inhibit-indicates a transmission operation is prevented and requested shift request may not occur.
SRS-indicates a problem in the RollTek supplemental restraint system
Check Message-Turn Signal On
Check Message-Door Ajar
Check Message-Cab Ajar
Check Message-ESC Active
Check Message-DPF Regen Active
Check Message-No Engine Data
Check Message-No Transmission Data
Check Message-No ABS Data
Check Message-No Data All Communication With Vehicle Systems Has Been Lost
Check Message-Check Engine Oil Level
Check Message-Check Washer Fluid Level
Check Message-Check Power Steering Fluid Level
Check Message-Low Transmission Fluid Level
Check Message-Check Coolant Level
GREEN LAMPS
Left and Right turn signal indicators
ATC-indicates low wheel traction for automatic traction control equipped vehicles, also indicates mud/snow mode
is active for ATC system
High Idle-indicates engine high idle is active.
Cruise Control-indicates cruise control is active
OK to Pump-indicates the pump engage conditions have been met
Pump Engaged-indicates the pump is currently in use
Auxiliary Brake-indicates secondary braking device is active
BLUE LAMPS
High Beam Indicator
Fire Engine
08/23/13
Page 58 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
AUDIBLE ALARMS FROM GAUGE PACKAGE
High Trans Temp
High or Low Voltage
Check Engine
Check Transmission
Stop Engine
Low Air Pressure
Fuel Low
Water in Fuel
ESC
High Coolant Temperature
Low Engine Oil Pressure
Low Coolant Level
Low DEF Level
Air Filter Restricted
Extended Left and Right Turn Remaining On
Cab Ajar
Door Ajar
ABS System Fault
Seatbelt Indicator
EXTERNAL AUDIBLE ALARM
Air Filter
Cab Ajar
Door Ajar
Check Engine
Stop Engine
Low Air Pressure
Water in Fuel
Low DEF
ABS System Fault
Seatbelt Indicator
BACKLIGHTING COLOR
The instrumentation gauges and the switch panel legends shall be backlit using red LED backlighting.
AUXILIARY SPEEDOMETER
The dash shall include an auxiliary analog speedometer.
AIR RESTRICTION GAUGE
The instrument panel shall include an Engineered Products air cleaner restriction gauge.
RADIO
A Panasonic radio with weather band, AM/FM stereo receiver, compact disc player, with and (4) speakers shall
be installed in the cab. The radio shall be installed above the officer position. The speakers shall be installed
inside the cab with two (2) speakers recessed within the headliner of the front of the cab just behind the
windshield and two (2) speakers on the upper rear wall of the cab.
AM/FM ANTENNA
A small antenna shall be located on the right hand side of the cab roof for AM/FM and weather band reception.
Fire Engine
08/23/13
Page 59 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB EXTERIOR PROTECTION
The cab face shall have a removable plastic film installed over the painted surfaces to protect the paint finish
during transport to the body manufacturer.
FIRE EXTINGUISHER
A 2.50 pound D.O.T approved fire extinguisher with BC rating shall be shipped loose with the cab.
ROAD SAFETY KIT
The cab and chassis shall include one (1) emergency road safety triangle kit.
DOOR KEYS
The cab and chassis shall include a total of four (4) door keys for the manual door locks.
DIAGNOSTIC SOFTWARE ENGINE
The cab and chassis shall include a Cummins Quick Check QC5100 kit. The system shall be shipped loose with
the chassis and shall include the following: a QC5200 handheld computer, cables, AC power supply, and the
QC5200 software application suite.
DIAGNOSTIC SOFTWARE TRANSMISSION
The cab and chassis shall include the latest version of Allison’s DOC diagnostic software for the transmission,
which shall interface with the MagiKey®. The software shall be compatible with both 3000 and 4000 Gen IV
transmissions.
Allison® DOC™ for PC-Service Tool is backward compatible with older electronically controlled transmissions.
The feature matrix for Allison Transmission Diagnostic Tools shall offer a user friendly table which shall guide you
through all available and unavailable functions of the Allison Transmission diagnostic tools.
The software shall be supported by Microsoft® Windows, XP, Professional and Window 2000 (SP4 or later).
DIAGNOSTIC SOFTWARE ABS
The cab and chassis shall include end user registration access codes for internet digital download of the latest
applicable version of TOOLBOX™ diagnostic software for the Wabco ABS system. This software shall interface
with the vehicles diagnostic interface module via a diagnostic adapter connection to the user’s TOOLBOX™
installed device. Visit the vendor website for information on system requirements and key features in the latest
version of the Meritor Wabco TOOLBOX™ diagnostic software.
http://www.meritorwabco.com/ProductBySegment,4,28,2,6,TOOLBOX%e2%84%a2-Software.aspx
Fire Engine
08/23/13
Page 60 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
DIAGNOSTIC INTERFACE MODULE
The shipped cab and chassis shall include a USB-Link™ interface module equipment kit which, shall
communicate between the vehicle and the computer. The vehicle interface is compatible with RP1210A OEM
diagnostic software including: Caterpillar, Cummins, Detroit Diesel, Allison Transmission and Meritor Wabco.
The kit shall include the USB-Link™, a USB cable which shall be 15.00 feet in length, a quick start reference
guide, a 6 and 9 pin “Y” Deutsch adapter, and Configuration utility CD and manuals.
The software shall be supported by Windows 2000, XP, Vista, and Windows 7.
DIAGNOSTIC SOFTWARE WELDON V-MUX
The cab and chassis shall include diagnostic software for the Weldon VMUX system shipped loose with the
vehicle. The software kit shall include the following.
•
•
•
•
•
•
•
•
•
•
•
•
One (1) carrying case
One (1) USB Transceiver
One (1) on one (1) cable for mini node
One (1) on one (1) cable for Hercules node
One (1) Deutsch wire removal tool, 14.00 to 16.00 gauge wire (blue)
One (1) Deutsch wire removal tool, 18.00 to 20.00 gauge wire (red)
One (1) cable, RS232 9 pin serial PC to transceiver
One (1) cable, RS485 transceiver to VMUX
One (1) cable which shall troubleshoot Hercules outputs
One (1) cable which shall trouble shoot mini node outputs
One (1) downloader manual
One (1) diagnostics manual
The system shall support PDF and USB diagnostic kits for Windows 2000, XP, Vista, and Windows 7.
DIAGNOSTIC SOFTWARE OCCUPANT PROTECTION
Diagnostic software for the Spartan Advanced Protection System shall be available for free download from the
Spartan Chassis website to Spartan authorized OEMs, dealers and service centers, as well as the vehicle owner.
The software has been validated to be compatible with the following RP1210 interface adapters:
•
•
•
•
•
Dearborn Group DPA4 Plus
Noregon Systems JPRO® DLA+
Cummins INLINE5
Cummins INLINE6
NexIQ™ USB-Link™
The software and adapter utilize the SAE J1939-13 heavy duty nine (9) pin connector which is located below the
driver’s side dash to the left of the steering column.
WARRANTY
The chassis manufacturer shall provide a limited parts and labor warranty to the purchaser of the custom built cab
and chassis for a period of twenty-four (24) months, or the first 36,000 miles, whichever occurs first. The warranty
period shall commence on the date the vehicle is delivered to the end user. The limited warranty may be
transferred to subsequent owners during the warranty period. The warranty shall include conditional items listed
in the detailed warranty document which shall be provided upon request.
Fire Engine
08/23/13
Page 61 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CHASSIS OPERATION MANUAL
There shall be four (4) complete sets of chassis operation manuals provided with the chassis. Two (2) sets shall
be printed hard copies and two (2) sets shall be digital copies. Each manual shall include a parts list specific to
the chassis model.
ENGINE AND TRANSMISSION OPERATION MANUALS
The following manuals specific to the engine and transmission models ordered will be included with the chassis in
the ship loose items:
(2) Digital copies of the Engine Owner’s manual
(2) Digital copies of the Transmission Operator’s manual
(2) Hard copies of the Engine Operation and Maintenance manual with CD
ENGINE SERVICE MANUALS
There shall be two (2) printed hard copy sets of Cummins ISX engine service reference manuals which shall be
provided with the chassis.
TRANSMISSION SERVICE MANUALS
There shall be two (2) printed hard copy sets of Allison 4000 transmission service manuals included with the
chassis.
CAB/CHASSIS AS BUILT WIRING DIAGRAMS
The cab and chassis shall include four (4) complete sets of wiring schematics and option wiring diagrams. Two
(2) sets shall be printed hard copies and two (2) sets shall be digital copies.
PAINT CONFIRMATION
There shall be a paint confirmation letter sent to the body manufacturer with paint spray outs to confirm the cab
primary paint color or primary and secondary paint color as specified by the paint options.
CAB TO AXLE DIMESION
Cab to axle will be 138.0”.
CAB/CHASSIS PREPAYMENT
The specified cab/chassis shall be prepaid by Greeley Fire Department within 30 days of invoice. Greeley Fire
Department understands that if payment is made after 30 days, additional interest charges may apply.
Fire Engine
08/23/13
Page 62 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CHASSIS MODIFICATIONS
LUBRICATION AND TIRE DATA PLATE
A permanent label in the driving compartment shall specify the quantity and type of the following fluids used in the
vehicle and tire information:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Engine oil
Engine coolant
Chassis transmission fluid
Pump transmission lubrication fluid . . (if applicable)
Pump priming system fluid, if applicable . . (if applicable)
Drive axle(s) lubrication fluid
Air conditioning refrigerant . . (if applicable)
Air conditioning lubrication oil . . (if applicable)
Power steering fluid
Cab tilt mechanism fluid . . (if applicable)
Transfer case fluid . . (if applicable)
Equipment rack fluid (if applicable)
CAFS air compressor system lubricant . . (if applicable)
Generator system lubricant . . (if applicable)
Front tire cold pressure
Rear tire cold pressure
Maximum tire speed ratings
VEHICLE DATA PLATE
A permanent label in the driving compartment which indicates the following:
•
•
•
•
•
Filter part numbers for the;
− Engine
− Transmission
− Air
− Fuel
Serial numbers for the;
− Engine
− Transmission
Delivered Weights of the Front and Rear Axles
Paint Brand and Code(s)
Sales Order Number
OVERALL HEIGHT, LENGTH DATA PLATE (US)
The fire apparatus manufacturer shall permanently affix a high-visibility label in a location visible to the driver
while seated.
The label shall show the height of the completed fire apparatus in feet and inches, the length of the completed fire
apparatus in feet and inches, and the GVWR in pounds.
Wording on the label shall indicate that the information shown was current when the apparatus was manufactured
and that, if the overall height changes while the vehicle is in service, the fire department must revise that
dimension on the plate.
Fire Engine
08/23/13
Page 63 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ACCIDENT PREVENTION
There shall be a placard in the cab seating area which reads, "ALL OCCUPANTS MUST BE SEATED AND
BELTED WHEN THE APPARATUS IS IN MOTION".
PERSONNEL CAPACITY
A label that states the number of personnel the vehicle is designed to carry shall be located in an area visible to
the driver.
ACCIDENT PREVENTION
If the rear bumper is 8" deep or more, there shall be a placard on the rear face of the body, in clear sight from the
ground, which reads, "WARNING - DO NOT RIDE ON STEPS OR DECK AREAS WHILE THE APPARATUS IS
IN MOTION. DEATH OR SERIOUS INJURY MAY RESULT".
WEARING HELMET WARNING
A label stating “DO NOT WEAR HELMET WHILE SEATED” shall be visible from each seating location.
FINAL STAGE MANUFACTURER VEHICLE CERTIFICATION
A final stage manufacturer vehicle certification label shall be provided and installed in the driver cab door jamb
area.
FRONT BUMPER
The front bumper shall be as provided by the cab/chassis manufacturer. No other alteration or modifications are
required.
BUMPER GRAVEL SHIELD
The front bumper extension shall have a 3/16" NFPA compliant aluminum tread plate gravel shield. The gravel
shield shall cover the full width of the front bumper to the front of the cab and the full height of the bumper on
each end.
BUMPER HOSE WELL COMPARTMENT
The bumper shall include a hose well compartment in center of bumper extension. The hose well shall be as large
as room allows and shall be capable of holding a minimum of 150' of 1-3/4" double jacketed structural firefighting
hose with nozzle. The front of the compartment shall be designed to allow the hose load to be deployed without
obstructions. The compartment door shall be 1/8" NFPA compliant aluminum tread plate with a stainless steel
hinge and lift-type hold down latches. The compartment door shall have a gas shock type hold open device. This
compartment shall not be watertight but shall include compartment drains.
If the bumper compartment is greater than 4 cu.ft. in volume and has an opening greater than 144 sq.in. it shall
have sufficient compartment lighting to provide a minimum of 2 fc (20 lx) at any location on the floor of the
compartment without any equipment in the compartment. If light is required, light shall be an OnScene LED type
light.
A flashing warning light signal shall be provided indicating when a compartment door is not in a closed position as
required by NFPA 1901.
A polished stainless scuff plate shall be provided on the top front edge of the cab bumper to protect the paint from
getting scuffed from the hose in front bumper tray.
Fire Engine
08/23/13
Page 64 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
AIR HORN(S)
The air horn(s) shall be supplied and installed by the cab/chassis manufacturer.
FRONT TOW PROVISIONS
The front tow provisions shall be supplied and installed by the cab/chassis manufacturer.
AIR INTAKE SYSTEM
An air filter shall be provided in the engine’s air intake system.
Air inlet restrictions shall not exceed the engine manufacturer’s recommendations.
The air inlet shall be equipped with a means of separating water and burning embers from the air intake system.
This requirement shall be permitted to be achieved by either of the following methods:
1. Provision of a device such that burning particulate matter larger than 0.039 in. (1.0 mm) in diameter cannot
reach the air filter element.
2. Provision of a multi screen ember separator capable of meeting the test requirements defined in the Parker
Hannafin, Racor Division, publication LF 1093-90, Ember Separation Test Procedure, or an equivalent test.
EXHAUST
The exhaust system shall be as provided by cab/chassis manufacturer. The tailpipe may require some
modifications for proper ground clearances and fit with body.
The exhaust piping and discharge outlet shall be located or shielded so as not to expose any portion of the
vehicle or equipment to excessive heating.
Exhaust pipe discharge shall be directed away from any operator’s position or entry doors on body.
Where parts of the exhaust system are exposed so that they are likely to cause injury to operating personnel,
protective guards shall be provided.
COMPUTER MOUNT
A Havis Shields DS-PAN-111-2 computer mount shall be provided and mounted for included Panasonic
Toughbook computer. Location to be determined by Greeley Fire Department.
MDT
There shall be one (1) Panasonic CF31SBLEB1M 13.1" LED Toughbook provided and installed to work in
conjunction with all mobile communication devices on the apparatus. (Panasonic Toughbook 31 with Win7, Intel
Core i5-3320M 2.6GHz, vPro, 13.1” XGA Touch, 520 GB (7200 rpm), 4GB, Intel Wi-Fi a/b/g/n, TPM, Bluetooth,
Dual Pass (Upper: WWAN/Lower: Selectable, Verizon 4G LTE, GPS, Emissive Backlit Keyboard).
Dedicated space in the officer seating area shall be provided and prepared to accommodate the MDT and data
radio. Dedicated space for all components required for the unit shall be determined during the prebuild
conference
Fire Engine
08/23/13
Page 65 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
LAPTOP COMPUTER
A Dell laptop computer capable of running all provided software shall be provided and approved by Greeley Fire
Department prior to ordering.
The laptop shall be capable of running the Cummins and Allison provided maintenance software
RADIO/ANTENNA INSTALLATION
There shall be one (1) Motorola APX7500 dual band VHF/800 mobile radio with two (2) antennas installed and
wired into the intercom system. Radio head location shall be determined by Greeley Fire Department during preconstruction meeting.
Radio(s) shall be installed per manufacturers’ requirements and wired for proper 12 volt power and ground.
SEAT BELT COLOR
Section 14.1.3.4 of the NFPA 1901 Standards, 2009 edition, requires all seat belt webbing in cab to be bright red
or bright orange in color, and the buckle portion of the seat belt shall be mounted on a rigid or semi rigid stalk
such that the buckle remains positioned in an accessible location.
SEAT BELT WEB LENGTH - CUSTOM CAB
Sections 14.1.3.2 and 14.1.3.3 of the NFPA 1901 standards, 2009 edition, require the effective seat belt web
length for a Type 1 lap belt for pelvic restraint to be a minimum of 60", and a Type 2 pelvic and upper torso
restraint-style seat belt assembly to be a minimum of 110".
The chassis seat belt web length as supplied by the custom chassis manufacturer shall be compliant to NFPA
Standards 14.1.3.2 and 14.1.3.3.
SEAT BELT / VDR SYSTEM - CUSTOM CAB
The seat belt warning and vehicle data recorder systems shall be provided by the cab/chassis manufacturer.
KNOX BOX
There shall be {qty} SVI supplied and installed Knox Box. The Knox Box shall be located on the engine tunnel
within easy reach of the driver.
The Knox Box shall be a model #2650 without a strobe, and wired for proper master switched 12 volt power and
ground.
KNOX MED VAULT 2
A Knox Med-Vault 2, (no WiFi), shall be furnished and surface mount installed by SVI in the EMS compartment.
Greeley must complete Knox forms and authorize, or provide a key for SVI to open and install.
HELMET STORAGE
Four (4) OnScene Solutions Talon model helmet storage bracket(s) shall be provided and installed in the cab
driving or crew area. The helmet mounting will comply with the 9G NFPA requirements. Helmet brackets shall be
mounted on the completed unit, locations as per the Greeley Fire Department.
Fire Engine
08/23/13
Page 66 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB CRASH TEST CERTIFICATION
A cab crash test certification from the fire apparatus manufacturer shall be provided with the equipment. A copy of
this certification shall be included with the bid.
NOTE: There shall be no exception to any portion of the cab integrity certification requirements. Nonconformance
shall lead to immediate rejection of bid.
The certification shall state that the cab does meet or exceed the requirements below:
1) European Occupant Protection Standard ECE Regulation No. 29.
2) SAE J2422 Cab Roof Strength Evaluation - Quasi-Static Loading Heavy Trucks.
CAB MIRRORS, DRIVER ADJUSTABLE
Section 14.3.5 of the NFPA 1901 Standards, 2009 edition, requires all primary rear view mirrors used by the
driver to be adjustable from the driver's position.
STREETSIDE ELFD STORAGE COMPARTMENT
Storage shall be provided for two (2) backboards with dimensions of 72" x 17" x 2-1/2" in streetside ELFD cab
door.
There shall be one (1) slide-out smooth aluminum vertical tool board approximately 24" deep. Tool board(s)
vertical exterior edge shall have a double 90 degree formed edge to provide an easy grip handle. The top and
bottom of tool board(s) shall be provided with Accuride 9300 series slide tracks. Each board shall be rated for a
maximum 200 lbs. evenly distributed load. Each tool board shall utilize a pneumatic cylinder to hold the tool board
in both the opened and closed positions.
MUDFLAPS
There shall be 1/4" rubber mudflaps provided and installed behind each set of tires to prevent throwing road
debris and lower road spray.
AIR BRAKE SYSTEM QUICK BUILD-UP
There shall be one (1) Milton male quick connector type air shoreline inlet to provide air to the chassis air tanks
from an external source compressed air shoreline hookup in order to maintain full operating air pressure while the
vehicle is not running. Air inlet shall be located near driver's door. The female end of the connector shall be
supplied by the Greeley Fire Department.
The quick buildup system shall provide sufficient air pressure so that the apparatus has no brake drag and is able
to stop under the intended operating conditions following the 60-second buildup time.
Fire Engine
08/23/13
Page 67 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CAB INTERIOR CABINET - CENTER REAR WALL
There shall be one (1) full height cabinet located in rear cab area. The cabinet shall be fabricated from 1/8"
smooth aluminum, and shall have a 30" wide ROM un-painted roll-up door offset to curbside of vehicle.
The full height cabinet shall also have a front roll up door covering a minimum 30" wide opening.
The cabinet shall be finished with a matching Zolatone paint. The cabinet shall be full cab width x full cab interior
height x 18" deep. The cabinet will have a bolt-in dividing wall to allow storage of 18" backboards from streetside,
and full height slide-out toolboard for FD tools.
There shall be three (3) 12 volt accessory plug(s) furnished and installed in the cabinet area. The location of
accessory plugs shall be located in the center compartment.
•
There shall be two (2) OnScene Solutions LED Night Axe(s) mounted vertically inside the cabinet. The LED
Night Axe(s) shall be a 54" section.
•
There shall be six (6) vertically adjustable shelves, three (3) in each of the above cabinets with a 1.25" vertical
lip.
•
There shall be one (1) 120 volt outlet(s) located inside this cabinet. The location of outlet(s) shall be located in
the center compartment.
−
•
The outlet receptacle(s) shall be 20 amp, straight-blade (NEMA 5-20R).
There shall be one (1) 120 volt outlet strip(s) approximately 4' long with straight blade household type outlets
provided with this outlet. Strip shall be located in the center compartment.
−
Outlet(s) shall be powered through the on-board shore power system.
FUEL FILL
There shall be one (1) fuel fill door located in the streetside exterior wheel well panel, behind the rear axle. The fill
door shall be fabricated from brushed stainless steel. There shall be a permanent label with the text "DIESEL
FUEL ONLY" located adjacent to the fuel fill access.
Fire Engine
08/23/13
Page 68 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
BODY DESIGN
The importance of public safety associated with emergency vehicles requires that the construction of this vehicle
meet the following specifications. These specifications are written to establish the minimum level of quality and
design.
It is the intent of these specifications to fully describe the requirements for a custom built emergency type vehicle.
In order to extend the expected service life of this vehicle, the body module shall be removable from the chassis
frame and be capable of being installed on a new chassis.
The sheet metal material requirements, including alloy and material thickness, throughout the specifications are
considered to be a minimum. Since such materials are available to all Manufacturers, the material specifications
shall be strictly adhered to. NO EXCEPTIONS
The fabrication of the body shall be formed sheet metal. Formed components shall allow the Greeley Fire
Department to have the body repaired locally in the case where any object has struck the body and caused
damage. The use of proprietary extrusions will prevent the Greeley Fire Department from such repair and shall
NOT be used. NO EXCEPTIONS
Following construction of the subframe, which supports the apparatus body, the sheet metal portion of the body
shall be built directly on the subframe. The joining of the subframe and body shall be of a welded integral
construction. NO EXCEPTIONS
The sheet metal fabrication of the body shall be performed using inert gas continuous feed welders only. The
entire body shall be welded construction. The use of pop rivets in any portion of structural construction may allow
premature failure of the body structure. Therefore, pop rivets shall NOT be used in the construction of the
structural portions of the body. This includes side body sheets, inner panels of compartment doors, and any other
structural portions of the body. NO EXCEPTIONS
Fire Engine
08/23/13
Page 69 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
EXTERIOR ALUMINUM BODY
The fabrication of the body shall be constructed from aluminum 3003H-14 alloy smooth plate. This shall include
compartment front panel, vertical side sheets, side upper rollover panels, rear panels and compartment door
frames.
The body compartment floors and exterior panels shall be constructed with not less than 3/16" (.187) aluminum
3003H-14 smooth plate. Interior compartment dividing walls shall be constructed with not less than 1/8" (.125)
aluminum 3003H-14 smooth plate. Lighter gauge sheet metal will not be acceptable in these areas, No
Exceptions.
The front and rear corners of body shall be formed as part of the front or rear body panels. This provides a
stronger body corner and finished appearance. The use of extruded corners, or caps will not be acceptable, No
Exceptions.
The door side frame openings shall be formed "C" channel design. An electrical wiring conduit raceway running
the full length of exterior compartments shall be provided. This raceway shall contain all 12 volt wiring running to
the rear of the apparatus, permitting easy accessibility to wiring.
Individual compartment modules, with dead air space voids between compartments, will not be an acceptable
method of compartment construction.
The compartments shall be an integral part of the body construction. Compartment floors from front of body to
ahead of rear axle, also from rear axle to rear of body shall be single one-piece sections. Compartment floors
shall be preformed, then positioned in body and welded into final position.
Compartment floors shall have a "sweep-out" design with door opening threshold positioned lower than
compartment floor, permitting easy cleaning of compartments. Angles, lips, or door moldings are not acceptable in
the base of compartment door opening. One-way rubber drain valves shall be provided in compartment floors so
that a water hose may be used to flush-out compartment area.
All exterior seams in sheet metal below frame, and around the rear wheel well area shall be welded and caulked
to prevent moisture from entering the compartments. All other interior seams and corners shall be sealed with
silicone based caulk prior to painting.
Only stainless steel bolts, nuts, and sheet metal screws shall be used in mounting exterior trim, hardware and
equipment.
Exterior compartments shall have louvers in lower back wall of compartment for ventilation.
DRIP RAILS
The body shall have drip rails over the side full height compartments. The drip rails shall be formed into the upper
body panels providing a ridged lower panel and a flat upper body panel surface. The use of mechanically
fastened, taped or glued on drip rails will not be acceptable, No Exceptions.
Fire Engine
08/23/13
Page 70 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ROOF CONSTRUCTION
The roof shall be integral with the body and shall be all welded construction. The roof of the body shall not be less
than 3/16" aluminum 3003H-14 alloy NFPA nonskid compliant tread plate, fully and continuously welded. The roof
shall be reinforced with 2" x 2" x 1/4" aluminum tubing running the full width of the body.
All seams in the roof area shall be welded to the radius and supports prior to paint to prevent entry of moisture. All
roof seams shall be continuously welded.
A 2" formed radius shall be provided along the body sides. The use of extruded radius will not be acceptable, No
Exceptions.
BODY SUBFRAME
The chassis frame rails shall be fitted with 1/4" custom extruded UHMW polyethylene rail cap to isolate the body
frame members from direct contact with chassis frame rails.
The body subframe shall be constructed from 6061T6 aluminum alloy tubing. Subframe shall consist of two (2) 2"
x 4" x 1/4" aluminum tubes minimum, the same width as the chassis frame rails. Welded to this tubing shall be
cross members of 2" x 4" x 1/4" aluminum. Smaller dimension, lighter gauge tubing or angle material subframe
shall not be accepted.
These cross members shall extend the full width of the body to support the compartments. Cross members shall
be located at front and rear of the body, below compartment divider walls, and in front and rear of wheel well
opening. Additional aluminum cross members shall be located on 16" centers, or as necessary to support
walkway or heavy equipment.
To form the frame, the tubing shall be beveled and welded at each joint using 5356 aluminum alloy welding wire.
BODY MOUNTING
The body subframe shall be fastened to the chassis frame with a minimum of four (4) spring loaded body mounts.
Each mount shall be configured using a two-piece encapsulated slide bracket. The two (2) brackets shall be
fabricated of heavy duty 1/4" thick steel and shall have a powder coat finish to prevent any corrosion. Each
mounting assembly shall utilizing two (2) 3/4" diameter x 6" long grade 8 bolts and two (2) heavy duty springs.
The assembly design shall allow the body and subframe to act as one (1) component, separate from the chassis.
As the chassis frame twists under driving conditions, the spring mounting system shall eliminate any stress from
being transferred into the body. The spring loaded body mounts shall also prevent frame side rail or body damage
caused by unevenly distributed stress and strains due to load and chassis movement.
Body mountings that do not allow relief from chassis movement will not be acceptable.
18" REAR STEP BUMPER
The full width rear bumper shall be constructed from 2" x 2" x 1/4" aluminum tubing frame and covered with 3/16"
NFPA compliant aluminum tread plate. The bumper shall extend from the rear vertical body panel 18" and provide
a rear step with a minimum of 1/2" space at body for water drainage.
REAR TOW EYES
There shall be two (2) heavy duty rear mounted tow eyes securely attached to the body subframe, below the
apparatus body. The tow eyes shall be fabricated from 3/4" thick steel plate and shall have a black powder coat
finish.
Fire Engine
08/23/13
Page 71 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
GROUND LIGHTS
There shall be two (2) OnScene 9" Night Axe LED lights installed below bumper capable of providing illumination
at a minimum level of 2 fc (20 lx) on ground areas within 30 in. (800 mm) of the edge of the vehicle in areas
designed for personnel to climb onto or descend from the vehicle to the ground level.
Lighting shall be switchable but activated automatically when the vehicle park brake is set.
WHEEL WELL EXTERIOR PANEL
The exterior panel of the body wheel well enclosure shall be constructed from 3/16" smooth aluminum panels.
STAINLESS STEEL BODY FENDERS
The body wheel well openings shall be provided with round radius, polished stainless steel fenderettes. The
fenderettes shall be bolted and easily replaceable if damaged. The fenderettes shall be installed using a rubber
gasket to reduce buildup of moisture and/or debris.
WHEEL WELL LINERS
The wheel wells shall be provided with an easily removable polymer, circular inner fender liner. The inner liner
shall be bolted to the wheel well with stainless steel bolts and spaced away from the wheel well so the liner will
not accumulate dirt or water.
SCBA CYLINDER COMPARTMENTS
There shall be three (3) SCBA cylinder storage compartments located, two (2) on the curbside, and one (1) on the
streetside of rear wheel well area. Each compartment shall be capable of storing two (2) SCBA cylinders (60 min
cylinders). Each compartment shall have a vertically hinged door with a positive catch latch installed and painted
primary lower body color. Each compartment shall allow the storage of an SCBA cylinder up to 7-1/2" in diameter.
The door shall activate the "Hazard Warning Light" in the cab when not in the closed position.
Compartments to fit new Scott 5.5 cylinders. ___" L x ___" Dia.
Fire Engine
08/23/13
Page 72 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
BODY PAINT SPECIFICATIONS
BODY PAINT PREPARATION
After the body and components have been fabricated they shall be disassembled prior to painting so when the
vehicle is complete there shall be finish paint beneath the removable components. The body shall be totally
removed from chassis during the paint process to insure the entire unit is covered. The body and components
shall be metal finished as follows to provide a superior substrate for painting.
The exterior body shall undergo a thorough cleaning process starting with a biodegradable phosphoric acid
solution to begin the etching process followed by a complete clear water rinse. The next step shall consist of a
chemical conversion coating applied to seal the metal substrate and become part of the metal surface for greater
film adhesion. If the compartment interior is to be painted the interior shall be acid etched as described above
then primed with an epoxy primer and all seams caulked.
All bright metal fittings, if unavailable in stainless steel or polished aluminum, shall be chrome plated. Iron fittings
shall be copper under plated prior to chrome plating.
PAINT PROCESS
The paint process shall follow the strict standards set forth by PPG Industries guidelines. Painters applying PPG
products will be PPG Certified Commercial Technicians, and re-certified every two (2) years.
The body shall go through an eight-stage paint process;
1)
2)
3)
4)
5)
6)
7)
8)
Clean bare metal using a solvent base wax & grease remover.
Finish all exterior body seams as necessary, followed by a thorough sanding of all bare metal to be painted.
Re-clean bare metal using a solvent base wax & grease remover.
Bare Metal Epoxy Primer Coat - PPG Delfleet® Evolution corrosion resistance epoxy primer to be applied at
1.0-2.0 mills DFT over clean abraded bare metal.
Primer Filler Coat - PPG Delfleet® Evolution urethane build primer to achieve total thickness of 3.0-6.0 mils
DFT after sanding.
Base coat (Color) - PPG Delfleet® Evolution High Solids Polyurethane Base coat. Apply 1.0-3.0 mils DFT of
base coat color to achieve full hiding.
Clear coat PPG Delfleet® Evolution polyurethane premium quality clear coat with improved mar resistant
finish. The clear coat shall be applied to achieve a total dry film thickness of 2.0-3.0 mils.
Curing process of the painted body shall go through a force dry/bake cycle process. The painted components
shall be baked 180 degrees for 2 hours to achieve a complete coating cure on the finished product.
MACHINE POLISHED
After the force dry/bake cycle and ample cool down time, the coated surface shall be sanded using 1,000, 1,500,
and or 3,000 grit sandpaper to remove surface defects. In the final step, the surface shall be buffed then polished
to an extra high gloss smooth finish. Total dry film thickness of paint will average between 8.0-12.0 mils.
PAINT - ENVIRONMENTAL IMPACT
The contractor shall meet or exceed all current State (his) regulations concerning paint operations. Pollution
control shall include measures to protect the atmosphere, water and soil. PPG Delfleet® Evolution paint shall be
free of all heavy metal (lead & chromate) components. Paint emissions from sanding and painting shall be filtered
and collected. All paint wastes shall be disposed of in an environmentally safe manner. Solvents used in cleanup
operations shall be collected, sent off-site for distillation and returned for reuse.
Fire Engine
08/23/13
Page 73 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
PAINT FINISH - SINGLE COLOR
The body shall be painted with a single color of PPG Delfleet® Evolution paint per approved customer sprayout.
Prior to the assembly and reinstallation of exterior components; i.e. warning and DOT lights, handrails, steps,
door hardware, and miscellaneous items, an isolation tape, or gasket shall be used to prevent damage to the
finish painted surfaces. These components shall be fastened to body using either a plastic insert into body metal
with stainless steel screws or zinc coated nutserts into body surface using stainless steel bolts to prevent
corrosion from dissimilar metals.
Touch-up paint shall be provided with completed vehicle.
•
Paint Color: Match cab/chassis supplied paint color.
BODY UNDERCOATING
The entire underside of body shall be sprayed with black automotive undercoating. Undercoating shall cover all
areas underside of body and wheel well area to help prevent corrosion under the vehicle.
UNDERCOAT WARRANTY
The body undercoating shall have a warranty provided by the manufacturer for the lifetime of the vehicle or twenty
(20) years, whichever occurs first. The warranty shall be transferable between vehicle owners. Should the
undercoating material applied to the underside of the body and wheel wells of the vehicle ever flake off, peel, chip
or crack due to drying out, the damaged area shall be re-sprayed without charge to the vehicle owner.
PAINT WARRANTY
The vehicle shall be provided with a ten (10) year non-prorated warranty to the original owner. Warranty is
provided by PPG Inc. A warranty sheet with all conditions and maintenance procedures shall be provided with the
delivered vehicle. Pro-rated warranties will not be acceptable.
COMPARTMENT INTERIOR FINISH
The compartment interiors shall be treated with phosphoric acid and then sprayed with an epoxy primer applied
1.0 mil thick. All body seams will be caulked with urethane seam sealer and painted with two (2) coats of textured
Zolatone paint. Zolatone catalysts will be added to the Zolatone to help in resisting moisture and provide a more
durable finish. Paint color shall be gray.
Fire Engine
08/23/13
Page 74 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
REFLECTIVE STRIPE REQUIREMENTS
Material
All retroreflective materials shall conform to the requirements of ASTM D 4956, Standard Specification for
Retroreflective Sheeting for Traffic Control, Section 6.1.1 for Type I Sheeting.
All retroreflective materials used that are colors not listed in ASTM D 4956, Section 6.1.1, shall have a minimum
coefficient of retroreflection of 10 with observation angle of 0.2 degrees and entrance angle of -4 degrees.
Any printed or processed retroreflective film construction used shall conform to the standards required of an
integral colored film as specified in ASTM D 4956, Section 6.1.1.
Minimum Requirements
A retroreflective stripe(s) shall be affixed to at least 50 percent of the cab and body length on each side, excluding
the pump panel areas, and at least 25 percent of the width of the front of the apparatus.
The stripe or combination of stripes shall be a minimum of 4 in. (100 mm) in total width.
The 4 in. (100 mm) wide stripe or combination of stripes shall be permitted to be interrupted by objects (i.e.,
receptacles, cracks between slats in roll up doors) provided the full stripe is seen as conspicuous when
approaching the apparatus.
GRAPHICS PROOF
A color graphics proof of the reflective striping layout shall be provided for approval by Greeley Fire Department
prior to installation. The graphics proof shall be submitted to Greeley Fire Department on 8.5" x 11" sheets with
front, sides, rear and plan views, each on one (1) sheet. In addition if there is any special art work an additional
sheet shall be provided showing all details.
REFLECTIVE STRIPE - CAB SIDE
The reflective stripe material shall be 6" wide, 3M Scotchcal 680 series.
•
This reflective stripe shall be black in color.
REFLECTIVE STRIPE - CAB FRONT/BUMPER
The reflective stripe material shall be 6" wide, 3M Scotchcal 680 series.
•
This reflective stripe shall be black in color.
REFLECTIVE STRIPE - BODY SIDES
The reflective stripe material shall be 6" wide, 3M Scotchcal 680 series.
•
This reflective stripe shall be black in color.
The stripe shall remain in a straight line from the front of the front of cab to the rear body.
Fire Engine
08/23/13
Page 75 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CHEVRON REFLECTIVE STRIPE - REAR SIDES PANELS
At least 50 percent of the rear-facing vertical surfaces, visible from the rear of the apparatus, excluding any pump
panel areas not covered by a door, shall be equipped with retroreflective striping in a chevron pattern sloping
downward and away from the centerline of the vehicle at an angle of 45 degrees. Each stripe shall be 6" width.
The rear side panels only of the body shall have a Chevron style reflective stripe layout, and cover as much of the
rear side panels as possible. Each chevron panel shall be a full sheet and shall have a 3M UV over laminate to
protect from UV rays, scene damage, and everyday use. Chevron panel shall have a minimum 10 year warranty
for material failure, and colorfastness.
The stripe material shall be 3M Diamond Grade.
This reflective chevron stripe shall alternate red and fluorescent yellow-green in color.
CAB STRIPE - 22K GOLD LEAF
The cab shall have a 1/2" wide 22K gold leaf stripe provided on each side of cab on the two-tone cab paint line.
Stripe shall have a black outline.
LOWER BODY STRIPE - 22K GOLD LEAF
The body shall have a 1/2" wide 22K gold leaf stripe provided on each side of lower doors or body, and lower door
or body above wheel well. Stripe shall have a black outline.
Fire Engine
08/23/13
Page 76 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
LETTERING
GRAPHICS PROOF
A color graphics proof of the lettering layout shall be provided for approval by Greeley Fire Department prior to
installation. The graphics proof shall be submitted to Greeley Fire Department on 8.5" x 11" sheets with front,
sides, rear and plan views, each on one (1) sheet. In addition if there is any special art work an additional sheet
shall be provided showing all details.
The following lettering shall be provided and installed on the completed unit as follows;
SIDE CAB DOOR LETTERING
There shall be fourteen (14) 6" high SuperGold letters furnished and installed on the vehicle. Lettering shall have
a clear 3M UV Protective Over Laminate applied before installation.
"GREELEY"
- Arched above door emblem on front cab doors.
"X"
- Rear crew door (Unit number)
There shall be sixteen (16) 4" high SuperGold letters furnished and installed on the vehicle. Lettering shall have a
clear 3M UV Protective Over Laminate applied before installation.
"FIRE DEPT."
- Below door emblem.
" ENGINE"
- Rear crew door, Arched above unit number.
FRONT OF CAB LETTERING
There shall be two (2) 4" high SuperGold letters furnished and installed on the vehicle. Lettering shall have a clear
3M UV Protective Over Laminate applied before installation.
"EX"
- X = Unit number
CUSTOM DECAL LOGO - 12" -18"
One (1) custom designed 12" - 18" Scotchcal type retroreflective logo shall be provided and located on the
completed vehicle. The exact design and/or artwork shall be provided by the Greeley Fire Department prior to
construction.
One (1) copy of the above custom logo shall be provided and located on the completed vehicle as directed by
Greeley Fire Department.
Fire Engine
08/23/13
Page 77 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
EXTERIOR COMPARTMENT DOORS
HINGED DOOR CONSTRUCTION
The exterior compartment doors shall be custom manufactured and built for each compartment. The compartment
doors must be able to withstand years of rugged service and wear. For this reason, the compartment door design,
metal thickness, and attachments must be strictly adhered to.
The compartment doors shall be all aluminum 3003H-14 alloy construction. The exterior panel shall be of 1/8"
thickness smooth plate aluminum and the interior panel shall be of 1/8" thickness smooth plate aluminum. Lighter
gauge material will NOT BE ACCEPTABLE in these areas. The double panel doors shall be 1-3/4" thick to
completely enclose the door latching assembly. Doors shall have drain hole openings for drainage and ventilation.
The doors shall be flush mounted so that the outer surface is in line with the side body surface. Lap or bevel type
constructed doors, doors framed with extrusions, or doors requiring rubber bumpers to prevent unnecessary
contact are NOT ACCEPTABLE.
Compartment door openings shall be sealed with closed cell automotive type rubber molding to provide a weather
resistant seal around door. In addition, rubber molding shall be provided along hinge to prevent moisture entry.
Open cell foam type rubber moldings are NOT ACCEPTABLE.
Hinged compartment doors shall have 14 gauge stainless steel hinge, with 1/4" stainless steel pin. The hinge
shall be bolted to the door and body with stainless steel machine screws. A polyester barrier film gasket shall be
placed between stainless steel hinge and any dissimilar metals as necessary.
Drip rails shall be installed above all compartment door openings. Drip rails shall be completely removable for
easy replacement if necessary.
The latching mechanism of hinged compartment doors shall include stainless steel 6" offset bent D-ring keyed
handles. A gasket shall be placed between stainless steel handle and door. Door latches shall be a double
catching two-point rotary slam latch, recessed inside the double panel door with striker plate.
All vertically hinged compartment doors shall have a pneumatic cylinder to hold door in the open and closed
positions. Each door shall be capable of being closed without unlatching. Door checks shall be bolted to the upper
compartment door header and the box pan of the door. Door checks that require unlatching by hand will NOT BE
ACCEPTABLE. All horizontally hinged compartment door shall have a door check as specified with each door.
Fire Engine
08/23/13
Page 78 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
BODY HEIGHT MEASUREMENTS
The vertical body dimensions shall be as follows:
AHEAD OF REAR AXLE
Description
A
Bottom of Subframe to Top of Body
B
Bottom of Subframe to Bottom of Body
C
Vertical Door Opening
-with hinged door
Dimension
58.0"
22.0"
63"
ABOVE REAR AXLE
Description
D
Vertical Door Opening - Above Rear Wheel
-with hinged door
BEHIND REAR AXLE
Description
E
Bottom of Subframe to Bottom of Body
F
Vertical Door Opening
-with hinged door
GENERAL
Description
G
Bottom of Drip Rail to Top of Body
Dimension
30.0"
Dimension
20.0"
60.0"
Dimension
13.5"
(Dimensions are generic and subject to change during the actual design process)
BODY WIDTH DIMENSIONS
The body shall be 100.0" wide, not including drip rail or non-permanent fixtures. Interior compartment depth
dimensions shall be:
Area Description
Compartment Depth
− Above Frame
− Below Frame
Dimension
12” min.
24” min.
Fire Engine
08/23/13
Page 79 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
STREETSIDE COMPARTMENT - FRONT (S1)
The interior useable compartment width shall be approximately 45.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have vertically hinged (reverse) box pan style doors fabricated of 1/8" thick smooth
aluminum. The inner liner of the door shall be 1/8" thick smooth aluminum with an unpainted finish. The door
exterior shall be painted job color.
The hinged door(s) shall have a stainless steel 6" offset bent D-ring non-locking handle. A gasket shall be placed
between stainless steel handle and door. Door latches shall be a two-point rotary slam, double-catch latch,
recessed inside the double panel door with striker plate.
The hinged door(s) shall have a pneumatic cylinder to hold door in the open and closed positions. Each door shall
be capable of being closed without unlatching. Door checks shall be bolted to the compartment door header and
the box pan of the door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening.
The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT LAYOUT
•
There shall be vertically mounted aluminum shelf-trac for specified component installation.
•
There shall be one (1) adjustable shelf/shelves approximately 12" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edges.
•
There shall be one (1) adjustable shelf/shelves approximately 24" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edge.
•
Two (2) OnScene 64" Access LED compartment lights, vertically mounted.
•
One (1) 120/240 VAC load center. The load center shall be located to match the Fire Departments previous
Engine. It shall be high in the compartment, facing the door opening. (Refer to photos of previous job).
•
The generator gauge panel.
•
The 12 volt electrical distribution panel shall be located in the front lower compartment.
Fire Engine
08/23/13
Page 80 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
STREETSIDE COMPARTMENT - ABOVE REAR WHEELS (S2)
The interior useable compartment width shall be approximately 59.0" wide.
The compartment door opening shall be approximately 52.0" wide.
This compartment shall have a horizontally hinged box pan style door fabricated of 1/8" thick smooth aluminum.
The inner liner of the door shall be 1/8" thick smooth aluminum with an unpainted finish. The door exterior shall be
painted job color.
The hinged door(s) shall have a stainless steel 6" offset bent D-ring non-locking handle. A gasket shall be placed
between stainless steel handle and door. Door latches shall be a two-point rotary slam, double-catch latch,
recessed inside the double panel door with striker plate.
The hinged door(s) shall have a pair of tailgate style mechanisms to stop the door at 90 degrees. Each door shall
be capable of being closed without unlatching.
COMPARTMENT LAYOUT
•
The back wall and both side walls of compartment shall be PAC Trac 7000 extrusion with the tracks in a
horizontal orientation.
•
Two (2) OnScene 36" Access LED compartment lights, vertically mounted.
Fire Engine
08/23/13
Page 81 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
STREETSIDE COMPARTMENT - REAR (S3)
The interior useable compartment width shall be approximately 49.0" wide.
The compartment door opening shall be approximately 42.0" wide.
This compartment shall have vertically hinged box pan style doors fabricated of 1/8" thick smooth aluminum. The
inner liner of the door shall be 1/8" thick smooth aluminum with an unpainted finish. The door exterior shall be
painted job color.
The hinged door(s) shall have a stainless steel 6" offset bent D-ring non-locking handle. A gasket shall be placed
between stainless steel handle and door. Door latches shall be a two-point rotary slam, double-catch latch,
recessed inside the double panel door with striker plate.
The hinged door(s) shall have a pneumatic cylinder to hold door in the open and closed positions. Each door shall
be capable of being closed without unlatching. Door checks shall be bolted to the compartment door header and
the box pan of the door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening.
The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT LAYOUT
•
There shall be vertically mounted aluminum shelf-trac for specified component installation.
•
There shall be one (1) adjustable shelf/shelves approximately 24" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edge.
•
A hose hanger bar capable of holding 300' of double jacket 1-3/4" hose and two (2) nozzles shall be provided
with a 3" retaining lip and located in in upper center of compartment 15" from ceiling.
•
The side walls of compartment shall be PAC Trac 7000 extrusion with the tracks in a horizontal orientation.
•
Two (2) OnScene 64" Access LED compartment lights, vertically mounted.
•
Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in the lower compartment.
Fire Engine
08/23/13
Page 82 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CURBSIDE COMPARTMENT - FRONT (C1)
The interior useable compartment width shall be approximately 45.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have vertically hinged box pan style doors fabricated of 1/8" thick smooth aluminum. The
inner liner of the door shall be 1/8" thick smooth aluminum with an unpainted finish. The door exterior shall be
painted job color.
The hinged door(s) shall have a stainless steel 6" offset bent D-ring non-locking handle. A gasket shall be placed
between stainless steel handle and door. Door latches shall be a two-point rotary slam, double-catch latch,
recessed inside the double panel door with striker plate.
The hinged door(s) shall have a pneumatic cylinder to hold door in the open and closed positions. Each door shall
be capable of being closed without unlatching. Door checks shall be bolted to the compartment door header and
the box pan of the door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening.
The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT LAYOUT
•
There shall be vertically mounted aluminum shelf-trac for specified component installation.
•
There shall be one (1) adjustable shelf/shelves approximately 12" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edges.
•
There shall be one (1) adjustable shelf/shelves approximately 24" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edge.
•
Two (2) OnScene 64" Access LED compartment lights, vertically mounted.
•
The cab tilt control pendant.
Fire Engine
08/23/13
Page 83 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CURBSIDE COMPARTMENT - ABOVE REAR WHEEL (C2)
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a horizontally hinged box pan style door fabricated of 1/8" thick smooth aluminum.
The inner liner of the door shall be 1/8" thick smooth aluminum with an unpainted finish. The door exterior shall be
painted job color.
The hinged door(s) shall have a stainless steel 6" offset bent D-ring non-locking handle. A gasket shall be placed
between stainless steel handle and door. Door latches shall be a two-point rotary slam, double-catch latch,
recessed inside the double panel door with striker plate.
The hinged door(s) shall have a pair of tailgate style mechanisms to stop the door at 90 degrees. Each door shall
be capable of being closed without unlatching.
COMPARTMENT LAYOUT
•
The back wall and both side walls of compartment shall be PAC Trac 7000 extrusion with the tracks in a
horizontal orientation.
•
Two (2) OnScene 36" Access LED compartment lights, vertically mounted.
Fire Engine
08/23/13
Page 84 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CURBSIDE COMPARTMENT - REAR (C3)
The interior useable compartment width shall be approximately 49.0" wide and completely sealed from adjoining
compartments for fuel storage.
The compartment door opening shall be approximately 42.0" wide.
This compartment shall have vertically hinged box pan style doors fabricated of 1/8" thick smooth aluminum. The
inner liner of the door shall be 1/8" thick smooth aluminum with an unpainted finish. The door exterior shall be
painted job color.
The hinged door(s) shall have a stainless steel 6" offset bent D-ring non-locking handle. A gasket shall be placed
between stainless steel handle and door. Door latches shall be a two-point rotary slam, double-catch latch,
recessed inside the double panel door with striker plate.
The hinged door(s) shall have a pneumatic cylinder to hold door in the open and closed positions. Each door shall
be capable of being closed without unlatching. Door checks shall be bolted to the compartment door header and
the box pan of the door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening.
The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT LAYOUT
•
There shall be vertically mounted aluminum shelf-trac for specified component installation.
•
•
There shall be one (1) adjustable shelf/shelves approximately 12" deep.
There shall be one (1) 400 lbs. slide-out tray(s) approximately 24" deep and as wide as the compartment
layout or door opening permits. The tray top shall be fabricated from 3/16" 3003 aluminum sheet with a 3"
vertical lip and welded corners to form a box type tray surface. The sliding tracks shall extend 100% of the
slide length. The tray assembly shall utilize a pneumatic cylinder mounted on underside to hold the tray in
both the extended and closed positions.
−
Tray shall hold a Fire Department Super Vac 720G4H PPV fan.
•
Two (2) OnScene 64" Access LED compartment lights, vertically mounted.
•
Two (2) 3-1/2" x 3-1/2" black plastic louvered vents shall be provided in the lower compartment.
Fire Engine
08/23/13
Page 85 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
REAR COMPARTMENT - CENTER (RC1)
The rear center compartment shall be closed to both side rear compartments.
The rear center compartment shall start at the bottom of the body and extend up to bottom of hose bed, and
extend as deep as possible up to fuel tank allowing for body mounts.
The interior useable compartment width shall be approximately 41.0" wide.
The compartment door opening shall be approximately 34.0" wide.
This compartment shall have a ROM roll-up door.
•
The roll-up door shall have an unpainted satin aluminum finish on the door slats and the door trim
components.
•
The door shall be equipped with a CPI harsh environment mechanical type door ajar switch located inside
compartment interior lower door track.
•
There shall be NO keyed lock on this roll-up compartment door.
A compartment threshold protection plate shall be installed on the bottom edge of the compartment door opening.
The threshold protection shall be fabricated from an aluminum extrusion with an anodized exterior finish.
COMPARTMENT LAYOUT
•
There shall be vertically mounted aluminum shelf-trac for specified component installation.
•
There shall be one (1) adjustable shelf/shelves approximately 24" deep. Each shelf shall be fabricated from
3/16" 3003 aluminum sheet with a 2" vertical flange along the front and rear edge.
•
There shall be one (1) 400 lbs. slide-out tray(s) approximately 24" deep and as wide as the compartment
layout or door opening permits. The tray top shall be fabricated from 3/16" 3003 aluminum sheet with a 3"
vertical lip and welded corners to form a box type tray surface. The sliding tracks shall extend 100% of the
slide length. The tray assembly shall utilize a pneumatic cylinder mounted on underside to hold the tray in
both the extended and closed positions.
•
Two (2) OnScene 64" Access LED compartment lights, vertically mounted.
Fire Engine
08/23/13
Page 86 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
COMPARTMENT - STREETSIDE REAR
Located in lower notch area of "T" tank shall be additional storage of long equipment. The compartment shall be
integral with the body construction, and will not be bolted or added on modules.
Access to the compartment shall be from a rear facing compartment door. Door shall be fabricated from 3/16"
smooth aluminum with full length 14 gauge stainless steel hinge, with 1/4" stainless steel pin, and a lift-turn style
latch. A polyester barrier film gasket shall be placed between stainless steel hinge and any dissimilar metals as
necessary to prevent corrosion. Door shall overlap body surface to prevent entry of moisture and sealed with
automotive type rubber molding to provide a weather resistant seal.
Devices to secure equipment, compartment dividers, or UHMW plastic angles, or sheeting will be used for storage
of specified equipment as required to prevent damage to equipment.
The compartment will be designed to store the following equipment:
•
One (1) Greeley Fire Department supplied 10' folding ladder. Manufacturer, model number and size of the
ladder shall be provided at pre-construction meeting.
•
Two (2) Greeley Fire Department supplied pike pole(s). Manufacturer, model number and size of the pike
pole(s) shall be provided at pre-construction meeting.
PLASTIC FLOOR AND SHELF TILE
All compartment floors, shelves, and trays shall be covered with Dri-Dek plastic interlocking grating.
•
The plastic floor tile shall be black.
•
The plastic edge trim shall be black.
Fire Engine
08/23/13
Page 87 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
LADDER LIFT SYSTEM, CURBSIDE
A Ziamatic 3092 Outside Arm Ladder System (OALS) with dual 8" stroke hydraulic cylinders that mount on end
walls of body (requires 7" W x 10" D on inside wall, and 4-1/2" W x 5" D on outside wall) designed to carry ladders
and equipment shall be provided. 2" x 4" heavy wall booms connect hydraulic cylinders to rack with bronze
bearings for years of trouble free service. Pneumatic power clamps shall lock booms in the stored position.
Hydraulic power unit shall be set at 1,500 PSI for up, to 2,500 PSI for down cycle. Requires 12 VDC, 125 amp
electrical service. System meets NFPA standard and has been cycle tested for over more than 6,000 operating
cycles.
The lift system shall be electro-hydraulic with built-in electric safety latches and audible warning alarm when in
operation. Access shall still be provided to compartments with system in lowered position. Flashing lights on ends
shall produce a visual signal when the system is out of the stored position. A flashing warning light signal shall be
provided indicating when a ladder rack is not in a stowed position as required by NFPA 1901.
The ladder control panel shall be located on curbside pump panel. The ladder lift system shall be designed to
store the specified ladder compliment specified. The lift system rear arm may require to be modified to allow for
unobstructed view of warning lights from rear of apparatus.
Storage shall be provided for the following;
•
One (1) Duo-Safety 900-A aluminum 24' 2-section ladder (14' - 2-3/4" x 21-3/4" x 5-3/8", 72 lbs). Ladder shall
be supplied by contractor with completed unit. See equipment section.
•
One (1) Duo-Safety 775-A aluminum 14' roof ladder (14' - 2-1/4" x 19" x 2-3/4", 25 lbs.). Ladder shall be
supplied by contractor with completed unit. See equipment section.
•
One (1) 10' length of hard suction hose. Hard suction hose shall be supplied by Greeley Fire Department.
SIDE BODY PROTECTION - RUB RAIL
OnScene Solutions rub rails shall be provided below the compartment door openings on both the streetside and
curbside.
The rub rail shall be fabricated from 6063 extruded aluminum, measuring approximately 2-3/4" high x 1-3/8" thick
with tapered aluminum end caps. The rub rail shall be bolted to the body using stainless steel bolts and 1-1/2"
diameter x 5/8" thick rubber mount isolators to prevent damage to the body.
The rails shall incorporate LED clearance marker lighting recessed into the rail fascia to avoid damage to the light
in case of impact. The rub rail shall have an accessory mounting track integrated into the backside of the rail to
allow mounting of accessories such as ground lighting.
3M™ Diamond Grade™ Conspicuity striping shall be provided in the rub rail. The striping shall be red in color.
FRONT GRAVEL GUARDS
Gravel guards shall be fabricated of 18 gauge brushed stainless steel. They will measure 12" high. The guards
will start at the edge of the door track or door hinge and will wrap around the corner of the end panel and cover
approximately 12" of the front.
Fire Engine
08/23/13
Page 88 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
HANDRAILS
A total of six (6) hand rails shall be provided and located as follows;
Two (2) vertical handrails on the rear of the body.
Two (2) on hose bed doors.
One (1) above the streetside pump panel.
One (1) on top of dunnage at the streetside pump panel.
Handrails shall be NFPA compliant 1-1/4" knurled 304 stainless steel with welded end stanchions.
FOLDING STEP(S)
There shall be four (4) NFPA approved folding step(s) furnished and installed. Two (2) steps shall be located on
the front of the body on streetside for use in accessing the upper dunnage area, and two (2) steps shall be
located on the rear of the apparatus, one (1) per side, for use in accessing the hose bed area. Each step shall be
cast aluminum with heavy duty stainless steel spring and textured step surface.
Fire Engine
08/23/13
Page 89 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
LOW VOLTAGE ELECTRICAL SYSTEM- 12 VDC
General
Any low voltage electrical systems or warning devices installed on the fire apparatus shall be appropriate for the
mounting location and intended electrical load.
Where wire passes through sheet metal, grommets shall be used to protect wire and wire looms. Electrical
connections shall be with double crimp water-tight heat shrink connectors.
All 12 VDC wiring running from front to back of vehicle body shall be run in full length electrical wiring raceway
down each side of body.
Wiring
All electrical circuit feeder wiring supplied and installed by the fire apparatus manufacturer shall meet the
requirements of NFPA Chapter 13.
The circuit feeder wire shall be stranded copper or copper alloy conductors of a gauge rated to carry 125 % of the
maximum current for which the circuit is protected. Voltage drops in all wiring from the power source to the using
device shall not exceed 10 %. The use of star washers for circuit ground connections shall not be permitted.
All circuits shall otherwise be wired in conformance with SAE J1292, Automobile, Truck, Truck-Tractor, Trailer,
and Motor Coach Wiring.
Wiring and Wire Harness Construction
All insulated wire and cable shall conform to SAE J1127, Low Voltage Battery Cable, or SAE J1128, Low Voltage
Primary Cable, type SXL, GXL, or TXL.
All conductors shall be constructed in accordance with SAE J1127 or SAE J1128, except where good engineering
practice dictates special strand construction. Conductor materials and stranding, other than copper, shall be
permitted if all applicable requirements for physical, electrical, and environmental conditions are met as dictated
by the end application. Physical and dimensional values of conductor insulation shall be in conformance with the
requirements of SAE J1127 or SAE J1128, except where good engineering practice dictates special conductor
insulation. The overall covering of conductors shall be moisture-resistant loom or braid that has a minimum
continuous rating of 194°F (90°C) except where good engineering practice dictates special consideration for loom
installations exposed to higher temperatures. The overall covering of jacketed cables shall be moisture resistant
and have a minimum continuous temperature rating of 194°F (90°C), except where good engineering practice
dictates special consideration for cable installations exposed to higher temperatures.
All wiring connections and terminations shall use a method that provides a positive mechanical and electrical
connection. The wiring connections and terminations shall be installed in accordance with the device
manufacturer’s instructions. All ungrounded electrical terminals shall have protective covers or be in enclosures.
Wire nut, insulation displacement, and insulation piercing connections shall not be used.
Wiring shall be restrained to prevent damage caused by chafing or ice buildup and protected against heat, liquid
contaminants, or other environmental factors.
Wiring shall be uniquely identified at least every 2 ft (0.6 m) by color coding or permanent marking with a circuit
function code. The identification shall reference a wiring diagram.
Circuits shall be provided with properly rated low voltage overcurrent protective devices. Such devices shall be
readily accessible and protected against heat in excess of the overcurrent device’s design range, mechanical
damage, and water spray. Circuit protection shall be accomplished by utilizing fuses, circuit breakers, fusible
links, or solid state equivalent devices.
Fire Engine
08/23/13
Page 90 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
If a mechanical-type device is used, it shall conform to one of the following SAE standards:
1)
2)
3)
4)
5)
SAE J156, Fusible Links
SAE J553, Circuit Breakers
SAE J554, Electric Fuses (Cartridge Type)
SAE J1888, High Current Time Lag Electric Fuses
SAE J2077, Miniature Blade Type Electrical Fuses
Switches, relays, terminals, and connectors shall have a direct current (dc) rating of 125 % of maximum current
for which the circuit is protected.
Power Supply
A 12 V or greater electrical alternator shall be provided. The alternator shall have a minimum output at idle to
meet the minimum continuous electrical load of the vehicle, at 200°F (93°C) ambient temperature within the
engine compartment, and shall be provided with full automatic regulation.
Minimum Continuous Electrical Load
The minimum continuous electrical load shall consist of the total amperage required to simultaneously operate the
following in a stationary mode during emergency operations:
1) The propulsion engine and transmission
2) All legally required clearance and marker lights, headlights, and other electrical devices except windshield
wipers and four-way hazard flashers
3) The radio(s) at a duty cycle of 10 percent transmit and 90 % receive (for calculation and testing purposes, a
default value of 5 A continuous)
4) The lighting necessary to produce 2 fc (20 lx) of illumination on all walking surfaces on the apparatus and on
the ground at all egress points onto and off the apparatus, 5 fc (50 lx) of illumination on all control and
instrument panels, and 50 percent of the total compartment lighting loads
5) The minimum optical warning system, where the apparatus is blocking the right-of way
6) The continuous electrical current required to simultaneously operate any fire pumps, aerial devices, and
hydraulic pumps
7) Other warning devices and electrical loads defined by the purchaser as critical to the mission of the apparatus
If the apparatus is equipped to tow a trailer, an additional 45 A shall be added to the minimum continuous
electrical load to provide electrical power for the federally required clearance and marker lighting and the optical
warning devices mounted on the trailer.
The condition of the low voltage electrical system shall be monitored by a warning system that provides both an
audible and a visual signal to persons on, in, or near the apparatus of an impending electrical system failure
caused by the excessive discharge of the battery set.
The charge status of the battery shall be determined either by direct measurement of the battery charge or
indirectly by monitoring the electrical system voltage.
If electrical system voltage is monitored, the alarm shall sound if the system voltage at the battery or at the master
load disconnect switch drops below 11.8 V for 12 V nominal systems, 23.6 V for 24 V nominal systems, or 35.4 V
for 42 V nominal systems for more than 120 seconds.
A voltmeter shall be mounted on the driver’s instrument panel to allow direct observation of the system voltage.
Fire Engine
08/23/13
Page 91 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
Electromagnetic Interference
Electromagnetic interference suppression shall be provided, as required, to satisfy the radiation limits specified in
SAE J551/1, Performance Levels and Methods of Measurement of Electromagnetic Compatibility of Vehicles,
Boats (up to 15 m), and Machines (16.6 Hz to 18 GHz).
Wiring Diagram
A complete electrical wiring schematic of actual system shall be provided with finished apparatus. Similar or
generic type electrical schematics shall NOT BE ACCEPTABLE.
Low Voltage Electrical System Performance Test
A low voltage electrical system test certification shall be provided with delivered apparatus.
Fire Engine
08/23/13
Page 92 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
12 VOLT MULTIPLEX CONTROL CENTER
The apparatus shall be equipped with a Weldon V-MUX multiplexed 12 volt electrical system that will provide
complete diagnostic capability, No Exception. The system shall have the capability of delivering multiple signals
via a CAN bus, utilizing specifications set forth by SAE J1939. The system shall be node based to maximize
stability so that failure of one node does not affect the operation of the other nodes. The system shall use
shielded twisted-pair wire for transmission of system function signals. The shielded wire shall provide protection
against EMI and RFI noise interruptions.
The multiplex system shall be responsible for providing power management functions as well as load shedding.
The warning light system shall be controlled by the multiplex system. The system shall be capable of displaying
text and/or graphic messages on a display module. The system shall be based on solid-state technology and
shall include self-contained diagnostic indicators.
WELDON CERTIFICATION
A letter shall be provided with bid submittal that the Contractor has successfully completed the Weldon training
requirements for Level 1 of the V-MUX Certified Supplier Program and is authorized to design, build, and service
V-MUX electrical systems.
The apparatus shall be equipped with a Weldon V-MUX multiplexed 12 volt electrical system that will provide
complete diagnostic capability, No Exception. The system shall have the capability of delivering multiple signals
via a CAN bus, utilizing specifications set forth by SAE J1939. The system shall be node based to maximize
stability so that failure of one node does not affect the operation of the other nodes. The system shall use
shielded twisted-pair wire for transmission of system function signals. The shielded wire shall provide protection
against EMI and RFI noise interruptions.
The multiplex system shall be responsible for providing power management functions as well as load shedding.
The warning light system shall be controlled by the multiplex system. The system shall be capable of displaying
text and/or graphic messages on a display module. The system shall be based on solid-state technology and
shall include self-contained diagnostic indicators.
Fire Engine
08/23/13
Page 93 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
BATTERY SYSTEM
The battery connectors shall be heavy duty type with cables terminating in heat shrink loom. Heavy duty battery
cables shall provide maximum power to the electrical system. Where required, the cables shall be shielded from
exhaust tubing and the muffler. Large rubber grommets shall be provided where cables enter the battery
compartment.
Batteries shall be of the high-cycle type. With the engine off, the battery system shall be able to provide the
minimum continuous electrical load for 10 minutes without discharging more than 50 percent of the reserve
capacity and then to restart the engine. The battery system cold cranking amps (CCA) rating shall meet or exceed
the minimum CCA recommendations of the engine manufacturer. The batteries shall be mounted to prevent
movement during fire apparatus operation and shall be protected against accumulations of road spray, snow, and
road debris. The batteries shall be readily accessible for examination, testing, and maintenance.
A means shall be provided for jump-starting the engine if the batteries are not accessible without lifting the cab of
a tilt-cab apparatus.
Where an enclosed battery compartment is provided, it shall be ventilated to the exterior to prevent the buildup of
heat and explosive fumes. The batteries shall be protected against vibration and temperatures that exceed the
battery manufacturer’s recommendation.
A master load disconnect switch shall be provided between the starter solenoid(s) and the remainder of the
electrical loads on the apparatus. The starter solenoids shall be connected directly to the batteries.
Electronic control systems and similar devices shall be permitted to be otherwise connected if so specified by
their manufacturer.
The alternator shall be wired directly to the batteries through the ammeter shunt(s), if one is provided, and not
through the master load disconnect switch.
A green “battery on” pilot light that is visible from the driver’s position shall be provided.
A sequential switching device shall be permitted to energize the optical warning devices and other high current
devices required in minimum continuous electrical load, provided the switching device shall first energize the
electrical devices required in minimum continuous electrical load within five (5) seconds.
BATTERY SWITCH
One (1) battery "On/Off" switch in cab located within easy reach of Driver with green "BATTERY ON" pilot light
that is visible from the driver’s position shall be provided. The switch and pilot light shall be supplied and installed
by the cab/chassis manufacturer.
BATTERY SOLENOID
Battery switch shall consist of a minimum 200 ampere, constant duty solenoid to feed from positive side of
battery.
BATTERY CONDITIONER
The battery conditioner shall be supplied and installed by the cab chassis manufacturer.
ENGINE COMPARTMENT LIGHT
Engine compartment light(s) shall be supplied and installed by the cab chassis manufacturer.
Fire Engine
08/23/13
Page 94 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
REAR SCENE LIGHTS (BACK-UP LIGHTS)
There shall be a switch on the left side rear to convert backup lights and rear step lights to scene lights during
night operations. The switch shall be of momentary style and shall be connected to a bi-stable relay, allowing
multiple switching locations. The scene/reverse lights shall automatically shut off when the parking brake is
disengaged.
CAB HAZARD WARNING LIGHT
A red "HAZARD" warning light shall be supplied and installed by the cab/chassis manufacturer. Light shall
illuminate automatically to warn the Driver of the following when the apparatus parking brake is not fully engaged:
•
•
•
Any passenger or compartment door is open
Equipment rack is not in stowed position
Light tower is extended
The light shall be labeled "DO NOT MOVE APPARATUS WHEN LIGHT IS ON".
BACK-UP ALARM
An electronic back-up alarm shall be supplied and installed by the cab/chassis manufacturer. The back-up alarm
shall actuate automatically when the transmission gear selector is placed in reverse.
TAIL LIGHTS
Rear body tail lights shall be vertically mounted and located per Federal Motor Vehicle Safety Standards, FMVSS
and Canadian Motor Vehicle Safety Standards CMVSS. The following lights shall be furnished;
•
•
•
•
Two (2) Whelen amber LED 600 Series 60A00TAR turn signal lights
Two (2) Whelen red LED 600 Series 60R00XRR stop/tail lights
Two (2) Whelen LED 600 Series 60C00WCR maximum intensity back-up lights with clear lens
Two (2) Whelen warning lights as detailed in the warning light section
Two (2) Whelen CAST-4V, 4-light polished aluminum bezels shall be provided, one (1) each side vertically
mounted on the rear of the apparatus body for the above tail lights.
ADDITIONAL BRAKE LIGHT
An additional Whelen LED brake light shall be provided on center rear body below the hose bed wired to main
brake light circuit.
RUNNING BOARD STEP LIGHT
One (1) OnScene Solutions 63" LED Night Stik lights provided under the hose bed walkway step. The light shall
be wired to the ground light circuit of the chassis.
MIDSHIP MARKER/TURN SIGNAL
Two (2) Whelen model T0A00MAR amber LED midship body clearance marker/turn signal lights shall be provided
and installed, one (1) light on each side of the body, in forward wheel well of rear axle. Midship marker/turn lights
shall be wired to the headlight circuit of the chassis.
Fire Engine
08/23/13
Page 95 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
MARKER LIGHTS
The body shall be equipped with all necessary clearance lights and reflectors in accordance with Federal Motor
Vehicle Safety Standards (FMVSS) and Canadian Motor Vehicle Safety Standards (CMVSS) regulations. All body
clearance lights shall be Truck-Lite Model 18 LED to reduce the need for maintenance and lower the amp draw.
Clearance lights shall be wired to the headlight circuit of the chassis.
CAB STEP LIGHTS / GROUND LIGHTS
The step lights and/or ground lights shall be supplied and installed by the cab/chassis manufacturer. Light(s) shall
be capable of providing illumination at a minimum level of 2 fc (20 lx) on ground areas within 30 in. (800 mm) of
the edge of the vehicle in areas designed for personnel to climb onto or descend from the vehicle to the ground
level.
Lighting designed to provide illumination on areas under the driver and crew riding area exits shall be switchable
but activated automatically when the exit doors are opened.
ELECTRONIC SIREN
The siren control head shall be supplied and installed by the cab/chassis manufacturer.
SIREN SPEAKER
The siren speaker(s) shall be supplied and installed by the cab/chassis manufacturer.
REAR SCENE LIGHTS
Two (2) Fire Research model SPA900-Q65 (9" x 7") surface mounted LED lights provided on the upper rear body
to light the work area immediately behind the vehicle to a level of at least 3 fc (30 lx) within a 10 ft × 10 ft (3 m × 3
m) square.
Each light shall have twenty-four (24) white LEDs that generate a rated 4,600 lumens at 12 VDC. The lens shall
redirect the light along the vehicle and out onto the working area. The light housing shall be aluminum with a
chrome colored bezel.
The lights shall be switched at the Vista display in the cab.
The rear scene lights shall also be activated when the apparatus is in reverse.
TRAFFIC DIRECTIONAL LIGHT
A custom designed traffic directional light shall be provided in the rear edge of the hose bed doors. The directional
light shall consist of eight (8) Code 3 model LXEX1F-A amber LED lights mounted four (4) per side. The traffic
directional light control shall be located in the Vista display in the cab within easy reach of driver
The traffic advisor shall be programmed to random flash when the Emergency Master is activated.
•
The traffic directional light shall be surface mounted to the rear edges of the hose bed doors on the upper rear
body.
Fire Engine
08/23/13
Page 96 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
DAVID CLARK INTERCOM SYSTEM
The following David Clark intercom system shall be provided and installed to improve the safety of firefighters and
rescue professionals through enhanced communication and hearing protection. System shall have the following
major components as minimum;
Provide total of four (4) position David Clark intercom system with capabilities of radio transmit at driver and
officer positions.
1 - U3800, Master Station
1 - U3805, Radio Cord Junction Module
1 - U3811, Radio Interface Module
1 - U3815, Radio Interface Module
3 - C3821, Jumper Cords
2 - C3812, 12’ Jumper Cords
1 - C3820, Power Cord
1 - 3821, Radio Cord
1 - H3441, Headset
3 - H3442, Headsets
The Motorola radio and the AM/FM radio shall be integrated into the intercom system.
INTERCOM SYSTEM INSTALLATION
The above listed intercom system shall be installed in the cab locations as follows;
Front of Cab
•
•
•
Driver’s – Mounted above the left shoulder position on the outside wall, the PTT switch shall be located in
center dash on driver side.
Officer’s – Mounted above the right shoulder position on the outside wall, the PTT switch shall be located in
center dash on officer side.
Mount both driver and officer headset jacks and hooks on the overhead AC cover.
Rear Crew Area
•
•
•
•
•
•
•
•
Driver’s side rear facing – Above the right shoulder on the wall or ceiling.
Driver’s side rear facing center – Above the left shoulder on the ceiling.
Officer’s side rear facing – Above the left shoulder on the wall or ceiling.
Officer’s side rear facing center – Above the right shoulder on the ceiling.
Driver’s side forward facing – Above the right shoulder on the rear wall or ceiling.
Driver’s side forward facing center – Above the left shoulder on the rear wall or ceiling.
Officer’s side forward facing – Above the left shoulder on the rear wall or ceiling.
Officer’s side forward facing center – Above the right shoulder on the rear wall or ceiling.
Fire Engine
08/23/13
Page 97 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
WARNING LIGHT PACKAGE
Each apparatus shall have a system of optical warning devices that meets or exceeds the requirements of this
section.
The optical warning system shall consist of an upper and a lower warning level. The requirements for each level
shall be met by the warning devices in that particular level without consideration of the warning devices in the
other level.
For the purposes of defining and measuring the required optical performance, the upper and lower warning levels
shall be divided into four (4) warning zones. The four zones shall be determined by lines drawn through the
geometric center of the apparatus at 45 degrees to a line drawn lengthwise through the geometric center of the
apparatus. The four (4) zones shall be designated A, B, C, and D in a clockwise direction, with zone A to the front
of the apparatus.
Each optical warning device shall be installed on the apparatus and connected to the apparatus’s electrical
system in accordance with the requirements of this standard and the requirements of the manufacturer of the
device.
A master optical warning system switch that energizes all the optical warning devices shall be provided.
The optical warning system on the fire apparatus shall be capable of two (2) separate signaling modes during
emergency operations. One (1) mode shall signal to drivers and pedestrians that the apparatus is responding to
an emergency and is calling for the right-of-way. One (1) mode shall signal that the apparatus is stopped and is
blocking the right-of-way. The use of some or all of the same warning lights shall be permitted for both modes
provided the other requirements of this chapter are met.
A switching system shall be provided that senses the position of the parking brake or the park position of an
automatic transmission. When the master optical warning system switch is closed and the parking brake is
released or the automatic transmission is not in park, the warning devices signaling the call for the right-of-way
shall be energized. When the master optical warning system switch is closed and the parking brake is on or the
automatic transmission is in park, the warning devices signaling the blockage of the right-of-way shall be
energized. The system shall be permitted to have a method of modifying the two (2) signaling modes.
The optical warning devices shall be constructed or arranged so as to avoid the projection of light, either directly
or through mirrors, into any driving or crew compartment(s). The front optical warning devices shall be placed so
as to maintain the maximum possible separation from the headlights.
Fire Engine
08/23/13
Page 98 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
UPPER LEVEL OPTICAL WARNING DEVICES
The upper-level optical warning devices shall be mounted as high and as close to the corner points of the
apparatus as is practical to define the clearance lines of the apparatus. The upper-level optical warning devices
shall not be mounted above the maximum height, specified by the device manufacturer.
ZONE A - FRONT WARNING LIGHTS
There shall be one (1) Whelen Edge FN72QLED LED 72" lightbar permanently mounted to the cab roof.
The lightbar configuration (streetside to curbside) shall be:
SECTION
INTERNAL COMPONENTS
LENS COLOR
1
Red Side Linear LED
Clear
2
Red Front Corner Linear LED
Clear
3
Blank
Clear
4
Clear Linear LED
Clear
5
Blank
Clear
6
Red Linear LED
Clear
7
Blank (Opticom if specified)
Clear
8
Blank (Opticom if specified)
Clear
9
Red Linear LED
Clear
10
Blank
Clear
11
Clear Linear LED
Clear
12
Blank
Clear
13
Red Front Corner Linear LED
Clear
14
Red Side Linear LED
Clear
All clear lights shall shut down when the parking brake is set to comply with "Blocking" mode requirements as
outlined in NFPA 1901.
The lightbar shall be separately switched at the vista display in the cab.
GTT OPTICOM
One (1) GTT Opticom emitter light shall be provided inside specified light bar. Opticom may replace specified
light(s) in specified light bar. The Opticom shall be activated with light bar and de-activated when the park brake is
set and the vehicle is in blocking mode.
Fire Engine
08/23/13
Page 99 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
ZONES B AND D - SIDE WARNING LIGHTS
UPPER REAR CORNER WARNING LIGHTS
There shall be two (2) Whelen Engineering L31 series LED beacons (L31HRFN) provided on the rear of the body,
one (1) each side in the upper corners. The beacons shall have red lenses.
The lights shall be switched at the Vista display in the cab.
Fire Engine
08/23/13
Page 100 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
LOWER LEVEL OPTICAL WARNING DEVICES
To define the clearance lines of the apparatus, the optical center of the lower-level optical warning devices in the
front of the vehicle shall be mounted on or forward of the front axle centerline and as close to the front corner
points of the apparatus as is practical.
The optical center of the lower-level optical warning devices at the rear of the vehicle shall be mounted on or
behind the rear axle centerline and as close to the rear corners of the apparatus as is practical. The optical center
of any lower-level device shall be between 18 in. and 62 in. (460 mm and 1600 mm) above level ground for large
apparatus, and 18 in. and 48 in. (460 mm and 1220 mm) above level ground for small apparatus.
A midship optical warning device shall be mounted right and the left sides of the apparatus if the distance
between the front and rear lower-level optical devices exceeds 25 ft (7.6 m) at the optical center. Additional
midship optical warning devices shall be required, where necessary, to maintain a horizontal distance between
the centers of adjacent lower-level optical warning devices of 25 ft (7.6 m) or less. The optical center of any
midship mounted optical warning device shall be between 18 in. and 62 in. (460 mm and 1600 mm) above level
ground.
ZONE A - FRONT WARNING LIGHTS
The warning lights shall be supplied and installed by the cab/chassis manufacturer. They shall be Whelen lights to
complete an NFPA compliant lower level warning light system.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - CAB INTERSECTOR LIGHT (CAB FRONT CORNERS)
The warning lights shall be supplied and installed by the cab/chassis manufacturer. They shall be Whelen lights to
complete an NFPA compliant lower level warning light system.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - BODY INTERSECTOR LIGHT (BODY WHEELWELL AREA)
There shall be two (2) Whelen 500 series (5" x 2") TIR6 Super-LED lights (50R03ZRR) provided, one (1) each
side. Each light shall have a red lens and chrome finished flange.
The lights shall be switched at the Vista display in the cab.
ZONES B AND D - BODY INTERSECTOR LIGHT (BODY REAR CORNERS)
There shall be two (2) Whelen 600 series (6" x 4") red Linear Super-LED lights (60R02FRR) provided, one (1)
each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
ZONE C - REAR WARNING LIGHTS (LOWER REAR CORNERS)
There shall be two (2) Whelen 600 series (6" x 4") red Linear Super-LED lights (60R02FRR) provided, one (1)
each side. Each light shall have a red lens and chrome flange.
The lights shall be switched at the Vista display in the cab.
Fire Engine
08/23/13
Page 101 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
LINE VOLTAGE ELECTRICAL SYSTEM
HYDRAULIC GENERATOR SYSTEM
A Harrison HydraGen model 15.0MPC-16D, hydraulic driven generator set shall be installed on the vehicle. The
generator shall be rated at 15,000 watts at 120/240 VAC, 125/62 amps, single phase. Current frequency shall be
stable at 60 hertz.
A switch to activate the hydraulic generator system shall be provided via the far left rocker switch on the center
dash switch panel and capable of operation while vehicle is being driven.
If the hydraulic generator system is not capable of output as stated on the power source specification label at all
engine speeds, an automatic engine speed control system shall be provided.
If the vehicle is equipped with a fire pump driven by the chassis engine, the generator shall be capable of output
as stated on the power source specification label with the engine at idle.
GENERATOR MOUNTING
The hydraulic generator module shall contain all system components necessary to comprise a complete hydraulic
generating system. The components shall be grouped and assembled into a compact modular unit.
The generator unit shall be modular, packaged with a heavy steel protective frame. All connections to the module
(both hydraulic and electrical) shall be easily removable for easy removal of unit from compartment.
Hydraulic oil reservoir and filter shall be easily accessible with adequate clearance to facilitate oil filling and filter
changing.
WARRANTY PERIOD
Provided such goods are operated and maintained in accordance with Harrison's written instructions, Harrison
warrants that the MPC series hydraulic generators shall be free from defects in material and workmanship for a
period of two (2) years or two thousand (2,000) hours, whichever comes first, from the date of delivery to the first
purchaser.
HYDRAULIC COMPONENTS
A hydraulic system filter and strainer shall be provided and shall be located in a readily accessible area.
Hydraulic hose shall meet the hydraulic pump manufacturer’s recommendations for pressure, size, vacuum, and
abrasion resistance. Hydraulic fittings shall meet the hydraulic pump manufacturer’s recommendations for
pressure, size, and the type of hose used.
Where the hydraulic hose comes into contact with other surfaces, the hose shall be protected from chafing.
GENERATOR MOUNTING
The generator shall be mounted in an upper roof compartment on rubber vibration isolators. The compartment
shall be reinforced where necessary to hold weight of generator. A valve shall be provided on the generator oil
drain outlet and piped to underside of generator compartment with flexible hose and plug. The drain shall be
located where easily accessible for generator service.
Fire Engine
08/23/13
Page 102 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
MANUALS AND SCHEMATICS
Two (2) complete manuals on parts list, maintenance, wiring schematics, hydraulic schematics, circuit boards,
voltage regulator board and other components shall be provided on delivery.
POWER-TAKE-OFF GENERATOR DRIVE
There shall be a "Hot Shift" power-take-off (PTO) installed on the transmission PTO opening of the chassis. The
"Hot Shift" PTO is provided to allow the engagement of the PTO at higher engine RPM speeds. The PTO output
shall be connected to the generator through hollow tube type driveline with heavy duty universals.
The engagement of the PTO shall be in the chassis cab with a rocker switch and red pilot light to note
engagement of the PTO or via the V-Mux screen if so equipped.
The power supply to the PTO engagement control shall be wired to the parking brake and a neutral position
transmission switch to prevent engagement unless the vehicle is stopped and transmission has been placed in
neutral.
The installation of the engine, transmission, driven accessories (power takeoffs (PTO), etc.) shall meet the engine
and transmission manufacturers’ installation recommendations for the service intended.
Model part number shall be Chelsea 859XSFJP-B5XV, 128% Ratio.
LOADCENTER
The loadcenter shall be a Cutler Hammer, BR Series, specifically designed for protection and distribution of
120/240 volt AC, such as lighting and small motor branch circuits. The loadcenter enclosure shall be made of 16
gauge galvanized sheet steel. The galvanized coating provides corrosion protection and as such does not require
paint. All trims used on the BR Loadcenter shall be chromate sealed and finished with electro disposition epoxy
paint (ASA61) which exceeds requirements for outdoor and indoor applications. A combination surface/flush
cover with integral door shall be supplied.
The loadcenter shall be UL/CSA listed, NO EXCEPTIONS will be allowed.
GENERATOR MONITORING PANEL
To properly monitor the generator performance and load demand during operation, the generator installation shall
be equipped with a full instrument monitor panel.
•
•
•
•
Generator frequency in hertz
Line 1 current in amperes
Line 2 current in amperes
Generator voltage in volts
The program shall support the accumulation of elapsed generator hours. Generator hours shall be displayed.
The generator meter panel shall be located on streetside pump panel.
SHORE POWER INLET - BATTERY CHARGER
The above mentioned shore power inlet, and battery conditioner shall be specified in the 12 volt section.
Fire Engine
08/23/13
Page 103 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
OUTLETS AND CIRCUITS
The generator and or shore power shall supply the 120/240 volt electrical equipment and outlets outlined below.
Proper circuit protection shall be installed as noted:
•
One (1) Hannay ECR1618-17-18 electric cable reel(s) capable of storing 200' of 10/3 electric cable shall be
located in upper dunnage area on streetside. Reel(s) shall be designed to hold 110% of the capacity of cord
length, with fully enclosed 45 amp, three (3) conductor collector rings.
−
−
−
•
Power rewind control(s) shall be in a position where the operator can observe the rewinding operation
and not be more than 72 in. (1830 mm) above the operator’s standing position, and shall be marked with
a label indicating its function.
A label shall be provided in a visible location adjacent to reel with following information: Current rating,
Current type, Phase, Voltage, and Total cord length.
The cable reel shall equipped with 200' of 10/3 SEOW yellow cable, a molded plastic ball clamp, and a
single heavy duty L5-30 twist-lock female plug at the end.
One (1) Akron model EJB series, cast aluminum electrical power distribution box with yellow powder coat
painted finish shall be provided. The power distribution box shall meet all requirements described in NFPA
1901. The power distribution box shall include the following outlets mounted on a backlit face plate;
−
A 12" pigtail that terminates in an L5-30 configuration to match the cable on the cord reel. The outlet
configuration shall include:
−
−
−
−
One (1) 5-20 duplex straight-blade receptacle
One (1) 5-20 duplex straight-blade receptacle
One (1) 5-20 duplex straight-blade receptacle
One (1) 5-20 GFCI duplex straight-blade receptacle wired to protect all outelts in box
•
One (1) Akron formed aluminum treadplate vertical mounting bracket shall be provided for specified power
distribution box. Box to be located on upper streetside dunnage area similar to current pumpers.
•
The fairlead roller shall be mounted to side of dunnage areas and the cord shall pass through the wall and the
fairlead to match existing pumpers.
Fire Engine
08/23/13
Page 104 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
LINE VOLTAGE ELECTRICAL SYSTEM
GENERAL REQUIREMENTS
Stability
Any fixed line voltage power source producing alternating current (ac) shall produce electric power at 60 Hz, ±3
Hz when producing power at all levels between no load and full rated power. Any fixed line voltage power source
shall produce electric power at the rated voltage ±10 percent when producing power at all levels between no load
and full rated power.
The maximum voltage supplied to portable equipment shall not exceed 275 volts to ground. Higher voltage shall
be permitted only when used to operate fixed wired, permanently mounted equipment on the apparatus.
Conformance with National Electrical Code
All components, equipment, and installation procedures shall conform to NFPA 70, National Electrical Code,
except where superseded by the requirements of this chapter. Where the requirements of this chapter differ from
those in NFPA 70, the requirements in this chapter shall apply.
Where available, line voltage electrical system equipment and materials included on the apparatus shall be listed
and used only in the manner for which they have been listed. All equipment and materials shall be installed in
accordance with the manufacturer’s instructions.
Location Ratings
Any equipment used in a dry location shall be listed for dry locations. Any equipment used in a wet location shall
be listed for wet locations.
Any equipment, except a PTO-driven generator, used in an underbody or under chassis location that is subject to
road spray shall be either listed as Type 4 or mounted in an enclosure that is listed as Type 4.
If a PTO-driven generator is located in an underbody or under chassis location, the installation shall include a
shield to prevent road spray from splashing directly on the generator.
Grounding
Grounding shall be in accordance with 250.34(A) and 250.34(B) of NFPA 70. Ungrounded systems shall not be
used.
Only stranded or braided copper conductors shall be used for grounding and bonding.
The grounded current-carrying conductor (neutral) shall be insulated from the equipment-grounding conductors
and from the equipment enclosures and other grounded parts.
The neutral conductor shall be colored white or gray in accordance with 200.6, “Means of Identifying Grounded
Conductors,” of NFPA 70.
Any bonding screws, straps, or buses in the distribution panel board or in other system components between the
neutral and equipment-grounding conductor shall be removed and discarded.
Fire Engine
08/23/13
Page 105 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
Bonding
The neutral conductor of the power source shall be bonded to the vehicle frame. The neutral bonding connection
shall occur only at the power source. In addition to the bonding required for the low voltage return current, each
body and each driving or crew compartment enclosure shall be bonded to the vehicle frame by a copper
conductor.
The conductor shall have a minimum amperage rating, as defined in 310.15, “Ampacities for Conductors Rated
0–2000 Volts,” of NFPA 70, of 115 percent of the rated amperage on the power source specification label.
A single conductor that is sized to meet the low voltage and line voltage requirements shall be permitted to be
used.
Ground Fault Circuit Interrupters
In special service vehicles incorporating a lavatory, sink, toilet, shower, or tub, 120 V, 15 or 20 A receptacles
within 6 ft (1.8 m) of these fixtures shall have ground fault circuit interrupter (GFCI) protection. GFCIs integrated
into outlets or circuit breakers or as stand-alone devices shall be permitted to be used in situations.
Power Source General Requirements
All power source system mechanical and electrical components shall be sized to support the continuous duty
nameplate rating of the power source.
The power source shall be shielded from contamination that would prevent the power source from operating
within its design specifications.
Power Source Rating
For power sources of 8 kW or larger, the power source manufacturer shall declare the continuous duty rating that
the power source can provide when installed on fire apparatus according to the manufacturer’s instructions and
run at 120°F (49°C) air intake temperature at 2000 ft (600 m) above sea level.
The rating on the power source specification label shall not exceed the declared rating from the power source
manufacturer.
Access shall be provided to permit both routine maintenance and removal of the power source for major servicing.
The power source shall be located such that neither it nor its mounting brackets interfere with the routine
maintenance of the fire apparatus.
Fire Engine
08/23/13
Page 106 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
Instrumentation
If the power source is rated at less than 3 kW, a “Power On” indicator shall be provided. If the power source is
rated at 3 kW or more but less than 8 kW, a voltmeter shall be provided.
If the power source is rated at 8 kW or more, the following instrumentation shall be provided at an operator’s
panel:
1)
2)
3)
4)
Voltmeter
Current meters for each ungrounded leg
Frequency (Hz) meter
Power source hour meter
The instrumentation shall be permanently mounted at an operator’s panel. The instruments shall be located in a
plane facing the operator. Gauges, switches, or other instruments on this panel shall each have a label to indicate
their function.
The instruments and other line voltage equipment and controls shall be protected from mechanical damage and
not obstructed by tool mounting or equipment storage.
An instruction plate(s) that provides the operator with the essential power source operating instructions, including
the power-up and power-down sequence, shall be permanently attached to the apparatus at any point where such
operations can take place.
Operation
Provisions shall be made for placing the generator drive system in operation using controls and switches that are
identified and within convenient reach of the operator.
Where the generator is driven by the chassis engine and engine compression brakes or engine exhaust brakes
are furnished, they shall be automatically disengaged for generator operations.
Any control device used in the generator system power train between the engine and the generator shall be
equipped with a means to prevent unintentional movement of the control device from its set position in the power
generation mode.
If there is permanent wiring on the apparatus that is designed to be connected to the power source, a power
source specification label that is permanently attached to the apparatus at the operator’s control station shall
provide the operator with the information required.
The power source, at any load, shall not produce a noise level that exceeds 90 dBA in any driving compartment,
crew compartment, or onboard command area with windows and doors closed or at any operator’s station on the
apparatus.
Power Supply Assembly
The conductors used in the power supply assembly between the output terminals of the power source and the
main over current protection device shall not exceed 12 ft (4 m) in length.
All power supply assembly conductors, including neutral and grounding conductors, shall have an equivalent
amperage rating and shall be sized to carry not less than 115 percent of the amperage of the nameplate current
rating of the power source.
If the power supply assembly connects to the vibrating part of a generator (not a connection on the base), the
conductors shall be flexible cord or other fine-stranded conductors enclosed in metallic or nonmetallic liquid tight
flexible conduit rated for wet locations and temperatures not less than 194°F (90°C).
Fire Engine
08/23/13
Page 107 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
Overcurrent Protection
Manually resettable over current devices shall be installed to protect the line voltage electrical system
components.
Power Source Protection
A main over current protection device shall be provided that is either incorporated in the power source or
connected to the power source by a power supply assembly.
The size of the main over current protection device shall not exceed 100 percent of the rated amperage stated on
the power source specification label or the rating of the next larger available size over current protection device,
where so recommended by the power source manufacturer.
If the main over current protection device is subject to road spray, the unit shall be housed in a Type 4–rated
enclosure.
Branch Circuit Overcurrent Protection
Over current protection devices shall be provided for each individual circuit and shall be sized at not less than 15
amps in accordance with 240.4, “Protection of Conductors,” of NFPA 70.
Any panel board shall have a main breaker where the panel has six or more individual branch circuits or the
power source is rated 8 kW or larger.
Each over current protection device shall be marked with a label to identify the function of the circuit it protects.
Dedicated circuits shall be provided for any large appliance or device (air conditioning units, large motors, etc.)
that requires 60 percent or more of the rated capacity of the circuit to which it is connected, and that circuit shall
serve no other purpose.
Panelboards
All fixed power sources shall be hardwired to a permanently mounted panel board unless one of the following
conditions exists:
1) All line voltage power connections are made through receptacles on the power source and the receptacles
are protected by integrated over current devices.
2) Only one circuit is hardwired to the power source, which is protected by an integrated over current device.
The panel shall be visible and located so that there is unimpeded access to the panel board controls. All panel
boards shall be designed for use in their intended location. The panel(s) shall be protected from mechanical
damage, tool mounting, and equipment storage.
Where the power source is 120/240 V and 120 V loads are connected, the apparatus manufacturer or line voltage
system installer shall consider load balancing to the extent that it is possible.
Fire Engine
08/23/13
Page 108 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
Wiring Methods
Fixed wiring systems shall be limited to the following:
1) Metallic or nonmetallic liquid tight flexible conduit rated at temperatures not less than 194°F (90°C) with
stranded copper wire rated for wet locations and temperatures not less than 194°F (90°C)
2) Type SOW, SOOW, SEOW, or SEOOW flexible cord rated at 600 V and at temperatures not less than 194°F
(90°C)
Electrical cord or conduit shall not be attached to chassis suspension components, water or fuel lines, air or air
brake lines, fire pump piping, hydraulic lines, exhaust system components, or low voltage wiring and shall be
arranged as follows:
1) Separated by a minimum distance of 12 in. (300 mm) from exhaust piping or shielded from such piping
2) Separated from fuel lines by a minimum distance of 6 in. (150 mm)
A means shall be provided to allow “flexing” between the driving and crew compartment, the body, and other
areas or equipment whose movement would stress the wiring.
Electrical cord or conduit shall be supported within 6 in. (150 mm) of any junction box and at a minimum of every
24 in. (600 mm) of run.
Supports shall be made of nonmetallic materials or of corrosion-resistant or corrosion-protected metal. All
supports shall be of a design that does not cut or abrade the conduit or cord and shall be mechanically fastened
to the apparatus.
Only fittings and components listed for the type of cord or conduit being installed shall be used.
Splices shall be made only in a listed junction box.
Additional Requirements for Flexible Cord Installations
Where flexible cord is used in any location where it could be damaged, it shall be protected by installation in
conduit, enclosures, or guards.
Where flexible cord penetrates a metal surface, rubber or plastic grommets or bushings shall be installed.
Wiring Identification
Each line voltage circuit originating from the main panel board shall be identified.
The wire or circuit identification either shall reference a wiring diagram or wire list or shall indicate the final
termination point of the circuit.
Where pre-wiring for future power sources or devices exists, the un-terminated ends shall be marked with a label
showing their wire size and intended function.
Fire Engine
08/23/13
Page 109 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
Wiring System Components
Only stranded copper conductors with an insulation rated for temperatures of at least 194°F (90°C) and wet
locations shall be used. Conductors in flexible cord shall be sized in accordance with Table 400.5(A) of NFPA 70.
Conductors used in conduit shall be sized in accordance with 310.15, “Ampacities for Conductors Rated 0–2000
Volts,” of NFPA 70. Aluminum or copper-clad aluminum conductors shall not be used.
All boxes shall conform to and be mounted in accordance with Article 314, “Outlet, Device, Pull, and Junction
Boxes; Conduit Bodies; Fittings; and Manholes,” of NFPA 70. All boxes shall be accessible using ordinary hand
tools. Boxes shall not be permitted behind welded or pop-riveted panels.
The maximum number of conductors permitted in any box shall be in accordance with 314.16, “Number of
Conductors in Outlet, Device, and Junction Boxes, and Conduit Bodies,” of NFPA 70.
All wiring connections and terminations shall provide a positive mechanical and electrical connection. Connectors
shall be installed in accordance with the manufacturer’s instructions. Wire nuts or insulation displacement and
insulation piercing connectors shall not be used.
Each switch shall indicate the position of its contact points (i.e., open or closed) and shall be rated for the
continuous operation of the load being controlled. All switches shall be marked with a label indicating the function
of the switch. Circuit breakers used as switches shall be “switch rated” (SWD) or better. Switches shall
simultaneously open all associated line voltage conductors. Switching of the neutral conductor alone shall not be
permitted.
Line voltage circuits controlled by low voltage circuits shall be wired through properly rated relays in listed
enclosures that control all non-grounded current-carrying conductors.
Receptacles and Inlet Devices
Wet and Dry Locations
All wet location receptacle outlets and inlet devices, including those on hardwired, remote power distribution
boxes, shall be of the grounding type, provided with a wet location cover, and installed in accordance with Section
406.8, “Receptacles in Damp or Wet Locations,” of NFPA 70.
All receptacles located in a wet location shall be not less than 24 in. (600 mm) from the ground. Receptacles on
off road fire apparatus shall be a minimum of 30 in. (750 mm) from the ground. All receptacles located in a dry
location shall be of the grounding type and shall be at least 12 in. (300 mm) above the interior floor height. No
receptacle shall be installed in a face-up position.
The face of any wet location receptacle shall be installed in a plane from vertical to not more than 45 degrees off
vertical.
Receptacle Label
Each receptacle shall be marked with a label indicating the nominal line voltage (120 volts or 240 volts) and the
current rating in amps of the circuit. If the receptacle is DC or other than single phase, that information shall also
be marked on the label.
All receptacles and electrical inlet devices shall be listed to UL 498, Standard for Safety Attachment Plugs and
Receptacles, or other recognized performance standards.
Receptacles used for DC voltages shall be rated for DC service.
Fire Engine
08/23/13
Page 110 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
Wiring Schematics
An "As-Built" Wiring diagrams for line voltage systems shall be provided to include the following information;
(a)
(b)
(c)
(d)
(e)
(f)
(g)
Pictorial representations of circuit logic for all electrical components and wiring
Circuit identification
Connector pin identification
Zone location of electrical components
Safety interlocks
Alternator–battery power distribution circuits
Input/output assignment sheets or equivalent circuit logic implemented in multiplexing systems
Fire Engine
08/23/13
Page 111 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
120/240 VAC SCENE LIGHTING
FRONT CAB-MOUNTED SCENE LIGHT(S)
One (1) quartz floodlight(s) shall be provided on the front of the cab by the cab/chassis manufacturer. Each light
shall be mounted in a brow-style mounting flange. Scene lights shall be provided with a lens or a means for
preventing damage from water spray and shall be listed for wet location usage.
Each light shall be wired directly to the electrical generator system with Carflex conduit and stranded copper wire.
The floodlights shall be protected with circuit breakers rated at the proper amperage and wire size.
•
The above lights shall be controlled by one (1) rocker switch(es). The rocker switch(es) shall be located in the
cab within reach of the Driver and/or Officer.
SIDE UPPER RECESSED SCENE LIGHTS
Four (4) Fire Research Spectra LED Scene Light model SPA100-J20 lamphead shall be provided. The lamphead
mounting arm shall terminate in 3/4" NPT threads. Wiring shall extend from the lamphead mounting arm bottom.
The lamphead shall have sixty (60) ultra-bright white LEDs, 48 for flood lighting and 12 to provide a spot light
beam pattern. It shall operate at 240 volts AC, draw 1 amp, and generate 20,000 lumens of light. The lamphead
shall have a unique lens that directs flood lighting onto the work area and focuses the spot light beam into the
distance. The lamphead angle of elevation shall be adjustable at a pivot in the mounting arm and the position
locked with a round knurled locking knob. The lamphead shall be no more than 5 3/8" high by 14" wide by 3 3/4"
deep and have a heat resistant handle. The lamphead and mounting arm shall be powder coated. The LED scene
light shall be for fire service use.
•
The above lights shall be controlled by two (2) rocker switch(es). The rocker switch(es) shall be located in the
cab within reach of the Driver and/or Officer.
Fire Engine
08/23/13
Page 112 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
PUMP MODULE
The side mount pump enclosure shall be removable and supported from the chassis frame rails with spring type
body mounts. This enclosure shall allow independent flexing of the pump enclosure from the body and allow for
quick removal. The support structure shall be constructed of extruded aluminum tubing and angle.
All pump suction and discharge controls are to be mounted on the driver side pump operator's panel so as to
permit operation of the pump from a central location. The fire pump, valves and controls shall be accessible for
service and maintenance as required by applicable sections of NFPA standards.
The "master" gauges shall be suitably enclosed and mounted on a full pump compartment width "hinged" gauge
panel constructed of the same material as the pump operators control panel, allowing access to the backside of
all gauges and gauge lines. The individual gauges shall be mounted inline with the control handle or adjacent to
the control handle. Panel is to include a stainless steel piano hinge, flush mounted chrome plated trigger latch,
and stainless steel cable end stops. Electrical wiring and all gauge lines shall be properly tie wrapped to prevent
kinking or cutting of the lines when the panel is opened.
The following controls and equipment shall be provided on the pump panel or within the pump enclosure:
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Electric primer.
Pump and plumbing area service lights.
Pressure control device and throttle control.
Fire pump and engine instruments.
Pump intakes and discharge controls.
Master intake and discharge gauges.
Tank fill control.
Tank suction control.
Water tank level gauge.
Pump panel lights.
PUMP MODULE DUNNAGE AREA
There shall be an open dunnage area located directly above the pump panels to store miscellaneous Greeley Fire
Department supplied equipment. The interior dunnage area side walls shall be fabricated from 1/8" aluminum
tread plate, and the walking surface shall be fabricated from 3/16" aluminum NFPA compliant tread plate. The
exterior sides shall be constructed of 1/8" aluminum treadplate.
STREETSIDE RUNNING BOARD - SIDE MOUNT PANEL
The left side pump panel shall be equipped with a side running board. The running board will extend along the
width of the pump module.
The running board stepping surface shall be constructed of aluminum NFPA compliant tread plate, bolted in place
with stainless steel fasteners.
The running board shall contain a hose well a minimum of 9" wide designed to carry a minimum of 50’ of 5” soft
suction hose with hold down provisions.
PUMP PANEL - SIDE MOUNT
The pump operator's panel, along with the lower left hand and right hand pump panels shall be constructed of
smooth plate aluminum with powder coated black paint finish, fastened to the pump enclosure with 1/4" stainless
steel bolts.
The instrument area shall have a stainless steel continuous hinge that shall swing towards the front of the module
for easy access to gauges.
Fire Engine
08/23/13
Page 113 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
LEFT SIDE PUMP PANEL - BOLTED
The left side pump panel shall be horizontally hinged at the top to allow for access for maintenance.
RIGHT SIDE PUMP PANEL - BOLTED
The right side pump panel shall be fastened to the pump enclosure with 1/4" stainless steel bolts and nutserts.
WATEROUS CMUCU20C 1500 GPM FIRE PUMP
A mid-ship mounted Waterous Model CMUCU20C2 fire pump shall be provided. The pump shall comply with all
applicable requirements of the latest standards for automotive fire apparatus of the National Fire Protection
Association, NFPA 1901, and shall have a rated capacity of 1500 GPM (5,677 LPM).
WATEROUS PUMP ANODES
There shall be two (2) Anodes provided with the Fire Pump. One (1) anode shall be installed in the left steamer
port and one (1) shall be installed in the right steamer port.
IMPELLERS
The pump impellers shall be bronze, specifically designed for the fire service and accurately balanced for
vibration free running. The stripping edges shall be located on opposite sides of the impellers to reduce shaft
deflection.
The impeller shaft shall be stainless steel, accurately ground to size and supported at each end by oil or grease
lubricated anti-friction ball bearings for rigid, precise support. The bearings used on the impeller shaft shall be
automotive type bearings, easily cross-referenced and readily available at normal parts or bearing stores.
FLAME PLATED IMPELLER HUBS
The impeller hubs shall be flame plated with tungsten carbide to a hardness approximately twice that of tool steel
to assure maximum pump life and efficiency. During the flame plating process the base metal shall not be
allowed to exceed a temperature of 300 degrees Fahrenheit to prevent altering the metallurgical properties of the
impeller material
IMPELLER WEAR RINGS
The pump shall be equipped with replaceable bronze wear rings for increased pump life and minimum
maintenance cost. The wear rings shall be designed to fit into a groove in the face of the impeller hubs forming a
labyrinth that, as the clearance increases with age, directs water from the discharge side in several directions
eventually exiting outward, away from the eye of the impeller hub.
PUMP CASING
The pump casing shall be cast as two (2) horizontally split pieces. The casing shall be made of high tensile,
close-grained gray iron with a minimum tensile strength of 40,000 PSI.
PUMP MANUAL
Two (2) Pump Operation & Maintenance manual(s) shall be supplied at the time of delivery.
PAINT FINISH
The paint finish shall match lower body color choice.
Fire Engine
08/23/13
Page 114 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
PUMP TRANSMISSION
The pump transmission shall be of the latest design, incorporating a high strength involute tooth-form Morse HyVo chain capable of operating at high speeds while providing smooth and quiet transmission of power. Drive and
driven sprockets shall be made of alloy steel with teeth of an involute form. Driveline shafts shall be made from
alloy steel forgings, hardened and ground to size. Deep groove, anti-friction ball bearings shall be used
throughout the pump transmission. The pump shift engagement shall be accomplished by a free sliding collar
that uses an internal locking mechanism to insure that the collar will stay in road or pump position.
Primary lubrication for the pump transmission bearings, sprockets and chain shall be provided by a splash
system. A supplementary pressure system shall also be employed which shall include a strainer, an oil circulation
pump driven by the impeller shaft, and a spray bar inside the case to apply oil to the inside of the chain just before
it engages the driven sprocket.
The pump and transmission shall be easily separable. A two-piece shaft shall be splined allowing for individual
repair of either the pump or transmission, to keep down time to a minimum.
All driveline components shall have a torque rating equal to or greater than the final net engine torque.
PUMP LUBRICATION
Grease zerk(s) shall be installed in a convenient location and connected to the pump lubrication points by copper
tubing.
PUMP CONTROLS
The engagement of the PTO shall be in the chassis cab with a rocker switch and red pilot light to note
engagement of the PTO.
The power supply to the PTO engagement control shall be wired to a neutral position transmission switch to
prevent engagement unless the vehicle is in neutral with the parking brake set.
Two (2) green indicator lights shall be supplied in the chassis cab. One (1) light shall be energized when the
chassis transmission is in neutral and shall be labeled "OK TO PUMP", the second light shall engage when the
pump drive (PTO) has been engaged and shall be labeled "PUMP ENGAGED".
One (1) green indicator light shall be supplied at the Pump Operator's panel adjacent to the engine hand throttle.
The green light shall be energized when both the chassis transmission is in neutral and the pump drive (PTO) has
been engaged. Green light shall be labeled "OK TO PUMP".
PAINT FINISH
The paint finish shall match the lower body color choice.
PUMP DRIVELINE
The pump transmission driveline shall be supplied with 1810 series yokes and bearings to match the cab chass
driveline.
MECHANICAL SEALS
The pump shall be equipped with self-adjusting, maintenance free mechanical shaft seals that shall not require
manual adjustment. These seals shall be designed in a manner such that they shall remain functional enough to
permit continued use of the pump in the unlikely event of a seal failure.
TWO STAGE FIRE PUMP
Fire Engine
08/23/13
Page 115 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
The pump shall be a two stage centrifugal class "A" rated fire pump, designed specifically for the fire service.
TWO STAGE TRANSFER VALVE
The transfer valve shall be of the latest ball type design. The valve shall be all bronze construction and
incorporate a hydraulically balanced seal to minimize leakage around the ball and assure maximum pump
efficiency. The transfer valve shall operate smoothly without sticking, even when it is exposed to sandy or dirty
water.
The transfer valve shall be operated by an electric actuator that will be controlled by a switch on the pump
operator's panel. There shall be two (2) indicator lights to show when the pump is operating in pressure or
volume mode.
WATEROUS FIVE YEAR PUMP WARRANTY
The fire pump shall be warranted by Waterous for a period of five (5) years from the date of delivery to the
Greeley Fire Department.
UNDERWRITERS LABORATORIES FIRE PUMP TEST
The pump shall undergo an Underwriters Laboratories Incorporated test per applicable sections of NFPA
standards, prior to delivery of the completed apparatus.
The UL acceptance certificate shall be furnished with the apparatus on delivery.
FIRE PUMP TEST LABEL
A fire pump performance and rating label shall be installed on the fire apparatus pump panel. The label shall
denote levels of pump performance and testing completed at factory. These shall include GPM at net pump
pressure, RPM at such level, and other pertinent data as required by applicable NFPA standards. In addition, the
pressure control device, tank to pump flow tests, and other required testing shall be completed.
In addition, the entire pump, suction and discharge passages shall be hydrostatically tested to a pressure as
required by applicable NFPA standards. The pump shall be fully tested at the pump manufacturer's factory to the
performance specifications as outlined by applicable NFPA standards.
UL PUMP CERTIFICATION
The fire pump shall be tested and certified by Underwriters Laboratories, to perform as listed below:
•
•
•
100% of rated capacity at 150 psi, 1000 kPa net pressure.
70% of rated capacity at 200 psi, 1350 kPa net pressure.
50% of rated capacity at 250 psi, 1700 kPa net pressure.
The entire pump, both suction and discharge passages, shall be hydrostatically tested to a pressure of 500 PSI.
The pump shall be free from objectionable pulsation under all normal operating conditions.
ALTITUDE REQUIREMENT
The apparatus shall be designed to meet the specified rating at 5,000 feet altitude.
MASTER DRAIN VALVE
Fire Engine
08/23/13
Page 116 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
There shall be one (1) Class 1 manifold type drain valve(s) installed in the pump compartment. All pump drains
shall be connected to the master drain valve. The drain valve shall be controlled adjacent to the pump panel. The
control shall be a hand wheel knob marked "open" and "closed". Each drain port shall be completely independent
where the master drain valve will not allow water or air flow between any two (2) inlet ports.
ELECTRIC PRIMING PUMP CONTROL AT PUMP PANEL
The Waterous priming system shall include an oil-free rotary vane priming pump rigidly attached to the pump
transmission and activated by a vacuum-activated priming (VAP) valve with a single push-button switch. Valve
actuation may be accomplished while the main pump is in operation, if necessary to assure a complete prime.
The priming system shall be controlled at the pump operator's panel. The control shall be provided in the form of a
momentary push button that is easily actuated with a gloved hand.
The primer shall be capable of priming the pump through a 20' section of suction hose with a 10' lift within 30
seconds for pumps less than 1,500 gpm, and 45 seconds for pumps 1,500 gpm and larger.
PRIMER CONTROL
The primer shall be activated by a push button control.
DISCHARGE RELIEF VALVE
The discharge pressure relief shall be controlled by the electronic engine controlled device as specified.
6" SUCTION INLET - STREETSIDE
One (1) 6" ungated suction intake shall be installed on the streetside pump panel to supply the fire pump from an
external water supply. The threads shall be 6" NST male threads.
The intake shall be provided with a removable screen.
SUCTION CAP
The suction inlet shall be equipped with a 6" NH chrome plated, long handled, cap capable of withstanding 500
psi.
6" SUCTION INLET - CURBSIDE
One (1) 6" ungated suction intake shall be installed on the curbside pump panel to supply the fire pump from an
external water supply. The threads shall be 6" NST male threads.
The intake shall be provided with a removable screen.
SUCTION CAP
The suction inlet shall be equipped with a 6" NH chrome plated, long handled, cap capable of withstanding 500
psi.
Fire Engine
08/23/13
Page 117 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
HEAT EXCHANGER
A heat exchanger shall be provided on the pump driving engine cooling system that uses water from the
discharge side of the pump to cool the engine coolant through the use of a closed heat exchanger. The water
from the pump and the engine coolant shall not be intermixed. This cooling system shall be controlled by a valve
on the pump operator's station.
INTAKE RELIEF VALVE
The intake relief valve shall be a non-pilot-operated intake relief valve and shall be provided by the pump
manufacturer. The valve shall be set at 175 psi. The intake relief valve will allow full opening of the relief valve
with a very small rise in intake pressure above set pressure.
Such dumping shall be through a system of piping terminating in an area away from the operator’s position. The
discharge end of the piping shall not have a threaded connection.
PLUMBING SPECIFICATIONS
The fire pump plumbing system shall be of rigid or flexible piping with stainless steel fittings. Victaulic couplings
shall be installed to permit flexing of the plumbing system and allow for quick removal of piping or valves for
service. Flexible hose couplings shall be threaded stainless steel or Victaulic connections.
The fire pump and plumbing shall be hydrostatically tested in compliance to applicable sections of NFPA
standards, with test results submit with the delivery documentation.
STAINLESS STEEL INTAKE MANIFOLD
The suction manifold assembly shall be fabricated with Schedule #10 type 304 stainless steel. All threaded fittings
shall be a minimum of Schedule 10 stainless steel. The suction manifold assembly shall have radiused sweep
elbows to minimize water turbulence into the suction volute.
The suction manifold shall be welded and pressure tested prior to installation. The stainless steel manifold
assembly shall be attached to the pump intake volute with a heavy-duty, flexible Victaulic coupling.
STAINLESS STEEL DISCHARGE MANIFOLD
The discharge manifold assembly shall be fabricated with Schedule #10 type 304 stainless steel. All threaded
fittings shall be a minimum of Schedule 10 stainless steel. The discharge manifold assembly shall have radiused
sweep elbows to minimize water turbulence into the discharge header.
The manifold shall be welded and pressure tested prior to installation. The stainless steel manifold assembly shall
be attached to the pump intake volute with a heavy-duty, flexible
Victaulic coupling.
STAINLESS STEEL PLUMBING WARRANTY
The stainless steel plumbing shall be free of defects in material and workmanship for a period of ten (10) years, or
100,000 miles (or 160,934 kilometers), whichever occurs first, starting thirty (30) days after the original invoice
date.
The contractor shall supply details of their warranty information with their bid submission.
Fire Engine
08/23/13
Page 118 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
INTAKES
The pump shall have a sufficient number and size of intakes to perform the apparatus pump system certification
test. The intakes shall have male National Hose Threads (NST) if the apparatus is to be used in the United
States.
If the couplings on the suction hose carried on the apparatus are of a different size from that of the pump intake(s)
or have means of hose attachment other than that provided on the intake(s), an adapter(s) shall be provided to
allow connection of the suction hose to the pump intake(s).
A sign shall be provided on the pump operator’s panel that states the following:
WARNING: Death or serious injury might occur if proper operating
procedures are not followed. The pump operator as well as individuals
connecting supply or discharge hoses to the apparatus must be
familiar with water hydraulics hazards and component limitations.
Each intake shall have a removable or accessible strainer inside the connection. The strainer(s) shall restrict
spherical debris that is too large to pass through the pump.
At least one valved intake shall be provided that can be controlled from the pump operator’s position. The valve
and piping shall be a minimum 2-1/2 in. (65 mm) nominal size.
If the intake is 2-1/2 in. (65 mm) nominal size, the intake shall be equipped with a female swivel coupling with NH
threads. Any 3 in. (75 mm) or larger intake valve except the tank-to-pump intake valve shall be a slow-operating
valve.
Each valved intake shall be equipped with a bleeder valve having a minimum 3/4 in. (19 mm) pipe thread
connection to bleed off air or water. The bleeder valve shall be operational without the operator having to get
under the apparatus. If a valved appliance is attached to an intake, it shall be equipped with a 3/4 in. (19 mm)
bleeder valve on each intake. Bleeder valves for valved intakes 4 in. (100 mm) and larger not located at the pump
operator’s panel shall be located where the bleeder valve controls are visible and operationally functional while
the operator remains stationary at the valved intake position.
Each valved intake having a connection size larger than 3 in. (75 mm) shall be equipped with an adjustable
automatic pressure relief device installed on the supply side of the valve to bleed off pressure from a hose
connected to the valved intake.
All intakes shall be provided with caps or closures capable of withstanding a hydrostatic gauge pressure of 500
psi (3400 kPa). Intakes having male threads shall be equipped with caps; intakes having female threads shall be
equipped with plugs. Where adapters for special threads or other means for hose attachment are provided on the
intakes, closures shall be provided for the adapters in lieu of caps or plugs. Caps or closures for intake
connections smaller than 4 in. (100 mm) shall remain secured to the apparatus when removed from the
connection.
If the suction inlets are to be equipped with a valve, siamese, or adapter that will remain in place while the
apparatus is in motion, that valve, siamese, or adapter shall not project beyond the apparatus running board. The
purchaser shall specify if any valve, siamese, or adapter is to be permanently installed on an intake and identify
the brand and model of such item.
The completed apparatus shall have the following intake(s);
Fire Engine
08/23/13
Page 119 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
STREETSIDE INTAKE - 2-1/2"
There shall be one (1) 2-1/2" gated intake(s) located on pump panel. Each intake shall include:
•
One (1) Akron Brass 8800 series, manual type 2-1/2" valve(s). Each valve shall be equipped with a brass
type valve adapter on inlet side, and discharge side with drain port.
−
•
Each intake shall have a 2-1/2" NSTF chrome swivel adapter with strainer provided.
−
•
Valve(s) shall be controlled with a handle for direct valve operation through panel.
The specified adapter shall be provided with a 2 1/2" NSTM chrome plated plug with chain.
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve(s) with lift type handle
which can be opened under pressure, with color coded label shall be provided. Valves shall be located on
bottom of pump panel and plumbed to drain the lowest point in the plumbing.
CURBSIDE INTAKE - 2-1/2"
There shall be one (1) 2-1/2" gated intake(s) located on pump panel. Each intake shall include:
•
One (1) Akron Brass 8800 series, manual type 2-1/2" valve(s). Each valve shall be equipped with a brass
type valve adapter on inlet side, and discharge side with drain port.
−
•
Each intake shall have a 2-1/2" NSTF chrome swivel adapter with strainer provided.
−
•
Valve(s) shall be controlled with a handle for direct valve operation through panel.
The specified adapter shall be provided with a 2 1/2" NSTM chrome plated plug with chain.
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve(s) with lift type handle
which can be opened under pressure, with color coded label shall be provided. Valves shall be located on
bottom of pump panel and plumbed to drain the lowest point in the plumbing.
TANK TO PUMP CHECK VALVE
There shall be a check valve between the pump suction and the booster tank valve. The check valve shall
eliminate back flow into the water tank when the pump is connected to a pressurized source.
TANK TO PUMP VALVE
A 4" full flow ball valve shall be installed between the fire pump and the water tank. The connection between the
tank and the pump shall be capable of the flow recommendations as set forth in the latest edition of NFPA 1901.
The valve shall be flanged to bolt directly to the pump and shall incorporate a chromium plated bronze ball. The
remaining internal moving parts shall be stainless steel for years of dependable service. A non collapsible flexible
hose shall be incorporated into the tank to pump plumbing to allow movement in the line as the chassis flexes to
avoid damage during normal road operation.
The tank to pump valve shall be controlled from the pump operator's panel.
−
Akron valve(s) shall be controlled with a remote handwheel connected to the gear actuated valve. The
handwheel actuator with portrait layout position indicator shall be located on the pump operator's panel.
−
An Akron portrait layout handwheel actuator with NFPA compliant valve position indicator shall be located on
the pump operator's panel.
Fire Engine
08/23/13
Page 120 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
DISCHARGES
A minimum of two 2-1/2 in. (65 mm) outlets shall be provided on any pump rated at 750 gpm (3000 L/min) or
greater, and a minimum of one 2-1/2 in. (65 mm) outlet shall be provided on any pump rated at less than 750 gpm
(3000 L/min).
All 1-1/2" (65 mm) or larger discharge outlet connections shall be equipped with male National Hose Threads
(NST). Adapters with special threads or other means for hose attachment shall be permitted to be attached to any
outlets.
The piping and valves supplying any preconnected 1-1/2 in. (38 mm), 1-3/4 in. (45 mm), or 2 in. (52 mm) hose
line, including the piping to the preconnected hose storage areas shall be at least 2 in. (52 mm) in size.
All discharge outlet connections, except connections to which a hose will be preconnected, shall be equipped with
caps or closures capable of withstanding a hydrostatic gauge pressure of 100 psi (700 kPa) over the maximum
pump close-off pressure or 500 psi (3400 kPa), whichever is greater.
Where adapters are provided on the discharge outlet connections, the closures shall fit on the adapters.
Caps or closures for outlet connections smaller than 4 in. (100 mm) shall remain secured to the apparatus when
removed from the connection.
Each discharge outlet shall be equipped with a valve that can be opened and closed smoothly at pump discharge
gauge pressures of 250 psi (1700 kPa).
The flow-regulating element of each valve shall not change its position under any condition of operation that
involves discharge pressures to the maximum pressure of the pump; the means to prevent a change in position
shall be incorporated in the operating mechanism and shall be permitted to be manually or automatically
controlled.
Any 3 in. (75 mm) or larger discharge valve shall be a slow-operating valve.
All 1-1/2 in. (38 mm) or larger discharge outlets shall be equipped with a drain or bleeder valve having a minimum
3.4 in. (19 mm) pipe thread connection for draining or bleeding off pressure from a hose connected to the outlet.
Any 2 in. (52 mm) or larger discharge outlet that is located more than 42 in. (1070 mm) off the ground to which
hose is to be connected and that is not in a hose storage area shall be supplied with a sweep elbow of at least 30
degrees downward.
The completed apparatus shall have the following discharge(s);
Fire Engine
08/23/13
Page 121 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
STREETSIDE DISCHARGE
There shall be two (2) 2-1/2" gated discharge(s) located on pump panel. Each discharge shall include:
•
Two (2) of the discharge(s) shall flow water only.
•
Two (2) Akron Brass 8600 series, actuated type 2-1/2" valve(s). Each valve shall be equipped with a Class 1
stainless steel weld type valve adapter on inlet side, and discharge side with drain port.
•
−
Akron valve(s) shall be controlled with a remote handwheel connected to the gear actuated valve. The
handwheel actuator with portrait layout position indicator shall be located on the pump operator's panel.
−
An Akron portrait layout handwheel actuator with NFPA compliant valve position indicator shall be located
on the pump operator's panel.
Each discharge shall have a 2-1/2" NSTF x 2-1/2" NSTM chrome plated 30 degree downsweep elbow
provided.
−
The specified elbow shall be provided with a 2-1/2" NSTF chrome plated cap with chain.
•
Two (2) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve(s) with lift type handle
which can be opened under pressure, with color coded label shall be provided. Valves shall be located on
bottom of pump panel and plumbed to drain the lowest point in the plumbing.
•
Two (2) Fire Research Insight model FPA402 combination digital flowmeter and pressure indicator kit(s) with
blue backlighting and color coded bezel shall be provided. The kit shall include a flowmeter/pressure display
module, paddlewheel flow sensor, flow sensor housing with a mount for proper sized plumbing, pressure
sensor, and interconnecting J1939 data link cable.
Fire Engine
08/23/13
Page 122 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
CURBSIDE DISCHARGE
There shall be one (1) 2-1/2" gated discharge(s) located on pump panel. Each discharge shall include:
•
One (1) of the discharge(s) shall flow water only.
•
One (1) Akron Brass 8600 series, actuated type 2-1/2" valve(s). Each valve shall be equipped with a Class 1
stainless steel weld type valve adapter on inlet side, and discharge side with drain port.
•
−
Akron valve(s) shall be controlled with a remote handwheel connected to the gear actuated valve. The
handwheel actuator with portrait layout position indicator shall be located on the pump operator's panel.
−
An Akron portrait layout handwheel actuator with NFPA compliant valve position indicator shall be located
on the pump operator's panel.
Each discharge shall have a 2-1/2" NSTF x 2-1/2" NSTM chrome plated 30 degree downsweep elbow
provided.
−
The specified elbow shall be provided with a 2-1/2" NSTF chrome plated cap with chain.
•
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve(s) with lift type handle
which can be opened under pressure, with color coded label shall be provided. Valves shall be located on
bottom of pump panel and plumbed to drain the lowest point in the plumbing.
•
One (1) Fire Research Insight model FPA402 combination digital flowmeter and pressure indicator kit(s) with
blue backlighting and color coded bezel shall be provided. The kit shall include a flowmeter/pressure display
module, paddlewheel flow sensor, flow sensor housing with a mount for proper sized plumbing, pressure
sensor, and interconnecting J1939 data link cable.
•
There shall be one (1) 4" gated discharge(s) located on pump panel. Each discharge shall include:
•
One (1) of the discharge(s) shall flow water only.
•
One (1) Akron Brass 8600 series, actuated type 4" valve(s). Each valve shall be equipped with a Class 1
stainless steel weld type valve adapter on inlet side, and discharge side with drain port.
•
−
Akron valve(s) shall be controlled with a remote handwheel connected to the gear actuated valve. The
handwheel actuator with portrait layout position indicator shall be located on the pump operator's panel.
−
An Akron portrait layout handwheel actuator with NFPA compliant valve position indicator shall be located
on the pump operator's panel.
Each discharge shall have a 4" NSTF x 5" Storz chrome plated 30 degree downsweep elbow provided.
−
The specified elbow shall be provided with a 5" Storz cap hardcoat finish with chain.
•
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve(s) with lift type handle
which can be opened under pressure, with color coded label shall be provided. Valves shall be located on
bottom of pump panel and plumbed to drain the lowest point in the plumbing.
•
One (1) Fire Research Insight model FPA402 combination digital flowmeter and pressure indicator kit(s) with
blue backlighting and color coded bezel shall be provided. The kit shall include a flowmeter/pressure display
module, paddlewheel flow sensor, flow sensor housing with a mount for proper sized plumbing, pressure
sensor, and interconnecting J1939 data link cable.
Fire Engine
08/23/13
Page 123 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
FRONT DISCHARGE
There shall be one (1) 2" gated discharge(s) located on pump panel. Each discharge shall include:
•
One (1) of the discharge(s) shall flow water only.
•
One (1) Akron Brass 8600 series, actuated type 2" valve(s). Each valve shall be equipped with a Class 1
stainless steel weld type valve adapter on inlet side, and discharge side with drain port.
−
The specified Akron valve(s) shall be configured for handwheel gear actuation.
−
An Akron portrait layout handwheel actuator with NFPA compliant valve position indicator shall be located
on the pump operator's panel.
•
There shall be a 2" NSTF x 1-1/2" NSTM chrome plated 90 degree swivel elbow provided.
•
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve(s) with lift type handle
which can be opened under pressure, with color coded label shall be provided. Valves shall be located on
bottom of pump panel and plumbed to drain the lowest point in the plumbing.
•
One (1) Fire Research Insight model FPA402 combination digital flowmeter and pressure indicator kit(s) with
blue backlighting and color coded bezel shall be provided. The kit shall include a flowmeter/pressure display
module, paddlewheel flow sensor, flow sensor housing with a mount for proper sized plumbing, pressure
sensor, and interconnecting J1939 data link cable.
Fire Engine
08/23/13
Page 124 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
MISCELLANEOUS DISCHARGE
HOSE BED DISCHARGE(S)
There shall be two (2) 2-1/2" (65 mm) gated discharge(s) located in the hose bed area. Each discharge shall
include:
•
Two (2) of the discharge(s) shall flow water only.
•
Two (2) Akron Brass 8600 series, actuated type 2-1/2" (65 mm) valve(s). Each valve shall be equipped with a
Class 1 stainless steel weld type valve adapter on inlet side, and discharge side with drain port.
−
Akron valve(s) shall be controlled with a remote handwheel connected to the gear actuated valve. The
handwheel actuator with portrait layout position indicator shall be located on the pump operator's panel.
−
An Akron portrait layout handwheel actuator with NFPA compliant valve position indicator shall be located
on the pump operator's panel.
•
There shall be a 2-1/2" (65 mm) NSTF x 2-1/2" (65 mm) NSTM chrome plated long adapter provided for hose
bed discharge(s).
•
Two (2) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve(s) with lift type handle
which can be opened under pressure, with color coded label shall be provided. Valves shall be located on
bottom of pump panel and plumbed to drain the lowest point in the plumbing.
•
Two (2) Fire Research Insight model FPA402 combination digital flowmeter and pressure indicator kit(s) with
blue backlighting and color coded bezel shall be provided. The kit shall include a flowmeter/pressure display
module, paddlewheel flow sensor, flow sensor housing with a mount for proper sized plumbing, pressure
sensor, and interconnecting J1939 data link cable.
Fire Engine
08/23/13
Page 125 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
2" SPEEDLAY(S)
There shall be two (2) 2" speedlay(s) located per the itemized compartment list. The speedslay(s) shall be
transverse of the apparatus body with access from either side.
Removable hose tray(s) shall be formed from 3/16" smooth aluminum with hand hold cut-outs on each end and
additional slotted opening the along length to allow for water drainage and ventilation. The hose tray(s) shall be
capable of sliding out either side with a roller mechanism to assist in loading and removal.
Each crosslay tray shall have a hose storage capacity of at least 200' of 1-3/4" double jacket hose and nozzle.
There shall be a red vinyl cover installed over the speedlays, one (1) on each side.
•
Two (2) of the discharge(s) shall flow water only.
•
Two (2) Akron Brass 8600 series, actuated type 2" valve(s). Each valve shall be equipped with a Class 1
stainless steel weld type valve adapter on inlet side, and discharge side with drain port.
−
The specified Akron valve(s) shall be configured for handwheel gear actuation.
−
An Akron portrait layout handwheel actuator with NFPA compliant valve position indicator shall be located
on the pump operator's panel.
•
There shall be a 2" NSTF x 1-1/2" NSTM chrome plated 90 degree swivel elbow provided.
•
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve(s) with lift type handle
which can be opened under pressure, with color coded label shall be provided. Valves shall be located on
bottom of pump panel and plumbed to drain the lowest point in the plumbing.
•
Two (2) Fire Research Insight model FPA402 combination digital flowmeter and pressure indicator kit(s) with
blue backlighting and color coded bezel shall be provided. The kit shall include a flowmeter/pressure display
module, paddlewheel flow sensor, flow sensor housing with a mount for proper sized plumbing, pressure
sensor, and interconnecting J1939 data link cable.
Fire Engine
08/23/13
Page 126 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
DECK GUN
There shall be one (1) 3" gated discharge located on the upper deck above the pump compartment. Piping shall
rise high enough for a mounted deluge gun to be operated in a 360 degree circle to a lower angle of 15 degrees
without being impeded by any part of the apparatus or equipment.
The discharge plumbing shall terminate as required by deck gun model. The discharge shall include:
•
One (1) of the discharge(s) shall flow water only.
•
One (1) Akron Brass 8600 series, actuated type 3" valve(s). Each valve shall be equipped with a Class 1
stainless steel weld type valve adapter on inlet side, and discharge side with drain port.
−
Akron valve(s) shall be controlled with a remote handwheel connected to the gear actuated valve. The
handwheel actuator with portrait layout position indicator shall be located on the pump operator's panel.
−
An Akron portrait layout handwheel actuator with NFPA compliant valve position indicator shall be located
on the pump operator's panel.
•
One (1) Innovative Controls model 3003000, ¾” brass 90 degree ball type drain valve with lift handle fitting
and color coded labels shall be provided for the above plumbing item. The valve shall be able to manually
open the drain valve when the line is under pressure and will be located on pump panel and plumbed to drain
the lowest point in the plumbing.
•
One (1) Fire Research Insight model FPA402 combination digital flowmeter and pressure indicator kit(s) with
blue backlighting and color coded bezel shall be provided. The kit shall include a flowmeter/pressure display
module, paddlewheel flow sensor, flow sensor housing with a mount for proper sized plumbing, pressure
sensor, and interconnecting J1939 data link cable.
DECK GUN MONITOR
An Akron Apollo model 3423 lift-off style deck monitor with 1,250 GPM capacity, manually controlled deck gun
shall be provided with completed unit with following features;
•
•
•
Vertical travel from 90° above to 15° below horizontal, with built-in 35° safety stop
3" waterway with cast-in turning vanes for efficient flow
Direct mount - a combination 3" NPT female and 3" flange
TELESCOPING WATERWAY - MANUAL
The specified deck gun shall be mounted on a TFT model XG18VL-PL 18" manually telescopic waterway. For
storage, it can be lowered to deck level, or raised to its extended position (12 or 18 extra inches) (30.5 or 45.7
extra cm) by lifting the quick release and raising by hand until the non-rotating pipe locks into position. This gives
greater clearance of other equipment on the apparatus, greater freedom of movement and allows a more
comfortable operating position. The Extend-A-Gun offers a full 3” waterway, hardcoat anodized finish, and built-in
sensor for connection to “monitor raised” light or truck open compartment warning.
STACKED TIPS
The specified deck gun shall be provide with an Akron model 2499 quad stacked deluge tips, and an Akron model
3488, 3-1⁄2” F x 3” M cast discharge pipe.
GROUND BASE
The specified deck gun shall be provide with an Akron model 3423 ground base, with dual 2-1/2" inlets.
Fire Engine
08/23/13
Page 127 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
TANK FILL VALVE
There shall be one (1) 2" tank fill valve plumbed with 2" plumbing from the pump to the tank. Installation shall be
completed with 2" rubber hose and stainless steel hose couplings. The tank fill valve shall be controlled from the
operator's control panel.
•
One (1) Akron Brass 8800 series, manual type 2" (52 mm) valve(s). Each valve shall be equipped with a
brass type valve adapter on inlet side, and discharge side with drain port.
−
Valve(s) shall be controlled with a push/pull type chromed "T" handle with adjustable linkage connected to
the valve. The control handle shall be located adjacent to the plumbing connection.
PUMP PANEL
The pump controls shall be mounted on an aluminum control panel which shall have a black powder coat painted
finish. The panel shall be hinged, or bolted in place allowing it to be easily removed to gain access to plumbing
components.
PUMP PANEL LOCATION
The pump control panel shall be side mounted.
The pump panel shall include the following items;
PUMP PANEL ACCESS
The pump panel shall be open to the side of the truck. The Pump Operator shall NOT be required to open a
compartment door to access the pump control panel.
The streetside pump panel shall be horizontally hinged at the top to allow for maintenance access only.
Fire Engine
08/23/13
Page 128 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
PRESSURE GOVERNOR and ENGINE MONITORING DISPLAY
A Fire Research PumpBoss series PBA400-A00 pressure governor and monitoring display kit shall be installed.
The kit shall include a control module, intake pressure sensor, discharge pressure sensor, and cables. The
control module case shall be waterproof and have dimensions not to exceed 6 3/4" high by 4 5/8". The control
knob shall be 2" in diameter with no mechanical stops, have a serrated grip, and a red idle push button in the
center. It shall not extend more than 1 3/4" from the front of the control module. Inputs for monitored engine
information shall be from a J1939 databus or independent sensors. Outputs for engine control shall be on the
J1939 databus or engine specific wiring. Inputs from the pump discharge and intake pressure sensors shall be
electrical.
The following continuous displays shall be provided:
•
•
•
•
•
•
•
•
•
Engine RPM; shown with four daylight bright LED digits more than 1/2" high
Check engine and stop engine warning LEDs
Engine oil pressure; shown on a dual color (green/red) LED bar graph display
Engine coolant temperature; shown on a dual color (green/red) LED bar graph display
Transmission Temperature: shown on a dual color (green/red) LED bar graph display
Battery voltage; shown on a dual color (green/red) LED bar graph display
Pressure and RPM operating mode LEDs
Pressure / RPM setting; shown on a dot matrix message display
Throttle ready LED.
A dot-matrix message display shall show diagnostic and warning messages as they occur. It shall show
monitored apparatus information, stored data, and program options when selected by the operator. All LED
intensity shall be automatically adjusted for day and night time operation.
The program shall store the accumulated operating hours for the pump and engine to be displayed with the push
of a button. It shall monitor inputs and support audible and visual warning alarms for the following conditions:
•
•
•
•
•
•
•
•
High Battery Voltage
Low Battery Voltage (Engine Off)
Low Battery Voltage (Engine Running)
High Transmission Temperature
Low Engine Oil Pressure
High Engine Coolant Temperature
Out of Water (visual alarm only)
No Engine Response (visual alarm only).
The program features shall be accessed via push buttons located on the front of the control module. There shall
be a USB port located at the rear of the control module to upload future firmware enhancements.
The governor shall operate in two control modes, pressure and RPM. No discharge pressure or engine RPM
variation shall occur when switching between modes. A throttle ready LED shall light when the interlock signal is
recognized. The governor shall start in pressure mode and set the engine RPM to idle. In pressure mode the
governor shall automatically regulate the discharge pressure at the level set by the operator. In RPM mode the
governor shall maintain the engine RPM at the level set by the operator except in the event of a discharge
pressure increase. The governor shall limit a discharge pressure increase in RPM mode to a maximum of 30 psi.
Other safety features shall include recognition of no water conditions with an automatic programmed response
and a push button to return the engine to idle.
The pressure governor and monitoring pressure display shall be programmed at installation for a specific engine.
Fire Engine
08/23/13
Page 129 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
MASTER DISCHARGE GAUGE
There shall be one (1) Innovative Controls 4" liquid filled gauge which shall display the Master Discharge
Pressure.
MASTER INTAKE GAUGE
There shall be one (1) Innovative Controls 4" liquid filled gauge which shall display the Master Intake Pressure.
−
This gauge(s) shall have a white background with black text.
−
The above gauge(s) shall have a range from -30" to 600 psi.
COLOR CODED LABELS
The completed unit shall have color coded labels for each intake, discharge, master gauges, and drains. Labels
shall be manufactured from an acrylic poly material with the text of each label engraved in the top surface.
PUMP PANEL LIGHTING
All gauges and controls on the pump operators’ panel shall be adequately illuminated by a shielded light
assembly with OnScene Solutions LED type lights. The lights shall be activated by a weather-proof type switch on
the pump operators’ panel as well as automatically when pump is engaged. This switch shall also activate any
area step lighting.
PUMP PANEL AIR HORN SWITCH
A switch to activate the cab/chassis air horn(s) shall be provided on pump panel. Switch shall be constantly
illuminated and labeled.
TEST TAPS
Test taps for pump intake and pump pressure shall be provided on the pump instrument panel and be properly
labeled.
DIGITAL FLOWMETER REMOTE
A Fire Research Insight model DFA400-000 digital flowmeter remote display module shall be installed and used
to total all discharge flows. The flowmeter case shall be waterproof, manufactured of anodized machined
aluminum, and have dimensions not to exceed 3 1/4" high by 3 1/4" wide by 2 1/2" deep. It shall have an LED
display with super bright digits more than 1/2" high.
The remote display shall receive input information over a datalink from a Fire Research Insight primary display. It
shall mirror the primary display or be programmable for summing and accumulating functions. A 10' cable shall be
provided to connect the datalink. The remote indicator shall have the same program as the primary so that the
two indicators are interchangeable.
Fire Engine
08/23/13
Page 130 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
POLY WATER TANK
The water tank capacity shall be approximately 500 US gallon or 4164 Imperial gallons. Certification of the tank
capacity shall be recorded on the manufacturer's record of construction and shall be provided to the purchaser
upon delivery of the apparatus.
CONSTRUCTION
The tank must be designed and fabricated by a tank manufacturer that is ISO 9001:2008 certified. The ISO
certification must be to the current standard in effect at the time of the design and fabrication of the tank.
The water tank shall be of a specific configuration and designed to be completely independent of the body and
compartments. Joints and seams shall be fused using nitrogen gas as required and tested for maximum strength
and integrity. The tank construction shall include PolyProSeal™ technology wherein a sealant shall be installed
between the plastic components prior to being fusion welded. This sealing method will provide a liquid barrier
offering leak protection in the event of a weld compromise. The top of the booster tank is fitted with removable
lifting assembly designed to facilitate tank removal. The transverse and longitudinal swash partitions shall be
manufactured of a minimum of 3/8" PT3™ polypropylene. All partitions shall be equipped with vent and air holes
to permit movement of air and water between compartments. The partitions shall be designed to provide
maximum water flow. All swash partitions interlock with one another and are completely fused to each other as
well as to the walls of the tank. All partitions and spacing shall comply with NFPA 1901. The walls shall be welded
to the floor of the tank providing maximum strength as part of the tank’s unique Full Floor Design™. Tolerances in
design allow for a maximum variation of 1/8” on all dimensions.
WATER FILL TOWER AND COVER
The tank shall have a combination vent and manual fill tower. The fill tower shall be constructed of 1/2" PT3™
polypropylene and shall be a minimum dimension of 8" x 8" outer perimeter. The fill tower shall be blue in color
indicating that it is a water-only fill tower. The tower shall be located in the left front corner of the tank unless
otherwise specified by the tank manufacturer to the purchaser. The tower shall have a 1/4" thick removable
polypropylene screen and a PT3™ polypropylene hinged cover. The capacity of the tank shall be engraved on the
top of the fill tower lid. Inside the fill tower there shall be a combination vent/overflow pipe. The vent overflow shall
be a minimum of schedule 40 polypropylene pipe with a minimum I.D. of 4" that is designed to run through the
tank, and shall be piped to discharge water behind the rear wheels as required in NFPA 1901 so as to not
interfere with rear tire traction.
The tank cover shall be constructed of 1/2" thick PT3™ polypropylene and UV stabilized, to incorporate a multipiece locking design, which allows for individual removal and inspection if necessary. The tank cover(s) shall be
flush or recessed 3/8" from the top of the tank and shall be fused to the tank walls and longitudinal partitions for
maximum integrity. Each one of the covers shall have hold downs consisting of 2" minimum polypropylene dowels
spaced a maximum of 40” apart. These dowels shall extend through the covers and will assist in keeping the
covers rigid under fast filling conditions. A minimum of two lifting dowels shall accommodate the necessary lifting
hardware.
SUMP
There shall be one (1) sump standard per tank. The sump shall be constructed of a minimum of 1/2" PT3™
polypropylene and be located in the left front quarter of the tank, unless specified otherwise. On all tanks that
require a front suction, a 3" schedule 40 polypropylene pipe shall be installed that will incorporate a dip tube from
the front of the tank to the sump location. The sump shall have a minimum 3" N.P.T. threaded outlet on the
bottom for a drain plug per NFPA. This shall be used as a combination clean-out and drain. All tanks shall have
an anti-swirl plate located approximately 3” above the inside floor.
Fire Engine
08/23/13
Page 131 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
OUTLETS
There will be two (2) standard tank outlets: one for the tank-to-pump suction line, which shall be sized to provide
adequate water flow to the pump; and, one for tank fill line, which shall be sized according to the NFPA minimum
size chart for booster tanks. All tank fill couplings shall be backed with flow deflectors to break up the stream of
water entering the tank, and be capable of withstanding sustained fill rates of up to 1000 G.P.M. The addition of
rear suction fittings, nurse valve fittings, dump valve fittings, and through-the-tank sleeves to accommodate rear
discharge piping must be specified. All auxiliary outlets and inlets must meet all NFPA guidelines in effect at the
time of manufacture.
MOUNTING
The tank shall rest on the body cross members in conjunction with such additional cross members, spaced at a
distance that would not allow for more than 530 square inches of unsupported area under the tank floor. In cases
where overall height of the tank exceeds 40 inches, cross member spacing must be decreased to allow for not
more than 400 square inches of unsupported area.
The tank must be isolated from the cross members through the use of hard rubber strips with a minimum
thickness and width dimension of 1/4” x 1” and a Shore A Hardness of approximately 60 durometer. The rubber
must be installed so it will not become dislodged during normal operation of the vehicle. Additionally, the tank
must be supported around the entire bottom outside perimeter and captured both in the front and rear as well as
side to side to prevent tank from shifting during vehicle operation.
A picture frame type cradle mount with a minimum of 2" x 2" x 1/4” mild steel, stainless steel, or aluminum angle
shall be provided or the use of corner angles having a minimum dimension of 4" x 4" x 1/4” by 6” high are
permitted for the purpose of capturing the tank.
Although the tank is designed on a free floating suspension principle, it is required that the tank have adequate
vertical hold down restraints to minimize movement during vehicle operation. If proper retention has not been
incorporated into the apparatus hose floor structure, an optional mounting restraint system shall be located on top
of the tank, half way between the front and the rear on each side of the tank. These stops can be constructed of
steel, stainless steel or aluminum angle having minimum dimensions of 3" x 3" x 1/4” and shall be approximately
6” to 12” long. These brackets must incorporate rubber isolating pads with a minimum thickness of 1/4” inch and a
hardness of 60 durometer affixed on the underside of the angle. The angle should then be bolted to the body side
walls of the vehicle while extending down to rest on the top outside edge of the upper side wall of the tank. Hose
beds floors must be so designed that the floor slat supports extend full width from side wall to side wall and are
not permitted to drop off the edge of the tank or in any way come in contact with the individual covers where a
puncture could occur. Tank top must be capable of supporting loads up to 200 lbs per sq. foot when evenly
distributed. Other equipment such as generators, portable pumps, etc. must not be mounted directly to the tank
top unless provisions have been designed into the Poly-Tank® III for that purpose. The tank shall be completely
removable without disturbing or dismantling the apparatus structure.
CENTER OF GRAVITY
A center of gravity calculation shall be determined for each tank and provided as requested in order to provide the
apparatus manufacturer with the necessary data to design and certify the apparatus with respect to the NFPA
requirements regarding rollover stability.
Fire Engine
08/23/13
Page 132 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
WATER TANK LEVEL GAUGE
There shall be one (1) Fire Research TankVision model WLA200-A00 tank indicator level gauge provided. The kit
shall include an electronic indicator module, a pressure sensor, and a 10' sensor cable. The indicator shall show
the volume of water in the tank on nine (9) easy to see super bright LEDs. A wide view lens over the LEDs shall
provide for a viewing angle of 180 degrees. The indicator case shall be waterproof, manufactured of aluminum,
and have a distinctive blue label.
The program features shall be accessed from the front of the indicator module. The program shall support selfdiagnostics capabilities, self-calibration, and a datalink to connect remote indicators. Low water warnings shall
include flashing LEDs at 1/4 tank, down chasing LEDs when the tank is almost empty, and an output for an audio
alarm.
The indicator shall receive an input signal from an electronic pressure sensor. The sensor shall be mounted from
the outside of the water tank near the bottom. No probe shall place on the interior of the tank. Wiring shall be
weather resistant and have automotive type plug-in connectors.
UPF POLY WATER TANK WARRANTY
The UPF poly water tank shall be provided with a lifetime material and workmanship limited warranty. The
manufacturer shall supply details of their warranty information with their bid submission.
Fire Engine
08/23/13
Page 133 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
HOSE BED STORAGE AREA
Hose bed storage area shall be located over water tank and body, and shall exit at the rear of the apparatus. The
interior of storage area shall be free from all projections such as nuts, sharp angles, or brackets that may damage
equipment.
Hose bed shall be laid out as follows;
•
•
•
•
•
Far Left Side:
Left Side:
Left Center:
Right Center:
Far Right:
200” of 3" Pre-connect
750’ of 2-1/2”
750’ of 2-1/2”
1,000’ of 5" supply hose
300’ of 2-1/2” Pre-connect, with space available for a Blitz Fire Monitor
Additional hose storage will be as follows:
•
•
Front Bumper:
Crosslays:
150’ of 1 ¾” in a flat or triple flat load
200' of 1-3/4" Pre-connect, each
ALUMINUM HOSE BED DECKING
The hose bed deck shall be constructed from 3" x 3/4" hollow aluminum extrusions welded into a one-piece grid
to allow ventilation and water drainage. The extrusions shall have a radiused ribbed top surface. The deck will be
completely removable for easy access to the booster tank. The booster tank fill tower shall be protected as
necessary to prevent damage from equipment located in the storage area.
HOSE BED FULL WIDTH STEP
A full width x 10" deep step shall be provided at end of hose bed to assist in loading/un-loading hose. Step shall
be formed from 3/16" NFPA compliant treadplate. Required rear DOT lights shall be recessed into step.
Four (4) adjustable aluminum hose bed partition(s) shall be provided in the hose storage area. The partition(s)
shall be 3/16" smooth aluminum with split aluminum tubing welded to the top and rear edges.
ALUMINUM HOSE BED COVER
A two-section hose bed cover shall be provided. Each door shall be fabricated from 1/8" NFPA aluminum
treadplate with formed hat sections for bracing. Doors shall be hinged along each side of the hose body using
stainless steel piano hinge. The top surface of each section shall slant down with the highest point in the center of
the hose bed area and shall be supported from underneath by at least one (1) adjustable hose bed divider.
Each section shall be constructed to support the weight of a person (300 lbs).
Each section shall utilize pneumatic cylinders to assist with opening and closing. There shall be a chrome grab
handle on each section at the rear of the hose body.
Each door shall have a horizontally mounted On Scene LED light on the underside of the door that will be
automatically activated when the door is opened and wired to the compartment door ajar warning light provided in
cab.
A vinyl hose bed flap shall be provided attached to each door and extend downward to bottom of hose bed to
protect hose and equipment from weather and dust. The center where both doors come together shall have a
Velcro seam to join two-pieces of vinyl together. Bottom of each flap shall be weighted for quick deployment of
hose. Vinyl color shall be color coordinated with upper vehicle colors unless specified otherwise.
Fire Engine
08/23/13
Page 134 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
EQUIPMENT PAYLOAD WEIGHT ALLOWANCE
In compliance with NFPA 1901 standards, the pumper shall be designed for an equipment loading allowance of
2,500 lbs. of Greeley Fire Department provided equipment based on the pumper body having more than 250 cu.
ft. of storage space.
EQUIPMENT
The following equipment shall be furnished with the completed pumper vehicle;
•
One (1) container of assorted stainless steel nuts, bolts, screws and washers used in the construction of the
apparatus shall be provided with the completed apparatus.
•
There shall be two (2) Zico SAC-44-E NFPA approved folding aluminum wheel chocks provided for 44"
diameter tires that together will hold the vehicle when loaded to its GVWR or GCWR, on a hard surface with a
20 % grade, with the transmission in neutral, and the parking brake released.
−
•
One (1) Duo-Safety 900-A series 24' 2-section extension ladder(s) shall be provided with the completed unit.
−
•
•
The ladder(s) shall be mounted on the specified ladder rack.
One (1) Nupla 8' Trash/Arson hook with fiberglass handle shall be provided with the completed unit.
−
The above specified pike pole will have a D handle attached
−
The trash hook(s) shall be mounted on the curbside rear wall of cab.
Four (4) Streamlight Fire Vulcan LED flashlight(s) shall be provided. Each flashlight shall be green in color
and have a 12 volt DC charger and vehicle mount kit. Each flashlight shall have an LED spotlight style bulbs
and reflectors. The flashlight(s) shall be wired to battery direct unless otherwise specified by Greeley Fire
Department.
−
•
The ladder(s) shall be mounted on the specified ladder rack.
One (1) Duo-Safety 775A series 14' aluminum roof ladder(s) shall be provided with the completed unit.
−
•
The wheel chock(s) shall be mounted in front of the rear wheels, below body on streetside.
The above specified flashlight(s) shall be shipped loose to SVI and will be located by the customer when
the chassis arrives at SVI..
Greeley Fire Department supplied NFPA required suction hose(s) shall be provided on completed unit before
placing vehicle in service.
−
The suction hose(s) shall be mounted on the specified ladder rack.
•
One (1) 6" NST low level jet siphon to match hard suction hose provided shall be provided and stored in
Compt. RC1 shelf.
•
One (1) Task Force Tips 500 GPM manual Blitzfire monitor model XXC-52 with automatic nozzle, stream
straightener, 3- stacked tips, 2-1/2" inlet, and apparatus mount shall be provided with completed unit.
−
The above specified fire adapter/appliance shall be mounted on the completed unit, located on the
streetside rear of the body and shall be preconnected to the far left 3" pre-connect.
Fire Engine
08/23/13
Page 135 of 136
Greeley Fire Department
SVI Trucks – Production Specifications
•
Greeley Fire Department supplied NFPA required fire hose and nozzles shall be provided on completed unit
before placing vehicle in service.
•
One (1) Akron Brass 448 wrench holder with two (2) style 46 spanners, and one (1) Akron Brass SS-MP
Super Spanners set with four (4) SS-525 spanner wrenches, shall be provided with completed unit.
−
The above specified wrench holder(s) shall be mounted on the completed unit, locations as per the
Greeley Fire Department.
REMAINING NFPA MINOR EQUIPMENT BY PURCHASER
All other minor equipment not specified above, but required by NFPA 1901, section 10.5.1 shall be supplied and
mounted by Greeley Fire Department before the unit is placed in emergency service.
Fire Engine
08/23/13
Page 136 of 136
