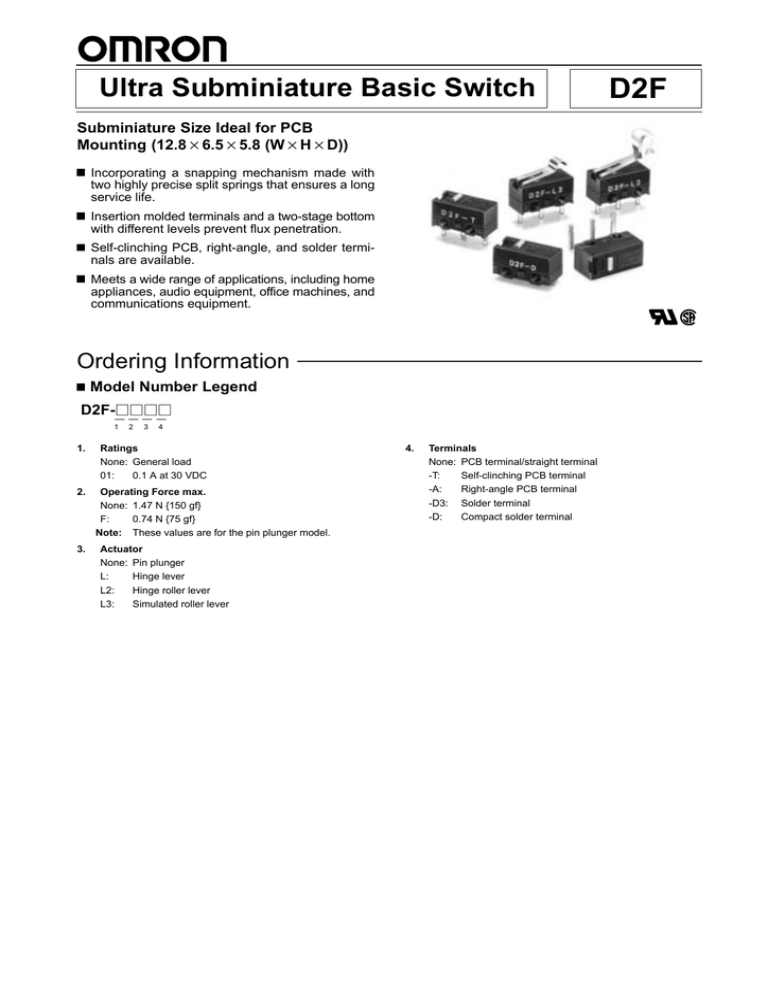

Ultra Subminiature Basic Switch
D2F
Subminiature Size Ideal for PCB
Mounting (12.8 6.5 5.8 (W H D))
Incorporating a snapping mechanism made with
two highly precise split springs that ensures a long
service life.
Insertion molded terminals and a two-stage bottom
with different levels prevent flux penetration.
Self-clinching PCB, right-angle, and solder terminals are available.
Meets a wide range of applications, including home
appliances, audio equipment, office machines, and
communications equipment.
RC
Ordering Information
Model Number Legend
D2F-jjjj
1
1.
2.
3.
2
3
4
Ratings
None: General load
01:
0.1 A at 30 VDC
Operating Force max.
None: 1.47 N {150 gf}
F:
0.74 N {75 gf}
Note: These values are for the pin plunger model.
Actuator
None: Pin plunger
L:
Hinge lever
L2:
Hinge roller lever
L3:
Simulated roller lever
4.
Terminals
None: PCB terminal/straight terminal
-T:
Self-clinching PCB terminal
-A:
Right-angle PCB terminal
-D3: Solder terminal
-D:
Compact solder terminal
D2F
D2F
List of Models
Actuator
Micro voltage/current load
Standard
0.1 A
Pin plunger
p g
Operating force (OF)
(see note)
Low operating
force 0.74 N {75 gf}
PCB terminals
D2F-01
D2F-F
D2F
D2F-01-T
D2F-F-T
D2F-T
Right-angle
terminals
D2F-01F-A
D2F-01-A
D2F-F-A
D2F-A
D2F-01F-D3
D2F-01-D3
D2F-F-D3
D2F-D3
D2F-01F-D
D2F-01-D
D2F-F-D
D2F-D
PCB terminals
D2F-01FL
D2F-01L
D2F-FL
D2F-L
Self-clinching
terminals
D2F-01FL-T
D2F-01L-T
D2F-FL-T
D2F-L-T
Right-angle
terminals
D2F-01FL-A
D2F-01L-A
D2F-FL-A
D2F-L-A
D2F-01FL-D3
D2F-01L-D3
D2F-FL-D3
D2F-L-D3
D2F-01FL-D
D2F-01L-D
D2F-FL-D
D2F-L-D
Compact solder
terminals
PCB terminals
D2F-01FL3
D2F-01L3
D2F-FL3
D2F-L3
Self-clinching
terminals
D2F-01FL3-T
D2F-01L3-T
D2F-FL3-T
D2F-L3-T
Right-angle
terminals
D2F-01FL3-A
D2F-01L3-A
D2F-FL3-A
D2F-L3-A
D2F-01FL3-D3
D2F-01L3-D3
D2F-FL3-D3
D2F-L3-D3
D2F-01FL3-D
D2F-01L3-D
D2F-FL3-D
D2F-L3-D
Solder terminals
Compact solder
terminals
PCB terminals
D2F-01FL2
D2F-01L2
D2F-FL2
D2F-L2
Self-clinching
terminals
D2F-01FL2-T
D2F-01L2-T
D2F-FL2-T
D2F-L2-T
Right-angle
terminals
D2F-01FL2-A
D2F-01L2-A
D2F-FL2-A
D2F-L2-A
D2F-01FL2-D3
D2F-01L2-D3
D2F-FL2-D3
D2F-L2-D3
D2F-01FL2-D
D2F-01L2-D
D2F-FL2-D
D2F-L2-D
Solder terminals
Compact solder
terminals
Note:
General-purpose
1.47 N {150 gf}
D2F-01F-T
Solder terminals
Hinge
g roller
l
lever
Low operating
force 0.74 N {75 gf}
D2F-01F
Compact solder
terminals
Simulated
roller
ll lever
l
3A
Self-clinching
terminals
Solder terminals
Hinge
g lever
General-purpose
1.47 N {150 gf}
1A
The OF values shown in the table are for the pin plunger models.
Specifications
Ratings
Item
D2F models
OF max.
1.47 N {150 gf}
(General-purpose)
D2F-01 models
0.74 N {75 gf}
(Low operating)
1.47 N {150 gf}
(General-purpose)
Resistive load
Rated voltage
Note:
125 VAC
3A
1A
---
30 VDC
2A
0.5 A
0.1 A
1. Consult your OMRON representative before using the Switch with inductive or motor loads.
2. The ratings values apply under the following test conditions:
Ambient temperature: 20±2°C
Ambient humidity: 65±5%
Operating frequency: 30 operations/min
0.74 N {75 gf}
(Low operating)
D2F
D2F
Characteristics
Operating speed
1 to 500 mm/s (at pin plunger models)
Operating frequency
Mechanical: 200 operations/min
Electrical: 30 operations/min
Insulation resistance
100 MΩ min. (at 500 VDC)
Contact resistance
(initial value)
D2F models:
D2F-F models:
D2F-01 models:
Dielectric strength
600 VAC, 50/60 Hz for 1 min between terminals of the same polarity
1,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground (see note 1), and
between each terminal and non-current-carrying metal part
Vibration resistance
(see note 2)
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance
(see note 2)
Destruction: 1,000 m/s2 {approx. 100G} max.
Malfunction: 300 m/s2 {approx. 30G} max.
Life expectancy
Mechanical: 1,000,000 operations min. (Refer to Engineering Data.)
Electrical: 30,000 operations min. (Refer to Engineering Data.)
Degree of protection
IP00
Degree of protection against
electric shock
Class I
Proof tracking index (PTI)
175
Ambient temperature
Operating: –25°C to 65°C (at ambient humidity of 60% max.) (with no icing)
Ambient humidity
Operating: 85% max. (for 5°C to 35°C)
Weight
Approx. 0.5 g (pin plunger models)
Note:
30 mΩ max.
50 mΩ max.
100 mΩ max.
1. The dielectric strength shown in the table indicates a value for models with a Separator.
2. For the pin plunger models, the values are at the free position and total travel position. For the lever models, they are at the total
travel position.
Approved Standards
Contact Form
UL1054 (File No. 41515)
CSA C22.2 No. 55 (LR21642)
Rated
voltage
D2F (generalpurpose)
SPDT
D2F (low
operating
force)
D2F-01
125 VAC
3A
1A
---
30 VDC
2A
0.5 A
0.1 A
Contact Specifications
Item
Contact
D2F models
Specification
Crossbar
Material
Silver alloy
Gap
(standard
value)
0.25 mm
Minimum applicable load
100 mA
at 5 VDC
COM
D2F-01 models
Gold alloy
1 mA at 5 VDC
NO
NC
D2F
D2F
Engineering Data
10,000
Ambient temperature: 20°±2°C
Ambient humidity:
65±5% max.
Without load
Operating frequency: 60 operations/min
7,000
Number of operations (x10 3)
Electrical Life Expectancy (D2F)
5,000
3,000
1,000
700
500
300
100
Ambient temperature: 20°±2°C
Ambient humidity:
65±5% max.
Without load
Operating frequency: 30 operations/min
300
Number of operations (x10 3)
Mechanical Life Expectancy (D2F, D2F-01)
100
125 VAC
50
30 VDC
30
20
10
0
OT (mm)
Switching current (A)
For details about the D2F-01, contact your
OMRON sales representative.
The values are for the pin plunger model.
Dimensions
Note:
All units are in millimeters unless otherwise indicated.
Terminals
PCB Terminals (Standard)
3.15
6.5±0.1
Self-clinching PCB Terminals
1.5
1.5
3.5
3.4
0.4
0.9
5.08
5.08
12.8±0.15
3.15
6.5±0.1
0.9
5.08
5.08
12.8±0.15
5.8±0.15
1.6±0.15
1.5
0.4±0.05
1.25±0.15
5.8±0.15
PCB Mounting Dimensions (Reference)
Right-angle PCB Terminals
2.54
5.8 ± 0.15
1.5
2.54
2.6±0.2
3.15
6.5±0.1
5.08
5.08
12.8±0.15
0.9
0.4
5.8±0.15
5.08 ± 0.1
3.1±0.2
12.8 ± 0.15
Solder Terminals
Compact Solder Terminals
1.5
0.5
1.5 2.4
3.5
2
3.15
6.5±0.1
5.08
5.08
12.8±0.15
Three,
1.2 dia. holes
1.2
2.2
3.15
0.4
5.8±0.15
Three, 0.8-dia. holes
6.5±0.1
5.08
5.08
12.8±0.15
1.6
0.4
5.8±0.15
D2F
D2F
Mounting Holes
Two , 2-dia. mounting holes
6.5 ± 0.15
Dimensions and Operating Characteristics
Note:
1. All units are in millimeters unless otherwise indicated.
2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
3. The following illustrations and drawings are for D2F models with PCB terminals. Self-clinching, solder, and right-angle terminals are
omitted from the following drawings. Refer to page 180 for these terminals. When ordering, replace j with the code for the terminal
that you need.
4. The operating characteristics are for operation in the A direction ( ).
Pin Plunger
D2Fj
D2F-01j
D2F-Fj
D2F-01Fj
12.7
1.2
+0.12
2.2 0
PT +0.12
20
dia. holes
5.2
A
dia.
5
2 +0.12
0
OF max.
1.47 N {{150 g
gf}}
0.74 N {75
{ gf}
g}
0.05 N {5 gf}
0.20 N {20 gf}
0.5 mm
1.5
OT min.
0.25 mm
3.5
MD max.
0.12 mm
OP
5.5±0.3 mm
0.4
5.8±0.15
Model
D2F-Lj
D2F-01Lj
D2F-FLj
D2F-01FLj
OF max.
0.78 N {{80 g
gf}}
0.25 N {{25 g
gf}}
RF min.
0.05 N {5 gf}
0.02 N {2 gf}
OT min.
0.55 mm
MD max.
0.5 mm
FP max.
10 mm
OP
6.8±1.5 mm
12.8
(10.8)
t = 0.3 (see note)
3
A
FP
OP
Note:
D2F-L3j
D2F-01L3j
D2F-FL3j
D2F-01FL3j
D2F-Fj
D2F-01Fj
PT max.
Hinge Lever
Simulate Roller Lever
D2Fj
D2F-01j
RF min.
5.08
5.08
12.8±0.15
D2F-Lj
D2F-01Lj
D2F-FLj
D2F-01FLj
Model
OP
0.9
6.5±0.1
3.15
5.7
2.9
12.7
(7.5)
10
Stainless-steel lever
A
t = 0.3 (see note)
2.1
3
1.3R
OP
Note:
FP
Stainless-steel lever
Model
D2F-L3j
D2F-01L3j
OF max.
0.78 N {{80 g
gf}}
0.39 N {{40 g
gf}}
RF min.
0.05 N {5 gf}
0.02 N {2 gf}
OT min.
0.5 mm
MD max.
0.45 mm
FP max.
13 mm
OP
8.5±1.2 mm
D2F-FL3j
D2F-01FL3j
D2F
D2F
Hinge Roller Lever
D2F-L2j
D2F-01L2j
D2F-FL2j
D2F-01FL2j
12.8
Model
D2F-L2j
D2F-01L2j
OF max.
0.78 N {{80 g
gf}}
0.39 N {{40 g
gf}}
RF min.
0.05 N {5 gf}
0.02 N {2 gf}
OT min.
0.55 mm
MD max.
0.5 mm
FP max.
16.5 mm
OP
13±2 mm
4
(10)
A 4.8 dia. × 2.8 (Resin roller)
(4.6)
t = 0.3
(see
note)
4
OP FP
Note:
D2F-FL2j
D2F-01FL2j
Stainless-steel lever
Precautions
Cautions
Terminal Connection
When soldering the lead wire to the terminal, first insert the lead wire
conductor through the terminal hole and then conduct soldering.
Make sure that the capacity of the soldering iron is 30 W maximum
(temperature of soldering iron: 350°C max.). Do not take more than
3 s to solder the switch terminal.
If soldering is not carried out under the proper conditions there is a
danger of over-heating and subsequent heat damage.
Applying a soldering iron for more than 3 s or using one that is rated
at more than 30 W may deteriorate the Switch characteristics.
When soldering the lead wire to the PCB terminal, pay careful attention so that the flux and solder liquid level does not exceed the PCB
level.
Using Micro Loads
Using a model for ordinary loads to open or close the contact of a
micro load circuit may result in faulty contact. Use models that operate in the following range. However, even when using micro load
models within the operating range shown below, if inrush current occurs when the contact is opened or closed, it may increase contact
wear and so decrease life expectancy. Therefore, insert a contact
protection circuit where necessary.
The minimum applicable load is the N-level reference value. This
value indicates the malfunction reference level for the reliability level of 60% (λ 60). The equation, λ 60 = 0.5 10–6/operations indicates that the estimated malfunction rate is less than 1/2,000,000
operations with a reliability level of 60%.
Correct Use
Voltage (V)
Refer to pages 26 to 33 for common precautions.
Mounting
Turn OFF the power supply before mounting or removing the
Switch, wiring, or performing maintenance or inspection. Failure to
do so may result in electric shock or burning.
Use M2 mounting screws with plane washers or spring washers to
securely mount the Switch. Tighten the screws to a torque of 0.08 to
0.1 N•m {0.8 to 1 kgf•cm}.
Mount the Switch onto a flat surface. Mounting on an uneven surface may cause deformation of the Switch, resulting in faulty operation or breakage in the housing.
Operating range
for micro load
models D2F-01
Operating
range for
general-load
models
D2F
Inoperable
range
Operating Stroke Setting
Take particular care in setting the operating stroke for the pin plunger models. Make sure that the operating stroke is 70% to 100% of
the rated OT distance. Do not operate the actuator exceeding the
OT distance, otherwise the life expectancy of the Switch may be
shortened.
Current (mA)
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. B036-E1-07B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
