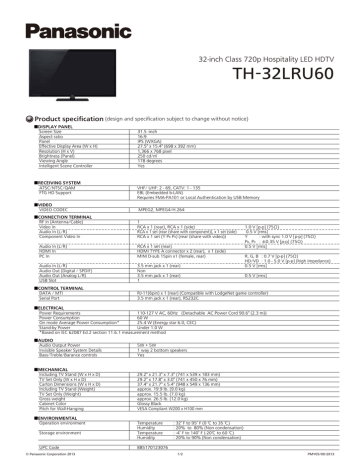

TH-32LRU60
32-inch Class 720p Hospitality LED HDTV
TH-32LRU60
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size
Aspect ratio
Panel
Effective Display Area (W x H)
Resolution (H x V)
Brightness (Panel)
Viewing Angle
Intelligent Scene Controller
■RECEIVING SYSTEM
ATSC/NTSC/QAM
FTG HD Support
■VIDEO
VIDEO CODEC
■CONNECTION TERMINAL
RF in (Antenna/Cable)
Video In
Audio In (L/R)
Component Video In
31.5 -inch
16:9
IPS (WXGA)
27.5" x 15.4" (698 x 392 mm)
1,366 x 768 pixel
250 cd/㎡
178 degrees
Yes
VHF/ UHF: 2 - 69, CATV: 1 - 135
EBL (Embedded b-LAN)
Requires FMA-PA101 or Local Authentication by USB Memory
MPEG2, MPEG4/H.264
1
RCA x 1 (rear), RCA x 1 (side)
RCA x 1 set (rear (share with component)), x 1 set (side)
RCA x 1 set (Y PB PR) (rear (share with video))
Audio In (L/R)
HDMI In
PC In
RCA x 1 set (rear)
HDMI TYPE A connector x 2 (rear), x 1 (side)
MINI D-sub 15pin x1 (female, rear)
Audio In (L/R)
Audio Out (Digital / SPDIF)
Audio Out (Analog L/R)
USB Slot
3.5 mm jack x 1 (rear)
Non
3.5 mm jack x 1 (rear)
1
■CONTROL TERMINAL
DATA / MTI
Serial Port
1.0 V [p-p] (75Ω)
0.5 V [rms]
Y
: with sync 1.0 V [p-p] (75Ω)
PB, PR : ±0.35 V [p-p] (75Ω)
0.5 V [rms]
R, G, B : 0.7 V [p-p] (75Ω)
HD/VD : 1.0 - 5.0 V [p-p] (high impedance)
0.5 V [rms]
0.5 V [rms]
RJ-11(6pin) x 1 (rear) (Compatible with LodgeNet game controller)
3.5 mm jack x 1 (rear), RS232C
■ELECTRICAL
110-127 V AC, 60Hz (Detachable AC Power Cord 90.6" (2.3 m))
Power Requirements
60 W
Power Consumption
On mode Average Power Consumption*
25.4 W (Energy star 6.0, CEC)
Under 1.0 W
Stand-by Power
*Based on IEC 62087 Ed.2 section 11.6.1 measurement method
■AUDIO
Audio Output Power
Invisible Speaker System Details
Bass/Treble/Barance controls
5W + 5W
1 way 2 bottom speakers
Yes
■MECHANICAL
Including TV Stand (W x H x D)
TV Set Only (W x H x D)
Carton Dimensions (W x H x D)
Including TV Stand (Weight)
TV Set Only (Weight)
Gross weight
Cabinet Color
Pitch for Wall-Hanging
29.2" x 21.3" x 7.3" (741 x 539 x 183 mm)
29.2" x 17.8" x 3.0" (741 x 450 x 76 mm)
37.4" x 21.7" x 5.4" (948 x 549 x 136 mm)
approx. 19.9 lb. (9.0 kg)
approx. 15.5 lb. (7.0 kg)
approx. 26.5 lb. (12.0 kg)
Glossy Black
VESA Compliant W200 x H100 mm
■ENVIRONMENTAL
Operation environment
Storage environment
UPC Code
© Panasonic Corporation 2013
Temperature
Humidity
Temperature
Humidity
:
:
:
:
32°
F to 95°F (0 ℃ to 35 ℃)
20% to 80% (Non condensation)
-4°F to 140°F (-20℃ to 60 ℃)
20% to 90% (Non condensation)
885170123076
1/2
PMY05/09/2013
TH-32LRU60
32-inch Class 720p Hospitality LED HDTV
MAIN FEATURE
ACCESSORIES
Yes
Yes
Yes
Yes
Image Viewer (JPEG playback),
Cloning
15/30/60/90 minutes
Initial INPUT
Initial Channel
Initial VOL level
Maximum VOL level
Button Lock
Power Control
VIERA LinkTM, HDAVI ControlTM
Integrated Pro:Idiom
Local Authentication
Welcome Image
USB Slot
OFF Timer
Hotel Mode
Included Accessories
Swivel Stand
(Rotate Angle : 30/60/90 degrees)
AC Power Cord 90.6" (2.3 m)
Antitheft Screw for Stand
Remote control transmitter
(N2QAYB000820)
Batteries for the Remote Control
Transmitter (AA Battery x 2)
Security Lockdown Screws
(Security Bit : Optional)
Operating Instruction
STANDARD (CERTIFICATIONS)
Safety Regulations
Radiation Regulations
ENERGY STAR 6.0, CEC
UL6500 Ver.2, cUL, BETS-7
FCC Part 15 Class-B, ICES-003
Yes
DIMENSIONS
Cautions: This drawing is not a scale
3.5 2.3
(87.9) (58)
Units : inches (mm)
Rotation angle of 30°
29.2 (741)
6.8
9.0
(170.6) (226.8)
28.5 (722.2)
3.0 (76)
Rotation angle of 60°
1.6
(38.9)
14.8
(374.9)
20.4 (516.9)
2.7
(68)
11.1 (279.9)
10.8
(273.2)
3.5
(88.7)
2.0 (50)
1.5 (36)
0.8 (20)
9.1 (232)
17.8 (450)
21.3 (539)
22.6 (574.1)
7.3 (183)
11.0 (277.9)
Rotation angle of 90°
<side>
11.2 (282.6)
<rear>
18.1 (458.4)
CONNECTION TERMINAL
6.9 (174.3)
© Panasonic Corporation 2013
2/2
PMY05/09/2013
