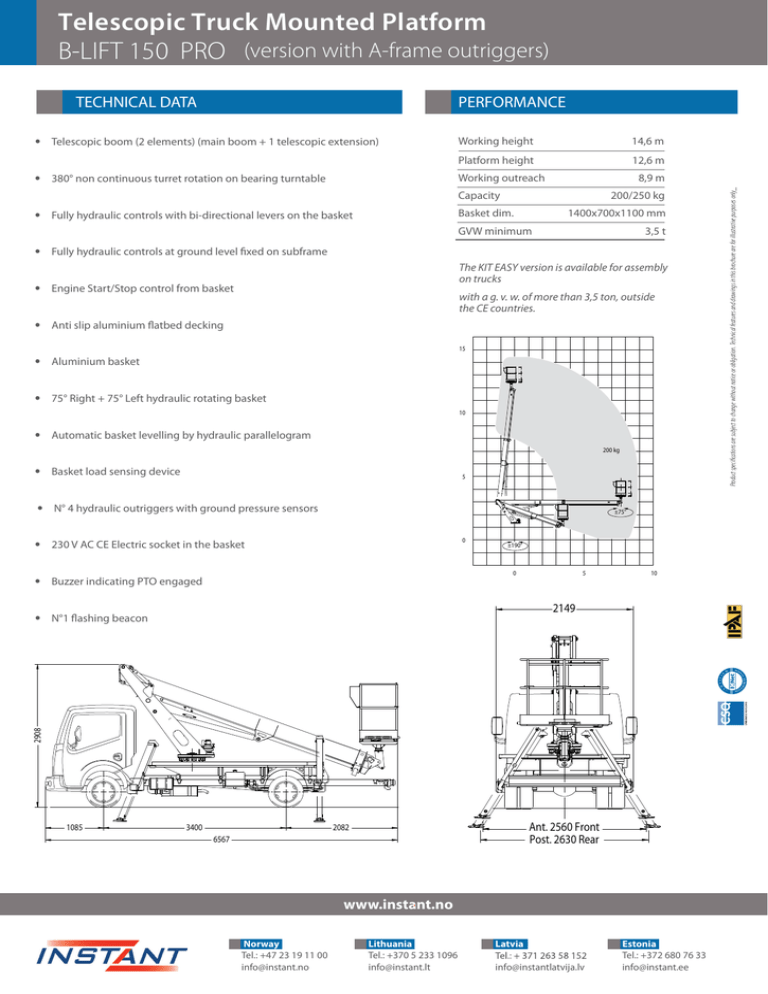

BLIFT-150 PRO

BLIFT-150 PRO
Telescopic Truck Mounted Platform
B-LIFT 150 PRO (version with A-frame outriggers)
PERFORMANCE
• Telescopic boom (2 elements) (main boom + 1 telescopic extension)
Working height
14,6 m
Platform height
12,6 m
Working outreach
• 380° non continuous turret rotation on bearing turntable
8,9 m
Capacity
200/250 kg
Basket dim.
• Fully hydraulic controls with bi-directional levers on the basket
1400x700x1100 mm
GVW minimum
3,5 t
• Fully hydraulic controls at ground level fixed on subframe
The KIT EASY version is available for assembly
on trucks
• Engine Start/Stop control from basket
with a g. v. w. of more than 3,5 ton, outside
the CE countries.
• Anti slip aluminium flatbed decking
15
• Aluminium basket
• 75° Right + 75° Left hydraulic rotating basket
10
• Automatic basket levelling by hydraulic parallelogram
200 kg
• Basket load sensing device
5
• N° 4 hydraulic outriggers with ground pressure sensors
±75°
0
• 230 V AC CE Electric socket in the basket
±190°
0
• Buzzer indicating PTO engaged
5
10
2149
2908
• N°1 flashing beacon
1085
3400
Ant. 2560 Front
Post. 2630 Rear
2082
6567
www.instant.no
Norway
Tel.: +47 23 19 11 00
[email protected]
Lithuania
Tel.: +370 5 233 1096
[email protected]
Latvia
[email protected]
Estonia
Tel.: +372 680 76 33
[email protected]
Product specifications are subject to change without notice or obligation. Technical features and drawings in this brochure are for illustrative purposes only_
TECHNICAL DATA
