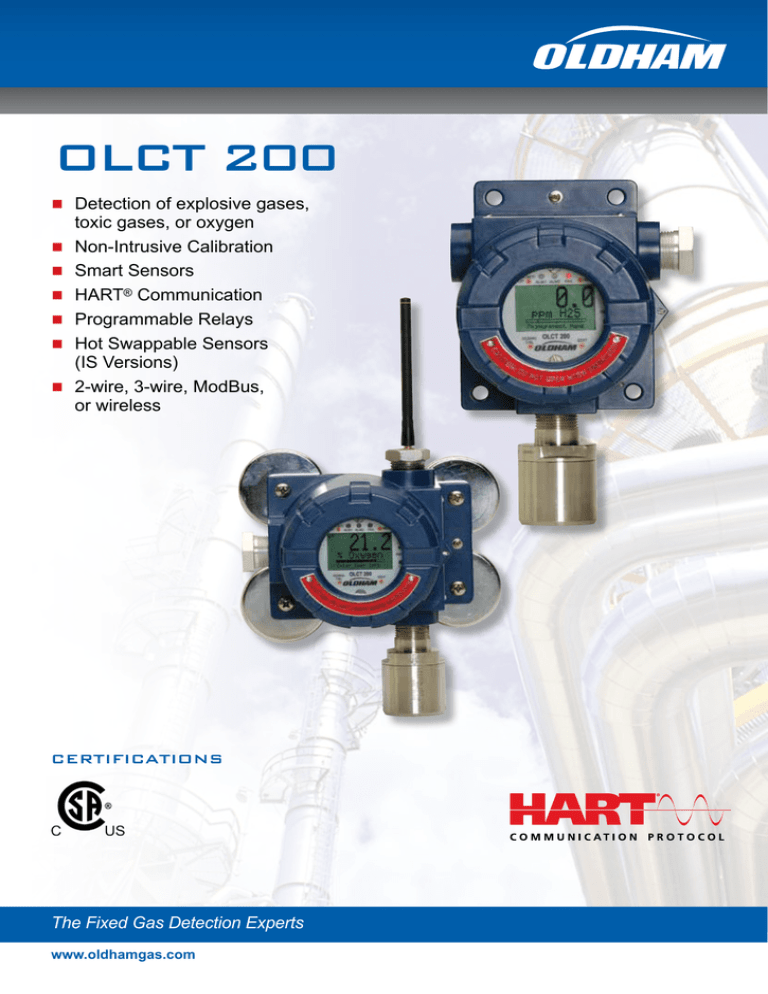

Fixed Gas Detector
OLCT 200
 Detection of explosive gases,
toxic gases, or oxygen
 Non-Intrusive Calibration
 Smart Sensors
 HART® Communication
 Programmable Relays

Hot Swappable Sensors
(IS Versions)
 2-wire, 3-wire, ModBus,
or wireless
CERTIFICATIONS
The Fixed Gas Detection Experts
www.oldhamgas.com
FEATURES
OLCT 200
APPLICATIONS
 Oil
and Gas Industry
Drilling
 Utilities and Power
 Petrochemical Industry
 Municipal Water and Waste Treatment
 Food and Beverage Production
 Offshore
RELIABLE
At OLDHAM, we understand the cost of equipment
downtime and false alarms, so we ensure all of our
products are designed with maximum reliability in mind.
 SIL
2 – Hardware assessed to be SIL 2 capable
mode allows for lockout of critical parameters
 “Fault Supervision” circuitry
 Programmable warm-up and cal delays to avoid
false alarms
 Security
VERSATILE
The OLCT 200 can be configured to meet nearly any
application through its state-of-the art features and
options.
 Explosion-proof
Intrinsically Safe
 HART®
 RS-485 ModBus
 Programmable Relays
2-wire, 3-wire Installations
 Wireless Communication
 Cold Climate Heater
Dual Gas Sensing
 Remote Sensing
 Large Sensor Offering—Electrochemical, Catalytic,
Infrared, and Photo Ionization Detection Sensors

EASY TO USE
The OLCT 200 is designed to offer the user convenient
features and ease of use.
IR SENSOR
 Smart
The infrared sensor provides detection of explosive
gases in more severe environmental conditions, where
the presence of poisons could harm the use of a
catalytic cell.
 Large



Methane
Carbon Dioxide
Propane



Propylene
Ethane
Methanol
Sensors
Graphical Display
 30min Trending
 Backlit LCD (excluding 2-wire)
 Non-Intrusive Calibration
 Split Screen Display (dual sensor option)
 Visual Alarm LEDs
Display Screens
Cross-reference factors are available for many other
common gases.
Main Screen
Trend Graph
Split Screen
WIRELESS
TECHNICAL SPECIFICATIONS
Wireless communication is becoming increasingly
popular in gas detection, and it is sometimes the only
way to ensure safety in existing infrastructure or remote
locations.
The OLCT 200 wireless option offers many benefits to
meet your application needs.
 900MHz
or 2.4GHz FHSS
 10mW – 1W Adjustable Tx Power
 CSA Div 1 and Div 2 Antennas
 256-bit Encryption
 Indoor Range up to 3000' (900 meters)
 Outdoor Range up to 10 miles (16 km)
 High Receiver Sensitivity
 Battery & Solar Powered Options
OLDHAM also offers a variety of wireless solutions
compatible with the OLCT 200, including wireless
controllers and solar-powered field monitors as well as
wireless repeaters and accessories.
Sensors
Combustible Gases: Catalytic, Infrared
Toxic / Oxygen: Electrochemical, PID
Detected Gases
See Ordering Guide
Material
Enclosure: Epoxy Coated Aluminum
Sensor: 316 Stainless Steel
Display
Backlit LCD (2-Wire models do not have backlight)
Input Voltage
10 - 30 VDC
Lithium-Ion Battery (select wireless models)
Power
Consumption
25mA @ 24VDC (EC Sensor)
100mA @ 24VDC (Cat, IR, PID Sensors)
+120mA @ 24VDC (for added energized relays)
+20mA @ 24VDC (for added RS-485 ModBus)
+210mA @ 24VDC (for added Arctic Heaters)
Ingress
Protection
NEMA 4X, IP66
Cable
2-wire, 3-wire, or 4-wire, shielded.
Max. cable loop 500Ω @ 24VDC (2-wire configs)
resistance
750Ω @ 24VDC (3-wire configs)
Output Signal
Standard: 4-20mA (analog), 2-wire (sink),
3-wire (source)
Optional 1: Dual Isolated 4-20mA (source)
Optional 2: RS-485 ModBus (9600 Baud)
Optional 3: Wireless (900MHz or 2.4 GHz)
Optional 4: HART® Protocol
Alarm Relays
(opt)
3 Relays (2 User Programmable, 1 Fault)
Form C (SPDT)
5 AMP @ 30VDC or 240 VAC "RESISTIVE"
Relays 1&2 are configurable for low and high
alarms, normally energized or normally deenergized, and latching or non-latching
Fault Relay is always normally energized
Wireless (opt)
900MHz or 2.4GHz FHSS
256-bit AES Encryption (meets FIPS-197)
10mW - 1W Adjustable Transit Power (900Mhz only)
Div 1 XP and Div 2 Configurable
Approvals
Consult factory for current approval status
CSA - Class 1, Div. 1, 2
- Groups A, B, C, D (2-wire config. only)
- Groups B, C, D (3-wire config. only)
IS barrier required for intrinsically safe installations!
SIL 2 - hardware SIL 2 capable per EN 61508
(exida)
Dimensions
5.0" (127mm) W x 7.8" (197mm) H x 5.1" (130mm) D
Shipping Weight Appox. 7 Lb (3.2 kg)
Operating
Temperature
-40°C to 60°C - (sensor specific)
WX4
Controller
WX16
Controller
WX64
Controller
ORDERING GUIDE
OLCT 200
ENCLOSURE MATERIAL
OLCT200-
so
r2
En
cl
M os
at ur
'l e
A
pp
ro
va
l
A
rc
H tic
ea
te
r
-
ARCTIC HEATER
A No Heater
B Arctic Heater
CONFIGURATION
Config
Code
Wiring
APPROVAL
ACSA
B ATEX (not yet available)
Se
n
r1
so
Se
n
C
on
fig
ur
at
io
n
A Aluminum (Epoxy Coated)
SENSOR 1
Dual
OnRS-485
Isolated
Wireless
HART®
Board
Location
ModBus
4-20mA Communication
Relays
Output
Type
SENSOR 2
Location
Type
GAS SENSORS
Gas sensors are available in the
following technologies:
Catalytic Bead
Electro-Chemical
Infrared
Photo-ionization Detection
Visit our website www.oldhamgas.com to
find a current listing of available sensors
for the OLCT 200.
NOTES
A*
2-Wire
n/a
On-Board
n/a
~
B**
3-Wire
n/a
On-Board
n/a
~
C**
3-Wire
n/a
Remote
n/a
~
D**
3-Wire

n/a
On-Board
n/a
~
E**
3-Wire

n/a
Remote
n/a
~
F**
3 or 4-Wire


n/a
On-Board
n/a
~
G**
3 or 4-Wire


n/a
Remote
n/a
~
H**
4-Wire
n/a
On-Board
On-Board
J**
4-Wire
n/a
On-Board
Remote

Calibration Adapter (P/N 10-0203)
K**
4-Wire


n/a
On-Board
On-Board

M**
4-Wire


n/a
On-Board
Remote
Splash Guard w/ Remote Cal
(P/N 10-0198)

Magnetic Mounting Kit (P/N 10-0319)

Duct Mount Kit (PVC) (P/N 10-0379)

Duct Mount Kit (Stainless Steel)
(P/N 10-0270)

Pole Mount Kit (P/N 10-0378)

Protective Cover (P/N 6123716)

Wall Mounted Collecting Cone
(P/N 6331169)

Ceiling Mounted Collecting Cone
(P/N 6331168)
N**
6-Wire

n/a
On-Board
On-Board
P**
6-Wire

n/a
On-Board
Remote
R**
Wireless
900MHz /
Battery
On-Board
n/a
• R
emote sensors do not have
Smart capability.
• Remote sensors cannot be
Electro-Chemical.
• W
ireless configurations come
standard with Div 2 omnidirectional
antenna. Div 1 omnidirectional and
other antennas available upon request.
• Intrinsically safe installations require
2-wire model and appropriate IS barrier,
such as P/N 10-0263.
ACCESSORIES
~
Wireless
900MHz /
10-30VDC
On-Board
n/a
~
T**
Wireless
900MHz /
10-30VDC
Remote
n/a
~
Intrinsically Safe Barrier (P/N 10-0263)
Wireless
2.4GHz /
Battery

U**
On-Board
n/a
~

CSA Sensor Head Tool (P/N 10-0187)
V**
Wireless
2.4GHz /
10-30VDC
On-Board
n/a
~
Consult factory for additional
antenna options.
W**
Wireless
2.4GHz /
10-30VDC
Remote
n/a
~
Consult factory for Div 2 quick
connectors and cable sets.
* can be installed as IS or XP (NH3 & HCl are IS only)
** XP install only (NH3 & HCl not available)
Consult factory for specific calibration
gas availability.
AMERICAS
www.oldhamgas.com
Tel.: +1-713-559-9280
Fax: +1-281-292-2860
[email protected]
EUROPE
Tel.: +33-3-21-60-80-80
Fax: +33-3-21-60-80-00
[email protected]
ASIA PACIFIC
Tel.: +86-21-3127-6373
Fax: +86-21-3127-6365
[email protected]
OLCT200_Lit_EN_10Aug2015
