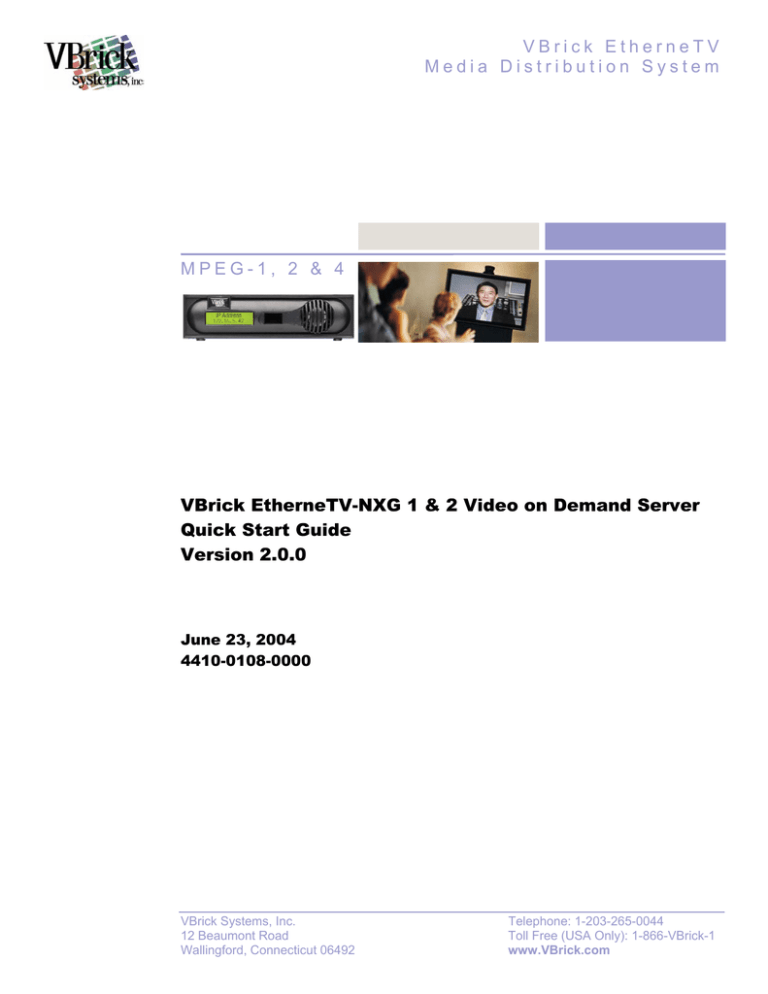

VBrick EtherneTV
Media Distribution System
MPEG-1, 2 & 4
VBrick EtherneTV-NXG 1 & 2 Video on Demand Server
Quick Start Guide
Version 2.0.0
June 23, 2004
4410-0108-0000
VBrick Systems, Inc.
12 Beaumont Road
Wallingford, Connecticut 06492
Telephone: 1-203-265-0044
Toll Free (USA Only): 1-866-VBrick-1
www.VBrick.com
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Copyright
VBrick Systems, Inc. copyrights this manual with all rights reserved. Under the copyright
laws, this manual may not be reproduced in any form, in whole or in part, without the prior
written permission of VBrick Systems, Inc.
 VBrick Systems, Inc., 2004
Disclaimer
VBrick Systems, Inc. has reviewed this manual to insure it is an easy-to-use guide. All
statements, technical information, and recommendations in this manual and in any guides or
related documents are believed to be reliable, but accuracy and completeness thereof are
not guaranteed or warranted and they are not intended to be, nor should they be understood
to be, representations or warrants concerning the products described. VBrick reserves the
right to make changes in the specifications of the product without notice and without
obligation to notify any person of such changes.
Trademarks
VBrick, VBrick Systems, StreamPlayer II, StreamPlayer Plus and StreamPlayer Plus are
registered trademarks of VBrick Systems, Inc. Other brand and product names may be
trademarks or registered trademarks of their respective owners.
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
2
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Table of Contents
COPYRIGHT........................................................................................................................................... 2
DISCLAIMER .......................................................................................................................................... 2
TRADEMARKS ........................................................................................................................................ 2
TABLE OF CONTENTS ............................................................................................................................. 3
QUICK START ....................................................................................................................................... 4
1. Unpack the EtherneTV-NXG1 Server. ........................................................................................ 4
2. Set up the EtherneTV-NXG Server ............................................................................................. 5
3. Configure the EtherneTV-NXG ................................................................................................... 6
Make required entries: .................................................................................................................. 7
Verify entries ................................................................................................................................. 8
4. Verify EtherneTV-NXG Server Operation..................................................................................... 8
Changing Time & Time Zone ...................................................................................................... 10
1: INTRODUCTION.............................................................................................................................. 11
Overview ........................................................................................................................................ 12
System Components...................................................................................................................... 12
2: USING THE ETHERNETV MEDIA CONTROL SERVER ................................................................ 13
ACCESS THE SERVER ........................................................................................................................... 13
Procedure (Version 1.0.0) ........................................................................................................... 13
Procedure (Version 2.0.0) ........................................................................................................... 14
ACCESSING MCS ................................................................................................................................ 14
DOWNLOAD COMPONENTS ................................................................................................................... 15
WATCH LIVE BROADCASTS ................................................................................................................... 15
BROWSE VIDEO LIBRARY ...................................................................................................................... 16
SCHEDULED PROGRAMS ...................................................................................................................... 16
BROWSE AND CONFIGURE ETHERNETV-NXG1 SYSTEM ......................................................................... 17
EtherneTV-NXG Administration ..................................................................................................... 17
HOW-TO INGEST CONTENT .................................................................................................................... 18
Instructions:.................................................................................................................................... 18
FTP FILES AND FILE INGESTION ............................................................................................................ 19
Instructions:................................................................................................................................. 19
AUTOMATIC FILE BACKUP ..................................................................................................................... 20
FILE BACKUP CAUTIONS ....................................................................................................................... 20
LICENSE KEY RE-INSTALLATION ............................................................................................................ 20
3: REFERENCE ................................................................................................................................... 21
OPERATION TIPS ................................................................................................................................. 21
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
3
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Quick Start
1. Unpack the EtherneTV-NXG1 Server.
Each shipment comes with:
•
An introduction letter
•
Quick Start Guide and Release Notes (located on CD-ROM 8250-0002-0000)
•
(1) EtherneTV-NXG system
•
Power cord
•
Rack mount kit (Kit type must be specified)
•
Recovery CDs and a floppy disk that contains the NXG license (do not lose)
NOTE: The server comes preloaded with the Operating System and VOD application
software. After the system is powered, a kick-start wizard will guide you through the initial
setup for permanent operation.
Before you Begin
Make sure that there is:
•
A separate PC running Internet Explorer
•
PS/2 mouse
•
Keyboard
•
Monitor or console
NOTE: If you have purchased an external storage device such as a SCSI attached DAS
it must be connected prior to powering up the NXG system.
Please obtain the following information for the EtherneTV-NXG before applying power to the
unit:
NOTE: Unix commands are case sensitive and should be entered as shown.
INFORMATION REQUIRED
Answer
Example
vbvodnxg
Hostname (that will be assigned to EtherneTV
VOD)
EtherneTV VOD IP address
Default gateway (router)
System network netmask
Broadcast IP address
Default network IP address
Domain name
DNS IP address
EtherneTV VOD serial number (from back of unit)
Server name (Not Applicable)
172.17.6.55
172.17.1.5
255.255.0.0
172.17.255.255
172.17.0.0
vb.loc
64.80.0.162
unused at this time
unused?
TABLE 1
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
4
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
2. Set up the EtherneTV-NXG Server
1. Connect monitor, keyboard and mouse on the back of the unit, following these steps:
NXG-1
2
3
1
NXG-2
1
3
2
•
If rack mounting the unit, mount the EtherneTV-NXG server in the rack, using the
rack mount kit provided.
•
Connect the EtherneTV-NXG server to the network by plugging the 10/100/1000
BaseT Ethernet cable into the Ethernet port 1c on the rear of the unit.
•
Connect the monitor cable to the video port at the back of the EtherneTV-NXG
server d. Turn the monitor on.
•
Connect a mouse and keyboard to the appropriate ports at the back of the
EtherneTV-NXG e
•
Plug the EtherneTV-NXG server into a power source, using the power cord
provided.
•
Turn the EtherneTV-NXG server’s main power on by pressing the power switch at
the front of the unit. f
4
•
C O P Y R I G H T
NOTE: the EtherneTV-NXG server will boot and automatically load using the default
settings – this may take several minutes.
V B R I C K
S Y S T E M S
P A G E
5
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
2. When booting is complete, type “Y” and Enter to continue.
Make sure the information from the “Before You Begin” section in the first part of this
procedure is available, then press Enter to continue.
Wait 5 to 8 minutes for the unit to fully power up.
3. Configure the EtherneTV-NXG
You will be prompted for the following information:
1. The system hostname
2. The system ip address
3. The default gateway ip-address
4. The system netmask
5. The default network ip-address
6. The system broadcast address
7. The system domain
8. The dns server ip-address
Quit now, if you do not have this information.
Continue?
Please enter y or n
Verify that the required information has been obtained from Table 1 before
proceeding:
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
6
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Make required entries:
NOTE: Unix commands are all lower case and can contain no spaces. Use an
underscore _ for separation. Use the values you determined in Table 1.
Enter the system’s new hostname in lowercase:
•
Enter the name of the host and Enter <cr>
•
Type “y” and and Enter <cr> to continue
Enter the system’s new IP address:
•
At the prompt, enter the IP address of the EtherneTV-NXG server and Enter <cr>
•
Type “y” and and Enter <cr> to continue
Enter the system’s new default route (gateway) ip-address:
•
At the prompt, enter the IP address of the default router and Enter <cr>
•
Type “y” and and Enter <cr> to continue
Enter the system’s new network netmask:
•
At the prompt, enter the network mask and Enter <cr>
•
Type “y” and and Enter <cr> to continue
Enter system’s new broadcast ip-address:
•
At the prompt, enter the broadcast IP address and Enter <cr>
•
Type “y” and and Enter <cr> to continue
Enter the system’s new default network ip-address:
•
At the prompt, enter the default network IP address and Enter <cr>
•
Type “y” and and Enter <cr> to continue
Enter the system’s new domain for the server:
•
At the prompt, enter the server’s domain name and Enter <cr>
•
Type “y” and and Enter <cr> to continue
Enter the system’s new DNS IP address:
C O P Y R I G H T
•
At the prompt, enter the DNS server’s IP address and Enter <cr>
•
Type “y” and and Enter <cr> to continue
V B R I C K
S Y S T E M S
P A G E
7
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Verify entries
The previous entries will be displayed.
•
Review the information you entered. If everything appears to be correct, type “y” and
Enter to continue. Otherwise, type “n” and repeat the setup process.
•
The EtherneTV-NXG server displays the configuration files it will update. Type “y”
then press Enter to continue. The changes will be displayed for each of the
following files. Review each, type “y” to accept, then press Enter to continue.
o
/etc/sysconfig/network
o
/etc/sysconfig/network-scripts
o
/etc/resolve.conf
o
ServerName in httpd.conf
•
When asked if you have completed reviewing the files to be updated, type “y” then
press Enter to continue.
•
Wait several minutes for setup to complete. A message will be displayed:
Done
Omnibase setup is complete; press enter to continue to login
•
Press Enter
•
Enter the login and password when prompted:
At the login prompt, type “root” then press Enter.
At the password prompt, type “omnibase” then press Enter.
•
NOTE: If you encounter an error during set-up or if the server is moved to
another network you MUST perform the following operation:
Rename the setup file as follows:
root# mv /opt/vbricksetup/.vbrickmbase_is_setup
/opt/vbricksetup/.vbrickmbase_is_not_setup
Reboot the server
root# reboot
4. Verify EtherneTV-NXG Server Operation
Verify that there is an amber link light on the EtherneTV-NXG server’s Ethernet port.
•
From the Linux Administrator command line: Ping the local gateway IP address.
Example: ping 172.17.1.5 (use your appropriate local gateway IP address)
•
From a separate PC: Ping the EtherneTV-NXG server from a PC using the
EtherneTV-NXG1 IP address.
Example: ping 172.17.6.55 (use the IP address of your EtherneTV-NXG server)
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
8
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
NOTES:
•
CRITICAL NOTE: The IP address of the EtherneTV-NXG server must be made as a
hostname entry in the DNS server in order for the server to be recognized by
desktop clients through its domain name (ie: http://vb.loc), rather than using the IP
address (ie: http://172.17.6.55).
•
For test purposes, the MIS Administrator can change the necessary DNS (host)
entry in the local PC hosts file. Modify the “hosts” file on the local PC to resolve the
EtherneTV-NXG IP address with
the actual hostname:
o
Search for the file named
“hosts” on the local PC c.
NOTE: If there is more
than one file named
“hosts” select the file
located in the
Windows/System or
Windows/system32
folder.
o
Modify the file by using
the right mouse button to
choose the “Open” or
“Open With” selection to
use Wordpad or Notepad to make the necessary entry highlighted in boldd.
2
# Copyright (c) 1993-1999 Microsoft Corp.
#
# This is a sample HOSTS file used by Microsoft TCP/IP for Windows.
#
# This file contains the mappings of IP addresses to host names. Each
# entry should be kept on an individual line. The IP address should
# be placed in the first column followed by the corresponding host name.
# The IP address and the host name should be separated by at least one
# space.
#
# Additionally, comments (such as these) may be inserted on individual
# lines or following the machine name denoted by a '#' symbol.
#
# For example:
#
#
102.54.94.97 rhino.acme.com
# source server
#
38.25.63.10 x.acme.com
# x client host
172.17.6.55
C O P Y R I G H T
V B R I C K
1
S Y S T E M S
vbvodnxg1
P A G E
9
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Changing Time & Time Zone
When the EtherneTV-NXG is working in conjunction with the EtherneTV-MCS Media Control
Server, in order for the time to appear correctly, it is necessary to set the time zone to match
that of the EtherneTV-MCS server.
In order to manually change the time zone, follow the directions below to edit the
/etc/sysconfig/clock file and then make a new soft link to /etc/localtime.
1)From the Linux prompt, type "startx<cr>". This launches the Red Hat graphical user
interface.
2)Open a command line interface from the GUI
3)Type /etc/init.d/mediabase stop
4) At the lower right corner of the screen, right click on the "time" and select "Adjust Date &
Time"
5) From the pull-down menu, select the time zone you are in. For example,
"America/Detroit", then click "apply and "OK" to close the window. Adjust the time as
needed.
6) Return to the command line interface and type /etc/init.d/mediabase start
7) At the lower left corner of the screen, right click on the "Red Hat" icon and select "logout"
and click on the "Logout" button to return to the Linux prompt.
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
1 0
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
CHAPTER one
1: Introduction
ICON KEY
Important
Information
V
Brick's EtherneTV-NXG server has been integrated with the EtherneTV family of
products including the EtherneTV-MCS Media Control Server, MPEG-1/2/4
streaming encoders, Windows-based desktop computers (future Apple MAC
support for MPEG-4 only) and the EtherneTV-STB. The EtherneTV-NXG delivers
stored MPEG assets as unicast streams (with full VCR-like functionality such as
Stop/Pause/Play/FF/Rew) across an Ethernet network. The EtherneTV-NXG is built on a
DELL hardware platform. Other features include the ability to schedule asset playback,
asset searching, user and system statistics, plus much more. EtherneTV-MCS is required
to gain the full benefits of the EtherneTV-NXG server and is sold separately.
In order to set up the EtherneTV MCS server, please follow the directions in the EtherneTV
MCS Administrator’s Guide. Once the EtherneTV MCS server is setup and configured, then
end users can access video the EtherneTV-NXG server through the MCS web interface.
VBrick uses its own software-based components to decode streams on the desktop. There is
no client side software to install. The EtherneTV-MCS automatically downloads components
to the desktop PC upon the user’s initial access to the system.
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
1 1
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Overview
System Components
These are the main components that together make up VBrick’s EtherneTV Media
Distribution System:
•
The EtherneTV-NXG Video on Demand Server. (NXG1 or 2)
•
The EtherneTV-MCS Media Control System. (MCS)
•
VBrick MPEG-1, MPEG-2 encoder/decoders and MPEG-4 encoders.
•
Standard Windows PCs can be used by end users for both administrative
control and content access.
•
VBrick EtherneTV-STB Set Top Boxes.
EtherneTV-MCS
EtherneTV-STB
EtherneTV-STB
EtherneTV-NXG
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
1 2
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
CHAPTER two
2: Using the EtherneTV Media
Control Server
Access the server
From a PC, enter the IP address or hostname to access the MCS.
EtherneTV-MCS Version 1.0.0
Version 2.0.0 is different
Procedure (Version 1.0.0)
1. Browse to "http://<MCS-Location or server name>/admin.aspx"
2. Click "Media Control Server"
3. Enter User ID (admin) and Password (admin), click "Logon"
4. Click "Global Variables"
5. Make browser full screen (F11)
6. Scroll down to "DEFINE THE VBVOD-NXG SERVER PATH" and enter the new server IP
address or server name where noted.
7. Click “save”
8. Quit admin
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
1 3
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Procedure (Version 2.0.0)
1. Browse to "http://<server name>/admin"
2. Enter User ID (admin) and Password (admin), click “Login”
3. Click “Global Settings”
4. Click “Servers”
5. Add the server Domain Name or IP Address, Description and ftp user (vbrickuser)
6. Click “Add”
Accessing MCS
In order to access the MCS launch your browser and enter the new link in the URL area as
http://“MCS name or IP address”
EtherneTV-MCS Version 1.0.0
EtherneTV-MCS Version 2.0.0
EtherneTV-MCS Version 2.0.0
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
1 4
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Download Components
VBrick uses its own software-based
components to decode streams on the
desktop. These components include
decoders and filters necessary to view
MPEG-1, MPEG-2 and MPEG-4
streams on a PC using software
based decoding. The EtherneTVMCS automatically downloads these
components to the desktop with the
user’s permission.
If this is a new installation, it is
necessary to answer Yes to security
requests before components are
downloaded.
Watch Live
Broadcasts
This link provides access to any VBrick MPEG-1, MPEG-2 or MPEG-4 live stream delivered
from a VBrick Encoder or any file
multicasted from the EtherneTVNXG server. Also MPEG-4
unicast from a VBrick encoder via
RTSP. A list of streams is shown
on the left; clicking on a program
from the Program Guide listing on
the left displays video from the
stream in the window on the right.
From this point you can click the
Full Screen button on the player
to go full screen (use the escape
key to exit full screen), or click on
Launch External Player to launch
a separate player window that
can be moved or resized. Since
this is live video FF/REW/Pause
are inoperative.
EtherneTV-MCS Version 1.0.0
Version 2.0.0 appears slightly different
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
1 5
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Browse Video Library
This link provides direct access to the EtherneTV-NXG server for watching stored Video-OnDemand files. When the user
accesses this page, the MCS server
builds a web page of available
videos on the EtherneTV-NXG
server. Simply clicking on the video
will begin it playing in the preview
window. From this point you can
click the Full Screen button on the
player to go full screen (use the
escape key to exit full screen), or
click on Launch External Player to
launch a separate player window
that can be moved or resized.
VoD video allows full VCR/DVD-like
Play, Pause, Stop, Fast Forward,
Rewind, and Seek functionality.1
EtherneTV-MCS Version 1.0.0
Version 2.0.0 appears slightly different
Scheduled Programs
Scheduled Programs displays content scheduled to be shown at a particular date and time.
The content can be live streams from a
VBrick encoder or stored files multicast
from the EtherneTV Video on Demand
NXG server.
To access the Scheduled Programs
page, select the Menu button from any
page and select Scheduled Programs.
Scheduled programs that are currently
playing will display a Now Playing
message and can be played directly
from the Scheduled Programs page.
NOTE: Programs in the process
of being played are also displayed
in the Live Video selection.
1
C O P Y R I G H T
EtherneTV-MCS Version 1.0.0
Version 2.0.0 appears slightly different
Fast forward and rewind available for MPEG-1 and MPEG-2 only. Seeking is available for all formats.
V B R I C K
S Y S T E M S
P A G E
1 6
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Browse and Configure EtherneTV-NXG1
System
EtherneTV-NXG Administration
The server comes pre-loaded with VBrick content. The only time it is necessary to reload
this information would be in the event it is necessary to upgrade or restore the content.
•
C O P Y R I G H T
Open a web browser on the VOD administrators PC and type the following URL:
o
http://vbvodnxg1/mbase/admin/ (make sure
o
To logon to the system:
you include the final /).
ƒ
User Name = mbase
ƒ
Password = mbase-admin
ƒ
In the browser, create a “favorite” or
“bookmark” this page.
•
To access the online documentation, select the link
“Admin Guide”, from here you can access the
Kasenna MediaBase XMP Installation and
Configuration Guide and the Kasenna MediaBase XMP Administrator's Guide.
•
Follow the instructions in these two manuals for system administration and video content
management.
V B R I C K
S Y S T E M S
P A G E
1 7
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
How-to Ingest content
Necessary equipment:
•
•
•
•
•
EtherneTV-NXG server
EtherneTV-MCS server
PC
Ethernet switch or hub
Ethernet, video, and audio cables
Instructions:
1. Log on to the Windows PC and open Internet Explorer browser
2. In web browser window, enter the ipaddress or name of server followed by the
application (i.e. http://172.22.163.100/mbase/admin/content/)
3. Login as: mbase
4. Password: mbase-admin
5. Click on Content Pages>Video>Add Video/Audio
6. In the Source File field , click on Browse
7. From new window, click on /vbrick, then OK
8. From next window, select the file MP2test_6mbps.mpg (or other mpeg file)
9. Click on OK, (This will insert the source file in the source file window)
10. In Video Name window enter a name that indicates the content. (Important - the file
extension MUST end in .mpg for Mpeg1&2 and .mp4 for Mpeg4 files!!!!)
11. Select the correct encoding type (MPEG 2)
12. Click on Add
13. Next we will monitor the ingestion by clicking on Content>Video>Find/Modify
14. Click on Find
15. Your file should appear in the list
16. To test, playback the file via the MCS
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
1 8
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
FTP Files and File Ingestion
Copy remote files and Ingest content - Necessary equipment:
•
EtherneTV-NXG server
•
PC
•
Ethernet switch or hub
•
Ethernet, video, and audio cables
•
CD containing video files
Instructions:
1. Logon to PC, and insert the CD into your PC.
2. Change to cdrom drive location (e.g. E:)
3. Open a command window, and type ftp x.x.x.x
4. FTP logon as vbrickuser
5. FTP password vbrickuser
6. Type cd /vbrick
7. Type bin
8. Type put zzz.mpg (zzz=video file name.mpg); quit ftp.
9. Open Internet Explorer browser, enter the ipaddress or name of server followed by the
application (i.e. http://172.22.163.100/mbase/admin/content/)
10. Login as: mbase
11. Password: mbase-admin
12. Click on Content Pages>Video>Add Video/Audio
13. In the Source File window, click on Browse
14. From new window, click on /vbrick
15. From next window, select the file you uploaded
16. Click on OK, (This will insert the source file in the source file window)
17. In Video Name window enter a name that indicates the content. (Important - the file
extension MUST end in .mpg for Mpeg1&2 and .mp4 for Mpeg4 files!!!!)
18. Select the correct encoding type (MPEG1, 2 or 4)
19. Click on Add
20. Next we will monitor the ingestion by clicking on Content>Video>Find/Modify
21. Click on Find
22. Your file should appear in the list
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
1 9
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
Automatic File Backup
The use of a dedicated drive 0 for the OS and VoD software benefits customers in two ways.
Firstly, OS patches or new VoD software updates only get applied to drive 0, leaving all the
content drives untouched. Secondly, both VoD servers use a mySQL database to index and
manage all video content and VoD configuration information. While this database is stored
on drive 0, each evening the system automatically backs up the database onto the RAID
drives. Should drive 0 fail, the database restore procedure uses this backup copy to rebuild
the database.
The Auto Backup feature is on by default and it is recommended that it be left on. However
if for some reason it is not required the following procedure should be used to turn this
feature off:
Note: If you get lost during editing hit “Esc” twice to leave edit mode. Hit “:” to return to
command mode.
•
•
•
Go to the NXG command line.
Type "crontab -e" at the command line; this puts you into an editor for the crontab
(the cron table). The editor is the "vi" editor.
Using the down arrow key, scroll down to the bottom of the file. A couple of lines up
from the bottom you will see two lines:
0
0
4
3
*
*
*
*
*
*
/opt/vbricksetup/backup_mediabase_database
/opt/vbricksetup/clear_old_mbdump_files
•
Cursor up to these lines and comment out this section by:
• Hit the "i" key to go into insert mode
• Type the "#" key in front of both these two line to comment them out
Hit <esc>, then ":" to go into command mode, then enter "wq" to save the changes and exit
the editor.
File Backup Cautions
Irrespective of the Auto Backup there are situations where the backup may not take place
soon enough after file ingestion. Therefore it is highly recommended that a separate copy of
the original content after ingestion be maintained for at least two days until the auto backups
are made.
License Key Re-Installation
The license is pre-installed on the server from the factory. You do not have to re-install this
license except for system restoration. Should you need to re-install the license, use the
following steps. A floppy disk is included that contains the license key for the EtherneTVNXG server. The key should be added to the /var/flexlm/license.dat file. If this file does not
exist then the file should be created in the specified path (/var/flexlm/). The following steps
will be used to make the floppy disk available to the Linux O/S:
From the root type: mkdir /floppy (enter)
Type: mount –t vfat /dev/fd0 /floppy (enter)
cd /floppy
You will now be able to copy the license file from the floppy to: /var/flexlm/license.dat
(NXG1) or /var/kasenna/license.dat (NXG2)
C O P Y R I G H T
V B R I C K
S Y S T E M S
P A G E
2 0
J U N E
2 3 ,
2 0 0 4
VBRICK
ETHERNET-NXG
VOD
QUICK
START
GUIDE
VERSION
2.0.0E
CHAPTER three
3: Reference
Operation Tips
C O P Y R I G H T
•
All assets that are installed into the server should have backup copies available in the
event of disk corruption. This will allow for an easy restoration of the system.
•
StreamPlayerPlus allows the recording of live streams to MPEG-1, MPEG-2 and MPEG4 files. Once saved the files can then be installed on the EtherneTV-NXG1 server for
playback. Make sure the “hinting” option is checked when recording MPEG-4 files.
•
When recording MPEG-4 and MPEG-2 files using StreamPlayer Plus software, it is
advisable to keep the length of the record to under 50 minutes to facilitate creating
playlists and keep viewing time manageable.
•
The controls for MPEG-4 Fast Forward and Rewind are not currently supported;
however, slide bars are supported and provide the same functonality.
•
As the disks become full the performance of head seek times diminishes and file
ingestion may fail.
•
Do not use spaces in filenames. Use underscores; ie: my_history_class.mp4.
•
Apple QuickTime 6.5, containing native MPEG-4 support, is the recommended MAC
desktop player for accessing MPEG-4 files from the EtherneTV VOD NXG. QuickTime
supports the Seek feature (accessed through a slider-bar) for MPEG-4 streams. Make
sure Edit >> Preferences >> QuickTime Preferences >> Streaming Transport option is
set to Automatically determine the best protocol and port ID or “use: UDP, RTSP Port ID
554”.
•
Samba is a widely used software package that allows Linux systems to connect to
Microsoft Windows networks and seamlessly share files with Windows host computers
and servers. This is the recommended method of ingesting files into the server’s
database. If you are connected to the Internet click
http://www.vbrick.com/support/downloads.asp , select Application Notes and then
“Samba Client Configuration”. There you will find detailed information regarding the
software package.
V B R I C K
S Y S T E M S
P A G E
2 1
J U N E
2 3 ,
2 0 0 4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
