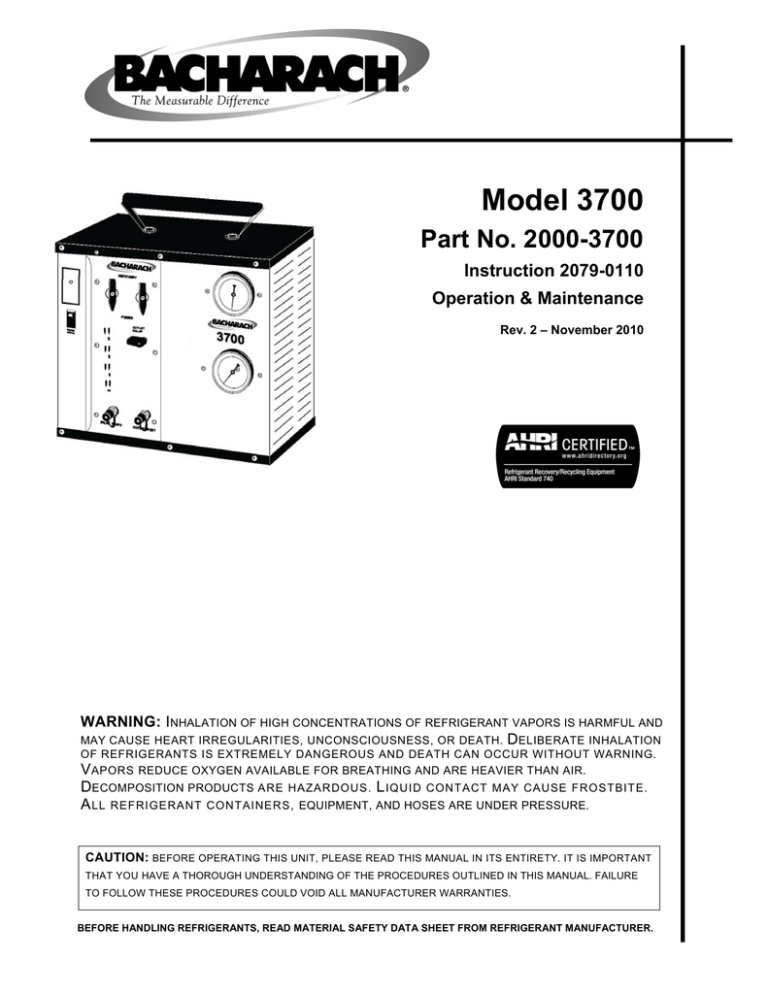

Model 3700

Part No. 2000-3700

Instruction 2079-0110

Operation & Maintenance

Rev. 2 – November 2010

WARNING: I

NHALATION OF HIGH CONCENTRATIONS OF REFRIGERANT VAPORS IS HARMFUL AND

MAY CAUSE HEART IRREGULARITIES, UNCONSCIOUSNESS, OR DEATH.

D

ELIBERATE INHALATION

OF REFRIGERANTS IS EXTREMELY DANGEROUS AND DEATH CAN OCCUR WITHOUT WARNING.

V

APORS REDUCE OXYGEN AVAILABLE FOR BREATHING AND ARE HEAVIER THAN AIR.

D

ECOMPOSITION PRODUCTS ARE HA ZARDOUS.

L

IQUI D CO NT ACT MAY CA USE F ROST BIT E.

A

LL REF RI GERA NT CO NT AINE RS, EQUIPMENT, AND HOSES ARE UNDER PRESSURE.

CAUTION:

BEFORE OPERATING THIS UNIT, PLEASE READ THIS MANUAL IN ITS ENTIRETY. IT IS IMPORTANT

THAT YOU HAVE A THOROUGH UNDERSTANDING OF THE PROCEDURES OUTLINED IN THIS MANUAL. FAILURE

TO FOLLOW THESE PROCEDURES COULD VOID ALL MANUFACTURER WARRANTIES.

BEFORE HANDLING REFRIGERANTS, READ MATERIAL SAFETY DATA SHEET FROM REFRIGERANT MANUFACTURER.

S

PECIFICATIONS

Model 3700

Refrigerants

Power Source

Amperes

Compressor

Portable Commercial Oilless Recovery

R12, R-22, R-134a, R-500, R-502, HP/MP Blends

115V AC 50/60 Hz

RLA 10.2A LRA 65 A

1 HP High Performance Oilless

Width 14.0"

Depth 8.5"

Refrigerant

R-22

R-134A

R-410A

Refrigerant Recovery Rates

Certified per AhRI 740-95 & 740-98

Liquid Rate Liquid Push-Pull Rate Vapor Rate

8.31 lb/min

3.77 kg/min

6.11 lb/min

2.77 kg/min

9.37 lb/min

4.25 kg/min

50.51 lb/min

22.91 kg/min

41.71 lb/min

18.92 kg/min

53.00 lb/min

24.04 kg/min

0.75 lb/min

0.34 kg/min

0.57 lb/min

0.26 kg/min

0.84 lb/min

0.38 kg/min

T

ABLE OF

C

ONTENTS

Specifications & Features ............................................................................................... 2

Introduction ....................................................................................................................... 3

General Safety Instructions ............................................................................................ 4

Operational Safety ......................................................................................................5

Description of Features ................................................................................................... 6-7

Vapor Recovery Procedures ........................................................................................... 8

Vapor Recovery Hose Connections (Figures 1&2)....................................................... 9

Liquid Recovery General Information. ........................................................................... 10

Liquid Recovery Procedures ................................................................................ 11

Liquid Push-Pull Hose Connections (Figures 3&4) ...................................................... 12

Pump Down Operations .................................................................................................. 13

DOT Recover Cylinder Safety ........................................................................................ 14

Troubleshooting Guide .................................................................................................... 15

Electrical Schematic ........................................................................................................ 16

Replacement and Accessory Parts List ......................................................................... 17

2

I

NTRODUCTION

Congratulations on your purchase of the Bacharach Model 3700 high performance oilless recovery system. Bacharach Test Systems has endeavored to make the Model

3700 the highest performing, most portable and easiest to use recovery system on the market. We are committed to your complete satisfaction!

Please note that Bacharach Test Systems requires that a filter be used on the inlet hose coming from the system being serviced in order to protect the compressor from particulate. A standard filter or filter dryer is suggested. The compressor warranty will be voided if it is determined that a filter was not used during the operation of this equipment.

CAUTION: These instructions are for personnel trained and experienced in the handling of refrigerants. Unqualified individuals should not attempt to operate this equipment. Failure to follow proper operating procedures may cause personal injury.

F

EATURES

A high performance dual headed oilless recovery system.

New oilless compressor technology that is QUIETER, FASTER, AND LIGHTER than current products on the market.

Tolerates liquid during vapor recovery operations with no compressor damage.

Very easy to operate.

Extra large condensing ensures high recovery rates even on the hottest days.

Self-purging valve completely purges the condenser and tubing, eliminating cross contamination when switching between refrigerants.

Solid state LED status display keeps the operator informed of the operational status of the unit. The following situations are monitored: High Pressure Shutoff, Recovery

Cylinder Full Shutoff (if option is installed), Automatic Vacuum Shutoff, and System

Operating.

Suction and discharge gauges eliminate the need for a manifold gauge set.

Inlet and outlet ball valves provide full refrigerant flow and positive shutoff.

Automatic vacuum shutoff at 13” HG vacuum.

Automatic high-pressure shutoff at 550 psi.

Rugged heavy-duty steel construction with epoxy powder coating finish.

Part # 0002-0081 Automatic 80% Tank Full Shutoff Option

Specifications are subject to change without notice.

3

G

ENERAL

S

AFETY

I

NSTRUCTIONS

1. K

NOW

Y

OUR

E

QUIPMENT

Read and understand the instruction manual and labels affixed to the unit. Learn its application and limitations as well as the specific potential hazards of your equipment.

2. G

ROUND

A

LL

E

QUIPMENT

This unit is equipped with an approved three pronged grounded power cord and plug. The green wire is the ground wire and should never be connected to a live terminal.

3. U

SE THE

P

ROPER

E

XTENSION

C

ORD

Use the following guide for choosing the proper extension cord:

18 gauge cord - maximum length 10 feet

16 gauge cord - maximum length 25 feet

14 gauge cord - maximum length 50 feet

12 gauge cord - maximum length 100 feet

4. A

VOID

D

ANGEROUS

E

NVIRONMENTS

Do not use this unit in damp or wet locations or expose it to rain. Secure unit when working above floor level. This equipment should be used in a location with mechanical ventilation that provides at least four air changes per hour or the equipment should be located at least 18 inches above the floor. This equipment should not be used in the vicinity of spilled or open containers of flammable materials.

5. D

ISCONNECT

U

NIT

B

EFORE

S

ERVICING

Electrical shock hazard may be present when the unit is disassembled.

6. A

VOID

A

CCIDENTAL

S

TARTING

Make sure the system switch is in the OFF position before connecting electrical devices.

7. R

EPAIR

D

AMAGED

P

ARTS

Do not operate the unit with a defective part. Repair unit to proper operating conditions.

8. U

SE

R

ECOMMENDED

A

CCESSORIES

Follow the instructions that accompany all accessories. Improper use of accessories may damage the equipment or create a hazard.

9. U

SE

C

AUTION

W

HEN

C

ONNECTING OR

D

ISCONNECTING

H

OSES

Improper usage may result in refrigerant burns (frostbite). If a significant refrigerant leak occurs, proceed immediately to a well ventilated area.

4

O

PERATIONAL

S

AFETY

WARNING: Inhalation of high concentrations of refrigerant vapors is harmful and may cause heart irregularities, unconsciousness, or death. Deliberate inhalation of refrigerants is extremely dangerous and death may occur without warning. Vapor reduces oxygen available for breathing and is heavier than air. Decomposition products are hazardous. Liquid contact can cause frostbite. All refrigerant containers, equipment and hoses are under high pressure.

 Avoid breathing high concentrations of vapors.

 Use with sufficient ventilation to keep operator exposure below recommended limits, especially in enclosed and low lying areas.

 Avoid contact of liquid with eyes and prolonged skin exposure.

 Wear safety goggles and protective gloves.

 Do not apply open flame or heat unit above 125

°

F.

 Do not allow refrigerants to contact open flame. Decomposition will occur.

FIRST AID: If high concentrations of refrigerant vapors are inhaled, immediately remove person(s) to fresh air. Keep calm. If not breathing, give artificial respiration. If breathing is difficult, give oxygen. Call a doctor. Do not give epinephrine or similar drugs.

EYE: In case of liquid contact, immediately flush eye with water.

Seek medical attention.

SKIN: Flush with water. Treat for frostbite by gently warming the affected area.

CAUTION: All refrigerant hoses, recovery cylinders, refrigerant lines, the unit, and other vessels containing refrigerants should be handled at all times as if under high pressure.

5

L

OCATION AND

D

ESCRIPTION OF

U

NIT

F

EATURES

6

1. Purge Ball Valve

2. Inlet Port Ball Valve

3 LED Status Display

5. Outlet Port Ball Valve

This valve determines what function the Model 3700 performs. This valve points UP during recovery operations and DOWN for purging and liquid pushpull operations.

Opens or closes the inlet port. It is pointing UP (open) for all recovery operations and points DOWN for purging operations.

Displays the status of the machine.

When in the ON position, this switch starts the recovery operation by turning the compressor on.

Opens or closes the outlet port. It points DOWN when it is open and to the

LEFT when closed.

6 Inlet Port Refrigerant hose connection for incoming refrigerant vapors.

7 Outlet Port Refrigerant hose connection for outgoing refrigerant.

8. Outlet Pressure Gauge Displays the outlet/discharge pressure.

9. Inlet Pressure Gauge

Automatic 80% Tank Full

Shutoff Cord - Optional

Accessory (Not shown)

Displays the inlet/suction pressure of the system being evacuated.

This optional accessory connects to the recovery cylinder overfill sensor and automatically shuts the unit off when the recovery cylinder reaches the 80% liquid fill limit. NOTE: If the Model 3700 is equipped with the

Automatic 80% Tank Shutoff Option, it will not work unless connected to a DOT recovery cylinder with a compatible level float switch. If the recovery cylinder does not have a float switch, a shorting cap must be installed in order to operate the system.

Compressor Circuit Breaker

(not shown)

Protects against high amperage. Located on the left side of the machine.

L

OCATION AND

D

ESCRIPTION OF

U

NIT

F

EATURES

Normal

Operation

High Pressure

Condition

Tank Full

LED DISPLAY

LED

STATUS

GREEN

LED

RED LED

RED LED

EXPLANATION

Indicates that the power switch is ON and the compressor is running.

Indicates that there is a high pressure condition that must be corrected. The internal high pressure switch activates at 550 psi.

Indicates that the recovery cylinder is full (if the Automatic

80% Tank Full Shutoff Option is installed).

NOTE: If the Model 3700 is equipped with the Automatic 80% Tank Full Shutoff Option, it will not work if it is not connected to a DOT recovery cylinder with a compatible level float switch. If the recovery cylinder does not have a float switch, a shorting cap must be installed on the end of the 80% shutoff cord in order to operate the system.

7

8

V

APOR

R

ECOVERY

P

ROCEDURES

STEPS:

1. Turn off all electrical or mechanical power to the refrigerant device to be evacuated.

2. Make proper hose connections: Connect refrigerant hoses to recovery cylinder, unit, and the refrigerant system as shown in Figure 1. NOTE: You must use an external filter drier in the suction line in order to meet the conditions of the unit warranty.

Caution: If the 80% shutoff option is not used, a scale must be used to monitor the refrigerant level in the recovery cylinder.

amounts of liquid over extended periods of time will reduce the life of the compressor. If large amounts of liquid are present, it is recommended that you use the liquid push-pull method of recovery prior to vapor recovery operations (See Figures 3 & 4).

3. Place the inlet and purge ball valves in the CLOSED position and the outlet valve is in the OPEN position. Open the DOT recovery cylinder liquid valve (See Figure 2).

4. Turn the system switch to the ON position. The LED status display will indicate

“SYSTEM ON”. NOTE: The system fan is on whenever the system switch is in the

ON position.

5. Regulate the inlet port ball valve when liquid refrigerant is present.

is entering the compressor. The inlet ball valve must be regulated as shown in the shaded region until this knocking sound stops, otherwise compressor damage could occur. Pumping liquid when the compressor is knocking will damage the compressor and will reduce the compressor life and will void the compressor warranty.

6. Monitor the LED status display. The unit will shut off automatically when the proper vacuum level is achieved and the status display will flash “EVACUATION COMPLETE”

GREED LED

SYSTEM ON

NO LED

EVACUATION

COMPLETE

RED LED

HIGH PRESSURE

RED LED TANK

FULL

The “SYSTEM ON” indicator should be ON during normal operations.

Indicates that the unit has shut down because the system being evacuated has reached 13" HG (The evacuation is complete). During liquid push-pull operations the system will not be pulled into a vacuum. NOTE: A small amount of inlet pressure might be needed to reset the vacuum switch, this is normal.

Indicates that there is a high pressure condition that must be corrected. Check for restrictions or a full recovery cylinder.

Correct problem and turn system switch to the OFF position.

Repeat steps 3-6.

Indicates that the recovery cylinder is full (if the 80%

Automatic Tank Full Shutoff Option is installed). Change the recovery cylinder and repeat steps 3-6.

7. Purge the system by positioning the inlet and purge ball valves to the PURGE position

(both pointing DOWN). CAUTION: Never turn the purge valve while the compressor is running or severe compressor damage could occur. Ensure the power switch is in the off position before turning the purge valve. If the unit is manually or automatically turned off before the evacuation is complete, repeat steps 3-7. NOTE: If the circuit breaker trips wait 10 seconds, reset circuit breaker and go to step 3. If the compressors thermal overload trips, wait 16 to 30 minutes before restarting.

V

APOR

R

ECOVERY

H

OSE

C

ONNECTIONS

F

IGURE

1

0007-1700

Use only approved DOT recovery cylinders. Follow precautions and warnings listed on the cylinder.

If servicing a system with a compressor burn-out, use a high acid type filter drier and do not reuse.

F

IGURE

2

9

L

IQUID

P

USH

-P

ULL

R

ECOVERY

G

ENERAL

I

NFORMATION

Attention: Before attempting the following liquid push-pull recovery operations, please review this page.

It may not be possible to recover liquid refrigerant from some types of refrigeration equipment.

A scale or liquid sight glass can be used to determine when all the liquid is recovered. The unit will not pull a vacuum using the push-pull liquid recovery operation.

To finish the recovery operation, you must proceed to vapor recovery operations.

Guidelines

If any of these conditions are present in the system being evacuated, liquid push pull operations may not be practical and vapor recovery operations should be performed.

 The equipment contains less than 15 lbs. of refrigerant.

 The equipment is a heat pump or other system with refrigerant flow that would prevent you from isolating the liquid.

 Equipment has an accumulator between the service ports used in the liquid recovery process.

 Liquid refrigerant migration has occurred and the location of the liquid is unknown.

 The refrigerant tubing design on the equipment does not allow for a solid column of liquid refrigerant to be formed.

Direct Liquid Recovery Operations

All compressors are designed to compress gases. Normally compressors are not capable of pumping non-compressible fluids such as liquid refrigerant; however, the Model 3700’s compressor head and valves have been specially engineered to enable it to handle liquid directly. This feature makes the 3700 easier to use by minimizing the need to monitor incoming refrigerant vapors and reduces compressor failures due to liquid slugging.

It is important to remember that the 3700 is a compressor and not a liquid pump. When large amounts of liquid are present, the liquid push-pull method of recovery should be used. Using the 3700 to pump large amounts of liquid refrigerant over a long

period of time will reduce the compressor life.

WARNING: A “knocking” sound coming from the compressor indicates too much liquid is entering the compressor. The inlet ball valve must be regulated as shown in the shaded region until the knocking sound stops, otherwise compressor damage could occur.

Pumping liquid when the compressor is knocking will damage the compressor and will reduce the compressor life. This will void the compressor warranty.

A sudden slug of liquid into the compressor may cause a sudden spike in pressure and cause the high pressure safety shutoff switch to shut the compressor off. If this happens, you must clear the liquid from the compressor before you can restart the compressor. To prevent this from happening, always open the inlet valve slowly when starting a recovery job. Opening the inlet valve quickly could allow a slug of liquid to enter the cylinder and cause the high pressure switch to shut the system down.

10

L

IQUID

R

ECOVERY

P

ROCEDURES

STEPS:

Liquid push-pull operations are performed by using hot compressor gas to push liquid refrigerant out of a system. The purge valve accomplishes this by re-directing the hot compressor gas around the condenser. See the diagram on top of the unit for hose connections.

1. Turn off all electrical or mechanical power to the refrigerant system to be evacuated.

2. Make proper hose connections. Connect the discharge hose from the outlet port to the low pressure side of the system you are servicing. Connect a hose between the liquid port (receiver or condenser) on the system being serviced and the liquid valve on the DOT recovery cylinder. Connect the inlet hose from the DOT recovery cylinder vapor valve to the 3700’s inlet port. See Figure 3 for a hose connection diagram. conditions of the unit warranty. Caution: If the 80% shutoff option is not used, a scale must be used to monitor the refrigerant level in the recovery cylinder.

3. Place the inlet and purge valves in the LIQUID PUSH-PULL position. This will allow hot compressor gas to bypass the condenser. OPEN the liquid and vapor valves on the cylinder (see Figure 4).

4. Open the outlet ball valve and the vapor and liquid valves on the DOT recovery cylinder.

5. Turn the system switch to the ON position. When all liquid refrigerant is recovered, turn the system switch to the OFF position. NOTE: Liquid push-pull operations do not pull a vacuum on a system. You must perform a vapor recovery operation in order to pull the system down to the required vacuum level.

6. Monitor the LED status display.

GREED LED

SYSTEM ON

NO LED

EVACUATION

COMPLETE

RED LED

HIGH

PRESSURE

RED LED

TANK FULL

(If equipped)

The “SYSTEM ON” indicator should be ON during normal operations.

Indicates that the unit has shut down because the system being evacuated has reached 13" HG (The evacuation is complete). During liquid push-pull operations the system will not be pulled into a vacuum.

NOTE: A small amount of inlet pressure might be needed to reset the vacuum switch, this is normal.

Indicates that there is a high pressure condition that must be corrected. Check for restrictions or a full recovery cylinder. Correct problem and turn system switch to the OFF position. Repeat steps 3-

6.

Indicates that the recovery cylinder is full (if the 80% Automatic Tank

Full Shutoff Option is installed). Change the recovery cylinder and repeat steps 3-6.

7. Turn the system switch to the OFF position when all liquid is recovered. The liquid recovery operation is complete when there is no more liquid present in the system. This can be verified by using an in-line sight glass to monitor the refrigerant flow in the line. NOTE: The unit must be manually shut off during all liquid recovery operations.

8. Proceed to vapor recovery operations to complete the recovery procedure. If the unit is manually or automatically turned off before liquid recovery is complete, repeat steps 3-8. NOTE: If the circuit breaker trips wait 10 seconds, reset circuit breaker and go to step 3. If the compressors thermal overload trips, wait 16 to 30 minutes before restarting.

11

L

IQUID

P

USH

-P

ULL

H

OSE

C

ONNECTIONS

F

IGURE

3

Use only approved DOT recovery tank. Follow precautions and warnings listed on the cylinder. If servicing a system with a compressor burn-out, use a high acid type filter drier and do not reuse.

F

IGURE

4

S

TORAGE

12

L

IQUID

P

USH-

P

ULL

M

ODE

P

UMP

D

OWN

O

PERATIONS

The Model 3700 is equipped with a pump-down purge valve that allows the technician to pump down or evacuate the 3700 before proceeding to the next recovery operation. This procedure not only eliminates cross contamination, but also conserves refrigerant. Follow the steps below to ensure your pump down operation is performed correctly.

STEPS:

1. After recovery operations are complete and the system switch is in the OFF position:

FIRST - Place the inlet valve in the PURGE position

SECOND - Place the purge valve in the PURGE position

THIRD - Place the outlet valve in the OPEN position as illustrated below.

It is important to turn the valves in this order to ensure the compressor properly equalizes.

2. Turn the system switch to the “ON” position. The LED status display will indicate

“SYSTEM ON”.

NOTE: If the compressor fails to start, cycle the purge valve from the

RECOVERY to PURGE position to reduce the pressure difference shown on the system’s gauges.

3. Allow the unit to run until it shuts off automatically. The LED status display will turn off indicating that the purge operation is complete.

4. Turn the system switch to the OFF position and turn the outlet valve to the “CLOSE” position. Close the inlet and outlet valves on the DOT recovery tank.

During the pump down operation, the 3700’s compressor pulls the entire system and discharge hose into a vacuum and discharges the gas directly out of the discharge port leaving no more than 1/4 ounce of refrigerant left the system.

CAUTION: Never turn the purge valve while the compressor is running - severe compressor damage may occur.

13

14

DOT R

ECOVERY

C

YLINDER

S

AFETY

An optional Automatic 80% Tank Full Shutoff Option is available with the Model 3700. If equipped, this option connects to the recovery cylinder float switch and will automatically shut the Model 3700 off when the recovery cylinder becomes 80% full.

When the Model 3700 is equipped with this option, Bacharach Test Systems recommends that you use this cord for added safety. If the Model 3700 is not equipped with this option, or, if you are using a recovery cylinder that does not have a float switch, then you must use a scale and the guidelines below to prevent overfilling of the cylinder. NOTE: THE

SHORTING CAP SUPPLIED WITH THIS OPTION MUST BE USED IN ORDER TO

OPERATE THE MODEL 3700 WITHOUT A RECOVERY CYLINDER EQUIPPED WITH A

FLOAT SWITCH.

CYLINDER

SIZE (water capacity)

NET REFRIGERANT

WEIGHT

GROSS

CONTAINER

WEIGHT (APPROX.)

30 lbs

50 lbs

100 lbs

125 lbs

250 lbs

24 lbs

40 lbs

80 lbs

100 lbs

200 lbs

44 lbs

70 lbs

130 lbs

150 lbs

280 lbs

NOTE: Weights of tanks vary by manufacturer. Check each tank for its tare weight.

T

ROUBLESHOOTING

G

UIDE

PROBLEM

UNIT

COMPRESSOR

WILL NOT START

LED S

TATUS

POSSIBLE CAUSE SOLUTION

 OFF

VACUUM PRESSURE SWITCH HAS

BEEN ACTIVATED

TURN UNIT OFF. APPLY 1-2

PSIG PRESSURE TO INLET

PORT TO RESET

VACUUM SWITCH

 RED LED –

HIGH PRESSURE

 GREEN LED

SYSTEM ON

CHECK FOR RESTRICTIONS IN THE

DISCHARGE LINE. ENSURE THAT

THE CYLINDER VALVES AND

DISCHARGE VALVES ARE OPEN

R E C O V E R Y C Y L I N D E R H A S

REACHED 550 PSI HIGH PRESSURE

LIMIT

BAD THERMAL OVERLOAD

REMOVE RESTRICTIONS IN

THE HIGH SIDE

R E P L A C E W I T H E M P T Y

CYLINDER OR COOL CYLINDER

WITH WATER/ICE

CALL BACHARACH TEST

SYSTEMS FOR SERVICE

 NONE

CIRCUIT BREAKER IS TRIPPED

NO POWER TO THE UNIT

RESET CIRCUIT BREAKER

PLUG THE UNIT INTO A 110-120

VOLT POWER

UNIT FAN WILL

NOT START

 GREEN LED

SYSTEM ON

DEFECTIVE FAN REPLACE FAN

UNIT S T A R T S

B U T STOPS

AFTER A FEW

MINUTES OF

OPERATION

 NONE

 NO LED

OBSTRUCTION IN FAN BLADES

SYSTEM SWITCH IS OFF

EVACUATION IS COMPLETE

REMOVE OBSTRUCTION

TURN SYSTEM AND FAN

SWITCH TO ON POSITION

CHECK INLET PRESSURE,

VERIFY VACUUM LEVEL IS AT

LEAST 1 0"HG

 RED LED

HIGH PRESSURE

OF TANK FULL

IF REFRIGERANT REMAINS IN THE

S Y S T E M , C H E C K F O R

RESTRICTIONS IN THE SUCTION

LINE

LIQUID VALVE ON DOT CYLINDER

CLOSED OR OUTLET BALL VALVE IS

NOT OPEN

ENSURE ALL VALVES ARE

OPEN

OPEN THE CYLINDER VALVES

 GREEN LED

SYSTEM ON

OTHER RESTRICTION(S) IN

DISCHARGE HOSE

THE UNIT IS TOO HOT. THERMAL

OVERLOAD TRIPPED

TURN UNIT OFF. REMOVE

RESTRICTION

LET THE UNIT COOL DOWN

FOR 15 MINUTES

 NONE

CIRCUIT BREAKER TRIPPED DUE

TO COMPRESSOR STALL

CIRCUIT BREAKER TRIPPED DUE

TO TOO MUCH PRESSURE OR

LIQUID IN THE SYSTEM

REDUCE THE INLET AND/OR

OUTLET PRESSURE

PURGE THE SYSTEM AND

CONTINUE

15

16

E

LECTRICAL

S

CHEMATIC

R

EPLACEMENT

P

ARTS

Part Component Description QTY Part Component Description QTY

0002-0011

COMPRESSOR RE-BUIILD KIT, INCLUDES:

S U C T I O N & D I S C H A R G E V A L V E S ,

SPRINGS, ONE VALVE PLATE, & O-RINGS

0012-0080 GUARD, FAN 5.9'

0013-0010 FAN MOTOR , 6' 11 5VAC,1 20V

0014-0020 SWITCH, PRESSURE, 550 psig

0014-0050 CIRCUIT BREAKER, 15 AMP

0014-0060 SWITCH, ROCKER

0014-0090 SWITCH, VACUUM , 13' HG

0014-0110 CAPACITOR 233-280 MFD 110VAC

0014-0740 RELAY, START, 120V/60HZ, 1 HP,

0015-0181 BOARD, LED CIRCUIT, 3/4 x 3 1/4

0024-0030 VALVE, BALL , 1/8x1/8 FEM, NPT

0024-0050

VALVE, CHECK, 1/4' MFL TO 1/8' MNPT

W/NEOPRENE SEAL

Kit 0002-0061

KIT, HARDWARE REPLACEMENT:

INCLUDES: 5 SHEET METAL SCREWS, 4 RUBBER

FEET, 1 FOAM HANDLE

Kit

1.00 0024-0270 VALVE, 3-WAY, BALL , 1/8' FEM. NPTF DROP

1.00 0024-0280 VALVE, 3 WAY, BALL, 1/4' FEM. NPTF DROP

1.00 0041-2050 HANDLE, 2 PART,COMMERCIAL

1.00

1.00

1.00

1.00 0045-0024 COMPRESSOR ASS'Y OILLESS DUAL, 115 VAC, 60HZ 1.00

1.00 0051-0680 CAP, PLASTIC W/RETAINER, 3/8' SAE 2.00

1.00 0054-0120 RUBBER FOOT, 5/8 OD X 9/16 H

1.00 0055-0050 HANDLE, FOAM, BLK, 10'

4.00

1.00

1.00 0063-0010 GAUGE, HI PRESSURE , 2.5

1.00 0063-0020 GAUGE, LOW PRESSURE, 2.5

1.00 2079-0110 MANUAL: 3700

1.00

1.00

1.00

1.00

ACCESSORIES

0002-0081 AUTOMATIC 80% TANK FULL SHUTOFF KIT

FOR INFORMATION ON ORDERING PARTS CALL:

1-800-736-4666

17

18

Printed in U.S.A.

World Headquarters

621 Hunt Valley Circle, New Kensington, PA 15068

Ph: 724-334-5000 • Fax: 724-334-5001 • Toll Free: 1-800-736-4666

Web site: www.MyBacharach.com • E-mail: [email protected]

® Registered Trademark

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
