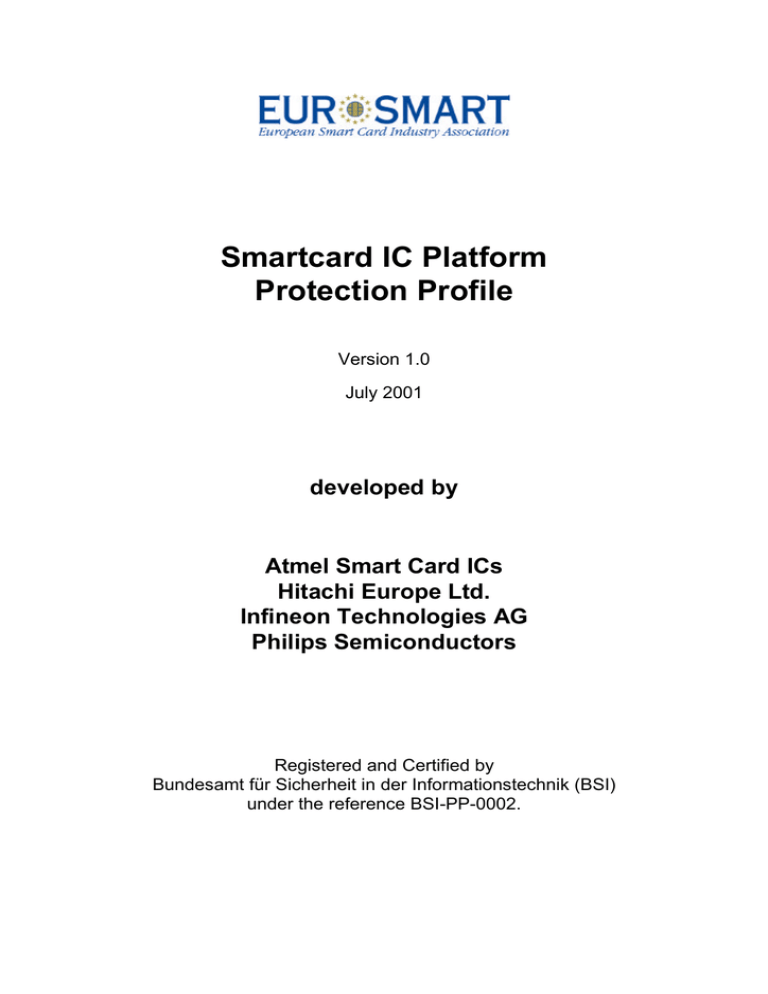

Smartcard IC Platform

Protection Profile

Version 1.0

July 2001

developed by

Atmel Smart Card ICs

Hitachi Europe Ltd.

Infineon Technologies AG

Philips Semiconductors

Registered and Certified by

Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference BSI-PP-0002.

This page is intentionally left blank.

Document Information and Table of Contents

Table of Contents

1 PP Introduction .........................................................................................................5

1.1

PP Identification ..........................................................................................................5

1.2

PP Overview ...............................................................................................................7

1.2.1

Introduction......................................................................................................7

1.2.2

Life-Cycle versus Scope and Organisation of this Protection

Profile ..............................................................................................................8

1.2.3

Specific Issues of Smartcard Hardware and the Common

Criteria...........................................................................................................12

1.3

Evaluation Assurance Level ......................................................................................15

2 TOE Description......................................................................................................15

2.1

TOE Definition ..........................................................................................................15

2.2

Further Definitions and Explanations ........................................................................19

3 TOE Security Environment.....................................................................................20

3.1

Description of Assets ................................................................................................20

3.2

Assumptions .............................................................................................................23

3.3

Threats .....................................................................................................................25

3.4

Organisational Security Policies................................................................................31

4 Security Objectives.................................................................................................32

4.1

Security Objectives for the TOE................................................................................32

4.2

Security Objectives for Environment .........................................................................37

5 IT Security Requirements.......................................................................................39

5.1

TOE Security Requirements .....................................................................................39

5.1.1

TOE Functional Requirements ......................................................................39

5.1.2

TOE Assurance Requirements ......................................................................50

5.1.3

Refinements of the TOE Assurance Requirements .......................................51

5.2

Security Requirements for the Environment..............................................................67

5.2.1

Security Requirements for the IT-Environment ..............................................67

5.2.2

Security Requirements for the Non-IT-Environment ......................................67

6 PP Application Notes..............................................................................................68

Version 1.0 (July 2001) Page 3 (of 100)

Document Information and Table of Contents

7 Rationale..................................................................................................................68

7.1

Security Objectives Rationale ...................................................................................69

7.2

Security Requirements Rationale..............................................................................70

7.2.1

Rationale for the security functional requirements .........................................70

7.2.2

Dependencies of security functional requirements.........................................76

7.2.3

Rationale for the Assurance Requirements and the Strength of

Function Level ...............................................................................................78

7.3

Security Requirements are Mutually Supportive and Internally

Consistent.................................................................................................................80

8 Annex.......................................................................................................................83

8.1

Development and Production Process (life-cycle) .....................................................83

8.1.1

Life-Cycle Description....................................................................................83

8.1.2

Description of Assets of the Integrated Circuits

Designer/Manufacturer ..................................................................................87

8.2

Security Aspects of the Smartcard Embedded Software...........................................88

8.2.1

Further Information regarding A.Resp-Appl ...................................................88

8.2.2

Examples of Specific Functional Requirements for the

Smartcard Embedded Software.....................................................................90

8.3

Examples of Attack Scenarios ..................................................................................91

8.4

Definition of the Family FCS_RND............................................................................94

8.5

Definition of the Family FMT_LIM .............................................................................95

8.6

Definition of the Family FAU_SAS ............................................................................96

8.7

Glossary of Vocabulary .............................................................................................97

8.8

List of Abbreviations................................................................................................100

Version 1.0 (July 2001) Page 4 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1)

1 PP Introduction

This chapter PP Introduction contains the following sections:

PP Identification (1.1)

PP Overview (1.2)

Introduction (1.2.1)

Life-Cycle versus Scope and Organisation of this Protection Profile (1.2.2)

Specific Issues of Smartcard Hardware and the Common Criteria (1.2.3)

Evaluation Assurance Level (1.3)

1.1 PP Identification

Title:

Smartcard IC Platform Protection Profile

Version number: Version 1.0 of July 2001

Provided by:

Atmel Smart Card ICs, Hitachi Europe Ltd., Infineon Technologies AG, and Philips Semiconductors

Technical editors: debis Systemhaus Information Security Services GmbH,

Rabinstraße 8, 53111 Bonn, Germany in co-operation with the above mentioned IC manufacturers

Certified by: Bundesamt für Sicherheit in der Informationstechnik (BSI) under registration number BSI-PP-0002

1 This Smartcard IC Platform Protection Profile has been developed on the basis of

[1] Protection Profile Smartcard Integrated Circuit (Version 2.0, Issue September

1998), Registered at the French Certification Body under the number PP/9806 and

[2] Smartcard Protection Profile of the Smartcard Security User Group; SCSUG,

Draft Version 2.1d, March 21, 2001.

Version 1.0 (July 2001) Page 5 (of 100)

Smartcard IC Platform Protection Profile

2

PP Introduction (Chapter 1)

A product compliant with this Protection Profile may also offer additional security functions. A list of possible augmentations is given in

[3] Smartcard Integrated Circuit Platform Augmentations provided by the Atmel

Smart Card ICs, Hitachi Europe Ltd., Infineon Technologies AG, and Philips

Semiconductors

3

4

5

This Smartcard IC Platform Protection Profile has been built with the

[4] Common Criteria for Information Technology Security Evaluation; Version 2.1

(ISO 15408) which comprises

[5] Common Criteria for Information Technology Security Evaluation, Part 1:

Introduction and General Model; Version 2.1 (ISO 15408)

[6] Common Criteria for Information Technology Security Evaluation, Part 2:

Security Functional Requirements; Version 2.1 (ISO 15408)

The

[7] Common Criteria for Information Technology Security Evaluation, Part 3:

Security Assurance Requirements; Version 2.1 (ISO 15408)

[8] Common Methodology for Information Technology Security Evaluation (CEM),

Part 2: Evaluation Methodology; Version 1.0, August 1999 has been taken into account.

Chapter 2 contains definitions used in this Smartcard IC Platform Protection Profile. A

Glossary is given in the annex (Section 8.7). A List of Abbreviations is also given in the annex (Section 8.8).

Version 1.0 (July 2001) Page 6 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1)

1.2 PP Overview

1.2.1 Introduction

6 This Protection Profile is the work of the following Integrated Circuits manufacturers:

Atmel,

Hitachi Europe,

Infineon Technologies, and

Philips Semiconductors.

in co-operation with debis Systemhaus Information Security Services GmbH

(T-Systems IT Security Services).

7 The increase in the number and complexity of applications in the smartcard market is reflected in the increase of the level of data security required. The security needs for a smartcard can be summarised as being able to counter those who want to defraud, gain unauthorised access to data and control a system using a smartcard. Therefore it is mandatory to:

maintain the integrity and the confidentiality of the content of the smartcard memory as required by the application(s) the smartcard is built for and

maintain the correct execution of the software residing on the card.

8

9

This requires that the smartcard integrated circuit especially maintains the integrity and the confidentiality of its security enforcing and security relevant architectural components.

Protected information are in general secret data as Personal Identification Numbers,

Balance Value (Stored Value Cards), and Personal Data Files. Other protected information are the data representing the access rights; these include any cryptographic algorithms and keys needed for accessing and using the services provided by the system through use of the smartcard.

10 The intended environment is very large; and generally once issued the smartcard can be stored and used anywhere in the world, at any time, and no control can be applied to the smartcard and the card operational environment.

11 For the sake of better understanding the definition of the TOE is copied from chapter 2 (which contains details) and already given here:

The Target of Evaluation (TOE) is a smartcard integrated circuit which is composed of a processing unit, security components, I/O ports (contact and/or contactless) and volatile and non-volatile memories (hardware). The TOE also includes any IC

Designer/Manufacturer proprietary IC Dedicated Software as long as it physically exists in the smartcard integrated circuit after being delivered by the IC Manufacturer.

Such software (also known as IC firmware) is often used for testing purposes during

Version 1.0 (July 2001) Page 7 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1) production only but may also provide additional services to facilitate usage of the hardware and/or to provide additional services (for instance in the form of a library).

In addition to the IC Dedicated Software the Smartcard Integrated Circuit may also comprise hardware to perform testing. All other software is called Smartcard

Embedded Software and is not part of the TOE.

12 The typical Smartcard integrated circuit product as the TOE is composed of a processing unit, security components, I/O ports and volatile and non-volatile memories as depicted in Figure 1.

ROM/FLASH

- IC Dedicated Software

- Smartcard Embedded

Software

RAM

- data

- code

(temporarily)

E2PROM

- data

- Smartcard Embedded

Software

Clock circuitry

CPU

Security

Circuitry

Reset logic

I/O interface

Random

Number

Generator

Crypto

Processor

Figure 1: Typical Smartcard IC Product

(especially the Cryptographic Processors are optional)

13 The evaluation of the smartcard integrated circuit according to this Protection Profile is independent of the evaluation of the Smartcard Embedded Software. The developer of the Smartcard Embedded Software decides if the platform (evaluated smartcard integrated circuit) is suitable for the application. An evaluation of a

Smartcard can be built on the results of the evaluation of the smartcard integrated circuit conforming to this Protection Profile.

1.2.2 Life-Cycle versus Scope and Organisation of this Protection Profile

Introduction to and Coverage of the Life-Cycle

14 The complex development and manufacturing processes of a smartcard can be separated into three distinct stages:

the development stage:

Smartcard Embedded Software development (Phase 1),

integrated circuit (hereafter “IC”) design, IC Dedicated Software development, integration and photomask fabrication (Phase 2),

Version 1.0 (July 2001) Page 8 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1)

the IC production stage: IC manufacturing, testing, preparation and shipping to the IC assembly line (Phase 3),

the smartcard production stage:

smartcard IC packaging (and testing) (Phase 4),

smartcard product finishing process, printing (and testing), smartcard preparation and shipping to the personalisation line (Phase 5),

15 In addition, two important stages have to be considered in the smartcard life cycle:

the smartcard personalisation and testing stage where the User Data is loaded into the smartcard's memory (Phase 6),

the smartcard usage by its issuers and end-user (Phase 7) which may include loading and other management of applications in the field.

16 This should be understood as covering multi-application approaches. A detailed description of the life-cycle is given in Section 8.1.

17 The whole life-cycle of the card will be considered during evaluations using this

Protection Profile as far as the developer/manufacturer of the TOE is directly involved. An organisational security policy (refer to Section 3.4) and a security objective (refer to Section 4) is defined to ensure that this is covered. However, a complex of details is given in terms of refinements of the Common Criteria assurance components since they are built to cover the development and production processes.

18 The scope of those assurance components referring the product’s life-cycle is limited to Phases 2 and 3. These phases are under the control of the Integrated Circuits manufacturer. All procedures within these phases are covered by the Protection

Profile. This includes the interfaces to the other phases where information and material is being exchanged with the partners of the developer/manufacturer of the

TOE.

19 Phase 4 (IC Packaging and Testing) is also included if the developer/manufacturer of the TOE delivers modules.

20 The Common Criteria [5] states: “Evaluation focuses on the IT security parts of the product or system and those parts of the operational environment that may directly affect the secure use of IT elements.“ “... refinements may be made to ISO/IEC

15408-3“ elements as required.“ [5] A refinement is the addition of details to a

(assurance) component. And [7] reads: Development security (ALC_DVS) “deals with measures to remove or reduce threats existing at the developer’s site. Conversely, threats to be countered at the TOE user’s site are normally covered in the security environment subclause of a PP or ST.” Therefore, in this Protection Profile security

Version 1.0 (July 2001) Page 9 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1) issues related to the development and production environment will not be specified in terms of threats but in terms of an organisational security policy.

21 The principles are visualised in Figure 2 and will be explained in the remainder of this section. Other requirements may also be mentioned here to correctly interface to a

Protection Profile for the Smartcard Embedded Software and vice versa.

PP

Assurance

Requirements

Phase 1

Card

Life-Cycle

Function

PP

Functional

Requirements

Refinements

Phases 2-3

Phases 4-7

Function

Figure 2: Card Life-Cycle versus PP Requirements

Delivery and External Interfaces of the Integrated Circuits manufacturer

22 The Common Criteria depict an ideal development process starting with a definition of the requirements and then having the design process, implementation, test, acceptance, delivery and usage. However, the smartcard development and production process is more complex.

23 For instance the external interfaces of the IC designer / IC manufacturer are complex:

Not only the delivery of the final product (“die” or wafer to smartcard embedding and personalisation) must be considered. The IC designer / IC manufacturer interacts with the Smartcard Embedded Software development, the mask manufacturer and may also exchange critical information with the card manufacturer.

24 Therefore, Common Criteria assurance requirements will be refined in Section 5.1.3

to ensure that this Protection Profile exactly reflects the requirements for the exchange of information and material between the developer/manufacturer of the

TOE and its partners.

Version 1.0 (July 2001) Page 10 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1)

25 In particular, the Common Criteria assurance requirement ADO_DEL (delivery) is refined. So, the details regarding secure exchange (delivery and receipt) of assets are not specified in terms of threats. The necessity of appropriate security measures is established and emphasised by an organisational security policy.

Application Note 1:

Note: The TOE may provide functions supporting the card’s life-cycle (for instance secure/authentic delivery). In this case the corresponding requirements will be specified in the Security Target in terms of security objectives and functional requirements. This is visualised in Figure 2.

Security during Development and Production

26 There are a lot of assets which need suitable protection during development and production process. Otherwise the security provided by the TOE’s security functions can not be maintained.

27 Therefore, Common Criteria assurance requirements will be refined in Section 5.1.3

to ensure that this Protection Profile exactly reflects the requirements regarding the protection of critical assets by the developer/manufacturer of the TOE during development and production.

28 In particular, the Common Criteria assurance requirement ALC_DVS (development security) is refined. So, the details regarding the security in the development and production process are not specified in terms of threats. The necessity of appropriate security measures is established and emphasised by an organisational security policy.

29 It may be necessary to state requirements for other parties if they use assets generated by the developer/manufacturer of the TOE. However, it can not be assessed during an evaluation according to this Protection Profile whether the requirements are met.

Consequently, these requirements must be taken into account during the evaluation of the Smartcard Embedded Software or Smartcard, respectively.

30 For assumptions regarding the usage of the TOE (its environment) made in this

Protection Profile refer to Section 3.2.

Version 1.0 (July 2001) Page 11 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1)

1.2.3 Specific Issues of Smartcard Hardware and the Common Criteria

31 The smartcard integrated circuit is a platform to be used by the Smartcard Embedded

Software. The smartcard integrated circuit itself may not possess any asset (such as critical data). All assets are those of the Smartcard Embedded Software. However, the hardware platform must

maintain the integrity and the confidentiality of the content of the smartcard memory as required by the context of the Smartcard Embedded Software and

maintain the correct execution of the Smartcard Embedded Software.

32 This requires that the smartcard integrated circuit especially maintains the integrity and the confidentiality of its security enforcing and security relevant architectural components.

33 The TOE security mechanisms need to work together in different combinations to counter attacks. Owing to complex dependencies, these combinations are only apparent in the context of a specific attack scenario. Often the composition of a security function only becomes clear when considering a specific attack path during vulnerability analysis (AVA_VLA). A security mechanism may be needed in different security functions depending on the attack path. This has to be considered during the

TOE evaluation.

34 Detailed specification of the (implementation dependent) security measures and associated binding aspects are beyond the scope of this Protection Profile.

35 This Protection Profile will describe the security problems related to smartcard integrated circuits (and the corresponding security objectives and requirements) in a more general way though addressing all important issues. Attack scenarios will be mentioned whenever appropriate but only to illustrate the corresponding security problem. The information about attack scenarios can not be considered as being complete.

36 It is not possible (because of differences between the chips) nor desirable (confidentiality; do not instruct the attackers) to specify all the specific attack scenarios and all the security features on a Protection Profile level. The Security Target may describe the Smartcard IC in more detail without necessarily disclosing construction details.

37 This Protection Profile will highlight some specific security features or functions though breaking them would not necessarily affect the primary assets in a direct way.

38 It is necessary and helpful to raise these second-level security issues already on the level of the Protection Profile or Security Target since appropriate countermeasures are mandatory for a smartcard integrated circuit.

39 This Protection Profile will address all the relevant security issues either in a general way (while not disclosing too much details) or in more detail (if possible though often being related to second-level security problems).

Version 1.0 (July 2001) Page 12 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1)

Application Note 2:

Note: The security features of smartcard integrated circuits differ. Some functionality may exist on one chip but not on another (example: cryptographic co-processor). To take this into account this Protection Profile will contain common requirements for smartcard integrated circuits. A Security Target shall take over all the requirements stated here (compliance) but may add functional security requirements for instance from the document Smartcard

Integrated Circuit Platform Augmentations [3] as appropriate. This is indicated by “Func. Augm.” in Figure 3. Therefore, the Security Target used for the evaluation of a smartcard integrated circuit will be created by taking this

Protection Profile and adding, for example, appropriate paragraphs from [3] and then adding TOE specific information.

40 Hardware and software together shall build an integrated secure whole. There can be a lot of interdependencies between the two. Requirements for the Smartcard

Embedded Software should normally be described as Security Requirements for the

Environment (Section 5.2) if they are necessary to ensure secure operation of the

TOE (here: the smartcard integrated circuit).

41 However, particular requirements for the software are often not clear before considering a specific attack scenario during vulnerability analysis (AVA_VLA).

Therefore, such results from the evaluation of the smartcard integrated circuit

(contained in the Evaluation Technical Report (ETR)) must be given to the developer of the Smartcard Embedded Software and be taken into account during the evaluation of the software (refer to Figure 3). This may also hold for additional tests being required for the combination of hardware and software.

42 In consequence, the Security Requirements for the Environment (Section 5.2) cannot be expected to exactly specify all requests for the Smartcard Embedded Software. In addition, a comprehensive list in a Security Target could disclose too much information about possible vulnerabilities. Instead a separate document must be prepared and handed over to the developer of the Smartcard Embedded Software which gives all the information for developing secure software. In this way modularity for evaluations is supported without making public vulnerabilities of the smartcard integrated circuit or details about the implementation. Refer to A.Plat-Appl in

Section 3.2 for more detail.

Version 1.0 (July 2001) Page 13 (of 100)

Smartcard IC Platform Protection Profile PP Introduction (Chapter 1)

Card Requirements

H/W PP

(this PP)

Smartcard IC

Security Target

Func.

Augm.

Card PP

Smartcard

Security Target

H/W

Evaluation

S/W

Evaluation

Smartcard

Evaluation

Evaluation results

Figure 3: Relationship between Hardware and Smartcard Embedded Software

(The term “H/W” means the TOE of this Protection Profile as defined in chapter 2.)

43 The TOE serves as a platform for the Smartcard Embedded Software. On the other hand, the Smartcard (with the TOE as a major element) is used in a terminal where communication is performed through the ISO interface provided by the TOE (contacts or contactless). After production the TOE is tested where communication is performed via the pads which mostly become part of the ISO interface during packaging. Therefore, the roles “user” and “administrator” must be interpreted in a specific way for the TOE. Regarding a definition of the terms “user” and

“administrator” refer to Sections 5.1.3.8 and 5.1.3.9, respectively.

44 Configuration management (CM) requires “discipline and control in the processes of refinement and modification of the TOE and the related information. CM systems are put in place to ensure the integrity of the portions of the TOE that they control, by providing a method of tracking any changes, and by ensuring that all changes are authorised.” [7] For a standard software development the integrity of the TOE

(including authorisation of changes) is very important. In addition, for Smartcard

Integrated Circuits the confidentiality of the design (as reflected by the Common

Criteria assurance component of the family ALC_DVS) is a primary goal.

45 As an example cryptographic attacks are not only possible taking a purely theoretical

(mathematical) approach but also by recording and interpreting information related to the execution of cryptographic operations. Details about the implementation may make such attacks easier. Therefore, in the case of a Smartcard Integrated Circuit, maintaining the confidentiality of the design is very important. This is in contrast

Version 1.0 (July 2001) Page 14 (of 100)

Smartcard IC Platform Protection Profile TOE Description (Chapter 2) to Kerckhoff’s principle, where the security of a cryptographic algorithm should rely solely on the secrecy of the keys and not on the secrecy of the algorithm itself.

46 If details of the design and layout of the integrated circuit are freely available this would considerably reduce the effort to mount an attack, since reverse-engineering would not be required. The security of the TOE is therefore also based upon concealing information.

1.3 Evaluation Assurance Level

47 The minimum assurance level for this Protection Profile is EAL4 augmented (refer to

Section 5.1.2 for more detail). The minimum strength of security functions for the

TOE is SOF-high (Strength of Functions High).

Application Note 3:

Revise: If the Security Target goes beyond EAL4 augmented (for instance

EAL5 augmented, refer for example to the Smartcard Integrated Circuit

Platform Augmentations), add some reference to that in the Security Target.

2 TOE Description

This chapter TOE Description contains the following sections:

TOE Definition (2.1)

Further Definitions and Explanations (2.2)

2.1 TOE Definition

48 The Target of Evaluation (TOE) is a smartcard integrated circuit which is composed of a processing unit, security components, I/O ports (contact and/or contactless) and volatile and non-volatile memories (hardware). The TOE also includes any IC

Designer/Manufacturer proprietary IC Dedicated Software as long as it physically exists in the smartcard integrated circuit after being delivered by the IC Manufacturer.

Such software (also known as IC firmware) is often used for testing purposes during production only but may also provide additional services to facilitate usage of the hardware and/or to provide additional services (for instance in the form of a library).

In addition to the IC Dedicated Software the Smartcard Integrated Circuit may also comprise hardware to perform testing. All other software is called Smartcard

Embedded Software and is not part of the TOE. Refer to Figure 1 on page 8.

Version 1.0 (July 2001) Page 15 (of 100)

Smartcard IC Platform Protection Profile TOE Description (Chapter 2)

49 Therefore, the TOE comprises

the circuitry of the IC (hardware including the physical memories),

-

TSF data

1 and, if delivered,

- the IC Dedicated Software with the parts

IC Dedicated Test Software,

IC Dedicated Support Software and

module packaging if TOE Delivery is after Phase 4 and

the associated guidance documentation.

The TOE is designed, produced and/or generated by the TOE Manufacturer.

50 Note that whenever this Protection Profile describes functions and behaviour of the

TOE, it refers to the device only and not to the associated guidance documentation.

51 The TSF data (including information about the TOE’s configuration, if any) are coded in non-volatile non-programmable memories (ROM), in specific circuitry, in nonvolatile programmable memories (for instance E

2

PROM) or a combination thereof. By definition the TSF data

2

belong to the TOE.

52 The TOE is developed in Phase 2. The integrated circuit is produced in Phase 3.

Then the TOE can be delivered in form of wafers or sawn wafers (dice). The TOE can also be delivered in form of modules. In this case the corresponding assurance requirements of this Protection Profile for the development and production of the

TOE not only pertain to Phase 2 and 3 but to Phase 4 in addition. Refer to the life cycle description in Section 8.1.1.

1 which may also be coded in specific circuitry of the IC; for a definition refer to the Glossary 8.7

2 for a definition refer to the Glossary 8.7

Version 1.0 (July 2001) Page 16 (of 100)

Smartcard IC Platform Protection Profile

Smartcard

Embedded

Software

Developer

TOE Description (Chapter 2)

Phase 1:

Smartcard Embedded

Software Developer

TOE

Manufacturer

TOE Delivery

Phase 2:

IC Developer

Phase 3:

IC Manufacturer after Phase 3 or after Phase 4

Phase 4:

IC Packaging Manufacturer

Card

Manufacturer

Phase 5:

Smartcard Product

Manufacturer

Phase 6:

Personaliser

Smartcard

Issuer; End-User

Phase 7:

Smartcard Issuer

Figure 4: Definition of “TOE Delivery” and responsible Parties

53 In the following the term “TOE Delivery” (refer to Figure 4) is uniquely used which indicates

after Phase 3 (or before Phase 4) if the TOE is delivered in form of wafers or sawn wafers (dice) or

after Phase 4 (or before Phase 5) if the TOE is delivered in form of modules.

54 The Protection Profile uniquely uses the term “TOE Manufacturer” (refer to Figure 4) which includes the following roles:

the IC Developer (Phase 2) and the IC Manufacturer (Phase 3) if the TOE is delivered after Phase 3 in form of wafers or sawn wafers (dice) or

the IC Developer (Phase 2), the IC Manufacturer (Phase 3) and the IC Packaging Manufacturer (Phase 4) if the TOE is delivered after Phase 4 in form of modules.

Version 1.0 (July 2001) Page 17 (of 100)

Smartcard IC Platform Protection Profile TOE Description (Chapter 2)

55 Hence the “TOE Manufacturer” comprise all roles before “TOE Delivery”. Starting with

“TOE Delivery” another party takes over the control of the TOE. This Protection

Profile defines requirements for the TOE’s development and production environment up to “TOE Delivery”. Refer to Figure 4.

56 The Protection Profile uniquely uses the term “Card Manufacturer” which includes all roles after TOE Delivery (refer to Figure 4) which are the following:

the IC Packaging Manufacturer (Phase 4) if the TOE is delivered after Phase 3 in form of wafers or sawn wafers (dice) the Smartcard Product Manufacturer (Phase 5) and the Personaliser (Phase 6).

57 Note that depending on the application context this may also include tasks of the

Smartcard Issuer. However, this is outside the scope of this Protection Profile.

Application Note 4:

Revise: The Security Target must explicitly state whether (i) TOE Delivery is after Phase 3 only or (ii) after Phase 4 as well. This can be done by using the relevant information from the paragraphs above.

58 So, in this Protection Profile the following roles are used (i) Smartcard Embedded

Software Developer, (ii) TOE Manufacturer and (iii) Card Manufacturer.

59 The Target of Evaluation (TOE) is intended to be used in a smartcard product, independent of the physical interface and the way it is packaged. Generally, a smartcard product may include other optional elements (such as specific hardware components, batteries, capacitors, antennae,...) but these are not in the scope of this

Protection Profile.

60 The IC Dedicated Software is part of the TOE, if it exists on the Smartcard after TOE

Delivery. The IC Dedicated Software may comprise (i) IC Dedicated Test Software and (ii) IC Dedicated Support Software:

61 The “IC Dedicated Test Software” is not usable after TOE Delivery. Therefore, this software (or parts of it) is seen only as a “test tool” though being delivered as part of the TOE. The IC Dedicated Test Software does not provide TSF after TOE Delivery and is only used to support production of the TOE according to the Common Criteria assurance class ATE (tests). However, it must be verified that it cannot be abused after TOE Delivery: this is evaluated according to the Common Criteria assurance family AVA_VLA.

62 In contrast, the “IC Dedicated Support Software" does provide functions after TOE

Delivery. Therefore, during evaluation it is treated as all other parts of the TOE.

Version 1.0 (July 2001) Page 18 (of 100)

Smartcard IC Platform Protection Profile

Application Note 5:

TOE Description (Chapter 2)

Revise: If the TOE provides functionality to be used after TOE Delivery this is part of the IC Dedicated Support Software. Then such functions must be specified in the Security Target of the actual TOE possibly using input from the document Smartcard Integrated Circuit Platform Augmentations [3]. Revise the above paragraphs in the Security Target to make clear if the TOE comprises

IC Dedicated Support Software.

2.2 Further Definitions and Explanations

63 The Smartcard Embedded Software is normally stored in non-volatile nonprogrammable memories (ROM). But some parts of it (called supplements for the

Smartcard Embedded Software, refer to Section 8.1) may also be stored in nonvolatile programmable memories (for instance E

2

PROM). All data managed by the

Smartcard Embedded Software is called User Data. In addition, Pre-personalisation

Data (refer to Section 8.1) belongs to the User Data.

64 Therefore, not included in the TOE, but part of the smartcard (refer to below) there is

the Smartcard Embedded Software comprising

Hard-coded Smartcard Embedded Software (normally stored in ROM)

Soft-coded Smartcard Embedded Software (normally stored in E

2

PROM) and

User Data (especially personalisation data and other data generated and used by the Smartcard Embedded Software)

65 The Smartcard Embedded Software is not designed and the User Data are not generated by the TOE Manufacturer.

66 The “Smartcard” comprises

the TOE,

the Smartcard Embedded Software,

User Data (including Pre-personalisation Data), and

its package (the smartcard carrier).

67 Note that it is assumed here that the chip is packed. However, the way it is packaged is not specified here.

68 Further terms are explained in the Glossary (refer to Section 8.7).

Version 1.0 (July 2001) Page 19 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3)

69 The following explanations help to understand the focus of the threats and objectives defined below. For example, certain attacks are only one step towards a disclosure of assets, others may directly lead to a compromise of the application security.

Manipulation of data (which may comprise any data, including code, stored in or processed by the smartcard integrated circuit) means that an attacker is able to alter a meaningful block of data. This should be considered for the threats

T.Malfunction, T.Phys-Manipulation and T.Abuse-Func.

- Manipulation of the TOE means that an attacker is able to deliberately deactivate or otherwise change the behaviour of a specific function in a manner which enables exploitation. This should be considered for the threat T.Malfunction,

T.Phys-Manipulation and T.Abuse-Func.

Disclosure of data (which may comprise any data, including code, stored in or processed by the smartcard integrated circuit) means that an attacker is realistically

3

able to determine a meaningful block of data. This should be considered for the threats T.Leak-Inherent, T.Phys-Probing, T.Leak-Forced and

T.Abuse-Func.

3 TOE Security Environment

This chapter TOE Security Environment contains the following sections:

Description of Assets (3.1)

Assumptions (3.2)

Threats (3.3)

Organisational Security Policies (3.4)

3.1 Description of Assets

Assets regarding the Threats

Application Note 6:

Note: This Protection Profile deals with the standard set of assets (both primary and secondary ones) related to standard functionality (refer to paragraphs 70 and 71). Other assets are related to specific functionality. One additional primary asset is already defined here. Other primary and secondary assets may be added to paragraphs 77 and 78 by using for instance the document Smartcard Integrated Circuit Platform Augmentations [3].

70 The primary assets (related to standard functionality) to be protected are

the User Data.

3 taking into account the assumed attack potential (and for instance the probability of errors)

Version 1.0 (July 2001) Page 20 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3)

71 Especially the User Data can be subject to manipulation and disclosure while being stored or processed by the TOE. However, also

the Smartcard Embedded Software needs to be protected to prevent manipulation and disclosure.

72 It is also essential that the TOE (including its Random Number Generator) guarantees

its correct operation.

73 In particular this means that the Smartcard Embedded Software is correctly being executed which includes the correct operation of the TOE’s functions.

74 Additional assets (secondary ones) are critical information about the TOE which include

logical design data, physical design data, IC Dedicated Software, and TSF Data.

75 In addition,

Initialisation Data and Pre-personalisation Data, specific development aids, test and characterisation related data, material for software development support, and photomasks will also contain information about the TOE. Such information and the ability to perform manipulations assist in threatening the above primary assets.

76 Note that there are many ways to manipulate or disclose the User Data. (i) An attacker may manipulate the Smartcard Embedded Software or the TOE. (ii) An attacker may cause malfunctions of the TOE or abuse Test Features provided by the

TOE. Such attacks usually require design information of the TOE to be obtained.

Therefore, the design information is a secondary asset. They pertain to all information about (i) the circuitry of the IC (hardware including the physical memories), (ii) the IC Dedicated Software with the parts IC Dedicated Test Software

(if any) and IC Dedicated Support Software (if any), and (iii) the TSF data.

77 Other primary assets (related to specific functionality) are

- the random numbers generated by the TOE

4

.

4

Note that random numbers are to be protected in terms of confidentiality for instance against the threat of leakage because they might be used to generate cryptographic keys.

Version 1.0 (July 2001) Page 21 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3)

78 Other secondary assets (related to specific functionality) are

none.

Application Note 7:

Revise: If the TOE provides further functions or services to the Smartcard

Embedded Software it might be necessary to define additional primary and secondary assets. In this case the above paragraphs 77 and 78 are to be revised.

Assets regarding the Organisational Security Policy P.Process-TOE

79 The information and material produced and/or processed by the TOE Manufacturer in the TOE development and production environment (Phases 2 up to TOE Delivery) can be grouped as follows:

- logical design data,

- physical design data,

-

IC Dedicated Software, Smartcard Embedded Software, Initialisation Data and

Pre-personalisation Data,

- specific development aids,

- test and characterisation related data,

- material for software development support, and

- photomasks and products in any form as long as they are generated, stored, or processed by the TOE Manufacturer.

Explanations can be found in Section 8.1.2.

Assets regarding the Assumption A.Process-Card

80 The information and material produced and/or processed by the Smartcard

Embedded Software Developer in Phase 1 and by the Card Manufacturer can be grouped as follows:

the Smart Card Embedded Software including specifications, implementation and related documentation,

pre-personalisation and personalisation data including specifications of formats and memory areas, test related data,

the User Data and related documentation, and

material for software development support

Version 1.0 (July 2001) Page 22 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3) as long as they are not under the control of the TOE Manufacturer. Details must be defined in the Protection Profile or Security Target for the evaluation of the Smartcard

Embedded Software and/or Smartcard.

3.2 Assumptions

81 The following Figure 5 shows the assumptions applied in this Protection Profile.

A.Process-Card A.Plat-Appl

...left for assumptions due to an augmentation in the

Security Target

A.Resp-Appl

Figure 5: Assumptions

Application Note 8:

Note: The TOE may provide specific security functionality which can be used by the Smartcard Embedded Software. Examples are given in the document

Smartcard Integrated Circuit Platform Augmentations [3]. In this case it can be required to add additional assumptions in the Security Target.

82 The intended usage of the TOE is twofold, depending on the Life Cycle Phase:

(i) The Smartcard Embedded Software developer uses it as a platform for the smartcard software being developed. The Card Manufacturer (and the end-user) uses it as a part of the Smartcard. The Smartcard is used in a terminal which supplies the card (with power and clock) and (at least) mediates the communication with the Smartcard Embedded Software.

83 Before being delivered to the end-user the TOE is packaged. Many attacks require the TOE to be removed from the carrier. Though this extra step adds difficulties for the attacker no specific assumptions are made here regarding the package.

84 Appropriate “Protection during Packaging, Finishing and Personalisation

(A.Process-Card)” must be ensured after TOE Delivery up to the end of Phase 6, as well as during the delivery to Phase 7 as specified below.

A.Process-Card Protection during Packaging, Finishing and Personalisation

It is assumed that security procedures are used after delivery of the TOE by the TOE Manufacturer up to delivery to the end-user to maintain confidentiality and integrity of the TOE

Version 1.0 (July 2001) Page 23 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3) and of its manufacturing and test data (to prevent any possible copy, modification, retention, theft or unauthorised use).

This means that the Phases after TOE Delivery (refer to

Sections 2.1 and 8.1) are assumed to be protected appropriately. For a preliminary list of assets to be protected refer to paragraph 80 (page 22).

85 The developer of the Smartcard Embedded Software must ensure the appropriate

“Usage of Hardware Platform (A.Plat-Appl)” while developing this software in Phase 1 as specified below.

A.Plat-Appl Usage of Hardware Platform

The Smartcard Embedded Software is designed so that the requirements from the following documents are met: (i) TOE guidance documents (refer to the Common Criteria assurance class AGD) such as the hardware data sheet, and the hardware application notes, and (ii) findings of the TOE evaluation reports relevant for the Smartcard Embedded Software.

Note that particular requirements for the Smartcard Embedded

Software are often not clear before considering a specific attack scenario during vulnerability analysis of the smartcard integrated circuit (AVA_VLA). Therefore, such results from the

TOE evaluation (as contained in the Evaluation Technical

Report (ETR)) must be given to the developer of the Smartcard

Embedded Software in an appropriate and authorised form and be taken into account during the evaluation of the software.

This may also hold for additional tests being required for the combination of hardware and software. The TOE evaluation must be completed before evaluation of the Smartcard

Embedded Software can be completed. The TOE evaluation can be conducted before and independent from the evaluation of the Smartcard Embedded Software.

86 The developer of the Smartcard Embedded Software must ensure the appropriate

“Treatment of User Data (A.Resp-Appl)” while developing this software in Phase 1 as specified below.

A.Resp-Appl Treatment of User Data

All User Data are owned by Smartcard Embedded Software.

Therefore, it must be assumed that security relevant User Data

(especially cryptographic keys) are treated by the Smartcard

Embedded Software as defined for the specific application context.

Details must be specified in the application context. Examples are given in Section 8.2.1, all being directly related to and covered by A.Resp-Appl.

Version 1.0 (July 2001) Page 24 (of 100)

Smartcard IC Platform Protection Profile

Application Note 9:

TOE Security Environment (Chapter 3)

Add: If needed further assumptions must be added in the Security Target.

Such assumptions might be required if the TOE provides specific security functionality which can be used by the Smartcard Embedded Software. Refer to the document Smartcard Integrated Circuit Platform Augmentations [3].

3.3 Threats

87 The cloning of the functional behaviour of the Smartcard on its ISO command interface is the highest level security concern in the application context.

88 The cloning of that functional behaviour requires to (i) develop a functional equivalent of the Smartcard Embedded Software, (ii) disclose, interpret and employ the secret

User Data stored in the TOE, and (iii) develop and build a functional equivalent of the smartcard using the input from the previous steps.

89 The smartcard integrated circuit is a platform for the Smartcard Embedded Software which ensures that especially the critical User Data are stored and processed in a secure way (refer to below). The Smartcard Embedded Software must also ensure that critical User Data are treated as required in the application context (refer to

Section 3.2). In addition, the personalisation process supported by the Smartcard

Embedded Software (and perhaps by the smartcard integrated circuit in addition) must be secure (refer to Section 3.2). This last step is beyond the scope of this

Protection Profile. As a result the threat “cloning of the functional behaviour of the smartcard on its ISO command interface” is averted by the combination of measures which split into those being evaluated according to this Protection Profile (smartcard integrated circuit) and those being subject to the evaluation of the Smartcard

Embedded Software or Smartcard and the corresponding personalisation process.

Therefore, functional cloning is indirectly covered by the security concerns and threats described below.

90 According to this Protection Profile there are the following standard high-level security concerns:

SC1 manipulation of User Data and of the Smartcard Embedded Software (while being executed/processed and while being stored in the TOE’s memories) and

SC2 disclosure of User Data and of the Smartcard Embedded Software (while being processed and while being stored in the TOE’s memories).

Though the Smartcard Embedded Software (normally stored in the ROM) will in many cases not contain secret data or algorithms, it must be protected from being disclosed, since for instance knowledge of specific implementation details may assist an attacker. In many cases critical User Data will be stored in the E

2

PROM.

Version 1.0 (July 2001) Page 25 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3)

91 These high-level security concerns are refined below by defining threats as required by the Common Criteria (refer to Figure 6). Note that manipulation of the TOE is only a means to threaten User Data or the Smartcard Embedded Software and is not a success for the attacker in itself.

T.Phys-Manipulation T.Leak-Inherent

T.Phys-Probing T.Leak-Forced

T.Malfunction

T.Abuse-Func

Figure 6: Standard Threats

92 According to this Protection Profile there are the following high-level security concerns related to specific functionality:

SC3 deficiency of random numbers.

93 These high-level security concerns being related to specific functionality are refined below by defining threats as required by the Common Criteria (refer to Figure 7).

T.RND

...left for threats due to an augmentation in the

Security Target

Figure 7: Threats related to Specific Functionality

Application Note 10:

Add: If the TOE provides further functions or services to the Smartcard

Embedded Software (such as cryptographic functions) this would result in having additional high-level security concerns in the Security Target which must also be refined. Examples are given in the document Smartcard

Integrated Circuit Platform Augmentations [3]. In this case add the appropriate text to the above paragraph.

94 The Smartcard Embedded Software must contribute to averting the threats: At least it must not undermine the security provided by the TOE. For detail refer to the assumptions regarding the Smartcard Embedded Software specified in Section 3.2.

Version 1.0 (July 2001) Page 26 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3)

95 The above security concerns are derived from considering the end-usage phase

(Phase 7) since

Phase 1 and the Phases from TOE Delivery up to the end of Phase 6 are covered by assumptions and

the development and production environment starting with Phase 2 up to TOE

Delivery are covered by an organisational security policy.

96 Refer to Figure 4 on page 17. The TOE’s countermeasures are designed to avert the threats described below. Nevertheless, they may be effective in earlier phases

(Phases 4 to 6).

97 The TOE is exposed to different types of influences or interactions with its outer world. Some of them may result from using the TOE only but others may also indicate an attack. The different types of influences or interactions are visualised in

Figure 8.

Figure 8: Attack Model for the TOE

98 An interaction with the TOE can be done through the ISO interfaces (Number 7 – 9 in

Figure 8) which are realised using contacts and/or a contactless interface. Influences or interactions with the TOE also occurs through the chip surface (Number 1 – 6 in

Figure 8). In Number 1 and 6 galvanic contacts are used. In Number 2 and 5 the

Version 1.0 (July 2001) Page 27 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3) influence (arrow directed to the chip) or the measurement (arrow starts from the chip) does not require a contact. Number 3 and 4 refer to specific situations where the

TOE and its functional behaviour is not only influenced but definite changes are made by applying mechanical, chemical and other methods (such as 1, 2). Many attacks require a prior inspection and some reverse-engineering (Number 3).

99 Examples for specific attacks are given in Section 8.3.

Standard Threats (referring to SC1 and SC2)

100 The TOE shall avert the threat “Inherent Information Leakage (T.Leak-Inherent)” as specified below.

T.Leak-Inherent Inherent Information Leakage

An attacker may exploit information which is leaked from the

TOE during usage of the Smartcard in order to disclose confidential data (User Data or TSF data).

No direct contact with the Smartcard internals is required here.

Leakage may occur through emanations, variations in power consumption, I/O characteristics, clock frequency, or by changes in processing time requirements. One example is the

Differential Power Analysis (DPA). This leakage may be interpreted as a covert channel transmission but is more closely related to measurement of operating parameters, which may be derived either from direct (contact) measurements (Numbers 6 and 7 in Figure 8) or measurement of emanations (Number 5 in

Figure 8) and can then be related to the specific operation being performed.

101 The TOE shall avert the threat “Physical Probing (T.Phys-Probing)” as specified below.

T.Phys-Probing Physical Probing

An attacker may perform physical probing of the TOE in order

(i) to disclose User Data, (ii) to disclose/reconstruct the

Smartcard Embedded Software or (iii) to disclose other critical operational information especially TSF data.

Physical probing requires direct interaction with the Smartcard

Integrated Circuit internals (Numbers 5 and 6 in Figure 8).

Techniques commonly employed in IC failure analysis and IC reverse engineering efforts may be used. Before that hardware security mechanisms and layout characteristics need to be identified (Number 3 in Figure 8). Determination of software

Version 1.0 (July 2001) Page 28 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3) design including treatment of User Data may also be a prerequisite.

This pertains to “measurements” using galvanic contacts or any type of charge interaction whereas manipulations are considered under the threat “Physical Manipulation

(T.Phys-Manipulation)”. The threats “Inherent Information

Leakage (T.Leak-Inherent)” and “Forced Information Leakage

(T.Leak-Forced)“ may use physical probing but require complex signal processing in addition.

102 The TOE shall avert the threat “Malfunction due to Environmental Stress

(T.Malfunction)” as specified below.

T.Malfunction

Malfunction due to Environmental Stress

An attacker may cause a malfunction of TSF or of the

Smartcard Embedded Software by applying environmental stress in order to (i) deactivate or modify security features or functions of the TOE or (ii) deactivate or modify security functions of the Smartcard Embedded Software. This may be achieved by operating the Smartcard outside the normal operating conditions (Numbers 1, 2 and 9 in Figure 8).

To exploit this an attacker needs information about the functional operation.

103 The TOE shall avert the threat “Physical Manipulation (T.Phys-Manipulation)” as specified below.

T.Phys-Manipulation Physical Manipulation

An attacker may physically modify the Smartcard in order to

(i) modify security features or functions of the TOE, (ii) modify security functions of the Smartcard Embedded Software or

(iii) to modify User Data.

The modification may be achieved through techniques commonly employed in IC failure analysis (Numbers 1, 2 and 4 in

Figure 8) and IC reverse engineering efforts (Number 3 in

Figure 8). The modification may result in the deactivation of a security function. Before that hardware security mechanisms and layout characteristics need to be identified. Determination of software design including treatment of User Data may also be a pre-requisite. Changes of circuitry or data can be permanent or temporary.

In contrast to malfunctions (refer to T.Malfunction) the attacker requires to gather significant knowledge about the TOE’s internal construction here (Number 3 in Figure 8).

Version 1.0 (July 2001) Page 29 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3)

104 The TOE shall avert the threat “Forced Information Leakage (T.Leak-Forced)“ as specified below:

T.Leak-Forced Forced Information Leakage

An attacker may exploit information which is leaked from the

TOE during usage of the Smartcard in order to disclose confidential data (User Data or TSF data) even if the information leakage is not inherent but caused by the attacker.

This threat pertains to attacks where methods described in

“Malfunction due to Environmental Stress” (refer to

T.Malfunction) and/or “Physical Manipulation” (refer to

T.Phys-Manipulation) are used to cause leakage from signals

(Numbers 5, 6, 7 and 8 in Figure 8) which normally do not contain significant information about secrets.

105 The TOE shall avert the threat “Abuse of Functionality (T.Abuse-Func)” as specified below.

T.Abuse-Func Abuse of Functionality

An attacker may use functions of the TOE which may not be used after TOE Delivery in order to (i) disclose or manipulate

User Data, (ii) to manipulate (explore, bypass, deactivate or change) security features or functions of the TOE or of the

Smartcard Embedded Software or (iii) to enable an attack.

Threats related to Specific Functionality (referring to SC3)

106 The TOE shall avert the threat “Deficiency of Random Numbers (T.RND)” as specified below.

T.RND

Deficiency of Random Numbers

An attacker may predict or obtain information about random numbers generated by the TOE for instance because of a lack of entropy of the random numbers provided.

An attacker may gather information about the produced random numbers which might be a problem because they may be used for instance to generate cryptographic keys.

Here the attacker is expected to take advantage of statistical properties of the random numbers generated by the TOE without specific knowledge about the TOE’s generator.

Malfunctions or premature ageing are also considered which may assist in getting information about random numbers.

Version 1.0 (July 2001) Page 30 (of 100)

Smartcard IC Platform Protection Profile TOE Security Environment (Chapter 3)

Application Note 11:

Add: Other threats related to specific functionality must be added in the

Security Target if this Protection Profile is augmented. This augmentation may be taken from the document Smartcard Integrated Circuit Platform

Augmentations [3].

3.4 Organisational Security Policies

107 The following Figure 9 shows the policies applied in this Protection Profile.

P.Process-TOE

...left for policies due to an augmentation in the

Security Target

Figure 9: Policies

Application Note 12:

Add: The TOE may provide specific security functionality which can be used by the Smartcard Embedded Software. Particular specific security functionality may not necessarily be derived from threats identified for the TOE’s environment because it can only be decided in the context of the smartcard application, against which threats the Smartcard Embedded Software will use the specific security functionality. Therefore, the necessity of some specific functionality may not derived from a threat. Instead specific security functionality can be provided according to a security policy to be specified here in this case (refer to the document Smartcard Integrated Circuit Platform

Augmentations [3]). Such security policies may be added in the Security Target if this Protection Profile needs to be augmented.

108 The IC Developer / Manufacturer must apply the policy “Protection during TOE

Development and Production (P.Process-TOE)” as specified below.

P.Process-TOE Protection during TOE Development and Production

The TOE Manufacturer must ensure that the development and production of the Smartcard Integrated Circuit (Phase 2 up to

TOE Delivery, refer to Section 2.1) is secure so that no information is unintentionally made available for the operational phase of the TOE. For example, the confidentiality and integrity of design information and test data shall be guaranteed; access to samples, development tools and other material shall be restricted to authorised persons only; scrap will be destroyed etc. This not only pertains to the TOE but also to all information and material exchanged with the developer of the Smartcard

Embedded Software and therefore especially to the Smartcard

Embedded Software itself. This includes the delivery

(exchange) procedures for Phase 1 and the Phases after TOE

Delivery as far as they can be controlled by the TOE

Manufacturer.

Version 1.0 (July 2001) Page 31 (of 100)

Smartcard IC Platform Protection Profile Security Objectives (Chapter 4)

An accurate identification must be established for the TOE.

This requires that each instantiation of the TOE carries this unique identification.

For a list of assets refer to paragraph 79 (page 22).

4 Security Objectives

This chapter Security Objectives contains the following sections:

Security Objectives for the TOE (4.1)

Security Objectives for Environment (4.2)

4.1 Security Objectives for the TOE

109 According to this Protection Profile there are the following standard high-level security goals:

SG1 maintain the integrity of User Data and of the Smartcard Embedded Software

(when being executed/processed and when being stored in the TOE’s memories) as well as

SG2 maintain the confidentiality of User Data and of the Smartcard Embedded

Software (when being processed and when being stored in the TOE’s memories).

Though the Smartcard Embedded Software (normally stored in the ROM) will in many cases not contain secret data or algorithms, it must be protected from being disclosed, since for instance knowledge of specific implementation details may assist an attacker. In many cases critical User Data will be stored in the E

2

PROM.

110 These standard high-level security goals are refined below by defining security objectives as required by the Common Criteria (refer to Figure 10). Note that the integrity of the TOE is a means to reach these objectives.

Version 1.0 (July 2001) Page 32 (of 100)

Smartcard IC Platform Protection Profile

O.Phys-Manipulation

Security Objectives (Chapter 4)

O.Leak-Inherent

O.Phys-Probing O.Leak-Forced

O.Malfunction

O.Abuse-Func

O.Identification

Figure 10: Standard Security Objectives

111 According to this Protection Profile there are the following high-level security goals related to specific functionality:

SG3 provide random numbers.

112 The additional high-level security considerations are refined below by defining security objectives as required by the Common Criteria (refer to Figure 11).

O.RND

...left for objectives due to an augmentation in the

Security Target

Figure 11: Security Objectives related to Specific Functionality

Application Note 13:

Add: If the TOE provides further functions or services to the Smartcard

Embedded Software (such as cryptographic functions) this may result in having additional high-level security goals in the Security Target which must also be refined. Examples are given in the document Smartcard Integrated

Circuit Platform Augmentations [3].

Version 1.0 (July 2001) Page 33 (of 100)

Smartcard IC Platform Protection Profile Security Objectives (Chapter 4)

Standard Security Objectives (referring to SG1 and SG2)

113 The TOE shall provide “Protection against Inherent Information Leakage

(O.Leak-Inherent)” as specified below.

O.Leak-Inherent Protection against Inherent Information Leakage

The TOE must provide protection against disclosure of confidential data (User Data or TSF data) stored and/or processed in the Smartcard IC

by measurement and analysis of the shape and amplitude of signals (for example on the power, clock, or I/O lines) and

by measurement and analysis of the time between events found by measuring signals (for instance on the power, clock, or I/O lines).

This objective pertains to measurements with subsequent complex signal processing whereas O.Phys-Probing is about direct measurements on elements on the chip surface. Details correspond to an analysis of attack scenarios which is not given here.

114 The TOE shall provide “Protection against Physical Probing (O.Phys-Probing)” as specified below.

O.Phys-Probing Protection against Physical Probing

The TOE must provide protection against disclosure of User

Data, against the disclosure/reconstruction of the Smartcard

Embedded Software or against the disclosure of other critical operational information. This includes protection against

measuring through galvanic contacts which is direct physical probing on the chips surface except on pads being bonded (using standard tools for measuring voltage and current) or

measuring not using galvanic contacts but other types of physical interaction between charges (using tools used in solid-state physics research and IC failure analysis) with a prior

reverse-engineering to understand the design and its properties and functions.

The TOE must be designed and fabricated so that it requires a high combination of complex equipment, knowledge, skill, and

Version 1.0 (July 2001) Page 34 (of 100)

Smartcard IC Platform Protection Profile Security Objectives (Chapter 4) time to be able to derive detailed design information or other information which could be used to compromise security through such a physical attack.

115 The TOE shall provide “Protection against Malfunctions (O.Malfunction)” as specified below.

O.Malfunction

Protection against Malfunctions

The TOE must ensure its correct operation.

The TOE must prevent its operation outside the normal operating conditions where reliability and secure operation has not been proven or tested. This is to prevent errors. The environmental conditions may include voltage, clock frequency, temperature, or external energy fields.

Remark: A malfunction of the TOE may also be caused using a direct interaction with elements on the chip surface. This is considered as being a manipulation (refer to the objective

O.Phys-Manipulation) provided that detailed knowledge about the TOE´s internal construction is required and the attack is performed in a controlled manner.

116 The TOE shall provide “Protection against Physical Manipulation

(O.Phys-Manipulation)” as specified below.

O.Phys-Manipulation Protection against Physical Manipulation

The TOE must provide protection against manipulation of the

TOE (including its software and TSF data), the Smartcard

Embedded Software and the User Data. This includes protection against

reverse-engineering (understanding the design and its properties and functions),

manipulation of the hardware and any data, as well as

controlled manipulation of memory contents (User Data).

The TOE must be designed and fabricated so that it requires a high combination of complex equipment, knowledge, skill, and time to be able to derive detailed design information or other information which could be used to compromise security through such a physical attack.

Version 1.0 (July 2001) Page 35 (of 100)

Smartcard IC Platform Protection Profile Security Objectives (Chapter 4)

117 The TOE shall provide “Protection against Forced Information Leakage

(O.Leak-Forced)“ as specified below:

O.Leak-Forced Protection against Forced Information Leakage

The Smartcard must be protected against disclosure of confidential data (User Data or TSF data) processed in the

Card (using methods as described under O.Leak-Inherent) even if the information leakage is not inherent but caused by the attacker

- by forcing a malfunction (refer to “Protection against

Malfunction due to Environmental Stress (O.Malfunction)” and/or

- by a physical manipulation (refer to “Protection against

Physical Manipulation (O.Phys-Manipulation)”.

If this is not the case, signals which normally do not contain significant information about secrets could become an information channel for a leakage attack.

118 The TOE shall provide “Protection against Abuse of Functionality (O.Abuse-Func)” as specified below.

O.Abuse-Func Protection against Abuse of Functionality

The TOE must prevent that functions of the TOE which may not be used after TOE Delivery can be abused in order (i) to disclose critical User Data, (ii) to manipulate critical User Data of the Smartcard Embedded Software, (iii) to manipulate

Soft-coded Smartcard Embedded Software or (iv) bypass, deactivate, change or explore security features or functions of the TOE. Details depend, for instance, on the capabilities of the

Test Features provided by the IC Dedicated Test Software which are not specified here.

119 The TOE shall provide “TOE Identification (O.Identification)“ as specified below:

O.Identification

TOE Identification

The TOE must provide means to store Initialisation Data and

Pre-personalisation Data in its non-volatile memory. The

Initialisation Data (or parts of them) are used for TOE identification.

Version 1.0 (July 2001) Page 36 (of 100)

Smartcard IC Platform Protection Profile Security Objectives (Chapter 4)

Security Objectives related to Specific Functionality (referring to SG3)

120 The TOE shall provide “Random Numbers (O.RND)” as specified below.

O.RND

Random Numbers

The TOE will ensure the cryptographic quality of random number generation. For instance random numbers shall not be predictable and shall have a sufficient entropy.

The TOE will ensure that no information about the produced random numbers is available to an attacker since they might be used for instance to generate cryptographic keys.

Application Note 14:

Add: If the TOE provides further functions or services to the Smartcard

Embedded Software (such as cryptographic functions) this may result in having additional security objectives in the Security Target. Add further security objectives in the Security Target if this Protection Profile is augmented for instance using the document Smartcard Integrated Circuit Platform

Augmentations [3].

4.2 Security Objectives for Environment

Phase 1

121 The Smartcard Embedded Software shall provide “Usage of Hardware Platform

(OE.Plat-Appl)” as specified below.

OE.Plat-Appl Usage of Hardware Platform

To ensure that the TOE is used in a secure manner the

Smartcard Embedded Software shall be designed so that the requirements from the following documents are met:

(i) hardware data sheet for the TOE, (ii) TOE application notes, and (iii) findings of the TOE evaluation reports relevant for the

Smartcard Embedded Software.

122 The Smartcard Embedded Software shall provide “Treatment of User Data

(OE.Resp-Appl)” as specified below.

OE.Resp-Appl Treatment of User Data

Security relevant User Data (especially cryptographic keys) are treated by the Smartcard Embedded Software as required by the security needs of the specific application context.

For example the Smartcard Embedded Software will not disclose security relevant user data to unauthorised users or processes when communicating with a terminal.

Version 1.0 (July 2001) Page 37 (of 100)

Smartcard IC Platform Protection Profile Security Objectives (Chapter 4)

Phase 2 up to TOE Delivery

123 The TOE Manufacturer shall ensure the “Protection during TOE Development and

Production (OE.Process-TOE)” as specified below.

OE.Process-TOE Protection during TOE Development and Production

The TOE Manufacturer must ensure that the development and production of the Smartcard Integrated Circuit (Phases 2 and 3 up to TOE Delivery, refer to Section 2.1) is secure so that no information is unintentionally made available for the operational phase of the TOE. For example, the confidentiality and integrity of design information and test data must be guaranteed, access to samples, development tools and other material must be restricted to authorised persons only, scrap must be destroyed. This not only pertains to the TOE but also to all information and material exchanged with the developer of the

Smartcard Embedded Software and therefore especially to the

Smartcard Embedded Software itself. This includes the delivery

(exchange) procedures for Phase 1 and the Phases after TOE

Delivery as far as they can be controlled by the TOE

Manufacturer.

An accurate identification must be established for the TOE.

This requires that each instantiation of the TOE carries this unique identification. In order to make this practical, electronic identification shall be possible.

For a list of assets refer to paragraph 79 (page 22).

TOE Delivery up to the end of Phase 6

124 Appropriate “Protection during Packaging, Finishing and Personalisation

(OE.Process-Card)” must be ensured after TOE Delivery up to the end of Phases 6, as well as during the delivery to Phase 7 as specified below.

OE.Process-Card Protection during Packaging, Finishing and Personalisation

Security procedures shall be used after TOE Delivery up to delivery to the end-user to maintain confidentiality and integrity of the TOE and of its manufacturing and test data (to prevent any possible copy, modification, retention, theft or unauthorised use).

This means that Phases after TOE Delivery up to the end of

Phase 6 (refer to Section 2.1) must be protected appropriately.

For a preliminary list of assets to be protected refer to paragraph 80 (page 22).

Version 1.0 (July 2001) Page 38 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

5 IT Security Requirements

This chapter IT Security Requirements contains the following sections:

TOE Security Requirements (5.1)

TOE Functional Requirements (5.1.1)

TOE Assurance Requirements (5.1.2)

Refinements of the TOE Assurance Requirements (5.1.3)

Security Requirements for the Environment (5.2)

125 Note that Section 5.1.3 is not mandatory according to the Common Criteria. The

Refinements of the TOE Assurance Requirements take into account the peculiarities of the smartcard development and production process (card’s life-cycle).

5.1 TOE Security Requirements

5.1.1 TOE Functional Requirements

126 In order to define the Security Functional Requirements the Part 2 of the Common

Criteria was used. However, some Security Functional Requirements have been newly created and are not taken from Part 2 of the Common Criteria. Therefore, this

Protection Profile is characterised by “Part 2 extended”.

127 The standard Security Functional Requirements are shown in Figure 12. These security functional components are listed and explained below.

Version 1.0 (July 2001) Page 39 (of 100)

Smartcard IC Platform Protection Profile

Standard SFRs which

- protect User Data and

- also support the other SFRs

Malfunctions

Limited fault tolerance

(FRU_FLT.2)

Failure with preservation of secure state

(FPT_FLS.1)

IT Security Requirements (Chapter 5)

Leakage

Basic internal transfer protection

(FDP_ITT.1)

Basic internal

TSF data trans- fer protection

(FPT_ITT.1)

Standard SFRs which

- support the TOE's life-cycle

- and prevent abuse of functions

Abuse of Functionality

Limited capabilities

(FMT_LIM.1)

Limited availability

(FMT_LIM.2)

Domain separation

(FPT_SEP.1)

Subset information flow control

(FDP_IFC.1)

Physical Manipulation and Probing

Resistance to physical attack

(FPT_PHP.3)

Identification

Audit storage

(FAU_SAS.1)

Figure 12: Standard Security Functional Requirements

128 The Security Functional Requirements related to Specific Functionality are shown in

Figure 13. These security functional components are listed and explained below.

SFRs related to Specific Funtionality

Random Numbers

Quality metric for random numbers

(FCS_RND.1) left for functional requirements due to an augmentation in the

Security Target

Figure 13: Security Functional Requirements related to Specific Functionality

Version 1.0 (July 2001) Page 40 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

Application Note 15:

Revise: If the TOE provides further functions or services to the Smartcard

Embedded Software (such as cryptographic functions) this would result in having additional Security Functional Requirements in the Security Target.

Examples are given in the document Smartcard Integrated Circuit Platform

Augmentations [3].

Malfunctions

129 There are different ranges of operating conditions such as supply voltage, external frequency and temperature. The TOE can be operated within the limits visualised as the inner dashed rounded rectangle in Figure 14 and must operate correctly there.

The limits have been reduced to ensure correct operation. This is visualised by the outer dotted rounded rectangle in the figure.

Failure with preservation of secure state (FPT_FLS.1)

max.

Limited fault tolerance

(FRU_FLT.2)

Technical limits without reduction due to FPT_FLS.1

min.

Usable limits of the product as enforced due to FPT_FLS.1

min.

max.

operating conditions

Figure 14: Paradigm regarding Operating Conditions

130 Figure 14 must not be understood as being two-dimensional and defining static limits only. Reality is multi-dimensional and includes a variety of timing aspects. Note that the limit of the operating conditions visualised by the inner dashed rounded rectangle in Figure 14 is not necessarily exactly reflected by the limits identified in the TOE’s data sheet. Instead this limit marks the boundary between the “tolerance reaction” of the TOE and the “active reaction” of sensors (and perhaps other circuitry).

131 The security functional component Limited fault tolerance (FRU_FLT.2) has been selected in order to address the robustness within some limit (as shown by the inner dashed rectangle in Figure 14) before active reaction takes place. Note that the TOE does not (in most cases) actually detect faults or failures and then correct them in order to guarantee further operation of all the TOE’s capabilities. This is the way software would implement Limited fault tolerance (FRU_FLT.2). Instead the TOE will achieve exactly the same by eliminating the cause for possible faults (by means of filtering for instance) and by being resistant against influences (robustness). In the case of the TOE the “reaction to a failure” is replaced by the “reaction to operating

Version 1.0 (July 2001) Page 41 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5) conditions” which could cause a malfunction without the reaction of the TOE’s countermeasure.

132 If the TOE is exposed to other operating conditions this may not be tolerated. Then the TOE must detect that and “preserve a secure state” (use of detectors and cause a reset for instance). The security functional component Failure with preservation

of secure state (FPT_FLS.1) has been selected to ensure that. The way the secure state is reached depends on the implementation. Note that the TOE can monitor both external operating conditions and other internal conditions and then react appropriately. Exposure to specific “out of range” external operating conditions

(environmental stress) may actually cause failure conditions internally which can be detected by FPT_FLS.1. Referring to external operating conditions the TOE is expected to respond if conditions are detected which may cause a failure. Examples for implementations of the security functional requirement Failure with preservation of secure state (FPT_FLS.1) are a voltage detector (external condition) and a circuitry which detects accesses to address areas which are not used (internal condition).

133 Those parts of the TOE which support the security functional requirements “Limited fault tolerance (FRU_FLT.2)” and “Failure with preservation of secure state

(FPT_FLS.1)” shall be protected from interference of the Smartcard Embedded

Software. The security functional component TSF Domain Separation (FPT_SEP.1) has been selected to ensure that.

134 The TOE shall meet the requirement “Limited fault tolerance (FRU_FLT.2)” as specified below.

FRU_FLT.2

Hierarchical to:

FRU_FLT.2.1

Dependencies:

Refinement:

Limited fault tolerance

FRU_FLT.1

The TSF shall ensure the operation of all the TOE’s capabilities when the following failures occur: exposure to operating

conditions which are not detected according to the requirement

Failure with preservation of secure state (FPT_FLS.1)

5

.

FPT_FLS.1 Failure with preservation of secure state

The term “failure” above means “circumstances”. The TOE prevents failures for the “circumstances” defined above.

5

[assignment: list of type of failures]

Version 1.0 (July 2001) Page 42 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

135 The TOE shall meet the requirement “Failure with preservation of secure state

(FPT_FLS.1)” as specified below.

FPT_FLS.1

Hierarchical to:

FPT_FLS.1.1

Failure with preservation of secure state

No other components.

The TSF shall preserve a secure state when the following types of failures occur: exposure to operating conditions which may

not be tolerated according to the requirement Limited fault tolerance (FRU_FLT.2) and where therefore a malfunction

could occur

6

.

Dependencies:

Refinement:

ADV_SPM.1 Informal TOE security policy model

The term “failure” above also covers “circumstances”. The TOE prevents failures for the “circumstances” defined above.

Application Note 16:

The Common Criteria suggest that the TOE generates audit data for the security functional requirements Limited fault tolerance (FRU_FLT.2) and

Failure with preservation of secure state (FPT_FLS.1). This may be advantageous or even required for the application context. The author of the

Security Target should consider this especially for FPT_FLS.1.

136 The TOE shall meet the requirement “TSF domain separation” state (FPT_SEP.1)” as specified below.

FPT_SEP.1

Hierarchical to:

TSF domain separation

No other components.

FPT_SEP.1.1

FPT_SEP.1.2

Dependencies:

Refinement:

The TSF shall maintain a security domain for its own execution that protects it from interference and tampering by untrusted subjects.

The TSF shall enforce separation between the security domains of subjects in the TSC.

No dependencies.

Those parts of the TOE which support the security functional requirements “Limited fault tolerance (FRU_FLT.2)” and

“Failure with preservation of secure state (FPT_FLS.1)” shall be protected from interference of the Smartcard Embedded

Software.

6

[assignment: list of types of failures in the TSF]

Version 1.0 (July 2001) Page 43 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

Abuse of Functionality

137 During testing at the end of Phase 3 before TOE Delivery, the TOE shall be able to store some data (for instance about the production history or identification data of the individual die or other data to be used after delivery). Therefore, the security functional component Audit storage (FAU_SAS.1) has been added. The security functional component FAU_SAS.1 has been newly created (refer to Section 8.6) and is used instead of FAU_GEN.1 which is too comprehensive to be applicable in this context.

138 The requirement FAU_SAS.1 shall be regarded as covering the injection of

Initialisation Data and/or Pre-personalisation Data and of supplements of the

Smartcard Embedded Software as described in Section 8.1.1. After TOE Delivery the identification data (injected as part of the Initialisation Data) and the Prepersonalisation Data are available to the Smartcard Embedded Software. These data are protected by the TOE as all other User Data. It’s up to the Smartcard Embedded

Software to use these data stored and provided by the TOE.

Application Note 17:

Revise: If the TOE provides specific functions to protect these data or to process them, appropriate security functional requirements can be specified in the Security Target. Then the above paragraph needs to be revised in addition.

139 The TOE shall prevent functions (provided by the IC Dedicated Test Software or by hardware features) from being abused after TOE Delivery in order to compromise the

TOE’s security. (All such functions are called “Test Features” below.) This includes but is not limited to: disclose or manipulate User Data and bypass, deactivate, change or explore security features or functions of the TOE. Details depend on the capabilities of the Test Features provided by the IC Dedicated Test Software and/or the hardware.

140 This can be achieved (i) by limiting the capabilities of these Test Features after

Phase 3, (ii) by limiting the availability of these Test Features after Phase 3 or (iii) by a combination of both. The security functional components Limited capabilities

(FMT_LIM.1) and Limited availability (FMT_LIM.2) have been newly created (refer to Section 8.5) to address this.

141 Examples of the technical mechanism used in the TOE are user authentication

(“passwords”), non-availability (for instance through removal or disabling by “fusing”) or a combination of both. A detailed technical specification would unnecessarily disclose details and is beyond the scope of a specification of requirements.

142 The TOE is tested after production in Phase 3 (refer to Section 8.1.1) using means provided by the IC Dedicated Software and/or specific hardware. Testing is evaluated according to the requirements of the Common Criteria assurance class ATE. The IC

Dedicated Software is considered as being a test tool delivered as part of the TOE and used before TOE Delivery only. It does not provide functions in later phases of the card’s life-cycle. Therefore, no security functional requirement is mandatory according to this Protection Profile regarding testing.

Version 1.0 (July 2001) Page 44 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

143 The implementation of the Test Features must be analysed to ascertain the existence and exploitability of vulnerabilities. This is subject to the Vulnerability Assessment

(AVA). All necessary information about the Test Features (including the IC Dedicated

Software) must be provided for Vulnerability Assessment (AVA). For further information of how to handle the Test Features refer to Section 5.1.3.

144 The TOE shall meet the requirement “Limited capabilities (FMT_LIM.1)” as specified below (Common Criteria Part 2 extended).

FMT_LIM.1

Limited capabilities

Hierarchical to:

FMT_LIM.1.1

No other components.

The TSF shall be designed in a manner that limits their capabilities so that in conjunction with “Limited availability

(FMT_LIM.2)” the following policy is enforced: Deploying Test

Features after TOE Delivery does not allow User Data to be disclosed or manipulated, TSF data to be disclosed or manipulated, software to be reconstructed and no substantial information about construction of TSF to be gathered which

may enable other attacks.

Dependencies: FMT_LIM.2 Limited availability.

145 The TOE shall meet the requirement “Limited availability (FMT_LIM.2)” as specified below (Common Criteria Part 2 extended).

FMT_LIM.2

Hierarchical to:

FMT_LIM.2.1

Dependencies:

Limited availability

No other components.

The TSF shall be designed in a manner that limits their availability so that in conjunction with “Limited capabilities

(FMT_LIM.1)” the following policy is enforced: Deploying Test

Features after TOE Delivery does not allow User Data to be disclosed or manipulated, TSF data to be disclosed or manipulated, software to be reconstructed and no substantial information about construction of TSF to be gathered which

may enable other attacks.

FMT_LIM.1 Limited capabilities.

Version 1.0 (July 2001) Page 45 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

146 The TOE shall meet the requirement “Audit storage (FAU_SAS.1)” as specified below

(Common Criteria Part 2 extended).

FAU_SAS.1

Hierarchical to:

FAU_SAS.1.1

Dependencies:

Audit storage

No other components.

The TSF shall provide test personnel before TOE Delivery

7 with the capability to store the Initialisation Data and/or Pre-

personalisation Data and/or supplements of the Smartcard

Embedded Software

8

in the audit records.

No dependencies.

Physical Manipulation and Probing

147 The TOE can be subject to “tampering” which here pertains to (i) manipulation of the chip hardware and its security features with (ii) prior reverse-engineering to understanding the design and its properties and functions), (iii) determination of critical data through measuring using galvanic contacts, (iv) determination of critical data not using galvanic contacts and (v) calculated manipulation of memory contents.

Refer to paragraph 69 (on page 20) for further explanations.

148 The TOE is not always powered and therefore not able to detect, react or notify that it has been subject to tampering. Nevertheless, its design characteristics make reverse-engineering and manipulations etc. more difficult. This is regarded as being an “automatic response” to tampering. Therefore, the security functional component

Resistance to physical attack (FPT_PHP.3) has been selected. The TOE may also provide features to actively respond to a possible tampering attack which is also covered by FPT_PHP.3.

149 The TOE may also leave it up to the Smartcard Embedded Software to react when a possible tampering has been detected. Comprehensive guidance (refer to Common

Criteria assurance class AGD) will be given for the developer of the Smartcard

Embedded Software in this case. Taking the assumption “Usage of Hardware

Platform (A.Plat-Appl)” into consideration this case shall therefore also be covered by

FPT_PHP.3.

9

7

[assignment: authorised users]

8

[assignment: list of audit information]

9

This must be evaluated for the final smartcard product.

Version 1.0 (July 2001) Page 46 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

150 The TOE shall meet the requirement “Resistance to physical attack (FPT_PHP.3)” as specified below.

FPT_PHP.3

Hierarchical to:

FPT_PHP.3.1

Dependencies:

Refinement:

Resistance to physical attack

No other components.

The TSF shall resist physical manipulation and physical

probing

10

to the TSF

11

by responding automatically such that the TSP is not violated.

No dependencies.

The TOE will implement appropriate measures to continuously counter physical manipulation and physical probing. Due to the nature of these attacks (especially manipulation) the TOE can by no means detect attacks on all of its elements. Therefore, permanent protection against these attacks is required ensuring that the TSP could not be violated at any time. Hence,

“automatic response” means here (i) assuming that there might be an attack at any time and (ii) countermeasures are provided at any time.

Leakage

151 When the Smartcard processes User Data and/or TSF Data, information about these data may be leaked by signals which can be measured externally (especially the ISO contacts of the Smartcard). An attacker may also cause malfunctions or perform manipulations of the TOE in order to cause the TOE to leak information. The analysis of those measurement data can lead to the disclosure of User Data and other critical data. Examples are given in Section 8.3.

152 The security functional requirements “Basic internal transfer protection (FDP_ITT.1)” and “Basic internal TSF data transfer protection (FPT_ITT.1)” have been selected to ensure that the TOE must resist leakage attacks (both for User Data and TSF data).

The corresponding security policy is defined in the security functional requirement

“Subset information flow control (FDP_IFC.1)”. These security functional requirements address inherent leakage. With respect to forced leakage they have to be considered in combination with the security functional requirements “Limited fault tolerance (FRU_FLT.2)” and “Failure with preservation of secure state (FPT_FLS.1)” on the one hand and “Resistance to physical attack (FPT_PHP.3)” on the other.

10

[assignment: physical tampering scenarios]

11

[assignment: list of TSF devices/elements]

Version 1.0 (July 2001) Page 47 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

153 The TOE shall meet the requirement “Basic internal transfer protection (FDP_ITT.1)” as specified below.

FDP_ITT.1

Hierarchical to:

FDP_ITT.1.1

Basic internal transfer protection

No other components.

The TSF shall enforce the Data Processing Policy

12

to prevent the disclosure

13

of user data when it is transmitted between physically-separated parts of the TOE.

Dependencies:

Refinement:

[FDP_ACC.1 Subset access control, or FDP_IFC.1 Subset information flow control]

The different memories, the CPU and other functional units of the TOE (e.g. a cryptographic co-processor) are seen as physically-separated parts of the TOE.

154 The TOE shall meet the requirement “Basic internal TSF data transfer protection

(FPT_ITT.1)” as specified below.

FPT_ITT.1

Basic internal TSF data transfer protection

Hierarchical to:

FPT_ITT.1.1

Dependencies:

Refinement:

No other components.

The TSF shall protect TSF data from disclosure

14

when it is transmitted between separate parts of the TOE.

No dependencies.

The different memories, the CPU and other functional units of the TOE (e.g. a cryptographic co-processor) are seen as separated parts of the TOE.

This requirement is equivalent to FDP_ITT.1 above but refers to TSF data instead of User Data. Therefore, it should be understood as to refer to the same Data Processing Policy defined under FDP_IFC.1 below.

12

13

14

[assignment: access control SFP(s) and/or information flow control SFP(s)]

[selection: disclosure, modification, loss of use]

[selection: disclosure, modification]

Version 1.0 (July 2001) Page 48 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

155 The TOE shall meet the requirement “ Subset information flow control (FDP_IFC.1)” as specified below:

FDP_IFC.1

Hierarchical to:

FDP_IFC.1.1

Subset information flow control

No other components.

The TSF shall enforce the Data Processing Policy

15

on all

confidential data when they are processed or transferred by the

TOE or by the Smartcard Embedded Software

16

.

FDP_IFF.1 Simple security attributes Dependencies:

156 The following Security Function Policy (SFP) Data Processing Policy is defined for the requirement “ Subset information flow control (FDP_IFC.1)”:

User Data and TSF data shall not be accessible from the TOE except when the

Smartcard Embedded Software decides to communicate the User Data via an external interface. The protection shall be applied to confidential data only but without the distinction of attributes controlled by the Smartcard Embedded Software.

Random Numbers

157 The TOE generates random numbers. To define the IT security functional requirements of the TOE an additional family (FCS_RND) of the Class FCS

(cryptographic support) is defined in chapter 8.4. This class FCS_RND Generation of random numbers describes the functional requirements for random number generation used for cryptographic purposes. For details on tests refer to the refinement of the assurance component of the family ATE_COV in Section 5.1.3.

158 The TOE shall meet the requirement “Quality metric for random numbers

(FCS_RND.1)” as specified below (Common Criteria Part 2 extended).

FCS_RND.1

FCS_RND.1.1

Dependencies:

Quality metric for random numbers

The TSF shall provide a mechanism to generate random numbers that meet [assignment: a defined quality metric].

No dependencies.

15

[assignment: information flow control SFP]

16

[assignment: list of subjects, information, and operations that cause controlled information to flow to and from controlled subjects covered by the SFP]

Version 1.0 (July 2001) Page 49 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

5.1.2 TOE Assurance Requirements

159 The Security Target to be developed based upon this Protection Profile will be evaluated according to

Security Target evaluation (Class ASE)

160 The TOE Assurance Requirements for the evaluation of the TOE and its development and operating environment are those taken from the

Evaluation Assurance Level 4 (EAL4) and augmented by taking the following components:

ADV_IMP.2, ALC_DVS.2, AVA_MSU.3, and AVA_VLA.4.

161 The assurance requirements are:

Development activities (Class ADV)

Functional Specification (Component ADV_FSP.2)

Security Policy Modelling (Component ADV_SPM.1)

High-Level Design (Component ADV_HLD.2)

Low-Level Design (Component ADV_LLD.1)

Implementation Representation (Component ADV_IMP.2)

Representation Correspondence (Component ADV_RCR.1)

Tests activities (Class ATE)

Coverage (Component ATE_COV.2)

Depth (Component ATE_DPT.1)

Functional Tests (Component ATE_FUN.1)

Independent Testing (Component ATE_IND.2)

Delivery and operation activities (Class ADO)

Delivery (Component ADO_DEL.2)

Installation, generation, and start-up (Component ADO_IGS.1)

Guidance documents activities (Class AGD)

Administrator Guidance (Component AGD_ADM.1)

User guidance (Component AGD_USR.1)

Configuration management activities (Class ACM)

CM automation (Component ACM_AUT.1)

CM Capabilities (Component ACM_CAP.4)

CM Scope (Component ACM_SCP.2)

Life cycle support activities (Class ALC)

Development Security (Component ALC_DVS.2)

Life Cycle Definition (Component ALC_LCD.1)

Tools and Techniques (Component ALC_TAT.1)

Version 1.0 (July 2001) Page 50 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

Vulnerability assessment activities (Class AVA)

Misuse (Component AVA_MSU.3)

Strength of TOE Security Functions (Component AVA_SOF.1)

Vulnerability Analysis (Component AVA_VLA.4)

Application Note 18:

This Protection Profile requires EAL4 augmented but allows to add higher hierarchical components. To support this most parts of the Protection Profile are, whenever possible, formulated independently from possible augmentations (for instance those to reach EAL5 augmented): Therefore, this Protection

Profile often refers to “the Common Criteria assurance component of the family XY” instead of referring to the specific components listed above. If the

Security Target uses further augmentations this must be identified in this section (and possibly in Section 1.3). The authors of the Security Target shall also review the rationale of this Protection Profile and extend it as appropriate.

162 The minimum strength of security functions for the TOE is SOF-high (Strength of

Functions High).

5.1.3 Refinements of the TOE Assurance Requirements

163 The following refinements shall support the comparability of evaluations according to this Protection Profile. Other standards as those issued for a specific certification scheme may not be replaced.

Refinements regarding Delivery (ADO_DEL)

Refinements regarding Development Security (ALC_DVS)

Refinement regarding CM scope (ACM_SCP)

Refinement regarding CM capabilities (ACM_CAP)

Refinements regarding Functional Specification (ADV_FSP)

Refinement regarding Test Coverage (ATE_COV)

Refinement regarding Installation, Generation and Start-up (ADO_IGS)

Refinement regarding User Guidance (AGD_USR)

Refinement regarding Administrator Guidance (AGD_ADM)

Additional Guidance regarding Vulnerability Analysis (AVA_VLA)” and Strength of

Functions (AVA_SOF)

Application Note 19:

The refinements as defined below may also be applicable to a hierarchically higher assurance component of the specific family. If a Security Target includes an additional augmentation, the author of the Security Target has to examine that the refinements as defined below are still applicable.

Version 1.0 (July 2001) Page 51 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

5.1.3.1 Refinements regarding Delivery (ADO_DEL)

Introduction

164 The Common Criteria assurance component of the family ADO_DEL (delivery) refer to the delivery of (i) the TOE or parts of it (ii) to the user or user’s site. The Common

Criteria assurance component ADO_DEL.2 requires procedures and technical measures to detect modifications.

165 In the particular case of a Smartcard Integrated Circuit more “material and information” than the TOE itself (which by definition includes the necessary guidance) is exchanged with “users”. Therefore, considering the definition of the Common Criteria

(refer to Paragraph 20, page 10) the following refinement is made regarding the items “TOE” and “to the user or user’s site”:

166 The following text reflects the requirements of the selected component ADO_DEL.2:

Developer action elements:

ADO_DEL.2.1D

ADO_DEL.2.2D

The developer shall use the delivery procedures.

Content and presentation of evidence elements:

ADO_DEL.2.1C

The developer shall document procedures for delivery of the

TOE or parts of it to the user.

ADO_DEL.2.2C

The delivery documentation shall describe all procedures that are necessary to maintain security when distributing versions of the TOE to a user’s site.

The delivery documentation shall describe how the various procedures and technical measures provide for the detection of modifications, or any discrepancy between the developer’s master copy and the version received at the user site.

ADO_DEL.2.3C The delivery documentation shall describe how the various procedures allow detection of attempts to masquerade as the developer, even in cases in which the developer has sent nothing to the user’s site.

Evaluator action elements:

ADO_DEL.2.1E

The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

Version 1.0 (July 2001) Page 52 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

Refinement

167 For delivery “to the user” or “the user’s site”, all the external interfaces of the TOE

Manufacturer have to be taken into account. These are:

the interface with the Smartcard Embedded Software Developer (Phase 1) where information about the smartcard integrated circuit, development software and/or tools for software development, IC pre-personalisation requirements, the

Smartcard Embedded Software and possible information about mask options are exchanged and

the interface with the Phase after TOE Delivery (Phase 4 or 5) where prepersonalisation data, information about tests, and the product in form of wafers, sawn wafers (dice) or modules are exchanged.

168 All assets identified in Section 3.1 and additionally described in 8.1.2 (if being exchanged) have to be taken into account in order to avoid any tampering with the actual version or substitution of a false version (including unauthorised modification or replacement) as specified in the Common Criteria.

5.1.3.2 Refinements regarding Development Security (ALC_DVS)

Introduction

169 The Common Criteria assurance component of the family ALC_DVS refer (i) to

“development environment”, (ii) to the “TOE” or “TOE design and implementation”.

The component ALC_DVS.2 requires additional evidence for the sufficiency of the security measures.

170 In the particular case of a Smartcard Integrated Circuit the TOE is developed and produced within a complex industrial process which must especially be protected.

Therefore, considering the definition of the Common Criteria (refer to Paragraph 20, page 10) the following refinement is made regarding the items “development environment”, “TOE” or “TOE design and implementation” and the confirmation of the application of the security measures:

171 The following text reflects the requirements of the selected component ALC_DVS.2:

Developer action elements:

ALC_DVS.2.1D

The developer shall produce development security documentation.

Content and presentation of evidence elements:

ALC_DVS.2.1C

The development security documentation shall describe all the physical, procedural, personnel, and other security measures that are necessary to protect the confidentiality and integrity of

Version 1.0 (July 2001) Page 53 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

ALC_DVS.2.2C

the TOE design and implementation in its development environment.

The development security documentation shall provide evidence that these security measures are followed during the development and maintenance of the TOE.

ALC_DVS.2.3C

The evidence shall justify that the security measures provide the necessary level of protection to maintain the confidentiality and integrity of the TOE.

Evaluator action elements:

ALC_DVS.2.1E

The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

ALC_DVS.2.2E

The evaluator shall confirm that the security measures are being applied.

Refinement

172 The “development environment” as referred to in the Common Criteria covers both, the development (Phase 2) and the production (at least Phase 3) of the TOE. The scope of the requirement of “Development Security (ALC_DVS)” pertains to the

Phase 2 up to TOE Delivery. These phases are under the control of the TOE

Manufacturer.

173 The IC Designer or IC Manufacturer is responsible to guarantee confidentiality and authenticity on the interface within Phase 3 where the necessary part of the smartcard IC database is delivered to the IC Mask Manufacturer and the IC photomasks are received by the IC manufacturer.

174 Mask manufacturing is covered by this Protection Profile and considered under the

Common Criteria assurance component of the family ALC_DVS (development security) since the manufacturer of the TOE can not delegate any responsibility here.

The certification body has to decide on a case by case decision how to handle this if the mask manufacturing is outsourced.

175 “TOE design and implementation” must be understood as comprising all material and information related to the development and production of the TOE. Therefore, all assets identified in Section 3.1 and 8.1.2 (referred to as information and material in the following paragraphs) have to be taken into account in order to ensure confidentiality and integrity (including unauthorised disclosure, unauthorised modification or replacement and theft) as specified in the Common Criteria.

176 The evaluator action includes assessment of all sites being involved in the development and production of the product. Sometimes standard cells (such as standard gates, standard memories) are used for the TOE as well as in other products. The corresponding items are produced and/or processed (also) in other sites where not all requirements may be applicable for practical reasons. For those

Version 1.0 (July 2001) Page 54 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5) assets, the certification body has to decide on a case by case decision how to handle these assets within a specific evaluation.

177 Whenever material and information is given to external partners (such as the developer of the Smartcard Embedded Software) the latter must be obliged by an

Non Disclosure Agreement to treat the material and information as it is required for the TOE Manufacturer.

Guidance

178 Additionally, the following guidance is given, in order to fulfil the requirements of the

Common Criteria assurance family ALC_DVS. There are restrictions resulting from the nature of the material and information. But in addition there are general requirements for the organisation of an industrial complex like a semiconductor manufacturer.

179 All sensitive information and material shall be forwarded on a need-to-know basis. To guarantee the confidentiality of information each department must have a clear interface to other departments or partners. It must be ensured that the material and information being exchanged is limited to what is absolutely needed by the other partner to do the work he is responsible for.

180 Roles and responsibilities of departments and teams shall be well-defined. This includes the content and the extent of the work to be done. Responsibilities and competence of individuals (including managers) shall be defined. All departments should consider that they contribute to develop and produce a security product.

181 Defined procedures must be adhered to - and their significance has to be understood by the personnel. The process procedures shall especially define requirement for secure communication and distribution of data, documents and material between the different development and production departments and to external companies and their departments the chip manufacturer works with. Confidentiality and integrity of data have to be preserved during the whole developing and manufacturing cycle.

182 The hardware design department shall provide sufficient information to the department developing the IC Dedicated Software regarding inherent hardware security mechanisms in order to allow the latter to appropriately use the hardware.

On the other hand this information shall be limited as far as possible.

183 All sensitive information and material must be stored in a secure way to ensure confidentiality and to avert unauthorised access. Appropriate measures for physical protection include but are not limited to admittance control, airlock, fences, camera supervision, locked doors and windows, safes, locked cupboards, alarm systems, burglary proof buildings. Appropriate measures to protect data files include but are not limited to logon procedures, access control, encryption, firewall systems, isolation of computers and local networks, audit and accountability.

184 Appropriate procedures and means for the disposal and destruction of wafers, dies and chips failed during the performed tests have to be provided in co-ordination with

Version 1.0 (July 2001) Page 55 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5) the requirements for traceability (refer to the sub-section “Refinement regarding

‘Configuration Management (ACM)’”).

185 Whenever material and information is given to external partners (such as the developer of the Smartcard Embedded Software) the latter must be obliged by an

Non Disclosure Agreement to treat the material and information as it is required for the TOE Manufacturer.

5.1.3.3 Refinement regarding CM scope (ACM_SCP)

Introduction

186 The Common Criteria assurance component of the family ACM_SCP (CM scope) refers to the tracking of specific configuration items within the developers configuration management system.

187 In the particular case of a Smartcard Integrated Circuit it is helpful to clarify the scope of the configuration item “TOE implementation representation”:

188 The following text reflects the requirements of the selected component ACM_SCP.2:

Developer action elements:

ACM_SCP.2.1D

The developer shall provide CM documentation.

Content and presentation of evidence elements:

ACM_SCP.2.1C

ACM_SCP.2.2C

The CM documentation shall show that the CM system, as a minimum, tracks the following: the TOE implementation representation, design documentation, test documentation, user documentation, administrator documentation, and CM documentation, and security flaws.

The CM documentation shall describe how configuration items are tracked by the CM system.

Evaluator action elements:

ACM_SCP.2.1E

The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

Version 1.0 (July 2001) Page 56 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

Refinement

189 The “TOE implementation representation” within the scope of the CM shall include at least:

logical design data,

physical design data,

IC Dedicated Software,

Smartcard Embedded Software,

final physical design data necessary to produce the photomasks, and

- photomasks.

5.1.3.4 Refinement regarding CM capabilities (ACM_CAP)

Introduction

190 The Common Criteria assurance component of the family ACM_CAP (CM capabilities) refers to the capabilities of a CM system. The component ACM_CAP.4

refers to “configuration items” and “configuration list” and uses the term “TOE” in addition.

191 In the particular case of a Smartcard Integrated Circuit the scope of “

configuration items” and the meaning of “TOE” in this context need to be

clarified:

192 The following text reflects the requirements of the selected component ACM_CAP.4:

Developer action elements:

ACM_CAP.4.1D

ACM_CAP.4.2D

ACM_CAP.4.3D

The developer shall provide a reference for the TOE.

The developer shall use a CM system.

The developer shall provide CM documentation.

Content and presentation of evidence elements:

ACM_CAP.4.1C

The reference for the TOE shall be unique to each version of the TOE.

ACM_CAP.4.2C

ACM_CAP.4.3C

The TOE shall be labelled with its reference.

The CM documentation shall include a configuration list, a CM plan, and an acceptance plan.

Version 1.0 (July 2001) Page 57 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

ACM_CAP.4.4C

ACM_CAP.4.5C

ACM_CAP.4.6C

ACM_CAP.4.7C

The configuration list shall describe the configuration items that comprise the TOE.

The CM documentation shall describe the method used to uniquely identify the configuration items.

The CM system shall uniquely identify all configuration items.

The CM plan shall describe how the CM system is used.

ACM_CAP.4.8C

ACM_CAP.4.9C

The evidence shall demonstrate that the CM system is operating in accordance with the CM plan.

The CM documentation shall provide evidence that all configuration items have been and are being effectively maintained under the CM system.

ACM_CAP.4.10C The CM system shall provide measures such that only authorised changes are made to the configuration items.

ACM_CAP.4.11C The CM system shall support the generation of the TOE.

ACM_CAP.4.12C The acceptance plan shall describe the procedures used to accept modified or newly created configuration items as part of the TOE.

Evaluator action elements:

ACM_CAP.4.1E The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

Refinement

193 “configuration items” comprise all items defined and refined under ACM_SCP (see above) to be tracked under CM.

194 The item “Smartcard Embedded Software” is only relevant for the configuration list as far as the TOE manufacturer can control it since the Smartcard Embedded Software is developed by another company and not part of the TOE though delivered together with it.

195 If specific requirements are not applicable for standard cells (such as standard gates, standard memories) being also used in other products, the certification body has to decide on a case by case decision how to handle them within the evaluation.

196 A production control system has to be applied to guarantee the traceability and completeness of different production charges or lots. The number of wafers, dies and chips must be tracked by this system. Appropriate administration procedures have to be provided for managing wafers, dies or complete chips, which are being removed from the production-process in order to verify and to control predefined quality standards and production parameters. It has to be controlled that these wafers or

Version 1.0 (July 2001) Page 58 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5) dies are returned to the same production stage from which they are taken; otherwise they have to be destroyed.

5.1.3.5 Refinements regarding Functional Specification (ADV_FSP)

Introduction

197 The Common Criteria assurance component of the family ADV_FSP (functional specification) refer to the user-visible interface and behaviour of the TSF. It is an instantiation of the TOE security functional requirements. The functional specification has to show that all the TOE security

functional requirements are addressed. It is a basis for the Test Coverage Analysis.

198 In the particular case of a Smartcard Integrated Circuit specific design measures, which are non-functional in nature, provide security and additionally, a test tool is delivered to the user as a part of the TOE. Therefore, refinements are provided.

199 The following text reflects the requirements of the selected component ADV_FSP.2:

Developer action elements:

ADV_FSP.2.1D

The developer shall provide a functional specification.

Content and presentation of evidence elements:

ADV_FSP.2.1C

ADV_FSP.2.2C

The functional specification shall describe the TSF and its external interfaces using an informal style.

The functional specification shall be internally consistent.

ADV_FSP.2.3C

ADV_FSP.2.4C

ADV_FSP.2.5C

The functional specification shall describe the purpose and method of use of all external TSF interfaces, providing complete details of all effects, exceptions and error messages.

The functional specification shall completely represent the TSF.

The functional specification shall include rationale that the TSF is completely represented.

Evaluator action elements:

ADV_FSP.2.1E The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

ADV_FSP.2.2E The evaluator shall determine that the functional specification is an accurate and complete instantiation of the TOE security functional requirements.

Version 1.0 (July 2001) Page 59 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

Refinement

200 The Functional Specification is expected also to specify the operating conditions of the TOE. These conditions include but are not limited to the frequency of the clock, the power supply, and the temperature.

201 The Functional Specification is expected to refer to measures against physical attacks in a more general way only, but detailed enough to be able to support Test

Coverage Analysis also for those measures where inspection of the layout is of relevance.

202 Although the IC Dedicated Test Software is a part of the TOE, the test functions of the IC Dedicated Test Software are not described in the Functional Specification because the IC Dedicated Test Software is considered as a test tool delivered with the TOE but not providing security functions for the operational phase of the TOE.

203 All functions and mechanisms which control access to the functions provided by the

IC Dedicated Test Software (refer to the security functional requirement Limited availability (FMT_LIM.2)) must at least be referred to within the Functional

Specification. Details can be given in the document for “Installation, Generation and

Start-up (ADO_IGS)”, refer to Section 5.1.3.7. In addition, all these functions and mechanisms must subsequently be refined according to all relevant requirements of the Common Criteria assurance class ADV because these functions and mechanisms are active after TOE Delivery and need to be part of the assurance aspects Tests (class ATE) and Vulnerability Assessment (class AVA). Therefore, all necessary information must be provided to allow tests and vulnerability assessment.

5.1.3.6 Refinement regarding Test Coverage (ATE_COV)

Introduction

204 The Common Criteria assurance component of the family ATE_COV (test coverage)

“addresses the extent to which the TSF is tested, and whether or not the testing is sufficiently extensive to demonstrate that the TSF operates as specified.”

205 The following text reflects the requirements of the selected component ATE_COV.2:

Developer action elements:

ATE_COV.2.1D

The developer shall provide an analysis of the test coverage.

Content and presentation of evidence elements:

ATE_COV.2.1C The analysis of the test coverage shall demonstrate the correspondence between the tests identified in the test documentation and the TSF as described in the functional specification.

Version 1.0 (July 2001) Page 60 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

ATE_COV.2.2C The analysis of the test coverage shall demonstrate that the correspondence between the TSF as described in the functional specification and the tests identified in the test documentation is complete.

Evaluator action elements:

ATE_COV.2.1E The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

Refinement

206 The TOE must be tested under different operating conditions (at least) within the specified ranges. These conditions include but are not limited to the frequency of the clock, the power supply, and the temperature. This means that “Limited fault tolerance (FRU_FLT.2)” must be proven for all TSF (including the TOE’s random number generator, refer to the functional requirement FCS_RND.1). The tests must also cover functions which may be affected by “ageing” (such as E

2

PROM writing).

207 The existence and effectiveness of measures against physical attacks (as specified by the functional requirement FPT_PHP.3) can not be tested in a straightforward way. Instead the TOE Manufacturer shall provide evidence that the TOE actually has the particular physical characteristics (especially layout design principles). This can be done by checking the layout (implementation or actual integrated circuit) in an appropriate way. The required evidence pertains to the existence of measures against physical attacks (unless being obvious) but will cover only a subset of the characteristics against physical attacks.

208 The IC Dedicated Test Software is seen as a “test tool” being delivered as part of the

TOE. However, the Test Features do not provide security functions and are not used after TOE Delivery. Therefore, Test Features need not to be covered by the Test

Coverage Analysis but all functions and mechanisms which control access to the functions provided by the IC Dedicated Test Software must be part of the Test

Coverage Analysis.

5.1.3.7 Refinement regarding Installation, Generation and Start-up (ADO_IGS)

Introduction

209 The life-cycle model to be described under the Common Criteria assurance component of the family ALC_LCD refers to organisational and procedural controls such as design methods, review procedures, project management controls, change control procedures, test methods and acceptance procedures. TOE configuration and administration is subject to the Common Criteria assurance component of the families ADO_IGS and AGD_ADM.

210 The requirements of the Common Criteria assurance family ADO_IGS “call for a secure transition from the TOE’s implementation representation being under

Version 1.0 (July 2001) Page 61 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5) configuration control to its initial operation in the user environment.” “The requirements in this assurance family are presented separately from those in the

AGD_ADM family, due to the infrequent, possibly one-time use of the installation, generation and start-up procedures.“

211 Though the TOE is not delivered and then configured, its configuration needs to be addressed as a specific aspect since these procedures may affect the overall security. Therefore, the terms "installation" and "generation" need to be refined:

212 The following text reflects the requirements of the selected component ADO_IGS.1:

Developer action elements:

ADO_IGS.1.1D The developer shall document procedures necessary for the secure installation, generation, and start-up of the TOE.

Content and presentation of evidence elements:

ADO_IGS.1.1C The documentation shall describe the steps necessary for secure installation, generation, and start-up of the TOE.

Evaluator action elements:

ADO_IGS.1.1E The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

ADO_IGS.1.2E The evaluator shall determine that the installation, generation, and start-up procedures result in a secure configuration.

Refinement

213 The TOE may be configured after production before the Smartcard is delivered to the end-user (this would be addressed by security functional requirement Limited availability (FMT_LIM.2)). In this case, these configuration aspects have to be considered. Differences between the TOE before first use (normally done during wafer test) and Phase 7 must be summarised. Guidance to change that behaviour must exist. Regarding technical details, the documentation provided by the developer can refer to documents provided for the Common Criteria class ADV.

214 Note that most of the security functions will already be effective before TOE Delivery.

However, guidance to determine the behaviour of Security Functions, to disable, to enable or to modify the behaviour of Security Functions must be given as follows:

If configuration of a Security Function of the TOE done before TOE Delivery (that means by the TOE Manufacturer) the corresponding guidance is given under the assurance component of the family ADO_IGS. Note that this document is an internal document of the TOE Manufacturer and not delivered to their customers.

If administration of a Security Function of the TOE is done after TOE Delivery

(that means by the Card Manufacturer) the corresponding guidance must be in the Administrator Guidance (refer to the Common Criteria assurance component

Version 1.0 (July 2001) Page 62 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5) of the family AGD_ADM) as it shall describe how to administer the TOE in a secure manner. This guidance document is delivered by the TOE Manufacturer.

215 Guidance documents must not contain security relevant details which are not absolutely necessary for the administration actually to be done.

5.1.3.8 Refinement regarding User Guidance (AGD_USR)

Introduction

216 The Common Criteria assurance components of the families AGD_USR (user guidance) and AGD_ADM (administrator guidance) “describe all relevant aspects for the secure application of the TOE.“ The terms “user” and “administrator” are used.

217 In the case of a Smartcard Integrated Circuit the meaning of the terms “user” and

“administrator” are not obvious. Therefore, the following refinements are given regarding guidance.

218 User guidance refers to material that is intended to be used by non-administrative human users of the TOE, and by others (e.g. programmers) using the TOE’s external interfaces. User guidance describes the security functions provided by the TSF and provides instructions and guidelines, including warnings, for its secure use.

219 The following text reflects specific requirements of the selected component

AGD_USR.1:

Developer action elements:

AGD_USR.1.1D The developer shall provide user guidance.

Content and presentation of evidence elements:

AGD_USR.1.1C

The user guidance shall describe the functions and interfaces available to the non-administrative users of the TOE.

AGD_USR.1.2C

The user guidance shall describe the use of user-accessible security functions provided by the TOE.

AGD_USR.1.3C

AGD_USR.1.4C

The user guidance shall contain warnings about useraccessible functions and privileges that should be controlled in a secure processing environment.

The user guidance shall clearly present all user responsibilities necessary for secure operation of the TOE, including those related to assumptions regarding user behaviour found in the statement of TOE security environment.

Version 1.0 (July 2001) Page 63 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

AGD_USR.1.5C

AGD_USR.1.6C

The user guidance shall be consistent with all other documentation supplied for evaluation.

The user guidance shall describe all security requirements for the IT environment that are relevant to the user.

Evaluator action elements:

AGD_USR.1.1E

The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

Refinement

220 The TOE serves as a platform for the Smartcard Embedded Software. Therefore, the

“user” of the TOE (as used in the Common Criteria assurance class AGD: guidance) is the Smartcard Embedded Software.

User Guidance (refer to the Common Criteria assurance component of the family

AGD_USR) must be given to the developer of the Smartcard Embedded Software to ensure that the Smartcard Embedded Software properly uses the TOE.

221 On the other hand the Smartcard (with the TOE as a major element) is used in a terminal where communication is performed through the ISO interface provided by the TOE. Therefore, another “user” of the TOE is the terminal (with its software).

-

User Guidance (refer to the Common Criteria assurance component of the family

AGD_USR) must be given to the developer of the terminal. However, this is only little information about the physical characteristics of the device, the ISO interface and perhaps standard protocols (such as T=1 if implemented in the TOE). Other information could be needed if the TOE provides other services in the end-user phase (Phase 7, refer to Section 8.1) which may be augmented to this Protection

Profile.

222 The User Guidance documents should provide only the information which is necessary for using the TOE. Depending on the recipient of that guidance documentation User and Administrator Guidance can be given in the same document.

223 After production the TOE is tested where communication is performed by directly contacting the pads that mostly become part of the ISO interface during packaging.

Here no guidance document according to Common Criteria class AGD is required

(provided that the tests are performed by the TOE Manufacturer). Note that test procedures are described under the Common Criteria assurance component of the family ATE_FUN.

Version 1.0 (July 2001) Page 64 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

5.1.3.9 Refinement regarding Administrator Guidance (AGD_ADM)

Introduction

224 Administrator guidance refers to written material that is intended to be used by those persons responsible for configuring, maintaining, and administering the TOE in a correct manner for maximum security.

225 The following text reflects specific requirements of the selected component

AGD_ADM.1:

Developer action elements:

AGD_ADM.1.1D The developer shall provide administrator guidance addressed to system administrative personnel.

Content and presentation of evidence elements:

AGD_ADM.1.1C

The administrator guidance shall describe the administrative functions and interfaces available to the administrator of the

TOE.

AGD_ADM.1.2C

AGD_ADM.1.3C

The administrator guidance shall describe how to administer the TOE in a secure manner.

The administrator guidance shall contain warnings about functions and privileges that should be controlled in a secure processing environment.

AGD_ADM.1.4C

AGD_ADM.1.5C

The administrator guidance shall describe all assumptions regarding user behaviour that are relevant to secure operation of the TOE.

The administrator guidance shall describe all security parameters under the control of the administrator, indicating secure values as appropriate.

AGD_ADM.1.6C

AGD_ADM.1.7C

AGD_ADM.1.8C

The administrator guidance shall describe each type of security-relevant event relative to the administrative functions that need to be performed, including changing the security characteristics of entities under the control of the TSF.

The administrator guidance shall be consistent with all other documentation supplied for evaluation.

The administrator guidance shall describe all security requirements for the IT environment that are relevant to the administrator.

Version 1.0 (July 2001) Page 65 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

Evaluator action elements:

AGD_ADM.1.1E

The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.

Refinement

226 If the TOE provides security functions which can or need to be administrated (i) by the Smartcard Embedded Software or (ii) using services of the TOE after TOE

Delivery (refer to Section 2.1) an Administrator Guidance must be given in addition.

227 Most of the security functions will already be effective before TOE Delivery. However, guidance to determine the behaviour of Security Functions, to disable, to enable or to modify the behaviour of Security Functions must be given if administration of a

Security Function is done after TOE Delivery (that means by the Card Manufacturer).

This guidance document is delivered by the TOE Manufacturer.

228 Guidance documents must not contain security relevant details which are not absolutely necessary for the administration actually to be done. Depending on the recipient of that guidance documentation User and Administrator Guidance can be given in the same document.

5.1.3.10 Additional Guidance regarding Vulnerability Analysis (AVA_VLA)” and

Strength of Functions (AVA_SOF)

229 When rating attack potential according to the Common Methodology for Information

Technology Security Evaluation (CEM), Part 2: Evaluation Methodology [8] for the assurance aspects Vulnerability Analysis and Strength of Functions, as expertise of an attacker it is distinguished between “expert”, “proficient” and “laymen”. With respect to the knowledge of the TOE it is distinguished between “no information about the TOE”, “public information concerning the TOE”, and “sensitive information about the TOE”. The information gained from a user guide is given as an example for public information concerning the TOE. This is not applicable here since the protection of such information is demanded according to this Protection Profile (refer to refinement regarding “Development Security (ALC_DVS)”).

230 During the Vulnerability Analysis it must be assessed that the functions provided by the IC Dedicated Test Software can not be abused after TOE Delivery (refer to the security functional requirements FMT_LIM.1 and FMT_LIM.2). All necessary information must be provided to allow that assessment.

Version 1.0 (July 2001) Page 66 (of 100)

Smartcard IC Platform Protection Profile IT Security Requirements (Chapter 5)

5.2 Security Requirements for the Environment

5.2.1 Security Requirements for the IT-Environment

231 The security objectives for the environment will be ensured by Non-IT security requirements only (refer to the next subsection, Section 5.2.2, and the rationale,

Section 7.2).

5.2.2 Security Requirements for the Non-IT-Environment

232 In the following security requirements for the Non-IT-Environment are defined for the development of the Smartcard Embedded Software (in Phase 1) and the Smartcard

Packaging, Finishing and Personalisation (Phases after TOE Delivery up to Phase 7).

233 The Smartcard Embedded Software is developed in Phase 1 and must support the security functionality of the TOE. This Protection Profile does not directly define obligatory security functional requirements for the Smartcard Embedded Software itself, because this might restrict the implementation possibilities for the developer.

Instead the following general requirement for the design and implementation of the software is stated.

RE.Phase-1 Design and Implementation of the Smartcard Embedded

Software

The developers shall design and implement the Smartcard

Embedded Software in such way that it meets the requirements from the following documents: (i) hardware data sheet for the

TOE, (ii) TOE application notes, and (iii) findings of the TOE evaluation reports relevant for the Smartcard Embedded

Software.

The developers shall implement the Smartcard Embedded Software in a way that it protects security relevant User Data

(especially cryptographic keys) as required by the security needs of the specific application context.

17

234 The requirement RE.Phase-1 also addresses the fact that the Smartcard Embedded

Software may need to support the security functions of the TOE (refer also to

Figure 3 on page 14). Examples for such security functional requirements for the

Smartcard Embedded Software are given in Section 8.2.2.

17

In particular, the Smartcard Embedded Software shall not disclose secret User Data to unauthorised users or processes as defined for the application context. Similarly the Smartcard

Embedded Software shall not allow unauthorised users or processes to use or modify security relevant User Data.

Version 1.0 (July 2001) Page 67 (of 100)

Smartcard IC Platform Protection Profile PP Application Notes (Chapter 6)

235 The responsible parties for the Phases 4-6 are required to support the security of the

TOE by appropriate measures:

RE.Process-Card Protection during Packaging, Finishing and Personalisation

The Card Manufacturer (after TOE Delivery up to the end of

Phase 6) shall use adequate security measures to maintain confidentiality and integrity of the TOE and of its manufacturing and test data (to prevent any possible copy, modification, retention, theft or unauthorised use).

6 PP Application Notes

236 In this Protection Profile operations are completed for all security functional components except the component FCS_RND.1 (Quality metric for random numbers). To complete the latter is left to the Security Target.

237 This Protection Profile contains other application notes distributed through the paper.

The application notes are separated paragraphs which are marked with “Application

Note” following a number.

7 Rationale

This chapter Rationale contains the following sections:

Security Objectives Rationale (7.1)

Security Requirements Rationale (7.2)

Rationale for the security functional requirements (7.2.1)

Dependencies of security functional requirements (7.2.2)

Rationale for the Assurance Requirements and the Strength of Function Level (7.2.3)

Security Requirements are Mutually Supportive and Internally Consistent (7.3)

Version 1.0 (July 2001) Page 68 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

7.1 Security Objectives Rationale

238 Table 1 below gives an overview, how the assumptions, threats, and organisational security policies are addressed by the objectives. The text following after the table justifies this in detail.

Assumption, Threat or

Organisational Security Policy

A.Plat-Appl

A.Resp-Appl

P.Process-TOE

A.Process-Card

T.Leak-Inherent

T.Phys-Probing

T.Malfunction

T.Phys-Manipulation

T.Leak-Forced

T.Abuse-Func

T.RND

Security Objective

OE.Plat-Appl

OE.Resp-Appl

OE.Process-TOE

O.Identification

OE.Process-Card

O.Leak-Inherent

O.Phys-Probing

O.Malfunction

O.Phys-Manipulation

O.Leak-Forced

O.Abuse-Func

O.RND

Note

(Phase 1)

(Phase 1)

(Phase 2 – 3)

(Phase 4 – 6)

Table 1: Security Objectives versus Assumptions, Threats or Policies

239 The justification related to the assumption “Usage of Hardware Platform

(A.Plat-Appl)” is as follows:

240 Since OE.Plat-Appl requires the Smartcard Embedded Software developer to implement those measures assumed in A.Plat-Appl, the assumption is covered by the objective.

241 The justification related to the assumption “Treatment of User Data (A.Resp-Appl)” is as follows:

242 Since OE.Resp-Appl requires the developer of the Smartcard Embedded Software to implement measures as assumed in A.Resp-Appl, the assumption is covered by the objective.

243 The justification related to the organisational security policy “Protection during TOE

Development and Production (P.Process-TOE)” is as follows:

244 OE.Process-TOE requires the TOE Manufacturer to implement those measures assumed in P.Process-TOE. Therefore, the organisational security policy is covered by this objective, as far as organisational measures are concerned. The only issue not completely covered by these measures is the fact that the TOE has to support the

Version 1.0 (July 2001) Page 69 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7) possibility of unique identification. This is the content of O.Identification. Therefore, the organisational security policy is covered by OE.Process-Card and

O.Identification.

245 The justification related to the assumption “Protection during Packaging, Finishing and Personalisation (A.Process-Card)” is as follows:

246 Since OE.Process-Card requires the Card Manufacturer to implement those measures assumed in A.Process-Card, the assumption is covered by this objective.

247 The justification related to the threats “Inherent Information Leakage

(T.Leak-Inherent)”, “Physical Probing (T.Phys-Probing)”, “Malfunction due to

Environmental Stress (T.Malfunction)”, “Physical Manipulation

(T.Phys-Manipulation)”, “Forced Information Leakage (T.Leak-Forced)“, “Abuse of

Functionality (T.Abuse-Func)” and “Deficiency of Random Numbers (T.RND)” is as follows:

248 For all threats the corresponding objectives (refer to Table 1) are stated in a way, which directly corresponds to the description of the threat (refer to Section 3.3). It is clear from the description of each objective (refer to Section 4.1), that the corresponding threat is removed if the objective is valid. More specifically, in every case the ability to use the attack method successfully is countered, if the objective holds.

7.2 Security Requirements Rationale

7.2.1 Rationale for the security functional requirements

249 Table 2 below gives an overview, how the security functional requirements are combined to meet the security objectives. The detailed justification follows after the table.

Version 1.0 (July 2001) Page 70 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

Objective TOE Security Functional

Requirements

Security Requirements for the environment

O.Leak-Inherent - FDP_ITT.1 “Basic internal transfer protection”

- FPT_ITT.1 “Basic internal

TSF data transfer protection”

- FDP_IFC.1 “Subset information flow control”

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software”

O.Phys-Probing

- FPT_PHP.3 “Resistance to physical attack”

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software”

O.Malfunction

- FRU_FLT.2 “Limited fault tolerance

- FPT_FLS.1 “Failure with preservation of secure state”

- FPT_SEP.1 “TSF domain separation”

O.Phys-Manipulation

- FPT_PHP.3 “Resistance to physical attack”

O.Leak-Forced

O.Abuse-Func

All requirements listed for

O.Leak-Inherent

- FDP_ITT.1, FPT_ITT.1,

FDP_IFC.1

plus those listed for

O.Malfunction and

O.Phys-Manipulation

- FRU_FLT.2, FPT_FLS.1,

FPT_SEP.1, FPT_PHP.3

- FMT_LIM.1 “Limited capabilities”

- FMT_LIM.2 “Limited availability” plus those for O.Leak-Inherent,

O.Phys-Probing, O.Malfunction,

O.Phys-Manipulation,

O.Leak-Forced

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software” (e. g. by implementing FDP_SDI.1

Stored data integrity monitoring)

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software”

Version 1.0 (July 2001) Page 71 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

Objective

O.Identification

O.RND

OE.Plat-Appl

OE.Resp-Appl

OE.Process-TOE

OE.Process-Card

TOE Security Functional

Requirements

Security Requirements for the environment

- FDP_ITT.1, FPT_ITT.1,

FDP_IFC.1, FPT_PHP.3,

FRU_FLT.2, FPT_FLS.1,

FPT_SEP.1

- FAU_SAS.1

“Audit storage”

- FCS_RND.1 “Quality metric for random numbers” plus those for O.Leak-Inherent,

O.Phys-Probing, O.Malfunction,

O.Phys-Manipulation,

O.Leak-Forced

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software” (e. g. by implementing FPT_AMT.1

“Abstract machine testing”)

- FDP_ITT.1, FPT_ITT.1,

FDP_IFC.1, FPT_PHP.3,

FRU_FLT.2, FPT_FLS.1,

FPT_SEP.1

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software”

RE.Phase-1 “Design and

Implementation of the

Smartcard Embedded

Software”

- FAU_SAS.1 “Audit storage”

Assurance Components: refer to below

RE.Process-Card possibly supported by RE.Phase-1

Table 2: Security Requirements versus Security Objectives

Assurance Components: Delivery (ADO_DEL); Installation, generation, and startup (ADO_IGS) (using Administrator Guidance (AGD_ADM), User guidance

(AGD_USR)); CM automation (ACM_AUT); CM Capabilities (ACM_CAP); CM Scope

(ACM_SCP); Development Security (ALC_DVS); Life Cycle Definition (ALC_LCD);

Tools and Techniques (ALC_TAT)

250 The justification related to the security objective “Protection against Inherent

Information Leakage (O.Leak-Inherent)” is as follows:

251 The refinements of the security functional requirements FPT_ITT.1 and FDP_ITT.1

together with the policy statement in FDP_IFC.1 explicitly require the prevention of disclosure of secret data (TSF data as well as User Data) when transmitted between

Version 1.0 (July 2001) Page 72 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7) separate parts of the TOE or while being processed. This includes that attackers cannot reveal such data by measurements of emanations, power consumption or other behaviour of the TOE while data are transmitted between or processed by TOE parts.

252 Of course this has also to be supported by the Smartcard Embedded Software. For example timing attacks were possible if the processing time of algorithms implemented in the software would depend on the content of secret variables. The requirement RE.Phase-1 makes sure that this is avoided.

253 The justification related to the security objective “Protection against Physical Probing

(O.Phys-Probing)” is as follows:

254 The scenario of physical probing as described for this objective is explicitly included in the assignment chosen for the physical tampering scenarios in FPT_PHP.3.

Therefore, it is clear that this security functional requirement supports the objective.

255 It is possible that the TOE needs additional support by the Smartcard Embedded

Software (e. g. to send data over certain buses only with appropriate precautions). If necessary this support is provided according to RE.Phase-1. Together with this

FPT_PHP.3 is suitable to meet the objective.

256 The justification related to the security objective “Protection against Malfunctions

(O.Malfunction)” is as follows:

257 The definition of this objective shows that it covers a situation, where malfunction of the TOE might be caused by the operating conditions of the TOE (while direct manipulation of the TOE is covered O.Phys-Manipulation). There are two possibilities in this situation: Either the operating conditions are inside of the tolerated range or at least one of them is outside of this range. The second case is covered by

FPT_FLS.1, because it states that a secure state is preserved in this case. The first case is covered by FRU_FLT.2 because it states that the TOE operates correctly under normal (tolerated) conditions. To support this, FPT_SEP.1 the functions implementing FRU_FLT.2 and FPT_FLS.1 must work independently so that their operation can not affected by the Smartcard Embedded Software (refer to the refinement). Therefore, there is no possible instance of conditions under

O.Malfunction, which is not covered.

258 The justification related to the security objective “Protection against Physical

Manipulation (O.Phys-Manipulation)” is as follows:

259 The scenario of physical manipulation as described for this objective is explicitly included in the assignment chosen for the physical tampering scenarios in

FPT_PHP.3. Therefore, it is clear that this security functional requirement supports the objective.

260 It is possible that the TOE needs additional support by the Embedded Software (for instance by implementing FDP_SDI.1 to check data integrity with the help of appropriate checksums, refer to Section 8.2.2). This support is provided according to

RE.Phase-1. Together with this FPT_PHP.3 is suitable to meet the objective.

Version 1.0 (July 2001) Page 73 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

261 The justification related to the security objective “Protection against Forced

Information Leakage (O.Leak-Forced)“ is as follows:

262 This objective is directed against attacks, where an attacker wants to force an information leakage, which would not occur under normal conditions. In order to achieve this the attacker has to combine a first attack step, which modifies the behaviour of the TOE (either by exposing it to extreme operating conditions or by directly manipulating it) with a second attack step measuring and analysing some output produced by the TOE. The first step is prevented by the same measures which support O.Malfunction and O.Phys-Manipulation, respectively. The requirements covering O.Leak-Inherent also support O.Leak-Forced because they prevent the attacker from being successful if he tries the second step directly.

263 The justification related to the security objective “Protection against Abuse of

Functionality (O.Abuse-Func)” is as follows:

264 This objective states that abuse of functions (especially provided by the IC Dedicated

Test Software, for instance in order to read secret data) must not be possible in

Phase 7 of the life-cycle. There are two possibilities to achieve this: (i) They cannot be used by an attacker (i. e. its availability is limited) or (ii) using them would not be of relevant use for an attacker (i. e. its capabilities are limited) since the functions are designed in a specific way. The first possibility is specified by FMT_LIM.2 and the second one by FMT_LIM.1. Since these requirements are combined to support the policy, which is suitable to fulfil O.Abuse-Func, both security functional requirements together are suitable to meet the objective.

265 Other security functional requirements which prevent attackers from circumventing the functions implementing these two security functional requirements (for instance by manipulating the hardware) also support the objective. The relevant objectives are also listed in Table 2.

266 It was chosen to define FMT_LIM.1 and FMT_LIM.2 explicitly (not using Part 2 of the

Common Criteria) for the following reason: Though taking components from the

Common Criteria catalogue makes it easier to recognise functions, any selection from Part 2 of the Common Criteria would have made it harder for the reader to understand the special situation meant here. As a consequence, the statement of explicit security functional requirements was chosen to provide more clarity.

267 The justification related to the security objective “TOE Identification (O.Identification)“ is as follows:

268 Obviously the operations for FAU_SAS.1 are chosen in a way that they require the

TOE to provide the functionality needed for O.Identification. The Initialisation Data (or parts of them) are used for TOE identification.

269 It was chosen to define FAU_SAS.1 explicitly (not using a given security functional requirement from Part 2 of the Common Criteria) for the following reason: The security functional requirement FAU_GEN.1 in Part 2 of the CC requires the TOE to generate the audit data and gives details on the content of the audit records (for instance data and time). The possibility to use the functions in order to store security

Version 1.0 (July 2001) Page 74 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7) relevant data which are generated outside of the TOE, is not covered by the family

FAU_GEN or by other families in Part 2. Moreover, the TOE cannot add time information to the records, because it has no real time clock. Therefore, the new family FAU_SAS was defined for this situation.

270 The justification related to the security objective “Random Numbers (O.RND)” is as follows:

271 FCS_RND.1 requires the TOE to provide random numbers of good quality. To specify the exact metric is left to the individual Security Target for a specific TOE.

272 Other security functional requirements, which prevent physical manipulation and malfunction of the TOE (see the corresponding objectives listed in the table) support this objective because they prevent attackers from manipulating or otherwise affecting the random number generator.

273 Random numbers are often used by the Smartcard Embedded Software to generate cryptographic keys for internal use. Therefore, the TOE must prevent the unauthorised disclosure of random numbers. Other security functional requirements which prevent inherent leakage attacks, probing and forced leakage attacks ensure the confidentiality of the random numbers provided by the TOE.

274 Depending on the functionality of specific TOEs the Smartcard Embedded Software will have to support the objective by providing runtime-tests of the random number generator (for instance by implementing FPT_AMT.1, refer to Section 8.2.2).

Together, these requirements allow the TOE to provide cryptographically good random numbers and to ensure that no information about the produced random numbers is available to an attacker.

275 It was chosen to define FCS_RND.1 explicitly, because Part 2 of the Common

Criteria do not contain generic security functional requirements for Random Number generation. (Note, that there are security functional requirements in Part 2 of the

Common Criteria, which refer to random numbers. However, they define requirements only for the authentication context, which is only one of the possible applications of random numbers.)

276 The justification related to the security objective “Usage of Hardware Platform

(OE.Plat-Appl)” is as follows:

277 RE.Phase-1 requires the Smartcard Embedded Software developer to design and implement the software in a way, which is suitable to meet OE.Plat-Appl.

278 The justification related to the security objective “Treatment of User Data

(OE.Resp-Appl)” is as follows:

279 RE.Phase-1 requires the developer of the Smartcard Embedded Software to design and implement the software in a way, which is suitable to meet OE.Resp-Appl.

Version 1.0 (July 2001) Page 75 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

280 The justification related to the security objective “Protection during TOE Development and Production (OE.Process-TOE)” is as follows:

281 The objective OE.Process-TOE has mainly to be fulfilled by organisational and other measures, which the TOE Manufacturer has to implement. These measures are a subset of those measures, which are examined during the evaluation of the assurance requirements of the classes ACM, AGD, ALC and ADO. The technical capability of the TOE to store Initialisation Data and/or Pre-personalisation Data is provided according to FAU_SAS.1. Together these security requirements are suitable to meet the objective.

282 The justification related to the security objective “Protection during Packaging,

Finishing and Personalisation (OE.Process-Card)” is as follows:

283 RE.Process-Card requires the Card Manufacturer to use adequate measures to fulfil

OE.Process-Card. Depending on the security needs of the application, the Smartcard

Embedded Software may have to support this for instance by using appropriate authentication mechanisms for personalisation functions. Therefore, RE.Phase-1 may support RE.Process-Card in fulfilling the objective in addition.

284 Note that there is a detailed explanation for each security functional requirement in

Section 5.1.1.

7.2.2 Dependencies of security functional requirements

285 Table 3 below lists the security functional requirements defined in this Protection

Profile, their dependencies and whether they are satisfied by other security requirements defined in this Protection Profile. The text following the table discusses the remaining cases.

Version 1.0 (July 2001) Page 76 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

Security Functional

Requirement

FRU_FLT.2

FPT_FLS.1

FPT_SEP.1

FMT_LIM.1

FMT_LIM.2

FAU_SAS.1

FPT_PHP.3

FDP_ITT.1

FDP_IFC.1

FPT_ITT.1

FCS_RND.1

Dependencies

FPT_FLS.1

ADV_SPM.1

None

FMT_LIM.2

FMT_LIM.1

None

None

FDP_ACC.1 or FDP_IFC.1

FDP_IFF.1

None

None

Fulfilled by security requirements in this PP

Yes

Yes (Part of EAL4)

No dependency

Yes

Yes

No dependency

No dependency

Yes

See discussion below

No dependency

No dependency

Table 3: Dependencies of the Security Functional Requirements

286 Part 2 of the Common Criteria defines the dependency of FDP_IFC.1 (information flow control policy statement) on FDP_IFF.1 (Simple security attributes). The specification of FDP_IFF.1 would not capture the nature of the security functional requirement nor add any detail. As stated in the Data Processing Policy referred to in

FDP_IFC.1 there are no attributes necessary. The security functional requirement for the TOE is sufficiently described using FDP_ITT.1 and its Data Processing Policy

(FDP_IFC.1). Therefore the dependency is considered satisfied.

287 As Table 3 shows, all other dependencies are fulfilled by security requirements defined in this Protection Profile.

Application Note 20:

Add: Regarding the security functional requirement “Failure with preservation of secure state (FPT_FLS.1)” the Common Criteria give the following explanation: The term “secure state” refers to a state in which the TSF data are consistent and the TSF continues correct enforcement of the TSP. The

“secure state” should be defined in the TSP model (ADV_SPM.1). The author of the Security Target should give some rationale (and a clear definition of the secure state if possible) here and add a reference to the TSP model.

288 The discussion in Section 7.2.1 has shown, how the security functional requirements support each other in meeting the security objectives of this Protection Profile. In particular the security functional requirements providing resistance of the hardware against manipulations (e. g. FPT_PHP.3) support all other more specific security functional requirements (e. g. FCS_RND.1) because they prevent an attacker from disabling or circumventing the latter. Together with the discussion of the dependencies above this shows that the security functional requirements build a mutually supportive whole.

Version 1.0 (July 2001) Page 77 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

7.2.3 Rationale for the Assurance Requirements and the Strength of Function Level

289 The assurance level EAL4 and the augmentation with the requirements ADV_IMP.2,

ALC_DVS.2, AVA_MSU.3, and AVA_VLA.4 were chosen in order to meet assurance expectations explained in the following paragraphs.

290 An assurance level of EAL4 is required for this type of TOE since it is intended to defend against sophisticated attacks. This evaluation assurance level was selected since it is designed to permit a developer to gain maximum assurance from positive security engineering based on good commercial practices. In order to provide a meaningful level of assurance that the TOE provides an adequate level of defence against such attacks, the evaluators should have access to the low level design and source code.

ADV_IMP.2 Implementation of the TSF

291 This assurance component is a higher hierarchical component to EAL 4 (which only requires ADV_IMP.1). It is important for a smartcard IC that the evaluation includes the implementation representation of the entire TSF and determines whether the functional requirements in the Security Target are addressed by the representation of the TSF. IC dedicated software source code and IC hardware drawings are examples of TSF implementation representation.

292 The implementation representation is used to express the notion of the least abstract representation of the TSF, specifically the one that is used to create the TSF itself without further design refinement.

293 ADV_IMP.2 has dependencies with ADV_LLD.1 “Descriptive Low-Level design”,

ADV_RCR.1 “Informal correspondence demonstration”, ALC_TAT.1 “Well defined development tools”. These assurance components are included in EAL4, then these dependencies are satisfied.

ALC_DVS.2 Sufficiency of security measures

294 Development security is concerned with physical, procedural, personnel and other technical measures that may be used in the development environment to protect the

TOE.

295 In the particular case of a Smartcard Integrated Circuit the TOE is developed and produced within a complex and distributed industrial process which must especially be protected. Details about the implementation, (e.g. from design, test and development tools as well as Initialisation Data) may make such attacks easier.

Therefore, in the case of a Smartcard Integrated Circuit, maintaining the confidentiality of the design is very important.

Version 1.0 (July 2001) Page 78 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

296 This assurance component is a higher hierarchical component to EAL4 (which only requires ALC_DVS.1). ALC_DVS.2 has no dependencies.

AVA_MSU.3 Analysis and testing for insecure states

297 The user guidance must be correct and sufficent to ensure that the TOE can be used in a secure way and that vulnerabilities are not introduced.

298 This component is included to ensure that misleading, unreasonable and conflicting guidance is absent from the guidance documentation, and that secure procedures for all modes of operation have been addressed. Insecure states should be easy to detect. In this component, an analysis of the guidance documentation provided by the developer is validated and confirmed through testing by the evaluator to provide additional assurance.

299 This assurance component is a higher hierarchical component to EAL4 (which only requires AVA_MSU.2).

300 AVA_MSU.3 has dependencies with ADO_IGS.1 “Installation, generation, and startup procedures“, ADV_FSP.1 “Informal functional specification”, AGD_ADM.1

“Administrator guidance” and AGD_USR.1 “User guidance”. The dependencies are satisfied in EAL4.

AVA_VLA.4 Highly resistant

301 Due to the intended use of the TOE, it must be shown to be highly resistant to penetration attacks. This assurance requirement is achieved by the AVA_VLA.4

component.

302 Independent vulnerability analysis is based on highly detailed technical information and goes beyond the vulnerabilities identified by the developer. The main intent of the evaluator analysis is to determine that the TOE is resistant to penetration attacks performed by an attacker possessing a high attack potential

.

303 AVA_VLA.4 has dependencies with ADV_FSP.1 “Informal functional specification”,

ADV_HLD.2 “Security enforcing high-level design”, ADV_LLD.1 “Descriptive low-level design”, ADV_IMP.1 “Subset of the implementation of the TSF”, AGD_ADM.1

“Administrator Guidance”, AGD_USR.1 “User Guidance”.

304

All these dependencies are satisfied by EAL4.

Application Note 21:

For the assurance level EAL5 augmented refer to the document Smartcard

Integrated Circuit Platform Augmentations [3]. The Security Target used for the evaluation of a smartcard integrated circuit will be created by taking this

Protection Profile and add additional assurance requirements for EAL5 augmented.

Version 1.0 (July 2001) Page 79 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

305 It has to be assumed that attackers with high attack potential try to attack smart cards used for digital signature applications or payment systems. Therefore, specifically

AVA_VLA.4 was chosen in order to assure that even these attackers cannot successfully attack the TOE. For the same reason the Strength of Function level

“SOF-high” is required.

306 The assurance components in an evaluation assurance level (EAL) are chosen in a way that they build a mutually supportive and complete set of components. The requirements chosen for augmentation do not add any dependencies, which are not already fulfilled for the corresponding requirements contained in EAL4. Therefore, these components add additional assurance to EAL4, but the mutual support of the requirements is still guaranteed.

307 Note that detailed refinements for assurance requirements are given in Section 5.1.3.

7.3 Security Requirements are Mutually Supportive and Internally Consistent

308 The discussion of security functional requirements and assurance components in the preceding sections has shown that mutual support and consistency are given for both groups of requirements. The arguments given for the fact that the assurance components are adequate for the functionality of the TOE also shows that the security functional requirements and assurance requirements support each other and that there are no inconsistencies between these groups.

309 The security functional requirement FPT_PHP.3 makes it harder to manipulate User

Data and TSF Data. This protects the primary assets identified in Section 3.1 and other security features or functions which use these data.

310 Though a manipulation of the TOE (refer to FPT_PHP.3) is not of great value for an attacker in itself, it can be an important step in order to threaten the primary assets identified in Section 3.1. Therefore, the security functional requirement FPT_PHP.3 is not only required to meet the security objective O.Phys-Manipulation. Instead it protects other security features or functions of both the TOE and the Smartcard

Embedded Software from being bypassed, deactivated or changed. In particular this may pertain to the security features or functions being specified using FDP_ITT.1,

FPT_ITT.1, FPT_FLS.1, FMT_LIM.2, FCS_RND.1, and those implemented in the

Smartcard Embedded Software.

311 A malfunction of TSF (refer to FRU_FLT.2 and FPT_FLS.1) can be an important step in order to threaten the primary assets identified in Section 3.1. Therefore, the security functional requirements FRU_FLT.2 and FPT_FLS.1 are not only required to meet the security objective O.Malfunction. Instead they protect other security features or functions of both the TOE and the Smartcard Embedded Software from being bypassed, deactivated or changed. In particular this pertains to the security features or functions being specified using FDP_ITT.1, FPT_ITT.1, FMT_LIM.1, FMT_LIM.2,

FCS_RND.1, and those implemented in the Smartcard Embedded Software.

Version 1.0 (July 2001) Page 80 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7)

312 In a forced leakage attack the methods described in “Malfunction due to

Environmental Stress” (refer to T.Malfunction) and/or “Physical Manipulation” (refer to

T.Phys-Manipulation) are used to cause leakage from signals which normally do not contain significant information about secrets. Therefore, in order to avert the disclosure of primary assets identified in Section 3.1 it is important that the security functional requirements averting leakage (FDP_ITT.1, FPT_ITT.1) and those against malfunction (FRU_FLT.2 and FPT_FLS.1) and physical manipulation (FPT_PHP.3) are effective and bind well. The security features and functions against malfunction ensure correct operation of other security functions (refer to above) and help to avert forced leakage themselves in other attack scenarios. The security features and functions against physical manipulation make it harder to manipulate the other security functions (refer to above).

313 Physical probing (refer to FPT_PHP.3) shall directly avert the disclosure of primary assets identified in Section 3.1. In addition, physical probing can be an important step in other attack scenarios if the corresponding security features or functions use secret data. For instance the security functional requirement FMT_LIM.2 may use passwords. Therefore, the security functional requirement FPT_PHP.3 (against probing) help to protect other security features or functions including those being implemented in the Smartcard Embedded Software. Details depend on the implementation.

314 Leakage (refer to FDP_ITT.1, FPT_ITT.1) shall directly avert the disclosure of primary assets identified in Section 3.1. In addition, inherent leakage and forced leakage (refer to above) can be an important step in other attack scenarios if the corresponding security features or functions use secret data. For instance the security functional requirement FMT_LIM.2 may use passwords. Therefore, the security functional requirements FDP_ITT.1 and FPT_ITT.1 help to protect other security features or functions implemented in the Smartcard Embedded Software

(FDP_ITT.1) or provided by the TOE (FPT_ITT.1). Details depend on the implementation.

315 According to the assumption Usage of Hardware Platform (A.Plat-Appl) the

Smartcard Embedded Software will correctly use the functions provided by the TOE.

Hereby the User Data are treated as required to meet the requirements defined for the specific application context (refer to Treatment of User Data (A.Resp-Appl)).

However, the TOE may implement additional functions. This can be a risk if their interface can not completely be controlled by the Smartcard Embedded Software.

Therefore, the security functional requirements FMT_LIM.1 and FMT_LIM.2 are very important. They ensure that appropriate control is applied to the interface of these functions (limited availability) and that these functions, if being usable, provide limited capabilities only.

316 The combination of the security functional requirements FMT_LIM.1 and FMT_LIM.2

ensures that (especially after TOE Delivery) these additional functions can not be abused by an attacker to (i) disclose or manipulate User Data, (ii) to manipulate

(explore, bypass, deactivate or change) security features or functions of the TOE or

Version 1.0 (July 2001) Page 81 (of 100)

Smartcard IC Platform Protection Profile Rationale (Chapter 7) of the Smartcard Embedded Software or (iii) to enable an attack. Hereby the binding between these two security functional requirements is very important:

317 The security functional requirement Limited Capabilities (FMT_LIM.1) must close gaps which could be left by the control being applied to the function’s interface

(Limited Availability (FMT_LIM.2)). Note that the security feature or function which limits the availability can be bypassed, deactivated or changed by physical manipulation or a malfunction caused by an attacker. Therefore, if Limited Availability

(FMT_LIM.2) is vulnerable

18

, it is important to limit the capabilities of the functions in order to limit the possible benefit for an attacker.

318 The security functional requirement Limited Availability (FMT_LIM.2) must close gaps which could result from the fact that the function’s kernel in principle would allow to perform attacks. The TOE must limit the availability of functions which potentially provide the capability to disclose or manipulate User Data, to manipulate security features or functions of the TOE or of the Smartcard Embedded Software or to enable an attack. Therefore, if an attacker could benefit from using such functions

19

, it is important to limit their availability so that an attacker is not able to use them.

319 No perfect solution to limit the capabilities (FMT_LIM.1) is required if the limited availability (FMT_LIM.2) alone can prevent the abuse of functions. No perfect solution to limit the availability (FMT_LIM.2) is required if the limited capabilities (FMT_LIM.1) alone can prevent the abuse of functions. Therefore, it is correct that both requirements are defined in a way that they together provide sufficient security.

320 It is important to avert malfunctions of TSF and of security functions implemented in the Smartcard Embedded Software (refer to above). There are two security functional requirements which ensure that malfunctions can not be caused by exposing the

TOE to environmental stress. First it must be ensured that the TOE operates correctly within some limits (Limited fault tolerance (FRU_FLT.2)). Second the TOE must prevent its operation outside these limits (Failure with preservation of secure state (FPT_FLS.1)). Both security functional requirements together prevent malfunctions. The two functional requirements must define the “limits”. Otherwise there could be some range of operating conditions which is not covered so that malfunctions may occur. Consequently, the security functional requirements Limited fault tolerance (FRU_FLT.2) and Failure with preservation of secure state

(FPT_FLS.1) are defined in a way that they together provide sufficient security.

18 or, in the extreme case, not being provided

19

the capabilities are not limited in a perfect way (FMT_LIM.1)

Version 1.0 (July 2001) Page 82 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

8 Annex

This chapter Annex contains the following sections:

Development and Production Process (life-cycle) (8.1)

Life-Cycle Description (8.1.1)

Description of Assets of the Integrated Circuits Designer/Manufacturer (8.1.2)

Security Aspects of the Smartcard Embedded Software (8.2)

Further Information regarding A.Resp-Appl (8.2.1)

Examples of Specific Functional Requirements for the Smartcard Embedded

Software (8.2.2)

Examples of Attack Scenarios (8.3)

Definition of the Family FCS_RND (8.4)

Definition of the Family FMT_LIM (8.5)

Definition of the Family FAU_SAS (8.6)

Glossary (8.7)

List of Abbreviations (8.8)

321 Note that Section 8.1 contains additional information which is used for the refinements of the standard assurance requirements (refer to Section 5.1.2) defined in the separate Section 5.1.3.

8.1 Development and Production Process (life-cycle)

8.1.1 Life-Cycle Description

322 The smartcard product life-cycle is visualised in Figure 15.

Version 1.0 (July 2001) Page 83 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

Figure 15: Smartcard Life-Cycle

323 The smartcard product life-cycle is decomposed into seven phases where the following authorities are involved:

Phase 1 Smartcard

Embedded Software

Development

The Smartcard Embedded Software Developer is in charge of

the smartcard embedded software development and

the specification of IC pre-personalisation requirements, though the actual data for IC pre-personalisation come from Phase 6 (or

Phase 4 or 5).

Phase 2 IC Development The IC Designer

designs the IC,

develops IC Dedicated Software,

provides information, software or tools to the

Smartcard Embedded Software Developer, and

receives the smartcard embedded software from the developer, through trusted delivery and verification procedures.

Version 1.0 (July 2001) Page 84 (of 100)

Smartcard IC Platform Protection Profile

Phase 3 IC Manufacturing and Testing

Annex (Chapter 8)

From the IC design, IC Dedicated Software and

Smartcard Embedded Software, the IC Designer

constructs the smartcard IC database, necessary for the IC photomask fabrication.

The IC Manufacturer is responsible for

producing the IC through three main steps: IC manufacturing, IC testing, and IC prepersonalisation.

The IC Mask Manufacturer

generates the masks for the IC manufacturing based upon an output from the smartcard IC database.

Phase 4 IC Packaging and

Testing

Phase 5 Smartcard Product

Finishing Process

Phase 6

Phase 7

Smartcard

Personalisation

Smartcard

End-usage

The IC Packaging Manufacturer is responsible for

the IC packaging and testing.

The Smartcard Product Manufacturer is responsible for

the smartcard product finishing process and testing.

The Personaliser is responsible for

the smartcard personalisation and final tests.

Other smartcard embedded software may be loaded onto the chip at the personalisation process,

The Smartcard Issuer is responsible for

the smartcard product delivery to the smartcard end-user, and the end of life process.

324 The relation between the semiconductor industry (TOE Manufacturer, refer to

Section 2.1, in particular comprising the roles IC Designer / IC Manufacturer and IC

Mask Manufacturer) and the other parties being involved in the Smartcard development and production (especially the Smartcard Embedded Software

Developer) are visualised in Figure 16.

Version 1.0 (July 2001) Page 85 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

Figure 16: Development and Wafer Production including Testing

325 The development process of the TOE starts with a process qualification. In parallel the concept of the integrated circuit and the corresponding logical design is developed. The design uses standard library elements (circuitry and layout) which could be used for other (non security) integrated circuits but may include full custom elements specially designed for the TOE as well. Some cells have parameters: For instance the concrete layout of a ROM cell is determined by its contents which in turn is determined by the software or the data to be stored within.

326 All these “cells” not only differ in their logical or physical behaviour but also in their structure size which may range from very few elements such as simple gates up to physical units or sub-circuitry which may represent whole independent logical processing units. The physical “cells” (physical layout information is used) are placed on the chip area and then connected by wires (routing). Information about the physical layout of “cells”, about their position, about the shape of connecting wires and other process information define the physical layout of the chip.

327 These development steps are very complex. Only the development of the logical design might be similar to standard software development. However, technological constraints (such as timing) make this process more complicated and require for instance simulations which take technological and layout information into account.

So, logical and physical design are developed in close relation.

328 The development of the information which defines the physical layout of an integrated circuit is a very complex matter. The masks or reticles required for wafer production are basically produced based upon this information. However, a bunch of technology related parameters (possible even some depending on the wafer foundry) are taken into account in addition.

Version 1.0 (July 2001) Page 86 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

329 The masks or reticles are used to realise the integrated circuitry on/in a substrate.

This again comprises tens of process steps each effecting the final result. Not only layout principles but process information is proprietary to IC Designers / IC

Manufacturers. The evaluator will not be able to comprehend the details of wafer processing. Each single chip (die or dice) is being tested after production.

330 The development and production is based upon a well established process of the manufacturer of the TOE. The processes are continuously developed and improved mainly in order to increase yield and reliability.

331 During integrated circuit development and production many information and material is produced as summarised in Section 8.1.2. The evaluator must concentrate on the most important assets and exactly assess their storage and handling. It is not sufficient to assess a company as a whole, arguing that personnel is trustworthy and exchange of information and material with external partners is properly controlled.

8.1.2 Description of Assets of the Integrated Circuits Designer/Manufacturer

332 The assets of the manufacturer of the TOE to be protected during development and production of the TOE were already identified in paragraph 79 (page 22). Further explanatory text is given here.

333 The logical design data are those used to design the schematics of the chip

(schematics or HDL sources and design documents). With the logical design data the functionality of the chip can be understood. The logical design data can be regarded as being independent from the actual implementation (layout) though they contain the timing characteristics of some functional units (circuitry blocks).

334 The physical design data comprises all topographic information (three dimensional) about parts of the chip or the whole chip. Topographic information is the absolute or relative position, form, thickness, length and size of any structures realised on the chip surface. These structures are pads, connecting wires, isolation layers, vias, and implants.

335 The IC Dedicated Software, Smartcard Embedded Software, Initialisation Data

and Pre-personalisation Data comprises the source code including the related documents and the corresponding binaries as well as other data to be injected into the TOE before TOE Delivery.

336 The specific development aids comprise all tools especially developed to produce the product. One important example is the “ROM translator” which produces the physical memory content from the software binaries.

337 The test and characterisation related data comprise all information, which is used for testing including test results (pre-layout, post layout and product) and the characterisation of the final chip.

Version 1.0 (July 2001) Page 87 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

338 The material for software development support comprises all information and material given to the Smartcard Embedded Software Developer to support the development of the Smartcard Embedded Software.

339 The photomasks and products comprises the photomasks or reticles (usable and scrap) and chips (usable and scrap) in different forms.

340 The requirements of the Common Criteria assurance family ALC_DVS apply to all the above items. This includes assessment of all sites being involved in the development and production of the product. Exceptions must be agreed with the certification body.

8.2 Security Aspects of the Smartcard Embedded Software

8.2.1 Further Information regarding A.Resp-Appl

341 When defining the Protection Profile or Security Target for the evaluation of the

Smartcard Embedded Software appropriate threats must be defined which depend on the application context. These security needs are condensed in the assumption

A.Resp-Appl (refer to Section 3.2) of this Protection Profile which is very general since the application context is not known and the evaluation of the Smartcard

Embedded Software is not covered by this Protection Profile. Refer to the requirement RE.Phase-1 (Section 5.2.2) in addition.

342 For better understanding of the assumption A.Resp-Appl (and the requirement

RE.Phase-1), examples are given in below, all being directly related to and covered by A.Resp-Appl as shown in Figure 17. Note that this figure the explanatory text below refers to assumptions here (TOE perspective) though these are requirements for the Smartcard Embedded Software (perspective of that software).

Version 1.0 (July 2001) Page 88 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

A.Plat-Appl A.Resp-Appl

A.Sec-Comm A.Log-Prot

A.Data-Auth

A.Account

A.Audit

A.User-Auth

A.Acc-Control

A.Data-Conf

A.Admin

Figure 17: Examples for Implementations of A.Resp-Appl

343 Note that this Protection Profile only specifies (and further refers to) the assumptions

A.Plat-Appl and A.Resp-Appl for the usage of the TOE. All other assumption on the development of the Smartcard Embedded Software are only given for the sake of information and are examples which must be selected and refined in the application context. The evaluation of the smartcard integrated circuit according to this Protection

Profile is conducted independent from the application context and evaluation results must be available before the evaluation of the Smartcard Embedded Software can be completed.

344 The next level of security aspects for the Smartcard Embedded Software (TOE security environment) are expected to cover the following:

345 Secure Communications (A.Sec-Com)

The Smartcard Embedded Software must support secure communication protocols and procedures between the smartcard and a terminal or a remote host as required by the application context. This prevents

unauthorised usage of functions and/or data by intercepting data on the

I/O-lines,

disclosure or undetected manipulation of data exchanged via the I/O-lines.

replay of exchanged data through the I/O-lines

Version 1.0 (July 2001) Page 89 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8) which would cause for instance financial loss or at least affect the reputation of the system. Details must be specified in the application context.

346 Logical Protection (A.Log-Prot)

The Smartcard Embedded Software must prevent logical compromise through attacks on its logical operation visible on the external I/O interface. This includes protection against

release of information though the analysis of responses to repetitive challenges

20

,

causing faults by stimulating the card and interrupting its operation, and

disclosure of data by measuring and analysis as described in O.Leak.

Details must be specified in the application context.

347 Further concrete requirements for the Smartcard Embedded Software may include but is not limited to (i) Data Authenticity (A.Data-Auth), (ii) User Authentication

(A.User-Auth), (iii) Stored Data Confidentiality (A.Data-Conf), (iv) Accountability

(A.Account), (v) Access Control (A.Acc-Control), (vi) Administration (A.Admin),

(vii) Audit and Accountability (A.Audit). The concrete requirements are to be defined in the Protection Profile / Security Target for the Smartcard Embedded Software.

8.2.2 Examples of Specific Functional Requirements for the Smartcard Embedded

Software

348 The following two Security Functional Requirements are typical examples of functionality to be provided by the Smartcard Embedded Software in order to support the security provided by the TOE.

349 Example 1: The Smartcard Embedded Software shall meet the requirement “Stored data integrity monitoring (FDP_SDI.1)” as specified below.

FDP_SDI.1

Hierarchical to:

FDP_SDI.1.1

Stored data integrity monitoring

No other components.

The TSF shall monitor user data stored within the TSC for

integrity errors after writing and before usage (and if necessary

20

This objective could also work through the detection of such attacks and the initiation of corrective actions to counter such attempts.

Version 1.0 (July 2001) Page 90 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

after processing)

21

on all objects, based on the following attributes: data are considered as being critical

22

.

Dependencies:

Refinement:

No dependencies.

The wording “and if necessary after processing” refers to situations where errors occurred during a calculation

23

(though the TOE provides FRU_FLT.2 and FPT_FLS.1). In this case it might be necessary that the Smartcard Embedded Software supports the overall security for instance by redundant calculations and verification after that.

350 Example 2: The Smartcard Embedded Software shall meet the requirement “Abstract machine testing (FPT_AMT.1)” as specified below.

FPT_AMT.1

Hierarchical to:

FPT_AMT.1.1

Dependencies:

Abstract machine testing

No other components.

The TSF shall run a suite of tests at initial start-up or before use

of the random number generator if being used by the

Smartcard Embedded Software

24

to demonstrate the correct operation of the security assumptions provided by the abstract machine that underlies the TSF.

No dependencies.

8.3 Examples of Attack Scenarios

351 In this section background information is given to better understand the threats defined in Section 3.3. The different types of influences on or interactions with the

Smartcard were already visualised in Figure 8. The contents of this section shall not be considered as being complete nor as a comprehensive guidance for the evaluation.

352 A standard tool used for electrical measurement (and application of voltage and injection of current) is the needle probe workstation. Often appropriate contact areas must be prepared before using the methods described above (refer to the threat

21

[assignment: integrity errors]

22

[assignment: user data attributes]

23

for instance due to exposure to specific “radiation”

24

[selection: during initial start-up, periodically during normal operation, at the request of the authorised user, at the conditions [assignment: conditions under which self test should occur]]

Version 1.0 (July 2001) Page 91 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

T.Phys-Manipulation). The actual measurement is done using standard tools such as voltmeters, oscilloscopes and signal analysers.

353 In addition, there are indirect methods for measurements not requiring a direct

(metallic) contact. Examples are voltage contrast imaging and electron probe microscopy. These methods are also referred to as physical probing since the

Smartcard must be prepared before using the methods described above (refer to the threat T.Phys-Manipulation).

354 The interface for the attack is (the smartcard carrier and then) the surface of the integrated circuit.

355 The application of appropriate combinations of such methods in order to reveal information (via a non-standard interface) are addressed by the threat T.Phys-Probing.

356 Malfunctions of the TOE may cause some of its TSF to fail to be effective. Often more critical, security functions (or mechanisms) of the Smartcard Embedded

Software may fail to be effective. This can be utilised by an attacker. The most straightforward way to cause malfunctions are irregular operating conditions in amplitude, shape, timing, occurrence etc. on the ISO interface (for instance such as glitches). Malfunctions can be due to errors or premature ageing.

357 The attacker stimulates the ISO interface (power supply, the external clock, reset and/or I/O). The attacker may also consider other types of influences on the

Smartcard or directly onto the surface of the integrated circuit. In the latter case it might be required to manipulate the Smartcard (refer to the threat

T.Phys-Manipulation). In addition, the attacker needs to observe the behaviour of the

Smartcard and immediately take advantage of a possible malfunction. This requires to have additional equipment such as a terminal and communication software, but may include other things depending on the application to be attacked.

358 The application of appropriate combinations of such methods in order to manipulate the Smartcard Embedded Software (or the IC Dedicated Test Software) while being executed (via a standard interface) are addressed by the threat T.Malfunction.

359 Specific sorts of malfunctions are a means to reveal information about cryptographic keys or other critical data. Such methods are addressed by the threat T.Leak-Forced.

360 Standard tools used for the manipulation of circuitry are the Focused Ion Beam (FIB) and the laser cutter. The contents of programmable memories (such as E

2

PROM) may be modified for instance by manipulation of circuitry, by exposing cells to charged particle beams, by using electromagnetic waves or by electrical probing

(application of voltage and injection of current).

361 Manipulations require prior extensive reverse-engineering. The methods being applied are for instance optical inspection, voltage contrast imaging, image processing and pattern matching. In order to analyse circuitry the chip hardware must be removed from its carrier and then de-layered using appropriate methods (wet etching, plasma etching, grinding).

Version 1.0 (July 2001) Page 92 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

362 The interface for the attack is (the smartcard carrier and then) the surface of the integrated circuit.

363 The application of appropriate combinations of such methods in order to perform manipulations are addressed by the threat T.Phys-Manipulation.

364 When the Smartcard processes User Data and other critical data information about these data may be contained in signals which can be measured on the ISO contacts of the Smartcard using standard tools such as voltmeters, oscilloscopes and signal analysers. The Smartcard may also produce emanation which can be received using an antenna and analysed. For the analysis of the measured data specific tools

(software) are required.

365 The interface for the attack is the ISO interface (contacts of the Smartcard) but other interfaces may also be used.

366 The application of appropriate combinations of such methods in order to reveal information (without affecting the TOE’s operation or the TOE itself) are addressed by the threat T.Leak-Inherent. Public known attack scenarios are for instance the

Simple Power Analysis (SPA) and the Differential Power Analysis (DPA).

367 An attacker may also apply methods in order to cause the TOE to leak information.

For instance the attacker must in addition cause faults. The interface for the attack can be more complex in this case. The ISO interface (contacts of the Smartcard), the

Smartcard itself and/or the surface of the integrated circuit may be used to cause faults (refer to the threat T.Malfunction for more detail). Physical manipulations may also be done (refer to the threat T.Phys-Manipulation).

368 The application of appropriate combinations of such methods in order to reveal information (by affecting the TOE’s operation or manipulating the TOE itself) are addressed by the threat T.Leak-Forced not being related to attacks on cryptographic algorithms only. Public known attack scenarios are for instance the Differential Fault

Analysis (DFA) and the Bellcore type of attacks.

369 The evaluation of the TOE will in many cases not lead to final results for smartcard products built using the TOE. Tests must be repeated with the actual Smartcard

Embedded Software.

370 Test Features (including other non-application related function) implemented in the

TOE might be abused in order to disclose or manipulate User Data and bypass, deactivate, change or explore security features or functions of the TOE. Details depend on the capabilities of the Test Features provided by the IC Dedicated Test

Software which are not specified here.

371 If the IC Dedicated Test Software offers commands via the ISO I/O interface an attacker needs to communicate with the Smartcard using a terminal and the communication software. If other interfaces are used and/or if the usage of such commands is protected, it can be necessary to manipulate the TOE (refer to the threat T.Phys-Manipulation for more detail) and/or to circumvent authentication mechanisms. An attacker may also reveal information by physical probing (refer to

Version 1.0 (July 2001) Page 93 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8) the threat T.Phys-Probing) or analysing data (refer to the threats T.Leak-Inherent and

T.Leak-Forced). If the TOE provides a command interface it can be subject to manipulations as described under the threat T.Malfunction and the software must not be susceptible to invalid inputs and other types of logical attacks being specific for software. Details depend on the way the Test Features are provided and protected by the TOE which is not specified here.

372 The application of appropriate combinations of methods in order to reveal information or perform manipulations are addressed by the threat T.Abuse-Func.

8.4 Definition of the Family FCS_RND

373 To define the IT security functional requirements of the TOE an additional family

(FCS_RND) of the Class FCS (cryptographic support) is defined here. This family describes the functional requirements for random number generation used for cryptographic purposes.

FCS_RND Generation of random numbers

Family behaviour

This family defines quality requirements for the generation of random numbers which are intended to be use for cryptographic purposes.

Component levelling:

FCS_RND Generation of random numbers 1

FCS_RND.1

Management:

Audit:

FCS_RND.1

Hierarchical to:

FCS_RND.1.1

Dependencies:

Generation of random numbers requires that random numbers meet a defined quality metric.

FCS_RND.1

There are no management activities foreseen.

FCS_RND.1

There are no actions defined to be auditable.

Quality metric for random numbers

No other components.

The TSF shall provide a mechanism to generate random numbers that meet [assignment: a defined quality metric].

No dependencies.

Version 1.0 (July 2001) Page 94 (of 100)

Smartcard IC Platform Protection Profile

FMT_LIM.2

Management:

Audit:

Annex (Chapter 8)

8.5 Definition of the Family FMT_LIM

374 To define the IT security functional requirements of the TOE an additional family

(FMT_LIM) of the Class FMT (Security Management) is defined here. This family describes the functional requirements for the Test Features of the TOE. The new functional requirements were defined in the class FMT because this class addresses the management of functions of the TSF. The examples of the technical mechanism used in the TOE (refer to Section 5.1.1) show that no other class is appropriate to address the specific issues of preventing the abuse of functions by limiting the capabilities of the functions and by limiting their availability.

375 The family “Limited capabilities and availability (FMT_LIM)” is specified as follows.

FMT_LIM Limited capabilities and availability

Family behaviour

This family defines requirements that limits the capabilities and availability of functions in a combined manner. Note that FDP_ACF restricts the access to functions whereas the Limited capability of this family requires the functions themselves to be designed in a specific manner.

Component levelling:

1

FMT_LIM Limited capabilities and availability

2

FMT_LIM.1

Limited capabilities requires that the TSF is built to provide only the capabilities (perform action, gather information) necessary for its genuine purpose.

Limited availability requires that the TSF restrict the use of functions (refer to Limited capabilities (FMT_LIM.1)). This can be achieved, for instance, by removing or by disabling functions in a specific phase of the TOE’s life-cycle.

FMT_LIM.1, FMT_LIM.2

There are no management activities foreseen.

FMT_LIM.1, FMT_LIM.2

There are no actions defined to be auditable.

Version 1.0 (July 2001) Page 95 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8)

376 The TOE Functional Requirement “Limited capabilities (FMT_LIM.1)” is specified as follows.

FMT_LIM.1

Hierarchical to:

FMT_LIM.1.1

Dependencies:

Limited capabilities

No other components.

The TSF shall be designed in a manner that limits their capabilities so that in conjunction with “Limited availability

(FMT_LIM.2)” the following policy is enforced [assignment:

Limited capability and availability policy].

FMT_LIM.2 Limited availability.

377 The TOE Functional Requirement “Limited availability (FMT_LIM.2)” is specified as follows.

FMT_LIM.2

Hierarchical to:

Limited availability

No other components.

FMT_LIm.2.1

The TSF shall be designed in a manner that limits their availability so that in conjunction with “Limited capabilities

(FMT_LIM.1)” the following policy is enforced [assignment:

Limited capability and availability policy].

FMT_LIM.1 Limited capabilities.

Dependencies:

378 Application note: The functional requirements FMT_LIM.1 and FMT_LIM.2 assume that there are two types of mechanisms (limited capabilities and limited availability) which together shall provide protection in order to enforce the policy. This also allows that

(i) the TSF is provided without restrictions in the product in its user environment but its capabilities are so limited that the policy is enforced or conversely

(ii) the TSF is designed with high functionality but is removed or disabled in the product in its user environment.

The combination of both requirements shall enforce the policy.

8.6 Definition of the Family FAU_SAS

379 To define the security functional requirements of the TOE an additional family

(FAU_SAS) of the Class FAU (Security Audit) is defined here. This family describes the functional requirements for the storage of audit data. It has a more general approach than FAU_GEN, because it does not necessarily require the data to be

Version 1.0 (July 2001) Page 96 (of 100)

Smartcard IC Platform Protection Profile Annex (Chapter 8) generated by the TOE itself and because it does not give specific details of the content of the audit records.

380 The family “Audit data storage (FAU_SAS)” is specified as follows.

FAU_SAS Audit data storage

Family behaviour

This family defines functional requirements for the storage of audit data.

Component levelling

FAU_SAS Audit data storage

FAU_SAS.1

Management:

Audit:

FAU_SAS.1

Hierarchical to:

FAU_SAS.1.1

Dependencies:

1

Requires the TOE to provide the possibility to store audit data.

FAU_SAS.1

There are no management activities foreseen.

FAU_SAS.1

There are no actions defined to be auditable.

Audit storage

No other components.

The TSF shall provide [assignment: authorised users] with the capability to store [assignment: list of audit information] in the audit records.

No dependencies.

8.7 Glossary of Vocabulary

Administrator

Card Manufacturer

Version 1.0 (July 2001)

(in the sense of the Common Criteria) The TOE may provide security functions which can or need to be administrated (i) by the Smartcard Embedded Software or (ii) using services of the TOE after delivery to

Phases 4-6. Then a privileged user (in the sense of the

Common Criteria, refer to definition below) becomes an administrator.

The customer of the TOE Manufacturer who receives the TOE during TOE Delivery. The Card Manufacturer

Page 97 (of 100)

Smartcard IC Platform Protection Profile

Integrated Circuit (IC)

IC Dedicated Software

IC Dedicated Test Software

IC Dedicated Support Software

Initialisation Data

Pre-personalisation Data

Smartcard

Smartcard Embedded Software

Version 1.0 (July 2001)

Annex (Chapter 8) includes all roles after TOE Delivery up to Phase 7

(refer to Figure 4 on page 17 and Section 8.1.1).

The Card Manufacturer has the following roles (i) the

Smartcard Product Manufacturer (Phase 5) and (ii) the

Personaliser (Phase 6). If the TOE is delivered after

Phase 3 in form of wafers or sawn wafers (dice) he has the role of the IC Packaging Manufacturer (Phase 4) in addition.

Electronic component(s) designed to perform processing and/or memory functions.

IC proprietary software embedded in a smartcard IC

(also known as IC firmware) and developed by the IC

Developer. Such software is required for testing purpose

(IC Dedicated Test Software) but may provide additional services to facilitate usage of the hardware and/or to provide additional services (IC Dedicated Support Software).

That part of the IC Dedicated Software (refer to above) which is used to test the TOE before TOE Delivery but which does not provide any functionality thereafter.

That part of the IC Dedicated Software (refer to above) which provides functions after TOE Delivery. The usage of parts of the IC Dedicated Software might be restricted to certain phases.

Any data defined by the TOE Manufacturer and injected into the non-volatile memory by the Integrated Circuits manufacturer (Phase 3). These data are for instance used for traceability and for TOE identification

(identification data).

Any data supplied by the Card Manufacturer that is injected into the non-volatile memory by the Integrated

Circuits manufacturer (Phase 3). These data are for instance used for traceability and/or to secure shipment between phases.

(as used in this Protection Profile) Composition of the

TOE, the Smartcard Embedded Software, User Data and the package (the smartcard carrier).

Software embedded in a smartcard IC and not being developed by the IC Designer. The Smartcard

Embedded Software is designed in Phase 1 and embedded into the Smartcard IC in Phase 3 or in later phases of the smartcard product life-cycle.

Page 98 (of 100)

Smartcard IC Platform Protection Profile

Test Features

TOE Delivery

TOE Manufacturer

TSF data

User

Annex (Chapter 8)

Some part of that software may actually implement a smartcard application others may provide standard services. Nevertheless, this distinction doesn’t matter here so that the Smartcard Embedded Software can be considered as being application dependent whereas the

IC Dedicated Software is definitely not.

All features and functions (implemented by the IC

Dedicated Test Software and/or hardware) which are designed to be used before TOE Delivery only and delivered as part of the TOE.

The period when the TOE is delivered which is (refer to

Figure 4 on page 17) either (i) after Phase 3 (or before

Phase 4) if the TOE is delivered in form of wafers or sawn wafers (dice) or (ii) after Phase 4 (or before

Phase 5) if the TOE is delivered in form of modules.

The TOE Manufacturer must ensure that all requirements for the TOE (as defined in Section 2.1) and its development and production environment are fulfilled (refer to Figure 4 on page 17).

The TOE Manufacturer has the following roles: (i) IC

Developer (Phase 2) and (ii) IC Manufacturer (Phase 3).

If the TOE is delivered after Phase 4 in form of modules, he has the role of the (iii) IC Packaging Manufacturer

(Phase 4) in addition.

Data created by and for the TOE, that might affect the operation of the TOE [5] (for example configuration data). Note that the TOE is the Smartcard IC (refer to definition in paragraph 48).

Initialisation Data defined by the Integrated Circuits manufacturer to identify the TOE and to keep track of the product’s production and further life-cycle phases are also considered as belonging to the TSF data.

(in the sense of the Common Criteria) The TOE serves as a platform for the Smartcard Embedded Software.

Therefore, the “user” of the TOE (as used in the

Common Criteria assurance class AGD: guidance) is the Smartcard Embedded Software. Guidance is given for the Smartcard Embedded Software Developer.

On the other hand the Smartcard (with the TOE as a major element) is used in a terminal where communication is performed through the ISO interface

Version 1.0 (July 2001) Page 99 (of 100)

Smartcard IC Platform Protection Profile

User Data

Annex (Chapter 8) provided by the TOE. Therefore, another “user” of the

TOE is the terminal (with its software).

All data managed by the Smartcard Embedded Software in the application context. User data comprise all data in the final Smartcard IC except the TSF data.

8.8 List of Abbreviations

CC Common Criteria Version 2.0 or Version 2.1. Note that the

Version 2.1 (ISO 15408) is technically identical with Version 2.0

of the Common Criteria.

EAL

IC

Evaluation Assurance Level.

Integrated circuit.

IT

PP

SOF

ST

Information Technology.

Protection Profile.

Strength of function.

Security Target.

TOE

TSC

TSF

TSP

Target of Evaluation.

TSF Scope of control.

TOE Security functions.

TOE Security Policy.

Version 1.0 (July 2001) Page 100 (of 100)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
