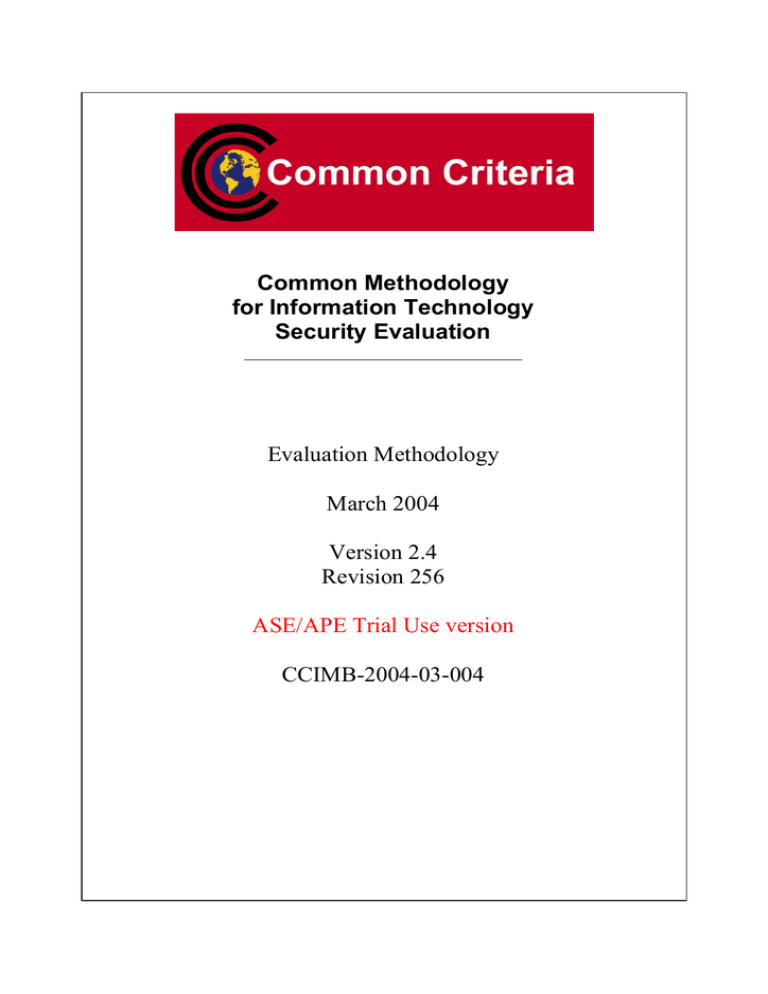

Common Methodology for Information Technology

Security Evaluation

Evaluation Methodology

March 2004

Version 2.4

Revision 256

ASE/APE Trial Use version

CCIMB-2004-03-004

Foreword

This document, version 2.4 of the Common Methodology for Information Technology

Security Evaluation (CEM), is issued for use by the international IT security evaluation community. The CEM is a companion document to the Common Criteria for Information

Technology Security Evaluation (CC) and is the result of extensive international cooperation. Practical experience acquired through use in evaluations, and requests for interpretations received, will be used to further develop the CEM

Page 2 of 231 Version 2.4 March 2004

This Legal NOTICE has been placed in the CEM by request:

The seven governmental organisations (collectively called the “Common Criteria

Project Sponsoring Organisations”) listed just below, as the joint holders of the copyright in the Common Methodology for Information Technology Security

Evaluations, version 2.4 (called “CEM 2.4”), hereby grant non-exclusive license to

ISO/IEC to use CEM 2.4 in the continued development/maintenance of the ISO/IEC

18045 international standard. However, the Common Criteria Project Sponsoring

Organisations retain the right to use, copy, distribute, translate or modify CEM 2.4 as they see fit.

Canada: Communications Security Establishment

France: Service Central de la Sécurité des Systèmes d’Information

Germany: Bundesamt für Sicherheit in der Informationstechnik

Netherlands: Netherlands National Communications Security Agency

United Kingdom: Communications-Electronics Security Group

United States: National Institute of Standards and Technology

United States: National Security Agency

Table of contents

Table of Contents

1 INTRODUCTION............................................................................................... 9

1.1

Scope..................................................................................................................................................... 9

1.2

Organisation ........................................................................................................................................ 9

1.3

Document Conventions ..................................................................................................................... 10

1.3.1

Terminology ................................................................................................................................... 10

1.3.2

Verb usage ...................................................................................................................................... 11

1.3.3

General evaluation guidance........................................................................................................... 11

1.3.4

Relationship between CC and CEM structures............................................................................... 11

2 EVALUATION PROCESS AND RELATED TASKS....................................... 13

2.1

Introduction ....................................................................................................................................... 13

2.2

Evaluation process overview ............................................................................................................ 13

2.2.1

Objectives ....................................................................................................................................... 13

2.2.2

Responsibilities of the roles............................................................................................................ 13

2.2.3

Relationship of roles....................................................................................................................... 14

2.2.4

General evaluation model ............................................................................................................... 14

2.2.5

Evaluator verdicts ........................................................................................................................... 15

2.3

Evaluation input task ........................................................................................................................ 16

2.3.1

Objectives ....................................................................................................................................... 16

2.3.2

Application notes............................................................................................................................ 16

2.3.3

Management of evaluation evidence sub-task ................................................................................ 17

2.4

Evaluation sub-activities ................................................................................................................... 18

2.5

Evaluation output task...................................................................................................................... 18

2.5.1

Objectives ....................................................................................................................................... 18

2.5.2

Management of evaluation outputs................................................................................................. 19

2.5.3

Application notes............................................................................................................................ 19

2.5.4

Write OR sub-task .......................................................................................................................... 19

2.5.5

Write ETR sub-task ........................................................................................................................ 20

3 PROTECTION PROFILE EVALUATION ........................................................ 28

3.1

Introduction ....................................................................................................................................... 28

3.2

Objectives........................................................................................................................................... 28

3.3

PP evaluation relationships .............................................................................................................. 28

3.4

Protection Profile evaluation activity .............................................................................................. 29

3.4.1

Evaluation of Conformance claims (APE_CCL.1)......................................................................... 29

3.4.2

Evaluation of Extended components definition (APE_ECD.1)...................................................... 35

3.4.3

Evaluation of PP introduction (APE_INT.1) .................................................................................. 40

3.4.4

Evaluation of Security objectives (APE_OBJ.1) ............................................................................ 41

3.4.5

Evaluation of Security requirements (APE_REQ.1) ...................................................................... 45

3.4.6

Evaluation of Security requirements (APE_REQ.2) ...................................................................... 49

3.4.7

Evaluation of Security problem definition (APE_SPD.1) .............................................................. 55

Page 4 of 231 Version 2.4 March 2004

Table of contents

4 EAL1 EVALUATION ...................................................................................... 58

4.1

Introduction ....................................................................................................................................... 58

4.2

Objectives ........................................................................................................................................... 58

4.3

EAL1 evaluation relationships ......................................................................................................... 58

4.4

Security Target evaluation activity .................................................................................................. 59

4.4.1

Application notes ............................................................................................................................ 59

4.4.2

Evaluation of Conformance claims (ASE_CCL.1)......................................................................... 60

4.4.3

Evaluation of Extended components definition (ASE_ECD.1) ...................................................... 66

4.4.4

Evaluation of ST introduction (ASE_INT.1).................................................................................. 71

4.4.5

Evaluation of Security requirements (ASE_REQ.1)....................................................................... 74

4.4.6

Evaluation of TOE summary specification (ASE_TSS.1) .............................................................. 78

4.5

Configuration management activity ................................................................................................ 78

4.5.1

Evaluation of CM capabilities (ACM_CAP.1) ............................................................................... 78

4.6

Delivery and operation activity ........................................................................................................ 80

4.6.1

Evaluation of Installation, generation and start-up (ADO_IGS.1).................................................. 80

4.7

Development activity ......................................................................................................................... 81

4.7.1

Application notes ............................................................................................................................ 81

4.7.2

Evaluation of Functional specification (ADV_FSP.1).................................................................... 82

4.7.3

Evaluation of Representation correspondence (ADV_RCR.1)....................................................... 86

4.8

Guidance documents activity............................................................................................................ 87

4.8.1

Application notes ............................................................................................................................ 87

4.8.2

Evaluation of Administrator guidance (AGD_ADM.1).................................................................. 87

4.8.3

Evaluation of User guidance (AGD_USR.1).................................................................................. 90

4.9

Tests activity ...................................................................................................................................... 92

4.9.1

Application notes ............................................................................................................................ 92

4.9.2

Evaluation of Independent testing (ATE_IND.1) ........................................................................... 93

5 EAL4 EVALUATION ...................................................................................... 98

5.1

Introduction ....................................................................................................................................... 98

5.2

Objectives ........................................................................................................................................... 98

5.3

EAL4 evaluation relationships ......................................................................................................... 98

5.4

Security Target evaluation activity .................................................................................................. 99

5.4.1

Application notes ............................................................................................................................ 99

5.4.2

Evaluation of Conformance claims (ASE_CCL.1)....................................................................... 101

5.4.3

Evaluation of Extended components definition (ASE_ECD.1) .................................................... 105

5.4.4

Evaluation of ST introduction (ASE_INT.1)................................................................................ 110

5.4.5

Evaluation of Security objectives (ASE_OBJ.1) .......................................................................... 112

5.4.6

Evaluation of Security requirements (ASE_REQ.2)..................................................................... 116

5.4.7

Evaluation of Security problem definition (ASE_SPD.1) ............................................................ 122

5.4.8

Evaluation of TOE summary specification (ASE_TSS.1) ............................................................ 124

5.5

Configuration management activity .............................................................................................. 125

5.5.1

Evaluation of CM automation (ACM_AUT.1)............................................................................. 125

5.5.2

Evaluation of CM capabilities (ACM_CAP.4) ............................................................................. 127

5.5.3

Evaluation of CM scope (ACM_SCP.2)....................................................................................... 133

March 2004 Version 2.4 Page 5 of 231

Table of contents

5.6

Delivery and operation activity ...................................................................................................... 133

5.6.1

Evaluation of Delivery (ADO_DEL.2)......................................................................................... 134

5.6.2

Evaluation of Installation, generation and start-up (ADO_IGS.1) ............................................... 136

5.7

Development activity....................................................................................................................... 137

5.7.1

Application notes.......................................................................................................................... 138

5.7.2

Evaluation of Functional specification (ADV_FSP.2) ................................................................. 139

5.7.3

Evaluation of High-level design (ADV_HLD.2).......................................................................... 144

5.7.4

Evaluation of Implementation representation (ADV_IMP.1)....................................................... 148

5.7.5

Evaluation of Low-level design (ADV_LLD.1)........................................................................... 150

5.7.6

Evaluation of Representation correspondence (ADV_RCR.1)..................................................... 154

5.7.7

Evaluation of Security policy modeling (ADV_SPM.1) .............................................................. 155

5.8

Guidance documents activity.......................................................................................................... 160

5.8.1

Application notes.......................................................................................................................... 160

5.8.2

Evaluation of Administrator guidance (AGD_ADM.1) ............................................................... 160

5.8.3

Evaluation of User guidance (AGD_USR.1)................................................................................ 162

5.9

Life cycle support activity............................................................................................................... 164

5.9.1

Evaluation of Development security (ALC_DVS.1) .................................................................... 164

5.9.2

Evaluation of Life cycle definition (ALC_LCD.1)....................................................................... 168

5.9.3

Evaluation of Tools and techniques (ALC_TAT.1) ..................................................................... 169

5.10

Tests activity .................................................................................................................................... 171

5.10.1

Application notes ..................................................................................................................... 171

5.10.2

Evaluation of Coverage (ATE_COV.2)................................................................................... 172

5.10.3

Evaluation of Depth (ATE_DPT.1) ......................................................................................... 174

5.10.4

Evaluation of Functional tests (ATE_FUN.1) ......................................................................... 175

5.10.5

Evaluation of Independent testing (ATE_IND.2) .................................................................... 178

5.11

Vulnerability assessment activity ................................................................................................... 185

5.11.1

Evaluation of Misuse (AVA_MSU.2) ..................................................................................... 185

5.11.2

Evaluation of Vulnerability analysis (AVA_VLA.2) .............................................................. 189

6 FLAW REMEDIATION SUB-ACTIVITIES .................................................... 205

6.1

Evaluation of flaw remediation (ALC_FLR.1) ............................................................................. 205

6.1.1

Objectives ..................................................................................................................................... 205

6.1.2

Input.............................................................................................................................................. 205

6.1.3

Action ALC_FLR.1.1E................................................................................................................. 205

6.2

Evaluation of flaw remediation (ALC_FLR.2) ............................................................................. 207

6.2.1

Objectives ..................................................................................................................................... 207

6.2.2

Input.............................................................................................................................................. 207

6.2.3

Action ALC_FLR.2.1E................................................................................................................. 208

6.3

Evaluation of flaw remediation (ALC_FLR.3) ............................................................................. 211

6.3.1

Objectives ..................................................................................................................................... 211

6.3.2

Input.............................................................................................................................................. 212

6.3.3

Action ALC_FLR.3.1E................................................................................................................. 212

A GLOSSARY .................................................................................................. 218

A.1

Abbreviations and acronyms.......................................................................................................... 218

A.2

Vocabulary....................................................................................................................................... 218

A.3

References ........................................................................................................................................ 220

Page 6 of 231 Version 2.4 March 2004

Table of contents

B GENERAL EVALUATION GUIDANCE ........................................................ 221

B.1

Objectives ......................................................................................................................................... 221

B.2

Sampling........................................................................................................................................... 221

B.3

Dependencies.................................................................................................................................... 224

B.3.1

Dependencies between activities .................................................................................................. 224

B.3.2

Dependencies between sub-activities ........................................................................................... 224

B.3.3

Dependencies between actions ..................................................................................................... 225

B.4

Site Visits .......................................................................................................................................... 225

B.5

TOE Boundary ................................................................................................................................ 226

B.5.1

Product and system ....................................................................................................................... 226

B.5.2

TOE .............................................................................................................................................. 227

B.5.3

TSF ............................................................................................................................................... 227

B.5.4

Evaluation..................................................................................................................................... 227

B.5.5

Certification .................................................................................................................................. 228

B.6

Impact of FTP on the Assurance Families .................................................................................... 229

B.6.1

ADV ............................................................................................................................................. 229

B.6.2

ATE_IND ..................................................................................................................................... 229

B.7

Scheme Responsibilities .................................................................................................................. 229

March 2004 Version 2.4 Page 7 of 231

Table of contents

List of figures

Figure 1 - Mapping of the CC and CEM structures........................................................ 12

Figure 2 - Generic evaluation model ................................................................................. 14

Figure 3 - Example of the verdict assignment rule .......................................................... 15

Figure 4 - ETR information content for a PP evaluation................................................ 21

Figure 5 - ETR information content for a TOE evaluation ............................................ 24

Figure 6 - TSF Interfaces ................................................................................................... 83

Figure 7 - TSF Interfaces ................................................................................................. 140

Page 8 of 231 Version 2.4 March 2004

Introduction

1 Introduction

1.1 Scope

1

The Common Methodology for Information Technology Security Evaluation

(CEM) is a companion document to the Common Criteria for Information

Technology Security Evaluation (CC). The CEM describes the minimum actions to be performed by an evaluator in order to conduct a CC evaluation, using the criteria and evaluation evidence defined in the CC.

2

3

4

5

The scope of this version is limited to evaluations of Protection Profiles and

TOEs for EAL1 and EAL4, as defined in the CC. It does not provide guidance for EALs 2, 3 , and 5 through 7, nor for evaluations using other assurance packages. The CEM is based on CC version 2.4

The target audience for the CEM is primarily evaluators applying the CC and certifiers confirming evaluator actions; evaluation sponsors, developers,

PP/ST authors and other parties interested in IT security may be a secondary audience.

The CEM recognises that not all questions concerning IT security evaluation will be answered herein and that further interpretations will be needed.

Individual schemes will determine how to handle such interpretations, although these may be subject to mutual recognition agreements. A list of methodology-related activities that may be handled by individual schemes can be found in Annex B.

This revision of the CEM consists of only one part. It supersedes all older versions and parts of the CEM.

1.2 Organisation

6

7

8

9

10

11

This CEM is divided into the following chapters:

Chapter 1, Introduction describes the objectives, organisation, document conventions and terminology, and evaluator verdicts.

Chapter 2, Evaluation process and related tasks describes the tasks that are relevant for all evaluation activities. These are the tasks used to manage the inputs and prepare the outputs.

Chapter 3, Protection Profile evaluation describes the methodology for the evaluation of Protection Profiles, based on the APE class of CC Part 3.

Chapters 4 and 5, describe the evaluation methodology for the Evaluation

Assurance Levels EAL1 and EAL4 defined in CC Part 3.

Chapter 6, Flaw remediation sub-activities, describes the methodology for the evaluation of the Flaw remediation (ALC_FLR) family of CC Part 3.

March 2004 Version 2.4 Page 9 of 231

12

13

Introduction

Annex A, Glossary, defines vocabulary and references used in the CEM and presents abbreviations and acronyms.

Annex B, General evaluation guidance, provides guidance common to several activities described in Chapters 4 through 5.

1.3.1 Terminology

14

The glossary, presented in Annex A of this part, includes only those terms used in a specialised way within this document. The majority of terms are used according to their accepted definitions.

15

16

17

The term activity is used to describe the application of an assurance class of the CC Part 3.

The term sub-activity is used to describe the application of an assurance component of the CC Part 3. Assurance families are not explicitly addressed in the CEM because evaluations are conducted on a single assurance component from an assurance family.

The term action is related to an evaluator action element of the CC Part 3.

These actions are either explicitly stated as evaluator actions or implicitly derived from developer actions (implied evaluator actions) within the CC

Part 3 assurance components.

18

19

20

The term work unit is the most granular level of evaluation work. Each CEM action comprises one or more work units, which are grouped within the CEM action by CC content and presentation of evidence or developer action element. The work units are presented in the CEM in the same order as the

CC elements from which they are derived. Work units are identified in the left margin by a symbol such as 4:ALC_TAT.1-2. In this symbol, the first digit (4) indicates the EAL; the string ALC_TAT.1 indicates the CC component (i.e. the CEM sub-activity), and the final digit ( 2) indicates that this is the second work unit in the ALC_TAT.1 sub-activity.

Unlike the CC, where each element maintains the last digit of its identifying symbol for all components within the family, the CEM may introduce new work units when a CC evaluator action element changes from sub-activity to sub-activity; as a result, the last digit of the work unit's identifying symbol may change although the work unit remains unchanged. For example, because an additional work unit labeled 4:ADV_FSP.2-7 was added at

EAL4, the subsequent sequential numbering of FSP work units is offset by one. Thus work unit 3:ADV_FSP.1-8 is now mirrored by work unit

4:ADV_FSP.2-9; each express the same requirement though their numbering no longer directly correspond.

Any methodology-specific evaluation work required that is not derived directly from CC requirements is termed task or sub-task.

Page 10 of 231 Version 2.4 March 2004

Introduction

21

22

23

1.3.3

24

1.3.4

25

All work unit and sub-task verbs are preceded by the auxiliary verb shall and by presenting both the verb and the shall in bold italic type face. The auxiliary verb shall is used only when the provided text is mandatory and therefore only within the work units and sub-tasks. The work units and subtasks contain mandatory activities that the evaluator must perform in order to assign verdicts.

Guidance text accompanying work units and sub-tasks gives further explanation on how to apply the CC words in an evaluation. The described method is normative, meaning that the verb usage is in accordance with ISO definitions for these verbs; that is: the auxiliary verb should is used when the described method is strongly preferred and the auxiliary verb may is used where the described method(s) is allowed but no preference is indicated.

(The auxiliary verb shall is used only for the text of work units.)

The verbs check, examine, report and record are used with a precise meaning within this part of the CEM and the glossary should be referenced for their definitions.

General evaluation guidance

Material that has applicability to more than one sub-activity is collected in one place. Guidance whose applicability is widespread (across activities and

EALs) has been collected into Annex B. Guidance that pertains to multiple sub-activities within a single activity has been provided in the introduction to that activity. If guidance pertains to only a single sub-activity, it is presented within that sub-activity.

Relationship between CC and CEM structures

There are direct relationships between the CC structure (i.e. class, family, component and element) and the structure of the CEM. Figure

1

illustrates the correspondence between the CC constructs of class, family and evaluator action elements and CEM activities, sub-activities and actions. However, several CEM work units may result from the requirements noted in CC developer action and content and presentation elements.

March 2004 Version 2.4 Page 11 of 231

Figure 1 - Mapping of the CC and CEM structures

Introduction

Page 12 of 231 Version 2.4 March 2004

Evaluation process and related tasks

2 Evaluation process and related tasks

2.1 Introduction

26

This chapter provides an overview of the evaluation process and defines the tasks an evaluator is intended to perform when conducting an evaluation.

27

28

29

30

Each evaluation, whether of a PP or TOE (including ST), follows the same process, and has three evaluator tasks in common: the input task, the output task and the evaluation sub-activities.

The input task and the output tasks, which are related to management of evaluation evidence and to report generation, are entirely described in this chapter. Each task has associated sub-tasks that apply to, and are normative for all CC evaluations (evaluation of a PP or a TOE).

The evaluation sub-activities are only introduced in this chapter, and fully described in the following chapters.

In contrast to the evaluation sub-activities, input and output tasks have no verdicts associated with them as they do not map to CC evaluator action elements; they are performed in order to ensure conformance with the universal principles and to comply with the CEM.

2.2 Evaluation process overview

2.2.1 Objectives

31

This section presents the general model of the methodology and identifies: a) roles and responsibilities of the parties involved in the evaluation process;

2.2.2

32

33

34 b) the general evaluation model.

Responsibilities of the roles

The general model defines the following roles: sponsor, developer, evaluator and evaluation authority.

The sponsor is responsible for requesting and supporting an evaluation. This means that the sponsor establishes the different agreements for the evaluation

(e.g. commissioning the evaluation). Moreover, the sponsor is responsible for ensuring that the evaluator is provided with the evaluation evidence.

The developer produces the TOE and is responsible for providing the evidence required for the evaluation (e.g. training, design information), on behalf of the sponsor.

March 2004 Version 2.4 Page 13 of 231

35

36

37

38

2.2.4

39

Evaluation process and related tasks

The evaluator performs the evaluation tasks required in the context of an evaluation: the evaluator receives the evaluation evidence from the developer on behalf of the sponsor or directly from the sponsor, performs the evaluation sub-activities and provides the results of the evaluation assessment to the evaluation authority.

The evaluation authority establishes and maintains the scheme, monitors the evaluation conducted by the evaluator, and issues certification/validation reports as well as certificates based on the evaluation results provided by the evaluator.

To prevent undue influence from improperly affecting an evaluation, some separation of roles is required. This implies that the roles described above are fulfilled by different entities, except that the roles of developer and sponsor may be satisfied by a single entity.

Moreover, some evaluations (e.g. EAL1 evaluation) may not require the developer to be involved in the project. In this case, it is the sponsor who provides the TOE to the evaluator and who generates the evaluation evidence.

General evaluation model

The evaluation process consists of the evaluator performing the evaluation input task, the evaluation output task and the evaluation sub-activities. Figure

2

provides an overview of the relationship between these tasks and subactivities.

40

Page 14 of 231

Figure 2 - Generic evaluation model

The evaluation process may be preceded by a preparation phase where initial contact is made between the sponsor and the evaluator. The work that is

Version 2.4 March 2004

Evaluation process and related tasks performed and the involvement of the different roles during this phase may vary. It is typically during this step that the evaluator performs a feasibility analysis to assess the likelihood of a successful evaluation.

41

The evaluator assigns verdicts to the requirements of the CC and not to those of the CEM. The most granular CC structure to which a verdict is assigned is the evaluator action element (explicit or implied). A verdict is assigned to an applicable CC evaluator action element as a result of performing the corresponding CEM action and its constituent work units. Finally, an evaluation result is assigned, as described in CC Part 1, Section 5.3.

42

March 2004

Figure 3 - Example of the verdict assignment rule

The CEM recognises three mutually exclusive verdict states: a) Conditions for a pass verdict are defined as an evaluator completion of the CC evaluator action element and determination that the requirements for the PP, ST or TOE under evaluation are met. The conditions for passing the element are defined as:

1) the constituent work units of the related CEM action, and;

2) all evaluation evidence required for performing these work units is coherent, that is it can be fully and completely understood by the evaluator, and

Version 2.4 Page 15 of 231

43

Evaluation process and related tasks

3) all evaluation evidence required for performing these work units does not have any obvious inconsistencies with other evaluation evidence. Note that obvious means here that the evaluator discovers this inconsistency while performing the work units: the evaluator should not undertake a full consistency analysis across the entire evaluation evidence every time a work unit is performed. b) Conditions for a fail verdict are defined as an evaluator completion of the CC evaluator action element and determination that the requirements for the PP, ST, or TOE under evaluation are not met, or that the evidence is incoherent, or an obvious inconsistency in the evaluation evidence has been found; c) All verdicts are initially inconclusive and remain so until either a pass of fail verdict is assigned.

The overall verdict is pass if and only if all the constituent verdicts are also

pass. In the example illustrated in Figure

3

, if the verdict for one evaluator action element is fail then the verdicts for the corresponding assurance component, assurance class, and overall verdict are also fail.

2.3.1 Objectives

44

The objective of this task is to ensure that the evaluator has available the correct version of the evaluation evidence necessary for the evaluation and that it is adequately protected. Otherwise, the technical accuracy of the evaluation cannot be assured, nor can it be assured that the evaluation is being conducted in a way to provide repeatable and reproducible results.

45

46

47

Page 16 of 231

The responsibility to provide all the required evaluation evidence lies with the sponsor. However, most of the evaluation evidence is likely to be produced and supplied by the developer, on behalf of the sponsor.

Since the assurance requirements apply to the entire TOE, all evaluation evidence pertaining to all parts of the TOE is to be made available to the evaluator. The scope and required content of such evaluation evidence is independent of the level of control that the developer has over each of the parts of the TOE. For example, if a high-level design is required, then the

High-level design (ADV_HLD) requirements will apply to all subsystems that are part of the TSF. In addition, assurance requirements that call for procedures to be in place (for example, CM capabilities (ACM_CAP) and

Delivery (ADO_DEL)) will also apply to the entire TOE (including any part produced by another developer).

It is recommended that the evaluator, in conjunction with the sponsor, produce an index to required evaluation evidence. This index may be a set of

Version 2.4 March 2004

51

52

Evaluation process and related tasks

48

49

50

2.3.3

references to the documentation. This index should contain enough information (e.g. a brief summary of each document, or at least an explicit title, indication of the sections of interest) to help the evaluator to find easily the required evidence.

It is the information contained in the evaluation evidence that is required, not any particular document structure. Evaluation evidence for a sub-activity may be provided by separate documents, or a single document may satisfy several of the input requirements of a sub-activity.

The evaluator requires stable and formally-issued versions of evaluation evidence. However, draft evaluation evidence may be provided during an evaluation, for example, to help an evaluator make an early, informal assessment, but is not used as the basis for verdicts. It may be helpful for the evaluator to see draft versions of particular appropriate evaluation evidence, such as: a) test documentation, to allow the evaluator to make an early assessment of tests and test procedures; b) design documents, to provide the evaluator with background for understanding the TOE design; c) source code or hardware drawings, to allow the evaluator to assess the application of the developer's standards.

Draft evaluation evidence is more likely to be encountered where the evaluation of a TOE is performed concurrently with its development.

However, it may also be encountered during the evaluation of an alreadydeveloped TOE where the developer has had to perform additional work to address a problem identified by the evaluator (e.g. to correct an error in design or implementation) or to provide evaluation evidence of security that is not provided in the existing documentation (e.g. in the case of a TOE not originally developed to meet the requirements of the CC).

Management of evaluation evidence sub-task

53

The evaluator shall perform configuration control of the evaluation evidence.

The CC implies that the evaluator is able to identify and locate each item of evaluation evidence after it has been received and is able to determine whether a specific version of a document is in the evaluator's possession.

The evaluator shall protect the evaluation evidence from alteration or loss while it is in the evaluator's possession.

March 2004 Version 2.4 Page 17 of 231

Evaluation process and related tasks

2.3.3.2 Disposal

54

Schemes may wish to control the disposal of evaluation evidence at the conclusion of an evaluation. The disposal of the evaluation evidence should be achieved by one or more of: a) returning the evaluation evidence; b) archiving the evaluation evidence; c) destroying the evaluation evidence.

2.3.3.3 Confidentiality

55

An evaluator may have access to sponsor and developer commerciallysensitive information (e.g. TOE design information, specialist tools), and may have access to nationally-sensitive information during the course of an evaluation. Schemes may wish to impose requirements for the evaluator to maintain the confidentiality of the evaluation evidence. The sponsor and evaluator may mutually agree to additional requirements as long as these are consistent with the scheme.

56

Confidentiality requirements affect many aspects of evaluation work, including the receipt, handling, storage and disposal of evaluation evidence.

57

58

The evaluation sub-activities vary depending whether it is a PP or a TOE evaluation. Moreover, in the case of a TOE evaluation, the sub-activities depend upon the selected assurance requirements.

Each of the Chapters 4 through 5 is organised similarly based on the evaluation work required for an evaluation. Chapter Protection Profile evaluation addresses the work necessary for reaching an evaluation result on a PP.

Evaluation output task 2.5

2.5.1 Objectives

59

60

The objective of this section is to describe the Observation Report (OR) and the Evaluation Technical Report (ETR). Schemes may require additional evaluator reports such as reports on individual units of work, or may require additional information to be contained in the OR and the ETR. The CEM does not preclude the addition of information into these reports as the CEM specifies only the minimum information content.

Consistent reporting of evaluation results facilitates the achievement of the universal principle of repeatability and reproducibility of results. The consistency covers the type and the amount of information reported in the

ETR and OR. ETR and OR consistency among different evaluations is the responsibility of the overseer.

Page 18 of 231 Version 2.4 March 2004

Evaluation process and related tasks

61

2.5.2

62

The evaluator performs the two following sub-tasks in order to achieve the

CEM requirements for the information content of reports: a) write OR sub-task (if needed in the context of the evaluation); b) write ETR sub-task.

Management of evaluation outputs

The evaluator delivers the ETR to the evaluation authority, as well as any

ORs as they become available. Requirements for controls on handling the

ETR and ORs are established by the scheme which may include delivery to the sponsor or developer. The ETR and ORs may include sensitive or proprietary information and may need to be sanitised before they are given to the sponsor.

63

64

65

66

In this version of the CEM, the requirements for the provision of evaluator evidence to support re-evaluation and re-use have not been explicitly stated.

The information resulting from evaluator work to assist in re-evaluation or re-use has not yet been determined by the CEMEB under their current work program. Where information for re-evaluation or re-use is required by the sponsor, the scheme under which the evaluation is being performed should be consulted.

ORs provide the evaluator with a mechanism to request a clarification (e.g. from the overseer on the application of a requirement) or to identify a problem with an aspect of the evaluation.

In the case of a fail verdict, the evaluator shall provide an OR to reflect the evaluation result. Otherwise, the evaluator may use ORs as one way of expressing clarification needs.

For each OR, the evaluator shall report the following: a) the identifier of the PP or TOE evaluated; b) the evaluation task/sub-activity during which the observation was generated; c) the observation; d) the assessment of its severity (e.g. implies a fail verdict, holds up progress on the evaluation, requires a resolution prior to evaluation being completed); e) the identification of the organisation responsible for resolving the issue;

March 2004 Version 2.4 Page 19 of 231

67

Evaluation process and related tasks f) the recommended timetable for resolution; g) the assessment of the impact on the evaluation of failure to resolve the observation.

The intended audience of an OR and procedures for handling the report depend on the nature of the report's content and on the scheme. Schemes may distinguish different types of ORs or define additional types, with associated differences in required information and distribution (e.g. evaluation ORs to overseers and sponsors).

2.5.5.1 Objectives

68

The evaluator shall provide an ETR to present technical justification of the verdicts.

69

70

The CEM defines the ETR's minimum content requirement; however, schemes may specify additional content and specific presentational and structural requirements. For instance, schemes may require that certain introductory material (e.g. disclaimers, and copyright clauses) be reported in the ETR.

The reader of the ETR is assumed to be familiar with general concepts of information security, the CC, the CEM, evaluation approaches and IT.

71

2.5.5.2

72

The ETR supports the evaluation authority to confirm that the evaluation was done to the required standard, but it is anticipated that the documented results may not provide all of the necessary information, so additional information specifically requested by the scheme may be necessary. This aspect is outside the scope of the CEM.

ETR for a PP Evaluation

This section describes the minimum content of the ETR for a PP evaluation.

The contents of the ETR are portrayed in Figure

4

; this figure may be used as a guide when constructing the structural outline of the ETR document.

Page 20 of 231 Version 2.4 March 2004

Evaluation process and related tasks

Figure 4 - ETR information content for a PP evaluation

2.5.5.2.1 Introduction

73

The evaluator shall report evaluation scheme identifiers.

74

75

Evaluation scheme identifiers (e.g. logos) are the information required to unambiguously identify the scheme responsible for the evaluation oversight.

The evaluator shall report ETR configuration control identifiers.

76

77

78

79

80

The ETR configuration control identifiers contain information that identifies the ETR (e.g. name, date and version number).

The evaluator shall report PP configuration control identifiers.

PP configuration control identifiers (e.g. name, date and version number) are required to identify what is being evaluated in order for the overseer to verify that the verdicts have been assigned correctly by the evaluator.

The evaluator shall report the identity of the developer.

The identity of the PP developer is required to identify the party responsible for producing the PP.

March 2004 Version 2.4 Page 21 of 231

Evaluation process and related tasks

81

82

The evaluator shall report the identity of the sponsor.

The identity of the sponsor is required to identify the party responsible for providing evaluation evidence to the evaluator.

The evaluator shall report the identity of the evaluator.

83

84

The identity of the evaluator is required to identify the party performing the evaluation and responsible for the evaluation verdicts.

2.5.5.2.2 Evaluation

85

The evaluator shall report the evaluation methods, techniques, tools and standards used.

86

87

88

The evaluator references the evaluation criteria, methodology and interpretations used to evaluate the PP.

The evaluator shall report any constraints on the evaluation, constraints on the handling of evaluation results and assumptions made during the evaluation that have an impact on the evaluation results.

The evaluator may include information in relation to legal or statutory aspects, organisation, confidentiality, etc.

89

90

The evaluator shall report a verdict and a supporting rationale for each assurance component that constitutes an APE activity, as a result of performing the corresponding CEM action and its constituent work units.

The rationale justifies the verdict using the CC, the CEM, any interpretations and the evaluation evidence examined and shows how the evaluation evidence does or does not meet each aspect of the criteria. It contains a description of the work performed, the method used, and any derivation of results. The rationale may provide detail to the level of a CEM work unit.

2.5.5.2.4 Conclusions and recommendations

91

The evaluator shall report the conclusions of the evaluation, in particular the overall verdict as defined in CC Part 1 Chapter 5, and determined by application of the verdict assignment described in 2.2.5.

92

The evaluator provides recommendations that may be useful for the overseer.

These recommendations may include shortcomings of the PP discovered during the evaluation or mention of features which are particularly useful.

93

The evaluator shall report for each item of evaluation evidence the following information:

Page 22 of 231 Version 2.4 March 2004

Evaluation process and related tasks

− the issuing body (e.g. the developer, the sponsor); the title; the unique reference (e.g. issue date and version number).

2.5.5.2.6 List of acronyms/Glossary of terms

94

The evaluator shall report any acronyms or abbreviations used in the ETR.

95

Glossary definitions already defined by the CC or CEM need not be repeated in the ETR.

96

97

2.5.5.3

98

The evaluator shall report a complete list that uniquely identifies the ORs raised during the evaluation and their status.

For each OR, the list should contain its identifier as well as its title or a brief summary of its content.

ETR for a TOE Evaluation

This section describes the minimum content of the ETR for a TOE evaluation. The contents of the ETR are portrayed in Figure

5

; this figure may be used as a guide when constructing the structural outline of the ETR document.

March 2004 Version 2.4 Page 23 of 231

Evaluation process and related tasks

Figure 5 - ETR information content for a TOE evaluation

2.5.5.3.1 Introduction

99

The evaluator shall report evaluation scheme identifiers.

100

Evaluation scheme identifiers (e.g. logos) are the information required to unambiguously identify the scheme responsible for the evaluation oversight.

101

102

103

104

105

The evaluator shall report ETR configuration control identifiers.

The ETR configuration control identifiers contain information that identifies the ETR (e.g. name, date and version number).

The evaluator shall report ST and TOE configuration control identifiers.

ST and TOE configuration control identifiers identify what is being evaluated in order for the overseer to verify that the verdicts have been assigned correctly by the evaluator.

If the ST claims that the TOE conforms with the requirements of one or more

PPs, the ETR shall report the reference of the corresponding PPs.

Page 24 of 231 Version 2.4 March 2004

Evaluation process and related tasks

106

107

108

109

110

111

112

The PPs reference contains information that uniquely identifies the PPs (e.g. title, date, and version number).

The evaluator shall report the identity of the developer.

The identity of the TOE developer is required to identify the party responsible for producing the TOE.

The evaluator shall report the identity of the sponsor.

The identity of the sponsor is required to identify the party responsible for providing evaluation evidence to the evaluator.

The evaluator shall report the identity of the evaluator.

The identity of the evaluator is required to identify the party performing the evaluation and responsible for the evaluation verdicts.

113

114

The evaluator shall report a high level description of the TOE and its major components based on the evaluation evidence described in the CC assurance family entitled “Development - High-level design (ADV_HLD)”, where applicable.

The intent of this section is to characterise the degree of architectural separation of the major components. If there is no High-level design

(ADV_HLD) requirement in the ST, this is not applicable and is considered to be satisfied.

2.5.5.3.3 Evaluation

115

The evaluator shall report the evaluation methods, techniques, tools and standards used.

116

117

118

The evaluator may reference the evaluation criteria, methodology and interpretations used to evaluate the TOE or the devices used to perform the tests.

The evaluator shall report any constraints on the evaluation, constraints on the distribution of evaluation results and assumptions made during the evaluation that have an impact on the evaluation results.

The evaluator may include information in relation to legal or statutory aspects, organisation, confidentiality, etc.

119

For each activity on which the TOE is evaluated, the evaluator shall report:

− the title of the activity considered;

March 2004 Version 2.4 Page 25 of 231

Evaluation process and related tasks

120

121

− a verdict and a supporting rationale for each assurance component that constitutes this activity, as a result of performing the corresponding CEM action and its constituent work units.

The rationale justifies the verdict using the CC, the CEM, any interpretations and the evaluation evidence examined and shows how the evaluation evidence does or does not meet each aspect of the criteria. It contains a description of the work performed, the method used, and any derivation of results. The rationale may provide detail to the level of a CEM work unit.

The evaluator shall report all information specifically required by a work unit.

122

For the AVA and ATE activities, work units that identify information to be reported in the ETR have been defined.

2.5.5.3.5 Conclusions and recommendations

123

124

The evaluator shall report the conclusions of the evaluation, which will relate to whether the TOE has satisfied its associated ST, in particular the overall verdict as defined in CC Part 1 Chapter 5, and determined by application of the verdict assignment described in 2.2.5.

The evaluator provides recommendations that may be useful for the overseer.

These recommendations may include shortcomings of the IT product discovered during the evaluation or mention of features which are particularly useful.

125

The evaluator shall report for each item of evaluation evidence the following information:

− the issuing body (e.g. the developer, the sponsor); the title; the unique reference (e.g. issue date and version number).

2.5.5.3.7 List of acronyms/Glossary of terms

126

The evaluator shall report any acronyms or abbreviations used in the ETR.

127

Glossary definitions already defined by the CC or CEM need not be repeated in the ETR.

128

The evaluator shall report a complete list that uniquely identifies the ORs raised during the evaluation and their status.

Page 26 of 231 Version 2.4 March 2004

Evaluation process and related tasks

129

For each OR, the list should contain its identifier as well as its title or a brief summary of its content.

March 2004 Version 2.4 Page 27 of 231

3

Protection Profile evaluation

Protection Profile evaluation

3.1 Introduction

130

This clause describes the evaluation of a PP. The requirements and methodology for PP evaluation are identical for each PP evaluation, regardless of the EAL (or other set of assurance requirements) that is claimed in the PP. The evaluation methodology in this clause is based on the requirements on the PP as specified in CC Part 3 class APE.

131

133

This Chapter should be used in conjunction with Annex B and C in CC Part

1, as these Annexes clarify the concepts here and provide many examples.

3.2 Objectives

132

The PP is the description of a TOE type. As such it is expected to identify the security requirements that enforce the defined OSPs and counter the defined threats under the defined assumptions.

Evaluating a PP is required to demonstrate that the PP is sound and internally consistent, and, if the PP is based on one or more PPs or packages, that the

PP is a correct instantiation of these PPs or packages. These properties are necessary for the PP to be suitable for use as the basis for an ST.

134

The activities to conduct a complete PP evaluation cover the following: a) evaluation input task (Chapter 2); b) PP evaluation activity, comprising the following sub-activities:

1) evaluation of the PP introduction (Section 3.4.3);

2) evaluation of the conformance claims (Section 3.4.1);

3) evaluation of the security problem definition (Section 3.4.7);

4) evaluation of the security objectives (Section 3.4.4);

5) evaluation of the extended security requirements (Section

3.4.2);

6) evaluation of the stated security requirements (Section 3.4.5);

7) evaluation of the derived security requirements (Section

3.4.6);

8) evaluation output task (Chapter 2).

Page 28 of 231 Version 2.4 March 2004

Protection Profile evaluation

135

136

137

The evaluation input and evaluation output tasks are described in Section 2.

The evaluation activities are derived from the APE assurance requirements contained in CC Part 3.

The sub-activities comprising a PP evaluation are described in this section.

Although the sub-activities can, in general, be started more or less coincidentally, some dependencies between sub-activities have to be considered by the evaluator.

Some of the information required for the PP may be included by reference.

For example if compliance to a PP is claimed, some information in the PP such as the threats may be included by reference only. All material that is referred to in such a way is considered to be part of the PP and should conform to the APE criteria.

3.4 Protection Profile evaluation activity

3.4.1 Evaluation of Conformance claims (APE_CCL.1)

3.4.1.1 Objectives

138

The objective of this sub-activity is to determine the validity of various conformance claims. These describe how the PP conforms to the CC, other

PPs and packages.

3.4.1.2 Input

139

The evaluation evidence for this sub-activity is: a) the PP; b) the PP(s) that the PP claims conformance to; c) the package(s) that the PP claims conformance to.

APE_CCL.1.1C

The conformance claim shall contain a CC conformance claim that

identifies the version of the CC to which the PP claims conformance.

APE_CCL.1-1 evaluator conformance claim that identifies the version of the CC to which the PP claims conformance.

140

The evaluator determines that the CC conformance claim identifies the version of the CC that was used to develop this PP. This should include the version number of the CC and, unless the International English version of the

CC was used, the language of the version of the CC that was used.

APE_CCL.1.2C

The CC conformance claim shall describe the conformance of the PP to

CC Part 2 as either CC Part 2 conformant or CC Part 2 extended.

March 2004 Version 2.4 Page 29 of 231

Protection Profile evaluation

APE_CCL.1-2

The either CC Part 2 conformant or Part 2 extended for the PP.

APE_CCL.1.3C

The CC conformance claim shall describe the conformance of the PP to

CC Part 3 as either CC Part 3 conformant or CC Part 3 extended.

APE_CCL.1-3

The either CC Part 3 conformant or CC Part 3 extended for the PP.

APE_CCL.1.4C

The CC conformance claim shall be consistent with the extended

components definition.

APE_CCL.1-4

The determine that it is consistent with the extended components definition.

141

If the CC conformance claim contains CC Part 2 conformant, the evaluator determines that the extended components definition does not define functional components.

142

If the CC conformance claim contains CC Part 2 extended, the evaluator determines that the extended components definition defines at least one extended functional component.

APE_CCL.1-5

The determine that it is consistent with the extended components definition.

143

144

If the CC conformance claim contains CC Part 3 conformant, the evaluator determines that the extended components definition does not define assurance components.

If the CC conformance claim contains CC Part 3 extended, the evaluator determines that the extended components definition defines at least one extended assurance component.

APE_CCL.1.5C

The conformance claim shall identify all PPs and security requirement

packages to which the PP claims conformance.

APE_CCL.1-6

The that identifies all PPs for which the PP claims conformance.

145

The evaluator determines that any referenced PPs are unambiguously identified (e.g. by title and version number, or by the identification included in the introduction of that PP).

146

The evaluator is reminded that claims of partial conformance to a PP are not permitted.

APE_CCL.1-7 evaluator claim that identifies all packages to which the PP claims conformance.

Page 30 of 231 Version 2.4 March 2004

Protection Profile evaluation

147

148

The evaluator determines that any referenced packages are unambiguously identified (e.g. by title and version number, or by the identification included in the introduction of that package).

The evaluator is reminded that claims of partial conformance to a package are not permitted.

APE_CCL.1.6C

The conformance claim shall describe any conformance of the PP to a

package as either package-conformant or package-augmented.

APE_CCL.1-8

The package-name conformant or package-name augmented.

149

150

If the package conformance claim contains package-name conformant, the evaluator determines that the PP contains no security requirements in addition to those included in the package.

If the package conformance claim contains package-name augmented, the evaluator determines that the PP includes at least one security requirement in addition to those included in the package.

APE_CCL.1.7C

The conformance claims rationale shall demonstrate that the TOE type is consistent with the TOE type in the PPs for which conformance is being

claimed.

APE_CCL.1-9

The that the TOE type of the TOE is consistent with all TOE types of the PPs.

151

If the PP does not claim conformance with another PP, this work unit is not applicable and therefore considered to be satisfied.

152

The relation between the types could be simple: a firewall ST claiming conformance to a firewall PP, or more complex: a smartcard ST claiming conformance to a number of PPs at the same time: a PP for the integrated circuit, a PP for the smartcard OS, and two PPs for two applications on the smartcard.

APE_CCL.1.8C

The conformance claims rationale shall demonstrate that the statement of the security problem definition is consistent with the statement of the security problem definition in the PPs for which conformance is being

claimed.

APE_CCL.1-10 evaluator that it demonstrates that the statement of security problem definition is consistent, as defined by the conformance statement of the PP, with the statements of security problem definition stated in the PPs.

153

154

If the PP does not claim conformance with another PP, this work unit is not applicable and therefore considered to be satisfied.

The conformance claim rationale will be trivial in the case where exact conformance is required by the PP for which conformance is being claimed.

March 2004 Version 2.4 Page 31 of 231

Protection Profile evaluation

155

156

In this instance the statement of SPD must be stated in exactly the same wording as that used in the PP for which conformance is being claimed. The

PP under evaluation may repeat any threats, OSPs and/or assumptions or it may include them by reference to the PP they come from.

Where strict or demonstrable conformance is required by the PP, the conformance claim rationale should provide a tracing between the statement of SDP in the PP under evaluation and that in the PP for which conformance is being claimed. This tracing should be sufficient for the evaluator to determine that all threats, assumptions and OSPs detailed in the PP are represented in the PP under evaluation.

The evaluator is reminded that if strict or demonstrable conformance with

PPs is required, the PP author is allowed to add threats, OSPs and/or assumptions to those drawn from those in the PPs for which conformance is being claimed.

APE_CCL.1.9C

The conformance claims rationale shall demonstrate that the statement of objectives is consistent with the statement of objectives in the PPs for

which conformance is being claimed.

APE_CCL.1-11 evaluator that the statement of security objectives is consistent, as defined by the conformance statement of the PP, with the statement of security objectives in the PPs.

157

158

159

160

If the PP does not claim conformance with another PP, this work unit is not applicable and therefore considered to be satisfied.

The conformance claim rationale will be trivial in the case where exact conformance is required by the PP for which conformance is being claimed.

In this instance the security objectives must be stated in exactly the same wording as that used in the PP for which conformance is being claimed. The

PP under evaluation may repeat any security objective, or it may include it by reference to the PP it comes from.

Where strict or demonstrable conformance is required by the PP for which conformance is being claimed, the conformance claim rationale should provide a tracing between the statement of security objectives in the PP under evaluation and that in the PP for which conformance is being claimed.

This tracing should be sufficient for the evaluator to determine that all security objectives detailed in the PP are represented in the PP under evaluation.

The evaluator is reminded that if strict or demonstrable conformance with

PPs is required, the ST author is allowed to add objectives to those drawn from those in the PP for which conformance is being claimed.

APE_CCL.1.10C

The conformance claims rationale shall demonstrate that the statement of security requirements is consistent with the statement of security

requirements in the PPs for which conformance is being claimed.

Page 32 of 231 Version 2.4 March 2004

Protection Profile evaluation

APE_CCL.1-12

The defined by the conformance statement of the PP, with all security requirements in the PPs for which conformance is being claimed.

161

If the PP does not claim conformance with another PP, this work unit is not applicable and therefore considered to be satisfied.

162

163

The PP under evaluation may repeat any security requirements or it may include them by reference to the PP(s) they come from. If, however, the security requirements in the PP for which conformance is being claimed include uncompleted operations, or the author of the PP under evaluation has applied the refinement operation on any PP security requirements, then these security requirements must be fully present in the PP under evaluation.

For exact conformance, the conformance rationale will be trivial, as the statement of security requirements in the PP under evaluation must include the same requirements as in the PPs for which conformance is being claimed, with no additions, deletions or substitutions.

164

165

For strict conformance, the conformance rationale will be trivial again; demonstrating that the statement of requirements in the PP is a non-strict super set of those in the PP. That is, that all requirements in the PP for which conformance is being claimed have been included in the PP under evaluation, possibly with some additional requirements.

For demonstrable conformance, the evaluator determines that the justification for the security requirements in the PP for which conformance is being claimed demonstrates that each requirement is represented by one or more security requirements in the PP under evaluation.

166

The evaluator is also reminded that if strict or demonstrable conformance with PPs is required, the author of the PP under evaluation is allowed to add security requirements to those drawn from those PPs for which conformance is being claimed.

APE_CCL.1.11C

The conformance claims rationale shall demonstrate that all operations of the security requirements that were taken from a PP are completed

consistently with the respective PP.

APE_CCL.1-13 evaluator that that the completion of the security requirements is consistent with those in the PP for which conformance is being claimed.

167

168

If the PP does not claim conformance with another PP, this work unit is not applicable and therefore considered to be satisfied.

The PP, for which conformance is being claimed, may already have partially completed operations in a requirement, or set other limits on the completion of those operations. If this is the case the evaluator determines that the corresponding requirement in the PP under evaluation is completed consistent with these partial completions and/or limits.

March 2004 Version 2.4 Page 33 of 231

Protection Profile evaluation

169

An example of an inconsistent completion is a PP that partially completes the first assignment in FIA_AFL.1 Authentication failure handling “TSF shall detect when [assignment: number] unsuccessful authentication attempts occur...” as “TSF shall detect when [assignment: a number between 1 and 5] unsuccessful authentication attempts occur...”. The PP under evaluation that claims conformance to this PP, copies the requirement and completes it as

“The TSF shall detect when 8 unsuccessful authentication attempts occur...”.

170

Note that, if the PP for which conformance is being claimed in the example above would mandate exactly 5 unsuccessful authentication attempts, a completion in the PP under evaluation with any number other than 5 would be an inconsistent completion.

APE_CCL.1.12C

The conformance claims rationale shall demonstrate that the statement of security requirements is consistent with the statement of security requirements in the security requirements package for which conformance

is being claimed.

APE_CCL.1-14

The security requirements in the packages for which conformance is being claimed.

171

172

If the PP does not claim conformance with a security requirements package, this work unit is not applicable and therefore considered to be satisfied.

The PP may repeat any security requirements or it may include them by reference to the package(s) they come from. If, however, the package security requirements include uncompleted operations, or the PP author has applied the refinement operation on any package security requirements, then these security requirements must be fully present in the PP.

173

The evaluator is also reminded that if the conformance claim is packagename augmented the PP author is permitted to add security requirements to those drawn from that package.

APE_CCL.1.13C

The conformance claims rationale shall demonstrate that all operations of the security requirements in the PP that were taken from a package are

completed consistently with the respective security requirement package.

APE_CCL.1-15 evaluator requirements in the PP that were taken from a security requirements package is completed consistently with that security requirements package.

174

175

If the PP does not claim conformance with a security requirements package, this work unit is not applicable and therefore considered to be satisfied.

If the security requirements package has already partially completed operations in a requirement, or has set other limits on the completion of those operations, the evaluator determines that the corresponding requirement in the PP is completed consistent with these partial completions and/or limits.

Page 34 of 231 Version 2.4 March 2004

Protection Profile evaluation

176

177

An example of an inconsistent completion is a package that partially completes the first assignment in FIA_AFL.1 Authentication failure handling

“The TSF shall detect when [assignment: number] unsuccessful authentication attempts occur...” as “The TSF shall detect when [assignment: a number between 1 and 5] unsuccessful authentication attempts occur...”.

The PP that claims conformance to this package, copies the requirement in the PP and completes it as “The TSF shall detect when 8 unsuccessful authentication attempts occur...”.

Note that, if the security requirements package in the example above would mandate exactly 5 unsuccessful authentication attempts, a completion in the

PP with any number other than 5 would be an inconsistent completion.

APE_CCL.1.14C

The conformance statement shall describe the conformance required of any PPs/STs as exact-PP, strict-PP or demonstrable-PP -conformance for

the PP.

APE_CCL.1-16

The of exact-PP, strict-PP, demonstrable-PP -conformance

3.4.2 Evaluation of Extended components definition (APE_ECD.1)

3.4.2.1 Objectives

178

The objective of this sub-activity is to determine whether extended components have been clearly and unambiguously defined, and whether they are necessary, i.e. they could not have been clearly expressed using existing

CC Part 2 or CC Part 3 components.

3.4.2.2 Input

179

The evaluation evidence for this sub-activity is: a) the PP.

APE_ECD.1.1C

The statement of security requirements shall identify all extended security

requirements.

APE_ECD.1-1

The security requirements that are not identified as extended requirements are present in CC Part 2 or Part 3.

APE_ECD.1.2C

The extended components definition shall define an extended component

for each extended security requirement.

APE_ECD.1-2 evaluator an extended component for each extended security requirement.

180

If the PP does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

March 2004 Version 2.4 Page 35 of 231

Protection Profile evaluation

181

A single extended component may be used to define multiple iterations of an extended security requirement, it is not necessary to repeat this definition for each iteration.

APE_ECD.1.3C

The extended components definition shall describe how each extended

component is related to the existing CC components, families, and classes.

APE_ECD.1-3

The determine that it describes how each extended component fits into the existing CC components, families, and classes.

182

183

184

185

186

If the PP does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that each extended component is either: a) a member of an existing CC Part 2 or CC Part 3 family, or b) a member of a new family defined in the PP

If the extended component is a member of an existing CC Part 2 or Part 3 family, the evaluator determines that the extended components definition adequately describes why the extended component should be a member of that family and how it relates to other components of that family.

If the extended component is a member of a new family defined in the PP, the evaluator confirms that the extended component is not appropriate for an existing family.

If the PP defines new families, the evaluator determines that each new family is either: a) a member of an existing CC Part 2 or CC Part 3 class, or b) a member of a new class defined in the PP

187

188

If the family is a member of an existing CC Part 2 or CC Part 3 class, the evaluator determines that the extended components definition adequately describes why the family should be a member of that class and how it relates to other families in that class.

If the family is a member of a new class defined in the PP, the evaluator confirms that the family is not appropriate for an existing class.

APE_ECD.1-4 evaluator determine that each definition of an extended component identifies all applicable dependencies of that component.

189

If the PP does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

Page 36 of 231 Version 2.4 March 2004

Protection Profile evaluation

190

The evaluator confirms that no applicable dependencies have been overlooked by the PP author.

APE_ECD.1-5

The determine that each definition of an extended functional component identifies all applicable audit information of that component.

191

192

If the PP does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

The evaluator confirms that no applicable security relevant events that are candidates for audit have been overlooked by the PP author.

APE_ECD.1-6

The definition to determine that each definition of an extended functional component identifies all applicable security management information of that component.

193

If the PP does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

194

The evaluator confirms that no applicable security management functions for this component have been overlooked by the PP author.

APE_ECD.1.4C

The extended components definition shall use the existing CC components,

families, classes, and methodology as a model for presentation.

APE_ECD.1-7

The determine that each extended functional component uses the existing CC Part

2 components as a model for presentation.

195

If the PP does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

196

197

198

The evaluator determines that the extended functional component is consistent with CC Part 2 Section 2.1.3 Component structure.

If the extended functional component uses operations, the evaluator determines that the extended functional component is consistent with CC

Part 1 Section 4.4.1.3 Component.

If the extended functional component is hierarchical to an existing functional component, the evaluator determines that the extended functional component is consistent with CC Part 2 Section 2.2.1 Component changes highlighting.

APE_ECD.1-8 evaluator determine that each definition of a new functional family uses the existing

CC functional families as a model for presentation.

199

If the PP does not define new functional families, this work unit is not applicable and therefore considered to be satisfied.

March 2004 Version 2.4 Page 37 of 231

Protection Profile evaluation

200

The evaluator determines that all new functional families are defined consistent with CC Part 2 Section 2.1.2 Family structure.

APE_ECD.1-9

The determine that each definition of a new functional class uses the existing CC functional classes as a model for presentation.

201

202

If the PP does not define new functional classes, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that all new functional classes are defined consistent with CC Part 2 Section 2.1.1 Class structure

APE_ECD.1-10

The determine that each definition of an extended assurance component uses the existing CC Part 3 components as a model for presentation.

203

If the PP does not contain extended SARs, this work unit is not applicable and therefore considered to be satisfied.

204

205

The evaluator determines that the extended assurance component definition is consistent with CC Part 3 Section 2.1.3 Assurance component structure.

If the extended assurance component uses operations, the evaluator determines that the extended assurance component is consistent with CC Part

1 Section 4.4.1.3 Component.

206

If the extended assurance component is hierarchical to an existing assurance component, the evaluator determines that the extended assurance component is consistent with CC Part 3 Section 2.1.3 Assurance component structure.

APE_ECD.1-11

The determine that for each defined extended assurance component, applicable methodology has been provided.

207

208

If the PP does not contain extended SARs, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that for each evaluator action element of each extended SAR one or more work units is provided and that succesfully performing all work units for a given evaluator action element will demonstrate that the element has been achieved.

APE_ECD.1-12 evaluator determine that each definition of a new assurance family uses the existing

CC assurance families as a model for presentation.

209

210

If the PP does not define new assurance families, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that all new assurance families are defined consistent with CC Part 3 Section 2.1.2 Assurance family structure.

Page 38 of 231 Version 2.4 March 2004

Protection Profile evaluation

APE_ECD.1-13

The determine that each definition of a new assurance class uses the existing CC assurance classes as a model for presentation.

211

If the PP does not define new assurance classes, this work unit is not applicable and therefore considered to be satisfied.

212

The evaluator determines that all new assurance classes are defined consistent with CC Part 3 Section 2.1.1 Class structure.

APE_ECD.1.5C

The extended components shall consist of measurable and objective elements such that compliance or noncompliance to these elements can be

demonstrated.

APE_ECD.1-14

The determine that each element in each extended component is measurable and states objective evaluation requirements, such that compliance or noncompliance can be demonstrated.

213

214

If the PP does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that elements of extended functional components are stated in such a way that they are testable, and traceable through the appropriate TSF representations.

215

216

The evaluator also determines that elements of extended assurance requirements avoid the need for subjective evaluator judgement.

The evaluator is reminded that whilst being measurable and objective is appropriate for all evaluation criteria, it is acknowledged that no formal method exists to prove such properties. Therefore the existing CC functional and assurance requirements are to be used as a model for determining what constitutes compliance with this requirement.

APE_ECD.1-15 evaluator determine that each extended component can not be clearly expressed using existing components.

217

If the PP does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

218

The evaluator determines that each extended component cannot be clearly expressed using existing components. The evaluator should take components from CC Part 2 and Part 3, other extended components that have been defined in the PP, combinations of these components, and possible operations on these components into account when making this determination.

March 2004 Version 2.4 Page 39 of 231

Protection Profile evaluation

219

The evaluator is reminded that the role of this work unit is to preclude unnecessary duplication of components, that is, components that can be clearly expressed using other components. The evaluator should not undertake an exhaustive search of all possible combinations of components including operations in an attempt to find a way to express the extended component with existing components.

3.4.3 Evaluation of PP introduction (APE_INT.1)

3.4.3.1 Objectives

220

The objective of this subactivity is to determine whether the PP is correctly identified, and whether the PP reference and TOE overview are consistent with each other.

3.4.3.2 Input

221

The evaluation evidence for this sub-activity is: a) the PP.

APE_INT.1.1C

The PP introduction shall contain a PP reference and a TOE overview.

APE_INT.1-1

The and a TOE overview.

APE_INT.1.2C

The PP reference shall uniquely identify the PP.

APE_INT.1-2

The identifies the PP.

222

223

The evaluator determines that the PP reference identifies the PP itself, so that it can be easily distinguished from other PPs, and that it also uniquely identifies each version of the PP, e.g. by including a version number and/or a date of publication.

The PP should have some referencing system that is capable of supporting unique references (e.g. use of numbers, letters or dates).

APE_INT.1.3C

The TOE overview shall summarise the usage and major security features

of the TOE.

APE_INT.1-3 evaluator the usage and major security features of the TOE.

224

The TOE overview should briefly (i.e. several paragraphs) describe the usage and major security features expected of the TOE. The TOE overview should enable consumers and potential TOE developers to quickly determine whether the PP is of interest to them.

Page 40 of 231 Version 2.4 March 2004

Protection Profile evaluation

225

The evaluator determines whether the overview is clear enough for TOE developers and consumers, and sufficient to give them a general understanding of the intended usage and major security features of the TOE.

APE_INT.1.4C

The TOE overview shall identify the TOE type.

APE_INT.1-4

The

APE_INT.1.5C

The TOE overview shall identify any non-TOE

hardware/software/firmware available to the TOE.

APE_INT.1-5

The any non-TOE hardware/software/firmware available to the TOE.

226

227

While some TOEs can run stand-alone, other TOEs (notably software TOEs) need additional hardware, software or firmware to operate. In this section of the PP, the PP writer can list all hardware, software, and/or firmware that will be available for the TOE to run on.

This identification should be detailed enough for potential consumers and

TOE developers to determine whether their TOE can operate with the listed hardware, software and firmware.

3.4.4 Evaluation of Security objectives (APE_OBJ.1)

3.4.4.1 Objectives

228

The objective of this sub-activity is to determine whether the security objectives adequately and completely address the security problem definition, that the division of this problem between the TOE, its development environment, and its operational environment is clearly defined, and whether the security objectives are internally consistent.

3.4.4.2 Input

229

The evaluation evidence for this sub-activity is: a) the PP.

APE_OBJ.1.1C

The statement of security objectives shall describe the security objectives

for the TOE.

APE_OBJ.1-1 evaluator the security objectives for the TOE.

230

The evaluator checks that the security objectives for the TOE are identified, and that they are clearly separated from the security objectives for the development environment and the security objectives for the operational environment.

March 2004 Version 2.4 Page 41 of 231

Protection Profile evaluation

APE_OBJ.1.2C

The security objectives rationale shall trace each security objective for the

TOE back to threats countered by that security objective and OSPs met by

that security objective.

APE_OBJ.1-2

The security objectives for the TOE back to threats countered by the objectives and/or organisational policies met by the objectives.

231

Each security objective for the TOE may trace back to more threats or OSPs, or a combination of threats and OSPs, but it must trace back to at least one threat or OSP.

232

Failure to trace implies that either the security objectives rationale is incomplete, the security problem definition is incomplete, or the security objective for the TOE has no useful purpose.

APE_OBJ.1.3C

The statement of security objectives shall describe the security objectives

for the development environment.

APE_OBJ.1-3

The the security objectives for the development environment

233

The evaluator checks that the security objectives for the development environment are identified, and that they are also clearly separated from the security objectives for the TOE and the security objectives for the operational environment.

APE_OBJ.1.4C

The security objectives rationale shall trace each security objective for the development environment back to threats countered by that security

objective and OSPs met by that security objective.

APE_OBJ.1-4

The security objectives for the development environment back to threats countered by that security objective and OSPs met by that security objective.

234

Each security objective for the development environment may trace back to more threats or OSPs, or a combination of threats and OSPs, but it must trace back to at least one threat or OSP.

235

Failure to trace implies that either the security objectives rationale is incomplete, the security problem definition is incomplete, or the security objective for the development environment has no useful purpose.

APE_OBJ.1.5C

The statement of security objectives shall describe the security objectives

for the operational environment

APE_OBJ.1-5 evaluator the security objectives for the operational environment.

236

The evaluator checks that the security objectives for the operational environment are identified, and that they are also clearly separated from the

Page 42 of 231 Version 2.4 March 2004

Protection Profile evaluation security objectives for the TOE and the security objectives for the development environment.

APE_OBJ.1.6C

The security objectives rationale shall trace each security objective for the operational environment back to threats countered by that security objective, OSPs enforced by that security objective, and assumptions

upheld by that security objective.

APE_OBJ.1-6

The security objectives for the operational environment back to threats countered by that security objective, to OSPs enforced by that security objective, and to assumptions upheld by that security objective.

237

238

Each security objective for the operational environment may trace back to threats, OSPs, assumptions, or a combination of threats, OSPs and/or assumptions, but it must trace back to at least one threat, OSP or assumption.

Failure to trace implies that either the security objectives rationale is incomplete, the security problem definition is incomplete, or the security objective for the operational environment has no useful purpose.

APE_OBJ.1.7C

The security objectives rationale shall demonstrate that the security

objectives counter all threats.

APE_OBJ.1-7 evaluator that it justifies for each threat that the security objectives are suitable to counter that threat.

239

240

If no security objectives trace back to the threat, this work unit fails.

The evaluator determines that the justification for a threat shows whether the threat is removed, diminished or mitigated.

241

242

The evaluator determines that the justification for a threat demonstrates that the security objectives are sufficient: if all security objectives that trace back to the threat are achieved, the threat is removed, sufficiently diminished, or the effects of the threats are sufficiently mitigated.

Note that the tracings from security objectives to threats provided in the security objectives rationale may be part of a justification, but do not constitute a justification by themselves. Even in the case that a security objective is merely a statement reflecting the intent to prevent a particular threat from being realised, a justification is required, but this justification could be as minimal as “Security Objective X directly counters threat Y”.

243

The evaluator also determines that each security objective that traces back to a threat is necessary: when the security objective is achieved it actually contributes to the removal, diminishing or mitigation of that threat.

APE_OBJ.1.8C

The security objectives rationale shall demonstrate that the security

objectives enforce all OSPs.

March 2004 Version 2.4 Page 43 of 231

Protection Profile evaluation

APE_OBJ.1-8

The that for each OSP it justifies that the security objectives are suitable to enforce that OSP.

244

If no security objectives trace back to the OSP, this work unit fails.

245

The evaluator determines that the justification for an OSP demonstrates that the security objectives are sufficient: if all security objectives that trace back to that OSP are achieved, the OSP is implemented.

246

247

The evaluator also determines that each security objective that traces back to an OSP is necessary: when the security objective is achieved it actually contributes to the implementation of the OSP.

Note that the tracings from security objectives to OSPs provided in the security objectives rationale may be part of a justification, but do not constitute a justification by themselves. In the case that a security objective is merely a statement reflecting the intent to enforce a particular OSP, a justification is required, but this justification could be as minimal as

“Security Objective X directly enforces OSP Y”.

APE_OBJ.1.9C

The security objectives rationale shall demonstrate that the security

objectives for the operational environment uphold all assumptions.

APE_OBJ.1-9 evaluator that for each assumption for the operational environment it contains an appropriate justification that the security objectives for the operational environment are suitable to uphold that assumption.

248

If no security objectives for the operational environment trace back to the assumption, this work unit fails.

249

250

251

The evaluator determines that the justification for an assumption about the operational environment of the TOE demonstrates that the security objectives are sufficient: if all security objectives for the operational environment that trace back to that assumption are achieved, the operational environment is consistent with the assumption.

The evaluator also determines that each security objective for the operational environment that traces back to an assumption about the operational environment of the TOE is necessary: when the security objective is achieved it actually contributes to the operational environment achieving consistency with the assumption.

Note that the tracings from security objectives for the operational environment to assumptions provided in the security objectives rationale may be a part of a justification, but do not constitute a justification by themselves.

Even in the case that a security objective of the operational environment is merely a restatement of an assumption, a justification is required, but this justification could be as minimal as “Security Objective for the Operational

Environment X directly upholds Assumption Y”.

Page 44 of 231 Version 2.4 March 2004

Protection Profile evaluation

APE_OBJ.1-10

The determine that it is internally consistent.

252

The evaluator should compare the security objectives with each other to determine whether they contradict each other, or whether there may be conditions in which they contradict each other.

253

Examples of such contradictions are:

“a user's identity shall never be released” and “actions of a user shall be logged with that user's identity”.

“the network connection in the operational environment shall be

100% available” and “The network connection in the operational environment shall fail in a secure manner by shutting down its services gracefully”.

“it hall not be possible for type X users to access type Y data”, “type

X users shall be able to export type Y data out of the TOE” may contradict unless the type Y data is protected in another way.

3.4.5 Evaluation of Security requirements (APE_REQ.1)

3.4.5.1 Objectives

254

The objective of this sub-activity is to determine whether the SFRs and

SARs are clear, unambiguous and canonically formulated and whether they are internally consistent.

3.4.5.2 Input

255

The evaluation evidence for this sub-activity is: a) the PP.

APE_REQ.1.1C

The statement of security requirements shall describe the SFRs and the

SARs.

APE_REQ.1-1 evaluator describes the SFRs.

256

The evaluator determines that all SFRs are identified by one of the following means: a) by reference to an individual component in CC Part 2; b) by reference to an extended component in the extended components definition of the PP;

March 2004 Version 2.4 Page 45 of 231

Protection Profile evaluation

257

258 c) by reference to an individual component in a PP that the PP claims to be compliant with; d) by reference to an individual component in a security requirements package that the PP claims to be compliant with; e) by reproduction in the PP.

It is not required to use the same means of identification for all SFRs.

If an SFR is reproduced in the PP, the evaluator determines that it has been reproduced correctly by comparing it to the definition of its component in

CC Part 2.

APE_REQ.1-2

The describes the SARs.

259

The evaluator determines that all SARs are identified by one of the following means: a) by reference to an individual component in CC Part 3;

260

261 b) by reference to an extended component in the extended components definition of the PP; c) by reference to an individual component in a PP that the PP claims to be compliant with; d) by reference to an individual component in a security requirements package that the PP claims to be compliant with; e) by reproduction in the PP.

It is not required to use the same means of identification for all SARs.

If an SAR is reproduced in the PP, the evaluator determines that it has been reproduced correctly by comparing it to the definition of its component in

CC Part 3.

APE_REQ.1.2C

The statement of security requirements shall identify all operations on the

security requirements.

APE_REQ.1-3 evaluator identifies all operations on the security requirements.

262

The evaluator determines that all operations are identified in each SFR or

SAR where such an operation is used. This includes both completed operations and uncompleted operations. Identification can be achieved by typographical distinctions, or by explicit identification in the surrounding text, or by any other distinctive means.

APE_REQ.1.3C

All operations shall be performed correctly.

Page 46 of 231 Version 2.4 March 2004

Protection Profile evaluation

APE_REQ.1-4

The determine that all assignment operations are performed correctly.

263

An assignment operation is only allowed where specifically permitted in a component.

264

265

266

267

The evaluator compares each assignment with the component from which it is derived to determine that the assignment has been left uncompleted, has been completed, or has been transformed into a selection.

If the assignment has been left uncompleted, the evaluator determines that the uncompleted assignment has been correctly copied from the component.

If the assignment has been completed with a value, the evaluator determines that the type of the value is consistent with the type required by the assignment. An assignment may only be completed with “None” if this is specifically allowed by the component.

If the assignment has been transformed into a selection, the evaluator determines that each value in the selection is an allowable value of the assignment. “None” may only be a choice in the selection if “None” is specifically allowed by the component as a completion of the assignment.

APE_REQ.1-5

The determine that all iteration operations are performed correctly.

268

The evaluator determines that each iteration of a requirement is different from each other iteration of that requirement (at least one element is different), or that the requirement applies to a different part of the TOE.

APE_REQ.1-6 evaluator determine that all selection operations are performed correctly.

269

270

271

A selection operation is only allowed where specifically permitted in a component.

The evaluator compares each selection with the component from which it is derived to determine that the selection has been left uncompleted, has been completed, or has been restricted.

If the selection has been left uncompleted, the evaluator determines that the uncompleted selection has been correctly copied from the component.

272

273

If the selection has been completed, the evaluator determines that selected item or items are one or more of the items indicated within the selection portion of the component. The evaluator also determines that where a selection explicitly states “choose one of” only one item is selected.

If the selection has been restricted, the evaluator determines that the remaining selectable items are a subset of the selectable items in the component.

March 2004 Version 2.4 Page 47 of 231

Protection Profile evaluation

APE_REQ.1-7

The determine that all refinement operations are performed correctly.

274

275

The evaluator determines for each refinement that the component is refined in such manner that a TOE meeting the refined requirement also meets the unrefined requirement. If the refined requirement exceeds this boundary it is considered to be an extended requirement.

A special case of refinement is an editorial refinement, where a small change is made in a requirement, i.e. rephrasing a sentence due to adherence to proper English grammar. This change is not allowed to modify the meaning of the requirement in any way. The evaluator is reminded that editorial refinements have to be clearly identified.

276

277

Another special case of refinement is where multiple iterations of the same requirement are used, each with different refinements, where some of the refined iterations do not meet the full scope of the original requirement. This is acceptable, provided that all iterations of the refined requirement taken collectively, meet the entire scope of the original requirement.

In addition, a refinement should be related to the original requirement.

Refining an audit requirement with an extra element on prevention of electromagnetic radiation is normally not allowed. This refinement should be added to another requirement, or if no applicable requirement to refine can be found, be formulated as an extended requirement.

APE_REQ.1-8 evaluator determine that it is internally consistent.

278

279

280

The evaluator determines that the combined set of all SFRs and SARs is internally consistent.

The evaluator determines that on all occasions where different security requirements apply to the same types of developer evidence, events, operations, data, tests to be performed etc. or “all objects”, “all subjects” etc., that these requirements do not conflict.

Some possible conflicts are: a) FRU_RSA.2 Minimum and maximum quotas specifying a minimum number of resources available to a user and FTA_MCS.1 Basic limitation on multiple concurrent sessions specifying a maximum number of sessions available for a user. If the resources are somehow linked to sessions, these requirements may conflict; b) an extended assurance requirement specifying that the design of certain cryptographic algorithm is to be kept secret, and another extended assurance requirement specifying an open source review;

Page 48 of 231 Version 2.4 March 2004

Protection Profile evaluation c) FPR_ANO.1 Anonymity specifying anonymity, FAU_GEN.1 Audit data generation specifying that subject identity is to be logged, and

FAU_SAR.1 Audit review specifying who can read the audit records.

If people from whom the activities of users should be hidden, can read the audit logs of these activities, these requirements may conflict; d) FDP_RIP.1 Subset residual information protection specifying deletion of information no longer needed, and FDP_ROL.1 Basic rollback specifying that a TOE can return to a previous state. If the information that is needed for the rollback to the previous state has been deleted, these requirements conflict;

281 e) Multiple iterations of FDP_ACC.1 Subset access control especially where some iterations cover the same subjects, objects, or operations.

If one access control policy allows a subject to perform an operation on an object, while another policy does not allow this, these requirements conflict.

3.4.6 Evaluation of Security requirements (APE_REQ.2)

3.4.6.1 Objectives

The objective of this sub-activity is to determine whether the SFRs and

SARs are clear, unambiguous and canonically formulated, whether they are internally consistent, and whether they meet the security objectives of the

TOE and the security objectives for the development environment.

3.4.6.2 Input

282

The evaluation evidence for this sub-activity is: a) the PP.

APE_REQ.2.1C

The statement of security requirements shall describe the SFRs and the

SARs.

APE_REQ.2-1 evaluator describes the SFRs.

283

The evaluator determines that all SFRs are identified by one of the following means: a) by reference to an individual component in CC Part 2; b) by reference to an extended component in the extended components definition of the PP; c) by reference to an individual component in a PP that the PP claims to be compliant with;

March 2004 Version 2.4 Page 49 of 231

Protection Profile evaluation d) by reference to an individual component in a security requirements package that the PP claims to be compliant with; e) by reproduction in the PP.

It is not required to use the same means of identification for all SFRs.

284

285

If an SFR is reproduced in the PP, the evaluator determines that it has been reproduced correctly by comparing it to the definition of its component in

CC Part 2.

APE_REQ.2-2

The describes the SARs.

286

The evaluator determines that all SARs are identified by one of the following means: a) by reference to an individual component in CC Part 3; b) by reference to an extended component in the extended components definition of the PP; c) by reference to an individual component in a PP that the PP claims to be compliant with; d) by reference to an individual component in a security requirements package that the PP claims to be compliant with; e) by reproduction in the PP.

287

288

It is not required to use the same means of identification for all SARs.

If an SAR is reproduced in the PP, the evaluator determines that it has been reproduced correctly by comparing it to the definition of its component in

CC Part 3.

APE_REQ.2.2C

The statement of security requirements shall identify all operations on the

security requirements.

APE_REQ.2-3

The identifies all operations on the security requirements.

289

The evaluator determines that all operations are identified in each SFR or

SAR where such an operation is used. This includes both completed operations and uncompleted operations. Identification can be achieved by typographical distinctions, or by explicit identification in the surrounding text, or by any other distinctive means.

APE_REQ.2.3C

All operations shall be performed correctly.

APE_REQ.2-4 evaluator determine that all assignment operations are performed correctly.

Page 50 of 231 Version 2.4 March 2004

Protection Profile evaluation

290

291

292

293

An assignment operation is only allowed where specifically permitted in a component.

The evaluator compares each assignment with the component from which it is derived to determine that the assignment has been left uncompleted, has been completed, or has been transformed into a selection.

If the assignment has been left uncompleted, the evaluator determines that the uncompleted assignment has been correctly copied from the component.

If the assignment has been completed with a value, the evaluator determines that the type of the value is consistent with the type required by the assignment. An assignment may only be completed with “None” if this is specifically allowed by the component.

294

If the assignment has been transformed into a selection, the evaluator determines that each value in the selection is an allowable value of the assignment. “None” may only be a choice in the selection if “None” is specifically allowed by the component as a completion of the assignment.

APE_REQ.2-5

The determine that all iteration operations are performed correctly.

295

The evaluator determines that each iteration of a requirement is different from each other iteration of that requirement (at least one element is different), or that the requirement applies to a different part of the TOE.

APE_REQ.2-6

The determine that all selection operations are performed correctly.

296

297

A selection operation is only allowed where specifically permitted in a component.

The evaluator compares each selection with the component from which it is derived to determine that the selection has been left uncompleted, has been completed, or has been restricted.

298

299

If the selection has been left uncompleted, the evaluator determines that the uncompleted selection has been correctly copied from the component.

If the selection has been completed, the evaluator determines that selected item or items are one or more of the items indicated within the selection portion of the component. The evaluator also determines that where a selection explicitly states “choose one of” only one item is selected.

300

If the selection has been restricted, the evaluator determines that the remaining selectable items are a subset of the selectable items in the component.

APE_REQ.2-7 evaluator determine that all refinement operations are performed correctly.

March 2004 Version 2.4 Page 51 of 231

Protection Profile evaluation

301

302

The evaluator determines for each refinement that the component is refined in such manner that a TOE meeting the refined requirement also meets the unrefined requirement. If the refined requirement exceeds this boundary it is considered to be an extended requirement.

A special case of refinement is an editorial refinement, where a small change is made in a requirement, i.e. rephrasing a sentence due to adherence to proper English grammar. This change is not allowed to modify the meaning of the requirement in any way. The evaluator is reminded that editorial refinements have to be clearly identified.

303

304

Another special case of refinement is where multiple iterations of the same requirement are used, each with different refinements, where some of the refined iterations do not meet the full scope of the original requirement. This is acceptable, provided that all iterations of the refined requirement taken collectively, meet the entire scope of the original requirement.

In addition, a refinement should be related to the original requirement.

Refining an audit requirement with an extra element on prevention of electromagnetic radiation is normally not allowed. This refinement should be added to another requirement, or if no applicable requirement to refine can be found, be formulated as an extended requirement.

APE_REQ.2.4C

Each dependency of the security requirements shall either be satisfied, or the security requirements rationale shall justify the dependency not being

satisfied.

APE_REQ.2-8 evaluator determine that each dependency of the security requirements is either satisfied, or that the security requirements rationale justifies the dependency not being satisfied.

305

A dependency is satisfied by the inclusion of the relevant component (or one that is hierarchical to it) within the statement of security requirements. The component used to satisfy the dependency should, if necessary, be modified by operations to ensure that it actually satisfies that dependency.

306

A justification that a dependency is not met can address either: a) why the dependency is not necessary or useful, in which case no further information is required, or b) that the dependency has been addressed by the operational environment of the TOE, in which case the justification should describe how the security objectives for the operational environment address this dependency.

APE_REQ.2.5C

The security requirements rationale shall trace each SFR back to the

security objectives for the TOE.

Page 52 of 231 Version 2.4 March 2004

Protection Profile evaluation

APE_REQ.2-9

The

SFR back to the security objectives for the TOE.

307

The evaluator determines that each SFR is traced back to at least one security objective for the TOE.

308

Failure to trace implies that either the security requirements rationale is incomplete, the security objectives for the TOE are incomplete, or that the

SFR has no useful purpose.

APE_REQ.2.6C

The security requirements rationale shall demonstrate that the SFRs meet

all security objectives for the TOE.

APE_REQ.2-10 evaluator that for each security objective for the TOE it justifies that the SFRs are suitable to meet that security objective for the TOE.

309

310

311

312

313

314

If no SFRs trace back to the security objective for the TOE, this work unit fails.

The evaluator determines that the justification for a security objective for the

TOE demonstrates that the SFRs are sufficient: if all SFRs that trace back to the objective are satisfied, the security objective for the TOE is achieved.

The evaluator also determines that each SFR that traces back to a security objective for the TOE is necessary: when the SFR is satisfied, it actually contributes to achieving the security objective.

Note that the tracings from SFRs to security objectives for the TOE provided in the security requirements rationale may be a part of the justification, but do not constitute a justification by themselves.

The evaluator takes into account that the TOE should usually have some form of protection for itself, otherwise it will not be able to uphold its security objectives. After all, if the TSF itself can be corrupted, it will not perform its duties for long in a hostile environment.

While examining the justification, the evaluator takes into account that SFRs can be bypassed, tampered with, deactivated, or attacked without being detected, and that this may lead to the security objectives for the TOE not being achieved. In particular, the evaluator closely examines cases where: a) Reference mediation (FPT_RVM) is not included, as this indicates possible bypass; b) Domain separation (FPT_SEP) is not included, as this indicates possible logical tampering; c) TSF physical protection (FPT_PHP) is not included, as this indicates possible physical tampering;

March 2004 Version 2.4 Page 53 of 231

Protection Profile evaluation d) FAU: Security audit components are not included, as this indicates that attacks can be performed without being detected; e) FMT: Security management components have been included, as this provides a possibility to modify the behaviour of other SFRs,

315 and these cases are not or not sufficiently addressed by the security objectives for the operational environment.

APE_REQ.2.7C

The security requirements rationale shall trace each SAR back to the

security objectives for the development environment.

APE_REQ.2-11

The

SAR back to the security objectives for the development environment.

316

The evaluator determines that each SAR is traced back to at least one security objective for the development environment.

317

Failure to trace implies that either the security requirements rationale is incomplete, the security objectives for the development environment are incomplete, or that the SAR has no useful purpose.

APE_REQ.2.8C

The security requirements rationale shall demonstrate that the SARs meet

all security objectives for the development environment.

APE_REQ.2-12 evaluator that for each security objective for the development environment it justifies that the SARs are suitable to meet that security objective for the development environment.

318

319

320

321

322

If no SARs trace back to the security objective for the development environment, this work unit fails.

The evaluator determines that the justification for a security objective for the development environment demonstrates that the SARs are sufficient: if all

SARs that trace back to the objective are satisfied, the security objective for the development environment is achieved.

If the SARs that trace back to a security objective for the development environment have any uncompleted assignments, or uncompleted or restricted selections, the evaluator determines that for every conceivable completion or combination of completions of these operations, the security objective is still met.

The evaluator also determines that each SAR that traces back to a security objective for the development environment is necessary, when the SAR is satisfied, it actually contributes to achieving the security objective.

Note that the tracings from SARs to security objectives for the development environment provided in the security requirements rationale may be a part of the justification, but do not constitute a justification by themselves.

Page 54 of 231 Version 2.4 March 2004

Protection Profile evaluation

APE_REQ.2-13 evaluator determine that it is internally consistent.

323

The evaluator determines that the combined set of all SFRs and SARs is internally consistent.

324

The evaluator determines that on all occasions where different security requirements apply to the same types of developer evidence, events, operations, data, tests to be performed etc. or “all objects”, “all subjects” etc., that these requirements do not conflict.

325

Some possible conflicts are: a) FRU_RSA.2 Minimum and maximum quotas specifying a minimum number of resources available to a user and FTA_MCS.1 Basic limitation on multiple concurrent sessions specifying a maximum number of sessions available for a user. If the resources are somehow linked to sessions, these requirements may conflict; b) an extended assurance requirement specifying that the design of certain cryptographic algorithm is to be kept secret, and another extended assurance requirement specifying an open source review; c) FPR_ANO.1 Anonymity specifying anonymity, FAU_GEN.1 Audit data generation specifying that subject identity is to be logged, and

FAU_SAR.1 Audit review specifying who can read the audit records.

If people from whom the activities of users should be hidden, can read the audit logs of these activities, these requirements may conflict; d) FDP_RIP.1 Subset residual information protection specifying deletion of information no longer needed, and FDP_ROL.1 Basic rollback specifying that a TOE can return to a previous state. If the information that is needed for the rollback to the previous state has been deleted, these requirements conflict; e) Multiple iterations of FDP_ACC.1 Subset access control especially where some iterations cover the same subjects, objects, or operations.

If one access control policy allows a subject to perform an operation on an object, while another policy does not allow this, these requirements conflict.

3.4.7 Evaluation of Security problem definition (APE_SPD.1)

3.4.7.1 Objectives

326

The objective of this sub-activity is to determine that the security problem intended to be addressed by the TOE, its operational environment, and its development environment, is clearly defined.

March 2004 Version 2.4 Page 55 of 231

3.4.7.2 Input

327

The evaluation evidence for this sub-activity is: a) the PP.

Protection Profile evaluation

APE_SPD.1.1C

The security problem definition shall describe the threats.

APE_SPD.1-1

The threats.

328

329

If all security objectives are derived from assumptions and OSPs only, the statement of threats need not be present in the PP. In this case, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that the security problem definition describes the threats that must be countered by the TOE, its development environment, its operational environment or combinations of these three.

APE_SPD.1.2C

All threats shall be described in terms of a threat agent, an asset, and an

adverse action.

APE_SPD.1-2

The that all threats are described in terms of a threat agent, an asset, and an adverse action.

330

331

If all security objectives are derived from assumptions and OSPs only, the statement of threats need not be present in the PP. In this case, this work unit is not applicable and therefore considered to be satisfied.

Threat agents may be further described by aspects such as expertise, resource, opportunity, and motivation.

APE_SPD.1.3C

The security problem definition shall describe the OSPs.

APE_SPD.1-3 evaluator

OSPs.

332

333

If all security objectives are derived from assumptions and threats only,

OSPs need not be present in the PP. In this case, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that OSP statements are made in terms of rules, practices or guidelines that must be followed by the TOE, its development environment, its operational environment or combinations of these three.

334

The evaluator determines that each OSP is explained and/or interpreted in sufficient detail to make it clearly understandable; a clear presentation of policy statements is necessary to permit tracing security objectives to them.

Page 56 of 231 Version 2.4 March 2004

Protection Profile evaluation

APE_SPD.1.4C

The security problem definition shall describe the assumptions about the

operational environment of the TOE.

APE_SPD.1-4 evaluator that it describes the assumptions about the operational environment of the

TOE.

335

If the threats and/or OSPs already sufficiently address the physical, personnel, and connectivity aspects of the TOE, this work unit is not applicable and is therefore considered to be satisfied.

336

The evaluator determines that each assumption about the operational environment of the TOE is explained in sufficient detail to enable consumers to determine that their operational environment matches the assumption. If the assumptions are not clearly understood, the end result may be that the

TOE is used in an operational environment in which it will not function in a secure manner.

March 2004 Version 2.4 Page 57 of 231

EAL1 evaluation

4.1 Introduction

337

EAL1 provides a basic level of assurance. The TOE is analysed using a functional specification and guidance documentation to understand its security behaviour. Independent testing of the TSF against a subset of the

SFRs is performed.

4.2 Objectives

338

The objective of this chapter is to define the minimal evaluation effort for achieving an EAL1 evaluation and to provide guidance on ways and means of accomplishing the evaluation.

4.3 EAL1 evaluation relationships

339

340

341

342

An EAL1 evaluation covers the following: a) evaluation input task (Chapter 2); b) EAL1 evaluation activities comprising the following:

1) evaluation of the ST (Section 4.4);

2) evaluation of the configuration management (Section 4.5);

3) evaluation of the delivery and operation documents (Section

4.6);

4) evaluation of the development documents (Section 4.7);

5) evaluation of the guidance documents (Section 4.8);

6) testing (Section 4.9); c) evaluation output task (Chapter 2).

The evaluation activities are derived from the EAL1 assurance requirements contained in CC Part 3.

The ST evaluation is started prior to any TOE evaluation sub-activities since the ST provides the basis and context to perform these sub-activities.

The sub-activities comprising an EAL1 evaluation are described in this chapter. Although the sub-activities can, in general, be started more or less coincidentally, some dependencies between sub-activities have to be considered by the evaluator.

Page 58 of 231 Version 2.4 March 2004

EAL1 evaluation

4.4 Security activity

343

This section describes the evaluation of an ST. The ST evaluation should be started prior to any TOE evaluation sub-activities since the ST provides the basis and context to perform these sub-activities. The evaluation methodology in this section is based on the requirements on the ST as specified in CC Part 3 class ASE.

344

This Chapter should be used in conjunction with Annexes B and C in CC

Part 1, as these Annexes clarify the concepts here and provide many examples.

4.4.1.1

345

346

347

348

ST evaluation relationships

The activities to conduct a complete ST evaluation cover the following: a) evaluation input task (Section 2); b) ST evaluation activity, comprising the following sub-activities:

1) evaluation of the ST introduction (Section 4.4.4);

2) evaluation of the conformance claims (Section 4.4.2);

3) evaluation of the extended security requirements 4.4.3);

4) evaluation of the security requirements (Section 4.4.5);

5) evaluation of the TOE summary specification (Section 4.4.6). c) evaluation output task (Section 2).

The evaluation input and evaluation output tasks are described in Section 2.

The evaluation activities are derived from the ASE assurance requirements contained in CC Part 3.

The sub-activities comprising an ST evaluation are described in this clause.

Although the sub-activities can, in general, be started more or less coincidentally, some dependencies between sub-activities have to be considered by the evaluator.

Some of the information required for the ST may be included by reference.

For example if compliance to a PP is claimed, some information in the PP such as the threats may be included by reference only. All material that is referred to in such a way is considered to be part of the ST and should conform to the ASE criteria.

March 2004 Version 2.4 Page 59 of 231

EAL1 evaluation

4.4.1.2

349

350

351

Re-using the evaluation results of certified PPs

While evaluating an ST that is based on one or more certified PPs, it may be possible to re-use the fact that these PPs were certified. The potential for reuse of the result of a certified PP is greater if the ST does not add threats,

OSPs, assumptions, security objectives and/or security requirements to those of the PP.

The evaluator is allowed to re-use the PP evaluation results by doing certain analyses only partially or not at all if these analyses or parts thereof were already done as part of the PP evaluation. While doing this, the evaluator should assume that the analyses in the PP were performed correctly.

An example would be where the PP contained a set of security requirements, and these were determined to be internally consistent during the PP evaluation. If the ST uses the exact same requirements, the consistency analysis does not have to be repeated during the ST evaluation. If the ST adds one or more requirements, or performs operations on these requirements, the analysis will have to be repeated. However, it may be possible to save work in this consistency analysis by using the fact that the original requirements are internally consistent. If the original requirements are internally consistent, the evaluator only has to determine that: a) the set of all new and/or changed requirements is internally consistent, and

352 b) the set of all new and/or changed requirements is consistent with the original requirements.

The evaluator notes in the ETR each case where analyses are not done or only partially done for this reason.

4.4.2 Evaluation of Conformance claims (ASE_CCL.1)

4.4.2.1 Objectives

353

The objective of this sub-activity is to determine the validity of various conformance claims. These describe how the ST and the TOE conform to the

CC and how the ST conforms to PPs and packages.

4.4.2.2 Input

354

The evaluation evidence for this sub-activity is: a) the ST; b) the PP(s) that the ST claims conformance to; c) the package(s) that the ST claims conformance to.

Page 60 of 231 Version 2.4 March 2004

EAL1 evaluation

ASE_CCL.1.1C

The conformance claim shall contain a CC conformance claim that identifies the version of the CC to which the ST and the TOE claim

conformance.

1:ASE_CCL.1-1

The conformance claim that identifies the version of the CC to which the ST and the TOE claim conformance.

355

The evaluator determines that the CC conformance claim identifies the version of the CC that was used to develop this ST. This should include the version number of the CC and, unless the International English version of the

CC was used, the language of the version of the CC that was used.

ASE_CCL.1.2C

The CC conformance claim shall describe the conformance of the ST to

CC Part 2 as either CC Part 2 conformant or CC Part 2 extended.

1:ASE_CCL.1-2

The either CC Part 2 conformant or Part 2 extended for the ST.

ASE_CCL.1.3C

The CC conformance claim shall describe the conformance of the ST to

CC Part 3 as either CC Part 3 conformant or CC Part 3 extended.

1:ASE_CCL.1-3

The either CC Part 3 conformant or CC Part 3 extended for the ST.

ASE_CCL.1.4C

The CC conformance claim shall be consistent with the extended

components definition.

1:ASE_CCL.1-4

The determine that it is consistent with the extended components definition.

356

If the CC conformance claim contains CC Part 2 conformant, the evaluator determines that the extended components definition does not define functional components.

357

If the CC conformance claim contains CC Part 2 extended, the evaluator determines that the extended components definition defines at least one extended functional component.

1:ASE_CCL.1-5 evaluator determine that it is consistent with the extended components definition.

358

359

If the CC conformance claim contains CC Part 3 conformant, the evaluator determines that the extended components definition does not define assurance components.

If the CC conformance claim contains CC Part 3 extended, the evaluator determines that the extended components definition defines at least one extended assurance component.

March 2004 Version 2.4 Page 61 of 231

EAL1 evaluation

ASE_CCL.1.5C

The conformance claim shall identify all PPs and security requirement

packages to which the ST claims conformance.

1:ASE_CCL.1-6

The that identifies all PPs for which the ST claims conformance.

360

The evaluator determines that any referenced PPs are unambiguously identified (e.g. by title and version number, or by the identification included in the introduction of that PP).

361

The evaluator is reminded that claims of partial conformance to a PP are not permitted.

1:ASE_CCL.1-7

The claim that identifies all packages to which the ST claims conformance.

362

The evaluator determines that any referenced packages are unambiguously identified (e.g. by title and version number, or by the identification included in the introduction of that package).

363

The evaluator is reminded that claims of partial conformance to a package are not permitted.

ASE_CCL.1.6C

The conformance claim shall describe any conformance of the ST to a

package as either package-conformant or package-augmented.

1:ASE_CCL.1-8

The package-name conformant or package-name augmented.

364

If the package conformance claim contains package-name conformant, the evaluator determines that the ST contains no security requirements in addition to those included in the package.

365

If the package conformance claim contains package-name augmented, the evaluator determines that the ST includes at least one security requirement in addition to those included in the package.

ASE_CCL.1.7C

The conformance claims rationale shall demonstrate that the TOE type is consistent with the TOE type in the PPs for which conformance is being

claimed.

1:ASE_CCL.1-9 evaluator that the TOE type of the TOE is consistent with all TOE types of the PPs.

366

367

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

The relation between the types could be simple: a firewall ST claiming conformance to a firewall PP, or more complex: a smartcard ST claiming conformance to a number of PPs at the same time: a PP for the integrated circuit, a PP for the smartcard OS, and two PPs for two applications on the smartcard.

Page 62 of 231 Version 2.4 March 2004

EAL1 evaluation

ASE_CCL.1.8C

The conformance claims rationale shall demonstrate that the statement of the security problem definition is consistent with the statement of the security problem definition in the PPs for which conformance is being

claimed.

1:ASE_CCL.1-10

The that it demonstrates that the statement of security problem definition is consistent, as defined by the conformance statement of the PP, with the statements of security problem definition stated in the PPs.

368

369

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

The conformance claim rationale will be trivial in the case where exact conformance is required by the PP. In this instance the statement of SPD must be stated in exactly the same wording as that used in the PP. The ST may repeat any threats, OSPs and/or assumptions or it may include them by reference to the PP they come from.

370

371

Where strict or demonstrable conformance is required by the PP, the conformance claim rationale should provide a tracing between the statement of SDP in the ST and that in the PP. This tracing should be sufficient for the evaluator to determine that all threats, assumptions and OSPs detailed in the

PP are represented in the ST.

The evaluator is reminded that if strict or demonstrable conformance with

PPs is required, the ST author is allowed to add threats, OSPs and/or assumptions to those drawn from those in the PPs.

ASE_CCL.1.9C

The conformance claims rationale shall demonstrate that the statement of objectives is consistent with the statement of objectives in the PPs for

which conformance is being claimed.

1:ASE_CCL.1-11 evaluator that the statement of security objectives is consistent, as defined by the conformance statement of the PP, with the statement of security objectives in the PPs.

372

373

374

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

The conformance claim rationale will be trivial in the case where exact conformance is required by the PP. In this instance the security objectives must be stated in exactly the same wording as that used in the PP. The ST may repeat any security objective, or it may include it by reference to the PP it comes from.

Where strict or demonstrable conformance is required by the PP, the conformance claim rationale should provide a tracing between the statement of security objectives in the ST and that in the PP. This tracing should be

March 2004 Version 2.4 Page 63 of 231

EAL1 evaluation

375

376

377 sufficient for the evaluator to determine that all security objectives detailed in the PP are represented in the ST.

The evaluator is reminded that if strict or demonstrable conformance with

PPs is required, the ST author is allowed to add objectives to those drawn from those in the PPs.

ASE_CCL.1.10C

The conformance claims rationale shall demonstrate that the statement of security requirements is consistent with the statement of security

requirements in the PPs for which conformance is being claimed.

1:ASE_CCL.1-12

The defined by the conformance statement of the PP, with all security requirements in the PPs for which conformance is being claimed.

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

The ST may repeat any security requirements or it may include them by reference to the PP(s) they come from. If, however, the PP security requirements include uncompleted operations, or the ST author has applied the refinement operation on any PP security requirements, then these security requirements must be fully present in the ST.

378

379

380

381

For exact conformance, the conformance rationale will be trivial, as the statement of security requirements in the ST must include the same requirements as in the PPs, with no additions, deletions or substitutions.

For strict conformance, the conformance rationale will be trivial again; demonstrating that the statement of requirements in the ST is a non-strict super set of those in the PP. That is, that all requirements in the PP have been included in the ST, possibly with some additional requirements.

For demonstrable conformance, the evaluator determines that the justification for the security requirements in the PP demonstrates that each requirement is represented by one or more security requirements in the ST.

The evaluator is also reminded that if strict or demonstrable conformance with PPs is required, the ST author is allowed to add security requirements to those drawn from those PPs.

ASE_CCL.1.11C

The conformance claims rationale shall demonstrate that all operations of the security requirements that were taken from a PP are completed

consistently with the respective PP.

1:ASE_CCL.1-13 evaluator that that the completion of the security requirements in the ST are consistent, in the manner specified in the PP, with those in the PP.

382

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

Page 64 of 231 Version 2.4 March 2004

EAL1 evaluation

383

384

The PP may already have partially completed operations in a requirement, or set other limits on the completion of those operations. If this is the case, the evaluator determines that the corresponding requirement in the ST is completed consistent with these partial completions and/or limits.

An example of an inconsistent completion is a PP that partially completes the first assignment in FIA_AFL.1 Authentication failure handling “The TSF shall detect when [assignment: number] unsuccessful authentication attempts occur...” as “The TSF shall detect when [assignment: a number between 1 and 5] unsuccessful authentication attempts occur...”. The ST that claims conformance to this PP, copies the requirement in the ST and completes it as

“The TSF shall detect when 8 unsuccessful authentication attempts occur...”.

385

Note that, if the PP in the example above would mandate exactly 5 unsuccessful authentication attempts, a completion in the ST with any number other than 5 would be an inconsistent completion.

ASE_CCL.1.12C

The conformance claims rationale shall demonstrate that the statement of security requirements is consistent with the statement of security requirements in the security requirement package for which conformance

is being claimed.

1:ASE_CCL.1-14

The security requirements in the packages for which conformance is being claimed.

386

387

If the ST does not claim conformance with a security requirements package, this work unit is not applicable and therefore considered to be satisfied.

The ST may repeat any security requirements or it may include them by reference to the package(s) they come from. If, however, the package security requirements include uncompleted operations, or the ST author has applied the refinement operation on any package security requirements, then these security requirements must be fully present in the ST.

388

The evaluator is also reminded that if the conformance claim is packagename augmented the ST author is permitted to add security requirements to those drawn from that package.

ASE_CCL.1.13C

The conformance claims rationale shall demonstrate that all operations of the security requirements in the ST that were taken from a package are

completed consistently with the respective security requirement package.

1:ASE_CCL.1-15 evaluator requirements in the ST that were taken from a security requirements package or PP are completed consistently with that security requirements package or

PP.

389

If the ST does not claim conformance with a security requirements package, this work unit is not applicable and therefore considered to be satisfied.

March 2004 Version 2.4 Page 65 of 231

EAL1 evaluation

390

391

If the security requirements package has already partially completed operations in a requirement, or has set other limits on the completion of those operations, the evaluator determines that the corresponding requirement in the ST is completed consistent with these partial completions and/or limits.

An example of an inconsistent completion is a package that partially completes the first assignment in FIA_AFL.1 Authentication failure handling

“The TSF shall detect when [assignment: number] unsuccessful authentication attempts occur...” as “The TSF shall detect when [assignment: a number between 1 and 5] unsuccessful authentication attempts occur...”.

The ST that claims conformance to this package, copies the requirement in the ST and completes it as “The TSF shall detect when 8 unsuccessful authentication attempts occur...”.

392

Note that, if the security requirements package in the example above would mandate exactly 5 unsuccessful authentication attempts, a completion in the

ST with any number other than 5 would be an inconsistent completion.

4.4.3 Evaluation of Extended components definition (ASE_ECD.1)

4.4.3.1 Objectives

393

The objective of this sub-activity is to determine whether extended components have been clearly and unambiguously defined, and whether they are necessary, i.e. they could not have been clearly expressed using existing

CC Part 2 or CC Part 3 components.

4.4.3.2 Input

394

The evaluation evidence for this sub-activity is: a) the ST.

ASE_ECD.1.1C

The statement of security requirements shall identify all extended security

requirements.

1:ASE_ECD.1-1

The security requirements that are not identified as extended requirements are present in CC Part 2 or Part 3.

ASE_ECD.1.2C

The extended components definition shall define an extended component

for each extended security requirement.

1:ASE_ECD.1-2 evaluator an extended component for each extended security requirement.

395

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

Page 66 of 231 Version 2.4 March 2004

EAL1 evaluation

396

A single extended component may be used to define multiple iterations of an extended security requirement, it is not necessary to repeat this definition for each iteration.

ASE_ECD.1.3C

The extended components definition shall describe how each extended

component is related to the existing CC components, families, and classes.

1:ASE_ECD.1-3

The determine that it describes how each extended component fits into the existing CC components, families, and classes.

397

398

399

400

401

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that each extended component is either: a) a member of an existing CC Part 2 or CC Part 3 family, or b) a member of a new family defined in the ST

If the extended component is a member of an existing CC Part 2 or Part 3 family, the evaluator determines that the extended components definition adequately describes why the extended component should be a member of that family and how it relates to other components of that family.

If the extended component is a member of a new family defined in the ST, the evaluator confirms that the extended component is not appropriate for an existing family.

If the ST defines new families, the evaluator determines that each new family is either: a) a member of an existing CC Part 2 or CC Part 3 class, or b) a member of a new class defined in the ST

402

403

If the family is a member of an existing CC Part 2 or CC Part 3 class, the evaluator determines that the extended components definition adequately describes why the family should be a member of that class and how it relates to other families in that class.

If the family is a member of a new class defined in the ST, the evaluator confirms that the family is not appropriate for an existing class.

1:ASE_ECD.1-4 evaluator determine that each definition of an extended component identifies all applicable dependencies of that component.

404

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

March 2004 Version 2.4 Page 67 of 231

EAL1 evaluation

405

The evaluator confirms that no applicable dependencies have been overlooked by the ST author.

1:ASE_ECD.1-5

The determine that each definition of an extended functional component identifies all applicable audit information of that component.

406

407

408

If the ST does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

The evaluator confirms that no applicable security relevant events that are candidates for audit have been overlooked by the ST author.

For guidance on audit information of a component, see CC Part 2, Section

2.1.2.5

1:ASE_ECD.1-6

The definition to determine that each definition of an extended functional component identifies all applicable security management information of that component.

409

410

411

414

415

If the ST does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

The evaluator confirms that no applicable security management functions for this component have been overlooked by the ST author.

For guidance on security management information of a component, see CC

Part 2, Section 2.1.2.4

ASE_ECD.1.4C

The extended components definition shall use the existing CC components,

families, classes, and methodology as a model for presentation.

1:ASE_ECD.1-7 evaluator determine that each extended functional component uses the existing CC Part

2 components as a model for presentation.

412

If the ST does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

413

The evaluator determines that the extended functional component is consistent with CC Part 2 Section 2.1.3 Component structure.

If the extended functional component uses operations, the evaluator determines that the extended functional component is consistent with CC

Part 1 Section 4.4.1.3 Component.

If the extended functional component is hierarchical to an existing functional component, the evaluator determines that the extended functional component is consistent with CC Part 2 Section 2.2.1 Component changes highlighting.

Page 68 of 231 Version 2.4 March 2004

EAL1 evaluation

1:ASE_ECD.1-8

The determine that each definition of a new functional family uses the existing

CC functional families as a model for presentation.

416

If the ST does not define new functional families, this work unit is not applicable and therefore considered to be satisfied.

417

The evaluator determines that all new functional families are defined consistent with CC Part 2 Section 2.1.2 Family structure.

1:ASE_ECD.1-9

The determine that each definition of a new functional class uses the existing CC functional classes as a model for presentation.

418

If the ST does not define new functional classes, this work unit is not applicable and therefore considered to be satisfied.

419

The evaluator determines that all new functional classes are defined consistent with CC Part 2 Section 2.1.1 Class structure.

1:ASE_ECD.1-10

The evaluator shall examine the extended components definition to determine that each definition of an extended assurance component uses the existing CC Part 3 components as a model for presentation.

420

421

If the ST does not contain extended SARs, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that the extended assurance component definition is consistent with CC Part 3 Section 2.1.3 Assurance component structure.

422

423

425

If the extended assurance component uses operations, the evaluator determines that the extended assurance component is consistent with CC Part

1 Section 4.4.1.3 Component.

If the extended assurance component is hierarchical to an existing assurance component, the evaluator determines that the extended assurance component is consistent with CC Part 3 Section 2.1.3 Assurance component structure.

1:ASE_ECD.1-11

The evaluator shall examine the extended components definition to determine that for each defined extended assurance component, applicable methodology has been provided.

424

If the ST does not contain extended SARs, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that for each evaluator action element of each extended SAR one or more work units is provided and that succesfully performing all work units for a given evaluator action element will demonstrate that the element has been achieved.

March 2004 Version 2.4 Page 69 of 231

EAL1 evaluation

1:ASE_ECD.1-12

The evaluator shall examine the extended components definition to determine that each definition of a new assurance family uses the existing

CC assurance families as a model for presentation.

426

If the ST does not define new assurance families, this work unit is not applicable and therefore considered to be satisfied.

427

The evaluator determines that all new assurance families are defined consistent with CC Part 3 Section 2.1.2 Assurance family structure.

1:ASE_ECD.1-13

The evaluator shall examine the extended components definition to determine that each definition of a new assurance class uses the existing CC assurance classes as a model for presentation.

428

If the ST does not define new assurance classes, this work unit is not applicable and therefore considered to be satisfied.

429

The evaluator determines that all new assurance classes are defined consistent with CC Part 3 Section 2.1.1 Class structure.

ASE_ECD.1.5C

The extended components shall consist of measurable and objective elements such that compliance or noncompliance to these elements can be

demonstrated.

1:ASE_ECD.1-14

The evaluator shall examine the extended components definition to determine that each element in each extended component is measurable and states objective evaluation requirements, such that compliance or noncompliance can be demonstrated.

430

431

432

433

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that elements of extended functional components are stated in such a way that they are testable, and traceable through the appropriate TSF representations.

The evaluator also determines that elements of extended assurance requirements avoid the need for subjective evaluator judgement.

The evaluator is reminded that whilst being measurable and objective is appropriate for all evaluation criteria, it is acknowledged that no formal method exists to prove such properties. Therefore the existing CC functional and assurance requirements are to be used as a model for determining what constitutes compliance with this requirement.

1:ASE_ECD.1-15

The evaluator shall examine the extended components definition to determine that each extended component can not be clearly expressed using existing components.

Page 70 of 231 Version 2.4 March 2004

EAL1 evaluation

434

435

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that each extended component cannot be clearly expressed using existing components. The evaluator should take components from CC Part 2 and Part 3, other extended components that have been defined in the ST, combinations of these components, and possible operations on these components into account when making this determination.

436

438

The evaluator is reminded that the role of this work unit is to preclude unnecessary duplication of components, that is, components that can be clearly expressed using other components. The evaluator should not undertake an exhaustive search of all possible combinations of components including operations in an attempt to find a way to express the extended component with existing components.

4.4.4 Evaluation of ST introduction (ASE_INT.1)

4.4.4.1 Objectives

437

The objective of this sub-activity is to determine whether the ST and the

TOE are correctly identified, whether the TOE is correctly described in a narrative way at three levels of abstraction (TOE reference, TOE overview and TOE description), and whether these three descriptions are consistent with each other.

4.4.4.2 Input

The evaluation evidence for this sub-activity is: a) the ST.

ASE_INT.1.1C

The ST introduction shall contain an ST reference, a TOE reference, a

TOE overview and a TOE description.

1:ASE_INT.1-1

The a TOE reference, a TOE overview and a TOE description.

ASE_INT.1.2C

The ST reference shall uniquely identify the ST.

1:ASE_INT.1-2 evaluator identifies the ST.

439

The evaluator determines that the ST reference identifies the ST itself, so that it can be easily distinguished from other STs, and that it also uniquely identifies each version of the ST, e.g. by including a version number and/or a date of publication.

March 2004 Version 2.4 Page 71 of 231

EAL1 evaluation

440

In evaluations where a CM system is provided, the evaluator could validate the uniqueness of the reference by checking the configuration list. In the other cases, the ST should have some referencing system that is capable of supporting unique references (e.g. use of numbers, letters or dates).

ASE_INT.1.3C

The TOE reference shall identify the TOE.

1:ASE_INT.1-3

The the TOE.

441

442

The evaluator determines that the TOE reference identifies the TOE, so that it is clear to which TOE the ST refers, and that it also identifies the version of the TOE, e.g. by including a version/release/build number, or a date of release.

This work unit is limited to the TOE reference in the ST, checking whether the TOE is actually labelled with this reference, and whether these references are consistent, is covered by the ACM_CAP CM capabilities family.

1:ASE_INT.1-4

The misleading.

443

If the TOE is related to one or more well-known products, it is allowed to reflect this in the TOE reference. However, this should not be used to mislead consumers: situations where only a small part of a product are evaluated, yet the TOE reference does not reflect this, are not allowed.

ASE_INT.1.4C

The TOE overview shall summarise the usage and major security features

of the TOE.

1:ASE_INT.1-5

The the usage and major security features of the TOE.

444

The TOE overview should briefly (i.e. several paragraphs) describe the usage and major security features of the TOE. The TOE overview should enable potential consumers to quickly determine whether the TOE may be suitable for their security needs.

445

The evaluator determines whether the overview is clear enough for consumers, and sufficient to give them a general understanding of the intended usage and major security features of the TOE.

ASE_INT.1.5C

The TOE overview shall identify the TOE type.

1:ASE_INT.1-6

The

1:ASE_INT.1-7 evaluator type is not misleading.

446

There are situations where the general consumer would expect certain functionality of the TOE because of its TOE type. If this functionality is

Page 72 of 231 Version 2.4 March 2004

EAL1 evaluation

447 absent in the TOE, the evaluator determines that the TOE overview adequately discusses this absence.

There are also TOEs where the general consumer would expect that the TOE should be able to operate in a certain operational environment because of its

TOE type. If the TOE can not operate in such an operational environment, the evaluator determines that the TOE overview adequately discusses this.

ASE_INT.1.6C

The TOE overview shall identify any non-TOE

hardware/software/firmware required by the TOE.

1:ASE_INT.1-8

The any non-TOE hardware/software/firmware required by the TOE.

448

While some TOEs can run stand-alone, other TOEs (notably software TOEs) need additional hardware, software or firmware to operate. If the TOE does not require any hardware, software or firmware, this work unit is not applicable and is therefore considered to be satisfied.

449

The evaluator determines that the TOE overview identifies any additional hardware, software and firmware needed by the TOE to operate. This identification does not have to be exhaustive but should be detailed enough for potential consumers of the TOE to determine whether their current hardware, software and firmware support use of the TOE, and, if this is not the case, which additional hardware, software and/or firmware is needed.

ASE_INT.1.7C

The TOE description shall describe the physical scope and boundaries of

the TOE.

1:ASE_INT.1-9 evaluator describes the physical scope and boundaries of the TOE.

450

451

The evaluator determines that the TOE description discusses the hardware, firmware and software components and/or modules that constitute the TOE at a level of detail that is sufficient to give the reader a general understanding of those components and/or modules.

The evaluator also determines that the TOE description lists all guidance that is part of the TOE.

452

453

The evaluator also determines that the TOE description describes exactly where the boundary lies between the TOE hardware/software/firmware and any non-TOE hardware/software/firmware.

The evaluator also determines that the TOE description describes exactly where the boundary between the TOE guidance and any non-TOE guidance lies.

ASE_INT.1.8C

The TOE description shall describe the logical scope and boundaries of the

TOE.

March 2004 Version 2.4 Page 73 of 231

EAL1 evaluation

1:ASE_INT.1-10

The describes the logical scope and boundaries of the TOE.

454

The evaluator determines that the TOE description discusses the logical security features offered by the TOE at a level of detail that is sufficient to give the reader a general understanding of those features.

455

The evaluator also determines that the TOE description describes exactly where the boundary lies between functionality provided by the TOE, and functionality provided by any non-TOE hardware/software/firmware.

1:ASE_INT.1-11

The description to determine that they are consistent with each other.

4.4.5 Evaluation of Security requirements (ASE_REQ.1)

4.4.5.1 Objectives

456

The objective of this sub-activity is to determine whether the SFRs and

SARs are clear, unambiguous and canonically formulated and whether they are internally consistent.

4.4.5.2 Input

457

The evaluation evidence for this sub-activity is: a) the ST.

ASE_REQ.1.1C

The statement of security requirements shall describe the SFRs and the

SARs.

1:ASE_REQ.1-1 evaluator describes the SFRs.

458

The evaluator determines that all SFRs are identified by one of the following means: a) by reference to an individual component in CC Part 2; b) by reference to an extended component in the extended components definition of the ST; c) by reference to an individual component in a PP that the ST claims to be compliant with; d) by reference to an individual component in a security requirements package that the ST claims to be compliant with; e) by reproduction in the ST.

Page 74 of 231 Version 2.4 March 2004

EAL1 evaluation

459

460

It is not required to use the same means of identification for all SFRs.

If an SFR is reproduced in the ST, the evaluator determines that it has been reproduced correctly by comparing it to the definition of its component in

CC Part 2.

1:ASE_REQ.1-2

The describes the SARs.

461

The evaluator determines that all SARs are identified by one of the following means: a) by reference to an individual component in CC Part 3; b) by reference to an extended component in the extended components definition of the ST; c) by reference to an individual component in a PP that the ST claims to be compliant with; d) by reference to an individual component in a security requirements package that the ST claims to be compliant with; e) by reproduction in the ST.

It is not required to use the same means of identification for all SARs.

462

463

If an SAR is reproduced in the ST, the evaluator determines that it has been reproduced correctly by comparing it to the definition of its component in

CC Part 3.

ASE_REQ.1.2C

The statement of security requirements shall identify all operations on the

security requirements.

1:ASE_REQ.1-3

The identifies all operations on the security requirements.

464

The evaluator determines that all operations are identified in each SFR or

SAR where such an operation is used. Identification can be achieved by typographical distinctions, or by explicit identification in the surrounding text, or by any other distinctive means.

ASE_REQ.1.3C

All assignment and selection operations shall be completed.

1:ASE_REQ.1-4 evaluator determine that each assignment and each selection operation is completed.

465

The evaluator determines that there are no choices left in the assignments and selections of all SFRs and all SARs.

ASE_REQ.1.4C

All operations shall be performed correctly.

March 2004 Version 2.4 Page 75 of 231

EAL1 evaluation

1:ASE_REQ.1-5

The determine that all assignment operations are performed correctly.

466

An assignment operation is only allowed where specifically permitted in a component.

467

The evaluator compares each assignment with the component from which it is derived to determine that the values of the parameters or variables chosen comply with the indicated type required by the assignment. An assignment may only be completed with “None” if this is specifically allowed.

1:ASE_REQ.1-6

The determine that all iteration operations are performed correctly.

468

The evaluator determines that each iteration of a requirement is different from each other iteration of that requirement (at least one element is different), or that the requirement applies to a different part of the TOE.

1:ASE_REQ.1-7

The determine that all selection operations are performed correctly.

469

470

A selection operation is only allowed where specifically permitted in a component.

The evaluator compares each selection with the component from which it is derived to determine that the selected item or items are one or more of the items indicated within the selection portion of the component. The evaluator also determines that where a selection explicitly states “choose one of”, only one item is selected.

1:ASE_REQ.1-8 evaluator determine that all refinement operations are performed correctly.

471

The evaluator determines for each refinement that the component is refined in such manner that a TOE meeting the refined requirement also meets the unrefined requirement. If the refined requirement exceeds this boundary it is considered to be an extended requirement.

472

473

474

A special case of refinement is an editorial refinement, where a small change is made in a requirement, i.e. rephrasing a sentence due to adherence to proper English grammar. This change is not allowed to modify the meaning of the requirement in any way. The evaluator is reminded that editorial refinements have to be clearly identified.

Another special case of refinement is where multiple iterations of the same requirement are used, each with different refinements, where some of the refined iterations do not meet the full scope of the original requirement. This is acceptable, provided that all iterations of the refined requirement taken collectively, meet the entire scope of the original requirement.

In addition, a refinement should be related to the original requirement.

Refining an audit requirement with an extra element on prevention of

Page 76 of 231 Version 2.4 March 2004

EAL1 evaluation electromagnetic radiation is normally not allowed. This refinement should be added to another requirement, or if no applicable requirement to refine can be found, be formulated as an extended requirement.

1:ASE_REQ.1-9 evaluator determine that it is internally consistent.

475

The evaluator determines that the combined set of all SFRs and SARs is internally consistent.

476

The evaluator determines that on all occasions where different security requirements apply to the same types of developer evidence, events, operations, data, tests to be performed etc. or “all objects”, “all subjects” etc., that these requirements do not conflict.

477

Some possible conflicts are: a) FRU_RSA.2 Minimum and maximum quotas specifying a minimum number of resources available to a user and FTA_MCS.1 Basic limitation on multiple concurrent sessions specifying a maximum number of sessions available for a user. If the resources are somehow linked to sessions, these requirements may conflict; b) an extended assurance requirement specifying that the design of certain cryptographic algorithm is to be kept secret, and another extended assurance requirement specifying an open source review; c) FPR_ANO.1 Anonymity, FAU_GEN.1 Audit data generation specifying that subject identity is to be logged, and FAU_SAR.1

Audit review specifying who can read the audit records. If people from whom the activities of users should be hidden, can read the audit logs of these activities, these requirements may conflict; d) FDP_RIP.1 Subset residual information protection specifying deletion of information no longer needed, and FDP_ROL.1 Basic rollback specifying that a TOE can return to a previous state. If the information that is needed for the rollback to the previous state has been deleted, these requirements conflict; e) Multiple iterations of FDP_ACC.1 Subset access control especially where some iterations cover the same subjects, objects, or operations.

If one access control policy allows a subject to perform an operation on an object, while another policy does not allow this, these requirements conflict.

March 2004 Version 2.4 Page 77 of 231

EAL1 evaluation

4.4.6 Evaluation of TOE summary specification (ASE_TSS.1)

4.4.6.1 Objectives

478

The objective of this sub-activity is to determine whether the TOE summary specification addresses all SFRs, and whether the TOE summary specification is consistent with other narrative descriptions of the TOE.

4.4.6.2 Input

479

The evaluation evidence for this sub-activity is: a) the ST.

ASE_TSS.1.1C

The TOE summary specification shall describe how the TOE meets each

SFR.

1:ASE_TSS.1-1

The that it describes how the TOE meets each SFR.

480

The evaluator determines that the TOE summary specification provides, for each SFR from the statement of security requirements, a description on how that SFR is met.

481

The evaluator is reminded that the objective of each description is to provide potential consumers of the TOE with a high-level view of how the developer intends to satisfy each SFR and that the descriptions therefore should not be overly detailed.

1:ASE_TSS.1-2 evaluator that it is consistent with the TOE overview and the TOE description.

482

The TOE overview, TOE description, and TOE summary specification describe the TOE in a narrative form at increasing levels of detail. These descriptions therefore need to be consistent.

483

The purpose of the configuration management activity is to assist the consumer in identifying the evaluated TOE.

4.5.1 Evaluation of CM capabilities (ACM_CAP.1)

4.5.1.1 Objectives

484

The objectives of this sub-activity are to determine whether the developer has clearly identified the TOE.

Page 78 of 231 Version 2.4 March 2004

EAL1 evaluation

4.5.1.2 Input

485

The evaluation evidence for this sub-activity is: a) the ST; b) the TOE suitable for testing.

ACM_CAP.1.1C

The reference for the TOE shall be unique to each version of the TOE.

1:ACM_CAP.1-1

The evaluation is uniquely referenced.

486

487

For this assurance component there is no requirement for the developer to use a CM system, beyond unique referencing. As a result the evaluator is able to verify the uniqueness of a TOE version only by checking that other versions of the TOE available for purchase do not possess the same reference. In evaluations where a CM system was provided in excess of the

CC requirements, the evaluator could validate the uniqueness of the reference by checking the configuration list. Evidence that the version provided for evaluation is uniquely referenced may be incomplete if only one version is examined during the evaluation, and the evaluator should look for a referencing system that is capable of supporting unique references (e.g. use of numbers, letters or dates). However, the absence of any reference will normally lead to a fail verdict against this requirement unless the evaluator is confident that the TOE can be uniquely identified.

The evaluator should seek to examine more than one version of the TOE

(e.g. during rework following discovery of a vulnerability), to check that the two versions are referenced differently.

ACM_CAP.1.2C

The TOE shall be labelled with its reference.

1:ACM_CAP.1-2

The with its reference.

488

489

The evaluator should ensure that the TOE contains a unique reference such that it is possible to distinguish different versions of the TOE. This could be achieved through labelled packaging or media, or by a label displayed by the operational TOE. This is to ensure that it would be possible for consumers to identify the TOE (e.g. at the point of purchase or use).

The TOE may provide a method by which it can be easily identified. For example, a software TOE may display its name and version number during the start up routine, or in response to a command line entry. A hardware or firmware TOE may be identified by a part number physically stamped on the

TOE.

1:ACM_CAP.1-3 evaluator

March 2004 Version 2.4 Page 79 of 231

490

491

4.6

492

EAL1 evaluation

If the TOE is labelled more than once then the labels have to be consistent.

For example, it should be possible to relate any labelled guidance documentation supplied as part of the TOE to the evaluated operational TOE.

This ensures that consumers can be confident that they have purchased the evaluated version of the TOE, that they have installed this version, and that they have the correct version of the guidance to operate the TOE in accordance with its ST.

The evaluator also verifies that the TOE reference is consistent with the ST.

Delivery and operation activity

The purpose of the delivery and operation activity is to judge the adequacy of the documentation of the procedures used to ensure that the TOE is installed, generated, and started in the same way the developer intended it to be.

4.6.1.1 Objectives

493

The objective of this sub-activity is to determine whether the procedures and steps for the secure installation, generation, and start-up of the TOE have been documented and result in a secure configuration.

494

The installation, generation, and start-up procedures refer to all installation, generation, and start-up procedures, regardless of whether they are performed at the user's site or at the development site that are necessary to progress the TOE to the secure configuration as described in the ST.

4.6.1.3 Input

495

The evaluation evidence for this sub-activity is: a) the administrator guidance; b) the secure installation, generation, and start-up procedures; c) the TOE suitable for testing.

ADO_IGS.1.1C

The installation, generation and start-up documentation shall describe all the steps necessary for secure installation, generation and start-up of the

TOE.

1:ADO_IGS.1-1 evaluator installation, generation and start-up of the TOE have been provided.

496

If it is not anticipated that the installation, generation, and start-up procedures will or can be reapplied (e.g. because the TOE may already be

Page 80 of 231 Version 2.4 March 2004

EAL1 evaluation delivered in an operational state) this work unit (or the effected parts of it) is not applicable, and is therefore considered to be satisfied.

1:ADO_IGS.1-2 evaluator up procedures to determine that they describe the steps necessary for secure installation, generation, and start-up of the TOE.

497

498

If it is not anticipated that the installation, generation, and start-up procedures will or can be reapplied (e.g. because the TOE may already be delivered in an operational state) this work unit (or the effected parts of it) is not applicable, and is therefore considered to be satisfied.

The installation, generation, and start-up procedures may provide detailed information about the following:

499 a) changing the installation specific security characteristics of entities under the control of the TSF; b) handling exceptions and problems; c) minimum system requirements for secure installation if applicable.

In order to confirm that the installation, generation, and start-up procedures result in a secure configuration, the evaluator may follow the developer's procedures and may perform the activities that customers are usually expected to perform to install, generate, and start-up the TOE (if applicable to the TOE), using the supplied guidance documentation only. This work unit might be performed in conjunction with the ATE_IND.1-2 work unit.

500

The purpose of the development activity is to assess the design documentation in terms of its adequacy to understand how the TSF meets the

SFRs. This understanding is achieved through examination of a functional specification (which describes the external interfaces of the TOE) and a representation correspondence (which maps the functional specification to the SFRs) in order to ensure consistency).

501

502

March 2004

The CC requirements for design documentation are levelled by formality.

The CC considers a document's degree of formality (that is, whether it is informal, semiformal or formal) to be hierarchical. An informal document is one that is expressed in a natural language. The methodology does not dictate the specific language that must be used; that issue is left for the scheme. The following paragraphs differentiate the contents of the different informal documents.

An informal functional specification comprises a description of the purpose and method of use of the externally-visible interfaces to the TSF. For

Version 2.4 Page 81 of 231

EAL1 evaluation

503 example, if an operating system presents the user with a means of selfidentification, of creating files, of modifying or deleting files, of setting permissions defining what other users may access files, and of communicating with remote machines, its functional specification would contain descriptions of each of these functions. If there is also audit functionality that detects and records the occurrences of such events, descriptions of this audit functionality would also be expected to be part of the functional specification; while this functionality is technically not directly invoked by the user at the external interface, it certainly is affected by what occurs at the user's external interface.

Informality of the demonstration of correspondence need not be in a prose form; a simple two-dimensional mapping may be sufficient. For example, a matrix with modules listed along one axis and subsystems listed along the other, with the cells identifying the correspondence of the two, would serve to provide an adequate informal correspondence between the high-level design and the low-level design

4.7.2 Evaluation of Functional specification (ADV_FSP.1)

4.7.2.1 Objectives

504

The objective of this sub-activity is to determine whether the developer has provided an adequate description of the TSF and whether this shows that all

SFRs have been sufficiently addressed.

4.7.2.2 Input

505

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the user guidance; d) the administrator guidance.

ADV_FSP.1.1C

The functional specification shall describe the TSF and its external

interfaces using an informal style.

1:ADV_FSP.1-1 evaluator contains all necessary informal explanatory text.

506

507

If the entire functional specification is informal, this work unit is not applicable and is therefore considered to be satisfied.

Supporting narrative descriptions are necessary for those portions of the functional specification that are difficult to understand only from the

Page 82 of 231 Version 2.4 March 2004

EAL1 evaluation semiformal or formal description (for example, to make clear the meaning of any formal notation).

ADV_FSP.1.2C

The functional specification shall describe the purpose and method of use of all external TSF interfaces, providing details of effects, exceptions and

error messages, as appropriate.

1:ADV_FSP.1-2

The identifies all of the external TSF interfaces.

508

The term external refers to that which is visible to the user. External interfaces to the TOE are either direct interfaces to the TSF or interfaces to non-TSF portions of the TOE. However, these non-TSF interfaces might have eventual access to the TSF. These external interfaces that directly or indirectly access the TSF collectively make up the TOE security function interface (TSFI). Figure

6

shows a TOE with TSF (cross-hatched) portions and non-TSF (empty) portions. This TOE has three external interfaces: interface c is a direct interface to the TSF; interface b is an indirect interface to the TSF; and interface a is an interface to non-TSF portions of the TOE.

Therefore, interfaces b and c make up the TFSI.

Figure 6 - TSF Interfaces

509

It should be noted that all security functions reflected in the functional requirements of CC Part 2 (or in extended components thereof) will have some sort of externally-visible manifestation. While not all of these are necessarily interfaces from which the security function can be tested, they are all externally-visible to some extent and must therefore be included in the functional specification.

1:ADV_FSP.1-3 evaluator identifies all of the external TSF interfaces.

510

For a TOE that has no threat of malicious users (i.e. TSF physical protection

(FPT_PHP), Reference mediation (FPT_RVM), and Domain separation

March 2004 Version 2.4 Page 83 of 231

EAL1 evaluation

511

(FPT_SEP) are rightfully excluded from its ST), the only interfaces that are described in the functional specification (and expanded upon in the other

TSF representation descriptions) are those to and from the TSF. The absence of TSF physical protection (FPT_PHP), Reference mediation (FPT_RVM), and Domain separation (FPT_SEP) presumes there is no concern for any sort of bypassing of the security features; therefore, there is no concern with any possible impact that other interfaces might have on the TSF.

On the other hand, if the TOE has a threat of malicious users or bypass (i.e.

TSF physical protection (FPT_PHP), Reference mediation (FPT_RVM), and

Domain separation (FPT_SEP) are included in its ST), all external interfaces are described in the functional specification, but only to the extent that the effect of each is made clear: interfaces to the security functions (i.e. interfaces b and c in Figure

6

) are completely described, while other interfaces are described only to the extent that it is clear that the TSF is inaccessible through the interface (i.e. that the interface is of type a, rather than b in Figure

6

). The inclusion of TSF physical protection (FPT_PHP),

Reference mediation (FPT_RVM), and Domain separation (FPT_SEP) implies a concern that all interfaces might have some effect upon the TSF.

Because each external interface is a potential TSF interface, the functional specification must contain a description of each interface in sufficient detail so that an evaluator can determine whether the interface is security relevant.

512

Some architectures lend themselves to readily provide this interface description in sufficient detail for groups of external interfaces. For example, a kernel architecture is such that all calls to the operating system are handled by kernel programs; any calls that might violate the TSP must be called by a program with the privilege to do so. All programs that execute with privilege must be included in the functional specification. Any program external to the kernel that executes without privilege is incapable of violating the TSP (i.e. such programs are interfaces of type a, rather than b in Figure

6

) and may, therefore, be excluded from the functional specification. It is worth noting that, while the evaluator's understanding of the interface description can be expedited in cases where there is a kernel architecture, such an architecture is not necessary.

1:ADV_FSP.1-4 evaluator adequately and correctly describes the behaviour of the TOE at each external interface describing effects, exceptions and error messages.

513

In order to assess the adequacy and correctness of an interface's presentation, the evaluator uses the functional specification and the user and administrator guidance to assess the following factors: a) All security relevant user input parameters (or a characterisation of those parameters) should be identified. For completeness, parameters outside of direct user control should be identified if they are usable by administrators. b) All security relevant behaviour described in the reviewed guidance should be reflected in the description of semantics in the functional

Page 84 of 231 Version 2.4 March 2004

EAL1 evaluation

514 specification. This should include an identification of the behaviour in terms of events and the effect of each event. For example, if an operating system provides a rich file system interface, where it provides a different error code for each reason why a file is not opened upon request (e.g. access denied, no such file, file is in use by another user, user is not authorised to open the file after 5pm, etc.), the functional specification should explain that a file is either opened upon request, or else that an error code is returned. (While the functional specification may enumerate all these different reasons for errors, it need not provide such detail.) The description of the semantics should include how the security requirements apply to the interface (e.g. whether the use of the interface is an auditable event and, if so, the information that can be recorded). c) All interfaces are described for all possible modes of operation. If the

TSF provides the notion of privilege, the description of the interface should explain how the interface behaves in the presence or absence of privilege. d) The information contained in the descriptions of the security relevant parameters and syntax of the interface should be consistent across all documentation.

Verification of the above is done by reviewing the SFRs and the functional specification, as well as the user and administrator guidance provided by the developer. For example, if the TOE were an operating system and its underlying hardware, the evaluator would look for discussions of useraccessible programs, descriptions of protocols used to direct the activities of programs, descriptions of user-accessible databases used to direct the activities of programs, and for user interfaces (e.g. commands, application program interfaces) as applicable to the TOE; the evaluator would also ensure that the processor instruction set is described.

ADV_FSP.1.3C

The functional specification shall completely represent the TSF.

1:ADV_FSP.1-5

The the TSF is fully represented.

515

In order to assess the completeness of the TSF representation, the evaluator consults the user guidance and the administrator guidance. None of these should describe security functionality that is absent from the TSF presentation of the functional specification.

1:ADV_FSP.1-6 evaluator is a complete instantiation of the SFRs.

516

To ensure that all SFRs are covered by the functional specification, the evaluator may construct a map between the SFRs and the functional specification. Such a map might be already provided by the developer as

March 2004 Version 2.4 Page 85 of 231

EAL1 evaluation

518 evidence for meeting the correspondence (Representation correspondence

(ADV_RCR).*) requirements, in which case the evaluator need only verify the completeness of this mapping, ensuring that all SFRs are mapped onto applicable TSFI presentations in the functional specification.

1:ADV_FSP.1-7

The is an accurate instantiation of the SFRs.

517

For each interface to the TSF with specific characteristics, the detailed information in the functional specification must be consistent with the SFRs.

For example, if the SFRs specify through FIA_SOS.1 Verification of secrets that the password length must be eight, the TOE must have eight-character passwords.

For each interface in the functional specification that operates on a controlled resource, the evaluator determines whether it returns an error code that indicates a possible failure due to enforcement of one of the SFRs; if no error code is returned, the evaluator determines whether an error code should be returned. For example, an operating system might present an interface to

OPEN a controlled object. The description of this interface may include an error code that indicates that access was not authorised to the object. If such an error code does not exist, the evaluator should confirm whether this is appropriate (because, perhaps, access mediation is performed on READs and

WRITEs, rather than on OPENs).

1:ADV_FSP.1-8 evaluator is consistent with the TOE summary specification.

519

The evaluator is reminded that the TOE summary specification may be at a much higher level of abstraction than the functional specification.

4.7.3 Evaluation of Representation correspondence (ADV_RCR.1)

4.7.3.1 Objectives

520

The objective of this sub-activity is to determine whether the developer has correctly and completely implemented the requirements of the ST in the functional specification.

4.7.3.2 Input

521

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the correspondence analysis between the TOE summary specification and the functional specification.

Page 86 of 231 Version 2.4 March 2004

EAL1 evaluation

1:ADV_RCR.1-1 evaluator and the functional specification to determine that the functional specification is a correct and complete representation of the SFRs.

522

The evaluator's goal in this work unit is to determine that all SFRs are represented in the functional specification and that they are represented accurately.

523

524

The evaluator reviews the correspondence between the SFRs and the functional specification. The evaluator looks for consistency and accuracy in the correspondence. Where the correspondence analysis indicates a relationship between an SFR and one or more interface description in the functional specification, the evaluator verifies that the interface descriptions completely and accurately represent that SFR.

This work unit may be done in conjunction with work units ADV_FSP.1-7 and ADV_FSP.1-8.

4.8

525

Guidance documents activity

The purpose of the guidance document activity is to judge the adequacy of the documentation describing how to use the operational TOE. Such documentation includes both that aimed at trusted administrators and nonadministrator users whose incorrect actions could adversely affect the security of the TOE, as well as that aimed at untrusted users whose incorrect actions could adversely affect the security of their own data.

526

527

The guidance documents activity applies to those functions and interfaces which are related to the security of the TOE. The secure configuration of the

TOE is described in the ST.

4.8.2 Evaluation of Administrator guidance (AGD_ADM.1)

4.8.2.1 Objectives

The objective of this sub-activity is to determine whether the administrator guidance describes how to administer the TOE in a secure manner.

528

The term “administrator” is used to indicate a human user who is trusted to perform security critical operations within the TOE, such as setting TOE configuration parameters. The operations may affect the enforcement of the

TSP, and the administrator therefore possesses specific privileges necessary to perform those operations. The role of the administrator(s) has to be clearly distinguished from the role of non-administrative users of the TOE.

March 2004 Version 2.4 Page 87 of 231

EAL1 evaluation

529

There may be different administrator roles or groups defined in the ST that are recognised by the TOE and that can interact with the TSF such as auditor, administrator, or daily-management. Each role can encompass an extensive set of capabilities, or can be a single one. The capabilities of these roles and their associated privileges are described in the FMT class. Different administrator roles and groups should be taken into consideration by the administrator guidance.

4.8.2.3 Input

530

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the user guidance; d) the administrator guidance; e) the secure installation, generation, and start-up procedures;

AGD_ADM.1.1C

The administrator guidance shall describe the administrative functions and

interfaces available to the administrator of the TOE.

1:AGD_ADM.1-1 evaluator describes the administrative security interfaces available to the administrator of the TOE.

531

The administrator guidance should contain an overview of the security functionality that is visible at the administrator interfaces.

532

533

The administrator guidance should identify and describe the purpose, behaviour, and interrelationships of the administrator security interfaces.

For each administrator security interface, the administrator guidance should: a) describe the method(s) by which the interface is invoked (e.g. command-line, programming-language system calls, menu selection, command button); b) describe the parameters to be set by the administrator, their valid and default values; c) describe the immediate TSF response, message, or code returned.

AGD_ADM.1.2C

The administrator guidance shall describe how to administer the TOE in a

secure manner.

Page 88 of 231 Version 2.4 March 2004

EAL1 evaluation

1:AGD_ADM.1-2

The describes how to administer the TOE in a secure manner.

534

The administrator guidance describes how to operate the TOE according to the TSP in an operational environment that meets all security objectives for the operational environment as described in the ST.

AGD_ADM.1.3C

The administrator guidance shall contain warnings about functions and

privileges that should be controlled in a secure processing environment.

1:AGD_ADM.1-3

The contains warnings about functions and privileges that should be controlled in a secure processing environment.

535

The configuration of the TOE may allow users to have dissimilar privileges to make use of the different functions of the TOE. This means that some users may be authorised to perform certain functions while other users may not be so authorised. These functions and privileges should be described by the administrator guidance.

536

The administrator guidance identifies the functions and privileges that must be controlled, the types of controls required for them, and the reasons for such controls. Warnings address expected effects, possible side effects, and possible interactions with other functions and privileges.

AGD_ADM.1.4C

The administrator guidance shall describe all security parameters under

the control of the administrator, indicating secure values as appropriate.

1:AGD_ADM.1-4

The describes all security parameters under the control of the administrator indicating secure values as appropriate.

537

For each security parameter, the administrator guidance should describe the purpose of the parameter, the valid and default values of the parameter, and secure and insecure use settings of such parameters, both individually or in combination.

AGD_ADM.1.5C

The administrator guidance shall describe each type of security-relevant event relative to the administrative functions that need to be performed, including changing the security characteristics of entities under the

control of the TSF.

1:AGD_ADM.1-5 evaluator describes each type of security-relevant event relative to the administrative functions that need to be performed, including changing the security characteristics of entities under the control of the TSF.

538

All types of security-relevant events are detailed, such that an administrator knows what events may occur and what action (if any) the administrator may have to take in order to maintain security. Security-relevant events that may occur during operation of the TOE (e.g. audit trail overflow, system crash,

March 2004 Version 2.4 Page 89 of 231

EAL1 evaluation updates to user records, such as when a user account is removed when the user leaves the organisation) are adequately defined to allow administrator intervention to maintain secure operation.

AGD_ADM.1.6C

The administrator guidance shall describe all security objectives for the

operational environment that are relevant to the administrator.

1:AGD_ADM.1-6 evaluator describes all security objectives for the operational environment that are relevant to the administrator.

539

540

The evaluator analyses the security objectives for the operational environment in the ST and compares them with the administrator guidance to ensure that all security objectives for the operational environment that are relevant to the administrator are described appropriately in the administrator guidance.

4.8.3 Evaluation of User guidance (AGD_USR.1)

4.8.3.1 Objectives

The objectives of this sub-activity are to determine whether the user guidance describes the security functions and interfaces provided by the TSF and whether this guidance provides instructions and guidelines for the secure use of the TOE.

541

There may be different user roles or groups defined in the ST that are recognised by the TOE and that can interact with the TSF. The capabilities of these roles and their associated privileges are described in the FMT class.

Different user roles and groups should be taken into consideration by the user guidance.

4.8.3.3 Input

542

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the high-level design; d) the user guidance; e) the administrator guidance; f) the secure installation, generation, and start-up procedures.

Page 90 of 231 Version 2.4 March 2004

EAL1 evaluation

AGD_USR.1.1C

The user guidance shall describe the interfaces available to the non-

administrative users of the TOE.

1:AGD_USR.1-1

The the security functions and interfaces available to the non-administrative users of the TOE.

543

The user guidance should contain an overview of the security functionality that is visible at the user interfaces.

544

The user guidance should identify and describe the purpose of the security interfaces and functions.

AGD_USR.1.2C

The user guidance shall describe the use of the interfaces available to the

non-administrative users of the TOE.

1:AGD_USR.1-2

The the use of interfaces available to the non-administrative users of the TOE.

545

The user guidance should identify and describe the behaviour and interrelationship of the security interfaces available to the non-administrative users of the TOE.

546

547

If a non-administrative user of the TOE is allowed to invoke the TSF, the user guidance provides a description of the interfaces available to the user for that invocation.

For each interface, the user guidance should: a) describe the method(s) by which the interface is invoked (e.g. command-line, programming-language system call, menu selection, command button) ; b) describe the parameters to be set by the user and their valid and default values; c) describe the immediate TSF response, message, or code returned.

AGD_USR.1.3C

The user guidance shall contain warnings about user-accessible functions and privileges that should be controlled in a secure processing

environment.

1:AGD_USR.1-3 evaluator warnings about user-accessible functions and privileges that should be controlled in a secure processing environment.

548

The configuration of the TOE may allow users to have dissimilar privileges in making use of the different functions of the TOE. This means that some users are authorised to perform certain functions, while other users may not

March 2004 Version 2.4 Page 91 of 231

EAL1 evaluation

549 be so authorised. These user-accessible functions and privileges are described by the user guidance.

The user guidance should identify the functions and privileges that can be used, the types of commands required for them, and the reasons for such commands. The user guidance should contain warnings regarding the use of the functions and privileges that must be controlled. Warnings should address expected effects, possible side effects, and possible interactions with other functions and privileges.

AGD_USR.1.4C

The user guidance shall describe all security objectives for the operational

environment that are relevant to the user.

1:AGD_USR.1-4 evaluator all security objectives for the operational environment that are relevant to the user.

550

The evaluator analyses the security objectives for the operational environment in the ST and compares them with the user guidance to ensure that all security objectives for the operational environment that are relevant to the user are described appropriately in the user guidance.

551

The user guidance should provide advice regarding effective use of the TSF

(e.g. reviewing password composition practices, suggested frequency of user file backups, discussion on the effects of changing user access privileges).

552

553

554

The goal of this activity is to determine, by independently testing a subset of the TSF, whether the TOE behaves as specified in the functional specification.

The size and composition of the evaluator's test subset depends upon several factors discussed in the independent testing (ATE_IND.1 Independent testing

- conformance) sub-activity. One such factor affecting the composition of the subset is known public domain weaknesses, information to which the evaluator needs access (e.g. from a scheme).

To create tests, the evaluator needs to understand the desired expected behaviour of a security function in the context of the requirements it is to satisfy. The evaluator may choose to focus on one security function of the

TSF at a time, examining the ST requirement and the relevant parts of the functional specification and guidance documentation to gain an understanding of the way the TOE is expected to behave.

Page 92 of 231 Version 2.4 March 2004

EAL1 evaluation

4.9.2.1 Objectives

555

The goal of this activity is to determine, by independently testing a subset of the TSF, whether the TOE behaves as specified in the functional specification.

4.9.2.2 Input

556

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the user guidance; d) the administrator guidance; e) the secure installation, generation, and start-up procedures; f) the TOE suitable for testing.

ATE_IND.1.1C

The TOE shall be suitable for testing.

1:ATE_IND.1-1

The is consistent with the configuration under evaluation as specified in the ST.

557

558

The TOE referred to in the developer's test plan should have the same unique reference as established in the ST introduction.

It is possible for the ST to specify more than one configuration for evaluation. The evaluator verifies that all test configurations identified in the developer test documentation are consistent with the ST.

559

The evaluator should consider the security objectives for the operational environment described in the ST that may apply to the test environment.

There may be some objectives for the operational environment that do not apply to the test environment. For example, an objective about user clearances may not apply; however, an objective about a single point of connection to a network would apply.

560

561

If any test resources are used (e.g. meters, analysers) it will be the evaluator's responsibility to ensure that these resources are calibrated correctly.

1:ATE_IND.1-2 evaluator properly and is in a known state.

It is possible for the evaluator to determine the state of the TOE in a number of ways. For example, previous successful completion of the ADO_IGS.1

March 2004 Version 2.4 Page 93 of 231

562

EAL1 evaluation

Installation, generation, and start-up procedures sub-activity will satisfy this work unit if the evaluator still has confidence that the TOE being used for testing was installed properly and is in a known state. If this is not the case, then the evaluator should follow the developer's procedures to install, generate and start up the TOE, using the supplied guidance only.

If the evaluator has to perform the installation procedures because the TOE is in an unknown state, this work unit when successfully completed could satisfy work unit ADO_IGS.1-2.

1:ATE_IND.1-3 evaluator

563

The evaluator selects a test subset and testing strategy that is appropriate for the TOE. One extreme testing strategy would be to have the test subset contain as many interfaces as possible tested with little rigour. Another testing strategy would be to have the test subset contain a few interfaces based on their perceived relevance and rigorously test these interfaces.

564

565

Typically the testing approach taken by the evaluator should fall somewhere between these two extremes. The evaluator should exercise most of the interfaces using at least one test, but testing need not demonstrate exhaustive specification testing.

The evaluator, when selecting the subset of the interfaces to be tested, should consider the following factors:

566 a) The number of interfaces from which to draw upon for the test subset.

Where the TSF includes only a small number of relatively simple interfaces, it may be practical to rigourously test all of the interfaces.

In other cases this may not be cost-effective, and sampling is required. b) Maintaining a balance of evaluation activities. The evaluator effort expended on the test activity should be commensurate with that expended on any other evaluation activity.

The evaluator selects the interfaces to compose the subset. This selection will depend on a number of factors, and consideration of these factors may also influence the choice of test subset size: a) Known public domain weaknesses commonly associated with the type of TOE (e.g. operating system, firewall). Know public domain weaknesses associated with the type of TOE will influence the selection process of the test subset. The evaluator should include those interfaces that are associated with known public domain weaknesses for that type of TOE in the subset (known public domain weaknesses in this context does not refer to vulnerabilities as such but to inadequacies or problem areas that have been experienced with this particular type of TOE).

Page 94 of 231 Version 2.4 March 2004

EAL1 evaluation b) Significance of interfaces. Those interfaces more significant than others should be included in the test subset. An input to this determination could be the number of SFRs mapping to this interface

(as determined in Representation correspondence (ADV_RCR)). c) Complexity of the interface. Complex interfaces may require complex tests that impose onerous requirements on the developer or evaluator, which will not be conducive to cost-effective evaluations.

Conversely, they are a likely area to find errors and are good candidates for the subset. The evaluator will need to strike a balance between these considerations. d) Implicit testing. Testing some interfaces may often implicitly test other interfaces, and their inclusion in the subset may maximize the number of interfaces tested (albeit implicitly). Certain interfaces will typically be used to provide a variety of security functionality, and will tend to be the target of an effective testing approach. e) Types of interfaces (e.g. programmatic, command-line, protocol).

The evaluator should consider including tests for all different types of interfaces that the TOE supports. f) Interfaces that give rise to features that are innovative or unusual.

Where the TOE contains innovative or unusual features, which may feature strongly in marketing literature, the corresponding interfaces should be strong candidates for testing.

567

This guidance articulates factors to consider during the selection process of an appropriate test subset, but these are by no means exhaustive.

1:ATE_IND.1-4 evaluator sufficiently detailed to enable the tests to be reproducible.

568

With an understanding of the expected behaviour of the TSF, from the ST and the functional specification, the evaluator has to determine the most feasible way to test the interface. Specifically the evaluator considers: a) the approach that will be used, for instance, whether an external interface will be tested, or an internal interface using a test harness, or will an alternate test approach be employed (e.g. in exceptional circumstances, a code inspection); b) the interface(s) that will be used to test and observe responses; c) the initial conditions that will need to exist for the test (i.e. any particular objects or subjects that will need to exist and security attributes they will need to have); d) special test equipment that will be required to either stimulate a security function (e.g. packet generators) or make observations of a security function (e.g. network analysers).

March 2004 Version 2.4 Page 95 of 231

EAL1 evaluation

569

570

The evaluator may find it practical to test each interface using a series of test cases, where each test case will test a very specific aspect of expected behaviour.

The evaluator's test documentation should specify the derivation of each test, tracing it back to the relevant interface(s).

1:ATE_IND.1-5

The

571

The evaluator uses the test documentation developed as a basis for executing tests on the TOE. The test documentation is used as a basis for testing but this does not preclude the evaluator from performing additional ad hoc tests.

The evaluator may devise new tests based on behaviour of the TOE discovered during testing. These new tests are recorded in the test documentation.

1:ATE_IND.1-6

The compose the test subset: a) identification of the interface behaviour to be tested; b) instructions to connect and setup all required test equipment as required to conduct the test; c) instructions to establish all prerequisite test conditions; d) instructions to stimulate the interface;

572 e) instructions for observing the behaviour of the interface; f) descriptions of all expected results and the necessary analysis to be performed on the observed behaviour for comparison against expected results; g) instructions to conclude the test and establish the necessary post-test state for the TOE; h) actual test results.

The level of detail should be such that another evaluator could repeat the tests and obtain an equivalent result. While some specific details of the test results may be different (e.g. time and date fields in an audit record) the overall result should be identical.

573

There may be instances when it is unnecessary to provide all the information presented in this work unit (e.g. the actual test results of a test may not require any analysis before a comparison between the expected results can be made). The determination to omit this information is left to the evaluator, as is the justification.

1:ATE_IND.1-7 evaluator expected test results.

Page 96 of 231 Version 2.4 March 2004

EAL1 evaluation

574

Any differences in the actual and expected test results may indicate that the

TOE does not perform as specified or that the evaluator test documentation may be incorrect. Unexpected actual results may require corrective maintenance to the TOE or test documentation and perhaps require rerunning of impacted tests and modifying the test sample size and composition. This determination is left to the evaluator, as is its justification.

1:ATE_IND.1-8 evaluator the testing approach, configuration, depth and results.

575

The evaluator testing information reported in the ETR allows the evaluator to convey the overall testing approach and effort expended on the testing activity during the evaluation. The intent of providing this information is to give a meaningful overview of the testing effort. It is not intended that the information regarding testing in the ETR be an exact reproduction of specific test instructions or results of individual tests. The intention is to provide enough detail to allow other evaluators and overseers to gain some insight about the testing approach chosen, amount of testing performed, TOE test configurations, and the overall results of the testing activity.

576

577

Information that would typically be found in the ETR section regarding the evaluator testing effort is: a) TOE test configurations. The particular configurations of the TOE that were tested; b) subset size chosen. The amount of interfaces that were tested during the evaluation and a justification for the size; c) selection criteria for the interfaces that compose the subset. Brief statements about the factors considered when selecting interfaces for inclusion in the subset; d) interfaces tested. A brief listing of the interfaces that merited inclusion in the subset; e) verdict for the activity. The overall judgement on the results of testing during the evaluation.

This list is by no means exhaustive and is only intended to provide some context as to the type of information that should be present in the ETR concerning the testing the evaluator performed during the evaluation.

March 2004 Version 2.4 Page 97 of 231

EAL4 evaluation

5.1 Introduction

578

EAL4 provides a moderate to high level of assurance. The security functions are analysed using a functional specification, guidance documentation, the high-level and low-level design of the TOE, and a subset of the implementation to understand the security behaviour. The analysis is supported by independent testing of a subset of the SFRs, evidence of developer testing based on the functional specification and the high level design, selective confirmation of the developer test results, analysis of strengths of the functions, evidence of a developer search for vulnerabilities, and an independent vulnerability analysis demonstrating resistance to low attack potential penetration attackers. Further assurance is gained through the use of an informal model of the TOE security policy and through the use of development environment controls, automated TOE configuration management, and evidence of secure delivery procedures.

5.2 Objectives

579

5.3

The objective of this chapter is to define the minimal evaluation effort for achieving an EAL4 evaluation and to provide guidance on ways and means of accomplishing the evaluation.

EAL4 evaluation relationships

580

An EAL4 evaluation covers the following: a) evaluation input task (Chapter 2); b) EAL4 evaluation activities comprising the following:

1) evaluation of the ST (Section 5.4);

2) evaluation of the configuration management (Section 5.5);

3) evaluation of the delivery and operation documents (Section

5.6);

4) evaluation of the development documents (Section 5.7);

5) evaluation of the guidance documents (Section 5.8);

6) evaluation of the life cycle support (Section 5.9);

7) evaluation of the tests (Section 5.10);

8) testing (Section 5.10);

9) evaluation of the vulnerability assessment (Section 5.11);

Page 98 of 231 Version 2.4 March 2004

EAL4 evaluation

581

582

583 c) evaluation output task (Chapter 2).

The evaluation activities are derived from the EAL4 assurance requirements contained in CC Part 3.

The ST evaluation is started prior to any TOE evaluation sub-activities since the ST provides the basis and context to perform these sub-activities.

The sub-activities comprising an EAL4 evaluation are described in this chapter. Although the sub-activities can, in general, be started more or less coincidentally, some dependencies between sub-activities have to be considered by the evaluator.

5.4 Security activity

584

585

This section describes the evaluation of an ST. The ST evaluation should be started prior to any TOE evaluation sub-activities since the ST provides the basis and context to perform these sub-activities. The evaluation methodology in this section is based on the requirements on the ST as specified in CC Part 3 class ASE.

This Chapter should be used in conjunction with Annexes B and C in CC

Part 1, as these Annexes clarify the concepts here and provide many examples.

5.4.1.1

586

ST evaluation relationships

The activities to conduct a complete ST evaluation cover the following: a) evaluation input task (Section 2); b) ST evaluation activity, comprising the following sub-activities:

1) evaluation of the ST introduction (Section 5.4.4);

2) evaluation of the conformance claims (Section 5.4.2);

3) evaluation of the security problem definition (Section 5.4.7);

4) evaluation of the security objectives (Section 5.4.5);

5) evaluation of the extended security requirements 5.4.3);

6) evaluation of the security requirements (Section 5.4.6);

7) evaluation of the TOE summary specification (Section 5.4.8). c) evaluation output task (Section 2).

March 2004 Version 2.4 Page 99 of 231

587

588

589

5.4.1.2

590

591

592

593

EAL4 evaluation

The evaluation input and evaluation output tasks are described in Section 2.

The evaluation activities are derived from the ASE assurance requirements contained in CC Part 3.

The sub-activities comprising an ST evaluation are described in this clause.

Although the sub-activities can, in general, be started more or less coincidentally, some dependencies between sub-activities have to be considered by the evaluator.

Some of the information required for the ST may be included by reference.

For example if compliance to a PP is claimed, some information in the PP such as the threats may be included by reference only. All material that is referred to in such a way is considered to be part of the ST and should conform to the ASE criteria.

Re-using the evaluation results of certified PPs

While evaluating an ST that is based on one or more certified PPs, it may be possible to re-use the fact that these PPs were certified. The potential for reuse of the result of a certified PP is greater if the ST does not add threats,

OSPs, assumptions, security objectives and/or security requirements to those of the PP.

The evaluator is allowed to re-use the PP evaluation results by doing certain analyses only partially or not at all if these analyses or parts thereof were already done as part of the PP evaluation. While doing this, the evaluator should assume that the analyses in the PP were performed correctly.

An example would be where the PP contained a set of security requirements, and these were determined to be internally consistent during the PP evaluation. If the ST uses the exact same requirements, the consistency analysis does not have to be repeated during the ST evaluation. If the ST adds one or more requirements, or performs operations on these requirements, the analysis will have to be repeated. However, it may be possible to save work in this consistency analysis by using the fact that the original requirements are internally consistent. If the original requirements are internally consistent, the evaluator only has to determine that: a) the set of all new and/or changed requirements is internally consistent, and b) the set of all new and/or changed requirements is consistent with the original requirements.

The evaluator notes in the ETR each case where analyses are not done or only partially done for this reason.

Page 100 of 231 Version 2.4 March 2004

EAL4 evaluation

5.4.2 Evaluation of Conformance claims (ASE_CCL.1)

5.4.2.1 Objectives

594

The objective of this sub-activity is to determine the validity of various conformance claims. These describe how the ST and the TOE conform to the

CC and how the ST conforms to PPs and packages.

5.4.2.2 Input

595

The evaluation evidence for this sub-activity is: a) the ST; b) the PP(s) that the ST claims conformance to; c) the package(s) that the ST claims conformance to.

4:ASE_CCL.1-1

The conformance claim that identifies the version of the CC to which the ST and the TOE claim conformance.

596

The evaluator determines that the CC conformance claim identifies the version of the CC that was used to develop this ST. This should include the version number of the CC and, unless the International English version of the

CC was used, the language of the version of the CC that was used.

4:ASE_CCL.1-2

The either CC Part 2 conformant or Part 2 extended for the ST.

4:ASE_CCL.1-3

The either CC Part 3 conformant or CC Part 3 extended for the ST.

4:ASE_CCL.1-4

The determine that it is consistent with the extended components definition.

597

If the CC conformance claim contains CC Part 2 conformant, the evaluator determines that the extended components definition does not define functional components.

598

If the CC conformance claim contains CC Part 2 extended, the evaluator determines that the extended components definition defines at least one extended functional component.

4:ASE_CCL.1-5 evaluator determine that it is consistent with the extended components definition.

599

If the CC conformance claim contains CC Part 3 conformant, the evaluator determines that the extended components definition does not define assurance components.

March 2004 Version 2.4 Page 101 of 231

EAL4 evaluation

600

If the CC conformance claim contains CC Part 3 extended, the evaluator determines that the extended components definition defines at least one extended assurance component.

4:ASE_CCL.1-6

The that identifies all PPs for which the ST claims conformance.

601

603

The evaluator determines that any referenced PPs are unambiguously identified (e.g. by title and version number, or by the identification included in the introduction of that PP).

602

The evaluator is reminded that claims of partial conformance to a PP are not permitted.

4:ASE_CCL.1-7

The claim that identifies all packages to which the ST claims conformance.

The evaluator determines that any referenced packages are unambiguously identified (e.g. by title and version number, or by the identification included in the introduction of that package).

604

The evaluator is reminded that claims of partial conformance to a package are not permitted.

4:ASE_CCL.1-8

The package-name conformant or package-name augmented.

605

606

If the package conformance claim contains package-name conformant, the evaluator determines that the ST contains no security requirements in addition to those included in the package.

If the package conformance claim contains package-name augmented, the evaluator determines that the ST includes at least one security requirement in addition to those included in the package.

4:ASE_CCL.1-9

The that the TOE type of the TOE is consistent with all TOE types of the PPs.

607

608

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

The relation between the types could be simple: a firewall ST claiming conformance to a firewall PP, or more complex: a smartcard ST claiming conformance to a number of PPs at the same time: a PP for the integrated circuit, a PP for the smartcard OS, and two PPs for two applications on the smartcard.

4:ASE_CCL.1-10 evaluator that it demonstrates that the statement of security problem definition is consistent, as defined by the conformance statement of the PP, with the statements of security problem definition stated in the PPs.

Page 102 of 231 Version 2.4 March 2004

EAL4 evaluation

609

610

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

The conformance claim rationale will be trivial in the case where exact conformance is required by the PP. In this instance the statement of SPD must be stated in exactly the same wording as that used in the PP. The ST may repeat any threats, OSPs and/or assumptions or it may include them by reference to the PP they come from.

611

Where strict or demonstrable conformance is required by the PP, the conformance claim rationale should provide a tracing between the statement of SDP in the ST and that in the PP. This tracing should be sufficient for the evaluator to determine that all threats, assumptions and OSPs detailed in the

PP are represented in the ST.

612

613

The evaluator is reminded that if strict or demonstrable conformance with

PPs is required, the ST author is allowed to add threats, OSPs and/or assumptions to those drawn from those in the PPs.

4:ASE_CCL.1-11

The that the statement of security objectives is consistent, as defined by the conformance statement of the PP, with the statement of security objectives in the PPs.

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

614

615

The conformance claim rationale will be trivial in the case where exact conformance is required by the PP. In this instance the security objectives must be stated in exactly the same wording as that used in the PP. The ST may repeat any security objective, or it may include it by reference to the PP it comes from.

Where strict or demonstrable conformance is required by the PP, the conformance claim rationale should provide a tracing between the statement of security objectives in the ST and that in the PP. This tracing should be sufficient for the evaluator to determine that all security objectives detailed in the PP are represented in the ST.

616

617

The evaluator is reminded that if strict or demonstrable conformance with

PPs is required, the ST author is allowed to add objectives to those drawn from those in the PPs.

4:ASE_CCL.1-12 evaluator defined by the conformance statement of the PP, with all security requirements in the PPs for which conformance is being claimed.

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

March 2004 Version 2.4 Page 103 of 231

EAL4 evaluation

618

619

620

The ST may repeat any security requirements or it may include them by reference to the PP(s) they come from. If, however, the PP security requirements include uncompleted operations, or the ST author has applied the refinement operation on any PP security requirements, then these security requirements must be fully present in the ST.

For exact conformance, the conformance rationale will be trivial, as the statement of security requirements in the ST must include the same requirements as in the PPs, with no additions, deletions or substitutions.

For strict conformance, the conformance rationale will be trivial again; demonstrating that the statement of requirements in the ST is a non-strict super set of those in the PP. That is, that all requirements in the PP have been included in the ST, possibly with some additional requirements.

621

622

For demonstrable conformance, the evaluator determines that the justification for the security requirements in the PP demonstrates that each requirement is represented by one or more security requirements in the ST.

The evaluator is also reminded that if strict or demonstrable conformance with PPs is required, the ST author is allowed to add security requirements to those drawn from those PPs.

4:ASE_CCL.1-13

The that that the completion of the security requirements in the ST are consistent, in the manner specified in the PP, with those in the PP.

623

624

625

If the ST does not claim conformance with a PP, this work unit is not applicable and therefore considered to be satisfied.

The PP may already have partially completed operations in a requirement, or set other limits on the completion of those operations. If this is the case, the evaluator determines that the corresponding requirement in the ST is completed consistent with these partial completions and/or limits.

An example of an inconsistent completion is a PP that partially completes the first assignment in FIA_AFL.1 Authentication failure handling “The TSF shall detect when [assignment: number] unsuccessful authentication attempts occur...” as “The TSF shall detect when [assignment: a number between 1 and 5] unsuccessful authentication attempts occur...”. The ST that claims conformance to this PP, copies the requirement in the ST and completes it as

“The TSF shall detect when 8 unsuccessful authentication attempts occur...”.

626

Note that, if the PP in the example above would mandate exactly 5 unsuccessful authentication attempts, a completion in the ST with any number other than 5 would be an inconsistent completion.

4:ASE_CCL.1-14 evaluator security requirements in the packages for which conformance is being claimed.

Page 104 of 231 Version 2.4 March 2004

EAL4 evaluation

627

628

If the ST does not claim conformance with a security requirements package, this work unit is not applicable and therefore considered to be satisfied.

The ST may repeat any security requirements or it may include them by reference to the package(s) they come from. If, however, the package security requirements include uncompleted operations, or the ST author has applied the refinement operation on any package security requirements, then these security requirements must be fully present in the ST.

629

The evaluator is also reminded that if the conformance claim is packagename augmented the ST author is permitted to add security requirements to those drawn from that package.

4:ASE_CCL.1-15 evaluator requirements in the ST that were taken from a security requirements package or PP are completed consistently with that security requirements package or

PP.

630

631

632

If the ST does not claim conformance with a security requirements package, this work unit is not applicable and therefore considered to be satisfied.

If the security requirements package has already partially completed operations in a requirement, or has set other limits on the completion of those operations, the evaluator determines that the corresponding requirement in the ST is completed consistent with these partial completions and/or limits.

An example of an inconsistent completion is a package that partially completes the first assignment in FIA_AFL.1 Authentication failure handling

“The TSF shall detect when [assignment: number] unsuccessful authentication attempts occur...” as “The TSF shall detect when [assignment: a number between 1 and 5] unsuccessful authentication attempts occur...”.

The ST that claims conformance to this package, copies the requirement in the ST and completes it as “The TSF shall detect when 8 unsuccessful authentication attempts occur...”.

633

634

Note that, if the security requirements package in the example above would mandate exactly 5 unsuccessful authentication attempts, a completion in the

ST with any number other than 5 would be an inconsistent completion.

5.4.3 Evaluation of Extended components definition (ASE_ECD.1)

5.4.3.1 Objectives

The objective of this sub-activity is to determine whether extended components have been clearly and unambiguously defined, and whether they are necessary, i.e. they could not have been clearly expressed using existing

CC Part 2 or CC Part 3 components.

5.4.3.2 Input

635

The evaluation evidence for this sub-activity is:

March 2004 Version 2.4 Page 105 of 231

EAL4 evaluation a) the ST.

4:ASE_ECD.1-1

The security requirements that are not identified as extended requirements are present in CC Part 2 or Part 3.

4:ASE_ECD.1-2

The an extended component for each extended security requirement.

636

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

637

638

A single extended component may be used to define multiple iterations of an extended security requirement, it is not necessary to repeat this definition for each iteration.

4:ASE_ECD.1-3 evaluator determine that it describes how each extended component fits into the existing CC components, families, and classes.

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

639

640

The evaluator determines that each extended component is either: a) a member of an existing CC Part 2 or CC Part 3 family, or b) a member of a new family defined in the ST

If the extended component is a member of an existing CC Part 2 or Part 3 family, the evaluator determines that the extended components definition adequately describes why the extended component should be a member of that family and how it relates to other components of that family.

641

642

643

If the extended component is a member of a new family defined in the ST, the evaluator confirms that the extended component is not appropriate for an existing family.

If the ST defines new families, the evaluator determines that each new family is either: a) a member of an existing CC Part 2 or CC Part 3 class, or b) a member of a new class defined in the ST

If the family is a member of an existing CC Part 2 or CC Part 3 class, the evaluator determines that the extended components definition adequately describes why the family should be a member of that class and how it relates to other families in that class.

Page 106 of 231 Version 2.4 March 2004

EAL4 evaluation

644

If the family is a member of a new class defined in the ST, the evaluator confirms that the family is not appropriate for an existing class.

4:ASE_ECD.1-4

The determine that each definition of an extended component identifies all applicable dependencies of that component.

645

646

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

The evaluator confirms that no applicable dependencies have been overlooked by the ST author.

4:ASE_ECD.1-5

The determine that each definition of an extended functional component identifies all applicable audit information of that component.

647

If the ST does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

648

649

The evaluator confirms that no applicable security relevant events that are candidates for audit have been overlooked by the ST author.

For guidance on audit information of a component, see CC Part 2, Section

2.1.2.5

4:ASE_ECD.1-6

The definition to determine that each definition of an extended functional component identifies all applicable security management information of that component.

650

If the ST does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

651

652

The evaluator confirms that no applicable security management functions for this component have been overlooked by the ST author.

For guidance on security management information of a component, see CC

Part 2, Section 2.1.2.4

4:ASE_ECD.1-7 evaluator determine that each extended functional component uses the existing CC Part

2 components as a model for presentation.

653

654

If the ST does not contain extended SFRs, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that the extended functional component is consistent with CC Part 2 Section 2.1.3 Component structure.

March 2004 Version 2.4 Page 107 of 231

EAL4 evaluation

655

656

If the extended functional component uses operations, the evaluator determines that the extended functional component is consistent with CC

Part 1 Section 4.4.1.3 Component.

If the extended functional component is hierarchical to an existing functional component, the evaluator determines that the extended functional component is consistent with CC Part 2 Section 2.2.1 Component changes highlighting.

4:ASE_ECD.1-8

The determine that each definition of a new functional family uses the existing

CC functional families as a model for presentation.

657

If the ST does not define new functional families, this work unit is not applicable and therefore considered to be satisfied.

658

659

The evaluator determines that all new functional families are defined consistent with CC Part 2 Section 2.1.2 Family structure.

4:ASE_ECD.1-9

The determine that each definition of a new functional class uses the existing CC functional classes as a model for presentation.

If the ST does not define new functional classes, this work unit is not applicable and therefore considered to be satisfied.

660

661

The evaluator determines that all new functional classes are defined consistent with CC Part 2 Section 2.1.1 Class structure.

4:ASE_ECD.1-10

The evaluator shall examine the extended components definition to determine that each definition of an extended assurance component uses the existing CC Part 3 components as a model for presentation.

If the ST does not contain extended SARs, this work unit is not applicable and therefore considered to be satisfied.

662

663

The evaluator determines that the extended assurance component definition is consistent with CC Part 3 Section 2.1.3 Assurance component structure.

If the extended assurance component uses operations, the evaluator determines that the extended assurance component is consistent with CC Part

1 Section 4.4.1.3 Component.

664

665

If the extended assurance component is hierarchical to an existing assurance component, the evaluator determines that the extended assurance component is consistent with CC Part 3 Section 2.1.3 Assurance component structure.

4:ASE_ECD.1-11

The evaluator shall examine the extended components definition to determine that for each defined extended assurance component, applicable methodology has been provided.

If the ST does not contain extended SARs, this work unit is not applicable and therefore considered to be satisfied.

Page 108 of 231 Version 2.4 March 2004

EAL4 evaluation

666

The evaluator determines that for each evaluator action element of each extended SAR one or more work units is provided and that succesfully performing all work units for a given evaluator action element will demonstrate that the element has been achieved.

4:ASE_ECD.1-12

The evaluator shall examine the extended components definition to determine that each definition of a new assurance family uses the existing

CC assurance families as a model for presentation.

667

668

If the ST does not define new assurance families, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that all new assurance families are defined consistent with CC Part 3 Section 2.1.2 Assurance family structure.

4:ASE_ECD.1-13

The evaluator shall examine the extended components definition to determine that each definition of a new assurance class uses the existing CC assurance classes as a model for presentation.

669

670

If the ST does not define new assurance classes, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that all new assurance classes are defined consistent with CC Part 3 Section 2.1.1 Class structure.

4:ASE_ECD.1-14

The evaluator shall examine the extended components definition to determine that each element in each extended component is measurable and states objective evaluation requirements, such that compliance or noncompliance can be demonstrated.

671

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

672

673

674

The evaluator determines that elements of extended functional components are stated in such a way that they are testable, and traceable through the appropriate TSF representations.

The evaluator also determines that elements of extended assurance requirements avoid the need for subjective evaluator judgement.

The evaluator is reminded that whilst being measurable and objective is appropriate for all evaluation criteria, it is acknowledged that no formal method exists to prove such properties. Therefore the existing CC functional and assurance requirements are to be used as a model for determining what constitutes compliance with this requirement.

4:ASE_ECD.1-15

The evaluator shall examine the extended components definition to determine that each extended component can not be clearly expressed using existing components.

March 2004 Version 2.4 Page 109 of 231

EAL4 evaluation

675

676

If the ST does not contain extended security requirements, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that each extended component cannot be clearly expressed using existing components. The evaluator should take components from CC Part 2 and Part 3, other extended components that have been defined in the ST, combinations of these components, and possible operations on these components into account when making this determination.

677

679

The evaluator is reminded that the role of this work unit is to preclude unnecessary duplication of components, that is, components that can be clearly expressed using other components. The evaluator should not undertake an exhaustive search of all possible combinations of components including operations in an attempt to find a way to express the extended component with existing components.

5.4.4 Evaluation of ST introduction (ASE_INT.1)

5.4.4.1 Objectives

678

The objective of this sub-activity is to determine whether the ST and the

TOE are correctly identified, whether the TOE is correctly described in a narrative way at three levels of abstraction (TOE reference, TOE overview and TOE description), and whether these three descriptions are consistent with each other.

5.4.4.2 Input

The evaluation evidence for this sub-activity is: a) the ST.

4:ASE_INT.1-1

The a TOE reference, a TOE overview and a TOE description.

4:ASE_INT.1-2 evaluator identifies the ST.

680

The evaluator determines that the ST reference identifies the ST itself, so that it can be easily distinguished from other STs, and that it also uniquely identifies each version of the ST, e.g. by including a version number and/or a date of publication.

681

In evaluations where a CM system is provided, the evaluator could validate the uniqueness of the reference by checking the configuration list. In the other cases, the ST should have some referencing system that is capable of supporting unique references (e.g. use of numbers, letters or dates).

Page 110 of 231 Version 2.4 March 2004

EAL4 evaluation

4:ASE_INT.1-3

The the TOE.

682

683

The evaluator determines that the TOE reference identifies the TOE, so that it is clear to which TOE the ST refers, and that it also identifies the version of the TOE, e.g. by including a version/release/build number, or a date of release.

This work unit is limited to the TOE reference in the ST, checking whether the TOE is actually labelled with this reference, and whether these references are consistent, is covered by the ACM_CAP CM capabilities family.

4:ASE_INT.1-4

The misleading.

684

If the TOE is related to one or more well-known products, it is allowed to reflect this in the TOE reference. However, this should not be used to mislead consumers: situations where only a small part of a product are evaluated, yet the TOE reference does not reflect this, are not allowed.

4:ASE_INT.1-5

The the usage and major security features of the TOE.

685

686

The TOE overview should briefly (i.e. several paragraphs) describe the usage and major security features of the TOE. The TOE overview should enable potential consumers to quickly determine whether the TOE may be suitable for their security needs.

The evaluator determines whether the overview is clear enough for consumers, and sufficient to give them a general understanding of the intended usage and major security features of the TOE.

4:ASE_INT.1-6

The

4:ASE_INT.1-7

The type is not misleading.

687

688

There are situations where the general consumer would expect certain functionality of the TOE because of its TOE type. If this functionality is absent in the TOE, the evaluator determines that the TOE overview adequately discusses this absence.

There are also TOEs where the general consumer would expect that the TOE should be able to operate in a certain operational environment because of its

TOE type. If the TOE can not operate in such an operational environment, the evaluator determines that the TOE overview adequately discusses this.

4:ASE_INT.1-8 evaluator any non-TOE hardware/software/firmware required by the TOE.

689

While some TOEs can run stand-alone, other TOEs (notably software TOEs) need additional hardware, software or firmware to operate. If the TOE does

March 2004 Version 2.4 Page 111 of 231

EAL4 evaluation

690 not require any hardware, software or firmware, this work unit is not applicable and is therefore considered to be satisfied.

The evaluator determines that the TOE overview identifies any additional hardware, software and firmware needed by the TOE to operate. This identification does not have to be exhaustive but should be detailed enough for potential consumers of the TOE to determine whether their current hardware, software and firmware support use of the TOE, and, if this is not the case, which additional hardware, software and/or firmware is needed.

4:ASE_INT.1-9

The describes the physical scope and boundaries of the TOE.

691

The evaluator determines that the TOE description discusses the hardware, firmware and software components and/or modules that constitute the TOE at a level of detail that is sufficient to give the reader a general understanding of those components and/or modules.

692

693

The evaluator also determines that the TOE description lists all guidance that is part of the TOE.

The evaluator also determines that the TOE description describes exactly where the boundary lies between the TOE hardware/software/firmware and any non-TOE hardware/software/firmware.

694

The evaluator also determines that the TOE description describes exactly where the boundary between the TOE guidance and any non-TOE guidance lies.

4:ASE_INT.1-10

The describes the logical scope and boundaries of the TOE.

695

696

The evaluator determines that the TOE description discusses the logical security features offered by the TOE at a level of detail that is sufficient to give the reader a general understanding of those features.

The evaluator also determines that the TOE description describes exactly where the boundary lies between functionality provided by the TOE, and functionality provided by any non-TOE hardware/software/firmware.

4:ASE_INT.1-11 evaluator description to determine that they are consistent with each other.

5.4.5 Evaluation of Security objectives (ASE_OBJ.1)

5.4.5.1 Objectives

697

The objective of this sub-activity is to determine whether the security objectives adequately and completely address the security problem definition, that the division of this problem between the TOE, its

Page 112 of 231 Version 2.4 March 2004

EAL4 evaluation development environment, and its operational environment is clearly defined, and whether the security objectives are internally consistent.

5.4.5.2 Input

698

The evaluation evidence for this sub-activity is: a) the ST.

ASE_OBJ.1.1C

The statement of security objectives shall describe the security objectives

for the TOE.

4:ASE_OBJ.1-1

The the security objectives for the TOE.

699

The evaluator checks that the security objectives for the TOE are identified, and that they are clearly separated from the security objectives for the development environment and the security objectives for the operational environment.

ASE_OBJ.1.2C

The security objectives rationale shall trace each security objective for the

TOE back to threats countered by that security objective and OSPs met by

that security objective.

4:ASE_OBJ.1-2

The security objectives for the TOE back to threats countered by the objectives and/or organisational policies met by the objectives.

700

701

Each security objective for the TOE may trace back to more threats or OSPs, or a combination of threats and OSPs, but it must trace back to at least one threat or OSP.

Failure to trace implies that either the security objectives rationale is incomplete, the security problem definition is incomplete, or the security objective for the TOE has no useful purpose.

ASE_OBJ.1.3C

The statement of security objectives shall describe the security objectives

for the development environment.

4:ASE_OBJ.1-3 evaluator the security objectives for the development environment

702

The evaluator checks that the security objectives for the development environment are identified, and that they are also clearly separated from the security objectives for the TOE and the security objectives for the operational environment.

ASE_OBJ.1.4C

The security objectives rationale shall trace each security objective for the development environment back to threats countered by that security

objective and OSPs met by that security objective.

March 2004 Version 2.4 Page 113 of 231

EAL4 evaluation

4:ASE_OBJ.1-4

The security objectives for the development environment back to threats countered by that security objective and OSPs met by that security objective.

703

Each security objective for the development environment may trace back to more threats or OSPs, or a combination of threats and OSPs, but it must trace back to at least one threat or OSP.

704

Failure to trace implies that either the security objectives rationale is incomplete, the security problem definition is incomplete, or the security objective for the development environment has no useful purpose.

ASE_OBJ.1.5C

The statement of security objectives shall describe the security objectives

for the operational environment

4:ASE_OBJ.1-5

The the security objectives for the operational environment.

705

The evaluator checks that the security objectives for the operational environment are identified, and that they are also clearly separated from the security objectives for the TOE and the security objectives for the development environment.

ASE_OBJ.1.6C

The security objectives rationale shall trace each security objective for the operational environment back to threats countered by that security objective, OSPs enforced by that security objective, and assumptions

upheld by that security objective.

4:ASE_OBJ.1-6

The security objectives for the operational environment back to threats countered by that security objective, to OSPs enforced by that security objective, and to assumptions upheld by that security objective.

706

Each security objective for the operational environment may trace back to threats, OSPs, assumptions, or a combination of threats, OSPs and/or assumptions, but it must trace back to at least one threat, OSP or assumption.

707

709

Failure to trace implies that either the security objectives rationale is incomplete, the security problem definition is incomplete, or the security objective for the operational environment has no useful purpose.

ASE_OBJ.1.7C

The security objectives rationale shall demonstrate that the security

objectives counter all threats.

4:ASE_OBJ.1-7 evaluator that it justifies for each threat that the security objectives are suitable to counter that threat.

708

If no security objectives trace back to the threat, this work unit fails.

The evaluator determines that the justification for a threat shows whether the threat is removed, diminished or mitigated.

Page 114 of 231 Version 2.4 March 2004

EAL4 evaluation

710

711

712

The evaluator determines that the justification for a threat demonstrates that the security objectives are sufficient: if all security objectives that trace back to the threat are achieved, the threat is removed, sufficiently diminished, or the effects of the threats are sufficiently mitigated.

Note that the tracings from security objectives to threats provided in the security objectives rationale may be part of a justification, but do not constitute a justification by themselves. Even in the case that a security objective is merely a statement reflecting the intent to prevent a particular threat from being realised, a justification is required, but this justification could be as minimal as “Security Objective X directly counters threat Y”.

The evaluator also determines that each security objective that traces back to a threat is necessary: when the security objective is achieved it actually contributes to the removal, diminishing or mitigation of that threat.

ASE_OBJ.1.8C

The security objectives rationale shall demonstrate that the security

objectives enforce all OSPs.

4:ASE_OBJ.1-8

The that for each OSP it justifies that the security objectives are suitable to enforce that OSP.

713

714

If no security objectives trace back to the OSP, this work unit fails.

The evaluator determines that the justification for an OSP demonstrates that the security objectives are sufficient: if all security objectives that trace back to that OSP are achieved, the OSP is implemented.

715

716

The evaluator also determines that each security objective that traces back to an OSP is necessary: when the security objective is achieved it actually contributes to the implementation of the OSP.

Note that the tracings from security objectives to OSPs provided in the security objectives rationale may be part of a justification, but do not constitute a justification by themselves. In the case that a security objective is merely a statement reflecting the intent to enforce a particular OSP, a justification is required, but this justification could be as minimal as

“Security Objective X directly enforces OSP Y”.

ASE_OBJ.1.9C

The security objectives rationale shall demonstrate that the security

objectives for the operational environment uphold all assumptions.

4:ASE_OBJ.1-9 evaluator that for each assumption for the operational environment it contains an appropriate justification that the security objectives for the operational environment are suitable to uphold that assumption.

717

If no security objectives for the operational environment trace back to the assumption, this work unit fails.

March 2004 Version 2.4 Page 115 of 231

718

719

720

EAL4 evaluation

The evaluator determines that the justification for an assumption about the operational environment of the TOE demonstrates that the security objectives are sufficient: if all security objectives for the operational environment that trace back to that assumption are achieved, the operational environment is consistent with the assumption.

The evaluator also determines that each security objective for the operational environment that traces back to an assumption about the operational environment of the TOE is necessary: when the security objective is achieved it actually contributes to the operational environment achieving consistency with the assumption.

Note that the tracings from security objectives for the operational environment to assumptions provided in the security objectives rationale may be a part of a justification, but do not constitute a justification by themselves.

Even in the case that a security objective of the operational environment is merely a restatement of an assumption, a justification is required, but this justification could be as minimal as “Security Objective for the Operational

Environment X directly upholds Assumption Y”.

4:ASE_OBJ.1-10 evaluator determine that it is internally consistent.

721

722

The evaluator should compare the security objectives with each other to determine whether they contradict each other, or whether there may be conditions in which they contradict each other.

Examples of such contradictions are: a) “a user's identity shall never be released” and “actions of a user shall be logged with that user's identity”. b) “the network connection in the operational environment shall be

100% available” and “the network connection in the operational environment shall fail in a secure manner by shutting down its services gracefully”. c) “it shall not be possible for type X users to access type Y data”, “type

X users shall be able to export type Y data out of the TOE” may contradict unless the type Y data is protected in another way.

5.4.6 Evaluation of Security requirements (ASE_REQ.2)

5.4.6.1 Objectives

723

The objective of this sub-activity is to determine whether the SFRs and

SARs are clear, unambiguous and canonically formulated, whether they are internally consistent, and whether they meet the security objectives of the

TOE and the security objectives for the development environment.

Page 116 of 231 Version 2.4 March 2004

EAL4 evaluation

5.4.6.2 Input

724

The evaluation evidence for this sub-activity is: a) the ST.

ASE_REQ.2.1C

The statement of security requirements shall describe the SFRs and the

SARs.

4:ASE_REQ.2-1

The describes the SFRs.

725

The evaluator determines that all SFRs are identified by one of the following means: a) by reference to an individual component in CC Part 2; b) by reference to an extended component in the extended components definition of the ST; c) by reference to an individual component in a PP that the ST claims to be compliant with; d) by reference to an individual component in a security requirements package that the ST claims to be compliant with;

726 e) by reproduction in the ST.

It is not required to use the same means of identification for all SFRs.

727

If an SFR is reproduced in the ST, the evaluator determines that it has been reproduced correctly by comparing it to the definition of its component in

CC Part 2.

4:ASE_REQ.2-2 evaluator describes the SARs.

728

The evaluator determines that all SARs are identified by one of the following means: a) by reference to an individual component in CC Part 3; b) by reference to an extended component in the extended components definition of the ST; c) by reference to an individual component in a PP that the ST claims to be compliant with; d) by reference to an individual component in a security requirements package that the ST claims to be compliant with;

March 2004 Version 2.4 Page 117 of 231

EAL4 evaluation

729 e) by reproduction in the ST.

It is not required to use the same means of identification for all SARs.

730

731

If an SAR is reproduced in the ST, the evaluator determines that it has been reproduced correctly by comparing it to the definition of its component in

CC Part 3.

ASE_REQ.2.2C

The statement of security requirements shall identify all operations on the

security requirements.

4:ASE_REQ.2-3

The identifies all operations on the security requirements.

The evaluator determines that all operations are identified in each SFR or

SAR where such an operation is used. Identification can be achieved by typographical distinctions, or by explicit identification in the surrounding text, or by any other distinctive means.

ASE_REQ.2.3C

All assignment and selection operations shall be completed.

4:ASE_REQ.2-4

The determine that each assignment and each selection operation is completed.

732

The evaluator determines that there are no choices left in the assignments and selections of all SFRs and all SARs.

ASE_REQ.2.4C

All operations shall be performed correctly.

4:ASE_REQ.2-5

The determine that all assignment operations are performed correctly.

733

734

An assignment operation is only allowed where specifically permitted in a component.

The evaluator compares each assignment with the component from which it is derived to determine that the values of the parameters or variables chosen comply with the indicated type required by the assignment. An assignment may only be completed with “None” if this is specifically allowed.

4:ASE_REQ.2-6

The determine that all iteration operations are performed correctly.

735

The evaluator determines that each iteration of a requirement is different from each other iteration of that requirement (at least one element is different), or that the requirement applies to a different part of the TOE.

4:ASE_REQ.2-7 evaluator determine that all selection operations are performed correctly.

736

A selection operation is only allowed where specifically permitted in a component.

Page 118 of 231 Version 2.4 March 2004

EAL4 evaluation

737

The evaluator compares each selection with the component from which it is derived to determine that the selected item or items are one or more of the items indicated within the selection portion of the component. The evaluator also determines that where a selection explicitly states “choose one of”, only one item is selected.

4:ASE_REQ.2-8

The determine that all refinement operations are performed correctly.

738

The evaluator determines for each refinement that the component is refined in such manner that a TOE meeting the refined requirement also meets the unrefined requirement. If the refined requirement exceeds this boundary it is considered to be an extended requirement.

739

740

741

A special case of refinement is an editorial refinement, where a small change is made in a requirement, i.e. rephrasing a sentence due to adherence to proper English grammar. This change is not allowed to modify the meaning of the requirement in any way. The evaluator is reminded that editorial refinements have to be clearly identified.

Another special case of refinement is where multiple iterations of the same requirement are used, each with different refinements, where some of the refined iterations do not meet the full scope of the original requirement. This is acceptable, provided that all iterations of the refined requirement taken collectively, meet the entire scope of the original requirement.

In addition, a refinement should be related to the original requirement.

Refining an audit requirement with an extra element on prevention of electromagnetic radiation is normally not allowed. This refinement should be added to another requirement, or if no applicable requirement to refine can be found, be formulated as an extended requirement.

ASE_REQ.2.5C

Each dependency of the security requirements shall either be satisfied, or the security requirements rationale shall justify the dependency not being

satisfied.

4:ASE_REQ.2-9 evaluator determine that each dependency of the security requirements is either satisfied, or that the security requirements rationale justifies the dependency not being satisfied.

742

A dependency is satisfied by the inclusion of the relevant component (or one that is hierarchical to it) within the statement of security requirements. The component used to satisfy the dependency should, if necessary, be modified by operations to ensure that it actually satisfies that dependency.

743

A justification that a dependency is not met can address either: a) why the dependency is not necessary or useful, in which case no further information is required, or

March 2004 Version 2.4 Page 119 of 231

EAL4 evaluation b) that the dependency has been addressed by the operational environment of the TOE, in which case the justification should describe how the security objectives for the operational environment address this dependency.

ASE_REQ.2.6C

The security requirements rationale shall trace each SFR back to the

security objectives for the TOE.

4:ASE_REQ.2-10

The

SFR back to the security objectives for the TOE.

744

745

The evaluator determines that each SFR is traced back to at least one security objective for the TOE.

Failure to trace implies that either the security requirements rationale is incomplete, the security objectives for the TOE are incomplete, or that the

SFR has no useful purpose.

ASE_REQ.2.7C

The security requirements rationale shall demonstrate that the SFRs meet

all security objectives for the TOE.

4:ASE_REQ.2-11 evaluator that for each security objective for the TOE it demonstrates that the SFRs are suitable to meet that security objective for the TOE.

746

747

748

749

750

751

If no SFRs trace back to the security objective for the TOE, this work unit fails.

The evaluator determines that the justification for a security objective for the

TOE demonstrates that the SFRs are sufficient: if all SFRs that trace back to the objective are satisfied, the security objective for the TOE is achieved.

The evaluator also determines that each SFR that traces back to a security objective for the TOE is necessary: when the SFR is satisfied, it actually contributes to achieving the security objective.

Note that the tracings from SFRs to security objectives for the TOE provided in the security requirements rationale may be a part of the justification, but do not constitute a justification by themselves.

The evaluator takes into account that the TOE should usually have some form of protection for itself, otherwise it will not be able to uphold its security objectives. After all, if the TSF itself can be corrupted, it will not perform its duties for long in a hostile environment.

While examining the justification, the evaluator takes into account that SFRs can be bypassed, tampered with, deactivated, or attacked without being detected, and that this may lead to the security objectives for the TOE not being achieved. In particular, the evaluator closely examines cases where: a) Reference mediation (FPT_RVM) is not included, as this indicates possible bypass;

Page 120 of 231 Version 2.4 March 2004

EAL4 evaluation b) Domain separation (FPT_SEP) is not included, as this indicates possible logical tampering; c) TSF physical protection (FPT_PHP) is not included, as this indicates possible physical tampering; d) FAU: Security audit components are not included, as this indicates that attacks can be performed without being detected; e) FMT: Security management components have been included, as this provides a possibility to modify the behaviour of other SFRs,

752 and these cases are not or not sufficiently addressed by the security objectives for the operational environment.

ASE_REQ.2.8C

The security requirements rationale shall trace each SAR back to the

security objectives for the development environment.

4:ASE_REQ.2-12

The

SAR back to the security objectives for the development environment.

753

754

The evaluator determines that each SAR is traced back to at least one security objective for the development environment.

Failure to trace implies that either the security requirements rationale is incomplete, the security objectives for the development environment are incomplete, or that the SAR has no useful purpose.

4:ASE_REQ.2-13 evaluator that for each security objective for the development environment it justifies that the SARs are suitable to meet that security objective for the development environment.

755

If no SARs trace back to the security objective for the development environment, this work unit fails.

756

757

758

The evaluator determines that the justification for a security objective for the development environment demonstrates that the SARs are sufficient: if all

SARs that trace back to the objective are satisfied, the security objective for the development environment is achieved.

The evaluator also determines that each SAR that traces back to a security objective for the development environment is necessary, when the SAR is satisfied, it actually contributes to achieving the security objective.

Note that the tracings from SARs to security objectives for the development environment provided in the security requirements rationale may be a part of the justification, but do not constitute a justification by themselves.

March 2004 Version 2.4 Page 121 of 231

EAL4 evaluation

4:ASE_REQ.2-14 evaluator determine that it is internally consistent.

759

The evaluator determines that the combined set of all SFRs and SARs is internally consistent.

760

The evaluator determines that on all occasions where different security requirements apply to the same types of developer evidence, events, operations, data, tests to be performed etc. or “all objects”, “all subjects” etc., that these requirements do not conflict.

761

Some possible conflicts are: a) FRU_RSA.2 Minimum and maximum quotas specifying a minimum number of resources available to a user and FTA_MCS.1 Basic limitation on multiple concurrent sessions specifying a maximum number of sessions available for a user. If the resources are somehow linked to sessions, these requirements may conflict; b) an extended assurance requirement specifying that the design of certain cryptographic algorithm is to be kept secret, and another extended assurance requirement specifying an open source review;

762 c) FPR_ANO.1 Anonymity, FAU_GEN.1 Audit data generation specifying that subject identity is to be logged, and FAU_SAR.1

Audit review specifying who can read the audit records. If people from whom the activities of users should be hidden, can read the audit logs of these activities, these requirements may conflict; d) FDP_RIP.1 Subset residual information protection specifying deletion of information no longer needed, and FDP_ROL.1 Basic rollback specifying that a TOE can return to a previous state. If the information that is needed for the rollback to the previous state has been deleted, these requirements conflict; e) Multiple iterations of FDP_ACC.1 Subset access control especially where some iterations cover the same subjects, objects, or operations.

If one access control policy allows a subject to perform an operation on an object, while another policy does not allow this, these requirements conflict.

5.4.7 Evaluation of Security problem definition (ASE_SPD.1)

5.4.7.1 Objectives

The objective of this sub-activity is to determine that the security problem intended to be addressed by the TOE, its operational environment, and its development environment, is clearly defined.

Page 122 of 231 Version 2.4 March 2004

EAL4 evaluation

5.4.7.2 Input

763

The evaluation evidence for this sub-activity is: a) the ST.

ASE_SPD.1.1C

The security problem definition shall describe the threats.

4:ASE_SPD.1-1

The threats.

764

765

If all security objectives are derived from assumptions and OSPs only, the statement of threats need not be present in the ST. In this case, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that the security problem definition describes the threats that must be countered by the TOE, its development environment, its operational environment or combinations of these three.

ASE_SPD.1.2C

All threats shall be described in terms of a threat agent, an asset, and an

adverse action.

4:ASE_SPD.1-2

The that all threats are described in terms of a threat agent, an asset, and an adverse action.

766

767

If all security objectives are derived from assumptions and OSPs only, the statement of threats need not be present in the ST. In this case, this work unit is not applicable and therefore considered to be satisfied.

Threat agents may be further described by aspects such as expertise, resource, opportunity, and motivation.

ASE_SPD.1.3C

The security problem definition shall describe the OSPs.

4:ASE_SPD.1-3 evaluator

OSPs.

768

769

If all security objectives are derived from assumptions and threats only,

OSPs need not be present in the ST. In this case, this work unit is not applicable and therefore considered to be satisfied.

The evaluator determines that OSP statements are made in terms of rules, practices or guidelines that must be followed by the TOE, its development environment, its operational environment or combinations of these three.

770

The evaluator determines that each OSP is explained and/or interpreted in sufficient detail to make it clearly understandable; a clear presentation of policy statements is necessary to permit tracing security objectives to them.

March 2004 Version 2.4 Page 123 of 231

EAL4 evaluation

ASE_SPD.1.4C

The security problem definition shall describe the assumptions about the

operational environment of the TOE.

4:ASE_SPD.1-4

The that it describes the assumptions about the operational environment of the

TOE.

771

If the threats and/or OSPs already sufficiently address the physical, personnel, and connectivity aspects of the TOE, this work unit is not applicable and is therefore considered to be satisfied.

772

The evaluator determines that each assumption about the operational environment of the TOE is explained in sufficient detail to enable consumers to determine that their operational environment matches the assumption. If the assumptions are not clearly understood, the end result may be that the

TOE is used in an operational environment in which it will not function in a secure manner.

5.4.8 Evaluation of TOE summary specification (ASE_TSS.1)

5.4.8.1 Objectives

773

The objective of this sub-activity is to determine whether the TOE summary specification addresses all SFRs, and whether the TOE summary specification is consistent with other narrative descriptions of the TOE.

5.4.8.2 Input

774

The evaluation evidence for this sub-activity is: a) the ST.

4:ASE_TSS.1-1

The that it describes how the TOE meets each SFR.

775

The evaluator determines that the TOE summary specification provides, for each SFR from the statement of security requirements, a description on how that SFR is met.

776

The evaluator is reminded that the objective of each description is to provide potential consumers of the TOE with a high-level view of how the developer intends to satisfy each SFR and that the descriptions therefore should not be overly detailed.

4:ASE_TSS.1-2 evaluator that it is consistent with the TOE overview and the TOE description.

Page 124 of 231 Version 2.4 March 2004

EAL4 evaluation

777

The TOE overview, TOE description, and TOE summary specification describe the TOE in a narrative form at increasing levels of detail. These descriptions therefore need to be consistent.

5.5 Configuration management activity

778

779

The purpose of the configuration management activity is to assist the consumer in identifying the evaluated TOE, to ensure that configuration items are uniquely identified, and the adequacy of the procedures that are used by the developer to control and track changes that are made to the TOE.

This includes details on what changes are tracked, how potential changes are incorporated, and the degree to which automation is used to reduce the scope for error.

5.5.1 Evaluation of CM automation (ACM_AUT.1)

5.5.1.1 Objectives

The objective of this sub-activity is to determine whether changes to the implementation representation are controlled with the support of automated tools, thus making the CM system less susceptible to human error or negligence.

5.5.1.2 Input

780

The evaluation evidence for this sub-activity is: a) the configuration management documentation.

ACM_AUT.1.1C

The CM system shall provide an automated means by which only

authorised changes are made to the TOE implementation representation.

4:ACM_AUT.1-1

The measures to control access to the TOE implementation representation.

4:ACM_AUT.1-2 evaluator determine that they are effective in preventing unauthorised modification of the TOE implementation representation.

781

782

The evaluator reviews the configuration management documentation to identify those individuals or roles authorised to make changes to the TOE implementation representation. For example, once it is under configuration management, access to an element of the implementation representation may only be allowed for the individual who performs the software integration role.

The evaluator should exercise the automated access control measures to determine whether they can be bypassed by an unauthorised role or user.

This determination need only comprise a few basic tests.

March 2004 Version 2.4 Page 125 of 231

EAL4 evaluation

ACM_AUT.1.2C

The CM system shall provide an automated means to support the

generation of the TOE.

4:ACM_AUT.1-3

The support generation of the TOE from its implementation representation.

783

In this work unit the term “generation” applies to those processes adopted by the developer to progress the TOE from its implementation to a state ready to be delivered to the end customer.

784

The evaluator should verify the existence of automated generation support procedures within the CM documentation.

4:ACM_AUT.1-4

The determine that they can be used to support generation of the TOE.

785

786

The evaluator determines that by following the generation procedures a TOE would be generated that reflects its implementation representation. The customer can then be confident that the version of the TOE delivered for installation implements the SFRs as described in the ST. For example, in a software TOE this may include checking that the automated generation procedures help to ensure that all source files and related libraries that are part of the TSF are included in the compiled object code.

It should be noted that this requirement is only to provide support. For example, an approach that placed Unix makefiles under configuration management should be sufficient to meet the aim, given that in such a case automation would have made a significant contribution to accurate generation of the TOE. Automated procedures can assist in identifying the correct configuration items to be used in generating the TOE.

ACM_AUT.1.3C

The CM plan shall describe the automated tools used in the CM system.

4:ACM_AUT.1-5

The automated tools used in the CM system.

ACM_AUT.1.4C

The CM plan shall describe how the automated tools are used in the CM

system.

4:ACM_AUT.1-6 evaluator provided in the CM plan to determine that it describes how they are used.

787

The information provided in the CM plan provides the necessary detail for a user of the CM system to be able to operate the automated tools correctly in order to maintain the integrity of the TOE. For example, the information provided may include a description of: a) the functionality provided by the tools; b) how this functionality is used by the developer to control changes to the implementation representation;

Page 126 of 231 Version 2.4 March 2004

EAL4 evaluation c) how this functionality is used by the developer to support generation of the TOE.

5.5.1.4

ACM_AUT.1.1D

Implied evaluator action

4:ACM_AUT.1-7

The tools and procedures described in the CM plan are used.

788

789

This work unit may be viewed as an additional activity to be carried out in parallel with the evaluator's examination into the use of the CM system required by CM capabilities (ACM_CAP). The evaluator looks for evidence that the tools and procedures are in use. This should include a visit to the development site to witness operation of the tools and procedures, and an examination of evidence produced through their use.

5.5.2 Evaluation of CM capabilities (ACM_CAP.4)

5.5.2.1 Objectives

The objectives of this sub-activity are to determine whether the developer has clearly identified the TOE and its associated configuration items, and whether the ability to modify these items is properly controlled.

5.5.2.2 Input

790

The evaluation evidence for this sub-activity is: a) the ST; b) the TOE suitable for testing; c) the configuration management documentation.

ACM_CAP.4.1C

The reference for the TOE shall be unique to each version of the TOE.

4:ACM_CAP.4-1 evaluator evaluation is uniquely referenced.

791

The evaluator should use the developer's CM system to validate the uniqueness of the reference by checking the configuration list to ensure that the configuration items are uniquely identified. Evidence that the version provided for evaluation is uniquely referenced may be incomplete if only one version is examined during the evaluation, and the evaluator should look for a referencing system that is capable of supporting unique references (e.g. use of numbers, letters or dates). However, the absence of any reference will normally lead to a fail verdict against this requirement unless the evaluator is confident that the TOE can be uniquely identifed.

March 2004 Version 2.4 Page 127 of 231

EAL4 evaluation

792

The evaluator should seek to examine more than one version of the TOE

(e.g. during rework following discovery of a vulnerability), to check that the two versions are referenced differently.

ACM_CAP.4.2C

The TOE shall be labelled with its reference.

4:ACM_CAP.4-2

The with its reference.

793

The evaluator should ensure that the TOE contains a unique reference such that it is possible to distinguish different versions of the TOE. This could be achieved through labelled packaging or media, or by a label displayed by the operational TOE. This is to ensure that it would be possible for consumers to identify the TOE (e.g. at the point of purchase or use).

794

The TOE may provide a method by which it can be easily identified. For example, a software TOE may display its name and version number during the start up routine, or in response to a command line entry. A hardware or firmware TOE may be identified by a part number physically stamped on the

TOE.

4:ACM_CAP.4-3

The

795

If the TOE is labelled more than once then the labels have to be consistent.

For example, it should be possible to relate any labelled guidance documentation supplied as part of the TOE to the evaluated operational TOE.

This ensures that consumers can be confident that they have purchased the evaluated version of the TOE, that they have installed this version, and that they have the correct version of the guidance to operate the TOE in accordance with its ST. The evaluator can use the configuration list that is part of the provided CM documentation to verify the consistent use of identifiers.

The evaluator also verifies that the TOE reference is consistent with the ST.

796

ACM_CAP.4.3C

The CM documentation shall include a configuration list, a CM plan, and

an acceptance plan.

4:ACM_CAP.4-4

The configuration list.

797

A configuration list identifies the items being maintained under configuration control.

4:ACM_CAP.4-5

The

CM plan.

4:ACM_CAP.4-6 evaluator acceptance plan.

ACM_CAP.4.4C

The configuration list shall uniquely identify all configuration items that

comprise the TOE.

Page 128 of 231 Version 2.4 March 2004

EAL4 evaluation

4:ACM_CAP.4-7

The configuration item.

798

The configuration list contains a list of the configuration items that comprise the TOE, together with sufficient information to uniquely identify which version of each item has been used (typically a version number). Use of this list will enable the evaluator to check that the correct configuration items, and the correct version of each item, have been used during the evaluation.

ACM_CAP.4.5C

The configuration list shall describe the configuration items that comprise

the TOE.

4:ACM_CAP.4-8

The identifies the configuration items that comprise the TOE.

799

The minimum scope of configuration items to be covered in the configuration list is given by CM scope (ACM_SCP).

ACM_CAP.4.6C

The CM documentation shall describe the method used to uniquely identify

the configuration items.

4:ACM_CAP.4-9

The to determine that it describes how configuration items are uniquely identified.

ACM_CAP.4.7C

The CM system shall uniquely identify all configuration items.

4:ACM_CAP.4-10

The are identified in a way that is consistent with the CM documentation.

800

Assurance that the CM system uniquely identifies all configuration items is gained by examining the identifiers for the configuration items. For both configuration items that comprise the TOE, and drafts of configuration items that are submitted by the developer as evaluation evidence, the evaluator confirms that each configuration item possesses a unique identifier in a manner consistent with the unique identification method that is described in the CM documentation.

ACM_CAP.4.8C

The CM plan shall describe how the CM system is used.

4:ACM_CAP.4-11 evaluator the CM system is used to maintain the integrity of the TOE configuration items.

801

The descriptions contained in a CM plan may include: a) all activities performed in the TOE development environment that are subject to configuration management procedures (e.g. creation, modification or deletion of a configuration item); b) the roles and responsibilities of individuals required to perform operations on individual configuration items (different roles may be

March 2004 Version 2.4 Page 129 of 231

EAL4 evaluation identified for different types of configuration item (e.g. design documentation or source code)); c) the procedures that are used to ensure that only authorised individuals can make changes to configuration items; d) the procedures that are used to ensure that concurrency problems do not occur as a result of simultaneous changes to configuration items; e) the evidence that is generated as a result of application of the procedures. For example, for a change to a configuration item, the

CM system might record a description of the change, accountability for the change, identification of all configuration items affected, status (e.g. pending or completed), and date and time of the change.

This might be recorded in an audit trail of changes made or change control records; f) the approach to version control and unique referencing of TOE versions (e.g. covering the release of patches in operating systems, and the subsequent detection of their application).

ACM_CAP.4.9C

The evidence shall demonstrate that the CM system is operating in

accordance with the CM plan.

4:ACM_CAP.4-12

The the CM system records identified by the CM plan.

802

The output produced by the CM system should provide the evidence that the evaluator needs to be confident that the CM plan is being applied, and also that all configuration items are being maintained by the CM system as required by ACM_CAP.4.10C. Example output could include change control forms, or configuration item access approval forms.

4:ACM_CAP.4-13 evaluator is being used as it is described in the CM plan.

803

804

The evaluator should select and examine a sample of evidence covering each type of CM-relevant operation that has been performed on a configuration item (e.g. creation, modification, deletion, reversion to an earlier version) to confirm that all operations of the CM system have been carried out in line with documented procedures. The evaluator confirms that the evidence includes all the information identified for that operation in the CM plan.

Examination of the evidence may require access to a CM tool that is used.

The evaluator may choose to sample the evidence.

Further confidence in the correct operation of the CM system and the effective maintenance of configuration items may be established by means of interview with selected development staff. In conducting such interviews, the evaluator should aim to gain a deeper understanding of how the CM system is used in practice as well as to confirm that the CM procedures are being applied as described in the CM documentation. Note that such interviews

Page 130 of 231 Version 2.4 March 2004

EAL4 evaluation

805 should complement rather than replace the examination of documentary evidence, and may not be necessary if the documentary evidence alone satisfies the requirement. However, given the wide scope of the CM plan it is possible that some aspects (e.g. roles and responsibilities) may not be clear from the CM plan and records alone. This is one case where clarification may be necessary through interviews.

It is expected that the evaluator will visit the development site in support of this activity.

ACM_CAP.4.10C

The CM documentation shall provide evidence that all configuration items

have been and are being effectively maintained under the CM system.

4:ACM_CAP.4-14

The evaluator shall check that the configuration items identified in the configuration list are being maintained by the CM system.

806

The CM system employed by the developer should maintain the integrity of the TOE. The evaluator should check that for each type of configuration item

(e.g. high-level design or source code modules) contained in the configuration list there are examples of the evidence generated by the procedures described in the CM plan. In this case, the approach to sampling will depend upon the level of granularity used in the CM system to control

CM items. Where, for example, 10,000 source code modules are identified in the configuration list, a different sampling strategy should be applied compared to the case in which there are only 5, or even 1. The emphasis of this activity should be on ensuring that the CM system is being operated correctly, rather than on the detection of any minor error.

ACM_CAP.4.11C

The CM system shall provide measures such that only authorised changes

are made to the configuration items.

4:ACM_CAP.4-15

The the CM plan to determine that they are effective in preventing unauthorised access to the configuration items.

807

808

The evaluator may use a number of methods to determine that the CM access control measures are effective. For example, the evaluator may exercise the access control measures to ensure that the procedures could not be bypassed.

The evaluator may use the outputs generated by the CM system procedures and already examined as part of the work unit ACM_CAP.4-13. The evaluator may also witness a demonstration of the CM system to ensure that the access control measures employed are operating effectively.

The developer will have provided automated access control measures as part of the CM system and as such their suitability may be verified under the component ACM_AUT.1 Partial CM automation.

ACM_CAP.4.12C

The CM system shall support the generation of the TOE.

4:ACM_CAP.4-16

The evaluator shall check the CM documentation for procedures for supporting the generation of the TOE.

March 2004 Version 2.4 Page 131 of 231

EAL4 evaluation

809

810

In this work unit the term “generation” applies to those processes adopted by the developer to progress the TOE from implementation to a state acceptable for delivery to the end customer.

The evaluator verifies the existence of generation support procedures within the CM documentation. The generation support procedures provided by the developer may be automated, and as such their existence may be verified under the component ACM_AUT.1.2C.

4:ACM_CAP.4-17

The that they are effective in helping to ensure that the correct configuration items are used to generate the TOE.

811

The evaluator determines that by following the generation support procedures the version of the TOE expected by the customer (i.e. as described in the TOE ST and consisting of the correct configuration items) would be generated and delivered for installation at the customer site. For example, in a software TOE this may include checking that the procedures ensure that all source files and related libraries are included in the compiled object code.

812

The evaluator should bear in mind that the CM system need not necessarily possess the capability to generate the TOE, but should provide support for the process that will help reduce the probability of human error.

ACM_CAP.4.13C

The acceptance plan shall describe the procedures used to accept modified

or newly created configuration items as part of the TOE.

4:ACM_CAP.4-18 evaluator they describe the acceptance criteria to be applied to newly created or modified configuration items.

813

814

An acceptance plan describes the procedures that are to be used to ensure that the constituent parts of the TOE are of adequate quality prior to incorporation into the TOE. The acceptance plan should identify the acceptance procedures to be applied: a) at each stage of the construction of the TOE (e.g. module, integration, system); b) to the acceptance of software, firmware and hardware components; c) to the acceptance of previously evaluated components.

The description of the acceptance criteria may include identification of: a) developer roles or individuals responsible for accepting such configuration items; b) any acceptance criteria to be applied before the configuration items are accepted (e.g. successful document review, or successful testing in the case of software, firmware or hardware).

Page 132 of 231 Version 2.4 March 2004

EAL4 evaluation

5.5.3 Evaluation of CM scope (ACM_SCP.2)

5.5.3.1 Objectives

815

The objective of this sub-activity is to determine whether the developer performs configuration management on the TOE implementation representation, design, tests, user and administrator guidance, the CM documentation and security flaws.

5.5.3.2 Input

816

The evaluation evidence for this sub-activity is: a) the configuration item list.

ACM_SCP.2.1C

The list of configuration items shall include the following: implementation representation, security flaws, and the evaluation evidence required by the

SARs in the ST.

4:ACM_SCP.2-1 evaluator items required by the CC.

817

The list includes the following: a) the TOE implementation representation (i.e., the components or subsystems that compose the TOE). For a software-only TOE, the implementation representation may consist solely of source code; for a TOE that includes a hardware platform, the implementation representation may refer to a combination of software, firmware and a description of the hardware. b) the evaluation evidence required by the SARs in the ST. c) the documentation used to record details of reported security flaws associated with the implementation (e.g., problem status reports derived from a developer's problem database).

818

The purpose of the delivery and operation activity is to judge the adequacy of the documentation of the procedures used to ensure that the TOE is installed, generated, and started in the same way the developer intended it to be and that it is delivered without modification. This includes both the procedures taken while the TOE is in transit, as well as the initialisation, generation, and start-up procedures.

March 2004 Version 2.4 Page 133 of 231

EAL4 evaluation

5.6.1.1 Objectives

819

The objective of this sub-activity is to determine whether the delivery documentation describes all procedures used to maintain security and detect modification or substitution of the TOE when distributing the TOE to the user's site.

5.6.1.2 Input

820

The evaluation evidence for this sub-activity is: a) the delivery documentation.

ADO_DEL.2.1C

The delivery documentation shall describe all procedures that are necessary to maintain security when distributing versions of the TOE to a

user's site.

4:ADO_DEL.2-1 evaluator describes all procedures that are necessary to maintain security when distributing versions of the TOE or parts of it to the user's site.

821

822

Interpretation of the term “necessary” will need to consider the nature of the

TOE and information contained in the ST. The level of protection provided should be commensurate with the other SARs. In some cases these may not be explicitly expressed in relation to delivery. The evaluator should determine that a balanced approach has been taken, such that delivery does not present an obvious weak point in an otherwise secure development process.

The delivery procedures describe proper procedures to determine the identification of the TOE and to maintain security of the TOE during transfer of the TOE or its component parts. The procedures describe which parts of the TOE need to be covered by these procedures. It should contain procedures for physical or electronic (e.g. for downloading off the Internet) distribution where applicable. The delivery procedures refer to the entire

TOE, including applicable software, hardware, firmware and documentation.

823

824

The emphasis in the delivery documentation is likely to be on measures related to integrity, as technical measures are required to be applied to maintain integrity during the TOE delivery. However, confidentiality and availability of the delivery will be of concern in the delivery of some TOEs; procedures relating to these aspects of the secure delivery should also be discussed in the procedures.

The delivery procedures should be applicable across all phases of delivery from the production environment to the installation environment (e.g. packaging, storage and distribution).

Page 134 of 231 Version 2.4 March 2004

EAL4 evaluation

825

Standard commercial practice for packaging and delivery may be acceptable.

This includes shrink wrapped packaging, a security tape or a sealed envelope. For the distribution, the public mail or a private distribution service may be acceptable.

826

The suitability of the choice of the delivery procedures is influenced by the

TOE (e.g. whether it is software or hardware) and by the security objectives.

In cases where the delivery procedures differ for different parts of the TOE, the totality of procedures should be considered.

ADO_DEL.2.2C

The delivery documentation shall describe how the various procedures and technical measures provide for the detection of modifications, or any discrepancy between the developer's master copy and the version received

at the user site.

4:ADO_DEL.2-2

The describes how the various procedures and technical measures provide for the detection of modifications or any discrepancy between the developer's master copy and the version received at the user site.

827

Checksum procedures, software signature, or tamper proof seals may be used by the developer to ensure that tampering can be detected. The developer may also employ other procedures (e.g. a recorded delivery service) that register the name of the originator and supplie the name to the receiver.

828

Technical measures for the detection of any discrepancy between the developer's master copy and the version received at the user site should be described in the delivery procedures.

ADO_DEL.2.3C

The delivery documentation shall describe how the various procedures allow detection of attempts to masquerade as the developer, even in cases

in which the developer has sent nothing to the user's site.

4:ADO_DEL.2-3

The describes how the various mechanisms and procedures allow detection of attempted masquerading even in cases in which the developer has sent nothing to the user's site.

829

830

This requirement may be fulfilled by delivering the TOE or parts of it (e.g. by an agent known to and trusted by both developer and user). For a software

TOE a digital signature may be appropriate.

If the TOE is delivered by electronic download, the security can be maintained by using digital signatures, integrity checksums, or encryption.

5.6.1.4

ADO_DEL.2.2D

Implied evaluator action

4:ADO_DEL.2-4 evaluator the delivery procedures are used.

March 2004 Version 2.4 Page 135 of 231

831

832

EAL4 evaluation

The approach taken by the evaluator to check the application of delivery procedures will depend on the nature of the TOE, and the delivery process itself. In addition to examination of the procedures themselves, the evaluator should seek some assurance that they are applied in practice. Some possible approaches are: a) a visit to the distribution site(s) where practical application of the procedures may be observed; b) examination of the TOE at some stage during delivery, or at the user's site (e.g. checking for tamper proof seals); c) observing that the process is applied in practice when the evaluator obtains the TOE through regular channels; d) questioning end users as to how the TOE was delivered.

It may be the case of a newly developed TOE that the delivery procedures have yet to be exercised. In these cases, the evaluator has to be satisfied that appropriate procedures and facilities are in place for future deliveries and that all personnel involved are aware of their responsibilities. The evaluator may request a “dry run” of a delivery if this is practical. If the developer has produced other similar products, then an examination of procedures in their use may be useful in providing assurance.

5.6.2.1 Objectives

833

The objective of this sub-activity is to determine whether the procedures and steps for the secure installation, generation, and start-up of the TOE have been documented and result in a secure configuration.

834

The installation, generation, and start-up procedures refer to all installation, generation, and start-up procedures, regardless of whether they are performed at the user's site or at the development site that are necessary to progress the TOE to the secure configuration as described in the ST.

5.6.2.3 Input

835

The evaluation evidence for this sub-activity is: a) the administrator guidance; b) the secure installation, generation, and start-up procedures; c) the TOE suitable for testing.

Page 136 of 231 Version 2.4 March 2004

EAL4 evaluation

4:ADO_IGS.1-1

The installation, generation and start-up of the TOE have been provided.

836

If it is not anticipated that the installation, generation, and start-up procedures will or can be reapplied (e.g. because the TOE may already be delivered in an operational state) this work unit (or the effected parts of it) is not applicable, and is therefore considered to be satisfied.

4:ADO_IGS.1-2 evaluator up procedures to determine that they describe the steps necessary for secure installation, generation, and start-up of the TOE.

837

If it is not anticipated that the installation, generation, and start-up procedures will or can be reapplied (e.g. because the TOE may already be delivered in an operational state) this work unit (or the effected parts of it) is not applicable, and is therefore considered to be satisfied.

838

The installation, generation, and start-up procedures may provide detailed information about the following: a) changing the installation specific security characteristics of entities under the control of the TSF;

839 b) handling exceptions and problems; c) minimum system requirements for secure installation if applicable.

In order to confirm that the installation, generation, and start-up procedures result in a secure configuration, the evaluator may follow the developer's procedures and may perform the activities that customers are usually expected to perform to install, generate, and start-up the TOE (if applicable to the TOE), using the supplied guidance documentation only. This work unit might be performed in conjunction with the ATE_IND.1-2 work unit.

840

March 2004

The purpose of the development activity is to assess the design documentation in terms of its adequacy to understand how the TSF meets the

SFRs. This understanding is achieved through examination of increasingly refined descriptions of the TSF design documentation. Design documentation consists of a functional specification (which describes the external interfaces of the TSF), a high-level design (which describes the architecture of the TSF in terms of internal subsystems), and a low-level design (which describes the architecture of the TSF in terms of internal modules). Additionally, there is an implementation description (a source code level description), a security policy model (which describes the security policies enforced by the TSF) and a representation correspondence (which

Version 2.4 Page 137 of 231

EAL4 evaluation maps representations of the TSF to one another in order to ensure consistency).

841

842

843

844

845

The CC requirements for design documentation are levelled by formality.

The CC considers a document's degree of formality (that is, whether it is informal, semiformal or formal) to be hierarchical. An informal document is one that is expressed in a natural language. The methodology does not dictate the specific language that must be used; that issue is left for the scheme. The following paragraphs differentiate the contents of the different informal documents.

An informal functional specification comprises a description of the purpose and method-of-use of externally-visible interfaces to the TSF. For example, if an operating system presents the user with a means of self-identification, of creating files, of modifying or deleting files, of setting permissions defining what other users may access files, and of communicating with remote machines, its functional specification would contain descriptions of each of these and how they are realised through interactions with the externally-visible interfaces to the TSF. If there is also audit functionality that detects and record the occurrences of such events, descriptions of this audit functionality would also be expected to be part of the functional specification; while this functionality is technically not directly invoked by the user at the external interface, it certainly is affected by what occurs at the user's external interface.

An informal high-level design is expressed in terms of sequences of actions that occur in each subsystem in response to stimulus at its interface. For example, a firewall might be composed of subsystems that deal with packet filtering, with remote administration, with auditing, and with connectionlevel filtering. The high-level design description of the firewall would describe the actions that are taken, in terms of what actions each subsystem takes when an incoming packet arrives at the firewall.

An informal low-level design is expressed in terms of sequences of actions that occur in a module in response to stimulus at its interface. For example, a virtual private networking subsystem might be composed of modules that create session keys, that encrypt traffic, that decrypt traffic, and that decide whether traffic needs to be encrypted. The low-level description of the encryption module would describe the steps that the module takes when it receives a traffic stream that is to be encrypted.

While the functional specification describes the functionality and services, the model describes the policies that that functionality and those services enforce. An informal model is simply a description of the security policies enforced by services or functionality available at the external interface. For example, access control policies would describe the resources being protected and the conditions that must be met for access to be granted; audit policies would describe the TOE's auditable events, identifying both those that are selectable by the administrator and those that are always audited;

Page 138 of 231 Version 2.4 March 2004

EAL4 evaluation

846 identification and authentication policies would describe how users are identified, how those claimed identities are authenticated, and any rules affecting how identities are authenticated (e.g. users on the corporate intranet need no authentication, while external users are authenticated with one-time passwords).

Informality of the demonstration of correspondence need not be in a prose form; a simple two-dimensional mapping may be sufficient. For example, a matrix with modules listed along one axis and subsystems listed along the other, with the cells identifying the correspondence of the two, would serve to provide an adequate informal correspondence between the high-level design and the low-level design.

5.7.2 Evaluation of Functional specification (ADV_FSP.2)

5.7.2.1 Objectives

847

The objective of this sub-activity is to determine whether the developer has provided an adequate description of the TSF and whether this shows that all

SFRs have been sufficiently addressed.

5.7.2.2 Input

848

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the user guidance; d) the administrator guidance.

ADV_FSP.2.1C

The functional specification shall describe the TSF and its external

interfaces using an informal style.

4:ADV_FSP.2-1 evaluator contains all necessary informal explanatory text.

849

850

If the entire functional specification is informal, this work unit is not applicable and is therefore considered to be satisfied.

Supporting narrative descriptions are necessary for those portions of the functional specification that are difficult to understand only from the semiformal or formal description (for example, to make clear the meaning of any formal notation).

ADV_FSP.2.2C

The functional specification shall describe the purpose and method of use of all external TSF interfaces, providing complete details of all effects,

exceptions and error messages.

March 2004 Version 2.4 Page 139 of 231

EAL4 evaluation

4:ADV_FSP.2-2

The identifies all of the external TSF interfaces.

851

The term external refers to that which is visible to the user. External interfaces to the TOE are either direct interfaces to the TSF or interfaces to non-TSF portions of the TOE. However, these non-TSF interfaces might have eventual access to the TSF. These external interfaces that directly or indirectly access the TSF collectively make up the TSF interface (TSFI).

Figure

7

shows a TOE with TSF (shaded) portions and non-TSF (empty) portions. This TOE has three external interfaces: interface c is a direct interface to the TSF; interface b is an indirect interface to the TSF; and interface a is an interface to non-TSF portions of the TOE. Therefore, interfaces b and c make up the TFSI.

Figure 7 - TSF Interfaces

852

It should be noted that all SFRs will have some sort of externally-visible manifestation, including those SFRs whose failure is the only externally visible observation (e.g. FDP_RIP.1 Subset residual information protection,

FPT_SEP.1 TSF domain separation and FPT_RVM.1 Non-bypassability of the TSP). While not all of these are necessarily interfaces from which the

SFR can be tested, they are all externally-visible to some extent and must therefore be included in the functional specification.

4:ADV_FSP.2-3 evaluator describes all of the external TSF interfaces.

853

For a TOE that has no threat of malicious users (i.e. TSF physical protection

(FPT_PHP), Reference mediation (FPT_RVM), and Domain separation

(FPT_SEP) are rightfully excluded from its ST), the only interfaces that are described in the functional specification (and expanded upon in the other

TSF representation descriptions) are those to and from the TSF. The absence of TSF physical protection (FPT_PHP), Reference mediation (FPT_RVM), and Domain separation (FPT_SEP) presumes there is no concern for any sort

Page 140 of 231 Version 2.4 March 2004

EAL4 evaluation

854

855 of bypassing of the security features; therefore, there is no concern with any possible impact that other interfaces might have on the TSF.

On the other hand, if the TOE has a threat of malicious users or bypass (i.e.

TSF physical protection (FPT_PHP), Reference mediation (FPT_RVM), and

Domain separation (FPT_SEP) are included in its ST), all external interfaces are described in the functional specification, but only to the extent that the effect of each is made clear: interfaces to the security functions (i.e. interfaces b and c in Figure

7

) are completely described, while other interfaces are described only to the extent that it is clear that the TSF is inaccessible through the interface (i.e. that the interface is of type a, rather than b in Figure

7

). The inclusion of TSF physical protection (FPT_PHP),

Reference mediation (FPT_RVM), and Domain separation (FPT_SEP) implies a concern that all interfaces might have some effect upon the TSF.

Because each external interface is a potential TSF interface, the functional specification must contain a description of each interface in sufficient detail so that an evaluator can determine whether the interface is security relevant.

Some architectures lend themselves to readily provide this interface description in sufficient detail for groups of external interfaces. For example, a kernel architecture is such that all calls to the operating system are handled by kernel programs; any calls that might violate the TSP must be called by a program with the privilege to do so. All programs that execute with privilege must be included in the functional specification. Any program external to the kernel that executes without privilege is incapable of violating the TSP (i.e. such programs are interfaces of type a, rather than b in Figure

7

) and may, therefore, be excluded from the functional specification. It is worth noting that, while the evaluator's understanding of the interface description can be expedited in cases where there is a kernel architecture, such an architecture is not necessary.

4:ADV_FSP.2-4 evaluator adequately and correctly describes the complete behaviour of the TSF at each external interface describing effects, exceptions and error messages.

856

In order to assess the adequacy and correctness of an interface's presentation, the evaluator uses the functional specification and the user and administrator guidance to assess the following factors: a) All security relevant user input parameters (or a characterisation of those parameters) should be identified. For completeness, parameters outside of direct user control should be identified if they are usable by administrators. b) Complete security relevant behaviour described in the reviewed guidance should be reflected in the description of semantics in the functional specification. This should include an identification of the behaviour in terms of events and the effect of each event. For example, if an operating system provides a rich file system interface, where it provides a different error code for each reason why a file is not opened upon request, the functional specification should explain

March 2004 Version 2.4 Page 141 of 231

EAL4 evaluation that a file is either opened upon request, or else that the request is denied, along with a listing of the reasons why the open request might be denied (e.g. access denied, no such file, file is in use by another user, user is not authorised to open the file after 5pm, etc.). It would be insufficient for the functional specification merely to explain that a file is either opened upon request, or else that an error code is returned. The description of the semantics should include how the security requirements apply to the interface (e.g. whether the use of the interface is an auditable event and, if so, the information that can be recorded). c) All interfaces are described for all possible modes of operation. If the

TSF provides the notion of privilege, the description of the interface should explain how the interface behaves in the presence or absence of privilege. d) The information contained in the descriptions of the security relevant parameters and syntax of the interface should be consistent across all documentation.

857

858

Verification of the above is done by reviewing the SFRs, the functional specification as well as the user and administrator guidance provided by the developer. For example, if the TOE were an operating system and its underlying hardware, the evaluator would look for discussions of useraccessible programs, descriptions of protocols used to direct the activities of programs, descriptions of user-accessible databases used to direct the activities of programs, and for user interfaces (e.g. commands, application program interfaces) as applicable to the TOE; the evaluator would also ensure that the processor instruction set is described.

This review might be iterative, such that the evaluator would not discover the functional specification to be incomplete until the high-level design, source code, or other evidence is examined and found to contain parameters or error messages that have been omitted from the functional specification.

ADV_FSP.2.3C

The functional specification shall completely represent the TSF.

4:ADV_FSP.2-5 evaluator the TSF is fully represented.

859

In order to assess the completeness of the TSF representation, the evaluator consults the user guidance, and the administrator guidance. None of these should describe security funtionality that are absent from the TSF presentation of the functional specification.

860

This review might be iterative, such that the evaluator would not discover the

TSF to be incompletely represented until the high-level design, source code, or other evidence is examined and found to contain functionality that had been omitted from the functional specification.

Page 142 of 231 Version 2.4 March 2004

EAL4 evaluation

ADV_FSP.2.4C

The functional specification shall include rationale that the TSF is

completely represented.

4:ADV_FSP.2-6

The contains a convincing argument that the TSF is completely represented by the functional specification.

861

The evaluator determines that there is a convincing argument that there are no interfaces in the TSFI that are missing from the functional specification.

This may include a description of the procedure or methodology that the developer used to ensure that all external interfaces to the TSF are covered.

The argument would prove inadequate if, for example, the evaluator discovers commands, parameters, error messages, or other interfaces to the

TSF in other evaluation evidence, yet absent from the functional specification.

4:ADV_FSP.2-7

The is a complete instantiation of the SFRs

862

To ensure that all SFRs are covered by the functional specification, the evaluator may construct a map between the SFRs and the functional specification. Such a map might be already provided by the developer as evidence for meeting the correspondence (ADV_RCR.*) requirements, in which case the evaluator need only verify the completeness of this mapping, ensuring that all SFRs are mapped onto applicable TSFI presentations in the functional specification.

4:ADV_FSP.2-8 evaluator is an accurate instantiation of the SFRs.

863

864

For each interface to the TSF with specific characteristics, the detailed information in the functional specification must be consistent with the SFRs.

For example, if the SFRs specify through FIA_SOS.1 Verification of secrets that the password length must be eight characters, the TOE must have eightcharacter passwords.

For each interface in the functional specification that operates on a controlled object, the evaluator determines whether it returns an error code that indicates a possible failure due to enforcement of one or more of the SFRs; if no error code is returned, the evaluator determines whether an error code should be returned. For example, an operating system might present an interface to OPEN a controlled object. The description of this interface may include an error code that indicates that access was not authorised to the object. If such an error code does not exist, the evaluator should confirm whether this is appropriate (because, perhaps, access mediation is performed on READs and WRITEs, rather than on OPENs).

March 2004 Version 2.4 Page 143 of 231

EAL4 evaluation

4:ADV_FSP.2-9

The is consistent with the TOE summary specification.

865

The evaluator is reminded that the TOE summary specification may be at a much higher level of abstraction than the functional specification.

5.7.3 Evaluation of High-level design (ADV_HLD.2)

5.7.3.1 Objectives

866

The objective of this sub-activity is to determine whether the high-level design provides a description of the TSF in terms of major structural units

(i.e. subsystems), provides a description of the interfaces to these structural units, and is a correct realisation of the functional specification.

5.7.3.2 Input

867

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the high-level design.

ADV_HLD.2.1C

The presentation of the high-level design shall be informal.

4:ADV_HLD.2-1

The contains all necessary informal explanatory text.

868

If the entire high-level design is informal, this work unit is not applicable and is therefore considered to be satisfied.

869

Supporting narrative descriptions are necessary for those portions of the high-level design that are difficult to understand only from the semiformal or formal description (for example, to make clear the meaning of any formal notation).

ADV_HLD.2.2C

The high-level design shall describe the structure of the TSF in terms of

subsystems.

4:ADV_HLD.2-2 evaluator is described in terms of subsystems.

870

With respect to the high-level design, the term subsystem refers to large, related units (such as memory-management, file-management, processmanagement). Breaking a design into the basic functional areas aids in the understanding of the design.

Page 144 of 231 Version 2.4 March 2004

EAL4 evaluation

871

872

873

The primary purpose for examining the high-level design is to aid the evaluator's understanding of the TSF. The developer's choice of subsystem definition are an important aspect of making the high-level design useful in understanding the TSF's intended operation. As part of this work unit, the evaluator should make an assessment as to the appropriateness of the number and nature of subsystems presented by the developer. The evaluator should ensure that the decomposition of the TSF into subsystems is sufficient for the evaluator to gain a high-level understanding of how the functionality of the

TSF is provided.

The subsystems used to describe the high-level design need not be called

“subsystems”, but should represent a similar level of decomposition. For example, the design may be decomposed using “layers” or “managers”.

There may be some interaction between the choice of subsystem definition and the scope of the evaluator's analysis. A discussion on this interaction is found following work unit ADV_HLD.2-10.

ADV_HLD.2.3C

The high-level design shall describe the security functionality provided by

each subsystem of the TSF.

4:ADV_HLD.2-3

The describes the security functionality of each subsystem.

874

The security functionality of a subsystem is a description of what the subsystem does. This should include a description of any actions that the subsystem may be directed to perform and the effects the subsystem may have on the security state of the TOE (e.g. changes in subjects, objects, security databases).

ADV_HLD.2.4C

The high-level design shall identify any underlying hardware, firmware, and/or software required by the TSF with a presentation of the functions provided by the supporting protection mechanisms implemented in that

hardware, firmware, or software.

4:ADV_HLD.2-4

The all hardware, firmware, and software required by the TSF.

875

876

If the ST contains no IT-related security objectives for the operational environment, this work unit is not applicable and is therefore considered to be satisfied.

The evaluator determines whether the list of hardware, firmware, or software required by the TSF as stated in the high-level design is consistent with the

IT-related security objectives for the operational environment.

4:ADV_HLD.2-5 evaluator includes a presentation of the security functionality provided by the supporting protection mechanisms implemented in the underlying hardware, firmware, or software.

March 2004 Version 2.4 Page 145 of 231

EAL4 evaluation

877

878

If the ST contains no IT-related security objectives for the operational environment, this work unit is not applicable and is therefore considered to be satisfied.

The presentation of the security functionality provided by the underlying abstract machine on which the TOE executes need not be at the same level of detail as the presentation of TSF subsystems in the high-level design. The presentation should explain how the TSF uses this functionality to support the TSF meeting the SFRs.

879

The IT-related security objectives for the operational environment may be abstract, particularly if they are intended to be capable of being satisfied by a variety of different combinations of hardware, firmware, or software.

ADV_HLD.2.5C

The high-level design shall identify all interfaces to the subsystems of the

TSF.

4:ADV_HLD.2-6

The to the TSF subsystems.

880

The high-level design includes, for each subsystem, the name of each of its interfaces.

ADV_HLD.2.6C

The high-level design shall identify which of the interfaces to the

subsystems of the TSF are externally visible.

4:ADV_HLD.2-7

The interfaces to the subsystems of the TSF are externally visible.

881

As discussed under work unit ADV_FSP.1-3, external interfaces (i.e. those visible to the user) may directly or indirectly access the TSF. Any external interface that accesses the TSF either directly or indirectly is included in the identification for this work unit. External interfaces that do not access the

TSF need not be included.

ADV_HLD.2.7C

The high-level design shall describe the purpose and method of use of all interfaces to the subsystems of the TSF, providing details of effects,

exceptions and error messages, as appropriate.

4:ADV_HLD.2-8 evaluator describes the interfaces to each subsystem in terms of their purpose and method of use, and provides details of effects, exceptions and error messages, as appropriate.

882

The high-level design should include descriptions in terms of the purpose and method of use for all interfaces of each subsystem. Such descriptions may be provided in general terms for some interfaces, and in more detail for others. In determining the level of detail of effects, exceptions and error messages that should be provided, the evaluator should consider the purposes of this analysis and the uses made of the interface by the TOE. For example, the evaluator needs to understand the nature of the interactions between

Page 146 of 231 Version 2.4 March 2004

EAL4 evaluation

883

884 subsystems to establish confidence that the TOE design is sound, and may be able to obtain this understanding with only a general description of some of the interfaces between subsystems. In particular, internal subsystem interfaces that are not called by any other subsystem would not normally require detailed descriptions.

The level of detail may also depend on the testing approach adopted to meet the Depth (ATE_DPT) requirement. For example, a different amount of detail may be needed for a testing approach that tests only through external interfaces than one that tests through both external and internal subsystem interfaces.

Detailed descriptions would include details of any input and output parameters, of the effects of the interface, and of any exceptions or error messages it produces. In the case of external interfaces, the required description is probably included in the functional specification and may be referenced in the high-level design without replication.

ADV_HLD.2.8C

The high-level design shall describe the separation of the TOE into TSP-

enforcing and other subsystems.

4:ADV_HLD.2-9

The of the TOE into TSP-enforcing and other subsystems.

885

886

The TSF comprises all the parts of the TOE that have to be relied upon for enforcement of the TSP. Because the TSF includes both subsystems that directly enforce the TSP, and also those subsystems that, while not directly enforcing the TSP, contribute to the enforcement of the TSP in a more indirect manner, all TSP-enforcing subsystems are contained in the TSF.

Subsystems that play no role in TSP enforcement are not part of the TSF. An entire subsystem is part of the TSF if any portion of it is.

As explained under work unit ADV_HLD.2-3, the developer's choice of subsystem definition is an important aspect of making the high-level design useful in understanding the TOE's intended operation. However, the choice of subsystems also affects the scope of the TSF, because a subsystem with any function that directly or indirectly enforces the TSP is part of the TSF.

While the goal of understandability is important, it is also helpful to limit the extent of the TSF so as to reduce the amount of analysis that is required. The two goals of understandability and scope reduction may sometimes work against each other. The evaluator should bear this in mind when assessing the choice of subsystem definition.

4:ADV_HLD.2-10 evaluator accurate instantiation of the SFRs.

887

The evaluator validates the subsystem interface specifications by ensuring that:

March 2004 Version 2.4 Page 147 of 231

EAL4 evaluation a) the interface specifications are consistent with the description of the purpose of the subsystem; b) the interface specifications are consistent with their use by other subsystems; c) the interrelationships between subsystems that are needed in order that each TSP-enforcing function is correctly supported are correctly stated.

4:ADV_HLD.2-11

The complete instantiation of the SFRs.

888

889

The evaluator ensures that all SFRs are mapped onto applicable sections of the high-level design. This determination should be made in conjunction with the ADV_RCR.1 Informal correspondence demonstration sub-activity.

The evaluator analyses the high-level design to determine that each SFR is completely described by the subsystem specifications, and that there are no subsystems on which an SFR relies for which there is no specification in the high-level design.

5.7.4.1 Objectives

890

The objective of this sub-activity is to determine whether the implementation representation is sufficient to satisfy the functional requirements of the ST and is a correct realisation of the low-level design.

5.7.4.2 Input

891

The evaluation evidence for this sub-activity is: a) the ST; b) the low-level design; c) the subset of the implementation representation.

ADV_IMP.1.1C

The implementation representation shall unambiguously define the TSF to a level of detail such that the TSF can be generated without further design

decisions.

4:ADV_IMP.1-1 evaluator that it unambiguously defines the TSF to a level of detail such that the TSF can be generated without any further design decisions.

892

This work unit requires the evaluator to confirm that the implementation representation is suitable for analysis. The evaluator should consider the

Page 148 of 231 Version 2.4 March 2004

EAL4 evaluation

893 process needed to generate the TSF from the representation provided. If the process is well-defined, requiring no further design decisions (for example, requiring only the compilation of source code, or the building of hardware from hardware drawings), then the implementation representation can be said to be suitable.

Any programming languages used must be well defined with an unambiguous definition of all statements, as well as the compiler options used to generate the object code. This determination will have been made as part of the ALC_TAT.1 Well-defined development tools sub-activity.

4:ADV_IMP.1-2 evaluator the developer to determine that it is sufficiently representative.

894

The developer is required to provide the implementation representation for only a subset of the TSF. The developer can select and offer an initial subset, but the evaluator may require additional portions, or even different subsets.

895

896

The evaluator determines the adequacy and appropriateness of the subset by applying the principles of sampling.

In determining the appropriateness of the subset, the evaluator decides if it is suitable for use in aiding the evaluator to understand and gain assurance of the correctness of the implementation of the TSF. In making this determination, the evaluator should consider the different methods of representation used by the developer, so that the evaluator is satisfied that a representative subset has been selected.

897

898

899

For example, if some of the implementation representation is known to have originated from different development organisations, the selected subset should contain samples from each of the different creating organisations. If the implementation representation source code includes different forms of programming languages, the subset should contain samples of each different language.

In the case that the implementation representation includes hardware drawings, several different portions of the TSF should be included in the subset. For example, for a TSF including a desktop computer, the selected subset should contain samples for peripheral controllers as well as the main computer board.

Other factors that might influence the determination of the subset include: a) the complexity of the design (if the design complexity varies across the TSF, the subset should include some portions with high complexity); b) scheme requirements; c) the results of other design analysis sub-activities (such as work units related to the low-level or high-level design) that might indicate

March 2004 Version 2.4 Page 149 of 231

EAL4 evaluation portions of the TSF in which there is a potential for ambiguity in the design; and d) the evaluator's judgement as to portions of the implementation representation that might be useful for the evaluator's independent vulnerability analysis (sub-activity AVA_VLA.2 Independent vulnerability analysis).

4:ADV_IMP.1-3

The determine that it accurately instantiates those SFRs relevant to the subset.

900

The evaluator may make use of the low-level design to assess if the portions in the implementation representation subset, in combination with other portions as described in the low-level design, work together to instantiate the

SFRs.

5.7.5 Evaluation of Low-level design (ADV_LLD.1)

5.7.5.1 Objectives

901

The objective of this sub-activity is to determine whether the low-level design is sufficient to satisfy the SFRs, and is a correct and effective refinement of the high-level design.

5.7.5.2 Input

902

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the high-level design; d) the low-level design.

ADV_LLD.1.1C

The presentation of the low-level design shall be informal.

4:ADV_LLD.1-1 evaluator contains all necessary informal explanatory text.

903

904

If the entire low-level design is informal, this work unit is not applicable and is therefore considered to be satisfied.

Supporting narrative descriptions are necessary for those portions of the lowlevel design that are difficult to understand only from the semiformal or formal description (for example, to make clear the meaning of any formal notation).

Page 150 of 231 Version 2.4 March 2004

EAL4 evaluation

ADV_LLD.1.2C

The low-level design shall describe the TSF in terms of modules.

4:ADV_LLD.1-2

The the TSF in terms of modules.

905

The term module is used in this family by the CC to denote a less abstract entity than a subsystem. This means that it contains more detail as to, not only the module's purpose, but also the manner in which the module achieves its purpose. Ideally, the low-level design would provide all the information needed to implement the modules described in it. The later work units in this sub-activity call for specific analysis to determine that a sufficient level of detail is included. For this work unit, it is sufficient for the evaluator to verify that each module is clearly and unambiguously identified.

ADV_LLD.1.3C

The low-level design shall describe the purpose of each module.

4:ADV_LLD.1-3

The describes the purpose of each module.

906

The low-level design contains a description of the purpose of each of its modules. These descriptions should be clear enough to convey what functions the module is expected to perform. The description should provide an overview of a module's purpose and is not intended to be at the level of detail of module interface specifications.

ADV_LLD.1.4C

The low-level design shall define the interrelationships between the modules in terms of provided security functionality and dependencies on

other modules.

4:ADV_LLD.1-4 evaluator the interrelationships between the modules in terms of provided security functionality and dependencies on other modules.

907

For the purpose of this analysis, modules are viewed as interacting in two ways: a) to provide services to one another, and

908 b) to cooperate in support of meeting SFRs.

The low-level design should include specific information on these interrelationships. For example, if a module performs calculations that depend on the results of calculations in other modules, those other modules should be listed. Further, if a module provides a service intended for other modules to use in meeting SFRs, the service should be described. It is possible that the description of the purpose of a module, as analysed in the preceding work unit, is sufficient to provide this information.

ADV_LLD.1.5C

The low-level design shall describe how each TSP-enforcing module is

provided.

March 2004 Version 2.4 Page 151 of 231

EAL4 evaluation

4:ADV_LLD.1-5

The describes how each of the TSP-enforcing modules is provided.

909

It is this description in the low-level design that is key to the assessment as to whether the low-level design is sufficiently refined to permit an implementation to be created. The evaluator should analyse the description from the point of view of an implementor. If the evaluator, using the implementor's viewpoint, is unclear on any aspect of how the module could be implemented, the description is incomplete. Note that there is no requirement that a module be implemented as a separate unit (be it a program, a subprogram, or a hardware component); but the low-level design may be sufficiently detailed to permit such an implementation.

ADV_LLD.1.6C

The low-level design shall identify all interfaces to the modules of the TSF.

4:ADV_LLD.1-6

The to the TSF modules.

910

The low-level design should include, for each module, the name of each of its entry points.

ADV_LLD.1.7C

The low-level design shall identify which of the interfaces to the modules

of the TSF are externally visible.

4:ADV_LLD.1-7

The interfaces to the modules of the TSF are externally visible.

911

As discussed under work unit ADV_FSP.2-3, external interfaces (i.e. those visible to the user) may directly or indirectly access the TSF. Any external interface that accesses the TSF either directly or indirectly is included in the identification for this work unit. External interfaces that do not access the

TSF need not be included.

ADV_LLD.1.8C

The low-level design shall describe the purpose and method of use of all interfaces to the modules of the TSF, providing details of effects,

exceptions and error messages, as appropriate.

4:ADV_LLD.1-8 evaluator describes the interfaces to each module in terms of their purpose and method of use, and provides details of effects, exceptions and error messages, as appropriate.

912

The module interface descriptions may be provided in general terms for some interfaces, and in more detail for others. In determining the necessary level of detail of effects, exceptions and error messages, the evaluator should consider the purposes of this analysis and the uses made of the interface by the TOE. For example, the evaluator needs to understand the general nature of the interactions between modules to establish confidence that the TOE design is sound, and may be able to obtain this understanding with only a general description of some of the interfaces between modules. In particular,

Page 152 of 231 Version 2.4 March 2004

EAL4 evaluation

913 internal entry points that are not called by any other module would not normally require detailed descriptions.

This work unit may be performed in conjunction with the evaluator's independent vulnerability analysis, which is part of the Vulnerability analysis

(AVA_VLA) sub-activity.

914

Detailed descriptions would include details of any input and output parameters, of the effects of the interface, and of any exceptions or error messages it produces. In the case of external interfaces, the required description is probably included in the functional specification and can be referenced in the low-level design without replication.

ADV_LLD.1.9C

The low-level design shall describe the separation of the TOE into TSP-

enforcing and other modules.

4:ADV_LLD.1-9

The of the TOE into TSP-enforcing and other modules.

915

The TSF comprises all the parts of the TOE that have to be relied upon for enforcement of the TSP. Because the TSF includes both modules that directly enforce the TSP, and also those modules that, while not directly enforcing the TSP, contribute to the enforcement of the TSP in a more indirect manner, all TSP-enforcing modules are contained in the TSF.

Modules that cannot affect TSP enforcement are not part of the TSF.

4:ADV_LLD.1-10

The accurate instantiation of the SFRs.

916

The evaluator validates the module interface specifications by ensuring that: a) the interface specifications are consistent with the description of the purpose of the module; b) the interface specifications are consistent with their use by other modules; c) the interrelationships between modules that are needed in order that each TSP-enforcing function is correctly supported are correctly stated.

4:ADV_LLD.1-11 evaluator complete instantiation of the SFRs.

917

918

The evaluator ensures that all SFRs are mapped onto applicable sections of the low-level design. This determination should be made in conjunction with the ADV_RCR.1 Informal correspondence demonstration sub-activity.

The evaluator analyses the low-level design to determine that each SFR is completely described by the module specifications, and that there are no

March 2004 Version 2.4 Page 153 of 231

EAL4 evaluation modules on which an SFR relies for which there is no specification in the low-level design.

5.7.6 Evaluation of Representation correspondence (ADV_RCR.1)

5.7.6.1 Objectives

919

The objective of this sub-activity is to determine whether the developer has correctly and completely implemented the requirements of the ST, functional specification, high-level design and low-level design in the implementation representation.

5.7.6.2 Input

920

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the high-level design; d) the low-level design; e) a subset of the implementation representation; f) the correspondence analysis between the TOE summary specification and the functional specification; g) the correspondence analysis between the functional specification and the high-level design; h) the correspondence analysis between the high-level design and the low-level design; i) the correspondence analysis between the low-level design and the subset of the implementation representation.

4:ADV_RCR.1-1 evaluator and the functional specification to determine that the functional specification is a correct and complete representation of the SFRs.

921

The evaluator's goal in this work unit is to determine that all SFRs are represented in the functional specification and that they are represented accurately.

922

The evaluator reviews the correspondence between the SFRs and the functional specification. The evaluator looks for consistency and accuracy in the correspondence. Where the correspondence analysis indicates a relationship between an SFR and one or more interface description in the

Page 154 of 231 Version 2.4 March 2004

EAL4 evaluation

923 functional specification, the evaluator verifies that the interface descriptions completely and accurately represent that SFR.

This work unit may be done in conjunction with work units ADV_FSP.2-8 and ADV_FSP.2-9.

4:ADV_RCR.1-2

The functional specification and the high-level design to determine that the highlevel design is a correct and complete representation of the functional specification.

924

The evaluator uses the correspondence analysis, the functional specification, and the high-level design to ensure that it is possible to map elements in the functional specification onto a TSF subsystem described in the high-level design. The evaluator verifies that the high-level design includes a description of a correct realisation of each element in the functional specifcation.

4:ADV_RCR.1-3

The level design and the low-level design to determine that the low-level design is a correct and complete representation of the high-level design.

925

The evaluator uses the correspondence analysis, the high-level design, and the low-level design to ensure that it is possible to map each TSF module identified in the low-level design onto a TSF subsystem described in the high-level design. For each TSF subsystem, the correspondence indicates which TSF modules are involved in implementing that subsystem. The evaluator verifies that the low-level design includes a description of a correct realisation of each TSF subsystem.

4:ADV_RCR.1-4 evaluator level design and the subset of the implementation representation to determine that the subset is a correct and complete representation of those portions of the low-level design that are refined in the implementation representation.

926

927

Since the evaluator examines only a subset of the implementation representation, this work unit is performed by only assessing the correspondence analysis of the subset of the implementation representation to the relevant parts of the low-level design.

5.7.7 Evaluation of Security policy modeling (ADV_SPM.1)

5.7.7.1 Objectives

The objectives of this sub-activity are to determine whether the security policy model clearly and consistently describes the rules and characteristics of the security policies and whether this description corresponds with the functional specification.

5.7.7.2 Input

928

The evaluation evidence for this sub-activity is:

March 2004 Version 2.4 Page 155 of 231

EAL4 evaluation a) the ST; b) the functional specification; c) the TOE security policy model; d) the user guidance; e) the administrator guidance.

ADV_SPM.1.1C

The TSP model shall be informal.

4:ADV_SPM.1-1

The contains all necessary informal explanatory text.

929

930

If the entire model is informal, this work unit is not applicable and is therefore considered to be satisfied.

Supporting narrative descriptions are necessary for those portions of the model that are difficult to understand only from the semiformal or formal description (for example, to make clear the meaning of any formal notation).

ADV_SPM.1.2C

The TSP model shall describe the rules and characteristics of all policies of

the TSP that can be modeled.

4:ADV_SPM.1-2

The that are explicitly included in the ST are modeled.

931

932

The security policy is expressed by the collection of the SFRs. Therefore, to determine the nature of the security policy (and hence what policies must be modeled), the evaluator analyses the SFRs for those policies explicitly called for (by Access control policy (FDP_ACC) and Information flow control policy (FDP_IFC), if included in the ST).

Depending upon the TOE, formal/semiformal modeling might not even be possible for access control. (For example, the access control policy for a firewall connected to the internet cannot be formally modeled in a useful manner because the state of the internet cannot be completely defined.). For any security policy where formal or semiformal models are not possible, the policy must be provided in an informal form.

933

If the ST contains no explicit policies (because neither Access control policy

(FDP_ACC) nor Information flow control policy (FDP_IFC) are included in the ST), this work unit is not applicable and is therefore considered to be satisfied.

4:ADV_SPM.1-3 evaluator security policies represented by the SFRs are modeled.

Page 156 of 231 Version 2.4 March 2004

EAL4 evaluation

934

935

937

In addition to the explicitly-listed policies (see work unit ADV_SPM.1-2), the evaluator analyses the SFRs for those policies implied by the other functional security requirement classes. For example, inclusion of FDP requirements (other than Access control policy (FDP_ACC) and Information flow control policy (FDP_IFC)) would need a description of the Data

Protection policy being enforced; inclusion of any FIA: Identification and authentication requirements would necessitate that a description of the

Identification and Authentication policies be present in the security policy model; inclusion of FAU: Security audit requirements need a description of the Audit policies; etc. While the other functional families are not typically associated with what are commonly referred to as security policies, they nevertheless do enforce security policies (e.g. non-repudiation, reference mediation, privacy, etc.) that must be included in the security policy model.

In cases where the model presentation is informal, all security policies can be modeled (i.e. described), and so must be included. For any security policy where formal or semiformal models are not possible, the policy must be provided in an informal form.

936

If the ST contains no such implicit policies, this work unit is not applicable and is therefore considered to be satisfied.

4:ADV_SPM.1-4

The determine that the modeled security behaviour of the TOE is clearly articulated.

The rules and characteristics describe the security posture of the TOE. It is likely that such a description would be contained within an evaluated and certified ST. In order to be considered a clear articulation, such a description should define the notion of security for the TOE, identify the security attributes of the entities controlled by the TOE and identify the TOE actions which change those attributes. For example, if a policy attempts to address data integrity concerns, the policy model would: a) define the notion of integrity for that TOE; b) identify the types of data for which the TOE would maintain integrity; c) identify the entities that could modify that data; d) identify the rules that potential modifiers must follow to modify data.

ADV_SPM.1.3C

The TSP model shall include a rationale that demonstrates that it is consistent and complete with respect to all policies of the TSP that can be

modeled.

4:ADV_SPM.1-5 evaluator that the behaviour modeled is consistent with respect to policies described by the security policies (as articulated by the SFRs).

March 2004 Version 2.4 Page 157 of 231

EAL4 evaluation

938

939

940

941

In determining consistency, the evaluator verifies that the rationale shows that each rule or characteristic description in the model accurately reflects the intent of the security policies. For example, if a policy stated that access control was necessary to the granularity of a single individual, then a model describing the security behaviour of a TOE in the context of controlling groups of users would not be consistent. Likewise, if the policy stated that access control for groups of users was necessary, then a model describing the security behaviour of a TOE in the context of controlling individual users would also not be consistent.

Assurance is to be gained from an explicit and general statement of the policies underlying the SFRs. The assurance gained is two-fold: collecting the description of each security policy into a concise whole aids in understanding the details of the policies being enforced. Additionally, such a collected description makes it much easier to see any gaps or inconsistencies

(which must be sought as part of the Security policy modeling

(ADV_SPM).*.3C element), and provides a clear characterisation of secure states (sought as part of the Security policy modeling (ADV_SPM).*.2C element).

The requirement for an Informal Security Policy Model (ISPM) is met by a clear statement of the security policy. The need for a separate ISPM is not absolute, since for very straightforward policies, or those very clearly expressed in the ST, there may be no need for a separate ISPM. In such cases, different sections of the ST (e.g. the security objectives for the TOE, the SFRs) may combine together to provide a sufficient level of detail for the security policy. However, this is often not the case. For example, audit requirements may be spread throughout the SFRs, which may not provide a clear model of the overall policy. Unless another section of the ST (perhaps the security objectives for the TOE) pulls together the audit requirements into a cohesive whole, then having a separate ISPM would be necessary in order to allow for the detection of inconsistencies within the ST requirements that may otherwise pass undetected.

Where a developer claims that the ISPM requirements for some or all of the security policies are met by the ST, the evaluator needs to determine that this is the case by applying the requirements of the ADV_SPM.1 Informal TOE security policy model component: determining that the policy is clearly expressed, and that the model is consistent with the remainder of the ST. As part of the ISPM rationale, it is likely that, in cases where the developer claims that the ISPM is met entirely by the ST, that the rationale will reference the demonstrations of suitability and correspondence between portions of the ST. When evaluating this work-unit, the evaluator may draw upon the results of the ST evaluation in this area.

4:ADV_SPM.1-6 evaluator that the behaviour modeled is complete with respect to the policies described by the security policies (i.e. as articulated by the SFRs).

942

In determining completeness of this rationale, the evaluator considers the rules and characteristics of the security policy model and maps those rules

Page 158 of 231 Version 2.4 March 2004

EAL4 evaluation

943

944 and characteristics to explicit policy statements (i.e. SFRs). The rationale should show that all policies that are required to be modeled have an associated rule or characteristic description in the security policy model.

Where a developer claims that the ISPM requirements for some or all of the security policies are met by the ST, the evaluator needs to determine that this is the case by applying the requirements of the ADV_SPM.1 Informal TOE security policy model component: determining that the policy is clearly expressed, and that the model is complete with respect to the remainder of the ST. When evaluating this work-unit, the evaluator may draw upon the results of the evaluation of the completeness of the various portions of the

ST.

ADV_SPM.1.4C

The demonstration of correspondence between the TSP model and the functional specification shall show that all of the external interfaces to the

TSF in the functional specification are consistent and complete with

respect to the TSP model.

4:ADV_SPM.1-7

The demonstration of the security policy model to determine that it identifies all external interfaces to the TSF described in the functional specification that implement a portion of the policy.

In determining completeness, the evaluator reviews the functional specification, identifies which external interfaces to the TSF directly support the security policy model and verifies that these interfaces are present in the functional specification correspondence demonstration of the security policy model.

4:ADV_SPM.1-8 evaluator demonstration of the security policy model to determine that the descriptions of the external interfaces to the TSF as implementing the security policy model are consistent with the security policy model.

945

To demonstrate consistency, the evaluator verifies that the functional specification correspondence shows that the description in the functional specification of the external interfaces to the TSF identified as implementing the policy described in the security policy model identify the same attributes and characteristics of the security policy model and enforce the same rules as the security policy model.

946

In cases where a security policy is enforced differently for untrusted users and administrators, the policies for each are described consistently with the respective behaviour descriptions in the user and administrator guidance. For example, the “identification and authentication” policy enforced upon remote untrusted users might be more stringent than that enforced upon administrators whose only point of access is within a physically-protected area; the differences in authentication should correspond to the differences in the descriptions of authentication within the user and administrator guidance.

March 2004 Version 2.4 Page 159 of 231

EAL4 evaluation

947

The purpose of the guidance document activity is to judge the adequacy of the documentation describing how to use the operational TOE. Such documentation includes both that aimed at trusted administrators and nonadministrator users whose incorrect actions could adversely affect the security of the TOE, as well as that aimed at untrusted users whose incorrect actions could adversely affect the security of their own data.

948

949

The guidance documents activity applies to those functions and interfaces which are related to the security of the TOE. The secure configuration of the

TOE is described in the ST.

5.8.2 Evaluation of Administrator guidance (AGD_ADM.1)

5.8.2.1 Objectives

The objective of this sub-activity is to determine whether the administrator guidance describes how to administer the TOE in a secure manner.

950

The term “administrator” is used to indicate a human user who is trusted to perform security critical operations within the TOE, such as setting TOE configuration parameters. The operations may affect the enforcement of the

TSP, and the administrator therefore possesses specific privileges necessary to perform those operations. The role of the administrator(s) has to be clearly distinguished from the role of non-administrative users of the TOE.

951

There may be different administrator roles or groups defined in the ST that are recognised by the TOE and that can interact with the TSF such as auditor, administrator, or daily-management. Each role can encompass an extensive set of capabilities, or can be a single one. The capabilities of these roles and their associated privileges are described in the FMT class. Different administrator roles and groups should be taken into consideration by the administrator guidance.

5.8.2.3 Input

952

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the user guidance; d) the administrator guidance; e) the secure installation, generation, and start-up procedures;

Page 160 of 231 Version 2.4 March 2004

EAL4 evaluation

4:AGD_ADM.1-1

The describes the administrative security interfaces available to the administrator of the TOE.

953

954

The administrator guidance should contain an overview of the security functionality that is visible at the administrator interfaces.

The administrator guidance should identify and describe the purpose, behaviour, and interrelationships of the administrator security interfaces.

955

For each administrator security interface, the administrator guidance should: a) describe the method(s) by which the interface is invoked (e.g. command-line, programming-language system calls, menu selection, command button); b) describe the parameters to be set by the administrator, their valid and default values; c) describe the immediate TSF response, message, or code returned.

4:AGD_ADM.1-2

The describes how to administer the TOE in a secure manner.

956

The administrator guidance describes how to operate the TOE according to the TSP in an operational environment that meets all security objectives for the operational environment as described in the ST.

4:AGD_ADM.1-3

The contains warnings about functions and privileges that should be controlled in a secure processing environment.

957

The configuration of the TOE may allow users to have dissimilar privileges to make use of the different functions of the TOE. This means that some users may be authorised to perform certain functions while other users may not be so authorised. These functions and privileges should be described by the administrator guidance.

958

The administrator guidance identifies the functions and privileges that must be controlled, the types of controls required for them, and the reasons for such controls. Warnings address expected effects, possible side effects, and possible interactions with other functions and privileges.

4:AGD_ADM.1-4 evaluator describes all security parameters under the control of the administrator indicating secure values as appropriate.

959

For each security parameter, the administrator guidance should describe the purpose of the parameter, the valid and default values of the parameter, and

March 2004 Version 2.4 Page 161 of 231

EAL4 evaluation secure and insecure use settings of such parameters, both individually or in combination.

4:AGD_ADM.1-5

The describes each type of security-relevant event relative to the administrative functions that need to be performed, including changing the security characteristics of entities under the control of the TSF.

960

All types of security-relevant events are detailed, such that an administrator knows what events may occur and what action (if any) the administrator may have to take in order to maintain security. Security-relevant events that may occur during operation of the TOE (e.g. audit trail overflow, system crash, updates to user records, such as when a user account is removed when the user leaves the organisation) are adequately defined to allow administrator intervention to maintain secure operation.

4:AGD_ADM.1-6 evaluator describes all security objectives for the operational environment that are relevant to the administrator.

961

The evaluator analyses the security objectives for the operational environment in the ST and compares them with the administrator guidance to ensure that all security objectives for the operational environment that are relevant to the administrator are described appropriately in the administrator guidance.

5.8.3 Evaluation of User guidance (AGD_USR.1)

5.8.3.1 Objectives

962

The objectives of this sub-activity are to determine whether the user guidance describes the security functions and interfaces provided by the TSF and whether this guidance provides instructions and guidelines for the secure use of the TOE.

963

There may be different user roles or groups defined in the ST that are recognised by the TOE and that can interact with the TSF. The capabilities of these roles and their associated privileges are described in the FMT class.

Different user roles and groups should be taken into consideration by the user guidance.

5.8.3.3 Input

964

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the high-level design;

Page 162 of 231 Version 2.4 March 2004

EAL4 evaluation d) the user guidance; e) the administrator guidance; f) the secure installation, generation, and start-up procedures.

4:AGD_USR.1-1

The the security functions and interfaces available to the non-administrative users of the TOE.

965

966

The user guidance should contain an overview of the security functionality that is visible at the user interfaces.

The user guidance should identify and describe the purpose of the security interfaces and functions.

4:AGD_USR.1-2

The the use of interfaces available to the non-administrative users of the TOE.

967

The user guidance should identify and describe the behaviour and interrelationship of the security interfaces available to the non-administrative users of the TOE.

968

If a non-administrative user of the TOE is allowed to invoke the TSF, the user guidance provides a description of the interfaces available to the user for that invocation.

969

For each interface, the user guidance should: a) describe the method(s) by which the interface is invoked (e.g. command-line, programming-language system call, menu selection, command button) ; b) describe the parameters to be set by the user and their valid and default values; c) describe the immediate TSF response, message, or code returned.

4:AGD_USR.1-3 evaluator warnings about user-accessible functions and privileges that should be controlled in a secure processing environment.

970

The configuration of the TOE may allow users to have dissimilar privileges in making use of the different functions of the TOE. This means that some users are authorised to perform certain functions, while other users may not be so authorised. These user-accessible functions and privileges are described by the user guidance.

971

The user guidance should identify the functions and privileges that can be used, the types of commands required for them, and the reasons for such

March 2004 Version 2.4 Page 163 of 231

EAL4 evaluation commands. The user guidance should contain warnings regarding the use of the functions and privileges that must be controlled. Warnings should address expected effects, possible side effects, and possible interactions with other functions and privileges.

4:AGD_USR.1-4 evaluator all security objectives for the operational environment that are relevant to the user.

972

973

The evaluator analyses the security objectives for the operational environment in the ST and compares them with the user guidance to ensure that all security objectives for the operational environment that are relevant to the user are described appropriately in the user guidance.

The user guidance should provide advice regarding effective use of the TSF

(e.g. reviewing password composition practices, suggested frequency of user file backups, discussion on the effects of changing user access privileges).

5.9 Life cycle support activity

974

975

976

The purpose of the life-cycle support activity is to determine the adequacy of the procedures the developer uses during the development and maintenance of the TOE. These procedures include the security measures used throughout

TOE development, the life-cycle model used by the developer, and the tools used by the developer throughout the life-cycle of the TOE.

Developer security procedures are intended to protect the TOE and its associated design information from interference or disclosure. Interference in the developement process may allow the deliberate introduction of vulnerabilities. Disclosure of design information may allow vulnerabilities to be more easily exploited. The adequacy of the procedures will depend on the nature of the TOE and the development process.

Poorly controlled development and maintenance of the TOE can result in vulnerabilities in the implementation. Conformance to a defined life-cycle model can help to improve controls in this area.

977

978

The use of well-defined development tools help to ensure that vulnerabilities are not inadvertently introduced during refinement.

5.9.1 Evaluation of Development security (ALC_DVS.1)

5.9.1.1 Objectives

The objective of this sub-activity is to determine whether the developer's security controls on the development environment are adequate to provide the confidentiality and integrity of the TOE design and implementation that is necessary to ensure that secure operation of the TOE is not compromised.

5.9.1.2 Input

979

The evaluation evidence for this sub-activity is:

Page 164 of 231 Version 2.4 March 2004

EAL4 evaluation

980 a) the ST; b) the development security documentation.

In addition, the evaluator may need to examine other deliverables to determine that the security controls are well-defined and followed.

Specifically, the evaluator may need to examine the developer's configuration management documentation (the input for the ACM_CAP.4

Generation support and acceptance procedures and ACM_SCP.2 Problem tracking CM coverage sub-activities). Evidence that the procedures are being applied is also required.

ALC_DVS.1.1C

The development security documentation shall describe all the physical, procedural, personnel, and other security measures that are necessary to protect the confidentiality and integrity of the TOE design and

implementation in its development environment.

4:ALC_DVS.1-1 evaluator determine that it details all security measures used in the development environment that are necessary to protect the confidentiality and integrity of the TOE design and implementation.

981

The evaluator determines what is necessary by first referring to the ST for any information that may assist in the determination of necessary protection, especially the security objectives for the development environment.

982

983

If no explicit information is available from the ST the evaluator will need to make a determination of the necessary measures. In cases where the developer's measures are considered less than what is necessary, a clear justification should be provided for the assessment, based on a potential exploitable vulnerability.

The following types of security measures are considered by the evaluator when examining the documentation: a) physical, for example physical access controls used to prevent unauthorised access to the TOE development environment (during normal working hours and at other times); b) procedural, for example covering:

− granting of access to the development environment or to specific parts of the environment such as development machines

− revocation of access rights when a person leaves the development team

− transfer of protected material out of the development environment

March 2004 Version 2.4 Page 165 of 231

EAL4 evaluation

− admitting and escorting visitors to the development environment

− roles and responsibilities in ensuring the continued application of security measures, and the detection of security breaches. c) personnel, for example any controls or checks made to establish the trustworthiness of new development staff; d) other security measures, for example the logical protections on any development machines.

984

985

The development security documentation should identify the locations at which development occurs, and describe the aspects of development performed, along with the security measures applied at each location. For example, development could occur at multiple facilities within a single building, multiple buildings at the same site, or at multiple sites.

Development includes such tasks as creating multiple copies of the TOE, where applicable. This work-unit should not overlap with those for Delivery

(ADO_DEL), but the evaluator should ensure that all aspects are covered by one sub-activity or the other.

Whereas the CM capabilities (ACM_CAP) requirements are fixed, those for

Development security (ALC_DVS), mandating only necessary measures, are dependent on the nature of the TOE, and on information that may be provided in the ST. For example, the ST may identify a security objective for the development environment that requires the TOE to be developed by staff who have security clearance. The evaluators would then determine that such a policy had been applied under this sub-activity.

4:ALC_DVS.1-2 evaluator policies in order to determine the sufficiency of the security measures employed.

986

These include the policies governing:

987

988 a) what information relating to the TOE development needs to be kept confidential, and which members of the development staff are allowed to access such material; b) what material must be protected from unauthorised modification in order to preserve the integrity of the TOE, and which members of the development staff are allowed to modify such material.

The evaluator should determine that these policies are described in the development security documentation, that the security measures employed are consistent with the policies, and that they are complete.

It should be noted that configuration management procedures will help protect the integrity of the TOE and the evaluator should avoid overlap with

Page 166 of 231 Version 2.4 March 2004

EAL4 evaluation

989 the work-units conducted for the CM capabilities (ACM_CAP) sub-activity.

For example, the CM documentation may describe the security procedures necessary for controlling the roles or individuals who should have access to the development environment and who may modify the TOE.

Whereas the CM capabilities (ACM_CAP) requirements are fixed, those for

Development security (ALC_DVS), mandating only necessary measures, are dependent on the nature of the TOE, and on information that may be provided in the ST. For example, the ST may identify a security objective for the development environment that requires the TOE to be developed by staff who have security clearance. The evaluators would then determine that such a policy had been applied under this sub-activity.

ALC_DVS.1.2C

The development security documentation shall provide evidence that these security measures are followed during the development and maintenance

of the TOE.

4:ALC_DVS.1-3

The determine that documentary evidence that would be produced as a result of application of the procedures has been generated.

990

Where documentary evidence is produced the evaluator inspects it to ensure compliance with procedures. Examples of the evidence produced may include entry logs and audit trails. The evaluator may choose to sample the evidence.

4:ALC_DVS.1-4 evaluator associated evidence to determine that the security measures are being applied.

991

This work unit requires the evaluator to determine that the security measures described in the development security documentation are being followed, such that the integrity of the TOE and the confidentiality of associated documentation is being adequately protected. For example, this could be determined by examination of the documentary evidence provided.

Documentary evidence should be supplemented by visiting the development environment. A visit to the development environment will allow the evaluator to: a) observe the application of security measures (e.g. physical measures);

992 b) examine documentary evidence of application of procedures; c) interview development staff to check awareness of the development security policies and procedures, and their responsibilities.

A development site visit is a useful means of gaining confidence in the measures being used. Any decision not to make such a visit should be determined in consultation with the overseer.

March 2004 Version 2.4 Page 167 of 231

EAL4 evaluation

5.9.2 Evaluation of Life cycle definition (ALC_LCD.1)

5.9.2.1 Objectives

993

The objective of this sub-activity is to determine whether the developer has used a documented model of the TOE life-cycle.

5.9.2.2 Input

994

The evaluation evidence for this sub-activity is: a) the ST; b) the life-cycle definition documentation.

ALC_LCD.1.1C

The life-cycle definition documentation shall describe the model used to

develop and maintain the TOE.

4:ALC_LCD.1-1

The model used to determine that it covers the development and maintenance process.

995

996

A life-cycle model encompasses the procedures, tools and tehniques used to develop and maintain the TOE. The description of the life-cycle model should include information on the procedures, tools and techniques used by the developer (e.g. for design, coding, testing, bug-fixing). It should describe overall management structure governing the application of the procedures

(e.g. an identification and description of the individual responsibilities for each of the procedures required by the development and maintenance process covered by the life-cycle model). ALC_LCD.1 Developer defined life-cycle model does not require the model used to conform to any standard life-cycle model.

ALC_LCD.1.2C

The life-cycle model shall provide for the necessary control over the

development and maintenance of the TOE.

4:ALC_LCD.1-2 evaluator procedures, tools and techniques described by the life-cycle model will make the necessary positive contribution to the development and maintenance of the TOE.

The information provided in the life-cycle model gives the evaluator assurance that the development and maintenance procedures adopted would minimise the likelihood of security flaws. For example, if the life-cycle model described the review process, but did not make provision for recording changes to components, then the evaluator may be less confident that errors will not be introduced into the TOE. The evaluator may gain further assurance by comparing the description of the model against an understanding of the development process gleaned from performing other evaluator actions relating to the TOE development (e.g. those actions

Page 168 of 231 Version 2.4 March 2004

EAL4 evaluation

997 covered under the ACM activity). Identified deficiencies in the life-cycle model will be of concern if they might reasonably be expected to give rise to the introduction of flaws into the TOE, either accidentally or deliberately.

The CC does not mandate any particular development approach, and each should be judged on merit. For example, spiral, rapid-prototyping and waterfall approaches to design can all be used to produce a quality TOE if applied in a controlled environment.

5.9.3 Evaluation of Tools and techniques (ALC_TAT.1)

5.9.3.1 Objectives

998

The objective of this sub-activity is to determine whether the developer has used well-defined development tools (e.g. programming languages or computer-aided design (CAD) systems) that yield consistent and predictable results.

999

This work may be performed in parallel with the ADV_IMP.1 Subset of the implementation of the TSF sub-activity, specifically with regard to determining the use of features in the tools that will affect the object code

(e.g. compilation options).

5.9.3.3 Input

1000

The evaluation evidence for this sub-activity is: a) the development tool documentation; b) the subset of the implementation representation.

ALC_TAT.1.1C

All development tools used for implementation shall be well-defined.

4:ALC_TAT.1-1

The to determine that all development tools are well-defined.

1001

For example, a well-defined language, compiler or CAD system may be considered to be one that conforms to a recognised standard, such as the ISO standards. A well-defined language is one that has a clear and complete description of its syntax, and a detailed description of the semantics of each construct.

ALC_TAT.1.2C

The documentation of the development tools shall unambiguously define

the meaning of all statements used in the implementation.

4:ALC_TAT.1-2 evaluator determine that it unambiguously defines the meaning of all statements used in the implementation.

March 2004 Version 2.4 Page 169 of 231

EAL4 evaluation

1002

1003

1004

The development tool documentation (e.g. programming language specifications and user manuals) should cover all statements used in the implementation representation of the TOE, and for each such statement provide a clear and unambiguous definition of the purpose and effect of that statement. This work may be performed in parallel with the evaluator's examination of the implementation representation performed during the

ADV_IMP.1 Subset of the implementation of the TSF sub-activity. The key test the evaluator should apply is whether or not the documentation is sufficiently clear for the evaluator to be able to understand the implementation representation. The documentation should not assume (for example) that the reader is an expert in the programming language used.

Reference to the use of a documented standard is an acceptable approach to meet this requirement, provided that the standard is available to the evaluator. Any differences from the standard should be documented.

The critical test is whether the evaluator can understand the TOE source code when performing source code analysis covered in the Implementation representation (ADV_IMP) sub-activity. However, the following checklist can additionally be used in searching for problem areas: a) In the language definition, phrases such as “the effect of this construct is undefined” and terms such as “implementation dependent” or “erroneous” may indicate ill-defined areas; b) Aliasing (allowing the same piece of memory to be referenced in different ways) is a common source of ambiguity problems; c) Exception handling (e.g. what happens after memory exhaustion or stack overflow) is often poorly defined.

1005

1006

Most languages in common use, however well designed, will have some problematic constructs. If the implementation language is mostly well defined, but some problematic constructs exist, then an inconclusive verdict should be assigned, pending examination of the source code.

The evaluator should verify, during the examination of source code, that any use of the problematic constructs does not introduce vulnerabilities. The evaluator should also ensure that constructs precluded by the documented standard are not used.

ALC_TAT.1.3C

The documentation of the development tools shall unambiguously define

the meaning of all implementation-dependent options.

4:ALC_TAT.1-3 evaluator determine that it unambiguously defines the meaning of all implementationdependent options.

1007

The documentation of software development tools should include definitions of implementation-dependent options that may affect the meaning of the executable code, and those that are different from the standard language as

Page 170 of 231 Version 2.4 March 2004

EAL4 evaluation

1008 documented. Where source code is provided to the evaluator, information should also be provided on compilation and linking options used.

The documentation for hardware design and development tools should describe the use of all options that affect the output from the tools (e.g. detailed hardware specifications, or actual hardware).

1009

The purpose of this activity is to confirm that the TSF behaves as specified in the design documentation. This is accomplished by determining that the developer has tested the TSF against its functional specification and highlevel design, gaining confidence in those test results by performing a sample of the developer's tests, and. by independently performing additional tests.

5.10.1.1

1010

1011

5.10.1.2

1012

Understanding the expected behaviour of the TOE

Before the adequacy of test documentation can be accurately evaluated, or before new tests can be created, the evaluator has to understand the desired expected behaviour of the TSF by examining the functional specification, the high-level design, and the user and administrator guidance.

With an understanding of the expected behaviour, the evaluator examines the test plan to gain an understanding of the testing approach. In most cases, the testing approach will entail the TSF being stimulated at either external or internal interfaces and its responses are observed. However, there may be cases where the TSF cannot be adequately tested at an interface (as may be the case, for instance, for residual information protection functionality); in such cases, other means will need to be employed.

Testing vs. alternate approaches to verify the expected behaviour of an interface

In cases where it is impractical or inadequate to test at an interface, the test plan should identify the alternate approach to verify expected behaviour. It is the evaluator's responsibility to determine the suitability of the alternate approach. However, the following should be considered when assessing the suitability of alternate approaches: a) an analysis of the implementation representation to determine that the required behaviour should be exhibited by the TOE is an acceptable alternate approach. This could mean a code inspection for a software

TOE or perhaps a chip mask inspection for a hardware TOE. b) it is acceptable to use evidence of developer integration or module testing, even if the EAL is not commensurate with evaluation exposure to the low-level design or implementation. If evidence of developer integration or module testing is used in verifying the expected TSF behaviour, care should be given to confirm that the

March 2004 Version 2.4 Page 171 of 231

EAL4 evaluation

1013

5.10.1.3

1014 testing evidence reflects the current implementation of the TOE. If the subsystem or modules have been changed since testing occurred, evidence that the changes were tracked and addressed by analysis or further testing will usually be required.

It should be emphasized that supplementing the testing effort with alternate approaches should only be undertaken when both the developer and evaluator determine that there exists no other practical means to test the expected behaviour of the TSF. This alternative is made available to the developer to minimize the cost (time and/or money) of testing under the circumstances described above; it is not designed to give the evaluator more latitude to demand unwarranted additional information about the TOE, nor to replace testing in general.

Verifying the adequacy of tests

Test prerequisites are necessary to establish the required initial conditions for the test. They may be expressed in terms of parameters that must be set or in terms of test ordering in cases where the completion of one test establishes the necessary prerequisites for another test. The evaluator must determine that the prerequisites are complete and appropriate in that they will not bias the observed test results towards the expected test results.

1015

1016

The test steps and expected results specify the actions and parameters to be applied to the interfaces as well as how the expected results should be verified and what they are. The evaluator must determine that the test steps and expected results are consistent with the functional specification and the high-level design. The tests must verify behaviour documented in these specifications. This means that each TSF behaviour characteristic explicitly described in the functional specification and high-level design should have tests and expected results to verify that behaviour.

Although the entire TSF has to be tested by the developer, exhaustive specification testing of the interfaces is not required. The overall aim of this activity is to determine that the TSF has been sufficiently tested against the behavioural claims in the functional specification and high-level design. The test procedures will provide insight as to how the TSF has been exercised by the developer during testing. The evaluator will use this information when developing additional tests to independently test the TOE.

5.10.2 Evaluation of Coverage (ATE_COV.2)

5.10.2.1 Objectives

1017

The objective of this sub-activity is to determine whether the testing (as documented) is sufficient to establish that the TSF has been systematically tested against the functional specification.

5.10.2.2 Input a) the ST;

Page 172 of 231 Version 2.4 March 2004

EAL4 evaluation b) the functional specification; c) the test documentation; d) the test coverage analysis.

ATE_COV.2.1C

The analysis of the test coverage shall demonstrate the correspondence between the tests in the test documentation and the interfaces in the

functional specification.

4:ATE_COV.2-1

The correspondence between the tests in the test documentation and the interfaces in the functional specification is accurate.

1018

1019

A simple cross-table may be sufficient to show test correspondence. The identification of the tests and the interfaces presented in the test coverage analysis has to be unambiguous.

The evaluator is reminded that this does not imply that all tests in the test documentation must map to interfaces in the functional specification.

4:ATE_COV.2-2

The approach for each interface demonstrates the expected behaviour of that interface.

1020

Guidance on this work unit can be found in: a) 5.10.1.1 b) 5.10.1.2

4:ATE_COV.2-3

The prerequisites, test steps and expected result(s) adequately test each interface.

1021

Guidance on this work units, as it pertains to the functional specification, can be found in: a) 5.10.1.3

4:ATE_COV.2-4 evaluator correspondence between the interfaces in the functional specification and the tests in the test documentation is complete.

1022

All interfaces that are described in the functional specification have to be present in the test coverage analysis and mapped to tests in order for completeness to be claimed, although exhaustive specification testing of interfaces is not required. Incomplete coverage would be evident if an interface was identified in the functional specification and no test was mapped to it.

March 2004 Version 2.4 Page 173 of 231

EAL4 evaluation

1023

1024

The evaluator is reminded that this does not imply that all tests in the test documentation must map to interfaces in the functional specification.

5.10.3 Evaluation of Depth (ATE_DPT.1)

5.10.3.1 Objectives

The objective of this sub-activity is to determine whether the developer has tested the TSF against its high-level design.

5.10.3.2 Input a) the ST; b) the functional specification; c) the high-level design; d) the test documentation; e) the depth of testing analysis.

ATE_DPT.1.1C

The analysis of the depth of testing shall demonstrate the correspondence between the tests in the test documentation and the interfaces in the high-

level design.

4:ATE_DPT.1-1

The the correspondence between the tests in the test documentation and the interfaces in the high-level design is accurate.

1025

1026

A simple cross-table may be sufficient to show test correspondence. The identification of the tests and the interfaces presented in the depth-of coverage analysis has to be unambiguous.

The evaluator is reminded that not all tests in the test documentation must map to an interface in the high-level design.

4:ATE_DPT.1-2 evaluator approach for each interface demonstrates the expected behaviour of that interface.

1027

Guidance on this work unit can be found in:

1028 a) 5.10.1.1 b) 5.10.1.2

Testing of an interface may be performed directly at that interface, or at the external interfaces, or a combination of both. Whatever strategy is used the evaluator will consider its appropriateness for adequately testing the interfaces. Specifically the evaluator determines whether testing at the

Page 174 of 231 Version 2.4 March 2004

EAL4 evaluation internal interfaces is necessary or whether these internal interfaces can be adequately tested (albeit implicitly) by exercising the external interfaces.

This determination is left to the evaluator, as is its justification.

4:ATE_DPT.1-3

The prerequisites, test steps and expected result(s) adequately test each interface.

1029

Guidance on this work units, as it pertains to the high-level design, can be found in: a) 5.10.1.3

ATE_DPT.1.2C

The analysis of the depth of testing shall demonstrate that the correspondence between the interfaces in the high-level design and the

tests in the test documentation is complete.

4:ATE_DPT.1-4 evaluator the correspondence between the interfaces in the high-level design and the tests in the test documentation is complete.

1030

1031

All interfaces that are described in the high-level design have to be present in the depth of testing analysis and mapped to tests in order for completeness to be claimed, although exhaustive specification testing of interfaces is not required. Incomplete depth of testing would be evident if an interface was identified in the high-level design and no tests could be attributed to it.

The evaluator is reminded that this does not imply that all tests in the test documentation must map to interfaces in the high-level design.

5.10.4 Evaluation of Functional tests (ATE_FUN.1)

5.10.4.1 Objectives

1032

The objective of this sub-activity is to determine whether developer correctly performed and documented the tests in the test documentation.

1033

1035

The extent to which the test documentation is required to cover the TSF is dependent upon the coverage assurance component.

1034

For the developer tests provided, the evaluator determines whether the tests are repeatable, and the extent to which the developer's tests can be used for the evaluator's independent testing effort. Any security function for which the developer's test results indicate that it may not perform as specified should be tested independently by the evaluator to determine whether or not it does.

5.10.4.3 Input

The evaluation evidence for this sub-activity is:

March 2004 Version 2.4 Page 175 of 231

EAL4 evaluation a) the ST; b) the test documentation;

ATE_FUN.1.1C

The test documentation shall consist of test plans, expected test results and

actual test results.

4:ATE_FUN.1-1

The expected test results and actual test results.

ATE_FUN.1.2C

The test plans shall identify the tests to be performed and describe the scenarios for performing each test. These scenarios shall include any

ordering dependencies on the results of other tests.

4:ATE_FUN.1-2

The performed.

1036

The evaluator may wish to employ a sampling strategy when performing this work unit.

4:ATE_FUN.1-3

The scenarios for performing each test.

1037

The evaluator determines that the test plan provides information about the test configuration being used: both on the configuration of the TOE and on any test equipment being used. This information should be detailed enough to ensure that the test configuration is reproducible.

1038

The evaluator also determines that the test plan provides information about how to execute the test: inputs to be applied, how these inputs are applied, how output is obtained etc. This information should be detailed enough to ensure that the test is reproducible.

1039

The evaluator may wish to employ a sampling strategy when performing this work unit.

4:ATE_FUN.1-4 evaluator configuration is consistent with the ST.

1040

The TOE referred to in the developer's test plan should have the same unique reference as established in the ST introduction.

1041

1042

It is possible for the ST to specify more than one configuration for evaluation. The evaluator verifies that all test configurations identified in the developer test documentation are consistent with the ST.

The evaluator should consider the security objectives for the operational environment described in the ST that may apply to the test environment.

There may be some objectives for the operational environment that do not apply to the test environment. For example, an objective about user

Page 176 of 231 Version 2.4 March 2004

EAL4 evaluation

1043 clearances may not apply; however, an objective about a single point of connection to a network would apply.

The evaluator may wish to employ a sampling strategy when performing this work unit.

4:ATE_FUN.1-5

The instructions are provided for any ordering dependencies.

1044

1045

Some steps may have to be performed to establish initial conditions. For example, user accounts need to be added before they can be deleted. An example of ordering dependencies on the results of other tests is the need to test an audit-related interface before relying on it to produce audit records for testing an access control-related interface. Another example of an ordering dependency would be where one test case generates a file of data to be used as input for another test case.

The evaluator may wish to employ a sampling strategy when performing this work unit.

ATE_FUN.1.3C

The expected test results shall show the anticipated outputs from a

successful execution of the tests.

4:ATE_FUN.1-6

The expected tests results are included.

1046

1047

The expected test results are needed to determine whether or not a test has been successfully performed. Expected test results are sufficient if they are unambiguous and consistent with expected behaviour given the testing approach.

The evaluator may wish to employ a sampling strategy when performing this work unit.

ATE_FUN.1.4C

The actual test results shall be consistent with the expected test results.

4:ATE_FUN.1-7 evaluator documentation are consistent with the actual test results in the test documentation.

1048

A comparison of the actual and expected test results provided by the developer will reveal any inconsistencies between the results. It may be that a direct comparison of actual results cannot be made until some data reduction or synthesis has been first performed. In such cases, the developer's test documentation should describe the process to reduce or synthesize the actual data.

1049

For example, the developer may need to test the contents of a message buffer after a network connection has occurred to determine the contents of the buffer. The message buffer will contain a binary number. This binary number would have to be converted to another form of data representation in order to make the test more meaningful. The conversion of this binary representation

March 2004 Version 2.4 Page 177 of 231

EAL4 evaluation

1050

1051 of data into a higher-level representation will have to be described by the developer in enough detail to allow an evaluator to perform the conversion process (i.e. synchronous or asynchronous transmission, number of stop bits, parity, etc.).

It should be noted that the description of the process used to reduce or synthesize the actual data is used by the evaluator not to actually perform the necessary modification but to assess whether this process is correct. It is up to the developer to transform the expected test results into a format that allows an easy comparison with the actual test results.

The evaluator may wish to employ a sampling strategy when performing this work unit.

4:ATE_FUN.1-8 evaluator approach, configuration, depth and results.

1052

1053

The developer testing information recorded in the ETR allows the evaluator to convey the overall testing approach and effort expended on the testing of the TOE by the developer. The intent of providing this information is to give a meaningful overview of the developer testing effort. It is not intended that the information regarding developer testing in the ETR be an exact reproduction of specific test steps or results of individual tests. The intention is to provide enough detail to allow other evaluators and overseers to gain some insight about the developer's testing approach, amount of testing performed, TOE test configurations, and the overall results of the developer testing.

Information that would typically be found in the ETR section regarding the developer testing effort is:

1054 a) TOE test configurations. The particular configurations of the TOE that were tested; b) testing approach. An account of the overall developer testing strategy employed; c) testing results. A description of the overall developer testing results.

This list is by no means exhaustive and is only intended to provide some context as to the type of information that should be present in the ETR concerning the developer testing effort.

5.10.5.1 Objectives

1055

The goal of this activity is to determine, by independently testing a subset of the TSF, whether the TOE behaves as specified in the design documentation, and to gain confidence in the developer's test results by performing a sample of the developer's tests.

Page 178 of 231 Version 2.4 March 2004

EAL4 evaluation

5.10.5.2 Input

1056

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the high-level design; d) the user guidance; e) the administrator guidance; f) the secure installation, generation, and start-up procedures; g) the test documentation; h) the TOE suitable for testing.

ATE_IND.2.1C

The TOE shall be suitable for testing.

4:ATE_IND.2-1

The is consistent with the configuration under evaluation as specified in the ST.

1057

1058

The TOE referred to in the developer's test plan should have the same unique reference as established in the ST introduction.

It is possible for the ST to specify more than one configuration for evaluation. The evaluator verifies that all test configurations identified in the developer test documentation are consistent with the ST.

1059

1060

The evaluator should consider the security objectives for the operational environment described in the ST that may apply to the test environment.

There may be some objectives for the operational environment that do not apply to the test environment. For example, an objective about user clearances may not apply; however, an objective about a single point of connection to a network would apply.

If any test resources are used (e.g. meters, analysers) it will be the evaluator's responsibility to ensure that these resources are calibrated correctly.

4:ATE_IND.2-2 evaluator properly and is in a known state

1061

It is possible for the evaluator to determine the state of the TOE in a number of ways. For example, previous successful completion of the ADO_IGS.1

Installation, generation, and start-up procedures sub-activity will satisfy this work unit if the evaluator still has confidence that the TOE being used for testing was installed properly and is in a known state. If this is not the case,

March 2004 Version 2.4 Page 179 of 231

EAL4 evaluation

1062 then the evaluator should follow the developer's procedures to install, generate and start up the TOE, using the supplied guidance only.

If the evaluator has to perform the installation procedures because the TOE is in an unknown state, this work unit when successfully completed could satisfy work unit ADO_IGS.1-2.

ATE_IND.2.2C

The developer shall provide an equivalent set of resources to those that

were used in the developer's functional testing of the TSF.

4:ATE_IND.2-3

The to determine that they are equivalent to the set of resources used by the developer to functionally test the TSF

1063

The resource set may include laboratory access and special test equipment, among others. Resources that are not identical to those used by the developer need to be equivalent in terms of any impact they may have on test results.

4:ATE_IND.2-4

The developer test plan and procedures.

1064

The overall aim of this work unit is to perform a sufficient number of the developer tests to confirm the validity of the developer's test results. The evaluator has to decide on the size of the sample, and the developer tests that will compose the sample.

1065

Taking into consideration the overall evaluator effort for the entire tests activity, normally 20% of the developer's tests should be performed although this may vary according to the nature of the TOE, and the test evidence supplied.

1066

All the developer tests can be traced back to specific interfaces. Therefore, the factors to consider in the selection of the tests to compose the sample are similar to those listed for subset selection in work-unit ATE_IND.2-4.

Additionally, the evaluator may wish to employ a random sampling method to select developer tests to include in the sample.

4:ATE_IND.2-5 evaluator the expected test results.

1067

1068

Inconsistencies between the developer's expected test results and actual test results will compel the evaluator to resolve the discrepancies. Inconsistencies encountered by the evaluator could be resolved by a valid explanation and resolution of the inconsistencies by the developer.

If a satisfactory explanation or resolution can not be reached, the evaluator's confidence in the developer's test results may be lessened and it may even be necessary for the evaluator to increase the sample size, to regain confidence in the developer testing. If the increase in sample size does not satisfy the evaluator's concerns, it may be necessary to repeat the entire set of

Page 180 of 231 Version 2.4 March 2004

EAL4 evaluation developer's tests. Ultimately, to the extent that the subset identified in work unit ATE_IND.2-4 is adequately tested, deficiencies with the developer's tests need to result in either corrective action to the developer's tests or in the production of new tests by the evaluator.

4:ATE_IND.2-6 evaluator

1069

The evaluator selects a test subset and testing strategy that is appropriate for the TOE. One extreme testing strategy would be to have the test subset contain as many interfaces as possible tested with little rigour. Another testing strategy would be to have the test subset contain a few interfaces based on their perceived relevance and rigorously test these interfaces.

1070

1071

Typically the testing approach taken by the evaluator should fall somewhere between these two extremes. The evaluator should exercise most of the interfaces using at least one test, but testing need not demonstrate exhaustive specification testing.

The evaluator, when selecting the subset of the interfaces to be tested, should consider the following factors: a) The developer test evidence. The developer test evidence consists of: the test coverage analysis, the depth of testing analysis, and the test documentation. The developer test evidence will provide insight as to how the TSF has been exercised by the developer during testing. The evaluator applies this information when developing new tests to independently test the TOE. Specifically the evaluator should consider:

1072

1) augmentation of developer testing for interfaces. The evaluator may wish to perform more of the same type of tests by varying parameters to more rigorously test the interface.

2) supplementation of developer testing strategy for interfaces.

The evaluator may wish to vary the testing approach of a specific interface by testing it using another test strategy. b) The number of interfaces from which to draw upon for the test subset.

Where the TSF includes only a small number of relatively simple interfaces, it may be practical to rigourously test all of them. In other cases this may not be cost-effective, and sampling is required. c) Maintaining a balance of evaluation activities. The evaluator effort expended on the test activity should be commensurate with that expended on any other evaluation activity.

The evaluator selects the interfaces to compose the subset. This selection will depend on a number of factors, and consideration of these factors may also influence the choice of test subset size:

March 2004 Version 2.4 Page 181 of 231

EAL4 evaluation a) Rigour of developer testing of the interfaces. Those interfaces that the evaluator determines require additional testing should be included in the test subset. b) Developer test results. If the results of developer tests cause the evaluator to doubt that an interface is not properly implemented, then the evaluator should include such interfaces in the test subset. c) Known public domain weaknesses commonly associated with the type of TOE (e.g. operating system, firewall). Know public domain weaknesses associated with the type of TOE will influence the selection process of the test subset. The evaluator should include those interfaces that are associated with known public domain weaknesses for that type of TOE in the subset (known public domain weaknesses in this context does not refer to vulnerabilities as such but to inadequacies or problem areas that have been experienced with this particular type of TOE). d) Significance of interfaces. Those interfaces deemed more significant than others should be included in the test subset. An input to this determination could be the number of SFRs mapping to this interface

(as determined in Representation correspondence (ADV_RCR)). e) Complexity of interfaces. Interfaces that require complex implementation may require complex tests that impose onerous requirements on the developer or evaluator, which will not be conducive to cost-effective evaluations. Conversely, they are a likely area to find errors and are good candidates for the subset. The evaluator will need to strike a balance between these considerations. f) Implicit testing. Testing some interfaces may often implicitly test other interfaces, and their inclusion in the subset may maximize the number of interfaces tested (albeit implicitly). Certain interfaces will typically be used to provide a variety of security functionality, and will tend to be the target of an effective testing approach. g) Types of interfaces (e.g. programmatic, command-line, protocol).

The evaluator should consider including tests for all different types of interfaces that the TOE supports. h) Interfaces that give rise to features that are innovative or unusual.

Where the TOE contains innovative or unusual features, which may feature strongly in marketing literature, the corresponding interfaces should be strong candidates for testing.

1073

This guidance articulates factors to consider during the selection process of an appropriate test subset, but these are by no means exhaustive.

4:ATE_IND.2-7 evaluator sufficiently detailed to enable the tests to be reproducible.

Page 182 of 231 Version 2.4 March 2004

EAL4 evaluation

1074

With an understanding of the expected behaviour of the TSF, from the ST, the functional specification, and the high-level design, the evaluator has to determine the most feasible way to test the interface. Specifically the evaluator considers: a) the approach that will be used, for instance, whether an external interface will be tested, or an internal interface using a test harness, or will an alternate test approach be employed (e.g. in exceptional circumstances, a code inspection); b) the interface(s) that will be used to test and observe responses; c) the initial conditions that will need to exist for the test (i.e. any particular objects or subjects that will need to exist and security attributes they will need to have); d) special test equipment that will be required to either stimulate an interface (e.g. packet generators) or make observations of an interface

(e.g. network analysers).

1075

1077

The evaluator may find it practical to test each interface using a series of test cases, where each test case will test a very specific aspect of expected behaviour of that interface.

1076

The evaluator's test documentation should specify the derivation of each test, tracing it back to the relevant interface(s).

4:ATE_IND.2-8

The

The evaluator uses the test documentation developed as a basis for executing tests on the TOE. The test documentation is used as a basis for testing but this does not preclude the evaluator from performing additional ad hoc tests.

The evaluator may devise new tests based on behaviour of the TOE discovered during testing. These new tests are recorded in the test documentation.

4:ATE_IND.2-9 evaluator compose the test subset: a) identification of the interface behaviour to be tested; b) instructions to connect and setup all required test equipment as required to conduct the test; c) instructions to establish all prerequisite test conditions; d) instructions to stimulate the interface; e) instructions for observing the interface;

March 2004 Version 2.4 Page 183 of 231

EAL4 evaluation

1078

1079 f) descriptions of all expected results and the necessary analysis to be performed on the observed behaviour for comparison against expected results; g) instructions to conclude the test and establish the necessary post-test state for the TOE; h) actual test results.

The level of detail should be such that another evaluator could repeat the tests and obtain an equivalent result. While some specific details of the test results may be different (e.g. time and date fields in an audit record) the overall result should be identical.

There may be instances when it is unnecessary to provide all the information presented in this work unit (e.g. the actual test results of a test may not require any analysis before a comparison between the expected results can be made). The determination to omit this information is left to the evaluator, as is the justification.

4:ATE_IND.2-10

The expected test results.

1080

Any differences in the actual and expected test results may indicate that the

TOE does not perform as specified or that the evaluator test documentation may be incorrect. Unexpected actual results may require corrective maintenance to the TOE or test documentation and perhaps require rerunning of impacted tests and modifying the test sample size and composition. This determination is left to the evaluator, as is its justification.

4:ATE_IND.2-11 evaluator the testing approach, configuration, depth and results.

1081

The evaluator testing information reported in the ETR allows the evaluator to convey the overall testing approach and effort expended on the testing activity during the evaluation. The intent of providing this information is to give a meaningful overview of the testing effort. It is not intended that the information regarding testing in the ETR be an exact reproduction of specific test instructions or results of individual tests. The intention is to provide enough detail to allow other evaluators and overseers to gain some insight about the testing approach chosen, amount of evaluator testing performed, amount of developer tests performed, TOE test configurations, and the overall results of the testing activity.

1082

Information that would typically be found in the ETR section regarding the evaluator testing effort is: a) TOE test configurations. The particular configurations of the TOE that were tested.

Page 184 of 231 Version 2.4 March 2004

EAL4 evaluation

1083 b) subset size chosen. The amount of interfaces that were tested during the evaluation and a justification for the size. c) selection criteria for the interfaces that compose the subset. Brief statements about the factors considered when selecting interfaces for inclusion in the subset. d) Interfaces tested. A brief listing of the interfaces that merited inclusion in the subset. e) developer tests performed. The amount of developer tests performed and a brief description of the criteria used to select the tests. f) verdict for the activity. The overall judgement on the results of testing during the evaluation.

This list is by no means exhaustive and is only intended to provide some context as to the type of information that should be present in the ETR concerning the testing the evaluator performed during the evaluation.

1084

The purpose of the vulnerability assessment activity is to determine the existence and exploitability of flaws or weaknesses in the TOE in the intended environment. This determination is based upon analysis performed by the developer and the evaluator, and is supported by evaluator testing.

5.11.1 Evaluation of Misuse (AVA_MSU.2)

5.11.1.1 Objectives

1085

The objectives of this sub-activity are to determine whether the guidance is misleading, unreasonable or conflicting, whether secure procedures for all modes of operation have been addressed, and whether use of the guidance will facilitate prevention and detection of insecure TOE states.

1086

1087

The use of the term guidance in this sub-activity refers to the user guidance, the administrator guidance, and the secure installation, generation, and startup procedures. Installation, generation, and start-up procedures here refers to all procedures the administrator is responsible to perform to progress the

TOE from a delivered state to an operational state.

This component includes a requirement for developer analysis that is not present in AVA_MSU.1 Examination of guidance. Validation of this analysis should not be used as a substitute for the evaluator's own examination of the guidance documentation, but should be used to provide evidence that the developer has also explicitly addressed the issue of misuse.

March 2004 Version 2.4 Page 185 of 231

EAL4 evaluation

5.11.1.3 Input

1088

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the user guidance; d) the administrator guidance; e) the secure installation, generation, and start-up procedures; f) the misuse analysis of the guidance; g) TOE suitable for testing.

AVA_MSU.2.1C

The guidance documentation shall identify all possible modes of operation of the TOE (including operation following failure or operational error),

their consequences and implications for maintaining secure operation.

4:AVA_MSU.2-1

The determine that the guidance identifies all possible modes of operation of the

TOE (including, if applicable, operation following failure or operational error), their consequences and implications for maintaining secure operation.

1089

1090

1091

Other evaluation evidence, particularly the functional specification, provide an information source that the evaluator should use to determine that the guidance contains sufficient guidance information.

If test documentation is included in the assurance package, then the information provided in this evidence can also be used to determine that the guidance contains sufficient guidance documentation. The detail provided in the test steps can be used to confirm that the guidance provided is sufficient for the use and administration of the TOE.

The evaluator should focus on a single human visible TSFI at a time, comparing the guidance for securely using the TSFI with other evaluation evidence, to determine that the guidance related to the TSFI is sufficient for the secure usage (i.e consistent with the TSP) of that TSFI. The evaluator should also consider the relationships between interfaces, searching for potential conflicts.

AVA_MSU.2.2C

The guidance documentation shall be complete, clear and reasonable.

4:AVA_MSU.2-2 evaluator

Page 186 of 231 Version 2.4 March 2004

EAL4 evaluation

1092

The guidance is unclear if it can reasonably be misconstrued by an administrator or user, and used in a way detrimental to the TOE, or to the security provided by the TOE.

4:AVA_MSU.2-3

The determine that the guidance is complete and reasonable.

1093

The evaluator should apply familiarity with the TOE gained from performing other evaluation activities to determine that the guidance is complete.

1094

1095

1096

In particular, the evaluator should consider the functional specification. The

TSF described in this document should be described in the guidance as required to permit secure administration and use through the TSFI available to human users. The evaluator may, as an aid, prepare an informal mapping between the guidance and these documents. Any omissions in this mapping may indicate incompleteness.

The guidance is unreasonable if it makes demands on the TOE's usage or operational environment that are inconsistent with the ST or unduly onerous to maintain security.

The evaluator should note that results gained during the performance of work units from the Administrator guidance (AGD_ADM) sub-activity will provide useful input to this examination.

AVA_MSU.2.3C

The guidance documentation shall list all security objectives for the

operational environment.

4:AVA_MSU.2-4

The objectives for the operational environment are articulated.

1097

The evaluator analyses the security objectives for the operational environment of the TOE as described in the ST and compares them with the guidance to ensure that all security objectives for the operational environment that are relevant to the administrator or user are described appropriately in the guidance.

1098

The guidance should list all external procedural, physical, personnel and connectivity measures, as described in the ST by the security objectives for the operational environment.

AVA_MSU.2.4C

The analysis documentation shall demonstrate that the guidance

documentation is complete.

4:AVA_MSU.2-5 evaluator developer has taken adequate measures to ensure that the guidance is complete.

1099

The developer analysis may comprise mappings from the ST or the functional specification to the guidance in order to demonstrate that the guidance is complete. Whatever evidence is provided by the developer to demonstrate completeness, the evaluator should assess the developer's

March 2004 Version 2.4 Page 187 of 231

EAL4 evaluation analysis against any deficiencies found during the conduct of work units

AVA_MSU.2-1 through AVA_MSU.2-4 and AVA_MSU.2-6.

4:AVA_MSU.2-6

The procedures necessary to configure and install the TOE to determine that the

TOE can be configured and used securely using only the supplied guidance.

1100

Configuration and installation requires the evaluator to advance the TOE from a deliverable state to the state in which it is operational and enforcing a

TSP consistent with the security objectives for the TOE specified in the ST.

1101

1102

The evaluator should follow only the developer's procedures as documented in the user and administrator guidance that is normally supplied to the consumer of the TOE. Any difficulties encountered during such an exercise may be indicative of incomplete, unclear or unreasonable guidance.

Note that work performed to satisfy this work unit may also contribute towards satisfying evaluator action ADO_IGS.1.2E.

4:AVA_MSU.2-7

The the guidance to determine that the TOE can be configured and used securely using only supplied guidance.

1103

The evaluator should follow only the developer's procedures as documented in the user and administrator guidance that is normally supplied to the consumer of the TOE.

1104

The evaluator should employ sampling in carrying out this work unit. When choosing a sample the evaluator should consider: a) the clarity of the guidance - any potential unclear guidance should be included in the sample; b) guidance that will be used most often - infrequently used guidance should not normally be included in the sample; c) complexity of the guidance - complex guidance should be included in the sample; d) severity of error - procedures for which error imparts the greatest severity on security should be included in the sample; e) the nature of the TOE - the guidance related to the normal or most likely use of the TOE should be included in the sample.

4:AVA_MSU.2-8 evaluator guidance is provided for the consumer to effectively administer and use the

TSF, and to detect insecure states.

Page 188 of 231 Version 2.4 March 2004

EAL4 evaluation

1105

1106

A TOE may use a variety of ways to assist the consumer in effectively using that TOE securely. A TOE may employ functionality (features) to alert the consumer when the TOE is in an insecure state, whilst other TOEs may be delivered with enhanced guidance containing suggestions, hints, procedures, etc. on using the existing security features most effectively; for instance, guidance on using the audit feature as an aid for detecting insecure states.

To arrive at a verdict for this work unit, the evaluator considers the TOE's functionality, its purpose and security objectives for the operational environment. The evaluator should arrive at the conclusion that, if the TOE can transition into an insecure state, there is reasonable expectation that use of the guidance would permit the insecure state to be detected in a timely manner. The potential for the TOE to enter into insecure states may be determined using the evaluation deliverables, such as the ST, the functional specification and any other design representations provided as evidence for components included in the assurance package for the TOE (e.g. the highlevel design of the TSF if a component from High-level design (ADV_HLD) is included).

4:AVA_MSU.2-9 evaluator determine that guidance is provided for secure operation in all modes of operation of the TOE.

1107

1108

The results of evaluation action AVA_MSU.2.1E should provide a basis with which to evaluate the developer's analysis. Having evaluated the potential for misuse of the guidance, the evaluator should be able to determine that the developer's misuse analysis meets the objectives of this sub-activity.

5.11.2 Evaluation of Vulnerability analysis (AVA_VLA.2)

5.11.2.1 Objectives

The objective of this sub-activity is to determine whether the TOE, in its operational environment, has vulnerabilities exploitable by attackers possessing basic attack potential.

1109

1110

An exploitable vulnerability is a weakness or flaw in the TOE. An attack is a way of exploiting weaknesses or flaws.

When considering a vulnerability in relation to the TOE, the vulnerability is prefixed with potential, residual or exploitable. However, those in the public domain, and therefore not in relation to the TOE are generally simply referred to as vulnerabilities, if there is an environment in which they can be exploited.

March 2004 Version 2.4 Page 189 of 231

EAL4 evaluation

1111

1112

The use of the term guidance in this sub-activity refers to the user guidance, the administrator guidance, and the secure installation, generation, and startup procedures.

The consideration of exploitable vulnerabilities will be determined by the security objectives for the operational envrionment and SFRs in the ST. For example, if security objectives for the operational environment state the TOE is to be physically protected, any attacks requiring physical access to the

TOE should not be considered.

1113

Potential vulnerabilities may be in the public domain, or not, and may require skill to exploit, or not. These two aspects are related, but are distinct.

It should not be assumed that, simply because a potential vulnerability is in the public domain, it can be easily exploited.

5.11.2.3 Input

1114

The evaluation evidence for this sub-activity is: a) the ST; b) the functional specification; c) the high-level design; d) the low-level design; e) the implementation subset selected;

1115

1116 f) the guidance documentation; g) the vulnerability analysis; h) the TOE suitable for testing.

The remaining implicit evaluation evidence for this sub-activity depends on the components that have been included in the assurance package. The evidence provided for each component is to be used as input in this subactivity.

Other input for this sub-activity is: a) current information regarding public domain vulnerabilities and attacks (e.g. from an overseer).

AVA_VLA.2.1C

The vulnerability analysis documentation shall describe the analysis of the

TOE deliverables performed to search for ways in which a user can violate

the TSP.

Page 190 of 231 Version 2.4 March 2004

EAL4 evaluation

AVA_VLA.2.2C

The vulnerability analysis documentation shall describe the disposition of

identified potential vulnerabilities.

AVA_VLA.2.3C

The vulnerability analysis documentation shall show, for all identified potential vulnerabilities, that the vulnerability cannot be exploited in the

operational environment for the TOE.

4:AVA_VLA.2-1

The determine that the search for potential vulnerabilities has considered all relevant information.

1117

The developer's vulnerability analysis should cover the developer's search for potential vulnerabilities in at least all evaluation deliverables and public domain information sources (the developer reports the sources used in the vulnerability analysis).

1118

Information in the public domain is highly dynamic. Therefore, it is possible that new vulnerabilities are reported in the public domain between the time the developer performs the vulnerability analysis and the time that the evaluation is completed. The point at which monitoring of the public domain information ceases is an evaluation authority issue; therefore guidance should be sought from the evaluation authority.

4:AVA_VLA.2-2 evaluator determine that each identified potential vulnerability is described and that a rationale is given for why it is not exploitable in the operational environment for the TOE.

1119

1120

1121

The developer is expected to search for potential vulnerabilities, based on knowledge of the TOE as documented in the inputs provided, and of public domain information sources. The developer shows that potential vulnerabilities are not exploitable in the operational environment.

The evaluator needs to be concerned with two aspects of the developer's analysis: a) whether the developer's analysis has considered all evaluation deliverables; b) whether appropriate measures are in place to prevent the exploitation of potential vulnerabilities in the operational environment.

A potential vulnerability is termed non-exploitable if one or more of the following conditions exist: a) measures in the operational environment, either IT or non-IT, prevent exploitation of the vulnerability in that operational environment. For instance, restricting physical access to the TOE to authorised users only may effectively render a potential vulnerability to tampering unexploitable;

March 2004 Version 2.4 Page 191 of 231

EAL4 evaluation b) the vulnerability is exploitable but only by attackers possessing moderate or high attack potential. For example, a potential vulnerability of a distributed TOE to session hijack attacks might require bespoke equipment and critical knowledge of the TOE which indicates an attack potential beyond basic. However, such vulnerabilities are reported in the ETR as residual vulnerabilities; c) it does not prevent the TOE from meeting its SFRs, and hence the

TSP, in the operational environment. For instance, a firewall whose

ST includes no availability requirements (Availability of exported

TSF data (FPT_ITA) or FRU: Resource utilisation components) and makes no availability policy claim, but is vulnerable to TCP SYN attacks (an attack on a common Internet protocol that renders hosts incapable of servicing connection requests) should not fail this evaluator action on the basis of this vulnerability alone.

1122

If a vulnerability can be exploited in the TOE in its operational environment, but it not apparent that the level of attack potential required is basic, the guidance on determining the necessary attack potential can be found in

Chapter 8.13.

4:AVA_VLA.2-3

The determine that it is consistent with the ST and the guidance.

1123

The developer's vulnerability analysis may address a potential vulnerability by suggesting specific configurations or settings for the TOE. If such operating constraints are deemed to be effective and consistent with the ST, then all such configurations/settings should be adequately described in the guidance so that they may be employed by the consumer.

4:AVA_VLA.2-4 evaluator vulnerability analysis .

1124

The evaluator prepares for penetration testing: a) as necessary to attempt to disprove the developer's analysis in cases where the developer's rationale for why a vulnerability is unexploitable is suspect in the opinion of the evaluator; b) as necessary to determine the susceptibility of the TOE, in its operational environment, to additional potential vulnerabilities to be considered by the evaluator. These additional potential vulnerabilities may be sourced from current information (e.g. from the overseer) regarding public domain vulnerabilities that may not have been considered by the developer, and may also have been identified as potential vulnerabilities as a result of performing other evaluation activities.

Page 192 of 231 Version 2.4 March 2004

EAL4 evaluation

1125

1126

The evaluator is not expected to test for potential vulnerabilities (including those in the public domain) beyond those for which a basic attack potential is required to effect an attack. In some cases, however, it will be necessary to carry out a test before the attack potential required can be determined.

Where, as a result of evaluation expertise, the evaluator discovers a vulnerability that is beyond basic attack potential, this is reported in the ETR as a residual vulnerability.

With an understanding of the potential vulnerability, the evaluator determines the most feasible way to test for the TOE's susceptibility.

Specifically the evaluator considers: a) the TSFI that will be used to stimulate the TSF and observe responses; b) initial conditions that will need to exist for the test (i.e. any particular objects or subjects that will need to exist and security attributes they will need to have); c) special test equipment that will be required to either stimulate a TSFI or make observations of a TSFI (although it is unlikely that specialist equipment would be required to exploit a potential vulnerability assuming a basic attack potential);

1127 d) whether theoretical analysis should replace physical testing, particularly relevant where the results of an initial test can be extrapolated to demonstrate that repeated attempts of an attack are likely to succeed after a given number of attempts.

The evaluator will probably find it practical to carry out penetration testing using a series of test cases, where each test case will test for a specific potential vulnerability.

4:AVA_VLA.2-5 evaluator potential vulnerabilities not already addressed by the developer's vulnerability analysis.

1128

A focused search of the evidence should be completed whereby specifications and documentation for the TOE are analysed and then potential vulnerabilities in the TOE are hypothesised, or speculated. The list of hypothesised potential vulnerabilities is then prioritised on the basis of the estimated probability that a potential vulnerability exists and, assuming a vulnerability does exist the attack potential required to exploit it, and on the extent of control or compromise it would provide. The prioritised list of potential vulnerabilities is used to direct penetration testing against the TOE.

1129

If a vulnerability can be exploited in the TOE, but it not apparent that the level of attack potential required is basic, the guidance on determining the necessary attack potential can be found in Chapter 8.13.

March 2004 Version 2.4 Page 193 of 231

EAL4 evaluation

1130

1131

1132

1133

Potential vulnerabilities hypothesised as exploitable only by attackers possessing moderate or high attack potential do not result in a failure of this evaluator action. Where analysis supports the hypothesis, these need not be considered further as an input to penetration testing. However, such vulnerabilities are reported in the ETR as residual vulnerabilities.

Potential vulnerabilities hypothesised exploitable by an attacker possessing a basic attack potential, that do not result in a violation of the security objectives specified in the ST, do not result in a failure of this evaluator action. Where analysis supports the hypothesis, these need not be considered further as an input to penetration testing.

Potential vulnerabilities hypothesised as exploitable by an attacker possessing a basic attack potential and resulting in a violation of the security objectives should be the highest priority potential vulnerabilities comprising the list used to direct penetration testing against the TOE.

Subject to the SFRs the TOE is to meet in the operational environment, the evaluator's independent vulnerability analysis should consider generic vulnerabilities under each of the following headings: a) generic vulnerabilities relevant for the type of TOE being evaluated, as may be supplied by the overseer; b) bypassing; c) tampering; d) direct attacks;

1134 e) misuse.

Items b) - e) are now explained in greater detail.

5.11.2.5.1 Bypassing

1135

Bypassing includes any means by which an attacker could avoid security enforcement, by:

1136 a) exploiting the capabilities of interfaces to the TOE, or of utilities which can interact with the TOE; b) inheriting privileges or other capabilities that should otherwise be denied; c) (where confidentiality is a concern) reading sensitive data stored or copied to inadequately protected areas.

Each of the following should be considered (where relevant) in the evaluator's independent vulnerability analysis.

Page 194 of 231 Version 2.4 March 2004

EAL4 evaluation a) Attacks based on exploiting the capabilities of interfaces or utilities generally take advantage of the absence of the required security enforcement on those interfaces. For example, gaining access to functionality that is implemented at a lower level than that at which access control is enforced. Relevant items include:

1) changing the predefined sequence of invocation of TSFI;

2) invocating an additional TSFI;

3) using a component in an unexpected context or for an unexpected purpose;

4) using implementation detail introduced in less abstract representations;

5) using the delay between time of access check and time of use. b) Changing the predefined sequence of invocation of components should be considered where there is an expected order in which interfaces to the TOE (e.g. user commands) are called to invoke a

TSFI (e.g. opening a file for access and then reading data from it). If a TSFI is invoked through one of the TOE interfaces (e.g. an access control check), the evaluator should consider whether it is possible to bypass the control by performing the call at a later point in the sequence or by missing it out altogether. c) Executing an additional component (in the predefined sequence) is a similar form of attack to the one described above, but involves the calling of some other TOE interface at some point in the sequence. It can also involve attacks based on interception of sensitive data passed over a network by use of network traffic analysers (the additional component here being the network traffic analyser). d) Using a component in an unexpected context or for an unexpected purpose includes using an unrelated TOE interface to bypass the TSF by using it to achieve a purpose that it was not designed or intended to achieve. Covert channels are an example of this type of attack. The use of undocumented interfaces (which may be insecure) also falls into this category (these include undocumented support and help facilities). e) Using implementation detail introduced in lower representations again includes the use of covert channels in which an attacker takes advantage of additional functions, resources or attributes that are introduced to the TOE as a consequence of the refinement process

(e.g. use of a lock variable as a covert channel). Additional functionality may also include test harness code contained in software modules.

March 2004 Version 2.4 Page 195 of 231

EAL4 evaluation f) Using the delay between time of check and time of use includes scenarios where an access control check is made and access granted, and an attacker is subsequently able to create conditions in which, had they applied at the time the access check was made, would have caused the check to fail. An example would be a user creating a background process to read and send highly sensitive data to the user's terminal, and then logging out and logging back in again at a lower sensitivity level. If the background process is not terminated when the user logs off, the MAC checks would have been effectively bypassed. g) Attacks based on inheriting privileges are generally based on illicitly acquiring the privileges or capabilities of some privileged component, usually by exiting from it in an uncontrolled or unexpected manner.

Relevant items include:

1) executing data not intended to be executable, or making it executable;

2) generating unexpected input for a component; h) Executing data not intended to be executable, or making it executable includes attacks involving viruses (e.g. putting executable code or commands in a file which are automatically executed when the file is edited or accessed, thus inheriting any privileges the owner of the file has). i)

3) invalidating assumptions and properties on which lower-level components rely.

Generating unexpected input for a component can have unexpected effects which an attacker could take advantage of. For example, if the

TSF could be bypassed if a user gains access to the underlying operating system, it may be possible to gain such access following the login sequence by exploring the effect of hitting various control or escape sequences whilst a password is being authenticated. j) Invalidating assumptions and properties on which lower level components rely includes attacks based on breaking out of the constraints of an application to gain access to an underlying operating system in order to bypass the TSF of an application. In this case the assumption being invalidated is that it is not possible for a user of the application to gain such access. A similar attack can be envisaged on an application on an underlying database management system: again the TSF could be bypassed if an attacker can break out of the constraints of the application. k) Attacks based on reading sensitive data stored in inadequately protected areas (applicable where confidentiality is a concern) include the following issues which should be considered as possible means of gaining access to sensitive data:

Page 196 of 231 Version 2.4 March 2004

EAL4 evaluation

1) disk scavenging;

2) access to unprotected memory;

3) exploiting access to shared writable files or other shared resources (e.g. swap files);

4) Activating error recovery to determine what access users can obtain. For example, after a crash an automatic file recovery system may employ a lost and found directory for headerless files, which are on disc without labels. If the TOE implements mandatory access controls, it is important to investigate at what security level this directory is kept (e.g. at system high), and who has access to this directory.

5.11.2.5.2 Tampering

1137

1138

Tampering includes any attack based on an attacker attempting to influence the behaviour of the TSF (i.e. corruption or de-activation), for example by: a) accessing data on whose confidentiality or integrity the TSF relies; b) forcing the TOE to cope with unusual or unexpected circumstances; c) disabling or delaying security enforcement.

Each of the following should be considered (where relevant) in the evaluator's independent vulnerability analysis. a) Attacks based on accessing data on whose confidentiality or integrity are protected include:

1) reading, writing or modifying internal data directly or indirectly;

2) using a component in an unexpected context or for an unexpected purpose;

3) using interfaces between components that are not visible at a higher level of abstraction. b) Reading, writing or modifying internal data directly or indirectly includes the following types of attack which should be considered:

1) reading “secrets” stored internally, such as user passwords;

2) spoofing internal data that security enforcing mechanisms rely upon;

3) modifying environment variables (e.g. logical names), or data in configuration files or temporary files.

March 2004 Version 2.4 Page 197 of 231

EAL4 evaluation c) It may be possible to decive a trusted process into modifying a protected file that it wouldn”t normally access. d) The evaluator should also consider the following “dangerous features”:

1) source code resident on the TOE along with a compiler (for instance, it may be possible to modify the login source code);

2) an interactive debugger and patch facility (for instance, it may be possible to modify the executable image);

3) the possibility of making changes at device controller level, where file protection does not exist;

4) diagnostic code which exists in the source code and that may be optionally included;

5) developer's tools left in the TOE. e) Using a component in an unexpected context or for an unexpected purpose includes (for example), where the TOE is an application built upon an operating system, users exploiting knowledge of a word processor package or other editor to modify their own command file

(e.g. to acquire greater privileges). f) Using interfaces between components which are not visible at a higher level of abstraction includes attacks exploiting shared access to resources, where modification of a resource by one component can influence the behaviour of another (trusted) component, e.g. at source code level, through the use of global data or indirect mechanisms such as shared memory or semaphores. g) Attacks based on forcing the TOE to cope with unusual or unexpected circumstances should always be considered. Relevant items include:

1) generating unexpected input for a component;

2) invalidating assumptions and properties on which lower-level components rely. h) Generating unexpected input for a component includes investigating the behaviour of the TOE when:

1) command input buffers overflow (possibly “crashing the stack” or overwriting other storage, which an attacker may be able to take advantage of, or forcing a crash dump that may contain sensitive information such as clear-text passwords);

Page 198 of 231 Version 2.4 March 2004

EAL4 evaluation i) j)

2) invalid commands or parameters are entered (including supplying a read-only parameter to an interface which expects to return data via that parameter);

3) an end-of-file marker (e.g. CTRLZ or CTRLD) or null character is inserted in an audit trail.

Invalidating assumptions and properties on which lower-level components rely includes attacks taking advantage of errors in the source code where the code assumes (explicitly or implicitly) that security relevant data is in a particular format or has a particular range of values. In these cases the evaluator should determine whether they can invalidate such assumptions by causing the data to be in a different format or to have different values, and if so whether this could confer advantage to an attacker.

The correct behaviour of the TSF may be dependent on assumptions that are invalidated under extreme circumstances where resource limits are reached or parameters reach their maximum value. The evaluator should consider (where practical) the behaviour of the TOE when these limits are reached, for example:

1) changing dates (e.g. examining how the TOE behaves when a critical date threshold is passed);

2) filling discs;

3) exceeding the maximum number of users;

4) filling the audit log;

5) saturating security alarm queues at a console;

6) overloading various parts of a multi-user TOE which relies heavily upon communications components;

7) swamping a network, or individual hosts, with traffic;

8) filling buffers or fields. k) Attacks based on disabling or delaying security enforcement include the following items:

1) using interrupts or scheduling functions to disrupt sequencing;

2) disrupting concurrence; l)

3) using interfaces between components which are not visible at a higher level of abstraction.

Using interrupts or scheduling functions to disrupt sequencing includes investigating the behaviour of the TOE when:

March 2004 Version 2.4 Page 199 of 231

EAL4 evaluation

1) a command is interrupted (with CTRLC, CTRLY, etc.);

2) a second interrupt is issued before the first is acknowledged. m) The effects of terminating security critical processes (e.g. an audit daemon) should be explored. Similarly, it may be possible to delay the logging of audit records or the issuing or receipt of alarms such that it is of no use to an administrator (since the attack may already have succeeded). n) Disrupting concurrence includes investigating the behaviour of the

TOE when two or more subjects attempt simultaneous access. It may be that the TOE can cope with the interlocking required when two subjects attempt simultaneous access, but that the behaviour becomes less well defined in the presence of further subjects. For example, a critical security process could be put into a resource-wait state if two other processes are accessing a resource which it requires. o) Using interfaces between components which are not visible at a higher level of abstraction may provide a means of delaying a timecritical trusted process.

1139

1140

1141

1142

1143

Direct attack includes the identification of any penetration tests necessary to test the strength of permutational or probabilistic mechanism and other mechanisms to ensure they withstand direct attack.

For example, it may be a flawed assumption that a particular implementation of a pseudo-random number generator will possess the required entropy necessary to seed the security mechanism.

Where a probabilistic or permutational mechanism relies on selection of security attribute value (e.g. selection of password length) or entry of data by a human user (e.g. choice of password), the assumptions made should reflect the worst case.

For example, the maximum theoretical password space (i.e. all printable

ASCII characters) would not be worst case because it is human behaviour to use natural language passwords, effectively reducing the password space and associated strength. However, such an assumption could be appropriate if the

SFRs in the ST included FIA_SOS.1 Verification of secrets or FIA_SOS.2

TSF Generation of secrets to minimise the use of natural language passwords.

Probabilistic or permutational mechanisms should be identified during examination of evaluation evidence required as input to this sub-activity

(security target, functional specification, high-level design, low-level design and implementation representation subset) and any other TOE (e.g. guidance) documentation may identify additional probabilistic or permutational mechanisms.

Page 200 of 231 Version 2.4 March 2004

EAL4 evaluation

1144

Where the design evidence or guidance includes assertions or assumptions

(e.g. about how many authentication attempts are possible per minute), the evaluator should independently confirm that these are correct. This may be achieved through testing or through independent analysis.

1145

Direct attacks reliant upon a weakness in a cryptographic algorithm should not be considered under Vulnerability analysis (AVA_VLA), as this is outside the scope of the CC. Correctness of the implementation of the cryptographic algorithm is considered during the ADV and ATE: Tests activities.

5.11.2.5.4 Misuse

1146

Misuse includes the identification of any penetration tests necessary to confirm or disprove the misuse analysis. Issues to be considered include: a) behaviour of the TOE when start-up, closedown or error recovery is activated; b) behaviour of the TOE under extreme circumstances (sometimes termed overload or asymptotic behaviour), particularly where this could lead to the de-activation or disabling of parts of the TSF; c) any potential for unintentional misconfiguration or insecure use arising from attacks noted in the section on tampering above.

4:AVA_VLA.2-6 evaluator vulnerability analysis.

1147

1148

1149

The evaluator prepares for penetration testing based on the prioritised list of potential vulnerabilities hypothesised in work unit AVA_VLA.2-5.

The evaluator is not expected to test for potential vulnerabilities beyond those for which a basic attack potential is required to effect an attack.

However, as a result of evaluation expertise, the evaluator may discover a vulnerability that is exploitable only by an attacker with greater than basic attack potential. Such vulnerabilities are to be reported in the ETR as residual vulnerabilities.

With an understanding of the potential vulnerability, the evaluator determines the most feasible way to test for the TOE's susceptibility.

Specifically the evaluator considers: a) the interfaces that will be used to stimulate the TSF and observe responses; b) initial conditions that will need to exist for the test (i.e. any particular objects or subjects that will need to exist and security attributes they will need to have); c) special test equipment that will be required to either stimulate a TSFI or make observations of a TSFI.

March 2004 Version 2.4 Page 201 of 231

EAL4 evaluation

1150

The evaluator will probably find it practical to carry out penetration test using a series of test cases, where each test case will test for a specific potential vulnerability.

4:AVA_VLA.2-7

The sufficient detail to enable the tests to be repeatable. The test documentation shall include: a) identification of the potential vulnerability the TOE is being tested for; b) instructions to connect and setup all required test equipment as required to conduct the penetration test; c) instructions to establish all penetration test prerequisite initial conditions; d) instructions to stimulate the TSF; e) instructions for observing the behaviour of the TSF; f) descriptions of all expected results and the necessary analysis to be performed on the observed behaviour for comparison against expected results; g) instructions to conclude the test and establish the necessary post-test state for the TOE.

1151

The intent of specifying this level of detail in the test documentation is to allow another evaluator to repeat the tests and obtain an equivalent result.

4:AVA_VLA.2-8 evaluator

1152

1153

The evaluator uses the penetration test documentation resulting from work unit AVA_VLA.2-4 as a basis for executing penetration tests on the TOE, but this does not preclude the evaluator from performing additional ad hoc penetration tests. If required, the evaluator may devise ad hoc tests as a result of information learned during penetration testing that, if performed by the evaluator, are to be recorded in the penetration test documentation. Such tests may be required to follow up unexpected results or observations, or to investigate potential vulnerabilities suggested to the evaluator during the preplanned testing.

The evaluator uses the penetration test documentation resulting from work unit AVA_VLA.2-10 as a basis for executing penetration tests on the TOE, but this does not preclude the evaluator from performing additional ad hoc penetration tests. If required, the evaluator may devise new tests as a result of information learned during penetration testing that, if performed by the evaluator, are to be recorded in the penetration test documentation. Such tests may be required to follow up unexpected results or observations, or to investigate potential vulnerabilities suggested to the evaluator during the preplanned testing.

Page 202 of 231 Version 2.4 March 2004

EAL4 evaluation

1154

Should penetration testing show that a hypothesised potential vulnerability does not exist, then the evaluator should determine whether or not the evaluator's own analysis was incorrect, or if evaluation deliverables are incorrect or incomplete.

4:AVA_VLA.2-9

The

1155

While some specific details of the actual test results may be different from those expected (e.g. time and date fields in an audit record) the overall result should be identical. Any unexpected test results should be investigated. The impact on the evaluation should be stated and justified.

4:AVA_VLA.2-10

The evaluator shall report in the ETR the evaluator penetration testing efforts, outlining the testing approach, configuration, depth and results.

1156

1157

The penetration testing information reported in the ETR allows the evaluator to convey the overall penetration testing approach and effort expended on this sub-activity. The intent of providing this information is to give a meaningful overview of the evaluator's penetration testing effort. It is not intended that the information regarding penetration testing in the ETR be an exact reproduction of specific test steps or results of individual penetration tests. The intention is to provide enough detail to allow other evaluators and overseers to gain some insight about the penetration testing approach chosen, amount of penetration testing performed, TOE test configurations, and the overall results of the penetration testing activity.

Information that would typically be found in the ETR section regarding evaluator penetration testing efforts is: a) TOE test configurations. The particular configurations of the TOE that were penetration tested; b) TSFI penetration tested. A brief listing of the TSFI that were the focus of the penetration testing;

1158 c) verdict for the sub-activity. The overall judgement on the results of penetration testing.

This list is by no means exhaustive and is only intended to provide some context as to the type of information that should be present in the ETR concerning the penetration testing the evaluator performed during the evaluation.

4:AVA_VLA.2-11 evaluator conclusions of all vulnerability analysis to determine that the TOE, in its operational environment, is resistant to an attacker possessing a basic attack potential.

1159

If the results reveal that the TOE, in its operational environment, has vulnerabilities exploitable by an attacker possessing less than a moderate attack potential, then this evaluator action fails.

March 2004 Version 2.4 Page 203 of 231

EAL4 evaluation

4:AVA_VLA.2-12 evaluator residual vulnerabilities, detailing for each: a) its source (e.g. CEM activity being undertaken when it was conceived, known to the evaluator, read in a publication); b) the SFRs not met; c) a description; d) whether it is exploitable in its operational environment or not (i.e. exploitable or residual); e) identification of evaluation party (e.g. developer, evaluator) who identified it.

Page 204 of 231 Version 2.4 March 2004

Flaw remediation sub-activities

6 Flaw remediation sub-activities

6.1 Evaluation of flaw remediation (ALC_FLR.1)

6.1.1 Objectives

1160

The objective of this sub-activity is to determine whether the developer has established flaw remediation procedures that describe the tracking of security flaws, the identification of corrective actions, and the distribution of corrective action information to TOE users.

6.1.2 Input

1161

The evaluation evidence for this sub-activity is: a) the flaw remediation procedures documentation.

ALC_FLR.1.1C

The flaw remediation procedures documentation shall describe the procedures used to track all reported security flaws in each release of the

TOE.

ALC_FLR.1-1

The to determine that it describes the procedures used to track all reported security flaws in each release of the TOE.

1162

1163

The procedures describe the actions that are taken by the developer from the time each suspected security flaw is reported to the time that it is resolved.

This includes the flaw's entire timeframe, from initial detection through ascertaining the flaw is a security flaw, to resolution of the security flaw.

If a flaw is discovered not to be security-relevant, there is no need (for the purposes of the Flaw remediation (ALC_FLR) requirements) for the flaw remediation procedures to track it further; only that there be an explanation of why the flaw is not security-relevant.

1164

While these requirements do not mandate that there be a publicised means for TOE users to report security flaws, they do mandate that all security flaws that are reported be tracked. That is, a reported security flaw cannot be ignored simply because it comes from outside the developer's organisation.

ALC_FLR.1.2C

The flaw remediation procedures shall require that a description of the nature and effect of each security flaw be provided, as well as the status of

finding a correction to that flaw.

ALC_FLR.1-2 evaluator that the application of these procedures would produce a description of each security flaw in terms of its nature and effects.

March 2004 Version 2.4 Page 205 of 231

Flaw remediation sub-activities

1165

The procedures identify the actions that are taken by the developer to describe the nature and effects of each security flaw in sufficient detail to be able to reproduce it. The description of the nature of a security flaw addresses whether it is an error in the documentation, a flaw in the design of the TSF, a flaw in the implementation of the TSF, etc. The description of the security flaw's effects identifies the portions of the TSF that are affected and how those portions are affected. For example, a security flaw in the implementation might be found that affects the identification and authentication enforced by the TSF by permitting authentication with the password “BACKDOOR”.

ALC_FLR.1-3

The that the application of these procedures would identify the status of finding a correction to each security flaw.

1166

The flaw remediation procedures identify the different stages of security flaws. This differentiation includes at least: suspected security flaws that have been reported, suspected security flaws that have been confirmed to be security flaws, and security flaws whose solutions have been implemented. It is permissible that additional stages (e.g. flaws that have been reported but not yet investigated, flaws that are under investigation, security flaws for which a solution has been found but not yet implemented) be included.

ALC_FLR.1.3C

The flaw remediation procedures shall require that corrective actions be

identified for each of the security flaws.

ALC_FLR.1-4

The the application of these procedures would identify the corrective action for each security flaw.

1167

1168

Corrective action may consist of a repair to the hardware, firmware, or software portions of the TOE, a modification of TOE guidance, or both.

Corrective action that constitutes modifications to TOE guidance (e.g. details of procedural measures to be taken to obviate the security flaw) includes both those measures serving as only an interim solution (until the repair is issued) as well as those serving as a permanent solution (where it is determined that the procedural measure is the best solution).

If the source of the security flaw is a documentation error, the corrective action consists of an update of the affected TOE guidance. If the corrective action is a procedural measure, this measure will include an update made to the affected TOE guidance to reflect these corrective procedures.

ALC_FLR.1.4C

The flaw remediation procedures documentation shall describe the methods used to provide flaw information, corrections and guidance on

corrective actions to TOE users.

ALC_FLR.1-5 evaluator to determine that it describes a means of providing the TOE users with the necessary information on each security flaw.

Page 206 of 231 Version 2.4 March 2004

Flaw remediation sub-activities

1169

1170

1171

The necessary information about each security flaw consists of its description (not necessarily at the same level of detail as that provided as part of work unit ALC_FLR.1-2), the prescribed corrective action, and any associated guidance on implementing the correction.

TOE users may be provided such information, correction, and documentation updates in any of several ways, such as their posting to a website, their being sent to TOE users, or arrangements made for the developer to install the correction. In cases where the means of providing this information requires action to be initiated by the TOE user, the evaluator examines any TOE guidance to ensure that it contains instructions for retrieving the information.

The only metric for assessing the adequacy of the method used for providing the information, corrections and guidance is that there be a reasonable expectation that TOE users can obtain or receive it. For example, consider the method of dissemination where the requisite data is posted to a website for one month, and the TOE users know that this will happen and when this will happen. This may not be especially reasonable or effective (as, say, a permanent posting to the website), yet it is feasible that the TOE user could obtain the necessary information. On the other hand, if the information were posted to the website for only one hour, yet TOE users had no way of knowing this or when it would be posted, it is infeasible that they would ever get the necessary information.

Evaluation of flaw remediation (ALC_FLR.2) 6.2

6.2.1 Objectives

1172

The objective of this sub-activity is to determine whether the developer has established flaw remediation procedures that describe the tracking of security flaws, the identification of corrective actions, and the distribution of corrective action information to TOE users. Additionally, this sub-activity determines whether the developer's procedures provide for the corrections of security flaws, for the receipt of flaw reports from TOE users, and for assurance that the corrections introduce no new security flaws.

1173

In order for the developer to be able to act appropriately upon security flaw reports from TOE users, TOE users need to understand how to submit security flaw reports to the developer, and developers need to know how to receive these reports. Flaw remediation guidance addressed to the TOE user ensures that TOE users are aware of how to communicate with the developer; flaw remediation procedures describe the developer's role is such communication

6.2.2 Input

1174

The evaluation evidence for this sub-activity is: a) the flaw remediation procedures documentation; b) flaw remediation guidance documentation.

March 2004 Version 2.4 Page 207 of 231

Flaw remediation sub-activities

ALC_FLR.2.1C

The flaw remediation procedures documentation shall describe the procedures used to track all reported security flaws in each release of the

TOE.

ALC_FLR.2-1

The to determine that it describes the procedures used to track all reported security flaws in each release of the TOE.

1175

The procedures describe the actions that are taken by the developer from the time each suspected security flaw is reported to the time that it is resolved.

This includes the flaw's entire timeframe, from initial detection through ascertaining the flaw is a security flaw, to resolution of the security flaw.

1176

If a flaw is discovered not to be security-relevant, there is no need (for the purposes of the Flaw remediation (ALC_FLR) requirements) for the flaw remediation procedures to track it further; only that there be an explanation of why the flaw is not security-relevant.

ALC_FLR.2.2C

The flaw remediation procedures shall require that a description of the nature and effect of each security flaw be provided, as well as the status of

finding a correction to that flaw.

ALC_FLR.2-2

The that the application of these procedures would produce a description of each security flaw in terms of its nature and effects.

1177

The procedures identify the actions that are taken by the developer to describe the nature and effects of each security flaw in sufficient detail to be able to reproduce it. The description of the nature of a security flaw addresses whether it is an error in the documentation, a flaw in the design of the TSF, a flaw in the implementation of the TSF, etc. The description of the security flaw's effects identifies the portions of the TSF that are affected and how those portions are affected. For example, a security flaw in the implementation might be found that affects the identification and authentication enforced by the TSF by permitting authentication with the password “BACKDOOR”.

ALC_FLR.2-3 evaluator that the application of these procedures would identify the status of finding a correction to each security flaw.

1178

The flaw remediation procedures identify the different stages of security flaws. This differentiation includes at least: suspected security flaws that have been reported, suspected security flaws that have been confirmed to be security flaws, and security flaws whose solutions have been implemented. It is permissible that additional stages (e.g. flaws that have been reported but not yet investigated, flaws that are under investigation, security flaws for which a solution has been found but not yet implemented) be included.

Page 208 of 231 Version 2.4 March 2004

Flaw remediation sub-activities

ALC_FLR.2.3C

The flaw remediation procedures shall require that corrective actions be

identified for each of the security flaws.

ALC_FLR.2-4

The the application of these procedures would identify the corrective action for each security flaw.

1179

1180

Corrective action may consist of a repair to the hardware, firmware, or software portions of the TOE, a modification of TOE guidance, or both.

Corrective action that constitutes modifications to TOE guidance (e.g. details of procedural measures to be taken to obviate the security flaw) includes both those measures serving as only an interim solution (until the repair is issued) as well as those serving as a permanent solution (where it is determined that the procedural measure is the best solution).

If the source of the security flaw is a documentation error, the corrective action consists of an update of the affected TOE guidance. If the corrective action is a procedural measure, this measure will include an update made to the affected TOE guidance to reflect these corrective procedures.

ALC_FLR.2.4C

The flaw remediation procedures documentation shall describe the methods used to provide flaw information, corrections and guidance on

corrective actions to TOE users.

ALC_FLR.2-5 evaluator to determine that it describes a means of providing the TOE users with the necessary information on each security flaw.

1181

1182

1183

The necessary information about each security flaw consists of its description (not necessarily at the same level of detail as that provided as part of work unit ALC_FLR.2-2), the prescribed corrective action, and any associated guidance on implementing the correction.

TOE users may be provided such information, correction, and documentation updates in any of several ways, such as their posting to a website, their being sent to TOE users, or arrangements made for the developer to install the correction. In cases where the means of providing this information requires action to be initiated by the TOE user, the evaluator examines any TOE guidance to ensure that it contains instructions for retrieving the information.

The only metric for assessing the adequacy of the method used for providing the information, corrections and guidance is that there be a reasonable expectation that TOE users can obtain or receive it. For example, consider the method of dissemination where the requisite data is posted to a website for one month, and the TOE users know that this will happen and when this will happen. This may not be especially reasonable or effective (as, say, a permanent posting to the website), yet it is feasible that the TOE user could obtain the necessary information. On the other hand, if the information were posted to the website for only one hour, yet TOE users had no way of knowing this or when it would be posted, it is infeasible that they would ever get the necessary information.

March 2004 Version 2.4 Page 209 of 231

Flaw remediation sub-activities

ALC_FLR.2.5C

The flaw remediation procedures shall describe a means by which the developer receives from TOE users reports and enquiries of suspected

security flaws in the TOE.

ALC_FLR.2-6

The that they describe procedures for the developer to accept reports of security flaws or requests for corrections to such flaws.

1184

The procedures ensure that TOE users have a means by which they can communicate with the TOE developer. By having a means of contact with the developer, the user can report security flaws, enquire about the status of security flaws, or request corrections to flaws. This means of contact may be part of a more general contact facility for reporting non-security related problems.

1185

The use of these procedures is not restricted to TOE users; however, only the

TOE users are actively supplied with the details of these procedures. Others who might have access to or familiarity with the TOE can use the same procedures to submit reports to the developer, who is then expected to process them. Any means of submitting reports to the developer, other than those identified by the developer, are beyond the scope of this work unit; reports generated by other means need not be addressed.

ALC_FLR.2.6C

The procedures for processing reported security flaws shall ensure that any

reported flaws are corrected and the correction issued to TOE users.

ALC_FLR.2-7

The that the application of these procedures would help to ensure every reported flaw is corrected.

1186

The flaw remediation procedures cover not only those security flaws discovered and reported by developer personnel, but also those reported by

TOE users. The procedures are sufficiently detailed so that they describe how it is ensured that each reported security flaw is corrected. The procedures contain reasonable steps that show progress leading to the eventual, inevitable resolution.

1187

The procedures describe the process that is taken from the point at which the suspected security flaw is determined to be a security flaw to the point at which it is resolved.

ALC_FLR.2-8 evaluator that the application of these procedures would help to ensure that the TOE users are issued corrective actions for each security flaw.

1188

The procedures describe the process that is taken from the point at which a security flaw is resolved to the point at which the corrective action is provided. The procedures for delivering corrective actions should be consistent with the security objectives; they need not necessarily be identical to the procedures used for delivering the TOE, as documented to meet

ADO_DEL, if included in the assurance requirements. For example, if the

Page 210 of 231 Version 2.4 March 2004

Flaw remediation sub-activities hardware portion of a TOE were originally delivered by bonded courier, updates to hardware resulting from flaw remediation would likewise expected to be distributed by bonded courier. Updates unrelated to flaw remediation would follow the procedures set forth in the documentation meeting the Delivery (ADO_DEL) requirements.

ALC_FLR.2.7C

The procedures for processing reported security flaws shall provide safeguards that any corrections to these security flaws do not introduce

any new flaws.

ALC_FLR.2-9

The that the application of these procedures would result in safeguards that the potential correction contains no adverse effects.

1189

Through analysis, testing, or a combination of the two, the developer may reduce the likelihood that adverse effects will be introduced when a security flaw is corrected. The evaluator assesses whether the procedures provide detail in how the necessary mix of analysis and testing actions is to be determined for a given correction.

1190

The evaluator also determines that, for instances where the source of the security flaw is a documentation problem, the procedures include the means of safeguarding against the introduction of contradictions with other documentation.

ALC_FLR.2.8C

The flaw remediation guidance shall describe a means by which TOE

users report to the developer any suspected security flaws in the TOE.

ALC_FLR.2-10 evaluator the application of these procedures would result in a means for the TOE user to provide reports of suspected security flaws or requests for corrections to such flaws.

1191

The guidance ensures that TOE users have a means by which they can communicate with the TOE developer. By having a means of contact with the developer, the user can report security flaws, enquire about the status of security flaws, or request corrections to flaws.

6.3 Evaluation of flaw remediation (ALC_FLR.3)

6.3.1 Objectives

1192

The objective of this sub-activity is to determine whether the developer has established flaw remediation procedures that describe the tracking of security flaws, the identification of corrective actions, and the distribution of corrective action information to TOE users. Additionally, this sub-activity determines whether the developer's procedures provide for the corrections of security flaws, for the receipt of flaw reports from TOE users, for assurance that the corrections introduce no new security flaws, for the establishment of a point of contact for each TOE user, and for the timely issue of corrective actions to TOE users.

March 2004 Version 2.4 Page 211 of 231

Flaw remediation sub-activities

1193

In order for the developer to be able to act appropriately upon security flaw reports from TOE users, TOE users need to understand how to submit security flaw reports to the developer, and developers need to know how to receive these reports. Flaw remediation guidance addressed to the TOE user ensures that TOE users are aware of how to communicate with the developer; flaw remediation procedures describe the developer's role is such communication.

6.3.2 Input

1194

The evaluation evidence for this sub-activity is: a) the flaw remediation procedures documentation; b) flaw remediation guidance documentation.

ALC_FLR.3.1C

The flaw remediation procedures documentation shall describe the procedures used to track all reported security flaws in each release of the

TOE.

ALC_FLR.3-1

The to determine that it describes the procedures used to track all reported security flaws in each release of the TOE.

1195

The procedures describe the actions that are taken by the developer from the time each suspected security flaw is reported to the time that it is resolved.

This includes the flaw's entire timeframe, from initial detection through ascertaining the flaw is a security flaw, to resolution of the security flaw.

1196

1197

If a flaw is discovered not to be security-relevant, there is no need (for the purposes of the Flaw remediation (ALC_FLR) requirements) for the flaw remediation procedures to track it further; only that there be an explanation of why the flaw is not security-relevant.

ALC_FLR.3.2C

The flaw remediation procedures shall require that a description of the nature and effect of each security flaw be provided, as well as the status of

finding a correction to that flaw.

ALC_FLR.3-2 evaluator that the application of these procedures would produce a description of each security flaw in terms of its nature and effects.

The procedures identify the actions that are taken by the developer to describe the nature and effects of each security flaw in sufficient detail to be able to reproduce it. The description of the nature of a security flaw addresses whether it is an error in the documentation, a flaw in the design of the TSF, a flaw in the implementation of the TSF, etc. The description of the security flaw's effects identifies the portions of the TSF that are affected and how those portions are affected. For example, a security flaw in the implementation might be found that affects the identification and

Page 212 of 231 Version 2.4 March 2004

Flaw remediation sub-activities authentication enforced by the TSF by permitting authentication with the password “BACKDOOR”.

ALC_FLR.3-3

The that the application of these procedures would identify the status of finding a correction to each security flaw.

1198

1199

The flaw remediation procedures identify the different stages of security flaws. This differentiation includes at least: suspected security flaws that have been reported, suspected security flaws that have been confirmed to be security flaws, and security flaws whose solutions have been implemented. It is permissible that additional stages (e.g. flaws that have been reported but not yet investigated, flaws that are under investigation, security flaws for which a solution has been found but not yet implemented) be included.

ALC_FLR.3.3C

The flaw remediation procedures shall require that corrective actions be

identified for each of the security flaws.

ALC_FLR.3-4

The the application of these procedures would identify the corrective action for each security flaw.

Corrective action may consist of a repair to the hardware, firmware, or software portions of the TOE, a modification of TOE guidance, or both.

Corrective action that constitutes modifications to TOE guidance (e.g. details of procedural measures to be taken to obviate the security flaw) includes both those measures serving as only an interim solution (until the repair is issued) as well as those serving as a permanent solution (where it is determined that the procedural measure is the best solution).

1200

If the source of the security flaw is a documentation error, the corrective action consists of an update of the affected TOE guidance. If the corrective action is a procedural measure, this measure will include an update made to the affected TOE guidance to reflect these corrective procedures.

ALC_FLR.3.4C

The flaw remediation procedures documentation shall describe the methods used to provide flaw information, corrections and guidance on

corrective actions to TOE users.

ALC_FLR.3-5 evaluator to determine that it describes a means of providing the TOE users with the necessary information on each security flaw.

1201

The necessary information about each security flaw consists of its description (not necessarily at the same level of detail as that provided as part of work unit ALC_FLR.3-2), the prescribed corrective action, and any associated guidance on implementing the correction.

1202

TOE users may be provided such information, correction, and documentation updates in any of several ways, such as their posting to a website, their being sent to TOE users, or arrangements made for the developer to install the

March 2004 Version 2.4 Page 213 of 231

Flaw remediation sub-activities

1203 correction. In cases where the means of providing this information requires action to be initiated by the TOE user, the evaluator examines any TOE guidance to ensure that it contains instructions for retrieving the information.

The only metric for assessing the adequacy of the method used for providing the information, corrections and guidance is that there be a reasonable expectation that TOE users can obtain or receive it. For example, consider the method of dissemination where the requisite data is posted to a website for one month, and the TOE users know that this will happen and when this will happen. This may not be especially reasonable or effective (as, say, a permanent posting to the website), yet it is feasible that the TOE user could obtain the necessary information. On the other hand, if the information were posted to the website for only one hour, yet TOE users had no way of knowing this or when it would be posted, it is infeasible that they would ever get the necessary information.

1204

For TOE users who register with the developer (see work unit ALC_FLR.3-

12), the passive availability of this information is not sufficient. Developers must actively send the information (or a notification of its availability) to registered TOE users.

ALC_FLR.3.5C

The flaw remediation procedures shall describe a means by which the developer receives from TOE users reports and enquiries of suspected

security flaws in the TOE.

ALC_FLR.3-6

The that the application of these procedures would result in a means for the developer to receive from TOE user reports of suspected security flaws or requests for corrections to such flaws.

1205

The procedures ensure that TOE users have a means by which they can communicate with the TOE developer. By having a means of contact with the developer, the user can report security flaws, enquire about the status of security flaws, or request corrections to flaws. This means of contact may be part of a more general contact facility for reporting non-security related problems.

1206

The use of these procedures is not restricted to TOE users; however, only the

TOE users are actively supplied with the details of these procedures. Others who might have access to or familiarity with the TOE can use the same procedures to submit reports to the developer, who is then expected to process them. Any means of submitting reports to the developer, other than those identified by the developer, are beyond the scope of this work unit; reports generated by other means need not be addressed.

ALC_FLR.3.6C

The procedures for processing reported security flaws shall ensure that any

reported flaws are corrected and the correction issued to TOE users.

ALC_FLR.3-7 evaluator that the application of these procedures would help to ensure that every reported flaw is corrected.

Page 214 of 231 Version 2.4 March 2004

Flaw remediation sub-activities

1207

1208

The flaw remediation procedures cover not only those security flaws discovered and reported by developer personnel, but also those reported by

TOE users. The procedures are sufficiently detailed so that they describe how it is ensured that each reported security flaw is corrected. The procedures contain reasonable steps that show progress leading to the eventual, inevitable resolution.

The procedures describe the process that is taken from the point at which the suspected security flaw is determined to be a security flaw to the point at which it is resolved.

ALC_FLR.3-8

The that the application of these procedures would help to ensure that the TOE users are issued corrective actions for each security flaw.

1209

The procedures describe the process that is taken from the point at which a security flaw is resolved to the point at which the corrective action is provided. The procedures for delivering corrective actions should be consistent with the security objectives; they need not necessarily be identical to the procedures used for delivering the TOE, as documented to meet

Delivery (ADO_DEL), if included in the assurance requirements. For example, if the hardware portion of a TOE were originally delivered by bonded courier, updates to hardware resulting from flaw remediation would likewise expected to be distributed by bonded courier. Updates unrelated to flaw remediation would follow the procedures set forth in the documentation meeting the Delivery (ADO_DEL) requirements.

ALC_FLR.3.7C

The procedures for processing reported security flaws shall provide safeguards that any corrections to these security flaws do not introduce

any new flaws.

ALC_FLR.3-9

The that the application of these procedures would result in safeguards that the potential correction contains no adverse effects.

1210

Through analysis, testing, or a combination of the two, the developer may reduce the likelihood that adverse effects will be introduced when a security flaw is corrected. The evaluator assesses whether the procedures provide detail in how the necessary mix of analysis and testing actions is to be determined for a given correction.

1211

The evaluator also determines that, for instances where the source of the security flaw is a documentation problem, the procedures include the means of safeguarding against the introduction of contradictions with other documentation.

ALC_FLR.3.8C

The flaw remediation guidance shall describe a means by which TOE

users report to the developer any suspected security flaws in the TOE.

ALC_FLR.3-10 evaluator the application of these procedures would result in a means for the TOE user

March 2004 Version 2.4 Page 215 of 231

Flaw remediation sub-activities

1212 to provide reports of suspected security flaws or requests for corrections to such flaws.

The guidance ensures that TOE users have a means by which they can communicate with the TOE developer. By having a means of contact with the developer, the user can report security flaws, enquire about the status of security flaws, or request corrections to flaws.

ALC_FLR.3.9C

The flaw remediation procedures shall include a procedure requiring timely responses for the automatic distribution of security flaw reports and the associated corrections to registered users who might be affected by the

security flaw.

ALC_FLR.3-11

The that the application of these procedures would result in a timely means of providing the registered TOE users who might be affected with reports about, and associated corrections to, each security flaw.

1213

1214

The issue of timeliness applies to the issuance of both security flaw reports and the associated corrections. However, these need not be issued at the same time. It is recognised that flaw reports should be generated and issued as soon as an interim solution is found, even if that solution is as drastic as

Turn off the TOE . Likewise, when a more permanent (and less drastic) solution is found, it should be issued without undue delay.

It is unnecessary to restrict the recipients of the reports and associated corrections to only those TOE users who might be affected by the security flaw; it is permissible that all TOE users be given such reports and corrections for all security flaws, provided such is done in a timely manner.

ALC_FLR.3-12 evaluator that the application of these procedures would result in automatic distribution of the reports and associated corrections to the registered TOE users who might be affected.

1215

1216

Automatic distribution does not mean that human interaction with the distribution method is not permitted. In fact, the distribution method could consist entirely of manual procedures, perhaps through a closely monitored procedure with prescribed escalation upon the lack of issue of reports or corrections.

It is unnecessary to restrict the recipients of the reports and associated corrections to only those TOE users who might be affected by the security flaw; it is permissible that all TOE users be given such reports and corrections for all security flaws, provided such is done automatically.

ALC_FLR.3.10C

The flaw remediation guidance shall describe a means by which TOE users may register with the developer, to be eligible to receive security flaw

reports and corrections.

Page 216 of 231 Version 2.4 March 2004

Flaw remediation sub-activities

ALC_FLR.3-13

The it describes a means of enabling the TOE users to register with the developer.

1217

1218

1219

1220

Enabling the TOE users to register with the developer simply means having a way for each TOE user to provide the developer with a point of contact; this point of contact is to be used to provide the TOE user with information related to security flaws that might affect that TOE user, along with any corrections to the security flaw. Registering the TOE user may be accomplished as part of the standard procedures that TOE users undergo to identify themselves to the developer, for the purposes of registering a software licence, or for obtaining update and other useful information.

There need not be one registered TOE user per installation of the TOE; it would be sufficient if there were one registered TOE user for an organisation. For example, a corporate TOE user might have a centralised acquisition office for all of its sites. In this case, the acquisition office would be a sufficient point of contact for all of that TOE user's sites, so that all of the TOE user's installations of the TOE have a registered point of contact.

In either case, it must be possible to associate each TOE that is delivered with an organisation in order to ensure that there is a registered user for each

TOE. For organisations that have many different addresses, this assures that there will be no user who is erroneously presumed to be covered by a registered TOE user.

It should be noted that TOE users need not register; they must only be provided with a means of doing so. However, users who choose to register must be directly sent the information (or a notification of its availability).

ALC_FLR.3.11C

The flaw remediation guidance shall identify the specific points of contact

for all reports and enquiries about security issues involving the TOE.

ALC_FLR.3-14 evaluator it identifies specific points of contact for user reports and enquiries about security issues involving the TOE.

1221

The guidance includes a means whereby registered TOE users can interact with the developer to report discovered security flaws in the TOE or to make enquiries regarding discovered security flaws in the TOE.

March 2004 Version 2.4 Page 217 of 231

Glossary

A Glossary

(normative)

1222

A.1

1223

This annex presents abbreviations, acronyms and vocabulary used by the

CEM and does not include those already presented in the CC. This annex also presents the references used in the CEM.

Abbreviations and acronyms

CEM Common Methodology for Information Technology Security

Evaluation

1224

1225

A.2 Vocabulary

1226

1227

1228

1229

1230

1231

1232

Terms which are presented in bold-faced type are themselves defined in this section.

Check : to generate a verdict by a simple comparison. Evaluator expertise is not required. The statement that uses this verb describes what is mapped.

Evaluation Deliverable : any resource required from the sponsor or developer by the evaluator or overseer to perform one or more evaluation or evaluation oversight activities.

Evaluation Evidence : a tangible evaluation deliverable.

Evaluation Technical Report : a report that documents the overall verdict and its justification, produced by the evaluator and submitted to an overseer.

Examine : to generate a verdict by analysis using evaluator expertise. The statement that uses this verb identifies what is analysed and the properties for which it is analysed.

Interpretation :

Page 218 of 231 Version 2.4 March 2004

Glossary

1233

1234

1235

1236

1237

1238

1239

1240

1241 a clarification or amplification of a CC, CEM or scheme requirement.

Methodology : the system of principles, procedures and processes applied to IT security evaluations.

Observation Report : a report written by the evaluator requesting a clarification or identifying a problem during the evaluation.

Overall Verdict : a pass or fail statement issued by an evaluator with respect to the result of an evaluation.

Oversight Verdict : a statement issued by an overseer confirming or rejecting an overall

verdict based on the results of evaluation oversight activities.

Record : to retain a written description of procedures, events, observations, insights and results in sufficient detail to enable the work performed during the evaluation to be reconstructed at a later time.

Report : to include evaluation results and supporting material in the

Evaluation Technical Report or an Observation Report.

Scheme : set of rules, established by an evaluation authority, defining the evaluation environment, including criteria and methodology required to conduct IT security evaluations.

Tracing : a simple directional relation between two sets of entities, which shows which entities in the first set correspond to which entities in the second.

Verdict : a pass, fail or inconclusive statement issued by an evaluator with respect to a CC evaluator action element, assurance component, or class. Also see overall verdict.

March 2004 Version 2.4 Page 219 of 231

Glossary

A.3 References

CC Common Criteria for Information Technology Security Evaluation, Version

2.1, August 1999.

COD

IEEE

Concise Oxford Dictionary, Oxford University Press, Ninth edition, 1995.

IEEE Standard Glossary of Software Engineering Terminology, ANSI/IEEE

STD 729-1983

Page 220 of 231 Version 2.4 March 2004

General evaluation guidance

(normative)

B.1 Objectives

1242

The objective of this chapter is to cover the basic evaluation techniques used to provide technical evidence of evaluation results. The use of such techniques helps in achieving objectivity, repeatability and reproducibility of the work performed by the evaluator.

B.2 Sampling

1243

This section provides general guidance on sampling. Specific and detailed information is given in those work units under the specific evaluator action elements where sampling has to be performed.

1244

1245

1246

Sampling is a defined procedure of an evaluator whereby some subset of a required set of evaluation evidence is examined and assumed to be representative for the entire set. It allows the evaluator to gain enough confidence in the correctness of particular evaluation evidence without analysing the whole evidence. The reason for sampling is to conserve resources while maintaining an adequate level of assurance. Sampling of the evidence can provide two possible outcomes: a) The subset reveals no errors, allowing the evaluator to have some confidence that the entire set is correct. b) The subset reveals errors and therefore the validity of the entire set is called into question. Even the resolution of all errors that were found may be insufficient to provide the evaluator the necessary confidence and as a result the evaluator may have to increase the size of the subset, or stop using sampling for this particular evidence.

Sampling is a technique which can be used to reach a reliable conclusion if a set of evidence is relatively homogeneous in nature, e.g. if the evidence has been produced during a well defined process.

The CC identifies the following evaluator action elements where sampling is explicitly acceptable: a) ADV_RCR.3.2E: “The evaluator shall determine the accuracy of the proofs of correspondence by selectively verifying the formal analysis.” b) Independent testing (ATE_IND).*.2E: “The evaluator shall test a subset of the TSF as appropriate to confirm that the TOE operates as specified”.

March 2004 Version 2.4 Page 221 of 231

1247

1248

1249

General evaluation guidance c) ATE_IND.2.3E: “The evaluator shall execute a sample of tests in the test documentation to verify the developer test results.” d) Covert channel analysis (AVA_CCA).*.3E: “The evaluator shall selectively validate the covert channel analysis through testing.” e) AVA_MSU.2.2E and AVA_MSU.3.2E: “The evaluator shall repeat all configuration and installation procedures, and other procedures selectively, to confirm that the TOE can be configured and used securely using only the supplied guidance documentation.”

In addition ADV_IMP.1.1D requires that the developer provide the implementation representation for a subset of the TSF only. The sample of the subset should be selected in agreement with the evaluator. Provision of a sample of the implementation representation allows the evaluator to assess the presentation of the implementation representation itself and to sample the traceability evidence to gain assurance in the correspondence between the low-level design and the implementation representation.

In addition to the sampling that the CC accepts, the CEM identifies the following actions where sampling is acceptable: a) Action CM capabilities (ACM_CAP).*.1E: “The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.”

Here sampling is accepted for the content and presentation of evidence elements CM capabilities (ACM_CAP).*.8C and CM capabilities (ACM_CAP).*.9C for EAL3 and EAL4. b) Action ATE_FUN.1.1E: “The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.”

Here sampling is accepted for the content and presentation of evidence element ATE_FUN.1.2C, ATE_FUN.1.3C, and

ATE_FUN.1.4C for EAL2, EAL3, and EAL4. c) Action ALC_DVS.1.1E: “The evaluator shall confirm that the information provided meets all requirements for content and presentation of evidence.”

Here sampling is accepted for the content and presentation of evidence element ALC_DVS.1.2C for EAL3 and EAL4.

Sampling in the cases identified in the CC, and in cases specifically covered in CEM work items, is recognised as a cost-effective approach to performing evaluator actions. Sampling in other areas is permitted only in exceptional cases, where performance of a particular activity in its entirety would require effort disproportionate to the other evaluation activities, and where this would not add correspondingly to assurance. In such cases a rationale for the

Page 222 of 231 Version 2.4 March 2004

General evaluation guidance

1250

1251

1252 use of sampling in that area will need to be made. Neither the fact that the

TOE is large and complex, nor that it has many security functional requirements, is sufficient justification, since evaluations of large, complex

TOEs can be expected to require more effort. Rather it is intended that this exception be limited to cases such as that where the TOE development approach yields large quantities of material for a particular CC requirement that would normally all need to be checked or examined, and where such an action would not be expected to raise assurance correspondingly.

Sampling needs to be justified taking into account the possible impact on the security objectives and threats of the TOE. The impact depends on what might be missed as a result of sampling. Consideration also needs to be given to the nature of the evidence to be sampled, and the requirement not to diminish or ignore any security functions.

It should be recognised that sampling of evidence directly related to the implementation of the TOE (e.g. developer test results) requires a different approach to sampling related to the determination of whether a process is being followed. In many cases the evaluator is required to determine that a process is being followed, and a sampling strategy is recommended. The approach here will differ from that taken when sampling a developer's test results. This is because the former case is concerned with ensuring that a process is in place, and the latter deals with determining correct implementation of the TOE. Typically, larger sample sizes should be analysed in cases related to the correct implementation of the TOE than would be necessary to ensure that a process is in place.

The following principles should be followed whenever sampling is performed: a) The sample size should be commensurate with the cost effectiveness of the evaluation and will depend on a number of TOE dependent factors (e.g. the size and complexity of the TOE, the amount of documentation), but a minimum size of 20% should be adopted as a norm for sampling material related to the TOE implementation.

Where sampling relates to gaining evidence that a process (e.g. visitor control or design review) is being followed, a percentage figure is not appropriate. The evaluator should sample sufficient information to gain reasonable confidence that the process is being followed, and justify the sample size. b) The sample should be representative of all aspects relevant to the areas that are sampled. In particular, a selection should cover a variety of components, security functions, developer and operational sites (if more than one is involved) and hardware platform types (if more than one is involved). c) The sponsor and developer should not be informed in advance of the exact composition of the sample, subject to ensuring timely delivery of the sample and supporting deliverable, e.g. test harnesses and

March 2004 Version 2.4 Page 223 of 231

General evaluation guidance

1253 equipment to the evaluator in accordance with the evaluation schedule. d) The choice of the sample should be free from bias to the degree possible (one should not always choose the first or last item). Ideally the sample selection should be done by someone other than the evaluator.

Errors found in the sample can be categorised as being either systematic or sporadic. If the error is systematic, the problem should be corrected and a complete new sample taken. If properly explained, sporadic errors might be solved without the need for a new sample, although the explanation should be confirmed. The evaluator should use judgement in determining whether to increase the sample size or use a different sample.

B.3 Dependencies

1254

B.3.1

1255

B.3.2

1256

1257

In general it is possible to perform the required evaluation activities, subactivities, and actions in any order or in parallel. However, there are different kinds of dependencies which have to be considered by the evaluator. This section provides general guidance on dependencies between different activities, sub-activities, and actions.

Dependencies between activities

For some cases the different assurance classes may recommend or even require a sequence for the related activities. A specific instance is the ST activity. The ST evaluation activity is started prior to any TOE evaluation activities since the ST provides the basis and context to perform them.

However, a final verdict on the ST evaluation may not be possible until the

TOE evaluation is complete, since changes to the ST may result from activity findings during the TOE evaluation.

Dependencies between sub-activities

Dependencies identified between components in CC Part 3 have to be considered by the evaluator. An example for this kind of dependency is

AVA_VLA.1 Developer vulnerability analysis. This component claims dependencies on ADV_FSP.1 Informal functional specification,

ADV_HLD.1 Descriptive high-level design, AGD_ADM.1 Administrator guidance and AGD_USR.1 User guidance.

A sub-activity can be assigned a pass verdict normally only if all those subactivities are successfully completed on which it has a dependency. For example, a pass verdict on AVA_VLA.1 Developer vulnerability analysis can normally only be assigned if the sub-activities related to ADV_FSP.1

Informal functional specification, ADV_HLD.1 Descriptive high-level design, AGD_ADM.1 Administrator guidance and AGD_USR.1 User guidance are assigned a pass verdict too.

Page 224 of 231 Version 2.4 March 2004

General evaluation guidance

1258

1259

B.3.3

1260

So when determining whether a sub-activity will impact another sub-activity, the evaluator should consider whether this activity depends on potential evaluation results from any dependent sub-activities. Indeed, it may be the case that a dependent sub-activity will impact this sub-activity, requiring previously completed evaluator actions to be performed again.

A significant dependency effect occurs in the case of evaluator-detected flaws. If a flaw is identified as a result of conducting one sub-activity, the assignment of a pass verdict to a dependent sub-activity may not be possible until all flaws related to the sub-activity upon which it depends are resolved.

Dependencies between actions

It may be the case, that results which are generated by the evaluator during one action are used for performing another action. For example, actions for completeness and consistency cannot be completed until the checks for content and presentation have been completed. This means for example that the evaluator is recommended to evaluate the PP/ST rationale after evaluating the constituent parts of the PP/ST.

1261

1262

1263

1264

March 2004

This section provides general guidance on site visits. Specific and detailed information is given in work units for those activities where site visits are performed: a) CM automation (ACM_AUT); b) CM capabilities (ACM_CAP).n (with n>2); c) Delivery (ADO_DEL); d) Development security (ALC_DVS).

A development site visit is a useful means whereby the evaluator determines whether procedures are being followed in a manner consistent with that described in the documentation.

Reasons for visiting sites include: a) to observe the use of the CM system as described in the CM plan; b) to observe the practical application of delivery procedures; c) to observe the application of security measures during development.

During an evaluation it is often necessary that the evaluator will meet the developer more than once and it is a question of good planning to combine the site visit with another meeting to reduce costs. For example one might combine the site visits for configuration management, for the developer's security and for delivery. It may also be necessary to perform more than one site visit to the same site to allow the checking of all development phases. It

Version 2.4 Page 225 of 231

1265

1266

1267

1268

General evaluation guidance should be considered that development could occur at multiple facilities within a single building, multiple buildings at the same site, or at multiple sites.

The first site visit should be scheduled early during the evaluation. In the case of an evaluation which starts during the development phase of the TOE, this will allow corrective actions to be taken, if necessary. In the case of an evaluation which starts after the development of the TOE, an early site visit could allow corrective measures to be put in place if serious deficiencies in the applied procedures emerge. This avoids unnecessary evaluation effort.

Interviews are also a useful means of determining whether the written procedures reflect what is done. In conducting such interviews, the evaluator should aim to gain a deeper understanding of the analysed procedures at the development site, how they are used in practice and whether they are being applied as described in the provided evaluation evidence. Such interviews complement but do not replace the examination of evaluation evidence.

To prepare for the site visit a checklist, based on the evaluation evidence provided should be generated by the evaluator. The results of the site visit should be recorded.

Site visits may not be deemed necessary if e.g. the development site has recently been visited for another TOE evaluation or particular ISO 9000 procedures were confirmed as being followed. Other approaches to gain confidence should be considered that provide an equivalent level of assurance (e.g. to analyse evaluation evidence). Any decision not to make a visit should be determined in consultation with the overseer.

1269

B.5.1

1270

1271

The identity of what is evaluated will appear in the ETR, on the certificate, in the ST, and on the list of evaluated products. Although products are typically bought and sold, evaluations are concerned with TOEs. In cases where the developer of the product is also the developer of the evaluation evidence (i.e. the sponsor), this distinction is unnecessary. But because these roles may be filled by different parties, the following were agreed as the basis of definitions used in the CEM, along with their interrelationships and effects upon evaluations and certification.

Product and system

The product is the collection of hardware and/or software that is available for use. Some purveyors might bundle a collection of products (e.g. a wordprocessor, spreadsheet, and graphics application) into yet another product (e.g. an office automation system). But, provided that it is available for use, either by the public, by other manufacturers, or by limited customers, the resulting collection is considered to be a product.

A system consists of one or more products in a known operational environment. The main difference between a product evaluation and a

Page 226 of 231 Version 2.4 March 2004

General evaluation guidance system evaluation is that, for a system evaluation, the evaluator takes into account the actual environment instead of theorising a hypothetical one, as done for a product evaluation.

B.5.2 TOE

1272

The TOE is the entity that is evaluated as defined by the ST. While there are cases where a TOE makes up the entire product, this need not be the case.

The TOE may be a product, a part of a product, a set of products, a unique technology never to be made into a product, or combinations of all of these, in a specific configuration or set of configurations. This specific configuration or set of configurations is called the evaluated configuration.

The ST clearly describes the relation between the TOE and any associated products.

1273

This evaluated configuration is identified in sufficient detail to differentiate hardware included in the evaluated configuration from hardware that is not included in the evaluated configuration, though it might be available as part of the product upon which the TOE is based. This identification makes it apparent to potential customers what product must be purchased, and what configuration options must be used, in order for the TOE to run securely.

B.5.3 TSF

1274

1275

The TSF is the collection of those parts of the TOE that must be relied upon to enforce the security of the TOE as defined by the SR. There may be parts within the TOE that contribute nothing to the security of the TOE as defined by the ST; consequently, such parts would not be part of the TSF.

The hardware portions of the TSF are described at a level of detail commensurate with the assurance requirements related to the relevant development documentation (functional specification, high-level design, low-level design) and the testing documentation. The level of hardware identification is determined by the impact that the hardware features have upon the security functions and assurances being claimed.

B.5.4 Evaluation

1276

An implicit assumption for all evaluations is that the TOE is (by definition) the product or system in its evaluated configuration; this assumption need not be explicitly included in the list of assumptions for the evaluation. The

TOE undergoes the scrutiny of the evaluation: analysis is performed only within the evaluated configuration, testing is performed upon this evaluated configuration, exploitable vulnerabilities are identified in this evaluated configuration, and assumptions are relevant only in the evaluated configuration. The ease with which the TOE can exit this configuration is important, and must be considered where Misuse (AVA_MSU) is called up.

This will look at the robustness of the TOE configuration, and the impact of any accidental or intentional deviations from it that may occur without detection.

March 2004 Version 2.4 Page 227 of 231

General evaluation guidance

1277

1278

1279

1280

1281

1282

1283

The following example provides three TOEs, all of which are based upon the same virtual private networking (VPN) firewall product, but which yield different evaluation results because of the differences in the STs.

1) A VPN-firewall which is configured in such a way that the VPN functionality is turned off. All threats in the ST are concerned with

access to the safe network from the unsafe network.

The TOE is the VPN-firewall configured in such a way that the VPN functionality is turned off. If the administrator were to configure the firewall such that some or all VPN functions were enabled, the product would not be in an evaluated configuration; it would therefore be considered to be unevaluated, and so nothing could be stated about its security.

2) A VPN-firewall, where all threats in the ST are concerned with access

to the safe network from the unsafe network.

The TOE is the entire VPN-firewall. The VPN functions are part of the TOE, so one of the things to be determined during the evaluation would be whether there are means to gain access to the safe network from the unsafe network through the VPN functions.

3) A VPN-firewall, where all threats in the ST are concerned with either access to the safe network from the unsafe network or confidentiality of

traffic on the unsafe network.

The TOE is the entire VPN-firewall. The VPN functions are part of the TOE, so one of the things to be determined during the evaluation would be whether the VPN functions permit the realisation of any of the threats described in the

ST.

B.5.5 Certification

1284

From the earlier paragraphs, it is clear that evaluating the same product with different STs leads to different TOEs with different TSFs. Consequently, the

Certificates, ETR, the STs, and the entries in the Evaluated Products List will have to differ among the evaluations to be of any use to potential customers.

1285

Note that, for the above example of three different firewall evaluations, the apparent differences between these Certificates would be subtle, as the three

VPN-firewalls would all lead to certificates identifying the TOE as:

1286

1287

1288

The XYZ Firewall product, as described in the Evaluated Configuration

identified in Security Target #ABC. with a different identifier for each ST ABC.

Therefore, the evaluator has to ensure that the ST adequately describes the

TOE in terms of what functionality is within the scope of the evaluation. A clear explanation is vital because prospective customers of evaluated products will consult the STs of the products that they are considering to buy

Page 228 of 231 Version 2.4 March 2004

General evaluation guidance in order to determine which security functionality of those products have been evaluated.

Impact of FTP on the Assurance Families B.6

1289

The inclusion/exclusion of the FPT self-protection requirements from the

PP/ST will affect the following requirements:

B.6.1 ADV

1290

Where the threat of tampering or bypass does not exist, the evaluation will focus on correct operation of the TSF. This will include consideration of all parts of the TOE that contribute directly or indirectly to the enforcement of the TSP. Parts that fall into neither of these categories need not be examined

(the presence of errors in these parts that can interfere with the correct operation of the TSF will be established through testing of the TSF).

1291

Where self-protection functions have been claimed, the description of their implementation will identify the protection mechanisms, from which a determination of the TSF boundaries can be made. Identification of the TSF boundaries and interfaces, together with a determination of the efficacy of the TSF protection mechanisms claimed, will allow the evaluation to be limited in scope. This limitation will exclude parts outside the TSF, since these cannot interfere with correct TSF operation. In many cases, the TSF boundary will include some parts that do not contribute to the enforcement of the TSP, and these partss will need to be examined during the evaluation.

Those parts that can be determined not to fall within the TSF need not be examined by the evaluator.

B.6.2 ATE_IND

1292

The application notes for Independent testing (ATE_IND) call for testing of obvious public domain weaknesses that may be applicable to the TOE. Such weaknesses that are based on the intent to tamper or bypass the TOE need only be considered where such a threat has been identified.

1293

This CEM describes the minimum technical work that evaluations conducted under oversight (scheme) bodies must perform. However, it also recognises

(both explicitly and implicitly) that there are activities or methods upon which mutual recognition of evaluation results do not rely. For the purposes of thoroughness and clarity, and to better delineate where the CEM ends and an individual scheme's methodology begins, the following matters are left up to the discretion of the schemes. Schemes may choose to provide the following, although they may choose to leave some unspecified. (Every effort has been made to ensure this list is complete; evaluators encountering a subject neither listed here nor addressed in the CEM should consult with their evaluation schemes to determine under whose auspices the subject falls.)

March 2004 Version 2.4 Page 229 of 231

1294

General evaluation guidance

The matters that schemes may choose to specify include: a) what is required in ensuring that an evaluation was done sufficiently - every scheme has a means of verifying the work of its evaluators, whether by requiring the evaluators to present their findings to the oversight body, by requiring the oversight body to redo the evaluator's work, or by some other means that assures the scheme that all evaluation bodies are adequate and comparable. b) process for disposing of evaluation evidence upon completion of an evaluation; c) any requirements for confidentiality (on the part of the evaluator and the non-disclosure of information obtained during evaluation); d) the course of action to be taken if a problem is encountered during the evaluation (whether the evaluation continues once the problem is remedied, or the evaluation ends immediately and the remedied product must be re-submitted for evaluation); e) any specific (natural) language in which documentation must be provided; f) any recorded evidence that must be submitted in the ETR - this CEM specifies the minimum to be reported in an ETR; however, individual schemes may require additional information to be included; g) any additional reports (other than the ETR) required from the evaluators -for example, testing reports; h) any specific ORs that may be required by the scheme, including the structure, recipients, etc. of any such ORs; i) any specific content structure of any written report as a result from an

ST evaluation - a scheme may have a specific format for all of its reports detailing results of an evaluation, be it the evaluation of a

TOE or of an ST; j) any additional PP/ST identification information required; k) any activities to determine the suitability of explicitly-stated requirements in an ST; l) any requirements for provision of evaluator evidence to support reevaluation and re-use of evidence; m) any specific handling of scheme identifiers, logos, trademarks, etc.; n) any specific guidance in dealing with cryptography; o) handling and application of scheme, national and international interpretations;

Page 230 of 231 Version 2.4 March 2004

General evaluation guidance p) a list or characterisations of suitable alternative approaches to testing where testing is infeasible; q) the mechanism by which an overseer can determine what steps an evaluator took while testing; r) s) preferred test approach (if any): at internal interface or at external interface; a list or characterisation of acceptable means of conducting the evaluator's vulnerability analysis (e.g. flaw hypothesis methodology); t) information regarding any vulnerabilities and weaknesses to be considered;

March 2004 Version 2.4 Page 231 of 231
