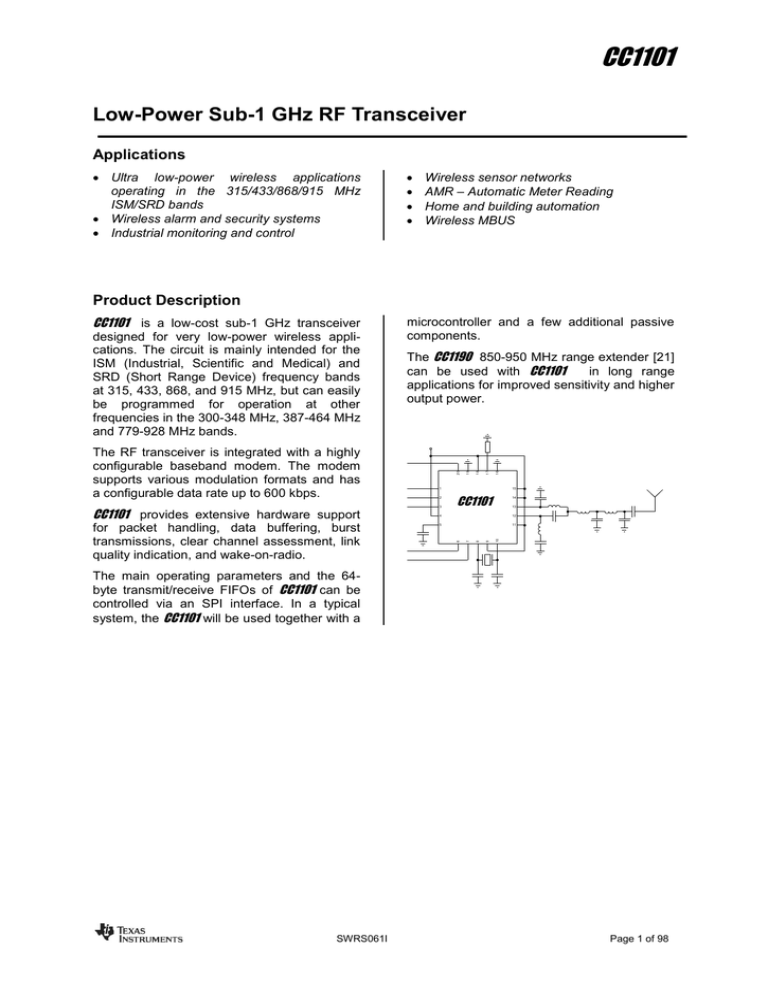

CC1101RGP

Low-Power Sub-1 GHz RF Transceiver

CC1101

Applications

Ultra

low-power wireless applications operating in the 315/433/868/915 MHz

ISM/SRD bands

Wireless alarm and security systems

Industrial monitoring and control

Product Description

CC1101

is a low-cost sub-1 GHz transceiver designed for very low-power wireless applications. The circuit is mainly intended for the

ISM (Industrial, Scientific and Medical) and

SRD (Short Range Device) frequency bands at 315, 433, 868, and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-348 MHz, 387-464 MHz and 779-928 MHz bands.

The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 600 kbps.

CC1101 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio.

The main operating parameters and the 64byte transmit/receive FIFOs of

CC1101 can be controlled via an SPI interface. In a typical system, the

CC1101

will be used together with a

Wireless sensor networks

AMR

– Automatic Meter Reading

Home and building automation

Wireless MBUS microcontroller and a few additional passive components.

The

CC1190

850-950 MHz range extender [21]

can be used with

CC1101 in long range applications for improved sensitivity and higher output power.

1

2

3

4

5

CC1101

15

14

13

12

11

SWRS061I Page 1 of 98

Key Features

CC1101

RF Performance

High sensitivity o

-116 dBm at 0.6 kBaud, 433 MHz,

1% packet error rate o

-112 dBm at 1.2 kBaud, 868 MHz,

1% packet error rate

Low current consumption (14.7 mA in RX,

1.2 kBaud, 868 MHz)

Programmable output power up to +12 dBm for all supported frequencies

Excellent receiver selectivity and blocking performance

Programmable data rate from 0.6 to 600 kbps

Frequency bands: 300-348 MHz, 387-464

MHz and 779-928 MHz

Analog Features

2-FSK, 4-FSK, GFSK, and MSK supported as well as OOK and flexible ASK shaping

Suitable for frequency hopping systems due to a fast settling frequency synthesizer; 75

μs settling time

Automatic Frequency Compensation

(AFC) can be used to align the frequency synthesizer to the received signal centre frequency

Integrated analog temperature sensor

Digital Features

Flexible support for packet oriented systems; On-chip support for sync word detection, address check, flexible packet length, and automatic CRC handling

Efficient SPI interface; All registers can be programmed with one “burst” transfer

Digital RSSI output

Programmable channel filter bandwidth

Programmable Carrier Sense (CS) indicator

Programmable Preamble Quality Indicator

(PQI) for improved protection against false sync word detection in random noise

Support for automatic Clear Channel

Assessment (CCA) before transmitting (for listen-before-talk systems)

Support for per-package Link Quality

Indication (LQI)

Optional automatic whitening and dewhitening of data

SWRS061I

Low-Power Features

200 nA sleep mode current consumption

Fast startup time; 240

μs from sleep to RX or TX mode (measured on EM reference

design [1] and [2])

Wake-on-radio functionality for automatic low-power RX polling

Separate 64-byte RX and TX data FIFOs

(enables burst mode data transmission)

General

Few external components; Completely onchip frequency synthesizer, no external filters or RF switch needed

Green package: RoHS compliant and no antimony or bromine

Small size (QLP 4x4 mm package, 20 pins)

Suited for systems targeting compliance with EN 300 220 (Europe) and FCC CFR

Part 15 (US)

Suited for systems targeting compliance with the Wireless MBUS standard

EN 13757-4:2005

Support for asynchronous and synchronous serial receive/transmit mode for backwards compatibility with existing radio communication protocols

Improved Range using CC1190

The

CC1190

[21] is a range extender for

850-950 MHz and is an ideal fit for

CC1101 to enhance RF performance

High sensitivity o

-118 dBm at 1.2 kBaud, 868 MHz,

1% packet error rate o

-120 dBm at 1.2 kBaud, 915 MHz,

1% packet error rate

+20 dBm output power at 868 MHz

+27 dBm output power at 915 MHz

Refer to AN094 [22] and AN096 [23] for

more performance figures of the

CC1190

combination

CC1101

+

Page 2 of 98

Reduced Battery Current using

TPS62730

The

TPS62730

[26] is a step down

converter with bypass mode for ultra low power wireless applications.

In RX, the current drawn from a 3.6 V battery is typically less than 11 mA when

TPS62730

output voltage is 2.1 V. When connecting

CC1101 directly to a 3.6 V battery the current drawn is typically 17

mA (see Figure 1)

In TX, at maximum output power (+12 dBm), the current drawn from a 3.6 V

CC1101 battery is typically 22 mA when

TPS62730 output voltage is 2.1 V. When connecting

CC1101 directly to a 3.6 V battery the current drawn is typically 34 mA (see

Figure 2).

When

CC1101 enters SLEEP mode, the

TPS62730 can be put in bypass mode for very low power down current

The typical

TPS62730

current consumption is 30 nA in bypass mode.

The

CC1101

is connected to the battery via an integrated 2.1

Ω (typical) switch in bypass mode

Figure 1: Typical RX Battery Current vs Battery Voltage

Figure 2: Typical TX Battery Current vs Battery Voltage at Maximum CC1101 Output Power (+12 dBm)

SWRS061I Page 3 of 98

Abbreviations

Abbreviations used in this data sheet are described below.

FS

GFSK

IF

I/Q

ISM

LC

LNA

LO

CW

DC

DVGA

ESR

FCC

FEC

FIFO

FHSS

LSB

LQI

MCU

2-FSK

4-FSK

ACP

ADC

AFC

AGC

AMR

ASK

BER

BT

CCA

CFR

CRC

CS

Binary Frequency Shift Keying

Quaternary Frequency Shift Keying

Adjacent Channel Power

Analog to Digital Converter

Automatic Frequency Compensation

Automatic Gain Control

Automatic Meter Reading

Amplitude Shift Keying

Bit Error Rate

Bandwidth-Time product

Clear Channel Assessment

Code of Federal Regulations

Cyclic Redundancy Check

Carrier Sense

Continuous Wave (Unmodulated Carrier)

Direct Current

Digital Variable Gain Amplifier

Equivalent Series Resistance

Federal Communications Commission

Forward Error Correction

First-In-First-Out

Frequency Hopping Spread Spectrum

Frequency Synthesizer

Gaussian shaped Frequency Shift Keying

Intermediate Frequency

In-Phase/Quadrature

Industrial, Scientific, Medical

Inductor-Capacitor

Low Noise Amplifier

Local Oscillator

Least Significant Bit

Link Quality Indicator

Microcontroller Unit

SNR

SPI

SRD

TBD

T/R

TX

UHF

VCO

QLP

QPSK

RC

RF

RSSI

RX

SAW

SMD

WOR

XOSC

XTAL

MSB

MSK

N/A

NRZ

OOK

PA

PCB

PD

PER

PLL

POR

PQI

PQT

PTAT

CC1101

Most Significant Bit

Minimum Shift Keying

Not Applicable

Non Return to Zero (Coding)

On-Off Keying

Power Amplifier

Printed Circuit Board

Power Down

Packet Error Rate

Phase Locked Loop

Power-On Reset

Preamble Quality Indicator

Preamble Quality Threshold

Proportional To Absolute Temperature

Quad Leadless Package

Quadrature Phase Shift Keying

Resistor-Capacitor

Radio Frequency

Received Signal Strength Indicator

Receive, Receive Mode

Surface Aqustic Wave

Surface Mount Device

Signal to Noise Ratio

Serial Peripheral Interface

Short Range Devices

To Be Defined

Transmit/Receive

Transmit, Transmit Mode

Ultra High frequency

Voltage Controlled Oscillator

Wake on Radio, Low power polling

Crystal Oscillator

Crystal

SWRS061I Page 4 of 98

CC1101

Table Of Contents

APPLICATIONS .................................................................................................................................................. 1

PRODUCT DESCRIPTION ................................................................................................................................ 1

KEY FEATURES ................................................................................................................................................. 2

RF PERFORMANCE .......................................................................................................................................... 2

ANALOG FEATURES ........................................................................................................................................ 2

DIGITAL FEATURES ......................................................................................................................................... 2

LOW-POWER FEATURES ................................................................................................................................ 2

GENERAL ............................................................................................................................................................ 2

IMPROVED RANGE USING CC1190 .............................................................................................................. 2

REDUCED BATTERY CURRENT USING TPS62730 .................................................................................... 3

ABBREVIATIONS ............................................................................................................................................... 4

TABLE OF CONTENTS ..................................................................................................................................... 5

1

2

ABSOLUTE MAXIMUM RATINGS ..................................................................................................... 8

OPERATING CONDITIONS ................................................................................................................. 8

3 GENERAL CHARACTERISTICS ......................................................................................................... 8

4 ELECTRICAL SPECIFICATIONS ....................................................................................................... 9

4.1

C

URRENT

C

ONSUMPTION

............................................................................................................................ 9

4.2

RF R

ECEIVE

S

ECTION

................................................................................................................................ 12

4.3

RF T

RANSMIT

S

ECTION

............................................................................................................................. 16

4.4

C

RYSTAL

O

SCILLATOR

.............................................................................................................................. 18

4.5

L

OW

P

OWER

RC O

SCILLATOR

................................................................................................................... 18

4.6

F

REQUENCY

S

YNTHESIZER

C

HARACTERISTICS

.......................................................................................... 19

4.7

A

NALOG

T

EMPERATURE

S

ENSOR

.............................................................................................................. 19

4.8

DC C

HARACTERISTICS

.............................................................................................................................. 20

4.9

P

OWER

-O

N

R

ESET

..................................................................................................................................... 20

5

6

PIN CONFIGURATION ........................................................................................................................ 20

CIRCUIT DESCRIPTION .................................................................................................................... 22

7 APPLICATION CIRCUIT .................................................................................................................... 22

7.1

B

IAS

R

ESISTOR

.......................................................................................................................................... 22

7.2

B

ALUN AND

RF M

ATCHING

....................................................................................................................... 23

7.3

C

RYSTAL

................................................................................................................................................... 23

7.4

R

EFERENCE

S

IGNAL

.................................................................................................................................. 23

7.5

A

DDITIONAL

F

ILTERING

............................................................................................................................ 24

7.6

P

OWER

S

UPPLY

D

ECOUPLING

.................................................................................................................... 24

7.7

A

NTENNA

C

ONSIDERATIONS

..................................................................................................................... 24

7.8

PCB L

AYOUT

R

ECOMMENDATIONS

........................................................................................................... 26

8 CONFIGURATION OVERVIEW ........................................................................................................ 27

9 CONFIGURATION SOFTWARE ........................................................................................................ 29

10 4-WIRE SERIAL CONFIGURATION AND DATA INTERFACE .................................................. 29

10.1

C

HIP

S

TATUS

B

YTE

................................................................................................................................... 31

10.2

R

EGISTER

A

CCESS

..................................................................................................................................... 31

10.3

SPI R

EAD

.................................................................................................................................................. 32

10.4

C

OMMAND

S

TROBES

................................................................................................................................. 32

10.5

FIFO A

CCESS

............................................................................................................................................ 32

10.6

PATABLE A

CCESS

................................................................................................................................... 33

11 MICROCONTROLLER INTERFACE AND PIN CONFIGURATION .......................................... 34

11.1

C

ONFIGURATION

I

NTERFACE

..................................................................................................................... 34

11.2

G

ENERAL

C

ONTROL AND

S

TATUS

P

INS

..................................................................................................... 34

11.3

O

PTIONAL

R

ADIO

C

ONTROL

F

EATURE

...................................................................................................... 34

12 DATA RATE PROGRAMMING .......................................................................................................... 35

SWRS061I Page 5 of 98

CC1101

13 RECEIVER CHANNEL FILTER BANDWIDTH .............................................................................. 35

14 DEMODULATOR, SYMBOL SYNCHRONIZER, AND DATA DECISION .................................. 36

14.1

F

REQUENCY

O

FFSET

C

OMPENSATION

........................................................................................................ 36

14.2

B

IT

S

YNCHRONIZATION

............................................................................................................................. 36

14.3

B

YTE

S

YNCHRONIZATION

.......................................................................................................................... 36

15 PACKET HANDLING HARDWARE SUPPORT .............................................................................. 37

15.1

D

ATA

W

HITENING

..................................................................................................................................... 37

15.2

P

ACKET

F

ORMAT

....................................................................................................................................... 38

15.3

P

ACKET

F

ILTERING IN

R

ECEIVE

M

ODE

...................................................................................................... 40

15.4

P

ACKET

H

ANDLING IN

T

RANSMIT

M

ODE

................................................................................................... 40

15.5

P

ACKET

H

ANDLING IN

R

ECEIVE

M

ODE

..................................................................................................... 41

15.6

P

ACKET

H

ANDLING IN

F

IRMWARE

............................................................................................................. 41

16 MODULATION FORMATS ................................................................................................................. 42

16.1

F

REQUENCY

S

HIFT

K

EYING

....................................................................................................................... 42

16.2

M

INIMUM

S

HIFT

K

EYING

........................................................................................................................... 43

16.3

A

MPLITUDE

M

ODULATION

........................................................................................................................ 43

17 RECEIVED SIGNAL QUALIFIERS AND LINK QUALITY INFORMATION ............................ 43

17.1

S

YNC

W

ORD

Q

UALIFIER

............................................................................................................................ 43

17.2

P

REAMBLE

Q

UALITY

T

HRESHOLD

(PQT) .................................................................................................. 44

17.3

RSSI .......................................................................................................................................................... 44

17.4

C

ARRIER

S

ENSE

(CS)................................................................................................................................. 46

17.5

C

LEAR

C

HANNEL

A

SSESSMENT

(CCA) ..................................................................................................... 48

17.6

L

INK

Q

UALITY

I

NDICATOR

(LQI) .............................................................................................................. 48

18 FORWARD ERROR CORRECTION WITH INTERLEAVING ..................................................... 48

18.1

F

ORWARD

E

RROR

C

ORRECTION

(FEC) ...................................................................................................... 48

18.2

I

NTERLEAVING

.......................................................................................................................................... 49

19 RADIO CONTROL ................................................................................................................................ 50

19.1

P

OWER

-O

N

S

TART

-U

P

S

EQUENCE

............................................................................................................. 50

19.2

C

RYSTAL

C

ONTROL

................................................................................................................................... 51

19.3

V

OLTAGE

R

EGULATOR

C

ONTROL

.............................................................................................................. 52

19.4

A

CTIVE

M

ODES

(RX

AND

TX)................................................................................................................... 52

19.5

W

AKE

O

N

R

ADIO

(WOR) .......................................................................................................................... 53

19.6

T

IMING

...................................................................................................................................................... 54

19.7

RX T

ERMINATION

T

IMER

.......................................................................................................................... 55

20 DATA FIFO ............................................................................................................................................ 56

21 FREQUENCY PROGRAMMING ........................................................................................................ 57

22 VCO ......................................................................................................................................................... 58

22.1

VCO

AND

PLL S

ELF

-C

ALIBRATION

.......................................................................................................... 58

23 VOLTAGE REGULATORS ................................................................................................................. 58

24 OUTPUT POWER PROGRAMMING ................................................................................................ 59

25 SHAPING AND PA RAMPING ............................................................................................................ 60

26 GENERAL PURPOSE / TEST OUTPUT CONTROL PINS ............................................................. 61

27 ASYNCHRONOUS AND SYNCHRONOUS SERIAL OPERATION .............................................. 63

27.1

A

SYNCHRONOUS

S

ERIAL

O

PERATION

........................................................................................................ 63

27.2

S

YNCHRONOUS

S

ERIAL

O

PERATION

.......................................................................................................... 63

28 SYSTEM CONSIDERATIONS AND GUIDELINES ......................................................................... 64

28.1

SRD R

EGULATIONS

................................................................................................................................... 64

28.2

F

REQUENCY

H

OPPING AND

M

ULTI

-C

HANNEL

S

YSTEMS

............................................................................ 64

28.3

W

IDEBAND

M

ODULATION WHEN NOT

U

SING

S

PREAD

S

PECTRUM

............................................................. 65

28.4

W

IRELESS

MBUS ...................................................................................................................................... 65

28.5

D

ATA

B

URST

T

RANSMISSIONS

................................................................................................................... 65

28.6

C

ONTINUOUS

T

RANSMISSIONS

.................................................................................................................. 65

28.7

B

ATTERY

O

PERATED

S

YSTEMS

................................................................................................................. 66

28.8

I

NCREASING

R

ANGE

.................................................................................................................................. 66

SWRS061I Page 6 of 98

CC1101

29 CONFIGURATION REGISTERS ........................................................................................................ 66

29.1

C

ONFIGURATION

R

EGISTER

D

ETAILS

R

EGISTERS WITH PRESERVED VALUES IN

SLEEP

STATE

............... 71

29.2

C

ONFIGURATION

R

EGISTER

D

ETAILS

R

EGISTERS THAT

L

OOSE

P

ROGRAMMING IN

SLEEP S

TATE

......... 91

29.3

S

TATUS

R

EGISTER

D

ETAILS

....................................................................................................................... 92

30 SOLDERING INFORMATION ............................................................................................................ 95

31 DEVELOPMENT KIT ORDERING INFORMATION ..................................................................... 95

32 REFERENCES ....................................................................................................................................... 96

33 GENERAL INFORMATION ................................................................................................................ 97

33.1

D

OCUMENT

H

ISTORY

................................................................................................................................ 97

SWRS061I Page 7 of 98

1 Absolute Maximum Ratings

CC1101

Under no circumstances must the absolute maximum ratings given in Table 1 be violated. Stress

exceeding one or more of the limiting values may cause permanent damage to the device.

Parameter

Supply voltage

Voltage on any digital pin

Min

–0.3

–0.3

Max

3.9

VDD + 0.3, max 3.9

Units Condition

V

V

All supply pins must have the same voltage

Voltage on the pins RF_P, RF_N,

DCOUPL, RBIAS

Voltage ramp-up rate

Input RF level

Storage temperature range

Solder reflow temperature

ESD

ESD

–0.3

–50

2.0

120

+10

150

260

750

400

V kV/µs dBm

C

C

According to IPC/JEDEC J-STD-020

V

V

According to JEDEC STD 22, method A114,

Human Body Model (HBM)

According to JEDEC STD 22, C101C,

Charged Device Model (CDM)

Table 1: Absolute Maximum Ratings

Caution! ESD sensitive device.

Precaution should be used when handling the device in order to prevent permanent damage.

2 Operating Conditions

The operating conditions for

CC1101

are listed Table 2 in below.

Parameter

Operating temperature

Operating supply voltage

Min

-40

1.8

Max

85

3.6

Unit Condition

C

V All supply pins must have the same voltage

Table 2: Operating Conditions

3 General Characteristics

Parameter

Frequency range

Data rate

Min

300

387

779

0.6

0.6

0.6

26

Typ Max

348

464

928

500

250

300

500

Unit

MHz

MHz

MHz kBaud kBaud kBaud kBaud

Condition/Note

If using a 27 MHz crystal, the lower frequency limit for this band is 392 MHz

2-FSK

GFSK, OOK, and ASK

4-FSK (the data rate in kbps will be twice the baud rate)

(Shaped) MSK (also known as differential offset QPSK).

Optional Manchester encoding (the data rate in kbps will be half the baud rate)

Table 3: General Characteristics

SWRS061I Page 8 of 98

CC1101

4 Electrical Specifications

4.1 Current Consumption

T

A

= 25

C, VDD = 3.0 V if nothing else stated. All measurement results are obtained using the CC1101EM reference designs

([1] and [2]). Reduced current settings (

MDMCFG2.DEM_DCFILT_OFF=1

) gives a slightly lower current consumption at the cost

of a reduction in sensitivity. See Table 7 for additional details on current consumption and sensitivity.

Parameter

Current consumption in power down modes

Current consumption

Current consumption,

315 MHz

Min Typ Max Unit Condition

0.2 1

A

Voltage regulator to digital part off, register values retained

(SLEEP state). All GDO pins programmed to 0x2F (HW to 0)

0.5

100

A

Voltage regulator to digital part off, register values retained, lowpower RC oscillator running (SLEEP state with WOR enabled)

A

Voltage regulator to digital part off, register values retained,

XOSC running (SLEEP state with

MCSM0.OSC_FORCE_ON

set)

165

8.8

A

Voltage regulator to digital part on, all other modules in power down (XOFF state)

A

Automatic RX polling once each second, using low-power RC oscillator, with 542 kHz filter bandwidth and 250 kBaud data rate,

PLL calibration every 4 th

wakeup. Average current with signal in channel

below

carrier sense level (

MCSM2.RX_TIME_RSSI=1

)

35.3

1.4

39.3

A

Same as above, but with signal in channel

above

carrier sense level, 1.96 ms RX timeout, and no preamble/sync word found

A

Automatic RX polling every 15 th

second, using low-power RC oscillator, with 542 kHz filter bandwidth and 250 kBaud data rate,

PLL calibration every 4 th

wakeup. Average current with signal in

channel below carrier sense level (

MCSM2.RX_TIME_RSSI=1

)

A

Same as above, but with signal in channel

above

carrier sense level, 36.6 ms RX timeout, and no preamble/sync word found

1.7

8.4 mA Only voltage regulator to digital part and crystal oscillator running

(IDLE state) mA Only the frequency synthesizer is running (FSTXON state). This currents consumption is also representative for the other intermediate states when going from IDLE to RX or TX, including the calibration state

15.4

14.4

15.2

14.3

16.5

15.1 mA Receive mode, 1.2 kBaud, reduced current, input at sensitivity limit mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input well above sensitivity limit mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input at sensitivity limit mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input well above sensitivity limit mA Receive mode, 250 kBaud, register settings optimized for reduced current, input at sensitivity limit mA Receive mode, 250 kBaud, register settings optimized for reduced current, input well above sensitivity limit

27.4

15.0

12.3 mA Transmit mode, +10 dBm output power mA Transmit mode, 0 dBm output power mA Transmit mode,

–6 dBm output power

Page 9 of 98 SWRS061I

Parameter

Current consumption,

433 MHz

Current consumption,

868/915 MHz

CC1101

Min Typ Max Unit Condition

16.0 mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input at sensitivity limit

15.0

15.7

15.0

17.1

15.7 mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input well above sensitivity limit mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input at sensitivity limit mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input well above sensitivity limit mA Receive mode, 250 kBaud, register settings optimized for reduced current, input at sensitivity limit mA Receive mode, 250 kBaud, register settings optimized for reduced current, input well above sensitivity limit

29.2

16.0

13.1

15.7

14.7

15.6

14.6

16.9

15.6 mA Transmit mode, +10 dBm output power mA Transmit mode, 0 dBm output power mA Transmit mode,

–6 dBm output power mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input at sensitivity limit.

See Figure 3 for current consumption with register settings

optimized for sensitivity. mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input well above sensitivity limit.

See Figure 3 for current consumption with register settings

optimized for sensitivity. mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input at sensitivity limit.

See Figure 3 for current consumption with register settings

optimized for sensitivity. mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input well above sensitivity limit.

See Figure 3 for current consumption with register settings

optimized for sensitivity. mA Receive mode, 250 kBaud, register settings optimized for reduced current, input at sensitivity limit.

See Figure 3 for current consumption with register settings

optimized for sensitivity. mA Receive mode, 250 kBaud, register settings optimized for reduced current, input well above sensitivity limit.

See Figure 3 for current consumption with register settings

optimized for sensitivity. mA Transmit mode, +12 dBm output power, 868 MHz 34.2

30.0

16.8

16.4

33.4

30.7

17.2

17.0 mA mA

Transmit mode, +10 dBm output power, 868 MHz mA Transmit mode, 0 dBm output power, 868 MHz mA Transmit mode,

–6 dBm output power, 868 MHz. mA Transmit mode, +11 dBm output power, 915 MHz

Transmit mode, +10 dBm output power, 915 MHz mA Transmit mode, 0 dBm output power, 915 MHz mA Transmit mode,

–6 dBm output power, 915 MHz

Table 4: Current Consumption

Page 10 of 98 SWRS061I

CC1101

Temperature [°C]

Current [mA], PATABLE=0xC0,

+12 dBm

Current [mA], PATABLE=0xC5,

+10 dBm

Current [mA], PATABLE=0x50,

0 dBm

-40

Supply Voltage

VDD = 1.8 V

25 85

32.7 31.5 30.5

30.1 29.2

16.4 16.0

28.3

15.6

-40

Supply Voltage

VDD = 3.0 V

25 85

35.3 34.2 33.3

30.9

17.3

30.0

16.8

29.4

16.4

-40

Supply Voltage

VDD = 3.6 V

25 85

35.5 34.4 33.5

31.1

17.6

30.3

17.1

29.6

16.7

Table 5: Typical TX Current Consumption over Temperature and Supply Voltage, 868 MHz

Temperature [°C]

Current [mA], PATABLE=0xC0,

+11 dBm

Current [mA], PATABLE=0xC3,

+10 dBm

Current [mA], PATABLE=0x8E,

0 dBm

-40

Supply Voltage

VDD = 1.8 V

25 85

31.9 30.7 29.8

30.9 29.8

17.2 16.8

28.9

16.4

-40

Supply Voltage

VDD = 3.0 V

25 85

34.6 33.4 32.5

31.7

17.6

30.7

17.2

30.0

16.9

-40

Supply Voltage

VDD = 3.6 V

25 85

34.8 33.6 32.7

31.9

17.8

31.0

17.4

30.2

17.1

Table 6: Typical TX Current Consumption over Temperature and Supply Voltage, 915 MHz

17,8

17,6

17,4

17,2

17

16,8

16,6

16,4

16,2

-110 -10

-40C

+25C

+85C

19,5

19

18,5

18

17,5

17

16,5

-100 -20 -90 -70 -50

Input Power Level [dBm]

-30 -80 -60

Input Power Level [dBm]

-40

-40C

+25C

+85C

1.2 kBaud GFSK 250 kBaud GFSK

17,8

17,6

17,4

17,2

17,0

16,8

16,6

16,4

16,2

-100 -80 -60

Input Power Level [dBm]

-40 -20

-40C

+25C

+85C

19,5

19,0

18,5

18,0

17,5

17,0

-90 -70 -50

Input Power Level [dBm]

-30 -10

38.4 kBaud GFSK

500 kBaud MSK

Figure 3: Typical RX Current Consumption over Temperature and Input Power Level,

868/915 MHz, Sensitivity Optimized Setting

-40C

+25C

+85C

SWRS061I Page 11 of 98

CC1101

4.2 RF Receive Section

T

A

= 25

C, VDD = 3.0 V if nothing else stated. All measurement results are obtained using the CC1101EM reference designs

([1] and [2]).

Parameter

Digital channel filter bandwidth

Spurious emissions

Min

58

Typ Max Unit Condition/Note

-68

-66

812

–57

–47 kHz dBm dBm

User programmable. The bandwidth limits are proportional to crystal frequency (given values assume a 26.0 MHz crystal)

25 MHz

– 1 GHz

(Maximum figure is the ETSI EN 300 220 limit)

Above 1 GHz

(Maximum figure is the ETSI EN 300 220 limit)

Typical radiated spurious emission is -49 dBm measured at the

VCO frequency

RX latency 9 bit Serial operation. Time from start of reception until data is available on the receiver data output pin is equal to 9 bit

315 MHz

1.2 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(2-FSK, 1% packet error rate, 20 bytes packet length, 5.2 kHz deviation, 58 kHz digital channel filter bandwidth)

Receiver sensitivity -111 dBm Sensitivity can be traded for current consumption by setting

MDMCFG2.DEM_DCFILT_OFF=1

. The typical current

consumption is then reduced from 17.2 mA to 15.4 mA at the sensitivity limit. The sensitivity is typically reduced to -109 dBm

500 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(MSK, 1% packet error rate, 20 bytes packet length, 812 kHz digital channel filter bandwidth)

Receiver sensitivity -88 dBm

MDMCFG2.DEM_DCFILT_OFF

=1 cannot be used for data rates >

250 kBaud

433 MHz

0.6 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(GFSK, 1% packet error rate, 20 bytes packet length, 14.3 kHz deviation, 58 kHz digital channel filter bandwidth)

Receiver sensitivity -116 dBm

1.2 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(GFSK, 1% packet error rate, 20 bytes packet length, 5.2 kHz deviation, 58 kHz digital channel filter bandwidth)

Receiver sensitivity -112 dBm Sensitivity can be traded for current consumption by setting

MDMCFG2.DEM_DCFILT_OFF=1

. The typical current

consumption is then reduced from 18.0 mA to 16.0 mA at the sensitivity limit. The sensitivity is typically reduced to -110 dBm

38.4 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(GFSK, 1% packet error rate, 20 bytes packet length, 20 kHz deviation, 100 kHz digital channel filter bandwidth)

Receiver sensitivity

–104 dBm

250 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(GFSK, 1% packet error rate, 20 bytes packet length, 127 kHz deviation, 540 kHz digital channel filter bandwidth)

Receiver sensitivity

868/915 MHz

-95 dBm

1.2 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(GFSK, 1% packet error rate, 20 bytes packet length, 5.2 kHz deviation, 58 kHz digital channel filter bandwidth)

Receiver sensitivity

–112 dBm Sensitivity can be traded for current consumption by setting

MDMCFG2.DEM_DCFILT_OFF=1

. The typical current

consumption is then reduced from 17.7 mA to 15.7 mA at sensitivity limit. The sensitivity is typically reduced to -109 dBm

Saturation

–14 dBm

FIFOTHR.CLOSE_IN_RX=0.

See more in DN010 [8]

Adjacent channel rejection

±100 kHz offset 37 dB

Desired channel 3 dB above the sensitivity limit.

100 kHz channel spacing

See Figure 4 for selectivity performance at other offset

frequencies

Image channel rejection

31 dB IF frequency 152 kHz

Desired channel 3 dB above the sensitivity limit

SWRS061I Page 12 of 98

CC1101

Parameter Min Typ Max Unit Condition/Note

Blocking

±2 MHz offset

±10 MHz offset

Adjacent channel rejection

-200 kHz offset

+200 kHz offset

-50

-40

38.4 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(GFSK, 1% packet error rate, 20 bytes packet length, 20 kHz deviation, 100 kHz digital channel filter bandwidth)

Receiver sensitivity

–104 dBm Sensitivity can be traded for current consumption by setting

MDMCFG2.DEM_DCFILT_OFF=1

. The typical current

consumption is then reduced from 17.7 mA to 15.6 mA at the sensitivity limit. The sensitivity is typically reduced to -102 dBm

Saturation

–16 dBm

FIFOTHR.CLOSE_IN_RX=0.

See more in DN010 [8]

12

25 dBm dBm dB dB

Desired channel 3 dB above the sensitivity limit

See Figure 4 for blocking performance at other offset

frequencies

Desired channel 3 dB above the sensitivity limit.

200 kHz channel spacing

See Figure 5 for blocking performance at other offset

frequencies

Image channel rejection 23 dB IF frequency 152 kHz

Desired channel 3 dB above the sensitivity limit

Blocking

±2 MHz offset

±10 MHz offset

-50

-40 dBm dBm

Desired channel 3 dB above the sensitivity limit

See Figure 5 for blocking performance at other offset

frequencies

250 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(GFSK, 1% packet error rate, 20 bytes packet length, 127 kHz deviation, 540 kHz digital channel filter bandwidth)

Receiver sensitivity

–95 dBm Sensitivity can be traded for current consumption by setting

MDMCFG2.DEM_DCFILT_OFF=1

. The typical current

consumption is then reduced from 18.9 mA to 16.9 mA at the sensitivity limit. The sensitivity is typically reduced to -91 dBm

Saturation

–17 dBm

FIFOTHR.CLOSE_IN_RX=0

. See more in DN010 [8]

Adjacent channel rejection 25 dB Desired channel 3 dB above the sensitivity limit.

750 kHz channel spacing

See Figure 6 for blocking performance at other offset

frequencies

Image channel rejection 14 dB IF frequency 304 kHz

Desired channel 3 dB above the sensitivity limit

Blocking

±2 MHz offset

±10 MHz offset

-50

-40 dBm dBm

Desired channel 3 dB above the sensitivity limit

See Figure 6 for blocking performance at other offset

frequencies

500 kBaud data rate, sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(MSK, 1% packet error rate, 20 bytes packet length, 812 kHz digital channel filter bandwidth)

Receiver sensitivity

–90 dBm

MDMCFG2.DEM_DCFILT_OFF=1

cannot be used for data

rates > 250 kBaud

Image channel rejection 1 dB IF frequency 355 kHz

Desired channel 3 dB above the sensitivity limit

Blocking

±2 MHz offset

±10 MHz offset

-50

-40 dBm dBm

Desired channel 3 dB above the sensitivity limit

See Figure 7 for blocking performance at other offset

frequencies

4-FSK, 125 kBaud data rate (250 kbps), sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(1% packet error rate, 20 bytes packet length, 127 kHz deviation, 406 kHz digital channel filter bandwidth)

Receiver sensitivity -96 dBm

4-FSK, 250 kBaud data rate (500 kbps), sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(1% packet error rate, 20 bytes packet length, 254 kHz deviation, 812 kHz digital channel filter bandwidth)

Receiver sensitivity -91 dBm

4-FSK, 300 kBaud data rate (600 kbps), sensitivity optimized,

MDMCFG2.DEM_DCFILT_OFF=0

(1% packet error rate, 20 bytes packet length, 228 kHz deviation, 812 kHz digital channel filter bandwidth)

Receiver sensitivity -89 dBm

Table 7: RF Receive Section

SWRS061I Page 13 of 98

CC1101

Temperature [°C]

Sensitivity [dBm]

1.2 kBaud

Sensitivity [dBm]

38.4 kBaud

Sensitivity [dBm]

250 kBaud

Sensitivity [dBm]

500 kBaud

-40

Supply Voltage

VDD = 1.8 V

25 85

-113 -112 -110

-105

-97

-91

-104

-96

-90

-102

-92

-86

-40

Supply Voltage

VDD = 3.0 V

25 85

-113 -112 -110

-105

-97

-91

-104

-95

-90

-102

-92

-86

-40

Supply Voltage

VDD = 3.6 V

25 85

-113 -112 -110

-105

-97

-91

-104

-94

-90

-102

-92

-86

Table 8: Typical Sensitivity over Temperature and Supply Voltage, 868 MHz, Sensitivity Optimized

Setting

Temperature [°C]

Sensitivity [dBm]

1.2 kBaud

Sensitivity [dBm]

38.4 kBaud

Sensitivity [dBm]

250 kBaud

Sensitivity [dBm]

500 kBaud

-40

Supply Voltage

VDD = 1.8 V

25 85

-113 -112 -110

-105

-97

-91

-104

-94

-89

-102

-92

-86

-40

Supply Voltage

VDD = 3.0 V

25 85

-113 -112 -110

-104

-97

-91

-104

-95

-90

-102

-92

-86

-40

Supply Voltage

VDD = 3.6 V

25 85

-113 -112 -110

-105

-97

-91

-104

-95

-89

-102

-92

-86

Table 9: Typical Sensitivity over Temperature and Supply Voltage, 915 MHz, Sensitivity Optimized

Setting

-40 -30 -20 -10

80

70

60

50

40

30

20

10

0

0

-10

-20

Offset [MHz]

10 20 30 40

60

50

40

30

20

10

0

-1 -0,9 -0,8 -0,7 -0,6 -0,5 -0,4 -0,3 -0,2 -0,1 0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1

-10

Offset [MHz]

Figure 4: Typical Selectivity at 1.2 kBaud Data Rate, 868.3 MHz, GFSK, 5.2 kHz Deviation. IF

Frequency is 152.3 kHz and the Digital Channel Filter Bandwidth is 58 kHz

SWRS061I Page 14 of 98

CC1101

40

30

20

60

50

10

0

-40

-10

70

60

50

40

30

20

10

0

-40

-10

-20

-30 -20 -10 0 10 20 30 40

50

40

30

20

10

0

-1 -0,9 -0,8 -0,7 -0,6 -0,5 -0,4 -0,3 -0,2 -0,1 0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1

-10

-20

Offset [MHz] Offset [MHz]

Figure 5: Typical Selectivity at 38.4 kBaud Data Rate, 868 MHz, GFSK, 20 kHz Deviation. IF

Frequency is 152.3 kHz and the Digital Channel Filter Bandwidth is 100 kHz

50

-30 -20 -10 0 10 20 30 40

40

30

20

10

0

-2

-10

-1,5 -1 -0,5 0 0,5 1 1,5 2

-20

-20

Offset [MHz]

Offset [MHz]

Figure 6: Typical Selectivity at 250 kBaud Data Rate, 868 MHz, GFSK, IF Frequency is 304 kHz and the Digital Channel Filter Bandwidth is 540 kHz

-20

-30

60

50

40

30

20

10

0

-40

-10

-30 -20 -10 0 10 20 30 40

40

30

20

10

0

-2

-10

-20

-1,5 -1 -0,5 0 0,5 1 1,5 2

Offset [MHz]

Offset [MHz]

Figure 7: Typical Selectivity at 500 kBaud Data Rate, 868 MHz, GFSK, IF Frequency is 355 kHz and the Digital Channel Filter Bandwidth is 812 kHz

SWRS061I Page 15 of 98

CC1101

4.3 RF Transmit Section

T

A

= 25

C, VDD = 3.0 V, +10 dBm if nothing else stated. All measurement results are obtained using the CC1101EM reference

designs ([1] and [2]).

Parameter

Differential load impedance

315 MHz

433 MHz

868/915 MHz

Output power, highest setting

315 MHz

433 MHz

868 MHz

915 MHz

Output power, lowest setting

Harmonics, radiated

2 nd

Harm, 433 MHz

3 rd

Harm, 433 MHz

2 nd

Harm, 868 MHz

3 rd

Harm, 868 MHz

2 nd

Harm, 915 MHz

3 rd

Harm, 915 MHz

Harmonics, conducted

315 MHz

433 MHz

868 MHz

2 nd

Harm other harmonics

915 MHz

2 nd

Harm other harmonics

< -35

< -53

-43

< -45

-36

< -46

-34

< -50

-49

-40

-47

-55

-50

-54

Min Typ

122 + j31

116 + j41

86.5 + j43

+10

+10

+12

+11

-30

Max Unit Condition/Note

Differential impedance as seen from the RF-port (RF_P and

RF_N) towards the antenna. Follow the CC1101EM reference

designs ([1] and [2]) available from the TI website

 dBm dBm dBm dBm

Output power is programmable, and full range is available in all frequency bands. Output power may be restricted by regulatory limits.

See Design Note DN013 [15] for output power and harmonics

figures when using

multi-layer

inductors. The output power is then typically +10 dBm when operating at 868/915 MHz.

Delivered to a 50

single-ended load via CC1101EM

reference designs ([1] and [2]) RF matching network

dBm dBm dBm dBm dBm dBm dBm dBm dBm dBm dBm dBm dBm dBm dBm Output power is programmable, and full range is available in all frequency bands

Delivered to a 50

single-ended load via CC1101EM

reference designs ([1] and [2]) RF matching network

Measured on CC1101EM reference designs ([1] and [2]) with

CW, maximum output power

The antennas used during the radiated measurements

(SMAFF-433 from R.W. Badland and Nearson S331 868/915) play a part in attenuating the harmonics

Note: All harmonics are below -41.2 dBm when operating in the 902

– 928 MHz band

Measured with +10 dBm CW at 315 MHz and 433 MHz

Frequencies below 960 MHz

Frequencies above 960 MHz

Frequencies below 1 GHz

Frequencies above 1 GHz

Measured with +12 dBm CW at 868 MHz

Measured with +11 dBm CW at 915 MHz (requirement is -20 dBc under FCC 15.247)

SWRS061I Page 16 of 98

CC1101

915 MHz

Parameter

Spurious emissions conducted, harmonics not included

315 MHz

433 MHz

Min

TX latency

< -51

< -54

< -52

< -53

8

Typ

< -58

< -53

< -50

< -54

< -56

Max Unit Condition/Note

dBm dBm dBm dBm dBm

Measured with +10 dBm CW at 315 MHz and 433 MHz

Frequencies below 960 MHz

Frequencies above 960 MHz

Frequencies below 1 GHz

Frequencies above 1 GHz

Frequencies within 47-74, 87.5-118, 174-230, 470-862 MHz

Measured with +12 dBm CW at 868 MHz dBm dBm dBm dBm

Frequencies above 1 GHz

Frequencies within 47-74, 87.5-118, 174-230, 470-862 MHz

All radiated spurious emissions are within the limits of ETSI.

The peak conducted spurious emission is -53 dBm at 699 MHz

(868 MHz

– 169 MHz), which is in a frequency band limited to

-54 dBm by EN 300 220. An alternative filter can be used to reduce the emission at 699 MHz below -54 dBm, for conducted

measurements, and is shown in Figure 11. See more

information in DN017 [9].

For compliance with modulation bandwidth requirements under

EN 300 220 in the 863 to 870 MHz frequency range it is recommended to use a 26 MHz crystal for frequencies below

869 MHz and a 27 MHz crystal for frequencies above 869

MHz.

Measured with +11 dBm CW at 915 MHz

Frequencies below 960 MHz

Frequencies above 960 MHz bit Serial operation. Time from sampling the data on the transmitter data input pin until it is observed on the RF output ports

Table 10: RF Transmit Section

Temperature [°C]

Output Power [dBm],

PATABLE=0xC0, +12 dBm

Output Power [dBm],

PATABLE=0xC5, +10 dBm

Output Power [dBm],

PATABLE=0x50, 0 dBm

Supply Voltage

VDD = 1.8 V

-40 25 85

12 11 10

11

1

10

0

9

-1

Supply Voltage

VDD = 3.0 V

-40 25 85

12 12 11

11

2

10

1

10

0

Supply Voltage

VDD = 3.6 V

-40 25 85

12 12 11

11

2

10

1

10

0

Table 11: Typical Variation in Output Power over Temperature and Supply Voltage, 868 MHz

Temperature [°C]

Output Power [dBm],

PATABLE=0xC0, +11 dBm

Output Power [dBm],

PATABLE=0x8E, +0 dBm

Supply Voltage

VDD = 1.8 V

-40 25 85

11 10 10

2 1 0

Supply Voltage

VDD = 3.0 V

-40 25 85

12 11 11

2 1 0

Supply Voltage

VDD = 3.6 V

-40 25 85

12 11 11

2 1 0

Table 12: Typical Variation in Output Power over Temperature and Supply Voltage, 915 MHz

Page 17 of 98 SWRS061I

CC1101

4.4 Crystal Oscillator

T

A

= 25

C, VDD = 3.0 V if nothing else is stated. All measurement results obtained using the CC1101EM reference designs ([1] and [2]).

Parameter

Crystal frequency

Min

26

Tolerance

Load capacitance

ESR

Start-up time

10

Typ Max Unit Condition/Note

26 27 MHz For compliance with modulation bandwidth requirements under

EN 300 220 in the 863 to 870 MHz frequency range it is recommended to use a 26 MHz crystal for frequencies below

869 MHz and a 27 MHz crystal for frequencies above 869 MHz.

±40 ppm This is the total tolerance including a) initial tolerance, b) crystal loading, c) aging, and d) temperature dependence. The acceptable crystal tolerance depends on RF frequency and channel spacing / bandwidth.

13

150

20

100 pF Simulated over operating conditions

µs This parameter is to a large degree crystal dependent. Measured

on the CC1101EM reference designs ([1] and [2]) using crystal

AT-41CD2 from NDK

Table 13: Crystal Oscillator Parameters

4.5 Low Power RC Oscillator

T

A

= 25

C, VDD = 3.0 V if nothing else is stated. All measurement results obtained using the CC1101EM reference designs ([1] and [2]).

Parameter

Calibrated frequency

Min

34.7

Typ

34.7

Max Unit

36 kHz

±1 %

Condition/Note

Calibrated RC Oscillator frequency is XTAL frequency divided by 750

Frequency accuracy after calibration

Temperature coefficient +0.5

Supply voltage coefficient

Initial calibration time

+3

2

% /

C

Frequency drift when temperature changes after calibration

% / V Frequency drift when supply voltage changes after calibration ms When the RC Oscillator is enabled, calibration is continuously done in the background as long as the crystal oscillator is running

Table 14: RC Oscillator Parameters

SWRS061I Page 18 of 98

CC1101

4.6 Frequency Synthesizer Characteristics

T

A

= 25

C, VDD = 3.0 V if nothing else is stated. All measurement results are obtained using the CC1101EM reference designs

([1] and [2]). Min figures are given using a 27 MHz crystal. Typ and max figures are given using a 26 MHz crystal.

Parameter

Programmed frequency resolution

Synthesizer frequency tolerance

RF carrier phase noise

RF carrier phase noise

RF carrier phase noise

RF carrier phase noise

RF carrier phase noise

RF carrier phase noise

RF carrier phase noise

RF carrier phase noise

PLL turn-on / hop time

( See Table 34)

PLL RX/TX settling time

( See Table 34)

PLL TX/RX settling time

( See Table 34)

PLL calibration time

(See Table 35)

Min

397

72

29

30

685

Typ Max

412 F

XOSC

/

2

16

±40

–92

–92

–92

–98

–107

–113

–119

–129

75

30

31

712

75

30

31

724

Unit Condition/Note

Hz 26-27 MHz crystal. The resolution (in Hz) is equal for all frequency bands ppm Given by crystal used. Required accuracy

(including temperature and aging) depends on frequency band and channel bandwidth / spacing dBc/Hz @ 50 kHz offset from carrier dBc/Hz @ 100 kHz offset from carrier dBc/Hz @ 200 kHz offset from carrier dBc/Hz @ 500 kHz offset from carrier dBc/Hz @ 1 MHz offset from carrier dBc/Hz @ 2 MHz offset from carrier dBc/Hz @ 5 MHz offset from carrier dBc/Hz @ 10 MHz offset from carrier

 s

Time from leaving the IDLE state until arriving in the RX, FSTXON or TX state, when not performing calibration. Crystal oscillator running.

 s

Settling time for the 1·IF frequency step from RX to TX

 s

Settling time for the 1·IF frequency step from TX to RX. 250 kbps data rate.

 s

Calibration can be initiated manually or automatically before entering or after leaving

RX/TX

Table 15: Frequency Synthesizer Parameters

4.7 Analog Temperature Sensor

T

A

= 25

C, VDD = 3.0 V if nothing else is stated. All measurement results obtained using the CC1101EM reference designs ([1]

and [2]). Note that it is necessary to write 0xBF to the

PTEST

register to use the analog temperature sensor in the IDLE state.

Parameter

Output voltage at

–40

C

Output voltage at 0

C

Output voltage at +40

C

Output voltage at +80

C

Temperature coefficient

Error in calculated temperature, calibrated

Current consumption increase when enabled

Min

-2

*

0.651

0.747

0.847

0.945

2.47

0

Typ Max Unit

2

*

0.3

Condition/Note

V

V

V

V mV/

C Fitted from

–20

C to +80

C

C From

–20

C to +80

C when using 2.47 mV /

1-point calibration at room temperature

C, after

*

The indicated minimum and maximum error with 1point calibration is based on simulated values for typical process parameters mA

Table 16: Analog Temperature Sensor Parameters

SWRS061I Page 19 of 98

4.8 DC Characteristics

T

A

= 25

C if nothing else stated.

Digital Inputs/Outputs

Logic "0" input voltage

Logic "1" input voltage

Logic "0" output voltage

Logic "1" output voltage

Logic "0" input current

Logic "1" input current

Min

0

VDD-0.7

0

VDD-0.3

N/A

N/A

Max

0.7

VDD

0.5

VDD

–50

50

Unit

V

V

V

V nA nA

Condition

For up to 4 mA output current

For up to 4 mA output current

Input equals 0V

Input equals VDD

Table 17: DC Characteristics

CC1101

4.9 Power-On Reset

For proper Power-On-Reset functionality the power supply should comply with the requirements in

Table 18 below. Otherwise, the chip should be assumed to have unknown state until transmitting an

SRES

strobe over the SPI interface. See Section 19.1 on page 50 for further details.

Parameter

Power-up ramp-up time

Power off time

Min Typ Max Unit Condition/Note

1

5 ms ms

From 0V until reaching 1.8V

Minimum time between power-on and power-off

Table 18: Power-On Reset Requirements

5 Pin Configuration

The

CC1101

pin-out is shown in Figure 8 and Table 19. See Section 26 for details on the I/O

configuration.

SCLK 1

SO (GDO1) 2

GDO2 3

DVDD 4

DCOUPL 5

20 19 18 17 16

6 7 8 9 10

15 AVDD

14 AVDD

13 RF_N

12 RF_P

11 AVDD

GND

Exposed die attach pad

Figure 8: Pinout Top View

.

Note: The exposed die attach pad

must

be connected to a solid ground plane as this is the main ground connection for the chip

SWRS061I Page 20 of 98

Pin # Pin Name

1 SCLK

2

Pin type

Digital Input

SO (GDO1) Digital Output

3

4

5

6

13

18

19

20

14

15

16

17

10

11

12

7

8

9

GDO2

DVDD

DCOUPL

GDO0

(ATEST)

CSn

XOSC_Q1

AVDD

XOSC_Q2

AVDD

RF_P

RF_N

AVDD

AVDD

GND

RBIAS

DGUARD

GND

SI

Digital Output

Power (Digital)

Power (Digital)

Digital I/O

Digital Input

Analog I/O

Power (Analog)

Analog I/O

Power (Analog)

RF I/O

RF I/O

Power (Analog)

Power (Analog)

Ground (Analog)

Analog I/O

Power (Digital)

Ground (Digital)

Digital Input

CC1101

Description

Serial configuration interface, clock input

Serial configuration interface, data output

Optional general output pin when CSn is high

Digital output pin for general use:

Test signals

FIFO status signals

Clear channel indicator

Clock output, down-divided from XOSC

Serial output RX data

1.8 - 3.6 V digital power supply for digital I

/O’s and for the digital core voltage regulator

1.6 - 2.0 V digital power supply output for decoupling

NOTE:

This pin is intended for use with the

CC1101

only. It can not be used to provide supply voltage to other devices

Digital output pin for general use:

Test signals

FIFO status signals

Clear channel indicator

Clock output, down-divided from XOSC

Serial output RX data

Serial input TX data

Also used as analog test I/O for prototype/production testing

Serial configuration interface, chip select

Crystal oscillator pin 1, or external clock input

1.8 - 3.6 V analog power supply connection

Crystal oscillator pin 2

1.8 - 3.6 V analog power supply connection

Positive RF input signal to LNA in receive mode

Positive RF output signal from PA in transmit mode

Negative RF input signal to LNA in receive mode

Negative RF output signal from PA in transmit mode

1.8 - 3.6 V analog power supply connection

1.8 - 3.6 V analog power supply connection

Analog ground connection

External bias resistor for reference current

Power supply connection for digital noise isolation

Ground connection for digital noise isolation

Serial configuration interface, data input

Table 19: Pinout Overview

Page 21 of 98 SWRS061I

6 Circuit Description

CC1101

RF_P

RF_N

LNA

RADIO CONTROL

ADC

0

90

ADC

FREQ

SYNTH

SCLK

SO (GDO1)

SI

CSn

GDO0 (ATEST)

GDO2

PA

RC OSC BIAS XOSC

RBIAS XOSC_Q1 XOSC_Q2

Figure 9:

CC1101

Simplified Block Diagram

A simplified block diagram of

CC1101 is shown

in Figure 9.

CC1101 features a low-IF receiver. The received

RF signal is amplified by the low-noise amplifier (LNA) and down-converted in quadrature (I and Q) to the intermediate frequency (IF). At IF, the I/Q signals are digitised by the ADCs. Automatic gain control

(AGC), fine channel filtering, demodulation, and bit/packet synchronization are performed digitally.

The transmitter part of

CC1101

is based on direct synthesis of the RF frequency. The frequency synthesizer includes a completely on-chip LC VCO and a 90 degree phase shifter for generating the I and Q LO signals to the down-conversion mixers in receive mode.

A crystal is to be connected to XOSC_Q1 and

XOSC_Q2. The crystal oscillator generates the reference frequency for the synthesizer, as well as clocks for the ADC and the digital part.

A 4-wire SPI serial interface is used for configuration and data buffer access.

The digital baseband includes support for channel configuration, packet handling, and data buffering.

7 Application Circuit

Only a few external components are required for using the

CC1101

. The recommended application circuits for

CC1101

are shown in

Figure 10 and

Figure 11. The external components are

described in Table 20, and typical values are

given in Table 21.

The 315 MHz and 433 MHz CC1101EM

reference design [1] use inexpensive multi-

layer inductors. The 868 MHz and 915 MHz

CC1101EM reference design [2] use wire-

wound inductors as this give better output power, sensitivity, and attenuation of harmonics compared to using multi-layer

inductors. Refer to design note DN032 [24] for

information about performance when using wire-wound inductors from different vendors.

See also Design Note DN013 [15], which gives

the output power and harmonics when using

multi-layer

inductors. The output power is then typically +10 dBm when operating at 868/915

MHz.

7.1 Bias Resistor

The bias resistor R171 is used to set an accurate bias current.

Page 22 of 98 SWRS061I

7.2 Balun and RF Matching

The balanced RF input and output of

CC1101 share two common pins and are designed for a simple, low-cost matching and balun network on the printed circuit board. The receive- and transmit switching at the

CC1101

front-end is controlled by a dedicated on-chip function, eliminating the need for an external RX/TXswitch.

A few external passive components combined with the internal RX/TX switch/termination circuitry ensures match in both RX and TX mode. The components between the

RF_N/RF_P pins and the point where the two signals are joined together (C131, C121, L121 and L131 for the 315/433 MHz reference

design [1], and L121, L131, C121, L122,

C131, C122 and L132 for the 868/915 MHz

reference design [2]) form a balun that

converts the differential RF signal on

CC1101

to a single-ended RF signal. C124 is needed for

7.3 Crystal

A crystal in the frequency range 26-27 MHz must be connected between the XOSC_Q1 and XOSC_Q2 pins. The oscillator is designed for parallel mode operation of the crystal. In addition, loading capacitors (C81 and C101) for the crystal are required. The loading capacitor values depend on the total load capacitance, C

L

, specified for the crystal. The total load capacitance seen between the crystal terminals should equal C

L

for the crystal to oscillate at the specified frequency.

C

L

1

C

81

1

1

C

101

C parasitic

The parasitic capacitance is constituted by pin input capacitance and PCB stray capacitance.

Total parasitic capacitance is typically 2.5 pF.

The crystal oscillator is amplitude regulated.

This means that a high current is used to start up the oscillations. When the amplitude builds up, the current is reduced to what is necessary to maintain approximately 0.4 Vpp signal

7.4 Reference Signal

The chip can alternatively be operated with a reference signal from 26 to 27 MHz instead of a crystal. This input clock can either be a fullswing digital signal (0 V to VDD) or a sine wave of maximum 1 V peak-peak amplitude.

The reference signal must be connected to the

DC blocking. Together with an appropriate LC network, the balun components also transform the impedance to match a 50

load. C125 provides DC blocking and is only needed if there is a DC path in the antenna. For the

868/915 MHz reference design, this component may also be used for additional

filtering, see Section 7.5 below.

Suggested values for 315 MHz, 433 MHz, and

868/915 MHz are listed in Table 21.

The balun and LC filter component values and their placement are important to keep the performance optimized. It is highly recommended to follow the CC1101EM

reference design ([1] and [2]). Gerber files and

schematics for the reference designs are available for download from the TI website. swing. This ensures a fast start-up, and keeps the drive level to a minimum. The ESR of the crystal should be within the specification in order to ensure a reliable start-up (see Section

4.4).

The initial tolerance, temperature drift, aging and load pulling should be carefully specified in order to meet the required frequency accuracy in a certain application.

Avoid routing digital signals with sharp edges close to XOSC_Q1 PCB track or underneath the crystal Q1 pad as this may shift the crystal dc operating point and result in duty cycle variation.

For compliance with modulation bandwidth requirements under EN 300 220 in the 863 to

870 MHz frequency range it is recommended to use a 26 MHz crystal for frequencies below

869 MHz and a 27 MHz crystal for frequencies above 869 MHz.

SWRS061I

CC1101

XOSC_Q1 input. The sine wave must be connected to XOSC_Q1 using a serial capacitor. When using a full-swing digital signal, this capacitor can be omitted. The

XOSC_Q2 line must be left un-connected. C81

Page 23 of 98

and C101 can be omitted when using a

CC1101 reference signal.

7.5 Additional Filtering

In the 868/915 MHz reference design, C126 and L125 together with C125 build an optional filter to reduce emission at carrier frequency

169 MHz. This filter is necessary for applications with an external antenna connector that seek compliance with ETSI EN

300-220. For more information, see DN017 [9].

If this filtering is not necessary, C125 will work as a DC block (only necessary if there is a DC path in the antenna). C126 and L125 should in that case be left unmounted.

Additional external components (e.g. an RF

SAW filter) may be used in order to improve the performance in specific applications.

7.6 Power Supply Decoupling

The power supply must be properly decoupled close to the supply pins. Note that decoupling capacitors are not shown in the application circuit. The placement and the size of the decoupling capacitors are very important to achieve the optimum performance. The

CC1101EM reference designs ([1] and [2])

should be followed closely.

7.7 Antenna Considerations

The reference design ([1] and [2]) contains a

SMA connector and is matched for a 50

 load. The SMA connector makes it easy to connect evaluation modules and prototypes to different test equipment for example a

Component

C51

C81/C101

C121/C131

C122

C123

C124

C125

C126

L121/L131

L122

L123

L124

L125

L132

R171

XTAL spectrum analyzer. The SMA connector can also be replaced by an antenna suitable for the desired application.

Please refer to the

antenna selection guide [13] for further details

regarding antenna solutions provided by TI.

Description

Decoupling capacitor for on-chip voltage regulator to digital part

Crystal loading capacitors

RF balun/matching capacitors

RF LC filter/matching filter capacitor (315/433 MHz). RF balun/matching capacitor (868/915 MHz).

RF LC filter/matching capacitor

RF balun DC blocking capacitor

RF LC filter DC blocking capacitor and part of optional RF LC filter (868/915 MHz)

Part of optional RF LC filter and DC-block (868/915 MHz)

RF balun/matching inductors (inexpensive multi-layer type)

RF LC filter/matching filter inductor (315 and 433 MHz). RF balun/matching inductor (868/915 MHz).

(inexpensive multi-layer type)

RF LC filter/matching filter inductor (inexpensive multi-layer type)

RF LC filter/matching filter inductor (inexpensive multi-layer type)

Optional RF LC filter/matching filter inductor (inexpensive multi-layer type) (868/915 MHz)

RF balun/matching inductor. (inexpensive multi-layer type)

Resistor for internal bias current reference

26

– 27 MHz crystal

Table 20: Overview of External Components (excluding supply decoupling capacitors)

Page 24 of 98 SWRS061I

CC1101

1.8V-3.6V power supply

R171

SI

1 SCLK

2 SO

(GDO1)

CC1101

3 GDO2

DIE ATTACH PAD:

4 DVDD

5 DCOUPL

Antenna

(50 Ohm)

SCLK

SO

(GDO1)

GDO2

(optional)

AVDD 15

AVDD 14

RF_N 13

RF_P 12

AVDD 11

C131

L131

C125

L121

C124

C121

L122 L123

C122 C123

C51

GDO0

(optional)

CSn

XTAL

C81 C101

Figure 10: Typical Application and Evaluation Circuit 315/433 MHz (excluding supply decoupling capacitors)

1.8V-3.6V power supply

SI

R171

SCLK

SO

(GDO1)

GDO2

(optional)

1 SCLK

2 SO

(GDO1)

3 GDO2

CC1101

AVDD 14

RF_N 13

DIE ATTACH PAD: RF_P 12 4 DVDD

AVDD 15

5 DCOUPL AVDD 11

C51

GDO0

(optional)

CSn

C81

XTAL

C101

L131

L121

C131

L132

C121 C122

L122

C124

L123 L124

C123

C125

Antenna

(50 Ohm)

C126 L125

C126 and L125 may be added to build an optional filter to reduce emission at 699

MHz

Figure 11: Typical Application and Evaluation Circuit 868/915 MHz (excluding supply decoupling capacitors)

SWRS061I Page 25 of 98

CC1101

Component

C51

C81

C101

C121

Value at 315MHz Value at 433MHz Value at

868/915MHz

6.8 pF ± 0.5 pF,

0402 NP0

100 nF ± 10%, 0402 X5R

27 pF ± 5%, 0402 NP0

27 pF ± 5%, 0402 NP0

3.9 pF ± 0.25 pF,

0402 NP0

1.0 pF ± 0.25 pF,

0402 NP0

C122

C123

C124

C125

C126

C131

L121

L122

L123

L124

L125

L131

L132

R171

XTAL

12 pF ± 5%, 0402

NP0

6.8 pF ± 0.5 pF,

0402 NP0

220 pF ± 5%,

0402 NP0

220 pF ± 5%,

0402 NP0

8.2 pF ± 0.5 pF,

0402 NP0

5.6 pF ± 0.5 pF,

0402 NP0

220 pF ± 5%, 0402

NP0

220 pF ± 5%, 0402

NP0

3.9 pF ± 0.25 pF,

0402 NP0

27 nH ± 5%, 0402 monolithic

22 nH ± 5%, 0402 monolithic

27 nH ± 5%, 0402 monolithic

1.5 pF ± 0.25 pF,

0402 NP0

3.3 pF ± 0.25 pF,

0402 NP0

100 pF ± 5%, 0402

NP0

12 pF ± 5%, 0402

NP0

47 pF ± 5%, 0402

NP0

1.5 pF ± 0.25 pF,

0402 NP0

6.8 pF ± 0.5 pF,

0402 NP0

33 nH ± 5%, 0402 monolithic

18 nH ± 5%, 0402 monolithic

33 nH ± 5%, 0402 monolithic

12 nH ± 5%, 0402 monolithic

18 nH ± 5%, 0402 monolithic

12 nH ± 5%, 0402 monolithic

12 nH ± 5%, 0402 monolithic

3.3 nH ± 5%, 0402 monolithic

33 nH ± 5%, 0402 monolithic

27 nH ± 5%, 0402 monolithic

12 nH ± 5%, 0402 monolithic

18 nH ± 5%, 0402 monolithic

56 kΩ ± 1%, 0402

Koa RK73 series

26.0 MHz surface mount crystal

Manufacturer

Murata GRM1555C series

Murata GRM1555C series

Murata GRM1555C series

Murata GRM1555C series

Murata GRM1555C series

Murata GRM1555C series

Murata GRM1555C series

Murata GRM1555C series

Murata GRM1555C series

Murata GRM1555C series

Murata LQG15HS series (315/433 MHz)

Murata LQW15xx series (868/915 MHz)

Murata LQG15HS series (315/433 MHz)

Murata LQW15xx series (868/915 MHz)

Murata LQG15HS series (315/433 MHz)

Murata LQW15xx series (868/915 MHz)

Murata LQG15HS series (315/433 MHz)

Murata LQW15xx series (868/915 MHz)

Murata LQG15HS series (315/433 MHz)

Murata LQW15xx series (868/915 MHz)

Murata LQG15HS series (315/433 MHz)

Murata LQW15xx series (868/915 MHz)

Murata LQG15HS series (315/433 MHz)

Murata LQW15xx series (868/915 MHz)

NDK, NX3225GA or AT-41CD2

Table 21: Bill Of Materials for the Application Circuit

1

1

Refer to design note DN032 [24] for information about performance when using inductors from

other vendors than Murata.

7.8 PCB Layout Recommendations

The top layer should be used for signal routing, and the open areas should be filled with metallization connected to ground using several vias.

The area under the chip is used for grounding and shall be connected to the bottom ground plane with several vias for good thermal performance and sufficiently low inductance to ground.

In the CC1101EM reference designs ([1] and

[2]), 5 vias are placed inside the exposed die

attached pad. These vias should be “tented”

(covered with solder mask) on the component side of the PCB to avoid migration of solder through the vias during the solder reflow process.

The solder paste coverage should not be

100%. If it is, out gassing may occur during the

SWRS061I Page 26 of 98

reflow process, which may cause defects

(splattering, solder balling). Using “tented” vias reduces the solder paste coverage below

100%. See Figure 12 for top solder resist and

top paste masks.

Each decoupling capacitor should be placed as close as possible to the supply pin it is supposed to decouple. Each decoupling capacitor should be connected to the power line (or power plane) by separate vias. The best routing is from the power line (or power plane) to the decoupling capacitor and then to the

CC1101 supply pin. Supply power filtering is very important.

Each decoupling capacitor ground pad should be connected to the ground plane by separate vias. Direct connections between neighboring power pins will increase noise coupling and should be avoided unless absolutely necessary. Routing in the ground plane underneath the chip or the balun/RF matching circuit, or between the chip’s ground vias and the decoupling cap acitor’s ground vias should be avoided. This improves the grounding and

CC1101 ensures the shortest possible current return path.

Avoid routing digital signals with sharp edges close to XOSC_Q1 PCB track or underneath the crystal Q1 pad as this may shift the crystal dc operating point and result in duty cycle variation.

The external components should ideally be as small as possible (0402 is recommended) and surface mount devices are highly recommended. Please note that components with different sizes than those specified may have differing characteristics.

Precaution should be used when placing the microcontroller in order to avoid noise interfering with the RF circuitry.

A CC1101DK Development Kit with a fully assembled CC1101EM Evaluation Module is available. It is strongly advised that this reference layout is followed very closely in order to get the best performance. The schematic, BOM and layout Gerber files are all

available from the TI website ([1] and [2]).

Figure 12: Left: Top Solder Resist Mask (Negative). Right: Top Paste Mask. Circles are Vias

8 Configuration Overview

CC1101

can be configured to achieve optimum performance for many different applications.

Configuration is done using the SPI interface.

See Section 10 below for more description of

the SPI interface. The following key parameters can be programmed:

Power-down / power up mode

Crystal oscillator power-up / power-down

Receive / transmit mode

RF channel selection

Data rate

Modulation format

RX channel filter bandwidth

RF output power

Data buffering with separate 64-byte receive and transmit FIFOs

Packet radio hardware support

Forward Error Correction (FEC) with interleaving

Data whitening

Wake-On-Radio (WOR)

Details of each configuration register can be

found in Section 29, starting on page 66.

Figure 13 shows a simplified state diagram

that explains the main

CC1101

states together with typical usage and current consumption.

For detailed information on controlling the

SWRS061I Page 27 of 98

CC1101

state machine, and a complete state

CC1101

diagram, see Section 19, starting on page 50.

SIDLE

SPWD or wake-on-radio (WOR)

Default state when the radio is not receiving or transmitting. Typ. current consumption: 1.7 mA.

CSn = 0

IDLE

SXOFF

Used for calibrating frequency synthesizer upfront (entering receive or transmit mode can then be done quicker).

Transitional state. Typ. current consumption: 8.4 mA.

Manual freq. synth. calibration

SCAL

CSn = 0

SRX or STX or SFSTXON or wake-on-radio (WOR)

SFSTXON

Frequency synthesizer is on, ready to start transmitting.

Transmission starts very quickly after receiving the STX command strobe.Typ. current consumption: 8.4 mA.

Frequency synthesizer on

Frequency synthesizer startup, optional calibration, settling

STX

Sleep

Crystal oscillator off

SRX or wake-on-radio (WOR)

Lowest power mode. Most register values are retained.

Current consumption typ

200 nA, or typ 500 nA when wake-on-radio (WOR) is enabled.

All register values are retained. Typ. current consumption; 165 µA.

Frequency synthesizer is turned on, can optionally be calibrated, and then settles to the correct frequency.

Transitional state. Typ. current consumption: 8.4 mA.

STX TXOFF_MODE = 01

SFSTXON or RXOFF_MODE = 01

Typ. current consumption:

16.8 mA at 0 dBm output,

30.0 mA at +10 dBm output,

34.2 mA at +12 dBm output.

In FIFO-based modes, transmission is turned off and this state entered if the TX

FIFO becomes empty in the middle of a packet. Typ. current consumption: 1.7 mA.

Transmit mode

STX or RXOFF_MODE=10

SRX or TXOFF_MODE = 11

Receive mode

Typ. current consumption: from 14.7 mA (strong input signal) to 15.7 mA

(weak input signal).

TXOFF_MODE = 00

RXOFF_MODE = 00

Optional transitional state. Typ. current consumption: 8.4 mA.

TX FIFO underflow

Optional freq. synth. calibration

RX FIFO overflow

In FIFO-based modes, reception is turned off and this state entered if the RX FIFO overflows. Typ. current consumption: 1.7 mA.

SFTX

SFRX

IDLE

Figure 13: Simplified State Diagram, with Typical Current Consumption at 1.2 kBaud Data

Rate and

MDMCFG2.DEM_DCFILT_OFF=1 (current optimized). Frequency Band = 868 MHz

Page 28 of 98 SWRS061I

9 Configuration Software

CC1101

can be configured using the SmartRF

TM

Studio software [5]. The SmartRF Studio

software is highly recommended for obtaining optimum register settings, and for evaluating performance and functionality. A screenshot of the SmartRF Studio user interface for

CC1101

is

shown in Figure 14.

CC1101

After chip reset, all the registers have default

values as shown in the tables in Section 29.

The optimum register setting might differ from the default value. After a reset all registers that shall be different from the default value therefore needs to be programmed through the SPI interface.

Figure 14: SmartRF

TM

Studio [5] User Interface

10 4-wire Serial Configuration and Data Interface

CC1101 is configured via a simple 4-wire SPIcompatible interface (SI, SO, SCLK and CSn) where

CC1101 is the slave. This interface is also used to read and write buffered data. All transfers on the SPI interface are done most significant bit first. transfer of a header byte or during read/write from/to a register, the transfer will be cancelled. The timing for the address and data

transfer on the SPI interface is shown in Figure

15 with reference to Table 22.

All transactions on the SPI interface start with access bit (B), and a 6-bit address (A

5

– A

0

).

The CSn pin must be kept low during transfers on the SPI bus. If CSn goes high during the

When CSn is pulled low, the MCU must wait until

CC1101

SO pin goes low before starting to transfer the header byte. This indicates that the crystal is running. Unless the chip was in the SLEEP or XOFF states, the SO pin will always go low immediately after taking CSn low.

SWRS061I Page 29 of 98

CC1101 t sp t ch t cl t sd t hd t ns

SCLK:

CSn:

Write to register:

SI

SO

X

Hi-Z

0

S7

B

B

A5

S5

Read from register:

A4

S4

A3

S3

A2

S2

A1

S1

A0

S0

X

D

W

S7

7 D

W

6

S6

D

W

5 D

W

4 D

W

3 D

W

2

S5 S4 S3

S2

D

W

1 D

W

0

S1 S0

X

Hi-Z

SI

SO

X

Hi-Z

S7

1

B A5 A4 A3 A2

B S5 S4 S3 S2

A1

S1

A0

S0

D

R

7 D

R

6 D

R

5 D

R

4 D

R

3

X

D

R

2 D

R

1 D

R

0

Hi-Z

Figure 15: Configuration Registers Write and Read Operations

Parameter Description

f

SCLK

SCLK frequency

100 ns delay inserted between address byte and data byte (single access), or between address and data, and between each data byte (burst access).

SCLK frequency, single access

No delay between address and data byte

Min

-

-

Max

10

9

Units

MHz t sp,pd t sp t ch t cl t rise t fall t sd t hd t ns

SCLK frequency, burst access

No delay between address and data byte, or between data bytes

-

CSn low to positive edge on SCLK, in power-down mode

CSn low to positive edge on SCLK, in active mode

Clock high

Clock low

Clock rise time

Clock fall time

Setup data (negative SCLK edge) to positive edge on SCLK

(t sd

applies between address and data bytes, and between data bytes)

Hold data after positive edge on SCLK

Negative edge on SCLK to CSn high.

Single access

Burst access

20

20

150

-

-

55

76

20

50

50

Table 22: SPI Interface Timing Requirements

6.5

-

-

-

-

-

40

40

-

-

- ns ns ns

 s ns ns ns ns ns

Note:

The minimum t sp,pd

figure in Table 22 can be used in cases where the user does not read

the

CHIP_RDYn

signal. CSn low to positive edge on SCLK when the chip is woken from power-

down depends on the start-up time of the crystal being used.

The 150 μs in Table 22 is the

crystal oscillator start-up time measured on CC1101EM reference designs ([1] and [2]) using

crystal AT-41CD2 from NDK.

Page 30 of 98 SWRS061I

CC1101

10.1 Chip Status Byte

When the header byte, data byte, or command strobe is sent on the SPI interface, the chip status byte is sent by the

CC1101

on the SO pin.

The status byte contains key status signals, useful for the MCU. The first bit, s7, is the

CHIP_RDYn

signal and this signal must go low

before the first positive edge of SCLK. The

CHIP_RDYn

signal indicates that the crystal is

running.

Bits 6, 5, and 4 comprise the

STATE

value.

This value reflects the state of the chip. The

XOSC and power to the digital core are on in the IDLE state, but all other modules are in power down. The frequency and channel configuration should only be updated when the chip is in this state. The RX state will be active

Bits Name

7 CHIP_RDYn

6:4 STATE[2:0] when the chip is in receive mode. Likewise, TX is active when the chip is transmitting.

The last four bits (3:0) in the status byte

contains

FIFO_BYTES_AVAILABLE.

For read

set to 1), the

FIFO_BYTES_AVAILABLE

field

contains the number of bytes available for reading from the RX FIFO. For write

set to 0), the

FIFO_BYTES_AVAILABLE

field

contains the number of bytes that can be written to the TX FIFO. When

FIFO_BYTES_AVAILABLE=15

, 15 or more bytes are available/free.

Table 23 gives a status byte summary.

Description

Stays high until power and crystal have stabilized. Should always be low when using the SPI interface.

Indicates the current main state machine mode

Value

000

State

IDLE

001 RX

010 TX

011

100

FSTXON

CALIBRATE

Description

IDLE state

(Also reported for some transitional states instead of SETTLING or CALIBRATE)

Receive mode

Transmit mode

Fast TX ready

Frequency synthesizer calibration is running

101 SETTLING PLL is settling

110 RXFIFO_OVERFLOW RX FIFO has overflowed. Read out any

useful data, then flush the FIFO with

SFRX

111 TXFIFO_UNDERFLOW TX FIFO has underflowed. Acknowledge with

SFTX

3:0 FIFO_BYTES_AVAILABLE[3:0] The number of bytes available in the RX FIFO or free bytes in the TX FIFO

Table 23: Status Byte Summary

10.2 Register Access

The configuration registers on the

CC1101

are located on SPI addresses from 0x00 to 0x2E.

Table 43 on page 68 lists all configuration

registers. It is highly recommended to use

SmartRF Studio [5] to generate optimum

register settings. The detailed description of

each register is found in Section 29.1 and

29.2, starting on page 71. All configuration

registers can be both written to and read. The written to or read. When writing to registers, the status byte is sent on the SO pin each time a header byte or data byte is transmitted on the SI pin. When reading from registers, the status byte is sent on the SO pin each time a header byte is transmitted on the SI pin.

Registers with consecutive addresses can be accessed in an efficient way by setting the burst bit (B) in the header byte. The address bits (A

5

– A

0

) set the start address in an internal address counter. This counter is incremented by one each new byte (every 8

SWRS061I Page 31 of 98

clock pulses). The burst access is either a read or a write access and must be terminated by setting CSn high.

For register addresses in the range 0x30-

0x3D, the burst bit is used to select between status registers when burst bit is one, and between command strobes when burst bit is

10.3 SPI Read

When reading register fields over the SPI interface while the register fields are updated by the radio hardware (e.g.

MARCSTATE

or

TXBYTES

), there is a small, but finite,

probability that a single read from the register

CC1101

zero. See more in Section 10.3 below.

Because of this, burst access is not available for status registers and they must be accessed one at a time. The status registers can only be read.

is being corrupt. As an example, the probability of any single read from

TXBYTES

being corrupt, assuming the maximum data rate is used, is approximately 80 ppm. Refer to the

CC1101

Errata Notes [3] for more details.

10.4 Command Strobes

Command Strobes may be viewed as single byte instructions to

CC1101

. By addressing a command strobe register, internal sequences will be started. These commands are used to disable the crystal oscillator, enable receive mode, enable wake-on-radio etc. The 13

command strobes are listed in Table 42 on page 67.

Note:

An SIDLE strobe will clear all pending command strobes until IDLE state is reached. This means that if for example an SIDLE strobe is issued while the radio is in RX state, any other command strobes issued before the radio reaches IDLE state will be ignored.

The command strobe registers are accessed by transferring a single header byte (no data is the burst access bit (set to 0), and the six

CSn

SO

SI Header

SRES

Header

Addr

Data

Figure 16: SRES Command Strobe

address bits (in the range 0x30 through 0x3D) zero and will determine how the

FIFO_BYTES_AVAILABLE

field in the status

byte should be interpreted.

When writing command strobes, the status byte is sent on the SO pin.

A command strobe may be followed by any other SPI access without pulling CSn high.

However, if an

SRES

strobe is being issued,

one will have to wait for SO to go low again before the next header byte can be issued as

shown in Figure 16. The command strobes are

executed immediately, with the exception of the

SPWD, SWOR,

and the

SXOFF

strobes,

which are executed when CSn goes high.

10.5 FIFO Access

The 64-byte TX FIFO and the 64-byte RX

FIFO are accessed through the 0x3F address. accessed, and the RX FIFO is accessed when

The TX FIFO is write-only, while the RX FIFO is read-only.

The burst bit is used to determine if the FIFO access is a single byte access or a burst access. The single byte access method

Page 32 of 98 SWRS061I

expects a header byte with the burst bit set to zero and one data byte. After the data byte, a new header byte is expected; hence, CSn can remain low. The burst access method expects one header byte and then consecutive data bytes until terminating the access by setting

CSn high.

The following header bytes access the FIFOs:

0x3F: Single byte access to TX FIFO

0x7F: Burst access to TX FIFO

0xBF: Single byte access to RX FIFO

0xFF: Burst access to RX FIFO

When writing to the TX FIFO, the status byte

(see Section 10.1) is output on SO for each

new data byte as shown in Figure 15. This

status byte can be used to detect TX FIFO

10.6 PATABLE Access

The 0x3E address is used to access the

PATABLE

, which is used for selecting PA power control settings. The SPI expects up to eight data bytes after receiving the address.

By programming the

PATABLE

, controlled PA power ramp-up and ramp-down can be achieved, as well as ASK modulation shaping for reduced bandwidth. See SmartRF Studio

[5] for recommended shaping / PA ramping

sequences. See also Section 24 for details on

output power programming.

The

PATABLE is an 8-byte table that defines the PA control settings to use for each of the eight PA power values (selected by the 3-bit value

FREND0.PA_POWER

). The table is

written and read from the lowest setting (0) to the highest (7), one byte at a time. An index counter is used to control the access to the table. This counter is incremented each time a byte is read or written to the table, and set to the lowest index when CSn is high. When the highest value is reached the counter restarts at zero.

The access to the

PATABLE is either single byte or burst access depending on the burst bit. When using burst access the index counter will count up; when reaching 7 the counter will access is a read or a write access.

If one byte is written to the

PATABLE and this value is to be read out, CSn must be set high before the read access in order to set the index counter back to zero.

Note that the content of the

PATABLE is lost when entering the SLEEP state, except for the first byte (index 0).

For more information, see Design Note DN501

[18].

CSn:

Command strobe(s):

Read or write register(s):

Read or write consecutive registers (burst):

Read or write n + 1 bytes from/to the RX/TX FIFO:

Combinations:

Header

Strobe

Header

Reg

Header

Reg n

Header

FIFO

Header

Reg

Header

Strobe

Data

Data n

Data

Byte 0

Header

Strobe

Header

Reg

Data n + 1

Data

Byte 1

Data

Data n + 2

Data

Byte 2

Header

Reg

Data

Data

Byte n - 1

Data Header

Strobe

Header

Reg

Data Header

Strobe

Figure 17: Register Access Types

Data

Byte n

Header

FIFO

Data

Byte 0

CC1101 underflow while writing data to the TX FIFO.

Note that the status byte contains the number of bytes free before writing the byte in progress to the TX FIFO. When the last byte that fits in the TX FIFO is transmitted on SI, the status byte received concurrently on SO will indicate that one byte is free in the TX

FIFO.

The TX FIFO may be flushed by issuing a

SFTX

command strobe. Similarly, a

SFRX

command strobe will flush the RX FIFO. A

SFTX

or

SFRX

command strobe can only be

issued in the IDLE, TXFIFO_UNDERFLOW, or

RXFIFO_OVERFLOW states. Both FIFOs are flushed when going to the SLEEP state.

Figure 17 gives a brief overview of different

register access types possible.

Data

Byte 1

Page 33 of 98 SWRS061I

CC1101

11 Microcontroller Interface and Pin Configuration

In a typical system,

CC1101

will interface to a microcontroller. This microcontroller must be able to:

Program

CC1101 into different modes

Read and write buffered data

Read back status information via the 4-wire

SPI-bus configuration interface (SI, SO,

SCLK and CSn)

11.1 Configuration Interface

The microcontroller uses four I/O pins for the

SPI configuration interface (SI, SO, SCLK and

11.2 General Control and Status Pins

The

CC1101 has two dedicated configurable pins (GDO0 and GDO2) and one shared pin

(GDO1) that can output internal status information useful for control software. These pins can be used to generate interrupts on the

MCU. See Section 26 on page 61 for more

details on the signals that can be programmed.

GDO1 is shared with the SO pin in the SPI interface. The default setting for GDO1

/

SO is

3-state output. By selecting any other of the programming options, the GDO1

/

SO pin will become a generic pin. When CSn is low, the pin will always function as a normal SO pin.

In the synchronous and asynchronous serial modes, the GDO0 pin is used as a serial TX data input pin while in transmit mode.

11.3 Optional Radio Control Feature

The

CC1101

has an optional way of controlling the radio by reusing SI, SCLK, and CSn from the SPI interface. This feature allows for a simple three-pin control of the major states of the radio: SLEEP, IDLE, RX, and TX. This optional functionality is enabled with the

MCSM0.PIN_CTRL_EN

configuration bit.

State changes are commanded as follows:

If CSn is high, the SI and SCLK are set to

the desired state according to Table 24.

If CSn goes low, the state of SI and SCLK is latched and a command strobe is generated internally according to the pin configuration.

It is only possible to change state with the latter functionality. That means that for instance RX will not be restarted if SI and

CSn). The SPI is described in Section 10 on page 29.

The GDO0 pin can also be used for an on-chip analog temperature sensor. By measuring the voltage on the GDO0 pin with an external

ADC, the temperature can be calculated.

Specifications for the temperature sensor are

found in Section 4.7. With default

PTEST

register setting (0x7F), the temperature sensor output is only available if the frequency synthesizer is enabled (e.g. the MANCAL,

FSTXON, RX, and TX states). It is necessary

to write 0xBF to the

PTEST

register to use the

analog temperature sensor in the IDLE state.

Before leaving the IDLE state, the

PTEST

register should be restored to its default value

(0x7F).

SCLK are set to RX and CSn toggles. When

CSn is low the SI and SCLK has normal SPI functionality.

All pin control command strobes are executed immediately except the

SPWD

strobe. The

SPWD

strobe is delayed until CSn goes high.

CSn SCLK SI

1

0

X

1

1

0

0

SPI mode

X

Function

Chip unaffected by SCLK/

0

1

0

1

Generates

SPWD

strobe

Generates

STX

strobe

Generates

SIDLE

strobe

Generates

SRX

strobe

SPI mode

SPI mode (wakes up into

IDLE if in SLEEP/XOFF)

SI

Table 24: Optional Pin Control Coding

Page 34 of 98 SWRS061I

12 Data Rate Programming

The data rate used when transmitting, or the data rate expected in receive is programmed by the

MDMCFG3.DRATE_M

and the

MDMCFG4.DRATE_E

configuration registers.

The data rate is given by the formula below.

As the formula shows, the programmed data rate depends on the crystal frequency.

R

DATA

256

DRATE

2

28

_

M

2

DRATE

_

E

f

XOSC

The following approach can be used to find suitable values for a given data rate:

DRATE

_

E

DRATE

_

M

 log

2



R

DATA f

XOSC

2

20

f

R

DATA

XOSC

2

28

2

DRATE

_

E



256

If

DRATE_M

is rounded to the nearest integer

and becomes 256, increment

DRATE_E

and use

DRATE_M

= 0.

CC1101

The data rate can be set from 0.6 kBaud to

500 kBaud with the minimum step size

according to Table 25 below. See Table 3 for

the minimum and maximum data rates for the different modulation formats.

Min Data

Rate

[kBaud]

0.6

0.79

1.59

3.17

6.35

12.7

25.4

50.8

101.6

203.1

406.3

Typical Data

Rate

[kBaud]

1.0

1.2

2.4

4.8

9.6

19.6

38.4

76.8

153.6

250

500

Max Data

Rate

[kBaud]

0.79

1.58

3.17

6.33

12.7

25.3

50.7

101.4

202.8

405.5

500

Data rate

Step Size

[kBaud]

0.0015

0.0031

0.0062

0.0124

0.0248

0.0496

0.0992

0.1984

0.3967

0.7935

1.5869

Table 25: Data Rate Step Size (assuming a

26 MHz crystal)

13 Receiver Channel Filter Bandwidth

In order to meet different channel width requirements, the receiver channel filter is

programmable. The

MDMCFG4.CHANBW_E

and

MDMCFG4.CHANBW_M

configuration registers

control the receiver channel filter bandwidth, which scales with the crystal oscillator frequency.

The following formula gives the relation between the register settings and the channel filter bandwidth:

BW channel

f

XOSC

8

( 4

CHANBW

_

M

)· 2

CHANBW

_

E

Table 26 lists the channel filter bandwidths

supported by the

CC1101

.

MDMCFG4.

CHANBW_M

00

01

10

11

00

812

650

541

464

MDMCFG4.CHANBW_E

01

406

325

270

232

10

203

162

135

116

11

102

81

68

58

Table 26: Channel Filter Bandwidths [kHz]

(assuming a 26 MHz crystal)

By compensating for a frequency offset between the transmitter and the receiver, the filter bandwidth can be reduced and the

sensitivity improved, see more in DN005 [17]

and in Section 14.1.

Page 35 of 98 SWRS061I

CC1101

14 Demodulator, Symbol Synchronizer, and Data Decision

CC1101

contains an advanced and highly configurable demodulator. Channel filtering and frequency offset compensation is performed digitally. To generate the RSSI level

(see Section 17.3 for more information), the

signal level in the channel is estimated. Data filtering is also included for enhanced performance.

14.1 Frequency Offset Compensation

The

CC1101

has a very fine frequency

resolution (see Table 15)

.

This feature can be used to compensate for frequency offset and drift.

When using 2-FSK, GFSK, 4-FSK, or MSK modulation, the demodulator will compensate for the offset between the transmitter and receiver frequency within certain limits, by estimating the centre of the received data. The frequency offset compensation configuration is

controlled from the FOCCFG register. By

compensating for a large frequency offset between the transmitter and the receiver, the

sensitivity can be improved, see DN005 [17].

The tracking range of the algorithm is selectable as fractions of the channel bandwidth with the

FOCCFG.FOC_LIMIT

configuration register.

If the

FOCCFG.FOC_BS_CS_GATE

bit is set,

the offset compensator will freeze until carrier sense asserts. This may be useful when the radio is in RX for long periods with no traffic,

14.2 Bit Synchronization

The bit synchronization algorithm extracts the clock from the incoming symbols. The algorithm requires that the expected data rate

14.3 Byte Synchronization

Byte synchronization is achieved by a continuous sync word search. The sync word is a 16 bit configurable field (can be repeated to get a 32 bit) that is automatically inserted at the start of the packet by the modulator in transmit mode. The MSB in the sync word is sent first. The demodulator uses this field to find the byte boundaries in the stream of bits.

The sync word will also function as a system identifier, since only packets with the correct predefined sync word will be received if the sync word detection in RX is enabled in register

MDMCFG2

(see Section 17.1). The

sync word detector correlates against the user-configured 16 or 32 bit sync word. The since the algorithm may drift to the boundaries when trying to track noise.

The tracking loop has two gain factors, which affects the settling time and noise sensitivity of the algorithm.

FOCCFG.FOC_PRE_K

sets the

gain before the sync word is detected, and

FOCCFG.FOC_POST_K

selects the gain after

the sync word has been found.

Note:

Frequency offset compensation is not supported for ASK or OOK modulation.

The estimated frequency offset value is

available in the

FREQEST

status register. This

can be used for permanent frequency offset compensation. By writing the value from

FREQEST into

FSCTRL0.FREQOFF

,

the frequency synthesizer will automatically be adjusted according to the estimated frequency offset. More details regarding this permanent frequency compensation algorithm can be

found in DN015 [10].

is programmed as described in Section 12.

Re-synchronization is performed continuously to adjust for error in the incoming symbol rate. correlation threshold can be set to 15/16,

16/16, or 30/32 bits match. The sync word can be further qualified using the preamble quality indicator mechanism described below and/or a carrier sense condition. The sync word is configured through the

SYNC1

and

SYNC0

registers.

In order to make false detections of sync words less likely, a mechanism called preamble quality indication (PQI) can be used to qualify the sync word. A threshold value for the preamble quality must be exceeded in order for a detected sync word to be accepted.

See Section 17.2 for more details.

Page 36 of 98 SWRS061I

15 Packet Handling Hardware Support

The

CC1101 has built-in hardware support for packet oriented radio protocols.

In transmit mode, the packet handler can be configured to add the following elements to the packet stored in the TX FIFO:

A programmable number of preamble bytes

A two byte synchronization (sync) word.

Can be duplicated to give a 4-byte sync word (recommended). It is not possible to only insert preamble or only insert a sync word

A CRC checksum computed over the data field.

The recommended setting is 4-byte preamble and 4-byte sync word, except for 500 kBaud data rate where the recommended preamble length is 8 bytes. In addition, the following can be implemented on the data field and the optional 2-byte CRC checksum:

Whitening of the data with a PN9 sequence

Forward Error Correction (FEC) by the use of interleaving and coding of the data

(convolutional coding)

In receive mode, the packet handling support will de-construct the data packet by implementing the following (if enabled):

CC1101

Preamble detection

Sync word detection

CRC computation and CRC check

One byte address check

Packet length check (length byte checked against a programmable maximum length)

De-whitening

De-interleaving and decoding

Optionally, two status bytes (see Table 27 and

Table 28) with RSSI value, Link Quality

Indication, and CRC status can be appended in the RX FIFO.

Bit Field Name Description

7:0 RSSI RSSI value

Table 27: Received Packet Status Byte 1

(first byte appended after the data)

Bit Field Name Description

7 CRC_OK 1: CRC for received data OK

(or CRC disabled)

0: CRC error in received data

6:0 LQI Indicating the link quality

Table 28: Received Packet Status Byte 2

(second byte appended after the data)

Note:

Register fields that control the packet handling features should only be altered when

CC1101

is in the IDLE state.

15.1 Data Whitening

From a radio perspective, the ideal over the air data are random and DC free. This results in the smoothest power distribution over the occupied bandwidth. This also gives the regulation loops in the receiver uniform operation conditions (no data dependencies).

Real data often contain long sequences of zeros and ones. In these cases, performance can be improved by whitening the data before transmitting, and de-whitening the data in the receiver.

With

CC1101

, this can be done automatically.

By setting

PKTCTRL0.WHITE_DATA=1

, all data, except the preamble and the sync word will be XOR-ed with a 9-bit pseudo-random

(PN9) sequence before being transmitted. This

is shown in Figure 18. At the receiver end, the

data are XOR-ed with the same pseudorandom sequence. In this way, the whitening is reversed, and the original data appear in the receiver. The PN9 sequence is initialized to all

1’s.

Page 37 of 98 SWRS061I

CC1101

8 7 6 5 4 3 2 1 0

TX_DATA

7 6 5 4 3 2 1 0

The first TX_DATA byte is shifted in before doing the XOR-operation providing the first TX_OUT[7:0] byte. The second TX_DATA byte is then shifted in before doing the XOR-operation providing the second TX_OUT[7:0] byte.

TX_OUT[7:0]

Figure 18: Data Whitening in TX Mode

15.2 Packet Format

The format of the data packet can be configured and consists of the following items

(see Figure 19):

Preamble

Synchronization word

Optional data whitening

Optionally FEC encoded/decoded

Optional CRC-16 calculation

Optional length byte

Optional address byte

Payload

Optional 2 byte CRC

Legend:

Inserted automatically in TX, processed and removed in RX.

Preamble bits

(1010...1010)

Data field

Optional user-provided fields processed in TX, processed but not removed in RX.

Unprocessed user data (apart from FEC and/or whitening)

8 x n bits 16/32 bits

8 bits

8 bits

8 x n bits 16 bits

Figure 19: Packet Format

The preamble pattern is an alternating sequence of ones and zeros (10101010

…).

The minimum length of the preamble is programmable through the value of

MDMCFG1.NUM_PREAMBLE

. When enabling

TX, the modulator will start transmitting the preamble. When the programmed number of preamble bytes has been transmitted, the modulator will send the sync word and then data from the TX FIFO if data is available. If the TX FIFO is empty, the modulator will continue to send preamble bytes until the first byte is written to the TX FIFO. The modulator will then send the sync word and then the data bytes.

The synchronization word is a two-byte value set in the

SYNC1

and

SYNC0

registers. The

sync word provides byte synchronization of the incoming packet. A one-byte sync word can be emulated by setting the

SYNC1

value to the

preamble pattern. It is also possible to emulate a 32 bit sync word by setting

MDMCFG2.SYNC_MODE

to 3 or 7. The sync

word will then be repeated twice.

CC1101 supports both constant packet length protocols and variable length protocols.

Variable or fixed packet length mode can be used for packets up to 255 bytes. For longer

SWRS061I Page 38 of 98

packets, infinite packet length mode must be used.

Fixed packet length mode is selected by setting

PKTCTRL0.LENGTH_CONFIG=0

. The desired packet length is set by the

PKTLEN

register. This value must be different from 0.

In variable packet length mode,

PKTCTRL0.LENGTH_CONFIG=1

, the packet length is configured by the first byte after the sync word. The packet length is defined as the payload data, excluding the length byte and the optional CRC. The

PKTLEN

register is used to set the maximum packet length allowed in RX. Any packet received with a

length byte with a value greater than

PKTLEN will be discarded. The

PKTLEN

value must be different from 0.The first byte written to the

TXFIFO must be different from 0.

With

PKTCTRL0.LENGTH_CONFIG=2

, the packet length is set to infinite and transmission and reception will continue until turned off manually. As described in the next section, this can be used to support packet formats with different length configuration than natively supported by

CC1101

. One should make sure that TX mode is not turned off during the transmission of the first half of any byte. Refer to the

CC1101

Errata Notes [3] for more details.

Note:

The minimum packet length supported (excluding the optional length byte and CRC) is one byte of payload data.

15.2.1 Arbitrary Length Field Configuration

The packet length register,

PKTLEN

, can be

reprogrammed during receive and transmit. In combination with fixed packet length mode

(

PKTCTRL0.LENGTH_CONFIG=0

), this opens the possibility to have a different length field configuration than supported for variable length packets (in variable packet length mode the length byte is the first byte after the sync word). At the start of reception, the packet length is set to a large value. The MCU reads out enough bytes to interpret the length field in

CC1101 the packet. Then the

PKTLEN

value is set according to this value. The end of packet will occur when the byte counter in the packet

handler is equal to the

PKTLEN

register. Thus, the MCU must be able to program the correct length, before the internal counter reaches the packet length.

15.2.2 Packet Length > 255

The packet automation control register,

PKTCTRL0,

can be reprogrammed during TX and RX. This opens the possibility to transmit and receive packets that are longer than 256 bytes and still be able to use the packet handling hardware support. At the start of the packet, the infinite packet length mode

(

PKTCTRL0.LENGTH_CONFIG=2

) must be

active. On the TX side, the

PKTLEN

register is set to mod(length, 256)

.

On the RX side the

MCU reads out enough bytes to interpret the

length field in the packet and sets the

PKTLEN

register to mod(length, 256)

.

When less than

256 bytes remains of the packet, the MCU disables infinite packet length mode and activates fixed packet length mode. When the internal byte counter reaches the

PKTLEN

value, the transmission or reception ends (the radio enters the state determined by

TXOFF_MODE

or

RXOFF_MODE)

. Automatic

CRC appending/checking can also be used

(by setting

PKTCTRL0.CRC_EN=1

).

When for example a 600-byte packet is to be transmitted, the MCU should do the following

(see also Figure 20)

Set

PKTCTRL0.LENGTH_CONFIG=2

.

Pre-program the

PKTLEN

register to mod(600, 256) = 88.

Transmit at least 345 bytes (600 - 255), for example by filling the 64-byte TX FIFO six times (384 bytes transmitted).

Set

PKTCTRL0.LENGTH_CONFIG=0

.

The transmission ends when the packet counter reaches 88. A total of 600 bytes are transmitted.

Page 39 of 98 SWRS061I

CC1101

Internal byte counter in packet handler counts from 0 to 255 and then starts at 0 again

0,1,..........,88,....................255,0,........,88,..................,255,0,........,88,..................,255,0,.......................

Infinite packet length enabled Fixed packet length enabled when less than

256 bytes remains of packet

600 bytes transmitted and received

Length field transmitted and received. Rx and Tx PKTLEN value set to mod(600,256) = 88

Figure 20: Packet Length > 255

15.3 Packet Filtering in Receive Mode

CC1101 supports three different types of packet-filtering; address filtering, maximum length filtering, and CRC filtering.

15.3.1 Address Filtering

Setting

PKTCTRL1.ADR_CHK

to any other

value than zero enables the packet address filter. The packet handler engine will compare the destination address byte in the packet with the programmed node address in the

ADDR

register and the 0x00 broadcast address when

PKTCTRL1.ADR_CHK=10

or both the 0x00 and 0xFF broadcast addresses when

PKTCTRL1.ADR_CHK=11

. If the received address matches a valid address, the packet is received and written into the RX FIFO. If the address match fails, the packet is discarded and receive mode restarted (regardless of the

MCSM1.RXOFF_MODE

setting).

If the received address matches a valid address when using infinite packet length mode and address filtering is enabled, 0xFF will be written into the RX FIFO followed by the address byte and then the payload data.

15.3.2 Maximum Length Filtering

In variable packet length mode,

PKTCTRL0.LENGTH_CONFIG=1

, the

PKTLEN.PACKET_LENGTH

register value is

15.4 Packet Handling in Transmit Mode

The payload that is to be transmitted must be written into the TX FIFO. The first byte written must be the length byte when variable packet length is enabled. The length byte has a value equal to the payload of the packet (including the optional address byte). If address recognition is enabled on the receiver, the used to set the maximum allowed packet length. If the received length byte has a larger value than this, the packet is discarded and receive mode restarted (regardless of the

MCSM1.RXOFF_MODE

setting).

15.3.3 CRC Filtering

The filtering of a packet when CRC check fails is enabled by setting

PKTCTRL1.CRC_AUTOFLUSH=1

. The CRC auto flush function will flush the entire RX

FIFO if the CRC check fails. After auto flushing the RX FIFO, the next state depends on the

MCSM1.RXOFF_MODE

setting.

When using the auto flush function, the maximum packet length is 63 bytes in variable packet length mode and 64 bytes in fixed packet length mode. Note that when

PKTCTRL1.APPEND_STATUS

is enabled, the

maximum allowed packet length is reduced by two bytes in order to make room in the RX

FIFO for the two status bytes appended at the end of the packet. Since the entire RX FIFO is flushed when the CRC check fails, the previously received packet must be read out of the FIFO before receiving the current packet.

The MCU must not read from the current packet until the CRC has been checked as

OK. second byte written to the TX FIFO must be the address byte.

If fixed packet length is enabled, the first byte written to the TX FIFO should be the address

(assuming the receiver uses address recognition).

SWRS061I Page 40 of 98

The modulator will first send the programmed number of preamble bytes. If data is available in the TX FIFO, the modulator will send the two-byte (optionally 4-byte) sync word followed by the payload in the TX FIFO. If CRC is enabled, the checksum is calculated over all the data pulled from the TX FIFO, and the result is sent as two extra bytes following the payload data. If the TX FIFO runs empty before the complete packet has been transmitted, the radio will enter

TXFIFO_UNDERFLOW state. The only way to

exit this state is by issuing an SFTX strobe.

CC1101

Writing to the TX FIFO after it has underflowed will not restart TX mode.

If whitening is enabled, everything following the sync words will be whitened. This is done before the optional FEC/Interleaver stage.

Whitening is enabled by setting

PKTCTRL0.WHITE_DATA=1

.

If FEC/Interleaving is enabled, everything following the sync words will be scrambled by the interleaver and FEC encoded before being modulated. FEC is enabled by setting

MDMCFG1.FEC_EN=1

.

15.5 Packet Handling in Receive Mode

In receive mode, the demodulator and packet handler will search for a valid preamble and the sync word. When found, the demodulator has obtained both bit and byte synchronization and will receive the first payload byte.

If FEC/Interleaving is enabled, the FEC decoder will start to decode the first payload byte. The interleaver will de-scramble the bits before any other processing is done to the data.

If whitening is enabled, the data will be dewhitened at this stage.

When variable packet length mode is enabled, the first byte is the length byte. The packet handler stores this value as the packet length and receives the number of bytes indicated by

15.6 Packet Handling in Firmware

When implementing a packet oriented radio protocol in firmware, the MCU needs to know when a packet has been received/transmitted.

Additionally, for packets longer than 64 bytes, the RX FIFO needs to be read while in RX and the TX FIFO needs to be refilled while in TX.

This means that the MCU needs to know the number of bytes that can be read from or written to the RX FIFO and TX FIFO respectively. There are two possible solutions to get the necessary status information: a) Interrupt Driven Solution

The GDO pins can be used in both RX and TX to give an interrupt when a sync word has been received/transmitted or when a complete packet has been received/transmitted by

setting

IOCFGx.GDOx_CFG=0x06

. In addition,

there are two configurations for the

IOCFGx.GDOx_CFG

register that can be used

as an interrupt source to provide information the length byte. If fixed packet length mode is used, the packet handler will accept the programmed number of bytes.

Next, the packet handler optionally checks the address and only continues the reception if the address matches. If automatic CRC check is enabled, the packet handler computes CRC and matches it with the appended CRC checksum.

At the end of the payload, the packet handler will optionally write two extra packet status

bytes (see Table 27 and Table 28) that contain

CRC status, link quality indication, and RSSI value.

on how many bytes that are in the RX FIFO and TX FIFO respectively.

IOCFGx.GDOx_CFG=0x00

and

The the

IOCFGx.GDOx_CFG=0x01

configurations are associated with the RX FIFO while the

IOCFGx.GDOx_CFG=0x02

and the

IOCFGx.GDOx_CFG=0x03

configurations

are associated with the TX FIFO. See Table

41 for more information.

b) SPI Polling

The

PKTSTATUS

register can be polled at a

given rate to get information about the current

GDO2 and GDO0 values respectively. The

RXBYTES

and

TXBYTES

registers can be

polled at a given rate to get information about the number of bytes in the RX FIFO and TX

FIFO respectively. Alternatively, the number of bytes in the RX FIFO and TX FIFO can be read from the chip status byte returned on the

SWRS061I Page 41 of 98

MISO line each time a header byte, data byte, or command strobe is sent on the SPI bus.

It is recommended to employ an interrupt driven solution since high rate SPI polling reduces the RX sensitivity. Furthermore, as

explained in Section 10.3 and the

CC1101

Errata Notes

[3] , when using SPI polling, there

16 Modulation Formats

CC1101

supports amplitude, frequency, and phase shift modulation formats. The desired modulation format is set in the

MDMCFG2.MOD_FORMAT

register.

Optionally, the data stream can be Manchester coded by the modulator and decoded by the demodulator. This option is enabled by setting

CC1101 is a small, but finite, probability that a single read from registers

PKTSTATUS

,

RXBYTES

and

TXBYTES

is being corrupt. The same is

the case when reading the chip status byte.

Refer to the TI website for SW examples ([6] and [7]).

MDMCFG2.MANCHESTER_EN=1

.

Note:

Manchester encoding is not supported at the same time as using the

FEC/Interleaver option or when using MSK and 4-FSK modulation.

16.1 Frequency Shift Keying

CC1101

supports both 2-FSK and 4-FSK modulation. 2-FSK can optionally be shaped by a Gaussian filter with BT = 0.5, producing a

GFSK modulated signal. This spectrumshaping feature improves adjacent channel power (ACP) and occupied bandwidth. When selecting 4-FSK, the preamble and sync word

is sent using 2-FSK (see Figure 21).

In ‘true’ 2-FSK systems with abrupt frequency shifting, the spectrum is inherently broad. By making the frequency shift ‘softer’, the spectrum can be made significantly narrower.

Thus, higher data rates can be transmitted in the same bandwidth using GFSK.

When 2-FSK/GFSK/4-FSK modulation is used,

the

DEVIATN

register specifies the expected

frequency deviation of incoming signals in RX and should be the same as the TX deviation for demodulation to be performed reliably and robustly.

The frequency deviation is programmed with

the

DEVIATION_M

and

DEVIATION_E

values

in the

DEVIATN

register. The value has an

exponent/mantissa form, and the resultant deviation is given by:

f dev

f xosc

2

17

( 8

DEVIATION

_

M

)

2

DEVIATION

The symbol encoding is shown in Table 29.

_

E

Format

2-FSK/GFSK

4-FSK

Symbol

‘0’

‘1’

‘01’

‘00’

‘10’

‘11’

Coding

– Deviation

+ Deviation

– Deviation

– 1/3∙ Deviation

+1/3∙ Deviation

+ Deviation

Table 29: Symbol Encoding for 2-FSK/GFSK and 4-FSK Modulation

+1

+1/3

-1/3

-1

1/Baud Rate

1 0 1 0 1 0 1 0

Preamble

0xAA

1/Baud Rate

1 1 0 1 0 0 1 1

Sync

0xD3

1/Baud Rate

00 01 01 11 10 00 11 01

Data

0x17 0x8D

Figure 21: Data Sent Over the Air (

MDMCFG2.MOD_FORMAT=100)

Page 42 of 98 SWRS061I

16.2 Minimum Shift Keying

When using MSK

2

, the complete transmission

(preamble, sync word, and payload) will be

MSK modulated.

Phase shifts are performed with a constant transition time. The fraction of a symbol period used to change the phase can be modified with the

DEVIATN.DEVIATION_M

setting.

2

Identical to offset QPSK with half-sine shaping (data coding may differ).

CC1101

This is equivalent to changing the shaping of

the symbol. The

DEVIATN

register setting has

no effect in RX when using MSK.

When using MSK, Manchester encoding/decoding should be disabled by

setting

MDMCFG2.MANCHESTER_EN=0

.

The MSK modulation format implemented in

CC1101

inverts the sync word and data compared to e.g. signal generators.

16.3 Amplitude Modulation

CC1101

supports two different forms of amplitude modulation: On-Off Keying (OOK) and Amplitude Shift Keying (ASK).

OOK modulation simply turns the PA on or off to modulate ones and zeros respectively.

The ASK variant supported by the

CC1101 allows programming of the modulation depth

(the difference between 1 and 0), and shaping of the pulse amplitude. Pulse shaping produces a more bandwidth constrained output spectrum.

When using OOK/ASK, the AGC settings from

the SmartRF Studio [5] preferred FSK/MSK settings are not optimum. DN022 [16] give

guidelines on how to find optimum OOK/ASK settings from the preferred settings in

SmartRF Studio [5]. The

DEVIATN

register

setting has no effect in either TX or RX when using OOK/ASK.

17 Received Signal Qualifiers and Link Quality Information

CC1101

has several qualifiers that can be used to increase the likelihood that a valid sync word is detected:

Sync Word Qualifier

Preamble Quality Threshold

RSSI

Carrier Sense

Clear Channel Assessment

Link Quality Indicator

17.1 Sync Word Qualifier

If sync word detection in RX is enabled in the

MDMCFG2

register, the

CC1101

will not start filling the RX FIFO and perform the packet

filtering described in Section 15.3 before a

valid sync word has been detected. The sync word qualifier mode is set by

MDMCFG2.SYNC_MODE

and is summarized in

Table 30. Carrier sense in Table 30 is

described in Section 17.4.

SWRS061I Page 43 of 98

CC1101

MDMCFG2.SYNC_MODE

Sync Word Qualifier Mode

000 No preamble/sync

001

010

011

100

15/16 sync word bits detected

16/16 sync word bits detected

30/32 sync word bits detected

No preamble/sync + carrier sense above threshold

101

110

111

15/16 + carrier sense above threshold

16/16 + carrier sense above threshold

30/32 + carrier sense above threshold

Table 30: Sync Word Qualifier Mode

17.2 Preamble Quality Threshold (PQT)

The Preamble Quality Threshold (PQT) sync word qualifier adds the requirement that the received sync word must be preceded with a preamble with a quality above the programmed threshold.

Another use of the preamble quality threshold is as a qualifier for the optional RX termination

timer. See Section 19.7 for details.

The preamble quality estimator increases an internal counter by one each time a bit is received that is different from the previous bit, and decreases the counter by eight each time a bit is received that is the same as the last bit.

17.3 RSSI

The RSSI value is an estimate of the signal power level in the chosen channel. This value is based on the current gain setting in the RX chain and the measured signal level in the channel.

In RX mode, the RSSI value can be read continuously from the

RSSI

status register

until the demodulator detects a sync word

(when sync word detection is enabled). At that point the RSSI readout value is frozen until the next time the chip enters the RX state.

Note

: It takes some time from the radio enters RX mode until a valid RSSI value is present in the

RSSI

register. Please see

DN505 [12] for details on how the RSSI

response time can be estimated.

The RSSI value is given in dBm with a ½ dB resolution. The RSSI update rate, f

RSSI

, depends on the receiver filter bandwidth

The threshold is configured with the register

field

PKTCTRL1.PQT

this counter is used to gate sync word detection. By setting the value to zero, the preamble quality qualifier of the sync word is disabled.

(BW channel

is defined in Section 13) and

AGCCTRL0.FILTER_LENGTH

.

f

RSSI

8

2

BW channel

2

FILTER

_

LENGTH

If

PKTCTRL1.APPEND_STATUS

is enabled,

the last RSSI value of the packet is automatically added to the first byte appended after the payload.

The RSSI value read from the

RSSI

status register is a 2’s complement number. The following procedure can be used to convert the

RSSI reading to an absolute power level

(RSSI_dBm)

1)

Read the

RSSI

status register

2) Convert the reading from a hexadecimal number to a decimal number (RSSI_dec)

3)

If RSSI_dec ≥ 128 then RSSI_dBm =

(RSSI_dec - 256)/2

– RSSI_offset

SWRS061I

. A threshold of 4∙

PQT

for

A “Preamble Quality Reached” signal can be observed on one of the GDO pins by setting

IOCFGx.GDOx_CFG=8

. It is also possible to determine if preamble quality is reached by checking the

PQT_REACHED

bit in the

PKTSTATUS

register. This signal / bit asserts

when the received signal exceeds the PQT.

Page 44 of 98

CC1101

4) Else if RSSI_dec < 128 then RSSI_dBm =

(RSSI_dec)/2

– RSSI_offset

Table 31 gives typical values for the

RSSI_offset. Figure 22 and Figure 23 show

Data rate [kBaud] RSSI_offset [dB], 433 MHz

1.2 74

38.4

250

500

74

74

74 typical plots of RSSI readings as a function of input power level for different data rates.

RSSI_offset [dB], 868 MHz

74

74

74

74

Table 31: Typical RSSI_offset Values

0

-10

-20

-60

-70

-80

-90

-30

-40

-50

-100

-110

-120

-120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0

Input Power [dBm]

1.2 kBaud 38.4 kBaud 250 kBaud 500 kBaud

Figure 22: Typical RSSI Value vs. Input Power Level for Different Data Rates at 433 MHz

SWRS061I Page 45 of 98

CC1101

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

-100

-110

-120

-120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0

Input Power [dBm]

1.2 kBaud

38.4 kBaud

250 kBaud 500 kBaud

Figure 23: Typical RSSI Value vs. Input Power Level for Different Data Rates at 868 MHz

17.4 Carrier Sense (CS)

Carrier sense (CS) is used as a sync word qualifier and for Clear Channel Assessment

(see Section 17.5). CS can be asserted based

on two conditions which can be individually adjusted:

CS is asserted when the RSSI is above a programmable absolute threshold, and deasserted when RSSI is below the same threshold (with hysteresis). See more in

Section 17.4.1.

CS is asserted when the RSSI has increased with a programmable number of dB from one RSSI sample to the next, and de-asserted when RSSI has decreased with the same number of dB. This setting is not dependent on the absolute signal level and is thus useful to detect signals in environments with time varying noise floor.

See more in Section 17.4.2.

Carrier sense can be used as a sync word qualifier that requires the signal level to be higher than the threshold for a sync word search to be performed and is set by setting

MDMCFG2

The carrier sense signal can be

observed on one of the GDO pins by setting

IOCFGx.GDOx_CFG=14

and in the status

register bit

PKTSTATUS.CS

.

Other uses of Carrier sense include the TX-if-

CCA function (see Section 17.5) and the

SWRS061I optional fast RX termination (see Section

19.7).

CS can be used to avoid interference from other RF sources in the ISM bands.

17.4.1 CS Absolute Threshold

The absolute threshold related to the RSSI value depends on the following register fields:

AGCCTRL2.MAX_LNA_GAIN

AGCCTRL2.MAX_DVGA_GAIN

AGCCTRL1.CARRIER_SENSE_ABS_THR

AGCCTRL2.MAGN_TARGET

For given

AGCCTRL2.MAX_LNA_GAIN

and

AGCCTRL2.MAX_DVGA_GAIN

settings, the absolute threshold can be adjusted ±7 dB in steps of 1

CARRIER_SENSE_ABS_THR

.

dB using

The

MAGN_TARGET

setting is a compromise

between blocker tolerance/selectivity and sensitivity. The value sets the desired signal level in the channel into the demodulator.

Increasing this value reduces the headroom for blockers, and therefore close-in selectivity.

It is strongly recommended to use SmartRF

Studio

[5]

to generate the correct

MAGN_TARGET

setting. Table 32 and Table

Page 46 of 98

33 show the typical RSSI readout values at the

CS threshold at 2.4 kBaud and 250 kBaud data rate respectively. The default reset value

for

CARRIER_SENSE_ABS_THR

= 0 (0 dB) has

been used.

MAGN_TARGET

= 3 (33 dB) and 7

(42 dB) have been used for 2.4 kBaud and

250 kBaud data rate respectively. For other data rates, the user must generate similar tables to find the CS absolute threshold.

If the threshold is set high, i.e. only strong signals are wanted, the threshold should be adjusted upwards by first reducing the

MAX_LNA_GAIN

value and then the

MAX_DVGA_GAIN

value. This will reduce

power consumption in the receiver front end, since the highest gain settings are avoided.

100

101

110

111

000

001

010

011

00

MAX_DVGA_GAIN[1:0]

01 10 11

-97.5

-94

-91.5

-88

-85.5

-82.5

-79.5

-76

-90.5

-88

-85.5

-84

-82

-79

-84.5

-82.5

-80

-78

-76

-73.5

-78.5

-76.5

-73.5

-72

-70

-67

-72.5

-70.5

-68

-66

-64

-61

Table 32: Typical RSSI Value in dBm at CS

Threshold with

MAGN_TARGET = 3 (33 dB) at

2.4 kBaud, 868 MHz

CC1101

100

101

110

111

000

001

010

011

00

MAX_DVGA_GAIN[1:0]

01 10 11

-90.5

-88

-84.5

-82

-78.5

-76

-72.5

-70

-84.5

-82.5

-80.5

-78

-76.5

-74.5

-78.5

-76.5

-74.5

-72

-70

-68

-72

-70

-68

-66

-64

-62

-66

-64

-62

-60

-58

-56

Table 33: Typical RSSI Value in dBm at CS

Threshold with

MAGN_TARGET = 7 (42 dB) at

250 kBaud, 868 MHz

17.4.2 CS Relative Threshold

The relative threshold detects sudden changes in the measured signal level. This setting does not depend on the absolute signal level and is thus useful to detect signals in environments with a time varying noise floor. The register field

AGCCTRL1.CARRIER_SENSE_REL_THR

is used to enable/disable relative CS, and to select threshold of 6 dB, 10 dB, or 14 dB RSSI change.

SWRS061I Page 47 of 98

17.5 Clear Channel Assessment (CCA)

The Clear Channel Assessment (CCA) is used to indicate if the current channel is free or busy. The current CCA state is viewable on any of the GDO pins by setting

IOCFGx.GDOx_CFG=0x09

.

MCSM1.CCA_MODE

selects the mode to use

when determining CCA.

When the

STX

or

SFSTXON

command strobe is

given while

CC1101

is in the RX state, the TX or

FSTXON state is only entered if the clear channel requirements are fulfilled. Otherwise, the chip will remain in RX. If the channel then

17.6 Link Quality Indicator (LQI)

The Link Quality Indicator is a metric of the current quality of the received signal. If

PKTCTRL1.APPEND_STATUS

is enabled, the

value is automatically added to the last byte appended after the payload. The value can

also be read from the

LQI

status register. The

LQI gives an estimate of how easily a received signal can be demodulated by accumulating

CC1101 becomes available, the radio will not enter TX or FSTXON state before a new strobe command is sent on the SPI interface. This feature is called TX-if-CCA. Four CCA requirements can be programmed:

Always (CCA disabled, always goes to TX)

If RSSI is below threshold

Unless currently receiving a packet

Both the above (RSSI below threshold and not currently receiving a packet) the magnitude of the error between ideal constellations and the received signal over the

64 symbols immediately following the sync word. LQI is best used as a relative measurement of the link quality (a low value indicates a better link than what a high value does), since the value is dependent on the modulation format.

18 Forward Error Correction with Interleaving

18.1 Forward Error Correction (FEC)

CC1101

has built in support for Forward Error

Correction (FEC). To enable this option, set

MDMCFG1.FEC_EN

to 1. FEC is only supported

in fixed packet length mode, i.e. when

PKTCTRL0.LENGTH_CONFIG=0

. FEC is employed on the data field and CRC word in order to reduce the gross bit error rate when operating near the sensitivity limit.

Redundancy is added to the transmitted data in such a way that the receiver can restore the original data in the presence of some bit errors.

The use of FEC allows correct reception at a lower Signal-to-Noise Ratio (SNR), thus extending communication range if the receiver bandwidth remains constant. Alternatively, for a given SNR, using FEC decreases the bit error rate (BER). The packet error rate (PER) is related to BER by

PER

1

( 1

BER

)

packet

_

length

A lower BER can therefore be used to allow longer packets, or a higher percentage of packets of a given length, to be transmitted successfully. Finally, in realistic ISM radio environments, transient and time-varying phenomena will produce occasional errors even in otherwise good reception conditions.

FEC will mask such errors and, combined with interleaving of the coded data, even correct relatively long periods of faulty reception (burst errors).

The FEC scheme adopted for

CC1101

is convolutional coding, in which

n

bits are generated based on

k

input bits and the

m

most recent input bits, forming a code stream able to withstand a certain number of bit errors between each coding state (the

m

-bit window).

The convolutional coder is a rate ½ code with a constraint length of

m

= 4. The coder codes one input bit and produces two output bits; hence, the effective data rate is halved. This means that in order to transmit at the same effective data rate when using FEC, it is necessary to use twice as high over-the-air data rate. This will require a higher receiver bandwidth, and thus reduce sensitivity. In other words the improved reception by using

FEC and the degraded sensitivity from a higher receiver bandwidth will be counteracting factors. See Design Note

DN504 for more details [19].

SWRS061I Page 48 of 98

18.2 Interleaving

Data received through radio channels will often experience burst errors due to interference and time-varying signal strengths.

In order to increase the robustness to errors spanning multiple bits, interleaving is used when FEC is enabled. After de-interleaving, a continuous span of errors in the received stream will become single errors spread apart.

CC1101

employs matrix interleaving, which is illustrated in

Figure 24.

The on-chip interleaving and de-interleaving buffers are 4 x

4 matrices. In the transmitter, the data bits from the rate ½ convolutional coder are written into the rows of the matrix, whereas the bit sequence to be transmitted is read from the columns of the matrix. Conversely, in the receiver, the received symbols are written into the rows of the matrix, whereas the data

Interleaver

Write buffer

Packet

Engine

FEC

Encoder

Interleaver

Read buffer

Modulator

CC1101 passed onto the convolutional decoder is read from the columns of the matrix.

CC1101 employs a 4x4 matrix interleaver with 2 bits (one encoder output symbol) per cell and the amount of data transmitted over the air will thus always be a multiple of four bytes (see

DN507 [20] for more details). When FEC and

interleaving is used, at least one extra byte is required for trellis termination and the packet control hardware therefore automatically inserts one or two extra bytes at the end of the packet. These bytes will be invisible to the user, as they are removed before the received packet enters the RXFIFO.

When FEC and interleaving is used the minimum data payload is 2 bytes.

Interleaver

Write buffer

Interleaver

Read buffer

Demodulator

FEC

Decoder

Figure 24: General Principle of Matrix Interleaving

Packet

Engine

SWRS061I Page 49 of 98

19 Radio Control

CC1101

MANCAL

3,4,5

CAL_COMPLETE

SCAL

SIDLE

SPWD | SWOR

SLEEP

0

IDLE

1

CSn = 0 | WOR

SXOFF

SRX | STX | SFSTXON | WOR

CSn = 0

XOFF

2

FS_WAKEUP

6,7

FS_AUTOCAL = 00 | 10 | 11

&

SRX | STX | SFSTXON | WOR

FS_AUTOCAL = 01

&

SRX | STX | SFSTXON | WOR

CALIBRATE

8

TXOFF_MODE = 10

SFSTXON

SETTLING

9,10,11

CAL_COMPLETE

FSTXON

18

STX

SRX | WOR

TX

STX

SRX

TXOFF_MODE=01

SFSTXON | RXOFF_MODE = 01

STX | RXOFF_MODE = 10

RXTX_SETTLING

21

( STX | SFSTXON ) & CCA

|

RXOFF_MODE = 01 | 10

19,20

RX

13,14,15

SRX | TXOFF_MODE = 11

TXRX_SETTLING

16

TXFIFO_UNDERFLOW

TXOFF_MODE = 00

&

FS_AUTOCAL = 10 | 11

TX_UNDERFLOW

22

TXOFF_MODE = 00

&

FS_AUTOCAL = 00 | 01

CALIBRATE

12

RXOFF_MODE = 00

&

FS_AUTOCAL = 10 | 11

RXOFF_MODE = 00

&

FS_AUTOCAL = 00 | 01

RXFIFO_OVERFLOW

RX_OVERFLOW

17

RXOFF_MODE = 11

SFTX

SFRX

IDLE

1

Figure 25: Complete Radio Control State Diagram

CC1101

has a built-in state machine that is used to switch between different operational states

(modes). The change of state is done either by using command strobes or by internal events such as TX FIFO underflow.

shown in Figure 13 on page 28. The complete

radio control state diagram is shown in Figure

25. The numbers refer to the state number

readable in the

MARCSTATE

status register.

This register is primarily for test purposes.

A simplified state diagram, together with typical usage and current consumption, is

19.1 Power-On Start-Up Sequence

When the power supply is turned on, the system must be reset. This is achieved by one of the two sequences described below, i.e. automatic power-on reset (POR) or manual reset. After the automatic power-on reset or manual reset, it is also recommended to

SWRS061I Page 50 of 98

change the signal that is output on the GDO0 pin. The default setting is to output a clock signal with a frequency of CLK_XOSC/192.

However, to optimize performance in TX and

RX, an alternative GDO setting from the

settings found in Table 41 on page 62 should

be selected.

19.1.1 Automatic POR

A power-on reset circuit is included in the

CC1101

. The minimum requirements stated in

Table 18 must be followed for the power-on

reset to function properly. The internal power-

up sequence is completed when

CHIP_RDYn goes low.

CHIP_RDYn

is observed on the SO pin after CSn is pulled low. See Section 10.1 for more details on

CHIP_RDYn

.

When the

CC1101

reset is completed, the chip will be in the IDLE state and the crystal oscillator will be running. If the chip has had sufficient time for the crystal oscillator to stabilize after the power-on-reset, the SO pin will go low immediately after taking CSn low. If

CSn is taken low before reset is completed, the SO pin will first go high, indicating that the crystal oscillator is not stabilized, before going

low as shown in Figure 26.

CSn this strobe, all internal registers and states are set to the default, IDLE state. The manual

power-up sequence is as follows (see Figure

27):

Set SCLK = 1 and SI = 0, to avoid potential problems with pin control mode

(see Section 11.3).

Strobe CSn low / high.

Hold CSn low and then high for at least 40

µs relative to pulling CSn low

Pull CSn low and wait for SO to go low

(

CHIP_RDYn

).

Issue the

SRES

strobe on the SI

line.

When SO goes low again, reset is complete and the chip is in the IDLE state.

XOSC and voltage regulator switched on

40 us

CSn

SO

CC1101

SO

XOSC Stable

Figure 26: Power-On Reset

19.1.2 Manual Reset

The other global reset possibility on

CC1101 uses the

SRES

command strobe. By issuing

19.2 Crystal Control

The crystal oscillator (XOSC) is either automatically controlled or always on, if

MCSM0.XOSC_FORCE_ON

is set.

In the automatic mode, the XOSC will be turned off if the

SXOFF

or

SPWD

command

strobes are issued; the state machine then goes to XOFF or SLEEP respectively. This can only be done from the IDLE state. The

XOSC will be turned off when CSn is released

(goes high). The XOSC will be automatically turned on again when CSn goes low. The

XOSC Stable

SI

SRES

Figure 27: Power-On Reset with

SRES

Note that the above reset procedure is only required just after the power supply is first turned on. If the user wants to reset the

CC1101 after this, it is only necessary to

issue an

SRES

command strobe.

state machine will then go to the IDLE state.

The SO pin on the SPI interface must be pulled low before the SPI interface is ready to

be used as described in Section 10.1.

If the XOSC is forced on, the crystal will always stay on even in the SLEEP state.

Crystal oscillator start-up time depends on crystal ESR and load capacitances. The electrical specification for the crystal oscillator

can be found in Section 4.4.

SWRS061I Page 51 of 98

19.3 Voltage Regulator Control

The voltage regulator to the digital core is controlled by the radio controller. When the chip enters the SLEEP state which is the state with the lowest current consumption, the voltage regulator is disabled. This occurs after

CSn is released when a

SPWD

command

strobe has been sent on the SPI interface. The

19.4 Active Modes (RX and TX)

CC1101

has two active modes: receive and transmit. These modes are activated directly by the MCU by using the

SRX

and

STX

command strobes, or automatically by Wake on Radio.

The frequency synthesizer must be calibrated regularly.

CC1101

has one manual calibration option (using the

SCAL

strobe), and three

automatic calibration options that are

controlled by the

MCSM0.FS_AUTOCAL

setting:

Calibrate when going from IDLE to either

RX or TX (or FSTXON)

Calibrate when going from either RX or TX to IDLE automatically

3

Calibrate every fourth time when going from either RX or TX to IDLE

automatically

3

If the radio goes from TX or RX to IDLE by

issuing an

SIDLE

strobe, calibration will not be

performed. The calibration takes a constant

number of XOSC cycles; see Table 34 for

timing details regarding calibration.

When RX is activated, the chip will remain in receive mode until a packet is successfully received or the RX termination timer expires

(see Section 19.7). The probability that a false

sync word is detected can be reduced by using PQT, CS, maximum sync word length, and sync word qualifier mode as described in

Section 17. After a packet is successfully

received, the radio controller goes to the state

indicated by the

MCSM1.RXOFF_MODE

setting.

The possible destinations are:

3

Not forced in IDLE by issuing an SIDLE strobe

CC1101 chip is then in the SLEEP state. Setting CSn low again will turn on the regulator and crystal oscillator and make the chip enter the IDLE state.

When Wake on Radio is enabled, the WOR module will control the voltage regulator as

described in Section19.5.

IDLE

FSTXON: Frequency synthesizer on and ready at the TX frequency. Activate TX

with

STX

TX: Start sending preamble

RX: Start search for a new packet

Note:

When

MCSM1.RXOFF_MODE=11

and a packet has been received, it will take some time before a valid RSSI value

is present in the

RSSI

register again even

if the radio has never exited RX mode.

This time is the same as the RSSI

response time discussed in DN505 [12].

Similarly, when TX is active the chip will remain in the TX state until the current packet has been successfully transmitted. Then the state will change as indicated by the

MCSM1.TXOFF_MODE

setting. The possible

destinations are the same as for RX.

The MCU can manually change the state from

RX to TX and vice versa by using the command strobes. If the radio controller is currently in transmit and the

SRX

strobe is

used, the current transmission will be ended and the transition to RX will be done.

If the radio controller is in RX when the

STX or

SFSTXON

command strobes are used, the TX-

if-CCA function will be used. If the channel is not clear, the chip will remain in RX. The

MCSM1.CCA_MODE

setting controls the conditions for clear channel assessment. See

Section 17.5 for details.

The

SIDLE

command strobe can always be

used to force the radio controller to go to the

IDLE state.

Page 52 of 98 SWRS061I

19.5 Wake On Radio (WOR)

The optional Wake on Radio (WOR) functionality enables

CC1101

to periodically wake up from SLEEP and listen for incoming packets without MCU interaction.

When the

SWOR

strobe command is sent on

the SPI interface, the

CC1101

will go to the

SLEEP state when CSn is released. The RC oscillator must be enabled before the

SWOR

strobe can be used, as it is the clock source for the WOR timer. The on-chip timer will set

CC1101

into IDLE state and then RX state. After a programmable time in RX, the chip will go back to the SLEEP state, unless a packet is

received. See Figure 28 and Section 19.7 for

details on how the timeout works.

To exit WOR mode, set the

IDLE state

CC1101

into the

CC1101

can be set up to signal the MCU that a packet has been received by using the GDO pins. If a packet is received, the

MCSM1.RXOFF_MODE

will determine the behaviour at the end of the received packet.

When the MCU has read the packet, it can put

the chip back into SLEEP with the

SWOR

strobe

from the IDLE state.

Note:

The FIFO looses its content in the

SLEEP state.

The WOR timer has two events, Event 0 and

Event 1. In the SLEEP state with WOR activated, reaching Event 0 will turn on the digital regulator and start the crystal oscillator.

Event 1 follows Event 0 after a programmed timeout.

The time between two consecutive Event 0 is programmed with a mantissa value given by

WOREVT1.EVENT0

and

WOREVT0.EVENT0

,

and an exponent value set by

WORCTRL.WOR_RES

. The equation is:

t

Event

0

750

f

XOSC

EVENT

0

2

5

WOR

_

RES

The Event 1 timeout is programmed with

WORCTRL.EVENT1

. Figure 28 shows the

timing relationship between Event 0 timeout and Event 1 timeout.

CC1101

Rx timeout

State: SLEEP IDLE RX SLEEP IDLE RX

Event0 Event1 t

Event0 t

Event0

Event0 Event1 t t

Event1 t

Event1 t

SLEEP

Figure 28: Event 0 and Event 1 Relationship

The time from the

CC1101

enters SLEEP state until the next Event0 is programmed to appear, t

SLEEP

in Figure 28, should be larger

than 11.08 ms when using a 26 MHz crystal and 10.67 ms when a 27 MHz crystal is used.

If t

SLEEP

is less than 11.08 (10.67) ms, there is a chance that the consecutive Event 0 will occur

750

f

XOSC

128

seconds

too early. Application Note AN047 [4] explains

in detail the theory of operation and the different registers involved when using WOR, as well as highlighting important aspects when using WOR mode.

19.5.1 RC Oscillator and Timing

The frequency of the low-power RC oscillator used for the WOR functionality varies with temperature and supply voltage. In order to keep the frequency as accurate as possible, the RC oscillator will be calibrated whenever possible, which is when the XOSC is running and the chip is not in the SLEEP state. When the power and XOSC are enabled, the clock used by the WOR timer is a divided XOSC clock. When the chip goes to the sleep state, the RC oscillator will use the last valid calibration result. The frequency of the RC oscillator is locked to the main crystal frequency divided by 750.

In applications where the radio wakes up very often, typically several times every second, it is possible to do the RC oscillator calibration once and then turn off calibration to reduce the current consumption. This is done by setting

WORCTRL.RC_CAL=0

and requires that RC oscillator calibration values are read from registers

RCCTRL0_STATUS

and

RCCTRL1_STATUS

and written back to

Page 53 of 98 SWRS061I

RCCTRL0

and

RCCTRL1

respectively. If the

RC oscillator calibration is turned off, it will have to be manually turned on again if

CC1101 temperature and supply voltage changes.

Refer to Application Note AN047 [4] for further

details.

19.6 Timing

19.6.1 Overall State Transition Times

The main radio controller needs to wait in certain states in order to make sure that the internal analog/digital parts have settled down and are ready to operate in the new states. A number of factors are important for the state transition times:

The crystal oscillator frequency, f xosc

PA ramping enabled or not

The data rate in cases where PA ramping is enabled

The value of the

TEST0

,

TEST1

, and

FSCAL3

registers

Table 34 shows timing in crystal clock cycles

for key state transitions.

Power on time and XOSC start-up times are

variable, but within the limits stated in Table

13.

Note that TX to IDLE and TX to RX transition times are functions of data rate (f baudrate

). When

PA ramping is enabled

Transition Time [µs]

75.1

799

75.2

799

31.1

30.1

~1

725

~0.1

724

735

(i.e.

FREND0.PA_POWER

≠000 b

), TX to IDLE and

TX to RX will

(

FREND0.PA_POWER

)/8

∙f baudrate require longer times

than the times stated in Table 34.

Description Transition Time

(no PA ramping)

IDLE to RX, no calibration

IDLE to RX, with calibration

1953/f xosc

1953/f xosc

+ FS calibration Time

1954/f xosc

IDLE to TX/FSTXON, no calibration

IDLE to TX/FSTXON, with calibration 1953/f xosc

+ FS calibration Time

TX to RX switch

RX to TX switch

782/f xosc

+ 0.25/f baudrate

782/f xosc

TX to IDLE, no calibration ~0.25/f baudrate

~0.25/f baudrate

+ FS calibration Time TX to IDLE, with calibration

RX to IDLE, no calibration

RX to IDLE, with calibration

Manual calibration

2/f

2/f xosc xosc

+ FS calibration Time

283/f xosc

+ FS calibration Time

Table 34: Overall State Transition Times (Example for 26 MHz crystal oscillator, 250 kBaud data rate, and

TEST0 = 0x0B (maximum calibration time)).

19.6.2 Frequency Synthesizer Calibration

Time

TEST0

when operating with different frequency bands are 0x09 and 0x0B. SmartRF Studio software

[5]

always

FSCAL3.CHP_CURR_CAL_EN

to 10 b

. sets

Table 35

summarizes the frequency synthesizer (FS) calibration times for possible settings of

TEST0 and

FSCAL3.CHP_CURR_CAL_EN

. Setting

FSCAL3.CHP_CURR_CAL_EN

to 00 b

disables the charge pump calibration stage.

TEST0

is set to the values recommended by SmartRF

Studio software [5]. The possible values for

Note that in a frequency hopping spread spectrum or a multi-channel protocol the calibration time can be reduced from 712/724

µs to 145/157 µs. This is explained in Section

28.2.

SWRS061I Page 54 of 98

CC1101

TEST0 FSCAL3.CHP_CURR_CAL_EN

FS Calibration Time f xosc

= 26 MHz

0x09

0x09

00

10 b b

3764/f xosc

= 145 us

18506/f xosc

= 712 us

0x0B

0x0B

00 b

10 b

4073/f xosc

= 157 us

18815/f xosc

= 724 us

FS Calibration Time f xosc

= 27 MHz

3764/f xosc

= 139 us

18506/f xosc

= 685 us

4073/f xosc

= 151 us

18815/f xosc

= 697 us

Table 35: Frequency Synthesizer Calibration Times (26/27 MHz crystal)

19.7 RX Termination Timer

CC1101

has optional functions for automatic termination of RX after a programmable time.

The main use for this functionality is Wake on

Radio, but it may also be useful for other applications. The termination timer starts when in RX state. The timeout is programmable with

the

MCSM2.RX_TIME

setting. When the timer

expires, the radio controller will check the condition for staying in RX; if the condition is not met, RX will terminate.

The programmable conditions are:

MCSM2.RX_TIME_QUAL=0

:

Continue receive if sync word has been found

MCSM2.RX_TIME_QUAL=1

:

Continue receive if sync word has been found, or if the preamble quality is above threshold

(PQT)

If the system expects the transmission to have started when enabling the receiver, the

MCSM2.RX_TIME_RSSI

function can be used.

The radio controller will then terminate RX if the first valid carrier sense sample indicates no carrier (RSSI below threshold). See Section

17.4 for details on Carrier Sense.

For ASK/OOK modulation, lack of carrier sense is only considered valid after eight symbol periods. Thus, the

MCSM2.RX_TIME_RSSI

function can be used

in ASK/OOK mode when the distance between

“1” symbols is eight or less.

If RX terminates due to no carrier sense when

the

MCSM2.RX_TIME_RSSI

function is used,

or if no sync word was found when using the

MCSM2.RX_TIME

timeout function, the chip

will always go back to IDLE if WOR is disabled and back to SLEEP if WOR is enabled.

Otherwise, the

MCSM1.RXOFF_MODE

setting determines the state to go to when RX ends.

This means that the chip will not automatically go back to SLEEP once a sync word has been received. It is therefore recommended to always wake up the microcontroller on sync word detection when using WOR mode. This can be done by selecting output signal 6 (see

Table 41 on page 62) on one of the

programmable GDO output pins, and programming the microcontroller to wake up on an edge-triggered interrupt from this GDO pin.

SWRS061I Page 55 of 98

20 Data FIFO

The

CC1101

contains two 64 byte FIFOs, one for received data and one for data to be transmitted. The SPI interface is used to read from the RX FIFO and write to the TX FIFO.

Section 10.5 contains details on the SPI FIFO

access. The FIFO controller will detect overflow in the RX FIFO and underflow in the

TX FIFO.

When writing to the TX FIFO it is the responsibility of the MCU to avoid TX FIFO overflow. A TX FIFO overflow will result in an error in the TX FIFO content.

Likewise, when reading the RX FIFO the MCU must avoid reading the RX FIFO past its empty value since a RX FIFO underflow will result in an error in the data read out of the RX FIFO.

The chip status byte that is available on the

SO pin while transferring the SPI header and contains the fill grade of the RX FIFO if the access is a read operation and the fill grade of the TX FIFO if the access is a write operation.

Section 10.1 contains more details on this.

The number of bytes in the RX FIFO and TX

FIFO can be read from the status registers

RXBYTES.NUM_RXBYTES

and

TXBYTES.NUM_TXBYTES

respectively. If a

received data byte is written to the RX FIFO at the exact same time as the last byte in the RX

FIFO is read over the SPI interface, the RX

FIFO pointer is not properly updated and the last read byte will be duplicated. To avoid this problem, the RX FIFO should never be emptied before the last byte of the packet is received.

For packet lengths less than 64 bytes it is recommended to wait until the complete packet has been received before reading it out of the RX FIFO.

If the packet length is larger than 64 bytes, the

MCU must determine how many bytes can be read from the RX FIFO

(

RXBYTES.NUM_RXBYTES

-1). The following

software routine can be used:

1.

Read

RXBYTES.NUM_RXBYTES

repeatedly at a rate specified to be at least twice that of which RF bytes are received until the same value is returned twice; store value in

n.

2. If n < # of bytes remaining in packet, read

n-1 bytes from the RX FIFO.

SWRS061I

CC1101

3. Repeat steps 1 and 2 until n = # of bytes remaining in packet.

4. Read the remaining bytes from the RX

FIFO.

The 4-bit

FIFOTHR.FIFO_THR

setting is used

to program threshold points in the FIFOs.

Table 36 lists the 16

FIFO_THR

settings and

the corresponding thresholds for the RX and

TX FIFOs. The threshold value is coded in opposite directions for the RX FIFO and TX

FIFO. This gives equal margin to the overflow and underflow conditions when the threshold is reached.

FIFO_THR

Bytes in TX FIFO Bytes in RX FIFO

0 (0000)

1 (0001)

2 (0010)

61

57

53

4

8

12

3 (0011)

4 (0100)

5 (0101)

6 (0110)

7 (0111)

8 (1000)

9 (1001)

49

45

41

37

33

29

25

16

20

24

28

32

36

40

10 (1010)

11 (1011)

12 (1100)

13 (1101)

14 (1110)

15 (1111)

9

5

1

21

17

13

44

48

52

56

60

64

Table 36:

FIFO_THR Settings and the

Corresponding FIFO Thresholds

A signal will assert when the number of bytes in the FIFO is equal to or higher than the programmed threshold. This signal can be

viewed on the GDO pins (see Table 41 on

page 62).

Figure 29 shows the number of bytes in both

the RX FIFO and TX FIFO when the threshold

signal toggles in the case of

FIFO_THR=13

.

Figure 30 shows the signal on the GDO pin as

the respective FIFO is filled above the threshold, and then drained below in the case

of

FIFO_THR=13

.

Page 56 of 98

CC1101

Overflow margin

FIFO_THR=13

NUM_RXBYTES

53 54 55 56 57 56 55 54 53

GDO

56 bytes

FIFO_THR=13

Underflow margin

8 bytes

RXFIFO TXFIFO

Figure 29: Example of FIFOs at Threshold

NUM_TXBYTES

6 7 8 9 10 9 8 7 6

GDO

Figure 30: Number of Bytes in FIFO vs. the

GDO Signal (

GDOx_CFG=0x00 in RX and

GDOx_CFG=0x02 in TX, FIFO_THR=13)

21 Frequency Programming

The frequency programming in

CC1101 is designed to minimize the programming needed in a channel-oriented system.

To set up a system with channel numbers, the desired channel spacing is programmed with the

MDMCFG0.CHANSPC_M

and

MDMCFG1.CHANSPC_E

registers. The channel

by the 24 bit frequency word located in the

FREQ2

,

FREQ1

, and

FREQ0 registers. This

word will typically be set to the centre of the lowest channel frequency that is to be used.

The desired channel number is programmed with the 8-bit channel number register,

CHANNR.CHAN

, which is multiplied by the

spacing registers are mantissa and exponent respectively. The base or start frequency is set

f carrier

f

XOSC

2

16

FREQ

CHAN

256 channel offset. The resultant carrier frequency is given by:

CHANSPC

_

M

2

CHANSPC

_

E

2

 

With a 26 MHz crystal the maximum channel spacing is 405 kHz. To get e.g. 1 MHz channel spacing, one solution is to use 333 kHz channel spacing and select each third channel

in

CHANNR.CHAN

.

The preferred IF frequency is programmed

with the

FSCTRL1.FREQ_IF

register. The IF

frequency is given by:

f

IF

f

XOSC

2

10

FREQ

_

IF

If any frequency programming register is altered when the frequency synthesizer is running, the synthesizer may give an undesired response. Hence, the frequency programming should only be updated when the radio is in the IDLE state.

SWRS061I Page 57 of 98

22 VCO

The VCO is completely integrated on-chip.

22.1 VCO and PLL Self-Calibration

The VCO characteristics vary with temperature and supply voltage changes as well as the desired operating frequency. In order to ensure reliable operation,

CC1101

includes frequency synthesizer self-calibration circuitry.

This calibration should be done regularly, and must be performed after turning on power and before using a new frequency (or channel).

The number of XOSC cycles for completing

the PLL calibration is given in Table 34 on page 54.

The calibration can be initiated automatically or manually. The synthesizer can be automatically calibrated each time the synthesizer is turned on, or each time the synthesizer is turned off automatically. This is configured with the

MCSM0.FS_AUTOCAL

register setting. In manual mode, the calibration is initiated when the

SCAL

command strobe is activated in the IDLE mode.

Note:

The calibration values are maintained in SLEEP mode, so the calibration is still valid after waking up from

SLEEP mode unless supply voltage or temperature has changed significantly.

23 Voltage Regulators

CC1101

contains several on-chip linear voltage regulators that generate the supply voltages needed by low-voltage modules. These voltage regulators are invisible to the user, and can be viewed as integral parts of the various modules. The user must however make sure that the absolute maximum ratings and

required pin voltages in Table 1 and Table 19

are not exceeded.

By setting the CSn pin low, the voltage regulator to the digital core turns on and the crystal oscillator starts. The SO pin on the SPI interface must go low before the first positive

CC1101

If calibration is performed

each

time before entering active mode (RX or TX) the user can

program register

IOCFGx.GDOx_CFG

to 0x0A

to check that the PLL is in lock. The lock detector output available on the GDOx pin should then be an interrupt for the MCU (x =

0,1, or 2). A positive transition on the GDOx pin means that the PLL is in lock. As an alternative the user can read register FSCAL1.

The PLL is in lock if the register content is different from 0x3F. Refer also to the

CC1101

Errata Notes

[3] . The PLL must be re-

calibrated until PLL lock is achieved if the PLL does not lock the first time.

If the calibration is not performed each time before entering active mode (RX or TX) the user should program register

IOCFGx.GDOx_CFG

to 0x0A to check that the

PLL is in lock before receiving/transmitting data. The lock detector output available on the

GDOx pin should then be an interrupt for the

MCU (x = 0,1, or 2). A positive transition on the GDOx pin means that the PLL is in lock.

Since the current calibration values are only valid for a finite temperature range (typically

±40C) the PLL must be re-calibrated if the lock indicator does not indicate PLL lock.

edge of SCLK (setup time is given in Table

22).

If the chip is programmed to enter power-down

mode (

SPWD

strobe issued), the power will be

turned off after CSn goes high. The power and crystal oscillator will be turned on again when

CSn goes low.

The voltage regulator for the digital core requires one external decoupling capacitor.

The voltage regulator output should only be used for driving the

CC1101

.

Page 58 of 98 SWRS061I

CC1101

24 Output Power Programming

The RF output power level from the device has two levels of programmability as illustrated in

Figure 31. The special

PATABLE register can hold up to eight user selected output power settings. The 3-bit

FREND0.PA_POWER

value

selects the

PATABLE entry to use. This twolevel functionality provides flexible PA power ramp up and ramp down at the start and end of transmission when using 2-FSK, GFSK,

4-FSK, and MSK modulation as well as ASK modulation shaping. All the PA power settings in the

PATABLE from index 0 up to the

FREND0.PA_POWER

value are used.

The power ramping at the start and at the end of a packet can be turned off by setting

FREND0.PA_POWER=0

and then program the desired output power to index 0 in the

PATABLE

.

If OOK modulation is used, the logic 0 and logic 1 power levels shall be programmed to index 0 and 1 respectively.

Table 39 contains recommended

PATABLE settings for various output levels and

frequency bands. DN013 [15] gives the

complete tables for the different frequency bands using multi-layer inductors. Using PA settings from 0x61 to 0x6F is not allowed.

Table 40 contains output power and current

consumption for default

PATABLE setting

(0xC6).

See Section 10.6 for

PATABLE programming details.

PATABLE must be programmed in burst mode if you want to write to other entries than

PATABLE[0].

Note:

All content of the

PATABLE

except for the first byte (index 0) is lost when entering the SLEEP state.

Output

Power

[dBm]

-30

Setting

0x03

868 MHz

Current

Consumption,

Typ. [mA]

12.0

-20

-15

-10

-6

0x17

0x1D

0x26

0x37

12.6

13.3

14.5

16.4

0

5

7

10

12/11

0x50

0x86

0xCD

0xC5

0xC0

16.8

19.9

25.8

30.0

34.2

Setting

0x03

915 MHz

Current

Consumption,

Typ. [mA]

11.9

0x0E

0x1E

0x27

0x38

12.5

13.3

14.8

17.0

0x8E

0x84

0xCC

0xC3

0xC0

17.2

20.2

25.7

30.7

33.4

Table 37: Optimum

PATABLE Settings for Various Output Power Levels and Frequency Bands

Using Wire-Wound Inductors in 868/915 MHz Frequency Bands

Page 59 of 98 SWRS061I

CC1101

Default

Power

Setting

0xC6

Output

Power

[dBm]

9.6

868 MHz

Current

Consumption,

Typ. [mA]

29.4

Output

Power

[dBm]

8.9

915 MHz

Current

Consumption,

Typ. [mA]

28.7

Table 38: Output Power and Current Consumption for Default

PATABLE Setting Using Wire-

Wound Inductors in 868/915 MHz Frequency Bands

Output

Power

[dBm]

Setting

315 MHz

Current

Consumption,

Typ. [mA]

0

5

7

10

-30

-20

-15

-10

0x12

0x0D

0x1C

0x34

0x51

0x85

0xCB

0xC2

10.9

11.4

12.0

13.5

15.0

18.3

22.1

26.9

Setting

433 MHz

Current

Consumption,

Typ. [mA]

0x12

0x0E

0x1D

0x34

11.9

12.4

13.1

14.4

0x60

0x84

0xC8

0xC0

15.9

19.4

24.2

29.1

Setting

868 MHz

Current

Consumption,

Typ. [mA]

0x03

0x0F

0x1E

0x27

12.1

12.7

13.4

15.0

0x50

0x81

0xCB

0xC2

16.9

21.0

26.8

32.4

Setting

915 MHz

Current

Consumption,

Typ. [mA]

0x03

0x0E

0x1E

0x27

12.0

12.6

13.4

14.9

0x8E

0xCD

0xC7

0xC0

16.7

24.3

26.9

31.8

Table 39: Optimum

PATABLE Settings for Various Output Power Levels and Frequency Bands

Using Multi-layer Inductors

Default

Power

Setting

0xC6

Output

Power

[dBm]

8.5

315 MHz

Current

Consumption,

Typ. [mA]

24.4

Output

Power

[dBm]

7.8

433 MHz

Current

Consumption,

Typ. [mA]

25.2

Output

Power

[dBm]

8.5

868 MHz

Current

Consumption,

Typ. [mA]

29.5

Output

Power

[dBm]

7.2

915 MHz

Current

Consumption,

Typ. [mA]

27.4

Table 40: Output Power and Current Consumption for Default

PATABLE Setting Using Multi-layer

Inductors

25 Shaping and PA Ramping

With ASK modulation, up to eight power settings are used for shaping. The modulator contains a counter that counts up when transmitting a one and down when transmitting a zero. The counter counts at a rate equal to 8 times the symbol rate. The counter saturates at

FREND0.PA_POWER

and 0 respectively.

This counter value is used as an index for a lookup in the power table. Thus, in order to utilize the whole table,

FREND0.PA_POWER

should be 7 when ASK is active. The shaping of the ASK signal is dependent on the configuration of the

PATABLE

. Figure 32

shows some examples of ASK shaping.

Page 60 of 98 SWRS061I

CC1101

PATABLE(7)[7:0]

PATABLE(6)[7:0]

PATABLE(5)[7:0]

PATABLE(4)[7:0]

PATABLE(3)[7:0]

PATABLE(2)[7:0]

PATABLE(1)[7:0]

PATABLE(0)[7:0]

The PA uses this setting.

Settings 0 to PA_POWER are used during ramp-up at start of transmission and ramp-down at end of transmission, and for

ASK/OOK modulation.

Index into PATABLE(7:0) e.g 6

PA_POWER[2:0] in FREND0 register

The SmartRF® Studio software should be used to obtain optimum

PATABLE settings for various output powers.

Figure 31:

PA_POWER and PATABLE

Output Power

PATABLE[7]

PATABLE[6]

PATABLE[5]

PATABLE[4]

PATABLE[3]

PATABLE[2]

PATABLE[1]

PATABLE[0]

1 0

FREND0.PA_POWER = 3

FREND0.PA_POWER = 7

0 1 0 1 1 0

Time

Bit Sequence

Figure 32: Shaping of ASK Signal

26 General Purpose / Test Output Control Pins

The three digital output pins GDO0, GDO1, and GDO2 are general control pins configured with

IOCFG0.GDO0_CFG

,

IOCFG1.GDO1_CFG

, and

IOCFG2.GDO2_CFG

respectively. Table 41 shows the different

signals that can be monitored on the GDO pins. These signals can be used as inputs to the MCU.

GDO1 is the same pin as the SO pin on the

SPI interface, thus the output programmed on this pin will only be valid when CSn is high.

The default value for GDO1 is 3-stated which is useful when the SPI interface is shared with other devices.

The default value for GDO0 is a 135-141 kHz clock output (XOSC frequency divided by

192). Since the XOSC is turned on at poweron-reset, this can be used to clock the MCU in systems with only one crystal. When the MCU is up and running, it can change the clock

frequency by writing to

IOCFG0.GDO0_CFG.

An on-chip analog temperature sensor is enabled by writing the value 128 (0x80) to the

IOCFG0

register. The voltage on the GDO0

pin is then proportional to temperature. See

Section

4.7

for temperature sensor specifications.

If the

IOCFGx.GDOx_CFG

setting is less than

0x20 and

IOCFGx_GDOx_INV is 0 (1), the

GDO0 and GDO2 pins will be hardwired to 0

(1), and the GDO1 pin will be hardwired to 1

(0) in the SLEEP state. These signals will be hardwired until the

CHIP_RDYn

signal goes

low.

If the

IOCFGx.GDOx_CFG

setting is 0x20 or higher, the GDO pins will work as programmed also in SLEEP state. As an example, GDO1 is high impedance in all states if

IOCFG1.GDO1_CFG=0x2E

.

SWRS061I Page 61 of 98

CC1101

GDOx_CFG[5:0]

Description

0 (0x00)

Associated to the RX FIFO: Asserts when RX FIFO is filled at or above the RX FIFO threshold. De-asserts when RX FIFO is drained below the same threshold.

1 (0x01)

2 (0x02)

Associated to the RX FIFO: Asserts when RX FIFO is filled at or above the RX FIFO threshold or the end of packet is reached. De-asserts when the RX FIFO is empty.

Associated to the TX FIFO: Asserts when the TX FIFO is filled at or above the TX FIFO threshold. De-asserts when the TX

FIFO is below the same threshold.

3 (0x03)

6 (0x06)

Associated to the TX FIFO: Asserts when TX FIFO is full. De-asserts when the TX FIFO is drained below the TX FIFO threshold.

4 (0x04) Asserts when the RX FIFO has overflowed. De-asserts when the FIFO has been flushed.

5 (0x05) Asserts when the TX FIFO has underflowed. De-asserts when the FIFO is flushed.

Asserts when sync word has been sent / received, and de-asserts at the end of the packet. In RX, the pin will also deassert when a packet is discarded due to address or maximum length filtering or when the radio enters

RXFIFO_OVERFLOW state. In TX the pin will de-assert if the TX FIFO underflows.

7 (0x07) Asserts when a packet has been received with CRC OK. De-asserts when the first byte is read from the RX FIFO.

8 (0x08)

Preamble Quality Reached. Asserts when the PQI is above the programmed PQT value. De-asserted when the chip re-

enters RX state (

MARCSTATE=0x0D

) or the PQI gets below the programmed PQT value.

9 (0x09) Clear channel assessment. High when RSSI level is below threshold (dependent on the current CCA_MODE setting).

10 (0x0A)

11 (0x0B)

Lock detector output. The PLL is in lock if the lock detector output has a positive transition or is constantly logic high. To check for PLL lock the lock detector output should be used as an interrupt for the MCU.

Serial Clock. Synchronous to the data in synchronous serial mode.

In RX mode, data is set up on the falling edge by

In TX mode, data is sampled by

CC1101

CC1101 when

GDOx_INV=0

. on the rising edge of the serial clock when

GDOx_INV=0

.

12 (0x0C) Serial Synchronous Data Output. Used for synchronous serial mode.

13 (0x0D) Serial Data Output. Used for asynchronous serial mode.

14 (0x0E) Carrier sense. High if RSSI level is above threshold. Cleared when entering IDLE mode.

15 (0x0F) CRC_OK. The last CRC comparison matched. Cleared when entering/restarting RX mode.

16 (0x10) to

21 (0x15)

Reserved

– used for test

22 (0x16) RX_HARD_DATA[1]. Can be used together with RX_SYMBOL_TICK for alternative serial RX output.

23 (0x17) RX_HARD_DATA[0]. Can be used together with RX_SYMBOL_TICK for alternative serial RX output.

24 (0x18) to

26 (0x1A)

Reserved

– used for test

27 (0x1B)

28 (0x1C)

PA_PD.

Note

: PA_PD will have the same signal level in SLEEP and TX states. To control an external PA or RX/TX switch

in applications where the SLEEP state is used it is recommended to use

GDOx_CFGx=0x2F

instead.

LNA_PD.

Note:

LNA_PD will have the same signal level in SLEEP and RX states. To control an external LNA or RX/TX switch in applications where the SLEEP state is used it is recommended to use

GDOx_CFGx=0x2F

instead.

29 (0x1D) RX_SYMBOL_TICK. Can be used together with RX_HARD_DATA for alternative serial RX output.

30 (0x1E) to Reserved

– used for test

35 (0x23)

36 (0x24) WOR_EVNT0

37 (0x25) WOR_EVNT1

38 (0x26) CLK_256

39 (0x27) CLK_32k

40 (0x28) Reserved

– used for test

41 (0x29) CHIP_RDYn

42 (0x2A) Reserved

– used for test

43 (0x2B) XOSC_STABLE

44 (0x2C) Reserved

– used for test

45 (0x2D) Reserved

– used for test

46 (0x2E) High impedance (3-state)

47 (0x2F)

HW to 0 (HW1 achieved by setting

GDOx_INV=1

). Can be used to control an external LNA/PA or RX/TX switch.

48 (0x30) CLK_XOSC/1

49 (0x31) CLK_XOSC/1.5

50 (0x32) CLK_XOSC/2

51 (0x33) CLK_XOSC/3

52 (0x34) CLK_XOSC/4

Note:

There are 3 GDO pins, but only one CLK_XOSC/n can be selected as an output at any time. If CLK_XOSC/n is to be monitored on one of the GDO pins, the other two GDO pins must

53 (0x35) CLK_XOSC/6

54 (0x36) CLK_XOSC/8

55 (0x37) CLK_XOSC/12

56 (0x38) CLK_XOSC/16

57 (0x39) CLK_XOSC/24

58 (0x3A) CLK_XOSC/32

59 (0x3B) CLK_XOSC/48

60 (0x3C) CLK_XOSC/64

61 (0x3D) CLK_XOSC/96

62 (0x3E) CLK_XOSC/128

63 (0x3F) CLK_XOSC/192 be configured to values less than 0x30. The GDO0 default value is CLK_XOSC/192.

To optimize RF performance, these signals should not be used while the radio is in RX or TX mode.

Table 41: GDOx Signal Selection (x = 0, 1, or 2)

Page 62 of 98 SWRS061I

CC1101

27 Asynchronous and Synchronous Serial Operation

Several features and modes of operation have been included in the

CC1101

to provide backward compatibility with previous Chipcon products and other existing RF communication systems. For new systems, it is recommended to use the built-in packet handling features, as they can give more robust communication, significantly offload the microcontroller, and simplify software development.

27.1 Asynchronous Serial Operation

Asynchronous transfer is included in the

CC1101

for backward compatibility with systems that are already using the asynchronous data transfer.

When asynchronous transfer is enabled, several of the support mechanisms for the

MCU that are included in

CC1101

will be disabled, such as packet handling hardware, buffering in the FIFO, and so on. The asynchronous transfer mode does not allow for the use of the data whitener, interleaver, and FEC, and it is not possible to use

Manchester encoding. MSK is not supported for asynchronous transfer.

Setting

PKTCTRL0.PKT_FORMAT

to 3 enables asynchronous serial mode. In TX, the

GDO0 pin is used for data input (TX data).

Data output can be on GDO0, GDO1, or

GDO2. This is set by the

IOCFG0.GDO0_CFG, IOCFG1.GDO1_CFG

and

IOCFG2.GDO2_CFG

fields.

The

CC1101

modulator samples the level of the asynchronous input 8 times faster than the programmed data rate. The timing requirement for the asynchronous stream is that the error in the bit period must be less than one eighth of the programmed data rate.

In asynchronous serial mode no data decision is done on-chip and the raw data is put on the data output line in RX. When using asynchronous serial mode make sure the interfacing MCU does proper oversampling and that it can handle the jitter on the data output line. The MCU should tolerate a jitter of

±1/8 of a bit period as the data stream is timediscrete using 8 samples per bit.

In asynchronous serial mode there will be glitches of 37 - 38.5 ns duration (1/XOSC) occurring infrequently and with random periods. A simple RC filter can be added to the data output line between

CC1101

and the MCU to get rid of the 37 - 38.5 ns ns glitches if considered a problem. The filter 3 dB cut-off frequency needs to be high enough so that the data is not filtered and at the same time low enough to remove the glitch. As an example, for 2.4 kBaud data rate a 1 kohm resistor and

2.7 nF capacitor can be used. This gives a 3 dB cut-off frequency of 59 kHz.

27.2 Synchronous Serial Operation

Setting

PKTCTRL0.PKT_FORMAT

to 1 enables synchronous serial mode. In the synchronous serial mode, data is transferred on a two-wire serial interface. The

CC1101 provides a clock that is used to set up new data on the data input line or sample data on the data output line. Data input (TX data) is on the GDO0 pin. This pin will automatically be configured as an input when TX is active. The

TX latency is 8 bits. The data output pin can be any of the GDO pins. This is set by the

IOCFG0.GDO0_CFG

,

IOCFG1.GDO1_CFG

,

and

IOCFG2.GDO2_CFG

fields. Time from

start of reception until data is available on the receiver data output pin is equal to 9 bit.

Preamble and sync word insertion/detection may or may not be active, dependent on the

sync mode set by the

MDMCFG2.SYNC_MODE

.

If preamble and sync word is disabled, all other packet handler features and FEC should also be disabled. The MCU must then handle preamble and sync word insertion and detection in software.

If preamble and sync word insertion/detection are left on, all packet handling features and

FEC can be used. One exception is that the address filtering feature is unavailable in synchronous serial mode.

When using the packet handling features in synchronous serial mode, the

CC1101

will insert and detect the preamble and sync word and the MCU will only provide/get the data payload. This is equivalent to the recommended FIFO operation mode.

An alternative serial RX output option is to configure any of the GD0 pins for

Page 63 of 98 SWRS061I

RX_SYMBOL_TICK

and

RX_HARD_DATA

, see

Table 41.

RX_HARD_DATA

[1:0]

is the hard decision symbol.

RX_HARD_DATA

[1:0]

contain data for 4-ary modulation formats while

RX_HARD_DATA[1]

contain data for 2ary modulation formats. The

CC1101

RX_SYMBOL_TICK

signal is the symbol clock

and is high for one half symbol period whenever a new symbol is presented on the hard and soft data outputs. This option may be used for both synchronous and asynchronous interfaces.

28 System Considerations and Guidelines

28.1 SRD Regulations

International regulations and national laws regulate the use of radio receivers and transmitters. Short Range Devices (SRDs) for license free operation below 1 GHz are usually operated in the 315 MHz, 433 MHz, 868 MHz or 915 MHz frequency bands. The

CC1101

is specifically designed for such use with its 300

- 348 MHz, 387 - 464 MHz, and 779 - 928

MHz operating ranges. The most important regulations when using the

CC1101

in the 315

MHz, 433 MHz, 868 MHz, or 915 MHz frequency bands are EN 300 220 (Europe) and FCC CFR47 Part 15 (USA).

For compliance with modulation bandwidth requirements under EN 300 220 in the 863 to

870 MHz frequency range it is recommended to use a 26 MHz crystal for frequencies below

869 MHz and a 27 MHz crystal for frequencies above 869 MHz.

Please note that compliance with regulations is dependent on the complete system performance. It is the customer’s responsibility to ensure that the system complies with regulations.

28.2 Frequency Hopping and Multi-Channel Systems

The 315 MHz, 433 MHz, 868 MHz, or 915

MHz bands are shared by many systems both in industrial, office, and home environments. It is therefore recommended to use frequency hopping spread spectrum (FHSS) or a multichannel protocol because the frequency diversity makes the system more robust with respect to interference from other systems operating in the same frequency band. FHSS also combats multipath fading.

CC1101

is highly suited for FHSS or multichannel systems due to its agile frequency synthesizer and effective communication interface. Using the packet handling support and data buffering is also beneficial in such systems as these features will significantly offload the host controller.

Charge pump current, VCO current, and VCO capacitance array calibration data is required for each frequency when implementing frequency hopping for

CC1101

. There are 3 ways of obtaining the calibration data from the chip:

1) Frequency hopping with calibration for each hop. The PLL calibration time is 712/724 µs

(26 MHz crystal and

TEST0 =

0x09/0B, see

Table 35). The blanking interval between each

frequency hop is then 787/799 µs.

2) Fast frequency hopping without calibration for each hop can be done by performing the necessary calibrating at startup and saving the resulting

FSCAL3

,

FSCAL2

, and

FSCAL1

register values in MCU memory. The VCO

capacitance calibration

FSCAL1

register value

must be found for each RF frequency to be used. The VCO current calibration value and the charge pump current calibration value

available in

FSCAL2

and

FSCAL3

respectively

are not dependent on the RF frequency, so the same value can therefore be used for all RF frequencies for these two registers. Between each frequency hop, the calibration process

can then be replaced by writing the

FSCAL3

,

FSCAL2

and

FSCAL1

register values that

corresponds to the next RF frequency. The

PLL turn on time is approximately 75 µs (Table

34). The blanking interval between each

frequency hop is then approximately 75 µs.

3) Run calibration on a single frequency at startup. Next write 0 to

FSCAL3[5:4]

to

disable the charge pump calibration. After

writing to

FSCAL3[5:4]

, strobe

SRX

(or

STX

)

with

MCSM0.FS_AUTOCAL=1

for each new frequency hop. That is, VCO current and VCO capacitance calibration is done, but not charge pump current calibration. When charge pump current calibration is disabled the calibration

SWRS061I Page 64 of 98

CC1101 time is reduced from 712/724 µs to 145/157 µs

(26 MHz crystal and

TEST0 =

0x09/0B, see

Table 35). The blanking interval between each

frequency hop is then 220/232 µs.

There is a trade off between blanking time and memory space needed for storing calibration data in non-volatile memory. Solution 2) above gives the shortest blanking interval, but requires more memory space to store calibration values. This solution also requires that the supply voltage and temperature do not vary much in order to have a robust solution.

Solution 3) gives 567 µs smaller blanking interval than solution 1).

The recommended settings for

TEST0.VCO_SEL_CAL_EN

change with frequency. This means that one should always

use SmartRF Studio [5] to get the correct

settings for a specific frequency before doing a calibration, regardless of which calibration method is being used.

Note:

The content in the

TEST0

register is not retained in SLEEP state, thus it is necessary to re-write this register when returning from the SLEEP state.

28.3 Wideband Modulation when not Using Spread Spectrum

Digital modulation systems under FCC Section

15.247 include 2-FSK, GFSK, and 4-FSK modulation. A maximum peak output power of

1 W (+30 dBm) is allowed if the 6 dB bandwidth of the modulated signal exceeds

500 kHz. In addition, the peak power spectral density conducted to the antenna shall not be greater than +8 dBm in any 3 kHz band. targeting compliance with digital modulation system as defined by FCC Section 15.247. An external power amplifier such as

CC1190

[21] is

needed to increase the output above +11

dBm. Please refer to DN006 [11] for further

details concerning wideband modulation using

CC1101

and DN036 for wideband modulation at

600 kbps data rate, +19 dBm output power when using

CC1101

+

CC1101

[25].

Operating at high data rates and frequency separation, the

CC1101

is suited for systems

28.4 Wireless MBUS

The wireless MBUS standard is a communication standard for meters and wireless readout of meters, and specifies the physical and the data link layer. Power consumption is a critical parameter for the meter side, since the communication link shall be operative for the full lifetime of the meter, without changing the battery. with

Wireless MBUS standard,

CC1101

combined

MSP430

is an excellent choice for the

CC1101

is a truly low cost, low power and flexible transceiver, and

MSP430

a high performance and low power

MCU. For more informati on regarding using

CC1101

for Wireless MBUS applications, see

AN067 [14].

Since the Wireless MBUS standard operates in the 868-870 ISM band, the radio requirements must also comply with the ETSI

EN 300 220 and CEPT/ERC/REC 70-03 E standards.

28.5 Data Burst Transmissions

The high maximum data rate of

CC1101

opens up for burst transmissions. A low average data rate link (e.g. 10 kBaud) can be realized by using a higher over-the-air data rate. Buffering the data and transmitting in bursts at high data rate (e.g. 500 kBaud) will reduce the time in active mode, and hence also reduce the average current consumption significantly.

28.6 Continuous Transmissions

In data streaming applications, the

CC1101 opens up for continuous transmissions at 500 kBaud effective data rate. As the modulation is

Reducing the time in active mode will reduce the likelihood of collisions with other systems in the same frequency range.

Note:

The sensitivity and thus transmission range is reduced for high data rate bursts compared to lower data rates. done with a closed loop PLL, there is no limitation in the length of a transmission (open loop modulation used in some transceivers

Page 65 of 98 SWRS061I

often prevents this kind of continuous data

CC1101 streaming and reduces the effective data rate).

28.7 Battery Operated Systems

In low power applications, the SLEEP state with the crystal oscillator core switched off should be used when the

CC1101

is not active.

It is possible to leave the crystal oscillator core running in the SLEEP state if start-up time is critical. The WOR functionality should be used in low power applications.

28.8 Increasing Range

In some applications it may be necessary to extend the range. The

CC1190

[21] is a range

extender for 850-950 MHz RF transceivers, transmitters, and System-on-Chip devices from Texas Instruments. It increases the link budget by providing a power amplifier (PA) for increased output power, and a low-noise amplifier (LNA) with low noise figure for

VDD

VDD

PA _ OUT

1

P

D

D

V

2

P

D

D

V

A

N

L

D

D

V

PA _ IN

LNA _ OUT improved receiver sensitivity in addition to switches and RF matching for simple design of high performance wireless systems. Refer to

AN094 [22] and AN096 [23] for performance

figures of the

CC1101

+

CC1190

combination.

Figure 33 shows a simplified application

circuit.

SAW

RF _ P

RF _ N

TR _ SW

CC 1190

LNA _ IN

S

A

B

PA _ EN

LNA _ EN

HGM

Connected to MCU

Connected to

VDD / GND / MCU

CC1101

GDOx

Figure 33: Simplified CC1101-CC1190 Application Circuit

29 Configuration Registers

The configuration of

CC1101

is done by programming 8-bit registers. The optimum configuration data based on selected system parameters are most easily found by using the

SmartRF Studio software [5]. Complete

descriptions of the registers are given in the following tables. After chip reset, all the registers have default values as shown in the tables. The optimum register setting might differ from the default value. After a reset, all registers that shall be different from the default value therefore needs to be programmed through the SPI interface.

There are 13 command strobe registers, listed

in Table 42. Accessing these registers will

initiate the change of an internal state or mode. There are 47 normal 8-bit configuration

registers listed in Table 43. Many of these

registers are for test purposes only, and need not be written for normal operation of

CC1101

.

There are also 12 status registers that are

listed in Table 44. These registers, which are

read-only, contain information about the status of

CC1101

.

The two FIFOs are accessed through one 8-bit register. Write operations write to the TX FIFO, while read operations read from the RX FIFO.

During the header byte transfer and while writing data to a register or the TX FIFO, a status byte is returned on the SO line. This

status byte is described in Table 23 on page

31.

SWRS061I Page 66 of 98

Table 45 summarizes the SPI address space.

The address to use is given by adding the base address to the left and the burst and

CC1101 read/write bits on the top. Note that the burst bit has different meaning for base addresses above and below 0x2F.

Address

0x30

0x31

0x32

0x33

0x34

0x35

0x36

0x38

0x39

0x3A

0x3B

0x3C

0x3D

Strobe

Name

Description

SRES Reset chip.

SFSTXON

Enable and calibrate frequency synthesizer (if

MCSM0.FS_AUTOCAL

=1). If in RX (with CCA):

Go to a wait state where only the synthesizer is running (for quick RX / TX turnaround).

SXOFF

SCAL

SRX

STX

SIDLE

SWOR

Turn off crystal oscillator.

Calibrate frequency synthesizer and turn it off.

SCAL

can be strobed from IDLE mode without

setting manual calibration mode (

MCSM0.FS_AUTOCAL

=0)

Enable RX. Perform calibration first if coming from IDLE and

MCSM0.FS_AUTOCAL

=1.

In IDLE state: Enable TX. Perform calibration first if

MCSM0.FS_AUTOCAL

=1.

If in RX state and CCA is enabled: Only go to TX if channel is clear.

Exit RX / TX, turn off frequency synthesizer and exit Wake-On-Radio mode if applicable.

Start automatic RX polling sequence (Wake-on-Radio) as described in Section 19.5 if

WORCTRL.RC_PD=0

.

SPWD

SFRX

SFTX

Enter power down mode when CSn goes high.

Flush the RX FIFO buffer. Only issue

SFRX

in IDLE or RXFIFO_OVERFLOW states.

Flush the TX FIFO buffer. Only issue

SFTX

in IDLE or TXFIFO_UNDERFLOW states.

SWORRST Reset real time clock to Event1 value.

SNOP No operation. May be used to get access to the chip status byte.

Table 42: Command Strobes

SWRS061I Page 67 of 98

CC1101

0x00

0x01

0x25

0x26

0x27

0x28

0x29

0x2A

0x2B

0x2C

0x2D

0x2E

0x1D

0x1E

0x1F

0x20

0x21

0x22

0x23

0x24

0x15

0x16

0x17

0x18

0x19

0x1A

0x1B

0x1C

0x0A

0x0B

0x0C

0x0D

0x0E

0x0F

0x10

0x11

0x12

0x02

0x03

0x04

0x05

0x06

0x07

0x08

0x09

0x13

0x14

Address Register Description

IOCFG2

IOCFG1

GDO2

output pin configuration

GDO1

output pin configuration

GDO0

output pin configuration

IOCFG0

FIFOTHR

RX FIFO and TX FIFO thresholds

SYNC1

SYNC0

Sync word, high byte

Sync word, low byte

PKTLEN

Packet length

PKTCTRL1

Packet automation control

PKTCTRL0

Packet automation control

ADDR

Device address

CHANNR

Channel number

FSCTRL1

Frequency synthesizer control

FSCTRL0

Frequency synthesizer control

FREQ2

Frequency control word, high byte

FREQ1

FREQ0

Frequency control word, middle byte

Frequency control word, low byte

MDMCFG4

Modem configuration

MDMCFG3

Modem configuration

MDMCFG2

Modem configuration

MDMCFG1

Modem configuration

MDMCFG0

Modem configuration

DEVIATN

Modem deviation setting

MCSM2

Main Radio Control State Machine configuration

MCSM1

Main Radio Control State Machine configuration

MCSM0

Main Radio Control State Machine configuration

FOCCFG

Frequency Offset Compensation configuration

BSCFG

Bit Synchronization configuration

AGCTRL2

AGC control

AGCTRL1

AGC control

AGCTRL0

AGC control

WOREVT1

High byte Event 0 timeout

WOREVT0

Low byte Event 0 timeout

WORCTRL

Wake On Radio control

FREND1

Front end RX configuration

FREND0

Front end TX configuration

FSCAL3

Frequency synthesizer calibration

FSCAL2

Frequency synthesizer calibration

FSCAL1

Frequency synthesizer calibration

FSCAL0

Frequency synthesizer calibration

RCCTRL1

RC oscillator configuration

RCCTRL0

RC oscillator configuration

FSTEST

Frequency synthesizer calibration control

PTEST

Production test

AGCTEST

AGC test

TEST2

TEST1

TEST0

Various test settings

Various test settings

Various test settings

Preserved in

SLEEP State

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Table 43: Configuration Registers Overview

Details on

Page Number

71

71

71

90

90

90

90

91

91

91

91

91

92

89

89

89

90

87

87

88

88

83

84

85

86

79

80

81

82

75

76

76

77

75

75

75

75

73

74

74

74

72

73

73

73

78

78

Page 68 of 98 SWRS061I

CC1101

Address

0x30 (0xF0)

0x31 (0xF1)

0x32 (0xF2)

0x33 (0xF3)

0x34 (0xF4)

0x35 (0xF5)

0x36 (0xF6)

0x37 (0xF7)

0x38 (0xF8)

Register

PARTNUM

VERSION

FREQEST

LQI

RSSI

MARCSTATE

WORTIME1

WORTIME0

PKTSTATUS

Description

Part number for

CC1101

Current version number

Frequency Offset Estimate

Demodulator estimate for Link Quality

Received signal strength indication

Control state machine state

High byte of WOR timer

Low byte of WOR timer

Current GDOx status and packet status

0x39 (0xF9)

0x3A (0xFA)

VCO_VC_DAC

TXBYTES

Current setting from PLL calibration module

Underflow and number of bytes in the TX

FIFO

Overflow and number of bytes in the RX

FIFO 0x3B (0xFB)

RXBYTES

0x3C (0xFC)

RCCTRL1_STATUS

Last RC oscillator calibration result

0x3D (0xFD)

RCCTRL0_STATUS

Last RC oscillator calibration result

Table 44: Status Registers Overview

Details on page number

92

92

92

92

92

93

93

93

94

94

94

94

94

95

Table 45: SPI Address Space (see next page)

SWRS061I Page 69 of 98

CC1101

0x12

0x13

0x14

0x15

0x16

0x17

0x18

0x19

0x1A

0x1B

0x1C

0x1D

0x1E

0x0A

0x0B

0x0C

0x0D

0x0E

0x0F

0x10

0x11

0x00

0x01

0x02

0x03

0x04

0x05

0x06

0x07

0x08

0x09

0x27

0x28

0x29

0x2A

0x2B

0x2C

0x2D

0x2E

0x1F

0x20

0x21

0x22

0x23

0x24

0x25

0x26

0x2F

0x30

0x31

0x32

0x33

0x34

0x35

0x36

0x37

0x38

0x39

SRES

SFSTXON

SXOFF

SCAL

SRX

STX

SIDLE

SWOR

SPWD

0x3A

0x3B

SFRX

SFTX

0x3C

SWORRST

0x3D

SNOP

0x3E

0x3F

PATABLE

TX FIFO

Write

Single Byte

+0x00

Read

Burst

+0x40

Single Byte

+0x80

IOCFG2

IOCFG1

IOCFG0

FIFOTHR

SYNC1

SYNC0

PKTLEN

PKTCTRL1

PKTCTRL0

ADDR

CHANNR

FSCTRL1

FSCTRL0

FREQ2

FREQ1

FREQ0

MDMCFG4

MDMCFG3

MDMCFG2

MDMCFG1

MDMCFG0

DEVIATN

MCSM2

MCSM1

MCSM0

FOCCFG

BSCFG

AGCCTRL2

AGCCTRL1

AGCCTRL0

WOREVT1

Burst

+0xC0

PATABLE

TX FIFO

WOREVT0

WORCTRL

FREND1

FREND0

FSCAL3

FSCAL2

FSCAL1

FSCAL0

RCCTRL1

RCCTRL0

FSTEST

PTEST

AGCTEST

TEST2

TEST1

TEST0

SRES

SFSTXON

SXOFF

SCAL

SRX

STX

SIDLE

SWOR

SPWD

SFRX

SFTX

PARTNUM

VERSION

FREQEST

LQI

RSSI

MARCSTATE

WORTIME1

WORTIME0

PKTSTATUS

VCO_VC_DAC

SWORRST RCCTRL1_STATUS

SNOP

PATABLE

RX FIFO

TXBYTES

RXBYTES

RCCTRL0_STATUS

PATABLE

RX FIFO

Page 70 of 98 SWRS061I

CC1101

Bit

7

6

5:0

Bit

7

6

5:0

29.1 Configuration Register Details

– Registers with preserved values in SLEEP state

Field Name

GDO2

_INV

GDO2

_CFG[5:0]

0x00: IOCFG2

– GDO2 Output Pin Configuration

Reset

0

41 (0x29)

R/W Description

R0 Not used

R/W Invert output, i.e. select active low (1) / high (0)

R/W

Default is

CHP_RDYn

(See Table 41 on page 62).

Field Name

GDO_DS

GDO1

_INV

GDO1

_CFG[5:0]

0x01: IOCFG1

– GDO1 Output Pin Configuration

Reset

0

0

46 (0x2E)

R/W Description

R/W Set high (1) or low (0) output drive strength on the GDO pins.

R/W Invert output, i.e. select active low (1) / high (0)

R/W

Default is 3-state (See Table 41 on page 62).

Bit

7

6

5:0

Field Name

TEMP_SENSOR_ENABLE

GDO0

GDO0

_INV

_CFG[5:0]

0x02: IOCFG0

– GDO0 Output Pin Configuration

Reset

0

0

63 (0x3F)

R/W Description

R/W Enable analog temperature sensor. Write 0 in all other register bits when using temperature sensor.

R/W Invert output, i.e. select active low (1) / high (0)

R/W

Default is CLK_XOSC/192 (See Table 41 on page 62).

It is recommended to disable the clock output in initialization, in order to optimize RF performance.

SWRS061I Page 71 of 98

CC1101

Bit

7

6

5:4

3:0

Field Name

ADC_RETENTION

CLOSE_IN_RX [1:0] 0 (00)

FIFO_THR[3:0]

0x03: FIFOTHR

– RX FIFO and TX FIFO Thresholds

Reset

0

0

7 (0111)

R/W Description

R/W Reserved , write 0 for compatibility with possible future extensions

R/W

0: TEST1 = 0x31 and TEST2= 0x88 when waking up from SLEEP

1: TEST1 = 0x35 and TEST2 = 0x81 when waking up from SLEEP

Note that the changes in the TEST registers due to the

ADC_RETENTION bit setting are only seen INTERNALLY in the analog part. The values read from the TEST registers when waking up from

SLEEP mode will always be the reset value.

The ADC_RETENTION bit should be set to 1before going into SLEEP mode if settings with an RX filter bandwidth below 325 kHz are wanted at time of wake-up.

R/W

For more details, please see DN010 [8]

Setting RX Attenuation, Typical Values

0 (00) 0 dB

1 (01) 6 dB

2 (10) 12 dB

3 (11) 18 dB

R/W Set the threshold for the TX FIFO and RX FIFO. The threshold is exceeded when the number of bytes in the FIFO is equal to or higher than the threshold value.

Setting Bytes in TX FIFO Bytes in RX FIFO

0 (0000)

1 (0001)

2 (0010)

3 (0011)

4 (0100)

5 (0101)

6 (0110)

7 (0111)

8 (1000)

9 (1001)

10 (1010)

11 (1011)

12 (1100)

13 (1101)

14 (1110)

15 (1111)

61

57

53

49

45

41

37

33

29

25

21

17

13

9

5

1

4

8

12

16

20

24

28

32

36

40

44

48

52

56

60

64

SWRS061I Page 72 of 98

CC1101

Bit

7:0

Field Name

SYNC[15:8]

0x04: SYNC1

– Sync Word, High Byte

Reset

211 (0xD3)

R/W Description

R/W 8 MSB of 16-bit sync word

Bit

7:0

Field Name

SYNC[7:0]

Bit

7:0

Reset

0x05: SYNC0

– Sync Word, Low Byte

R/W Description

145 (0x91) R/W 8 LSB of 16-bit sync word

0x06: PKTLEN

– Packet Length

Field Name Reset

PACKET_LENGTH 255 (0xFF)

R/W Description

R/W Indicates the packet length when fixed packet length mode is enabled. If variable packet length mode is used, this value indicates the maximum packet length allowed. This value must be different from 0.

4

3

Bit

7:5

2

1:0

Field Name

PQT[2:0]

0

CRC_AUTOFLUSH 0

APPEND_STATUS 1

ADR_CHK[1:0]

0x07: PKTCTRL1

– Packet Automation Control

Reset R/W Description

0 (0x00)

0 (00)

R/W Preamble quality estimator threshold. The preamble quality estimator increases an internal counter by one each time a bit is received that is different from the previous bit, and decreases the counter by 8 each time a bit is received that is the same as the last bit.

A threshold of 4∙

PQT

for this counter is used to gate sync word detection.

When

PQT=0 a sync word is always accepted.

R0 Not Used.

R/W Enable automatic flush of RX FIFO when CRC is not OK. This requires that only one packet is in the RXIFIFO and that packet length is limited to the

RX FIFO size.

R/W When enabled, two status bytes will be appended to the payload of the packet. The status bytes contain RSSI and LQI values, as well as CRC OK.

R/W Controls address check configuration of received packages.

Setting Address check configuration

0 (00) No address check

1 (01) Address check, no broadcast

2 (10) Address check and 0 (0x00) broadcast

3 (11) Address check and 0 (0x00) and 255 (0xFF) broadcast

SWRS061I Page 73 of 98

CC1101

Bit Field Name

7

6 WHITE_DATA

5:4 PKT_FORMAT[1:0]

3

2 CRC_EN

1:0 LENGTH_CONFIG[1:0]

0x08: PKTCTRL0

– Packet Automation Control

0

1

Reset

1

0 (00)

1 (01)

R/W Description

R0 Not used

R/W Turn data whitening on / off

0: Whitening off

1: Whitening on

R/W Format of RX and TX data

Setting Packet format

0 (00) Normal mode, use FIFOs for RX and TX

1 (01)

2 (10)

3 (11)

Synchronous serial mode, Data in on GDO0 and data out on either of the GDOx pins

Random TX mode; sends random data using PN9 generator. Used for test.

Works as normal mode, setting 0 (00), in RX

Asynchronous serial mode, Data in on GDO0 and data out on either of the GDOx pins

R0 Not used

R/W 1: CRC calculation in TX and CRC check in RX enabled

0: CRC disabled for TX and RX

R/W Configure the packet length

Setting Packet length configuration

0 (00) Fixed packet length mode. Length configured in

PKTLEN

register

1 (01) Variable packet length mode. Packet length configured by the first byte after sync word

2 (10) Infinite packet length mode

3 (11) Reserved

Bit Field Name

7:0 DEVICE_ADDR[7:0]

0x09: ADDR

– Device Address

Reset

0 (0x00)

R/W Description

R/W Address used for packet filtration. Optional broadcast addresses are 0

(0x00) and 255 (0xFF).

Bit Field Name

7:0 CHAN[7:0]

0x0A: CHANNR

– Channel Number

Reset R/W Description

0 (0x00) R/W The 8-bit unsigned channel number, which is multiplied by the channel spacing setting and added to the base frequency.

SWRS061I Page 74 of 98

CC1101

Bit

7:6

5

4:0

Field Name

FREQ_IF[4:0]

Bit

7:0

Field Name

FREQOFF[7:0]

Bit

7:6

Field Name

FREQ[23:22]

5:0 FREQ[21:16]

0x0B: FSCTRL1

– Frequency Synthesizer Control

Reset R/W Description

0

R0

R/W

Not used

Reserved

15 (0x0F) R/W The desired IF frequency to employ in RX. Subtracted from FS base frequency in RX and controls the digital complex mixer in the demodulator.

f

IF

f

XOSC

2

10

FREQ

_

IF

The default value gives an IF frequency of 381kHz, assuming a 26.0 MHz crystal.

0x0C: FSCTRL0

– Frequency Synthesizer Control

Reset R/W Description

0 (0x00) R/W Frequency offset added to the base frequency before being used by the frequency synthesizer. (2s-complement).

Resolution is F

XTAL

/2

14

(1.59kHz-1.65kHz); range is ±202 kHz to ±210 kHz, dependent of XTAL frequency.

0x0D: FREQ2

– Frequency Control Word, High Byte

Reset R/W Description

0 (00) R FREQ[23:22]

is always 0 (the

FREQ2

register is less than 36 with 26-27 MHz crystal)

30 (0x1E) R/W

FREQ[23:0]

is the base frequency for the frequency synthesiser in increments of f

XOSC

/2

16

.

f carrier

f

XOSC

2

16

FREQ

23 : 0

Bit Field Name

7:0 FREQ[15:8]

0x0E: FREQ1

– Frequency Control Word, Middle Byte

Reset R/W Description

196 (0xC4) R/W

Ref.

FREQ2

register

Bit Field Name

7:0 FREQ[7:0]

0x0F: FREQ0

– Frequency Control Word, Low Byte

Reset R/W Description

236 (0xEC) R/W Ref.

FREQ2

register

SWRS061I Page 75 of 98

CC1101

Bit Field Name

7:6 CHANBW_E[1:0]

5:4 CHANBW_M[1:0]

3:0 DRATE_E[3:0]

Bit Field Name

7:0 DRATE_M[7:0]

Reset

0x10: MDMCFG4

– Modem Configuration

R/W Description

2 (0x02)

0 (0x00)

R/W

R/W Sets the decimation ratio for the delta-sigma ADC input stream and thus the channel bandwidth.

BW channel

f

XOSC

8

( 4

CHANBW

_

M

)· 2

CHANBW

_

E

The default values give 203 kHz channel filter bandwidth, assuming a 26.0

MHz crystal.

12 (0x0C) R/W The exponent of the user specified symbol rate

0x11: MDMCFG3

– Modem Configuration

R/W Description Reset

34 (0x22) R/W The mantissa of the user specified symbol rate. The symbol rate is configured using an unsigned, floating-point number with 9-bit mantissa and 4-bit exponent. The 9 th bit is a hidden ‘1’. The resulting data rate is:

R

DATA

256

DRATE

_

M

2

DRATE

_

E

2

28

f

XOSC

The default values give a data rate of 115.051 kBaud (closest setting to 115.2 kBaud), assuming a 26.0 MHz crystal.

SWRS061I Page 76 of 98

CC1101

Bit Field Name

7 DEM_DCFILT_OFF

Reset

0

6:4 MOD_FORMAT[2:0] 0 (000)

3 MANCHESTER_EN 0

2:0 SYNC_MODE[2:0]

0x12: MDMCFG2

– Modem Configuration

2 (010)

R/W Description

R/W Disable digital DC blocking filter before demodulator.

0 = Enable (better sensitivity)

1 = Disable (current optimized). Only for data rates

≤ 250 kBaud

The recommended IF frequency changes when the DC blocking is disabled.

Please use SmartRF Studio [5] to calculate correct register setting.

R/W The modulation format of the radio signal

Setting Modulation format

0 (000) 2-FSK

1 (001) GFSK

2 (010) -

3 (011) ASK/OOK

4 (100) 4-FSK

5 (101) -

6 (110) -

7 (111) MSK

MSK is only supported for data rates above 26 kBaud

R/W Enables Manchester encoding/decoding.

0 = Disable

1 = Enable

R/W Combined sync-word qualifier mode.

The values 0 (000) and 4 (100) disables preamble and sync word transmission in TX and preamble and sync word detection in RX.

The values 1 (001), 2 (010), 5 (101) and 6 (110) enables 16-bit sync word transmission in TX and 16-bits sync word detection in RX. Only 15 of 16 bits need to match in RX when using setting 1 (001) or 5 (101). The values 3 (011) and 7 (111) enables repeated sync word transmission in TX and 32-bits sync word detection in RX (only 30 of 32 bits need to match).

Setting Sync-word qualifier mode

0 (000) No preamble/sync

1 (001) 15/16 sync word bits detected

2 (010) 16/16 sync word bits detected

3 (011) 30/32 sync word bits detected

4 (100) No preamble/sync, carrier-sense above threshold

5 (101) 15/16 + carrier-sense above threshold

6 (110) 16/16 + carrier-sense above threshold

7 (111) 30/32 + carrier-sense above threshold

Page 77 of 98 SWRS061I

CC1101

Bit

7

6:4

3:2

1:0

Field Name

FEC_EN

NUM_PREAMBLE[2:0]

CHANSPC_E[1:0]

0x13: MDMCFG1

– Modem Configuration

Reset

0

2 (010)

2 (10)

R/W Description

R/W Enable Forward Error Correction (FEC) with interleaving for packet payload

0 = Disable

1 = Enable (Only supported for fixed packet length mode, i.e.

PKTCTRL0.LENGTH_CONFIG=0

)

R/W Sets the minimum number of preamble bytes to be transmitted

Setting

0 (000)

1 (001)

2 (010)

3 (011)

4 (100)

5 (101)

6 (110)

7 (111)

6

8

12

16

24

3

4

Number of preamble bytes

2

R0 Not used

R/W 2 bit exponent of channel spacing

Bit

7:0

Field Name

CHANSPC_M[7:0]

0x14: MDMCFG0

– Modem Configuration

Reset

248 (0xF8)

R/W Description

R/W 8-bit mantissa of channel spacing. The channel spacing is

multiplied by the channel number

CHAN

and added to the base

frequency. It is unsigned and has the format:

f

CHANNEL

f

XOSC

2

18

256

CHANSPC

_

M

2

CHANSPC

_

E

The default values give 199.951 kHz channel spacing (the closest setting to 200 kHz), assuming 26.0 MHz crystal frequency.

SWRS061I Page 78 of 98

CC1101

Bit Field Name

7

6:4 DEVIATION_E[2:0]

3

2:0 DEVIATION_M[2:0]

0x15: DEVIATN

– Modem Deviation Setting

R/W Description Reset

4 (100)

7 (111)

R0 Not used.

R/W Deviation exponent.

R0 Not used.

R/W TX

Specifies the nominal frequency deviation from the carrier for a

‘0’ (-DEVIATN) and ‘1’ (+DEVIATN) in a mantissa-exponent format, interpreted as a 4-bit value with MSB implicit 1. The resulting frequency deviation is given by: 2-FSK/

GFSK/

4-FSK

f dev

f xosc

2

17

( 8

DEVIATION

_

M

)

2

DEVIATION

_

E

The default values give ±47.607 kHz deviation assuming 26.0

MHz crystal frequency.

MSK Specifies the fraction of symbol period (1/8-8/8) during which a phase change occurs (‘0’: +90deg, ‘1’:-90deg). Refer to the

SmartRF Studio software [5] for correct DEVIATN setting when

using MSK.

ASK/OOK This setting has no effect.

RX

2-FSK/

GFSK/

4-FSK

MSK/

ASK/OOK

Specifies the expected frequency deviation of incoming signal, must be approximately right for demodulation to be performed reliably and robustly.

This setting has no effect.

SWRS061I Page 79 of 98

CC1101

0x16: MCSM2

– Main Radio Control State Machine Configuration

Bit Field Name Reset R/W Description

7:5

4

3

RX_TIME_RSSI

RX_TIME_QUAL

0

0

R0 Not used

R/W Direct RX termination based on RSSI measurement (carrier sense). For

ASK/OOK modulation, RX times out if there is no carrier sense in the first 8 symbol periods.

R/W

When the

RX_TIME

timer expires, the chip checks if sync word is found when

RX_TIME_QUAL=0

, or either sync word is found or PQI is set when

RX_TIME_QUAL=1.

2:0 RX_TIME[2:0] 7 (111) R/W Timeout for sync word search in RX for both WOR mode and normal RX

operation. The timeout is relative to the programmed

EVENT0

timeout.

The RX timeout in µs is given by

EVENT0

·C(

RX_TIME

,

WOR_RES

) ·26/X, where C is given by the table below and X is the

crystal oscillator frequency in MHz:

Setting WOR_RES = 0 WOR_RES = 1 WOR_RES = 2 WOR_RES = 3

0 (000) 3.6058

1 (001) 1.8029

2 (010) 0.9014

3 (011) 0.4507

4 (100) 0.2254

5 (101) 0.1127

6 (110) 0.0563

18.0288

9.0144

4.5072

2.2536

1.1268

0.5634

0.2817

32.4519

16.2260

8.1130

4.0565

2.0282

1.0141

0.5071

46.8750

23.4375

11.7188

5.8594

2.9297

1.4648

0.7324

7 (111) Until end of packet

As an example,

EVENT0=34666

,

WOR_RES=0

and

RX_TIME=6

corresponds to 1.96 ms RX timeout, 1 s polling interval and

0.195% duty cycle. Note that

WOR_RES

should be 0 or 1 when using WOR because using

WOR_RES

> 1 will give a very low duty cycle. In applications where WOR is not used all settings of

WOR_RES

can be used.

The duty cycle using WOR is approximated by:

Setting

WOR_RES=0 WOR_RES=1

0 (000) 12.50%

1 (001) 6.250%

2 (010) 3.125%

3 (011) 1.563%

4 (100) 0.781%

5 (101) 0.391%

6 (110) 0.195%

7 (111) NA

1.95%

9765ppm

4883ppm

2441ppm

NA

NA

NA

Note that the RC oscillator must be enabled in order to use setting 0-6, because the timeout counts RC oscillator periods.

WOR mode does not need to be enabled.

The timeout counter resolution is limited: With

RX_TIME=0

, the timeout count is given by the 13 MSBs of

EVENT0

, decreasing to the 7MSBs of

EVENT0 with

RX_TIME=6

.

SWRS061I Page 80 of 98

CC1101

Bit Field Name

0x17: MCSM1

– Main Radio Control State Machine Configuration

Reset R/W Description

7:6

5:4 CCA_MODE[1:0]

R0 Not used

3 (11) R/W

Selects

CCA_MODE

; Reflected in CCA signal

Setting Clear channel indication

0 (00) Always

1 (01)

2 (10)

3 (11)

If RSSI below threshold

Unless currently receiving a packet

If RSSI below threshold unless currently receiving a packet

3:2 RXOFF_MODE[1:0] 0 (00) R/W Select what should happen when a packet has been received

Setting Next state after finishing packet reception

0 (00)

IDLE

1 (01)

2 (10)

3 (11)

FSTXON

TX

Stay in RX

It is not possible to set

RXOFF_MODE

to be TX or FSTXON and at the same time use CCA.

1:0 TXOFF_MODE[1:0] 0 (00) R/W Select what should happen when a packet has been sent (TX)

Setting Next state after finishing packet transmission

0 (00)

1 (01)

2 (10)

3 (11)

IDLE

FSTXON

Stay in TX (start sending preamble)

RX

SWRS061I Page 81 of 98

CC1101

1

0

Bit

7:6

5:4

3:2

0x18: MCSM0

– Main Radio Control State Machine Configuration

Field Name Reset R/W Description

FS_AUTOCAL[1:0]

PO_TIMEOUT

PIN_CTRL_EN 0

XOSC_FORCE_ON 0

R0 Not used

0 (00) R/W Automatically calibrate when going to RX or TX, or back to IDLE

Setting When to perform automatic calibration

0 (00)

Never (manually calibrate using

SCAL

strobe)

1 (01) When going from IDLE to RX or TX (or FSTXON)

2 (10)

3 (11)

When going from RX or TX back to IDLE automatically

Every 4 th

time when going from RX or TX to IDLE automatically

In some automatic wake-on-radio (WOR) applications, using setting 3 (11) can significantly reduce current consumption.

1 (01) R/W Programs the number of times the six-bit ripple counter must expire after

XOSC has stabilized before

CHP_RDYn

goes low

[1]

.

If XOSC is on (stable) during power-down,

PO_TIMEOUT

should be set so that

the regulated digital supply voltage has time to stabilize before

CHP_RDYn

goes low (

PO_TIMEOUT=2

recommended). Typical start-up time for the voltage regulator is 50

μs.

For robust operation it is recommended to use

PO_TIMEOUT

= 2 or 3 when

XOSC is off during power-down.

[1]

Note that the

XOSC_STABLE

signal will be asserted at the same time as

the

CHP_RDYn

signal; i.e. the

PO_TIMEOUT

delays both signals and does not insert a delay between the signals

Setting Expire count Timeout after XOSC start

0 (00)

1 (01)

1

16

Approx. 2.3

– 2.4 μs

Approx. 37

– 39 μs

2 (10)

3 (11)

64

256

Approx. 149

– 155 μs

Approx. 597

– 620 μs

Exact timeout depends on crystal frequency.

R/W Enables the pin radio control option

R/W Force the XOSC to stay on in the SLEEP state.

SWRS061I Page 82 of 98

CC1101

Bit Field Name

0x19: FOCCFG

– Frequency Offset Compensation Configuration

Reset R/W Description

7:6

5 FOC_BS_CS_GATE 1

4:3 FOC_PRE_K[1:0]

R0 Not used

R/W If set, the demodulator freezes the frequency offset compensation and clock recovery feedback loops until the CS signal goes high.

2 (10) R/W The frequency compensation loop gain to be used before a sync word is detected.

2 FOC_POST_K 1

Setting Freq. compensation loop gain before sync word

0 (00)

K

1 (01)

2 (10)

3 (11)

2

3

4

K

K

K

R/W The frequency compensation loop gain to be used after a sync word is detected.

1:0 FOC_LIMIT[1:0]

Setting Freq. compensation loop gain after sync word

0 Same as FOC_PRE_K

1

K

/2

2 (10) R/W The saturation point for the frequency offset compensation algorithm:

Setting Saturation point (max compensated offset)

0 (00) ±0 (no frequency offset compensation)

1 (01)

2 (10)

±BW

CHAN

/8

±BW

CHAN

/4

±BW

CHAN

/2 3 (11)

Frequency offset compensation is not supported for ASK/OOK. Always use

FOC_LIMIT=0 with these modulation formats.

SWRS061I Page 83 of 98

CC1101

0x1A: BSCFG

– Bit Synchronization Configuration

Bit Field Name Reset R/W Description

7:6 BS_PRE_KI[1:0] 1 (01) R/W The clock recovery feedback loop integral gain to be used before a sync word is detected (used to correct offsets in data rate):

Setting Clock recovery loop integral gain before sync word

0 (00)

1 (01)

2 (10)

3 (11)

K

I

2

K

I

3

K

I

4

K

I

5:4 BS_PRE_KP[1:0] 2 (10) R/W The clock recovery feedback loop proportional gain to be used before a sync word is detected.

3 BS_POST_KI 1

Setting Clock recovery loop proportional gain before sync word

0 (00)

1 (01)

2 (10)

3 (11)

K

P

2

K

P

3

K

P

4

K

P

R/W The clock recovery feedback loop integral gain to be used after a sync word is detected.

Setting Clock recovery loop integral gain after sync word

0

1

Same as BS_PRE_KI

K

I

/2

2

1:0

BS_POST_KP

BS_LIMIT[1:0]

1 R/W The clock recovery feedback loop proportional gain to be used after a sync word is detected.

Setting Clock recovery loop proportional gain after sync word

0

1

Same as BS_PRE_KP

K

P

0 (00) R/W The saturation point for the data rate offset compensation algorithm:

Setting Data rate offset saturation (max data rate difference)

0 (00)

1 (01)

2 (10)

3 (11)

±0 (No data rate offset compensation performed)

±3.125 % data rate offset

±6.25 % data rate offset

±12.5 % data rate offset

SWRS061I Page 84 of 98

CC1101

Bit

7:6

Field Name

MAX_DVGA_GAIN[1:0]

5:3 MAX_LNA_GAIN[2:0]

2:0 MAGN_TARGET[2:0]

0x1B: AGCCTRL2

– AGC Control

Reset R/W Description

0 (00) R/W Reduces the maximum allowable DVGA gain.

Setting Allowable DVGA settings

0 (00)

1 (01)

2 (10)

3 (11)

All gain settings can be used

The highest gain setting can not be used

The 2 highest gain settings can not be used

The 3 highest gain settings can not be used

0 (000) R/W Sets the maximum allowable LNA + LNA 2 gain relative to the maximum possible gain.

Setting Maximum allowable LNA + LNA 2 gain

0 (000) Maximum possible LNA + LNA 2 gain

1 (001) Approx. 2.6 dB below maximum possible gain

2 (010) Approx. 6.1 dB below maximum possible gain

3 (011) Approx. 7.4 dB below maximum possible gain

4 (100) Approx. 9.2 dB below maximum possible gain

5 (101) Approx. 11.5 dB below maximum possible gain

6 (110) Approx. 14.6 dB below maximum possible gain

7 (111) Approx. 17.1 dB below maximum possible gain

3 (011) R/W These bits set the target value for the averaged amplitude from the digital channel filter (1 LSB = 0 dB).

Setting

0 (000)

1 (001)

2 (010)

3 (011)

4 (100)

5 (101)

6 (110)

7 (111)

Target amplitude from channel filter

24 dB

27 dB

30 dB

33 dB

36 dB

38 dB

40 dB

42 dB

SWRS061I Page 85 of 98

CC1101

0x1C: AGCCTRL1

– AGC Control

Reset R/W Description Bit Field Name

7

6 AGC_LNA_PRIORITY 1

R0 Not used

R/W Selects between two different strategies for LNA and LNA 2 gain adjustment. When 1, the LNA gain is decreased first. When 0, the

LNA 2 gain is decreased to minimum before decreasing LNA gain.

5:4 CARRIER_SENSE_REL_THR[1:0] 0 (00) R/W Sets the relative change threshold for asserting carrier sense

Setting

0 (00)

1 (01)

2 (10)

3 (11)

Carrier sense relative threshold

Relative carrier sense threshold disabled

6 dB increase in RSSI value

10 dB increase in RSSI value

14 dB increase in RSSI value

3:0 CARRIER_SENSE_ABS_THR[3:0] 0

(0000)

R/W Sets the absolute RSSI threshold for asserting carrier sense. The

2-complement signed threshold is programmed in steps of 1 dB and is relative to the MAGN_TARGET setting.

Setting Carrier sense absolute threshold

(Equal to channel filter amplitude when AGC has not decreased gain)

-8 (1000) Absolute carrier sense threshold disabled

-7 (1001)

7 dB below

MAGN_TARGET

setting

… …

-1 (1111) 1 dB below

MAGN_TARGET

setting

0 (0000) At

MAGN_TARGET

setting

1 (0001)

1 dB above

MAGN_TARGET

setting

… …

7 (0111)

7 dB above

MAGN_TARGET

setting

SWRS061I Page 86 of 98

CC1101

Bit Field Name

7:6 HYST_LEVEL[1:0]

5:4 WAIT_TIME[1:0]

3:2 AGC_FREEZE[1:0]

Reset

2 (10)

1 (01)

0 (00)

1:0 FILTER_LENGTH[1:0] 1 (01)

0x1D: AGCCTRL0

– AGC Control

R/W Description

R/W Sets the level of hysteresis on the magnitude deviation (internal AGC signal that determine gain changes).

Setting Description

0 (00) No hysteresis, small symmetric dead zone, high gain

1 (01)

2 (10)

3 (11)

Low hysteresis, small asymmetric dead zone, medium gain

Medium hysteresis, medium asymmetric dead zone, medium gain

Large hysteresis, large asymmetric dead zone, low gain

R/W Sets the number of channel filter samples from a gain adjustment has been made until the AGC algorithm starts accumulating new samples.

Setting

0 (00)

1 (01)

2 (10)

3 (11)

Channel filter samples

8

16

24

32

R/W Control when the AGC gain should be frozen.

Setting Function

0 (00) Normal operation. Always adjust gain when required.

1 (01)

2 (10)

3 (11)

The gain setting is frozen when a sync word has been found.

Manually freeze the analogue gain setting and continue to adjust the digital gain.

Manually freezes both the analogue and the digital gain setting. Used for manually overriding the gain.

R/W 2-FSK, 4-FSK, MSK: Sets the averaging length for the amplitude from the channel filter.

ASK, OOK: Sets the OOK/ASK decision boundary for OOK/ASK reception.

Setting Channel filter samples

OOK/ASK decision boundary

0 (00) 8

1 (01) 16

2 (10) 32

3 (11) 64

4 dB

8 dB

12 dB

16 dB

Bit Field Name

7:0 EVENT0[15:8]

0x1E: WOREVT1

– High Byte Event0 Timeout

Reset R/W Description

135 (0x87) R/W

High byte of

EVENT0

timeout register

t

Event

0

750

f

XOSC

EVENT

0

2

5

WOR

_

RES

Page 87 of 98 SWRS061I

CC1101

Bit

7:0

Field Name

EVENT0[7:0]

Bit

7

Field Name

RC_PD

6:4 EVENT1[2:0]

3

2

1:0

RC_CAL

WOR_RES

0x1F: WOREVT0

–Low Byte Event0 Timeout

Reset

107 (0x6B)

R/W Description

R/W Low byte of

EVENT0

timeout register.

The default

EVENT0

value gives 1.0s timeout, assuming a 26.0 MHz crystal.

Reset

0x20: WORCTRL

– Wake On Radio Control

R/W Description

1

7 (111)

1

0 (00)

R/W Power down signal to RC oscillator. When written to 0, automatic initial calibration will be performed

R/W Timeout setting from register block. Decoded to Event 1 timeout. RC oscillator clock frequency equals F

XOSC

/750, which is 34.7

– 36 kHz, depending on crystal frequency. The table below lists the number of clock periods after

Event 0 before Event 1 times out.

Setting t

Event1

0 (000) 4 (0.111

– 0.115 ms)

1 (001) 6 (0.167

– 0.173 ms)

2 (010) 8 (0.222

– 0.230 ms)

3 (011) 12 (0.333

– 0.346 ms)

4 (100) 16 (0.444

– 0.462 ms)

5 (101) 24 (0.667

– 0.692 ms)

6 (110) 32 (0.889

– 0.923 ms)

7 (111) 48 (1.333

– 1.385 ms)

R/W Enables (1) or disables (0) the RC oscillator calibration.

R0 Not used

R/W Controls the Event 0 resolution as well as maximum timeout of the WOR module and maximum timeout under normal RX operation:

Setting Resolution (1 LSB)

0 (00) 1 period (28

– 29 μs)

1 (01) 2

5

periods (0.89

– 0.92 ms)

2 (10) 2

10

periods (28

– 30 ms)

3 (11) 2

15

periods (0.91

– 0.94 s)

Max timeout

1.8

– 1.9 seconds

58

– 61 seconds

31

– 32 minutes

16.5

– 17.2 hours

Note that

WOR_RES

should be 0 or 1 when using WOR because

WOR_RES

>

1 will give a very low duty cycle.

In normal RX operation all settings of

WOR_RES

can be used.

SWRS061I Page 88 of 98

CC1101

Bit

7:6

5:4

3:2

1:0

Bit

7:6

5:4

3

2:0

0x21: FREND1

– Front End RX Configuration

Field Name

LNA_CURRENT[1:0]

LNA2MIX_CURRENT[1:0]

LODIV_BUF_CURRENT_RX[1:0]

MIX_CURRENT[1:0]

Reset

1 (01)

1 (01)

1 (01)

2 (10)

R/W Description

R/W Adjusts front-end LNA PTAT current output

R/W Adjusts front-end PTAT outputs

R/W Adjusts current in RX LO buffer (LO input to mixer)

R/W Adjusts current in mixer

PA_POWER[2:0]

0x22: FREND0

– Front End TX Configuration

Reset R/W Description Field Name

LODIV_BUF_CURRENT_TX[1:0]

R0 Not used

1 (0x01) R/W Adjusts current TX LO buffer (input to PA). The value to use

in this field is given by the SmartRF Studio software [5].

R0 Not used

0 (0x00) R/W Selects PA power setting. This value is an index to the

PATABLE

, which can be programmed with up to 8 different

PA settings. In OOK/ASK mode, this selects the

PATABLE index to use when transmitting a ‘1’.

PATABLE index zero is used in OOK/ASK when transmitting a ‘0’. The

PATABLE settings from index ‘0’ to the

PA_POWER

value are used for

ASK TX shaping, and for power ramp-up/ramp-down at the start/end of transmission in all TX modulation formats.

Bit

7:6

5:4

3:0

Field Name

FSCAL3[7:6]

0x23: FSCAL3

– Frequency Synthesizer Calibration

Reset R/W Description

CHP_CURR_CAL_EN[1:0]

FSCAL3[3:0]

2 (0x02) R/W Frequency synthesizer calibration configuration. The value to write in this field before calibration is given by the SmartRF

Studio software.

2 (0x02) R/W Disable charge pump calibration stage when 0.

9 (1001) R/W Frequency synthesizer calibration result register. Digital bit vector defining the charge pump output current, on an exponential scale: I_OUT =

I

0

·2

FSCAL3[3:0]/4

Fast frequency hopping without calibration for each hop can be done by calibrating upfront for each frequency and saving

the resulting

FSCAL3

,

FSCAL2

and

FSCAL1

register values.

Between each frequency hop, calibration can be replaced by

writing the

FSCAL3

,

FSCAL2

and

FSCAL1

register values

corresponding to the next RF frequency.

SWRS061I Page 89 of 98

CC1101

0x24: FSCAL2

– Frequency Synthesizer Calibration

Bit Field Name Reset

7:6

5 VCO_CORE_H_EN 0

4:0 FSCAL2[4:0] 10 (0x0A)

R/W Description

R0 Not used

R/W Choose high (1) / low (0) VCO

R/W Frequency synthesizer calibration result register. VCO current calibration result and override value.

Fast frequency hopping without calibration for each hop can be done by

calibrating upfront for each frequency and saving the resulting

FSCAL3

,

FSCAL2

and

FSCAL1

register values. Between each frequency hop,

calibration can be replaced by writing the

FSCAL3

,

FSCAL2

and

FSCAL1

register values corresponding to the next RF frequency.

Bit Field Name

7:6

5:0 FSCAL1[5:0]

0x25: FSCAL1

– Frequency Synthesizer Calibration

Reset R/W Description

32 (0x20)

R0 Not used

R/W Frequency synthesizer calibration result register. Capacitor array setting for

VCO coarse tuning.

Fast frequency hopping without calibration for each hop can be done by

calibrating upfront for each frequency and saving the resulting

FSCAL3

,

FSCAL2

and

FSCAL1

register values. Between each frequency hop,

calibration can be replaced by writing the

FSCAL3

,

FSCAL2

and

FSCAL1

register values corresponding to the next RF frequency.

Bit Field Name

7

6:0 FSCAL0[6:0]

0x26: FSCAL0

– Frequency Synthesizer Calibration

Reset R/W Description

R0 Not used

13 (0x0D) R/W Frequency synthesizer calibration control. The value to use in this register is

given by the SmartRF Studio software [5].

Bit Field Name

7

6:0 RCCTRL1[6:0]

0x27: RCCTRL1

– RC Oscillator Configuration

Reset R/W Description

0

65 (0x41)

R0 Not used

R/W RC oscillator configuration.

Bit Field Name

7

6:0 RCCTRL0[6:0]

0x28: RCCTRL0

– RC Oscillator Configuration

Reset

0

0 (0x00)

R/W Description

R0 Not used

R/W RC oscillator configuration.

Page 90 of 98 SWRS061I

CC1101

29.2 Configuration Register Details

– Registers that Loose Programming in SLEEP State

Bit Field Name

7:0 FSTEST[7:0]

0x29: FSTEST

– Frequency Synthesizer Calibration Control

Reset

89 (0x59)

R/W Description

R/W For test only. Do not write to this register.

Bit Field Name

7:0 PTEST[7:0]

0x2A: PTEST

– Production Test

R/W Description Reset

127 (0x7F) R/W Writing 0xBF to this register makes the on-chip temperature sensor available in the IDLE state. The default 0x7F value should then be written back before leaving the IDLE state. Other use of this register is for test only.

Bit Field Name

7:0 AGCTEST[7:0]

Reset

63 (0x3F)

0x2B: AGCTEST

– AGC Test

R/W Description

R/W For test only. Do not write to this register.

Bit Field Name

7:0 TEST2[7:0]

Bit Field Name

7:0 TEST1[7:0]

Reset

0x2C: TEST2

– Various Test Settings

R/W Description

136 (0x88) R/W The value to use in this register is given by the SmartRF Studio software

[5]. This register will be forced to 0x88 or 0x81 when it wakes up from

SLEEP mode, depending on the configuration of FIFOTHR.

ADC_RETENTION.

Note that the value read from this register when waking up from SLEEP always is the reset value (0x88) regardless of the ADC_RETENTION setting. The inverting of some of the bits due to the ADC_RETENTION setting is only seen INTERNALLY in the analog part.

0x2D: TEST1

– Various Test Settings

Reset

49 (0x31)

R/W Description

R/W The value to use in this register is given by the SmartRF Studio software

[5]. This register will be forced to 0x31 or 0x35 when it wakes up from

SLEEP mode, depending on the configuration of FIFOTHR.

ADC_RETENTION.

Note that the value read from this register when waking up from SLEEP always is the reset value (0x31) regardless of the ADC_RETENTION setting. The inverting of some of the bits due to the ADC_RETENTION setting is only seen INTERNALLY in the analog part.

SWRS061I Page 91 of 98

CC1101

1

0

Bit Field Name

7:2 TEST0[7:2]

VCO_SEL_CAL_EN 1

TEST0[0] 1

0x2E: TEST0

– Various Test Settings

Reset

2 (0x02)

R/W Description

R/W The value to use in this register is given by the SmartRF Studio software

[5].

R/W Enable VCO selection calibration stage when 1

R/W The value to use in this register is given by the SmartRF Studio software

[5].

29.3 Status Register Details

Bit Field Name

7:0 PARTNUM[7:0]

0x30 (0xF0): PARTNUM

– Chip ID

Reset R/W Description

0 (0x00) R Chip part number

Bit Field Name

7:0 VERSION[7:0]

Reset

20

(0x14)

0x31 (0xF1): VERSION

– Chip ID

R/W Description

R Chip version number. Subject to change without notice.

0x32 (0xF2): FREQEST

– Frequency Offset Estimate from Demodulator

Bit Field Name

7:0 FREQOFF_EST

Reset R/W Description

R The estimated frequency offset (2

’s complement) of the carrier. Resolution is

F

XTAL

/2

14

(1.59 - 1.65 kHz); range is ±202 kHz to ±210 kHz, depending on XTAL frequency.

Frequency offset compensation is only supported for 2-FSK, GFSK, 4-FSK, and

MSK modulation. This register will read 0 when using ASK or OOK modulation.

Bit Field Name

7 CRC OK

6:0 LQI_EST[6:0]

0x33 (0xF3): LQI

– Demodulator Estimate for Link Quality

Reset R/W Description

R

R

The last CRC comparison matched. Cleared when entering/restarting RX mode.

The Link Quality Indicator estimates how easily a received signal can be demodulated. Calculated over the 64 symbols following the sync word

Bit Field Name

7:0 RSSI

0x34 (0xF4): RSSI

– Received Signal Strength Indication

Reset R/W Description

R Received signal strength indicator

Page 92 of 98 SWRS061I

CC1101

Bit

7:5

4:0

0x35 (0xF5): MARCSTATE

– Main Radio Control State Machine State

Field Name

MARC_STATE[4:0]

Reset R/W Description

R0

R

Not used

Main Radio Control FSM State

Value

0 (0x00)

1 (0x01)

2 (0x02)

3 (0x03)

4 (0x04)

State name

SLEEP

IDLE

XOFF

VCOON_MC

REGON_MC

5 (0x05)

6 (0x06)

7 (0x07)

8 (0x08)

9 (0x09)

MANCAL

VCOON

REGON

STARTCAL

BWBOOST

10 (0x0A) FS_LOCK

11 (0x0B) IFADCON

State (Figure 25, page 50)

SLEEP

IDLE

XOFF

MANCAL

MANCAL

MANCAL

FS_WAKEUP

FS_WAKEUP

CALIBRATE

SETTLING

SETTLING

SETTLING

12 (0x0C) ENDCAL

13 (0x0D) RX

14 (0x0E) RX_END

15 (0x0F) RX_RST

16 (0x10) TXRX_SWITCH

CALIBRATE

RX

RX

RX

TXRX_SETTLING

17 (0x11) RXFIFO_OVERFLOW RXFIFO_OVERFLOW

18 (0x12) FSTXON

19 (0x13) TX

FSTXON

TX

20 (0x14) TX_END

21 (0x15) RXTX_SWITCH

TX

RXTX_SETTLING

22 (0x16) TXFIFO_UNDERFLOW TXFIFO_UNDERFLOW

Note: it is not possible to read back the SLEEP or XOFF state numbers because setting CSn low will make the chip enter the IDLE mode from the

SLEEP or XOFF states.

Bit

7:0

Field Name

TIME[15:8]

0x36 (0xF6): WORTIME1

– High Byte of WOR Time

Reset R/W Description

R High byte of timer value in WOR module

Bit

7:0

Field Name

TIME[7:0]

0x37 (0xF7): WORTIME0

– Low Byte of WOR Time

Reset R/W Description

R Low byte of timer value in WOR module

Page 93 of 98 SWRS061I

CC1101

1

0

4

3

6

5

Bit Field Name

7 CRC_OK

2

CS

PQT_REACHED

CCA

SFD

GDO2

GDO0

0x38 (0xF8): PKTSTATUS

– Current GDOx Status and Packet Status

Reset R/W Description

R

R

R

R

R

R

R0

R

The last CRC comparison matched. Cleared when entering/restarting RX mode.

Carrier sense. Cleared when entering IDLE mode.

Preamble Quality reached. If leaving RX state when this bit is set it will

remain asserted until the chip re-enters RX state (

MARCSTATE=0x0D

). The

bit will also be cleared if PQI goes below the programmed PQT value.

Channel is clear

Start of Frame Delimiter. In RX, this bit is asserted when sync word has been received and de-asserted at the end of the packet. It will also deassert when a packet is discarded due to address or maximum length filtering or the radio enters RXFIFO_OVERFLOW state. In TX this bit will always read as 0.

Current GDO2 value. Note: the reading gives the non-inverted value

irrespective of what

IOCFG2.GDO2_INV

is programmed to.

It is not recommended to check for PLL lock by reading

PKTSTATUS[2]

with

GDO2_CFG=0x0A

.

Not used

Current GDO0 value. Note: the reading gives the non-inverted value

irrespective of what

IOCFG0.GDO0_INV

is programmed to.

It is not recommended to check for PLL lock by reading

PKTSTATUS[0]

with

GDO0_CFG=0x0A

.

0x39 (0xF9): VCO_VC_DAC

– Current Setting from PLL Calibration Module

Bit Field Name

7:0 VCO_VC_DAC[7:0]

Reset R/W Description

R Status register for test only.

0x3A (0xFA): TXBYTES

– Underflow and Number of Bytes

Reset R/W Description Bit Field Name

7 TXFIFO_UNDERFLOW

6:0 NUM_TXBYTES

R

R Number of bytes in TX FIFO

0x3B (0xFB): RXBYTES

– Overflow and Number of Bytes

Reset R/W Description Bit Field Name

7 RXFIFO_OVERFLOW

6:0 NUM_RXBYTES

R

R Number of bytes in RX FIFO

0x3C (0xFC): RCCTRL1_STATUS

– Last RC Oscillator Calibration Result

Bit Field Name

7

6:0 RCCTRL1_STATUS[6:0]

Reset R/W Description

R0

R

Not used

Contains the value from the last run of the RC oscillator calibration routine.

For usage description refer to Application Note AN047 [4]

SWRS061I Page 94 of 98

CC1101

0x3D (0xFD): RCCTRL0_STATUS

– Last RC Oscillator Calibration Result

Bit Field Name

7

6:0 RCCTRL0_STATUS[6:0]

Reset R/W Description

R0

R

Not used

Contains the value from the last run of the RC oscillator calibration routine.

For usage description refer to Application Note AN047 [4].

30 Soldering Information

The recommendations for lead-free reflow in IPC/JEDEC J-STD-020 should be followed.

31 Development Kit Ordering Information

Orderable Evaluation Module

CC1101DK433

CC1101DK868-915

CC1101EMK433

CC1101EMK868-915

Description

CC1101 Development Kit, 433 MHz

CC1101 Development Kit, 868/915 MHz

CC1101 Evaluation Module Kit, 433 MHz

CC1101 Evaluation Module Kit, 868/915 MHz

Figure 34: Development Kit Ordering Information

Minimum Order Quantity

1

1

1

1

SWRS061I Page 95 of 98

CC1101

32 References

[1] CC1101EM 315 - 433 MHz Reference Design (swrr046.zip)

[2] CC1101EM 868

– 915 MHz Reference Design (swrr045.zip)

[3] CC1101 Errata Notes (swrz020.pdf)

[4] AN047 CC1100/CC2500

– Wake-On-Radio (swra126.pdf)

[5] SmartRF

TM

Studio (swrc046.zip)

[6] CC1100 CC2500 Examples Libraries (swrc021.zip)

[7] CC1100/CC1150DK, CC1101DK, and CC2500/CC2550DK Examples and Libraries User

Manual (swru109.pdf)

[8] DN010 Close-in Reception with CC1101 (swra147.pdf)

[9] DN017 CC11xx 868/915 MHz RF Matching (swra168.pdf)

[10] DN015 Permanent Frequency Offset Compensation (swra159.pdf)

[11] DN006 CC11xx Settings for FCC 15.247 Solutions (swra123.pdf)

[12] DN505 RSSI Interpretation and Timing (swra114.pdf)

[13] AN058 Antenna Selection Guide (swra161.pdf)

[14] AN067 Wireless MBUS Implementation with CC1101 and MSP430 (swra234.pdf)

[15] DN013 Programming Output Power on CC1101 (swra168.pdf)

[16] DN022 CC11xx OOK/ASK register settings (swra215.pdf)

[17] DN005 CC11xx Sensitivity versus Frequency Offset and Crystal Accuracy (swra122.pdf)

[18] DN501 PATABLE Access (swra110.pdf)

[19] DN504 FEC Implementation (swra113.pdf)

[20] DN507 FEC Decoding (swra313.pdf)

[21] CC1190 Data Sheet (swrs089.pdf)

[22] AN094 Using the CC1190 Front End with CC1101 under EN 300 220 (swra356.pdf)

[23] AN096 Using the CC1190 Front End with CC1101 under FCC 15.247 (swra361.pdf)

[24] DN032 Options for Cost Optimized CC11xx Matching (swra346.pdf)

[25] DN036 CC1101+CC1190 600 kbps Data Rate, +19 dBm transmit power without FHSS in

902-928 MHz frequency Band (swrr078.pdf)

[26] TPS62730 Data Sheet (slvsac3.pdf)

Page 96 of 98 SWRS061I

33 General Information

CC1101

33.1 Document History

Revision Date Description/Changes

SWRS061I 2013.11.05 Updated the package designator from RTK to RGP

Changed description of VERSION. Reset value changed from 0x04 to 0x14

SWRS061H 2012.10.09 Added 256 Hz clock to Table 41: GDOx Signal Selection

SWRS061G 2011.07.26 Crystal NX3225GA added to application circuit BOM

Added reference to CC1190 range extender

Added reference to AN094 and AN096

Corrected settling times and PLL turn-on/hop time in Table 15

Added reference to design notes DN032 and DN036

Removed references to AN001 and AN050

Changed description of MCSM0.PO_TIMEOUT

Removed link to DN009

Added more detailed information about how to check for PLL lock in Section 22.1

SWRS061F

2010.01.10 Changed from multi-layer to wire-wound inductors in Table 38.

Included PA_PD and LNA_PD GDO signals Table 41 as they were erroneously

removed in SWRS061E.

Updated WOR current consumption figures in Table 4.

The Gaussian filter BT is changed from 1.0 to 0.5.

Changed minimum data rate to 0.6 kBaud.

Updated Table 25 with 0.6 kBaud data rate.

Added information that digital signals with sharp edges should not be routed close to

XOSC_Q1 PCB track.

Added information about 1/XOSC glitch in received data output when using asynchronous serial mode

Added information that a 27 MHz crystal is recommended for systems targeting compliance with modulation bandwidth requirements in the 869 to 870 MHz frequency range under EN 300 220.

Updated overall state transition times in Table 34 and added table with frequency

synthesizer calibration times (Table 35).

Added -116 dBm 1% PER at 0.6 kBaud, 434 MHz

Included information about 4-FSK modulation

Added sensitivity figures for 4-FSK

Added link to DN507

Updated PKTSTATUS.SFD. In TX this bit reads as 0.

Updated PKTSTATUS.PQT_REACHED.

Removed chapter on Packet Description

Changed chapter on Ordering Information since this was duplicate information.

SWRS061E 2009.04.21 Maximum output power increased to +12/+11 dBm at 868/915MHz with the use of wire-wound inductors (Murata LQW15xx series).

Changes to optimum PATABLE settings.

Added typical output power over temperature and supply voltage.

Changes to current consumption in TX mode.

Added typical TX current consumption over temperature and supply voltage.

Improved sensitivity figures at 868/915 MHz.

Added typical sensitivity figures over temperature and supply voltage.

Added typical RX current consumption over temperature and input power level.

Changes to adjacent channel rejection at 38.4 kBaud.

Changes to image rejection at 250 kBaud.

Updates to selectivity/blocking plots.

Changed bill of materials for 868/915 MHz application circuits to Murata LQW15xx series inductors.

Changed analog temperature sensor temperature coefficient.

Added links to DN501 and DN504

Changes to section 17.6. A low LQI value indicates a good link

Changes to Package Description section

Changes to Ordering Information section

Page 97 of 98 SWRS061I

CC1101

Revision Date Description/Changes

SWRS061D 2008.05.22 Edited title and removed CC logo.

Formatted and edited text. Put important notes in boxes.

Corrected the 250 kBaud settings information from MSK to GFSK.

Added plot over RX current variation versus input power level and temperature.

Added tables for sensitivity, output power and TX current consumption variation versus temperature and supply voltage.

Moved the selectivity plots to the electrical specification section and updated the 1.2 kBaud setting plot.

Added load capacitance spec for the crystal oscillator.

Updated links from AN039 to AN050.

Updated information regarding optional filtering of 699 MHz emission, updated the

868/915 MHz application figure and bills of material, and added link to DN017.

Updated and moved information regarding the crystal, a reference signal, the balun, and PCB layout recommendations to the section regarding the application circuit.

Added information regarding antennas and link to the antenna selection guide AN058.

Added link to DN005.

Restructured Section 14.1 and added link to DN015.

Moved improved spectrum information (GFSK info) to Section 16.1.

Added information regarding the DEVIATN register in Chapter 16 and in the register description.

Added information on ASK/OOK settings and added a link to DN022.

Updated RSSI information and added link to DN505.

Updated Section 18.2 information.

Clarified the text describing Figure 27.

Added link to DN013.

Updated Figure 33.

Updated Section 28.2.

Updated information regarding serial synchronous mode.

Added information regarding Wireless MBUS and added link to AN067.

Updated info regarding the FIFOTHR register and TEST1 and TEST2.

Updated info regarding the PKTSTAUS.SFD bit.

Updated address for reading content from 0x3D.

Updated registers information on bits that are not used.

Updated Command Strobes section.

Added link to DN009.

Updated links in the reference chapter.

Added link to the Community.

SWRS061C 2008.05.22 Added product information on the front page

SWRS061B 2007.06.05 Changed name on DN009 Close-in Reception with CC1101 to DN010 Close-in

Reception with CC1101.

Added info regarding how to reduce spurious emission at 699 MHz. Changes

regarding this was done the following places: Table: RF Transmit Section,

Figure 11: Typical Application and Evaluation Circuit 868/915 MHz, Table 20:

Overview of External Components, and Table 21: Bill Of Materials for the Application

Circuit.

Changes made to Figure 27: Power-On Reset with SRES

SWRS061A 2007.06.30 Initial release.

SWRS061 2007.04.16 First preliminary data sheet release

Table 46: Document History

SWRS061I Page 98 of 98

PACKAGE OPTION ADDENDUM

www.ti.com

5-Nov-2013

PACKAGING INFORMATION

Orderable Device

CC1101RGP

CC1101RGPR

Status

(1)

ACTIVE

ACTIVE

Package Type Package

Drawing

QFN

QFN

RGP

RGP

Pins Package

20

20

Qty

Eco Plan

(2)

92 Green (RoHS

& no Sb/Br)

3000 Green (RoHS

& no Sb/Br)

Lead/Ball Finish

(6)

CU NIPDAU

CU NIPDAU

MSL Peak Temp

(3)

Level-3-260C-168 HR

Op Temp (°C)

-40 to 85

Level-3-260C-168 HR -40 to 85

Device Marking

(4/5)

CC1101

CC1101

CC1101RGPT ACTIVE QFN RGP 20 250 Green (RoHS

& no Sb/Br)

CU NIPDAU Level-3-260C-168 HR

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

-40 to 85 CC1101

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.

Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.

Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.

Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4)

There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5)

Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device.

(6)

Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and

Addendum-Page 1

Samples

PACKAGE OPTION ADDENDUM

www.ti.com

5-Nov-2013 continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

OTHER QUALIFIED VERSIONS OF CC1101 :

Automotive: CC1101-Q1

NOTE: Qualified Version Definitions:

Automotive - Q100 devices qualified for high-reliability automotive applications targeting zero defects

Addendum-Page 2

www.ti.com

TAPE AND REEL INFORMATION

PACKAGE MATERIALS INFORMATION

30-Nov-2013

*All dimensions are nominal

Device Package

Type

Package

Drawing

Pins SPQ

CC1101RGPT QFN RGP 20 250

Reel

Diameter

(mm)

Reel

Width

W1 (mm)

180.0

12.4

A0

(mm)

4.3

B0

(mm)

4.3

K0

(mm)

P1

(mm)

W

(mm)

Pin1

Quadrant

1.5

8.0

12.0

Q2

Pack Materials-Page 1

www.ti.com

PACKAGE MATERIALS INFORMATION

30-Nov-2013

*All dimensions are nominal

Device

CC1101RGPT

Package Type Package Drawing Pins

QFN RGP 20

SPQ

250

Length (mm) Width (mm) Height (mm)

210.0

185.0

35.0

Pack Materials-Page 2

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.

TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.

No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.

Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products Applications

Audio

Amplifiers

Data Converters

DLP® Products

DSP

Clocks and Timers

Interface

Logic

Power Mgmt

Microcontrollers

RFID

OMAP Applications Processors

Wireless Connectivity www.ti.com/audio amplifier.ti.com

dataconverter.ti.com

www.dlp.com

dsp.ti.com

www.ti.com/clocks interface.ti.com

logic.ti.com

power.ti.com

microcontroller.ti.com

www.ti-rfid.com

www.ti.com/omap

Automotive and Transportation www.ti.com/automotive

Communications and Telecom www.ti.com/communications

Computers and Peripherals

Consumer Electronics

Energy and Lighting

Industrial

Medical

Security www.ti.com/computers www.ti.com/consumer-apps www.ti.com/energy www.ti.com/industrial www.ti.com/medical www.ti.com/security

Space, Avionics and Defense www.ti.com/space-avionics-defense

Video and Imaging

TI E2E Community

www.ti.com/wirelessconnectivity www.ti.com/video e2e.ti.com

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2013, Texas Instruments Incorporated

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
