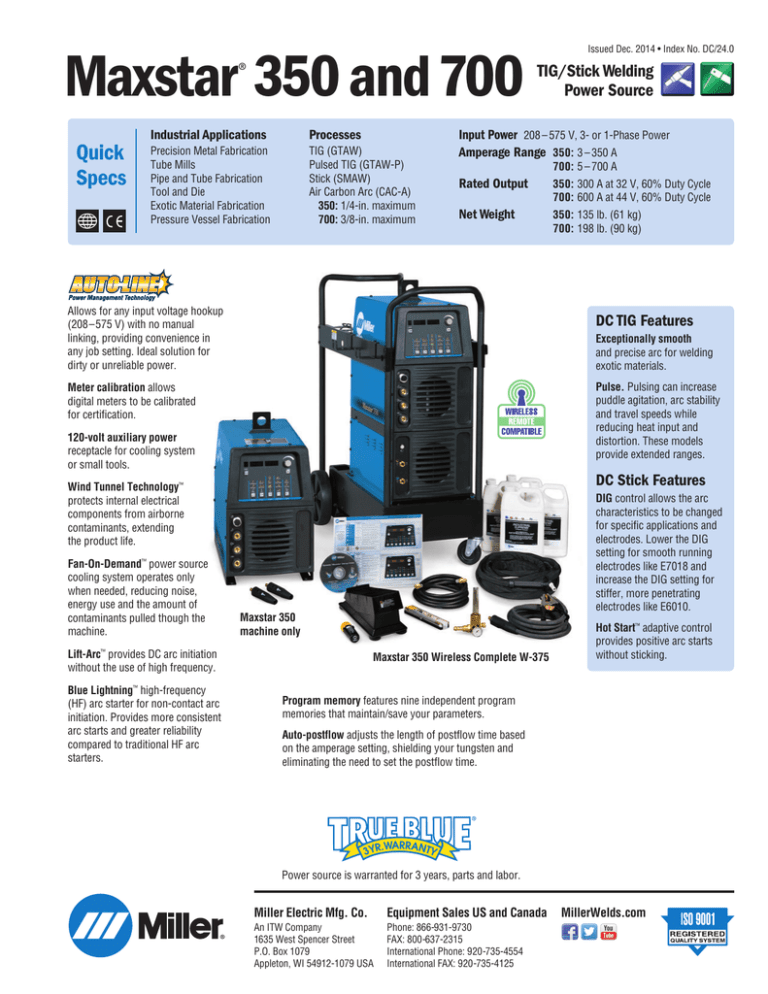

Maxstar 350 and 700 Quick Specs

Maxstar 350 and 700 Quick Specs
Issued Dec. 2014 • Index No. DC/24.0
Maxstar 350 and 700
®
Quick
Specs
Industrial Applications
Processes
Precision Metal Fabrication
Tube Mills
Pipe and Tube Fabrication
Tool and Die
Exotic Material Fabrication
Pressure Vessel Fabrication
TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air Carbon Arc (CAC-A)
350: 1/4-in. maximum
700: 3/8-in. maximum
TIG/Stick Welding
Power Source
Input Power 208 – 575 V, 3- or 1-Phase Power
Amperage Range 350: 3 – 350 A
700: 5 – 700 A
Rated Output
350: 300 A at 32 V, 60% Duty Cycle
700: 600 A at 44 V, 60% Duty Cycle
Net Weight
350: 135 lb. (61 kg)
700: 198 lb. (90 kg)
Allows for any input voltage hookup
(208–575 V) with no manual
linking, providing convenience in
any job setting. Ideal solution for
dirty or unreliable power.
DC TIG Features
Exceptionally smooth
and precise arc for welding
exotic materials.
Pulse. Pulsing can increase
puddle agitation, arc stability
and travel speeds while
reducing heat input and
distortion. These models
provide extended ranges.
Meter calibration allows
digital meters to be calibrated
for certification.
120-volt auxiliary power
receptacle for cooling system
or small tools.
DC Stick Features
Wind Tunnel Technology™
protects internal electrical
components from airborne
contaminants, extending
the product life.
Fan-On-Demand™ power source
cooling system operates only
when needed, reducing noise,
energy use and the amount of
contaminants pulled though the
machine.
DIG control allows the arc
characteristics to be changed
for specific applications and
electrodes. Lower the DIG
setting for smooth running
electrodes like E7018 and
increase the DIG setting for
stiffer, more penetrating
electrodes like E6010.
Maxstar 350
machine only
Lift-Arc™ provides DC arc initiation
without the use of high frequency.
Blue Lightning™ high-frequency
(HF) arc starter for non-contact arc
initiation. Provides more consistent
arc starts and greater reliability
compared to traditional HF arc
starters.
Maxstar 350 Wireless Complete W-375
Hot Start™ adaptive control
provides positive arc starts
without sticking.
Program memory features nine independent program
memories that maintain/save your parameters.
Auto-postflow adjusts the length of postflow time based
on the amperage setting, shielding your tungsten and
eliminating the need to set the postflow time.
Power source is warranted for 3 years, parts and labor.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An ITW Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
MillerWelds.com
Specifications (Subject to change without notice.)
Model
Maxstar
350
Input
Power
Welding
Amperage
Range
3-phase
3– 350 A
1-phase
Maxstar
700
3-phase
1-phase
3– 350 A
5 – 700 A
5 – 700 A
Rated
Output
Amps Input at Rated Load Output, 50/60 Hz
208 V 230 V 400 V 460 V 575 V KVA KW
250 A at 30 V,
100% duty cycle
27
24
14
12
9
9.7
9.3
300 A at 32 V,
60% duty cycle
33
30
17
15
12
12
11.5
180 A at 27.2 V,
100% duty cycle
32
32
—
14
11
6.4
6
225 A at 29 V,
60% duty cycle
41
37
—
19
15
8.6
8.2
500 A at 40 V,
100% duty cycle
67
60
35
30
24
24
23
600 A at 44 V,
60% duty cycle
89
80
46
40
32
32
31
360 A at 34 V,
100% duty cycle
77
70
—
35
28
16
15
450 A at 38 V,
60% duty cycle
106
96
—
48
38
22
21
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
Max.
Open-Circuit
Voltage
75 VDC
(10 –15 VDC*)
75 VDC
(10 –15 VDC*)
Dimensions
H: 24.75 in. (629 mm)
W: 13.75 in. (349 mm)
D: 22 in. (559 mm)
135 lb.
(61 kg)
with TIGRunner®
H: 43.125 in. (1095 mm)
W: 23.125 in. (587 mm)
D: 43.75 in. (1111 mm)
with
TIGRunner®
308 lb.
(140 kg)
H: 34.5 in. (876 mm)
W: 13.75 in. (349 mm)
D: 22 in. (559 mm)
198 lb.
(90 kg)
All CE models conform to the applicable parts of the IEC 60974 series of standards.
*Indicates sense-voltage for Lift-Arc™ TIG and Low OCV Stick.
Performance Data
DUTY CYCLE
Maxstar 350
Maxstar 700
3-PHASE
%
30%
60%
100%
3-PHASE
AMPERAGE
350 A
300 A
250 A
%
30%
60%
100%
AMPERAGE
350 A
250 A
225 A
180 A
%
10%
30%
60%
100%
1-PHASE
%
10%
30%
60%
100%
2
Net
Weight
AMPERAGE
700 A
600 A
500 A
1-PHASE
AMPERAGE
700 A
500 A
450 A
360 A
Maxstar 350 and 700 Control Panel
®
9
10
11
8
1
7
2
3
4
5
6
Control Panel Parameter Values
1. Memory
18 Combinations
(9 DC TIG)
(9 DC Stick)
2. Process/
Arc Starting
TIG: HF Impulse, Lift Arc
STICK: Adaptive Hot Start
3. Output Control
Standard Remote,
2T Trigger Hold,
Output ON
4. Pulser Control
Pulses per Second DC: 0.1– 5000 PPS
Peak Time
5 – 95%
Background Amps 5 – 95%
5. Sequencer Control
Initial Amps
Maxstar 350: 3 – 350 A
Maxstar 700: 5 –700 A
Initial Slope
0.0 – 50.0 seconds
Final Slope
0.0 – 50.0 seconds
Final Amps
Maxstar 350: 3 – 350 A
Maxstar 700: 5 –700 A
6. Gas/DIG Preflow
Postflow
DIG
7. Amperage Control
8. Encoder Control
9. Ammeter Display
10. Voltmeter Display
11. Memory Display
0.0 – 25.0 seconds
Auto Postflow,
Adjust 0.0 – 50 seconds
0 –100%
Additional Setup Parameter Values
Preprogrammed Starts
Maxstar 350
.020 – 3/16 in. tungsten
Maxstar 700
.040 –1/4 in. tungsten
Programmable Starts
Amperage
Maxstar 350: 3 – 200 A
Maxstar 700: 5 – 200 A
Time
1– 200 milliseconds
Ramp Time
0 – 250 milliseconds
Minimum Amperage Maxstar 350: 3 – 25 A
Maxstar 700: 5 – 25 A
Additional Triggers 3T, 4T, Mini Logic,
4T Momentary
Spot/Weld Timer
0.0 – 999 seconds
OCV
Low OCV, Normal OCV
Stick-Stuck Check
On/Off
Lockouts
Four levels
Arc Timer
0.0 – 9999 hours
and 0 – 59 minutes
Cycle Counter
0 – 999,999 cycles
Meter Calibration
±0 – 20.0 amps
±0 – 20.0 volts
3
Pulsed TIG Controls
High-Speed DC Pulsed TIG Controls
• PPS Pulses per second (Hz): DC = 0.1 – 5,000 PPS
• % ON – % Peak Time: 5 – 95% (Controls the amount of time during each pulse cycle at the PEAK amperage.)
• Background Amps: 5 – 99% (Sets the low-pulse amperage value as a % of the Peak Amps.)
Conventional Pulsed TIG
Peak Amps
Peak Time %
Background Amps
(% of Peak)
Typically from 1 to 10 PPS. Provides a heating and
cooling effect on the weld puddle and can reduce
distortion by lowering the average amperage. This
heating and cooling effect also produces a distinct
ripple pattern in the weld bead. The relationship
between pulse frequency and travel speed
determines the distance between the ripples. Slow
pulsing can also be coordinated with filler metal
addition and can increase overall control of the
weld puddle.
Pulse Cycle
High-Speed Pulsed TIG
Peak Time %
Peak Amps
Pulsing the weld current at high speeds — between
a high Peak and a low Background amperage —
can also constrict and focus the arc. This results
in maximum arc stability, increased penetration
and increased travel speeds (Common Range:
100 – 500 PPS).
Background Amps
(% of Peak)
Pulse Cycle
4
In excess of 40 PPS, Pulsed TIG becomes more
audible than visible — causing increased puddle
agitation for a better as-welded microstructure.
The Arc-Sharpening effects of high speed pulsing
are expanded to new dimensions. The ability to
pulse at 5,000 PPS further enhances arc stability
and concentration potential — which is extremely
beneficial to automation where maximum travel
speeds are required.
Maxstar 350 and 700 Models/Packages
®
Machines and Preconfigured
Water-Cooled Packages
Order machine only or use a single stock number to
order a complete preconfigured system.
#907 334 and
#907 103
models shown.
Machine Only
Maxstar 350 (CSA)
Maxstar 350 (CE)
Maxstar 350 (Automation)
#907 334
#907 334 021
#907 334 002
Maxstar 700 (CSA)
Maxstar 700 (CE)
#907 103
#907 103 021
Comes with:
• 8-ft. power cord (no plug) (350 model)
• Setup DVD and quick reference guide
• Two 50-mm Dinse-style connectors (350 model)
• Two thread-lock connectors (700 model)
• One thread-lock water-cooled connector
(700 model)
Build a
Water-Cooled
Package
Select desired
stock number
for each step.
#907 334 001
package shown.
#951 625
package shown.
TIGRunner® Package (Machine/Cart/Cooler)
Complete Package (Machine/Cart/Cooler/Torch Kit/Remote)
Maxstar 350 (CSA)
Maxstar 350 (CSA) w/Foot Control, W-375
#951 624
Maxstar 350 (CSA) w/Wireless Foot Control, W-375 #951 625
#907 334 001
Comes with:
• 8-ft. power cord (no plug) (350 model)
• Setup DVD and quick reference guide
• Runner™ cart #300 244
• Coolmate™ 3.5 #300 245
Comes with:
• 8-ft. power cord (no plug) (350 model)
• Setup DVD and quick reference guide
• Runner™ cart #300 244
• Coolmate™ 3.5 #300 245
• 4 gallons of coolant #043 810
• W-375 torch kit #301 268
• Remote control #194 744 (foot) or
Remote control #300 429 (wireless foot)
#907 334 001
Maxstar 350
TIGRunner® shown
with four bottles
of #043 810
Low-Conductivity
Coolant.
#194 744 remote shown.
Step #1 • Select Maxstar TIGRunner® and Coolant
Maxstar 350 TIGRunner
Maxstar 700
(add #300 244 cart and #300 245 Coolmate
to create Maxstar 700 TIGRunner)
&
Low-Conductivity Coolant
(must be ordered in quantities of four)
#907 334 001
#907 103
#043 810
#301 268 kit shown.
Step #2 • Select Remote Control
Wireless Foot
RFCS-14 HD Foot
RCC-14 E/W Fingertip
RCCS-14 N/S Fingertip
RMS-14 Pushbutton
RMLS-14 Momentary/Maintained
RHC-14 Hand
Wireless Hand
#300 429
#194 744
#151 086
#043 688
#187 208
#129 337
#242 211 020
#300 430
Step #3 • Select Torch Kit
W-250 (WP-20) Kit
#300 185
W-375 Kit
#301 268
(recommended for 350 model)
W-400 (WP-18SC) Kit
#300 186
(recommended for 700 model)
5
Genuine Miller Accessories
®
Water-Cooled Torch Kits
W-250 (WP-20) Torch Kit #300 185
Weldcraft™ W-250 (WP-20) 25-foot
(7.6 m) TIG torch with Dinse-style
connector
Torch cable cover
Work clamp with 15-foot (4.6 m)
1/0 cable and Dinse-style connector
Flowmeter regulator
Gas hose (regulator to machine)
AK4C torch accessory kit includes
nozzles, collets, collet bodies and
2% ceriated tungsten electrodes
(1/16, 3/32 and 1/8 inch)
W-375 Torch Kit #301 268
Recommended for Maxstar 350
Weldcraft™ W-375 25-foot (7.6 m)
TIG torch with Dinse-style connector
Torch cable cover
Work clamp with 15-foot (4.6 m)
1/0 cable and Dinse-style connector
Flowmeter regulator
Gas hose (regulator to machine)
AK4C torch accessory kit includes
nozzles, collets, collet bodies and
2% ceriated tungsten electrodes
(1/16, 3/32 and 1/8 inch)
W-400 (WP-18SC) Torch Kit #300 186
Recommended for Maxstar 700
Weldcraft™ W-400 (WP-18SC) 25-foot
(7.6 m) TIG torch with thread-lock
connector
Torch cable cover
Work clamp with 12-foot (3.7 m)
4/0 cable with thread-lock connector
Flowmeter regulator
Gas hose (regulator to machine)
AK18C torch accessory kit includes
nozzles, collets, collet bodies and
2% ceriated tungsten electrodes
(3/32, 1/8 and 5/32 inch)
Water-Cooled TIG Torch Connector
#195 377
For Dynasty ® and Maxstar ® 350. 50-mm
Dinse-style with water return line. For use
with all Weldcraft™ water-cooled torches.
Runner™ Cart
#300 244
Designed to
accommodate
Dynasty® or
Maxstar® 350
or 700 power
sources and
a Coolmate™ 3.5
Cooler. Cart
features single
cylinder rack, foot
pedal holder, three cable/torch holders, and
two TIG electrode filler holders.
Low-Conductivity
TIG Coolant
#043 810
Sold in multiples
of four in onegallon recyclable
plastic bottles.
Miller coolants
contains a base of ethylene glycol and
deionized water to protect against freezing
to -37° Fahrenheit (-38° C) or boiling to
227° Fahrenheit (108° C).
Water-Cooled TIG
Torch Connector
#225 028
For Dynasty ® and
Maxstar ® 700.
50-mm thread-lock
with water return
line. For use with
all Weldcraft™ water-cooled torches.
Coolmate™ 3.5 #300 245
Designed to integrate with the Dynasty®
and Maxstar® 350 and 700 power sources.
For use with water-cooled torches rated up
to 600 amps. 3.5 gallon capacity.
6
Automation Interface Connection Kit
#195 516 Field
Provides control of power source welding
parameters through a 28-pin receptacle.
The 28-pin receptacle replaces the standard
14-pin receptacle and requires a PLC
controller to operate the power source.
Ideal for automated equipment integration.
Weld Current Sensor #300 179 Field
Detects when work clamp is not connected
and prevents expensive damage to
disconnect devices and input power cord
and wiring.
Genuine Miller Accessories (Continued)
®
Remote Controls and Switches
Wireless Remote
Foot Control
#300 429
For remote
current and
contactor control.
Receiver plugs
directly into the 14-pin receptacle of Miller
machine. 90-foot (27.4 m) operating range.
Wireless Remote Hand
Control #300 430
For remote current
and contactor control.
Receiver plugs directly
into the 14-pin
receptacle of Miller
machine. 300-foot (91.4 m) operating range.
RCCS-14 Remote Contactor and
Current Control #043 688
North/south rotary-motion fingertip control
attaches to TIG torch using two hook-andloop fasteners. Great for applications that
require a finer amperage control. Includes
26.5-foot (8 m) cord and 14-pin plug.
RCC-14 Remote Contactor and Current
Control #151 086
East/west rotary-motion fingertip control
attaches to TIG torch using two hook-andloop fasteners. Great for production or
contractors that need quick ramp-up. Includes
26.5-foot (8 m) cord and 14-pin plug.
RFCS-14 HD Foot
Control #194 744
Maximum flexibility
is accomplished
with a reconfigurable cord that
can exit the front, back or either side of the
pedal. Foot pedal provides remote current
and contactor control. Includes 20-foot
(6 m) cord and 14-pin plug.
RHC-14 Hand Control
#242 211 020
Miniature hand control
for remote current
and contactor control.
Dimensions: 4 x 4 x
3.25 inches (102 x 102 x 83 mm). Includes
20-foot (6 m) cord and 14-pin plug.
RMLS-14 Switch #129 337
Momentary- and maintained-contact rocker
switch for contactor control. Push forward
for maintained contact and backward for
momentary contact. Includes 26.5-foot
(8 m) cord and 14-pin plug.
RMS-14 On/Off Control #187 208
Momentary-contact switch for contactor
control. Rubber-covered pushbutton
dome switch ideal for repetitive on-off
applications. Includes 26.5-foot (8 m) cord
and 14-pin plug.
Educational Materials
To order, please call Miller Literature at 866-931-9732
or visit MillerWelds.com/resources/tools.
Gas Tungsten Arc Welding (TIG) Publication
#250 833
Simulator and Setup CD-ROM #233 558
Setup DVD #251 116
Video topics include tungsten selection, setup
menus, DC pulse, sequencer, balance and
frequency settings. (Included with machine.)
TIG Welding Gloves
Classic TIG
Welding Gloves
#249 199 Large
#249 200 X-Large
Unlined pigskin leather palm
with reinforced palm patch.
Performance TIG Gloves
#263 345 X-Sm (Women’s)
#263 346 Small (Women’s)
#263 347 Medium
#263 348 Large
#263 349 X-Large
Completely unlined, goat grain leather with
triple-padded palm.
Performance TIG/Multitask
Gloves
#263 352 Small
#263 353 Medium
#263 354 Large
#263 355 X-Large
Goat grain leather with
dual-padded palm and wool back.
Extension Cables for 14-Pin
Remote Controls
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15.2 m)
#242 208 080 80 ft. (24.4 m)
Tungsten
Tungsten
Amp Range
2% Ceriated (AC/DC)
2% Lanthanated (AC/DC)
1/16 in. (1.6 mm)
70 –150 A
WC116X7
WL2116X7
3/32 in. (2.4 mm)
140 – 250 A
WC332X7
WL2332X7
1/8 in. (3.2 mm)
225 – 400 A
WC018X7
WL2018X7
5/32 in. (4.0 mm)
300 – 500 A
WC532X7
WL2532X7
7
Ordering Information
Equipment and Options
Stock No.
Description
Maxstar® 350
#907 334
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA. 8-ft. power cord
Maxstar® 350 International
#907 334 021
Auto-Line™ 380 – 575 VAC, 50/60 Hz, CE. 8-ft. power cord
Maxstar 350 TIGRunner
#907 334 001
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA. 8-ft. power cord. Requires coolant
Maxstar 350 Wireless Complete W-375
#951 625
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA. 8-ft. power cord
Maxstar® 350 Complete W-375
#951 624
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA. 8-ft. power cord
Maxstar 700
#907 103
Auto-Line™ 208 – 575 VAC, 50/60 Hz, CSA
Maxstar 700 International
#907 103 021
Auto-Line™ 380 – 575 VAC, 50/60 Hz, CE
Water-Cooled Torch Kits
#300 185
#301 268
#300 186
W-250 (WP-20)
W-375 (recommended for Maxstar 350)
W-400 (WP-18SC) (recommended for Maxstar 700)
Water-Cooled TIG Torch Connectors
#195 377
#225 028
Connects Weldcraft™ water-cooled torches to Dinse-style connector
Connects Weldcraft™ water-cooled torches to Maxstar 700
(thread-lock connector included with 700 models)
Weldcraft™ A-200 (WP-26) TIG Torch
#WP-26-25-R
®
®
®
®
®
Qty.
TIG Torches, Kits and Connectors
Tungsten
For Maxstar 350 only. 25-ft. (7.6 m) cable. Requires #195 379 connector
See page 7
Remote Controls
Wireless Remote Foot Control
#300 429
Foot control with wireless 90-ft. (27.4 m) operating range
Wireless Remote Hand Control
#300 430
Hand control with wireless 300-ft. (91.4 m) operating range
RCCS-14
#043 688
North/south fingertip control
RCC-14
#151 086
East/west fingertip control
RFCS-14 HD
#194 744
Heavy-duty foot control
RHC-14
#242 211 020
Hand control
RMLS-14
#129 337
Momentary/maintained rocker switch
RMS-14
#187 208
Momentary rubber dome switch
Extension Cables
See page 7
Accessories
Runner ™ Cart
#300 244
Coolmate™ 3.5
#300 245
120 VAC, 50/60 Hz, CE. Requires coolant
TIG Coolant
(Must be ordered in quantities of four)
#043 810
1-gallon plastic bottle. Protects against freezing to
-37° Fahrenheit (-38° C) or boiling to 227° Fahrenheit (108° C)
Automation Interface Kit
#195 516
Field. Provides required automation connections
Weld Current Sensor
#300 179
Field. Installation required
Dinse-Style Connector 50 mm (1 male)
#042 418
Used to connect weld cable to Dinse terminal machine
Thread-Lock Connectors (2 male)
#225 029
Used to connect weld cable to Dynasty 700 or Maxstar 700
Dinse-Style Connector 50 mm
(1 male, 1 female)
#042 419
Used to extend weld cables
Dinse/Tweco® Adapter
#042 465
Male Dinse to female Tweco
Dinse/Cam-Lok Adapter
#042 466
Male Dinse to female Cam-Lok
Gas Tungsten Arc Welding (TIG) Publication
#250 833
Simulator and Setup CD-ROM
#233 558
Setup DVD (included with machine)
#251 116
TIG Welding Gloves
Date:
Distributed by:
© 2013 Miller Electric Mfg. Co.
See page 7
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
