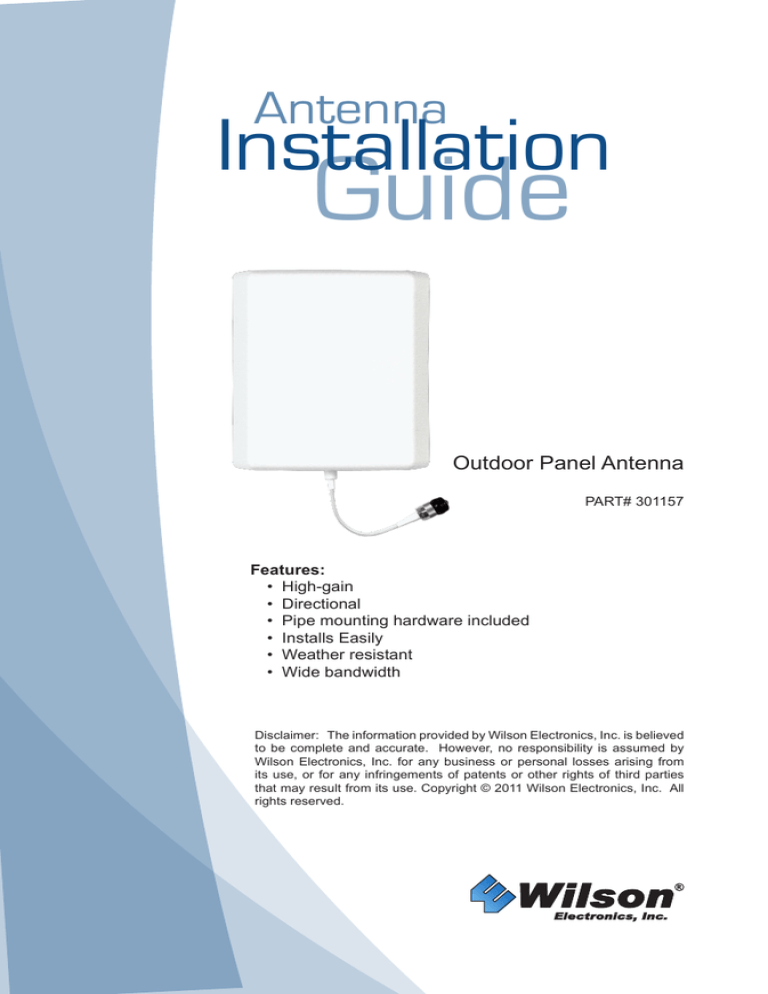

Panel Antenna Installation Guide
Antenna
Installation
Guide
Outdoor Panel Antenna
PART# 301157
Features:
• High-gain
• Directional
• Pipe mounting hardware included
• Installs Easily
• Weather resistant
• Wide bandwidth
Disclaimer: The information provided by Wilson Electronics, Inc. is believed
to be complete and accurate. However, no responsibility is assumed by
Wilson Electronics, Inc. for any business or personal losses arising from
its use, or for any infringements of patents or other rights of third parties
that may result from its use. Copyright © 2011 Wilson Electronics, Inc. All
rights reserved.
How It Works
Wilson Electronics Outdoor Panel Antenna will collect the cell tower signal and send it
through the cable to a Signal Booster, cell phone or data card. When the cellular device
transmits, the signal is transferred to a Signal Booster or directly to the antenna and
broadcasted back to the cell tower.
Package Contents
(A) Outdoor Panel Antenna, (B) Pole Mounting Bracket), (C) 3 - Small Washers,
(D) 3 - Bracket nuts, (E) 1 - U-Bolt, (F) 1- Pipe Bracket, (G) 2 - Washers (H) 2 - 1/4” Split-Lock Washers
(I) 2 - 2 - 1/4”-20 nuts
C
A
D
B
H
G
F
I
E
STEP 2
STEP 1
Drip hole on bottom
Cell Tower
Antenna Installation
The antenna should be mounted as shown in the illustration above. The included
mounting bracket is adjustable and will accommodate pipe diameters from 1.25” to 2”
(pipe sold separately Part# 901117). Mount the antenna so that there is at least 3 feet of
clearance in front and sides. Position the antenna so that it has the most unobstructed
line of sight to the cellular service provider’s strongest signal. If you are using a wireless
Signal Booster, make sure the antenna is not pointing across your own roof.
Warning: Lightning protection is recommended for all installations (Wilson
Electronics Part #859902). Take extreme care to ensure that neither you nor the
antenna comes near any electric power lines.
1
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: [email protected] Hours: 7 am to 6 pm MST.
RF Signal
Wide Band
Antenna
Cell Tower
Adjusting the Antenna for Maximum Performance
To adjust the antenna for best performance, connect it to your cell phone with an
external adapter and a length of cable. External Antenna Adapters and cables are
sold separately. Put the cell phone in test mode and turn the antenna in 10-degree
increments while checking the cell phone’s signal level. At each point you may need
to wait a few seconds as your cell phone updates. To find your phone’s test mode, visit
www.WilsonElectronics.com. Signal readings usually appear as a negative number (for
example, -86). The larger the number, the more powerful the signal (-75 is stronger than
-84). See graph below.
EXCELLENT
Signal Strength
-50dB
-60dB
GOOD
Signal Strength
-70dB
-80dB
POOR
Signal Strength
-90dB
-100dB
NO
SIGNAL
-110dB
Once you have obtained the strongest signal, fully tighten the mounting hardware. After
the Signal Booster and the rest of the system is installed and performing correctly,
weatherproof all connections.
Important: If you are using a wireless Signal Booster, be sure the antenna is not
pointing across the building in which you are trying to get coverage. The antenna
should point away from the building to help prevent oscillation (feedback).
Ultra low loss cable is recommended for lengths 20’ or greater to prevent significant signal
loss. Wilson Electronics offers WILSON 400 cable in several lengths from 20-100 feet.
Wilson Electronics also offers a wide range of phone adapters to connect your cell phone
to a Signal Booster or directly to the antenna. To find the adapter for your phone, visit
www.WilsonElectronics.com or call toll free 866-294-1660.
Antenna Adapter
An 18-inch external adapter may be required to connect the cell phone directly to the
antenna. The external adapter is cell phone specific and may be purchased through a
local retailer. Refer to Wilson Electronics Adapter Guide to identify the right adapter for
your cell phone or cellular data card. The Adapter Guide is available through a local
retailer. It is also available on our web site, www.WilsonElectronics.com, or you may call
Technical Support at 866-294-1660.
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: [email protected] Hours: 7 am to 6 pm MST.
2
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day moneyback guarantee. If for any reason the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
90-Day Warranty
Wilson Electronics antennas are warranted for ninety (90) days against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Antennas may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its
option, either repair or replace the product. Wilson Electronics will pay for delivery of
the repaired or replaced product back to the original consumer.
This warranty does not apply to any signal boosters determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
Antenna Specifications
Part Number
301157
Frequency Range
700-800 MHz / 824-894 MHz / 880-960 MHz / 1710-1880 MHz
1850-1990 MHz / 2110-2170 MHz
Gain
5.2 dBi 700-800 MHz / 4.4 dBi 824-894 MHz / 4.2 dBi 880-960 MHz /
10.1 dBi 1710-1880 MHz / 10.6 dBi 1850-1990 MHz / 8.2 dBi 2110-2170 MHz
VSWR max
< 1.5
Horizontal Beamwidth
70°
Vertical Beamwidth
50°
Nominal Impedance
50 ohms
Polarization
Vertical
Maximum Power
100 watts
Connector
N-Female
Dimension
210 x 180 x 44 mm
Weight
600 g
Radome Material
UV Protection ABS
Wilson
®
Electronics, Inc.
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
or email at: [email protected]
Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432
www.twitter.com/WilsonCellular
www.facebook.com/WilsonCellular
Part #104099 AIG Outdoor Panel 010 / 07.06.11
