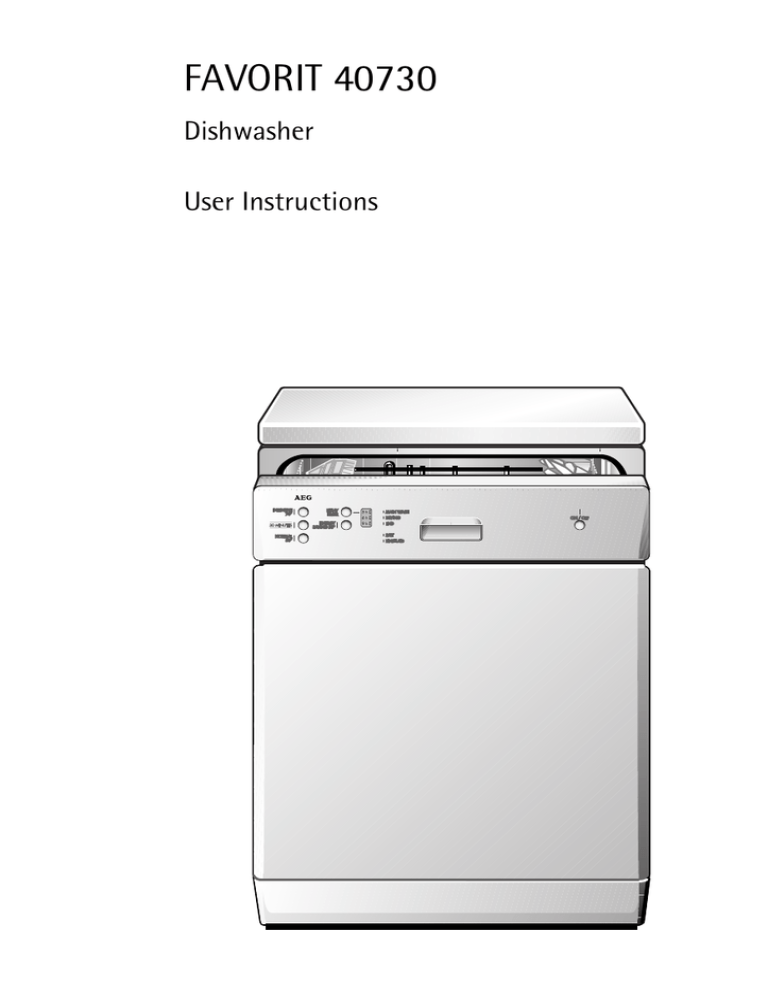

FAVORIT 40730
Dishwasher
User Instructions
Dear customer,
Please read these user instructions carefully.
Above all please observe the safety instructions on the first few pages
ofthese user instructions! Please keep these user instructions for later
reference. Pass them on to any subsequent owner of the appliance.
1
0
The warning triangle and/or specific words (Warning!, Caution!,
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
This symbol or numbered instruction steps lead you step for step
through the operation of the appliance.
3
Next to this symbol you receive additional information and practical
tips on using the appliance.
2
Tips and instructions for the economical and environmentally conscious
use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the "What to do, if..."
section.
If these instructions are insufficient, please contact your nearest customer service centre.
In the case of technical problems, our customer service organisation is
available to provide you with assistance at any time (you will find
addresses and telephone numbers in the "Customer Service Centres"
section).
In this respect please read the "Service" note on the rear of these user
instructions.
3
Your dishwasher is fitted with the new "PULSE WASH" wash system.
With this wash system, the motor speed and spray pressure are
varied during the wash programme to improve the cleaning of the
dishes. It is for this reason that the noise level changes during the
wash programme.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
2
Contents
CONTENTS
Operating Instructions
....................................
5
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Appliance Features and Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
9
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with Special Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . .
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
To switch off rinse aid control indicator . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
10
12
13
13
14
15
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading cutlery and dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . .
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Height of the Upper Basket . . . . . . . . . . . . . . . . . . . . . . .
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Use of "3 in 1"/ Combi Detergent Tablets . . . . . . . . . . . . . . . . . . . . . . . .
Concentrated Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detergent tablets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . .
Start the wash pogram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interrupting or ending the wash programme . . . . . . . . . . . . . . . . . . . . .
Pause function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting or changing the delay start timer . . . . . . . . . . . . . . . . . . . . . . . .
Load Sensing – Sensor Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
16
17
18
20
21
22
23
24
24
25
26
26
27
27
27
28
28
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3
Contents
What to do, when ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
...Fault warnings are displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
...there are problems operating the dishwasher. . . . . . . . . . . . . . . . . . . . . .
...the wash results are unsatisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
30
31
31
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Installation and Connection Instructions . . . . . . . . . . . . . . . .
34
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Built-In Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Free-Standing Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Departments
Guarantee Conditions
Service
4
36
36
36
36
38
39
39
40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Operating Instructions
OPERATING INSTRUCTIONS
1
Safety Instructions
The safety aspects of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you
aware of the following safety information:
Installation, Connection and Placing into Operation
• The dishwasher may only be transported upright.
• Check the dishwasher for transport damage. Do not in any circumstances connect an appliance that is damaged. In the case of damage,
please contact your supplier.
• Prior to placing the appliance in operation, ensure that the nominal
voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be
found on the rating plate.
• For information on how to correctly install and connect up your dishwasher, please read the „Installation“ section. Multiway plugs / connectors and extension cables must not be used. This could constitute
a safety hazard.
Child Safety
• Children often do not recognise the hazards associated with the use
of electrical appliances. It is therefore important that you ensure
children are adequately supervised and that you do not allow children to play with the dishwasher – there is a risk that children can
shut themselves inside the appliance (risk of suffocation!).
• Packaging materials (e.g. films, styrofoam) can be dangerous for children. Risk of suffocation! Keep packaging away from children.
• Detergents can cause burns to the eyes, mouth, and throat, or even
cause choking! Please observe the manufacturer's safety instructions
for cleaners and detergents.
• The water in your dishwasher is not suitable for drinking. If there are
still remnants of detergent in the appliance, there is a risk of burns!
• When disposing of the dishwasher: unplug from the mains, cut off
and dispose of the mains cable. Break the door lock so that the door
no longer shuts.
5
Operating Instructions
General Safety
• Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for
the user. If your appliance needs repairing, please contact customer
service or your dealer.
• Never place the dishwasher in operation if the mains cable, water
inlet or drain hose is damaged; or the control panel, work top or
plinth area is damaged such that the inside of the appliance is freely
accessible.
• If the mains lead is damaged, or is to be replaced for a longer lead,
the cable (obtainable from AEG customer service) must be replaced
by a service engineer authorised by AEG.
• Never unplug the appliance by pulling on the cable, always pull the
plug.
• Additions or modifications to the dishwasher are not permitted for
safety reasons.
• Ensure that the door of the dishwasher is always closed when it is not
being loaded or unloaded. In this way you will avoid anybody tripping
over the open door and hurting themselves.
• Sharp knives and other item of cutlery with sharp edges must be laid
in the upper rack or placed in the cutlery rack with the point facing
downwards.
Correct Use
• Only wash household dishes using the dishwasher. If the appliance is
used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.
• Prior to use, ensure that the manufacturers of the special salt, detergent, and rinse aid employed specifically permit the usage of their
products in household dishwashers.
• Do not put any solvents in the dishwasher. There is a risk of an explosion!
• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the mains even when it is
switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap when the dishwasher is
not to be used for longer periods, e.g. when you are away on holiday.
6
Operating Instructions
• Do not sit or stand on the open door, the appliance may tip over.
• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently
wired to the mains: switch off the fuse(s) or unscrew them.
2
Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE<
for polyethylene, e.g. sheet wrapping material
– >PS<
for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposal of old appliances
As and when you cease to use your dishwasher, please take it to a recycling centre or to your dealer who will, for a small contribution to the
costs, dispose of it for you.
2
Economical and Ecological Dishwashing
• Only connect the dishwasher to the hot water supply if your hot
water is not electrically heated.
• Ensure that the water softener is correctly adjusted.
• Do not pre-rinse dishes under running water.
• When you wash a small load, the load sensor calculates the amount
of water necessary and shortens the programme. It is more economical to always wash with a full load.
• Select the wash programme to suit the nature and degree of the soiling on the dishes.
• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the manufacturer of
the respective product.
7
Operating Instructions
Appliance Features and Control Panel
Top Spray Nozzle
Rubber Seal for
Connecting the
Water Feed to
the Spray Arm
Spray Arms
Water hardness switch
Container for
Special Salt
Container for
Detergent
Container for
Rinse Aid
8
Rating Plate Filters
Operating Instructions
Control panel
Water softener button
Function To set delay Display for delay
button
start
start set
Wash programme buttons
Control indicators
Multidisplay
Door handle
ON / OFF button
Water softener and function button: In addition to the wash programme marked, it is also possible to adjust the dishwasher's water softener using a combination of these buttons.
The 3 lights of the multidisplay
can indicate:
– the current stage of the selected
wash programme.
– which fault has occurred in the
dishwasher.
: Upper light
: Middle light
: Lower light
Control indicators indicate the following:
3
SALT
Refill with salt
RINSE AID
Refill with rinse aid
The control indicators never light up while a wash programme is running.
9
Operating Instructions
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the dish
racks are secured for transport.
Then perform the following steps:
0 1. Adjust the water softener
2. Filling with Special Salt for the Water Softener
3. Filling with Rinse Aid
Adjust the water softener
To prevent the build up of limescale on dishes and in the dishwasher,
the dishes must be washed with soft water, i.e. water with a low lime
content. For this reason the dishwasher is fitted with a water softener
in which tap water from a hardness of 4 °d (German degree) is softened
with the aid of special salt.
3
Your local water authority can advise you on the hardness of the water
in your area.
The water softener can be set manually using the water hardness
switch; it can also be set electronically using the buttons on the control
panel.
Water hardness
1
2
in °d )
in mmol/l )
41 - 50
7.3 – 9.0
Hardness setting
Range
manual
IV
electronic
Number of
flashes
5
5
1
30 - 40
5.3 – 7.2
IV
4
4
19 - 29
3.3 – 5.2
III/IV
3*
3
4 - 18
0.7 – 3.2
I/II/III
2
2
1
no salt
required
1
0*
under 4
under 0.7
I
1)(°d) German degrees, a measure of water hardness
2)(ppm), parts per million
*factory setting
10
Operating Instructions
Adjust the water softener to the water hardness setting for your area
as shown in the table.
It is only possible to adjust the water hardness setting when no programme is running. If you have accidentally started a programme (a
LED stays on permanently), the programme must be stopped by pressing the appropriate button.
0 1. The dishwasher must be switched off.
2. Manual setting:
Open the door on the dishwasher.
3. Remove the lower rack from the
dishwasher.
4. Turn the water hardness switch
to 0 or 1.
5. Re-position the lower rack.
6. Electronic setting:
Press the softener and function buttons simultaneously and keep them
pressed.
7. In addition press the ON/OFF button.
8. The LED indicators for the water softener and function buttons flash.
9. Press the softener button again.
– At first the LED indicator for the water softener button will light up
continuously for 5 seconds and then begin to flash.
– The number of flashes corresponds to the hardness setting.
– The sequence of flashes is repeated several times after a 5 second
pause.
10. Each time you press the water-softener button the hardness setting
will go up by 1.
(Exception: Hardness setting 1 follows hardness setting 5).
– If the hardness setting is changed, the LED indicator for the watersoftener button will confirm the change by remaining illuminated
continuously for 5 seconds and then flashing again.
– The number of flashes corresponds to the new hardness setting.
– The sequence of flashes is repeated several times after a 5 second
pause.
11. Once the hardness setting is correctly adjusted, press the ON/OFF button.
The hardness setting is then stored.
1
11
Operating Instructions
Filling with Special Salt for the Water Softener
1
Use only special salt for dishwashers. Never fill the salt container with
any another type of salt (e.g. culinary salt) or dishwasher detergent.
This would irreparably damage the water softener.
Prior to filling with salt, please check each time that you really do have
a packet of special salt in your hand.
Fill with special salt:
– Prior to using the dishwasher for the first time
– When the SALT indicator on the control panel is illuminated.
If the water hardness in your area is less than 4 °d, you do not need to
use special salt.
0 1. Open the door, remove the lower
rack.
LE
SA ALT Z
2. Undo the lid on the salt container by
S AL
S EL
turning it anticlockwise.
S
3. Only when using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the
container opening.
Fill the container with special salt
through the funnel; the capacity of
the container is approx. 1.0-1.5 kg
depending on the grain size. Do not
overfill the salt container with special salt.
3
12
3
The water expelled by filling the salt container with special salt runs
out of the salt container onto the base of the washing compartment.
This is not a cause for concern, the water will be pumped out at the
start of the next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise special salt will leak into
the wash water, this could lead to poor wash results. To avoid this run a
rinse programme after filling the salt container with special salt. This
will wash away salt water and any salt crystals that have been spilt.
3
Depending on the size of the salt grains, it can take several hours for
the salt to dissolve in the water and for the SALT indicator to extinguish.
The setting of the water softener and thus the consumption of salt are
dependent on the hardness of the local water.
Operating Instructions
Rinse aid
Rinse aid ensures thorough rinsing, spot and streak free drying of
dishes and glassware.
Rinse aid can be added in one of two ways:
• Use the dishwasher detergent and rinse aid separately, add the rinse
aid to the rinse aid container.
If you opt for this method, please note that
– the rinse aid container must never be empty.
– the amount of rinse aid dispensed must be set.
• If you use dishwasher detergent which already contains rinse aid, add
this to the detergent compartment.
If you opt for this method, please note that
– the rinse aid container must be empty in order to avoid dispensing
too much rinse aid.
– You can switch off the RINSE AID control indicator. Otherwise, the
RINSE AID control indicator would stay on permanently owing to
the empty container.
1
Only use rinse aid specifically designed for domestic dishwashers. Never
fill the rinse aid container with dishwasher detergent or any other substance (e.g. vinegar essence) as this would damage the appliance.
To switch off rinse aid control indicator
0 1. The appliance must be switched off.
2. Press the softener and function buttons simultaneously and keep them
pressed.
3. In addition press the ON/OFF button.
The LED indicators for the function and water softener buttons flash.
4. Press the function button again.
The LED indicator for the function button flashes.
5. The END indicator shows the current setting:
The END indicator flashes:
Control indicator switched on (factory setting)
The END indicator does not flash: Control indicator switched off
6. Pressing the function button switches the control indicator on or off.
7. If the control indicator is set, press the ON/OFF button.
The setting for the control indicator is then stored.
13
Operating Instructions
Filling with rinse aid
If you use dishwasher detergent and rinse aid separately, fill the rinse
aid container:
– Prior to using the dishwasher for the first time.
– When the RINSE AID indicator on the control panel comes on.
The rinse aid compartment is on the inside of the dishwasher door.
0 1. Open the door.
2. Press the rinse aid compartment
release button with your finger.
3. Fully open the rinse aid compartment
lid.
4. Fill with rinse aid exactly up to the
level marked “max”; this corresponds
to a quantity of approx. 140 ml.
5. Close the lid and press until it locks
into place.
6. Wipe up any spilt rinse aid with a
cloth. Otherwise too much foam will
be formed during the wash.
14
Operating Instructions
Adjusting Rinse Aid Dosing
3
As the dishes are washed rinse aid is released from the dispenser into
the wash water. The dose is factory set at 4, and can be adjusted from
1 to 6. Only change the setting if streaks, milky spots or dried on water
marks are visible on glasses or crockery.
0 1. Open the door of the dishwasher.
2. Press the rinse aid compartment
release button with your finger.
3. Fully open the rinse aid compartment
lid.
4. Set the dose level.
5. Close the lid and press until it locks
into place.
6. If rinse aid has run out, wipe up with
a cloth.
In Daily Use
• Is it necessary to refill with special salt or rinse aid?
• Load cutlery and dishes into the dishwasher
• Fill with dishwasher detergent
• Select a wash programme suitable for the cutlery and dishes
• Start the wash programme
15
Operating Instructions
Loading cutlery and dishes
1
Sponges, household cloths and any object that can absorb water may
not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
• Cutlery with wooden, horn,
china or mother of pearl handles
• Plastic items that are not heat
resistant
• Older cutlery with cement that is
not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Lead crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
are of limited suitability:
• Only wash stoneware in the dishwasher if it
is specifically marked as being dishwashersafe by the manufacturer.
• Glazed patterns may fade if machine
washed frequently.
• Silver and aluminium parts have a tendency
to discolour during washing. Left-overs, e.g.
egg white, egg yolk and mustard often
cause discolouring and staining on silver.
Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.
• Some types of glass can become dull after a
large number of washes.
• Before loading the dishes, you should:
– Remove large left-overs.
– Soften remnants of burnt food in pans.
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening
downwards so that water cannot collect in the container or a deep
base.
– Dishes and items of cutlery must not lie inside one another, or
cover each other
– To avoid damage to glasses, they must not touch
– Do not lay small objects (e.g. lids) in the cutlery rack
16
Operating Instructions
Loading Cutlery
Long, pointed items of cutlery in
the cutlery rack are a hazard, particularly to children (see Safety
Instructions).
To ensure that all items of cutlery
are completely washed, you should
0 1. Place the grid insert on the cutlery
rack
2. Place short knives, forks and spoons
in the grid insert with their handles
pointing downwards.
3. For larger items of cutlery, e.g. a
whisk, half of the top for the cutlery basket can be left off.
1
On some models of dishwasher
it is possible to open the cutlery
basket.
To ensure that the cutlery rack
cannot open on removal from the
appliance, you should always hold
both parts of the two part handle.
0 1. Place the cutlery rack on a table
or work surface
2. Open the two part handle
3. Remove cutlery
4. Close the two part handle.
1
17
Operating Instructions
Loading Pans, Frying Pans
and Large Plates
Load large and heavily soiled dishes
in the lower rack.
Your dishwasher has one of the following four types of lower rack:
Type 1: None of the plate inserts in the lower rack can be removed
Type 2: The right-hand plate inserts in the lower rack can be
folded over to the left
To ease the loading of large items,
the two right-hand plate inserts in
the lower rack can be folded over to
the left:
0 1. Slightly lift the right plate insert.
3
2. Fold the plate insert to the left.
18
Operating Instructions
Type 3: The right-hand plate inserts in the lower rack can be
folded across one another
3
To ease the loading of large items,
the two right-hand plate inserts in
the lower rack can be folded across
one another.
Type 4: The two rear plate inserts in the lower rack can be folded
across one another
3
To ease the loading of large items,
the two rear plate inserts in the lower
rack can be folded across one
another.
19
Operating Instructions
Loading Cups, Glasses and
Coffee Services
Load small, delicate items and long
pointed cutlery in the upper rack.
• Arrange items of crockery on the
folding cups racks so that they are
offset from each other and water
can reach all items.
• The cup racks can be folded up out
of the way for tall items.
• Lay or hang wine, champagne, and
brandy glasses in the cut outs on
the cup racks.
• Glasses, beakers, etc. can also be
placed on the two rows of prongs
on the left of the upper rack.
20
Operating Instructions
Adjusting the Height of the Upper Basket
Maximum Height of the Dishes in the
Upper Basket
Lower Basketk
3
With upper basket raised
22 cm
31 cm
With upper basket lowered
24 cm
29 cm
The height of the basket can also be adjusted when it is loaded.
Lowering the Upper Basket:
0 1. Pull the upper basket out completely.
2. Holding the upper basket at the rear
right, lift it as far as it will go and
then lower it vertically. The upper
basket will engage in the lower position.
Raising the Upper Basket:
0 1. Pull the upper basket out completely.
2. Holding the upper basket at the rear
right, lift it as far as it will go and
then lower it vertically. The upper
basket will engage in the higher
position.
21
Operating Instructions
Filling with Detergent
1
Only use dishwasher detergent.
Fill with detergent:
– Prior to the start of a wash programme (not for the pre wash programme). The detergent is released into the wash water during the
programme.
Please observe the manufacturer's dosing and storage recommendations as stated on the detergent packaging.
The detergent compartment is on the
inside of the dishwasher door.
0 1. If the lid is closed:
press release button (1).
The lid springs open.
2
2. Fill the detergent dispenser with
detergent. The markings indicate the
dosing levels:
“20” corresponds to approx. 20 ml of
detergent,
“30” corresponds to approx. 30 ml of
detergent.
3. Close the lid and press until it locks
into place.
3
22
If the dishes are very heavily soiled
put additional detergent into the
adjacent chamber (2). This detergent
will take effect during the pre wash.
Operating Instructions
Use of "3 in 1"/ Combi Detergent Tablets
General Advice
These products are tablets with combined detergent/rinse-aid and salt
functions.
0 1. Before using these products you should first check that the water hardness in your supply is compatible with the use of these products as per
the detergent manufacturers instructions (on the product packaging).
2. These products should be strictly used according to the detergent manufacturers instructions.
Do not place the tablets in the tub or the cutlery basket as this will
result in poorer wash results. The tablets should be placed in the
detergent doser.
3. If you encounter problems when using "3 in1" products for the first
time then please contact the detergent manufacturers care line (the
telephone number is given on the product packaging).
1
Special Advice
When using combination products, the rinse-aid and salt lights are no
longer useful. It may be helpful therefore to switch the rinse aid off please note that only some dishwashers have this facility - and selecting the lowest possible setting for water hardness.
For more information please refer to your instruction manual.
If you decide to switch to the use of a standard detergent system we
advise that you:
• Refill both the salt and rinse aid compartments.
• Switch the waterhardness setting to the highest possible position
and run for three normal cycles without a load.
• Readjust the waterhardness setting again according to the conditions
for your region (as per the instruction manual).
23
Operating Instructions
Concentrated Detergent
Based on their chemical composition, dishwasher detergents can be
split into two basic types:
– conventional, alkaline detergents with caustic components
– low alkaline concentrated detergents with natural enzymes.
2
The use of 50 °C wash programmes in conjunction with concentrated
detergents reduces pollution and is good for your dishes; these wash
programmes are specially matched to the dirt-dissolving properties of
the enzymes in the concentrated detergent. For this reason 50 °C wash
programmes in which concentrated detergents are used can achieve
the same results that can otherwise only be achieved using 65 °C programmes.
Detergent tablets
3
24
Detergent tablets of different makes dissolve at different speeds. For
this reason some detergent tablets cannot develop their full cleaning
power during short programmes. Therefore please use wash programmes with pre wash when using detergent tablets.
Operating Instructions
Selecting the Wash Programme (Programme Table)
Choose the most suitable wash programme with the aid of this table:
Type of Dishes
Dinner Service and
Cooking Utensils
Dishes
without Pans
-
-
In Addition
Type of Soiling
Suitable Programme:
Programme
Sequence 4
• heavily
soiled
• dried on leftovers, particularly egg white
and thickeners
INTENSIVE 70°
Dishes
without Pans
Coffee Service and
Dessert Dishes
with non temperature resistant dishes
• just used, aver- • average
age to slightly
soiled
soiled
• average to
slightly
soiled
particularly suitable
when concentrated detergents are used.
30 MINUTES 1
NORMAL 50°
ENERGY
SAVING 50° 2 3
Pre wash
Main wash
2x Rinsing
Final rinse
Drying
Main wash
Final rinse
-
Pre wash
Main wash
Rinsing
Final rinse
Drying-
Pre wash
Main wash
Rinsing
Final rinse
Drying
ò
ò
ò
ò
Consumption
Figures: 5
Duration
115 - 125 min.
30 min.
90 - 100 min.
140 - 150 min.
Energy
2.0 - 2.2 kWh
0.8 kWh
1.05 - 1.24 kWh
0.95 - 1.05 kWh
Water
20 litres
8 litres
13 - 15 litres
13 - 15 litres
1) This programme is not suitable when left-overs have dried on.
2) Test programme for test institutes
3) The ECO 50° wash programme washes normally soiled dishes with a very low electricity
consumption. If the dishes need to be washed more quickly, as an alternative you can
use the NORMAL 50° wash programme.
4) Noise levels vary at different stages of the wash programme as at some programme
stages the dishes are washed more energetically so that they will be cleaned more thoroughly.
5) The consumption figures were determined under standard conditions. They are intended
as a guide only and depend on the loading. For this reason figures may vary in practice.
25
Operating Instructions
Start the wash pogram
0 1. Check that when the dishes and cutlery are loaded in the dishwasher
the spray arms are free to rotate.
2. Open the tap fully.
3. Shut the door.
4. Press the ON/OFF button. ON/OFF button indicator comes on.
5. Press the button for the programme required (see “Programme Table“).
The programme indicator lights up. One or two lights will flash in the
multidisplay. During this time it is possible to reselect the programme.
The selected washing programme begins after approx. 6 seconds. The
current wash programme stage will always be shown in the multidisplay.
If the top light and/or the middle light in the multidisplay flash after
the programme has started please read the section “What to do, if...“.
3
Interrupting or ending the wash programme
Only interrupt a wash programme in progress if it is absolutely necessary. After the appliance has been closed again the air that has entered
will be greatly heated and expand. As a result water may penetrate the
base of the appliance and trigger the anti-flood system.
3
Interrupting the wash programme by opening the door of the dishwasher
Hot steam can escape from the appliance when the door is opened.
Open the door carefully.
0 1. Open the door of the dishwasher. The wash programme will stop.
2. Lights are flashing in the multidisplay.
3. Shut the door. The wash programme will continue.
1
Ending the wash programme
0 1. Press the button for the wash programme that is running and hold it
down until the programme indicator for the wash programme goes out.
2. Release the programme button; the wash programme has been ended.
26
Operating Instructions
Pause function
3
The pause function can only be initiated before the DRYING section of
the programme. If the pause function is initiated during the DRYING
section of the programme the wash programme is ended.
Using the pause function the dishwasher can be temporarily stopped:
0 1. Press the ON/OFF button. The wash programme will stop.
2. All indicators will go out.
3. After a short time when the wash programme is to continue, press the
ON/OFF button again. The wash programme will continue.
2
The wash programme should not be stopped for a prolonged period or
the cooled water will need to be reheated resulting in increased energy
consumption.
Setting or changing the delay start timer
Using the delay start timer you can opt to set the wash programme to
start in 3, 6 or 9 hours.
0 1. Press the ON/OFF button.
2. Setting the delay start timer:
Press the DELAY TIMER button until the indicator next to the number
of hours of delay illuminates.
Changing the delay start timer:
As long as the wash programme has not started, you can still change
the delay start set by pressing the DELAY TIMER button. Repeatedly
press the DELAY TIMER button until all three of the time indicators are
off. The selected wash programme will begin immediately.
3. Press the button for the required wash programme. The programme
indicator lights up.
4. After the set number of hours the wash programme will begin.
Load Sensing – Sensor Logic
If a wash programme is started even though there are only a few dishes
in the upper and/or lower rack, an intelligent electronic system adjusts
the amount of water and the duration of the wash programme to the
number of dishes. By this means it is possible to wash only a few dishes
quickly and economically. At half load (6 place settings), up to 2 litres
of water and 0.2 kWh of electricity are saved.
27
Operating Instructions
Switching Off the Dishwasher
Only switch off the dishwasher when END is illuminated on the programme progress display.
0 1. Press the ON/OFF button. The ON/OFF button indicator extinguishes.
Hot steam may escape from the appliance when opening the door
immediately after the end of the programme. Therefore:
2. Open the door carefully.
1
Emptying the Dishwasher
3
• Hot dishes are sensitive to knocks. The dishes should therefore be
allowed to cool down before removing them from the appliance.
• Leave the dishes in the dishwasher for approx. 15 minutes after the
end of the programme so that they dry better and can cool down.
• First empty the lower rack, and then the upper rack. By using this
procedure you will avoid any water that may be remaining in the
upper rack, dripping onto the dishes in the lower rack and leaving
water marks.
Care and Cleaning
1
28
Do not under any circumstances use furniture care products or aggressive cleaners.
• If necessary, clean the controls only with a soft cloth and pure warm
water.
• Occasionally check the internal containers, door seal, and water inlet
for soiling, clean if necessary.
Operating Instructions
Cleaning the Filter
The filters in the base of the washing compartment are to a large
extent self-cleaning.
Nevertheless the filters should be
checked and cleaned from time to
time. Dirty filters will degrade the
washing result.
0 1. Open the door, remove the lower
rack.
2. The dishwasher filter system comprises a coarse/fine filter, microfilter
and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.
3. Turn the handle about ¼ a turn anticlockwise and remove.
4. Take hold of the coarse/fine filter (1)
by the handle with the hole and
remove from the microfilter (2)
5. Clean all filters thoroughly under
running water.
6. Remove the flat filter (3) from the
base of the washing compartment
and clean both faces thoroughly
3
7. Put the flat filter back in the base of
the washing compartment
8. Place the coarse/fine filter in the
microfilter and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
ensure that the flat filter does not
protrude above the base of the washing compartment.
1
Under no circumstances may the
dishwasher be used without filters.
29
Operating Instructions
What to do, when ...
Try to rectify minor faults on the dishwasher with the aid of the
instructions given here. If you call in customer service to resolve one of
the malfunctions listed here, or rectify an error made in the operation
of the appliance, the customer service engineer’s visit is not free of
charge, even during the period of guarantee.
...Fault warnings are displayed.
• If the top or middle light in the display is flashing you can probably
rectify the fault yourself.
Once the fault has been rectified press the ON/OFF button. The wash
programme will continue. If the fault is displayed again, contact your
local AEG Service Force Centre.
• If other lights flash in the multidisplay, please contact your local AEG
Service Force Centre stating which fault indicator is flashing.
Symptom:
Possible Cause
The top light in the multi- Tap is blocked or furred with
display is flashing.
lime-scale.
Clean tap.
The filter (where present) in
the threaded hose fitting is
blocked.
Clean the filter in the
threaded hose fitting.
There is no water
entering the dishwasher.
The water inlet hose
is not correctly laid.
Check hose
installation.
The middle light is flashing in the multidisplay.
The sink outlet is blocked.
Clean the sink outlet.
The water drain hose
is not correctly laid.
Check hose
installation.
The anti-flood system has
been triggered.
Close the tap and contact AEG Service
Force.
The top and the
middle light are flashing
in the multidisplay.
30
Solution
Operating Instructions
...there are problems operating the dishwasher.
Symptom
Possible Cause
Solution
The dishwasher door has not
Shut the door.
been closed properly.
The programme does
not start.
Mains plug is not
plugged in.
Insert mains plug.
House fuse is faulty.
Replace fuse.
For dishwasher models with If dishes are to be washed
delay start timer:
immediately cancel delay
Delay start has been selected. start timer.
The washing compartment is
made of anticorrosive stainless steel. Rust spots in the
washing compartment are
Spots of rust are visible from particles from outside
the appliance (rust particles
in the washing comfrom the water pipe, from
partment.
pans, cutlery, etc.). Remove
such spots with a commercially available stainless steel
cleaner.
Only wash cutlery and dishes
that are suitable for dishwasher use.
There is a whistling
noise during washing.
Use a different brand of
detergent.
The whistling is not a cause
for concern.
Close the salt dispenser lid
securely.
...the wash results are unsatisfactory.
The dishes are still dirty.
– The wrong wash programme was selected.
– The dishes were arranged in such a way as to stop the water reaching
all parts of the surface. The dish racks must not be overloaded.
– The filters in the base of the washing compartment are dirty or incorrectly positioned.
– Too little or no detergent was used.
– Where there are limescale deposits on the dishes: the special salt container is empty or the water softener is incorrectly adjusted.
– The drain hose is connected wrongly.
The dishes are wet and dull.
– Rinse aid was not used.
– The rinse aid container is empty.
31
Operating Instructions
There are streaks, milky spots or a bluish coating on glasses and
dishes.
– Decrease rinse aid dosing.
There are dried water drops on the glasses and dishes.
– Increase rinse aid dosing.
– The detergent may be the cause. Contact the detergent manufacturer's consumer advisor.
Technical Data
Capacity:
12 place settings including serving dishes
Permitted Water
Pressure:
1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)
Electrical Connection:
Information on the electrical connection is given on the
rating plate on the inner edge of the dishwasher door on
the right.
Dishwasher: Free-Standing Appliances
Dimensions:
850 x 600 x 600 (H x W x D in mm)
Max. Weight:
54 Kg
Dishwashers that Can Be Integrated, Built-In Dishwashers
Dimensions:
820 – 880 x 596 x 570 (H x W x D in mm)
Max. Weight:
50 Kg
Dishwashers that Can Be Fully Integrated
Dimensions:
820 – 880 x 596 x 546 - 550 (H x W x D in mm)
Max. Weight:
50 Kg
; This appliance conforms with the following EU Directives:
– 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive
– 89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/EWG) – EMC Directive
32
Operating Instructions
Notes for Test Institutes
Testing in accordance with EN 60704 must be carried out with the
appliance fully loaded and using the test programme (see Programme
Table).
Tests in accordance with EN 50242 must be carried out when the salt
dispenser and rinse aid container have been filled with salt and rinse
aid respectively and using the test programme (see Programme Table).
Full Load:
12 place settings
incl. serving dishes
Half Load:
6 place settings incl. serving dishes,
leaving alternate positions free
Detergent Dosing:
5g + 25g (Type B)
20g (Type B)
Rinse Aid Setting:
4 (Type III)
4 (Type III)
Sample loading arrangements:
Upper basket
Lower basket with cutlery basket
Cutlery basket
33
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installing the Dishwasher
• The dishwasher must be installed on a firm floor and adjusted to
ensure that it is stable and level.
• To compensate for unevenness in the
floor and to match the height of the
appliance to that of surrounding units
extend the threaded feet by unscrewing:
– use a screwdriver.
• For built-in dishwashers the rear feet should be adjusted from the
front of the appliance using a screwdriver.
• The drain hose, inlet hose and mains cable must not be kinked or
crushed when the dishwasher is in position.
Built-In Dishwasher
(see enclosed installation instructions)
Free-Standing Appliances
can be set up as stand-alone without additional installation.
1
34
If the dishwasher is set up next to a gas or coal cooker, a heatinsulating, non-flammable plate must be mounted between the
dishwasher and the cooker, flush to the top edge of the work surface
(depth 57.5 cm). The plate should have aluminium foil on the side facing the cooker.
Installation and Connection Instructions
If the dishwasher is installed underneath a kitchen work surface, the
original work surface of the dishwasher is to be removed as follows:
0 1. Unscrew the screws from the positioning plates on the back (1).
2. Slide the appliance's work surface
approx. 1 cm to the rear (2).
3. Lift the work surface at the front (3)
and remove.
1
If the dishwasher is later used as a free-standing appliance, the original
work surface must be re-mounted.
3
The plinth on free-standing appliances is not adjustable.
35
Installation and Connection Instructions
Connecting the Dishwasher
Water Connection
The dishwasher is fitted with safety devices that prevent the wash
water returning into the drinking water system and comply with the
applicable plumbing regulations.
• The dishwasher can be connected to cold and hot water supplies up
to max. 60 °C.
• The dishwasher must not be connected to open hot water appliances
or instantaneous water heaters.
Permitted water pressure
Lowest permitted water pressure:
1 bar (=10 N/cm2 =100 kPa)
Consult your installer if the water pressure is less than 1 bar.
Highest permitted water pressure:
10 bar (=100 N/cm2 =1 MPa)
In the case of a water pressure greater
than 10 bar, a pressure reduction valve
must be used (available from your
dealer).
Connect the inlet hose
1
0
3
36
The water inlet hose must not be kinked, crushed or entangled when it
is being connected up.
Connect the threaded hose fitting (ISO 228-1:2000) on the water inlet
hose to a tap with an external thread (¾ inch). Tighten the threaded
hose fitting hand tight only.
• In order that access to the tap in the kitchen is not limited by the use
of the dishwasher, we recommend the installation of an additional
tap, or fitting a two way adapter to the existing tap.
• If you need a longer water inlet hose than that supplied, VDE
approved complete hose sets are to be used. These are available from
your local Service Force Centre.
Installation and Connection Instructions
3
The following section is only applicable to dishwashers that have a
safety valve on the threaded hose fitting for the tap:
Water inlet hose with safety valve
After connecting the double-walled water inlet hose, the safety valve is
next to the tap. Therefore the water inlet hose is only under pressure
while the water is running. If the water inlet hose starts to leak during
this operation, the safety valve cuts off the running water and the
draining pump in the dishwasher is switched on.
1
Please take care when installing the water inlet hose:
– The distance between the bottom
edge of the safety value and the
floor on which the dishwasher is
standing must be at least 30 cm:
– The electrical cable for the safety
valve is in the double-walled water
inlet hose. Do not immerse the
water inlet hose or the safety valve
in water.
– If the water inlet hose or the safety
valve is damaged, remove the
mains plug immediately.
– A water inlet hose with safety valve
must only be replaced by a
specialist or Customer Services.
– Place the water inlet hose in such a way that it is never higher than
the bottom edge of the safety valve.
37
Installation and Connection Instructions
Water drain
Drain hose
1
The drain hose must not be kinked, crushed or entangled.
• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 40 cm above the lower edge of the
machine.
Extension hoses
• Extension hoses are available from
your dealer or customer service.
The internal diameter of the extension hoses must be 19 mm to
ensure that the function of the
appliance is not impeded.
• Extension hoses may be laid a maximum of 3 metres horizontally; the
maximum permitted height for the
connection for the drain hose is
then 85 cm.
Sink outlet connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available
sink outlet spigot types. The outer diameter of the spigot connection
must be at least 15 mm.
• The drain hose must be fixed to the sink outlet connection using the
hose clamp supplied.
If the dishwasher is fitted at a high position
If the dishwasher is installed at a high level, and the drainhose connection is less than 30 cm from the bottom of the appliance, adapter kit
ET 111099520 must be fitted. This is available from Customer Service.
Water drain into wash basins (only possible with free-standing
appliances)
In the case that you wish to hang the drain hose in a wash basin, use a
detachable hose elbow. You can obtain this from AEG customer service
under spare part number ET 646 069 190.
0 1. Fit the elbow to the drain hose.
2. Secure the drain hose against sliding off the edge of the wash basin.
Pass a piece of cord through the hose elbow and fix it to the wall or the
tap.
38
Installation and Connection Instructions
Leak Prevention System
For protection from damage due to water leaks, the dishwasher is
equipped with a leak prevention system, the AQUA CONTROL SYSTEM.
In the event of a fault, the safety valve in the appliance immediately
interrupts the inflow of water and the drain pump is activated. By this
means water can neither escape nor overflow. The remaining water in
the appliance is automatically pumped out.
1
The leak prevention system also works when the appliance is switched
off.
Electrical connection
1
In compliance with electric company technical requirements for mains
connections, hard-wired connections to the mains may only be made
by approved electri-cians.
When connecting the appliance, observe the German VDE regulations
and, if applicable, any additional conditions required by your local electricity supplier. Following installation, live parts and live insulated wiring must not be accessible using a finger test in accordance with EN
60335/DIN VDE 0700.
Information on the electrical connection can be found on the rating
plate on the right side of the inner edge of the dishwasher door. If the
appliance has a change-over switch, the additional instructions on the
change-over diagram in the mains connector box must be observed.
Prior to connecting ensure that the mains voltage and current rating at
the site of installation match the nominal voltage and current rating
given on the rating plate. The required fuse protection is also to be
found on the rating plate.
To isolate the dishwasher from the mains, remove the mains plug.
Important: The plug must still be accessible after the appliance has
been installed.
If the appliance is hard-wired to the mains supply, then it must be
safely isolated from the mains within the electrical installation with
switches intended to ensure all-pole(N,L1) disconnection, shall be
directly connected to the supply terminals and shall have a contact
separation (fuses, cut outs, current trips or similar) of at least 3mm in
each pole.
39
Installation and Connection Instructions
Connections
The water inlet and drain hoses, as well as the mains cable must be
connected beside the dishwasher as there is insufficient space behind
the appliance.
The plumbing and electrical installation example given below can only
be regarded as a recommendation; the actual situation where the dishwasher is to be installed will define the exact installation (available
connections, local electricity and water board regulations for connecting up appliances, etc.).
Two 45° or Straight Connections,
Outer ø 19 mm, Length 30 mm
Water
inlet
40
Mains
cable
Water
drain
Mains socket
Double tap
Water drain
Mains
cable
Water inlet
Service Departments
SERVICE DEPARTMENTS
U.A.E. Abu Dhabi
Universal Trading Company
P.O. Box 43 99
Tel.: 335331
Jordan
Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50
Malta
ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644
Egypt
Middle East Commercial
Center
P.O. Box 19
Kairo-Heliopolis
Tel.: 29917/31634
Kanada
EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: 905 829 3980
Fax: 905 829 3985
Mauritius
Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355
Australia
ANDI-Co Pty. Ltd
9 Kingston Town Close
Oakleigh VIC 3166
Tel.: (03) 9569 1235
Fax: (03) 9569 1450
Korea (South)
Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku
Seoul
Telefon 82 2 549 89 61
Namibia
AEG NAMIBIA (PTY) LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: (061) 21-6082/4
Fax: (061) 217838
Bahrain/Arabian Gulf
A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel.: 261060
Croatia
Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: 1 61 19512
Fax: 1 61 19513
New Zealand
Euro-Life New Zealand Ltd.
Privat Bag
58 Symonds Street
Auckland
Tel.: (09) 525 2222
Bulgaria
Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: 2 806676
Fax. 2 980 5276
Kuwait/Arabian Gulf
Ali Al-Ghanim Est.
P.O. Box 10 83
Tel.: 5322463
Fax: 5242114
Nouvelle Caledonie
Socometra N.C.
B.P. 483
Nouman
Tel.: 275444
Cyprus
Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Box 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699
Lebanon
Adib & Assaferi
P.O. Box 539
Tripoli
Oman
Moshin Haider Darwish
P.O. Box 1 35
Muscat
Tel.: 703743
41
Service Departments
42
Estonia
Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: (372) 6 650 090
Fax: (372) 6 650 092
Latavia
Electrolux Latavia Ltd.
Terlaton Street 42/44
1011 Riga
Tel.: 371 2 297821
Fax: 371 2 821286
Poland
Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: 022 874 33 33
fax: 022 874 33 00
Hongkong
Wo Kee Services Ltd.
585-609 Castle Peak Road
Kwai Chung N.T.
Hongkong
Tel.: 2494 4000
Lthuania
Electrolux Lthuania
Verkui 29
2600 Vilnus
Tel.: 372 272 3326
Fax: 372 272 3366
Russia
Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: (095) 937 7837
Fax: (095) 926 5513
Israel
Electricity & Electronic
Services-Evis LTD.
19 Hataasia st.
Raanana, Industrial area 43654
Tel: 972-9-7448118
Fax: 972-9-7603618
e-mail:evis@evis.co.il
Saudi Arabia
Malaysia
Alia Trading Corporation
Arzbergh Engineering
No. 49A/B, Jalan Petaling Utama P.O. Box 4101
King Abdul Aziz Street
7
Riyadh
4600 Petaling Jaya
Tel.: 4645977
Tel.: 3 795 1084
Al Nahas Est.
Fax: 3 795 1082
Musaidia Market I
P.O. Box 1 15 29
Jeddah
Tel.: 6606852
Japan
Electrolux Japan Ltd.
Domestic Appliances Department
Maruzen Showa Warehouse Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: 0120-13-7117
Fax: 03-3790-5257
Singapore
Arzbergh Engineering
19 Tanglin Road 06-07
Singapore 247909
Tel.: 65 7356572
Fax: 7351124
Slovenia
Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: 61 1234 137
Fax: 61 1234 238
Thailand
OLYMPIA Thai Ltd.
44 Ratchadapisek Road
10320 Bangkok
Tel.: 2 513 6111
Fax: 2 513 2574
Slovakia Rep.
Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: 02 4333 4322, 4355
Fax: 02 4333 6976
South Africa
AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: 8069111
Hungary
Electrolux Lehel KFT
(AEG Div)
Erzsebet’Kiralyne Utja 87
1142 Budapest
Tel.: 00361/251 84 44
USA
ANDI Co. Appl. Inc. East
65 Campus Plaza
Edison, New Jersey 0837
USA/Tel.: (201) 2258839
Syria
Masri & Shami
P.O. Box 24 96
Damascus
Tel.: 214080
Guarantee Conditions
GUARANTEE CONDITIONS
Weitere Kundendienststellen im Ausland
In diesen Ländern gelten die Garantiebedingungen der örtlichen Partner. Diese können dort eingesehen werden.
Further after-sales service agencies overseas
In these countries our AEG agents’ own guarantee conditions are applicable. Please obtain further details direct.
Autres agences étrangères assurant le service après-vente
Dans ces pays, les conditions de garantie des concessionnaires de la
région sont valables. Vous pouvez les consulter sur place.
Otros puntos de Postventa en el extranjero
En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.
Ulteriori uffici del servizio tecnico assistenza clienti all’estero
In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.
Serviços de assistência técnica no estrangeiro
Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.
43
44
45
46
Service
SERVICE
In the section "What to do, if..." the most important sources of faults
that you can rectify yourself are summarised.
If, nevertheless, you call in customer service to resolve a problem listed
in these instruction, or because of an error made in operating the
appliance, the customer service engineer’s visit is not free of charge,
even during the warranty period.
If you can not find any information on a specific malfunction in these
operating instructions, please contact customer service.
Please provide customer service the PNC number and the S No. (serial
number), you can find these on the rating plate. The plate is on the
inner edge of the door on the right.
So that you always have these numbers at hand, we recommend you to
make a note of them here:
PNC :...............................................................................................................................
S-No. :.............................................................................................................................
47
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 960 713 -00- 0203
Subject to change without notice
Download PDF

advertising
