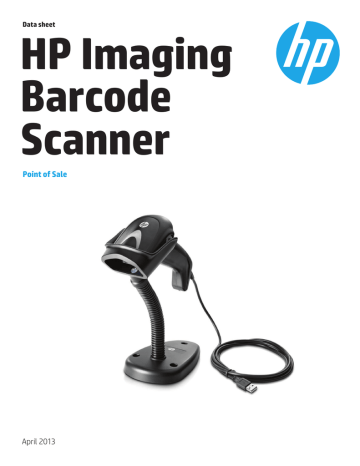

Data sheet
HP Imaging
Barcode
Scanner
Point of Sale
April 2013
Data sheet | HP Imaging Barcode Scanner
HP Imaging Barcode Scanner
The scanner for today’s retailer. An extended function scanner
that features 1D and 2D omnidirectional barcode scanning and
image capture. The lightweight design is easy to handle or use
hands-free.
Substance and style
HP’s Imaging Barcode Scanner is an extended functionality scanner that supports the
changing barcode and image requirements of today’s retail environment. Featuring 1D and
2D omni-directional barcode scanning, it can scan bar code images from a mobile device and
capture images. Its comfortable, lightweight design allows standard handheld trigger use as
well as automatic movement recognition when operated hands-free in presentation mode.
Reliable performance
HP Point of Sale
Imaging Barcode Scanner
Use this multi-function scanner to read most common 1D and 2D barcodes printed in standard retail
formats as well as displayed on mobile devices with confidence. HP has you covered with industry
standard support you can rely on. The HP Imaging Barcode Scanner is designed with industry
standard USB 2.0 interface, command modes and drivers to ensure compatibility with your POS
system.
Designed for comfort and ease of use
Designed with an intuitive aiming pattern, excellent motion tolerance, omnidirectional scanning
and both sound and light indicators to signal a successful read to help you and your customer
get the transaction completed quickly and successfully.
1 Advanced Exchange part is shipped via a carrier
or courier to the Customer’s location free of
freight charges. HP will ship the replacement
product in a container suitable for returning the
defective product to HP. Instructions and a prepaid
shipping label for the return of the failed product
will be included in the replacement product’s shipping container.
Your environment is rough on your equipment. A smart design ensures long life for your
equipment. The scanner’s plastic molding provides protection against minor drops as well as a
comfortable, ergonomic grip for long hours of use required in most retail environments.
The included stand allows you to scan in presentation mode for a hands-free experience.
2 Service levels and response times for HP Care
Packs may vary depending on your geographic
location. Service starts on date of hardware
purchase. Restrictions and limitations apply.
For details, visit hp.com/go/lookuptool.
The HP Imaging Barcode Scanner is backed by a 3-year limited warranty that includes Advanced
Exchange1. You can also select from a range of HP Care Pack Services to extend your protection
beyond the standard warranties2.
2
Industry leading warranty & support
For more information about the HP Imaging Barcode Scanner please visit hp.com/go/POS.
Data sheet | HP Imaging Barcode Scanner
HP Imaging Barcode Scanner
Scanner type
Omnidirectional
Light source
LED
Nominal working distance
(Depth of Field)
Print contrast
1D/2D Decode Symbologies
Code 39
5mil: 1.6” - 7.5” (4 - 19 cm)
10mil: 0.4” - 11.8” (1.0 - 30 cm)
20mil: up to 17.7” (45 cm)
EAN/UPC
13mil: 0.6” - 15.7” (1.5 - 40 cm)
7.5mil: 0.5” - 10.6” (2.0 - 27cm)
PDF-417
6.6mil: 11.0” - 5.9” (2.5 - 15cm)
10mil: 0.2” - 8.6” (0.5 - 22cm)
15mil: 0.6” - 13.4” (1.5 - 34cm)
DataMatrix
10mil: 0.8” - 6.3” (2.0 - 16cm)
15mil: 0 - 9.3” (0 - 23.6cm)
25% minimum reflectance
Factory Default Bar Codes
CODE 128
CODE 39
CODE 93
DataMatrix
EAN-13
EAN-8
GS1 DataBar Expanded
GS1 Databar Omnidirectional
PDF417
QR Codes
UPC-A
UPC-E
Note: HP factory setting has these code selection enabled by default.
Dimensions (LxWxH)
4.9 x 2.8 x 7.1 (100 x 71 x 181 mm)
Weight
8.0 ounces (226.7g); Scanner 6.9 ounces (195.6g) + Cable 1.0 ounce (28.3g)
Cable Length
6.5 ft (1.9 m)
Cable
USB 2.0
Power
Input Current at 5V = 350 mA (max)
Idle Current at 5V = 65 mA max
Drivers
Windows UBB HID-KB and OPOS & JPOS (via USB-COM mode drivers)
Operating system compatibility
QR Code
10mil: 1.2” - 4.9” (3 - 12.5cm)
15mil: 0 - 7.5” (1 - 19.0cm)
Windows 7 Business 32
Windows 7 Business 64
Windows Vista® Business 32
Windows XP Professional
Windows Embedded for Point of Service (WEPOS)
Windows Embedded POSReady 2009
Agency Certifications
C-Tick, KCC, BSMI, VCCI, CSA, CE, FCC
Option kit contents
HP Imaging Barcode Scanner, Scanner Stand, USB Cable, HP Point of Sale System Software and Documentation CD
Warranty
HP Peripheral Limited Warranty is a three (3) year parts replacement warranty (HP Option Limited Warranty Period).
HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for
your HP product, use the HP Care Pack Services Lookup Tool at hp.com/go/lookuptool. Additional HP Care Pack Services
information by product is available at hp.com/hps/carepack.
3
Data sheet | HP Imaging Barcode Scanner
HP Imaging Barcode Scanner
1.Durable design
2.Omnidirectional operation
3.Store in stand to operate
hands-free
4.6.5 ft. USB 2.0 cable
1
2
3
4
Learn more at
hp.com/go/POS
© Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft, Windows and Vista are trademarks of the Microsoft group of companies.
4AA4-6089ENW, April 2013
