110L Series

110L Series
110L Series

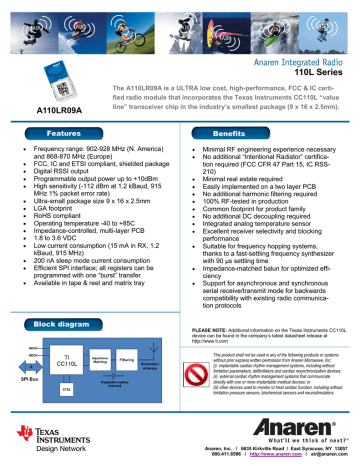

A110LR09A
The A110LR09A is a ULTRA low cost, high-performance, FCC & IC certified radio module that incorporates the Texas Instruments CC110L “value
line” transceiver chip in the industry’s smallest package (9 x 16 x 2.5mm).
Features















Frequency range: 902-928 MHz (N. America)
and 868-870 MHz (Europe)
FCC, IC and ETSI compliant, shielded package
Digital RSSI output
Programmable output power up to +10dBm
High sensitivity (-112 dBm at 1.2 kBaud, 915
MHz 1% packet error rate)
Ultra-small package size 9 x 16 x 2.5mm
LGA footprint
RoHS compliant
Operating temperature -40 to +85C
Impedance-controlled, multi-layer PCB
1.8 to 3.6 VDC
Low current consumption (15 mA in RX, 1.2
kBaud, 915 MHz)
200 nA sleep mode current consumption
Efficient SPI interface; all registers can be
programmed with one “burst” transfer
Available in tape & reel and matrix tray
Block diagram
Benefits













Minimal RF engineering experience necessary
No additional “Intentional Radiator” certification required (FCC CFR 47 Part 15, IC RSS210)
Minimal real estate required
Easily implemented on a two layer PCB
No additional harmonic filtering required
100% RF-tested in production
Common footprint for product family
No additional DC decoupling required
Integrated analog temperature sensor
Excellent receiver selectivity and blocking
performance
Suitable for frequency hopping systems,
thanks to a fast-settling frequency synthesizer
with 90 μs settling time
Impedance-matched balun for optimized efficiency
Support for asynchronous and synchronous
serial receive/transmit mode for backwards
compatibility with existing radio communication protocols
PLEASE NOTE: Additional information on the Texas Instruments CC110L
device can be found in the company’s latest datasheet release at
http://www.ti.com
This product shall not be used in any of the following products or systems
without prior express written permission from Anaren Microwave, Inc:
(i) implantable cardiac rhythm management systems, including without
limitation pacemakers, defibrillators and cardiac resynchronization devices;
(ii) external cardiac rhythm management systems that communicate
directly with one or more implantable medical devices; or
(iii) other devices used to monitor or treat cardiac function, including without
limitation pressure sensors, biochemical sensors and neurostimulators.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 / http://www.anaren.com / [email protected]
Footprint
Product overview
Refer to User’s Manual for additional layout guidelines.
Dimensions in mm.
The A110LR09A is a high-performance, dualband FCC & IC certified and ETSI compliant radio
module that incorporates the Texas Instruments
CC110L “value line” low-cost transceiver chip in
the industry’s smallest package (9 x 16 x 2.5mm)
and is compatible with all TI-approved software
stacks.
With an LGA pad footprint, this module is designed to effortlessly integrate into a wide range
of applications, including: industrial control, building automation, low-power wireless sensor networks, lighting control, and automated meter
reading.
The A110LR09A has an RoHS-compliant ENIG
finish and is packaged on tape and reel for highvolume automated manufacturing.
Pin diagram
Nomenclature
DNC = Do Not Connect
A
1
2
3
4
5
6
7
Chip series
Function
Frequency band
Form factor
Design ID
Application
Packaging
(Anaren)
(CC1101, CC110L, CC2500)
(R = radio only)
(x100MHz)
(A = Internal Antenna, C = Connector)
(00 = Default)
(G = General)
(R = Tape/Reel, M = Matrix Tray)
Caution! ESD sensitive device.
Precautions should be used when
handling the device in order to
prevent permanent damage.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 / http://www.anaren.com / [email protected]
1150b
