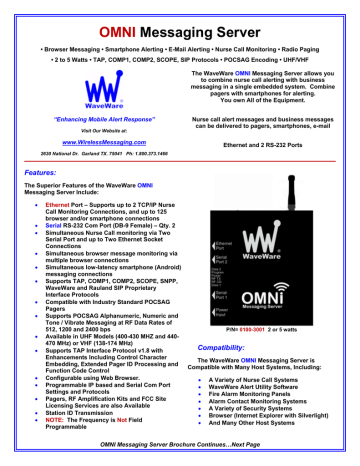

OMNI Messaging Server
• Browser Messaging • Smartphone Alerting • E-Mail Alerting • Nurse Call Monitoring • Radio Paging
• 2 to 5 Watts • TAP, COMP1, COMP2, SCOPE, SIP Protocols • POCSAG Encoding • UHF/VHF
The WaveWare OMNI Messaging Server allows you
to combine nurse call alerting with business
messaging in a single embedded system. Combine
pagers with smartphones for alerting.
You own All of the Equipment.
“Enhancing Mobile Alert Response”
Visit Our Website at:
Nurse call alert messages and business messages
can be delivered to pagers, smartphones, e-mail
www.WirelessMessaging.com
Ethernet and 2 RS-232 Ports
2630 National Dr. Garland TX. 75041 Ph: 1.800.373.1466
Features:
The Superior Features of the WaveWare OMNI
Messaging Server Include:















Ethernet Port – Supports up to 2 TCP/IP Nurse
Call Monitoring Connections, and up to 125
browser and/or smartphone connections
Serial RS-232 Com Port (DB-9 Female) – Qty. 2
Simultaneous Nurse Call monitoring via Two
Serial Port and up to Two Ethernet Socket
Connections
Simultaneous browser message monitoring via
multiple browser connections
Simultaneous low-latency smartphone (Android)
messaging connections
Supports TAP, COMP1, COMP2, SCOPE, SNPP,
WaveWare and Rauland SIP Proprietary
Interface Protocols
Compatible with Industry Standard POCSAG
Pagers
Supports POCSAG Alphanumeric, Numeric and
Tone / Vibrate Messaging at RF Data Rates of
512, 1200 and 2400 bps
Available in UHF Models (400-430 MHZ and 440470 MHz) or VHF (138-174 MHz)
Supports TAP Interface Protocol v1.8 with
Enhancements Including Control Character
Embedding, Extended Pager ID Processing and
Function Code Control
Configurable using Web Browser.
Programmable IP based and Serial Com Port
Settings and Protocols
Pagers, RF Amplification Kits and FCC Site
Licensing Services are also Available
Station ID Transmission
NOTE: The Frequency is Not Field
Programmable
P/N= 0100-3001 2 or 5 watts
Compatibility:
The WaveWare OMNI Messaging Server is
Compatible with Many Host Systems, Including:







A Variety of Nurse Call Systems
WaveWare Alert Utility Software
Fire Alarm Monitoring Panels
Alarm Contact Monitoring Systems
A Variety of Security Systems
Browser (Internet Explorer with Silverlight)
And Many Other Host Systems
OMNI Messaging Server Brochure Continues…Next Page
OMNI Messaging Server
Beneficial Features:
The WaveWare OMNI Messaging Server offers many Beneficial Features, Including:















Ethernet and Serial Connectivity – Configurable using Browser (Internet Explorer with Silverlight)
Simultaneous Monitoring of up to Two Ethernet Socket Connections and Two Serial Port Connections
for nurse call system protocols, with Independent Configuration of Interface Control Protocols on each
Connection
Simultaneous interface on up to 125 Browser and/or Smartphone connections
Support for DHCP or Static IP Address
Discover All WaveWare OMNI Messaging Servers on the LAN using the Discovery Software
Economical, Eliminating Wide Area Paging Service Fees
Allows you to blend Nurse Call and Browser based Messaging
Allows you to blend Pagers and Smartphones and E-mail Notification
Long Range Campus Wide Coverage (5 watt System Provides up to a 3 mile Coverage, Depending upon
the Local On-Site Conditions)
Supports Alphanumeric, Numeric, and Tone / Vibe Messages
Supports Paging RF Data Rates of 512, 1200, and 2400 bps, with Data Rate Auto Switching
Smartphone integration requires WaveWare Alert Client App (Android OS) and WiFi coverage
Industry Compatibility using a choice of Several Industry Standard Interface Protocols
Recipient Database can be Configured using internet browser (Internet Explorer with Silverlight)
Shared Use FCC Site Licensing available for UHF Models - Amp Kits Available for Output of 25 & 50
watts
System Specifications:


















NOTE: Frequency is Not Field Programmble, Factory Preset Only
Ethernet Port: RJ-45 Female, Supports up to Two TCP/IP Connections on Independent IP Port Values.
Also supports up to 125 Browser and/or Smartphone Connections
Serial RS-232 Com Ports: Dual Serial DB-9 Female Com Ports
Serial Port Configuration: 300, 1200, 2400 or 9600 Baud and Even or No Parity and 7 or 8 Bits
Rubber Duck Antenna Connection: BNC Female
Recipient Database: 5,000 Plus Programmable using Web Browser
Frequency Source: Synthesized Transceiver - TecNet Maxon SD-125E or Apollo TX-125
Frequency Range: UHF2 (440-470 MHz), UHF1 (400- 430 MHz) and VHF (138-175 MHz)
Frequency Stability: Models UHF ± 2.5 ppm, VHF ± 5.0 ppm
Transmitter Operations Rating: Intermittent, 66% Duty Cycle
Power Supply: 12vDC 3.75A (or Higher Amp) AC / DC Adaptor
Operating Temperature: 30º C to 60º C (22º F to 140º F)
Modulation Deviation: ± 2.5 KHz (Narrowband)
Bandwidth: 12.5 KHz (Narrowband)
RF Power Out (Watts): 5 Watts Nominal (Available “Factory Preset” from 1- 5 watts)
Transmitter FCC ID: UHF = RXUSD-125EU2 (Maxon) Transmitter Canada ID: UHF = 153B-SD125EU2 (Maxon)
Dimensions: Approx. 9” (H) x 8.5” (W) x 2.25” (D)
Weight: Approx: 8.5 lbs (Including the Antenna, P/S, Cable and CD)
Packaging:
The OMNI Messaging Server Comes Packaged with Everything you need to Configure and Install the System:





Qty. One - Rubber Duck Antenna with BNC Male Connector
Qty. One - 6 or 10 ft. Standard RS-232 Serial Cable – DB-9 Male to Female
Qty. One - 6 or 10 ft. Standard Ethernet Cable
12vDC Power Supply - AC / DC Adaptor and Mounting Hardware - Screws and Plastic Wall Anchors
Support CD with Installation Software, Quick Start Guide, User Manuals, Installation Diagrams & More
WaveWare Technologies, Inc.
1.800.373.1466
[email protected]
03.24.16
