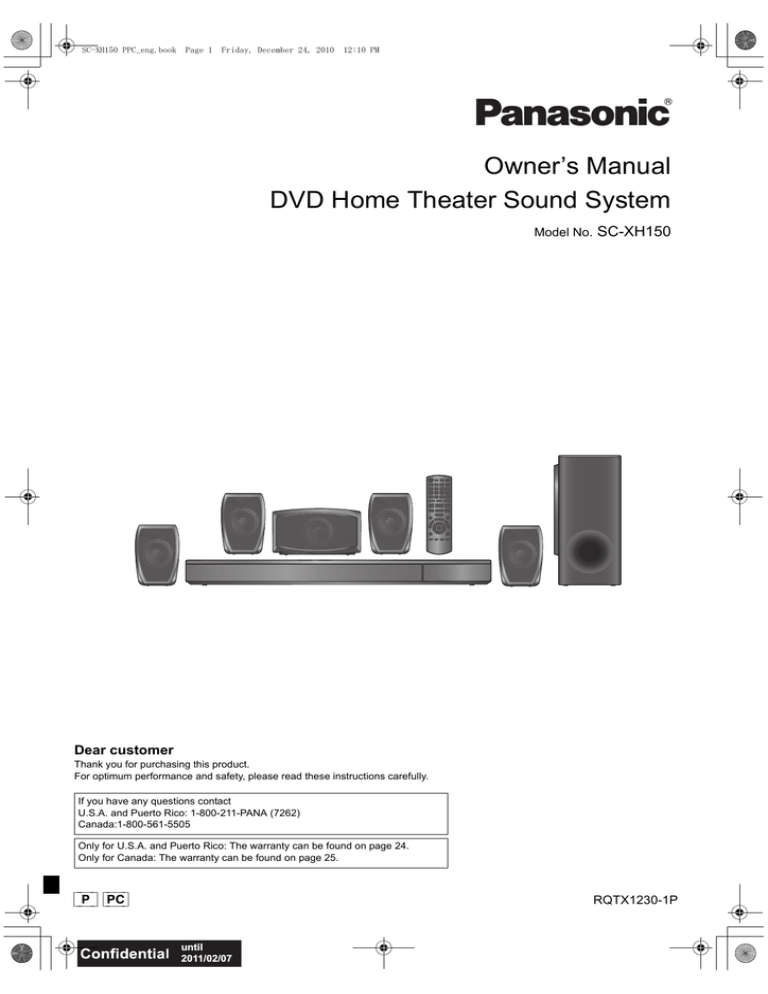

SC-XH150 PPC_eng.book Page 1
Friday, December 24, 2010
12:10 PM
Owner’s Manual
DVD Home Theater Sound System
Model No.
SC-XH150
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
If you have any questions contact
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Canada:1-800-561-5505
Only for U.S.A. and Puerto Rico: The warranty can be found on page 24.
Only for Canada: The warranty can be found on page 25.
[_P_] [PC]
RQTX1230-1P
until
2011/02/07
SC-XH150 PPC_eng.book Page 2
Friday, December 24, 2010
12:10 PM
≥ Before connecting, operating or adjusting this product,
please read the instructions completely. Please keep this
manual for future reference.
≥ The illustrations shown may differ from your unit.
≥ Operations in these instructions are described mainly with
the remote control, but you can perform the operations on
the main unit if the controls are the same.
System
SC-XH150
Main unit
Speaker
system
SA-XH150
Front speakers
SB-HF270
Center speaker
SB-HC270
Surround speakers
Subwoofer
SB-HS270
SB-HW270
Accessories
Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement
parts. (Product numbers are correct as of December 2010. These may be subject to change.)
Only for U.S.A. and Puerto Rico:
To order accessories, refer to “Accessory Purchases (United States and Puerto Rico)” on page 24.
For Canada: To order accessories, call the dealer from whom you made your purchase.
∏ 1 Remote control (N2QAYB000623)
∏ 2 Remote control batteries
∏ 1 FM indoor antenna (RSAX0002)
∏ 5 Speaker cables (REEX1266A (red), REEX1267A (white),
REEX1268 (green), REEX1269 (gray), REEX1270 (blue))
∏ 1 AC power supply cord (K2CB2CB00021)
∏ 1 Sheet of speaker cable stickers
CAUTION!
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK
OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
WARNING:
The unit should be installed near an accessible AC power outlet,
with the power cord connected directly to it.
To completely disconnect power from the unit, unplug the power
cord from the AC power outlet.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE,
≥DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
≥USE ONLY THE RECOMMENDED
ACCESSORIES.
≥DO NOT REMOVE THE COVER (OR BACK);
THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
RQTX1230
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
2
(Inside of product)
SC-XH150 PPC_eng.book Page 3
Friday, December 24, 2010
12:10 PM
TV
INPUT
AV
1
2
3
4
7
5
8
6
9
CANCEL
0
10




iPod
DVD
SEARCH




VOL

MUTE
RADIO
SEARCH
SKIP
PAUSE
STOP
FUNCTIONS
EXIT
START
U
OK
RETURN
PLAY MODE
–REPEAT
SOUND SURROUND
–CH SELECT
W.SRD

EXT-IN
NU
ME



SLOW
SKIP
TOP M
EN

PLAY
VOL
FL DISPLAY
–SLEEP








 


RQTX1230

3

  

The circled numbers indicated in this Owner’s Manual (e.g. Press [Í]1) correspond to the circled numbers in the above.
Getting Started
SC-XH150 PPC_eng.book Page 4
Friday, December 24, 2010
12:10 PM
Control reference guide
Avoiding interference with other Panasonic equipment
Remote control
Playing Discs
1 Turn the main unit on/off (B 8)
2 Select channels and title numbers etc. / Enter numbers
(B 9, 11)
3 Cancel (B 12)
4 Source select
[DVD]:
Select disc as the source (B 11)
[iPod]:
Select iPod/iPhone as the source (B 15)
[EXT-IN, RADIO]: Select the FM tuner or the external audio
source (B 8, 9)
FM # AUX # ARC # D-IN
^-----------------------------------------------}
Other Operations
5
6
7
8
9
:
;
Basic operations for play (B 11)
Show on-screen menu (B 13)
Show a disc top menu (B 12)
Select or confirm menu items / Frame-by-frame (B 11)
Select the play mode / Set the repeat mode (B 12, 13)
Select sound mode / Select speaker channel (B 10, 11)
Select surround sound effects (B 10)
or
Set the Sleep timer
Press and hold [jSLEEP].
While the time is shown on the main unit’s display, press
[jSLEEP] repeatedly.
Each time you press the button:
SLEEP 30 # SLEEP 60 # SLEEP 90 # SLEEP120
^-------------------------- OFF (Cancel) (------------------------}
≥ To confirm the remaining time, press and hold the button again.
Reference
< TV operations
Aim the remote control at the Panasonic TV and press the
button.
[TV, Í]:
Turn the TV on/off
[INPUT, AV]: Change the TV’s video input mode
[r, VOL, s]: Adjust the TV volume
This may not work properly with some models.
= Adjust the volume of the main unit
> Mute the sound
≥ “MUTE” flashes on the main unit’s display while the function is on.
≥ To cancel, press the button again or adjust the volume.
≥ Muting is cancelled when you switch the unit to standby.
RQTX1230
?
@
A
B
C
D
E
F
4
Select radio stations manually (B 9)
Select preset radio stations (B 9)
Exit the display
Show START menu (B 9)
Show a disc menu (B 12)
Return to previous screen (B 12)
Switch information on the main unit’s display (B 12)
Turn Whisper-mode Surround on/off (B 11)
Other Panasonic audio/video equipment may start functioning when you
operate the unit using the supplied remote control.
You can operate this unit in another mode by setting the remote control
operating mode to “REMOTE 2”.
The main unit and remote control must be set to the same mode.
1 Press [EXT-IN, RADIO]4 to select “AUX”.
2 Press and hold [1]8 on the main unit and [2] on the remote control
until the main unit’s display shows “REMOTE 2”.
3 Press and hold [OK]8 and [2] on the remote control for at least 2
seconds.
To change the mode back to “REMOTE 1”, repeat the steps above by
replacing [2] with [1].
Main unit
1 Standby/on switch (POWER Í/I)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2 Open/Close the disc tray (B 11)
3 Adjust the volume of the main unit
4 Connect iPod/iPhone (B 15)
5 Power indicator
The indicator lights when this unit is turned on.
6 Disc tray
7 Stop
8 Start play
9 Remote control signal sensor
: Display (FL display)
POWER-SAVING FEATURES
The main unit is designed to conserve its power
consumption and save energy.
∫ Auto FL display turn-off function
The main unit's display is automatically turned off when the
volume is adjusted to “0”. (B 18, “FL Control” in Others
menu.)
∫ Auto power-down function
The main unit will automatically switch to standby mode after
30 minutes of inactivity.
e.g.
– There is no audio signal from an external device.
– Disc playback is stopped/paused.
– iPod/iPhone playback is stopped/paused.
– The disc menu is displayed and play is not selected.
(This function may not work depending on the application
type of discs.)
SC-XH150 PPC_eng.book Page 5
Friday, December 24, 2010
12:10 PM
Getting Started
Playing Discs
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Control reference guide. . . . . . . . . . . . . . . . . . . . . . . . . . .4
Playing from the selected item. . . . . . . . . . . . . . . . . . . . 12
POWER-SAVING FEATURES. . . . . . . . . . . . . . . . . . . . .4
Other modes of play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
step 1 Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
step 2 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Speaker connections . . . . . . . . . . . . . . . . . . . . . .6
Radio antenna connections . . . . . . . . . . . . . . . . .6
Audio and video connections . . . . . . . . . . . . . . .7
step 3 AC power supply cord connection . . . . . . . . 8
step 4 Preparing the remote control . . . . . . . . . . . . 8
step 5 Easy setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using on-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . 13
Other Operations
Linked operations with the TV
(VIERA LinkTM “HDAVI ControlTM”) . . . . . . . . . . . . . . . 14
Setting the audio link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Easy control only with VIERA remote control . . . . . . . . . . 15
Using the iPod/iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Reference
Changing the player settings . . . . . . . . . . . . . . . . . . . . . 16
Listening to the radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Discs that can be played. . . . . . . . . . . . . . . . . . . . . . . . . 18
Presetting stations automatically . . . . . . . . . . . . . . . . . . . . . 8
Listening/confirming the preset channels . . . . . . . . . . . . . . . 9
Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the START menu . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Selecting the source using the remote control . . . . . . . . . . . 9
Listening to the TV or other device’s audio from this
unit’s speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Enjoying sound effects from all speakers
Playing Discs
Quick Start Guide
Program and Random play . . . . . . . . . . . . . . . . . . . . . . . . 12
Repeat play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Other Operations
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . below
Getting Started
TABLE OF CONTENTS
Speaker installation option. . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Limited Warranty (ONLY FOR U.S.A. AND PUERTO
RICO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Limited Warranty (ONLY FOR CANADA). . . . . . . . . . . . 25
Reference
Enjoying surround sound effects. . . . . . . . . . . . . . . .10
Selecting sound mode. . . . . . . . . . . . . . . . . . . . . . . . .10
Whisper-mode Surround. . . . . . . . . . . . . . . . . . . . . . .11
Adjusting the speaker level during playback . . . . . .11
Adjusting the speaker balance during playback . . .11
IMPORTANT SAFETY INSTRUCTIONS
RQTX1230
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed
below. Keep these operating instructions handy for future reference.
1) Read these instructions.
10) Protect the power cord from being walked on or pinched particularly
2) Keep these instructions.
at plugs, convenience receptacles, and the point where they exit from
3) Heed all warnings.
the apparatus.
4) Follow all instructions.
11) Only use attachments/accessories specified by the manufacturer.
5) Do not use this apparatus near water.
12) Use only with the cart, stand, tripod, bracket, or table
6) Clean only with dry cloth.
specified by the manufacturer, or sold with the
7) Do not block any ventilation openings. Install in accordance with the
apparatus. When a cart is used, use caution when
manufacturer’s instructions.
moving the cart/apparatus combination to avoid injury
8) Do not install near any heat sources such as radiators, heat registers,
from tip-over.
stoves, or other apparatus (including amplifiers) that produce heat.
13) Unplug this apparatus during lightning storms or when
9) Do not defeat the safety purpose of the polarized or grounding-type
unused for long periods of time.
plug. A polarized plug has two blades with one wider than the other.
14) Refer all servicing to qualified service personnel. Servicing is
A grounding-type plug has two blades and a third grounding prong.
required when the apparatus has been damaged in any way, such as
The wide blade or the third prong are provided for your safety. If the
power-supply cord or plug is damaged, liquid has been spilled or
provided plug does not fit into your outlet, consult an electrician for
objects have fallen into the apparatus, the apparatus has been
replacement of the obsolete outlet.
exposed to rain or moisture, does not operate normally, or has been
dropped.
5
SC-XH150 PPC_eng.book Page 6
step 1
Friday, December 24, 2010
12:10 PM
Positioning
step 2
How you set up your speakers can affect the bass and the sound field.
Note the following points:
≥ Place speakers on flat secure bases.
≥ Keep your speakers at least 10 mm (13/32q) away from the system for
proper ventilation.
≥ Placing speakers too close to floors, walls, and corners can result in
excessive bass. Cover walls and windows with thick curtains.
≥ For optional wall mount, refer to page 19.
Setup example (“Surround layout (Recommended)”: Standard
surround placement)
Place the front, center, and surround speakers at approximately the same
distance from the seating position. The angles in the diagram are
approximate.
Center speaker§2
Front speaker
(left)
Main unit§1
Front speaker
(right)
60°
Subwoofer§3
Surround
speaker (left)
Surround
speaker (right)
§1 Position with at least 5 cm (2q) of space on all sides for proper
ventilation.
§2 Put on a rack or shelf. Vibration caused by the speaker can disrupt
the picture if it is placed directly on the TV.
§3 Place to the right or left of the TV, on the floor or a sturdy shelf so that
it will not cause vibration. Leave about 30 cm (1113/16q) from the TV.
Depending on the room layout, you may like to use all the speakers at the
front (“Front layout (Alternative)”) (B 8, Easy setup).
Notes on speaker use
≥Use only supplied speakers
Using other speakers can damage the unit, and sound quality will be
negatively affected.
≥ You can damage your speakers and shorten their useful life if you play
sound at high levels over extended periods.
≥ Reduce the volume in the following cases to avoid damage:
– When playing distorted sound.
– When the speakers are reverberating due to a record player, noise
from FM broadcasts, or continuous signals from an oscillator, test
disc, or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.
If irregular coloring occurs on your TV
The center speaker is designed to be used close to a TV, but the picture
may be affected on some TVs and setup combinations.
If this occurs, turn the TV off for about 30 minutes.
The demagnetizing function of the TV should correct the problem. If it
persists, move the speakers further away from the TV.
Caution
RQTX1230
≥ The main unit and supplied speakers are to be
used only as indicated in this setup. Failure to do
so may lead to damage to the amplifier and/or the
speakers, and may result in the risk of fire.
Consult a qualified service person if damage has
occurred or if you experience a sudden change in
performance.
≥ Do not attempt to attach these speakers to walls
using methods other than those described in this
manual.
6
Turn off all equipment before connection and read the appropriate
operating instructions.
Do not connect the AC power supply cord until all other
connections are completed.
1
Speaker connections
Pay attention to the type of speaker and the connector color when you
place the speakers.
Main unit (rear)
Connect to the terminals of the same color.
Use of the speaker cable stickers is convenient when making cable
connections.
Speakers (rear)
Insert the wire fully, taking care not to insert beyond the wire insulation.
i: White
j: Blue line
≥ Be careful not to cross (short circuit) or reverse the polarity of the
speaker wires as doing so may damage the speakers.
2
120°
Connections
Radio antenna connections
Using an indoor antenna
Adhesive tape
FM ANT
(75 )
FM indoor antenna
(supplied)
Affix this end of the antenna
where reception is best.
Main unit (rear)
Using an outdoor antenna
Use outdoor antenna if radio reception is poor.
≥ Disconnect the antenna when the unit is not in use.
≥ Do not use the outdoor antenna during an electrical storm.
FM ANT
(75 )
Main unit
(rear)
75 ≠ coaxial
cable
(not supplied)
FM outdoor antenna
(Using a TV antenna
(not supplied))
The antenna should be
installed by a competent
technician.
3
Friday, December 24, 2010
12:10 PM
Audio and video connections
∫ Connection without an ARC compatible TV
≥ To listen to the TV audio on the sound system, connect the optical
digital audio cable, HDMI§ cable or audio cable.
Refer to the operating instructions of the respective devices for the
settings necessary to output the audio.
§ Only when connecting to an ARC compatible TV.
Refer to “Connection with an ARC compatible TV” for details. (B below)
OPTICAL
OUT
AV IN
Getting Started
SC-XH150 PPC_eng.book Page 7
TV
Recommended connection to a TV
HDMI cable
(not supplied)
This connection provides the best picture and audio quality.
Optical digital audio
cable (not supplied)
VIERA Link “HDAVI Control”
(ARC)
≥ Please use High Speed HDMI Cables that have the HDMI logo (as shown on
the back cover).
≥ Non-HDMI-compliant cables cannot be utilized.
≥ It is recommended that you use Panasonic’s HDMI cable. Recommended
part number:
RP-CDHS15 (1.5 m/4.9 ft), RP-CDHS30 (3.0 m/9.8 ft), RP-CDHS50
(5.0 m/16.4 ft), etc.
≥ Do not make the video connections through the VCR.
Due to copy guard protection, the picture may not be displayed properly.
≥ After connecting with the optical digital audio cable or HDMI§ cable, make
settings to suit the type of audio from your digital equipment (B 10).
(Only Dolby Digital and PCM can be played with this connection.)
DIGITAL AUDIO
IN OPTICAL
AV
OUT
HDMI AV OUT
DIGITAL AUDIO IN
OPTICAL
Quick Start Guide
If your Panasonic TV is VIERA Link compatible, you can operate your TV
synchronizing with home theater operations or vice versa
(B 14, Linked operations with the TV).
Main unit (rear)
Alternative connection to a TV
AUDIO OUT
R
L
VIDEO IN
TV
∫ Connection with an ARC compatible TV
What is ARC?
Audio cable
(not supplied)
ARC is an abbreviation of Audio Return Channel, also known as HDMI
ARC. It refers to one of the HDMI functions. If the TV is ARC
compatible, audio from the TV can be sent to this unit via the HDMI
cable without the need to make an extra audio connection.
Video cable
(not supplied)
AUX
≥ Refer to the operating instructions of the TV for details.
TV
HDMI cable
(not supplied)
HDMI (ARC)
AV OUT
AV
OUT
(ARC)
Main unit (rear)
R
L
VIDEO OUT
DIGITAL AUDIO IN
VIDEO OUT
OPTICAL
Main unit (rear)
Set Top Box (cable/satellite/Blu-ray Disc player, etc) connection
Use this connection when you want to output the original surround audio
from your STB, etc. to this unit.
Connect the optical digital audio cable (not supplied) from the
DIGITAL AUDIO IN OPTICAL terminal on the main unit to the
OPTICAL OUT terminal on your STB.
≥ If the DIGITAL AUDIO IN OPTICAL terminal is already in use for the TV
audio, reconnect the TV audio to the AUX terminal using an audio
cable.
If you have various sound sources (such as Blu-ray Disc player, DVD recorder,
VCR, etc.), connect them to the available inputs on the TV and the TV output
should then be connected to the AUX, HDMI AV OUT§ or DIGITAL AUDIO IN
OPTICAL terminal of the main unit.
RQTX1230
Be sure to connect to the
TV’s ARC compatible
terminal. (Refer to the
operating instructions for
the TV.)
HDMI
(ARC)
AUX
7
SC-XH150 PPC_eng.book Page 8
step 3
Friday, December 24, 2010
12:10 PM
AC power supply cord connection
Easy setup
The Easy setup screen assists you in making necessary
settings.
To household AC outlet
(AC 120 V, 60 Hz)
AC IN
AC power supply cord
(supplied)
Main unit (rear)
Conserving power
The main unit consumes a small amount of power, even when it is in
standby mode (approx. 0.4 W). To save power when the unit is not to be
used for a long time, unplug it from the household AC outlet.
You will need to reset some memory items when plugging back the main
unit.
Preparation
Turn on your TV and select the appropriate video input mode
(e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connection to this unit.
≥ To change your TV’s video input mode, refer to its operating
instructions.
≥ This remote control can perform some basic TV operations (B 4).
[Í]1 to turn on the unit.
1 Press
≥ The Easy setup screen appears automatically.
2 Press [3, 4]8 to select “Yes” and press [OK]8.
the messages and make the settings with
3 Follow
[3, 4, 2, 1]8 and [OK]8.
≥Language
The supplied AC power supply cord is for use with the main unit only.
Do not use it with other equipment. Also, do not use cords for other equipment
with the main unit.
step 4
Select the language used on menu screen.
≥TV aspect
Select the aspect to suit your TV.
≥Speaker layout
Select “Surround layout (Recommended)” mode or “Front layout
(Alternative)” mode according to your speaker layout (B 6,
Positioning).
Preparing the remote control
≥Speaker check
Batteries

step 5
Listen to speaker output to confirm speaker connections.
Insert so the poles (r and j) match those in the remote control.
≥Speaker output
Make surround sound setting for speaker output.
≥TV audio
Select the audio input connection from your TV.
For AUX connection (B 7): Select “AUX”.
For HDMI connection (B 7): Select “ARC”.
For DIGITAL AUDIO IN OPTICAL connection (B 7): Select
“DIGITAL IN”.
This will be the TV audio setting for VIERA Link “HDAVI Control”.
(B 14)
 Press in and lift up.
R6/LR6, AA
 Replace the cover.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
≥ Use alkaline or manganese batteries.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in an automobile exposed to direct
sunlight for a long period of time with doors and windows closed.
Do not:
≥ mix old and new batteries.
≥ use different types of batteries at the same time.
≥ take apart or short circuit.
≥ attempt to recharge alkaline or manganese batteries.
≥ use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can
severely damage the remote control.
Remove the batteries if the remote control is not going to be used for a
long period of time. Store in a cool, dark place.
Use
Aim at the remote control signal sensor (B 4), avoiding obstacles.
Distance: Within approx. 7 m (23 ft)
Angle: Within approx. 20° up and down, approx. 30° to the left and right
4 Press [OK]8 to finish the “Easy setup”.
≥ You can perform this setup anytime by selecting “Easy setup” in the Setup
menu. (B 17)
≥ If this unit is connected to a “HDAVI Control 3 or later” compatible TV via
HDMI cable, the menu language and TV aspect information will be retrieved
via VIERA Link.
≥ If this unit is connected to a “HDAVI Control 2” compatible TV via HDMI cable,
the menu language information will be retrieved via VIERA Link.
Listening to the radio
Presetting stations automatically
Up to 30 stations can be set.
1 Press [EXT-IN, RADIO]4 to select “FM”.
[MENU]C.
2 Press
Each time you press the button:
LOWEST (factory preset):
To begin auto preset with the lowest frequency.
CURRENT:
To begin auto preset with the current frequency.§
§ To change the frequency, refer to “Manual tuning” (B 9).
and hold [OK]8.
3 Press
Release the button when “FM AUTO” is displayed.
The tuner starts to preset all the stations it can receive into the
channels in ascending order.
RQTX1230
≥ “SET OK” is displayed when the stations are set, and the radio tunes to
the last preset station.
≥ “ERROR” is displayed when auto presetting is unsuccessful. Preset the
stations manually (B 9).
8
Friday, December 24, 2010
12:10 PM
Listening/confirming the preset channels
1
the numbered buttons to select a channel.
2 Press
≥ To select a 2-digit number
Press [EXT-IN, RADIO]4 to select “FM”.
e.g. 12: [S10]2 B [1] B [2]
Alternatively, press [X, W]@.
≥ The FM setting is also shown on the TV display.
Using the START menu
You can select desired source, change the settings, access playback/
menus, etc., by using the START menu.
[START]B to show the START menu.
1 Press
≥ When using VIERA Link “HDAVI Control”, the TV also turns on
Getting Started
SC-XH150 PPC_eng.book Page 9
when the START menu is displayed.
e.g.
DVD/CD
Home theater
If noise is excessive
Manual tuning
1 Press [EXT-IN, RADIO]4 to select “FM”.
[SEARCH6, SEARCH5]? to select the
2 Press
frequency.
≥ To start auto tuning, press and hold [SEARCH6,
SEARCH5]? until the frequency starts scrolling. Tuning stops
when a station is found.
Presetting stations manually
Up to 30 stations can be set.
1 While listening to the radio broadcast
Press [OK]8.
2 While the frequency is flashing on the display
Press the numbered buttons to select a channel.
≥ To select a 2-digit number
e.g. 12: [S10]2 B [1] B [2]
Alternatively, press [X, W]@, and then press [OK]8.
[3, 4]8 to select an item and press [OK]8.
2 Press
≥ To exit, press [START]B.
[3, 4, 2, 1]8 to make the setting and press
3 Press
[OK]8.
When “Input select” is selected
You can select a desired source from the menu.
≥ DVD/CD (B 11), FM RADIO (B 8), AUX§1 (B below),
ARC§1 (B below), DIGITAL IN§1, 2 (B below), iPod (B 15)
§1 “(TV)” will appear beside “AUX”, “ARC” or “DIGITAL IN”, indicating
the TV audio setting for VIERA Link “HDAVI Control” (B 14).
§2 “(STB)” will appear beside “DIGITAL IN”, indicating the STB audio
setting for VIERA Link “HDAVI Control” (B 14).
When “Setup” is selected
You can change the settings for this unit. (B 16)
Other selectable items
The items that are displayed will vary depending on the media and
source.
When a disc is loaded, you can also access playback or menus from the
START menu.
e.g. [DVD-V]
DVD/CD
Playback Disc
TOP MENU(DVD)
MENU(DVD)
A station previously stored is overwritten when another station is stored in
the same channel preset.
FM frequency step
The step is factory-set to 0.2 MHz, but you can change it to receive
broadcasts allocated in 0.1 MHz steps. You may need to change this
setting if the tuner seems to skip over the correct frequency for stations in
your area.
1
Press [EXT-IN, RADIO]4 to select “FM”.
2
Press and hold [∫]7 on the main unit.
Home theater
Playback/menu access
Input select
Setup
When the on-screen control panel appears
e.g. [DVD-V] (when “Playback Disc” is selected from the START menu)
After a few seconds the display changes to show the current minimum
frequency. Continue to hold the button down. The minimum frequency
changes and the step is changed.
e.g. 87.9 (Factory preset) ,# 87.5
You can operate the playback with the indicated controls.
To return to the original step, repeat steps 1 and 2.
Press
[DVD]4
[iPod]4
[EXT-IN,
RADIO]4
After changing the setting, previously preset frequencies will be cleared. Preset
them again.
Selecting the source using the remote control
To select
DVD/CD
IPOD (B 15)
Each time you press the button:
FM: (B 8)
AUX: For audio input through the AUX terminal.
ARC: For audio input through the HDMI AV OUT terminal.
D-IN: For audio input through the DIGITAL AUDIO IN
OPTICAL terminal. (B 10)
Confirm the audio connection to the AUX, HDMI AV OUT or DIGITAL AUDIO IN
OPTICAL terminal on the main unit when you select the corresponding sources
(B 7). Reduce the volume on the TV to its minimum, and then adjust the
volume of the main unit.
RQTX1230
To cancel the mode, press and hold the button again until “AUTO ST” is
displayed.
≥ The mode is also cancelled when you change the frequency.
Quick Start Guide
Input select
Setup
Press and hold [PLAY MODE]9 to display “MONO”.
9
SC-XH150 PPC_eng.book Page 10 Friday, December 24, 2010
12:10 PM
Listening to the TV or other device’s
audio from this unit’s speakers
Getting Started
Preparation
≥ Make sure that there is an audio connection between this unit and the
TV or other device. (B 7)
≥ Turn on the TV or/and other device.
Press [EXT-IN, RADIO]4 to choose the source that is used
to connect this unit to the TV or other device.
≥ To change the surround sound effects and sound mode, refer to
“Enjoying sound effects from all speakers” (B right).
≥ If your Panasonic TV is VIERA Link compatible, refer to “Linked
operations with the TV” (B 14) for other related functions.
Making settings for digital audio input
Playing Discs
Select to suit the type of audio from the DIGITAL AUDIO IN OPTICAL and
HDMI AV OUT terminal on the main unit.
≥ Underlined items are the factory presets.
Reference
Other Operations
Available settings
Mode
Setting
DUAL:
(Only works with Dolby Dual Mono)
– MAIN+SAP (stereo audio)
– MAIN
– SAP
“SAP” = Secondary Audio Program
≥ Set PCM FIX mode to “OFF” to listen to the “MAIN” or
“SAP” audio.
DRC:
– ON
(Dynamic
Adjust for clarity even when the volume is low by
Range
compressing the range of the lowest sound level and
Compression)
the highest sound level. Convenient for late night
viewing. (Only works with Dolby Digital)
– OFF
The full dynamic range of the signal is reproduced.
PCM FIX:
– ON
Select when receiving only PCM signals.
– OFF
Select when receiving Dolby Digital and PCM signals.
≥ When receiving true 5.1-channel surround sound,
select “OFF”.
– SET
STB§:
(CABLE/SAT
Select when setting the main unit to switch to
AUDIO)
“D-IN” when the input channel of an HDMI connected
device (STB, etc.) is selected on the TV (B 14,
Setting the audio link with the STB).
– OFF
Select to cancel this setting.
[EXT-IN, RADIO]4 several times to select “D-IN”
1 Press
or “ARC”.
Press [PLAY MODE]9 and then [3, 4]8 to select the
2 mode.
While the selected mode is displayed, press [2, 1]8 to
3 select
the desired setting.
§ Only when “D-IN” is selected.
Be sure to select the device’s (STB, etc.) input channel on the TV when
making the setting.
The device must be connected to the Panasonic TV via an HDMI cable
and to this unit with an optical digital audio cable.
≥If the device’s (STB, etc.) input channel on the TV is changed or if you
want to change the device allocated for the linked operations, select
the “STB” mode to “OFF” in step 3 above and then select “SET”
again.
≥This function will not operate if “DIGITAL IN” is selected in “TV Audio”
(B 17).
Enjoying sound effects from all
speakers
≥ The following sound effects may not be available or may have no effect
with some sources.
≥ You may experience a reduction in sound quality when these sound
effects are used with some sources. If this occurs, turn the sound effects
off.
When changing the surround sound effect, Whisper-mode Surround or the
sound modes, the setting is displayed on the TV screen if “DVD/CD” is the
selected source during video playback.
Enjoying surround sound effects
Press [SURROUND];.
Each time you press the button:
For “Surround layout (Recommended)”§ mode
STANDARD:
Sound is output as it was recorded/encoded. Speaker output varies
depending on the source.
MULTI-CH:
You can enjoy sound from the front speakers, as well as the surround
speakers even when playing a 2-channel sound.
MANUAL: (B below)
While “MANUAL” is displayed, press [2, 1]8 to select
other surround modes.
Each time you press [2, 1]8:
DOLBY PLII MOVIE
Suitable for movies, or videos recorded in Dolby Surround.
DOLBY PLII MUSIC
Adds 5.1-channel effects to stereo sources.
S.SRD (Super Surround)
You can enjoy sound from all speakers with stereo sources.
STEREO
Sound will only be output to the front speakers and the subwoofer from
any source.
Recommended modes to enjoy TV audio or stereo
sources from all speakers:
≥ DOLBY PLII MOVIE
≥ DOLBY PLII MUSIC
≥ S.SRD
For “Front layout (Alternative)”§ mode
STANDARD:
Stereo source is output as 2.1-channel audio.
When playing surround sources, you can enjoy 5.1-channel
surround-like effect even with all the speakers at the front.
STEREO:
You can play any source in stereo. Surround sound effect is
unavailable.
A.SRD (Advanced Surround):
You can enjoy surround effect with any audio source.
When the signal is Dolby Digital, “/DOLBY DIGITAL” will also be displayed.
§ Selected mode in “Speaker layout” (B 8, Easy setup).
Selecting sound mode
1 Press [SOUND]: to select a sound mode.
Each time you press the button:
EQ:
Equalizer
SUBW LVL:
Subwoofer Level
C.FOCUS:
Center Focus (Only when “Surround layout
(Recommended)” mode is selected in “Speaker
layout” (B 8, Easy setup).)
the selected mode is displayed, press [2, 1]8 to
2 While
make the settings.
RQTX1230
Refer to the following for setting details of each sound effect.
10
12:10 PM
SUBW LVL (Subwoofer level)
You can adjust the amount of bass. The unit automatically selects
the most suitable setting according to the type of playback
source.
LEVEL 1 ,# LEVEL 2 ,# LEVEL 3 ,# LEVEL 4
^-------------------------------------------------------------------J
≥ The setting you make is retained and recalled every time you
play the same type of source.
C.FOCUS (Center Focus)
(Effective when playing audio containing the center channel
sound or when DOLBY PLII (B 10) is selected.)
You can make the sound of the center speaker seem like it is
coming from within the TV.
ON ,------. OFF
Basic play
Preparation
To display the picture, turn on your TV and change its video input mode
(e.g. VIDEO 1, AV 1, HDMI, etc.) to suit the connection to this unit.
Getting Started
EQ (Equalizer)
You can select sound quality settings.
Each time you press [2, 1]8:
FLAT:
Cancel (no effect is added).
HEAVY: Adds punch to rock.
CLEAR: Clarifies higher sounds.
SOFT:
For background music.
1 Press [Í]1 to turn on the unit.
2 Press [DVD]4 to select “DVD/CD”.
3 Press [< OPEN/CLOSE]2 to open the disc tray.
the disc.
Label facing up
4 Load
≥ Load double-sided discs so the label for the
side you want to play is facing up.
[1 PLAY]5 to start play.
5 Press
≥ Press [r, VOL, s]= to adjust the volume.
Playing Discs
SC-XH150 PPC_eng.book Page 11 Friday, December 24, 2010
Each time you press the button:
ON ,------. OFF
Adjusting the speaker level during playback
Only when “Surround layout (Recommended)” mode is selected in
“Speaker layout” (B 8, Easy setup)
(Effective when playing 5.1-channel sound or when DOLBY PLII/“S.SRD”
(B 10) is selected.)
and hold [–CH SELECT]: to select the speaker.
1 Press
While the speaker channel is displayed, press [–CH SELECT]:.
e.g.
L# C# R# RS# LS# SW
^---------------------------------------------}
≥ You can adjust SW (Subwoofer) only if the disc includes a
subwoofer channel.
≥ When “S” appears, only the surround speaker channel can be
adjusted. Both surround speaker levels will be adjusted at the same
time.
“C”, “RS”, “LS”, “SW” or “S” is selected
2 While
Press [3]8 (increase) or [4]8 (decrease) to adjust the
speaker level for each speaker.
C, RS, LS, SW, S: `6 dB to i6 dB
(L, R: Only the balance is adjustable.) (B below)
Adjusting the speaker balance during playback
For “Surround layout (Recommended)”§ mode:
Front speaker balance
For “Front layout (Alternative)”§ mode:
Front and surround speaker balance
and hold [–CH SELECT]: to select “L”
1 Press
or “R”.
“L” or “R” is selected
2 While
Press [2, 1]8 to adjust the speaker balance.
§ Selected mode in “Speaker layout” (B 8, Easy setup).
≥ DISCS CONTINUE TO ROTATE WHILE MENUS ARE DISPLAYED.
Press [∫ STOP]5 when you finish to preserve the unit’s motor and your TV
screen.
≥ Total title number may not be displayed properly on iR/iRW.
Other Operations
Press [W.SRD]F.
Basic controls
One touch play (remote control only): [1 PLAY]5
(during standby mode)
The main unit automatically turns on and starts playing the disc in the
tray.
Stop: [∫ STOP]5
The position is memorized while “RESUME” is on the main unit’s display.
[DVD-V] [VCD] [CD] [MP3] This unit can memorize the resume position for
the last 5 discs.
≥ Press [1 PLAY]5 to resume.
≥ Press [∫ STOP]5 again to clear the position.
Reference
You can enhance the audio effect for low volume 5.1-channel sound.
(Convenient for late night viewing.)
≥ When you press [< OPEN/CLOSE]2 to close the disc tray, this unit
automatically starts playing the disc in the tray.
[MP3] [JPEG]
– Only the contents in the current group will be played.
– If there are both MP3 and JPEG contents in the current group, only
one content type will be played. (Priority: MP3 contents will be
played.)
You can select an item of your desired content type to start play.
(B 12, Using navigation menu)
Pause: [; PAUSE]5
≥ Press [1 PLAY]5 to restart play.
Skip: [SKIP:, SKIP 9]5
Search: [SEARCH6, SEARCH5]5 (during play)
Slow-motion: [SEARCH6, SEARCH5]5 (during pause)
≥ Search: Up to 4 steps
Slow-motion: Up to 3 steps
≥ Press [1 PLAY]5 to start normal play.
≥ [VCD] Slow-motion: Forward direction only.
[DVD-V] [VCD] Frame-by-frame: [2;, ;1]8 (during pause)
≥ [VCD] Forward direction only.
On-screen item select: [3, 4, 2, 1, OK]8
[3, 4, 2, 1]8: Select
[OK]8: Confirm
Enter number: Numbered buttons
[DVD-V] [VCD] [CD]
e.g. To select 12: [S10]2 B [1] B [2]
RQTX1230
Whisper-mode Surround
11
SC-XH150 PPC_eng.book Page 12 Friday, December 24, 2010
12:10 PM
[DVD-V] Show a disc top menu: [TOP MENU]7
[DVD-V] Show a disc menu: [MENU]C
Getting Started
Return to previous screen: [RETURN]D
[VCD] (with playback control)
Show a disc menu: [RETURN]D
Turn PBC function on/off: [MENU]C
Program and Random play
[CD] [MP3] [JPEG]
Preparation
Main unit display: [FL DISPLAY]E
[DVD-V] [MP3]
Time display ,-. Information display
[JPEG]
SLIDE,-.Contents number
While stopped, press [PLAY MODE]9 to select the play
mode.
Playing from the selected item
Using navigation menu
[CD] [MP3] [JPEG]
Playing Discs
Other modes of play
Each time you press the button:
[CD] [MP3] Music Program menu
[JPEG] Picture Program menu
RND (Random) menu
Exit program and random menus
Program play (up to 30 items)
[3, 4]8 to select an item and press [OK]8.
1 Press
e.g. [MP3]
You can select to play from your desired item while the navigation menu
screen is displayed.
e.g. Data disc
Group (Folder):
Elapsed time
Content (File/Track):
: MP3/CD-DA
: JPEG
1/3
00:02:40
/ .../Underwater.MP3
..
Perfume
Underwater
Fantasy planet
Starpersons1
Other Operations
Press [3, 4]8 to select an item and press [OK]8.
≥ Press [2, 1]8 to skip page by page.
Play starts from the selected content.
[MP3] [JPEG]
≥ To return to the previous folder, press [RETURN]D. You can also do
this by selecting “
.. ” in the menu.
≥ Maximum: 16 characters for file/folder name.
≥ Only the contents in the current group will be played.
≥ If there are both MP3 and JPEG contents in the current group, play will
be based on the selected content type.
Selecting the picture in Thumbnail menu
[JPEG]
the picture is displayed, press [TOP MENU]7 to
1 While
show the thumbnail menu.
Reference
Music Program
..
Track
Track
Track
Track
e.g.
1
2
3
4
5
6
1
2
3
4
≥ When a content is selected, it will be programmed.
≥ Repeat this step to program other items.
≥ [MP3] [JPEG] To return to the previous folder, press [RETURN]D.
You can also do this by selecting “
.. ” in the menu.
2 Press [1 PLAY]5 to start play.
To clear the selected program
1 Press [1]8 and then press [3, 4]8 to select the program.
2 Press [CANCEL]3.
To clear the whole program
Press [1]8 several times to select “Clear All”, and then press [OK]8.
The whole program is also cleared when the disc tray is opened, the unit
is turned off or another source is selected.
Random play
[CD] All tracks will be played in random order.
[MP3] [JPEG] The MP3/JPEG contents of the selected group will be played
in random order.
[JPEG]
1 [MP3]
Press [3, 4]8 to select the desired group and press
[OK]8.
e.g. [MP3]
RND
/ .../Track 1.MP3
1/10
..
Track
Track
Track
Track
Press [3, 4, 2, 1]8 to select a picture and press
2 [OK]8.
≥ Press [SKIP:, SKIP 9]5 to skip page by page.
∫ Rotating a picture
While a picture is displayed, press [3, 4, 2, 1]8 to rotate the
picture.
1
2
3
4
≥ To return to the previous folder, press [RETURN]D. You can also do
this by selecting “
.. ” in the menu.
[JPEG]
2 [MP3]
Press [3, 4]8 to select the desired content
§
and press
[OK]8.
§ If there are both MP3 and JPEG contents, random play will be
based on the selected content type.
RQTX1230
3 Press [1 PLAY]5 to start play.
12
SC-XH150 PPC_eng.book Page 13 Friday, December 24, 2010
12:10 PM
Repeat play
Play Speed
During play, press and hold [–REPEAT]9, to show the
repeat mode.
While the repeat mode is displayed, press [–REPEAT]9 to select the
item to be repeated.
e.g. [DVD-V]
`Chapter ---. `Title ---. `Off
^-------------------------------------------_------b
To cancel, select “Off”.
Items shown differ depending on the type of disc and playback mode.
[FUNCTIONS]6 to show the on-screen menu.
1 Press
Each time you press the button:
Subtitle
e.g. [DVD-V] Menu 1 (Disc)
Current item
D5
O
Item name
[3, 4, 2, 1]8 to select the item and press
2 Press
[OK]8.
C1
1/5
Off
Chapter Search
Angle
[DVD-V] (with multiple angles)
To select a video angle
e.g. [DVD-V] Menu 1 (Disc)
Current setting
T1
[DVD-V] (with multiple subtitles)
To select subtitle language
≥ On iR/iRW, a subtitle number may be shown for subtitles that are
not displayed.
Menu 2 (Video)
D5
O
3 Press [3, 4]8 to make the settings and press [OK]8.
This does not work during HD JPEG playback (B 17, HD JPEG Mode [JPEG])
Items shown will vary depending on the type of disc.
Menu 1 (Disc)
Transfer Mode
To select the method of conversion for video output to suit the type
of material
Auto, Video
≥ When the content is distorted, select “Video”.
≥ This may have no effect with some sources.
≥ The setting will return to “Auto” when the disc tray is opened, the unit is
turned off or another source is selected.
Zoom
Track Search, Title Search, Content Search, Chapter
Search
To select zoom
Normal, 1, 2, 3
To start from a specific item
e.g. [DVD-V]: T2 C5
To select 12: [S10]2 B [1] B [2] B [OK]8
Menu 3 (Audio)
Audio
[DVD-V] (with multiple soundtracks)
To select audio soundtrack
[VCD]
To select “L”, “R”, “L+R” or “L R”
Reference
1/5
C1
Off
Title Search
Playing Discs
Using on-screen menus
T1
Repeat Mode
(B left, Repeat play)
A-B Repeat (To repeat a specified section)
Except [JPEG]
Press [OK]8 at the starting and ending points.
≥ Select “Off” to cancel.
Random mode will be cleared when you change the repeat mode.
Menu 1 (Disc)
Menu 2 (Video)
Menu 3 (Audio)
Exit
[DVD-V]
To change play speed
– from “k0.6” to “k1.4” (in 0.1-unit steps)
≥ Press [1 PLAY]5 to return to normal play.
≥ After you change the speed
– Dolby Pro Logic II has no effect.
– Audio output switches to 2-channel stereo.
– Sampling frequency of 96 kHz is converted to 48 kHz.
≥ This function may not work depending on the disc’s recording.
Getting Started
This works only when the elapsed play time can be displayed. It also
works with all JPEG content.
Dialog Enhancer
To make the dialog in movies easier to hear
[DVD-V] (Dolby Digital, 3-channel or higher, with the dialog recorded in
the center channel)
Off, On
Actual operations depend on the disc. Read the disc’s instructions for
details.
RQTX1230
Signal type/data
LPCM/
D/DTS§/MPEG: Signal type
§ During playback of DTS source, there will be no sound from the
speakers.
13
SC-XH150 PPC_eng.book Page 14 Friday, December 24, 2010
12:10 PM
Linked operations with the TV
(VIERA LinkTM “HDAVI ControlTM”)
One touch play
You can turn the main unit and the TV on, and start playing a disc with a
single press of a button.
(Remote control only)
Getting Started
What is VIERA Link “HDAVI Control”?
VIERA LinkTM is a new name for EZ SyncTM.
VIERA Link “HDAVI Control” is a convenient function that offers linked
operations of this unit, and a Panasonic TV (VIERA) under “HDAVI
Control”. You can use this function by connecting the equipment with
the HDMI cable. See the operating instructions for connected
equipment for operational details.
Playing Discs
Preparation
≥ Confirm that the HDMI connection has been made (B 7).
1 Set “VIERA Link” to “On” (B 17).
(The default setting is “On”.)
2 Set the “HDAVI Control” operations on the connected equipment
(e.g., TV).
3 Turn on all “HDAVI Control” compatible equipment and select this unit’s
input channel on the connected TV so that the “HDAVI Control”
function will work properly.
Whenever the connection or settings are changed, repeat this
procedure and reconfirm the points in “Setting the audio link”
(B below).
Setting the audio link
∫ Setting the audio link with the TV
Other Operations
Select “AUX”, “ARC”§1 or “DIGITAL IN” for TV audio link.
Refer to TV audio setting in Easy setup (B 8) or “TV Audio” in HDMI
menu (B 17).
Confirm the TV audio connection to the AUX terminal (for “AUX”), HDMI
AV OUT terminal (for “ARC”§1) or DIGITAL AUDIO IN OPTICAL terminal
(for “DIGITAL IN”) on the main unit (B 7).
∫ Setting the audio link with the STB
Select “D-IN” for STB audio link.
Refer to STB setting in “Making settings for digital audio input” (B 10).
Confirm the STB audio connection to the DIGITAL AUDIO IN OPTICAL
terminal (for “D-IN”) on the main unit (B 7).
Reference
≥ VIERA Link “HDAVI Control”, based on the control functions provided by
HDMI which is an industry standard known as HDMI CEC (Consumer
Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports
HDMI CEC cannot be guaranteed.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the newest standard (current as of December, 2010) for
Panasonic’s HDAVI Control compatible equipment. This standard is
compatible with Panasonic’s conventional HDAVI equipment.
≥ Please refer to individual manuals for other manufacturers’ equipment
supporting VIERA Link function.
Auto lip-sync
(For “HDAVI Control 3 or later”)
This function automatically provides synchronized audio and video
output. (This works only when the source is “DVD/CD”, “AUX”§2,
“ARC”§1, 2 or “D-IN”§2, 3.)
≥ When using “DVD/CD” as the source, set “Time Delay” in Video menu to
“0ms/Auto” (B 17).
During standby mode, press [1 PLAY]5 to start disc playback.
This unit’s speakers will be automatically activated (B below).
Playback may not be immediately displayed on the TV. If you miss the
beginning portion of playback, press [SKIP:]5 or [SEARCH6]5 to go
back to where playback started.
Auto input switching
(Power on link)
When the following operations are performed, the TV will automatically
switch the input channel and display the corresponding action.
Additionally when the TV is off, the TV will automatically turn on:
– When play starts on the unit
– When an action that uses the display screen is performed (e.g., START
menu)
≥ When you switch the TV input to TV tuner mode or the STB input
channel, this unit will automatically switch to “AUX”§2, “ARC”§1, 2 or
“D-IN”§2, 3. (For “IPOD” mode, this works only in iPod/iPhone music
mode, or when iPod/iPhone is not connected.)
≥ When you start disc play, the TV will automatically switch its input mode
for this unit.
Power off link
All connected equipment compatible with “HDAVI Control”, including this
unit, automatically turn off when you switch the TV off.
To continue audio playback even when the TV is turned off, select “Video”
(B 17, “Power Off Link” in HDMI menu).
When you press [Í]1, only this unit turns off. Other connected equipment
compatible with VIERA Link “HDAVI Control” stays on.
For details, refer also to the operating instructions for your TV.
Speaker selection
You can select whether audio will output from this unit’s speakers or the
TV speakers by using the TV menu settings. For details, refer to the
operating instructions for your TV.
Home theater
This unit’s speakers are active.
≥ When you turn on this unit, this unit’s speakers will be automatically
activated.
≥ When this unit is in standby mode, changing the TV speakers to this
unit’s speakers in the TV menu will automatically turn this unit on and
select “AUX”§2, “ARC”§1, 2 or “D-IN”§2, 3 as the source.
≥ The TV speakers are automatically muted.
≥ You can control the volume setting using the volume or mute button on
the TV’s remote control. (The volume level is displayed on the main
unit’s display.)
≥ To cancel muting, you can also use this unit’s remote control (B 4).
≥ If you turn off this unit, TV speakers will be automatically activated.
TV
TV speakers are active.
≥ The volume of this unit is set to “0”.
– This function works only when “DVD/CD”, “AUX”§2, “ARC”§1, 2 or
“D-IN”§2, 3 is selected as the source on this unit.
≥ Audio output is 2-channel audio.
When switching between this unit speakers and TV speakers, the TV screen
may go blank for several seconds.
§1 The selection works only when using an ARC compatible TV.
§2 “AUX”, “ARC” or “D-IN” (DIGITAL IN) works depending on the TV
audio setting (B left, Setting the audio link with the TV).
RQTX1230
§3 “D-IN” (DIGITAL IN) works depending on the STB audio setting
(B left, Setting the audio link with the STB).
14
12:10 PM
e.g.
Easy control only with VIERA remote control
(For “HDAVI Control 2 or later”)
You can control the playback menus of this unit with the TV’s remote
control. When operating the TV’s remote control, refer to the below
illustration for operation buttons.

1
1 Select this unit’s operation menu by using the TV menu settings.
(For details, refer to the operating instructions for your TV.)
The START menu will be shown.
e.g. [DVD-V]

Home theater
Playback/menu access

Input select
Setup


≥ The START menu can also be shown by using a button on the TV’s
remote control (e.g. [SUB MENU]).
– When “DVD/CD” is selected as the source, the TV’s remote control
works only during stop mode.
– This feature does not work while the iPod music playback screen is
displayed on the TV.
Align
2
A iPod/iPhone
(not supplied)
B Dock adapter
(not supplied)
C Dock for iPod/iPhone
D Main unit
2 Select the desired item on the START menu (B 9).
When the on-screen control panel appears
e.g. [DVD-V] (when “Playback Disc” is selected from the START menu.)
Playing Discs
DVD/CD
Pla yb ack Disc
TOP MENU(DVD)
MENU(DVD)

3
Getting Started
SC-XH150 PPC_eng.book Page 15 Friday, December 24, 2010
[iPod]4 to select “IPOD”.
4 Press
The iPod/iPhone automatically switches to this unit’s display mode.
e.g.
iPod
Music
[FUNCTIONS]6 to select the menu.
5 Press
Each time you press the button:
Music menu ------------_______--------) Video menu
^--- iPod/iPhone menu (iPod/iPhone LCD) (-}
When using the START menu in “IPOD” mode
e.g.
iPod
Using the iPod/iPhone
You can enjoy iPod/iPhone music through this unit’s speakers or view
iPod/iPhone photos/videos on the TV.
Preparation
≥ To view photos/videos from the iPod/iPhone
– Ensure the video connection to the VIDEO OUT terminal on this unit
(B 7).
– Operate the iPod/iPhone menu to make the appropriate photo/video
output settings for your TV. (Refer to operating instructions for your
iPod/iPhone.)
≥ To display the picture, turn on the TV and select the appropriate video
input mode.
≥ Before connecting/disconnecting the iPod/iPhone, turn the main unit off
or reduce the volume of the main unit to its minimum.
the Dock for iPod/iPhone.
1 Open
1 Push the center of the drawer.
2 Pull the drawer until you hear a click.
the dock adapter (not supplied) until it is firmly in
2 Attach
place.
≥ Be sure to use a dock adapter that is compatible with your iPod/
iPhone.
To purchase a dock adapter, consult your iPod/iPhone dealer.
3
Home theater
Music
Videos
All (iPod display)
Input select
iPod Information
Reference
≥ Depending on the menu, some button operations cannot be performed from
the TV’s remote control.
≥ You cannot input numbers with the numbered buttons on the TV’s remote
control ([0] to [9]). Use this unit’s remote control to select the play list etc.
Other Operations
Playlists
Artists
Albums
Songs
Genres
C
Music: Shows the music menu.
Videos: Shows the video menu.
All (iPod display): Switches to iPod/iPhone menu.
iPod Information: Display iPod/iPhone details.
Items shown will vary depending on the availability of the functions on
your iPod/iPhone.
Enjoying music/videos
[FUNCTIONS]6 to select music or video menu
1 Press
on the TV.
[3, 4]8 to select an item and press [OK]8.
2 Press
≥ Press [2, 1]8 to skip page by page.
≥ To return to the previous screen, press [RETURN]D.
Play starts from the selected song or video.
e.g. music playback screen
iPod
Connect the iPod/iPhone (not supplied) firmly.
Home theater
3 of 45
Good morning
Ronaldo
Happy days
2:43
§
-1:15
Shuffle mode§
Repeat mode§
Current position
These icons will only appear for music mode.
: Song shuffle
: Repeat 1 song
: Album shuffle
: Repeat all
RQTX1230
You can operate the playback with the indicated controls.
≥ The on-screen control panel can also be shown by using a button on the
TV’s remote control (e.g. [SUB MENU]).
– This works only during “DVD/CD” playback and resume modes or,
while the iPod music playback screen is displayed on the TV.
Home theater
15
SC-XH150 PPC_eng.book Page 16 Friday, December 24, 2010
12:10 PM
Getting Started
Basic controls (For music and videos only)
Button
Function
[1 PLAY]5
Play
[∫ STOP]5, [; PAUSE]5
Pause
[SKIP:, SKIP 9]5
Skip
(press and hold)
[SEARCH6, SEARCH5]5
Search
Other methods of playback
Shuffle mode (For music playback only)
Press [PLAY MODE]9 several times.
SONGS, ALBUMS, OFF
Repeat mode
Press and hold [–REPEAT]9 and then press the button several times
within a few seconds.
During the music/video playback: ONE, ALL, OFF
When the iPhone receives a call while connected to this unit, playback, etc. of
the iPhone may stop.
To prioritize the operation with the iPhone connected to this unit, make the
setting so that the iPhone does not receive calls.
Changing the player settings
1 Press [DVD]4 to select “DVD/CD”.
2 Press [START]B to show the START menu.
3 Press [3, 4]8 to select “Setup” and press [OK]8.
Item
Playing Discs
Music playback modes set on the iPod/iPhone will be maintained when
connected to the main unit. Changes made while the iPod/iPhone is connected
to the main unit will be kept on the iPod/iPhone after disconnecting it.
Setup
Language
Video
Enjoying photos
Audio
Other Operations
The remote control operation may vary between iPod/iPhone models.
While an iPod/iPhone is connected
Do not push or pull your iPod/iPhone back and forth.
About recharging the battery
≥ iPod/iPhone will start recharging regardless of whether this unit is on or
off.
≥ “IPOD ¢” will be shown on the main unit’s display during iPod/iPhone
charging in main unit standby mode.
≥ Check iPod/iPhone to see if the battery is fully recharged.
≥ If you are not using iPod/iPhone for an extended period of time after
recharging has completed, disconnect it from main unit, as the battery
will be depleted naturally. (Once fully recharged, additional recharging
will not occur.)
Reference
Compatible iPod/iPhone (as of December 2010)
≥ Update your iPod/iPhone with the latest software before using this unit.
≥ iPod/iPhone compatibility is based on the operations§ described in this
manual.
§ Subject to the availability of the functions on your iPod/iPhone.
≥ Compatibility depends on the software version of your iPod/iPhone.
≥ iPod touch 4th generation (8GB, 32GB, 64GB)
≥ iPod nano 6th generation (8GB, 16GB)
≥ iPod touch 3rd generation (32GB, 64GB)
≥ iPod nano 5th generation (video camera) (8GB, 16GB)
≥ iPod touch 2nd generation (8GB, 16GB, 32GB)
≥ iPod classic (120GB, 160GB (2009))
≥ iPod nano 4th generation (video) (8GB, 16GB)
≥ iPod classic (160GB (2007))
≥ iPod touch 1st generation (8GB, 16GB, 32GB)
≥ iPod nano 3rd generation (video) (4GB, 8GB)
≥ iPod classic (80GB)
≥ iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB)
≥ iPod 5th generation (video) (60GB, 80GB)
≥ iPod 5th generation (video) (30GB)
≥ iPod nano 1st generation (1GB, 2GB, 4GB)
≥ iPhone 4 (16GB, 32GB)
≥ iPhone 3GS (8GB, 16GB, 32GB)
≥ iPhone 3G (8GB, 16GB)
≥ iPhone (4GB, 8GB, 16GB)
RQTX1230
In some locations, reception status of an iPhone may be poor when it is
loaded on this unit.
Display
Audio
Subtitle
DVD Menu
:
:
:
:
English
English
Auto
English
HDMI
1 Press [FUNCTIONS]6 to select the iPod/iPhone menu.
a slideshow on your iPod/iPhone.
2 Play
You can use the remote control to operate the iPod/iPhone menu.
[3, 4]8:
To navigate menu items.
[OK]8:
To go to the next menu.
[RETURN]D: To return to the previous menu.
16
To use the iPod touch/iPhone features
1 Press the Home button on the iPod touch/iPhone.
2 Select the iPod touch/iPhone features on the touch screen to operate.
Others
Set
RETURN
Menu
Current setting
4
5 Press [3, 4]8 to select the item and press [OK]8.
6 Press [3, 4]8 to make the settings and press [OK]8.
Press [3, 4]8 to select menu and press [OK]8.
≥ To return to the previous screen, press [RETURN]D.
≥ To exit the screen, press [START]B.
≥ The settings remain intact even if you switch the unit to standby.
≥ Underlined items are the factory settings in the following menus.
Language menu
Display
Choose the language for the on-screen messages.
≥ Français
≥ Español
≥ English
Audio§
Choose the audio language.
≥ English
≥ French
≥ Spanish
Subtitle§
Choose the subtitle language.
≥ English
≥ Auto
≥ Off
≥ French
≥ Spanish
DVD Menu§
Choose the language for disc menus.
≥ English
≥ French
≥ Spanish
§ Some discs start in a certain language despite any changes you make
here.
When the selected language is not available on the disc, the default
language is played. There are discs where you can only switch the
language from the menu screen (B 12).
Video menu
TV Aspect
Choose the setting to suit your TV.
≥ 16:9: Widescreen TV (16:9)
≥ 4:3 Pan&Scan: Regular aspect TV (4:3)
The sides of the widescreen picture are cut off so it
fills the screen (unless prohibited by the disc).
≥ 4:3 Letterbox: Regular aspect TV (4:3)
Widescreen picture is shown in the letterbox style.
12:10 PM
When connected with a Plasma display, adjust if you notice the audio is
out of sync with the video.
≥ 0ms/Auto
≥ 20ms
≥ 40ms
≥ 60ms
≥ 80ms
≥ 100ms
When using VIERA Link “HDAVI Control” with “HDAVI Control 3 or later”
compatible TV (B 14), select “0ms/Auto”.
Audio and video will automatically be set in sync.
Video Resolution
This works only when the HDMI connection is being used.
Select suitable picture quality with your TV.
(Video recordings will be converted to, and output as, high-definition
video.)
≥ Auto
≥ 480i
≥ 480p
≥ 720p
≥ 1080i
≥ 1080p
Ensure that your TV can support the resolution that you choose.
If a message screen appears, confirm your selection by pressing
[2, 1]8 to select “Yes” and press [OK]8. If the picture is distorted, wait
for 15 seconds or press [2, 1]8 to select “No”. To accept the setting,
select “Yes” again.
Change the black level of the picture.
≥ Lighter
≥ Darker
Audio menu
Select to suit the type of equipment you connected to the HDMI AV OUT
terminal.
Select “Bitstream” when the equipment can decode the bitstream (digital
form of 5.1-channel data). Otherwise, select “PCM”.
(If the bitstream is output to the equipment without a decoder, high levels
of noise can be output and may damage your speakers and hearing.)
Digital Output
Dynamic Range
Adjusts for clarity even when the volume is low. Convenient for
late night viewing. (Only works with Dolby Digital)
≥ Off
Select the delay time of the speakers.
(Effective only when “Surround layout (Recommended)” mode is selected
in “Speaker layout” (B 8, Easy setup).)
(Center and surround speakers only)
For optimum listening with 5.1-channel sound, all the speakers, except for
the subwoofer, should be the same distance from the seating position.
If you have to place the center or surround speakers closer to the seating
position, adjust the delay time to make up for the difference.
: Actual speaker position
Audio Out
≥ On:
≥ Off:
When audio output is from the HDMI AV OUT terminal.
(Depending on the capabilities of the connected equipment,
audio output may differ from the audio settings of the main unit.)
When audio output is not from the HDMI AV OUT terminal. (The
audio is output using the settings of the main unit.)
Power Off Link
Select the desired power off link setting of this unit for VIERA Link operation
(B 14). (This works depending on the settings of the connected VIERA Link
“HDAVI Control” compatible equipment.)
≥ Video/Audio: When the TV is turned off, this unit will turn off
automatically.
≥ Video: When the TV is turned off, this unit will turn off except during the
following conditions:
– audio playback ([CD] [MP3])
– iPod/iPhone mode
– radio mode
– “AUX”, “ARC” or “D-IN” mode (non-selected TV audio setting
for VIERA Link)
TV Audio
Select the TV audio input to work with the VIERA Link operations (B 14).
≥ AUX
≥ ARC
≥ DIGITAL IN
Others menu
C
R
 
: Ideal speaker position
   : Primary listening
distance

RS
Set the speed of the slideshow.
≥ 3 Seconds
≥ 5 Seconds
≥ 10 Seconds
≥ 15 Seconds
Easy setup
You can execute basic settings to optimize your home theater system.
(B 8)
FL Dimmer
Change the brightness of the unit’s display.
≥ Bright
≥ Dim: The display is dimmed.
≥ Auto: The display is dimmed, but brightens when you perform
some operations.
Approximate room dimensions
RS
Circle of constant primary listening distance
If either distance a or b is less than c, find the difference in the table
and change to the recommended setting.
RQTX1230
C
LS
The VIERA Link “HDAVI Control” function is available (B 14).
Slide Show Time
Speaker Settings
LS
≥ On:
≥ Off
≥ PCM
When audio output is from HDMI AV OUT terminal, and the connected
equipment does not support the item selected, the actual output will
depend on the performance of this connected equipment.
SW
HDMI menu
Other Operations
Black Level
L
≥ C Delay (Center Delay):
0ms, 1ms, 2ms, 3ms, 4ms, 5ms
Select the delay time for your center speaker.
≥ LS/RS Delay (Left Surround/Right Surround Delay):
0ms, 5ms, 10ms, 15ms
Select the delay time for your surround speakers.
≥ Test Tone:
Use the test tone to listen to the speaker output to confirm speaker
connections.
Test tone will be output to each channel in the following order.
Left, Center, Right, Surround Right, Surround Left, Subwoofer
To stop the test tone, press [RETURN]D.
Reference
(This works only when using HDMI connection with “Video Resolution”
(B above) set to “Auto”, “720p”, “1080i” or “1080p”.)
HD JPEG playback is available. (JPEG images will be displayed
≥ On:
in original resolution.)
≥ Off
During HD JPEG playback, there will be no on-screen menus (B 13) and
on-screen displays.
≥ On:
b Surround speaker
Difference (Approx.)
Setting
150 cm (5 feet)
5ms
300 cm (10 feet)
10ms
450 cm (15 feet)
15ms
VIERA Link
HD JPEG Mode [JPEG]
≥ Bitstream
a Center speaker
Difference (Approx.)
Setting
30 cm (1 foot)
1ms
60 cm (2 feet)
2ms
90 cm (3 feet)
3ms
120 cm (4 feet)
4ms
150 cm (5 feet)
5ms
Getting Started
Time Delay
Playing Discs
SC-XH150 PPC_eng.book Page 17 Friday, December 24, 2010
17
SC-XH150 PPC_eng.book Page 18 Friday, December 24, 2010
12:10 PM
FL Control
≥ On (VOL 0):
The unit’s display will turn off when the volume is
adjusted to “0”.
Getting Started
≥ Off
Screen Saver
Discs that can be played
Commercial discs
Type of media/
Logo
DVD-Video
This is to prevent burn marks on the TV screen.
≥ Off
≥ Wait 5 min: If there is no operation for 5 minutes, the screen saver will
be shown. The TV screen will resume when you perform
some operations. (This does not work during playback.)
Remarks
High quality movie and
music discs
Indicated as
[DVD-V]
Ratings
Playing Discs
Set a rating level to limit DVD-Video play.
Setting ratings (When level 8 is selected)
≥ 1 to 7
≥ 8 No Limit
When you select your ratings level, a password screen is shown.
The default password is “8888”.
Enter the 4-digit password with the numbered buttons, and press [OK]8.
You can change the default password (B below)
Do not forget your password.
A message screen will be shown if a DVD-Video disc exceeding the rating
level is inserted in the unit.
Follow the on-screen instructions.
Set Password
Other Operations
Change the password for “Ratings”.
When you change the password for the first time:
The default password is “8888”.
Follow the on-screen instructions.
Video CD
CD
Music discs with video
Including SVCD
(Conforming to IEC62107)
[VCD]
Music discs
[CD]
Recorded discs
Type of media/
Logo
DVD-R/RW
Restore Default Settings
Formats
Indicated as
≥ DVD-Video Format
≥ MP3 format
≥ JPEG format
[DVD-V]
[MP3]
[JPEG]
≥ DVD-Video Format
[DVD-V]
≥ iVR (iR/iRW Video
Recording) Format
≥ CD-DA format
≥ MP3 format
≥ JPEG format
[DVD-V]
This returns all values in the Setup menu to the default settings except the
password and ratings level.
Press [2, 1]8 to select “Yes” and press [OK]8.
Turn the unit off and on again.
Reference
DVD-R DL
rR/rRW/rR DL
CD-R/RW
[CD]
[MP3]
[JPEG]
≥ Before playback, finalize the disc on the device it was recorded on.
≥ It may not be possible to play all the above-mentioned discs in some
cases due to the type of disc, the condition of the recording, the
recording method, or how the files were created (B 19, Tips for making
data discs).
≥ During playback of DTS source, there will be no sound from the
speakers.
Note about using a DualDisc
The digital audio content side of a DualDisc does not meet the technical
specifications of the Compact Disc Digital Audio (CD-DA) format so
playback may not be possible.
Discs that cannot be played
RQTX1230
Blu-ray Discs, HD DVD, AVCHD discs, DVD-RW version 1.0, DVD-Audio,
DVD-ROM, DVD-VR, CD-ROM, CDV, CD-G, SACD, DTS Music Discs,
WMA discs, DivX discs and Photo CD, DVD-RAM, and “Chaoji VCD”
available on the market including CVD, DVCD and SVCD that do not
conform to IEC62107.
18
SC-XH150 PPC_eng.book Page 19 Friday, December 24, 2010
12:10 PM
Region number
[DVD-V]
Speaker installation option
4
Disc handling precautions
≥ Do not attach labels or stickers to discs. This may cause disc warping,
rendering it unusable.
≥ Do not write on the label side with a ball-point pen or other writing
instrument.
≥ Do not use record cleaning sprays, benzine, thinner, liquids which
prevent static electricity, or any other solvent.
≥ Do not use scratch-proof protectors or covers.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed stickers or labels (rented
discs, etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
≥ The wall or pillar on which the speakers are to be attached should be
capable of supporting 10 kg (22 Ibs) per screw. Consult a qualified
building contractor when attaching the speakers to a wall. Improper
attachment may result in damage to the wall and speakers.
1 Drive a screw (not supplied) into the wall.
At least 30 mm (13/16q)
‰4.0 mm (5/32q)
‰7.0 mm to ‰9.4 mm
(9/32q to 3/8q)
Wall or pillar
3 mm to 5 mm (1/8q to 3/16q)
2 Fit the speaker securely onto the screw(s) with the hole(s).
e.g., Front speaker
Tips for making data discs
DO NOT
[JPEG] (Extension: “.JPG”, “.jpg”, “.JPEG”, “.jpeg”)
Disc: DVD-R/RW, CD-R/RW
≥ JPEG files taken on a digital camera that conform to DCF Standard
(Design rule for Camera File system) Version 1.0 are displayed.
– Files that have been altered, edited or saved with computer picture
editing software may not be displayed.
≥ This unit cannot display moving pictures, MOTION JPEG and other
such formats, still pictures other than JPEG (e.g. TIFF), or play
pictures with attached audio.
≥ There may be differences in the display order on the menu screen and
computer screen.
≥ This unit cannot play files recorded using packet write.
DVD-R/RW
≥ Discs must conform to UDF bridge (UDF 1.02/ISO9660).
≥ This unit does not support multi-session. Only the default session is
played.
CD-R/RW
≥ Discs must conform to ISO9660 level 1 or 2 (except for extended
formats).
≥ This unit supports multi-session but if there are many sessions it takes
more time for play to start. Keep the number of sessions to a minimum
to avoid this.
DO
≥ In this position, the speaker will
likely fall if moved to the left or
right.
≥ Move the speaker so that the
screw is in this position.
∫ Tips
Use the measurements indicated below to identify the screwing positions
on the wall.
≥ Leave at least 20 mm (25/32q) of space above the speaker and
10 mm (13/32q) on each side to allow enough space for fitting the speaker.
Front/Surround speaker
Center speaker
 



A 17.6 mm (11/16q)
B 98.7 mm (37/8q)
C 40 mm (19/16q)
D 40 mm (19/16q)
E 16.7 mm (21/32q)
F 63.7 mm (21/2q)
G 23 mm (29/32q)
H 96 mm (325/32q)
I 26 mm (11/32q)
Clean this unit with a soft, dry cloth
Before moving the unit, ensure the disc tray is empty. Failure to
do so will risk severely damaging the disc and the unit.



Maintenance
≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, carefully read the instructions that
came with the cloth.
Do not use commercially available lens cleaners as they may cause
malfunction. Cleaning of the lens is generally not necessary although
this depends on the operating environment.

Reference
[MP3] (Extension: “.MP3”, “.mp3”)
Disc: DVD-R/RW, CD-R/RW
≥ Sampling frequency and compression rate:
8 kHz, 11.02 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz (8 kbps to
160 kbps), 32 kHz, 44.1 kHz and 48 kHz (32 kbps to 320 kbps)
≥ ID3 tags: version 1, 2
Getting Started
1
2
Playing Discs
ALL
Other Operations
1
Attaching to a wall
You can attach all of the speakers (except subwoofer) to a wall.
∫ To prevent speakers from falling
Front speaker, Surround speaker, Center speaker
e.g. Front speaker
String (not supplied)
Less than
10 cm (315/16q)
Screw eye
(not supplied)
Wall
RQTX1230
The player plays DVD-Video marked with labels containing the region
number “1” or “ALL”.
e.g.
19
SC-XH150 PPC_eng.book Page 20 Friday, December 24, 2010
12:10 PM
Troubleshooting guide
Getting Started
Before requesting service, make the following checks. If you are in doubt
about some of the check points, or if the solutions indicated in the
following guide do not solve the problem, refer to “Customer Services
Directory (United States and Puerto Rico)” on page 24 if you reside in the
U.S.A. or Puerto Rico, or refer to “WARRANTY SERVICE” on page 25 if
you reside in Canada.
Power
No power.
Insert the AC power supply cord securely. (B 8)
The unit is automatically switched to standby mode.
Playing Discs
≥ The Sleep timer was working and had reached the set time limit. (B 4)
≥ The main unit will automatically switch to standby mode after 30
minutes of inactivity. (B 4)
Power of this unit is turned off when the input for the TV is
changed.
This is normal when using VIERA Link “HDAVI Control 4 or later”. For
details please read the operating instructions for the TV.
Unit displays
The display is dark.
Other Operations
Select “Bright” in “FL Dimmer” in the Others menu. (B 17)
≥ The iPod/iPhone is not ready. Wait for this display to disappear.
≥ Disconnect the iPod/iPhone, and then reconnect it firmly. (B 15)
General operation
No response when any buttons are pressed.
≥ This unit cannot play discs other than the ones listed in this Owner’s
Manual. (B 18)
≥ The unit may not be operating properly due to lightning, static electricity
or some other external factor. Turn the unit off and then back on.
Alternatively, turn the unit off, disconnect the AC power supply cord, and
then reconnect it.
≥ Condensation has formed. Wait 1 to 2 hours for it to evaporate.
No response when remote control buttons are pressed.
≥ Check that the batteries are installed correctly. (B 8)
≥ The batteries are depleted. Replace them with new ones. (B 8)
≥ Aim the remote control at the remote control signal sensor and operate.
(B 4)
Other products respond to the remote control.
Change the remote control operating mode. (B 4)
Cannot display the START menu.
Remove the disc and then press [START]B again.
No picture or sound.
≥ You have not inserted a disc; insert one.
≥ You have not inserted the disc correctly; insert it correctly. (B 11)
“IPOD OVER CURRENT ERROR”
The iPod/iPhone is drawing too much power. Remove the iPod/iPhone,
and turn the unit off and on again.
≥ Check the video or speaker connection. (B 6, 7)
≥ Check the power or input setting of the connected equipment and the
main unit.
≥ Check that the disc has something recorded on it.
≥ During HD JPEG playback, there will be no video output from the
VIDEO OUT terminal.
No on-screen menus/displays.
[JPEG] This is normal during HD JPEG playback.
You have forgotten your ratings password.
There is a power supply problem. Consult the dealer.
Reset all the settings to Factory Preset.
While stopped and “DVD/CD” is the source, press and hold [∫]7 on the
main unit and [S10]2 on the remote control until “RESET” appears on
the main unit’s display. Turn the unit off and on again.
All settings will return to the default values.
“DVD U11”
Some characters are not displayed correctly.
Check and correct the speaker cable connections. If this does not fix the
problem, consult the dealer. (B 6)
“F76”
Reference
“LOADING”
≥ You inserted a disc the unit cannot play; insert one it can. (B 18)
≥ You inserted a blank disc.
≥ You inserted a disc that has not been finalized.
“NO DISC”
Disc may be dirty. Wipe it clean.
“ERROR”
Characters other than English alphabet and Arabic numerals may not be
displayed correctly.
Incorrect operation performed. Read the instructions and try again.
The VIERA Link “HDAVI Control” function does not
respond.
“DVD H∑∑”
“DVD F∑∑∑”
Depending on the condition of this unit or the connected equipment, it
may be necessary to repeat the same operation so that the function can
work correctly. (B 14)
∑ stands for a number.
≥ Trouble may have occurred. The numbers following “H” and “F” depend
on the status of the unit. Turn the unit off and then back on.
Alternatively, turn the unit off, disconnect the AC power supply cord, and
then reconnect it.
≥ If the service numbers fail to clear, note the service number and contact
a qualified service person.
“U70∑”
∑ stands for a number. (The actual number following “U70” will depend on
the state of the main unit.)
≥ The HDMI connection acts unusually.
– The connected equipment is not HDMI-compatible.
– Please use High Speed HDMI Cables that have the HDMI logo (as
shown on the back cover).
– The HDMI cable is too long.
– The HDMI cable is damaged.
RQTX1230
Match the modes on the main unit and remote control. Depending on the
number being displayed (“1” or “2”), press and hold [OK]8 and the
corresponding numbered button ([1] or [2]) for at least 2 seconds. (B 4)
“NO PLAY”
“F61”
20
“REMOTE 1” or “REMOTE 2”
The setting you made in “TV Aspect” (B 16, Video menu) or
“Display” (B 16, Language menu) does not work.
The settings for “TV Aspect”§1 and “Display”§2 will automatically follow the
information from the TV. (B 8, Easy setup)
§1 When using VIERA Link “HDAVI Control” with “HDAVI Control 3 or
later” compatible TV
§2 When using VIERA Link “HDAVI Control” with “HDAVI Control 2 or
later” compatible TV
12:10 PM
A menu screen appears during skip or search. [VCD]
This is normal for Video CDs.
Playback control menu does not appear.
[VCD] with playback control
Press [MENU]C to change to PBC on and then press [RETURN]D
during playback.
Play does not start.
If a disc contains CD-DA and other formats, proper playback may not be
possible.
No subtitles.
Display the subtitles. (“Subtitle” in Menu 1) (B 13)
Point B is automatically set.
The end of an item becomes point B when it is reached.
The Setup menu cannot be accessed.
Select “DVD/CD” as the source.
Sound
≥ Change “TV Aspect” in the Video menu. (B 16)
≥ Use the TV to change the aspect.
≥ Change the zoom setting. (“Zoom” in Menu 2) (B 13)
≥ [JPEG] This is normal during HD JPEG playback. Set “HD JPEG Mode”
to “Off” if you want to perform zoom function. (B 17)
Menu is not displayed correctly.
Restore the zoom ratio to “Normal”. (“Zoom” in Menu 2) (B 13)
Display is distorted.
[JPEG] This is normal when the display switches to/from HD JPEG
playback.
iPod/iPhone operation
Cannot charge or operate.
≥ Check that the iPod/iPhone is connected firmly. (B 15)
≥ The battery of the iPod/iPhone is depleted. Charge the iPod/iPhone,
and then operate again.
Cannot display iPod/iPhone photos/videos on the TV.
≥ Ensure the video connection to the VIDEO OUT terminal on this unit.
(B 7)
≥ Operate the iPod/iPhone menu to make the appropriate photo/video
output settings for your TV. (Refer to operating instructions for your
iPod/iPhone.)
HDMI progressive video
Sound is distorted.
There is ghosting when HDMI progressive output is on.
When using the HDMI output, audio may not output from other terminals.
This problem is caused by the editing method or material used on
DVD-Video, but should be corrected if you use interlaced output. When
using the HDMI AV OUT terminal, set “Video Resolution” in Video menu
to “480i”. Or, disable the HDMI connection and use the other video
connection. (B 7, 17)
Effects do not work.
Some audio effects do not work or have less effect with some discs.
Humming is heard during play.
An AC power supply cord or fluorescent light is near the main unit. Keep
other appliances and cables away from the main unit.
No sound.
≥ There may be a slight pause in sound when you change the play speed.
≥ If the input source is bitstream, set the sound setting to PCM on the
external equipment.
≥ During playback of DTS source, there will be no sound from the
speakers. Select a different audio source (e.g. Dolby Digital). (B 13)
No sound from the TV.
Getting Started
Play may take time to begin when an MP3 track has still picture data.
Even after the track starts, the correct play time will not be displayed. This
is normal.
Picture size does not fit the screen.
Playing Discs
It takes time before play starts. [MP3]
Other Operations
Disc operation
Closed captions not displayed.
When HDMI progressive output is used, closed captions will not be
displayed.
Radio
Distorted sound or noise is heard.
≥ Adjust the position of the FM antenna.
≥ Use an outdoor antenna. (B 6)
A beat sound is heard.
≥ If the TV is not ARC compatible and only the HDMI connection is used,
an extra audio connection is necessary. (B 7)
≥ Confirm the audio connection. Press [EXT-IN, RADIO]4 to select the
corresponding source. (B 7, 9)
≥ When using the HDMI connection, ensure that “Audio Out” in the HDMI
menu is set to “On”. (B 17)
Turn the TV off or move it away from the unit.
No sound from the surround speakers.
“/ Incorrect Disc Region”
≥ When using the “Surround layout (Recommended)” mode, press
[SURROUND]; to select “MULTI-CH”. (B 10)
≥ When using the “Front layout (Alternative)” mode, press
[SURROUND]; to select “A.SRD”. (B 10)
Only DVD-Video discs that include or have the same region number as
the one on the rear panel of this unit can be played. (B 19)
Reference
SC-XH150 PPC_eng.book Page 21 Friday, December 24, 2010
TV displays
“/”
The operation is prohibited by the unit or disc.
The picture on the TV is not displayed correctly or
disappears.
RQTX1230
≥ Ensure that the unit is connected directly to the TV, and is not
connected through a VCR. (B 7)
≥ Mobile telephone chargers can cause some disturbance.
≥ If you are using an indoor TV antenna, change to an outdoor antenna.
≥ The TV antenna wire is too close to the unit. Move it away from the unit.
≥ Reduce the number of connected HDMI devices.
≥ When using the HDMI AV OUT terminal, ensure that an incompatible
video output with the connected TV is not selected. Set the “Video
Resolution” in Video menu to “480p”. (B 17)
≥ Video images converted to 1920k1080 resolution may look different
from the true native 1080p full-HD sources. This is not a malfunction of
the main unit.
21
SC-XH150 PPC_eng.book Page 22 Friday, December 24, 2010
12:10 PM
Getting Started
AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
Front Ch
160 W per channel (3 ≠), 1 kHz, 10 % THD
Surround Ch
160 W per channel (3 ≠), 1 kHz, 10 % THD
Center Ch
160 W per channel (3 ≠), 1 kHz, 10 % THD
Subwoofer Ch
200 W per channel (3 ≠), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power
1000 W
FTC Output Power: Dolby Digital Mode
Front Ch
60 W per channel (3 ≠), 150 Hz to 20 kHz, 1 % THD
Surround Ch
60 W per channel (3 ≠), 150 Hz to 20 kHz, 1 % THD
Center Ch
90 W per channel (3 ≠), 150 Hz to 20 kHz, 1 % THD
Subwoofer Ch
100 W per channel (3 ≠), 50 Hz to 150 Hz, 1 % THD
Total FTC Dolby Digital mode power
430 W
Playing Discs
FM TUNER, TERMINALS SECTION
Preset Memory
FM 30 stations
Frequency Modulation (FM)
Frequency range
87.9 MHz to 107.9 MHz (200-kHz step)
87.5 MHz to 108.0 MHz (100-kHz step)
Antenna terminals
75 ≠ (unbalanced)
Digital audio input
Optical digital input
Optical terminal
Sampling frequency
32 kHz, 44.1 kHz, 48 kHz
Other Operations
Specifications
DISC SECTION
Discs played [8 cm (3q) or 12 cm (5q)]
(1) DVD (DVD-Video)
(2) DVD-R (DVD-Video, MP3§2, 4, JPEG§3, 4)
(3) DVD-R DL (DVD-Video)
(4) DVD-RW (DVD-Video, MP3§2, 4, JPEG§3, 4)
(5) iR/iRW (Video)
(6) iR DL (Video)
(7) CD, CD-R/RW (CD-DA, Video CD, SVCD§1, MP3§2, 4, JPEG§3, 4)
§1 Conforming to IEC62107
§2 MPEG-1 Layer 3, MPEG-2 Layer 3, MPEG-2.5 Layer 3
§3 Exif Ver 2.0 JPEG Baseline files
Picture resolution:
16:9 min. size 4k4, max. size (720k8)k(405k8);
4:3 min. size 4k4, max. size (720k8)k(540k8)
§4 The total combined maximum number of recognizable audio and
picture contents and groups: 1900 audio and picture contents and
189 groups. (Excluding Root folder)
Reference
Pick up
Wavelength (DVD/CD)
Laser power
Audio output (Disc)
Number of channels
Dimensions (WtHtD)
Mass [Weight]
[Surround\speakers\SB-HS270]
Type
Speaker unit(s)
Full range
Output sound pressure
Frequency range
Dimensions (WtHtD)
Mass [Weight]
[Center\speaker\SB-HC270]
Type
Speaker unit(s)
Full range
Output sound pressure
Frequency range
Dimensions (WtHtD)
Mass [Weight]
[Subwoofer\SB-HW270]
Type
Speaker unit(s)
Woofer
Output sound pressure
Frequency range
Dimensions (WtHtD)
Mass [Weight]
GENERAL
Power supply
Power consumption
Dimensions (WtHtD)
Mass [Weight]
Operating temperature range
Operating humidity range
1 way, 1 speaker system (Bass reflex)
Impedance 3 ≠
6.5 cm (21/2q) Cone type
78 dB/W (1 m)
105 Hz to 25 kHz (j16 dB)
130 Hz to 22 kHz (j10 dB)
80 mmk117 mmk70.5 mm
(35/32qk419/32qk215/16q)
0.35 kg (0.77 lbs)
1 way, 1 speaker system (Bass reflex)
Impedance 3 ≠
6.5 cm (21/2z) Cone type
78 dB/W (1 m)
105 Hz to 25 kHz (j16 dB)
130 Hz to 22 kHz (j10 dB)
80 mmk117 mmk70.5 mm
(35/32qk419/32qk215/16q)
0.35 kg (0.77 lbs)
1 way, 1 speaker system (Bass reflex)
Impedance 3 ≠
6.5 cm (21/2z) Cone type
79 dB/W (1 m)
90 Hz to 25 kHz (j16 dB)
115 Hz to 22 kHz (j10 dB)
145 mmk81 mmk70.5 mm
(523/32zk33/16zk215/16z)
0.52 kg (1.10 lbs)
1 way, 1 speaker system (Bass reflex)
Impedance 3 ≠
16 cm (61/2z) Cone type
78 dB/W (1 m)
40 Hz to 220 Hz (j16 dB)
45 Hz to 180 Hz (j10 dB)
145 mmk289.5 mmk259 mm
(523/32zk1113/32zk103/16z)
3 kg (6.6 lbs)
AC 120 V, 60 Hz
Main unit 75 W
430 mmk38 mmk279 mm
15/16zk11/2zk1031/32z)
(16
Main unit 2.6 kg (5.7 lbs)
0 oC to r40 oC (r32 oF to r104 oF)
35 % to 80 % RH (no condensation)
5.1 ch (FL, FR, C, SL, SR, SW)
VIDEO SECTION
Video system
NTSC
Composite video output
Output level
1 Vp-p (75 ≠)
Terminal
Pin jack (1 system)
HDMI AV output
Terminal
19-pin type A connector
HDAVI Control
This unit supports “HDAVI Control 5” function.
RQTX1230
22
655/790 nm
For U.S.A. CLASS II
For Canada CLASS 1M
SPEAKER SECTION
[Front\speakers\SB-HF270]
Type
Speaker unit(s)
Full range
Output sound pressure
Frequency range
Power consumption in standby mode
approx. 0.4 W
1 Specifications are subject to change without notice.
Mass and dimensions are approximate.
2 Total harmonic distortion is measured by a digital spectrum analyzer.
SC-XH150 PPC_eng.book Page 23 Friday, December 24, 2010
12:10 PM
Licenses
Getting Started
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby
Laboratories.
This item incorporates copy protection technology that is protected by
U.S. patents and other intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
HDAVI ControlTM is a trademark of Panasonic Corporation.
Playing Discs
VIERA LinkTM is a trademark of Panasonic Corporation.
EZ SyncTM is a trademark of Panasonic Corporation.
Other Operations
“Made for iPod” and “Made for iPhone” mean that an electronic
accessory has been designed to connect specifically to iPod, or
iPhone, respectively, and has been certified by the developer to meet
Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, or iPhone may
affect wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks
of Apple Inc., registered in the U.S. and other countries.
“DVD Logo” is a trademark of DVD Format/Logo Licensing
Corporation.
RQTX1230
Reference
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS
and Thomson.
23
SC-XH150 PPC_eng.book Page 24 Friday, December 24, 2010
12:10 PM
Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO)
Getting Started
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Home Audio Products
Limited Warranty
Limited Warranty Coverage (For USA and Puerto Rico Only)
Product or Part Name
Parts
Labor
Audio Products (except items below)
1 year
1 year
DVD Home Theater System
1 year
1 year
USB Reader-writer, PC Card
Adapters (defective exchange)
1 year
Not
Applicable
Accessories: Headphones, cartridges,
Microphones, Adapters
90 days
90 days
Rechargeable Batteries, DVD-RAM
Disc (defective exchange)
10 days
Not
Applicable
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS
NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes
damages for lost time, travel to and from the servicer, loss of or damage
to media or images, data or other memory or recorded content. The items
listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product
develops during or after the warranty period, you may contact your dealer
or Service Center. If the problem is not handled to your satisfaction, then
write to the warrantor’s Consumer Affairs Department at the addresses
listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
SD Memory Cards, Rechargeable
Battery Packs (defective exchange)
90 days
Not
Applicable
Customer Services Directory (United States and Puerto Rico)
Other Operations
Playing Discs
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company (referred to as
“the warrantor”) will, for the length of the period indicated on the chart
below, which starts with the date of original purchase (“warranty period”),
at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c)
refund your purchase price. The decision to repair, replace or refund will
be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. This
Limited Warranty excludes both parts and labor for non-rechargeable
batteries, antennas, and cosmetic parts (cabinet). This warranty only
applies to products purchased and serviced in the United States or Puerto
Rico. This warranty is extended only to the original purchaser of a new
product which was not sold “as is”.
Carry-In or Mail-In Service
Reference
To find a service center please visit http://www.panasonic.com/help or call
1-800-211-PANA (7262).
When shipping the unit, carefully pack, include all accessories, and send
it prepaid, adequately insured and preferably in the original carton. If
Lithium Ion batteries are shipped by air the package must be labeled
“Contains Lithium Ion Battery (No lithium metal)”. Damaged batteries are
prohibited from shipment by US Mail. Batteries must be securely packed
in a manner to prevent short-circuiting and a package cannot contain
more than 3 Lithium Ion batteries. Include a letter detailing the complaint,
a return address and provide a daytime phone number where you can be
reached. A valid registered receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT
PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED
FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
RQTX1230
Limited Warranty Limits And Exclusions
24
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not
supplied by the warrantor, or failures which result from accidents, misuse,
abuse, neglect, mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification,
introduction of sand, humidity or liquids, commercial use such as hotel,
office, restaurant, or other business or rental use of the product, or service
by anyone other than a Factory Service Center or other Authorized
Servicer, or damage that is attributable to acts of God.
Obtain Product Information and Operating Assistance;
locate your nearest Dealer or Service Center; purchase
Parts and Accessories; or make Customer Service and
Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for
all Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American
Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of November 2009
SC-XH150 PPC_eng.book Page 25 Friday, December 24, 2010
12:10 PM
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
Getting Started
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT - LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below
from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a
refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada
Inc.
Playing Discs
Technics Audio Product - One (1) year, parts and labour
Panasonic BD/DVD Product - One (1) year, parts and labour
Panasonic Audio Receivers - One (1) year, parts and labour
Home Theater Systems Product - One (1) year, parts and labour
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above
sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was
delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF
ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED
LIMITATIONS AND EXCLUSIONS
Other Operations
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic
Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an
Authorized Servicer, or damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE
LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT
OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the
Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for
illustration only.)
Reference
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied
warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights
which vary depending on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
PRODUCT OPERATION ASSISTANCE
Customer Care Centre:
Telephone #: 1-800-561-5505
Fax #: (905) 238-2360
Email link: “Support # contact us # email” on www.panasonic.ca
PRODUCT REPAIRS
Please locate your nearest Authorized Servicentre.
Link: “Support # Panasonic Servicentre® locator” on www.panasonic.ca
RQTX1230
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
25
SC-XH150 PPC_eng.book Page 22 Friday, December 24, 2010
12:10 PM
User memo:
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
DATE OF PURCHASE ___________________________________________
FCC Note:
-If you see this symbol-
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and receiver.
≥ Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
≥ Consult the dealer or an experienced radio/TV technician for help.
Information on Disposal in other Countries outside the
European Union
Any unauthorized changes or modifications to this equipment would
void the user’s authority to operate this device.
DEALER NAME _________________________________________________
DEALER ADDRESS _____________________________________________
__________________________________________________________________
TELEPHONE NUMBER _________________________________________
The model number and serial number of this product can be found
on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
SC-XH150
MODEL NUMBER _______________________________________________
SERIAL NUMBER _______________________________________________
This symbol is only valid in the European Union.
If you wish to discard this product, please
contact your local authorities or dealer and ask
for the correct method of disposal.
®
As an ENERGY STAR Partner,
Panasonic has determined that
®
this product meets the ENERGY STAR
guidelines for energy efficiency.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-PANA (7262)
For Canada only: The word “Participant” is
used in place of the word "Partner".
[For[U.S.A.]and]Puerto]Rico]
[For[Canada]
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
Panasonic Canada Inc.
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
C Panasonic Corporation 2010
Printed in Malaysia
p
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
RQTX1230-1P
F1210SA1120
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
