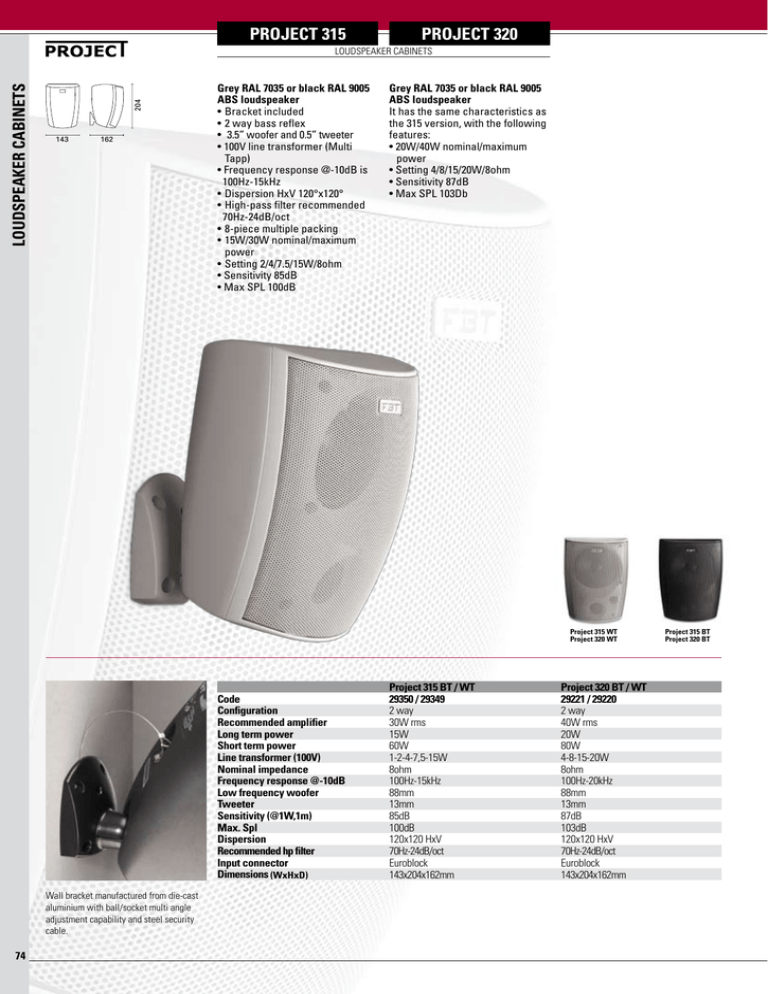

FBT Project series

143 162

ProjeCT 315 ProjeCT 320

LOUDSPEAKER CABINETS

Grey raL 7035 or black raL 9005 aBS loudspeaker

• Bracket included

• 2 way bass reflex

• 3.5” woofer and 0.5” tweeter

• 100V line transformer (Multi

Tapp)

• Frequency response @-10dB is

100Hz-15kHz

• Dispersion HxV 120°x120°

• High-pass filter recommended

70Hz-24dB/oct

• 8-piece multiple packing

• 15W/30W nominal/maximum power

• Setting 2/4/7.5/15W/8ohm

• Sensitivity 85dB

• Max SPL 100dB

Grey raL 7035 or black raL 9005 aBS loudspeaker

It has the same characteristics as the 315 version, with the following features:

• 20W/40W nominal/maximum power

• Setting 4/8/15/20W/8ohm

• Sensitivity 87dB

• Max SPL 103Db

74

Wall bracket manufactured from die-cast aluminium with ball/socket multi angle adjustment capability and steel security cable.

Code

Configuration

recommended amplifier

Long term power

Short term power

Line transformer (100V)

nominal impedance

Frequency response @-10dB

Low frequency woofer

Tweeter

Sensitivity (@1W,1m)

Max. Spl

dispersion

recommended hp filter

input connector

dimensions

(WxHxd)

Project 315 BT / WT

29350 / 29349

2 way

30W rms

15W

60W

1-2-4-7,5-15W

8ohm

100Hz-15kHz

88mm

13mm

85dB

100dB

120x120 HxV

70Hz-24dB/oct

Euroblock

143x204x162mm

Project 315 WT

Project 320 WT

Project 320 BT / WT

29221 / 29220

2 way

40W rms

20W

80W

4-8-15-20W

8ohm

100Hz-20kHz

88mm

13mm

87dB

103dB

120x120 HxV

70Hz-24dB/oct

Euroblock

143x204x162mm

Project 315 BT

Project 320 BT

168 180

ProjeCT 530 ProjeCT 550

LOUDSPEAKER CABINETS

Grey raL 7035 or black raL 9005 aBS loudspeaker

• Bracket included

• Grey or black ABS loudspeaker

• 2 way bass reflex

• 5” woofer and 0.75” tweeter

• 100V line transformer(Multi Tapp)

• Frequency response @-10dB

85Hz-20kHz

• Dispersion HxV 100°x100°

• High-pass filter recommended

55Hz-24dB/oct

• 30W/60W nominal/maximum power

• Setting 10/15/20/30W/8ohm

• Sensitivity 87.5dB

• Max SPL 106dB

Grey raL 7035 or black raL 9005 aBS loudspeaker

It has the same characteristics as the 530 version, with the following differing features:

• 50W/100W nominal/maximum power

• Setting: 15/25/40/50W/8ohm

• Sensitivity 89dB

• Max SPL 109Db

Project 315 BT

Project 320 BT

Wall bracket manufactured from die-cast aluminium with ball/socket multi angle adjustment capability and steel security cable.

Code

Configuration

recommended amplifier

Long term power

Short term power

Line transformer (100V)

nominal impedance

Frequency response @-10dB

Low frequency woofer

Tweeter

Sensitivity (@1W,1m)

Max. Spl

dispersion

recommended hp filter

input connector

dimensions (WxHxd)

Project 530 BT / WT

29223 / 29222

2 way

60W rms

30W

120W

10-15-20-30W

8ohm

85Hz-20kHz

130mm

20mm

87,5dB

106dB

100x100 HxV

55Hz-24dB/oct

Euroblock

168x240x180mm

Project 530 WT

Project 530 WT

Project 550 BT / WT

29225 / 29224

2 way

100W rms

50W

200W

15-25-40-50W

8ohm

80Hz-20kHz

130mm

25mm

89dB

109dB

100x100 HxV

50Hz-24dB/oct

Euroblock

168x240x180mm

Project 550 BT

Project 550 BT

75

218 219

ProjeCT 640

LOUDSPEAKER CABINETS

ProjeCT 660

Grey raL 7035 or black raL 9005 aBS loudspeaker

• Bracket included

• 2 way bass reflex

• 6.5” woofer and 1” tweeter

• 100V line transformer(multi Tapp)

• Frequency response @-10dB

70Hz-20kHz

• Dispersion HxV 90°x90°

• High-pass filter recommended

40Hz-24dB/oct

• 4-piece multiple packing

• 40W/80W nominal/maximum power

• Setting 10/20/30/40/8ohm

• Sensitivity 89dB

• Max SPL 108dB

Grey raL 7035 or black raL 9005 aBS loudspeaker

It has the same characteristics as the 640 version, with the following differing features:

• 60W/120W nominal/maximum power

• Setting 15/30/45/60W/8ohm

• Sensitivity 90dB

• Max SPL 111dB

76

Wall bracket manufactured from die-cast aluminium with ball/socket multi angle adjustment capability and steel security cable.

Code

Configuration

recommended amplifier

Long term power

Short term power

Line transformer (100V)

nominal impedance

Frequency response @-10dB

Low frequency woofer

Tweeter

Sensitivity (@1W,1m)

Max. Spl

dispersion

recommended hp filter

input connector

dimensions (WxHxd)

Project 640 BT / WT

29227 / 29226

2 way

80W rms

40W

160W

10-20-30-40W

8ohm

70Hz-20kHz

165mm

25mm

89dB

108dB

90x90 HxV

40Hz-24dB/oct

Euroblock

218x312x219mm

Project 640 WT

Project 660 WT

Project 660 BT / WT

29229 / 29228

2 way

120W rms

60W

240W

15-30-45-60W

8ohm

70Hz-20kHz

165mm

25mm

90dB

111dB

90x90 HxV

40Hz-24dB/oct

Euroblock

218x312x219mm

Project 640 BT

Project 660 BT

360mm

ProjeCT Sub 1180a

AMPLIFIED SUBWOOFER

amplified subwoofer

• Black or grey colour wooden construction

• 1 way bass reflex

• 180W rms internal amplifier

• 4 ohm nominal impedance

• Frequency response

@-10dB 28Hz-180Hz

• Sensitivity 90dB

• Max SPL 112dB

• Dispersion HxV omnidirectional

• RCA input and output connector

• Crossover frequency and volume control

Code

Configuration

internal amplifier

Frequency response @-10dB

Low frequency woofer

Sensitivity (@1W,1m)

Max. Spl

dispersion

input connector

Power consumption

dimensions (WxHxd)

Project Sub 1180a

29351

1 way

180W rms

28Hz-180kHz

250mm

90dB

112dB omnidirectional

2 x RCA

200Va

360x450x360mm

77

STYLe a40 STYLe P80

LOUDSPEAKER CABINETS

STYLe S80

The new series of STYLE sound speakers combines high quality sound play with innovative design, creating a new concept and a catching look that are able to satisfy several architectural needs.

The sound speaker shall no more be hidden, with the risk of affecting the sound quality.

Instead, it will be integrated in the environment, combining form and function, acoustics and integration in the environment.

The nature itself has inspired this loudspeaker: in the nature the sound spreads to all directions, and, hence, we have developed a speaker that could reproduce a natural sound feeling. The sound diffusion in the nature is 360°, whereas in standard speakers its propagation is conic-shaped and, hence, has a narrow angle.

Thanks to the conic-shape of the diaphragm, STYLE sound speakers provide a 360° sound diffusion, reaching even the highest frequencies. The sound diffusion spreads to all directions, keeping the sound natural and accurate even when the volume is very high.

Thanks to this new technology you will immediately forget the geometric diffusion you are used to and you will be able to recreate a holographic and threedimensional sound effect in any environment.

Moreover, thanks to the material

Style speakers are made of and to the aluminium loudspeaker, they are suitable for outdoor mounting and resist to various weather conditions.

• 360° even sound diffusion

• Even sound diffusion over a wide frequency range (120 Hz ÷

20KHz) to all directions

• They can be powered using standard amplifiers

• The listening position is not bound by the orientation towards the axis

STYLe a40

• Perfect both for high-fidelity systems and for sound diffusion in environments such as train stations, airports, restaurants, shopping centres etc.

• Full end even sound energy pressure everywhere in the environment

• High sound efficiency

STYLe P80

• Excellent results with reference to the Larsen effect thanks to the sound energy that is reduced to one fourth towards the microphone

• Low intermodulation

• Low second harmonic distortion

• Classic modern design, perfect for any environment

STYLe S80

Customization is possible upon request

Tr-20

Switching unit

Cod. 31011

Code

Type

System enclosure

Colour

driver equipment

STYLe a40

31150

Ceiling mounted

One way system

Palstic flange

(Duroplast)

White RAL 9010 matte

STYLe P80

31151

Suspending mounted

One way system

Plastic flange

(Duroplast)

White RAL 9010 matte

nom. imp. / dC Widerstand nominal / Music Power

8Ω / 6,2Ω 8Ω / 6,2Ω

40 Watt RMS / 90 Watt Music power 80 Watt / 165 Watt

STYLe S80

31152

Wall hanging speaker

One way system

Plastic material

(PC+ABS+Duroplast Fenol)

White RAL 9010 matte

1x FDS 100/40 ALU Sonus/NewTec 1 x FDS 100/40 ALU Sonus/NewTec 1x FDS 100/40 ALU Sonus/NewTec

8Ω / 6,2Ω

80 Watt / 165 Watt

Sensitivity ([email protected] 2,[email protected]) 86,4dB (+6dB auf 360°)

Maximum SPL

104dB (active high pass

Frequency response

120Hz/18dB - Oktave)

105 - 20.000 Hz (+/-3dB)

86,4dB (+6dB auf 360°)

104dB (active high pass

120 Hz / 18dB - Oktave)

105 - 20.000 Hz (+/-3dB)

86,4dB (+6dB auf 360°)

104dB (active high pass

120 Hz / 18dB - Oktave)

100 - 20.000 Hz (+/-3dB)

Connectors

Press-Terminal

net weight (only the loutspeaker) 470gr

Gross weight ( inc. Package) 720gr

dimensions

ø 180x15mm

accessories nominal Power 100V

Maximum SPL 100V installation depth 35mm

Tr-20 Code 31011

Press-Terminal

830gr

1170gr

Screw-terminal

1160gr

1530gr

ø 134x135mm + cab. stand. lenght 1mt - ø 134x130x220mm

Deckendose (Baldachin) Höhe transformer 5 pole print-terminal transformer 5 pole print-terminal

100Volt / 2000Ω - 250Ω

2,5-5-10-20 Watt

101,5dB

Deckendose (Baldachin) Höhe 72mm, ø60

Tr-20 Code 31011

100Volt / 2000Ω - 250Ω

2,5-5-10-20 Watt

101,5dB

Tr-20 Code 31011

100Volt / 2000Ω - 250Ω

2,5-5-10-20 Watt

101,5dB

CS 3030/T CS 3060/T

Column speaker with aluminium body

• Power 30 Watt RMS with

70-100V transformer and

7.5/15/30W power selection

• Frequency response

200Hz-16kHz

• Sensitivity 91dB

• Maximum SPL 106dB

• five 2” loudspeakers

• Horizontal dispersion (-6dB)

1kHz/4kHz 180°/120°

Column speaker with aluminium body

• Power 40 Watt RMS with

70-100V transformer and

10/20/40W power selection

• Frequency response

200Hz-16kHz

• Sensitivity 94dB

• Maximum SPL 110dB

• ten 2” loudspeakers

• Horizontal dispersion (-6dB)

1kHz/4kHz 180°/120°

Column speaker with aluminium body

• Power 60 Watt RMS with

70-100V transformer and

15/30/60W power selection

• Frequency response

200Hz-15kHz

• Sensitivity 96dB

• Maximum SPL 114dB

• fifteen 2” loudspeakers

• Horizontal dispersion (-6dB)

1kHz/4kHz 180°/120°

65 65 65

SC a2

Wall fastening bracket

Code 20130

CS3030/T CS3040/T CS3060/T

Code

CS 3030/T

20128

CS 3040/T

20131

CS 3060/T

20129

Power (r.M.S.) 7,5-15-30W - 100V 10-20-40W - 100V 15-30-60W - 100V

Sensitivity 1W/1m

91dB 94dB 96dB

Frequency response 200÷16.000Hz

200 ÷ 16.000Hz 200 ÷ 15.000Hz

(± 6dB)

Loudspeakers

Cabinet

N° 5 x 2”

Aluminium

N° 10 x 2”

Aluminium

N° 15 x 2”

Aluminium

Weight 1,94 Kg 3,4 Kg 4,63 Kg

dimensions (WxHxd) 65x385x74,3mm 65x653x74,3mm 65x920x74,3mm

STudio.Pro 9 STudio.Pro 9 T

LOUDSPEAKER CABINETS

STudio.Pro 9 a

Loudspeaker cabinets

• Extremely light and sturdy enclosure made of gas injection moulded polypropylene, black (STUDIO.

PRO 9B) or RAL 7035 grey colour

(STUDIO.PRO 9W), stand adapter,

2 M6 anchoring points

• 2-way bass-reflex system with

130mm woofer and 25mm high frequency tweeter

• Power 120 Watt

• Frequency response 80Hz-20 kHz

• Sensitivity 95.5dB 1W/1m Maximum

SPL 116.5dB

• Dispersion (HxV) 90°x60°

• SUB-D input connectors

Speaker cabinets

Same characteristics as the

STUDIO.PRO 9B/W models except for the following:

• Power 80W

• 70-100V 4-position line transformers: 5W/20W/45W/80W

• Sensitivity 95.5dB 1W/1m

Maximum SPL 114.5dB

Loudspeaker cabinet

Same characteristics as the STUDIO.

PRO 9B/W models except for the following:

• 80W RMS internal amplifiers for the woofer and 20W RMS for the driver

• ADAP® (Advanced Dynamic

Active Protection) designed to limit amplifier saturation and ensure complete reliability of the system even in extreme conditions; 24dB/ oct active filters

• Frequency response 70Hz-20 kHz

• Sensitivity 95dB 1W/1m

• Maximum SPL 115dB

• Control panel with Ground Lift,

Combo XLR/JACK inputs, XLR male output, limiter, volume control

80

Sj 9 B/W

Sj 9 uB/uW adjustable wall support

Model Code

Sj 9 B 19706

Sj 9 W 19705

Colour

black

RAL 7035 grey

Wall mounting brackets

Model Code

Sj 9 uB 19708

Sj 9 uW 19707

Colour

black

RAL 7035 grey

ST 20 B adjustable floor stand

Code 19710

Adjustable metal floor stand, with safety locking device, max weigh 55 kg

Code

Colour

Configuration

recommended amplifier

internal amplifier

Long term power (aeS)

STudio.Pro 9 B/W

19678 / 19677

black - RAL 7035 grey

2 way

120W rms

-

60W

Short term power (ieC 268-5) 240W

N ominal impedance 8ohm

Line transformer -

Frequency response (@-6dB) 80Hz - 20kHz

Low frequency woofer

1x200

ø 38 mm coil

High frequency woofer

Sensitivity 1W/1m

Max. SPL 1m

dispersion

Crossover frequency

recommended hp filter

input connectors

Weight

dimensions (WxHxd)

1xTweeter+horn

ø 20 mm coil

95,5dB

116,5dB

90°x60° HxV

3,5 kHz

60Hz 24dB oct spring terminals

4,8 kg

255x415x245mm

STudio.Pro 9 BT/WT

19680 / 19679

black - RAL 7035 grey

2 way

80W rms

-

-

-

-

70V-100V

80Hz - 20kHz

1x200

ø 38 mm coil

1xTweeter+horn

ø 20 mm coil

95,5dB

114,5dB

90°x60° HxV

3,5 kHz

60Hz 24dB oct spring terminals

4,8 kg

255x415x245mm

STudio.Pro 9 Ba

19681

black

-

2 way

-

-

-

80W + 20W

-

70Hz - 20kHz

1x200

ø 38 mm coil

1xTweeter+horn

ø 20 mm coil

95dB

115dB

90°x60° HxV

2,5 kHz

-

Combo XLR-M/JACK

5,4 Kg

255x415x245mm

STudio.Pro 14 STudio.Pro 14a

LOUDSPEAKER CABINETS

Loudspeaker cabinet

• Extremely light and sturdy enclosure made of gas injection moulded polypropylene, black colour, integral handle

• Stand adapter, 2 M6 anchoring points

• 2-way bass-reflex system with

320mm woofer and 25mm high frequency tweeter

• Built-in class G amplifiers 150W

RMS for the woofer and 50W

RMS for the high frequency unit;

ADAP (Advance Dynamic Active

Protection) designed to limit amplifier saturation and ensure complete reliability of the system even in extreme conditions

(STUDIO.PRO 14BA)

• 24dB/oct active filters

(STUDIO.PRO 14BA)

• Power 250 Watt

• Impedance 8 Ohm

• Frequency response

60Hz-20 kHz

• Sensitivity 98dB 1W/1m

• Maximum SPL 122/125dB

(STUDIO.PRO 14B) 121dB

(STUDIO.PRO 14BA)

• Dispersion (HxV) 90°x60°

• 2 speakon input connectors

• Control panel with Ground Lift switch, Combo XLR/JACK inputs,

XLR male output, limiter, volume control (STUDIO.PRO 14BA)

Sj 14 uB

ST 30 B

ST 40 B

Wall mounting brackets

Model

Sj 14 uB 19709

Colour

black

adjustable floor stand

Code 18239

Adjustable, aluminium floor stand, with safety locking device

adjustable floor stand

Code 18240

Code

Adjustable, metal floor stand, with safety locking device

Code

Configuration

recommended amplifier

internal amplifier

STudio.Pro 14B

19682

2 way

250W rms

-

Long term power (aeS) 125W

Short term power (ieC 268-5) 500W

nominal impedance 8ohm

Frequency response (@-6dB) 60Hz - 20kHz

Low frequency woofer

High frequency woofer

Sensitivity 1W/1m

Maximum SPL 1m

dispersion

Crossover frequency

recommended hp filter

input connectors

Weight

dimensions (WxHxd)

1x320

ø 51 mm coil

1x25.4+horn

ø 25.4 mm coil

98dB

122/125dB

90°x60° HxV

2,5 kHz

40Hz 24dB oct

2xspeakon

13,5 kg

410x663x387mm

STudio.Pro 14Ba

19683

2 way

-

150W+50W rms

-

-

-

60Hz - 20kHz

1x320

ø 51 mm coil

1x25.4+horn

ø 25.4 mm coil

98dB

121dB

90°x60° HxV

2 kHz

40Hz 24dB oct

Combo XLR/JACK

16 kg

410x663x387mm

81

Md60 B Md60 BT

WEATHER PROOF LOUDSPEAKERS

Md40

• Durable UV stable ABS plastic cabinet

• Wide frequency range, high efficiency two-way system with ingress protected bass reflex port

• Weather-proof to IP 44

• Standard colours black or white

• Available in 8 ohm or 100V line versions MD-60 is available with transformer on request:

70/50 Volt line

• Secondary switch tappings:

1/1 60,0 W

1/2 30,0 W

1/4 15,0 W

1/8 7,5 W

1/16 3,5 W

Md40 T

extremely light and solid aBS sound speaker

• 2 way bass reflex system

• 40W/80W nominal/maximum power

• 60Hz-20 kHz frequency response

• Sensitivity 87 dB 1W/1m

• Maximum sound pressure 103 dB, Max/Min 90°C/20°C

• Terminal board connectors

• Protection index IP44

• Size (WxHxD) 155x240x226

• Weight 2.6 Kg

• Stainless steel fixing bracket

extremely light and solid aBS sound speaker

• Same characteristics as the

MD40 model

• 100V

82

250

203

Code

Material / Colour

Mounting

Terminazioni

iP-rating

Max. / min. amb. temp

Md 60 B/W Md 60 BT/WT

23727/21648 23376/23119

ABS / Black or White

Bracket (included) screw terminal

44

90°C / -20°C

Standard version

Power (rated/Max.)

SPL 1W/1m

8 Ω

60W/100W

90dB

SPL 100 W/1m

Frequency response

109dB

45-20.000 Hz

dispersion (-6dB) 1 kHz / 4 kHz 110° / 55°

directivity factor, Q (2 kHz 6,4

Weight 2,9 kg

dimensions (WxHxd) 203x335x250mm

Md 40 B/W Md40 BT/WT

29462/29307 29131

ABS / Black or White

Bracket (included) screw terminal

44

90°C / -40°C

8 Ω

40W/60W

87dB

103dB

-

60-20.000 Hz

-

2,6 kg

203x335x250mm

430

GdS 200T/dT

EXTERNAL SOUND SPEAKERS

iP55 external sound speaker

• Dual cone two way loudspeaker

• Polyurethane framework

• 8” diameter

• Stainless steel basket

• Polypropylene diaphragm

• Rubber suspension

• ø 25,5mm coil

• ø 100mm coil ferrite magnet

• 8 ohm impedance

• 150W maximum peak power

• 75W Rms active power

• 40 Hz - 18.000 Hz passband

• 90dB +/- 2dB sensitivity (1W/1m)

• Size 430x295x300mm

• Weight 3.6 kg

GS 20/T

EXTERNAL SOUND SPEAKERS

iP66 external sound speaker

• Guaranteed to resist to difficult weather conditions

• It can be placed near pools, on terraces or in gardens

• This versatile speaker can be mounted on the surface or underground

• Speaker’s base has been designed to guarantee a firm and safe positioning

• Offers extraordinary coverage thanks to its design, enabling a

360° sound dispersion

• 80Hz-15,000Hz frequency response

• 95dB+/-3dB sensitivity

• 100V Transformer

• 4” Woofer

• ABS, green coloured

• Diameter 215x245mm

• Net weight 2.04Kg

Code

System

iP-rating

Maximum power

active power

Constant voltage

Banda passante

SPL Sensitivity

dimensions (WxHxd)

Weight

GdS 200T/dT

20010

2 way dual cone

55

150W

75W rms

100 V

40-18.000Hz

90 +/- 2dB (1W/1m)

430x295x300mm

3,6 kg

Code

System

iP-rating

Maximum power

active power

Sensitivity

Transformer

Woofer

Colour

dimensions

Weight

GS 20/T

29432

2 way dual cone

66

150W

20W

95dB+/-3dB

100V

4”

Green in ABS

ø 215x245mm

2,04 kg

83

aTT 1010

ATTENUATORS

recessed attenuator

• 100V 10 Watt transformer

(for A 503 surface

mounting recess)

• Designed for emergency systems in installations with

3 wires

124

COM

LINE

EMER

-

IN

100V

SPKR

Connection with 100V line and emergency

aTT 0501

ATTENUATORS

recessed attenuator

• 100V 50 Watt Transformer, including cover

• Designed for emergency systems in installations

with 3 wires

116

aTT 1001

ATTENUATORS

recessed attenuator

• 100V 100 Watt transformer, including cover

• Designed for emergency systems in installations with

3 wires

116

OUT

+ -

ATT - 1001

IN

COM LINE EMER

-

SPKR

Connection with 100V line and emergency

LINE

100V

Connection with 100V line

-

IN

100V

SPKR

ATT - 1001

IN

COM LINE EMER

SPKR

-

LINE

100V

Connection with 100V line

84

SuB 1000 recess box

Code 13542

For ATT 0501 and ATT 1001 attenuators

Code

Features aT 1010

13000 aTT 0501

17902 aTT 1001

13001

Surface mounted Surface mounted Surface mounted attenuator with attenuator with attenuator with

Mounting system

transformer transformer transformer and Emergency and Emergency and Emergency

SUB 1000 SUB 1000 surface mounting surface mounting

rated power

10 Watt

Controls

Total attenuation 36dB recess not supplied recess not supplied

50 Watt

36dB

100 Watt

36dB

11 posizioni +OFF 11 posizioni +OFF 11 posizioni +OFF

input voltage output voltage

100V

0-100V

100V

0-100V

100V

0-100V

accessories included White ABS plate

White ABS plate

White ABS plate

optional accessories

Weight

160 g

Surface mounting Surface mounting

dimensions (WxHxd) 124x70x42,5mm

116x124x60mm 116x124x60mm

Maximum protrusion 10,6mm

450 g

10,6mm

700g

10,6mm

ø 190

MG 10

MEGAPHONES

Megaphone

• 10 Watt Power with up to

0.5 km range depending on ambient noise levels

• DC 12V power supply

• 8 x 1.5V batteries

(AA - UM 3)

ø 230

MG 25

MEGAFONI

Megaphone

• 25 Watt power with up to 1 km range depending on ambient noise levels

• DC 12V power supply

• 8 x 1.5V batteries

(AA - UM 3)

320

370

Code

Features

rated/Maximum power

Frequency response

Capacity

Power supply

Weight

dimensions

MG 10

11584

Megaphone

10 W

30÷5000 Hz

500:800 m depending on ambient noise levels

12 VDC 8 x 1.5V” AA”

(UM 3) batteries

0,9 Kg

ø 190x320mm

Code

Features

rated/Maximum power

Frequency response

Capacity

Power supply

Weight

dimensions

MG 25

11585

Megaphone

25 W

280÷6000 Hz

500:800 m depending on ambient noise levels

12 VDC 8 x 1.5V” AA”

(UM 3) batteries

1,65 Kg

ø 230x370mm

85

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
