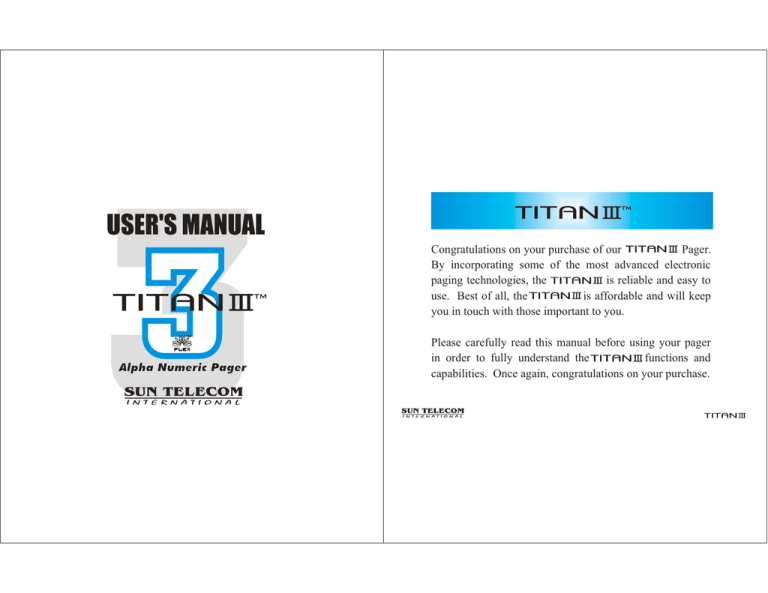

Congratulations on your purchase of our Pager.

By incorporating some of the most advanced electronic paging technologies, the is reliable and easy to use. Best of all, the is affordable and will keep you in touch with those important to you.

Please carefully read this manual before using your pager in order to fully understand the functions and capabilities. Once again, congratulations on your purchase.

CONTENTS

FEATURES

DESCRIPTION OF INDICATORS & SYMBOLS

CONTROL BUTTONS

OPERATION

Turning The Pager On

Turning The Pager Off

Main Screen

Function Menu Screen

Personal Message Screen

MailDrop/ Information Message Screen

NoteBook Message Screen

FUNCTION MENU

Reading a Stored Message in each Message Screen

Setting the Time and Date

Setting the Alarm

Setting the Paging Alert

Setting the Audible On/Off

5

8

1 1

1 8

1 9

2 0

2 1

2 2

1 2

1 3

1 4

1 5

1 6

1 7

1 7

CONTENTS

Enabling the Display Zoom

Setting the Scroll Mode

Enabling the Reminder Alert

Locking and Unlocking Messages

Deleting A Message

Deleting All Messages

Moving A Message to the NoteBook

Selecting a MailDrop Alert Type

2 3

2 4

2 5

2 6

2 7

2 7

2 8

2 9

FEATURES

16 Flex addresses

4 Line x 20 Alpha Character Display

20 Personal Message Slots

15 MailDrop Message Slots

16 NoteBook Message Slots

Personal Message Storage: 6400 Bytes

MailDrop Message Storage: 19200 Bytes

NoteBook Message Storage: 3200 Bytes

Personal Maximum Message Length: 2000 Bytes

MailDrop Maximum Message Length: 2000 Bytes

10 Personal Messages Lock with Lock Icon

7 Sub-slots of each MailDrop (optional)

Canned Message

FEATURES

Zoom On/Off (User Selectable)

Marquee Scrolling (User Selectable)

Customer Power Up Logo (Optional)

Battery Status Display with 3 steps using A/D

One Alarm with Message ("ALARM TIME")

Message with Time & Date Stamping

Automatic Alert Reset

One Beep, Seven Different pleasing Alerts, a Chirp, Vibrate, Sleep(no alert)

User-Selectable Reminder Alert (Every 2-min. by current mode)

Audible ON/OFF

Manual ON/OFF using Softkey

No Message Indication (No Message)

New Message indication (Flashing Icon)

FEATURES

Unread Message Indication

Continuous Message Indication (with Icon)

Error Message Indication (with Icon)

All & Selective Message Clear

Message Full Indication (with Icon)

Message Slot Number

Duplicated Message Indication (with Icon)

EL Back Lighting Display

Out of Service Range Indication (with Icon)

Battery Backup

Self Diagnostic

1 AAA Battery

Smart Unread Reminder On/Off (Optional)

DESCRIPTION OF INDICATORS & SYMBOLS

Indicators

Audio Alert

Silent Alert (Vibration)

Enabled Alarm

Sleep Alert

New Page or Unread Message

Indication

Lock Message

Unlock Message

In Range or Out Range Indication

Full Battery Status

2/3 Battery Status

1/3 Battery Status

Low Battery Status

Message Continuation

Power On

DESCRIPTION OF INDICATORS & SYMBOLS

Symbols

Personal Folder

MailDrop Folder

NoteBook

Escape

Set Time

Set Alarm

Set Alert

Pager Off

Zoom

Set Scroll

Enable Reminder

Disable Reminder

Delete All

Delete

Escape

Move to NoteBook

DESCRIPTION OF INDICATORS & SYMBOLS

Symbols

Page by Page

Slow Speed

Medium Speed

High Speed

MailDrop Slot

(Enabled Alert)

Unread MailDrop Slot

(Enabled Alert)

Set MailDrop Alert

NoteBook Slot

Unread Personal Slot

Read Personal Slot

Read Mail Slot

Unread Mail Slot

Cursor

(Current Slot)

Set Audible ON

Set Audible OFF

CONTROL BUTTONS

Use to navigate through the Function menu

and through your messages.

Use to navigate through time, alarm, and date

setting functions.

Use to enter the Function menu mode.

Use to turn the Backlight off.

Use to exit to current

F

unction mode.

Use to turn the pager on and off.

Use to read the received message.

Use to activate your selection.

Use to adjust the time, alarm, and date setting

functions.

OPERATION

Turning the Pager On

Press the Read Button ( ) for two (2) seconds to turn the pager on. A start-up screen is momentarily displayed and the pager alerts the currently selected alert-mode

(Vibrator, Audio, Sleep).

PowerUp Screen

Main Screen Standby Screen

OPERATION

Turning the Pager Off

Off Screen

Press the button to display the Function menu.

Press the or button to move the cursor on OFF icon.

Press the button.

" TURN PAGER OFF?" is displayed.

Press the button again to turn the pager off.

The pager is now off and the screen should be blank

Time/Date display on Pager Off

Note: If you choose the function key ( ) while the pager is off, the

" "

The display disappears after eight (8) seconds or after you press

any of the pager keys.

OPERATION

Main Screen

Main Screen

Pressing any of the buttons on the Standby Screen will provide access to the Main Screen.

The Main Screen shows both the current status of message folders

(Personal/MailDrop/Notebook) and the time and date. The Main

Screen also displays any activated pager settings in the split screen.

When the Main Screen is initially displayed, the Personal Folder icon is the first icon followed by the MailDrop and Notebook icons. The

Personal folder is also highlighted. Choosing either arrow button will highlight the other icons.

Press or to move the cursor within the Message Folder.

Press to enter the selected Folder.

OPERATION

Function Menu Screen

The Function Menu provides access to the many features incorporated in the .

Function Menu Screen

As you navigate through the Function menu, the Function Icon will flash to indicate the current location of the cursor.

Press or to navigate through the Function menu.

Press to enter the current menu.

Press to exit the Function menu.

Note: Depending upon the pager and whether or not it has messages, some icons

may not display on the pager.

OPERATION

Personal Message Screen

The Personal Message Screen shows the current status of personal messages by displaying the first line of your message.

(Message Preview)

Personal Message Screen

Note: Previewing an unread message remains unread until reading it by choosing Read button( ).

OPERATION

MailDrop / Information Message Screen

The MailDrop Message Screen shows the current status of

MailDrop messages by displaying the first line of your message.

(Message Preview)

MailDrop Message Screen

NoteBook Message Screen

The NoteBook Message Screen shows the current status of the messages by displaying the first line of your message.

(Message Preview)

NoteBook Message Screen

FUNCTION MENU

Reading Stored Message in each Message Screen

From each Message screen press or to move the cursor to the message you want to read.

Press button to read the message.

Auto Scrolling Screen by Screen

Press and hold button.

Reading Previous or Next Message

Press or button.

Note: When an unread message exists, the pager gives a periodic reminder alert until all unread

messages are read. A flashing symbol on the StandBy screen indicates that there are

unread messages on your pager.

FUNCTION MENU

Setting the Time and Date

Set Time Screen

From the Function menu, press or to move the cursor to display " SET TIME".

Press to display the Set Time screen.

Press to move the cursor to the next digit.

Press to adjust the current digit.

Repeat the two previous steps to adjust all time digits.

Press to activate the time and date setting.

Note: If no changes have been made, please wait for at least five(5) seconds before exiting

the screen.

FUNCTION MENU

Setting the Alarm

Set Alarm Screen

From the Function menu, press or to move the cursor to display " SET ALARM".

Press to display the Set Alarm screen.

Press or to move the cursor.

Press to adjust the current digit or enable daily alarm.

Repeat the two previous steps to adjust all the time digits.

Press button to activate the current setting.

FUNCTION MENU

Setting the Paging Alert

Set Alert Screen

You can set the paging alert to an audible alert, a vibrating alert, a chirp alert, a sleep alert(completely silent), or one of eight other alerts. From the Function menu:

Press o SETA LERT".

Press to display the Set-Alert screen.

SETA LERT

Press or to move the cursor to the alert you want to set.

Press to activate the alert setting.

Note: If no changes have been made, please wait for at least five (5) seconds before exiting the screen.

You may also choose to exit from any screen.

FUNCTION MENU

Setting the Audible On/Off

The alert can be set as either audible on or off.

- Press to display the function menu.

- Press to move the cursor to or .

The symbol is displayed if the pager is in the audible off mode(prompting you to enter the audible on mode, if desired). The symbol is displayed if the pager is in the audible on mode(prompting you to enter the audible off mode, if desired).

- Press to select the desired audible mode. The alert can be set as either audible or vibrate.

If the Audible On function is set ( ), the pager will alert.

If the Audible Off function is set ( ), the pager will be on vibrate mode. Audible Mode applies to all alerts, including reminder alert, alarm, etc.

Note: If the Alert has been set for sleep(no alert), setting the Audible On/Off Function will not be

activated.

FUNCTION MENU

Setting Display Zoom

When this feature is enabled, the standard 4-line Display is converted to a 2-line Display. The characters are enlarged to increase message readability. From the Function Menu:

Press or to more the cursor to display " ZOOM".

Press to display the Zoom screen.

Press or to move the cursor.

Press to activate the Zoom.

Enable Zoom-In Screen

FUNCTION MENU

Setting the Scroll Mode

From the Function menu, press or to the cursor to display " SET SCROLL".

Press to enter this mode.

Set Scroll Mode Screen

To Enable Page by Page Display Mode

From the Set Scroll Mode Screen, press

Press toactivate the current setting.

or to move the cursor to display " PAGE BY PAGE".

To Enable Marquee Scrolling and Speed

From the Set Scroll Mode Screen, press

"

HIGH

Press toactivate the current setting.

or t o move the cursor to display " SLOW"or

FUNCTION MENU

Enabling Reminder Alert

When this feature is enabled and there are unread personal messages, the pager will alert the user with a short beep or vibration depending on the current personal alert type or Audible mode. The pager does not emit reminder alerts for MailDrop messages, or messages with no alert setting.

To Enable Reminder Alert

From the Function menu, press or to move the cursor to display "

ENABLE REMINDER".

Press to activate the current setting.

To Disable Reminder Alert

From the Function menu, press or to move the cursor to display " DISABLE REMINDER".

Press to activate the current setting.

FUNCTION MENU

Locking and Unlocking Messages

Up to 10 messages can be locked to prevent them from being deleted or from being replaced when the memory is full.

To Lock/Unlock a Message

From the Personal Message Status Screen, press or to select the message you want to lock or unlock.

Press and then press or to move the cursor to show "

Press to activate the setting.

LOCK UNLOCK

To lock or unlock a message while reading it, follow the last two steps above while the message is displayed.

Note: MailDrop and NoteBook Messages can not be locked.

FUNCTION MENU

To Delete One Message

From the Personal Message Status Screen, press or to select the message you want to delete.

Press and then press or to move the cursor to show " DELETE".

Press to activate the setting.

To Delete a message while reading it, follow the last two steps above while the message is displayed.

To Delete All Messages

From the Personal/MailDrop/Notebook Message Status Screen, press or to select the message you want to delete.

Press and then press or to move the cursor to show " DELETE ALL".

Press to activate the setting.

Note: Neither a NEW personal message nor a LOCKED message cannot be deleted by using the Delete All function. Using Delete all with the Maildrop, will only delete those messages in the current subfolder.

FUNCTION MENU

Moving A Message to NoteBook

From the Personal/MailDrop Message Status Screen, press or to select the message you want to move.

Press and then press or to move the cursor to show " NOTEBOOK".

Press to activate the setting.

To Move a message while reading it, follow the last two steps above while the message is displayed.

FUNCTION MENU

Selecting the MailDrop Alert Type

From the Mail Message Status Screen, press or to select the message you want to set alert.

Press and then Press or to move the cursor to show " SET ALERT".

Press .

Press or to move the cursor to the desired alert type.

Press to activate the your setting.

While reading a message, follow the last four steps.

Note: When Personal Pager alert is set to SLEEP , all alerts revert to SLEEP regardless of the

current mail alert type.

Neither your Wireless Provider nor Sun Telecom International is responsible for data that may be damaged or lost at any time, including, without limitation data lost or damaged during the servicing of Sun Telecom International hardware. In as much as the wireless data service provided, we cannot guarantee or warrant that the wireless data service will always be available or will always function properly. For this and other reasons, the wireless data service should not be relied upon for the transmission of data relating to emergency or life-threatening or mission critical situations, and Sun

Telecom International disclaims any liability on its behalf and on behalf of its Wireless Providers for events or damages resulting from such reliance or the failure of the wireless data service to perform or to be available for your use of the wireless data service, including, without limitation, the lack of service coverage in the area in which YOU wish to use the wireless solution. To the extent the third party providing the wireless data service provides any warranties or guarantees that may be passed on to YOU, such warranties and/or guarantees are automatically passed on to YOU without any further effort on your part or on the part of Sun Telecom International. Neither Sun Telecom

International nor your wireless provider shall in any way be liable to you for any damages you suffer or incur (including, but not limited to, general, special, consequential or incidental damages including damages for loss of business profits, business interruption, loss of business information and the like and personal injury or wrongful death damages) arising from or in connection with the use or performance of our product, even if Sun Telecom International or your wireless solution provider are aware of the possibility of such damages. This limitation is intended to apply and does apply without regard to whether such damages are claimed, asserted or brought in an action or claim sounding in tort or contract, or on the warranty, or under any other law or form of action.

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient/Relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
