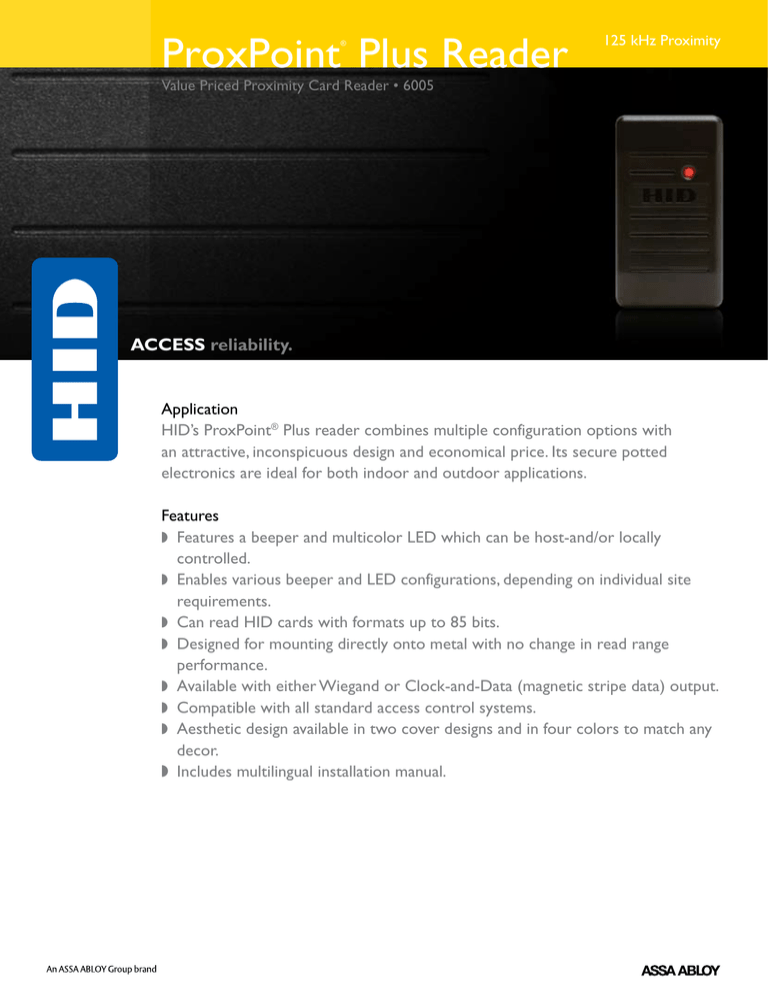

ProxPoint Plus
ProxPoint Plus Reader
®
125 kHz Proximity
Value Priced Proximity Card Reader • 6005
ACCESS reliability.
Application
HID’s ProxPoint® Plus reader combines multiple configuration options with
an attractive, inconspicuous design and economical price. Its secure potted
electronics are ideal for both indoor and outdoor applications.
Features
w Features a beeper and multicolor LED which can be host-and/or locally
controlled.
w Enables various beeper and LED configurations, depending on individual site
requirements.
w Can read HID cards with formats up to 85 bits.
w Designed for mounting directly onto metal with no change in read range
performance.
w Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
w Compatible with all standard access control systems.
w Aesthetic design available in two cover designs and in four colors to match any
decor.
w Includes multilingual installation manual.
Mounting
Features
Specifications
Unobtrusive design can be mounted directly onto metal such as
door mullions.
Typical Maximum* Read Range
Audiovisual
Indication
Audiovisual indication: when a proximity card is presented to
the reader, the red LED flashes green and the beeper sounds.
The multicolor LED and beeper can also be controlled
individually by the host system.
Diagnostics
On reader power-up, an internal self-test routine checks and
verifies the setup configuration, determines the internal or
external control of the LED and beeper, and initializes reader
operation. An additional external loop-back test allows for the
reader outputs and inputs to be verified without the use of
additional test equipment.
Indoor/outdoor
Design
Sealed in a rugged, weatherized polycarbonate enclosure
designed to withstand harsh environments, providing reliable
performance and a high degree of vandal resistance.
Easily Interfaced
Wiegand output model interfaces with all existing Wiegand
protocol access control systems. Clock-and-Data
(magnetic stripe) model interfaces with most systems that
accept magnetic stripe readers.
Security
Warranty
Part Numbers
Description
Options
ProxCard® II card - up to 3” (7.6 cm)
ISOProx® II card - up to 2.5” (6.35 cm)
DuoProx® II card – up to 2.5” (6.35 cm)
Smart ISOProx®/DuoProx® II cards – up to 2.5” (6.35 cm)
Proximity & MIFARE® card - up to 2.5” (6.35 cm)
ProxCard® Plus card - up to 1.0” (2.5 cm)
ProxKey® II keyfob - up to 1.5” (3.8 cm)
MicroProx® Tag - up to 2” (5.1 cm)
*Depending on local installation conditions.
Dimensions
3.135” x 1.720” x 0.660” (7.96 x 4.37 x 1.68 cm)
Material: Polycarbonate UL 94
Power Supply
5-16 VDC
Linear power supplies are recommended.
Maximum Current Requirements
Current (DC)
Average 30 mA, Peak 75 mA
Recognizes card formats up to 85 bits, with over 137
billion unique codes.
Operating Temperature
Lifetime warranty against defects in materials and
workmanship (see complete sales policy for details).
Operating Humidity
Base Part No.: 6005B Wiegand Interface
Base Part No.: 6008B Clock-and-Data Interface
Transmit Frequency: 125 kHz
-22° to 150° F (-30° to 65° C)
0-95% relative humidity noncondensing
Weight: 2.7 oz. (75 gm)
Tri-State LED, Pigtail Connection
•
•
•
•
Certifications
CLASSIC series cover in gray, beige, black or white (or)
Designer series cover in grey, wave blue, black or white
custom label
custom embossing in housing
Canada/UL 294 Listed, FCC Certification, United States,
Canada Certification, EU and CB Scheme Electrical Safety
(EN60950 and IEC60950 ITE Electrical Safety)
Fifteen EU Countries under the R&TTE Directive (EN 300 330
- SRD, and ETS 300 683 - EMC), CE Mark, Australia C-Tick,
New Zealand, Taiwan, China
(Please see “How to Order Guide” for a description of options
and associated part numbers).
1.720
Cable Distance
Wiegand or Clock-and-Data interface:
500 feet (150 m)
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor
stranded with overall shield or equivalent.
.660
2.690
3.135
© 2007 HID Global. All rights reserved. HID, and the HID logo are trademarks
or registered trademarks of HID Global in the U.S. and/or other countries. All
other trademarks, service marks, and product or service names are trademarks or
registered trademarks of their respective owners. Rev. 4/2007
For best results, please
print on recycled paper.
ACCESS experience.
MKT-PROXPOINT_DS_EN
hidcorp.com
