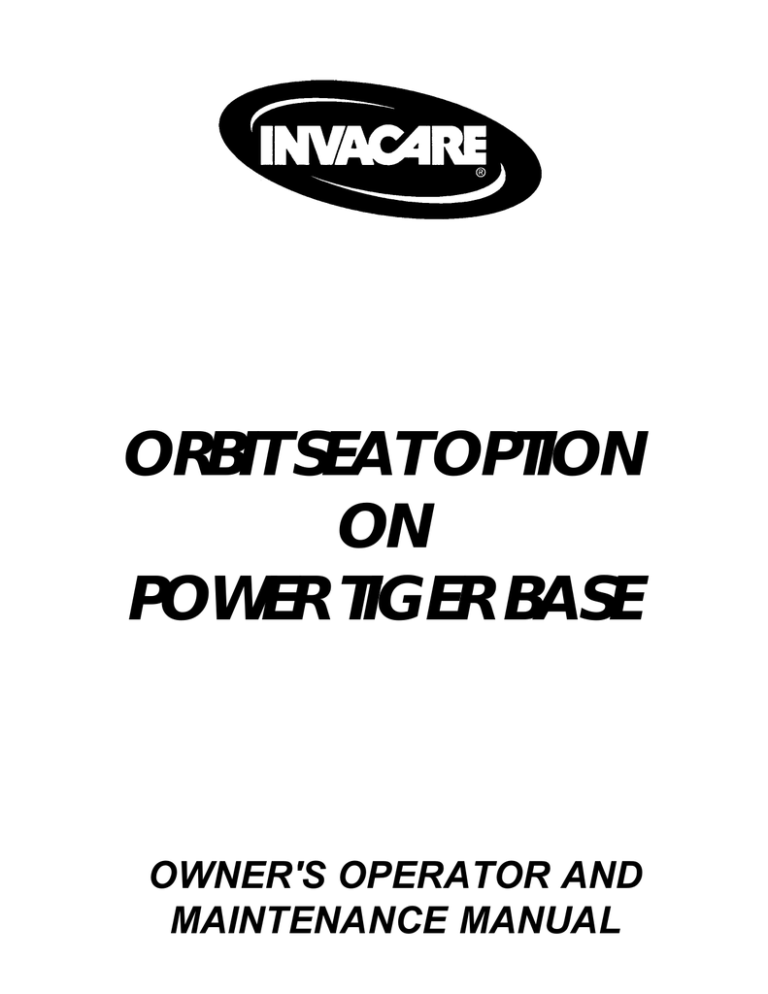

ORBIT SEAT OPTION

ON

POWER TIGER BASE

OWNER'S OPERATOR AND

MAINTENANCE MANUAL

WARNING

I

N

G

W

A

R

N

WARNING

DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST

READING AND UNDERSTANDING THE INFORMATION IN THIS

SUPPLEMENTAL MANUAL AND THE OWNER’S MANUAL. IF YOU ARE

UNABLE TO UNDERSTAND THE WARNINGS, CAUTIONS, AND IN-

STRUCTIONS, CONTACT A HEALTHCARE PROFESSIONAL, DEALER OR

TECHNICAL PERSONNEL IF APPLICABLE BEFORE ATTEMPTING TO USE

THIS EQUIPMENT - OTHERWISE INJURY OR DAMAGE MAY RESULT.

ALL PROCEDURES IN THIS MANUAL SUPERCEDE ANY DUPLICATED

PROCEDURES FOUND IN THE POWER TIGER OWNER’S MANUAL,

PART NUMBER 1045938.

THE INITIAL SET UP OF THIS WHEELCHAIR MUST BE PERFORMED BY AN

AUTHORIZED INVACARE DEALER OR QUALIFIED TECHNICIAN.

SPECIAL NOTES

WARNING/CAUTION notices as used in this manual apply to hazards or unsafe practices which could result in personal injury or property damage.

NOTICE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

WHEELCHAIR USER

As a manufacturer of wheelchairs, Invacare endeavors to supply a wide variety of Action wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her healthcare professional capable of making such a selection.

WHEELCHAIR TIE-DOWN RESTRAINTS AND SEAT POSITIONING STRAPS

Invacare recommends that Action wheelchair users NOT be transported in vehicles of any kind while in wheelchairs. As of this date, the Department of Transportation has not approved any tie-down systems for transportation of a user while in a wheelchair, in a moving vehicle of any type.

It is Invacare’s position that users of Action wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry.

Invacare cannot and does not recommend any wheelchair transportation systems.

AS REGARDS RESTRAINTS - SEAT POSITIONING STRAPS - IT IS THE OBLIGATION OF THE DME DEALER, THERA-

PISTS AND OTHER HEALTHCARE PROFESSIONALS TO DETERMINE IF A SEATING POSITIONING STRAP IS

REQUIRED TO ENSURE THE SAFE OPERATION OF THIS EQUIPMENT BY THE USER. SERIOUS INJURY CAN

OCCUR IN THE EVENT OF A FALL FROM A WHEELCHAIR.

SAVE THESE INSTRUCTIONS

2

TABLE OF CONTENTS

TABLE OF CONTENTS

SPECIAL NOTES .................................................................................................................................... 2

SPECIFICATIONS ................................................................................................................................... 4

PROCEDURE 1 - DISASSEMBLY/ASSEMBLY ........................................................................................ 5

DISASSEMBLING/ASSEMBLING THE SEAT FRAME TO/FROM THE BASE FRAME ............................... 5

PROCEDURE 2 - FRONT RIGGINGS ...................................................................................................... 7

INSTALLING FOOTRESTS .................................................................................................................... 7

ADJUSTING FOOTREST HEIGHT ......................................................................................................... 7

INSTALLING 3-INCH EXTENSION.......................................................................................................... 8

INSTALLING/ADJUSTING THE ADJUSTABLE ANGLE FLIP-UP FOOTPLATES ....................................... 8

REPLACING SECTOR BLOCK .............................................................................................................. 9

ADJUSTING THE TELESCOPING FRONT FRAME TUBES .................................................................. 10

HEEL LOOP REPLACEMENT .............................................................................................................. 10

PROCEDURE 3 - ARMS ....................................................................................................................... 11

INSTALLING THE T-ARM SOCKETS .................................................................................................... 11

INSTALLING/REMOVING THE T-ARMS ............................................................................................... 11

ADJUSTING THE T-ARMS................................................................................................................... 12

ADJUSTING THE TRANSFER ASSISTS AND/OR SIDE GUARDS-T-ARMS........................................... 13

REPLACING THE LOCKING LEVERS - T-ARMS .................................................................................. 13

REMOVING/INSTALLING JOYSTICK ................................................................................................... 14

PROCEDURE 4 - BACK/SEAT/WHEEL LOCKS ..................................................................................... 15

REPLACING THE LOCKING MECHANISM IN THE BACK CANE ........................................................... 15

INSTALLING/REMOVING STROLLER HANDLES ................................................................................. 15

FOLDING/UNFOLDING THE BACK CANES ......................................................................................... 16

REMOVING/INSTALLING THE SEAT PAN ............................................................................................ 16

ENGAGING/DISENGAGING WHEEL LOCKS ....................................................................................... 16

PROCEDURE 5 - CASTERS.................................................................................................................. 17

REMOVING/INSTALLING FRONT CASTERS ....................................................................................... 17

REPLACING FORKS ........................................................................................................................... 17

PROCEDURE 6 - TILTING ................................................................................................................... 18

ENGAGING THE TILT-IN-SPACE ......................................................................................................... 18

PROCEDURE 7 - DEALER ADJUSTMENTS - GENERAL ........................................................................... 19

REMOVING/INSTALLING THE SPREADER BAR .................................................................................. 19

CHANGING THE SEAT WIDTH ............................................................................................................ 20

REMOVING/INSTALLING/ADJUSTING THE CABLE ASSEMBLY........................................................... 21

REMOVING/INSTALLING/THE CABLE ASSEMBLY FROM THE RELEASE PEDAL ................................ 22

REMOVING/INSTALLING THE TILT MECHANISMS .............................................................................. 22

PROCEDURE 8 - DEALER ADJUSTMENTS - STABILITY ........................................................................... 24

STABILITY OVERVIEW........................................................................................................................ 24

CHANGING THE CASTER POSITION .................................................................................................. 24

CHANGING THE BACK ANGLE ........................................................................................................... 24

CHANGING THE SEAT DEPTH............................................................................................................ 25

ADJUSTING THE PIVOT POINT OF THE SEAT FRAME ....................................................................... 27

STABILITY ADJUSTMENTS WITHOUT A SEATING SYSTEM ............................................................... 29

STABILITY ADJUSTMENTS WITH A KSS SEATING SYSTEM .............................................................. 31

LIMITED WARRANTY ........................................................................................................................... 35

3

O

F

B

L

T

A

E

T

S

E

N

C

O

N

T

SPECIFICATIONS

I

O

A

T

N

S

I

C

F

I

E

C

S

P

PHYSICAL SPECIFICATIONS

SPECIFICATIONS

ORBIT SEAT OPTION ON POWER TIGER BASE

Overall Width:

Overall Depth

(w/o front riggings):

Overall Height:

Seat Width:

Seat Depth:

Seat-to-Floor Height:

Back Style and Height:

Arm Styles:

Footrest:

Rear Axle:

Rear Wheels:

Caster Size:

Wheel Locks:

Weight (Approx.)

W/O Batteries:

With Batteries:

Shipping Weight (Approx.):

*23-inches (including joystick)

*30-inches

*41-inches

10 to 16-inches (in one {1} inch increments)

10 to 16-inches (in one {1} inch increments)

19-3/4-inches (without seating system)

Adjustable Angle (80 o

to 110 o

), Fold Down

Fixed Height Anodized Cane W/Push Handles - 20-inch

Adjustable Height “T” - Arms

Swingaway Footrests

Fixed Rear Axle

12-Inch Pneumatic w/ flat free option

6 and 8-Inch Semi Pneumatic, 8-Inch Pneumatic

Push to Lock - Low Mounted

95 lbs.

173 lbs.

125 lbs

NOTE: All heights are approximate to +1/4-inch due to tire wear and air pressure. The front seat-to-floor heights are approximate to +1/4-inch.

*Measurements taken using 16x16-inch Orbit Seat Frame.

4

DISASSEMBLY/ASSEMBLY PROCEDURE 1

This Procedure Includes the Following:

Disassembling/Assembly the Seat Frame From/To the Base Frame

WARNING

After ANY adjustments, repair or service and

BEFORE use, make sure all attaching hardware is tightened securely.

DISASSEMBLING/ASSEMBLING

THE SEAT FRAME FROM/TO THE

BASE FRAME (FIGURE 1)

A. If so equipped, remove the existing seating system from the seat frame.

B. Remove the T-arms. Refer to REMOVING/IN-

STALLING THE T-ARMS in PROCEDURE 3 of this manual.

C. Fold down the back canes. Refer to FOLDING/

UNFOLDING THE BACK CANES in PROCE-

DURE 4 of this manual.

D. Remove the batteries from the base frame. Refer to REMOVING BATTERIES on page 43 in the Power Tiger Owner’s Manual, part number

1045938.

Disassembling the Seat Frame from the Base

Frame (FIGURE 1)

WARNING

Invacare recommends that Action wheelchair users NOT be transported in vehicles of any kind while in wheelchairs. As of this date, the Department of Transportation has not approved any tiedown systems for transportation of a user while in a wheelchair, in a moving vehicle of any type.

1. Return the wheelchair to 0 manual.

o tilt. Refer to ENGAGING

THE TILT-IN-SPACE in PROCEDURE 6 of this

2. Remove occupant from wheelchair.

3. Remove the joystick from the mounting bracket. Refer to REMOVING/INSTALLING JOYSTICK in PRO-

CEDURE 3 of this manual.

4. Remove the footrests. Refer to FRONT RIGGINGS in PROCEDURE 2 of the manual.

NOTE: Tilting the wheelchair makes the plungers under the seat plate more accessible.

5. Tilt the wheelchair. Refer to ENGAGING THE TILT-

IN-SPACE in PROCEDURE 6 of this manual.

6. Pull down and turn plungers located on underside of base frame plate. See DETAIL "A".

7. Push in on the tip of the quick release pin located on underside of base frame plate and pull out of seat/ base frame plate assembly. See DETAIL "A".

8. To disengage the seat frame from the base frame, push/pull the seat frame forward.

9. If transporting is desired, perform the following steps:

NOTE: If a seating system is being used on the wheelchair, refer to the seating system Owner's Manual for installation and removal of the seating system.

Assembling the Seat Frame to the Base Frame

(FIGURE 1)

1. Turn the plungers located on the underside of the base frame plate until an audible click is heard. See

DETAIL "A".

2. Visually inspect the base frame plate to ensure the locking buttons protrude all the way through the plate.

3. Place seat frame plate on base frame plate depressing the locking buttons.

4. Slide seat frame rearward.

WARNING

Ensure both sides of seat frame plate are underneath the locking channels of the base frame plate and the seat frame is securely locked in place before using the wheelchair, otherwise injury may result.

5. With both sides of seat frame plate underneath the locking channels of the base frame plate, continue to slide until an audible click from both locking buttons is heard.

NOTE: If an audible click is not heard from both locking buttons, wiggle seat frame plate back and forth until an audible click is heard. This will ensure the seat frame is locked into position.

WARNING

Make sure the locking pins of the quick-release pin are fully released BEFORE operating the wheelchair.

The locking pins MUST be protruding past the top of the seat plate assembly for a positive lock.

Keep locking pin clean.

6. Push in on the tip of the quick-release pin and reinstall in the seat/base frame plate assembly. See DETAIL "A".

5

S

S

E

M

S

A

D

I

B

L

Y

M

B

L

Y

S

E

A

S

S

S

E

M

S

A

D

I

B

L

Y

L

Y

M

B

S

E

A

S

PROCEDURE 1 DISASSEMBLY/ASSEMBLY

7. Pull down on quick-release pin to ensure positive lock.

8. Install the footrests. Refer to FRONT RIGGINGS in

PROCEDURE 2 of this manual.

9. Install joystick onto mounting bracket. Refer to RE-

MOVING/INSTALLING JOYSTICK in PROCE-

DURE 3 of this manual.

10. If necessary, perform the following:

A. Unfold the back canes. Refer to FOLDING/UN-

FOLDING THE BACK CANES in PROCEDURE

4 of this manual.

B. Install the T-arms. Refer to REMOVING/IN-

STALLING THE T-ARMS in PROCEDURE 3 of this manual.

NOTE: If a seating system is being used on the wheelchair, refer to the seating system Owner's Manual for installation and removal of the seating system.

C. Install the existing seating system onto the wheelchair, if so equipped.

D. Install the batteries. Refer to REMOVING BAT-

TERIES on page 43 in the Power Tiger Owner’s

Manual, part number 1045938.

Locking Buttons

Engage Here

SEAT FRAME AND BASE FRAME DISASSEMBLED

Locking

Channel

Seat Frame

Plate

Locking Buttons

Base Frame

Plate

SEAT FRAME

SECTIONAL OF SEAT FRAME AND BASE FRAME

ASSEMBLED (WITHOUT SEATING SYSTEM)

Seat Frame

Plate

BASE FRAME

Locking

Pins

DETAIL "A" - SIDE VIEW

Top of

Seat Frame

Plate

Locking Buttons

Engaged

Quick-Release

Pin

Crossmember

Base Frame

Plate

Seat Frame

Plate

Locking

Button

Crossmember

Locking

Channels

Quick-Release

Pin

Tip

Base Frame Plate

Plunger

FIGURE 1 - DISASSEMBLING/ASSEMBLING THE SEAT FRAME FROM/TO THE BASE FRAME

6

FRONT RIGGINGS PROCEDURE 2

This Procedure Includes the Following:

Installing Footrests

Adjusting Footrest Height

Installing 3-inch Extension

Installing/Adjusting the Adjustable Angle Flip-up

Footplate

Replacing Sector Block

Adjusting the Telescoping Front Frame Tubes

Heel Loop Replacement

WARNING

After ANY adjustments, repair or service and

BEFORE use, make sure all attaching hardware is tightened securely.

INSTALLING FOOTRESTS

(FIGURE 1)

NOTE: This procedure replaces FOOTREST ASSEM-

BLY on page 19 in the Power Tiger Owner’s Manual, part number 1045938.

1. Turn the footrest to the side (open footplate is perpendicular to wheelchair).

2. Insert footrest mounting pin into mounting tube.

3. Push the footrest towards the inside of the wheelchair until it locks into place.

NOTE: The footplate will be on the inside of the wheelchair when locked in place.

4. Repeat this STEPS 1-3 for the opposite footrest.

5. To release the footrest, push the footrest release lever inward, rotate footrest outward.

ADJUSTING FOOTREST HEIGHT

NOTE: This procedure replaces ADJUSTMENT OF THE

FOOTREST HEIGHT on page 30 in the Power Tiger

Owner’s Manual, part number 1045938.

NOTE: Release the footrest locking mechanism and lift the mounting pin out of the mounting tube. Lay the assembly on a flat surface to simplify this procedure.

Pivot Slide Tube Height Adjustment

(FIGURE 2)

1. Remove any accessories that are attached to the footrests.

2. Remove the hex screw and coved washer and position the lower footrest assembly to the desired height.

3. Align the mounting hole in the footrest support, reinsert the hex screw and coved washer and securely tighten.

4. Repeat STEPS 1-3 for the other footrest.

5. Reinstall any accessories that are attached to the footrest.

Hex Screw

Coved Washer

Lower Footrest

Assembly

Footrest

Mounting

Pin

FIGURE 2 - PIVOT SLIDE TUBE HEIGHT

ADJUSTMENT

Footrest

Mounting

Tube

Footrest

NOTE: All swingaway style footrests are installed the same way. Only one (1) style of footrest is shown for clarity.

FIGURE 1 - INSTALLING FOOTRESTS

7

Footplate Height Adjustment (70 o

MFX and 90 o

Footrests Only) (FIGURE 3)

1. Remove any accessories that are attached to the footrests.

2. Remove the socket screw, coved washer and locknut that secure the footplate to the footrest support.

3. Reposition the footplate to the desire height.

WARNING

DO NOT overtighten. Footrest must be able to rotate upward from the horizontal to vertical position.

I

N

G

S

R

I

G

G

F

R

O

N

T

I

N

G

S

R

I

G

G

F

R

O

N

T

PROCEDURE 2 FRONT RIGGINGS

4. Reinstall the socket screw through the mounting holes of the footplate and footrest support.

5. Secure the footplate to the footrest support with the coved washer and locknut. Securely tighten.

Footrest

Support

Locknut

(STEP 4)

Footrest

Support

Washer (STEP 4)

Hex Screw

(STEP 4)

Locknut

Height

Adjustment

Holes

Socket Screw and

Coved Washer

3-inch

Extension

Footplate

Socket Screw,

Coved Washer and Locknut

(STEPS 2,6)

FIGURE 4 - INSTALLING 3-INCH EXTENSION

Footplate

FIGURE 3 - FOOTPLATE HEIGHT ADJUSTMENT

(70 o

MFX AND 90 o

FOOTRESTS ONLY)

INSTALLING/ADJUSTING THE

ADJUSTABLE ANGLE FLIP-UP

FOOTPLATES

NOTE: This procedure replaces ADJUSTING ARTICU-

LATING SWINGAWAY FOOTREST on page 32 in the

Power Tiger Owner’s Manual, part number 1045938.

INSTALLING 3-INCH EXTENSION

(FIGURE 4)

NOTE: This procedure replaces ASSEMBLY OF THE

90 o

FOOTREST EXTENSION on page 31 in the Power

Tiger Owner’s Manual, part number 1045938.

NOTE: Note the position of the attaching hardware for proper reassembly of the footrest.

NOTE: If using ANY type of extension with the ADJUST-

ABLE ANGLE FOOTPLATE, refer to ADJUSTABLE

ANGLE FLIP UP FOOTPLATE PERPENDICULAR

AND/OR INVERSION/EVERSION ADJUSTMENT in this procedure of the manual.

1. Remove any accessories that are attached to the footrests.

2. Remove the socket screw, coved washer and locknut that secure the footplate to the footrest support.

3. Insert the 3-inch extension into the footrest support and align the mounting holes.

4. Secure the 3-inch extension to the footrest support with NEW hex screw, washer and locknut. Securely tighten.

5. Position the footplate at the desired height.

WARNING

When determining the angle of the footplates, make sure the rear of the footplates do not interfere with the movement of the front casters.

Installing the Adjustable Angle Flip-up

Footplate(FIGURE 5)

1. Slide the half clamp over the footplate hinge.

2. Loosely tighten the two (2) flat screws that secure the footplate to the half clamp.

3. Adjust the footplates to the desired angle and depth for the user. Refer to the following sections of this procedure.

90 o

Footrest

Support

Footplate

Hinge

Flat Screws

Articulating

Footplate

Nylon

Adjustment

Screw

WARNING

DO NOT overtighten. Footrest must be able to rotate upward from the horizontal to vertical position.

Half

Clamp

6. Reinstall the socket screw through the mounting holes of the footplate and footrest support.

7. Secure the footplate to the footrest support with the coved washer and locknut. Securely tighten.

8

Washers

Locknuts

Half Clamp

Footplate Hinge

FIGURE 5 - ADJUSTABLE ANGLE FLIP-UP

FOOTPLATES - INSTALLING/ DEPTH ADJUSTMENT

FRONT RIGGINGS PROCEDURE 2

Adjustable Angle Flip-up Footplate Depth

Adjustment (FIGURE 5)

NOTE: Observe the angle of the articulating footplate for reinstallation.

1. Remove the two (2) flat screws, washers and locknuts that secure articulating footplate to the footplate hinge.

2. Move the articulating footplate to one (1) of four (4) mounting positions.

NOTE: If desired depth is still not obtained, rotate the half clamp on the footplate hinge 180 o

.

3. Retighten the two (2) flat screws, washers and locknuts.

NOTE: The settings for positioning the articulating footplates on the half-clamps may vary for each footplate.

2. Slowly turn the nylon adjustment screw in or out until the adjustable angle footplate is perpendicular to the footrest assembly or the desired inversion or eversion is obtained.

Footrest

Support

Footplate

FRONT VIEW OF

FOOTPLATE

AND FOOTREST

SUPPORT.

FIGURE 7 - ADJUSTABLE ANGLE FLIP-UP

FOOTPLATE PERPENDICULAR AND/OR

INVERSION/EVERSION ADJUSTMENT

Adjustable Angle Flip-up Footplate Angle

Adjustment (FIGURES 5 AND 6)

1. Loosen, but do not remove the two (2) flat screws and locknuts that secure the footplate to the footplate hinge. (FIGURE 5)

2. Position the adjustable angle flip-up footplate to the desired angle to accommodate the user.

3. Retighten the two (2) flat screws and locknuts. (FIG-

URE 5)

SIDE VIEW OF

Footrest

Support

FOOTPLATE

AND FOOTREST

Footplate

REPLACING SECTOR BLOCK

(FIGURE 8)

1. Remove the hex screw and washer that secure the existing sector block to the wheelchair frame.

2. Position the NEW sector block on the wheelchair frame. Make sure the locking pin is facing

UP.

3. Secure the NEW sector block to the wheelchair frame with the existing hex screw and washer.

Use Loctite

®

242 and securely tighten.

Wheelchair

Frame

Locking Pin

Washer

FIGURE 6 - ADJUSTABLE ANGLE FLIP-UP

FOOTPLATE ANGLE ADJUSTMENT

Adjustable Angle Flip-up Footplate

Perpendicular and/or Inversion/

Eversion Adjustment (FIGURES 5 AND 7)

NOTE: It is not necessary to remove the footplate to perform this adjustment.

1. Insert a flathead screwdriver through the half clamp on the adjustable angle footplate.

Hex Screw

Sector Block

9

FIGURE 8 - REPLACING SECTOR BLOCK

Loctite - Registered trademark of Loctite Corporation.

G

S

I

N

G

G

R

I

O

N

F

R

T

G

S

I

N

G

G

R

I

O

N

F

R

T

PROCEDURE 2 FRONT RIGGINGS

ADJUSTING THE TELESCOPING

FRONT FRAME TUBES (FIGURE 9)

CAUTION

When determining the depth of the telescoping front frame tubes, make sure the rear of the footrests do not interfere with the movement of the front casters. Otherwise damage to the wheelchair may result.

1. Remove the mounting screw and locknut that secures the telescoping tube to the seat rail.

2. Adjust telescoping tube to IN or OUT to desired mounting adjustment hole.

3. Reinsert mounting screw and install locknut. Securely tighten.

4. Repeat STEPS 1-3 for opposite telescoping front frame tube.

5. Rotate front casters to ensure there is no interference between the footrests and front casters.

6. If interference occurs, repeat procedure and adjust telescoping front frame tube accordingly.

Mounting

Screw

Seat Rail

Mounting

Adjustment

Holes

Locknut

Telescoping

Tube

2. Remove the lower footrest assembly.

3. Remove the phillips screws, spacers, and locknuts that secure the heel loop to the footrest.

4. Slide heel loop over slide tube of footrest assembly.

5. Replace heel loop.

6. Reverse STEPS 1-5 to reassemble.

NOTE: When securing the heel loop to the footrest assembly, tighten the phillips screw and locknut until the spacer is secure.

Adjustable Footplate

1. Remove the four (4) phillips screws and washers that secure the EXISTING heel loop to the footplate.

2. Position the mounting holes of the NEW heel loop with the mounting holes in the adjustable footplate.

3. Secure the NEW heel loop to the footplate with the four (4) phillips screws and washers. Securely tighten.

COMPOSITE FOOTPLATES

Swingaway Footrest

Assembly

Hex Screw/

Coved Washer

Phillips

Screw

Spacer

Slide

Tube

Lower

Footrest

Assembly

Locknut

ADJUSTABLE FOOTPLATES

Phillips

Screws

FIGURE 9 - ADJUSTING THE TELESCOPING

FRONT FRAME TUBES

HEEL LOOP REPLACEMENT

(FIGURE 10)

NOTE: This procedure replaces HEEL LOOP REPLACE-

MENT on page 32 in the Power Tiger Owner’s Manual, part number 1045938.

Composite Footplates

1. Remove the hex screw and coved washer that secures the lower footrest assembly to the swingaway footrest assembly.

10

Washer

Phillips

Screws

FIGURE 10 - HEEL LOOP REPLACEMENT

ARMS PROCEDURE 3

This Procedure Includes the Following:

Installing the T-arm Sockets

Installing/Removing the T-arms

Adjusting the T-arms

Adjusting the Transfer Assists and/or

Side Guards - T-arms

Replacing the Locking Lever - T-arms

Removing/Installing Joystick

6. Adjust the T-arm socket. Refer to ADJUSTING THE

T-ARMS in this instruction sheet.

7. Repeat STEPS 2-6 for the opposite side of the wheelchair.

8. Install the T-arms into the T-arm sockets. Refer to

INSTALLING/REMOVING THE T-ARMS in this instruction sheet.

INSTALLING/REMOVING THE

T-ARMS (FIGURE 2)

WARNING

After ANY adjustments, repair or service and BE-

FORE use, make sure all attaching hardware is tightened securely.

Installing

1. Position the T-arm over the T-arm socket on the wheelchair frame.

INSTALLING THE T-ARM SOCKETS

(FIGURE 1)

1. Position the T-arm clamp on the wheelchair frame as shown in FIGURE 1.

NOTE: The T-arm socket must be positioned on the outside of the wheelchair frame.

2. Install the hex bolts through the T-arm clamp, wheelchair frame and coved washers and tighten securely with locknuts.

3. Position the T-arm socket inserts in the T-arm socket as shown in FIGURE 1.

4. Line up the mounting holes in the T-arm socket with the threaded holes in the T-arm clamp.

5. While holding the T-arm socket and the T-arm clamp together, install the four (4) hex screws and washers into mounting holes and tighten loosely.

Wheelchair Frame

Locknuts

NOTE: Make sure the locking lever is towards the front of the wheelchair.

2. Slide the T-arm into the T-arm socket until the locking lever is in the slot in the T-arm socket and an audible "click" is heard.

3. Pull up on the T-arm to make sure the T-arm is locked in place.

NOTE: If the T-arm does not slide in the T-arm socket as desired, adjust the T-arm socket. Refer to ADJUSTING

THE T-ARMS in this procedure of the manual.

4. Adjust the T-arm for desired height, width and depth, if necessary. Refer to ADJUSTING THE T-ARMS in this procedure of the manual.

5. Repeat STEPS 1-4 for the opposite side of the wheelchair.

6. Install the joystick onto the right side T-Arm. Refer to

REMOVING/INSTALLING THE T-ARMS in this procedure of the manual.

T-arm Clamp

Removing

T-arm Socket

Inserts

T-arm

Socket

Washers

Hex Bolts

Hex Screws

FIGURE 1 - INSTALLING THE T-ARM SOCKETS

NOTE: Remove the joystick before removing the right side T-Arm. Refer to REMOVING/INSTALLING THE T-

ARMS in this procedure of the manual.

1. Press in on the locking lever and lift the T-arm straight up and out of the T-arm socket.

Coved

Washers

NOTE: If the T-arm does not slide up and down in the Tarm socket as desired, adjust the T-arm socket. Refer to

ADJUSTING THE T-ARMS in this procedure of this manual.

11

2. Repeat STEP 1 for the opposite side of the wheelchair.

A

R

M

S

PROCEDURE 3 ARMS

T-Arm Release

Lever - Unlocked

Position

T-Arm

Set

Screws

Inside

T-Arm Post

A

R

M

S

Wheelchair

Frame

Locking Lever

(Towards the front of the wheelchair.)

Outside T-

Arm Post

T-Arm Release

Lever - Locked

Position

FIGURE 3 - ADJUSTING THE T-ARMS - HEIGHT

T-Arm

Socket

ADJUSTING THE T-ARMS

T-Arm Sockets (FIGURE 6)

FIGURE 2 - INSTALLING/REMOVING THE

T-ARMS

Slot

Height (FIGURE 3)

1. Unlock the T-arm by flipping the T-arm release lever towards the inside of the wheelchair.

NOTE: If necessary, pull out on the T-arm release lever and rotate 180 o the wheelchair.

so it can be flipped towards the outside of

2. Slide the T-arm to one (1) of the eight (8) positions.

NOTE: If the inside T-arm post does not slide up and down in the outside T-arm post as desired, perform one

(1) of the following:

1. Loosen, but do not remove the four (4) hex screws and washers that secure the T-arm socket to the Tarm clamp.

NOTE: The T-arm socket will disassemble if the four (4) hex screws and washers are removed.

2. Slide the T-arm into the T-arm socket until the locking lever is in the slot in the T-arm socket and an audible "click" is heard.

3. Squeeze the T-arm socket the T-arm clamp together until the socket is flush with the T-arm.

4. While holding the T-arm socket and the T-arm clamp together, tighten the four (4) hex screws and washers securely.

5. Press in on the locking lever and lift the T-arm straight up and out of the T-arm socket.

6. Repeat STEPS 3-6, if necessary until the T-arm slides in the T-arm socket as desired.

A. Tighten - Tightening the set screws on the outside T-arm post will make it harder to move the inside T-arm post up and down.

B. Loosen - Loosening the set screws on the outside T-arm post will make it easier to move the inside T-arm post up and down.

3. Lock the T-arm by flipping the T-arm release lever towards the front of the wheelchair.

T-arm

12

Hex Screws and Washers

T-arm Socket

Hex Screws and Washers

FIGURE 6 - ADJUSTING THE T-ARMS -

T-ARM SOCKETS

ARMS PROCEDURE 3

ADJUSTING THE TRANSFER

ASSISTS AND/OR SIDE GUARDS -

T-ARMS (FIGURE 7)

1. Remove the T-arm from the wheelchair. Refer to IN-

STALLING/REMOVING THE T-ARMS in this procedure of the manual.

2. Remove the two (2) bottom socket screws that secure the side guard to the bottom clamp.

3. Perform one (1) of the following:

Small Side Guards - Move the bottom clamp up one (1) of two (2) mounting positions in the side guard.

Large Side Guards - Move the bottom clamp up one (1) of three (3) mounting positions in the side guard.

4. Re-secure the side guard to the bottom clamp with the two (2) socket screws. Securely tighten.

5. Install the T-arm onto the wheelchair. Refer to IN-

STALLING/REMOVING THE T-ARMS in this procedure of the manual.

DO NOT

REMOVE

THESE

MOUNTING

SCREWS

Side

Guard

T-Arm

2. Remove the phillips bolt and locknut that secure the

EXISTING locking lever to the bottom bracket.

NOTE: The locking lever is spring loaded. Place your free hand over the locking lever to prevent the parts from springing off of the bottom bracket.

3. Remove the EXISTING locking lever and spring from the bottom bracket.

NOTE: Inspect the spring for wear and damage. Replace if necessary.

4. Position the spring on the bottom bracket as shown in FIGURE 8.

5. Position the NEW locking lever onto the spring and the bottom bracket.

NOTE: Make sure the two (2) extended ends of the spring are inside the notch in the locking lever.

6. Line up the mounting holes in the NEW locking lever, spring and bottom bracket.

WARNING

DO NOT over tighten the locknut that secures the locking lever to the bottom bracket. Over tightening this locknut will prevent the locking lever from operating properly, possibly causing injury.

7. Install the phillips bolt and locknut. Tighten securely.

8. Install the T-arm onto the wheelchair. Refer to IN-

STALLING/REMOVING THE T-ARMS in this procedure of the manual.

Transfer

Assist

Extended Ends

A

R

M

S

Bottom

Socket

Screws

Bottom

Clamp

FIGURE 7 - ADJUSTING THE TRANSFER

ASSISTS AND/OR SIDE GUARDS-T-ARMS

REPLACING THE LOCKING LEVER -

T-ARMS (FIGURE 8)

1. Remove the T-arm from the wheelchair. Refer to

INSTALLING/REMOVING THE T-ARMS in this procedure of the manual.

Bottom

Bracket

Spring

Notch

Locknut

Phillips Bolt

Locking

Lever

FIGURE 8 - REPLACING THE LOCKING LEVER -

T-ARMS

13

PROCEDURE 3 ARMS

A

R

M

S

REMOVING/INSTALLING JOYSTICK

(FIGURE 9)

1. Disconnect (unplug) joystick from controller.

2. Cut plastic clips that secure cord to wheelchair frame.

3. Rotate release lever to COUNTERCLOCKWISE to unlock the joystick mounting tube.

NOTE: Illustration depicts the locked position of the release lever facing forward and the unlocked position facing rearward. The unlocked and locked positions will not always be as shown. Positions shown for reference only.

4. Remove joystick from T-arm mounting bracket.

5. To install, reverse STEPS 1-4.

NOTE: When installing, ensure joystick is facing front of wheelchair.

T-Arm

Release

Lever

Mounting

Bracket

Joystick

Front of

Wheelchair

Connects to

Controller

Joystick Mounting

Tube

Unlocked

Locked

NOTE: T-Arm pad not shown for clarity.

FIGURE 9 - REMOVING/INSTALLING JOYSTICK

14

BACK/SEAT/WHEELLOCKS PROCEDURE 4

This Procedure Includes the Following:

Replacing the Locking Mechanism in the Back

Cane

Installing/Removing Stroller Handles

Folding/Unfolding the Back canes

Removing/Installing the Seat Pan

Engaging/Disengaging the Wheel Locks

Back Cane

Actuator

Spring

Locking

Mechanism

Angled Portion of Locking

Mechanism

FIGURE 1 - REPLACING THE LOCKING

MECHANISM IN THE BACK CANE

WARNING

After ANY adjustments, repair or service and BE-

FORE use, make sure all attaching hardware is tightened securely.

REPLACING THE LOCKING

MECHANISM IN THE BACK CANE

(FIGURE 1)

CAUTION

The locking mechanism in the back canes is spring loaded. Slowly remove the back canes from the wheelchair to prevent the springs from being lost.

1. Fold back canes down. Refer to FOLDING AND

UNFOLDING THE BACK CANES in this procedure of the manual.

2. Twist the actuator COUNTERCLOCKWISE to remove from the locking mechanism.

3. Slowly let the EXISTING locking mechanism and spring slide out of the back cane.

NOTE: Inspect the spring for wear and damage. Replace if necessary.

4. Slide the NEW locking mechanism and spring into the back cane.

5. Make sure the angled end of the NEW locking mechanism is facing down toward seat rails.

6. Use Loctite 242, on threads only, and securely tighten the actuator into the locking mechanism.

7. Unfold back canes. Refer to FOLDING AND UN-

FOLDING THE BACK CANES in this procedure of the manual.

INSTALLING/REMOVING

STROLLER HANDLES (FIGURE 2)

1. Remove the back cane grips and plug buttons from both back canes.

2. Slide the stroller handle into the back canes.

3. Align the mounting holes of the stroller handle and the back canes.

4. Secure stroller handle to the back canes with the two

(2) mounting screws provided. Securely tighten.

5. To remove, reverse STEPS 1-4.

Button

Stroller Handle

Quick-Release Pin

Back Cane

FIGURE 2 - INSTALLING/REMOVING STROLLER

HANDLES

A

T

S

E

C

K

B

A

O

C

L

L

W

H

E

E

K

S

15

A

T

S

E

C

K

B

A

O

C

L

L

W

H

E

E

K

S

PROCEDURE 4

FOLDING/UNFOLDING THE BACK

CANES (FIGURE 3)

1. To fold back canes, lift up on actuator pins and fold back canes forward.

2. To unfold back canes, pull back canes up until actuator pins are locked in place.

NOTE: Actuator pins are locked in place when an audible click is heard.

Rigid Seat

Pan

Mounting

Screws

BACK/SEAT/WHEELLOCKS

Mounting

Screws

Seat Frame

Assembly

Back Cane

FIGURE 4 -REMOVING/INSTALLING THE SEAT

PAN

ENGAGING/DISENGAGING THE

WHEEL LOCKS (FIGURE 5)

Actuator

Pin

Engaging

1. Push handle forward away from tire to engage wheel lock.

2. Repeat STEP 1 for opposite wheel.

FIGURE 3 - FOLDING/UNFOLDING THE BACK

CANES

REMOVING/INSTALLING THE SEAT

PAN (FIGURE 4)

Removing

NOTE: If a seating system is being used on the wheelchair, refer to your particular seating system manufacturer's

Owner's Manual for installation and removal of the seating system.

1. If so equipped, remove seating system from wheelchair.

2. Remove the four (4) mounting screws that secure the seat pan to the seat rails.

3. Remove existing seat pan and discard.

Disengaging

1. Pull handle back toward tire to disengage wheel lock.

2. Repeat STEP 1 for opposite wheel.

Handle

Wheellock

Installing

1. Position the NEW seat pan on crossmembers.

2. Secure with the existing four (4) mounting screws.

Securely tighten.

3. Reinstall seating system onto wheelchair.

FIGURE 5 - ENGAGING/DISENGAGING THE

WHEEL LOCKS

16

CASTERS PROCEDURE 5

This Procedure Includes the Following:

Removing/Installing Front Casters

Replacing Forks

REMOVING/INSTALLING FRONT

CASTERS (FIGURE 1)

NOTE: This procedure replaces FRONT TIRES - PNEU-

MATIC/SEMI-PNEUMATIC on page 38 in the Power Tiger Owner’s Manual, part number 1045938.

Periodically, the tires will need to be replaced due to wear or puncture.

Removing

1. Remove the mounting screw, spacers and locknut that secure the EXISTING caster to the fork.

2. Remove the EXISTING caster from the fork.

3. Torque locknut to 10-foot pounds (120-inch) pounds.

4. Loosen the locknut 1/8 of a turn.

5. Move the caster side to side.

NOTE: If the caster moves side to side, tighten the locknut slightly. Repeat STEP 4 until there is no side to side movement of the caster.

WARNING

After ANY adjustments, repair or service and BE-

FORE use, make sure all attaching hardware is tightened securely.

DO NOT use your power wheelchair unless it has the proper tire pressure (p.s.i.). DO NOT over-inflate the tires. Failure to follow these suggestions may cause the tire to explode and cause bodily harm.

The recommended tire pressure is listed on the side wall of the tire.

CAUTION

DO NOT overtighten hardware attaching to the frame. Damage to components may occur.

Installing

1. Position the new/existing caster into the fork.

2. Reinstall the mounting screw, spacers and locknut.

Securely tighten.

REPLACING FORKS (FIGURE 2)

NOTE: This procedure combined with REMOVING/IN-

STALLING FRONT CASTERS replaces SIX OR EIGHT

INCH CASTER INSTALLATION on page 36 in the Power

Tiger Owner’s Manual, part number 1045938.

1. Remove the caster from the existing fork. Refer to

REMOVING/INSTALLING FRONT CASTERS in this procedure of the manual.

2. Remove the head tube cap.

3. Remove the locknut and nylon washer.

4. Drop the EXISTING fork out of the caster head tube.

5. Slide the new fork into the caster head tube.

NOTE: Check bearing assemblies. Replace if necessary.

6. Ensure NEW fork slides completely into caster headtube.

7. Install nylon washer and secure with locknut.

WARNING

Improper positioning of the washer will prohibit the free movement of the forks which may result in injury to the occupant.

8. Install the caster onto the NEW fork. Refer to RE-

MOVING/INSTALLING CASTERS in this procedure of the manual.

9. Install headtube cap.

Headtube

Cap

Locknut

Locknut

Nylon Washer

E

R

S

S

T

C

A

Mounting

Screw

Fork

Spacer

Spacer

Caster

FIGURE 1 - REMOVING/INSTALLING FRONT

CASTERS

17

Caster Headtube

Fork

FIGURE 2 - REPLACING FORKS

I

N

G

L

T

T

I

PROCEDURE 6 TILTING

This Procedure Includes the Following:

Engaging the Tilt-in-Space

WARNING

After ANY adjustments, repair or service and BE-

FORE use, make sure all attaching hardware is tightened securely.

ENGAGING THE TILT-IN-SPACE

(FIGURE 1)

WARNING

ALWAYS make sure that the wheelchair is stable

BEFORE using the tilt-in-space.

NEVER operate the wheelchair while in any tilt position over 10 o

RELATIVE TO THE SEAT FRAME. If the limit switch does not stop the wheelchair from operating in a tilt position greater than 10 o

RELATIVE TO

THE SEAT FRAME, have the limit switch adjusted by an authorized Invacare dealer or qualified technician.

Make sure the occupant of the wheelchair is properly positioned.

Always engage both wheel locks.

DO NOT use the release pedal of the tilt mechanism to gain leverage in tipping the wheelchair.

The release pedal was not designed to be used in this manner and may cause injury to the assistant and/or user or damage to the wheelchair.

1. Place the wheelchair on a level surface.

2. Engage both wheel locks. Refer to ENGAGING/DIS-

ENGAGING THE WHEEL LOCKS in PROCEDURE

4 of this manual.

3. Move the locking mechanism on the release pedal to the unlocked position. See DETAIL "A".

4. Inform the occupant of the wheelchair that the wheelchair is about to be tilted and remind them to lean back.

5. Stand behind the wheelchair and apply pressure to the release pedal.

6. SLOWLY, pull back on the back canes while stepping on the release pedal.

7. When the seat reaches the desired angle, SLOWLY relieve the pressure on the release pedal.

8. Move the locking mechanism on the release pedal to the locked position. See DETAIL "A".

9. Disengage wheel locks before attempting to move occupant. ENGAGING/DISENGAGING THE

WHEEL LOCKS in PROCEDURE 4 of this manual.

Locked

Position

DETAIL "A"

Locking

Mechanism

Release

Pedal

Wheelchair

Frame

Back

Cane

Unlocked

Position

FIGURE 1 - ENGAGING THE TILT-IN-SPACE

18

DEALER ADJUSTMENTS - GENERAL PROCEDURE 7

This Procedure Includes the Following:

Removing/Installing the Spreader Bar

Changing the Seat Width

Removing/Installing/Adjusting Cable Assembly

Removing/Installing the Cable Assembly from the Release Pedal

Removing/Installing the Tilt Mechanism(s)

WARNING

After ANY adjustments, repair or service and BE-

FORE use, make sure all attaching hardware is tightened securely.

8. Reattach back assembly to the back angle brackets with the EXISTING mounting screws, coved spacers, washers, and locknuts. DO NOT OVER-

TIGHTEN! Wheelchair will not fold properly. Tighten until a snug fit is provided.

9. Reinstall the locking mechanisms in the back canes.

Refer to REPLACING THE LOCKING MECHANISM

IN THE BACK CANE in PROCEDURE 4 of this manual.

REMOVING/INSTALLING THE

SPREADER BAR (FIGURE 1)

NOTE: Make sure the spreader bar is ALWAYS attached to the wheelchair.

NOTE: If a seating system is being used on the chair, refer to the seating system Owner's Manual for installation and removal of the seating system.

1. Remove the EXISTING seating system from the wheelchair, if so equipped.

2. Separate back assembly from the back angle brackets by removing the mounting screws, coved spacers, washers, and locknuts.

3. Remove the locking mechanisms in the back canes.

Refer to REPLACING THE LOCKING MECHANISM

IN THE BACK CANE in this procedure of the manual.

4. Loosen, but do not remove the two (2) set screws that secure the EXISTING spreader bar to back canes.

5. Slide the EXISTING spreader bar off of the two (2) back canes and slide NEW spreader bar on.

NOTE: Make sure the spreader bar is positioned on back canes so not to interfere with the back angle brackets.

6. Securely tighten the two (2) set screws that secure the new spreader bar to the back canes.

CAUTION

When reattaching back assembly, DO NOT

OVERTIGHTEN! Back will not fold down properly.

Tighten hardware until snug.

Set

Screw

(STEP 4,7)

Spreader Bar

(STEP 4-7)

Back

Assembly

(STEPS 2,8)

Coved Spacer

(STEPS 2,8)

Mounting

Screw

(STEPS 2,8)

Locking

Mechanism

(STEPS 3,9)

Locknut

(STEPS

2,8)

Washer

(STEPS 2,8)

Back Angle

Bracket

(STEPS 2,8)

FIGURE 1 - REMOVING/INSTALLING THE

SPREADER BAR

G

E

N

E

R

A

L

S

T

M

E

J

U

A

D

N

T

S

A

L

D

E

E

R

19

S

T

M

E

J

U

A

D

N

T

S

A

L

D

E

E

R

G

E

N

E

R

A

L

PROCEDURE 7 DEALER ADJUSTMENTS - GENERAL

CHANGING THE SEAT WIDTH

(FIGURE 2)

NOTE: This procedure replaces 12-INCH TO 13-INCH

SEAT WIDTH ADJUSTMENT, 12-INCH OR 13-INCH

TO 14-INCH SEAT WIDTH ADJUSTMENT, SEAT

WIDTH ADJUSTMENT 12-INCH, 13-INCH OR 14-INCH

TO 15-INCH OR 16-INCH on page 51-57 in the Power

Tiger Owner’s Manual, part number 1045938.

1. Remove the seat frame from the base frame. Refer to DISASSEMBLY/ASSEMBLY in PROCEDURE 1 of this manual.

NOTE: Note the orientation of the seat plate in relation to the seat rails for proper reinstallation.

WARNING

Before removing the crossmembers, note the mounting hole position of the crossmembers to the seat rails for proper reinstallation. Otherwise injury to the occupant and/or user and damage to the wheelchair may occur.

NOTE: If a change in the position of the crossmembers is desired, refer to ADJUSTING THE PIVOT POINT in this procedure of the manual.

2. Remove the four (4) mounting screws and four (4) washers that secure the crossmembers to the seat rails.

3. Replace existing spreader bar with NEW spreader bar. Refer to REMOVING/INSTALLING THE

SPREADER BAR in this procedure of the manual.

4. Remove the four (4) mounting screws and four (4) locknuts that secure the seat plate to the crossmembers.

5. Secure the seat plate to the NEW crossmembers with the existing four (4) mounting screws and locknuts. Securely tighten.

6. Secure the crossmembers to the seat rails with the four (4) mounting screws and washers. Securely tighten.

7. Reinstall the seat frame onto the base frame. Refer to DISASSEMBLY/ASSEMBLY in PROCEDURE 1 of this manual.

Seat Rail

(STEP 2, 6)

Washer

(STEP 2, 6)

Mounting

Screws

(STEP 2, 6)

Seat Rail

(STEP 2, 6)

Crossmember

(STEPS 2, 6)

Washer

(STEP 2, 6)

Locknuts

(STEP 4, 5)

Washer

(STEP 2, 6)

Crossmember

(STEPS 2, 6)

Mounting

Screws

(STEP 2, 6)

Mounting

Screws

(STEPS 4, 5)

Seat Plate

(STEPS 4, 5)

NOTE: The back angle plates are not shown for clarity

Mounting

Screws

(STEP 4, 5)

FIGURE 2 - CHANGING THE SEAT WIDTH

20

DEALER ADJUSTMENTS - GENERAL PROCEDURE 7

REMOVING/INSTALLING/

ADJUSTING THE CABLE ASSEMBLY

Removing/Installing (FIGURE 3)

1. Remove the seat frame from the base frame. Refer to DISASSEMBLY/ASSEMBLY in PROCEDURE 1 of this manual.

2. Loosen back locknut and rotate COUNTERCLOCK-

WISE five (5) to six (6) revolutions.

3. Rotate cable adjuster and jam nut COUNTER-

CLOCKWISE all the way out to the end of the threads.

4. Rotate front locknut COUNTERCLOCKWISE completely off of threads and onto the exposed cable.

5. Pull threaded portion of cable assembly back beyond back tab of the tilt mechanism.

6. Slide the exposed cable out the side of the back tab.

7. Remove anchor end of cable from front tab.

8. To install perform the following:

A. Reverse STEPS 1-7.

B. Adjust cable. Refer to ADJUSTING THE CABLE

ASSEMBLY in this procedure of the manual.

Adjusting (FIGURE 4)

WARNING

DO NOT operate the tilt-in-space if the lock cylinder handles and cables are not properly adjusted to ensure that the lock cylinders lock in place when engaged.

1. Loosen the jam nut (counterclockwise) on the lock cylinder cable.

2. Turn the cable adjuster until the desired play in the release pedal is achieved.

3. Retighten the jam nut (clockwise) on the cable.

4. Tilt the wheelchair to any tilt position. Make sure the wheelchair holds the position.

NOTE: If the wheelchair does not hold the position, repeat STEPS 1-4 until the wheelchair is able to hold the tilted position.

Jam Nut

Cable

Adjuster

Tilt

Mechanism

Cable

Adjuster

Jam Nut

G

E

N

E

R

A

L

S

T

M

E

J

U

A

D

N

T

S

A

L

D

E

E

R

NOTE: The release pedal is not shown for clarity.

Back Locknut

Back Tab

Front Locknut

Exposed

Cable

Front

Tab

Anchor End of Cable

FIGURE 4 - ADJUSTING THE CABLE ASSEMBLY

FIGURE 3 - REMOVING/INSTALLING THE

CABLE ASSEMBLY

21

PROCEDURE 7 DEALER ADJUSTMENTS

M

E

S

T

J

U

A

D

N

T

S

D

E

A

L

E

R

G

E

N

E

R

A

L

REMOVING/INSTALLING THE

CABLE ASSEMBLY FROM THE

RELEASE PEDAL (FIGURE 5)

1. Rotate cable adjuster COUNTERCLOCKWISE four

(4) to five (5) times.

NOTE: Rotating the cable adjuster COUNTERCLOCK-

WISE will produce slack in the cable.

2. Remove anchor end of cable from back cable bolt.

3. Repeat STEPS 1-2 for opposite tilt mechanism.

4. Remove locknut from front cable bolt.

5. Remove front cable bolt and washer from release pedal assembly.

6. Unthread the cable assembly from the front cable bolt.

7. Pull anchor end of cable through front cable bolt.

8. Repeat STEPS 6-7 for opposite tilt mechanism.

9. To install cable assembly onto release pedal, perform the following:

A. Reverse STEPS 1-8.

B. Adjust cable assembly. Refer to REMOVING/

INSTALLING/ADJUSTING THE CABLE AS-

SEMBLY in this procedure of the manual.

Release

Pedal

Assembly

Locknut

Washer

Cable

Adjuster

REMOVING/INSTALLING THE TILT

MECHANISM(S) (FIGURE 6)

Removing

1. Remove the seat frame from the base frame. Refer to DISASSEMBLY/ASSEMBLY in PROCEDURE 1 of this manual.

2. Disconnect the cable from the tilt mechanism. Refer to REMOVING/INSTALLING/ADJUSTING THE

CABLE ASSEMBLY in this procedure of the manual.

3. Perform one (1) of the following:

NOTE: Left and right tilt mechanisms are determined by sitting in the wheelchair.

A. LEFT TILT MECHANISM -

l

Remove the mounting screw, washers, and locknut that secures the limit stop plate and the top portion of the tilt mechanism to the mounting bracket of the seat frame crossmember. See DETAIL “A”.

l

Remove the mounting screw, spacer and locknut that secure the limit stop plate to the tilt mechanism bracket See DETAIL “A”.

B. RIGHT TILT MECHANISM - Remove the mounting screw and locknut that secures the top portion of the tilt mechanism to the mounting bracket of seat frame crossmember.

4. Remove the mounting screw and locknut that secure the tilt mechanism to the mounting bracket of the base frame crossmember.

5. Remove tilt mechanism from the mounting bracket of the base frame crossmember.

Back

Cable

Bolt

Front

Cable

Bolt

Threads

Anchor End of Cable

FIGURE 5 - REMOVING/INSTALLING THE

CABLE ASSEMBLY FROM THE RELEASE PEDAL

22

Installing

1. Install tilt mechanism into mounting brackets of base frame crossmember.

2. Secure the tilt mechanism to the base frame crossmember with mounting screw and locknut. Securely tighten.

3. Perform one (1) of the following:

NOTE: Left and right tilt mechanisms are determined by sitting in the wheelchair.

A. LEFT TILT MECHANISM -

l

Reinstall the mounting screw, washers, and locknut that secures the limit stop plate and the top portion of the tilt mechanism to the seat plate. Securely tighten.

DEALER ADJUSTMENTS l

Reinstall the mounting screw, spacer, and locknut that secure the bottom of the limit stop plate to the bracket of the tilt mechanism. Securely tighten tighten.

B. RIGHT TILT MECHANISM - Install the mounting screw and locknut that secures the top portion of the tilt mechanism to the seat frame crossmember.

4. Reconnect the cable to the tilt mechanisms. Refer to

REMOVING/INSTALLING/ADJUSTING THE

CABLE ASSEMBLY in this procedure of the manual.

5. Adjust the cable assembly. Refer to ADJUSTING THE

CABLE ASSEMBLY in this procedure of the manual.

6. Install the seat frame from the base frame. Refer to

DISASSEMBLY/ASSEMBLY in PROCEDURE 1 of this manual.

PROCEDURE 7

DETAIL “A”

Washer

Mounting

Screw

Limit Stop

Plate

Mounting

Bracket of Seat

Frame

Crossmember

Washer

Mounting

Screw

Spacer

Tilt

Mechanism

Bracket

Locknuts

Left Tilt

Mechanism

(Partial View)

G

E

N

E

R

A

L

S

T

M

E

J

U

A

D

N

T

S

A

L

D

E

E

R

Locknuts

Right Tilt

Mechanism

Left Tilt

Mechanism

Mounting

Screw

Mounting

Bracket of

Base Frame

Crossmember

NOTE: Only the base frame is shown for clarity.

FIGURE 6 - REMOVING\INSTALLING THE TILT MECHANISM

Wheelchair

Frame

23

PROCEDURE 8 DEALER ADJUSTMENTS - STABILITY

M

E

S

T

J

U

A

D

N

T

S

D

E

A

L

E

R

I

T

I

L

Y

S

T

A

B

This Procedure Includes the Following:

Stability Overview

Changing the Caster Position

Changing the Back Angle

Changing the Seat Depth

Adjusting the Pivot Point of the Seat Frame

WARNING

After ANY adjustments, repair or service and BE-

FORE use, make sure all attaching hardware is tightened securely.

Wheelchair

Frame

Locknut

Wheelchair

Frame

ALWAYS USE THIS

MOUNTING POSITION

STABILITY OVERVIEW

WARNING

The back angle, seat depth, pivot point of seat frame, seating system, caster position, as well as the user condition directly relate to the stability of the wheelchair. Any change to one (1) or any combination of the six (6) may cause the wheelchair to decrease in stability. These adjustments

MUST be performed by an authorized Invacare dealer or qualified technician.

1. Before performing any of the following stability adjustments:

A. Changing the Caster Position.

B. Changing the Back Angle.

C. Changing the Seat depth.

D. Adjusting the Pivot Point of the Seat Frame

Review and understand the procedures and the adjustment of each component.

2. After understanding the adjustment of each component, refer to the charts on the following pages for allowable adjustment combinations.

Front

Caster

DO NOT USE THESE

FORWARD MOUNTING

POSITIONS

FIGURE 1 - CHANGING THE CASTER POSITION

CHANGING THE BACK ANGLE

(FIGURES 2 AND 3)

NOTE: Before performing this procedure, refer to STA-

BILITY OVERVIEW in this procedure of the manual.

1. Loosen, but do not remove the front mounting screw that secures the back angle plate to the wheelchair frame.

2. Remove the rear mounting screw, washer and locknut that secure the back angle plates to the wheelchair frame.

3. Refer to FIGURE 3 to determine the mounting hole in the back angle plates for the desired back angle.

4. Reinstall the rear mounting screw, washer and securely tighten with locknut.

Back Angle

Plate

Front

Mounting

Screw

Rear

Mounting

Screw

CHANGING THE CASTER POSITION

(FIGURE 1)

WARNING

DO NOT decrease the wheelbase length by adjusting the front casters to either of the two (2) forward positions. ALWAYS use the rear most mounting hole. Moving the front casters back by using the forward positions causes the wheelchair to decrease in stability which may result in injury to the occupant and/or assistant .

Washer

Coved

Washers

FIGURE 2 - CHANGING THE BACK ANGLE

24

DEALER ADJUSTMENTS - STABILITY

70

0

75

0

USE THE FOLLOWING MOUNTING HOLES FOR

ALLOWABLE BACK ANGLES

Back Plate

Back Plate

85

0

Back Plate

95

0

DO NOT USE

THESE

MOUNTING

HOLES

80

0

Back Plate

90

0

100

0

Back Plate

PROCEDURE 8

CHANGING THE SEAT DEPTH

(FIGURES 4 AND 5)

NOTE: Before performing this procedure, refer to STA-

BILITY OVERVIEW in this procedure of the manual.

NOTE: This procedure replaces SEAT DEPTH ADJUST-

MENT on page 49 in the Power Tiger Owner’s Manual, part number 1045938.

1. Determine the necessary back position for the desired seat depth. Refer to the FIGURE 5 for proper back positioning.

NOTE: Note the back angle before removing for proper reinstallation.

2. Remove the front and rear mounting screws, coved washers and locknuts that secure the two (2) back angle plates to the wheelchair frame. Repeat for opposite side.

3. Align the mounting holes in the back angle plates with the mounting holes in the seat rail determined in

STEP 1.

4. Secure the back angle plates to the wheelchair frame, at the angle noted previously, with the two (2) mounting screws, washers and locknuts. Securely tighten.

Repeat for opposite side.

NOTE: Make sure the back angle plates are at the same angle BEFORE using the wheelchair.

T

Y

L

I

A

B

S

T

I

S

T

M

E

J

U

A

D

N

T

S

A

L

D

E

E

R

Back Angle

Plate

Front

Mounting

Screw

Rear

Mounting

Screw

105

Back Plate

0

110

0

Back Plate

FIGURE 3 - BACK ANGLE PLATE MOUNTING

HOLES FOR CORRESPONDING BACK ANGLES

Wheelchair

Frame

Locknut

Coved

Washers

Washer

FIGURE 4 - CHANGING THE SEAT DEPTH

25

T

Y

I

L

A

B

S

T

I

M

E

S

T

J

U

A

D

N

T

S

D

E

A

L

E

R

PROCEDURE 8

BACK POSITION FOR 16-INCH SEAT DEPTH

Rear of

Seat

Rail

WARNING:

Never Use These Mounting

Holes for Seat Depth

Front of

Seat

Rail

DEALER ADJUSTMENTS - STABILITY

BACK POSITION FOR 12-INCH SEAT DEPTH

Rear of

Seat

Rail

WARNING:

Never Use These Mounting

Holes for Seat Depth

Front of

Seat

Rail

18 17 16 15 14 13 12 11 10

Hole for

Front Riggings

BACK POSITION FOR 15-INCH SEAT DEPTH

Rear of

Seat

Rail

WARNING:

Never Use These Mounting

Holes for Seat Depth

Front of

Seat

Rail

18 17 16 15 14 13 12 11 10

Hole for

Front Riggings

BACK POSITION FOR 11-INCH SEAT DEPTH

Rear of

Seat

Rail

WARNING:

Never Use These Mounting

Holes for Seat Depth

Front of

Seat

Rail

18 17 16 15 14 13 12 11 10

Hole for

Front Riggings

BACK POSITION FOR 14-INCH SEAT DEPTH

Rear of

Seat

Rail

WARNING:

Never Use These Mounting

Holes for Seat Depth

Front of

Seat

Rail

18 17 16 15 14 13 12 11 10

Hole for

Front Riggings

BACK POSITION FOR 10-INCH SEAT DEPTH

Rear of

Seat

Rail

WARNING:

Never Use These Mounting

Holes for Seat Depth

Front of

Seat

Rail

Hole for

Front Riggings

18 17 16 15 14 13 12 11 10

Hole for

Front Riggings

BACK POSITION FOR 13-INCH SEAT DEPTH

Rear of

Seat

Rail

WARNING:

Never Use These Mounting Holes for Seat Depth

Front of

Seat

Rail

18 17 16 15 14 13 12 11 10

18 17 16 15 14 13 12 11 10

Hole for

Front Riggings

FIGURE 5 - CHANGING THE SEAT DEPTH (ALLOWABLE MOUNTING POSITIONS)

26

DEALER ADJUSTMENTS - STABILITY

PROCEDURE 8

ADJUSTING THE PIVOT POINT OF

THE SEAT FRAME (FIGURES

6 AND 7)

NOTE: Before performing this procedure, refer to STA-

BILITY OVERVIEW in this procedure of the manual.

1. Remove the existing seating system from the wheelchair, if so equipped.

NOTE: Refer to your particular seating system manufacturer's Owner's Manual for removal of the seating system.

2. Remove the four (4) mounting screws and washers that secure the seat plate assembly to the seat rails.

WARNING

For FRONT crossmember use ONLY mounting holes one (1) through five (5). For REAR crossmember use ONLY mounting holes eight (8) through twelve

(12). See DETAIL “A”.

DETAIL “A”

ACCEPTABLE MOUNTING HOLES FOR THE

ADJUSTABLE PIVOT POINT

Rear

Crossmember of Seat Plate

Front

Crossmember of Seat Plate

Mounting

Hole for

Bilateral

Platform

XX XX

12 11 10 9 8 5 4 3 2 1

Mounting Hole for Front Riggings

ACCEPTABLE MOUNTING COMBINATIONS

Front Crossmember 1 2 3 4 5

and and and and and

Rear Crossmember 8 9 10 11 12

3. Position the seat plate assembly at the mounting holes for the desired pivot point. Refer to DETAIL “A” for acceptable mounting hole positions and the chart on the following page for illustrations of the various mounting positions for the adjustable pivot point.

4. Secure seat plate assembly with the four (4) mounting screws and washers to the seat rails at the determined position in STEP 3.

CAUTION

Some mounting positions of the adjustable pivot point may cause interference between the footrests and front casters. Adjust telescoping front frame tubes accordingly. Otherwise damage to the wheelchair may result.

5. If necessary, adjust front frame telescoping tubes.

Refer to ADJUSTING THE TELESCOPING FRONT

FRAME TUBES in PROCEDURE 2 of this manual.

6. Reinstall the seating system, if so equipped.

NOTE: Refer to your particular seating system manufacturer's Owner's Manual for installation of the seating system.

Seat

Rail

Back

Mounting

Plates

Mounting Screws

Washers

Seat

Rail

Seat Plate

Assembly

FIGURE 6 - ADJUSTING THE PIVOT POINT OF THE

SEAT FRAME

T

Y

L

I

A

B

S

T

I

S

T

M

E

J

U

A

D

N

T

S

A

L

D

E

E

R

27

T

Y

I

L

A

B

S

T

I

M

E

S

T

J

U

A

D

N

T

S

D

E

A

L

E

R

PROCEDURE 8

DEALER ADJUSTMENTS - STABILITY

WARNING

DO NOT use any other mounting positions for the adjustable pivot point except for the positions shown below. Otherwise, injury to the occupant may occur

Rear of

Wheelchair

Hole for

Front Riggings

Rear

Crossmember of Seat Plate

Front

Crossmember of Seat Plate

Front of

Wheelchair

POSITION 1

USE MOUNTING HOLES NUMBER 1 AND 8

Mounting

Hole 8

Mounting

Hole 1

X X X X X X

POSITION 4

USE MOUNTING HOLES NUMBER 4 AND 11

X X

Mounting

Hole 11

X X

Mounting

Hole 4

X X

POSITION 2

USE MOUNTING HOLES NUMBER 2 AND 9

Mounting

Hole 9

Mounting

Hole 2

X

X X X X X

POSITION 5

USE MOUNTING HOLES NUMBER 5 AND 12

X

X

Mounting

Hole 12

X X

Mounting

Hole 5

X X

POSITION 3

USE MOUNTING HOLES NUMBER 3 AND 10

X X

Mounting

Hole 10

Mounting

Hole 3

X X X X

FIGURE 7 - ADJUSTING THE PIVOT POINT OF THE SEAT FRAME

(ALLOWABLE MOUNTING POSITIONS)

28

DEALER ADJUSTMENTS - STABILITY PROCEDURE 8

STABILITY ADJUSTMENT WITHOUT A SEATING SYSTEM

NOTE: ANY seating system attached to this wheelchair will require ONE (1) or ALL of the components in the preceding sections of this procedure to be readjusted.

NOTE: There are two (2) charts of allowable adjustment combinations. The first chart, STABILITY ADJUST-

MENTS WITHOUT A SEATING SYSTEM shows the allowable adjustment combinations without a seating system attached. The second chart, STABILITY

ADJUSTMENTS WITH A KSS SEATING SYSTEM was developed to show the difference in weight distribution and the decreasing range of allowable back angles.

How to read the Stability charts:

1. Find the chart that represents your desired adjustable pivot point.

2. Then, find your desired seat depth.

NOTE: Seat depths are listed across the top.

3. Follow that column down until you find the row which contains your desired seat width.

NOTE: Seat widths are listed down the left hand side.

NOTE: Each box contains the allowable back angle range for your desired seat width, seat depth, and pivot point adjustment combination.

SEAT WIDTH

14

15

16

10

11

12

13

ADJUSTABLE PIVOT POINT POSITION #1

10

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

11

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

12

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

SEAT DEPTH

13

80

80

80

80

80

80

80 o o o o o o o

-110

-110

-110

-110

-110

-110

-110 o o o o o o o

14

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

15

N/A

N/A

N/A

80 o

-110 o

80 o

-110 o

80 o

-90 o

80 o

-110 o

16

N/A

N/A

N/A

80 o

-105 o

80 o

-105 o

N/A

80 o

-105 o

SEAT WIDTH

14

15

16

10

11

12

13

10

N/A

N/A

N/A

N/A

N/A

N/A

N/A

ADJUSTABLE PIVOT POINT POSITION #2

11

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

12

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

SEAT DEPTH

13

80

80

80

80

80

80

80 o o o o o o o

-110

-110

-110

-110

-110

-110

-110 o o o o o o o

14

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

15

80 o

-110 o

80 o

-110 o

80 o

-100 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

16

80 o

-90 o

80 o

-90 o

80 o

-90 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

T

Y

L

I

A

B

S

T

I

S

T

M

E

J

U

A

D

N

T

S

A

L

D

E

E

R

NOTE: N/A - There are no back angles allowed with these adjustment combinations.

29

I

I

L

A

B

T

Y

S

T

M

E

S

T

J

U

A

D

N

T

S

D

E

A

L

E

R

PROCEDURE 8 DEALER ADJUSTMENTS - STABILITY

SEAT WIDTH

14

15

16

10

11

12

13

STABILITY ADJUSTMENT WITHOUT A SEATING SYSTEM

10

N/A

N/A

N/A

N/A

N/A

N/A

N/A

ADJUSTABLE PIVOT POINT POSITION #3

11

N/A

N/A

N/A

N/A

N/A

N/A

N/A

12

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

SEAT DEPTH

13

80

80

80

80

80

80

80 o o o o o o o

-110

-110

-110

-110

-110

-110

-110 o o o o o o o

14

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

15

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

16

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

SEAT WIDTH

14

15

16

10

11

12

13

SEAT WIDTH

14

15

16

10

11

12

13

10

N/A

N/A

N/A

N/A

N/A

N/A

N/A

ADJUSTABLE PIVOT POINT POSITION #4

11

N/A

N/A

N/A

N/A

N/A

N/A

N/A

12

N/A

N/A

N/A

N/A

N/A

N/A

N/A

SEAT DEPTH

13

N/A

N/A

N/A

N/A

N/A

N/A

N/A

14

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

15

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

16

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

10

N/A

N/A

N/A

N/A

N/A

N/A

N/A

ADJUSTABLE PIVOT POINT POSITION #5

11

N/A

N/A

N/A

N/A

N/A

N/A

N/A

12

N/A

N/A

N/A

N/A

N/A

N/A

N/A

SEAT DEPTH

13

N/A

N/A

N/A

N/A

N/A

N/A

N/A

14

N/A

N/A

N/A

N/A

N/A

N/A

N/A

15

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

16

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

NOTE: N/A - There are no back angles allowed with these adjustment combinations.

30

DEALER ADJUSTMENTS - STABILITY PROCEDURE 8

SEAT WIDTH

10

11

12

13

14

15

16

STABILITY ADJUSTMENT WITH A KSS SEATING SYSTEM

ADJUSTABLE PIVOT POINT POSITION #1

10

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

11

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

12

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

SEAT DEPTH

13

80

80

80

80

80

80 o

80 o o o o o o

-110

-110

-110

-110

-110

-110 o

-110 o o o o o o

14

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

80 o

-100 o

-100 o

15

N/A

N/A

N/A

80 o

-95 o

80 o

-95 o

80

N/A o

-95 o

16

N/A

N/A

N/A

N/A

N/A

N/A

N/A

S

T

M

E

J

U

A

D

N

T

S

A

L

D

E

E

R

SEAT WIDTH

14

15

16

10

11

12

13

SEAT WIDTH

14

15

16

10

11

12

13

10

N/A

N/A

N/A

N/A

N/A

N/A

N/A

ADJUSTABLE PIVOT POINT POSITION #2

11

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

12

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

SEAT DEPTH

13

80

80

80

80

80

80

80 o o o o o o o

-110

-110

-110

-110

-110

-110

-110 o o o o o o o

14

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

15

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

16

80 o

-90 o

80 o

-90 o

80 o

-90 o

80 o

-95 o

80 o

-95 o

80 o

-95 o

80 o

-95 o

10

N/A

N/A

N/A

N/A

N/A

N/A

N/A

ADJUSTABLE PIVOT POINT POSITION #3

11

N/A

N/A

N/A

N/A

N/A

N/A

N/A

12

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

85 o

-110 o

SEAT DEPTH

13

80

80

80

80

80

80

80 o o o o o o o

-110

-110

-110

-110

-110

-110

-110 o o o o o o o

14

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

15

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

16

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

80 o

-100 o

T

I

L

I

Y

S

T

A

B

NOTE: N/A - There are no back angles allowed with these adjustment combinations.

31

I

I

L

A

B

T

Y

S

T

M

E

S

T

J

U

A

D

N

T

S

D

E

A

L

E

R

PROCEDURE 8 DEALER ADJUSTMENTS - STABILITY

SEAT WIDTH

14

15

16

10

11

12

13

STABILITY ADJUSTMENT WITH A KSS SEATING SYSTEM

10

N/A

N/A

N/A

N/A

N/A

N/A

N/A

ADJUSTABLE PIVOT POINT POSITION #4

11

N/A

N/A

N/A

N/A

N/A

N/A

N/A

12

N/A

N/A

N/A

N/A

N/A

N/A

N/A

SEAT DEPTH

13

N/A

N/A

N/A

N/A

N/A

N/A

N/A

14

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

15

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

16

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

SEAT WIDTH

14

15

16

10

11

12

13

10

N/A

N/A

N/A

N/A

N/A

N/A

N/A

ADJUSTABLE PIVOT POINT POSITION #5

11

N/A

N/A

N/A

N/A

N/A

N/A

N/A

12

N/A

N/A

N/A

N/A

N/A

N/A

N/A

SEAT DEPTH

13

N/A

N/A

N/A

N/A

N/A

N/A

N/A

14

N/A

N/A

N/A

N/A

N/A

N/A

N/A

15

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

90 o

-110 o

16

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

80 o

-110 o

32

NOTES

NOTES

T

E

N

O

S

33

T

E

N

O

S

NOTES

NOTES

34

WARRANTY

LIMITED WARRANTY

PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW AP-

PLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.

This warranty is extended only to the original purchaser/user of our products.

This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

Invacare warrants the side frames and crossmembers to be free from defects in materials and workmanship for the lifetime of the original purchaser/user. All remaining components are warranted for a period of one (1) year from the date of purchase except upholstered materials, padded materials and tires/wheels. If within such warranty period any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement. Any seating system installed on this wheelchair will fall under its own warranty. Refer to your particular Seating System

Owner's Manual for warranty information.

For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address on the back cover, provide dealer’s name, address, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.

LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUM-

BERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR DEFACED, PRODUCTS SUB-

JECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAINTENANCE OR STORAGE, PROD-

UCTS MODIFIED WITHOUT INVACARE’S EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT LIMITED

TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS; PRODUCTS

DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT

OF INVACARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL,

AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT

APPLY TO PROBLEMS ARISING FROM NORMAL WEAR OR FAILURE TO ADHERE TO THESE INSTRUC-

TIONS.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES.

IMPLIED WARRANTIES, IF ANY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE DURATION OF THE EX-

PRESSED WARRANTY PROVIDED HEREIN AND THE REMEDY FOR VIOLATIONS OF ANY IMPLIED WAR-

RANTY SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT

TO THE TERMS CONTAINED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL

OR INCIDENTAL DAMAGES WHATSOEVER.

THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIRE-

MENTS.

T

Y

A

N

W

A

R

R

35

INVACARE CORPORATION l

39350 Taylor Parkway l

North Ridgeville, OH 44039

Customer Service (800) 333-6900 l

Technical Support (800) 832-4707

Form No. 98-303 Part No. 1083067 REV B (2) - 6/99 Printed in U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
