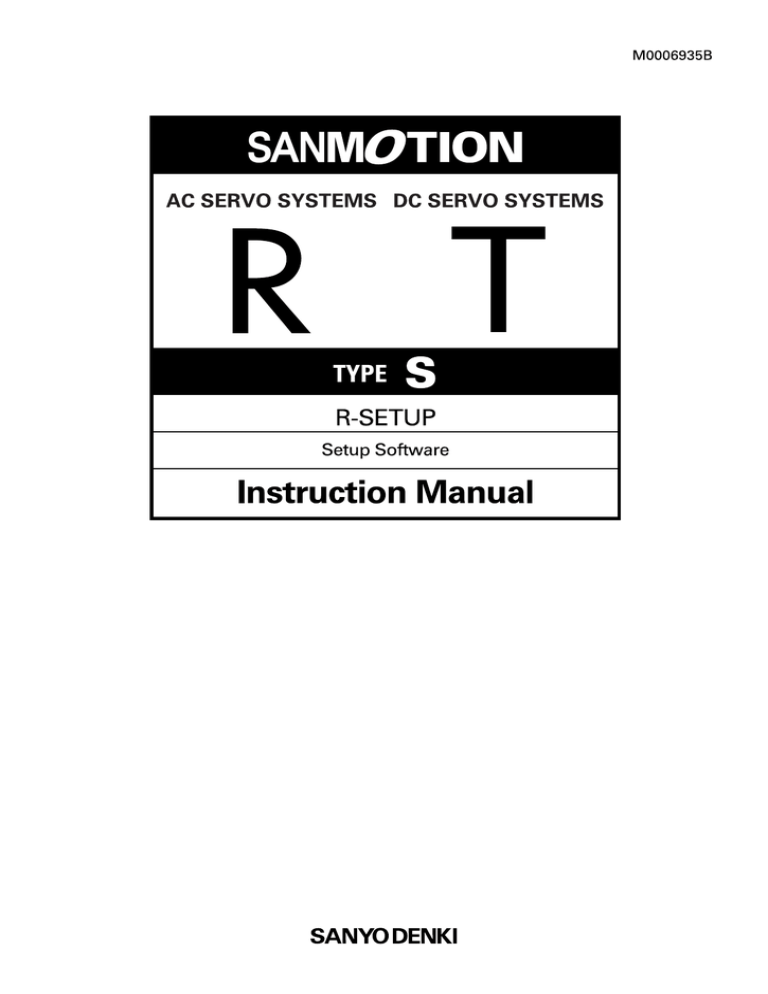

AC_servo_systems_Rtype_software_manual

AC_servo_systems_Rtype_software_manual

Preface

This user’s manual explains the use and specifications of the Setup Software for AC servo amplifier “Q” series.

Notifications on this User’s Manual:

To completely utilize all functions of the

AC servo amplifier “R” series, read this manual carefully before use to ensure proper operation.

・ After reading this manual, keep it handy so that it can be referred to by anyone at anytime.

・ Contact the head office or our sales departments listed on the back cover if there is incorrect collating or missing page.

・ Make sure to follow the directions on safety cautions in this manual. We will not insure safety in the use other than specified in this manual or in the improper use.

・ This manual content may be revised without notice because of product version up or usage additions. The changes will be noticed by revising this manual.

・ Some figures in this manual may be outlined or abstract.

・ Contact the head office or our sales departments listed on the back cover in case of questions or omission.

Terms:

In this manual, “AC Servomotor” is sometimes abbreviated to “Servomotor” or “Motor”,

“AC Servo Amplifiers” to “Servo Amps.” or “Amps.”,

“Wiring-saved incremental encoders” to “INC-E”,

“Incremental Absolute encoders” to “ABS-E”,

“Absolute encoder with request signal” to “ABS-E with request signal”,

Also, both “Wiring-saved incremental encoders” and “Absolute encoders” to “Encoder”, and entire optical and resolver encoders are abbreviated to “Sensor”.

CONTENTS

Contents…………………………………………………………………………………………… 1

1. Installing and Uninstalling……………………………………………………….......…..….... 3

1.1. Operating Environment…………………………………………………………….……... 3

1.2. How to Install …………………………........................................................................ 4

1.2.1. Installer…………….............................................................................................. 4

1.2.2. How to Install………………………………………………………………………….. 4

1.3. How to Uninstall ……………………………………………………..........................….. 8

2. Connecting to Servo Amplifier……………………………………................................…… 11

2.1. Connected Cable……………………………………………………………………….…. 11

2.2. How to Connect……………………………………………………………………………. 11

3. How to Operate………………………………………………………………………………… 12

3.1. How to Activate………………………………………………………………………........ 12

3.2. Main Screen…………………………………………………………………………..…… 13

3.3. Communication Setting………………………………………………………………....... 17

3.4. Switching Communication State……………………………………………………..….. 17

3.4.1. Offline->Online..………………………………………………………………………. 17

3.4.2. Online>Offline………………………………………………………………........…… 18

3.5. Communication State Check...………........................................................……........ 18

3.6. General Parameter setting……………………………………………………………….. 19

3.6.1. Parameter Display Level ……………………………………………………………. 21

3.6.2. Parameter Setting of Servo Amplifier………………………………………………. 22

3.6.3. Parameter Setting of Amplifier File…………………………………………………. 26

3.6.4. Transmit Parameter [Amplifier->File]……………………………………………….. 28

3.6.5. Transmit Parameter [File->Amplifier]……………………………………………….. 28

3.6.6. Match Parameter……………………………………………………………………… 28

3.7. System Parameter Setting……………………………………………………………….. 31

3.7.1. Parameter Setting of Servo Amplifier………………………………………………. 33

3.7.2. Parameter Setting of Amplifier File………………………………………………….. 35

3.7.3. Transmit Parameter [Amplifier->File] ………………………………………………. 37

3.7.4. Transmit Parameter [File->Amplifier] ………………………………………………. 37

3.7.5. Match Parameter……………………………………………………………………… 37

3.8. Motor Parameter Setting…………………………………………………………………. 38

3.8.1. Parameter Setting of Servo Amplifier………………………………………………. 40

3.8.2. Parameter Setting of Amplifier File…………………………………………………. 43

3.8.3. Transmit Parameter [Amplifier->File] ………………………………………………. 45

3.8.4. Transmit Parameter [File->Amplifier]……………………………………………….. 45

3.8.5. Match Parameter……………………………………………………………………… 45

3.9. Transmit Parameter [Amplifier->File] …………………………………………………… 46

3.10. Transmit Parameter [File->Amplifier] …………………………………………………. 48

3.11. Monitor Display…………………………………………………………………………… 51

3.12. Multi-Monitor Display……………………………………………………………………. 52

3.12.1. Multi-Monitor Display Setting………………………………………………………. 53

3.13. Alarm History……………………………………………………………………………... 54

3.13.1. Alarm Reset………………………………………………………………………….. 55

3.13.2. Alarm History Clear…………………………………………………………………. 55

3.14. Jogging Operation…………………………………….…………………………………. 56

3.15. Operation for Pulse Feed Jogging…………………………………………………….. 60

3.16. Automatic Notch Filter Tuning………………………………………………………….. 64

3.17. Automatic Vibration Suppressor Frequency Tuning…..……………………………… 68

3.18. Fixation Excitation Operation…………………………………………………………… 72

1

3.19. Automatic Offset Adjustment of V-REF Terminal……………………………………… 74

3.20. Automatic Offset Adjustment of T-COMP Terminal…………………………………… 76

3.21. Save Result of Automatic Tuning…………………..…………………………………… 78

3.22. Alarm Reset………………………………………………………………………………. 83

3.23. Absolute Encoder Clear…………………………………………………………………. 85

3.24. Alarm Trace Clear……………………………………………………………………….. 87

3.25. Trace Operation………………………………………………………………………….. 89

3.25.1. Trace Operation Setting…………………………………………………………….. 94

3.25.2. Select Contents of Trace Operation Setting……………………………………… 96

3.25.3. Trace Operation Display Setting…………………………………………………… 99

3.25.4. How to Use Trace Mode of Trace Operation Function………………………….. 100

3.25.5. How to Use Scroll Mode of Trace Operation Function………………………….. 103

3.25.6. Measurement of Trace Operation Function………………………………...…….. 104

3.26. System Analysis………………………………………………………………………….. 106

3.26.1. Data Measurement & Analysis Start……………………………………………….. 109

3.26.2. General Parameter Setting…………………………………………………………. 113

3.26.3. Display Setting……………………………………………………………………….. 114

4. Appendix……………………………………………………………………………………....... 115

4.1 Wiring ………………………………………………………………………………………. 115

4.1.1. Wiring when connecting 1 unit……………………………………………………….. 115

4.1.2. Wiring when connecting some units………………………………………………… 116

4.2. Version List…………………………………………………………………………………. 117

4.3. Instruction Manual Revision History…………………………………………………….. 117

4.4. Trouble Shooting………………………………………………………………………….. 118

4.4.1. Troubles when Connecting to Servo Amplifier…………………….………………. 118

4.4.2. Troubles in Use……………………………………………………………………….. 119

4.4.3. Transmit Parameter [File -> Amplifier] Alarm………………………………………. 120

4.4.4. Parameter Matching Alarm………………………………………………………….. 120

4.4.5. Test Operation and Adjustment/ Alarm Trace Clear Message…………………… 121

4.4.6. Trace Operation Message…………………...………………………………………. 123

4.5. Communication Setting of Servo Amplifier……………………………………………… 124

4.5.1. Parameter……………………………………………………………………………… 124

4.5.2. Communication Setting Procedure by Digital Operator…………………............. 125

2

1. Installing and Uninstalling

1.1. Operating Environment

The following system is required to utilize R-SETUP - Setup Software.

PC IBM PC/AT compatible machine

(NEC PC-98x1 cannot be ensured to operate.)

CPU At least Pentium133MHz

(When using scroll mode of the operational trace function,

CPU operational frequency of 350MHz or 800MHz at least is recommended. *1)

Memory

Hard disk

At least 32MB(Minimum 64Mb is recommended)

At least 10Mb free spaces

Complete installation: At least 30MB of space area

Reduced installation: At least 10MB of space capacity

At least 800×600 Monitor resolution

Number of colors At least 256 colors

Others At least one RS-232C

CD-ROM drive

At least Internet Explorer 4.0 (Used for opening a part of

Corresponding

OS operational procedure explanation file)

Windows® 98

Windows® Me

Windows NT® 4.0

Windows® 2000 Professional

Windows® Xp Home Edition/Professional

*Note 1) The recommended operational conditions (CPU operational frequency) when using scroll mode of the operational trace function is as below:

50ms≦Data sampling period setting<100ms: CPU operational frequency≧800MHz

100ms≦Data sampling period setting<200ms: CPU operational frequency≧350MHz

200ms≦ Data sampling period setting: CPU operational frequency≧133MHz

3

1.2. How to Install

1.2.1. Installer

There are two kinds of R-SETUP - Setup Software installers as follows. Use an appropriate one according to the customer conditions (the difference between the

Complete install and the Reduced install is only with or without the system analysis function.

“***-***” corresponds to the R-SETUP – Setup Software version).

The Complete Installer [Setup_V***-***-Complete.exe]

The Complete Installer/ The Reduced Installer can be selected.

The Installer file size: Approximately 7MB

The file sizes after installed (Complete Install): Approximately 25MB

(Reduced Install): Approximately 7MB

The Reduced Installer [Setup_V***-***-Reduced.exe]

Not selectable but the Reduced Installer

The Installer file size: Approximately 2MB

The file size after installed (Reduced Install): Approximately 7MB

1.2.2. How to Install

Installing process of R-SETUP - Setup Software is as follows:

1. Exit all applications that are running.

2. Insert the installation Disk into the CD-ROM drive of PC.(Call this E drive)

3. Select “Run…” in the start menu of Windows task bar. Click “Reference (B) “ and

Select “Setup_V***-***-Complete” or “Setup_V***-***-Reduced” in the “E:

\R-Setup” folder, and click “Open (O)” (“***-***” is corresponding to the R-SETUP - Setup

Software versions). After the completion of specifying file, click “OK”. After the following screen appears, installation starts.

Also, starting Explorer and double-click “Setup_V***-***-Complete” or

“Setup_V***-***-Reduced” in the “E:

\R-SETUP” folder can start installation.

4

4. When the following screen appears, select the language for installing and click “OK”.

Note)If selecting “Japanese” in OS except Japanese edition, all letters in Japanese are transformed.

5. The following screen appears. After checking the contents, click “Next >”.

6. Select the Destination Folder. When changing the destination for default, specify the

Destination Folder by clicking “Browse…”. After completing it, click “Next >”.

5

7. Select the component to be installed. The default setting is at “Complete installation”.

In case that the system analysis function is not necessary and the hard disk capacity is insufficient, select “Reduced installation” (“Disk Space Remaining” indicates the disk space capacity after the R-SETUP – Setup Software installation). After the selection, click “Next >”.

When the Reduced Installer (Setup_V***-***-Reduced) is selected, “Select

Components” is invalid and always execute “the Reduced Installation”.

8. Select the program group to add R-SETUP - Setup Software icons. Default setting is at “AC_SERVO_SYSTEM”. After the selection, click “Next >”.

6

9. The following screen appears. When click “Next >”, dialog box for entering key words appears. When reset the items for installing, click “< Back”.

When click [cancel], installing is interrupted.

7

11. Start copying file and display the process.

12. When complete copying, the following screen appears. Click “Finish (F)”.

1.3. How to Uninstall

Uninstalling of R-SETUP - Setup Software is as follows. double-click the icon “Add/Remove Programs”, the following screen appears.

8

2. After select “R-Setup - Setup Software”, click ”Change/Remove”.(Or click ”

Add/Remove…”.) The following screen appears and uninstalling starts.

3. The following screen appears. When uninstall all the files that were installed, click

“Automatic”. When select the file to be uninstalled, click “Custom” and “Next >”.

9

4. The following screen appears. When click “Finish”, uninstalling starts

.

5. Uninstalling of the file starts.

10

2. Connecting to Servo Amplifier

2.1. Connected Cable

Exclusive cable AL-00490833-01

CN2

+50

285-10

ケーブル長

9 5

CN1

6 1

CN1:3240-12P-TO-C Without fixed hook (HIROSE ELECTRIC CO., LTD.)

CN2:HDEB-9S (Connector・HIROSE ELECTRIC CO., LTD.)

GM-9L (Case・HONDA TSUSHIN KOGYO CO., LTD.)

Note:Connector, case, and cable may be changed into the equivalents without notice.

For wiring diagram, see the appendix.

2.2. How to Connect

Connect the serial pin (COM) to PC connector of R series servo amplifier with the exclusive cable.

11

3. How to Operate

3.1. How to Activate

1.

Select “Programs” - “AC_SERVO_SYSTEM” in the start menu of Windows task bar.

2.

Click “R-SETUP”. The following start screen appears.

R-SETUP

Setup Software

For Windows(R)95/98/Me,Windows NT(R)4.0,Windows(R)2000/Xp

Version 1.0.2

Copyright(c)2005 SANYO DENKI CO.,LTD

SANYO DENKI CO.,LTD

12

3.2. Main Screen

After activating R-SETUP – Setup Software, the following main screen appears.

Each function of R-SETUP – Setup Software can be accessed by selecting it in the menu bar of main screen.

[File]

Exit:Exit R-SETUP - Setup Software

.

13

[Communication]

Communication Setting…:Set the communication.

Possible to select it only at offline.

Offline->Online…:Switch from offline to online and display the confirmation dialog box of communication state.

Possible to select it only at offline.

Communication Check…:Check the communication state.

Possible to select it only at online.

Online->Offline: Switch from online to offline

Possible to select it only at online

.

Communication Reset : Reset the communication state. (This is used when communication can not be performed. Do not use this usually.)

[Parameter]

General Parameter Setting…:Set and save general parameters of servo amplifiers.

System Parameter Setting…:Set and save system parameters of servo amplifiers.

Motor Parameter Setting…:Set and save motor parameters of servo amplifiers.

Transmit Parameter [Amplifier->File]…:Read all parameters of servo amplifier and save them into amplifier file together.

Transmit Parameter [File->Amplifier]…:Write the parameters saved in amplifier file into servo amplifier together directly.

[Monitor]

Monitor Display…:Display a list of state and operation of servo amplifier.

Possible to select it only at online.

Multi-monitor Display…:Display a list of state and operation of servo amplifier.

Possible to select it only at online.

Alarm History Display…:Display the alarm history generated in servo amplifier.

14

[Test Run and Adjustment]

Jogging Operation

… : Run the motor in positive/negative feed at the velocity command set at jogging operation.

Possible to select it only at online.

Operation for Pulse Feed Jogging… : Run the motor in positive/negative feed with the number of feed pulses and movement speed at jogging operation.

Possible to select it only at online.

Automatic Notch Filter Tuning…

: Perform automatic notch filter tuning.

Possible to select it only at online.

Automatic Vibration Suppressor Frequency Tuning…

: Perform automatic vibration suppressor frequency tuning.

Possible to select it only at online.

System Analysis… : Performs system analysis.

Possible to use by selecting complete installation.

Fixation Excitation Operation… : Perform fixation excitation operation for linear motor.

Possible to select it only at online.

Analog Offset Adjustment of V-REF Terminal… : Perform offset adjustment of analog velocity command/torque (force) command.

Possible to select it only at online.

Analog Offset Adjustment of T-COMP Terminal… : Perform offset adjustment of analog torque addition command.

Possible to select it only at online.

Save Result of Automatic Tuning … : Perform save result of automatic tuning function.

Possible to select it only at online.

Alarm Reset…:Reset the current alarm of servo amplifier.

15

Possible to select it only at online.

Absolute Encoder Clear… : Reset the multi-revolution data of absolute encoder and the alarm in it.

Possible to select it only at online.

[Trace Operation]

Trace Operation…:Display and save the trace operation data of servo amplifier.

[Help]

About…:Indicate the information about R-SETUP - Setup Software.

16

3.3. Communication Setting

When select “Communication” - “Communication Setting…” in the menu bar of main screen, the following screen appears. This sets communication between R-SETUP - Setup

Software and servo amplifier through serial port.

Port(COM1 to COM256)

Select COM port.

Baud rate

Select the communication speed to servo amplifier.

In case of changing the communication speed, change the communication setting of the servo amplifier as well.

Axis Number Select

Give check mark(s) to the numbered axis of servo amplifier for communication.

Multiple selection is possible according to the number of servo amplifiers to be connected. In case of changing the axis number select, change the communication setting of the servo amplifier as well.

3.4. Switching Communication State

3.4.1. Offline->Online

Select “Communication” - “Offline->Online…” on the menu bar in the main screen, and the connection of communication cable will be confirmed.

If the cable is connected correctly, confirmation dialog box of communication state will be displayed.

17

3.4.2. Online->Offline

Click “Online->Offline” during online state, and all the communications with the servo amplifiers currently connected by cables will terminate and switch to offline.

3.5. Communication State Check

When select “Communication” - “Offline->Online…” or “Communication Check…” in the menu bar of main screen, the following dialog box appears after checking the connection of communication cable. Here starts the communication with servo amplifier connected to this cable. In case the communication already starts, update current communication state of servo amplifier.

Start the communication as follows

.

1. Give the check mark to the numbered axis of servo amplifier for starting communication.

Note) As the servo amplifier of numbered axis without check mark inAxis Number

Select” of “Communication Settings” can not be used, the check mark can not be given.

3. Display the servo amplifier state. Contents are as follows.

Connected:Now communicating with servo amplifier.

Not connected:Servo amplifier is not connected.

Error:Can not communicate due to communication error.

Overlap:The axis number of servo amplifier overlaps.

Not-corresponding : The type of servo amplifier differs. Or this can not be corresponded to the software of servo amplifier. Update the R-SETUP - Setup

Software version. (R-SETUP cannot be communicated with Q series servo amplifier.)

18

3.6. General Parameter Setting

When select “Parameter” - “General Parameter Setting…” in the menu bar of main screen,

General parameter settings appears. The following can be operated.

General parameter setting of servo amplifier

General parameter setting of amplifier file

Saving the parameters and alarm history of the servo amplifier in the amplifier file together.

Writing the parameters from amplifier file to servo amplifier together.

Matching the parameters of servo amplifier with that of amplifier file

Printing a list of parameters

When click [#1] to [#F] on left side of General parameter settings, switch to the setting of corresponding servo amplifier. When click [File], switch to General parameter settings of amplifier file.

When click tab of “Group*” above parameter list, switch the parameter group.

Each function of general parameter setting can be accessed by selecting it in the menu bar of General Parameter Setting.

19

[File]

Open…:Open the amplifier file to be edited.

Possible to select it only when setting parameter of amplifier file.

Save:Write the edited amplifier file over a file and save it.

Possible to select it only when setting parameter of amplifier file.

Save As…:Save the edited amplifier file in a file as another name.

Possible to select it only when setting parameter of amplifier file.

Exit:Exit General Parameter Settings.

[Amplifier]

Read from Amplifier:Read the parameters from servo amplifier.

Possible to select it only when setting parameter of servo amplifier.

Write to Amplifier:Write the edited parameter to servo amplifier.

Possible to select it only when setting parameter of servo amplifier.

Communication State Check…:Check the communication state.

Possible to select it only at online.

[Disk]

Transmit Parameter [Amplifier->File]…:Read all parameters and alarm history of servo amplifier and save them in amplifier file together.

Possible to select it only when setting parameter of servo amplifier.

Transmit Parameter [File->Amplifier]… : Directly write the parameters saved in amplifier file to servo amplifier together.

Possible to select it only when setting parameter of servo amplifier.

20

Match Parameter…:Match the parameters of servo amplifier with that of amplifier file and display a list of mismatch parameters.

Possible to select it only when setting parameter of servo amplifier.

[Print]

Print…:Print a list of parameters.

Print Preview …:Display the print image of parameter list.

When click “Change…” of the dialog box of General Parameter Settings,the following dialog box is displayed. Here switch the parameter level displayed in general parameter settings.

[Display Level]

Basic Level:Display only basic level parameters.

Standard Level:Display basic level parameters and standard ones.

Advanced Level:Display basic, standard, and advanced level parameters.

21

3.6.2. Parameter Setting of Servo Amplifier

When displaying the dialog box of general parameter setting at online, the following screen appears and reads the parameters from servo amplifier.

When complete reading parameters from servo amplifier correctly, “Now Reading” disappears and a list of parameters to be set is displayed.

When click [Edit…] or double-click with mouse after selecting a parameter to be edited, Edit

Parameter is displayed. Depending on parameter classification, the displayed screen changes.

Example 1) KP1:When editing Position Loop Proportional Gain 1(Group 1 - 02)

Click tab of “Group 1” of parameter setting screen to display a list of parameters of Group

1. When click [Edit…] or double-click with mouse after selecting “02:KP1”, the following

Edit Parameter screen is displayed. Enter the value to be set in “Input Value :” by keyboard.

22

When click [OK], the following message is indicated in case the entered value is outside the setting range. Re-enter the value within the setting range.

When the entered value is within the setting range, return to parameter setting screen. In case the entered value in “Input Value” is different from “Present Value”, it is indicated in red.

Example 2) When editing GER1:Electric Gear Ratio 1(Group 8 - 15)

Click tab of “Group 8” of parameter setting screen to display a list of parameters of Group

8. When click [Edit…] or double-click with mouse after selecting “15:GER1”, the following

Edit Parameter screen is displayed. Enter the numerator and denominator in “Input Value :” by keyboard.

23

When the entered value is within the setting range, return to parameter setting screen.

In case the entered value in “Input Value” is different from “Present Value”, it is indicated in red.

Example 3) MON1:When editing “Analog Monitor 1, Output Signal Selection” (Group A-11)

Click tab of “Group A ” of parameter setting screen to display a list of parameters of Group

A. When click “Edit…” or double-click with mouse after selecting “11:MON1”, the following

Edit Parameter screen is displayed. Select the value to be set in the combo box.

Note) When set the value outside the setting range, only “Reserve” is indicated in combo

24

box. In this case, the value can not be changed

.

When click [OK],return to parameter setting screen.

In case the selected value in “Input

Value” is different from “Present Value”, it is indicated in red.

The parameters in one group can be edited together. After completing editing parameters, select “Amplifier” - ”Write to Amplifier” in the menu bar of parameter setting screen. The following screen appears and writes the parameters to servo amplifier.

When complete writing parameters to servo amplifier correctly, “Now writing” disappears.

The value in “Input Value” disappears and indicates the value entered in “Present Value”.

Note) If click another Group before writing to servo amplifier or switch to the setting of

25

another servo amplifier or amplifier file after editing parameters, the following dialog box is displayed.

When click [Yes], switch the display to another Group or another servo amplifier after writing the edited parameters to servo amplifier which is now communicating.

When click [No], switch the display to another Group or another servo amplifier without writing the edited parameters. The entered value is cancelled.

When click [Cancel], switch to another Group or another servo amplifier is not conducted.

3.6.3. Parameter Setting of Amplifier File

When display general parameter setting screen at offline or click [File], the following screen is displayed. Here the saved parameters of amplifier file can be set.

When select “File” - “Open…” in the menu bar of general parameter, the following file selection dialog box is displayed

.

26

Select the amplifier file to be set and click [Open]. Display a list of parameters to be set.

Edit parameters as well as that of servo amplifier.

After completing editing parameters, select “File” - “Save” in the menu bar of parameter setting screen and save the edited parameters in amplifier file.

When save the edited parameters in another file which is different from the amplifier file which is now running, select “File” - “Save As…” in the menu bar. The following dialog box of saving file is displayed

.

27

Specify the space and name of file and click [Save]. Save the amplifier file as a new name.

Note

) If click another Group before saving in amplifier file or switch to the setting of another servo amplifier after editing parameters, the following dialog box is displayed.

When click [Yes], the display is switched to another Group or another servo amplifier after saving the edited parameters to servo amplifier which is now running.

When click [No], the display is switched to another Group or another servo amplifier without saving the edited parameters. The entered value is cancelled.

When click [Cancel], switch to another Group or another servo amplifier is not conducted.

3.6.4. Transmit Parameter [Amplifier->File]

“Transmit Parameter [Amplifier->File]” reads all parameters and alarm history of servo amplifier and save them in amplifier file together. In this case, the parameters are directly saved in the disk without displaying them.

For operation, see “3.9. Transmit Parameter [Amplifier->File]”

3.6.5. Transmit Parameter [File->Amplifier]

“Transmit Parameter [File->Amplifier]” directly writes the parameters saved in amplifier file to servo amplifier together.

For operation, see “3.10. Transmit Parameter [File->Amplifier]”

“Match Parameter” matches the parameters of servo amplifier with that of amplifier file and indicates a list of mismatches if applicable.

When select “Amplifier” - “Match Parameter…” in the menu bar of general parameter setting, the following selection dialog box appears

.

28

Select the amplifier file to be matched with servo amplifier and click [Open]. When software version of servo amplifier is different from that of amplifier file or hardware differs, the following dialog box is displayed

.

The Servo amplifier software version of the transmission source having saved the amplifier file and that of transmission destination are different, or those hardware types are different.

For this reason, non-compatible parameter may exist.

Click “Yes”, and match parameter starts including the incompatible parameters. Those incompatible parameters, regardless of its setting values, will be indicated their names in red as “not matching”

Click “Cancel”, matching parameters are not conducted.

Note) In case this dialog box appears according to the difference of software version.

There may be some parameters without interchangeability depending on the software version. Those without interchangeability are indicated in matching results (contents of difference) regardless of their setting. Here, the parameters are indicated in red as well.

Note) In case this dialog box appears according to the difference of hardware type.

There may be some parameters without interchangeability because of the difference of encoder interface circuit. Those without interchangeability are indicated in matching results (contents of difference) regardless of their setting. Take care in using multiple hardware servo amplifiers.

In case that the classification of servo amplifier is different from that of amplifier file, the following dialog box appears and matching parameters cannot be conducted.

29

When parameter matching starts, read the parameters from servo amplifier. When complete reading parameters from servo amplifier correctly, “Now Reading” disappears and parameter matching process starts

.

When completing parameter matching process, “Now Processing” disappears and the following list of parameter matching result is displayed.

If match parameters in case that the software version of servo amplifier is different from that of amplifier file, other kinds of parameters are displayed. The parameters are displayed all in red.

When click [Print], print a list of parameters being displayed.

30

3.7. System Parameter Setting

When select “Parameter” - “ System Parameter Setting…” in the menu bar of main screen,

System parameter settings appears. The following can be operated.

System parameter setting of servo amplifier

System parameter setting of amplifier file

Saving the parameters of servo amplifier in amplifier file together

Writing the parameters from amplifier file to servo amplifier together.

Matching the parameters of servo amplifier with that of amplifier file

Printing a list of parameters

When click [#1] to [#F] on left side of System parameter settings, switch to the setting of corresponding servo amplifier. When click [File], switch to System parameter settings of amplifier file.

Each function of system parameter setting can be accessed by selecting it in the menu bar of System Parameter Settings.

31

[File]

Open…:Open the amplifier file to be edited.

Possible to select it only when setting parameter of amplifier file.

Save:Write the edited amplifier file over a file and save it.

Possible to select it only when setting parameter of amplifier file.

Save As…:Save the edited amplifier file in a file as another name.

Possible to select it only when setting parameter of amplifier file.

Exit:Exit System Parameter Settings.

[Amplifier]

Read from Amplifier:Read the parameters from servo amplifier.

Possible to select it only when setting parameter of servo amplifier.

Write to Amplifier:Write the edited parameter to servo amplifier.

Possible to select it only when setting parameter of servo amplifier.

Communication State Check…:Check the communication state.

Possible to select it only at online.

[Disk]

Transmit Parameter [Amplifier->File]…:Read all parameters from servo amplifier and save them in amplifier file together.

Possible to select it only when setting parameter of servo amplifier.

Transmit Parameter [File->Amplifier]… : Directly write the parameters saved in amplifier file to servo amplifier together.

Possible to select it only when setting parameter of servo amplifier.

32

Match Parameter…:Match the parameters of servo amplifier with that of amplifier file and display a list of mismatch parameters.

Possible to select it only when setting parameter of servo amplifier.

[Print]

Print…:Print a list of parameters.

Print Preview …:Display the print image of parameter list.

3.7.1. Parameter Setting of Servo Amplifier

When displaying the dialog box of general parameter setting at online, the following screen appears and reads the parameters from servo amplifier.

When complete reading parameters from servo amplifier correctly, “Now Reading” disappears and a list of parameters to be set is displayed.

When click [Edit…] or double-click with mouse after selecting a parameter to be edited, parameter editing screen is displayed. Depending on parameter classification, the displayed screen changes. For parameter editing, see “3.6.2 Parameter setting of servo amplifier”

After parameter editing, select “Amplifier” - “Write to Amplifier” in the menu bar of parameter setting screen. The following dialog box appears.

33

When click “OK”, the parameters are written to servo amplifier.

When click “Cancel”, the parameters are not written.

When complete writing parameters to servo amplifier correctly, “Now writing” disappears.

The value in “Input Value” disappears and indicates the value entered in “Present Value”.

Note) If click another Group before writing to servo amplifier or switch to the setting of another servo amplifier or amplifier file after editing parameters, the following dialog box is displayed.

When click [Yes], the display is switched to another Group or another servo amplifier after writing the edited parameters to servo amplifier which is currently communicating.

When click [No], the display is switched to another Group or another servo amplifier without writing the edited parameters. The entered value is cancelled.

34

3.7.2. Parameter Setting of Amplifier File

When display System parameter setting screen at offline or click [File], the following screen is displayed. Here the saved parameters of amplifier file can be set.

When select “File” - “Open…” in the menu bar of System parameter setting, the following file selection dialog box is displayed.

Select the amplifier file to be set and click [Open]. Display a list of parameters to be set.

35

Edit parameters as well as that of servo amplifier.

After parameter editing, select “File” - “Save” in the menu bar of parameter setting screen.

The following dialog box appears.

When click [OK] to save the edited parameters in amplifier file.

When click [Cancel], the parameters are not saved

.

When save the edited parameters in another file which is different from the amplifier file which is now running, select ”File” - “Save As…” in the menu bar. The following dialog box of saving file is displayed.

Specify the space and name of file and click [Save]. Save the amplifier file as a new name.

Note) If click another Group before saving in amplifier file or switch to the setting of another

36

servo amplifier after editing parameters, the following dialog box is displayed.

When click [Yes], the display is switched to another servo amplifier after saving the edited parameters to servo amplifier which is now running.

When click [No], the display is switched to another servo amplifier without saving the edited parameters. The entered value is cancelled.

When click [Cancel], switch to another servo amplifier is not conducted.

3.7.3. Transmit Parameter [Amplifier->File]

“Transmit Parameter [Amplifier->File]” reads all parameters of servo amplifier and save them in amplifier file together. In this case, the parameters are directly saved in the disk without displaying them.

For operation, see “3.9. Transmit Parameter [Amplifier->File]”.

3.7.4. Transmit Parameter [File->Amplifier]

“Transmit Parameter [File->Amplifier]” directly writes the parameters saved in amplifier file to servo amplifier together.

For operation, see “3.10. Transmit Parameter [File->Amplifier]”.

“Match Parameter” matches the parameters of servo amplifier with that of amplifier file and indicates a list of mismatches if applicable.

For operation, see “3.6.6. Match parameter”.

37

3.8. Motor Parameter Setting

When select “Parameter” - “Motor parameter Setting…” in the menu bar of main screen,

Motor parameter settings appears. The following can be operated.

Motor parameter setting of servo amplifier

Motor parameter setting of amplifier file

Saving the parameters of servo amplifier in amplifier file together

Writing the parameters from amplifier file to servo amplifier together.

Matching the parameters of servo amplifier with that of amplifier file

Printing a list of parameters

When click [#1] to [#F] on left side of Motor parameter settings, switch to the setting of corresponding servo amplifier. When click [File], switch to Motor parameter settings of amplifier file.

Each function of motor parameter setting can be accessed by selecting it in the menu bar of

Motor Parameter Settings.

38

[File]

Open…:Open the amplifier file to be edited.

Possible to select it only when setting parameter of amplifier file.

Save:Write the edited amplifier file over a file and save it.

Possible to select it only when setting parameter of amplifier file.

Save As…:Save the edited amplifier file in a file as another name.

Possible to select it only when setting parameter of amplifier file.

Exit:Exit Motor Parameter Settings.

[Amplifier]

Read from Amplifier:Read the parameters from servo amplifier.

Possible to select it only when setting parameter of servo amplifier.

Write to Amplifier:Write the edited parameter to servo amplifier.

Possible to select it only when setting parameter of servo amplifier.

Communication State Check…:Check the communication state.

Possible to select it only at online.

[Disk]

Transmit Parameter [Amplifier->File]…:Read all parameters of servo amplifier and save them in amplifier file together.

Possible to select it only when setting parameter of servo amplifier.

Transmit Parameter [File->Amplifier]… : Directly write the parameters saved in amplifier file to servo amplifier together.

Possible to select it only when setting parameter of servo amplifier.

Match Parameter…:Match the parameters of servo amplifier with that of amplifier file and display a list of mismatch parameters.

Possible to select it only when setting parameter of servo amplifier.

39

[Print]

Print…:Print a list of parameters.

Print Preview …:Display the print image of parameter list.

3.8.1. Parameter Setting of Servo Amplifier

When displaying the dialog box of Motor parameter setting at online, the following screen appears and reads the parameters from servo amplifier.

When complete reading parameters from servo amplifier correctly, “Now Reading” disappears and a list of parameters to be set is displayed.

When click [Motor select from list…] or double-click the field of “Motor Setting”, a dialog box of motor selection appears.

40

Select the motor parameter file which writes to servo amplifier in the list. When click [OK], return to parameter setting screen. When the model name of selected motor is different from

“Present Value”, the model name is indicated in “Input Value” in red

.

After parameter editing, select “Amplifier” - “Write to Amplifier” in the menu bar of parameter setting screen. The following dialog box appears

.

When click [OK], the parameters are written to servo amplifier.

When click [Cancel], the parameters are not written

.

41

When complete writing parameters to servo amplifier correctly, “Now writing” disappears.

The value in “Input Value” disappears and indicates the value entered in “Present Value”.

Note) If click another Group before writing to servo amplifier or switch to the setting of another servo amplifier or amplifier file after editing parameters, the following dialog box is displayed.

When click [Yes], the display is switched to another servo amplifier after writing the edited parameters to servo amplifier which is currently communicating.

When click [No], the display is switched to another servo amplifier without writing the edited parameters. The entered value is cancelled.

When click [Cancel], switch to another servo amplifier is not conducted.

42

3.8.2. Parameter Setting of Amplifier File

When display General parameter setting at offline or click [File], the following screen is displayed. Here the saved parameters of amplifier file can be set.

When select “File” - “Open…” in the menu bar of System parameter setting, the following file selection dialog box is displayed.

Select the amplifier file to be set and click [Open]. Display a list of parameters to be set.

43

Edit parameters as well as that of servo amplifier.

After parameter editing, select “File” - “Save” in the menu bar of parameter setting screen.

The following dialog box appears.

When click [OK] to save the edited parameters in amplifier file.

When click [Cancel], the parameters are not saved

.

When save the edited parameters in another file which is different from the amplifier file which is now running, select ”File” - “Save As…” in the menu bar. The following screen of saving file is displayed.

Specify the space and name of file and click [Save]. Save the amplifier file as a new name

.

44

Note) If click another Group before saving in amplifier file or switch to the setting of another servo amplifier after editing parameters, the following dialog box is displayed.

When click [Yes], the display is switched to another servo amplifier after saving the edited parameters to servo amplifier which is currently running.

When click [No], the display is switched to another servo amplifier without saving the edited parameters. The entered value is cancelled.

When click [Cancel], switch to another servo amplifier is not conducted.

3.8.3. Transmit Parameter [Amplifier->File]

“Transmit Parameter [Amplifier->File]” reads all parameters of servo amplifier and save them in amplifier file together. In this case, the parameters are directly saved in the disk without displaying them.

For operation, see “3.9. Transmit Parameter [Amplifier->File]”.

3.8.4. Transmit Parameter [File->Amplifier]

“Transmit Parameter [File->Amplifier]” directly writes the parameters saved in amplifier file to servo amplifier together.

For operation, see “3.10. Transmit Parameter [File->Amplifier]”.

“Match Parameter” matches the parameters of servo amplifier with that of amplifier file and indicates a list of mismatches if applicable.

For operation, see “3.6.6 Match parameter”

.

45

3.9. Transmit Parameter [Amplifier->File]

“Transmit Parameter [Amplifier->File]” reads all parameters of servo amplifier and save them in amplifier file together. In this case, the parameters are directly saved in the disk without displaying them.

When select “Parameter”

- “Transmit Parameter [Amplifier->File]…” in the menu bar of main screen or select “Amplifier” - “Transmit Parameter [Amplifier->File]…” in the menu bar of General parameter settings / System parameter settings / Motor parameter settings, the following appears.

Transmit the parameters and alarm history from servo amplifier to amplifier file referring to the following procedure.

1. Select the axis number of servo amplifier which transmits parameters in “Transmission source”.

2. When click [Browse…] in “Transmission destination”, the following dialog box of saving file appears.

46

Specify the space and name of a file and click “Save”.

3. When click [Execute], the following appears and reads parameters and alarm history from servo amplifier.

4. When complete reading parameters and alarm history to servo amplifier correctly, "Now reading" disappears and "The completion" appears. The read parameters and alarm history are saved in amplifier file.

47

3.10. Transmit Parameter [File->Amplifier]

“Transmit Parameter [File->Amplifier]” directly writes the parameters saved in amplifier file to servo amplifier together.

When select “Parameter”

- “Transmit Parameter [File->Amplifier]…” in the menu bar of main screen or select “Amplifier” - “Transmit Parameter [File->Amplifier]…” in the menu bar of General parameter settings / System parameter settings / Motor parameter settings, the following appears.

Transmit the parameters from servo amplifier to amplifier file as the following procedure.

1. Select the axis number of servo amplifier which transmits parameters in “Transmission destination”.

2. When click [Browse…] in “Transmission source”, the following dialog box of saving file appears.

48

Select the amplifier file which writes to servo amplifier together and click [Open].

3. Select the class of parameter which is written to servo amplifier in “The kind of parameter to transmit”.

4. When click [Execute], the following dialog box appears

.

When click [OK], the parameters are written to servo amplifier together

.

In case the software version of servo amplifier is different from that of amplifier file or hardware differs, the following dialog box appears.

The Servo amplifier software version of the transmission source having saved the amplifier file and that of transmission destination are different, or those hardware types are different. Thus, the part of incompatible parameters may not be transmitted.

49

Click “Yes” , and the transmission will be executed except for the incompatible parameters. After the transmission is completed, check the parameters that have not been transmitted by “Match parameter”. Set up those parameters in manual if necessary. (For operation, see “3.6.6 Match parameter”

.)

Click “No” , parameters are not transmitted.

When the kind of servo amplifier is different from that of amplifier file, parameters are not written together as the following dialog box.

5. When complete writing together correctly, “Now Writing” disappears and “The completion” appears.

50

3.11. Monitor Display

When click “Monitor” - “Monitor Display…” in the menu bar of main screen, the following screen appears. Here display a list of the status and operation of servo amplifier which is currently connected by the cable

.

When click [#1] to [#F] on the left side of Monitor Display, the status of corresponding servo amplifier which is numbered is displayed in monitor.

Each function of Monitor display can be accessed by selecting it in the menu bar of Monitor

Display.

[File]

Exit:Exit Monitor Display.

51

3.12. Multi-monitor Display

When click “Monitor” - “Multi-monitor Display…” in the menu bar of main screen, the following screen appears. Here displays 16 cases at maximum in the status and operation of servo amplifier which is currently connected by the cable

.

Each function of Multi-monitor display can be accessed by selecting it in the menu bar of

Multi-monitor Display.

[File]

Exit:Exit Multi-monitor Display.

52

3.12.1. Multi-monitor Display Setting

When click

“Display Setting” in multi-monitor display screen, the following screen appears.

The parameters performing monitor display in multi-monitor display are selected in the servo amplifier which is currently connected.

Give check mark(s) on either one(s) from No. 0 to No. 15 in which multi-monitor display is desired to select axis number and display parameter.

53

3.13. Alarm History

When click ”Monitor” - “Alarm History Display…” in the menu bar of main screen, the following screen appears. Here displays an alarm history generated in servo amplifier which is currently connected by a cable.

When click [#1] to [#F] in the left of Alarm History Display, the alarm of the corresponding numbered servo amplifier is displayed. When click [File], switch to Alarm History saved in amplifier file.

In order to save the information of servo amplifier alarm history in a file, execute “Transmit

Parameter [Amplifier->File]”. Refer to “3.9 Transmit Parameter [Amplifier->File]” for the procedure.

Current State

Display the alarm which is currently generated, the state of servo amplifier (current state in case of “No alarm”), and the passed time from generating.

Alarm Generating History

Display last seven alarms. This history is updated at any time.

Software Version of Servo Amplifier

Display the software version of servo amplifier

.

Each function of alarm history display can be accessed by selecting it in the menu bar of

Alarm History Display.

54

[File]

Open…:Open an amplifier file displaying alarm history.

Possible to select it only at displaying an alarm history of amplifier file.

Exit:Exit Alarm History Display.

[Amplifier]

Alarm Reset:Reset the current alarm of servo amplifier.

Possible to select it only at displaying an alarm history of servo amplifier.

Alarm Trace Clear:Clear the servo amplifier’s data of alarm which was generated in the past.

Possible to select it only at displaying an alarm history of servo amplifier.

[Print]

Print…:Print a list of alarm history

.

Print Preview …:Display the print image of parameter list.

For “Alarm Reset”, reset the current alarm of servo amplifier.

For how to operate, see “3.22. Alarm Reset”.

3.13.2. Alarm Trace Clear

For “Alarm Trace Clear”, clear the servo amplifier’s data of alarm which was generated in the past. Refer to “3.24. Alarm Trace Clear” for the procedure.

55

3.14. Jogging Operation

Jogging operation can test the servo amplifier and servomotor easily. This function runs the servomotor. Secure the safety of the surroundings. When the alarm generates during jogging operation, motor excitation becomes OFF. Prepare the control equipments which can be readily used.

When select “Test Run and Adjustment” - “Jogging operation” in the menu bar of main screen, the following appears. Here runs the motor in positive/negative directions with the velocity command set by jogging operation.

Jogging operation is performed as follows.

1. Select the axis number of servo amplifier performing jogging operation in “Select Servo

Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which jogging operation is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not use jogging operation.

56

When servo amplifier is not ready, the following dialog box appears.

Jogging operation is not ready.

In caser servo amplifier is in alarm state, main power is not supplied, or “Test Run and

Adjustment” is executed with digital operator, jogging operation is not ready.

When confirming that jogging operation can be used, click “Execute” again.

In case servo amplifier is ready, the following appears.

3. Select the operation at completing and set the jogging velocity command.

When generate “Alarm of Test Run complete” at completing jogging operation, click ‘At completing, “Alarm of Test Run complete” is selected’. In case of the opposite, click ‘At completing, “Alarm of Test Run complete” is not selected’.

When changing jogging velocity command, click “Edit” and switch to editing mode. Enter the value in keyboards and click “Write”.

4. In case of generating alarm, the following dialog box appears when click “Servo ON”.

57

In case servo amplifier can not function Servo ON, the following dialog box appears.

When confirming that Servo ON can be used, click “Servo ON” again.

In case of Servo ON, “Positive move” and “Negative move” buttons can be used.

While editing velocity command, “Positive move” and “Negative move” buttons can not be used. After click “Write”, complete the editing.

5. While continue to click “Positive move” or “Negative move”, jogging operation is being executed.

While Over-travel is confirmed, the following dialog box appears.

58

While editing velocity command, the following appears. When click “Write”, complete the editing by updating the set value. When click “Edit Cancel”, complete the editing without updating the set value.

59

3.15. Operation for Pulse Feed Jogging

Operation for Pulse Feed Jogging can test the servo amplifier and servomotor easily. This function runs the servomotor. Secure the safety of the surroundings. When the alarm generates during operation for feed Jogging operation, motor excitation becomes OFF.

Prepare the control equipments which can be readily used.

When select “Test Run and Adjustment” - “Operation for Pulse Feed Jogging” in the menu bar of main screen, the following appears. Here runs the motor in positive/negative directions with the number of feed pulses and movement speed set by jogging operation.

Operation for pulse feed jogging is performed as follows.

1. Select the axis number of servo amplifier performing jogging operation in “Select Servo

Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which pulse feed jogging operation is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not use jogging operation.

60

When servo amplifier is not ready, the following dialog box appears.

Jogging operation is not ready.

In case servo amplifier is in alarm state, main power is not supplied, or “Test Run and

Adjustment” is executed with digital operator, jogging operation is not ready.

When confirming that jogging operation can be used, click “Execute” again.

In case servo amplifier is ready, the following appears.

3. Select the operation at completing and set the number of feed pulses and movement speed.

When generate “Alarm of Test Run complete” at completing pulse feed jogging operation, click ‘At completing, “Alarm of Test Run complete” is selected’. In case of the opposite, click ‘At completing, “Alarm of Test Run complete” is not selected’.

When changing the number of feed pulses and movement speed, click “Edit” and switch to editing mode. Enter the value in keyboards and click “Write”.

61

4. In case of generating alarm, the following dialog box appears when click “Servo ON”.

In case servo amplifier can not function Servo ON, the following dialog box appears.

In case of Servo ON, “Positive move” and “Negative move” buttons can be used.

In case of Servo ON, “Positive Feed”, “Negative Feed”, and “Stop & Deviation Clear” buttons are enabled. While editing the number of feed pulses and movement speed,

“Positive Feed”, “Negative Feed”, and “Stop & Deviation Clear” buttons can not be used.

After click “Write”, complete the editing.

5. When click “Positive feed” or “Negative feed”, move the number of feed pulses to be set.

In case of stopping before moving the number of feed pulses to be set, click “Stop &

Deviation Clear”.

62

While Over-travel is confirmed, the following dialog box appears.

When the setting of number of feed pulses or movement speed is inadequate, the following appears. Change the setting.

While editing the number of feed pulses or movement speed, the following appears.

When click “Write”, complete the editing by updating the set value. When click “Edit

Cancel”, complete the editing without updating the set value.

63

3.16. Automatic Notch Filter Tuning

Automatic notch filter tuning can readily find the resonance frequency by running servo amplifier and servomotor for a short period. In case resonance frequency exists, set the frequency at command notch filter A (TCNFILA) automatically. This function runs the servomotor. Secure the safety of surroundings. During execution, the holding torque becomes small. At the weight axis and so on, do not use this function.

When select “Test Run and Adjustment” - “Automatic Notch Filter Tuning” in the menu bar of main screen, the following appears. Here executes automatic notch filter tuning.

Automatic notch filter tuning is performed as follows.

1. Select the axis number of servo amplifier performing automatic notch filter tuning in

“Select Servo Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which automatic notch filter tuning is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not perform automatic notch filter tuning.

64

When servo amplifier is not ready, the following dialog box appears.

Automatic notch filter tuning is not ready.

In case servo amplifier is in alarm state, main power is not supplied, or “Test Run and

Adjustment” is executed with digital operator, tuning operation is not ready.

When confirming that automatic notch filter tuning can be used, click “Execute” again.

In case servo amplifier is ready, the following appears.

3. Select the operation at completing and set the torque command value of tuning.

When generate “Alarm of Test Run complete” at completing automatic notch filter tuning, click ‘At completing, “Alarm of Test Run complete” is selected’. In case of the opposite, click ‘At completing, “Alarm of Test Run complete” is not selected’.

When changing the torque command value of tuning, click “Edit” and switch to editing mode. Enter the value in keyboards and click “Write”.

4. In case of generating alarm, the following dialog box appears when click “Servo ON”.

65

In case servo amplifier can not function Servo ON, the following dialog box appears.

In case of Servo ON, “Execute”, button is enabled. While editing torque command value,

“Execute” button can not be used. After click “Write”, complete the editing.

5. When click “Execute”, the following appears and execute automatic notch filter tuning.

6. When automatic notch filter tuning completes normally, “Execute” disappears and the following dialog box of tuning result appears.

66

This tuning result is saved in “Torque (Force) Command, Notch Filter A (TCNFILA)”.

When automatic notch filter tuning can not complete normally, the following dialog box appears.

During editing torque command, the following appears. When click “Write”, complete the editing by updating the setting value. When click “Edit Cancel”, complete the editing without updating the setting value.

67

3.17. Automatic Vibration Suppressor Frequency Tuning

Automatic Vibration Suppressor Frequency Tuning can easily set the vibration suppressor control parameter “Vibration Suppressor Frequency 1 (SUPFRQ1)” by running servo amplifier and servomotor for a short period. After the tuning is executed, the result is automatically set to Vibration Suppressor Frequency 1 (SUPFRQ1). This function runs the servomotor.

Secure the safety of surroundings. During execution, the holding torque becomes small. At the weight axis and so on, do not use this function.

When select “Test Run and Adjustment” - “Automatic Vibration Suppressor Frequency

Tuning” in the menu bar of main screen, the following appears. Here executes Automatic

Vibration Suppressor Frequency Tuning.

Automatic Vibration Suppressor Frequency Tuning is performed as follows.

1. Select the axis number of servo amplifier performing automatic vibration suppressor frequency tuning in “Select Servo Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which automatic vibration suppressor frequency tuning is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not perform automatic vibration suppressor frequency tuning.

68

When servo amplifier is not ready, the following dialog box appears.

Automatic Vibration Suppressor Frequency Tuning is not ready.

In case servo amplifier is in alarm state, main power is not supplied, or “Test Run and

Adjustment” is executed with digital operator, tuning operation is not ready.

When confirming that automatic vibration suppressor frequency tuning can be used, click

“Execute” again.

In case servo amplifier is ready, the following appears.

3. Select the operation at completing and set the torque (force) command and friction torque

(force) compensation value of tuning.

When generate “Alarm of Test Run complete” at completing automatic vibration suppressor frequency tuning, click ‘At completing, “Alarm of Test Run complete” is selected’. In case of the opposite, click ‘At completing, “Alarm of Test Run complete” is not selected’.

When changing the torque (force) command and friction torque (force) value of tuning, click “Edit” and switch to editing mode. Enter the value in keyboards and click “Write”.

69

4. In case of generating alarm and servo amplifier can not function Servo ON, the following appears.

In case of Servo ON, “Execute”, button is enabled. While editing torque (force) command and friction torque (force) compensation value, “Execute” button can not be used. After click “Write”, complete the editing.

5. When click “Execute”, the following appears and execute automatic vibration suppressor frequency tuning.

6. When automatic vibration suppressor frequency tuning completes normally, “Execute” disappears and the following dialog box of tuning result appears.

70

This tuning result is saved in “Vibration Suppressor Frequency 1 (SUPFRQ1)”.

When automatic vibration suppressor frequency tuning can not complete normally, the following dialog box appears.

During editing torque (force) command and friction torque (force) compensation, the following appears. When click “Write”, complete the editing by updating the setting value.

When click “Edit Cancel”, complete the editing without updating the setting value.

71

3.18. Fixation Excitation Operation

This functions fixation excitation operation for linear motor. This function runs servomotor.

Secure the safety of surroundings.

When select “Test Run and Adjustment” - “Fixation Excitation Operation” in the menu bar of main screen, the following appears. Here executes fixation excitation operation for linear motor.

Fixation Excitation Operation is performed as follows.

1. Select the axis number of servo amplifier performing fixation excitation operation in

“Select Servo Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which fixation excitation operation is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not execute fixation excitation operation.

When servo amplifier is not ready, the following dialog box appears.

72

Fixation Excitation Operation is not ready.

In case servo amplifier is in alarm state, main power is not supplied, or “Test Run and

Adjustment” is executed with digital operator, jogging operation is not ready.

When confirming that fixation excitation operation can be used, click “Execute” again.

When servo amplifier is ready, the following dialog box appears and execute fixation excitation operation.

When click “Cancel”, fixation excitation operation is cancelled.

3. When fixation excitation operation completes normally, “Now executing” disappears and the following dialog box appears.

When fixation excitation operation can not complete normally, the following dialog box appears.

73

3.19. Automatic Offset Adjustment of V-REF Terminal

This is the function for offset adjustment of analog velocity command input terminal

(V-REF).

When select “Test Run and Adjustment” - “Automatic Offset Adjustment (V-REF)” in the menu bar of main screen, the following appears. Here performs automatic offset adjustment of analog velocity command/torque command.

Automatic offset adjustment of analog velocity command/torque command is performed as follows.

1. Select the axis number of servo amplifier performing automatic offset adjustment of analog velocity command/torque command in “Select Servo Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which automatic offset adjustment of analog velocity command/torque command is not functioned, the following dialog box appears when click

“OK”.

This servo amplifier can not execute automatic offset adjustment of analog velocity command/torque command.

74

When servo amplifier is not ready, the following dialog box appears.

Automatic offset adjustment of analog velocity command/torque command is not ready.

In case “Test Run and Adjustment” is executed with digital operator, automatic offset adjustment of analog velocity command/torque command is not ready.

When confirming that automatic offset adjustment of analog velocity command/torque command is enabled, click “Execute” again.

When servo amplifier is ready, the following dialog box appears and executes automatic offset adjustment of analog velocity command/torque command.

3. When automatic offset adjustment of analog velocity command/torque command completes normally, “Now executing” disappears and the following dialog box appears.

When automatic offset adjustment of analog velocity command/torque command can not complete normally, the following dialog box appears.

75

3.20. Automatic Offset Adjustment of T-COMP Terminal

This is the function for offset adjustment of analog torque addition command input terminal

(T-COMP).

When select “Test Run and Adjustment” - “Automatic Offset Adjustment (T-COMP)” in the menu bar of main screen, the following appears. Here performs automatic offset adjustment of analog torque addition command.

Automatic offset adjustment of analog torque addition command is performed as follows.

1. Select the axis number of servo amplifier performing automatic offset adjustment of analog torque addition command in “Select Servo Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which automatic offset adjustment of analog torque addition command is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not execute automatic offset adjustment of analog torque addition command.

When servo amplifier is not ready, the following dialog box appears.

76

Automatic offset adjustment of analog torque addition command is not ready.

In case “Test Run and Adjustment” is executed with digital operator, automatic offset adjustment of analog velocity command/torque command is not ready.

When confirming that automatic offset adjustment of analog torque addition command is enabled, click “Execute” again.

When servo amplifier is ready, the following dialog box appears and execute automatic offset adjustment of analog torque addition command.

3. When automatic offset adjustment of analog torque addition command completes normally, “Now executing” disappears and the following dialog box appears.

When automatic offset adjustment of analog torque addition command can not complete normally, the following dialog box appears.

77

3.21. Save Result of Automatic Tuning

This is the function for saving control gain that automatic tuning function outputs. The control gain are saved as the parameter. Five kinds of parameters are saved.

Position Loop Proportional Gain 1 (KP1)

Velocity Loop Proportional Gain 1 (KVP1)

Velocity Loop Integral Time Constant 1 (TVI1)

Torque (Force) Command Filter 1 (TCFIL1)

Load Inertia Ratio (Load Mass Ratio) 1 (JRAT1)

The saved contents are different according to the setting of “Tuning Mode (TUNMODE)” and

“Automatic Tuning Characteristic (ATCHA)”.

Parameter Name

Group0-Page00

TUNMODE

Tuning Mode

Group0-Page01

ATCHA

Automatic Tuning

Characteristic

Setting value / “Parameter Monitor Value of Automatic Tuning” (Saving Contents)

00:_Positioning1

01:_Positioning2

02:_Positioning3

03:_Trajectory1

00:_AutoTun

04:_Trajectory2

01:_AutoTun_JRAT-Fix

00:_Positioning1

01:_Positioning2

02:_Positioning3

03:_Trajectory1

02:_ManualTun

04:_Trajectory2 00:_Positioning1

01:_Positioning2

02:_Positioning3

03:_Trajectory1

04:_Trajectory2

KP

KVP

TVI

TCFIL

JRAT control gain that automatic tuning function outputs

(Note 1)

Parameter KP1 setting value control gain that automatic tuning function outputs

(Note 1) corresponding to parameter

JRAT1

Parameter

Parameter KP1 setting value corresponding to parameter

JRAT1

Parameter

Remarks value value

These are the values while using it by the control loop.

They are the same to Monitor Display values.

(Monitor Display - Page16 KP_MON, Page18 KVP_MON, Page19 TVI_MON,

Page1A TCFIL_MON, Page15 JRAT_MON) control gain that automatic tuning function outputs

(Note 1)

The control loop operates by using the parameter setting value. (Note 2)

Note 1) After control power turned on, it becomes the gain corresponding to parameter JRAT1 until the gain presumption completion is done.

Note 2) The control loop operates in using the parameter setting value when TUNMODE is

"02:_ManualTun". The gain under use changes when Save Result of Automatic Tuning. (It excludes it while switching the gain.) Therefore, there is a possibility that the movement of the motor changes suddenly. Please execute the Save Result of Automatic Tuning by an off servo or the motor halt condition.

The usage of the Save Result of Automatic Tuning is different according to the difference of the saved contents.

78

(1) TUNMODE = 00:_AutoTun

The control loop use the gain that automatic tuning function outputs. But after control power turned on, it becomes the gain corresponding to parameter JRAT1 until the gain presumption completion is done.

Save Result of Automatic Tuning function can set the initial value.

(2) TUNMODE = 01:_AutoTun_JRAT-Fix

The control loop use the gain corresponding to parameter JRAT1.

Save Result of Automatic Tuning function can save gain corresponding to parameter

JRAT1.

(3) TUNMODE = 02:_ManualTun

The control loop use the parameter setting value.

Save Result of Automatic Tuning function can set the gain that automatic tuning function outputs. (When adjusting the parameter setting value, the saved value can be used as reference value.)

Note) The control loop operates in using the parameter setting value when TUNMODE is "02:_ManualTun". The gain under use changes when Save Result of Automatic

Tuning. (It excludes it while switching the gain.) Therefore, there is a possibility that the movement of the motor changes suddenly. Please execute the Save Result of

Automatic Tuning by an off servo or the motor halt condition.

79

When select “Test Run and Adjustment” - “Save Result of Automatic Tuning” in the menu bar of main screen, the following appears.

Save Result of Automatic Tuning is performed as follows.

1. Select the axis number of servo amplifier performing Save Result of Automatic Tuning in

“Select Servo Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which Save Result of Automatic Tuning is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not perform Save Result of Automatic Tuning.

When servo amplifier is not ready, the following dialog box appears.

Save Result of Automatic Tuning is not ready.

In case “Test Run and Adjustment” is executed with digital operator, Save Result of

Automatic Tuning operation is not ready.

When confirming that Save Result of Automatic Tuning can be used, click “Execute” again.

80

In case servo amplifier is ready, the following appears.

3. Set the “Setting Parameter” (Saving Contents) and the “ATRES” (Automatic Tuning

Response).

When changing the “Setting Parameter” and “ATRES”, click “Edit” and switch to editing mode. Enter the value in keyboards and click “Write”.

Note) ATRES can be changed on this window. The changed value is reflected in the operation of the motor and amplifier. However, the changed value is not saved as a parameter. ATRES returns to former setting value when this window is closed.

Tuning Mode

It displays general parameter "Tuning Mode (TUNMODE)" setting value.

ATCHA

It displays general parameter "Automatic Tuning Characteristic (ATCHA)" setting value.

Setting Parameter

Select The parameter saving by using this function.

ATRES

Set the General parameter “Automatic Tuning Response (ATRES)”

Parameter Monitor Value of Automatic Tuning

It displays control gain that automatic tuning function outputs.

81

Parameter Setting Value

It displays the saving value as the parameters.

4. Click “Save Monitor Value”, save the “Parameter Monitor Value of Automatic Tuning” as the parameter. As a result of the saving, it is displayed “Parameter Setting Value“ at the right of the window.

Click [Save Monitor Value]

The parameter which was selected by [Setting

Parameter] in [Parameter Monitor Value of

Automatic Tuning] is saved.

During editing [Setting Parameter] and [ATRES], the following appears. When click

“Write”, complete the editing by updating the setting value. When click “Edit Cancel”, complete the editing without updating the setting value.

Note) ATRES returns to former setting value when this window is closed.

82

3.22. Alarm Reset

This is the function for resetting alarm state of servo amplifier. This function is equivalent to Alarm Reset (AL-RST) with general purpose input terminal. Some alarm may not be reset.

When select “Test Run and Adjustment” - “Alarm Reset” in the menu bar of main screen or select “Amplifier” and “Alarm Reset” in the menu bar of alarm history, the following appears.

Here resets the current alarm of servo amplifier.

Alarm reset is performed as follows.

1. Select the axis number of servo amplifier performing alarm reset in “Select Servo

Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which alarm reset is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not execute alarm reset.

83

When servo amplifier is not ready, the following dialog box appears.

Alarm reset is not ready.

In case “Test Run and Adjustment” is executed with digital operator, alarm reset is not ready.

When confirming that alarm reset is enabled, click “Execute” again.

When servo amplifier is ready, the following dialog box appears and execute alarm reset.

3. When alarm reset completes normally, “Now executing” disappears and the following dialog box appears.

When alarm reset can not complete normally, the following dialog box appears.

84

3.23. Absolute Encoder Clear

This is a function for absolute encoder clear. This is equivalent to absolute encoder clear

(ECLR) function.

When select “Test Run and Adjustment” - “Absolute Encoder Clear” in the menu bar of main screen, the following appears. Here resets the multi-revolution data and the alarm in absolute encoder.

Absolute encoder clear is performed as follows.

1. Select the axis number of servo amplifier performing absolute encoder clear in “Select

Servo Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which absolute encoder clear is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not execute absolute encoder clear.

When servo amplifier is not ready, the following dialog box appears.

85

Absolute encoder clear is not ready.

In case “Test Run and Adjustment” is executed with digital operator, alarm reset is not ready.

When confirming that absolute encoder clear is enabled, click “Execute” again.

When servo amplifier is ready, the following dialog box appears and execute absolute encoder clear.

3. When absolute encoder clear completes normally, “Now executing” disappears and the following dialog box appears.

When absolute encoder clear can not complete normally, the following dialog box appears.

86

3.24. Alarm Trace Clear

This is a function for deleting the past alarm saved in servo amplifier.

When select “Amplifier” - “Alarm Trace Clear” in the menu bar of alarm history, the following appears. Here clears the past alarm generated in servo amplifier.

Alarm trace clear is performed as follows.

1. Select the axis number of servo amplifier performing alarm trace clear in “Select Servo

Amplifier”.

2. When click “Execute”, the following appears.

For the servo amplifier which alarm trace clear is not functioned, the following dialog box appears when click “OK”.

This servo amplifier can not execute alarm trace clear.

When servo amplifier is not ready, the following dialog box appears.

87

Alarm trace clear is not ready.

In case “Test Run and Adjustment” is executed with digital operator, alarm reset is not ready.

When confirming that alarm trace clear is enabled, click “Execute” again.

When servo amplifier is ready, the following dialog box appears and execute absolute encoder clear.

3. When alarm trace clear completes normally, “Now executing” disappears and the following dialog box appears.

When alarm trace clear can not complete normally, the following dialog box appears.

88

3.25. Trace Operation

When select “ Trace Operation” - “Trace Operation” in the menu bar of main screen, the following appears. Here displays and saves the trace operation data.

Click either one from [#1] to [#F] in the left of Trace Operation, and the corresponding servo amplifier is displayed. Click [File], and the screen switches to trace operation data saved in the file.

There are two different usages in Trace Operation. There are two changeable modes by trace operation setting.

• Trace mode: Saved data in the servo amplifier is read and displayed in waveform.

• Scroll mode: Data is periodically read from the servo amplifier and displayed in waveform.

Horizontal scale

Indicates the horizontal setting of the displayed data. The horizontal setting of the displayed data can be changed.

89

Sampling period

Indicates

sampling period setting of displayed data.

Trigger

Indicates trigger signal (trigger channel) setting of displayed data.

Trigger level

Indicates the trigger level setting of displayed data.

Trigger edge

Indicates the trigger edge setting of displayed data.

Trigger position

Indicates the trigger position of displayed data

.

CH1, CH2, CH3, CH4

Indicates the data contents, vertical scale, and displayed color per channel.

Vertical scale, vertical position, and data display ON/OFF per channel can be changed.

CH5, CH6, CH7, CH8

Indicates the data contents and displayed color per channel.

t1

Indicates the displayed color and horizontal position of t1 cursor. t 1 cursor can be moved by scroll bar. (When left-click on the data, t1 cursor moves to its position.)

t2

Indicates the displayed color and horizontal position of t2 cursor.

t 2 cursor can be moved by scroll bar. (When left-click on the data, t2 cursor moves to its position.)

t1 and t2

Indicates the duration between t1 and t2 cursors.

1/ (t1 and t2)

Indicates the reciprocal number of the duration between t1 and t2 cursors.

CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8

Indicates the data of t1 cursor in value.

In scroll mode, horizontal scale is fixed by sampling period setting.

In scroll mode, trigger related contents will not be displayed.

While monitoring scroll mode, there is no numerical display of cursor operation and cursor position.

90

91

Each function of trace operation can be accessed by selecting it in the menu bar of Trace

Operation.

[File]

Open : Open the trace operation data stored in the file.

Possible to select it only at displaying trace operation data saved in a file.

Save : Save the trace operation data which is now being displayed.

Save As: Save the trace operation data which is now being displayed as the other name in a file.

Exit: Exit trace operation.

Left) In Trace mode Right) In Scroll mode

[Trace Operation]

Trace Start + Trace Data Read : Directs the trace start (data sampling start) to servo amplifier. Monitors data sampling status of servo amplifier. When completing sampling, read the trace operation data from servo amplifier and indicate it.

Possible to select it only at displaying trace operation data of servo

amplifier.

Possible to select only at “Trace Mode” for trace mode select in trace

operation setting of servo amplifier.

Trace Start : Directs the trace start (data sampling start) to servo amplifier.

Possible to select it only at displaying trace operation data of servo

amplifier.

Possible to select only at “Trace Mode” for trace mode select in trace

operation setting of servo amplifier.

92

Trace Data Read : Monitors data sampling status of servo amplifier. When completing sampling, read the trace operation data from servo amplifier and indicate it. If data sampling keeps, continues to monitor it.

Possible to select it only at displaying trace operation data of servo

amplifier.

Possible to select only at “Trace Mode” for trace mode select in trace

operation setting of servo amplifier.

Monitor Start : Reads data continuously from the servo amplifier and starts displaying scroll mode data.

Possible to select it only at displaying trace operation data of servo

amplifier.

Possible to select only at “Scroll Mode” for trace mode select in trace

operation setting of servo amplifier.

Monitor Stop : Stops displaying scroll mode data (Stops updating the display).

Possible to select it only at displaying trace operation data of servo

amplifier.

Possible to select only at “Scroll Mode” for trace mode select in trace

operation setting inside the servo amplifier.

Clear Trace Data : Deletes the trace operation data in servo amplifier. Deletes the trace operation data which is being displayed.

Possible to select it only at displaying trace operation data of servo

amplifier.

Trace Operation Setting : Sets the trace operation for servo amplifier.

Possible to select it only at displaying trace operation data of servo

amplifier.

Display Setting : Sets the trace operation and the color at printing.

General Parameter Setting… : Can set general parameters. For procedures, refer to

“3.6. General Parameter Setting”

Possible to select it only at displaying trace operation data of servo

amplifier.

Measurement… : The maximum, the minimum, the average, and the effect value of the waveform data under the display can be requested. Refer to “3.25.6.

Measurement of Trace Operation”

Possible to select it only while displaying the waveform data of the servo

amplifier or the file that has been preserved.

Note) Some servo amplifiers do not apply to the trace operation function depending on

93

the type and the version. In those not applying, the following screen appears when selecting “Trace Start + Trace Data Read”, “Trace Start”, “Monitor Start”, and

“Trace Operation Setting ”.

[Print]

Print :Print

the trace operation data which is being displayed.

Impossible to select it

when the trace operation data is not displayed.

Print Preview : Indicates the print image of trace operation data which is now being displayed.

Impossible to select it

when the trace operation data is not displayed.

3.25.1. Trace Operation Setting

When click “Trace Operation” and “Trace Operation Setting (E)”, the following appears.

Here sets the contents of trace operation.

When click “OK” after entering the contents, update them and start the trace. Click

“Cancel” in case the setting is not updated.

94

When executing trace setting for the servo amplifiers that do not apply to the trace operation function, the following screen appears. Trace operation function cannot be used.

Access

the setting condition.

Click “Open” and select the stored trace operation data file. Read the stored trace operation data.

Select the trace mode.

Select the trace operation mode among the following.

・Scroll mode

2 channel analog data and 2 channel digital data can be monitored by scroll mode.

Possible to obtain 1000 data per channel at the minimum sampling period of 50ms.

(Minimum sampling period may be different depending on the servo amplifier type.)

・Trace mode : Analog 4CH+Digital 4CH

Trace the analog and digital data of 4 channel. 256 data per channel can be obtained.

・Trace mode : Analog 2CH+Digital 2CH

Trace the analog and digital data of 2 channel. 512 data per channel can be obtained.

・Trace mode : Analog 1CH+Digital 1CH

Trace the analog and digital data of 1 channel. 1024 data per channel can be obtained.

Analog setting

Selects the data contents of CH1 to CH4. Selects the trigger signal.

Analog data is classified under two kinds according to its data length.

・2Byte type(In normal font)

・4Byte type(In thick font)

4Byte type consumes the memory for 2 channels. Therefore, there are some channels that cannot be set. (In case of setting prohibited, setting contents will be displayed in pale color.) When select the 4Byte type data in CH1 to CH3, the next channel can not be used. (E.g. When selects 4Byte type in CH2, CH3 can not be used.)

Cannot set to the largest numbered channel of each mode.

Setting to CH4 prohibited at “Trace Mode : Analog 4CH + Digital 4CH”.

95

Setting to CH2 prohibited at “Trace Mode : Analog 2CH + Digital 2CH”.

Setting to CH2 prohibited at “Scroll Mode”.

4Byte type data cannot be designated at “Trace Mode : Analog 1CH + Digital 1CH”.

Digital setting

Select the data contents of CH5 to CH8. Selects the trigger signal.

Sampling setting

Sets the sampling period. Product of the base time and the set value (multiple) becomes the sampling period. The duration enabling trace is displayed according to trace mode selection contents and sampling period setting.

Trigger condition setting

Set

the trigger condition.

・Trigger level : In case the trigger signal is digital data, the setting is not required.

・Trigger edge

・Trigger position

3.25.2. Select Contents of Trace Operation Setting

The table below is the explanation of select contents for standard servo amplifier. Select contents may be different from the ones below depending on the amplifier type.

Trace mode select

Trace mode

Scroll Mode

Trace Mode:

Analog 4CH

+ Digital 4CH

Trace Mode:

Analog 2CH

+ Digital 2CH

Trace Mode:

Analog 1CH

+ Digital 1CH

Number of monitor channels

Analog data

Note 3

2

(CH1, CH2)

4

(CH1, CH2,

CH3, CH4)

Digital data

2

(CH5, CH6)

4

(CH5, CH6,

CH7, CH8)

2

(CH1, CH2)

2

(CH5, CH6)

1

(CH1)

1

(CH5)

Data points at file save

(per channel)

Trigger setting

Sampling period setting

Note 4

Notes

1000points Not Note 1 possible more more more or Note 2

Note 1. Data is periodically read from the servo amplifier and waveform is updated. When sampling period is set to blow 200ms, the following environment (CPU operation frequency) is recommended.

Data sampling period setting = 50ms or above, below 100ms.: CPU operation frequency 800MHz or above.

Data sampling period setting = 100ms or above, below 200ms.: CPU operation frequency 350MHz or above.

Data sampling period setting = 200ms or above. : CPU operation frequency 133MHz or above.

Even if recommended environment is met, display sometimes becomes abnormal. This abnormality may be resolved by reducing the load of PC, such as by terminating other applications or stopping some resident program.

96

Note 2. Data is temporarily saved in the servo amplifier. After trigger generation or sampling stop, data is read and waveform is displayed.

Note 3. The number of monitor channels of analog data is that for monitoring 2Byte type signals. Monitoring 4Byte type signals consumes twice as much the memory for 2Byte type signals (for 2 channels), therefore, the number of monitor channels becomes less. (For details, see the previous page.)

Note 4. The range of sampling period setting may be different depending on the servo amplifier type.

Analog CH select contents

Select contents

Note 2

Data type

(Data length)

2Byte

Data range

Note 3

Unit

Note 4

Notes

VMON:Velocity Monitor

VCMON:Velocity Command Monitor

2Byte

-32768 ~ 32767 min-1

[mm/s]

-32768 ~ 32767 min-1

[mm/s]

-32768 ~ 32767

%

TMON:Torque Monitor

[TMON:Force Monitor]

TCMON:Torque Command Monitor

[TCMON:Force Command Monitor]

PMON: Position Deviation Monitor

2Byte

2Byte

-32768 ~ 32767

%

APMON : Actual Position Monitor (Motor

Encoder)

CPMON:Command Position Monitor

FMON : Position Command Pulse Monitor

(Position Command Pulse Input Frequency)

Sine U

PS-H:Absolute Encoder PS (High)

PS-L:Absolute Encoder PS (Low)

RegR:Regenerative Resistor Operation Ratio

OPRT:Motor Operating Rate Monitor

JRAT_MON : Control Loop Parameter_Load

Inertia Moment Ratio Monitor

[JRAT_MON : Control Loop Parameter_Load

Mass Ratio Monitor]

TLMON_EST:Load Torque (Estimated Value)

[TLMON_EST:Load Force (Estimated Value)]

PMON_S:Position Deviation Monitor (2Byte)

4Byte -2147483648

~ 2147483647

4Byte -2147483648

~ 2147483647

4Byte -2147483648

~ 2147483647

Pulse

2Byte -2147483648

~ 2147483647

2Byte

Pulse

-32768 ~ 32767

-- Note

4Byte

4Byte

2Byte

2Byte

2Byte

2Byte

2Byte

Pulse

Pulse

0 ~ 4294967295 x2^32 P

0 ~ 4294967295

Pulse

0 ~ 65535

0.01%

0 ~ 65535

0 ~ 65535

%

%

-32768 ~ 32767

%

-32768 ~ 32767

Pulse Note

Note 1. The select contents above show when the standard type servo amplifier is combined with R-Setup.

For details of each signal, refer to “Explanation of Parameter” in the Servo Amplifier Instruction Manual.

Note 2. Words in parentheses are for linear system.

Note 3. Data range in this table shows the range where waveform display is possible.

If servo amplifier deals with smaller range than the above, display is only within the range that servo amplifier can deal with.

Note 4. Unit equivalent to 1LSB. Units in parentheses are for linear system.

Note 5. Outputs Sin U (U phase electric angle).

When U phase electric angle = 0 deg., monitor data = 0.

97

When U phase electric angle = 90 deg., monitor data = 32767 (Peak at positive direction of sine waveform)

When U phase electric angle = 270 deg., monitor data = -32767 (Peak at negative direction of sine waveform)

Note 6. When position deviation becomes -32768 or below, data always show -32768.

When position deviation becomes 32767 or above, data always show 32767.

Digital CH select contents

Select contents Explanation of signal Notes

Note 1

CONT1:General Purpose Input1

CONT2:General Purpose Input2

CONT3:General Purpose Input3

CONT4:General Purpose Input4

CONT5:General Purpose Input5

Indicates input signal state of general purpose input

(CONT1~8) terminal.

“High”

・Input photo coupler ON (CONT1~6)

・During negative logic signal input(CONT7,8)

“Low”

・Input photo coupler OFF (CONT1~6)

・During positive logic signal input (CONT7,8)

CONT6:General Purpose Input6

CONT7:General Purpose Input7

CONT8:General Purpose Input8

OUT1:General Purpose Output1

OUT2:General Purpose Output2

OUT3:General Purpose Output3

OUT4:General Purpose Output4

Indicates the state of general purpose output

(OUT1~8) terminal.

Note 2

“High”

・Output transistor OFF

“Low”

・Output transistor ON

OUT5:General Purpose Output5

OUT6:General Purpose Output6

OUT7:General Purpose Output7

OUT8:General Purpose Output8

INP:In-Positioning

NEAR:In-Position Near

“High” during positioning complete state.

“High” during near range state.

VCMP:Speed Matching

“High” during velocity conformity state.

TLC:Torque (Force) Limiting Operation

“High” during torque (force) limit operation.

VLC:Velocity Limiting Operation

S-ON: Motor Excitation

S-RDY:Servo Ready Complete

“High” during velocity limit operation.

“High” during motor excitation.

“High” during operation ready complete.

CMD-ACK:Command Can be Accepted

PCON-ACK : During Velocity Loop

“High” during velocity loop proportional control

Proportional Control switching state.

EGR-ACK:During Electric Gear Switching

“High” during electric gear switching state.

WNG-OFW:Following Warning

“High” during command receive permit state.

“High” during excessive deviation warning.

WNG-OLW:Over Load Warning

ALM:Alarm State

“High” during over load warning.

“High” during alarm state.

Note1. The select contents above show when the standard type servo amplifier is combined with R-Setup.

Note2. Logic is reverse to the monitor display (monitor display page 04 of R-Setup).

State of output transistor

Output transistor OFF

Output transistor ON

Trace Operation digital data

OUT*:General Purpose Output*

“High”

“Low”

Q-SETUP

Monitor Display page 04 OUT8-1:

General Purpose Output OUT8~1Monitor

“0”

“1”

98

3.25.3. Trace Operation Display Setting

When click “Trace Operation” - “Display Setting”, the following appears. Here sets the data display of trace operation.

When click “OK” after entering the contents, update them and start the trace. Click “Cancel” in case the setting is not updated.

Analog CH1 to Digital CH8

Select the color, width, and mark in data display.

t1, t2

Select the color and width in cursor display.

Print by gray scale.

When check this, display all colors in the tone of black/white at printing.

99

3.25.4. How to Use Trace Mode of Trace Operation Function

This section explains how to use trace mode of trace operation function.

1. Set the trace operation.

Open

the trace operation setting by selecting “Trace Operation” - “Trace Operation

Setting (E)” in the menu bar of trace operation. Select “Trade Mode : ・・・” at “Trace

Mode Select”. Set others as necessary. After inputting, click “OK” to update the setting.

2. Start the trace. (In case of using “Trace Start” and “Trace Data Read”)

When select “Trace Operation” - “Trace Start” in the menu bar of trace operation, start the trace. Although servo amplifier starts sampling, the display of setup software remains unchanged.

Once servo amplifier starts sampling, it continues until trigger is generated or the control power is shut off. (Sampling continues even after terminating the setup software or cutting off the cable.) After trigger generation, the data can be read by using “Trace Data Read…”.)

3.

Read the data and display it. (In case of using “Trace Start” and “Trace Data Read”)

When select “Trace Operation” - “Trace Data Read” in the menu bar of trace operation, read the trace data.

In case of sampling in progress (waiting trigger), the following appears.

Servo amplifier is sampling the data while waiting the trigger.

When click

“Sampling Stop”, stops sampling. (This detects the trigger falsely.)

When click “Cancel”, this dialog box is closed. Even if click “Cancel”, servo amplifier continues sampling.

When the trigger is detected, switch to the dialog box after trigger is generating.

100

When sampling in progress (after trigger generating), the following appears.

Servo amplifier is sampling the data. “The remaining time” displays that of sampling.

When the remaining time is 0 [sec], switch to “Now Reading”.

When sampling is completed, the following appears.

Reading the sampling data from servo amplifier. When the reading is completed normally, “Now Reading” disappears and trace operation data is displayed.

4. Execute Trace Start and Trace Data Read continuously. (When use “Trace Start+Trace

Data Read”)

When select “Trace Operation” - “Trace Start+Trace Data Read ” in the menu bar of trace operation, start the trace. When the trace starts, the following appears.

Servo amplifier is sampling the data while waiting trigger generation.

When click “Sampling Stop”, stops sampling.

(This detects the trigger falsely.)

When click “Cancel”, this dialog box is closed. Even if click “Cancel”, servo amplifier continues sampling.

Once

servo amplifier starts sampling, it continues until trigger is generated or the control power is shut off. (Sampling continues even after terminating the setup software or cutting off the cable.) After trigger generation, the data can be read by using “Trace Data

Read”.)

101

When the trigger is detected, the following dialog box appears.

Servo amplifier is sampling the data.

“The remaining time” displays the period until the sampling completes. When the remaining time is 0[sec], the following dialog box appears.

Reading the sampling data from servo amplifier. When the reading is completed normally, “Now Reading” disappears and trace operation data is displayed.

5. Trace operation data display in progress

When trace operation data read is complete and the data is displayed on the

screen, following operations are possible.

Saving trace operation data.

Cursor Operation.

Expanding horizontal range.

Changing vertical axis range for each channel. ON/OFF of the vertical and data.

102

3.25.5. How to Use Scroll Mode of Trace Operation Function

This section explains how to use scroll mode of trace operation function.

1. Set the trace operation setting.

Open the trace operation setting by selecting “Trace Operation” - “Trace Operation

Setting (E)” in the menu bar of trace operation. Select “Scroll Mode” at “Trace Mode

Select”. Set others as necessary. After inputting these, click “OK” to update the setting.

2. Select “Trace Operation” – “Monitor Start…” in the menu bar of trace operation to start the monitor. Read the data for each sampling period from the servo amplifier and update the data displaying screen. Monitoring operation (data read, updating data displaying screen) continues until monitoring stops or any stop occurs due to communication error.

During monitoring operation, following operations are possible.

Changing vertical axis range for each channel. ON/OFF of the vertical and data.

Depending on the sampling period setting, data display on the screen may be broken.

This phenomena occurs when communication or displaying transaction is not in time for the sampling period setting. Reduce the load of PC by terminating other applications or stop resident program. If not improved by these measures, change the sampling period setting. When broken display (data missing) occurs very frequently, monitoring may stop.

Note that display is broken when menu bar is opened during monitor operation.

3. Select “Trace Operation” – “Monitor Stop” to stop monitoring.

During monitor stop, following operations are possible.

Saving trace operation data.

Cursor operation.

Changing vertical axis range for each channel. ON/OFF of the vertical and data.

103

3.25.6. Measurement of Trace Operation

When click “Trace Operation” - “Measurement”, the following appears. Here sets the data display of trace operation. The maximum, the minimum, the average, and the effective value of the waveform data under the display can be requested.

Measurement Range

Select the measurement data.

“All Data”: All the data under the display is measured.

“Between t1 and t2”: The data between the cursor t1 and the cursor t2 is measured.

Measurement Star

The measurement of waveform data begins, and the measurement result is updated.

Outputs to File

The measurement result is outputted to a text file.

Print Preview

Indicates the print image of measurement result.

Max: The maximum value in measurement data is displayed.

Min: The minimum value in measurement data is displayed.

Ave: The average value of the measurement data is displayed.

RMS: The effective value (root mean square value) of the measurement data is displayed.

104

Note for "Measurement" of "Trace Operation"

- Note for data loss at "Scroll Mode".

In case of data loss resulted form communication environment or setting of sampling frequency etc.

There is a possibility that no data exists.

In the trace operation measurement function, the area where no data exists will be excluded from measurement target.

The measurement function can be used even when data is lost.

* When all the data is lost in the measurement range (no data exists), the measurement result is "0".

- Initial data of "Scroll Mode"

At "Scroll Mode", 1000 point data is always displayed.

When monitoring starts, this 1000 point data is cleared to "0".

Therefore, from monitoring start until the time 1000 times as long as the sampling frequency will have past, initial data "0" exists which is not actual data.

The Measurement function of Trace Operation treats this initial data "0" as measurement target.

- Initial data of "Trace Mode"

At "Trace Mode", data buffer is cleared to "0" when tracing starts.

Therefore, when a trigger is detected and sampling stops before Tracing Time will have past after tracing start, initial data "0" exists which is not actual data.

The Measurement function of Trace Operation treats this initial data "0" as measurement target.

* Specify by cursor the measurement range and make the actual data as measurement target.

105

3.26. System Analysis

In the system analysis, system can be easily analyzed by operating servo amplifier and servomotor for the duration from hundreds ms to tens seconds. This function operates the servomotor, therefore, take care for safety.

Click “Trial Operation and Adjustment” – “System Analysis…” in the menu bar of main screen, and the following system analysis screen appears. System analysis data is displayed and saved here.

System analysis setting

Displays measurement conditions when analysis data now on display is obtained.

Control loop parameter monitor

Displays contents of control loop parameter when analysis data now on display is

obtained.

Range

Indicates vertical axis range for Gain and Phase.

Gain can change vertical axis and the vertical. “Auto” and “Default” can automatically adjust the vertical axis range and the vertical.

“Auto” : Adjusts the vertical axis range and the vertical to appropriate setting.

“Default” : Returns the vertical axis range and the vertical to initial setting.

106

t 1

Indicates the color of t1 cursor and the horizontal.

When data is displayed, t1 cursor can be moved by scroll bar. (Left click on the data

moves the t1 cursor to the position.) There is numerical display for t1 cursor position

data (frequency, gain and phase) at the right of t1 scroll bar.

t2

Indicates the color of t2 cursor and the horizontal.

When data is displayed, t2 cursor can be moved by scroll bar. (Right click on the data

moves the t2 cursor to the position.) There is numerical display for t2 cursor position

data (frequency, gain and phase) at the right of t2 scroll bar.

Generation ratio of torque (thrust) limit state while measuring

Indicates the generation ratio of torque (thrust) limit state when obtaining analysis

data. If this ratio is high, there is a possibility that result of analysis may be different

from actual system.

Each function of the system analysis can be accessed by selecting one in the menu bar of system analysis.

[File]

Open… : Opens and displays system analysis data file.

Close… : Clears the data while system analysis data file is displayed.

Possible to select only when system analysis data file is displayed.

Save As… : Saves the displayed data in the file.

Possible to select only when analysis result data or system analysis data file is

displayed.

Exit : Exits the system analysis.

107

[System Analysis]

Start Data Measurement & Analysis… : Starts data measurement and analysis.

Possible to select only at online.

In the reduction installed Q-Setup, selection is possible, however, data

measurement/analysis cannot be performed.

General Parameter Setting… : Can set general parameters. For procedures, refer to “3.6.

General Parameter Setting”

Possible to select only at online.

Data Clear : Clears the data on the screen while displaying analysis result.

Possible to select only when analysis result is displayed.

Display Setting : Sets the system analysis screen and the color for printing.

[Print]

Print : Prints the displayed system analysis data.

Do not select this unless system analysis data is displayed on the screen.

Print Preview (V) : Displays the image of the displayed system analysis data.

Do not select this unless system analysis data is displayed on the screen

[Help]

Cautions : Opens a file describing cautions on using the system analysis.

This file is html type, which can be opened where Internet Explorer 4.0 or above

is installed.

108

3.26.1. Data Measurement & Analysis Start

Click “System Analysis” – “Data Measurement & Analysis Start…”, and the following screen appears. The motor operates in positive/negative move to measure the data for analysis. After data measurement, analysis can start.

See the following procedure for Data Measurement & Analysis Start.

1. Select the axis number for which data measurement & analysis is to be executed in

“Servo Amplifier Select”.

2. Click [Execute], and the following screen appears.

Click [OK], and the following screen appears if the servo amplifier does not apply to

the system analysis function. In this servo amplifier, system analysis function cannot

be used.

When the servo amplifier is not in ready complete state, the following screen appears.

It is not ready for data measurement for system analysis.

Ready not complete state occurs when servo amplifier is in alarm state, when the

109

main circuit power is not supplied, or when “Trial Operation and Adjustment” is

being executed by digital operator. When data measurement becomes ready, click

[Execute] again.

When servo amplifier is in ready complete state, the following screen appears.

3. Set options at the end of data measurement and system analysis.

If “Trial Operation End Alarm” is to be generated when data measurement ends (when

analysis starts), click “Trial Operation End Alarm at End”, and if not, click

“No Trial Operation End Alarm at End”.

In system analysis setting, torque (thrust) command at data measurement and frequency

range to be analyzed are selected.

4. Confirm the control loop parameter that its value is as targeted. (If not, exit “Data

Measurement & Analysis Start” once and change the value by general parameter setting.)

5. Click [Servo ON], and the following screen appears during alarm generation.

110

If servo amplifier cannot become Servo ON, the following appears.

After making it possible, click [Servo ON] again.

At Servo ON state, [Execute] button can be used.

6. Click [Execute], and the followings are displayed and data measurement is executed.

Depending on the selected measurement frequency range, data measurement time varies. Therefore, display of “Data measurement in progress” sometimes lasts long.

111

Click [Stop], and the measurement stops with Servo ON state remaining.

Click [Servo OFF], and the measurement stops with Servo OFF.

When data measurement cannot be executed properly due to overtravel generation,

the following appears. After removing the cause, execute data measurement again.

7. When data measurement ends normally, the following appears.

Click [OK], and the following appears and analysis starts with Servo OFF.

Click [Cancel], and the measured data is canceled to return to the state before data

measurement is executed (Servo ON state).

112

8. When analysis ends normally, the following result is displayed.

3.26.2. General Parameter Setting

Select “System Analysis” – “General Parameter Setting…”, and the general parameter setting screen appears. Here, general parameter can be set without closing system analysis screen.

For the procedure, refer to “3.10. Transmit Parameter [File -> Amplifier]”.

113

Click “System Analysis” – “Display Setting…”, and the following screen appears. Trace operation data display is set here.

Click [OK] after inputting every setting, and the contents are updated and data is displayed again. If the setting is not to be updated, click [Cancel].

Gain, Phase

Color of data display, line width and mark are selected.

t1, t2

Color and line width for cursor display are selected.

Print in gray scale

At the time of checking and printing, all the colors are displayed in black/white

tone.

114

4. Appendix

4.1. Wiring

4.1.1. Wiring when Connecting 1 Unit

6

7

8

9

1

2

3

4

5

COM(PC side)

D-Sub9 pin (hollow)

Pin Signal number name

1 DCD

2 RD

3 TD

4 DTR

5 SG

6 DSR

7 RS

8 CS

9 RI

1

3

5

7

9

11

2

4

6

8

10

12

Servo amplifier

3240-12P-TO-C (Hirose Electric Co., Ltd.)

Pin number

Signal name

Pin number

Signal name

5 TXD0 6 S-IN

9 RXD0 10 NC

Case Connect to SG through the resistor.

Use shield wire for the cable.

The shield wire of the cable must be connected to the case of amplifier connector.

Do not connect to the case of PC connector (D-Sub9 pin).

Wire only pins which the connecting destination is specified in wiring diagram.

115

4.1.2. Wiring when Connecting Some Units

The following is a wiring diagram when connecting 3 units. In case of connecting 4 or more units, add “the 2 nd

unit to the (N-1) th

unit” for the number of units. The last servo amplifier must be as “the N th connection”. (15 units at maximum can be connected.)

Each cable length must be within

3m.

Use shield wire for the cable.

The shield wire of the cable must be connected to the case of amplifier connector.

Do not connect to the case of PC connector (D-Sub9 pin).

Wire only pins which the connecting destination is specified in wiring diagram.

116

4.2. Version List

The list of Servo Amplifier and its corresponding R-SETUP – Setup Software.

Servo Amplifier R-SETUP - Setup Software version Remarks

SANMOTION R

Type S

SANMOTION T

Type S

: corresponded

P0.00.1 AC System

DC System

4.3. Instruction Manual Revision History

A Revision

2005/4/1

B Revision

2006/3/9

First edition

3.25 Trace Operation Addition of Measurement function

4.2 Version List Addition of version of Setup Software

4.4.1 Trouble Shooting Addition of No4, “Failure of control power”

4.4.2 Trouble Shooting Addition of No3,

“Failure of control power”

117

4.4. Trouble Shooting

4.4.1. Troubles when connecting to the Servo Amplifier (During communication status check)

No.

Abnormal operation/ Message

Major cause Check/ Corrective measures

1 “The communication port cannot be used.

(COM*) ”

Setting error of the communication port

Communication port can not be used for

R-SETUP.

Check if the “communication port” connecting with cable (PC side) matches to the one set by [Communication Setting…].

Check if the “communication port” connecting with cable (PC side) has been used for other applications.

Check if more than two R-SETUP

have been activated.

Check if the “communication port” connecting with cable (PC side) operates correctly.

Abnormal operation of communication port

2 “The communication cable is not connected”

Connecting failure of the communication cable (PC side)

Check if the communication cable (PC side/ D-sub 9 pin) is connected correctly.

Check if the communication cable has any breakage.

Control power supply Check if control power is supplied to the Servo amplifier.

3 The communication status check results in

“Not connected”.

Connecting failure of the communication cable (Amplifier side)

Check if the communication cable (Amplifier side) is connected to the

Amplifier correctly.

Check if the communication cable has any breakage.

Setting error of the communication relations.

Check if the communication baud rate setting of the Servo amplifier conforms to the one set by [Communication Setting…]. *Note 1

Check if the communication axis number setting of the Servo amplifier conforms to the one set by [Communication Setting…]. *Note 1

4 The communication status check results in

“Error”.

Setting error of the communication port

Wrong operation due to the setting failure.

Check if the “communication port” connecting with cable (PC side) matches to the one set by [Communication Setting…].

Check if the communication baud rate setting of the Servo amplifier conforms to the one set by [Communication Setting…]. *Note 1

Failure of control power Check if control power is supplied to the Servo amplifier. This abnormality occurs when the control power supply is a low voltage.

Wrong operation due to noise.

*Note 2

5

The communication status check results in

“Overlap” *Note 3

Setting error of the communication relations (when plural

Amplifiers are connected).

Check if the communication axis number settings overlap among connected Amplifiers. *Note 1

6 The communication status check results in

“Not-corresponding”.

Wrong operation due to noise.

Version mismatch The R-SETUP is not corresponding to the Servo amplifier software version. Install the latest version R-SETUP.

The R-SETUP cannot communicate to Q series Servo Amplifier. Software mismatch

R series Servo Amplifier cannot communicate Q-SETUP.

*Note 1 The communication axis number and the communication baud rate of the Servo amplifier can be set at parameter. Refer to the Appendix “4.5 Communication Setting of the Servo Amplifier” for the details. Note that the setting procedure is different or the setting can not be changed depending upon Amplifier types.

*Note 2 In case that the communication can not be executed correctly due to noise, the noise influence should be reduced by the countermeasures as follows:

Ground the Servo amplifier and PC appropriately.

Keep the Servo amplifier and PC away from the noise cause. ・Install noise filter

*Note 3 In case that ”Overlap” remains after countermeasures are implemented, take one of the following measures:

Turn off the control power of the Servo amplifier and turn it on.

*Note 2

118

Plug off the communication cable (Amplifier side) and reconnect it.

・ Execute [Communication] – [Communication Reset].

4.4.2. Troubles in use

No.

Abnormal operation/ Message

Major cause Check/ Corrective measures

1 “The communication port cannot be used.

(COM*) ” communication cable is not connected”

Communication port can not be used for

R-SETUP.

Abnormal operation of communication port

The communication cable (PC side) is not connected. abnormal (Axis number

[#*].)”

Failure of control power

Connecting failure of the communication cable.

“Parameter lock function” by pass ward is set.

Check if the “communication port” connecting with cable (PC side) has been used for other applications.

Check if more than two R-SETUP

have been activated.

Check if the “communication port” connecting with cable (PC side) operates correctly.

Check if the communication cable (PC side/ D-sub 9 pin) is connected correctly.

Check if the communication cable has any breakage.

Check if control power is supplied to the Servo amplifier. This abnormality occurs when the control power supply is a low voltage.

Control power supply was turned off, and it was turned on again.

Please execute [Offline->Online] or [Communication Check] again.

Check if the communication cable (PC side/ D-sub 9 pin) is connected correctly.

Check if the communication cable (Amplifier side) is connected to the

Amplifier correctly.

Check if the communication cable has any breakage.

When using the following functions under the Parameter lock function setting (editing parameter is prohibited), communication error occurs and the communication will be shut down.

”Write to Amplifier” of “General/ System/ Motor parameter setting”

・ ”Transmit parameter[File->Amplifier]”

・ Functions of ”Test running and adjustment”

”Operational Trace”

・ ”Alarm Reset”, “Alarm Trace Clear”

4 “Communication timeout (Axis number

[#*] ) “

5 “The axis number overlaps (Axis number

[#*] ) ” *Note 3

6 “The Servo amplifier that can communicate does not exist.”

7 “The amplifier file has broken.”

Wrong operation due to noise.

Failure of control power

*Note 2

Check if control power is supplied to the Servo amplifier.

Control power supply was turned off, and it was turned on again.

Please execute [Offline->Online] or [Communication Check] again.

Connecting failure of the communication cable (Amplifier side)

Wrong operation due to the setting failure.

Wrong operation due to noise.

Others

Check if the communication cable (Amplifier side) is connected to the

Amplifier correctly.

Check if the communication cable has any breakage.

Check if the communication baud rate setting of the Servo amplifier conforms to the one set by [Communication Setting]. *Note 1

*Note 2

The online Amplifier does not exist.

The Amplifier file to be operated (*.ap0)

has broken.

It might be generated by the hardware of the PC. Please use another

PC.

After taking measures, execute “Turn off and on again the control power of the Servo amplifier” or “Communication reset”. Communication can be reset by selecting [Communication] – [Communication Reset] from menu bar of the main screen.

There is no communicable online Servo amplifier due to communication error or timeout. Execute “Communication status check”.

The contents of the Amplifier file to be operated (*.ap0)

has broken.

The file can not be opened.

119

No.

Abnormal operation/ Message

Major cause Check/ Corrective measures

8 Even if the amplifier file

(*.ap0) is opened, parameters are not displayed.

(Or alarm history data is not displayed)

The amplifier file (*.ap0) was saved from Q series

Servo Amplifier.

[General Parameter Setting], [System Parameter Setting],

[Motor Parameter Setting], [Alarm History Display]

R-SETUP cannot not display and operate saved amplifier file (*.ap0) from Q series Servo Amplifier.

*Note 1 The communication axis number and the communication baud rate of the Servo amplifier can be set at parameter. Refer to the Appendix “4.5 Communication Setting of the Servo Amplifier” for the details. Note that the setting procedure is different or the setting can not be changed depending upon Amplifier types.

*Note 2 In case that the communication can not be executed correctly due to noise, the noise influence should be reduced by the countermeasures as follows:

・ Ground the Servo amplifier and PC appropriately.

Keep the Servo amplifier and PC away from the noise cause. ・Install noise filter

*Note 3 In case that ”Overlap” remains after countermeasures are implemented, take one of the following measures:

・ Turn off the control power of the Servo amplifier and turn it on.

Plug off the communication cable (Amplifier side) and reconnect it.

Execute “Communication (C)” and “Communication Reset (R)“.

4.4.3. Transmit Parameter [File->Amplifier] Alarm

No. Alarm Contents/ Message Explanation/ Corrective Measures

1 “Because the software version of servo amplifier is different, there are parameters which cannot be transmitted. Dose it transmit?”

2 “The kind of servo amplifier is different. It cannot transmit.”

The Servo amplifier software version of the transmission source having saved the amplifier file and that of transmission destination are different, or those hardware types are different. Thus, the part of incompatible parameters may not be transmitted.

Click “Yes”, and the transmission will be executed except for the incompatible parameters. After the transmission is completed, check the parameters that have not been transmitted by “Match parameter”. Set up those parameters in manual if necessary.

The Servo amplifier software version of the transmission source having saved the amplifier file and that of transmission destination are different. Because of the low compatibility between them, the parameter transmission can not be executed.

4.4.4. Match Parameter Alarm

No. Alarm Contents/ Message Explanation/ Corrective Measures

1

2 “The kind of servo amplifier is different. It cannot match.”

“The software version of servo amplifier is different. Dose it continue a matching?”

The Servo amplifier software version of the transmission source having saved the amplifier file and that of transmission destination are different, or those hardware types are different. For this reason, non-compatible parameter may exist.

Click “Yes”, and match parameter starts including the incompatible parameters. Those incompatible parameters, regardless of its setting values, will be indicated their names in red as “not matching”.

The Servo amplifier software version of the transmission source having saved the amplifier file and that of transmission destination are different. Because of the low compatibility between them, the Match Parameter can not be executed.

120

4.4.5. Test Operation and Adjustment/ Alarm Trace Clear Massage

No. Alarm Contents/ Message Explanation/ Corrective Measures

1

2

5

“JOG Operation cannot be used.”

“Pulse Feed JOG cannot be used.”

“Automatic Notch Filter Tuning cannot be used.”

“Automatic Vibration Suppressor Frequency Tuning cannot be used.”

“Measurement & Analysis cannot be used.”

[System Analysis Function]

“Fixation Excitation Operation cannot be used.”

“Automatic Offset Adjustment of V-REF Terminal cannot be used.”

“Automatic Offset Adjustment of T-COMP Terminal cannot be used.”

“Save Result of Automatic Tuning cannot be used.”

“Alarm Reset cannot be used.”

“Absolute Encoder Clear cannot be used.”

“Alarm Trace Clear cannot be used.”

“Jogging Operation cannot be executed. (Not ready)”

“Pulse Feed Jogging cannot be executed. (Not ready)”

“Automatic Notch Filter Tuning cannot be executed.

(Not ready)”

“Automatic Vibration Suppressor Frequency Tuning cannot be executed. (Not ready)”

“Measurement & Analysis cannot be executed. (Not ready)” [System Analysis Function]

“Fixation Excitation Operation cannot be executed. (Not ready)”

3 “Automatic Offset Adjustment of V-REF Terminal cannot be executed. (Not ready)”

“Automatic Offset Adjustment of T-COMP Terminal cannot be executed. (Not ready)”

“Save Result of Automatic Tuning cannot be executed.

(Not ready)”

“Alarm Reset cannot be executed. (Not ready)”

“Absolute Encoder Clear cannot be executed. (Not ready)”

“Alarm Trace Clear cannot be executed. (Not ready)”

4 “This function cannot be used in R-SETUP by which reduced installation was carried out.”

[System Analysis Function]

“Over-travel is now going on.”

[JOG Operation], [Pulse Feed JOG],

[Automatic Notch Filter Tuning],

[Automatic Vibration Suppressor Frequency Tuning],

[System Analysis], [Fixation Excitation Operation],

[Automatic Offset Adjustment of Analog Velocity Command/

Torque Command],

[Automatic Offset Adjustment of Analog Torque Additional

Command],

[Save Result of Automatic Tuning], [Alarm Reset],

[Absolute Encoder Clear], [Alarm Trace Clear]

The Servo amplifier is not corresponding to the functions and those functions in R-SETUP can not be used.

The functions that can be used in the “Test Operation and

Adjustment” of R-SETUP differs depending upon the Servo amplifier software version and the Servo amplifier types.

[JOG Operation], [Pulse Feed JOG],

[Automatic Notch Filter Tuning],

[Automatic Vibration Suppressor Frequency Tuning],

[System Analysis], [Fixation Excitation Operation]

The Servo amplifier is not ready and those functions can not be executed.

Check the followings:

・ if in the alarm status.

・ if the main circuit power is supplied.

・ if “Test Operation and Adjustment” and “Alarm Trace Clear” are implemented from digital operator.

During control mode switching. (Note7)

・ If the linear system without hall-sensor doesn't do Fixation

Excitation Operation, other test operation cannot be used.

[Automatic Offset Adjustment of Analog Velocity Command/

Torque Command],

[Automatic Offset Adjustment of Analog Torque Additional

Command],

[Save Result of Automatic Tuning], [Alarm Reset],

[Absolute Encoder Clear], [Alarm Trace Clear]

The Servo amplifier is not ready and those functions can not be executed.

Check if “Test Operation and Adjustment” and “Alarm Trace

Clear” are implemented from digital operator.

[System Analysis]

In the reduced installed R-SETUP, the system analysis function shall not be used. Use a complete version installer and implement the complete installation.

[JOG Operation], [Pulse Feed JOG]

Over-travel occurs in the JOG operational direction.

121

No. Alarm Contents/ Message Explanation/ Corrective Measures

6

7

“The setting value will not allow Pulse Feed Jogging.

Change the setting value.”

“Automatic Notch Filter Tuning has not been executed.

(Completing abnormally)”

“Automatic Vibration Suppressor Frequency Tuning has not been executed. (Completing abnormally)”

[Pulse Feed JOG]

Correct feed pulse value and setting value of travel velocity.

Appropriate setting range (Note 1)

Feed pulse value: 1 to 214748364 pulse

Travel velocity: 1 to approx. 1000min

-1

(Rotary)

1 to approx. 200mm/s (Linear)

[Automatic Notch Filter Tuning],

[Automatic Vibration Suppressor Frequency Tuning]

Tuning process has been interrupted (abnormal termination).

Check the causes as follows:

Over-travel has occurred.

・ After Servo OFF → Servo ON, tuning is implemented during holding brake release delay time (BOFFDLY). (Note2)

Torque limitation is effective. (Note 3)

・ Alarm has occurred. (Note 4)

・ The main circuit power has not been supplied.

8

9

10

11

12

“Measurement & Analysis can not be executed.

(Completing abnormally)”

[System Analysis Function]

“It is not a system analysis file.”

[System Analysis]

Data measurement process has been interrupted (abnormal termination).

Check the causes as follows:

Over-travel has occurred.

・ After Servo OFF → Servo ON, tuning is implemented (or started) during holding brake release delay time (BOFFDLY).

(Note2)

Alarm has occurred. (Note4)

・ The main circuit power has not been supplied.

[System Analysis]

The specified file is not a system analysis data file.

“Fixation Excitation Operation has not been executed.” [Fixation Excitation Operation]

The Fixation Excitation Operation can not be implemented normally.

“Automatic Offset Adjustment of V-REF Terminal has not been executed.”

“Automatic Offset Adjustment of T-COMP Terminal has not been executed.”

Check the causes as follows:

・ Rotary Servo system. (Note5)

・ Alarm has occurred. (Note4, Note6)

The main circuit power has not been supplied.

[Automatic Offset Adjustment of Analog Velocity Command/

Torque Command],

[Automatic Offset Adjustment of Analog Torque Additional

Command]

Automatic Offset Adjustment can not be executed normally.

Check the cause as follows:

Voltage of over±4V has been implied into analog input terminal.

“Alarm Reset has not been executed.” [Alarm Reset]

Alarm can not be reset normally.

Check the causes as follows:

The alarm that can not be reset has occurred.

・ Since the alarm cause has not been removed, the alarm cannot be reset.

122

*Note 1 The maximum travel velocity that can be set in the Pulse Feed JOG function differs depending upon the encoder resolution (if resolution is higher, the maximum travel velocity setting value shall be lower). The maximum travel velocity setting value in general encoder is as follows: (when setting beyond the over-speed setting value of the motor, over-speed error occurs.) Take extra care since JOG operation in the high speed is dangerous.

Rotary Servo System

・ Incremental Encoder(2000PPR)

Wiring-saved Absolute Encoder(131072FMT) :2746min-1

Linear Servo System

・ Incremental Encoder(10000P/mm) :600mm/s

Incremental Encoder(1000P/mm) :6000mm/s

*Note 2 Tuning/ data measurement can not be implemented normally during holding brake release time. After Servo

OFF →

Servo ON, wait holding brake release time (BOFFDLY) process. And then click “Execute”.

*Note 3 In the status of torque limitation, tuning can not be executed normally. Enlarge the setting value of the torque limitation, or lower the tuning torque command.

*Note 4 In case that the “Test operation complete alarm (ALM_DF)” occurs, this is a secondary alarm occurring due to the function failure and is not a cause of the “Test Operation and Adjustment” function failure.

*Note 5 In the Rotary Servo System, the Fixation Excitation Function can not be used.

*Note 6 In case that the “Fixation Excitation Error (ALM_44) occurs, this is a secondary alarm occurring due to the function failure and is not a cause of the “Fixation Excitation” operational failure.

*Note 7 The test operation might not be able to be used during switching the control mode.

4.4.6. Trace Operation Massage

No. Alarm Contents/ Message Explanation/ Corrective Measures

1 “Trace Operation cannot be executed.”

2 “It is not an operational trace file.”

3 “A sampling period is outside the setting range.”

“A trigger level is outside the setting range.”

“A trigger position is outside the setting range.”

4 “In the now baud rate and communication environment, the set-up sampling period is unrealizable.”

The Servo amplifier is not corresponding to the Trace

Operation Function and this function can not be used.

It differs depending upon the Servo amplifier software version and the Servo amplifier types if the Servo amplifier is corresponding to the Trace Operational Function.

The specified file is not an operational trace data file.

[Trace Operation Setting

]

The set value is out of specification.

[Scroll Mode]

This alarm occurs in case of high frequency of the display interruption (data elimination). The following causes are considered:

Menu bar opens during monitoring operation. (Note 1)

・ The relation between the sampling period setting value and

CPU operational frequency are not appropriate. (Note 2)

Other application operates in the background.

・ The application with large load exists.

Lower the load on PC. If no improvement, readjust the sampling period setting value.

*Note 1 Data update stops during the menu bar opens. When this data update stop becomes long, the alarm will occur and monitor will stop.

*Note 2 The recommended conditions (CPU operational frequency) when using scroll mode of the Trace Operational

Function are as follows:

50ms ≦ Data sampling period < 100ms :CPU operational frequency ≧ 800MHz

・ 100ms≦Data sampling period < 200ms

200ms≦Data sampling period

:CPU operational frequency ≧350MHz

:CPU operational frequency ≧133MHz

123

4.5. Communication Setting of Servo Amplifier

4.5.1. Parameter

Communication setting of the servo amplifier can be changed by operating parameter of the servo amplifier.

Setup Software, Communication Axis Number COMAXIS [Group A – Page 20]

Setup Software, Communication Baud Rate COMBAUD [Group A – Page 21]

By making this parameter setting identical with the communication setting of the

R-SETUP ([Communication] – [Communication Setting…] in the menu bar of the main screen), communication can be executed at the objective setting. The default settings are as follows:

Servo amplifier (

Standard setting value at ex-factory)

Communication Axis Number : #1 : COMAXIS = “01:_#1”

Communication Baud Rate : 38400bps : COMBAUD = “05:_38400bps”

R-SETUP - Setup Software (

Standard setting value after installation)

Communication Axis Number : #1

Communication Baud Rate : 38400bps

Setup Software, Communication Axis Number COMAXIS [Group A – Page 20]

Select Value Remarks

01 #1 Standard setting value at ex-factory.

02 #2

03 #3

04 #4

05 #5

06 #6

07 #7

08 #8

09 #9

0A #A

0B #B

0C #C

0D #D

0E #E

0F #F

Setup Software, Communication Baud Rate COMBAUD [Group A – Page 21]

Select Value Remarks

05 38400 bps Standard setting value at ex-factory.

124

Note 1) Depending upon the Amplifier types, “initial value/ ex-factory setting value may differ,” or “setting procedure may differ,” or “the setting value may not be able to change.” Refer to the individual Instruction Manual or Specifications.

Note 2) In case of changing COMAXIS and COMBAUD setting, the setting change will be valid by turning ON the Amplifier control power again.

4.5.2. Communication Setting Procedure by Digital Operator

Communication setting of the Servo amplifier can be checked and changed by using digital operator in the following procedure:

Note that “setting procedure may differ” or “the setting value may not be able to change” depending upon the Amplifier types. Refer to the individual Instruction Manual or

Specifications.

1. Switching digital operator mode.

(1) Turn ON the control power. Then the digital operator is in the status display mode.

(2) Press the MODE Key sometimes until Basic Mode (or Parameter Editing Mode).

2. Checked and Changed the communication settings at Basic Mode (or Parameter

Editing Mode)

MODE Page

bA

Name

00 COMAXIS Setup Software, Communication

Axis Number

01 COMBAUD Setup Software, Communication

Baud Rate

Corresponding group and page in

Parameter Editing Mode.

(General Parameter Setting)

Group A – Page 20

Group A – Page 21

3. Turn ON the control power again to update communication settings.

125

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
