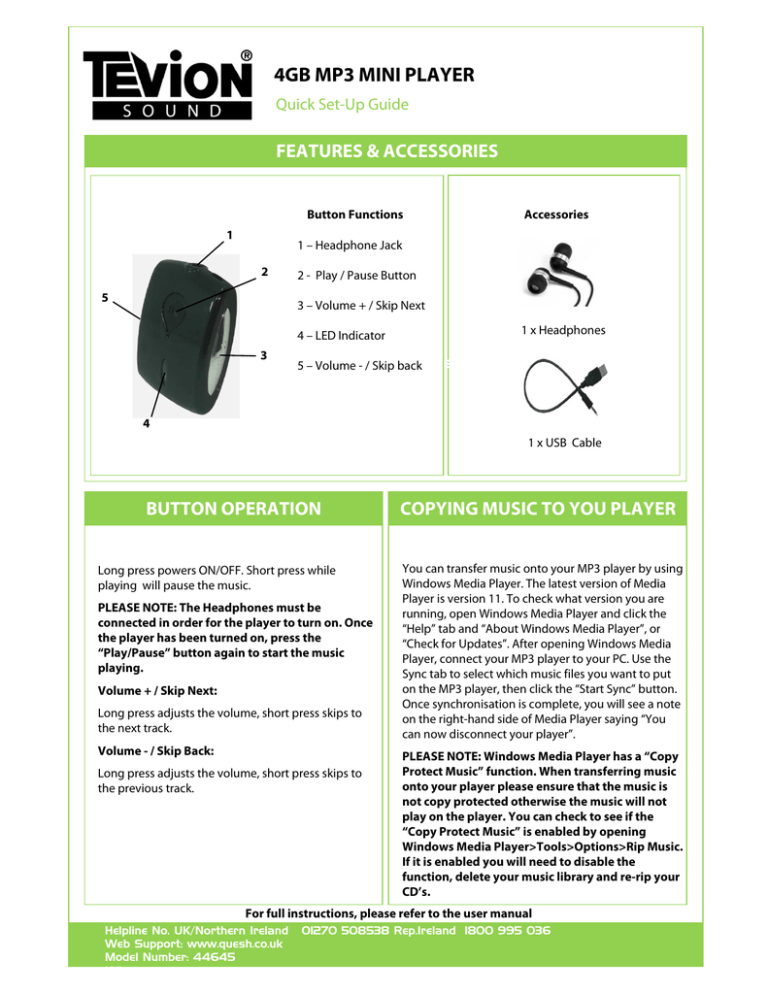

4GB MP3 MINI PLAYER
Quick Set-Up Guide
FEATURES & ACCESSORIES
Button Functions
1
Accessories
1 – Headphone Jack
2
5
2 - Play / Pause Button
3 – Volume + / Skip Next
4 – LED Indicator
3
5 – Volume - / Skip back
In ear
earphones
1 x Headphones
USB
cable
4
1 x USB Cable
BUTTON OPERATION
Long press powers ON/OFF. Short press while
playing will pause the music.
PLEASE NOTE: The Headphones must be
connected in order for the player to turn on. Once
the player has been turned on, press the
“Play/Pause” button again to start the music
playing.
Volume + / Skip Next:
Long press adjusts the volume, short press skips to
the next track.
Volume - / Skip Back:
Long press adjusts the volume, short press skips to
the previous track.
COPYING MUSIC TO YOU PLAYER
You can transfer music onto your MP3 player by using
Windows Media Player. The latest version of Media
Player is version 11. To check what version you are
running, open Windows Media Player and click the
“Help” tab and “About Windows Media Player”, or
“Check for Updates”. After opening Windows Media
Player, connect your MP3 player to your PC. Use the
Sync tab to select which music files you want to put
on the MP3 player, then click the “Start Sync” button.
Once synchronisation is complete, you will see a note
on the right-hand side of Media Player saying “You
can now disconnect your player”.
PLEASE NOTE: Windows Media Player has a “Copy
Protect Music” function. When transferring music
onto your player please ensure that the music is
not copy protected otherwise the music will not
play on the player. You can check to see if the
“Copy Protect Music” is enabled by opening
Windows Media Player>Tools>Options>Rip Music.
If it is enabled you will need to disable the
function, delete your music library and re-rip your
CD’s.
For full instructions, please refer to the user manual
Helpline No. UK/Northern Ireland
Web Support: www.quesh.co.uk
Model Number: 44645
183
01270 508538 Rep.Ireland 1800 995 036
