U N I N T E R R U P T I B L E P O W E R S U P P L I E S + L I G H T I N G F L O W D I M M E R - S TA B I L I S E R S + V O LTA G E S TA B I L I S E R S & P O W E R L I N E C O N D I T I O N E R S + D C P O W E R S Y S T E M S + S TAT I C I N V E R T E R S + P H O T O V O LTA I C I N V E R T E R S

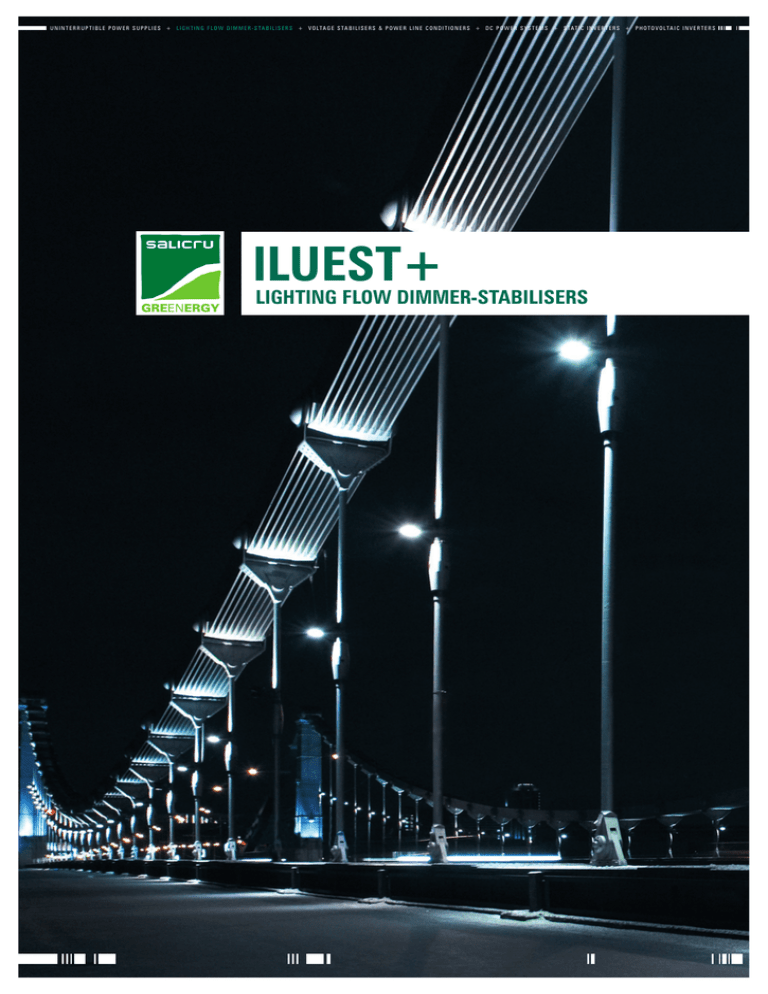

ILUEST+

LIGHTING FLOW DIMMER-STABILISERS

ILUEST+

ENERGY-SAVING, COST-EFFECTIVE & ENVIRONMENTAL FRIENDLY LIGHTING SYSTEMS

SALICRU has traditionally focused on energy saving in lighting installations. Proof of this is ILUEST lighting flow dimmer-stabiliser which, designed over 20 years ago and widely used throughout the country and abroad, was a pioneer in achieving precise High-Intensity Discharge (HID) lamp regulation with considerable savings in energy plus maintenance.

Nowadays, when energy has become a valuable and expensive service and street lighting is increasing constantly in quantity plus quality, SALI CRU stands fast for its first stake launching latest version of ILUEST+ lighting flow dimmer-stabiliser on the market:

ILUEST+CR, faithful to its original philosophy, uses the latest technology available to achieve better adjustment, management control and saving in outdoor urban lighting installations.

ILUEST+MT, the natural evolution of the original equipment with a multitaps transformer, which has been provided with higher-level communications, cutting-edge bypass, standard LCD display with astronomic clock and head contactor control.

More than 15,000 units installed and 400 MW back us

Such functional installation figure demonstrates manufactured product quality and innovation, becoming a perfect lighting installations plus.

ILUEST+CR

Energy efficiency in lighting

Energy consumption in lighting accounts for a large percentage of the energy expenditure in any municipality, and often amounts to more than 60% of the total electricity bill.

The lighting lines suffer considerable voltage fluctuations (overvoltages) throughout the night, causing considerable surplus consumption and a dramatic fall in the lifespan of the associated discharge lamps, which has a large effect on maintenance costs.

Street lighting systems generally maintain constant lighting levels, regardless of specific needs. However, most of the night, the streets and roads are empty with little traffic, so the lighting level could be reduced without causing problems and without consuming more than necessary.

In some cases, lighting is partially turned off, though this brings on a lack of uniformity incident risk-prone, increasing as well lighting lines complexity. In other cases, each lighting point is regulated, but this supposes extra purchasing cost plus expensive installation & mainte nance. In both cases, voltage is not stabilised, implying a severe drop in discharge lamps lifespan.

Therefore, if town halls and other official bodies, amongst others, wish to avoid excessive lighting or needless long lighting time, without disregarding quality parameters, they do need to set street lighting systems light flow.

Lighting flow dimmer-stabilisers installed in lighting line head panel, meaning minimum modifications made to current installations, so effective voltage stabilisation achieved, as well as up to 40% energy saving. Moreover, as voltage reaching lamps is stabilised, they bestow full life long potential, thus significantly reducing linked maintenance costs.

Finally, it is important to mention that these energy saving also means that huge CO atmosphere.

2

amounts are no longer being released the

SALICRU

Lighting suited to every need

The ILUEST+ series allows lighting level to adapt to overall needs, via parameter intelligent setting; such as intensity, turning on and off.

BENEFITS:

· Energy savings, reduction of energy consumption.

· Economic savings, reduction of the electricity bill in terms of consumption, maintenance and replacement.

· Simple installation, both in current and new lighting systems.

· Optimised telemanagement, via remote control equipment connected to a control centre.

· Speedy amortisation, in-between 6 and 24 months.

(1)

· Smaller CO

2

emissions, environment protection maximising nightly hours natural conditions.

METHODS:

Double circuit

Partial turning off. Main drawbacks of this solution are citizens’ insecuri ty in dark areas and disturbing ‘zebra’ effect upsetting drivers.

Double level reactances

These are used to achieve regular lighting, being expensive to buy & install due to extra reactance and usually in control line to each lighting point. Furthermore, as there is no stabilisation, lamps are still affected by overvoltages.

ILUEST+, dimmer-stabiliser

These provide previous systems advantages without their drawbacks, inasmuch voltage is stabilised and light flow gently reduced, being cheaper to install & maintain providing regular lighting plus considerable energy saving.

(1) Estimated 0.09 €/kWh rate.

ILUEST+ MT

ENERGY SAVINGS

In cities before 1973 world energy crisis and due to low energy price, lighting was set up without constraint. However, after this crisis, all of this changed, energy became more expensive and town halls began to look for a way to save street lighting consumption.

ECONOMIC SAVINGS

With ILUEST+ we are able to achieve up to 40% economy saving.

In any city of the world, lighting is on around 4,000 hours as yearly average, nightly overvoltages amount to 10%, so electricity bill is increased to 21% and drop in lamp average lifespan easily attains

-50%, sharply increasing maintenance cost.

Also in any city of the world, full power lighting needs after-midnight slow down, matching traffic and pedestrian abatement in the streets.

25,000 inhabitants town for example’s sake; if no action taken regarding energy saving, we will spend yearly an extra 450 MWh due to overvolta ge, resulting in 21% increase in electricity bill and 67% higher maintenan ce costs due to lamp replacement. Moreover, as if this were not enough, we will also weight on Greenhouse Effect by consuming 1,426 Tonnes CO

2

yearly equivalent.

On the other hand, if we install ILUEST+ in each control cen tre, in addition to overvoltage avoidance via voltage stabilisation, we will diminish maintenance costs and rationalise consumption to 1,723

MWh, achieving 848 MWh energy saving, over 93,000 € equivalent

(2)

, plus no less meaningful drop in Greenhouse Effect gas emission, estimated around 466 CO

2

Tonnes.

Following tables show possible energy saving, economy saving plus

CO

2

reduction which are easily achieved, depending on municipality’s inhabi tant number and other factors.

Nr. inhab. (in thou.)

100

200

500

1,000

2,000

10

25

50

75

Nr. control centres (1)

11

27

54

80

107

214

536

1,071

2,143

WITHOUT ILUEST+

Annual consumption

(MWh) – 4000h /10% overvoltage

1,065

2,614

5,227

7,744

10,358

20,715

51,885

103,673

207,442

Annual bill (€)

(2)

(consumption + maint.)

110,122

270,949

541,898

804,135

1,075,084

2,150,168

5,384,132

10,759,552

21,527,816

CO

2

sent to atmosphere (T)

586

1,437

2,875

4,259

5,697

11,393

28,537

57,020

114,093

Annual saving (MWh)

4000h.

345

848

1,696

2,512

3,360

6,720

16,830

33,629

67,290

WITH ILUEST+

Annual saving (€)

(2)

(consumption + maint.)

37,876

93,277

186,554

277,005

370,282

740,564

1,854,236

3,705,646

7,414,118

Annual saving in

CO

2

(T)

190

466

933

1,382

1,848

3,696

9,257

18,496

37,010

Average amortisation time (months)

10

10

10

10

10

10

10

10

10

(1) Calculation based on 20 kW average power per control centre, for n HPSV lamps of 150 W, where n corresponds to 7 inhabitants per lighting point. (2) Estimated 0.09 €/kWh rate.

LIGHTING FLOW DIMMER-STABILISERS

INSTALLATION

The ILUEST+ equipment are easily installed at head line and not at each lighting point, therefore adapting to all kinds of new or current installations and types of lamps on the market.

There is also the possibility of installing them inside the feeder pillar itself, or next to it on the outside.

TELEMANAGEMENT

The ILUEST+ equipment can also be managed easily by town hall personnel.

With the optional SICRES module, direct, effective and easy communication is possible with the city’s street lighting, enabling consumption and data to be registered, complete remote control of the installation by means of GPRS modem and comprehensive alarm management in real-time using SMS and e-mails.

AMORTISATION

The total investment made in ILUEST+ equipment is repaid in-between 6 and 24 months, thus regaining full investment.

APPLICATIONS

Thanks to their operative flexibility, the ILUEST+ may be installed in a multitude of different applications of both outdoor and indoor lighting:

Outdoor lighting:

· Residential areas: streets, avenues, roads, loop roads, roundabouts, bridges, etc.

· Industrial areas: industrial estates.

· Car parks: in hospitals, ports, airports, shopping centres, etc.

· Platforms: railway stations, quays, etc.

· Airports: aircraft parking areas.

Indoor lighting:

· Check-in areas in ports, railway stations and airports.

· Tunnels.

· Shopping centres: product storage and sales area at times of cleaning and product replacement.

· Manufacturing industries, industrial warehouses and silos.

Once repaid, the total achieved saving may be completely reinvested in improving and managing the lighting system. Furthermore, if we add multiple fundings promoted by the different governments to this, aforesaid amortisation period will be even shorter.

CO

2

EMISSION

0.55 Tonnes of CO

2

are being released the atmosphere for every MWh of power consumed.

With ILUEST+, as electrical consumption is reduced, CO

2

emissions also decrease, avoiding well-known Greenhouse Effect which is affecting our planet. Moreover, by broadening lamp’s useful life, we will weight reducing their recycling cost.

If such action would be unfolded to the rest of towns in a country of 40 million inhabitants, its environment contribution would prove crucial, as it would avoid releasing 1 million CO more than 650 million trees.

2

tonnes equivalent to the atmosphere yearly. In other words, it would save the need to plant

REFERENCES

National references:

ILUEST+MT without the front cover.

Airports: Tenerife, Alicante, Barcelona, Lanzarote, Madrid, Santiago de Compostela, ...

Motorways: Bidegi, Acesa, Aumar, Avasa, Aucat, Autoestradas, ...

Port authorities: Barcelona, Tarragona, Valencia, El Ferrol, ...

International references:

City Halls: Madrid, Barcelona, Valencia, Seville, Zaragoza, Vitoria,

Malaga, Pamplona, Vigo, Palma de Majorca, ...

France: Lyons, Rennes, Reims, Le Havre, St Etienne, Lorient, Charlesville

Meziers, Evry, …

Tunisia: Tunis, Carthage, Sidi Bou Said, Sfax, Megrine, Bardo,

Hammamet, Mornaguia, …

Morocco: Rabat, Casablanca, Fes, Tangiers, Meknes, Berrechid,

Temara, Skhirate, …

Others: Acería Compacta de Vizcaya, Canal de Isabel II, Túneles de la DGT, Fasa-Renault, Maersk España, Port Aventura, EADS-Casa, ...

China: Beijing, Guangzhou, Shanghai, Shandong, Jiangsu, Hunan,

Xingjian, Si Chuan, …

Poland: Gdansk, Bydgoszcz, Gdynia, Czestochowa, Torun, Walbrzych,

Swidnica, Swiecie, …

Portugal: Lisbon Port authority, Azores airport, Lisbon City Hall, Porto

City Hall, ...

(1) Estimated 0.09 €/kWh rate.

SALICRU

LIGHTING FLOW DIMMER-STABILISERS

ILUEST+CR

THE MOST ADVANCED SOLUTION

ILUEST+CR series made with apparel range in-between 3.5 and 45 kVA, both in single phase plus three-phase, making up most highly evolved SALICRU’s stabiliser range, being a great step forward in such kind of equipment.

There are several features in which ILUEST+CR evolution is obvious, clearly standing out over current solutions in operation:

FORMATS AND COMMUNICATIONS

OEM FORMAT KIT:

A format which gets the most out of this series’ modularity by configuring the modules to be integrated with the utmost flexibility in a specific installation and in lighting cabinets of any size and proportion.

Innovation: Most products within lighting flow control market applications offer discontinuous voltage setting. However,

ILUEST+CR series provides continuous adjustment thanks to

PWM technology used.

Technology: Due to its 100% static, electronic and transistorised

(IGBT) nature plus its 2-way topology, load reactive currents are returned to main, adjustment being improved in its output accuracy

(±1%), correc tion speed increased, linear ramps, etc.

Telemanagement: Total digital control, with greater measuring capacity, data monitoring and parameter programming. By including a rear-lit LCD display and new SICRES card, it is possible to build a powerful interface for Ethernet networks with TCP-IP & SNMP protocols, and GSM/GPRS modems. MODBUS protocol.

Modularity: Operation and maintenance strongly improved by modular power configuration which, due to smaller weight achieved via transfor mer elimination, reduce considerably both size & weight.

Power density: Transformer elimination allows a power package up to 3 times that of competitors’, facilitating adaptation to current or new control centres, thereby turning this series into most compact in market.

Protections: Automatic & manual bypass active by default with swit ching not passing through zero. Input for manual override.

Protection pro vided with automatic reset against overloading, high temperatures and malfunction.

Ecology: Due to new conception and electronic topology used,

ILUEST+CR series capable of being more ecological than its predecessor, if this is possible at all, avoiding sending huge CO

2 amounts to the atmosphere.

(1)

OEM format kit

Supplied in single phase or three-phase configuration, this comprises modules, fixing supports, wiring and power supply.

INDOOR VERSION:

Also conceived to adapt to lighting cabinets with little available space, but this integrates the three phases in a highly compact vertical format.

Indoor version

(1) 190 Tonnes of CO

2

on average for a typical town of 10,000 inhabitants.

SALICRU

OUTDOOR VERSION:

Apart from these 2 indoor formats with IP-20 protection index, there is also a weatherproof application in which the equipment is fitted in a polyester cabinet for locations in the open air.

COMMUNICATIONS:

All of the units of any format have a standard synoptic comprising:

LCD display: Provides information on input & output voltages, fre quency, load percent and saving, output current, active power, apparent power, power factor, load type and temperatures.

It in cludes a timing programmer, astronomic clock and alarm log.

Communications ports: RS-232 by RJ-45 connector for local monitoring via PC.

MODBUS protocol.

LCD Display, LED synoptic and connection for PC

Outdoor version

Slot detail of SICRES card

OPTIONS

Internal or external manual Bypass: Which will enable units to be electrically isolated to facilitate maintenance, repair work, etc.

GSM/GPRS modem.

SICRES card: This provides the equipment with remote communications by GPRS modem and

Web environment.

Digital I/O: Digital inputs and outputs.

Atmospheric gas discharger.

TECHNICAL SPECIFICATION

MODEL

TECHNOLOGY

INPUT

OUTPUT

BYPASS

STANDARDS

(1) Depending on type of lamp

Voltage

Voltage range

Frequency

Module protection

Equipment protection per phase

Voltage

Accuracy inside voltage range

Soft start voltage

Saving voltage

Speed ramp setting

Response time

Regulation

Efficiency

Phase unbalancing

Selectable saving voltage

Permissible overload

Type

Features

Activation criteria

Rearm

COMMUNICATION

Ports

Monitoring

GENERALS Operating temperature

Relative humidity

Maximum altitude

Mean Time Between Failures (MTBF)

Mean Time To Repair (MTTR)

Acoustic noise @ 1 metre

IMPLEMENTATIONS Indoor

Outdoor

OEM kit

Safety

Electromagnetic compatibility (EMC)

Marking

Quality and environmental management

(2) Optional

ILUEST+CR

Bidirectional ‘Buck’ converter with IGBTs, electronic, static and transformerless

Single phase: 230 V / Three-phase: 3 x 400 V + N

+ 25% / - 7% nominal voltage

+ 25% / - 17% saving voltage HPSV

+ 25% / - 10% saving voltage MV/MH

48 ÷ 65 Hz

Input/output fuses / electronic for temperature, overload

Fuse

Adjustable 215 V to 230 V (220 V as standard)

Better than ± 1%

Preselectionable

(1)

and adjustable

Adjustable 180 V to 210 V

From 1 V/minute to 6 V/minute

< 40 ms.

Linear and independent per phase

96% ÷ 98%

100% permissible

Through LCD panel or via SICRES communication

150% for 30 seconds; 120% for > 1 minute

No break

Automatic, reversible, independent per phase, independent operating, input for manual activation

Overtemperature, overload, fault, output fault, manual activation

Automatic by alarm cancelling.

Quantity of retries: 5; time between retries: 2 minutes

RS-232 y RS-485

(2)

SICRES system

(2)

– 20º C ÷ + 55º C (3)

Up to 95%, non-condensing

2,400 m.a.s.l.

60,000 hours

30 minutes

< 48 dBA (with typical load)

Modules built in assembling base (chassis of sheeted steel at carbon cold) with drills to fix to the wall

Indoor built in a poylester cabinet

Modules + Supports + Control wiring + Power Supply

EN-60950-1

IEC 62041

CE

ISO 9001 and ISO 14001 TÜV

(3) 4% power derating per each degree over 45ºC

RANGE

MODEL

KIT NET+7.5-4-LCD

KIT NET+10-4-LCD

KIT NET+15-4-LCD

KIT NET+20-4-LCD

KIT NET+25-4-LCD

KIT NET+30-4-LCD

KIT NET+45-4-LCD

MODEL

NET+ 7.5-4

NET+ 10-4

NET+ 15-4

NET+ 20-4

NET+ 25-4

NET+ 30-4

NET+ 45-4

POWER

(kVA)

25

30

45

7.5

10

15

20

POWER

(kVA)

7.5

10

15

20

25

30

45

MODULES NO.

3

3

3

3

3

3

3

DIMENSIONS PER MODULE

(D x W x H mm.)

200 x 172 x 310

200 x 172 x 310

200 x 172 x 310

200 x 172 x 310

200 x 172 x 470

200 x 172 x 470

200 x 172 x 470

INDOOR IMPLEMENTATION

DIMENSIONS

(D x W x H mm.)

240 x 520 x 610

240 x 520 x 610

240 x 520 x 610

240 x 520 x 610

240 x 520 x 770

240 x 520 x 770

240 x 520 x 770

Nomenclature, dimensions and weight for models: 3x400 V / 50 Hz input/output.

KIT OEM

WEIGHT

(Kg)

29

30

31

33

55

56

57

WEIGHT (Kg)

19

20

20

11

11

12

12

OUTDOOR IMPLEMENTATION

DIMENSIONS

(D x W x H mm.)

320 x 750 x 1105

320 x 750 x 1105

320 x 750 x 1105

320 x 750 x 1105

320 x 750 x 1105

320 x 750 x 1105

320 x 750 x 1105

WEIGHT

(Kg)

64

65

66

68

89

90

91

LIGHTING FLOW DIMMER-STABILISERS

ILUEST+MT

TECHNOLOGICAL EVOLUTION

ENHANCED PERFORMANCE

Thanks to its design, ILUEST+MT series guarantees that voltage reaching lamps always stays within ±2% nominal value margins, to allow them to operate under planned conditions and also, in addition to planned real flow plus lighting levels, achieving a considerable increase in discharge lamp lifespan.

The ILUEST+MT lighting flow dimmer-stabilisers bring in a series of advantages which, with time, have become reference performances in the majority of lighting projects:

Equally, it enables controlled, soft reduction of power supply volta ge, giving regular flows and significant energy saving.

Absence of moving elements: For safety and greater reliability, lighting flow dimmer-stabilisers are static, high efficiency and interactive. Therefore, switching bet ween different autotransformer secondary taps is carried out by solid-state switches (triacs).

Finally, the new communications using the SICRES card, a state-of-theart interface, enable real-time remote control in Web environment of the principal parameters of the installation.

High-speed correction: According to the correction speed, voltage stabilisation is almost im mediate, under 100 ms, which benefits lamps as at no time will they be exposed to sporadic overloading

(causing their prema ture aging) and it will avoid unexpectedly turning off due to a momentary drop in power supply.

ADAPTABILITY

ILUEST+MT dimmer-stabilisers fully static to start with, so as to have no moving elements, having a longer lifetime and replying faster to sudden changes in power supply voltage, protecting the always de licate discharge lamps more effectively. Furthermore, as regulation completely independent by phase (3 single phase units connected in star), allowing complete independence between them so they will not affect each other. Therefore, static Bypass on each phase will respond by connecting lighting from affected phase directly to mains when any fault befalls, albeit in unit itself or outside it, such as over loading, short-circuits, etc.

There are 2 types of finish respecting casing used: indoor version

(conceived for use in customer’s panel) and outdoor version (designed for exterior installation).

ILUEST+MT dimmer-stabilisers are conceived and designed for installa tion at line head, thus avoiding ackward supplementary wiring of other systems; being cheaper at the same time.

Also on each phase, these units have an RS-232 communications channel which allows local communication (by laptop computer or

LCD on the unit itself) or remote communication (using the SICRES card telecontrol options and GSM/GPRS modem) of all of the electrical parameters involved in the adjustment. It is therefore possible to control, monitor and programme the equipment from a distance using a specially developed Web environment management application.

Indoor ILUEST+MT

Operational flexibility: Each of the three electronic control units has fine adjustment of the output voltage (either the nominal or reduced value) to adapt the unit to the discharge lamps and/or overcome the habitual falls in voltage at the end of the line.

SALICRU

Conformity to regulations: Conforming to essential requirements of EC Di

Electromagnetic Compatibility (CEM). rectives

2006/95/EC on LV Safety & 2004/108/EC on

ILUEST+MT in outdoor version

Improved remote communication: This series has an interface for local and/or remote communication by means of the LCD display and/or

GSM/GPRS modem + SICRES card, respectively, which enable the principal parameters of the installation to be watched over and programmed, thus making it possible to exhaustively monitor the whole of the facility and the achieved savings.

View of the LCD display and slot for SICRES card

OPTIONS

SICRES card.

GSM/GPRS modem.

Manual bypass, to electrically isolate the unit during maintenance work.

(1)

Automatic bypass to contactors, by phase or common.

(1)

Atmospheric gas discharger.

(1)

Digital I/O card.

(1)

TECHNICAL SPECIFICATIONS

MODEL

TECHNOLOGY

INPUT

Voltage

Single phase

Three-phase

ILUEST+MT

Static and electronic regulation by microprocessor control

120 V, 220 V, 230 V, 240 V

3 x 208 V, 3 x 220 V, 3 x 380 V, 3 x 400 V, 3 x 415 V (+N)

Voltage range

+ 33% / - 8% nominal voltage

+ 4% / - 29% saving voltage HPSV

+ 10% / - 24% saving voltage MV/MH

OUTPUT

BYPASS

COMMUNICATION Ports

Monitoring

GENERALS

Operating temperature

Relative humidity

Maximum altitude

Mean Time Between Failures (MTBF)

Mean Time To Repair (MTTR)

Acoustic noise @ 1 metre

IMPLEMENTATIONS Indoor

STANDARDS

Frequency

Equipment protection per phase

Voltage

Single phase

Three-phase

Accuracy inside voltage range

Soft start voltage

Saving voltage

Speed ramp setting

Response time

Regulation

Phase unbalancing

Efficiency

Selectable saving voltage

Permissible overload

Type

Features

Activation criteria

Rearm

Outdoor

Safety

Electromagnetic compatibility (EMC)

Marking

Quality and environmental management

48 ÷ 63 Hz

Single pole MCB

120 V, 220 V, 230 V, 240 V

3 x 208 V, 3 x 220 V, 3 x 380 V, 3 x 400 V, 3 x 415 V

Better than ± 2%

Preselectionable

(1)

and adjustable

180 V (phase to neutral) adjustable MV, HPSV, MH and fluorescence

From 1 V/minute to 6 V/minute

< 100 ms.

Independent per phase

100% permissible

> 97%

Through LCD panel or via SICRES communication

150% for 30 seconds; 120% for > 1 minute

Static

Automatic and independent per phase.

Overtemperature, overload, fault, output fault, manual activation

Automatic by alarm cancelling.

Quantity of retries: 5; time between retries: 2 minutes

RS-232 and RS-485

(2)

SICRES system

(2)

– 40º C ÷ + 55º C

(3)

Up to 95%, non-condensing

2,400 m.a.s.l.

60,000 hours

30 minutes

< 35 dBA

Modules built in assembling base (chassis of sheeted steel at carbon cold) with drills to fix to the wall

Indoor built in a poylester cabinet

EN-60950-1

EN 61000-6-2; EN 61000-6-3

CE

ISO 9001 and ISO 14001 TÜV

(1) Depending on type of lamp (2) Optional (3) 4% power derating per each degree over 45º’C

RANGE

MODEL

NA+ 3.5-2

NA+ 5-2

NA+ 7.5-2

NA+ 10-2

NA+ 15-2

NA+ 20-2

POWER

(kVA)

3.5

5

7.5

10

15

20

INDOOR IMPLEMENTATION

DIMENSIONS

(D x W x H mm.)

245 x 350 x 380

245 x 350 x 380

245 x 350 x 380

245 x 350 x 380

245 x 350 x 380

245 x 350 x 380

Nomenclature, dimensions and weight for models: 230 V / 50 Hz input/output.

WEIGHT

(Kg)

42

43

45

46

50

67

MODEL

NAT+ 7.5-4

NAT+ 10-4

NAT+ 15-4

NAT+ 20-4

NAT+ 25-4

NAT+ 30-4

NAT+ 45-4

NAT+ 60-4

NAT+ 80-4

NAT+ 100-4

NAT+ 120-4

POWER

(kVA)

7.5

10

15

20

25

30

45

60

80

100

120

INDOOR IMPLEMENTATION

DIMENSIONS

(D x W x H mm.)

245 x 350 x 800

245 x 350 x 800

245 x 350 x 800

245 x 350 x 800

245 x 350 x 800

245 x 350 x 800

245 x 350 x 800

355 x 350 x 1100

355 x 350 x 1100

350 x 653 x 1070

350 x 800 x 1070

Nomenclature, dimensions and weight for models: 3x400 V / 50 Hz input/output.

WEIGHT

(Kg)

60

181

204

214

225

80

81

82

90

95

139

OUTDOOR IMPLEMENTATION

DIMENSIONS

(D x W x H mm.)

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

WEIGHT

(Kg)

72

73

75

76

80

105

OUTDOOR IMPLEMENTATION

DIMENSIONS

(D x W x H mm.)

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

320 x 520 x 1348

420 x 520 x 1348

420 x 520 x 1348

420 x 770 x 1348

420 x 1020 x 1348

WEIGHT

(Kg)

94

221

244

254

265

116

117

118

125

130

173

(1) In additional module.

LIGHTING FLOW DIMMER-STABILISERS

SICRES Telemanagement

SICRES: COMPLETE LIGHTING TELEMANAGEMENT

In any municipality, the lighting control centres are located in the street and away from the technical services, something which makes maintenance enormously more difficult. The cost of lighting maintenance therefore increases significantly and obliges municipalities to have brigades or subcontractors who, even without carrying out any corrective action, make periodic rounds of the streets in order to detect problems. In the best of cases, the installations will be in an operative state and it will not be possible to obtain statistics of faults, graphs on consumption, mains quality, etc.

By incorporating the SICRES network card, SALICRU offers a telemaintenance service through an Internet connection, which enables the state of the complete fleet of equipment (including cartography) to be known at all times and failures in the equipment and/or the control centres to the anticipated. Amongst the many services offered by the system, we might mention: sending of unattended alarms by SMS and/or e-mail, full monitoring of the equipment, control and programming of the different parameters such as the adjustments of the astronomic clock, transitions between states (nominal and economy), the different voltage levels, the types of lamp and a long etc, giving an overall view of the installation at all times and providing all kinds of graphs and statistics.

2

Lighting 1

1

Lighting 2

1

Lighting N

1

1

Lighting Control Centre: ILUEST+ with SICRES card and GSM/GPRS modem.

2

Two-way transmission.

3

Internet.

(1)

4

Internet Server.

(2)

5

Control Centre (e-mail) / mobile (SMS).

6

Technical Assistance Service.

(1)

5

T.A.S.

6

3

Flow of data through remote connection SICRES

4

CONTROL CENTRE

EQUIPMENT FLEET

(1) Other communication options: PLC, Ethernet, optical fiber, etc.

(2) SALICRU Web server or one owned by the customer.

ADVANTAGES & PERFORMANCES

The SICRES telemaintenance system provides monitoring, analysis and technical support in real-time 24/7, thus reducing the MTTR in the event of any unexpected incident.

For more important incidents and/or alarms, SICRES sends e-mails and

SMS to instantly report the incident and to enable suitable corrective action to be taken.

While the monitoring is under way, an incident and alarm log is created to enable exhaustive analysis of the equipment, which provides valuable information on the operating tendency and identifies potential future problems.

SICRES facilitates overall lighting maintenance by including cartographic maps with the exact location of the units. By clicking on any of them, we can find out their main parameters and enable their monitoring, control and programming.

SALICRU

MONITORING & CONTROL

Personalised screens for perfect equipment location, monitoring, control and programming.

Cartographic map of the equipment fleet

Location and data of the equipment fleet

TECHNICAL SPECIFICATIONS

MODEL

HARDWARE PLATFORM FEATURES

SICRES MODULE Functions

SICRES MODULE & CONTROL CENTRE

“Low Power ARM9” microprocessors

128 Mb RAM

RS232 / RS485 communications and Ethernet

Storage supports: E2PROM, SPI and SD/MMC

S.O. in real-time WCE 5.0

MODBUS/TCP

Data compilation and incorporation of advanced alarm management functions and logs

CONTROL CENTRE

Performances

Functions

Performances

Remote control and communications via RTC/GSM/GPRS/RS485,

LAN/ETHERNET, WIFI/WIMAX and protocols

Equipment telemaintenance

E-mail automatic sending

SMS configurable depending on the incident

Inclusion of native SNMP control

Consultation and remote control of the unit values by a Web interface: sending of commands, consultations, alarm management, remote updates, etc.

Web explorer monitoring

Telnet/Web/FTP configuration

Accessed via Ethernet or serial connection

Optional access by GPRS, Wifi, Wimax

Possibility of third party system connection

SNMP protocol support for integration with network administration tools

Monitoring of different ILUEST+ equipment: information centralisation and resending of commands from/to the different SICRES control cards

General map of the CC with display of the state of the equipment

General screen of a unit

Graphs of voltage, output intensity, power and % charge

Web user interface

Consultation of ILUEST+units location geographic maps

Consultation/programming of specific information concerning the different SICRES control cards

Sending of alarm notification by SMS and e-mail

Consultation of real-time data

Display of the state of the equipment in real-time: alarms, MODBUS table, ...

Generation of statistics and consultation of data log

Graphs of the different parameters: measurements, alarms, etc.

VERSIONS

In order to perfectly integrate the SICRES system throughout the ILUEST+ range, both in present and previous equipment, we have two versions of the card:

SICRES Card: For equipment with a slot to insert the SICRES card. This avoids having small devices around the unit.

SICRES Box: When the equipment has no slot, as in the case of the OEM Kits, the SICRES can be installed externally.

MEASUREMENT

Input voltage by phase

Output voltage by phase

Charge level by phase

Output current by phase

Apparent power by phase

Active power by phase

Total active power

Total apparent power

Cos by phase

Temperature 1 and 2 of the dissipater by phase

Inducer temperature by phase

Frequency

Percentage saving

ALARMS

INPUT

OUTPUT

BYPASS

Overloading alarm by phase

Voltage down alarm by phase

Protections alarm

Overloading alarm by phase

Off-margin alarm by phase

Output protections alarm

Manual bypass alarm

Bypass alarm by phase

GENERAL Overheating alarm sensors 1 and 2

Intrusion alarm

ILUEST+ communication failure alarm

N MODULES

Overloading alarm

Bypass alarm

High and low input voltages alarm

High and low output voltages alarm

High temperatures 1 and 2 (dissipater) alarm

High current in serial and parallel IGBT alarm

Bypass failure alarm

Fan failure alarm

Equipment blocked alarm

Manual bypass alarm

General alarm

SICRES Card SICRES Box

LIGHTING FLOW DIMMER-STABILISERS

U N I N T E R R U P T I B L E P O W E R S U P P L I E S + L I G H T I N G F L O W D I M M E R - S TA B I L I S E R S + V O LTA G E S TA B I L I S E R S & P O W E R L I N E C O N D I T I O N E R S + D C P O W E R S Y S T E M S + S TAT I C I N V E R T E R S + P H O T O V O LTA I C I N V E R T E R S

SALICRU REF. JM803A01 CODE 401AB000590 ED. NOVEMBER 2011

Avda. de la Serra 100

08460 Palautordera

BARCELONA. Spain

Tel. +34 93 848 24 00

Fax +34 93 848 11 51 [email protected]

SALICRU.COM

DELEGATIONS and SERVICE & TECHNICAL SUPPORT (STS)

BARCELONA

BILBAO

GIJON

CORUNNA

LAS PALMAS DE GRAN CANARIA

MADRID

MALAGA

MURCIA

PALMA DE MALLORCA

PAMPLONA

SAN SEBASTIAN

SEVILLE

VALENCIA

VALLADOLID

ZARAGOZA

SUBSIDIARIES

CHINA

FRANCE

HUNGARY

MOROCCO

MEXICO

PORTUGAL

UNITED KINGDOM

SINGAPORE

REST OF THE WORLD

ALGERIA

ARGENTINA

BELGIUM

BRAZIL

CHILE

COLOMBIA

CUBA

CZECH REPUBLIC

DENMARK

ECUADOR

EGYPT

GERMANY

HOLLAND

INDONESIA

IRELAND

JORDAN

KUWAIT

MALAYSIA

PERU

PHILIPPINES

POLAND

RUSSIA

SAUDI ARABIA

SWEDEN

SWITZERLAND

THAILAND

TUNISIA

UAE

URUGUAY

VENEZUELA

VIETNAM

Product Range

Uninterruptible Power Supplies (UPS)

Lighting Flow Dimmer Stabilisers

Voltage Stabilisers & Power Line Conditioners

DC Power Systems

Static Inverters

Photovoltaic Inverters

LIGHTING FLOW DIMMER STABILISERS

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
