Samsung 5050 series User`s manual

Samsung 5050 series User`s manual
00-Cover&Contents
7/16/99 8:05 PM
Page 1

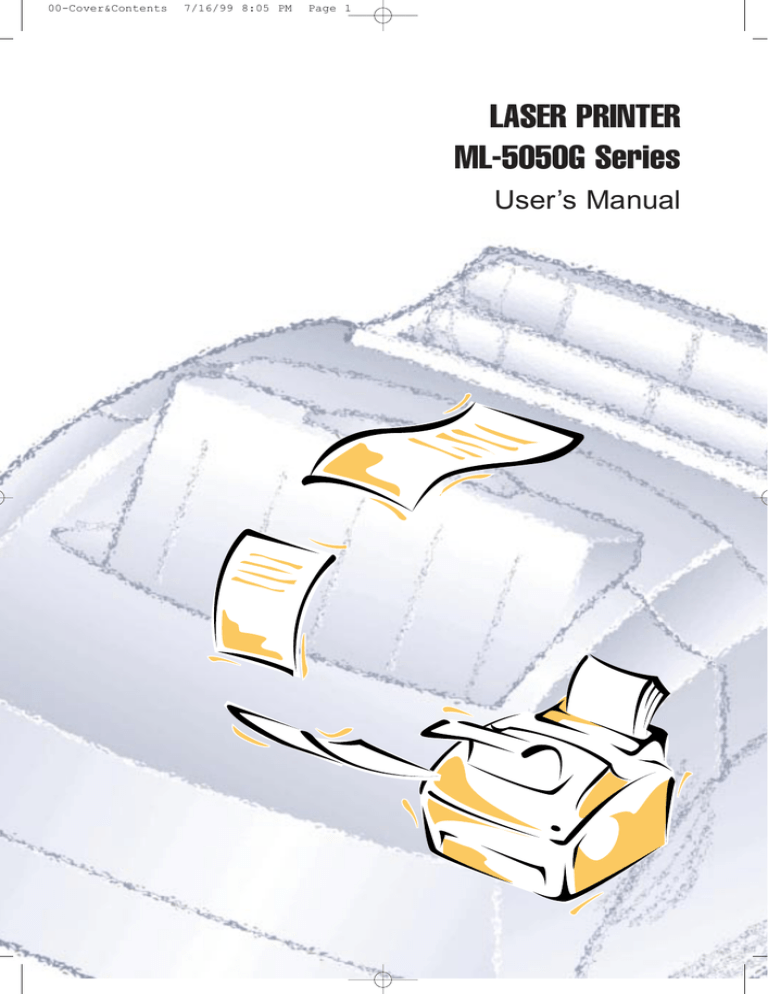

LASER PRINTER
ML-5050G Series
User’s Manual
00-Cover&Contents
7/16/99 8:05 PM
Page 2
Using Your Documentation
The following documentation is supplied with the ML-5050G Series to help you use your
new Samsung laser printer.
Setup Guide
This manual describes how you unpack, set up, and start using your ML-5050G Series,
including how to install the printer driver, which you must install in order to use
the ML-5050G Series for printing.
UserÕs Manual
This manual offers detailed information on how to operate your ML-5050G Series.
It includes maintenance, troubleshooting, options, and specifications.
This manual is provided for information purposes only. All information included herein is
subject to change without notice. Samsung is not responsible for any damage, direct or
indirect, arising from or related to use of this manual.
© 1999 Samsung. All rights reserved.
¥ ML-5050G Series and the Samsung logo are trademarks of Samsung.
¥ Centronics is a registered trademark of Centronics Data Computer Corporation.
¥ IBM, IBM PC are registered trademarks of International Business Machines Corporation.
¥ True Type is a registered trademark of Apple Computer, inc.
¥ Microsoft, MS-windows, MS-DOS are registered trademarks of Microsoft Corporation.
¥ All other brand or product names are trademarks or registered trademarks of their
respective companies or organisations.
¥ SuperPrinter is a registered trademark of Zenographics,Inc.
00-Cover&Contents
7/16/99 8:05 PM
Page 3
Contents
Chapter 1
Introducing Your Printer
Control Locations and Functions
Front View
Rear View
Inside
Operator Panel
Indicator Lights
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Chapter 2
1
1
2
2
3
3
Paper Handling
Selecting Paper Types and Feed Source
Loading a Stack of Paper
Feeding Manually
Using Face-up Stacker
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
4
5
9
10
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Paper Guidelines
Chapter 3
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
11
Operating Your Printer
Selecting Your Printer
Printing a Document
Print Settings
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
12
13
14
00-Cover&Contents
7/16/99 8:05 PM
Chapter 4
Page 4
Troubleshooting
Poor Print Quality
Paper Problems
19
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
20
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Printing Problems
21
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Software Problems
22
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Before You Call For Service
23
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Clearing Paper Jams
Tips for Avoiding Paper Jams
24
26
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Chapter 5
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Supplies and Maintenance
Cartridge Maintenance
27
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Replacing Toner Cartridge
27
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Appendix
FCC Regulations
29
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Canadian Radio Interference Regulations
FCC Declaration Of Conformity
EC Declaration of Conformity
29
30
31
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
Laser Safety Statement
Safety Information
Specifications
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
ÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐÐ
32
33
34
00-Cover&Contents
7/16/99 8:05 PM
Page 5
ELECTRONICS
Visit us at http://samsungtelecom.com
P/N. JC68-00147B Rev.1.00
01-Setup
7/16/99 2:03 PM
Page 1
Chapter 1
Introducing Your Printer
Control Locations and Functions
Front View
Automatic Paper Feeder
Holds 150 sheets of paper.
Manual Paper Feeder
Used to feed a single sheet of paper.
Tray Extender
Supports paper stacked in the
automatic paper feeder.
Stacker Extender
Supports paper stacked in the
paper output bin.
Paper Guides
Adjust to the
width of paper.
Operator Panel
Face-down Stacker
Holds printed documents.
If printed on plain paper,
a maximum of 100 sheets
can be held.
Face-up Stacker
Holds a single sheet of special media (transparency,
label, envelope, and heavy weight paper) with print
side facing up.
Introducing Your Printer
1
01-Setup
7/16/99 2:03 PM
Page 2
Rear View
Printer Cable
Connector
Power Cord
Connector
Inside
Toner Cartridge
Front Cover
2
Introducing Your Printer
Power
Switch
01-Setup
7/16/99 2:03 PM
Page 3
Operator Panel
The operator panel has three indicator lights and one button.
ERROR
PAPER
READY
Indicator Lights
INDICATOR
DESCRIPTION
READY (on)
The printerÕs power is ÔONÕ.
READY (blink)
The printer is receiving or processing data.
ERROR (on)
¥
There is no image cartridge installed, or the
cover is open.
¥ Print
¥
error occurs.
If the PAPER light is also on, there is paper
jammed.
PAPER (on)
The paper bin is empty.
Introducing Your Printer
3
01-Setup
7/16/99 2:03 PM
Page 4
Chapter 2
Paper Handling
Selecting Paper Types and Feed Source
One of the most important things you can do to assure the best
possible print quality from your printer is to select the correct paper.
Your printer produces letter quality output on most plain bond paper,
including cotton bond and photocopying paper; it does not require
special paper. However, the print quality varies with different paper
types. Be sure to test a small quantity of paper before you purchase a
large quantity.
You can print on any of the following paper types:
Type
Plain paper
(20 to 30 Ib)
Envelopes
Cards (16 to 32 Ib)
Transparency
Film Paper Labels
Feed Source
Capacity
Letter: 8 1/2 x 11Ó
Legal: 8 1/2 x 14Ó
Executive: 7 1/4 x 10 1/2Ó
A4: 210 x 297 mm
A5: 148 x 210 mm
B5: 182 x 257 mm
Folio: 8 1/2 x 13Ó
Automatic
feeder
150 sheets
(Approx.)
Manual
feeder
1 sheet
COM-10: 4 1/8 x 9 1/2Ó
Monarch: 3 7/8 x 7 1/2Ó
C5: 162 x 229 mm
C6: 114 x 162 mm
DL: 110 x 220 mm
Automatic
feeder
10 envelopes
(Approx.)
Manual
feeder
1 envelope
Automatic
feeder
10 items
(Approx.)
Manual
feeder
1 item
Size
Notes:
¥When you print, select the correct paper size and source in your application.
¥Depending on paper thickness, the maximum capacity may be reduced.
4
Paper Handling
01-Setup
7/16/99 2:03 PM
Page 5
Loading a Stack of Paper
You can stack paper, envelopes, card stocks, labels, or transparencies
in the automatic paper feeder to feed automatically. The automatic
feeder can hold a maximum of 150 sheets of plain paper, and 10
envelopes or other print media. The maximum capacity may be
reduced, depending on the thickness of the paper type selected.
Note: If you experience feeding problems, try printing item at a time from
the manual feeder. See page 9.
1. Pull the extender on the automatic feeder up until it stops.
Extender
Automatic feeder
Manual feeder
2. Prepare the print material for loading.
¥ For paper and envelopes:
- Flex paper or fan envelopes back and forth. Do not fold or
crease the paper. Straighten the edges on a level surface.
Note: If envelopes jam while printing, try reducing the number of envelopes
in the automatic feeder.
Paper Handling
5
01-Setup
7/16/99 2:04 PM
Page 6
¥ For transparencies:
- Hold the transparencies by the edges and avoid touching the
print side.
- Fan the stack of transparencies to prevent feeding failures. Be
careful not to scratch or leave fingerprints on the print sides.
3. Load the print material in the automatic feeder. Do not load too
much print material. Do not different paper types. See the
following directions on how to load each type of print material.
¥ Load paper or transparencies with the print side facing you.
Place the print side facing you.
6
Paper Handling
Page 7
¥ Load envelopes with the flap side facing away from you. The stamp
area is on the bottom right corner. The end of the envelope with the
stamp area enters the feeder first.
Notes:
¥ Do not feed stamped envelopes. The stamp is shown for placement only.
¥ Never use envelopes with clasps, snaps, windows, coated linings, or
self-stick adhesives.
¥ These envelopes may severely damage the printer.
¥ Load letterhead paper with the design facing you. The top edge of
the sheet with the logo should enter the printer first.
AD
ERHE
7/16/99 2:04 PM
LETT
01-Setup
Paper Handling
7
01-Setup
7/16/99 2:04 PM
Page 8
4. Adjust the guides to the width of the print material. Slide the
guides until they lightly touch the stack of print material. Do not
bend the print material.
Paper guide
Paper guide
5. Pull up the extender on the face-down stacker. The face-down
stacker can hold a maximum of 100 printed pages.
Face-down stacker
6. Before starting your print job, make sure you select the correct
paper size and feed source in your application.
8
Paper Handling
01-Setup
7/16/99 2:04 PM
Page 9
Feeding Manually
Use the manual feeder to feed one sheet at a time into your printer.
The manual feeder is in front of the automatic feeder.
Automatic paper feeder
Manual paper feeder
1. If necessary, open the face-up stacker. See page 10.
2. Load the print material in the manual feeder and adjust the paper
guides to the width of the print material.
See the instructions to load each type of material on page 5.
Paper guide
Paper guide
3. Gently push it all the way in.
4. Before starting your print job, make sure you select the correct
paper size and feed source in your application.
5. Press and hold the button on the operator panel for about 2
seconds. Printing will start.
6. If you have more than one page to print, the Printer Status Window
on the computer screen alerts you to feed the next sheet each time
the printer is ready to print the next page. Press and hold the
button for about 2 seconds until the printer pulls in the paper and
starts printing.
Notes: If you press the button without paper in the manual feeder, the
printer will automatically use paper in the automatic paper feeder.
Paper Handling
9
01-Setup
7/16/99 2:04 PM
Page 10
Using the Face-up Stacker
1. Push both sides of the stacker marked
open.
, and the stacker will
2. If you use the face-up stacker, printed pages will exit through the
front output path, with the printed side up.
Notes:
¥ The face-up stacker may not hold the printed materials properly.
¥ The printed pages will not stack in the standard face-down stacker unless
you close the face-up stacker. The face-down stacker can hold up to 100
printed pages. When you finish using the face-up stacker, you must close
it.
10
Paper Handling
01-Setup
7/16/99 2:04 PM
Page 11
Paper Guidelines
When selecting or loading paper, envelopes, or other special media,
keep these guidelines in mind:
¥ Attempting to print on damp, curled, wrinkled, or torn paper can
cause paper jams and poor print quality.
¥ Use cut-sheet paper only. You cannot use multipart paper.
¥ Use only high quality, copier grade paper. Avoid paper with
embossed lettering, perforations, or texture that is too smooth or too
rough.
¥ Colored paper should be of the same high quality as white
photocopy paper. The pigments must withstand the printerÕs fusing
temperature of 392 oF (200 oC) for 0.1 second without deterioration.
Do not use paper with a colored coating that was added after the
paper was produced.
¥ Pre-printed forms must be printed with non-flammable, heatresistant inks that do not melt, vaporize, or release hazardous
emissions when subjected to the printerÕs approximately 392 oF (200
o
C) fusing temperature for 0.1 seconds.
¥ Store paper in its ream wrapper until you are ready to use it. Place
cartons on pallets or shelves, not on the floor. Do not place heavy
objects on top of the paper, whether it is packaged or unpackaged.
Keep it away from moisture, or other conditions that can cause it to
wrinkle or curl.
¥ During storage, moisture-proof wrap (any plastic container or bag)
should be used to prevent dust and moisture from contaminating
your paper.
¥ Always use paper and other media that conform with those listed
under ÔSpecificationsÕ on page 33.
¥ When you choose envelopes, use only well-constructed envelopes
with sharp, and well creased folds.
- DO NOT use envelopes with clasps and snaps.
- DO NOT use envelopes with windows, coated linings, self-stick
adhesives, or other synthetic materials.
- DO NOT use damaged or poorly made envelopes.
- DO NOT use envelopes with affixed stamps.
Paper Handling
11
01-Setup
7/16/99 2:04 PM
Page 12
Chapter 3
Operating Your Printer
Selecting Your Printer
To use all of the features of your ML-5050G Series printer, make sure
it is selected as the default printer. If you use more than one printer,
select ML-5050G Series as the default printer in the following manner
:
Windows 95 / 98 / NT 4.0
1. Select Start, Settings, then Printers.
2. Double-click ML-5050G Series.
3. Select Set As Default from the Printer menu.
Windows 3.x
1. Double-click Control Panel from the Main program group.
2. Double-click Printers.
3. Select ML-5050G Series.
4. Click Set As Default printer.
12
Operating Your Printer
01-Setup
7/16/99 2:04 PM
Page 13
Printing a Document
This procedure describes the general steps required for printing from
various Windows applications. The exact steps for printing a
document may vary depending on the application you are using.
Refer to your applicationÕs documentation for the exact printing
procedure.
1. Start the program you are using to create the document, and/or
open the document you want to print.
2. Choose Print or Print Setup from the File menu. The Print or
Print Setup dialog appears to make changes to the printer setting.
3. If you click on Properties, Setup, or Options in the dialog box,
youÕll access the printer driver and you can make any additional
setting as appropriate for printing your document. See ÔPrint
SettingsÕ on page 14. The settings you can change depend on the
printer you selected.
4. Select OK to close the dialog box.
5. After making any necessary changes to the print parameters,
select OK to start the print job.
Note: The way you access the printer driver varies depending on the
programs you use.
Operating Your Printer
13
02-Printing
7/16/99 1:57 PM
Page 2
Print Settings
Most Windows applications allow you to make changes to the printer
settings. This changes the number of copies, paper orientation, and
paper size.
Note: Most Windows applications will override settings you specify in the
printer driver. Change all printer settings available in the software application
first, and any remaining settings with the printer driver.
In Windows 95/98
To access ML-5050G Series settings from the Windows 95/98 Printers
folder :
1. Open the Printers folder (Start/Settings/Printers).
2. Right click the printerÕs icon, and choose Properties from the
resulting menu.
3. Choose the 32-bit SuperDriver Setup tab.
In Windows NT 4.0
To access ML-5050G Series settings from the Windows NT 4.0 Printers
folder :
1. Open the Printers folder (Start/Settings/Printers).
2. Right click the printerÕs icon, and choose Document Defaults from
the resulting pop-up menu.
In Windows 3.1x
To access ML-5050G Series settings from the Windows 3.1X Control
Panel :
1. Open the Control Panel from the Main group and double click the
Printers icon.
2. Choose the ML-5050G Series from the list of available printers and
click the Setup button.
14
Operating Your Printer
02-Printing
7/16/99 1:57 PM
Page 3
The following Properties dialog box appears.
Paper Tab
On the Paper tab, you can change the number of copies, paper size,
paper source, page orientation, nUP and scale the image of your print
job.
For Help on each item, click ? at the top of the dialog box, and then
click the desired item.
nUP: For multi-page documents, you can choose to have more than one
document page per physical page. Choices are 1,2,4,9, and 16.
Printer Options Tab
On the printer Options, you can set the toner density, print a test
page, and set the time to specify when your printer goes into an
energy saving mode if the printer is idle.
For Help on each item, click ? at the top of the dialog box, and then
click the desired item.
Operating Your Printer
15
02-Printing
7/16/99 1:57 PM
Page 4
Quality Tab
On the Quality tab, you can adjust the print quality of your
document by setting resolution. Higher resolution looks better but
takes longer to print and requires more memory. You can also adjust
the Lighten/Darken and contrast for all graphics in your documents.
Output TypeÕs Quality : Each of the selections on the output quality
correspond to a pre-determined halftone is used by the driver. If text is
selected then a halftone that is optimal for text printing is used by the driver.
The normal option uses the new halftone that we have optimized for your
printer engine. Photographic selects a halftone that is optimized for printing
images at a higher quality.
Lighten/Darken/Contrast : When youÕre printing documents that contain
areas of gray, you may find the results you get from the ML-5050G Series
driver can be significantly lighter than from other printer drivers (especially
laser printer drivers). The ML-5050G Series driver corrects output to render
grays more nearly like those you see on your screen; most other drivers do
not. You can use any of the above settings to alter the output to you liking.
For Help on each item, click ? at the top of the dialog box, and then
click the desired item.
Advanced Tab
The options on the Advanced Tab are designed mostly for
troubleshooting application or file specific problems.
Color Documents : Some applications do not recognize the inherent colorhandling capabilities of your ML-5050G Series printer. It is for these
applications that the option Color Document exists. One application that
requires this setting to be on is Microsoft PowerPoint. If you find that you
are not getting correct grays from an application, you should try toggling
this option.
Graphics : MicrosoftÕs specifications for communicating to Windows
printer drivers are sufficiently ÒlooseÓ that different software developers have
invented (or borrowed) special driver ÒescapesÓ (unusual instruction codes).
The set of escapes invented by Micrografx can provide substantial
performance gains. Applications that either require or work better with
Graphics turned on include Lotus Freelance for Windows and most
Micrografx software. In general, if performance when rendering complex
graphics is either very slow, or yields unsatisfactory output, you should try
toggling this setting.
16
Operating Your Printer
02-Printing
7/16/99 1:57 PM
Page 5
Dither Line : Most output devices rely on dithering to achieve shades of
gray. With the Dither Lines option on (the default), your ML-5050G Series
printer gives you accurate grays even if it has to dither them. You get exactly
what you ask for. However, fine dithered lines appear dashed instead of solid.
With the Dither Lines option off, your ML-5050G Series printer maps text
and lines to the nearest gray. For black & white output, grays that are darker
than about 50% map to black; lighter grays map to white. For color, colors
map to the nearest gray.
Dither Text : Most output devices rely on dithering to achieve shades of
gray. With the Dither Text option on (the default), your ML-5050G Series
printer gives you accurate grays even if it has to dither them. You get exactly
what you ask for. However, small dithered text is difficult to read. With the
Dither Text option off, your ML-5050G Series printer maps text and lines
to the nearest gray. For black & white output, grays that are darker than
about 50% map to black; lighter grays map to white. For color, colors map to
the nearest gray.
Accept Larger Bitmap Pattern : When an application sends a bitmap fill
pattern (also called a Òpattern brushÓ) to the printer, the expected, standard
size is 8 pixels square. Some applications are able to send larger patterns. If
Accept Larger Bitmap Pattern is on, and you encounter output where your
bitmap fills have repeating pattern anomalies in them, try turning it off.
Bitmap fill patterns can be used for any repeated design, or even to simulate
grayscale dithering. Some applications send box tints as bitmap patterns.
One problem that arises with this is that some programs donÕt make
allowances for the difference between screen resolution and printer
resolution. (Another problem is that some do!) The typical result is that
patterns printed to a laser printer get very small, and tints get too dark.
Scale : Your ML-5050G Series has a process that automatically enlarges the
bitmap fill patterns so that the output more closely matches the screen. For
example, with the default, ÒautomaticÓ setting of Scale: 0, patterns that come
from a VGA system (96x96 logical pixels per inch) are enlarged
three times to (almost) match the 300x300 dpi of a laser printer. If you set
Scale to 1, your printer can handle the brush patterns exactly as they come
from the application-no scaling. You can also
force your printer to scale by 2, 3, 4, or more times by entering larger
numbers.
Operating Your Printer
17
02-Printing
7/16/99 1:57 PM
Page 6
Adobe and True Type Font Engine Checkboxes : The primary use of this
feature is for troubleshooting by a process of elimination with a limited
number of applications. If your printing works OK, you should ignore these
settings. In some circumstances, certain applications can cause problems
with your ML-5050G Series printer when the document uses typefaces
installed in Adobe Type Manager software (ATM) or TrueType. If you have
both font engines, you could also run into substitution problems. Turning
the TrueType checkbox on speeds up handling of True Type fonts by sending
them as text. With this option off, fonts are handled as graphics. This can be
useful if you are printing over a network to a server that does not have the
same typeface you are using on your workstation PC. Since the data is sent
as graphics, you do not run into font substitution problems. If you are
printing with characters found in languages like Japanese or Chinese (also
called double-byte characters), the True Type checkbox should be off.
About Tab
The About dialog box displays the software version and other useful
information about your printer.
18
Operating Your Printer
02-Printing
7/16/99 1:57 PM
Page 7
Chapter 4
Troubleshooting
Poor Print Quality
Problem
Light or blurred
characters
Action
¥ Hot/humid or cold/dry weather conditions may affect
how well toner adheres to paper. Select the next darker
print setting.
¥ Make sure the Toner Cartridge is installed correctly.
¥ The Toner Cartridge may be out of toner. Install a new
Cartridge.
¥ Make sure you are using the correct type of paper. See
ÒSelecting Paper Types and Feed SourceÓ on page 4.
Smudged or dark
characters
¥ The Toner Cartridge may be defective. Remove it and
check for damage. Install a new Cartridge if needed.
¥ Make sure the paper is straight and unwrinkled.
Irregular or missing dots
¥ If printing on transparencies, try changing the fill pattern
in your application.
¥ The paper may be too damp. Try printing with a different
batch of paper.
Solid black areas on
transparencies or paper
contain white streaks
¥ Try using a different fill pattern in your application.
¥ The Toner Cartridge may be defective. Remove and check
the Cartridge for damage. Install a new Cartridge if
needed.
¥ Try a different type of paper. Paper designed for use with
xerographic copiers produces the best quality.
¥ Try a different type of paper. Paper designed for use with
xerographic copiers give the best quality.
Poor printer quality
¥ You may be printing on the wrong side of the paper. Some
paper has a right side for printing. If the print quality is not
as clear as you would like it to be, try turning the paper
over and printing on the other side.
Troubleshooting
19
02-Printing
7/16/99 1:57 PM
Page 8
Paper Problems
Problem
Paper sticks
together/multiple sheets of
paper feed
Action
¥ Remove paper from the paper feeder and flex or fan the
paper.
¥ Make sure there is not too much paper in the paper tray.
Depending on the thickness of your paper, the
automatic feeder can hold up to 150 sheets.
¥ Make sure you are using the correct type of paper. See
ÒSelecting Paper Types and Feed SourceÓ on page 4.
¥ Different types of paper may be stacked in the
automatic feeder. Load just one type of paper. Do not
mix paper types.
Paper fails to feed
¥ Remove the paper from the paper feeder and flex or fan
the paper.
¥ Make sure the paper source you selected in your
application is correct.
¥ Remove any obstructions inside the printer.
Paper skews or buckles
¥ Make sure there is not too much paper in the automatic
feeder. Depending on paper thickness, the automatic
feeder can hold up to 150 sheets of paper.
¥ Make sure the paper guides do not cause the paper to
bend in the paper feeder.
¥ Make sure you are using the correct type of paper. See
ÒSelecting Paper Types and Feed SourceÓ on page 4.
Envelopes skew
¥ Make sure the paper guides do not cause envelopes to
bend in the paper feeder.
¥ Make sure the envelopes are loaded properly, and that
there are no more than 10 envelopes in the automatic
feeder.
Envelopes fail to feed
correctly
20
Troubleshooting
¥ Try a different kind. Envelopes designed for laser
printers will produce the best results.
¥ Envelopes may not match the specification of this
machine.
03-Troubleshooting
7/16/99 1:51 PM
Problem
Transparencies or
envelopes do not feed
correctly
Page 1
Action
¥ The film or envelopes may not be loaded correctly.
Make sure you load no more than 10 transparencies or
envelopes in the automatic feeder. Depending on the
thickness, the maximum capacity may need to be
reduced.
¥ When you feed paper into the manual feeder, you
must load one sheet at a time.
Repeated paper jams
occur
¥ The paper you are using may be causing the jams. Fan
the paper before stacking it in the paper feeder. This
keeps the sheets from sticking together.
¥ Check that the paper you are using and your printing
environment are within the specifications of the unit.
Printing Problems
Problem
Action
The operator panel
indicator lights do not
come on when printer is
turned on
¥ Make sure the printer power cord is firmly attached at
the back of the printer and at the electrical outlet.
Printer seems to be
printing, but pages are
blank
¥ Make sure the Toner Cartridge is installed.
¥ Be sure to turn on the printer power switch.
¥ The Toner Cartridge may be empty. Install a new Toner
Cartridge.
¥ The Toner Cartridge may be defective. Remove and
check the Cartridge for damage. Install a new
Cartridge if needed.
Printer power is on, but
nothing prints
¥ Make sure that the printer interface cable is firmly
inserted into the interface connector of the printer.
Printer does not print
even though a paper jam
has been cleared
¥ Open and close the cover to restart the printer.
Troubleshooting
21
03-Troubleshooting
7/16/99 1:51 PM
Problem
Page 2
Action
Unexpected characters
are printed or characters
are missing
¥ Change the parallel interface cable.
Printer prints very slowly
¥ Graphics print more slowly than text.
Cannot close the printer
cover
¥ Make sure the Toner Cartridge is properly installed.
Printout does not match
paper size
¥ Paper may not be loaded and aligned correctly in the
paper feeder.
¥ Make sure you are using the correct printer driver.
¥ The applicationÕs paper size and margin settings may
be incorrect.
¥ The selected printer driver may be incorrect. Make
sure you select the ML-5050G Series as the default
printer in your application.
Software Problems
Problem
The printer does not print
Action
Bi-directional communication may not be setup properly.
¥ Check that the parallel port is set for bi-directional
mode in the computerÕs BIOS. If you do not know how
to enter the BIOS or make the changes, contact the
computer manufacturer.
¥ Make sure that the cable is bi-directional IEEE-1284
compliant parallel interface cable.
Your printer driver conflicts
with existing printer driver.
¥ Change the ports of existing printer drivers to FILE.
The printer does not print
in DOS environment.
This printer not support DOS (DOS windows & pure
DOS) application.
22
Troubleshooting
¥ Uninstall the existing printer drivers before you install
your printer driver.
03-Troubleshooting
7/16/99 1:51 PM
Page 3
Problem
Action
The printer does not print
in network.
Your printer driver supports Microsoft network. It does
not support Unix, OS/2.
The computer does not
recognize the setup CDROM.
¥ Make sure that you select the correct CD-ROM drive.
¥ Check if the CD-ROM is damaged.
Before You Call For Service
If youÕre unable to solve printer problems, you may want to call for service. Before calling,
however, check these things:
¥ Is the power cord plugged into the printer?
¥ Is the power cord plugged directly into a wall outlet?
¥ Is your printer connected properly to your computer?
¥ Are all other devices attached to your printer plugged in and turned on?
¥ Is the wall outlet live?
¥ Has a power outage occurred in your area?
¥ Is a Toner Cartridge installed in the printer?
¥ Is the cover closed completely?
Once youÕve checked all these things, turn your printer off and back on again. If your
printer is still not operating properly, call your point of purchase for service.
Troubleshooting
23
03-Troubleshooting
7/16/99 1:51 PM
Page 4
Clearing Paper Jams
If the paper has just started to feed from the feeder when the jam
occurs:
1. Pull the jammed paper back out of the feeder toward you.
2. Open and close the cover to resume printing.
24
Troubleshooting
03-Troubleshooting
7/16/99 1:51 PM
Page 5
If the jam occurs inside the printer:
1. Open the cover, and remove the Toner Cartridge.
2. Grasp the paper on both sides and gently pull out toward you.
If the jam occurs near the fusing unit, do not pull the paper through
the fuser or you may damage the fusing unit.
3. Check that there is no other paper in the printer.
4. Close the cover. The printer continues printing.
Troubleshooting
25
03-Troubleshooting
7/16/99 1:51 PM
Page 6
Tips for Avoiding Paper Jams
By carefully selecting print materials and loading them properly, you
should be able to avoid most paper jams. If jams occur frequently,
make sure you are following these tips to avoid jams.
¥ Follow the procedures in ÒLoading a Stack of PaperÓ on page 5 to
load paper properly.
¥ Do not overload the paper feeder. The automatic feeder can hold up
to 150 sheets and the manual feeder can hold only one sheet at a
time.
¥ Flex, fan, and straighten the paper before loading it.
¥ Fan stacks of labels or transparencies before loading them into the
automatic feeder. If jams do occur using the automatic feeder, try
feeding one sheet at a time in the manual feeder.
¥ Do not load wrinkled, creased, damp, or highly curled paper.
¥ Do not mix paper types in the automatic feeder.
¥ Use only recommended print materials.
¥ Make sure the recommended print side is face up when loading the
feeders.
¥ Keep print materials stored in an acceptable environment.
26
Troubleshooting
03-Troubleshooting
7/16/99 1:51 PM
Page 7
Chapter 5
Supplies and Maintenance
Cartridge Maintenance
To get the maximum benefit from your Toner Cartridges:
¥Do not remove a Toner Cartridge from its packaging until you are
ready to install it.
¥Do not refill the Toner Cartridge. The printer warranty does not
cover damage caused by using a refilled Cartridge.
¥Store the Toner Cartridge in the same environment as the printer.
¥Do not remove a Toner Cartridge from the printer except to replace
it, clean it or clear a paper jam. Replace the Cartridge immediately.
Replacing Toner Cartridge
1. Hold the printer cover using both hands, and pull it toward you.
Supplies and Maintenance
27
03-Troubleshooting
7/16/99 1:51 PM
Page 8
2. Lift up and pull out the old Toner Cartridge. Follow the
instructions printed on the cartridge box to recycle the used
cartridge.
3. Unpack the new Toner Cartridge, remove the sealing tape, and
slowly and gently rock it 5 or 6 times to distribute the toner.
4. Find the cartridge slots inside the printer, one each side.
5. Grasp the handle and slide the Cartridge down between the
Toner cartridge slots. Gently push down on the Cartridge until it
stops in place.
6. Close the printer cover.
28
Supplies and Maintenance
04-Appendix
7/20/99 9:35 AM
Page 1
Appendix
FCC Regulations
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
¥ Reorient or relocate the receiving antenna.
¥ Increase the separation between the equipment and receiver.
¥ Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
¥ Consult the dealer or an experienced radio/TV technician for help.
Do not make any changes or modifications to the equipment unless specified in the manual.
If such changes or modifications should be made, you could be required to stop operation of
the equipment.
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of
FCC Rules.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the interference-causing equipment standard entitled ÒDigital
ApparatusÓ, ICES-003 of the Industry and Science Canada.
Cet appareil numŽrique respecte les limites de bruits radioŽlectriques applicables aux
appareils numŽriques de Classe B prescrites dans la norme sur le matŽriel brouilleur:
ÒAppareils NumŽriquesÓ, NMB-003 ŽdictŽe par lÕIndustrie et Sciences Canada.
Appendix
29
04-Appendix
7/20/99 9:35 AM
Page 2
FCC DECLARATION OF CONFORMITY
according to FCC Part 15
1.Product Name
: Laser Printer
2.Model Number
: ML-5050G Series
3.FCC Rules
: TESTED BY COMPLY WITH FCC PART 15 CLASS B
4.Operating Environment : FOR HOME OR OFFICE USE
5.FCC Compliance Statement
This device complies with Part 15 FCC rules.Operating is subject to the following two
conditions : (1)This device may not cause harmful interference,and
(2)This device must accept any interference received,including interference
that any cause undesired operation.
6.Information to User
This device has been tested and found to comply with the limits for a Class B digital
device,pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable
protection against harmful interference in a residential installation.This equipment
generates,uses and can radiate radio frequency energy and,if not installed and used in
accordance with the instructions,may cause harmful interference to radio
communications.However,there is no guarantee that interference will not occur in a
particular installation.If this equipment does cause harmful interference to radio or
television reception,which can be determined by turning the equipment off and on,the user
is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna
2. Increase the separation between the equipment and receiver
3. Connect the equipment into an outlet on a circuit difference from that to which the
receiver is connected
4. Consult the dealer or an experienced radio/TV technician for help.
CAUTION
: Changed of modifications not expressly approved by the manufacturer
responsible for compliance could be void the userÕs authority to the
equipment
Responsible Party for Product Compliance
Samsung Electronics America
American QA Lab
85 West Tasman Dr.
San Jose.CA95134
30
Appendix
04-Appendix
7/20/99 9:35 AM
Page 3
EC Declaration of Conformity
We,
SAMSUNG ELECTRONICS CO.,LTD
#259, Gong Dan-Dong, Gumi-City, Kyung Buk, Korea
declare sole responsibility that the
ML-5050G Series Laser printer
meets the intent of Directive 89/336/EEC for Electromagnetic Compatibility and Low
Voltage Directive 73/23/EEC.
Compliance was demonstrated to the following specifications as listed in the official
journal of the European Communities:
EN 50081-Emissions:
EN 55022 Radiated, Class B
EN 55022 Conducted, Class B
EN 60555-2 Power Harmonics
EN 50082-Immunity:
IEC 801-2 Electrostatic Discharge
IEC 801-3 RF Radiated
IEC 801-4 Fast Transient/Burst
EN 60950-Safety
Appendix
31
04-Appendix
7/20/99 9:35 AM
Page 4
Laser Safety Statement
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR
Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser
product conforming to the requirements of IEC 825.
Class I laser products are not considered to be hazardous. The laser system and printer are
designed so there is never any human access to laser radiation above a Class I level during
normal operation, user maintenance, or prescribed service condition.
WARNING Never operate or service the printer with the protective cover removed from
the Laser/Scanner assembly. The reflected beam, although invisible, can
damage your eyes.
CAUTION
-INVISIBLE LASER RADIATION WHEN THIS COVER IS OPEN.
DO NOT OPEN THIS COVER
VORSICHT
-UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFENT. NICHT DEM STRAHL AUSETZEN.
ATTENTION
-RAYONNEMENT LASER INVISIBLE EN CAS D’OVERTURE.
DANGEREUSE AU FAISCEAU.
ATTENZIONE
-RADIAZIONE LASER INVISIBLE IN CASO DIAPERTURA.
EVITARE L’ESPOSIZIONE AL FASCIO.
PRECAUCION -RADIACION LASER IVISIBLE CUANDO SE ABRE. EVITAR EXPONERSE AL
RAYO.
ADVARSEL
-USYNLIG LASERSTRÅLNING VED ÅBNING NÅR SIKKERHEDSBRYDERE
ER UDE AF FUNKTION UNDGÅ UDSAETTELSE FOR STRÅLNING.
ADVARSER
-USYNLIG LASERSTRÅLNING NÅR DEKSEL ÅPNES. STIRR IKKE INN I
STRÅLEN. UNNGÅ EKSPONERING FOR STRÅLEN.
VARNING
-OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPAND OCH SPÄRREN
ÅR URKOPPLAD. BETRAKTA EJ STRÅLEN STRÅLEN AR FARLIG.
VARO
-AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ KATSO SÄTEESEEN.
32
Appendix
04-Appendix
7/20/99 9:35 AM
Page 5
Laser product labels are located above the print cartidge.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
APPAREIL À LASER DE CLASSE 1
TO IEC 825
Safety Information
PRODUCT SAFETY
USA
UL 1950 (UL LISTING)
CANADA
CSA C22.2 No. 950 & UL 1950 (CSA Certification)
EEC (Europe)
IEC 60950/EN 60950 (TÜV GS Certification)
CB
IEC 60950
LASER SAFETY
EEC (Europe)
HD 194. & EN 60825
USA
21 CFR, Chapter 1, Subchapter J (CDRH Certified)
Appendix
33
04-Appendix
7/20/99 9:35 AM
Page 6
Specifications
Item
Description
Engine
Remarks
Speed
8 PPM
Resolution
600 DPI
Developing
Eletrophotography
method/Toner
Non-mag monocomponent
Warm up time
Less than 30 sec.
at normal condition
First print time
Less than 19 sec.
from idle mode
Duty cycle
Maximum 6,000 pages per month
Size (w x d x h)
13.6 x 14.4 x 8.8 in (345 x 365 x 224mm)
Weight
Less than 16.5 Ib (7.5 Kg)
Power consumption
Printing: 200 W avg./450 W max.
USA: 100~127 VAC,
47~63 Hz
Sleep mode: Less than 25 W
EUROPE: 220~240 VAC,
47~63 Hz
Printing: <48 dBA, Idle: <33 dBA
Measurement by ISO7779
Noise level
Sleep mode: Background noise
Input capacity
150 sheets (automatic feeder)
Multi-page feeding
1 sheet (manual feeder)
Paper
Handling
Output capacity
100 sheets in face-down stacker
1 sheet in face-up stacker
Paper size
A4, Letter, Legal, Executive, B5
COM-10, Monarch, DL, C5, C6, A5
Toner
Cartridge
Controller
34
Type
Cartridge
Life time
2,500 pages at 5 % density
Charging/Transfer
Contact roller Charging & Transfer
CPU
ASIC
Emulation
SuperDriver
Memory
1MB
Interface
IEEE1284 B type 1
Minimum System
Requirement
A 486 with 16 MB of RAM. Our driver is supported in Win 3.1X,
Win 95/98 and Win NT 4.0.
Appendix
By Controller
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
