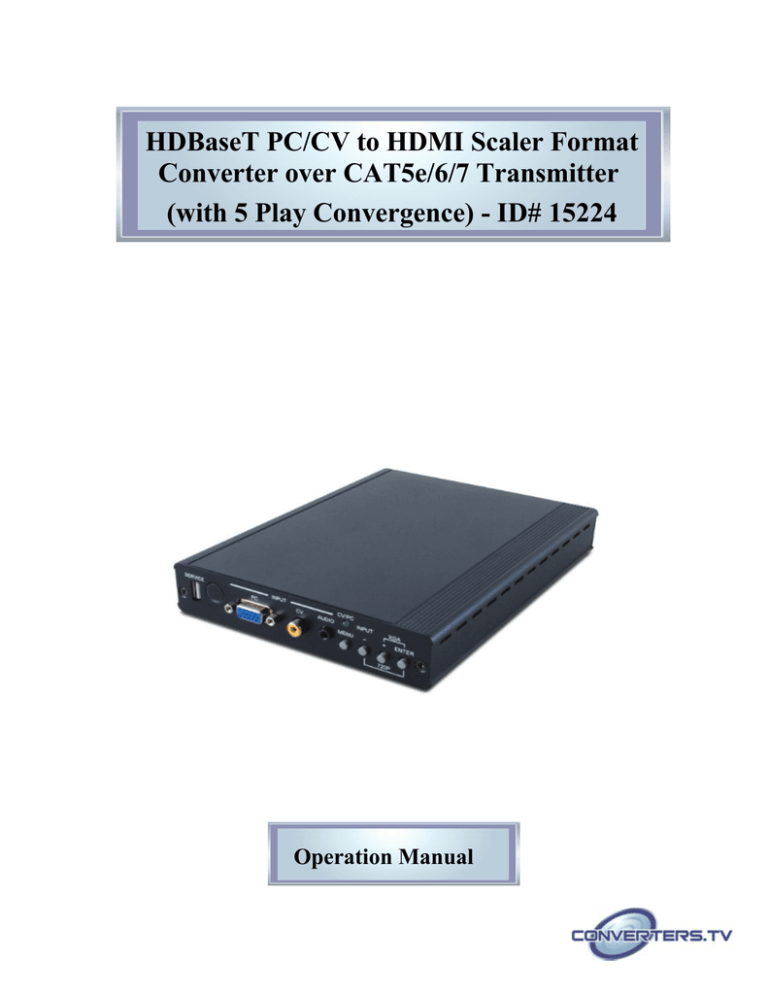

HDBaseT PC/CV to HDMI Scaler Format

Converter over CAT5e/6/7 Transmitter

(with 5 Play Convergence) - ID# 15224

Operation Manual

Introduction

Features

Applications

The HDBaseT PC/CV to HDMI Scaler Format Converter over CAT5e/6/7

Transmitter (with 5 Play Convergence) is an HDBaseT™ Transmitter Scaler supporting PC or Composite Video (CV) input. It can scale and switch the video sources, and send the digitalized signal over a single run of CAT5e/6/7 cable to the Receiver at a distance up to 100 meters, along with an external audio input, 2-way IR, RS-232 and bidirectional LAN serving.

Control is via on-panel buttons or IR remote control and there is an On-screen

Display (OSD) providing selection and system information.

The device provides a full range of output resolutions, up to 1080p and

WUXGA (RB). The bidirectional Power over Ethernet (PoE) function provides greater flexibility in installations

Supports PC/CV scaling to a full range of HDTV or PC resolutions up to 1080p and WUXGA (RB)

Transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft

5Play™ convergence: Video and Audio, LAN serving, bidirectional

Power over Ethernet (PoE) and Control (IR/RS-232 bypass)

Supports IR, Remote control, RS-232 (bypass) and on-panel controls

Provides bidirectional 24V DC power to or receive from compatible

PoE Receiver through CAT5e/6/7 cable

Supports Ethernet transmission rates up to 100 Mbps

Supports NTSC and PAL formats for Composite Video input

Note:

1.

2.

3.

This system was tested with CAT6/23AWG cables, results may vary with cables of different specifications.

The PoE function is designed for powering compatible Receiver units only—non-PoE Receivers will need their own power supply.

Receivers from other brands may not be compatible.

DO NOT connect the LAN connection to the CAT5e/6/7 port.

Doing so may cause a power shutdown and may damage the device.

Analog to Digital video signal conversion

Up scale standard definition video to High-Definition TVs/displays

Extend the operating distance of a CV/PC video signal

Lecture room/Showroom/Meeting room/Classroom display and control

System Requirements

CV/PC source equipment such as a DVD/Video player or PC/Laptop and output to HDBaseT compatible Receiver

Operation Controls and Functions

Front Panel

1. SERVICE:

Reserved for manufacturer use only.

2. IR RECEIVER WINDOW:

Receives only the IR signal from the supplied remote control for this device only.

3. PC:

Connect to a PC/Laptop source device with a D-Sub 15pin cable.

4. CV:

Connect to a composite video source such as a DVD/Video player.

5. AUDIO:

Connect to an analog stereo (L/R) audio source with a 3.5mm mini-jack cable.

6. MENU:

Press this button to enter the On-Screen Display (OSD) menu.

7. INPUT (–) Button & CV/PC LED:

Press the INPUT (−) button to toggle between CV or PC inputs. When in CV mode the LED will be lit, off when in PC mode.

8. −/+:

Use these buttons to navigate down and up in the on-screen menu.

9. ENTER:

Press this button to confirm the selection.

Note:

Pressing '−' (MINUS) and ENTER simultaneously will immediately switch the output resolution of the device to 720p60.

Pressing '+' (PLUS) and ENTER simultaneously will immediately switch the output resolution of the device to XGA (1024×768)

Back Panel

1. POWER LED:

This LED will illuminate when the device is connected to an active power supply.

2. DC 24V:

Connect the 24V DC power supply to the unit and plug the adaptor into an

AC outlet. Only one unit requires powering if both the Transmitter and

Receiver are both PoE compatible.

3. RS-232 IN:

Connect to a PC or RS-232 control system with a D-Sub 9 pin male cable for the transmission of RS-232 commands.

4. LAN:

Connect to an active network for LAN serving. When any compatible LAN equipped receivers are connected, this allows the network access (including internet access if available) to be shared between any connected LAN equipped receivers. Connect any Ethernet equipped device e.g. a Smart TV or games console to the LAN port of a receiver for that device to share the network/internet access.

Warning: DO NOT connect the LAN connection to the CAT5e/6/7 port.

Doing so may cause a power shutdown and may damage the device.

5. IR Blaster:

Connect the supplied IR Blaster cable for IR signal transmission. Place the IR

Blaster in direct line-of-sight of the equipment to be controlled.

6. IR Extender:

Connect the supplied IR Receiver cables for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR Extender.

7. CAT5e/6/7 OUT:

Connect to the Receiver unit with a single CAT5e/6/7 cable for transmission of all data signals.

MODE LED:

This LED will illuminate when the power is connected.

LINK LED:

This LED will illuminate when connected to a Receiver unit that is connected with a TV/monitor that is displaying the signal

Remote Control

1.

INPUT:

Press this button to toggle between the CV or PC input.

2. EXIT:

Press this button to exit the menu or the current selection in the on-screen menu.

3. MENU:

Press this button to enter into the

OSD menu.

4. RESET:

Press this button to return the device to the factory default settings.

5. AUTO ADJUST:

Press this button to optimize the positioning of the picture

(picture centering) on the screen.

6. OK & ▲▼◄►:

Press 'OK' to confirm the selection or use the directional buttons to navigate the on-screen menus.

IR Cable Pin Assignment

RS-232 Protocols

RS-232 & Telnet

Commands

6

7

4

5

PIN

1

2

3

DEFINITION

N/C

TxD

RxD

N/C

GND

N/C

N/C

8

9

Baud Rate: 9600bps

Data Bit: 8 bits

Parity: None

Flow Control: None

Stop Bit: 1

N/C

N/C

6

7

4

5

PIN

1

2

3

8

9

DEFINITION

N/C

RxD

TxD

N/C

GND

N/C

N/C

N/C

N/C

Command

S SOURCE 1~2

R SOURCE

S OUTPUT 0~25

R OUTPUT

S SIZE 0~6

Description

1=VIDEO

2=PC

Reports the numerical equivalent for the

SOURCE setting (as listed above)

0=Native 12=1600×1200

1=640×480 13=1920×1080

2=800×600 16=1920×1200

3=1024×768 17=480p

5=1360×768 [email protected]

6=1280×720 [email protected]

7=1280×800 [email protected]

8=1280×1024 22=576p

9=1440×900 [email protected]

10=1400×1050 [email protected]

11=1680×1050 [email protected]

Reports the numerical equivalent for the

OUTPUT setting (as listed above)

0=OVERSCAN 4=LETTER BOX

1=FULL 5=UNDER 2

2=BEST FIT 6=UNDER 1

R SIZE

S CONTRAST 0~60

R CONTRAST

S BRIGHTNESS 0~60

R BRIGHTNESS

S HUE 0~60

R HUE

S SATURATION 0~60

R SATURATION

S SHARPNESS 0~30

R SHARPNESS

S NR 0~3

R NR

S AUDIO DELAY 0~3

R AUDIO DELAY

S AUDIO MUTE 0/1

R AUDIO MUTE

S KEY LOCK 0/1

R KEY LOCK

FW

S RESET 1

3=PAN SCAN

Reports the numerical equivalent for the

SIZE setting (as listed above)

Sets the numerical value for the CONTRAST setting (0~60)

Reports the numerical value for the

CONTRAST setting (0~60)

Sets the numerical value for the

BRIGHTNESS setting (0~60)

Reports the numerical value for the

BRIGHTNESS setting (0~60)

Sets the numerical value for the HUE setting

((0~60)

Reports the numerical value for the HUE setting (0~60)

Sets the numerical value for the

SATURATION setting (0~60)

Reports the numerical value for the

SATURATION setting (0~60)

Sets the numerical value for SHARPNESS setting (0~30)

Reports the numerical value for the

SHARPNESS setting (0~30)

0=OFF 2=MIDDLE

1=LOW 3=HIGH

Reports the numerical equivalent for the

NOISE REDUCTION setting (as listed above)

0=OFF 2=110ms

1=40ms 3=150ms

Reports the numerical equivalent for the

AUDIO DELAY setting (as listed above)

0=ON 1=MUTE

Reports the numerical equivalent for the

AUDIO MUTE setting (as above)

0=ENABLE 1=DISABLE

Reports the numeric equivalent for the KEY

LOCK setting (as listed above)

Checks the FIRMWARE version

Sets the numerical equivalent for the RESET setting (as left)

OSD Menu

Note:

1.

RS-232 commands will not execute unless followed by a carriage return and LF (Line Feed).

2. Commands are not case-sensitive.

3. Resolutions 1~16 are RGB encoded and 17~25 are YUV encoded

1 st Layer

Display

Size

2 nd Layer

Output

Size

3 rd Layer

Native

640x480 60

800x600 60

1024x768 60

1360x768 60

1280x720 60

1280x800 60

1280x1024 60

1440x900 60

1400x1050 60

1680x1050 60

1600x1200 60

1920x1080 60

1920x1200 60

720x480P 60

1280x720P 60

1920x1080I 60

1920x1080P 60

720x576P 50

1280x720P 50

1920x1080I 50

1920x1080P 50

Overscan

Full

Aspect Ratio

Pan Scan

Letter Box

4 th Layer

Colour

Audio

Mode Info

Under1

Under 2

Info

On

Off

PC (PC mode only) Auto Setup

H Position

V Position

Phase

Clock

WXGA/XGA

Reset

Colour

Contrast

Brightness

Hue

Saturation

Sharpness

NR.

Volume

Delay

R

G

No

Yes

B

R Offset

G Offset

B Offset

0~60

0~60

0~600~60

0~60

0~60

Off

Low

Middle

High

0~100

Off

40ms

No

Yes

0~60 (30)

0~60 (30)

XGA

WXGA

Setup

Sound

Factory Reset

Key Lock

No

Yes

Off

On

110ms

150ms

On

Mute

Information Input

Output

Revision

Note: Items in Bold are the default settings

Input Resolutions

Support

Input Resolution

NTSC/PAL

[email protected]/72/75 Hz

[email protected]/60/72/75 Hz

[email protected]/70/75 Hz

[email protected]/75 Hz

[email protected] Hz

1280×[email protected] Hz

1680×[email protected] Hz (RB)

1920×[email protected] Hz

-

-

-

-

CV

-

-

-

-

PC

-

Specifications

Ethernet Speed

Output Video Bandwidth

Input Ports

100 Mbps

300MHz / 10.2Gbps

1×Composite Video, 1×VGA, 1×3.5mm

Mini-jack (L/R), 1×RS-232, 1×LAN,

Output Ports

1×IR Extender

1×CAT5e/6/7, 1×IR Blaster

CAT5e/6/7 Out Cable Distance Up to 100 Meters

CV Resolutions Support

VGA Resolutions Support

CAT5e/6/7 Resolutions Support

NTSC/PAL

VGA~WUXGA (RB)

HD: Up to [email protected] Hz

PC: Up to WUXGA (RB)

IR Frequency

ESD Protection

30~50 kHz

Human body model:

±8kV (air-gap discharge)

Dimensions

Weight

Chassis Material

Color

Operating Temperature

Storage Temperature

Relative Humidity

Power Consumption

±4kV (contact discharge)

145 mm (W)×192 mm (D)×30 mm (H)/

Jacks Excluded

145 mm (W)×202 mm (D)×30 mm (H)/

Jacks Included

606 g

Aluminum

Black

0 ̊C~40 ̊C / 32 ̊F~104 ̊F

−20 ̊C ~ 60 ̊C / −4 ̊F ~ 140 ̊F

20 ~ 90 % RH (non-condensing)

16W

CAT5e/6/7 Cable

Specification

Cable Type Range Pixel Clock

Rate

Video

Data Rate

CAT5e/6/7 100 m ≤225 MHz ≤

5.3 Gbps

(HD Video)

Supported Video

Up to 1080p, 60 Hz,

36 bits, 3D (data rates lower than 5.3

Gbps or below 225

MHz TMDS clock).

Connection Diagram
