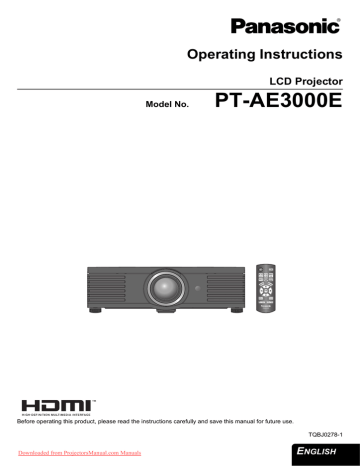

Model No.

Operating Instructions

LCD Projector

PT-AE3000E

Before operating this product, please read the instructions carefully and save this manual for future use.

Downloaded from ProjectorsManual.com Manuals

TQBJ0278-1

E

NGLISH

Important Safety Notice

Dear Panasonic Customer:

This instruction booklet provides all the necessary operating information that you might require. We hope it will help you to get the most out of your new product, and that you will be pleased with your Panasonic LCD projector. The serial number of your product may be found on its bottom. You should note it in the space provided below and retain this booklet in case service is required.

Model number:

PT-AE3000E

Serial number:

WARNING:

THIS APPARATUS MUST BE EARTHED.

WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.

Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.

WARNING:

1.

Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.

2.

To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

3.

Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthingtype mains plug. This plug will only fit an earthing-type mains socket. This is a safety feature. If you are unable to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the earthing plug.

Information for Users on Collection and Disposal of Old Equipment and used

Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

CAUTION:

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

To assure continued compliance, follow the attached installation instructions, which includes using the provided power cord and shielded interface cables when connecting to computer or peripheral device. If you use serial port to connect PC for external control of projector, you must use optional

RS-232C serial interface cable with ferrite core. Any unauthorized changes or modifications to this equipment will void the user’s authority to operate.

E

NGLISH

Important Safety Notice

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

IMPORTANT: THE MOULDED PLUG (U.K. only)

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark a or the BSI mark ` on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from an Authorised Service Centre.

If the fitted moulded plug is unsuitable for the mains socket in your home, then the fuse should be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

WARNING:

THIS APPLIANCE MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green - and - Yellow:

Blue:

Brown:

Earth

Neutral

Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured GREEN - AND - YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol W or coloured GREEN or GREEN - AND -

YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

BS1363/A

13A250V

L

ASA

HE-8

N

Important Information

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 3

Contents

J

Quick steps

1. Set up your projector

See “Setting up” on page 14.

2. Connect with other devices

See “Connections” on page 18.

3. Prepare the remote control

See “Remote control” on page 11.

4. Start projecting

See “Switching the projector on/off” on page 19.

5. Adjust the image

See “Menu Navigation” on page 29.

Important Information

Important Safety Notice........................................ 2

Precautions with regard to safety ....................... 6

WARNINGS.................................................................6

CAUTIONS ..................................................................7

Cautions when transporting.........................................8

Cautions when installing..............................................9

Cautions on use ..........................................................9

Accessories ...............................................................10

Preparation

About Your Projector.......................................... 11

Remote control ..........................................................11

Projector body ...........................................................12

Getting Started

Setting up............................................................. 14

Screen size and throw distance.................................14

Projection method......................................................15

Front leg adjusters and throwing angle .....................15

Lens shift and positioning..........................................16

Connections ........................................................ 18

Before connecting to the projector.............................18

Connecting example: COMPONENT IN/S-VIDEO IN/

VIDEO IN...................................................................18

Connecting example: HDMI IN/COMPUTER IN........18

Basic Operation

Switching the projector on/off ........................... 19

Mains lead .................................................................19

Power indicator..........................................................20

Switching on the projector .........................................21

Switching off the projector .........................................21

Projecting an image ............................................ 22

Selecting the input signal...........................................22

Positioning the image ................................................22

Remote control operation .................................. 23

Operating range ........................................................23

Managing the lens control settings ............................23

Switching the picture mode .......................................23

Adjusting the image...................................................23

Loading a saved setting ............................................24

Switching the aspect ratio..........................................24

Adjusting the signal condition with a waveform .........24

Setting your own colour profile ..................................26

Resetting to the factory default settings ....................28

Capturing an image ...................................................28

Switching the input signal..........................................28

Using the assigned function as shortcut....................28

E

NGLISH

Settings

Menu Navigation ..................................................29

Navigating through the MENU .................................. 29

Main menu and sub-menu ........................................ 30

PICTURE menu.....................................................32

PICTURE MODE....................................................... 32

CONTRAST .............................................................. 32

BRIGHTNESS........................................................... 32

COLOUR................................................................... 32

TINT .......................................................................... 32

SHARPNESS ............................................................ 32

COLOUR TEMPERATURE....................................... 33

DYNAMIC IRIS.......................................................... 33

WAVEFORM MONITOR ........................................... 33

SPLIT ADJUST ......................................................... 33

ADVANCED MENU................................................... 34

MEMORY SAVE ....................................................... 36

MEMORY LOAD ....................................................... 36

MEMORY EDIT......................................................... 36

SIGNAL MODE ......................................................... 36

POSITION menu ...................................................37

H-POSITION ............................................................. 37

V-POSITION ............................................................. 37

DOT CLOCK ............................................................. 37

CLOCK PHASE......................................................... 37

ASPECT.................................................................... 37

WSS .......................................................................... 39

OVER SCAN ............................................................. 39

KEYSTONE............................................................... 39

AUTO SETUP ........................................................... 39

LENS CONTROL...................................................40

ZOOM/FOCUS.......................................................... 40

LENS MEMORY LOAD............................................. 40

LENS MEMORY SAVE ............................................. 40

LENS MEMORY EDIT .............................................. 41

H-AREA POSITION .................................................. 41

V-AREA POSITION................................................... 41

FUNCTION BUTTON.............................................42

BUTTON ................................................................... 42

OPTION menu.......................................................43

INPUT GUIDE ........................................................... 43

OSD DESIGN............................................................ 43

OSD POSITION ........................................................ 43

BACK COLOUR ........................................................ 43

STARTUP LOGO ...................................................... 43

AUTO SEARCH ........................................................ 43

HDMI SIGNAL LEVEL............................................... 43

FRAME RESPONSE................................................. 43

INSTALLATION......................................................... 44

SLEEP....................................................................... 44

HIGH ALTITUDE MODE ........................................... 44

LAMP POWER.......................................................... 44

LAMP RUNTIME ....................................................... 44

Contents

Maintenance

TEMP and LAMP Indicators ............................... 45

Managing the indicated problems ............................. 45

Care and Replacement ....................................... 46

Cleaning the projector............................................... 46

Replacing the lamp unit ............................................ 47

Troubleshooting .................................................. 49

Appendix

Technical Information......................................... 50

List of compatible signals.......................................... 50

Serial terminal........................................................... 51

Specifications............................................................ 54

Ceiling mount bracket safeguards ............................ 56

Dimensions ............................................................... 57

Trademark acknowledgements................................. 57

Index..................................................................... 58

Important Information

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 5

Precautions with regard to safety

WARNINGS

If you notice smoke, strange smells or noise coming from the projector, disconnect the mains plug from the mains socket.

Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.

Check that no more smoke is coming out, and then contact an Authorised Service Centre for repairs.

Do not attempt to repair the projector yourself, as this can be dangerous.

Do not install this projector in a place which is not strong enough to take the full weight of the projector.

If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could result.

Installation work (such as ceiling suspension) should only be carried out by a qualified technician.

If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.

Do not use other than an authorised ceiling mount bracket.

If foreign objects or water get inside the projector, or if the projector is dropped or the cabinet is broken, disconnect the mains plug from the mains socket.

Continued use of the projector in this condition may result in fire or electric shocks.

Contact an Authorised Service Centre for repairs.

The mains socket shall be installed near the equipment and shall be easily accessible.

Unplug the mains plug from the mains socket immediately when problem occurred.

Do not overload the mains socket.

If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire may result.

Never attempt to modify or disassemble the projector.

High voltages can cause fire or electric shocks.

For any inspection, adjustment and repair work, please contact an Authorised Service Centre.

Clean the mains plug regularly to prevent it from becoming covered in dust.

If dust builds up on the mains plug, the resulting humidity can damage the insulation, which could result in fire. Pull the mains plug out from the mains socket and wipe it with a dry cloth.

If not using the projector for an extended period of time, pull the mains plug out from the mains socket.

Do not handle the mains plug with wet hands.

Failure to observe this may result in electric shocks.

Insert the mains plug securely into the mains socket.

If the plug is not inserted correctly, electric shocks or overheating could result.

Do not use damaged plugs or loose mains socket.

Do not place the projector on top of surfaces which are unstable.

If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result.

Do not place the projector into water or let it become wet.

Failure to observe this may result in fire or electric shocks.

Do not do anything that might damage the mains lead or the mains plug.

Do not damage the mains lead, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

If the mains lead is used while damaged, electric shocks, short-circuits or fire may result.

Ask an Authorised Service Centre to carry out any repairs to the mains lead that might be necessary.

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so may cause the projector to overheat, which can cause burns, fire or damage to the projector.

Do not place liquid containers on top of the projector.

If water spills onto the projector or gets inside it, fire or electric shocks could result.

If any water gets inside the projector, contact an

Authorised Service Centre.

Do not insert any foreign objects into the projector.

Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks.

Do not allow the + and - terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

Failure to observe this may cause the batteries to leak, overheat, explode or catch fire.

Store the batteries in a plastic bag and keep them away from metallic objects.

E

NGLISH

Do not touch the leaked liquid from the batteries.

If you touch the leaked liquid, it may hurt your skin.

Immediately wash away the liquid with water and seek medical advice.

If you get the leaked liquid in your eye, it may cause blindness or damage. Never rub your eye, and immediately wash away the liquid with water and seek medical advice.

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not use the projector in a bath or shower.

Fire or electric shocks can result.

Do not place your skin into the light beam while the projector is being used.

Strong light is emitted from the projector’s lens. If you place directly into this light, it can hurt or damage your skin.

Do not look into the lens while the projector is being used.

Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes.

Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the mains plug when you are away from the projector.

CAUTIONS

Do not cover the air inlet port or the air outlet port.

Doing so may cause the projector to overheat, which can cause fire or damage to the projector.

Do not place the projector in narrow, badly ventilated places such as closets or bookshelves.

Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam.

Using the projector under such conditions may result in fire, electric shocks or plastic deterioration. The plastic deterioration may cause the falling down of the projector which is mounted on the ceiling.

Do not set up the projector in a high temperature environment, such as near a heater or in direct sunlight.

Failure to observe this may result in fire, malfunction or plastic deterioration.

Precautions with regard to safety

Do not place your hands or other objects close to the air outlet port.

Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port [allow at least

50 cm (20") of space], otherwise burns or damage could result.

Replacement of the lamp is recommended to be carried out by a qualified technician.

The lamp has high internal pressure. If improperly handled, explosion might result.

The lamp can easily become damaged if struck against hard objects or dropped, and injury or malfunctions may result.

When replacing the lamp, allow it to cool for at least one hour before handling it.

The lamp cover gets very hot, and touching it can cause burns.

Before replacing the lamp, be sure to disconnect the mains plug from the mains socket.

Electric shocks or explosions can result if this is not done.

Do not allow infants or pets to touch the remote control unit.

Keep the remote control unit out of the reach of infants and pets after using it.

Do not set up the projector outdoors.

The projector is designed for indoor use only.

When disconnecting the mains lead, hold the plug, not the lead.

If the mains lead itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks may result.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur.

Do not place any heavy objects on top of the projector.

Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.

Important Information

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 7

Precautions with regard to safety

Do not short-circuit, heat or disassemble the batteries or place them into water or fire.

Failure to observe this may cause the batteries to overheat, leak, explode or catch fire, and burns or other injury may result.

When inserting the batteries, make sure the polarities (+ and -) are correct.

If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Do not put your weight on this projector.

You could fall or the projector could break, and injury may result.

Be especially careful not to let young children stand or sit on the projector.

Disconnect the mains plug from the mains socket as a safety precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

Use only the specified batteries.

If incorrect or different kinds of batteries are used, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Do not mix old and new batteries.

If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces.

Failure to observe this may cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces may cause injury.

If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately.

Ask your dealer about the replacement of the lamp unit and check the inside of the projector.

Remove the used batteries from the remote control promptly.

If you leave used batteries in the remote control for an extended period of time, it may cause liquid leaking, abnormal internal temperature rising or explosion.

If not using the projector for an extended period of time, disconnect the mains plug from the mains socket and remove the batteries from the remote control.

If dust builds up on the mains plug, the resulting humidity may damage the insulation, which could result in fire.

Keeping or leaving the remote control with batteries inside may cause insulation deterioration, electrical leakage or explosion which could result in fire.

Ask an Authorised Service Centre to clean inside the projector at least once a year.

If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation.

It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your nearest Authorised Service Centre to clean the projector when required. Please discuss with the

Authorised Service Centre regarding cleaning costs.

We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable units back to your dealer or a recycling company.

Cautions when transporting

Do not subject the projector to excessive vibration or shocks.

The projector lens needs to be handled with care.

Cover the lens with the lens cover when transporting the projector.

When transporting the projector, hold the body at the bottom securely.

Do not hold the adjuster legs or the top cover to move the projector, as this may damage the projector.

E

NGLISH

Precautions with regard to safety

Cautions when installing

Avoid setting up in places which are subject to vibration or shocks.

The internal parts can be damaged, which may cause malfunctions or accidents.

Avoid setting up in places which are subject to sudden temperature changes, such as near an air conditioner or lighting equipment.

The life of the lamp may be shortened or the projector

may be turned off. See “TEMP indicator” on page 45.

Do not set up the projector near high-voltage power lines or near motors.

The projector may be subject to electromagnetic interference.

If installing the projector to the ceiling, ask a qualified technician or an Authorised Service Centre to carry out all installation work.

You will need to purchase the separate installation kit

(Model No. ET-PKE2000, ET-PKE1000S).

Furthermore, all installation work should only be carried out by a qualified technician.

See “Ceiling mount bracket safeguards” on page 56

for the safety cable installation.

If using this projector at high elevations 1 400 -

2 700 m (4 593 - 8 858 ft) sea level, set the HIGH

ALTITUDE MODE to ON. See “HIGH ALTITUDE

MODE” on page 44.

Failure to observe this may result in malfunctions or the life of the lamp or the other components may be shortened.

Cautions on use

In order to get the best picture quality

Draw curtains or blinds over any windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

Do not touch the surfaces of the lens with your bare hands.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen. Moreover, when not using the projector, attach the lens cover.

Liquid crystal panel

Do not project the same image for long periods of time, as this may remain as an afterimage on the liquid crystal panel. Display the white screen test

pattern for more than an hour to remove it. See

“ZOOM/FOCUS” on page 40.

The liquid crystal panel of the projector is built with very high precision technology to provide fine picture details. Occasionally, a few stuck pixels may appear on the screen as fixed points of blue, green or red. It is recommended to switch off the projector once and try after 1 hour later again. Please note that this does not affect the performance of your LCD.

The projector has a high pressure mercury lamp and that is characterised as follows.

The brightness of the lamp depends on the duration of use.

The lamp may explode or shorten the lamp life by shocks or chipping damage.

The lamp may explode only occasionally after using the projector.

The lamp may explode if using the projector after the instructed lamp replacement timing.

When the lamp exploded, it emits the internal smokelike gas.

The lamp life depends on individual lamp characteristics, usage condition and the installation environment. Especially the consecutive use of the projector for more than 10 hours, or the frequent switching on or off may greatly affect on the lamp life.

Optical components

If you use the projector consecutively 6 hours every day, the optical components may need to be replaced in less than 1 year.

Important Information

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 9

Precautions with regard to safety

Accessories

Make sure the following accessories are provided with your projector.

Remote control for

PT-AE3000E (x1)

N2QAYB000316

Safety cable

TTRA0141

Attachment screw (x1)

Safety cable (x1)

Lens cover (x1)

TXFKK01VKF5

(Attached to the projector by default.)

Mains lead for continental Europe (x1)

K2CM3FH00001

3 m (9'10")

Mains lead for UK (x1)

K2CT3FH00003

3 m (9'10")

AA batteries for remote control (x2) Power cord secure lock (x1)

TTRA0184

* The protectors for enclosed products, such as a plug cover or foam cartons, must be treated properly.

* Contact to an Authorised Service Centre for lost accessories.

E

NGLISH

About Your Projector

Remote control

Power button

While the MAIN POWER button is on, switch between standby mode and projection

mode. (page 21)

Remote control signal emitter

Emit remote control signal. (page 23)

Button backlight

When any button is pressed, the button backlight is lit. Without any operation, it gets darker after 5 seconds and goes of after next 5 seconds.

Display the PICTURE menu.

(page 23)

Display the LENS CONTROL

menu. (page 23)

Display the MEMORY LOAD

menu. (page 24)

Switch to cycle through the

PICTURE MODE. (page 23)

Switch to cycle through the

aspect ratio. (page 24)

Display the main menu or return to the previous menu.

(page 29)

Navigate through the menus with FGIH, and activate the menu item with the ENTER

button. (page 29)

Reset some of the settings to

the factory default. (page 28)

Switch to cycle through the input method.

(page 28)

Display the COLOUR

MANAGEMENT menu.

(page 26)

Display the input waveform.

(page 24)

Return to the previous

menu. (page 29)

Capture the projected image

as a still image. (page 28)

Activate the assigned function from the menu options for shortcut.

(page 42)

Battery compartment

1. Press the tab and lift up the cover.

2. Insert the batteries according to the polarity diagram indicated inside.

NOTE:

• Do not drop the remote control.

• Avoid contact with liquids or moisture.

• Use manganese batteries or alkaline batteries with the remote control.

• Do not attempt to modify or disassemble the remote control. Contact an Authorised Service Centre for repairs.

• Do not keep pressing the remote control buttons as this may shorten battery life.

• See “Remote control operation” on page 23.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 11

About Your Projector

Projector body

J

Top and front view

Lens shift dial • Vertical

(page 16)

Air exhaust port

Heated air comes out of this opening.

Lens shift dial • Horizontal

(page 16)

Projection lens

Power/LAMP/TEMP indicators

(page 20/page 45)

Air filter

(page 46)

MAIN POWER

Switch the projector on/off

(page 21)

Lens cover

Protects the projection lens from dust or dirt.

Remote control signal receptor

(page 23)

Air exhaust port

Heated air comes out of this opening.

INPUT SELECT

Switch to cycle through the

input method. (page 22)

Navigate through the menus with F G H I, and activate the menu item with the ENTER

button. (page 29)

Power

While the MAIN POWER is on, switch between

standby mode and projection mode. (page 21)

MENU

Display the main menu.

Return to the previous menu. (page 29)

(Push to open/close the cover.)

RETURN

Return to the previous menu.

(page 29)

FOCUS and ZOOM

Adjust the focus and size of the

image. (page 22)

NOTE:

• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.

• While the projector is not in use, keep the lens cover to protect the lens.

E

NGLISH

About Your Projector

J

Back and bottom view

Air intake port

Security lock

Attach the commercial shackle lock which is provided with the projector.

Compatible with the Kensington

MicroSaver Security System.

Front leg adjusters

Screw up/down to adjust the

projection angle. (page 15)

Lens cover attachment hole

Top cover

Hold the top cover at the back corner and slightly push up to open.

(page 47)

Air intake port

AC IN

Connect the mains lead to supply electronic power to the

projector. (page 19)

Safety cable attachment point

Attach the safety cable when mounted on the ceiling.

(page 56)

Front leg adjusters

Screw up/down to adjust the

projection angle. (page 15)

COMPUTER IN

Connect an RGB signal cable from your PC.

COMPONENT IN

Connect YP

B

P

R

signal cables.

S-VIDEO IN

Connect a S-VIDEO signal cable.

VIDEO IN

Connect an RCA composite video cable.

Connecting terminals

(page 18)

HDMI IN

Connect HDMI signal cables.

SERIAL

Connect a compatible cable for controlling the projector remotely via your computer.

(page 51)

NOTE:

• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.

• The projector should only be used with the attached mains lead to ensure optimum performance and avoid damage to the projector.

• Do not open the top cover other than replacing the lamp unit.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 13

Setting up

Screen size and throw distance

You can adjust the projection size with 2.0x zoom lens. Calculate and define the throw distance as follows.

SD

Projected image

(Shown as 16:9 size)

SW

Screen

All measurements and the calculation results bellow are approximate and may differ from the actual measurements.

Throw distance (16 : 9) Throw distance (2.35 : 1)

Screen Diagonal

(SD)

1.01 m (40")

1.27 m (50")

1.52 m (60")

1.77 m (70")

2.03 m (80")

2.28 m (90")

2.54 m (100")

3.05 m (120")

3.81 m (150")

5.08 m (200")

Minimum distance

(LW)

1.2 m

1.5 m

1.8 m

2.1 m

2.4 m

2.7 m

3 m

3.6 m

4.5 m

6 m

(3'11'')

(4'11'')

(5'10'')

(6'10'')

(7'10'')

(8'10'')

(9'10'')

(11'9'')

(14'9'')

(19'8'')

Maximum distance

(LT)

2.3 m

2.9 m

3.5 m

4.1 m

4.7 m

5.3 m

5.9 m

7.2 m

9 m

12 m

(7'6'')

(9'6'')

(11'5'')

(13'5'')

(15'5'')

(17'4'')

(19'4'')

(23'7'')

(29'6'')

(39'4'')

J

Calculation methods for screen dimensions

Minimum distance

(LW)

You can calculate more detailed screen dimension from the screen diagonal.

16 : 9 size

Screen width (SW) and screen height (SH)

SW (m)= SD (m) x 0.872

SH (m) = SD (m) x 0.490

Minimum distance (LW) and maximum distance (LT)

LW (m) = SD (m) x 1.189 - 0.04

LT (m) = SD (m) x 2.378 - 0.05

2.35 : 1 size

Screen width (SW) and screen height (SH)

SW (m)= SD (m) x 0.920

SH (m) = SD (m) x 0.392

Minimum distance (LW) and maximum distance (LT)

LW (m) = SD (m) x 1.256 - 0.04

LT (m) = SD (m) x 2.512 - 0.05

1.3 m

1.6 m

1.9 m

2.2 m

2.6 m

2.9 m

3.2 m

3.8 m

(4'3'')

(5'2'')

(6'2'')

(7'2'')

(8'6'')

(9'6'')

(10'5'')

(12'5'')

4.8 m (15'8'')

6.4 m (20'11'')

Maximum distance

(LT)

2.5 m

3.1 m

3.7 m

4.4 m

(8'2'')

(10'2'')

(12'1'')

(14'5'')

5 m

5.6 m

(16'4'')

(18'4'')

6.3 m (20'8'')

7.6 m (24'11'')

9.5 m

12.7 m

(31'2'')

(41'8'')

NOTE:

• Do not use the projector at a raised or a horizontally tilted position as it may cause malfunction of the projector.

• Make sure the projector lens surface is parallel with the screen. You can tilt the projector body less than approximately ± 30° vertically. Overtilting may result in shortening the component’s life.

• For the best quality of the projection image, install a screen where sun light or room light does not shine directly onto the screen. Close window shades or curtains to block the lights.

+

30°

-

30°

E

NGLISH

Setting up

Projection method

You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,

See “INSTALLATION” on page 44.

J

Setting on a desk/floor and

J

Setting on a desk/floor and projecting from front projecting from rear

INSTALLATION: FRONT/DESK

J

Mounting on the ceiling and projecting from front

INSTALLATION: REAR/DESK

J

Mounting on the ceiling and projecting from rear

INSTALLATION: FRONT/CEILING INSTALLATION: REAR/CEILING

NOTE:

• A translucent screen is required for rear projection.

• When mounting the projector on the ceiling, the optional ceiling mount bracket (ET-PKE2000, ET-PKE1000S) is required.

• See “Ceiling mount bracket safeguards” on page 56.

Front leg adjusters and throwing angle

You can screw up/down the front leg adjusters to control the angle of the projector for adjusting the throwing angle.

See “Positioning the image” on page 22.

NOTE:

• Heated air comes out of the air exhaust port. Do not touch the air exhaust port directly.

• If keystone distortion occurs, see “KEYSTONE” on page 39.

• Screw up the adjuster legs, and an audible click will be heard as the limit.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 15

Setting up

Lens shift and positioning

If the projector is not positioned at the right angle to the centre of the screen, you can adjust the projected image position by moving the lens shift dials within the shift range of the lens.

J

Adjusting the lens shift dials

Q

Horizontal shift

You can place the projector where the projector lens is up to 40% horizontally off-centre from the screen and then adjust the image position with the Lens shift dial • Horizontal.

Up to about 40 % of the projection

Up to about 40 % of the projection

Turning the dial clockwise:

Image moves to the right

Turning the dial counterclockwise:

Image moves to the left

Q

Vertical shift

You can place the projector where the projector lens is up to 100% vertically off-centre from the screen and then adjust the image position with the Lens shift dial • Vertical.

Turning the dial counterclockwise:

Image moves to the bottom

Up to about 100 % of the projection

Up to about 100 % of the projection

Turning the dial clockwise:

Image moves to the top

E

NGLISH

Setting up

J

Projector location range

You can determine where to locate the screen and the projector by considering the lens shift possibilities.

Q

When the screen position is fixed

Projector

H

Placement

V

Vertical centre of screen

SH

Centre of lens

Screen

SW

Q

When the projector position is fixed

100%

Shift range

100%

40% 40%

Projector

NOTE:

• When the projector is located at the right angle to the centre of the screen and the lens shift dials is centred, you will get the best quality of the projection image.

• When the Lens shift dial • Vertical is at the vertical limit of the shift range, you cannot turn the dial to the horizontal limit, likewise when the Lens shift dial • Horizontal is at the horizontal limit of the shift range, you cannot turn the dial to the vertical limit.

• When the projector is tilted and you adjust KEYSTONE, the centre of the screen and the lens need to be realigned.

• Do not force the lens shift dials to turn as this may damage the projector. Turning the dials maximum limit is 4 or 5 times from the default position.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 17

Connections

\

Before connecting to the projector

Read and follow the operating and connecting instructions of each peripheral device.

The peripheral devices must be turned off.

Use cables that match each peripheral device to be connected.

Confirm the type of video signals. See “List of compatible signals” on page 50.

Audio cables must be connected from each peripheral device directly to the audio reproduction system.

Connecting example: COMPONENT IN/S-VIDEO IN/

VIDEO IN

To COMPONENT video output

To VIDEO output

To S-VIDEO output

DVD player Video player

Connecting example: HDMI IN/COMPUTER IN

DVD player

HDMI cable

(RP-CDHG100: Optional))

RGB signal cable

(Commercial item)

To HDMI output

DVD player

Computer

NOTE:

• Make sure the HDMI cable is adapted to your HDMI device for proper performance.

• A compatible cable is required for an HDMI 1 080p signal.

• It is possible to connect with DVI devices via a HDMI/DVI conversion adapter, but some equipment may not project the

image properly or other problems could be encountered. See “Serial terminal” on page 51.

E

NGLISH

Switching the projector on/off

Mains lead

J

Connecting

1. Make sure the shape of the mains plug and the

AC IN terminal on the back of the projector match, then push the plug all the way in.

J

Disconnecting

1. Unplug the mains lead from the mains socket.

2. Depress the latch and slide the cover off.

2. Align the side of the power cord secure lock with the side guide rail of the AC IN terminal of the projector and slide it in.

Rail guide

Latch

3. Slide the power cord secure lock up along the side guide rail and remove.

Rail guide

3. Place the latch to the latch catcher and press until it clicks.

4. Hold the plug and unplug the mains lead from the

AC IN terminal on the back of the projector.

Latch

4. Connect the mains lead to a mains socket.

NOTE:

• Do not use other than the provided mains lead.

• Ensure all the input devices are connected and turned off before connecting the mains lead.

• Do not force the connector as this may damage the projector and/or the mains lead.

• Dirt or dust build-up around plugs may cause fire or electrical hazards.

• Switch off the power to the projector when not in use.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 19

Switching the projector on/off

Power indicator

Power indicator informs you the status of the power.

When the TEMP indicator is flashing, the power indicator will not light.

Power indicator

Indicator status

No illumination or flashing

Red Lit

Flashing

Green

Lit

Lit

Orange

Flashing

Status

The MAIN POWER button is switched off.

The MAIN POWER button is switched on and the projector is in standby mode.

The power button is switched on and the projector is getting ready to project.

Projecting.

The power button is switched off and the projector is cooling the lamp.

The power button is switched on again when cooling the lamp and recovering to projection mode. Recovery may take a while.

NOTE:

• See “TEMP indicator” on page 45.

• While the projector is cooling the lamp, do not switch the MAIN POWER button off or unplug the mains lead.

• The electric consumption in standby mode is 0.08 W.

E

NGLISH

Switching on the projector

Power indicator

Switching the projector on/off

1. Remove the lens cover from the lens.

2. Switch the MAIN POWER button on.

The power indicator lights up in red.

3. Press the power button.

The power indicator lights up in green after flashing for a while.

The STARTUP LOGO is displayed on the screen.

See “STARTUP LOGO” on page 43.

NOTE:

• When the internal cooling fan is operating, some operational sound may be heard. The loudness of the operational sound depends on the external temperature.

• You can reduce the operational sound by setting the LAMP POWER in OPTION menu to the ECO-MODE. See “LAMP

POWER” on page 44.

• When starting up the projector, some small rattling or tinkling sound may be heard, or the display may flicker for the characteristics of the lamp. Those are normal and will not affect the performance of the projector.

• Do not attempt to modify the lens cover which may cause burns, fire or damage to the projector.

Switching off the projector

Power indicator

1. Press the power button.

The confirmation screen is displayed. It will disappear and return to the projection after

10 seconds without any operation.

To return to the projection, press any button except the power button.

2. Press I to select OK and press the power or

ENTER button.

The power indicator lights up in orange while cooling the lamp, then illuminates red when it is ready to switch off the MAIN POWER button.

3. Switch off the MAIN POWER button on the back of the projector.

4. Attach the lens cover.

NOTE:

• Press the power button twice or for a long duration to switch the power off.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 21

Projecting an image

Selecting the input signal

1. Switch on the connected devices.

Press the play button of the required device.

2. Press the INPUT SELECT button to select the

required input method if needed. See “Switching the input signal” on page 28.

The image will be projected on the screen.

Positioning the image

1. Press the ASPECT button to select the required

aspect mode. See “Switching the aspect ratio” on page 24.

2. Adjust the projected image with the lens shift dials.

See “Lens shift and positioning” on page 16.

NOTE:

AUTO SEARCH is ON as default and the signal from

the connected devices is detected automatically. See

“AUTO SEARCH” on page 43.

4. Adjust the focus and the projected image size.

Press +/- of the FOCUS and ZOOM buttons to adjust.

Press the LENS button to adjust the focus and zoom

by the remote control. See “LENS CONTROL” on page 40.

3. Adjust the angle of the projector.

Screw down the front leg adjusters and adjust the angle vertically.

See “Front leg adjusters and throwing angle” on page 15.

NOTE:

• Do not touch the air exhaust port as this may cause burns or injury.

• If keystone distortion occurs, see “KEYSTONE” on page 39.

• If you adjust the focus, you may need to adjust the size of the image by pressing the ZOOM button again.

E

NGLISH

Remote control operation

Operating range

You can operate the projector with the remote control within the remote range 7 m (22'11").

Q

Facing to the projector

Ensure the remote control emitter is facing to the remote control signal receptor on front/back of the projector and press the required buttons to operate.

Q

Facing to the screen

Ensure the remote control emitter is facing to the screen and press the required buttons to operate the projector. The signal will be reflected off the screen. The operating range may differ due to the screen material. This function may not be effective with a translucent screen.

NOTE:

• Do not let strong light shine onto the signal receptor.

The remote control may malfunction under strong light such as fluorescent.

• If there are any obstacles between the remote control and the remote control signal receptor, the remote control may not operate correctly.

Managing the lens control settings

You can adjust the focus and zoom of the projected image, and save the settings. Press the LENS button to display the LENS CONTROL menu.

See “LENS CONTROL” on page 40.

Switching the picture mode

You can switch the preset picture mode settings by pressing the PICTURE MODE button. Press the button until the required

setting is selected. See “PICTURE MODE” on page 32.

NORMAL

DYNAMIC

CINEMA3

CINEMA2

COLOUR1

COLOUR2 CINEMA1

Adjusting the image

You can display the PICTURE and

ADVANCED MENU menu items in called up style by pressing the PICTURE ADJUSTMENT button. Press the button to switch between

PICTURE and ADVANCED MENU menu.

Press F G to select the required menu item and I H to adjust.

Q

PICTURE menu items

PICTURE MODE, CONTRAST, BRIGHTNESS,

COLOUR, TINT, SHARPNESS, COLOUR

TEMPERATURE and DYNAMIC IRIS

Q

ADVANCED MENU items

GAMMA, CONTRAST, BRIGHTNESS,

x.v.Colour, FRAME CREATION, DETAIL

CLARITY, NR, MPEG NR, CINEMA REALITY and

TV-SYSTEM

NOTE:

• For each menu items description, see “PICTURE menu” on page 32.

• The screen will be cleared after 7 seconds without any operation.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 23

Remote control operation

Loading a saved setting

You can access saved settings instantly. See

“MEMORY LOAD” on page 36.

1. Select the required setting from MEMORY1 - 16.

Undefined setting will not be displayed.

2. Press the ENTER button to activate the selected setting.

NOTE:

• If you have not saved any settings, MEMORY1 - 16 will not be displayed.

Switching the aspect ratio

The aspect ratio will be selected automatically, or you can switch it manually by pressing the

ASPECT button. Press the button several times to cycle through the different aspect type

as follows. See “ASPECT” on page 37.

Q

VIDEO/S-VIDEO/COMPONENT (YP

B

P

R

)

4:3 JUST

16:9

14:9

Q

COMPUTER (RGB)

4:3

ZOOM2

ZOOM1

16:9

Q

HDMI

4:3 16:9

NOTE:

• If you project an image with an unmatched aspect ratio, the image may distort or some portions may be cropped. Select an aspect ratio which preserves the intention of the image creator.

• The order of aspect type is defined not only by the input

method but also by the input signals. See “List of compatible signals” on page 50.

• If you project a copyrighted image enlarged or distorted by using ASPECT function in commercial use in a public place, such as a restaurant or hotel, you might infringe on the copyright of the creator which is protected by copyright law.

Adjusting the signal condition with a waveform

You can display the image brightness and contrast level of the input signal with a

waveform. See “WAVEFORM MONITOR” on page 33.

2. Press ENTER button until the required waveform option is displayed.

In FULL SCAN mode, press F G I H to change the waveform position.

In SINGLE LINE SCAN mode, press F G to select the required line position.

FULL SCAN

SINGLE LINE SCAN

Monitoring the waveform of brightness and contrast of the whole image.

Monitoring the waveform of brightness and contrast in each horizontal line of the image.

J

Displaying the waveform

1. Press the WAVEFORM button and display the waveform monitor.

Press the WAVEFORM button again to escape from the waveform mode.

FULL SCAN(Y)

FULL SCAN(R)

FULL SCAN(G)

FULL SCAN(B)

SINGLE LINE SCAN(B)

SINGLE LINE SCAN(G)

SINGLE LINE SCAN(R)

SINGLE LINE SCAN(Y)

NOTE:

• In SINGLE LINE SCAN mode, the position of the waveform monitor depends on the position of the selected line.

• You can display the main menu by pressing the MENU button and adjust the menu items.

• The called up menu items displayed position depends on the position of the waveform monitor.

• You can activate AUTO ADJUST of the WAVEFORM menu by pressing the DEFAULT button.

• The signal which is lower than 0% in the waveform will be displayed as same as 0% on the projected image.

• While the waveform is displayed, the image is displayed without the COLOUR MANAGEMENT adjustment.

• When adjusting the KEYSTONE of the POSITION menu while the waveform is displayed, x.v.Colour will be deactivated.

E

NGLISH

J

Adjustment example

Project a commercial test signal for picture adjustment on the screen and press the

WAVEFORM button.

100%

50%

0%

ENTER

ENTER

100%

Adjust to 100%

50%

Image displayable area

0%

Adjust to 0%

Monitor position

With COMPUTER (except 1080) or

HDMI (Expand)

Adjust to 100%

100%

50%

0%

Adjust to 0%

Image displayable area

Monitor position

Q

Adjusting with luminance options

1. Press the ENTER button several times to display

FULL SCAN(Y)/SINGLE LINE SCAN(Y).

In SINGLE LINE SCAN mode, select the required adjusting point by pressing F G.

2. Press the PICTURE ADJUSTMENT button and display the BRIGHTNESS by pressing

F G

.

When ADVANCED MENU is displayed, press the button again to switch to the PICTURE menu.

Remote control operation

3. Adjust by pressing I H.

Adjust the bottom line of the waveform to 0 % (0 or

7.5 IRE).

Setting range: -32 to +32

4. Press

F G

to display the CONTRAST.

5. Adjust by pressing I H.

Adjust the up line of the waveform to 100 %

(100 IRE).

Setting range: -64 to +64

FULL SCAN(Y)/SINGLE LINE SCAN(Y)

BRIGHTNESS

Adjust the bottom line of the waveform to 0 % (0 or 7.5 IRE)

CONTRAST

Adjust the top line of the waveform to

100 % (100 IRE)

Q

Adjusting with RGB options

1. Press the ENTER button several times to display the required R/G/B waveform option.

In SINGLE LINE SCAN mode, select the required adjusting point by pressing F G.

2. Press the PICTURE ADJUSTMENT button and display the BRIGHTNESS R/BRIGHTNESS G/

BRIGHTNESS B by pressing

F G

.

When PICTURE menu is displayed, press the button again to switch to the ADVANCED MENU.

3. Adjust by pressing I H.

Adjust the bottom line of the waveform to 0 % (0 or

7.5 IRE).

Setting range: -16 to +16

4. Press

F G

to display the CONTRAST R/

CONTRAST G/CONTRAST B.

5. Adjust by pressing I H.

Adjust the up line of the waveform to 100 %

(100 IRE).

Setting range: -32 to +32

FULL SCAN(R)/SINGLE LINE SCAN(R)

BRIGHTNESS R

Adjust the bottom line of the waveform to 0 % (0 or 7.5 IRE)

CONTRAST R

Adjust the top line of the waveform to

100 % (100 IRE)

FULL SCAN(G)/SINGLE LINE SCAN(G)

BRIGHTNESS G

CONTRAST G

Adjust the bottom line of the waveform to 0 % (0 or 7.5 IRE)

Adjust the top line of the waveform to

100 % (100 IRE)

FULL SCAN(B)/

BRIGHTNESS B

CONTRAST B

Adjust the bottom line of the waveform to 0 % (0 or 7.5 IRE)

Adjust the top line of the waveform to

100 % (100 IRE)

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 25

Remote control operation

Setting your own colour profile

You can adjust a selected colour individually and save and retrieve under the PICTURE

MODE setting. Press the

COLOUR MANAGEMENT button to open the

menu. See “COLOUR MANAGEMENT” on page 35.

3. Select a menu item and the I H to adjust each item level.

The result box is displayed on the right of the cursor and shows the adjusted colour.

CURSOR

RETURN

SELECT

ENTER

DEFAULT

COLOUR

TINT

BRIGHTNESS

PROFILE

CURSOR

LOG

PROFILE SAVE

PROFILE DELETE

PROFILE NAME CHANGE

NORMAL

J

Create a new profile

Q

Adjusting the selected colour

Select a colour and adjust COLOUR, TINT and

BRIGHTNESS.

1. Select the CURSOR menu and press ENTER.

The projected image is captured, and the target cursor is displayed.

When the LOG is fully stored, the target cursor will not be displayed.

Target cursor

Adjusted colour

COLOUR

TINT

BRIGHTNESS

Adjust the vividness of the colour.

Setting range: -30 to +30

Adjust the colour tone.

Setting range: -30 to +30

Adjust the brightness of the colour.

Setting range: -20 to +20

4. Press ENTER to store the adjusted result.

PROCESSING” is displayed for a few seconds and the result is stored in LOG.

You can store up to 8 logs under LOG for each

PICTURE MODE setting.

5. Press MENU or RETURN to return to the previous menu.

Repeat the steps above to store more adjustment.

Q

Managing stored logs

You can edit or delete the stored logs of the selected PICTURE MODE.

1. Select LOG and press ENTER.

The LOG menu is displayed.

2. Move the cursor with F G I H to the required place to select a colour and press ENTER.

The colour at the centre of the target cursor is sampled and the sample box is displayed on the left of the cursor. The menu items are displayed on the upper part of the screen.

CURSOR

RETURN

SELECT

ENTER

DEFAULT

COLOUR

TINT

BRIGHTNESS

PICTURE MODE : CINEMA1

POINT1

POINT2

POINT3

POINT4

POINT5

POINT6

POINT7

POINT8

ALL DELETE

Sampled colour

Sampled colour Adjusted colour

2. Select the required log from 1 - 8 or ALL DELETE, and press ENTER.

Select CHANGE to edit the log.

The cursor menu is displayed and you can readjust the colour.

Select DELETE to delete the log.

The confirmation screen will be displayed. Select OK to delete.

When you select ALL DELETE, the "DELETE ALL

LOG." screen is displayed. Select OK to delete all logs. The PROFILE setting will be set to NORMAL.

E

NGLISH

Q

Saving a log setting as a profile

Return to the COLOUR MANAGEMENT menu and save the stored log as a profile. Make sure that the PICTURE MODE is not switched.

1. Select the PROFILE SAVE menu and press the

ENTER button.

The PROFILE SAVE menu is displayed. You can save the profile as USER1, USER2 and USER3.

USER1

USER2

USER3

2. Press the ENTER button to save the profile.

The confirmation screen is displayed. Press ENTER again to save.

3. Name the profile.

Use F G I H to specify the location of the required character to enter and press the ENTER button.

You can enter up to 14 characters.

PROFILE NAME INPUT

ALL DELETE

OK CANCEL

4. Repeat step 3 until you finish the text line.

Move cursor to ALL DELETE and press the ENTER button to delete all the entered text line.

Press the DEFAULT button to delete the last entered character or indicated with cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press G then perform step 3.

5. Select OK and press the ENTER button to set the entered text as a name.

Press the ENTER button without entering any text to keep the default name.

Remote control operation

Q

Deleting the saved profiles

You can delete the profiles from PROFILE

DELETE menu.

1. Select PROFILE DELETE and press the ENTER button.

2. Select the required profile or ALL DELETE and press the ENTER button.

The confirmation screen will be displayed and select

OK.

3. Press the ENTER button.

Q

Changing the profile names

You can change the name of the profiles from the

PROFILE NAME CHANGE menu.

1. Select PROFILE NAME CHANGE and press the

ENTER button.

2. Select the required profile and press the ENTER button.

3. Rename the profile.

Use F G I H to specify the location of the required character to enter and press the ENTER button.

4. Select OK and press the ENTER button to set the entered text as a name.

Q

Loading saved profiles

When profiles are loaded under the PICTURE

MODE setting, you can keep them as you defined until the PROFILE is set to NORMAL.

1. Select the required PICTURE MODE and press the ENTER button.

2. Press the COLOUR MANAGEMENT button and select the PROFILE menu.

The profile settings of the selected PICTURE MODE will be displayed.

3. Select the required profile and press the ENTER button.

Return to the default setting of the

PICTURE MODE menu.

NORMAL

USER1

USER2

USER3

Defined profile settings.

NOTE:

LOG and PROFILE SAVE are not displayed before you apply COLOUR MANAGEMENT.

• When the LOG is fully stored, the CURSOR will not be displayed.

• If you load a profile with a different attribute mode of the profile, the CURSOR and PROFILE SAVE menus will not be displayed.

• The approximate colours will be adjusted at the same time. If you adjust the exact same colour differently, both colours will affect each other and you might get unexpected results.

• White, Black and Grey are not adjustable.

• If you escape the COLOUR MANAGEMENT menu or attempt to perform another menu action before you save the adjusted profile, the confirmation screen will be displayed.

• If you switch the input signal before you save the profile, the setting will be cancelled without notice.

• When HDMI signal is selected, COLOUR MANAGEMENT is not available with the COLOUR1 setting of the PICTURE

MODE.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 27

Remote control operation

Resetting to the factory default settings

You can reset most of the customised settings to the factory defaults by pressing DEFAULT button of the remote control. Display the required sub-menu or the menu items and press the button again.

NOTE:

• Some menu items are not available to reset by pressing the DEFAULT button. Adjust each menu items manually.

Capturing an image

Press the FREEZE button to capture the image, and you can see it as a still picture while the AV equipment are continuing. Press the

FREEZE button again to escape and return to the continuing image.

While displaying the frozen image, you can enter the

AREA SELECT mode of the SPLIT ADJUST menu by

pressing the ENTER button. See “SPLIT ADJUST” on page 33.

Switching the input signal

You can switch the input method manually by pressing the INPUT SELECT button.

Press the button several times or press I

H to cycle through the input methods as follows. The actual projected image will be changed in a while.

The graphical guidance will be displayed on the upper right of the projected image and you can confirm the

selected input method which is highlighted in yellow. See

“INPUT GUIDE” on page 43.

COMPONENT 1 IN COMPONENT 2 IN

COMPONENT 1 IN

COMPONENT 2 IN

S-VIDEO IN

VIDEO IN

HDMI 1 IN

HDMI 2 IN

HDMI 3 IN

COMPONENT (YP

B

P

R

) signals from the equipment connected to

COMPONENT IN 1/

COMPONENT IN 2.

S-VIDEO signal from the equipment connected to S-VIDEO IN.

VIDEO signal from the equipment connected to VIDEO IN.

HDMI signal from the equipment connected to HDMI IN 1/HDMI IN 2/

HDMI IN 3.

COMPUTER IN S-VIDEO IN

COMPUTER IN

COMPUTER (RGB) signal from the equipment connected to

COMPUTER IN.

HDMI 3 IN VIDEO IN

HDMI 2 IN HDMI 1 IN

NOTE:

• If you select an unplugged input method, the guidance will blink on and off several times.

• See “List of compatible signals” on page 50.

• See “Connections” on page 18.

Using the assigned function as shortcut

You can access the assigned function in FUNCTION BUTTON menu as shortcut. See “FUNCTION BUTTON” on page 42.

HDMI 1 IN

HDMI 2 IN

HDMI 3 IN

COMPUTER IN

COMPONENT 1 IN

COMPONENT 2 IN

S-VIDEO IN

VIDEO IN

BLANK

AUTO SETUP

CONTRAST

CONTRAST R

CONTRAST G

CONTRAST B

page 28

-

page 39

page 32

page 34

NORMAL

DYNAMIC

COLOUR1

COLOUR2

CINEMA1

CINEMA2

CINEMA3

SPLIT ADJUST

WAVEFORM AUTO ADJUST

LENS MEMORY LOAD

BRIGHTNESS

BRIGHTNESS R

BRIGHTNESS G

BRIGHTNESS B

page 32

page 33

page 40

page 32

page 34

E

NGLISH

Menu Navigation

Navigating through the MENU

J

Displaying the main menu

Press the MENU button to display the main menu and the operating guidance.

Main menu

Sub-menu

Current settings

J

Operating procedure

1. Press F G to scroll to the required main menu item and press the ENTER button to select.

The selected item is highlighted in orange and the sub-menu is displayed on the right.

See “Main menu and sub-menu” on page 30.


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

OPTION

SELECT

RETURN

ENTER

PICTURE MODE

CONTRAST

BRIGHTNESS

COLOUR

TINT

SHARPNESS

COLOUR TEMPERATURE

DYNAMIC IRIS

WAVEFORM MONITOR

SPLIT ADJUST

ADVANCED MENU

MEMORY SAVE

MEMORY LOAD

MEMORY EDIT

NORMAL

ON

OFF

Operating guidance

Contains the required buttons to adjust the settings.

J

Adjusting with the bar scale items

The triangle mark under the bar indicates factory default setting and the square indicates the current setting.

Current setting


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

OPTION

SELECT

RETURN

ENTER


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

OPTION

H-POSITION

V-POSITION

ASPECT

WSS

OVER SCAN

KEYSTONE

H-POSITION

V-POSITION

ASPECT

WSS

OVER SCAN

KEYSTONE

ON

2. Press F G to scroll to the required sub-menu item and press I H or the ENTER button to adjust.

The selected item is called up and the other menu items disappear from the screen. The Called up item will be disappear after 5 seconds and return to the menu mode.

If there is a lower level, the next level will be displayed.

ON

BRIGHTNESS

RETURN

Default

J

Returning to the previous menu

Press the MENU or RETURN button to return to the previous menu. Press repeatedly to escape from the menu mode and return to the projection.

SELECT

ENTER

3. Press I H to adjust or set the selected item.

For items using a bar scale, the current settings are displayed on the left of the bar scale.

You can cycle through the options of an item by pressing I H.

BRIGHTNESS

4. Press the MENU or RETURN button to return to the previous menu.

NOTE:

• See “Resetting to the factory default settings” on page 28 to reset each menu items.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 29

Menu Navigation

Main menu and sub-menu

The menu options are structured and categorised. You can navigate through the menu with F G H I buttons. See

“Menu Navigation” on page 29.

NOTE:

• The underlined items are factory default settings.

• Some default settings vary by the selected input signal.

• Sub-menu items vary according to the selected input signal.

• Some settings are adjustable without any signals.


PICTURE MODE

NORMAL

COLOUR1

CINEMA1

CINEMA3

CONTRAST

(Default: 0)

BRIGHTNESS

(Default: 0)

DYNAMIC

COLOUR2

CINEMA2

COLOUR

(Default: 0)

TINT

(Default: 0)

SHARPNESS

(Default: 0)

COLOUR TEMPERATURE

(Default: 0)

page 32 page 32 page 32 page 32 page 32 page 32

page 33

DYNAMIC IRIS

ON OFF

WAVEFORM MONITOR

OFF

FULL SCAN(Y)

FULL SCAN(G)

SINGLE LINE SCAN(Y)

FULL SCAN(R)

FULL SCAN(B)

SINGLE LINE SCAN(R)

SINGLE LINE SCAN(G)

SINGLE LINE SCAN(B)

MONITOR POSITION

AUTO ADJUST

page 33 page 33

SPLIT ADJUST

AREA SELECT

NORMAL

ADVANCED MENU

page 33

SPLIT ADJUST MODE

REVERSE

page 34

GAMMA

GAMMA HIGH

GAMMA MID

GAMMA LOW

CONTRAST

CONTRAST R

CONTRAST G

CONTRAST B

BRIGHTNESS

BRIGHTNESS R

BRIGHTNESS G

BRIGHTNESS B

G

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

E

NGLISH

F

NR (Noise Reduction)

(Default: 0)

MPEG NR

(Default: 0)

FRAME CREATION

OFF MODE1 MODE2

COLOUR MANAGEMENT

PROFILE

LOG

PROFILE DELETE

CURSOR

PROFILE SAVE

PROFILE NAME CHANGE x.v.Colour

ON

DETAIL CLARITY

ON

CINEMA REALITY

ON

OFF

OFF

OFF

TV-SYSTEM

AUTO

NTSC

PAL

PAL-N

MEMORY SAVE

MEMORY1 - 16

MEMORY LOAD

MEMORY1 - 16

MEMORY EDIT

MEMORY DEL

SIGNAL MODE

NTSC 4.43

PAL-M

SECAM

page 36 page 36 page 36

MEMORY NAME CHANGE

page 36

POSITION

H - POSITION

(Default: 0)

V - POSITION

(Default: 0)

DOT CLOCK

(Default: 0)

CLOCK PHASE

(Default: 0)

ASPECT

4:3

ZOOM2

WSS

16:9

JUST

G

14:9

page 37 page 37 page 37 page 37 page 37

ZOOM1

page 39

OVER SCAN

KEYSTONE

(Default: 0)

AUTO SETUP

F

LANGUAGE

LENS CONTROL

ZOOM/FOCUS

LENS MEMORY LOAD

LENS MEMORY 1 - 3

LENS MEMORY SAVE

LENS MEMORY 1 - 3

LENS MEMORY EDIT

LENS MEMORY DELETE

LENS MEMORY NAME CHANGE

H-AREA POSITION

V-AREA POSITION

page 40 page 40 page 40

page 41 page 41 page 41

FUNCTION BUTTON

BUTTON

page 42

HDMI 1 IN

HDMI 3 IN

COMPONENT 1 IN

S-VIDEO IN

BLANK

CONTRAST

CONTRAST G

NORMAL

HDMI 2 IN

COMPUTER IN

COMPONENT 2 IN

VIDEO IN

AUTO SETUP

CONTRAST R

CONTRAST B

DYNAMIC

COLOUR1

CINEMA1

COLOUR2

CINEMA2

CINEMA3 SPLIT ADJUST

WAVEFORM AUTO ADJUST

LENS MEMORY LOAD

BRIGHTNESS BRIGHTNESS R

BRIGHTNESS G BRIGHTNESS B

page 39 page 39 page 39

Menu Navigation

OPTION

INPUT GUIDE

DETAILED

OFF

OSD DESIGN

TYPE1

TYPE3

OSD POSITION

SIMPLE

TYPE2

page 43 page 43

UPPER LEFT

UPPER RIGHT

LOWER LEFT

LOWER RIGHT

BACK COLOUR

BLUE BLACK

STARTUP LOGO

ON OFF

AUTO SEARCH

ON OFF

HDMI SIGNAL LEVEL

page 43

UPPER CENTRE

CENTRE

LOWER CENTRE

page 43 page 43 page 43 page 43

NORMAL EXPAND

FRAME RESPONSE

NORMAL FAST

page 43

INSTALLATION

FRONT/DESK

REAR/DESK

SLEEP

OFF

15 MIN.

20 MIN.

FRONT/CEILING

REAR/CEILING

25 MIN.

35 MIN.

55 MIN.

40 MIN.

60 MIN.

45 MIN.

HIGH ALTITUDE MODE

OFF ON

LAMP POWER

NORMAL

LAMP RUNTIME

ECO-MODE

page 44 page 44

30 MIN.

50 MIN.

page 44 page 44 page 44

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 31

PICTURE menu

Remote control Control panel

CONTRAST

You can adjust the contrast of the projected image.

Adjust the BRIGHTNESS in advance if necessary.

Lower Higher

See “Navigating through the MENU” on page 29.

See “Main menu and sub-menu” on page 30.

PICTURE MODE

Depending on the projection environment, you can use these preset parameter settings to optimise image projection. Press I H to cycle through the options.

NORMAL CINEMA3

Setting range: -64 to +64

BRIGHTNESS

You can adjust the brightness of the projected image.

Darker Brighter

DYNAMIC

COLOUR1

CINEMA2

Setting range: -32 to +32

COLOUR

You can adjust the colour saturation of the projected image.

COLOUR2

NORMAL

DYNAMIC

COLOUR1

COLOUR2

CINEMA1

CINEMA2

CINEMA3

CINEMA1

Setting for a general image, such as sports programme or TV games

Bright and sharp setting

Setting for HDTV standard in ITU-

R BT. 709 and colour temperature

6 500 K at the default setting of the PICTURE menu items.

Setting for DCDM standard

(SMPTE431-2) and colour temperature 6 300 K at the default setting of the PICTURE menu items.

Setting tuned by top Hollywood colourists

Deeper and more rich colour setting

Vivid and crisp colour setting

NOTE:

• It may take for a while until the selected mode is stabilised.

Lighter Darker

Setting range: -32 to +32

When COMPUTER signal is connected, only available with the following signals.

1 125 (1 080)/60i

1 125 (1 080)/60p

1 125 (1 080)/50i

1 125 (1 080)/50p

TINT

You can adjust the skin tone in the projected image.

More reddish

More greenish

Setting range: -32 to +32

When COMPUTER signal is connected, only available with the following signals.

1 125 (1 080)/60i

1 125 (1 080)/60p

1 125 (1 080)/50i

1 125 (1 080)/50p

SHARPNESS

You can adjust the sharpness of the projected image.

Less sharp

More sharp

Setting range will vary according to the selected input signal.

E

NGLISH

COLOUR TEMPERATURE

You can adjust the white balance of the projected image.

Less bluish

More bluish

Setting range: -6 to +6

DYNAMIC IRIS

You can switch automatic adjustment of the lamp and the lens iris on/off.

ON:

OFF:

Automatic adjustment

No adjustment

WAVEFORM MONITOR

You can monitor whether or not the luminance level of the input signal is in the recommended range by displaying it in the waveform monitor. If the waveform is

not in the range, adjust it for the best quality. See

“Adjusting the signal condition with a waveform” on page 24.

OFF

FULL SCAN(Y)

FULL SCAN(R)

FULL SCAN(G)

FULL SCAN(B)

SINGLE LINE SCAN(Y)

SINGLE LINE SCAN(R)

SINGLE LINE SCAN(G)

SINGLE LINE SCAN(B)

MONITOR POSITION

AUTO ADJUST

UPPER LEFT

1. Press F G to move to the required waveform style.

2. Press ENTER to select.

The WAVEFORM MONITOR will be displayed.

See “Adjusting the signal condition with a waveform” on page 24.

NOTE:

• When the WAVEFORM MONITOR is set to OFF, the

AUTO ADJUST is not displayed.

• The waveform of the WAVEFORM MONITOR will not be displayed correctly with a noisy equipment or source.

• The WAVEFORM MONITOR adjusts the signal level based on the reference signal which consist of 0% and

100%. The over scanned reference signal which runs off the edge of the screen, below 0% or over 100% signal level will not be adjusted correctly.

PICTURE menu

J

MONITOR POSITION

When the FULL SCAN is selected, press F G I

H to adjust the position of the monitor.

See “Adjusting the signal condition with a waveform” on page 24.

J

AUTO ADJUST

You can switch on/off the automatic adjustment system in each items.

BLACK LEVEL ADJUST

Adjust the black level of luminance (Y) to 0%.

ON

WHITE LEVEL ADJUST

Adjust the white level of luminance (Y) to

100%.

ON

RGB ADJUST (BLACK)

Adjust the black level of colours (R/G/B) to 0%.

OFF

RGB ADJUST (WHITE)

Adjust the white level of colours (R/G/B) to

100%.

OFF

1. Press F G and select the required item.

2. Press I H and switch on/off.

3. Press F G and select AUTO and press ENTER.

The confirmation screen will be displayed.

4. Press I H and select OK.

5. Press ENTER.

SPLIT ADJUST

You can perform image adjustment for some PICTURE menu items while displaying a certain area of the frozen image in a split window.

Q

SPLIT ADJUST MODE

Select the required split style from NORMAL and

REVERSE in the SPLIT ADJUST MODE menu.

NORMAL

REVERSE

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 33

PICTURE menu

Q

Adjusting the image in a split window

1. Select AREA SELECT and press the ENTER button.

The image will be frozen and the area cursor will be displayed.

MOVE AREA ENTER GO TO SPLIT ADJUST RETURN GO TO FREEZE SCREEN

2. Press I H to move the area cursor to select the area of interest and press the ENTER button.

The selected frozen image will be displayed in a split window.

3. Press the MENU to display the PICTURE menu on the right.


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

OPTION

SELECT

RETURN

ENTER

PICTURE MODE

CONTRAST

BRIGHTNESS

COLOUR

TINT

SHARPNESS

COLOUR TEMPERATURE

DYNAMIC IRIS

WAVEFORM MONITOR

SPLIT ADJUST

ADVANCED MENU

MEMORY SAVE

MEMORY LOAD

MEMORY EDIT

NORMAL

ON

OFF

4. Adjust the required PICTURE menu items.

Only the highlighted menu items are adjustable.

Sub-menu items vary according to the selected input

signal. See “Main menu and sub-menu” on page 30.

5. Press the MENU/RETURN button several times to escape from the menu.

6. Press the ENTER button.

The confirmation screen will be displayed. Select OK to finish the adjustment.

7. Press the ENTER button.

Press the ENTER button again to return to the AREA

SELECT.

Press the RETURN button to escape from the SPLIT

ADJUST mode.

ADVANCED MENU

You can perform more detailed image adjustment manually.

J

GAMMA

You can adjust linear intensity at 3 levels. Press

I H to increase/decrease 1 point.

Levels Default setting

GAMMA HIGH

GAMMA MID

0

0

GAMMA LOW

Setting range: -8 to +8

J

CONTRAST

0

You can adjust the amount of contrast of individual

RGB colours. Press I H to increase/decrease

1 point.

RGB Default setting

CONTRAST R

0

CONTRAST G

0

CONTRAST B

Setting range: -32 to +32

J

BRIGHTNESS

0

You can adjust the brightness of individual RGB colours. Press I H to increase/decrease 1 point.

RGB Default setting

BRIGHTNESS R

BRIGHTNESS G

0

0

BRIGHTNESS B

Setting range: -16 to +16

J

NR (Noise Reduction)

0

You can adjust the automatic noise reduction system level. Press I H to change the level.

Setting range: 0 to +3

E

NGLISH

J

MPEG NR

You can adjust the automatic noise reduction system level for MPEG format images. The system minimise block noise and mosquito noise to eliminate jagged edges, providing an overall smoother image. Press I H to change the level.

Setting range: 0 to +3

NOTE:

MPEG NR system is not available with COMPUTER/

HDMI (VGA60) signals.

J

FRAME CREATION

You can activate the rendering system for fast motion frames with fewer afterimage. Press I H to select the required option.

OFF

MODE1

Deactivate

Setting for a standard image

MODE2

Setting for a moving image

NOTE:

• With some of the images, it might be difficult to see a difference in result.

• The image might look slower with the MODE2 setting.

When the result does not meet your requirement, select

MODE1 or deactivate the system.

J

COLOUR MANAGEMENT

You can manage your own defined colour settings.

See “Setting your own colour profile” on page 26.

J

x.v.Colour

You can switch on/off the automatic adjustment system for signals which comply with xvYCC.

ON: Active

OFF: Deactive

NOTE:

x.v.Colour adjustment system is available only with

HDMI signals in COLOUR1 of PICTURE MODE menu.

PICTURE menu

J

DETAIL CLARITY

You can switch the automatic detail clarity system on/off.

ON:

OFF:

Active

Deactive

J

CINEMA REALITY

You can switch the automatic image synchroniser on/off for 24 frames a second images, such as movies. Press I H to select the required setting.

ON:

OFF:

Active

Deactive

NOTE:

CINEMA REALITY is effective only with interlace signals.

J

TV-SYSTEM

When the video signal is changed, the setting switches automatically.

You can switch the setting manually to match the video data. Press I H to cycle through the options.

AUTO NTSC

SECAM

PAL-N

PAL-M

NTSC 4.43

PAL

NOTE:

AUTO setting will select from NTSC/NTSC 4.43/PAL/

PAL60/PAL-M/PAL-N/SECAM.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 35

PICTURE menu

MEMORY SAVE

You can save and name the adjusted PICTURE menu settings for instant access from MEMORY LOAD menu.

1. Adjust the items in PICTURE menu.

2. Select MEMORY SAVE and press the ENTER button.

3. Select the required memory setting and press the

ENTER button.

The confirmation screen will be displayed. Select OK and press the ENTER button.

Indicated with

is in use, and

is empty.

4. Name the memory setting.

Use F G I H to specify the location of the required character to enter and press the ENTER button.

You can enter up to 16 characters.

MEMORY NAME INPUT

ALL DELETE

MEMORY EDIT

You can edit the named memory settings.

Q

Deleting a memory setting

1. Select MEMORY DEL and press the ENTER button.

2. Select the required memory setting and press the

ENTER button.

If you select ALL DELETE, you can delete all of the saved memory settings.

3. Select OK in the confirmation screen and press the

ENTER button.

Q

Changing the name of the memory setting

1. Select the required memory setting and press the

ENTER button.

2. Rename the memory setting.

Use F G I H to specify the location of the required character to enter and press the ENTER button.

You can enter up to 16 characters.

MEMORY NAME INPUT

ALL DELETE

OK CANCEL

5. Repeat step 4 until you finish the text line.

Move the cursor to ALL DELETE and press the

ENTER button to delete all the entered text line.

Press the DEFAULT button to delete the last entered character or indicated with cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press G then perform step 4.

6. Select OK and press the ENTER button to set the entered text as a name.

NOTE:

• If you leave the text box empty and save, the default memory number will stay as a name.

MEMORY LOAD

You can access the saved settings instantly. See

“Loading a saved setting” on page 24.

1. Select a setting from MEMORY1 - 16.

Undefined settings will not be selectable.

2. Press ENTER to activate.

NOTE:

• If you have not saved any settings, MEMORY1 - 16 will not be displayed.

OK CANCEL

3. Repeat step 2 until you finish the text line.

Move the cursor to ALL DELETE and press the

ENTER button to delete all the entered text line.

Press the DEFAULT button to delete the last entered character or indicated with cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press G then perform step 2.

4. Select OK and press the ENTER button to set the entered text as a name.

NOTE:

• If you have not saved any settings, MEMORY1 - 16 will not be displayed.

SIGNAL MODE

The current selected signal will be displayed. This is available with signals from COMPUTER IN/

COMPONENT IN/HDMI IN only.

NOTE:

• See “List of compatible signals” on page 50.

E

NGLISH

POSITION menu

Remote control

See “Navigating through the MENU” on page 29.

See “Main menu and sub-menu” on page 30.

H-POSITION

You can move the projected image horizontally for fine adjustment.

Move left

Move right

V-POSITION

Control panel

You can move the projected image vertically for fine adjustment.

Move down

Move up

DOT CLOCK

If you have interference patterns of the projected image, which is sometimes referred to as moire or noise, you can minimize it by pressing I H to adjust the clock frequency. (Available with signals from COMPUTER IN only)

NOTE:

• If the projecting signal’s dot clock frequency is higher than 150 MHz, the adjustment may not make a difference.

DOT CLOCK needs to be adjusted before adjusting the

CLOCK PHASE.

CLOCK PHASE

If you require further adjustment for the same reason as the DOT CLOCK adjustment, you can fine adjust the timing of the clock. Press I H to adjust. (Available with signals from COMPUTER IN/COMPONENT IN only)

NOTE:

• If the projecting signal’s dot clock frequency is higher than 150 MHz, the adjustment may not make a difference.

• Available signals from COMPONENT IN:

1 125 (1 080)/60i, 1 125 (1 080)/50i, 1 125 (1 080)/60p,

1 125 (1 080)/50p, 1 125 (1 080)/24p, 750 (720)/60p

ASPECT

You can switch the aspect ratio manually when needed.

J

Aspect ratio depend on signals

Press I H to cycle through the aspect ratio options. The cycle pattern depends on the connected signals.

VIDEO/

S-VIDEO

COMPUTER

(RGB)

HDMI

COMPONENT

(YP

B

P

R

)

4:3 \ 16:9 \ 14:9 \ ZOOM1 \

ZOOM2 \ JUST

AUTO \ 4:3 \ 16:9 \ JUST \ ZOOM

NTSC signal

4:3 \ 16:9

4:3 \ 16:9

VGA or SVGA signals

Not switchable with

WIDE480/600/720/768/768-2/800/900 signals

4:3 \ 16:9

16:9 \ H - FIT \ V - FIT \ ZOOM

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p, 1 125 (1 080)/60p,

1 125 (1 080)/24p, 750 (720)/50p and

750 (720)/60p signals

4:3 \ 16:9 \ JUST \ ZOOM

525p (480p) and 625p (576p) signals

4:3 \ 16:9 \ 14:9 \ JUST \ ZOOM1

\ ZOOM2

625i (576i), 625p (576p)

AUTO \ 4:3 \ 16:9 \ JUST \ ZOOM

525i (480i), 525p (480p)

16:9 \ H - FIT \ V - FIT

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p, 1 125 (1 080)/60p,

1 125 (1 080)/24p, 750 (720)/50p,

750 (720)/60p signals

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 37

POSITION menu

J

Aspect ratio options and projection example

If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ

due to the input signals. See “Switching the aspect ratio” on page 24.

Q

VIDEO/S-VIDEO/COMPONENT

Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/

24p, 750 (720)/50p and 750 (720)/60p signals.

4:3

Squeeze signal

16:9

Letter box

14:9

Letter Box

2.35:1

Cinescope

Original size

4:3

Projects at 4:3.

16:9

Adjusts horizontally to 16:9.

JUST

ZOOM/

ZOOM1

ZOOM2

Adjusts horizontally to fit 16:9. Closer to edge, more enlarged. Not available with COMPUTER signals.

Adjusts to 16:9 size while preserving original ratio. Escape the menu mode and press FG to adjust vertically.

Adjusts to cinescope size not including letter box. Escape the menu mode and press FG to adjust vertically.

14:9

Adjusts to 14:9.

Q

COMPONENT signals

Available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,

750 (720)/50p and 750 (720)/60p signals

4:3 16:9 Cinescope

Original Size

H - FIT

V - FIT

ZOOM

Adjusts horizontally to 16:9.

Adjusts to 16:9 vertically. Escape and press F G to scroll the image to adjust the edge vertically.

Adjusts to 16:9 size with preserving original ratio. Escape the menu mode and press FG to adjust vertically.

E

NGLISH

POSITION menu

WSS

WSS (Wide Screen Signalling) detects if a PAL/

625p (576p)/625i (576i) signal is input and that signal has an identification signal, and switch the aspect ratio to required setting automatically. You can switch the system off manually.

OVER SCAN

If the 4 edges of an image is partly dropped, you can use this function to adjust and project it properly.

Setting range: 0 to +10

OVER SCAN is not available with COMPUTER signals.

KEYSTONE

If the projector is aligned non-perpendicularly to the screen, or if the projection screen has an angled surface, you can correct the keystone vertically.

Image Operation

Shrink

Enlarge

Setting range: -32 to 32

NOTE:

• You can correct the distortion ± 30 degrees from the vertical plane. For a better quality image, installing the projector with minimum distortion is recommended.

• Some distortion may be retained for the lens shift adjustment.

• The distortion of the main menu screen is not correctable.

• The result of the keystone correction will affect the aspect ratio and the size of the image.

AUTO SETUP

You can adjust V - POSITION, H - POSITION, DOT

CLOCK and CLOCK PHASE automatically when connecting via COMPUTER IN. Press ENTER to adjust these at the same time.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 39

LENS CONTROL

Remote control Control panel

See “Navigating through the MENU” on page 29.

See “Main menu and sub-menu” on page 30.

NOTE:

• The saved lens memory adjustment accuracy is not guaranteed.

• If the memorised ZOOM/FOCUS adjustment is not accurate enough, adjust the ZOOM/FOCUS menu again.

ZOOM/FOCUS

You can use the 2 different test patterns to adjust the

focus and zoom of the image. See “Lens shift and positioning” on page 16.

1. Press ENTER to display test pattern 1.

Press F G to adjust the focus and I H to adjust the zoom.

RETURN

ENTER

FOCUS

ZOOM

2. Press ENTER to display test pattern 2.

Press F G to adjust the focus and I H to adjust the zoom.

LENS MEMORY LOAD

You can access the saved lens control settings instantly.

1. Select a setting from LENS MEMORY 1 - 3.

2. Press the ENTER button to activate.

NOTE:

• The option that contains no saved adjustment will not be displayed.

• If there is no saved setting, the LENS MEMORY LOAD menu will not be selectable.

LENS MEMORY SAVE

You can save and name the adjusted ZOOM/FOCUS,

H-AREA POSITION and V-AREA POSITION settings in memory.

1. Adjust ZOOM/FOCUS, H-AREA POSITION and

V-AREA POSITION.

2. Select the LENS MEMORY SAVE and press the

ENTER button.

3. Select the required memory setting and press the

ENTER button.

4. The confirmation screen will be displayed. Select

OK and press the ENTER button.

Indicated with

is in use, and

is empty.

5. Name the lens memory setting.

Use F G I H to specify the location of the required character to enter and press the ENTER button.

LENS MEMORY NAME INPUT

ALL DELETE

RETURN

ENTER

FOCUS

ZOOM

3. Press ENTER to display the projected image.

You can confirm the adjustment is fit to the projected image.

4. Press MENU or RETURN to return to the previous menu, or press repeatedly to escape the menu mode.

NOTE:

• When the projector and/or the screen is tilted, adjust the focus at the centre of the image. The upper and lower edge might be out of focus.

• When the image is distorted in keystone, adjust the

KEYSTONE in POSITION menu.

OK CANCEL

6. Repeat step 5 until you finish the text line.

You can enter up to 16 characters.

Move the cursor to ALL DELETE and press the

ENTER button to delete all the entered text line.

Press the DEFAULT button to delete the last entered character or indicted with the cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press G then perform step 5.

7. Select OK and press the ENTER button to set the entered text as a name.

NOTE:

• If you leave the text box empty and save, the default memory number will stay as a name.

E

NGLISH

LENS CONTROL

LENS MEMORY EDIT

You can edit named lens memory settings.

Q

Deleting a memory setting

1. Select LENS MEMORY DELETE and press the

ENTER button.

2. Select the required lens memory setting and press the ENTER button.

3. If you select ALL DELETE, you can delete all of the saved lens memory settings.

4. Select OK in the confirmation screen and press the

ENTER button.

Q

Changing the name of the memory setting

1. Select the required lens memory setting and press the ENTER button.

2. Rename the lens memory setting.

Use F G I H to specify the location of the required character to enter and press the ENTER button.

3. Repeat step 2 until you finish the text line.

You can enter up to 16 characters.

Move the cursor to ALL DELETE and press the

ENTER button to delete all the entered text line.

Press the DEFAULT button to delete the last entered character or indicted with the cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press G then perform step 2.

4. Select OK and press the ENTER button to set the entered text as a name.

NOTE:

• The option that contains no saved adjustment will not be displayed

• If you leave the text box empty and save, the default memory name will stay as a name.

H-AREA POSITION

You can move the frame area horizontally, such as aligning the right or left frame edge to the screen edge.

Press I H to move the frame.

V-AREA POSITION

You can move the frame area vertically, such as aligning the up or bottom frame edge to the screen edge. Press

F G to move the frame.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 41

FUNCTION BUTTON

Remote control Control panel

See “Navigating through the MENU” on page 29.

See “Main menu and sub-menu” on page 30.

BUTTON

You can assign certain menu option to the FUNCTION button as shortcut. Press F G I H to select the required menu options and press the ENTER button.

Q

BLANK function

You can stop the projection temporary for electrical power save while the input source is stopped.

Press any button to escape from the blank mode.

Q

Assignable functions

Functions

HDMI 1 IN

*1

HDMI 2 IN

HDMI 3 IN

COMPUTER IN

COMPONENT 1 IN

COMPONENT 2 IN

S-VIDEO IN

VIDEO IN

BLANK

AUTO SETUP

CONTRAST

CONTRAST R

CONTRAST G

CONTRAST B

NORMAL

DYNAMIC

COLOUR1

COLOUR2

CINEMA1

CINEMA2

CINEMA3

SPLIT ADJUST

WAVEFORM AUTO ADJUST

LENS MEMORY LOAD

BRIGHTNESS

BRIGHTNESS R

BRIGHTNESS G

BRIGHTNESS B

Refer

page 28

-

page 39

page 32

page 34

page 32

page 33

page 40

page 32

page 34

*1.The underlined item is factory default setting.

E

NGLISH

OPTION menu

Remote control Control panel

See “Navigating through the MENU” on page 29.

See “Main menu and sub-menu” on page 30.

INPUT GUIDE

When you change the input method, the guidance appears in the upper right corner of the screen. The following display methods are available. Press I H to cycle through the options.

Options

DETAILED

SIMPLE

OFF

Function

Display the input method graphically.

The INPUT GUIDE will go out after

3 seconds without any operation.

Display the input method by text. The

INPUT GUIDE will disappear after

3 seconds without any operation.

Turn off the guidance.

OSD DESIGN

You can change the background colour of the menu.

Press I H to cycle through the options.

TYPE1

TYPE2

Semi transparent black

Solid blue

TYPE3

Semi transparent dark blue

OSD POSITION

You can change the displaying position of the menu.

Press I H to cycle through the options.

UPPER

LEFT

UPPER

CENTRE

UPPER

RIGHT

CENTRE

BACK COLOUR

You can choose a screen colour from BLUE or BLACK for when the projector is in idle. Press I H to select.

STARTUP LOGO

You can switch the logo on/off that is displayed when starting up the projector. Press I H to select the required option. STARTUP LOGO will be displayed for

15 seconds.

ON

Active

OFF

Deactive

AUTO SEARCH

When the projector is turned on, the input terminals are detected and an input signal is selected automatically.

You can switch the system on/off. Press I H to cycle through the options.

ON

OFF

Active

Deactive

NOTE:

• When no signal is detected, the last used input will be selected.

HDMI SIGNAL LEVEL

When an HDMI IN is selected, you can switch the HDMI signal NORMAL or EXPAND to display the image. Press

I H to select an option.

NORMAL

EXPAND

For general HDMI equipment

For HDMI equipment with expanded signals.

NOTE:

HDMI SIGNAL LEVEL is not available with some equipment.

FRAME RESPONSE

You can minimise the time delay of image displayed for the progressive signals.

NORMAL

Prioritise the image quality

FAST

Prioritise the frame response

LOWER

LEFT

LOWER

CENTRE

LOWER

RIGHT

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 43

OPTION menu

INSTALLATION

When installing the projector, select the projection method according to the projector position. Press I H

to cycle through the options. See “Projection method” on page 15.

FRONT/DESK

FRONT/CEILING

REAR/DESK

REAR/CEILING

Setting on a desk/floor and projecting from front

Mounting on the ceiling and projecting from front

Setting on a desk/floor and projecting from rear

Mounting on the ceiling and projecting from rear

SLEEP

You can select the required duration of time and set the off timer to turn off the power of the projector automatically. 3 minutes before turn-off, the countdown of minutes will be displayed in the lower right corner.

Press I H to cycle through the options.

OFF 240MIN.

HIGH ALTITUDE MODE

If you use the projector at high elevation, the HIGH

ALTITUDE MODE setting need to be ON to set the fan speed high. Press I H to select the required option.

OFF

ON

The fan speed is low.

The fan speed is high.

NOTE:

• At 1 400 - 2 700 m (4 593 - 8 858 ft) above sea level, the setting must be ON.

• The loudness of fan noise depends on the HIGH

ALTITUDE MODE setting.

LAMP POWER

You can adjust the power of the lamp to save on electricity, prolong the lamp life and reduce the noise.

Options Function

NORMAL

ECO-MODE

When higher luminance is required.

When lower luminance is sufficient.

60MIN.

90MIN.

120MIN.

210MIN.

180MIN.

150MIN.

NOTE:

• When no input signal is detected, the function is disabled.

LAMP RUNTIME

You can check how long the lamp has been used.

NOTE:

LAMP RUNTIME is a relevant matter for lamp

replacement timing. See “Replacing the lamp unit” on page 47.

E

NGLISH

TEMP and LAMP Indicators

Managing the indicated problems

If a problem should occur with the projector, the LAMP and/or TEMP indicators will inform you. Manage the indicated problems as follows.

1. Confirm the status of all indicators and projector, and switch off the projector in proper way.

2. Find out the cause of the problem by status of the LAMP and/or

TEMP indicators.

3. Follow the following instruction for each indication and solve the problem.

4. Turn on the projector in the correct way and confirm the indicator is not indicating a problem any longer.

Power LAMP TEMP

J

LAMP indicator

Indicator

Illuminating red

Problem

LAMP RUNTIME has reached 1 800 hours.

Cause

Remedy

Flashing red

Lamp circuit failure, abnormal function or lamp unit is damaged.

The lamp unit will run out soon and needs to be replaced.

See “Replacing the lamp unit” on page 47.

The MAIN POWER is switched on again before the lamp unit is cooled enough.

Let the lamp unit cool down and turn on the

MAIN POWER after

90 seconds.

Lamp circuit failure, abnormal function.

Contact an Authorised

Service Centre.

The lamp unit is damaged.

See “Replacing the lamp unit” on page 47.

J

TEMP indicator

Indicator

Illuminating red while projecting and the alert will be displayed.

Flashing red and the power button is turned off.

Problem

Cause

Remedy

The temperature inside and/or outside the projector is abnormally high.

The ventilation openings are covered.

Remove the object(s) from the ventilation openings or clear around the projector.

The room temperature is too high.

Reinstall the projector in a temperature controlled

place. See page 54.

The air filter is excessively dirty and the ventilation is poor.

Replace the air filter in the

proper method. See page 46.

The projector is located at high elevations (above

1 400 - 2 700 m).

Turn on the projector and set the HIGH ALTITUDE

MODE to ON.

See page 44.

NOTE:

• If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorised Service Centre.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 45

Care and Replacement

Cleaning the projector

J

Before cleaning the projector

Switch off the MAIN POWER switch in proper way and disconnect the mains plug from the mains socket.

Unplug all the cables from the projector.

J

Cleaning the outer surface of the projector

Wipe off dirt and dust gently with a soft cloth.

If it is difficult to remove the dirt, soak a cloth in water, wring the cloth well and then wipe the projector. Dry off the projector with dry cloth.

Do not use petroleum benzine, thinner, any alcoholic solvent, kitchen detergents or chemical clothes. Failure to observe these may result in altered or damaged surface of the projector.

J

Cleaning the lens surface

Wipe off dirt and dust gently with a lint-free cloth.

Make sure no dirt or dust remains on the surface of the lens. It will be enlarged and projected onto a screen.

J

Cleaning the air filter

If the air filter is excessively dirty, the internal temperature of the projector increases and may cause malfunction. Clean the air filter regularly every 100 hours of usage.

1. Place a finger at the bottom of the air filter.

2. Slightly push up and pull out the air filter to remove.

3. Vacuum dirt and dust from the air filter.

Do not wash the air filter.

4. Place and slightly slide in the air filter in the air intake port to attach.

Make sure the air filter clicks into the place.

NOTE:

• Do not use the projector without attaching the air filter.

J

Replacing the air filter

The air filter should be replaced when cleaning is ineffective and when replacing the lamp unit. A replacement air filter (TXFKN01VKF5) is provided with a replacement lamp unit, ET-LAE1000. Contact an Authorised

Service Centre for the optional air filter.

E

NGLISH

Care and Replacement

Replacing the lamp unit

J

Before replacing the lamp unit

Switch off the MAIN POWER button in proper way and disconnect the mains plug from the mains socket.

Wait for more than 1 hour and make sure the lamp unit and the surroundings are cooled enough.

Unplug all the cables from the projector.

Prepare a Phillips-head screwdriver.

Contact an Authorised Service Centre to purchase a replacement lamp unit (ET-LAE1000).

When the projector is mounted on the ceiling, do not work directly under the projector or put your face closer to the projector.

NOTE:

• Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.

• Do not attempt replacement with an unauthorised lamp unit.

J

When to replace the lamp unit

The lamp unit is consumable and the brightness decreases by duration of usage. The LAMP indicator will inform you of the replacement timing at 1 800 hours, and at 2 000 hours, the projector will be turned off. Those figures are rough guidance and might be shortened by the usage conditions, characteristics of the lamp unit, environmental conditions, and so on. You can check the duration of usage time using LAMP RUNTIME in the

OPTION menu.

On screen

REPLACE LAMP

LAMP indicator

Indication

Over 1 800 hours

Over 2 000 hours

REPLACE LAMP” is displayed on the upper left of the screen for 30 seconds.

To clear the screen immediately, press any button.

Illuminates red.

REPLACE LAMP” is displayed on the upper left of the screen, and it will stay until you respond.

To clear the screen, press any button.

NOTE:

• The guide times, 1 800 and 2 000 hours, are rough estimates based on certain conditions and is not a guaranteed time.

The estimated condition is: LAMP POWER in OPTION menu set to NORMAL.

• To prolong the lamp life, set the LAMP POWER in OPTION menu to ECO-MODE. See “LAMP POWER” on page 44.

• For more information about the lamp unit, such as guaranteed time, see the instructions which is provided with the lamp unit.

J

Opening the top cover

1. Hold at the back corner of the top cover and slightly push up to open.

2. Unhook the top cover safety hook from the projector.

3. Hold the top cover up and press the sides of each hinge parts to remove.

When the projector is mounted on the ceiling, removing the hinge parts is not required.

4. Remove the top cover aside.

Press here

NOTE: When the projector is mounted on the ceiling:

• Place yourself at back side of the projector, then open and close the top cover.

• Do not work directly under the projector or put your face closer to the projector.

Top cover safety hook Hinge parts

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 47

Care and Replacement

J

Removing and replacing the lamp unit

1. Use a Phillips screw driver to loosen the 3 lamp unit fixing screws until the screws turn freely.

Lamp unit fixing screws

4. Replace the new lamp unit while making sure that the direction of insertion is correct.

Press the top of the lamp unit and make sure the unit is installed securely.

Press here

Press here

Lamp unit lock

2. Hold the handle of the lamp unit and release the lamp unit lock.

3. Pull out the lamp unit gently from the projector.

J

Attaching the top cover

1. Attach the hinge parts of the top cover to the projector and press slightly until it clicks.

When the projector is mounted on the ceiling, attaching the hinge parts is not required.

2. Hook the top cover safety hook to the projector.

3. Hooking the tabs of the top cover to the front of the projector and lift down slowly.

4. Press the back corner of the top cover gently until it clicks.

Make sure to hook the top cover safety hook to the body.

5. Tighten the lamp unit fixing screws securely with a

Phillips screwdriver.

Top cover safety hook Hinge part

NOTE:

• Be sure to install the lamp unit and the top cover of the projector securely. If they are not securely installed, it may cause the protection circuit to operate so that the power cannot be turned on.

• Grip the handle and keep the lamp unit paralleled when you remove the lamp unit.

• Do not switch the power on while the top cover is opened.

• When the projector is mounted on the ceiling, keep the lamp unit paralleled up and remove.

J

Resetting the LAMP RUNTIME

If the lamp usage time has passed 2 000 hours (when LAMP POWER has been set to NORMAL), the projector will switch to standby mode after approximately 10 minutes of operation. The resetting procedure should thus be completed within 10 minutes.

1. Connect the mains lead to the projector and a mains socket, and switch the MAIN POWER on.

2. Switch the power button.

3. Press the MENU button to display the menu.

4. Press F G to select OPTION and press ENTER.

5. Press F G to select LAMP RUNTIME.

6. Press and hold the ENTER button for approximately 3 seconds.

7. The confirmation screen will be displayed and select OK.

8. Switch off the power button to reset the duration of the LAMP RUNTIME.

LAMP POWER STANDARD

9. Confirm the duration of time in LAMP RUNTIME is reset to "0".

LAMP RUNTIME

1820H

E

NGLISH

Troubleshooting

Should any problem persist, contact your dealer.

Problem

Power does not turn on.

No picture appears.

The picture is fuzzy.

The colour is pale or greyish.

The Remote control does not operate.

The picture does not display correctly.

Picture from a computer does not appear.

Cause

The mains lead may not be connected.

The MAIN POWER switch is turned off.

No electric supply is at the mains socket.

TEMP indicator is lit or flashes.

LAMP indicator is lit or flashes.

The lamp unit cover has not been securely installed.

The circuit breakers have tripped.

The video signal input source may not be connected to a terminal properly.

The input selection setting may not be correct.

The BRIGHTNESS adjustment setting may be at the minimum setting.

The SHUTTER function may be in use.

The lens cover may still be attached to the lens.

The lens focus may not have been set correctly.

The projector may not be at the correct distance from the screen.

The lens may be dirty.

The projector may be tilted too much.

COLOUR or TINT adjustment may be incorrect.

The equipment which is connected to the projector may not be adjusted correctly.

The batteries may be weak.

The batteries may not have been inserted correctly.

The remote control signal receptor on the projector may be obstructed.

The remote control unit may be out of the operation range.

The signal format (TV-SYSTEM) may not have been set correctly.

There may be a problem with the VCR or other signal source.

A signal which is not compatible with the projector is being input.

The cable may be longer than the optional cable.

The external video output from a laptop computer may not be correct.

(You may be able to change the external output settings by pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method varies depending on the type of computer; refer to the documentation provided with your computer for further details.)

Reference page

19

21

19

45

45

47

-

18

22

14

46

16

28

32

42

12

32

-

-

11

23

23

-

-

35

-

50

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 49

Technical Information

List of compatible signals

Mode Display

Display resolution

(dots)

*1

Scanning frequency

H

(kHz)

V (Hz)

Dot clock frequency

(MHz)

NTSC/NTSC 4.43/

PAL-M/PAL60

PAL/PAL-N/SECAM

525i (480i)

625i (576i)

525p (480p)

625p (576p)

1 125 (1 080)/60i

1 125 (1 080)/50i

1 125 (1 080)/24p

1 125 (1 080)/60p

1 125 (1 080)/50p

750 (720)/60p

750 (720)/50p

VGA480

SVGA

WIDE720

XGA

WIDE768

MXGA

SXGA

SXGA60+

WIDE768-2

WIDE800

WIDE900

WIDE1080/60

WIDE1080/50

-

60.0

68.7

72.1

45.3

64.0

67.5

64.0

65.1

48.8

49.7

55.9

66.5

55.6

35.2

37.9

48.1

46.9

53.7

45.1

48.4

56.5

67.5

56.3

45.0

37.5

31.5

37.5

43.3

72.1

15.6

15.7

15.6

31.5

31.3

33.8

28.1

27.0

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

1 280 x 720

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768

1 280 x 768

1 152 x 864

1 152 x 864

1 280 x 1 024

1 400 x 1 050

1 360 x 768

1 280 x 800

1 440 x 900

1 920 x 1 080

1 920 x 1 080

720 x 576i

720 x 480i

720 x 576i

720 x 483

720 x 576

1 920 x 1 080i

1 920 x 1 080i

1 920 x 1 080

1 920 x 1 080

1 920 x 1 080

1 280 x 720

1 280 x 720

640 x 480

640 x 480

640 x 480

640 x 480

SVGA55

SVGA60

SVGA70

SVGA75

SVGA85

WIDE720

XGA60

XGA70

XGA75

XGA85

XGA89

WIDE768

MXGA70

MXGA75

SXGA60

SXGA60+

WIDE768-2

WIDE800

WIDE900

WIDE1080/60

WIDE1080/50

-

525i

625i

525p

625p

1 125/60i

1 125/50i

1 125/24p

1 125/60p

1 125/50p

750/60p

750/50p

VGA60

VGA75

VGA85

VGA138

720 x 480i 15.7

59.9

-

*1. The “i” appearing after the resolution indicates an interlaced signal.

*2. The following symbols are used to indicate picture quality.

AA Maximum picture quality can be obtained.

A Signals are converted by the image processing circuit before picture is projected.

75.0

85.0

89.0

56.5

71.2

74.9

60.0

59.9

59.8

59.8

59.8

59.9

49.9

56.3

60.3

72.2

75.0

85.1

60.1

60.0

70.1

60.0

50.0

60.0

50.0

59.9

75.0

85.0

138.0

50.0

59.9

50.0

59.9

50.0

60.0

50.0

24.0

78.8

94.5

99.2

76.2

94.2

108.0

108.0

122.4

36.0

40.0

50.0

49.5

56.3

76.5

65.0

75.0

74.3

83.5

106.5

138.5

141.5

148.5

148.5

74.3

74.3

25.2

31.5

36.0

62.3

-

13.5

13.5

27.0

27.0

74.3

74.3

74.3

Picture quality

*2

A

A

A

A

A

A

A

A

A

A

A

A

AA

AA

A

AA

A

A

A

A

A

A

A

A

A

A

AA

AA

AA

AA

A

AA

AA

AA

A

A

A

A

Terminals

VIDEO/S-VIDEO

COMPONENT

COMPONENT/HDMI

COMPONENT/

HDMI/COMPUTER

COMPONENT/HDMI

COMPONENT/

HDMI/COMPUTER

COMPONENT/HDMI

COMPUTER

E

NGLISH

Technical Information

Serial terminal

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connecter.

J

Connection

D-sub 9 pin (male)

Serial terminal (female)

Computer

NOTE:

• You must use only an RS-232C Serial Interface Cable with a ferrite core, type ET-ADSER.

J

Pin assignments and signal names

Signal name Pin No.

E

F

G

H

A

B

C

D

I

J

Cable specifications

(When connected to a personal computer)

NC

TXD

RXD

GND

RTS

CTS

Projector

NC

NC

Contents

NC

Transmitted data

Received data

NC

Earth

NC

Connected internally

NC

NC

NC

NC

PC (DTE)

NC NC

J

Basic format

STX

Start byte

(02h)

Command

3 bytes

:

1 byte

Parameter

1 byte -

4 bytes

ETX

End

(03h)

The data streaming from the computer will start with STX, and proceed to Command,

Parameter and end with ETX. You can add the required parameter.

The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds before sending the command.

If sending multiple commands, check that a response has been received from the projector for one command before sending the next command.

When a command which does not require parameters to be sent, the colon (:) is not required.

If an incorrect command is sent from the personal computer, the ER401 command will be sent from the projector to the personal computer.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 51

Technical Information

J

Communication settings

Signal level

Sync. method

Baud rate

RS-232C

Asynchronous

9 600 bps

Parity

None

J

Control commands

Command

PON

POF

IIS

OMN

OEN

OBK

OCU/OCD/

OCL/OCR

OLE

OST

OFZ

FCI

OOT

OSH

OVM

OWM

VS1

VPM

Character length

Stop bit

X parameter

S parameter

8 bits

1 bit

None

None

Control contents

POWER ON

POWER OFF

INPUT

MAIN

ENTER

RETURN

Navigation buttons

LENS

DEFAULT

FREEZE

FUNCTION BUTTON

SLEEP

BLANK


WAVEFORM

ASPECT

PICTURE MODE

Remarks

In standby mode, all commands other than the PON command are ignored.

The PON command is ignored during lamp ON control.

If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away in order to protect the lamp.

Parameter:

CP1 = COMPONENT1 IN

SVD = S-VIDEO IN

HD1 = HDMI1 IN

HD3 = HDMI3 IN

CP2 = COMPONENT2 IN

VID = VIDEO IN

HD2 = HDMI2 IN

RG1 = COMPUTER IN

Displaying the main menu.

Activating the selected items in the menu mode.

Returning to the previous menu or escaping from the menu mode.

OCU = F button

OCD = G button

OCL = I button

OCR = H button

Activating the LENS CONTROL menu.

Resetting to the factory default setting. (page 28)

Freezing the projected screen.

Parameter:

0 = OFF 1 = ON

Activates the function that is assigned to the FUNCTION button of the remote control.

Setting the duration of time to turn off the power automatically. (See “SLEEP” on page 44.)

0 = OFF 1 = 60min.

2 = 90min.

3 = 120min.

4 = 150min.

5 = 180min.

6 = 210min.

7 = 240min.

Turning off the projection temporarily.

Send the command to switch between ON and OFF.

Do not send the command consecutively.

Activating the PICTURE menu. Send the command to switch menu items. (page 23)

Activating the WAVEFORM.

Parameter:

0 = OFF

1 = FULL SCAN (Y)

2 = FULL SCAN (R)

3 = FULL SCAN (G)

4 = FULL SCAN (B)

(page 24)

5 = SINGLE LINE SCAN (Y)

6 = SINGLE LINE SCAN (R)

7 = SINGLE LINE SCAN (G)

8 = SINGLE LINE SCAN (B)

Switching the aspect ratio. (page 24)

Switching the PICTURE MODE. (page 23)

Parameter:

NOR = NORMAL DYN = DYNAMIC CL1 = COLOUR1 CL2 = COLOUR2

CN1 = CINEMA1 CN2 = CINEMA2 CN3 = CINEMA3

E

NGLISH

Technical Information

J

Inquiry commands

Command

QPW

QFZ

QIN

QOT

QPM

QSH

QWM

Control contents

Power status

FREEZE status

INPUT signal status

OFF TIMER status

PICTURE MODE status

BLANK status

WAVEFORM status

000 = OFF

Parameter

001 = ON

0 = OFF 1 = ON

CP1 = COMPONENT1 IN

SVD = S-VIDEO IN

HD1 = HDMI1 IN

HD3 = HDMI3 IN

0 = OFF

5 = 180min.

1 = 60min.

6 = 210min.

CP2 = COMPONENT2 IN

VID = VIDEO IN

HD2 = HDMI2 IN

RG1 = COMPUTER IN

2 = 90min.

7 = 240min.

3 = 120min.

NOR = NORMAL DYN = DYNAMIC CL1 = COLOUR1 CL2 = COLOUR2

CN1 = CINEMA1 CN2 = CINEMA2 CN3 = CINEMA3

0 = OFF

1 = ON

Parameter:

0 = OFF

1 = FULL SCAN (Y)

2 = FULL SCAN (R)

3 = FULL SCAN (G)

4 = FULL SCAN (B)

5 = SINGLE LINE SCAN (Y)

6 = SINGLE LINE SCAN (R)

7 = SINGLE LINE SCAN (G)

8 = SINGLE LINE SCAN (B)

4 = 150min.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 53

Technical Information

Specifications

Power supply

Power consumption

Amps

AC 100 - 240 V 50 Hz/60 Hz

Less than 240 W

During standby (when fan is stopped): 0.08 W (at 220 V)

3.0 A - 1.6 A

Panel size (diagonal)

0.74 type (17.78 mm)

Aspect ratio

16 : 9

LCD panel

Lens

Display method

Drive method

Pixels

3 transparent LCD panels (RGB)

Active matrix method

2 073 600 (1 920 x 1 080) x 3 panels

Motorised zoom (2x)/Motorised focus

F 1.9 - 3.1, f 22.4 mm - 44.8 mm

UHM lamp (165 W)]

Lamp

Luminosity

*1

1 600 lm

Operating environment

Temperature

Humidity

0 °C - 40 °C (32 °F - 104 °F)

When the HIGH ALTITUDE

MODE (page 44) is set to ON:

0 °C - 35 °C (32 °F - 95 °F)

20% - 80% (no condensation)

Scanning frequency

*2

(for RGB signal)

Horizontal scanning frequency

Vertical scanning frequency

Dot clock frequency

30 kHz - 70 kHz

50 Hz - 87 Hz

COMPONENT (YP

Colour system

Projection size

B

P

R

) signals

Less than 150 MHz

525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/60p,

750 (720)/50p, 1 125 (1 080)/60i, 1 125 (1 080)/50i,

1 125 (1 080)/60p, 1 125 (1 080)/50p, 1 125 (1 080)/24p

7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)

40" - 200" (1 016 mm - 5 080 mm)

Throw distance

1.2 m - 12 m (3'11" - 39'4")

Screen aspect ratio

Installation

16 : 9

FRONT/DESK, FRONT/CEILING, REAR/DESK, REAR/CEILING

(Menu selection method)

*1. Measurement, measuring conditions and method of notation all comply with ISO 21118 international standards.

*2. See “List of compatible signals” on page 50 for available signals.

E

NGLISH

Technical Information

Terminals

Cabinet

Dimensions

Weight

Certifications

Remote control

Options

S-VIDEO IN

VIDEO IN

COMPUTER IN

COMPONENT IN

HDMI IN

SERIAL

Power supply

Operating range

Weight

Dimensions

Cable cover

Ceiling bracket

Single - line, Mini DIN 4p Y: 1.0 V [p-p], C: 0.286 V [p-p], 75

Single - line, RCA pin jack1.0 V [p-p], 75

Single - line, D - sub HD 15-pin (female)

Selectable for input and output by menu operation.

R.G.B.

0.7 V [p-p], 75

G.SYNC

HD/SYNC

VD

Y, P

B

/C

B

, P

R

/C

R

Y:

P

B

/C

B

, P

R

/C

R

1.0 V [p-p], 75

TTL high impedance, automatic positive/negative polarity compatible

TTL high impedance, automatic positive/negative polarity compatible

Dual - line, RCA pin jack x 3

1.0 V [p-p] (including sync), 75

0.7 V [p-p], 75

Triple - line, 19-pin HDMI connector (HDCP compliant)

D-sub 9-pin RS-232C compatible

Moulded plastic (PC+ABS)

Width

Height

Length

Approx. 7.3 kg (16.09 lbs.)

*1

460 mm (18 -3/32")

130 mm (5 -3/32")

300 mm (11 -25/32")

EN60950-1, EN55022, EN61000-3-2, EN61000-3-3, EN55024

3 V DC (AA battery x 2)

Approx. 7 m (23') (when operated directly in front of signal receptor)

125 g (4.4 ozs.) (including batteries)

Width

Length

Height

48 mm (1 -7/8")

138 mm (5 -13/32")

28.35 mm (1 -3/32") (not including surface projection parts)

ET-PCE2000

ET-PKE2000/ET-PKE1000S

*1. Average value. Each product has an individual variability in weight.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 55

Technical Information

Ceiling mount bracket safeguards

The projector and the ceiling mount bracket are designed for sufficiently safety however, make sure the safety cable provided with the projector is installed and attached to the bottom of the projector when mounting on the ceiling for safety and security.

NOTE:

• Even if it is during guarantee period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorised distributors, or environmental conditions.

• Make sure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver.

• Installation work of the ceiling mount bracket should only be carried by a qualified technician.

• Remove an unused ceiling mount bracket promptly.

J

Installing the safety cable

1. Install the ceiling mount bracket according to the Installation Instructions.

2. Loop the security cable around the ceiling mount bracket with less slack.

Lace the cable of the end with a latch through the loop on the other end of the cable.

Loop twice

Loop once

* Indicated above is ET-PKE1000S.

* Indicated above is ET-PKE2000

3. Attach the latch on to the bottom of the projector with a provided screw.

Torque: 1.25±0.2 N·m

E

NGLISH

Technical Information

Dimensions

Unit: mm

300 (11-23/32)

15 (19/6)

60 (2 -5/16)

17 (-21/32)

147 (5 -25/32)

230 (9 -1/32)

460 (18 -3/32)

Trademark acknowledgements

VGA and XGA are trademarks of International Business Machines Corporation.

S-VGA is a registered trademark of the Video Electronics Standards Association.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh

Company, Ltd.

All other trademarks are the property of the various trademark owners.

Downloaded from ProjectorsManual.com Manuals

E

NGLISH - 57

Index

A

AC IN

......................................................................13

Accessories

..............................................................10

ADVANCED MENU

...................................................34

Air exhaust port

Air filter

........................................................12

....................................................................12

Replacing

...........................................................46

Air intake port

...........................................................13

ASPECT

..................................................................37

Remote control button

.........................................11

Remote control function

.......................................24

AUTO SEARCH

........................................................43

AUTO SETUP

..........................................................39

B

BACK COLOUR

........................................................43

Batteries

Accessory

..........................................................10

Compartment

.....................................................11

BLANK

....................................................................42

BRIGHTNESS

ADVANCED MENU

.............................................34

PICTURE menu

..................................................32

BUTTON

..................................................................42

C

Ceiling mount bracket

................................................56

CINEMA REALITY

....................................................35

Cleaning

..................................................................46

CLOCK PHASE

........................................................37

COLOUR

.................................................................32

COLOUR MANAGEMENT

.........................................35

Remote control button

.........................................11

Remote control function

.......................................26

COLOUR TEMPERATURE

........................................33

COMPONENT IN

Connection

.........................................................18

Terminal

............................................................13

COMPUTER IN

Connection

.........................................................18

Terminal

............................................................13

Connections

.............................................................18

CONTRAST

ADVANCED MENU

.............................................34

PICTURE menu

..................................................32

D

DEFAULT

Remote control button

.........................................11

Remote control function

.......................................28

DETAIL CLARITY

.....................................................35

Dimensions

..............................................................57

DOT CLOCK

............................................................37

DYNAMIC IRIS

.........................................................33

E

ENTER

Control panel button

............................................12

Remote control button

.........................................11

F

FOCUS

Control panel button

............................................12

LENS CONTROL menu

.......................................40

FRAME CREATION

..................................................35

FRAME RESPONSE

.................................................43

FREEZE

Remote control button

.........................................11

Remote control function

.......................................28

E

NGLISH

I

G

GAMMA

.................................................................. 34

H

Front leg adjusters

............................................. 13, 15

FUNCTION

Remote control button

........................................ 11

Remote control function

...................................... 28

FUNCTION BUTTON

Main menu

........................................................ 42

Remote control buttons

....................................... 11

Remote control function

...................................... 28

H-AREA POSITION

.................................................. 41

HDMI IN

Connection

........................................................ 18

Terminal

............................................................ 13

HDMI SIGNAL LEVEL

.............................................. 43

HIGH ALTITUDE MODE

........................................... 44

H-FIT

...................................................................... 38

H-POSITION

........................................................... 37

INPUT GUIDE

......................................................... 43

INPUT SELECT

Control panel button

........................................... 12

Remote control button

........................................ 11

Remote control function

...................................... 28

INSTALLATION

POSITION menu

................................................ 44

Projection method

.............................................. 15

J

JUST

...................................................................... 38

K

KEYSTONE

............................................................. 39

L

LAMP

Indicator

............................................................ 12

Indicator status

.................................................. 45

LAMP POWER

........................................................ 44

LAMP RUNTIME

................................................ 44, 48

Lamp unit

Replacing

.......................................................... 47

LENS

Remote control button

........................................ 11

Remote control function

...................................... 23

LENS CONTROL

Main menu

........................................................ 40

Remote control button

........................................ 11

Lens cover

.............................................................. 12

Accessory

......................................................... 10

Attachment hole

................................................. 13

LENS MEMORY

EDIT

................................................................. 41

LOAD

............................................................... 40

SAVE

............................................................... 40

Lens shift

Lens shift dial • Horizontal

................................... 12

Lens shift dial • Vertical

....................................... 12

M

MAIN POWER

......................................................... 12

Mains lead

Accessory

......................................................... 10

Connecting

........................................................ 19

MEMORY EDIT

....................................................... 36

N

O

OPTION menu

OSD DESIGN

..........................................................43

...........................................................43

OSD POSITION

OVER SCAN

........................................................43

............................................................39

P

Navigation buttons

Control panel button

............................................12

Remote control button

.........................................11

NR (Noise Reduction)

................................................34


.................................................................32

Remote control button

PICTURE ADJUST

.........................................11

Remote control function

.......................................23

Remote control button

.........................................11

Remote control function

.......................................23

PICTURE MODE

......................................................32

Remote control button

.........................................11

Remote control function

.......................................23

POSITION

................................................................37

Power

Control panel button

............................................12

Indicator

.............................................................12

Indicator status

...................................................20

Remote control button

.........................................11

Power cord secure lock

........................................10, 19

R

MEMORY LOAD

.......................................................36

Remote control button

.........................................11

Remote control function

.......................................24

MEMORY SAVE

.......................................................36

MENU

Control panel button

............................................12

Remote control button

.........................................11

Remote control function

.......................................29

Menu

Main menu

.........................................................30

Navigation

..........................................................29

Sub-menu

..........................................................30

MPEG NR

................................................................35

Remote control

Accessory

.........................................................11

..........................................................10

Operating range

..................................................23

Operation

...........................................................23

Signal emitter

.....................................................11

Signal receptor

...................................................12

RETURN

Control panel button

............................................12

Remote control button

.........................................11

Remote control function

.......................................29

S

Safety cable

.............................................................56

Accessory

..........................................................10

Attachment point

.................................................13

Screen size

..............................................................14

Calculation methods

Security lock

............................................14

.............................................................13

Index

SERIAL

Basic format

...................................................... 51

Cable specifications

........................................... 51

Communication settings

...................................... 52

Connection

........................................................ 51

Control commands

............................................. 52

Inquiry commands

.............................................. 53

Pin assignments

................................................ 51

Terminal

............................................................ 13

SHARPNESS

.......................................................... 32

SLEEP

.................................................................... 44

Specifications

.......................................................... 54

SPLIT ADJUST

........................................................ 33

STARTUP LOGO

..................................................... 43

S-VIDEO IN

Connection

........................................................ 18

Terminal

............................................................ 13
