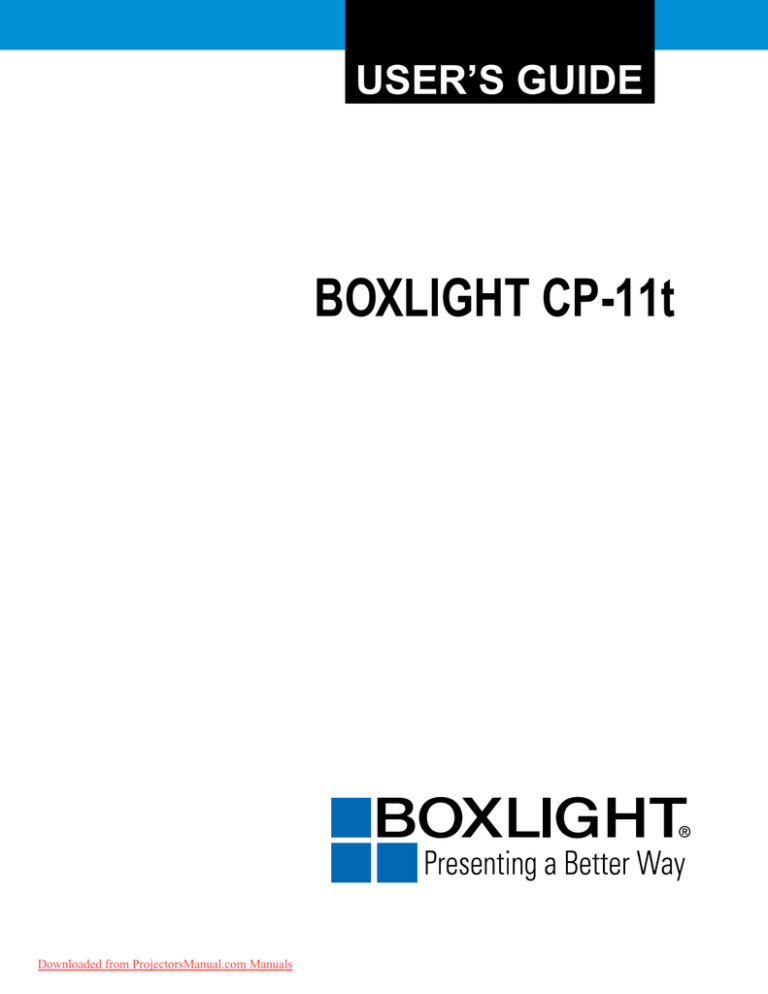

USER’S GUIDE

BOXLIGHT CP-11t

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

TO THE OWNER

As the owner of a new Boxlight CP-11t, you are probably eager to try out your new projector. Before you do, we suggest that your spend a little time reading this manual to familiarize yourself with the operating procedures so that you will receive maximum satisfaction from the many features included in your new projector.

This owner's manual will acquaint you with your projector's features. Reading it will help us too.

You can often correct operating problems yourself. If your projector fails to work properly, see

"TROUBLESHOOTING" section on pages 35 ~ 36 and try the solution marked for each problem.

SAFETY PRECAUTIONS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

This Boxlight CP-11t has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature.

This projector produces intense light from the projection lens. Do not stare directly into the lens as possible eye damage could result. Be especially careful that children do not stare directly into the beam.

The Remote Control Unit, supplied to this projector, emits the laser beam as the Laser Pointer function from the Laser Light Window while pressing the LASER button (for 1 minute). Do not look into the Laser

Light Window or shine the laser beam on yourself or other people. Eye damage may result.

This projector should be set in the way indicated. If not, It may result in fire hazard.

If the projector will not be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT

DANGEROUS VOLTAGE CONSTITUTING

A RISK OF ELECTRIC SHOCK IS

PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

OWNER'S MANUAL WITH THIS UNIT

.

2

Downloaded from ProjectorsManual.com Manuals

IMPORTANT SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table.

The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the projector.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

20cm d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been damaged.

f. When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

GROUND

This projector is equipped with a grounding type AC line plug.

Should you be unable to insert the plug into the outlet, contact your electrician. Do not defeat the safety purpose of this grounding type plug.

Follow all warnings and instructions marked on the projectors.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained.

Do not cover the ventilation slot on the projector.

Heat build-up can reduce the service life of your projector, and can also be dangerous.

PROJECTOR

(FRONT)

PROJECTOR

(SIDE)

WALL

50cm 50cm 50cm

Downloaded from ProjectorsManual.com Manuals

3

TABLE OF CONTENTS

FEATURES AND DESIGN

PREPARATION

5

6

NAME OF EACH PART OF THE PROJECTOR 6

SETTING-UP THE PROJECTOR

POSITIONING THE PROJECTOR

7

7

ADJUSTABLE FEET

CONNECTING THE AC POWER CORD

VENTILATION

MOVING THE PROJECTOR

8

9

7

8

COMPUTER MODE

SELECTING COMPUTER MODE

SELECTING COMPUTER SYSTEM

AUTOMATIC MULTISCANNING SYSTEM

COMPATIBLE COMPUTER SPECIFICATIONS

PC ADJUSTMENT

PICTURE IMAGE ADJUSTMENT

ADJUST PICTURE IMAGE MANUALLY

NORMAL FUNCTION

AUTO IMAGE FUNCTION

PICTURE POSITION ADJUSTMENT

PICTURE SCREEN ADJUSTMENT

CONNECTING THE PROJECTOR 10

TERMINALS OF THE PROJECTOR 10

CONNECTING TO THE VIDEO EQUIPMENT 11

CONNECTING TO THE COMPUTER 12

VIDEO MODE

SELECTING VIDEO MODE

SELECTING COLOR SYSTEM

PICTURE SCREEN ADJUSTMENT

PICTURE IMAGE ADJUSTMENT

ADJUSTING THE PICTURE IMAGE MANUALLY

NORMAL FUNCTION

BEFORE OPERATION

OPERATION OF THE REMOTE CONTROL

LASER POINTER FUNCTION

REMOTE CONTROL BATTERIES INSTALLATION

TOP CONTROLS AND INDICATORS

OPERATING ON-SCREEN MENU

HOW TO OPERATE THE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU

MENU BAR

14

14

14

15

16

17

17

17

18

SETTING

SETTING MENU

SETTING LANGUAGE

BASIC OPERATION

TURNING ON / OFF THE PROJECTOR

ADJUSTING THE IMAGE

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

KEY STONE ADJUSTMENT

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

SOUND ADJUSTMENT

SOUND VOLUME ADJUSTMENT

SOUND MUTE ADJUSTMENT

19

19

20

20

20

20

21

21

21

21

21

APPENDIX

OPERATING WIRELESS MOUSE

MAINTENANCE

TEMPERATURE WARNING INDICATOR

AIR FILTER CARE AND CLEANING

CLEANING THE PROJECTION LENS

LAMP REPLACEMENT

LAMP REPLACEMENT MONITOR TIMER

TROUBLESHOOTING

TECHNICAL SPECIFICATIONS

22

24

26

26

26

27

22

22

22

23

27

28

29

29

29

29

30

30

30

31

31

31

32

32

33

33

33

33

34

34

35

37

TRADEMARKS

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

Windows and PowerPoint are registered trademarks of Microsoft Corporation.

Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.

4

Downloaded from ProjectorsManual.com Manuals

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

Compatibility

This projector is compatible with many different types of personal computers and video devices, including;

IBM-compatible computers, including laptops, up to 1024 x 768 resolution.

Apple Macintosh and PowerBook computers up to 1024 x 768 resolution.

Various video equipment using any of the world wide video standards, including

NTSC, NTSC4.43, SECAM, PAL, PAL-M and PAL-N.

Automatic Multiscanning System

This projector automatically tunes to most personal computers currently distributed by simply connecting. It is free from complicated adjustments to project picture images from most Personal Computers.

Multilanguage Menu Display

Operation menu is displayed in; English,

Deutsch, Français, Italiano, Español, or

Japanese.

Image Resolution

Picture Image of the computer is projected in the resolution of 800 x 600 and it is provided just as appearing on your computer's monitor.

Screen resolutions between 800 x 600 and

1024 x 768 are compressed to 800 x 600, and this projector cannot display screen resolutions above 1024 x 768. If your computer's screen resolution is higher than 1024 x 768, reset it to a lower resolution before you connect the projector.

Laser Pointer Function

The Remote Control Unit of this projector includes the Laser Pointer function providing convenience for your presentations.

Other Features

This projector has Motor Zoom/Focus, No

Show, Picture Freeze, Keystone, Mute functions, and the Air Pad Remote Control.

Portability

This projector is quite compact in size and weight. Having a sophisticated shape like an attaché case with a retractable carrying handle, the projector will help you make powerful presentations wherever you go.

Accessories

This projector comes with the parts listed below. Check to make sure all are included. If any parts are missing, contact Boxlight immediately.

Owner's Manual.

AC Power Cord.

Wireless Remote Control Unit.

Batteries for Remote Control Unit.

VGA Cable.

Control Cable for PS/2 Port.

Lens Cover.

Dust Cover

Downloaded from ProjectorsManual.com Manuals

5

PREPARATION

NAME OF EACH PART OF THE PROJECTOR

FRONT OF THE CABINET

PROJECTION LENS

LENS COVER

SPEAKER (Monaural)

CARRY HANDLE

INFRARED REMOTE RECEIVER

BACK OF THE CABINET

EXHAUST VENT

HOT AIR EXHAUSTED !

Air blown from the exhaust vent is hot.

When using or installing the projector, following attention should be taken.

Do not put a flammable object near this vent.

Keep heat-sensitive objects away from the exhaust vent.

Do not touch this area especially screws and metallic parts. This area will become hot while the projector is used.

POWER CORD CONNECTOR

BOTTOM OF THE CABINET

AIR INTAKE VENTS

These Air Intake Vents should not be blocked.

INFRARED

REMOTE RECEIVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

LAMP COVER

6

Downloaded from ProjectorsManual.com Manuals

PREPARATION

SETTING-UP THE PROJECTOR

POSITIONING THE PROJECTOR

This projector is designed to project on a flat projection surface.

The projector can be focused from 4.6’(1.4m) ~ 35.4’(10.8m).

Refer to the figure below to adjust the screen size.

4.6’ (1.4m)

40”

11.8’ (3.6m)

100”

77”

18.0’ (5.5m)

24.0’ (7.3m)

200”

150”

115”

154”

30”

35.4’ (10.8m)

300”

231”

H1

H2

Screen Size

(W x H) mm

Height (H1)

Height (H2)

30”

610 x 457

17.1”(435mm)

0.9”(22mm)

60”

1219 x 914

34.3”(870mm)

1.7”(44mm)

100”

2032 x 1524

57.1”(1451mm)

2.9”(73mm)

150”

3048 x 2286

200”

4064 x 3048

300”

6096 x 4572

85.7”(2177mm) 114.3”(2903mm) 171.4”(4354mm)

4.3”(109mm) 5.7”(145mm) 8.6”(218mm)

ROOM LIGHT

The brightness in the room has a great influence on the picture quality. It is recommended to limit ambient lighting in order to provide the best image.

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating the ADJUSTABLE FEET. Projection angle can be adjusted to 10 degrees.

1

2

Lift the front of the projector and pull the FEET LOCK

LATCHES on both sides of the projector.

Release the FEET LOCK LATCHES to lock the

ADJUSTABLE FEET and rotate the ADJUSTABLE

FEET to fine tune the position and the tilt.

3

To shorten the ADJUSTABLE FEET, lift the front of the projector and pull and undo the FEET LOCK LATCHES.

The position and the keystone distortion of the image can also be adjusted using the Menu Operation. (Refer to P 20, 28 and 29.)

ADJUSTABLE FEET

Downloaded from ProjectorsManual.com Manuals

FEET LOCK

LATCHES

7

PREPARATION

CONNECTING THE AC POWER CORD

This projector uses nominal input voltages of 100-120 V

AC or 200-240 V AC. The projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if you are not sure of the type of power supply being in use.

Connect the projector with the peripheral equipment before turning the projector on. (Refer to pages 10 ~ 13 for connection.)

CAUTION

For safety, unplug the AC Power Cord when the appliance is not in use.

When this projector is connected to the outlet with the AC Power Cord, the appliance is in Stand-by

Mode and consumes some electric power.

Connect the AC power supply cord (supplied) to the projector.

The socket-outlet must be near this equipment and must be easily accessible.

Projector side (Female)

AC outlet side (Male)

VENTILATION

This projector is equipped with cooling fans for protection from overheating. Pay attention to the following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

Do not cover the vent slot.

Keep the rear grill at least 3’(1m) away from any object.

Keep sides clear of any obstructions. Obstructions may block cooling air.

EXHAUST VENT

(REAR SIDE)

AIR INTAKE VENTS

(BOTH SIDES)

8

Downloaded from ProjectorsManual.com Manuals

PREPARATION

MOVING THE PROJECTOR

Use the Carry Handle when moving the Projector.

When moving the projector, replace the lens cover and retract feet to prevent damage to the lens and cabinet.

When this projector is not in use for an extended period, replace the lens cover, retract the Adjustable Feet and apply the dust cover supplied with this projector.

CAUTION WHEN CARRYING OR TRANSPORTING THE PROJECTOR

Do not drop or bump the projector, otherwise damages or malfunctions may result.

When transporting the projector, use a carrying case recommended by Boxlight.

Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause damage to the projector. To transport the projector through a courier or transport service, use a case recommended by Boxlight.

For carrying or transportation cases, contact a Boxlight at 1-800-762-5757 or 360-779-7901.

Downloaded from ProjectorsManual.com Manuals

9

CONNECTING THE PROJECTOR

TERMINALS OF THE PROJECTOR

S-VIDEO INPUT JACK

Connect the S-VIDEO output from the video equipment to this terminal.

(Refer to P11.)

AUDIO INPUT JACKS

Connect the audio outputs from the video equipment to these terminals.

(Refer to P11.)

When the audio output is monaural, connect it to the Left jack.

COMPUTER INPUT TERMINAL

Connect the computer output to this terminal.

(Refer to P12, 13.)

MONITOR OUTPUT TERMINAL

This terminal outputs the signal from the COMPUTER IN terminal. Connect an external monitor to this terminal.

(Refer to P12, 13.)

S-VIDEO

R-AUDIO-L

(MONO)

COMPUTER IN

VIDEO

AUDIO

IN

OUT

MONITOR OUT

CONTROL PORT

VIDEO INPUT JACK

Connect the video output from the video equipment to this terminal.

(Refer to P11.)

COMPUTER AUDIO INPUT JACK

Connect the audio output from the computer to this terminal.

(Refer to P12, 13.)

AUDIO OUTPUT JACK (STEREO)

Connect the audio amplifier to this terminal.

(Refer to P11, 12, 13.)

CONTROL PORT CONNECTOR

When controlling the computer with the Remote Control of this projector, connect the mouse port of your personal computer to this terminal.

(Refer to P12, 13.)

COMPUTER INPUT / MONITOR OUTPUT TERMINAL

Terminal : HDB15-PIN

Connect the display output terminal of the computer to COMPUTER INPUT terminal of this projector with the VGA Cable

(supplied). And connect the monitor to MONITOR OUTPUT with the monitor cable (not supplied). When connecting the

Macintosh computer, the MAC Adapter (not supplied) is required.

Pin Configuration

5 4

10

15 14

9

3

13

8

2

12

7

1

11

6

7

8

5

6

1

2

3

4

Red Input

Green Input

Blue Input

Sense 2

Ground (Horiz.sync.)

Ground (Red)

Ground (Green)

Ground (Blue)

9

10

11

12

13

14

15

Non Connect

Ground (Vert.sync.)

Sense 0

Sense 1

Horiz. sync.

Vert. sync.

Reserved

CONTROL PORT CONNECTOR

Terminal : DIN 8-PIN

Connect control port (PS/2, Serial or ADB port) on your computer to this terminal with the Control Cable (the Control

Cable for PS/2 port is supplied).

Pin Configuration

5

8 7 6

4 3

2 1

7

8

5

6

3

4

1

2

PS/2 Serial ADB

-----

CLK

DATA

GND

-----

-----

GND

-----

R X D

-----

-----

GND

RTS

T X D

GND

GND

-----

ADB

-----

GND

-----

-----

-----

GND

CONNECTING THE PROJECTOR

CONNECTING TO THE VIDEO EQUIPMENT

Video Source (example)

Video Cassette Recorder Video Disc Player

Video / Audio Output S-VIDEO Output

Used cables for connection

• VIDEO CABLE ✽

• S-VIDEO CABLE ✽

• AUDIO CABLE (stereo) ✽

✽ These cables are not supplied with this projector.

Video Audio Cable

S-VIDEO Cable

Use either the VIDEO jack or S-VIDEO jack. When the both jacks are connected, the S-VIDEO jack has priority over the

VIDEO jack.

S-VIDEO

R-AUDIO-L

(MONO)

VIDEO

AUDIO

IN

OUT

COMPUTER IN

MONITOR OUT

CONTROL PORT

Terminals of the Projector

Audio Cable (Stereo)

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

Audio Input

External Audio Equipment

Audio Speaker

(stereo)

Audio Amplifier

Downloaded from ProjectorsManual.com Manuals

11

CONNECTING THE PROJECTOR

CONNECTING TO THE COMPUTER

To connect to the computer, refer to the figure below.

Used cables for connection

• VGA CABLE

• CONTROL CABLE FOR PS/2 PORT

• CONTROL CABLE FOR SERIAL PORT,or ADB PORT ✽

• MAC ADAPTER

• MONITOR CABLE ✽

• PC AUDIO CABLE (stereo) ✽

✽ These cables are not supplied with this projector.

IBM-compatible computers or Macintosh computers (VGA / SVGA / XGA)

Desktop type

Laptop type

Monitor

Audio Speaker

(stereo)

Audio Amplifier

To the Monitor

To each terminal of your computer

Monitor Output

ON DIP

1 2 3 4 5 6

MAC Adapter ✽

Set the slide switches following the chart on the next page.

Serial port PS/2 port

Terminal Terminal

ADB port Audio Output

Terminal

Audio Input

Audio Cable (stereo)

Control Cable for ADB Port

Control Cable for PS/2 Port

Control Cable for Serial Port

VGA Cable

Monitor Cable

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

CONNECTING THE PROJECTOR

S-VIDEO

R-AUDIO-L

(MONO)

VIDEO

AUDIO

IN

OUT

COMPUTER IN

MONITOR OUT

CONTROL PORT

COMPUTER

IN

MONITOR

OUT

CONTROL

PORT

AUDIO

IN

AUDIO

OUT

Use one of these Control

Cables corresponding with the terminal of your computer.

Downloaded from ProjectorsManual.com Manuals

MAC ADAPTER (Not supplied)

Set the switches as shown in the table below depending on the RESOLUTION

ON

MODE that you want to use before your turn on the projector and computer.

OFF

ON DIP

1 2 3 4 5 6

13" MODE (640 x 480)

16" MODE (832 x 624)

19" MODE (1024 x 768)

1 2

ON ON

OFF

OFF

3

OFF

ON OFF

ON ON

4 5 6

OFF OFF OFF

ON OFF OFF

OFF OFF OFF

13

BEFORE OPERATION

OPERATION OF THE REMOTE CONTROL

Left Side

ON

ALL OFF

COMPUTER BUTTON

Used to select COMPUTER output source. (P22)

COMPUTER VIDEO

ON-OFF

ZOOM FOCUS VOLUME

POWER ON-OFF BUTTON

Used to turn the projector on or off. (P19)

VIDEO BUTTON

Used to select VIDEO source. (P29)

MENU BUTTON

Used to select MENU operation. (P17, 18)

MUTE

D.ZOOM

MENU

ALL-OFF SWITCH

When using the Remote Control

Unit, turn this switch to “ON” and turn it “ALL OFF” when it is not used.

SELECT BUTTON

Used to execute the item selected or to expand the image in DIGITAL ZOOM mode. (P28)

It is also used as a PC mouse in Wireless Mouse Operation.

(P32)

LASER

NO SHOW

KEYSTONE

FREEZE

AUTO IMAGE NORMAL

LASER BUTTON

Used to operate the laser pointer function. The laser beam is emitted while pressing this button within 1 minute. When using the laser pointer for more than 1 minute, release the button and press it again.

POINT BUTTON

Used to move the pointer on the MENU, to adjust the item, or to pan the image in DIGITAL

ZOOM mode. (P28)

It is also used as a PC mouse in Wireless Mouse Operation.

(P32)

When pressing the center of this button, it works as the SELECT button.

RIGHT CLICK BUTTON

Used to compress the image in DIGITAL ZOOM mode.

(P28)

It is also used as a PC mouse in Wireless Mouse Operation.

(P32)

Laser Pointer Function

This remote control emits a laser beam as the Laser Pointer from the Laser Light Window. When the LASER button is pressed, the laser light goes on. And when the button is pressed more than 1 minute or the button is released, light goes off.

Laser light is emitted with the RED light which tells the laser beam being emitted.

The laser emitted is a class II laser; therefore, do not look into the Laser Light Window or shine the laser beam on yourself or other people. The three marks bellow are the caution labels for the laser beam.

CAUTION : Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

These caution labels are put on the remote control.

Laser Light Window

BEFORE OPERATION

ZOOM BUTTON

Used to adjust zoom.

(P20)

COMPUTER VIDEO

ON-OFF

ZOOM FOCUS VOLUME

FOCUS BUTTON

Used to adjust focus.

(P20)

MUTE

D.ZOOM

MENU

MUTE BUTTON

Used to mute sound.(P21)

NO SHOW BUTTON

Used to turn the picture into black image. (P21)

AUTO IMAGE BUTTON

Use to operate AUTO

IMAGE function. (P27)

LASER

NO SHOW

KEYSTONE

FREEZE

AUTO IMAGE NORMAL

VOLUME BUTTON

Used to adjust volume.

(P21)

Operating Range

Point the remote control toward the projector (the Remote Receiver) whenever pressing the buttons.

Maximum operating range for the remote control is about 16.4’ (5m) and 60° front and rear of the projector

D.ZOOM BUTTON

Used to turn the projector into DIGITAL ZOOM mode and resize the image. (P28, 29)

60°

16.4’

(5 m)

FREEZE BUTTON

Used to freeze the picture.

(P21)

NORMAL BUTTON

Used to reset to normal picture adjustments preset by the factory. (P26, 30)

KEYSTONE BUTTON

Used to correct the keystone distortion.

(P20, 28, 29)

60°

16.4’

(5 m)

Remote Control Batteries Installation

1

Remove the battery compartment lid.

Press the lid downward and slide it.

2

Slide the batteries into the compartment.

Two AA size batteries

For correct polarity (+ and –), be sure the battery terminals are in contact with the pins in the compartment.

3

Replace the compartment lid.

To insure safe operation, please observe the following precautions :

Use (2) AA type alkaline batteries.

Replace two batteries at the same time.

Do not use a new battery with a used battery.

Avoid contact with water or liquid.

Do not expose the Remote Control Unit to moisture, or heat.

Do not drop the remote control unit.

If batteries have leaked on the remote control, carefully wipe the case clean and load new batteries.

Downloaded from ProjectorsManual.com Manuals

15

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

POWER ON–OFF BUTTON

Used to turn the projector on or off. (P19)

LAMP INDICATOR

This indicator is dim when the projector is turned on.

And bright when the projector is in stand-by mode.

LAMP

READY

READY INDICATOR

This indicator is lit in green when the projector is ready to be turned on.

WARNING TEMP. INDICATOR

This indicator flashes red when internal projector temperature is too high.

(P33)

LAMP REPLACE INDICATOR

This indicator turns to yellow when the life of the projection lamp draws to an end. (P34)

WARNING

TEMP.

LAMP

REPLACE

MENU BUTTON

Used to open or close the

MENU operation.

(P17, 18)

ZOOM FOCUS VOLUME

ON–OFF MENU

AUTO IMAGE

SELECT

MODE

NORMAL

ZOOM BUTTONS

Used to select zoom adjust.

(P20)

FOCUS BUTTONS

Used to select focus adjust.

(P20)

VOLUME BUTTONS

Used to adjust volume.

(P21)

MODE BUTTON

Used to select input source either Computer or Video.

(P22, 29)

SELECT BUTTON

Used to execute the item selected.

It is also used to expand the image in DIGITAL

ZOOM mode. (P28)

POINT BUTTONS

Used to select an item or adjust the value on the MENU.

It is also used to pan the image in DIGITAL ZOOM mode.

(P28)

NORMAL BUTTON

Used to reset to normal picture adjustment preset by factory. (P26, 30)

AUTO IMAGE BUTTON

Used to operate AUTO

IMAGE function. (P27)

BEFORE OPERATION

OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector through the

ON-SCREEN MENU. Refer to the following pages to operate each adjustment on the ON-SCREEN MENU.

WIRELESS REMOTE CONTROL

POINT BUTTON

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

1 MOVING THE POINTER

Move the pointer (see the NOTE below) by pressing POINT button(s) on the TOP CONTROL or the REMOTE CONTROL.

SELECT BUTTON

Used to select the item.

2 SELECT THE ITEM

Select the item by pressing SELECT button.

NOTE : Pointer is the icon on the ON-SCREEN Menu to select the item. See the figures on the section

"FLOW OF ON-SCREEN MENU" below.

TOP CONTROL

SELECT

SELECT BUTTON

Used to select the item.

POINT BUTTONS

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

FLOW OF ON-SCREEN MENU

MENU BAR

1

Display ON-SCREEN MENU

Press MENU button to display the ON-SCREEN MENU

(MENU BAR). The red frame is the POINTER.

POINTER

(red frame)

Select the Item

2

Move the POINTER (red frame) to the ITEM ICON that you want to select by pressing POINT RIGHT / LEFT buttons.

3

Select the ITEM by pressing SELECT button. The dialog box of the ITEM appears.

4

Control and adjust through ON-SCREEN MENU

Move the POINTER downward by pressing POINT

DOWN button. (The shape of the POINTER becomes an arrow.)

5

Move the POINTER to the ITEM that you want to adjust and adjust the ITEM by pressing SELECT button.

Refer to the following pages for details of respective adjustments.

SELECT

BUTTON

POINT

DOWN

BUTTON

ITEM ICON

POINTER

(red frame)

MENU

POINTER

Downloaded from ProjectorsManual.com Manuals

17

BEFORE OPERATION

MENU BAR

MENU BAR IN COMPUTER MODE

Press MENU BUTTON while in Computer mode.

MODE MENU

Used to select the Computer input mode.

(Refer to P22)

AUTO IMAGE MENU

Used to adjust Fine sync., Total dots, and Picture Position automatically.

(Refer to P27)

PC ADJUST MENU

Used to adjust the parameters to match with the input signal format.

(Refer to P24, 25)

SETTING MENU

Used to set the Display

Menu and to reset

Lamp Replacement

Monitor Timer.

(Refer to P31)

SYSTEM MENU

Used to select a computer system.

(Refer to P22)

IMAGE MENU

Used to adjust the computer image. [Fine sync. / Total dots /

White Balance /

Contrast / Brightness]

(Refer to P26)

POSITION MENU

Used to adjust the position of the image.

(Refer to P27)

SCREEN MENU

Used to adjust the size of the image.

(Refer to P28)

LANGUAGE MENU

Used to select the language used in the

Menu.

(Refer to P31)

MENU BAR IN VIDEO MODE

Press MENU BUTTON while in Video mode.

MODE MENU

Used to select the Video input.

(Refer to P29)

IMAGE MENU

Used to adjust the picture image. [

Color /

Tint / White Balance /

Contrast / Brightness/

Sharpness

]

(Refer to P30)

These icons have the same function as the

Computer Mode.

SYSTEM MENU

Used to select a color system among

[

PAL, SECAM, NTSC,

NTSC 4.43, PAL-M and

PAL-N

].

(Refer to P29)

SCREEN MENU

Used to set the size of the image either

Regular or Wide, or to correct the

Keystone distortion.

(Refer to P29)

BASIC OPERATION

TURNING ON / OFF THE PROJECTOR

TURNING ON THE PROJECTOR

1

Complete the peripheral connections (with Computer, VCR, etc.) before turning on the projector. (Refer to "CONNECTING

TO THE PROJECTOR" on Pages 10~13 for connecting that equipment.)

2

Connect the projector's AC power cord into a wall outlet. The

LAMP indicator lights RED, and the READY indicator lights

GREEN.

3

Press the power ON-OFF button on the Remote Control Unit or on the Top Control to ON. The LAMP POWER indicator dims, and the Cooling Fans start to operate. The Preparation Display appears on the screen and the count-down starts. The signal from the source appears after 30 seconds.

30

The Preparation Display disappears after 30 seconds.

1

2

3

TURNING OFF THE PROJECTOR

Press the power ON-OFF button on the Remote Control Unit or on the Top Control, and the message "Power off?" appears on the screen.

Press the power ON-OFF button again to turn off the projector.

The LAMP indicator lights bright and the READY indicator turns off. The Cooling Fans operate for 90 seconds after the projector is turned off. (During this "Cooling Down" period, this appliance cannot be turned on.)

When cooling the projector has finished, the READY indicator turns to green again and you can turn the projector on. After cooling down completely, disconnect the AC power cord.

Power off?

The message disappears after 4 seconds.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN IT ON, WAIT AT LEAST 5

MINUTES BEFORE TURNING IT OFF.

When the TEMPERATURE WARNING indicator flashes red, the projector is automatically turned off.

Wait at least 5 minutes before turning the projector on again.

If the TEMPERATURE WARNING indicator continues to flash, follow procedures below:

1. Disconnect the AC power cord from the AC outlet.

2. Check the air filters for dust accumulation.

3. Clean the Air Filter. (See "AIR FILTER CARE AND CLEANING" section on page 33.)

4. Press the power ON-OFF button to ON.

If the TEMPERATURE WARNING indicator still continues to flash, call Boxlight at 1-800-762-5757 or

360-779-7901.

NOTE: The Cooling Fan may work for cooling while the projector is turned off. When the Cooling

Fan is working, TEMPERATURE WARNING INDICATOR flashes red.

Downloaded from ProjectorsManual.com Manuals

19

BASIC OPERATION

ADJUSTING THE IMAGE

ZOOM ADJUSTMENT

1

Press the ZOOM

/

▼ button(s) on the Top Control or on the

Remote Control Unit to turn on the ZOOM mode.

2

Press the ZOOM

▲ button to make the image larger, and press the ZOOM

▼ button to make the image smaller.

In the Computer mode, the image can be expanded, compressed, and panned with the Digital Zoom function. Refer to page 28 for the

Digital Zoom operation.

Zoom

The message disappears after 4 seconds.

1

FOCUS ADJUSTMENT

Press the FOCUS

/

▼ button(s) on the Top Control or on the

Remote Control Unit to turn on the FOCUS mode.

2

Adjust the focus of the image by pressing the FOCUS

/

▼ button.

Focus

The message disappears after 4 seconds.

KEYSTONE ADJUSTMENT

If the picture has keystone distortion, correct image with KEYSTONE adjustment.

1

Press the KEYSTONE

/

▼ button on the Remote Control Unit or select the Keystone on the SCREEN menu. (Refer to page

28, 29.) The message “Keystone” is displayed.

Keystone

2

Correct the Keystone distortion by pressing the KEYSTONE

/

▼ button or the POINT UP/DOWN button(s). Press the

KEYSTONE

▲ button or the POINT UP button to reduce the upper part or the image, and press the KEYSTONE

▼ button or the POINT DOWN button to reduce the lower part.

The message disappears after 4 seconds.

Reduce the upper width with the KEY STONE

▲ button or the POINT UP button.

Reduce the lower width with the KEY STONE

▼ button or the POINT DOWN button.

BASIC OPERATION

NO SHOW FUNCTION

Press the NO SHOW button on the Remote Control Unit to black out the image. This function is cancelled when the NO SHOW button is pressed again or any other function button is pressed.

No show

The message disappears after 4 seconds.

PICTURE FREEZE FUNCTION

Press the FREEZE button on the Remote Control Unit to freeze the picture on-screen. This function is cancelled when the FREEZE button is pressed again or any other function button is pressed.

SOUND ADJUSTMENT

SOUND VOLUME ADJUSTMENT

Press the VOLUME (+/–) button(s) on the Top Control or on the

Remote Control Unit to adjust the volume. The Volume dialog box appears on the screen for a few seconds.

The VOLUME (+) button increases the volume, and the VOLUME (–) button decreases the volume.

SOUND MUTE ADJUSTMENT

Press the MUTE button on the Remote Control Unit to mute the sound. To restore the sound to its previous level, press the MUTE button again or press the VOLUME (+/–) button(s).

Indicates the level of the volume.

Press the MUTE button to turn the Mute function On or Off.

The display disappears after 4 seconds.

Downloaded from ProjectorsManual.com Manuals

21

COMPUTER MODE

SELECTING COMPUTER MODE

DIRECT OPERATION

Select COMPUTER mode by pressing the MODE button on the Top

Control or the COMPUTER button on the Remote Control Unit.

MODE button

COMPUTER

VIDEO

MENU OPERATION

Press the MENU button and the ON-SCREEN MENU will appear.

Press the POINT LEFT/RIGHT buttons to select Computer press the SELECT button. and

CURRENT MODE DISPLAY

When selecting the Computer Mode, the Current Mode display appears. It shows the information of the computer of the mode selected.

Providing the information of the computer detected by the projector.

SELECTING COMPUTER SYSTEM

AUTOMATIC MULTISCANNING SYSTEM

This projector automatically tunes to most different types of computer based on VGA, SVGA or XGA (refer to “COMPATIBLE COMPUTER

SPECIFICATION” on page 23). When selecting Computer, this projector automatically tunes to the incoming signal and projects the proper image without any special setting. (Setting of the Computer

System may be required when connecting some computers.)

Note : The projector may provides the messages below.

Go to PC adj.

The projector cannot discriminate or detect the input signal from the computer. Adjust and set the computer system manually. (Refer to page 24.)

No signal

There is no signal input from the computer. Make sure the connection of the computer and the projector is set correctly.

(Refer to TROUBLESHOOTING on page 35.)

SYSTEM BOX

Display the SYSTEM being selected.

SELECT COMPUTER MODE MANUALLY

To set the Computer system manually, select the mode on the ON-

SCREEN MENU.

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SYSTEM and press the SELECT button. Another dialog box

COMPUTER SYSTEM Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the system that you want to set, and then press SELECT button.

The system being selected.

The systems on this dialog box can be selected.

Close the SYSTEM

Menu.

COMPUTER MODE

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept the signal from all computers with the V, H-Frequency mentioned below and less than 135 MHz of Dot Clock.

ON-SCREEN

DISPLAY

RESOLUTION

VGA 1 640 x 480

VGA 2 720 x 400

VGA 3

VGA 4

VGA 5

VGA 6

640 x 400

640 x 480

640 x 480

640 x 480

MAC LC13 640 x 480

MAC 13

RGB

RGB

SVGA 1

640 x 480

640 x 480

(Interlace)

768 x 576

(Interlace)

800 x 600

SVGA 2 800 x 600

SVGA 3

SVGA 4

SVGA 5

SVGA 6

SVGA 7

SVGA 8

SVGA 9

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

H-Freq.

(kHz)

31.47

31.47

31.47

37.86

37.86

37.50

34.97

35.00

15.734

15.625

35.156

37.88

46.875

53.674

48.08

37.90

34.50

38.00

38.60

NOTE : Specifications are subject to change without notice.

V-Freq.

(Hz)

59.88

70.09

70.09

74.38

72.81

75.00

66.60

66.67

30

25

56.25

60.32

75.00

85.06

72.19

61.03

55.38

60.51

60.31

ON-SCREEN

DISPLAY

RESOLUTION

SVGA 10 800 x 600

SVGA 11 800 x 600

SVGA 12 800 x 600

MAC1 6 832 x 624

XGA 1

XGA 2

1024 x 768

1024 x 768

XGA 3

XGA 4

XGA 5

XGA 6

1024 x 768

1024 x 768

1024 x 768

1024 x 768

XGA 7

XGA 8

XGA 9

XGA 10

1024 x 768

1024 x 768

1024 x 768

(Interlace)

1024 x 768

XGA 11

XGA 12

XGA 13

XGA 14

1024 x 768

1024 x 768

(Interlace)

1024 x 768

1024 x 768

MAC 19 1024 x 768

H-Freq.

(kHz)

47.90

32.70

38.00

49.72

48.36

68.677

60.023

56.476

60.31

48.50

44.00

63.48

36.00

62.04

61.00

35.522

46.90

47.00

60.24

V-Freq.

(Hz)

71.92

51.09

60.51

74.55

60.00

84.997

75.03

70.07

74.92

60.02

54.58

79.35

43.59

77.07

75.70

43.48

58.20

58.30

75.08

Downloaded from ProjectorsManual.com Manuals

23

COMPUTER MODE

PC ADJUSTMENT

This Projector can automatically tune to the display signals from most personal computers currently distributed.

However, some computers employ the special signal formats which are different from the standard ones and may not be tuned by Multiscanning of this projector. If this happens, the projector cannot reproduce a proper image and the image is recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.

This projector has PC ADJUSTMENT function, to enable you to precisely adjust several parameters to match with those exceptional signal formats and the projector has five independent memory areas to memorize those parameters manually adjusted. This enables you to recall the setting for a specific computer whenever you use it.

1

2

3

4

5

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT RIGHT/LEFT buttons to select PC

ADJUST and press the SELECT button. Another dialog box “Where to reserve” Menu will appear.

In this dialog box, you can store the parameter into the area from “Mode 1” to “Mode 5.” When memorizing the new computer parameter, select the Mode with the message “Free” by pressing the POINT UP/DOWN buttons and the SELECT button. To change the parameters of the Mode previously set, select the Mode with “Stored.”

When the Mode is selected, Parameter adjustment dialog box appears. Move the arrow to the item that you want to change by pressing the POINT UP/DOWN buttons, and adjust each item to match with your computer. To change the value, press either the POINT RIGHT button or the POINT LEFT button.

Refer to the next page for adjusting each item.

Move the arrow to “Stored” and press the SELECT button. The parameter is memorized in the selected Mode.

To activate the Mode manually adjusted in this PC

ADJUSTMENT Menu, select the Mode at the SYSTEM

SELECT Menu. (Refer to page 22.)

This Mode has parameters being stored.

The Vacant Mode.

Manual set Computer

Mode (1 to 5).

Close the PC

ADJUSTMENT Menu.

Press the POINT

RIGHT/LEFT button(s) to adjust the value.

Press the

SELECT button to set Full screen function on/off.

Total lines

The number of the total vertical lines. Adjust the number to match the image of your personal computer.

Total dots

The number of the total dots in one horizontal period. Adjust the number to match the image of your personal computer.

Horizontal / Vertical

Adjustment of the horizontal or vertical picture position. When the image is not centered on the screen, adjust each of those items.

Clamp

Adjustment of the clamp level. When the image has a dark bar(s), try this adjustment.

Display area

Adjustment of the area displayed with this projector. Select the resolution at the Display area dialog box, or adjust the number at the column of “H” or “V” to match the resolution of the image.

Full Screen

Set “On” to resize the image with 4 x 3 aspect ratio to fit the screen.

Each of the keys operates as follow.

Reset

Recalls the parameter data that was previously adjusted.

Mode free

Stored

Quit

Clears the parameter data previously set.

Stores the parameters in the memory.

Closes the PC ADJUST Menu.

Press the

SELECT button to select the typical resolution of the image.

Downloaded from ProjectorsManual.com Manuals

25

COMPUTER MODE

ADJUST PICTURE IMAGE MANUALLY

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

IMAGE and press the SELECT button. Another dialog box

PICTURE IMAGE ADJUSTMENT Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to change by pressing the POINT UP/DOWN buttons. To change the value, press either the POINT RIGHT button or the POINT LEFT button.

Fine sync.

Adjust the picture as necessary to eliminate flicker from the display.

(From 0 to 255.)

Total dots

The number of the total dots in one horizontal period. Adjust the number to match your PC image.

White balance (Red / Green / Blue)

Move the arrow to the color that you want to adjust. Press POINT

LEFT button to lighten the color and press POINT RIGHT button to deepen the color. (From 0 to 63.)

Contrast

Press POINT LEFT button to decrease contrast, and press POINT

RIGHT button to increase contrast. (From 0 to 63.)

Brightness

Press POINT LEFT button to adjust the image darker, and press

POINT RIGHT button to adjust brighter. (From 0 to 63.)

Each of the keys operates as follow.

Reset

Stored

Quit

Recalls the data previously adjusted.

Stores the adjusted data in the memory.

Closes the PICTURE IMAGE ADJUSTMENT Menu.

Indicate the level of the item.

Move the arrow to the item and press

POINT RIGHT /

LEFT button.

Close the PICTURE

IMAGE ADJUSTMENT

Menu.

NORMAL FUNCTION

The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Top Control or on the Remote Control Unit). The “Normal” display will be displayed on the screen for a few seconds.

Normal

COMPUTER MODE

AUTO IMAGE FUNCTION

The Auto Image function is provided to automatically adjust Fine sync., Total dots, and Picture Position for most computers.

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

AUTO IMAGE and press the SELECT button.

Another dialog box AUTO IMAGE Menu will appear.

Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN button. Change the setting On or Off by pressing the SELECT button.

Fine sync.

Adjust the picture as necessary to eliminate flicker from the display.

This item can be adjusted manually. (Refer to page 26.)

Total dots

The number of the total dots in one horizontal period. This item can be adjusted manually. (Refer to page 26.)

Position

Adjustment of the position of the image. This item can be adjusted manually. (Refer to page 27.)

Starts the adjustment on the item set to "On".

Terminates the PICTURE

IMAGE ADJUSTMENT Menu.

3

Move the arrow to “Go!” and press the SELECT button to start the Auto Image function.

This adjustment can be executed by pressing AUTO IMAGE button on the Top Control and the Remote Control Unit.

Stored

Go!

Stores the On/Off setting of each item.

Starts the Auto Image Adjustment.

Quit

Closes the AUTO IMAGE ADJUSTMENT Menu.

NOTE : The Fine sync., Total dots, and Picture Position of some computers may not be fully adjusted with the Auto Image

Function. In that case, manual adjustment is required to make fine image. (Refer to page 26 to adjust "Fine sync." or

"Total dots" and page 27 to adjust Picture Position.)

Move the arrow to the item and then press the SELECT button.

PICTURE POSITION ADJUSTMENT

The position of the image can be adjusted vertically and horizontally through PICTURE POSITION

ADJUSTMENT.

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

POSITION and press the SELECT button. The PICTURE

POSITION dialog box will appear.

Move the image by pressing the POINT UP / DOWN / RIGHT /

LEFT buttons.

PICTURE POSITION dialog box

Press the POINT UP /

DOWN / RIGHT / LEFT buttons to move the image

Downloaded from ProjectorsManual.com Manuals

27

COMPUTER MODE

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

1

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SCREEN and press the SELECT button. Another dialog box PICTURE SCREEN Menu will appear.

2

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the function that you want to select and then press SELECT button.

True

To make the image into its original size select True in the dialog box. When the original image size is larger than the screen size

(800 x 600), this projector enters Digital Zoom mode automatically.

Move the arrow to the function and press the

SELECT button.

Keystone

When the image is distorted vertically, select Keystone in the dialog box. The ON-SCREEN menu and SCREEN ADJUST menu disappears and the message “Keystone” is displayed. Correct the

Keystone distortion by pressing the KEYSTONE

/

▼ button or the

POINT UP/DOWN button(s). Refer to KEYSTONE ADJUSTMENT on page 20.

Digital Zoom

To adjust the image size or pan the image, select Digital zoom in the dialog box. The ON-SCREEN menu and SCREEN ADJUST menu disappears and the message “D. Zoom” is displayed.

This projector is also enters Digital Zoom mode by pressing the

D.ZOOM

/

▼ button on the Remote Control Unit.

Refer to the following for operation.

Expand function

To expand the image size, press the D.ZOOM

▲ button or the SELECT button. The image is magnified by degrees.

Compress function

To compress the image size, press the D.ZOOM

▼ button or the RIGHT CLICK button. The size of image is reduced by degrees.

Panning function

To pan the image, press the POINT UP/DOWN/LEFT/RIGHT buttons. Panning function can work only when the image is larger than the screen size.

To cancel Digital Zoom mode, press any button except D.ZOOM

/

, SELECT, RIGHT CLICK, POINT or LASER button. To adjust the image to 800 x 600, press NORMAL button.

This projector cannot display any resolution higher than 1024 X 768. If your computer’s screen resolution is higher than 1024 X 768, reset the resolution to the lower before connecting the projector.

The image data in other than SVGA (800 x 600) is modified to fit the screen size in the initial mode.

The normal "Panning Operation" may not function properly if the computer system prepared with the "PC Adjust" is used.

VIDEO MODE

SELECTING VIDEO MODE

DIRECT OPERATION

Select VIDEO mode by pressing the MODE button on the Top

Control or the VIDEO button on the Remote Control Unit.

MODE button

COMPUTER

VIDEO

MENU OPERATION

Press the MENU button and the ON-SCREEN MENU will appear.

Press the POINT LEFT/RIGHT buttons to select Video press the SELECT button. and

SELECTING COLOR SYSTEM

1

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SYSTEM and press the SELECT button. Another dialog box

VIDEO SYSTEM Menu will appear.

2

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to "Auto", and then press the SELECT button.

Auto

The projector automatically detects the incoming Video system, and adjusts itself to optimize its performance.

When the Video System is PAL-M or PAL-N, select the system manually.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

If the projector cannot reproduce the proper video image, it is necessary to select a specific broadcast signal format among PAL,

SECAM, NTSC, NTSC 4.43, PAL-M, or PAL-N.

This box indicates the system being selected.

Move the arrow to the Mode and press the SELECT button.

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

1

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SCREEN and press the SELECT button. Another dialog box PICTURE SCREEN ADJUSTMENT DISPLAY will appear.

2

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the screen size that you want to set, and then press the SELECT button.

Regular

Normal Video Image size with 4 x 3 aspect ratio.

Wide

Resizes the image for wide screen size with 16 x 9 aspect ratio.

Keystone

When the image is distorted vertically, select Keystone in the dialog box. Correct the Keystone distortion by pressing KEYSTONE

/

▼ button or POINT UP/DOWN button(s). Refer to KEYSTONE

ADJUSTMENT on page 20.

Move the pointer to the function and press the SELECT button.

Downloaded from ProjectorsManual.com Manuals

29

VIDEO MODE

PICTURE IMAGE ADJUSTMENT

1

2

ADJUSTING THE PICTURE IMAGE

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

IMAGE and press the SELECT button. Another dialog box

PICTURE IMAGE ADJUSTMENT Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to adjust by pressing the POINT UP/DOWN buttons. To change the value, press either the POINT RIGHT button or the POINT LEFT button.

Color

Press POINT LEFT button to lighten the image, and press POINT

RIGHT button to deepen the image. (From 0 to 63.)

Tint

Press POINT LEFT button to increase purple, and press POINT

RIGHT button to increase green. (From 0 to 63.)

White balance (Red / Green / Blue)

Move the arrow to the color that you want to adjust. Press POINT

LEFT button to lighten the color, and press POINT RIGHT button to deepen the color. (From 0 to 63.)

Contrast

Press POINT LEFT button to decrease contrast, and press POINT

RIGHT button to increase contrast. (From 0 to 63.)

Brightness

Press POINT LEFT button to darken the image, and press POINT

RIGHT button to brighten the image. (From 0 to 63.)

Sharpness

Press POINT LEFT button to soften the image, and press POINT

RIGHT button to sharpen the image. (From 0 to 63.)

Each of the keys operates as follow.

Reset

Recalls the data previously adjusted.

Stored

Stores the data in the memory.

Quit

Closes the PICTURE IMAGE ADJUSTMENT Menu.

NORMAL FUNCTION

The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Top Control or on the Remote Control Unit). The "Normal" display will be displayed on the screen for a few seconds.

Normal

Indicates the level of the item.

Move the arrow to the item and press

POINT RIGHT /

LEFT button.

Closes the PICTURE

IMAGE ADJUSTMENT

Menu.

SETTING

SETTING MENU

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select

SETTING and press the SELECT button. Another dialog box SETTING Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to set, and then press the SELECT button to set it "On" or "Off".

Blue back

When this function is in the "On" position, this projector will produce a blue image instead of the video noise on the screen when the input source is unplugged or turned off.

Display

When this function is in the "On" position, the On-

Screen Displays always appear when adjustments are made. (The following displays disappear by switching this function "Off.")

Preparation Display

(The Number-counting-down Display)

Mode Display

Volume/Mute Display

Zoom Display

Focus Display

Normal Display

No show Display

Keystone Display

D.Zoom Display

Ceiling

Rear

Split wipe

Lamp age

When this function is in the “On” position, the top / bottom and the left / right reversed picture is provided to project the image from a ceiling mounted projector.

When this function is in the “On” position, the left / right reversed picture is provided to project the image to a rear projection screen.

Turn this function “On” in the SETTING menu. The picture will change into next one by sliding black image side ways like drawing the black curtains when the input source is changed.

The Lamp age function is designed to reset the lamp replacement monitor timer. When replacing the lamp, reset the lamp replacement monitor timer by using this function. (Refer to page 34.)

Ceiling function

Rear function

Set the Pointer to the item, and then press the SELECT button.

SELECTING LANGUAGE

The language used in the ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish and Japanese.

1

2

Press the MENU button and the ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to select

LANGUAGE and press the SELECT button. Another dialog box LANGUAGE Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the language that you want to set, and then press the SELECT button.

Move the Pointer to the language that you want to set, and then press the SELECT button.

Downloaded from ProjectorsManual.com Manuals

31

APPENDIX

OPERATING WIRELESS MOUSE

The Wireless Remote Control Unit is not only able to operate the projector but also usable as a wireless mouse for most Personal Computers. The POINT buttons and the two CLICK buttons are used for the wireless mouse operation.

The wireless mouse is available only when PC mouse pointer is displayed on the screen. When the menu or the indicator of the projector is displayed on the screen instead of the PC mouse pointer, the wireless mouse cannot be used.

INSTALLATION

To use the Wireless Remote Control Unit as the Wireless Mouse for a Personal Computer, installation of the mouse driver (not supplied) is required. Make sure that the mouse driver is properly installed in your computer. And make sure that the mouse port of the computer connected to Control Port is activated.

1

2

Connect the mouse port of your computer to the Control Port of the projector with the Control Cable. (Refer to page 10 to 13 for connection.)

Turn the projector on first, and then turn on your computer.

When the computer is switched on first, the Wireless Mouse may not work properly.

Note : When the computer has no mouse port, connect the Serial

Port of the computer to Control

Port of the projector with the

Control Cable for Serial Port.

OPERATING WIRELESS MOUSE

When controlling the pointer of the computer, operate the Wireless Mouse with POINT button, SELECT button, and RIGHT CLICK button on the Wireless Remote Control Unit.

POINT button

Used to move the pointer. The pointer is moved corresponding with the direction you are pressing.

POINT button (Move the pointer)

SELECT (LEFT CLICK) button

This button has the same function as the left button in a PC mouse.

RIGHT CLICK button

This button has the same function as the right button in a PC mouse.

Pressing this button does not affect any operation when in Menu mode.

SELECT button

(left button of the mouse)

RIGHT CLICK button

(right button of the mouse)

APPENDIX

MAINTENANCE

TEMPERATURE WARNING INDICATOR

1

2

3

The TEMPERATURE WARNING Indicator flashes red when the internal temperature of the projector exceeds the normal temperature. The Indicator stops flashing when the temperature of the projector become normal.

When the TEMPERATURE WARNING Indicator continues to flash, check the item listed below.

The Ventilation slots of the projector may be blocked. In such an event, reposition the appliance so that the ventilation slots are not obstructed.

Air filters are clogged with dust particles. Clean the air filters by following AIR FILTER CARE AND CLEANING below.

If the TEMPERATURE WARNING Indicator remains on after performing the above checks, the Cooling Fans or the

Internal Circuits may be malfunctioning. In that case, call Boxlight.

AIR FILTER CARE AND CLEANING

The Removable Air Filters prevent dust from accumulating on the surface of the Projection Lens and the

Projection Mirror. Should the Air Filters become clogged with dust particles, it will reduce the Cooling Fans' effectiveness and may result in internal heat build up and adversely affect the life of the projector.

Clean the Air Filters following the steps below:

1

2

3

Turn the power off, and disconnect the AC power cord from the

AC outlet.

Turn the projector upside down and remove the Air Filters by pulling the latches upward.

Clean the Air Filters with brush or wash out the dust and particles.

AIR FILTERS

4

Replace the Air Filter. Make sure that the Air Filters are fully inserted.

CAUTION

Do not operate the projector with the Air Filter removed.

Dust may become stuck on the LCD Panel and the Mirror degrading picture quality.

Do not put small parts into the Air Intake Vents. It may result in malfunction of the projector.

The Air Filter is small part. Ensure that children don’t eat or swallow it.

RECOMMENDATION

We recommend avoiding dusty/smoky environment for operating the projector. Using in these environment may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on the liquid crystal panel and lens inside it, and may resultantly be projected onto the screen together with the picture.

When the above symptoms are noticed contact Boxlight at 1-800-762-5757 or 360-779-7901 for cleaning.

CLEANING THE PROJECTION LENS

2

3

Follow these steps to clean the projection lens:

1

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

Lightly wipe the cleaning cloth over the lens.

When the projector is not in use, replace the lens cover.

Downloaded from ProjectorsManual.com Manuals

33

APPENDIX

LAMP REPLACEMENT INDICATOR

When the life of the Lamp of this projector draws to an end, the LAMP REPLACEMENT indicator lights yellow. When the image becomes dark or the color of the image becomes unnatural, replacement of the

Lamp is required.

LAMP REPLACEMENT

CAUTION

For continued safety, replace with a lamp assembly of the same type.

Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the projector can become very hot.

Do not drop the lamp assembly or touch the glass bulb! The glass can shatter and may cause injury.

Follow these steps to replace the lamp assembly.

1

Turn off the projector and disconnect the AC plug. Allow the projector to cool for at least 45 minutes.

2

3

4

Remove a screw with a screwdriver and remove the Lamp

Cover.

Remove 2 screws with a screwdriver and pull out the Lamp

Assembly by grasping the handle.

Replace the Lamp Assembly with new one and tighten 2 screws. Make sure that the Lamp Assembly is set properly.

And replace the Lamp Cover and tighten a screw.

5

6

Connect the AC Power Cord to the projector and turn the projector on.

Reset the Lamp Replacement Monitor Timer (refer to the section “Lamp Replacement Monitor Timer” below).

NOTE : Do not reset the LAMP REPLACEMENT MONITOR

TIMER, when the lamp is not replaced.

LAMP COVER

HANDLE

LAMP

ASSEMBLY

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through Boxlight at 1-800-762-5757 or 360-779-7901.

Model No. of your projector : BOXLIGHT CP-11t

Replacement Lamp Type No. : POA-LMP21J

(Service Parts No. 610 280 6939)

(BOXLIGHT Lamp No. : CP10T-930)

LAMP REPLACEMENT MONITOR TIMER

Be sure to reset the Lamp Replacement Monitor Timer when the Lamp Assembly is replaced. When the

Lamp Replacement Monitor Timer is reset, the LAMP REPLACEMENT indicator stops lighting.

1

2

Turn the projector on, and press the MENU button and the ON-SCREEN MENU will appear. Press the POINT

LEFT/RIGHT buttons to select SETTING dialog box SETTING MENU will appear. and press the SELECT button (refer to the page 31). Another

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to Lamp age, and then press the

SELECT button. The message "Lamp replace monitor Reset?" is displayed.

3

Select [Yes] to reset the Timer.

Do not reset the Lamp Replacement Monitor Timer, except after the lamp is replaced.

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service station for assistance, check the matters below once again.

1. Make sure you have connected the projector to your equipment as described in the section "CONNECTING

THE PROJECTOR" on pages 10 ~ 13.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If the projector still does not produce the image, re-start the computer.

5. If the image sill does not appear, unplug the projector from the computer and check the computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, remember to turn the computer and monitor off before you power up the projector.

Power the equipment back on in order of : Projector and computer.)

6. If the problem still exists, check the following chart.

Problem:

No power.

Image is out of focus.

Try these Solution

Plug the projector into the AC outlet.

Be sure READY Indicator light is On.

Wait 90 seconds after the projector is turned OFF before turning the projector back on.

NOTE : After pressing the power ON-OFF switch to OFF, make sure the projector works as follows:

1. The LAMP indicator will light and the READY indicator will turn off.

2. After 90 seconds, the READY indicator will light green again and the projector may be turned on by pressing the power ON-OFF button.

Check the TEMPERATURE WARNING indicator. If the indicator flashes red, the projector cannot be turned on.

(See "TURNING ON/OFF THE PROJECTOR" section on page 19.)

Check the Projection Lamp. (Refer to page 34.)

Adjust the focus

Make sure the projection screen is at least 4.6’ (1.4m) from the projector.

Check the projection lens to see if it needs cleaning.

NOTE : Moving the projector from a cool temperature location to a warm temperature location may result in moisture condensation on the lens. In such an event, leave the projector OFF an d wait until condensation disappears.

Check Ceiling / Rear feature. (See “SETTING” section on page 31.)

Picture is Left/Right reversed.

Picture is

Top/Bottom reversed.

Some displays are not seen during the

Operation.

No image.

No sound.

Check Ceiling feature. (See “SETTING” section on page 31.)

Check Display feature.(See “SETTING” section on page 31.)

Check the connection between the computer or video equipment and the projector.

When turning the projector on, it takes about 30 seconds to display the image.

Check the system that you select is corresponding with the computer or the video equipment.

Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).

Check audio cable connection from audio input source.

Adjust the audio source.

Press VOLUME (+) button.

Press MUTE button.

Downloaded from ProjectorsManual.com Manuals

35

APPENDIX

Problem:

Remote Control Unit does not work.

Try these Solution

Check the batteries.

Check the ALL-OFF switch on the Remote Control Unit is set to “ON.”.

Make sure nothing is between the Remote Receiver and the Remote Control Unit.

Make sure you are not too far from the projector when using the Remote Control Unit.

Maximum operating range is 16.4’ (5m).

Check the cable connection between the projector and the computer.

Check the mouse setting on your computer.

Turn the projector on before you turn on the computer.

Wireless Mouse function does not work.

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

Boxlight Service is easily obtained. If after following instructions above, you find that service is necessary, contact Boxlight for assistance at 1-800-762-5757 or 360-779-7901.

Give the model number and explain the difficulty. We will advise you how to obtain service.

Please have the following information available.

Serial No. of projector.

Resolution of the computer.

Refresh rate of computer.

TECHNICAL SPECIFICATIONS

Projector Type

Dimensions

(W x H x D)

Net Weight

LCD Panel System

Panel Resolution

Number of Pixels

Color System

Scanning Frequency

Projection Image size

(Diagonal)

Horizontal Resolution

Projection Lens

Throw Distance

Projection Lamp

AV Input Jacks

Computer Input Jacks

Control Port Jack

Monitor Output Jack

Computer Audio Input Jack

Audio Output Jack

Internal Audio Amp

Built-in Speaker

Feet Adjustment

Voltage

Power Consumption

Operating Temperature

Storage Temperature

Remote Control Transmitter

Accessories

Multi-media Projector

9.41" x 3.54" x 12.72" (239mm x 90mm x 323mm)

(not including Adjustable Feet)

8.6 lbs (3.9 kg)

0.9" TFT Active Matrix type, 3 panels

800 x 600 dots

1,440,000 (800 x 600 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz

Adjustable from 30” to 300”

750 TV lines

F 1.7 ~ 2.0 lens with f 33.2mm ~ 43.1mm Motor zoom and focus

4.6’ ~ 35.4’ (1.4 m ~ 10.8 m)

150 W

RCA Type x 1 (Video, Audio R and L) and DIN 4 pin (S-Video) x 1

(VGA) HDB 15 Terminal x 1

DIN 8 pin x 1

(VGA) HDB 15 Terminal x 1

Mini Jack (stereo)

Mini Jack (stereo)

1W RMS (Monaural)

1 speaker, 1.57" x 1.18" (40mm x 30mm)

0˚ to 10˚

AC 100 ~ 120 V / 200 - 240 V, 50 / 60 Hz

2.5 A / 1.4 A (Max. Ampere)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Power Source : AA Type x 2

Operating Range : 16.4’ (5m) / ±30˚

Dimensions

Net Weight :

: 2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm)

0.35 lbs (160 g) (including batteries)

Laser Pointer : Class II Laser (Max. Output : 1mW / Wave length : 650±20nm)

Owner’s Manual

AC Power Cord

Remote Control Transmitter and Batteries

VGA Cable

Control Cable for PS/2 port

Dust Cover

Lens Cover

The specifications are subject to change without notice.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Downloaded from ProjectorsManual.com Manuals

37

LIMITED WARRANTY

BOXLIGHT CORPORATION (“BOXLIGHT”) warrants that each Boxlight CP-11t (“the Product”) sold hereunder will conform to and function in accordance with the written specifications of BOXLIGHT. Said limited warranty shall apply only to the first person or entity that purchases the Product for personal or business use and not for the purpose of distribution resale. Said warranty shall continue for a period of two (2) years from the date of such purchase.

BOXLIGHT does not warrant that the Product will meet the specific requirements of the first person or entity that purchases the Product for personal or business use. Lamp is warrantied for 120 days.

BOXLIGHT CORPORATION’s liability for the breach of the foregoing limited warranty is limited to the repair or replacement of the Product or refund of the purchase price of the Product, at BOXLIGHT’s sole option. To exercise the Purchaser’s rights under the foregoing warranty, the Product must be returned at the Purchaser’s sole cost and expense, to BOXLIGHT or any authorized service center provided, however, that the Product must be accompanied by a written letter explaining the problem and which includes (i) proof of purchase; (ii) the dealer’s name; (iii) the model and serial number of the Product. A return authorization number, issued by the BOXLIGHT customer service department, must also be clearly displayed on the outside of the shipping carton containing the Product.

WARRANTY LIMITATION AND EXCLUSION

BOXLIGHT CORPORATION shall have no further obligation under the foregoing limited warranty if the Product has been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress, unauthorized modification, tampering, alterations, or service other than by BOXLIGHT or its authorized agents, causes other than from ordinary use or failure to properly use the Product in the application for which said Product is intended.

DISCLAIMER OR UNSTATED WARRANTIES

The warranty printed above is the only warranty applicable to this purchase.

All other warranties express or implied, including, but not limited to, the implied warranties or merchantability and fitness for a particular purpose are disclaimed. There are no warranties that extend beyond the face of hereof and the foregoing warranty shall not be extended, altered or varied except by written instrument signed by BOXLIGHT

CORPORATION.

LIMITATION OR LIABILITY

It is understood and agreed that BOXLIGHT’s liability whether in contract, in tort, under any warranty, in negligence or otherwise shall not exceed the return of the amount of the purchase price paid by purchaser and under no circumstances shall BOXLIGHT be liable for special, indirect or consequential damages. The price stated for the

Product is a consideration in limiting BOXLIGHT’s liability. No action regardless of form, arising out of the agreement to purchase the product, may be brought by purchaser more than one year after the cause of action has accrued.

Printed in Japan

Part No. 610 288 3893 (1AA6P1P2481-- MA6E)

Downloaded from ProjectorsManual.com Manuals

Boxlight

19332 Powder Hill Place

Poulsbo, WA 98370-7407 USA www.boxlight.com

USA and Canada 800-762-5757

International 360-779-7901

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
