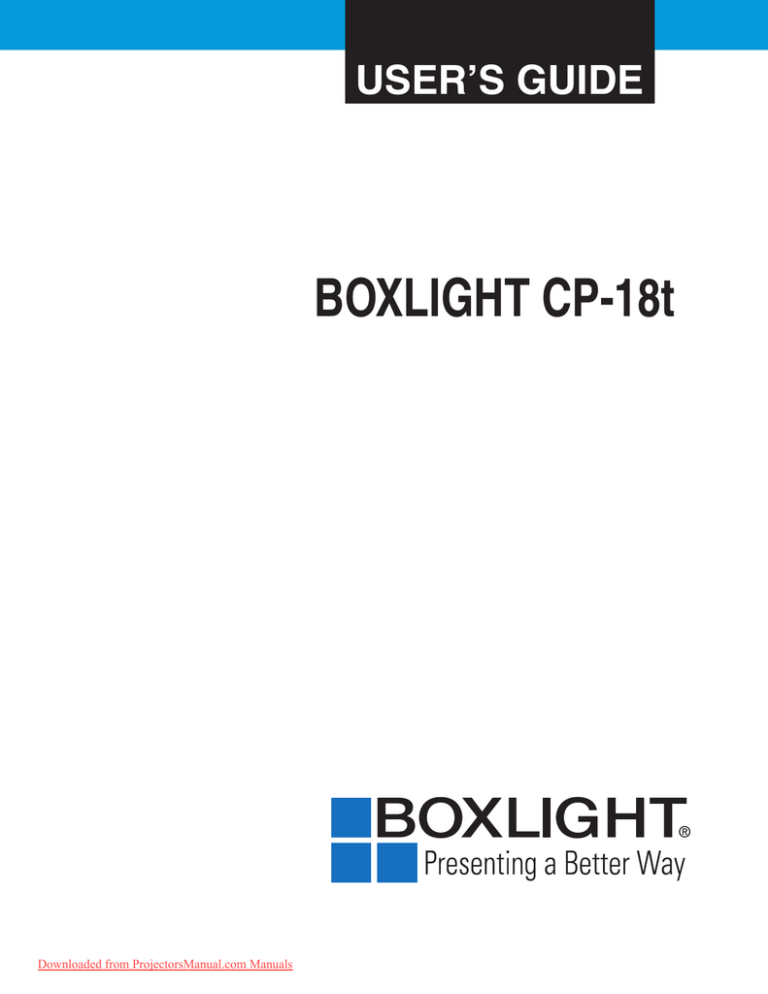

USER’S GUIDE

BOXLIGHT CP-18t

TO THE OWNER

Before operating this projector, read this manual thoroughly to operate the projector properly.

This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time.

Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “TROUBLESHOOTING” section at the end of this manual. If the problem still persists, contact

BOXLIGHT.

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as it could possibly damage your eyes. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Provide appropriate space on the top, sides and rear of the projector cabinet for allowing air circulation and cooling the projector. Minimum clearance must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

20cm

SIDE and TOP

50cm 50cm

REAR

50cm

● Do not put any flammable objects or spray cans near the projector, hot air is exhausted from the ventilation holes.

● Remote Control Unit, supplied with this projector, emits a laser beam as a laser pointer function from Laser

Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate laser emission). Do not look into Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS

VOLTAGE CONSTITUTING A RISK OF ELECTRIC

SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT

OPERATING AND MAINTENANCE INSTRUCTIONS IN THE

OWNER'S MANUAL WITH THIS UNIT.

2

Downloaded from ProjectorsManual.com Manuals

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table.

The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.

Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the projector.

c. If the projector has been exposed to rain or water.

d. If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been damaged.

f. When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd.

Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

Downloaded from ProjectorsManual.com Manuals

3

COMPLIANCES

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number

Trade Name

Responsible party

Address

Telephone No.

: BOXLIGHT CP-18t

: Boxlight

: BOXLIGHT

: 19332 Powder Hill Place Poulsbo, WA 98370-7407 USA

: (800)762-5757 or +1-360-779-7901

AC POWER CORD REQUIREMENT

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters

Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

GROUND

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

4

Downloaded from ProjectorsManual.com Manuals

TABLE OF CONTENTS

FEATURES AND DESIGN

PREPARATION

NAME OF EACH PART OF PROJECTOR

SETTING-UP PROJECTOR

CONNECTING AC POWER CORD

POSITIONING PROJECTOR

ADJUSTABLE FEET

MOVING PROJECTOR

6

7

7

8

8

9

9

10

COMPUTER INPUT

SELECTING INPUT SOURCE

SELECTING COMPUTER SYSTEM

COMPATIBLE COMPUTER SPECIFICATIONS

PC ADJUSTMENT

AUTO PC ADJUSTMENT

MANUAL PC ADJUSTMENT

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT

IMAGE LEVEL ADJUSTMENT

PICTURE SCREEN ADJUSTMENT

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

CONNECTING TO COMPUTER

CONNECTING TO VIDEO EQUIPMENT

BEFORE OPERATION

OPERATION OF REMOTE CONTROL UNIT

LASER POINTER FUNCTION

REMOTE CONTROL BATTERIES INSTALLATION

TOP CONTROLS AND INDICATORS

OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU OPERATION

MENU BAR

14

14

14

15

16

17

17

17

18

11

11

12

13

VIDEO INPUT

SELECTING INPUT SOURCE

SELECTING VIDEO SYSTEM

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT

IMAGE LEVEL ADJUSTMENT

PICTURE SCREEN ADJUSTMENT

SETTING

SETTING MENU

BASIC OPERATION

TURNING ON / OFF PROJECTOR

ADJUSTING SCREEN

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

KEYSTONE ADJUSTMENT

PICTURE FREEZE FUNCTION

NO SHOW FUNCTION

P-TIMER FUNCTION

SOUND ADJUSTMENT

19

19

20

20

20

20

20

21

21

21

APPENDIX

LAMP REPLACEMENT

LAMP REPLACE

LAMP REPLACE COUNTER

OPERATING WIRELESS MOUSE

MAINTENANCE

WARNING TEMP. INDICATOR

AIR FILTER CARE AND CLEANING

CLEANING PROJECTION LENS

TROUBLESHOOTING

TECHNICAL SPECIFICATIONS

CONFIGURATIONS OF TERMINALS

OPTIONAL PARTS

35

35

37

37

37

38

39

40

40

40

40

41

43

44

45

22

27

27

28

29

22

22

23

24

24

25

30

30

31

32

32

33

34

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.

Downloaded from ProjectorsManual.com Manuals

5

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. It utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

Compact Design

This projector is extremely compact in size and weight.

It is designed to be carried and work anywhere you wish to use.

Compatibility

This projector widely accepts various video and computer input signals including;

Computers

IBM-compatible or Macintosh computer up to 1280 x 1024 resolution.

6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-

N color system can be connected.

Component Video

Component video signal, such as a DVD player output high definition TV signals including 480i,

480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.

S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

High Resolution Image

This projector provides 800 x 600 dots resolution for computer input and 750 horizontal TV lines. Resolution from a computer between SVGA (800 x 600) and SXGA

(1280 x 1024) is compressed into 800 x 600 dots. This projector cannot display image of over 1280 x 1024 dots.

When resolution of your computer is over than 1280 x

1024, reset a computer output for lower resolution.

Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and the best adjustment is automatically set by Auto PC

Adjustment. No complicated setup is necessary and projection is always precise.

Digital Zoom (for Computer)

Digital Zoom function adjusts the image size to approx.

1/4 ~ 49 times of original image size, allowing you to focus on crucial information at a presentation.

Keystone Correction

Positioning height of a projector may result in distorted image being displayed in a trapezoid shape. Keystone

Correction solves this problem by digitally altering projection to produce undistorted images.

Power Management

Power Management function is provided to reduce power consumption while a projector is not in use.

This Power Management function operates to turn

Projection Lamp off when a projector detects signal interruption and any button is not pressed over 5 minutes. Projection Lamp is automatically turned on again when a projector detects signal or any operation button is pressed.

This projector is shipped with this function ON.

Digital Visual Interface

This projector is equipped with DVI 29-pin terminal for connecting DVI output from a computer.

Laser Pointer Function

Remote Control Unit supplied with this projector includes

Laser Pointer function. This function helps you to make a smart presentation on a projected screen.

Wireless Mouse

Remote Control Unit supplied with this projector has

Wireless Mouse function for a connected computer. This function enables you to operate both projector and computer with Remote Control Unit only.

Multilanguage Menu Display

Operation menu is displayed in; English, German,

French, Italian, Spanish, Portuguese, Dutch, Swedish,

Chinese, Korean or Japanese.

Media Card Imager (Optional)

Optional Media Card Imager is available for this projector. For the Media Card Imager, contact the dealer where you purchased this projector.

Wireless Imager (Optional)

This projector can be operated through Wireless LAN by attaching Wireless Imager that is optionally supplied.

For the Wireless Imager, contact the dealer where you purchased the projector.

6

Downloaded from ProjectorsManual.com Manuals

PREPARATION

NAME OF EACH PART OF PROJECTOR

FRONT

CARRY HANDLE

INFRARED

REMOTE RECEIVER

PROJECTION LENS

EXHAUST VENTS

HOT AIR EXHAUSTED !

Air blown from Exhaust Vents is hot.

When using or installing projector, following precautions should be taken.

● Do not put any flammable object near these vents.

● Keep front grills at least 3’(1m) away from any object, especially heatsensitive objects.

● Do not touch this area, especially screws and metallic parts. This area will become hot while a projector is used.

This projector detects internal temperature and automatically controls operating power of Cooling Fans.

LENS COVER

BACK

TOP CONTROLS

AND INDICATORS

INFRARED

REMOTE RECEIVER

POWER CORD CONNECTOR

BOTTOM

LAMP COVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

Downloaded from ProjectorsManual.com Manuals

SPEAKER

TERMINALS

AND CONNECTORS

AIR FILTER

AIR INTAKE VENTS

(Back and Bottom)

This projector is equipped with Cooling

Fans for protection from overheating.

Pay attention to the following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

● Do not cover vent slots.

● Keep back and bottom clear of any object. Obstructions may block cooling air.

7

PREPARATION

SETTING-UP PROJECTOR

CONNECTING AC POWER CORD

This projector uses nominal input voltages of 100-120 V or 200-240

V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system.

Consult your authorized dealer or service station if you are not sure of the type of power being supplied.

Connect a projector with all peripheral equipment before turning a projector on. (Refer to pages 11 ~ 13 for connection.)

CAUTION

For safety, unplug AC Power Cord when the projector is not in use.

When this projector is connected to the outlet with AC Power

Cord, it is in Stand-by Mode and consumes a little electric power.

Connect AC Power Cord (supplied) to a projector.

The AC outlet must be near this equipment and must be easily accessible.

NOTE ON THE POWER CORD

The AC Power Cord must meet the requirements of the country where you use the projector.

Confirm the AC plug type with the chart below. The proper AC power cord must be used.

If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.

Projector side AC Outlet side

For the U.S.A. and Canada

Ground

For Continental Europe

To the POWER CORD

CONNECTOR on the projector.

To the AC Outlet.

(120 V AC)

To the AC Outlet.

(200 - 240 V AC)

8

Downloaded from ProjectorsManual.com Manuals

PREPARATION

H1 : H2 = 9 : 1

POSITIONING PROJECTOR

● This projector is designed to project on a flat projection surface.

● The projector can be focused from 5.3’(1.6m) ~ 40.0’(12.2m).

● Refer to the figure below to adjust a screen size.

ROOM LIGHT

The brightness in a room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide the best image.

40.0’ (12.2m)

300”

26.6’ (8.1m)

13.1’ (4.0m)

21.3’ (6.5m)

160”

200”

Max. Zoom

230”

Min. Zoom

5.3’ (1.6m) H1

153”

100”

115”

40”

77”

Screen Size

(W x H) mm

Zoom (min)

Zoom (max)

31”

31"

630 x 472

5.3' (1.6m)

–––––

40”

813 x 610

6.9' (2.1m)

5.3' (1.6m)

100”

2032 x 1524

17.4' (5.3m)

13.1' (4.0m)

160”

3251 x 2438

27.9' (8.5m)

21.3' (6.5m)

200”

4064 x 3048

34.8' (10.6m)

26.6' (8.1m)

H2

300”

6096 x 4572

–––––

40.0' (12.2m)

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating

ADJUSTABLE FEET. Projection angle can be adjusted to 15.6

degrees.

1

2

3

Lift the front of a projector and pull FEET LOCK LATCHES on both sides of a projector.

Release FEET LOCK LATCHES to lock ADJUSTABLE FEET and rotate ADJUSTABLE FEET to fine tune position and tilt.

To retract ADJUSTABLE FEET, lift the front of a projector and pull and undo FEET LOCK LATCHES.

Keystone distortion of a projected image can be adjusted by

Menu Operation. (Refer to P20 and 35.)

CAUTION

Avoid positioning a projector with the angle of more than 20 degrees. Projection Lamp may malfunction.

ADJUSTABLE FEET

FEET LOCK

LATCHES

Downloaded from ProjectorsManual.com Manuals

9

PREPARATION

MOVING PROJECTOR

Use Carry Handle when moving a projector.

When moving a projector, replace Lens Cover and retract

Adjustable Feet to prevent damage to the lens and cabinet.

When a projector is not in use for an extended period, put it into the case (carrying bag) supplied with a projector.

CAUTION

Carrying Bag (supplied) is intended for protection from dust and scratches on the surface of a cabinet, and it is not designed to protect the projector from external forces. Do not transport a projector through a courier or transport services with this bag. The projector can be damaged. When handling a projector, do not drop, bump, subject it to strong forces or put other things on the cabinet.

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump a projector, otherwise damages or malfunctions may result.

● When carrying a projector, use a suitable carrying case.

● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult your Boxlight dealer for more information.

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to the figures on pages 11 to 13 for these connections.

S-VIDEO INPUT JACK

Connect the S-VIDEO output from video equipment to this jack. (Refer to P13.)

AUDIO INPUT JACKS

Connect the audio output from video equipment to these jacks.

(Refer to P13.)

● When the audio output is monaural, connect it to L (MONO) jack.

VIDEO INPUT JACKS

Connect the composite video output from video equipment to VIDEO/Y jack or connect the component video outputs to VIDEO/Y, Pb/Cb and

Pr/Cr jacks. (Refer to P13.)

AUDIO OUTPUT JACKS

Connect an external audio amplifier to these jacks.

(Refer to P12, 13.)

COMPUTER IN

DVI - I

R – AUDIO IN – L

(MONO)

VIDEO

Y – Pb / Cb – Pr / Cr

S – VIDEO

AUDIO IN

COMPUTER

RESET

RESET BUTTON

This projector uses a micro processor to control this unit, and occasionally, this micro processor may malfunction and need to be reset. This can be done by pressing

RESET button with a pen, which will shut down and restart the unit. Do not use

RESET function excessively.

MCI / WI

MONITOR OUT

USB CONTROL PORT

CONTROL PORT CONNECTOR

When controlling the computer with Remote Control Unit of this projector, connect the mouse port of your personal computer to this connector.

(Refer to P12.)

MONITOR OUTPUT

TERMINAL

Connect a monitor to this terminal. This terminal outputs a computer input signal.

(Refer to P12.)

COMPUTER AUDIO

INPUT JACK

Connect the audio output

(stereo) from computer to this jack. (Refer to P12.)

COMPUTER INPUT (DIGITAL/ANALOG)

Media Card Imager / Wireless Imager

TERMINAL

Connect computer output (Digital /

Analog DVI-I type), Media Card

Imager*, or Wireless Imager* to this terminal.

*optional accessories

USB CONNECTOR (Series B)

When controlling the computer with Remote Control Unit of this projector, connect USB port of your personal computer to this connector. (Refer to P12.)

✽ Do not press this button. This button is used for our optional accessories.

Downloaded from ProjectorsManual.com Manuals

11

CONNECTING PROJECTOR

CONNECTING TO COMPUTER

Cables used for connection

(

✽ = Cable or adapter is not supplied with this projector.)

• VGA Cable (HDB 15 pin)

• Control Cable for PS/2 Port

• DVI-Digital Cable (for Single Link T.M.D.S.) ✽

• Control Cable for Serial Port ✽ , or ADB Port ✽

• USB Cable ✽

• MAC Adapter (When connecting to Macintosh computer)

• DVI/VGA Adapter

• Audio Cables (RCA x 2 and Mini Plug (stereo) x 1) ✽

IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)

Desktop type Laptop type

Monitor Output

MAC Adapter

Set slide switches according to the chart below.

DVI Cable ✽

VGA Cable

DVI/VGA

Adapter

COMPUTER IN DVI-I

Monitor Input

VGA

Cable ✽

Audio Output

Audio

Cable ✽

(stereo)

COMPUTER IN

DVI - I

R – AUDIO IN – L (MONO)

VIDEO

Y – Pb / Cb – Pr / Cr

USB port Serial port PS/2 port

USB

Cable ✽

COMPUTER IN DVI-I MONITOR OUT AUDIO IN COMPUTER USB

ADB port

Control Cable for Serial Port

Terminal

Control Cable for PS/2 Port

Terminal

Control Cable for ADB Port

Terminal

Use one of these Control

Cables corresponding with the terminal of your computer.

CONTROL PORT

S – VIDEO

AUDIO IN

COMPUTER

RESET

MCI / WI

MONITOR OUT

USB CONTROL PORT

Terminals of the Projector

AUDIO OUT

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from

AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

MAC ADAPTER (Not supplied)

Set switches as shown in the table

ON below depending on RESOLU-

TION MODE that you want to use before you turn on projector and computer.

OFF

13" MODE (640 x 480)

16" MODE (832 x 624)

19" MODE (1024 x 768)

21" MODE (1152 x 870)

1

ON

2 3

ON

OFF

OFF

ON

ON

OFF

OFF

ON ON

ON ON

ON DIP

1 2 3 4 5 6

4

ON

5 6

OFF OFF OFF

ON OFF OFF

OFF OFF OFF

OFF OFF

Audio Cable

(stereo) ✽

Audio Input

External Audio Equipment

Audio Amplifier

Audio Speaker

(stereo)

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Cables used for connection

( ✽ = Cable is not supplied with this projector.)

• Video Cable (RCA x 1 or RCA x 3)

• S-VIDEO Cable ✽

• Audio Cable (RCA x 2)

Video Source (example)

Video Cassette Recorder Video Disc Player

Component video output equipment.

(such as DVD player or high-definition TV source.)

S-VIDEO Output

Composite

Video Output

Component Video Output

(Y, Pb/Cb, Pr/Cr)

Audio Output

(R, L)

S-VIDEO

Cable ✽

Video Cable

(RCA x 1) ✽

Video Cable

(RCA x 3) ✽

Use any of VIDEO jack, S-VIDEO jack, or Y-Pb/Cb-Pr/Cr jacks.

• When both VIDEO jack and S-

VIDEO jack are connected, S-

VIDEO jack has priority over

VIDEO jack.

• When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are connected,

Y-Pb/Cb-Pr/Cr jacks has priority over S-VIDEO jack.

S-VIDEO

VIDEO

Y - Pb/Cb - Pr/Cr

COMPUTER IN

DVI - I R – AUDIO IN – L

(MONO)

VIDEO

Y – Pb / Cb – Pr / Cr

S – VIDEO

AUDIO IN

COMPUTER

RESET

MCI / WI

MONITOR OUT

USB CONTROL PORT

AUDIO OUT

AUDIO IN

Terminals of the Projector

Audio Cable

(Stereo) ✽

Audio Cable

(RCA x 2) ✽

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from

AC outlet.

Audio Input

External Audio Equipment

Audio Amplifier

Audio Speaker

(stereo)

Downloaded from ProjectorsManual.com Manuals

13

BEFORE OPERATION

OPERATION OF REMOTE CONTROL UNIT

Left Side

LASER POINTER INDICATOR

Lights red while laser beam is emitted from Laser Light

Window.

ON

ON-OFF

ZOOM FOCUS VOLUME

POWER ON-OFF BUTTON

Used to turn projector on or off. (P19)

ALL OFF

MENU BUTTON

Used to select MENU operation. (P17, 18)

MUTE

D.ZOOM

INPUT

MENU

ALL-OFF SWITCH

When using Remote Control Unit, turn this switch to “ON.” Turn it to

“ALL OFF” when not in use.

SELECT BUTTON

Used to execute the item selected, or to expand or compress the image in

DIGITAL ZOOM +/– mode.

(P29)

It is also used as a PC mouse in Wireless Mouse

Operation. (P39)

LASER BUTTON

Used to operate Laser Pointer

Function. Laser beam is emitted while pressing this button within 1 minute.

When using this Laser Pointer for more than 1 minute, release

LASER button and press it again.

KEYSTONE

LASER

NO SHOW FREEZE

AUTO PC ADJ.

P-TIMER


INPUT BUTTON

Used to select input source.

(P22, 30)

POINT BUTTON

Used to move a pointer on

ON-SCREEN MENU, adjust each item, or pan image in

DIGITAL ZOOM +/– mode.

(P29)

It is also used as a PC mouse in Wireless Mouse Operation.

(P39)

✽ When pressing the center of this button, it works as SELECT button.

RIGHT CLICK BUTTON

Used as a PC mouse in

Wireless Mouse Operation.

(P39)

P-TIMER BUTTON

Used to operate P-TIMER function. (P21)

LASER POINTER FUNCTION

This Remote Control Unit emits a laser beam as the laser pointer function from Laser Light Window. When LASER button is pressed, the laser light goes on. And when LASER button is being pressed for more than 1 minute or LASER button is released, light goes off. LASER POINTER INDICATOR lights RED and Laser is emitted with RED light to indicate laser beam is being emitted.

The laser emitted is a class II laser; therefore, do not look into Laser Light Window or shine the laser beam on yourself or other people. The caution labels for the laser beam are shown below.

CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result hazardous radiation exposure.

These caution labels are put on the Remote Control Unit.

LASER POINTER INDICATOR

Laser Light Window

BEFORE OPERATION

ZOOM BUTTON

Used to adjust zoom.

(P20)

ON-OFF

ZOOM FOCUS VOLUME

FOCUS BUTTON

Used to adjust focus.

(P20)

MUTE

D.ZOOM

INPUT

MENU

MUTE BUTTON

Used to mute sound.(P21)

KEYSTONE BUTTON

Used to correct keystone distortion.

(P20, 35)

NO SHOW BUTTON

Used to turn the picture into black image. (P21)

AUTO PC ADJ. BUTTON

Used to operate AUTO PC

Adjustment function. (P24)

KEYSTONE

LASER

NO SHOW FREEZE

AUTO PC ADJ.

P-TIMER


VOLUME BUTTON

Used to adjust volume.

(P21)

Operating Range

Point Remote Control Unit toward projector (Receiver Window) whenever pressing any button.

Maximum operating range for

Remote Control Unit is about 16.4’

(5m) and 60° in front and rear of the projector.

D.ZOOM BUTTON

Used to select DIGITAL

ZOOM +/– mode and resize image. (P29)

16.4’

(5 m)

60°

FREEZE BUTTON

Used to freeze the picture.

(P20)

IMAGE BUTTON

Used to select image level. (P27, 32)

60°

16.4’

(5 m)

1

REMOTE CONTROL BATTERIES INSTALLATION

Remove the battery compartment lid.

Press the lid downward and slide it.

2

Slide the batteries into the compartment.

Two AA size batteries

For correct polarity (+ and –), be sure the battery terminals are in contact with the pins in the compartment.

3

Replace the compartment lid.

To insure safe operation, please observe the following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace both batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose Remote Control Unit to moisture, or heat.

● Do not drop Remote Control Unit.

● If a battery has leaked on Remote Control Unit, carefully wipe the case clean and load new batteries.

● Danger of explosion if battery is incorrectly replaced.

● Dispose of used batteries according to battery manufacturer's instructions and local rules.

Downloaded from ProjectorsManual.com Manuals

15

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

WARNING TEMP. INDICATOR

Flashes red when internal projector temperature is too high. (P40)

LAMP REPLACE INDICATOR

Turns yellow when the life of the projection lamp draws to an end.

(P37)

MENU BUTTON

Used to open or close

MENU operation. (P17,

18)

INPUT BUTTON

Used to select input source. (P22, 30)

IMAGE BUTTON

Used to select image level. (P27, 32)

LA

MP

RE

PLA

CE

WARNIN

G

TEMP.

VOLUME –

INPUT


MENU

ON -OFF

READY

VOLUME +

LAM

P

SELECT

ZOOM FOCUS

POWER ON–OFF BUTTON

Used to turn the projector on or off. (P19)

READY INDICATOR

Lights green when the projector is ready to be turned on. And it flashes green in Power

Management mode.

(P36)

LAMP INDICATOR

Becomes dim when the projector is turned on.

And it is bright when the projector is in stand-by mode.

FOCUS BUTTON

Used to adjust focus.

(P20)

POINT (VOLUME + / – ) BUTTONS

Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan the image in

DIGITAL ZOOM

+/– mode. (P29)

POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons.

SELECT BUTTON

Used to execute the item selected. It is also used to expand / compress the image in DIGITAL

ZOOM mode. (P29)

ZOOM BUTTON

Used to adjust zoom.

(P20)

OPERATING ON-SCREEN MENU

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector through ON-SCREEN

MENU. Refer to the following pages to operate each adjustment on ON-SCREEN MENU.

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

REMOTE CONTROL UNIT

ON -OFF

2 MOVING POINTER

Move the pointer ( ✽ see below) or adjust the value of item by pressing POINT button(s) on Top Control or on Remote Control

Unit.

✽ Pointer is the icon on ON-SCREEN MENU to select the item.

See the figures on the section "FLOW OF ON-SCREEN MENU

OPERATION" below.

TOP CONTROL

WARNIN

G

TEMP.

READY

VOLUME +

3 SELECT ITEM

Select the item or set selected function by pressing SELECT button.

VOLUME –

MENU SELECT

POINT BUTTON

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

SELECT BUTTON

Used to select the item.

POINT BUTTONS

Used to move the

Pointer UP/ DOWN/

RIGHT/ LEFT.

FLOW OF ON-SCREEN MENU OPERATION

MENU BAR

Display ON-SCREEN MENU

1

Press MENU button to display ON-SCREEN MENU (MENU

BAR). A red frame is POINTER.

POINTER (red frame)

Press POINT DOWN button to move POINTER.

2

Select Menu to be adjusted

Move POINTER (red frame) to MENU ICON that you want to select by pressing POINT RIGHT / LEFT buttons.

ITEM

3

Control or adjust item through ON-SCREEN MENU

Press POINT DOWN button and move POINTER (red frame or red arrow) to ITEM that you want to adjust, and then press

SELECT button to show ITEM DATA.

4

Adjust ITEM DATA by pressing POINT RIGHT / LEFT buttons.

Refer to the following pages for details of respective adjustments.

SELECT

BUTTON

SELECT BUTTON

Used to select the item.

MENU ICON

POINTER

(red frame)

ITEM DATA

Press POINT LEFT/RIGHT buttons to adjust value or set function.

Downloaded from ProjectorsManual.com Manuals

17

BEFORE OPERATION

MENU BAR

Press MENU BUTTON while connecting to PC input source.

FOR PC SOURCE

GUIDE WINDOW

Shows selected item of ON-

SCREEN MENU.

PC SYSTEM MENU

Used to select computer system.

(Refer to P22, 23)

IMAGE SELECT MENU

Used to select image level among

Standard, Real and Image 1 ~ 4.

(Refer to P27)

SCREEN MENU

Used to adjust size of image. [Normal

/ True / Wide /

Digital zoom +/–]

(Refer to P29)

SETTING MENU

Used to change settings of projector or reset Lamp

Replace Counter.

(Refer to P35, 36)

INPUT MENU

Used to select input source either

Computer or

Video.

(Refer to P22)

PC ADJUST MENU

Used to adjust parameters to match with input signal format.

(Refer to P24-26)

IMAGE ADJUST MENU

Used to adjust computer image.

[Contrast / Brightness

/ White Balance

(R/G/B) / Gamma]

(Refer to P28)

SOUND MENU

Used to adjust volume or mute sound.

(Refer to P21)

FOR VIDEO SOURCE

Press MENU BUTTON while connecting to VIDEO input source.

INPUT MENU

Used to select input source either Video or

Computer.

(Refer to P30)

IMAGE SELECT MENU

Used to select image level among

Standard, Cinema and Image 1 ~ 4.

(Refer to P32)

SCREEN MENU

Used to set size of image to Normal or Wide.

(Refer to P34)

Same function as

Menu for PC source.

AV SYSTEM MENU

Used to select system of selected video source.

(Refer to P31)

IMAGE ADJUST MENU

Used to adjust picture image.

[Contrast / Brightness / Color /

Tint / White balance (R/G/B) /

Sharpness / Gamma]

(Refer to P33, 34)

Same function as

Menu for PC source.

BASIC OPERATION

TURNING ON / OFF PROJECTOR

TURNING ON PROJECTOR

1

Complete peripheral connections (with Computer, VCR, etc.) before turning on projector. (Refer to "CONNECTING

PROJECTOR" on pages 11~13 for connecting the equipment.)

2

Connect the projector's AC Power Cord into an AC outlet. LAMP

Indicator lights RED, and READY Indicator lights GREEN.

NOTE : When “On start” function is ON, this projector is turned on automatically by connecting AC Power Cord to an

AC outlet. (Refer to pages 35, 36.)

3

Press POWER ON-OFF button on Top Control or on Remote

Control Unit to ON. LAMP Indicator dims, and Cooling Fans start to operate. Preparation Display appears on a screen and the count-down starts. The signal from PC or Video source appears after 30 seconds.

30

Preparation Display disappears after 30 seconds.

TURNING OFF PROJECTOR

1

Press POWER ON-OFF button on Top Control or on Remote

Control Unit, and a message "Power off?" appears on a screen.

2

Press POWER ON-OFF button again to turn off the projector.

LAMP Indicator lights bright and READY Indicator turns off.

After the projector is turned off, Cooling Fans operate (for 90 seconds). During this "Cooling Down" period, the projector cannot be turned on.

3

When projector has cooled down, READY Indicator lights

GREEN again and you can turn the projector on. After the projector has cooled down completely, disconnect AC Power

Cord.

Power off?

Message disappears after 4 seconds.

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN

PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE

TURNING IT OFF.

When “Power Management” function is ON, projector detects signal interruption and turns off Projection Lamp automatically.

Refer to “Power management” on pages 36.

When WARNING TEMP. Indicator flashes red, the projector is automatically turned off. Wait at least 5 minutes before turning on the projector again.

When WARNING TEMP. Indicator continues to flash, follow procedures below:

1. Press POWER ON-OFF button to turn a projector off and disconnect AC Power Cord from an AC outlet.

2. Check Air Filters for dust accumulation.

3. Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 40.)

4. Turn the projector on again.

If WARNING TEMP. Indicator should still continue to flash, call Boxlight at 1-800-762-5757 or 360-779-7901.

Downloaded from ProjectorsManual.com Manuals

19

BASIC OPERATION

ADJUSTING SCREEN

ZOOM ADJUSTMENT

1

Press ZOOM button on Top Control or ZOOM

▲/▼ button on

Remote Control Unit. The message “Zoom” is displayed.

2

Press ZOOM

▲ button or POINT UP button to make image larger, and press ZOOM

▼ button or POINT DOWN button to make image smaller.

Zoom

Message disappears after 4 seconds.

FOCUS ADJUSTMENT

1

Press FOCUS button on Top Control or FOCUS

▲/▼ button on

Remote Control Unit. The message “Focus” is displayed.

2

Adjust focus of image by pressing FOCUS

▲/▼ button or

POINT UP/DOWN button(s) .

Focus

Message disappears after 4 seconds.

KEYSTONE ADJUSTMENT

If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.

1

Press KEYSTONE button on Remote Control Unit or select

Keystone on SETTING menu. (Refer to page 35.) Keystone dialog box appears.

2

Correct keystone distortion by pressing POINT

UP/DOWN/LEFT/RIGHT button(s). Press POINT UP button to reduce the upper part of the image, and press POINT DOWN button to reduce the lower part. Press POINT LEFT button to reduce the left part, and press POINT RIGHT button to reduce the right part.

• Arrows are white in no correction.

• Arrow(s) of direction being corrected turn(s) red.

• Arrow(s) disappear(s) at the maximum correction.

Reduce the upper width with POINT UP button.

Reduce the lower width with POINT DOWN button.

Reduce the left part with

POINT LEFT button.

Reduce the right part with

POINT RIGHT button.

PICTURE FREEZE FUNCTION

Press FREEZE button on Remote Control Unit to freeze the picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button.

BASIC OPERATION

NO SHOW FUNCTION

Press NO SHOW button on Remote Control Unit to black out the image. To restore to normal, press NO SHOW button again or press any other button.

No show

Message disappears after 4 seconds.

P-TIMER FUNCTION

Press P-TIMER button on Remote Control Unit. The timer display “00

: 00” appears on the screen and the timer starts to count time (00 : 00

~ 59 : 59).

To stop P-TIMER display, press P-TIMER button. Ppress P-TIMER button again to cancel P-TIMER function.

SOUND ADJUSTMENT

DIRECT OPERATION

Volume

Press VOLUME (+/–) button(s) on Top Control or on Remote Control

Unit to adjust volume. Volume dialog box appears on the screen for a few seconds.

(+) button to increase volume, and (–) button for decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press

Volume (+/–) button(s).

Indicates approximate level of volume.

Press MUTE button to set

Mute function On or Off.

The display disappears after 4 seconds.

1

2

MENU OPERATION

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to

SOUND Menu icon.

Press POINT DOWN button to move a red frame pointer to the item that you want to select, and then press SELECT button.

Volume

To increase volume, press POINT RIGHT button, and press POINT

LEFT button to decrease volume.

Mute

Press POINT LEFT/RIGHT button(s) to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press POINT LEFT/RIGHT button(s) again.

SOUND MENU

SOUND Menu icon

Close SOUND Menu.

Indicates approximate level of volume.

Downloaded from ProjectorsManual.com Manuals

21

COMPUTER INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

Choose Computer by pressing INPUT button on Top Control or on

Remote Control Unit.

If projector cannot reproduce proper image, select correct input source through MENU OPERATION (see below).

INPUT button

Computer

Video

MENU OPERATION

1

2

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

INPUT Menu icon.

Press POINT DOWN button to move a red arrow pointer to

Computer and then press SELECT button. Source Select Menu will appear.

3

Move a pointer to either RGB (Digital) or RGB (Analog) and then press SELECT button.

RGB (Digital)

RGB (Analog)

When digital signal is connected to DVI terminal, select Digital.

When analog signal is connected to DVI terminal, select Analog.

INPUT MENU

Computer

INPUT Menu icon

Move a pointer (red arrow) to Computer and press

SELECT button.

Source Select Menu

Move a pointer to RGB

(Digital) or RGB (Analog) and press SELECT button.

SELECTING COMPUTER SYSTEM

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to

“COMPATIBLE COMPUTER SPECIFICATIONS” on page 23). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)

Note : Projector may display one of the following messages.

Auto

––––

When projector cannot recognize connected signal as PC system provided in this projector, Auto PC Adjustment function operates to adjust projector and the message

“Auto” is displayed on SYSTEM Menu icon. (Refer to

P24.) When image is not provided properly, manual adjustment is required. (Refer to P25 and 26.)

There is no signal input from computer. Make sure the connection of computer and a projector is set correctly.

(Refer to TROUBLESHOOTING on page 41.)

PC SYSTEM MENU

SYSTEM Menu icon

Displays system being selected.

SELECT COMPUTER SYSTEM MANUALLY

This projector automatically selects PC system among those provided in this projector and PC system can be also selected manually.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to PC

SYSTEM Menu icon.

2

Press POINT DOWN button to move a red arrow pointer to the system that you want to set, and then press SELECT button.

PC SYSTEM MENU

SYSTEM Menu icon

Displays system being selected.

The systems on this dialog box can be selected.

Custom Mode (1~5) set in PC

ADJUST Menu. (P25, 26)

COMPUTER INPUT

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned and less than 100

MHz of Dot Clock.

ON-SCREEN

DISPLAY

VGA 1

VGA 2

VGA 3

VGA 4

VGA 5

RGB

RGB

SVGA 1

SVGA 2

SVGA 3

SVGA 4

SVGA 5

SVGA 6

SVGA 7

SVGA 8

SVGA 9

XGA 2

RESOLUTION

640 x 480

720 x 400

640 x 400

640 x 480

640 x 480

VGA 6

VGA 7

640 x 480

640 x 480

MAC LC13 640 x 480

MAC 13 640 x 480

––––––––

––––––––

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

SVGA 10 800 x 600

SVGA 11 800 x 600

MAC 16 832 x 624

XGA 1 1024 x 768

1024 x 768

H-Freq.

(kHz)

31.47

31.47

31.47

37.86

37.86

37.50

43.269

34.97

35.00

15.625

15.734

35.156

37.88

46.875

53.674

48.08

37.90

34.50

38.00

38.60

32.70

38.00

49.72

48.36

68.677

75.00

85.06

72.19

61.03

55.38

60.51

60.31

51.09

60.51

74.55

60.00

84.997

V-Freq.

(Hz)

59.88

70.09

70.09

74.38

72.81

75.00

85.00

66.60

66.67

50

(Interlace)

60

(Interlace)

56.25

60.32

ON-SCREEN

DISPLAY

XGA 3

XGA 4

XGA 5

XGA 6

XGA 7

XGA 8

XGA 9

XGA 10

XGA 11

XGA 12

XGA 13

XGA 14

XGA 15

1080i50 (HDTV)

RESOLUTION

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

1024 x 768

MAC 19 1024 x 768

MAC 21 1152 x 870

SXGA 1 1152 x 864

SXGA 11 1152 x 900

SXGA 13 1280 x 1024

SXGA 14 1280 x 1024

SXGA 17 1152 x 900

SXGA 18 1280 x 1024

720p (HDTV) ––––––––

1035i (HDTV)

1080i60 (HDTV)

––––––––

––––––––

––––––––

H-Freq.

(kHz)

60.023

56.476

60.31

48.50

44.00

63.48

36.00

62.04

61.00

35.522

46.90

47.00

58.03

60.24

68.68

64.20

61.20

50.00

50.00

61.85

46.43

45.00

33.75

33.75

28.125

V-Freq.

(Hz)

75.03

70.07

74.92

60.02

54.58

79.35

87.17

(Interlace)

77.07

75.70

86.96

(Interlace)

58.20

58.30

72.00

75.08

75.06

70.40

65.20

86.00

(Interlace)

94.00

(Interlace)

66.00

86.70

(Interlace)

60.00

60.00

(Interlace)

60.00

(Interlace)

50.00

(Interlace)

When a input signal is digital from DVI terminal, refer to the chart below.

ON-SCREEN

DISPLAY

D-VGA

D-SVGA

D-XGA

RESOLUTION

640 x 480

800 x 600

1024 x 768

H-Freq.

(kHz)

31.469

37.879

48.363

V-Freq.

(Hz)

59.940

60.317

60.004

ON-SCREEN

DISPLAY

RESOLUTION

D-SXGA 2 1280 x 1024

D-SXGA 3 1280 x 1024

NOTE : Specifications are subject to change without notice.

H-Freq.

(kHz)

60.276

31.65

V-Freq.

(Hz)

58.069

29.8

Downloaded from ProjectorsManual.com Manuals

23

COMPUTER INPUT

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows.

1

Auto PC Adj.

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to PC

ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to

AUTO PC Adj. icon and then press SELECT button twice.

This Auto PC Adjustment can be also executed by pressing

AUTO PC ADJ. button on Remote Control Unit.

Store adjustment parameters.

Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, the setting can be done just by selecting Mode in PC SYSTEM Menu (P22). Refer to step 3 of MANUAL PC ADJUSTMENT section (P26).

NOTE

● Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When the image is not provided properly through this function, manual adjustments are required. (Refer to page 25, 26.)

● Auto PC Adjustment function cannot be operated when “RGB,”

“720p (HDTV),” “1035i (HDTV)” or “1080i (HDTV)” is selected on PC

SYSTEM Menu (P22).

PC ADJUST MENU

PC ADJUST Menu icon

Move a red frame pointer to AUTO PC

Adj. icon and press SELECT button.

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to the display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from the standard ones and may not be tuned by Multi-

Scan system of this projector. If this happens, projector cannot reproduce a proper image and the image may be displayed as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.

This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables you to recall the setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when the input signal is digital or “RGB” is selected on PC SYSTEM

MENU (P22).

PC ADJUST MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to PC

ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the item that you want to adjust and then press SELECT button.

Adjustment dialog box will appear. Press POINT LEFT/RIGHT button to adjust value.

PC ADJUST Menu icon

Move a red frame icon to the item and press SELECT button.

Fine sync

Adjusts an image as necessary to eliminate flicker from the display.

Press POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)

Total dots

The number of total dots in one horizontal period. Press POINT

LEFT/RIGHT button(s) and adjust number to match your PC image.

Selected Mode

Shows status

(Stored / Free) of the selected Mode.

Horizontal

Adjusts horizontal picture position. Press POINT LEFT/RIGHT button(s) to adjust the position.

Press POINT LEFT/RIGHT button to adjust the value.

Vertical

Adjusts vertical picture position. Press POINT LEFT/RIGHT button(s) to adjust the position.

Current mode

Press SELECT button to show the information of computer selected.

Clamp

Adjusts clamp level. When the image has a dark bar(s), try this adjustment.

Press SELECT button at this icon to adjust “Clamp,” “Display area (H/V)” or set “Full screen.”

Current mode

Press SELECT button at

Current mode icon to show the information of computer connected.

Downloaded from ProjectorsManual.com Manuals

25

COMPUTER INPUT

Display area

Selects area displayed with this projector. Select the resolution at

Display area dialog box.

Display area H

Adjustment of horizontal area displayed with this projector. Press

POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area V

Adjustment of vertical area displayed with this projector. Press

POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Full screen

Press POINT LEFT/RIGHT button(s) to switch Full screen function to

“On” or “Off.” Set “On” to resize the image with 4 x 3 aspect ratio to fit the screen.

NOTE : Fine sync, Total dots, Display area (H/V) and Full screen cannot be adjusted when “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu (P22).

Press SELECT button at Display area icon and Display area dialog box appears.

Press POINT LEFT

/RIGHT button(s) to adjust value and then press

SELECT button.

Display area

To store adjustment data.

This Mode has parameters being stored.

3

Store

To store adjustment parameters, move a red frame pointer to

Store icon and then press SELECT button. Move a red arrow pointer to any of Mode 1 to 5 that you want to store to and then press SELECT button.

Mode free

To clear adjustment parameters previously set, move a red frame pointer to Mode free icon and then press SELECT button.

Move a red arrow pointer to the Mode that you want to clear and then press SELECT button.

Other icons operate as follows.

Reset

Reset all adjust parameters on adjustment dialog box to previous figure.

Quit

Closes PC ADJUST MENU.

Vacant Mode

Store icon

Shows values of “Total dots,”

“Horizontal,” “Vertical,” “Display area H,” and “Display area V.”

To clear adjustment data.

Mode free icon

Close this dialog box.

COMPUTER INPUT

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote

Control Unit.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P28).

IMAGE button

Standard

Real

Image 1

Image 2

Image 3

Image 4

IMAGE LEVEL SELECT (MENU)

IMAGE SELECT MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

IMAGE SELECT Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the level that you want to set and then press SELECT button.

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P28).

IMAGE SELECT

Menu icon

Move a red frame pointer to the level and press SELECT button.

The level being selected.

Downloaded from ProjectorsManual.com Manuals

27

COMPUTER INPUT

IMAGE LEVEL ADJUSTMENT

IMAGE ADJUST MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to

IMAGE ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the item that you want to adjust. and then press SELECT button.

The level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

Contrast

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Move a red frame pointer to the item to be selected and then press SELECT button.

Brightness

Press POINT LEFT button to adjust image darker, and POINT

RIGHT button to adjust brighter. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

IMAGE ADJUST

Menu icon

Selected Image level

Press POINT LEFT/RIGHT buttons to adjust value.

White balance (Blue)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

3

Gamma

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Store

To store manually preset image, move a red frame pointer to

Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to the Image 1 to 4 where you want to set and then press SELECT button.

Other icons operate as follows.

Reset

Reset all adjustment to previous figure.

Quit

Closes IMAGE MENU.

Store icon

Press SELECT button at this icon to store the adjustment.

Image Level Menu

Move a red frame pointer to any of Image 1 to 4 where you want to set and then press SELECT button.

COMPUTER INPUT

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red frame pointer to

SCREEN Menu icon.

SCREEN MENU

2

Press POINT DOWN button and move a red frame pointer to the function that you want to select and then press SELECT button.

SCREEN Menu icon

Move the red frame to the function and press SELECT button.

Normal

Provides image to fit screen size.

True

Provides image in its original size. When the original image size is larger than screen size (800 x 600), this projector enters “Digital zoom +” mode automatically.

Wide

Provides image to fit wide video aspect ratio (16 : 9) by expanding image width uniformly. This function can be used for providing a squeezed video signal at 16 : 9.

Digital zoom +

When Digital zoom + is selected, ON-SCREEN MENU disappears and the message “D. Zoom +” is displayed. Press SELECT button to expand image size. And press POINT UP/DOWN/LEFT/RIGHT button(s) to pan the image. Panning function can work only when the image is larger than screen size.

A projected image can be also expanded by pressing D.ZOOM

▲ button on Remote Control Unit.

Digital Zoom –

When Digital zoom – is selected, ON-SCREEN MENU disappears and the message “D. Zoom –” is displayed. Press SELECT button to compress image size.

A projected image can be also compressed by pressing D.ZOOM

▼ button on Remote Control Unit.

To cancel Digital Zoom +/– mode, press any button except D.ZOOM

▲/▼, SELECT, POINT and LASER buttons.

NOTE

● This SCREEN Menu cannot be operated when

“1035i (HDTV)” or “1080i (HDTV)” is selected on

PC SYSTEM Menu (P22).

● Wide cannot be selected when “720p (HDTV)” is selected on PC SYSTEM Menu (P22).

● True and Digital zoom +/– cannot be selected when “RGB” is selected on PC SYSTEM Menu

(P22).

● This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, lower the resolution before connecting projector.

● The image data in other than SVGA (800 x 600) is modified to fit the screen size in initial mode.

● Panning function may not operate properly if the computer system prepared on PC ADJUST Menu is used.

Downloaded from ProjectorsManual.com Manuals

29

VIDEO INPUT

SELECTING INPUT SOURCE

DIRECT OPERATION

Choose Video by pressing INPUT button on Top Control or on Remote

Control Unit.

If projector cannot reproduce proper video source, select correct input source through MENU OPERATION (see below).

INPUT button

Video

Computer

MENU OPERATION

1

2

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

INPUT Menu icon.

Press POINT DOWN button to move a red arrow pointer to

Video and then press SELECT button. Source Select Menu will appear.

3

Move a pointer to the source that you want to select and then press SELECT button.

Auto

Video

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance.

• When both VIDEO jack and S-VIDEO jack are connected, S-VIDEO jack has priority over VIDEO jack.

• When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are connected, Y-Pb/Cb-Pr/Cr jacks have priority over S-

VIDEO jack.

When video input signal is connected to VIDEO jack, select Video.

S-Video

When video input signal is connected to S-VIDEO jack, select S-Video.

Y,Pb/Cb,Pr/Cr

When video input signal is connected to Y-Pb/Cb-

Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

INPUT MENU

VIDEO

Move a pointer to Video and press SELECT button.

Source Select Menu (VIDEO)

Move a pointer to the source and press SELECT button.

VIDEO INPUT

1

2

SELECTING VIDEO SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT buttons to move a red frame pointer to AV

SYSTEM Menu icon.

Press POINT DOWN button to move a red arrow pointer to the system that you want to select and then press SELECT button.

VIDEO JACK OR S-VIDEO JACK

Auto

Projector automatically detects incoming Video system, and adjusts itself to optimize its performance.

When Video System is PAL-M or PAL-N, select system manually.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC,

NTSC 4.43, PAL-M, and PAL-N.

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM Menu icon

This box indicates the system being selected.

Move the pointer to the system and press

SELECT button.

Y, Pb/Cb, Pr/Cr JACKS

Auto

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i,

480p, 575p, 720p, 1035i and 1080i.

AV SYSTEM MENU (COMPONENT VIDEO)

AV SYSTEM Menu icon

This box indicates the system being selected.

Move the pointer to the system and press

SELECT button.

Downloaded from ProjectorsManual.com Manuals

31

VIDEO INPUT

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Cinema, Image 1, Image 2,

Image 3 and Image 4 by pressing IMAGE button on Top Control or on

Remote Control Unit.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P33, 34).

IMAGE button

Standard

Cinema

Image 1

Image 2

Image 3

Image 4

IMAGE LEVEL SELECT (MENU)

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button to move a red frame pointer to

IMAGE SELECT Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the level that you want to set and then press SELECT button.

IMAGE SELECT MENU

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

IMAGE 1~4

User preset picture adjustment in IMAGE ADJUST Menu (P33, 34).

IMAGE SELECT

Menu icon

Move the red frame pointer to the level and press SELECT button.

The level being selected.

VIDEO INPUT

IMAGE LEVEL ADJUSTMENT

IMAGE ADJUST MENU

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red frame pointer to

IMAGE ADJUST Menu icon.

2

Press POINT DOWN button to move a red frame pointer to the item that you want to adjust and then press SELECT button.

The level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

Contrast

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Move a red frame pointer to the item to be selected and then press SELECT button.

Brightness

Press POINT LEFT button to adjust image darker, and POINT

RIGHT button to adjust brighter. (From 0 to 63.)

Color

Press POINT LEFT button to lighten color, and POINT RIGHT button to deeper color. (From 0 to 63.)

Tint

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

Sharpness

Press POINT LEFT button to soften the image, and POINT RIGHT button to sharpen the image. (From 0 to 31.)

Gamma

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

NOTE : Tint cannot be adjusted when the video system is PAL,

SECAM, PAL-M or PAL-N.

IMAGE ADJUST

Menu icon

Press POINT LEFT/RIGHT buttons to adjust value.

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

Press POINT LEFT/RIGHT buttons to adjust value.

Press SELECT button at this icon to store the value.

Downloaded from ProjectorsManual.com Manuals

33

VIDEO INPUT

3

Store

To store the adjustment data, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear.

Move a red frame pointer to the Image Level 1 to 4 and then press SELECT button.

Other icons operate as follows.

Reset

Reset all adjustment to previous figure.

Quit

Closes IMAGE MENU.

Store icon

Image Level Menu

Move a red frame pointer to the image icon to be set and then press SELECT button.

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

1

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red frame pointer to

SCREEN Menu icon.

SCREEN MENU

2

Press POINT DOWN button and move a red frame pointer to the function that you want to select and then press SELECT button.

Normal

Provides image at a normal video aspect ratio of 4 : 3.

SCREEN Menu icon

Move the red frame to the function and press SELECT button.

Wide

Provides image at a wide screen ratio of 16 : 9.

NOTE : SCREEN Menu cannot be operated when

“720p,” “1035i,” or “1080i” is selected on AV

SYSTEM Menu (P31).

SETTING

1

2

SETTING MENU

SETTING MENU

Press MENU button and ON-SCREEN MENU will appear. Press

POINT LEFT/RIGHT button(s) to move a red-frame pointer to

SETTING icon.

Press POINT DOWN button to move a red-frame pointer to the item that you want to set and then press SELECT button.

Setting dialog box appears.

Set a red frame pointer to the item and press SELECT button.

Language

Language used in ON-SCREEN MENU is selectable from among

English, German, French, Italian, Spanish, Portuguese, Dutch,

Swedish, Chinese, Korean and Japanese.

Keystone

When the image is distorted, select Keystone. ON-SCREEN MENU disappears and Keystone dialog box is displayed. Correct keystone distortion by pressing POINT UP/DOWN/LEFT/RIGHT button(s).

Refer to KEYSTONE ADJUSTMENT on page 20.

Blue back

When this function is “On,” this projector will produce a blue image instead of the video noise on the screen when any input source is unplugged or turned off.

Display

This function decides whether to display On-Screen Displays.

On ··· shows all the On-Screen Displays.

Off ···· sets On-Screen Displays disappeared except;

● ON-SCREEN MENU

● “Power off?” message

Logo

When this function is “On,” projector displays our logo when starting up.

Ceiling

When this function is “On,” picture is top / bottom and left / right reversed. This function is used to project the image from a ceiling mounting the projector.

SETTING Menu icon

When pressing SELECT button at Language,

Language Menu appears.

Move a pointer to the item and then press POINT

LEFT/RIGHT button(s).

Ceiling function

Rear

When this function is “On,” picture is left / right reversed. This function is used to project the image to a rear projection screen.

Rear function

Downloaded from ProjectorsManual.com Manuals

35

SETTING

Power management

This function turns Projection Lamp off when this projector detects signal interruption and is not used for a certain period in order to reduce power consumption and maintain the Lamp-life. (This projector is shipped with this function ON.)

Power Management function operates to turn Projection Lamp off when the input signal is interrupted and any button is not pressed over 5 minutes. This function operates as follows;

1. When any input signal is interrupted, “No signal” and the count down display appears (for 5 minutes).

2. After counting down for 5 minutes, Projection Lamp and

READY Indicator are turned off. (Cooling Fans keep running.)

3. READY Indicator starts to flash after cooling down Projection

Lamp about for 90 seconds (Power Management mode).

In this Power Management mode, Projection Lamp is automatically turned on when the input signal is connected or projector is operated with any button on Top Control or on

Remote Control Unit again.

On start

When this function is “On,” projector is automatically turned on just by connecting AC Power cord to a wall outlet.

Note ; Be sure to turn projector off properly (refer to the section

“TURNING OFF PROJECTOR” on P19). If projector is turned off in the wrong steps, On Start function does not operate properly.

Remote control

This projector has two different remote control codes; the factory-set normal code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when operating several projectors or video equipment together.

When operating projector in “Code 2,” both projector and Remote

Control Unit must be switched to “Code 2.”

To change the code of Projector;

Set Remote control in the SETTING MENU to “Code 2.”

To change the code of the Remote Control Unit;

Press both MENU and IMAGE buttons on Remote Control Unit together for over 10 seconds.

After changing the code, make sure Remote Control Unit operates properly.

To return to the normal code (Code 1), repeat the steps above.

NOTE : When the batteries of Remote Control Unit are replaced or

ALL-OFF switch is turned to “ALL-OFF,” the remote transmit code automatically returns to the normal code (Code 1).

Lamp counter reset

This function is used to reset Lamp Replace Counter. When replacing Projection Lamp, reset Lamp Replace Counter by using this function. Refer to page 38 for operation.

Time left until Lamp off.

Press SELECT button at this icon to display other items.

Press SELECT button at this icon to display previous items.

Move the pointer to the item and then press POINT LEFT/RIGHT button(s).

APPENDIX

LAMP REPLACEMENT

LAMP REPLACE

When the life of the Projection Lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the projection lamp with a new one promptly.

TOP CONTROL

This indicator lights yellow when the life of the projection lamp draws to an end.

Replace the Projection Lamp with a new one promptly.

LA

MP

RE

PLA

CE

WARNIN

G

TEMP.

VOLUME –

INPUT


MENU

ON -OFF

Allow a projector to cool, for at least 45 minutes before you open Lamp Cover. The inside of a projector can become very hot.

CAUTION

For continued safety, replace with a lamp assembly of the same type.

Do not drop a lamp assembly or touch a glass bulb! The glass can shatter and may cause injury.

2

3

Follow these steps to replace the lamp assembly.

1

Turn off the projector and disconnect the AC plug. Allow the projector to cool for at least 45 minutes.

To remove Lamp Cover, remove the screw with a screwdriver.

4

Loosen 3 screws with a screwdriver and pull out Lamp Assembly by grasping Handle.

Replace Lamp Assembly with a new one and tighten 3 screws back into position. Make sure that Lamp Assembly is set properly. Replace Lamp Cover and tighten the screw.

5

6

Connect AC Power Cord to the projector and turn on the projector.

Reset the Lamp Replace Counter.

Refer to “LAMP REPLACE COUNTER” on the next page .

LAMP COVER

LAMP

ASSEMBLY

SCREW

SCREW

HANDLE

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through Boxlight at 1-800-762-5757 or 360-779-7901.

Model No. of your projector

Replacement Lamp Type No.

:

:

BOXLIGHT CP-18t

POA-LMP35

(Service Parts No. 610 293 2751)

Downloaded from ProjectorsManual.com Manuals

37

APPENDIX

LAMP REPLACE COUNTER

Be sure to reset the Lamp Replace Counter after the Lamp Assembly is replaced. When the Lamp Replace Counter is reset, the LAMP REPLACE Indicator stops lighting.

1

2

3

Turn projector on, press MENU button and ON-SCREEN

MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SETTING Menu icon (refer to page 35, 36).

Press POINT DOWN button to move a red frame pointer to

“Lamp counter reset” and then press SELECT button. The message "Lamp replace counter reset?" is displayed. Move the pointer to [Yes] and then press SELECT button.

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

Move the pointer to Lamp counter reset and then press

SELECT button. The message “Lamp replace counter reset?” is displayed.

NOTE : Do not reset the Lamp Replace Counter until after the Projection Lamp is replaced.

LAMP HANDLING PRECAUTIONS

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.

A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

APPENDIX

OPERATING WIRELESS MOUSE

The Wireless Remote Control Unit is not only able to operate this projector but is also usable as a Wireless Mouse for most

Personal Computers. The POINT button and two CLICK buttons are used for wireless mouse operation.

This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen. When ON-

SCREEN MENU or any message / dialog box is displayed on the screen instead of PC mouse pointer, the POINT and

CLICK buttons control the projector, rather than the computer.

INSTALLATION

To use the Wireless Remote Control Unit as Wireless Mouse, a mouse driver must be already installed on your computer.

No mouse driver is supplied with this projector: instead, the Wireless Remote Control Unit becomes the pointing device for your computer's existing mouse driver. Make sure that the mouse driver is properly installed in your computer, and that the appropriate port (PS/2, DB9, ADB, or USB port) is activated. Note that only a PS/2 mouse cable is supplied with the projector: for other mouse cables, contact your dealer.

1

2

With the projector and computer both OFF, connect the mouse port (or USB port) of your computer to Control Port (or USB connector) of this projector with the appropriate cable. (Refer to page 11, 12 for connection.)

Turn the projector ON first, and then turn ON your computer. When the computer is switched on first, Wireless Mouse may not work properly.

OPERATING WIRELESS MOUSE

When controlling a mouse pointer, operate Wireless Mouse with the POINT button, SELECT button, and RIGHT CLICK button on the Wireless Remote Control Unit.

POINT button

Used to move mouse pointer. The pointer is moved in a direction corresponding to the direction you are pressing.

POINT button (Move the pointer)

SELECT (LEFT CLICK) button

This button has the same function as the left button in a PC mouse.

RIGHT CLICK button

This button has the same function as the right button in a PC mouse.

SELECT button

(left button of the mouse)

RIGHT CLICK button

(right button of the mouse)

Downloaded from ProjectorsManual.com Manuals

39

APPENDIX

MAINTENANCE

WARNING TEMP. INDICATOR

WARNING TEMP. Indicator flashes red when an internal temperature of a projector exceeds the normal temperature. This

Indicator stops flashing when the temperature of a projector returns to normal.

When WARNING TEMP. Indicator continues to flash, check the items listed below.

1

2

3

Ventilation Slots of the projector may be blocked. In such an event, reposition the projector so that Ventilation Slots are not obstructed.

Air Filter may be clogged with dust particles. Clean Air Filter by following the section AIR FILTER CARE AND

CLEANING below.

If WARNING TEMP. Indicator remains on after performing the above checks, Cooling Fans or the Internal Circuits may be malfunctioning. In that case, call Boxlight at 1-800-762-5757 or 360-779-7901 for service.

AIR FILTER CARE AND CLEANING

3

4

Removable Air Filter prevents dust from accumulating on the surface of Projection Lens and Projection Mirror. Should Air

Filter become clogged with dust particles, it will reduce Cooling Fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean Air Filter following the steps below:

1

2

Turn off the projector, and disconnect AC power cord from the

AC outlet.

Turn the projector upside down and remove Air Filter by pulling the latches upward.

Clean Air Filter with a brush or wash out dust and particles.

Replace Air Filter properly. Make sure that Air Filter is fully inserted.

CAUTION

Do not operate the projector with Air Filter removed. Dust may accumulate on LCD Panel and Projection Mirror degrading picture quality.

Do not put small parts into Air Intake Vents. It may result in malfunction of the projector.

AIR FILTER

Pull up and remove.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside the projector. This condition may degrade the quality of a projected image.

When the above symptoms are noticed, contact Boxlight at 1-800-762-5757 or 360-779-7901 for cleaning.

CLEANING PROJECTION LENS

2

3

Follow these steps to clean Projection Lens:

1

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.

Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

Lightly wipe a cleaning cloth over Projection Lens.

When the projector is not in use, replace Lens Cover.

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check the following:

1. Make sure you have connected a projector to your computer or video equipment as described in the section

"CONNECTING PROJECTOR" on pages 11 ~ 13.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If a projector still does not produce an image, re-start your computer.

5. If an image still does not appear, unplug a projector from your computer and check your computer monitor's display. The problem may be with your graphics controller rather than with a projector. (When you reconnect a projector, be sure to turn the computer and monitor off before you power up the projector. Power the equipment back on in order of : Projector and computer.)

6. If the problem still exists, check the following chart.

Problem:

No power.

Image is out of focus.

Try these Solutions

● Plug a projector into your AC outlet.

● Make sure READY Indicator lights.

● Wait 90 seconds after a projector is turned OFF before turning the projector back on.

NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as follows:

1. LAMP indicator lights bright and READY indicator turns off.

2. After 90 seconds, READY indicator lights green again and a projector may be turned on by pressing Power ON-OFF button.

● Check WARNING TEMP. indicator. If the indicator flashes red, the projector cannot be turned on.

(See "TURNING ON/OFF PROJECTOR" section on page 19.)

● Check Projection Lamp. (Refer to page 37.)

● Adjust focus of a projector.

● Make sure a projection screen is at least 5.3’ (1.6m) from the projector.

● Check Projection Lens to see if it needs cleaning.

NOTE : Moving a projector from a cool temperature location to a warm temperature location may result in moisture condensation on Projection Lens. In such an event, leave a projector OFF and wait until condensation disappears.

● Check Ceiling / Rear feature. (See “SETTING” section on page 35.)

Picture is Left/Right reversed.

Picture is

Top/Bottom reversed.

Some displays are not seen during the

Operation.

No image.

No sound.

● Check Ceiling feature. (See “SETTING” section on page 35.)

● Check Display feature.(See “SETTING” section on page 35.)

● Check the connection between your computer or video equipment and a projector.

● When turning a projector on, it takes about 30 seconds to display an image.

● Check the system that you select is corresponding with your computer or video equipment.

● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).

● Check audio cable connection from audio input source.

● Adjust the audio source.

● Press VOLUME (+) button.

● Press MUTE button.

Downloaded from ProjectorsManual.com Manuals

41

APPENDIX

Problem:

Remote Control Unit does not work.

Wireless Mouse function does not work.

Try these Solution

● Check the batteries.

● Check ALL-OFF switch on Remote Control Unit is set to “ON.”.

● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.

● Make sure you are not too far from a projector when using Remote Control Unit.

Maximum operating range is 16.4’ (5m).

● Make sure the code of Remote Control Unit is set to conform to projector.

(See “SETTING” section on page 35, 36.)

● Check cable connection between a projector and your computer.

● Check the mouse setting on your computer.

● Turn a projector on before turning on a computer.

WARNING :

High voltages are used to operate this projector. Do not attempt to open the cabinet.

If the problem still persists after following all operating instructions, contact Boxlight for assistance at 1-800-762-5757 or 360-

779-7901. Give the model number and explain about the problem. We will advise you how to obtain service.

Please have the following information available.

● Serial No. of projector.

● Resolution of the computer.

● Refresh rate of computer.

This symbol on the nameplate means the product is Listed by Underwriters

Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

APPENDIX

TECHNICAL SPECIFICATIONS

Projector Type

Dimensions

(W x H x D)

Net Weight

LCD Panel System

Panel Resolution

Number of Pixels

Color System

High Definition TV Signal

Scanning Frequency

Projection Image size

(Diagonal)

Horizontal Resolution

Projection Lens

Throw Distance

Projection Lamp

Video Input Jacks

Audio Input Jacks

Computer Input Terminal

Monitor Out Terminal

Computer Audio Input Jack

Control Port Connector

USB Connector

Audio Output Jacks

Internal Audio Amp

Built-in Speakers

Feet Adjustment

Voltage and

Power Consumption

Operating Temperature

Storage Temperature

Remote Control Unit

Accessories

Multi-media Projector

13.11" x 3.52" x 9.96" (333mm x 89.5mm x 253mm) (not including Adjustable Feet)

9.3 lbs (4.2 kg)

0.9" TFT Active Matrix type, 3 panels

800 x 600 dots

1,440,000 (800 x 600 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz

Adjustable from 31” to 300”

750 TV lines

F 1.7 ~ 2.0 lens with f 37.4 mm ~ 48.3 mm with motor zoom and focus

5.3’ ~ 40.0’ (1.6 m ~ 12.2 m)

200 W

RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)

RCA Type x 2

DVI-I Terminal (Digital/Analog)

(VGA) HDB 15 Terminal x 1

Mini Jack (stereo) x 1

Mini DIN 8 pin x 1

USB Series B receptacle x 1

RCA Type x 2

1.0 W RMS

1 speaker, 1.18" x 1.57" (30mm x 40mm)

0˚ to 15.6˚

AC 100 ~ 120 V (3.6 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)

AC 200 ~ 240 V (1.8 A Max. Ampere), 50 / 60 Hz (Continental Europe)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Power Source : AA, UM3 or R06 Type x 2

Operating Range : 16.4’ (5m) / ±30˚

Dimensions

Net Weight

Laser Pointer

:

:

:

2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm)

0.36 lbs (165 g) (including batteries)

Class II Laser

(Max. Output : 1mW / Wave length : 650±20nm)

Owner’s Manual

AC Power Cord

Remote Control Unit and Batteries

VGA Cable

Control Cable for PS/2 port

DVI/VGA Adapter

Carrying Bag

Lens Cover

● The specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

Downloaded from ProjectorsManual.com Manuals

43

APPENDIX

CONFIGURATIONS OF TERMINALS

MONITOR OUT TERMINAL (ANALOG)

Terminal : HDB15-PIN

Pin Configuration

5 4 3

10

9

15 14 13

8

2

12

7

1

11

6

6

7

4

5

8

1

2

3

Red Input

Green Input

Blue Input

Sense 2

Ground (Horiz.sync.)

Ground (Red)

Ground (Green)

Ground (Blue)

12

13

14

15

9

10

11

+5V Power

Ground (Vert.sync.)

Sense 0

DDC Data

Horiz. sync.

Vert. sync.

DDC Clock

DVI-I TERMINAL (DIGITAL/ANALOG)

Pin Configuration

C1 C2

1

9

2

10

17 18

3

11

4

12

19 20

5 6

13 14

21 22

7

15

8

16

23 24

C3

C5

C4

C1

C2

C3

C4

C5

Analog Red Input

Analog Green Input

Analog Blue Input

Analog Horiz. sync

Analog Ground (R/G/B)

6

7

4

5

8

1

2

3

T.M.D.S. Data2–

T.M.D.S. Data2+

T.M.D.S. Data2/4 Shield

+3.3V MCI

W-LAN

DDC Clock

DDC Data

Analog Vert. sync

12

13

14

15

16

9

10

11

T.M.D.S. Data1–

T.M.D.S. Data1+

T.M.D.S. Data1/3 Shield

+5V MCI

Card In

+5V Power

Ground (for +5V)

Hot Plug Detect

20

21

22

23

24

17

18

19

T.M.D.S. Data0–

T.M.D.S. Data0+

T.M.D.S. Data0/5 Shield

Viewer RXD

Viewer TXD

T.M.D.S. Clock Shield

T.M.D.S. Clock+

T.M.D.S. Clock–

APPENDIX

CONTROL PORT CONNECTOR

Terminal : Mini DIN 8-PIN

Pin Configuration

5

8 7 6

4 3

2 1

7

8

5

6

3

4

1

2

PS/2

-----

CLK

DATA

GND

-----

-----

GND

-----

Serial

R X D

-----

-----

GND

RTS / CTS

T X D

GND

GND

ADB

-----

ADB

-----

GND

-----

-----

-----

GND

USB CONNECTOR (Series B)

Pin Configuration

2 1

3 4

3

4

1

2

Vcc

- Data

+ Data

Ground

OPTIONAL PARTS

The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer.

Control Cable (Serial Port)

Control Cable (ADB Port)

MAC Adapter

Media Card Imager Kit

Wireless Imager Kit

Type No. : CP13T-212

Type No. : CP13T-213

Type No. : ZZZADAP-MAC

Type No. : PCMCIA-MOD1

Type No. :

Available models are different in each country. Contact the sales dealer for details.

When using Wireless Imager, set the following model name to

PJ Controller.

Model Name : 09

(Product)

-1

(Model)

-1

(Category)

Downloaded from ProjectorsManual.com Manuals

45

Downloaded from ProjectorsManual.com Manuals

47

LIMITED WARRANTY

BOXLIGHT CORPORATION (“BOXLIGHT”) warrants that each BOXLIGHT CP-18t (“the Product”) sold hereunder will conform to and function in accordance with the written specifications of BOXLIGHT. Said limited warranty shall apply only to the first person or entity that purchases the Product for personal or business use and not for the purpose of distribution resale. Said warranty shall continue for a period of two (2) years from the date of such purchase.

BOXLIGHT does not warrant that the Product will meet the specific requirements of the first person or entity that purchases the Product for personal or business use. Lamp is warrantied for 120 days. Accessories are warrantied for

1 year from date of purchase.

BOXLIGHT CORPORATION’s liability for the breach of the foregoing limited warranty is limited to the repair or replacement of the Product or refund of the purchase price of the Product, at BOXLIGHT’s sole option. To exercise the Purchaser’s rights under the foregoing warranty, the Product must be returned at the Purchaser’s sole cost and expense, to BOXLIGHT or any authorized service center provided, however, that the Product must be accompanied by a written letter explaining the problem and which includes (i) proof of purchase; (ii) the dealer’s name; (iii) the model and serial number of the Product. A return authorization number, issued by the BOXLIGHT customer service

department, must also be clearly displayed on the outside of the shipping carton containing the Product.

WARRANTY LIMITATION AND EXCLUSION

BOXLIGHT CORPORATION shall have no further obligation under the foregoing limited warranty if the Product has been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress (unusual physical and electrical stress includes unusually long operation, exposure to smoke and other airborne contaminants), unauthorized modification, tampering, alterations, or service other than by BOXLIGHT or its authorized agents, causes other than from ordinary use or failure to properly use the Product in the application for which said Product is intended.

DISCLAIMER OR UNSTATED WARRANTIES

The warranty printed above is the only warranty applicable to this purchase.

All other warranties express or implied, including, but not limited to, the implied warranties or merchantability and fitness for a particular purpose are disclaimed. There are no warranties that extend beyond the face hereof and the foregoing warranty shall not be extended, altered or varied except by written instrument signed by BOXLIGHT

CORPORATION.

LIMITATION OF LIABILITY

It is understood and agreed that BOXLIGHT’s liability whether in contract, in tort, under any warranty, in negligence or otherwise shall not exceed the return of the amount of the purchase price paid by purchaser and under no circumstances shall BOXLIGHT be liable for special, indirect or consequential damages. The price stated for the

Product is a consideration in limiting BOXLIGHT’s liability. No action regardless of form, arising out of the agreement to purchase the product, may be brought by purchaser more than one year after the cause of action has accrued.

Printed in Japan

Part No. 610 300 8516 (1AA6P1P3478-- ML8E)

Downloaded from ProjectorsManual.com Manuals

Boxlight

19332 Powder Hill Place

Poulsbo, WA 98370-7407 USA www.boxlight.com

USA and Canada 800-762-5757

International 360-779-7901

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
