Optoma HD131Xe Projector User Guide

Optoma HD131Xe Projector User Guide

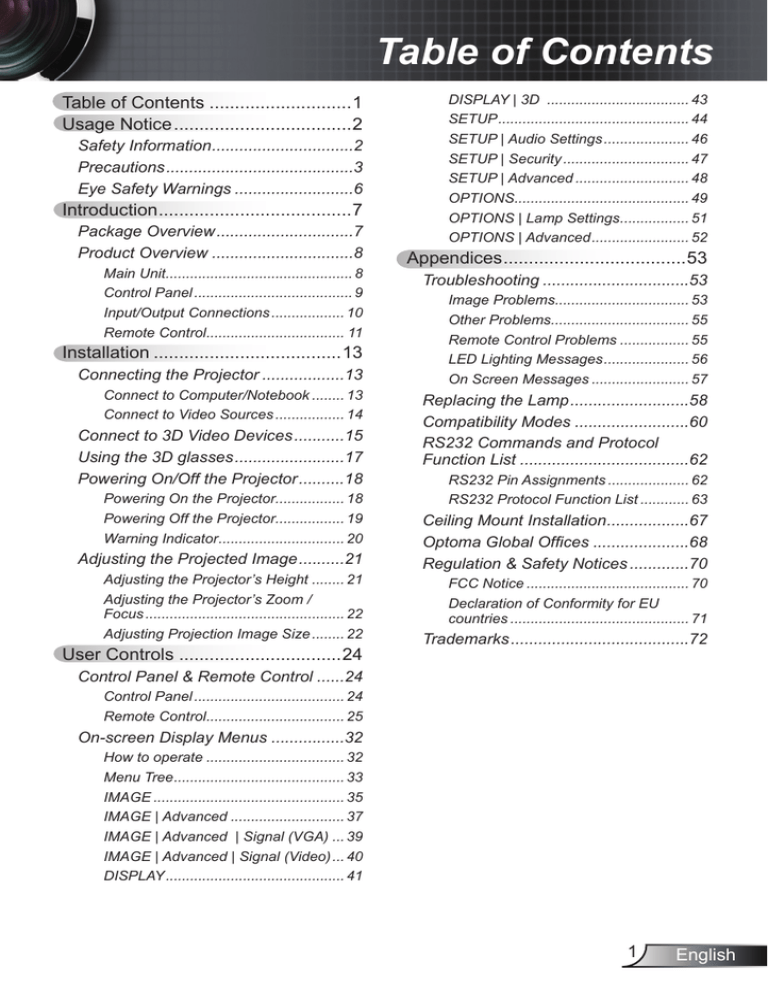

Table of Contents
Table of Contents.............................1
Usage Notice....................................2
Safety Information................................2
Precautions..........................................3
Eye Safety Warnings...........................6
Introduction.......................................7
Package Overview...............................7
Product Overview................................8
Main Unit............................................... 8
Control Panel........................................ 9
Input/Output Connections................... 10
Remote Control................................... 11
Installation......................................13
Connecting the Projector...................13
Connect to Computer/Notebook......... 13
Connect to Video Sources.................. 14
Connect to 3D Video Devices............15
Using the 3D glasses.........................17
Powering On/Off the Projector...........18
Powering On the Projector.................. 18
Powering off the projector.................. 19
Warning Indicator................................ 20
Adjusting the Projected Image...........21
Adjusting the Projector’s Height ........ 21
Adjusting the Projector’s Zoom /
Focus.................................................. 22
Adjusting Projection Image Size......... 22
User Controls.................................24
DISPLAY | 3D .................................... 43
SETUP................................................ 44
SETUP | Audio Settings...................... 46
SETUP | Security................................ 47
SETUP | Advanced............................. 48
OPTIONS............................................ 49
OPTIONS | Lamp Settings.................. 51
OPTIONS | Advanced......................... 52
Appendices.....................................53
Troubleshooting.................................53
Image Problems.................................. 53
Other Problems................................... 55
Remote Control Problems.................. 55
LED Lighting Messages...................... 56
On Screen Messages......................... 57
Replacing the Lamp...........................58
Compatibility Modes..........................60
RS232 Commands and Protocol
Function List......................................62
RS232 Pin Assignments..................... 62
RS232 Protocol Function List............. 63
Ceiling Mount Installation...................67
Optoma Global Offices......................68
Regulation & Safety Notices..............70
FCC Notice......................................... 70
Declaration of Conformity for EU
countries............................................. 71
Trademarks........................................72
Control Panel & Remote Control.......24
Control Panel...................................... 24
Remote Control................................... 25
On-screen Display Menus.................32
How to operate................................... 32
Menu Tree........................................... 33
IMAGE................................................ 35
IMAGE | Advanced............................. 37
IMAGE | Advanced | Signal (VGA).... 39
IMAGE | Advanced | Signal (Video).... 40
DISPLAY............................................. 41
1
English
Usage Notice
Safety Information
The lightning flash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of the
projector and to protect from over heating, it is recommended to install the
projector in a location that does not block ventilation. As an example, do
not place the projector on a crowded coffee table, sofa, bed, etc. Do not
put the projector in an enclosure such as a book case or a cabinet that
restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire
and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any
other apparatus such as amplifiers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical
damage/abuse would be (but not limited to):
-- Unit has been dropped.
-- Power supply cord or plug has been damaged.
-- Liquid has been spilled on to the projector.
-- Projector has been exposed to rain or moisture.
-- Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric
shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
English
2
Usage Notice
Precautions
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
NOTE
™™ When the lamp
reaches the end
of its life, the projector will not turn
back on until the
lamp module has
been replaced. To
replace the lamp,
follow the procedures listed under
“Replacing the
Lamp” section.
▀■ Warning-
Do not look into the projector’s lens when the
lamp is on. The bright light may hurt your eyes.
▀■ Warning-
To reduce the risk of fire or electric shock, do
not expose this projector to rain or moisture.
▀■ Warning-
Please do not open or disassemble the projector as this may cause electric shock.
▀■ Warning-
When replacing the lamp, please allow the unit
to cool down.
▀■ Warning-
This projector will detect the life of the lamp
itself. Please be sure to change the lamp when
it shows warning messages.
▀■ Warning-
Reset the “Lamp Reset” function from the
on-screen display “OPTIONS | Lamp Settings”
menu after replacing the lamp module.
▀■ Warning-
When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.
▀■ Warning-
Do not use lens cap when projector is in operation.
▀■ Warning-
When the lamp is approaching to the end of
its life time, the message “Replacement suggested” will show on the screen. Please contact
your local reseller or service center to change
the lamp as soon as possible.
▀■ Warning-
Do not look into or point the laser pointer on
your remote control into your or someone’s
eyes. Laser pointer can cause permanent damage to eyesight.
3
English
Usage Notice
Do:
™™ Turn off and unplug the power plug from the AC outlet before
cleaning the product.
™™ Use a soft dry cloth with mild detergent to clean the display housing.
™™ Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Do not:
™™ Block the slots and openings on the unit provided for ventilation.
™™ Use abrasive cleaners, waxes or solvents to clean the unit.
™™ Use under the following conditions:
-- In extremely hot, cold or humid environments.
`` Ensure that the ambient room temperature is within 5°C ~
40°C
`` Relative humidity is 10% ~ 85%
-- In areas susceptible to excessive dust and dirt.
-- Near any appliance generating a strong magnetic field.
-- In direct sunlight.
Viewing 3D projection using the 3D function
IMPORTANT SAFETY INFORMATION. READ THE FOLLOWING WARNINGS BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION.
Warning
™™ Children and teenagers may be more susceptible to health issues
associated with viewing in 3D and should be closely supervised
when viewing these images.
Photosensitive Seizure Warning and Other Health Risks
™™ Some viewers may experience an epileptic seizure or stroke when
exposed to certain flashing images or lights contained in certain
Projector pictures or video games. If you suffer from, or have a
family history of epilepsy or strokes, please consult with a medical
specialist before using the 3D function.
™™ Even those without a personal or family history of epilepsy or
stroke may have an undiagnosed condition that can cause photosensitive epileptic seizures.
™™ Pregnant women, the elderly, sufferers of serious medical condi-
English
4
Usage Notice
™™
™™
™™
™™
™™
™™
tions, those who are sleep deprived or under the influence of
alcohol should avoid utilizing the unit’s 3D functionality.
If you experience any of the following symptoms, stop viewing 3D
pictures immediately and consult a medical specialist: (1) altered
vision; (2) light-headedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea;
(7) loss of awareness; (8) convulsions; (9) cramps; and/ or (10)
disorientation. Children and teenagers may be more likely than
adults to experience these symptoms. Parents should monitor
their children and ask whether they are experiencing these symptoms.
Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye strain and decreased postural
stability. It is recommended that users take frequent breaks to
lessen the potential of these effects. If your eyes show signs of
fatigue or dryness or if you have any of the above symptoms, immediately discontinue use of this device and do not resume using
it for at least thirty minutes after the symptoms have subsided.
Watching 3D projection while sitting too close to the screen for
an extended period of time may damage your eyesight. The
ideal viewing distance should be at least three times the screen
height. It is recommended that the viewer’s eyes are level with the
screen.
Watching 3D projection while wearing 3D glasses for an extended
period of time may cause a headache or fatigue. If you experience
a headache, fatigue or dizziness, stop viewing the 3D projection
and rest.
Do not use the 3D glasses for any other purpose than for watching 3D projection. Wearing the 3D glasses for any other purpose
(as general spectacles, sunglasses, protective goggles, etc.) may
be physically harmful to you and may weaken your eyesight.
Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your 3D PROJECTOR near open
stairwells, cables, balconies, or other objects that can be tripped
over, run into, knocked down, broken or fallen over.
5
English
Usage Notice
Eye Safety Warnings
English
6
▀■
Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■
When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■
In order to minimize the lamp power, use room blinds to reduce ambient light levels.
Introduction
Package Overview
ER
POW
Unpack and inspect the box contents to ensure all parts listed
below are in the box. If something is missing, please contact
Optoma customer service.
SOURCE
Power Cord
Projector
™™ Due to different
applications in each
Country, some
regions may have
different accessories.
™™ Lens cap is not
included in the
package
2 × AAA Batteries
IR Remote Control
(Remote may vary depending on model)
Documentation :
Warranty Card

Quick Start Card

WEEE Card

(for EMEA only)
Optional lens cap
7
English
Introduction
Product Overview
Main Unit
1
2
3
4
5
2
6
PO
ER
W
1
RCE
SOU
5
8
7
SOURCE
POW
ER
VIDEO
HDMI 1
™™ The interface is
subject to model’s
specifications.
™™ Do not block
projector in/out air
vents.
8
AUDIO1-IN
(VGA)
3D SYNC
Out(5V)
HDMI 2
RS-232C
AUDIO
OUT
AUDIO2-IN
(VIDEO)
11
10
1.
2.
3.
4.
5.
6.
English
VGA-IN/YPb
Pr/
MOUSE/
SERVICE
Ventilation (outlet)
Ventilation (inlet)
Focus Ring
Zoom Ring
IR Receivers
Control Panel
9
8
7. Lens
8. Tilt-Adjustment Feet
9. Security Bar
10. Input / Output
Connections
11. Power Socket
Introduction
Control Panel
1
2
12
3
4
5
6
POW
?
ER
7
8
9
10
11
1. Help
2. Menu
3. Source
4. Enter
5. Re-Sync
6. Power
7. Keystone Correction
8. Four Directional Select Keys
9. On/Standby LED
10. Lamp LED
11. Temp LED
12. IR Receiver
9
English
Introduction
Input/Output Connections
1
2
3
4
VIDEO
MOUSE/
SERVICE
HDMI 1
HDMI 2
5
6
7
AUDIO1-IN
(VGA)
VGA-IN/YPbPr/
RS-232C
8
3D SYNC
Out(5V)
AUDIO
OUT
AUDIO2-IN
(VIDEO)
9
10
1.
2.
3.
4.
5.
™™ The interface is
subject to model’s
specifications.
™™ VGA dongle is a
optional accessory. Please contact
Optoma service
for details.
English
10
11
12
13
USB for remote mouse function and firmware upgrade
HDMI 1 Connector (v1.4a 3D supported)
HDMI 2 Connector (v1.4a 3D supported)
Composite Video Input Connector
VGA-In/YPbPr/
Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr/
Wireless function via VGA Dongle)
6. Audio1 Input for VGA (3.5mm mini jack)
7. Audio Output Connector (3.5mm Mini Jack)
8. 3D Sync Out (5V)
9. Power Socket
10. RS-232 Connector (9-pin)
11. Audio2 Input for Video (3.5mm mini jack)
12. KensingtonTM Lock Port
13. Security Bar
Introduction
Remote Control
Type A
™™ The remote is
subject to model’s
specifications.
1
23
2
22
3
21
4
20
5
19
6
7
18
8
17
9
16
15
7
14
10
13
11
™™ The VGA2 button on
the remote control
only functions on
models with VGA2
Input.
1. Power On
2. Power Off
3. 16:9
4. Native
5. Gamma
6. 3D format
7. Vol+/8. Enter
9. Re-Sync
10. VGA1 Source
11. Video Source
12. HDMI2 Source
13. VGA2 Source
14. HDMI1 Source
15. Menu
16. Four Directional Select
Keys
17. Source
18. Lamp Mode
19. Contrast
20. Brightness
21. LBX
22. 4:3
23. Mode
12
11
English
Installation
Type B
1
™™ The remote is
subject to model’s
specifications.
2
7
3
8
4
9
5
6
10
19
11
12
20
13
21
14
22
15
23
16
24
17
18
25
Type C
English
12
26
27
1.
2.
3.
4.
5.
6.
LED Indicator
Power On/Off
Source
Mouse Left Click
Enter
Four Directional Select
Keys / Mouse control
7. Switch (turn on/off
mouse function)
8. Re-Sync
9. Mouse Right Click
10. Display Mode
11. Page Up
12. Volume +/13. Menu
14. Zoom
15. AV mute
16. Video
17. 3D
18. VGA1
19. Page Down
20. Keystone +/21. Brightness
22. HDMI1
23. HDMI2
24. Dynamic Black
25. Numbered keypad
(for password input)
26. Freeze
27. Laser Pointer
Installation
Connecting the Projector
Connect to Computer/Notebook
3D Glasses
MOLEX
3
2
4
5
molex
MOUSE/
SERVICE
HDMI 1
HDMI 2
AUDIO1-IN
(VGA)
VGA-IN/YPbPr/
RS-232C
3D SYNC
Out(5V)
AUDIO
OUT
AUDIO2-IN
(VIDEO)
R
PS50426E
™™ Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
™™ (*) Optional
accessory
VIDEO
1
6
7
8
Audio Output
1....................................................................................................Power Cord
2......................................................................... *USB Cable (Mouse control)
3..................................................................................................*HDMI Cable
4................................................................................................... *VGA Cable
5...........................................................................................*3D Emitter cable
6................................................................................................*RS232 Cable
7.........................................................................................*Audio Input Cable
8......................................................................................*Audio Output Cable
13
English
Installation
Connect to Video Sources
DVD Player, Set-top Box,
HDTV receiver
Audio Output
5
3
2
7
9
3D Glasses
8
6
4
10
™™ Due to the
difference in applications for each
country, some
regions may have
1
different accessories.
™™ For more detailed
information about
connecting to the
3D emitter and 3D
glasses, please
refer to their
11
8
Composite Video Output
user’s guides.
™™ Use high speed
HDMI cable to
connect Blu-ray
3D player.
™™ (*) Optional Accessory
1....................................................................................................Power Cord
VIDEO
MOUSE/
SERVICE
HDMI 1
HDMI 2
AUDIO1-IN
(VGA)
VGA-IN/YPbPr/
RS-232C
3D SYNC
Out(5V)
AUDIO
OUT
AUDIO2-IN
(VIDEO)
R
PS50426E
2..................................................................................................*HDMI Cable
3.............................................................................*3 RCA Component Cable
4........................................................................................*VGA/RCA Adaptor
5................................................................................... *SCART/VGA Adaptor
6................................................................................................... *VGA Cable
7...........................................................................................*VGA/RCA Cable
8.................................................................................*Audio Cable Jack/RCA
9......................................................................................*Audio Output Cable
10.........................................................................................*3D Emitter cable
11...............................................................................*Composite Video Cable
English
14
Installation
Connect to 3D Video Devices
NOTE
™™ The 3D video
source device
must be powered
on before the 3D
projector.
NOTE
™™ If input video is
normal 2D, please
press “3D Format”
and switch to
“Auto”.
™™ If “SBS Mode” is
active, 2D video
content will not
display correctly.
Once you have connected your devices together with HDMI
cables, as shown in the diagram, you are ready to begin.
Power ON your 3D video source and your 3D projector.
PlayStation® 3 Games
Make sure that you have updated your console to the latest software veryy
sion.
Go to the “Settings menu -> Display settings -> Video output -> HDMI”.
yy
Select “Automatic” and follow the on-screen instructions.
Insert your 3D game disc. Alternatively you can download games (and 3D
yy
updates) via the PlayStation® network.
Launch the game. In the in-game menu, select “Play in 3D”.
yy
Blu-ray 3D™ Player
Make sure that your player can support 3D Blu-ray™ disc and that 3D
yy
output is enabled.
Insert the 3D Blu-ray™ disc into the player, press “Play”.
yy
3D TV (e.g. SKY 3D, DirecTV)
Contact your TV service provider to enable any 3D channels on your
yy
channel package.
Once enabled, switch to the 3D channel.
yy
yy
You should see two images side-by-side.
yy
Switch to the “SBS Mode” of the 3D projector. The option is located in the
“Display” section of the projector OSD menu.
3D Device (e.g. 3D DV/DC) with 2D 1080i side by side signal output
Connect your 3D device and switch to out 3D content with 2D side-by-side
yy
output to 3D Projector.
-- You should see two images side-by-side.
Switch to the “SBS Mode” of the 3D projector. The option is located in the
yy
“Display” section of the projector OSD menu.
If watching 3D content from an HDMI 1.4a source (e.g. 3D Blu-ray) your 3D
glasses should always be in sync. If watching 3D content from an HDMI 1.3
source (e.g. 3D broadcast using SBS mode) it may be necessary to use the
projector’s 3D Sync-Invert option to optimize your 3D experience. The option
is located in the “Display ->3D” section of the projector OSD menu.
15
English
Installation
3D Broadcast
3D Blu-ray™ Disc
SKY+HD, cable/satellite
box
3D Blu-ray™ Player
3D Console Games
PO
WE
R
PlayStation® 3
E
SOURC
3D Glasses
Full 3D 1080p DLP® Projector
English
16
Installation
NOTE
™™ For more detailed
information,
please refer to
3D glasses user’s
guide.
Using the 3D glasses
1. To turn ON 3D glasses: Press the “Power” button and the LED will flash
one time indicating the glasses are ready to use 3D mode.
2. Verify that 3D content is being sent to the projector and signal is compatible with projector specifications.
3. Turn on the “3D Mode” (DLP-Link/VESA 3D - depending on which type
of glasses you are using) of the 3D projector. The option is located in the
“Display” section of the projector OSD menu.
4. Turn on 3D glasses and verify image appears in 3D without eyestrain.
5. If the image does not appear in 3D, please check 3D device set up correctly to send out 3D image or not. Or “SBS Mode” should turn on when
input signal is 2D 1080i side-by-side and repeat previous steps 1 ~ 4.
6. It may be necessary to use projector’s “3D Sync-Invert” option to optimize
your 3D experience. The option is located in the “Display” section of the
projector OSD menu.
7. To turn OFF 3D glasses: Press the “Power” button and hold until the LED
switches off.
8. For more detailed information, please refer to the 3D glasses user’s
guide, or manufacturer's Website.
17
English
Installation
Powering On/Off the Projector
Powering On the Projector
™™ When Power mode
(Standby) is set to
Eco (<0.5W), the
VGA output and
Audio pass-through
will be deactivated
when the projector
is in standby.
1. Securely connect the power cord and signal cable. When
connected, the ON/STANDBY LED will turn Amber.
2. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The ON/STANDBY LED will
now turn Green. 
The startup screen will display in approximately 10 seconds.
The first time you use the projector, you will be asked to
select the preferred language and power saving mode.
3. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.
Power
1
POW
?
ER
W
ER
PO
™™ Turn on the projector first and then
select the signal
sources.
CE
SOUR
English
18
Installation
Powering off the projector
1. Press the “ ” button on the remote control or
on the control panel to turn off the projector.
The following message will be displayed on the screen.
Power Off?
Press Power again
Press the “ ” button again to confirm otherwise the
message will disappear after 15 seconds. When you
press the “ ” button for the second time, the projector will
display countdown timer and will shut down.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle and the ON/STANDBY LED will Flash
Green. When the ON/STANDBY LED lights solid Amber,
the projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and
has entered standby mode. Once in standby mode, simply
press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a power
off procedure.
19
English
Installation
Warning Indicator
When the warning indicators (see below) come on,
the projector will automatically shutdown:
™™ Contact the nearest
service center if the
projector displays
these symptoms.
See pages 68-69 for
more information.
English
20
 “LAMP” LED indicator is lit red and if “On/Standby” indicator
flashes amber.
 “TEMP” LED indicator is lit red and if “On/Standby”
indicator flashes amber. This indicates the projector has
overheated. Under normal conditions, the projector can be
switched back on.
 “TEMP” LED indicator flashes red and if “On/Standby”
indicator flashes amber.
Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please
contact your nearest service center for assistance.
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator feet for adjusting
the image height.
1.Locate the adjustable foot you wish to modify on the
underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector
or counter clockwise to lower it. Repeat with the remaining
feet as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
21
English
Installation
Adjusting the Projector’s Zoom / Focus
PO
ER
W
You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear.
The projector will focus at distances from 4.92 to 32.80 feet
(1.5 to 10.0 meters).
?
Zoom Ring
Focus Ring
Adjusting Projection Image Size
Projection Image Size from 37.6” to 301.1” (0.96 to 7.65
meters).
Top View
Screen
Screen (W)
Height
Projection Distance (D)
Screen
Side View
Offset (Hd)
Projection Distance (D)
English
22
Screen (H)
Dia
go
na
Width
l
Installation
Diagonal length
(inch) size of
16:9 Screen
Screen Size W x H
(m)
Projection Distance (D)
(inch)
(m)
Offset (Hd)
(feet)
Width
Height
Width
Height
wide
tele
wide
tele
(m)
37.6
0.83
0.47
32.8
18.4
-
1.5
-
4.92
0.07
(feet)
0.25
40.0
0.89
0.50
35.0
19.6
1.3
1.6
4.36
5.22
0.08
0.26
60.0
1.33
0.76
52.4
29.8
2.0
2.4
6.53
7.84
0.12
0.40
70.0
1.55
0.87
61.0
34.3
2.3
2.8
7.62
9.15
0.14
0.46
80.0
1.77
1.00
69.7
39.4
2.7
3.2
8.71
10.46
0.16
0.52
90.0
1.99
1.12
78.3
44.1
3.0
3.6
9.80
11.76
0.18
0.59
100.0
2.21
1.25
87.0
49.2
3.3
4.0
10.89
13.07
0.20
0.66
120.0
2.66
1.49
104.7
58.7
4.0
4.8
13.07
15.68
0.24
0.78
150.0
3.32
1.87
130.7
73.6
5.0
6.0
16.34
19.60
0.30
0.98
180.0
3.98
2.24
156.7
88.2
6.0
7.2
19.60
23.53
0.36
1.18
250.0
5.53
3.11
217.7
122.4
8.3
10.0
27.23
32.68
0.50
1.63
301.1
6.67
3.75
262.4
147.6
10.0
-
32.80
-
0.60
1.97
This table is for user’s reference only.
23
English
User Controls
Control Panel & Remote Control
Control Panel
POW
?
ER
Using the Control Panel
English
24
POWER
Refer to the “Power On/Off the Projector” section on
pages 18-19.
RE-SYNC
Automatically synchronize the projector to the input
source.
Enter
Confirm your item selection.
SOURCE
Press “SOURCE” to select an input signal.
Menu
Press “Menu” to launch the on-screen display
(OSD) menu. To exit OSD, Press “Menu” again.
Help
Help Menu (only available when OSD menu is not
shown).
Four Directional
Select Keys
Use
to select items or make adjustments to your selection.
Keystone
Use
to adjust image distortion caused
by tilting the projector. (±40 degrees)
Lamp LED
Indicate the projector’s lamp status.
Temp LED
Indicate the projector’s temperature status.
ON/STANDBY LED
Indicate the projector’s status.
User Controls
Remote Control
Type A
Using the Remote Control
Power On
Refer to the “Power On” section on page 18.
Power Off
Refer to the “Power On/Off the Projector”
section on page 19.
Lamp Mode
Increase/Decrease the luminance of the image. (refer to page 51)
Mode
Select a display mode for optimised settings
for different applications. (refer to page 35)
4:3
Scale the image at a 4:3 (1440x1080) aspect
ratio.
16:9
Scale the image at a 16:9 (1920x1080)
aspect ratio.
LBX
Enable the viewing of the letterboxed nonanamorphically enhanced movie at full screen
width. Part of the original image will be lost if
the image aspect ratio is less than 2.35:1.
Native
The input source will be displayed without
scaling.
Gamma
Set up gamma curve type.
Brightness
Adjust the brightness of the image.
Contrast
Control the degree of difference between the
lightest and darkest parts of the picture.
3D Format
Manually select a 3D mode that matches
your 3D content.
Vol+ / Vol -
Adjust to increase / decrease the volume.
25
English
User Controls
Using the Remote Control
Type A
Enter
Confirm your item selection.
Source
Press “Source” to select an input signal.
Re-sync
Automatically synchronizes the projector
to the input source.
Menu
Display or exit the on-screen display
menus for projector.
HDMI1
Press “HDMI1” to choose source from
HDMI 1 connector.
HDMI2
Press “HDMI2” to choose source from
HDMI 2 connector.
VGA1
Press “VGA1” to choose source from
VGA-IN/YPbPr/ connector.
VGA2
No function.
Video
Press “Video” to choose Composite
video source.
Four
Directional
Select Keys
English
26
Use
to select items or
make adjustments to your selection.
User Controls
Remote Control
Type B/C
Using the Remote Control
Power
Refer to the “Power On/Off the Projector”
section on pages 18-19.
L Button
Mouse left click.
R Button
Mouse right click.
Page +
Use this button to page up.
Page -
Use this button to page down.
Enter
Confirm your item selection.
Source
Press “Source” to select an input signal.
Re-Sync
Automatically synchronizes the projector to
the input source.
Four Directional
Select Keys
Use ▲▼◄► to select items or make adjustments to your selection.
PC/Mouse Control
Use ▲▼◄► for emulation of USB mouse
via USB when you press “Switch” button.
Keystone +/-
Adjust image distortion caused by tilting the
projector.
Volume +/-
Adjust to increase / decrease the volume.
Brightness
Adjust the brightness of the image.
Dynamic Black
Automatically adjusts the picture brightness
to give optimum contrast performance.
Menu
Press “Menu” to launch the on-screen
display (OSD) menu. To exit OSD, press
“Menu” again.
HDMI1
Press “HDMI1” to choose source from
HDMI 1 connector.
27
English
User Controls
Using the Remote Control
Type B/C
HDMI2
Press “HDMI2” to choose source from
HDMI 2 connector.
Freeze
Press “Freeze” to pause the screen image.
Press this button again to unlock.
AV mute
Momentarily turns off/on the audio and
video.
VGA1
Press “VGA1” to choose source from
VGA-IN/YPbPr/ connector.
VGA2
No function.
Video
Press “Video” to choose Composite video
source.
Switch
USB mouse switch. Turns mouse function
on/off. Press once to turn on the mouse
function. For the mouse function to work,
USB cable must be connected between the
projector and computer.
Mode
Select the display mode from Cinema,
Bright, Photo, Reference, 3D and User.
(refer to page 35)
Zoom
3D
English
28
Zoom in on an image.
Press ◄► buttons to alter zoom.
Press the “3D” to turn the 3D OSD menu
on/off.
User Controls
Using the HELP button
The HELP function ensures easy setup and operation.
Press the “?” button on the control panel to open the Help
Menu.
ER
W
PO
?
?
29
English
User Controls
Help menu button functions only when no input source
is detected.
Please refer to the
“Troubleshooting”
section on pages
53-55 for more
details.
If input source is detected and help button is pressed, the
following pages will appear to help diagnose any problems.
English
30
User Controls
31
English
User Controls
On-screen Display Menus
The Projector has multilingual On-screen Display menus that
allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to operate
1. To open the OSD menu, press “Menu” on the Remote Control or
Control Panel.
2 When OSD is displayed, use ◄► keys to select any item in the
main menu. While making a selection on a particular page, press
▼ or “Enter” key to enter sub menu.
3. Use ▲▼ keys to select the desired item in the sub menu and then
press ► or “Enter” key to view further settings. Adjust the settings
by ◄► key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Enter” or “Menu” to confirm, and the screen will return to
the main menu.
6. To exit, press “Menu” again. The OSD menu will close and the
projector will automatically save the new settings.
Main Menu
Display Mode
Brightness
Sub Menu
Contrast
Sharpness
Color
Tint
Advanced
English
32
Settings
User Controls
Menu Tree
Main Menu
Sub Menu
Display Mode
Settings
Brightness
Cinema / Reference / Photo / Bright / 3D
/ User /
-50~50
Contrast
-50~50
Sharpness
1~15
#1
Color
-50~50
#1
Tint
-50~50
Advanced
Noise Reduction
0~10
Gamma
Film / Video / Graphics / Standard
BrilliantColor™
1~10
Dynamic Black
Off / Low / High
Color Temp.
Warm / Medium / Cold
Color Settings
Red / Green / Blue
/ Cyan / Magenta /
Yellow /
Hue / Saturation / Gain
White
Red / Green / Blue
Reset
Exit
Color Space
Signal (VGA)
AUTO / RGB (0-255) / RGB (16-235) /
YUV
Automatic
On / Off
Phase
0~31
Frequency
-5~5
H. Position
-5~5
V. Position
-5~5
Exit
Signal (Video)
White Level
-50~50
Black Level
-50~50
Saturation
-50~50
Hue
-50~50
Exit
Exit
Reset
Display
4:3 / 16:9 / LBX / Native / AUTO /
Superwide
Format
Edge Mask
0~10
Zoom
-5~25
Image Shift
H
-100~100
V
-100~100
3D Mode
3D ĺ 2D
3D Format
DLP-Link / VESA 3D
3D / L / R
Auto / SBS / Top and Bottom / Frame
Sequential
On / Off
V Keystone
-40~40
3D
#2
#2
Setup
3D Sync. Invert
Exit
Language
English / Deutsch / Français /
Italiano / Español / Português /
Svenska / Nederlands / Norsk/Dansk /
Polski / Suomi / Ɋɭɫɫɤɢɣ / İȜȜȘȞȚțȐ /
Magyar / ýeština / ̶γέΎϓ / ϲΑήϋ /᜗᧯խ
֮ʳ/ 亞᫿խ֮ʳ/ ֲ‫ء‬፿!0ᾂ᝖᱑ʳ/ ࡷࡎ࡙/
Türkçe / ViӋt / Bahasa Indonesia /
Română
Projection
Menu Location
HD25e OSD Menu Tree.xls
33
English
User Controls
Main Menu
Sub Menu
Setup
Audio Settings
Security
Settings
Internal Speaker
On / Off
Mute
On / Off
Volume
0~10
Audio Input
Default / Audio1 / Audio2
Security
On / Off
Security Timer
Month / Day / Hour
Change Password
Exit
Projector ID
Advanced
0~99
Logo
Default / Neutral
Logo Capture
Closed Captioning
Off / CC1 / CC2
Wireless
On / Off
Exit
Options
Input Source
VGA / Video / HDMI1/ HDMI2
Source Lock
On / Off
High Altitude
On / Off
Information Hide
On / Off
Keypad Lock
On / Off
Test Pattern
None / Grid / White Pattern
IR Function
On / Off
Background Color
Lamp Settings
Black / Red / Blue / Green / White
Lamp Hours
Lamp Reminder
On / Off
Lamp Mode
Bright / Eco
Lamp Reset
Yes / No
Exit
Advanced
Direct Power On
On / Off
Auto Power Off (min.)
0~180
Sleep Timer (min.)
0~990
Power Mode (Standby)
Active / Eco
Exit
Reset
Current
Yes / Cancel
All
Yes / Cancel
™™ Please note that the on-screen display (OSD) menus vary according to the
signal type selected and the projector model you are using.
™™ (#1) “Color” and “Tint” are only supported in Video mode.
™™ (#2) “3D Sync Invert” is only available when 3D is enabled.
HD25e OSD Menu Tree.xls
English
34
User Controls
Display Mode
Brightness
Contrast
Sharpness
Color
Tint
Advanced
Display Mode
There are many factory presets optimized for various types of
images.
`` Cinema: For home theater.
`` Bright: Maximum brightness from PC input.
`` Photo: Optimized for displaying photographic images.
`` Reference: This mode is intended to reproduce, as close as
possible, the image the way the movie director intended. Color,
color temperature, brightness, contrast and gamma settings are
all configured to standard reference levels.
`` User: User’s settings.
`` 3D: Recommended setting for 3D mode enabled. Any further
adjustments by the user in 3D will be saved in this mode for
further use.
Brightness
Adjust the brightness of the image.
`` Press the ◄ to darken image.
`` Press the ► to lighten the image.
Contrast
The contrast controls the degree of difference between the lightest
and darkest parts of the picture.
`` Press the ◄ to decrease the contrast.
`` Press the ► to increase the contrast.
Sharpness
Adjust the sharpness of the image.
`` Press the ◄ to decrease the sharpness.
`` Press the ► to increase the sharpness.
35
English
User Controls
Color
Adjust a video image from black and white to fully saturated color.
`` Press the ◄ to decrease the color saturation in the image.
`` Press the ► to increase the color saturation in the image.
Tint
™™ “Color” and “Tint”
are only supported for composite
and component
sources.
English
36
Adjust the color balance of red and green.
`` Press the ◄ to increase the amount of green in the image.
`` Press the ► to increase the amount of red in the image.
User Controls
IMAGE | Advanced
Advanced
Noise Reduction
Film
Gamma
BrilliantColor™
Low
Dynamic Black
Medium
Color Temp.
Color Settings
Noise Reduction
The Noise Reduction reduces the amount of visible noise interlaced signals. The range is from “0” to “10”. (0: Off)
Gamma
This allows you to set up gamma curve type. After the initial setup
and fine tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
`` Film: for home theater.
`` Video: for video or TV source.
`` Standard: for standardized setting.
`` Graphics: for PC / Photo source.
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm and
enhancements to enable higher brightness while providing true,
more vibrant colors in picture. The range is from “1” to “10”. If you
prefer a stronger enhanced image, adjust toward the maximum
setting. For a smoother, more natural image, adjust toward the
minimum setting.
Dynamic Black
Dynamic Black enables the projector to automatically optimize the
the brightness of the display during dark/light movie scenes to be
shown in incredible detail.
Color Temp
If set to cold temperature, the image looks more blue.
(cold image)
If set to warm temperature, the image looks more red.
(warm image)
If set to medium temperature, the image maintains normal colorings for white.
37
English
User Controls
Color Settings
Press ► into the next menu and then use ▲ or ▼ or ◄ or ►to
select item.
Color Settings
Red
Cyan
Green
Magenta
Blue
Yellow
White
Reset
Exit
`` Red/Green/Blue/Cyan/Magenta/Yellow: Use ◄ or ► to select
Hue, Saturation and Gain Colors.
Red
Hue
Saturation
Gain
Exit
`` White: Use ◄ or ► to select Red, Green and Blue Colors.
White
Red
Green
Blue
Exit
`` Reset: Choose “ Reset” to return the factory default settings
for color adjustments.
Color Space
Select an appropriate color matrix type from AUTO, RGB(0-255),
RGB(16-235) or YUV.
English
38
User Controls
IMAGE | Advanced
| Signal (VGA)
Advanced : Signal
Automatic
On
Phase
Frequency
H. Position
V. Position
™™ “Signal” is only
supported in Analog VGA (RGB)
signal.
Exit
Automatic
Automatically configures the signal (the Frequency and Phase
items are grayed out). If Automatic is disabled, the Frequency and
Phase items will appear for user to manually tune and save the
settings.
Phase
Synchronize the signal timing of the display with the graphic card.
If the image appears to be unstable or flickers, use this function to
correct it.
Frequency
Change the display data frequency to match the frequency of your
computer’s graphic card. Use this function only if the image appears to flicker vertically.
H. Position
`` Press the ◄ to move the image left.
`` Press the ► to move the image right.
V. Position
`` Press the ◄ to move the image down.
`` Press the ► to move the image up.
39
English
User Controls
IMAGE | Advanced
| Signal (Video)
Advanced : Signal
White Level
Black Level
Saturation
Hue
Exit
™™ “Signal” is not
supported when
the source is
HDMI.
White Level
Allow user adjust White Level when inputting Video signals.
Black Level
Allow user adjust Black Level when inputting Video signals.
Saturation
Adjust a video image from black and white to fully saturated color.
`` Press the ◄ to decrease the amount of color in the image.
`` Press the ► to increase the amount of color in the image.
Hue
Adjust the color balance of red and green.
`` Press the ◄ to increase the amount of green in the image.
`` Press the ► to increase the amount of red in the image.
English
40
User Controls
DISPLAY
DISPLAY
Format
Edge Mask
Zoom
Image Shift
V Keystone
3D
Exit
Format
Use this function to choose your desired aspect ratio.
`` 4:3: This format is for 4x3 input sources.
`` 16:9: This format is for 16x9 input sources, like HDTV and
DVD enhanced for Widescreen TV.
`` LBX: This format is for non-16x9, letterbox source and for users who use external anamorphic lens to display 2.35:1 aspect
ratio using full resolution.
`` Native: This format displays the original image without scaling.
`` AUTO: Automatically selects the appropriate display format.
`` Superwide: This mode scales 2.35:1 sources to fill 100% of
image height to remove black bars. (the left and right side of
image will be cropped). Detail informations about LBX mode:
1. Some Letter-Box Format DVDs are not enhanced for 16x9
TVs. In this situation, the image will not look right when displayed in 16:9 mode. In this situation, please try to using the
4:3 mode to view the DVD. If the content is not 4:3, there will
be black bars around the image in 16:9 display. For this type
of content, you can use LBX mode to fill the image on the 16:9
display.
2. If you use an external anamorphic lens, this LBX mode also
allows you to watch a 2.35:1 content (include Anamorphic
DVD and HDTV film source) that support anamorphic wide
is enhanced for 16x9 Display in a wide 2.35:1 image. In this
case, there are no black bars. Lamp power and vertical resolution are fully utilized.
41
English
User Controls
16:9 Screen
™™ Each I/O has different setting of “Edge
Mask”.
™™ “Edge Mask” and
“Zoom” can’t work at
same time.
480i/p
576i/p
1080i/p
720p
PC
4:3
1440 x 1080 center
16:9
1920 x 1080 center
LBX
1920 x 1440 center, then get the central 1920 x 1080
image to display
Native
No resize image, 1:1 mapping and centered. This format
shows original image without scaling.
Auto
If this format is select, Screen type will auto become 16:9
(1920x1080)
If source is 4:3, auto resize to 1440 x1080
If source is 16:9 auto resize to 1920x1080
If source is 16:10 auto resize to 1920 x 1200 and cut
1920x1080 area to display
Superwide
Scale to 2534 x 1426 (132% Enlarge ), then get the central 1920x1080 image to display
Edge Mask
Edge mask the image to remove video encoding noise on the
edge of video source.
Zoom
`` Press the ◄ to reduce the size of an image.
`` Press the ► to magnify an image on the projection screen.
Image Shift
Press ► into the next menu as below and then use ▲ or ▼or ◄
or ►to select item.
Image Shift
`` H: Press the ◄ ► to shift the projected image position horizontally.
`` V: Press the ▲ ▼ to shift the projected image position vertically.
V Keystone
Press the ◄ or ► to adjust image distortion vertically and make a
squarer image.
English
42
User Controls
DISPLAY
DISPLAY | 3D
3D
3D Mode
DLP - Link
3D
3D -> 2D
3D Format
AUTO
Off
3D Sync. Invert
Exit
3D Mode
`` DLP-Link: Select “DLP-Link” to use optimized settings for DLP
Link 3D Glasses. (refer to page 17).
`` VESA 3D: Select “VESA 3D” to use optimized setting for VESA
3D Glasses. (refer to page 17).
™™ “3D sync. Invert” function wouldn’t save the
setting. It will set to
3D -> 2D
“Off” when powers on
`` 3D: Display 3D signal.
and changes source.
`` L (Left): Display the left frame of 3D content.
™™ 3D Format is only supported on 3D Timing
`` R (Right): Display the right frame of 3D content.
on page 61.
3D
Format
™™ “3D Format” is only
supported on non`` Off: Press the “Off” to disable 3D format conversion.
HDMI 1.4a 3D timing.
`` SBS: Display 3D signal in “Side-by-Side” format.
`` Top and Bottom: Display 3D signal in “Top and Bottom” format.
`` Frame Sequential: Display 3D signal in “Frame Sequential”
format.
3D Sync. Invert
`` Press the “On” to invert left and right frame contents.
`` Press the “Off” for default frame contents.
43
English
User Controls
SETUP
SETUP
Language
English
Projection
Menu Location
Audio Settings
Security
Projector ID
Language
Choose the multilingual OSD menu. Press ► into the sub menu
and then use the ▲ or ▼ or ◄ or ► key to select your preferred
language. Press “Enter” to finalize the selection.
Language
™™ Rear-Desktop and
Rear-Ceiling are to be
used with a translucent screen.
Exit
Projection
``
Front-Projection
This is the default selection. The image is projected straight on
the screen.
``
Rear-Desktop
When selected, the image will appear reversed.
``
Front-Ceiling
When selected, the image will turn upside down.
``
Rear-Ceiling
When selected, the image will appear reversed in upside down
position
English
44
User Controls
Menu Location
Choose the menu location on the display screen.
Projector ID
ID definition can be set up by menu (range 0-99), and allow user
control an individual projector by RS232. Refer to pages 63-66 for
the complete list of RS232 commands.
45
English
User Controls
SETUP
SETUP |
Audio Settings
Audio Settings
Internal Speaker
Off
Mute
Off
Volume
Audio Input
Default
Exit
Internal Speaker
™™ “Mute” function
affects both internal
and external speaker
volume.
Choose the “On” or “Off” to turn on or off the internal speaker.
Mute
`` Choose the “On” to turn mute on.
`` Choose the “Off” to turn mute off.
Volume
`` Press the ◄ to decrease the volume.
`` Press the ► to increase the volume.
Audio Input
™™ HDMI audio signals
cannot be assigned
to other image
sources.
English
46
The default audio inputs are on the back panel of the projector.
Use this option to reassign any of the Audio Inputs to the current
image source.
`` Audio1: VGA.
`` Audio2: Video.
User Controls
SETUP
SETUP | Security
Security
Security
Off
Security Timer
Change Password
Exit
Security
`` On: Choose “On” to use security verification when the turning
on the projector.
`` Off: Choose “Off” to be able to switch on the projector without
password verification.
Security Timer
™™ Pass-code default
value is “1234” (first
time).
Enter Current Security Code (4 digits)
Can be select the time (Month/Day/Hour) function to set the
number of hours the projector can be used. Once this time has
elapsed you will be requested to enter your password again.
Change Password
``
1.
2.
3.
First time:
Press “ ” to set the password.
The password has to be 4 digits.
Use number button on the remote to enter your new password
and then press “ ” key to confirm your password.
Incorrect security code. Re-enter again. (Last Try)
`` Change Password:
(If your remote does not have a number keypad, please use
the up/down arrows to change each digit of the password,
then press enter to confirm)
1. Press “ ” to input old password.
2. Use number button to enter current password and then press “
” to confirm.
3. Enter new password (4 digits in length) using the number buttons on the remote, then press “ ” to confirm.
4. Enter new password again and press “ ” to confirm.
`` If the incorrect password is entered 3 times, the projector will
automatically shut down.
`` If you have forgotten your password, please contact your local
office for support.
47
English
User Controls
SETUP
SETUP |
Advanced
Advanced
Logo
Default
Logo Capture
Closed Captioning
Off
Wireless
Off
Exit
Logo
™™ “For a successful
logo capture, ensure
that the on-screen
image does not
exceed the projector native resolution.
(1080p:1920x1080).
Use this function to set the desired startup screen. If changes are
made they will take effect the next time the projector is powered
on.
`` Default: The default startup screen.
`` Neutral: Logo is not displayed on startup screen.
`` User: Use stored picture from “Logo Capture” function.
Logo Capture
Press ► to capture an image of the picture currently displayed on
screen.
Closed Captioning
™™ “Wireless” is onlyfunctional with VGA
connector.
™™ Wired VGA will not
function and the
projector may shut
down if Wireless is
turned on.
English
48
Use this function to set the desired startup screen. If changes are
made they will take effect the next time the projector is powered
on.
`` Off: select “Off” to turn off the closed captioning feature.
`` CC1:CC1 language: American English.
`` CC2:CC2 language (depending on the TV channel of the
user):Spanish, French, Portuguese, German, Danish.
Wireless
Choose the “On” to turn on the Wireless.
User Controls
OPTIONS
OPTIONS
Input Source
Source Lock
Off
High Altitude
Off
Information Hide
Off
Keypad Lock
Off
Test Pattern
None
IR Function
Off
Input Source
Use this option to enable / disable input sources. Press ► to enter
the sub menu and select which sources you require. Press “Enter”
to finalize the selection. The projector will only search for inputs
that are enabled.
Source Lock
`` On: The projector will only search current input connection.
`` Off: The projector will search for other signals if the current
input signal is lost.
High Altitude
When “On” is selected, the fans will spin faster. This feature is
useful in high altitude areas where the air is thin.
Information Hide
`` On: Choose “On” to hide the info message.
`` Off: Choose “Off” to show the “searching” message.
Keypad Lock
™™ To turn off the keypad
lock, press and hold
“Enter” key on top
of the projector for 5
seconds.
When the keypad lock function is “On”, the control panel will be
locked however, the projector can be operated by the remote
control. By selecting “Off”, you will be able to reuse the control
panel.
Test Pattern
Display a test pattern. There are Grid, White pattern and None.
IR Function
When this function is “ON” , the projector can be operated by the
remote control from IR receiver. By selecting “Off”, you will be able
to use the control panel keys.
49
English
User Controls
Background Color
Use this feature to display a “Black”, “Red”, “Blue”, “Green” or
“White”, screen when no signal is available.
Reset
`` Current: Choose “Yes” to return the display parameters on this
menu to the factory default settings.
`` All: Choose “Yes” to return the display parameters on all
menus to the factory default settings.
English
50
User Controls
OPTIONS
OPTIONS |
Lamp Settings
Lamp Settings
Lamp Hours
On
Lamp Reminder
Lamp Mode
Bright
Lamp Reset
Exit
Lamp Hours
Display the projection time.
Lamp Reminder
™™ When ambient
temperature is over
40°C in operating, the projector
will switch to Eco
automatically.
™™ “Lamp Mode” can
be indipendently set
for 2D and 3D.
Choose this function to show or to hide the warning message
when the changing lamp message is displayed.
The message will appear 30 hours before suggested replacement
of lamp.
Lamp Mode
`` Eco.: Choose “Eco.” to dim the projector lamp which will lower
power consumption and extend the lamp life.
`` Bright: Choose “Bright” to increase the brightness.
Lamp Reset
Reset the lamp hour counter after replacing the lamp.
51
English
User Controls
OPTIONS
OPTIONS |
Advanced
Advanced
Direct Power On
On
Auto Power Off (min)
Sleep Timer (min)
Power Mode (Standby)
Active
Exit
Direct Power On
Choose “On” to activate Direct Power mode. The projector will
automatically power on when AC power is supplied, without
pressing the “ ” key on the projector control panel or on the
remote control.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start,
when there is no signal being sent to the projector. The projector
will automatically power off when the countdown has finished (in
minutes).
Sleep Timer (min)
™™ When Power mode
(Standby) is set to
Eco (<0.5W), the
VGA output and
Audio pass-through
will be deactivated
when the projector
is in standby.
™™ The value of sleep
timer will be reset to
zero after the projector power off.
English
52
Sets the countdown timer interval. The countdown timer will start,
with or without a signal being sent to the projector. The projector
will automatically power off when the countdown has finished (in
minutes).
Power Mode (Standby)
`` Eco.: Choose “Eco.” to save power dissipation further < 0.5W.
`` Active: Choose “Active” to return to normal standby and the
VGA out port will be enabled.
Appendices
Troubleshooting
If you experience a problem with your projector, please refer to
the following information. If a problem persists, please contact
your local reseller or service center.
Image Problems
No image appears on-screen
`` Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
`` Ensure the pins of connectors are not crooked or broken.
`` Check if the projection lamp has been securely installed.
Please refer to the “Replacing the Lamp” section.
`` Make sure the projector is switched on.
`` Ensure that the “AV mute” feature is not turned on.
Image is out of focus
`` Adjust the Focus Ring on the projector lens.
`` Make sure the projection screen is between the required distance from the projector. (refer to pages 21-22)
The image is stretched when displaying 16:9 DVD title
`` When you play anamorphic DVD or 16:9 DVD, the projector
will show the best image in 16: 9 format on projector side.
`` If you play the LBX format DVD title, please change the format
as LBX in projector OSD.
`` If you play 4:3 format DVD title, please change the format as
4:3 in projector OSD.
`` If the image is still stretched, you will also need to adjust the
aspect ratio by referring to the following:
`` Please setup the display format as 16:9 (wide) aspect ratio
type on your DVD player.
Image is too small or too large
`` Adjust the zoom lever on the top of the projector.
`` Move the projector closer to or further from the screen.
`` Press “Menu” on the projector panel, go to “Display-->Format”.
Try the different settings.
53
English
Appendices
Image has slanted sides:
`` If possible, reposition the projector so that it is centered on the
screen and below the bottom of the screen.
`` Use “Display-->V Keystone” from the OSD to make an adjustment.
Image is reversed
`` Select “Setup-->Projection” from the OSD and adjust the projection direction.
The projector stops responding to all controls
`` If possible, turn off the projector, then unplug the power cord
and wait at least 60 seconds before reconnecting power.
`` Check that “Keypad Lock” is not activated by trying to control
the projector with the remote control.
Blurry double image
`` Press “3D Format” button and switch to “Off” to avoid normal
2D image is blurry double image.
Two images, side-by-side format
`` Press “3D Format” button and switch to “SBS” for input signal
is HDMI 1.3 2D 1080i side-by-side.
Image does not display in 3D
`` Check if the battery of 3D glasses is drained.
`` Check if the 3D glasses is turned on.
`` When the input signal is HDMI 1.3 2D (1080i side-by-side
half), press “3D Format” button and switch to “SBS”.
English
54
Appendices
Other Problems
The projector stops responding to all controls
`` If possible, turn off the projector, then unplug the power cord
and wait at least 20 seconds before reconnecting power.
Lamp burns out or makes a popping sound
`` When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector
will not turn on until the lamp module has been replaced. To
replace the lamp, follow the procedures in the “Replacing the
Lamp” section.
Remote Control Problems
If the remote control does not work
`` Check the operating angle of the remote control is within ±15°
both horizontally and vertically of on of the IR receivers on the
projector.
`` Make sure there are not any obstructions between the remote
control and the projector. Move to within 6 m (20 ft) of the
projector.
`` Make sure batteries are inserted correctly.
`` Replace batteries if they are exhausted.
55
English
Appendices
LED Lighting Messages
Message
Standby State
(Input power cord)
Power on (Warming)
Lamp lighting
™™ Steady light 
No light 
ON/STANDBY
LED
Temp-LED
Lamp-LED
(Green/Amber)
(Red)
(Red)
Amber
Flashing
Green
Green
Power off (Cooling)
Flashing
Green
Error (Over Temp.)
Flashing
Amber
Error (Fan fail)
Flashing
Amber
Error (Lamp fail)
Flashing
Amber
Flashing
* ON/STANDBY LED be ON when OSD appears, be OFF when OSD disappears.
English
56
Appendices
On Screen Messages
™™ Power off:
Power Off?
Press Power again
™™ Lamp warning:
Lamp Warning
Lamp life exceeded.
™™ Temperature warning:
Warning! TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service centre for repair.
™™ Fan failed:
Warning! FAN LOCKED
The projector will switch off automatically.
Please contact a service centre for repair.
™™ Out of display range:
Out of range
57
English
Appendices
Replacing the Lamp
The projector automatically detects the lamp life. When the
lamp life is nearing the end of use, you will receive a warning
message.
Lamp Warning
Lamp life exceeded.
When you see this message, please contact your local reseller or
service center to change the lamp as soon as possible. Make sure
the projector has been cooled down for at least 30 minutes before
changing the lamp.
Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety
glasses if changing the bulb when ceiling mounted. “Caution
must be used to prevent any loose parts from falling out of
projector.”
Warning: Lamp compartment is hot! Allow it to cool down
before changing lamp!
Warning: To reduce the risk of personal injury, do not drop
the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.
English
58
Appendices
™™ The screws on the
lamp cover and the
lamp cannot be
removed.
™™ The projector cannot
be turned on if the
lamp cover has not
been placed back on
the projector.
™™ Do not touch the glass
area of the lamp. Hand
oil can cause the lamp
to shatter. Use a dry
cloth to clean the lamp
module if it was accidentally touched.
1
2
4
3
Lamp Replacement Procedure:
1. Switch off the power to the projector by pressing the “ ” button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the two screws on the cover. 1
5. Lift up and remove the cover. 2
6. Unscrew the two screws on the lamp module. 3
7. Lift up the lamp handle and remove the lamp module slowly and carefully. 4
To replace the lamp module, reverse the previous steps.
8. Turn on the projector and use “Lamp Reset” after the lamp module is
replaced.
Lamp Reset: (i) Press “Menu”  (ii) Select “OPTIONS”  (iii) Select
“Lamp Settings”  (iv) Select “Lamp Reset”  (v) Select “Yes”.
59
English
Appendices
Compatibility Modes
™™ Computer/Video/HDMI/Mac Compatibility
Signal
Analog
HDMI
Mac
-
720 x 480
60
O
-
-
720 x 576
50
O
-
-
-
640 x 480
60
-
O
O
O
XGA
HDTV (720p)
WXGA
640 x 480
67
-
O
-
-
640 x 480
72.8
-
O
-
O
O
640 x 480
85
-
O
-
800 x 600
56.3
-
O
-
-
800 x 600
60.3 (*2)
-
O
O
O
800 x 600
72.2
-
O
O
O
800 x 600
85.1
-
O
O
O
800 x 600
120 (*2)
-
O
O
-
1024 x 768
60 (*2)
-
O
O
O
O
1024 x 768
70.1
-
O
O
1024 x 768
75
-
O
O
O
1024 x 768
85
-
O
O
O
1024 x 768
120 (*2)
-
O
O
-
1280 x 720
50
O
O
O
-
1280 x 720
60
O
O
O
O
1280 x 720
120 (*2)
-
O
O
-
1280 x 768
60
-
O
O
O (*3)
1280 x 768
75
-
O
O
O
1280 x 768
85
-
O
O
O (*3)
O
1280 x 800
60
-
O
O
1366 x 768
60
-
O
O
O
WXGA+
1440 x 900
60
-
O
-
O (*3)
1280 x 1024
60
-
O
O
O
SXGA
1280 x 1024
75
-
O
O
O
1280 x 1024
85
-
O
O
-
1400 x 1050
60
-
O
O
-
SXGA+
UXGA
HDTV (1080p)
HDTV (1080i)
WUXGA
60
Video
NTSC
SVGA
English
Refresh Rate
(Hz)
PAL/SECAM
VGA
™™ (*1) 1920 x1200
@60Hz only support
RB (reduced blanking).
™™ (*2) 3D timing for
True 3D projector.
™™ (*3) is not supported
HDMI input singal
for Mac.
™™ 120Hz input signals
may be dependent
on graphics cards
support.
Resolution
1600 x1200
60
-
O
O
-
1920 x 1080
24
O
O
O
-
1920 x 1080
30
-
-
O
-
1920 x 1080
50
O
O
O
-
1920 x 1080
60
O
O
O
O
1920 x 1080
50
O
-
O
-
1920 x 1080
60
O
-
O
-
1920 x 1200
60 (*1)
-
O
O
O
Appendices
Signal
Resolution
Refresh Rate
(Hz)
Video
Analog
HDMI
SDTV (576i)
768 x 576
50
O
-
O
-
SDTV (576p)
768 x 576
50
O
-
O
-
Mac
SDTV (480i)
640 x 480
60
O
-
O
-
SDTV (480p)
640 x 480
60
O
-
O
-
™™ 3D Input Video Compatibility
Input Timing
HDMI 1.4a 3D
Input
Input
Resolution
1280 x 720p @ 50Hz
Top-and-Bottom
1280 x 720p @ 60Hz
Top-and-Bottom
1280 x 720p @ 50Hz
Frame packing
1280 x 720p @ 60Hz
Frame packing
1920 x 1080i @ 50 Hz
Side-by-Side (Half)
1920 x 1080i @ 60 Hz
Side-by-Side (Half)
1920 x 1080p @ 24 Hz
Top-and-Bottom
1920 x 1080p @ 24 Hz
Frame packing
1920 x 1080i @ 50Hz
1920 x 1080i @ 60Hz
1280 x 720p @ 50Hz
Side-by-Side (Half)
While 3D Format is
“SBS”
Top-and-Bottom
While 3D Format is
“Top and Bottom”
HQFS
While 3D Format is
“Frame sequential”
1280 x 720p @ 60Hz
HDMI 1.3 3D
Content
1920 x 1080i @ 50Hz
1920 x 1080i @ 60Hz
1280 x 720p @ 50Hz
1280 x 720p @ 60Hz
480i
61
English
Appendices
RS232 Commands and Protocol
Function List
RS232 Pin Assignments
9
5
Pin no.
English
62
8
4
7
3
6
2
1
Spec.
(from projector side)
1
N/A
2
RXD
3
TXD
4
N/A
5
GND
6
N/A
7
N/A
8
N/A
9
N/A
Appendices
RS232 Protocol Function List
XX=00-99, projector's ID,
Baud Rate : 9600
XX=00 is for all projectors
Data Bits: 8
Parity: None
™™ There is a <CR>
Optoma
HD25e
Table.
after all
ASCIICommand
comStop
Bits: 1
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------mands.
Baud
Rate : 9600
Note : There is a <CR> after all ASCII commands
Flow
Control : None
Bits:is8 the HEX code
0D is the HEX code for <CR> in ASCII code
™™Data0D
Parity: None
UART16550 FIFO: Disable
in ASCII
Stopfor
Bits:<CR>
1
Flow
Control : None
Projector Return (Pass): P
code.
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F
Projector Return (Fail): F
XX=01ˀ99, projector's ID, XX=00 is for all projectors
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------SEND to projector
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------232 ASCII Code HEX Code
Function
Description
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX00 1
7E 30 30 30 30 20 31 0D
Power ON
~XX00 0
7E 30 30 30 30 20 30 0D
Power OFF
(0/2 for backward compatible)
~XX00 1 ~nnnn
7E 30 30 30 30 20 31 20 a 0D Power ON with Password
~nnnn = ~0000 (a=7E 30 30 30 30)
~9999 (a=7E 39 39 39 39)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX01 1
7E 30 30 30 31 20 31 0D
Resync
~XX02 1
7E 30 30 30 32 20 31 0D
AV Mute
On
~XX02 0
7E 30 30 30 32 20 30 0D
Off (0/2 for backward compatible)
~XX03 1
7E 30 30 30 33 20 31 0D
Mute
On
~XX03 0
7E 30 30 30 33 20 30 0D
Off (0/2 for backward compatible)
~XX04 1
7E 30 30 30 34 20 31 0D
Freeze
~XX04 0
7E 30 30 30 34 20 30 0D
Unfreeze
(0/2 for backward compatible)
~XX05 1
7E 30 30 30 35 20 31 0D
Zoom Plus
~XX06 1
7E 30 30 30 36 20 31 0D
Zoom Minus
~XX12 1
7E 30 30 31 32 20 31 0D
Direct Source Commands
HDMI1
~XX12 15
7E 30 30 31 32 20 31 35 0D
HDMI2
~XX12 5
7E 30 30 31 32 20 35 0D
VGA
~XX12 10
7E 30 30 31 32 20 31 30 0D
Video
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX20 1
7E 30 30 32 30 20 31 0D
Display Mode
Cinema
~XX20 4
7E 30 30 32 30 20 34 0D
Reference
~XX20 3
7E 30 30 32 30 20 33 0D
~XX20 2
7E 30 30 32 30 20 32 0D
Bright
~XX20 9
7E 30 30 32 30 20 39 0D
3D
~XX20 5
7E 30 30 32 30 20 35 0D
User
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX21 n
7E 30 30 32 31 20 a 0D
Brightness
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n
7E 30 30 32 32 20 a 0D
Contrast
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n
7E 30 30 32 33 20 a 0D
Sharpness
n = 1 (a=31) ~ 15 (a=31 35)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX24 n
7E 30 30 32 34 20 a 0D
Color Settings/White
Red
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n
7E 30 30 32 35 20 a 0D
Green
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n
7E 30 30 32 36 20 a 0D
Blue
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX33 1
7E 30 30 33 33 20 31 0D
Reset
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX34 n
7E 30 30 33 34 20 a 0D
BrilliantColorTM
n = 1 (a=30) ~ 10 (a=31 30)
~XX191 0
7E 30 30 31 39 31 20 30 0D
Dynamic Black
Off
~XX191 1
7E 30 30 31 39 31 20 31 0D
Low
~XX191 2
7E 30 30 31 39 31 20 32 0D
High
~XX35 1
7E 30 30 33 35 20 31 0D
Gamma
Film
~XX35 2
7E 30 30 33 35 20 32 0D
Video
~XX35 3
7E 30 30 33 35 20 33 0D
Graphics
~XX35 4
7E 30 30 33 35 20 34 0D
Standard
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX36 1
7E 30 30 33 36 20 31 0D
Color Temp.
Warm
~XX36 2
7E 30 30 33 36 20 32 0D
Medium
~XX36 3
7E 30 30 33 36 20 33 0D
Cold
~XX37 1
7E 30 30 33 37 20 31 0D
Color Space
Auto
~XX37 2
7E 30 30 33 37 20 32 0D
RGB\ RGB(0-255)
~XX37 3
7E 30 30 33 37 20 33 0D
YUV
~XX37 4
7E 30 30 33 37 20 34 0D
RGB(16 - 235)
~XX73 n
7E 30 30 37 33 20 a 0D
Signal
Frequency
n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX91 n
7E 30 30 39 31 20 a 0D
Automatic
n = 0 disable; n = 1 enable
~XX74 n
7E 30 30 37 34 20 a 0D
Phase
n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n
7E 30 30 37 35 20 a 0D
H. Position
n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n
7E 30 30 37 36 20 a 0D
V. Position
n = -5 (a=2D 35) ~ 5 (a=35) By timing
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
63
English
Appendices
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX200 n
7E 30 30 32 30 30 20 a 0D
White Level
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX201 n
7E 30 30 32 30 31 20 a 0D
Black Level
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX202 n
7E 30 30 32 30 32 20 a 0D
Saturation
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX203 n
7E 30 30 32 30 33 20 a 0D
Hue
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX45 n
7E 30 30 34 34 20 a 0D
Color (Saturation)
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX44 n
7E 30 30 34 35 20 a 0D
Tint
n = -50 (a=2D 35 30) ~ 50 (a=35 30)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX60 1
7E 30 30 36 30 20 31 0D
Format
4:3
~XX60 2
7E 30 30 36 30 20 32 0D
16:9
~XX60 5
7E 30 30 36 30 20 35 0D
LBX
~XX60 6
7E 30 30 36 30 20 36 0D
Native
~XX60 7
7E 30 30 36 30 20 37 0D
Auto
~XX60 9
7E 30 30 36 30 20 39 0D
Superwide
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX61 n
7E 30 30 36 31 20 a 0D
Edge mask
n = 0 (a=30) ~ 10 (a=31 30)
~XX62 n
7E 30 30 36 32 20 a 0D
Zoom
n = -5 (a=30) ~ 25 (a=32 35)
~XX63 n
7E 30 30 36 33 20 a 0D
H Image Shift
n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX64 n
7E 30 30 36 34 20 a 0D
V Image Shift
n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX66 n
7E 30 30 36 36 20 a 0D
V Keystone
n = -40 (a=2D 34 30) ~ 40 (a=34 30)
~XX230 1
7E 30 30 32 33 30 20 31 0D
3D Mode
DLP-Link
~XX230 3
7E 30 30 32 33 30 20 31 0D
3D Mode
IR
~XX400 0
7E 30 30 34 30 30 20 30 0D
3Dĺ2D
3D
~XX400 1
7E 30 30 34 30 30 20 31 0D
L
~XX400 2
7E 30 30 34 30 30 20 32 0D
R
~XX405 0
7E 30 30 34 30 35 20 30 0D
3D Format
Auto
~XX405 1
7E 30 30 34 30 35 20 31 0D
SBS
~XX405 2
7E 30 30 34 30 35 20 32 0D
Top and Bottom
~XX405 3
7E 30 30 34 30 35 20 33 0D
Frame sequential
~XX231 0
7E 30 30 32 33 31 20 30 0D
3D Sync Invert
On
~XX231 1
7E 30 30 32 33 31 20 31 0D
3D Sync Invert
Off
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX70 1
7E 30 30 37 30 20 31 0D
Language
English
~XX70 2
7E 30 30 37 30 20 32 0D
German
~XX70 3
7E 30 30 37 30 20 33 0D
French
~XX70 4
7E 30 30 37 30 20 34 0D
Italian
~XX70 5
7E 30 30 37 30 20 35 0D
Spanish
~XX70 6
7E 30 30 37 30 20 36 0D
Portuguese
~XX70 7
7E 30 30 37 30 20 37 0D
Polish
~XX70 8
7E 30 30 37 30 20 38 0D
Dutch
~XX70 9
7E 30 30 37 30 20 39 0D
Swedish
~XX70 10
7E 30 30 37 30 20 31 30 0D
Norwegian/Danish
~XX70 11
7E 30 30 37 30 20 31 31 0D
Finnish
~XX70 12
7E 30 30 37 30 20 31 32 0D
Greek
~XX70 13
7E 30 30 37 30 20 31 33 0D
Traditional Chinese
~XX70 14
7E 30 30 37 30 20 31 34 0D
Simplified Chinese
~XX70 15
7E 30 30 37 30 20 31 35 0D
Japanese
~XX70 16
7E 30 30 37 30 20 31 36 0D
Korean
~XX70 17
7E 30 30 37 30 20 31 37 0D
Russian
~XX70 18
7E 30 30 37 30 20 31 38 0D
Hungarian
~XX70 19
7E 30 30 37 30 20 31 39 0D
Czechoslovak
~XX70 20
7E 30 30 37 30 20 32 30 0D
Arabic
~XX70 21
7E 30 30 37 30 20 32 31 0D
Thai
~XX70 22
7E 30 30 37 30 20 32 32 0D
Turkish
~XX70 23
7E 30 30 37 30 20 32 33 0D
Farsi
~XX70 25
7E 30 30 37 30 20 32 33 0D
Vietnamese
~XX70 26
7E 30 30 37 30 20 32 33 0D
Indonesian
~XX70 27
7E 30 30 37 30 20 32 33 0D
Romanian
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX71 1
7E 30 30 37 31 20 31 0D
Projection
Front-Desktop
~XX71 2
7E 30 30 37 31 20 32 0D
Rear-Desktop
~XX71 3
7E 30 30 37 31 20 33 0D
Front-Ceiling
~XX71 4
7E 30 30 37 31 20 34 0D
Rear-Ceiling
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX72 1
7E 30 30 37 32 20 31 0D
Menu Location
Top Left
~XX72 2
7E 30 30 37 32 20 32 0D
Top Right
~XX72 3
7E 30 30 37 32 20 33 0D
Centre
~XX72 4
7E 30 30 37 32 20 34 0D
Bottom Left
~XX72 5
7E 30 30 37 32 20 35 0D
Bottom Right
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX77 n
7E 30 30 37 37 20 aabbcc 0D Security
Security Timer
Month/Day/Hour
n = mm/dd/hh
mm = 00 (aa=30 30) ~ 12 (aa=31 32)
dd = 00 (bb=30 30) ~ 30 (bb=33 30)
hh = 00 (cc=30 30) ~ 24 (cc=32 34)
~XX78 1
7E 30 30 37 38 20 31 0D
Security Settings
Enable
~XX78 0
7E 30 30 37 38 20 32 0D
Disable(0/2 for backward compatible)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX79 n
7E 30 30 37 39 20 a 0D
Projector ID
n = 00 (a=30 30) ~ 99 (a=39 39)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX80 1
7E 30 30 38 30 20 31 0D
Mute
On
~XX80 0
7E 30 30 38 30 20 30 0D
Off (0/2 for backward compatible)
~XX310 0
7E 30 33 31 30 20 30 0D
Internal Speaker
Off
~XX310 1
7E 30 33 31 30 20 31 0D
On
~XX81 n
7E 30 30 38 31 20 a 0D
Volume(Audio)
n = 0 (a=30) ~ 10 (a=31 30)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
English
64
2
Appendices
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX89 0
7E 30 30 38 39 20 30 0D
Audio Input
Default
~XX89 1
7E 30 30 38 39 20 31 0D
Audio1
~XX89 3
7E 30 30 38 39 20 33 0D
Audio2
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX82 1
7E 30 30 38 32 20 31 0D
Logo
Default
~XX82 2
7E 30 30 38 32 20 32 0D
User
~XX82 3
7E 30 30 38 32 20 33 0D
Neutral
~XX83 1
7E 30 30 38 33 20 31 0D
Logo Capture
~XX88 0
7E 30 30 38 38 20 30 0D
Closed Captioning
Off
~XX88 1
7E 30 30 38 38 20 31 0D
cc1
~XX88 2
7E 30 30 38 38 20 32 0D
cc2
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX100 1
7E 30 30 31 30 30 20 31 0D
Source Lock
On
~XX100 0
7E 30 30 31 30 30 20 30 0D
Off (0/2 for backward compatible)
~XX101 1
7E 30 30 31 30 31 20 31 0D
High Altitude
On
~XX101 0
7E 30 30 31 30 31 20 30 0D
Off (0/2 for backward compatible)
~XX102 1
7E 30 30 31 30 32 20 31 0D
Information Hide
On
~XX102 0
7E 30 30 31 30 32 20 30 0D
Off (0/2 for backward compatible)
~XX103 1
7E 30 30 31 30 33 20 31 0D
Keypad Lock
On
~XX103 0
7E 30 30 31 30 33 20 30 0D
Off (0/2 for backward compatible)
~XX195 0
7E 30 30 31 39 35 20 30 0D
Test Pattern
None
~XX195 1
7E 30 30 31 39 35 20 31 0D
Grid
~XX195 2
7E 30 30 31 39 35 20 32 0D
White Pattern
~XX11 0
7E 30 30 31 31 20 30 0D
IR Function
Off
~XX11 1
7E 30 30 31 31 20 31 0D
On
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX104 1
7E 30 30 31 30 34 20 31 0D
Background Color
Blue
~XX104 2
7E 30 30 31 30 34 20 32 0D
Black
~XX104 3
7E 30 30 31 30 34 20 33 0D
Red
~XX104 4
7E 30 30 31 30 34 20 34 0D
Green
~XX104 5
7E 30 30 31 30 34 20 35 0D
White
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX105 1
7E 30 30 31 30 35 20 31 0D
Advanced
Direct Power On
On
~XX105 0
7E 30 30 31 30 35 20 30 0D
Off (0/2 for backward compatible)
~XX106 n
7E 30 30 31 30 36 20 a 0D
Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30)
(5 minutes for each step).
~XX107 n
7E 30 30 31 30 37 20 a 0D
Sleep Timer (min)
n = 0 (a=30) ~ 995 (a=39 39 30)
(30 minutes for each step).
~XX114 1
7E 30 30 31 31 34 20 31 0D
Power Mode(Standby) Eco.(<=0.5W)
~XX114 0
7E 30 30 31 31 34 20 30 0D
Active (0/2 for backward compatible)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX109 1
7E 30 30 31 30 39 20 31 0D
Lamp Reminder
On
~XX109 0
7E 30 30 31 30 39 20 30 0D
Off (0/2 for backward compatible)
~XX110 1
7E 30 30 31 31 30 20 31 0D
Lamp Mode
Bright
~XX110 2
7E 30 30 31 31 30 20 32 0D
Eco
~XX111 1
7E 30 30 31 31 31 20 31 0D
Lamp Reset
Yes
~XX111 0
7E 30 30 31 31 31 20 30 0D
No (0/2 for backward compatible)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX112 1
7E 30 30 31 31 32 20 31 0D
Reset all
Yes
~XX112 2
7E 30 30 31 31 32 20 32 0D
Cancel
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX99 1
7E 30 30 39 39 20 31 0D
RS232 Alert Reset
Reset System Alert
(MCU)
~XX210 n
7E 30 30 32 30 30 20 n 0D
Display message on the OSD
n: 1-30 characters
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------SEND to emulate Remote
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX140 10
7E 30 30 31 34 30 20 31 30 0D
Up
~XX140 11
7E 30 30 31 34 30 20 31 31 0D
Left
~XX140 12
7E 30 30 31 34 30 20 31 32 0D
Enter (for projection MENU)
~XX140 13
7E 30 30 31 34 30 20 31 33 0D
Right
~XX140 14
7E 30 30 31 34 30 20 31 34 0D
Down
~XX140 15
7E 30 30 31 34 30 20 31 35 0D
Keystone +
~XX140 16
7E 30 30 31 34 30 20 31 36 0D
Keystone –
~XX140 17
7E 30 30 31 34 30 20 31 37 0D
Volume –
~XX140 18
7E 30 30 31 34 30 20 31 38 0D
Volume +
~XX140 19
7E 30 30 31 34 30 20 31 39 0D
Brightness
~XX140 20
7E 30 30 31 34 30 20 32 30 0D
Menu
~XX140 21
7E 30 30 31 34 30 20 32 31 0D
Zoom
~XX140 28
7E 30 30 31 34 30 20 32 38 0D
Contrast
~XX140 47
7E 30 30 31 34 30 20 34 37 0D
Source
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------SEND from projector automatically
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------232 ASCII Code HEX Code
Function
Projector Return
Description
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------System status
INFOn
n : 0/1/2/3/4/6/7/8 = Standby/Warming/Cooling/Out of Range/
Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
3
65
English
Appendices
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------READ from projector
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------232 ASCII Code HEX Code
Function
Projector Return
Description
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX121 1
7E 30 30 31 32 31 20 31 0D
Input Source Commands
OKn
n : n: 0/1/3/4/5 = None/VGA/Video/HDMI1/HDMI2
~XX122 1
7E 30 30 31 32 32 20 31 0D
Software Version
OKdddd
dddd: FW version
~XX123 1
7E 30 30 31 32 33 20 31 0D
Display Mode
OKn
n : 0/1/2/3/4/5/6= None/Cinema/Reference/Photo/Bright/3D/User
~XX124 1
7E 30 30 31 32 34 20 31 0D
Power State
OKn
n : 0/1 = Off/On
~XX125 1
7E 30 30 31 32 35 20 31 0D
Brightness
OKn
~XX126 1
7E 30 30 31 32 36 20 31 0D
Contrast
OKn
~XX127 1
7E 30 30 31 32 37 20 31 0D
Aspect Ratio
OKn
n: 0/1/2/3/4 = 4:3/16:9/LBX/Native/AUTO
~XX128 1
7E 30 30 31 32 38 20 31 0D
Color Temperature
OKn
n : 0/1/2 = Warm/Medium/Cold
~XX129 1
7E 30 30 31 32 39 20 31 0D
Projection Mode
OKn
n : 0/1/2/3 = Front-Desktop/Rear-Desktop/Front-Ceiling/Rear-Ceiling
~XX150 1
7E 30 30 31 35 30 20 31 0D
Information
OKabbbbccdddde
a : 0/1 = Off/On
bbbb: LampHour
cc: source
n: 00/01/03/04/05 =
None/VGA/Video/HDMI1/HDMI2/
dddd: FW version
e : Display mode 0/1/2/3/4/5/6
None/Cinema/Reference/Photo/Bright/3D/User
~XX151 1
7E 30 30 31 35 31 20 31 0D
Model name
OKn
n:1=HD25e
~XX108 1
7E 30 30 31 30 38 20 31 0D
Lamp Hours
OKbbbb
bbbb: LampHour
~XX108 2
7E 30 30 31 30 38 20 31 0D
Cumulative Lamp Hours
OKbbbbb
bbbbb: (5 digits) Total Lamp Hours
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
English
66
4
Appendices
Ceiling Mount Installation
1. To prevent damage to your projector, please use the Optoma
ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure
the screws used to attach a mount to the projector meet the following specifications:
`` Screw type: M3*3
`` Maximum screw length: 10mm
`` Minimum screw length: 7.5mm
47.88
72.05
76.40
89.75
110.00
137.20
82.30
55.00
93.50
233.30
Warning:
1. If you buy a ceiling
mount from another
company, please be
sure to use the correct
screw size. Screw size
will vary depending on
the thickness of the
mounting plate.
2. Be sure to keep at least
10 cm gap between the
ceiling and the bottom of
the projector.
3. Avoid installing the
projector near a heat
source.
97.00
™™ Please note that
damage resulting from
incorrect installation
will void the warranty.
Lens
Unit: mm
59.00
89.75
323.60
67
English
Appendices
Optoma Global Offices
For service or support please contact your local office.
USA
3178 Laurelview Ct.
Fremont, CA 94538, USA
www.optomausa.com
Canada
3178 Laurelview Ct.
Fremont, CA 94538, USA
www.optomausa.com
Latin America
3178 Laurelview Ct.
Fremont, CA 94538, USA
www.optomausa.com
Europe
42 Caxton Way, The Watford Business Park Watford, Hertfordshire,
WD18 8QZ, UK
www.optoma.eu
Service Tel: +44 (0)1923 691865
Benelux BV
Randstad 22-123
1316 BW Almere
The Netherlands
www.optoma.nl
France
Bâtiment E
81-83 avenue Edouard Vaillant
92100 Boulogne Billancourt, France
Spain
C/ José Hierro,36 Of. 1C 28522
Rivas VaciaMadrid,
Spain
English
68
888-289-6786
510-897-8601
[email protected]
888-289-6786
510-897-8601
[email protected]
888-289-6786
510-897-8601
[email protected]
+44 (0) 1923 691 800
+44 (0) 1923 691 888
[email protected]
+31 (0) 36 820 0253
+31 (0) 36 548 9052
+33 1 41 46 12 20
+33 1 41 46 94 35
[email protected]
+34 91 499 06 06
+34 91 670 08 32
Appendices
Deutschland
Wiesenstrasse 21 W
D40549 Düsseldorf,
Germany
Scandinavia
Lerpeveien 25
3040 Drammen
Norway
+49 (0) 211 506 6670
+49 (0) 211 506 66799
[email protected]
+47 32 98 89 90
+47 32 98 89 99
[email protected]
PO.BOX 9515
3038 Drammen
Norway
Korea
WOOMI TECH.CO.,LTD.
4F, Minu Bldg. 33-14, Kangnam-Ku,
seoul,135-815, KOREA
Japan
東京都足立区綾瀬3-25-18
株式会社オーエスエム
サポートセンター: 0120-46-5040
Taiwan
12F., No.215, Sec. 3, Beixin Rd.,
Xindian Dist., New Taipei City 231,
Taiwan, R.O.C.
www.optoma.com.tw
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street,
Cheung Sha Wan,
Kowloon, Hong Kong
China
5F, No. 1205, Kaixuan Rd.,
Changning District
Shanghai, 200052, China
+82+2+34430004
+82+2+34430005
[email protected]
www.os-worldwide.com
+886-2-8911-8600
+886-2-8911-6550
[email protected]
asia.optoma.com
+852-2396-8968
+852-2370-1222
www.optoma.com.hk
+86-21-62947376
+86-21-62947375
www.optoma.com.cn
69
English
Appendices
Regulation & Safety Notices
This appendix lists the general notices of your projector.
FCC Notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This device generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
™™ Reorient or relocate the receiving antenna.
™™ Increase the separation between the device and receiver.
™™ Connect the device into an outlet on a circuit different from that to which
the receiver is connected.
™™ Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded
cables to maintain compliance with FCC regulations.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority, which is granted by the Federal Communications
Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference
that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du
Canada.
English
70
Appendices
Declaration of Conformity for EU countries
yy
yy
yy
EMC Directive 2004/108/EC (including amendments)
Low Voltage Directive 2006/95/EC
R & TTE Directive 1999/5/EC (if product has RF function)
Disposal instructions
Do not throw this electronic device into the trash when
discarding. To minimize pollution and ensure utmost
protection of the global environment, please recycle it.
71
English
Appendices
Trademarks
•
•
•
•
•
•
English
72
DLP is trademarks of Texas Instruments.
IBM is a trademark or registered trademark of International
Business Machines Corporation.
Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other
countries.
Microsoft, Windows, Windows Vista, Internet Explorer and
PowerPoint are either a registered trademark or trademark
of Microsoft Corporation in the United States and/or other
countries.
HDMI, the HDMI Logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
Other product and company names mentioned in this
user’s manual may be the trademarks or registered trademarks of their respective holders.
Was this manual useful for you? yes no
Thank you for your participation!
