Epson PowerLite 54c Projector User Guide

Epson PowerLite 54c Projector User Guide

EPSON

®

PowerLite

®

54c/74c

Multimedia Projector

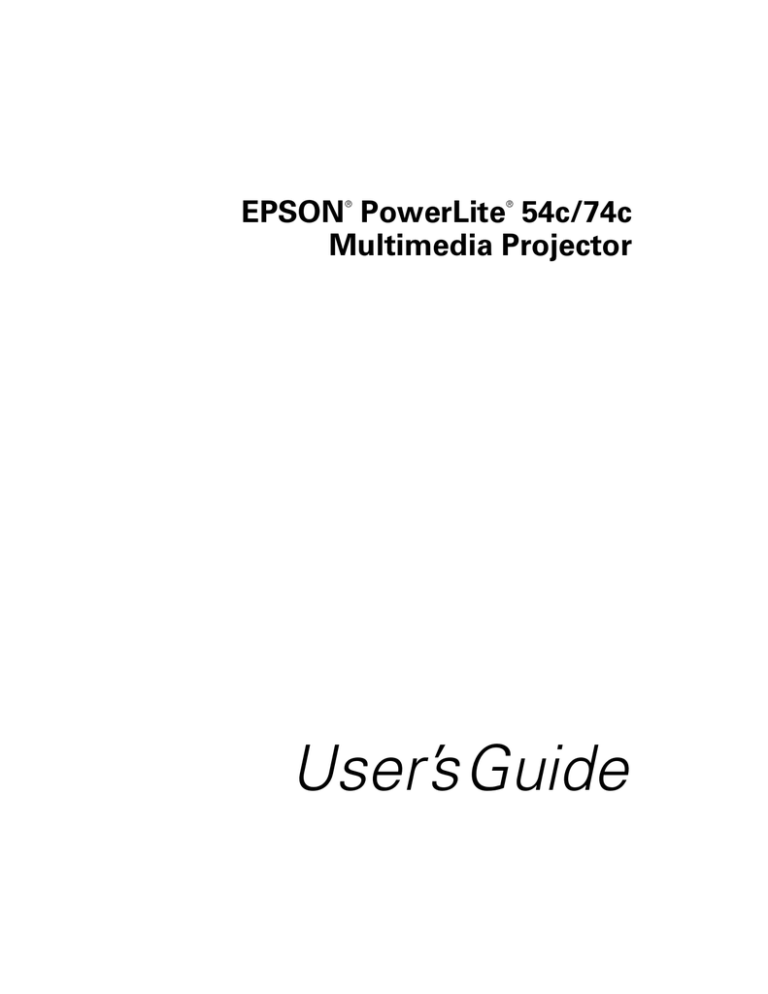

User’s Guide

Important Safety Information

WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.

Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small children to avoid any risk of suffocation.

Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for use with this EPSON product. EPSON is not responsible for any use of this information as applied to other products.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the

U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON

Approved Products by SEIKO EPSON CORPORATION.

Trademarks

EPSON is a registered trademark of SEIKO EPSON CORPORATION.

EPSON Connection, EPSON Store, and Extra Care are service marks; SizeWise is a trademark; and PrivateLine,

Presenters Club, and PowerLite are registered trademarks of Epson America, Inc.

Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. EPSON disclaims any and all rights in those marks.

Copyright © 2003 by Epson America, Inc.

2

9/03

CPD-16804R1

Contents

Welcome

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Getting the Most from Your Projector . . . . . . . . . . . . . . . . . 8

Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 9

Getting More Information . . . . . . . . . . . . . . . . . . . . . . . 9

Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 10

Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Additional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1

Setting Up the Projector

. . . . . . . . . . . . . . . . . . . . 13

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Other Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Connecting to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting the VGA Computer Cable . . . . . . . . . . . . 16

Connecting a Monitor . . . . . . . . . . . . . . . . . . . . . . . . . 18

Connecting the Cable for Remote Mouse Control . . . . 19

Amplifying Computer Audio . . . . . . . . . . . . . . . . . . . . 20

Connecting to a High-End Workstation . . . . . . . . . . . 21

Connecting to Video Sources . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting a Composite Video Source . . . . . . . . . . . . 22

Connecting an S-Video Source . . . . . . . . . . . . . . . . . . 24

Connecting an RGB Video Source. . . . . . . . . . . . . . . . 25

Connecting a Component Video Source . . . . . . . . . . . 26

2

Using the Projector

. . . . . . . . . . . . . . . . . . . . . . . . . 27

Turning On Your Equipment. . . . . . . . . . . . . . . . . . . . . . . 28

Turning On the Projector . . . . . . . . . . . . . . . . . . . . . . 28

Selecting the Image Source. . . . . . . . . . . . . . . . . . . . . . 30

What To Do If You See a Blank Screen . . . . . . . . . . . . 30

3

4

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Focusing and Zooming Your Image . . . . . . . . . . . . . . . . 33

Adjusting the Height of Your Image . . . . . . . . . . . . . . . 34

Adjusting the Image Shape. . . . . . . . . . . . . . . . . . . . . . . 35

Adjusting the Brightness . . . . . . . . . . . . . . . . . . . . . . . . 36

Adjusting the Color Mode . . . . . . . . . . . . . . . . . . . . . . . 36

Correcting Computer Images. . . . . . . . . . . . . . . . . . . . . 37

Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 37

3

Using the Remote Control

. . . . . . . . . . . . . . . . . . . 39

Removing the Battery Tape . . . . . . . . . . . . . . . . . . . . . . . . . 40

Storing the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . 40

Controlling the Picture and Sound. . . . . . . . . . . . . . . . . . . . 41

Switching Between Picture Sources . . . . . . . . . . . . . . . . 41

Turning Off the Picture and Sound . . . . . . . . . . . . . . . . 42

Stopping Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Zooming Your Image. . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Using the Remote Control as a Wireless Mouse . . . . . . . . . . 43

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4

Fine-tuning the Projector

. . . . . . . . . . . . . . . . . . . . 45

Using the Projector’s Menu System . . . . . . . . . . . . . . . . . . . 46

Changing Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . 47

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Adjusting the Sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 52

Setting Advanced Features . . . . . . . . . . . . . . . . . . . . . . . 53

Viewing Lamp Usage and Other Information. . . . . . . . . . . . 55

Creating Your Own Screen Logo . . . . . . . . . . . . . . . . . . . . . 56

Capturing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Choosing When to Display the Screen Logo . . . . . . . . . 57

Enabling Password Protection . . . . . . . . . . . . . . . . . . . . . . . 58

Setting a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Turning On the Password and User’s Logo . . . . . . . . . . 59

Starting the Projector with a Password . . . . . . . . . . . . . . 60

Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . . 61

5

Maintaining and Transporting the Projector

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . . 64

Cleaning and Replacing the Air Filter . . . . . . . . . . . . . . . . . 65

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Transporting the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . 70

6

Solving Problems

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Using On-Screen Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

What To Do When the Lights Flash . . . . . . . . . . . . . . . . . . 73

Solving Problems with the Image or Sound . . . . . . . . . . . . . 75

Solving Password Problems . . . . . . . . . . . . . . . . . . . . . . . . . 82

Solving Problems with the Remote Control . . . . . . . . . . . . . 82

Where To Get Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Telephone Support Services. . . . . . . . . . . . . . . . . . . . . . 84

Appendix A: Technical Specifications

. . . . . . . 85

Appendix B: Notices

. . . . . . . . . . . . . . . . . . . . . . . . . 91

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . 91

Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . . 93

Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . 94

FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . 95

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

5

6

-

Welcome

T he EPSON

®

PowerLite

®

54c and 74c are micro-portable projectors that offer up to 2000 ANSI lumens of brightness. From classrooms to auditoriums, your full-color presentations and videos will be bright and visible even in ordinary indoor lighting.

Images are displayed at a resolution of 800

×

600 pixels

(PowerLite 54c) or 1024

×

768 pixels (PowerLite 74c). Three

0.7-inch LCDs provide a 500:1 contrast ratio for incredibly vivid images and clear text. Support for S-Video contributes to theater-quality performance.

You can connect the projector to a wide range of computers, including

IBM

®

-compatible PCs and laptops, Apple

®

Macintosh,

®

Power

Macintosh

®

series (including G3 and G4 systems), PowerBook

® computers, many iMac

®

and iBook

®

series systems, and high-end workstations such as the Sun

®

SPARCstation.

With EPSON’s patented SizeWise

technology, the projector supports computer displays ranging from VGA through UXGA.

You can use any of the following video sources: HDTV, VCR, DVD player, gaming console (such as Microsoft

®

Xbox,

Sony

®

PlayStation

®

2, and Nintendo GameCube

), camcorder, digital camera, or laser disc player. The projector supports NTSC, PAL, and

SECAM video formats.

Two devices can be connected to the projector at the same time; either two computers, two video sources, or one of each. The source buttons let you easily switch between them.

To safeguard your projector, you can set a password to control who uses it, and create your own screen logo which cannot be disabled by unauthorized users.

Welcome

7

note

Many of the projector’s features can only be accessed with the remote control. To avoid losing the remote control, place it in the remote control storage compartment beneath the side of the projector.

Getting the Most from Your Projector

Depending on your presentation, you can take advantage of any or all of these options:

Connecting to a laptop or other computer

If you want to connect the projector to a laptop or desktop

computer, see page 16. For additional presentation control, you

can connect the USB cable to the projector for running slide shows, and connect an external monitor to view the presentation on your computer simultaneously.

Connecting to video sources

You can connect a DVD player, VCR, HDTV, camcorder, laser disc player, digital camera, and other video sources to your

projector. See page 22 for instructions.

Using the remote control

The remote control lets you switch from computer to video sources, zoom in on part of your image, freeze or mute the presentation, and adjust many other projector features. For details, see Chapter 3.

By connecting an additional cable, you can also use the remote control as a wireless mouse. This lets you click through computer-based presentations (such as PowerPoint ® ) from up to

20 feet away. For more information, see page 43.

Including sound in your presentation

If your presentation includes sound, you can connect an optional

audio cable to use the projector’s built-in speaker. See page 20.

8

Welcome

Using Your Documentation

Your Start Here kit includes a Quick Setup sheet, warranty brochures, and EPSON PrivateLine ® Support card. Store this User’s Guide in the envelope and keep the envelope with your projector at all times.

The Quick Setup sheet gives instructions to quickly set up your projector and connect it to a laptop or PowerBook computer.

This book contains all the information you need to set up and use your projector. Please follow these guidelines as you read through it:

Warnings must be followed carefully to avoid bodily injury.

Cautions must be observed to avoid damage to your equipment.

Notes contain important information about your projector.

Getting More Information

Need tips on giving presentations? How about quick steps for setting up your projector? Here’s where you can look for help:

■ www.presentersonline.com

Includes a library of articles covering presentation tips, tricks, and technology. The site provides templates, clip art and sound clips, as well as Presenters Services to use on the road. Even more resources and services are available if you register to join the

Presenters Club

®

—and it’s free.

Built-in help system

Press the

Help

button on the remote control to get quick

solutions for common problems. See page 72 for details.

■ support.epson.com

Download FAQs (frequently-asked questions) and e-mail your questions to EPSON support.

If you still need help after checking this User’s Guide and the sources listed above, you can use the EPSON PrivateLine Support service to get help fast. Call (800) 637-7661 and enter the PIN on the card in

your Start Here kit. See page 83 for more information.

Welcome

9

Registration and Warranty

Your projector comes with a basic carry-in warranty and an international warranty that let you project with confidence anywhere

in the world. For details, see page 96 and the warranty brochure

included in your Start Here kit.

In addition, EPSON offers free Extra Care

SM

Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, EPSON will ship you a replacement unit anywhere in the United States or Canada, usually via overnight delivery. See the brochure in your Start Here kit for details.

To register, complete the registration form in your Start Here kit and mail it to EPSON. Or register your product online at: http://www.epson.com/webreg

Registering also lets you receive special updates on new accessories, products, and services.

Unpacking the Projector

After unpacking the projector, make sure you have all these items:

Projector Remote control Documentation Soft carrying case

Power cord VGA computer cable RCA A/V cable USB mouse cable

10

Welcome

Save all packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when you need to send the projector to another location.

If you are moving the projector by hand, use the carrying case included with the projector.

Additional Components

Depending on how you plan to use the projector, you may need additional components:

To receive an S-Video signal, you need an S-Video cable. One is usually provided with your video device, or you can purchase it

from EPSON. See page 12.

To receive a component video signal from a VCR or other video device, you need a D-sub, 15-pin, VGA-to-component video

cable, which is available from EPSON. See page 12.

To amplify your computer’s audio through the projector’s sound system, you need a computer audio cable (male-to-male 3.5-mm stereo miniplug cable). See your computer or electronics dealer to obtain this cable.

Some older PowerBooks and Macintosh desktop models may

need the Macintosh adapter set shown on page 17 (available from

EPSON, as described on page 12). Older iMac systems may need

a special adapter to provide a VGA output port; see your computer dealer.

Welcome

11

12

Welcome

Optional Accessories

To enhance your use of the projector, EPSON provides the following optional accessories:

Product

Replacement lamp

Air filter set (includes 5 filters)

Samsonite

®

wheeled soft case

Soft shoulder bags (projector/laptop)

ATA molded hard-shell carrying case

Replacement remote control

Component video cable (VGA-to-RCA)

S-Video cable

Macintosh adapter set

50-inch portable screen

60-inch portable pop-up screen

80-inch portable pop-up screen

High resolution document imager

High resolution document camera

Kensington

®

security lock

Ceiling mount

False ceiling plate

Suspension adapter

Product number

V13H010L27

V13H134A05

ELPKS24

ELPKS43

ELPKS45

V12H007T13

ELPKC19

ELPSV01

ELPAP01

ELPSC06

ELPSC07

ELPSC08

ELPDC02

V12H064020

ELPSL01

ELPMB39

ELPMBFCP

ELPMBAPL

You can purchase these accessories from your dealer, by calling

EPSON at (800) 873-7766, or by visiting the EPSON Store

SM at www.epsonstore.com (U.S. sales only). In Canada, please call

(800) 463-7766 for dealer referral.

Setting Up the Projector

T his chapter tells you how to set up the projector and connect it to a computer or video source. You can connect up to two devices simultaneously: two computers or two video sources or one of each.

You’ll find instructions for the following in this chapter:

Positioning the projector

Connecting to a computer

Connecting to video sources

1

Setting Up the Projector

13

Positioning the Projector

Before connecting the projector, you need to decide where to place it. If you’re setting up the projector yourself and it isn’t already installed in the room you’re using, you’ll probably want to place it on a table in front of the screen, as shown.

This lets you stand in the front of the room, face the audience, and remain close enough to the equipment to be able to control it. Try to leave as much space as possible between the projector and the screen to get a good-size image.

Place the projector somewhere between 3 and 35 feet from the screen.

Use the figure below to help you determine exactly how far. Image size increases with distance, but can vary depending on how you’ve adjusted the optical zoom and other settings.

note

You can download the

Projection Distance

Calculator program from the

Drivers and Downloads section of EPSON’s web site:

http://epson.com

.

30 to 35.5 feet 5.9 to 6.8 feet 2.9 to 3.4 feet

Also keep these considerations in mind:

Place the projector on a sturdy, level surface.

Make sure there is plenty of space for ventilation around and under the projector. Do not set the projector on top of loose papers that could block the vents under the projector.

Make sure the projector is within 6 feet of a grounded electrical outlet or extension cord.

14

Setting Up the Projector

Try to place the projector directly in front of the center of the screen, facing it toward the screen squarely. If the projector isn’t positioned this way, the image will be “keystone” shaped, instead of square or rectangular.

If you place the projector below the level of the screen, you’ll have to tilt it up by extending the feet. This also causes the image to lose its rectangular shape, but the Auto Keystone feature corrects the distortion automatically. If the image does not regain its rectangular shape, the tilt angle is greater than 15° or the Auto Keystone feature

may have been disabled. To turn it on, see page 52. To adjust it

manually, see page 35.

note

The Auto Keystone feature corrects vertical distortion automatically. For more

information, see page 35.

Other Installations

You can also project from behind the screen or from the ceiling, with the projector mounted upside-down:

Rear projection (using a translucent screen)

Rear/ceiling projection (using a translucent screen)

Front/ceiling projection

To project from overhead, you’ll need the optional ceiling mount

hardware. (See page 12 for ordering information.) You’ll also need to

select

Front/Ceiling

or

Rear/Ceiling

for the

Projection

option in the

Advanced menu. To project from the rear, select

Rear

. See page 53

for more information.

Setting Up the Projector

15

note

If you have an iBook with an

RCA video-out port, follow the instructions for connecting to a video device

on page 22.

Connecting to a Computer

You can connect the PowerLite projector to any Macintosh or

IBM ® -compatible PC that has a standard video output (monitor) port, including PC notebook and laptop computers, Macintosh

PowerBooks and iBooks, and hand-held devices. You can connect two computers at the same time.

Follow the instructions in this section to:

Connect the VGA computer cable to the projector

Connect your computer’s monitor cable to the projector (if you want to view your display on the desktop computer screen)

Connect the mouse cable (if you want to use the remote control as a mouse)

Connect an optional audio cable (if you’ll be projecting with audio)

note

If your computer provides video output through BNC connectors, you can use the optional VGA-to-BNC cable

instead. See page 12.

Connecting the VGA Computer Cable

Before you start, make sure your computer and the projector are turned off.

1. If you are connecting the projector to a desktop computer, disconnect the monitor cable from your computer.

2. Locate the VGA computer cable that came with the projector.

VGA computer cable

16

Setting Up the Projector

3. Connect one end of the cable to the projector’s

Computer1/Component Video1 or the

Computer2/Component Video2

port. If you are going to connect your computer monitor to the projector for simultaneous display, use the

Computer1/Component Video1

port.

4. Connect the other end of the cable to your computer’s video-out or monitor port.

If you’re using a PowerBook or iBook and you can’t connect the cable, you may need to use the Macintosh desktop adapter as

shown below (available from EPSON; see page 12).

To use the adapter, remove its cover as shown and set its DIP switches according to the resolution you want to use, such as

16-inch mode. See your Macintosh documentation for instructions.

Replace the cover and connect the adapter to the free end of the computer video cable. Then plug the cable (with the adapter) into the video port on your

Macintosh.

5. If you want to view the display simultaneously on your computer monitor and the projector

screen, see “Connecting a Monitor” on page 18.

6. Tighten the screws on the connectors.

Setting Up the Projector

17

After projection starts, select the correct source (either

Computer1

or

Computer2

)

when you want to project this source. See page 30.

If you don’t need to make any other connections, you can plug in

your projector and turn it on. See page 28 for instructions.

note

Some LCD monitors may not be able to display the image correctly. If you have trouble displaying the image, connect a multiscan monitor. If you’re projecting computer images, make sure the computer’s refresh rate is set to 65 Hz or greater.

Connecting a Monitor

If you want to see your presentation close-up as well as on the screen, you can connect an external monitor to the projector. This lets you view images on your computer monitor while the projector is in standby mode (plugged in but not turned on) and check your presentation or switch between picture sources even if you’ve pressed the

A/V Mute

button to turn off projection on the screen.

Simultaneous display is possible only when the computer is connected to the projector’s

Computer1/Component Video1

port.

Make sure the projector and computer are off. Then connect the monitor’s cable to the projector’s

Monitor Out

port, as shown:

18

Setting Up the Projector

If you don’t need to make any other connections, you can plug in

your projector and turn it on. See page 28 for instructions.

Connecting the Cable for Remote Mouse

Control

Using the remote control as a wireless mouse lets you click through slideshow-style presentations, such as PowerPoint, from up to 20 feet away. This makes it easy to deliver your presentation, since you won’t need to stand near your computer.

To use the wireless mouse function, your system must have a USB port and the full version of one of these operating systems:

Windows

Windows 98, 2000, Me, and XP

Macintosh

Macintosh OS 8.6 to 9.2, OS X

1. If you are using a desktop computer, disconnect the mouse cable from your computer.

2. Locate the USB mouse cable that came with the projector and connect the square end of the cable to the projector’s USB port.

3. Connect the flat end of the cable to an available USB port on your computer.

4. If necessary, configure your laptop to work with an external mouse.

If you don’t need to make any other connections, you can plug in

your projector and turn it on. See page 28 for instructions.

Setting Up the Projector

19

Amplifying Computer Audio

Your computer probably has its own sound system; however, it may not be adequate for your presentation. If you need more volume, you can connect a computer audio cable to take advantage of the projector’s built-in amplifier and speaker. You can obtain a computer audio cable (3.5-mm stereo miniplug cable) from a computer or electronics dealer.

1. Connect one end of the audio cable to the

Audio1 jack on the projector.

note

The Audio menu also lets you adjust the volume.

2. Connect the other end of the audio cable to your laptop’s

headphone jack or audio-out jack, or your desktop’s speaker or audio-out port.

3. After you turn on your projector, open the Audio menu and make sure

Audio 1

is selected for the

Audio Input

setting. See page 51.

If you don’t need to make any other connections, you can plug in

your projector and turn it on. See page 28 for instructions.

20

Setting Up the Projector

Connecting to a High-End Workstation

Your PowerLite projector is capable of remapping input resolutions up to 1600

×

1200 pixels (on the PowerLite 74c) or up to

1280

×

1024 pixels (on the PowerLite 54c). Since 1280

×

1024 pixels is the default resolution for most leading workstations, your projector is ideal for displaying workstation video output.

There is no standard for workstation video output. Workstations that follow the SXGA standard and use the HD15 (standard VGA) connector won’t need an adapter cable or any special connection device. However, your system may vary; contact your computer dealer if you need help connecting your workstation.

Setting Up the Projector

21

note

The projector does not support TV antenna cable

F connectors.

Connecting to Video Sources

You can connect a DVD player, VCR, camcorder, laser disc player, digital camera, gaming console—such as Microsoft Xbox, Sony

PlayStation 2, or Nintendo GameCube—or any other compatible video source to your projector. You can connect up to two video devices at time (or one computer and one video device).

The projector supports HDTV, NTSC, PAL, and SECAM, and automatically detects the video format. It can receive composite video,

S-Video, and component video. The type of cable you need depends on the video source:

For composite video, use the RCA A/V cable included with the projector. See below.

For S-Video, use the S-Video cable supplied with your video

device or order one from EPSON (ELPSV01). See page 24.

For RGB video, use the VGA computer cable included with the

projector. See page 25.

For component video, you’ll need the optional EPSON

component video cable (ELPKC19). See page 26.

Connecting a Composite Video Source

Before starting, make sure the projector and your DVD player or other video source are turned off.

1. Locate the RCA A/V cable that came with your projector.

22

Setting Up the Projector

2. Connect the yellow RCA plug on the two-connector end of the cable to the projector’s yellow

Video

jack as shown below.

3. Connect the other yellow plug to the video-out jack on your video source.

4. To play sound through the projector, connect the black audio plug on the RCA A/V cable to the projector’s

Audio2 jack.

5. Connect the red and white plugs on the other end of the cable to the corresponding audio output jacks on your video source.

6. After you turn on your projector, be sure to:

If more than one device is connected to the projector, select

Video

when you want to project this source. See page 30.

Open the Audio menu and make sure

Audio 2

is selected for the

Audio Input

setting. See page 51.

note

The Audio menu also lets you adjust the volume.

Setting Up the Projector

23

24

Setting Up the Projector

Connecting an S-Video Source

If your video source has an S-Video jack, you can use it to project a higher quality video image. You’ll need an S-Video cable, which is usually provided with your video source, or you can purchase one

from EPSON. See page 12.

Before starting, make sure the projector and your DVD player or other video source are turned off.

1. Insert one end of the S-Video cable into the projector’s

S-Video port and the other end into the S-Video output port of your video source.

2. If you want to play sound through the projector, connect the

audio plugs on the RCA A/V cable as described on page 22.

3. After you turn on your projector, be sure to:

If more than one device is connected to the projector, select

S-Video

when you want to project this source. See page 30.

Open the Audio menu (if you connected the audio cable) and make sure

Audio 2

is selected for the

Audio Input

setting.

See page 51.

Connecting an RGB Video Source

Follow these instructions to connect the projector to a video player that has an RGB video output port using the VGA computer cable that came with the projector.

1. Connect one end of the VGA computer cable to the

Computer1/Component Video1 or the

Computer2/Component Video2

port on the projector.

2. Connect the other end to the video port on your player.

3. If you want to play sound through the projector, connect the optional audio cable (3.5-mm stereo miniplug) as described on

page 20.

Once the projector is turned on, be sure to select

Computer 1

or

Computer 2

(whichever port you used) as the source to see your

image. See page 30.

Setting Up the Projector

25

Connecting a Component Video Source

If your video source has component video connectors, you can use them to project a higher quality video image. You’ll need a component video cable, which can be purchased from EPSON

(ELPKC19). See page 12.

Before starting, make sure the projector and your DVD player or other video device are turned off.

1. Connect the large end of the component video cable to the projector’s

Computer1/Component Video1

or the

Computer2/Component Video2

port.

26

Setting Up the Projector

2. Insert the three ends of the component video cable into the

R

,

G

, and

B

ports on your video source.

3. Connect the audio plugs on the RCA A/V cable as described on

page 22.

4. Once the projector is turned on, be sure to:

Select the correct source to see your image:

Component

Video1 (YCbCr), Component Video1 (YPbPr)

,

Component Video2 (YCbCr)

, or

Component Video2

(YPbPr)

. See page 50.

Open the projector’s Image menu and select the correct

Input Signal

setting to match your device and the port you used:

Component Video1 (YCbCr), Component Video1

(YPbPr), Component Video2 (YCbCr), or

Component

Video2 (YPbPr)

. See page 50.

Using the Projector

O nce you’ve set up the projector, you’re ready to turn it on, adjust the image, and give your presentation.

Although you can operate the projector without it, the remote control

lets you use additional features. See Chapter 3 for instructions on

using the remote. This chapter covers the following:

Turning on the projector and other equipment

Adjusting the image

Shutting down the projector

1

Using the Projector

27

Turning On Your Equipment

Make sure your projector and other equipment are set up and

connected correctly, as described in Chapter 1. Then turn on your

projector, as described below.

If you turn on your connected computer or video equipment before starting the projector, the projector automatically detects and displays the image source. If you turn on the projector first, or have multiple pieces of connected equipment, you may have to select the image

source manually. See page 30.

Turning On the Projector

Follow these steps to plug in and turn on the projector:

1. Remove the lens cap.

caution

Do not use the projector with the lens cap in place. The heat generated by the lamp can damage it.

2. Connect one end of the power cord to the projector’s power inlet.

28

Using the Projector

3. Connect the other end to an electrical outlet.

The power light on top of the projector turns orange, indicating that the projector is receiving power but not yet turned on. Wait until the light stops flashing but stays lit orange.

4. Turn on your computer or video source if you have not already.

5. Press the P

Power

button on top of the projector to turn it on.

(You can also press the P

Power

button on the remote control.)

note

If you are using the remote control for the first time, be sure to remove the tape from the battery tray as described

on page 40.

Page down Page up

Power

Computer S-Video/Video Color Mode

Menu A/V Mute Freeze

E-Zoom

Enter

Auto ESC

Projector Remote control

The projector beeps and the power light flashes green as the projector warms up. The lamp comes on in about 30 seconds and the power light stays green.

If you’re using a computer, you should see your computer display projected after a moment or two. If not, you need to

select the image source. See page 30.

(Windows

®

only: If you see a message saying that it has found a plug-and-play monitor, click

Cancel

.)

If you’re projecting a video, press the

Source

button on top of the projector or the

S-Video/Video

button on the remote control to switch to your video source. Then press the

Play button on your DVD player or other device.

If you are prompted to enter a password, see page 60.

To focus and adjust the image, see page 33. If a projected image fails

to appear, see “What To Do If You See a Blank Screen” below.

When you’re done with your presentation, shut down the projector as

described on page 37. Shutting down the projector correctly prevents

premature lamp failure and possible damage from overheating.

warning

Never look into the lens when the lamp is on. This can damage your eyes, and is especially dangerous for children.

Using the Projector

29

note

If you don’t hear any sound and adjusting the volume controls does not help, you may need to select the correct

Audio port. See page 51.

Selecting the Image Source

Selecting the image source lets you switch between images input from different pieces of equipment connected to the projector (such as a computer and DVD player). If you don’t see the image you want, select it as follows:

On the projector, press the

Source

button until the correct device image is projected.

On the remote control, press the

Computer1/2

button to select the device connected to the Computer1/Component Video1 or

Computer2/Component Video2 port. For the S-Video or Video port device, press the

S-Video/Video

button.

If a projected image fails to appear, see the next section for help.

Once you see your image, turn to page 33 for instructions on focusing

and making other image adjustments.

What To Do If You See a Blank Screen

If you see a blank screen or a blue screen with the message

No Signal after turning on your computer or video source, try the following:

Make sure the cables are connected correctly, as described in

Chapter 1.

Make sure the power light is green and not flashing and the lens cap is off.

Press the

Source

button on top of the projector to select the correct source. (Allow a few seconds for the projector to sync up after pressing the button.)

Check the

Input Signal

setting in the Image menu to make sure

it matches the port to which the device is connected. See page 50.

30

Using the Projector

If you’re using a PC laptop:

Hold down the

Fn

key and press the function key that lets you display on an external monitor. It may have an icon such as or it may be labelled

CRT/LCD

. Allow a few seconds for the projector to sync up after pressing it. Check your laptop’s manual or online help for details.

On most systems, the or

CRT/LCD

key lets you toggle between the LCD screen and the projector, or display on both at the same time.

If you’re projecting from a laptop, and you don’t see the same image on the projection screen and computer screen, check your monitor settings to make sure both the LCD screen and the external monitor port are enabled.

From the Control Panel, open the

Display

utility. Click the

Settings

tab, then click

Advanced

. The method for adjusting the settings varies by brand; you may need to click a

Monitor

tab, then make sure the external Monitor port is set as your primary display and/or enabled. See your computer’s documentation or online help for details.

If you’re using a Macintosh laptop with OS X:

You may need to set up your system to display on the projector screen as well as the LCD screen. Follow these steps:

1. From the Apple menu, select

System Preferences

, then click

Displays.

2. Select

VGA Display

or

Color LCD

, click

Arrange

or

Arrangement

, and make sure

Mirror Displays

is checked.

Click here

Select Mirror

Displays

Using the Projector

31

32

Using the Projector

If you’re using a Macintosh laptop with OS 9.x or earlier:

You may need to set up your system to display on the projector screen as well as the LCD screen. Follow these steps:

1. From the Apple menu, select

Control Panels

, then click

Monitors

or

Monitors and Sound.

2. Click the

Arrange

icon.

Click here

Drag one monitor icon on top of the other

3. Drag one monitor icon on top of the other.

If the

Arrange

option isn’t available, you may need to select one of the Simulscan resolution settings:

1. Click the

Monitor

icon, if necessary.

Click here

Select a

Simulscan resolution

2. Select a

Simulscan

resolution as shown. (Allow a few seconds for the projector to sync up after making the selection.)

Adjusting the Image

Once you see your image, you’ll need to make certain adjustments:

To focus or zoom your image, see below.

If the image is too high or too low, you can reposition it.

See page 34.

If the image isn’t square, see page 35.

To change the color mode for your image and surroundings, see

page 36.

If a computer image displays incorrectly, see page 37.

You can make many other adjustments to the image—such as changing the brightness, contrast, and aspect ratio—using the projector’s menu system. See Chapter 4 for more information

Focusing and Zooming Your Image

Rotate the focus ring to sharpen the image.

Focus ring

Rotate the zoom ring to reduce or enlarge the image.

Zoom ring

Using the Projector

33

You can also change the image size by moving the projector closer to or farther away from the screen. You can use the

E-Zoom buttons on

the remote control to zoom in on a portion of the image. See page 42

for instructions.

Adjusting the Height of Your Image

If the image is too low, you can raise it by extending the projector’s feet.

1. Stand behind the projector. Press the blue foot release levers on each side and lift the front of the projector. This unlocks the feet.

34

Using the Projector

Foot

2. Once the image is positioned where you want, release the levers to lock the feet in position.

3. To fine-tune the height of the image, rotate the projector’s feet.

If the image is no longer rectangular after raising it, see the next section.

Adjusting the Image Shape

The projector automatically corrects images that are distorted when the projector is tilted up or down (up to a 15° tilt). The Keystone window appears on the screen while the projector makes the correction. If the projected image still isn’t rectangular or has a

“keystone” shape, do one or more of the following:

If your image looks like or , you’ve placed the projector off to one side of the screen, at an angle. Move it directly in front of the center of the screen, facing the screen squarely.

If your image looks like or , the Auto Keystone feature may have been disabled or you may need to manually adjust the keystone correction value. (Auto Keystone is not available when you’re using ceiling or rear projection.) Follow the directions below:

To turn on Auto Keystone, press the

Menu

button on the remote control. Use the directional button to select the

Setting

menu, then press

Enter

. If

Auto Keystone

is

OFF

, press to highlight this option and press

Enter

. Select

ON

in the Auto Keystone window that appears and press

Enter

to save your changes. Exit the menu by pressing the

Menu button.

To manually adjust the keystone correction value, press the

or side of the

Keystone

button on the projector to correct the shape of the image. After correction, your image will be slightly smaller.

Menu

Enter Directional buttons

You can also make keystone adjustments using the projector’s Setting

menu. See page 52.

Using the Projector

35

36

Using the Projector

Adjusting the Brightness

The brightness of an image depends on the source you are projecting and the amount of light in the room. If the image is too bright or not bright enough, here are two ways you can adjust it:

Change the

Brightness

setting in the Image menu. See page 49.

Select

Low

or

High

for the

Brightness Control

option in the

Advanced menu. (See page 54.) Low brightness mode extends the

life of the lamp and decreases the fan noise.

Adjusting the Color Mode

You may want to adjust the color mode to select a different setting that is appropriate for the image you’re projecting and the environment in which you’re projecting it.

If you’re projecting computer or RGB video images, the default color mode is

Presentation

, which is appropriate for presentations in bright rooms. For other images, the default color mode is

Dynamic

, which optimizes video images using natural colors.

The following table lists the 6 color modes available.

Color mode

sRGB

Dynamic

Presentation

Theater

Living Room

Blackboard

Description

Use when projecting computer images conforming to the sRGB color standard (the default setting when projecting from a computer with analog video)

Best for projecting movies with vivid color in bright rooms.

Use when you’re projecting a presentation in a bright room.

Use when projecting movies in a dark room.

Best for playing video games or watching TV in a bright room.

Choose this fixed color mode when you need to project against a green blackboard.

To change the color mode, press the

Color Mode

button on the remote control until you see the mode you want. The currently selected setting appears in the upper right corner of the screen. You can also use the projector menu system to select the Color Mode in

the Image menu (see page 49).

Correcting Computer Images

If you’ve connected a computer and the image doesn’t look right, or it doesn’t fit properly on the screen, press the

Auto

button on the remote control. This automatically resets the projector’s tracking, sync, resolution, and position settings. You must be projecting an image for this button to have any effect. Additionally, if the

Auto

Setup

option in the Image menu is set to

OFF

, the Auto function will

not work. See page 50.

Color Mode

Auto button

Shutting Down the Projector

When you’ve finished using the projector, follow the recommended procedure to shut it down. This extends the life of the lamp and protects the projector from possible overheating.

1. If you’re using a computer, shut it down first; otherwise you may not be able to see your computer’s display to shut it down properly.

2. To turn off the projector, press the P

Power button on the projector or remote control.

note

When the projector has not received any input signals for

30 minutes, it automatically turns off the projector lamp and enters “sleep mode.” This conserves electricity, cools the projector, and extends the life of the lamp. If you are done using the projector, unplug the power cord. If you want to start projecting again, press

the P

Power

button. You can turn Sleep mode on or off through the Setting menu.

See page 53.

You see this confirmation message:

(If you don’t want to turn it off, press any other button or wait a few seconds until it disappears.)

Using the Projector

37

caution

To avoid damaging the projector or lamp, never unplug the power cord when the power light is green or flashing orange.

3. Press the P

Power

button again. The lamp is turned off and the power light flashes orange for about 20 seconds as the projector cools down. When the projector has cooled, the light stays orange and the exhaust fan shuts off.

If you want to turn the projector on again, wait until the orange light stops flashing. Then press the P

Power

button.

4. Retract the front feet as shown.

5. Replace the lens cap and unplug the power cord.

6. Turn off and disconnect any equipment plugged into the projector.

7. If you won’t be using the projector for a while, store it in the soft case that came with it or in a protective case.

38

Using the Projector

Using the Remote Control

T he remote control lets you access your projector’s features from anywhere in the room—up to 20 feet away. For example, you can turn the projector on and off, freeze the presentation, zoom in on a portion of your image, and access the menu system. (The projector menus let you adjust many projector settings; see Chapter 4.)

If you’re using a computer and you’ve connected the mouse cable

as described in Chapter 1, you can use the remote control as a wireless

mouse.

When using the remote control, stand within 20 feet of the projector.

Point the remote control either at the front or back of the projector or at the screen (the projector’s front sensor can detect signals bounced off the screen). Press the button for the function you want to use.

This chapter covers the following information:

Removing the battery tape

Storing the remote control

Controlling the picture and sound

Using the remote control as a wireless mouse

1

Using the Remote Control

39

40

Using the Remote Control

Removing the Battery Tape

Before using the remote control, pull out the tape from the battery tray as shown below.

Tape

When the battery power runs low, you can replace it as described on

page 44.

Storing the Remote Control

Most of the projector’s features can be accessed only with the remote control. To prevent losing it, store it in the projector’s remote control storage compartment when you are not using it.

Open the door to the remote control tray

Then place the remote inside and close the door

Controlling the Picture and Sound

You can use the remote control to select your source, temporarily turn off the picture and sound, freeze the action, or zoom in on the picture.

Make sure you have set up your projector and connected any equipment as described in Chapter 1.

Switching Between Picture Sources

If you’ve connected your projector to more than one computer and/or video source, you can use the buttons on the remote control to switch between the different sources.

Press the

Computer1/2 button to select the computer or video source connected to the projector’s

Computer1/Component

Video1

or

Computer2/Component Video2

port.

Press the

S-Video/Video

button to select an S-Video or standard composite video source.

After you select a source, the screen goes dark for a moment before the image appears. The name of the selected source (such as

Computer1 or

S-Video

) appears briefly on the screen.

Select the S-Video or Video source

Select the computer or RGB (component) video source

Using the Remote Control

41

A/V Mute

Zoom out

Freeze

Turning Off the Picture and Sound

Press the

A/V Mute

button on the remote control to turn off the image and sound and darken your screen. This is useful if you want to temporarily re-direct your audience’s attention without the distraction of a bright screen.

To turn off the picture and sound, press the

A/V Mute

button.

The screen goes dark.

To turn the image and sound back on, press the button again or press

Esc

.

You can create an image, such as a company logo or a picture, to display on the screen whenever you press the

A/V Mute

button. See

page 56 for more information.

Stopping Action

Press the

Freeze

button to stop the action in your video or computer image and keep the current image on the screen. The sound will continue, however; and if you have connected an external monitor for simultaneous display, the action continues on the monitor even though it is paused on the screen.

Press the

Freeze

button again or press

Esc

to re-start it.

Esc

Zoom in

Zooming Your Image

Follow these steps to zoom in on a portion of the image:

1. Press the

E-Zoom button on the remote control.

You see a crosshair indicating the center of the zoom-in area.

2. Use the directional buttons to position the crosshair in the area you want to enlarge.

3. Continue pressing the

E-Zoom button to enlarge the selected area up to 4 times.

42

Using the Remote Control

4. While the image is enlarged, you can:

Use the directional buttons to pan about.

Press the

E-Zoom button to zoom out.

5. When you’re done, press the

E

SC

button to return to the original size.

Using the Remote Control as a Wireless

Mouse

When you use the remote control as a wireless mouse, you can control your computer or click through slideshow-style presentations (such as

PowerPoint) from up to 20 feet away. This gives you more flexibility, since you don’t need to stand near your computer to change slides.

To control your computer with the remote, make sure you have connected the mouse cable between the projector and your computer

as described on page 19.

To move the mouse pointer on the screen, aim the remote at the screen and use the directional buttons to move the cursor.

To click (or left-click), press the

Enter

button.

To right-click, press the

Esc

button.

To double-click, press the

Enter

button twice.

To click and drag, press down and hold the

Enter

button and use the directional buttons to move where you want to drag.

To advance slides in a PowerPoint presentation in Slide Show mode, press the

Page up

or

Enter

button on the remote control.

Press the

Page down

or

Esc

button to go back a slide.

Enter

Directional buttons

Esc

Using the Remote Control

43

caution

When replacing batteries, take the following precautions:

Replace the battery as soon as it runs out. If the battery leaks, wipe away battery fluid with a soft cloth. If fluid gets on your hands, wash them immediately.

Do not expose batteries to heat or flame.

Dispose of used batteries according to local regulations.

Remove the battery if you won’t be using the remote control for a long period of time.

Replacing the Battery

Follow these steps to replace the battery:

1. Press the tab towards the center of the remote and slide the battery tray out of the remote control.

Tab

2. Remove the old battery and insert a CR2025 watch battery as shown.

3. Slide the battery tray back into the remote until it clicks into place.

44

Using the Remote Control

Fine-tuning the Projector

Y ou can use the projector’s remote control to access on-screen menus to adjust the image, sound, and other features. This chapter covers the following information:

Using the menu system

Adjusting the image

Adjusting the sound

Customizing projector features

Viewing lamp usage and other information

Creating your own screen logo

Enabling password protection

Restoring the default settings

133

Fine-tuning the Projector

45

46

Fine-tuning the Projector

Using the Projector’s Menu System

The seven projector menus let you adjust and customize the projector features from the remote control:

The Image menu controls the look and quality of the projected image. It lets you adjust the image position, select the color mode, and fine-tune settings such as Brightness, Sharpness, and

Contrast.

The Audio menu controls the volume level and audio input setting (

Audio1

or

Audio2

).

The Setting menu allows you to adjust or enable features such as

Keystone correction, background screen color, message display, and sleep mode.

The User’s Logo menu lets you capture and store a custom image or logo which you can then use as the startup screen or A/V Mute screen.

The Advanced menu lets you select Low or High brightness mode, the menu language, startup screen, color setting, and rear or ceiling projection.

The Info menu provides information about lamp status and computer or video settings.

The Reset All menu lets you restore the projector’s factory default settings.

Changing Menu Settings

Use the buttons on the remote control to access the menus and change settings. Follow these steps:

1. Press the

Menu

button on the remote control to display the menu screen:

Menu options

Menu Directional buttons

Menus

The seven menus are listed on the left, and the options available for the highlighted menu are shown on the right.

2. Press the up or down directional buttons to scroll through the menu list.

3. When the menu you want is highlighted, press the

Enter

button to select it. The highlight moves to the first option for that menu.

4. Use the directional buttons ( , , , or ) to scroll through the list of options. (The options available depend on which source is selected.)

5. When the option you want to change is highlighted, press the

Enter

button to select it. Then use the directional buttons to change the setting.

The current setting is indicated by a green oval . Press the and buttons to select a different setting, and then press

Enter

to accept the new setting. The for the new setting turns green.

note

If you want to go back to the default settings on any menu,

select Reset, press Enter,

select Yes, and then press

Enter.

Fine-tuning the Projector

47

6. Press the

Esc

button to return to the previous menu or to close the menu system if you are at the main menu. Your changes are saved automatically.

7. Press the

Menu

button to exit the menu system.

Adjusting the Image

The Image menu lets you make adjustments to the projected image.

The options available depend on which image source is selected:

Computer (Analog-RGB) RGB video

Component video (YCbCr, YPbPr)

Video (Composite video, S-Video)

Follow these steps to adjust the appearance of your image:

1. Press the

Menu

button. You see the main menu.

2. Press

Enter

to select the Image menu.

48

Fine-tuning the Projector

3. Use the directional buttons and press

Enter

to select any of the following options:

Position

Press and hold one of the directional buttons to move the image on the screen left, right, up, or down.

Tracking

(computer images only)

Removes unwanted vertical lines from a computer image by matching the projector’s internal clock to various computer

signals. See page 80 for more information about adjusting the

tracking.

Sync

(computer images only)

Corrects fuzziness or screen flicker by synchronizing the projector with the tracking signal sent from the computer.

See page 80 for more information about adjusting the sync

setting.

Brightness

Lightens or darkens the overall image.

Contrast

Adjusts the difference between light and dark areas.

Color

(video only)

Adjusts the depth or intensity of the image.

Tint

(video only)

Adjusts the balance of green to magenta in the image.

Sharpness

Sharpens or softens the image.

Color Mode

Corrects the vividness of image color. You can select from the following six settings, and save a different one for each computer and/or video source:

Dynamic:

For projecting movies in vivid color in bright rooms

Presentation:

For presentations in bright rooms

note

If you have repositioned the image but then change your mind, you can press the

Auto

button on the remote control to restore the default settings.

note

You can also select High

Brightness or Low Brightness mode in the Advanced menu.

See page 54.

Fine-tuning the Projector

49

note

Be sure to select the correct source with one of the Source buttons before you check the

Input Signal.

Theatre:

For optimizing movie images with natural color in a dark room (the default for video or S-Video display)

Living Room:

For playing video games and watching TV in a bright room sRGB:

For standard sRGB computer displays (the default when projecting from a computer with analog video)

Blackboard:

Fixed color mode when projecting against a green blackboard

Input Signal

This setting should match the port to which your selected source is connected, such as

Computer1 when a computer is connected to the

Computer1/Component Video1

. When a component video source is connected, choose

YCbCr

or

YPbPr

, depending on the type of signals produced by your source. (You can tell which setting is correct by the quality of the projected image.)

Auto Setup

(computer images only)

Leave this setting

ON to automatically optimize the computer image. Turn it off if you want to save adjustments you have made to the video settings.

Video Signal

(video only)

Leave this setting at

Auto

unless you are using a 60-Hz PAL system (select

PAL60

).

Aspect Ratio

(video only)

Set to

4:3

for letterbox video content and to

16:9

for widescreen video content.

4. When the image is set correctly, press

Esc

or

Menu

. Your settings are automatically saved.

50

Fine-tuning the Projector

Adjusting the Sound

You can use the Audio menu to adjust the sound volume and select the audio input port.

1. Press the

Menu

button. You see the main menu.

2. Select the Audio menu. You see the following:

3. To increase or decrease the sound, select

Volume

and use the directional buttons to adjust it.

4. If you’re using a different audio input port than the default port for your source, select

Audio Input

and then either

Audio 1

or

Audio 2

. Then press

Enter

.

5. When you’re finished adjusting the audio settings, press

Esc or

Menu

.

Fine-tuning the Projector

51

Customizing Projector Features

Use the Setting menu to disable the projector’s sleep mode, adjust the image shape, and customize several other features.

1. Press the

Menu

button.

2. Select the

Setting

menu.

3. Press

Enter and then use the directional buttons and the

Enter button to set the following options:

Keystone

Adjusts a distorted image from a trapezoid shape to rectangular.

Auto Keystone

Automatically adjusts a distorted image from a trapezoid shape to rectangular when the projector’s feet are extended or retracted. (Not available when you’re projecting from the ceiling or using rear projection.) Select

ON

or

OFF

.

Message

Selects whether the projector displays a message in the following situations: when the image source is switched, or when no image signal is being received, when the color mode is changed, when an incompatible signal is input, and when the air filter needs to be changed.

52

Fine-tuning the Projector

Background Color

Sets the screen background to Black, Blue, or Logo when the

A/V Mute

button is pressed. If the User’s Logo Protect function has been set to

ON

, the Logo setting cannot be changed to

Black

or

Blue

. The Password Protect function

must be cancelled first. See page 59.

Sleep Mode

Enables or disables the power management system, which turns the lamp off when the projector has not received any input signals for 30 minutes.

4. When you’re finished, press

Esc

or

Menu.

note

See page 56 for instructions

on creating your own screen logo.

Setting Advanced Features

Use the Advanced menu to change the brightness mode, configure the projector for rear projection and/or ceiling projection, and adjust other features.

1. Press the

Menu

button.

2. Select the

Advanced

menu. You see the features and their settings on the right side:

Fine-tuning the Projector

53

note

The Startup Screen option cannot be turned off if the

User’s Logo Protect feature has been turned on. See

page 59.

3. Press

Enter and use the directional buttons and the

Enter

button to set the following options:

Brightness Control

Select

Low

lamp brightness when the projection is too bright for the room. The

Low

setting also reduces the electricity consumption and fan noise. Select

High

to project the maximum brightness. (Also check the

Brightness

setting in

the Image menu; see page 49.)

Startup Screen

Turn on to display the image or logo you have captured

whenever the projector is turned on. See page 56 for more

information.

Color Adjustment

Color Temp:

Adjusts the whiteness of the screen.

RGB:

Adjusts the individual RGB values.

Projection

Front:

Projector is in front of the screen

Front/Ceiling:

Projector is in front of the screen, mounted upside-down from the ceiling

Rear:

Projector is behind the screen

Rear/Ceiling:

Projector is behind the screen, mounted upside-down from the ceiling

COM Port

Turn on

USB

only if you’re controlling the projector from a computer with the EMP Link 21L software. This software can be downloaded from the EPSON website at support.epson.com. (You must turn the projector off and then on again to use the new setting.)

Language

Select from nine languages to be used for the projector menus.

4. When you’re finished, press

Esc

or

Menu

.

54

Fine-tuning the Projector

Viewing Lamp Usage and Other

Information

Use the Info menu to view information about the display settings of your computer and the number of hours the lamp has been used.

1. Press the

Menu

button and select the

About

menu. You see the lamp usage hours and computer display settings on the right:

Video (Composite video, S-Video)

Computer (analog RGB, digital RGB,

RGB Video/Component video,

(YCbCr, YPbPr)

note

If you access the About menu when the projector display is set to video, you only see the lamp life, video source, and video signal settings.

The life span of the lamp ranges from about 2000 hours in High brightness mode to about 3000 hours in Low brightness mode.

If the number shown is close to 2000, make sure you have a spare lamp handy.

2. When you’re finished, press

Esc or

Menu

.

note

The lamp usage timer doesn’t register until you’ve used the lamp for at least 10 hours.

Fine-tuning the Projector

55

Creating Your Own Screen Logo

You can transfer any image on your computer to the projector, and then use it as the startup screen and/or the screen that is displayed when you press the

A/V Mute

button. The image can be a company logo, slogan, photograph, or any other image you want to use. The projector considers this image the “User’s Logo.”

note

If the User’s Logo Protect function is ON, you see a message that the logo cannot be recorded. You’ll need to disable the User’s Logo

Protect function before you can create or change the

User’s Logo. See page 59.

Capturing the Image

Follow these steps to capture the image and transfer it to the projector:

1. Display the image you want to use on the projector. You can use an image from either a computer or video source such as a VCR or digital camera.

2. Press the

Menu

button and select the

User’s Logo menu.

3. When you see a message asking if you want to use the present image as a user’s logo, Select

Yes

and press

Enter

. A selection box displays over the image.

4. Use the directional buttons to select the area of the image you want to use. Once you have selected the area, press

Enter

.

5. When you see the message “Select this image?” choose

Yes

and press

Enter

. If you want to change the area selected, select

No

, press

Enter and repeat steps 4 through 6.

56

Fine-tuning the Projector

6. Use the directional buttons on the remote control to select a zoom rate (display size), and then press

Enter

.

7. When you see the message “Save image as user’s logo?,” select

Yes and press

Enter

. Saving the logo takes few moments. Do not use the projector or other sources (computer, video, etc.) while the logo is being saved.

8. When you see the message “Completed,” press

Esc

or

Menu

.

Choosing When to Display the Screen Logo

After your screen logo is saved, you can set it up as the startup screen and/or the background screen, which is displayed when you press the

A/V Mute

button.

1. Press the

Menu

button to open the menu (if it is not already open).

2. To display the logo as the background screen when the

A/V Mute button is pressed, select the Setting menu and press

Enter

. Select

Background Color

, choose

Logo

, and press

Enter

. Then press

Esc

.

3. To turn on the logo for your startup screen, select the

Advanced menu and press

Enter

. Select

Startup Screen

, highlight

ON

, and press

Enter

.

4. When you’re finished, press

Esc

or

Menu

.

note

If the User’s Logo Protect function has been set to

ON

, the Logo setting cannot be changed from Logo to Black or Blue. You’ll need to turn the protect function off first.

See page 59.

Fine-tuning the Projector

57

note

If you should happen to enable the password before you set one, and you see the prompt to enter the password, enter the default password:

0000

to proceed.

Enabling Password Protection

To prevent unauthorized use of the projector, you can assign it a password. If you do, a screen appears requesting the password whenever the projector is turned on. If you enter the password incorrectly three times in succession, the projector’s operation is locked and you’ll need to disconnect the power cord, then reconnect it to redisplay the password screen. If an incorrect password is entered nine times in a row, the projector is locked and you’ll need to contact

EPSON to unlock it. See “Where To Get Help” on page 83.

If you have created a user’s logo for the projector (as described on

page 56), you can also lock the logo on so it is displayed as the startup

screen and/or AV/Mute screen. Unauthorized users cannot turn it off or change it. This feature is intended to discourage theft and provides a way to identify the projector should it be stolen.

Additionally, if someone else will be using the projector for a while but you want to make sure that person returns it by a certain time, you can temporarily disable the password for set period. When that time has elapsed, the password is reactivated and must be entered before the projector can be used.

Follow the instructions below to first set the password, and then turn on the password and/or user logo protection. Be sure to set the password before you turn it on; otherwise, you may lock yourself out of the projector.

58

Fine-tuning the Projector

Setting a Password

1. Press the

Freeze

button on the remote control for about 7 seconds, until you see the Password Protect menu:

2. Select

Password

and press

Enter

. You see the message

Change the password?

3. Select

Yes

and press

Enter

.

4. Enter a 4-digit password using the numeric keypad on the remote control.

The password will be displayed as

****

. After you enter the last digit, a confirmation screen appears. Enter the password again.

5. After you finish setting the password, press the

Esc

button to return to the Password Protect menu.

Make a note of the password and keep it in a safe place in case you forget it.

Turning On the Password and User’s Logo

1. To enable the password, select

Power ON Protect

and press

Enter

. Select

ON

then press

Esc

.

2. If you want to disable the password temporarily, select

Timer

and press

Enter

. Then use the numeric keypad to enter the number of hours (from 0 to 999) that you want the password feature disabled. If you want the projector to request the password every time it is turned on, set the timer to

0H

.

The countdown for the elapsed time begins as soon as you close the Password Protect menu. (You can check the elapsed time in this menu next to

Time elapsed

.)

note

If a password has already been set, you see the

Password Protect Release

screen. See “Starting the

Projector with a Password” on page 60.

Use these buttons like a numeric keypad to enter the password

Fine-tuning the Projector

59

3. To enable your screen logo, select

User’s Logo Protect

and press

Enter

. Select

ON

and press

Enter

.

When this feature is on the logo appears whenever the projector is turned on (if the Startup Screen is enabled) and as the A/V Mute screen (if you enabled the logo for the

Background Color setting). None of the User’s Logo features can be changed when the User’s Logo Protect function is enabled.

4. Press

Menu

to close the Password Protect menu.

If you lose the remote control, you will not be able to enter the password; so keep the remote control in a safe place at all times. You

can store it in the compartment under the projector. See “Storing the

Remote Control” on page 40.

When the period defined in the Time-elapsed setting has passed, and the password is entered correctly, the elapsed time will be reset to

0 and the countdown will start again. So remember to disable or change this setting when you need to.

Starting the Projector with a Password

When the password function is enabled, you see this screen when you turn on the projector:

Use the numeric keypad buttons to enter the password that has been set. Once you have entered the password correctly, the password screen closes, and projection begins.

60

Fine-tuning the Projector

If the password is not correct, you see the message “Wrong password.

Please try again.” If you enter an incorrect password three times in succession, you see the message “The projector’s operation will be locked. Request code xxxxx” and the projector switches to standby mode for approximately 5 minutes. Write down the request code.

Then disconnect the projector’s power cord from the electrical outlet, reconnect it, and turn the projector back on.

When you see the Password Protect Release screen again, you can try to enter the correct password.

If you have forgotten the password, contact EPSON with the request code number that appears in the Password Protect Release screen for

assistance. See “Where To Get Help” on page 83.

If you enter an incorrect password nine times in succession, the projector remains locked and you must contact EPSON to unlock it.

Restoring the Default Settings

The Reset All option lets you return the projector settings to their default values.

note

The Input Signal, Video

Signal, User’s Logo, Lamp

Hours, and Language settings do not return to their defaults when you select

Reset All

.

Select

Reset All

and press the

Enter

button on the remote control to display the confirmation screen. Select

Yes

to reset all the default settings or

No

to cancel.

Fine-tuning the Projector

61

62

Fine-tuning the Projector

Maintaining and

Transporting the Projector

warning

Before you clean any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages in the projector can injure you severely. Do not try to service this product yourself, except as specifically explained in this

User’s Guide. Refer all other

servicing to qualified service personnel.

Y our projector needs little maintenance. All you need to do on a regular basis is keep the lens clean. Any dirt or smears on the lens may show up on your projected image.

You also need to periodically clean the air filter on the bottom of the projector. A clogged air filter can block ventilation needed to cool the projector and cause overheating.

The only parts you should replace are the lamp and air filter. If any other part needs replacing, contact your dealer or a qualified servicer.

This chapter covers the following:

Cleaning the lens

Cleaning the projector case

Cleaning and replacing the air filter

Replacing the lamp

Resetting the lamp timer

Transporting the projector

1

Maintaining and Transporting the Projector

63

caution

Do not use glass cleaner to clean the lens.

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

Use a canister of compressed air to remove dust.

To remove dirt or smears on the lens, use lens-cleaning paper. If necessary, moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Cleaning the Projector Case

Before you clean the case, first turn off the projector and unplug the power cord.

To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth.

To remove stubborn dirt or stains, moisten a soft cloth with water and a mild detergent. Then wipe the case.

Do not use wax, alcohol, benzene, paint thinner, or other chemical detergents. These can damage the case.

64

Maintaining and Transporting the Projector

Cleaning and Replacing the Air Filter

Clean the air filter on the bottom of the projector after every 100 hours of use. If it is not cleaned periodically, it can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector. When the filter is clogged, the projector displays the message “The projector is overheated.”

To clean the air filter, follow these steps:

1. Turn off the projector, allow it to cool down, and unplug the power cord.

2. Turn the projector upside-down, as shown below.

3. To clean the filter, EPSON recommends using a small vacuum cleaner designed for computers and other office equipment. If you don’t have one, gently clean the filter using a very soft brush (such as an artist’s camel-hair brush).

If the dirt is difficult to remove or if the filter is torn, replace it.

Contact your dealer or call EPSON at (800) 873-7766 to obtain a new one. The air filter set (part number V13H134A05) contains five filters. In Canada, please call (800) 463-7766 to locate a dealer.

note

When you get a replacement lamp for your projector, a new air filter is included.

You should replace the filter when you replace the lamp.

Maintaining and Transporting the Projector

65

4. If you need to replace the filter, lift the tab on the filter cover and pull it upward to remove it.

5. Remove the filter.

6. Install the new filter as shown below.

7. Replace the filter cover by inserting the tabs and then pressing down the other end until it clicks into place.

66

Maintaining and Transporting the Projector

Replacing the Lamp

The projection lamp typically lasts for about 2000 hours of use

(in High brightness mode) or 3000 hours (in Low brightness mode).

It is time to replace the lamp when:

The projected image gets darker or starts to deteriorate.

The warning light is flashing red at 0.5-second intervals.

The message

Lamp Replace

appears on the screen when the lamp comes on. To maintain projector brightness and image quality, replace the lamp as soon as possible.

Contact your dealer or call EPSON at (800) 873-7766 in the United

States for a replacement lamp. Request part number

V13H010L27

.

In Canada, please call (800) 463-7766 to locate a dealer.

Follow these steps to replace the lamp:

1. Turn off the projector.

2. When the power light stops flashing and remains orange, unplug the power cord.

3. If the projector has been on, allow it to cool down for at least half an hour (or until the lamp is cool).

4. Turn the projector upside-down to access the lamp compartment.

5. Use the screwdriver included with the replacement lamp to slide the edge of the lamp cover towards the side of the projector. Then lift off the cover.

1

note

You can check to see how many hours the lamp has

been used. See page 55.

warning

Let the lamp cool before replacing it. If the lamp breaks, handle the shards carefully to avoid injury.

2

Maintaining and Transporting the Projector

67

6. Use the screwdriver to loosen the two screws holding the lamp in place. The screws are deep inside the projector on the sides of the lamp. (You can’t remove the screws.)

warning

This product includes a lamp component that contains mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put it in the trash.

Don’t remove these screws

7. Hold the lamp by the top, as shown, and pull it straight out.

caution

Do not touch the glass portion of the lamp assembly.

Touching the glass could result in premature lamp failure.

8. Gently insert the new lamp as shown below.

9. Once the lamp is fully inserted, tighten its screws.

68

Maintaining and Transporting the Projector

10. Position the lamp cover so the arrows on the lamp cover align with the arrows on the projector. Then slide in the cover until it clicks into place.

1

2

11. Reset the lamp timer as described below.

Resetting the Lamp Timer

You must reset the lamp timer after replacing the lamp to clear the

Lamp Replace

warning message. Follow these steps:

1. Connect the power cable and turn on the projector.

2. Press the

Menu

button on the remote control and select the

Info menu. Then press

Enter

. You see the following:

note

Do not reset the lamp timer if you have not replaced the lamp. If you do, the Lamp

Hours will not accurately reflect the number of hours that the lamp has been used.

Maintaining and Transporting the Projector

69

3. Press

Enter

to select the

Lamp-Hours Reset

option. You see the following:

4. Select

Yes

and press

Enter

.

5. Press

Esc

to return to the main menu or the

Menu

button to exit the menu system.

note

EPSON shall not be liable for any damages incurred during transportation.

Transporting the Projector

The projector contains many glass and precision parts. If you need to transport it, please follow these packing guidelines to prevent damage to the projector:

When shipping the projector for repairs, use the original packaging material if possible. If you do not have the original packaging, use equivalent materials, placing plenty of cushioning around the projector.

When transporting the projector as freight or checked luggage, first put it in the supplied carrying case, then pack it in a firm box, using cushioning around the case.

When you are hand-carrying the projector, be sure to use the supplied carrying case.

70

Maintaining and Transporting the Projector

Solving Problems

T his chapter helps you solve problems with your projector, and tells you how to contact technical support for problems you can’t solve yourself. This chapter explains the following:

Using the projector’s on-screen help system

What to do when the projector’s status lights flash

Solving problems with the image or sound

Solving password problems

Solving problems with the remote control

Contacting technical support

1

Solving Problems

71

Using On-Screen Help

If the image doesn’t look right or your audio isn’t working, you can get help by pressing the

?

Help

button on top of the projector. The following choices are available:

Help for the image

Help for the sound

Language selection

Follow these steps to get help:

1. Press the

?

Help

button on the projector. You see the help menu.

Help button

Press here to select a problem or solution

note

You can also use the directional buttons on the remote control to select Help options.

2. Press the left side of the

Select

(

Keystone

) button on the projector to highlight one of the options. Then press the

Enter

(

Source

) button on the projector to select it.

3. Press the left side of the

Select

(

Keystone

) button on the projector to highlight the problem you want to solve. Then press the

Enter

(

Source

) button to view the solution(s).

72

Solving Problems

4. Highlight a solution (if this choice is available). Then press the

Enter

(

Source)

button to select the solution.

Highlight

Return

and press the

Enter

(

Source

) button if you need to back up.

If the solution is to adjust one of the settings, press the left side of the

Select

(

Keystone

) button on the projector to adjust it.

5. To exit the Help system, press the

? Help

button.

If none of the suggestions solves your problem, see additional solutions to problems in the following sections.

What To Do When the Lights Flash

The lights on top of the projector indicate the projector’s status and let you know when a problem occurs.

Warning light

Power light

If the projector is not working correctly, first turn it off and unplug it.

Then plug the power cord back in and turn on the projector. If this does not solve the problem, check the status lights on top of the projector and try the solutions recommended in the following table.

Solving Problems

73

Power light

Orange

Warning light

Flashing red at

1-second intervals

Flashing red at

0.5-second intervals

Green Off

Flashing orange Off

Status

Internal error

Lamp failure

Operating

Cooling down

Description

There is an internal error in the projector. Turn the projector off and unplug it. Contact EPSON for help.

The lamp is burned out, broken, or not installed correctly; or the lamp cover is open. Close the cover or replace or reseat the lamp, if

necessary, as described on page 67. If you need to replace the lamp, see page 67.

Red

Off

Overheating

Flashing orange

(quickly)

High temperature warning

Standby (sleep) mode

The projector has overheated and turned itself off. Let it cool for a few minutes, then turn it back on. Make sure there is plenty of space around and under the projector for ventilation.

Also clean the air filter. See page 65. If it

continues to overheat, you may need to replace the air filter.

The projector is too hot. Make sure the temperature surrounding the projector does not exceed 95

°

F (35

°

C) and there is plenty of space around and under the projector for ventilation. Clean the air filter, if necessary.

See page 65 for instructions.

The projector is in standby or sleep mode. You can unplug it or press the P Power button to turn it on.

Flashing green Off Warming up The projector is warming up. Wait for the image to appear.

The projector is operating normally.

The projector is cooling down. Wait for the light to stay lit orange without flashing before unplugging it.

74

Solving Problems

Solving Problems with the Image or

Sound

No image appears on the screen.

Check that the power light is green, not flashing, and the lens cap is off.

The projector may be in standby or sleep mode. If the projector has not received any input signal for 30 minutes, it turns off the lamp to conserve the lamp life and save energy. If the power light is orange, press the P

Power

button to turn the projector on.

Press the

A/V Mute button to make sure the picture has not been turned off temporarily.

If the power was switched off and then on again, the projector may still be cooling down. Wait until the power light stops flashing and remains orange; then press the P

Power

button again.

Check the

Video Signal

or

Input Signal

setting in the Image menu to make sure it is correct for the selected source. See

page 50 for more information.

Has the

Message

option in the Setting menu been set to

OFF

?

Adjust the

Brightness

setting on the Image menu or select

High for the

Brightness Control

setting in the Advanced menu. See

page 49 or page 54.

The attached computer may be in sleep mode or displaying a black screen saver. Try pressing a key on the computer.

Solving Problems

75

76

Solving Problems

Nothing appears on the external monitor.

Make sure the VGA computer cable is connected to your computer’s video port and the projector’s

Computer1/Component Video1

port. It will not work if you connected the computer cable to the projector’s

Computer2/Component Video2

port.

Make sure the cable from your monitor is connected to the projector’s

Monitor Out

port.

You see a blue screen with the message

No Signal

displayed.

Make sure the cables are connected correctly, as described in

Chapter 1.

Make sure the power to your computer or video source is turned on.

If you’ve connected a computer and one or more video sources, you may need to press the

Source button (on the projector) or the

Computer1/2

or

S-Video/Video

button (on the remote control) to select the correct source. Allow a few seconds for the projector to sync up after pressing the button.

If you’ve connected a laptop computer, make sure it’s set to

display on an external monitor. See page 31.

If you’re using a PC laptop:

Hold down the

Fn

key and press the function key that lets you display on an external monitor. It may have an icon such as

, or it may be labelled

CRT/LCD

. Allow a few seconds for the projector to sync up after pressing it. Check your laptop’s manual or online help for details.

On most systems, the or

CRT/LCD

key lets you toggle between the LCD screen and the projector, or display on both at the same time.

Depending on your computer’s video card, you might need to use the Display utility in the Control Panel to make sure that both the

LCD screen and external monitor port are enabled. See your computer’s documentation or online help for details.

If you’re using a PowerBook or iBook with

Macintosh OS X:

1. From the Apple menu, select

System Preferences

, then click

Display

.

2. Select

VGA Display

or

Color LCD

, click

Arrange

or

Arrangement

, then put a check mark in

Mirror Displays

.

If you’re using a PowerBook or iBook with

Macintosh OS 9.x:

1. From the Apple menu, select

Control Panels

, then click

Monitors

or

Monitors and Sound.

2. Click the

Arrange

icon.

3. Drag one monitor icon on top of the other. This lets you display on the projector screen as well as the LCD screen.

4. If the

Arrange

icon isn’t available, click the

Monitor

icon.

5. Select one of the listed

Simulscan

resolutions. (Allow a few seconds for the projector to sync up after making the selection.)

The message

Not Supported

is displayed.

Make sure your computer’s resolution doesn’t exceed UXGA and

the frequency is supported by the projector. See page 88. If

necessary, change your computer’s resolution setting as described below.

Make sure the correct

Video Signal

is selected in the Image

menu. See page 50. It should normally be set to

Auto

.

Solving Problems

77

78

Solving Problems

Only part of the computer image is displayed.

You may need to adjust the

Position

setting in the Image menu.

See page 49 for more information.

If you changed the Aspect Ratio setting for a different source, you

may need to change it back to 4:3. See page 50 for instructions.

Make sure your computer’s resolution setting is correct. Ideally, it should be 1024

×

768 (for the PowerLite 74c) or 800

×

600

(for the PowerLite 54c) to match the projector’s native resolution.

If this option isn’t available, select one of the other compatible

video formats listed on page 88.

Windows:

Right-click the desktop, select

Properties

, click the

Settings tab, and select a different resolution.

Macintosh OS X:

On the Apple menu, choose

System Preferences

, then click

Display

. Select a different resolution.

Macintosh OS 9.x:

On the Apple menu, choose

Control Panels

, then click

Monitors

or

Monitors and Sound

. Select a different resolution.

You also may need to modify existing presentation files if you created them for a different resolution. See your software documentation for specific information.

If you used the E-Zoom feature, press

Esc

on the remote control to cancel zooming and return to full screen size.

The image isn’t rectangular, but trapezoid-shaped.

Make sure the projector isn’t placed off to one side of the screen, at an angle, or the image won’t be rectangular. Place it directly in front of the center of the screen, facing the screen squarely.

If you’ve tilted the projector upward, the image will be broader at the top. Turn on Auto Keystone correction as described on

page 52 or hold down the

or side of the

Keystone button on top of the projector until the image is rectangular.

The image contains static or noise.

If you’re using a computer cable longer than 6 feet, or an extension cable, the image quality may be reduced.

Keep your computer and video cables separated from the power cord as much as possible to prevent interference.

The video signal may be split between the computer and the projector. If you notice a decline in the projected image quality when the image is displayed simultaneously on your laptop computer and the projector, turn off the laptop’s LCD display.

Check the

Input Signal

or

Video Signal

setting in the Image menu.

Make sure the cables are securely connected.

Select the correct resolution; see “Compatible Video Formats” on page 88.

Try adjusting the

Sync

and

Tracking

settings in the Image menu.

The image is blurry.

Adjust the focus using the focus ring.

Make sure the lens cap is off.

There may be dirt or smears on the lens. Clean the lens as

described on page 64.

Make sure the lens is not fogged by condensation. You may need to wait before using the projector after moving it from a cold environment.

Make sure the projection distance is within the range described on

page 14.

Adjust the

Sharpness

setting on the Image menu (see page 49).

You should be able to see the effect on the screen immediately.

If you’re projecting from a computer, you may also need to adjust the

Tracking

and

Sync

as described in the next section. If you don’t like the new settings, you can always select

Reset to return to the factory default settings.

Solving Problems

79

note

Because of the different technologies used, your projected image may not exactly match the colors on your laptop or computer monitor.

You see vertical stripes or the image still looks blurry after trying the solutions in the previous section.

If you’re projecting from a computer and displaying an image that contains a lot of fine detail, you may notice one or more vertical stripes or bands, or some of the characters may look heavy or blurred. Press the

Auto

button on the remote control. This resets the projector’s tracking and sync settings.

If further adjustment is needed, you can fine-tune the

Tracking and

Sync

settings manually using the Image menu as described

on page 49.

1. Fill the screen with an image containing fine detail when making these adjustments. For example, in Windows you can select a pattern to appear as your desktop background. Or try projecting black text on a white background.

2. Adjust the

Tracking

to eliminate vertical stripes.

3. Adjust the

Sync

to increase the sharpness of the image.

The colors of the image are not right.

Try selecting a different Color Mode.

If you’re displaying video, adjust the

Color

and

Tint

settings on

the Image menu. See page 48 for instructions.

Adjust the

Brightness

and

Contrast

settings on the Image menu.

Try adjusting the

Color Adjustment setting on the Advanced menu.

If the images appear too green or too purple, check that the

Input Signal

or

Video Input

setting is correct on the Image menu.

Check your computer display settings to correct the color balance.

If the image seems dark, the lamp may be nearing time for

replacement. Check the lamp hours as described on page 55 and

replace it, if necessary, as described on page 67.

80

Solving Problems

There is no sound.

Try turning up the volume in the Audio menu (see page 51).

Make sure the

A/V Mute

function is not on.

If you’re using a VCR or other video source, make sure its volume is not turned all the way down or muted. Also, make sure the

cables are connected correctly, as described in Chapter 1.

Make sure the audio cable is connected to the correct Audio port.

See page 20 or page 23.

If your presentation includes computer audio, make sure the volume control on your computer is not turned all the way down or muted. Make sure the audio cable is securely connected to both the projector and your computer’s headphone jack or

audio out jack. See page 20.

Make sure the Windows volume controls on your computer are not turned all the way down or set to Mute. Check this by clicking the volume control in your Windows System Tray (lower right corner of the screen).

The wrong source may be selected. Press the

Source button on the projector—or the

Computer1/2

or

S-Video/Video

button on the remote control—to select the correct source.

Check the

Audio Input

setting in the Audio menu.

Solving Problems

81

82

Solving Problems

Solving Password Problems

You have forgotten the password.

Write down the request code that appears in the Password Protect

Release screen and contact EPSON. See “Where To Get Help” on page 83.

If you turned on the password protect feature before setting the password and no password was set before, try using the default password:

0000

.

You don’t have the remote control.

You must have the remote control to enter the password. If necessary, you can purchase a replacement remote control from EPSON (part number: V12H007T13).

Solving Problems with the Remote

Control

The projector doesn’t respond to remote control commands.

Make sure the tape has been removed from the battery tray as

described on page 40.

Make sure you are within 20 feet of the projector, and within range of the projector’s front or back sensor (approximately 30° to the left or right and 15° above or below).

The remote control battery may not be installed correctly or may

be low on power. Change the battery as described on page 44.

Dim the room lights and turn off any fluorescents. Make sure the projector is not in direct sunlight. Strong lighting, especially fluorescent lights, may affect the projector’s infrared receivers.

Turn off any nearby equipment that emits infrared energy, such as a radiant room heater.

You have lost the remote control.

You need the remote control to access many projector features. If you have lost it, you can order another from EPSON (part number

V12H007T13).

To prevent losing the remote control, store it in the compartment

beneath the projector, as described on page 40.

You can’t control the mouse pointer with the remote control.

Make sure the mouse cable is securely connected to both your computer’s mouse port or USB port and the projector’s USB

port. For details, see page 19.

Make sure

RS232C

is selected as the COM Port setting in the

Advanced menu. See page 54.

To use the USB mouse connection on a PC, your system must have a “clean” installation of Windows 98, Windows Me,

Windows XP, or Windows 2000. The connection may not work correctly if your system was upgraded from Windows 95.

Where To Get Help

EPSON provides technical assistance through electronic support services 24 hours a day, as listed in the following table.

Service

World Wide Web

Presenters Online

Access

From the Internet, you can reach EPSON’s product support page at

http://support.epson.com. After selecting your product, you can access troubleshooting information, download product documentation, and receive technical advice through e-mail.

Access tips, templates, and training for developing successful presentations at

http://www.presentersonline.com

Solving Problems

83

84

Solving Problems

Telephone Support Services

To use the EPSON PrivateLine Support service, call (800) 637-7661 and enter the PIN on the EPSON PrivateLine Support card included in your Start Here kit. This is the fastest way of speaking to a live representative, and it’s free. This service is available 6

AM

to 6

PM

,

Pacific Time, Monday through Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one of these numbers:

U.S.: (562) 276-4394, 6

AM

to 6

PM

, Pacific Time, Monday through Friday

Canada: (905) 709-3839, 6

AM

to 6

PM

, Pacific Time, Monday through Friday

Toll or long distance charges may apply.

Before you call, please have the following information ready:

Product name (EPSON PowerLite 54c or PowerLite 74c)

Product serial number (located on the bottom of the projector)

Computer or video configuration

Description of the problem

You can purchase screens, carrying cases, or other accessories from EPSON at (800) 873-7766 or by visiting the EPSON Store at www.epsonstore.com (U.S. sales only). In Canada, please call

(800) 463-7766 for dealer referral

.

Appendix A: Technical

Specifications

General

Type of display

LCD panels (3)

Poly-silicon TFT active matrix

Diagonal size: 0.7 inches (17.8 mm)

Lens

Resolution

F=1.70 to 1.87, f=21.3 to 25.6 mm

74c: 1024

×

768 pixels

54c: 800

×

600 pixels

Full color, 16.8 million colors Color reproduction

Brightness (ANSI)

Contrast ratio

Image size

Projection distance

Projection methods

Focus adjustment

Zoom adjustment

2000 lumens (High brightness mode)

1500 lumens (Low brightness mode)

500:1

30 to 300 inches (0.8 to 7.6 meters)

2.9 to 34.4 feet (0.9 to 10.5 meters)

Front, rear, ceiling

Manual

Manual

Internal sound system 1 W monaural

Optical aspect ratio 4:3 (horizontal : vertical)

Zoom ratio

Noise level

1:1.2

38 dB (High brightness mode)

33 dB (Low brightness mode)

Keystone correction angle

±

15° vertical (maximum)

Pixelworks DNX

ICs are used in this projector.

Appendix A: Technical Specifications

85

A

Projection Lamp

Power consumption 200 W

Lamp life

Part number

About 2000 hours (High brightness);

3000 hours (Low brightness)

V13H010L27

Remote Control

Range

Battery

20 feet (6 meters)

CR2025 lithium

Mouse Compatibility

Supports USB

Dimensions

Height

Width

Depth

Weight

3.4 to 3.8 inches (feet extended)

(87 to 97 mm)

12.4 inches (315 mm)

9.5 inches (240 mm)

6.4 lb (2.9 kg)

Electrical

Rated frequency

Power supply

Power consumption

50/60 Hz

100 to 120 VAC, 2.6 A

200 to 240 VAC, 1.3 A

Operating: 280 W

Standby: 3 W

86

Appendix A: Technical Specifications

Environmental

Temperature

Humidity

Operating: 41 to 95 °F (5 to 35 °C)

Storage: 14 to 140 °F (–10 to 60 °C)

Operating: 20 to 80% RH, non-condensing

Storage: 10 to 90% RH, non-condensing

Safety and Approvals

United States FCC 47CFR Part15B Class B (DoC)

UL1950 Rev. 3

Canada

CE Marking

ICES-003 Class B

CSA C22.2 No. 950-95 (cUL)

Directive 73/23/EEC, 89/336/EEC

EN 55022, EN 55024

Appendix A: Technical Specifications

87

Compatible Video Formats

The projector supports NTSC, PAL, and SECAM international video standards, as well as the monitor and HDTV display formats listed below.

To project images output from a computer, the computer’s video card must be set at a refresh rate (vertical frequency) that’s compatible with the projector; see the following table for compatible formats. As noted below, some images are automatically resized to display in one of the projector’s “native” formats (such as XGA). In addition, the frequencies of some computers may not allow images to display correctly; see your computer’s documentation for details.

Mode

VGAEGA

VGA—60

VESA—72

VESA—75

VESA—85

SVGA—56

SVGA—60

SVGA—72

SVGA—75

SVGA—85

XGA—43i

XGA—60

XGA—70

XGA—75

XGA—85

SXGA1—70

SXGA1—75

SXGA1—85

SXGA2—60

SXGA2—75

SXGA2—85

SXGA3—43i

SXGA3—60

SXGA3—75

SXGA3—85

60

75

85

43

60

75

85

Refresh Rate (Hz)

70

56

60

72

75

85

60

72

75

85

43

60

70

75

85

70

75

85

Resolution

640

×

350 *

640

×

480

*

640

×

480

*

640

×

480

*

640

×

480

*

800

×

600

* 1

800

×

600

* 1

800

×

600

* 1

800

×

600

* 1

800

×

600

* 1

1024

×

768

* 2

1024

×

768

* 2

1024

×

768

* 2

1024

×

768

* 2

1024

×

768

* 2

1152

×

864 *

1152

×

864 *

1152

×

864 *

1280

×

960

*

1280

×

960

*

1280

×

960

*

1280

×

1024

*

1280

×

1024

*

1280

×

1024

*

1280

×

1024

*

88

Appendix A: Technical Specifications

Mode

UXGA—48i

UXGA—60

MAC13

MAC16

MAC19—60

MAC19

MAC21

NTSC

NTSC 4:3

PAL

M-PAL

N-PAL

PAL—60

SECAM

HDTV (480i)

HDTV (480p)

HDTV (575i)

HDTV (575p)

HDTV (720p)

HDTV (1080i)

HDTV (1080i) 33.75/

31.25

Refresh Rate (Hz)

48

60

67

75

59

75

75

60

60

50

60

50

60

50

59.94

59.94

50

50

60

60

50

Resolution

1600

×

1200 * 3

1600

×

1200 * 3

640

×

480

*

832

×

624

*

1024

×

768

* 2

1024

×

768

* 2

1152

×

870

*

720

×

480

*

720

×

480

*

720

×

574

*

720

×

574

*

1280

×

720

*

1920

×

1080

*

1920

×

1080

*

* The image is resized using EPSON’s SizeWise Technology.

1

Resized on the PowerLite 74c only; native mode on the PowerLite 54c.

2

Resized on the PowerLite 54c only; native mode on the PowerLite 74c.

3

Resized on the PowerLite 74c only; not available on the PowerLite 54c.

Appendix A: Technical Specifications

89

Computer Video Port Pin Assignments

The Computer port is a female video RGB, 15-pin micro-D-style connector. Here are its pin assignments:

13

14

15

10

11

12

7

8

9

4

5

6

2

3

Pin no.

1

Computer port

Red video

Green video

Blue video

GND

GND

Red GND

Green GND

Blue GND

Reserved

Synchronous GND

GND

SDA

Horizontal sync / composite sync

Vertical sync

SCL

90

Appendix A: Technical Specifications

Appendix B: Notices

T his appendix includes safety instructions and other important information about your EPSON PowerLite 54c/74c.

Important Safety Instructions

Follow these safety instructions when setting up and using the projector:

Do not place the projector on an unstable cart, stand, or table.

Do not use the projector near water or sources of heat.

Use attachments only as recommended.

Use the type of power source indicated on the projector. If you are not sure of the power available, consult your dealer or power company.

Place the projector near a wall outlet where the plug can be easily unplugged.

Placez le projecteur près d’une prise de contacte où la fiche peut être débranchée facilement.

Insert the projector’s two-wire plug into an electrical outlet. Do not hold the plug with wet hands.

Take the following precautions for the plug. Failure to comply with these precautions could result in sparks or fire: Do not insert the plug into an outlet with dust present. Insert the plug firmly into the outlet.

Do not overload wall outlets, extension cords, or integral convenience receptacles. This can cause fire or electric shock.

Do not place the projector where the cord can be walked on. This may result in fraying or damage to the plug.

Unplug the projector from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

Do not block the slots and openings in the projector case. They provide ventilation and prevent the projector from overheating. Do not operate the projector on a sofa, rug, or other soft surface, or in a closed-in cabinet unless proper ventilation is provided.

Appendix B: Notices

91

A

92

Appendix B: Notices

Never push objects of any kind through cabinet slots. Never spill liquid of any kind into the projector.

Except as specifically explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Opening or removing covers may expose you to dangerous voltages and other hazards.

This product includes a lamp component that contains mercury. Please consult your state and local regulations regarding disposal or recycling.

Do not put it in the trash.

Unplug the projector during lightning storms or when it will not be used for extended periods.

Do not place the projector and remote control on top of heat-producing equipment or in a hot location.

Unplug the projector from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power cord or plug is damaged or frayed. If liquid has been spilled into the projector, or if it has been exposed to rain or water. If it does not operate normally when you follow the operating instructions, or if it exhibits a distinct change in performance, indicating a need for service. If it has been dropped or the housing has been damaged.

If you use the projector in a country other than where you purchased it, use the correct power cord for that country.

Do not stand on the projector or place heavy objects on it.

Do not attempt to remove the lamp immediately after use. Allow the lamp to cool for approximately one hour before removing it.

Do not use the projector outside of the required temperature range:

41 to 95 °F (5 to 35 °C). Doing so may cause an unstable display and an excessive load on the fan, leading to projector damage.

Do not store the projector outside of the required temperature range—

14 to 140 °F (–10 to 60 °C)—or in direct sunlight for long periods of time. Doing so may cause damage to the case.

Do not use the projector with the lens cap in place. The heat generated by the lamp may damage the cap.

The liquid crystal display panel contains more than 99.99% active pixels. However, 0.01% of the pixels may be missing or constantly illuminated.

Remote Control Information

You can operate the projector by remote control via a line-of-sight infrared

(IR) receiver at the front and rear of the projector. The projector may not respond to remote control commands under the following conditions:

There is an object between the remote control IR emitter and the IR receiver on the projector.

Ambient light is too bright.

Certain types of fluorescent lighting are used.

A strong light source shines into the IR receiver.

Other equipment that emits infrared energy, such as a radiant room heater, is in the room.

These conditions commonly cause problems for most infrared-controlled equipment. Try the following:

The remote control unit’s battery may be low on power; replace it.

Dim the ambient lighting and/or turn off any fluorescent lights.

Close any window coverings and/or move the projector out of direct sunlight.

Turn off other equipment that emits infrared energy.

If the remote control still does not work correctly, you can always run your computer-based presentation directly from the computer.

Appendix B: Notices

93

94

Appendix B: Notices

Declaration of Conformity

According to 47CFR, Part 2 and 15 Class B Personal Computers and

Peripherals; and/or CPU Boards and Power Supplies used with Class B

Personal Computers:

We:

Located at:

Tel:

Epson America, Inc.

3840 Kilroy Airport Way

MS: 3-13

Long Beach, CA 90806

(562) 290-5254

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed, is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Trade Name: EPSON

Type of Product: Projector

Model: EMP-54/74

Marketing name: PowerLite-54c/PowerLite-74c

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces.

Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le materiel brouilleur du Canada.

Appendix B: Notices

95

96

Appendix B: Notices

Warranty

Epson America, Inc. Limited Warranty

Basic Two-Year Warranty and 90-Day Lamp Warranty

What Is Covered: Epson America, Inc. (“EPSON”) warrants to the first end user customer of the EPSON product enclosed with this limited warranty statement that the product, if purchased and used in the United States or

Canada, conforms to the manufacturer’s specifications and will be free from defects in workmanship and materials for a period of two (2) years from the date of original purchase (except that the warranty period is 90 days for projector lamps).

What EPSON Will Do To Correct Problems: If you elect carry-in warranty service, please bring the product securely packaged in its original container or an equivalent, along with proof of the date of original purchase, to your

EPSON Dealer or EPSON Customer Care Center. EPSON will, at its option, repair or replace on an exchange basis the defective unit, without charge for parts or labor. When warranty service involves the exchange of the product or of a part, the item replaced becomes EPSON property. The exchanged product or part may be new or previously repaired to the EPSON standard of quality. Exchange or replacement products or parts assume the remaining warranty period of the product covered by this limited warranty.

However, each replacement lamp carries the limited 90-day warranty stated above.

What This Warranty Does Not Cover: This warranty covers only normal consumer use in the United States and Canada. 24-hour-per-day use causes unusual strain and is not considered normal use. This warranty does not cover consumables (e.g., fuses), other than lamps. EPSON is not responsible for warranty service should the EPSON label or logo or the rating label or serial number be removed or should the product fail to be properly maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as fire, flood, and lightning, improper electrical current, software problems, interaction with non-EPSON products, or service other than by an EPSON

Authorized Servicer. Postage, insurance, or shipping costs incurred in presenting your EPSON product for carry-in warranty service are your responsibility. If a claimed defect cannot be identified or reproduced in service, you will be held responsible for costs incurred.

THE WARRANTY AND REMEDY PROVIDED ABOVE ARE

EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED

WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. SOME LAWS DO NOT ALLOW

THE EXCLUSION OF IMPLIED WARRANTIES. IF THESE LAWS

APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE

LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE.

UNLESS STATED HEREIN, ANY STATEMENTS OR

REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM

ARE VOID. EXCEPT AS PROVIDED IN THIS WRITTEN

WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS

AFFILIATES SHALL BE LIABLE FOR ANY LOSS, INCONVENIENCE,

OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR

INABILITY TO USE THE EPSON PRODUCT, WHETHER

RESULTING FROM BREACH OF WARRANTY OR ANY OTHER

LEGAL THEORY. IF THE REMEDY ABOVE FAILS, EPSON’S

ENTIRE LIABILITY SHALL BE LIMITED TO A REFUND OF THE

PRICE PAID FOR THE EPSON PRODUCTS COVERED BY THIS

LIMITED WARRANTY.

In Canada, warranties include both warranties and conditions.

Some jurisdictions do not allow limitations on how long an implied warranty lasts and some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction.

To locate the Authorized EPSON Servicer nearest you, call the

EPSON Connection

SM

at (800) 637-7661 + PIN or (562) 276-4394 in the U.S. and (905) 709-3839 in Canada or write to: Epson America, Inc.,

P.O. Box 93012, Long Beach, CA 90809-3012.

Appendix B: Notices

97

98

Appendix B: Notices

Index

A

A/V cable, 10, 22 to 26

A/V Mute, 42, 53, 56 to 57, 75, 81

About menu, 46, 55

Accessories, 12, 84

Adapters, Macintosh, 12, 17

Advanced menu, 46, 53 to 54

Air filter

cleaning and replacing, 65 to 66

purchasing, 12

Anti-theft device, 12

Aspect ratio, 50, 85

Audio

adjusting volume, 51

cable, 8, 20, 81 connecting laptop, 20

menu, 20, 23, 46, 51, 81 problems, troubleshooting, 81

turning off, 42

Audio Input setting, 20, 23, 46, 51, 81

Auto button, 37, 49

Auto Keystone correction, 15, 35, 46, 52

Auto Setup setting, 37, 50

B

Background Color setting, 53, 56 to 57, 60

Battery tape, removing, 40

Battery, replacing, 44

Black background, 53

Blackboard color mode, 36, 50

Blank screen, 30 to 32, 75 to 77

Blue background, 53

Blurry image, 79

Brightness, 7, 36, 54, 67, 75, 85

Brightness Control setting, 36, 54, 75

Brightness setting, 36, 49, 75, 80

C

Cables, 10 to 12

Camcorder, connecting to, 22 to 24

Carrying case, 10 to 12, 70

Ceiling

mount, 12, 15

projection, 15, 54

Cleaning

air filter, 65 to 66

lens, 64 projector case, 64

Color

adjusting, 36 to 37, 49 to 50, 54

problems, 80

specifications, 85

Color Mode, 36 to 37, 49 to 50

Component video cable, 11 to 12, 22

Component video source, selecting, 26

Composite video cable, 22 to 23

Computer

cable, 10, 16 to 18

connecting to projector, 16 to 21

connector pin assignments, 90

source, selecting, 18

support, 7

Computer/Component Video port, 17, 25, 41

Computer1/2 button, 30, 41, 76

Connecting projector

to a computer, 16 to 20

to a high-end workstation, 21

to a video source, 22 to 26

Connector pin assignments, 90

Contrast setting, 49, 85

Index

99

D

Declaration of Conformity, 94

Default password, 58

Default settings, restoring, 47, 61

Digital camera, connecting to, 22 to 24

Dimensions, 86

Directional buttons, 43, 47

Distance from projector to screen, 14 to 15, 85

Documentation, using, 9

DVD player, connecting to, 22 to 26

Dynamic color mode, 36, 49

E

Electrical specifications, 86

Enter button, 43, 47

Entering the password, 60 to 61

Environmental specifications, 87

EPSON

accessories, 12, 84

Extra Care Road Service, 10

PrivateLine Support, 9, 84

Store, 12, 84

technical support, 9, 83 to 84

Esc button, 43, 48

Extra Care Road Service, 10

E-Zoom button, 42 to 43

F

FCC compliance statement, 95

Filter, cleaning and replacing, 65 to 66

Focusing, 33

Foot release levers, 34

Formats, video, 88 to 89

Freeze button, 42

Front projection, 14 to 15

Front/Ceiling setting, 15, 54

H

Height of image, adjusting, 34

Help, 9, 83 to 84

Help system, using, 72 to 73

High brightness, 36, 54, 67, 75, 85

I

iBook, connecting to, 16 to 18 iMac, connecting to, 11, 16 to 18


adjusting, 33 to 37, 48 to 50

capturing and saving in projector, 56 to 57

correcting shape of, 35, 52, 78

fitting on screen, 37, 50

focusing, 33

freezing, 42

height, adjusting, 15, 34

menu, 46, 48 to 50

positioning, 34, 49

problems, 75 to 80

raising, 34

selecting source, 18, 23 to 26, 29 to 30

shape, correcting, 35, 52, 78

size and projection distance, 14 to 15, 85

turning off, 42 zooming, 33, 42 to 43

Input Signal setting, 50

Input signal, selecting, 26, 30

K

Kensington anti-theft device, 12

Keystone correction, 35, 52, 78, 85

L

Lamp

automatic shutoff, 37

brightness, 7, 54, 67, 75, 85

number of hours used, 55, 67, 69 replacing, 67 to 70

specifications, 86

status light, 73 to 74

timer, resetting, 69 to 70

Language setting, 54, 72

Laptop computer

connecting to, 16 to 18

displaying on, 31 to 32, 76

Laser disc player, connecting to, 22 to 26

LCD panels, 7, 85

100

Index

Lens

cap, 28, 38

cleaning, 64

specifications, 85

Lights, status, 73 to 74

Living Room color mode, 36, 50

Logo

creating, 56 to 57

displaying, 56 to 60

enabling, 53, 59 to 60

password protection, 53, 56 to 61

Low brightness, 36, 54, 67, 75, 85

M

Macintosh

adapters, 12, 17

connecting, 16 to 20

Manuals, 9

Menus

About, 46, 55

Advanced, 46, 53 to 54

Audio, 46, 51 changing settings, 46 to 48

Image, 46, 48 to 50

Reset All, 46, 61

Setting, 46, 52 to 53

User’s Logo, 46, 56 to 57

using, 46 to 48

Message setting, 52

Mouse

compatibility, 86

connecting cable, 19

using remote control as, 43

N

Noise level, 85

O

Options for projector, 12

P

Page up and Page down buttons, 43

Password

default, 58 enabling, 58 to 61

entering, 60 to 61

logo protection, 53, 56 to 61

problems, 82

prompt, 29, 60

protection, 58 to 61

request code, 61

setting, 58 to 59

turning on, 59 to 60

User’s Logo protection, 53, 56 to 61

Picture source, selecting, 18, 30, 41

Pin assignments, connector, 90

Position setting, 49

Positioning

image, 34, 49

projector, 14 to 15

Power

button, 29, 37

consumption, 86

light, 28, 73 to 74

saving, 37, 53

supply, 86

PowerBook, connecting to, 16 to 18

Presentation color mode, 36, 49

Presenters Online, 9, 83

PrivateLine Support, 9, 84

Problems

color, 80

image, 75 to 80

password, 82 remote control, 82, 93

sound, 81

USB, 83

Projection lamp, see Lamp

Index

101

Projector

carrying case, 10 to 12, 70

cleaning, 63 to 66

distance from screen, 14 to 15, 85

feet, adjusting height with, 34

lamp specifications, 86

options, 12

password protection, 58 to 61

positioning, 14 to 15

resolution, 7, 85

shutting off, 37 to 38

specifications, 85 to 90

transporting, 70

troubleshooting, 71 to 81

turning off, 37 to 38

turning on, 28 to 29

unpacking, 10

viewing information about, 55

Q

Quick Setup sheet, 9

R

Raising image, 34

RCA A/V cable, 10, 22 to 26

Rear

projection, 15, 53 to 54

setting, 15, 53 to 54

Rear/Ceiling setting, 15, 53 to 54

Registration, 10

Remote control

problems, 82, 93

removing tape, 40

replacing battery, 44

specifications, 86

storage compartment, 8, 40, 60

using, 39 to 43

wireless mouse, using as, 43

Replacing

air filter, 65 to 66

lamp, 67 to 70

102

Index

Request code, password, 61

Reset All menu, 46, 61

Resetting menu options, 61

Resolution, 7, 21, 85

S

Safety instructions, 91 to 92

Screen logo, see User’s Logo

Screen, distance from projector, 14 to 15, 85

Screens, portable, 12

Setting a password, 59

Setting menu, 46, 52 to 53

Sharpness setting, 49

Sleep mode, 37, 53

Sound, see Audio

Source button, 29 to 30, 41

Source, selecting, 29 to 30, 41

Speaker, specifications, 85

Specifications

brightness, 7, 85

electrical, 86

environmental, 87

lamp, 86

lens, 85

remote control, 86

resolution, 7, 85

safety, 87

sRGB color mode, 36, 50

Standby mode, 37, 53

Start Here kit, 9

Startup screen

creating, 56 to 57 displaying, 56 to 60

protecting, 58 to 60

user’s logo, See User’s Logo

Startup Screen setting, 54

Status lights, 73 to 74

Stopping action, 42

Storing remote control, 60

Support, 9, 83 to 84

S-Video cable, 11, 22

S-Video/Video button, 29 to 30, 41

Switching picture source, 30, 41

Sync, adjusting, 49, 79 to 80

T

Technical support, 9, 83 to 84

Temperature

light, 73 to 74

requirements, 87

Theater color mode, 36, 50

Timer, lamp, 69 to 70

Tint setting, 49

Tracking, adjusting, 49, 79 to 80

Transporting projector, 70

Troubleshooting

cut-off image, 37

image and sound problems, 75 to 81 projector problems, 71 to 81

remote control problems, 82

Turning off picture, 42

Turning off projector, 37 to 38

Turning on password, 59 to 60

Turning on projector, 28 to 29

Turning on User’s Logo, 59 to 60

Typing the password, 60 to 61

U

Unpacking projector, 10

USB mouse cable, 10, 19, 83

User’s Logo

creating, 56 to 57 displaying, 46, 56 to 60

enabling, 53, 59 to 60

password, 58 to 61 protecting, 53, 58 to 61

turning on, 59 to 60

V

VCR, connecting to, 22 to 26

VGA computer cable, 10, 16 to 18

Video

display settings, 55

formats, supported, 7, 88 to 89

port pin assignments, 90

source, connecting to, 22 to 26

source, selecting, 23 to 26, 29 to 30, 41

Video Signal setting, 50

Volume, adjusting, 51

W

Warning light, 73 to 74

Warranty, 10, 96 to 97

Weight, 86

Wireless mouse, 19, 43

Workstations, connecting projector to, 21

Y

YCbCr, 26

YPbPr, 26

Z

Zoom ratio, 85

Zooming image, 33, 42 to 43

Index

103

104

Index

Warning light

Power light

Zoom ring

Control panel

Front adjustable foot

Remote control receiver

Focus ring

Lens cap

Foot release lever

Front adjustable foot

Computer1/

Component Video1 port

Computer2/

Component Video2

S-Video port port

Video port

Remote control receiver

Audio 2 port

USB ports

Power inlet

Security lock

Audio 1 port Monitor Out port RS-232C port

Go back a slide

Select video source

Select computer source

Display projector menus

Zoom out

Directional buttons

Optimize computer image

Advance slide

Turn projector on/off

Change color mode

Stop action

Turn off picture and sound

Zoom in

Select menu item; left mouse button

Cancel current function; right mouse button

Warning light

Power light

Zoom ring

Control panel

Front adjustable foot

Remote control receiver

Focus ring

Lens cap

Foot release lever

Front adjustable foot

Computer1/

Component Video1 port

Computer2/

Component Video2

S-Video port port

Video port

Remote control receiver

Audio 2 port

USB ports

Power inlet

Security lock

Audio 1 port Monitor Out port RS-232C port

Go back a slide

Select video source

Select computer source

Display projector menus

Zoom out

Directional buttons

Optimize computer image

Advance slide

Turn projector on/off

Change color mode

Stop action

Turn off picture and sound

Zoom in

Select menu item; left mouse button

Cancel current function; right mouse button

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
