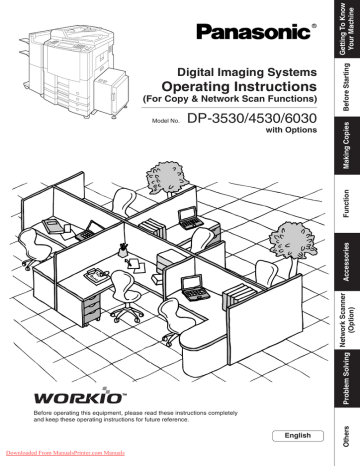

Digital Imaging Systems

Operating Instructions

(For Copy & Network Scan Functions)

Model No.

DP-3530/4530/6030

with Options

Before operating this equipment, please read these instructions completely and keep these operating instructions for future reference.

Downloaded From ManualsPrinter.com Manuals

English

Getting To Know Your Machine

Useful Office Functions

Copy

• Copy up to Ledger size.

Capable of copying text/photos/ halftone originals.

Scan/File

• Monochrome scanner capability when optional Network Scanner

Module (DA-NS600) is installed.

Scanning resolution up to 600 dpi.

• A document can be saved to, or retrieved from the Network Server with this Digital Imaging System.

Fax/Email

• Plain Paper High-speed Super

G3 compatible Fax with JBIG compression when optional Fax

Communication Board (DA-

FG600) is installed.

• Quick-Scan

• Quick Memory Transmission

• Email Function capability when optional Internet Fax/E-Mail

Module (DA-NF600) is installed.

Print

• Digital printer controller standard, printer resolution 300 or 600 dpi.

Application Software

• Document Manager

• Document Viewer

• Document Network Scanner∗

• Utilities (Network Status Monitor, Address Book Editor, Device

Configuration Editor)

Document Network Scanner is only available when the optional Network Scanner Module (DA-

NS600) is installed.

Multi-Tasking Job Table

Current Job

Copy

Concurrent Copy*

Storing

Document

Printing

Network Scanning GDI/PCL/PS Printing Facsimile (Sending) Facsimile (Receiving)

Storing

Document

Transmission to PC

Receiving

Data

Printing

Received Data

Storing

Document

Memory

Transmission

Memory

Receiving

Printing Received

Memory Data

2nd Job

Copy

Copy

Concurrent Copy*

Storing Document

Printing

Network Scanning

Storing Document

GDI/PCL/PS Printing

Receiving Data

Printing Received Document

Facsimile (Sending)

Storing Document

Memory Transmission

Facsimile (Receiving)

Memory Receiving

Printing Received

Memory Data

*

: Accepts and executes 2nd Job.

: Accepts and executes 2nd Job (Copy) only if Current Job has been interrupted.

: Accepts 2nd Job and executes the 2nd Job after Current Job has completed.

: Accepts 2nd Job (Concurrent copy printing) and executes the 2nd Job after Current Job (Printing from PC data) has stopped, or at the end of a printing Copy (Electronic/Rotate/Shift/

Staple Sort) or the end of a printing Group (Rotate/Shift Stack). After 2nd Job has completed, the remains of Current Job will restart.

For example

Current Job (PC print): 2 pages x 2 copies with staple sort; 2nd Job (Concurrent Copy): 1 page

> After one operator sets Current Job, another operator sets 2nd Job. 2 pages print stapled (PC print); 1 page prints (Concurrent Copy); 2 pages print with staple (PC print)

: Not accepts 2nd Job.

: None

NOTE

: HDD (DA-HD60) and additional 16MB (minimum) Image memory are required.

Operating Instructions Outline

Getting To Know

Your Machine

Before Starting

● Precautions

● Quick Operation Chart

(See pages 7-13)

(See pages 14 and 15)

● Adding Paper, Replacing the Toner Bottle,

Removing a Misfed Paper and Error Codes

(See pages 14-29)

● Control Panel Key/Button/Indicator Names

(See pages 31-33)

Making Copies

Function

● Operating Instructions for making copies according to Function Categories on the LCD Touch Panel

Display

(See pages 34-63)

● Changing the Initial Machine Modes

● Copy, Printer, Scanner (Option) and Fax/Internet Fax (Option)

● Combined Function Table

(See pages 64-79)

(See page 80)

Options

Problem Solving

Others

● Accessories Components

● 2-Bin Finisher (DA-FS600)

(See page 81)

2-Bin Saddle-Stitch Finisher (DA-FS605)

2-Bin Finisher (DA-FS330)

1-Bin Saddle-Stitch Finisher (DA-FS355A)

(See pages 82 and 83)

● Network Scanner (DA-NS600)

(See pages 84 and 85)

● Troubleshooting

(See pages 86 and 87)

● Replacing the Battery/Set the Date and Time

(See pages 88 and 89)

● Specifications, Options and Supplies and Index

(See pages 90-98)
