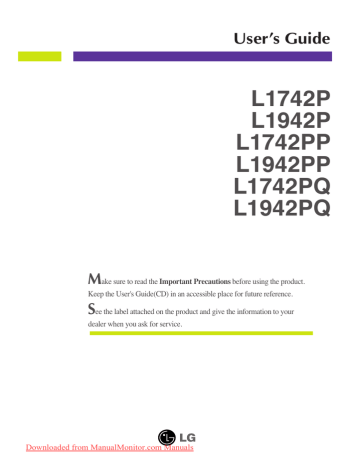

User’s Guide

L1742P

L1942P

L1742PP

L1942PP

L1742PQ

L1942PQ

M

ake sure to read the Important Precautions before using the product.

Keep the User's Guide(CD) in an accessible place for future reference.

S

ee the label attached on the product and give the information to your dealer when you ask for service.

Downloaded from ManualMonitor.com Manuals

Important Precautions

This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement.

Do not Open the Display.

There are no user serviceable components inside.

There are Dangerous High Voltages inside, even when the power is OFF.

Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

Do not place the display on a sloping shelf unless properly secured.

Use only a stand recommended by the manufacturer.

Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.

It can cause injury to human, problem to product and damage the display.

To Prevent Fire or Hazards:

Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house.

Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages.

Do not add accessories that have not been designed for this display.

When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.

In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous. It can cause electric shock.

Important Precautions

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage.

Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER:

Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.

Place the display in a built-in enclosure unless proper ventilation is provided.

Cover the openings with cloth or other material.

Place the display near or over a radiator or heat source.

Main power breaker is the power cord and this breaking device must be located at a location where it is easy to operate.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen.

However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel.

Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image burn-in. Make sure to use a screen saver on the monitor.

This phenomenon occurs to products by other manufacturers as well, and this occurrence is not subject to warranty.

On Cleaning

Unplug the display before cleaning the face of the display screen.

Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock.

On Repacking

Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material.

On Disposal

The fluorescent lamp used in this product contains a small amount of mercury.

Do not dispose of this product with general household waste.

Disposal of this product must be carried out in accordance to the regulations of your local authority.

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Connecting the stand

1

.

Place the monitor with its front facing downward on a cushion or soft cloth.

2

.

Assemble the Stand Base into the Stand Body.

Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.

Stand Base

Side Stop Pin

Stand Body

FRONT

3

.

Make the monitor stand , then pull out the Stop Pin.

Warning:

The tape and locking pin may only be removed from those monitors equipped with a standing base when the base is pulled up. Otherwise, you may be injured by the protruding sections of the stand.

pull out the stop pin

Stop Pin

Stop Pin

Important

This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.

Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

1.

Adjust the position of the panel in various ways for maximum comfort.

Tilt Range: -6˚~17˚

-6 17

Height Range: maximum 4.33 inch (110.0 mm)

110.0 mm

First, remove the locking pin.

Landscape & Portrait: You can rotate the panel 90˚ clockwise.

( For detailed information, please refer to the Pivot Software CD provided.)

Ergonomic

It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off.

Positioning your display

Using the cable holder

1

3

2

If you want to use the cable holder to let your cables together, please put them through right as shown. For if you don't do like that, you cannot use Pivot function smoothly.

Connecting the Display

Using the Computer

1.

Make sure to turn off the computer and product. Connect the cable as below sketch map form

1

to

2

.

A

B

Connect DVI Cable

Connect Dsub Cable (PC)

C

Connect Dsub Cable (Mac)

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as shown.

User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite cores to maintain standard compliance for the product.

Power Cord

Analog signal

D-sub

Digital signal

DVI

Wall-outlet type

PC-outlet type

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector.

DVI-D (This feature is not available in all countries.)

2.

Press button on the front switch panel to turn the power on. When monitor power is turned on, the

'Self Image Setting Function' is executed automatically.

(Only Analog Mode)

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.

‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO/SET function button to improve resolution.

Control Panel Functions

Front Panel Controls

MENU AUTO/SET

ENGINE SOURCE

Control Function

MENU Button

Use this button to enter or exit from the On Screen Display.

OSD LOCKED/UNLOCKED

This function allows you to lock the current control settings, so that these settings are not inadvertently changed. To lock the

OSD settings, press and hold the MENU button for several seconds. The message "OSD LOCKED" appears.

You can unlock the OSD settings at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" appears.

Control Panel Functions

Control Function

Buttons

Use these buttons to select or adjust functions in the

On Screen Display.

For more information, refer to page A15.

AUTO/SET

Button

Use this button to make D-Sub or DVI connector active. This feature is used when two computers are connected to the display. The default setting is D-Sub.

Use this button to select an icon in the On Screen

Display.

AUTO IMAGE ADJUSTMENT

When adjusting your display settings, always press the AUTO/SET button prior to entering the On

Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode).

The best display mode is:

17 inch: 1280x1024

19 inch: 1280x1024

Power Button

Use this button to turn the display on or off.

Power Indicator

This Indicator lights up as blue when the display is operating normally(On Mode). If the display is in

Sleep Mode (Energy Saving), this indicator changes to flicker.

On Screen Display (OSD) Control Adjustment

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system.

A short example is given below to familiarize you with the use of the controls.

The following section is an outline of the available adjustments and selections you can make using the OSD.

NOTE

Allow the display to stabilize for at least 30 minutes before making image adjustments.

To make adjustments in the On Screen Display, follow these steps:

Press the MENU Button, then the main menu of the OSD appears.

To access a control, use the or Buttons. When the icon you want becomes highlighted, press the AUTO/SET Button.

Use the / Buttons to adjust the image to the desired level. Use the

AUTO/SET Button to select other sub-menu items.

Push the MENU Button once to return to the main menu to select another function. Push the MENU Button twice to exit from the OSD.

On Screen Display(OSD) Selection and Adjustment

The following table indicates all the On Screen Display control, adjustment, and setting menus.

NOTE

The order of icons may differ depending on the model (A10~A15 ).

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu.

Press the MENU Button, then the main menu of the OSD appears.


COLOR TRACKING SETUP

Main Menu

MENU : Exit

: Adjust (Decrease/Increase)

SET : Enter

Menu Name

: Select another sub-menu

: Restart to select sub-menu

Button Tip

Menu Name

Sub-menus

Icons

NOTE

OSD (On Screen Display) menu languages on the monitor may differ from the manual.

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description



BRIGHTNESS

CONTRAST

GAMMA

To adjust the brightness of the screen.

To adjust the contrast of the screen.

Set your own gamma value. : -50/0/50

On the monitor, high gamma values display whitish images and low gamma values display high contrast images.

MENU : Exit

: Decrease

: Increase

SET : Select another sub-menu

COLOR

COLOR

PRESET

RED

GREEN

MENU : Exit

: Decrease

: Increase

BLUE

SET : Select another sub-menu

• sRGB: Set the screen color to fit the

SRGB standard color specification.

• 6500K: Slightly reddish white.

• 9300K: Slightly bluish white.

Set your own red color levels.

Set your own green color levels.

Set your own blue color levels.

On Screen Display(OSD) Selection and Adjustment

TRACKING

Main menu

TRACKING

Sub menu Description

HORIZONTAL

To move image left and right.

VERTICAL

To move image up and down.

CLOCK

PHASE

MENU : Exit

: Decrease

: Increase

SET : Select another sub-menu

SHARPNESS

To minimize any vertical bars or stripes visible on the screen background.

The horizontal screen size will also change.

To adjust the focus of the display.

This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

To adjust the clearness of the screen.

On Screen Display(OSD) Selection and Adjustment

Main menu Sub menu Description

SETUP

SETUP

LANGUAGE

To choose the language in which the control names are displayed.

OSD

POSITION

To adjust position of the OSD window on the screen.

WHITE

BALANCE

If the output of the video card is different the required specifications, the color level may deteriorate due to video signal distortion. Using this function, the signal level is adjusted to fit into the standard output level of the video card in order to provide the optimal image.

Activate this function when white and black colors are present in the screen.

POWER

MENU : Exit

: Adjust

: Adjust

SET : Select another sub-menu

INDICATOR

Use this function to set the power indicator on the front side of the monitor to ON or OFF.

If you set OFF, it will go off.

If you set ON at any time, the power indicator will automatically be turned on.

FACTORY

RESET

Restore all factory default settings except

"LANGUAGE."

Press the , buttons to reset immediately.

If this does not improve the screen image, restore the factory default settings.

If necessary, perform the white balance function again. This function will be enabled only when the input signal is an analog signal.

On Screen Display(OSD) Selection and Adjustment

The OSD screen will appear when you touch the button on the left bottom of the monitor.

Menu Name

Icons

Sub-menu Name

Main menu Sub menu Description

MOVIE

INTERNET

This feature lets you easily select the best desired image condition optimized to the environment

(ambient illumination, image types etc).

MOVIE: For animation images in videos or movies

INTERNET: For text images (Word processing etc.)

USER

User

You can manually adjust brightness, ACE or RCM.

You can save or restore the adjusted value even when using a different environment.

...

(Brightness): Adjusts screen brightness.

...

ACE

(Adaptive Clarity Enhancer)

: Selects the clarity mode.

...

RCM

(Real Color Management)

: Selects the color mode.

0

1

2

3

Not applied

Green enhance

Flesh tone

Color Enhance

button and save the YES value using the ,

buttons.

NORMAL

This is under normal operating conditions.

DEMO

This is just for advertising to customer in the shops. It’s setting is same with Movie mode and screen is divided by half.

Troubleshooting

Check the following before calling for service.

Is the power cord of the display connected?

• Check and see if the power cord is connected properly to the power outlet.

Is the power indicator light on?

• Press the Power button.

Is the power on and the power indicator blue or green?

• Adjust the brightness and the contrast.

Is the power indicator flicking?

• If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.

• Try to turn on the PC.

Do you see an "OUT OF

RANGE" message on the screen?

• This message appears when the signal from the

PC (video card) is out of horizontal or vertical frequency range of the display. See the

'Specifications' section of this manual and configure your display again.

Do you see a "CHECK

SIGNAL CABLE" message on the screen?

• This message appears when the signal cable between your PC and your display is not connected. Check the signal cable and try again.

Do you see a "OSD LOCKED" message on the screen?

Do you see “OSD

LOCKED” when you push MENU button?

• You can secure the current control settings, so that they cannot be inadvertently changed.

You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message

“OSD UNLOCKED” will appear.

Troubleshooting

Display image is incorrect

Display Position is incorrect.

• Press the AUTO/SET button to automatically adjust your display image to the ideal setting.

If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.

On the screen background, vertical bars or stripes are visible.

• Press the AUTO/SET button to automatically adjust your display image to the ideal setting.

If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon in the on screen display.

Any horizontal noise appearing in any image or characters are not clearly portrayed.

• Press the AUTO/SET button to automatically adjust your display image to the ideal setting.

If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display.

• Check Control Panel --> Display --> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits

(true color).

Important

Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.

The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer

.

Troubleshooting

Display image is incorrect

The screen color is mono or abnormal.

• Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.

• Make sure the video card is properly inserted in the slot.

• Set the color setting higher than 24 bits (true color) at Control Panel - Settings.

The screen blinks.

• Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Have you installed the display driver?

Have you installed the display driver?

• Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com.

Do you see an

"Unrecognized monitor,

Plug&Play (VESA DDC) monitor found" message?

• Make sure to check if the video card supports

Plug&Play function.

Specifications L1742P/L1742PQ

Display

Sync Input

Video Input

Resolution

Plug&Play

Power

Consumption

Dimensions

&Weight

Tilt Range

Power Input

Environmental

Conditions

Stand Base

Signal cable

Power cord

17 inches (43.2 cm) Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Visible diagonal size: 43.2 cm

0.264 mm pixel pitch

Horizontal Freq. Analog : 30 - 83 kHz (Automatic)

Digital : 30 - 71 kHz (Automatic)

Vertical Freq.

Input Form

56 - 75 Hz (Automatic)

Separate TTL, Positive/Negative

SOG (Sync On Green)

Digital

Signal Input

Input Form

15 pin D-Sub Connector

DVI - D connector (Digital)

RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Max

Recommend

Analog : VESA 1280 x 1024 @75 Hz

Digital : VESA 1280 x 1024 @60 Hz

VESA 1280 x 1024 @60 Hz

DDC 2B (Digital), DDC 2AB (Analog)

On Mode

Sleep Mode

Off Mode

: 30 W(Typ.)

≤ 1 W

≤ 1 W

With Stand Without Stand

Width 36.96 cm / 14.55 inches 36.96 cm / 14.55 inches

Height 40.83 cm / 16.07 inches 31.51 cm / 12.41 inches

51.83 cm / 20.41 inches

Depth 24.16 cm / 9.51 inches 5.60 cm / 2.20 inches

Net 3.83 kg (8.51 lbs)

Tilt -6˚~17˚

AC 100-240V~ 50/60Hz 0.8A

Operating Conditions

Temperature 10˚C to 35 ˚C

Humidity

Storage Conditions

10 % to 80 % non-Condensing

Temperature -20˚C to 60 ˚C

Humidity 5 % to 90 % non-Condensing

Attached( ), Detached ( O )

Attached( ), Detached ( O )

Wall-outlet type or PC-outlet type

NOTE

Information in this document is subject to change without notice.

Specifications L1742PP

Display

Sync Input

Video Input

Resolution

Plug&Play

Power

Consumption

Dimensions

&Weight

Tilt Range

Power Input

Environmental

Conditions

Stand Base

Signal cable

Power cord

17 inches (43.2 cm) Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Visible diagonal size: 43.2 cm

0.264 mm pixel pitch

Horizontal Freq. Analog : 30 - 83 kHz (Automatic)

Digital : 30 - 71 kHz (Automatic)

Vertical Freq.

Input Form

56 - 75 Hz (Automatic)

Separate TTL, Positive/Negative

SOG (Sync On Green)

Digital

Signal Input

Input Form

15 pin D-Sub Connector

DVI - D connector (Digital)

RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Max

Recommend

Analog : VESA 1280 x 1024 @75 Hz

Digital : VESA 1280 x 1024 @60 Hz

VESA 1280 x 1024 @60 Hz

DDC 2B (Digital), DDC 2AB (Analog)

On Mode

Sleep Mode

Off Mode

: 30 W(Typ.)

≤ 1 W

≤ 1 W

With Stand Without Stand

Width 36.96 cm / 14.55 inches 36.96 cm / 14.55 inches

Height 40.83 cm / 16.07 inches 31.51 cm / 12.41 inches

51.83 cm / 20.41 inches

Depth 24.16 cm / 9.51 inches 5.60 cm / 2.20 inches

Net 4.16 kg (9.24 lbs)

Tilt -6˚~17˚

AC 100-240V~ 50/60Hz 0.8A

Operating Conditions

Temperature 10˚C to 35 ˚C

Humidity

Storage Conditions

10 % to 80 % non-Condensing

Temperature -20˚C to 60 ˚C

Humidity 5 % to 90 % non-Condensing

Attached( ), Detached ( O )

Attached( ), Detached ( O )

Wall-outlet type or PC-outlet type

NOTE

Information in this document is subject to change without notice.

Specifications L1942P/L1942PQ

Display

Sync Input

Video Input

Resolution

Plug&Play

Power

Consumption

Dimensions

&Weight

Tilt Range

Power Input

Environmental

Conditions

Stand Base

Signal cable

Power cord

19 inches (48.2 cm) Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Visible diagonal size: 48.2 cm

0.294 mm pixel pitch

Horizontal Freq. Analog : 30 - 83 kHz (Automatic)

Digital : 30 - 71 kHz (Automatic)

Vertical Freq.

Input Form

56 - 75 Hz (Automatic)

Separate TTL, Positive/Negative

SOG (Sync On Green)

Digital

Signal Input

Input Form

15 pin D-Sub Connector

DVI - D connector (Digital)

RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Max

Recommend

Analog : VESA 1280 x 1024 @75 Hz

Digital : VESA 1280 x 1024 @60 Hz

VESA 1280 x 1024 @60 Hz

DDC 2B (Digital), DDC 2AB (Analog)

On Mode

Sleep Mode

Off Mode

: 34 W(Typ.)

≤ 1 W

≤ 1 W

With Stand Without Stand

Width 40.63 cm / 16.00 inches 40.63 cm / 16.00 inches

Height 42.27 cm / 16.64 inches 34.45 cm / 13.56 inches

53.27 cm / 20.97 inches

Depth 24.16 cm / 9.51 inches 5.84 cm / 2.30 inches

Net 4.23 kg (9.40 lbs)

Tilt -6˚~17˚

AC 100-240V~ 50/60Hz 0.8A

Operating Conditions

Temperature 10˚C to 35 ˚C

Humidity

Storage Conditions

10 % to 80 % non-Condensing

Temperature -20˚C to 60 ˚C

Humidity 5 % to 90 % non-Condensing

Attached( ), Detached ( O )

Attached( ), Detached ( O )

Wall-outlet type or PC-outlet type

NOTE

Information in this document is subject to change without notice.

Downloaded from ManualMonitor.com Manuals

Specifications L1942PP

Display

Sync Input

Video Input

Resolution

Plug&Play

Power

Consumption

Dimensions

&Weight

Tilt Range

Power Input

Environmental

Conditions

Stand Base

Signal cable

Power cord

19 inches (48.2 cm) Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Visible diagonal size: 48.2 cm

0.294 mm pixel pitch

Horizontal Freq. Analog : 30 - 83 kHz (Automatic)

Digital : 30 - 71 kHz (Automatic)

Vertical Freq.

Input Form

56 - 75 Hz (Automatic)

Separate TTL, Positive/Negative

SOG (Sync On Green)

Digital

Signal Input

Input Form

15 pin D-Sub Connector

DVI - D connector (Digital)

RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Max

Recommend

Analog : VESA 1280 x 1024 @75 Hz

Digital : VESA 1280 x 1024 @60 Hz

VESA 1280 x 1024 @60 Hz

DDC 2B (Digital), DDC 2AB (Analog)

On Mode

Sleep Mode

Off Mode

: 34 W(Typ.)

≤ 1 W

≤ 1 W

With Stand Without Stand

Width 40.63 cm / 16.00 inches 40.63 cm / 16.00 inches

Height 42.27 cm / 16.64 inches 34.45 cm / 13.56 inches

53.27 cm / 20.97 inches

Depth 24.16 cm / 9.51 inches 5.84 cm / 2.30 inches

Net 4.63 kg (10.29 lbs)

Tilt -6˚~17˚

AC 100-240V~ 50/60Hz 0.8A

Operating Conditions

Temperature 10˚C to 35 ˚C

Humidity

Storage Conditions

10 % to 80 % non-Condensing

Temperature -20˚C to 60 ˚C

Humidity 5 % to 90 % non-Condensing

Attached( ), Detached ( O )

Attached( ), Detached ( O )

Wall-outlet type or PC-outlet type

NOTE

Information in this document is subject to change without notice.

Specifications

Preset Modes (Resolution)

Display Modes (Resolution)

9

10

11

*12

**13

7

8

5

6

3

4

1

2

640 x 350

720 x 400

640 x 480

640 x 480

800 x 600

800 x 600

832 x 624

1024 x 768

1024 x 768

1152 x 870

1152 x 900

1280 x 1024

1280 x 1024

Horizontal Freq. (kHz)

31.469

31.468

31.469

37.500

37.879

46.875

49.725

48.363

60.123

68.681

61.805

63.981

79.976

Vertical Freq. (Hz)

60

75

75

60

70

70

60

75

75

75

65

60

75

* Recommend Mode

** Only Analog Mode

Indicator

MODE

On Mode

Sleep Mode

Off Mode

LED Color

blue flicker

Off

Installing the Wall mount plate

This monitor satisfies the specifications of the Wall mount plate or the interchange device.

1

.

Place the monitor with its front facing downward on a soft cloth.

2

.

Separate the stand after firstly separating 4 screws by using a driver as figure.

3

.

Install the Wall mount plate.

Wall mount plate (Separate purchase)

This is stand-type or will mount type and is connectable with Wall mount plate.

Please refer to the installation guide for more details, which is provided when Wall mount plate is purchased.

Kensington Security Slot

Connected to a locking cable that can be purchased separately at most computer stores

Digitally yours

Downloaded from ManualMonitor.com Manuals

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
