Nikon COOLPIX S3600 Camera User Guide

Nikon COOLPIX S3600 Camera User Guide

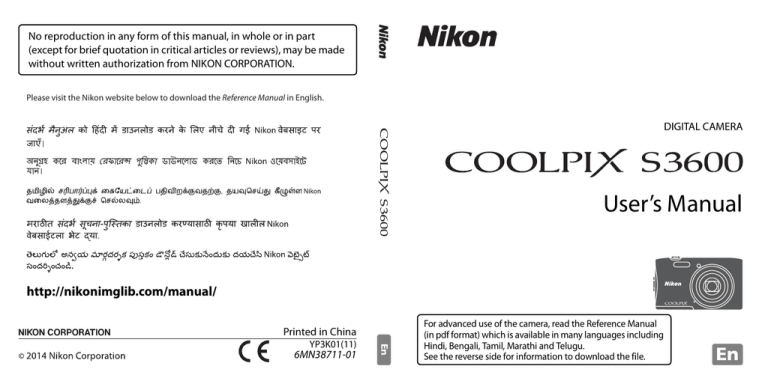

No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be made
without written authorization from NIKON CORPORATION.
Please visit the Nikon website below to download the Reference Manual in English.
DIGITAL CAMERA
User’s Manual
http://nikonimglib.com/manual/
Printed in China
En
YP3K01(11)
6MN38711-01
For advanced use of the camera, read the Reference Manual
(in pdf format) which is available in many languages including
Hindi, Bengali, Tamil, Marathi and Telugu.
See the reverse side for information to download the file.
En
Introduction
Parts of the Camera
The Basics of Shooting and Playback
Shooting Features
Playback Features
Recording and Playing Back Movies
General Camera Setup
Connecting the Camera to a TV, Computer, or Printer
Technical Notes and Index
i
Introduction
Read This First
Introduction
Thank you for purchasing the Nikon COOLPIX S3600 digital camera. Before using the camera,
please read the information in “For Your Safety” (Aviii-x) and familiarize yourself with the
information provided in this manual. After reading, please keep this manual handy and refer
to it to enhance your enjoyment of your new camera.
Confirming the Package Contents
In the event that any items are missing, please contact the store where you purchased the
camera.
COOLPIX S3600
Digital Camera
Camera Strap
Rechargeable Li-ion
Battery EN-EL19
USB Cable UC-E6
Audio Video Cable
EG-CP142
ViewNX 2 CD
• User’s Manual (this manual)
Charging AC Adapter
EH-70P1
• Warranty
1
A plug adapter is included if the camera was purchased in a country or region that requires
a plug adapter. The shape of the plug adapter varies with the country or region of purchase
(A12).
2 This item is supplied only if the camera was purchased in India, and is described in this
manual as being “optional,” “available separately,” etc.
ii
NOTE: A memory card is not included with the camera.
About This Manual
If you want to start using the camera right away, see “The Basics of Shooting and Playback”
(A10).
To learn about the parts of the camera and information that is displayed in the monitor, see
“Parts of the Camera” (A1).
Introduction
Downloading the “Reference Manual”
Refer to the Reference Manual (PDF format) for more detailed information. The Reference
Manual can be downloaded from the Nikon website.
http://nikonimglib.com/manual/
The Reference Manual can be viewed using Adobe Reader, available for free download from
the Adobe website.
iii
Other Information
• Symbols and Conventions
Symbol
Description
Introduction
B
This icon marks cautions and information that should be read before using the
camera.
C
This icon marks notes and information that should be read before using the
camera.
A/E/
F
These icons indicate other pages containing relevant information;
E*: “Reference Section”, F: “Technical Notes and Index”
* Refer to the Reference Manual for pages indicated with E.
• SD, SDHC, and SDXC memory cards are referred to as “memory cards” in this manual.
• The setting at the time of purchase is referred to as the “default setting.”
• The names of menu items displayed in the camera monitor, and the names of buttons or
messages displayed on a computer monitor appear in bold.
• In this manual, images are sometimes omitted from monitor display samples so that
monitor indicators can be more clearly shown.
• Illustrations and monitor content shown in this manual may differ from the actual display.
iv
Information and Precautions
Life-Long Learning
Introduction
As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and education,
continually updated information is available online at the following sites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe and Africa: http://www.europe-nikon.com/support/
• For users in Asia, Oceania, and the Middle East: http://www.nikon-asia.com/
Visit these sites to keep up-to-date with the latest product information, tips, answers to frequently
asked questions (FAQs), and general advice on digital imaging and photography. Additional
information may be available from the Nikon representative in your area. Visit the site below for
contact information.
http://imaging.nikon.com/
Use Only Nikon Brand Electronic Accessories
Nikon COOLPIX cameras are designed to the highest standards and include complex electronic
circuitry. Only Nikon brand electronic accessories (including battery chargers, batteries, Charging AC
Adapter, and AC adapters) certified by Nikon specifically for use with this Nikon digital camera are
engineered and proven to operate within the operational and safety requirements of this electronic
circuitry.
THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND MAY
VOID YOUR NIKON WARRANTY.
The use of third-party rechargeable Li-ion batteries not bearing the
Nikon holographic seal could interfere with normal operation of the
camera or result in the batteries overheating, igniting, rupturing, or
Holographic seal:
leaking.
Identifies this device as an
For more information about Nikon brand accessories, contact a local
authentic Nikon product.
authorized Nikon dealer.
Before Taking Important Images
Before taking images on important occasions (such as at weddings or before taking the camera on a
trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable
for damages or lost profits that may result from product malfunction.
v
About the Manuals
Introduction
• No part of the documentation included with this product may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form, by any means,
without Nikon’s prior written permission.
• Nikon reserves the right to change the specifications of the hardware and software described in
the documentation at any time and without prior notice.
• Nikon will not be held liable for any damages resulting from the use of this product.
• While every effort was made to ensure that the information in the documentation is accurate and
complete, we would appreciate it were you to bring any errors or omissions to the attention of the
Nikon representative in your area (address provided separately).
Notice Concerning Prohibition of Copying or Reproduction
Note that simply being in possession of material that was digitally copied or reproduced by means
of a scanner, digital camera or other device may be punishable by law.
• Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities, government bonds or local government
bonds, even if such copies or reproductions are stamped “Sample.” The copying or reproduction of
paper money, coins, or securities which are circulated in a foreign country is prohibited. Unless the
prior permission of the government was obtained, the copying or reproduction of unused postage
stamps or post cards issued by the government is prohibited. The copying or reproduction of
stamps issued by the government and of certified documents stipulated by law is prohibited.
• Cautions on certain copies and reproductions
The government has issued cautions on copies or reproductions of securities issued by private
companies (shares, bills, checks, gift certificates, etc.), commuter passes or coupon tickets, except
when a minimum of necessary copies are to be provided for business use by a company. Also, do
not copy or reproduce passports issued by the government, licenses issued by public agencies and
private groups, ID cards and tickets, such as passes and meal coupons.
• Comply with copyright notices
The copying or reproduction of copyrighted creative works such as books, music, paintings,
woodcut prints, maps, drawings, movies and photographs is governed by national and international
copyright laws. Do not use this product for the purpose of making illegal copies or to infringe
copyright laws.
vi
Disposing of Data Storage Devices
Introduction
Please note that deleting images or formatting data storage devices such as memory cards or builtin camera memory does not completely erase the original image data. Deleted files can sometimes
be recovered from discarded storage devices using commercially available software, potentially
resulting in the malicious use of personal image data. Ensuring the privacy of such data is the user’s
responsibility.
Before discarding a data storage device or transferring ownership to another person, erase all data
using commercial deletion software, or format the device and then completely refill it with images
containing no private information (for example, images of empty sky). Be sure to also replace any
images selected for the Select an image option in the Welcome screen setting (A73). Care
should be taken to avoid injury or damage to property when physically destroying data storage
devices.
vii
For Your Safety
Introduction
To prevent damage to your Nikon product or injury to yourself or to others, read the following
safety precautions in their entirety before using this equipment. Keep these safety
instructions where all those who use the product will read them.
The consequences that could result from failure to observe the precautions listed in this
section are indicated by the following symbol:
This icon marks warnings, information that should be read before using this Nikon
product, to prevent possible injury.
WARNINGS
Turn off in the event of
malfunction
Should you notice smoke or an unusual
smell coming from the camera or Charging
AC Adapter, unplug the Charging AC
Adapter and remove the battery
immediately, taking care to avoid burns.
Continued operation could result in injury.
After removing or disconnecting the power
source, take the equipment to a Nikonauthorized service representative for
inspection.
viii
Do not disassemble
Touching the internal parts of the camera or
Charging AC Adapter could result in injury.
Repairs should be performed only by
qualified technicians. Should the camera or
Charging AC Adapter break open as the
result of a fall or other accident, take the
product to a Nikon-authorized service
representative for inspection, after
unplugging the product and/or removing
the battery.
Do not use the camera or Charging
AC Adapter in the presence of
flammable gas
Do not use electronic equipment in the
presence of flammable gas, as this could
result in explosion or fire.
Handle the camera strap with care
Never place the strap around the neck of an
infant or child.
Keep out of reach of children
Particular care should be taken to prevent
infants from putting the battery or other
small parts into their mouths.
Do not leave the product where it
will be exposed to extremely high
temperatures, such as in an
enclosed automobile or in direct
sunlight
Failure to observe this precaution could
cause damage or fire.
Observe caution when handling
the battery
The battery may leak, overheat or explode if
improperly handled. Observe the following
precautions when handling the battery for
use in this product:
• Before replacing the battery, turn the
product off. If you are using the Charging
AC Adapter/AC adapter, be sure it is
unplugged.
• Use only a Rechargeable Li-ion Battery
EN-EL19 (included). Charge the battery
by using a camera that supports battery
charging. To perform this operation, use
either Charging AC Adapter EH-70P
(included) or the Charge by computer
function. The Battery Charger MH-66
(available separately) is also available to
charge the battery without using a
camera.
• When inserting the battery, do not
attempt to insert it upside down or
backwards.
• Do not short or disassemble the battery
or attempt to remove or break the
battery insulation or casing.
• Do not expose the battery to flame or to
excessive heat.
• Do not immerse in or expose to water.
• Put the battery in a plastic bag, etc. in
order to insulate it before transporting.
Do not transport or store with metal
objects such as necklaces or hairpins.
• The battery is prone to leakage when
fully discharged. To avoid damage to the
product, be sure to remove the battery
when no charge remains.
• Discontinue use immediately should you
notice any change in the battery, such as
discoloration or deformation.
• If liquid from the damaged battery
comes in contact with clothing or skin,
rinse immediately with plenty of water.
Observe the following precautions
when handling the Charging AC
Adapter
• Keep dry. Failure to observe this
precaution could result in fire or electric
shock.
• Dust on or near the metal parts of the
plug should be removed with a dry cloth.
Continued use could result in fire.
• Do not handle the plug or go near the
Charging AC Adapter during lightning
storms. Failure to observe this precaution
could result in electric shock.
Introduction
Do not remain in contact with the
camera, battery charger, or AC
adapter for extended periods
while the devices are on or in use
Parts of the devices become hot. Leaving
the devices in direct contact with the skin
for extended periods may result in lowtemperature burns.
ix
Introduction
• Do not damage, modify, forcibly tug or
bend the USB cable, place it under heavy
objects, or expose it to heat or flames.
Should the insulation be damaged and
the wires become exposed, take it to a
Nikon-authorized service representative
for inspection. Failure to observe these
precautions could result in fire or electric
shock.
• Do not handle the plug or Charging AC
Adapter with wet hands. Failure to
observe this precaution could result in
electric shock.
• Do not use with travel converters or
adapters designed to convert from one
voltage to another or with DC-to-AC
inverters. Failure to observe this
precaution could damage the product or
cause overheating or fire.
Use appropriate cables
When connecting cables to the input and
output jacks, use only the cables provided
or sold by Nikon for the purpose, to
maintain compliance with product
regulations.
Handle moving parts with care
Be careful that your fingers or other objects
are not pinched by the lens cover or other
moving parts.
CD-ROMs
The CD-ROMs included with this device
should not be played back on audio CD
equipment. Playing CD-ROMs on an audio
x
CD player could cause hearing loss or
damage the equipment.
Using the flash close to your
subject’s eyes could cause
temporary visual impairment
The flash should be no less than 1 meter (3
ft 4 in.) from the subject.
Particular care should be observed when
photographing infants.
Do not operate the flash with the
flash window touching a person or
object
Failure to observe this precaution could
result in burns or fire.
Avoid contact with liquid crystal
Should the monitor break, care should be
taken to avoid injury caused by broken glass
and to prevent liquid crystal from the
monitor touching the skin or entering the
eyes or mouth.
Turn the power off when using
inside an airplane or the hospital
Turn the power off while inside the airplane
during take off or landing. Do not use
wireless network functions while in the air.
Follow the instructions of the hospital when
using while in a hospital. The
electromagnetic waves emitted by this
camera may disrupt the electronic systems
of the airplane or the instruments of the
hospital. If you are using an Eye-Fi card,
remove it from the camera before boarding
an aircraft or entering a hospital.
Notices
Notices for Customers in the
U.S.A.
DANGER - TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, CAREFULLY
FOLLOW THESE INSTRUCTIONS
For connection to a supply not in the U.S.A.,
use an attachment plug adapter of the
proper configuration for the power outlet if
needed.
The power supply unit is intended to be
correctly orientated in a vertical or floor
mount position.
Federal Communications Commission
(FCC) Radio Frequency Interference
Statement
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
Introduction
IMPORTANT SAFETY INSTRUCTIONS–
SAVE THESE INSTRUCTIONS.
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/television technician for help.
CAUTIONS
Modifications
The FCC requires the user to be notified that
any changes or modifications made to this
device that are not expressly approved by
Nikon Corporation may void the user’s
authority to operate the equipment.
Interface Cables
Use the interface cables sold or provided by
Nikon for your equipment. Using other
interface cables may exceed the limits of
Class B Part 15 of the FCC rules.
xi
Notice for Customers in the State of
California
Introduction
WARNING
Handling the cord on this product will
expose you to lead, a chemical known to
the State of California to cause birth defects
or other reproductive harm.
Wash hands after handling.
Nikon Inc.,
1300 Walt Whitman Road
Melville, New York 11747-3064
USA
Tel: 631-547-4200
Notice for Customers in Canada
CAN ICES-3 B / NMB-3 B
Notices for Customers in Europe
CAUTIONS
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
This symbol indicates that
electrical and electronic
equipment is to be collected
separately.
The following apply only to users
in European countries:
• This product is designated for separate
collection at an appropriate collection
point. Do not dispose of as household
waste.
xii
• Separate collection and recycling helps
conserve natural resources and prevent
negative consequences for human
health and the environment that might
result from incorrect disposal.
• For more information, contact the retailer
or the local authorities in charge of waste
management.
This symbol on the battery
indicates that the battery is to be
collected separately. The
following apply only to users in
European countries:
• All batteries, whether marked with this
symbol or not, are designated for
separate collection at an appropriate
collection point. Do not dispose of as
household waste.
• For more information, contact the retailer
or the local authorities in charge of waste
management.
Table of Contents
Read This First ....................................................... ii
Confirming the Package Contents................. ii
About This Manual .................................................. iii
Information and Precautions ............................. v
For Your Safety ................................................. viii
WARNINGS ................................................................ viii
Notices .................................................................... xi
Introduction
Step 3 Frame a Picture .................................... 24
Using the Zoom ...................................................... 25
Step 4 Focus and Shoot.................................. 26
The Shutter-release Button .............................. 27
Step 5 Play Back Images ................................. 28
Step 6 Delete Images....................................... 30
Introduction ................................................... ii
Shooting Features ..................................... 32
Parts of the Camera ..................................... 1
The Camera Body................................................. 1
Attaching the Camera Strap............................... 3
Using Menus (the d Button)....................... 4
The Monitor ........................................................... 6
Shooting Mode .......................................................... 6
Playback Mode ........................................................... 8
The Basics of Shooting and Playback
........................................................................... 10
Preparation 1 Insert the Battery .................. 10
Preparation 2 Charge the Battery ............... 12
Preparation 3 Insert a Memory Card.......... 14
Internal Memory and Memory Cards......... 15
Preparation 4 Setting the Display Language,
Date, and Time................................................... 16
Step 1 Turn the Camera On........................... 20
Step 2 Select a Shooting Mode.................... 22
Available Shooting Modes ............................... 23
Refer to the Reference Manual for pages indicated with E.
x (Scene Auto Selector) Mode................... 32
Scene Mode (Shooting Suited to Scenes)
................................................................................. 33
Tips and Notes.......................................................... 34
Special Effects Mode (Applying Effects
When Shooting) ................................................ 38
Smart Portrait Mode (Capturing Images of
Smiling Faces) .................................................... 40
A (Auto) Mode ................................................ 42
Using Quick Effects................................................ 43
Functions That Can Be Set Using the Multi
Selector................................................................. 44
Using the Flash ........................................................ 45
Using the Self-timer .............................................. 47
Using Macro Mode ................................................ 49
Adjusting Brightness (Exposure
Compensation)........................................................ 50
Default Settings....................................................... 51
Functions That Can Be Set with the d
Button (Shooting Menu) ................................ 53
xiii
Introduction
Options Available in the Shooting Menu
........................................................................................... 54
Functions That Cannot Be Used
Simultaneously .................................................. 56
Focusing............................................................... 58
Using Face Detection .......................................... 58
Using Skin Softening............................................ 59
Using Target Finding AF .................................... 60
Subjects Not Suitable for Autofocus.......... 61
Focus Lock.................................................................. 62
Installing ViewNX 2................................................ 77
Transferring Images to the Computer....... 80
Viewing Images ....................................................... 82
Reference Section ................................. E1
Playback Features....................................... 63
Playback Zoom .................................................. 63
Thumbnail Playback/Calendar Display..... 64
Functions That Can Be Set with the d
Button (Playback Menu)................................. 65
Recording and Playing Back Movies.... 67
Recording Movies ............................................. 67
Functions That Can Be Set with the d
Button (Movie Menu) .......................................... 70
Playing Back Movies ........................................ 71
General Camera Setup.............................. 73
Functions That Can Be Set with the d
Button (Setup Menu) ....................................... 73
Connecting the Camera to a TV,
Computer, or Printer ................................. 75
Connection Methods....................................... 75
Using ViewNX 2 ................................................. 77
xiv
Refer to the Reference Manual for pages indicated with E.
Using Panorama Assist............................... E2
Favorite Pictures Mode .............................. E5
Adding Images to Albums.......................... E5
Playing Back Images in Albums............... E6
Removing Images from Albums ............. E7
Changing the Favorites Album Icon .... E8
Auto Sort Mode ............................................ E9
List by Date Mode...................................... E10
Editing Images (Still Images) ................. E11
Before Editing Images ................................ E11
Quick Effects: Changing Hue or Mood
.................................................................................. E12
Quick Retouch: Enhancing Contrast and
Saturation........................................................... E13
D-Lighting: Enhancing Brightness and
Contrast ............................................................... E13
Red-eye Correction: Correcting Red-eye
When Shooting with the Flash ............. E14
Glamour Retouch: Enhancing Human Faces
.................................................................................. E15
Small Picture: Reducing the Size of an
Image .................................................................... E17
Crop: Creating a Cropped Copy........... E18
Connecting the Camera to a TV (Playback
on a TV).......................................................... E19
Connecting the Camera to a Printer (Direct
Print) ............................................................... E20
The Setup Menu ......................................... E59
Welcome Screen............................................ E59
Time Zone and Date.................................... E60
Monitor Settings ............................................ E62
Print Date (Imprinting Date and Time)
.................................................................................. E64
Photo VR.............................................................. E65
Motion Detection.......................................... E66
AF Assist .............................................................. E67
Digital Zoom .................................................... E67
Sound Settings................................................ E68
Auto Off ............................................................... E68
Format Memory/Format Card............... E69
Language............................................................ E70
Video Mode....................................................... E70
Charge by Computer .................................. E71
Blink Warning................................................... E72
Eye-Fi Upload................................................... E73
Reset All ............................................................... E74
Firmware Version........................................... E74
Error Messages............................................ E75
File Names .................................................... E79
Optional Accessories ................................ E80
Introduction
Connecting the Camera to a Printer
.................................................................................. E21
Printing Images One at a Time ............. E23
Printing Multiple Images .......................... E25
The Shooting Menu (for A (Auto) Mode)
.......................................................................... E28
Image Mode (Image Size and Quality)
.................................................................................. E28
White Balance (Adjusting Hue) ............ E30
Continuous Shooting ................................. E33
ISO Sensitivity .................................................. E35
Color Options .................................................. E36
AF Area Mode.................................................. E37
Autofocus Mode............................................ E41
Quick Effects..................................................... E41
The Smart Portrait Menu......................... E42
Skin Softening ................................................. E42
Smile Timer ....................................................... E43
Blink Proof.......................................................... E44
The Playback Menu ................................... E45
Print Order (Creating a DPOF Print Order)
.................................................................................. E45
Slide Show ......................................................... E49
Protect.................................................................. E50
Rotate Image.................................................... E52
Voice Memo ..................................................... E53
Copy (Copy Between Internal Memory
and Memory Card) ....................................... E54
The Movie Menu ........................................ E56
Movie Options................................................. E56
Autofocus Mode............................................ E57
Movie VR............................................................. E58
Wind Noise Reduction ............................... E58
Technical Notes and Index .................. F1
Refer to the Reference Manual for pages indicated with E.
Caring for the Product.................................. F2
The Camera............................................................ F2
The Battery.............................................................. F4
Charging AC Adapter....................................... F5
Memory Cards ...................................................... F5
Cleaning and Storage................................... F6
Cleaning ................................................................... F6
xv
Storage ..................................................................... F6
Troubleshooting ............................................ F7
Specifications ............................................... F16
Approved Memory Cards........................... F20
Index................................................................ F22
Introduction
xvi
Refer to the Reference Manual for pages indicated with E.
Parts of the Camera
The Camera Body
1
2 3 4 5
6
Parts of the Camera
Lens cover closed
11
10
9
1
Shutter-release button.................................... 26
2
Zoom control........................................................ 25
f: Wide-angle................................................ 25
g: Telephoto.................................................... 25
h: Thumbnail playback.......................... 64
i: Playback zoom......................................... 63
j: Help................................................................ 33
3
Power switch/power-on lamp ................... 20
4
Flash............................................................................ 45
8
7
5
Self-timer lamp..................................................... 48
AF-assist illuminator..........................................74
6
Lens
7
Lens cover ...........................................................F2
8
Built-in microphone................................. E53
9
Eyelet for camera strap.......................................3
10 Connector cover .................................................75
11 USB/audio/video output connector....... 75
1
1
2
3
4
5
Parts of the Camera
6
7
8
9
1
2
10
11 12
13
Charge lamp.......................................................... 13
Flash lamp............................................................... 45
8
d button............................... 4, 53, 65, 70, 73
9
Monitor ........................................................................6
2
b (e movie-record) button..................... 67
3
A (shooting mode) button
........................................................22, 33, 38, 40, 42
11 Tripod socket..................................................F18
4
c (playback) button ...................................... 28
12
Battery-chamber/
memory card slot cover.......................... 10, 14
5
Multi selector
6
k (apply selection) button
13
Power connector cover (for connection
with optional AC adapter).................... E80
7
l (delete) button ......................30, 72, E54
10 Speaker
Attaching the Camera Strap
Parts of the Camera
3
Using Menus (the d Button)
Use the multi selector and the k button to navigate the menus.
1
Press the d button.
2
• The menu is displayed.
Press the multi selector J.
• The current menu icon is displayed in
yellow.
Parts of the Camera
Shooting menu
Image mode
White balance
Continuous
ISO sensitivity
Color options
AF area mode
Autofocus mode
Menu icons
3
Select the desired menu icon.
• The menu is changed.
4
4
Press the k button.
• The menu options become selectable.
Set up
Welcome screen
Welcome screen
Time zone and date
Time zone and date
Monitor settings
Monitor settings
Print date
Print date
Photo VR
Photo VR
Motion detection
Motion detection
AF assist
AF assist
5
Select a menu option.
6
Press the k button.
• The settings for the option you
selected are displayed.
Photo VR
Welcome screen
Time zone and date
Monitor settings
On
Print date
Off
Parts of the Camera
Photo VR
Motion detection
AF assist
7
8
Select a setting.
Press the k button.
• The setting you selected is applied.
• When you are finished using the menu,
press the d button.
Photo VR
On
Off
C
Setting Menu Options
• Certain menu options cannot be set depending on the current shooting mode or the state of the
camera. Unavailable options are displayed in gray and cannot be selected.
• When a menu is displayed, you can switch to shooting mode by pressing the shutter-release
button, A (shooting mode) button, or b (e movie-record) button.
5
The Monitor
The information that is displayed in the monitor during shooting and playback changes
depending on the camera’s settings and state of use.
By default, information is displayed when the camera is turned on and when you operate the
camera, and turns off after a few seconds (when Photo info is set to Auto info in Monitor
settings (A73)).
Parts of the Camera
Shooting Mode
38
37
36
2
10
2
35
3
34
33
1
32
5
AF
6
7
AE/AF-L
4
8
31
10
30
29
9
PRE
10 11 12
28
27
13
26
400
25
1/250
F3.7
22
17
+1.0
29m 0s
999
14
999
9999
16
24
23
6
21 20 19
18
15
15
16
17
18
19
20
Shooting mode ...................22, 33, 38, 40, 42
Flash mode............................................................. 45
Macro mode .......................................................... 49
Zoom indicator ............................................ 25, 49
Focus indicator .................................................... 26
AE/AF-L indicator...........................................E4
Movie options.......................................70, E56
Image mode ..........................................54, E28
Photo VR icon .......................................73, E65
Movie VR icon .......................................70, E58
Motion detection icon ....................73, E66
Wind noise reduction ......................70, E58
Exposure compensation value .................. 50
Movie length ......................................................... 67
Number of exposures remaining
(still images)...........................................20, E29
Internal memory indicator............................ 20
Aperture value...................................................... 27
Focus area (target finding AF) ....60, E39
Focus area (for manual or center)
...............................................................................E38
Focus area (face detection, pet detection)
....................................................... 37, 40, 58, E37
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Focus area (subject tracking).............. E38
Shutter speed........................................................ 27
ISO sensitivity ........................................54, E35
Battery level indicator ...................................... 20
Print date..................................................73, E64
“Date not set” indicator...................................16
Eye-Fi communication indicator
........................................................................74, E73
Travel destination ...................................... E60
White balance mode........................54, E30
Skin softening .......................................55, E42
Color options.........................................54, E36
Quick effects icon .......................43, 54, E41
Continuous shooting mode
........................................................................54, E33
Blink proof ...............................................55, E44
Hand-held/tripod ............................................... 34
Self-timer indicator ............................................ 47
Smile timer..............................................55, E43
Pet portrait auto release ......................... 37, 47
Parts of the Camera
1
2
3
4
5
6
7
8
9
10
11
12
13
14
7
Playback Mode
1 2 3
4
5 6 7 8 9 10 11
12
999 / 999
Parts of the Camera
a
b
25
24
23
999 / 999
9999 / 9999
29m00s
29m00s
14 15
9999. JPG
15 / 05 / 2014 15:30
22
20
8
13
16
17
21
19
18
a
b
1
Album icon in
favorite pictures mode...............................E5
14 Image mode ..........................................54, E28
2
Category icon in
auto sort mode ...............................................E9
16 Small picture icon...............................65, E17
3
List by date icon ..........................................E10
4
Protect icon............................................65, E50
5
Print order icon ....................................65, E45
6
Voice memo icon ...............................65, E53
7
Glamour retouch icon .....................65, E15
8
Quick effects icon...............................29, E12
9
D-Lighting icon....................................65, E13
15 Movie options.......................................70, E56
17 Crop icon .................................................63, E18
18 Volume indicator ................................................ 71
19 Quick effects guide
21 Time of recording
22 Date of recording
10 Quick retouch icon............................65, E13
a Battery level indicator..................................20
23 b Charging AC Adapter connection
indicator
11 Red-eye correction icon.................65, E14
24 File number and type.............................. E79
12 Internal memory indicator
a Current frame number/
13
total number of frames
b Movie length
Parts of the Camera
20 Movie playback guide
25
Eye-Fi communication indicator
........................................................................74, E73
9
The Basics of Shooting and Playback
Preparation 1 Insert the Battery
The Basics of Shooting and Playback
1
Open the battery-chamber/memory card slot
cover.
2
Insert the battery.
• Push the orange battery latch in the direction indicated
by the arrow (1), and fully insert the battery (2).
• The battery locks into place when inserted correctly.
B Be Careful to Insert the Battery in Correct
Direction
Inserting the battery upside down or backwards could
damage the camera.
10
Battery latch
3
Close the battery-chamber/memory card slot
cover.
Removing the Battery
B
High Temperature Caution
The camera, battery, and memory card may be hot immediately after using the camera.
The Basics of Shooting and Playback
Turn the camera off and make sure that the power-on lamp
and monitor have turned off, and then open the batterychamber/memory card slot cover.
Move the battery latch in the direction indicated by the arrow
(1) to eject the battery (2).
11
Preparation 2 Charge the Battery
1
Prepare the included Charging AC Adapter.
The Basics of Shooting and Playback
• If a plug adapter* is included with your camera, attach the plug adapter
to the plug on the Charging AC Adapter. Push the plug adapter firmly
until it is securely held in place. Once the two are connected, attempting
to forcibly remove the plug adapter could damage the product.
* The shape of the plug adapter varies according to the country or
region in which the camera was purchased. This step can be omitted if
the plug adapter comes permanently bonded to the Charging AC
Adapter.
2
Make sure the battery is installed in the camera, and then connect the
camera to the Charging AC Adapter in order of 1 to 3.
• Keep the camera turned off.
• Make sure that the plugs are properly oriented. Do not insert or remove the plugs at an
angle when connecting or disconnecting them.
Charge lamp
Electrical
outlet
USB cable
(included)
• The charge lamp slowly flashes green to indicate that the battery is charging.
• Shooting is not possible while the camera is connected to the Charging AC Adapter.
12
Charge lamp
Description
The battery is charging.
Off
When charging is complete, the charge lamp stops flashing green and
turns off. About 2 hours and 50 minutes are required to charge a fully
exhausted battery.
Flashes quickly
(green)
• The ambient temperature is not suited to charging. Charge the battery
indoors with an ambient temperature of 5°C to 35°C (41°F to 95°F).
• The USB cable or Charging AC Adapter is not properly connected, or
there is a problem with the battery. Disconnect the USB cable or unplug
the Charging AC Adapter and correctly connect it again, or change the
battery.
3
C
Disconnect the Charging AC Adapter from the electrical outlet and
then disconnect the USB cable.
Charging Using a Computer or Battery Charger
• You can also charge the battery by connecting the camera to a computer (A74, E71).
• You can use the Battery Charger MH-66 (available separately; E80) to charge the battery without
using the camera.
The Basics of Shooting and Playback
Flashes slowly
(green)
13
Preparation 3 Insert a Memory Card
The Basics of Shooting and Playback
1
Turn off the camera and open the batterychamber/memory card slot cover.
2
Insert the memory card.
• Slide the memory card in until it clicks into place.
B Be Careful to Insert the Memory Card in Correct
Direction
Inserting the memory card upside down or backwards could
damage the camera and memory card.
3
14
Close the battery-chamber/memory card slot cover.
Memory card slot
B
Formatting a Memory Card
The first time you insert a memory card that has been used in another device into this camera, make
sure to format it with this camera. Insert the memory card into the camera, press the d button,
and select Format card in the setup menu.
Removing the Memory Card
Turn the camera off and make sure that the power-on lamp
and monitor have turned off, and then open the batterychamber/memory card slot cover.
Gently push the memory card into the camera (1) to
partially eject the card (2).
High Temperature Caution
The camera, battery, and memory card may be hot immediately after using the camera.
Internal Memory and Memory Cards
Camera data, including images and movies, can be saved either in the camera’s internal
memory or on a memory card. To use the camera’s internal memory, first remove the memory
card.
The Basics of Shooting and Playback
B
15
Preparation 4 Setting the Display Language, Date,
and Time
When the camera is turned on for the first time, the language-selection screen and the date
and time setting screen for the camera clock are displayed.
• If you exit without setting the date and time, O will flash when the shooting screen is
displayed.
The Basics of Shooting and Playback
1
Press the power switch to turn on the camera.
2
Use the multi selector HI to select
the desired language and press the
k button.
Language
Cancel
3
Select Yes and press the k button.
Choose time zone and
set date and time?
Yes
No
Cancel
16
4
Select your home time zone and
press the k button.
• To enable daylight saving time, press H.
When the daylight saving time function
is enabled, W is displayed above the
map. To disable the daylight saving time
function, press I.
5
Select the date format and press the k
button.
London, Casablanca
Back
Date format
Day/Month/Year
6
Set the date and time, and press the k
button.
• Select a field: Press JK (changes between D, M, Y, hour,
and minute).
• Edit the date and time: Press HI.
• Confirm the settings: Select the minute field and press the
k button.
7
Select Yes and press the k button.
• When settings are finished, the lens extends and the
camera switches to shooting mode.
Date and time
D
Y
M
01 01
2014
h
m
00 00
Edit
The Basics of Shooting and Playback
Year/Month/Day
Month/Day/Year
Date and time
15/05/2014 15 :30
OK?
2014
01 01
Yes
00 00
No
Edit
17
C
Changing the Language or the Date and Time Setting
• You can change these settings using the Language and Time zone and date settings in the
z setup menu (A73).
• You can enable or disable daylight saving time in the z setup menu by selecting Time zone and
date followed by Time zone. Press the multi selector K and then H to enable daylight saving
time and move the clock forward one hour, or I to disable daylight saving time and move the
clock back one hour.
C
The Basics of Shooting and Playback
18
The Clock Battery
• The camera’s clock is powered by a built-in backup battery.
The backup battery charges when the main battery is inserted into the camera or when the
camera is connected to an optional AC adapter, and it can run the clock for several days after
about ten hours of charging.
• If the camera’s backup battery becomes exhausted, the date and time setting screen is displayed
when the camera is turned on. Set the date and time again. See step 3 (A16) of “Preparation 4
Setting the Display Language, Date, and Time” for more information.
C
Imprinting the Shooting Date on Printed Images
• You can permanently imprint the shooting date on images as they are captured by setting Print
date in the setup menu (A73).
• You can use the ViewNX 2 software (A77) to print the shooting date on images that were
captured without using the Print date option.
19
Step 1 Turn the Camera On
1
Press the power switch.
• The monitor turns on.
• To turn the camera off, press the power switch again.
2
The Basics of Shooting and Playback
Check the battery level indicator and the number of exposures
remaining.
Battery Level Indicator
Display
Number of exposures
remaining
Description
b
The battery level is high.
B
The battery level is low.
P
Battery exhausted.
The camera cannot capture images.
Recharge the battery.
8m 0s
1400
Battery level indicator
Number of Exposures Remaining
The number of images that can be taken is displayed.
• C is displayed when no memory card is inserted in the camera, and images are saved in the
internal memory.
20
C
The Auto Off Function
Flashes
No operations
performed
No operations
performed
3 min
8m 0s
1400
Camera enters standby mode.
Camera turns off.
The Basics of Shooting and Playback
• The time that elapses before the camera enters standby mode is about one minute. The time can
be changed using the Auto off setting in the setup menu (A73).
• While the camera is in standby mode, the monitor turns back on if you perform any of the
following operations:
- Press the power switch, shutter-release button, A (shooting mode) button, c (playback)
button, or b (e movie-record) button.
21
Step 2 Select a Shooting Mode
The Basics of Shooting and Playback
22
1
Press the A button.
2
Use the multi selector HI to select
a shooting mode and press the k
button.
• x (scene auto selector) mode is used in this
example.
• The shooting mode setting is saved even after
the camera is turned off.
Scene auto selector
Available Shooting Modes
x
Scene auto selector
A32
The camera automatically selects the optimum scene mode when you frame an
image, making it even easier to take images using settings that suit the scene.
b
Scene
A33
Camera settings are optimized according to the scene that you select.
D
Special effects
A38
Effects can be applied to images during shooting.
Smart portrait
A40
When the camera detects a smiling face, you can take an image automatically without
pressing the shutter-release button (smile timer). You can also use the skin softening
option to smooth the skin tones of human faces.
A
Auto mode
A42
Used for general shooting. Settings can be adjusted to suit the shooting conditions
and the type of shot you want to capture.
The Basics of Shooting and Playback
F
23
Step 3 Frame a Picture
1
Hold the camera steady.
• Keep fingers and other objects away from the lens, flash, AF
assist-illuminator, microphone, and speaker.
• When taking pictures in portrait (“tall”) orientation, turn the
camera so that the flash is above the lens.
The Basics of Shooting and Playback
2
Frame the picture.
Shooting mode icon
• When the camera automatically determines the scene
mode, the shooting mode icon changes (A32).
8m 0s
1400
B
24
Notes About x (Scene Auto Selector) Mode
• Depending upon shooting conditions, the camera may not select the desired scene mode. In this
case, select another shooting mode (A33, 38, 40, 42).
• When the digital zoom is in effect, the scene mode changes to d.
C
When Using a Tripod
• We recommend using a tripod to stabilize the camera in the following situations:
- When shooting in dim lighting
- When shooting with the flash mode (A46) set to W (off)
- When using the telephoto setting
• When using a tripod to stabilize the camera during shooting, set Photo VR to Off in the setup
menu (A73) to prevent potential errors caused by this function.
Using the Zoom
• A zoom indicator is displayed at the top of the monitor
when the zoom control is moved.
• Digital zoom, which allows you to further magnify the
subject up to approximately 4× the maximum optical zoom
ratio, can be activated by moving and holding the zoom
control toward g when the camera is zoomed in to the
maximum optical zoom position.
C
Zoom out
Optical
zoom
Zoom in
Digital
zoom
The Basics of Shooting and Playback
When you move the zoom control, the zoom lens position
changes.
• To zoom in closer to the subject: Move toward g (telephoto).
• To zoom out and view a larger area: Move toward f (wideangle).
When you turn the camera on, the zoom moves to the
maximum wide-angle position.
Notes About Digital Zoom
The zoom indicator turns blue when the digital zoom is activated, and it turns yellow when the
zoom magnification is increased further.
• Zoom indicator is blue: Image quality is not noticeably reduced by using the Dynamic Fine Zoom.
• Zoom indicator is yellow: Image quality is noticeably reduced.
• The indicator remains blue across a wider area when the image size is smaller.
• The zoom indicator may not turn blue when using certain continuous shooting settings.
25
Step 4 Focus and Shoot
1
The Basics of Shooting and Playback
26
Press the shutter-release button
halfway.
• When the subject is in focus, the focus area
glows green (multiple focus areas can glow
green).
• When you are using digital zoom, the camera
focuses in the center of the frame and the
focus area is not displayed. When the camera
has focused, the focus indicator (A7) glows
green.
• If the focus area or focus indicator flashes, the
camera is unable to focus. Modify the
composition and try pressing the shutterrelease button halfway again.
2
Without lifting your finger, press the shutterrelease button the rest of the way down.
1/250
F3.7
The Shutter-release Button
Press halfway
To set focus and exposure (shutter speed and aperture value),
press the shutter-release button lightly until you feel a slight
resistance. Focus and exposure remain locked while the shutterrelease button is pressed halfway.
Press all the
way
Press the shutter-release button all the way to release the shutter
and take an image.
Do not use force when pressing the shutter-release button, as this
may result in camera shake and blurred images. Press the button
gently.
Notes About Saving Images and Recording Movies
The indicator showing the number of exposures remaining or the indicator showing the maximum
movie length flashes while images are being saved or while a movie is being recorded. Do not open
the battery-chamber/memory card slot cover or remove the battery or memory card while an
indicator is flashing. Doing this could result in loss of data, or in damage to the camera or the
memory card.
The Basics of Shooting and Playback
B
27
Step 5 Play Back Images
1
Press the c (playback) button.
• If you press and hold down the c (playback)
button while the camera is turned off, the
camera turns on in playback mode.
The Basics of Shooting and Playback
2
Use the multi selector to select an image to
display.
Display the
previous image
• Press and hold down HIJK to scroll through the
images quickly.
Display the next
• To return to shooting mode, press the A button or
shutter-release button.
4/4
0004. JPG
15 / 05 / 2014 15:30
28
C
The Quick Effects Function
• When e is displayed in full-frame playback mode, you can
press the k button to apply an effect to the image.
• When the effect selection screen is displayed, use the multi
selector HIJK to select an effect, press the k button, and
then select Yes in the confirmation dialog and press the k
button to save the image as a separate file.
See “Quick Effects: Changing Hue or Mood” (E12) for more
information.
4/4
0004. JPG
15 / 05 / 2014 15:30
The Basics of Shooting and Playback
29
Step 6 Delete Images
The Basics of Shooting and Playback
1
Press the l button to delete the
image currently displayed in the
monitor.
2
Use the multi selector HI to select the
desired deletion method and press the k
button.
• To exit without deleting, press the d button.
3
Delete
Current image
Erase selected images
All images
Select Yes and press the k button.
• Deleted images cannot be recovered.
• To cancel, select No and press the k button.
Erase 1 image?
Yes
No
30
Operating the Erase Selected Images Screen
1
Use the multi selector JK to select an image
to be deleted, and then use H to display K.
Erase selected images
• To undo the selection, press I to remove K.
• Move the zoom control (A1) toward g (i) to switch to
full-frame playback or f (h) to switch to thumbnail
playback.
Back
Add K to all images that you want to delete and then press the k
button to confirm the selection.
• A confirmation dialog is displayed. Follow the on-screen instructions to complete
operations.
C
Deleting the Last Image Captured while in Shooting Mode
When using shooting mode, press the l button to delete the last image that was saved.
The Basics of Shooting and Playback
2
31
Shooting Features
x (Scene Auto Selector) Mode
The camera automatically selects the optimum scene mode when you frame an image,
making it even easier to take images using settings that suit the scene.
Enter shooting mode M A (shooting mode) button M x (scene auto selector) M
k button
When the camera selects a scene mode, the shooting mode icon displayed in the shooting
screen changes to that for the scene mode currently enabled.
Shooting Features
e
Portrait (for taking close-up portraits of one or two people)
b
Portrait (for taking portraits of three or more people, or images in which a large
background takes up the frame)
f
Landscape
h
Night portrait (for taking close-up portraits of one or two people)
c
Night portrait (for taking portraits of three or more people, or images in which a large
background takes up the frame)
g
Night landscape
i
Close-up
j
Backlighting (for taking images of subjects other than people)
d
Backlighting (for taking portrait images)
d
Other scenes
Functions Available in x (Scene Auto Selector) Mode
• Flash mode (A45)
• Self-timer (A47)
• Exposure compensation (A50)
32
Scene Mode (Shooting Suited to Scenes)
When a scene is selected, camera settings are automatically optimized for the selected scene.
Enter shooting mode M A (shooting mode) button M b (second icon from the top*)
M K M HI M select a scene M k button
* The icon for the last scene selected is displayed.
c Landscape1
d Sports2
(A34)
e Night portrait3
f Party/indoor2
(A34)
Z Beach2
z Snow2
h Sunset 2, 3
i Dusk/dawn1, 3
j Night landscape1, 3 k Close-up
(A34)
(A35)
u Food
(A35)
l Museum2
(A35)
m Fireworks show1, 3
(A35)
o Backlighting2
(A36)
U Panorama assist
(A36)
O Pet portrait
(A37)
1
2
3
n Black and white
copy2 (A35)
Shooting Features
b Portrait
(default setting)
The camera focuses at infinity.
The camera focuses on the area in the center of the frame.
Use of a tripod is recommended, because the shutter speed is slow. Set Photo VR to Off in the
setup menu (A73) when using a tripod to stabilize the camera during shooting.
Displaying a Description of Each Scene Mode (Help Display)
Select a scene and move the zoom control (A1) toward g (j) to
view a description of that scene. To return to the original screen,
move the zoom control toward g (j) again.
Panorama assist
33
Tips and Notes
d Sports
• While the shutter-release button is held all the way down, the camera shoots up to about 6
images continuously at a rate of about 1.1 fps (when image mode is set to x).
• The frame rate for continuous shooting may vary depending on the current image mode
setting, the memory card used, or shooting conditions.
• Focus, exposure, and hue are fixed at the values determined with the first image in each series.
f Party/indoor
• To avoid the effects of camera shake, hold the camera steady. Set Photo VR to Off in the setup
menu (A73) when using a tripod to stabilize the camera during shooting.
Shooting Features
34
j Night landscape
• From the screen displayed after j Night landscape is selected, select u Hand-held or w
Tripod.
• u Hand-held (default setting): Select this option to produce shots with reduced blurring and
noise even when the camera is hand-held.
• w Tripod: Select this option when using a tripod or other means to stabilize the camera when
shooting.
- Vibration reduction is disabled even when Photo VR (A73) in the setup menu is set to On.
k Close-up
• Macro mode (A49) is enabled and the camera automatically zooms to the closest position at
which it can focus.
• You can move the focus area. Press the k button, use the multi selector HIJK to move the
focus area, and press the k button to apply the setting.
u Food
8m 0s
1400
l Museum
Shooting Features
• Macro mode (A49) is enabled and the camera automatically zooms to the closest position at
which it can focus.
• You can adjust hue by using the multi selector HI. The hue
setting is saved in the camera’s memory even after the camera
is turned off.
• You can move the focus area. Press the k button, use the multi
selector HIJK to move the focus area, and press the k
button to apply the setting.
• The camera captures a series of up to ten images while the shutter-release button is held all the
way down, and the sharpest image in the series is automatically selected and saved (BSS (Best
Shot Selector)).
• The flash does not fire.
m Fireworks show
• The shutter speed is fixed at four seconds.
• The zoom is restricted to four fixed positions.
n Black and white copy
• Use with macro mode (A49) when shooting a subject at close distance.
35
o Backlighting
• The flash always fires.
U Panorama assist
• You can use this mode when shooting a series of images that can later be joined on a computer
to form a single panorama.
• Select the direction in which to add images to the panorama by using the multi selector
HIJK and then press the k button.
• After taking the first image, take the additional shots needed while checking how each image
will connect to the next. To finish shooting, press the k button.
• Transfer the images to a computer and use Panorama Maker (A79) to join them into a single
panorama.
See “Using Panorama Assist” (E2) for more information.
Shooting Features
36
O Pet portrait
• When you point the camera at a dog or cat, the camera detects the pet’s face and focuses on it.
By default, the camera detects a dog or cat face and automatically releases the shutter (pet
portrait auto release).
• On the screen displayed when O Pet portrait is selected, select U Single or V Continuous.
- U Single: The camera captures one image when a dog or cat face is detected.
- V Continuous: The camera captures three images continuously when a dog or cat face is
detected.
B
Pet Portrait Auto Release
B
Shooting Features
• Press the multi selector J (n) to change the Pet portrait auto release setting.
- Y: The camera detects a dog or cat face and automatically releases the shutter.
- OFF: The camera does not release the shutter automatically, even if a dog or cat face is detected.
Press the shutter-release button. The camera also detects human faces when OFF is selected.
• Pet portrait auto release is set to OFF after five bursts have been taken.
• Shooting is also possible by pressing the shutter-release button, regardless of the Pet portrait
auto release setting. When V Continuous is selected, you can take images continuously while
holding down the shutter-release button all the way.
Focus Area
• When the camera detects a face, the face is displayed inside a
yellow border. When the camera acquires focus on a face
displayed inside a double border (focus area), the double border
turns green. If no faces are detected, the camera focuses on the
subject in the center of the frame.
• Under some shooting conditions, the pet face may not be
detected and other subjects may be displayed inside a border.
8m 0s
1400
37
Special Effects Mode (Applying Effects When Shooting)
Effects can be applied to images during shooting.
Enter shooting mode M A (shooting mode) button M D (third icon from the top*) M
K M HI M select an effect M k button
* The icon of the last effect selected is displayed.
Category
Shooting Features
38
Description
D Soft
(default setting)
Softens the image by adding a slight blur to the entire image.
E Nostalgic sepia
Adds a sepia tone and reduces the contrast to simulate the qualities
of an old photograph.
F High-contrast
monochrome
Changes the image to black and white and gives it sharp contrast.
G High key
Gives the entire image a bright tone.
H Low key
Gives the entire image a dark tone.
I Selective color
Creates a black and white image in which only the specified color
remains.
l Pop
Increases the color saturation of the entire image to create a bright
look.
k Super vivid
Increases the color saturation of the entire image and sharpens the
contrast.
h Painting
Gives the image a painting-like appearance.
Category
Description
m
Toy camera effect 1
Gives the entire image a yellowish hue and darkens the image
periphery.
n
Toy camera effect 2
Decreases the color saturation of the entire image and darkens the
image periphery.
o Cross process
Gives the image a mysterious appearance based on a specific color.
Save
Slider
Shooting Features
• The camera focuses on the area in the center of the frame.
• When Selective color or Cross process is selected, use
the multi selector HI to select the desired color from the
slider.
To change settings for any of the following functions, press
the k button to cancel color selection.
- Flash mode (A45)
- Self-timer (A47)
- Macro mode (A49)
- Exposure compensation (A50)
To return to the color selection screen, press the k button
again.
39
Smart Portrait Mode (Capturing Images of Smiling
Faces)
When the camera detects a smiling face, you can take an image automatically without
pressing the shutter-release button (smile timer (A55)). You can use the skin softening
option to smooth the skin tones of human faces.
Enter shooting mode M A (shooting mode) button M F Smart portrait M k button
1
Frame the picture.
• Point the camera at a human face.
Shooting Features
2
Without pressing the shutter-release button, wait for the subject to
smile.
• If the camera detects that the face framed by the double border is smiling, the shutter is
automatically released.
• Whenever the camera detects a smiling face, it automatically releases the shutter.
3
End automatic shooting.
• Perform one of the operations listed below to end shooting.
- Set Smile timer to Off.
- Press the A button and select a different shooting mode.
B
Notes About Smart Portrait Mode
Under some shooting conditions, the camera may be unable to detect faces or smiles (A58). The
shutter-release button can also be used for shooting.
40
C
When the Self-timer Lamp Flashes
When using smile timer, the self-timer lamp flashes when the camera detects a face and flashes
quickly immediately after the shutter is released.
Functions Available in Smart Portrait Mode
•
•
•
•
Flash mode (A45)
Self-timer (A47)
Exposure compensation (A50)
Smart portrait menu (A53)
Shooting Features
41
A (Auto) Mode
Used for general shooting. Settings can be adjusted to suit the shooting conditions and the
type of shot you want to capture.
Enter shooting mode M A (shooting mode) button M A (auto) mode M k button
• You can change how the camera selects the area of the frame to focus on by changing AF
area mode setting (A54). The default setting is Target finding AF (A60).
Functions Available in A (Auto) Mode
Shooting Features
42
•
•
•
•
•
Flash mode (A45)
Self-timer (A47)
Macro mode (A49)
Exposure compensation (A50)
Shooting menu (A54)
Using Quick Effects
When in A (auto) mode, you can apply effects to images immediately after releasing the
shutter.
• The edited image is saved as a separate file with a different name.
1
Press the k button when the image is
displayed after it is taken in A (auto) mode.
• When you press the d button or when no operations
are performed for about five seconds, the monitor display
returns to the shooting screen.
• To not display the screen shown on the right, set Quick
effects to Off in the shooting menu (A54).
Use the multi selector HIJK to select the
desired effect and press the k button.
Cancel
Choose effect
Quick effects
Pop
Super vivid
Painting
• Move the zoom control (A1) toward g (i) to switch to
full-frame playback or f (h) to switch to thumbnail
playback.
High key Toy camera
• To exit without saving the edited image, press the d
illustration
effect 1
Cancel
Check
button. When a confirmation dialog is displayed, select Yes
and press the k button.
• See “Quick Effects: Changing Hue or Mood” (E12) for information about the effect types.
3
Shooting Features
2
Quick effects
Select Yes and press the k button.
43
Functions That Can Be Set Using the Multi Selector
The functions that are available vary depending on the shooting mode, as shown below.
1
2
3
4
Shooting Features
x
(scene auto
selector)
Special
effects
Smart
portrait
A (auto)
mode
1
X Flash mode (A45)
w
w
w*
w
2
n Self-timer (A47)
w
w
w*
w
3
p Macro mode (A49)
w
–
w
4
Exposure
o compensation
(A50)
w
w
w
–
w
* Availability depends on the setting.
44
Scene
*
Using the Flash
You can select a flash mode to match the shooting conditions.
1
Press the multi selector H (m).
2
Select the desired flash mode (A46) and
press the k button.
Auto
• If a setting is not applied by pressing the k button within
a few seconds, the selection will be canceled.
The Flash Lamp
Shooting Features
B
• The status of the flash can be confirmed by pressing the shutterrelease button halfway.
- On: The flash fires when you press the shutter-release button all
the way down.
- Flashing: The flash is charging. The camera cannot shoot
images.
- Off: The flash does not fire when an image is taken.
• If the battery level is low, the monitor turns off while the flash is charging.
45
Available Flash Modes
U
Auto
The flash fires when necessary, such as in dim lighting.
• The flash mode icon on the shooting screen is displayed only immediately after the
setting is made.
V
Auto with red-eye reduction
Reduce “red-eye” in portraits caused by the flash.
W
Off
The flash does not fire.
• We recommend using a tripod to stabilize the camera when shooting in dark
surroundings.
Shooting Features
X
Fill flash
The flash fires whenever an image is taken. Use to “fill-in” (illuminate) shadows and backlit
subjects.
Y
Slow sync
Suited to evening and night portraits that include background scenery. The flash fires
when necessary to illuminate the main subject; slow shutter speeds are used to capture
background at night or under dim lighting.
C
The Flash Mode Setting
• The setting may not be available with some shooting modes.
• The setting applied in A (auto) mode is saved in the camera’s memory even after the camera is
turned off.
C
46
Red-eye Reduction
If the camera detects red eye while saving an image, the affected area is processed to reduce red-eye
before the image is saved.
Note the following when shooting:
• More time than usual is required to save images.
• Red-eye reduction may not produce the desired results in some situations.
• In some rare cases, red-eye reduction may be applied unnecessarily to other areas of the image. In
these cases, select another flash mode and take the image again.
Using the Self-timer
The camera is equipped with a self-timer that releases the shutter about ten seconds or two
seconds after you press the shutter-release button.
Set Photo VR to Off in the setup menu (A73) when using a tripod to stabilize the camera
during shooting.
1
Press the multi selector J (n).
2
Select n10s or n2s, and press the k
button.
Self-timer
3
Frame the picture and press the
shutter-release button halfway.
Shooting Features
• n10s (ten seconds): Use on important occasions, such as
weddings.
• n2s (two seconds): Use to prevent camera shake.
• If a setting is not applied by pressing the k button within
a few seconds, the selection will be canceled.
• When the shooting mode is Pet portrait scene mode, Y
(pet portrait auto release) is displayed (A37). The self-timer cannot be used.
10
• Focus and exposure are set.
1/250
F3.7
47
4
Press the shutter-release button the
rest of the way down.
• Countdown starts. The self-timer lamp flashes
and then glows steadily about one second
before the shutter is released.
• When the shutter is released, the self-timer is set
to OFF.
• To stop the countdown, press the shutterrelease button again.
Shooting Features
48
9
1/250
F3.7
Using Macro Mode
Use macro mode when taking close-up images.
1
Press the multi selector I (p).
2
Select ON and press the k button.
Macro mode
• If the setting is not applied by pressing the k button
within a few seconds, the selection will be canceled.
Move the zoom control to set the zoom ratio
to a position where F and the zoom
indicator glow green.
Shooting Features
3
• When the zoom ratio is set to a position where the zoom indicator glows green, the camera
can focus on subjects as close as approximately 9 cm (3.6 in.) from the lens. When the zoom
is at the position where G is displayed, the camera can focus on subjects as close as
approximately 2 cm (0.8 in.) from the lens.
B
Notes About Using the Flash
The flash may be unable to light the entire subject at distances of less than 50 cm (1 ft 8 in.).
C
The Macro Mode Setting
• The setting may not be available with some shooting modes.
• The setting applied in A (auto) mode is saved in the camera’s memory even after the camera is
turned off.
49
Adjusting Brightness (Exposure Compensation)
You can adjust overall image brightness.
Shooting Features
50
1
Press the multi selector K (o).
2
Select a compensation value and press the k
button.
• To brighten the image, set a positive (+) value.
• To darken the image, set a negative (–) value.
• The compensation value is applied, even without pressing
the k button.
C
Exposure compensation
+2.0
+0.3
-2.0
Exposure Compensation Value
The setting applied in A (auto) mode is saved in the camera’s memory even after the camera is
turned off.
Default Settings
Default settings for each shooting mode are described below.
Flash mode
(A45)
x (scene auto selector) U1
Self-timer
(A47)
Macro mode
(A49)
Exposure
compensation
(A50)
Off
Off2
0.0
Scene
b (portrait)
V
Off
Off2
0.0
c (landscape)
W2
Off
Off2
0.0
2
2
2
W
Off
0.0
e (night portrait)
V3
Off
Off2
0.0
f (party/indoor)
V4
Off
Off2
0.0
Z (beach)
U
Off
Off2
0.0
2
Off
z (snow)
U
Off
Off
0.0
h (sunset)
W2
Off
Off2
0.0
i (dusk/dawn)
W2
Off
Off2
0.0
j (night landscape)
W2
Off
Off2
0.0
2
0.0
k (close-up)
W
Off
On
u (food)
W2
Off
On2
0.0
l (museum)
W2
Off
Off
0.0
m (fireworks show)
W2
Off2
Off2
0.02
n (black and white
copy)
W
Off
Off
0.0
Shooting Features
d (sports)
51
Flash mode
(A45)
1
Shooting Features
52
2
3
4
5
Self-timer
(A47)
Macro mode
(A49)
Exposure
compensation
(A50)
o (backlighting)
X2
Off
Off2
U (panorama assist)
W
Off
Off
0.0
O (pet portrait)
W2
Y5
Off
0.0
D (special effects)
W
Off
Off
0.0
F (smart portrait)
U
Off
Off2
0.0
A (auto)
U
Off
Off
0.0
0.0
U (auto flash) or W (off) can be selected. When U (auto flash) is selected, the camera
automatically selects the flash mode appropriate for the scene it has been selected.
The setting cannot be changed.
The setting cannot be changed. The flash mode setting is fixed at the fill flash with slow sync and
red-eye reduction.
Slow sync with red-eye reduction flash mode may be used.
Self-timer cannot be used. Pet portrait auto release can be turned on or off (A37).
Functions That Can Be Set with the d Button (Shooting Menu)
The settings listed below can be changed by pressing the d button during shooting (A4).
Image mode
White balance
Continuous
ISO sensitivity
Color options
8m 0s
1400
AF area mode
Autofocus mode
The settings that can be changed vary depending on the shooting mode, as shown below.
Special
effects
Smart
portrait
Auto mode
w
w
w
w
w
White balance
–
–
–
–
w
Continuous
–
–
–
–
w
ISO sensitivity
–
–
–
–
w
Color options
–
–
–
–
w
AF area mode
–
–
–
–
w
Autofocus mode
–
–
–
–
w
Quick effects
–
–
–
–
w
Skin softening
–
–
–
w
–
Smile timer
–
–
–
w
–
Blink proof
–
–
–
w
–
Image mode
1
2
Scene2
Shooting Features
1
Scene auto
selector
The setting is also applied to other shooting modes.
Additional settings are available for some scene modes. See “Tips and Notes” (A34) for more
information.
53
Options Available in the Shooting Menu
Option
Image mode
White balance
Continuous
ISO sensitivity
Shooting Features
54
Description
Allows you to set the combination of image size and image
quality used when saving images.
• Default setting: x 5152×3864
Allows you to adjust white balance to suit the weather
conditions or light source in order to make the colors in
images match what you see with your eyes.
• Default setting: Auto
Allows you to select single or continuous shooting.
• Default setting: Single
Allows you to control the camera’s sensitivity to light.
• Default setting: Auto
When Auto is selected, E is displayed in the monitor while
shooting if ISO sensitivity increases.
A
E28
E30
E33
E35
Color options
Allows you to change the color tones of images.
• Default setting: Standard color
E36
AF area mode
Allows you to determine how the camera selects the focus
area that is used for autofocus.
• Default setting: Target finding AF (A60)
E37
Autofocus mode
Allows you to select either Single AF, which focuses only
when the shutter-release button is pressed halfway, or Fulltime AF, which continues focusing even when the shutterrelease button is not pressed halfway.
• Default setting: Single AF
E41
Quick effects
Allows you to enable or disable the quick effects function
(A43).
• Default setting: On
E41
Option
Skin softening
Smile timer
Blink proof
Description
Allows you to select the skin softening level for human faces.
• Default setting: Normal
Allows you to select whether or not the camera automatically
releases the shutter when it detects a human smiling face.
• Default setting: On
The camera automatically releases the shutter twice with
every shot and saves one image in which the subject’s eyes
are open.
• Default setting: Off
A
E42
E43
E44
Shooting Features
55
Functions That Cannot Be Used Simultaneously
Some functions cannot be used with other menu options.
Restricted function
Option
Continuous (A54)
Flash mode
Blink proof (A55)
Self-timer
Shooting Features
56
Macro mode
Description
When a setting other than Single is selected, the
flash cannot be used.
When Blink proof is set to On, the flash cannot be
used.
AF area mode
(A54)
When Subject tracking is selected, self-timer
cannot be used.
Smile timer (A55)
When Smile timer is selected, the self-timer cannot
be used.
AF area mode
(A54)
Continuous (A54)
When Subject tracking is selected, macro mode
cannot be used.
When Multi-shot 16 is selected, the Image mode
setting is fixed at L (image size: 2560 × 1920 pixels).
ISO sensitivity
(A54)
When 3200 is selected, the image mode setting of
only r 2272×1704, q 1600×1200, or
O 640×480 can be selected. If any image mode
setting other than above is selected, the image
mode setting is automatically changed to
r 2272×1704 when ISO sensitivity is set to
3200.
White balance
Color options
(A54)
When Black-and-white, Sepia, or Cyanotype is
selected, the White balance setting is fixed at Auto.
ISO sensitivity
Continuous (A54)
When Multi-shot 16 is selected, the ISO sensitivity
setting is fixed at Auto.
AF area mode
Digital zoom
(A74)
When digital zoom is in effect, the camera focuses in
the center of the frame regardless of the AF area
mode setting.
Image mode
Restricted function
Option
Description
Continuous (A54)
Monitor settings
Quick effects
(A54)
When Quick effects is set to On while shooting still
images, the captured image is displayed after
shooting, regardless of the Image review setting.
Continuous (A54)
When Multi-shot 16 is selected, Motion detection
is disabled.
ISO sensitivity
(A54)
When a setting other than Auto is selected, Motion
detection is disabled.
AF area mode
(A54)
When Subject tracking is selected, Motion
detection is disabled.
When Multi-shot 16 is selected, digital zoom
cannot be used.
When Subject tracking is selected, digital zoom
cannot be used.
When a setting other than Single is selected, the
shutter sound is disabled.
Motion detection
Continuous (A54)
Digital zoom
AF area mode
(A54)
Shutter sound
Continuous (A54)
Blink warning
Continuous (A54)
B
When a setting other than Single is selected, Blink
warning is disabled.
Shooting Features
Quick effects
Quick effects cannot be applied to images
immediately after they are taken with continuous
shooting.
Notes About Digital Zoom
• Depending on the shooting mode or the current settings, digital zoom may not be available
(E67).
• When digital zoom is in effect, the camera focuses in the center of the frame.
57
Focusing
The focus area varies depending on the shooting mode.
Using Face Detection
Shooting Features
When the camera is pointed at a human face in the shooting
modes as shown below, the camera automatically detects the
face and focuses on it.
• e/b Portrait, h/c Night portrait, or d
Backlighting in x (scene auto selector) mode (A32)
• Portrait or Night portrait in scene mode (A33)
8m 0s
• Smart portrait mode (A40)
1400
• When AF area mode (A54) is set to Face priority in A
(auto) mode (A42)
When the camera detects more than one face, the double border (focus area) is displayed
around the face that is focused on, and single borders around the others.
If the shutter button is pressed halfway when no faces are detected:
• When x (scene auto selector) mode is selected, the focus area changes depending on the
scene.
• In Portrait and Night portrait scene modes or in smart portrait mode, the camera
focuses in the center of the frame.
• In A (auto) mode, the camera selects the focus area containing the subject closest to the
camera.
B
Notes About Face Detection
• The camera’s ability to detect faces depends on a variety of factors, including the direction in
which the faces are looking.
• The camera may be unable to detect faces in the following situations:
- When faces are partially hidden by sunglasses or otherwise obstructed
- When faces take up too much or too little of the frame
58
Using Skin Softening
When the shutter is released while using one of the shooting modes listed below, the camera
detects human faces and processes the image to soften facial skin tones (up to three faces).
• Smart portrait mode (A40)
- The skin softening level can be adjusted.
• e Portrait, h Night portrait, or d Backlighting in x (scene auto selector) mode
(A32)
• Portrait or Night portrait in scene mode (A33)
Editing functions such as Skin softening can be applied to saved images by using Glamour
retouch (A65) even after shooting.
B
Notes About Skin Softening
Shooting Features
• It may take more time than usual to save images after shooting.
• Under some shooting conditions, the desired skin softening results may not be achieved, and skin
softening may be applied to areas of the image where there are no faces.
59
Using Target Finding AF
When AF area mode (A54) in A (auto) mode is set to Target finding AF, the camera
focuses in the manner described below when you press the shutter-release button halfway.
• The camera detects the main subject and focuses on it.
When the subject is in focus, the focus area glows green. If a
human face is detected, the camera automatically sets
focus priority on it.
1/250
F3.7
Focus areas
Shooting Features
• If no main subject is detected, the camera automatically
selects one or more of the nine focus areas containing the
subject closest to the camera. When the subject is in focus,
the focus areas that are in focus glow green.
1/250
F3.7
Focus areas
B
Notes About Target Finding AF
• Depending on shooting conditions, the subject that the camera determines to be the main
subject may vary.
• The main subject may not be detected when using certain White balance settings.
• The camera may not detect the main subject appropriately in the following situations:
- When the subject is very dark or bright
- When the main subject lacks clearly defined colors
- When the shot is framed so that the main subject is at the edge of the monitor
- When the main subject is composed of a repeating pattern
60
Subjects Not Suitable for Autofocus
Shooting Features
The camera may not focus as expected in the following situations. In some rare cases, the
subject may not be in focus despite the fact that the focus area or the focus indicator glows
green:
• Subject is very dark
• Objects of sharply differing brightness are included in the scene (e.g. the sun behind the
subject makes that subject appear very dark)
• No contrast between the subject and surroundings (e.g. a portrait subject wearing a white
shirt is standing in front of a white wall)
• Several objects are at different distances from the camera (e.g. the subject is inside a cage)
• Subjects with repeating patterns (window blinds, buildings with multiple rows of similarly
shaped windows, etc.)
• Subject is moving rapidly
In the situations noted above, try pressing the shutter-release button halfway to refocus
several times, or focus on another subject positioned at the same distance from the camera as
the actual desired subject, and use focus lock (A62).
61
Focus Lock
Focus lock shooting is recommended when the camera does not activate the focus area that
contains the desired subject.
1
2
Set AF area mode to Center in A (auto) mode (A54).
Position the subject in the center of
the frame and press the shutterrelease button halfway.
• The camera focuses on the subject and the focus
area glows green.
• Focus and exposure are locked.
Shooting Features
3
F3.7
1/250
F3.7
Without lifting your finger, recompose the
picture.
• Make sure to maintain the same distance between the
camera and the subject.
4
62
1/250
Press the shutter-release button the rest of
the way down to take the picture.
Playback Features
Playback Zoom
Moving the zoom control toward g (i) in full-frame playback mode (A28) zooms in on the
image.
Display area guide
4/4
0004. JPG
15 / 05 / 2014 15:30
Full-frame Playback
g
(i)
f
(h)
3.0
Image is zoomed in
C
Playback Features
• You can change the zoom ratio by moving the zoom control toward f (h) or g (i).
• To view a different area of the image, press the multi selector HIJK.
• If you are viewing an image that was captured using face detection or pet detection, the
camera zooms in on the face detected at the time of shooting, except for images captured
with Continuous, BSS, Multi-shot 16, or Subject tracking. To zoom in on an area of the
image where there are no faces, change the zoom ratio and then, press HIJK.
• When a zoomed image is displayed, press the k button to return to full-frame playback
mode.
Cropping Images
When a zoomed image is displayed, you can press the d button to crop the image to include
only the visible portion and save it as a separate file (E18).
63
Thumbnail Playback/Calendar Display
Moving the zoom control toward f (h) in full-frame playback mode (A28) displays
images as thumbnails.
1 / 20
f
(h)
1 / 20
f
(h)
Sun
Mon
2014 05
Tue Wed Thu
1
4
0004. JPG
15 / 05 / 2014 15:30
Full-frame Playback
Playback Features
64
g
(i)
g
(i)
Thumbnail Playback
Sat
2
3
10
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
25
5
4
Fr i
Calendar display
• You can change the number of thumbnails displayed by moving the zoom control toward
f (h) or g (i).
• While using thumbnail playback mode, press the multi selector HIJK to select an
image and then press the k button to display that image in full-frame playback mode.
• While using calendar display mode, press HIJK to select a date and then press the k
button to display the image captured on that day.
B
Notes About Calendar Display
Images captured when the camera’s date is not set are treated as images captured on January 1,
2014.
Functions That Can Be Set with the d Button
(Playback Menu)
When viewing images in full-frame playback mode or thumbnail playback mode, you can
configure the menu operations listed below by pressing the d button (A4).
Option
Description
A
E13
D-Lighting*
Allows you to create copies with enhanced brightness and
contrast, brightening dark portions of an image.
E13
Red-eye correction*
Corrects “red-eye” that may occur in images when shooting
with a flash.
E14
Glamour retouch*
Detects faces in images and retouches the detected faces
glamorously.
E15
Print order
Allows you to select which images are printed, and how many
copies of each image are printed, prior to printing.
E45
Slide show
Allows you to view images in an automatic slide show.
E49
Protect
Protects selected images from accidental deletion.
E50
Rotate image
Allows you to rotate the displayed image to portrait or
landscape orientation.
E52
Small picture*
Creates a small copy of images.
E17
Voice memo
Allows you to use the camera’s microphone to record voice
memos and attach them to images.
E53
Copy
Allows you to copy images between the internal memory and
a memory card.
E54
Playback Features
Quick retouch*
Allows you to create retouched copies in which contrast and
saturation have been enhanced.
65
Option
Description
Favorite pictures
E5
Remove from
favorites
Allows you to remove images from an album.
This option is displayed only in favorite pictures mode.
E7
* Edited images are saved as separate files. Some images may not be edited.
Playback Features
66
A
Allows you to add images to an album.
This option is not displayed in favorite pictures mode.
Recording and Playing Back Movies
Recording Movies
Display the shooting screen.
• Check the remaining amount of movie recording time.
• When the Photo info option in Monitor settings (A73)
in the setup menu is set to Movie frame+auto info, the
area that will be visible in the movie can be confirmed
before movie recording starts.
8m 0s
1400
Maximum movie length
2
Press the b (e movie-record) button to start
movie recording.
Recording and Playing Back Movies
1
• The camera focuses in the center of the frame.
2m30s
3
Press the b (e movie-record) button again to end recording.
67
B
Maximum Movie Length
Recording and Playing Back Movies
Individual movie files cannot exceed 2 GB in size or 29 minutes in length, even when there is
sufficient free space on the memory card for longer recording.
• The maximum movie length for a single movie is displayed on the shooting screen.
• Recording may end before either limit is reached if camera temperature becomes elevated.
• The actual movie length may vary depending on the movie content, subject movement, or type of
memory card.
B
Notes About Saving Images and Recording Movies
The indicator showing the number of exposures remaining or the indicator showing the maximum
movie length flashes while images are being saved or while a movie is being recorded. Do not open
the battery-chamber/memory card slot cover or remove the battery or memory card while an
indicator is flashing. Doing this could result in loss of data, or in damage to the camera or the
memory card.
B
Notes About Movie Recording
• Memory cards with an SD Speed Class rating of 6 or faster are recommended when recording
movies (F20). Movie recording may stop unexpectedly when memory cards with a lower Speed
Class ratings are used.
• There may be some degradation in image quality when digital zoom is used.
• The sounds of zoom control operation, zoom, autofocus lens drive movement, movie vibration
reduction, and aperture operation when brightness changes may be recorded.
• Smear (F3) visible in the monitor with movie recording will be recorded with movies. Avoiding
bright objects such as the sun, reflections of the sun, and electric lights when recording movies is
recommended.
• Depending on the distance to the subject or the amount of zoom applied, subjects with repeating
patterns (fabrics, lattice windows, etc.) may have colored stripes (interference patterns, moire, etc.)
in them during movie recording and playback. This occurs when the pattern in the subject and the
layout of the image sensor interfere with each other; it is not a malfunction.
68
B
Notes About Vibration Reduction During Movie Recording
• When Movie VR in the movie menu (A70) is set to On (hybrid), the angle of view (i.e., the area
visible in the frame) becomes narrower during movie recording.
• When using a tripod to stabilize the camera during shooting, set Movie VR to Off to prevent
potential errors caused by this function.
Notes About Camera Temperature
• The camera may become hot when shooting movies for an extended period of time or when the
camera is used in a hot area.
• If the inside of the camera becomes extremely hot when recording movies, the camera will
automatically stop recording.
The amount of time remaining until the camera stops recording (B10s) is displayed.
After the camera stops recording, it turns itself off.
Leave the camera off until the inside of the camera has cooled.
B
Notes About Autofocus for Movie Recording
Recording and Playing Back Movies
B
Autofocus may not perform as expected (A61). Should this occur, try the following:
1. Set Autofocus mode in the movie menu to Single AF (default setting) before starting movie
recording.
2. Frame another subject (positioned at the same distance from the camera as the intended
subject) in the center of the frame, press the b (e movie-record) button to start recording, and
modify the composition.
69
Functions That Can Be Set with the d Button (Movie
Menu)
Enter shooting mode M d button M D menu icon M k button
Recording and Playing Back Movies
The settings of the menu options listed below can be
configured.
Movie options
Autofocus mode
Movie VR
Wind noise reduction
Option
Description
Movie options
E56
Autofocus mode
Select either Single AF, which locks focus when movie
recording begins, or Full-time AF, which continues focusing
during movie recording.
• Default setting: Single AF
E57
Movie VR
Select the vibration reduction setting used when recording
movies.
• Default setting: On (hybrid)
E58
Set whether or not to reduce wind noise during movie
Wind noise reduction recording.
• Default setting: Off
70
A
Select the movie type.
• Default setting: f 720/30p/V 720/25p
• The default setting is g 480/30p/W 480/25p when
the internal memory is used.
E58
Playing Back Movies
Press the c button to enter playback mode.
Movies are indicated by the movie options icon (A70).
Press the k button to play back movies.
10s
4s
Movie options
• To adjust the volume, move the zoom control while a
movie is playing (A1).
Volume indicator
Recording and Playing Back Movies
0010. AVI
15 / 05 / 2014 15:30
71
Operation During Movie Playback
Playback controls are displayed at the bottom of the monitor.
The operations listed below can be performed by using the
multi selector JK to select a control and then pressing the k
button.
Recording and Playing Back Movies
Paused
Function
Icon
Description
Rewind
A
Hold down the k button to rewind the movie.
Advance
B
Hold down the k button to advance the movie.
Pause playback.
The operations listed below can be performed while paused.
Pause
End
E
G
C
Rewind the movie one frame. Hold down the k button for
continuous rewinding.
D
Advance the movie one frame. Hold down the k button for
continuous advancing.
F
Resume playback.
Return to full-frame playback mode.
Deleting Movies
To delete a movie, select the desired movie in full-frame playback mode (A28) or thumbnail
playback mode (A64) and press the l button (A30).
72
General Camera Setup
Functions That Can Be Set with the d Button
(Setup Menu)
Press the d button M z (setup) menu icon M k button
Welcome screen
Time zone and date
Monitor settings
Print date
Photo VR
Motion detection
AF assist
Option
Description
A
Welcome screen
Allows you to select whether or not the welcome screen is
displayed when the camera is turned on.
E59
Time zone and date
Allows you to set the camera clock.
E60
Monitor settings
Allows you to adjust photo information display, post-shooting
image review, and monitor brightness settings.
E62
Print date
Allows you to imprint the shooting date and time on images.
E64
Photo VR
Allows you to select the vibration reduction setting used when
shooting still images.
E65
Motion detection
Allows you to set whether or not the camera reduces blurring
caused by camera shake if motion is detected when shooting
still images.
E66
General Camera Setup
The settings of the menu options listed below can be
configured.
73
Option
General Camera Setup
74
Description
A
AF assist
Allows you to enable or disable the AF-assist illuminator.
E67
Digital zoom
Allows you to enable and disable digital zoom.
E67
Sound settings
Allows you to adjust sound settings.
E68
Auto off
Allows you to set the amount of time that passes before the
monitor turns off to save power.
E68
Format memory/
Format card
Allows you to format the internal memory or the memory card.
E69
Language
Allows you to change the camera’s display language.
E70
Video mode
Allows you to adjust video mode settings for connection to a
television. Select from NTSC and PAL.
E70
Charge by
computer
Allows you to set whether or not the battery in the camera is
charged when the camera is connected to a computer.
E71
Blink warning
Allows you to set whether or not closed eyes are detected
when taking images of people using face detection.
E72
Eye-Fi upload
Allows you to set whether or not to enable the function for
sending images to a computer using a commercially available
Eye-Fi card.
E73
Reset all
Allows you to reset the camera’s settings to their default values.
E74
Firmware version
View the current camera firmware version.
E74
Connecting the Camera to a TV,
Computer, or Printer
You can enhance your enjoyment of images and movies by connecting the camera to a TV,
computer, or printer.
USB/audio/video
output connector
Open the connector cover.
Insert the plug straight.
• Before connecting the camera to an external device, make sure the remaining battery level
is sufficient and turn the camera off. Before disconnecting, make sure to turn the camera off.
• If the AC Adapter EH-62G (available separately) is used, this camera can be powered from
an electrical outlet. Do not use any other make or model of AC adapter as it may cause the
camera to heat up or malfunction.
• For information about the connection methods and subsequent operations, refer to the
documentation included with the device in addition to this document.
Connecting the Camera to a TV, Computer, or Printer
Connection Methods
75
Viewing images on a TV
E19
Images and movies captured with the camera can be viewed on a TV.
Connection method: Connect the video and audio plugs of an optional audio
video cable to the TV’s input jacks.
Connecting the Camera to a TV, Computer, or Printer
76
Viewing and organizing images on a computer
A77
You can transfer images to a computer to perform simple retouching and
manage image data.
Connection method: Connect the camera to the computer’s USB port with
the USB cable.
• Before connecting to a computer, install ViewNX 2 on the computer
(A77).
• If any USB devices that draw the power from the computer are connected,
disconnect them from the computer before you connect the camera to it.
Connecting the camera and other USB-powered devices to the same
computer simultaneously may cause a camera malfunction or excessive
power supply from the computer, which could damage the camera or
memory card.
Printing images without using a computer
E20
If you connect the camera to a PictBridge-compatible printer, you can print
images without using a computer.
Connection method: Connect the camera directly to the printer’s USB port
with the USB cable.
Using ViewNX 2
ViewNX 2 is an all-in-one software package which enables you to transfer, view, edit and share
images. Install ViewNX 2 using the included ViewNX 2 CD-ROM.
ViewNX 2™
Installing ViewNX 2
• An Internet connection is required.
Compatible Operating Systems
Connecting the Camera to a TV, Computer, or Printer
Your Imaging Toolbox
Windows
Windows 8.1, Windows 7, Windows Vista, Windows XP
Mac
OS X 10.9, 10.8, 10.7
Refer to the Nikon website for details on system requirements, including the latest
information on operating system compatibility.
77
1
Start the computer and insert the ViewNX 2 CD-ROM into the CD-ROM
drive.
Connecting the Camera to a TV, Computer, or Printer
• Windows: If instructions for operating the CD-ROM are displayed in the window, follow the
instructions to proceed to the installation window.
• Mac: When the ViewNX 2 window is displayed, double-click the Welcome icon.
2
Select a language in the language selection dialog to open the
installation window.
• If the desired language is not available, click Region Selection to choose a different region,
and then choose the desired language (the Region Selection button is not available in the
European release).
• Click Next to display the installation window.
3
Start the installer.
• We recommend clicking Installation Guide in the installation window to check the
installation help information and system requirements before installing ViewNX 2.
• Click Typical Installation (Recommended) in the installation window.
4
Download the software.
• When the Software Download screen is displayed, click I agree - Begin download.
• Follow the on-screen instructions to install the software.
78
5
Exit the installer when the installation completion screen is displayed.
• Windows: Click Yes.
• Mac: Click OK.
6
Remove the ViewNX 2 CD-ROM from the CD-ROM drive.
Connecting the Camera to a TV, Computer, or Printer
The following software is installed:
• ViewNX 2 (consisting of the three modules below)
- Nikon Transfer 2: For transferring images to the computer
- ViewNX 2: For viewing, editing, and printing transferred images
- Nikon Movie Editor: For basic editing of transferred movies
• Panorama Maker (for creating a single panorama photo using a series of images shot in
panorama assist scene mode)
79
Transferring Images to the Computer
1
Connecting the Camera to a TV, Computer, or Printer
80
Choose how images will be copied to the computer.
Choose one of the following methods:
• Direct USB connection: Turn the camera off and ensure that the memory card is inserted
in the camera. Connect the camera to the computer using the USB cable. The camera
automatically turns on.
To transfer images that are saved in the camera’s internal memory, remove the memory card
from the camera before connecting it to the computer.
• SD card slot: If your computer is equipped with an SD card slot, the card can be inserted
directly in the slot.
• SD card reader: Connect a card reader (available separately from third-party suppliers) to
the computer and insert the memory card.
If the memory card contains a large number of images, it may take a while for Nikon Transfer 2
to start. Wait until Nikon Transfer 2 starts.
B
Connecting the USB Cable
The connection may not be recognized if the camera is connected to the computer via a USB hub.
2
Transfer images to the computer.
• Click Start Transfer.
Connecting the Camera to a TV, Computer, or Printer
If a message is displayed prompting you to choose a program, select Nikon Transfer 2.
• When using Windows 7
If the dialog shown at right is displayed,
follow the steps below to select
Nikon Transfer 2.
1 Under Import pictures and videos, click
Change program. A program selection
dialog will be displayed; select Import
File using Nikon Transfer 2 and click
OK.
2 Double-click Import File.
Start Transfer
• At default settings, all the images on the memory card will be copied to the computer.
81
3
Terminate the connection.
Connecting the Camera to a TV, Computer, or Printer
• If the camera is connected to the computer, turn the camera off and disconnect the USB
cable. If you are using a card reader or card slot, choose the appropriate option in the
computer operating system to eject the removable disk corresponding to the memory card,
and then remove the card from the card reader or card slot.
Viewing Images
Start ViewNX 2.
• Images are displayed in ViewNX 2 when transfer is
complete.
• Consult online help for more information on
using ViewNX 2.
C
Starting ViewNX 2 Manually
• Windows: Double-click the ViewNX 2 shortcut on the desktop.
• Mac: Click the ViewNX 2 icon in the Dock.
82
Technical Notes and Index
Caring for the Product....................................................F2
The Camera.....................................................................................................................F2
The Battery......................................................................................................................F4
Charging AC Adapter ..................................................................................................F5
Memory Cards................................................................................................................F5
Cleaning and Storage.....................................................F6
Cleaning...........................................................................................................................F6
Storage .............................................................................................................................F6
Troubleshooting............................................................. F7
Specifications................................................................F16
Approved Memory Cards ....................................................................................... F20
Index ..............................................................................F22
F1
Caring for the Product
The Camera
To ensure continued enjoyment of this Nikon product, observe the precautions described
below in addition to the warnings in “For Your Safety” (Aviii-x) when using or storing the
device.
B
Keep Dry
The device will be damaged if immersed in water or subjected to high humidity.
B
Do Not Drop
The product may malfunction if subjected to strong shock or vibration.
B
Handle the Lens and All Moving Parts with Care
Technical Notes and Index
Do not apply force to the lens, lens cover, monitor, memory card slot, or battery chamber. These
parts are easily damaged. Applying force to the lens cover could result in camera malfunction or
damage to the lens. Should the monitor break, care should be taken to avoid injury caused by
broken glass and to prevent the liquid crystal from the display touching the skin or entering the eyes
or mouth.
B
Do Not Point the Lens at Strong Light Sources for Extended Periods
Avoid pointing the lens at the sun or other strong light sources for extended periods when using or
storing the camera. Intense light may cause deterioration of the CCD image sensor, producing a
white blur effect in photographs.
B
Keep Away from Strong Magnetic Fields
Do not use or store this device in the vicinity of equipment that generates strong electromagnetic
radiation or magnetic fields. Strong static charge or the magnetic fields produced by equipment
such as radio transmitters could interfere with the monitor, damage data saved on the memory card,
or affect the product’s internal circuitry.
F2
B
Avoid Sudden Changes in Temperature
Sudden changes in temperature, such as when entering or leaving a heated building on a cold day,
can cause condensation to form inside the device. To prevent condensation, place the device in a
carrying case or a plastic bag before exposing it to sudden changes in temperature.
B
Turn the Product Off Before Removing or Disconnecting the Power Source or
Memory Card
Do not remove the battery while the product is on, or while images are being saved or deleted.
Forcibly cutting power in these circumstances could result in loss of data or in damage to product
memory or internal circuitry.
B
Notes About the Monitor
F3
Technical Notes and Index
• Monitors and electronic viewfinders are constructed with extremely high precision; at least 99.99%
of pixels are effective, with no more than 0.01% being missing or defective. Hence while these
displays may contain pixels that are always lit (white, red, blue, or green) or always off (black), this is
not a malfunction and has no effect on images recorded with the device.
• White or colored streaks may be visible when bright subjects are framed in the monitor. This
phenomenon, known as “smear,” occurs when extremely bright light strikes the image sensor; it is
characteristic of image sensors and does not indicate a malfunction. Smear may also take the form
of partial discoloration in the monitor during shooting. It does not appear in images saved with
the camera except in the cases of movies and of images saved with Multi-shot 16 selected for
Continuous. When shooting in these modes, we recommend that you avoid bright subjects such
as the sun, reflected sunlight, and electric lights.
• Images in the monitor may be difficult to see under bright lighting.
• The monitor is lit by an LED backlight. Should the monitor begin to dim or flicker, contact your
Nikon-authorized service representative.
The Battery
Be sure to read and follow the warnings in “For Your Safety” (Aviii-x) before use.
Technical Notes and Index
• Check the battery level before using the camera and replace or charge the battery if necessary. Do
not continue charging once the battery is fully charged as this will result in reduced battery
performance. Whenever possible, carry a fully charged spare battery when taking images on
important occasions.
• Do not use the battery at ambient temperatures below 0°C (32°F) or above 40°C (104°F).
• Charge the battery indoors with an ambient temperature of 5°C to 35°C (41°F to 95°F) before use.
• When charging the battery inserted into this camera using the Charging AC Adapter or a
computer, the battery is not charged at battery temperatures below 0°C (32°F) or above 45°C
(113°F).
• Note that the battery may become hot during use; wait for the battery to cool before charging.
Failure to observe these precautions could damage the battery, impair its performance, or prevent
it from charging normally.
• On cold days, the capacity of batteries tends to decrease. Be sure that the battery is fully charged
before heading outside to take images in cold weather. Keep spare batteries in a warm place and
exchange as necessary. Once warmed, a cold battery may recover some of its charge.
• Dirt on the battery terminals can prevent the camera from functioning. Should the battery
terminals become dirty, wipe them off with a clean, dry cloth before use.
• If the battery will not be used for some time, insert it in the camera and completely exhaust it
before removing it for storage. The battery should be stored in a cool location with an ambient
temperature of 15°C to 25°C (59°F to 77°F). Do not store the battery in hot or extremely cold
locations.
• Always remove the battery from the camera or optional battery charger when it is not being used.
When inserted, minute amounts of current flow even when unused, and the battery may become
excessively drained and no longer function. Turning the camera on or off while the battery is
exhausted can result in reduced battery life.
• Recharge the battery at least once every six months and completely exhaust it before returning it
to storage.
• After removing the battery from the camera or optional battery charger, put the battery in a plastic
bag, etc. in order to insulate it and store it in a cool place.
• A marked drop in the time a fully charged battery retains its charge, when used at room
temperature, indicates that the battery needs to be replaced. Purchase a new EN-EL19 battery.
F4
• Replace the battery when it no longer holds a charge. Used batteries are a valuable resource.
Please recycle used batteries in accordance with local regulations.
Charging AC Adapter
Be sure to read and follow the warnings in “For Your Safety” (Aviii-x) before use.
• The Charging AC Adapter EH-70P is for use only with compatible devices. Do not use with another
make or model of device.
• The EH-70P is compatible with AC 100-240 V, 50/60 Hz electrical outlets. When using in other
countries, use a plug adapter (commercially available) as necessary. For more information about
plug adapters, consult your travel agency.
• Do not, under any circumstances, use another make or model of AC adapter other than Charging
AC Adapter EH-70P or USB-AC adapter. Failure to observe this precaution could result in
overheating or in damage to the camera.
Memory Cards
F5
Technical Notes and Index
• Use only Secure Digital memory cards. See “Approved Memory Cards” (F20) for recommended
memory cards.
• Be sure to follow the precautions described in the documentation included with the memory card.
• Do not put labels or stickers on memory cards.
• The first time you insert a memory card that has been used in another device into this camera, be
sure to format it with this camera. We recommend formatting new memory cards with this camera
before using them with this camera.
• Note that formatting a memory card permanently deletes all images and other data on the
memory card. Be sure to make copies of any images you wish to keep before formatting the
memory card.
• If the message Card is not formatted. Format card? is displayed when the camera is turned on,
the memory card must be formatted. If there is data that you do not want to delete, select No.
Copy the necessary data to a computer, etc. If you want to format the card, select Yes. The
confirmation dialog will be displayed. To start formatting, press the k button.
• Do not perform the following during formatting, while data is being written to or deleted from the
memory card, or during data transfer to a computer. Failure to observe this precaution could result
in the loss of data or in damage to the camera or memory card:
- Open the battery-chamber/memory card slot cover to remove/insert the battery or memory card.
- Turn off the camera.
- Disconnect the AC adapter.
• Do not format the memory card using a computer.
Cleaning and Storage
Cleaning
Do not use alcohol, thinner, or other volatile chemicals.
Lens
Avoid touching the lens with your fingers. Remove dust or lint with a blower
(typically a small device with a rubber bulb attached to one end that is pumped to
produce a stream of air out the other end). To remove fingerprints or other stains
that cannot be removed with a blower, wipe the lens with a soft cloth, using a spiral
motion that starts at the center of them and working toward the edges. If this fails,
clean the lens using a cloth lightly dampened with commercial lens cleaner.
Monitor
Remove dust or lint with a blower. To remove fingerprints and other stains, clean the
monitor with a soft, dry cloth, being careful not to apply pressure.
Body
Use a blower to remove dust, dirt, or sand, then wipe gently with a soft, dry cloth.
After using the camera at the beach or other sandy or dusty environment, wipe off
any sand, dust, or salt with a dry cloth lightly dampened with fresh water and dry
thoroughly. Note that foreign matter inside the camera could cause damage not
covered by the warranty.
Technical Notes and Index
Storage
Turn the camera off when not in use. Be sure that the power-on lamp is off before putting the
camera away. Remove the battery if the camera will not be used for an extended period. Do
not store the camera with naphtha or camphor moth balls, or in any of the following
locations:
• Next to equipment that produces strong electromagnetic fields, such as televisions or
radios
• Exposed to temperatures below –10°C (14°F) or above 50°C (122°F)
• Places that are poorly ventilated or subject to humidity of over 60%
To prevent mold or mildew, take the camera out of storage at least once a month. Turn the
camera on and release the shutter a few times before putting the camera away again.
For storing the battery, follow the precautions in “The Battery” (F4) in “Caring for the
Product” (F2).
F6
Troubleshooting
If the camera fails to function as expected, check the list of common problems below before
consulting your retailer or Nikon-authorized service representative.
Power, Display, Settings Issues
Problem
A
Cause/Solution
The camera is on but does
not respond.
Wait for recording to end.
If the problem persists, turn the camera off.
If the camera does not turn off, remove and reinsert
the battery or batteries or, if you are using an AC
adapter, disconnect and reconnect the AC adapter.
Note that although any data currently being
recorded will be lost, data that have already been
recorded will not be affected by removing or
disconnecting the power source.
12
Battery inserted in the
camera cannot be charged.
• Confirm all connections.
• When connected to a computer, the camera
may not charge for any of the reasons described
below.
- Off is selected for Charge by computer in
the setup menu.
- Battery charging stops if the camera is turned
off.
- Battery charging is not possible if the
camera’s display language and date and time
have not been set, or the date and time were
reset after the camera’s clock battery was
exhausted. Use the Charging AC Adapter to
charge the battery.
- Battery charging may stop if the computer is
in sleep mode.
- Depending upon the computer
specifications, settings, and status, battery
charging may not be possible.
The battery is exhausted.
20
74, E71
Technical Notes and Index
The camera cannot be
turned on.
20, E80
–
16, 18
–
–
F7
Problem
The camera turns off without
warning.
Monitor is blank.
Technical Notes and Index
Monitor is hard to read.
Date and time of recording
are not correct.
F8
A
Cause/Solution
• The camera automatically turns off to save
power (auto off function).
• The camera and battery may not work properly
at low temperatures.
• The inside of the camera has become hot. Leave
the camera off until the inside of the camera has
cooled, and then try turning it on again.
• The camera turns off if the USB cable
connecting it to a computer or printer is
disconnected. Reconnect the USB cable.
• The camera is off.
• The battery is exhausted.
• The camera has entered standby mode to save
power. Press the power switch, shutter-release
button, A button, c button, or b (e movierecord) button.
• The flash lamp flashes while the flash is
charging. Wait for the flash to charge.
• The camera and computer are connected via
the USB cable.
• The camera and TV are connected via an audio
video cable.
• Adjust the monitor brightness.
• The monitor is dirty. Clean the monitor.
• If the camera clock has not been set, the “Date
not set” indicator flashes during shooting and
movie recording. Images and movies recorded
before the clock is set are dated “00/00/0000
00:00” and “01/01/2014 00:00” respectively. Set
the correct time and date for Time zone and
date in the setup menu.
• The camera clock is not as accurate as ordinary
watches or clocks. Periodically compare the time
of the camera clock with that of a more accurate
timepieces, and reset as required.
21
F4
–
75, 80, E21
20
20
21
45
75, 80
75, E19
73, E62
F6
16, 73, E60
Problem
A
Cause/Solution
No indicators displayed in
monitor.
Hide info is selected for Photo info in Monitor
settings in the setup menu.
73, E62
Print date not available.
Time zone and date has not been set in the
setup menu.
16, 73, E60
Date not imprinted on
images even when Print
date is enabled.
• The current shooting mode does not support
Print date.
• The date cannot be imprinted on movies.
73, E64
Screen for setting time zone
and date is displayed when
the camera is turned on.
The clock battery is exhausted; all settings were
restored to their default values.
16, 18
The camera becomes hot.
The camera may become hot when used for an
extended period of time to shoot movies or send
images using an Eye-Fi card, or when used in a hot
environment; this is not a malfunction.
–
The camera makes sound.
When Autofocus mode is set to Full-time AF or
while in some shooting modes, the camera may
produce an audible focusing sound.
54, 70,
E41,
E57
The camera settings reset.
Technical Notes and Index
Shooting Issues
Problem
A
Cause/Solution
Cannot switch to shooting
mode.
The camera cannot be switched to shooting mode
while connected to a power outlet via the
Charging AC Adapter.
No image captured when the
shutter-release button is
pressed.
• When the camera is in playback mode, press the
A button, shutter-release button, or b (e
movie-record) button.
• When menus are displayed, press the d
button.
• The battery is exhausted.
• When the flash lamp is flashing, the flash is
charging.
12
28
4
20
45
F9
Problem
The camera cannot focus.
Images are blurred.
Cause/Solution
• The subject is too close. Try shooting using
macro mode or x (scene auto selector) mode,
or Close-up scene mode.
• The subject is hard to focus on.
• Set AF assist in the setup menu to Auto.
• Turn the camera off and then on again.
32, 35, 49
• Use the flash.
• Increase the ISO sensitivity value.
• Enable Photo VR and/or Motion detection
when shooting still images. Enable Movie VR
when recording movies.
45
54, E35
70, 73,
E58,
E65,
E66
35, E33
47
• Use BSS (Best Shot Selector).
• Use a tripod to stabilize the camera when
shooting (using the self-timer at the same time
is more effective).
Technical Notes and Index
Streaks of light or partial
discoloration are visible in
the monitor.
F10
A
Smear may occur when extremely bright light
strikes the image sensor. When shooting with
Continuous set to Multi-shot 16 and when
recording movies, avoiding bright objects, such as
the sun, reflections of the sun, and electric lights is
recommended.
61
74, E67
20
68, E34,
F3
Problem
A
Cause/Solution
Bright specks appear in
images captured with flash.
The flash is reflecting off particles in the air. Set the
flash mode setting to W (off).
Flash does not fire.
• The flash mode is set to W (off).
• A scene mode that restricts the flash is selected.
• On is selected for Blink proof in the smart
portrait menu.
• A function that restricts the flash is enabled.
• Digital zoom is set to Off in the setup menu.
• Digital zoom cannot be used in the following
situations:
- When Portrait, Night portrait, or Pet
portrait scene mode is selected
Digital zoom cannot be used.
- When smart portrait mode is selected
- When Continuous is set to Multi-shot 16 in
A (auto) mode
- When AF area mode is set to Subject
tracking in A (auto) mode
46
46
51
55
56
74, E67
33
40
54, E33
54, E37
A function that restricts Image mode is enabled.
56
74, E68
No sound when the shutter is
released.
• Off is selected for Shutter sound in the Sound
settings setup menu. No sound is produced
with some shooting modes and settings, even
when On is selected.
• The speaker is blocked. Do not cover the
speaker.
AF-assist illuminator does not
light.
Off is selected for AF assist in the setup menu.
AF-assist illuminator may not light depending on
the position of the focus area or the current scene
mode, even when Auto is selected.
Technical Notes and Index
Image mode not available.
2, 24
74, E67
F11
Problem
A
Cause/Solution
The lens is dirty. Clean the lens.
F6
Colors are unnatural.
White balance is not adjusted properly.
35, 54, E30
Randomly spaced bright
pixels (“noise”) appear in
image.
The subject is dark and the shutter speed is too
slow, or ISO sensitivity is too high. Noise can be
reduced by:
• Using flash
• Specifying a lower ISO sensitivity setting
45
54, E35
Randomly spaced bright
pixels (“noise”) appear in
movies.
When recording movies in dim lighting, the image
may become somewhat “grainy” in appearance.
This occurs when the ISO sensitivity increases, and it
does not indicate a malfunction.
Images appear smeared.
Images are too dark
(underexposed).
•
•
•
•
•
•
Technical Notes and Index
The flash mode is set to W (off).
The flash window is blocked.
The subject is beyond the range of the flash.
Adjust exposure compensation.
Increase ISO sensitivity.
The subject is backlit. Select Backlighting
scene mode or set the flash mode setting to X
(fill flash).
–
46
24
45
50
54, E35
36, 46
Images are too bright
(overexposed).
Adjust exposure compensation.
50
Unexpected results when
flash set to V (auto with
red-eye reduction).
When taking images with V (auto with red-eye
reduction) or fill flash with slow sync and red-eye
reduction in Night portrait scene mode, the InCamera Red Eye Fix processing may be applied to
areas not affected by red-eye in rare cases. Use any
scene mode other than Night portrait, and change
the flash mode to any setting other than V (auto
with red-eye reduction) and try taking an image again.
33, 46
F12
Problem
Skin tones are not softened.
Saving images takes time.
It may take more time to save images in the
following situations:
• When the noise reduction function is in
operation
• When the flash mode is set to V (auto with
red-eye reduction)
• When the skin softening function is applied
while shooting
Colored circles or light
streaks appear in the monitor
or images.
A
Cause/Solution
• In some shooting conditions, facial skin tones
may not be softened.
• For images containing four or more faces, try
using the Skin softening effect in Glamour
retouch in the playback menu.
When shooting with backlighting or when a very
strong light source (such as sunlight) is in the
frame, colored circles or light streaks (ghosting)
may occur. Change the position of the light source,
or frame the image so that the light source does
not enter the frame, and try again.
59
65, E15
–
46
55, 59,
E42
–
Technical Notes and Index
Playback Issues
Problem
File cannot be played back.
A
Cause/Solution
• This camera may not be able to play back
images saved with another make or model of
digital camera.
• This camera cannot play back movies recorded
with another make or model of digital camera.
• This camera may not be able to play back data
edited on a computer.
–
F13
Problem
A
Cause/Solution
Technical Notes and Index
Cannot zoom in on image.
• Playback zoom cannot be used with movies.
• For small images, the zoom ratio displayed on
the screen may not be compatible with the
actual zoom ratio.
• This camera may not be able to zoom in on
images captured with another make or model of
digital camera.
Cannot record or play back
voice memos.
• Voice memos cannot be attached to movies.
• Voice memos cannot be attached to images
captured with other cameras. Voice memos
attached to images using another camera
cannot be played back on this camera.
–
65, E53
E11
Cannot edit images.
• Some images cannot be edited. Images that
have already been edited may not be edited
again.
• There is not enough free space in the internal
memory or on the memory card.
• This camera is unable to edit images captured
with other cameras.
• Editing functions used for images are not
available for movies.
• Video mode is not correctly set in the setup
menu.
• The memory card contains no images. Replace
the memory card. Remove the memory card to
play back images from the internal memory.
74, E70
•
•
•
•
•
20
20
75
–
77
Images are not displayed on
TV.
Nikon Transfer 2 does not
start when the camera is
connected to a computer.
F14
The camera is off.
The battery is exhausted.
The USB cable is not correctly connected.
The camera is not recognized by the computer.
The computer is not set to start Nikon Transfer 2
automatically. For more information about
Nikon Transfer 2, refer to help information
contained in ViewNX 2.
–
–
–
–
14
A
Problem
Cause/Solution
The PictBridge startup screen
is not displayed when the
camera is connected to a
printer.
With some PictBridge-compatible printers, the
PictBridge startup screen may not be displayed
and it may be impossible to print images when
Auto is selected for Charge by computer in the
setup menu. Set Charge by computer to Off and
reconnect the camera to the printer.
74, E71
Images to be printed are not
displayed.
• Memory card contains no images. Replace the
memory card.
• Remove the memory card to print images from
the internal memory.
14
Cannot select paper size with
the camera.
The camera cannot be used to select the paper
size in the following situations, even when printing
from a PictBridge-compatible printer. Use the
printer to select the paper size.
• The printer does not support the paper sizes
specified by the camera.
• The printer automatically selects the paper size.
75, E24,
E25
–
Technical Notes and Index
F15
Specifications
Nikon COOLPIX S3600 Digital Camera
Type
Number of effective pixels
Image sensor
Lens
Focal length
f/-number
Compact digital camera
20.1 million
1
/2.3-in. type CCD; total pixels: approx. 20.48 million
NIKKOR lens with 8× optical zoom
4.5–36.0 mm (angle of view equivalent to that of 25–200 mm lens
in 35mm [135] format)
f/3.7–6.6
Construction
8 elements in 7 groups
Digital zoom magnification Up to 4× (angle of view equivalent to that of approx. 800 mm lens
in 35mm [135] format)
Vibration reduction
Motion blur reduction
Technical Notes and Index
Autofocus (AF)
Focus range
Focus-area selection
Monitor
Frame coverage
(shooting mode)
Frame coverage
(playback mode)
F16
Lens shift (still pictures)
Lens shift and electronic VR (movies)
Motion detection (still pictures)
Contrast-detect AF
• [W]: Approx. 50 cm (1 ft 8 in.)–∞
[T]: Approx. 1.5 m (5 ft)–∞
• Macro mode: Approx. 2 cm (0.8 in.)–∞ (wide-angle position)
(All distances measured from center of front surface of lens)
Face priority, center, manual with 99 focus areas, subject tracking,
target finding AF
6.7 cm (2.7-in.), approx. 230k-dot, TFT LCD with anti-reflection
coating and 5-level brightness adjustment
Approx. 97% horizontal and 97% vertical (compared to actual
image)
Approx. 99% horizontal and 99% vertical (compared to actual
image)
Storage
Media
File system
File formats
Image size
(pixels)
ISO sensitivity (Standard
output sensitivity)
Exposure
Metering mode
Shutter
Speed
Still pictures: JPEG
Sound files (Voice Memo): WAV
Movies: AVI (Motion-JPEG compliant)
•
•
•
•
•
•
•
•
•
•
20M (High) [5152×3864P]
20M [5152×3864]
10M [3648×2736]
4M [2272×1704]
2M [1600×1200]
VGA [640×480]
16:9 (14M) [5120×2880]
1:1 [3864×3864]
ISO 80–1600
ISO 3200 (available when using Auto mode)
Matrix, center-weighted (digital zoom less than 2×), spot (digital
zoom 2× or more)
Programmed auto exposure and exposure compensation (–2.0 –
+2.0 EV in steps of 1/3 EV)
Mechanical and CCD electronic shutter
1/1500–1 s
4 s (when scene mode is set to Fireworks show)
Aperture
Electronically-controlled ND filter (–3 AV) selection
Range
Self-timer
2 steps (f/3.7 and f/10.5 [W])
Can be selected from 10 s and 2 s
F17
Technical Notes and Index
Exposure control
Internal memory (approx. 25 MB), SD/SDHC/SDXC memory card
DCF, Exif 2.3, and DPOF compliant
Flash
Range (approx.)
(ISO sensitivity: Auto)
Flash control
[W]: 0.5–3.5 m (1 ft 8 in.–11 ft)
[T]: 1.5–2.0 m (5 ft–6 ft 6 in.)
TTL auto flash with monitor preflashes
Interface
Data transfer protocol
Video output
I/O terminal
Supported languages
Hi-Speed USB
MTP, PTP
Can be selected from NTSC and PAL
Audio/video (A/V) output; digital I/O (USB)
Arabic, Bengali, Bulgarian, Chinese (Simplified and Traditional), Czech,
Danish, Dutch, English, Finnish, French, German, Greek, Hindi,
Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian,
Persian, Polish, Portuguese (European and Brazilian), Romanian,
Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish,
Ukrainian, Vietnamese
Power sources
One Rechargeable Li-ion Battery EN-EL19 (included)
AC Adapter EH-62G (available separately)
Approx. 2 h 50 min (when using Charging AC Adapter EH-70P and
when no charge remains)
Charging time
Technical Notes and Index
Battery life1
Still pictures
Movies (actual battery
life for recording)2
Tripod socket
Dimensions
(W × H × D)
Weight
Operating environment
Temperature
Humidity
F18
Approx. 230 shots when using EN-EL19
Approx. 45 min (720/30p) when using EN-EL19
Approx. 50 min (720/25p) when using EN-EL19
1/4 (ISO 1222)
Approx. 97.1 × 57.9 × 19.9 mm (3.9 × 2.3 × 0.8 in.) (excluding
projections)
Approx. 125 g (4.5 oz) (with battery and SD memory card)
0°C–40°C (32°F–104°F)
85% or less (no condensation)
• Unless otherwise stated, all figures assume a fully-charged battery and an ambient
temperature of 23 ±3°C (73.4 ±5.4°F) as specified by the Camera and Imaging Products
Association (CIPA).
1
2
Battery life may vary depending on conditions of use, such as the interval between shots or the
length of time that menus and images are displayed.
Individual movie files cannot exceed 2 GB in size or 29 minutes in length. Recording may end
before this limit is reached if camera temperature becomes elevated.
Rechargeable Li-ion Battery EN-EL19
Type
Rechargeable lithium-ion battery
Rated capacity
DC 3.7 V, 700 mAh
Operating temperature
0°C–40°C (32°F–104°F)
Dimensions
(W × H × D)
Approx. 31.5 × 39.5 × 6 mm (1.3 × 1.6 × 0.3 in.)
Weight
Approx. 14.5 g (0.5 oz)
Charging AC Adapter EH-70P
AC 100–240 V, 50/60 Hz, 0.07–0.044 A
Rated output
DC 5.0 V, 550 mA
Operating temperature
0°C–40°C (32°F–104°F)
Dimensions
(W × H × D)
Approx. 55 × 22 × 54 mm (2.2 × 0.9 × 2.2 in.) (excluding plug
adapter)
For Argentina: Approx. 55 × 59 × 63 mm (2.2 × 2.4 × 2.5 in.)
For Korea: Approx. 55 × 59 × 66.5 mm (2.2 × 2.4 × 2.7 in.)
Weight
Approx. 47 g (1.7 oz) (excluding plug adapter)
For Argentina and Korea: Approx. 72 g (2.6 oz)
B
Technical Notes and Index
Rated input
Specifications
• Nikon will not be held liable for any errors this manual may contain.
• The appearance of this product and its specifications are subject to change without notice.
F19
Approved Memory Cards
The following Secure Digital (SD) memory cards have been tested and approved for use in
this camera.
• Memory cards with an SD Speed Class rating of 6 or faster are recommended for recording
movies. Movie recording may stop unexpectedly when memory cards with a lower Speed
Class rating are used.
SD memory card
SanDisk
2 GB1
–
TOSHIBA
Panasonic
Lexar
1
2
3
2 GB1
–
SDHC memory card2
SDXC memory card3
4 GB, 8 GB, 16 GB, 32 GB
64 GB, 128 GB
4 GB, 8 GB, 16 GB, 32 GB
64 GB
4 GB, 8 GB, 16 GB, 32 GB
64 GB
4 GB, 8 GB, 16 GB, 32 GB
64 GB, 128 GB
Technical Notes and Index
If the memory card is used with a card reader or similar device, make sure that the device supports
2 GB cards.
SDHC compliant. If the memory card is used with a card reader or similar device, be sure
that the device is compliant with the SDHC standard.
SDXC compliant. If the memory card is used with a card reader or similar device, be sure
that the device is compliant with the SDXC standard.
• Contact the manufacturer for details on the above cards. We cannot guarantee camera
performance when using memory cards made by other manufacturers.
F20
Trademark Information
• Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
• Mac and OS X are trademarks or registered trademarks of Apple Inc., in the U.S. and other
countries.
• Adobe and Acrobat are registered trademarks of Adobe Systems Inc.
• SDXC, SDHC, and SD Logos are trademarks of SD-3C, LLC.
• PictBridge is a trademark.
• All other trade names mentioned in this manual or the other documentation provided
with your Nikon product are the trademarks or registered trademarks of their respective
holders.
FreeType License (FreeType2)
• Portions of this software are copyright © 2012 The FreeType Project
(http://www.freetype.org). All rights reserved.
MIT License (HarfBuzz)
• Portions of this software are copyright © 2014 The HarfBuzz Project
(http://www.freedesktop.org/wiki/Software/HarfBuzz). All rights reserved.
Technical Notes and Index
F21
Index
Symbols
Technical Notes and Index
x Scene auto selector mode .................. 32
A Auto mode................................................... 42
b Scene mode .................................................. 33
D Special effects mode .............................. 38
F Smart portrait mode.............................. 40
c Playback mode........................................... 28
h Favorite pictures mode..................... E5
F Auto sort mode..................................... E9
C List by date mode.............................. E10
z Setup menu ................................. 73, E59
g (Telephoto)............................................... 1, 25
f (Wide-angle).......................................... 1, 25
i Playback zoom ....................................... 1, 63
h Thumbnail playback....................... 1, 64
j Help............................................................. 1, 33
b (e movie-record) button ........... 2, 67
A (Shooting mode) button............. 2, 22
c Playback button ................................ 2, 28
k Apply selection button ............................. 2
d Menu button
...................................... 2, 4, 53, 65, 70, 73
l Delete button.......... 2, 30, 72, E54
m Flash mode ..................................................... 45
n Self timer ......................................................... 47
p Macro mode ................................................ 49
Refer to the Reference Manual for pages indicated with E.
F22
o Exposure compensation ....................... 50
R ......................................................... E4
A
AC adapter ........................................ 75, E80
Adding favorite pictures.............. 66, E5
AF area mode .................................. 54, E37
AF assist............................................... 74, E67
Album................................................................. E8
Aperture value .................................................... 27
Audio video cable...... 76, E19, E80
Auto flash .............................................................. 46
Auto mode........................................................... 42
Auto off...................................... 21, 74, E68
Auto sort mode............................................ E9
Auto with red-eye reduction .................... 46
Autofocus............. 54, 70, E41, E57
Autofocus mode
.................................... 54, 70, E41, E57
AVI...................................................................... E79
B
Backlighting o .................................................. 36
Battery .................................................. 10, 12, 18
Battery chamber ....................................... E80
Battery charger ................................ 13, E80
Battery latch.......................................................... 10
Battery level .......................................................... 20
Battery-chamber/memory card slot cover
..................................................................... 2, 11, 14
Beach Z................................................................. 33
Best Shot Selector.......................... 35, E33
Black and white copy n .............................. 35
Black-and-white ........................................ E36
Blink proof.......................................... 55, E44
Blink warning ................................... 74, E72
Brightness ..................................................... E62
BSS........................................................... 35, E33
Built-in microphone ............................................ 1
Button sound.............................................. E68
C
Date and time .................................. 17, E60
Date format........................................ 17, E60
Daylight.......................................................... E30
Daylight saving time .......... 17, 18, E61
Delete........................................ 30, 72, E54
Digital zoom.......................... 25, 74, E67
Direct print ........................................ 76, E20
D-Lighting........................................... 65, E13
DPOF................................................................ E45
DPOF printing ............................................ E27
DSCN................................................................ E79
Dusk/dawn i .................................................... 33
Dynamic Fine Zoom........................................ 25
E
Editing images............................................ E11
EH-70P............................................................... F19
EN-EL19 ............................................................ F19
Exposure compensation............................... 50
Extension....................................................... E79
Eye-Fi upload ................................... 74, E73
Eyelet for camera strap...................................... 1
F
Face detection .................................................... 58
Face priority................................................. E37
Favorite pictures mode ............................ E5
File names..................................................... E79
Refer to the Reference Manual for pages indicated with E.
F23
Technical Notes and Index
Calendar Display............................................... 64
Center................................................... 62, E38
Charge by computer ................... 74, E71
Charge lamp............................... 2, 13, E71
Charging AC Adapter ...................................... 12
Close-up k .......................................................... 35
Cloudy............................................................. E30
Color options................................... 54, E36
Compression ratio ................................... E28
Computer.................................................... 76, 80
Connector cover.................................................... 1
Continuous ....................................... 54, E33
Copying images............................. 65, E54
Crop........................................................ 63, E18
Cross process o............................................... 39
Cyanotype .................................................... E36
D
Technical Notes and Index
Fill flash................................................................... 46
Fireworks show m ........................................... 35
Firmware version........................... 74, E74
Fixed range auto....................................... E35
Flash .......................................................................... 45
Flash lamp ..................................................... 2, 45
Flash mode ............................................... 45, 46
Flash off .................................................................. 46
Fluorescent .................................................. E30
Focus................................ 26, 54, 58, E37
Focus area................................................... 26, 58
Focus indicator ........................................... 7, 26
Focus lock .............................................................. 62
Food u .................................................................... 35
Format internal memory .......... 74, E69
Format memory cards ..... 15, 74, E69
Formatting .............................. 15, 74, E69
FSCN................................................................. E79
Full-frame playback ................... 28, 63, 64
Full-time AF ........ 54, 70, E41, E57
Functions that cannot be used
simultaneously.................................................... 56
G
Glamour retouch............................ 65, E15
H
Help ........................................................................... 33
High key G........................................................... 38
High-contrast monochrome F .............. 38
Refer to the Reference Manual for pages indicated with E.
F24
I
Identifier......................................................... E79
Image mode.................. 54, E28, E29
Image review .............................................. E62
Image size.......................................... 54, E28
Imprinting date and time......... 73, E64
Incandescent .............................................. E30
Internal memory................................................. 15
Internal memory indicator .................. 7, 20
ISO sensitivity................................... 54, E35
J
JPG..................................................................... E79
L
Landscape c ...................................................... 33
Language ........................................... 74, E70
Lens.............................................................. 1, F16
Lens cover.................................................................. 1
List by date mode..................................... E10
Low key H............................................................ 38
M
Macro mode........................................................ 49
Manual............................................................ E38
Memory card...................................... 14, F20
Memory card slot .............................................. 14
Monitor................................................. 2, 6, F6
Monitor settings............................. 73, E62
Motion detection .......................... 73, E66
Movie length............................................. 67, 68
Movie menu ..................................... 70, E56
Movie options ................................. 70, E56
Movie playback ................................................... 71
Movie recording ................................................ 67
Movie VR............................................. 70, E58
Multi selector .......................................................... 2
Multi-shot 16............................................... E33
Museum l .......................................................... 35
P
Q
N
Night landscape j ......................................... 34
Night portrait e................................................ 33
Nikon Transfer 2 ....................................... 79, 81
Nostalgic sepia E ........................................... 38
Number of exposures remaining
.................................................................. 20, E29
O
Painting h............................................................ 38
Panorama assist U ......................... 36, E2
Panorama Maker............................... 36, E4
Paper size ................................... E24, E25
Party/indoor f.................................................. 34
Pet portrait auto release ............................... 37
Pet portrait O..................................................... 37
Photo info ..................................................... E62
Photo VR .............................................. 73, E65
Quick effects....... 43, 54, E12, E41
Quick retouch................................... 65, E13
R
Rechargeable Li-ion battery ................ F19
Red-eye correction.................................. E14
Removing favorite pictures........ 66, E7
Reset all ............................................... 74, E74
Rotate image..................................... 65, E52
RSCN................................................................. E79
Refer to the Reference Manual for pages indicated with E.
F25
Technical Notes and Index
Optical zoom ....................................................... 25
Optional accessories .............................. E80
PictBridge....................... 76, E20, E45
Playback .................................... 28, 71, E53
Playback menu ............................... 65, E45
Playback mode ................................................... 28
Playback zoom.................................................... 63
Pop l................................................................... 38
Portrait b............................................................... 33
Power............................................................. 16, 20
Power switch ................................................ 1, 20
Power-on lamp............................................ 1, 20
Preset manual.............................................. E31
Pressing halfway ................................................ 27
Print....... 65, 76, E23, E25, E45
Print date
................ 18, 73, E46, E48, E64
Print order.......................................... 65, E45
Printer................................................... 76, E20
Protect.................................................. 65, E50
S
Technical Notes and Index
Scene auto selector ......................................... 32
Scene mode .............................................. 33, 34
Selective color I ............................................. 38
Self-timer................................................................ 47
Self-timer lamp ................................. 1, 41, 48
Sepia................................................................. E36
Setup menu....................................... 73, E59
Shooting ........................................... 22, 24, 26
Shooting menu .............................. 54, E28
Shooting mode .................................................. 22
Shutter sound............................................. E68
Shutter speed...................................................... 27
Shutter-release button ........................... 1, 26
Single.................................................... 54, E33
Single AF............... 54, 70, E41, E57
Skin softening........................ 55, 59, E42
Slide show ......................................... 65, E49
Slow sync .............................................................. 46
Small picture ..................................... 65, E17
Smart portrait menu.................... 41, E42
Smart portrait mode ...................................... 40
Smile timer ........................................ 55, E43
Snow z.................................................................. 33
Soft D..................................................................... 38
Sound settings................................ 74, E68
Speaker....................................................................... 2
Special effects mode....................................... 38
Refer to the Reference Manual for pages indicated with E.
F26
Sports d................................................................. 34
SSCN................................................................. E79
Standard color................................. 54, E36
Strap ............................................................................. 3
Subject tracking .................... E38, E40
Sunset h............................................................... 33
Super vivid k....................................................... 38
T
Target finding AF................ 54, 60, E39
Telephoto............................................................... 25
Televisions .......................................... 76, E19
Thumbnail display ........................................... 64
Time difference ......................................... E60
Time zone ........................................... 17, E60
Time zone and date..................... 73, E60
Toy camera effect 1 m................................. 39
Toy camera effect 2 n ................................ 39
Tripod socket ......................................... 2, F18
U
USB cable .................................. 12, 80, E21
USB/audio/video output connector
............................................................................... 1, 75
V
Video mode ...................................... 74, E70
Video-in jack/audio-in jack.................. E19
ViewNX 2 ................................................................ 77
Vivid color ..................................................... E36
Voice memo...................................... 65, E53
Volume ................................................. 71, E53
W
WAV .................................................................. E79
Welcome screen............................. 73, E59
White balance ................................. 54, E30
Wide-angle............................................................ 25
Wind noise reduction.......... 7, 70, E58
Z
Zoom control ..................................... 1, 25, 71
Zooming in/out ................................................. 25
Technical Notes and Index
Refer to the Reference Manual for pages indicated with E.
F27
No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be made
without written authorization from NIKON CORPORATION.
Please visit the Nikon website below to download the Reference Manual in English.
DIGITAL CAMERA
User’s Manual
http://nikonimglib.com/manual/
Printed in China
En
YP3K01(11)
6MN38711-01
For advanced use of the camera, read the Reference Manual
(in pdf format) which is available in many languages including
Hindi, Bengali, Tamil, Marathi and Telugu.
See the reverse side for information to download the file.
En
