©2013 Sony Corporation
Printed in China
1
Digital Still Camera

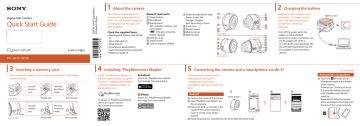

Quick Start Guide
The camera is designed to be
connected to a smartphone via
Wi-Fi. You can transfer images to
a smartphone on the spot just
after shooting.
Check the supplied items
ˎˎ Rechargeable
battery pack NP-BN
(1)
ˎˎ Micro
USB cable (1)
strap (1)
ˎˎ Smartphone attachment (1)
ˎˎ Quick Start Guide (this manual) (1)
ˎˎ Reference Guide (1)
ˎˎ Wrist
4-474-751-12(1)
2
About the camera
Name of main parts
Power button
Microphone
Display panel
: Indicates memory card
not inserted
: Indicates remaining
battery capacity
Hook for strap
Tripod socket
Control ring (DSC-QX100)
Power/Charge/Movie lamp
Green: Power ON
Orange: Charging
Red: Recording a movie
Zoom lever
Shutter button
Multi terminal
RESET button
4
Inserting a memory card
Insert a microSD memory card or “Memory Stick Micro” (M2) media
before shooting.
microSD
memory
card
“Memory
Stick Micro”
media
Printed side
DSC-QX10
microSD
memory
card
DSC-QX100
Charge the battery before using
the camera. To charge, use the
micro USB cable (supplied) to
connect the camera to a
computer.
Battery Cover
ˎˎ Turn
off the power when the
battery is being charged.
ˎˎ If you do not have a computer, use
the AC adaptor AC-UD10 or
AC-UD11 (both sold separately). The
AC-UD11 (sold separately) may not
be available in some countries/
regions.
DSC-QX10
DSC-QX100
DSC-QX10/QX100
3
Charging the battery
Install “PlayMemories Mobile” to
the smartphone before using the
camera. If “PlayMemories Mobile”
is already installed, update it to
the latest version.
Android
Search for “PlayMemories Mobile”
from Google Play and install it.
iPhone
Terminal side
For details on “PlayMemories Mobile”,
refer to the support website
http://www.sony.net/pmm/
“Memory
Stick Micro”
media
Printed side
Installing “PlayMemories Mobile”
Terminal side
Search for “PlayMemories Mobile”
from App Store and install it.
5
Connecting the camera and a smartphone via Wi-Fi
Continued 
Android (NFC-compatible)
The connection method varies
depending on the type of
smartphone. Confirm your
smartphone type and connect via
Wi-Fi.
Android

Power button

Turn on the power of the camera.
Start “PlayMemories Mobile” on
the smartphone.
Select the SSID, as printed on the
inside of the camera’s battery
cover or on the cover of this
manual.
Input the password, as printed on the same label (first time only).


Touch the
(N mark) of the
smartphone against the N Mark
of the camera.
Powered on: Continue to touch
(1-2 seconds) without moving
until “PlayMemories Mobile”
starts up.
Powered off: Keep the camera
and a smartphone touching until
the lens of the camera extends.
6
Connecting the camera and a smartphone via Wi-Fi (continued)
Attach a smartphone after fixing the camera to the smartphone
attachment (supplied).
iPhone
Turn on the power of the camera.
On the smartphone, select
[Settings], then select [Wi-Fi].
Select the SSID, as printed on the
inside of the camera’s battery
cover or on the cover of this
manual.
Input the password, as printed on
the same label (first time only).
Confirm the connection to the
SSID of the camera.
Go back to the Home screen,
then start “PlayMemories
Mobile”.
Shooting images (continued)
Screen of “PlayMemories
Mobile”
Switching exposure modes
Settings
Shutter/movie button
Switching between still image/
movie
Zoom
7
Attaching the camera to a smartphone





Power button
8
Terminating
End “PlayMemories Mobile” to
return to the Home screen.
Turn off the power of the camera.
ˎˎ If you turn off the power of the
camera before ending
“PlayMemories Mobile”, an error
message will be displayed. This is
not a malfunction.

The display screen for the
application is subject to change
without notice by future upgrades.
Refer to the Help Guide
The Help Guide is an online
manual. Refer to the Help Guide
when you would like to know
further details, settings and
operations of “PlayMemories
Mobile”, and precautions.
http://rd1.sony.net/help/dsc/1310/
h_zz/
Fix the camera to the attachment.
Put the camera into the slot of the attachment,
aligning the index, then rotate the attachment
until it clicks.
Open the clamps of the attachment.
Extend the clamps and attach a smartphone.
ˎˎ Do not swing the camera around with a
smartphone attached to it, as the smartphone
may slip out of the attachment.
ˎˎ Make sure no buttons are caught when the
smartphone is attached.
Removing the smartphone
attachment
Slide the removal lever to the lens
side and rotate the attachment.

Sony mark


Smartphone Index (-)
Attachment
Removal lever
Q&A
Why doesn’t the camera charge?
ˎˎ Turn the power off.
Why the power lamp flashing red?
ˎˎ Memory card is not inserted
correctly. Insert it in the correct
direction.
How can I correct the date/time?
ˎˎ When Wi-Fi connection between
the camera and the smartphone is
made, the date/time on the
camera is automatically set to that
of the smartphone.
How can I return to the default
setting?
ˎˎ Turn on the power of the camera,
then press the RESET button.
How can I change a setup of image
size, etc.?
ˎˎ You can make changes on the
settings screen of “PlayMemories
Mobile”.
How can I see the number of
images or information about the
camera?
ˎˎ Refer to the “Reference Guide”
(supplied) or the “Help Guide
(HTML)”.
Why has the power of the camera
turned on unexpectedly?
ˎˎ If an NFC-enabled smartphone is
close to the camera, the power
may turn on accidentally. This is
not a malfunction.
Why does an image not transfer to
my smartphone after shooting?
ˎˎ Movies are recorded on a memory
card, but are not transferred
automatically.
I’ve forgotten the password. Where
can I find out what it is?
ˎˎ The password and SSID are printed
on the inside of the battery cover
or on the cover of this manual.
Shooting images
Start “PlayMemories Mobile” on
the smartphone.
Shoot images with the shutter
button of the camera or
“PlayMemories Mobile”. The
shutter button of the camera is
not available while shooting
movies.
[2M] images are transmitted
automatically to the smartphone.
[18M] images are saved into the
memory card of the camera (default
setting).
