Panasonic LUMIX DMC-LZ4 Camera User Guide

VQT0V00ENG.book 1 ページ２００６年１月２０日　金曜日　午後６時３１分

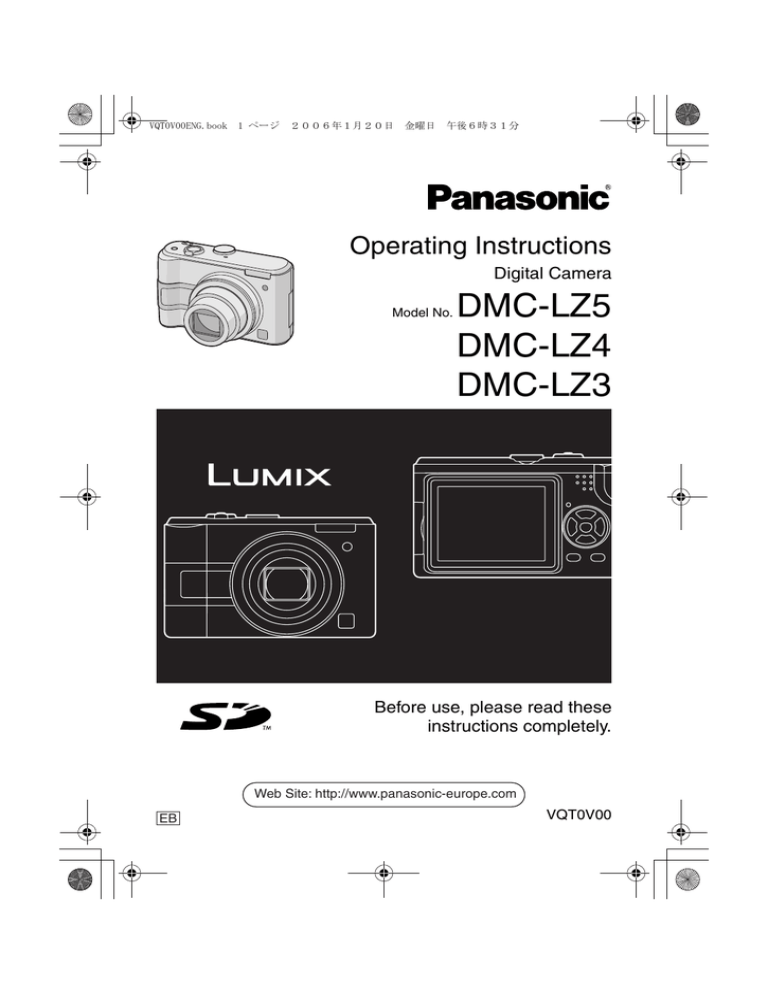

Operating Instructions

Digital Camera

Model No.

DMC-LZ5

DMC-LZ4

DMC-LZ3

EB

Before use, please read these instructions completely.

Web Site: http://www.panasonic-europe.com

VQT0V00

VQT0V00ENG.book 2 ページ２００６年１月２０日　金曜日　午後６時３１分

Before Use

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic

Digital Camera. Please read these

Operating Instructions carefully and keep them handy for future reference.

Information for Your

Safety

WARNING

TO REDUCE THE RISK OF FIRE OR

SHOCK HAZARD AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES

AND DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR

MOISTURE. DO NOT REMOVE THE

COVER (OR BACK); THERE ARE NO

USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

Carefully observe copyright laws.

Recording of pre-recorded tapes or discs or other published or broadcast material for purposes other than your own private use may infringe copyright laws. Even for the purpose of private use, recording of certain material may be restricted.

• Please note that the actual controls and components, menu items, etc. of your

Digital Camera may look somewhat different from those shown in the illustrations in these Operating

Instructions.

• SD Logo is a trademark.

• Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

VQT0V00

VQT0V00ENG.book 3 ページ２００６年１月２０日　金曜日　午後６時３１分

Before Use

Information on Disposal for Users of Waste Electrical & Electronic Equipment

(private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

∫ Care of the camera

• Do not strongly shake or bump the

camera. The camera may stop operating normally, pictures may not be recorded or the lens may be damaged.

• Sand or dust may cause the camera to malfunction. Make sure that sand or dust does not get into the lens or the terminals when using the camera on a beach etc.

• Make sure that water does not get into the camera when using it on a rainy day or on a beach.

• If water or seawater splashes on the camera, wet a soft cloth with tap water, wring it well and use it to wipe the camera body carefully. Then, wipe the camera again with a dry cloth.

∫ About the LCD monitor

• Do not press the LCD monitor with excessive force. Uneven colours may appear on the LCD monitor and it may malfunction.

• Condensation may form on the LCD monitor in places with large temperature differences. Wipe the condensation with a soft, dry cloth.

• If the camera is cold when you turn it on, the picture on the LCD monitor will be slightly darker than usual at first. However, the picture will return to normal brightness when the internal temperature of the camera increases.

VQT0V00

VQT0V00ENG.book 4 ページ２００６年１月２０日　金曜日　午後６時３１分

Before Use

Extremely high precision technology is employed to produce the LCD monitor screen. However there may be some dark or bright spots (red, blue or green) on the screen. This is not a malfunction.

The LCD monitor screen has more than

99.99% effective pixels with a mere

0.01% of the pixels inactive or always lit.

The spots will not be recorded on pictures on the built-in memory or a card.

∫ About the Lens

• Do not press the lens with excessive force.

• Do not leave the camera with the lens facing the sun as it may cause the camera to malfunction. Also, be careful when you leave the camera outside or near a window.

∫ About Condensation (When the lens

is fogged up)

• Condensation occurs when the ambient temperature or humidity changes as described below. Be careful of condensation since it causes lens stains, fungus and camera malfunction.

– When the camera is taken from the cold outdoors to the warm indoors.

– When the camera is taken from outside to inside an air-conditioned car.

– When cool wind from an air conditioner etc. blows directly on the camera.

– In humid places

• To prevent condensation, put the camera in a plastic bag until the temperature of the camera is close to the ambient temperature. If condensation occurs, turn the camera off and leave it for about

2 hours. The fog will disappear naturally when the temperature of the camera becomes close to the ambient temperature.

∫ When not using the camera for a long

period of time

• Store the batteries in a cool and dry place with a relatively stable temperature.

[Recommended temperature:

15 oC to 25 oC,

Recommended humidity: 40% to 60%]

• Always remove the batteries and the card from the camera.

• If the batteries are left inserted in the camera they will discharge as a weak electric current passes through them even if the camera is turned off. [Read P12 for information about Ni-MH (nickel metal hydride) batteries.]

• We recommend storing the camera with a desiccant (silica gel) when you keep it in a closet or a cabinet.

VQT0V00

VQT0V00ENG.book 5 ページ２００６年１月２０日　金曜日　午後６時３１分

About The Mode Dial

Before Use

∫ About indications in these operating

instructions

Adjust part A to the desired mode.

The mode dial can be rotated 360 o. Rotate it slowly and surely to adjust to each mode.

(Do not adjust it to parts where there is no mode.)

SCN

1

SCN

2

Modes indicated here allow you to use the functions or settings described on this page. Set the mode dial to any of the modes to use the functions or settings.

SCN

Convenient or helpful information for use of the camera is described.

: Normal picture mode (P23)

Use this mode for normal recording.

∫ About illustrations in these operating

instructions

Please note that the appearance of the product, the illustration or the menu screen are a little different from those in actual use.

The procedure is described for DMC-LZ5 as an example.

: Economy mode (P46)

This mode allows you to take pictures while reducing battery power consumption.

: Macro mode (P47)

This mode allows you to take a close-up picture of a subject.

∫ About illustrations of the cursor

button

In these operating instructions, the operations on the cursor button are described as illustrated as shown.

e.g.: When you press the

4 button

: Motion picture mode (P54)

This mode allows you to record motion pictures.

SET

REV

: Scene mode 1

: Scene mode 2 (P48)

This mode allows you to match the picture to the scene being recorded.

Two frequently used scenes can be set to the mode dials [ ] and [ ].

: Simple mode (P26)

This mode is recommended for beginners.

: Playback mode (P32)

This mode allows you to play back recorded pictures.

VQT0V00

VQT0V00ENG.book 6 ページ２００６年１月２０日　金曜日　午後６時３１分

Before Use

Information for Your Safety....................... 2

About The Mode Dial ................................ 5

Preparation

Accessories .............................................. 8

Names of the Components ....................... 8

Quick Guide ............................................ 10

About the Batteries ................................. 11

Inserting/Removing the Batteries............ 15

Inserting/Removing the Card

(Optional) ............................................ 15

About the Built-in Memory/the Card........ 16

Setting Date/Time (Clock Set) ................ 18

About the Setup Menu ............................ 19

Basic

Taking Pictures ....................................... 23

Taking Pictures in Simple Mode ............. 26

Taking Pictures with the Zoom ............... 28

• Using the Optical Zoom .................... 28

• Using the Extra Optical Zoom (EZ)... 29

• Using the Digital Zoom

Further extending the zoom ............. 30

Checking the Recorded Picture

(Review) .............................................. 31

Playing Back Pictures ............................. 32

Deleting Pictures..................................... 33

About the LCD Monitor ........................... 35

• Changing the information displayed .......................................... 35

• Recording a picture with the camera held high above your head

(High angle mode)............................ 37

Taking Pictures using the Built-in Flash........................ 38

Taking Pictures with the Self-timer ......... 41

VQT0V00

Advanced

Compensating the Exposure .................. 42

Taking Pictures using Auto Bracket........ 43

Optical Image Stabilizer .......................... 44

Taking Pictures using Burst Mode .......... 45

Economizing Power Consumption .......... 46

Taking Close-up Pictures........................ 47

Scene Mode............................................ 48

– Portrait mode................................. 49

– Soft skin mode............................... 49

– Scenery mode ............................... 49

– Sports mode .................................. 50

– Night portrait mode ........................ 50

– Night scenery mode ...................... 50

– Food mode .................................... 51

– Party mode .................................... 51

– Candle light mode ......................... 51

– Fireworks mode............................. 52

– Starry sky mode ............................ 52

– Snow mode ................................... 53

– Baby mode 1/Baby mode 2 ........... 53

– High Sensitivity mode .................... 54

Motion Picture Mode ............................... 54

Displaying Multiple Screens

(Multi Playback)................................... 56

Using the Playback Zoom....................... 57

Playing Back Motion Pictures/

Pictures with Audio.............................. 58

Menu Settings

Using the [REC] Mode Menu .................. 60

• [W.BALANCE]

Adjusting the hue for a more natural picture ................. 61

• [SENSITIVITY]

Setting the light sensitivity ................ 62

• [ASPECT RATIO]

Setting the aspect ratio of pictures ... 63

• [PICT.SIZE]/[QUALITY]

Setting a picture size and quality that matches your use of the pictures .................... 63

• [AUDIO REC.] (DMC-LZ5)

Recording still pictures with audio .... 65

• [AF MODE]

Setting the focus method.................. 65

VQT0V00ENG.book 7 ページ２００６年１月２０日　金曜日　午後６時３１分

• [AF ASSIST LAMP]

Focusing in low light conditions becomes easier ................................ 66

• [SLOW SHUTTER]

Recording bright pictures in dark places ................................... 66

• [COL.EFFECT]

Setting colour effects for the recorded pictures .................. 67

• [PICT.ADJ.]

Adjusting the picture quality for the recorded pictures .................. 67

Using the [PLAY] mode menu ................ 68

• [SLIDE SHOW]

Playing back pictures in order for a fixed duration............................ 68

• [FAVORITE]

Setting your favourite pictures .......... 69

• [ROTATE DISP.]/[ROTATE]

To display the picture rotated ........... 70

• [DPOF PRINT]

Setting the picture to print and the number of prints .................. 71

• [PROTECT]

Preventing accidental erasure of pictures ......................................... 73

• [AUDIO DUB.] (DMC-LZ5)

Adding audio after taking pictures .... 74

• [RESIZE]

Making the picture smaller ............... 74

• [TRIMMING]

Enlarging a picture and trimming it ... 75

• [COPY]

Copying the picture data .................. 76

• [FORMAT]

Initializing the built-in memory or a card ........................................... 77

Connecting to other equipment

Connecting to a PC................................. 79

Printing the Pictures................................ 81

Playing Back Pictures on a TV Screen ... 85

Others

Screen Display........................................86

Cautions for Use ..................................... 88

Message Display ....................................89

Troubleshooting ......................................91

Number of recordable pictures and available recording time ...............95

Specifications..........................................98

Sales and Support Information

Customer Care Centre

• For customers within the UK:

08705 357357

• For customers within the Republic of

Ireland: 01 289 8333

• Visit our website for product information

• E-mail: [email protected]

Technical Support for AV Software

• For UK, ROI: 08701 505610

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre

Monday – Thursday 9.00 a.m. – 5.30 p.m.,

Friday 9.30 a.m. – 5.30 p.m.

(Excluding public holidays)

• Or go on line through our Internet

Accessory ordering application at www.panasonic.co.uk.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by

Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details.

Interested in purchasing an extended guarantee?

Please call 0870 240 6284 or visit our website www.panasonic.co.uk/guarantee.

VQT0V00

VQT0V00ENG.book 8 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

Accessories

Check that all the accessories are included before using the camera.

1 2

1

DMC-LZ5

K1HA08CD0007

2

DMC-LZ4

DMC-LZ3

K1HA08CD0008

K1HA08CD0009

VFC4090

∫ Standard Accessories

1 Batteries

AA Oxyride batteries

2 USB Connection Cable

3 1: AV Cable

(Supplied with DMC-LZ5)

2: Video Cable

(Supplied with DMC-LZ4/

DMC-LZ3)

4 CD-ROM

5 Strap

• SD Memory Cards are optional.

You can record or play back pictures on the built-in memory when you are not using a card. (P16)

• Consult the dealer or your nearest servicentre if you lose the supplied accessories. (You can purchase the

8 accessories separately.)

VQT0V00

∫ Optional Accessories

• AC Adaptor

DMW-AC6

• Soft Case

DMW-CLZ5

• Semi Hard Case

DMW-CLZH5

• SD Memory Card

2 GB: RP-SDK02GE1A/

RP-SDQ02GE1A

1 GB: RP-SDK01GE1A/

RP-SDQ01GE1A

512 MB: RP-SDK512E1A/

RP-SD512BE1A

256 MB: RP-SDH256E1A/

RP-SD256BE1A

128 MB: RP-SD128BE1A

64 MB: RP-SD064BE-A

• USB 2.0 Reader/Writer

BN-SDUSB2E

• CardBus PC Card Adapter

BN-SDPC3E

• PC Card Adapter

BN-SDPC2E

• SD-CF Adapter

BN-SDCF1E

• Some optional accessories may not be available in some countries.

Names of the

Components

1 2 3

1 Lens (P4)

2 Flash (P38)

3 Self-timer indicator (P41)

AF assist lamp (P66)

VQT0V00ENG.book 9 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

4 5

6 7 8 9

4 LCD monitor (P3, 35, 86)

5 Status indicator (P12, 15, 46)

6 Cursor buttons

2/Self-timer button (P41)

4/[REV] button (P31)

1/Flash setting button (P38)

3/Exposure compensation (P42)/Auto bracket (P43)/White balance fine adjustment (P61)/Backlight compensation in simple mode (P27) button

7 [MENU/SET] button (P19)

8 [DISPLAY] (P35)/[HIGH ANGLE] (P37) button

9 Delete (P33)/Single or burst mode

(P45) button

16 Strap eyelet

17 Lens barrel

18 Card door (P15)

DIGITAL

AV OUT

DC IN 3V

19 [DIGITAL/AV OUT] socket

(DMC-LZ5)

[DIGITAL/V.OUT] socket

(DMC-LZ4/DMC-LZ3)

(P79, 81, 85)

20 [DC IN] socket (P79, 81)

• Always use a genuine Panasonic AC adaptor (DMW-AC6; optional).

21 22

10 11 12

13 14 15

10 Microphone (DMC-LZ5) (P54, 65, 74)

11 Zoom lever (P28)

12 Optical image stabilizer button (P44)

13 Mode dial (P5)

14 Shutter button (P23, 54)

15 Camera ON/OFF switch (P10, 18)

21 Battery door (P15)

22 Tripod receptacle

• When you use a tripod, make sure it is stable when the camera is attached to it.

VQT0V00

VQT0V00ENG.book 10 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

Quick Guide

This is an overview of how to record and playback pictures with the camera. For each step, be sure to refer to the pages indicated in brackets.

1 Insert the batteries. (P15)

3 Play back the pictures.

N 1

1 Set the mode dial to [ ].

2 Select the picture you want to view.

(P32)

• When you do not use the card

(optional), you can record or play back pictures on the built-in memory

(P16). Refer to P15 when you use a card.

2 Turn the camera on to take pictures.

• Set the clock. (P18)

• Select the type of battery in use on

[BATTERY TYPE] in the [SETUP] menu. (P20)

SCN 1

OFF ON

1 Set the mode dial to [

2 Press the shutter button to take pictures. (P23)

VQT0V00

VQT0V00ENG.book 11 ページ２００６年１月２０日　金曜日　午後６時３１分

About the Batteries

∫ Usable batteries

AA Oxyride batteries (supplied)

AA Alkaline batteries (optional)

AA Rechargeable Ni-MH (nickel metal hydride) batteries (optional)

• One of the following messages appears when you insert batteries for the first time, change the batteries when they become exhausted etc.

[CURRENT BATTERY TYPE SETTING:

OXYRIDE]/[CURRENT BATTERY TYPE

SETTING: ALKALINE/Ni-MH]

If the batteries inserted are different from the type displayed in the message, set [BATTERY TYPE] in the

[SETUP] menu. (P20)

• The battery type that is set can be distinguished by the colour of the battery indication (blue or white).

– The battery indication does not appear when using the AC adaptor (DMW-AC6; optional).

A: When oxyride batteries are selected

The battery indication turns blue.

B: When alkaline/Ni-MH batteries are

selected

The battery indication turns white.

¢An oxyride battery is a new type of non-rechargeable battery developed by

Panasonic.

It has more power than a regular alkaline battery and is suitable for high-drain equipment such as digital cameras.

• We recommend using Panasonic batteries.

Preparation

• Battery performance may vary greatly depending on the brand used and the storage life and conditions of the batteries.

• Battery performance temporarily deteriorates in low temperature conditions

(10 °C or less). However, it recovers when the temperature returns to normal.

• Depending on the temperature and the conditions of use, the camera may not operate properly and the batteries may become exhausted without warning because the battery indication is not displayed correctly. This is not a malfunction.

• We recommend turning the camera off frequently while recording to conserve battery power for longer battery life. If you will be using the camera for long periods of time, using rechargeable Ni-MH batteries is recommended.

• Exhausted batteries may recover some performance if left for a period of time.

However, they cannot be used for a long time. Be sure to replace them with new batteries.

∫ Unusable batteries

Manganese batteries

Nickel batteries

Lithium batteries

Ni-Cd batteries

• Operation is not guaranteed when using the batteries listed above. The batteries can leak and the following malfunctions can occur:

– The remaining battery power is not displayed accurately.

– The camera does not turn on.

– Data written to the built-in memory or the card is damaged resulting in loss of the photographs.

∫ Battery shapes that cannot be used

• Batteries with unusual shapes cause leakage, heat generation or explosion if inserted in the camera.

VQT0V00

VQT0V00ENG.book 12 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

• Batteries with the covering partly or fully peeled off. Never use these batteries.

(Refer to the illustration below.)

• All or part of the covering on the battery is peeled off.

∫ Battery indication

• The

- pole is flat.

The remaining battery power appears on the LCD monitor. [It does not appear when using the AC adaptor (DMW-AC6; optional)].

wait until the battery temperature decreases before removing them.

• Battery performance deteriorates and recording/playback time decreases when the ambient temperature is low (10 °C or less). This is particularly true when using oxyride or alkaline batteries so warm them in your pocket etc. before using them.

Make sure that no metal objects such as a lighter are placed together with the batteries when warming them in your pocket.

• If there is grease or dirt on the battery poles, the recording/playback time may become extremely short. Before inserting the batteries, clean the battery terminals with a soft, dry cloth.

If battery leakage occurs, remove the batteries and thoroughly wipe the leakage in the battery compartment. Insert new batteries or fully charged Ni-MH batteries.

• The battery indication turns red and blinks. (The status indicator blinks when the LCD monitor is turned off.)

• Replace with new batteries or fully charged Ni-MH batteries.

∫ Proper Care and Handling of Batteries

Mishandling batteries may cause leakage, heat generation, fire or explosion. Observe the following.

• Do not splash batteries with water/sea water or wet battery terminals.

• Do not peel off or scratch the covering on batteries.

• Do not drop, throw or subject batteries to other strong impacts.

• Do not use batteries that show signs of leakage, deformation, discoloration etc.

• Do not store batteries in high humidity areas or high temperatures.

• Keep batteries away from children.

• Always use 2 new batteries of the same type when replacing batteries.

• Remove the batteries if you do not intend to use the unit for a long time.

• Batteries may heat up soon after you start using the unit. Turn the camera off and

If battery electrolyte spills on your hands or clothes, thoroughly wash them with water. Battery electrolyte can cause loss of sight if it comes into contact with your eyes. Do not rub your eyes. Wash them immediately with clean water and consult a doctor.

∫ Ni-MH Batteries (Nickel Metal Hydride)

You can use Ni-MH batteries after charging them with a nickel metal hydride battery charger. However, improper handling of the batteries may cause leakage, heat generation, fire or explosion. Observe the following.

• If there is dirt on the battery poles, you may not be able to charge normally. Clean the battery poles and the battery recharger terminals with a soft, dry cloth.

• When charging batteries for the first time, or after having not used them for a long period of time, they may not charge fully.

This is a feature of Ni-MH batteries and is not a malfunction. Battery performance

VQT0V00

VQT0V00ENG.book 13 ページ２００６年１月２０日　金曜日　午後６時３１分 will become normal after a few charges and discharges.

• We recommend charging the batteries after they are fully discharged. If you charge the batteries before they are fully discharged, it can reduce battery performance. This is called “memory effect”.

• If “memory effect” occurs, continue using the batteries until the camera stops working and then charge them fully.

Battery performance will be restored after a few charges and discharges.

• Over time Ni-MH batteries naturally discharge and their capacity lowers even when they are not used.

• Once the batteries have reached full charge, do not continue to charge them.

• Do not peel off or scratch the covering on

Ni-MH batteries.

• Read the operating instructions for the battery charger.

Ni-MH batteries have a limited life. Battery capacity gradually decreases over time. If the length of time you can use the camera is extremely short even after fully charging the batteries, they may have exceeded their life span. Purchase new batteries.

• Battery life differs depending on the conditions of storage and usage and the environment.

When not using the batteries for a long period of time

• If the batteries are left in the camera they will discharge. This is because a small electrical current continues to flow even when the camera is turned off. If the batteries continue to be left in the camera, they will discharge excessively and may become unusable even if charged.

• When storing the batteries for a long period of time, we recommend charging them once a year. Remove the batteries from the camera and store them again after they have completely discharged.

Preparation

∫ Battery life

The number of recordable pictures

(By CIPA standard in normal picture mode)

Batteries Used

Panasonic Oxyride batteries (supplied or optional)

Fully charged

Panasonic Ni-MH batteries (optional)

Number of recordable pictures

DMC-LZ5:

Approx. 235 pictures

(Approx. 117 min)

DMC-LZ4/DMC-LZ3:

Approx. 250 pictures

(Approx. 125 min)

Panasonic Alkaline batteries (optional)

DMC-LZ5:

Approx. 140 pictures

(Approx. 70 min)

DMC-LZ4/DMC-LZ3:

Approx. 155 pictures

(Approx. 77 min)

DMC-LZ5:

Approx. 400 pictures

(Approx. 200 min)

DMC-LZ4/DMC-LZ3:

Approx. 420 pictures

(Approx. 210 min)

Recording conditions by CIPA standard

• Temperature: 23 °C/

Humidity: 50% when the LCD monitor is on.

• Using a Panasonic SD Memory Card

(16 MB)

• Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to

[MODE1])

• Recording once every 30 seconds, with full flash every second recording.

• Rotating the zoom lever from Tele to Wide or vice versa in every recording.

• Turning the camera off every

10 recordings./Leaving the camera until the batteries cool down.

¢The card is not supplied.

• CIPA is an abbreviation of [Camera &

Imaging Products Association].

VQT0V00

VQT0V00ENG.book 14 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

The number of recordable pictures varies depending on the recording interval time. If the recording interval time becomes longer, the number of recordable pictures decreases.

(e.g. When recording once every

2 minutes: about 1/4 the number when recording once every 30 seconds)

The number of recordable pictures in low temperatures

(In normal picture mode when the temperature is 0 °C and other recording conditions comply with CIPA standard.)

Batteries Used

Panasonic Oxyride batteries (supplied or optional)

Panasonic Alkaline batteries (optional)

Fully charged

Panasonic Ni-MH batteries (optional)

Number of recordable pictures

DMC-LZ5:

Approx. 40 pictures

(Approx. 20 min)

DMC-LZ4/DMC-LZ3:

Approx. 45 pictures

(Approx. 22 min)

DMC-LZ5:

Approx. 35 pictures

(Approx. 17 min)

DMC-LZ4/DMC-LZ3:

Approx. 35 pictures

(Approx. 17 min)

DMC-LZ5:

Approx. 360 pictures

(Approx. 180 min)

DMC-LZ4/DMC-LZ3:

Approx. 380 pictures

(Approx. 190 min)

• Please note that the performance of oxyride batteries and alkaline batteries significantly decreases in low temperature conditions.

Playback time

Batteries Used

Panasonic Oxyride batteries (supplied or optional)

Panasonic Alkaline batteries (optional)

Continuous playback time

DMC-LZ5:

Approx. 410 min

DMC-LZ4/DMC-LZ3:

Approx. 420 min

DMC-LZ5:

Approx. 400 min

Fully charged

Panasonic Ni-MH batteries (optional)

DMC-LZ4/DMC-LZ3:

Approx. 410 min

DMC-LZ5:

Approx. 590 min

DMC-LZ4/DMC-LZ3:

Approx. 600 min

• The number of recordable pictures and playback time will vary depending on the operating conditions and how the battery is stored.

• The number of recordable pictures and the playback time will also vary depending on the brand and type of batteries used.

• We recommend using power save mode

(P21) or economy mode (P46) or turning off the camera frequently while recording to maintain battery power.

VQT0V00

VQT0V00ENG.book 15 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

Inserting/Removing the Batteries

• Check that the camera is turned off and that the lens is retracted.

• Use oxyride batteries (supplied), alkaline batteries (optional) or Ni-MH batteries

(optional).

1 Slide the battery door to open it.

2 Insert the batteries with the

and

poles aligned correctly.

• Select the battery type being used in

[BATTERY TYPE] in the [SETUP] menu.

(P20)

• Remove the batteries after use.

• When batteries have been inserted for more than 3 hours, the clock setting is stored in the camera for approximately

3 months even if the batteries are removed.

• Do not remove the card or the batteries while the camera accesses the built-in memory or a card. The data may be damaged. (P16)

• Remove the batteries after the LCD monitor and the status indicator

(green) turn off. Otherwise, the settings on the camera may not be stored properly.

Inserting/Removing the Card (Optional)

3 1 Close the battery door.

2 Slide the battery door to the

end and then close it firmly.

• Check that the camera is turned off and that the lens is retracted.

• Prepare an SD Memory Card (optional) or a MultiMediaCard (optional).

• You can record or play back pictures on the built-in memory when you are not using a card. (P16)

1 Slide the card door to open it.

VQT0V00

VQT0V00ENG.book 16 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

2 Insert:

Insert the card fully until it clicks and it is locked.

Remove:

Push the card until it clicks, then pull the card out upright.

• Check the direction of the card.

• Do not touch the connection terminals on the back side of the card.

• The card may be damaged if it is not fully inserted.

3 1 Close the card door.

2 Slide the card door to the end

and then close it firmly.

• If the card door cannot be completely closed, remove the card and insert it again.

• The card and the data may be damaged if it is inserted or removed while the camera is on.

• We recommend using Panasonic’s SD

Memory Card.

About the Built-in

Memory/the Card

∫ Built-in Memory [

]

You can record or play back pictures on the built-in memory when you are not using a card.

• The built-in memory capacity is about

14 MB.

• Picture size is fixed to QVGA

(320

k240 pixels) when recording

motion pictures to the built-in memory.

(P54)

∫ Card [

]

You can record or play back pictures on a card.

(The built-in memory cannot be used when a card is inserted.)

∫ Access to the built-in memory or the

card

• The access indication lights red when pictures are being recorded on the built-in memory (or the card).

• Do not do the following when the access indication lights, pictures are being read or deleted or the built-in memory (or the card) is being formatted (P77).

– Turn the camera off.

– Remove the batteries or the card (if used).

– Shake or impact the camera.

– Disconnect the AC adaptor (DMW-AC6; optional). (when using the AC adaptor)

The card or the data may be damaged and the camera may not operate normally.

VQT0V00

VQT0V00ENG.book 17 ページ２００６年１月２０日　金曜日　午後６時３１分

Icons displayed on the screen:

( )

Preparation format it. When the switch is unlocked, these functions become available.)

SD Memory Card

( )

A: When using the built-in memory

B: When accessing the built-in memory

C: When using the card

D: When accessing the card

• Picture data recorded on the built-in memory or a card can be copied from the built-in memory to the card or vice versa. (P76)

• The built-in memory (about 14 MB) can be used as a temporary storage device when the card being used becomes full.

• The data on the built-in memory or the card may be damaged or lost due to electromagnetic waves, static electricity or breakdown of the camera or the card. We recommend storing important data on a

PC etc.

• The access time for the built-in memory may be longer than the access time for a card. (Max. about 7 sec.)

• If the card was formatted on a PC or other equipment, format it again on the camera.

(P77)

∫ SD Memory Card (optional) and

MultiMediaCard (optional)

• The SD Memory Card and　

MultiMediaCard are small, lightweight, removable external cards.

• The reading/writing speed of an SD

Memory Card is fast. The SD Memory

Card is equipped with a Write-Protect switch E that can inhibit writing and formatting a card. (When the switch is slid to the [LOCK] side, it is not possible to write or delete data on the card and

• On this unit, you can use SD Memory

Cards of the following capacity (from 8 MB to 2 GB).

8 MB, 16 MB, 32 MB, 64 MB, 128 MB,

256 MB, 512 MB, 1 GB, 2 GB (Maximum)

Please confirm the latest information on the following website.

http://panasonic.co.jp/pavc/global/cs

(This Site is English only.)

• Refer to P95 for information about the number of recordable pictures and the available recording time for each SD

Memory Card.

• This unit supports SD Memory Cards formatted in FAT12 system and FAT16 system based on SD Memory Card

Specifications.

• This unit does not support recording motion pictures on MultiMediaCards. We recommend using High Speed SD

Memory Cards when recording motion pictures (P54).

• The reading/writing speed of a

MultiMediaCard is slower than an SD

Memory Card. When a MultiMediaCard is used, the performance of certain features may be slightly slower than advertised.

• Keep the Memory Card out of reach of children to prevent swallowing.

VQT0V00

VQT0V00ENG.book 18 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

Setting Date/Time

(Clock Set)

∫ Initial setting

The clock is not set so the following screen appears when you turn the camera on.

OFF ON

• Turn the camera off after finishing setting the clock. Then turn it on and check that the clock setting is correct.

∫ Changing the clock setting

1 Press [MENU/SET] to display the menu and then press

2 Press

4 to select the [SETUP] menu icon [ ] and then press

3 Press

3/4 to select [CLOCK SET] and then press

1. Set as shown previously.

SETUP

BATTERY TYPE

CLOCK SET

MONITOR

AUTO REVIEW n

1SEC.

POWER SAVE

SELECT EXIT

2MIN.

MENU

PLEASE SET THE CLOCK

CLOCK SET

MENU

A: [MENU/SET] button

B: Cursor buttons

• The screen disappears after about

5 seconds. Turn the camera off and on again.

1 Press [MENU/SET].

2 Press

3/4/2/1 to select the

date and time.

CLOCK SET

0 0 00 1 1 .

JAN .

2006

D/M/Y

SELECT SET EXIT

MENU

•

2/1: Select the desired item

•

3/4: Set the display order for the date and time.

3 Press [MENU/SET] several times to close the menu.

VQT0V00

• When batteries have been inserted for more than 3 hours, the clock setting is stored in the camera for approximately

3 months even if the batteries are removed.

• You can set the year from 2000 to 2099.

The 24-hour system is used.

• If the date is not set in the camera it will not be printed when you use a photo printing service, even if the store provides a date printing option for your photographs. (P72)

VQT0V00ENG.book 19 ページ２００６年１月２０日　金曜日　午後６時３１分

About the Setup Menu

• Set items as required. (Refer to P20 to 22 for each menu item.)

• Menu items differ depending on the mode selected with the mode dial (P5).

The following example shows how to set

[BEEP] when normal picture mode [ ] is selected.

• Select [RESET] to return the settings to the initial settings at the time of purchase.

(P22)

1 Press [MENU/SET] and then press

2.

REC

W.BALANCE

SENSITIVITY

ASPECT RATIO

PICT.SIZE

QUALITY

SELECT

AUTO

EXIT

MENU

SET

2 Press

4 to select the [SETUP]

menu icon [ ] and then press

1.

SETUP

1 /

BATTERY TYPE

CLOCK SET

MONITOR n

AUTO REVIEW

1SEC.

POWER SAVE

SELECT

2MIN.

MENU

EXIT

Preparation

3 Press

3/4 to select the menu

item.

SETUP

1 /

BATTERY TYPE

CLOCK SET

MONITOR

AUTO REVIEW n

1SEC.

POWER SAVE

SELECT EXIT

2MIN.

MENU

SETUP

BEEP

NO.RESET

RESET

USB MODE

VIDEO OUT

SELECT

EXIT

PAL

MENU

• Press

4 at A to switch to the next menu screen.

4 Press

1, press 3/4 to select the

setting and then press

[MENU/SET].

SETUP

BEEP

NO.RESET

RESET

USB MODE

VIDEO OUT

SELECT SET

MENU

PAL

SET

5 Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

VQT0V00

VQT0V00ENG.book 20 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

∫ About the menu screen items

• There are 3 menu screens (1/3, 2/3 and

3/3).

• You can switch menu screens from any menu item by rotating the zoom lever.

SETUP

BATTERY TYPE

SETUP

CLOCK SET

MONITOR

AUTO REVIEW

BEEP n

NO.RESET

1SEC.

RESET

POWER SAVE

SELECT EXIT

OFF

USB MODE

MENU

VIDEO OUT

SELECT

SETUP

SCENE MENU

NTSC

MENU

EXIT

LANGUAGE

SELECT

AUTO

ENG

EXIT

MENU

[BATTERY TYPE]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

Select the type of battery being used from the following 2 types.

[ ALKALINE (LR6)/Ni-MH]:

[

Alkaline batteries or Ni-MH batteries

OXYRIDE (ZR6)]:

Oxyride batteries

• If the type of battery being used and the type of battery selected are not the same, the battery indication will not be displayed correctly.

• The [BATTERY TYPE] setting also affects simple mode [ ].

[CLOCK SET]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

Change date and time. (P18)

[MONITOR]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

Adjust the brightness of the LCD monitor in

7 steps.

• The [MONITOR] setting also affects simple mode [ ].

[AUTO REVIEW]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

[1SEC.]: The recorded picture automatically appears on the screen for about 1 second.

[3SEC.]: The recorded picture automatically appears on the screen for about 3 seconds.

[ZOOM]: The recorded picture automatically appears on the screen for about 1 second. It is then enlarged 4 times and appears for about 1 second. This mode is useful for confirming focus. Pictures recorded using auto bracket or burst mode and pictures with audio (DMC-LZ5) are not enlarged even if [ZOOM] is selected.

[OFF]:

The recorded picture does not automatically appear.

• The auto review function is not activated in motion picture mode [ ].

• When pictures are recorded in simple mode [ ], auto bracket (P43) or burst mode (P45), the auto review function is activated regardless of the setting on the auto review function. (The picture is not enlarged.)

• The auto review function is activated while pictures with audio (DMC-LZ5) (P65) are being recorded regardless of its setting.

(The picture is not enlarged.)

• The auto review setting is disabled when using auto bracket or burst mode, in motion picture mode [ ] or when

[AUDIO REC.] (DMC-LZ5) is set to [ON].

VQT0V00

VQT0V00ENG.book 21 ページ２００６年１月２０日　金曜日　午後６時３１分

[POWER SAVE]

(Except for mode)

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

[1MIN.]/[2MIN.]/[5MIN.]/[10MIN.]:

Power save mode is activated (the camera is automatically turned off to save the battery life) if the camera has not been used for the time selected on the setting.

[OFF]: Power save mode is not activated.

• Press the shutter button halfway or turn the camera off and on to cancel power save mode.

• In simple mode [ ], power save mode is fixed to [2MIN.].

• When using the AC adaptor (DMW-AC6; optional), connecting to a PC or a printer, recording or playing back motion pictures and during a slide show, power save mode is not activated. (However, the setting for power save mode is fixed to

[10MIN.] while pausing a slide show or playing back a manual slide show.)

[ECONOMY]

( mode only)

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

Battery life is saved by reducing the brightness of the LCD monitor and turning it off automatically when the camera is not being used in recording mode. (P46)

[LEVEL 1]: The LCD monitor turns off if the camera is not operated for about 15 seconds in recording mode.

[LEVEL 2]: The LCD monitor turns off if the camera is not operated for about 15 seconds in recording mode or for about 5 seconds after taking a picture.

• The status indicator lights while the LCD monitor is turned off. Press any button to turn on the LCD monitor again.

Preparation

• Power save mode is fixed to [2MIN.] in economy mode.

[However, power save mode is not activated when using the AC adaptor

(DMW-AC6; optional).]

• Economy mode will not work when the menu screen is displayed or the self-timer is set.

[BEEP]

Press [

SET

] to display the [SETUP] menu

[ and select the item to set. (P19)

]: No operation sound

[

[ ]: Soft operation sound

]: Loud operation sound

• The [BEEP] setting also affects simple mode [ ].

[NO.RESET]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

Set this when you want the file number of the next recording to start from 0001. (The folder number is updated and the file number starts from 0001.)

• A folder number between 100 and 999 can be assigned.

When the folder number reaches 999, the number cannot be reset. We recommend formatting the card after saving the data on a PC or elsewhere.

• To reset the folder number to 100, format the built-in memory (P77) or the card first and then use this function to reset the file number.

A reset screen for the folder number will then appear. Select [YES] to reset the folder number.

• Refer to P80 for detailed information about the file number and the folder number.

• The [NO.RESET] setting also affects simple mode [ ].

VQT0V00

VQT0V00ENG.book 22 ページ２００６年１月２０日　金曜日　午後６時３１分

Preparation

[RESET]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

The [REC] or [SETUP] menu settings are reset to the initial settings.

• The birthday setting for [BABY1]/[BABY2]

(P53) in scene mode is also reset when the [SETUP] menu settings are reset.

Also, in the [PLAY] mode menu,

[ROTATE DISP.] (P70) is reset to [ON] and

[FAVORITE] (P69) is reset to [OFF].

• The battery type setting, the folder number and the clock setting are not changed.

[USB MODE]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

Select the USB communication system after or before connecting the camera to your PC or your printer with the USB connection cable (supplied).

[ SELECT ON CONNECTION]:

Select either [PC] or [PictBridge (PTP)] if you connected the camera to a PC or a printer supporting PictBridge.

[ PC]:

Set after or before connecting to a PC.

[ PictBridge (PTP)]:

Set after or before connecting to a printer supporting PictBridge.

• When [PC] is selected, the camera is connected via the USB Mass Storage communication system.

• When [PictBridge (PTP)] is selected, the camera is connected via the PTP (Picture

Transfer Protocol) communication system.

[VIDEO OUT]

(Playback mode only) (P85)

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

[NTSC]: Video output is set to NTSC system.

[PAL]:

Video output is set to PAL system.

[SCENE MENU]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

[AUTO]: [SCENE MODE] menu appears automatically when setting the mode dial to [ ] or [ ].

Select the desired scene mode.

(P48)

[OFF]:

[SCENE MODE] menu does not appear when setting the mode dial to [ ] or [ ] and the camera is operated in the scene mode currently selected. If you change the scene mode, press

[MENU/SET] to display the

[SCENE MODE] menu and then select the desired scene mode.

[LANGUAGE]

Press [

SET

] to display the [SETUP] menu and select the item to set. (P19)

Set the language on the menu screen from the following languages. Set to the desired language with

3/4 and store it with

[MENU/SET].

[ENGLISH]: English

[DEUTSCH]: German

[FRANÇAIS]: French

[ESPAÑOL]: Spanish

[ITALIANO]: Italian

[

]: Japanese

• If you set a different language by mistake, select [ ] from the menu icons to set the desired language.

• The [LANGUAGE] setting also affects simple mode [ ].

VQT0V00

VQT0V00ENG.book 23 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic

Taking Pictures

The camera automatically sets the shutter speed and the aperture value according to the brightness of the subject.

1 1 Turn the camera on.

2 Select normal picture mode

[ ].

SCN 1

Basic when taking pictures in dark places.

(P65)

Focus indication

AF area

When the subject is not focused

When the subject is focused

Blinks (green) On (green)

Sound

Turns white to red or no AF area

Turns white to green

Beeps 4 times Beeps 2 times

3 Take a picture.

OFF ON

2 Aim the AF area 1 to the point

you want to focus on and then press the shutter button halfway.

F2.8

1/25

• B: Press the shutter button fully to take the picture.

F2.8

1/25

• A: Press the shutter button halfway to focus.

• The focus indication 2 lights and then the aperture value 3 and the shutter speed 4 are displayed.

• If 5-area-focusing or 3-area-focusing

(High speed) is used in AF mode, the

AF area does not appear until the subject is brought into focus. (P65)

• The AF area displayed is bigger than usual when using the digital zoom or

• We recommend checking that the clock is set properly before taking pictures. (P18)

• When you press the shutter button, the screen may become bright or dark for a moment. This function allows easy adjustment of focus and the recorded picture will not be affected.

• When a time is set for power save (P21), the camera automatically turns off if you do not operate it within the set time. To operate the camera again, press the shutter button halfway or turn the camera off and on.

• To avoid noise, we recommend decreasing the ISO sensitivity (P62) or setting [PICT.ADJ.] to [NATURAL]. (P67)

(ISO sensitivity is set to [AUTO] when the camera is shipped. Therefore, when taking pictures indoors etc. the ISO sensitivity increases.)

VQT0V00

VQT0V00ENG.book 24 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic

∫ Tips for taking good pictures

• Hold the camera gently with both hands, keep your arms still at your side and stand with your feet slightly apart.

• Make sure the camera does not shake when you press the shutter button.

• Do not cover the flash or the AF assist lamp with your fingers or other objects.

• Do not touch the front of the lens.

• If the LCD monitor screen is difficult to see because of light from the sun etc. shining on it, we recommend using your hand or another object to block the light when using the camera.

subject because the people are outside the

AF area.

In this case,

1 Aim the AF area at the subject.

2 Press the shutter button halfway to fix the focus and the exposure.

• The focus indication lights when the subject is focused.

3 Press and hold the shutter button

halfway while moving the camera as you compose the picture.

4 Press the shutter button fully.

• You can repeatedly retry AF/AE lock before pressing the shutter button fully.

1: When holding the camera sideways

2: When holding the camera vertically

A: Flash

B: AF assist lamp

∫ Direction detection function

Pictures recorded with the camera held vertically are played back vertically

(rotated). (Only when [ROTATE DISP.]

(P70) is set to [ON])

• Pictures may not be displayed vertically if they were taken with the camera aimed up or down.

• Motion pictures taken with the camera held vertically are not displayed vertically.

∫ When you want to take a subject

outside the AF area (AF/AE Lock)

When recording a picture of people with a composition like the following picture, you will not be able to focus the camera on the

F2.8

1/25

F2.8

1/25

∫ Focusing

• The focus range is 50 cm to

¶ (Wide),

1.2 m to

¶ (Tele). Use macro mode when recording close-up pictures. (P47)

• If the distance between the camera and the subject is beyond the focus range of the camera, the picture may not be properly focused even if the focus indication lights.

• In the following cases, the camera will not focus on subjects properly.

– When there are both near and distant subjects in a scene.

– When there is dirt or dust on glass between the lens and the subject.

VQT0V00

VQT0V00ENG.book 25 ページ２００６年１月２０日　金曜日　午後６時３１分

– When there are illuminated or glittering objects around the subject.

– When taking a picture in dark places.

– When the subject is moving fast.

– When the scene has low contrast.

– When jitter occurs.

– When recording a very bright subject.

We recommend taking pictures using AF/

AE lock. In dark places, the AF assist lamp (P66) may turn on to focus on the subject.

• Even when the focus indication appears and the subject is focused, it is cancelled if you release the shutter button. Press the shutter button halfway again.

∫ Preventing jitter (camera shake)

• Be careful of jittering when pressing the shutter button.

• If jitter could occur because of slow shutter speed, the jitter alert A appears.

– [STARRY SKY] (P52)

– When the shutter speed is slowed in

[SLOW SHUTTER] (P66)

Basic

∫ Exposure

• If you press the shutter button halfway when the exposure is not adequate, the aperture value and the shutter speed turn red. (They do not turn red when the flash is activated.)

• The brightness of the screen may differ from the brightness of the recorded pictures especially when recording in low light conditions.

• When most of the subjects on the screen are bright (e.g. a blue sky on a clear day, a snowy field etc.), the recorded pictures may become dark. In this case, compensate the exposure value on the camera. (P42)

F2.8

1/10

• When the jitter alert appears, we recommend using a tripod. If you cannot use a tripod, be careful how you hold the camera (P24). The use of the self-timer prevents jittering caused by pressing the shutter button when you are using a tripod

(P41).

• Shutter speed will be slower particularly in the following cases. Keep the camera still from the moment the shutter button is pressed until the picture appears on the screen. We recommend using a tripod.

– Slow sync./Red-eye reduction (P38)

– [NIGHT PORTRAIT] (P50)

– [NIGHT SCENERY] (P50)

– [PARTY] (P51)

– [CANDLE LIGHT] (P51)

– [FIREWORKS] (P52)

VQT0V00

VQT0V00ENG.book 26 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic

Taking Pictures in

Simple Mode

This mode allows beginners to take pictures easily. Only the basic functions appear in the menu to make operations simple.

∫ Basic menu settings

1 Press [MENU/SET].

2 Press

3/4 to select the desired

menu item and then press

1.

SIMPLE MODE

PICT.MODE

BATTERY TYPE

ENLARGE

4" k 6"/10 k 15cm

BEEP

CLOCK SET

SELECT SET

MENU

E-MAIL

3 Press

3/4 to select the desired

setting and then press

[MENU/SET].

4 Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

∫ Settings in Simple mode

[PICT.MODE]

ENLARGE Suitable for enlarging the pictures to be printed to

8 qk10q size, letter size etc.

4 qk6q/

10 k15cm

Suitable for regular size printing.

E-MAIL Suitable for attaching pictures to e-mails or adding pictures to websites.

VQT0V00

[BATTERY TYPE]

Change the battery type being used.

(P20)

[BEEP]

OFF No operation sound

LOW Soft operation sound

HIGH Loud operation sound

[CLOCK SET]

Change date and time. (P18)

• If [4 qk6q/10k15cm] or [E-MAIL] are set in

[PICT.MODE], the extra optical zoom is activated and the zoom ratio is extended to a maximum of 8.3

k(DMC-LZ5)/

7.5

k(DMC-LZ4/DMC-LZ3). (P29)

• The settings for [BATTERY TYPE],

[BEEP] and [CLOCK SET] in simple mode are also applied to other recording modes.

• The settings for [MONITOR] (P20),

[NO.RESET] (P21) and [LANGUAGE]

(P22) in the [SETUP] menu are applied to simple mode.

∫ Other Settings in Simple mode

In simple mode, other settings are fixed as follows. For more information about each setting, refer to the page indicated.

• Focus range:

50 cm to

¶ (Tele)

5 cm to

¶ (Wide)

• [AUTO REVIEW] (P20):

[1SEC.]

• [POWER SAVE] (P21):

[2MIN.]

• Self-timer (P41):

10 seconds

• Optical Image Stabilizer (P44):

[MODE1]

• Burst speed (P45):

Low speed (2 frames/second)

• [W.BALANCE] (P61):

[AUTO]

• [SENSITIVITY] (P62):

[AUTO]

VQT0V00ENG.book 27 ページ２００６年１月２０日　金曜日　午後６時３１分

• [ASPECT RATIO]/[PICT.SIZE]/[QUALITY]

(P63):

– [ ENLARGE]:

/ (6M) (DMC-LZ5)/

(DMC-LZ4/DMC-LZ3)/Fine

– [ 4 qk6q/10k15cm]:

(5M)

/ (2.5M EZ)/Standard

– [ E-MAIL]:

/ (0.3M EZ)/Standard

• [AF MODE] (P65):

[ ] (1-area-focusing)

• [AF ASSIST LAMP] (P66):

[ON]

• [SLOW SHUTTER] (P66):

[1/8 – ]

Basic

• If you press

3 while [

] is displayed,

[ ] disappears and the backlight compensation function is cancelled.

• We recommend using the flash when you use the backlight compensation function.

(When using the flash, it is fixed to Forced

ON [ ].)

• The flash setting is fixed to AUTO/

Red-eye reduction [ ] when the backlight compensation function is set to

[OFF].

• You cannot use the following functions in simple mode.

– High angle mode

– White balance fine adjustment

– Exposure compensation

– Auto bracket

– [AUDIO REC.] (DMC-LZ5)

– [D.ZOOM]

– [COL.EFFECT]

– [PICT.ADJ.]

∫ The Backlight Compensation

Backlight refers to when light comes from the back of a subject.

In this case, the subject, such as a person, will become dark.

If you press

3, [

] (compensating backlight ON indication) A appears and the backlight compensation function is activated. This function compensates the backlight by brightening the whole of the picture.

3 3

BACKLIGHT BACKLIGHT

VQT0V00

VQT0V00ENG.book 28 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic

Taking Pictures with the Zoom

Using the Optical Zoom

SCN

You can make people and subjects appear closer with the 6 k optical zoom and landscapes can be recorded in wide angle.

∫ To make subjects appear closer use

(Tele)

Rotate the zoom lever towards

Tele.

• When the setting for picture size is

[ ] (6M) (DMC-LZ5).

a wider area of the zoom lens as you move closer to the subject.

• Depending on the zoom magnification, the picture may have some coloured fringes around the subject. This is called chromatic aberration and may be more visible when recording distant subjects.

• If you use the zoom function after focusing on the subject, focus on the subject again.

• The indicated zoom magnification is an approximation.

• The lens barrel (P9) extends or retracts according to the zoom position. Take care not to interrupt the motion of the lens barrel while the zoom lever is rotated.

• In motion picture mode [ ], the zoom magnification is fixed to the value set at the start of recording.

W T 6X

∫ To make subjects appear further away

use (Wide)

Rotate the zoom lever towards

Wide.

• When the setting for picture size is

[ ] (6M) (DMC-LZ5).

W T

W T 1X

• The optical zoom is set to Wide (1 k) when the camera is turned on.

• Depending on the zoom magnification, the picture may have some distortion.

Distortion will be more visible when using

VQT0V00

VQT0V00ENG.book 29 ページ２００６年１月２０日　金曜日　午後６時３１分

Using the Extra Optical Zoom (EZ)

SCN

This camera has a 6 k optical zoom.

However, if the picture size is not set to the highest setting for each aspect ratio [

/ ], a maximum of 8.3

(DMC-LZ5)/7.5

k (DMC-LZ4/DMC-LZ3)

/ zoom can be achieved with no picture quality deterioration.

Picture size with the extra optical zoom not

[ activated [example:

] (6M)]

Picture size with the extra optical zoom

[ activated [example:

] (3M EZ)]

(DMC-LZ5)

∫ Picture size and maximum zoom

magnification

(

±: Available, —: Not available)

Basic

Aspect ratio

Picture size

Maximum zoom magnification

/ (6M)

(DMC-LZ5)/

(5M)

(DMC-LZ4/

DMC-LZ3)

(5M)

(DMC-LZ5)/

(4.5M)

(DMC-LZ4/

DMC-LZ3)

(4.5M)

(DMC-LZ5)/

(3.5M)

(DMC-LZ4/

DMC-LZ3)/

6 k

Extra optical zoom

—

(3M EZ)

(2M EZ)

(1M EZ)

(0.3M EZ)

(2.5M EZ)

8.3

(DMC-LZ5)

7.5

(DMC-LZ4/

DMC-LZ3)

(2M EZ)

∫ Extra optical zoom mechanism

When you set the picture size to [ ]

(3M EZ) (3 million pixels), the 6M (6 million pixels) (DMC-LZ5)/5M (5 million pixels)

(DMC-LZ4/DMC-LZ3) CCD area is cropped to the centre 3M (3 million pixels) area, allowing a picture with a higher zoom effect.

VQT0V00

VQT0V00ENG.book 30 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic

• Refer to P63 for aspect ratio settings, P63 for picture size and P26 for simple mode

[ ].

• “EZ” is an abbreviation of

[Extra optical Zoom].

• You can further enhance the zoom magnification with the extra optical zoom without worrying about further picture distortion.

• If you set a picture size that activates the extra optical zoom, the extra optical zoom icon [ ] is displayed on the screen when you use the zoom function.

• The zoom will stop moving for an instant near [W] (1 k) when the extra optical zoom is used. This is not a malfunction.

• The indicated zoom magnification is an approximation.

• In motion picture mode [ ] and

[HIGH SENS.] in scene mode, the extra optical zoom does not work.

Using the Digital Zoom

Further extending the zoom

SCN

A maximum of 24 k zoom can be achieved with the 6 k optical zoom and the 4k digital zoom when [D.ZOOM] is set to [ON] in the

[REC] menu. However, if a picture size that can use extra optical zoom is selected, a maximum of 33 k(DMC-LZ5)/

30 k(DMC-LZ4/DMC-LZ3) zoom can be achieved with the 8.3

k(DMC-LZ5)/

7.5

k(DMC-LZ4/DMC-LZ3) extra optical zoom and the 4 k digital zoom.

∫ Menu operation

1 Press [MENU/SET].

• When a scene mode is selected, press

2 in the [SCENE MODE] menu (P48), press

4 to select the [REC] menu icon

[ ] and then press

VQT0V00

2 Press

3/4 to select [D.ZOOM]

and then press

1. 3 Press

4 to select [ON] and then

press [MENU/SET].

REC

AUDIO REC.

AF MODE

AF ASSIST LAMP

SLOW SHUTTER

D.ZOOM

SELECT SET

MENU

OFF

1/8㧙

MENU

SET

4 Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

∫ Entering the digital zoom range

The on-screen zoom indication may momentarily stop moving when you rotate the zoom lever to the extreme Tele position.

You can enter the digital zoom range by continuously rotating the zoom lever to Tele or releasing the zoom lever once and then rotating it to Tele again.

≥[OFF]:

≥[ON]:

a

1 Optical zoom

2 Digital zoom

3 Extra optical zoom

8.3

a

(DMC-LZ5) (DMC-LZ5)

• When using the digital zoom, the AF area on the centre of the screen is displayed and it is bigger than usual. (P66)

• In digital zoom, the larger the picture the lower the picture quality.

VQT0V00ENG.book 31 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic

• In the digital zoom range, the stabilizer function may not be effective.

• When using the digital zoom, we recommend using a tripod and the self-timer (P41) for taking pictures.

• The indicated zoom magnification is an approximation.

• The digital zoom does not work in simple mode [ ] or [HIGH SENS.] in scene mode.

Checking the

Recorded Picture

(Review)

SCN

You can check the recorded pictures while still in [REC] mode.

1 Press

4 [REV].

REVIEW1X

EXIT 4X DELETE

• The last recorded picture appears for about 10 seconds.

• Review is cancelled when the shutter button is pressed halfway or the

[REV] is pressed again.

• You can check other pictures by pressing

2/1.

• When the recorded pictures are too bright or too dim, compensate the exposure. (P42)

2 Rotate the zoom lever towards

[ ] [T] to enlarge the picture.

• Rotate the zoom lever to [ ] [T] for a

4 k magnification and then rotate it even more for a 8 k magnification.

When you rotate the zoom lever towards [ ] [W] after enlarging the picture, the magnification becomes lower.

VQT0V00

VQT0V00ENG.book 32 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic

3 Press

3/4/2/1 to move the

position.

Playing Back Pictures

REVIEW4X

1X 8X DELETE

The picture data on the built-in memory appears when a card is not inserted. The picture data on the card appears when a card is inserted. (P16)

Press

2/1 to select the picture.

• When you change the magnification or the position to be displayed, the zoom position indication

A appears for about

1 second so that you can check the enlarged area.

∫ Deleting the recorded picture during

Review (Quick deletion)

1 Press [ ].

2 Press

3 to select [YES].

3 Press [MENU/SET].

DELETE SINGLE

DELETE THIS PICTURE?

YES

SELECT

SET

MENU

MULTI/ALL

• Once deleted, pictures cannot be recovered. Double-check pictures before deleting them.

• Multiple pictures or all the pictures can be deleted. For information about how to delete pictures, refer to P33.

100_0001

1 / 3

10:00 1.DEC.2006

2: Play back the previous picture

1: Play back the next picture

• The first recorded picture will be displayed after the last recorded picture.

• When [ROTATE DISP.] (P70) is set to

[ON], pictures recorded by holding the camera vertically are played back vertically.

∫ Fast forwarding/Fast rewinding

Press and hold

2

1

during playback.

100_0001

1 / 3

10:00 1.DEC.2006

2: Fast rewind

1: Fast forward

• The file number A and the picture number B only change one by one.

Release

2/1 when the number of the

VQT0V00

VQT0V00ENG.book 33 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic desired picture appears to play back the picture.

• If you press and hold

2/1, the number of files forwarded/rewound at one time increases. The actual number of files forwarded/rewound at one time depends on the number of files recorded.

• In review playback in recording mode and in multi playback (P56), the pictures can only be forwarded or rewound one by one.

Deleting Pictures

The picture data on the built-in memory is deleted when a card is not inserted. The picture data on the card is deleted when a card is inserted. (P16)

∫ To delete a single picture

1 Select the picture with

2/1.

• This camera is based on the DCF standard (Design rule for Camera File system) which was established by the

Japan Electronics and Information

Technology Industries Association

(JEITA).

• The file format that can be played back on the camera is JPEG. (In some cases, even JPEG pictures cannot be played back.)

• The LCD monitor may not be able to display the details of the recorded pictures. You can use the playback zoom

(P57) to check the details of the pictures.

• If you play back pictures that have been recorded with other equipment, the picture quality may deteriorate. (The pictures are displayed as [THUMBNAIL IS

DISPLAYED] on the screen.)

• If you change a folder name or file name on your PC, the pictures may not play back on the camera.

• If you play back a non-standard file, the folder/file number is indicated by [—] and the screen may turn black.

• Depending on the subject, an interference fringe may appear on the screen. This is called moire. This is not a malfunction.

100_0001

1 / 3

10:00 1.DEC.2006

2: Play back the previous picture

1: Play back the next picture

2 Press [

].

3 Press

3 to select [YES] and then

press [MENU/SET].

DELETE SINGLE

DELETE THIS PICTURE?

YES

SELECT

MENU

SET MULTI/ALL

SET

• While the picture is being deleted, [ ] appears on the screen.

∫ To delete [MULTI DELETE]/

[ALL DELETE]

1 Press [

] twice.

VQT0V00

VQT0V00ENG.book 34 ページ２００６年１月２０日　金曜日　午後６時３１分

Basic

2 Press

3/4 to select

[MULTI DELETE] or

[ALL DELETE] and then press

[MENU/SET].

MULTI/ALL DELETE

MULTI DELETE

ALL DELETE

SELECT SET

MENU

CANCEL

SET

• If you select [MULTI DELETE], perform steps 3 onwards.

• If you select [ALL DELETE], perform steps 5 onwards.

• When [FAVORITE] (P69) is set to [ON],

[ALL DELETE EXCEPT ] appears. If you select [ALL DELETE EXCEPT ], perform steps 5 onwards. (However, if none of the pictures have [ ] displayed, you cannot select [ALL

DELETE EXCEPT ] even if

[FAVORITE] is set to [ON].)

3 Press

2/1 to select the picture

and then press

4 to set.

(Only when selecting [MULTI DELETE])

MULTI DELETE

7 8 9

SELECT

MARK/UNMARK

11 12

DELETE

MENU

EXIT

• Repeat the above procedure.

• [ ] appears on the selected pictures. If

4 is pressed again, the setting is cancelled.

• The icon [ ] blinks red if the selected picture is protected and cannot be deleted. Cancel the protect setting and then delete the picture. (P73)

4 Press [

].

5 Press

3 to select [YES] and then

press [MENU/SET] to set.

(Screen when selecting

[MULTI DELETE])

MULTI DELETE

DELETE THE PICTURES

YOU MARKED?

YES

SET

SELECT SET

MENU

SET

• [DELETE ALL PICTURES?] is displayed when using [ALL DELETE] and [DELETE ALL EXCEPT ?] is displayed when using [ALL DELETE

EXCEPT ].

• When you delete all pictures, only pictures in either of the built-in memory or the card can be deleted. (You cannot delete pictures in both the built-in memory and the card at the same time.)

• If you press [MENU/SET] while deleting pictures using [ALL DELETE] or [ALL

DELETE EXCEPT ], the deleting will stop halfway.

• Once deleted, pictures cannot be recovered. Double-check pictures before deleting them.

• Do not turn off the camera while deleting.

• When deleting pictures, use batteries with sufficient battery power (P12) or use the

AC adaptor (DMW-AC6; optional).

• It is possible to delete up to 50 pictures at one time using [MULTI DELETE].

• The greater the number of pictures the longer it takes to delete them.

• If there are pictures that are protected

[ ] (P73), do not conform to the DCF standard (P33) or are in a card with the

Write-Protect switch slid to the [LOCK] side (P17), they are not deleted even if

[ALL DELETE] or [ALL DELETE

EXCEPT ] is selected.

VQT0V00

VQT0V00ENG.book 35 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

About the LCD Monitor

In recording mode

Changing the information displayed

Advanced

DISPLAY

A LCD monitor (LCD)

Press [DISPLAY] to change.

• When the menu screen appears, the

[DISPLAY] button is not activated.

During multi playback (P56) or playback zoom (P57), you can only select

“Normal display” or “No display”.

In simple mode [ ]

D Normal display

E Display with histogram

F No display (Recording guide line)

G No display

¢1 Histogram

In playback mode

100_0001

1 / 3

9 months

10 y

10:00 1.DEC.2006

100_0001

1 / 3

BACKLIGHT

B Normal display

C No display

F2.8 1/25

ISO 100

10:00 1.DEC.2006

AUTO

H Normal display

I Display with recording information and histogram

J No display

¢2 Displayed if [BIRTHDAY SET.] and

[WITH AGE] were set in [BABY1]/

[BABY2] (P53) in scene mode before taking pictures.

• In [NIGHT PORTRAIT] (P50),

[NIGHT SCENERY] (P50), [FIREWORKS]

(P52) and [STARRY SKY] (P52) in scene mode, the lines are grey.

VQT0V00

VQT0V00ENG.book 36 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

∫ Recording guide line

When you align the subject on the horizontal and vertical guide lines or the cross point of these lines, you can take pictures with well-designed composition by viewing the size, the slope and the balance of the subject.

Example of histogram

100_0001

1 / 3

F2.8 1/200

ISO

100

10:00 1.DEC.2006

AUTO

100_0001

1 / 3

F2.8 1/100

ISO 100

10:00 1.DEC.2006

AUTO

100_0001

1 / 3

∫ Histogram

• A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each brightness level on the vertical axis.

• It allows you to easily check a picture’s exposure.

• It is very useful if manual adjustments of the lens aperture and shutter speed are available, especially in those situations where automatic exposure may be difficult due to uneven lighting. Using the histogram feature allows you to get the maximum performance from your camera.

A When the values are concentrated on the left, the picture is under exposed.

B When the values are distributed evenly, the exposure is proper and the brightness is well-balanced.

C When the values are concentrated on the right, the picture is over exposed.

A Under Exposed

B Properly Exposed

C Over Exposed

¢Histogram

F2.8 1/50

ISO 100

10:00 1.DEC.2006

AUTO

• When you take pictures with the flash or in dark places, the histogram is displayed in orange because the recorded picture and the histogram do not match each other.

• The histogram is an approximation in recording mode.

• The histogram of a picture may not match in recording mode and playback mode.

• The histogram displayed in this camera does not match histograms displayed by picture editing software used in PCs etc.

• The histogram does not appear in simple mode [ ] or motion picture mode [ ] and during multi playback and playback zoom.

VQT0V00

VQT0V00ENG.book 37 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

Recording a picture with the camera held high above your head

(High angle mode)

SCN

The LCD monitor becomes easier to see when the camera is held in the following position. This is useful when you cannot get close to the subject because there is a person in the way.

• Pictures are displayed on the LCD monitor with increased brightness in High angle mode. Therefore, some subjects may look different on the LCD monitor. However, this does not affect the recorded pictures.

• You may not notice the High angle mode effect if the LCD monitor is difficult to see because of light from the sun etc. shining on it. In this case, we recommend using your hand or another object to block the light when using the camera.

• High angle mode is not activated in the following cases:

– In simple mode [ ]

– In playback mode

– While the menu screen is displayed

– During Review

Press [HIGH ANGLE]

A for

1 second to display the High angle mode icon [ ]

B.

3 3

PRESS

HIGH

ANGLE

FOR 1 SEC.

• High angle mode is activated. The LCD monitor becomes brighter and easier to see when the camera is held away from you. (However it becomes more difficult to see when looked at straight on.)

∫ Cancelling High angle mode

Press and hold [HIGH ANGLE] again for

1 second or turn the camera off.

• High Angle mode is also cancelled if power save mode is activated.

VQT0V00

VQT0V00ENG.book 38 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

Taking Pictures using the Built-in Flash

SCN

A: Flash

Do not cover it with your fingers or other objects.

∫ Switching to the appropriate flash

setting

Set the flash to match the recording.

Press

1 [ ] to switch the flash

setting.

• For information about flash settings that can be selected, refer to “Available flash settings by recording mode” (P39).

: Forced ON

The flash is activated every time regardless of the recording conditions.

• Use this when your subject is back-lit or under fluorescent light.

: Forced ON/Red-eye reduction

¢1

• The flash setting is set to Forced ON/

Red-eye reduction only when you set

[PARTY] (P51) or [CANDLE LIGHT]

(P51) in scene mode.

: Slow sync./Red-eye reduction

¢1

If you take a picture with a dark background landscape, this feature will slow the shutter speed when the flash is activated so that the dark background landscape will become bright. Simultaneously it reduces the red-eye phenomenon.

• Use this when you take pictures of people in front of a dark background.

: Forced OFF

The flash is not activated in any recording conditions.

• Use this when you take pictures in places where the use of the flash is not permitted.

¢1 The flash is activated twice. The

subject should not move until the second flash is activated.

: AUTO

The flash is automatically activated when the recording conditions make it necessary.

: AUTO/Red-eye reduction

¢1

The flash is automatically activated when the recording conditions make it necessary.

It is activated once before the actual recording to reduce the red-eye phenomenon (eyes of the subject appearing red in the picture) and then activated again for the actual recording.

• Use this when you take pictures of people in low lighting conditions.

VQT0V00

VQT0V00ENG.book 39 ページ２００６年１月２０日　金曜日　午後６時３１分

∫ Available flash settings by recording

mode

The available flash settings depend on the recording mode.

(

±: Available, —: Not available)

2 2

¢2 It becomes Forced ON [

], when the backlight compensation function is activated.

Advanced

∫ The available flash range to take

pictures

The available flash range to take pictures depends on the ISO sensitivity selected.

ISO sensitivity Available flash range

AUTO Wide

50 cm to 4.2 m

Tele

ISO80

50 cm to 2.6 m

Wide

50 cm to 1.9 m

Tele

ISO100

ISO200

ISO400

50 cm to 1.1 m

Wide

50 cm to 2.1 m

Tele

50 cm to 1.3 m

Wide

50 cm to 3.0 m

Tele

50 cm to 1.8 m

Wide

60 cm to 4.2 m

Tele

60 cm to 2.6 m

• The available flash range differs in

[HIGH SENS.] (P54) in scene mode.

Wide: 80 cm to 5.7 m

Tele: 80 cm to 3.5 m

• The available flash range is an approximation.

• Refer to P62 for the ISO sensitivity.

• Refer to P24 for the focus range.

• If ISO sensitivity is set to [AUTO] when using the flash, it will be automatically increased to a maximum of [ISO400].

• To avoid noise, we recommend decreasing the ISO sensitivity (P62) or setting [PICT.ADJ.] to [NATURAL]. (P67)

VQT0V00

VQT0V00ENG.book 40 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

∫ Shutter speed for each flash setting

Flash setting

: AUTO

: AUTO/

Red-eye reduction

Shutter speed

(Sec.)

1/30 to 1/2000

: Forced ON

: Forced ON/

1/30 to 1/2000

Red-eye reduction

: Slow sync./

1/8

¢3

to 1/2000

Red-eye reduction

: Forced OFF

1/8

¢3

to 1/2000

¢3 The shutter speed changes depending on the slow shutter setting. (P66)

• There may be differences in the above shutter speeds in scene mode.

– [NIGHT SCENERY] (P50):

8 to 1/2000th

– [FIREWORKS] (P52):

1/4th, 1 second

– [STARRY SKY] (P52):

15 seconds, 30 seconds, 60 seconds

• Do not look directly at the flash at close range when it is activated.

• If you bring the flash too close to an object, the object may be distorted or discoloured by the heat or lighting from the flash.

• Do not cover the flash with your fingers or other objects.

• While the flash is charged, the screen turns off and you cannot take pictures.

The status indicator lights. [Except when using the AC adaptor (DMW-AC6; optional).]

If the remaining battery power is low, the screen may be turned off for a longer period of time.

• If you press the shutter button halfway when the flash is activated, the flash icon turns red.

• When the jitter alert appears, we recommend using a tripod.

• When you take a picture beyond the available flash range, the exposure may not be adjusted properly and the picture may become bright or dark.

• When taking a picture with the flash, the white balance is automatically adjusted

[except for [ ] (Daylight)]. However, the white balance may not be properly adjusted if the flash level is insufficient.

(P61)

• When the shutter speed is fast, the flash effect may not be sufficient.

• If you repeat taking a picture, it may not actually be taken even if the flash is activated. Take a picture after the access indication disappears.

• The red-eye reduction effect differs between people. Also, if the subject was far away from the camera or was not looking at the first flash, the effect may not be evident.

• When you set burst mode or auto bracket, only 1 picture is recorded for every flash activated.

VQT0V00

VQT0V00ENG.book 41 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

Taking Pictures with the Self-timer

SCN

1 Press

2 [ ] to select the

self-timer mode.

: Self-timer set to 10 seconds

;

: Self-timer set to 2 seconds

;

No display: cancelled

2 Press the shutter button halfway to focus and then press it fully to take the picture.

• When using a tripod etc., setting the self-timer to 2 seconds is a convenient way to avoid the jitter caused by pressing the shutter button.

• When you press the shutter button once fully, the subject is automatically focused just before recording. In dark places, the self-timer indicator will blink and then may turn on brightly operating as an AF assist lamp (P66) to allow the camera to focus on the subject.

• In simple mode [ ], the self-timer is fixed to 10 seconds.

• When you set the self-timer in burst mode, the camera starts taking a picture 2 or

10 seconds after the shutter button is pressed. The number of pictures taken at one time is fixed to 3.

• We recommend using a tripod when recording with the self-timer. (When you use a tripod, make sure the tripod is stable when the camera is attached to it.)

CANCEL

MENU

•

A: Press the shutter button halfway to focus.

•

B: Press the shutter button fully to take the picture.

• The self-timer indicator

C blinks and the shutter is activated after 10 seconds (or

2 seconds).

• If you press [MENU/SET] while the self-timer is set, the self-timer setting is cancelled.

VQT0V00

VQT0V00ENG.book 42 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

Compensating the

Exposure

1 Press

3 [

] until [EXPOSURE] appears, compensate the exposure with

2/1.

EXPOSURE

SCN

Use this function when you cannot achieve appropriate exposure due to the difference in brightness between the subject and the background. Look at the following examples.

Under exposed

SELECT EXIT

MENU

• You can compensate from [ j2 EV] to

[ i2 EV] in steps of [1/3 EV].

• Select [0 EV] to return to the original exposure.

2 Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

Compensate the exposure towards positive.

Properly exposed

Over exposed

• EV is an abbreviation of [Exposure Value].

It refers to the amount of light given to the

CCD by the aperture value and the shutter speed.

• The exposure compensation value appears on the lower left of the screen.

• The set exposure value is memorised even if the camera is turned off.

• The compensation range of the exposure will be limited depending on the brightness of the subject.

• Exposure cannot be compensated when using [STARRY SKY] in scene mode.

Compensate the exposure towards negative.

VQT0V00

VQT0V00ENG.book 43 ページ２００６年１月２０日　金曜日　午後６時３１分

Taking Pictures using

Auto Bracket

SCN

In this mode, 3 pictures are automatically recorded in the selected exposure compensation range each time the shutter button is pressed. You can select the picture with the desired exposure from the

3 pictures with different exposures.

1 Press

3 [

] several times until

[AUTO BRACKET] appears, set the compensation range of the exposure with

2/1.

AUTO BRACKET

Advanced

• The auto bracket setting is cancelled if the camera is turned off.

• When setting auto bracket and burst mode simultaneously, auto bracket will be performed.

• When auto bracket is set, the auto review function is activated regardless of the auto review setting. (The picture is not enlarged.) You cannot set the auto review function in the [SETUP] menu.

• When auto bracket is activated,

[AUDIO REC.] cannot be used.

(DMC-LZ5)

• The exposure may not be compensated with auto bracket depending on the brightness of the subject.

• When the flash is activated or

[STARRY SKY] in scene mode is selected, you can take only 1 picture.

• If the number of recordable pictures is 2 or less, you cannot take pictures by setting auto bracket.

SELECT EXIT

MENU

• You can select [OFF] (0), [ d1/3 EV],

[ d2/3 EV] or [d1 EV].

• When you do not use auto bracket, select [OFF] (0).

2 Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

• When setting auto bracket, the auto bracket icon [ ] appears on the lower left of the screen.

• When taking pictures using auto bracket after setting the exposure compensation range, the pictures taken are based on the selected exposure compensation range.

When the exposure is compensated, the exposure compensation value appears on the lower left of the screen.

VQT0V00

VQT0V00ENG.book 44 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

Optical Image

Stabilizer

zoom is fixed to Wide (1 k) and the zoom function cannot be activated. You also cannot take pictures.

SCN

This mode detects jitter and compensates for it.

1 Press and hold the optical image stabilizer button

A until

[STABILIZER] appears.

2 Press

3/4 to select the

stabilizer function mode and then press [MENU/SET].

STABILIZER

OFF

MODE1

MODE2

• The stabilizer function may not be effective in the following cases.

– When there is a lot of jitter.

– When the zoom magnification is high

– In digital zoom range.

– When taking pictures while following a moving subject.

– When the shutter speed becomes slower to take pictures indoors or in dark places.

Be careful of camera jitter when you press the shutter button.

• In simple mode [ ], the setting is fixed to

[MODE1] and in [STARRY SKY] (P52) in scene mode it is fixed to [OFF]. The stabilizer function mode selection menu does not appear.

• In motion picture mode [ cannot be set.

], [MODE2]

SELECT SET

MENU

DEMO.

SET

MODE1

( )

MODE2

( )

OFF

( )

The stabilizer operates continuously and can assist during photo composition.

The jitter is compensated for when the shutter button is pressed. There is a greater stabilizing effect.

When you want to take a picture with jitter.

∫ Demonstration of the optical image

stabilizer (Demonstration Mode)

Press

1 to display the demonstration. After the demonstration ends, the screen returns to the stabilizer function mode selection menu. Press

1 again if you want to exit the demonstration before it ends. While the demonstration is displayed, the optical

VQT0V00

VQT0V00ENG.book 45 ページ２００６年１月２０日　金曜日　午後６時３１分

Taking Pictures using

Burst Mode

SCN

1 Press the burst mode button to switch the burst mode setting.

Advanced

• The number of pictures indicated is when the shutter speed is faster than 1/60 and the flash is not activated.

• In simple mode [ ], the settings become as follows. [ ] appears on the left of the screen. (P86)

– [ ENLARGE]:

/Max. 6 pictures (DMC-LZ5)/Max. 3 pictures (DMC-LZ4/DMC-LZ3)

– [ 4 qk6q/10k15cm]/[

E-MAIL]:

/Max. 8 pictures (DMC-LZ5)/Max. 5 pictures (DMC-LZ4/DMC-LZ3)

: High speed

;

: Low speed

;

: Unlimited

¢ 1

;

No display: cancelled

¢1 Depends on the memory size, battery power, picture size and quality (compression).

2 Take a picture.

• Hold down the shutter button fully to activate the burst mode.

∫ Number of pictures recorded in burst

mode

Burst speed

(pictures/ second)

¢2

¢2 approx. 1.5

Number of recordable pictures (pictures)

DMC-LZ5: max. 6

DMC-LZ4/

DMC-LZ3: max. 3

DMC-LZ5: max. 8

DMC-LZ4/

DMC-LZ3: max. 5

Depends on the remaining capacity of the built-in memory/card.

¢2 The burst speed is constant regardless of the transfer speed of the card.

• When the burst mode setting is set to

Unlimited

– You can take pictures until the capacity of the built-in memory or the card is full.

– The burst speed will become slower halfway. The burst speed of a

MultiMediaCard becomes even slower than that of an SD Memory Card.

However, the exact timing of this depends on the number of recordable pictures and the card.

• The focus is fixed when the first picture is taken.

• When the self-timer is used, the number of recordable pictures in burst mode is fixed to 3.

• Burst mode is not cancelled when the camera is switched off.

• When auto bracket and burst mode are set simultaneously, auto bracket will be performed.

• The exposure and the white balance vary depending on the burst mode setting.

When burst mode is set to [ ] or

[ ], they are fixed to the values set for the first picture.

When the burst speed is set to [ ], they are adjusted each time you take a picture.

VQT0V00

VQT0V00ENG.book 46 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

• When burst mode is set, the auto review function is activated regardless of the auto review setting. (The picture is not enlarged.) You cannot set the auto review function in the [SETUP] menu.

• When burst mode is activated,

[AUDIO REC.] cannot be used.

(DMC-LZ5)

• When the flash is activated or

[STARRY SKY] in scene mode is selected, you can take only 1 picture.

Economizing Power

Consumption

The brightness of the screen is reduced and the camera operates in the following way. Other operations operate in the same way as recording mode [ ]. Refer to P19 for the setting method.

Conditions:

• When 15 seconds pass without any operation.

• When 5 seconds pass without any operation after taking a picture. (Only effective when [ECONOMY] in the

[SETUP] menu is set to [LEVEL 2].) (P21)

Operation:

• The [MONITOR OFF] message blinks and then the LCD monitor turns off and the status indicator lights.

How to turn the LCD monitor on again:

Press any button.

Power save:

The camera turns off and power save mode is activated when 2 minutes pass without any operation. Press the shutter button halfway or turn the camera off and on to cancel power save mode.

• Economy mode is not activated in the following cases. (Power save mode is activated.)

– While the menu screen is displayed.

– While the self-timer is set.

• Power save mode is not activated when using the AC adaptor (DMW-AC6; optional).

VQT0V00

VQT0V00ENG.book 47 ページ２００６年１月２０日　金曜日　午後６時３１分

Taking Close-up

Pictures

This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of flowers. You can take pictures of a subject as close as 5 cm from the lens by rotating the zoom lever upmost to Wide

(1 k).

∫ Focus range

Advanced

• We recommend setting the flash to

Forced OFF [ ] when you take pictures at close range.

• When you take pictures at close range, the resolution of the periphery of the picture may decrease slightly. This is not a malfunction.

T

W

5 cm

50 cm

• We recommend using a tripod and the self-timer (P41) in macro mode.

• When a subject is close to the camera, the effective focus range (depth of field) is significantly narrowed. Therefore, if the distance between the camera and the subject is changed after focusing on the subject, it may become difficult to focus on it again.

• If the distance between the camera and the subject is beyond the focus range of the camera, the picture may not be properly focused even if the focus indication lights.

• Macro mode gives priority to a subject close to the camera. Therefore, if the distance between the camera and the subject is more than 50 cm it takes longer to focus on it in macro mode than normal picture mode.

• The available flash range is about 50 cm to 4.2 m (Wide). (When the ISO sensitivity is set to [AUTO].)

VQT0V00

VQT0V00ENG.book 48 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

Scene Mode

• You can switch menu screens from any menu item by rotating the zoom lever.

SCN

When you select a scene mode to match the subject and recording situation, the camera sets the optimal exposure and hue to obtain the desired picture.

Two frequently used scenes can be set to the mode dials [ ] and [ ].

• Refer to P49 to 54 for each scene menu.

1 Press

3/4 to select the scene

mode.

SCENE MODE 1

1/5

SCN

SELECT

PORTRAIT

SOFT SKIN

SCN

SCENERY

SCENE MODE 1 2/5

CANDLE LIGHT

SPORTS

SET

FOOD

MENU

PARTY

FIREWORKS

STARRY SKY

SELECT SET

MENU

SNOW

SELECT SET

MENU

SCN

SCENE MODE 1 4/5

BABY1

SCENE MODE 1 5/5

SCN

HIGH SENS.

BABY2

SCENE MODE 1

1/5

SCN

SELECT

PORTRAIT

SOFT SKIN

SCENERY

SPORTS

SET

MENU

SCN

SCENE MODE 1 2/5

NIGHT PORTRAIT

SELECT

NIGHT SCENERY

FOOD

PARTY

SET

MENU

• Press

4 at A to switch to the next menu screen.

• If [SCENE MODE] menu does not appear, press [MENU/SET] to display the [SCENE MODE] menu.

• When you press

1, explanations about each scene mode are displayed. (When you press

2, the screen returns to the

[SCENE MODE] menu.)

2 Press [MENU/SET].

∫ About the menu screen items

• There are 5 menu screens (1/5, 2/5, 3/5,

4/5 and 5/5).

SELECT SET

MENU

SELECT SET

MENU

∫ Setting frequently used scenes to the

mode dials [ ] and [ ].

1 Set [SCENE MENU] in the [SETUP] menu to [OFF]. (P22)

2 Press

3/4 to select the scene mode

[ and then press [MENU/SET].

• When the mode dial is set to [ ] or

], the selected scene mode is activated and the [SCENE MODE] menu is not displayed. This is convenient as you do not need to select the scene mode in the [SCENE MODE] menu every time you take pictures.

• When you take a picture with a scene mode that is not adequate for the purpose, the hue of the picture may differ from the actual scene.

• When you want to change the brightness of the picture to be recorded, compensate the exposure (P42). (However, the exposure cannot be compensated in

[STARRY SKY].)

• Press

2 and then press 3/4 in the

[SCENE MODE] menu to select either the

[REC] menu icon [ ] (P60) or the

VQT0V00

VQT0V00ENG.book 49 ページ２００６年１月２０日　金曜日　午後６時３１分

[SETUP] menu icon [ ] (P19) and set the desired items.

• The following cannot be set in scene mode because the camera automatically adjusts them to the optimal setting.

– [W.BALANCE]

– [SENSITIVITY]

– [COL.EFFECT]

– [PICT.ADJ.]

Advanced

Soft skin mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

The camera detects the face or skin area to achieve a smoother appearance of the skin than portrait mode.

Portrait mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

The person stands out from the background and has a healthier complexion.

∫ Technique for Soft skin mode

To make this mode more effective:

1 Rotate the zoom lever as far as possible to Tele.

2 Move close to the subject to make this mode more effective.

∫ Technique for Portrait mode

To increase the effective of this mode:

1 Rotate the zoom lever as far as possible to Tele.

2 Move close to the subject to make this mode more effective.

• This mode is only suitable when taking pictures outdoors in the daytime.

• If a part of the background etc. is a colour close to skin colour, this part is also smoothed.

• This mode may not be effective when there is insufficient brightness.

• ISO sensitivity is fixed to [ISO80].

• This mode is only suitable when taking pictures outdoors in the daytime.

• ISO sensitivity is fixed to [ISO80].

Scenery mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

The camera focuses preferentially on a distant subject. This allows you to take pictures of a wide landscape.

• The focus range is 5 m to

¶.

VQT0V00

VQT0V00ENG.book 50 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

• The flash setting is fixed to Forced OFF

[ ].

• The setting on the AF assist lamp is disabled.

• Keep the subject still for about 1 second after taking the picture.

• We recommend rotating the zoom lever to

Wide (1 k) and being about 1.5 m from the subject when taking a picture.

Sports mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode allows you to take pictures of a fast moving subject e.g. when taking pictures of outdoor sports.

• The focus range is 1.2 m to 5 m. (Refer to

P39 for the available flash range to take pictures.)

• The shutter may remain closed (max. about 1 sec.) after taking the picture because of signal processing. This is not a malfunction.

• Noise may become visible when you take pictures in dark places.

• When using the flash, Slow sync./Red-eye reduction [ ] is selected and the flash is activated every time.

∫ Technique for Sports mode

• This mode is effective when taking pictures during the day in good weather.

• This mode is suitable for taking pictures outdoors in the daytime when you are 5 m or more away from the subject.

Night scenery mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This modes allows you to record the nightscape vividly by reducing the shutter speed.

Night portrait mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode allows you to take pictures of a subject and a landscape with near real-life brightness by using the flash and slowing down the shutter speed.

∫ Technique for Night scenery mode

• Since the shutter speed becomes slower

(up to about 8 sec.) use a tripod. We also recommend using the self-timer (P41) for taking pictures.

∫ Technique for Night portrait mode

• Use the flash.

• Since the shutter speed becomes slower, we recommend using a tripod and the self-timer (P41) for taking pictures.

VQT0V00

• The focus range is 5 m to

¶.

• The shutter may remain closed (max. about 8 sec.) after taking the picture because of signal processing. This is not a malfunction.

VQT0V00ENG.book 51 ページ２００６年１月２０日　金曜日　午後６時３１分

• Noise may become visible when you take pictures in dark places.

• The flash setting is fixed to Forced OFF

[ ].

• ISO sensitivity is fixed to [ISO80].

• The setting on the AF assist lamp is disabled.

• You cannot set the slow shutter.

Advanced

∫ Technique for Party mode

• Since the shutter speed becomes slower, we recommend using a tripod and the self-timer (P41) for taking pictures.

• We recommend rotating the zoom lever to

Wide (1 k) and being about 1.5 m from the subject when taking pictures.

• The flash setting can be set to Slow sync./

Red-eye reduction [ ] or Forced ON/

Red-eye reduction [ ].

Food mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode allows you to take pictures of food with a natural hue without being affected by the ambient light in restaurants etc.

Candle light mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode allows you to take pictures with a candle-lit atmosphere.

• The focus range becomes the same as macro mode. [5 cm (Wide)/50 cm (Tele) to

¶]

∫ Technique for Candle light mode

• If you make the most of the candle light, you can take successful pictures without using the flash.

• We recommend using a tripod and the self-timer (P41) for taking pictures.

Party mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

Select this mode when you want to take pictures at a wedding reception, indoor party etc. By using the flash and slowing down the shutter speed, both people and the background can be recorded with a brightness close to real life.

• The focus range becomes the same as macro mode. [5 cm (Wide)/50 cm (Tele) to

¶]

• The flash setting can be set to Slow sync./

Red-eye reduction [ ] or Forced ON/

Red-eye reduction [ ].

VQT0V00

VQT0V00ENG.book 52 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

Fireworks mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode allows you to take beautiful pictures of fireworks exploding in the night sky.

could not take in [NIGHT SCENERY] by making the shutter speed slower.

∫ Technique for Fireworks mode

• Since the shutter speed becomes slower, we recommend using a tripod.

∫ Setting the shutter speed

• Select a shutter speed of [15 SEC.],

[30 SEC.] or [60 SEC.].

1 Press

3/4 to select the number of seconds and then press [MENU/SET].

STARRY SKY

15 SEC.

30 SEC.

60 SEC.

CANCEL SELECT SET

MENU

2 Taking Pictures.

• This mode is most effective when the subject is 10 m or more away.

• The shutter speed becomes the following.

– When [OFF] is set on the optical image stabilizer function: Fixed to 1 second

– When [MODE1] or [MODE2] is set on the optical image stabilizer function:

1/4th or 1 second (The shutter speed becomes 1 second only when the camera has determined that there is little jitter such as when using a tripod etc.)

• Histograms are always displayed in orange. (P36)

• The flash setting is fixed to Forced OFF

[ ].

• The setting on the AF assist lamp is disabled.

• You cannot set the slow shutter.

CANCEL

MENU

• Press the shutter button to display the countdown screen. Do not move the camera after this screen is displayed.

When countdown finishes,

[PLEASE WAIT...] is displayed for the same length of time as the set shutter speed for signal processing.

• Press [MENU/SET] to stop taking the picture while the countdown screen is displayed.

∫ Technique for Starry sky mode

• The shutter opens for 15, 30 or

60 seconds. Be sure to use a tripod. We also recommend taking pictures with the self-timer. (P41)

Starry sky mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode allows you to take vivid pictures of a starry sky or a dark subject that you

• Histograms are always displayed in orange. (P36)

• The flash setting is fixed to Forced OFF

[ ].

VQT0V00

VQT0V00ENG.book 53 ページ２００６年１月２０日　金曜日　午後６時３１分

• The optical image stabilizer function is fixed to [OFF].

• ISO sensitivity is fixed to [ISO80].

• You cannot compensate the exposure or set [AUDIO REC.] (DMC-LZ5), auto bracket, burst mode.

Snow mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode allows you to take a picture in locations such as skiing resorts and locations near snowy mountains. The exposure and the white balance are adjusted to make the white colour of the snow stand out.

Advanced

• If you do not want the age to be displayed, select [WITHOUT AGE] and press

[MENU/SET].

BABY1

9 months

10 days

10:00 1.DEC.2006

WITH AGE

WITHOUT AGE

BIRTHDAY SET.

CANCEL SELECT SET

MENU

∫ Birthday setting

1 Press

3/4 to select [BIRTHDAY SET.] and then press [MENU/SET].

2 When the message [PLEASE SET THE

BIRTHDAY OF THE BABY] appears, select items (Year/Month/Day) using

2/1 and set them using 3/4.

3 Press [MENU/SET] to finish the setting.

• If you select [WITH AGE] without setting the birthday in advance, a message is displayed. Press [MENU/SET] and set the birthday in steps 2 and 3.

Baby mode 1

Baby mode 2

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode takes pictures of a baby with a healthy complexion. When the flash is used, the light from it is weaker than usual.

You can set the birthdays of two babies by using [BABY1] and [BABY2].

• The baby’s age can be displayed when playing back pictures.

• The age can also be printed on each picture by using the software [LUMIX

Simple Viewer] in the CD-ROM (supplied).

(For information about printing, refer to the separate operating instructions for PC connection.)

∫ Age display setting

• If you want the age to be displayed, set the birthday in advance, select

[WITH AGE] and press [MENU/SET].

• The focus range becomes the same as macro mode. [5 cm (Wide)/50 cm (Tele) to

¶]

• After turning on the camera in [BABY1]/

[BABY2] in scene mode or switching to

[BABY1]/[BABY2] from other scene modes, the age and current date and time are displayed for about 5 seconds at the bottom of the screen.

• The age display style differs depending on the language setting in the recording mode.

• The display style when printing may differ slightly from the display style on the screen.

• The date of birth is displayed as

[0 month 0 day].

• If the age is not properly displayed, check the clock and birthday settings.

VQT0V00

VQT0V00ENG.book 54 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

• If the camera is set to [WITHOUT AGE], the age is not recorded even if the time and birthday are set. This means the age cannot be displayed even if the camera is set to [WITH AGE] after taking the pictures.

• Use [RESET] in the [SETUP] menu to reset the birthday setting. (P22)

Motion Picture Mode

1 Press the shutter button halfway to focus and then press it fully to start recording.

High Sensitivity mode

Press [

SET

] to display the [SCENE MODE] menu and select a scene mode. (P48)

This mode sets the ISO sensitivity higher than usual. A slight blurring of the subject is created when taking pictures indoors etc.

R 21s

• ISO sensitivity is automatically set to the optimal value between [ISO800] and

[ISO1600].

• The focus range becomes the same as macro mode. [5 cm (Wide)/50 cm (Tele) to

¶]

• The resolution of the recorded picture decreases slightly because of high sensitivity processing. This is not a malfunction.

• The extra optical zoom and digital zoom cannot be used.

• When the subject is focused, the focus indication lights.

• The focus, zoom and aperture value are fixed to the setting when recording starts (the first frame).

• The available recording time

A is displayed on the top right and the elapsed recording time

B is displayed on the bottom right of the screen.

For example, 1 hour 20 minutes and

30 seconds is displayed as

[1h20m30s].

• The available recording time and the elapsed recording time are approximations.

• Audio recording starts simultaneously from the camera’s built-in microphone.

(DMC-LZ5)

2 Press the shutter button fully to stop recording.

• If the built-in memory or the card becomes full in the middle of recording, the camera stops recording automatically.

VQT0V00

VQT0V00ENG.book 55 ページ２００６年１月２０日　金曜日　午後６時３１分

∫ Changing the picture quality setting

1 Press [MENU/SET].

2 Press

3/4 to select

[PICT.MODE] and then press

1.

REC

1 /

W.BALANCE

PICT.MODE

AUTO

AF MODE

AF ASSIST LAMP

OFF D.ZOOM

SELECT SET

MENU

3 Press

3/4 to select the item and

then press [MENU/SET].

Item

30fpsVGA

Picture size fps

640 k480 pixels

10fpsVGA

30fpsQVGA

320 k240 pixels

10fpsQVGA

• fps (frames per second); This refers to the number of frames used in 1 second.

• You can record smoother motion pictures with 30 fps.

• You can record longer motion pictures with 10 fps although the picture quality is lower.

• The file size with [10fpsQVGA] is small so it is suitable for e-mails.

¢ You can only record to the built-in

memory if the picture size is set to

QVGA (320

k240 pixels).

(

±: Available, —: Not available)

Item

30fpsVGA

10fpsVGA

30fpsQVGA

10fpsQVGA

SD Memory

Card

Built-in

Memory

—

Advanced

4 Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

• The focus range is 5 cm to

¶ (Wide),

50 cm to

¶ (Tele).

• Refer to P97 for information about the available recording time.

• The available recording time is an approximation.

(It varies depending on the recording condition and the types of SD memory

Card.)

• The available recording time changes with subjects.

• The available recording time displayed on the screen may not decrease regularly.

• Motion pictures cannot be recorded without audio. (DMC-LZ5)

• You cannot record audio. (DMC-LZ4/

DMC-LZ3)

• This unit does not support recording motion pictures on MultiMediaCards.

• When you set the picture quality to

[30fpsVGA], we recommend using a high speed SD Memory Card with

“10MB/s” or greater displayed on the package.

• Depending on the type of SD Memory

Card, recording may stop in the middle.

• We recommend using Panasonic’s SD

Memory Card.

• Depending on the type of SD Memory

Card, the card access indication may appear for a while after recording motion pictures. This is not a malfunction.

• When motion pictures recorded with the camera are played back on other equipment, the quality of the picture and sound may deteriorate and it may not be possible to play them back.

VQT0V00

VQT0V00ENG.book 56 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

• In motion picture mode [ ], you cannot use the direction detection function and the review function.

• You cannot set [MODE2] on the optical image stabilizer function.

• The bundled software includes QuickTime to play back motion picture files recorded with the camera on the PC.

Displaying Multiple

Screens

(Multi Playback)

1 Rotate the zoom lever towards

[ ] [W] to display multiple screens.

(Screen when 9 screens are displayed)

•

1.DEC. 2006

1/14

W T CANCEL

MENU

: 1 screen

>9 screens>

16 screens

>25 screens

• After the multiple screens are displayed, rotate the zoom lever further towards [ ] [W] to display 16 screens then 25 screens. Rotate the zoom lever towards [ ] [T] to return to the previous screen.

• When you switch to multiple screens, a scroll bar A appears. You can confirm the location of the displayed picture in all the recorded pictures with this scroll bar.

2 Press

3/4/2/1 to select a

picture.

1.DEC. 2006

5/14

T CANCEL

MENU

• The recording date and number of the selected picture and the total number of recorded pictures are displayed.

VQT0V00

VQT0V00ENG.book 57 ページ２００６年１月２０日　金曜日　午後６時３１分

Using the Playback

Zoom

Advanced

• Depending on the recorded picture and the setting, the following icons will appear.

– [ ] (Favourites)

– [

] (Motion picture)

] ([BABY1]/[BABY2] in scene mode)

1 Rotate the zoom lever towards

[ ] [T] to enlarge the picture.

∫ Examples of 16 screens and

25 screens

W T

1.DEC. 2006

1/20

T CANCEL

MENU

1.DEC. 2006

1/30

CANCEL

MENU

B: 16 screens

C: 25 screens

∫ To return to normal playback

Rotate towards [ ] [T] or press

[MENU/SET].

• The picture appears framed in orange.

∫ To delete a picture during multi

playback

1 Press

3/4/2/1 to select a picture and then press [ ].

2 Press

3 to select [YES].

3 Press [MENU/SET].

CANCEL DELETE

• : 1 k

>2k>4k>8k>16k

• When you rotate the zoom lever towards [ ] [W] after enlarging the picture, the magnification becomes lower. When you rotate the zoom lever towards [ ] [T], the magnification becomes higher.

• When you change the magnification, the zoom position indication A appears for about 1 second so that you can check the position of the enlarged section.

2 Press

3/4/2/1 to move the

position.

• Even if the indications on the screen are turned off in normal playback mode (P35), the recording information etc. appears on the screen in multi playback. You can switch between displaying or not displaying the indications on the screen by pressing [DISPLAY]. If you return to the previous screen, the indications on the screen are displayed as in normal playback mode.

• Pictures will not be displayed in the rotated direction even if [ROTATE DISP.] is set to [ON]. (P70)

CANCEL DELETE

• When you move the position to be displayed, the zoom position indication appears for about 1 second.

∫ To stop using the playback zoom

Rotate towards [ ] [W] or press

[MENU/SET].

VQT0V00

VQT0V00ENG.book 58 ページ２００６年１月２０日　金曜日　午後６時３１分

Advanced

∫ To delete a picture during the

playback zoom

1 Press [ ].

2 Press

3 to select [YES].

3 Press [MENU/SET].

Playing Back Motion

Pictures/Pictures with

Audio

• Even if the indications on the screen are turned off in normal playback mode (P35), the magnification and operation appear on the screen when the playback zoom is activated. You can switch between displaying or not displaying the indications on the screen by pressing [DISPLAY].

When you set the magnification to 1 k, the indications on the screen are displayed as in normal playback mode.

• The more a picture is enlarged, the more its quality deteriorates.

• If you want to save the enlarged picture, use the trimming function. (P75)

• The playback zoom may not operate if pictures have been recorded with other equipment.

∫ Motion pictures

[

Press

2/1 to select a picture

with a motion picture icon [

]/[ ]/[ ] and then press

4 to play back.

PLAY MOTION


100_0001

1 / 3

25s

]/

10:00 1.DEC.2006

• The motion picture recording time A is displayed on the screen. After playback starts, the motion picture recording time disappears and the elapsed playback time is displayed on the bottom right of the screen.

For example, 1 hour 20 minutes and

30 seconds is displayed as [1h20m30s].

• The cursor displayed during playback is the same as

3/4/

2/1.

• Press

4 again to stop motion picture playback and return to the normal playback screen.

Fast forwarding/Fast rewinding

Press and hold

2/1 during motion picture playback.

2: Fast rewind

1: Fast forward

• The camera returns to normal motion picture playback when

2/1 is released.

To pause

Press

3 during motion picture playback.

• Press

3 again to cancel pause.

VQT0V00

VQT0V00ENG.book 59 ページ２００６年１月２０日　金曜日　午後６時３１分

∫ Pictures with audio (DMC-LZ5)

Press

2/1 to select a picture

with the audio icon [ ] and then press

4 to play back.

PLAY AUDIO

100_0001

1 / 3

10:00 1.DEC.2006

• Refer to [AUDIO REC.] (P65) and

[AUDIO DUB.] (P74) for information about how to create still pictures with audio.

Advanced

• You cannot use the following functions with pictures with audio (DMC-LZ5) and motion pictures.

– Playback zoom

[While playing audio (DMC-LZ5) and playing back or pausing motion pictures]

– [AUDIO DUB.] (DMC-LZ5)/

[ROTATE DISP.]/[ROTATE]

(Motion pictures only)

– [RESIZE]/[TRIMMING]

• You can record audio on DMC-LZ5.

However, you cannot play audio only with the camera. When you want to play audio, connect the camera to PC

(P79) or TV (P85).

• You cannot record audio on DMC-LZ4/

DMC-LZ3.

• The file format that can be played back with this camera is QuickTime Motion

JPEG.

• Please note that the bundled software includes QuickTime to play back motion picture files created with the camera on the PC.

• Some QuickTime Motion JPEG files recorded by a PC or other equipment may not play back on the camera.

• If you play back motion pictures that have been recorded with other equipment, the picture quality may deteriorate or the pictures may not play back.

• When using a high capacity card, it is possible that fast rewinding may be slower than usual.

VQT0V00

VQT0V00ENG.book 60 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

Using the [REC] Mode

The available white balance range is shown in the following illustration. When you take a picture beyond the available white balance range, the picture may appear reddish or bluish. Also, auto white balance may not operate properly if the subject is surrounded by many light sources. In these cases, set the white balance to a mode other than [AUTO].

1 Auto white balance will work in the following range.

2 Blue sky

3 Cloudy sky (Rain)

4 TV screen

K lKelvin Colour Temperature

∫ Setting the white balance manually

(White set )

Use this to set the white balance manually.

1 Select [ ] (White set) and then press [MENU/SET].

2 Aim the camera at a sheet of white paper etc. so that the frame in the centre is filled by the white object only and then press [MENU/SET].

WHITE SET

CANCEL

SET

MENU

3 Press [MENU/SET] twice to close the menu.

• You can also press the shutter button halfway to finish.

∫ Finely adjusting the white balance

(white balance fine adjustment )

You can adjust the white balance finely when you cannot acquire the desired hue by setting the white balance.

• Set the white balance to [

[ ].

]/[ ]/[ ]/

VQT0V00

VQT0V00ENG.book 62 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

1 Press

3 [

] several times until

[WB ADJUST.] appears and then press

2/1 to adjust the white

balance.

WB ADJUST.

• The white balance fine adjustment level in

[ ] (White set) returns to “0” when you

[ reset the white balance using White set

• You cannot finely adjust the white balance when [COL.EFFECT] (P67) is set to

[COOL], [WARM], [B/W] or [SEPIA].

RED BLUE

[SENSITIVITY]

Setting the light sensitivity

SELECT

EXIT

MENU

•

2 [RED]: Press when the hue is bluish.

•

1 [BLUE]: Press when the hue is reddish.

• Select [0] to return to the original white balance.

2 Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

About the white balance

• When you take a picture with the flash, the white balance is automatically adjusted

[except for [ ] (Daylight)]. However, the white balance may not be properly adjusted if the flash level is insufficient.

• The white balance cannot be set in simple mode [ ] and scene mode.

About the white balance fine adjustment

• You can finely adjust the white balance independently for each white balance item.

• The white balance icon on the screen turns red or blue.

• The white balance fine adjustment setting is reflected in the picture when using the flash.

• The white balance fine adjustment setting is memorised even if the camera is turned off.

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

ISO is a measure of sensitivity to light. The higher the sensitivity is set, the less light is needed to take a picture so the camera becomes more suitable for recording in dark places.

• When [AUTO] is selected, the ISO sensitivity automatically increases to a maximum of [ISO200] (or [ISO400] when the flash is activated) depending on the brightness.

80 ISO sensitivity

Use in bright places

(e.g. outdoors)

Use in dark places

Shutter speed

Noise

Suitable

Not suitable

Slow

Less

400

Not suitable

Suitable

Fast

Increased

• ISO sensitivity is automatically set to the optimal value between [ISO800] and

[ISO1600] in [HIGH SENS.] (P54) in scene mode.

• To avoid picture noise, we recommend decreasing the ISO sensitivity or setting

[PICT.ADJ.] to [NATURAL]. (P67)

VQT0V00

VQT0V00ENG.book 63 ページ２００６年１月２０日　金曜日　午後６時３１分

• ISO sensitivity cannot be set in scene mode, motion picture mode [ ] and simple mode [ ].

Menu Settings

[PICT.SIZE]/[QUALITY]

Setting a picture size and quality that matches your use of the pictures

[ASPECT RATIO]

Setting the aspect ratio of pictures

SCN

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

By changing the aspect ratio, you can select an angle of view that matches the subject.

Select to take pictures with the same aspect ratio as a 4:3 TV or a computer monitor.

SCN

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

A digital picture is made of numerous dots called pixels. Although you cannot see the difference on the camera’s screen, the more the pixels the finer the picture will be when it is printed on a large piece of paper or displayed on a computer monitor. Picture quality refers to the compression rate when saving digital pictures.

Select to take pictures with the same 3:2 aspect ratio as 35 mm film.

This is suitable for landscapes etc. where a wide view is preferable.

This is also suitable for playing back pictures on a wide-screen

TV, high-definition TV etc.

A Many pixels (Fine)

B Few pixels (Rough)

∫ Number of pixels

You can print pictures more clearly when a

[ large picture size [ ] (6M) (DMC-LZ5)/

] (5M) (DMC-LZ4/DMC-LZ3) is selected.

When a smaller picture size [ ]

(0.3M EZ) is selected, you can record more pictures and attach them to an e-mail or post them on a website because their file size is small.

• The ends of the recorded pictures may be cut at printing. (P94)

VQT0V00

VQT0V00ENG.book 64 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

∫ When the aspect ratio is [

(6M)

(DMC-LZ5)

2816 k2112 pixels

(5M)

(DMC-LZ4/

DMC-LZ3)

2560 k1920 pixels

(3M EZ)

2048 k1536 pixels

(2M EZ)

1600 k1200 pixels

(1M EZ)

1280 k960 pixels

(0.3M EZ)

640 k480 pixels

∫ When the aspect ratio is [

(5M)

(DMC-LZ5)

2816 k1880 pixels

(4.5M)

(DMC-LZ4/

DMC-LZ3)

2560 k1712 pixels

(2.5M EZ) 2048 k1360 pixels

∫ When the aspect ratio is [

(4.5M)

(DMC-LZ5)

2816 k1584 pixels

(3.5M)

(DMC-LZ4/

DMC-LZ3)

2560 k1440 pixels

(2M EZ)

1920 k1080 pixels

∫ Quality

You can increase the number of recordable pictures without changing the picture size if quality is set to [STANDARD].

Fine (Low compression):

This gives priority to picture quality.

Picture quality will be high.

Standard (High compression):

This gives priority to the number of recordable pictures. Standard quality pictures are recorded.

you change the aspect ratio, set the picture size.

• “EZ” is an abbreviation of

[Extra optical Zoom]. This is a function which further extends the optical zoom ratio. If you select a picture size with EZ displayed, the zoom ratio is extended to a maximum of 8.3

k (DMC-LZ5)/7.5k

(DMC-LZ4/DMC-LZ3) when the digital zoom is set to [OFF]. (P29)

• The extra optical zoom does not work in

[HIGH SENS.] in scene mode so the picture size for [EZ] is not displayed.

• In motion picture mode [ ], the picture size is fixed to VGA (640 k480 pixels)

(Only when using an SD Memory Card) or

QVGA (320 k240 pixels).

• Pictures may appear mosaic depending on the subject and the recording conditions.

• Refer to P95 for information about the number of recordable pictures.

• The number of recordable pictures depends on the subject.

• The number of recordable pictures displayed on the screen may not correspond with recorded frames.

• In simple mode [ ], the settings become as follows.

– ENLARGE:

[

[ ] (6M [

] (5M [

]) (DMC-LZ5)/

]) (DMC-LZ4/DMC-LZ3)/

Fine

– 4 qk6q/10k15cm:

[ ] (2.5M EZ [

– E-MAIL:

[ ] (0.3M EZ [

])/Standard

• The number of pixels that can be selected differs depending on the aspect ratio. If

VQT0V00

VQT0V00ENG.book 65 ページ２００６年１月２０日　金曜日　午後６時３１分

[AUDIO REC.] (DMC-LZ5)

Recording still pictures with audio

SCN

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

You can record audio with the still picture if this is set to [ON]. This means you can record the conversation that took place when you were recording or an explanation of the picture.

• [ ] appears on the screen when you set

[AUDIO REC.] to [ON].

• Focus on the subject and press the shutter button to start recording.

Recording will automatically stop about

5 seconds later. There is no need to press and hold the shutter button.

• Audio is recorded from the built-in microphone on the camera.

• If you press [MENU/SET] during audio recording, the audio recording is cancelled. The audio is not recorded.

• The total number of pictures that can be stored on each card will decrease slightly when audio is recorded with each picture.

Menu Settings

(5-area-focusing):

The camera focuses on any of 5 focus areas.

This is effective when the subject is not in the centre of the screen.

[3-area-focusing (High speed)]:

The camera quickly focuses on any of

3 focus areas points – left, right or centre.

This is effective when the subject is not in the centre of the screen.

[1-area-focusing (High speed)]:

The camera quickly focuses on the subject in the AF area on the centre of the screen.

(1-area-focusing):

The camera focuses on the subject in the AF area on the centre of the screen.

• You cannot take pictures with audio in auto bracket, burst mode or

[STARRY SKY] in scene mode.

(Spot-focusing):

The camera focuses on a limited narrow area in the screen.

[AF MODE]

Setting the focus method

SCN

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

Select the mode that matches the recording conditions and the composition.

∫ About 3-area-focusing (High speed)

and 1-area-focusing (High speed)

• You can focus on the subject more quickly than other AF modes.

• The picture may stop moving for a moment before being brought into focus when you press the shutter button halfway. This is not a malfunction.

VQT0V00

VQT0V00ENG.book 66 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

[AF ASSIST LAMP]

Focusing in low light conditions becomes easier

on when you press the shutter button halfway in dark places etc.

• The AF area displayed on the centre of the screen is bigger than usual when using the digital zoom or when taking pictures in dark places.

The AF assist lamp turns on in low light conditions. At this time, the AF assist lamp icon [ ] appears on the screen. The effective range of the AF assist lamp is 1.5 m.

OFF The AF assist lamp does not turn on.

F5.0

1/60

• The camera is focusing on all the AF areas when multiple AF areas (max.

5 areas) light at the same time.

The focus position is not predetermined. It is set to a position automatically determined by the camera at the time of focusing. If you want to determine the focus position to take pictures, switch the

AF mode to 1-area-focusing mode (High speed), 1-area-focusing mode or

Spot-focusing mode.

• Switch the AF mode to 1-area-focusing mode (High speed) or 1-area-focusing mode if it is difficult to focus using

Spot-focusing mode.

• The AF mode cannot be set in simple mode [ ].

• Be careful about the following when using the AF assist lamp.

– Do not look at the AF assist lamp from close up.

– Do not cover the AF assist lamp with your fingers or other objects.

• When the AF assist lamp is turned on, the

AF area on the centre of the screen is displayed and it is bigger than usual. (P66)

• When you do not want to use the AF assist lamp (e.g. when taking pictures of animals in dark places), set the

[AF ASSIST LAMP] to [OFF]. In this case, it will become more difficult to focus on the subject.

• The setting for [AF ASSIST LAMP] is fixed to [ON] in simple mode [ ].

• The setting for the [AF ASSIST LAMP] is fixed to [OFF] in [SCENERY] (P49),

[NIGHT SCENERY] (P50) and

[FIREWORKS] (P52) in scene mode.

SCN

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

Illuminating the subject makes it easier for the camera to focus when recording in low light conditions that make focusing difficult.

• If the AF assist lamp is set to [ON], an AF area with a size wider than usual is displayed and the

AF assist lamp A turns

[SLOW SHUTTER]

Recording bright pictures in dark places

SCN

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

The shutter speed is automatically adjusted. However, if you want brighter pictures you can manually select an even slower shutter speed.

VQT0V00

VQT0V00ENG.book 67 ページ２００６年１月２０日　金曜日　午後６時３１分

• The slow shutter speeds you can select are: [1/8–], [1/4–], [1/2–] and [1–].

• This is effective if you want to take bright pictures of both a night landscape and a subject using [NIGHT PORTRAIT] (P50) in scene mode.

Slow shutter setting

Brightness

Jitter

∫ Example

1/8 –

Darker

Less

Brighter

1 –

COOL

WARM

B/W

SEPIA

[PICT.ADJ.]

Adjusting the picture quality for the recorded pictures

Menu Settings

The picture becomes bluish.

The picture becomes reddish.

The picture becomes black and white.

The picture becomes sepia.

1/8 – 1 –

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

Select an effect that matches the recording situation and your image of the recording.

NATURAL The picture becomes softer.

VIVID

The picture becomes sharper.

• This should usually be set to [1/8–] to take pictures. (When you select a slow shutter speed other than [1/8–], [ ] appears on the lower left of the screen.)

• When the shutter speed is made slower using [SLOW SHUTTER], jitter is likely to occur. We recommend using a tripod and the self-timer (P41) for taking pictures.

• You cannot set the slow shutter in

[NIGHT SCENERY], [FIREWORKS] and

[STARRY SKY] in scene mode.

• When you take pictures in dark places, noise may become visible. To avoid noise, we recommend setting [PICT.ADJ.] to

[NATURAL].

[COL.EFFECT]

Setting colour effects for the recorded pictures

Press [

SET

] to display the [REC] mode menu and select the item to set. (P60)

Select a colour effect that matches the recording conditions and your image of the recording.

VQT0V00

VQT0V00ENG.book 68 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

Using the [PLAY] mode menu

∫ About the menu screen items

• There are 3 menu screens (1/3, 2/3 and

3/3).

• You can switch menu screens from any menu item by rotating the zoom lever.

You can use various functions in playback mode to rotate pictures, set protection for them etc.

• Refer to P68 to 77 for each menu item.

1 Press [MENU/SET].

2 Press

3/4 to select the menu

item.

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

DPOF PRINT

SELECT

PLAY

OFF

PROTECT

AUDIO DUB.

EXIT

RESIZE

TRIMMING

MENU

COPY

SELECT

PLAY

2 /

EXIT

MENU

SELECT

EXIT

MENU

PLAY 1

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

DPOF PRINT

SELECT

OFF

EXIT

MENU

PLAY

PROTECT

AUDIO DUB.

RESIZE

TRIMMING

COPY

SELECT

2 /

EXIT

MENU

• Press

4 at A to switch to the next menu screen.

3 Press

1.

PLAY

PROTECT

AUDIO DUB.

RESIZE

TRIMMING

COPY

SELECT SET

MENU

2 /

SINGLE

• After selecting a menu item in step 3, refer to the description of the menu item in the operating instructions and then set it.

[SLIDE SHOW]

Playing back pictures in order for a fixed duration

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

This is recommended when playing back pictures on a TV screen. You can skip unwanted pictures if [FAVORITE] (P69) has been set.

1 Press

3/4 to select [ALL] or [ ]

and then press [MENU/SET].

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

DPOF PRINT

SELECT SET

MENU

1 /

ALL

OFF

SET

[ALL]

[ ]

Displays all pictures.

Displays only those pictures that have been set as favourites (P69).

• The screen shown in step 1 appears when [FAVORITE] is set to [ON]. When

[FAVORITE] is set to [OFF], perform step 2 onwards.

VQT0V00

VQT0V00ENG.book 69 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

• If none of the pictures have [ ] displayed, you cannot select [ ] even if [FAVORITE] is set to [ON].

2 Press

3 to select [START] and

then press [MENU/SET].

(Screen when [ALL] is selected)

ALL SLIDE SHOW

START

DURATION

AUDIO

1 SEC.

OFF

SET

CANCEL SELECT SET

MENU

• If you set [AUDIO] to [ON] and then play back a picture with audio, the next picture will be displayed after the audio has finished. (DMC-LZ5)

• You cannot play back motion pictures and use power save in a slide show. (However, the setting for power save mode is fixed to

[10MIN.] while pausing a slide show or playing back a manual slide show.)

• The cursor displayed during a slide show A or while a slide show is paused

B is the same as

3/4/2/1.

• Press

3 to pause the slide show. Press

3 again to cancel pause.

• Press

2/1 while paused to display the previous or next picture.

3 Press

4 to finish.

∫ Setting the audio (DMC-LZ5) and

duration

Select [DURATION] or [AUDIO] on the screen shown in step 2 and set.

[DURATION] Can be set to [1SEC.],

[2SEC.], [3SEC.],

[5SEC.] or [MANUAL]

(manual playback).

[AUDIO]

If set to [ON], the audio of the pictures with audio is played back.

• You can only select [MANUAL] when

[ ] has been selected in step 1.

• Press

2/1 to display the previous or next picture when [MANUAL] is selected.

¢ When the camera is connected to TV

(P85), the audio can be played back.

[FAVORITE]

Setting your favourite pictures

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

You can do the following if a mark has been added to pictures and they have been set as favourites.

• Delete all the pictures not set as favourites. ([ALL DELETE EXCEPT ])

(P33)

• Play back the pictures set as favourites only as a slide show. (P68)

1 Press

4 to select [ON] and then

press [MENU/SET].

PLAY 1

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

DPOF PRINT

SELECT SET

MENU

CANCEL

SET

• You cannot set pictures as favourites if

[FAVORITE] is set to [OFF]. Also the favourites icon [ ] will not appear when [FAVORITE] is set to [OFF] even if it was previously set to [ON].

• You cannot select [CANCEL] if none of the pictures have [ ] displayed.

2 Press [MENU/SET] to close the menu.

VQT0V00

VQT0V00ENG.book 70 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

3 Press

2/1 to select the picture

then press

3.

∫ Rotate display

(The picture is automatically rotated and displayed.)

1 Press

4 to select [ON] and then

press [MENU/SET].

100_0001

1 / 3

10:00 1.DEC.2006

• Repeat the above procedure.

• If

3 is pressed while the [

] favourites icon

A is displayed, [

] is cleared, and the favourites setting is cancelled.

• You can set up to 999 pictures as favourites.

∫ Deleting all favourites

1 Select [CANCEL] on the screen shown in step 1 and then press [MENU/SET].

2 Press

3 to select [YES] and then press

[MENU/SET].

3 Press [MENU/SET] to close the menu.

PLAY

SLIDE SHOW

FAVORITE

ROTATE DISP.

ROTATE

DPOF PRINT

SELECT SET

MENU

1 /

OFF

SET

• The pictures are displayed without being rotated when you select [OFF].

• Refer to P32 for information about how to play back pictures.

2 Press [MENU/SET] to close the menu.

• When printing pictures at a photo printing store, [ALL DELETE EXCEPT ] (P33) is useful so only the pictures you want to be printed remain on the card.

• Use [LUMIX Simple Viewer] on the

CD-ROM (supplied), to set, confirm or delete favourites. (For information about this, refer to the separate operating instructions for PC connection.)

• You may not be able to set pictures taken with other equipment as favourites.

∫ Rotate

(The picture is rotated manually.)

1 Press

2/1 to select the picture

and then press

4.

ROTATE

100_0001

1 / 3

SELECT SET EXIT

MENU

• The [ROTATE] function is disabled when [ROTATE DISP.] is set to [OFF].

• Motion pictures and protected pictures cannot be rotated.

[ROTATE DISP.]/[ROTATE]

To display the picture rotated

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

This mode allows you to automatically display pictures vertically if they were recorded holding the camera vertically or rotate pictures manually in 90° steps.

VQT0V00

VQT0V00ENG.book 71 ページ２００６年１月２０日　金曜日　午後６時３１分

2 Press

3/4 to select the direction

to rotate the picture and then press [MENU/SET].

ROTATE

CANCEL SELECT SET

MENU

SET

Menu Settings information etc. to be added. It was established by JEITA [Japan Electronics and Information Technology Industries

Association].

• Rotated pictures are displayed without being rotated when they are played back in multi playback.

• It may not be possible to rotate pictures that have been recorded with other equipment.

The picture rotates clockwise in steps of 90°.

The picture rotates counter-clockwise in steps of 90°.

3 Press [MENU/SET] twice to close the menu.

∫ Example

When rotating clockwise ( )

Original picture

• When [ROTATE DISP.] is set to [ON], pictures recorded holding the camera vertically are played back vertically

(rotated).

• If you take pictures when aiming the camera up or down, it may not be possible to display the pictures vertically. (P24)

• The picture may be slightly blurred when the camera is connected to the TV with the AV cable (DMC-LZ5)/video cable

(DMC-LZ4/DMC-LZ3) (supplied) and played back vertically.

• When you play back pictures on a PC, they cannot be displayed in the rotated direction unless the OS or software is compatible with Exif. Exif is a file format for still pictures which allows recording

[DPOF PRINT]

Setting the picture to print and the number of prints

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

DPOF (Digital Print Order Format) is a system that allows the user to select which pictures to print, how many copies of each picture to print and whether or not to print the recording date on the pictures when using a DPOF compatible photo printer or photo printing store. For details, ask at your photo printing store.

When you want to use a photo printing store to print pictures recorded on the built-in memory, copy them to a card (P76) and then set the DPOF setting.

Press

3/4 to select [SINGLE],

[MULTI] or [CANCEL] and then press [MENU/SET].

PLAY 1

SLIDE SHOW

FAVORITE

OFF

ROTATE DISP.

ROTATE

SINGLE

DPOF PRINT

SELECT SET

MENU

MULTI

CANCEL

SET

• You cannot select [CANCEL] if there are no prints that have been set in the

DPOF print settings.

VQT0V00

VQT0V00ENG.book 72 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

∫ Single setting

1 Press

2/1 to select the picture

to print and then press

3/4 to

set the number of prints.

2 Press [MENU/SET] twice to close the menu.

∫ To cancel all settings

1 Press

3 to select [YES] and then

press [MENU/SET].

DPOF SET THIS

100_0001

1 / 14

COUNT

SELECT

1 DATE

DISPLAY

EXIT

MENU

• The number of prints icon [ ] appears.

• The number of prints can be set from 0 to 999. The DPOF print setting is cancelled when the number of prints is set to “0”.

2 Press [MENU/SET] twice to close the menu.

CANCEL ALL DPOF

PRINT SETTINGS?

YES

SELECT SET

MENU

SET

2 Press [MENU/SET] to close the menu.

• DPOF print settings on the built-in memory are cancelled when a card is not inserted. DPOF print settings on the card are cancelled when a card is inserted.

∫ Multi setting

1 Press

2/1 to select the picture

to print then press

3/4 to set

the number of prints.

∫ To print the date

After setting the number of prints, set/ cancel printing with the recording date by pressing [DISPLAY].

DPOF SET MULTI

7 8 9

COUNT

SELECT

11 12

DATE

DISPLAY

EXIT

MENU

DPOF SET THIS

100_0001

DATE

1 / 14

• The number of prints icon [ ] appears.

• Repeat the above procedure. (You cannot set all the pictures at one time.)

• The number of prints can be set from 0 to 999. The DPOF print setting is cancelled when the number of prints is set to “0”.

COUNT

SELECT

1 DATE

DISPLAY

EXIT

MENU

• The date print icon [

DATE

] appears.

• When you go to a photo printing store for digital printing, be sure to order the printing of the date additionally if required.

• Depending on the photo printing store or the printer, the date may not be printed even if you set to print the date. For further information, ask at your photo printing store or refer to the operating instructions for the printer.

VQT0V00

VQT0V00ENG.book 73 ページ２００６年１月２０日　金曜日　午後６時３１分

• DPOF is an abbreviation of [Digital Print

Order Format]. This feature allows you to write print information to media and then use the information on a DPOF-compliant system.

• DPOF print setting is a convenient function when printing pictures with a printer that supports PictBridge (P81).

The date printing setting on the printer may take priority over the date printing setting on the camera. Check the date printing setting on the printer also. (P81)

• It is necessary to delete all previous

DPOF print information made on other equipment when setting DPOF print on the camera.

• If the file is not based on the DCF standard, the DPOF print setting cannot be set. DCF is an abbreviation of [Design rule for Camera File system], stipulated by

JEITA [Japan Electronics and Information

Technology Industries Association].

Menu Settings

∫ Single setting

1 Press

2/1 to select the picture

and then press

4 to set/cancel.

PROTECT THIS

100_0001

1 / 3

SELECT

SET/CANCEL EXIT

MENU

SET The protect icon [ ] appears.

CANCEL The protect icon [ ] disappears.

2 Press [MENU/SET] twice to close the menu.

∫ Multi setting/To cancel all settings

Perform the same operation as in

“[DPOF PRINT] Setting the picture to print and the number of prints”. (P71 to 73)

[PROTECT]

Preventing accidental erasure of pictures

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

You can set protection for pictures you do not want to be deleted by mistake.

Press

3/4 to select [SINGLE],

[MULTI] or [CANCEL] and then press [MENU/SET].

PLAY

2 /

PROTECT

AUDIO DUB.

RESIZE

TRIMMING

COPY

SELECT SET

MENU

SINGLE

SET

• If you press [MENU/SET] while cancelling protection, the cancelling will stop halfway.

• The protect setting may not be effective on other equipment.

• If you want to delete protected pictures, cancel their protection.

• Even if you protect pictures in the built-in memory or a card, they will be deleted if the built-in memory or the card is formatted. (P77)

• Even if you do not protect pictures on an

SD Memory Card, they cannot be deleted when the card’s write protect switch

A is set to [LOCK].

VQT0V00

VQT0V00ENG.book 74 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

• The following functions cannot be used with protected pictures.

– [ROTATE]

– [AUDIO DUB.] (DMC-LZ5)

• The audio recording stops automatically if

4 is not pressed after about 10 seconds.

3 Press [MENU/SET] twice to close the menu.

[AUDIO DUB.] (DMC-LZ5)

Adding audio after taking pictures

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

You can add the audio after taking a picture.

1 Press

2/1 to select the picture

and then press

4 to start audio

recording.

AUDIO

DUB.

100_0001

1 / 3

SELECT

START EXIT

MENU

• The message [OVERWRITE AUDIO

DATA?] screen appears when audio has already been recorded. Press

3 to select [YES] and then press

[MENU/SET] to start audio recording.

(The original audio is overwritten.)

• Audio dubbing cannot be used with the following pictures.

– Motion pictures

– Protected pictures

• Audio dubbing may not work properly on pictures recorded by other equipment.

2 Press

4 to stop recording.

AUDIO

DUB.

100_0001

1 / 3

[RESIZE]

Making the picture smaller

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

This function is useful if you want to reduce the file size of a picture to attach it to an e-mail or upload it to a website.

1 Press

2/1 to select the picture

and then press

4.

RESIZE

100_0001

1 / 3

SELECT

SET EXIT

MENU

• The following pictures cannot be resized.

• When the aspect ratio setting is [

– Pictures recorded in [

] (0.3M EZ)

• When the aspect ratio setting is

[ ].

– Pictures recorded in [

(2.5M EZ)

]

• When the aspect ratio setting is

[ ].

– Pictures recorded in [

– Motion pictures

] (2M EZ)

– Pictures with audio (DMC-LZ5)

• It may not be possible to resize pictures recorded with other equipment.

STOP

VQT0V00

VQT0V00ENG.book 75 ページ２００６年１月２０日　金曜日　午後６時３１分

2 Press

2/1 to select the size and

then press

4.

RESIZE

100_0001

1 / 3

Menu Settings

[TRIMMING]

Enlarging a picture and trimming it

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

You can enlarge and then clip the important part of the recorded picture.

SELECT

RESIZE EXIT

MENU

• Sizes smaller than the recorded picture are displayed.

• When the aspect ratio setting is [

– [ ]/[ ]/[ ]/[ ]

• When the aspect ratio setting is

[ ].

– [ ]

• When the aspect ratio setting is

[

– [

]

3 Press

3/4 to select [YES] or

[NO] and then press [MENU/SET].

1 Press

2/1 to select the picture

and then press

4.

TRIMMING

100_0001

1 / 3

SELECT

SET EXIT

MENU

• The following pictures cannot be trimmed.

– Motion pictures

– Pictures with audio (DMC-LZ5)

• It may not be possible to trim pictures recorded with other equipment.

2 Enlarge or decrease the parts to be trimmed with the zoom lever.

RESIZE

DELETE ORIGINAL

PICTURE?

YES

CANCEL SELECT SET

MENU

SET

• The picture is overwritten when you select [YES]. Resized pictures cannot be restored when they are overwritten.

• A resized picture is newly created when you select [NO].

• If the original picture is protected, you cannot overwrite it. Select [NO] and newly create a resized picture.

4 Press [MENU/SET] twice to close the menu.

TRIMMING

100_0001

1 / 3

ZOOM EXIT

MENU

3 Press

3/4/2/1 to move the

position of the part to be trimmed.

TRIMMING

100_0001

1 / 3

ZOOM

TRIM:SHUTTER EXIT

MENU

4 Press shutter button.

• The message [DELETE ORIGINAL

PICTURE?] appears.

VQT0V00

VQT0V00ENG.book 76 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

5 Press

3/4 to select [YES] or

[NO] and then press [MENU/SET].

1 Press

3/4 to select the copy

destination and then press

[MENU/SET].

TRIMMING

DELETE ORIGINAL

PICTURE?

YES

CANCEL SELECT SET

MENU

SET

• The picture is overwritten when you select [YES]. The trimmed pictures cannot be restored when they are overwritten.

• A trimmed picture is newly created when you select [NO].

• When the original picture is protected, you cannot overwrite it. Select [NO] and newly create a trimmed picture.

6 Press [MENU/SET] twice to close the menu.

PLAY

PROTECT

AUDIO DUB.

RESIZE

TRIMMING

COPY

SELECT SET

MENU

SET

• :

All the picture data in the built-in memory are copied onto the card at one time.

•

(Perform step 3)

One picture at a time is copied from the card to the built-in memory.

(Perform step 2)

2 Press

2/1 to select the picture

and then press

4.

• Depending on the cut size, the picture size of the trimmed picture may become smaller than that of the original picture.

• The picture quality of the trimmed picture will deteriorate.

[COPY]

Copying the picture data

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

You can copy recorded picture data from the built-in memory to a card or vice versa.

COPY

100_0001

1 / 3

SELECT

SET EXIT

MENU

• When you copy picture data from the built-in memory to the card, all the pictures are selected at one time so this screen does not appear.

3 Press

3 to select [YES] and then

press [MENU/SET].

(The illustration shows the screen when pictures are copied from the built-in memory to a card.)

COPY

COPY PICTURES FROM

BUILT-IN MEMORY TO

MEMORY CARD ?

YES

SELECT SET

MENU

SET

VQT0V00

VQT0V00ENG.book 77 ページ２００６年１月２０日　金曜日　午後６時３１分

• The message [COPY THIS PICTURE

TO BUILT-IN MEMORY?] appears when you copy pictures from the card to the built-in memory.

• If you press [MENU/SET] while copying pictures from the built-in memory to the card, the copying will stop halfway.

• Do not turn the camera off or do any other operations before copying is finished. The data on the built-in memory or the card may be damaged or lost.

4 Press [MENU/SET] several times to close the menu.

• If you copy picture data from the built-in memory to a card, the screen automatically returns to the playback screen when all the pictures are copied.

• If you copy picture data from the built-in memory to a card, we recommend using a card which has more free space than the built-in memory (about 14 MB).

• It may take time to copy the picture data.

• Only pictures recorded with a Panasonic digital camera (LUMIX) will be copied.

(Even if the pictures were recorded with a

Panasonic digital camera, you may not be able to copy them if they were edited with a PC.)

• DPOF settings on the original picture data will not be copied. Set the DPOF settings again after copying is finished. (P71)

• If a picture with the same name as the picture to be copied exists in the copy destination, the picture will not be copied.

• If you copy picture data from the built-in memory to a card which does not have sufficient free space, the picture data will only be copied halfway.

Menu Settings

[FORMAT]

Initializing the built-in memory or a card

Press [

SET

] to display the [PLAY] mode menu and select the item to set. (P68)

Usually, it is not necessary to format the built-in memory and the card. Format them when the message [BUILT-IN MEMORY

ERROR] or [MEMORY CARD ERROR] appears.

Press

3 to select [YES] and then

press [MENU/SET].

(The illustration shows the screen when the built-in memory is formatted.)

FORMAT

DELETE ALL DATA

ON THE BUILT-IN MEMORY?

YES

SET

SELECT SET

MENU

• When a card is not inserted, you can format the built-in memory. When a card is inserted, you can format the card.

• If you press [MENU/SET] while formatting the built-in memory, the formatting will stop halfway. (However, all the pictures will be deleted.)

VQT0V00

VQT0V00ENG.book 78 ページ２００６年１月２０日　金曜日　午後６時３１分

Menu Settings

• Formatting irretrievably deletes all the data including any protected pictures.

Check the data carefully before formatting.

• If the card has been formatted on a PC or other equipment, format it on the camera again.

• Use batteries with sufficient power (P12) or the AC adaptor (DMW-AC6; optional) when formatting.

• Do not turn the camera off during formatting.

• It may take longer to format the built-in memory than the card. (Max. about

15 sec.)

• You cannot format an SD Memory Card when the card’s write protect switch is set to [LOCK].

• If the built-in memory or the card cannot be formatted, consult your nearest servicentre.

VQT0V00

VQT0V00ENG.book 79 ページ２００６年１月２０日　金曜日　午後６時３１分

Connecting to other equipment

Connecting to a PC

SCN

You can acquire recorded pictures to a PC by connecting the camera and the PC.

The software [LUMIX Simple Viewer]

(for Windows

) in the CD-ROM (supplied) allows you to easily acquire pictures recorded with the camera to a PC, print them and send them by e-mail.

If you use Windows 98/98SE, install the

USB driver and then connect it to the computer.

For information about installing [LUMIX

Simple Viewer] etc., refer to the separate operating instructions for PC connection.

Connecting to other equipment

2 Connect the camera to a PC via the USB connection cable

A

(supplied).

• Connect the USB connection cable with the [ ] mark facing the [

1] mark on the [DIGITAL] socket.

• Hold the USB connection cable at

C and insert straight in or take straight out. (If you forcibly insert the USB connection cable at a slant or upside down you can deform the connection terminals and damage the camera or the connected equipment.)

ACCESS

D: This message appears during data transfer.

3 Press

3 to select [PC] and then

press [MENU/SET].

DIGITAL

AV OUT

DC IN 3V

A: USB connection cable (supplied)

B: AC adaptor (DMW-AC6; optional)

• Use batteries with sufficient battery power or the AC adaptor (DMW-AC6; optional).

• Turn the camera off before inserting or removing the cable for the AC adaptor

(DMW-AC6; optional).

1 Turn on the camera and the PC.

USB MODE

PLEASE SELECT

THE USB MODE

PictBridge(PTP)

SET

SELECT SET

MENU

• If you set [USB MODE] in the [SETUP] menu to [PC] in advance, it is not necessary to set this every time you connect to a PC. (P22)

• If you set [USB MODE] to [PictBridge

(PTP)] and then connect the camera to the PC, messages may appear on the screen of the PC.

Select [Cancel] to close the messages and disconnect the camera from the

PC. Set [USB MODE] to [PC] again.

[Windows]

The drive appears in the [My Computer] folder.

VQT0V00

VQT0V00ENG.book 80 ページ２００６年１月２０日　金曜日　午後６時３１分

Connecting to other equipment

• If you are connecting the camera to a PC for the first time, the required driver is installed automatically so that the camera can be recognised by Windows Plug and

Play. The drive then appears on the

[My Computer] folder.

[Macintosh]

The drive is displayed on the screen.

• The drive is displayed as [LUMIX] when you connect the camera with no card inserted.

• The drive is displayed as [NO_NAME] or

[Untitled] when you connect the camera with a card inserted.

∫ Folder Composition

Folders are displayed as shown in the following illustration.

≥Built-in memory

≥SD Memory Card

≥MultiMediaCard

DCIM

100_PANA


2 3


999_PANA

MISC

1 Folder number

2 File number

3 JPG: pictures

MOV: motion pictures

The items in each folder are as follows.

DCIM Folders from [100_PANA] to

[999_PANA]

Pictures/motion pictures 100_PANA to

999_PANA

MISC Files on which the DPOF print settings are recorded

VQT0V00


101_PANA

• The data for up to 999 pictures recorded by the camera can be included in 1 folder.

If the number of pictures exceeds 999, another folder is created.

• To reset the file number or the folder number, select [NO.RESET] in the

[SETUP] menu. (P21)

∫ Conditions under which a different

folder number is used

In the following cases, the picture is not recorded in the same folder as the previously recorded picture. It is recorded in a folder with a new number.

1 When the folder just recorded to contains a picture file with the number 999 in it

(example: P1000999.JPG).

2 When the card just recorded to contains, for example, a folder with the number

100 (100_PANA) in it and that card is removed and replaced with a card that has a folder with the number 100 in it recorded by a camera from a different maker (100XXXXX, with XXXXX being the name of the maker) and then a picture is recorded.

3 When recording after selecting

[NO.RESET] (P21) from the [SETUP] menu. (Pictures will be recorded to a new folder with a number sequential to the folder recorded to immediately before. By using [NO.RESET] on a card that does not contain folders or pictures, such as one just formatted, the folder number can be reset to 100.)

∫ PictBridge (PTP) setting

Even if you set [USB MODE] to

[PictBridge (PTP)], you can connect to your

PC if the OS is Windows XP Home Edition/

Professional or Mac OS X.

• Pictures can only be read on the camera.

They cannot be written to a card or deleted.

• When there are 1000 or more pictures on a card, the pictures may not be imported.

VQT0V00ENG.book 81 ページ２００６年１月２０日　金曜日　午後６時３１分

Connecting to other equipment

Printing the Pictures

• Do not use any other USB connection cables except the supplied one.

• Do not disconnect the USB connection cable while [ACCESS] is displayed.

• If battery power is exhausted while the camera and the PC are communicating, the recorded data may be damaged. Use batteries with sufficient battery power

(P12) or the AC adaptor (DMW-AC6; optional) when you connect the camera to the PC.

• If the remaining battery power becomes low while the camera and the PC are communicating, the status indicator blinks and the alarm beeps. In this case, stop the communication at once on the PC.

• When connecting the camera to a

Windows 2000 OS PC with the USB connection cable, do not replace the card while the camera and the PC are connected. The information on the card may be damaged. Disconnect the USB connection cable before replacing the card.

• For information about this, refer to the separate operating instructions for PC connection.

• Read the operating instructions for the

PC.

• If a card is not inserted when the camera is connected to the PC, you can edit or access the pictures on the built-in memory. If a card is inserted, you can edit or access the pictures on it.

• You cannot switch between the built-in memory and the card while the camera is connected to the PC. When you want to switch between the built-in memory and the card, disconnect the USB connection cable, insert (or remove) the card and then connect the USB connection cable to the PC again.

SCN

By connecting the camera directly to a printer supporting PictBridge via the USB connection cable (supplied), you can select the pictures to print and start printing on the camera’s screen.

Set print settings such as the print quality on the printer beforehand. (Read the printer operating instructions.)

DIGITAL

AV OUT

DC IN 3V

A: USB connection cable (supplied)

B: AC adaptor (DMW-AC6; optional)

• It may take time to print some pictures.

Use batteries with sufficient battery power

(P12) or the AC adaptor (DMW-AC6; optional) when you connect to a printer.

• Turn the camera off before inserting or removing the cable for the AC adaptor

(DMW-AC6; optional).

1 Turn on the camera and the printer.

2 Connect the camera to a printer via the USB connection cable

A

(supplied).

VQT0V00

VQT0V00ENG.book 82 ページ２００６年１月２０日　金曜日　午後６時３１分

Connecting to other equipment

• Connect the USB connection cable with the [ ] mark facing the [

1] mark on the [DIGITAL] socket.

• Hold the USB connection cable at C and insert straight in or take straight out.

3 Press

4 to select [PictBridge

(PTP)] and then press

[MENU/SET].

• To find out more about PictBridge compliant printers, contact your local dealer.

∫ Single picture

1 Press

3 to select

[SINGLE PICTURE] and then press

[MENU/SET].

PictBridge

USB MODE

PLEASE SELECT

THE USB MODE

PictBridge(PTP)

SET

SELECT SET

MENU

• If you set [USB MODE] in the [SETUP] menu to [PictBridge (PTP)] in advance, it is not necessary to set this every time you connect to a PC. (P22)

SINGLE PICTURE

DPOF PICTURE

SET

SELECT SET

MENU

2 Press

2/1 to select the picture

and then press

4.

• Do not use any other USB connection cables except the supplied one.

• If a card is not inserted when the camera is connected to the PC, you can edit or access the picture data on the built-in memory. If a card is inserted, you can edit or access the picture data on it.

• You cannot switch between the built-in memory and the card while the camera is connected to the printer. When you want to switch between the built-in memory and the card, disconnect the USB connection cable, insert (or remove) the card and then connect the USB connection cable to the printer again.

• To print the age in [BABY1]/[BABY2]

(P53) in scene mode, use the software

[LUMIX Simple Viewer] in the CD-ROM

(supplied) and print from the PC. For information about this, refer to the separate operating instructions for PC connection.

PictBridge

100_0001

1 / 3

PLEASE SELECT

THE PICTURE TO PRINT

SELECT

PRINT EXIT

MENU

• The message disappears in about

2 seconds.

3 Press

3 to select [PRINT START]

and then press

[MENU/SET].

SINGLE PICTURE

PRINT START

PRINT WITH DATE

NUM. OF PRINTS

PAPER SIZE

PAGE LAYOUT

CANCEL SELECT

１秒

1 OFF

SET

MENU

SET

• Press [MENU/SET] to cancel printing.

4 Disconnect the USB connection cable after printing.

∫ Setting date printing, the number of

prints, the paper size and the page layout

Select and set each item in step 3.

VQT0V00

VQT0V00ENG.book 83 ページ２００６年１月２０日　金曜日　午後６時３１分

• Items not supported by the printer are displayed in grey and cannot be selected.

• When you want to print pictures in a paper size or a layout which is not supported by the camera, set [PAPER SIZE] or

[PAGE LAYOUT] to [ ] and then set the paper size or the layout on the printer. (For details, refer to the operating instructions of the printer.)

• [PRINT WITH DATE]

Settings on the printer are prioritised.

OFF Date is not printed.

ON Date is printed.

• If the printer does not support date printing, the date cannot be printed on the picture.

• [NUM. OF PRINTS]

Set the number of prints.

• [PAPER SIZE]

(Paper sizes that can be set with this unit)

The paper sizes are displayed on pages

1/2 and 2/2. Press

4 to select.

1/2

Settings on the printer are prioritised.

L/3.5

qk5q

2L/5 q k

7 q

89 mm k

127 mm

127 mm k

178 mm

POSTCARD 100 mm k

148 mm

2/2

210 mm k

297 mm

CARD SIZE 54 mm k

85.6 mm

10 k

15cm 100 mm k

150 mm

4 q k

6 q

8 q k

10 q

LETTER

101.6 mm

203.2 mm k

152.4 mm k

254 mm

216 mm k

279.4 mm

¢These items cannot be displayed when the printer does not support the paper sizes.

Connecting to other equipment

• [PAGE LAYOUT]

(Layouts that can be set with this unit)

Settings on the printer are prioritised.

1 page with no frame is printed.

1 page with a frame is printed.

2 pages are printed.

4 pages are printed.

• An item cannot be selected if the printer does not support the page layout.

∫ DPOF picture

• Set the DPOF print setting on the camera in advance. (P71)

1 Press

4 to select

[DPOF PICTURE] and then press

[MENU/SET].

PictBridge

SINGLE PICTURE

DPOF PICTURE

SET

SELECT SET

MENU

2 Press

3 to select [PRINT START]

and then press [MENU/SET].

DPOF

PRINT START

PAPER SIZE

PAGE LAYOUT

DPOF SET

SET

CANCEL SELECT SET

• You cannot select [PRINT START] when the DPOF print setting is not set.

Select [DPOF SET] and then set the

DPOF print setting. (P71)

• Press [MENU/SET] to cancel printing.

3 Disconnect the USB connection cable after printing.

VQT0V00

VQT0V00ENG.book 84 ページ２００６年１月２０日　金曜日　午後６時３１分

Connecting to other equipment

∫ Setting the date printing with the

DPOF print in advance

We recommend setting DPOF date printing with [DPOF PRINT] (P72) in advance when the printer supports it. If you select

[DPOF PICTURE], printing starts and the recording date is printed.

∫ Layout printing

• When printing a picture several times on 1 sheet of paper

For example, if you want to print a picture

4 times on 1 sheet of paper, set

[PAGE LAYOUT] to [ ] and then set

[NUM. OF PRINTS] to 4.

• When printing different pictures on

1 sheet of paper (only in DPOF printing)

For example, if you want to print 4 different pictures on 1 sheet of paper, set

[PAGE LAYOUT] to [ ] and then set

[COUNT] in [DPOF PRINT] (P71) to 1 for each of the 4 pictures.

differ from the number set. This is not a malfunction.

• With date printing, the setting on the printer may take priority over the setting on the camera. Check the date print setting on the printer also.

• Do not disconnect the USB connection cable when the cable disconnection warning icon [ ] is displayed.

(Depending on the printer, the icon may not be displayed.)

• If the remaining battery power becomes low while the camera and the printer are connected, the status indicator blinks and the alarm beeps. If this happens during printing, press [MENU/SET] and stop printing at once. If not printing, disconnect the USB connection cable.

• The camera is receiving an error message from the printer when the [

¥] indication lights orange during printing. After finishing printing, make sure there are no problems with the printer.

• If the total number of DPOF prints or the number of DPOF pictures printed is high, pictures may be printed several times. The remaining number of prints indicated may

VQT0V00

VQT0V00ENG.book 85 ページ２００６年１月２０日　金曜日　午後６時３１分

Connecting to other equipment

Playing Back Pictures on a TV Screen

∫ Playing back pictures using the AV

cable (supplied)

The procedure for DMC-LZ5 is described below. In the case of DMC-LZ4/DMC-LZ3, connect the TV and the [V.OUT] terminal on the camera with the video cable

(supplied).

• Turn the camera and the TV off.

DIGITAL

AV OUT

DC IN 3V

1 Connect the AV cable A

(supplied) to the [AV OUT] socket on the camera.

• Connect the AV cable with the [ mark facing the [

1] mark on the

[AV OUT] socket.

• Hold the AV cable at B and insert straight in or take straight out.

]

2 Connect the AV cable to the video input and the audio input sockets on the TV.

• 1 Yellow: to the video input socket

• 2 White: to the audio input socket

3 Turn the TV on and select external input.

4 Turn the camera on.

• Do not use any other AV cables

(DMC-LZ5)/video cables (DMC-LZ4/

DMC-LZ3) except the supplied one.

• Only when the mode dial is set to playback mode [ displayed on the TV.

], the picture is

• The top and bottom or left and right of the picture may be cut off slightly when it is displayed due to the characteristics of the

TV.

• Depending on the screen mode setting of the TV when you connect the camera to a wide-screen TV or a high-definition TV, the picture may be stretched horizontally or vertically and the top and bottom and or left and right of the picture may be cut off when it is displayed. In this case, change the screen mode setting.

• Audio playback is monaural. (DMC-LZ5)

• Read the operating instructions for the TV.

• When you play back a picture vertically, it may be blurry.

• You can view pictures on TVs in other countries (regions) which use the NTSC or PAL system when you set

[VIDEO OUT] in the [SETUP] menu.

∫ Playing back pictures on a TV with an

SD Memory Card slot

Still pictures recorded on an SD Memory

Card can be played back on a TV with an

SD Memory Card slot.

• Depending on the TV model, pictures may not be displayed on the full screen.

• Motion pictures cannot be played back. To play back motion pictures, connect the camera to the TV with the AV cable

(DMC-LZ5)/video cable (DMC-LZ4/

DMC-LZ3) (supplied).

• You may not be able to play back

MultiMediaCards.

VQT0V00

VQT0V00ENG.book 86 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

Screen Display

1 2 3 4 5 6 7 8 9

ISO 100

F2.8

1/25

A In recording

1 Recording mode (P23)

2 Flash mode (P38)

3 Burst (P45)

: Audio recording (DMC-LZ5)

(P54, 65)

4 White balance (P61)

5 ISO sensitivity (P62)

6 Focus (P23)

7 Picture size (P63)

8 Quality (P63)

In Motion picture mode (P54)

/ / /

: Jitter alert (P25)

9 Battery indication (P12)

10 Colour effect mode (P67)

11 Number of recordable pictures/

Available recording time

In Motion picture mode (P54) e.g.:

R1h20m30s

12 Built-in memory/Card (P16)

: Built-in memory

: Card

13 Recording state

14 Histogram (P36)

VQT0V00

15 Age (P53)

• This is displayed for about 5 seconds when the camera is turned on in baby mode, after setting the clock or birthday, and after switching from other modes to baby mode.

16 Elapsed recording time (P54)

17 Current date and time

• This is displayed for about 5 seconds when the camera is turned on, after setting the clock and after switching from playback mode to recording mode.

Zoom (P28)/Extra optical zoom (P29)/

Digital zoom (P30)

18 Shutter speed (P23)

19 Aperture value (P23)

20 Exposure compensation (P42)

21 Auto bracket (P43)

22 Slow shutter (P66)

23 High angle mode (P37)

24 Self-timer mode (P41)

25 Spot AF area (P65)

26 AF assist lamp (P66)

27 AF area (P23)

28 Optical image stabilizer (P44)

1 2 3 4

10 9

BACKLIGHT

B Recording in simple mode

1 Flash mode (P38)

VQT0V00ENG.book 87 ページ２００６年１月２０日　金曜日　午後６時３１分

2 Focus (P23)

3 Picture mode (P26)

: Jitter alert (P25)

4 Battery indication (P12)

5 Number of recordable pictures

6 Built-in memory/Card (P16)

: Built-in memory

: Card

7 Recording state

8 AF area (P23)

9 Operation for backlight compensation

(P27)

10 Current date and time

• This is displayed for about 5 seconds when the camera is turned on, after setting the clock and after switching from playback mode to simple mode.

Zoom (P28)/Extra optical zoom (P29)

W T

11 Backlight compensation (P27)

12 Self-timer mode (P41)

13 AF assist lamp (P66)

14 Burst (P45)

1 2 3 4 5 6 7

PLAY AUDIO

100_0001

1 / 3

F2.8 1/25

ISO 100

AUTO

10:00 1.DEC.2006

C In playback

1 Playback mode (P32)

2 Number of DPOF prints (P71)

3 Protected picture (P73)

4 Picture with audio (DMC-LZ5)/Motion pictures (P58)

Others

5 Picture size (P63)

6 Quality (P63)

In Motion picture mode (P54)

/ / /

In Simple mode (P26)

: ENLARGE

: 4 qk6q/10k15cm

: E-MAIL

7 Battery indication (P12)

8 Folder/File number (P80)

Built-in memory/Card (P16)

9 Picture number/Total pictures

10 Cable disconnection warning icon (P84)

• This is displayed when printing using a printer supporting PictBridge.　

(Depending on the printer, the icon may not be displayed.)

Motion picture recording time (P58) e.g.:

1h20m30s

11 Histogram (P36)

12 Recording information

13 Favourites settings (P69)

Elapsed playback time (P58) e.g.:

1h20m30s

14 Recorded date and time

15 Age (P53)

16 Audio playback (DMC-LZ5) (P58)

In motion picture mode (P58)

PLAY MOTION


17 Favourites (P69)

VQT0V00

VQT0V00ENG.book 88 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

Cautions for Use

∫ Optimal use of the camera

Take care not to drop or knock the unit or put a lot of pressure on it.

• Do not leave the unit in your pants pocket when you sit down or forcefully insert it into a full bag etc.

• Take care not to drop or knock the bag that you inserted the unit in as it may strongly shock the unit.

• A strong shock to the unit may break the lens, screen or outer case and cause the unit to malfunction.

Do not use the camera near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded pictures and sound may be adversely affected.

Always use the supplied cords and cables. If you use optional accessories, use the cords and the cables supplied with them.

Do not extend the cords or the cables.

Keep the camera as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).

• If you use the camera on top of or near a

TV, the pictures and sound on the camera may be disrupted by electromagnetic wave radiation.

• Do not use the camera near cell phones because doing so may result in noise adversely affecting the pictures and sound.

• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields created by speakers or large motors.

• Electromagnetic wave radiation generated by microprocessors may adversely affect the camera, disturbing the pictures and sound.

• If the camera is adversely affected by electromagnetic equipment and stops functioning properly, turn the camera off and remove the batteries or disconnect

AC adaptor (DMW-AC6; optional). Then reinsert the batteries or reconnect AC adaptor and turn the camera on.

VQT0V00

Do not spray the camera with insecticides or volatile chemicals.

• If the camera is sprayed with such chemicals, the body of the camera may be damaged and the surface finish may peel off.

• Do not keep rubber or plastic products in contact with the camera for a long period of time.

Do not use benzine, thinner or alcohol for cleaning the camera.

• Before cleaning the camera, remove the batteries or disconnect the AC adaptor

(DMW-AC6; optional) from the electrical outlet.

• The body of the camera may be damaged and the surface finish may peel off.

• Wipe the camera with a soft, dry cloth. To remove stubborn stains, wipe with a cloth that is soaked in a detergent diluted with water and then with a soft, dry cloth.

• If you use a chemically treated cloth, read the instructions that come with the cloth.

• If rain water or other drops of water splash onto the camera, wet a soft cloth with tap water, wring it well, then use it to wipe the camera body carefully. Lastly, wipe the camera again with a dry cloth.

VQT0V00ENG.book 89 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

∫ Card

Do not leave the card where the temperature is high, where electromagnetic waves or static electricity are easily generated or exposed to direct sunlight.

Do not bend or drop the card.

• The card may be damaged or the recorded content may be damaged or deleted.

• Put the card in the card case or the storage bag after use and when storing or carrying the card.

• Do not allow dirt, dust or water to get into the terminals on the back of the card and do not touch the terminals with your fingers.

∫ Batteries

Be sure to remove the batteries when you will not be using the camera for a long period of time.

• If the temperature is too high or low, the terminals may rust causing a malfunction.

If you drop the batteries accidentally, check to see if the body of the batteries and the terminals are damaged.

• Inserting a damaged battery in the camera will damage the camera.

Bring charged spare batteries when going out.

• Be aware that the operating time of the batteries becomes shorter in low temperature conditions such as at a ski resort.

Dispose of unusable batteries.

• Batteries have a limited life.

• Do not throw batteries into fire because they may cause an explosion.

Do not allow battery terminals to come into contact with metal objects (such as necklaces, hairpins, etc.).

• This can cause short circuiting or heat generation and you may be badly burned if you touch the batteries.

Message Display

Confirmation messages or error messages will be displayed on the screen in some cases.

The major messages are described below as examples.

[CURRENT BATTERY TYPE SETTING:

OXYRIDE]/[CURRENT BATTERY TYPE

SETTING: ALKALINE/Ni-MH]

This message is displayed the first time you insert batteries and when the batteries are exhausted and you replace them. If the battery type being used is different from the one indicated in the message, change the battery type in [BATTERY TYPE] in the

[SETUP] menu. (P20)

[THIS MEMORY CARD IS PROTECTED]

The Write-Protect switch on the SD

Memory Card is moved to [LOCK]. Move the switch back to unlock it. (P17, 73)

[NO VALID PICTURE TO PLAY]

Record a picture or insert a card with a recorded picture and then play it.

[THIS PICTURE IS PROTECTED]

Delete or overwrite the picture after cancelling the protect setting. (P73)

[THIS PICTURE CANNOT BE DELETED]/

[SOME PICTURES CANNOT BE

DELETED]

Pictures not based on the DCF standard cannot be deleted. If you want to delete some pictures, format the card after saving necessary data on a PC etc. (P77)

[NO ADDITIONAL DELETE SELECTIONS

CAN BE MADE]

You have exceeded the number of pictures that can be set at once with

[MULTI DELETE]. Delete the selected pictures and then select [MULTI DELETE] again to delete any remaining pictures.

More than 999 favourites have been set.

VQT0V00

VQT0V00ENG.book 90 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

[CANNOT BE SET ON THIS PICTURE]/

[CANNOT BE SET ON SOME PICTURES]

If the pictures are not based on the DCF standard, the DPOF print cannot be set.

[NOT ENOUGH SPACE ON BUILT-IN

MEMORY]/[NOT ENOUGH MEMORY IN

THE CARD]

There is no space left on the built-in memory or the card.

• When you copy pictures from the built-in memory to the card (batch copy), the pictures are copied until the capacity of the card becomes full.

[SOME PICTURES CANNOT BE

COPIED]/[COPY COULD NOT BE

COMPLETED]

The following pictures cannot be copied.

• When a picture with the same name as the picture to be copied exists in the copy destination.

• Files not based on the DCF standard.

Moreover, pictures recorded or edited by other equipment may not be copied.

[BUILT-IN MEMORY ERROR

FORMAT BUILT-IN MEMORY?]

This message will be displayed when you format the built-in memory on the PC or remove the batteries without turning the camera off. Format the built-in memory on the camera again. (P77) The data on the built-in memory will be deleted.

[MEMORY CARD ERROR

FORMAT THIS CARD?]

The card format cannot be recognised by the camera. Format the card again with the camera after saving necessary data on a

PC etc. (P77)

[PLEASE TURN CAMERA OFF AND

THEN ON AGAIN]

This message appears when the camera is not operating properly. Turn the camera off and on. If the message persists, contact the dealer or your nearest servicentre.

[MEMORY CARD ERROR

PLEASE CHECK THE CARD]

• An error has occurred accessing the card.

Insert the card again.

• A card with a capacity more than 2 GB is inserted. Do not use a card with a capacity more than 2 GB.

[READ ERROR

PLEASE CHECK THE CARD]

An error has occurred reading the data.

Insert the card again. Make sure the card is inserted properly and then play back again.

[WRITE ERROR

PLEASE CHECK THE CARD]

An error has occurred writing the data.

Turn the camera off and remove the card.

Insert the card again and turn the camera on. Make sure the camera is turned off before removing or inserting the card to avoid damage.

[MOTION RECORDING WAS

CANCELLED DUE TO THE LIMITATION

OF THE WRITING SPEED OF THE

CARD]

• We recommend using a high speed SD

Memory Card with “10MB/s” or greater displayed on the package when you set the picture quality to [30fpsVGA].

• Depending on the type of SD Memory

Card, recording may stop in the middle.

[A FOLDER CANNOT BE CREATED]

A folder cannot be created because there are no remaining folder numbers that can be used. (P80)

Format the card after saving necessary data on a PC etc. (P77)

VQT0V00

VQT0V00ENG.book 91 ページ２００６年１月２０日　金曜日　午後６時３１分

Troubleshooting

If you return the menu settings to the initial settings at the time of purchase, the condition may improve.

Select [RESET] in the [SETUP] menu.

(P22)

∫ Batteries and the power source

1: The camera turns off immediately even when battery power is full.

The remaining battery power is low even if new batteries are inserted.

• The remaining battery power may not be displayed accurately, and the camera may suddenly stop working, when the type of battery and the settings on

[BATTERY TYPE] are not identical.

However this is not a malfunction.

Depending on the battery brand and the operating temperature, or if exhausted batteries are used, the remaining battery power may not be displayed accurately.

– Please check [BATTERY TYPE] (P20) in the [SETUP] menu.

2: The camera cannot be operated even when it is turned on.

• Are the batteries inserted correctly?

• Use sufficiently charged batteries when using Ni-MH batteries.

3: The LCD monitor turns off while the camera is turned on.

• Is power save mode (P21) or economy mode (P21) activated?

– Press the shutter button halfway to cancel these modes.

• Are the batteries exhausted?

– Replace them with batteries which have sufficient capacity. (When you use Ni-MH batteries, charge them.)

4: The camera turns off immediately after it is turned on.

• Are the batteries exhausted?

– Replace them with batteries which have sufficient capacity. (When you use Ni-MH batteries, charge them.)

Others

– If you leave the camera on, the batteries will be exhausted. Turn the camera off frequently by using power save mode (P21), economy mode

(P21), etc.

∫ Recording

1: The picture cannot be recorded.

• Is the mode dial correctly set?

• Is there any memory remaining on the built-in memory or the card?

– Before recording, delete some pictures. (P33)

2: The recorded picture is whitish.

The lens is dirty.

• The picture can become whitish if there is dirt e.g. fingerprints on the lens. If the lens is dirty, turn on the camera, eject the lens barrel (P9) and gently wipe the lens surface with a soft dry cloth.

3: The recorded picture is too bright or dark.

• Check that the exposure is correctly compensated. (P42)

4: The subject is not focused properly.

• The focus range varies depending on the recording mode.

Rotate the mode dial to set the proper mode for the distance to the subject.

• Is the subject beyond the focus range of the camera? (P24)

• Have you taken a picture with jitter?

5: The recorded picture is blurred. The optical image stabilizer is not effective.

• The shutter speed will become slower and the optical image stabilizer function may not work properly when taking pictures especially in dark places. In this case, we recommend holding the camera firmly with both hands when taking pictures. (P24) When

[SLOW SHUTTER] (P66) is set, we recommend using a tripod and the self-timer (P41) when taking pictures.

VQT0V00

VQT0V00ENG.book 92 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

6: The recorded picture looks rough.

Noise appears on the picture.

• Is the ISO sensitivity high or the shutter speed slow?

(ISO sensitivity is set to [AUTO] when the camera is shipped. Therefore, when taking pictures indoors etc. the ISO sensitivity increases.)

– Decrease the ISO sensitivity. (P62)

– Set [PICT.ADJ.] to [NATURAL]. (P67)

– Take pictures in bright places.

• In [HIGH SENS.] (P54) in scene mode, the resolution of the recorded picture decreases slightly because of high sensitivity processing.

This is not a malfunction.

7: Motion picture recording stops in the middle.

• Are you using a MultiMediaCard?

– This unit does not support

MultiMediaCards.

• We recommend using a high speed SD

Memory Card with “10MB/s” or greater displayed on the package when you set the picture quality to [30fpsVGA].

• Depending on the type of SD Memory

Card, recording may stop in the middle.

∫ LCD monitor

1: The LCD monitor is turned off sometimes when the camera is turned on.

• Is the LCD monitor turned off soon after you take pictures with the flash?

– While the flash is being charged, the

LCD monitor is turned off.

2: The LCD monitor becomes darker or brighter for a moment.

• This phenomenon appears when you press the shutter button halfway to set the aperture value and does not affect the recorded pictures.

3: The LCD monitor flickers indoors.

• The LCD monitor may flicker for a few seconds after turning the camera on indoors under fluorescent light.

VQT0V00

This is not a malfunction.

4: The LCD monitor is too bright or dark.

• Adjust the brightness of the screen.

(P20)

• Is the camera in high angle mode?

(P37)

5: Black, red, blue and green dots appear on the LCD monitor.

• These pixels do not affect the recorded pictures.

This is not a malfunction.

6: Noise appears on the LCD monitor.

• In dark places, noise may appear to maintain the brightness of the LCD monitor.

This does not affect the pictures you are recording.

7: A vertical line appears on the LCD monitor.

• This is a phenomenon called smear. It is a characteristic of CCD and appears when the subject has a bright part.

Uneven colours may also appear around the smear. This is not a malfunction. It is recorded in motion pictures but is not recorded on still pictures.

∫ Flash

1: The flash is not activated.

• Is the flash setting set to Forced OFF

[ ]?

– Change the flash setting. (P38)

• The flash is not activated when motion picture mode [ ], [SCENERY] (P49),

[NIGHT SCENERY] (P50),

[FIREWORKS] (P52) or [STARRY SKY]

(P52) in scene mode is selected.

2: The flash is activated 2 times.

• When you select red-eye reduction

(P38), the flash is activated once before the actual recording to reduce the red-eye phenomenon (eyes of the subject appearing red in the picture)

VQT0V00ENG.book 93 ページ２００６年１月２０日　金曜日　午後６時３１分 and then activated again for the actual recording.

∫ Playback

1: The picture being played back is rotated and displayed in an unexpected direction.

The camera has a function that automatically rotates the display of pictures recorded holding the camera vertically. (If you take pictures when aiming the camera up or down, the camera may recognise that it is being held vertically.)

• You can display the pictures without being rotated when [ROTATE DISP.]

(P70) is set to [OFF].

• You can rotate pictures with the

[ROTATE] function. (P70)

2: The picture is not played back.

• Is the mode dial set to playback [ ]?

• Is there a picture on the built-in memory or the card?

The pictures on the built-in memory appears when a card is not inserted.

The picture data on the card appears when a card is inserted. (P16)

3: The folder number and the file number are displayed as [—] and the screen turns black.

• Is the picture edited with a PC or recorded with a digital camera from another manufacturer?

This may also happen if batteries are removed immediately after recording or if recording with exhausted batteries.

– Format the data to delete the pictures mentioned above. (P77) (Formatting irretrievably deletes all data including the other pictures. Check the data carefully before formatting.)

∫ TV, PC and printer

1: The picture does not appear on the television.

Others

• Is the camera connected to the TV correctly?

• Set the TV input to external input mode.

2: The display areas on the TV screen and the camera’s LCD monitor are different.

Depending on the TV model, the area display may be smaller so the picture may be stretched horizontally or vertically and the top and bottom or left and right of the picture may be cut off when it is displayed. This is due to the

TV specifications and is not a malfunction.

3: The motion pictures cannot be played back on a TV.

• Are you trying to play back the motion pictures by directly inserting the card in the card slot of the TV?

– Connect the camera to the TV with the AV cable (DMC-LZ5)/video cable

(DMC-LZ4/DMC-LZ3) (supplied) and then play back the pictures on the camera.

4: The picture cannot be transferred when the camera is connected to a PC.

• Is the camera connected to the PC correctly?

• Is the camera recognised by the PC correctly?

• Set [USB MODE] to [PC]. (P22, 79)

5: The card is not recognised by the PC.

(The built-in memory is recognised.)

• Disconnect the USB connection cable.

Connect it again while the card is inserted in the camera.

6: The picture cannot be printed when the camera is connected to a printer.

• Does the printer support PictBridge?

– You cannot print pictures with printers which do not support PictBridge.

(P81)

• Set [USB MODE] to [PictBridge (PTP)].

(P22, 81)

VQT0V00

VQT0V00ENG.book 94 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

7: The ends of the pictures are cut at printing.

• When using a printer with a trimming or borderless printing function, cancel this function before printing. (For details, refer to the operating instructions for the printer.)

• When you order photo studios to print pictures, ask the photo studio if the pictures can be printed with both ends.

∫ Others

1: An unreadable language was selected by mistake.

• Press [MENU/SET], select the [SETUP] menu icon [ ] and then select the [ ] icon to set the desired language. (P22)

2: The setting for the auto review function is disabled.

• Are you taking pictures using auto bracket (P43)? Is the camera in burst

[ mode (P45) or motion picture mode

] (P54)? Is [AUDIO REC.] set to

[ON] (DMC-LZ5) (P65)?

– In these cases, you cannot set the auto review function in the [SETUP] menu.

3: A red lamp sometimes turns on when the shutter button is pressed halfway.

• In dark places, the AF assist lamp (P66) lights red to make it easier to focus on a subject.

4: The AF assist lamp does not turn on.

• Is [AF ASSIST LAMP] on the [REC] mode menu set to [ON]? (P66)

• Are you taking pictures in dark places?

– The AF assist lamp does not turn on in bright places.

• The AF assist lamp does not turn on when [SCENERY] (P49),

[NIGHT SCENERY] (P50) or

[FIREWORKS] (P52) in scene mode is selected.

5: The camera becomes warm.

• The surface of the camera may become warm during use. This does not affect the performance or quality of the camera.

6: The lens clicks.

• When the brightness changes due to zoom or camera movement etc., the lens may click and the picture on the screen may drastically change.

However, the picture is not affected.

The sound is caused by the automatic adjustment of the aperture.

This is not a malfunction.

7: The clock is reset.

• If you do not use the camera for a long time, the clock may be reset. When the message [PLEASE SET THE CLOCK] appears, set the clock again. (P18)

• When you take a picture before setting the clock, [0:00 0. 0.

0] is recorded.

8: Colours appear on the picture which were not found in the actual scene.

• Depending on the zoom magnification, the picture may have some coloured fringes around the subject. This is called chromatic aberration and may be more visible when recording distant subjects. However this is not a malfunction.

9: The file numbers are not recorded consecutively.

• When you perform an operation after taking a certain action, the pictures may be recorded in folders with different numbers from the ones used prior to the operation. (P80)

VQT0V00

VQT0V00ENG.book 95 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

Number of recordable pictures and available recording time

Others

• The number of recordable pictures and the available recording time are an approximation. (These vary depending on the recording conditions and the type of card.)

• The number of recordable pictures varies depending on the subjects.

∫ Number of recordable pictures

Aspect ratio

Picture size

(6M):

(2816 k2112 pixels)

(DMC-LZ5)

Quality

Built-in Memory

(Approx. 14 MB)

16 MB

Card

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

160

320

660

160

320

640

1270

(5M):

(2560 k1920 pixels)

(DMC-LZ4/

DMC-LZ3)

195

390

790

190

380

770

1530

(3M EZ):

(2048 k1536 pixels)

150

300

600

1220

150

290

590

1180

2360

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx. 14 MB)

16 MB

Card

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

(2M EZ):

(1600 k1200 pixels)

(1M EZ):

(1280 k960 pixels)

125

240

480

970

1920

120

240

470

940

1880

3610

190

370

730

1470

2920

175

350

690

1370

2740

5120

(0.3M EZ):

(640 k480 pixels)

145

290

600

1170

2320

4640

8780

110

230

480

970

1900

3770

7550

12290

VQT0V00

VQT0V00ENG.book 96 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

Aspect ratio

Picture size

Quality

Built-in Memory

(Approx. 14 MB)

16 MB

Card

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

(5M):

(2816 k1880 pixels)

(DMC-LZ5)

(4.5M):

(2560 k1712 pixels)

(DMC-LZ4/

DMC-LZ3)

(2.5M EZ):

(2048 k1360 pixels)

180

360

730

180

350

710

1420

110

210

440

890

110

210

430

860

1700

170

340

680

1360

165

330

650

1310

2560

Aspect ratio

Picture size

(4.5M):

(2816 k1584 pixels)

(DMC-LZ5)

(3.5M):

(2560 k1440 pixels)

(DMC-LZ4/

DMC-LZ3)

(2M EZ):

(1920 k1080 pixels)

Quality

Built-in Memory

(Approx. 14 MB)

16 MB

Card

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

105

210

430

870

105

210

420

850

1700

130

250

520

1040

130

250

510

1020

2040

115

230

450

910

1800

105

220

430

860

1720

3410

VQT0V00

VQT0V00ENG.book 97 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

∫ Available recording time (seconds)

Picture quality setting

Built-in Memory

(Approx. 14 MB)

SD Memory Card

16 MB

32 MB

64 MB

128 MB

256 MB

512 MB

1 GB

2 GB

30fpsVGA

—

160

320

660

1350

10fpsVGA 30fpsQVGA 10fpsQVGA

— 25 81

120

250

490

980

1970

4020

120

250

490

980

1970

4020

170

360

740

1440

2870

5700

11700

• The numbers inside the thick black line are the number of recordable pictures in simple mode [ ]. (P26)

• The number of recordable pictures and the available recording time displayed on the LCD monitor may not decrease in order.

• This unit does not support recording motion pictures on MultiMediaCards.

• The extra optical zoom does not work in [HIGH SENS.] (P54) in scene mode so the picture size for [EZ] is not displayed.

VQT0V00

VQT0V00ENG.book 98 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

Specifications

Digital Camera:

Information for your safety

Power Source:

Power Consumption:

DC 3.0 V

DMC-LZ5: 1.5 W (When recording)

0.7 W (When playing back)

DMC-LZ4:

DMC-LZ3: 1.4 W (When recording)

0.7 W (When playing back)

Camera effective pixels:

6,000,000 pixels (DMC-LZ5)/5,000,000 pixels (DMC-LZ4/

Image sensor:

DMC-LZ3)

1/2.5

q CCD, total pixel number 6,370,000 pixels (DMC-LZ5)/

Lens:

Digital zoom:

Extra optical zoom:

Focus:

Focus range:

Shutter system:

Burst recording

Burst speed:

5,360,000 pixels (DMC-LZ4/DMC-LZ3),

Primary colour filter

Optical 6 k zoom, fl6.1 mm to 36.6 mm (35 mm film camera equivalent: 37 mm to 222 mm)/F2.8 to F4.5

Max. 4 k

Max. 8.3

k (DMC-LZ5)/Max. 7.5k (DMC-LZ4/DMC-LZ3)

(Except for the maximum picture size for each aspect ratio)

Normal/Macro, 5-area-focusing/3-area-focusing (High speed)/

1-area-focusing (High speed)/1-area-focusing/Spot-focusing

Normal: 50 cm (Wide)/1.2 m (Tele) to

Macro/Simple/Motion picture: 5 cm (Wide)/50 cm (Tele) to

Electronic shutter iMechanical shutter

3 frames/second (High speed), 2 frames/second (Low speed),

Approx. 1.5 frames/second (Unlimited)

Number of recordable pictures:

Max. 8 frames (Standard) (DMC-LZ5), max. 6 frames (Fine)

(DMC-LZ5), Max. 5 frames (Standard) (DMC-LZ4/DMC-LZ3), max. 3 frames (Fine) (DMC-LZ4/DMC-LZ3), Depends on the remaining capacity of the built-in memory or the card (Unlimited).

(Performance in burst recording is only with SD Memory Card.

MultiMediaCard performance will be less.)

Motion picture recording: 640 k480 pixels (Only when using an SD Memory Card)/

320 k240 pixels (30 or 10 frames/second with audio. The

ISO sensitivity:

Shutter speed:

White balance:

Exposure (AE):

Metering mode:

LCD monitor:

maximum recording time depends on the capacity of the built-in memory or the card. Audio recording is available only with DMC-LZ5.)

AUTO/80/100/200/400

[HIGH SENS.] mode: 800 to 1600

8 to 1/2000th

[STARRY SKY] mode: 15 seconds, 30 seconds, 60 seconds

Motion picture mode: 1/30th to 1/20000th

AUTO/Daylight/Cloudy/Halogen/White set

Programme AE

Exposure compensation (1/3 EV Step, j2 EV to i2 EV)

Multiple

2.5

q (DMC-LZ5/DMC-LZ4)/2.0q (DMC-LZ3) low-temperature polycrystalline TFT LCD (Approx. 85,000 pixels) (field of view ratio about 100%)

VQT0V00

VQT0V00ENG.book 99 ページ２００６年１月２０日　金曜日　午後６時３１分

Others

Flash:

Flash range: (ISO AUTO)

Approx. 50 cm to 4.2 m (Wide)

[HIGH SENS.] mode: Approx. 80 cm to 5.7 m

AUTO, AUTO/Red-eye reduction, Forced ON (Forced ON/

Red-eye reduction), Slow sync./Red-eye reduction,

Forced OFF

Microphone

(DMC-LZ5):

Recording media:

Monaural

Built-in Memory (Approx. 14 MB)/SD Memory Card/

MultiMediaCard (Still pictures only)

Picture size

Still picture:

Motion pictures:

When the aspect ratio setting is [ ]

2816 k2112 pixels (DMC-LZ5), 2560k1920 pixels (DMC-LZ4/

DMC-LZ3), 2048 k1536 pixels, 1600k1200 pixels,

1280 k960 pixels, 640k480 pixels

When the aspect ratio setting is [ ]

2816 k1880 pixels (DMC-LZ5), 2560k1712 pixels (DMC-LZ4/

DMC-LZ3), 2048 k1360 pixels

When the aspect ratio setting is [ ]

2816 k1584 pixels (DMC-LZ5), 2560k1440 pixels (DMC-LZ4/

DMC-LZ3), 1920 k1080 pixels

640 k480 pixels (Only when using an SD Memory Card)/

320 k240 pixels

Fine/Standard

Quality:

Recording file format

Still Picture:

JPEG (based on Design rule for Camera File system, based on Exif 2.2 standard)/DPOF corresponding

Picture with audio

(DMC-LZ5):

Motion pictures:

JPEG (based on Design rule for Camera File system, based on Exif 2.2 standard) iQuickTime (picture with audio)

QuickTime Motion JPEG (Audio recording is available on

DMC-LZ5)

Interface

Digital:

Analogue video/audio

(DMC-LZ5):

Analogue video

USB 2.0 (Full Speed)

(DMC-LZ4/DMC-LZ3):

NTSC/PAL Composite (Switched by menu),

Audio line output (monaural) (DMC-LZ5)

Terminal

DIGITAL/AV OUT

(DMC-LZ5):

DIGITAL/V.OUT

(DMC-LZ4/DMC-LZ3):

Dedicated jack (8 pin)

DC IN:

Dimensions:

Mass:

Type 1 jack

Approx. 100.0 mm (W) k62.0 mm (H)k45.0 mm (D)

(excluding the projection part)

Approx. 186 g (DMC-LZ5/DMC-LZ4), Approx. 183 g

(DMC-LZ3) (excluding card and batteries),

Approx. 234 g (DMC-LZ5/DMC-LZ4), Approx. 231 g

(DMC-LZ3) (with card and batteries)

Operating temperature:

0 oC to 40 oC

Operating humidity:

10% to 80%

VQT0V00

VQT0V00ENG.book 100 ページ２００６年１月２０日　金曜日　午後６時３１分

QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Computer, Inc., used under license.

VQT0V00

F0106Mn0 ( 5000

Matsushita Electric Industrial Co., Ltd.

Web Site: http://www.panasonic.co.jp/global/

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Panasonic Lumix DMC-LS1 User Guide Manual pdf

Panasonic DMCLS80 Operating Instructions

Panasonic DMC-LS80 Digital Camera Owner's Manual

Panasonic DMCFZ50 Operating Instructions

Panasonic DMCFX50 Operating Instructions

Panasonic Lumix DMC-LZ4 Owner Manual

Panasonic DMCFX50 Operating Instructions

Panasonic DMCFZ50 Operating Instructions
