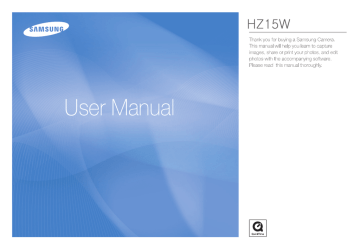

User Manual

Instructions

Use this camera in the following order.

Set up the Software

Take a picture

Insert the USB cable

Check the camera’s power

Check the camera’s power. If the power is turned off, press the power button to turn it on.

Check [Removable Disk]

To use this camera with a PC, install the application software fi rst. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.

(p.96~97)

Take a picture. (p.20)

Insert the supplied USB cable into the

PC’s USB port and the camera’s USB connection terminal. (p.98)

Open Windows EXPLORER and search for [Removable Disk]. (p.99)

Getting to know your camera

Thank you for buying a Samsung Digital Camera.

Prior to using this camera, please read the user manual thoroughly.

If you require After Sales service, please bring the camera and the cause of the camera malfunction (such as battery, Memory card etc.) to the A/S centre.

Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung takes no responsibility for any loss or damage that may result from camera malfunction.

Keep the manual in a safe place.

The contents and illustrations in this manual are subject to change without prior notice for upgrading the camera functions.

If you use a card reader to copy the images on the memory card to your

PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer accepts no responsibility for loss or damage of images on the memory card due to the use of a card reader.

Microsoft, Windows and Windows logo are registered trademarks of

Microsoft Corporation incorporated in the United States and/or other countries.

Apple, Mac and QuickTime logo are registered trademarks of Apple computer.

Adobe and Reader are either trademarks or registered trademarks in the

United States and/or other countries.

All brand and product names appearing in this manual are registered trademarks of their respective companies.

001

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Do not attempt to modify this camera in any way. This may result in fi re, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should be carried out by your dealer or Samsung Camera Service centre.

Please do not use this product in close proximity to fl ammable or explosive gases, as this could increase the risk of explosion.

Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fi re or electric shock.

Do not insert or drop metallic or infl ammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fi re or electric shock.

Do not operate this camera with wet hands. This could pose a risk of electric shock.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Do not use the fl ash in close proximity to people or animals. Positioning the fl ash too close to your subject’s eyes may cause eyesight damage.

For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.:

– Swallowing battery or small camera accessories. If an accident should occur, please consult a doctor immediately.

– There is the possibility of injury from the camera’s moving parts.

Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool.

Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extremes in temperature. Exposure to extreme temperatures may adversely affect the camera’s internal components and could cause a fi re.

When in use, do not cover the camera or Charger. This may cause heat to build up and distort the camera body or cause a fi re. Always use the camera and its accessories in a well-ventilated area.

002

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury.

Leaking, overheating, or burst battery could result in fi re or injury.

– Use battery with the correct specifi cation for the camera.

– Do not short circuit, heat or dispose of battery in fi re.

– Do not insert the battery with the polarities reversed.

Remove the battery when not planning to use the camera for a long period of time. Battery may leak corrosive electrolyte and permanently damage the camera’s components.

Do not fi re the fl ash while it is in contact with hands or objects. Do not touch the fl ash after using it continuously. It may cause burns.

Do not move the camera while it is switched on when you are using the AC

Charger. After use, always switch off the camera before unplugging the cable from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fi re or electric shock.

Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction.

Avoid obstructing the lens or the fl ash when you capture an image.

When using this camera in low temperatures, you may experience the following. These are not camera malfunctions and usually recover at normal temperature.

– It takes longer to turn on the LCD monitor and the colour may differ from the subject.

– When changing the composition, there may be an after image on the

LCD monitor.

Credit cards may be demagnetized if left near case. Avoid leaving magnetic strip cards near the case.

It is highly likely to result in computer malfunctions when the 20 pin connector is connected to the USB port of a PC. Never connect the 20 pin connector to USB port of a PC.

Contents

READY

RECORDING

Contents

Separately

008 Identifi cation of features

009 Back

010 Bottom

012 Connecting to a power source

015 Inserting the memory card

016 Instructions on how to use the memory card

018 When using the camera for the fi rst time

019 LCD monitor indicator

020 Starting the Recording mode

020

021

021

021

022

022

024

024

025

025

026

How to use the Auto mode

How to use the Program mode

How to use the Manual mode

How to use the DUAL IS(Dual Image

Stabilization) mode

How to use the Beauty Shot mode

How to use the Scene modes

How to use the Movie clip mode

Recording HD (High Defi nition) movie clips

Recording the movie clip without sound

Pausing while recording a movie clip

(Successive Recording)

How to use the Smart Auto mode

003

Contents

027 Things to watch out for when taking pictures

028 Using the camera buttons to set the camera

029 Zoom W/T Lever

031 Command

031 How to use the Command lever mode

032 Function Description / Info / Up button

033 Macro / Down button

035 Flash / Left button

037 Self-timer / Right button

039 MENU / OK button

040 Fn

040 How to use the Fn menu

041 Fn button: Size

042 Fn button: Frame rate

042 Fn button: Metering

043 Fn button: Drive mode

044 Fn button: ISO

044 Fn button: White balance

045 Fn button: Aperture Value

045 Fn button: Shutter Speed

046 Fn button: Face Detection

049 E (Effect) button: Photo Style Selector

004

049 E (Effect) button: Image editing

049 Colour

050 Sharpness

050 Contrast

050 Saturation

051 Using the LCD monitor to adjust the camera settings

053 Quality

053 ACB

054 OIS (Optical image Stabilization)

PLAY

056 Recording the movie clip without voice

056 Starting

056 Playing back a still image

057

057

058

058

059

Playing back a movie clip

Movie clip capture function

On camera movie trimming

Playing back a recorded voice

Playing back a voice memo

059 LCD monitor Indicator

060 Using the camera buttons to set the camera

060 Play

060 Thumbnail / Digital Zoom Lever

062 Info / Up button

Contents

062 Play & Pause / Down button

063 Left / Right / MENU / OK button

SETUP

064 E (Effect) button: Resize

065 E (Effect) button: Rotating an image

065 E (Effect) button: Colour

066 E (Effect) button: Image editing

066 ACB

066 Red eye removal

Retouch control effect

068 Using the remote control in play mode

069 Setting up the play back function using the LCD monitor

070 Starting the slide show

070 Start the slide show

Images

071 Confi gure slide show effects

073 Playback

Album images

076 DPOF

080 Sound

080 Volume

Sound

Sound

082 Display

082 Language

082

083

Setting the Grid Line

Setting up the Date / Time / Date type view

Save

084 Settings

085 Initialisation

086

Bin name

Imprinting the recording date

087 Selecting video out type

088 Auto

090 Anynet+(CEC)

005

Contents

PRINT

091 PictBridge

SOFTWARE

APPENDIX

094 QuickTime Player 7.5 : H.264(MPEG4.

AVC) playback Requirements

096 Setting up the application software

100 Removing the removable disk

104 Setting up the USB Driver for MAC

104 Using the USB Driver for MAC

105 Specifi cations

110 Before contacting a service centre

112 FAQ

006

Package Contents

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. Parts and accessories illustrated below may differ from exact appearance.

Included Contents

Camera

User manual (AD68-03944A),

Product warranty

Camera strap

(Silver: AD63-02596A/

Black: AD63-02604A)

Rechargeable battery

(4302-001221)

AC adapter (AD44-00131A)/

USB cable (AD39-00165A)

Software CD (AD46-00249A)

(see p.95)

Sold Separately

SD/SDHC/MMC memory card (see p.17)

Remote Control

(AD59-00164A)

Camera case

(AD69-01922A)

HDMI cable

(AD39-00160A)

AV cable (AD39-00146A)

007

Identifi cation of features

Front & Top

Mode dial

Flash

AF sensor/

Self-timer lamp

Remote control sensor

Lens

008

Zoom T Lever (Digital zoom)

Zoom W Lever (Thumbnail)

POWER button

Speaker

Microphone

HDMI connection terminal

HDMI connection terminal note

To connect to the HDMI connection terminal, use the

HDMI cable only.

Identifi cation of features

Back

Camera status lamp

LCD monitor

Command Lever

Fn / Delete button

5-function button

Play mode /

Print button

E (Effect) button

Shutter button

USB / AV / DC terminal

Camera strap

009

Identifi cation of features

Bottom

Memory card slot

Battery holder

Battery chamber cover Battery chamber

Tripod socket

010

5 Function button

Function Description / Information / Up button

Flash /

Left button

Self-timer /

Right button

MENU / OK button

Macro /Play & Pause / Down button

Identifi cation of features

Self-timer lamp

Icon Status

Blinking

Blinking

Description

– For the fi rst 7 seconds, the lamp blinks at 1 second intervals.

– For the fi nal 3 seconds, the lamp blinks quickly at 0.25-second intervals.

For the fi nal 2 seconds, the lamp blinks quickly at

0.25-second intervals.

Blinking

Blinking

Blinking

A picture will be taken after about 10 seconds and

2 seconds later a second picture will be taken.

After pressing the Shutter button, the image is taken in accordance with the subject’s movement.

Pressing the remote control Shutter button will allow an interval of 2 seconds before the image is taken.

Camera Status Lamp

Status

Power on

After taking a picture

When the USB cable is inserted to a PC

Transmitting Data with a PC

Description

The lamp turns on and off when the camera is ready to take a picture.

The lamp blinks while saving the image data and turns off when the camera is ready to take another picture.

The lamp lights up. (LCD monitor turns off after initializing the device)

The lamp blinks. (LCD monitor turns off)

When the USB cable is inserted to a printer

The lamp blinks and turns off when the printer is ready to print a picture.

When the printer is printing

The lamp is off.

When the AF activates

The lamp turns on.

(The camera is focused on the subject)

The lamp blinks.

(The camera doesn’t focus on the subject)

Mode icon: Refer to page 20 for more information about the camera mode setting.

Auto Program

MODE

Manual DUAL IS

SHOOTING mode

Beauty Shot

Scene Movie Smart Auto

SCENE mode

Frame Guide

Landscape

Night

Close up

Dawn

Self-Shot

Backlight

Food

Portrait

Text

Children

Sunset

Firework Beach&Snow

Café

011

Connecting to a power source

You should use the rechargeable battery SLB-10A supplied with the camera. Be sure to charge the battery before using the camera.

SLB-10A rechargeable battery Specifi cation

Model

Type

Capacity

Voltage

Charging time

(When the camera is turned off)

SLB-10A

Lithium Ion

1050mAh

3.7V

Approx. 180MIN

Number of images and battery life: Using the SLB-10A

Still image

Battery life

/Number of images

Conditions

Approx. 140

MIN/

Approx. 280 shots

Using the fully charged battery, Auto mode, 12M image size, Fine image quality, Shot to shot interval: 30sec.

Changing the zoom position between the Wide and the Tele after every shot.

Using the fl ash on every second shot.

Using the camera for 5 minutes and then Powering it off for 1 minute.

Movie

Recording time

Conditions

Approx. 125

MIN

Using the fully charged battery

640x480 image size 30fps frame rate.

These fi gures are measured under Samsung’s standard conditions and shooting conditions and may vary depending on the user’s methods.

These fi gures are measured under OIS shooting condition.

Several videos were recorded in succession to determine the total recording time.

Important information about battery usage.

When the camera is not used, turn off the camera power.

Please remove the battery if the camera will not be used for long periods. Batteries can lose power over time and are prone to leaking if kept inside the camera.

Low temperatures (below 0°C) can affect the performance of the battery and you may experience reduced battery life.

Batteries will usually recover at normal temperatures.

During extended use of the camera, the camera body may become warm. This is perfectly normal.

012

Connecting to a power source

Connecting the AC adapter with the USB cable can be used as an

AC cable, and you can charge the rechargeable battery with the AC cable.

Using an AC cable:

Connect the AC adapter to the USB cable.

It can be used as a power cable.

Important information about USB cable usage.

Use a USB cable with the correct specifi cation.

If the camera is connected to the PC through a USB hub: connect the camera directly to the PC.

If the camera and other devices are connected to the PC at the same time: remove other device.

Camera can not be detected using the front side USB port of computer. In this case, use the back side USB port of computer.

If the USB port of the PC doesn’t meet the Power output standard (5V, 500mA), the camera may not be charged.

Using a USB cable:

Remove the AC adapter.

You can download stored images to your PC (p.98) or supply the power to your camera through the USB cable.

013

Connecting to a power source

How to charge the rechargeable battery

Before inserting any cables or AC adapter, check the directions and do not insert using force. It may cause breakage of cable or camera.

If the charging LED of the AC Charger does not turn on or blink after inserting the rechargeable battery, please check whether the battery is inserted correctly.

If you charge the battery with the camera power on, the battery can’t charge fully. Turn the camera off while charging the battery.

Charging LED of the AC Adapter

Being Charged

Charging is complete

Charging error

Charging LED

Red LED is on

Green LED is on

Orange LED is off or blinking

– If you insert the fully discharged battery to charge it, do not turn on the camera at the same time. This is because of the low battery capacity.

Charge the battery for more than 10 minutes before using the camera.

– Do not use the fl ash frequently or take a movie clip with the fully discharged battery charged for a short time. Even if the charger is inserted, the camera power may be turned off because the rechargeable battery is discharged again.

014

Inserting the battery

Insert the battery as shown.

– If the camera does not turn on after you have inserted battery, please check whether the battery is inserted with the correct polarity

(+/-).

– When the battery chamber cover is opened, do not force it. This may cause damage to the battery chamber cover.

There are 4 indicators for battery condition that are displayed on the

LCD monitor.

Battery indicator

Battery status

The battery is fully charged

Low battery capacity

(Prepare to recharge or use spare battery)

Low battery capacity

(Prepare to recharge or use spare battery)

Battery empty.

Recharge or use spare battery.

Inserting the memory card

Insert the memory card as shown.

- Turn off the camera’s power before inserting the memory card.

- Have the front label of the memory card facing toward the front of the camera (Lens) and the card pins toward the back of the camera (LCD monitor).

- Do not insert the memory card the wrong way round.

Doing so may damage the memory card slot.

015

Instructions on how to use the memory card

Be sure to format the memory card (see p.84) if you are using a newly purchased memory card for the fi rst time, if it contains data that the camera cannot recognise, or if it contains images captured with a different camera.

Turn off the camera power whenever the memory card is being inserted or removed.

Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty.

The memory card is an electronic precision device. Do not bend, drop or subject the memory card to any heavy impact.

Do not store the memory card in an environment with strong electronic or magnetic fi elds, e.g. near loud speakers or TV receivers.

Please do not use or store in an environment where there are extremes in temperature.

Do not allow the memory card to become dirty or to come into contact with any liquid. Should this happen, clean the memory card with a soft cloth.

Please keep the memory card in its case when not in use.

During and after periods of extended use, you may notice that the memory card is warm. This is perfectly normal.

Do not use a memory card that is used in another digital camera. To use the memory card in this camera, format the memory card using this camera.

Do not use a memory card formatted by another digital camera or memory card reader.

If the memory card is subjected to any of the following, the recorded data may become corrupted:

– When the memory card is used incorrectly.

– If the power is switched off or the memory card is removed while recording, deleting (formatting) or reading.

Samsung cannot be held responsible for lost data.

It is advisable to copy important data onto other media as back-up e.g. fl oppy disks, hard disks, CD etc.

If there is insuffi cient memory available:

A [Memory Full!] message will appear and the camera will not operate.

To optimise the amount of memory in the camera, replace the memory card or delete unnecessary images stored on the memory card.

Don’t remove the memory card when the camera status lamp is blinking as this may cause damage to data in the memory card.

016

Instructions on how to use the memory card

The camera can use SD/ SDHC Memory Cards and MMC (Multi

Media Cards).

When using a 1GB SD memory, the specifi ed shooting capacity will be as follows. These fi gures are approximate as image capacities can be affected by variables such as subject matter and memory card type.

Card pins

Write protect switch

Label

<SD (Secure Digital) memory card>

The SD/ SDHC memory card has a write protect switch that prevents image fi les from being deleted or formatted. By sliding the switch to the bottom of the

SD memory card, the data will be protected. By sliding the switch to the top of the SD memory card, the data protection will be cancelled.

Slide the switch to the top of the SD memory card before taking a picture.

Recorded image size

Super

Fine

Fine Normal 60FPS 30FPS 15FPS

Still image

147 285 404 -

168 314 442 -

203 368 529 -

212 375 538 -

334

524

558 780 -

790 1049 -

-

-

-

-

-

-

1449 1645 1845 -

* Movie clip

-

-

-

-

-

-

-

-

-

-

-

-

-

-

about

64’ about

8’20” about

10’19” about

29’33” about

120’ about

16’29” about

20’47”

The recording times can be changed by the zoom operation.

The Zoom W/T lever doesn’t function during the movie recording.

Several videos were recorded in succession to determine the total recording time.

about

59’ about

210’

017

-

-

-

-

-

-

When using the camera for the fi rst time

Charge the rechargeable battery fully before using the camera for the fi rst time.

When the camera is turned on for the fi rst time, a menu will be displayed in the LCD monitor to set date, time and language. This menu will not be displayed again after setting up the date, time and language.

Set up the date, time and language before using this camera.

Setting up the language

Setting up the date, time and date type

1. Select the [Date&Time] menu by pressing the Up/Down button and press the Right button.

2. Select the desired sub menu by pressing the Up/Down/Left/Right button and press the OK button.

DISPLAY

Language

Date&Time

Back

1. Select the [Language] menu by pressing the Up/Down button and press the

Right button.

2. Select the desired language by pressing the Up/Down button and press the OK button.

DISPLAY

Language

Date&Time

Back

ENGLISH

한국어

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

OK Set

+ Seoul, Tokyo

2009 / 01 / 01

13 : 00

Off

OK Set

Right button:

Left button:

Selects world time/year/ month/ day/hour/minute/ date type.

Moves the cursor to the [Date&Time] main menu if the cursor is at the fi rst item of the date and time setup. In all other instances, the cursor will be shifted to the left of its current position.

Up/Down button: Changes the value of each item.

For more information about the World Time, refer to the page 83.

018

)

^

%

$

#

(

*

&

LCD monitor indicator

The LCD monitor displays information about the shooting functions and selections.

1 2 3 g h d e f

7

8

9

0

4

5

6

!

<Image & Full Status>

No.

1

2

3

4

Description

Optical/Digital Zoom bar/

Digital Zoom rate

Number of available shots remaining/Remaining time

Memory card icon/

Internal memory icon

Battery

5

Image Size

6 Auto Focus area/Frame Rate

7

Metering

8

Drive mode

@

Icons

x 5.0

1/00:00:00

/

/

Page

p.29~30 p.17

p.15

p.41

p.41/p.42

p.42

p.43

No.

9

10

11

12

Description

ISO

White Balance

Face Detection · Self Portrait

· Blink Detection ·Smile Shot

Date/Time

13

Saturation/Colour

14

Contrast/Face Retouch

15

Sharpness/Photo Style

Selector/Face Tone

Macro

16

17

Self-timer

18

Flash

19

OIS (Optical Image Stabilization)

20

Recording mode

21

Exposure value

22

Aperture Value/Shutter Speed

23

Compensating Flash Output

24

Voice Memo/Mic. off

25

26

Auto Focus Frame

Histogram

27

Exposure compensation/

Camera shake Warning

28

Manual Focus

Icons

2009/01/01 PM 01:00

/

/

/

/

Page

p.44

p.44~45 p.46~47 p.83

p.50/p.49

p.50/p.22

p.50/p.49/ p.22

p.33~34 p.37~38 p.35~36 p.54

p.11

1/30 F3.3

/

/ p.31

p.45

p.52

p.54/p.25

p.41

p.32

p.31/p.27

p.33

019

Starting the Recording mode

Selecting modes

You can select the shooting modes by using the mode dial on the upper of your camera.

How to use the mode dial

Select the shooting mode by turning the mode dial to the selection point.

Smart Auto mode

Movie Clip mode

Scene mode

Select point

Auto mode

Program mode

Beauty Shot mode

Manual mode

DUAL IS(Dual Image

Stabilization) mode

How to use the Auto mode

Select this mode for quick and easy picture taking with minimal user interaction.

1. Insert the battery (p.15) taking note of the correct polarity (+/-).

2. Insert the memory card (p.15). As this camera has a 21MB internal memory, it is not essential to insert the memory card. If the memory card is not inserted, an image will be stored in the internal memory. If the memory card is inserted, an image will be stored on the memory card.

3. Close the battery chamber cover.

4. Press the POWER button to turn on the camera. (If the date/time that is displayed on the LCD monitor is incorrect, reset the date/time before taking a picture.)

5. Select the Auto mode by using the mode dial.

6. Point the camera towards the subject and compose the image.

7. Press the Shutter button to capture an image.

If the auto focus frame turns to red when you press the Shutter button down half way, it means that the camera cannot focus on the subject. Should this be the case, the camera is less likely to capture an image clearly.

Avoid obstructing the lens or the fl ash when you capture an image.

020

Starting the Recording mode

How to use the Program mode

Selecting the automatic mode will confi gure the camera with optimal settings and you can manually confi gure various functions.

1. Select the Program mode by using the

Mode dial. (p.20)

2. Point the camera towards the subject and compose the image by using the

LCD monitor.

3. Press the Shutter button to capture an image.

Refer to page 40-47 for more information about the Program mode menus.

How to use the Manual mode

The user can manually set both the aperture value and the shutter speed.

1. Select the Manual mode by using the

Mode dial. (p.20)

2. Point the camera towards the subject and compose the image by using the

LCD monitor.

3. Press the Shutter button to capture an image.

Refer to page 45 for more information about the menus.

How to use the DUAL IS(Dual Image Stabilization) mode

This mode will reduce the effect of camera shake and help you get a well exposed image in dim conditions.

1. Select the DUAL IS mode by using the

Mode dial. (p.20)

2. Point the camera towards the subject and compose the image by using the

LCD monitor.

3. Press the Shutter button to capture an image.

Things to watch out for using the DUAL IS mode

– The digital zoom will not operate in the DUAL IS mode.

– If the lighting conditions are brighter than fl uorescent lighting conditions, the DUAL IS will not activate.

– If the lighting conditions are darker than in fl uorescent lighting conditions, camera shake warning indicator ( ) will be displayed.

For best results only take pictures in situations where the camera shake warning indicator ( ) is not displayed.

– If the subject is moving, the captured image may be blurred.

– As the DUAL IS uses the camera’s digital signal processor, it may take a little longer for the camera to process and save the images.

021

Starting the Recording mode

How to use the Beauty Shot mode

Take a photo of portraits by setting options to clear facial imperfections.

1. Select the Beauty Shot mode by using the Mode dial. (p.20)

2. Point the camera towards the subject and compose the image by using the

LCD monitor.

3. Press the MENU button.

4. Press the Up/Down button to select

[Face Tone] or [Face Retouch].

5. Press the Right button, then press the

Up/Down button to select a desired level of each function.

The higher the level is, [Face Tone] becomes brighter and [Face Retouch] features better performance.

6. Press the OK button to fi nish your setting.

7. Capture images in Recording mode by pressing the Shutter button.

RECORDING

Face Tone

Face Retouch

Quality

OIS

Voice Memo

Voice Record

Back

Level 1

Level 2

Level 3

OK Set

How to use the Scene modes

Use the menu to easily confi gure optimal settings for a variety of shooting situations. (p. 56)

1. Select the Scene mode by using the

Mode dial. (p.20)

2. Point the camera towards the subject and compose the image by using the

LCD monitor.

3. Press the Shutter button to capture an image.

Frame: Shutter

022

Starting the Recording mode

The scene modes are listed below. (p.56)

Icons Scene modes

Frame Guide

Night

Portrait

Children

Landscape

Close up

Text

Sunset

Dawn

Backlight

Firework

Beach&Snow

Self-Shot

Food

Café

Description

Use this mode when you want someone else to take a picture for you from the angle you choose.

Use this for shooting still images at night or in other dark conditions.

Selecting the portrait mode will confi gure the camera with optimal settings for portrait photography.

To take a picture of fast moving objects, for example, children.

To take pictures of distant scenery.

Close-up shooting for small objects such as plants and insects.

Use this mode to shoot a document.

For taking pictures of sunsets.

Daybreak scenes.

Portrait without shadows caused by backlight.

Firework scenes.

For ocean, lake, beach and snowscape scenes.

Use when the photographer would also like to appear in the image.

For taking delicious looking food.

For taking pictures in cafes and restaurants.

How to use the [Frame Guide] mode

Set [Frame Guide] mode when you want someone else to take a picture for you from the angle you choose.

1.

Take a picture from the angle you choose.

- A translucent guide appears round the sides of the picture.

Guide

Cancel Frame : OK

2.

Then another person can take the picture by aligning the edge of the picture to be taken with the translucent guide framing the sides of the window.

Cancel Frame : OK

Cancel Frame : OK

023

Starting the Recording mode

How to use the Movie clip mode

A movie clip can be recorded for as long as the available recording time(maximum of 29 minutes) of the memory capacity allows.

1. Select the Movie clip mode by using the Mode dial. (p.20)

2. Point the camera towards the subject and compose the image by using the

LCD monitor.

3. Press the Shutter button once and movie clips are recorded for up to 29 minutes.

Movie clips will still be recorded if the

Shutter button is released.

If you wish to stop recording, press the Shutter button again.

Image size and type are listed below.

– Image size: 1280X720HQ, 1280X720, 640x480, 320x240

(1280X720HQ and 1280X720 are the settings for recording high-quality videos.)

– Movie clip fi le type: H.264(MPEG4.AVC)

– Frame Rate: 60FPS, 30FPS, 15FPS

– The frame rate can be selected when the following image size is selected.

1280X720HQ, 1280X720, 640x480: 30FPS, 15FPS selectable.

320x240: 60FPS, 30FPS 15FPS selectable.

If the recording time is takes longer 29 minutes, the recording is stopped and then saved.

Select [Zoom Mute] from the recording menu during video recording to disable the recording of zoom sound.

024

Recording HD (High Defi nition) movie clips

You can record HD (High Defi nition) movie clips. (1280X720, 30 fps)

H.264(MPEG4.AVC) is a standard for the digital video codec.

It supports a high quality movie clip in a small fi le size.

1. Select the Movie clip mode by using the

Mode dial. (p.20)

2.

Press the Fn button to set the resolution to either [1280HQ] or [1280].

3.

Press the Shutter button to record video for the available recording time.

1280x720HQ

What is H.264(MPEG4 part10/AVC) ?

With its high-compression rate and the small file size, it is a standard for the digital video codec. It supports the recording functions in a high resolution.

Starting the Recording mode

Recording the movie clip without sound

You can record the movie clip without sound.

Steps from 1-3 are the same as those for

Movie clip mode.

4. Press the MENU button.

5. Select the [RECORDING] menu by pressing the Left/Right button.

6. Press the Down button to select the

[Voice] menu and press the Right button.

7. Select the [Off] menu by pressing the

Up/Down button.

8. Press the OK button. You can record a movie without sound.

RECORDING

Command Lever

OIS

Voice

Back

Off

On

Zoom Mute

OK Set

Pausing while recording a movie clip (Successive Recording)

This camera allows you to temporarily stop during unwanted scenes, while recording a movie clip. Using this function, you can record your favourite scenes into a movie clip without having to create multiple movie clips.

Using Successive Recording

Steps from 1-2 are the same as those for

Movie clip mode.

3. Point the camera towards the subject and compose the image by using the

LCD monitor. Press the Shutter button and movie clips are recorded for as long as the available recording time. Movie clips will still be recorded if the Shutter button is released.

SH Stop

00:00:18

REC

4. Press the Play & Pause ( ) button to pause recording.

5. Press the Play & Pause ( ) button again to resume the recording.

6. If you wish to stop recording, press the Shutter button again.

025

Starting the Recording mode

How to use the Smart Auto mode

The camera automatically chooses the appropriate camera settings based on a detected type of scene. It will be helpful if you are not familiar with the camera settings for various scenes.

1. Select Smart Auto mode by using the

Mode dial. (p.20)

2. Point the camera towards the subject and compose the image by using the

LCD monitor.

3. Press the Shutter button to capture an image.

If the camera does not recognize a proper scene mode, the default settings will be used.

Even if there is a face detected, the camera may not select a portrait mode depending on the subject’s position or lighting.

The camera may not select the correct scene depending on shooting environments, such as camera shake, lighting, and distance to the subject.

The [Night] mode recognizes scenes only when the fl ash is set to off. The camera operates the [Tripod] mode after checking the shooting condition on the tripod for a certain time.

Despite using a tripod, the camera may not select a tripod mode depending on the subject’s movement.

Each scene is recognized in the following conditions;

[Night Portrait] ( ) : When shooting people in a dark outdoor place

[Backlight Portrait] ( portrait

) : When shooting a backlit portrait

[Macro Text]

[Action]

( ) : When shooting texts in a close focus

( movement on the tripod

) : When shooting a subject making frequent movements

026

Things to watch out for when taking pictures

Pressing the Shutter button down half way.

Lightly press the Shutter button to confi rm focus and fl ash battery charge.

Press the Shutter button all way down to take the picture.

Avoid obstructing the lens or the fl ash when you capture an image.

Compose the image by using the LCD monitor.

Under certain conditions the auto focus system may not perform as expected.

– When photographing a subject that has little contrast.

– If the subject is highly refl ective or shiny.

– If the subject is moving at high speed.

– When there is strong refl ected light, or when the background is very bright.

– When the subject matter has only horizontal lines or the subject is very narrow (such as a stick or fl agpole).

– When the surroundings are dark.

<Lightly press the Shutter button> <Press the Shutter button down all the way>

The available memory capacity may vary depending on shooting conditions and camera settings.

When the Flash Off or Slow synchro mode is selected in a low lighting condition, the camera shake warning indicator ( ) may appear on the

LCD monitor. In this case, use a tripod, support the camera on a solid surface or change to fl ash shot mode.

It is best to take pictures with the sun in the background. Taking pictures against the sun may make the picture come out dark. To take a picture against the light, please use the [Backlight] in scene shooting mode (see page 23), fi ll-in fl ash (see page 36), spot metering (see page 42), exposure compensation (see page 31) or ACB (see page 53) function.

027

Focus lock

To focus on a subject not positioned in the centre of the picture, use the focus lock function.

Using the Focus Lock

1. Ensure the subject is in the centre of the autofocus frame.

2. Press the Shutter button halfway. When the green auto focus frame lights up, it means the camera is focused on the subject. Be careful not to press the Shutter button all the way down to avoid taking an unwanted picture.

3. With the Shutter button still pressed down only halfway, move the camera to recompose your picture as desired, and then press the

Shutter button completely to take the picture. If you release your fi nger from the Shutter button, the focus lock function will be cancelled.

Using the camera buttons to set the camera

The recording mode function can be set up by using the camera buttons.

POWER button

Used for turning the camera’s power on/off.

If there is no operation during the specifi ed time, the camera’s power will be turned off automatically to save battery life.

Refer to page 87 for more information about the auto power off function.

1. The image to be captured.

2. Press the Shutter button halfway and focus on the subject.

3. Recompose the picture and fully depress the Shutter button.

028

Shutter button

Used for taking an image or recording voice in the Recording mode.

In Movie clip mode

Pressing the Shutter button down fully starts the process for recording a movie clip. Press the Shutter button once and the movie clip is recorded for as long as the available recording time in the memory allows. If you wish to stop recording, press the Shutter button again.

In Still image mode

Pressing the Shutter button down halfway activates the autofocus and checks the condition of the fl ash.

Pressing the Shutter button down fully takes and stores the image.

If you select voice memo recording, the recording will start after the camera has fi nished storing the image data.

Zoom W/T Lever

When the menu window is not displayed, this lever is used to control the optical or digital zoom. This camera has a 10X optical zoom and a 5X digital zoom function. Using both will offer a total zoom ratio of 50X.

TELE Zoom

Optical zoom TELE: Move the Zoom W/T lever to the right to see the subject closer.

Digital zoom TELE: Move the Zoom W/T lever to the right once again in optical 10x zoom mode to enable digital zoom

(software tele). Stop moving the Zoom W/T lever to stop the operation of digital zoom (tele). In digital

5x zoom mode, digital zoom is disabled even if you operate the Zoom W/T lever.

<WIDE zoom> <TELE zoom>

<Digital zoom 5.0X>

029

Zoom W/T Lever

WIDE Zoom

Optical zoom WIDE: Move the Zoom W/T lever to the left in optical zoom mode to see subjects in the distance. Continue to move the Zoom W/T lever to the left to disable optical zoom.

<TELE zoom> <Optical zoom 2X> <WIDE zoom>

Digital zoom WIDE: Move the Zoom W/T lever to the left in digital

Optical zoom zoom mode to enable digital zoom (software wide). Stop moving the Zoom W/T lever to stop

X 5.0

the operation of digital zoom. Continue to move

Digital zoom the Zoom W/T lever to the left when digital zoom is disabled to disable optical zoom (optical tele).

Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place.

You may notice a decrease in image quality when using the digital zoom.

To view a clearer digital zoom image, press the Shutter button halfway at the maximum optical zoom position and press the

Zoom T button again.

The digital zoom can’t be activated in the [Face Detection],

[DUAL IS], [Beauty Shot], [Movie], [Smart Auto], and some

Scene modes.

Take care not to press the lens as this may cause a camera malfunction.

The digital zoom cannot be used in movie clip shots.

Select [Zoom Mute] from the recording menu during video recording to disable the recording of zoom sound.

030

<Digital zoom 5.0X> <TELE zoom> <WIDE zoom>

Command Lever

How to use the Command lever mode

Exposure compensation

This product automatically controls exposure, adjusting it according to the recording situation. However, use the

command lever to change the exposure to a different value.

1.

Select [EV] under [Command Lever] in the menu.

2.

Press the command lever to the left or right from the menu to set the desired exposure value.

For detailed information on setting the

command lever, refer to Page 52.

- If you set the exposure to [-], exposure will not be properly performed.

If you set the exposure to [+], the LCD monitor may look too white, and it may not be possible to capture a good image. Take care when altering exposure.

In [Manual] mode, you cannot control exposure by using the

command lever.

■ Controlling ISO/White Balance

You can enable the desired features for the command lever.

1.

Select [ISO] or [WB] under [Command

Lever] in the menu. (p.52)

2.

Press the command lever to the left or right to select the submenu for each feature from the recording mode window.

For detailed information on setting [ISO] and [WB], refer to Page 44.

<Example: [ISO] Control Window>

[Command Lever] can be set in [Program], [Manual], [DUAL IS], or [Movie] mode and [ISO] can be set in [Program] or [Manual] mode.

If you want to set [EV] after setting [ISO] or [WB], press the Fn button to switch to the exposure control window. Once [EV] are set, the exposure control icon will appear on the window.

■ Controlling the Aperture Value and Shutter Speed in [Manual] Mode

Press the command lever to the left or right from the [Manual] mode to control the aperture value and shutter speed.

For detailed information on the aperture value and shutter speed, refer to

Page 45.

■ Moving to Another Menu

Press the command lever to the left or right from the menu window to move to another main menu.

031

Function Description / Info ( ) / Up button

While the menu is showing, the Up button operates as a direction button. If the menu screen does not appear, information or function descriptions of the current fi lming image (fi lming mode) can be accessed through the liquid crystal monitor by pressing the Function description / Information ( ) button.

Display every piece of information about shooting.

<Filming screen>

Display the basic information.

<Information screen>

Display detailed photo information including grid line & histograms.

<Histogram/Grid Window>

Display description for each feature.

<Function description screen>

Histogram/Grid Window ( )

Histogram

Histogram shows you the distribution of brightness in recorded images. If the bars in the histogram are higher towards the right, the image may be too bright. If the bars are higher on the left, the image may be too dark. If the lighting conditions are too bright to check the subject by using the LCD, checking the histogram will enable more precise exposure control for the shots.

Distribution of brightness

Dark Bright

Grid

If you focus on the subject using a variety of horizontal or vertical grids, you will be able to take pictures at better angles, checking size, horizontality, or proportions. For information on types of grid and how to set them, refer to

Page 82.

Function description: When pressing the Function description button on the information screen mode, detailed descriptions of the functions can be viewed. The function description can be cancelled by pressing the Function description button again.

Pressing the Function description button

Pressing the

Fn button

SIZE

Set the photo size.

Histogram is not displayed when operating the [Face Detection] function.

Display description for each feature.

<Examples of Function descriptions>

032

Macro ( ) / Down button

While the menu is showing, press the Down button to move from the main menu to a sub menu, or to move down the sub menu. When the menu is not showing, you can use the Macro( )/Down button to take macro pictures. The distance ranges are shown below. Press the Macro button until the desired macro mode indicator appears on the LCD monitor.

How to Set Focus Manually

If it is diffi cult to get the automatic focus to work (for example in low light), you can manually control the focus.

1. Press the Macro button to enable manual focus.

- Then the control bar for manual focus will appear.

2. Press the Left/Right button to control the focus as you want.

Control Bar for Manual Focus

Set the manual focus to expand the center of the window to the entire window. Press the Shutter button halfway to return to the original state.

<Normal Focus>

<Macro

( )

>

Note that the picture may be blurred if manual focusing is not performed properly.

<Auto Macro

( )

> <Manual Focus ( )>

033

Macro ( ) / Down button

Types of focus mode and focus range (W: Wide, T: Tele)

Mode

Focus Type

Focus range

Mode

Focus Type

Focus range

Mode

Focus Type

Focus range

(Unit: cm)

Auto ( )

Auto macro ( ) Normal

W: 5 ~ Infi nity

T: 100 ~ Infi nity

Program / Manual (

W: 50 ~ Infi nity

T: 200 ~ Infi nity

)

Macro (

W: 5 ~ 50

)

T: 100 ~ 200

Auto macro ( )

W: 5 ~ Infi nity

T: 100 ~ Infi nity

Manual focus ( )

W: 5 ~ Infi nity

T: 100 ~ Infi nity

DUAL IS (

)

Normal

W: 50 ~ Infi nity

T: 200 ~ Infi nity

Normal

W: 50 ~ Infi nity

T: 200 ~ Infi nity

Available focusing method, by Recording mode

( : Selectable, ∞: Infi nity focus range)

Mode Auto macro Manual focus Macro Normal

Mode

SCENE

Auto macro

Manual focus

Macro Normal

When the macro mode is selected, be particularly careful to avoid camera shake.

When you take a picture within 50cm (Wide zoom) or 100cm

(Tele zoom) in the Macro mode, select the FLASH OFF mode.

When you take a picture within the 5cm macro range, the autofocus on the camera will take longer to set the correct focus distance.

Focus range is automatically selected in [Smart Auto] mode.

034

Flash ( ) / Left button

When the menu is displayed on the LCD monitor, pressing the Left button makes the cursor shift to the left tab.

When the menu is not displayed on the LCD monitor, the

Flash( )/Left button operates as the Flash( ) button.

If you press the Shutter button after selecting the fl ash, the fi rst fl ash fi res to check the shooting condition (Flash range and

Power ratio of fl ash). Do not move the camera until the second fl ash fi res.

Using the fl ash frequently will reduce the life of the battery.

Selecting the fl ash mode

Under normal operating conditions the re-charging time for the fl ash is usually within 5 seconds. If the battery is weak, the charging time will be longer.

1. Select a desired Recording mode, except the [Movie] mode and the

[DUAL IS] mode. (p.20)

2. Press the Flash button until the desired fl ash mode indicator is displayed on the LCD monitor.

The fl ash function will not operate in the [DUAL IS], [Movie],

[Blink Detection], and some Scene mode.

Take photographs within the fl ash range.

3. A fl ash mode indicator will be displayed on the LCD monitor. Use the correct fl ash to suit the environment.

The image quality is not guaranteed if the subject is too close or highly refl ective.

Flash range m)

When taking an image in poorly lit conditions with the fl ash, there may be a white speck in the captured image. The speck is caused by the fl ash light refl ecting off atmospheric dust.

Normal

Macro

Manual focus

Auto macro

WIDE

0.5 ~ 4.7

0.3 ~ 0.5

0.3 ~ 4.7

0.3 ~ 4.7

TELE

2.0 ~ 2.7

1.0 ~ 2.0

1.0 ~ 2.7

1.0 ~ 2.7

ISO

AUTO

035

Flash ( ) / Left button

Flash mode indicator

Icon Flash mode

Auto fl ash

Description

If the subject or background is dark, the camera fl ash will operate automatically.

Auto & Red-eye reduction

If a subject or background is dark, the camera fl ash will work automatically and will reduce the red-eye effect by using the red-eye reduction function.

Fill in fl ash

Slow synchro

Flash off

Red-eye reduction

The fl ash fi res regardless of the available light.

The intensity of the fl ash will be automatically controlled to suit the prevailing conditions.

The fl ash operates with a slow shutter speed to obtain a balanced correct exposure. In poor lighting conditions the camera shake warning indicator ( ) will appear on the LCD monitor.

The fl ash does not fi re.

Select this mode when capturing images in a place or situation where fl ash photography is prohibited. When you capture an image in poorly lit conditions, the camera shake warning indicator ( ) will appear on the LCD monitor.

When a shot with “Red-eye” is detected, this mode will reduce the red-eye effect automatically.

Available fl ash mode, by Recording mode ( : Selectable)

Smart Auto Flash ( ) icon will appear in [Smart Auto] mode.

036

Self-timer ( ) / Right button

When the menu is displayed on the LCD monitor, pressing the

Self-timer ( ) / Right button makes the cursor shift to the right tab.

When the menu is not displayed on the LCD monitor, the Self-timer

( ) / Right button operates as the Self-timer ( ) button. This function is used when the photographer would also like to be in the image.

If you operate the Self-timer( ) button during the self-timer operation, the self-timer function is cancelled.

Use a tripod to prevent the camera from shaking.

In Movie Clip mode, only the 10SEC self-timer will work.

When you select 2SEC self-timer with fl ash, the delay

(2 seconds) can be extended according to the fl ash charging status.

When taking a picture using the self-timer, the self-timer lamp works as follows :

10SEC self-timer

2SEC self-timer

– For the fi rst 7 seconds, the lamp blinks at 1 second intervals.

– For the fi nal 3 seconds, the lamp blinks quickly at 0.25-second intervals.

For the fi nal 2 seconds, the lamp blinks quickly at 0.25-second intervals.

Selecting the self-timer

1. Select a Recording mode with the exception of Voice recording mode.

(p.20)

2. Press the Self-timer ( ) button until the desired mode indicator displays on the LCD monitor.

3. When you press the Shutter button, the picture will be taken after the specifi ed time has elapsed.

<Selecting the 10 SEC self-timer>

Icon Self-timer Mode

10SEC self-timer

2SEC self-timer

Double self-timer

Motion Timer

Remote

Description

Pressing the Shutter button will allow an interval of 10 seconds before the image is taken.

Pressing the Shutter button will allow an interval of 2 seconds before the image is taken.

A picture will be taken after about 10 seconds and 2 seconds later a second picture will be taken.

The camera detects the subject’s movement

6 seconds after pressing the Shutter button, and the picture is taken when the movement is stopped.

You can take a picture by remote control instead of using the shutter button of the camera.

Remote control mode is maintained after recording. Press the power button to release the setting.

037

Self-timer ( ) / Right button

Motion Timer

Motion Icon & Self-timer lamp

Pressing the Shutter button after setting the Motion Timer

Blink (1 second interval)

Detecting the subject’s movement

No movement is detected

Blink (0.25 second interval)

Turn on and the image is taken after

2 seconds.

The Motion Timer fl ows are as follows.

(with the exception of [Movie] and [Frame Guide] modes)

Selecting the Motion Timer Pressing the Shutter button Confi rming the composition (Within 6 sec.)

*1 hands fully)

Starting the detection (Swing your

*2

Stopping the detection (Do not move) Taking an image

(after 2 sec.)

*1: The camera detects the subject’s movement 6 seconds after pressing the Shutter button, so confi rm the composition within 6 seconds.

*2: Move your body or hands fully.

In the following cases, the Motion Timer may not operate.

The focus distance is over 3m.

The exposure is too bright or dark.

In backlight conditions.

The movement is insignifi cant.

The movement is detected beyond the center part (50%) of the sensor where the movement is recognized.

If the camera does not detect any movement for 25 seconds or the camera does not detect the pause after recognizing the movement.

<The detection range of

Motion Timer>

038

Self-timer ( ) / Right button

Remote control range

When you take a picture by using the remote control, refer to the illustrations shown alongside about the remote control range.

[Shutter button on the remote control]

MENU / OK button

MENU button

– When you press the MENU button, a menu related to each camera mode will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

– A menu option can be displayed when the following are selected :

MOVIE CLIP and STILL IMAGE mode. There is no menu available when the voice recording function is selected.

Pressing the

MENU button.

Replacing battery for the remote control

Make sure the + (positive) polarity is toward the top and the - (negative) polarity is toward the bottom while installing battery for the remote control.

Replace battery for the remote control in the local service centre.

Use the CR 2025 3V battery.

<Menu off>

RECORDING

Command Lever

Flash EVC

Quality

ACB

OIS

Voice Memo

Move

EV

0

Fine

Off

On

Off

MENU Exit

<Menu on>

OK button

– When the menu is displayed on the LCD monitor, this button is used for shifting the cursor to the sub menu or for confi rming data.

039

Fn button

You can use the Fn button to set the following menus.

( : Selectable)

SIZE

Page

p.41

p.41

FOCUS AREA

FRAME RATE

METERING

DRIVE

ISO p.42

p.42

p.43

p.44

WHITE BALANCE p.44~

45

Aperture Value/

Shutter Speed p.45

FACE DETECTION p.46~

47

Selectable menu may differ depending on each scene mode.

How to use the Fn menu

1. Press the Fn button in an available mode.

- Press the Fn button twice in some modes.

2. Select a desired menu by pressing the Up/Down button. And then a sub menu will be displayed on the bottom left side of the LCD monitor.

Up/Down button

SIZE

Center AF

3. Select a desired menu by pressing the Left/Right button and then press the OK button.

Left/Right button

SIZE 2048X1536

040

Fn button: Size

You can select the image size appropriate for your application.

Still image

Mode

Movie clip mode

Icon

Size

4000x

3000

3984x

2656

3968x

2232

3264x

2448

2592x

1944

2048x

1536

1024x

768

Icon

Size

1280x720HQ 1280x720 640x480 320x240

Focus Area

You can select your preferred Focus

Area according to the shooting conditions.

1024X768

640X480

< Still image mode > < Movie clip mode >

The higher the resolution, the lower the number of shots available because high resolution images require more memory.

Center AF

Icon Focus Area

Center AF

Multi AF

Description

The rectangular area in the center of the LCD monitor will be focused.

This camera selects all available AF points of the

LCD monitor.

Selection AF Focus on the desired position of the LCD monitor.

When the camera focuses on the subject, the auto focus frame turns to green. When the camera doesn’t focus on the subject, the auto focus frame turns to red.

How to Enable Selection AF

Press the Up/Down/Left/Right button to move the focus mark to the desired position. Press the shutter button to enable

Selection AF. Once setting is complete, the focus mark will be fi xed at the position set.

If you want to change the position of the focus mark, press the Fn button and select

[Selection AF]. Then the focus mark setting window will appear.

Move OK Set

Focus Mark

Even if you turn off the power and turn on it again, the previous setting will be maintained.

[Selection AF] is not available when operating the [Face Detection] function.

041

Fn button: Frame rate

This menu allows you to select an appropriate frame rate depending on the intended use for a recorded video.

Using a faster shutter speed enables the movie clip to catch a decisive moment, but which will raise the fi le size.

30 FPS

Mode

Icon

Sub menu

File Format

Movie clip mode

60 FPS

H.264

30 FPS

H.264

15 FPS

H.264

This fi le format complies with the DCF (Design rule for Camera

File system).

Fn button: Metering

If you cannot obtain suitable exposure conditions, you can change the metering method to take brighter pictures.

Multi

Icon

Metering

Mode

Description

Multi

Spot

Center

Weighted

Exposure will be calculated based on an average of light in each image area divided into multiple regions. However, the calculation will be biased towards the centre of the image area. This is suitable for general use.

Only the rectangular area in the centre of the LCD monitor will be metered for light. This is suitable when the subject in the centre is exposed correctly, regardless of the back lighting.

Exposure will be calculated based on an average of the available light in the image area. However, the calculation will be biased towards the centre of the image area. This is suitable for taking a picture of small objects like fl owers or insects.

If the subject is not the centre of the focus area, do not use the [Spot] metering as this may result in an exposure error. In this circumstance, it is better to use exposure compensation.

042

Fn button: Drive mode

You can select continuous shot, and

AEB (Auto Exposure Bracketing).

Single

Icon Drive Mode

Single

Description

Take one picture only.

Continuous

High Speed

AEB

Motion

Capture

Images will be taken continuously until the Shutter button is released.

The shooting capacity depends on the memory.

Continuous shooting is available while pressing and holding the Shutter button (About 1.5 frames per second).

The shooting speed may get slower depending on the shooting environment or the number of shots.

Take three pictures in a series in different exposures: standard exposure (0.0EV), short exposure (-1/3EV) and over exposure (+1/3EV).

This takes 6 shots per second for up to 5 seconds, when the Shutter is pressed and held down. After completing the continuous shooting, images are saved automatically. The maximum number of shots is 30 and the image size is fi xed as VGA.

High resolution and picture quality increases fi le saving time, which increases stand-by time.

If the [Continuous], [High Speed], [AEB] or [Motion Capture] sub menu is selected, the fl ash will be off automatically.

If less than 30 pictures are available in the memory, the motion capture is not available.

It is best to use a tripod for the [AEB] shooting as the time to save each image fi le is longer and blurring caused by camera shake may occur.

In [Manual] mode, [High Speed], [AEB], and [Motion Capture] are disabled.

[Continuous], [High Speed] and [AEB] menus can be selected only when the shutter speed is faster than 1/4 second. If the shutter speed is slower than 1/4 second, it will be fixed with 1/4 second.

043

Fn button: ISO

You can select the ISO sensitivity when taking pictures.

The speed or specifi c light-sensitivity of a camera is rated by ISO numbers.

Fn button: White balance

The white balance control allows you to adjust the colours to appear more natural.

Auto

Auto WB

Icon ISO Mode

Auto

80

100

200

400

800

1600

3200

Description

The camera’s sensitivity is automatically changed by variables such as lighting value or subject brightness.

You use a faster (shorter) shutter speed while the same amount of light is present, by increasing the ISO sensitivity amount of light is present, by increasing the

ISO sensitivity. However, the image may be saturated in high luminance. The higher the ISO value, the higher the camera’s sensitivity to light and therefore the greater its capacity to take pictures in dark conditions.

However, the noise level in the image will increase as the ISO value increases, making the image appear coarse.

When the ISO 3200 menu is selected, the image size is fi xed to under 3M.

When [Motion Capture] is set, ISO speed will be set to Auto.

[ISO] is enabled only in [Program] or [Manual] mode.

Icon

White balance

Mode

Description

Auto WB

Daylight

Cloudy

The camera automatically selects the appropriate white balance settings, depending on the prevailing lighting conditions.

For taking images outside.

For taking images under a cloudy or overcast sky.

Fluorescent_H

For shooting under daylight fl uorescent types of threeway fl uorescent lighting.

Fluorescent_L For shooting under white fl uorescent lighting.

Tungsten

Custom Set

For shooting under tungsten (standard light bulb) lighting.

Allows the user to set the white balance according to the shooting conditions.

Different lighting conditions may cause a colour cast on your images.

044

Fn button: White balance

Using the Custom White Balance

White balance settings may vary slightly depending on the shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance.

1. Select the [Measure: SH] ( ) menu of the White Balance and place a sheet of white paper in front of the camera so that the LCD monitor shows only white.

2. MENU/OK button: Selects previous custom white balance.

Shutter button: Saves new custom white balance.

White paper

– The custom white balance value will be applied, starting with the next picture you take.

– The user confi gured white balance will be remain effective until it is overwritten.

Fn button: Aperture Value

This mode will set the aperture value for automatic exposure in manual mode.

Smaller aperture values make the object sharp but blur the background. Larger aperture values make both the object and background sharp.

Aperture Value

Setting up the Aperture Value

Press the Fn button. Then press the command lever to the left or right to set the aperture value.

Fn button: Shutter Speed

This mode will set the shutter speed for automatic exposure in manual mode.

High shutter speeds can capture a moving object in a way that makes it seem as if the object is not moving. Low shutter speeds can capture a moving object, giving it a dynamic feeling of movement.

Shutter Speed

Setting up the Shutter Speed

Press the Fn button and then Left/Right button. Press the command

lever to the left or right to set the shutter speed.

045

Fn button: Face Detection

If you use face detection options, your camera can detect a human face. When focusing on a human face, the brightness of the face is also adjusted. You can also capture natural facial expressions by using self portrait, smile shot or blink detection.

FACE DETECTION

Selectable modes: [Auto], [Program], [Manual], [DUAL IS], [Beauty

Shot], [Scene] ([Portrait], [Children], [Beach&Snow],

[Self-Shot], [Café])

Face Detection

This mode detects the face position of the subject automatically and then sets the focus and exposure.

1. The size and position of the auto focus frame is automatically set on the face of the subject.

2. Press the Shutter button halfway.

- When the camera detects a target face, the white colour focus frame will be displayed over the target face and the grey colour focus frame appears over the remaining faces. Press the shutter button halfway down to focus on the face and the white focus frame turns green.

3. Press the Shutter button fully to take a picture.

046

This function can detect up to 10 faces.

When the camera recognises many people at the same time, it will focus on the nearest person.

Return to previous AF mode if face detection failed.

In some conditions this function cannot work properly.

- When a person wears dark glasses or some part of the face is hidden.

- When the subject does not look at the camera.

- Camera doesn’t detect a face as the conditions are too dark or too bright.

- The distance between the camera and object is too great.

- If there is refl ection of the light or the back light that are too bright.

The maximum available Face Detection range is 2.5m (Wide).

The nearer the subject, the faster the camera can recognize the subject.

When using the digital zoom, [Face Detection] is not available.

In [Beauty Shot], [Frame Guide], [Portrait], and [Children] mode, the [Face Detection] function setting is set to its default value.

Fn button: Face Detection

Self Portrait

When taking pictures of yourself, the area of your face is automatically detected so that you can take self portraits more easily and quickly.

1. For self-fi lming, set the camera lens towards the face of the object.

It automatically detects the face of the object, and emits a guiding sound.

- When locating the face in the center of the screen, it repeatedly emits a faster sound unlike the sounds that are emitted when the face is not in the center.

2. Start fi lming by pressing the Shutter button.

The guiding sound can be set using the [Self-Portrait] Menu.

(p.81)

Smile Shot

The camera automatically takes a picture by detecting the face of the subject although you don’t press the shutter button.

If you press the Shutter button, the picture is taken in the normal way.

When taking a picture of smile shot, showing teethes or keeping the smiley face of your subject helps detecting the smile face of the subject.

Blink Detection

If the eyes of the subject are closed when the shutter button is pressed, the camera takes 3 continuous shots and then the images are saved.

The camera takes only one picture if the eyes of the subject are open when the

Shutter button is pressed.

Detecting the smiling face or the blinking eyes may not be available if any of the following situations occurs:

- If the subject is wearing sunglasses.

- When the subject is not facing directly to the camera.

- If the environmental light is too bright or too dark to detect the face of the subject.

- When the camera is far from the subject. (Orange colored focusing mark)

- If there is refl ection of the light or the back light that are too bright.

047

E (Effect) button

It is possible to add special effects to your images by using this button.

Available Effects, by recording mode

Mode E button Mode

( : Selectable)

E button

The E button will not operate in Voice recording mode, [Smart

Auto], [Beauty Shot] and some [Scene] modes ([Frame

Guide], [Night], [Text], [Sunset], [Dawn], [Backlight], [Firework],

[Beach&Snow], [Self-Shot], [Food], [Café]).

Even if the camera is turned off, the effect setting will be preserved.

048

E (Effect) button: Photo Style

Selector

You can add various effects to the image without an image editing software.

Press the E button in an available mode.

1. Select the desired Photo style selector by pressing the Left/Right button and press the OK button.

2. Press the Shutter button to take an image.

OK

Set

E

Back

Icon Style mode

Normal

Vivid

Soft

Forest

Retro

Cool

Calm

Classic

Description

No style effect is added to the image.

The image will be applied with vivid colours.

The image will be applied with soft colours.

The image will be applied with clear natural colours.

The image will be applied in a sepia tone.

The image will be applied with cool colours.

The image will be applied with calm colours.

The image will be applied with classic colours.

When picture style is set, face detection is not available.

E (Effect) button: Image editing

Press the E button in the [Program], [Manual] and some scene modes ([Portrait], [Children], [Landscape], [Close up]).

Colour

1. Select the Color( ) menu by pressing the Up/Down button.

2. Select the desired sub menu by pressing the Left/Right button and press the OK button.

3. Press the Shutter button to take an image.

Move

OK

Set

Icon Color

Normal

B/W

Sepia

Description

No colour effect is added to the image.

Captured images will be stored in black and white.

Captured images will be stored in a sepia tone

(a gradient of yellowish brown colours).

Captured images will be stored in a red tone.

Red

Green

Blue

Negative

Captured images will be stored in a green tone.

Captured images will be stored in a blue tone.

Saves the image in negative mode.

Custom Color Captured image will be saved in set RGB tone.

049

E (Effect) button: Image editing

Custom colour: You can change the

R (Red), G (Green) and B (Blue) values of the image.

Up/Down button: Selects R, G, B

Left/Right button: Changes the values

Move

OK

Set

Move

OK

Set

Press the E button in the [Program], [Manual] mode.

Sharpness

1. Select the Sharpness( ) menu by pressing the Up/Down button and a bar for selecting the sharpness will be displayed.

2. Change the sharpness by pressing the

Left/Right button. Press the OK button.

3. Press the Shutter button to take an image.

050

Move OK Set

Contrast

1. Select the Contrast( ) menu by pressing the Up/Down button and a bar for selecting the contrast will be displayed.

2. Change the contrast by pressing the

Left/Right button. Press the OK button.

3. Press the Shutter button to take an image.

Move OK

Set

Saturation

1. Select the Saturation( ) menu by pressing the Up/Down button and a bar for selecting the saturation will be displayed.

2. Change the saturation by pressing the

Left/Right button. Press the OK button.

3. Press the Shutter button to take an image.

Move OK

Set

Using the LCD monitor to adjust the camera settings

You can use the menu on the LCD monitor to set up recording functions.

The items indicated by are default settings.

Menu

Command Lever

Flash EVC

EV

Sub menu

EV(A, S)

ISO WB

+1.0, +0.5, 0, -0.5, -1.0

Available mode Page

p.52

Quality

Super Fine

Normal

Fine

p.53

ACB Off On

Menu

Voice

Scene

Sub menu

Off

Zoom Mute

Frame Guide

Portrait

On

-

Night

Children

Landscape

Text

Close up

Sunset

Dawn Backlight

Firework Beach&Snow

Self-Shot

Café

Food

-

Menus are subject to change without prior notice.

Available mode Page

p.56

p.56

OIS

Voice Memo

Voice Record

Off

Off

-

On

On p.54

p.55

051

Command Lever

You can enable the desired features for the command lever on the back of the camera.

- [Command Lever] Sub menus:

[EV], [EV(A, S)], [ISO], [WB]

RECORDING

Command Lever

Flash EVC

Quality

ACB

OIS

Voice Memo

Back

EV

ISO

WB

OK

Set or right to select the submenu for each feature.

For detailed information on using the command lever, refer to Page 31.

The [Command Lever] feature is enabled in [Program], [Manual],

[DUAL IS], or [Movie] mode.

Selectable sub-menu and default value can vary depending on recording mode.

Flash Intensity

You can control fl ash intensity.

(You can set fl ash intensity within the range of +/- 1EV in intervals of 0.5EV.)

- [Flash EVC] Sub menus:

[+1.0], [+0.5], [0], [-0.5], [-1.0]

RECORDING

Command Lever

Flash EVC

Quality

ACB

OIS

Voice Memo

Back

+1.0

+0.5

0

-0.5

-1.0

OK Set

In [Auto], [DUAL IS], [Beauty Shot], [Smart Auto], [Scene], or

[Movie] mode, the [Flash EVC] feature is disabled.

If the subject is too close or the sensitivity is too high, changing the value to a negative value (-) may not have any effect.

If the fl ash intensity is out of the control range because the exposure value is too high or low, the camera may not operate properly.

052

Quality

You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality.

- [Quality] Sub menus: [Super Fine],

[Fine], [Normal]

RECORDING

Command Lever

Flash EVC

Quality

ACB

OIS

Voice Memo

Back

Super Fine

Fine

Normal

OK Set

ACB

This function is to adjust the contrast automatically when taking photos in an environment with big exposure difference i.e. backlight or contrast. This function adjusts the brightness automatically and allows the subject to be photographed clearly.

- [ACB] Sub menus: [Off], [On]

RECORDING

Command Lever

Flash EVC

Quality

ACB

OIS

Voice Memo

Back

Off

On

OK Set

Mode

Sub menu

File Format

Super Fine

JPEG

Still image Mode

Fine

JPEG

Normal

JPEG

The ACB function is available in [Auto], [Program] or [Portrait] recording mode. ACB function always operates in the [Auto], [Portrait] recording mode.

This fi le format complies with the DCF (Design rule for Camera

File system).

JPEG (Joint Photographic Experts Group):

JPEG is the image compression standard developed by the

Joint Photographic Experts Group. This type of compression is most commonly used for compressing photos and graphics because it can compress the fi les effi ciently.

053

OIS (Optical image Stabilization)

This feature allows you to minimize camera shake while taking a picture.

- [OIS] Sub menus: [Off], [On]

RECORDING

Command Lever

Flash EVC

Quality

ACB

OIS

Voice Memo

Back

Off

On

OK Set

OIS function may not work suffi ciently in the following cases.

– To take pictures of a moving subject.

– To take pictures with higher digital zoom values.

– When camera shake is beyond the camera-shake correction range.

– When the shutter speed is slow.

– When the battery is low.

If you operate OIS function using a tripod, the image can be blurred by the vibration of the sensor of the OIS. Turn off the OIS function when you use a tripod.

If the camera is subjected to an impact, the LCD monitor can be affected. To make the camera function properly again, turn it on and off.

Voice Memo

You can add your voice-over to a stored still image. (Max. 10 sec.)

RECORDING

Command Lever

Flash EVC

Quality

ACB

OIS

Voice Memo

Back

Off

On

OK

Set

– If the voice memo indicator is displayed on the LCD monitor, the setting is completed.

– Press the Shutter button and take a picture. The picture is stored on the memory card.

– Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the Shutter button will stop the voice memo.

SH Stop

00:00:03

054

Voice recording

A voice can be recorded for as long as the available recording time (Max. 10 hour) allows.

Press the Shutter button to record a voice.

– Press the Shutter button once and voice is recorded for as long as the available recording time (max:10 hour) allows. The recording time will be displayed on the LCD monitor. Voice will still be recorded if the Shutter button is released.

– If you wish to stop recording, press the

Shutter button again.

– File type: *.wav

RECORDING

Flash EVC

Quality

ACB

OIS

Voice Memo

Voice Record

Move

0

Fine

Off

On

Off

OK

Set

SH

Record

00:00:00

OK

Exit

<Voice recording mode>

Pausing while recording a voice

Using this function, you can record your favourite voice clips into a voice recording fi le without having to create multiple voice recording fi les.

1. Press the Play & Pause ( to pause recording.

) button

SH

Stop

00:00:06

Pause

<Pausing the voice recording>

2. Press the Play & Pause ( ) button again to resume the recording.

3. If you wish to stop recording, press the Shutter button again.

A distance of 40cm between you and the camera (microphone) is the best distance to record sound.

If the camera power is turned off while the voice recording is paused, the voice recording is cancelled.

055

Recording the movie clip without voice

You can record the movie without voice.

Select [Voice] menu in the Movie clip mode. (p. 25)

( ) icon will appear on the LCD monitor.

Press the Shutter button and a movie will record for as long as the memory capacity allows without voice.

RECORDING

Command Lever

OIS

Voice Off

On

Zoom Mute

OK Set

Back

Starting play mode

Turn the camera on and select Play mode by pressing the Play

mode ( ) button. The camera can now play back the images stored in the memory.

If the memory card is inserted in the camera, all the camera functions apply only to the memory card. If the memory card is not inserted in the camera, all the camera functions apply only to the internal memory.

Playing back a still image

1. Select the Play mode by pressing the

Play mode button.

2. The last image stored on the memory is displayed on the LCD monitor.

Scene mode

Use the menu to easily confi gure optimal settings for a variety of shooting situations.

Press the MENU button and select a desired sub menu.

Refer to page 23 for more information.

RECORDING

Scene

Quality

OIS

Voice Memo

Voice Record

Frame Guide

Night

Portrait

Children

Landscape

Close up

OK Set Back

056

3. Select an image that you want to view by pressing the Left/Right button.

Press and hold the Left or Right button to play back the images quickly.

Starting play mode

Playing back a movie clip

1. Select the recorded movie clip that you want to play back by using the

Left/Right button.

2. Press the Play & Pause ( to playback a movie clip fi le.

) button

– To pause a movie clip fi le while playing it back, press the Play &

Pause ( ) button again.

– Pressing the Play & Pause ( ) button again will cause the movie clip fi le to restart.

– To rewind the movie clip while it is

REW

Pause

00:00:05 playing, press the Left button. To fast forward the movie clip, press the Right button.

– To stop playback of the movie clip, press the Play & Pause ( button, and then press the Left or Right button.

FF ►

)

Video fi les (H.264 (MPEG4.AVC)) recorded with another camera cannot be played back.

Movie clip capture function

You can capture still images from the movie clip.

How to capture the movie clip

1. Press the Play & Pause ( while playing the movie clip.

Then press the E button.

) button

2. The paused movie clip is saved in a new fi le name.

The captured movie clip fi le is the same size as the original movie clip

(1280x720, 640x480, 320x240).

When you press the E button at the beginning of the movie clip, the fi rst frame of the movie clip will be saved as a still image.

Play

00:00:06

E Capture

<Paused>

<Press the E button>

How to Control Volume While Playing Back Movie clip

Press the command lever on the left while a video is playing to turn down the volume.

Press the command lever on the right to turn up the volume.

Even though voice memo, movie clip, voice recording is playing, you can control the volume.

057

Starting play mode

On camera movie trimming

You can extract desired frames of movie clip during the movie clip play back. If the running time is under 10 seconds, the movie clip can’t be trimmed.

1. Press the Play & Pause ( ) button at the point of the movie clip where you want to start extracting.

2. Press the Zoom T Lever.

3. Press the Play & Pause ( and the extracted range will be displayed on the status bar.

) button

T Trim

00:00:08

E Capture

4. Press the Play & Pause ( ) button once more at the point where you wish the extracted fi le to stop.

5.

Move the Zoom T lever to display a window that prompts you to check if the video has been extracted.

T Trim

00:00:14

E Capture

Trimming?

6. Select a desired sub menu by pressing the Up/Down button and press the OK button.

[No]: The movie trimming will be

No

Yes

OK

Confi rm cancelled.

[Yes]: The extracted frames are saved as a new fi le name.

00:00:14

If you don’t specify the ending point of the movie clip, the trimming confi rmation window will be displayed at the point of the last frame.

058

Playing back a recorded voice

1. Select the recorded voice that you want to play back by using the Left/Right button.

2. Press the Play & Pause ( ) button to play back a recorded voice fi le.

– To pause a recorded voice fi le, while playing it back, press the Play &

Pause ( ) button again.

Play

00:02:51

– To resume playback of the voice fi le, press the Play & Pause

( ) button

– To rewind the voice fi le while it is playing, press the Left button.

To fast forward the voice fi le, press the Right button.

– To stop playback of the voice memo, press the Play & Pause

( ) button and then press the OK button.

Starting play mode

Playing back a voice memo

1. Select a still image that has the voice memo.

2. Press the Play & Pause ( to play back the voice memo.

) button

– To pause the voice memo, while playing it back, press the Play &

Pause ( ) button again.

– To resume playback of the voice

( memo, press the Play & Pause

) button.

– To stop playback of the voice memo, press the Play & Pause ( ) button and then press the OK button.

Pause

00:00:06

Play

00:00:06

LCD monitor Indicator

The LCD monitor displays shooting information about the displayed image.

1 2 3 4

$

#

@

5

6

7

8

3

6

7

8

4

5

9

10

11

12

13

14

No.

1

2

Description

Playback mode

Folder name & File name

Internal memory icon/

Memory card icon indicator

Battery

Histogram

ISO

Aperture value

Shutter speed

Flash

Image size

Recording date

DPOF

Protect

Voice Memo

Icon

!

0 9

100-0010

/

80 ~ 3200

F 3.3 ~ 13.1

16 ~ 1/1500

On/Off

4000x3000 ~ 320X240

2009/01/01

Page

p.56

p.86

p.15

p.32

p.44

p.45

p.45

p.35~36 p.41

p.83

p.76~78 p.75

p.73

059

Using the camera buttons to set the camera

In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions.

Play mode button

Thumbnail ( ) / Digital Zoom ( ) Lever

You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.

Thumbnail display

If you have turned on the camera by pressing the POWER button, you can press the Play mode button once to switch to Play mode and press it again to switch to Recording mode.

You can turn the power on with the Play mode button. The camera is turned on in play mode. Press the Play mode button again to turn off the camera.

Manner mode: To select the Manner mode, press the Play mode button for more than 3 seconds. In the Manner mode,

Operating sound, Effect sound, Start-up sound and

Shutter sound will not be generated. To cancel the

Manner mode, turn on the camera by pressing the

POWER button.

1. Once a picture has been played back, move the Thumbnail lever to the left.

2. The thumbnail display will highlight the image that had been showing at the time the thumbnail mode was selected.

3. Press the 5 function button to move to a desired image.

4. Move the Digital Zoom lever to the right to return to the picture playback state.

11

44

22

55

33

66

77 88

<Normal display mode> Highlighted image

<Thumbnail display mode>

060

Using the camera buttons to set the camera

Image enlargement The maximum enlargement rate in proportion to the image size

1. Select the picture you want to enlarge and move the Digital Zoom lever to the right. Then the selected picture will be digitally enlarged.

Image size

Maximum enlargement rate

X12.5 X11.1 X10.3 X10.2

X8.1

X6.4

X3.2

2. Different parts of the image can be viewed by pressing the 5 function button.

3. Move the Thumbnail lever to the left to return the enlarged picture to its original size.

OK Trim

– You can tell whether the image displayed is an enlarged view by checking the image enlargement indicator shown at the top left of the LCD monitor. (If the image is not an enlarged view, the indicator will not be displayed.) You can also check the area of enlargement.

– Movie clips and WAV fi les can’t be enlarged.

– If an image is enlarged, a loss of quality may occur.

Trimming: You can extract part of the image that you want and save it separately.

1. Select an image that you want to enlarge and press the enlargement button. Press the OK button and a message will be displayed.

Trimming?

2. Select a desired sub menu by pressing the Up/Down button and press the OK button.

– [No]: The trimming menu will disappear.

OK

No

Yes

Confi rm

– [Yes]: The trimmed image will be saved as a new fi le name, and appear on the LCD monitor.

If there is not enough memory space to save the trimmed image, the image can’t be trimmed.

061

Info ( ) / Up button

When the menu is displayed on the LCD monitor, the Up button operates as a direction button. When the menu is not displayed on the LCD monitor, pressing the Info( ) button will display image information on the LCD monitor.

Info ( ) button

Play & Pause ( ) / Down button

In Play mode, the Play & Pause ( follows:

)/ Down button works as

– If the menu is displayed

Press the Down button to move from the main menu to a sub menu, or to move down the sub menu cursor.

– If a still image with a voice memo, a voice fi le, or a movie clip is playing

· In Stop mode: Plays a still image with a voice memo, a voice fi le, or a movie clip.

· During playback: Temporarily stops playback.

· In Pause mode: Resumes playback

Info ( ) button

Info ( ) button

Play

00:02:51

REW

Pause

00:00:05

OK

Stop

FF ▶

Play

00:00:12

OK

Stop

<Voice recording is stopped> <Voice recording is playing> <Voice recording is paused>

062

Left / Right / MENU / OK button

Left/Right/MENU/OK button activate the following.

Left button: While the menu is showing, the Left button operates as a direction button. While the menu is not showing, press the

Left button to select the previous image.

Right button: While the menu is showing, the Right button operates as a direction button. While the menu is not showing, press the Right button to select the next image.

MENU button: When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display.

OK button: When the menu is displayed on the LCD monitor, the OK button is used for confi rming data that is changed by using the 5 function button.

Delete ( ) button

This deletes images stored on the memory card. By activating the

Recycle Bin function (p.85) you can restore deleted photos.

1. Select an image that you want to delete by pressing the Left/Right button and press the Delete button.

Delete?

No

Yes

44

Delete?

22

No

Yes

55

33

66

Print ( ) button

When the camera is connected to a PictBridge printer, you can print images by pressing the Print button.

Print OK Menu

T Select OK Confi rm

<Single Image>

OK Confi rm

<Thumbnail Image>

2. Press the Zoom T lever to add an image to be removed.

Left/Right button: Selects images

Zoom T Lever: Checks for deletion

OK button: Deletes the selection

Prev

T Select

Next

OK Delete

3. Select the submenu values by pressing the Up/Down button and then press the OK button.

– If [No] is selected: Cancels “Delete Image”.

– If [Yes] is selected: Deletes the selected images.

063

E (Effect) button: Resize

Change the resolution (size) of pictures taken. Select [Start image] to save an image to be the start-up image.

1. Press the Play mode button and press the E button.

2. Press the Left/Right button and select the [RESIZE] ( ) menu tab.

3. Select a desired sub menu by pressing the Up/Down button and press the OK button.

Move E Exit

Image Resize Types ( : Selectable)

– A large sized image can be resized to a smaller sized image, but not vice versa.

– Only JPEG images can be resized. Movie clip (H264), Voice recording

(WAV) fi les can’t be resized.

– You can change the resolution of only those fi les compressed in the

JPEG 4:2:2 format.

– The resized image will have a new fi le name. The [Start Image] image is stored not on the memory card but on the internal memory.

– If a new user image is saved, one of the two user images will be deleted in order.

– If the memory capacity is insuffi cient to store the resized image, a

[Memory Full!] message will appear on the LCD monitor and the resized image can’t be stored.

064

E (Effect) button: Rotating an image

You can rotate the stored images by various degrees.

Once the playback of the rotated picture is fi nished, it will switch back to the original state.

1. Press the Play mode button and press the E button.

Move E Exit

2. Press the Left/Right button and select the [ROTATE] ( ) menu tab.

3. Select a desired sub menu by pressing the Up/ Down button.

E (Effect) button: Colour

It is possible to add colour effects to your images by using this button.

1 Press the Play mode button and press the E button.

2. Select ( ) menu tab by pressing the

Left/Right button.

OK

Set

E Back

< : Right 90˚>:

Rotate picture in a clockwise direction

OK

Set

E

< : Left 90˚>:

Back

Rotate picture in a counterclockwise direction

OK

Set

E Back

< : 180˚>:

Rotate picture 180 degrees

OK Set E Back

< : Horizontal>:

Rotate picture horizontally

OK Set E Back

< : Vertical>:

Rotate picture vertically

If you display the rotated image on the LCD monitor, empty spaces may appear to the left and right of the image.

Move E Exit

3. Select a desired sub menu by pressing the Up/Down button and press the OK button.

Icon Effect Mode

B/W

Sepia

Red

Green

Blue

Negative

Description

Captured images will be stored in black and white.

Captured images will be stored in a sepia tone

(a gradient of yellowish brown colours).

Captured images will be stored in a red tone.

Captured images will be stored in a green tone.

Captured images will be stored in a blue tone.

Save the image in negative mode.

Custom Color

Captured images will be stored in set RGB tone.

4. The changed image is saved as a new fi le name.

065

E (Effect) button: Colour

Custom colour

You can change the R(Red), G(Green) and

B(Blue) values of the image.

OK button: Selects / sets up the Custom

Colour

Up/Down button: Selects R, G, B

Left/Right button: Changes the values

◄► Move

OK Set

◄► Move OK Set

E (Effect) button: Image editing

1. Press the Play button and press the E button.

2. Select ( ) menu tab by pressing the Left/Right button.

ACB

You can automatically adjust the brightness of the dark area, caused by under exposure to the light source.

1. Select ( ) by pressing the Up/Down button and press the OK button.

2 The [Processing!] message is displayed and the image is saved as a new fi le name

OK Set E Back

Red eye removal

Red eye effect can be removed from the captured image.

1. Select ( ) by pressing the Up/Down button and press the OK button.

2 The [Processing!] message displays and the image is saved as a new fi le name OK Set E Back

066

E (Effect) button: Image editing

Face Retouch

When you recorded a person, you can retouch the subject’s face.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the

[Face Retouch] will be displayed.

2. Change the Face Retouch by pressing the Left/Right button.

3. Press the OK button and the image will be saved as a new fi le name.

OK Set E Back

Brightness control

You can change the brightness of the image.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the brightness will be displayed.

2. Change the brightness by pressing the

Left/Right button.

3. Press the OK button and the image will be saved as a new fi le name.

◄►

Move OK Set

Contrast control

You can change the contrast of the image.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the contrast will be displayed.

2. Change the contrast by pressing the

Left/Right button.

3. Press the OK button and the image will be saved as a new fi le name.

◄►

Move

OK Set

Saturation control

You can change the saturation of the image.

1. Select ( ) by pressing the Up/Down button and a bar for selecting the saturation will be displayed.

2. Change the saturation by pressing the

Left/Right button.

3. Press the OK button and the image will be saved as a new fi le name.

◄►

Move OK Set

067

E (Effect) button: Image editing

Noise effect

You can add noise to an image to add a more classic feel to your photo.

1. Select ( ) by pressing the Up/Down button and press the OK button.

2 The [Processing!] message is displayed and the image is saved as a new fi le name

OK Set E Back

Using the remote control in play mode

You can play the movie clip and images by remote control.

Button for moving up : Move to the previous thumbnail page.

Button for moving left/right : Move to the left/right image in the thumbnail screen or Smart

Album.

Enter button : Used to confi rm when Anynet+(CEC).

Play/Pause button : Play or pause voice memo, voice recording, movie clip or images.

Button for moving down : Move to the next thumbnail page.

Each time you press the down button in the Smart Album, you can move to another category.

Enlargement button : Enlarge the images.

Play mode button : Play the images or movie clip.

If pressed when Anynet+(CEC) is used, the playback menu appears. (p.90)

Thumbnail button : Display images into 9 thumbnail images.

If pressed when Anynet+(CEC) is used, the Smart Album appears.

※ See page 39 about using the remote control in recording mode.

068

Setting up the play back function using the LCD monitor

Play mode functions can be changed by using the LCD monitor.

In the Play mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the Play mode button or Shutter button.

Menu Tab Main Menu

(

PLAY

BACK

)

Delete

DPOF

Menu Tab Main Menu

Show Start

MULTI

SLIDE

SHOW

( )

(

PLAY

BACK

)

Images

Effect

Interval

Music

Voice Memo

Smart Album

Protect

Sub Menu

Play/Repeat Play

All

Smart Album

Sub Menu

-

-

-

Off/Calm/Sweet/Rural/

Vivid/Lively/Shine/Relax

1, 3, 5, 10sec -

Off/Mist/Muse/Fall/Dawn/

Party/Drops/Trip

Off

On

Off

On

Select

All

-

-

-

-

-

Unlock/Lock

Page

p.70

p.71

p.72

p.73

p.73~

74 p.75

Copy To Card

Sub Menu

Select

All

Standard

Index

Size

No Yes

Sub Menu

-

Yes/No

Select/All Pics/Cancel

No/Yes

Select/All Pics/Cancel

-

Page

p.76

p.76~

78 p.79

This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable.

Menu Tab Main Menu

Images

Size

Layout

Sub Menu

One Pic All Pics

Auto Postcard

Card

L

Letter

A3

Auto

4X6

2L

A4

-

Full

1

4

9

Index

2

8

16

-

Sub Menu

-

-

-

-

-

-

-

-

-

-

-

Page

p.92

069

Setting up the play back function using the LCD monitor

Menu Tab Main Menu

Type

Quality

Date Print

File Name

Reset

Fine

Auto

Off

On

Auto

Off

On

No

Yes

Sub Menu

Auto

Plain


FastPhoto

Auto

Draft

Normal

Menus are subject to change without prior notice.

-

-

-

-

-

-

-

-

-

Sub Menu

-

-

-

-

-

-

-

Page

p.92

Starting the slide show ( )

Images can be displayed continuously at pre-set intervals. You can view the slide show by connecting the camera to an external monitor.

1. Press the Play mode button and press the MENU button.

2. Press the Left/Right button and select the [MULTI SLIDE SHOW] menu tab.

Start the slide show

The slide show can start only in the [Show Start] menu.

1. Use the Up/Down button to select the

[Show Start] menu and press the Right button.

2. Select a desired sub menu by pressing the Up/Down button.

[Play]: The slide show is closed after one cycle.

[Repeat Play]: The slide show is repeated until cancelled.

MULTI SLIDE SHOW

Show Start

Images

Effect

Interval

Music

Back

Play

Repeat Play

OK Set

3. Press the OK button and the slideshow will be started.

– To pause the slide show while playing it back, press the Play &

Pause ( ) button again.

– Pressing the Play & Pause ( show to restart.

) button again will cause the slide

– To stop playback of the slide show, press the Play & Pause ( button, and then press the OK button.

)

070

Starting the slide show ( )

Selecting Images

You can select image to view.

1 Use the Up/Down button to select the

[Images] menu and press the Right button.

2. Select a desired sub menu by pressing the Up/Down button.

[All]: All images saved in the Memory

MULTI SLIDE SHOW

Show Start

Images

Effect

Interval

Music

All

Smart Album are played back.

[Smart Album]: Images are played back

Back

OK depending on the category of [Smart Album].

3. Press the OK button and the settings are saved.

Set

Confi gure slide show effects

Unique screen effects can be used for the slide show.

1. Select the [Effect] sub menu by pressing the Up/Down button and press the Right button.

2. Use the Up/Down button to select the type of effect.

3. Press the OK button to confi rm the setting.

MULTI SLIDE SHOW

Show Start

Images

Effect

Interval

Music

Back

Off

Calm

Sweet

Rural

Vivid

Lively

OK Set

– When the effect is selected, the background music is changed according to the default setting of the effect.

Effect

Off

Calm

Sweet

Rural

Vivid

Lively

Shine

Relax

No background music.

Description

Background music is set to [Mist].

Background music is set to [Muse].

Background music is set to [Fall].

Background music is set to [Dawn].

Background music is set to [Party].

Background music is set to [Drops].

Background music is set to [Trip].

You can change the desired music for each effect.

071

Starting the slide show ( )

Setting play interval

Set the slide show play interval.

1. Select the [Interval] sub menu by pressing the Up/Down button and press the Right button.

2. Use the Up/Down button to select the desired interval.

3. Press the OK button to save the confi guration.

MULTI SLIDE SHOW

Show Start

Images

Effect

Interval

Music

Back

1sec

3sec

5sec

10sec

OK Set

The loading time depends on the image size and quality.

While the slide show is playing, only the fi rst frame of a movie fi le is displayed.

While the slide show is playing, the voice recording fi le will not display.

[Interval] is available when the effect is set to [Off], [Calm] in the slide show. It is unavailable when the effect is set to [Rural], [Vivid], [Sweet],

[Lively], [Shine], [Relax] in the slide show.

Setting Background Music

Set the slide show music.

1. Select the [Music] sub menu by pressing the Up/Down button and press the Right button.

2. Use the Up/Down button to select the desired Music.

MULTI SLIDE SHOW

Show Start

Images

Effect

Interval

Music

3. Press the OK button to save the confi guration.

Back

[Off]: Background music is not played back.

[Mist], [Muse], [Fall], [Dawn], [Party], [Drops], [Trip]:

Selected music is played back.

Off

Mist

Muse

Fall

Dawn

Party

OK Set

072

Playback ( )

Voice memo

You can add your voice to a stored still image.

PLAYBACK

Voice Memo

Smart Album

Protect

Delete

DPOF

Copy To Card

Back

Off

On

OK Set

<Voice memo menu> <Ready for recording>

00:00:06

SH Stop

<Voice is recording>

– Once you press the shutter button, the voice will record for 10 seconds.

– To stop the recording, press the Shutter button.

Smart Album

You can easily categorize or search a large amount of content such as pictures and videos.

1. Press the Up/Down button to select the

[Smart Album] menu. Press the Right button.

2. Press the Up/Down button to select [On].

In [Smart Album], [On] is the default value.

3. Press the Play mode button to switch to playback mode.

4. Move the Zoom W/T lever to the left to move to the Smart Album window.

5. Each time you press the Down button, you can move to another category.

6. Press the Left/Right button to move to the previous or next fi le.

- As the display bar moves, the target image is displayed.

PLAYBACK

Voice Memo

Smart Album

Protect

Delete

DPOF

Copy To Card

Back

Date

11 15

Off

On

OK Set

2009/01/01

1 2 5

When Smart Album feature runs or a category is selected, it may take few seconds depends on recorded data volume.

However, it is not a malfunction please wait until Smart Album screen appears.

If the memory card is not inserted, [Smart Album] function will not operate.

073

Playback ( )

Details of Each Category

Category

Date

Colour

Week

Type

Searching or Deleting Files

Categorized depending on the sequence of recorded dates.

Categorized depending on the main color.

Categorized depending on the sequence of recorded weeks.

Categorized depending on the fi le type

(e.g., picture, video, or voice)

Format

1. Move the Thumbnail lever to the left in the Smart

Album window.

2. Each time you move the Thumbnail lever to the left, the fi les in a category are displayed in the

9-tumbnail or 20-tumbnail window.

Pictures,

Videos, voice

3. Select the fi le by pressing the Up/Down/Left/Right buttons.

4. Press the Delete( ) button to delete the selected fi le.

Date

11 15

2009/01/01

1 2 5

Date

11 15

2009/01/01

1 2 5

<9-Thumbnail Window>

Date

11 15

2009/01/01

1 2 5

<20-Thumbnail Window>

074

Playback ( )

Protecting images

This is used to protect specifi c shots from being accidentally erased (Lock).

It also unprotects images that have been previously protected (Unlock).

1. Press the Up/Down button and select the [Protect] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the Up/Down button and press the OK button.

PLAYBACK

Voice Memo

Smart Album

Protect

Delete

DPOF

Copy To Card

Back

Select

All

OK Set

22 33

[Select]: Selection window for an image to be protected / released is displayed.

T/W Lock

44 55

OK Set

66

Up/Down/Left/Right button:

Select an image.

Zoom T/W Lever: Protect / release the image.

OK button: Your changes will be saved and the menu will disappear.

[All]: Protect / release all saved images.

– If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator)

– An image in Lock mode will be protected from the delete function or

[Delete] functions, but will NOT be protected from the [Format] function.

Protect All?

Unlock

Lock

OK Confi rm

075

Playback ( )

Deleting images

This deletes images stored on the memory card. By activating the

Recycle Bin function (p.85) you can restore deleted photos.

1. Press the Up/Down button and select the [Delete] menu tab. And then press the Right button.

2. Select a desired sub menu by pressing the Up/Down button and press the OK button.

PLAYBACK

Voice Memo

Smart Album

Protect

Delete

DPOF

Copy To Card

Select

All

[Select]: Selection window for an image to delete is displayed.

Up/Down/Left/Right button:

Select an image.

Zoom T Lever: Select the image for deletion. (V mark)

OK button: Press the OK button to

Back

44

OK Set

22

55 display the confi rmation message. Select the

[Yes] menu and press the OK button to delete marked images.

T Select

OK

Delete

Delete All?

[All]: Displays confi rmation window.

Select the [Yes] menu and press the OK button to delete all unprotected images. If there are

OK

No

Yes

Confi rm no protected images, all the images are deleted and a

[No Image!] message will display.

33

66

076

3. After deletion, the screen will be changed to the play mode screen.

Of all the fi les stored in the memory card, the unprotected fi les in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images. Important shots should be stored on a computer before deletion takes place.

The startup image is stored in the camera’s internal memory

(i.e., not on the memory card) and it will not be deleted even if you delete all fi les on the memory card.

DPOF

DPOF(Digital Print Order Format) allows you to embed printing information on your memory card’s MISC folder. Select the pictures to be printed and how many prints to make.

The DPOF indicator will be displayed on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.

This function is not available for movie clips and voice recording fi les.

When the wide angle image is printed as a wide angle print, 8% of the left and right side of the image may not be printed. Check that your printer can support the wide angle image when you print the image.

When you print the image at a photo lab, request that the image is printed as a wide angle image. (Some photo labs may not support the wide angle size print.)

Playback ( )

Standard

This function allows you to embed printing quantity information on a stored image.

1. Press the Up/Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and

[Standard] sub menu will be displayed.

PLAYBACK

Standard

Index

Size

Back

3. Select a desired sub menu by pressing the Up/Down button and press the OK button.

[Select]: Selection window for an image to print is displayed.

Up/Down/Left/Right button:

Select an image to print.

Zoom T/W Lever: Select the number of prints.

[All Pics]: Confi gure number of prints for all pictures except movie and voice fi les.

Zoom T/W Lever: Select a number of prints.

[Cancel]: Cancel the print setup.

44

Select

All Pics

Cancel

OK Set

OK Set

OK Set

22

55

33

66

4. Press the OK button to confi rm the setting. If an image carries DPOF instructions, the DPOF ( ) indicator will show.

Index

Images (except for movie clips and voice fi le) are printed as index type.

1. Press the Up/Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and [Index] sub menu will be displayed.

PLAYBACK

Standard

Index

Size

No

Yes

3. Select a desired sub menu by pressing the Up/Down button.

If [No] is selected: Cancel the index

Back OK Set print setting.

If [Yes] is selected: The image will be printed in index format.

4. Press the OK button to confi rm the setting.

077

Playback ( )

Print size

You can specify the print size when printing images stored on the memory card. The [Size] menu is available only for DPOF 1.1 compatible printers.

1. Press the Up/Down button and select the [DPOF] menu tab. And then press the Right button.

2. Press the Right button again and select the [Size] sub menu will be displayed.

PLAYBACK

Standard

Index

Size

Select

All Pics

Cancel

3. Select a desired sub menu by pressing the Up/Down button and press the OK button.

[Select]: Selection window to change the printed size of the image is displayed.

Back OK Set

22 33

Up/Down/Left/Right button:

Select an image.

Zoom T/W Lever: Change the print size.

44

OK Set

55 66

OK button: Your changes will be saved and the menu will disappear.

[All Pics]: Change print size of all saved images.

Zoom T/W Lever: Select a print size.

OK button: Confi rm the changed setting.

[Cancel]: Cancel all of the print size settings.

OK Set

DPOF [Size] secondary menu: Cancel, 3X5, 4X6, 5X7, 8X10

Depending on the manufacturer and print model, cancelling the printing may take a little longer for the printer to process.

078

Playback ( )

Copy To Card

This enables you to copy image fi les, movie clips and voice recording fi les to the memory card.

1. Select the [Copy To Card] menu tab by pressing the Up/Down button. And then press the Right button.

2. Select a desired sub menu by pressing the Up/Down button and press the OK button.

PLAYBACK

Voice Memo

Smart Album

Protect

Delete

DPOF

Copy To Card

No

Yes

– [No]: Cancels [Copy To Card].

– [Yes]: All images, movie clips and

Back OK Set voice recording fi les saved in the internal memory are copied to the memory card after the [Processing!] message is displayed. After copying has been completed, the screen will return to play mode.

If there is not enough space available in the memory card to copy saved images in the internal memory (21MB), the

[Copy To Card] command will copy only some of the images and display [Memory Full!] message. Then the system will return to the Playback mode. Please be sure to delete any unnecessary fi les to free up space before inserting the memory card into the camera.

When you move the images that are stored in the internal memory by doing [Copy To Card] to the card, the next number of fi le names will be created in the card to avoid duplication of the fi le name.

– When the [Reset] of the [File] setup menu is set: The copied fi le names start from after the last stored fi le name.

– When the [Series] of the [File] setup menu is set: The copied fi le names start from after the last captured fi le name. After completing [Copy To Card], the last stored image of the last copied folder is displayed on the LCD monitor.

079

Sound menu

In this mode, you can set up sound settings. You can use the setup menu in all camera modes, except Voice recording mode.

The menus marked * are set to the default value.

Menus are subject to change without prior notice.

Start up Sound

You can select the sound that is activated whenever the camera is turned on.

– [Start Sound] sub menus:

[Off]*, [Sound 1], [Sound 2], [Sound 3]

SOUND

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

Back

Off

Sound 1

Sound 2

Sound 3

OK Set

Sound ( )

Volume

You can set select a volume of shutter sound, beep sound and AF sound.

– [Volume] sub menus: [Off], [Low],

[Medium]*, [High]

SOUND

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

Back

Off

Low

Medium

High

OK Set

Shutter Sound

You can select the shutter sound.

– [Shutter Sound] sub menus:

[Off], [Sound 1]*, [Sound 2], [Sound 3]

SOUND

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

Back

Off

Sound 1

Sound 2

Sound 3

OK Set

080

Sound ( )

Beep Sound

If you set sound to on, various sounds will be activated for camera startup, when OK button is pressed, so that you can be aware of the camera operation status.

– [Beep Sound] sub menus:

[Off], [Sound 1]*, [Sound 2], [Sound 3]

SOUND

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

Back

Off

Sound 1

Sound 2

Sound 3

OK Set

Self Portrait

This feature automatically detects the location of the face and optimises the camera settings to ensure a great self portrait.

– [Self-Portrait] sub menus: [Off], [On]*

SOUND

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

Back

Off

On

OK Set

AF Sound

If you set AF sound to on, AF sound will be activated when the Shutter button is pressed down half way so that you can be aware of the camera operation status.

– [AF Sound] sub menus: [Off], [On]*

SOUND

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

Back

Off

On

OK Set

081

Setup menu

In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice recording mode.

The menus marked * are set to the default value.

Menus are subject to change without prior notice.

Setting the Grid Line

You can set the type of grid displayed on the histogram/grid window. (p. 32)

– [Grid Line] sub menus:

[2 X 2]

*

:

DISPLAY

Language

Grid Line

Date&Time

Start Image

Display Bright

Quick View

Back

2 X 2

3 X 3

X

+

OK

Set

Display ( )

Language

There is a choice of languages that can be displayed on the LCD monitor. Even if the battery is removed and inserted again, the language setting will be preserved.

DISPLAY

Language

Grid Line

Date&Time

Start Image

Display Bright

Quick View

Back

ENGLISH

한국어

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

OK Set

[3 X 3]: [X]: [+]:

082

Display ( )

Setting up the Date / Time / Date type

You can change the date and time that will be displayed on the captured images and set up the date type. If [World Time] is set in foreign countries, the date and time of the destination will be displayed on the LCD monitor.

DISPLAY

Language

Grid Line

Date&Time

Start Image

Display Bright

Quick View

Back – Date type: [yyyy/mm/dd], [Off]*,

[dd/mm/yyyy], [mm/dd/yyyy]

London

2009 / 01 / 01

13:00

Off

OK

Set

– World time

Available cities:

London, Cape Verde, Mid-Atlantic,

Buenos Aires, Newfoundland, Caracas,

La Paz, New York, Miami, Chicago,

Dallas, Denver, Phoenix, LA, San

Francisco, Alaska, Honolulu, Hawaii,

DISPLAY

Samoa, Midway, Wellington, Auckland,

Okhotsk, Guam, Sydney, Darwin,

Seoul, Tokyo

[GMT +09:00] 2009/01/01 13:00PM

OK

Confi rm DST

Adelaide, Seoul, Tokyo, Beijing, Hong

Kong, Bangkok, Jakarta, Yangon, Almaty, Kathmandu, Mumbai, New

Delhi, Tashkent, Kabul, Abu Dhabi, Teheran, Moscow, Athens, Helsinki,

Rome, Paris, Berlin

– [DST] (Daylight Saving Time): Press the Up button to set up [DST].

( ) icon will appear in front of the city name.

Start up image

You can select the image that is fi rst displayed on the LCD monitor whenever the camera is turned on.

– [Start Image] sub menu:

[Off]*, [Logo], [User Image]

– Use a saved image for the start-up image with the [Start Image] in the

[RESIZE] menu in the play mode.

DISPLAY

Language

Grid Line

Date&Time

Start Image

Display Bright

Quick View

Back

OK

Set

Off

– The start-up image will not be deleted by [Delete] or [Format] menu.

– The User images will be deleted by [Reset] menu.

Display brightness

You can adjust the LCD brightness.

– [Display Bright] sub menu:

[Auto]*, [Dark], [Normal], [Bright]

DISPLAY

Language

Grid Line

Date&Time

Start Image

Display Bright

Quick View

Back

Auto

Dark

Normal

Bright

OK

Set

083

Display ( )

Quick view

If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Quick

View] setup. Quick view is possible only with still images.

DISPLAY

Language

Grid Line

Date&Time

Start Image

Display Bright

Quick View

Off

0.5sec

1sec

3sec

– Sub menus

[Off]: The quick view function can’t be activated.

Back

OK

Set

[0.5sec]*, [1sec], [3sec]: The captured image is briefl y displayed during the selected time.

Display Save

If you set the [Display Save] to On and the camera isn’t operated during the specifi ed time, the LCD monitor will be turned off automatically.

– Sub menus

[Off]*: The LCD monitor will not be turned off.

[On]: If the camera isn’t operated

DISPLAY

Grid Line

Date&Time

Start Image

Display Bright

Quick View

Display Save

Back

Off

On

OK

Set during the specifi ed time (about 30 SEC.), the camera power will be idle (Camera status lamp:Blinking) automatically.

Settings ( )

Formatting a memory

If you run [Format] on the memory, all fi les which are image, video clip and even protected images will be deleted.

So be sure to download important fi les to your PC before formatting the memory.

– Sub menus

[No]*: The memory will not be formatted.

SETTINGS

Format

Reset

Recycle Bin

File

Imprint

Power Off

Back

[Yes]: A window for confi rming the selection displays.

No

Yes

OK Set

– [Processing!] A message is displayed and the memory card is formatted. When the memory card is formatted, a message saying that

[No Image!] appears.

Be sure to run [Format] on the following types of memory card.

– A new memory card, or an unformatted memory card

– A memory card that has a fi le this camera can’t recognise or one that has been taken from another camera.

– Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers, or PCs, you will get a [Card Error!] message.

– [Processing!] A message is displayed and the memory card is formatted. When the memory card is formatted, a message saying that

[No Image!] appears.

084

Settings ( )

Initialisation

All camera menu and function settings will be restored to their default values.

However, values for Date/Time,

Language, and Video will not be changed.

SETTINGS

Format

Reset

Recycle Bin

File

Imprint

Power Off

No

Yes

– Sub menus

[No]*: Settings will not be restored to their defaults.

Back OK Set

[Yes]: A window to confi rm the selection is displayed. Select the [Yes] menu and all settings will be restored to their defaults.

Recycle Bin

You can activate the [Recycle Bin] function or restore photos saved in the recycle bin. By turning on this function, you can temporarily save photos up to a total 10MB capacity. You can also restore photos from the recycle bin.

SETTINGS

Format

Reset

Recycle Bin

File

Imprint

Power Off

Back

Off

On

Recycle Folder

OK Set

– Sub menus

[Off]*: Do not want to use the Recycle Bin function.

[On]: Deleted photos are saved in the Recycle folder.

[Recycle Folder]: You can restore the deleted photos from the Recycle folder.

The Recycle Bin function only works with photos.

When you delete all fi les at once, the fi les are not saved in the

Recycle Bin. When the Recycle bin is full of space, it removes photos in sequence from the fi rst deleted photo.

Although you turn off the Recycle function, the Recycle bin still keeps the photos.

When you format the built-in/external memory, all photos in the

Recycle Bin are deleted.

085

Settings ( )

File name

This function allows the user to select the fi le naming format.

SETTINGS

Format

Reset

Recycle Bin

File

Imprint

Power Off

Back

Reset

Series

OK Set

File name

Reset

Series*

Description

After using the reset function, the next fi le name will be set from 0001 even after formatting, deleting all or inserting a new memory card.

New fi les are named using numbers that follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting all pictures.

The fi rst stored folder name is 100SSCAM, and the fi rst fi le name is SDC10001.

File names are assigned sequentially from SDC10001

SDC10002 ~ SDC19999.

The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM 101SSCAM ~ 999SSCAM.

Maximum numbers of fi les in a folder are 9999.

The fi les used with the memory card conform to the DCF

(Design rule for Camera File systems) format. If you change the image fi le name, the image may not play back.

086

Imprinting the recording date

There is an option to include DATE/TIME on still images.

– Sub menus

[Off]*: The DATE & TIME will not be imprinted on the image fi le.

[Date]: Only the DATE will be imprinted on the image fi le.

SETTINGS

Format

Reset

Recycle Bin

File

Imprint

Power Off

Back

Off

Date

Date&Time

OK Set

[Date&Time]: The DATE & TIME will be imprinted on the image fi le.

The Date & Time are imprinted at the bottom right side of the still image.

The imprint function is applied only to still images.

Depending on the manufacturer and print mode, the date printed on an image may not be printed correctly.

Settings ( )

Auto power off

This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage.

– Sub menus

[Off]: Do not want to use the Power Off function.

SETTINGS

Format

Reset

Recycle Bin

File

Imprint

Power Off

Off

1min

3min

5min

10min

[1min], [3min]*, [5min], [10min]:

Back OK Set

The power will turn off automatically if not used for the period of time specifi ed.

– After replacing the battery, the [Power Off] setting will be preserved.

– Note that the automatic [Power Off] function will not operate if the camera is in the PC/Printer mode, slide show, playing back a voice recording and playing back a movie clip.

Selecting video out type

The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or

TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.

Connecting to an external monitor

When the camera is connected to an external monitor, the image and menus on the LCD monitor will be visible on the external monitor and the LCD monitor of the camera.

SETTINGS

Reset

Recycle Bin

File

Imprint

Power Off

Video Out

Back

NTSC

PAL

OK Set

Selecting Video out type

NTSC

PAL

Description

U.S.A, Canada, Japan, South Korea, Taiwan,

Mexico.

Australia, Austria, Belgium, China, Denmark,

Finland, Germany, U.K., Holland, Italy, Kuwait,

Malaysia, New Zealand, Singapore, Spain, Sweden,

Switzerland, Thailand, Norway.

087

Settings ( )

Yellow - Video

White - Sound

Auto focus lamp

You can turn on and off the Auto Focus lamp.

– [AF Lamp] Sub menus

[Off]: The AF lamp will not light up in low light conditions.

[On]*: The AF lamp will light up in low light conditions.

SETTINGS

Recycle Bin

File

Imprint

Power Off

Video Out

AF Lamp

Back

– When using a TV as an external monitor, you will need to select the external or AV channel of the TV.

– There will be a digital noise on the external monitor, but it is not a malfunction.

– If the image is not in the centre of the screen, use the TV controls to centre it.

– When the camera is connected to an external monitor, some parts of the image may not be displayed.

– When the camera is connected to an external monitor, the menu will be visible on the external monitor and the menu functions are the same as those indicated on the LCD monitor.

Setting the Anynet+(CEC)

To use Anynet+(CEC) feature, set the

[Anynet+] to [on]. For more detailed information, refer to page 90.

- [Anynet+] sub menus

[Off]: View fi les without using an HDTV remote control.

[On]*: Control the camera with an

HDTV remote control.

SETTINGS

File

Imprint

Power Off

Video Out

AF Lamp

Anynet+

Back

Off

On

OK Set

Off

On

OK Set

088

Settings ( )

HDMI Size

When the camera is connected with the HDTV, you can select image size that is compatible with the HDTV. The image size are [1080i], [720p], [480p] and [576p]. Only when [480p] is set to

[NTSC] and [576p] is set to [PAL], those resolutions can be set in the menu.

SETTINGS

Imprint

Power Off

Video Out

AF Lamp

Anynet+

HDMI Size

Back

1080i

720p

576p

480p

OK

Set

■ How to connect the camera with the HDTV

Connect the HDMI cable to the HDMI port of both the camera and HDTV.

Connect the AC cable to the camera fi rst, before connecting the HDMI cable to the HDTV.

HDMI (High Definition Multimedia Interface) is a function that allows transferring the recorded images without compression by using the HDMI cable. You can see the images in a high resolution in the HDTV.

HDMI resolution is set to [480p](NTSC) or [576p](PAL), it is only available to play back the image, movie clip, voice.

If the selected HDMI resolution is not supported by HDTV, the clear image can not be shown in the screen.

If you try to select the HDMI resolution that is not supported by

HDTV, the resolution is adjusted to the maximum resolution of the HDTV. For example, if you select “1080i” when the HDTV supports the “720p” by the maximum resolution, it is adjusted to

“720p.”

When [HDMI size] is set to [720p], you can get better picture quality.

You can playback the normal resolution of the movie clip as well.

You can not connect HDMI to HDTV which is not supported.

Please check up the specification of HDTV before connecting it.

HDMI cable

As the above picture, do not use the AV cable at the same time if you connect HDMI to HDTV. When you connect HDMI to HDTV, please connect only HDMI cable and remove the AV cable.

Setting the USB

If the camera is set to connect automatically to a PC or a printer using a USB cable, you can manually set

[Computer] or [Printer].

- [USB] sub menus

[Auto]*: Automatically enables an external device connected with

SETTINGS

Power Off

Video Out

AF Lamp

Anynet+

HDMI Size

USB

Back

Auto

Computer

Printer

OK Set a USB cable.

[Computer]: Sets computer connection mode if the connected external device cannot be recognized automatically.

[Printer]: Sets printer connection mode if the connected external device cannot be recognized automatically.

089

Anynet+(CEC)

Anynet+(CEC) is an AV network system which controls all your connected SAMSUNG AV devices when using the TV remote control that supports Anynet+. When connected to the SAMSUNG HDTV, you can operate the playback functions by using the camera or the

TV remote control. For more information about connecting the HDTV by using the HDMI cable, see page 89.

In order to use the Anynet+(CEC) feature, the Anynet+ option under the camera’s [Settings] menu must fi rst be activated.

(p.88)

5. Press the menu button on the remote control unit’s playback control pad to display the playback menu on the TV screen.

PLAYBACK

View

Rotate

Move

Single

Off

MENU Exit

How to use the Anynet+(CEC)

1. Connect the HDMI cable to the HDMI port of both the camera and

HDTV. (p.89)

2. TV turns on as soon as the power button is pressed on the camera.

3. If there is no picture after turning on the TV, press the source button on the TV remote control to change to the HDMI mode.

- Depending on the TV, it might not change to the HDMI mode although you press the source button.

4. Set the TV to Anynet+(CEC) mode. Direct conversion into Anynet+(CEC) mode may be possible, depending on the model of the TV.

- Refer to the TV manual for further information on activating the

Anynet+(CEC) mode.

The playback menu appearing on TV screen operates the same function of the camera.

6. Select the desired playback function by using the remote control of the

TV or the camera.

To select the sub menus, move to the desired playback menu and then press the Enter (OK) button.

For more detailed information of the remote control of the camera, see page 68.

Only available when using the TV that supports Anynet+(CEC).

(Not available by using TV that supports Anynet)

For more detailed information of the HDTV connection, see the user manual of HDTV.

090

PictBridge

You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. Movie clips and voice fi les cannot be printed.

Setting up the camera for connection to the printer

1. Connect the camera and printer with USB cable.

2.

Once the camera is turned on, the camera automatically recognizes the printer and is connected to it.

If automatic connection fails, set the [USB] menu to [Printer]. (p.89)

For a printer that can enable removable disks, set the [USB] menu to

[Printer].

■ Connecting the Camera to a Printer

Easy printing

When you connect the camera to printer in the Play back mode, you can print a picture easily.

– Pressing the Left/Right button:

Selects a previous / next image.

– Pressing the Print ( ) button:

Currently displayed image will be printed with the printer’s default setting.

Print OK Menu

091

PictBridge: Picture Selection

You can select images you want to print.

Setting the Number of Copies to Print

1. Press the MENU button and the

PictBridge menu will be displayed.

2. Use the Up/Down button to select the

[Images] menu and press the Right button.

PICTBRIDGE

Images

Size

Layout

Type

One Pic

All Pics

3. Use the Up/Down button to select a desired sub menu and press the OK

Quality

Date Print

Back OK Set button.

– Select [One Pic] or [All Pics]. A screen where you can set the number of copies to print will appear as shown below.

00

Prev

◄ ►

Next

00

SH Exit OK Set SH Exit OK Set

<When [One Pic] is selected> <When [All Pics] is selected>

– Press the Up/Down button to select the number of prints.

– When [One Pic] is selected: Use the Left/Right button to select another picture. After selecting another picture, select the number of prints for another picture.

– After setting the number of prints, press the OK button to save.

– Press the Shutter button to return to the menu without setting the number of prints.

4. Press the Print ( ) button and images will be printed.

092

PictBridge: Print Setting

You can select the Paper Size, Print Format, Paper Type, Print

Quality, Date Print, and File Name Print menus for printed pictures.

1. Press the MENU button and the

PictBridge menu will be displayed.

2. Use the Up/Down button to select the desired menu, and then press the Right button.

3. Use the Up/Down button to select the desired sub menu value, and then press the OK button.

PICTBRIDGE

Images

Size

Layout

Type

Quality

Date Print

Back

Auto

Postcard

Card

4x6

L

2L

OK

Set

Menu

Size

Layout

Type

Function

Set the size of the printing paper.

Set the number of pictures to be printed on a sheet of paper.

Set the quality of the printing paper.

Sub menu

Auto, PostCard, Card, 4X6,

L, 2L, Letter, A4, A3

Auto, Full, 1, 2, 4, 8, 9, 16,

Index

Auto, Plain, Photo,

FastPhoto

Quality

Date Print

Set the quality of the picture to be printed.

Set whether to print the date.

Auto, Draft, Normal, Fine

Auto, Off, On

File Name

Set whether to print the fi le name.

Auto, Off, On

Some menu options are not supported on all printers. If not supported, the menus are still displayed in the LCD, but are not selectable.

PictBridge: Reset

Initialises user-changed confi gurations.

1. Use the Up/Down button to select the

[Reset] menu tab. And then press the

Right button.

2. Use the Up/Down button to select the desired sub menu value, and then press the OK button.

PICTBRIDGE

Layout

Type

Quality

Date Print

File Name

Reset

Back

No

Yes

OK Set

If [No] is selected: Settings will not be reset.

If [Yes] is selected: All print and image settings will be reset.

Default print setting varies depending on the printer manufacturer.

For your printer’s default setting, refer to the user’s guide that came with your printer.

Software notes

Please ensure that you read the instruction manual carefully before use.

– Under no circumstances should all or part of either the software or the user manual be reproduced.

– Copyrights for software are licensed only for use with a camera.

– In the unlikely event of a manufacturing fault, we will repair or exchange your camera. We cannot, however, be held responsible in any way for damage caused by inappropriate use.

– Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is not covered by the Samsung warranty.

– Before reading this manual, you should have a basic knowledge of computers and O/S (Operating Systems).

093

Software notes

System requirements

For Windows For Macintosh

USB support environment

Software support environment

PC with processor better than Pentium III 500MHz

(Pentium III 800MHz recommended)

Windows 2000 / XP / Vista

Minimum 256MB RAM

(Over 512MB recommended)

250MB of available hard-disk space

(Over 1GB recommended)

1024×768 pixels, 16-bit color display compatible monitor

(24-bit color display recommended)

Microsoft DirectX 9.0c or later

Power Mac G3 or later, or

Intel Processor

Mac OS 10.3 or later

110MB of available hard-disk space

Minimum 256MB RAM

(Over 512MB recommended)

Not supported

It is not compatible with Windows XP and Vista 64-bit Edition.

Samsung is not responsible for any defects or damages caused by the use of unauthorized computer including an assembled PC.

QuickTime Player 7.5 : H.264(MPEG4.AVC) playback

Requirements

For Windows

Intel Pentium 4, 3.2GHz or later /

AMD Athlon 64FX, 2.6GHz or later

Windows XP service pack2/Vista

Minimum 512MB RAM

(1GB recommended) nVIDIA Geforce 7600GT or later /

ATI X1600 series or later

For Macintosh

1.8GHz Power Mac G5 or

1.83GHz Intel Core Duo or later

Macintosh

Mac OS 10.3.9 or later

Minimum 256MB RAM

(1GB recommended)

64MB video card

094

About the software

After inserting the CD-ROM provided with this camera into the CD-

ROM drive, the following window should automatically run.

Samsung Master : This is the all-in-one multi media software solution.

You can download, view, edit and save your digital images and movie files with this software. It does not support H.264(MPEG4.AVC) movie clip. This software is only compatible with Windows.

QuickTime Player 7.5 : The movie viewing program

QuickTime Player is a movie viewing program and is provided for the

Windows OS only.

You should allow 5 - 10 seconds for running the automatic setup program according to the capability of your computer.

If the frame does not show, run the [Windows Explorer] and select [Installer.exe] in the CD-ROM Drive.

PDF documents of user manual are included in the Software

CD-ROM supplied with this camera. Search the PDF fi les with

Windows explorer. Before opening the PDF fi les, you must install the Adobe Reader included in the Software CD-ROM.

Install Adobe Reader from the CD provided. If the Internet is not enabled, install Adobe Reader by using the executable fi le located in the CD.

To install the Adobe Reader 6.0.1 correctly, Internet Explorer

5.01 or later had to be installed. Visit “www.microsoft.com” and upgrade the Internet Explorer.

095

Setting up the application software

To use this camera with a PC, install the application software fi rst.

After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.

You can visit the Samsung web-site through the internet.

http://www.samsung.com: English

1. The auto run frame display. Click the [Samsung

Camera Installer] menu in the Auto run frame.

will

Digital

3. Install the Samsung Master in the order shown.

2. Install the DirectX by selecting a button shown on the monitor. If a latest version of DirectX was installed on your computer, DirectX may not be installed.

096

Setting up the application software

4. Install the QuickTime Player 7.5 in the order shown.

5. After restarting the computer, connect the PC to the camera with the USB cable.

6. Turn on the camera power. The [Found

New Hardware Wizard] will open and the computer will recognise the camera.

If your OS is Windows XP / Vista, an image viewer program will open.

QuickTime Player 7.5 cannot be installed under Window 2000.

097

Starting PC mode

If you connect the USB cable to a USB port on your PC and then turn on the power, the camera will automatically switch to “computer connection mode”. In this mode, you can download stored images to your PC through the USB cable.

Camera settings for connection

1. Turn on the camera

2. Connect the camera and computer with the supplied USB cable.

3. Once the camera is turned on, the camera automatically recognizes the

PC and is connected to it.

If automatic connection fails, set the [USB] menu to [Computer]. (p.89)

Connecting the camera to a PC

Disconnecting the camera and PC

Refer to page 100 (Removing the removable disk).

098

Starting PC mode

Downloading stored images

You can download the still images stored on the camera to your PC’s hard disk and print them or use a photo editing software to edit them.

1. Connect the camera to your PC with the

USB cable.

2. On your computer’s desktop display, select

[My computer] and double click [Removable

Disk DCIM 100SSCAM]. The image fi les will then be displayed.

3. Select an image and press the right mouse button.

5. Click a folder where you want to paste the fi le.

6. Press the right mouse button and a pop-up menu will open. Click [Paste].

7. An image fi le is transferred from the camera to your PC.

4. A pop-up menu will open.

Click the [Cut] or [Copy] menu.

– [Cut]: cuts a selected fi le.

– [Copy]: copies fi les.

We recommend that you should copy the images to the PC to view them. Opening images directly from the removable disk may be subject to unexpected disconnection.

When you upload a fi le that is not taken by this camera to the

Removable Disk, the [File Error!] message will be displayed on the LCD monitor in the Play mode, and nothing is displayed in

THUMBNAIL mode.

099

Removing the removable disk

Windows 2000/XP/Vista

(The illustrations may differ from those shown depending on the Windows

O/S.)

1. Check whether the camera and PC are transferring a fi le. If the camera status lamp blinks, please wait until the lamp has fi nished blinking and is constantly on.

2. Double-click the [Unplug or Eject Hardware] icon on the task bar.

Double-click!

3. The [Unplug or Eject Hardware] window will open. Select the [USB Mass Storage

Device] and click the [Stop] button.

5. A [Safe to Remove Hardware] window will open. Click the [OK] button.

6. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely.

7. Unplug the USB cable.

4. The [Stop a Hardware device] window will open. Select the [USB Mass Storage Device] and click the [OK] button.

100

Samsung Master

You can download, view, edit and save your images and movies with this software. It does not support H.264(MPEG4.AVC) movie clip.

This software is only compatible with Windows.

To run the Samsung Master, double click the Samsung Master icon on the desktop.

Downloading images

1. Connect the camera to your PC.

2. A window for downloading images will display after connecting the camera to your PC.

– To download the captured images, select the [Select All] button.

– Select desired folder in the window and click the [Select All] button. You can save captured images and selected folder.

– If you click the [Cancel] button, downloading will be cancelled.

3. Click [Next >] button.

4. Select a destination and make a new folder in which to save downloaded images and folders.

– Folder names can be made in order of date and images will be downloaded.

– Folder name will be made as you want and images will be downloaded.

– After selecting a folder that was made before, images will be downloaded.

5. Click [Next >] button.

6. A window will open as shown alongside.

The destination of the selected folder will be displayed on the upper side of the window.

Click the [Start] button to download the images.

7. Downloaded images will be displayed.

101

Samsung Master

Image viewer: You can view the stored images.

Image edit: You can edit the still image.

– Image viewer functions are listed below.

1 Menu bar: You can select menus. File, Edit, View, Tools, Change functions, Auto download, help, etc.

2 Image selection window: You can select the desired images in this window.

3 Media type selection menu: You can select image viewer, image edit and movie edit functions in this menu.

4 Preview window: You can preview an image or a movie clip and check the multi media information.

5 Zoom bar: You can change preview size.

6 Folder display window: You can see the folder location of the selected image.

7 Image display window: Images of the selected folder are displayed.

Refer to the [Help] menu in Samsung Master for further information.

102

– Image edit functions are listed below.

1 Edit menu: You can select the following menus.

[Tools]: You can resize or crop the selected image. See the [Help] menu.

[Adjust]: You can modify image quality. See the [Help] menu.

[Retouch]: You can change image or insert effects on the image. See the [Help] menu.

2 Drawing tools: Tools for editing an image.

3 Image display window: A selected image is displayed in this window.

4 Preview window: You can preview the changed image.

A still image edited with Samsung Master can’t be played back on the camera.

Refer to the [Help] menu in Samsung Master for further information.

Samsung Master

Movie edit: You can get the still image, movie clip, narration, music fi les together in a movie clip.

Some movie clips that were compressed with a codec that is not compatible with the Samsung Master cannot be played back.

Refer to the [Help] menu in Samsung Master for further information.

Samsung Master does not support the playback and editing for the

H.264(MPEG4.AVC) movie clip.

– Movie clip edit functions are listed below.

1 Edit menu:You can select the following menus.

[Add Media]: You can add other media elements to a movie.

[Edit Clip]: You can change the brightness, contrast, colour and saturation.

[Effects]: You can insert an effect.

[Set Text]: You can insert texts.

[Narrate]: You can insert a narration.

[Produce]: You can save the edited multi media as a new fi le name. You can select AVI, Windows media (wmv) and Windows media

(asf) fi le types.

2 Frame display window: You can insert multi media in this window.

103

Setting up the USB Driver for MAC

1. A USB Driver for MAC is not included with the software CD as MAC OS supports the camera driver.

2. Check the MAC OS version during start-up. This camera is compatible with MAC OS 10.3 or later.

3. Connect the camera to the Macintosh and turn the camera power on.

4. A new icon will be displayed on the desktop after connecting the camera to the MAC.

Using the USB Driver for MAC

1. Double click a new icon on the desktop and the folder in the memory will be displayed.

2. Select an image fi le and copy or move it to MAC.

First complete uploading from computer to camera and then remove the removable disk with the Extract command.

104

Specifi cations

Image Sensor

Lens

– Type: 1/2.33” CCD

– Effective Pixel: Approx. 12.2 Mega-pixel

– Total Pixel: Approx. 12.4 Mega-pixel

– Focal Length: Schneider lens f = 4.2 ~ 42.0 mm

(35mm fi lm equivalent: 24 ~ 240 mm)

– F No.: F3.3(W) ~ F5.8(T)

– Digital Zoom:

Still Image mode: 1.0X ~ 5.0X

Play mode: 1.0X ~ 12.5X (depends on image size)

Shake Reduction

– Dual IS (OIS + DIS)

LCD Monitor

Focusing

Wide

Tele

Stabilization)

– 3.0” QVGA TFT LCD (230,000 pixel)

– Type: TTL auto focus (Multi-AF, Center AF, Manual

– Range

Focus, Selection AF, Face Detection AF)

Normal Macro

50cm ~ Infi nity

5cm ~ 50cm

Manual Focus

5cm ~ Infi nity

Auto Macro

5cm ~ Infi nity

200cm ~ Infi nity 100cm ~ 200cm 100cm ~ Infi nity 100cm ~ Infi nity

Shutter

– Auto: 1/8 ~ 1/1,500 sec

– Program: 1 ~ 1/1,500 sec

– Manual: 16 ~ 1/1,500 sec

– Night: 8 ~ 1/1,500 sec

– Firework: 4 sec

Exposure

Flash

Sharpness

White Balance

Shooting

– Control: Program AE or Manual Exposure

– Metering: Multi, Spot, Center-weighted, Face Detection AE

– Compensation: ±2EV (1/3EV steps)

– ISO: Auto, 80, 100, 200, 400, 800, 1600, 3200

(Up to 3M Size)

– Modes: Auto, Auto & Red-eye reduction, Fill-in fl ash,

Slow sync, Flash off, Red-eye Fix

– Range: Wide: 0.3 ~ 4.7m, Tele: 0.5 ~ 2.7 m (ISO Auto)

– Controlling Flash Intensity: ±1EV (1/2 steps)

– Recharging Time: Approx. under 5 seconds (new battery)

– Soft+, Soft, Normal, Vivid, Vivid+

– Auto WB, Daylight, Cloudy, Fluorescent_H,

Fluorescent_L, Tungsten, Custom

– Still Image

• Mode: Auto, Program, Manual, DUAL IS, Beauty Shot,

Smart Auto, Scene

• Scene: Frame Guide, Night, Portrait, Children,

Landscape, Text, Close-up, Sunset, Dawn,

Backlight, Fireworks, Beach & Snow, Self-Shot,

Food, Café

• Smart Auto: Macro, Macro Text, White, Landscape,

Action, Tripod, Night, Night Portrait,

Backlight, Backlight Portrait, Portrait

• Shooting: Single, Continuous, High Speed, AEB,

Motion Capture

• Self-timer: 2 sec., 10 sec., Double (10 sec, 2 sec),

Motion Timer, Remote control (SRC-A5)

105

Specifi cations

– Movie Clip

• With Audio or without Audio (user selectable, recording time : Memory capacity dependent, max 29min.)

• Size: 1280x720HQ(30FPS & 15FPS),

1280x720(30FPS & 15FPS),

640x480(30FPS & 15FPS) ,

320x240(60FPS & 30FPS & 15FPS)

• Movie Editing (Embedded):

Pause during recording, Still Image Capture, Time

Trimming

Voice Recording

– Voice Recording (max 10 hours)

– Voice Memo in Still Image (max 10 sec.)

Date Imprinting

– Date, Date & Time, Off (user selectable)

Storage

– Media

• Internal memory: 21MB

• External Memory (Optional)

MMC Plus (Up to 2GB guaranteed, 4bit 20MHz)

SD (up to 4GB guaranteed)

SDHC (up to 8GB guaranteed)

* Internal memory capacity is subject to change without prior notice.

– File Format

• Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1,

PictBridge 1.0

• Movie Clip: MP4 (H.264(MPEG4.AVC))

• Audio: WAV

– Image Size and Capacity (1GB Size)

Super Fine

Fine

Normal

4000x3000 3984x2656 3968x2232 3264x2448 2592x1944 2048x1536 1024x768

147

285

404

168

314

442

203

368

529

212

375

538

334

558

780

524

790

1049

1449

1645

1845

These fi gures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings.

E Button

Image Play

– Recording Effect:

Photo Style Selector: Normal, Classic, Calm, Cool,

Retro, Forest, Vivid, Soft

Color Effect: Normal, B&W, Sepia, Red, Green, Blue,

Negative, Custom Color

Image Adjust: Saturation, Contrast, Sharpness

– Playback Effect:

Image Edit: Resize, Rotate, Trimming

Color Effect: Normal, B&W, Sepia, Red, Blue, Green,

Negative, Custom Color

Image Adjust: ACB, Red Eye Fix, Brightness, Contrast,

Saturation, Face Retouch, Noise effect

– Single image, Thumbnails, Slide show, Movie clip,

Smart Album

* Slide show : Slide show with Effect & Music

106

Specifi cations

Interface

Power Source

– Digital output connector: USB 2.0 High Speed 20 pin connector

– Audio: Stereo(Microphone), Mono(Speaker)

– Video output: NTSC, PAL (user selectable)

– HDMI 1.2: NTSC, PAL (user selectable)

– Rechargeable battery: SLB-10A, 3.7V (1,050mAh)

– DC Adapter: 4.2V, 20 pin connector

Included battery may vary depending on sales region.

Dimensions

(WxHxD)

– 105 X 61.4 X 36.5mm

– 225g (without batteries and card)

Weight

Operating

Temperature

Operating

Humidity

– 0 ~ 40°C

– 5 ~ 85%

Software

– Application: Samsung Master, Quick Time Player 7.5,

Adobe Reader

Specifi cations are subject to change without prior notice.

All trademarks are the property of their respective owners.

Important notes

Be sure to observe the following precautions!

This unit contains precision electronic components. Do not use or store this unit in the following locations.

– Areas exposed to extremes of in temperature and humidity.

– Areas exposed to dust and dirt.

– Areas exposed to direct sunlight or the inside of a vehicle in hot weather.

– Environments where there is high magnetism or excessive vibration.

– Areas with high explosives or highly fl ammable materials.

Do not leave this camera in places subject to dust, chemicals (like naphthalene and mothballs), high temperature and high humidity. Keep this camera with silica gel in a hermetically sealed box when not planning to use the camera for a long period of time

Sand can be particularly troublesome to cameras.

– Do not let sand get inside the camera when using it on beaches, coastal dunes, or other areas where there is lots of sand.

– Doing so may result in failure or may permanently render the camera unusable.

Handling the camera

– Never drop the camera or subject it to severe shocks or vibrations.

– Protect the large size LCD monitor from an impact. When this camera is not used, keep it in the camera case.

– Avoid obstructing the lens or the fl ash when you capture an image.

107

Important notes

– This camera is not waterproof. To avoid dangerous electrical shocks, never hold or operate the camera with wet hands.

– If you use this camera in wet places, such as beach or pool, do not let water or sand get inside the camera. Doing so may result in failure or may permanently damage the unit.

Extremes in temperature may cause problems.

– If the camera is transferred from a cold to a warm and humid environment, condensation can form on the delicate electronic circuitry.

If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed. Moisture built up can also occur on the memory card. If this happens, turn off the camera and remove the memory card.

Wait until the moisture has dispersed before replacing the card in the camera.

Caution on Using the Lens

– If the lens is subjected to direct sunlight, it could result in the discoloration and deterioration of the image sensor.

– Take care not to get fi ngerprints or foreign substances on the surface of the lens.

If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to remove the battery and the memory card if you do not intend using the camera for an extended period of time.

If the camera is exposed to electronic interference, it will turn itself off to protect the memory card.

Camera Maintenance

– Use a soft brush (available from photo stores) to gently clean the lens and

LCD assemblies. If this does not work, lens-cleaning paper with lens cleaning fl uid can be used. Clean the camera body with a soft cloth. Do not allow this camera to come into contact with solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell of the camera and also affect its performance. Rough handling can damage the LCD monitor.

Take care to avoid damage and keep the camera in its protective carry case at all times when not in use.

Do not attempt to disassemble or modify the camera.

Under certain conditions, static electricity can cause the fl ash unit to fi re. This is not harmful to the camera and is not a malfunction.

When images are uploaded or downloaded, the data transfer may be affected by static electricity. In this case, disconnect and re-connect the USB cable before trying the transfer again.

Before an important event or going on a trip, you should check the camera condition.

– Take a picture for testing the camera condition and prepare extra battery.

– Samsung cannot be held responsible for camera malfunctions.

The temperature of the surface increases if the camera is used for prolonged periods of time. This doesn’t affect the camera operation and is not a problem of the camera.

If the digital camera is not used for a long period, the date and time may adopt the default settings by automatical battery discharged. In this case, reset the date and time correctly before the recording

108

Warning indicator

There are several warnings that may appear on the LCD display.

[ Card Error ! ]

• Memory card error.

Turn off the camera power and turn it on again.

Insert the memory card again.

Insert and format the memory card. (p.84)

[ Card Locked! ]

• The memory card is locked.

SD/SDHC memory card: Slide the write protect switch to the top of the memory card.

[ No Card! ]

• A memory card is not inserted.

Insert the memory card.

Turn off the camera power and turn it on again.

[ No Image! ]

• There are no images stored on the memory.

Take images.

Insert a memory card that is holding some images.

[ File Error! ]

Delete the fi le.

Contact a camera service centre.

[ Low Battery! ]

• There is low battery capacity.

Insert fresh batteries.

[ Low Light! ]

• When taking pictures in dark places.

Take pictures in Flash Photography mode.

[Out of Number]

• When selecting too many printing pages in the PictBridge menu.

Select printing page within the limitation.

[DCF Full Error]

• Violation of DCF format.

Copy the images to a PC and format the memory.

109

Before contacting a service centre

Please check the following.

The camera doesn’t switch on.

• There is low battery capacity.

Insert fresh batteries. (p.15)

• Battery is inserted incorrectly with the polarities reversed.

Insert the battery according to the polarity marks (+, -).

The camera power ceases while in use.

• The battery is exhausted.

Insert a fully charged battery.

• The Camera is turned off automatically

Turn on the camera power again.

• Operation has ceased in a low temperature outside of the camera usage temperature range.

Remove the batteries from the camera. Warm the camera and battery by placing them in your pocket and then immediately before shooting, place the battery in the camera and then shoot.

The camera suddenly stops working while in use.

• The camera stopped due to a malfunction.

Remove /re-insert battery and switch the camera on.

The camera buttons do not operate.

110

Remove/re-insert battery and switch the camera on.

Camera does not take images when pressing the Shutter button.

• There is insuffi cient memory capacity.

Delete unnecessary image fi les.

• The memory card has not been formatted.

Format the memory card (p.84).

• The memory card is exhausted.

Insert a new memory card.

• The memory card is locked.

Refer to [Card Locked!] error message.

• The camera’s power is off.

Turn the camera power on.

• The battery is exhausted.

Insert fresh batteries. (p.15)

• Battery is inserted incorrectly with the polarities reversed.

Insert the battery according to the polarity marks (+, -).

The images are unclear.

• A picture was taken of a subject without setting an appropriate macro mode.

Select an appropriate macro mode to take a clear image.

• Taking a picture beyond the fl ash range.

Take a picture within the fl ash range.

• The lens is smudged or dirty.

Clean the lens.

Before contacting a service centre

The fl ash does not fi re.

• Flash off mode has been selected.

Dis-engage fl ash off mode.

• The camera mode can’t use the fl ash.

Refer to the FLASH instruction. (p.35-36)

Incorrect date and time is displayed

• The date and time have been set incorrectly or the camera has adopted the default settings.

Reset the date and time correctly.

A card error has occurred while the memory card is in the camera.

• Incorrect memory card format.

Re-format the memory card.

The images don’t play back.

Do not change the image fi le name.

Colour of image is different to the original scene.

• White balance or effect setting is incorrect.

Select appropriate White balance and effect.

Images are too bright.

• Exposure is excessive.

Reset exposure compensation.

Image distortion appears in the picture.

• The camera you have purchased uses a wide angle lens and this may cause image distortion. This is a special feature of the product.

No image on external monitor.

• The external monitor has not been connected properly with the camera.

Check the connection cables.

• There are incorrect fi les in the memory card.

Insert a memory card that has correct fi les.

When using the PC’s explorer, the [Removable Disk] fi le does not show.

• Cable connection is incorrect.

Check the connection.

• The camera is off.

Turn the camera on.

• The operating system is not Windows 2000, XP, Vista / Mac OS 10.3.

Alternatively the PC does not support USB.

Install Windows 2000, XP, Vista / Mac OS 10.3 to PC that supports

USB.

111

Before contacting a service centre

A part of the LCD screen does not occasionally turn on or a spot appears.

• Although the LCD screen is manufactured with high precision technology, the precision pixels are not occasionally lighted or the red, white and blue spots appear.

This phenomenon does not affect the quality of the recorded image and it is not a malfunction.

A vertical line appears on the LCD screen when taking a picture of a bright object.

• If a subject is exposing bright lights, a gray, black, red or purple vertical line may appear.

This is a phenomenon called smear and it does not affect the quality of the recorded image. This is not a malfunction.

FAQ

Please check the following if the USB connection malfunctions.

Case 1

USB cable is not connected or it is not the supplied USB cable.

Connect the supplied USB cable.

Case 2

The camera is not recognised by your PC.

Sometimes, the camera may appear under [Unknown Devices] in Device

Manager.

Turn off the camera, remove the USB cable, plug in the USB cable again, and then turn on the camera.

Case 3

There is an unexpected error during fi le transfer.

Turn the camera power off and on again. Transfer the fi le again.

Case 4

When using the USB hub.

There may be a problem in connecting the camera to the PC through the USB hub if the PC and the hub are not compatible. Wherever possible, connect the camera to the PC directly.

112

FAQ

Case 5

Are other USB cables connected to the PC?

The camera may malfunction when it is connected to the PC at the same time as another USB cable. In this case, disconnect the other

USB cable, and connect only one USB cable to the camera.

Case 6

When I open the Device Manager (by clicking Start (Settings)

Control Panel (Performance and Maintenance) System

(Hardware) Device Manager), there are Unknown Devices or Other

Devices entries with a yellow question mark(?) beside them or devices with an exclamation mark(!) beside them.

Right-click on the entry with the question (?) or exclamation (!) mark and select “Remove”. Restart the PC and connect the camera again.

Case 7

In some security programs (Norton Anti Virus, V3, etc.), the computer may not recognise the camera as a removable disk.

Stop the security programs and connect the camera to the computer.

Refer to the security program instructions about how to temporarily disable the program.

Case 8

The camera is connected to the USB port located on the front of the computer.

When the camera is connected to the USB port located on the front of the computer, the computer may not recognise the camera.

Connect the camera to the USB port located on the back of the computer.

When you can not playback the recorded movie clip on your computer.

※ When you can not playback the recorded movie clip on your computer, it is mostly caused by the video codec installed on the computer.

[How to playback the H.264(MPEG4.AVC) movie clips]

• Using the QuickTime Player 7.5

Install the “QuickTime Player 7.5” provided in the CD.

(The QuickTime Player 7.5 supports the H.264(MPEG4.AVC) compression for videos.)

→ Plays back using the “QuickTime Player 7.5”.

• How to use with installing United Codec

We recommend that install the latest United Codec. (Recommendable

Codec : K-Lite Codec Pack Full latest version)

→ Plays back using the “video player.”

(When installed K-lite codec with its full version, the Media Player

Classic or Window Media Player 11 is recommended)

※ “QuickTime Player 7.5”, “K-lite United Codec full version” should be installed in Windows ServicePack2 or later.

※ Although the computer is guaranteed as operated, the playback might be intermittent depending on an user’s computer.

113

FAQ

When the DirectX 9.0c or later is not installed

Install the DirectX 9.0c or later

1) Insert the CD provided with the camera

2) Run the windows explorer and select the [CD-ROM drive:\ DirectX] folder and click the DXSETUP.exe fi le. The DirectX will be installed.

Visit the following site for downloading the DirectX.http://www.

microsoft.com/directx

If a PC connected with the camera stops responding while Windows is starting.

In this case, disconnect the PC and the camera and Windows will start.

If the problem happens continuously, set the Legacy USB Support to disable and re-start the PC. The Legacy USB Support is in the BIOS setup menu. (The BIOS setup menu differs from the PC manufacturers and some BIOS menus don’t have Legacy USB Support) If you can’t change the menu by yourself, contact to the PC manufacturer or BIOS manufacturer.

If the movie clip can’t be deleted, or the removable disk can’t be extracted or an error message displays during the fi le transfer.

If you install only the Samsung Master, the problems mentioned above occasionally happen.

– Close the Samsung Master program by clicking the [Samsung

Master] icon on the Taskbar.

– Install all the application programs included in the software CD.

When the screen ratio of movie player does not meet with monitor.

If the resolution of monitor is smaller than the resolution of recorded movie clip, the screen ratio of movie player may not meet with monitor.

Using the menu of movie player, you can adjust the screen ratio.

114

FCC notice

NOTE:

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the distance between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio / TV technician for help.

CAUTION:

Changes or modifi cations not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

Declaration of Conformity

Model No. : Samsung HZ15W

Responsible Party : SAMSUNG ELECTRONICS AMERICA, INC.

Address : 105 Challenger Road Ridgefield Park NJ

Telephone No. : 1-800-SAMSUNG(726-7864)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Samsung Eco-mark

It is Samsung’s own symbol mark is used to effectively communicate Samsung’s environmental friendly product activities to the consumers. The mark represents Samsung’s continuous effort on development of environmental conscious products.

115

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
