Fujitsu-Siemens LIFEBOOK S

Fujitsu-Siemens LIFEBOOK S

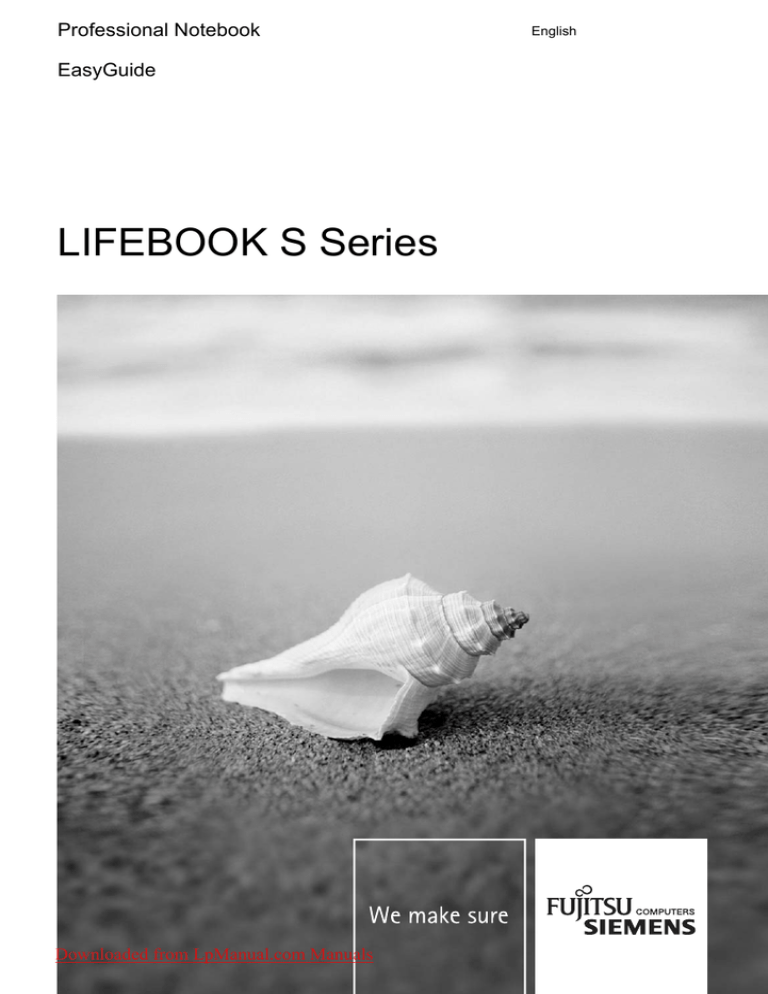

Professional Notebook
EasyGuide
LIFEBOOK S Series
Downloaded from LpManual.com Manuals
English
Are there ...
... any technical problems or other questions which you would like to be clarified?
Please contact:
●
our Hotline/Help Desk (see the included Help Desk list or go to:
http://www.fujitsu-siemens.com/support/helpdesk.html)
●
your sales partner
●
your sales outlet
Additional information is contained in the Help Desk list and the "Warranty" manual. The "Warranty"
manual can be found on the "Drivers & Utilities" CD/DVD provided with your computer.
The latest information on our products, tips, updates, etc., can be found on the internet under:
http://www.fujitsu-siemens.com
Downloaded from LpManual.com Manuals
Downloaded from LpManual.com Manuals
This manual was produced by
Xerox Global Services
Published by
Fujitsu Siemens Computers GmbH
AG 04/06
Edition 2
Order no.: A26391-K164-Z120-1-7619
Downloaded from LpManual.com Manuals
Introduction
Troubleshooting and tips
Notebook views
Technical data
LIFEBOOK S Series
Important notes
Manufacturer’s notes
Preparing the notebook
for use
Index
Using your notebook
Operating Manual
Security functions
Connecting external
devices
Memory expansion
Energy saving functions
Settings in BIOS Setup
April 2006 edition
Downloaded from LpManual.com Manuals
DPMS and VESA are registered trademarks of Video Electronics Standards Association.
Intel is a registered trademark, Pentium and Celeron are trademarks of Intel Corporation,
USA.
Macrovision is a trademark of Macrovision Corporation, USA.
Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft
Corporation.
PS/2 is a registered trademark of International Business Machines, Inc.
Adobe and Acrobat are trademarks of Adobe systems Incorporated and may be protected in
certain countries.
The Bluetooth trademarks are the property of Bluetooth SIG, Inc., U.S.A. licensed for Fujitsu
Siemens Computers GmbH.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
Copyright © Fujitsu Siemens Computers GmbH 2006
All rights, including rights of translation, reproduction by printing, copying or similar methods,
in part or in whole, are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved.
Delivery subject to availability. Right of technical modification reserved.
Downloaded from LpManual.com Manuals
Contents
Innovative technology ... .................................................................................................................... 1
Notational conventions ......................................................................................................................... 2
Notebook views .................................................................................................................................. 3
Important notes .................................................................................................................................. 5
Safety notes.......................................................................................................................................... 5
Additional safety precautions for devices with wireless LAN/ Bluetooth ...................................... 6
Notes on installing and removing boards and components.......................................................... 7
Energy saving....................................................................................................................................... 8
Travelling with your notebook............................................................................................................... 9
Before you travel .......................................................................................................................... 9
Transporting the notebook ......................................................................................................... 10
Cleaning the notebook........................................................................................................................ 10
Preparing the notebook for use ...................................................................................................... 11
Unpacking and checking your notebook............................................................................................. 11
Selecting a location ............................................................................................................................ 12
Connecting the power adapter ........................................................................................................... 12
Switching on the notebook for the first time........................................................................................ 14
Using your notebook........................................................................................................................ 15
Switching on the notebook ................................................................................................................. 15
Switching off the notebook ................................................................................................................. 17
Indicators ............................................................................................................................................ 18
Keyboard ............................................................................................................................................ 20
Virtual numeric keypad ............................................................................................................... 22
Key combinations ....................................................................................................................... 23
Easy Launch keys .............................................................................................................................. 24
Touchpad / TouchStick and touchpad buttons ................................................................................... 25
LCD screen......................................................................................................................................... 27
Information on LCD monitor ....................................................................................................... 27
Monitor settings .......................................................................................................................... 27
Battery ................................................................................................................................................ 28
Charging, caring for and maintaining the battery........................................................................ 28
Monitoring the battery charging level ......................................................................................... 29
Removing and installing the battery ........................................................................................... 29
Hard disk ............................................................................................................................................ 30
Module................................................................................................................................................ 31
Removing module ...................................................................................................................... 31
Installing module ........................................................................................................................ 32
Optical drive........................................................................................................................................ 33
CD/DVD indicator ....................................................................................................................... 33
Inserting or removing a CD/DVD ................................................................................................ 34
Manual removal (emergency removal) ....................................................................................... 36
PC cards and ExpressCards .............................................................................................................. 37
Installing ExpressCard ............................................................................................................... 38
Removing ExpressCard ............................................................................................................. 38
Installing a PC card .................................................................................................................... 40
Removing a PC card .................................................................................................................. 41
Integrated 56k modem........................................................................................................................ 42
Connecting notebook modem to telephone connection ............................................................. 42
Wireless LAN/ Bluetooth..................................................................................................................... 43
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
Contents
Port Replicator (optional) ....................................................................................................................44
Connecting the notebook to the Port Replicator .........................................................................44
Switching on notebook via Port Replicator .................................................................................46
Switching off notebook via Port Replicator .................................................................................46
Disconnecting the notebook from the Port Replicator.................................................................47
Security functions .............................................................................................................................49
Overview of all security functions........................................................................................................49
Kensington Lock .........................................................................................................................49
Security panel .............................................................................................................................49
BIOS password protection ..........................................................................................................50
SmartCard reader .......................................................................................................................50
Trusted Platform Module (optional).............................................................................................50
Brief overview of the security functions...............................................................................................51
Using Kensington Lock on notebook ..................................................................................................52
Using Kensington Lock on Port Replicator .........................................................................................53
Configuring and using Security Panel .................................................................................................54
Configuring Security Panel .........................................................................................................54
Using Security Panel...................................................................................................................56
Configuring password protection in BIOS Setup.................................................................................57
Password protection for BIOS Setup (supervisor and user password).......................................57
Password protection for starting the operating system ...............................................................58
Password protection for hard disk...............................................................................................59
Configuring and using SmartCard reader ...........................................................................................60
Configuring SmartCard reader....................................................................................................61
SmartCards.................................................................................................................................62
Application examples ..................................................................................................................63
Trusted Platform Module (optional).....................................................................................................66
Troubleshooting ..................................................................................................................................67
Security panel .............................................................................................................................67
BIOS passwords .........................................................................................................................67
SmartCard reader .......................................................................................................................67
Connecting external devices............................................................................................................69
Connections on notebook ...................................................................................................................70
Ports on the Port Replicator ................................................................................................................72
Connecting an external monitor to the notebook ................................................................................73
Connecting an external monitor to the Port Replicator .......................................................................73
Connecting an external keyboard .......................................................................................................74
Connecting an external PS/2 mouse...................................................................................................74
Using the parallel port .........................................................................................................................74
Connecting USB devices ....................................................................................................................75
Connecting external audio devices .....................................................................................................75
Connecting FireWire devices ..............................................................................................................76
Connecting an external device to S-Video Out ...................................................................................76
Activating the external TV / projector ..........................................................................................76
Memory expansion............................................................................................................................77
Installing and removing the memory extension...................................................................................78
Energy saving functions...................................................................................................................81
Standby mode .....................................................................................................................................81
Settings in BIOS Setup .....................................................................................................................83
Start BIOS Setup.................................................................................................................................83
Operating BIOS Setup ........................................................................................................................84
Exiting BIOS Setup .............................................................................................................................84
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Contents
Troubleshooting and tips................................................................................................................. 85
Reinstalling Windows XP.................................................................................................................... 85
The notebook's date or time is incorrect............................................................................................. 87
The battery cannot be charged........................................................................................................... 87
Battery indicator no longer appears in status indicator panel............................................................. 87
The battery discharges too quickly ..................................................................................................... 87
No display appears on the screen, the power-on indicator flashes .................................................... 88
The LCD screen of the notebook remains blank ................................................................................ 88
The LCD screen is difficult to read ..................................................................................................... 89
The external monitor stays blank........................................................................................................ 89
The external monitor is blank or the image is unstable ...................................................................... 90
The notebook cannot be started......................................................................................................... 90
The notebook stops working............................................................................................................... 91
The notebook switches off.................................................................................................................. 91
The Suspend/Resume button does not respond properly .................................................................. 91
Radio connection to a network does not function............................................................................... 92
The mouse does not work .................................................................................................................. 92
The printer does not print ................................................................................................................... 93
No sound or minimal volume .............................................................................................................. 93
The CD/DVD does not function .......................................................................................................... 93
Acoustic warnings............................................................................................................................... 93
Error messages on the screen ........................................................................................................... 94
Technical data................................................................................................................................... 97
Notebook ............................................................................................................................................ 97
Battery ................................................................................................................................................ 98
Power adapter 60 W........................................................................................................................... 99
Power adapter 80 W........................................................................................................................... 99
Manufacturer's notes ..................................................................................................................... 101
Copyright-protected technology........................................................................................................ 101
Energy Star....................................................................................................................................... 101
CE marking....................................................................................................................................... 102
Regulatory notices............................................................................................................................ 102
Regulatory information for notebooks without radio device...................................................... 102
FCC Regulatory information for notebooks with radio device .................................................. 106
Index ................................................................................................................................................ 109
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
Downloaded from LpManual.com Manuals
Innovative technology ...
and ergonomic design make your LIFEBOOKLIFEBOOK S Series the ideal easy to use and reliable
notebook.
Your operating system is already pre-installed and optimally configured. That means you're ready to
start when you switch on your notebook for the first time.
Your notebook features the very latest technology so that you get the best performance from your
computing experience. Depending on which model you own, you have access to:
●
Up to 2 Gbyte Mbyte of main memory (RAM)
●
A module slot for using a broad range of drives and components, ensuring the necessary
flexibility
●
S-Video out for connecting your notebook to your television
●
An IEEE 1394 (FireWire) connection for high speed devices such as digital camcorders
●
Three USB ports which provide easy expansion with webcams, game pads, printers and more
●
An internal modem for connecting to the internet
●
An ExpressCard slot for operating an ExpressCard/34 or ExpressCard/54
●
A PC card slot (CardBus or PCMIA) for using a type II PC card
●
An onboard sound card and stereo speakers for your audio enjoyment.
You can even connect headphones, a microphone and external speakers for even better
performance.
With the user-friendly BIOS Setup you can control the hardware of your notebook and protect your
system better against unauthorised access by using the powerful password properties.
This operating manual tells you how to put your notebook into operation and how to operate it in daily
use.
Further information about your notebook can also be found:
●
in the "Getting Started" manual
●
in the "Safety" manual
●
in the "Wireless LAN" manual
●
in the documentation of the operating system
●
in the information files (e.g. *.TXT, *.DOC, *.CHM, *.HLP, *.PDF, *.HTML)
T
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
1
Innovative technology ...
Notational conventions
The following symbols are used in this manual:
!
i
Indicates information which is important for your health or for preventing
physical damage. Failure to follow the instructions may lead to loss of data,
invalidate your warranty, destroy the notebook, or endanger your life.
Indicates important information which is required to use the system properly.
►
Text which follows this symbol describes activities that must be performed in
the order shown.
This font
indicates screen outputs.
This font
indicates programme names, commands, or menu items.
"Quotation marks"
indicate names of chapters, hard disks, CDs, DVDs, and terms that are
being emphasised.
2
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Notebook views
This chapter presents the individual hardware components of your notebook. You can obtain an
overview of the displays and connections of the notebook. Please familiarise yourself with these
components before you start to work with your notebook.
12
13 14
10 11
17
15
16
9
8
7
65
1=
2=
3=
4=
5=
6=
7=
8=
9=
4
3
2
On/Off switch for wireless LAN/ Bluetooth
ExpressCard slot
PC Card slot (CardBus or PCMCIA)
FireWire port
Headphones port/Line Out
Microphone port/Line-In
S Video out socket
Monitor port (with port cover)
DC jack (DC IN)
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
18
1
10 =
11 =
12 =
13 =
14 =
15 =
16 =
17 =
18 =
Built-in loudspeakers
Status display
Easy Launch keys
ON/OFF switch of the Notebook
Built-in loudspeakers
TouchStick
Touchpad
Touchpad buttons
Touchpad scroll button
3
Notebook views
1
2
3
4 5
11
1=
2=
3=
4=
5=
6=
4
Infrared interface
USB ports
Battery
LAN port
Kensington Lock device
USB port
Downloaded from LpManual.com Manuals
7=
8=
9=
10 =
11 =
10
9 8
7
6
Opening for manual ejection
Insert/Eject button
Optical drive
Modem port
Kensington Lock device
A26391-K164-Z120-1-7619, edition 2
Important notes
Here you will find essential safety information regarding your notebook. The other notes provide
useful information on your notebook.
Safety notes
!
Pay attention to the information provided in the "Safety" manual and in the following safety
notes.
Observe the sections in the manual marked with the symbol on the left.
●
When connecting and disconnecting cables, observe the relevant notes in this operating
manual.
●
When cleaning the device, please observe the relevant notes in the "Cleaning the notebook"
paragraph.
●
Only use batteries designed for this notebook.
Do not store batteries for longer periods in the notebook.
Take care not to drop the batteries or otherwise damage their casing (fire risk).
If the rechargeable batteries develop a fault please stop using them immediately.
Do not touch the contacts of the batteries.
Never interconnect the positive and negative terminals of a battery.
Batteries are harmful to the environment. You should dispose of them following guidance from
your local District Council.
●
A lithium battery (button cell) is contained in your notebook:
The lithium battery should only be replaced by an authorised technician. Incorrect handling may
lead to a risk of explosion.
Only use batteries approved by Fujitsu Siemens Computers.
Batteries are harmful to the environment. You should dispose of the lithium battery following
guidance from your local District Council.
●
Your notebook is equipped with numerous security functions that offer you a high level of
security according to a multi-level concept. Detailed information can be found in "Security
functions" chapter.
●
If you have a device with a wireless LAN/ Bluetooth, also observe the information in the
"Additional safety precautions for devices with wireless LAN/ Bluetooth" section.
This notebook complies with the relevant safety regulations for data processing equipment. If you
have questions about using your notebook in a particular area, please contact your sales outlet or
our hotline/help desk.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
5
Important notes
Additional safety precautions for devices with wireless LAN/
Bluetooth
If a radio component (Wireless LAN or Bluetooth) is integrated in your notebook, you must be sure to
observe the following safety notes when using your notebook:
●
The transmitted radio waves can cause an unpleasant humming in hearing aids.
●
Switch off the radio component (the ON/OFF switch must be in the "OFF" position) when you
are at an airport or driving in a car.
●
Switch off the radio component (the ON/OFF switch must be in the "OFF" position) when you
are in a hospital, an operating room or near a medical electronics system. The transmitted
radio waves can impair the operation of the medical devices.
●
Keep the notebook at least 20 cm from a pacemaker, as otherwise the proper operation of the
pacemaker may be impaired by radio waves.
●
Switch off the radio component (the ON/OFF switch must be in the "OFF" position), when you
let the device get near flammable gases or into hazardous environments (e.g. petrol station,
paintshops), as the transmitted radio waves can cause an explosion or a fire.
●
With data traffic via a wireless connection, it is also possible for unauthorised third parties to
receive data.
The company Fujitsu Siemens Computers GmbH cannot be held responsible for radio or television
faults arising from unauthorised changes made to this device. Fujitsu Siemens Computers GmbH is,
furthermore, not responsible for replacing and / or exchanging connector cables and devices which
have not been specified by Fujitsu Siemens Computers GmbH. The user is solely responsible for
repairing faults arising from such unauthorised changes made to a device and for replacing and/or
exchanging devices.
6
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Important notes
Notes on installing and removing boards and components
!
Only qualified technicians should repair your notebook. Unqualified users who open the
notebook’s case expose themselves to electric shock and fire hazards. It will also
invalidate your warranty.
►
Switch the notebook off and pull the power plug out of the mains socket.
►
Remove the battery.
►
Take care when you use the locking mechanisms on the battery and any other component.
►
Never use sharp objects such as screwdrivers, scissors or knives as leverage to remove
covers.
Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown.
When you handle boards fitted with ESDs, you must, under all circumstances, observe the following
points:
●
●
●
●
You must statically discharge yourself before working with boards (e.g. by touching a grounded
object).
The equipment and tools you use must be free of static charges.
Always hold boards with ESDs by their edges.
Never touch pins or conductors on boards fitted with ESDs.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
7
Important notes
Energy saving
If you will not be using your notebook, switch it off.
Make use of the device's energy saving functions (see "Using your notebook"). The notebook uses
less power when the power management features are enabled. You will then be able to work for
longer before having to recharge the battery.
If a monitor with energy saving features is connected to your notebook, you can use the Screen Saver
tab to activate the energy saving features of the monitor. Select the following item in the start menu:
Settings - Control Panel - Display - Display Properties - Screen Saver - Energy saving functions for the
display. You can set additional energy saving functions in the start menu by selecting the following
item: Settings - Control Panel - Energy - Extended.
8
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Important notes
Travelling with your notebook
Please follow these guidelines when travelling with your notebook.
Before you travel
●
Back up important data stored on your hard disk.
●
Switch off the radio component (Wireless LAN/ Bluetooth) for security reasons when youn
cannot exclude that the transmitted radio waves can negatively affect electrical and electronic
devices in your surrounding area.
●
Switch off the radio component (Wireless LAN/Bluetooth) for data security reasons. With data
traffic via a wireless connection, it is also possible for unauthorised third parties to receive data.
i
Information on activating data encryption is provided in the documentation for your
radio component.
●
Disconnect the notebook from the Port Replicator.
●
If you wish to use your notebook during a flight, first check with the flight attendants if it is OK to
do so.
●
If you are travelling abroad, check that the mains adapter can be operated with the local mains
voltage. If this is not the case, obtain the appropriate power adapter for your notebook.
Do not use any other voltage converter!
●
Make sure that the rated current of the power adapter is not higher than that of the power
system to which you connect the power adapter (see technical data of the power adapter).
When travelling in other countries
●
Check whether the local power supply and the specifications of the power cable are
compatible. If this is not the case, buy a power cable that matches the local conditions. Do not
use a connection adapter for electrical devices to connect the notebook.
●
Enquire with the corresponding government office of the country you will be travelling in as to
whether you may operate the radio component integrated in your notebook there (also see "CE
marking").
●
If you use the modem, incompatibilities with the local telecommunications system may result.
This may result in poor performance, or the modem will not work at all.
You may require a country-specific telephone adapter (available as an accessory).
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
9
Important notes
Transporting the notebook
●
Remove all data carriers (e.g. CD) from the drives.
●
Switch the notebook off with the Suspend/Resume button (see "Using your notebook" chapter,
"Switching off the notebook" section).
●
Unplug the mains adapter from the mains socket.
●
Disconnect all cables of the notebook.
●
Close the connector covers.
●
Close the LCD screen so that it locks into place.
●
If the device needs to be shipped, use the original packaging or other suitable packaging to
protect it from damage caused by mishandling.
●
To protect against damaging jolts and bumps, use a notebook carrying case to transport your
notebook.
Fujitsu Siemens Computers offers a number of solutions for transporting your notebook. The
current offering can be viewed on the Internet at http://www.e-shop2.de.
●
Protect the notebook from severe shocks and extreme temperatures (e.g. direct sunlight in a
car).
Cleaning the notebook
►
Switch the notebook off.
►
Unplug the mains adapter from the mains socket.
►
Remove the battery.
!
Do not clean any interior parts yourself; leave this job to a service technician.
Only use cleaning products designed for computers. Normal household cleaners and
polishes can damage the markings on the keyboard and the device, the paintwork or the
notebook itself.
Ensure that no liquid enters the notebook.
Wipe the casing with a dry cloth.
If particularly dirty, use a cloth that has been moistened in mild domestic detergent and then carefully
wrung out.
To clean the touchpad, you can use disinfectant wipes.
Wipe the LCD screen with a soft, moistened cloth.
10
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Preparing the notebook for use
!
Observe the relevant notes in the "Important notes" chapter and in the manual about your
radio component.
Upon delivery, the battery can be found in the battery compartment and is not charged. Before
putting the notebook into operation, the battery must be completely charged. The operating system
and drivers required are preinstalled.
When not plugged into a mains outlet, the notebook runs on its built-in battery. You can increase the
battery's life by enabling the system's energy saving functions.
When you use your notebook in your home or office, we recommend you use the mains adapter
instead of the battery.
Please see the "Connecting external devices" chapter for instructions on how to connect devices
such as a mouse and a printer to the notebook.
Unpacking and checking your notebook
►
Unpack all the individual parts.
►
Check your notebook for damage incurred during transportation.
!
i
Should you discover damages incurred during transportation, notify your local sales outlet
immediately!
We recommend that you keep the original packaging material. You may need the
packaging in the future if you need to transport your device.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
11
Preparing the notebook for use
Selecting a location
!
Select a suitable location for the notebook before setting it up. Consider the following
points when looking for a location:
●
Never place the notebook on a soft surface (e.g. carpeting, upholstered furniture,
bed). This can block the air vents and cause overheating and damage.
●
Do not place the notebook on your legs for a longer period of time. The underside of
the notebook heats up during normal operation. Longer contac with the skin can
become unpleasant or even result in burns.
●
Place the notebook on a stable, flat, nonslippery surface. Please note that the rubber
feet may mark certain types of surfaces.
●
Keep other objects 100 mm away from the notebook and its power adapter to ensure
adequate ventilation.
●
Never cover the fan intake or exhaust openings of the notebook or the power
adapter.
●
Do not expose the notebook to extreme environmental conditions.
Protect the notebook from dust, humidity, and heat.
Connecting the power adapter
!
Please take note of the information in the section "Selecting a location".
Make sure that the power cable is approved for use in the country in which you intend to
use it.
Do not use the power adapter for other notebooks or devices.
Do not use a power adapter that is not specially intended for this notebook.
Make sure that the rated current of the power adapter is not higher than that of the power
system to which you connect the power adapter (see technical data of the power adapter).
12
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Preparing the notebook for use
1
3
2
►
Connect the power adapter cable to the DC jack (DC IN) of the notebook (1).
►
Connect the power cable to the power adapter (2).
►
Plug the power cable into the mains socket (3).
2
1
►
Press the release button (1), and unfold the LCD screen upwards (2).
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
13
Preparing the notebook for use
1
The power indicator
of the notebook appears in the status indicator panel.
The battery will charge. The charging indicator
status indicator panel.
i
and the battery indicator
appear in the
The meaning of the various displays can be found in the section "Indicators" in the
"Using your notebook" chapter.
Switching on the notebook for the first time
!
When you switch on your notebook for the first time, the supplied software is installed and
configured. Due to the fact that this installation must not be interrupted, you should set
aside enough time for it to be fully completed and connect the notebook to the mains outlet
using the power adapter.
During installation, the notebook may only be rebooted when you are requested to do so!
►
Switch the notebook on (see "Switching on the notebook").
►
During installation, follow the instructions on screen.
Consult the operating system manual if there is anything unclear about the requested input data.
i
14
If there is a Windows operating system installed on your notebook the "Drivers°&°Utilities"
CD/DVD is included in the delivery scope. You will find further information on the system,
drivers, utilities, updates and manuals on the "Drivers & Utilities" CD/DVD.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
This chapter describes the basics for operating your notebook.
Please see the "Connecting external devices" chapter for instructions on how to connect devices
such as a mouse and a printer to the notebook.
!
Please take note of the information in the "Important notes" chapter.
Switching on the notebook
2
1
►
Press the release button (1), and unfold the LCD screen upwards (2).
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
15
Using your notebook
2
►
Press the Suspend/Resume button (1) to switch on the notebook.
The power-on indicator
!
i
of the notebook appears in the status indicator panel (2).
After switch-on a self-test (POST, Power On Self Test) is automatically carried out. Never
switch the notebook off during the self-test.
You can configure the Suspend/Resume button under Start - Control Panel - Performance
and Maintenance - Power Options - Advanced.
If you have assigned a password, you must enter this when requested to do so, in order to
start the operating system password. Detailed information can be found in "Security
functions" chapter.
16
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
Switching off the notebook
►
Close all programmes and shut down your operating system (please see operating system
manual).
i
►
If the notebook cannot be shut down properly, press the Suspend/Resume button for
approx. four seconds. The notebook switches off. However, any data which have not been
saved may be lost.
Close the LCD screen so that it locks into place.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
17
Using your notebook
Indicators
The status indicator panel is a small LCD panel on which various symbols appear. These symbols
provide information about the status of the power supply, the drives, and the keyboard functions.
1
Power-on indicator
1
2
18
2
1
2
1
Hard disk indicator
PC card indicator
Power indicator
1
Battery charging indicator
2
ExpressCard indicator
1
Num Lock indicator
A
Caps Lock indicator
First battery indicator
Second battery indicator
A
Wireless LAN/ Bluetooth indicator
Scroll indicator (Scroll Lock)
CD/DVD indicator
Security Panel indicator
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
The meaning of the symbols are as follows:
Power-on indicator
●
The indicator lights up: The notebook is on.
●
The indicator flashes (1 second on / 1 second off): The notebook is in energy-saving
mode.
●
The display is not shown: the notebook is switched off.
Power indicator
The power adapter is supplying power to the notebook.
Battery charging indicator
●
The indicator lights up: The battery is charging.
●
The indicator blinks: The battery is too hot or too cold for charging.
1
Battery indicators
2
The charging state of the batteries is shown with the two battery indicators. 1 indicates
that the information applies to the first battery in the battery compartment. 2 indicates that
the information applies to the second battery in the module bay.
indicates that the battery is 0%-25% charged.
indicates that the battery is 25%-50% charged
indicates that the battery is 50%-75% charged.
indicates that the battery is 75%-100% charged.
Wireless LAN/ Bluetooth indicator
●
The indicator lights up: The wireless LAN/ Bluetooth module is switched on.
CD/DVD indicator
●
The indicator is lit: The CD/DVD in the optical drive is being accessed.
You may only remove the CD/DVD when the indicator is dark.
●
The indicator flashes: an CD/DVD is being inserted or removed.
Hard disk indicator
The hard disk drive of the notebook is being accessed.
1
PC card indicator
The system accesses a PC Card.
2
ExpressCard indicator
The ExpressCard is being accessed.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
19
Using your notebook
1
Num Lock indicator
A
Caps Lock indicator
The Num key has been pressed. The virtual numeric keypad is activated. You can
output the characters located at the upper right on the keys.
The Caps Lock key has been pressed. All the characters you type appear in uppercase.
In the case of overlay keys, the character printed on the upper left of the key appears
when that key is pressed.
Scroll indicator (Scroll Lock)
The key combination Fn + Scr has been pressed. The effect this key has varies from
programme to programme.
Security Panel indicator
The security panel is active. Supervisor and user passwords are set.
i
You will find the information on the security panel in "Security functions" chapter.
Keyboard
i
The keyboard of your notebook is subject to continuous wear due to normal use. The
keyboard markings are subjected to particularly high loads. The keyboard markings can
wear off in the course of using the notebook.
The keyboard has been designed to provide all the functions of an enhanced keyboard. Some
enhanced keyboard functions are mapped with key combinations.
The following description of keys and key combinations refers to Windows.
20
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
&
7
7
&
7
7
$
4 €
$
4 €
&
7
Num
Scr
&
7
7
7
$
4 €
Alt Gr
$
4 €
Backspace key
The Backspace key deletes the character to the left of the cursor.
Tab key
The Tab key moves the cursor to the next tab stop.
Enter key (return)
The enter key terminates a command line. The command you have entered is
executed when you press this key.
Caps Lock key
The Caps Lock key activates uppercase mode (CapsLK indicator lit). The Caps Lock
function causes all the characters you type to appear in uppercase. In the case of
overlay keys, the character printed on the upper left of the key appears when that
key is pressed.
To cancel the Caps Lock function, simply press the Caps Lock key again.
Shift key
The Shift key causes uppercase characters to appear. In the case of overlay keys,
the character printed on the upper left of the key appears when that key is pressed.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
21
Using your notebook
Alt Gr key
Alt Gr
The Alt Gr key allows one to type the characters printed on the lower right of the
keycaps (e.g. { in the case of the 7 key on the German keyboard).
Fn key
Fn
The Fn key enables the special functions indicated on overlay keys (see "Key
combinations" section).
Cursor keys
The cursor keys move the cursor in the direction of the arrow, i.e. up, down, left, or
right.
Pause
Break
Pause key
The Pause key temporarily suspends display output. Output will resume when you
press any other key.
Start key
The Start key invokes the Windows Start menu.
Menu key
The Menu key invokes the menu for the marked item.
Virtual numeric keypad
The keyboard of your notebook does not have a separate number block. To provide the convenience
of a numeric keypad, your keyboard is equipped with a virtual numeric keypad. The special keys of
the virtual numeric keypad are recognisable by the numbers and symbols printed in the upper right
corner of each key. If you have switched on the virtual numeric keypad, you can output the
characters shown on the upper right of the keys.
&
*
7
8
U
1
22
)
0
I
J
O
K
M
1=
2=
(
9
7
P
L
<
,
4
2
:
;
>
.
8
?
/
9
5
1
6
2
0
/
*
-
3
,
+
Characters enabled when Num Lock indicator is not lit (see "Indicators" section).
Characters enabled when Num Lock indicator is lit (see "Indicators" section).
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
Key combinations
The following description of key combinations refers to functions when using Microsoft Windows.
Some of the following key combinations may not function in other operating systems and with some
device drivers.
Key combinations are performed as follows:
►
Press and hold the first key in the combination.
►
While holding the first key down, press the other key or keys in the combination.
Fn
+
F3
Switching the loudspeakers on/off
This key combination switches your device's integrated loudspeakers off and
on. Each time the loudspeaker switches on you will hear an acoustic signal.
Fn
+
F5
Enlarge MS-DOS screen
This key combination enlarges the screen in the MS-DOS mode to the fullscreen mode or switches it back to the normal display mode.
Fn
+
F6
Decreasing screen brightness
This key combination decreases screen brightness.
Fn
+
F7
Increasing screen brightness
This key combination increases screen brightness.
Fn
+
F8
Reducing the volume
This key combination reduces the volume of the integrated loudspeakers.
Fn
+
F9
Increasing the volume
This key combination raises the volume of the integrated loudspeakers.
Fn
+
F10
Switching between internal and external screen
If an external monitor is connected, the monitor on which the output is to be
displayed can be selected with this key combination.
You can opt to use:
●
just the notebook's LCD screen
●
just the external monitor
●
both the LCD screen and the external monitor.
Ctrl
C
+
Halting the current operation
This key combination can be used to halt an operation instantly without clearing
the keyboard buffer.
+
Backtab (Shift+Tab)
This key combination moves the cursor back to the previous tabular stop.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
23
Using your notebook
Easy Launch keys
Your notebook is equipped with four configurable Easy Launch keys.
1
1=
2=
3=
4=
2
3
4
Enter
Key 1
This key could be preset. However, you can also configure this key as desired.
Key 2
This key could be preset. However, you can also configure this key as desired.
Key 3 (preset as Internet key)
With this key you can start the standard internet browser for your system. However, you can
also configure this key as desired.
Key 4 (preset as E-mail key)
Use this key to start the standard e-mail programme for your system. However, you can also
configure this key as desired.
Configuring Easy Launch keys
With the Application Panel you can assign various functions to the Easy Launch keys. You will find the
Application Panel under Start - Control Panel - Additional Control Panel Options - Application Panel.
24
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
Touchpad / TouchStick and touchpad buttons
3
1
2
4
1=
2=
TouchStick
Touchpad
3=
4=
Touchpad buttons
Touchpad scroll button
Your notebook offers a Touchpad (and as an option also a TouchStick) for mouse control.
You can move the pointer on the screen with the TouchStick (1) or the Touchpad (2). The touchpad
buttons (3) allow the selection and execution of commands. They correspond to the buttons on a
conventional mouse.
!
Keep the touchpad clean. Protect it from dirt, liquids, and grease.
Do not use the touchpad if your fingers are dirty.
Do not rest heavy objects (e.g. books) on the touchpad or the touchpad buttons.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
25
Using your notebook
Moving the pointer
►
Move your finger on the touchpad.
or
►
Press down gently with your finger on the TouchStick.
If you want to move the pointer to the left for example, press down gently on the left side of the
TouchStick.
The pointer will move accordingly.
Selecting an item
►
Move the pointer to the item you wish to select.
►
Tap the touchpad once or press the left button once.
The item will be selected.
Executing a command
►
Move the pointer to the field you wish to select.
►
Tap the touchpad twice or press the left button twice.
The command will be executed.
Dragging an object
►
Select the desired object.
►
Press and hold the left button and drag the object to the desired position with the finger on the
touchpad.
or
Press and hold the left button and drag the object to the desired position with the finger on the
TouchStick.
►
Lift your finger from the touchpad.
or
Lift your finger from the TouchStick.
The item will be moved.
Scrolling up
►
Press the upper side of the touchpad scroll button to scroll up.
The information/texts above the display area appear.
Scrolling down
►
Press the lower side of the touchpad scroll button to scroll down.
The information/texts below the display area appear.
26
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
LCD screen
Information on LCD monitor
High-quality TFT displays are installed in notebooks from Fujitsu Siemens Computers GmbH. The
specification of the monitor resolution indicates how many pixels can be displayed. For example,
"XGA" stands for 1024 x 768 pixels. Each pixel consists of three so-called subpixels of the colours
red, green and blue. As a result, an XGA monitor consists of 1024 x 768 x 3 = 2,359,296 subpixels.
The standard of production techniques today cannot guarantee an absolutely fault-free monitor. A
few isolated constant lit or unlit pixels may be present. To ensure the highest possible quality, Fujitsu
Siemens Computers uses only monitors that at least comply with the standard DIN ISO 13406-2
(Class II).
TFT screens are operated with background lighting. The brightness of your monitor can be set
individually with the brightness control keys of the keyboard. The luminosity of the background
lighting can decrease during the period of use of the notebook.
Monitor settings
Setting resolution (under Windows)
You can change the screen resolution under Start - Settings - Control Panel - Display - Settings and then
selecting from the Resolution field.
Setting font size (under Windows)
Under Start - Settings - Control Panel - Display - Settings you can choose between a larger and a smaller
font in the Font size field.
Setting the display brightness
You can adjust the brightness of your LCD screen with the keys Fn + F6 or Fn + F7 : With Fn
+ F6 , screen brightness will be reduced and with Fn + F7 increased.
Synchronising the display on the LCD screen and an external monitor
Your notebook supports the simultaneous display on the LCD screen and an external monitor. If the
picture does not appear correctly on the LCD monitor, press the key combination Fn + F10
several times, or switch the external monitor off and then on again. This achieves good picture
synchronisation.
Adjusting the speed of the mouse pointer
You can change the speed of the mouse pointer under Start - Settings - Control Panel - Mouse and
clicking on the Motion tab.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
27
Using your notebook
Battery
The battery supplies your notebook with the necessary power during mobile use. You can increase
battery life by enabling the system's power management features.
The battery charge is indicated by the battery symbol in the status indicator panel (see also section
"Indicators") When you switch on the notebook, it takes a few seconds before the battery status is
displayed.
The life of the battery is dependent on its proper storage, the number of charging/discharging cycles
and the operating temperature of the notebook.
Charging, caring for and maintaining the battery
!
Only use batteries approved by Fujitsu Siemens Computers for your notebook.
Take care not to drop the batteries or otherwise damage their casing (fire risk).
If the rechargeable batteries develop a fault please stop using them immediately.
Do not touch the contacts of the batteries.
Never interconnect the positive and negative terminals of a battery.
Batteries are harmful to the environment. You should dispose of them following guidance
from your local District Council.
Observe the information on battery storage in the "Important notes" chapter.
Information on the battery charging time is contained in the "Technical data" chapter.
You can charge the battery by connecting the notebook to the power adapter.
The battery can only be charged when the ambient temperature is between 5°C and max. 40°C.
You can maintain long life from your battery by allowing it to discharge fully before you recharge it
again. To do this, leave your notebook turned on when it is operated with the battery. Once the
battery is running low you will hear a warning alarm. If you do not connect the mains adapter within
five minutes of the warning alarm described above, your notebook will automatically switch off.
Storing the battery
Keep the battery pack between 0°C and +30°C (32 and 122 degrees Fahrenheit). The lower the
temperature at which the batteries are stored, the lower is the rate of self-discharge.
If you store rechargeable batteries for a longer period (longer than two months), the battery charge
level should be approx. 30%. To prevent exhaustive discharge, check the charging level of the
battery at regular intervals.
To be able to make use of the optimal charging capacity of the batteries, the battery should be
completely discharged and then fully recharged.
i
28
If you do not use the batteries for long periods, remove them from the notebook. Never
store the batteries in the unit.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
Monitoring the battery charging level
The battery charge is indicated by the battery symbol in the status indicator panel (see the section
"Indicators ").
Power management includes a "battery charge meter" located in the task bar. When you place the
mouse pointer on the battery symbol, the system displays the battery status.
Removing and installing the battery
!
Only use batteries released for this notebook.
Never use force when inserting or removing a battery.
Make sure no foreign objects get into the battery compartment.
►
Switch the notebook off.
►
Place the notebook on a flat surface.
►
Close the LCD screen.
►
Turn the notebook over.
Removing battery
1
2
3
►
Press the release (1) in the direction of the arrow and hold it pressed.
►
Push the battery lock in the direction of the arrow up to the stop (2).
►
Remove the battery from the battery compartment (3).
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
29
Using your notebook
Inserting battery
1
2
►
Position the battery at the edge of the casing.
►
Push the battery into the battery slot until you feel it locking into place (1).
►
Push the battery lock in the direction of the arrow up to the stop (2).
Hard disk
The hard disk is the most important storage medium of your notebook. You can work considerably
faster and more efficiently if you copy applications and files from CDs to your hard disk.
When the hard disk is accessed, the hard disk indicator
30
Downloaded from LpManual.com Manuals
lights up in the status indicator panel.
A26391-K164-Z120-1-7619, edition 2
Using your notebook
Module
The design of your notebook enables the flexible use of notebook batteries and drives. The following
modules can be operated in the module bay of your notebook:
●
●
●
●
Hard disk drive
Optical drive
Second battery
Weight Saver
Only use modules designed for your notebook.
!
Do not use force when installing or removing the module.
Make sure that no foreign objects enter the module bay.
Removing module
You can replace modules during operation. This means you do not need to switch off the
notebook.
i
With the
symbol in the task bar you can stop the module:
►
Left-click on the icon.
►
Select the module you want to stop and remove.
►
Press the Enter key.
Wait for the dialogue box which tells you that it is now safe to remove the module.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
31
Using your notebook
1
2
►
Pull the eject lever in the direction of the arrow up to the stop (1).
The module is unlocked and extends somewhat beyond the casing.
►
Pull the module out of the module bay (2).
Installing module
►
Place the module into the module bay so that the contacts enter first.
►
Push the module into the module bay until you feel it locking into place.
32
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
Optical drive
Depending on the variant, your notebook is equipped with a DVD-ROM drive, a combination drive
(CD-RW/DVD), a DVD±RW dual drive or a multi-format DVD drive with double-layer support.
You can replace your optical drive with another drive, a battery or a Weight Saver (see "Module"
section).
!
The optical drive is a Class 1 laser according to IEC 60825-1.
It contains a light emitting diode (LED) which may produce a stronger laser beam.
It is dangerous to look directly at this beam.
Therefore, do not remove any drive housing parts.
Handling CD/DVDs
Observe the following guidelines when handling CD/DVDs:
●
Avoid touching the surface of a CD/DVD. Hold CDs/DVDs by their edges!
●
Always store CDs/DVDs in their cases. This will protect CD/DVD from dust,
scratches and other damage.
●
Protect your CDs/DVDs from dust, mechanical vibration and direct sunlight!
●
Avoid storing a CD/DVD in areas subject to high temperatures or humidity.
You may use both 8-cm and 12-cm CDs/DVDs in the optical drive.
When using CDs/DVDs of poor quality vibrations and reading errors may occur.
CD/DVD indicator
The CD/DVD indicator
flashes when a CD/DVD is inserted. The indicator goes out when the drive
is ready for reading. The indicator lights up when the drive is being accessed. You may only remove
the CD/DVD when the indicator is dark.
i
If the CD/DVD indicator
does not go out after inserting a CD/DVD, but instead
continues to flash, the drive cannot access the data carrier.
Either the CD/DVD is damaged or dirty or you are using a data carrier that the drive cannot
read.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
33
Using your notebook
Inserting or removing a CD/DVD
The notebook must be switched on.
1
►
2
Push the insert/eject button (1).
The drive tray will open.
►
Pull the drive tray all the way out (2).
►
Place the CD/DVD in the drive tray with the label facing upwards or remove an inserted
CD/DVD.
34
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
►
Push in the drive tray until you feel it lock into place.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
35
Using your notebook
Manual removal (emergency removal)
In the event of a power failure or damage to the drive it may be necessary to manually remove the
CD/DVD.
►
Switch the notebook off.
►
Press a pen or a piece of wire (e.g. a paper clip) firmly into the opening.
The drive tray is unlocked and opens. You can now pull out the drive tray completely.
36
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
PC cards and ExpressCards
1
2
1=
ExpressCard slot
2=
PC Card slot (CardBus or PCMCIA)
An ExpressCard slot (1) enables the operation of an ExpressCard/34 or ExpressCard/54. A PC card
slot (2) permits operation of a type I or type II PC card.
!
Please read the documentation on the PC card and/or on the ExpressCard and follow the
manufacturer's instructions.
Never use force when installing or removing a PC card or an ExpressCard.
Make sure that foreign objects do not fall into the PC card slot.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
37
Using your notebook
Installing ExpressCard
►
Insert the ExpressCard in the upper slot guide with the connection contacts first.
►
Gently push the ExpressCard into the slot until you feel it click into place.
Please see the documentation on the ExpressCard for driver installation instructions.
i
Also observe the corresponding information files (e.g. *.TXT, *.DOC, *.WRI, *.HLP or
*.PDF) on the driver CD and in the user manual of the operating system.
T
You can push the ExpressCard slot eject button into the notebook casing. Press the eject
button until it snaps in. This prevents the ExpressCard from being ejected accidentally.
Removing ExpressCard
With the
symbol in the task bar you can stop the ExpressCard:
►
Left-click on the icon.
►
Select the ExpressCard you want to stop and remove.
►
Press the Enter key.
Wait for the dialogue box which tells you that it is now safe to remove the ExpressCard.
38
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
2
1
►
Press the eject button (1) so that the ExpressCard entends somewhat from the notebook.
If the eject button is lowered, you must first cause the eject button to release from the notebook
casing. To do this, press the eject button until it pops out.
►
Pull the ExpressCard carefully out of the slot (2).
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
39
Using your notebook
Installing a PC card
►
Insert the PC card, contacts first, into the lower slot guide.
►
Gently push the PC card into the slot until you feel it click into place.
i
Consult the documentation supplied with the PC card for information on how to install the
necessary device drivers.
Also observe the corresponding information files (e.g. *.TXT, *.DOC, *.WRI, *.HLP or
*.PDF) on the driver CD and in the user manual of the operating system.
T
You can push the PC card slot eject button into the notebook casing. Press the eject
button until it snaps in. This prevents the PC card from being ejected accidentally.
40
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
Removing a PC card
With the
symbol in the task bar you can stop the PC card:
►
Left-click on the icon.
►
Select the PC card you want to stop and remove.
►
Press the Enter key.
Wait for the dialogue box which tells you that it is now safe to remove the PC card.
2
1
►
Press the eject button (1). The PC card will project further out of the notebook's case.
If the eject button is lowered, you must first cause the eject button to release from the notebook
casing. To do this, press the eject button until it pops out.
►
Pull the PC card (2) out of the slot.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
41
Using your notebook
Integrated 56k modem
The integrated 56k modem supports all data communication applications, such as:
●
Modem operation: High-speed downloads at up to 56,000 bit/s (V.9x). Downward-compatible to
V.34 modems.
●
Fax mode: Transmitting and receiving at up to 14,400 bit/s
●
Simple country adaptation with programme
The modem complies with the EU Directive 91/263/EEC (Telecommunications terminal equipment
directive) and has been checked in agreement with the guideline TBR-21.
The modem can be operated in the following countries:
Multifrequency (MFC) dialling:
Belgium, Denmark, Germany, Finland, France, Greece, Great Britain, Holland, Ireland, Iceland, Italy,
Luxembourg, Norway, Austria, Portugal, Sweden, Switzerland and Spain.
Pulse dialling:
Belgium, France, Holland and Italy.
Also in: Poland, Slovenia, South Africa and Hungary.
Connecting notebook modem to telephone connection
2
1
►
Connect the modem cable supplied to the country-specific telephone adapter if necessary.
►
Connect the modem cable to the modem port of the notebook (1).
►
Connect the modem cable to your telephone wall socket (2).
42
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
i
Please note that the telephone line is busy and that you cannot use your telephone if the
modem cable is plugged into the telephone wall socket. Pull the modem cable out of the
telephone socket after you have finished your internet session or the fax mode and
reconnect the telephone cable.
Wireless LAN/ Bluetooth
!
The installation of a wireless LAN module not approved by Fujitsu Siemens
Computers GmbH voids the permits (CE!, FCC) issued for this device.
Depending on the device variant, wireless LAN/ Bluetooth may be integrated in your notebook. The
wireless LAN/ Bluetooth module is switched off in the delivered state.
Switching wireless LAN/ Bluetooth module on and off
OFF
►
ON
Slide the ON/OFF switch into the "ON" position to activate the wireless LAN/ Bluetooth module.
or
►
Slide the ON/OFF switch into the "OFF" position to deactivate the wireless LAN/ Bluetooth
module.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
43
Using your notebook
i
When you switch off the Wireless LAN/ Bluetooth module, the Bluetooth function and the
Wireless LAN antenna are also switched off.
Pay attention to the additional safety precautions for devices with wireless LAN/ Bluetooth
provided in the "Safety" manual.
Details are contained in the online help for your wireless LAN software and in the
"Wireless LAN" manual. The "Wireless LAN" manual can be found on the
"Drivers & Utilities" CD/DVD.
Detailed information on using Bluetooth is provided on the CD for your Bluetooth software
(e.g. the "Widcomm Software Suite" CD).
Port Replicator (optional)
The Port Replicator is a docking device with which you can quickly connect your notebook to your
peripheral devices. Among other things, the Port Replicator is equipped with the standard ports for
serial data transmission, printer, monitor, audio, mouse and keyboard.
i
Additional information on the Port Replicator and on the various external devices that can
be connected to it is contained in the in the chapter entitled "Connecting external devices".
Connecting the notebook to the Port Replicator
!
i
If you connect the notebook to the Port Replicator during operation, problems can occur.
We recommend that you switch off the notebook beforehand.
If the notebook is connected to the Port Replicator, you must connect the power adapter to
the Port Replicator. Otherwise some connections will not function.
When the notebook is connected to the Port Replicator, only one microphone port can
function. The microphone port on the notebook functions in the standard configuration. If
you would like to use the microphone port on the Port Replicator, you must switch over the
active microphone port under Start - Control Panel - Sounds and Audio Devices.
When the notebook is connected to the Port Replicator, we recommend that the notebook
not be operated with the LCD screen closed. The resulting overheating can cause reduced
performance and increased activity of the integrated fan.
►
Switch the notebook off.
►
Unplug the mains adapter from the mains socket.
►
Pull the power adapter cable out of the DC socket (DC IN) of the notebook.
44
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
1
a
2
4
3
b
►
Make sure that the hoop (a) is in the position illustrated.
►
Position the notebook (1) so that the rear left-hand corner lies on the Port Replicator, as shown
in the illustration (b).
►
Press down on the notebook’s rear corners so that it may lock into position.
►
Connect the power adapter cable to the DC jack (DC IN) of the Port Replicator (2).
►
Connect the power cable to the power adapter (3).
►
Plug the power cable into the mains socket (4).
i
If the notebook is connected to a Port Replicator, the operating system creates an
hardware profile for the "Docked" mode. In this profile, for example, the setting is saved as
to which monitor was last used for output. This profile will be loaded, as soon as the
notebook is connected to any desired Port Replicator.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
45
Using your notebook
Switching on notebook via Port Replicator
2
1
►
Press the Suspend/Resume button (1) of the Port Replicator.
The power-on indicator (2) of the Port Replicator lights up.
!
After switch-on a self-test (POST, Power On Self Test) is automatically carried out. Never
switch the notebook off during the self-test.
Switching off notebook via Port Replicator
►
Close all programmes and shut down your operating system (please see operating system
manual).
i
46
If the notebook cannot be shut down properly, press the Suspend/Resume button of the
Port Replicator for approx. four seconds. The notebook switches off. However, any data
which have not been saved may be lost.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Using your notebook
Disconnecting the notebook from the Port Replicator
!
It is not permitted to disconnect the notebook from the Port Replicator during operation.
►
Switch the notebook off.
►
Unplug the mains adapter from the mains socket.
1
2
►
Press the button (1).
►
Lift off the notebook (2).
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
47
Downloaded from LpManual.com Manuals
Security functions
Your notebook enables you to protect your system and personal data in a number of ways against
unauthorised access. By combining these options, you can achieve maximum protection for your
system.
In this chapter you will learn which security functions your notebook is equipped with, which
advantages these functions offer you and how to configure and use them.
!
Please consider that in the case of improper use, you yourself will also be unable to
access your system and your data. Please note therefore the following hints:
●
Back up your data on external data carriers at regular intervals.
●
Some security functions need you to choose a password. Please be sure to note
these passwords, as otherwise you will no longer be able to access your system.
We recommend that you make a note of the passwords and keep them in a safe
place.
If you lose both the user and the admin passwords, you must contact our help desk. The
telephone numbers are contained in the supplied help desk list. Passwords are not
covered by your warranty and a charge will be made for assistance.
Overview of all security functions
The following sections contain a brief description of the security functions that are provided with your
notebook as standard equipment.
Kensington Lock
With the Kensington MicroSaver, a sturdy steel cable, you can protect your notebook and your Port
Replicator from theft. Therefore, your notebook and your Port Replicator are equipped with a device
for the Kensington MicroSaver. The Kensington MicroSaver is available as an accessory.
Security panel
The security panel enables you to protect your notebook from unauthorised use with a password.
When a Security Panel password is activated, the notebook will not start without the correct insertion
of a password. The password is entered before the BIOS is read out and the hardware activated.
The password is requested from all suspend and resume modes. This ensures a high level of
security even with the energy-saving mode activated.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
49
Security functions
BIOS password protection
You can protect you personal data from unauthorised access with various passwords. By combining
these different options, you can achieve maximum protection for your system.
Password protection for the BIOS setup
With the Supervisor password you prevent unauthorised opening of the BIOS Setup, and with it
access to important system settings. In the BIOS Setup you can also activate protection for the
operating system and your hard disk.
Password protection for the operating system
With corresponding settings in the BIOS Setup you can block starting of the operating system. Only
those who know the supervisor or user password can access the system.
Password protection for your hard disk
By activating the hard disk protection in the BIOS Setup you prevent unauthorised access to the hard
disk drive. The hard disk password is checked internally during each system start-up and ensures
that the hard disk can only be used in conjunction with the related device.
SmartCard reader
Your notebook is equipped with a SmartCard interface. You can purchase the "Mobile Secure IT
Suite" as an accessory. It contains a SmartCard and a SmartCard holder. Together with the
SmartCard interface this SmartCard holder serves as a versatile SmartCard reader. You can
purchase additional SmartCards as accessories. The SmartCard can be used as a particularly
secure alternative or as an addition to password protection. SmartCards are just as useful for digital
signatures or for encrypting e-mails.
You can also read out other cards with your SmartCard reader (e.g. cell phone cards, health
insurance cards, bank cards). For this purpose you also require the software matched to the
respective card.
The "Mobile Secure IT Suite" contains several adapters for your cell phone cards. You will find the
trial version of a program with which you can conveniently manage your cell phone data and
messages on your notebook on the "Security Drivers & Tools" CD.
Trusted Platform Module (optional)
A Trusted Platform Module (TPM), i.e. a special security chip, is integrated in your notebook. This
module functions like a permanently installed SmartCard. However, the TPM is not linked to a user
like a SmartCard, but instead to a hardware system. The TPM contains a unique code. As a result,
the TPM is used for the clear identification and authentication of the notebook. Keys are saved in the
TPM. The TPM is also used for encryption and decryption of user-specific cryptography keys saved
on data carriers.
50
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
Brief overview of the security functions
Security function
Type of protection
Preparation
Kensington Lock
Mechanical
Mount and lock Kensington
MicroSaver (accessory)
Security panel
Hardware password protection
with Supervisor and User
password. The passwords are
numeric combinations. More
than 750,000 combinations are
possible.
Install the programs provided
and specify the numeric
combinations for the Supervisor
and User passwords using
these programs.
BIOS password protection
Password protection for BIOS
Setup, operating system and
hard disk with Supervisor and
User password. The passwords
consist of a maximum of eight
alphanumeric characters.
Specify at least one Supervisor
password in the BIOS Setup and
activate the password
protection for the operating
system and hard disk as
desired.
SmartCard reader
PIN and SmartCard protection
for operating system
Insert SmartCard holder
(accessory).
Install the corresponding
software, e.g. Smarty
(accessory).
Specify a password when using
the Smarty software.
Trusted Platform Module
(optional)
Identification and authentication
of the notebook
Define a supervisor password
and activate the TPM (Security
Chip) in the BIOS Setup.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
51
Security functions
Using Kensington Lock on notebook
With the Kensington MicroSaver, a sturdy steel cable, you can help protect your notebook from theft.
For this reason your notebook is equipped with a device for the Kensington MicroSaver. The
Kensington MicroSaver is available as an accessory.
1
►
52
1
Mount the Kensington MicroSaver on one of the two devices (1) of your notebook.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
Using Kensington Lock on Port Replicator
With the Kensington MicroSaver, a sturdy steel cable, you can protect your notebook and your Port
Replicator from theft. For this reason your Port Replicator is equipped with two devices for the
Kensington MicroSaver. The Kensington MicroSaver is available as an accessory.
2
1
1=
Kensington Lock device
2=
Kensington Lock device
Protecting Port Replicator against theft
►
Fit the Kensington MicroSaver on the device (1) on your Port Replicator.
Protecting Port Replicator and notebook against theft
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
►
Connect the notebook to the Port
Replicator.
►
Push the switch into the "Lock" position.
►
Fit the Kensington MicroSaver on the
device (2) on your Port Replicator.
53
Security functions
Configuring and using Security Panel
1
2
3
4
Enter
Security panel
Configuring Security Panel
When you put your notebook into operation for the first time, the Security Panel is not activated yet.
Assign the necessary passwords with the programs FJSECS.EXE (Supervisor password) and
FJSECU.EXE (User password). These programs are ready for installation in the folder AddOn and are
also provided on the "Drivers & Utilities" CD/DVD.
You require the User password each time you want to start your notebook (or want to return to your
working interface from the energy-saving mode). Should you forget your User password, you can
unlock the notebook with the Supervisor password and assign a new User password.
!
We recommend that you make a note of the security passwords and keep them in a safe
place.
If you should have forgotten both the User password and the Supervisor password you
cannot start your notebook any more. In this case you must call our Help Desk. The
deletion of security passwords is not a warranty case and is therefore subject to charge.
Back up your data on external data carriers at regular intervals.
To set the passwords, proceed in the following order:
Setting a supervisor password
The setup programme can be found under Start - AddOn.
►
Double-click on the symbol to start the setup programme for FJSECS.EXE.
The programme starts.
or
54
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
►
Enter the programme name FJSECS.EXE under Start - Run.
►
Click on OK.
The programme starts.
The program instructions will help you configure the password.
You see a field with five lines and 4 keys each
with the numbers 1 to 4 for selecting your
password. You can select one number or a
combination of several numbers in each line.
►
Click one to four keys in the first line.
►
You can also click a key or key combination
in additional lines if desired.
Here it is important that you do not skip a
line. In the end your password consists of
one to five numbers or one to five number
combinations.
i
With a combination you must press the security keys with these numbers simultaneously
later when entering the password.
An example:
Here the combination 2, 3 was selected in the
first line, the number 4 in the second line, the
combination 1, 3 and 4 in the third line, the
number 2 in the fourth line and finally the
combination 1, 2, 3 and 4 in the fifth line.
In this case the supervisor password is then:
2/3 4 1/3/4 2 1/2/3/4
Assigning the user password
The setup programme can be found under Start - AddOn.
►
Double-click on the symbol to start the setup programme for FJSECU.EXE.
The programme starts.
or
►
Enter the programme name FJSECU.EXE under Start - Run.
►
Click on OK.
The programme starts.
The program instructions will help you configure the password. Enter the user password with its
numbers and number combinations in the same way as the supervisor password.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
55
Security functions
Using Security Panel
Entering security password
in the display field indicates that Security Panel is
During the next reboot a key symbol
activated. Your notebook does not start up until you have correctly entered your selected user
password.
For the example in the section "Setting a supervisor password" (2/3 4 1/3/4 2 1/2/3/4), the
following steps are necessary:
►
Simultaneously press the security keys 2 and 3.
►
Press the security button 4.
►
Simultaneously press the security keys 1, 3 and 4.
►
Press the security button 2.
►
Simultaneously press the security keys 1, 2, 3 and 4.
►
Then press the Enter key to complete the entry.
Your notebook boots.
i
The Security Panel is never activated with the functions Wake on Ring, Wake on LAN and
Time Resume. This means the notebook boots without password entry with the functions
named.
Password error alarm
If the password is entered incorrectly three times, a one-minute alarm is triggered. If the correct
password is still entered during the alarm, the notebook boots as usual.
After one minute the notebook stops the alarm. The user must press the Suspend/Resume key. The
key symbol
appears in the display field - the user must now enter the correct user password.
Upon correct entry the notebook boots.
Changing or removing security password
After you have installed the programs FJSECS.EXE and FJSECU.EXE, you will find the entry Security
control under Start - Programs. Here you can change or completely remove your user password. In
this case follow the instructions of the programme.
56
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
Configuring password protection in BIOS Setup
!
i
Before using the various options of password protection for your data security in the BIOS
Setup, please note the following hints:
●
Please keep in mind your passwords in any case, as you will not be able to access
your BIOS Setup and/or your system any longer, if you forget both the user password
and the supervisor password.
Passwords are not covered by your warranty and a charge will be made for
assistance.
●
Back up your data on external data carriers at regular intervals.
Passwords can be up to eight characters long. You can use all alphanumeric characters
and need not distinguish between uppercase and lowercase characters.
Password protection for BIOS Setup (supervisor and user
password)
We recommend that you print out the following instructions, as these cannot be displayed while
setting the password.
You prevent unauthorised opening of the BIOS Setup with both the supervisor and the user password.
With the supervisor password you have access to all functions of the BIOS Setup, and with the user
password only to part of the functions. You can only set a user password if a supervisor password
has already been assigned.
i
Please refer to section "Settings in BIOS Setup" for a description of calling and operating
the BIOS Setup.
Set the supervisor and user password
►
Call BIOS Setup and select the Security menu.
►
Mark the Set Supervisor Password field and press the Enter key.
With Enter new Password: you are then requested to enter a password.
►
Enter the password and press the Enter key.
With Confirm new Password you are asked to confirm the password.
►
Enter the password again and press the Enter key.
With Notice: Changes have been saved you receive a confirmation that the new password has been
saved.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
57
Security functions
►
To assign the user password, mark the field Set User Password and proceed exactly as when
configuring the supervisor password.
If you do not want to make any other settings, you can exit BIOS Setup.
Select the Exit Saving Changes option in the Exit menu.
►
The notebook is rebooted and the new password is effective. If you now want to open the BIOS Setup,
you must first enter your supervisor or user password. Please note that you only have access to a
few BIOS settings with the user password.
Changing supervisor or user password
►
Recall BIOS Setup and select the Security menu.
When changing the password, proceed exactly as for password assignment.
You can only change the supervisor password when you have logged into the BIOS Setup with the
supervisor password.
Cancelling passwords
To cancel a password (without setting a new password) run the following steps:
►
Call BIOS Setup and select the Security menu.
►
Mark the Set User Password or Set Supervisor Password field and press the Enter key.
With Enter new Password you will then be asked to enter a password.
►
Press the Enter key twice.
►
Select the Exit Saving Changes option in the Exit menu.
Your notebook will now restart and the password is cancelled.
With the supervisor password you simultaneously deactivate the user password.
Password protection for starting the operating system
i
With the supervisor password or the user password, you have assigned in the BIOS Setup
(see section "Set the supervisor and user password"), you can also prevent booting of the
operating system.
Activating system protection
►
Call BIOS Setup and select the Security menu.
►
If you have not assigned BIOS passwords yet, define the supervisor and the user password
now, if desired (see "Set the supervisor and user password" section).
►
Mark the Password on Boot field and press the Enter key.
►
Select the Every Boot entry and press the Enter key.
If you do not want to make any other settings, you can exit BIOS Setup.
►
Select the Exit Saving Changes option in the Exit menu.
The notebook reboots and you are asked to enter your password (the supervisor or user password).
58
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
Deactivating system protection
►
Call BIOS Setup and select the Security menu.
►
Mark the Password on Boot field and press the Enter key.
►
Select Disabled and press the Enter key.
If you do not want to make any other settings, you can exit BIOS Setup.
Select the Exit Saving Changes option in the Exit menu.
►
The notebook reboots and there is no longer any password protection for the operating system.
Password protection for hard disk
i
The had disk password prevents unauthorised access to the hard disk drives and is
checked internally each time the system is booted. The condition for this is that you have
assigned at least the supervisor password.
Activating hard disk protection
►
Call BIOS Setup and select the Security menu.
►
If you have not assigned BIOS passwords yet, define the supervisor and the user password
now, if desired (see "Set the supervisor and user password" section).
►
Mark the Hard Disk Security field and press the Enter key.
►
Mark the Set Primary Master Password field and press the Enter key.
With Enter new Password: you are then requested to enter a password.
►
Enter the password and press the Enter key.
With Confirm new Password you are asked to confirm the password.
►
Enter the password again and press the Enter key.
With Notice: Changes have been saved you receive a confirmation that the new password has been
saved.
►
If you want to assign the password for the second hard disk, mark the field Set Secondary Master
Password and proceed exactly as when configuring the password for the first hard disk.
The field Password Entry on Boot is set to Enabled in the default setting.
If you do not want to make any other settings, you can exit BIOS Setup.
►
Select the Exit Saving Changes option in the Exit menu.
The notebook reboots and your hard disk is now protected with a password. The password request
becomes active as soon as the hard disk is installed in another computer and the computer is
started.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
59
Security functions
Deactivating hard disk protection
To cancel a password (without setting a new password) run the following steps:
►
Call BIOS Setup and select the Security menu.
►
Mark the Hard Disk Security field and press the Enter key.
►
Mark the Set Primary Master Password field and press the Enter key.
With Enter new Password you will then be asked to enter a password.
►
Press the Enter key twice.
►
Select the Exit Saving Changes option in the Exit menu.
Your notebook will now restart and the password is cancelled.
With the password for the first hard disk you simultaneously deactivate the password for the second
hard disk.
►
Select the Exit Saving Changes option in the Exit menu.
The notebook reboots and there is no longer any password protection for the hard disk.
Configuring and using SmartCard reader
1
2
1=
2=
PC card slot with SmartCard Interface
SmartCard holder
1 + 2 = SmartCard reader
To use the SmartCard reader, you must install a SmartCard holder in your notebook. The SmartCard
holder is contained in the "Mobile Secure IT Suite", which is available as an accessory.
60
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
Configuring SmartCard reader
!
Do not use force when installing and removing the SmartCard holder.
Make sure that foreign objects do not fall into the SmartCard holder.
►
Insert the SmartCard holder in the lower slot guide with the connection contacts first.
►
Carefully slide the SmartCard holder into the slot with the sticker facing upward until it audibly
engages.
i
You can lower the eject button into the notebook casing. Press the eject button until it
snaps in. This prevents the SmartCard holder from being ejected accidentally.
Installing drivers
Windows will detect the installed SmartCard holder as new hardware and will search for the chip
driver. The driver is provided on the "Security Drivers & Tools" CD, which is also included with the
"Mobile Secure IT Suite".
►
Follow the instructions that appear on the screen after inserting the CD.
The SmartCard reader is now configured.
i
To remove the SmartCard holder, proceed exactly as for a PC card (see "Using your
notebook" chapter, "Removing a PC card" section).
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
61
Security functions
SmartCards
SmartCards are not supplied as standard equipment. You can use all SmartCards that comply with
the ISO standard 7816-1, -2 or -3. These SmartCards are available from various manufacturers.
With the appropriate software you can use your SmartCard as an alternative to password protection,
but also as a digital signature, for encrypting your e-mails or for homebanking.
We recommend that you always use two SmartCards. Always keep one of the SmartCards in a safe
place if you carry the other SmartCard with you.
i
The SmartCard can only be used with a PIN so protection is maintained even when the
SmartCard is lost. The SICRYPT SmartCard, that is included in the "Mobile Secure IT
Suite", is locked after an incorrect PIN is input three times, to ensure maximum security for
you.
The first time you use your SmartCard you must enter the preset PIN provided by the
SmartCard manufacturer or your system administrator.
Inserting the SmartCard
!
►
Do not use force when inserting and removing the SmartCard.
Make sure that foreign objects do not fall into the SmartCard holder.
Slide the SmartCard into the SmartCard reader with the chip facing upward and at the front.
When the SmartCard is properly inserted, it protrudes by approximately 1.5 cm.
62
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
Application examples
SmartCard as device protection
After you insert the SmartCard, you are prompted in the logon screen to enter your PIN. Upon correct
entry the SmartCard is checked and the operating system is booted.
The SmartCard remains in the SmartCard reader during the entire work session.
i
In the Smarty software you can specify how the user is to log on to the operating system:
●
only with SmartCard and PIN
●
either with SmartCard and PIN or with password entry
To install, configure and use Smarty, please see the documentation and online help on the
CD for the Smarty software.
SmartCard for protecting your opened documents
In conjunction with software such as Smarty (accessory), the SmartCard allows you to interrupt your
work. So you can leave your notebook unattended without unauthorised persons being able to
access your opened documents and data.
►
Pull the SmartCard out of the notebook during your work session.
A window appears stating that the system is locked.
►
When you want to continue your work, insert the SmartCard and enter your PIN.
You return to your opened documents.
Using SmartCard reader with your cell phone card
Your "Mobile Secure IT Suite" contains black plastic adapters into which you can slide your GSM
card.
►
Insert the adapter in the SmartCard reader with the GSM card first.
►
Install the SIMEdit! software from the "Security Drivers & Tools" CD.
Now you can comfortably manage both your data (telephone numbers, addresses) and your
messages (SMS) from your notebook.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
63
Security functions
SmartCard as system protection (SystemLock)
With SystemLock, the notebook can only be started with an initialised SmartCard (SICRYPT or
CardOS) and personal identification number (PIN). SmartCard and PIN are already checked during
system booting in the BIOS Setup, i.e. before the operating system is booted. To use SystemLock, the
following conditions must be met:
●
You must configure a SmartCard reader (see "Configuring and using SmartCard reader")
section.
You must install SystemLock on your notebook.
You must initialise two SmartCards (one Supervisor SmartCard and one User SmartCard).
●
●
All new SmartCards have a preset PIN (Personal Identification Number) and a preset PUK
(Personal Unblocking Key).
i
On SICRYPT and CardOS SmartCards PIN and PUK are preset to 12345678.
For reasons of security, we recommend that you change both PIN and PUK.
Access rights of the SmartCards
New SmartCards have only a preset PIN and a preset PUK. The initialisation is carried out after
entering the PUK. Access rights and an individual PIN are not assigned until the SmartCard is
initialised. Depending on which access rights the SmartCard is assigned, this is referred to as a User
SmartCard or a Supervisor SmartCard.
The following table shows an overview of the rights associated with each SmartCard type when a
PIN or PUK is entered:
Rights
User SmartCard
Supervisor SmartCard
PIN
PIN
PUK
System start-up
X
X
Calling BIOS Setup
X
X
Changing own PIN
X
X
PUK
X
Unblocking all blocked SmartCards
X
Creating user SmartCard
X
Deactivating SystemLock
X
Installing SystemLock
During initial installation, the first SmartCard becomes the Supervisor SmartCard. Together with the
PUK, it has all access rights, and should therefore be kept in a safe place. Before you can configure
SystemLock, you must assign a Supervisor password and a User password in the BIOS Setup.
►
Assign a Supervisor password and a User password in the BIOS Setup (see the "Configuring
password protection in BIOS Setup" section).
Then you must initialise the Supervisor SmartCard and the User SmartCard and switch over the
SmartCard Security (SystemLock) from Disabled to Enabled.
64
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
Initialise the Supervisor SmartCard and the User SmartCard and activate the SmartCard
Security (SystemLock)
►
Call BIOS Setup and select the Security menu.
►
Mark the SmartCard Security field and press the Enter key.
►
Mark the SmartCard SystemLock field and press the Enter key.
►
Select the Enabled field and press the Enter key.
►
Now insert your SmartCard and select Yes in the Setup Confirmation window.
►
Enter your PUK in the Enter PUK field and press the Enter key.
The following message appears: Supervisor SmartCard initialized
After you have successfully initialised your Supervisor SmartCard, you must initialise the User
SmartCard:
►
Mark the Initialize User SmartCard field and press the Enter key.
►
Now insert your User SmartCard, enter your PUK in the Enter PUK window and press the Enter
key.
The following message appears: User SmartCard initialized
i
Your Supervisor and User SmartCard are now ready to use. However, for security reasons
we urgently recommend that you change your PIN and your PUK.
Changing PIN and PUK
►
Call BIOS Setup and select the Security menu.
►
Mark the SmartCard Security field and press the Enter key.
►
Mark the Change PIN field and press the Enter key.
►
Insert the SmartCard for which you want to change the PIN and press the Enter key.
►
In the Change PIN window, first enter your old PIN, assign your new PIN in the next line and
confirm it again in the Confirm New Pin window.
The following message appears: PIN has been changed
To change your PUK, you must select the Change PUK field and carry out the same steps.
i
For the new PIN and new PUK , 4 to 8-digit numbers are acceptable.
For security reasons, we recommend that you change the PIN and PUK for every
SmartCard, and use an 8-digit number each time.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
65
Security functions
Switching on the PC with SystemLock
If you switch on the notebook with an On/Off switch then the following message appears:
Insert a SmartCard
►
Insert your SmartCard.
The following message appears: Enter PIN:
►
Enter your PIN.
If you have entered the PIN correctly, the operating system is booted.
If you have entered the PIN incorrectly once or twice, then the following message appears:
Invalid PIN/PUK
If you have entered the PIN incorrectly three times, the SmartCard is blocked and the following
message appears:
The SmartCard is blocked
The SmartCard can only be enabled again by entering the PUK.
Deactivating SmartCard as system protection (SystemLock) again
If you no longer want to use this security function of your notebook, you must deactivate the
SmartCard SystemLock function in the BIOS Setup. This can only be done with the Supervisor
SmartCard.
►
Call BIOS Setup and select the Security menu.
►
Mark the SmartCard Security field and press the Enter key.
►
Mark the SmartCard SystemLock field and press the Enter key.
►
Select the Disnabled field and press the Enter key.
Trusted Platform Module (optional)
To use the TPM, you must be sure to activate the TPM in the BIOS Setup before the software
installation. The condition for this is that you have assigned at least the supervisor password (see
the "Set the supervisor and user password" section).
You can start the BIOS Setup by pressing the F2 key while booting the system.
Activate the TPM by selecting the entry Enabled for Embedded Security Chip in the Security menu. If you
have activated the TPM, the menu item Clear Security Chip appears.
!
66
You can use this menu item to delete the holder in the TPM. However, you can then no
longer access the data you have encrypted on the holder-based keys.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Security functions
On the supplied TPM software CD/DVD you will find software that, in conjunction with the TPM,
enhances the security of your system. Information on using the TPM and the related software is
provided on the TPM software CD/DVD.
i
If you use TPM and the software on the TPM software CD/DVD, we strongly recommend
that you use the emergency restoration function and create a medium (e.g. floppy disk,
network drive) for restoration in emergencies.
You can only re-access your encrypted data using the medium you created for emergency
restoration if, for example, a security key is lost due to hardware faults.
When the TPM is activated, it initially takes control of the notebook during each start-up to check all
hardware components and the BIOS Setup for trustworthiness. In the further course of operation, it
checks the operating system, certain drivers and applications. Should a component not have a valid
certificate, the TPM refuses this component access to protected content.
For example, with the TPM activated, data can be generated which can only be read or run on this
device. The support of security protocols, such as SSL (Secure Socket Layer) for Internet
connections, IPSec (LAN encryption), S-MIME (e-mail encryption, WLAN encryption and others) is
also possible.
Troubleshooting
Security panel
You have forgotten your password or passwords.
If you have forgotten the user password, you can reset the forgotten user password and specify a
new user password with the supervisor password.
If the Security panel is active and you have forgotten both the user password and the supervisor
password, then contact our help desk. You must provide proof of ownership for the notebook. Then
the Help Desk will refer you to our service partner, who will unlock your notebook (for a charge).
BIOS passwords
You have forgotten your user and/or supervisor password.
If you have forgotten your user password, enter the supervisor password or contact your system
administrator. If the supervisor password is also no longer available, contact our help desk. You must
provide proof of ownership for the notebook. Then the Help Desk will refer you to our service partner,
who will unlock your notebook (for a charge).
SmartCard reader
Your SmartCard is not recognised.
Make sure you have inserted your SmartCard into the SmartCard holder with the chip facing upward.
Also make sure you are using a supported SmartCard. Your SmartCard must comply with the ISO
standard 7816-1, -2 or -3.
You have forgotten your PIN.
If you work in a network, contact your system administrator, who can unlock your notebook with an
Admin PIN.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
67
Security functions
You have lost your SmartCard.
If you work in a network, contact your system administrator, who can boot your notebook with an
Admin SmartCard.
You have lost your user and/or supervisor SmartCard.
If you have lost your User SmartCard, you can continue working with the Supervisor SmartCard and
can initialise a new User SmartCard or deactivate the SystemLock function. If you have lost the
Supervisor SmartCard, you can also continue working, but you no longer have all rights and cannot
initialise another Supervisor-SmartCard.
i
If you have lost both SmartCards, you cannot boot your system.
Please contact our help desk. You must provide proof of ownership for the notebook. Then the Help
Desk will refer you to our service partner, who will unlock your notebook (for a charge).
68
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Connecting external devices
!
Under all circumstances, please observe the safety notes provided in the "Important notes"
chapter.
Read the documentation on the external device before connecting it.
Do not connect or disconnect cables during a thunderstorm.
Do not pull on the cable when disconnecting a cable. Always take hold of the actual plug.
Follow the steps below in order, when connecting or disconnecting devices to your
notebook:
Connecting devices to notebook
1.
Turn off all power and equipment switches.
2.
Remove all power plugs from the mains outlets.
3.
Connect all the cables to the notebook and the external devices.
4.
Plug all data communication cables into the utility sockets.
5.
Plug all power cables into the mains outlets.
Disconnecting devices from notebook
1.
Turn off all power and equipment switches.
2.
Remove all power plugs from the mains outlets.
3.
Unplug all data communication cables from the utility sockets.
4.
Disconnect all the cables from the notebook and the external devices.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
69
Connecting external devices
Connections on notebook
1
2
3
4
5
1=
2=
3=
i
70
6
DC jack (DC IN)
Monitor port (with port cover folded open)
S Video out socket
4=
5=
6=
Microphone port/Line-In
Headphones port/Line Out
FireWire port
When the notebook is connected to the Port Replicator, the audio connections on the
notebook are deactivated: Line In socket, microphone jack and headphone port.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Connecting external devices
1
2
1=
USB port
2=
1
1=
2=
Modem port
2
Infrared interface
USB ports
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
3
3=
LAN port
71
Connecting external devices
Ports on the Port Replicator
4
9
LAN port
Serial port
DVI-D port (digital)
Monitor port (analogue)
Parallel port
1
5
8
7
1=
2=
3=
4=
5=
3
2
6=
7=
8=
9=
6
PS/2 port (for keyboard or mouse)
USB ports
Headphones port
Microphone jack
2
1
1=
i
72
Connector of the Port Replicator for the
docking port on the underside of the
notebook
2=
DC jack (DC IN)
Some of the devices that you connect require special drivers (see the operating system
and device documentation).
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Connecting external devices
Connecting an external monitor to the notebook
An external monitor can be connected to the notebook. The notebook graphics card supports
extended resolutions up to 1600 x 1200 and 16.7 million colours at 85 Hz.
Using the Fn + F10 key combination you can switch back and forth between the external monitor
and the LCD screen.
►
Switch off the notebook and the external monitor.
►
Connect the data cable of the external monitor to the monitor port of the notebook.
►
First switch on the monitor and then the notebook.
Setting the refresh rate for your external monitor
The refresh rate must be correctly set so that the image does not flicker.
►
Select the monitor type in the menu Start - Control Panel - Appearance and Themes - Display Settings - Advanced - Display.
►
Adjust the refresh rate and then click Apply.
!
If the refresh rate set is too high, the monitor may be damaged. Please see the
documentation included with your monitor for the maximum possible refresh rate.
Connecting an external monitor to the Port Replicator
An external monitor can be connected to the notebook. The notebook graphics card supports
extended resolutions up to 1600 x 1200 and 16.7 million colours at 85 Hz.
Using the Fn + F10 key combination you can switch back and forth between the external monitor
and the LCD screen.
►
Switch off the notebook and the external monitor.
►
Connect the external monitor's data cable to the monitor port (analogue) an on the Port
Replicator.
or
►
Connect the external monitor's data cable to the DVI-D port (digital) on the Port Replicator.
►
First switch on the monitor and then the notebook.
i
If the notebook is connected to a Port Replicator, the operating system creates an
hardware profile for the "Docked" mode. The setting with the last screen used for output is
saved in this profile. This profile will be loaded, as soon as the notebook is connected to
any desired Port Replicator.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
73
Connecting external devices
Setting the refresh rate for your external monitor
The refresh rate must be correctly set so that the image does not flicker.
►
Select the monitor type in the menu Start - Control Panel - Appearance and Themes - Display Settings - Advanced - Display.
►
Adjust the refresh rate and then click Apply.
!
If the refresh rate set is too high, the monitor may be damaged. Please see the
documentation included with your monitor for the maximum possible refresh rate.
Connecting an external keyboard
You do not need to switch your notebook off.
►
Connect the external keyboard to the PS/2 port on the Port Replicator.
Connecting an external PS/2 mouse
You do not need to switch your notebook off.
►
Connect the mouse to the PS/2 port of the Port Replicator.
Using the parallel port
►
Switch the notebook off.
►
Connect the data cable of the printer to the parallel interface on the Port Replicator.
►
Plug the printer power cable into the mains outlet.
►
First switch the printer on, then the notebook.
74
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Connecting external devices
Connecting USB devices
On the USB ports you can connect external devices that also have a USB port (e.g. a printer, a
scanner or a modem).
USB devices are hot-pluggable. This means you can connect and disconnect devices
while your operating system is running.
i
Additional information can be found in the documentation for the USB devices.
►
Connect the data cable to the external device.
►
Connect the data cable to the USB port of the notebook.
or
Connect the data cable to the USB port on the Port Replicator.
i
Device drivers
Some USB devices will be automatically recognised and installed by your operating
system. However, newer devices will need to be installed using the supplied CD / DVD.
Always follow the instructions supplied with the device to complete the installation.
Connecting external audio devices
i
High Definition Audio
Your notebook is equipped with the HDA (High Definition Audio) function. As soon as a
plug is connected to one of the audio sockets, a popup window of the audio driver appears
on the screen. In this window you can enter which audio device you have connected (e.g.
headphones or loudspeakers on the audio output). This ensures an optimum sound
experience.
Microphone jack
Via the microphone port you can connect an external microphone to your notebook.
Headphones port
Via the headphone port you can connect either headphones or external loudspeakers to your
notebook.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
75
Connecting external devices
Connecting FireWire devices
External devices such as digital audio/video devices or other high-speed devices can be connected
to the FireWire port. The FireWire port operates at a speed of 400 Mbit per second.
i
FireWire devices are hot-pluggable. Therefore, the cables of FireWire devices can be
connected and disconnected with the system switched on.
Additional information is provided in the documentation of the FireWire devices.
►
Connect this data cable of the external devices to the FireWire port of the notebook.
►
Plug the power cable of the external device into the mains socket.
Connecting an external device to S-Video Out
You can connect a TV set or a projector to the notebook.
►
Switch off the notebook and the external device.
►
Connect the external device to the S-Video Out socket of your notebook.
►
First switch the external device on and then the notebook.
Activating the external TV / projector
►
To do this, select the TV/projector in the menu Start - Control Panel - Appearance and Themes Display - Settings - Advanced - Intel External Graphics.
►
Click on Apply.
i
You can set which key combination you use to switch over the screen output in the menu
Start - Control Panel - Appearance and Themes - Display - Settings - Advanced - Intel External
Graphics.
You must end the playback program (e.g. DVD playback program) before you switch over
the screen output to a TV/projector.
76
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Memory expansion
Your notebook has 256 Mbyte - 2 Gbyte of main memory installed, depending on the upgrade level.
The notebook will not start without memory modules, as no fixed main memory is installed.
Your notebook supports the Dual-Channel DDR2 technology, which increases the processor and
main memory performance.
i
The Dual-Channel DDR2 technology can only be used with two identical memory modules.
When two different memory modules are installed, only the "single-channel" performance
is supported.
An installation overview is provided in the following table:
Memory slot 1
Memory slot 2
Mode
Performance
Total main memory
256 MB
-
Single channel
Single channel
256 MB
256 MB
256 MB
Dual channel
interleave mode
Dual channel
512 MB
256 MB
512 MB
Dual channel
asymmetric
mode
Single channel
768 MB
256 MB
1 GB
Dual channel
asymmetric
mode
Single channel
1,25 GB
512 MB
-
Single channel
Single channel
512 MB
512 MB
256 MB
Dual channel
asymmetric
mode
Single channel
768 MB
512 MB
512 MB
Dual channel
interleave mode
Dual channel
1 GB
512 MB
1 GB
Dual channel
asymmetric
mode
Single channel
1,50 GB
1 GB
-
Single channel
Single channel
1 GB
1 GB
512 MB
Dual channel
asymmetric
mode
Single channel
1,25 GB
1 GB
512 MB
Dual channel
asymmetric
mode
Single channel
1,50 GB
1 GB
1 GB
Dual channel
interleave mode
Dual channel
2 GB
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
77
Memory expansion
Installing and removing the memory extension
!
Please note the information provided in the "Notes on installing and removing boards and
components" section in the "Important notes" chapter.
The notebook must be switched off when installing/removing the memory modules, it
must not be in Suspend mode.
Use only memory extensions of the manufacturer which have been approved for your
notebook (256, 512 Mbyte modules or 1 Gbyte modules of the type DDR2 533
SO-DIMM).
Never use force when installing or removing memory modules.
Make sure that foreign objects do not fall into the memory module compartment.
►
Switch the notebook off.
►
Close the LCD screen so that it locks into place.
►
Unplug the mains adapter from the mains socket.
►
Disconnect all cables connected to the notebook.
►
Remove the battery (see "Using your notebook" chapter, "Removing battery" section).
►
Place the notebook upside down on a flat surface.
Removing cover
1
1
2
►
Remove the screws (1).
►
Pull off the cover from the notebook in the direction of the arrow (2).
78
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Memory expansion
Removing a memory module
3
2
1
1
►
Carefully push the two mounting clips outwards (1).
The memory module will flap upward (2).
►
Pull the memory module out of its slot in the direction of the arrow (3).
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
79
Memory expansion
Installing a memory module
1
2
3
3
a
►
Insert the memory module with the contacts and the recess (a) facing the slot (1).
►
Carefully push the memory module downwards until it engages noticeably (2).
Mounting the cover
11
2
2
►
Position the cover on its slot in the direction of the arrow (1).
►
Fasten the cover with the screws (2).
►
Reinstall the battery (see "Using your notebook" chapter, "Inserting battery" section).
►
Turn the notebook over and place it on a flat surface.
►
Reconnect the cables that you disconnected before.
80
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Energy saving functions
The notebook uses less power when the power management features are enabled. You will then be
able to work longer when using the battery before having to recharge it.
You can also use energy saving modes such as Standby or Hibernate for times when you are not
using your notebook but want to keep coming back to it.
!
If you are connecting to a network, or the Internet, we advise you to turn off the energy
saving modes as they interrupt your connection.
When you are finished working with your notebook we advise you to come out of an
energy saving mode and then turn off as normal.
Never turn off your notebook while it is in an energy saving mode.
If the notebook is in an energy-saving mode mode:
●
●
●
●
●
●
●
Do not connect any external devices.
Do not disconnect any external devices.
Do not disconnect the notebook from the Port Replicator.
Do not attempt to switch the notebook on if the built-in battery is flat.
Do not add or remove RAM.
Do not add or remove a PC card.
Do not replace or remove the battery.
Standby mode
►
Press the Suspend/Resume button to switch the Standby mode on and off.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
81
Energy saving functions
i
You can configure the Suspend/Resume button under Start - Control Panel - Performance
and Maintenance - Power Options - Advanced.
In the Standby/Suspend-to-DRAM mode the content of your main memory is saved by continuing to
supply the main memory with power, while the processor, monitor, hard disk and other internal
components are switched off. This mode is activated whenever you press the Suspend/Resume
button. Saving is also triggered when you do not make an entry on your notebook for a certain time.
When you resume work, your notebook returns to the place at which you discontinued working.
i
If you use an integrated LAN/Modem, a PC-LAN card or a PC modem card, we do not
recommend switching over to the Standby mode, as this may lead to an interruption in the
network connection.
When you press the Suspend/Resume button for more than 4 seconds, your notebook will
switch off.
You can set the power-management features for your notebook under Start - Control Panel Performance and Maintenance - Power Options.
i
82
Additional information on this service programme is contained in your operating system
help files.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Settings in BIOS Setup
In BIOS Setup you can set the system functions and the hardware configuration of the notebook. The
settings can only be changed via the keyboard.
When it is delivered, the notebook is set to factory default settings. You can change these settings in
BIOS Setup. Any changes you make take effect as soon as you save and quit the BIOS Setup.
The BIOS Setup programme contains the following menus:
for system settings as time, date, hard disk and monitor selection
for system settings such as ports and keyboard
for password settings and safety functions
for configuring the boot sequence
for displaying the system configuration (e.g. processor and memory configuration)
to exit the BIOS Setup
Main:
Advanced:
Security:
Boot:
Info:
Exit:
Start BIOS Setup
►
Restart the notebook (switching ON/OFF or warm boot).
The following display briefly appears on the screen during start-up:
<ESC> Diagnostic screen
<F12> Boot Menu
<F2> BIOS Setup
When this message appears, press the function key F2 .
►
i
If a password has been assigned:
►
Enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator or contact our
hotline/help desk.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
83
Settings in BIOS Setup
Operating BIOS Setup
i
Press the F1 key to display help on the operation of BIOS Setup.
The description of the individual settings is shown in the right-hand window of the BIOS
Setup.
You can revert to the default settings for the BIOS Setup menu you are currently in, by
using the F9 function key.
►
Use the cursor key  or € to select the menu you wish to access to make changes.
►
Press the Enter key.
The menu is displayed on the screen.
►
Use the cursor key  or ‚ to select the field you wish to change.
►
Press the Enter key to confirm your selection.
►
Press the ESC key to exit the selected menu.
►
For future reference, make a note of the changes you have made (for example, in this manual).
Exiting BIOS Setup
To exit BIOS Setup, select the Exit menu from the menu bar. You can then decide which settings you
want to save. The Exit menu offers the following options.
You must mark the required option and activate it with the Enter key.
Exit Saving Changes
Select Exit Saving Changes and Yes to save the current settings and exit the BIOS Setup. The device is
rebooted and the new settings come into effect.
Exit Discarding Changes
Select Exit Discarding Changes and Yes to discard the changes you have made. The settings which
were in force when BIOS Setup was called remain effective. BIOS Setup is terminated and the device is
rebooted.
Load Setup Default
To revert all the menus of BIOS Setup to the default entries, select Load Setup Default and Yes.
Discard Changes
To load the values of all the menus of BIOS Setup that were in effect when BIOS Setup was called,
select Discard Changes and Yes. If you want to exit BIOS Setup with these settings, select Exit Saving
Changes and Yes.
Save Changes
To save settings without exiting BIOS Setup, select Save Changes and Yes.
84
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Troubleshooting and tips
Take note of the safety notes in the "Safety" manual, when you connect or disconnect
cables.
!
If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows:
►
Make a note of the steps and the circumstances that led to the fault. Also make a note of any
error messages displayed.
►
Switch the notebook off.
►
Please contact the hotline/help desk.
The telephone numbers are contained in the supplied help desk list. Please have the following
information ready when you call:
–
–
–
–
–
–
The model name and serial number of the notebook. The serial number is located on a
sticker on the underside of the notebook.
Notes of any messages that appear on the screen and information on acoustic signals.
Any changes you have made to the hardware or software after receiving the notebook.
Any changes you have made to the BIOS Setup settings after receiving the notebook.
Your system configuration and all peripheral devices connected to your system.
Your sales contract.
Reinstalling Windows XP
You can reinstall the Windows XP operating system with the "Windows XP Recovery CD" and the
"Drivers & Utilities" CD/DVD.
The instructions are provided on the case of the Recovery CD.
!
During the reinstall process your personal files and any installed programs will be deleted.
We advise that you backup your files to an external hard drive, or CD / DVD disk before
you start.
►
Switch the notebook on.
►
Press the F12 key when the message F2: Setup F12: Boot Menu appears on the
screen.
►
Insert the "Windows XP Recovery CD" into the optical drive.
►
Select the CD-ROM and press the Enter key.
►
Follow the instructions on the screen.
After the installation you must install all the drivers again. Some installed hardware components will
not be correctly supported until this has been done.
►
Insert the "Drivers & Utilities" CD/DVD into the optical drive.
The CD starts automatically.
►
Click on the Desk Update button.
►
Select Automatic driver installation (Express) and click Start installation.
►
Follow the instructions on the screen.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
85
Troubleshooting and tips
►
86
Restart your notebook when the driver installation is completed.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Troubleshooting and tips
The notebook's date or time is incorrect
►
Double-click on the clock in the task bar and adjust the time.
or
►
Set the time and/or date in the BIOS Setup menu Main.
i
If the date and time are repeatedly incorrect when you switch on the notebook, the buffer
battery that supplies the internal clock is dead.
Connect the notebook via its power adapter to a grounded mains outlet or install a fresh
battery. The buffer battery will take approximately two days to complete its recharge. If that
problem exists further more please contact our service.
The battery cannot be charged
The battery is faulty.
If the battery fails, do not use it in the notebook.
►
Replace the battery with a new one.
Observe the information on the "Drivers & Utilities" CD/DVD when disposing of the defective battery.
Battery indicator no longer appears in status
indicator panel
If the battery indicator does not appear in the status indicator panel, no battery is installed or there is
no contact between the notebook and the battery.
►
Check whether the battery is installed correctly in its compartment.
or
►
Charge the battery.
If this does not succeed, you must change the battery for a new one. Observe the information on the
"Drivers & Utilities" CD/DVD when disposing of the defective battery.
The battery discharges too quickly
The battery is either too hot or too cold. In this case the battery indicator flashes.
►
Bring the notebook up / down to a normal temperature again.
If the operating time of the battery mode is extremely short, the battery is probably old and should be
replaced.
You may have an application running that consumes a great deal of power due to frequent
accessing of the hard disk or optical drive.
►
Use the power adapter as frequently as possible.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
87
Troubleshooting and tips
The maximum brightness may have been set for the screen.
►
Set the screen somewhat darker with the key Fn and the key F6 to reduce the power
consumption.
The power-management features have been deactivated.
►
Check the settings in the BIOS Setup (in the Power menu), and adjust the parameters.
No display appears on the screen, the power-on
indicator flashes
If no display appears on the screen and the power-on indicator
following causes:
flashes, this may have the
The screen power-management feature may be active.
►
Press any key to activate the display.
The notebook is in Standby or Suspend mode.
►
Press the Suspend/Resume button to end the Standby or Suspend mode.
The display angle or brightness may not be properly adjusted.
►
Change the display angle and set the brightness by pressing the key Fn together with the key
F6 (darker) or F7 (brighter) until the picture appears correct.
The notebook is set so that the picture only appears on the external screen.
►
Press the key combination Fn + F10 to switch over the display to the LCD screen or to
specify the simultaneous display on the LCD screen and the external screen.
The LCD screen of the notebook remains blank
If your LCD screen remains blank this may be due to the following:
LCD screen is switched off
►
Press a key or enter the password
External monitor or television set connected
►
88
In BIOS-Setup in the Advanced - Video Features menu set the Display Settings setting to Internal
Flat Panel.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Troubleshooting and tips
The LCD screen is difficult to read
If the LCD screen display is hard to read, it can be due to the following:
Reflection
►
Turn the notebook or alter the tilt of the LCD screen.
Brightness control is set to dark
►
Set the brightness control of the LCD screen to bright.
The external monitor stays blank
If your screen remains blank this may be due to the following:
Monitor is switched off
►
Switch the external monitor on.
Power saving has been activated (screen is blank)
►
Press any key to continue.
Brightness control is set to dark
►
Adjust the brightness control.
Screen output is set to the notebook’s LCD screen
►
Press the key combination Fn + F10 (selecting internal/external display).
The external monitor's power cable or data cable is not connected properly
►
Switch off the external monitor and the notebook.
►
Check whether the power cable is plugged properly into the external monitor and into the power
socket.
►
Check whether the data cable is properly connected to the notebook and the external monitor
(if it is plugged in with a connector).
►
Switch on the external monitor and the notebook.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
89
Troubleshooting and tips
The external monitor is blank or the image is
unstable
The wrong external monitor has been selected or the wrong screen resolution has been set for the
application programme.
►
Terminate the application programme in Windows with Alt + F4 . If the fault continues to
occur after ending the programme, switch over to the notebook's internal LCD screen with Fn
+ F10 and carry out the following routine:
►
Select the correct monitor or set the correct screen resolution.
–
Select the screen: Start - Settings - Control Panel - Display - Settings - Advanced - Monitor
–
Set the screen resolution: Start - Settings - Control Panel - Display - Settings, Resolution field
The notebook cannot be started
If the notebook does not start after switch on, this may be due to one of the following:
The battery is not installed correctly.
►
Switch the notebook off.
►
Check whether the battery is installed correctly in its compartment.
►
Switch the notebook on.
The battery is dead.
►
Charge the battery.
or
►
Install a charged battery.
or
►
Connect the notebook via its power adapter to the mains outlet.
The power adapter is not connected correctly.
►
Switch the notebook off.
►
Check whether the power adapter is connected correctly to the notebook.
►
Check whether the power cable is plugged properly into the power adapter and into the mains
outlet.
►
Switch the notebook on.
The power indicator
of the notebook must appear in the status indicator panel.
The security panel indicator lights up.
►
Enter your password.
!
90
If you have forgotten your password, please contact our hotline/help desk. Passwords are
not covered by your warranty and a charge will be made for assistance.
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Troubleshooting and tips
The notebook stops working
If the notebook stops working, this may have the following reasons:
The notebook is in Standby or Suspend mode
►
Reactivate the notebook by pressing a key (Standby mode) or by switching it back on (Suspend
mode).
An application programme has caused the malfunction
►
Close the application programme or restart the notebook by switching it on/off or with a warm
boot.
The battery is dead
►
Charge the battery.
or
►
Install a charged battery.
or
►
Connect the power adapter to the notebook.
The notebook switches off
You have defined a time limit in the "Power" menu in BIOS Setup that is insufficient for your
needs.
►
Restart the notebook (ON/OFF switch or warm start) to call the BIOS Setup.
►
When the text <ESC> Diagnostic screen
appears, press the F2 key immediately.
►
Correct the time limit in the Power menu in the BIOS Setup.
<F12> Boot Menu
<F2> BIOS Setup
If you are operating the notebook with a battery, you may have overlooked the reference to the
low battery level and the notebook has switched over to Standby mode.
►
Connect the power adapter.
►
Press the Suspend/Resume button.
The Suspend/Resume button does not respond
properly
The system may be processing.
►
Wait until the system has completed processing.
You have not pressed the Suspend/Resume button long enough to switch off the notebook.
►
Press the Suspend/Resume button until the notebook switches off.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
91
Troubleshooting and tips
The Standby function has been deactivated in the BIOS Setup.
►
Restart the notebook (ON/OFF switch or warm start) to call the BIOS Setup.
►
When the text <ESC> Diagnostic screen
appears, press the F2 key immediately.
►
Activate the Standby function in the Power menu.
<F12> Boot Menu
<F2> BIOS Setup
Radio connection to a network does not function
The ON/OFF switch for the wireless LAN/Bluetooth module is in the "ON" position.
Nevertheless, the radio connection to a network does not function.
►
Check whether the radio connection is switched on via the software.
i
Details are contained in the online help for your wireless LAN software and in the
"Wireless LAN" manual. The "Wireless LAN" manual can be found on the
"Drivers & Utilities" CD/DVD.
Detailed information on using Bluetooth is provided on the CD for your Bluetooth software
(e.g. the "Widcomm Software Suite" CD).
The mouse does not work
If the connected mouse does not work, it can have the following reasons:
Touchpad driver is not installed properly
►
Deinstall the touchpad driver.
►
Install the actual driver from the "Drivers & Utilities" CD/DVD.
Mouse driver is not loaded
►
Check whether the correct mouse driver is properly installed and is present before the
application programme is started.
Detailed information can be found in the User guides for the mouse or application programme.
Mouse is not connected
►
Switch the notebook off.
►
Check whether the mouse cable is correctly connected to the notebook.
If you use an adapter or extension lead with the mouse cable, check the connections.
►
Switch the notebook on.
92
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Troubleshooting and tips
The printer does not print
►
Make sure that the printer is switched on and is on-line (see the manuals supplied with the
printer).
►
Check that the cable connecting the notebook and the printer is connected properly.
►
Check that the correct printer driver is installed.
►
Check the entry for the port used in the BIOS Setup in the Advanced - Serial/Parallel Port
Configurations menu. The respective entry in the fields of Serial Port or Parallel Port must match
the setting in the application programme under Windows.
No sound or minimal volume
Check whether the volume is set correctly.
►
Make sure that the sound driver is correctly installed under Control Panel - System - Device
Manager.
►
Use the key combination Fn + F3 to check the mute status.
►
Double-click on the volume indicator in the task bar and adjust the volume.
or
Use the key combination Fn + F8 or Fn + F9 to check the volume.
The CD/DVD does not function
Check whether the CD/DVD has been properly inserted into the drive.
►
Check whether the CD/DVD is scratched, warped, dirty or damp.
►
Make sure that you use a CD/DVD that complies with the standards.
►
Use the key combination Fn + F3 to check the mute status.
►
Use the key combination Fn + F8 or Fn + F9 to check the volume.
Acoustic warnings
A beep sounds every few seconds
The battery is almost flat.
►
Charge the battery.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
93
Troubleshooting and tips
Error messages on the screen
This section describes the error messages generated by the BIOS Setup. Error messages displayed
by the operating system or programmes are described in the relevant documentation.
CMOS Battery Bad
If the error message occurs repeatedly, then the buffer battery in the notebook is flat.
►
Connect the notebook via its power adapter to the mains outlet. The buffer battery will take
approximately two days to complete its recharge.
If the error message appears repeatedly, please contact the place of purchase or our customer
service centre.
System CMOS checksum bad - Default configuration used
The system configuration information is incorrect.
►
Switch the notebook off.
►
Switch the notebook on.
►
Enter the BIOS Setup programme by pressing F2 .
►
Select the Exit menu in the BIOS Setup.
►
Select the Default Setup entry and click on OK.
If the error message appears repeatedly, please contact the place of purchase or our customer
service centre.
Extended memory failed at offset: xxxx Failing Bits: zzzz zzzz
When testing the extended memory an error has resulted at the address xxxx.
►
Check whether the additional memory module has been inserted correctly.
Should you receive this error message again, please contact your dealer.
Failure Fixed Disk n
The settings of the hard disk drive are incorrect.
►
Start the BIOS Setup (Primary Master submenu) and select the correct settings.
Keyboard controller error
►
Switch off the notebook with the Suspend/Resume button.
►
Wait 3 - 5 seconds and switch on the notebook again.
Should you receive this error message again, please contact your dealer.
94
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Troubleshooting and tips
Keyboard error
If you use an external keyboard:
►
Check the connection and reboot the notebook.
Should you receive this error message again, please contact your dealer.
nn Stuck key
►
Make sure that no key is pressed.
Should you receive this error message again, please contact your dealer.
Operating system not found
►
Check in the BIOS Setup whether your hard disk has been set correctly.
►
Make sure that the operating system is installed on the corresponding drive.
Press <F1> to resume, <F2> to SETUP.
This error message appears if an error occurs during the self-test before starting the operating
system.
►
Press the F1 function key to start the operating system.
►
Enter the BIOS Setup programme by pressing F2 .
Previous boot incomplete - Default configuration used
Due to an error during the previous system boot, default values were used for certain settings. Check
the BIOS Setup and the settings.
►
Press the F1 function key when prompted to do so.
Real Time clock error
►
Contact your dealer.
nnnnK Shadow RAM failed at offset: xxxx Failing Bits: zzzz
►
Contact your dealer.
System battery is dead - Replace and run SETUP
►
Contact your dealer.
System cache error - Cache disabled
►
Contact your dealer.
System timer error
►
Contact your dealer.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
95
Downloaded from LpManual.com Manuals
Technical data
Notebook
Processor:
Intel Pentium M up to 2.13 GHz
Main memory:
Maximum 2 Gbyte DDR2 533 SO-DIMM
2 slots for 256, 512-Mbyte modules or 1-Gbyte modules
●
Hard disk drive
●
optical drive
●
Second battery
●
Weight Saver
Possible modules:
Electrical data
Regulations complied with:
CE, CE!, Energy Star
Protection class:
II
Maximum power draw:
(notebook on with battery charging)
60 W
LCD screen
Display diagonal (max. resolution):
14.1 inch TFT XGA (1024 x 768)
or
14.1 inch TFT SXGA+ (1400 x 1050)
Screen controller
Chip:
Intel 915GM Internal Graphics
Video memory (VRAM):
8 -128 Mbyte (UMA)
Recommended screen resolution of the
external monitor (21 inch):
maximum of 1600 x 1200/16.7 million colours at 85 Hz
Audio
Soundchip:
RealTek ALC260
Input devices
Keyboard:
85 keys
Touchpad:
2 buttons and 1 scroll button
Slots
ExpressCard slot:
–
Compliance ID:
PC Card slot (CardBus/PCMCIA):
1 x ExpressCard/34 or ExpressCard/54
EC100025
PCMCIA 1 x type I or II
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
97
Technical data
Connections on notebook
●
●
●
●
●
●
●
●
●
●
Monitor port:
S Video out socket:
Modem port:
LAN connector:
Microphone port/Line-In:
Headphones port/Line Out:
FireWire port:
USB port:
Infrared interface:
Docking port:
15-pin female connector
3.5 mm mini jack
connector, RJ11
connector, RJ45
3.5 mm stereo mini jack
3.5 mm stereo mini jack
S400, 4-pin
3x USB 2.0
IrDA 1.1
100-pin
Ports on the Port Replicator
●
●
●
●
●
●
●
●
●
●
LAN connector:
Serial port:
DVI-D port:
Monitor port:
Parallel port:
PS/2 port:
USB port:
Headphone port:
Microphone jack:
Docking port:
connector, RJ45
9-pin plug
25-pin female connector, digital
15-pin female connector, analogue
25-pin female connector
6-pin mini DIN female connector
4x USB 2.0
3.5 mm stereo mini jack
3.5 mm mono mini-jack
100-pin
Environmental conditions
Temperature:
●
Operation
●
Transport
5 °C .... 35 °C
-15 °C .... 60 °C
Dimensions
Width/depth/height:
Weight with Weight Saver:
i
306 mm/248 mm/33,5 mm
approx. 1,75 kg
The data sheet of this notebook contains further technical data. You will find the data sheet
on the internet at http://www.fujitsu-siemens.com.
Battery
Rated voltage:
10.8 V
Rated capacity:
51.8 Wh
Charge time:
approx. 4 hours (when switched off)
Operating time with a battery:
approx. 3.5 hours (depending on application and
power management settings)
98
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Technical data
Power adapter 60 W
Main
●
Rated voltage:
●
Frequency:
100 V to 240 V (automatic)
50 Hz to 60 Hz (automatic)
Sub
●
Rated voltage:
●
Max. rated current:
19 V
3.15 A
You can readily order an additional power adapter and an additional power cable.
Power adapter 80 W
Main
●
Rated voltage:
●
Frequency:
100 V or 240 V (automatic)
50 Hz to 60 Hz (automatic)
Sub
●
Rated voltage:
●
Max. rated current:
19 V
4.22 A
You can readily order an additional power adapter and an additional power cable.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
99
Downloaded from LpManual.com Manuals
Manufacturer's notes
Copyright-protected technology
This product incorporates copyright protection technology that is protected by method claims of
certain U. S. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorised by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Energy Star
The notebook from Fujitsu Siemens Computers is designed to conserve
electricity by dropping to less than 8 W when it goes into standby/suspend
mode and to less than 3 W when it goes into OFF mode. With this level of
power management, the notebook qualifies for the U.S. Environmental
Protection Agency's (EPA) Energy Star Computers award.
The EPA estimates that computer equipment uses 5 % percent of all business electricity and that
this is growing rapidly. If all desktop PCs and peripherals enter a low-power mode when not in use,
the overall savings in electricity could amount to $ 2 milliard annually. These savings could also
prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5
million automobiles.
As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product
meets the Energy Star guidelines for energy efficiency.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
101
Manufacturer's notes
CE marking
CE marking for devices without wireless LAN/ Bluetooth
The shipped version of this device complies with the requirements of the EEC
directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low
voltage directive".
CE marking for devices with radio component
This equipment complies with the requirements of Directive 1999/5/EC of the
European Parliament and Commission from 9 March, 1999 governing Radio and
Telecommunications Equipment and mutual recognition of conformity.
This equipment can be used in the following countries:
Belgium (not with
Wireless LAN to
802.11a)
Finland
Ireland
Liechtenstein
Netherlands
Portugal
Slovenia
Cyprus
Denmark
Germany
Estonia
France
Iceland
Lithuania
Norway
Greece
Italy
Luxemburg
Austria (not with
Wireless LAN to
802.11a)
Switzerland
Czech Republic
UK
Latvia
Malta
Poland
Sweden
Spain
Slovakia
Hungary
Contact the corresponding government office of the respective country for
current information on possible operating restrictions. If your country is not
included in the list, then please contact the corresponding supervisory authority
as to whether the use of this product is permitted in your country.
Regulatory notices
i
If there is no FCC logo and also no FCC ID on the device then this device is not approved
by the Federal Communications Commission (FCC) of the USA. Although it is not explicitly
forbidden to travel the US trading area carrying this device, but to avoid trouble at customs
clearance Fujitsu Siemens Computers GmbH recommends not to bring this device into the
US trading area.
Regulatory information for notebooks without radio device
NOTICE:
Changes or modifications not expressly approved by Fujitsu Siemens Computers could void this
user’s authority to operate the equipment.
Notice to Users of Radios and Television
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
102
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Manufacturer's notes
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and receiver.
●
Connect the equipment into an outlet that is on a different circuit than the receiver.
●
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables must be employed with this equipment to ensure compliance with the
pertinent RF emission limits governing this device.
Notice to Users of the US Telephone Network
Your notebook may be supplied with an internal modem which complies with Part 68 of the FCC
rules. On this notebook is a label that contains the FCC Registration Number and the Ringer
Equivalence Number (REN) for this equipment among other information. If requested, the user must
provide their telephone company with the following information:
1.
The telephone number to which the notebook is connected.
2.
The Ringer Equivalence Number (REN) for this equipment.
3.
The equipment requires a standard modular jack type USOC RJ-11C which is FCC Part 68
compliant.
4.
The FCC Registration Number.
This equipment is designed to be connected to the telephone network or premises wiring using a
standard modular jack type USOC RJ-11C which is FCC Part 68 compliant and a line cord between
the modem and the telephone network with a minimum of 26AWG.
The REN is used to determine the number of devices that you may connect to your telephone line
and still have all of those devices ring when your number is called. Too many devices on one line
may result in failure to ring in response to an incoming call. In most, but not all, areas the sum of the
RENs of all of the devices should not exceed five (5). To be certain of the number of devices you
may connect to your line, as determined by the RENs, contact your local telephone company.
If this equipment causes harm to the telephone network, your telephone company may discontinue
your service temporarily. If possible, they will notify you in advance. If advance notice is not practical
they will notify you as soon as possible. You will also be advised of your right to file a complaint with
the FCC.
This fax modem also complies with fax branding requirements per FCC Part 68.
Your telephone company will probably ask you to disconnect this equipment from the telephone
network until the problem is corrected and you are sure that the equipment is not malfunctioning.
This equipment may not be used on coin-operated telephones provided by your telephone company.
Connection to party lines is subject to state tariffs. Contact your state’s public utility commission,
public service commission or corporation commission for more information.
This equipment includes automatic dialing capability. When programming and/or making test calls to
emergency numbers:
●
Remain on the line and briefly explain to the dispatcher the reason for the call.
●
Perform such activities in off-peak hours, such as early morning or late evening.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
103
Manufacturer's notes
FCC rules prohibit the use of non-hearing aid compatible telephones in the following locations or
applications:
●
All public or semipublic coin-operated or credit card telephones.
●
Elevators, highways, tunnels (automobile, subway, railroad or pedestrian) where a person with
impaired hearing might be isolated in an emergency.
●
Places where telephones are specifically installed to alert emergency authorities such as fire,
police or medical assistance personnel.
●
Hospital rooms, residential health care facilities, convalescent homes and prisons.
●
Hotel, motel or apartment lobbies.
●
Stores where telephones are used by patrons to order merchandise.
●
Public transportation terminals where telephones are used to call taxis or to reserve lodging or
rental cars.
●
In hotel and motel rooms as at least ten percent of the rooms must contain hearing aidcompatible telephones or jacks for plug-in hearing aid compatible telephones which will be
provided to hearing impaired customers on request.
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les exigence du Réglement sur le matérial
brouilleur du Canada.
Notice to Users of the Canadian Telephone Network
NOTICE:
This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications.
This is confirmed by the registration number. The abbreviation, IC, before the registration number
signifies that registration was performed based on a Declaration of Conformity indicating that
Industry Canada technical specifications were met. It does not imply that Industry Canada approved
the equipment. Before connecting this equipment to a telephone line the user should ensure that it is
permissible to connect this equipment to the local telecommunication facilities. The user should be
aware that compliance with the certification standards does not prevent service degradation in some
situations.
Repairs to telecommunication equipment should be made by a Canadian authorized maintenance
facility. Any repairs or alterations not expressly approved by Fujitsu or any equipment failures may
give the telecommunication company cause to request the user to disconnect the equipment from
the telephone line.
104
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Manufacturer's notes
NOTICE:
The Ringer Equivalence Number (REN) for this terminal equipment is 0.0. The REN assigned to
each terminal equipment provides an indication of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on an interface may consist of any combination
of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the
devices does not exceed five.
!
CAUTION:
For safety, users should ensure that the electrical ground of the power utility, the telephone
lines and the metallic water pipes are connected together. Users should NOT attempt to
make such connections themselves but should contact the appropriate electric inspection
authority or electrician. This may be particularly important in rural areas.
Avis Aux Utilisateurs Du Réseau Téléphonique Canadien
AVIS: Le présent matériel est conforme aux spécifications techniques d’Industrie Canada
applicables au matériel terminal. Cette conformité est confirmée par le numéro d’enregistrement. Le
sigle IC, placé devant le numéro d’enregistrement, signifie que l’enregistrement s’est effectué
conformément à une déclaration de conformité et indique que les spécifications techniques
d’Industrie Canada ont été respectées. Il n’implique pas qu’Industrie Canada a approuvé le matériel.
Avant de connecter cet équipement à une ligne téléphonique, l’utilisateur doit vérifier s’il est permis
de connecter cet équipement aux installations de télécommunications locales. L’utilisateur est averti
que même la conformité aux normes de certification ne peut dans certains cas empêcher la
dégradation du service.
Les réparations de l’équipement de télécommunications doivent être eVectuées par un service de
maintenance agréé au Canada. Toute réparation ou modification, qui n’est pas expressément
approuvée par Fujitsu, ou toute défaillance de l’équipement peut entraîner la compagnie de
télécommunications à exiger que l’utilisateur déconnecte l’équipement de la ligne téléphonique.
AVIS: L’indice d’équivalence de la sonnerie (IES) du présent matériel est de 0.0. L’IES assigné à
chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une
interface téléphonique. La terminaison d’une interface peut consister en une combinaison
quelconque de dispositifs, à la seule condition que la somme d’indices d’équivalence de la sonnerie
de tous les dispositifs n’excède pas 5.
!
AVERTISSEMENT:
Pour assurer la sécurité, les utilisateurs doivent vérifier que la prise de terre du service
d’électricité, les lignes télphoniques et les conduites d’eau métalliques sont connectées
ensemble. Les utilisateurs NE doivent PAS tenter d’établir ces connexions eux-mêmes,
mais doivent contacter les services d’inspection d’installations électriques appropriés ou
un électricien. Ceci peut être particulièrement important en régions rurales.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
105
Manufacturer's notes
UL Notice
This unit requires an AC adapter to operate. Use only UL Listed Class 2 adapter, output rating
19 V DC, 4.22 A. Refer to the illustration below for the correct AC Adapter output polarity:
!
CAUTION:
To reduce the risk of fire, use only 26AWG or larger telecommunications line cord.
For Authorized Repair Technicians Only
!
!
CAUTION:
For continued protection against risk of fire, replace only with the same type and rating
fuse.
WARNING:
Danger of explosion if Lithium (CMOS) battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instruction.
FCC Regulatory information for notebooks with radio device
Federal Communications Commission statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of this device.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. If not installed and used in accordance with the instructions, it may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
106
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Manufacturer's notes
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
1.
Reorient or relocate the receiving antenna.
2.
Increase the distance between the equipment and the receiver.
3.
Connect the equipment to an outlet on a circuit different from the one the receiver is connected
to.
4.
Consult the dealer or an experienced radio/TV technician for help.
Please note the following regulatory information related to the optional radio device.
FCC Radio Frequency Exposure statement
This radio device has been evaluated under FCC Bulletin OET 65C and found compliant with the
requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF
Exposure from radio frequency devices. The radiated output power of this radio device is far below
the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner
that the potential for human contact during normal operation is minimized. When using this device, a
certain separation distance between antenna and nearby persons must be maintained to ensure RF
exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1
standards, the distance between the antennas and the user should not be less than 20 cm (8
inches).
Regulatory Notes and Statements
Radio device, health and authorisation for use
Radio-frequency electromagnetic energy is emitted from the wireless devices. The energy levels of
these emissions, however, are far much less than the electromagnetic energy emissions from
wireless devices such as mobile phones. Radio devices are safe for use by consumers because they
operate within the guidelines found in radio frequency safety standards and recommendations.
The use of the radio devices may be restricted in some situations or environments, such as:
●
on board an airplane, or
●
in an explosive environment, or
●
in situations where the interference risk to other devices or services is perceived or identified
as harmful.
In cases in which the policy regarding use of radio devices in specific environments is not clear (e.g.,
airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use
these devices prior to operating the equipment.
Regulatory Information/Disclaimers
Installation and use of this radio device must be in strict accordance with the instructions included in
the user documentation provided with the product. Any changes or modifications made to this device
that are not expressly approved by the manufacturer may void the user’s authority to operate the
equipment. The manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, or the substitution or attachment of connecting cables and
equipment other than those specified by the manufacturer. It is the responsibility of the user to
correct any interference caused by such unauthorized modification, substitution or attachment. The
manufacturer and its authorized resellers or distributors will assume no liability for any damage or
violation of government regulations arising from failure to comply with these guidelines.
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
107
Manufacturer's notes
Export restrictions
This product or software contains encryption code which may not be exported or transferred from the
US or Canada without an approved US Department of Commerce export license. This device
complies with Part 15 of FCC Rules, as well as ICES 003 B / NMB 003 B. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesirable operation.
Modifications not expressly authorized by Fujitsu Siemens Computers may invalidate the user's right
to operate this equipment.
108
Downloaded from LpManual.com Manuals
A26391-K164-Z120-1-7619, edition 2
Index
5
56k modem 42
A
Acoustic warnings 94
Alt Gr key 22
Anti-theft protection 52, 53
Application Panel 24
Audio devices, connecting 75, 76
Audio ports 75
B
Backtab 23
Battery 4
charge metre 29
charging 28
charging indicator 19
indicator
fails to light 87
first battery 19
second battery 19
installing 30
lifetime 28
maintenance 28
monitoring the charging level 29
removing 29
second battery 31
self-discharge 28
storing 28
technical data 98
Beep, error message 94
BIOS passwords, handling problems 67
BIOS Setup
exiting 84
operating 84
password protection 57
protect with password 57
settings 83
starting 83
Bluetooth
indicator 19
ON/OFF switch 3
safety 6
switching module off 43
switching module on 43
Board, note 7
Built-in loudspeakers 3
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
C
CardBus, see PC card
CD/DVD
emergency removal 36
indicator 19, 33
inserting 34
removing 34
working with 33
CE marking 102
Charging capacity, battery 28
Charging indicator, battery 19
Cleaning 10
Combo drive 33
indicator 19
Configuration, BIOS Setup 83
Ctrl+C 23
Cursor keys 22
D
Data
electrical 97
technical 97
Date, not correct 87
Date/Time incorrect 87
DC IN
at notebook 70
at Port Replicator 72
jack 3
DC jack
at notebook 70
at Port Replicator 72
Devices
connecting 69
disconnecting 69
Display, difficult to read 89
DOC (INDUSTRY CANADA) NOTICES 104
DVD±RW dual drive 33
DVD-ROM drive 33
DVI-D port 72
E
Easy Launch keys 3, 24
programming 24
Emergency removal, CD/DVD 36
Energy saving 8
Energy saving functions
external monitor 8
notebook 8, 81
Energy Star 101
Enter key 21
109
Index
Error correction 85
Error message
acoustic 94
on the screen 95
ESD 7
ExpressCard 37
indicator 19
installing 38
lowering eject button 38
removing 38
slot 3
External devices, connecting 69
External keyboard, connecting 74
External monitor
connecting to the notebook 73
connecting to the Port Replicator 73
no screen display 90
remains blank 89
screen display drifts 90
selecting the display 23, 27
synchronising the display 23, 27
External PS/2 mouse, connecting 74
F
FireWire devices, connecting 76
FireWire port 3, 70, 76
First time switching on 14
Fn+F10 23
Fn+F3 23
Fn+F5 23
Fn+F6 23
Fn+F7 23
Fn+F8 23
Fn+F9 23
Full-screen, MS-DOS screen 23
H
Hard disk 30, 31
indicator 19
installing 32
removing 31
Hardware, configuring 83
HDA, High Definition Audio 75
Headphones
connecting 75
port 3, 72
port, at notebook 70
High Definition Audio 75
Hole for manual ejection 4
110
Downloaded from LpManual.com Manuals
I
IEEE 1394 port, see FireWire port
Important notes 5
Indicator 18
Caps Lock 20
Num Lock 20, 22
Scroll 20
Infrared interface 4, 71
Insert/eject button 4
K
Kensington Lock 4
applying 52, 53
Kensington MicroSaver 52, 53
Key
Backspace 21
Caps Lock 21
combination 23
combination, Fn+F3 23
cursor control keys 22
Fn key 22
Return 21
Shift 21
Shift key+Tab 23
Shift+Tab 23
Tab key 21
Keyboard 20
cleaning 10
connecting 74
port 72
L
LAN port 4
at notebook 71
at Port Replicator 72
LCD panel, see status indicator panel
LCD screen
cleaning 10
increasing the brightness 23, 27
is blank 88, 89
is difficult to read 89
notes 27
reducing the brightness 23, 27
remains blank 88
selecting the display 23, 27
setting the Desktop Area 27
setting the font size 27
settings 27
synchronising the display 23, 27
too bright 89
A26391-K164-Z120-1-7619, edition 2
Index
Lifetime, battery 28
Line in 3
Line out 3
Location, selecting the 12
Loudspeaker
increasing the volume 23
switching off/on 23
M
Main memory, extension 77
Manual removal, CD/DVD 36
Manufacturer, notes 101
Memory
expansion 77
installing 80
removing 79
module
important notes 78
installing 80
removing 79
Menu key 22
Microphone
connecting 75
jack 3, 72
jack, at notebook 70
Mobile operation 9
Modem 42
connecting 42
port 4, 71
Module 31
bay 31
installing 32
removing 31
Monitor port 3
at notebook 70
at Port Replicator 72
Monitor settings 27
Mouse
does not work 93
no mouse pointer 93
port 72
MS-DOS screen, enlarge 23
Multi-format DVD burner with double layer
support 33
N
Notational conventions 2
Notebook
not starting 90
ON/OFF switch 3
operating 15
setting up 12
stops working 91
switching off 17
A26391-K164-Z120-1-7619, edition 2
Downloaded
from LpManual.com Manuals
switching off via Port Replicator 46
switching on 15
switching on for the first time 14
switching on via Port Replicator 46
views 3
Notes, important 5
O
ON/OFF switch
notebook 3
wireless LAN/ Bluetooth 3
Operation, preparing for 12
Optical drive 4, 31, 33
installing 32
removing 31
P
Packing material 11
Parallel port 72
Pause key 22
PC card 37
indicator 19
installing 40
lowering eject button 40, 61
removing 41
slot 3
slots 37
PCMCIA, see PC card
Peripherals, see devices
Pointer, changing the speed 27
Port Replicator 44
connecting the notebook 44
disconnecting the notebook 47
ports 72
Power adapter
60 W, technical data 99
80 W, technical data 99
connecting 12
setting up 12
Power indicator 19
Power-on indicator 19
Preparing for use 11
Printer
connecting 74
does not print 94
Projector
activating 76
connecting 76
PS/2 mouse, connecting 74
PS/2 port 72
111
Index
R
Radio component, notes on safety 6
Reflection 89
Regulatory information
notebooks with radio device 106
notebooks without radio device 102
S
S Video Out socket 3, 70
Safety 5
Screen brightness
decreasing 23, 27
increasing 23, 27
Scroll indicator 20
Second battery
installing 32
removing 31
Security functions 49
overview 49
survey 51
Security panel
applying 56
handling problems 67
indicator 20
setting 54
Select monitor 23, 27
Self-discharge, battery 28
Serial port 72
Setting
font size 27
resolution 27
Setup, see BIOS Setup
Shift key 21
Signs and symbols 2
Slot, ExpressCard 37
SmartCard 62
access rights 64
PIN 64
PUK 64
reader
handling problems 67
PC 61
using 60
Speaker, connecting 75
Standby mode 81
Start key 22
Status indicator panel 3, 18
Summer time 87
Survey, security functions 51
Suspend/Resume button 16, 81
Symbols, status indicator panel 18
System
configuration 83
settings, BIOS Setup 83
SystemLock, switching system on 66
112
Downloaded from LpManual.com Manuals
T
Technical data 97
Time
daylight savings 87
not correct 87
Tips 85
Touchpad 3, 25
buttons 3, 25
cleaning 10
does not work 93
dragging items 26
executing commands 26
moving the pointer 26
scroll button 3
scrolling 26
TouchStick 3, 25
dragging items 26
executing commands 26
moving the pointer 26
scrolling 26
TPM 66
Transport 9, 10
damages 11
Travel preparations 9
Trouble, correction 85
Troubleshooting 85
Trusted Platform Module 66
TV
activate 76
connect 76
U
USB devices
connecting 75
software 75
USB port 4, 75
at notebook 71
at Port Replicator 72
V
VGA port, see monitor port
Video devices, connecting 76
Virtual numeric keypad 22
Volume
decreasing 23
increasing 23
A26391-K164-Z120-1-7619, edition 2
Index
W
Weight Saver
installing
removing
Wireless LAN
indicator
31
32
31
ON/OFF switch 3
safety notes 6
switching off module 43
switching on module 43
Wireless LAN/Bluetooth indicator 19
19
A26391-K164-Z120-1-7619, edition 2
