SPS- 5 v9 with Inovonics and Call Manager Install Diagram

SPS- 5 v9 with Inovonics and Call Manager Install Diagram
WaveWare Call Manager Software - SPS-5 v9 Dual Port Paging System - Inovonics Alert System Setup Diagram
INOVONICS
Room 201
Bath
Wallpager LED Sign
II
Com Port 1- Inovonics Central Receiver
Com Port 2- Wired System
Com Port 3- SPS-5 v9 Paging System
Input
RS-232 Com Port 2
Output
RS-232 Com Port 3
Receiver
Main
Input
RS-232 Com Port 1
Repeater 1
Output
RS-232 Com Port
Required
12vDC Power
12vDC Power
Repeater 2
Optional
12vDC Power
Optional
Room 201 Bath
Windows
“Desktop PC”
WaveWare
Call Manager
Software
O
Apollo Gold Pager
(4-Line UHF Alphanumeric)
Wired
Nurse Call
System
BNC Female
Antenna Connector
Alphanumeric
Utility Paging System
UHF - 5 watts
Serial
Cable
Serial
Cable
12v DC
12v DC
12v DC
Com Port 2
INOVONICS
WaveWare
Wireless
Sensors - Transmitters
Examples
Serial Cable
SPS5
v9
Com Port 1
PAGING SYSTEM
12v DC Power
Approx: 8” W x 9” H x 2’ D
Serial
Cable
Power Supply
12v DC
110vAC
110vAC
Window 1
Door 1
Pendant 1
Pendant 2
110vAC
110vAC Outlet
Wired
Alarm Contact
Panel
Windows Desktop PC Power
TITLE

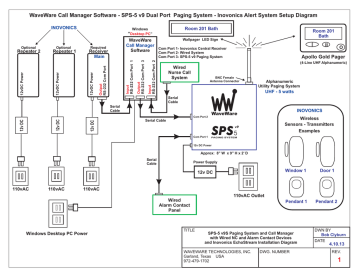

SPS-5 v9S Paging System and Call Manager
with Wired NC and Alarm Contact Devices
and Inovonics EchoStream Installation Diagram
WAVEWARE TECHNOLOGIES, INC.
Garland, Texas USA
972-479-1702
DWG. NUMBER
DWN BY
Bob Clyburn
DATE
4.10.13
REV.
1
