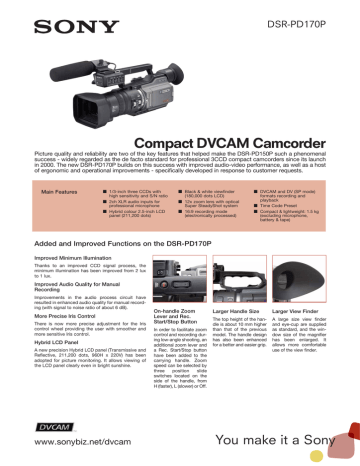

Compact DVCAM Camcorder
Picture quality and reliability are two of the key features that helped make the DSR-PD150P such a phenomenal
success - widely regarded as the de facto standard for professional 3CCD compact camcorders since its launch
in 2000. The new DSR-PD170P builds on this success with improved audio-video performance, as well as a host
of ergonomic and operational improvements - specifically developed in response to customer requests.
Main Features
■ 1/3-inch three CCDs with
high sensitivity and S/N ratio
■ 2ch XLR audio inputs for
professional microphone
■ Hybrid colour 2.5-inch LCD
panel (211,200 dots)
■ Black & white viewfinder
(180,000 dots LCD)
■ 12x zoom lens with optical
Super SteadyShot system
■ 16:9 recording mode
(electronically processed)
■ DVCAM and DV (SP mode)
formats recording and
■ Time Code Preset
■ Compact & lightweight: 1.5 kg
(excluding microphone,
battery & tape)
Added and Improved Functions on the DSR-PD170P
Improved Minimum Illumination
Thanks to an improved CCD signal process, the
minimum illumination has been improved from 2 lux
to 1 lux.
Improved Audio Quality for Manual
Improvements in the audio process circuit have
resulted in enhanced audio quality for manual recording (with signal to noise ratio of about 6 dB).
More Precise Iris Control
There is now more precise adjustment for the Iris
control wheel providing the user with smoother and
more sensitive Iris control.
Hybrid LCD Panel
A new precision Hybrid LCD panel (Transmissive and
Reflective, 211,200 dots, 960H x 220V) has been
adopted for picture monitoring. It allows viewing of
the LCD panel clearly even in bright sunshine.
On-handle Zoom
Lever and Rec.
Start/Stop Button
In order to facilitate zoom
control and recording during low-angle shooting, an
additional zoom lever and
a Rec. Start/Stop button
have been added to the
carrying handle. Zoom
speed can be selected by
switches located on the
side of the handle, from
H (faster), L (slower) or Off.
Larger Handle Size
Larger View Finder
The top height of the handle is about 10 mm higher
than that of the previous
model. The handle design
has also been enhanced
for a better and easier grip.
A large size view finder
and eye-cup are supplied
as standard, and the window size of the magnifier
has been enlarged. It
allows more comfortable
use of the view finder.
You make it a Sony
DSR-PD170P Specifications
The wide conversion lens
(VCL-HG0758) and new lens
hood (LSF-S58) are bundled with
the DSR-PD170P. The wide conversion lens can be removed
without removing the hood itself
and the hood can be used without the wide conversion lens.
i.LINK Cable Strap
An i.LINK Cable Strap is provided
as a supplied accessory. This
small plastic plate straps and
protects the i.LINK cable. It is
useful for avoiding mishaps when
an external HDD (for example
DSR-DU1) is being used for
Supplied Hood with Built-in
Lens Cap
New Body Colour and New
Design for Zoom / Focus
Another new hood with a built-in
lens cap is also bundled with the
DSR-PD170P. By using the lever
on the side of the hood, the lens
cap can be opened or closed.
A new two-tone colour design
has been applied to the
DSR-PD170P and the design of
the zoom and focus rings has
also been updated.
Simultaneous Turn On of
LCD Panel and View Finder
Imaging Device
White Balance
Shutter Speed
Minimum Illumination
Horizontal Resolution
Audio Signal
Built-in Speaker
Tape Speed
Maximum Recording Time
The LCD panel and the view
finder can be turned on simultaneously, allowing the user to
control the focus on the view
finder and set the camera angle
on the LCD panel.
Video Signal
Video IN/OUT
Audio IN/OUT
S-Video IN/OUT
Audio IN
DVCAM Silver Support Pack
Operating Temperature
Storage Temperature
Power Requirements
Power Consumption
All DVCAM camcorders and decks are backed by the reassurance of
Sony Silver Support, a unique after-sales care programme that gives
you these valuable benefits in addition to the normal Sony product
Dimensions (camcorder only)
Mass (camcorder only)
Supplied Accessories
Silver Support extends your standard DVCAM product
warranty from 1 to 2 years.
Operational advice, tips and information to help get
the most out of your Sony DVCAM product. Telephone
support is available Monday to Friday and in 5 languages –
English, French, German, Italian and Spanish.
In the event of a repair being necessary, Sony will collect,
repair and return the unit to your preferred location within
7 working days.
If a repair is likely to take longer than 7 working days,
Sony will provide a loan unit for the remaining duration
of the repair.
Sony will arrange collection of a faulty unit and delivery when
repaired to your preferred location (NB: covers mainland EU,
Norway and Switzerland).
RCA pin x 1, Luminance signal : 1 Vp-p,
75 Ω, unbalanced, sync negative
RCA pin x 1, 327 mV, Output impedance
with more than 47 Ω
Mini-DIN 4 pin x 1, Luminance signal : 1 Vp-p, 75 Ω,
unbalanced, Chrominance signal : 0.3 Vp-p
XLR 3-pin female x 2, 327mV, -60 dBu,
3 kΩ, + 4 dBu, 10 kΩ (0 dBu = 0.775 V ms)
I.LINK (DV IN/OUT) : 4-pin x 1, LANC : Stereo mini jack
(0.25 mm) x 1
Headphone : Stereo mini jack (0.35 mm) x 1, External DC
IN : 8.4 V for AC-L15 AC adaptor or AC-V700A + DK-215
0 to 40 °C
-20 to 60 °C
DC 7.2 V (Battery), DC 8.4 V (AC adaptor)
REC with Viewfinder only: 4.0 W
REC with LCD only: 5.4 W
Playback on LCD: 3.5 W
136 (W) x 180 (H) x 456 (D) mm
Approx. 1.5 kg (3 Ib 5 oz)
AC-L15 AC Adaptor
NP-F330 InfoLITHIUM “L” series Rechargeable Battery Pack
ECM-NV1 Electret Condenser Microphone
VCL-HG0758 Wide Conversion Lens
LSF-S58 Hood for Wide Conversion Lens and Hood Cap
Lens Cap built in Hood
Lens Cap
i.LINK Cable Strap
Carrying Belt
AV Cable (RCA PIN x3)
RMT-811 Wireless Remote Commander
(with 2x AA Dry Batteries)
Dimensions (Unit: mm)
12:1 Variable Speed (1.2-22 sec.) zoom lens
(48 x Digital zoom)
f=6.0 to 72.0 mm; f (35mm conversion) =
43.2 – 518.4 mm; F1.6 to 2.4; Filter Diameter 58 mm
Auto/ Manual (ring) / Infinity / One push auto
Three 1/3-inch CCDs, 450,000 pixels, Progressive/
Interlace Scan
Auto/ one-push/ Outdoor (5800 K)/ Indoor (3200 K)
1/3, 1/6, 1/12, 1/25, 1/50, 1/60, 1/100, 1/120, 1/150,
1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750,
1/2500, 1/3500, 1/6000, 1/10000 second
F1.6, F2, F2.4, F2.8, F3.4, F4, F4.8, F5.6, F6.8, F8,
F9.6, F11, Close
0, 3, 6, 9, 12, 15, 18dB
Auto / Manual
1 Ix
530 TV lines
180,000 dot Black & White LCD, horizontal resolution
500 TV lines
48 kHz/16-bit, 32 kHz/12-bit
48 kHz/16-bit, 32 kHz/12-bit,
32 kHz/16-bit, 44.1 kHz/16-bit
Dynamic Speaker 20 mm
Hybrid, 2.5 type, 211,200 dots (960 H x 220 V)
Approx. 28.2 mm/sec. (DVCAM mode)
Approx. 18.8 mm/sec. (DV SP mode)
40 minutes (DVCAM mode),
60 minutes (DV SP mode, with DVM-60ME)
CCIR Standard, PAL colour system
Supplied Wide Conversion
Lens and New Lens Hood
