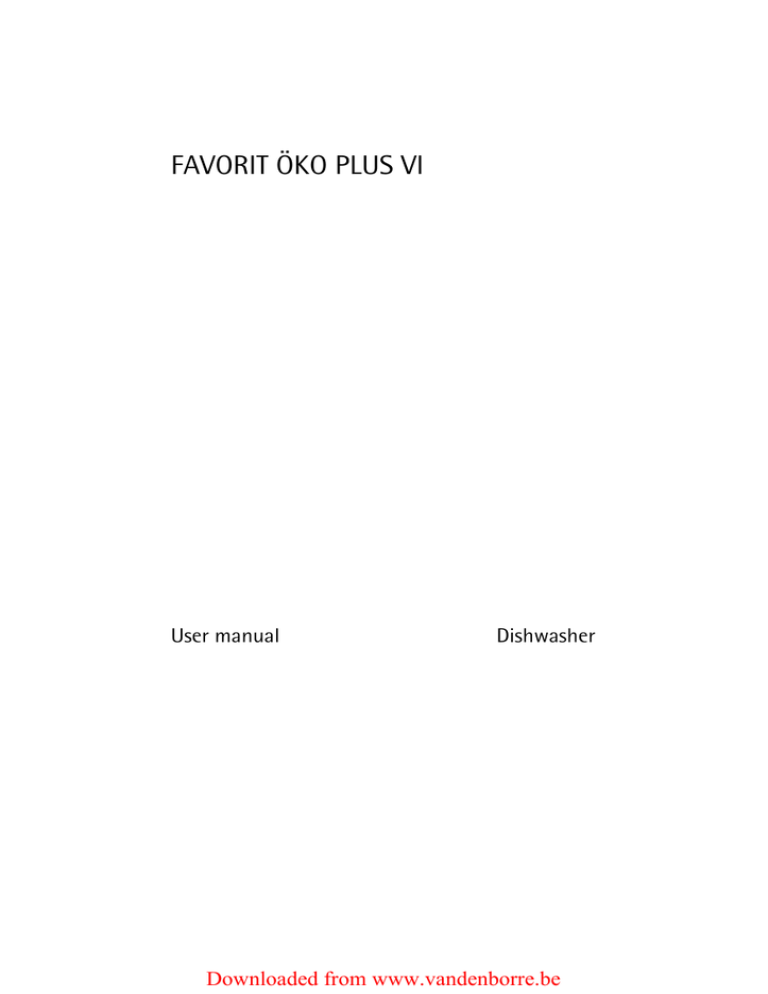

FAVORIT ÖKO PLUS VI
User manual
Dishwasher
Downloaded from www.vandenborre.be
2
Contents
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating instructions
3
Safety information
Correct use
General safety
Child safety
Installation
Product description
3
3
3
3
4
4
Control panel
Setting mode
Audible signals
First use
Set the water softener
Setting manually
Setting electronically
Use of dishwasher salt
5
7
7
8
8
8
9
9
Use of rinse aid
Adjusting the dosage of rinse aid
Daily use
10
11
11
Load cutlery and dishes
12
The lower basket
13
The cutlery basket
13
Beer glasses
15
The upper basket
16
Adjusting the height of the upper basket
17
Use of detergent
18
Fill with detergent
18
Multi-tab function
19
Activation/deactivation of the Multitab
function
20
Washing programmes
21
Select and start a washing programme
22
Unloading the dishwasher
Care and cleaning
Cleaning the filters
Cleaning the spray arms
External cleaning
Internal cleaning
Prolonged periods of non-operation
Frost precautions
Moving the machine
What to do if…
23
24
24
25
25
25
25
25
26
26
Technical data
Hints for test institutes
27
28
Installation instructions
Installation
Fixing to the adjacent units
Levelling
Water connection
Water supply connections
Water inlet hose with safety valve
Water outlet hose connection
Electrical connection
Environment concerns
Packaging material
29
29
29
29
29
29
30
30
31
32
32
Subject to change without notice
Downloaded from www.vandenborre.be
Safety information
3
Operating instructions
Safety information
In the interest of your safety and to ensure the correct use, before installing and first using
the appliance, read this user manual carefully, including its hints and warnings. To avoid
unnecessary mistakes and accidents, it is important to ensure that all people using the
appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that
everyone using it through its life will be properly informed on appliance use and safety.
Correct use
• This dishwasher is only intended for washing household utensils suitable for machine
washing.
• Do not put any solvents in the dishwasher. This could cause an explosion.
• Knives and other items with sharp points must be loaded in the cutlery basket with their
points down or placed in a horizontal position in the upper basket.
• Only use products (detergent, salt and rinse aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance is in operation, hot steam may escape.
• Do not take any dishes out of the dishwasher before the end of the dishwashing cycle.
• After use, isolate the appliance from the power supply and turn off the water supply.
• This product should be serviced only by an authorised service engineer, and only genuine
spare parts should be used.
• Under no circumstances should you attempt to repair the machine yourself. Repairs
carried out by inexperienced persons will cause injury or serious malfunctioning. Contact
your local Service Force Centre. Always insist on genuine spare parts.
General safety
• Dishwasher detergents can cause chemical burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.
• The water in your dishwasher is not for drinking. Detergent residues may still be present
in your machine.
• Ensure that the door of the dishwasher is always closed when it is not being loaded or
unloaded. In this way you will avoid anybody tripping over the open door and hurting
themselves.
• Do not sit or stand on the open door.
Child safety
• This appliance is designed to be operated by adults. Don’t allow children to use the
dishwasher unsupervised.
• Keep all packaging well away from children. There is risk of suffocation.
• Keep all detergents in a safe place out of children’s reach.
• Keep children well away from the dishwasher when the door is open.
Downloaded from www.vandenborre.be
4
Product description
Installation
• Check your dishwasher for any transport damage. Never connect a damaged machine.
If your dishwasher is damaged contact your supplier.
• All packaging must be removed before use.
• Any electrical and plumbing work required to install this appliance must be carried out
by a qualified and competent person.
• For safety reasons it is dangerous to alter the specifications or attempt to modify this
product in any way.
• Never use the dishwasher if the electrical supply cable and water hoses are damaged; or
if the control panel, work top or plinth area are damaged such that the inside of the
appliance is freely accessible. Contact your local Service Force centre, in order to avoid
hazard.
• All sides of the dishwasher must never be drilled to prevent damage to hydraulic and
electric components.
WARNING!
For electrical and water connection carefully follow the instructions given in specific paragraphs.
Product description
1
2
3
4
5
Upper basket
Water hardness dial
Salt container
Detergent dispenser
Rinse aid dispenser
Downloaded from www.vandenborre.be
Control panel
6
7
8
9
5
Rating plate
Filters
Lower spray arm
Upper spray arm
Optical signal
Once the washing programme has started , a point-shaped optical signal shows on the
floor beneath the appliance door.
If the appliance has been installed higher up with a furniture door mounted flush, the
optical signal will be no longer visible.
Optical signal
Red light fixed
Indicates the start of a washing programme and remains on for all the
duration
Red light flashes
Indicates a malfunction of the appliance
Green light fixed
Indicates the end of the washing programme
This dishwasher has an internal light that turns on and off when the opening and closing
of the dishwasher's door occurs.
Internal light is equipped with led lamp CLASS 1 in accordance with EN 60825-1: 1994 +
A1: 2002 + A2: 2001.
In case that this light has to be replaced, please, contact your local Service Force Centre.
Control panel
6
7
9
1
2
3
4
5
6
Digital display
Delay start button
Programme selection buttons
ÖKO PLUS button (Save Energy)
MULTITAB button
Half load button
Downloaded from www.vandenborre.be
8
6
Control panel
7 Indicator lights
8 On/Off button
9 Function buttons
Indicator lights
Salt
Illuminates when the special salt has run out. 1)
Rinse aid
Illuminates when the rinse aid has run out. 1)
End of programme
Illuminates when the washing programme has ended.
1) The salt and rinse aid indicator lights are never illuminated while a washing programme is running even if filling
with salt and/or rinse aid is necessary.
The digital display indicates:
• the level of hardness to which the water softener is set,
• the number corresponding to the washing programme,
• the approximate remaining time of the running programme,
• activation/deactivation of the rinse aid dispenser (ONLY with Multitab function active),
• the end of a washing programme (a zero will appear in the digital display),
• the countdown of the delay start,
• fault codes concerning malfunction of the dishwasher,
• activation/deactivation of the audible signals.
ÖKO PLUS button
With this option it is possible to reduce the energy consumption. This is reached by the
reduction of the temperature in the drying phase.
As a consequence of this the dishes could still be wet when the programme has ended. We
suggest, at the end of the programme, to slightly open the dishwasher door and leave it
ajar so that dishes can dry naturally.
This option can be selected with all washing programmes. The corresponding indicator light
comes on when the ÖKO PLUS button is pressed.
The ÖKO PLUS option will have no impact on some programmes. Refer to 'Washing programmes' for the list of programmes where the option ÖKO PLUS has or not impact.
For programmes were the option has an impact, the energy saving is between 10% and
25%.
Half load button
This option is useful and economical when baskets are not fully loaded. It reduces the
consumption of water and energy.
Remember to load both baskets.
Downloaded from www.vandenborre.be
Control panel
7
When using this option we recommend to reduce the dose of detergent that is normally
used for a completed load.
This option is available only with some programmes (see "Washing programmes" chart).
Function buttons
The following functions can be set with the help of these buttons:
• setting of the water softener,
• cancel a washing programme or a delay start in progress,
• activation/deactivation of the rinse aid dispenser when Multitab function is active,
• activation/deactivation of the audible signals.
Setting mode
The appliance is in setting mode when the lights of the programme selection buttons are
on and 2 horizontal lines (- -) are visible in the digital display.
Always remember that when performing operations such as:
• setting the water softener
• activating/deactivating the rinse aid dispenser
• activating/deactivating the audible signals
the appliance MUST be in setting mode.
If the lights of the programme selection buttons are on and the time duration (in minutes)
of a programme is visible in the digital display, the last performed programme is still set.
In this case, to return to setting mode, the programme has to be cancelled.
To cancel a set programme or a programme in progress: simultaneously press and hold
the two RESET buttons (B and C) until 2 horizontal lines will appear in the digital display.
The programme has been cancelled and the machine is now in setting mode.
Audible signals
Audible signals have been introduced to help indicate which operations the appliance is
performing:
• setting the water softener
• end of the programme
• intervention of an alarm due to malfunction.
Factory setting: audible signals activated.
It is possible to deactivate the audible signals, using the function buttons.
1. Press the On/Off button. The appliance must be in setting mode.
2. Simultaneously press and hold function buttons B and C, until the light of the function
buttons A, B and C start flashing.
3. Press function button C, the lights of buttons A and B turn off while the light of function
button C goes on flashing. The digital display indicates the current setting.
= Audible signals deactivated
= Audible signals activated
4. To change the setting, press again function button C: the digital display will indicate
the new setting.
5. To memorize the operation, switch off the dishwasher.
Downloaded from www.vandenborre.be
8
First use
First use
Before using your dishwasher for the first time:
• Ensure that the electrical and water connections comply with the installation instructions
• Remove all packaging from inside the appliance
• Set the water softener
• Pour 1 litre of water inside the salt container and then fill with dishwasher salt
• Fill the rinse aid dispenser
If you want to use combi detergent tablets such as: "3 in 1", "4 in 1", "5 in 1" etc... set the
Multitab function (see "Multitab function").
Set the water softener
The dishwasher is equipped with a water softener designed to remove minerals and salts
from the water supply, which would have a detrimental or adverse effect on the operation
of the appliance.
The higher the content of these minerals and salts, the harder your water is. Water hardness
is measured in equivalent scales, German degrees (°dH), French degrees (°TH) and mmol/l
(millimol per litre - international unit for the hardness of water).
The softener should be adjusted according to the hardness of the water in your area. Your
local Water Authority can advise you on the hardness of the water in your area.
The water softener must be set in both ways: manually, using the water hardness dial and
electronically.
Water hardness
Adjusting the water hardness
setting
Use of salt
°dH
°TH
mmol/l
manually
electronically
51 - 70
91 - 125
9,1 - 12,5
2
level 10
yes
43 - 50
76 - 90
7,6 - 8,9
2
level 9
yes
37 - 42
65 - 75
6,5 - 7,5
2
level 8
yes
29 - 36
51 - 64
5,1 - 6,4
2
level 7
yes
23 - 28
40 - 50
4,0 - 5,0
2
level 6
yes
19 - 22
33 - 39
3,3 - 3,9
2
level 5
yes
15 - 18
26 - 32
2,6 - 3,2
1
level 4
yes
11 - 14
19 - 25
1,9 - 2,5
1
level 3
yes
4 - 10
7 - 18
0,7 - 1,8
1
level 2
yes
<4
<7
< 0,7
1
level 1
no
Setting manually
The dishwasher is factory set at position 2.
Downloaded from www.vandenborre.be
Use of dishwasher salt
9
1. Open the dishwasher door.
2. Remove the lower basket from the dishwasher.
3. Turn the water hardness dial to position 1
or 2 (see table).
4. Replace the lower basket.
Setting electronically
The dishwasher is factory set at level 5.
1. Press the On/Off button. The dishwasher must be in setting mode.
2. Press simultaneously and keep pressed buttons B and C, until the lights of buttons A,
B and C start flashing.
3. Press button A, the lights of buttons B and C turn off while the light of button A goes
on flashing. In the digital display will show the current level and a sequence of intermittent audible signals are heard.
Examples:
displayed, 5 intermittent audible signals, pause, etc... = level 5
displayed, 10 intermittent audible signals, pause, etc... = level 10
4. To change the level, press button A. Each time the button is pressed the level changes
(for the selection of the new level see the chart).
Examples: if the current level is 5, by pressing button A once, level 6 is selected. if the
current level is 10, by pressing button A once, level 1 is selected.
5. To memorise the operation, switch off the dishwasher by pressing the On/Off button.
Use of dishwasher salt
WARNING!
Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes. This
will prevent any grains of salt or salty water, which may have been spilt, remaining on the
bottom of the machine for any period of time, which may cause corrosion.
To fill:
1. Open the door, remove the lower basket and unscrew the cap of the salt container by
turning it anticlockwise.
2. Pour 1 litre of water inside the container (this is necessary only before filling with
salt for the first time) .
Downloaded from www.vandenborre.be
10
Use of rinse aid
3. Using the funnel provided, pour in the salt
until the container is full.
4. Replace the cap making sure that there is
no trace of salt on the screw thread or on
the gasket.
5. Replace the cap tightly turning it clockwise until it stops with a click.
Do not worry if water overflows from the unit
when filling with salt, this is quite normal.
The salt indicator light on the control panel can remain illuminated for 2-6 hours after the
salt has been replenished, assuming the dishwasher remains switched on. If you are using
salts that take longer to dissolve then this can take longer. The function of the machine is
not affected.
Use of rinse aid
WARNING!
Only use branded rinse aid for dishwashers.
Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent,
liquid detergent). This would damage the appliance.
Rinse aid ensures thorough rinsing, and spot and streak free drying.
Rinse aid is automatically added during the last rinse.
1. Open the container by pressing the release
button (A).
Downloaded from www.vandenborre.be
Daily use
11
2. Add the rinse aid in the container. The
maximum level for filling is indicated by
"max".
The dispenser holds about 110 ml of rinse
aid, which is sufficient for between 16 and
40 dishwashing cycles, depending upon
the dosage setting.
3. Ensure that the lid is closed after every refill.
Clean up any rinse aid spilt during filling with
an absorbent cloth to avoid excess foaming
during the next wash.
Adjusting the dosage of rinse aid
According to the finish and drying results obtained, adjust the dose of rinse aid by means
of the 6 position selector (position 1= minimum dosage, position 6= maximum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of water or lime
spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the
dishes or a bluish film on glassware or knife blades.
Daily use
•
•
•
•
•
Check if it's necessary to refill with dishwasher salt or rinse aid.
Load cutlery and dishes into the dishwasher.
Fill with dishwasher detergent.
Select a wash programme suitable for the cutlery and dishes.
Start the wash programme.
Downloaded from www.vandenborre.be
12
Load cutlery and dishes
Load cutlery and dishes
Sponges, household cloths and any object that can absorb water may not be washed in the
dishwasher.
• Before loading the dishes, you should:
– Remove all left over food and debris.
– Soften remnants of burnt food in pans
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening downwards so
that water cannot collect in the container or a deep base.
– Dishes and items of cutlery must not lie inside one another, or cover each other.
– To avoid damage to glasses, they must not touch.
– Lay small objects in the cutlery basket.
• Plastic items and pans with non stick coatings have a tendency to retain water drops;
these items will not dry as well as porcelain and steel items.
• Light items (plastic bowls etc.) must be loaded in the upper basket and arranged so they
do not move.
For washing in the dishwasher the following cutlery and dishes
are not suitable:
are of limited suitability:
• Cutlery with wooden, horn, china or mother- • Only wash stoneware in the dishwasher if it
of-pearls handles.
is specially marked as being dishwasher-safe
• Plastic items that are not heat resistant.
by the manufacturer.
• Older cutlery with glued parts that are not
• Glazed patterns may fade if machine washed
temperature resistant.
frequently.
• Bonded cutlery items or dishes.
• Silver and aluminium parts have a tendency
• Pewter or copper items.
to discolour during washing: Residues, e.g.
• Lead crystal glass.
egg white, egg yolk and mustard often cause
• Steel items prone to rusting.
discolouring and staining on silver. Therefore
• Wooden platters.
always clean left-overs from silver immedi• Items made from synthetics fibres.
ately, if it is not to be washed straight after
use.
Open the door and slide out the baskets to load the dishes.
Downloaded from www.vandenborre.be
Load cutlery and dishes
13
The lower basket
Load larger and heavily soiled dishes and pans in
the lower basket.
To make it easier to load larger dishes, all rear plate
racks in the lower basket can be folded down.
The cutlery basket
WARNING!
Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp
items of cutlery such as carving knives must be positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as knives.
To ensure that all items of cutlery in the cutlery basket can be reached by the water, you
should:
Downloaded from www.vandenborre.be
14
Load cutlery and dishes
1. Place the grid insert on the cutlery basket.
2. Place forks and spoon in the cutlery basket
with their handles pointing downwards.
For larger utensils, such as whisks, leave off
one half of the cutlery grid.
The cutlery basket can be opened out.
Always make sure that you put your hand around
both parts of the two-part handle when removing
it from the dishwasher.
1. Place the cutlery basket on a table or work
surface.
2. Open out the two-part handle.
3. Remove cutlery.
Downloaded from www.vandenborre.be
Load cutlery and dishes
Beer glasses
There are the glass holders on the left hand side in
the lower basket.
You can arrange there up to 4 beer glasses.
You can fold up the beer glass holders if necessary.
You can replace the beer glass holders with 2 supplied cup racks. You can use them as:
• cup shelves
• champagne glass holders.
Do these steps to remove beer glass holders
1. Pull upwards and push lightly on the hooks
from below.
2. Use the hooks to attach cup racks onto the
horizontal bar.
Downloaded from www.vandenborre.be
15
16
Load cutlery and dishes
You can remove the support that fix the beer glass
holders or cup racks if necessary.
1. Use the thumbs to push the support back.
2. Push them forwards to fix the support
again.
WARNING!
Do not hold the support with the hand. This
can cause injury. Place the hand under the
support on the lower basket.
The upper basket
Load smaller, fragile crockery and long, sharp cutlery in the upper basket.
• Arrange items of crockery on and under the
folding cup racks so that they are offset from
each other and water can reach all items.
Downloaded from www.vandenborre.be
Load cutlery and dishes
• The cup racks can be folded up out of the way
for tall crockery items.
• Lay or hang wine and brandy glasses in the
slots in the cup racks.
• For glasses with long stems, fold the glass
rack to the right, otherwise fold it away to
the left.
• The row of spikes on the left of the upper
basket is also in two parts and can be folded
away.
Spikes not folded away: place glasses, mugs
etc. in the upper basket.
Spikes folded away: more room for serving
dishes.
Adjusting the height of the upper basket
Maximum height of the dishes in:
the upper basket
the lower basket
With upper basket raised
22 cm
30 cm
With upper basket lowered
24 cm
29 cm
The height of the upper basket can also be adjusted when it is loaded.
Downloaded from www.vandenborre.be
17
18
Use of detergent
Raising / lowering the upper basket:
1. Pull out the upper basket completely.
2. Holding the upper basket by the handle,
raise it as far as it will go and then lower
it vertically.
The upper basket will latch into the lower
or the upper position.
WARNING!
After loading your machine always close the
door, as an open door can be a hazard.
Before closing the door, ensure that the spray
arms can rotate freely.
Use of detergent
Only use detergents specifically designed for use in dishwashers.
Please observe the manufacturer's dosing and storage recommendations as stated on the
detergent packaging.
Using no more than the correct amount of detergent contributes to reducing pollution.
Fill with detergent
1. Open the lid.
Downloaded from www.vandenborre.be
Multi-tab function
19
2. Fill the detergent dispenser (1) with detergent. The marking indicates the dosing
levels:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.
3. All programmes with prewash need an additional detergent dose (5/10 g) that must
be placed in the prewash detergent chamber (2).
This detergent will take effect during the
prewash phase.
4. When using detergent tablets, place the
tablet in compartment (1)
5. Close the lid and press until it locks in
place.
Detergent tablets
Detergent tablets from different manufactures dissolve at different rates. For this reason,
some detergent tablets do not attain their full
cleaning power during short washing programmes. Therefore, please use long washing
programmes when using detergent tablets, to
ensure the complete removal of detergent residuals.
Multi-tab function
This appliance is equipped with the "Multitab function", that allows the use of the "Multitab"
combi detergent tablets.
These products are detergents with a combined cleaning, rinsing and salt functions. They
can also contain other different agents depending on which kind of tablets you choose ("3
in 1", "4 in 1", "5 in 1" etc...).
Check whether these detergents are suitable for your water hardness. See the manufacturers instructions.
This function can be selected with all washing programmes. With the selection of this
function the inflow of rinse aid and salt from each respective supply container is automatically deactivated and also the indicator lights for salt and rinse aid are deactivated.
Select the "Multitab function " before the start of a washing programme.
Once this function is selected (indicator light illuminated) it will remain active also for the
following washing programmes.
With the use of the "Multitab function", the cycle durations may change. In this case, in
the digital display, the indication of the running time of the programme is automatically
updated.
Downloaded from www.vandenborre.be
20
Multi-tab function
Once the programme is running, the "Multitab function " can NO longer be changed. If you
want to exclude the "Multitab function " you have to cancel the programme setting and
then deactivate the "Multitab function ".
In this case you have to set a washing programme (and desired options) again.
Activation/deactivation of the Multitab function
Press the Multitab button: the corresponding indicator light illuminates. This means that
the function is active.
To deactivate the function press the Multitab button again: the indicator light turns off.
If the drying results are not satisfactory we suggest that you:
1. Fill up the rinse aid dispenser with rinse aid.
2. Activate the rinse aid dispenser.
3. Set the rinse aid dosage to position 2.
• The activation/deactivation of the rinse aid dispenser can only be possible with the
"Multitab function" active.
Activation/deactivation of the rinse aid dispenser
1. Press the On/Off button. The dishwasher must be in setting mode.
2. Press simultaneously buttons B and C, until the lights of buttons A , B, and C start
flashing.
3. Press button B, the lights of buttons A and C turn off while the light of button B goes
on flashing. The digital display indicates the current setting:
= Rinse aid dispenser deactivated.
= Rinse aid dispenser activated.
4. To change the setting, press button B again, the digital display indicates the new setting.
5. To memorise the operation, switch off the dishwasher by pressing the On/Off button.
If you decide to turn back to the use of standard detergent system we advise that you:
1. Deactivate the "Multitab function".
2. Fill up the salt container and the rinse aid dispenser again.
3. Adjust the water hardness setting to the highest setting and perform 1 normal washing
programme without loading any dishes.
4. Adjust the water hardness setting according to the hardness of the water in your area.
5. Adjust the rinse aid dosage.
Downloaded from www.vandenborre.be
Washing programmes
21
Washing programmes
Crockery
and cutlery
6
GLASS 45°
Normal
soil
Delicate
crockery
and glassware
-
7
RINSE AND
HOLD
Any
Partial load
(to be completed later
in the
day)6)
-
12 -23 Water (litres)
Normal
soil
16 - 18
5
1 HOUR 55°
9
Crockery
and cutlery
12 - 13
Normal
soil
11 - 12
4
ECO 50°5)
14 - 15
Crockery
and cutlery
4
Light soil
1.1 - 1.7 Energy (kWh)
3
30 MIN 60°4)
1,5 - 1,7
Crockery,
cutlery,
pots and
pans
0,9
Heavy soil
0,8 - 0,9 1,0 - 1,2 1,0 - 1,1
2
INTENSIV
CARE 70°
0,1
Mixed nor- Crockery,
mal and
cutlery,
heavy soil pots and
pans
-
1
AUTO
45-70°3)
-
- Duration (minutes)2)
Consumption values 1)
Drying
Final rinse
Programme description
1/2x Intermediate rinse
Type of
load
Main wash
Degree of
soil
Prewash
Programme
1) The consumption values are intended as a guide and depends on the pressure and the temperature of the water
and also by the variations of the power supply and the amount of dishes.
2) The digital display shows the programme duration.
3) During the Auto washing programme the amount of soil on the dishes is determined by how cloudy the water
is. The programme duration, water and energy consumption levels can vary; this depends upon if the appliance
is fully or partially loaded and if the dishes are lightly or heavily soiled. The temperature of the water is
automatically adjusted between 45° C and 70° C.
4) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet the needs
of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.
5) Test programme for test institutes.
6) This programme does not require the use of detergent
Downloaded from www.vandenborre.be
22
Select and start a washing programme
Option available with washing programme
Programme
ÖKO PLUS
Half load
1
AUTO 45-70°
Selectable
impact on washing programme
No
2
INTENSIV CARE 70°
Selectable
impact on washing programme
Yes
3
30 MIN 60°
Selectable
no impact on washing programme
No
4
ECO 50°
Selectable
impact on washing programme
Yes
5
1 HOUR 55°
Selectable
no impact on washing programme
No
6
GLASS 45°
Selectable
impact on washing programme
No
7
RINSE AND HOLD
Selectable
no impact on washing programme
No
Select and start a washing programme
Select the washing programme and delay start with the door slightly opened. The
start of the programme or the countdown of the delay start will occur only after
the closure of the door. Until then it is possible to modify the settings.
1. Check that the baskets have been loaded correctly and that the spray arms are free to
rotate.
2. Check that the water tap is opened.
3. Press the On/Off button. The dishwasher must be in setting mode.
4. Press one of the programme selection buttons until the number corresponding to the
required programme appears in the digital display (see "Washing programmes" chart).
The lights of the programme selection buttons and programme number are flashing.
5. If you want to set option please refer to the "Washing programmes" chart to be sure
that the option is available with the selected programme.
6. Close the dishwasher door, the programme starts automatically.
Setting and starting the programme with delay start
1. After having selected the washing programme, press the delay start button until the
number of hours for the delay start appear in the digital display. The start of the selected
washing programme can be delayed for between 1 and 19 hours.
2. Close the dishwasher door, the countdown starts automatically.
3. The countdown will decrease with steps of 1 hour.
4. The opening of the door will interrupt the countdown. Close the door; the countdown
will continue from the point at which it was interrupted.
5. Once the delay start has elapsed the programme will start automatically.
Downloaded from www.vandenborre.be
Unloading the dishwasher
23
WARNING!
Interrupt or cancel a washing programme in progress ONLY if it’s absolutely necessary. Attention! Hot steam may escape when the door is opened. Open the door
carefully.
Cancelling a delay start or a washing programme in progress
• Simultaneously press and hold the two programme buttons positioned over the word
RESET, until 2 horizontal lines will appear in the digital display.
• Cancelling a delay start involves also the cancelling of the washing programme set. In
this case you have to set the washing programme again.
• If a new washing programme is to be selected, check that there is detergent in the
detergent dispenser.
Interrupt a washing programme in progress
• Open the dishwasher door; the programme will stop. Close the door; the programme will
start from the point at which it was interrupted.
End of the washing programme
• The dishwasher will automatically stop and an audible signal informs you of the end of
the washing programme.
1. Open the dishwasher door.
2. In the digital display is visible 0
3. The end of programme indicator light is illuminated.
4. Switch off the dishwasher by pressing the On/Off button.
It is recommended to switch off the appliance once the washing programme has ended. If
this is not done, automatically after about 3 minutes from the end of the programme, all
indicator lights will go off. The digital display shows 1 horizontal bar.
This will help to reduce the consumption of energy when you forget or for any reason
cannot switch the appliance off once the programme has ended.
Press any button (except On/Off) and the control panel will show the same situation (indicator lights and digital display) as when the programme ended.
5. Leave the dishwasher door ajar and wait a few minutes before removing the dishes; in
this way they will be cooler and the drying will be improved.
If the Save Energy option was set, dishes could be wet once the programme finished. We
suggest to leave the appliance door ajar so that dishes can dry naturally.
Unloading the dishwasher
• Hot dishes are sensitive to knocks.
The dishes should therefore be allowed to cool down before removing from the appliance.
• Empty the lower basket first and then the upper one; this will avoid water dripping from
the upper basket onto the dishes in the lower one.
• Water may appear on the sides and the door of the dishwasher as the stainless steel will
eventually become cooler than the dishes.
Downloaded from www.vandenborre.be
24
Care and cleaning
CAUTION!
When the washing programme has finished, it is recommended that the dishwasher is
unplugged and the water tap turned off.
Care and cleaning
Cleaning the filters
The filters must be checked and cleaned from time to time. Dirty filters will degrade the
washing result.
WARNING!
Before cleaning the filters ensure that the machine is switched off.
1. Open the door, remove the lower basket.
2. The dishwasher filter system comprises a
coarse filter (A), a microfilter (B) and a flat
filter. Unlock the filter system using the
handle on the microfilter.
3. Turn the handle about 1/4 a turn anticlockwise and remove the filter system.
4. Take hold of the coarse filter (A) by the
handle with the hole and remove from
the microfilter (B).
5. Clean all filters thoroughly under running water.
Downloaded from www.vandenborre.be
Care and cleaning
25
6. Remove the flat filter from the base of
the washing compartment and clean
both faces thoroughly.
7. Put the flat filter back in the base of the
washing compartment and ensure that
it fits perfectly.
8. Place the coarse filter (A) in the microfilter (B) and press together.
9. Put the filter combination in place and
lock by turning the handle clockwise to
the stop. During this process ensure
that the flat filter does not protrude
above the base of the washing compartment.
WARNING!
NEVER use the dishwasher without filters. Incorrect repositioning and fitting of the filters
will produce poor washing results and may result in damage to the appliance.
Cleaning the spray arms
NEVER try to remove the spray arms.
If residues of soil have clogged the holes in the spray arms, remove them with a cocktail
stick.
External cleaning
Clean the external surfaces of the machine and control panel with a damp soft cloth. If
necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent
(acetone, trichloroethylene etc....).
Internal cleaning
Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned
regularly with a damp cloth.
We recommend every 3 months to run the wash programme for heavy soiled dishes using
detergent but without dishes.
Prolonged periods of non-operation
If you are not using the machine for any prolonged period of time you are advised to:
1. Unplug the appliance and then turn off the water.
2. Leave the door ajar to prevent the formation of any unpleasant smells.
3. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the temperature is below 0°C. If this is
unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe
and empty it.
Downloaded from www.vandenborre.be
26
What to do if…
Moving the machine
If you have to move the machine (moving house etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
What to do if…
The dishwasher will not start or stops during operation. Certain problems are due to the
lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out an engineer.
Switch off the dishwasher and carry out the following suggested corrective actions.
Fault code and malfunction
Possible cause and solution
•
appears in the digital display.
• intermitted audible signal
The dishwasher does not fill with water.
• The water tap is blocked or furred with limescale.
Clean the water tap.
• The water tap is turned off. Turn the water tap
on.
• The filter (where present) in the threaded hose
fitting at the water inlet valve is blocked.
Clean the filter in the threaded hose.
• The water inlet hose has not been correctly
laid or it is bent or squashed.
Check the water inlet hose connection.
•
appears in the digital display.
• intermitted audible signal
The dishwasher will not drain.
• The sink spigot is blocked.
Clean out the sink spigot.
• The water drain hose has not been correctly
laid or it is bent or squashed.
Check the water drain hose connection.
•
appears in the digital display.
• intermitted audible signal
Anti-flood device is activated.
• Close the water tap and contact your local
Service Force Centre.
The programme does not start.
• The dishwasher’s door has not been properly
closed. Close the door.
• The main plug is not plugged in. Insert the
main plug.
• The fuse has blown out in the household fuse
box.
Replace the fuse.
• Delay start has been set.
If dishes are to be washed immediately, cancel
the delay start.
Downloaded from www.vandenborre.be
Technical data
27
Once these checks have been carried out, switch on the appliance: the programme will
continue from the point at which it was interrupted.
If the malfunction or fault code reappears contact the Service Force Centre.
For other fault codes not described in the above chart, please contact your local Service
Force Centre, quoting the model (Mod.), product number (PNC) and serial number (S.N.).
This information can be found on the rating plate located on the side of the dishwasher
door.
So that you always have these numbers at hand, we recommend you to make a note of
them here:
Mod. : . . . . . . . . . . . . . . . . . . . . . . .
PNC :. . . . . . . . . . . . . . . . . . . . . . . .
S.N. : . . . . . . . . . . . . . . . . . . . . . . . .
The wash results are not satisfactory
The dishes are not clean
• The wrong washing programme has been selected.
• The dishes are arranged in such a way as to
stop water reaching all parts of the surface.
The baskets must not be overloaded.
• The spray arms do not rotate freely due to
incorrect arrangement of the load.
• The filters in the base of the washing compartment are dirty or incorrectly positioned.
• Too little or no detergent has been used.
• Where there are limescales deposits on the
dishes; the salt container is empty or the incorrect level of the water softener has been
set.
• The drain hose connection is not correct.
• The salt container cap is not properly closed.
The dishes are wet and dull
• Rinse aid was not used.
• The rinse aid dispenser is empty.
There are streaks, milky spots or a bluish coating • Decrease rinse aid dosing.
on glasses and dishes
Water drops have dries onto glasses and dishes
• Increase rinse aid dosing.
• The detergent may be the cause. Contact the
detergent manufacturer’s consumer care line.
If after all these checks, the problem persists, contact your local Service Force Centre.
Technical data
Dimension
Width - height - depth (cm)
59,6 x 81,8-89,8 x 55,5
Electrical connection - Voltage Information on the electrical connection is given on the rating
- Overall power - Fuse
plate on the inner edge of the dishwasher's door
Water supply pressure
Minimum - Maximum (MPa)
0,05 - 0,8
Capacity
Place settings
12
Downloaded from www.vandenborre.be
28
Hints for test institutes
Hints for test institutes
Testing in accordance with EN 60704 must be carried out with appliance fully loaded and
using the test programme (see "Washing programmes").
Test in accordance with EN 50242 must be carried out when the salt container and rinse
aid dispenser have been filled with salt and rinse aid respectively and using the test programme (see "Washing programmes").
Full load: 12 standard place settings
Amount of detergent required:
5 g + 25 g (Type B)
Rinse aid setting:
position 4 (Type III)
Example loading arrangements:
Upper basket 1)
Lower basket with cutlery basket2)
Cutlery basket
1) If there are cup racks in place on the lefthand side, remove them.
2) If necessary, you can remove the cup racks on the lefthand side and/or the beer glass holder.
Downloaded from www.vandenborre.be
Installation
29
Installation instructions
Installation
WARNING!
Any electrical and/or plumbing work required to install this appliance should be carried out
by a qualified electrician and/or plumber or competent person.
Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a drain.
This dishwasher is designed to be fitted under a kitchen counter or work surface.
Attention! Carefully follow the instructions on the enclosed template for building in the
dishwasher and fitting the furniture panel.
No further openings for the venting of the dishwasher are required, but only to let the
water fill and drain hose and power supply cable pass through.
The dishwasher incorporates adjustable feet to allow the adjustment of the height.
During all operations that involve accessibility to internal components the dishwasher has
to be unplugged.
When inserting the machine, ensure that the water inlet hose, the drain hose and the supply
cable are not kinked or squashed.
Fixing to the adjacent units
The dishwasher must be secured against tilting.
Therefore make sure that the counter it is fixed under, is suitably secured to a fixed structure
(adjacent kitchen unites, cabinets, wall).
Levelling
Good levelling is essential for correct closure and sealing of the door. When the appliance
is correctly levelled, the door will not catch on either side of the cabinet. If the door does
not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.
Water connection
Water supply connections
This appliance can be connected to either a hot (max. 60°) or cold water supply.
With a hot water supply you can have a significant reduction of energy consumption. This
however, depends on how the hot water is produced. (We suggest alternative sources of
energy that are more environmentally friendly as e.g. solar or photovoltaic panels and
aeolian).
For making the connection itself, the coupling nut fitted to the machine's supply hose is
designed to screw onto a 3/4" gas thread spout or to a purpose made quick-coupling tap
such as the Press-block.
The water pressure must be within the limits given in the "Technical specifications". Your
local Water Authority will advise you on the average mains pressure in your area.
The water inlet hose must not be kinked, crushed, or entangled when it is being connected.
Downloaded from www.vandenborre.be
30
Water connection
The dishwasher features fill and drain hoses which can be turned either to the left or the
right to suit the installation by means of the locknut.
The locknut must be correctly fitted to avoid water leaks.
(Attention! NOT all models of dishwashers have fill and drain hoses provided with locknut.
In this case, this kind of facility is not possible). If the machine is connected to new pipes
or pipes which have not been used for a long time, you should run the water for a few
minutes before connecting the inlet hose.
DO NOT use connection hoses which have previously been used for an old appliance.
This appliance has been fitted with safety features which will prevent the water used in
the appliance from returning back into the drinking water system. This appliance complies
with the applicable plumbing regulations.
Water inlet hose with safety valve
After connecting the double-walled water inlet hose, the safety valve is next to the tap.
Therefore the water inlet hose is only under pressure while the water is running. If the
water inlet hose starts to leak during this operation, the safety valve cuts off the running
water.
Please take care when installing the water inlet hose:
• The electrical cable for the safety valve is in the double-walled water inlet hose. Do not
immerse the water inlet hose or the safety valve in water.
• If water inlet hose or the safety valve is damaged, remove the mains plug immediately.
• A water inlet hose with safety valve must only be replaced by a specialist or by the Service
Force Centre.
WARNING!
Warning! Dangerous voltage.
Water outlet hose connection
The end of the drain hose can be connected in the following ways:
1. To the sink outlet spigot, securing it to the underside of the work surface. This will
prevent waste water from the sink running into the machine.
2. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm.
Downloaded from www.vandenborre.be
Electrical connection
31
The waste connection must be at a maximum
height of 60 cm from the bottom of the dishwasher.
The drain hose can face either to the right or left
of the dishwasher.
Ensure the hose is not bent or squashed as this
could prevent or slow down the discharge of water.
The sink plug must not be in place when the machine is draining as this could cause the water to
syphon back into the machine.
The total length of the drain hose, including any
extension you might add, must be no longer than
4 metres. The internal diameter of the extension
hose must be no smaller than the diameter of the
hose provided.
Likewise the internal diameter of the couplings used for connections to the waste outlet
must be no smaller than the diameter of the hose provided.
When connecting the drain hose to an under sink trap spigot, the entire plastic membrane
(A) must be removed. Failure to remove all the membrane will result in food particles
building up over time eventually blocking the dishwasher drain hose spigot.
Our appliances are supplied with a security device to protect
against the return of dirty water back into the machine. If the
spigot of your sink has a "no return valve" incorporated this
can prevent the correct draining of your dishwasher. We
therefore advise you to remove it.
To avoid water leakage after installation make sure that the
water couplings are tight.
Electrical connection
WARNING!
Safety standards require the appliance to be earthed.
Prior to using the appliance for the first time, ensure that the rated voltage and type of
supply on the rating plate match that of the supply where the appliance is to be installed.
The fuse rating is also to be found on the rating plate.
Always plug the mains plug into a correctly installed shockproof socket. Multi-way plugs,
connectors and extension cables must not be used.
This could constitute a fire hazard through overheating.
If necessary, have the domestic wiring system socket replaced. In case that the electrical
cable has to be replaced, contact your local Service Force centre.
The plug must be accessible after the appliance has been installed.
Never unplug the appliance by pulling on the cable. Always pull the plug.
The manufacturer accepts no liability for failure to observe the above safety precautions.
Downloaded from www.vandenborre.be
32
Environment concerns
Environment concerns
The symbol
on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product, please contact
your local council, your household waste disposal service or the shop where you purchased
the product.
Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging
materials in the appropriate container at the community waste disposal facilities.
WARNING!
When a unit is no longer being used:
• Pull the plug out of the socket.
• Cut off the cable and plug and dispose of them.
• Dispose of the door catch. This prevents children from trapping themselves inside and
endangering their lives.
Downloaded from www.vandenborre.be
33
Downloaded from www.vandenborre.be
34
Downloaded from www.vandenborre.be
35
Downloaded from www.vandenborre.be
117965260 - 062008
www.electrolux.com
Downloaded from www.vandenborre.be
Download PDF

advertising
