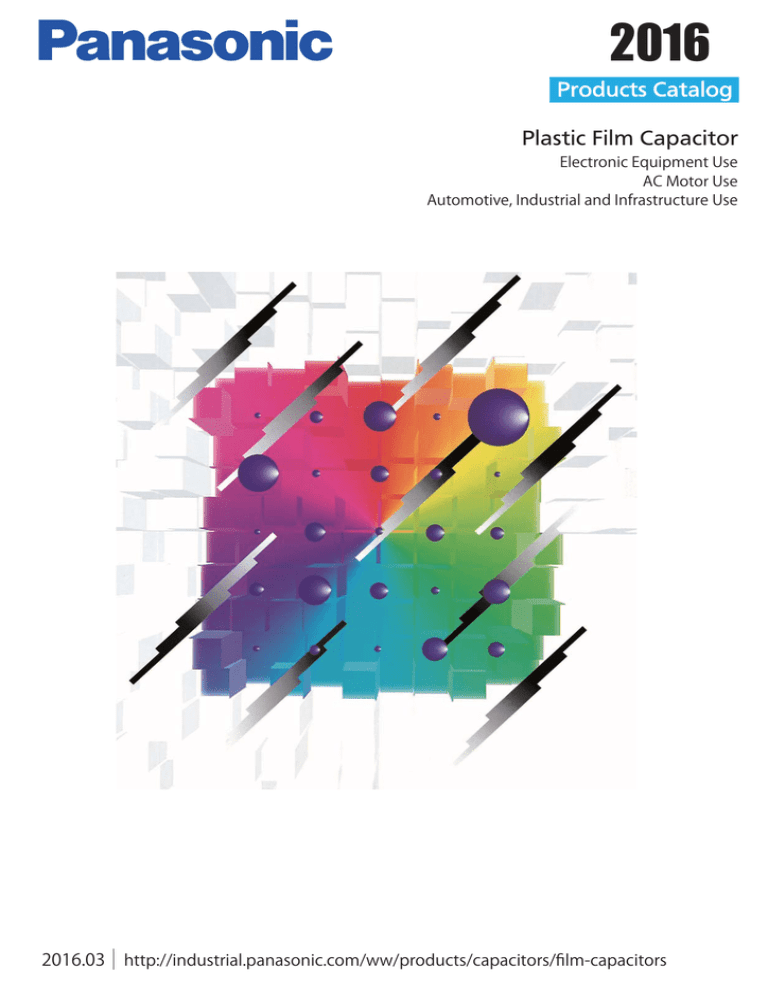

2016

Plastic Film Capacitor

Electronic Equipment Use

AC Motor Use

Automotive, Industrial and Infrastructure Use

2016.03

http://industrial.panasonic.com/ww/products/capacitors/film-capacitors

INDEX

・Electronic Equipment Use

Dielectric

Stacked Metallized PPS Film Chip Capacitor

Stacked Metallized PEN Film Chip Capacitor

Stacked Metallized Plastic Film Chip Capacitor

Metallized Polyester Film Capacitor

Metallized Polypropylene Film Capacitor

Metallized Polypropylene Film Capacitor

Metallized Polyester Film Capacitor

Series

ECHU (X)

ECHU (C)

ECWU (X)

ECWU (C)

ECWU (V16)

ECPU (A)

ECQE (F)

ECQE (B)

ECQE (T)

ECWF (L)

ECWF (A)

ECWFD

ECWFE

ECWH (V)

ECWH (A)

ECWH (C)

TMF

ECQUA

ECQUL

ECQUG

・AC Motor Use

Dielectric

Film Capacitor for AC Motor

Series

AMF

DMF

PMF/SMF

Automotive, Industrial and Infrastructure Use

Dielectric

Metallized Polyester Film Capacitor for Noise Suppression of Automobile

DC-link Film Capacitor

Metallized Polypropylene

Series

ECQE

Type1

EZPE

EZPE (Low profile)

Summary of Products

Electronic Equipment Use

Dielectric Type Appearance

Operating

Temp

Rating Feature Application

Stacked Metallized

PPS Film

Chip Capacitor

ECHU(X)

ECHU(C)

–55 °C to

+125 °C

–55 °C to

+105 °C

0.00010 μF to 0.22 μF

16 V.DC,

50 V.DC

0.010 μF to 0.22 μF

100 V.DC

● Non-inductive, Stacked

● Tight C-Tol.

● Refl ow soldering

● Non-inductive, Stacked

● Tight C-Tol.

● Refl ow soldering

● Non-inductive

● Refl ow soldering

● High density mounting

● High density mounting

● Resonance circuit for

LCD B/L inverter unit

● High density mounting ECWU(X)

–55 °C to

+105 °C

0.0010 μF to 0.010 μF

100 V.DC

Stacked Metallized

PEN Film

Chip Capacitor

ECWU(C)

ECWU(V16)

–55 °C to

+125 °C

–55 °C to

+85 °C

0.0010 μF to 1.0 μF

100 V.DC to 630 V.DC

0.0010 μF to 0.12 μF

250 V.DC

● Non-inductive

● Refl ow soldering

● Non-inductive

● Refl ow soldering

● Ringer circuit telephone PBX

● DC Blocking for xDSL

● Ringer circuit telephone PBX

● DC Blocking for xDSL

● Coupling

Stacked Metallized

Plastic Film

Chip Capacitor

ECPU(A)

–40 °C to

+85 °C

0.10 μF to 1.0 μF

16 V.DC

● Non-inductive

● Refl ow soldering

Metallized

Polyester

Film Capacitor

ECQE(F)

ECQE(B)

ECQE(T)

ECWF(L)

ECWF(A)

ECWFD

–40 °C to

+105 °C

–40 °C to

+105 °C

–40 °C to

+105 °C

–40 °C to

+105 °C

–40 °C to

+105 °C

–40 °C to

+110 °C

0.0010 μF to 10 μF

100 V.DC to 1250 V.DC,

125 V.AC, 250 V.AC

0.010 μF to 4.7 μF

250 V.DC

125 V.AC

0.010 μF to 10 μF

250 V.DC to 630 V.DC

125 V.AC, 250 V.AC

0.010 μF to 2.4 μF

400 V.DC,

630 V.DC

0.10 μF to 6.8 μF

250 V.DC to 630 V.DC

0.1 μF to 4.7 μF

450 V.DC

● Epoxy resin coating

● Wide capacitance range

● Epoxy resin coating

● Miniaturization of

ECQE(F) type

● Epoxy resin coating

● Excellent moisture resistance

● Epoxy resin coating

● Low D.F

● Excellent moisture resistance

● Miniaturization of

ECWF(L) type

● Low D.F

● Epoxy resin coating

● Low D.F

● Miniaturization of

ECWF(A) type

● Box type

● Low D.F

● General purpose

● Noise suppressor

● General purpose

● Noise suppressor

● Electric circuit of high humidity equipment

● High frequncy high current circuit

● Active fi ltering circuit

● High frequency high current circuit

● Active fi ltering circuit

● High frequency high current circuit

NEW

ECWFE

–40 °C to

+105 °C

0.10 μF to 4.7 μF

450 V.DC, 630 V.DC

● Active fi ltering circuit

● High frequency high current circuit

Metallized

Polypropylene

Film Capacitor

Metallized

Polypropylene

Film Capacitor

Metallized

Polyester

Film Capacitor

ECWH(V)

ECWH(A)

ECWH(C)

TMF

ECQUA

ECQUL

ECQUG

–40 °C to

+105 °C

–40 °C to

+105 °C

–40 °C to

+105 °C

(+85 °C)

–25 °C to

+85 °C

–40 °C to

+110 °C

–40 °C to

+100 °C

–40 °C to

+100 °C

0.0010 μF to 0.10 μF

1000 V.DC to 2000 V.DC

0.0010 μF to 0.047 μF

800 V.DC, 1600 V.DC

0.0024 μF to 0.33 μF

630 V.DC to 3000 V.DC

Smoothing circuit

1 μF to 10 μF

150 V.AC to 220 V.AC

350 V.DC to 630 V.DC

Resonance circuit

0.01 μF to 4.0 μF

300 V.AC to 2300 V.AC

500 V.DC to 1200 V.DC

● Epoxy resin coating

● Low D.F

● Small in size

● High frequency high current circuit

● Epoxy resin coating

● Low D.F

● Miniaturization of

ECWH(VV) type

● Epoxy resin coating

● Low D.F

● Wide voltage range up to 2300 V.AC

● High frequency and high current capability

● Low loss/Low ESR

● Long life time/High reliability

● Flame retardant

● General resonant circuits

● General resonance circuit

● Microwave oven

● IH resonance circuit

● General resonance and smoothing circuits for IH and

Industry

0.10 μF to 2.2 μF

275 V.AC

● Box type

● UL, CSA, VDE

Approved (ClassX2)

Worldwide

● Noise suppressor for AC line

0.0010 μF to 2.2 μF

275 V.AC (250 V.AC)

0.010 μF to 1.0 μF

300 V.AC (250 V.AC)

● Box type

● UL, CSA, VDE

Approved (ClassX2)

Worldwide

● Noise suppressor for AC line

● Equipped with a safety mechanism

● UL, CSA, NEMKO, ENEC

Approved (ClassX1)

Worldwide

● Noise suppressor for AC line

✽ Operating temp. : Including temperature-rise on unit surface. Refer to each product page for details.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Summary of Products

AC Motor Use

Dielectric

Film Capacitor for AC Motor

AMF

DMF

Type

PMF/SMF

Appearance

Operating

Temp

Rating

–25 °C to

+70 °C

10 μF to 40 μF

180 V.AC to 440 V.AC

–25 °C to

+70 °C

–25 °C to

+70 °C

10 μF to 60 μF

180 V.AC to 450 V.AC

0.5 μF to 65 μF

150 V.AC to 500 V.AC

Feature Application

● High safety (safety function installed)

● High reliability

● Small size, lightness, and low loss

● High safety (with built-in safety device)

● High reliability, IEC S2/

P2 standard approval

● Small size, lightness, and low loss

● High safety (safety function installed)

● High reliability, IEC S3/

P2 standard approval

● Small size, lightness, and low loss

● Motor and compressor

● Motor and compressor

● Motor and small compressor

✽ The range of IEC approval is different depending on each approval.

Automotive, Industrial and Infrastructure Use

Dielectric Type Appearance

Operating

Temp

Metallized Polyester

Film Capacitor for Noise

Suppression of Automobile

ECQE

–40 °C to

+130 °C

Rating

0.47 μF, 2.2 μF, 4.7 μF

250 V.DC

DC-Link

Film Capacitor

Metallized Polypropylene

Film Capacitors

Type1

EZPE

EZPE

(Low profile type)

–40 °C to

+105 °C

–40 °C to

+85 °C

–40 °C to

+85 °C

Feature

● Box type

Application

● Noise suppressor for automobile

581 μF

450 V.DC

10 μF to 110 μF

500 V.DC to 1300 V.DC

29 μF, 66 μF

450 V.DC, 525 V.DC

● High safety, Self-healing and Self-protecting

● Any automotive and/ or other application function built in.

● No catastrophic failure upon natural end of life due to inbuilt fuse function requiring DC

Linkage

● High safety, Self-healing and Self-protecting

● DC fi ltening

● DC link circuit function built-in

● Long product life, reliability

● Low loss, Low ESR

● Flame retardant

● High safety, Self-healing and Self-protecting function built-in

● Long product life,

High moisture resistance

● Low loss, Low ESR

● Flame retardant

● Solar inverters,

Micro inverters

● Wind power generation

● Industrial power supplies

● Inverter circuit in appliances (Air

Conditioners etc.)

✽ Operating temp. : Including temperature-rise on unit surface. Refer to each product page for details.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Series system diagram

Series system diagram

Stacked Metallized PPS Film

Chip Capacitor

High performance

High density surface mounting

ECHU(X)

Volt. : 16 V.DC to 50 V.DC

Temp. : −55 ˚C to +125 ˚C

Cap. : 0.00010 μF to 0.22 μF

High performance

High density surface mounting

ECHU(C)

Volt. : 100 V.DC

Temp. : −55 ˚C to +105 ˚C

Cap. : 0.010 μF to 0.22 μF

Surface mounting type

Stacked Metallized PEN Film

Chip Capacitor

General- purpose

High density surface mounting

ECWU(X)

Volt. : 100 V.DC

Temp. : −55 ˚C to +105 ˚C

Cap. : 0.0010 μF to 0.010 μF

General- purpose

Ringer circuit for telephone, PBX etc.

ECWU(C)

Volt. : 100 V.DC to 630 V.DC

Temp. : −55 ˚C to +125 ˚C

Cap. : 0.0010 μF to 1.0 μF

Special application

DC Blocking for xDSL

ECWU(V16)

Volt. : 250 V.DC

Temp. : −55 ˚C to +85 ˚C

Cap. : 0.0010 μF to 0.12 μF

Stacked Metallized Plastic Film

Chip Capacitor

Small in size and large capacitance

Audio circuit etc.

ECPU(A)

Volt. : 16 V.DC

Temp. : −40 ˚C to +85 ˚C

Cap. : 0.10 μF to 1.0 μF

Metallized Polyester

Film Capacitor

Miniaturization of ECQE(F)

General-purpose

ECQE(B)

Volt. : 250 V.DC

125 V.AC

Temp. : −40 ˚C to +105 ˚C

Cap. : 0.010 μF to 4.7 μF

Standard

General-purpose

ECQE(F)

Volt. : 100 V.DC to 1250 V.DC

125 V.AC to 250 V.AC

Temp. : −40 ˚C to +105 ˚C

Cap. : 0.0010 μF to 10.0 μF

High humidity type

Lighting, Automotive etc.

(85 °C, 85 % guarantee)

ECQE(T)

Volt. : 250 V.DC to 630 V.DC

125 V.AC, 250 V.AC

Temp. : −40 ˚C to +105 ˚C

Cap. : 0.010 μF to 10.0 μF

Special application

Case type

Noise suppressor for automobile

ECQE

Volt. : 250 V.DC

Temp. : −40 ˚C to +130 ˚C

Cap. : 0.47, 2.2, 4.7 μF

Radial lead type

NEW

Case of

ECWFD type

Active filtering circuit

High frequency

Equipped with a safety mechanism

ECWFE

Volt. : 450V.DC, 630V.DC

Temp. : −40 ˚C to +105 ˚C

Cap. : 0.1 μF to 4.7 μF

Miniaturization of

ECWF(A) type

Active filtering circuit

High frequency

Equipped with a safety mechanism

ECWFD

Volt. : 450V.DC

Temp. : −40 ˚C to +110 ˚C

Cap. : 0.1 μF to 4.7 μF

Metallized Polypropylene

Film Capacitor

Middle voltage and

High current

High frequency and

High current circuit

ECWF(L)

Volt. : 400 V.DC to 630 V.DC

Temp. : −40 ˚C to +105 ˚C

Cap. : 0.010 μF to 2.4 μF

Miniaturization of

ECWF(L) type

Active filtering circuit

High frequency and

High current circuit

Equipped with a safety mechanism

ECWF(A)

Volt. : 250 V.DC to 630 V.DC

Temp. : −40 ˚C to +105 ˚C

Cap. : 0.10 μF to 6.8 μF

Hight voltage and

High current

High frequency and

High current circuit

ECWH(V)

Volt. : 1000 V.DC to 2000 V.DC

Temp. : −40˚C to +105 ˚C

Cap. : 0.0010 μF to 0.1 μF

Miniaturization of

ECWH(V) type

High frequency and

High current circuit

ECWH(A)

Volt. : 800 V.DC to 1600 V.DC

Temp. : −40 ˚C to +105 ˚C

Cap. : 0.0010 μF to 0.047 μF

Safety Standard Approval Metallized Film Capacitor

PP

Product for Class X2

Case type

Across-The- Line capacitors for power supply

Equipped with a safety mechanism

ECQUA

Volt. : 275 V.AC

Temp. : −40 ˚C to +110 ˚C

Cap. : 0.10 μF to 2.2 μF

PET

Product for Class X2

Case type

Across-The- Line capacitors for power supply

Equipped with a safety mechanism

ECQUL

Volt. : 275 V.AC (IEC60384−14)

250 V.AC (UL/CSA)

Temp. : −40 ˚C to +100 ˚C

(UL/CSA : 85 ˚C max)

Cap. : 0.0010 μF to 2.2 μF

PET

Product for Class X1

Case type

Across-The- Line capacitors for power supply

Equipped with a safety mechanism

ECQUG

Volt. : 300 V.AC (IEC60384−14)

250 V.AC (UL/CSA)

Temp. : −40 ˚C to +100 ˚C

(UL/CSA : 85 ˚C max)

Cap. : 0.010 μF to 1.0 μF

Resonace circuit

Microwave oven

IH resonance circuit

ECWH(C)

Volt. : 630 V.DC to 3000 V.DC

Temp. : −40 ˚C to +105 ˚C

Cap. : 0.0024 μF to 0.33 μF

UL, CSA, VDE approved

UL, CSA, VDE approved

0.001 μF to 0.0068 μF : (ClassY2/X2)

UL, CSA, ENEC approved

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Switcing Power Supply

Main Applications & Main Products

ECQE ECWF

ECQE ECWF

Lighting

Audio

ECPU

+

PWM

+

ECPU

Wave generator

ECHU

ECWU

ECHU

ECWU

ECQE · ECWF

Non-contact charger

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Main Applications & Main Products

xDSL

Phone

Line

ECWU

ECQE

ECWU

ECQE

ECHU

ECHU

ECHU

ECHU

TX

RX

Microwave oven(IH)

· ECQ · ECQ

Automobile

144 V to

Hybrid car DC/DC Convertars

ECWF

12 V

Smart Keyless Ignition

Igniter

ECHU

Wireless

Noise Suppression of Automobile

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Permissible AC voltage corresponding to DC rated voltage

Permissible voltage (R.M.S) in alternating current corresponding to DC Rated voltage

1. In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor, permissible voltage (R.M.S) in alternating current is shown in the following table.

2. Permissible voltage (R.M.S) in alternating current is not an AC rated voltage.

3. The capacitor of DC rating should not be used at the primary side of power supplies.

4. In case of using ECWH(V) type in CRT horizontal resonance circuit, please apply voltage not higher than permissible voltage (peak-to-peak : p-p) in CRT horizontal resonance circuit shown in the following table.

5. The peak value (zero-to-peak) including pulse of voltage applied capacitor of DC rating should be less than

DC rated voltage.

The permissible pulse current is different in each type of the capacitor, please request the product specifi cations.

6. Please request the product specifi cations or consult us about details of permissible voltage (R.M.S) in alternating current.

ECHU(X)

ECHU(C)

ECWU(X)

ECWU(C)

ECPU(A)

ECQE(F)

ECQE(B)

ECQE(T)

ECWF(A)

ECWFD

ECWFE

ECWF(L)

ECWH(A)

ECWH(C)

ECWH(V)

Type & Series

ECHU1C(X)

ECHU1H(X)

ECHU1(C)

ECWU1(X)

ECWU1(C)

ECWU2(C)

ECWUC2J

ECPU1C(A)

ECQE1(F)

ECQE2(F)

ECQE4(F)

ECQE6(F)

ECQE10(F)

ECQE12(F)

ECQE2(B)

ECQE2(T)

ECQE4(T)

ECQE6(T)

ECWF2(A)

ECWF2W(A)

ECWFA2J

ECWFD2W

ECWFE2W

ECWFE2J

ECWF4(L)

ECWF2W(L)

ECWF6(L)

ECWH8(A)

ECWHA3C

ECWH6(C)

ECWHC3B

ECWHC3F

ECWH10(V)

ECWH12(V)

ECWH16(V)

ECWH20(V)

Rated voltage

(V.DC)

450

630

450

450

630

400

450

630

1000

1250

250

250

400

630

250

800

16

50

100

100

100

250

630

16

100

250

400

630

630

1250

3000

1000

1250

1600

2000

Permissible voltage

(R.M.S) in alternating current

(V.AC)

11

30

40

40

84

141

84

84

141

141

160

223

283

400

500

125

150

200

250

125

40

125

250

12

63

150

200

250

Permissible voltage

(p-p) in CRT horizontal resonance circuit

223

450

1060

283

354

424

531

V1000 Vp-p

V1200 Vp-p

V1500 Vp-p

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Taping Specification for Automatic Insertion (Mounting)

Taping type

Shape

Radial type

Chip type

Name Specifi cation Taping style

Standard taping

Odd size taping (I)

5 mm lead spacing with 12.7 mm body width

5 mm, 7.5 mm lead spacing with 15 mm & up body width

Odd size taping (II) Other than above

Embossed taping Apply for chip type

AD, AS, AB

B, C, D, E, F

Please consult

8 mm, 12 mm, 16 mm, 24 mm carrier tape

Radial type taping

Standard taping

Style AD

P

Style AS

P

Style AB

P

F

F

F

P

0

P

0

Unit : mm Unit : mm

P

P

0

F

H

0

H

1

12.7

12.7

5.0

16.0

34.0 max.

12.7

12.7

5.0

(H)18.0 — 20.0

34.0 max.

Note : H

1

dimension is based on insertion machine “Panasert RH series” made by Panasonic.

Consult with Panasonic technical staff when using other insertion machines.

P

0

12.7

12.7

5.0

16.0

34.0 max.

Unit : mm

Odd size taping (I)

Style B

P

Style C

P

Style D

P

Style E

P

Style F

P

F

F

F

F

F

P

0

P

0

P

0

Unit : mm Unit : mm Unit : mm

P

P

0

F

H

0

H

1

15.0

15.0

5.0

16.0

39.0 max

25.4

12.7

5.0

16.0

39.0 max.

15.0

15.0

7.5

16.0

44.0 max.

Note : H

1

dimension is based on insertion machine “Panasert RH series” made by Panasonic.

Consult with Panasonic technical staff when using other insertion machines.

P

0

Unit : mm

30.0

15.0

7.5

16.0

44.0 max.

P

0

Unit : mm

15.0

15.0

7.5

16.0

44.0 max.

Odd size taping (II)

If the specifi cation of taping is changed by various conditions, including, dimensions, lead spacing and insertion machine, please contact the nearest sales offi ce for further information.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Taping Specification for Automatic Insertion (Mounting)

Dimensions

Style AD, Style B, Style D, Style F

P

2

P h

Style C, Style E

P

F

F

P

1

P

0

fD

0

P

0

P'

0

Unit : mm

W

0

W

1

W

2

H

0

H

1 k k

0

0D

0 t

P’

0

P

1

P

2

F

Δh

W

Code Style AB, AD, AS

P

Style B Style C Style D, F Style E

12.7±1.0 15.0±1.0 25.4±1.0 15.0±1.0 30.0±1.0

P

0

12.7±0.2 15.0±0.2 12.7±0.2 15.0±0.2 15.0±0.2

3.85±0.50

6.35±1.30

5.0

+0.8

−0.2

5.0±0.5

7.5±1.3

5.0

+0.8

−0.2

25.4±0.2 —

3.85±0.50 3.75±0.50 3.75±0.50

6.35±1.30 7.5±1.3

5.0

+0.8

−0.2

7.5

+0.8

−0.2

30.0±0.2

7.5±1.3

7.5

+0.8

−0.2

0±2.0

18.0±0.5

9.5 min.

9.0±0.5

16.0±0.5

34.0 max.

16.0±0.5

39.0 max.

0 — 3.0

16.0±0.5 16.0

+1.0

0

39.0 max.

0

7.0 max.

4.0±0.2

0.7±0.2

44.0 max.

16.0

+1.0

0

44.0 max.

L

✽ Style AS is 18.0 – 20.0 in code H.

11.0 max.

Note : H1 dimension is based on insertion machine “Panasert RH series” made by Panasonic.

Consult with Panasonic technical staff when using other insertion machines.

Packing

Ammo Packing

Indication of content

65 max.

350 max.

Unit : mm

Ammo Box depends on capacitor's dimensions, taping style and quantity.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Taping Specification for Automatic Insertion (Mounting)

Chip type embossed taping

Embossed taping

A

0

P

0

P

2

P

1

fD

1

fD

0

K

T

T

2

Standard packaging quantities

Size code

K1

J1, J2, H1, H2

H3, G1, G2, G3

E1, E2, D1, D2

E3a, E3, D3, D4, D5

B, Z

X, Y, V

Reel

f180

f180

f180

f330

f330

f330

f330

Quantity

4000 pcs/reel

3000 pcs/reel

2000 pcs/reel

3000 pcs/reel

2000 pcs/reel

1500 pcs/reel

1000 pcs/reel

K1

J1

J2

H1, H2

H3

G1, G2

G3

E1

E2

E3a, E3

D1, D2

D3, D4

D5

B

Z

Size code

Dimensions (mm)

A

0

±0.10 B

0

±0.10 W±0.3 F±0.05 E±0.10 P

1

±0.1 P

2

±0.05 P

0

±0.1

fD

0

+0.1

0

1.00

1.85

1.55

1.55

1.90

2.30

2.30

3.50

8.0

3.50

1.75

4.0

2.00

4.0

1.5

1.90

2.80

3.50

3.50

2.80

3.80

3.80

3.80

4.60

3.50

5.10

5.10

5.10

6.30

12.0

5.50

1.75

8.0

2.00

4.0

1.5

4.60

4.60

5.50

5.50

6.30

6.30

6.30

7.50

12.0

5.50

1.75

8.0

2.00

4.0

1.5

fD

1

+0.2

0

1.0

1.5

T±0.05 T

2

±0.2 K±0.1

0.20

1.0

0.9

0.25

1.3

1.5

1.5

1.2

1.4

1.4

1.9

1.9

1.8

1.8

0.30

2.5

2.0

2.6

3.4

2.7

2.4

1.9

2.5

3.3

2.6

0.30

3.5

4.6

5.1

4.7

3.4

4.5

5.0

4.6

Size code

X, Y

V

Dimensions (mm)

A

0

±0.1 B

0

±0.1 W±0.3

F±0.1 E±0.10 P

1

±0.1 P

2

±0.1 P

0

±0.1

fD

0

+0.10

0

6.9

8.4

16.0

7.5

1.75

12.0

2.0

4.0

1.50

8.9

10.5

fD

1

+0.25

0

1.50

T±0.02 T

2

±0.2 K±0.1

0.34

5.7

5.9

5.7

5.8

Reel dimensions

Leader part and tape end

Tape end Leader part

E

C

20Empty Pocket min.

D

W

1

W

2

40 min.

400 min.

Unit : mm

Code

N

W

D

E

A

C

W

1

2

Reel size

f180

Tape width 8

180.0

9.0

0

-1.5

13.0±0.2

21.0±0.8

2.0±0.5

60.0

+1.0

0

+1.0

0

11.4±1.0

Dimensions (mm)

Tape width 12

Reel size

f330

Tape width 16

13.4±1.0

17.4±1.0

330.0±2.0

13.0±0.2

21.0±0.8

2.0±0.5

80.0±1.0

17.4±1.0

21.4±1.0

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Temperature & Frequency Characteristics

Temperature characteristics

Typical curve

Capacitance change

6

4

2

ECQE

0

– 2

ECWF

ECWH

– 4

– 6

– 40 – 20 0 20 40 60 80 100

Temp. (°C)

1.2

1.0

0.8

0.6

0.4

0.2

0

Dissipation factor change

Temp. (°C)

ECQE

ECWF

ECWH

– 40 – 20 0 20 40 60 80 100

10

7

10

6

10

5

10

4

10

3

Insulation resistance change

ECWF

ECWH

ECQE

Capacitance change

3

2

1

0

ECWU

ECHU

– 1

– 2

– 3

– 60 – 40 – 20 0 20 40 60 80 100 120 140

Temp. (°C)

Dissipation factor change

1.2

1.0

0.8

0.6

ECHU

ECWU

0.4

0.2

0

– 60 – 40 – 20 0 20 40 60 80 100 120 140

Temp. (°C)

10

7

10

2

– 40 – 20 0 20 40 60 80 100

Temp. (°C)

Insulation resistance change

10

6

10

5

10

4

10

3

ECWU ECHU

10

2

– 60 – 40 – 20 0 20 40 60 80 100

Temp. (°C)

120 140

Frequency Characteristics

Typical curve

10

8

2

0

6

4

– 2

– 4

– 6

– 8

– 10

1

Cap. : 0.01 μF

10

Capacitance change

100

Frequency (kHz)

ECWF

ECWH

1000

ECQE

10000

0

– 2

– 4

– 6

– 8

– 10

1

10

8

6

4

2

Cap. : 0.01 μF

10

Capacitance change

100

ECHU

Frequency (kHz)

1000

ECWU

10000

Dissipation factor change

5

4

7

6

3

10

9

8

2

1

0

1

Cap. : 0.01 μF

10 100

Frequency (kHz)

1000

ECQE

ECWF

ECWH

10000

Dissipation factor change

4

3

6

5

2

10

9

8

7

1

0

1

Cap. : 0.01 μF

10 100

Frequency (kHz)

ECWU

1000

ECHU

10000

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Product System for Film Chip Capacitor

Dielectric PPS

Type

Rated. volt

ECHU(X)

16 V.DC

50 V.DC

Categorytemp. rarge −55 °C to +125 °C

Cap. tol.

±2 %, ±5 %

ECHU(C)

100 V.DC

100 V.DC

−55 °C to +105 °C

ECWU(C)

250 V.DC

−55 °C to +125 °C

±5 %, ±10 %

PEN

630 V.DC

±5 %

Thermoset resin

ECWU(C)V16 ECWU(X) ECPU(A)

250 V.DC

100 V.DC

16 V.DC

−55 °C to +85 °C −55 °C to +105 °C −40 °C to +85 °C

±5 % ±20 %

Soldering

Cap.

Refl ow Refl ow Refl ow

Size code H Size code H Size code H Size code H Size code H Size code H Size code H Size code H Size code H

0.00010

1608 0.7

2012 0.9

0.00012

1608 0.7

2012 0.9

0.00015

1608 0.7

2012 0.9

0.00018

1608 0.7

2012 0.9

0.00022

1608 0.7

2012 0.9

0.00027

1608 0.7

2012 0.9

0.00033

1608 0.7

2012 0.9

0.00039

1608 0.7

2012 0.9

0.00047

1608 0.7

2012 0.9

0.00056

1608 0.7

2012 0.9

0.068

0.082

0.10

0.12

0.15

0.18

0.22

0.27

0.00068

1608 0.7

2012 0.9

0.00082

1608 0.7

2012 0.9

0.0010

0.0012

0.0015

0.0018

0.0022

0.0027

0.0033

0.0039

0.0047

0.0056

0.0068

0.0082

0.010

0.012

1608

1608

0.7

0.7

2012

2012

0.9

0.9

1608 0.7

2012 0.9

1608 0.7

2012 0.9

1608

1608

2012

2012

0.7

0.7

0.9

0.9

2012

2012

3216

3216

0.9

0.9

2012 0.9

3216 0.9

2012 0.9

3216 0.9

0.9

0.9

2012 0.9

3216 0.9

2012 1.1

3216 1.1

4833 1.4

4833 1.4

4833 1.4

4833 1.4

4833 1.4

4833 1.4

4833 1.4

4833 1.4

4833 1.4

4833 1.4

4833 1.4

4833 1.4

2012 1.1

3216 1.1

4833 1.4

4833 1.4

3216 0.9

3225 1.1

4833 1.4 4833 1.4 4833 1.4

0.015

0.018

0.022

0.027

4833

4833

4833

4833

4833

4833

4833

4833

4833

4833

4833

4833

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

3216

3216

3216

3216

3216

3216

3216

3216

3216

3225

3225

3225

1.1

1.1

1.1

1.1

1.1

1.1

1.5

1.5

1.5

1.5

1.5

2.1

3216 0.9

3225 1.1

4833 2.0 4833 1.4 4833 1.4

3216 0.9

3225 1.5

4833 2.0 4833 1.4 4833 2.0

4833 1.4

3225 2.1

4833 1.4

4833

4833

1.4

2.0

3216 0.9

3225 1.5

4833 2.4 4833 1.4 4833 2.0 7163 3.6 4833 2.0

3216 1.1

3225 1.5

4833 2.8 4833 1.4 4833 2.4 7163 4.1 4833 2.4

0.033

0.039

0.047

0.056

3216 1.1

3225 2.1

6041 1.8 4833 1.4 4833 2.8 7163 5.1 4833 2.8

3216 1.5

3225 2.1

6041 2.0 4833 1.4 6041 2.0

3216 1.5

4833 1.5

6041 2.4 4833 2.0 6041 2.4

3225 1.5

4833 1.5

6041 2.8 4833 2.0 6041 2.8

6041

6041

6041

2.0

2.4

2.8

3225

3225

3225

1.5

2.1

2.1

4833

4833

4833

6041

1.5

2.1

2.1

1.9

6041

7150

7150

7150

3.2 4833 2.4 6041 3.2

2.8 4833 2.8 6050 3.2

3.0 6041 1.8 6050 3.8

3.4 6041 2.4 6050 4.5

6041 1.9

7163 3.4 6041 2.8

6041 2.5

7163 4.0 7150 2.0

6041 2.8

7163 4.8 7150 2.4

7150 2.9

6041 3.2

6050 3.2

6050 3.8

6050 4.5

0.33

0.39

0.47

0.56

7150 3.5

7755 3.4

7755 4.0

9863 3.0

0.68

0.82

9863 3.6

9863 4.3

1.0

9863 5.1

✽ Please confirm in the individual page because the specifications depend on the partial capacitance.

2012

3216

3216

3216

3216

3216

3225

1.0

0.8

0.8

1.0

1.4

1.4

1.4

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Stacked Metallized PPS Film

Chip Capacitor

Type :

ECHU(X)

Stacked metallized PPS fi lm as dielectric with simple mold-less construction

Features

Small in size (Minimum size 1.6 mm × 0.8 mm)

85 °C, 85 %RH, W.V. × 1.0 for 500 hours

For refl ow soldering

RoHS directive compliant

Recommended applications

Time-constant

Filtering

Oscillation and resonance

Audio circuit

Explanation of part number

E C H U X

Product code Dielectric & construction

Rated voltage Capacitance Cap. Tol.

Suffix Suffix

1C

1H

16 V.DC

50 V.DC

G

J

±2 %

±5 %

Code Tape width

5

9

8 mm

12 mm

Reel diameter

f180 mm

f330 mm

✽ Tape width 8 mm

and diameter

f330 mm reel is

prepared

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

– 55 °C to +125 °C

Rated voltage

16 V.DC, 50 V.DC

(50 V.DC : 0.12 μF or more : Derating or rated voltage by 1.25 % / °C at more than 105 °C)

0.00010 μF to 0.22 μF (E12) Capacitance range

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

±2 %(G), ±5 %(J) tan

d < 0.6 % (20 °C, 1 kHz)

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

16 V.DC : IR

> 3000 MΩ (20 °C, 10 V.DC, 60 s)

50 V.DC : IR

> 3000 MΩ (20 °C, 50 V.DC, 60 s)

Refl ow soldering : 260 °C max. and 95 sec max. at more than 220 °C (Temp. at capacitor surface) Soldering conditions

✽ Please consult us for fl ow soldering

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Construction Dimensions

Element

(Stacked)

Outer electrode

L±0.2

(±0.3)

(±0.15)

W±0.2

✽ ✽ ✽

✽ ✽ e±0.30

(±0.25)

(±0.20)

✽ ✽ g e±0.30

(±0.25)

(±0.20)

✽ ✽ ✽

✽ To be applied only for size code J1, J2

✽✽ To be applied only for size code K1

✽✽✽ To be applied only for size code E1, E2, D1, D3, D4

Unit : mm

Size code L W H e g

K1 1.6

0.8

0.7 0.35

> 0.4

J1 2.0 1.25 0.9 0.45

> 0.6

J2 2.0 1.25 1.1 0.45

> 0.6

H1 3.2

1.6

0.9 0.65

> 1.0

H2 3.2

1.6

1.1 0.65

> 1.0

H3 3.2

1.6

1.5 0.65

> 1.0

G1 3.2

2.5

1.1 0.65

> 1.0

G2 3.2

2.5

1.5 0.65

> 1.0

G3 3.2

2.5

2.1 0.65

> 1.0

E1 4.8

3.3

1.5 0.80

> 2.0

E2 4.8

3.3

2.1 0.80

> 2.0

D1 6.0

4.1

1.9 0.80

> 2.0

D3 6.0

4.1

2.5 0.80

> 2.0

D4 6.0

4.1

2.8 0.80

> 2.0

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Taping specifi cation for automatic mounting

Refer to the page of taping specifi cations

Rating · Dimensions · Quantity

Capacitance tolerance : ±2 %(G), ±5 %(J)

0.00010

0.00012

0.00015

0.00018

0.00022

0.00027

0.00033

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.00039

0.00047

0.00056

0.00068

0.00082

0.0010

0.0012

0.0015

0.0018

0.0022

0.0027

0.0033

0.0039

0.0047

0.0056

0.0068

0.0082

0.010

0.012

0.015

Rated voltage 16 V.DC

Capacitance

(μF)

Part No.

Dimensions (mm) Size

L W H code

ECHU1C101◻X5

1.6

0.8

0.7

K1

ECHU1C121◻X5

1.6

0.8

0.7

K1

ECHU1C151◻X5

1.6

0.8

0.7

K1

ECHU1C181◻X5

1.6

0.8

0.7

K1

ECHU1C221◻X5

1.6

0.8

0.7

K1

ECHU1C271◻X5

1.6

0.8

0.7

K1

ECHU1C331◻X5

1.6

0.8

0.7

K1

ECHU1C391◻X5

1.6

0.8

0.7

K1

ECHU1C471◻X5

1.6

0.8

0.7

K1

ECHU1C561◻X5

1.6

0.8

0.7

K1

ECHU1C681◻X5

1.6

0.8

0.7

K1

ECHU1C821◻X5

1.6

0.8

0.7

K1

ECHU1C102◻X5

1.6

0.8

0.7

K1

ECHU1C122◻X5

1.6

0.8

0.7

K1

ECHU1C152◻X5

1.6

0.8

0.7

K1

ECHU1C182◻X5

1.6

0.8

0.7

K1

ECHU1C222◻X5

1.6

0.8

0.7

K1

ECHU1C272◻X5

1.6

0.8

0.7

K1

ECHU1C332◻X5

2.0

1.25

0.9

J1

ECHU1C392◻X5

2.0

1.25

0.9

J1

ECHU1C472◻X5

2.0

1.25

0.9

J1

ECHU1C562◻X5

2.0

1.25

0.9

J1

ECHU1C682◻X5

2.0

1.25

0.9

J1

ECHU1C822◻X5

2.0

1.25

1.1

J2

ECHU1C103◻X5

2.0

1.25

1.1

J2

ECHU1C123◻X5

3.2

1.6

0.9

H1

ECHU1C153◻X5

3.2

1.6

0.9

H1

ECHU1C183◻X5

3.2

1.6

0.9

H1

ECHU1C223◻X5

3.2

1.6

0.9

H1

ECHU1C273◻X5

3.2

1.6

1.1

H2

ECHU1C333◻X5

3.2

1.6

1.1

H2

ECHU1C393◻X5

3.2

1.6

1.5

H3

ECHU1C473◻X5

3.2

1.6

1.5

H3

ECHU1C563◻X5

3.2

2.5

1.5

G2

ECHU1C683◻X5

3.2

2.5

1.5

G2

ECHU1C823◻X5

3.2

2.5

2.1

G3

ECHU1C104◻X5

3.2

2.5

2.1

G3

0.082

0.10

0.12

0.15

0.18

0.22

✽ ◻ : Capacitance tolerance code

Q'ty

4000

3000

2000

Recommended for land dimensions

Rated voltage 50 V.DC

Part No.

Dimensions (mm) Size

L W H code

ECHU1H101◻X5

2.0

1.25

0.9

J1

ECHU1H121◻X5

2.0

1.25

0.9

J1

ECHU1H151◻X5

2.0

1.25

0.9

J1

ECHU1H181◻X5

2.0

1.25

0.9

J1

ECHU1H221◻X5

2.0

1.25

0.9

J1

ECHU1H271◻X5

2.0

1.25

0.9

J1

ECHU1H331◻X5

2.0

1.25

0.9

J1

ECHU1H391◻X5

2.0

1.25

0.9

J1

ECHU1H471◻X5

2.0

1.25

0.9

J1

ECHU1H561◻X5

2.0

1.25

0.9

J1

ECHU1H681◻X5

2.0

1.25

0.9

J1

ECHU1H821◻X5

2.0

1.25

0.9

J1

ECHU1H102◻X5

2.0

1.25

0.9

J1

ECHU1H122◻X5

2.0

1.25

0.9

J1

ECHU1H152◻X5

2.0

1.25

0.9

J1

ECHU1H182◻X5

2.0

1.25

0.9

J1

ECHU1H222◻X5

2.0

1.25

0.9

J1

ECHU1H272◻X5

2.0

1.25

0.9

J1

ECHU1H332◻X5

3.2

1.6

0.9

H1

ECHU1H392◻X5

3.2

1.6

0.9

H1

ECHU1H472◻X5

3.2

1.6

0.9

H1

ECHU1H562◻X5

3.2

1.6

0.9

H1

ECHU1H682◻X5

3.2

1.6

0.9

H1

ECHU1H822◻X5

3.2

1.6

1.1

H2

ECHU1H103◻X5

3.2

1.6

1.1

H2

ECHU1H123◻X5

3.2

2.5

1.1

G1

ECHU1H153◻X5

3.2

2.5

1.1

G1

ECHU1H183◻X5

3.2

2.5

1.5

G2

ECHU1H223◻X5

3.2

2.5

1.5

G2

ECHU1H273◻X5

3.2

2.5

1.5

G2

ECHU1H333◻X5

3.2

2.5

2.1

G3

ECHU1H393◻X5

3.2

2.5

2.1

G3

ECHU1H473◻X9

4.8

3.3

1.5

E1

ECHU1H563◻X9

4.8

3.3

1.5

E1

ECHU1H683◻X9

4.8

3.3

1.5

E1

ECHU1H823◻X9

4.8

3.3

2.1

E2

ECHU1H104◻X9

4.8

3.3

2.1

E2

ECHU1H124◻X9

6.0

4.1

1.9

D1

ECHU1H154◻X9

6.0

4.1

1.9

D1

ECHU1H184◻X9

6.0

4.1

2.5

D3

ECHU1H224◻X9

6.0

4.1

2.8

D4

Q'ty

3000

2000

3000

2000

Land

A

B

Electrode

Size code

K1

J1, J2

H1, H2, H3

G1, G2, G3

E1, E2

D1, D3, D4

Land dimensions

Refl ow soldering

A

0.6

0.8

1.8

1.8

3.0

4.0

B

2.0

2.4

3.6

3.6

5.6

7.0

Unit : mm

C

0.7

1.1

1.4

2.3

3.0

3.8

✽ lt is not warrantable that you can mount the capacitor without trouble under all the mounting condition when “Recommender for Land dimensions” is adopted.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Stacked Metallized PPS Film

Chip Capacitor

Type :

ECHU(C)

Stacked metallized PPS fi lm as dielectric with simple mold-less construction

Features

Small in size

Low loss and excellent frequency characteristics

For refl ow soldering

RoHS directive compliant

Recommended applications

Time-constant

Filtering

Oscillation and resonance

Resonance circuit for LCD backlight inverter unit

Explanation of part number

E C

Product code

H U 1

Dielectric & construction

Rated voltage

1 100 V.DC

Capacitance Cap. Tol.

Suffix

G

J

±2 %

±5 %

C

Suffix

Code

9

Tape width

12 mm

V

16 mm

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

– 55 °C to +105 °C

Capacitance range

Capacitance tolerance

100 V.DC

0.010 µF to 0.22 µF (E12)

±2 %(G), ±5 %(J)

Dissipation factor (tan d)

Withstand voltage

Insulation resistance (IR)

Soldering conditions tan

d < 0.6 % (20 °C, 1 kHz)

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

IR

> 3000 MΩ (20 °C, 100 V.DC, 60 s)

Refl ow soldering : 260 °C max. and 95 sec max. at more than 220 °C

(Temp. at capacitor surface)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Construction Dimensions

Element

(Stacked)

Outer electrode

(±0.4)

L±0.2

(±0.4)

W±0.3

0.35±0.20

0.35±0.20

✽ To be applied only for size code Z, Y

Taping specifi cation for automatic mounting

Refer to the page of taping specifi cations

Rating · Dimensions · Quantity

Capacitance tolerance : ±2 %(G), ±5 %(J)

Capacitance

(µF)

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.15

0.18

0.22

0.010

0.012

0.015

0.018

0.022

0.027

0.033

✽ ◻ : Capacitance tolerance code

Part No.

ECHU1103◻C9

ECHU1123◻C9

ECHU1153◻C9

ECHU1183◻C9

ECHU1223◻C9

ECHU1273◻C9

ECHU1333◻C9

ECHU1393◻C9

ECHU1473◻C9

ECHU1563◻C9

ECHU1683◻C9

ECHU1823◻C9

ECHU1104◻C9

ECHU1124◻C9

ECHU1154◻CV

ECHU1184◻CV

ECHU1224◻CV

6.0

6.0

6.0

6.0

7.1

7.1

7.1

7.1

7.1

7.1

4.8

4.8

4.8

6.0

L

4.8

4.8

4.8

Rated voltage 100 V.DC

Dimensions (mm)

W

3.3

3.3

3.3

H

1.4

1.4

2.0

3.3

3.3

3.3

4.1

2.0

2.4

2.8

1.8

4.1

4.1

4.1

4.1

5.0

5.0

5.0

6.3

6.3

6.3

2.0

2.4

2.8

3.2

2.8

3.0

3.4

3.4

4.0

4.8

Unit : mm

Size code

E1

E2

E3a

E3

D1

D2

D3

D4

D5

Z

Y

L

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

7.1

7.1

W

3.3

3.3

3.3

3.3

4.1

4.1

4.1

4.1

4.1

5.0

6.3

✽ Refer to the column

“ Rating, Dimensions&Quantity”

H

1.4

2.0

2.4

2.8

1.8

2.0

2.4

2.8

3.2

Size code

D2

D3

D4

D5

Z

Z

Z

Y

Y

Y

E1

E1

E2

E2

E3a

E3

D1

Q'ty

3000

2000

3000

2000

1500

1000

Recommended for land dimensions

Electrode

Land

A

B

Size code

E1, E2, E3a, E3

D1, D2, D3, D4, D5

Z

Y

3.8

4.5

4.5

7.8

9.0

9.0

Unit : mm

Land dimensions

Refl ow soldering

A

2.6

B

6.6

C

3.0

3.8

4.6

5.7

✽ lt is not warrantable that you can mount the capacitor without trouble under all the mounting condition when “Recommender for Land dimensions” is adopted.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Stacked Metallized PEN

Film Chip Capacitor

Type :

ECWU(X)

Stacked metallized PEN fi lm as dielectric with simple mold-less construction

Features

Small in size (minimum size 3.2 mm × 1.6 mm)

85 °C, 85 %RH, W.V. × 1.0 for 500 hours

For refl ow soldering

RoHS directive compliant

Recommended applications

General purpose (Coupling, By-pass)

Explanation of part number

1 2 3 4 5

E C W U 1

Product code Dielectric & construction

Rated voltage

1 100 V.DC

Capacitance

J X

Cap. Tol.

Suffix

J ±5 %

5

Suffix

Code Tape width

5 8 mm

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

– 55 °C to +105 °C

Capacitance range

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

Soldering conditions

d)

Insulation resistance (IR)

100 V.DC

0.0010 μF to 0.010 μF (E12)

±5 %(J) tan d < 1.0 % ( 20 °C, 1 kHz )

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

IR

> 3000 MΩ (20 °C, 100 V.DC, 60 s)

Refl ow soldering : 250 °C max. and 60 s max. at more than 220 °C

(Temp. at capacitor surface)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Construction Dimensions

L±0.2

W±0.2

Element

(Stacked)

Outer electrode e±0.30

g e±0.30

Unit : mm

Size code

L W H e g

H2 3.2

1.6

1.1 0.65

> 1.0

H3 3.2

1.6

1.5 0.65

> 1.0

G2 3.2

2.5

1.5 0.65

> 1.0

G3 3.2

2.5

2.1 0.65

> 1.0

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Taping specifi cation for automatic mounting

Refer to the page of taping specifi cations

Rating · Dimensions · Quantity

Capacitance tolerance : ±5 %(J)

Capacitance

(μF)

Part No.

0.0010

0.0012

0.0015

0.0018

0.0022

0.0027

0.0033

0.0039

0.0047

0.0056

0.0068

0.0082

0.010

ECWU1102JX5

ECWU1122JX5

ECWU1152JX5

ECWU1182JX5

ECWU1222JX5

ECWU1272JX5

ECWU1332JX5

ECWU1392JX5

ECWU1472JX5

ECWU1562JX5

ECWU1682JX5

ECWU1822JX5

ECWU1103JX5 cap.

> 0.012 μF : Please use 100 V.DC rating of ECWU(C)

Recommended for land dimensions

Electrode

3.2

3.2

3.2

3.2

3.2

3.2

3.2

L

3.2

3.2

3.2

3.2

3.2

3.2

Rated voltage 100 V.DC

Dimensions (mm)

W

1.6

1.6

1.6

1.6

1.6

1.6

H

1.1

1.1

1.1

1.1

1.1

1.1

1.6

1.6

1.6

2.5

2.5

2.5

2.5

1.5

1.5

1.5

1.5

1.5

2.1

2.1

Size code

H3

H3

H3

G2

G2

G3

G3

H2

H2

H2

H2

H2

H2

Q'ty

3000

2000

Land

Size code

H2, H3

G2, G3

Unit : mm

A

1.8

Land dimensions

Refl ow soldering

B

3.6

C

1.4

1.8

3.6

2.3

A

B

✽ lt is not warrantable that you can mount the capacitor without trouble under all the mounting condition when “Recommender for Land dimensions” is adopted.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Stacked Metallized PEN

Film Chip Capacitor

Type :

ECWU(C)

Stacked metallized PEN fi lm as dielectric with simple mold-less construction

Features

Small in size

For refl ow soldering

RoHS directive compliant

Recommended applications

General purpose (Coupling, By-pass)

Explanation of part number

1 2 3 4 5

E C W U

Product code Dielectric & construction

Rated voltage

1 100 V.DC

2 250 V.DC

Capacitance

C

Cap. Tol.

Suffix

J

K

±5 %

±10 %

Suffix

Code

9

Tape width

12 mm

V 16 mm

1 2 3 4 5

E C W U 1

Product code

1 0 4 V 3 3

Dielectric & construction

Rated voltage

1 100 V.DC

Capacitance Suffix

Small in size, Cap. Tol. : ±5 %, Tape width : 12 mm

1 2 3 4 5

E C

Product code

W U

Dielectric & construction

C

Suffix

2 J

Rated voltage

2J 630 V.DC

Capacitance

J V

Cap. Tol.

Suffix

J ±5 %

Code Tape width

V 16 mm

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

– 55 °C to +125 °C

Capacitance range

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

Soldering conditions

100 V.DC, 250 V.DC, 630 V.DC (Derating of rated voltage by 1.25 %/°C more than 85 °C)

100 V.DC

0.012 μF to 1.0 μF (E12)

250 V.DC

0.0010 μF to 0.12 μF (E12)

630 V.DC

0.022 μF, 0.027 μF, 0.033 μF

100 V.DC

±5 %(J), ±10 %(K) (C

> 0.18 μF : ±10 %(K) Only)

250 V.DC

±5 %(J), ±10 %(K)

630 V.DC

±5 %(J) tan d < 1.0 % (20 °C, 1 kHz)

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

C

< 0.33 μF 100 V.DC, 250 V.DC, 630 V.DC : IR > 3000 MΩ (20 °C, 100 V.DC, 60 s)

C > 0.33 μF 100 V.DC : IR

> 1000 MΩ∙μF (20 °C, 100 V.DC, 60 s)

100 V.DC

250 V.DC

Refl ow soldering : 250 °C max. and 60 s max. at more than 220 °C

(Temp. at capacitor surface)

630 V.DC

Refl ow soldering : 250 °C max. and 60 s to 150 s. at more than 217 °C (Temp. at cap. surface)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

✽ Please consult us for capacitance range between 0.15 μF and 1.0 μF. (250 V.DC)

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Construction

Element

(Stacked)

Outer electrode

Dimensions

(±0.5)

(±0.4)

L±0.2

✽✽

(±0.4)

W±0.3

✽✽✽

0.35±0.20

0.35±0.20

To be applied only for size code Z, X

✽✽

✽✽✽ To be applied only for size code B, Z, X, V

Unit : mm

Size code

E1

E2

E3a

E3

D1

D2

D3

D4

D5

B

Z

X

V

L

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

6.0

7.1

7.7

9.8

W

3.3

3.3

3.3

3.3

4.1

4.1

4.1

4.1

4.1

5.0

5.0

5.5

6.3

✽ Refer to the column

“Rating, Dimensions & Quantity”.

H

1.4

2.0

2.4

2.8

1.8

2.0

2.4

2.8

3.2

Taping specifi cation for automatic mounting

Refer to the page of taping specifi cations

Rating · Dimensions · Quantity

Capacitance tolerance : ±5 %(J), ±10 %(K)

Rated voltage 100 V.DC

Capacitance

(μF)

Part No.

Dimensions (mm)

Size

L W H code

Q'ty

0.0010

0.0012

0.0015

0.0018

0.0022

0.0027

0.0033

0.0039

Please use 0.001 μF to 0.01 μF rating

0.0047

0.0056

0.0068

0.0082

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

ECWU1123◻C9

ECWU1153◻C9

ECWU1183◻C9

ECWU1223◻C9

ECWU1273◻C9

ECWU1333◻C9

ECWU1393◻C9

ECWU1473◻C9

ECWU1563◻C9

ECWU1683◻C9

ECWU1823◻C9

ECWU1104◻C9

ECWU1104V33

ECWU1124◻C9

ECWU1154◻C9

ECWU1184KC9

ECWU1224KC9

ECWU1274KC9

ECWU1334KC9

ECWU1394KCV

ECWU1474KCV

ECWU1564KCV

ECWU1684KCV

ECWU1824KCV

ECWU1105KCV

✽ ◻ : Capacitance tolerance

ECWU(X)

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

1.4

1.4

1.4

1.4

1.4

1.4

1.4

2.0

2.0

E1

4.8

3.3

2.4

E3a

4.8

3.3

2.8

E3

6.0

4.1

1.8

4.8

3.3

2.8

6.0

4.1

2.4

6.0

4.1

2.8

7.1

5.0

2.0

7.1

5.0

2.4

7.1

7.1

7.7

7.7

9.8

9.8

9.8

9.8

5.0

5.0

5.5

5.5

6.3

6.3

6.3

6.3

2.9

3.5

3.4

4.0

3.0

3.6

4.3

5.1

E1

E1

E2

E2

E1

E1

E1

E1

D1

E3

Z

Z x

D3

D4

Z

Z

V

V x

V

V

3000

2000

3000

2000

1500

1000

Rated voltage 250 V.DC

Part No.

Dimensions (mm)

L W H

Size code

Q'ty

ECWU2102◻C9

ECWU2122◻C9

ECWU2152◻C9

ECWU2182◻C9

4.8

4.8

4.8

3.3

3.3

3.3

1.4

1.4

1.4

4.8

3.3

1.4

ECWU2222◻C9

4.8

3.3

1.4

ECWU2272◻C9

4.8

3.3

1.4

ECWU2332◻C9

4.8

3.3

1.4

E1

E1

E1

E1

E1

E1

ECWU2392◻C9

4.8

3.3

1.4

ECWU2472◻C9

4.8

3.3

1.4

ECWU2562◻C9

4.8

3.3

1.4

ECWU2682◻C9

4.8

3.3

1.4

ECWU2822◻C9

4.8

3.3

1.4

ECWU2103◻C9

4.8

3.3

1.4

ECWU2123◻C9

ECWU2153◻C9

4.8

3.3

1.4

4.8

3.3

1.4

ECWU2183◻C9

4.8

3.3

2.0

ECWU2223◻C9

4.8

3.3

2.0

ECWU2473◻C9

6.0

4.1

2.4

ECWU2563◻C9

6.0

4.1

2.8

ECWU2683◻C9

6.0

4.1

3.2

ECWU2823◻C9

6.0

5.0

3.2

E1

E1

E1

E1

E1

E1

E1

E1

E1

E2

E2

ECWU2273◻C9

4.8

3.3

2.4

E3a

ECWU2333◻C9

4.8

3.3

2.8

ECWU2393◻C9

6.0

4.1

2.0

E3

D2

2000

3000

D3

D4

D5

B

3000

2000

ECWU2104◻C9

ECWU2124◻C9

6.0

6.0

5.0

5.0

3.8

4.5

B

B

1500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Capacitance tolerance : ±5 %(J)

Capacitance

(μF)

0.022

0.027

0.033

Part No.

ECWUC2J223JV

ECWUC2J273JV

ECWUC2J333JV

L

7.1

7.1

7.1

Rated voltage 630 V.DC

Dimensions (mm)

W

6.3

6.3

6.3

H

3.6

4.1

5.1

Size code

Y

Y

Y

Q'ty

1000

Recommended for land dimensions

Land

A

B

Electrode

Size code

E1, E2, E3a, E3

D1, D2, D3, D4, D5

B

Z

Y

X

V

A

2.6

3.8

3.8

4.5

4.5

5.1

7.2

B

6.6

7.8

7.8

9.0

9.0

9.7

11.9

Unit : mm

Land dimensions

Refl ow soldering

C

3.0

3.8

4.6

4.6

5.7

5.0

5.7

✽ lt is not warrantable that you can mount the capacitor without trouble under all the mounting condition when “Recommender for Land dimensions” is adopted.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Stacked Metallized PEN

Film Chip Capacitor

Type :

ECWU(V16)

Stacked metallized PEN fi lm dielectric with simple moldless construction

Features

Small in size

For refl ow soldering

RoHS directive compliant

Recommended applications

DC Blocking for xDSL

Explanation of part number

1 2 3 4 5

E C W U 2

Product code Dielectric & construction

Rated voltage

2 250 V.DC

Capacitance

V 1 6

Suffix

V16 for xDSL, Withstand voltage : 400 V.DC

Cap.tol : ±5 %

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

– 55 °C to +85 °C

250 V.DC

Capacitance range

Capacitance tolerance

0.0010 µF to 0.12 µF (E12)

±5 %(J)

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

Soldering conditions tan d < 1.0 % ( 20 °C, 1 kHz )

Between terminals : 400 V.DC, 60 s

IR

> 3000 MΩ (20 °C, 100 V.DC, 60 s)

Refl ow soldering : 250 °C max. and 60 s max. at more than 220 °C

(Temp. at capacitor surface)

✽ Application of this capacitor is limited to DC Blocking for xDSL, such as ADSL.

✽ Please consult us for 400 V.DC rating product.

Construction Dimensions

Element

(Stacked)

Outer electrode

L±0.2

W±0.3

0.35±0.20

0.35±0.20

✽ To be applied only for size code B

Unit : mm

Size code L

E1

4.8

E2

E3a

E3

D2

4.8

4.8

4.8

W

3.3

3.3

3.3

3.3

H

1.4

2.0

2.4

2.8

D3

D4

D5

B

6.0

6.0

6.0

6.0

6.0

4.1

4.1

4.1

4.1

5.0

2.0

2.4

2.8

3.2

✽ Refer to the column

“Rating, Dimensions & Quantity”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Taping specifi cation for automatic mounting

Refer to the page of taping specifi cations

Rating · Dimensions · Quantity

Capacitance tolerance : ±5 %(J)

Capacitance

(µF)

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.0010

0.0012

0.0015

0.0018

0.0022

0.0027

0.0033

0.0039

0.0047

0.0056

0.0068

0.0082

0.010

Part No.

ECWU2102V16

ECWU2122V16

ECWU2152V16

ECWU2182V16

ECWU2222V16

ECWU2272V16

ECWU2332V16

ECWU2392V16

ECWU2472V16

ECWU2562V16

ECWU2682V16

ECWU2822V16

ECWU2103V16

ECWU2123V16

ECWU2153V16

ECWU2183V16

ECWU2223V16

ECWU2273V16

ECWU2333V16

ECWU2393V16

ECWU2473V16

ECWU2563V16

ECWU2683V16

ECWU2823V16

ECWU2104V16

ECWU2124V16

4.8

4.8

6.0

6.0

4.8

4.8

4.8

4.8

6.0

6.0

6.0

6.0

6.0

4.8

4.8

4.8

4.8

4.8

4.8

4.8

L

4.8

4.8

4.8

4.8

4.8

4.8

Rated voltage 250 V.DC

Dimensions (mm)

W

3.3

3.3

3.3

3.3

3.3

3.3

H

1.4

1.4

1.4

1.4

1.4

1.4

3.3

3.3

4.1

4.1

3.3

3.3

3.3

3.3

4.1

4.1

5.0

5.0

5.0

3.3

3.3

3.3

3.3

3.3

3.3

3.3

2.4

2.8

2.0

2.4

1.4

1.4

2.0

2.0

2.8

3.2

3.2

3.8

4.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

Q'ty

3000

Size code

E3a

E3

D2

D3

E1

E1

E2

E2

D4

D5

B

B

B

E1

E1

E1

E1

E1

E1

E1

E1

E1

E1

E1

E1

E1

2000

3000

2000

1500

Recommended for land dimensions

Electrode

Land

A

B

Size code

E1, E2, E3a, E3

D2, D3, D4, D5

B

2.6

3.8

3.8

6.6

7.8

7.8

Unit : mm

Land dimensions

A

Refl ow soldering

B C

3.0

3.8

4.6

✽ lt is not warrantable that you can mount the capacitor without trouble under all the mounting condition when “Recommender for Land dimensions” is adopted.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Stacked Metallized Plastic

Film Chip Capacitor

Type :

ECPU(A)

Stacked dielectric and inner electrode with simple mold - less construction

Features

Low ESR

Max. capacitance values 1.0 μF

Smallest package size in fi lm capacitors 3225/1.0 μF

For refl ow soldering

RoHS directive compliant

Recommended applications

Noise suppressor

Coupling

Explanation of part number

1 2 3 4 5

E C P U 1

Product code Dielectric & construction

6 7 8 9 10

C M

Capacitance

A

Cap. Tol.

Suffix Rated voltage

1C 16 V.DC

5

Suffix

Code Tape width

5 8 mm

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

Capacitance range

– 40 °C to +85 °C

16 V.DC

0.10 μF to 1.0 μF (E6)

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

Soldering conditions

±20 %(M) tan d

< 1.5 % ( 20 °C, 1 kHz )

Between terminals : Rated volt (V.DC)

×150 %, 60 s

C

< 0.33 μF : IR > 1000 MΩ (20 °C, 10 V.DC, 60 s)

C > 0.33 μF : IR

> 300 MΩ ∙ μF (20 °C, 10 V.DC, 60 s)

Refl ow soldering : 240 °C max. and 30 sec max. at more than 220 °C

(Temp. at capacitor surface)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Construction Dimensions

L±0.2

W±0.20

Element

(Stacked)

Outer electrode e±0.30

(±0.25)

✽ g e±0.30

(±0.25)

✽ To be applied only for size code J1

Unit : mm

Size code

L W H e g

J1 2.0 1.25 1.0 0.45 > 0.6

H1 3.2 1.6 0.8 0.65 > 1.0

H2 3.2 1.6 1.0 0.65 > 1.0

H3 3.2 1.6 1.4 0.65 > 1.0

G2 3.2 2.5 1.4 0.65 > 1.0

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Taping specifi cation for automatic mounting

Refer to the page of taping specifi cations

Rating · Dimensions · Quantity

Capacitance

(μF)

0.10

0.15

0.22

0.33

0.47

0.68

1.0

Part No.

ECPU1C104MA5

ECPU1C154MA5

ECPU1C224MA5

ECPU1C334MA5

ECPU1C474MA5

ECPU1C684MA5

ECPU1C105MA5

L

2.0

3.2

3.2

3.2

Rated voltage 16 V.DC

Dimensions (mm)

W

1.25

1.6

1.6

1.6

H

1.0

0.8

0.8

1.0

3.2

3.2

3.2

1.6

1.6

2.5

1.4

1.4

1.4

Size code

J1

H1

H1

H2

H3

H3

G2

Q'ty

3000

2000

Recommended for land dimensions

Land

A

B

Electrode

Size code

J1

H1

H2

H3

G2

A

0.8

Land dimensions

Refl ow soldering

B

2.4

C

1.1

1.8

1.8

1.8

1.8

3.6

3.6

3.6

3.6

Unit : mm

1.4

1.4

1.4

2.3

✽ lt is not warrantable that you can mount the capacitor without trouble under all the mounting condition when “Recommender for Land dimensions” is adopted.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polyester Film Capacitor

Type :

ECQE(F)

Non-inductive construction using metallized Polyester fi lm with fl ame retardant epoxy resin coating

Features

Self-healing property

Excellent electrical characteristics

Flame retardant epoxy resin coating

RoHS directive compliant

Recommended applications

General purpose usage

✽ Please contact us when applications are CDI , ignitor etc.

Explanation of part number

1 2 3 4 5

E C Q E

6 7 8 9 10

F

Product code Dielectric & construction

Rated voltage Capacitance Cap. Tol.

Suffix Suffix

1 100 V.DC

2 250 V.DC

4 400 V.DC

10 1000 V.DC

12 1250 V.DC

1A 125 V.AC

6 630 V.DC

2A 250 V.AC

J ±5 %

K ±10 %

Code

Blank

B

Z

3

6

Lead Form

Straight

Crimped lead

Cut lead

Crimped taping (Ammo)

Crimped taping (Ammo)

Odd size taping

1 2 3 4 5

E C Q E

6 7 8 9 10

R F

Product code Dielectric & construction

Rated voltage Capacitance Suffix Cap. Tol.

Suffix

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

Capacitance range

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

d)

100 V.DC, 250 V.DC, 400 V.DC, 630 V.DC, 1000 V.DC, 1250 V.DC

– 40 °C to +105 °C

125 V.AC, 250 V.AC

– 40 °C to +105 °C

100 V.DC, 250 V.DC,400 V.DC, 630 V.DC, 1000 V.DC, 1250 V.DC

(Derating of rated voltage by 1.25 %/°C at more than 85 °C)

125 V.AC, 250 V.AC

0.0010 μF to 10 μF (E12)

±5 %(J), ±10 %(K) tan d < 1.0 % (20 °C, 1 kHz )

• Rated volt. : 100 V.DC to 630 V.DC

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

• Rated volt. : 1000 V.DC, 1250 V.DC

Between terminals : Rated volt. (V.DC)

×175 %, 2 s to 5 s or 1000 V.AC, 60 s

Between terminals to enclosure : 1500 V.AC, 60 s

Insulation resistance (IR)

• Rated volt. : 125 V.AC, 250 V.AC

Between terminals : Rated volt. (V.AC)

×230 %, 60 s

Between terminals to enclosure : 1500 V.AC, 60 s

100 V.DC to 630 V.DC : C

< 0.33 μF : IR > 9000 MΩ

C > 0.33 μF : IR

> 3000 MΩ ∙ μF

(20 °C, 100 V.DC, 60 s)

1000 V.DC, 1250 V.DC : IR

> 10000 MΩ (20 °C, 100 V.DC, 60 s)

125 V.AC, 250 V.AC : C

> 2000 MΩ (20 °C, 500 V.DC, 60 s)

< 0.47 μF : IR > 2000 MΩ

C

(20 °C, 500 V.DC, 60 s)

>

0.47 μF : IR > 3000 MΩ ∙ μF (20 °C, 100 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

✽ Voltage to be applied to ECQE1A (F) & ECQE2A (F) is only sine wave (50 Hz or 60 Hz).

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

Straight

L max.

Marking

F±1.0

T max.

Crimped lead (Suffix B)

L max.

L max.

Marking

Marking

Cut lead (Suffix Z)

Marking

fd±0.05

Copper-clad steel-wire

S±0.8

Style B

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Taping specifi cations for automatic insertion

Taping style

Style AD Style AB

P

P

S±0.8

Style D

Unit : mm

Style B

P

F

F F

P

0

P

0

P

0

Style C Style D Style E

P P

P

F

F

F

P

0

P

0

✽ Refer to the page of taping specifications.

Packaging specifi cations

Type

ECQE(F)

Rated voltage

100 V.DC

250 V.DC

400 V.DC

630 V.DC

1000 V.DC

Capacitance range

(μF)

Taping style

AD AS AB B C D E

0.56 to 0.68

0.82 to 1.0

1.2 to 3.3

1.2 to 3.3

0.010 to 0.27

0.33

0.39 to 1.5

0.010 to 0.33

0.39 to 1.5

0.010 to 0.10

0.12 to 0.47

0.010 to 0.10

0.12 to 0.47

0.0010 to 0.033

0.039 to 0.047

0.056 to 0.22

0.001 to 0.047

0.056 to 0.22

0.010 to 0.10

1250 V.DC 0.0010 to 0.022

125 V.AC

0.010 to 0.068

0.010 to 0.068

0.010 to 0.033

250 V.AC

0.010 to 0.047

0.056 to 0.22

Packing

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo suffi x

R( ) F

R( ) F

( ) F3

( ) F3

( ) F3

R( ) F

R( ) F

R( ) F

R( ) F

( ) F6

R( ) F

( ) F6

R( ) F

R( ) F

( ) F3

( ) F3

( ) F3

R( ) F

( ) F3

( ) F3

( ) F3

R( ) F

R( ) F

( ) F3

( ) F3

P

0

Lead spacing

Style Lead spacing

AD

AB

D

E

B

C

5.0 mm

5.0 mm

5.0 mm

5.0 mm

7.5 mm

7.5 mm

✽ See the column “Rating ·

Dimensions · Quantity” for packing quantity

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 100 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Part No.

Cap.

(μF) L max. T max.

Dimensions (mm)

H max.

F S G max.

Straight Crimped lead Straight Crimped lead Straight

0.56

12.0

5.5

10.9

15.9

10.0

10.0

1.0

0.68

12.0

6.0

11.9

16.9

10.0

10.0

1.0

0.82

12.0

6.0

13.5

18.5

10.0

10.0

1.0

1.0

12.0

6.7

14.0

19.0

10.0

10.0

1.0

1.2

18.5

5.5

12.8

17.8

15.0

10.0

1.0

1.5

18.5

6.0

13.4

18.4

15.0

10.0

1.0

1.8

18.5

6.5

14.4

19.4

15.0

10.0

1.0

3.3

18.5

8.5

16.5

21.5

15.0

10.0

1.0

3.9

26.0

7.0

16.4

21.4

22.5

15.0

1.0

4.7

26.0

7.5

17.0

22.0

22.5

15.0

1.0

5.6

26.0

8.3

17.5

22.5

22.5

15.0

1.0

6.8

26.0

9.0

18.5

23.5

22.5

15.0

1.0

8.2

26.0

10.0

20.0

25.0

22.5

15.0

1.5

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

ECQE1564◻F( )

ECQE1684◻F( )

ECQE1824◻F( )

ECQE1105◻F( )

ECQE1125◻F( )

ECQE1155◻F( )

ECQE1185◻F( )

ECQE1225◻F( )

ECQE1275◻F( )

ECQE1335◻F( )

ECQE1395◻F( )

ECQE1475◻F( )

ECQE1565◻F( )

ECQE1685◻F( )

ECQE1825◻F( )

ECQE1106◻F( )

2.2

2.7

10.0

18.5

18.5

26.0

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

7.0

8.0

11.5

15.0

15.8

21.0

20.0

20.8

26.0

15.0

15.0

22.5

10.0

10.0

15.0

1.0

1.0

1.5

fd

0.8

0.8

0.8

0.8

Standard 5 mm Odd size 5 mm Odd size 7.5 mm

500

– style D : 0.56 μF to 1.0 μF style B : 1.2 μF to 10.0 μF

1,000

500

400

600

500

400

Bulk

500

Rating · Dimensions · Quantity

Rated voltage : 250 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Part No.

ECQE2103◻F( )

ECQE2123◻F( )

ECQE2153◻F( )

ECQE2183◻F( )

ECQE2223◻F( )

ECQE2273◻F( )

ECQE2333◻F( )

ECQE2393◻F( )

ECQE2473◻F( )

ECQE2563◻F( )

ECQE2683◻F( )

ECQE2823◻F( )

ECQE2104◻F( )

ECQE2124◻F( )

ECQE2154◻F( )

ECQE2184◻F( )

ECQE2224◻F( )

ECQE2274◻F( )

ECQE2334◻F( )

ECQE2394◻F( )

ECQE2474◻F( )

ECQE2564◻F( )

ECQE2684◻F( )

ECQE2824◻F( )

ECQE2105◻F( )

ECQE2125◻F( )

ECQE2155◻F( )

ECQE2185◻F( )

ECQE2225◻F( )

ECQE2275◻F( )

ECQE2335◻F( )

ECQE2395◻F( )

ECQE2475◻F( )

ECQE2565◻F( )

ECQE2685◻F( )

ECQE2825◻F( )

ECQE2106◻F( )

Cap.

(μF)

0.010

0.012

0.015

0.018

0.022

0.027

0.033

10.3

4.5

7.5

12.5

7.5

7.5

1.0

0.039

10.3

4.5

7.5

12.5

7.5

7.5

1.0

0.047

0.056

0.068

0.082

0.10

0.12

0.15

10.3

6.0

10.8

15.8

7.5

7.5

1.0

0.18

12.0

5.0

10.3

15.3

10.0

10.0

1.0

0.22

0.27

0.33

0.39

0.47

0.56

0.68

18.5

6.0

13.5

18.5

15.0

10.0

1.0

0.82

18.5

6.5

14.5

19.5

15.0

10.0

1.0

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10.0

L max. T max.

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

12.0

12.0

12.0

18.5

18.5

18.5

18.5

18.5

18.5

26.0

26.0

26.0

26.0

10.3

18.0

23.0

22.5

15.0

1.5

26.0

11.0

20.5

25.5

22.5

15.0

1.5

26.0

31.0

31.0

31.0

31.0

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

4.3

4.4

4.4

4.4

4.4

4.4

4.5

4.8

4.5

4.9

5.8

6.0

5.5

6.0

6.5

4.9

5.3

5.5

7.4

8.0

9.0

7.5

8.5

9.4

12.0

11.8

13.0

14.3

15.9

7.4

7.5

7.5

7.5

7.5

7.5

7.5

7.9

7.5

8.0

8.4

9.0

10.5

11.5

12.0

12.0

12.5

13.0

15.0

15.9

16.8

15.5

16.3

17.0

21.5

21.0

22.4

23.5

25.8

Dimensions (mm)

H max.

F S G max.

Straight Crimped lead Straight Crimped lead Straight

12.4

12.5

12.5

12.5

12.5

12.5

12.5

12.9

12.5

13.0

13.4

14.0

15.5

16.5

17.0

17.0

17.5

18.0

20.0

20.9

21.8

20.5

21.3

22.0

26.5

26.0

27.4

28.5

30.8

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

10.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

22.5

27.5

27.5

27.5

27.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

22.5

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.5

1.5

1.5

1.5

1.5

fd

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

Standard 5 mm Odd size 5 mm Odd size 7.5 mm

1000

500

Style D : 0.010 μF to 0.33 μF

Style B : 0.39 μF to 10.0 μF

1000

500

400

1000

500

400

300

Bulk

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 400 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Dimensions (mm) Min. order Q'ty

Part No.

Cap.

(μF)

L max. T max.

H max.

Straight

Crimped lead

F

Straight

S

Crimped lead

G max.

Straight

fd

ECQE4103◻F( )

0.010

10.3

4.3

7.4

12.4

7.5

7.5

1.0

0.6

ECQE4123◻F( )

0.012

10.3

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE4153◻F( )

0.015

10.3

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE4183◻F( )

0.018

10.3

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE4223◻F( )

0.022

10.3

4.8

7.9

12.9

7.5

7.5

1.0

0.6

ECQE4273◻F( )

0.027

10.3

5.5

8.0

13.0

7.5

7.5

1.0

0.6

ECQE4333◻F( )

0.033

10.3

6.0

9.0

14.0

7.5

7.5

1.0

0.6

ECQE4393◻F( )

0.039

12.0

4.9

8.0

13.0

10.0

10.0

1.0

0.6

ECQE4473◻F( )

0.047

12.0

5.0

8.3

13.3

10.0

10.0

1.0

0.6

ECQE4563◻F( )

0.056

12.0

5.0

10.0

15.0

10.0

10.0

1.0

0.6

ECQE4683◻F( )

0.068

12.0

5.4

10.5

15.5

10.0

10.0

1.0

0.6

ECQE4823◻F( )

0.082

12.0

5.8

11.0

16.0

10.0

10.0

1.0

0.6

ECQE4104◻F( )

0.10

12.0

6.3

12.0

17.0

10.0

10.0

1.0

0.6

ECQE4124◻F( )

0.12

18.5

5.0

10.0

15.0

15.0

10.0

1.0

0.6

ECQE4154◻F( )

0.15

18.5

5.0

12.4

17.4

15.0

10.0

1.0

0.6

ECQE4184◻F( )

0.18

18.5

5.4

12.5

17.5

15.0

10.0

1.0

0.6

ECQE4224◻F( )

0.22

18.5

5.9

13.0

18.0

15.0

10.0

1.0

0.6

ECQE4274◻F( )

0.27

18.5

6.5

14.3

19.3

15.0

10.0

1.0

0.8

ECQE4334◻F( )

0.33

18.5

7.0

14.9

19.9

15.0

10.0

1.0

0.8

ECQE4394◻F( )

0.39

18.5

7.5

15.4

20.4

15.0

10.0

1.0

0.8

ECQE4474◻F( )

0.47

18.5

7.8

17.0

22.0

15.0

10.0

1.0

0.8

ECQE4564◻F( )

0.56

26.0

6.5

16.0

21.0

22.5

15.0

1.0

0.8

ECQE4684◻F( )

0.68

26.0

7.0

16.5

21.5

22.5

15.0

1.0

0.8

ECQE4824◻F( )

0.82

26.0

7.9

17.3

22.3

22.5

15.0

1.0

0.8

ECQE4105◻F( )

1.0

26.0

8.5

18.0

23.0

22.5

15.0

1.0

0.8

ECQE4125◻F( )

1.2

ECQE4155◻F( )

1.5

26.0

31.0

9.5

9.5

18.9

19.0

23.9

24.0

22.5

27.5

15.0

22.5

1.0

1.0

0.8

0.8

ECQE4185◻F( )

1.8

ECQE4225◻F( )

2.2

31.0

31.0

11.0

11.0

20.5

22.0

25.5

27.0

27.5

27.5

22.5

22.5

1.5

1.5

0.8

0.8

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

Standard

5 mm

1000

500

Taping

Odd size

Style D : 0.010 μF to 0.10 μF

Style B : 0.12 μF to 2.2 μF

5 mm

500

Odd size

7.5 mm

1000

500

400

Bulk

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 630 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Dimensions (mm)

Part No.

Cap.

(μF)

L max. T max.

H max.

Straight

Crimped lead

F

Straight

S

Crimped lead

G max.

Straight

fd

ECQE6102◻F( )

0.0010 10.0

4.5

9.5

14.5

7.5

5.0

1.0

0.6

ECQE6122◻F( ) 0.0012 10.0 4.5 10.0 15.0 7.5 5.0

1.0

0.6

ECQE6152◻F( ) 0.0015 10.0 4.5 10.0 15.0 7.5 5.0

1.0

0.6

ECQE6182◻F( ) 0.0018 10.0 4.5 10.0 15.0 7.5 5.0

1.0

0.6

ECQE6222◻F( ) 0.0022 10.0 4.5 10.0 15.0 7.5 5.0

1.0

0.6

ECQE6272◻F( ) 0.0027 10.0 4.5 10.0 15.0 7.5 5.0

1.0

0.6

ECQE6332◻F( ) 0.0033 10.0 4.5 10.0 15.0 7.5 5.0

1.0

0.6

ECQE6392◻F( ) 0.0039 10.0 4.5 10.0 15.0 7.5 5.0

1.0

0.6

ECQE6472◻F( ) 0.0047 12.0 4.5 10.0 15.0 10.0 7.5

1.0

0.6

ECQE6562◻F( ) 0.0056 12.0 4.5 10.0 15.0 10.0 7.5

1.0

0.6

ECQE6682◻F( ) 0.0068 12.0 4.9 10.0 15.0 10.0 7.5

1.0

0.6

ECQE6822◻F( ) 0.0082 12.0 4.5 10.0 15.0 10.0 7.5

1.0

0.6

ECQE6103◻F( )

0.010

12.0

4.5

7.5

12.5

10.0

10.0

1.0

0.6

ECQE6123◻F( ) 0.012

12.0

4.5

7.8

12.8

10.0

10.0

1.0

0.6

ECQE6153◻F( ) 0.015

12.0

5.0

8.2

13.2

10.0

10.0

1.0

0.6

ECQE6183◻F( ) 0.018

12.0

4.9

10.0

15.0

10.0

10.0

1.0

0.6

ECQE6223◻F( ) 0.022

12.0

5.3

10.5

15.5

10.0

10.0

1.0

0.6

ECQE6273◻F( ) 0.027

12.0

5.5

10.9

15.9

10.0

10.0

1.0

0.6

ECQE6333◻F( ) 0.033

12.0

6.0

11.9

16.9

10.0

10.0

1.0

0.6

ECQE6393◻F( ) 0.039

12.0

6.0

13.4

18.4

10.0

10.0

1.0

0.6

ECQE6473◻F( ) 0.047

12.0

6.5

13.5

18.5

10.0

10.0

1.0

0.6

ECQE6563◻F( ) 0.056

18.5

5.4

10.5

15.5

15.0

10.0

1.0

0.6

ECQE6683◻F( ) 0.068

18.5

5.8

11.0

16.0

15.0

10.0

1.0

0.6

ECQE6823◻F( ) 0.082

18.5

6.5

12.0

17.0

15.0

10.0

1.0

0.6

ECQE6104◻F( )

0.10

ECQE6124◻F( ) 0.12

18.5

18.5

6.3

6.3

14.0

14.5

19.0

19.5

15.0

15.0

10.0

10.0

1.0

1.0

0.6

0.8

ECQE6154◻F( ) 0.15

ECQE6184◻F( ) 0.18

ECQE6224◻F( ) 0.22

ECQE6274◻F( )

0.27

18.5

18.5

18.5

26.0

7.5

8.0

9.0

7.0

15.4

16.0

16.5

16.5

20.4

21.0

21.5

21.5

15.0

15.0

15.0

22.5

10.0

10.0

10.0

15.0

1.0

1.0

1.0

1.0

0.8

0.8

0.8

0.8

ECQE6334◻F( ) 0.33

ECQE6394◻F( ) 0.39

ECQE6474◻F( )

0.47

ECQE6564◻F( ) 0.56

ECQE6684◻F( ) 0.68

ECQE6824◻F( ) 0.82

ECQE6105◻F( )

1.0

ECQE6125◻F( ) 1.2

ECQE6155◻F( ) 1.5

ECQE6185◻F( ) 1.8

ECQE6225◻F( ) 2.2

26.0

26.0

26.0

26.0

26.0

31.0

31.0

31.0

31.0

31.0

31.0

7.8

8.5

9.3

10.0

11.5

11.3

12.5

13.5

15.3

16.8

19.5

17.0

17.9

18.5

20.0

21.0

20.5

21.9

23.0

24.7

27.0

29.0

22.0

22.9

23.5

25.0

26.0

25.5

26.9

28.0

29.7

32.0

34.0

22.5

22.5

22.5

22.5

22.5

27.5

27.5

27.5

27.5

27.5

27.5

15.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

22.5

22.5

22.5

1.0

1.0

1.0

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

Standard

5 mm

1000

500

Min. order Q'ty

Taping

Odd size

5 mm

1000

500

400

Style D : 0.010 μF to 0.047 μF

Style B : 0.0010 μF to 0.0082 μF

0.056 μF to 2.2 μF

Odd size

7.5 mm

1000

500

400

300

Bulk

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 1000 V.DC, Note) 125 V.AC, Capacitance tolerance : ±5 %(J), ±10 %(K)

Part No.

Cap.

(μF)

L max.

T max.

ECQE10103◻F( )

0.010

ECQE10123◻F( )

0.012

ECQE10153◻F( )

0.015

ECQE10183◻F( )

0.018

ECQE10223◻F( )

0.022

ECQE10273◻F( )

0.027

ECQE10333◻F( )

0.033

ECQE10393◻F( )

0.039

ECQE10473◻F( )

0.047

ECQE10563◻F( )

0.056

ECQE10683◻F( )

0.068

ECQE10823◻F( )

0.082

ECQE10104◻F( )

0.10

ECQE10124◻F( )

0.12

ECQE10154◻F( )

0.15

ECQE10184◻F( )

0.18

ECQE10224◻F( )

0.22

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

15.5

15.5

15.5

15.5

15.5

21.0

21.0

21.0

21.0

21.0

21.0

21.0

21.0

26.0

26.0

26.0

26.0

6.5

7.0

7.5

7.5

8.5

9.0

10.0

6.0

6.0

7.0

7.5

7.5

6.0

9.0

10.0

10.5

12.0

14.0

14.5

15.5

17.0

18.0

18.5

20.0

Straight

11.0

Dimensions (mm)

H max.

Crimped lead

16.0

F

Straight

12.5

12.0

12.5

17.0

17.5

12.5

12.5

13.0

15.5

13.0

20.0

22.5

18.0

12.5

12.5

17.5

18.5

20.0

22.0

23.0

19.0

19.5

20.5

22.0

23.0

23.5

25.0

23.5

25.0

27.0

28.0

17.5

17.5

17.5

17.5

17.5

17.5

17.5

22.5

22.5

22.5

22.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

S

Crimped lead

12.5

12.5

12.5

12.5

12.5

12.5

17.5

17.5

17.5

17.5

G max.

Straight

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.5

1.5

1.5

1.0

1.0

1.0

1.0

1.0

1.0

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.6

0.6

0.6

0.8

0.8

0.8

Style D : 0.010 μF to 0.022 μF

Style B : 0.027 μF to 0.22 μF

Min. order Q'ty

Taping

Bulk

7.5 mm

500

400

500

400

300

500

Note) This type has two rated voltage, one is DC rated voltage another is AC rated voltage..

DC rated voltage is 1000 V.DC, AC rated voltage is 125 V.AC.

Making for rated voltage is “1000 V, 125 V ”

When capacitors use in secondary side of power source, and in case of applying voltage in altering current (50 Hz or

60 Hz sine wave) to a capacitor, please refer to the page of “Permissible voltage (R.M.S) in altering current corresponding to DC rated voltage”.

When capacitors use in primary side of power source, the rated voltage is shown 125 V.AC. Voltage to be applied to capacitors in only sine wave (50 Hz or 60 Hz).

AC rated capacitors complying with clause 1 of “Electrical Appliance and Material Safety Law”. And not complying with clause 2 of “Electrical Appliance and Material Safety Law”, in this case please use ECQUA type or ECQUL type.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 1250 V.DC, Note) 125 V.AC, Capacitance tolerance : ±5 %(J), ±10 %(K)

Part No.

Cap.

(μF)

L max.

T max.

ECQE12102◻F( ) 0.0010

15.5

ECQE12122◻F( ) 0.0012

15.5

ECQE12152◻F( ) 0.0015

15.5

ECQE12182◻F( ) 0.0018

15.5

ECQE12222◻F( ) 0.0022

15.5

ECQE12272◻F( ) 0.0027

15.5

ECQE12332◻F( ) 0.0033

15.5

ECQE12392◻F( ) 0.0039

15.5

ECQE12472◻F( ) 0.0047

15.5

ECQE12562◻F( ) 0.0056

15.5

ECQE12682◻F( ) 0.0068

15.5

ECQE12822◻F( ) 0.0082

21.0

ECQE12103◻F( ) 0.010

ECQE12123◻F( ) 0.012

ECQE12153◻F( ) 0.015

21.0

21.0

21.0

ECQE12183◻F( ) 0.018

ECQE12223◻F( ) 0.022

ECQE12273◻F( ) 0.027

ECQE12333◻F( ) 0.033

ECQE12393◻F( ) 0.039

ECQE12473◻F( ) 0.047

ECQE12563◻F( ) 0.056

ECQE12683◻F( ) 0.068

ECQE12823◻F( ) 0.082

ECQE12104◻F( ) 0.10

ECQE12124◻F( ) 0.12

ECQE12154◻F( ) 0.15

ECQE12184◻F( ) 0.18

ECQE12224◻F( ) 0.22

21.0

21.0

26.0

26.0

26.0

26.0

31.0

31.0

31.0

31.0

31.0

31.0

31.0

31.0

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

7.5

8.0

9.0

10.0

11.5

12.0

13.0

5.5

6.0

6.5

7.0

6.0

6.5

7.0

8.0

14.5

6.0

6.5

7.0

7.5

7.5

5.0

5.0

6.0

6.0

6.0

6.0

6.0

6.5

22.0

22.5

23.5

24.5

25.5

28.0

29.5

18.0

18.5

19.5

20.0

20.5

21.0

21.5

22.0

31.5

17.0

17.5

18.5

19.5

20.5

23.0

24.5

13.0

13.5

14.5

15.0

15.5

16.0

16.5

17.0

26.5

11.5

12.0

12.5

13.0

15.0

12.0

12.5

Straight

11.0

Dimensions (mm)

H max.

Crimped lead

16.0

F

Straight

12.5

11.0

11.0

16.0

16.0

12.5

12.5

11.0

11.5

12.0

16.0

16.5

17.0

12.5

12.5

12.5

16.5

17.0

17.5

18.0

20.0

17.0

17.5

12.5

12.5

12.5

12.5

12.5

17.5

17.5

27.5

27.5

27.5

27.5

27.5

27.5

27.5

17.5

17.5

17.5

17.5

22.5

22.5

22.5

22.5

27.5

22.5

22.5

22.5

22.5

22.5

22.5

22.5

12.5

12.5

12.5

12.5

17.5

17.5

17.5

17.5

22.5

10.0

10.0

10.0

10.0

10.0

12.5

12.5

S

Crimped lead

10.0

10.0

10.0

10.0

10.0

10.0

G max.

Straight

fd

Style D : 0.0010 μF to 0.0068 μF

Style B : 0.0082 μF to 0.22 μF

1.0

1.0

1.0

1.0

1.5

1.5

1.5

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.5

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.6

0.6

0.8

0.8

0.8

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

Min. order Q'ty

Taping

Bulk

7.5 mm

500

400

500

500

Note) This type has two rated voltage, one is DC rated voltage another is AC rated voltage.

DC rated voltage is 1250 V.DC, AC rated voltage is 125 V.AC.

Making for rated voltage is “1250 V, 125 V ”

When capacitors use in secondary side of power source, and in case of applying voltage in altering current (50 Hz or

60 Hz sine wave) to a capacitor, please refer to the page of “Permissible voltage (R.M.S) in altering current corresponding to DC rated voltage”.

When capacitors use in primary side of power source, the rated voltage is shown 125 V.AC. Voltage to be applied to capacitors in only sine wave (50 Hz or 60 Hz).

AC rated capacitors complying with clause 1 of “Electrical Appliance and Material Safety Law”. And not complying with clause 2 of “Electrical Appliance and Material Safety Law”, in this case please use ECQUA type or ECQUL type.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 125 V.AC, Capacitance tolerance : ±5 %(J), ±10 %(K)

Noise suppression Capacitors (Across-the-line)

Dimensions (mm)

Part No.

Cap.

(μF)

L max. T max.

H max.

Straight

Crimped lead

F

Straight

S

Crimped lead

G max.

Straight

fd

ECQE1A103◻F( ) 0.010 10.5

4.5

7.5

12.5

7.5

7.5

1.0

0.6

ECQE1A123◻F( ) 0.012 10.5

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE1A153◻F( ) 0.015 10.5

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE1A183◻F( ) 0.018 10.5

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE1A223◻F( ) 0.022 10.5

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE1A273◻F( ) 0.027 10.5

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE1A333◻F( ) 0.033 10.5

4.5

7.8

12.8

7.5

7.5

1.0

0.6

ECQE1A393◻F( ) 0.039 10.5

4.5

7.8

12.8

7.5

7.5

1.0

0.6

ECQE1A473◻F( ) 0.047 10.5

5.5

8.0

13.0

7.5

7.5

1.0

0.6

ECQE1A563◻F( ) 0.056 10.5

5.9

8.5

13.5

7.5

7.5

1.0

0.6

ECQE1A683◻F( ) 0.068 10.5

6.3

9.4

14.4

7.5

7.5

1.0

0.6

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

Standard

5 mm

1000

500

Min. order Q'ty

Taping

Odd size

Style D : 0.010 μF to 0.068 μF

5 mm

Odd size

7.5 mm

1000

Bulk

500

Notice for AC rated

AC rated capacitors complying with clause 1 of “Electrical Appliance and Material Safety Law”.

As for clause 2 of “Electrical Appliance and Material Safety Law”, please use ECQUA type or ECQUL type.

When using these capacitors as a across-the-line capacitor, it shall be required to follow either item 1. or item 2. condition.

1. Capacitor shall be connected in parallel with varistor (Specifi ed varistor voltage in table 1.)

2. Voltage applied for capacitor shall not exceed other than specifi ed in table 1, when using these capacitors

Table 1

Capacitor rated voltage Varistor voltage

125 V.AC

250 V

Pulse voltage

250 V

0-P

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 250 V.AC, Capacitance tolerance : ±5 %(J), ±10 %(K)

Noise suppression Capacitors (Across-the-line)

Dimensions (mm)

Part No.

Cap.

(μF)

L max. T max.

H max.

Straight

Crimped lead

F

Straight

S

Crimped lead

ECQE2A103◻F( )

ECQE2A123◻F( )

ECQE2A153◻F( )

ECQE2A183◻F( )

ECQE2A223◻F( )

ECQE2A273◻F( )

ECQE2A333◻F( )

ECQE2A393◻F( )

ECQE2A473◻F( )

ECQE2A563◻F( )

ECQE2A683◻F( )

ECQE2A823◻F( )

ECQE2A104◻F( )

ECQE2A124◻F( )

ECQE2A154◻F( )

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.15

ECQE2A184◻F( )

ECQE2A224◻F( )

ECQE2A274◻F( )

ECQE2A334◻F( )

0.18

0.22

0.27

0.33

ECQE2A394◻F( )

ECQE2A474◻F( )

0.39

0.47

ECQE2A564P( )( )

0.56

ECQE2A684P( )( )

0.68

ECQE2A824P( )( )

0.82

ECQE2A105P( )( )

1.0

ECQE2A125P( )( )

1.2

ECQE2A155P( )( )

1.5

ECQE2A185P( )( )

1.8

ECQE2A225P( )( )

2.2

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

18.5

18.5

18.5

18.5

18.5

18.5

18.5

18.5

26.0

26.0

26.0

26.0

26.0

26.0

26.0

31.0

31.0

31.0

31.0

31.0

5.5

6.0

6.3

6.0

6.0

5.5

6.0

6.0

6.5

5.4

5.8

6.3

6.3

6.8

7.5

8.0

9.0

7.0

7.8

8.5

9.3

10.0

11.5

13.0

12.5

13.5

15.3

16.8

19.5

10.8

11.5

9.9

11.9

11.5

10.9

11.9

13.4

14.4

10.5

11.0

12.0

14.0

14.5

15.4

16.0

16.9

16.5

17.0

17.9

18.5

20.0

21.0

22.5

21.9

23.0

24.7

27.0

29.0

15.8

16.5

14.9

16.9

16.5

15.9

16.9

18.4

19.4

15.5

16.0

17.0

19.0

19.5

20.4

21.0

21.9

21.5

22.0

22.9

23.5

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

22.5

22.5

22.5

22.5

27.5

27.5

27.5

27.5

27.5

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

G max.

Straight

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.5

1.5

1.5

1.5

1.5

0d

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

Standard

5 mm

Odd size

7.5 mm

Bulk

Style D : 0.010 μF to 0.047 μF

Style B : 0.056 μF to 0.47 μF

500

1000

500

400

300

500

✽ Please consult us about Crimped lead type of 0.56 μF to 2.2 μF.

Notice for AC rated

AC rated capacitors complying with clause 1 of “Electrical Appliance and Material Safety Law”.

As for clause 2 of “Electrical Appliance and Material Safety Law”, please use ECQUA type or ECQUL type.

When using these capacitors as a across-the-line capacitor, it shall be required to follow either item 1. or item 2. condition.

1. Capacitor shall be connected in parallel with varistor (Specifi ed varistor voltage in table 1.)

2. Voltage applied for capacitor shall not exceed other than specifi ed in table 1, when using these capacitors

Table 1

Capacitor rated voltage Varistor voltage

250 V.AC

470 V

Pulse voltage

630 V

0-P

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polyester Film Capacitor

Type :

ECQE(B)

Non-inductive construction using metallized polyester fi lm with fl ame retardant epoxy resin coating

Features

Self-healing property

Small size

Excellent electrical characteristics

Flame retardant epoxy resin coating

RoHS directive compliant

Recommended applications

General purpose usage

✽ Please contact us when applications are CDI, ignitor etc.

Explanation of part number

1 2 3 4 5

E C Q E

Product code Dielectric & construction

6 7 8 9 10

Rated voltage Capacitance

B

Cap. Tol.

Suffix

2 250 V.DC

1A 125 V.AC

J ±5 %

K ±10 %

Suffix

Code

Blank

B

3

6

Z

2

Lead Form

Straight

Crimped lead

Cut lead

Straight taping (Ammo)

Crimped taping (Ammo)

Crimped taping (Ammo)

Odd size taping

1 2 3 4 5

E C Q E

6 7 8 9 10

R B

Product code Dielectric & construction

Rated voltage Capacitance Suffix Cap. Tol.

Suffix

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

250 V.DC

– 40 °C to +105 °C

125 V.AC

– 40 °C to +105 °C

250 V.DC, 125 V.AC

(250 V.DC : Derating of rated voltage by 1.25 %/°C at more than 85 °C)

0.010 μF to 4.7 μF Capacitance range

Capacitance tolerance ±5 %(J), ±10 %(K)

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR) tan d < 1.0 % ( 20 °C, 1 kHz )

• Rated volt. : 250 V.DC

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

• Rated volt. : 125 V.AC

Between terminals : Rated volt. (V.AC)

×230 %, 60 s

Between terminals to enclosure : 1500 V.AC, 60 s

250 V.DC

125 V.AC

C

< 0.33 μF : IR > 9000 MΩ

(20 °C, 100 V.DC, 60 s)

C > 0.33 μF : IR

> 3000 MΩ ∙ μF (20 °C, 100 V.DC, 60 s)

C

< 0.47 μF : IR > 2000 MΩ

(20 °C, 500 V.DC, 60 s)

C >

0.47 μF : IR > 3000 MΩ ∙ μF (20 °C, 100 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

✽ Voltage to be applied to ECQE1A (B) is only sine wave (50 Hz or 60 Hz).

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

Straight

L max.

Marking

F±1.0

T max.

Crimped lead (Suffix B)

L max.

L max.

Marking

Marking

fd±0.05

Copper-clad steel-wire

S±0.8

Style B

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Taping specifi cations for automatic insertion

Taping style

Style AB

P

Style AD

P

S±0.8

Style D

F

F

P

0

Style C

P

P

0

Style D

P

F

F

P

0

P

0

✽ Refer to the page of taping specifications.

Packaging specifi cations

Type

ECQE(B)

Rated voltage

250 V.DC

125 V.AC

Capacitance range

(μF)

0.010 to 0.15

Taping style

AD AS AB B C D E

0.010 to 0.68

0.82 to 1.5

0.18 to 0.68

0.82 to 4.7

0.010 to 0.068

0.082 to 0.22

0.27 to 2.7

0.082 to 0.68

0.82 to 2.7

Packing

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo suffi x

( ) B2

( ) B3

( ) B3

R( ) B

R( ) B

( ) B2

( ) B6

( ) B3

R( ) B

R( ) B

Cut lead (Suffix Z)

Marking

Unit : mm

Style AS

P

P

0

Style E

P

P

0

F

F

Lead spacing

Style Lead spacing

AD

AS

AB

C

D

E

5.0 mm

5.0 mm

5.0 mm

5.0 mm

7.5 mm

7.5 mm

✽ See the column “Rating ·

Dimensions · Quantity” for packing quantity

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 250 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Dimensions (mm)

Part No.

Cap.

(μF)

L max.

T max.

H max.

Straight

Crimped lead

F

Straight

S

Crimped lead

ECQE2103◻B( ) 0.010

7.9

4.2

7.1

12.1

5.0

5.0

ECQE2123◻B( ) 0.012

7.9

4.2

7.1

12.1

5.0

5.0

ECQE2153◻B( ) 0.015

7.9

4.2

7.1

12.1

5.0

5.0

ECQE2183◻B( ) 0.018

7.9

4.3

7.2

12.2

5.0

5.0

ECQE2223◻B( ) 0.022

7.9

4.3

7.2

12.2

5.0

5.0

ECQE2273◻B( ) 0.027

7.9

4.3

7.2

12.2

5.0

5.0

ECQE2333◻B( ) 0.033

7.9

4.3

7.2

12.2

5.0

5.0

ECQE2393◻B( ) 0.039

7.9

4.5

7.4

12.4

5.0

5.0

ECQE2473◻B( ) 0.047

7.9

4.5

7.4

12.4

5.0

5.0

ECQE2563◻B( ) 0.056

7.9

4.7

7.7

12.7

5.0

5.0

ECQE2683◻B( ) 0.068

7.9

5.1

8.0

13.0

5.0

5.0

ECQE2823◻B( ) 0.082

7.9

5.4

8.6

13.6

5.0

5.0

ECQE2104◻B( ) 0.10

ECQE2124◻B( ) 0.12

7.9

7.9

5.9

5.7

9.0

10.6

14.0

15.6

5.0

5.0

5.0

5.0

ECQE2154◻B( ) 0.15

ECQE2184◻B( ) 0.18

ECQE2224◻B( ) 0.22

7.9

10.3

10.3

6.3

5.0

5.4

11.2

9.7

10.1

16.2

14.7

15.1

5.0

7.5

7.5

5.0

5.0

5.0

ECQE2274◻B( ) 0.27

ECQE2334◻B( ) 0.33

ECQE2394◻B( ) 0.39

ECQE2474◻B( ) 0.47

ECQE2564◻B( ) 0.56

ECQE2684◻B( ) 0.68

ECQE2824◻B( ) 0.82

ECQE2105◻B( ) 1.0

10.3

10.3

12.3

12.3

12.3

12.3

15.3

15.3

5.9

6.4

5.7

6.2

6.7

7.3

6.3

7.0

10.8

11.3

10.9

11.4

11.9

12.7

13.3

14.0

15.8

16.3

15.9

16.4

16.9

17.7

18.3

19.0

7.5

7.5

10.0

10.0

10.0

10.0

12.5

12.5

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

ECQE2125◻B( ) 1.2

ECQE2155◻B( ) 1.5

ECQE2185◻B( ) 1.8

ECQE2225◻B( ) 2.2

ECQE2275◻B( ) 2.7

ECQE2335◻B( ) 3.3

ECQE2395◻B( ) 3.9

ECQE2475◻B( ) 4.7

15.3

15.3

20.8

20.8

20.8

20.8

20.8

20.8

7.6

8.6

7.6

8.4

9.3

10.5

10.8

11.9

14.6

15.7

14.6

15.6

16.7

17.9

19.8

21.0

19.6

20.7

19.6

20.6

21.7

22.9

24.8

26.0

12.5

12.5

17.5

17.5

17.5

17.5

17.5

17.5

5.0

5.0

10.0

10.0

10.0

10.0

10.0

10.0

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

fd

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

Standard

5 mm

2000

1500

1000

1500

1000

1500

1000

Min. order Q'ty

Taping

Odd size

5 mm

600

500

400

Style D : 0.010 μF to 0.68 μF

Style B : 0.82 μF to 4.7 μF

Odd size

7.5 mm

1500

1000

900

500

400

300

400

300

200

Bulk

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 125 V.AC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Dimensions (mm)

Part No.

Cap.

(μF)

L max.

T max.

H max.

Straight

Crimped lead

F

Straight

S

Crimped lead

ECQE1A103◻B( ) 0.010

7.9

4.2

7.1

ECQE1A123◻B( ) 0.012

7.9

4.2

7.1

ECQE1A153◻B( ) 0.015

7.9

4.2

7.1

ECQE1A183◻B( ) 0.018

7.9

4.3

7.2

ECQE1A223◻B( ) 0.022

7.9

4.3

7.2

ECQE1A273◻B( ) 0.027

7.9

4.3

7.2

ECQE1A333◻B( ) 0.033

7.9

4.3

7.2

ECQE1A393◻B( ) 0.039

7.9

4.5

7.4

ECQE1A473◻B( ) 0.047

7.9

4.8

7.7

ECQE1A563◻B( ) 0.056

7.9

5.1

8.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

ECQE1A683◻B( ) 0.068

7.9

5.4

8.6

5.0

ECQE1A823◻B( ) 0.082

10.3

4.6

7.6

12.6

7.5

7.5

ECQE1A104◻B( ) 0.10

ECQE1A124◻B( ) 0.12

10.3

10.3

5.1

5.3

7.7

8.4

12.7

13.4

7.5

7.5

7.5

7.5

ECQE1A154◻B( ) 0.15

ECQE1A184◻B( ) 0.18

ECQE1A224◻B( ) 0.22

10.3

10.3

10.3

5.7

5.6

6.1

8.9

10.3

11.0

13.9

15.3

16.0

7.5

7.5

7.5

7.5

7.5

7.5

ECQE1A274◻B( ) 0.27

ECQE1A334◻B( ) 0.33

ECQE1A394◻B( ) 0.39

ECQE1A474◻B( ) 0.47

ECQE1A564◻B( ) 0.56

ECQE1A684◻B( ) 0.68

ECQE1A824◻B( ) 0.82

ECQE1A105◻B( ) 1.0

12.3

12.3

12.3

12.3

12.3

12.3

15.3

15.3

5.4

5.9

6.4

7.0

6.7

7.3

6.3

7.0

10.7

11.2

11.6

12.2

11.9

12.7

13.3

14.0

15.7

16.2

16.6

17.2

16.9

17.7

18.3

19.0

10.0

10.0

10.0

10.0

10.0

10.0

12.5

12.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

ECQE1A125◻B( ) 1.2

ECQE1A155◻B( ) 1.5

ECQE1A185◻B( ) 1.8

ECQE1A225◻B( ) 2.2

ECQE1A275◻B( ) 2.7

ECQE1A335◻B( ) 3.3

ECQE1A395◻B( ) 3.9

ECQE1A475◻B( ) 4.7

20.8

20.8

20.8

20.8

20.8

25.8

25.8

25.8

7.1

8.0

8.7

9.7

10.9

9.6

10.6

11.8

14.1

15.1

15.9

17.1

18.2

18.7

19.7

20.8

19.1

20.1

20.9

22.1

23.2

23.7

24.7

25.8

17.5

17.5

17.5

17.5

17.5

22.5

22.5

22.5

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

fd

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Standard

5 mm

2000

1500

1000

Min. order Q'ty

Taping

Odd size

5 mm

800

700

600

500

600

500

600

500

500

400

300

Style D : 0.082 μF to 0.68 μF

Style B : 0.82 μF to 4.7 μF

Odd size

7.5 mm

1500

1000

900

1000

900

500

400

400

300

Bulk

500

Notice for AC rated

AC rated capacitors complying with clause 1 of “Electrical Appliance and Material Safety Law”.

As for clause 2 of “Electrical Appliance and Material Safety Law”, please use ECQUA type or ECQUL type.

When using these capacitors as a across-the-line capacitor, it shall be required to follow either item 1. or item 2. condition.

1. Capacitor shall be connected in parallel with varistor (Specifi ed varistor voltage in table 1.)

2. Voltage applied for capacitor shall not exceed other than specifi ed in table 1, when using these capacitors.

Table 1

Capacitor rated voltage Varistor voltage

125 V.AC

250 V

Pulse voltage

250 V

0-P

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polyester Film Capacitor

Type :

ECQE(T)

Non-inductive construction using metallized Polyester fi lm with fl ame retardant epoxy resin coating

Features

Self-healing property

Excellent electrical characteristics

Flame retardant epoxy resin coating

Moisture resistance 85 °C, 85 % RH for 500 hours

RoHS directive compliant

Recommended applications

General purpose usage

✽ Please contact us when applications are CDI , ignitor etc.

Explanation of part number

1 2 3 4 5

E C Q E

6 7 8 9 10

T

Product code Dielectric & construction

Rated voltage Capacitance Cap. Tol.

Suffix Suffix

2 250 V.DC

4 400 V.DC

6 630 V.DC

1A 125 V.AC

2A 250 V.AC

J ±5 %

K ±10 %

Code

Blank

B

Z

3

6

Lead Form

Straight

Crimped lead

Cut lead

Crimped taping (Ammo)

Crimped taping (Ammo)

Odd size taping

1 2 3 4 5

E C Q E

Product code Dielectric & construction

6 7 8 9 10

R

Rated voltage Capacitance

T

Suffix Cap. Tol.

Suffix

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

250 V.DC,400 V.DC, 630 V.DC

125 V.AC, 250 V.AC

– 40 °C to +105 °C

– 40 °C to +105 °C

Rated voltage

250 V.DC,400 V.DC, 630 V.DC

(Derating of rated voltage by 1.25 %/°C at more than 85 °C)

125 V.AC, 250 V.AC

0.010 μF to 10 μF (E12) Capacitance range

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

±5 %(J), ±10 %(K) tan

d < 1.0 % (20 °C, 1 kHz )

• Rated volt. : 250 V.DC to 630 V.DC

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

• Rated volt. : 125 V.AC, 250 V.AC

Between terminals : Rated volt. (V.AC)

×230 %, 60 s

Between terminals to enclosure : 1500 V.AC, 60 s

250 V.DC to 630 V.DC : C

< 0.33 μF : IR > 9000 MΩ

C > 0.33 μF : IR

> 3000 MΩ ∙ μF

(20 °C, 100 V.DC, 60 s)

125 V.AC, 250 V.AC : IR

> 2000 MΩ (20 °C, 500 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

✽ Voltage to be applied to ECQE1A (T) & ECQE2A (T) is only sine wave (50 Hz or 60 Hz).

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

Straight

L max.

T max.

Crimped lead (Suffix B)

L max.

L max.

Marking

Marking

Marking

F±1.0

fd±0.05

Copper-clad steel-wire

S±0.8

Style B

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Taping specifi cations for automatic insertion

Taping style

Style AD

P

Style AB

P

S±0.8

Style D

Style C

Cut lead (Suffix Z)

Marking

Unit : mm

P

F

F

F

P

0

P

0

P

0

Style D

P

Style E

P

F

F

Type

ECQE(T)

Rated voltage

P

0

✽ Refer to the page of taping specifications.

Packaging specifi cations

250 V.DC

400 V.DC

630 V.DC

125 V.AC

250 V.AC

P

0

Capacitance range

0.18 to 0.33

0.39 to 1.5

Taping style

(μF)

AD AB C D E

0.010 to 0.15

0.010 to 0.33

0.39 to 1.5

0.010 to 0.033

0.039 to 0.10

0.12 to 0.47

0.010 to 0.10

0.12 to 0.47

0.010 to 0.047

0.056 to 0.22

0.010 to 0.047

0.056 to 0.22

0.27 to 0.47

0.010 to 0.10

0.12 to 0.22

0.010 to 0.22

0.27 to 0.47

0.056 to 0.22

0.010 to 0.047

0.010 to 0.047

0.056 to 0.22

Packing

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo

Ammo suffi x

( ) T3

( ) T3

R( ) T

R( ) T

( ) T3

( ) T6

( ) T6

R( ) T

R( ) T

( ) T3

( ) T3

( ) T3

( ) T3

R( ) T

R( ) T

( ) T3

( ) T3

( ) T3

R( ) T

R( ) T

( ) T6

R( ) T

R( ) T

Lead spacing

Style Lead spacing

AD

AB

C

D

E

5.0 mm

5.0 mm

5.0 mm

7.5 mm

7.5 mm

✽ See the column “Rating ·

Dimensions · Quantity” for packing quantity

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 250 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Dimensions (mm)

Part No.

Cap.

(μF)

L max. T max.

H max.

Straight

Crimped lead

F

Straight

S

Crimped lead

G max.

Straight

fd

ECQE2103◻T( )

0.010 10.8

4.3

7.4

12.4

7.5

7.5

1.0

0.6

ECQE2123◻T( )

0.012 10.8

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2153◻T( )

0.015 10.8

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2183◻T( )

0.018 10.8

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2223◻T( )

0.022 10.8

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2273◻T( )

0.027 10.8

4.4

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2333◻T( )

0.033 10.8

4.5

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2393◻T( )

0.039 10.8

4.5

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2473◻T( )

0.047 10.8

4.5

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2563◻T( )

0.056 10.8

4.8

7.9

12.9

7.5

7.5

1.0

0.6

ECQE2683◻T( )

0.068 10.8

4.5

7.5

12.5

7.5

7.5

1.0

0.6

ECQE2823◻T( )

0.082 10.8

4.9

8.0

13.0

7.5

7.5

1.0

0.6

ECQE2104◻T( )

0.10

10.8

5.8

8.4

13.4

7.5

7.5

1.0

0.6

ECQE2124◻T( )

0.12

10.8

6.0

9.0

14.0

7.5

7.5

1.0

0.6

ECQE2154◻T( )

0.15

10.8

6.0

10.8

15.8

7.5

7.5

1.0

0.6

ECQE2184◻T( )

0.18

12.5

5.0

10.3

15.3

10.0

10.0

1.0

0.6

ECQE2224◻T( )

0.22

12.5

5.5

10.5

15.5

10.0

10.0

1.0

0.6

ECQE2274◻T( )

0.27

12.5

6.0

11.5

16.5

10.0

10.0

1.0

0.6

ECQE2334◻T( )

0.33

12.5

6.5

12.0

17.0

10.0

10.0

1.0

0.6

ECQE2394◻T( )

0.39

19.0

4.9

12.0

17.0

15.0

10.0

1.0

0.6

ECQE2474◻T( )

0.47

19.0

5.3

12.5

17.5

15.0

10.0

1.0

0.6

ECQE2564◻T( )

0.56

19.0

5.5

13.0

18.0

15.0

10.0

1.0

0.6

ECQE2684◻T( )

0.68

19.0

6.0

13.5

18.5

15.0

10.0

1.0

0.8

ECQE2824◻T( )

0.82

19.0

6.5

14.5

19.5

15.0

10.0

1.0

0.8

ECQE2105◻T( )

1.0

ECQE2125◻T( )

1.2

19.0

19.0

7.4

8.0

15.0

15.9

20.0

20.9

15.0

15.0

10.0

10.0

1.0

1.0

0.8

0.8

ECQE2155◻T( )

1.5

ECQE2185◻T( )

1.8

ECQE2225◻T( )

2.2

ECQE2275◻T( )

2.7

19.0

26.5

26.5

26.5

9.0

7.5

8.5

9.4

16.8

15.5

16.3

17.0

21.8

20.5

21.3

22.0

15.0

22.5

22.5

22.5

10.0

15.0

15.0

15.0

1.0

1.0

1.0

1.0

0.8

0.8

0.8

0.8

ECQE2335◻T( )

3.3

ECQE2395◻T( )

3.9

ECQE2475◻T( )

4.7

ECQE2565◻T( )

5.6

ECQE2685◻T( )

6.8

ECQE2825◻T( )

8.2

ECQE2106◻T( ) 10.0

26.5

26.5

26.5

31.5

31.5

31.5

31.5

10.3

11.0

12.0

11.8

13.0

14.3

15.9

18.0

20.5

21.5

21.0

22.4

23.5

25.8

23.0

25.5

26.5

26.0

27.4

28.5

30.8

22.5

22.5

22.5

27.5

27.5

27.5

27.5

15.0

15.0

15.0

22.5

22.5

22.5

22.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

0.8

0.8

0.8

0.8

0.8

0.8

0.8

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

Standard

5 mm

1500

1000

Style D : 0.010 μF to 0.33 μF

Style B : 0.39 μF to 10.0 μF

Min. order Q'ty

Taping

Odd size

5 mm

800

700

600

800

700

800

700

600

500

400

Odd size

7.5 mm

1800

1700

1600

1700

1500

1300

1200

1400

1300

1200

1100

700

600

500

400

Bulk

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 400 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Part No.

Cap.

(μF) L max.

T max.

Dimensions (mm)

H max.

F S

Straight Crimped lead Straight Crimped lead Straight

ECQE4103◻T( )

ECQE4123◻T( )

ECQE4153◻T( )

ECQE4183◻T( )

ECQE4223◻T( )

ECQE4273◻T( )

ECQE4333◻T( )

ECQE4393◻T( )

ECQE4473◻T( )

ECQE4563◻T( )

ECQE4683◻T( )

ECQE4823◻T( )

ECQE4104◻T( )

ECQE4124◻T( )

ECQE4154◻T( )

ECQE4184◻T( )

ECQE4224◻T( )

ECQE4274◻T( )

ECQE4334◻T( )

ECQE4394◻T( )

ECQE4474◻T( )

ECQE4564◻T( )

ECQE4684◻T( )

ECQE4824◻T( )

ECQE4105◻T( )

ECQE4125◻T( )

ECQE4155◻T( )

ECQE4185◻T( )

ECQE4225◻T( )

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

1.0

1.2

1.5

1.8

2.2

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

0.010

10.8

4.3

7.4

12.4

7.5

7.5

0.012

10.8

4.4

7.5

12.5

7.5

7.5

0.015

10.8

4.4

7.5

12.5

7.5

7.5

0.018

10.8

4.4

7.5

12.5

7.5

7.5

0.022

10.8

4.8

7.9

12.9

7.5

7.5

0.027

10.8

5.5

8.0

13.0

7.5

7.5

0.033

10.8

6.0

9.0

14.0

7.5

7.5

0.039

12.5

4.9

8.0

13.0

10.0

10.0

0.047

12.5

5.0

8.3

13.3

10.0

10.0

0.056

12.5

5.0

10.0

15.0

10.0

10.0

0.068

12.5

5.4

10.5

15.5

10.0

10.0

0.082

12.5

5.8

11.0

16.0

10.0

10.0

0.10

0.12

12.5

19.0

6.3

5.0

12.0

10.0

17.0

15.0

10.0

15.0

10.0

10.0

19.0

19.0

19.0

19.0

26.5

26.5

26.5

26.5

26.5

31.5

31.5

31.5

5.0

5.4

5.9

7.8

6.5

7.0

7.9

8.5

9.5

9.5

11.0

11.0

12.4

12.5

13.0

17.0

16.0

16.5

17.3

18.0

18.9

19.0

20.5

22.0

17.4

17.5

18.0

22.0

21.0

21.5

22.3

23.0

23.9

24.0

25.5

27.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

22.5

22.5

27.5

27.5

27.5

10.0

10.0

10.0

19.0

6.5

14.3

19.3

15.0

10.0

19.0

7.0

14.9

19.9

15.0

10.0

19.0

7.5

15.4

20.4

15.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

G max.

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.5

1.5

fd

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Standard

5 mm

1500

1000

Style D : 0.010 μF to 0.10 μF

Style B : 0.12 μF to 2.2 μF

Min. order Q'ty

Taping

Odd size

5 mm

Odd size

7.5 mm

1800

900

800

700

800

700

600

500

1700

1600

1400

1200

1500

1400

1300

1200

700

600

500

400

Bulk

500

Rated voltage : 630 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Part No.

Cap.

(μF) L max.

T max.

ECQE6103◻T( )

ECQE6123◻T( )

ECQE6153◻T( )

ECQE6183◻T( )

ECQE6223◻T( )

ECQE6273◻T( )

ECQE6333◻T( )

ECQE6393◻T( )

ECQE6473◻T( )

ECQE6563◻T( )

ECQE6683◻T( )

ECQE6823◻T( )

ECQE6104◻T( )

ECQE6124◻T( )

ECQE6154◻T( )

ECQE6184◻T( )

ECQE6224◻T( )

ECQE6274◻T( )

ECQE6334◻T( )

ECQE6394◻T( )

ECQE6474◻T( )

ECQE6564◻T( )

ECQE6684◻T( )

ECQE6824◻T( )

ECQE6105◻T( )

ECQE6125◻T( )

ECQE6155◻T( )

ECQE6185◻T( )

ECQE6225◻T( )

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

19.0

19.0

19.0

19.0

19.0

19.0

19.0

19.0

26.5

26.5

26.5

26.5

26.5

26.5

31.5

31.5

31.5

31.5

31.5

31.5

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

6.5

5.4

5.8

6.5

6.3

6.3

7.5

8.0

9.0

7.0

4.5

4.5

5.0

4.9

5.3

5.5

6.0

6.0

7.8

8.5

9.3

10.0

11.5

11.3

12.5

13.5

15.3

16.8

19.5

Dimensions (mm)

H max.

Straight

13.5

10.5

11.0

12.0

14.0

14.5

15.4

16.0

16.5

16.5

7.5

7.8

8.2

10.0

10.5

10.9

11.9

13.4

17.0

17.9

18.5

20.0

21.0

20.5

21.9

23.0

24.7

27.0

29.0

Crimped lead

18.5

15.5

16.0

17.0

19.0

19.5

20.4

21.0

21.5

21.5

12.5

12.8

13.2

15.0

15.5

15.9

16.9

18.4

22.0

22.9

23.5

25.0

26.0

25.5

26.9

28.0

29.7

32.0

34.0

F

Straight

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

22.5

22.5

22.5

27.5

27.5

27.5

27.5

27.5

27.5

S

Crimped lead

G max.

Straight

fd

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

22.5

22.5

22.5

Style D : 0.010 μF to 0.047 μF

Style B : 0.056 μF to 2.2 μF

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

Odd size

5 mm

Odd size

7.5 mm

Bulk

900

800

700

600

800

700

600

500

400

1600

1400

1300

1200

1100

600

500

400

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 125 V.AC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Noise suppression Capacitors (Across-the-line)

Part No.

Cap.

(μF)

ECQE1A103◻T( )

ECQE1A123◻T( )

ECQE1A153◻T( )

ECQE1A183◻T( )

ECQE1A223◻T( )

ECQE1A273◻T( )

ECQE1A333◻T( )

ECQE1A393◻T( )

ECQE1A473◻T( )

ECQE1A563◻T( )

ECQE1A683◻T( )

ECQE1A823◻T( )

ECQE1A104◻T( )

ECQE1A124◻T( )

ECQE1A154◻T( )

ECQE1A184◻T( )

ECQE1A224◻T( )

ECQE1A274◻T( )

ECQE1A334◻T( )

ECQE1A394◻T( )

ECQE1A474◻T( )

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

13.0

13.0

13.0

13.0

19.0

19.0

19.0

19.0

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

L max.

T max.

4.5

4.4

4.4

4.4

4.4

4.4

4.5

4.5

5.5

5.9

6.3

6.5

Dimensions (mm)

H max.

F S

7.5

12.5

7.5

7.5

7.5

12.5

7.5

7.5

7.5

7.5

12.5

7.5

7.5

7.5

12.5

7.5

7.5

7.5

7.8

7.8

8.0

8.5

9.4

9.8

12.5

12.5

12.8

12.8

13.0

13.5

14.4

14.8

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

6.5

11.8

16.8

7.5

7.5

5.9

11.5

16.5

10.0

10.0

6.5

12.0

17.0

10.0

10.0

7.0

12.5

17.5

10.0

10.0

7.5

13.4

18.4

10.0

10.0

6.3

12.0

17.0

15.0

10.0

6.9

12.5

17.5

15.0

10.0

7.4

13.0

18.0

15.0

10.0

7.5

15.3

20.3

15.0

10.0

G max.

Straight Crimped lead Straight Crimped lead Straight

fd

Standard

5 mm

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1500

1000

Style D : 0.010 μF to 0.22 μF

Style B : 0.27 μF to 0.47 μF

Min. order Q'ty

Taping

Odd size

5 mm

Odd size

7.5 mm

600

500

600

500

1700

1400

1300

1200

1100

1000

900

800

500

400

Bulk

500

Rated voltage : 250 V.AC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Noise suppression Capacitors (Across-the-line)

Part No.

Cap.

(μF) L max.

T max.

ECQE2A103◻T( )

ECQE2A123◻T( )

ECQE2A153◻T( )

ECQE2A183◻T( )

ECQE2A223◻T( )

ECQE2A273◻T( )

ECQE2A333◻T( )

ECQE2A393◻T( )

ECQE2A473◻T( )

ECQE2A563◻T( )

ECQE2A683◻T( )

ECQE2A823◻T( )

ECQE2A104◻T( )

ECQE2A124◻T( )

ECQE2A154◻T( )

ECQE2A184◻T( )

ECQE2A224◻T( )

ECQE2A274◻T( )

ECQE2A334◻T( )

ECQE2A394◻T( )

ECQE2A474◻T( )

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped or taped type

0.18

0.22

0.27

0.33

0.39

0.47

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.15

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

19.0

19.0

19.0

19.0

19.0

19.0

19.0

19.0

26.5

26.5

26.5

26.5

5.5

6.0

6.0

6.5

5.4

5.8

5.5

6.0

6.3

6.0

6.0

6.3

6.3

6.8

7.5

8.0

9.0

7.0

7.8

8.5

9.3

Dimensions (mm)

H max.

Straight

10.8

11.5

9.9

11.9

11.5

10.9

11.9

13.4

14.4

10.5

11.0

12.0

14.0

14.5

15.4

16.0

16.9

16.5

17.0

17.9

18.5

Crimped lead

15.8

16.5

14.9

16.9

16.5

15.9

16.9

18.4

19.4

15.5

16.0

17.0

19.0

19.5

20.4

21.0

21.9

21.5

22.0

22.9

23.5

F

Straight

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

22.5

22.5

22.5

22.5

S

Crimped lead

G max.

Straight

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

fd

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

Style D : 0.010 μF to 0.047 μF

Style B : 0.056 μF to 0.47 μF

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

700

600

Min. order Q'ty

Taping

Odd size

5 mm

800

Odd size

7.5 mm

1300

1200

1100

Bulk

700

800

700

600

800

700

600

500

400

1200

1300

1200

1100

600

500

400

500

Notice for AC rated

AC rated capacitors complying with clause 1 of ''Electrical Appliance and Material Safety Law''.

As for clause 2 of ''Electrical Appliance and Material Safety Law'', please use ECQUA type or ECQUL type.

When using these capacitors as a across-the-line capacitor, it shall be required to follow either item 1. or item 2. condition.

1. Capacitor shall be connected in parallel with varistor (Specifi ed varistor voltage in table 1.)

2. Voltage applied for capacitor shall not exceed other than specifi ed in table 1, when using these capacitors.

Table 1

Capacitor rated voltage Varistor voltage

125 V.AC

250 V

250 V.AC

470 V

Pulse voltage

250 V

630 V

0-P

0-P

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECWF(L)

Designed for high frequency and current applications.

Features

Small size

Excellent frequency characteristics

Low loss

85 °C, 85 % RH, W.V. × 1.0 for 500 hours

RoHS directive compliant

Recommended applications

Lighting

High frequency and high current circuits (Televisions, Monitors, Power Supplies, etc.)

Explanation of part number

1 2 3 4 5

E C W F

Product code

6 7 8 9 10

Dielectric & construction

Rated voltage

4 400 V.DC

6 630 V.DC

Capacitance Cap. Tol.

Suffix

H ±3 %

J ±5 %

L

11

Suffix

Code

Blank

B

C

Lead Form

Straight

Crimped lead

Cut lead

Odd size taping

1 2 3 4 5

E C

Product code

W F

Dielectric & construction

Rated voltage

6 7 8 9 10

R

Capacitance

11

L

Suffix Cap. Tol.

Suffix

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

– 40 °C to +105 °C

400 V.DC

400 V.DC, 630 V.DC

0.022 μF to 2.4 μF

Capacitance range

630 V.DC

0.010 μF to 1.3 μF

Capacitance tolerance ±3 %(H), ±5 %(J)

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR) tan d < 0.05 % ( 20 °C, 1 kHz ) tan

d < 0.20 % ( 20 °C, 10 kHz )

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

C

< 0.33 μF : IR > 9000 MΩ

(20 °C, 100 V.DC, 60 s for 400 V.DC)

C > 0.33 μF : IR

> 3000 MΩ ∙ μF (20 °C, 500 V.DC, 60 s for 630 V.DC)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

Straight

L max.

Marking

F±1.5

T max.

Crimped lead

(Suffix B)

L max.

Marking

Cut lead

(Suffix Z)

Marking

0d±0.05

Copper-wire or

Copper-clad steel-wire

S±0.8

Unit : mm

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Taping specifi cations for automatic insertion

Taping style

Style D

P

F

P

0

✽ Refer to the page of taping specifications.

Packaging specifi cations

Type

ECWF(L)

Rated voltage

(V.DC)

400

630

Capacitance range

(μF)

0.022 to 0.091

0.10 to 1.0

0.010 to 0.043

0.047 to 0.43

Taping style

AD AB C D E

Packing

Ammo

Ammo

Ammo

Ammo suffi x

R( ) L

R( ) L

R( ) L

R( ) L

P

0

Style E

P

F

Lead spacing

Style Lead spacing

D

E

7.5 mm

7.5 mm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 400 V.DC, Capacitance tolerance : ± 3 %(J), ±5 %(J)

Part No.

Cap.

(μF)

ECWF4223◻L( )

ECWF4243◻L( )

ECWF4273◻L( )

ECWF4303◻L( )

ECWF4333◻L( )

ECWF4363◻L( )

ECWF4393◻L( )

ECWF4433◻L( )

ECWF4473◻L( )

ECWF4513◻L( )

ECWF4563◻L( )

ECWF4623◻L( )

ECWF4683◻L( )

ECWF4753◻L( )

ECWF4823◻L( )

ECWF4913◻L( )

ECWF4104◻L( )

ECWF4114◻L( )

ECWF4124◻L( )

ECWF4134◻L( )

ECWF4154◻L( )

ECWF4164◻L( )

ECWF4184◻L( )

ECWF4204◻L( )

ECWF4224◻L( )

ECWF4244◻L( )

ECWF4274◻L( )

ECWF4304◻L( )

ECWF4334◻L( )

ECWF4364◻L( )

ECWF4394◻L( )

ECWF4434◻L( )

ECWF4474◻L( )

ECWF4514◻L( )

ECWF4564◻L( )

ECWF4624◻L( )

ECWF4684◻L( )

ECWF4754◻L( )

ECWF4824◻L( )

ECWF4914◻L( )

ECWF4105◻L( )

ECWF4115◻L( )

ECWF4125◻L( )

ECWF4135◻L( )

ECWF4155◻L( )

ECWF4165◻L( )

ECWF4185◻L( )

ECWF4205◻L( )

ECWF4225◻L( )

ECWF4245◻L( )

0.022

0.024

0.027

0.030

0.033

0.036

0.039

0.043

0.047

0.051

0.056

0.062

0.068

0.075

0.082

0.091

0.10

0.11

0.12

0.13

0.15

0.16

0.18

0.20

0.22

0.24

0.27

0.30

0.33

0.36

0.39

0.43

0.47

0.51

0.56

0.62

0.68

0.75

0.82

0.91

1.0

1.1

1.2

1.3

1.5

1.6

1.8

2.0

2.2

2.4

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

L max.

T max.

20.5

20.5

20.5

20.5

23.0

23.0

23.0

23.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

18.0

18.0

18.0

18.0

18.0

18.0

20.5

15.5

15.5

15.5

15.5

15.5

18.0

18.0

12.5

12.5

12.5

13.0

13.0

13.0

13.0

13.0

15.5

15.5

15.5

15.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

10.7

11.3

11.8

12.3

11.8

12.4

13.0

13.6

12.3

12.8

13.7

14.2

15.2

16.0

16.8

17.5

9.2

9.6

9.9

10.3

10.7

11.2

10.3

7.6

7.8

8.2

8.6

9.0

8.3

8.8

6.2

6.4

6.6

6.8

7.0

7.3

7.5

7.8

6.5

6.8

7.0

7.2

5.8

6.0

6.2

6.4

6.7

5.7

5.8

6.0

Dimensions (mm)

12.2

12.4

12.8

13.3

13.6

13.0

13.4

10.1

10.4

10.7

11.0

11.3

11.5

11.8

8.6

H max.

Straight

Crimped lead

13.6

8.8

9.0

9.3

9.5

8.4

8.6

8.8

9.0

9.2

9.4

9.6

9.9

13.8

14.0

14.3

14.5

13.4

13.6

13.8

14.0

14.2

14.4

14.6

14.9

17.2

17.4

17.8

18.3

18.6

18.0

18.4

15.1

15.4

15.7

16.0

16.3

16.5

16.8

17.3

17.9

18.5

19.1

18.5

19.2

19.8

20.5

19.1

13.9

14.3

14.7

15.1

15.6

16.1

16.8

19.6

20.7

21.2

22.2

23.1

24.0

24.8

22.3

22.9

23.5

24.1

23.5

24.2

24.8

25.5

24.1

18.9

19.3

19.7

20.1

20.6

21.1

21.8

24.6

25.7

26.2

27.2

28.1

29.0

29.8

F

Straight

17.5

17.5

17.5

17.5

20.0

20.0

20.0

20.0

25.0

25.0

25.0

25.0

25.0

25.0

25.0

25.0

15.0

15.0

15.0

15.0

15.0

15.0

17.5

12.5

12.5

12.5

12.5

12.5

15.0

15.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

12.5

12.5

12.5

12.5

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

7.5

7.5

7.5

7.5

7.5

10.0

10.0

7.5

7.5

7.5

7.5

7.5

7.5

7.5

S

Crimped lead

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

17.5

10.0

10.0

10.0

10.0

10.0

10.0

12.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.6

0.6

0.6

0.8

0.8

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

Min. order Q'ty

Taping

Bulk

7.5 mm

1100

1000

900

1100

1000

900

800

500

400

300

200

300

200

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 630 V.DC, Capacitance tolerance : ± 3 %(J), ±5 %(J)

Part No.

Cap.

(μF)

ECWF6103◻L( )

ECWF6113◻L( )

ECWF6123◻L( )

ECWF6133◻L( )

ECWF6153◻L( )

ECWF6163◻L( )

ECWF6183◻L( )

ECWF6203◻L( )

ECWF6223◻L( )

ECWF6243◻L( )

ECWF6273◻L( )

ECWF6303◻L( )

ECWF6333◻L( )

ECWF6363◻L( )

ECWF6393◻L( )

ECWF6433◻L( )

ECWF6473◻L( )

ECWF6513◻L( )

ECWF6563◻L( )

ECWF6623◻L( )

ECWF6683◻L( )

ECWF6753◻L( )

ECWF6823◻L( )

ECWF6913◻L( )

ECWF6104◻L( )

ECWF6114◻L( )

ECWF6124◻L( )

ECWF6134◻L( )

ECWF6154◻L( )

ECWF6164◻L( )

ECWF6184◻L( )

ECWF6204◻L( )

ECWF6224◻L( )

ECWF6244◻L( )

ECWF6274◻L( )

ECWF6304◻L( )

ECWF6334◻L( )

ECWF6364◻L( )

ECWF6394◻L( )

ECWF6434◻L( )

ECWF6474◻L( )

ECWF6514◻L( )

ECWF6564◻L( )

ECWF6624◻L( )

ECWF6684◻L( )

ECWF6754◻L( )

ECWF6824◻L( )

ECWF6914◻L( )

0.010

0.011

0.012

0.013

0.015

0.016

0.018

0.020

0.022

0.024

0.027

0.030

0.033

0.036

0.039

0.043

0.047

0.051

0.056

0.062

0.068

0.075

0.082

0.091

0.10

0.11

0.12

0.13

0.15

0.16

0.18

0.20

0.22

0.24

0.27

0.30

0.33

0.36

0.39

0.43

0.47

0.51

0.56

0.62

0.68

0.75

0.82

0.91

ECWF6105◻L( )

ECWF6115◻L( )

ECWF6125◻L( )

ECWF6135◻L( )

1.0

1.1

1.2

1.3

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

L max.

T max.

20.5

20.5

20.5

20.5

20.5

20.5

20.5

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

15.5

15.5

15.5

15.5

18.0

18.0

18.0

12.5

12.5

13.0

13.0

13.0

13.0

13.0

13.0

15.5

15.5

15.5

15.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

10.4

10.9

11.4

11.9

12.4

13.0

13.5

11.1

11.6

12.1

12.7

13.3

13.9

14.6

15.5

16.3

17.0

17.6

8.5

9.1

9.3

9.8

10.3

10.8

11.2

7.4

7.7

8.0

8.3

7.7

8.0

8.3

6.2

6.4

6.6

6.9

7.1

7.3

7.6

7.9

6.4

6.6

6.8

7.1

5.2

5.4

5.5

5.6

5.9

6.0

6.2

6.5

Dimensions (mm)

11.8

12.1

12.4

12.7

12.1

12.4

12.7

10.2

10.4

10.7

10.8

11.0

11.2

11.5

8.0

H max.

Straight

Crimped lead

13.0

8.2

8.3

8.5

8.7

8.9

9.1

9.3

9.0

9.2

9.5

9.7

10.0

13.2

13.3

13.5

13.7

13.9

14.1

14.3

14.0

14.2

14.5

14.7

15.0

16.8

17.1

17.4

17.7

17.1

17.4

17.7

15.2

15.4

15.7

15.8

16.0

16.2

16.5

16.7

17.2

17.7

18.5

19.0

19.5

20.1

17.3

17.8

18.7

19.3

19.9

20.5

13.0

13.5

13.8

14.2

14.7

15.5

15.9

21.2

22.3

23.0

23.7

24.4

21.7

22.2

22.7

23.5

24.0

24.5

25.1

22.3

22.8

23.7

24.3

24.9

25.5

18.0

18.5

18.8

19.1

19.7

20.5

20.9

26.2

27.3

28.0

28.7

29.4

F

Straight

17.5

17.5

17.5

17.5

17.5

17.5

17.5

25.0

25.0

25.0

25.0

25.0

25.0

25.0

25.0

25.0

25.0

25.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

12.5

12.5

12.5

12.5

15.0

15.0

15.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

12.5

12.5

12.5

12.5

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

7.5

7.5

7.5

7.5

10.0

10.0

10.0

7.5

7.5

7.5

7.5

7.5

7.5

7.5

S

Crimped lead

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

17.5

17.5

17.5

17.5

17.5

17.5

10.0

10.0

10.0

10.0

10.0

10.0

10.0

17.5

17.5

17.5

17.5

17.5

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.6

0.6

0.8

0.8

0.8

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

Min. order Q'ty

Taping

Bulk

7.5 mm

1200

1100

1000

900

800

500

400

300

200

300

200

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECWF(A)

Non-inductive construction using metallized polypropylene fi lm with fl ame retardant epoxy resin coating.

Features

Small size

Excellent frequency characteristics

Low loss

Low Hum Sound Noise

85 degree C , 85 %RH , 500 V.DC , 500 hours (630 V.DC)

RoHS directive compliant

Recommended applications

250 V.DC, 630 V.DC : High frequency and high current circuits

450 V.DC : Active fi lter circuits

Explanation of part number

250 V.DC, 450 V.DC (Bulk)

1 2 3 4 5

E C W F

Product code Dielectric & construction

6 7 8 9 10

Rated voltage Capacitance

A

Cap. Tol.

Suffix

2 250 V.DC

2W 450 V.DC

H

J

J

±3 %

±5 %

±5 %

K ±10 %

Suffix

Code

Blank

B

Q

C

Lead Form

Straight

Crimped lead

Crimped lead

Cut lead

250 V.DC, 450 V.DC (Odd size taping)

1 2 3 4 5

E C W F

6 7 8 9 10

R A

Product code Dielectric & construction

Rated voltage

630 V.DC (Bulk, Odd size taping)

1 2 3 4 5

E C W F A

Capacitance Suffix

6 7 8 9 10

2 J

Cap. Tol.

Suffix

J

Product code Dielectric & construction

Rated voltage Capacitance Cap. Tol.

Suffix

2J 630 V.DC

J ±5 %

Code

Blank

B

Q

C

4

Lead Form

Straight

Crimped lead

Crimped lead

Cut lead

Odd size taping

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

– 40 °C to +105 °C

Rated voltage

250 V.DC

450 V.DC (Derating of rated voltage by 1.25%/°C at more than 85 °C)

Peak to peak voltage applied on the capacitor should be less than

240 Vp-p, and zero to peak voltage should be less than 450 Vo-p.

630 V.DC (Derating of rated voltage by 1.0%/°C at more than 85 °C)

250 V.DC

0.1 μF to 6.8 μF

Capacitance range 450 V.DC

0.1 μF to 4.7 μF

630 V.DC

0.1 μF to 2.2 μF

Capacitance tolerance

250 V.DC

±3 %(H), ±5 %(J)

450 V.DC

±5 %(J), ±10 %(K)

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

630 V.DC

±5 %(J) tan

d < 0.1 % (20 °C, 1 kHz)

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

250 V.DC

450 V.DC

630 V.DC

C

< 0.33 μF : IR > 9000 MΩ

C > 0.33 μF : IR

> 3000 MΩ ∙ μF

C

< 0.33 μF : IR > 30000 MΩ

C > 0.33 μF : IR

> 10000 MΩ ∙ μF

C

< 0.33 μF : IR > 9000 MΩ

C > 0.33 μF : IR

> 3000 MΩ ∙ μF

(20 °C, 100 V.DC, 60 s)

(20 °C, 100 V.DC, 60 s)

(20 °C, 500 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Dimensions

Straight

L max.

Marking

F±1.0

T max.

Crimped lead

(Suffix B)

L max.

Marking

0d±0.05

Copper-wire or

Copper-clad steel-wire

S±0.8

Style B

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Crimped lead

(Suffix Q)

L max.

Marking

S±0.8

Style D

Cut lead

(Suffix C)

Marking

Unit : mm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Taping specifi cations for automatic insertion

Taping style

Style D

P

Style E

P

F

F

P

0

P

0

✽ Refer to the page of taping specifications.

Packaging specifi cations

Type

ECWF(A)

Rated voltage

(V.DC)

250

450

630

Capacitance range

(μF)

0.10 to 0.47

0.56 to 3.9

0.10 to 0.47

0.56 to 2.2

0.10 to 0.68

Taping style

AD AS B C D E F

Packing

Ammo suffi x

R( ) A

J4

Style F

P

P

0

F

Lead spacing

Style Lead spacing

D

E

F

7.5 mm

7.5 mm

7.5 mm

Rating · Dimensions · Quantity

Rated voltage : 250 V.DC, Capacitance tolerance : ± 3 %(H), ±5 %(J)

Dimensions (mm)

Part No.

Cap.

(μF)

L max. T max.

Straight

H max.

Crimped lead

(Suffix B)

Crimped lead

(Suffix Q)

F

Straight

Crimped lead

(Suffix B)

S

Crimped lead

(Suffix Q)

ECWF2104◻A( )

0.10

13.0

5.0

ECWF2124◻A( )

0.12

13.0

5.3

ECWF2154◻A( )

0.15

13.0

5.6

ECWF2184◻A( )

0.18

13.0

5.9

ECWF2224◻A( )

0.22

13.0

6.3

ECWF2274◻A( )

0.27

13.0

6.8

ECWF2334◻A( )

0.33

13.0

7.3

14.1

14.4

14.7

15.1

15.4

15.9

16.4

14.1

14.4

14.7

15.1

15.4

15.9

16.4

7.5

7.5

7.5

7.5

7.5

7.5

7.5

10.0

10.0

10.0

10.0

10.0

10.0

10.0

ECWF2394◻A( )

0.39

13.0

7.8

ECWF2474◻A( )

0.47

13.0

8.4

ECWF2564◻A( )

0.56

18.1

6.9

ECWF2684◻A( )

0.68

18.1

7.4

16.9

17.6

16.4

17.0

16.9

17.6

18.4

19.0

7.5

7.5

7.5

7.5

10.0

10.0

15.0

15.0

ECWF2824◻A( )

0.82

18.1

8.0

ECWF2105◻A( )

1.0

18.1

8.5

13.3

17.6

18.3

19.6

20.3

15.0

7.5

7.5

15.0

15.0

ECWF2125◻A( )

1.2

18.8

9.5

14.6

19.6

21.6

15.0

7.5

15.0

ECWF2155◻A( )

1.5

ECWF2185◻A( )

1.8

ECWF2225◻A( )

2.2

ECWF2275◻A( )

2.7

ECWF2335◻A( )

3.3

ECWF2395◻A( )

3.9

ECWF2475◻A( )

4.7

ECWF2565◻A( )

5.6

ECWF2685◻A( )

6.8

18.8

18.8

18.8

23.8

23.8

23.8

23.8

23.8

23.8

10.5

11.4

12.6

11.4

12.5

13.5

14.8

16.2

17.8

15.6

16.5

17.6

17.2

18.3

19.3

20.6

21.9

23.5

20.6

21.5

22.6

22.2

23.3

24.3

25.6

26.9

28.5

22.6

23.5

24.6

24.2

25.3

26.3

27.6

28.9

30.5

15.0

15.0

15.0

20.0

20.0

20.0

20.0

20.0

20.0

7.5

7.5

7.5

12.5

12.5

12.5

12.5

12.5

12.5

15.0

15.0

15.0

20.0

20.0

20.0

20.0

20.0

20.0

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

G max.

Straight

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

fd

Min. order Q'ty

Taping

Bulk

7.5 mm

0.6

1300

0.6

1200

0.6

0.6

1100

0.6

1000

0.8

0.8

0.8

0.8

0.6

0.6

900

0.6

800

0.6

700

400

0.8

0.8

0.8

0.8

300

200

0.8

300

0.8

200

0.8

0.8

0.8

0.8

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 450 V.DC, Capacitance tolerance : ± 5 %(J), ±10 %(K)

Dimensions (mm)

Part No.

Cap.

(μF)

L max. T max.

Straight

H max.

Crimped lead

(Suffix B)

Crimped lead

(Suffix Q)

F

Crimped lead

(Suffix B)

S

Crimped lead

(Suffix Q)

ECWF2W104◻A( ) 0.10

13.0

ECWF2W124◻A( ) 0.12

13.0

ECWF2W154◻A( ) 0.15

13.0

ECWF2W184◻A( ) 0.18

13.0

ECWF2W224◻A( ) 0.22

13.0

ECWF2W274◻A( ) 0.27

13.0

ECWF2W334◻A( ) 0.33

13.0

ECWF2W394◻A( ) 0.39

13.0

ECWF2W474◻A( ) 0.47

13.0

ECWF2W564◻A( ) 0.56

18.1

ECWF2W684◻A( ) 0.68

18.1

5.1

5.4

5.7

6.1

6.5

7.0

7.6

8.1

8.7

7.0

7.5

11.5

12.1

14.3

14.5

14.9

15.2

15.6

16.1

16.7

17.2

17.9

16.5

17.1

14.3

14.5

14.9

15.2

15.6

16.1

16.7

17.2

17.9

18.5

19.1

15.0

15.0

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

ECWF2W824◻A( ) 0.82

18.1

ECWF2W105◻A( ) 1.0

18.1

ECWF2W125◻A( ) 1.2

ECWF2W155◻A( ) 1.5

18.8

18.8

8.2

9.3

9.7

10.7

12.7

12.6

14.7

15.8

17.7

17.6

19.7

20.8

19.7

19.6

21.7

22.8

15.0

15.0

15.0

15.0

7.5

7.5

7.5

7.5

15.0

15.0

15.0

15.0

ECWF2W185◻A( ) 1.8

ECWF2W225◻A( ) 2.2

ECWF2W275◻A( ) 2.7

18.8

18.8

26.3

11.6

12.8

10.6

16.7

17.9

16.5

21.7

22.9

21.5

23.7

24.9

23.5

15.0

15.0

22.5

7.5

7.5

15.0

15.0

15.0

22.5

ECWF2W335◻A( ) 3.3

ECWF2W395◻A( ) 3.9

ECWF2W475◻A( ) 4.7

26.3

26.3

26.3

11.7

12.6

13.8

17.5

18.4

19.6

22.5

23.4

24.6

24.5

25.4

26.6

22.5

22.5

22.5

15.0

15.0

15.0

22.5

22.5

22.5

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

G max.

fd

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

7.5 mm

1200

1000

800

600

400

300

200

Bulk

500

Rated voltage : 630 V.DC, Capacitance tolerance : ± 5 %(J)

Dimensions (mm) Min. order Q'ty

Part No.

Cap.

(μF)

L max. T max.

Straight

H max.

Crimped lead

(Suffix B)

Crimped lead

(Suffix Q)

F

Crimped lead

(Suffix B)

S

Crimped lead

(Suffix Q)

G max.

ECWFA2J104J( ) 0.10

18.2

5.2

10.4

15.4

15.4

15.0

7.5

15.0

1.5

ECWFA2J124J( ) 0.12

18.2

5.5

10.8

15.8

15.8

15.0

7.5

15.0

1.5

ECWFA2J154J( ) 0.15

18.2

6.0

11.2

16.2

16.2

15.0

7.5

15.0

1.5

ECWFA2J184J( ) 0.18

18.2

6.5

11.7

16.7

16.7

15.0

7.5

15.0

1.5

ECWFA2J224J( ) 0.22

18.2

7.1

12.3

17.3

17.3

15.0

7.5

15.0

1.5

ECWFA2J274J( ) 0.27

18.2

7.8

12.9

17.9

17.9

15.0

7.5

15.0

1.5

ECWFA2J334J( ) 0.33

18.2

8.5

13.6

18.6

18.6

15.0

7.5

15.0

1.5

ECWFA2J394J( ) 0.39

18.2

9.2

14.3

19.3

19.3

15.0

7.5

15.0

1.5

ECWFA2J474J( ) 0.47

18.2

10.0

15.1

20.1

20.1

15.0

7.5

15.0

1.5

ECWFA2J564J( ) 0.56

18.2

10.9

16.0

21.0

21.0

15.0

7.5

15.0

1.5

ECWFA2J684J( ) 0.68

18.2

12.0

17.1

22.1

22.1

15.0

7.5

15.0

1.5

ECWFA2J824J( ) 0.82

26.0

10.1

15.3

20.3

22.3

22.5

15.0

22.5

1.5

ECWFA2J105J( ) 1.0

ECWFA2J125J( ) 1.2

ECWFA2J155J( ) 1.5

26.0

26.0

26.0

11.1

12.1

13.5

16.2

17.2

18.6

21.2

22.2

23.6

23.2

24.2

25.6

22.5

22.5

22.5

15.0

15.0

15.0

22.5

22.5

22.5

1.5

1.5

1.5

ECWFA2J185J( ) 1.8

ECWFA2J225J( ) 2.2

26.0

26.0

14.8

16.3

19.8

21.4

24.8

26.4

26.8

28.4

22.5

22.5

15.0

15.0

22.5

22.5

1.5

1.5

fd

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

Taping

7.5 mm Straight

600

500

400

300

200

Bulk

1000

800

600

500

400

Crimped lead

1000

600

500

✽ ( ) : Suffi x for lead crimped

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECWFD

Non-inductive construction using metalized Polypropylene fi lm with fl ame retardant epoxy resin coating.

Features

Small size

Low loss

Low Hum Sound Noise

Excellent frequency characteristics

Flame-retardant epoxy resin coating

RoHS directive compliant

Recommended applications

Activ fi lter circuits

High frequency and high current circuits

Explanation of part number

Standard product

1 2 3 4 5

E C W F D

6 7 8 9 10

Product code Dielectric & construction

Rated voltage

2W 450 V.DC

Capacitance

J ±5 %

K ±10 %

Cap. Tol.

Suffix

Code

Blank

C

3

4

B

Q

Lead Form

Straight

Crimped lead

Crimped lead

Cut lead

Crimped taping (Ammo)

Odd size taping

Short lead space product (0.47 μF, 0.68 μF, 1.0 μF)

1 2 3 4 5 6 7 8 9 10

E C W F D

Product code Dielectric & construction

Rated voltage Capacitance Suffix 1 Suffix 2

2W 450 V.DC

Code

P

Q

Cap. Tol.

±5 %(J)

±10 %(K)

Code

1

B

3

4

Q

C

Lead Form

Straight

Crimped lead

Crimped lead

Cut lead

Crimped taping (Ammo)

Odd size taping

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

– 40 °C to +110 °C

Rated voltage

450 V.DC (Derating of rated voltage by 0.62%/°C at more than 85°C Peak to peak voltage applied on the capacitor should be less than 240 Vp-p, and zero to peak voltage should be less than 450 Vo-p.

Capacitance range

Capacitance tolerance

0.1 μF to 4.7 μF

±5 %(J), ±10 %(K)

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR) tan d < 0.1 % ( 20 °C, 1 kHz )

Between terminals:Rated voltage (V.DC)

×150 %, 60 s

C

< 0.33 μF : IR > 30000 MΩ

C > 0.33 μF : IR

> 10000 MΩ ∙ μF

(20 °C, 100 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

Straight

L max.

Marking

F±1.0

T max.

Crimped lead

(Suffix B)

L max.

Marking

Crimped lead

(Suffix Q)

L max.

Marking

Cut lead

(Suffix C)

Marking

0d±0.05

Copper-clad steel-wire

S±0.8

Style B

S±0.8

Style D

Unit : mm

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Taping specifi cations for automatic insertion

Taping style

Style AB

P

Style E

P

F

P

0

P

0

F

Style F

P

Taping style

Type

Rated voltage

(V.DC)

Capacitance range

(μF)

ECWFD

450

0.10 to 0.39

0.47, 0.68, 1.0

0.10 to 0.39

0.47, 0.68, 1.0

0.47 to 2.2

✽ Refer to the page of taping specifications.

Taping style

AD AS AB B C D E F

Lead spacing

Style Lead spacing

AB

E

F

5.0 mm

7.5 mm

7.5 mm

Packing

Ammo suffi x

3

P3/Q3

4

P4/Q4

4

P

0

F

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 450 V.DC, Capacitance tolerance : ±5 %(J), ± 10 %(K),

Dimensions (mm) Min. order Q'ty

Part No.

Cap.

(μF)

L max.

T max.

Straight

H max.

Crimped lead

(Suffix B)

Crimped lead

(Suffix Q)

F

Crimped lead

(Suffix B)

S

Crimped lead

(Suffix Q)

G max.

fd

Taping

ECWFD2W104◻( ) 0.10 12.6 4.5

ECWFD2W124◻( ) 0.12 12.6 4.6

ECWFD2W154◻( ) 0.15 12.6 4.6

13.9

14.0

14.1

13.9

14.0

14.1

7.5

7.5

7.5

10.0

10.0

10.0

0.6

0.6

0.6

1500 1400

ECWFD2W184◻( ) 0.18 12.6 4.8

ECWFD2W224◻( ) 0.22 12.6 5.0

ECWFD2W274◻( ) 0.27 12.6 5.3

ECWFD2W334◻( ) 0.33 12.6 5.6

14.3

14.6

15.0

15.4

14.3

14.6

15.0

15.4

7.5

7.5

7.5

7.5

10.0

10.0

10.0

10.0

0.6

0.6

0.6

0.6

1400

1300

1200

1300

1200

1100

ECWFD2W394◻( ) 0.39 12.6 6.0

ECWFD2W474P( )

ECWFD2W474Q( )

0.47

12.6

6.5

11.2

16.2

16.2

10.0

7.5

10.0

1.5

0.6

ECWFD2W474◻( ) 0.47 17.5 5.8 9.0 14.0 16.0 15.0 7.5 15.0

1.5

0.8

1000

900

ECWFD2W564◻( ) 0.56 17.5 6.2 9.4 14.4 16.4 15.0 7.5 15.0

1.5

0.8

ECWFD2W684P( )

0.68

12.6

7.7

12.4

17.4

17.4

10.0

7.5

10.0

1.5

0.6

800

500

700

ECWFD2W684Q( )

ECWFD2W684◻( ) 0.68 17.5 6.7 9.9 14.9 16.9 15.0 7.5 15.0

1.5

0.8

ECWFD2W824◻( ) 0.82 17.5 7.2 10.4 15.4 17.4 15.0 7.5 15.0

1.5

0.8

400

ECWFD2W105P( )

ECWFD2W105Q( )

1.0

12.6

9.2

13.9

15.7

18.9

15.7

18.9

10.0

7.5

7.5

10.0

10.0

1.5

0.6

0.6

1100

700

1000

600

ECWFD2W105◻( ) 1.0

17.5

7.8

11.0

16.0

18.0

15.0

7.5

15.0

1.5

0.8

ECWFD2W125◻( ) 1.2

17.5

8.5

11.6

16.6

18.6

15.0

7.5

15.0

1.5

0.8

ECWFD2W155◻( ) 1.5

17.5

9.3

12.5

17.5

19.5

15.0

7.5

15.0

1.5

0.8

ECWFD2W185◻( ) 1.8

17.5

10.1

13.3

18.3

20.3

15.0

7.5

15.0

1.5

0.8

ECWFD2W225◻( ) 2.2

17.5

11.1

14.3

19.3

21.3

15.0

7.5

15.0

1.5

0.8

ECWFD2W275◻( ) 2.7

25.3

9.0

13.7

18.7

20.7

22.5

15.0

22.5

1.5

0.8

ECWFD2W335◻( ) 3.3

25.3

9.8

14.6

19.6

21.6

22.5

15.0

22.5

1.5

0.8

ECWFD2W395◻( ) 3.9

25.3

10.7

15.4

20.4

22.4

22.5

15.0

22.5

1.5

0.8

400

300

200

ECWFD2W475◻( ) 4.7

25.3

11.7

16.4

21.4

23.4

22.5

15.0

22.5

1.5

0.8

Bulk

5.0 mm 7.5 mm Straight

1000

800

600

Crimped lead

1000

600

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

Note) Part Number marked with

★ is Short Lead Space Product.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECWFE

Non-inductive construction using metalized Polypropylene fi lm with fl ame retardant plastic case.

Features

Small size

Excellent frequency characteristics

Low loss

Flame retardant plastic case and non-combustible resin

Low Hum Sound Noise

RoHS directive compliant

Recommended applications

Activ fi lter circuits

High frequency and high current circuits

Explanation of part number

Standard

1 2 3 4 5

E C W F E

Product code Dielectric & construction

6 7 8 9 10

Rated voltage

2W 450 V.DC

2J 630 V.DC

11 12

Capacitance

J ±5 %

K ±10 %

Cap. Tol.

Suffix

Code

Blank

A

Lead Form

Straight

Cut lead

Short lead space product (0.47 μF)

1 2 3 4 5

E C W F E

Product code Dielectric & construction

6 7 8 9 10

2 W

Rated voltage Capacitance

2W 450 V.DC

11 12

P ±5 %

Q ±10 %

Cap. Tol.

Suffix

Code

1

A

Lead Form

Straight

Cut lead

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

– 40 °C to +105 °C

Rated voltage

Capacitance range

450 V.DC (Derating of rated voltage by 1.25 %/°C at more than 85 °C)

Peak to peak voltage applied on the capacitor should be less than 240 Vp-p ,and zero to peak voltage should be less than 450 Vo-p.

630 V.DC ( Derating of rated voltage by 1.0%/°C at more than 85 °C)

Peak to peak voltage applied on the capacitor should be less than

400 Vp-p ,and zero to peak voltage should be less than 630 Vo-p.

450 V.DC

0.1 μF to 4.7 μF

630 V.DC

0.1 μF to 2.2 μF

Capacitance tolerance ±5 %(J), ±10 %(K)

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR) tan d < 0.1 % (20 °C, 1 kHz)

Between terminals : Rated voltage (V.DC)

×150 % 60 s

450 V.DC

C

< 0.33 μF : IR > 30000 MΩ

C > 0.33 μF : IR

> 10000 MΩ ∙ μF

(20 °C, 100 V.DC, 60 s)

630 V.DC

C

< 0.33 μF : IR > 9000 MΩ

C > 0.33 μF : IR

> 3000 MΩ ∙ μF

(20 °C, 500 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

L±0.5

T±0.5

Cut lead

(Suffix A)

F±0.4

Q

+1.4

–0.6

P

(Lead location limits from center)

0d±0.05

Tin-plated copper-clad steel wire

Marking

Unit : mm

Marking example

W F E 2 W

1 0 5 J

Note : Date code.

Rating · Dimensions · Quantity

Rated voltage : 450 V.DC, Capacitance tolerance : ±5 %(J), ± 10 %(K),

Part No.

Cap.

(μF)

ECWFE2W104◻( )

ECWFE2W154◻( )

ECWFE2W224◻( )

ECWFE2W334◻( )

ECWFE2W474P( )

ECWFE2W474Q( )

ECWFE2W474◻( )

ECWFE2W684◻( )

ECWFE2W105◻( )

ECWFE2W155◻( )

ECWFE2W225◻( )

ECWFE2W335◻( )

ECWFE2W475◻( )

0.10

0.15

0.22

0.33

0.47

0.47

0.68

1.0

1.5

2.2

3.3

4.7

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

L

13.0

13.0

13.0

13.0

13.0

17.5

17.5

17.5

17.5

17.5

26.0

26.0

T

5.0

5.0

6.0

6.0

7.0

6.0

7.0

7.0

10.0

10.0

10.0

12.0

12.5

11.5

12.5

12.5

15.5

15.5

17.0

19.0

H

Dimensions (mm)

F

10.5

10.0

fd

0.6

10.5

12.0

10.0

10.0

0.6

0.6

12.0

10.0

0.6

10.0

15.0

15.0

15.0

15.0

15.0

22.5

22.5

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Note) Part Number marked with

★ is Short Lead Space Product.

P

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

Q

1.5

1.5

1.5

1.5

1.5

1.3

1.3

1.3

1.3

1.3

1.8

1.8

Min. order Q'ty

Straight Cut lead

1000

500

300

1000

600

300

200

Rated voltage : 630 V.DC, Capacitance tolerance : ±5 %(J), ± 10 %(K),

Part No.

Cap.

(μF)

ECWFE2J104◻( )

ECWFE2J154◻( )

ECWFE2J224◻( )

ECWFE2J334◻( )

ECWFE2J474◻( )

ECWFE2J684◻( )

ECWFE2J105◻( )

ECWFE2J155◻( )

ECWFE2J225◻( )

0.10

0.15

0.22

0.33

0.47

0.68

1.0

1.5

2.2

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

L

17.5

17.5

17.5

17.5

17.5

17.5

26.0

26.0

26.0

T

5.0

6.0

7.0

8.5

10.0

11.0

10.0

12.0

16.0

14.5

15.5

17.5

17.0

19.0

23.0

H

Dimensions (mm)

F

10.5

15.0

fd

0.6

11.5

12.5

15.0

15.0

0.6

0.6

15.0

15.0

15.0

22.5

22.5

22.5

0.6

0.6

0.6

0.8

0.8

0.8

P

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

1.3

1.3

1.3

1.8

1.8

1.8

Q

1.3

1.3

1.3

Min. order Q'ty

Straight Cut lead

1000

1000

600

500

300

200

800

600

300

200

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECWH(V)

Non-inductive construction using metallized polypropylene fi lm with fl ame retardant epoxy resin coating.

Features

Low-loss and inherent tempereature rise

Excellent electrical characteristics

Flame-retardant epoxy resin coating

RoHS directive compliant

Recommended applications

High frequency high voltage circuit

(TV horizontal resonance, inverter lighting circuit)

Explanation of part number

1 2 3 4 5

E C W H

Product code Dielectric & construction

6 7 8 9 10

Rated voltage Capacitance

V

Cap. Tol.

Suffix

10 1000 V.DC

12 1250 V.DC

16 1600 V.DC

20 2000 V.DC

H

J

±3 %

±5 %

Suffix

Code

Blank

B

C

Lead Form

Straight

Crimped lead

Cut lead

Odd size taping

1 2 3 4 5

E C W H

Product code Dielectric & construction

6 7 8 9 10

R

Rated voltage Capacitance

V

Suffix Cap. Tol.

Suffix

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

– 40 °C to +105 °C

Rated voltage

1000 V.DC, 1250 V.DC (1000 Vp-p)

1600 V.DC (1200 Vp-p), 2000 V.DC (1500 Vp-p)

(Derating of rated voltage by 1.25 %/°C at more than 85 °C)

1000 V.DC

0.0075 μF to 0.10 μF

1250 V.DC

0.0036 μF to 0.10 μF

Capacitance range

1600 V.DC

0.0013 μF to 0.056 μF

2000 V.DC

0.001 μF to 0.015 μF

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

±3 %(H), ±5 %(J) tan d < 0.1 % (20 °C, 1 kHz) tan d < 0.2 % (20 °C, 10 kHz)

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

Between terminals to enclosure : 1500 V.AC 60 s

IR

> 30000 MΩ (20 °C, 500 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

Straight

L max.

Marking

F±1.25

T max.

Crimped lead

(Suffix B)

L max.

Marking

Cut lead

(Suffix C)

Marking

00.80±0.05

Copper wire

S±0.8

Unit : mm

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Taping specifi cations for automatic insertion

Taping style

Style E

P

F

P

0

✽ Refer to the page of taping specifications.

Taping style

Type

ECWH(V)

Rated voltage

(V.DC)

1000

1250

1600

Capacitance range

(μF)

0.0075 to 0.10

0.0036 to 0.051

0.0013 to 0.020

Taping style

AD AS B C D E

2000 0.0010 to 0.015

✽ See the column “Rating · Dimensions · Quantity” for packing quantity

Packing

Ammo suffi x

R( ) V

R( ) V

R( ) V

R( ) V

Lead spacing

Style Lead spacing

E

7.5 mm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 1000 V.DC, Capacitance tolerance : ±3 %(H), ±5 %(J)

Part No.

Cap.

(μF)

ECWH10752◻V( )

0.0075

ECWH10822◻V( )

0.0082

ECWH10912◻V( )

0.0091

ECWH10103◻V( )

0.010

ECWH10113◻V( )

0.011

ECWH10123◻V( )

0.012

ECWH10133◻V( )

0.013

ECWH10153◻V( )

0.015

ECWH10163◻V( )

0.016

ECWH10183◻V( )

0.018

ECWH10203◻V( )

0.020

ECWH10223◻V( )

0.022

ECWH10243◻V( )

0.024

ECWH10273◻V( )

0.027

ECWH10303◻V( )

0.030

ECWH10333◻V( )

0.033

ECWH10363◻V( )

0.036

ECWH10393◻V( )

0.039

ECWH10433◻V( )

0.043

ECWH10473◻V( )

0.047

ECWH10513◻V( )

0.051

ECWH10563◻V( )

0.056

ECWH10623◻V( )

0.062

ECWH10683◻V( )

0.068

ECWH10753◻V( )

0.075

ECWH10823◻V( )

0.082

ECWH10913◻V( )

0.091

ECWH10104◻V( )

0.10

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

L max.

T max.

8.0

8.5

8.5

9.0

9.5

9.5

10.0

7.5

8.0

8.5

8.5

9.0

9.5

7.5

7.5

10.5

11.0

11.5

12.0

6.0

6.0

6.0

6.5

6.5

6.5

7.0

7.0

7.5

23.0

23.0

23.0

23.0

23.0

23.0

23.0

18.0

18.0

18.0

18.0

18.0

18.0

23.0

23.0

23.0

23.0

23.0

23.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

Dimensions (mm)

16.5

16.5

17.0

17.5

17.5

18.0

19.0

19.5

20.0

20.5

21.0

Straight

12.5

12.5

H max.

Crimped lead

17.5

17.5

F

Straight

15.0

15.0

14.5

15.0

15.0

15.5

16.0

16.5

16.0

16.0

13.0

13.0

13.5

13.5

13.5

14.0

14.0

18.0

18.0

18.5

18.5

18.5

19.0

19.0

19.5

20.0

20.0

20.5

21.0

21.5

21.0

21.0

15.0

15.0

15.0

15.0

15.0

15.0

20.0

20.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

21.5

21.5

22.0

22.5

22.5

23.0

24.0

24.5

25.0

25.5

26.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

S

Crimped lead

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

Bulk

7.5 mm

500

400

300

400

300

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 1250 V.DC, Capacitance tolerance : ±3 %(H), ±5 %(J)

Part No.

Cap.

(μF)

ECWH12362◻V( )

0.0036

ECWH12392◻V( )

0.0039

ECWH12432◻V( )

0.0043

ECWH12472◻V( )

0.0047

ECWH12512◻V( )

0.0051

ECWH12562◻V( )

0.0056

ECWH12622◻V( )

0.0062

ECWH12682◻V( )

0.0068

ECWH12752◻V( )

0.0075

ECWH12822◻V( )

0.0082

ECWH12912◻V( )

0.0091

ECWH12103◻V( )

0.010

ECWH12113◻V( )

0.011

ECWH12123◻V( )

0.012

ECWH12133◻V( )

0.013

ECWH12153◻V( )

0.015

ECWH12163◻V( )

0.016

ECWH12183◻V( )

0.018

ECWH12203◻V( )

0.020

ECWH12223◻V( )

0.022

ECWH12243◻V( )

0.024

ECWH12273◻V( )

0.027

ECWH12303◻V( )

0.030

ECWH12333◻V( )

0.033

ECWH12363◻V( )

0.036

ECWH12393◻V( )

0.039

ECWH12433◻V( )

0.043

ECWH12473◻V( )

0.047

ECWH12513◻V( )

0.051

ECWH12563◻V( )

0.056

ECWH12623◻V( )

0.062

ECWH12683◻V( )

0.068

ECWH12753◻V( )

0.075

ECWH12823◻V( )

0.082

ECWH12913◻V( )

0.091

ECWH12104◻V( )

0.10

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

L max.

T max.

8.5

8.5

9.0

9.5

10.0

10.0

10.5

8.0

8.5

8.5

9.0

9.5

7.5

7.5

8.0

6.0

6.0

6.0

6.0

6.5

6.5

6.5

7.0

7.0

7.5

7.5

11.0

11.5

12.0

11.5

12.0

12.5

13.5

14.0

14.5

15.5

23.0

23.0

23.0

23.0

23.0

23.0

23.0

18.0

18.0

18.0

18.0

18.0

23.0

23.0

23.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

23.0

23.0

23.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

20.0

20.5

21.0

20.0

21.0

21.5

22.0

22.5

23.0

24.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

15.0

15.0

15.5

15.5

16.0

16.0

16.0

16.5

13.0

13.5

13.5

13.5

14.0

14.0

14.5

Dimensions (mm)

12.5

H max.

Straight

Crimped lead

17.5

12.5

13.0

13.0

17.5

18.0

18.0

F

Straight

15.0

15.0

15.0

15.0

18.0

18.5

18.5

18.5

19.0

19.0

19.5

15.0

15.0

15.0

15.0

15.0

15.0

15.0

20.0

20.0

20.5

20.5

21.0

21.0

21.0

21.5

21.5

22.0

22.5

23.0

23.5

24.0

24.5

20.0

20.0

20.0

20.0

20.0

20.0

20.0

15.0

15.0

15.0

15.0

15.0

20.0

20.0

20.0

25.0

25.5

26.0

25.0

26.0

26.5

27.0

27.5

28.0

29.0

20.0

20.0

20.0

25.0

25.0

25.0

25.0

25.0

25.0

25.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

S

Crimped lead

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

17.5

17.5

17.5

17.5

17.5

17.5

17.5

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

Bulk

7.5 mm

500

400

500

400

300

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 1600 V.DC, Capacitance tolerance : ±3 %(H), ±5 %(J)

Part No.

Cap.

(μF)

ECWH16132◻V( )

0.0013

ECWH16152◻V( )

0.0015

ECWH16162◻V( )

0.0016

ECWH16182◻V( )

0.0018

ECWH16202◻V( )

0.0020

ECWH16222◻V( )

0.0022

ECWH16242◻V( )

0.0024

ECWH16272◻V( )

0.0027

ECWH16302◻V( )

0.003

ECWH16332◻V( )

0.0033

ECWH16362◻V( )

0.0036

ECWH16392◻V( )

0.0039

ECWH16432◻V( )

0.0043

ECWH16472◻V( )

0.0047

ECWH16512◻V( )

0.0051

ECWH16562◻V( )

0.0056

ECWH16622◻V( )

0.0062

ECWH16682◻V( )

0.0068

ECWH16752◻V( )

0.0075

ECWH16822◻V( )

0.0082

ECWH16912◻V( )

0.0091

ECWH16103◻V( )

0.010

ECWH16113◻V( )

0.011

ECWH16123◻V( )

0.012

ECWH16133◻V( )

0.013

ECWH16153◻V( )

0.015

ECWH16163◻V( )

0.016

ECWH16183◻V( )

0.018

ECWH16203◻V( )

0.020

ECWH16223◻V( )

0.022

ECWH16243◻V( )

0.024

ECWH16273◻V( )

0.027

ECWH16303◻V( )

0.030

ECWH16333◻V( )

0.033

ECWH16363◻V( )

0.036

ECWH16393◻V( )

0.039

ECWH16433◻V( )

0.043

ECWH16473◻V( )

0.047

ECWH16513◻V( )

0.051

ECWH16563◻V( )

0.056

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

L max.

T max.

7.5

8.0

8.0

8.5

9.0

9.0

9.5

7.0

7.0

6.5

6.5

6.5

7.0

7.0

7.5

6.5

6.5

7.0

7.0

7.0

6.5

7.0

7.0

7.5

7.5

7.0

11.5

12.5

13.5

14.5

15.0

15.5

16.0

10.0

10.5

11.0

9.5

10.0

10.5

11.0

23.0

23.0

23.0

23.0

23.0

23.0

23.0

18.0

18.0

23.0

23.0

23.0

23.0

23.0

23.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

28.0

28.0

28.0

28.0

28.0

28.0

28.0

23.0

23.0

23.0

28.0

28.0

28.0

28.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

15.0

S

Crimped lead

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

17.5

17.5

17.5

17.5

17.5

17.5

17.5

15.0

15.0

15.0

17.5

17.5

17.5

17.5

20.5

21.5

22.0

22.5

23.5

24.0

24.5

18.5

19.5

20.0

18.0

18.5

19.5

20.0

16.0

16.0

16.5

17.0

17.0

17.5

18.0

14.0

14.0

14.5

15.0

15.0

15.0

15.5

15.5

14.0

13.5

13.5

14.0

14.0

14.5

13.5

Dimensions (mm)

13.0

H max.

Straight

Crimped lead

18.0

13.5

13.5

14.0

18.5

18.5

19.0

F

Straight

15.0

15.0

15.0

15.0

19.0

18.5

18.5

19.0

19.0

19.5

18.5

15.0

15.0

15.0

15.0

15.0

15.0

15.0

19.0

19.0

19.5

20.0

20.0

20.0

20.5

20.5

21.0

21.0

21.5

22.0

22.0

22.5

23.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

15.0

15.0

20.0

20.0

20.0

20.0

20.0

20.0

25.5

26.5

27.0

27.5

28.5

29.0

29.5

23.5

24.5

25.0

23.0

23.5

24.5

25.0

25.0

25.0

25.0

25.0

25.0

25.0

25.0

20.0

20.0

20.0

25.0

25.0

25.0

25.0

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

Bulk

7.5 mm

500

400

500

400

300

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 2000 V.DC, Capacitance tolerance : ±3 %(H), ±5 %(J)

Part No.

Cap.

(μF)

ECWH20102◻V( )

0.0010

ECWH20112◻V( )

0.0011

ECWH20122◻V( )

0.0012

ECWH20132◻V( )

0.0013

ECWH20152◻V( )

0.0015

ECWH20162◻V( )

0.0016

ECWH20182◻V( )

0.0018

ECWH20202◻V( )

0.0020

ECWH20222◻V( )

0.0022

ECWH20242◻V( )

0.0024

ECWH20272◻V( )

0.0027

ECWH20302◻V( )

0.0030

ECWH20332◻V( )

0.0033

ECWH20362◻V( )

0.0036

ECWH20392◻V( )

0.0039

ECWH20432◻V( )

0.0043

ECWH20472◻V( )

0.0047

ECWH20512◻V( )

0.0051

ECWH20562◻V( )

0.0056

ECWH20622◻V( )

0.0062

ECWH20682◻V( )

0.0068

ECWH20752◻V( )

0.0075

ECWH20822◻V( )

0.0082

ECWH20912◻V( )

0.0091

ECWH20103◻V( )

0.010

ECWH20113◻V( )

0.011

ECWH20123◻V( )

0.012

ECWH20133◻V( )

0.013

ECWH20153◻V( )

0.015

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped

L max.

T max.

9.5

10.0

10.0

10.5

11.0

11.5

12.0

12.0

9.0

9.0

9.5

7.0

7.5

7.5

8.0

8.5

8.0

8.0

8.5

8.5

9.0

9.5

8.5

6.5

6.5

7.0

7.0

7.5

7.5

23.0

23.0

23.0

23.0

23.0

23.0

23.0

23.0

18.0

18.0

18.0

23.0

23.0

23.0

23.0

23.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

21.0

21.0

21.5

21.5

23.0

23.0

24.0

24.5

21.0

21.0

20.5

20.5

21.0

21.0

20.5

25.0

25.5

26.0

26.5

16.0

16.0

16.5

16.5

18.0

18.0

19.0

19.5

16.0

16.0

15.5

15.5

16.0

16.0

15.5

20.0

20.5

21.0

21.5

Dimensions (mm)

H max.

Straight

Crimped lead

13.5

18.5

F

Straight

15.0

13.5

18.5

15.0

S

Crimped lead

10.0

10.0

13.5

14.0

14.0

14.5

14.5

15.0

15.0

15.5

18.5

19.0

19.0

19.5

19.5

20.0

20.0

20.5

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

20.0

15.0

15.0

15.0

15.0

15.0

15.0

20.0

20.0

20.0

20.0

20.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

Bulk

7.5 mm

500

400

300

400

300

500

400

300

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECWH(A)

Non-inductive construction using metallized polypropylene fi lm with fl ame retardant epoxy resin coating

Features

Small size

Excellent electrical characteristics

Low loss

Low Hum Sound Noise

Flame-retardant epoxy resin coating

RoHS directive compliant

Recommended applications

Resonant circuit

Explanation of part number

Rated voltage 800 V.DC (Bulk)

1 2 3 4 5

E C W H 8

Product code

6 7 8 9 10

Dielectric & construction

Rated voltage

8 800 V.DC

Capacitance

H

H ±3 %

A

Cap. Tol.

Suffix

11

Suffix

Code

Blank

B

Q

C

Lead Form

Straight

Crimped lead

Crimped lead

Cut lead

Rated voltage 800 V.DC (Odd size taping)

1 2 3 4 5

E C

Product code

W H 8

Dielectric & construction

Rated voltage

6 7 8 9 10

R H

Capacitance

11

A

Suffix Cap. Tol.

Suffix

Rated voltage 1600 V.DC

1 2 3 4 5

E C W H A

Product code Dielectric & construction

6 7 8 9 10

3 C

Rated voltage

3C 1600 V.DC

Capacitance

H ±3 %

J ±5 %

Cap. Tol.

Suffix

Code

Blank

B

Q

C

4

Lead Form

Straight

Crimped lead

Crimped lead

Cut lead

Odd size taping

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage 800 V.DC

– 40 °C to +105 °C

1600 V.DC

Capacitance range

Capacitance tolerance

Dissipation factor (tan

d)

Withstand voltage

Insulation resistance (IR)

0.010 μF to 0.047 μF 0.0010 μF to 0.047 μF

±3 %(H) ±3 %(H), ±5 %(J) tan

d < 0.1 % ( 20 °C, 1 kHz )

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

IR

> 30000 MΩ (20 °C, 500 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Dimensions

Straight

L max.

Marking

F±1.0

T max.

Crimped lead

(Suffix B)

L max.

Marking

Crimped lead

(Suffix Q)

L max.

Marking

Cut lead

(Suffix C)

Marking

0d±0.05

Copper-clad steel-wire

S±0.8

S±0.8

Unit : mm

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Taping specifi cations for automatic insertion

Taping style

Style E

P

Taping style

Type

Rated voltage

(V.DC)

ECWH(A)

800

1600

F

Capacitance range

(μF)

0.010 to 0.047

0.0010 to 0.047

P

0

Taping style

AD AS B C D E

✽ Refer to the page of taping specifications.

Packing suffi x

Lead spacing

Style Lead spacing

E

7.5 mm

Ammo

R( ) A

( ) 4

Rating · Dimensions · Quantity

Rated voltage : 800 V.DC, Capacitance tolerance : ±3 %(H)

Part No.

Cap.

(μF)

L max. T max.

ECWH8103HA( )

ECWH8123HA( )

ECWH8153HA( )

ECWH8183HA( )

ECWH8223HA( )

ECWH8273HA( )

ECWH8333HA( )

ECWH8393HA( )

ECWH8473HA( )

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

✽ H : Capacitance tolerance code

( ) : Suffi x for lead crimped taped type

15.4

15.4

15.4

15.7

15.7

15.7

15.7

15.7

15.7

5.4

5.8

6.2

6.6

7.1

7.6

8.4

8.9

9.7

Straight

Dimensions (mm)

H max.

Crimped lead

(Suffix B)

Crimped lead

(Suffix Q)

F

9.8

14.8

14.8

12.5

10.2

15.2

15.2

12.5

10.6

15.6

15.6

12.5

11.0

16.0

18.0

12.5

11.5

16.5

18.5

12.5

12.0

17.0

19.0

12.5

12.8

17.8

19.8

12.5

13.3

18.3

20.3

12.5

14.1

19.1

21.1

12.5

Crimped lead

(Suffix B)

7.5

S

Crimped lead

(Suffix Q)

12.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

fd

Min. order Q'ty

Taping

Bulk

7.5 mm

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

500

400

300

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 1600 V.DC, Capacitance tolerance : ±3 %(H), ±5 %(J)

Dimensions (mm)

Part No.

Cap.

(μF)

L max. T max.

Straight

H max.

Crimped lead

(Suffix B)

Crimped lead

(Suffix Q)

F

Crimped lead

(Suffix B)

S

Crimped lead

(Suffix Q)

ECWHA3C102◻( ) 0.0010 17.8

5.2

ECWHA3C112◻( ) 0.0011 17.8

5.4

ECWHA3C122◻( ) 0.0012 17.8

5.5

ECWHA3C132◻( ) 0.0013 17.8

5.7

ECWHA3C152◻( ) 0.0015 17.8

5.9

ECWHA3C162◻( ) 0.0016 17.8

6.1

ECWHA3C182◻( ) 0.0018 17.8

6.4

ECWHA3C202◻( ) 0.0020 17.8

6.6

ECWHA3C222◻( ) 0.0022 17.8

6.7

ECWHA3C242◻( ) 0.0024 17.8

7.0

ECWHA3C272◻( ) 0.0027 17.8

5.2

13.0

13.1

13.2

13.4

13.7

13.9

14.1

14.3

14.5

14.7

13.0

13.0

13.1

13.2

13.4

13.7

13.9

14.1

14.3

14.5

14.7

13.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

ECWHA3C302◻( ) 0.0030 17.8

5.5

ECWHA3C332◻( ) 0.0033 17.8

5.6

ECWHA3C362◻( ) 0.0036 17.8

5.7

ECWHA3C392◻( ) 0.0039 17.8

6.0

13.2

13.4

13.5

13.8

13.2

13.4

13.5

13.8

10.0

10.0

10.0

10.0

15.0

15.0

15.0

15.0

ECWHA3C432◻( ) 0.0043 17.8

6.2

13.9

13.9

10.0

15.0

ECWHA3C472◻( ) 0.0047 17.8

6.4

9.1

14.1

14.1

15.0

10.0

15.0

ECWHA3C512◻( ) 0.0051 17.8

6.6

9.4

14.4

14.4

15.0

10.0

15.0

ECWHA3C562◻( ) 0.0056 17.8

6.8

9.6

14.6

14.6

15.0

10.0

15.0

ECWHA3C622◻( ) 0.0062 17.8

7.1

9.8

14.8

14.8

15.0

10.0

15.0

ECWHA3C682◻( ) 0.0068 17.8

6.1

12.1

17.1

17.1

15.0

10.0

15.0

ECWHA3C752◻( ) 0.0075 17.8

6.5

12.4

17.4

17.4

15.0

10.0

15.0

ECWHA3C822◻( ) 0.0082 17.8

6.8

12.7

17.7

17.7

15.0

10.0

15.0

ECWHA3C912◻( ) 0.0091 17.8

7.1

13.0

18.0

18.0

15.0

10.0

15.0

ECWHA3C103◻( ) 0.010

20.3

6.4

12.3

17.3

17.3

17.5

10.0

17.5

ECWHA3C113◻( ) 0.011

20.3

6.6

12.5

17.5

17.5

17.5

10.0

17.5

ECWHA3C123◻( ) 0.012

20.3

6.8

12.8

17.8

17.8

17.5

10.0

17.5

ECWHA3C133◻( ) 0.013

20.3

7.1

13.0

18.0

18.0

17.5

10.0

17.5

ECWHA3C153◻( ) 0.015

20.3

7.6

13.5

18.5

18.5

17.5

10.0

17.5

ECWHA3C163◻( ) 0.016

20.3

7.9

13.8

18.8

18.8

17.5

10.0

17.5

ECWHA3C183◻( ) 0.018

20.6

8.2

14.1

19.1

21.1

17.5

10.0

17.5

ECWHA3C203◻( ) 0.020

20.6

8.7

14.6

19.6

21.6

17.5

10.0

17.5

ECWHA3C223◻( ) 0.022

20.6

9.1

15.0

20.0

22.0

17.5

10.0

17.5

ECWHA3C243◻( ) 0.024

20.6

9.6

15.4

20.4

22.4

17.5

10.0

17.5

ECWHA3C273◻( ) 0.027

20.6

10.0

15.9

20.9

22.9

17.5

10.0

17.5

ECWHA3C303◻( ) 0.030

20.6

10.7

16.5

21.5

23.5

17.5

10.0

17.5

ECWHA3C333◻( ) 0.033

20.6

11.2

17.0

22.0

24.0

17.5

10.0

17.5

ECWHA3C363◻( ) 0.036

20.6

11.7

17.5

22.5

24.5

17.5

10.0

17.5

ECWHA3C393◻( ) 0.039

20.6

12.1

18.0

23.0

25.0

17.5

10.0

17.5

ECWHA3C433◻( ) 0.043

20.6

12.8

18.6

23.6

25.6

17.5

10.0

17.5

ECWHA3C473◻( ) 0.047

20.6

13.4

19.2

24.2

26.2

17.5

10.0

17.5

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead crimped taped type

fd

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.6

0.6

0.8

0.8

0.6

0.6

0.6

0.6

0.8

0.8

Min. order Q'ty

Taping Bulk

7.5 mm Straight

Crimped lead

600

500

400

600

500

400

500

400

500

400

300

200

1000

800

600

1000

800

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECWH(C)

Non-inductive construction using metallized polypropylene fi lm with fl ame retardant epoxy resin coating

Features

Excellent electrical characteristics

Low loss

Flame-retardant epoxy resin coating

RoHS directive compliant

Recommended applications

General resonance circuit (630 V.DC, 1250 V.DC)

Resonance circuits for microwave oven and IH cooker (630 V.DC, 1250 V.DC)

Resonance circuits for microwave oven (630 V.DC, 1250 V.DC)

General high voltage circuit (3000 V.DC)

Explanation of part number

Rated voltage 630 V.DC (Bulk)

1 2 3 4 5

E C W H 6

6 7 8 9 10

H C

11

Product code Dielectric & construction

Rated voltage

6 630 V.DC

Capacitance Cap. Tol.

Suffix

H ±3 %

Code

Blank

C

Suffix

Lead Form

Straight

Cut lead

Rated voltage 630 V.DC (Odd size taping)

1 2 3 4 5

E C W H 6

6 7 8 9 10

R H

11

C

Product code Dielectric & construction

Rated voltage 1250 V.DC (Cut lead)

Rated voltage

1 2 3 4 5

E C W H C

Capacitance Suffix Cap. Tol.

6 7 8 9 10

3 B

Product code Dielectric & construction

Rated voltage Capacitance

Suffix

J A

Cap. Tol.

Suffix

3B 1250 V.DC

J ±5 % Code

A

Lead Form

Cut lead

Rated voltage 3000 V.DC (Bulk)

1 2 3 4 5

E C W H C

Product code Dielectric & construction

6 7 8 9 10

3 F

Rated voltage Capacitance

J

Cap. Tol.

Suffix

3F 3000 V.DC

J ±5 %

Code

Blank

D

Lead Form

Straight

Cut lead

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Specifi cations

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

Capacitance range

630 V.DC

1250 V.DC

– 40 °C to +105 °C : General resonance circuit

– 40 °C to +85 °C : When using compulsive air cooling for a resonance circuit

– 40 °C to +105 °C : General resonance circuit

– 40 °C to +85 °C : When using compulsive air cooling for a resonance circuit

3000 V.DC – 40 °C to +85 °C : General high voltage circuit

630 VDC, 1250 VDC, 3000 VDC

630 V.DC 0.10 μF to 0.33 μF

1250 V.DC 0.08 μF to 0.12 μF

3000 V.DC 0.0024 μF to 0.01 μF

630 V.DC ±3 %(H)

Capacitance tolerance 1250 V.DC ±5 %(J)

3000 V.DC ±5 %(J)

Dissipation factor (tan

Withstand voltage

d)

630 V.DC tan

d < 0.05 % ( 20 °C, 1 kHz )

1250 V.DC

tan

d < 0.1 % ( 20 °C, 10 kHz )

3000 V.DC tan

d < 0.1 % ( 20 °C, 1 kHz ), tan d < 0.1 % ( 20 °C, 10 kHz )

Between terminals : Rated volt. (V.DC)

×150 %, 60 s

Insulation resistance (IR)

630 V.DC

IR

> 9000 MΩ (20 °C, 500 V.DC, 60 s)

1250 V.DC

3000 V.DC

IR

> 50000 MΩ (20 °C, 500 V.DC, 60 s)

✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,

please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

Dimensions

Straight

L max.

T max.

Cut lead

(Suffix C)

Cut lead

(Suffix D)

Cut lead

(Suffix A)

Marking

F±1.0

Marking Marking Marking

00.80±0.05

Copper wire or copper-clad steel wire

Unit : mm

Packaging specifi cations for bulk package

Packing quantity : 100 pcs./bag

Taping specifi cations for automatic insertion

Taping style

Style E

P

F

P

0

✽ Refer to the page of taping specifications.

Taping style

Rated voltage

(V.DC)

Capacitance range

(μF)

Taping style

Type

AD AS B C D E

ECWH(C)

630 0.10 to 0.33

✽ See the column “Rating · Dimensions · Quantity” for packing quantity

Packing

Ammo

Lead spacing

Style Lead spacing

E

7.5 mm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 630 V.DC, Capacitance tolerance : ±3 %(H)

Dimensions (mm)

Part No.

Capacitance

(μF)

L max.

T max.

H max.

F

ECWH6104HC( )

ECWH6114HC( )

ECWH6124HC( )

ECWH6184HC( )

ECWH6214HC( )

ECWH6244HC( )

ECWH6274HC( )

ECWH6284HC( )

ECWH6304HC( )

ECWH6324HC( )

ECWH6334HC( )

✽ ( ) : Suffi x for lead form

0.10

0.11

0.12

0.18

0.21

0.24

0.27

0.28

0.30

0.32

0.33

20.7

20.7

20.7

20.7

20.7

20.7

20.7

20.7

20.7

20.7

20.7

8.6

9.0

9.4

11.5

12.4

13.2

14.0

14.3

14.8

14.5

14.7

13.5

13.9

14.3

16.3

17.2

18.1

18.9

19.1

19.6

20.9

21.1

17.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

G max.

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Taping

7.5 mm

350

Bulk

300

250

1000

200

700

Rated voltage : 1250 V.DC, Capacitance tolerance : ±5 %(J)

Part No.

ECWHC3B803JA

ECWHC3B104JA

ECWHC3B114JA

ECWHC3B124JA

Capacitance

(μF)

0.08

0.10

0.11

0.12

Dimensions (mm)

L max.

T max.

H max.

F

20.7

20.7

12.0

13.5

19.0

20.6

17.5

17.5

20.7

20.7

14.2

14.9

21.3

21.9

17.5

17.5

G max.

1.5

1.5

1.5

1.5

fd

0.8

0.8

0.8

0.8

Min. order Q'ty

Bulk

700

600

Rated voltage : 3000 V.DC, Capacitance tolerance : ±5 %(J)

Part No.

ECWHC3F242J( )

ECWHC3F362J( )

ECWHC3F392J( )

ECWHC3F432J( )

ECWHC3F562J( )

ECWHC3F822J( )

ECWHC3F103J( )

✽ ( ) : Suffi x for lead form

Capacitance

(μF)

0.0024

0.0036

0.0039

0.0043

0.0056

0.0082

0.01

Dimensions (mm)

L max.

T max.

H max.

F

25.8

25.8

6.1

7.2

10.9

11.9

22.5

22.5

25.8

25.8

25.8

7.5

6.5

7.3

12.2

11.2

12.0

22.5

22.5

22.5

25.8

25.8

7.5

8.2

15.3

16.1

22.5

22.5

G max.

1.5

1.5

1.5

1.5

1.5

1.5

1.5

fd

0.8

0.8

0.8

0.8

0.8

0.8

0.8

Min. order Q'ty

Bulk

1000

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitors

Type :

TMF

Series

(for smoothing and resonance)

Features

Wide voltage range up to 2300 V.AC

High frequency and high current capability

Low loss, Low ESR

Long life time, High reliability

Flame retardant

RoHS directive compliant

Recommended applications

Smoothing and resonance circuit, IH equipment and Industrial power supply

Construction

Dielectric

Electrodes

Plastic case

Sealing

Terminal

: Polypropylene fi lm

: Metallized plastic fi lm

: UL94 V-0

: UL94 V-0

: Lead wire (tin plating), Plate terminal (tin plating)

Explanation of part number

1 2 3 4 5 6 7 8 9 10 11 12

KS Resonance use

SS Smoothing use

Rated voltage

(Ex.)

351 350 V

202 2000 V

Capacitance

Note) Definition of AC or DC, please refer to an individual drawing

Structure Terminal shape

“-” or Suffix

Suffix

Specifi cations

Rated voltage

✽1

Rated capacitance

✽1

Capacitance tolerance

Withstand voltage

Insulation resistance

Maximum permissible temperature

(Case wall)

Smoothing circuit Resonance circuit

150 V.AC to 220 V.AC

350 V.DC to 630 V.DC

300 V.AC to 2300 V.AC

500 V.DC to 1200 V.DC

150 V.AC to 220 V.AC

1 μF to 10 μF 300 V.AC to 2300 V.AC 0.01 μF to 4.0 μF

350 V.DC to 630 V.DC

1 μF to 10 μF 500 V.DC to 1200 V.DC 0.01 μF to 4.0 μF

Please refer to an individual drawing

Please refer to an individual drawing

Please refer to an individual drawing

85 °C (Including self temperature rising)

✽1 These are typical values. Please contact if necessary other Voltage and Capacitance.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECQUA

[Class X2]

In accordance with UL/CSA and European safety regulation class X2

Equipped with a safety mechanism

Features

High humidity resistance

(THB test : 85 °C/85 %/240 V.AC/1000 h (C

< 1.0 μF)

High safety (safety function installed)

Compact

Flame-retardant plastic case and non-combustible resin

RoHS directive compliant

Recommended applications

Interference suppressors

Explanation of part number

1 2 3 4 5

E C Q U A

6 7 8 9 10

A F

Product code Dielectric & construction

Rated voltage Capacitance

11

K ±10 %

M ±20 %

12

Cap. Tol.

Suffix

Code

Blank

A

Lead Form

Straight

Cut lead

Applicable standard

✽ It is certifi ed as type ECQUA in the following approval.

UL

CSA

Approval

UL60384-14

Class

Class X2

Class X2

Class X2

Certifi cation organization

UL

Europe

International

CAN/CSA E60384-14

EN60384-14

VDE

IEC60384-14 Class X2

✽ When applying this capacitor to European and American safety standards, please use type designation and rating such as ECQUA, 0.1 μF.

✽ Approval number (File No.) of safety regulations are subject to revision without notice. Ask factory for a copy of the latest file No.

Specifi cations

Category temperature range

Rated voltage

Rated capacitance

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

−40 °C to +110 °C

275 V.AC

0.10 μF to 2.2 μF

±10 % (K), ±20 % (M)

C

< 1.0 μF : tan d < 0.1 % ( 20 °C, 1 kHz )

C > 1.0 μF : tan d < 0.2 % ( 20 °C, 1 kHz )

Between terminals : 633 V.AC, 1183 V.DC, 60 s

Between terminals to enclosure : 2050 V.AC, 60 s

C

< 0.33 μF : IR > 15000 MΩ (20 °C, 100 V.DC, 60 s)

C > 0.33 μF : IR

> 5000 MΩ ∙ μF (20 °C, 100 V.DC, 60 s)

C

< 0.47 μF : IR > 2000 MΩ

(20 °C, 500 V.DC, 60 s)

310 V.AC

Maximum AC voltage

✽ Use of this capacitor is limited to AC voltage (50 Hz or 60 Hz sine wave).

✽ A faint corona discharge may occur inside of the capacitor element at rated voltage, however there is no influence on the reliability of the capacitor.

(Suitable for series to the mains usage - for more details, please contact your Panasonic contact person.)

✽ Maximum AC voltage including line voltage fluctuation is 310 V.AC.

310 V.AC is not nominal continuous applied voltage, but only indicates maximum value including in the voltage ofthe power supply. Basic nominal voltage is considered as 240 V.AC.

This maximum AC voltae is specified in only ECQUA type, not specified in other types.

Please refer to individual product specification, and contact us for further questions regarding design life.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

L±0.5

T±0.5

Cut lead

(Suffix A)

(A) side

ECQUA104

275V ~ X2

Marking Example

F±0.4

Q

+1.4

–0.6

P

(Lead location limits from center)

0d±0.05

Solder-plated copper-clad steel wire

(C)

(A)

(B)

Unit : mm

Note : Only ±10 % as cap. tol. be marked as “K” .

(B) or (C) side

K

Note : Date code.

Rating · Dimensions · Quantity

Capacitance tolerance : ±10 %(K), ±20 %(M)

Part No.

Cap.

(μF)

ECQUAAF104◻( )

ECQUAAF154◻( )

0.10

0.15

ECQUAAF224◻( )

0.22

ECQUAAF334◻( )

0.33

ECQUAAF474◻( )

0.47

ECQUAAF684◻( )

0.68

ECQUAAF105◻( )

ECQUAAF155◻( )

1.0

1.5

ECQUAAF225◻( )

2.2

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead form

L

17.5

17.5

17.5

17.5

26.0

26.0

26.0

31.0

31.0

T

5.0

6.0

7.5

9.0

8.5

10.0

12.0

12.0

14.5

H

Dimensions (mm)

F

12.0

15.0

fd

0.6

13.0

14.0

15.0

15.0

0.6

0.6

16.0

15.0

17.0

19.0

15.0

22.5

22.5

22.5

0.6

0.8

0.8

0.8

22.0

24.5

27.5

27.5

0.8

0.8

P

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

0±0.8

Q

1.3

1.3

1.3

1.3

1.8

1.8

1.8

1.8

1.8

Min. order Q'ty

Straight Cut lead

1000

1000

600

500

300

200

800

500

300

200

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECQUL

[Class X2]

[Class Y2/X2]

In accordance with UL/CSA and European safety regulation class X2 or class Y2/X2

Features

Compact

Flame-retardant plastic case and non-combustible resin

RoHS directive compliant

Recommended applications

Interference suppressors

Explanation of part number

1 2 3 4 5

E C Q U 2

6 7 8 9 10

A

Product code Dielectric & construction

Rated voltage Capacitance

11

L

Cap. Tol.

Suffix

K ±10 %

M ±20 %

12

Suffix

Code

Blank

A

Lead Form

Straight

Cut lead

Applicable standard

It is certifi ed as type ECQUL in the following approval.

Approval Class Capacitance range Certifi cation organization

UL

CSA

UL60384-14

CAN/CSA E60384-14

Class Y2/X2

Class X2

Class Y2/X2

Class X2

Electromagnetic

Interference (EMI) Filters

(0.0010 μF to 0.0068 μF)

(0.0082 μF to 2.2 μF)

(0.0010 μF to 0.0068 μF)

(0.0082 μF to 2.2 μF)

(1.2 μF to 2.2 μF)

UL

CSA

CSA C22.2

No.8-M1986

Class Y2/X2 (0.0010 μF to 0.0068 μF)

Europe EN60384-14

Class X2

Class Y2/X2

(0.0082 μF to 2.2 μF)

(0.0010 μF to 0.0068 μF)

VDE

International IEC60384-14

Class X2 (0.0082 μF to 2.2 μF)

✽ When applying this capacitor to European and American safety standards, please use type designation and rating such as ECQUL, 0.1 μF.

✽ Approval number (File No.) of safety regulations are subject to revision without notice. Ask factory for a copy of the latest file No.

✽ This capacitor is recognized for European standards by VDE only. But, there are no problems using this capacitor in a device which will get approvals from certification bodies in Europe, SEMKO, DEMKO, NEMKO, FIMKO and SEV etc. except VDE.

Specifi cations

Category temperature range

Rated voltage

−40 °C to +100 °C (85 °C max. on CSA C22.2 No.8 spec.)

275 V.AC (250 V.AC on CSA C22.2 No.8 spec.)

Rated capacitance 0.0010 μF to 2.2 μF

Capacitance tolerance

Dissipation factor (tan

Withstand voltage

d)

Insulation resistance (IR)

±10 % (K), ±20 % (M) tan d

< 1.0 % (20 °C, 1 kHz)

Between terminals : 575 V.AC, 1768 V.DC, 60 s (0.0082 μF to 2.2 μF)

Between terminals : 500 V.AC, 2121 V.DC, 60 s (0.0010 μF to 0.0068 μF)

Between terminals to enclosure : 2050 V.AC, 60 s

C

< 0.33 μF : IR > 15000 MΩ

(20 °C, 100 V.DC, 60 s)

C > 0.33 μF : IR

> 5000 MΩ ∙ μF (20 °C, 100 V.DC, 60 s)

IR

> 2000 MΩ (20 °C, 500 V.DC, 60 s)

✽ Use of this capacitor is limited to AC voltage (50 Hz or 60 Hz sine wave).

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

L±0.5

T±0.5

Cut lead

(Suffix A)

F±0.4

Q

+1.4

–0.6

P

(Lead location limits from center)

✽ > 1.2 μF±1.0

0d±0.05

Solder-plated copper-clad steel wire

(A)

(B)

Unit : mm

STYLE

1

0.0010 μF to

0.0068 μF

2

0.0082 μF to

1.0 μF

3

1.2 μF to 2.2 μF

Marking example

(A) side

.001 μF K

.0082 μF K

1.5 μF K

Note : Only ±10 % as cap. tol. be marked as “K” .

(B) side

E C Q U L

2 7 5 V ~

X2/Y2

E C Q U L

2 7 5 V ~

X2

8X

250 V~

E C Q U L

2 7 5 V ~

X2

Note : Date code.

Rating · Dimensions · Quantity

Capacitance tolerance : ±10 %(K), ±20 %(M)

Part No.

ECQU2A102◻L( )

ECQU2A122◻L( )

ECQU2A152◻L( )

ECQU2A182◻L( )

ECQU2A222◻L( )

ECQU2A272◻L( )

ECQU2A332◻L( )

ECQU2A392◻L( )

ECQU2A472◻L( )

ECQU2A562◻L( )

ECQU2A682◻L( )

ECQU2A822◻L( )

ECQU2A103◻L( )

ECQU2A123◻L( )

ECQU2A153◻L( )

ECQU2A183◻L( )

ECQU2A223◻L( )

ECQU2A273◻L( )

ECQU2A333◻L( )

ECQU2A393◻L( )

ECQU2A473◻L( )

ECQU2A563◻L( )

ECQU2A683◻L( )

ECQU2A823◻L( )

ECQU2A104◻L( )

ECQU2A124◻L( )

ECQU2A154◻L( )

ECQU2A184◻L( )

ECQU2A224◻L( )

ECQU2A274◻L( )

ECQU2A334◻L( )

ECQU2A394◻L( )

ECQU2A474◻L( )

ECQU2A564◻L( )

ECQU2A684◻L( )

ECQU2A824◻L( )

ECQU2A105◻L( )

ECQU2A125◻L( )

ECQU2A155◻L( )

ECQU2A185◻L( )

ECQU2A225◻L( )

✽ ◻ : Capacitance tolerance code

( ) : Suffi x for lead form

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

Capacitance

(μF)

0.0010

0.0012

0.0015

0.0018

0.0022

0.0027

0.0033

0.0039

0.0047

0.0056

0.0068

0.0082

0.010

0.012

0.015

0.018

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

15.0

15.0

15.0

15.0

15.0

17.5

17.5

17.5

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

L

15.0

15.0

15.0

15.0

15.0

15.0

15.0

15.0

25.5

25.5

25.5

25.5

25.5

30.5

30.5

30.5

30.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

25.5

5.0

5.0

6.0

6.0

6.0

4.5

4.5

5.5

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

T

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

8.5

10.5

10.5

12.0

12.0

16.5

16.5

19.0

19.0

5.5

6.5

6.5

8.0

8.0

9.5

9.5

8.5

11.5

11.5

13.0

13.0

13.0

11.5

11.5

12.0

11.5

11.5

11.5

11.5

11.5

11.5

11.5

11.5

H

11.5

11.5

11.5

11.5

11.5

11.5

11.5

11.5

17.5

19.5

19.5

22.0

22.0

26.0

26.0

29.5

29.5

12.0

14.5

14.5

16.0

16.0

17.5

17.5

17.5

15.0

15.0

15.0

15.0

15.0

15.0

15.0

22.5

12.5

12.5

12.5

12.5

12.5

15.0

15.0

15.0

Dimensions (mm)

F

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

22.5

22.5

22.5

22.5

22.5

27.5

27.5

27.5

27.5

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

fd

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.6

0.6

0.6

0.6

0.6

0.8

0.8

0.8

P

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.75

0±0.75

0±0.75

0±0.75

0±0.75

0±0.75

0±0.75

0±0.75

0±0.75

0±0.75

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

Q

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

Min. order

Q'ty

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

ECQUG

[Class X1]

In accordance with UL/CSA and European safety regulation class X1

Features

Equipped with a safety mechanism

Flame-retardant plastic case and non combustible resin

RoHS directive compliant

Recommended applications

Interference suppressors

Explanation of part number

1 2 3 4 5

E C Q U 3

Product code Dielectric & construction

6 7 8 9 10

A M

Rated voltage Capacitance

11

G

Cap. Tol.

Suffix

M ±20 %

12

Suffix

Code

Blank

A

Lead Form

Straight

Cut lead

Applicable standard

It is certifi ed as type ECQUG in the following approval.

UL

CSA

Europe

International

Approval

UL60384-14

CAN/CSA E60384-14

EN60384-14

IEC60384-14

Class

Class X1

Class X1

Class X1

Class X1

Certifi cation organization

UL

CSA

NEMKO

✽ When applying this capacitor to European and American safety standards, please use type designation and rating such as ECQUG, 0.1 μF.

✽ Approval number (File No.) of safety regulations are subject to revision without notice. Ask factory for a copy of the latest file No..

✽ European standards marking are NEMKO only. But, there are no problem using this capacitor in a device which will get approvals from certification bodies in Europe, VDE, FIMKO, SEMKO, DEMKO, and SEV etc. except VDE and FIMKO.

Specifi cations

Category temperature range

Rated voltage

Rated capacitance

−40 °C to +100 °C

300 V.AC

0.010 μF to 1.0 μF (E6)

Capacitance tolerance

Dissipation factor (tan d)

±20 % (M) tan d

< 1.0 % (20 °C, 1 kHz )

Between terminals : 575 V.AC, 1768 V.DC, 60 s

Withstand voltage

Insulation resistance (IR)

Between terminals to enclosure : 2100 V.AC, 60 s

C

< 0.33 μF : IR > 15000 MΩ (20 °C, 100 V.DC, 60 s)

C > 0.33 μF : IR

> 5000 MΩ ∙ μF (20 °C, 100 V.DC, 60 s)

IR

> 2000 MΩ (20 °C, 500 V.DC, 60 s)

✽ Use of this capacitor is limited to AC voltage (50 Hz or 60 Hz sine wave).

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

L±0.5

T±0.5

Cut lead

(Suffix A)

F±0.4

Q

+1.4

–0.6

P

(Lead location limits from center)

0d±0.05

Copper-clad steel wire

(A)

(B)

Unit : mm

(A) side

Marking example

(B) side

.01 μF

E C Q U G

300V~X1

17

N

Note : Date code.

Rating · Dimensions · Quantity

Capacitance tolerance : ±20 %(M)

Part No.

ECQU3A103MG( )

ECQU3A153MG( )

ECQU3A223MG( )

ECQU3A333MG( )

ECQU3A473MG( )

ECQU3A683MG( )

ECQU3A104MG( )

ECQU3A154MG( )

ECQU3A224MG( )

ECQU3A334MG( )

ECQU3A474MG( )

ECQU3A684MG( )

ECQU3A105MG( )

✽ ( ) : Suffi x for lead form

Capacitance

(μF)

0.15

0.22

0.33

0.47

0.68

1.0

0.010

0.015

0.022

0.033

0.047

0.068

0.10

L

15.0

15.0

15.0

15.0

15.0

15.0

15.0

18.0

18.0

26.0

26.0

26.0

27.0

T

5.0

5.0

5.0

6.0

6.0

8.0

8.0

8.0

9.0

9.0

10.5

12.5

16.5

16.5

17.5

18.5

20.0

22.0

25.5

H

11.5

Dimensions (mm)

F

12.5

fd

0.6

11.5

11.5

12.5

12.5

0.6

0.6

13.0

13.0

15.0

15.0

12.5

12.5

12.5

12.5

0.6

0.6

0.6

0.6

15.0

15.0

22.5

22.5

22.5

22.5

0.8

0.8

0.8

0.8

0.8

0.8

P

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.50

0±0.75

0±0.75

0±0.75

Q

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

2.2

Min. order Q'ty

500

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Film Capacitor for AC Motor

Type :

AMF

Series

Features

High safety (Safety function installed)

High reliability

Small size, lightness, and low loss

RoHS directive compliant

Recommended applications

Motor and compressor (for running)

Construction

Internal electrode : Metallized plastic fi lm (Safety function installed)

Plastic case

: UL94 V-0

Sealing

Terminal

: UL94 V-0

: Faston terminal (tin plating)

Explanation of part number

1 2 3 4 5

D S

6 7 8 9 10

Rated voltage Capacitance Externals structure

11 12

Suffix

1 2 3 4 5

E Z W

Product code

6 7 8 9 10

Dielectric & construction

Rated voltage Capacitance

11

Terminal shape

Suffix

Applicable standard

Japan

UL/cUL

12

Suffix

JIS C 4908 Capacitors for electrical apparatus

CMJ registration parts. Registration No.1475- C9902-026(JET)

UL810/CSA C22.2 No. 190 FILE No. E76560

Specifi cations

Applicable standard

✽1

Safety class

Rated voltage (50/60 Hz)

✽2

Rated capacitance

✽2

Capacitance tolerance

Between terminals

Withstand voltage

Between terminals to enclosure

Maximum permissible temperature

(Case wall)

✽1 The range of approval is different depending on each approval.

✽2 These are typical values.

JIS UL

Safety function installed P2 (CMJ approval), 10000 AFC (UL)

180 V.AC to 440 V.AC

10 μF to 40 μF

−5 %/+10 % (Refer to the individual drawing)

Rated voltage

× 1.75, 60 s

(min. 2000 V.AC)

Rated voltage

× 2.0+1000 (V.AC), 60 s

70 °C (Including self temperature rising)

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimension (Example)

3

fA±1

#250TAB

E±1

4− f1.65

Unit : mm

✽3 Other shape and specific requirement can be designed. Please contact, if necessary.

Rating · Dimensions

4

Rated voltage

(V.AC)

440

Capacitance

(μF)

10.0

10.5 to 18.5

19.0 to 27.5

16.0 to 21.0

21.5 to 25.0

25.5 to 28.5

29.0 to 36.5

31.0 to 37.0

37.5 to 40.0

✽4 Please contact if necessary other Voltage and Capacitance.

A

40.0

40.0

40.0

45.0

45.0

45.0

45.0

50.0

50.0

B

60.0

90.0

120.0

80.0

90.0

100.0

120.0

100.0

120.0

Dimensions (mm)

C

70.5

100.5

130.5

90.5

100.5

110.5

130.5

100.5

130.5

D

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

E

16.0

16.0

16.0

16.0

16.0

16.0

18.0

18.0

18.0

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Film Capacitor for AC Motor

Type :

DMF

Series

Features

High safety (with built-in safety device)

High reliability, IEC standard S2/P2 approval

Small size, lightness, and low loss

RoHS directive compliant

Recommended applications

Motor and compressor (for running)

Construction

Internal electrode : Metallized plastic fi lm

Exterior material : Metal case (oil sealing up type)

Terminal

: Faston terminal (tin plating)

Explanation of part number

1 2 3 4 5

D S

Rated voltage

6 7 8 9 10

Capacitance Externals structure

11 12

Suffix

1 2 3 4 5

E Z W

Product code

6 7 8 9 10

Dielectric & construction

Rated voltage Capacitance Terminal shape

11

Suffix

Applicable standard

Japan

UL/cUL

Europe

China

12

Suffix

JIS C 4908 Capacitors for electrical apparatus

CMJ registration parts. Registration No.1475- C9902-026(JET)

UL810/CSA C22.2 No. 190 FILE No. E76560

EN60252-1 AC motor Capacitors TUV

GB/T 3667.1 AC motor Capacitors CQC

Specifi cations

Applicable standard

Safety class

✽1

Rated voltage (50/60 Hz)

✽2

Rated capacitance

✽2

JIS UL

With built-in safety device

P1(CMJ approval) 10000 AFC (UL)

180 V.AC to 450 V.AC

10 μF to 60 μF

EN GB

S2 (EN)/P2 (GB)

EN GB : 440 V.AC, 450 V.AC

Capacitance tolerance

Between terminals

−5 %/+10 %, ±5 % (Refer to the individual drawing)

Rated voltage

× 1.75, 60 s

Rated voltage

× 2.0, 60 s

Withstand voltage

Between terminals to enclosure

Maximum permissible temperature

(Case wall)

✽1 The range of approval is different depending on each approval.

✽2 These are typical values.

(min. 2000 V.AC)

Rated voltage

× 2.0+1000 (V.AC), 60 s

70 °C (Including self temperature rising)

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

3

Plastic Film Capacitors

Unit : mm

✽3 Other shape and specific requirement can be designed. Please contact, if necessary.

Three tabs and as many as four tabs are also possible though standards of the number of terminal tabs are two tabs.

Rating · Dimensions

4

Rated voltage

(V.AC)

370 to 440

Capacitance

(μF)

5.0 to 10.0

11.0 to 15.0

16.0 to 20.0

21.0 to 25.0

26.0 to 30.0

31.0 to 35.0

36.0 to 40.0

41.0 to 50.0

51.0 to 55.0

56.0 to 60.0

61.0 to 65.0

Rated voltage

(V.AC)

450

Capacitance

(μF)

5.0 to 10.0

11.0 to 15.0

16.0 to 20.0

21.0 to 25.0

26.0 to 30.0

31.0 to 35.0

36.0 to 40.0

41.0 to 50.0

51.0 to 55.0

56.0 to 60.0

✽4 Please contact if necessary other Voltage and Capacitance.

A

43.0

43.0

43.0

48.0

48.0

53.0

53.0

63.0

63.0

63.0

A

43.0

43.0

43.0

43.0

43.0

43.0

48.0

48.0

53.0

63.0

63.0

B

41.0

41.0

41.0

41.0

41.0

41.0

45.0

45.0

50.5

60.5

60.5

B

41.0

41.0

41.0

45.0

45.0

50.5

50.5

60.5

60.5

60.5

Dimensions (mm)

C

70.0

80.0

90.0

100.0

110.0

130.0

110.0

130.0

110.0

90.0

100.0

D

83.0

93.0

103.0

113.0

123.0

143.0

123.0

143.0

123.0

103.0

113.0

Dimensions (mm)

C

70.0

90.0

110.0

100.0

110.0

100.0

110.0

100.0

110.0

100.0

D

83.0

103.0

123.0

113.0

123.0

113.0

123.0

113.0

123.0

113.0

E

16.0

16.0

16.0

18.0

18.0

18.0

18.0

20.0

20.0

20.0

E

16.0

16.0

16.0

16.0

16.0

16.0

18.0

18.0

18.0

20.0

20.0

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Film Capacitor for AC Motor

Type :

PMF

Series

Features

High safety (safety function installed)

High reliability, safety standard approval

Small size, lightness, and low loss

RoHS directive compliant

Recommended applications

Motor and small compressor (for running)

Construction

Internal electrode : Metallized plastic fi lm (safety function installed)

Plastic case

: UL94 V-0

Sealing

Terminal

: UL94 V-0

: Faston terminal (tin plating), Lead wire (tin plating), Insulated wire

Explanation of part number

1 2 3 4 5

D S

6 7 8 9 10 11

Rated voltage Capacitance Externals structure

12

Suffix

1 2 3 4 5

E Z S

Product code

6 7 8 9 10

Dielectric & construction

Rated voltage Capacitance

11

Terminal shape

Suffix

Applicable standard

Japan

UL/cUL

CSA

Europe

China

12

Suffix

JIS C 4908 Capacitors for electrical apparatus

CMJ registration parts. Registration No.1475- C9902-026(JET)

UL810 FILE No. E76560

CSA C22.2 No. 190

EN60252-1 AC motor Capacitors TUV

GB/T 3667.1 AC motor Capacitors CQC

Specifi cations

Applicable standard

✽1

Safety class

Rated voltage (50/60 Hz)

Rated capacitance

✽2

✽2

Capacitance tolerance

Withstand voltage

Between terminals

Between terminals to enclosure

Maximum permissible temperature (Case wall)

JIS UL EN GB

With built-in safety function

P2 (CMJ approval) 10000 AFC (UL)

150 V.AC to 500 V.AC

(For UL Approved P/N : up to 480 V.AC)

S3 (EN)/P2 (GB)

EN/TUV : 450 V.AC

GB : 250 V.AC, 450 V.AC

0.5 μF to 65 μF

−5 %/+10 %, ±5 % (Refer to the individual drawing)

Rated voltage

×1.75, 60 s

Rated voltage

×2.0, 60 s

(min. 2000 V)

Rated voltage

× 2.0+1000 (V), 60 s

70 °C (Including self temperature rising)

✽1 The range of approval is different depending on each approval.

✽2 These are typical values.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Dimension (Example)

3

Q series (Mounting type)

✽ Non Mounting type is available. (P series).

A±0.5

Plastic Film Capacitors

f4.3±0.3

1.5

Lap±2.5 max.

18

B±0.5

6.2±0.5

H±0.5

D±0.5

T series (Printed circuit board (PCB))

Unit : mm

f0.8±0.1

P±1.0

A±1.0

Terminal shape (Standard)

4.0 min.

#187 tabs

4.0 min.

Unit : mm

Lead wire type

f0.8

f1.4

✽3 Other shape and specific requirement can be designed. Please contact, if necessary.

Unit : mm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions

4

Q series (Mounting type)

Rated voltage

(V.AC)

250

450

Capacitance

(μF)

3.0 to 4.5

5.0 to 6.0

6.5 to 9.5

10.0 to 16.0

16.5 to 20.0

20.5 to 25.0

25.5 to 34.5

1.0 to 1.4

1.5 to 1.8

1.9 to 2.5

3.0 to 5.0

5.5 to 6.5

7.0 to 8.0

8.5 to 10.5

48.5

48.5

48.5

38.5

38.2

38.2

48.3

B

38.5

38.2

38.2

48.3

48.5

48.5

48.5

50.0

50.0

50.0

39.5

39.5

39.5

49.7

A

39.5

39.5

39.5

49.7

50.0

50.0

50.0

26.7

30.5

34.0

16.2

18.3

22.0

24.0

C

16.2

18.3

22.0

24.0

26.7

30.5

34.0

Dimensions (mm)

D E

14.8

16.8

27.0

29.0

20.8

22.5

32.5

34.5

25.3

28.8

32.6

14.8

16.8

20.8

22.5

25.3

28.8

32.6

37.5

41.0

45.0

27.0

29.0

32.5

34.5

37.5

41.0

45.0

38.0

41.5

45.0

27.0

29.0

32.5

34.5

F

27.0

29.0

32.5

34.5

38.0

41.5

45.0

G

4.0

6.0

4.0

6.0

H

11.5

11.5

Case series

Q

T series (Printed circuit board (PCB))

Rated voltage

(V.AC)

250

Capacitance

(μF)

3.0 to 4.0

4.5 to 6.5

7.0 to 8.0

8.5 to 11.0

11.5 to 18.5

1.0 to 1.3

450

1.4 to 2.0

2.1 to 2.5

3.0 to 3.5

4.0 to 5.5

✽4 Please contact if necessary other Voltage and Capacitance.

38.5

38.5

38.5

48.5

A

38.5

38.5

38.5

38.5

48.5

38.5

Dimensions (mm)

C

14.0

15.5

20.5

25.0

22.0

14.0

15.5

20.5

25.0

22.0

F

25.5

29.0

29.0

34.0

36.0

25.5

29.0

29.0

34.0

36.0

P

36.0

36.0

36.0

36.0

46.0

36.0

36.0

36.0

36.0

46.0

Case series

T

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Film Capacitor for AC Motor

Type :

SMF

Series

Features

High safety (safety function installed)

High reliability, safety standard approval

Small size, lightness, and low loss

RoHS directive compliant

Recommended applications

Motor and small compressor (for running)

Construction

Internal electrode : Metallized plastic fi lm (safety function installed)

Plastic case

: UL94 V-0

Sealing

Terminal

: UL94 V-0

: Faston terminal (tin plating), Lead wire (tin plating), Insulated wire

Explanation of part number

1 2 3 4 5

D S

6 7 8 9 10 11

Rated voltage Capacitance Externals structure

12

Suffix

1 2 3 4 5

E Z S

Product code

6 7 8 9 10

Dielectric & construction

Rated voltage Capacitance

11

Terminal shape

Suffix

Applicable standard

Japan

UL/cUL

Europe

China

12

Suffix

JIS C 4908 Capacitors for electrical apparatus

CMJ registration parts. Registration No.1475- C9902-026(JET)

UL810 FILE No. E76560

EN60252-1 AC motor Capacitors VDE

GB/T 3667.1 AC motor Capacitors CQC

Specifi cations

Applicable standard

✽1

Safety class

Rated voltage (50/60 Hz)

✽2

Rated capacitance

✽2

JIS UL

With built-in safety function

P2 (CMJ approval) 10000 AFC (UL)

370 V.AC to 450 V.AC

1.5 μF to 9 μF

EN GB

S0 (EN)/P0 (GB)

400 V.AC, 450 V.AC

Capacitance tolerance

Between terminals

Withstand voltage

Between terminals to enclosure

Maximum permissible temperature

(Case wall)

✽1 The range of approval is different depending on each approval.

✽2 These are typical values.

−5 %/+10 %, ±5 % (Refer to the individual drawing)

Rated voltage

×1.75, 60 s

Rated voltage

×2.0, 60 s

(min. 2000 V)

Rated voltage

× 2.0+1000 (V), 60 s

70 °C (Including self temperature rising)

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Dimension (Example)

3

SQ series (Mounting type)

✽ Non Mounting type is available. (SP series).

A±0.5

Plastic Film Capacitors

f4.3±0.3

1.5

Lap±2.5 max.

18

B±0.5

6.2±0.5

H±0.5

D±0.5

T series (Printed circuit board (PCB))

Unit : mm

f0.8±0.1

P±1.0

A±1.0

Terminal shape (Standard)

4.0 min.

#187 tabs

4.0 min.

Unit : mm

Lead wire type

f0.8

f1.4

✽3 Other shape and specific requirement can be designed. Please contact, if necessary.

Unit : mm

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions

4

SQ series (Installation leg type)

Rated voltage

(V.AC)

400

450

Capacitance

(μF)

1.5 to 3.0

3.5

4.0 to 5.0

5.5 to 6.5

7.0 to 8.0

8.5 to 9.0

1.5 to 2.5

3.0

3.5 to 4.0

4.5 to 5.5

6.0 to 6.5

7.0 to 7.5

39.5

39.5

39.5

39.5

39.5

39.5

39.5

A

39.5

39.5

39.5

39.5

39.5

38.0

38.0

38.0

38.0

38.0

38.0

38.0

B

38.0

38.0

38.0

38.0

38.0

26.7

26.7

16.0

17.5

22.0

26.7

26.7

C

16.0

17.5

22.0

26.7

26.7

Dimensions (mm)

D E

14.5

16.0

26.5

28.0

20.5

25.2

32.5

37.0

25.2

25.2

14.5

16.0

20.5

25.2

25.2

25.2

37.0

37.0

26.5

28.0

32.5

37.0

37.0

37.0

37.0

41.0

30.5

30.5

30.5

32.0

37.0

F

30.5

30.5

30.5

32.0

41.0

G

4.0

4.0

H

11.0

11.0

Case series

SQ

T series (Printed circuit board (PCB))

Rated voltage

(V.AC)

400

450

Capacitance

(μF)

1.5 to 2.5

3.0 to 3.5

4.0 to 5.0

5.5 to 7.5

1.5 to 2.0

2.5 to 3.0

3.5 to 4.0

4.5 to 6.5

✽4 Please contact if necessary other Voltage and Capacitance.

A

38.5

38.5

38.5

38.5

38.5

38.5

38.5

38.5

Dimensions (mm)

C

14.0

15.5

20.5

25.0

14.0

15.5

20.5

25.0

29.0

34.0

F

25.5

29.0

29.0

34.0

25.5

29.0

P

36.0

36.0

36.0

36.0

36.0

36.0

36.0

36.0

Case series

T

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polyester Film Capacitor for Noise suppression of Automobile

Type :

ECQE

Non-inductive construction using metallized polyester fi lm with fl ame retardant epoxy resin

Features

Excellent water-proof and corrosion-proof construction properties.

Guaranteed operation temperture of 130 °C max

Available with wide variety of terminals, including blacket and lead wire

RoHS directive compliant

Recommended applications

Noise suppression for automobile

Explanation of part number

1 2 3 4 5

E C Q E 2

6 7 8 9 10

4 7 4

11 12

Product code Dielectric & construction

Rated voltage

Applicable standard

Category temperature range

(Including temperature-rise on unit surface)

Rated voltage

Rated capacitance

Capacitance tolerance

Dissipation factor (tan d)

Withstand voltage

Insulation resistance (IR)

Capacitance Suffix Suffix Suffix Suffix

−40 °C to +130 °C

(Except cord, connector, tube and tape)

250 V.DC (Derating of rated voltage by 1.11 %/°C at more than 85 °C)

0.47 μF, 2.2 μF, 4.7 μF

±20 % (M) tan d < 1.0 % (20 °C, 1 kHz )

250 V.DC

×150 % for 60 s

IR

> 3000 MΩ ∙ μF (20 °C, 100 V.DC, 60 s)

Dimensions (Example)

Connector : Type 090, 090II, 187 etc.

Connecting diagram

L±10

L=80 mm, 90 mm, 100 mm, 110 mm, 120 mm etc.

Connecting diagram

✽ Other voltage ratings, capacitance values and special dimensions are available upon request.

Please consult engineering section.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

DC-Link Film Capacitor

Type :

TYPE1

Features

High safety, Self-healing and Self-protecting function built in.

No catastrophic failure upon natural end of life due to inbuilt fuse function.

Open circuit failure mode by fuse function patterned electrode

Can replace Electrolytic Capacitor

Low ESR, High Ripple Current capability

Low ESL

RoHS directive compliant

Recommended applications

Any automotive and/or other application requiring DC Linkage

✽ Verify the usage and fi tting environments, and make sure to observe the rated performance specifi ed in the corresponding specifi cations.

Construction

Dielectric :

Electrode

: Metallized dielectric with Segment pattern

Plastic Case : PPS. equivalent to UL94 V-0

Sealing

: Epoxy Resin equivalent to UL94 HB

Terminal

: Copper with Tin plating

Explanation of part number

E Z T V K C T Y P 1 H A

Specifi cations

Operating temperature on the surface of the case

Capacitance

Rated voltage

Maximum voltage

Rated ripple current

Current derating

ESR

ESL

Insulation Resistance between Terminals and Case

Dimensions L

× W × H (Typical data)

Weight (Typical data)

– 40 °C to +105 °C including self heat generation

581 μF

+10 %

−5 %

at 1 kHz, 25 ºC

450 V.DC

600 V.DC for 60 sec in life time

Continuous 80 Arms at 10 kHz

Refer Fig.1

0.8 m

Ω or less at 10KHz

20 nH or less at 1MHz

1 G

Ω or more

Measure after applying 500

+50

0

V.DC for 2

+2

0

seconds.

164

× 115 × 43.1 mm : Excluding terminals

980 g

Note:

1) Voltage includes ripple voltage

2) Derate the current when the maximum surface temperature exceeds 95 degC, as shown in Fig. 1.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Current Derating

100

90

80

70

60

50

40

30

20

10

0

−40

95 °C

60 65 70 75 80 85 90 95

Temperature on the surface of the capacitor housing (°C)

100

Fig.1 Current derating curve

105 110

Dimensions

Unit : mm

164±1

136±1

N

(7.5)

4-f

6.9

0

+0.3

(34.5)

(6.5)

149±0.4

80

STAMPING AREA

(40)

P

HATCHED AREA : LABEL

2-12

63.5±0.4

85.5±0.4

(22)

2-f

6.5

0

+0.3

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Characteristics <Reference>

<Temperature characteristics (Typical curve)>

Change of capacitance

10

ΔC/C

5

0

−5

−10

−40 −20 0 20 40

Temperature (°C)

60 80 100

<Frequency characteristics (Typical curve)>

Equivalent series resistance

1.0

ESR

0.8

0.6

0.4

0.2

0.0

10 15 20

Frequency (kHz)

25

Equivalent series resistance

10

ESR

0.8

0.6

0.4

0.2

0.0

−40 −20 0 20 40

Temperature (°C)

60 80 100

<Lifetime Expectancy (Reference)>

✽ Expected life : 15,000 hours

✽ Failure in Time : 300 Fits

The above values are reference calculated under an pre-assumed average operating condition.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

EZPE

Series

Features

High safety, Self-healing and Self-protecting function built-in

Long product life, High reliability

Low loss, Low ESR

Flame retardant (Case and sealing resin)

RoHS directive compliant

Recommended applications

For DC fi ltering, DC link circuit

Solar inverters

Wind power generation

Industrial power supplies

Inverter circuit in appliances (Air Conditioners etc.)

Construction

Dielectric : Polypropylene fi lm

Electrodes : Metallized dielectric with segmented pattern

Plastic case : UL94 V-0

Sealing

: UL94 V-0

Terminals : Tinned wires, 2-pin and 4-pin versions

Explanation of part number

1 2 3 4 5

E Z P E

6 7 8 9 10

Product code Dielectric & construction

Rated voltage

50 500 V.DC

80 800 V.DC

1B 1100 V.DC

1D 1300 V.DC

Capacitance

11

T

Pin type Suffix

L

M

2-pin type

4-pin type

12

A

Suffix

Specifi cations

Category temperature range (T

C

)

✽1

Rated voltage(V

R

)

✽2

Rated capacitance (C

R

)

Capacitance tolerance

Withstanding DC voltage

Insulation resistance (CR)

✽1 : The temperature of capacitor surface (case)

✽2 : Use for DC voltage only

✽3 : Refer to the page of “DC voltage derating”

500 V.DC

800 V.DC

1100 V.DC

1300 V.DC

−40 °C to +85 °C

500 V.DC, 800 V.DC, 1100 V.DC, 1300 V.DC

(Derating of rated voltage by more than 70 °C

✽3

)

10 μF to 110 μF

10 μF to 60 μF

10 μF to 40 μF

10 μF to 25 μF

±10 %

Between terminals : Rated voltage. (V.DC)

×150 %, 10 s

Terminal to case : 2110 V.AC (50 Hz or 60 Hz), 10 s

CR

> 10000 Ω ∙ F (20 °C, 500 V.DC, 60 s)

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

Marking Marking

P1±1

L±0.5

0±0.2

P1±1

L±0.5

P2±1

0±0.2

Unit : mm

Marking

(ex.)

Panasonic

DC

(a)

V

(b)

μF

(c)

(a) Rated voltage

(b) Capacitance

(c) Lot No.

Rating · Dimensions · Quantity

Rated voltage : 500 V.DC at 70 °C (450 V.DC at 85 °C)

Part No.

Cap.

C

R

(μF)

W H

Dimensions (mm)

L P1 P2

f

dv/dt

[V/μs]

EZPE50106LTA

10 20 42 41.5 37.5

EZPE50156LTA

15 20 42 41.5 37.5

EZPE50206LTA

20 20 42 41.5 37.5

EZPE50256LTA

25 20 42 41.5 37.5

1.2

1.2

1.2

1.2

EZPE50306MTA 30

20 42 41.5 37.5 10.2

1.2

EZPE50356MTA 35

30 51 41.5 37.5 10.2

1.2

EZPE50406MTA 40

30 51 41.5 37.5 10.2

1.2

EZPE50456MTA 45

30 51 41.5 37.5 10.2

1.2

EZPE50506MTA 50

30 51 41.5 37.5 20.3

1.2

EZPE50556MTA 55

30 51 41.5 37.5 20.3

1.2

EZPE50606MTA 60

30 51 41.5 37.5 20.3

1.2

EZPE50656MTA 65

30 51 57.5 52.5 10.2

1.2

EZPE50706MTA 70

30 51 57.5 52.5 10.2

1.2

EZPE50756MTA 75

30 51 57.5 52.5 20.3

1.2

EZPE50806MTA 80

30 51 57.5 52.5 20.3

1.2

EZPE50856MTA 85

35 56 57.5 52.5 20.3

1.2

EZPE50906MTA 90

35 56 57.5 52.5 20.3

1.2

EZPE50956MTA 95

35 56 57.5 52.5 20.3

1.2

EZPE50107MTA 100

35 56 57.5 52.5 20.3

1.2

EZPE50117MTA

110 35 56 57.5 52.5 20.3

1.2

✽1 : When rising temperature of capacitor surface by continuous peak current (included pulse current),

use within limit specified for temperature of capacitor surface and self heating temperature rise.

✽2 : Maximum RMS current @70 °C, 10 kHz

Use within limit for self heating temperature rise at capacitor surface.

✽3 : Typical values @ 20 °C, 10 kHz ESR : less than 2.5×ESR

typ

✽4 : Maximum dissipation factor @ 20 °C, 1 kHz

✽5 : Minimum order quantity consists of 4 packing units.

21

21

14

21

21

21

21

21

21

21

21

21

14

14

14

14

14

14

14

14

Permissible current

Peak

Current

✽1

(A o-p

)

RMS

Current

(A rms

)

✽2

ESR

(m typ

Ω)

210 5.0

22.0

✽3 tan

d

(%)

315 7.5

14.8

420

525

9.5

11.0

11.0

0.28

0.28

0.28

8.8

0.28

✽4

630 12.5

7.0

0.28

735 13.5

840 14.5

945 15.2

1050 16.0

1155 16.3

1260 16.5

910 15.0

6.2

5.4

4.9

4.4

4.1

3.9

6.8

0.28

0.28

0.28

0.28

0.28

0.28

0.44

980 15.5

1050 16.0

1120 16.5

1190 16.7

1260 17.0

1330 17.5

1400 18.0

1540 18.5

6.5

0.44

6.0

0.44

5.7

0.44

5.4

0.44

5.1

0.44

4.9

0.44

4.7

0.44

4.4

0.44

Mass

(g)

83

82

81

80

79

77

111

45

45

44

43

43

109

108

106

142

141

140

139

138

Min. order

Q'ty

✽5

(pcs)

600

400

200

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Rating · Dimensions · Quantity

Rated voltage : 800 V.DC at 70 °C (700 V.DC at 85 °C)

Part No.

Cap.

C

R

(μF) W H

Dimensions (mm)

L P1 P2

f

EZPE80106LTA

10 20 42 41.5 37.5

– 1.2

EZPE80156MTA

15 20 42 41.5 37.5 10.2

1.2

EZPE80206MTA

20 30 51 41.5 37.5 10.2

1.2

EZPE80256MTA

25 30 51 41.5 37.5 10.2

1.2

EZPE80306MTA

30 30 51 41.5 37.5 20.3

1.2

EZPE80356MTA

35 30 51 57.5 52.5 10.2

1.2

EZPE80406MTA

40 30 51 57.5 52.5 20.3

1.2

EZPE80456MTA

45 30 51 57.5 52.5 20.3

1.2

EZPE80506MTA

50 35 56 57.5 52.5 20.3

1.2

EZPE80556MTA

55 35 56 57.5 52.5 20.3

1.2

EZPE80606MTA

60 35 56 57.5 52.5 20.3

1.2

22

15

15

15

15

22

22

22

22

15

15 dv/dt

[V/μs]

Permissible current

Peak

Current

✽1

(A o-p

)

RMS

Current

✽2

(A rms

)

220 7

330

440

550

660

525

600

675

750

825

900

16

17

12

13

14

15

9

11

13

15

ESR typ

✽3

(m

Ω) tan

d ✽4

(%)

15.8

0.22

10.5

0.22

7.7

0.22

6.8

0.22

5.3

0.22

9.7

0.33

8.3

0.33

7.0

0.33

6.3

0.33

5.9

0.33

5.6

0.33

Mass

(g)

44

43

82

80

78

110

107

104

140

138

136

Min. order

Q'ty

✽5

(pcs)

600

400

200

Rated voltage : 1100 V.DC at 70 °C (920 V.DC at 85 °C)

Part No.

Cap.

C

R

(μF)

W H

Dimensions (mm)

L P1 P2

f

EZPE1B106MTA 10

20 42 41.5 37.5 10.2

1.2

EZPE1B156MTA 15

30 51 41.5 37.5 10.2

1.2

EZPE1B206MTA 20

30 51 41.5 37.5 20.3

1.2

EZPE1B256MTA 25

30 51 57.5 52.5 10.2

1.2

EZPE1B306MTA 30

30 51 57.5 52.5 20.3

1.2

EZPE1B356MTA 35

35 56 57.5 52.5 20.3

1.2

EZPE1B406MTA 40

35 56 57.5 52.5 20.3

1.2

35

35

35

54

54

54

35 dv/dt

[V/μs]

Permissible current

Peak

Current

✽1

(A o-p

)

540

810

RMS

Current

(A rms

7.0

8.5

)

✽2

ESR

(m typ

Ω)

12.3

✽3 tan

d

(%)

0.20

8.2

0.20

✽4

1080 10.0

6.3

0.20

875 8.0

10.7

0.28

1050 9.0

1225 10.0

1400 11.0

8.5

7.2

6.5

0.28

0.28

0.28

Mass

(g)

43

80

76

107

103

137

134

Min. order

Q'ty

✽5

(pcs)

600

400

200

Rated voltage : 1300 V.DC at 70 °C (1100 V.DC at 85 °C)

Part No.

Cap.

C

R

(μF) W H

Dimensions (mm)

L P1 P2

f

dv/dt

[V/μs]

Permissible current

Peak

Current

✽1

(A o-p

)

RMS

Current

(A rms

)

✽2

EZPE1D106MTA 10

30 51 41.5 37.5 10.2

1.2

EZPE1D156MTA 15

30 51 57.5 52.5 10.2

1.2

EZPE1D206MTA 20

30 51 57.5 52.5 20.3

1.2

EZPE1D256MTA 25

35 56 57.5 52.5 20.3

1.2

73

50

50

50

730

750

1000

1250

✽1 : When rising temperature of capacitor surface by continuous peak current (included pulse current),

use within limit specified for temperature of capacitor surface and self heating temperature rise.

✽2 : Maximum RMS current @70 °C, 10 kHz

Use within limit for self heating temperature rise at capacitor surface.

✽3 : Typical values @ 20 °C, 10 kHz ESR : less than 2.5×ESR

typ

✽4 : Maximum dissipation factor @ 20 °C, 1 kHz

✽5 : Minimum order quantity consists of 4 packing units.

12.0

10.0

14.0

17.0

ESR typ

✽3

(m

Ω) tan

d ✽4

(%)

10.0

14.5

11.1

8.5

0.17

0.22

0.22

0.22

Mass

(g)

80

109

103

136

Min. order

Q'ty

✽5

(pcs)

400

200

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Metallized Polypropylene

Film Capacitor

Type :

EZPE

Series

(Low profi le type)

Features

High safety, Self-healing and Self-protecting function built-in

Long product life, High reliability, High moisture resistance

Low loss, Low ESR

Flame retardant

Low profi le design

RoHS directive compliant

Recommended applications

For DC fi ltering, DC link circuit

Solar inverters, Micro inverters

Wind power generation

Industrial power supplies

Inverter circuit in appliances (Air Conditioners etc.)

Construction

Dielectric : Polypropylene fi lm

Electrodes : Metallized dielectric with segmented pattern

Plastic case : UL94 V-0

Sealing

: UL94 V-0

Terminals : Tinned wires, 2-pin and 4-pin versions

Explanation of part number

1 2 3 4 5

E Z P E

Product code

6 7 8 9 10

Dielectric & construction

Rated voltage

(Ex.)

45

52

450 V.DC

525 V.DC

Capacitance

11

T

Pin type Suffix

L

M

2-pin type

4-pin type

12

Suffix

Specifi cations

Category temperature range (T

C

)

✽1

Rated voltage(V

R

)

✽2

Rated capacitance (C

R

)

Capacitance tolerance

Withstanding DC voltage

Insulation resistance (CR)

✽1 : The temperature of capacitor surface (case)

✽2 : Use for DC voltage only

✽3 : Refer to the page of “DC voltage derating”

−40 °C to +85 °C

450 V.DC, 525 V.DC

(Derating of rated voltage by more than 70 °C

✽3

)

450 V.DC

525 V.DC

66 μF

29 μF

±15 %

Between terminals : Rated voltage. (V.DC)

×150 %, 10 s

Terminal to case : 2000 V.AC (50 Hz or 60 Hz), 10 s

CR

> 10000 Ω ∙ F (20 °C, 500 V.DC, 60 s)

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

Plastic Film Capacitors

Dimensions

P1±1.0

Marking

P2±1.0

0±0.2

Marking

(ex.)

Panasonic

DC

(a)

V

(b)

μF

(c)

Unit : mm

(a) Rated voltage

(b) Capacitance

(c) Lot No.

L±1.0

Rating · Dimensions · Quantity

Rated voltage : 450 V.DC at 70 °C

Part No.

Cap.

C

R

(μF) W H

Dimensions (mm)

L P1 P2

f

EZPE45666MTB 66

90 24 32.5 27.5 37.5

0.8

dv/dt

[V/μs]

5

Permissible current

Peak

Current

✽1

(A o-p

)

RMS

Current

✽2

(A rms

)

300 15.0

ESR typ

✽3

(m

Ω) tan

d ✽4

(%)

5.0

0.3

Mass

(g)

110

Min. order

Q'ty

✽5

(pcs)

200

Rated voltage : 525 V.DC at 70 °C

Part No.

Cap.

C

R

(μF) W H

Dimensions (mm)

L P1 P2

f

dv/dt

[V/μs]

Permissible current

Peak

Current

✽1

(A o-p

)

RMS

Current

(A rms

)

✽2

EZPE52296MTB 29

48.5 23.5 37.0 34.0 20.3

0.8

14 400

✽1 : When rising temperature of capacitor surface by continuous peak current (included pulse current),

use within limit specified for temperature of capacitor surface and self heating temperature rise.

✽2 : Maximum RMS current @ 70 °C, 10 kHz

Use within limit for self heating temperature rise at capacitor surface.

✽3 : Typical values @ 20 °C, 10 kHz ESR : less than 2.5×ESR

typ

✽4 : Maximum dissipation factor @ 20 °C, 1 kHz

✽5 : Minimum order quantity consists of 4 packing units.

3.0

ESR typ

✽3

(m

Ω) tan

d ✽4

(%)

7.0

0.4

Mass

(g)

50

Min. order

Q'ty

✽5

(pcs)

400

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Feb. 2016

CAUTION AND WARNING

1. The electronic components contained in this catalog are designed and produced for use in home electric appliances, office eq uipment, information equipment, communications equipment, and other general purpose electronic devices.

Before use of any of these components for equipment that requires a high degree of safety, such as medical instruments, aeros pace equipment, disaster-prevention equipment, security equipment, vehicles (automobile, train, vessel),

please be sure to contact our sales representative.

2. When applying one of these components for equipment requiring a high degree of safety, no matter what sort of application it might be, be sure to install a protective circuit or redundancy arrangement to enhance the safety of your equipment. In addition, please carry out the safety test on your own responsibility.

4. Technical information contained in this catalog is intended to convey examples of typical performances and/or applications a nd is not intended to make any warranty with respect to the intellectual property rights or any other related rights of our company or any third parties nor grant any license under such rights.

5. In order to export products in this catalog, the exporter may be subject to the export license requirement under the Foreign Exchange and Foreign Trade Law of

Japan.

6. No ozone-depleting substances (ODSs) under the Montreal Protocol are used in the manufacturing processes of Automotive & Ind ustrial Systems Company, Panasonic

Corporation.

Please contact Factory

The information in this catalog is valid as of December 2015.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
