c o m m e r c i a l

c o m m e r c i a l
Floor Care
®
commercial

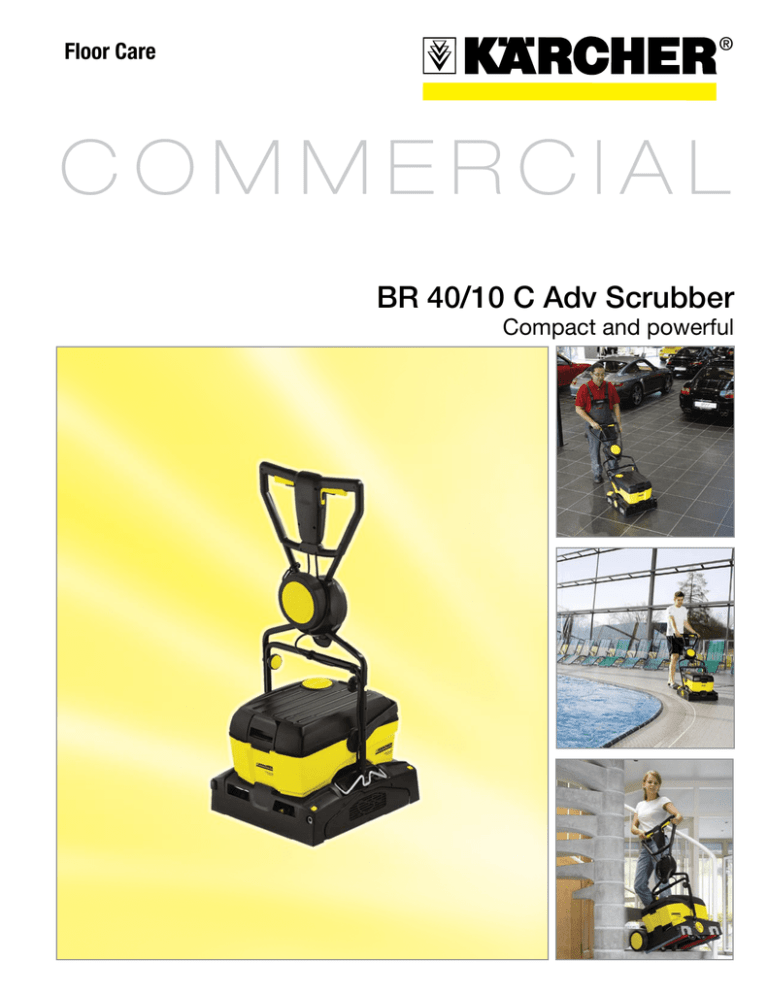

BR 40/10 C Adv Scrubber
Compact and powerful
®
Scrubbers
Clean anywhere with this compact, lightweight scrubber/dryer.
Kärcher’s BR 40/10 C Adv scrubber/dryer thoroughly deep-cleans all your hard floor surfaces then leaves them perfectly
dry, safe and hygienic. This compact scrubber is engineered to be easy to transport and even easier to use with snap on
wheels that conveniently stow on the operating handle. Ideal for use on hard floors and tile, the BR 40/10 C is perfect
for use in institutions, restaurants, schools, stores and even homes to maintain the appearance of floors and keep your
premises sanitary.
Two, Counter-Rotating Brushes:
Variable cleaning pressure up to 88 lbs
Large wheels simplify transport
and are conveniently stowed on
the handle during cleaning.
2.5 Gallon Solution and Recovery Tanks:
Can be easily detached, eliminates moving machine
from work site to empty or fill solution tanks
High Speed Roller Technology:
High contact pressure and rotation speed thoroughly
cleans all types of hard floors. Cylindrical brush is
particularly effective on uneven surfaces and ceramic
tile grouting.
Standard Accessories (included):
Two Squeegees:
Allows for pick up in forward and reverse
Standard Red Roller Brush (2)
Squeegee Tool (2)
12 Gauge Power Cord 50’
Easy Brush and Squeegee Removal:
No tools required
Optional Accessories:
White Soft Roller Brush (2)
Orange Hi-Lo Roller Brush (2)
Green Heavy-Duty Grit Brush (2)
Oil-Resistant Squeegee Tool (2)
Roller Pad Shaft (2)
White Roller Pads
Cylindrical brushes
TECHNICAL DATA
BR 40/10 C Adv
Product Number
9.840-769.0
Working Width
16” (400 mm)
Brushes
Two 16” (400 mm) - Cylindrical
Brush Diameter
Brush Speed
3.7” (96 mm)
1100 rpm
Down Pressure
88 lbs (40 kg) with full solution tank
Solution Capacity
Solution Flow
2.5 gallons (10 l)
.25-.3 gallons/min (1-1.2 l/min)
Recovery Capacity
Vacuum Motor
2.5 gallons (10 l)
.6 hp (500 W)
Performance (ft /h)
2
Power Cord
Dimensions (L x W x H)
Weight
Noise Level
4300 sq. ft per hour
50’
20.5” x 18.5” x 15”
(520 x 470 x 380 mm)
Kärcher offers a full line of
cleaning equipment including:
Commercial Pressure Washers
Hot Water
Cold Water
Commercial Floor Care
Vacuums
Floor Burnishers
Floor Polishers
Sweepers
Scrubbers
Carpet Extractors
Air Blower
Steamer
Industrial Floor Care
Sweepers
Scrubbers
66 lbs (30 kg)
67 dBA
YOUR AUTHORIZED KäRCHER DEALER:
Kärcher Commercial Floor Care
www.KarcherFloorcare.com
[email protected]
888-805-9852 • Fax 800-248-8409
P/N 9.800-470.0 • 9/09
