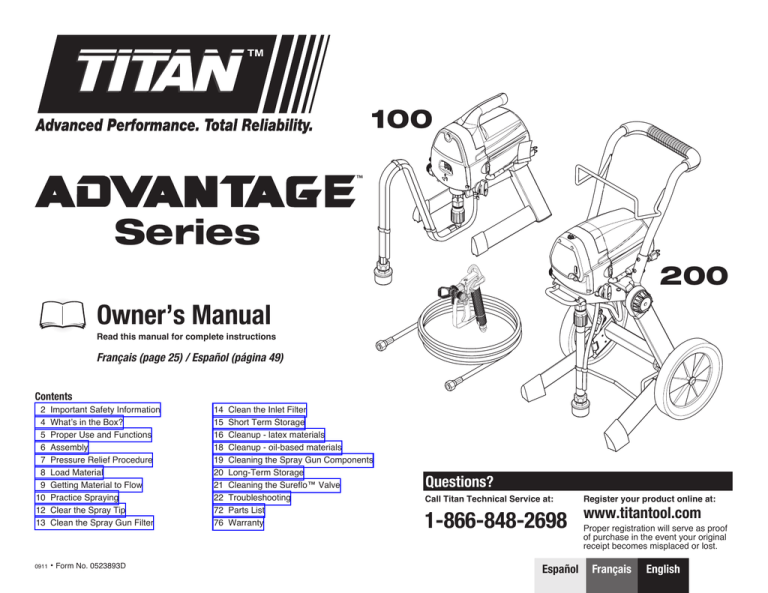

100
Series
200
Owner’s Manual
Read this manual for complete instructions
Français (page 25) / Español (página 49)
Contents
2 Important Safety Information
4 What’s in the Box?
5 Proper Use and Functions
6 Assembly
7 Pressure Relief Procedure
8 Load Material
9 Getting Material to Flow
10 Practice Spraying
12 Clear the Spray Tip
13 Clean the Spray Gun Filter
0911
• Form No. 0523893D
14 Clean the Inlet Filter
15 Short Term Storage
16 Cleanup - latex materials
18 Cleanup - oil-based materials
19 Cleaning the Spray Gun Components
20 Long-Term Storage
21 Cleaning the Sureflo™ Valve
22 Troubleshooting
72 Parts List
76 Warranty
Questions?
Call Titan Technical Service at:
1-866-848-2698
Español
Register your product online at:
www.titantool.com
Proper registration will serve as proof
of purchase in the event your original
receipt becomes misplaced or lost.
Français
English
Important
Safety Safety
Information
Read all safety information before operating
the equipment. Save these instructions
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
a) To reduce the risks of fire or explosion, electrical
shock and the injury to persons, read and
understand all instructions included in this manual.
Be familiar with the controls and proper usage of
the equipment.
Grounding Instructions
This product must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock
by providing an escape wire for the electric current. This
product is equipped with a cord having a grounding wire with
an appropriate grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
warning - Improper installation of the
grounding plug can result in a risk of electric
shock.
If repair or replacement of the cord or plug is necessary,
do not connect the green grounding wire to either flat blade
terminal. The wire with insulation having a green outer
surface with or without yellow stripes is the grounding wire
and must be connected to the grounding pin.
Check with a qualified electrician or serviceman if the
grounding instructions are not completely understood, or
if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided. If the plug
will not fit the outlet, have the proper outlet installed by a
qualified electrician.
English
This product is for use on a nominal 120 volt circuit and
has a grounding plug that looks like the plug illustrated
below. Make sure that the product is connected to an
outlet having the same configuration as the plug. No
adapter should be used with this product.
Grounded Outlet
Grounding Pin
Cover for grounded outlet box
b) WARNING - To reduce the risk of
fire or explosion:
1. Do not spray flammable or
combustible materials near an open flame, pilot
lights or sources of ignition such as hot objects,
cigarettes, motors, electrical equipment and
electrical appliances. Avoid creating sparks from
connecting and disconnecting power cords.
2. Use extreme caution when using materials with
a flashpoint below 70ºF (21ºC). Flashpoint is
the temperature that a fluid can produce enough
vapors to ignite.
3. Paint or solvent flowing through the equipment is
able to result in static electricity. Static electricity
creates a risk of fire or explosion in the presence
of paint or solvent fumes. All parts of the spray
system, including the pump, hose assembly, spray
gun and objects in and around the spray area
shall be properly grounded to protect against static
discharge and sparks. Use only conductive or
grounded high-pressure airless paint sprayer hoses
specified by the manufacturer.
4. Verify that all containers and collection systems are
grounded to prevent static discharge.
5. Connect to a grounded outlet and use grounded
extension cords (electric models only). Do not use
a 3 to 2 adapter.
6. Do not use a paint or solvent containing
halogenated hydrocarbons. Such as chlorine,
bleach mildewcide, methylene chloride and
trichloroethane. They are not compatible with
aluminum. Contact the coating supplier about
compatibility of material with aluminum.
7. Keep spray area well ventilated. Keep a good
supply of fresh air moving through the area to keep
the air within the spray area free from accumulation
of flammable vapors. Keep pump assembly in well
ventilated area. Do not spray pump assembly.
8. Do not smoke in the spray area.
2
9. Do not operate light switches, engines, or similar
spark producing products in the spray area.
10. Keep area clean and free of paint or solvent
containers, rags, and other flammable materials.
11. Know the contents of the paint and solvents being
sprayed. Read all Material Safety Data Sheets
(MSDS) and container labels provided with the
paints and solvents. Follow the paint and solvent
manufacture’s safety instructions.
12. Place pump at least 25 feet (7.62 meters) from the
spray object in a well ventilated area (add more
hose if necessary). Flammable vapors are often
heavier than air. Floor area must be extremely well
ventilated. The pump contains arcing parts that
emit sparks and can ignite vapors.
13. Plastic can cause static sparks. Never hang plastic
to enclose spray area. Do not use plastic drop
cloths when spraying flammable material.
14. Fire extinguisher equipment shall be present and
working.
c)WARNING - To reduce the risk of skin
injection:
1. Do not aim the gun at, or spray any person
or animal.
2. Keep hands and other body parts away from the
discharge. For example, do not try to stop leaks
with any part of the body.
3. Always use the nozzle tip guard. Do not spray
without the nozzle tip guard in place.
4. Only use a nozzle tip specified by the
manufacturer.
5. Use caution when cleaning and changing nozzle
tips. In the case where the nozzle tip clogs while
spraying, ALWAYS lock gun trigger, shut pump
off, and release all pressure before servicing,
cleaning tip or guard, or changing tip. Pressure
will not be released by turning off the motor. The
PRIME/SPRAY valve or pressure bleed valve must
be turned to their appropriate positions to relieve
system pressure. Refer to PRESSURE RELIEF
PROCEDURE described in the pump manual.
6. Do not leave the unit energized or under pressure
while unattended. When the unit is not in use, turn
off the unit and relieve the pressure in accordance
with the manufacturer’s instructions.
7. High-pressure spray is able to inject toxins into
the body and cause serious bodily injury. In the
event that injection occurs, seek medical attention
immediately.
8. Check hoses and parts for signs of damage, a
leak can inject material into the skin. Inspect hose
before each use. Replace any damaged hoses or
parts.
9. This system is capable of producing 2800 PSI / 193
Bar (100) or 3000 PSI / 207 Bar (200). Only use
replacement parts or accessories that are specified by
the manufacturer and that are rated a minimum of 3000
PSI. This includes spray tips, nozzle guards, guns,
extensions, fittings, and hose.
10. Always engage the trigger lock when not spraying.
Verify the trigger lock is functioning properly.
11. Verify that all connections are secure before operating
the unit.
12. Know how to stop the unit and bleed pressure quickly.
Be thoroughly familiar with the controls. Pressure will
not be released by turning off the motor. The PRIME/
SPRAY valve or pressure bleed valve must be turned to
their appropriate positions to relieve system pressure.
Refer to PRESSURE RELIEF PROCEDURE described
in the pump manual.
13. Always remove the spray tip before flushing or cleaning
the system.
11. The United States Government Safety Standards
have been adopted under the Occupational
Safety and Health Act (OSHA). These standards,
particularly part 1910 of the General Standards and
part 1926 of the Construction Standards should be
consulted.
12. Before each use, check all hoses for cuts, leaks,
abrasion or bulging of cover. Check for damage or
movement of couplings. Immediately replace hose
if any of those conditions exist. Never repair a paint
hose. Replace with a conductive high-pressure
hose.
13. Do not spray outdoors on windy days.
14. Always unplug cord from outlet before working on
equipment (electric models only).
NOTE TO PHYSICIAN:
Injection into the skin is a traumatic injury. It is
important to treat the injury as soon as possible. DO
NOT delay treatment to research toxicity. Toxicity is a
concern with some coatings injected directly into the
blood stream. Consultation with a plastic surgeon or
reconstructive hand surgeon may be advisable.
important: Use only a 3-wire extension cord that
has a 3-blade grounding plug and a 3-slot receptacle
that will accept the plug on the product. Make sure
your extension cord is in good condition. When
using an extension cord, be sure to use one heavy
enough to carry the current your product will draw.
An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. A 14
or 12 gauge cord is recommended (see chart). If
an extension cord is to be used outdoors, it must
be marked with the suffix W-A after the cord type
designation. For example, a designation of SJTW-A
would indicate that the cord would be appropriate
for outdoor use.
Cord gauge
Maximum cord length
12
150 feet
14
100 feet
Do not use more than 100 feet of spray hose. If you
need to spray further than 100 feet from your power
source, use more extension cord, not more spray
hose.
If you experience problems with your sprayer at
any time during assembly, operation, or cleanup,
please refer to the Troubleshooting section of this
manual (page 22), or call customer service at:
d)WARNING - To reduce the risk of injury:
1. Always wear appropriate gloves, eye protection,
clothing and a respirator or mask when painting.
Hazardous vapors – Paints, solvents, insecticides, and
other materials can be harmful if inhaled or come in
contact with body. Vapors can cause severe nausea,
fainting or poisoning.
2. Do not operate or spray near children. Keep children
away from equipment at all times.
3. Do not overreach or stand on an unstable support.
Keep effective footing and balance at all times.
4. Stay alert and watch what you are doing.
5. Do not operate the unit when fatigued or under the
influence of drugs or alcohol.
6. Do not kink or over-bend the hose. Airless hose can
develop leaks from wear, kinking and abuse. A leak
can inject material into the skin.
7. Do not expose the hose to temperatures or pressures in
excess of those specified by manufacturer.
8. Do not use the hose as a strength member to pull or lift
the equipment.
9. Use lowest possible pressure to flush equipment.
10. Follow all appropriate local, state and national codes
governing ventilation, fire prevention and operation.
Important Electrical Information
1-866-848-2698
3
English
Spray Gun assembly
What’s in
the box?*
Sprayer assembly
Hose wrap*
*Certain parts of the sprayer will not be
assembled out of the box. Be sure to read
Assembly instructions, page 6.
Start
AutoOiler™ cap*
Notice:
SprayTrac™
(reverse side)
lX-50
This pump is available in a stand model
(100) and cart model (200 shown right).
All information given for the stand model
applies to the cart model except where
indicated.
tr2 Spray tip assembly
Spray tip
Some of the graphics in this manual may not
exactly match your sprayer and spray gun. All information and instructions given in this
manual applies to all models except where
noted.
Gun Model
Hose Length
100
LX-50
25 ft.
200
LX-50
35 ft.
ON/OFF switch
Pump cleaning
adapter
PRIME/SPRAY
knob
AutoOiler™
button*
Smart-Move™
cart knob*
Pail bracket*
Spray
guard
The type of spray gun and length of spray
hose included depends upon the pump
model you have. Refer to the chart below
for details.
Pump Model
Spray hose port
(reverse side)
Sureflo™ valve
Suction tube
Material
return tube
Spray Hose assembly
Inlet filter
* Cart models only
Unfolding the cart:
If you have one of the cart
models (200) you will need
to unfold the cart before
using. Follow steps 1-4,
right.
1
(a)
English
3
4
(b)
1. Lift the sprayer by the pail
bracket. Lift the leg lock (a) and
unfold the legs (b). Move leg
lock down to lock legs into place.
2
Leg lock*
2. Twist the knob on either side
of the cart toward the “UP”
arrow until it stops.
4
3. Lift the handle until the motor
housing and handle locks into
place. DO NOT pinch the
power cord with the cart.
4. Insert the ends of the hose
bracket into the holes of the
handle as shown.
Controls and Functions
Proper use
and functions
Sprays a variety of paints (oil-based and
latex), primers, stains, preservatives and other
nonabrasive materials.
Do not use!
This pump should not be used with textured
materials, block filler, asphalt sealer or
materials containing HHC. See coating supplier
if flash point is not listed on the container
SPRAY
The PressureTrac™ regulates
the amount of force the pump
uses to push the fluid and can
be adjusted for desired spray
pattern.
The ON/OFF switch turns power
to sprayer on and off.
(O=OFF, |=ON)
PRIME/SPRAY knob:
The PRIME/SPRAY knob directs
material to the material return
tube when set to PRIME or to
spray hose when set to SPRAY.
WIDE
NARROW
Capability:
l
PRIME
Start
PressureTrac:
ON/OFF switch:
Specifications:
Capacity:
100������������ Up to .29 gallon (1.1 liter) / min
200������������ Up to .33 gallon (1.25 liter) / min
Power source:
100������������ 1/2 Hp universal motor
200������������ 5/8 Hp universal motor
Power requirement: 15 amp minimum circuit
on 115 VAC, 60 Hz current
Generator power requirement: 8000 Watt
The spray hose connects the
spray gun to the pump.
LX-50
Trigger lock:
Engage the trigger lock whenever
the gun is not in use.
LX-50 - The gun is locked
when the trigger lock is at a
90º angle (perpendicular to the
trigger in either direction).
Spray gun:
The spray gun controls the
delivery of the material being
pumped.
AutoOiler (200 only):
The AutoOiler is designed to
provide lubrication to the fluid
section of the pump.
Suction tube (a):
The suction tube draws the fluid
from the original container into
the pump.
(a)
Sureflo Valve:
The Sureflo Valve is designed
to keep the inlet valve open and
from sticking to dried materials.
The Sureflo Valve is activated
manually by the user.
The TR2 spray tip can be
adjusted based on your spraying
needs.
Spray hose:
Safety features:
Spray gun trigger lock and pressure diffuser;
built-in tip safety guard; PRIME/SPRAY knob
for safe pressure release. Conforms to UL STD
1450. Certified to CAN/CSAC 22.2 NO 68-92
TR2 spray tip:
5
Material return tube (b):
(b)
Fluid is sent out through the
return tube and back into the
original container when the
PRIME/SPRAY knob is in the
PRIME position.
English
1. Assembly
Start
1
2
3
You will need:
• Two adjustable wrenches
important: Do not plug in the
power cord until assembly is
complete.
Note: It will be much easier to attach the
hose to the sprayer if you uncoil it first.
1. Remove the plug from inside
the hose fittings and remove the
cap on the outlet valve. Discard
both.
4
2. Thread one end of the high
pressure spray hose to the
spray hose port.
5
3. Hold the port with an
adjustable wrench, and tighten
the hose with the other.
6
(a)
4. Thread the other end of the
hose to the spray gun. Hold
the gun with one adjustable
wrench, and tighten the hose
nut with the other.
English
6
5. Remove cap from the Sureflo
valve (a).
Thread the suction tube onto the
inlet valve and tighten firmly by
hand.
Note: Be sure that the threads are
straight so that the fitting turns freely.
6. Press the return tube onto
the return tube fitting.
Squeeze clip over the return
tube fitting to secure the
return tube.
Pressure
Safety Relief
Procedure*
*Perform when instructed
Start
Important Safety Warning
Be careful when handling the spray gun so you don’t
accidently spray yourself. The high pressure paint
stream could pierce your skin causing serious injury. If
an accident happens see detail procedures in the Safety
Information section on pages 2-3. See physician
immediately and bring this instruction manual.
1
2
Important Safety
Warning
SPRAY
PRIME
Be sure to follow the Pressure Relief
Procedure when shutting the unit off
for any purpose. This procedure is
used to relieve pressure from the
spray hose. Failure to do so could
result in serious injury.
You will need:
• A waste bucket
2. Turn the PRIME/SPRAY knob to PRIME.
1. Lock the spray gun.
3
4
O
OFF
l
3. Turn the power OFF.
7
4. Unlock the spray gun. Briefly pull the trigger
to fully relieve pressure from the system.
Lock the spray gun.
English
2. Load
Material
Start
Cart Model Only
1
2
3
(a)
You will need:
• The material you plan to spray
• Flat blade screwdriver
(cart models only)
• Piston Lube™
• Extension cord
• Waste bucket
1. Remove AutoOiler cap with a
flat blade screwdriver.
Squirt Piston Lube into the
AutoOiler. Replace cap.
5
all models
4
2. Push AutoOiler button 2-5 times
to lubricate the fluid section.
Press button 2-3 times before
every use. Be sure to check
reservoir level (a) and refill as
necessary.
7
6
English
5. Place a full container
of spraying material
underneath the suction
tube (a).
Hold the return tube into a
waste container (b).
SPRAY
6. Slide the PressureTrac™ to
maximum pressure (+).
Turn the PRIME/SPRAY
knob to PRIME.
8
O
l
PRIME
4. Fully depress the
Sureflo™ valve to
make sure the inlet
ball is free.
3. Squirt a teaspoon of Piston
Lube™ (P/N 314-480 or
0516750, sold separately) into
the indicated area.
Light household oil can be
substituted if necessary.
8
ON
(a)
(b)
Stand model Only
7. Plug in the sprayer and
move the ON/OFF switch
to the ON (l) position.
Allow pump to run until
you see spray material
flowing from the return
tube.
8. Switch the pump OFF (O).
Place return tube back into
material container and clip
return tube and suction tube
together.
Start
2
3
l
You will need:
O
ON
SPRAY
• Waste bucket
• Scrap material / cardboard
• Drop cloths to protect floors and
furnishings from overspray
PRIME
Note: Motor will cycle ON and OFF while
spraying to regulate pressure. This is normal.
5
4
SPRAY
1
PRIME
3. Getting
Material to
Flow
1. Point the spray gun into a
separate waste container.
Unlock the spray gun trigger.
Squeeze and hold trigger
for steps 2-3.
2. Turn the power ON.
Turn the PRIME/SPRAY
knob to SPRAY.
6
3. Continue to squeeze
trigger until the material
is flowing freely through
the spray gun.
7
4. Peform the Pressure
Relief Procedure,
page 7.
8
l
O
ON
OR
SPRAY
SPRAY
PRIME
5. Thread the spray tip guard
assembly onto the gun.
Tighten by hand.
6. Rotate spray tip forward to one of the
SPRAY positions.
Unlock the spray gun trigger.
7. Turn the power ON.
Turn the PRIME/SPRAY
knob to SPRAY.
8. Point the spray gun at a piece of
scrap material/cardboard.
Pull the trigger and practice spraying
(see pages 10-11).
Note: Motor will cycle ON and OFF while
spraying to regulate pressure. This is normal.
9
English
4. Practice
Spraying
Start
Tip:
Trigger gun after starting the
stroke. Release the trigger
before ending the stroke. The
spray gun should be moving
when the trigger is pulled and
released. Overlap each stroke
by about 50%. This will ensure
an even coating.
You will need:
• Scrap material / cardboard
Notes:
If the spray pattern becomes distorted or
stops completely while the gun is triggered,
follow any or all the procedures listed on
pages 12-14.
If you plan to be away from your spray
project for more than one hour, follow the
Short Term Storage instructions on page 15.
If you have difficulty achieving a good spray
pattern, your spray tip and gun filter may
not be ideal for the type of material you are
spraying.
Spray
Tip
Size
Filter
Color
Spray
Material
Initial
Pressure
Setting
311
Red
Thin stains,
sealers
Minimum
Yellow
Latex paints,
stains
Maximum
White
Thick latex
paints, stains Maximum
Practice on a piece of scrap material/cardboard
Hold the Spray Gun Level
correct
incorrect
313
413
415
515
517
English
10” - 12” 10” - 12”
(25 - 30 cm)
(25 - 30 cm)
10
Spray Technique
Tip:
correct
Flex your wrist as
you move in order to
keep gun parallel to
the surface
correct
inCorrect
Start
stroke
Pull
trigger
Move
steadily
Release
trigger
End
stroke
Spray Pattern
Overlap Your Strokes
GOOD SPRAY PATTERN
BAD SPRAY PATTERN: TAILING
50% Overlap
8” - 10”
(20 - 25 cm)
!
correct
See page 12-14
11
English
Spraying
Troubleshooting -
1
2
Clear the
Spray Tip
Start
You will need:
Note: If spray tip is difficult
to rotate, relieve pressure
by 1) slowly turn PRIME/
SPRAY knob to PRIME, 2)
unlock the spray gun and
3) squeeze trigger while
pointing at scrap material/
cardboard. Release
trigger, lock the spray gun,
and try rotating spray tip
again.
• Scrap material / cardboard
Do not attempt to unclog or
clean the tip with your finger.
High pressure fluid can cause
injection injury.
OR
1. Lock the spray gun.
2. Rotate spray tip 180 degrees from its
current position.
4
3
5
NARROW
SPRAY
OR
PRIME
3. Make sure the PRIME/
SPRAY knob is turned to
SPRAY.
Unlock the spray gun.
English
WIDE
4. Point at a piece of scrap material /
cardboard and squeeze trigger until
material comes out in a high pressure
stream. Release the trigger and lock the
spray gun.
12
5. Rotate spray tip forward to one
of the SPRAY positions.
Unlock the spray gun and
resume spraying.
Spraying
Troubleshooting -
1
Start
•
•
•
•
SPRAY
3
PRIME
Clean the Spray
Gun Filter
2
You will need:
Wrench
Warm, soapy water for latex material
Mineral spirits for oil based materials
Replacement spray gun filter (if necessary)
important: Never clean the filter by
poking it with a sharp object.
(a)
1. Peform the Pressure
Relief Procedure, page 7.
2. Pull trigger guard
from filter housing.
3. Tighten the wrench over the
wrench flats (a). Unscrew the
filter housing using a wrench.
Note: You DO NOT need to
remove the spray hose from the gun
to clean the filter.
4
4. Remove the filter from the
housing. Clean with appropriate
cleaning solution (warm, soapy
water for latex materials; mineral
spirits for oil-based materials).
5
6
6. Replace cleaned filter, tapered
end first, into the gun housing.
Note: It is important to place
tapered end first to ensure proper
sprayer operation.
5. Inspect the filter for
damage. Replace if any
holes or tears are found.
13
7
7. Reassemble the spray gun.
English
Spraying
Troubleshooting -
1
2
Clean the
Inlet Filter
Start
You will need:
• Warm, soapy water for latex material
• Mineral spirits for oil based materials
important: Make sure your floors and
furnishings are covered with drop cloths
to prevent accidental drips.
1. Unscrew the inlet filter from the fitting
on the end of the suction tube.
2. Clean the filter using the appropriate
cleaning solution (warm, soapy
water for latex materials, mineral
spirits for oil-based materials).
3
Note: If after completing all of the steps
in Spraying Troubleshooting you are still
experiencing problems spraying, refer to
the Troubleshooting section (page 22).
3. Replace the cleaned filter by
threading it back into the fitting on the
end of the suction tube.
English
14
Start
•
•
•
•
2
SPRAY
1
3
PRIME
Short Term
Storage
Shutdown
You will need:
OR
Water
Plastic bag or bucket
Rags
Stir stick
This procedure should be used when taking
a short term break or when ending your
project for the day. If your break is longer
than 16 hours follow Cleanup instructions,
page 16.
Instructions are for latex
materials only
Note: If using oil based material follow
instructions for Cleanup on page 16.
1. Peform the Pressure Relief
Procedure, page 7.
2. Place spray gun in plastic
bag or immerse into bucket of
water.
3. Pour 1/2 cup water slowly on
the top of the paint to prevent
the paint from drying.
Place the entire spraying
system out of the sun.
Startup
1
2
3
Page 9
1. Remove the spray gun from
the plastic bag or the water.
15
2. If water was added during
shut down, stir water into
material with the stir stick.
3. Follow Getting Material to
Flow instructions, page 9.
English
Cleanup
MINERAL
SPIRITS
Start
Cleaning notes - read before cleaning
• When using latex material, clean sprayer and components with warm, soapy water. For oil based material use
mineral spirits. Never use mineral spirits with latex materials.
• NEVER use gasoline to clean sprayer.
• Dispose of used cleaning solution properly.
• Thorough cleaning and lubrication of sprayer is important to ensure proper operation after storage.
• If you flush your sprayer with mineral spirits, repeat Cleanup instructions using warm, soapy water.
or
You will need:
Follow these steps whenever cleaning with mineral spirits:
• If spraying or cleaning with oil-based materials, the spray gun must be grounded while preparing the spray hose or
cleaning.
• Ground the gun by holding it against the edge of a metal container while purging. Failure to do so may lead to a
static electric discharge which may cause a fire.
• Always flush spray gun at least one hose length from spray pump.
• If collecting flushed solvent in one gallon metal container, place it into an empty five gallon container, then flush.
• Area must be free from vapors.
• Follow all cleanup instructions.
• A water source that can be delivered with
a garden hose (latex materials only)
• Mineral spirits if using oil-based material
• Empty waste container
• A container with warm, soapy water
Cleanup - Latex materials
STOP
Follow these steps if you used latex materials and if you have a
garden hose available. If you do not have a garden hose available,
follow the Cleanup - Oil-Based Materials instructions on page 18.
2
1. Perform Pressure Relief Procedure
(page 7).
3
4
PRIME
SPRAY
1
English
2. Remove the spray tip and
place into container filled
with warm, soapy water.
3. Place the suction tube and return tube
into an empty waste container.
16
4. Using a garden hose, rinse off the
suction tube, return tube and inlet filter.
Empty the waste container of all fluids.
6
7
8
6. Thread pump cleaning
adapter onto garden hose.
Thread suction tube fitting
over the adapter.
9
10
7. Unclip the return tube from the suction tube
and place it into the waste container. Turn
the PRIME/SPRAY knob to PRIME.
SPRAY
ON
11
12
11. Continue squeezing the trigger
until fluid is coming out clear.
12. Perform Pressure Relief
Procedure, page 7.
PRIME
10. While squeezing the trigger, turn the
PRIME/SPRAY knob to SPRAY.
PRIME
9. Point the spray gun at the side of
a waste container.
l
8. Turn the water supply to the garden hose on.
Turn the pump ON.
Water will go into the suction tube and out
through the return tube. Let the pump run
for a few minutes, and leave pump running
for next steps.
SPRAY
5. Remove the inlet filter from
the suction tube and place
it into waste container.
PRIME
SPRAY
5
Move on the Cleaning the Spray
Gun Components, page 19.
17
English
Cleanup Oil-Based
Materials
SPRAY
2
3
PRIME
Start
1
You will need:
• Mineral spirits if using oil-based material
• Warm, soapy water if using latex material
• Waste container
4
1. Perform Pressure Relief
Procedure (page 7).
5
2. Remove the spray tip
and place into an empty
waste container.
6
7
O
ON
PRIME
l
3. Submerge suction set into a
bucket with the appropriate
cleaning solution.
SPRAY
Follow these steps if you sprayed oil-based
materials, or if you sprayed latex materials
and do not have a garden hose available.
Be sure to use the appropriate cleaning
solution for the type of material sprayed.
SPRAY
PRIME
4. Point the spray gun at the side of
a waste container.
Ground the gun against the
side of a metal waste container
if flushing with mineral spirits.
English
6. Continue squeezing the trigger
until fluid is coming out clear.
You may need to get new
cleaning solution.
5. While squeezing the
trigger, turn the power
ON, and turn the PRIME/
SPRAY knob to SPRAY.
18
7. Perform Pressure Relief
Procedure, page 7.
If you flushed the sprayer with mineral
spirits repeat the steps on this page
using warm, soapy water.
Cleaning the
Spray Gun
Components
•
•
•
•
•
SPRAY
2
3
PRIME
Start
1
You will need:
Soft bristled brush
Light household oil
Warm, soapy water if using latex material
Mineral spirits for oil based material
Wrench
(a)
1. Peform the Pressure
Relief Procedure, page 7.
4
5
2. Pull trigger guard to separate
from filter housing and unscrew
housing using a wrench.
Note: Tighten the wrench over the
wrench flats (a).
6
3. Remove filter from spray gun.
Clean spray tip and filter with soft
bristled brush and appropriate
cleaning solution.
7
(b)
HOUSEHOLD
OIL
4. Pour a few drops of light
household oil inside gun
housing.
(c)
5. Install gun filter taperedend first. Reassemble
spray gun.
6. Line up the tabs (b) on the
spray tip with the slots in the
guard assembly.
Slide the tip into the guard.
19
7. Install spray tip and guard
assembly.
Move on to Long Term
Storage, page 20.
English
Long Term
Storage
1
2
3
(a)
Start
You will need:
OIL
• Light household oil /
Piston Lube
• Rags
• Wrench
important: Store the
unit indoors with the
power cord wrapped
around the cart handle.
5 SECONDS
HOUSEHOLD
OIL
1. Remove the suction tube.
Using a wrench, remove
the spray hose.
4
5
4. Replace suction tube.
5. Wipe entire unit, hose,
and spray gun to remove
accumulated spray
material.
STOP
DO NOT perform this
step if you intend to
collapse the cart for
storage.
English
l
HOUSEHOLD
2. Fill a cup or other container with
two ounces of Piston Lube and
submerge the Sureflo Valve (a)
into the oil.
Light household oil can be
substituted.
ON
3. Cover the outlet valve with a rag. Turn
power ON and let the pump run for five
seconds.
Turn power OFF.
Cart Models Only
6
7
6. With one hand on the handle,
twist the knob on either side
of the cart toward the “DOWN”
arrow.
20
7. When the knob is fully
“DOWN”, this will release the
handle and it can be folded
down until it is locked into
place.
Be careful not to pinch the
power cord with the cart.
8
8. Lift the leg lock, and fold the
legs in. Replace the leg lock
to hold the legs into place.
Cleaning the
Sureflo Valve
Start
1
2
You will need:
(a)
• Wrench
Cleaning or servicing the Sureflo Valve
may be required if the unit has priming
problems. Priming problems may be
prevented by properly cleaning the sprayer
and following the long-term storage steps.
1. Remove the suction tube.
If priming problems persist, you may need
to replace the Sureflo Valve assembly. Call
Technical Service (1-866-848-2698) to order
new Sureflo™ valve assembly.
3
2. Unscrew the Sureflo Valve assembly (a) from the
sprayer. Visually inspect the inside and outside
of the Sureflo Valve assembly. Clean any paint
residue with the appropriate cleaning solution.
4
(b)
3. Lubricate the O-ring on the Sureflo Valve (b) with
petroleum jelly.
Replace Sureflo Valve assembly by screwing it into
the sprayer. Tighten with the wrench.
21
4. Replace suction tube and hand-tighten.
English
Troubleshooting
Before servicing, always release system
pressure by following Pressure Relief
Procedure (page 7).
Problem A: The sprayer does not start
1.
2.
3.
4.
5.
6.
Cause
Sprayer is not plugged in
ON/OFF switch is set to OFF
The sprayer shuts off while under pressure
No voltage is coming from wall plug
The extension cord is damaged or has too low a capacity
There is a problem with sprayer motor
Solution
Plug sprayer in
Turn ON/OFF switch to ON
Motor will cycle ON and OFF while spraying to regulate pressure. This is normal.
Test the power supply voltage
Replace extension cord
Take sprayer to Titan Authorized Service Center
Problem B: The sprayer starts but does not draw material when the PRIME/SPRAY knob is set to PRIME
1.
Cause
The inlet valve is stuck
2.
3.
4.
6.
7.
8.
9.
The sprayer will not prime properly or has lost prime
The suction set is not properly installed
The material container is empty
The inlet filter is clogged
The outlet valve is stuck
The inlet valve is worn or damaged
The PRIME/SPRAY valve is plugged
Solution
Inlet may be stuck from old material. Push Sureflo Valve to release. If still stuck refer to
Clean the Inlet Filter see page 14 or Cleaning the Sureflo Valve see page 21
Refer to Getting Material to Flow section see page 9
Reinstall the suction set see page 6
Refer to Load Material and Getting Material to Flow sections see pages 8-9
Refer to Clean the Inlet Filter see page 14
Call Technical Service
Take sprayer to Titan Authorized Service Center
Take sprayer to Titan Authorized Service Center
Problem C: The sprayer draws up material but the pressure drops when the gun is triggered (bad spray pattern)
1.
2.
3.
4.
5.
6.
7.
Cause
Pressure too low
The spray tip is worn
The inlet filter is clogged
The spray tip is plugged
The spray gun filter is clogged
The material is too heavy or coarse
The Sureflo™ Valve assembly is damaged or worn
Solution
Increase the pressure by sliding the PressureTrac to the left
Replace spray tip with a new one**
Refer to Clean the Inlet Filter see page 14
Refer to Clear the Spray Tip see page 12
Refer Clean the Spray Gun Filter see page 13. Keep extra filters on hand
Thin or strain the material
Replace the Sureflo Valve see page 21
Problem D: The PRIME/SPRAY knob is set to SPRAY and there is flow through the material return tube
1.
Cause
The PRIME/SPRAY valve is dirty or worn
English
Solution
Take sprayer to Titan Authorized Service Center
22
Problem E: The spray gun leaks
1.
2.
Cause
Gun filter housing is loose
Internal parts of spray gun are worn or dirty
Solution
Tighten handle
Take sprayer to Titan Authorized Service Center
Problem F: The spray tip assembly leaks
1.
2.
Cause
The spray tip was assembled incorrectly
Gun seal is worn
Solution
Check tip assembly and assemble properly see page 19, steps 6-7
Replace the seal**
Problem G: The spray gun will not spray
1.
2.
3.
4.
Cause
The spray tip plugged
The spray gun filter is clogged
The spray tip is in wrong position
PRIME/SPRAY knob not set on SPRAY
Solution
Refer to Clear the Spray Tip see page 12
Refer to Clean the Spray Gun Filter see page 13. Keep extra filters on hand
Rotate spray tip to one of the spraying positions see page 12, step 5
Turn PRIME/SPRAY knob to SPRAY see page 9 Getting Material to Flow
Problem H: The spray pattern is poor (tailing)
1.
2.
3.
4.
5.
6.
7.
Cause
Pressure too low
The spray tip is plugged
The inlet filter is clogged
The spray gun filter is clogged
The spray tip is worn
The material is too thick
Pressure loss
Solution
Increase the pressure by sliding the PressureTrac to the left
Refer to Clear the Spray Tip see page 12
Refer to Clean the Inlet Filter see page 14
Refer to Clean the Spray Gun Filter see page 13. Keep extra filters on hand
Replace the spray tip
Thin material using appropriate thinning solution
Refer to Causes and Solutions for Problem C
Problem I: The spray tip will not turn
1.
Cause
High pressure has locked the spray tip in place
Solution
Refer to Clear the Spray Tip see page 12
** Additional parts are available for this procedure. Refer to the Parts List (page 74) section of this manual for a list of the parts and their part numbers
Daily Maintenance
The only daily maintenance necessary is thorough cleaning. Follow the cleaning procedures in this manual.
Extended Maintenance
Some pump parts eventually wear out from use and must be replaced. The following is a list of
available repair kits. Pump performance is the only reliable indicator of when to replace wear parts.
Refer to the Troubleshooting section for more information on when to use these kits
23
Kit Part #
Description
0516701
0552946
Fluid Section Seal Kit (100, 200)
Saddle seat/seal kit English
Parts List • Liste de Pièces • Lista de Piezas
Sprayer • Pulvérisateur • Rociador
3
4
2
1
Item
Art.
Art.
Part No.
No de piéce
Pieza No.
English - Description
Français - Description
Español - Descripción
1
0516772
Stand assembly
Ensemble de support
Ensamblaje del banco
1
Cap kit (100)
Trousse de capuchon (100)
Juego de tapa (100)
1
Cart assembly (200)
Ensemble du chariot (200)
Ensamblaje de carrito (200)
1
2
0516773
3
0516225A
4
0516581A
AutoOiler cap
Capuchon de AutoOiler
Tapa de AutoOiler
1
5
0516030
Cap kit (200)
Trousse de capuchon (200)
Juego de tapa (200)
1
6
0516465
Wheel
Roue
Rueda
1
7
0516483A
Leg lock
Verrou de pied
Seguro
1
6
5
7
This unit contains no servicable parts. Do not attempt to
service yourself. Store indoors with the cord wrapped
around the handle.
Cet appareil ne contient aucune pièce nécessitant un
entretien quelconque. Ne tentez pas d’effectuer vous-même
l’entretien. Rangez à l’intérieur d’un bâtiment avec le cordon
d’alimentation enroulé autour de la poignée.
Esta unidad no contiene piezas que se puedan reparar. No
intente repararlas personalmente. Guarde la unidad en
interiores con el cable enrollado alrededor de la asa.
English
Français
Español
Qty.
Qté.
Cant.
72
Parts List • Liste de Pièces • Lista de Piezas
Suction set • Dispositif d’aspiration • Juego de succión
1
2
3a
3b
5
6
7
Item
Art.
Art.
Part No.
No de piéce
Pieza No.
1
0516197
0516127
Suction set (200)
Dispositif d’aspiration (200)
Juego de succión (200)
1
2
0512371
Return tube (100)
Tube de retour (100)
Tubo de retorno (100)
1
0512389
Return tube (200)
Tube de retour (200)
Tubo de retorno (200)
1
3a
0512390
Clip (cart models)
Agrafe (modèles du chariot)
Abrazadera (modelos de
carrito)
1
Français - Description
Español - Descripción
Dispositif d’aspiration (100)
Juego de succión
1
3b
0512390
Clip (100)
Agrafe (100)
Abrazadera (100)
3
4
0552947
Inlet filter
Filtre d’entrée
Filtro de entrada
1
5
0327226
Squeeze clip
Agrafe de compression
Abrazadera del apretón
1
6
9885553
Return tube fitting
Raccord de tube de retour
Conector del tubo de
retorno
1
7
0515146
Pump cleaning
adapter
Adaptateur de nettoyage de
pompe
Adaptador de limpieza de
bomba
1
4
English - Description
Suction set (100)
Qty.
Qté.
Cant.
73
Español
Español Français
English
Parts List • Liste de Pièces • Lista de Piezas
LX-50 Spray Gun • Pistolet de LX-50 • Pistola de LX-50
3
4
Item
Art.
Art.
Part No.
No de piéce
Pieza No.
English - Description
Français - Description
Español - Descripción
1
692-515
TR2 tip, 515
Buse de TR2 tip, 515
Boquilla de TR2, 515
1
2
0089959
Filter, 100 mesh (yellow,
2 pack)
Filtre, maille 100 (jaune,
trousse de 2)
Filtro, malla 100
(amarillo, juego de 2)
1
3
0515228
Seal
Joint d’etanchéite
Sello
1
Filter housing
Logement de filtre
Alojamiento de filtro
1
Swivel
Raccord
Giratoria
1
4
------
5
0347706A
Qty.
Qté.
Cant.
2
1
5
Guard Assembly • Ensemble de déflecteur • Ensamblaje del protección
1
4
2
5
3
English
Français
Español
Item
Art.
Art.
Part No.
No de piéce
Pieza No.
1
2
Qty.
Qté.
Cant.
English - Description
Français - Description
Español - Descripción
0271441
Hook guide
Guide de crochet
Guía de gancho
1
0552945
Guard assembly
Déflecteur
Ensamblaje de
protección
1
3
0271442
Latch guide
Guide de verrou
Guía de sujetador
1
4
0552946
Tip seal / saddle seat
Joint de buse / siège
formé
Junta de boquilla /
asiento de la montura
1
5
0296641
Collar
Collier
Collar
1
0271065
Collar kit (includes items
1, 3 and 5)
Trousse de bague
(comprende les articles
1, 3 et 5)
Juego de collar (incluye
los articulos 1, 3 y 5)
74
Accessories • Accessoires • Accesorios
Part No.
No de piéce
Pieza No.
0516701
Piston repair kit
English - Description
Français - Description
Español - Descripción
0516713
Hose connector kit
Raccord de flexible
Conector de manguera
Juego de reparación del pistón
0552945
Tip guard
Déflecteur
Ensamblaje de protección
0552946
Tip seat / seal kit
Trousse de siège / rondelle
Juego de asiento de montura / arandela
661-311
311 SC-6 spray tip
Buse de pulvérisation SC-6, 311
Boquilla rociadora SC-6, 311
661-413
413 SC-6 spray tip
Buse de pulvérisation SC-6, 413
Boquilla rociadora SC-6, 413
661-415
415 SC-6 spray tip
Buse de pulvérisation SC-6, 415
Boquilla rociadora SC-6, 415
661-515
515 SC-6 spray tip
Buse de pulvérisation SC-6, 515
Boquilla rociadora SC-6, 515
661-517
517 SC-6 spray tip
Buse de pulvérisation SC-6, 517
Boquilla rociadora SC-6, 517
692-313
313 TR2 spray tip
Buse de pulvérisation TR2, 313
Boquilla rociadora TR2, 313
692-515
692-517
515
TR2
517
TR2
spray tip
spray tip
Buse de pulvérisation
TR2,
515
Boquilla rociadora TR2, 515
Buse de pulvérisation
TR2,
517
Boquilla rociadora TR2, 517
314-482
Liquid Shield™
Liquid Shield™
Liquid Shield™
314-480
Piston Lube™ (8 oz.)
Piston Lube™ (8 oz.)
Piston Lube™ (8 oz.)
0297055
Pump Shield™ (12 oz.)
Pump Shield™ (12 oz.)
Pump Shield™ (12 oz.)
0508071
Paint Mate™ (1 qt)
Paint Mate™ (1 L)
Paint Mate™ (1 L)
0286021
LX-50 spray gun
Modèle du pistolet LX-50
Modelo de pistola rociadora LX-50
0286020
LX-65 spray gun
Modèle du pistolet LX-65
Modelo de pistola rociadora LX-65
316-513
Airless hose, 25’ x 1/4”
Flexible sans air, 7,6 m x 0,6 cm
Manguera, 7.6 m x 0.6 cm
0523044
Airless hose, 35’ x 1/4”
Flexible sans air, 10,6 m x 0,6 cm
Manguera, 10.6 m x 0.6 cm
316-505
Airless hose, 50’ x 1/4”
Flexible sans air, 15 m x 0,6 cm
Manguera, 15 m x 0.6 cm
0516714
Hose, whip end, 5’ x 1/4”
Flexible sans air, 1,5 m x 0,6 cm
Manguera, 1.5 m x 0.6 cm
0089960
Red gun filter, extra fine (2 pack)
Filtre de pistolet, rouge, trés fin (2 pièces)
Filtro de pistola rojo, extra-fino (2 piezas)
0089959
Yellow gun filter, fine (2 pack)
Filtre de pistolet, jaune, fin (2 pièces)
Filtro de pistola amarillo, fino (2 piezas)
0089958
White gun filter, medium (2 pack)
Filtre de pistolet, blanc, moyen (2 pièces)
Filtro de pistola blanco, medio (2 piezas)
0516743
Tip extension, 36”
Rallonge de buse, 36 pi
Extensión de la boquilla, 36”
651-073
Tip extension, 24”
Rallonge de buse, 24 pi
Extensión de la boquilla, 24”
651-072
Tip extension, 18”
Rallonge de buse, 18 pi
Extensión de la boquilla, 18”
0516703
0516715A
0516716A
0552947
Jeu de joints pour tronçon d’acheminement
TR-10 telescoping roller, 3/8” nap
Rouleau téléscopique de TR-10, grain de 1,0 cm
Rodillo Telescópico de TR-10, pelillo de 3/8”
Roller cover, 3/4” nap
Manchon de rouleau, grain de 1,9 cm
Funda del rodillo, pelillo de 3/4”
Roller cover, 3/8” nap
Manchon de rouleau, grain de 1,0 cm
Funda del rodillo, pelillo de 3/8”
Inlet filter
Filtre d’entrée
Filtro de entrada
75
Español
Español Français
English
Limited Warranty
GARANTIE LIMITÉE
GARANTÍA LIMITADA
AIRLESS PAINT SPRAY EQUIPMENT
MATÉRIEL DE PULVÉRISATION DE PEINTURE SANS AIR
EQUIPO DE ATOMIZACIÓN DE PINTURA SIN AIRE
This product, manufactured by Titan Tool, is warranted to
the original retail purchaser against defects in material and
workmanship for:
Ce produit, fabriqué par Titan Tool, est garanti, au bénéfice
de l’acheteur au détail d’origine, contre tout vice de matières
et toute malfaçon pour:
Este producto, fabricado por Titan Tool, está garantizado
ante el comprador original contra defectos de materiales y
mano de obra durante:
100 - two years from date of purchase.
100 - deux années à compter de la date d’achat.
200 - two years from date of purchase.
This warranty does not cover damage resulting from improper
use, accidents, user’s negligence or normal wear. This
warranty does not cover any defects or damages caused
by service or repair performed by anyone other than a Titan
Authorized Service Center. This warranty does not apply to
accessories.
TITAN SHALL NOT IN ANY EVENT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND, WHETHER FROM BREACH OF THIS WARRANTY
OR ANY OTHER REASON.
If any product is defective in material and/or workmanship
during the applicable warranty period, please call Titan
Technical Service at 1-866-848-2698. do not return
the product to the original retailer. Under
Titan’s Free Tool Replacement Program, Titan Technical
Service will either replace the defective part, or refer you to
your nearest Authorized Service Center for repair.
SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS OR THE
EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION
MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE.
200 - deux années à compter de la date d’achat.
La présente garantie ne s’applique pas aux dégâts entraînés
par une utilisation incorrecte, par la négligence de l’usager
ou par l’usure normale. La présente garantie ne s’applique
pas non plus aux défectuosités ou dommages résultant
de l’entretien ou de la réparation que fait une personne
quelconque qui ne soit pas membre d’un centre d’entretien
autorisé pour les produits Titan. La présente garantie ne
s’applique pas aux accessoires.
TITAN NE pourra en aucun cas Être tenue
responsable de DOMMAGES-INTÉRÊTS INDIRECTS
OU consÉcutifs, QUE CE SOIT POUR UNE RUPTURE
DE CETTE GARANTIE OU TOUTE AUTRE RAISON.
En cas de défaut de matériau ou de fabrication du produit
durant la période de garantie applicable, appelez le Service
technique Titan au 1 866 848-2698. Ne renvoyez pas le produit au détaillant original. Dans le cadre
du programme de remplacement gratuit d’outils Titan, le
Service technique Titan remplacera la pièce défectueuse ou
vous indiquera le centre de service agréé le plus proche.
CERTAINES PROVINCES INTERDISENT LES
RESTRICTIONS SUR LA DURÉE D’UNE GARANTIE
IMPLICITE OU L’EXCLUSION DES DOMMAGES
ACCESSOIRES OU INDIRECTS. IL SE PEUT DONC QUE
LA RESTRICTION ET L’EXCLUSION ÉNONCÉES CIDESSUS NE S’APPLIQUENT PAS À VOUS.
LE PRÉSENTE GARANTIE VOUS ACCORDE DES DROITS
JURIDIQUES SPÉCIFIQUES, ET VOUS AVEZ PEUTÊTRE D’AUTRES DROITS, QUI PEUVENT VARIER D’UNE
PROVINCE À L’AUTRE.
100 - dos años contado a partir de la fecha de compra.
200 - dos años contado a partir de la fecha de compra.
Esta garantía no cubre los daños que sean resultado de un
uso inapropiado, accidentes, negligencia del usuario o un
desgaste normal. Esta garantía no cubre ningún defecto o
daño que haya sido causado por los servicios o reparaciones
llevadas a cabo por alguien que no sea un técnico del Centro
de Servicio Autorizado de Titan. Esta garantía no es válida
para ningún accesorio.
TITAN NO SERÁ EN NINGÚN CASO RESPONSABLE
DE NINGÚN DAÑO INCIDENTAL O DE CONSECUENCIA
DE NINGUNA CLASE, QUE RESULTE DE VIOLAR ESTA
GARANTÍA O POR CUALQUIER OTRA RAZÓN.
Si algún producto presenta fallas en los materiales y/o en
su fabricación durante el periodo de vigencia de la garantía,
llame al Servicio Técnico de Titan al 1-866-848-2698.
No devuelva el producto a la tienda donde lo adquirió. Gracias al Programa de Reemplazo de
Herramientas Gratis de Titan, el Servicio Técnico de Titan
reemplazará la pieza defectuosa o lo derivará al Centro de
Servicio Autorizado más cercano para su reparación.
ALGUNOS ESTADOS NO PERMITEN LIMITACIONES EN
CUANTO A LA DURACIÓN DE UNA GARANTÍA IMPLÍCITA
O LA EXCLUSIÓN DE DAÑOS INCIDENTALES O DE
CONSECUENCIA, DE MANERA QUE LA LIMITACIÓN Y
EXCLUSIÓN ANTERIORES PODRÍAN NO SER VÁLIDAS
PARA USTED.
ESTA GARANTÍA LE CONCEDE DERECHOS LEGALES
ESPECÍFICOS, PERO USTED PODRÍA TENER DERECHO
A OTROS, LOS CUALES VARÍAN DE UN ESTADO A
OTRO.
U.S. Patent Nos.
English
Français
Español
76
6,981,852 7,071,429
D553,325
7,458,601
6,933,634
D550,327
D550,329
D558,948
7,018,181
D537,839
D550,328
7,886,876
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
